Mobile and Wireless Device Forensics Unit 3

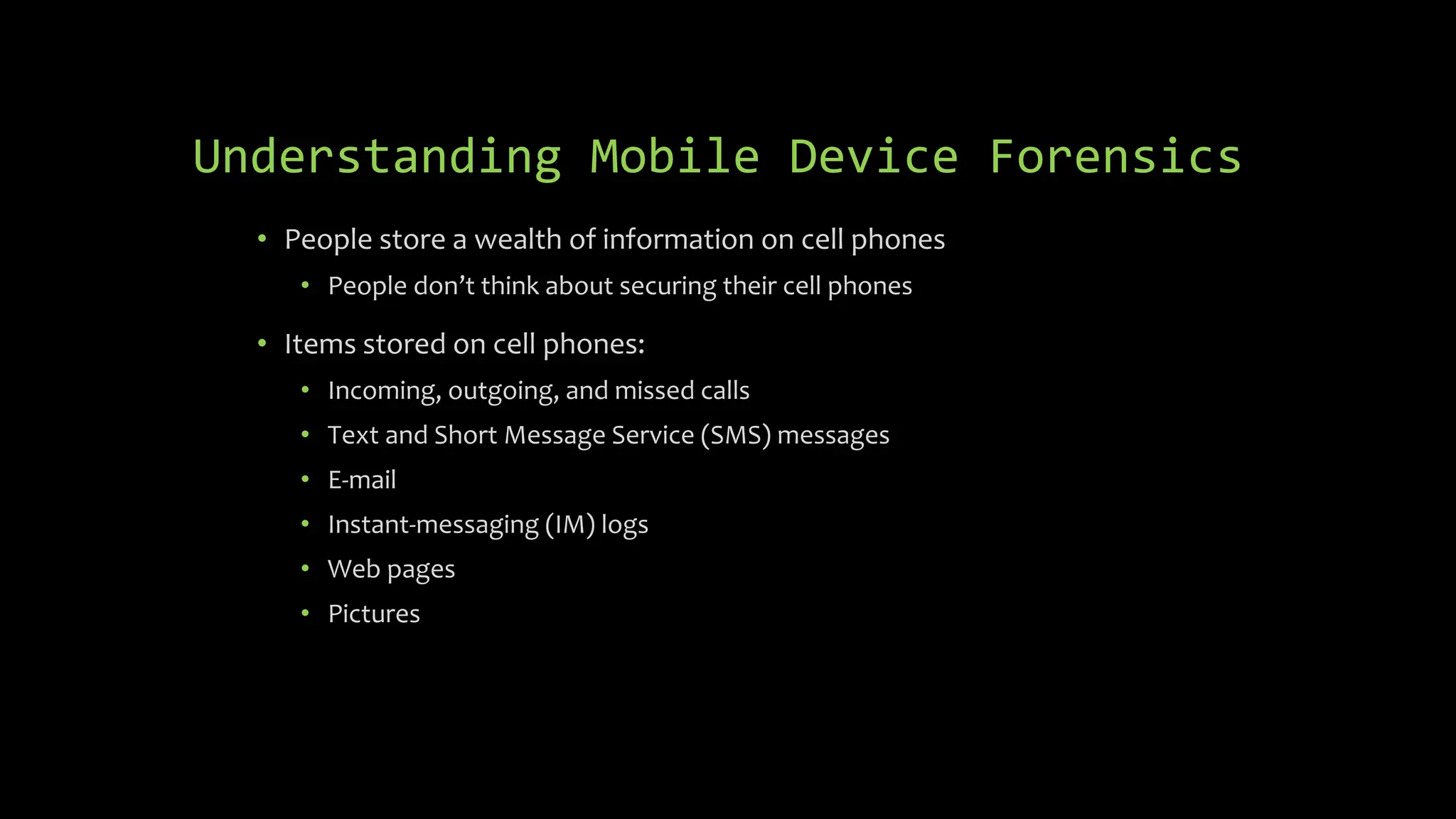

Understanding Mobile Device Forensics • People store a wealth of information on cell phones • People don’t think about securing their cell phones • Items stored on cell phones: • Incoming, outgoing, and missed calls • Text and Short Message Service (SMS) messages • E-mail • Instant-messaging (IM) logs • Web pages • Pictures

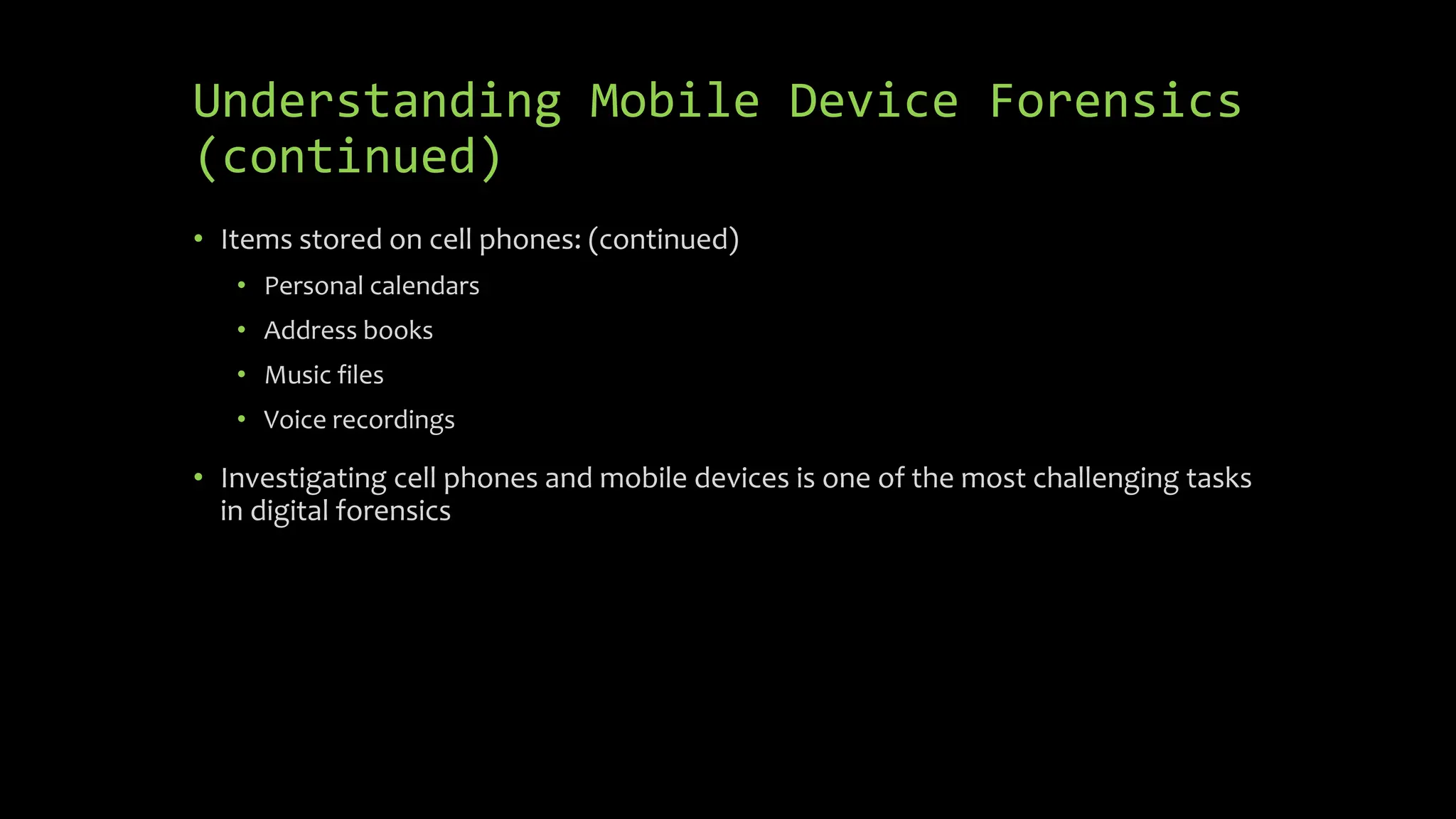

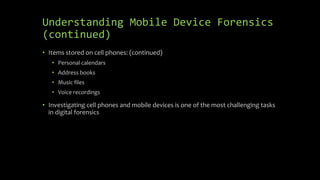

Understanding Mobile Device Forensics (continued) • Items stored on cell phones: (continued) • Personal calendars • Address books • Music files • Voice recordings • Investigating cell phones and mobile devices is one of the most challenging tasks in digital forensics

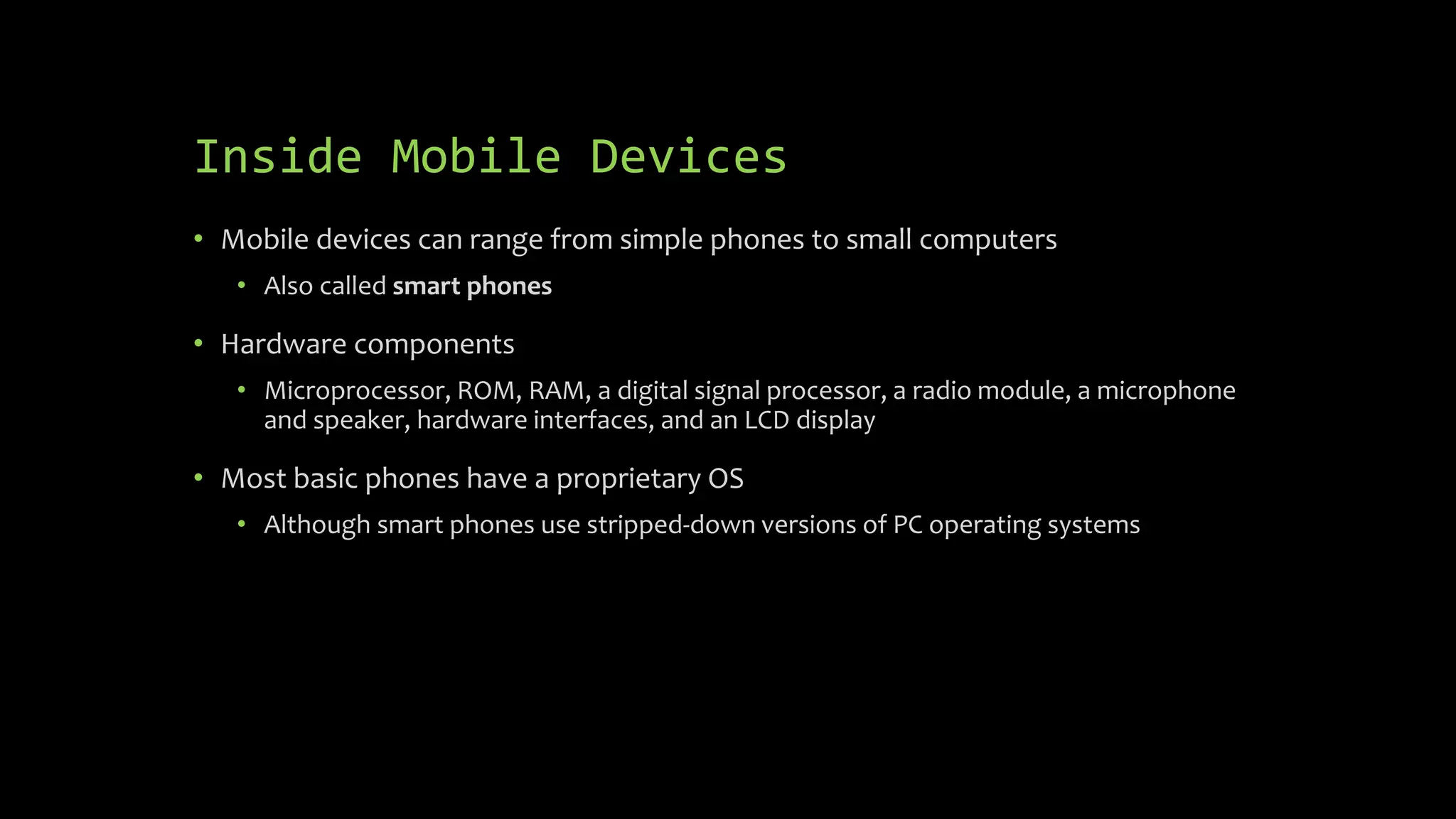

Inside Mobile Devices • Mobile devices can range from simple phones to small computers • Also called smart phones • Hardware components • Microprocessor, ROM, RAM, a digital signal processor, a radio module, a microphone and speaker, hardware interfaces, and an LCD display • Most basic phones have a proprietary OS • Although smart phones use stripped-down versions of PC operating systems

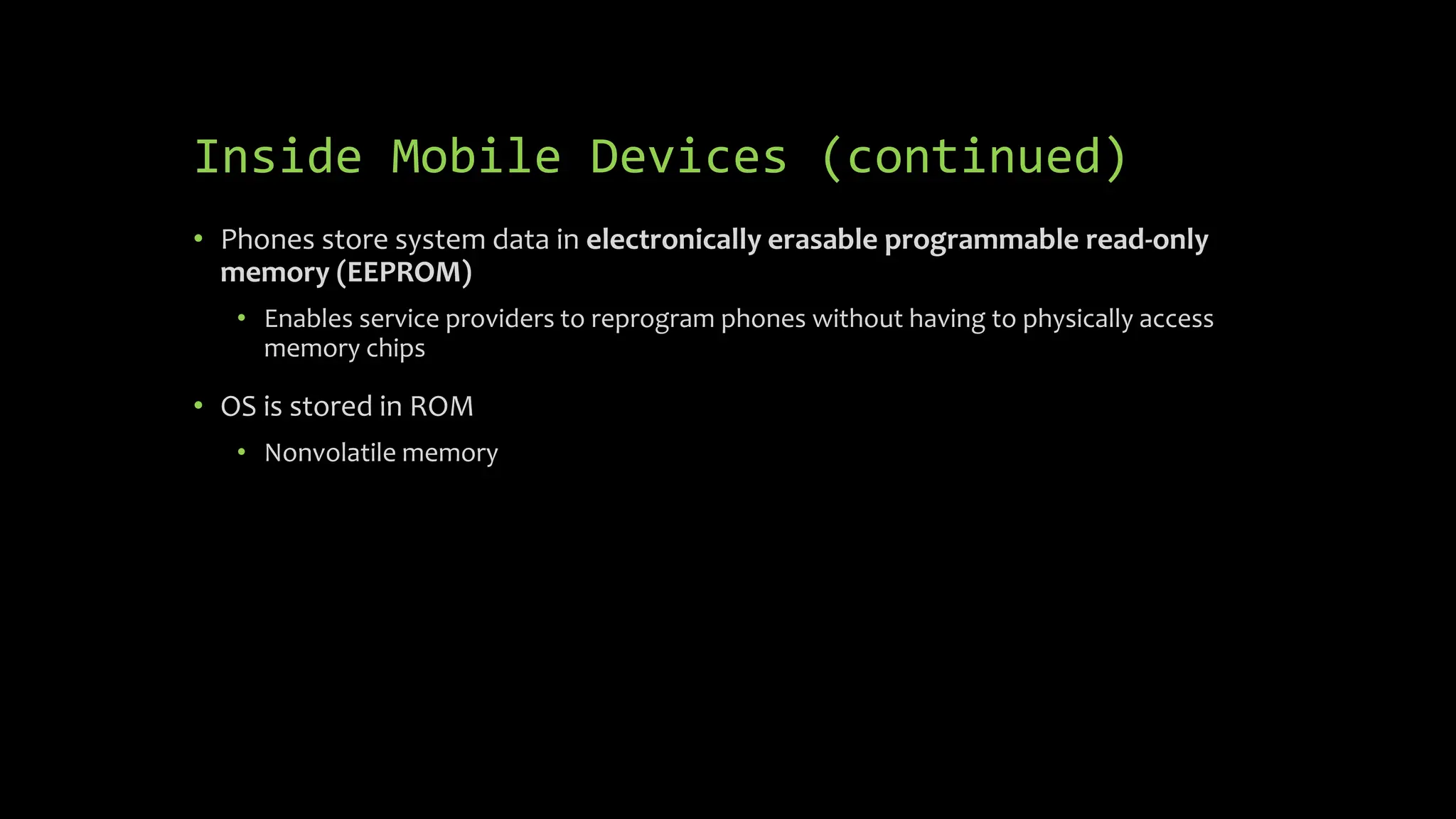

Inside Mobile Devices (continued) • Phones store system data in electronically erasable programmable read-only memory (EEPROM) • Enables service providers to reprogram phones without having to physically access memory chips • OS is stored in ROM • Nonvolatile memory

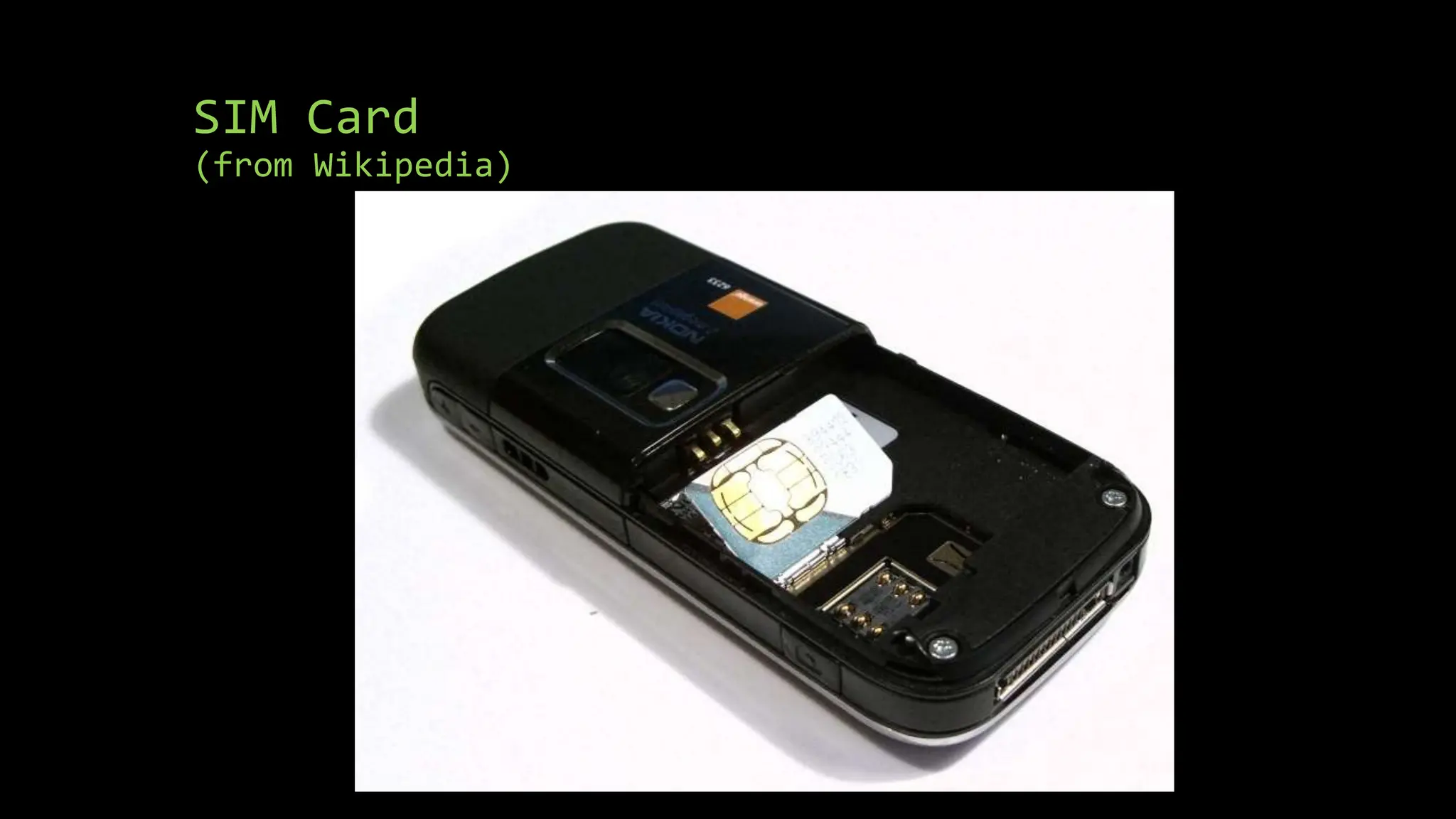

SIM Card (from Wikipedia)

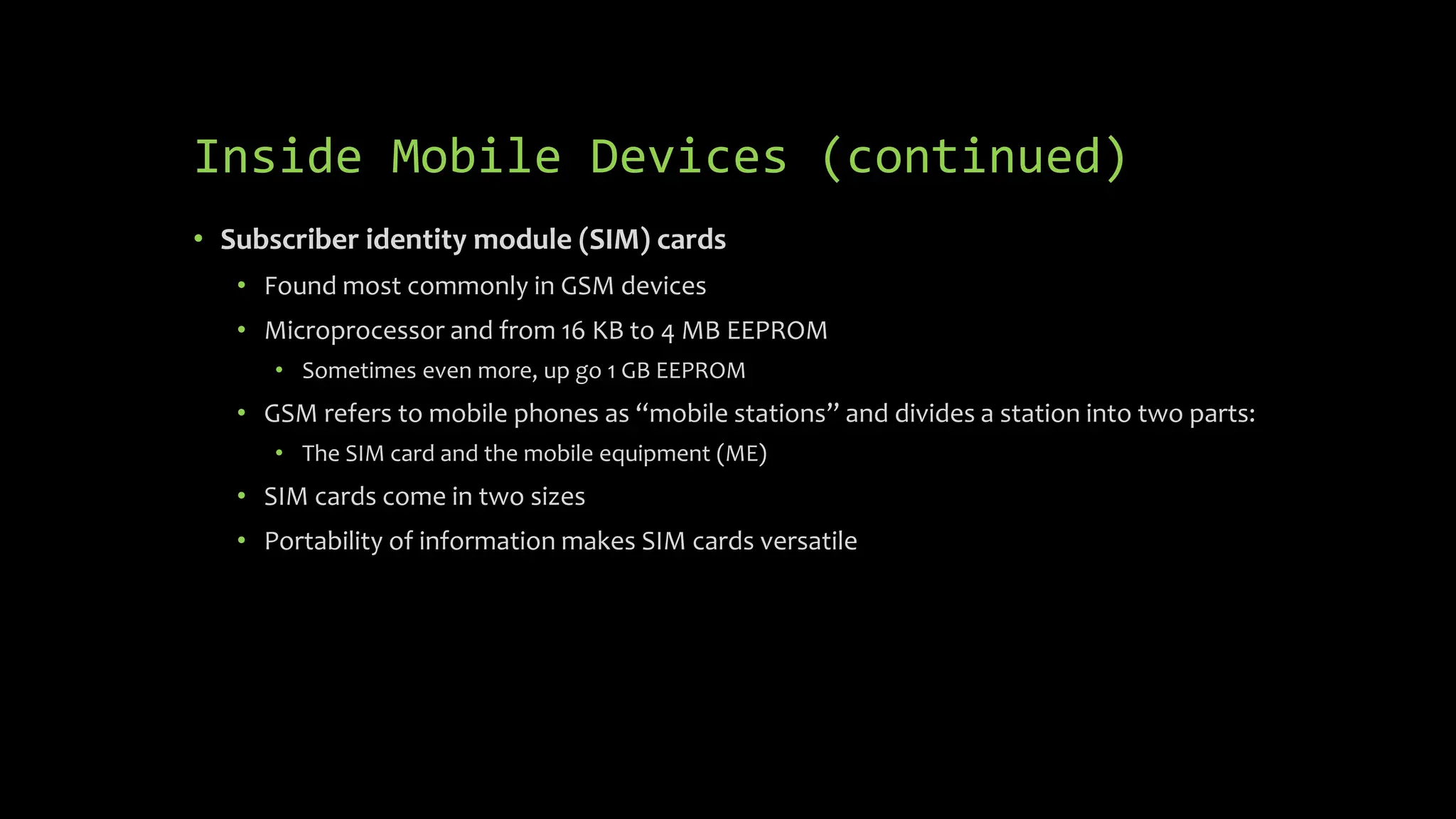

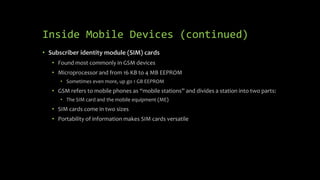

Inside Mobile Devices (continued) • Subscriber identity module (SIM) cards • Found most commonly in GSM devices • Microprocessor and from 16 KB to 4 MB EEPROM • Sometimes even more, up go 1 GB EEPROM • GSM refers to mobile phones as “mobile stations” and divides a station into two parts: • The SIM card and the mobile equipment (ME) • SIM cards come in two sizes • Portability of information makes SIM cards versatile

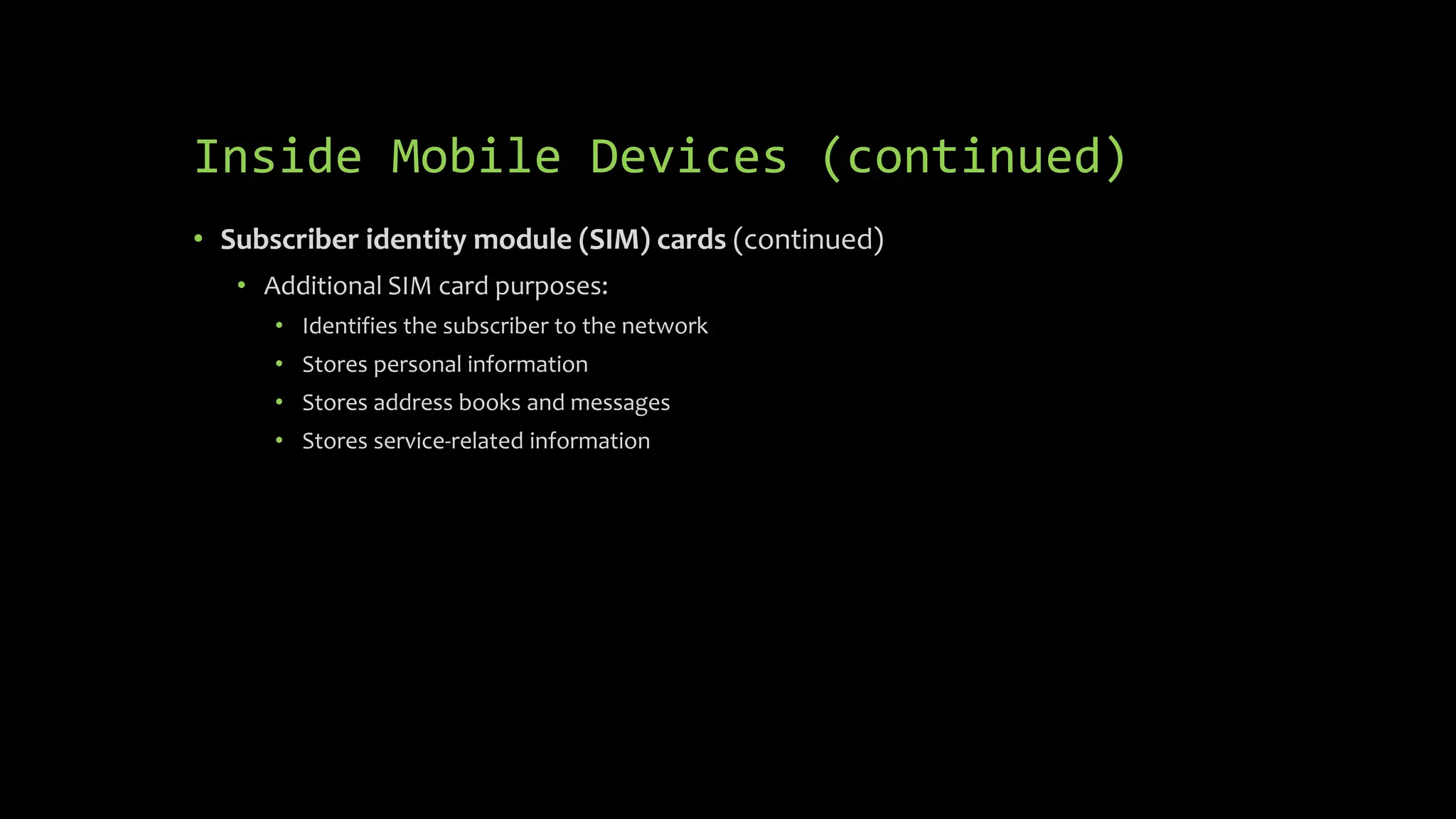

Inside Mobile Devices (continued) • Subscriber identity module (SIM) cards (continued) • Additional SIM card purposes: • Identifies the subscriber to the network • Stores personal information • Stores address books and messages • Stores service-related information

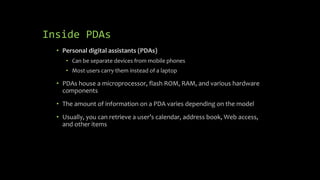

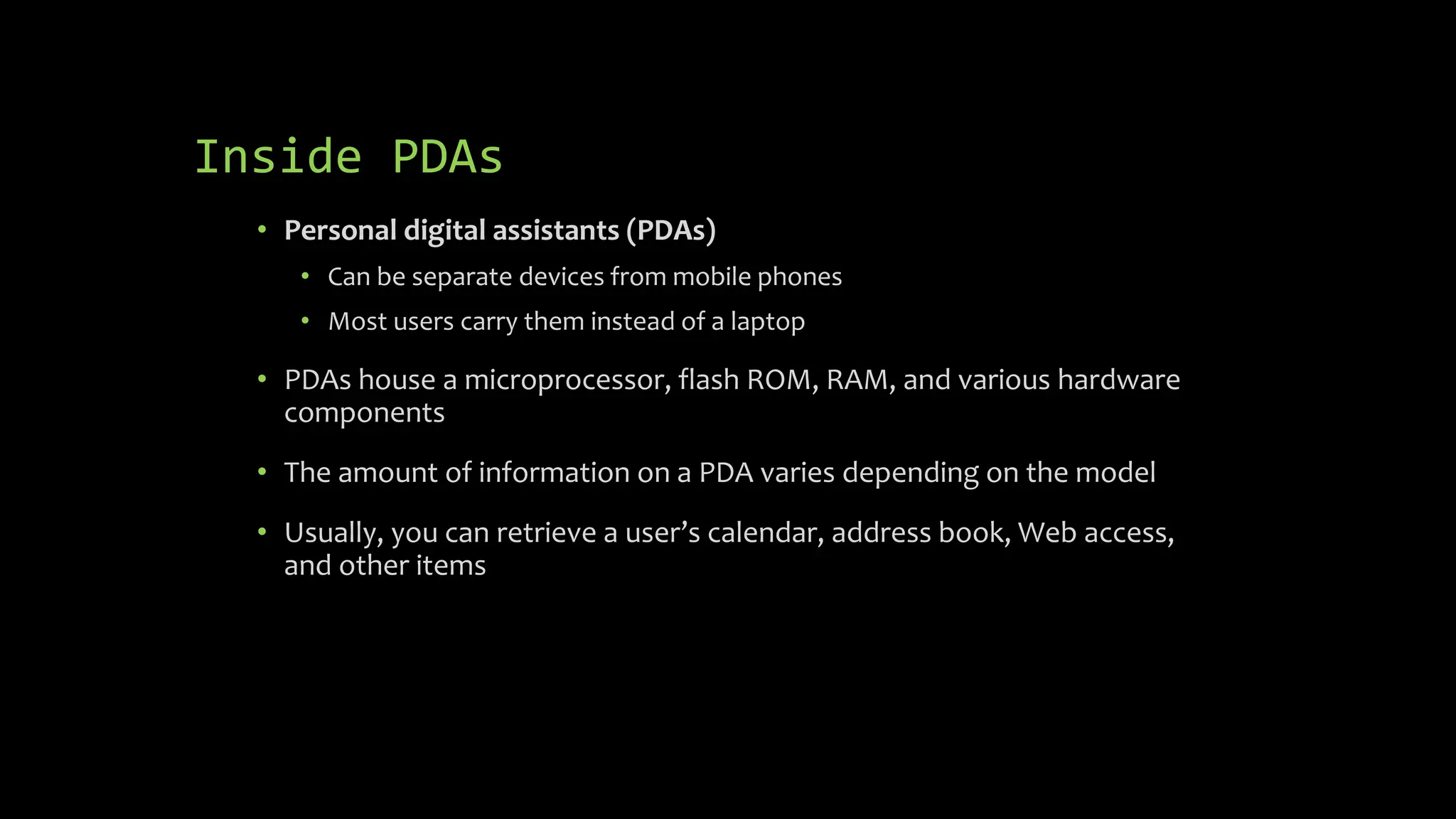

Inside PDAs • Personal digital assistants (PDAs) • Can be separate devices from mobile phones • Most users carry them instead of a laptop • PDAs house a microprocessor, flash ROM, RAM, and various hardware components • The amount of information on a PDA varies depending on the model • Usually, you can retrieve a user’s calendar, address book, Web access, and other items

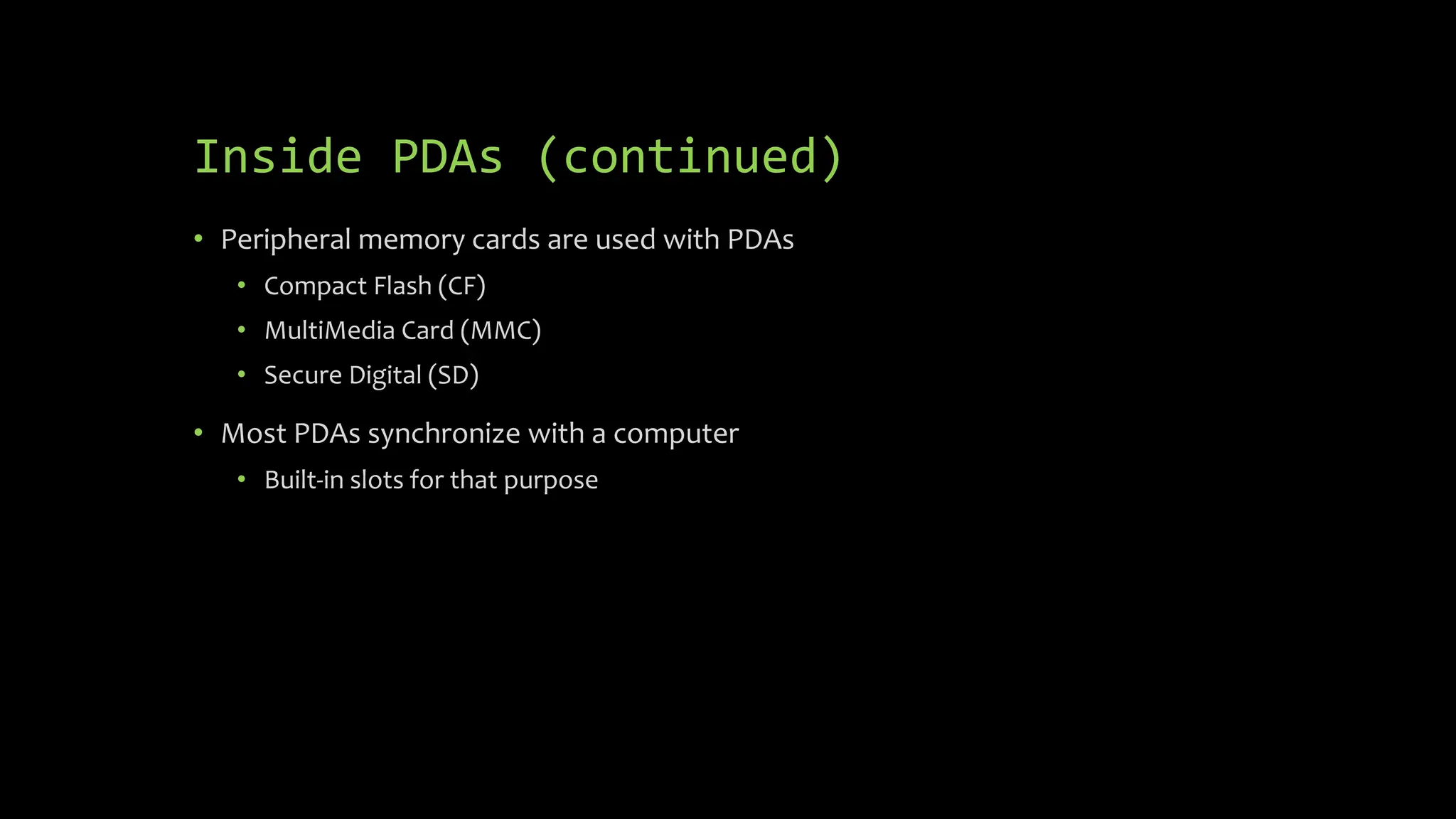

Inside PDAs (continued) • Peripheral memory cards are used with PDAs • Compact Flash (CF) • MultiMedia Card (MMC) • Secure Digital (SD) • Most PDAs synchronize with a computer • Built-in slots for that purpose

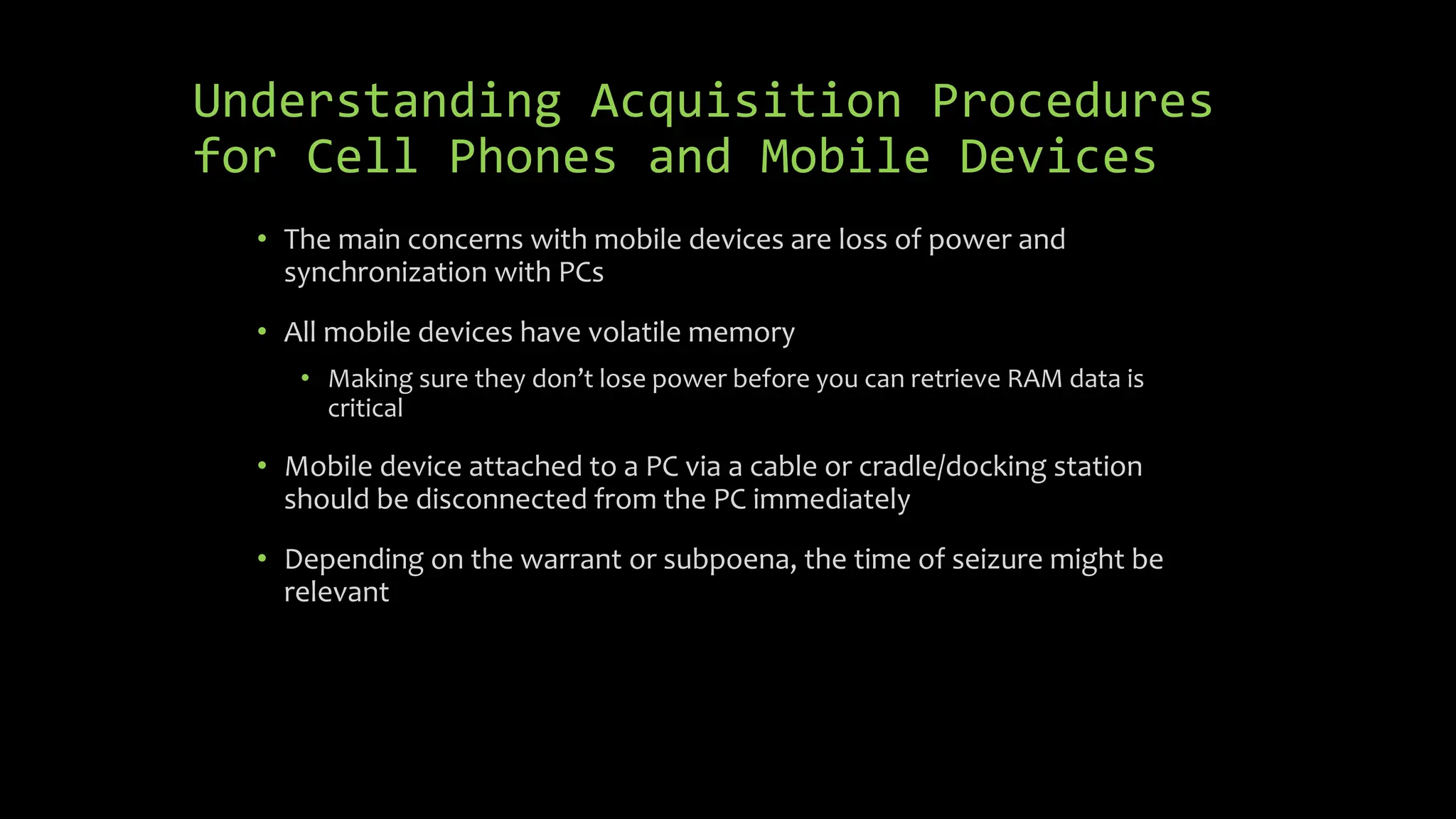

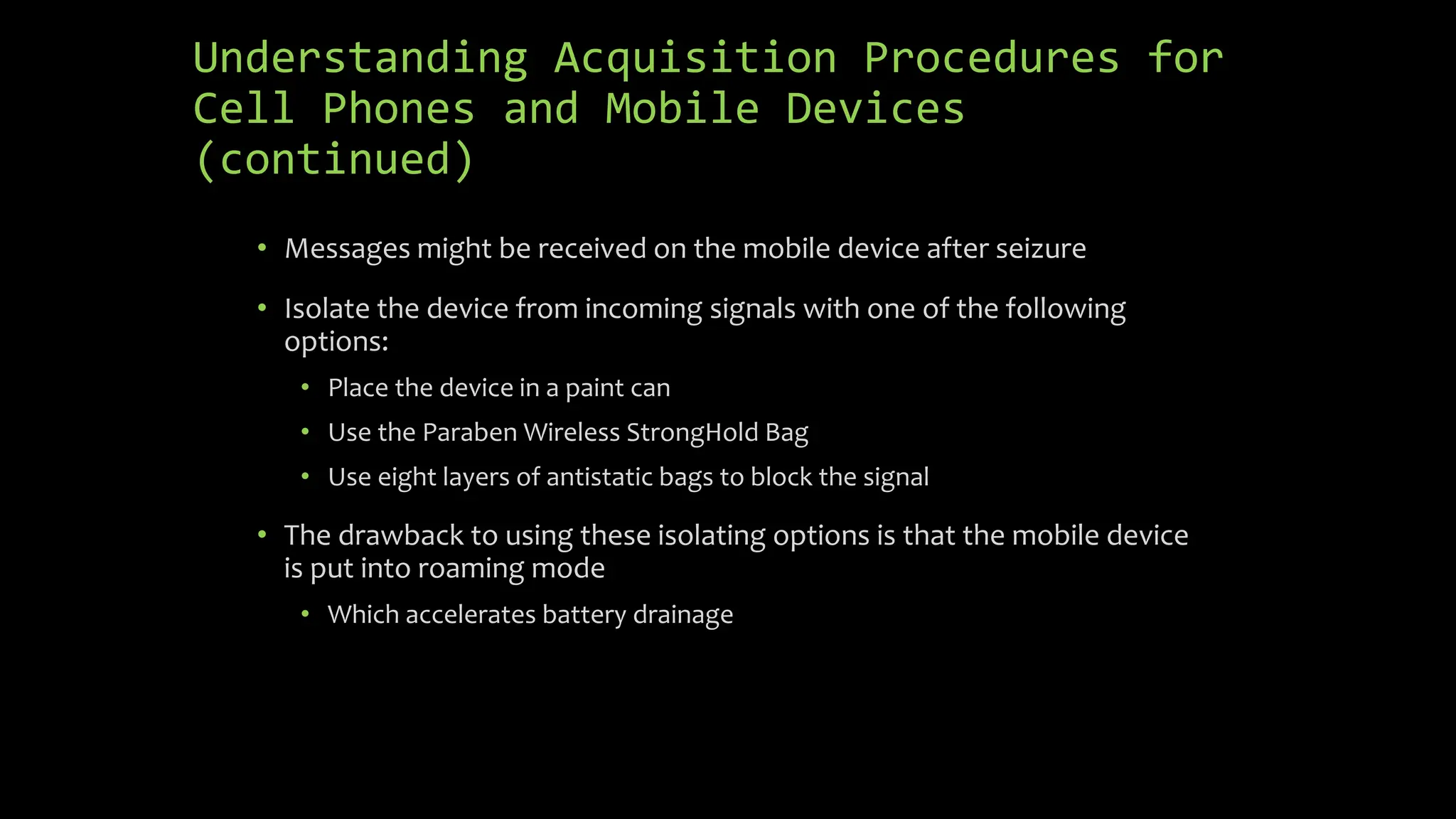

Understanding Acquisition Procedures for Cell Phones and Mobile Devices

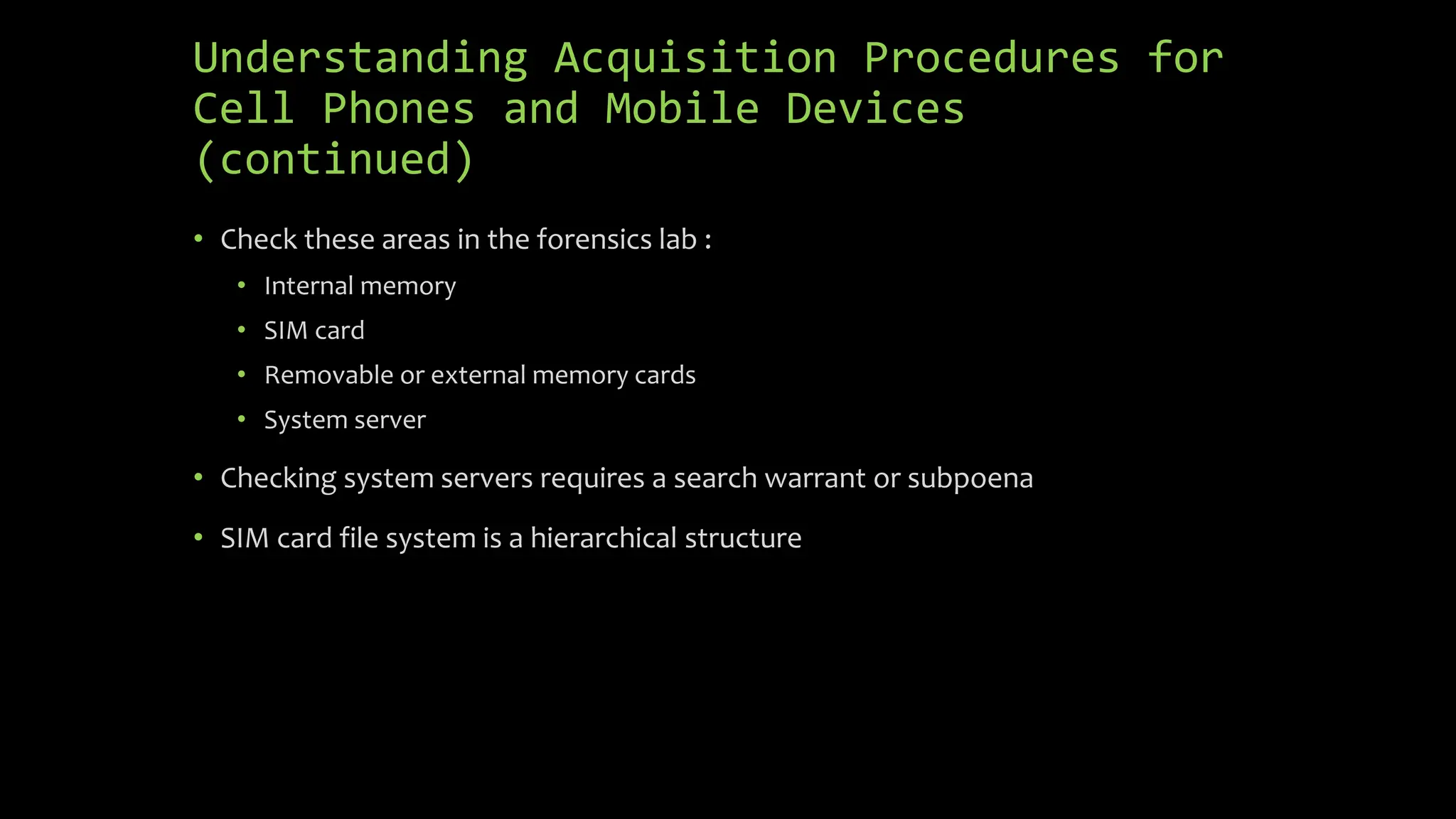

Understanding Acquisition Procedures for Cell Phones and Mobile Devices • The main concerns with mobile devices are loss of power and synchronization with PCs • All mobile devices have volatile memory • Making sure they don’t lose power before you can retrieve RAM data is critical • Mobile device attached to a PC via a cable or cradle/docking station should be disconnected from the PC immediately • Depending on the warrant or subpoena, the time of seizure might be relevant

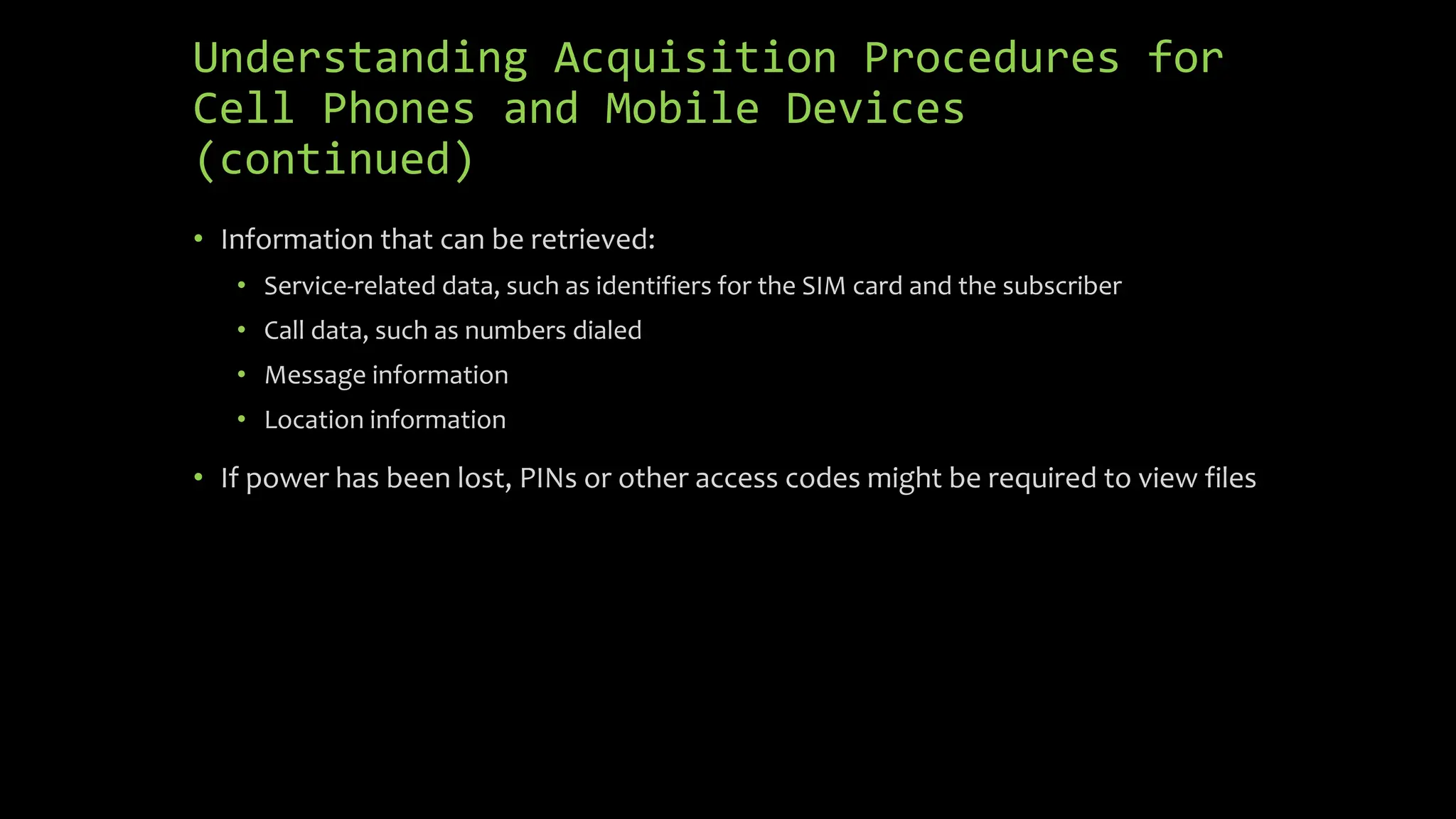

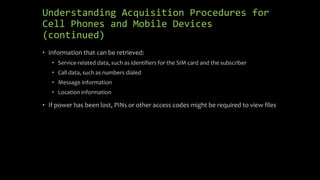

Understanding Acquisition Procedures for Cell Phones and Mobile Devices (continued) • Messages might be received on the mobile device after seizure • Isolate the device from incoming signals with one of the following options: • Place the device in a paint can • Use the Paraben Wireless StrongHold Bag • Use eight layers of antistatic bags to block the signal • The drawback to using these isolating options is that the mobile device is put into roaming mode • Which accelerates battery drainage

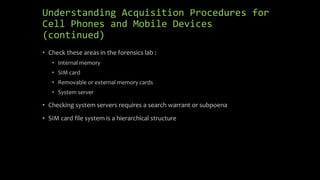

Understanding Acquisition Procedures for Cell Phones and Mobile Devices (continued) • Check these areas in the forensics lab : • Internal memory • SIM card • Removable or external memory cards • System server • Checking system servers requires a search warrant or subpoena • SIM card file system is a hierarchical structure

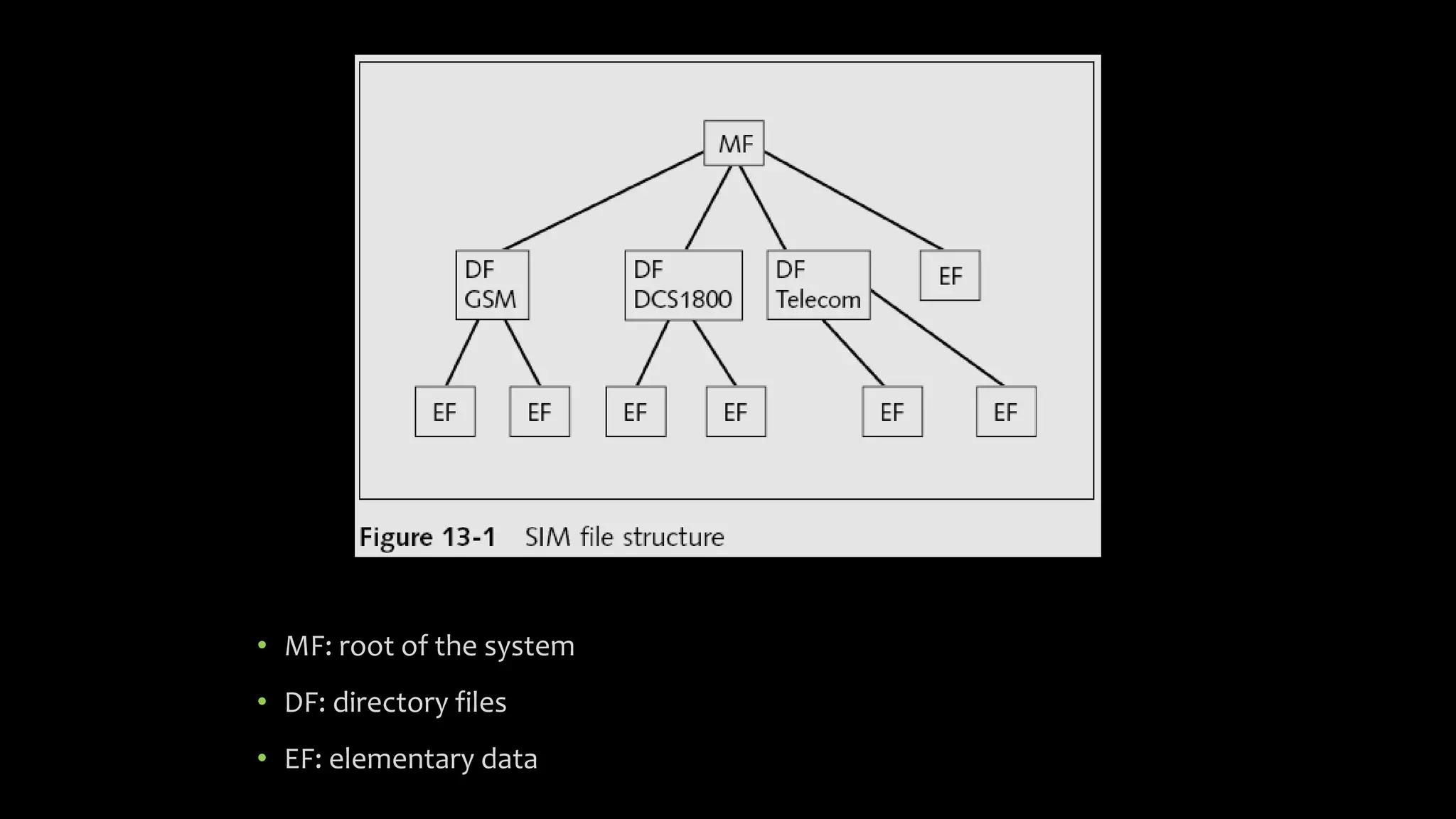

• MF: root of the system • DF: directory files • EF: elementary data
Understanding Acquisition Procedures for Cell Phones and Mobile Devices (continued) • Information that can be retrieved: • Service-related data, such as identifiers for the SIM card and the subscriber • Call data, such as numbers dialed • Message information • Location information • If power has been lost, PINs or other access codes might be required to view files

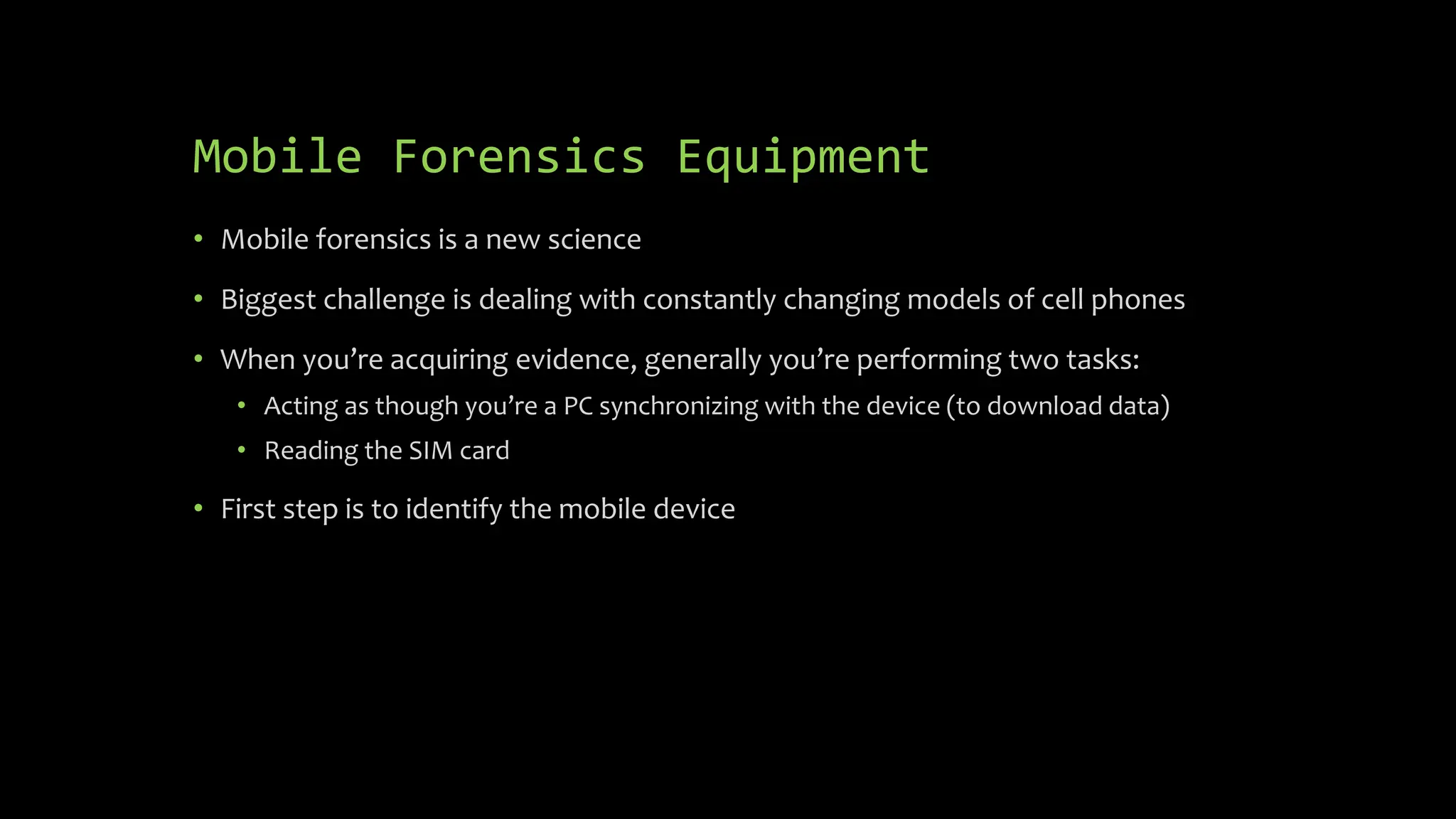

Mobile Forensics Equipment • Mobile forensics is a new science • Biggest challenge is dealing with constantly changing models of cell phones • When you’re acquiring evidence, generally you’re performing two tasks: • Acting as though you’re a PC synchronizing with the device (to download data) • Reading the SIM card • First step is to identify the mobile device

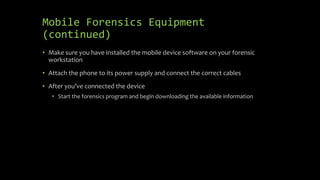

Mobile Forensics Equipment (continued) • Make sure you have installed the mobile device software on your forensic workstation • Attach the phone to its power supply and connect the correct cables • After you’ve connected the device • Start the forensics program and begin downloading the available information

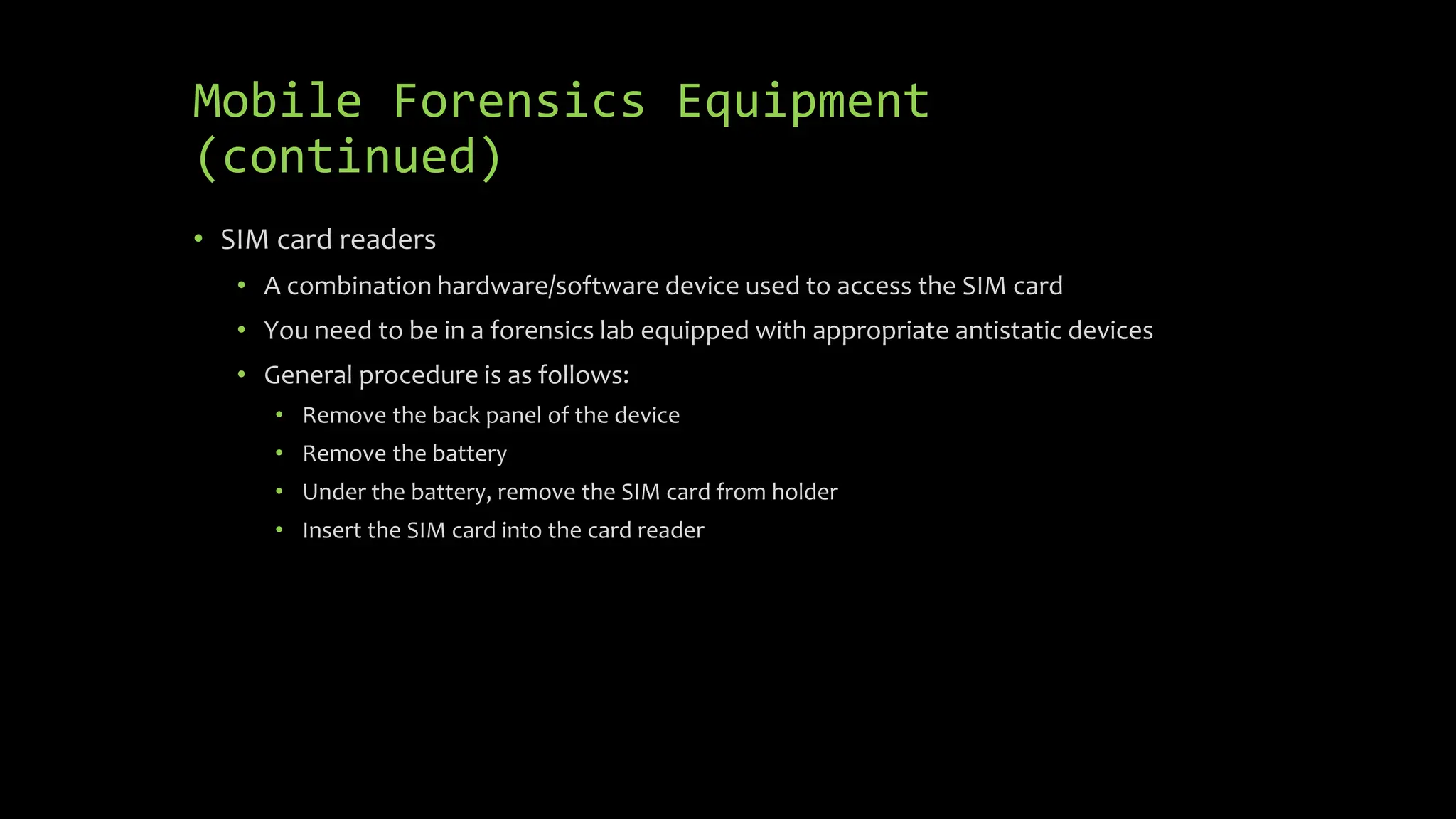

Mobile Forensics Equipment (continued) • SIM card readers • A combination hardware/software device used to access the SIM card • You need to be in a forensics lab equipped with appropriate antistatic devices • General procedure is as follows: • Remove the back panel of the device • Remove the battery • Under the battery, remove the SIM card from holder • Insert the SIM card into the card reader

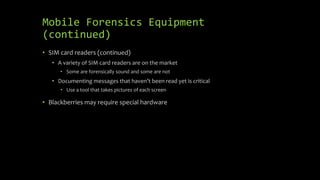

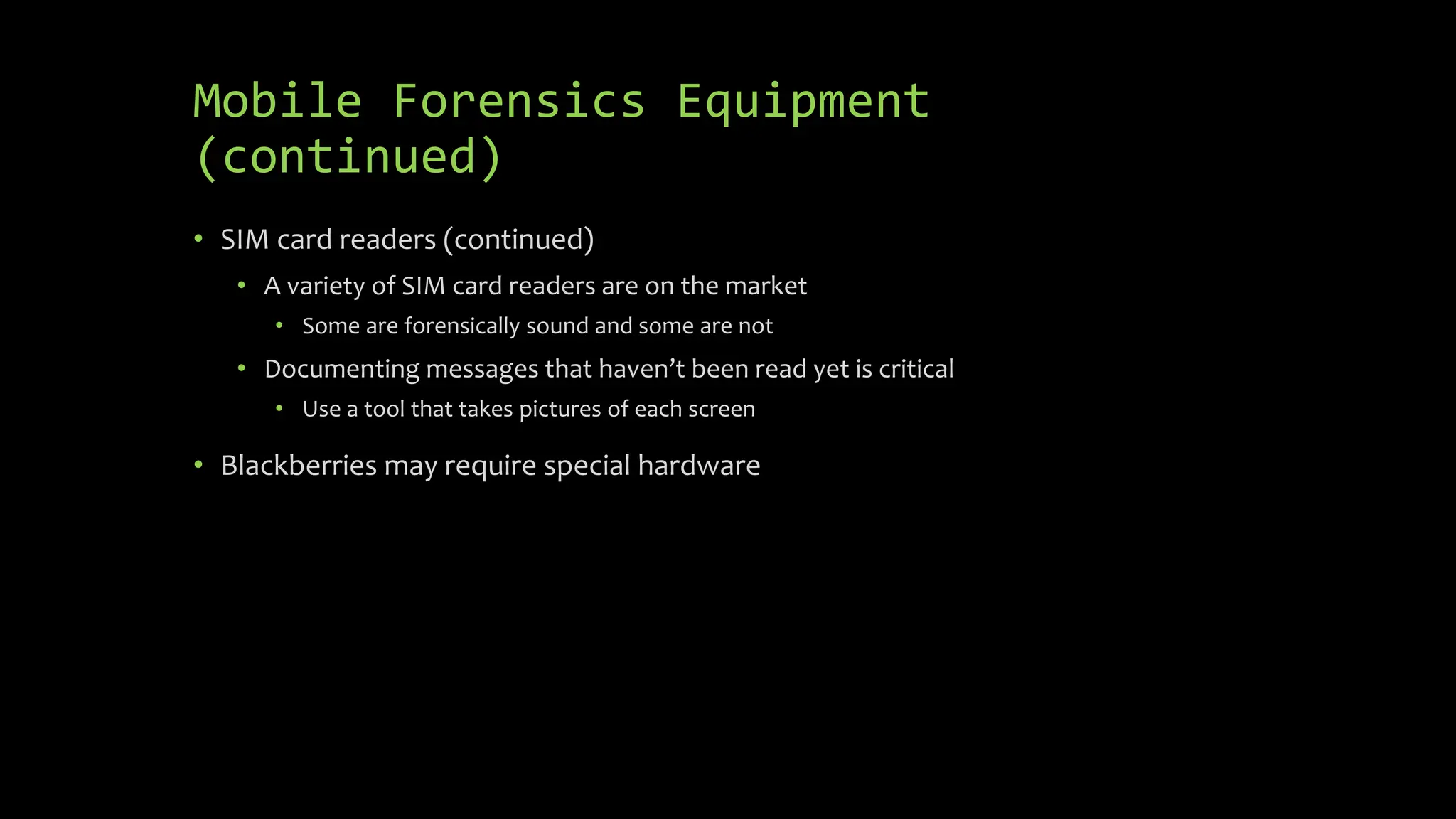

Mobile Forensics Equipment (continued) • SIM card readers (continued) • A variety of SIM card readers are on the market • Some are forensically sound and some are not • Documenting messages that haven’t been read yet is critical • Use a tool that takes pictures of each screen • Blackberries may require special hardware

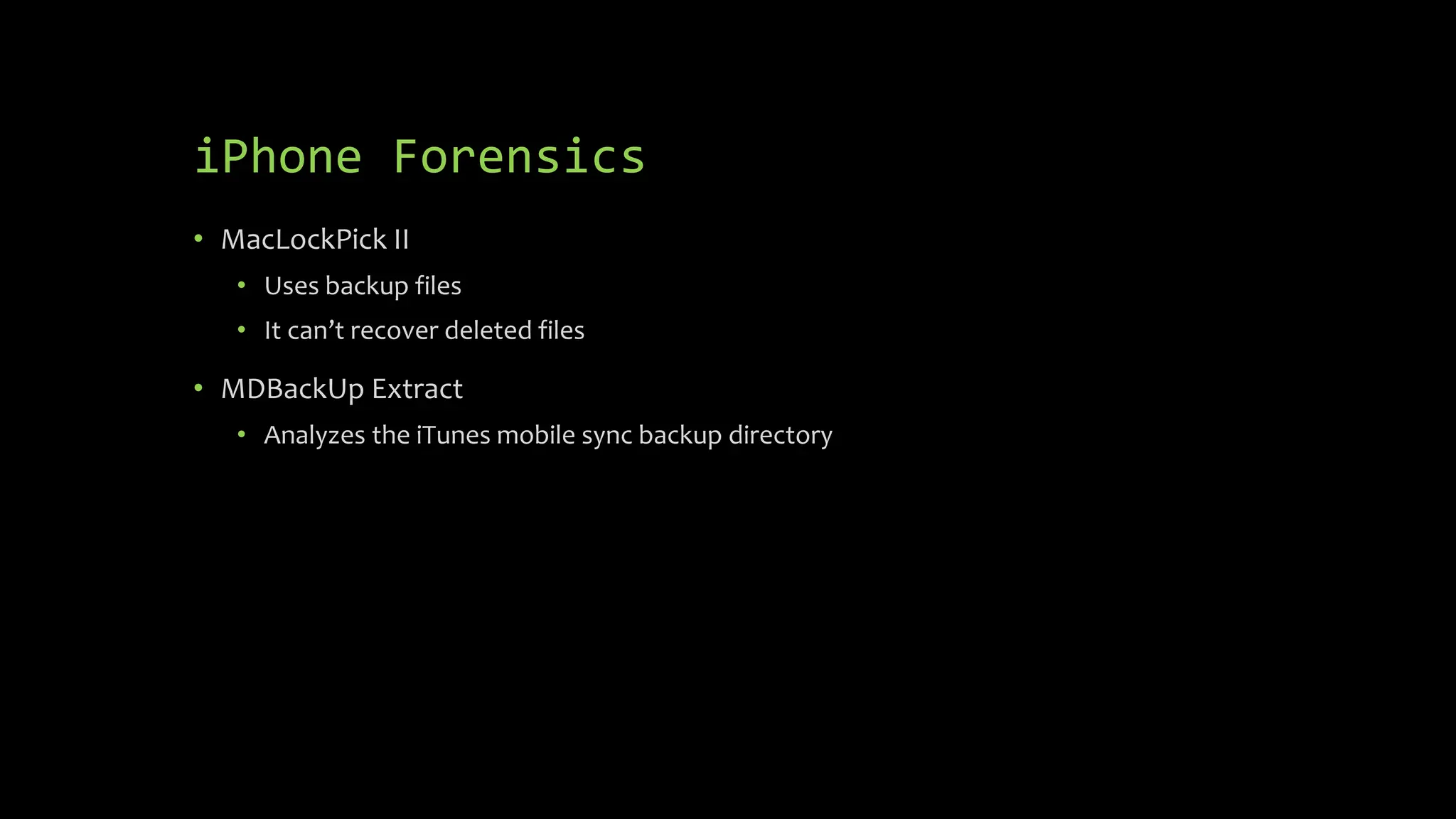

iPhone Forensics • MacLockPick II • Uses backup files • It can’t recover deleted files • MDBackUp Extract • Analyzes the iTunes mobile sync backup directory

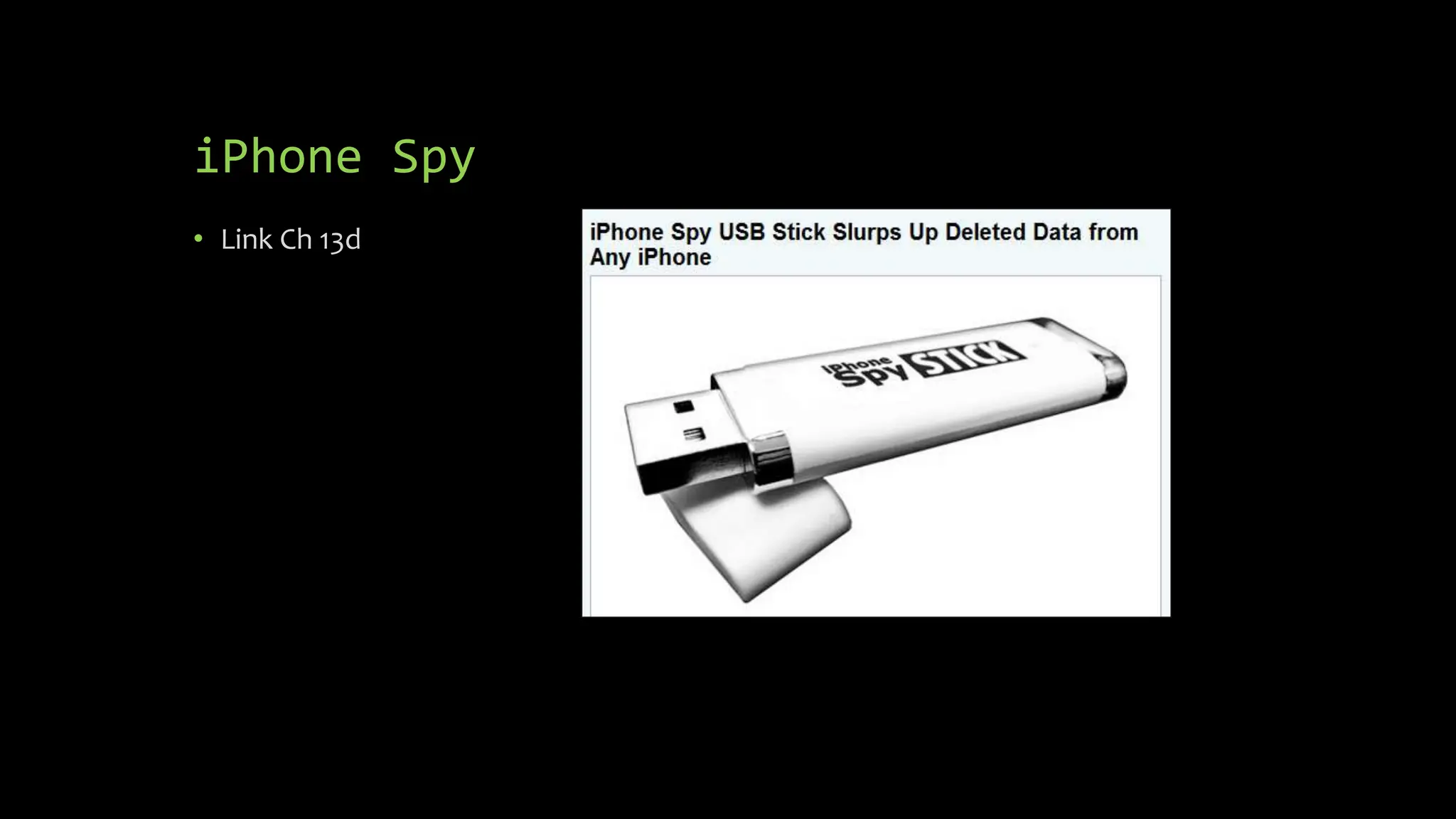

iPhone Spy • Link Ch 13d

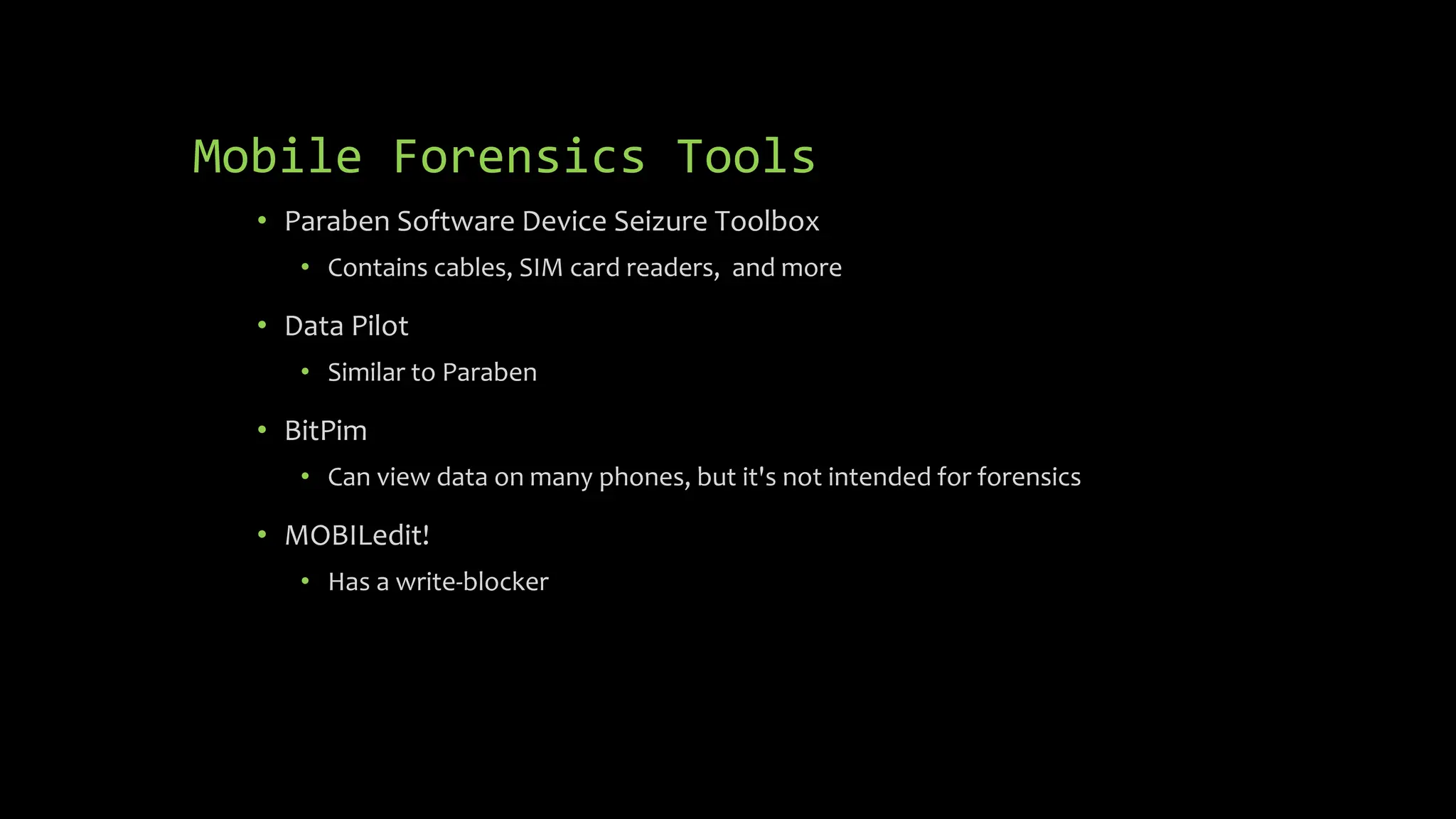

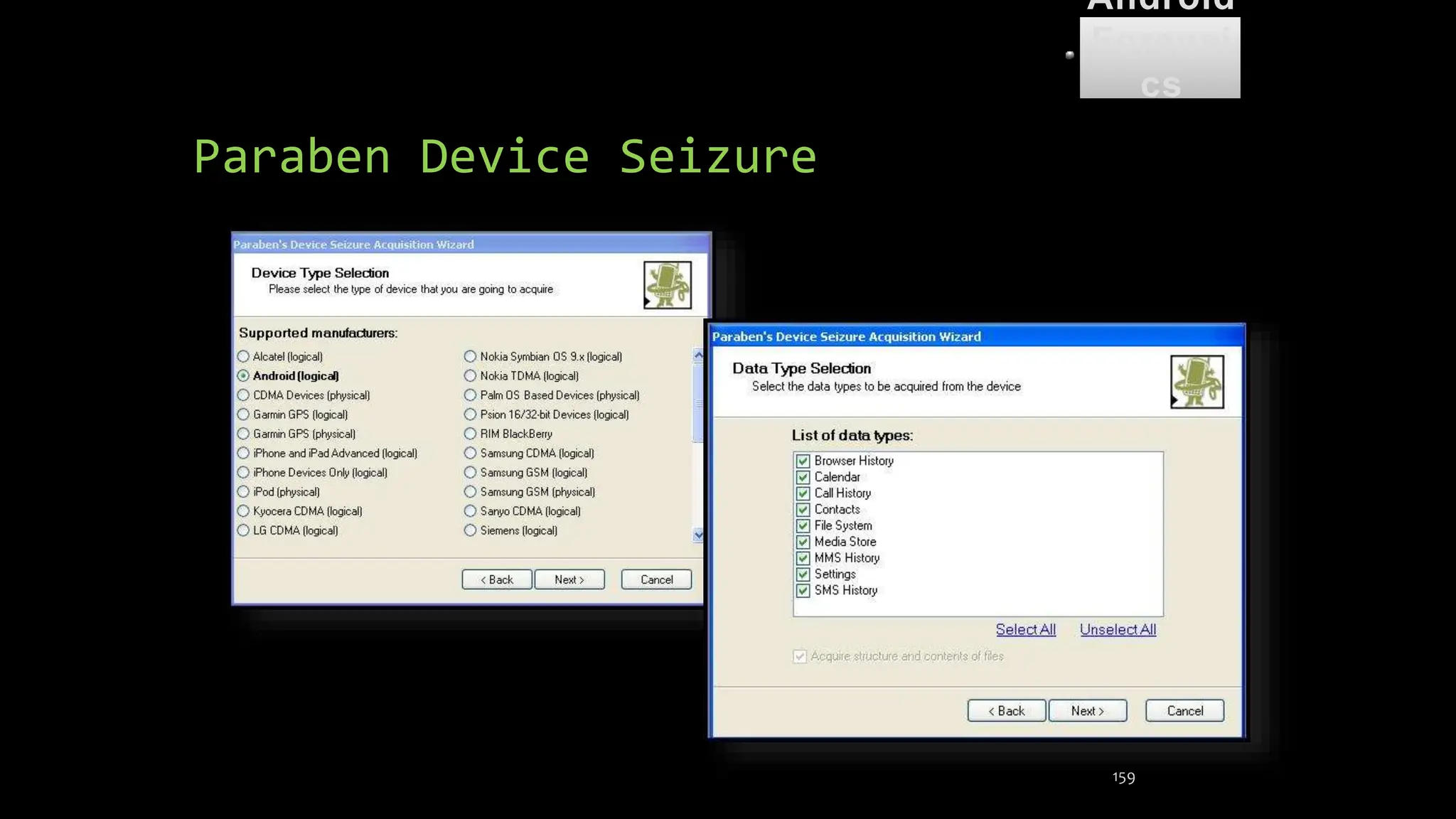

Mobile Forensics Tools • Paraben Software Device Seizure Toolbox • Contains cables, SIM card readers, and more • Data Pilot • Similar to Paraben • BitPim • Can view data on many phones, but it's not intended for forensics • MOBILedit! • Has a write-blocker

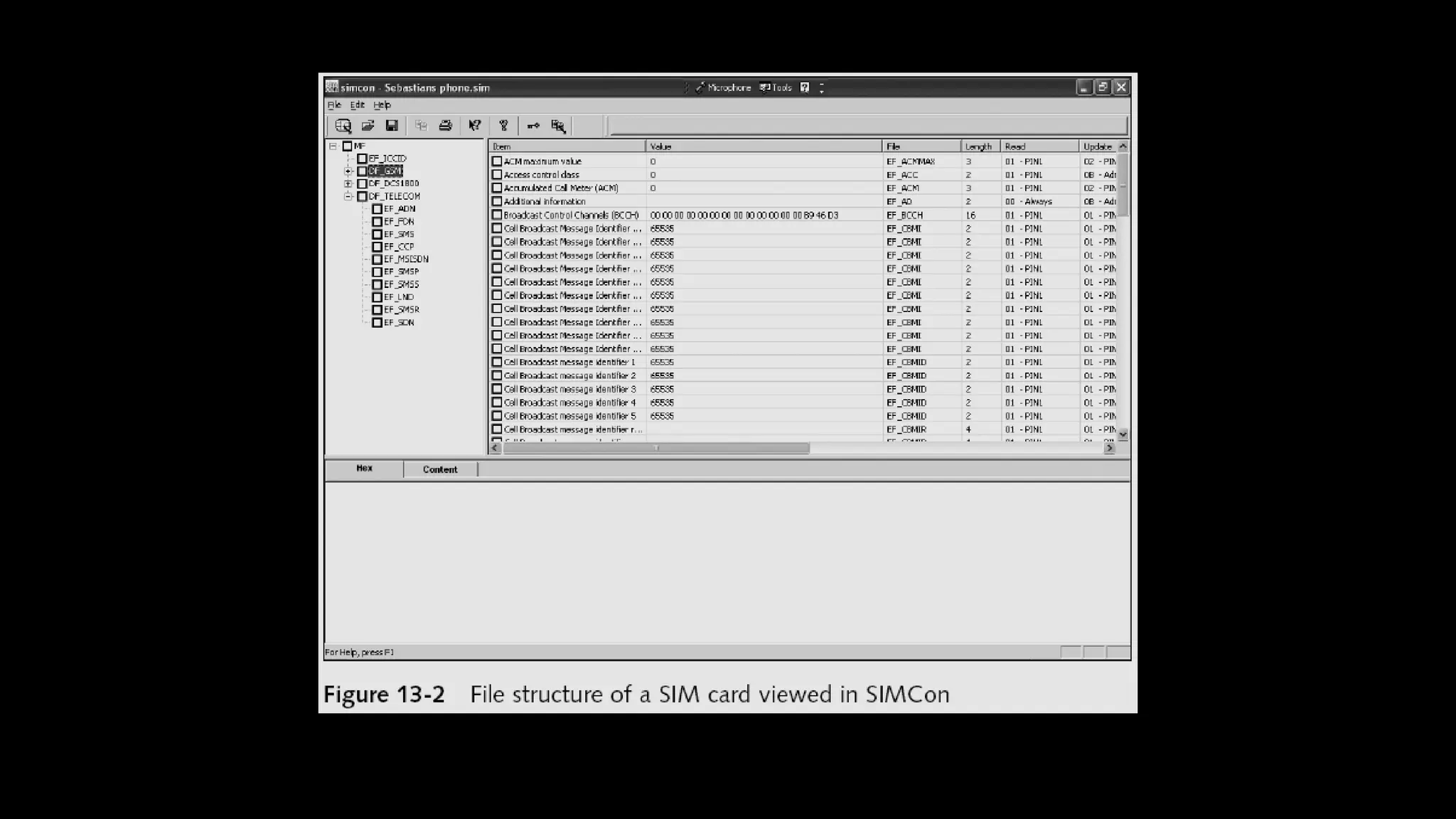

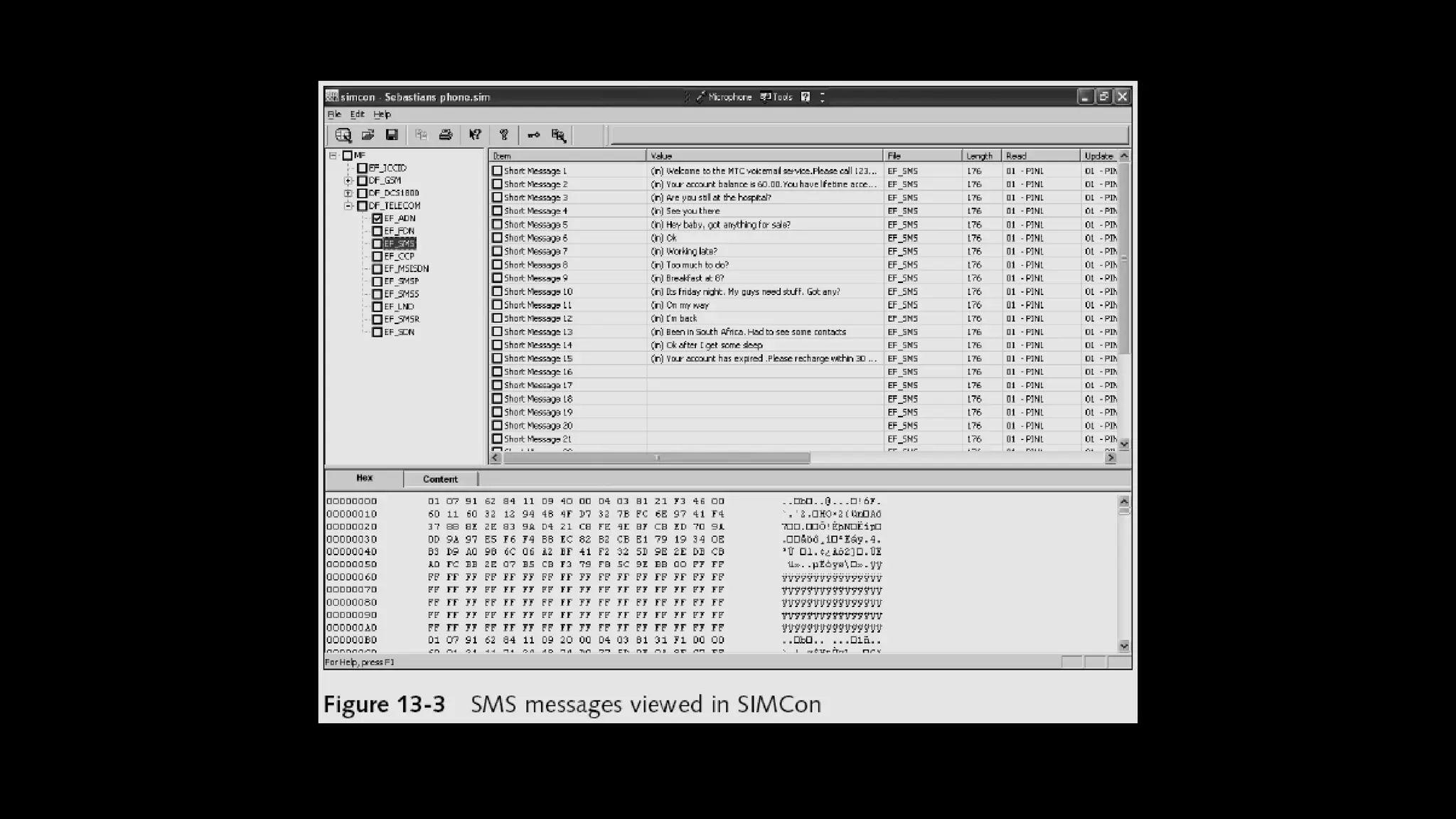

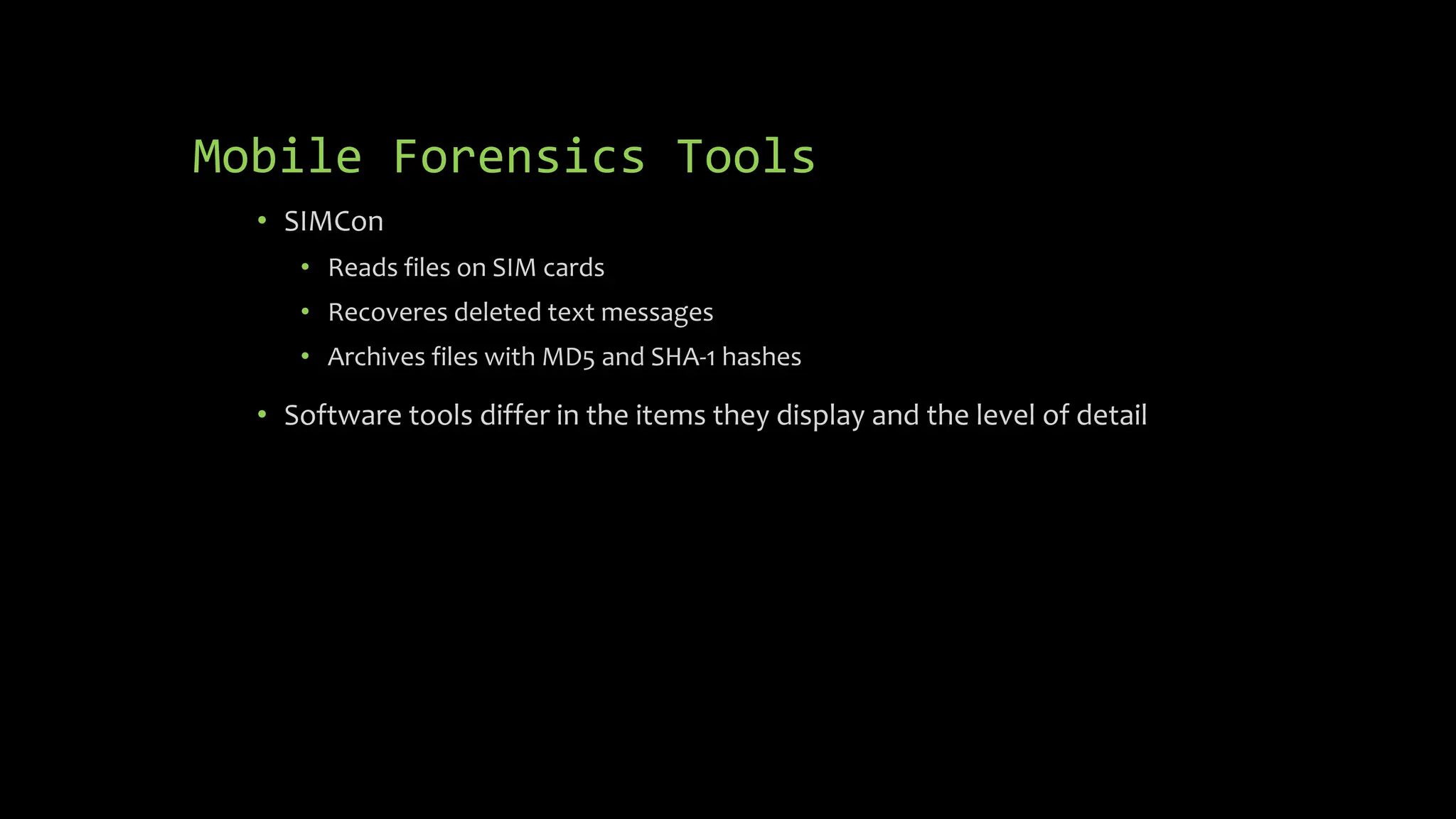

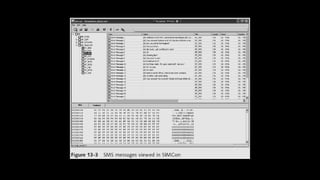

Mobile Forensics Tools • SIMCon • Reads files on SIM cards • Recoveres deleted text messages • Archives files with MD5 and SHA-1 hashes • Software tools differ in the items they display and the level of detail

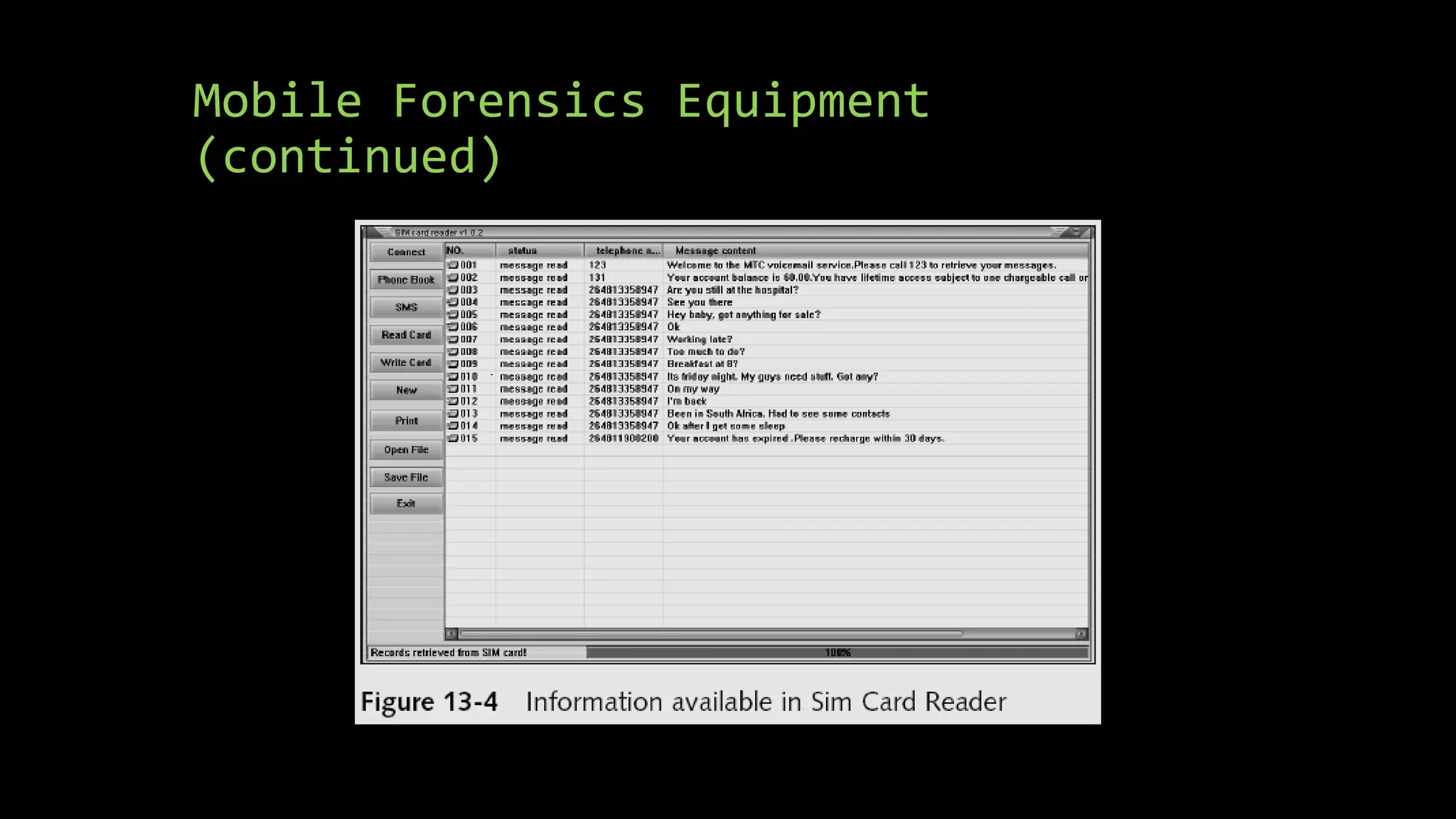

Mobile Forensics Equipment (continued)

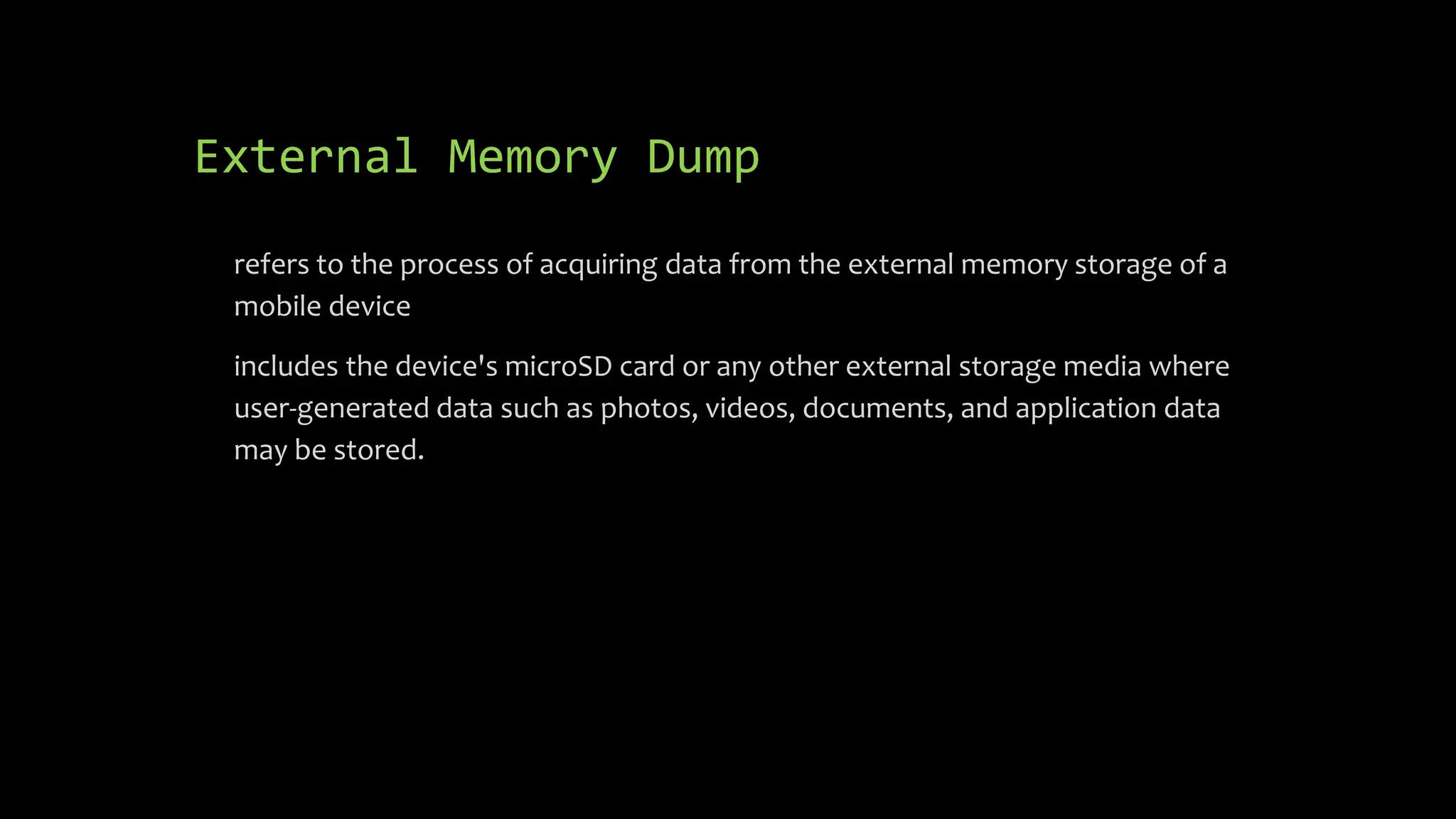

External Memory Dump • refers to the process of acquiring data from the external memory storage of a mobile device • includes the device's microSD card or any other external storage media where user-generated data such as photos, videos, documents, and application data may be stored.

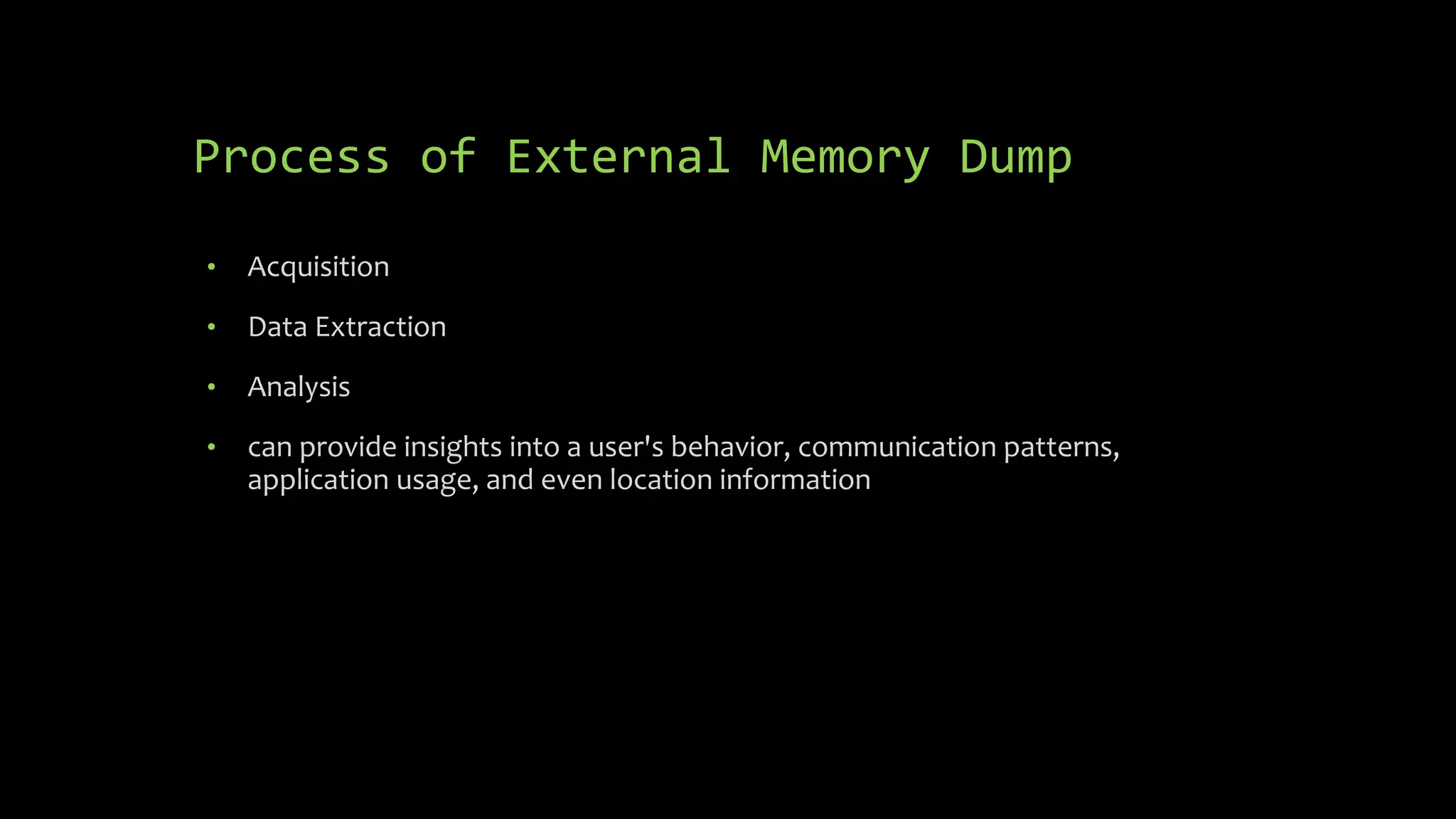

Process of External Memory Dump • Acquisition • Data Extraction • Analysis • can provide insights into a user's behavior, communication patterns, application usage, and even location information

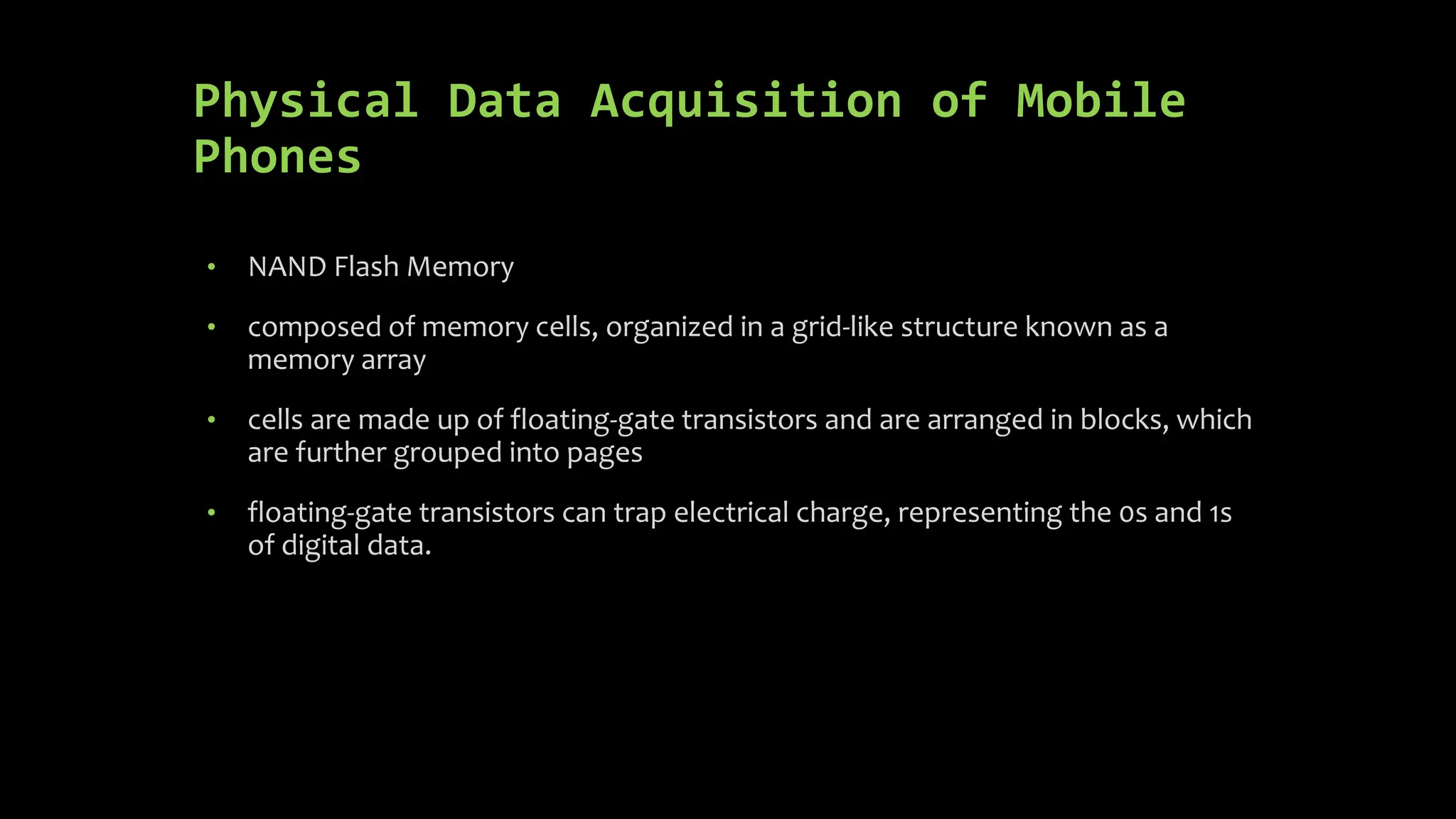

Physical Data Acquisition of Mobile Phones • NAND Flash Memory • composed of memory cells, organized in a grid-like structure known as a memory array • cells are made up of floating-gate transistors and are arranged in blocks, which are further grouped into pages • floating-gate transistors can trap electrical charge, representing the 0s and 1s of digital data.

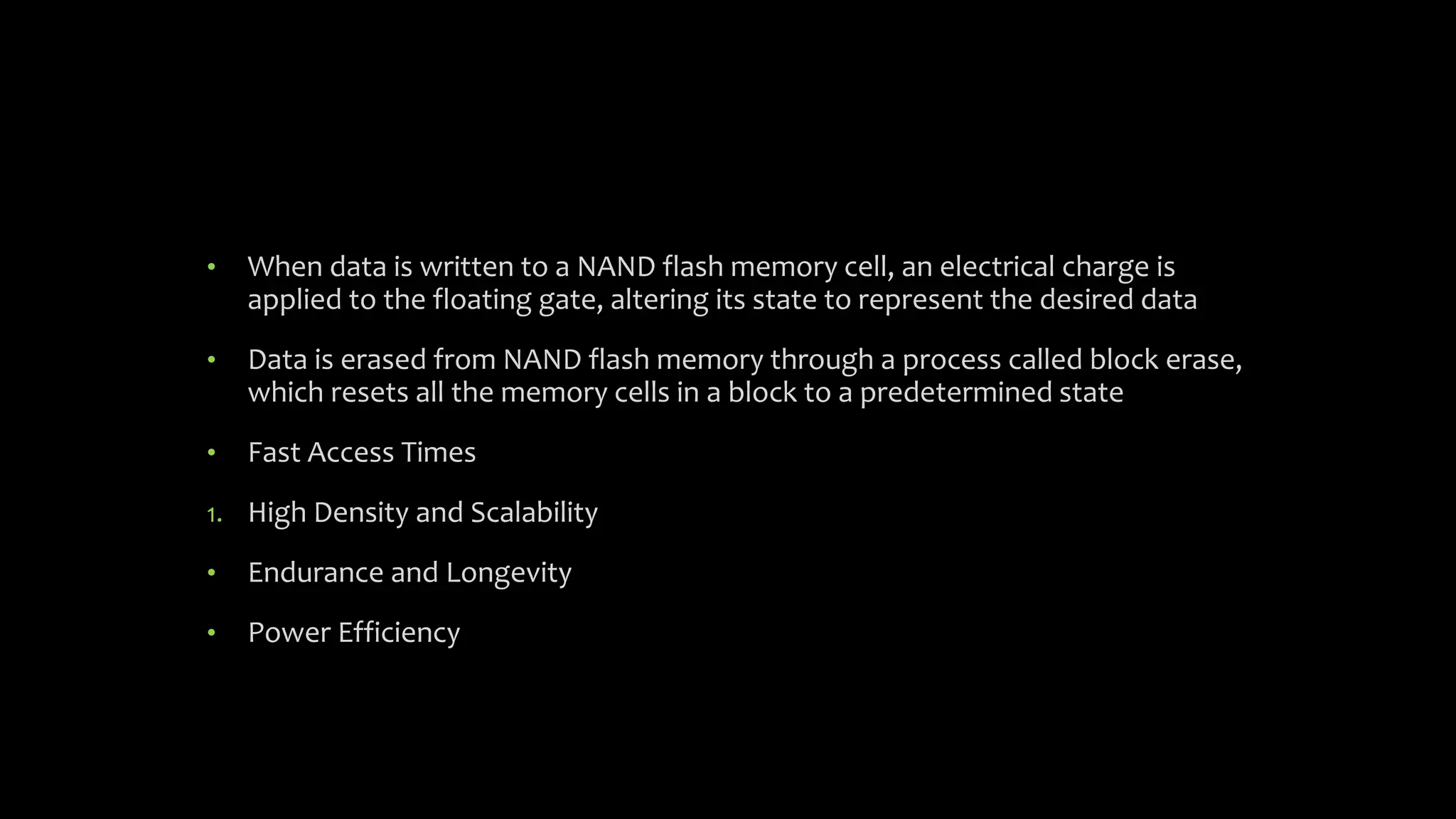

• When data is written to a NAND flash memory cell, an electrical charge is applied to the floating gate, altering its state to represent the desired data • Data is erased from NAND flash memory through a process called block erase, which resets all the memory cells in a block to a predetermined state • Fast Access Times 1. High Density and Scalability • Endurance and Longevity • Power Efficiency

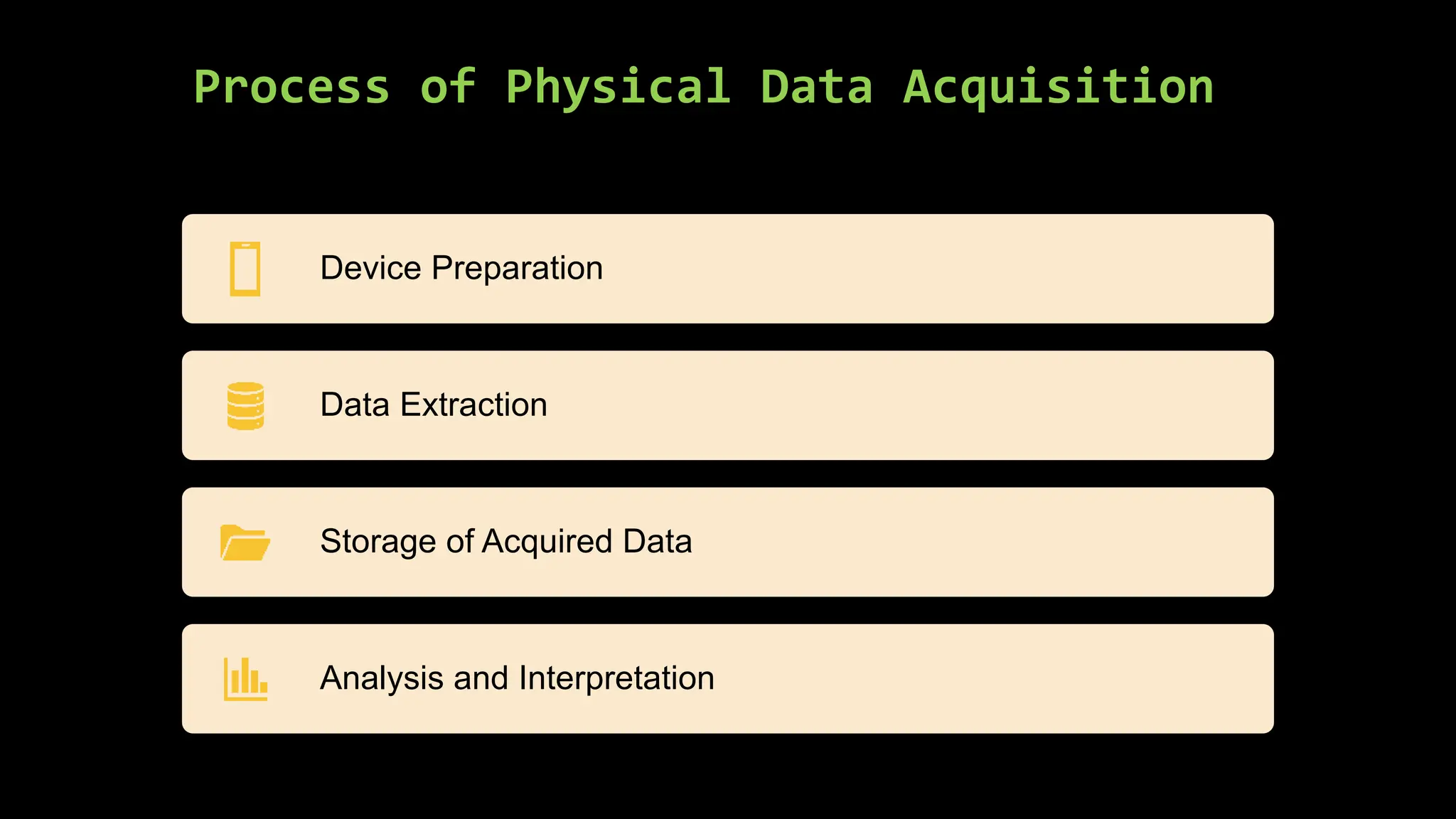

Process of Physical Data Acquisition Device Preparation Data Extraction Storage of Acquired Data Analysis and Interpretation

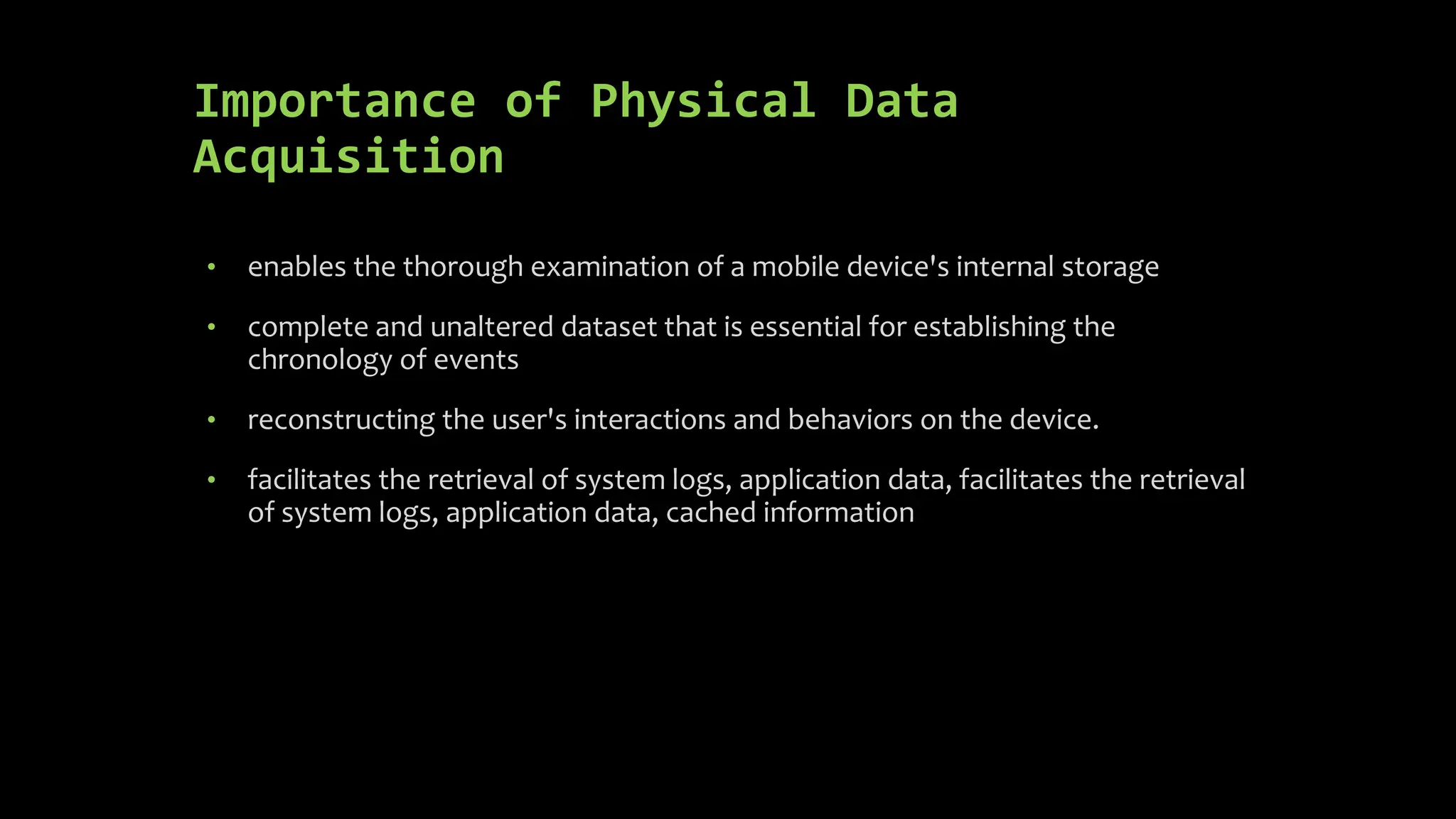

Importance of Physical Data Acquisition • enables the thorough examination of a mobile device's internal storage • complete and unaltered dataset that is essential for establishing the chronology of events • reconstructing the user's interactions and behaviors on the device. • facilitates the retrieval of system logs, application data, facilitates the retrieval of system logs, application data, cached information

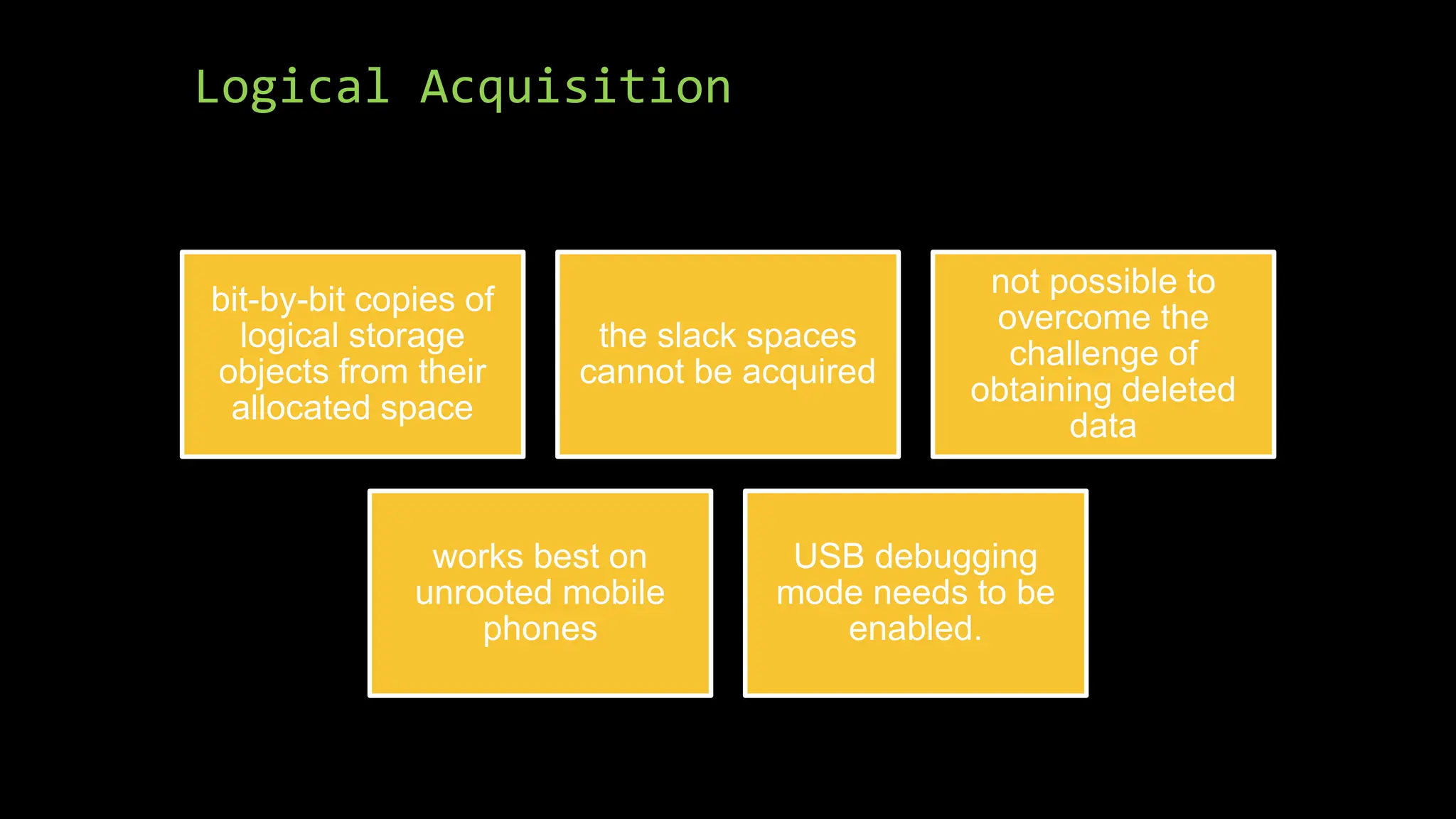

Logical Acquisition bit-by-bit copies of logical storage objects from their allocated space the slack spaces cannot be acquired not possible to overcome the challenge of obtaining deleted data works best on unrooted mobile phones USB debugging mode needs to be enabled.

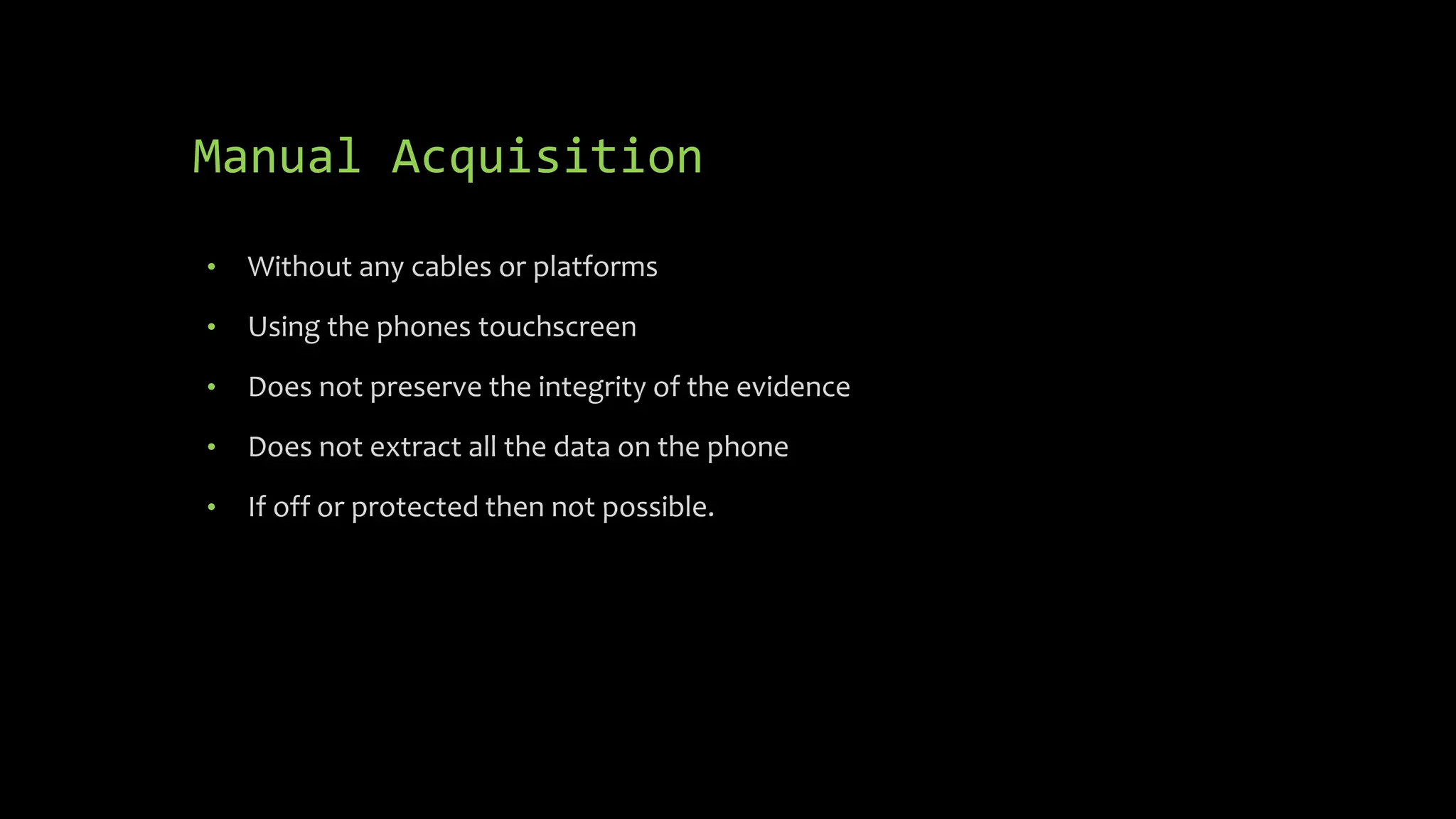

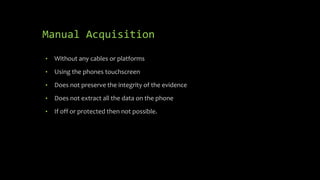

Manual Acquisition • Without any cables or platforms • Using the phones touchscreen • Does not preserve the integrity of the evidence • Does not extract all the data on the phone • If off or protected then not possible.

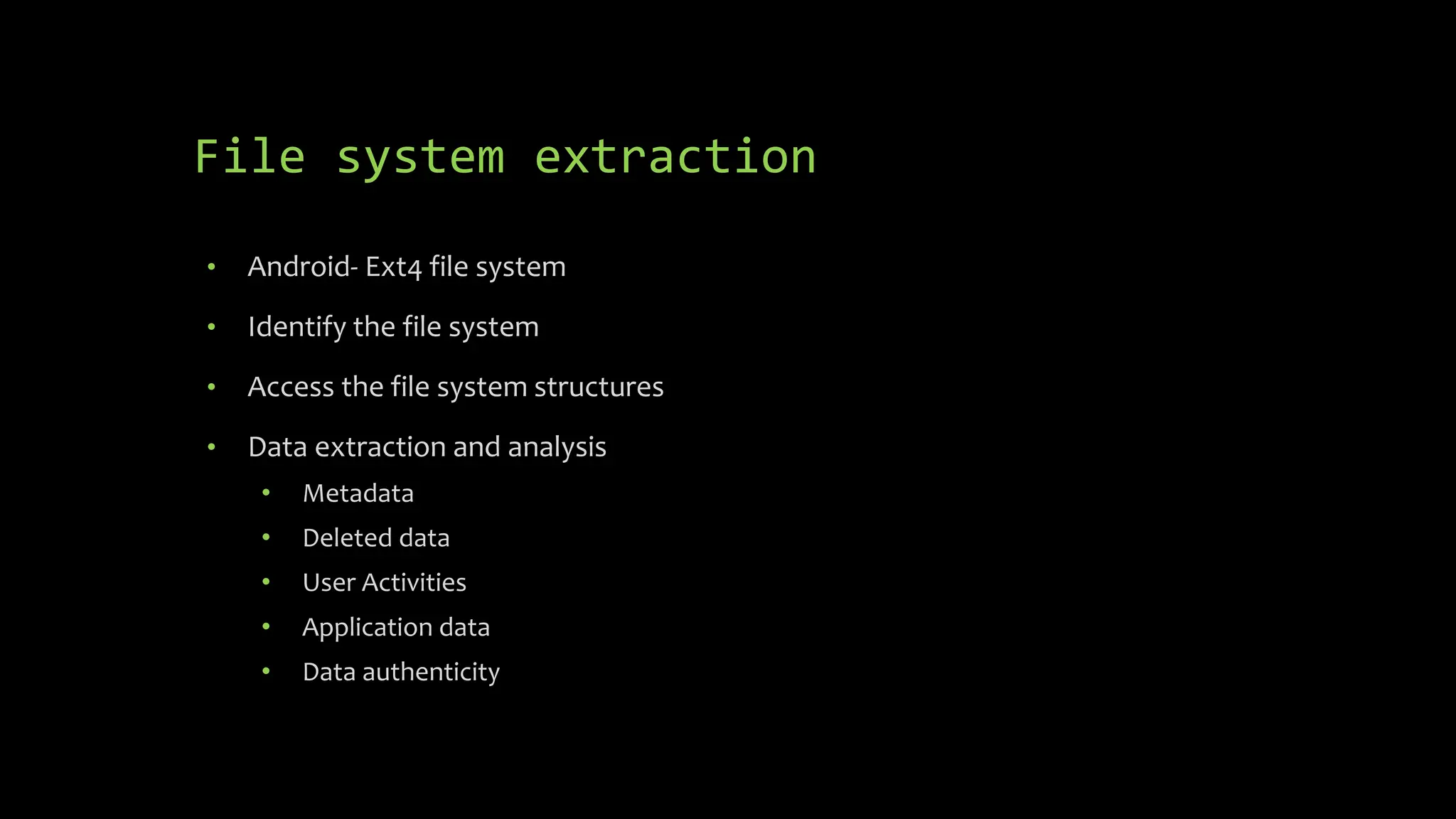

File system extraction • Android- Ext4 file system • Identify the file system • Access the file system structures • Data extraction and analysis • Metadata • Deleted data • User Activities • Application data • Data authenticity
Android Forensics Shawn Valle shawnvalle at gmail dot com September 2012
Android Overview & History

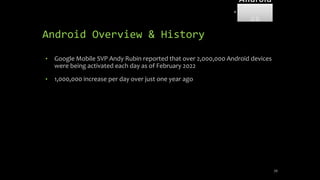

Android Overview & History • Google Mobile SVP Andy Rubin reported that over 2,000,000 Android devices were being activated each day as of February 2022 • 1,000,000 increase per day over just one year ago 39 Android Forensi cs

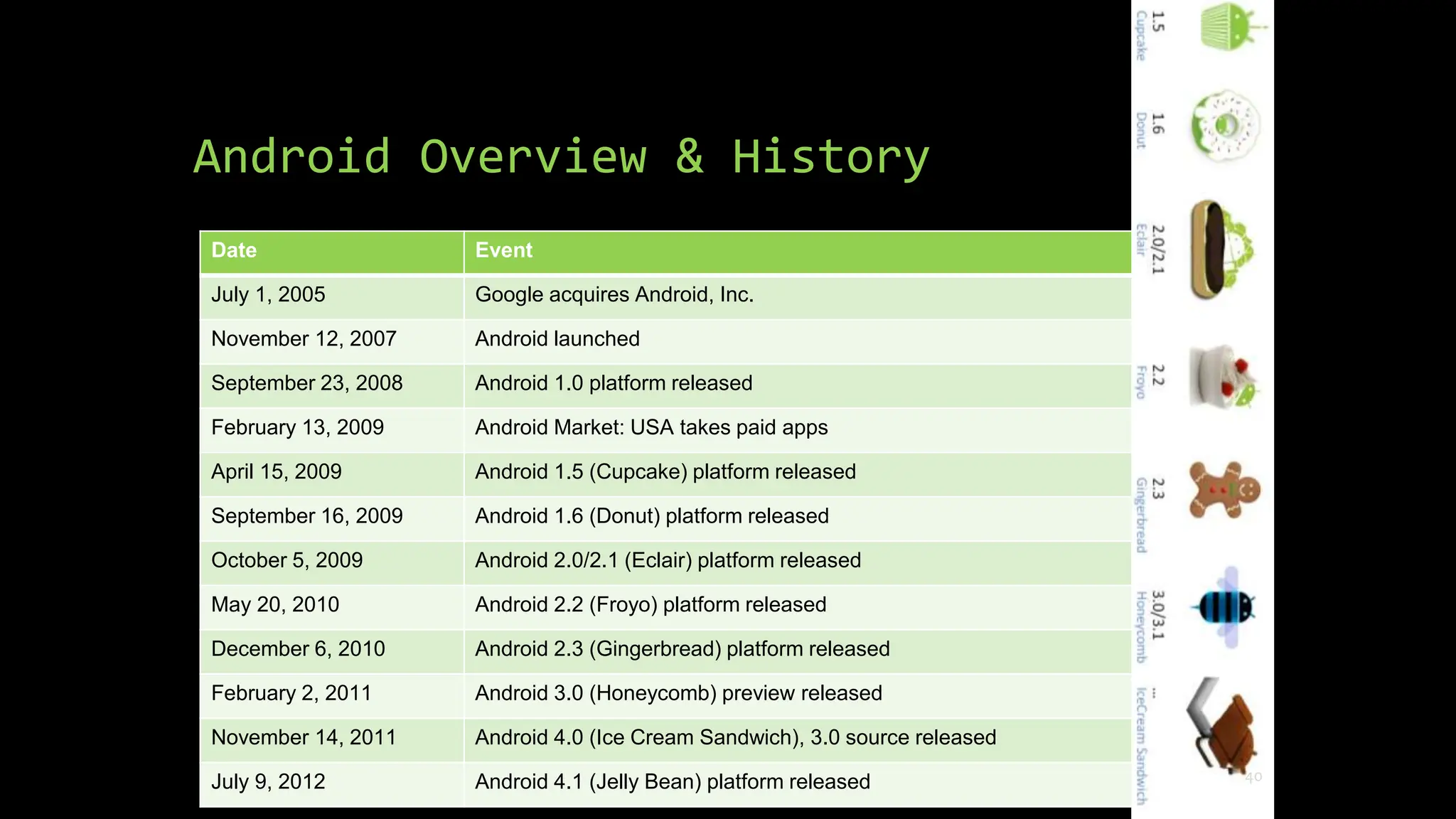

Android Overview & History Date Event July 1, 2005 Google acquires Android, Inc. November 12, 2007 Android launched September 23, 2008 Android 1.0 platform released February 13, 2009 Android Market: USA takes paid apps April 15, 2009 Android 1.5 (Cupcake) platform released September 16, 2009 Android 1.6 (Donut) platform released October 5, 2009 Android 2.0/2.1 (Eclair) platform released May 20, 2010 Android 2.2 (Froyo) platform released December 6, 2010 Android 2.3 (Gingerbread) platform released February 2, 2011 Android 3.0 (Honeycomb) preview released November 14, 2011 Android 4.0 (Ice Cream Sandwich), 3.0 source released July 9, 2012 Android 4.1 (Jelly Bean) platform released 40

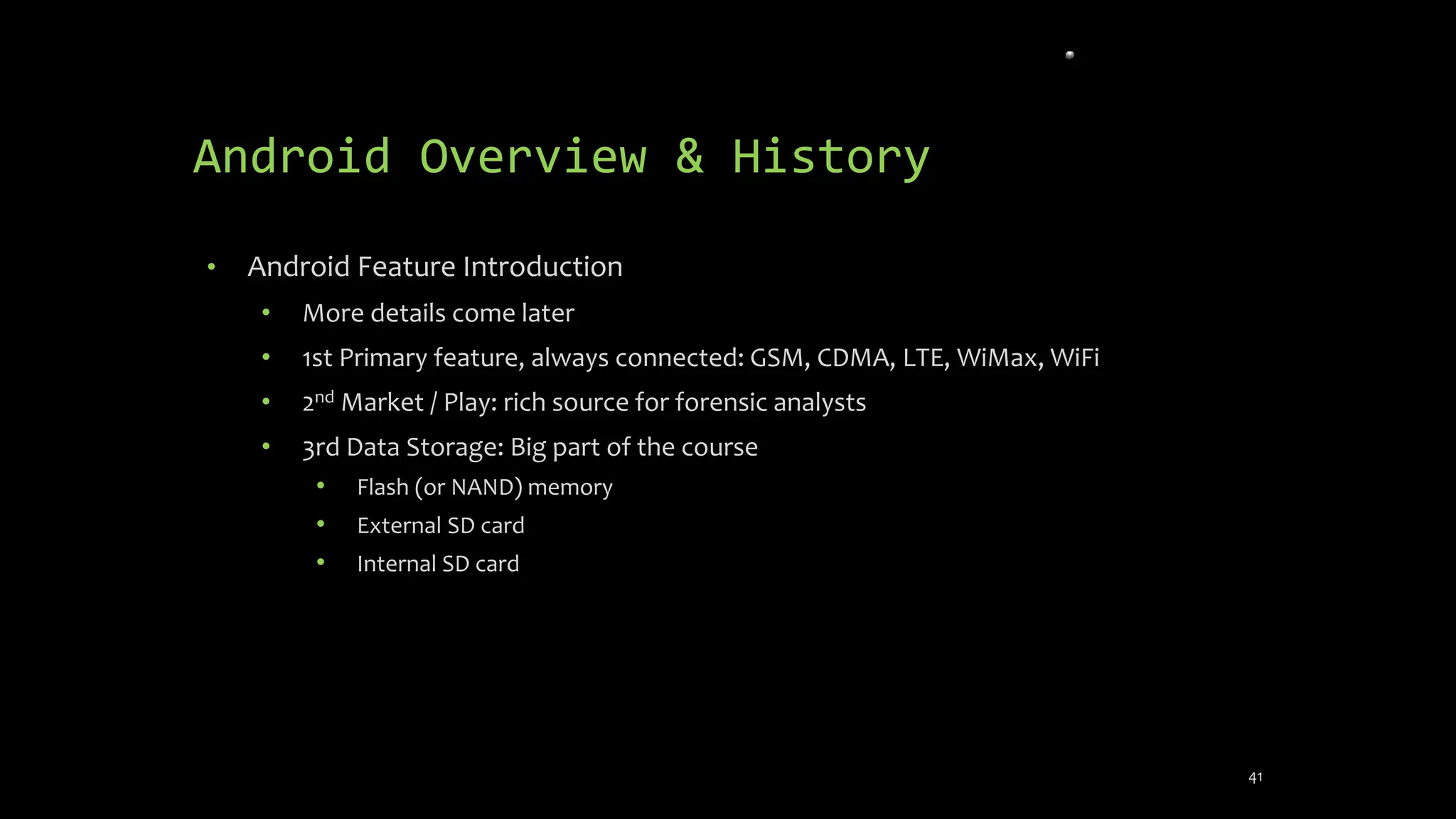

Android Overview & History • Android Feature Introduction • More details come later • 1st Primary feature, always connected: GSM, CDMA, LTE, WiMax, WiFi • 2nd Market / Play: rich source for forensic analysts • 3rd Data Storage: Big part of the course • Flash (or NAND) memory • External SD card • Internal SD card 41

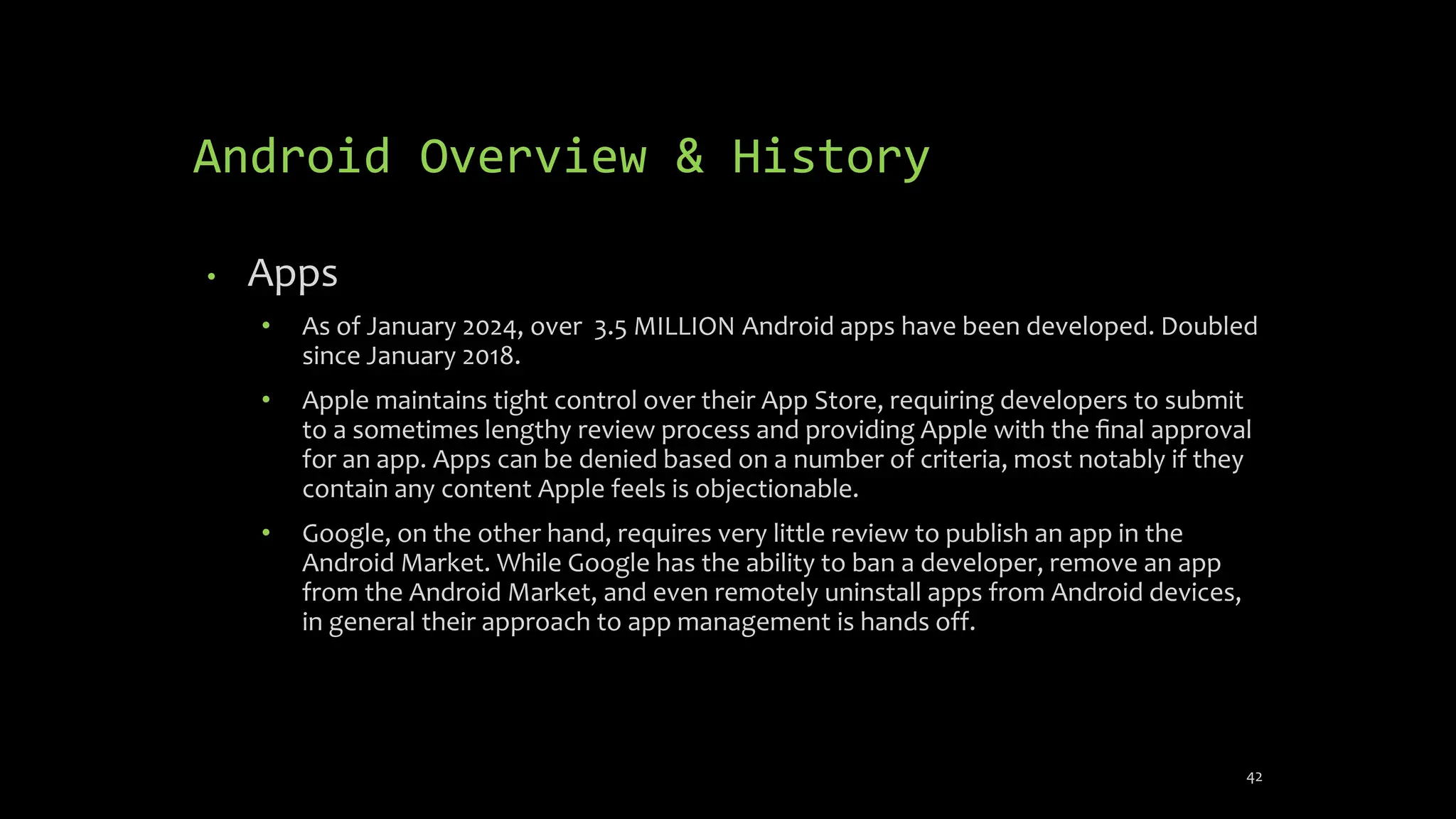

Android Overview & History • Apps • As of January 2024, over 3.5 MILLION Android apps have been developed. Doubled since January 2018. • Apple maintains tight control over their App Store, requiring developers to submit to a sometimes lengthy review process and providing Apple with the final approval for an app. Apps can be denied based on a number of criteria, most notably if they contain any content Apple feels is objectionable. • Google, on the other hand, requires very little review to publish an app in the Android Market. While Google has the ability to ban a developer, remove an app from the Android Market, and even remotely uninstall apps from Android devices, in general their approach to app management is hands off. 42

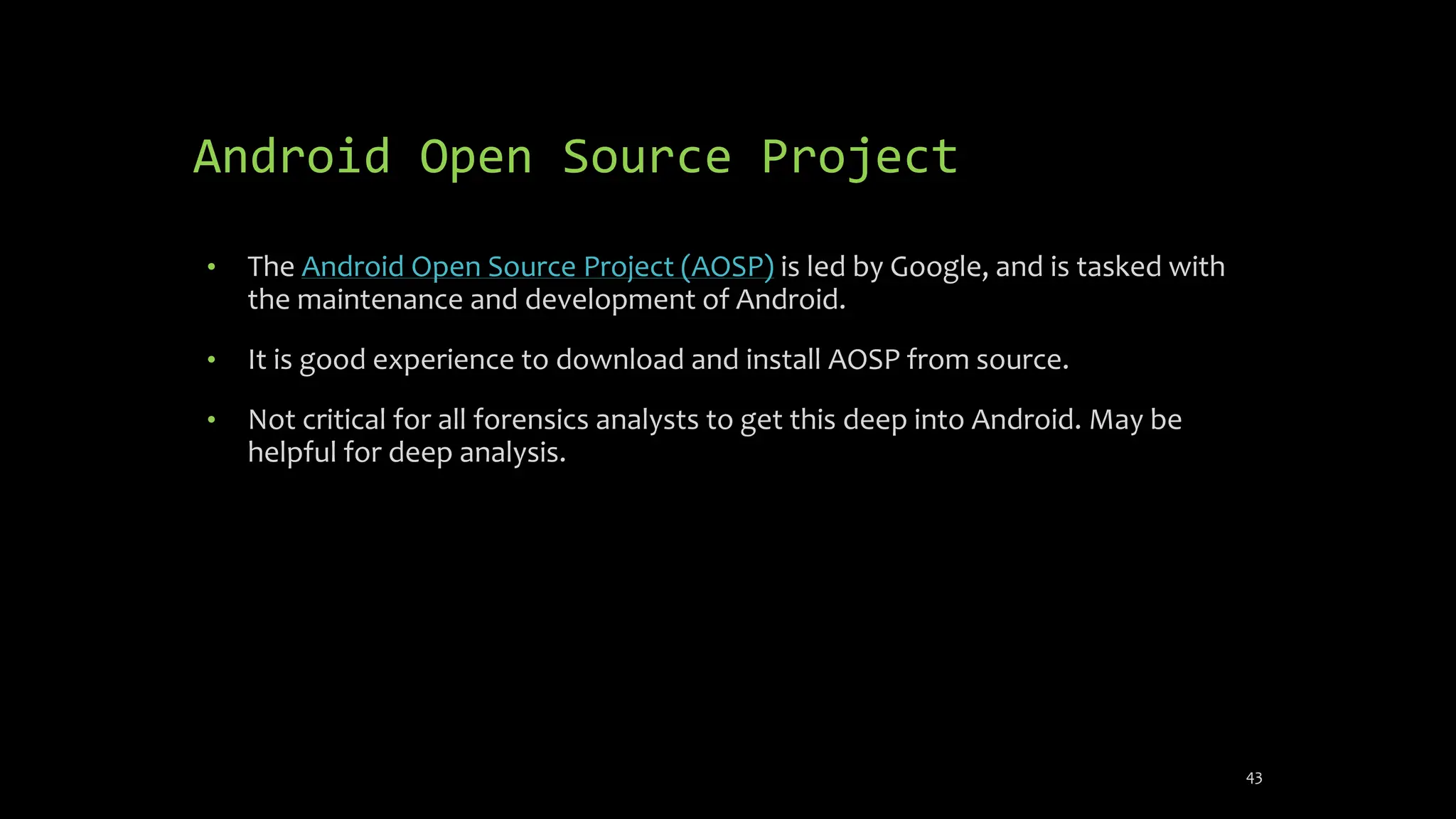

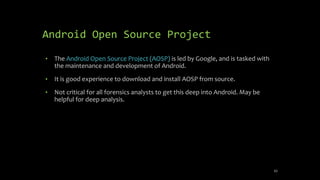

Android Open Source Project • The Android Open Source Project (AOSP) is led by Google, and is tasked with the maintenance and development of Android. • It is good experience to download and install AOSP from source. • Not critical for all forensics analysts to get this deep into Android. May be helpful for deep analysis. 43
Android and Forensics 44

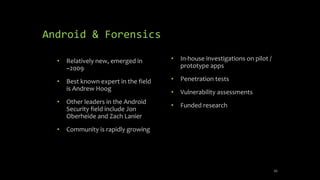

Android & Forensics • Relatively new, emerged in ~2009 • Best known expert in the field is Andrew Hoog • Other leaders in the Android Security field include Jon Oberheide and Zach Lanier • Community is rapidly growing • In-house investigations on pilot / prototype apps • Penetration tests • Vulnerability assessments • Funded research 45
Android Architecture 46

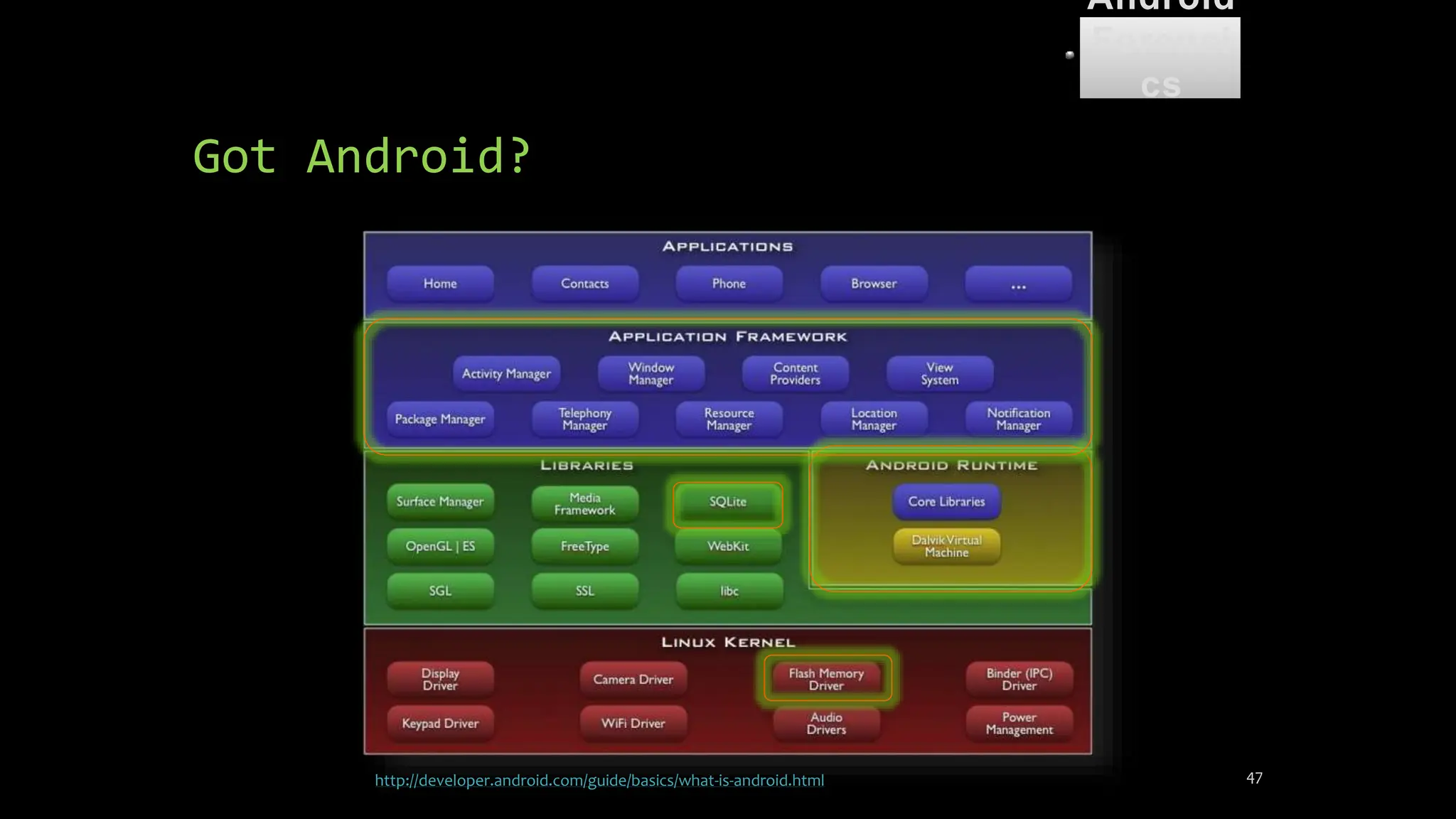

Got Android? http://developer.android.com/guide/basics/what-is-android.html 47 Android Forensi cs

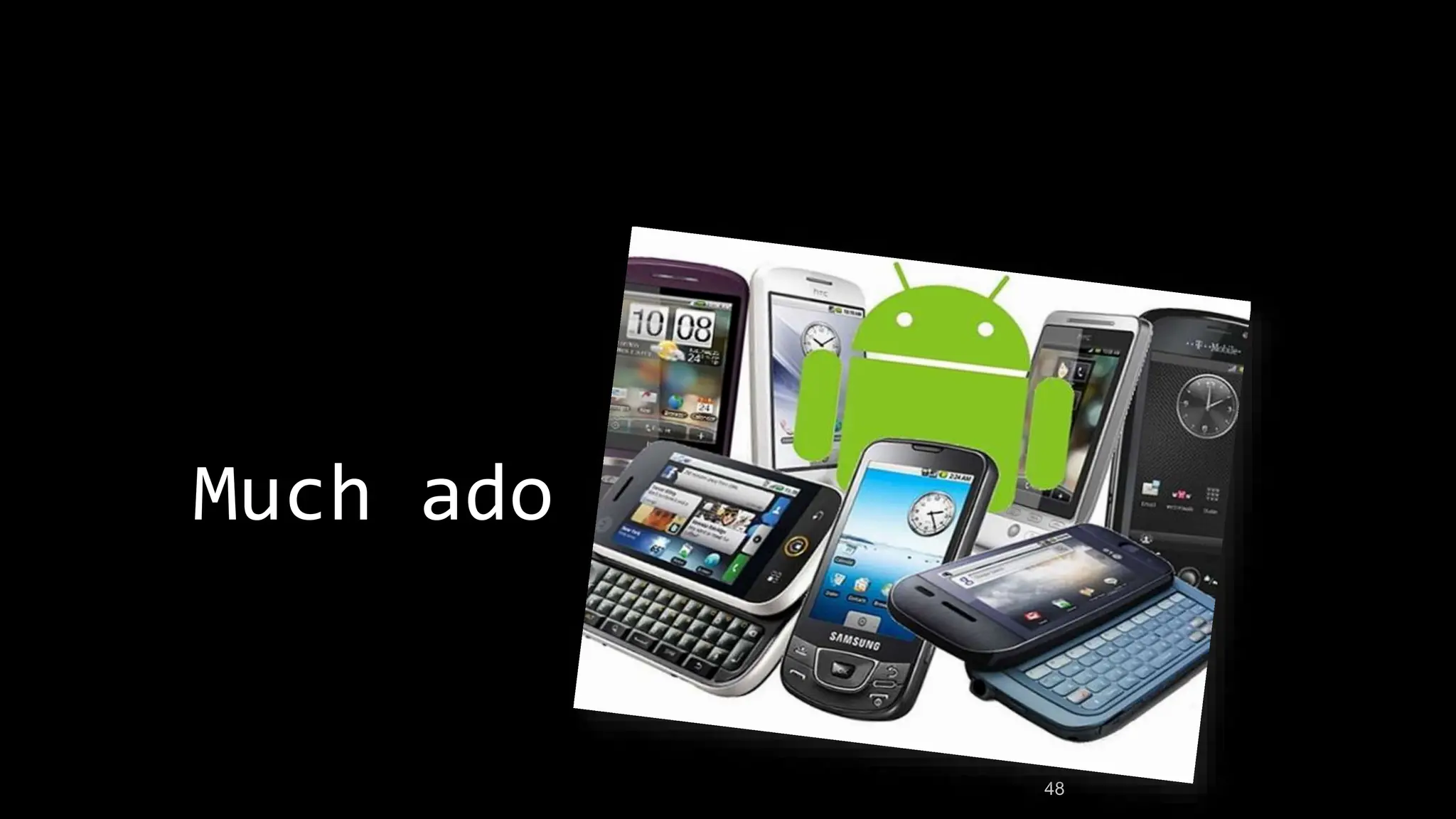

Much ado about hardware 48

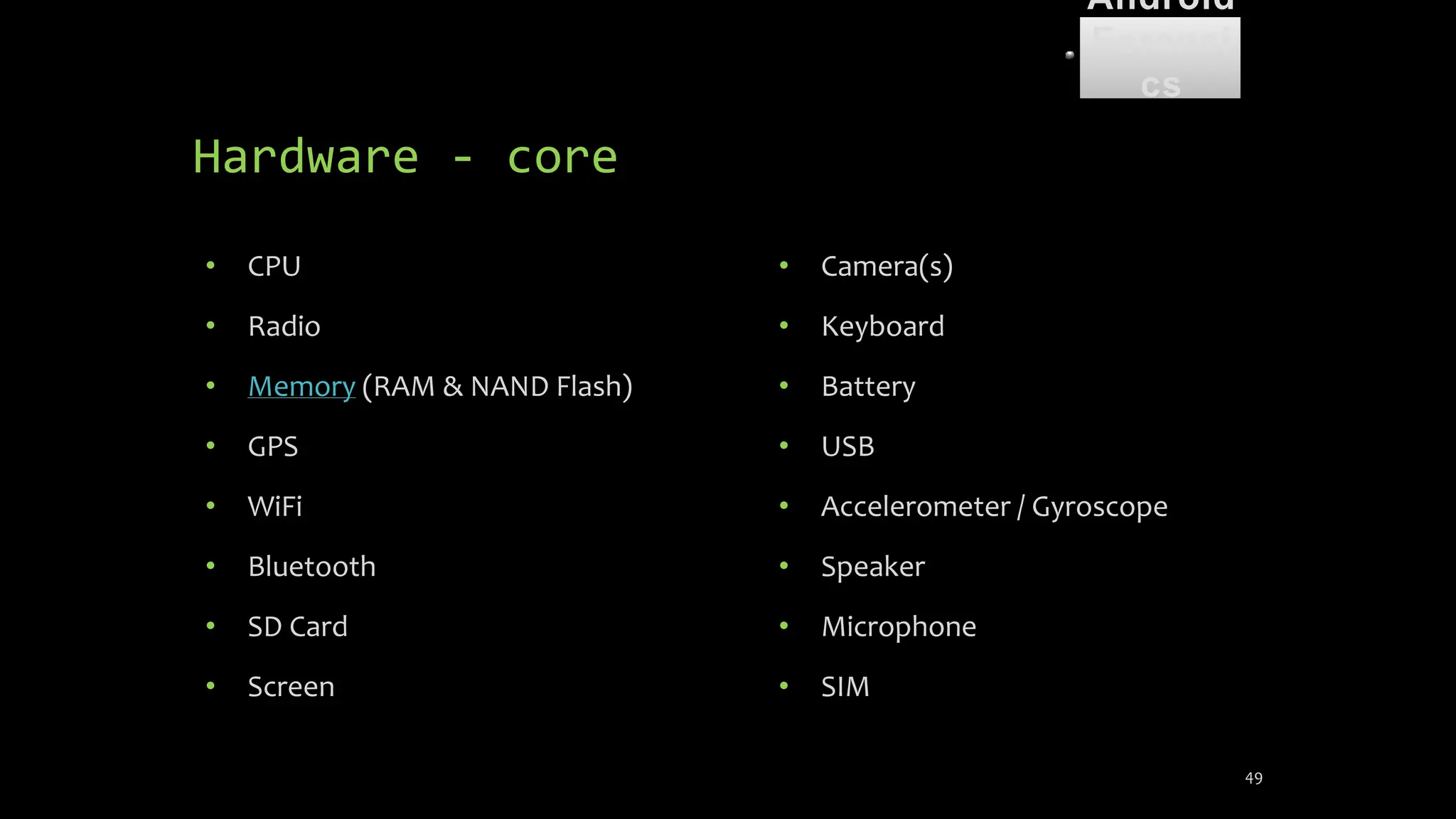

Hardware - core • CPU • Radio • Memory (RAM & NAND Flash) • GPS • WiFi • Bluetooth • SD Card • Screen • Camera(s) • Keyboard • Battery • USB • Accelerometer / Gyroscope • Speaker • Microphone • SIM 49 Android Forensi cs

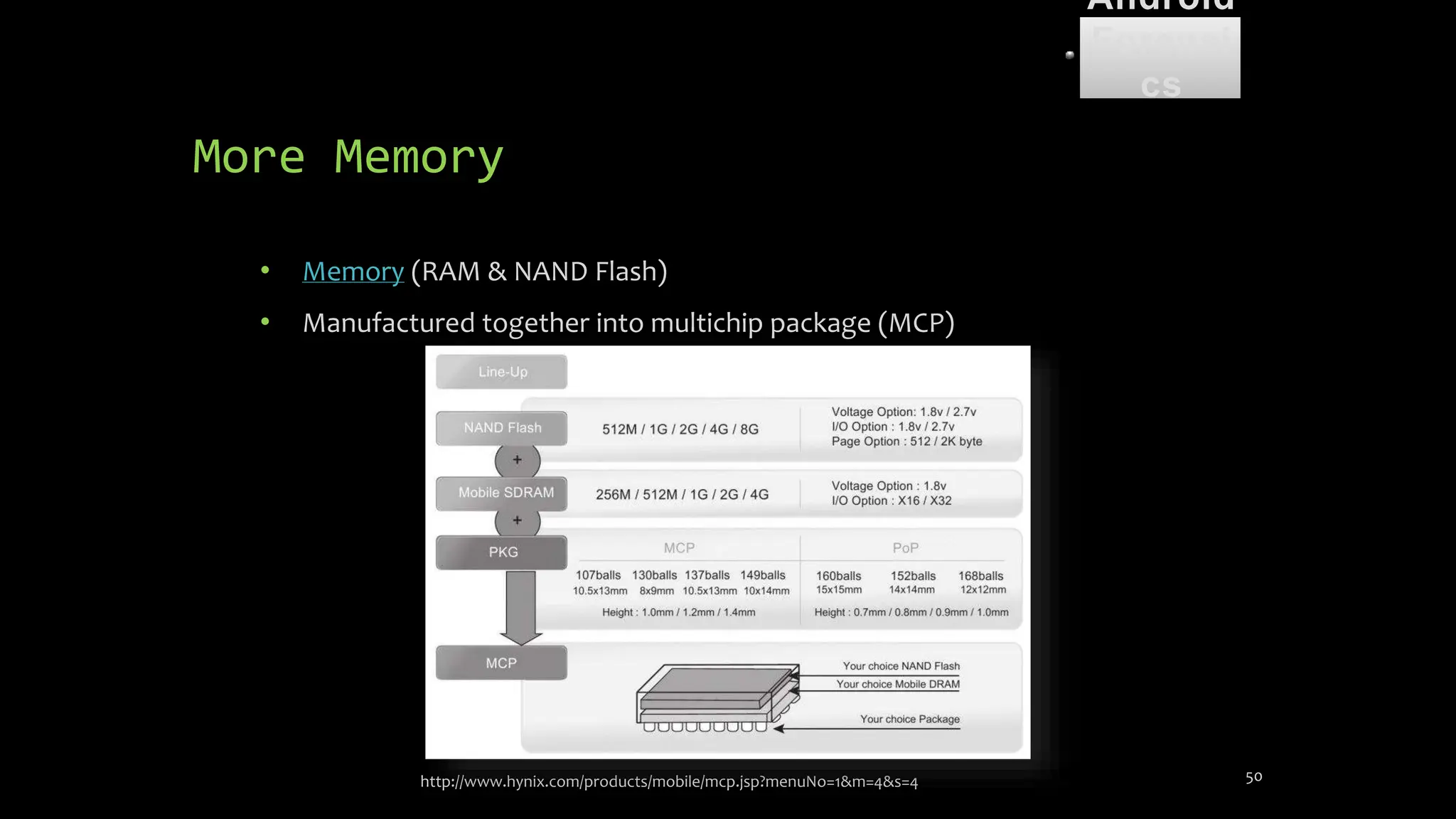

More Memory • Memory (RAM & NAND Flash) • Manufactured together into multichip package (MCP) http://www.hynix.com/products/mobile/mcp.jsp?menuNo=1&m=4&s=4 50 Android Forensi cs

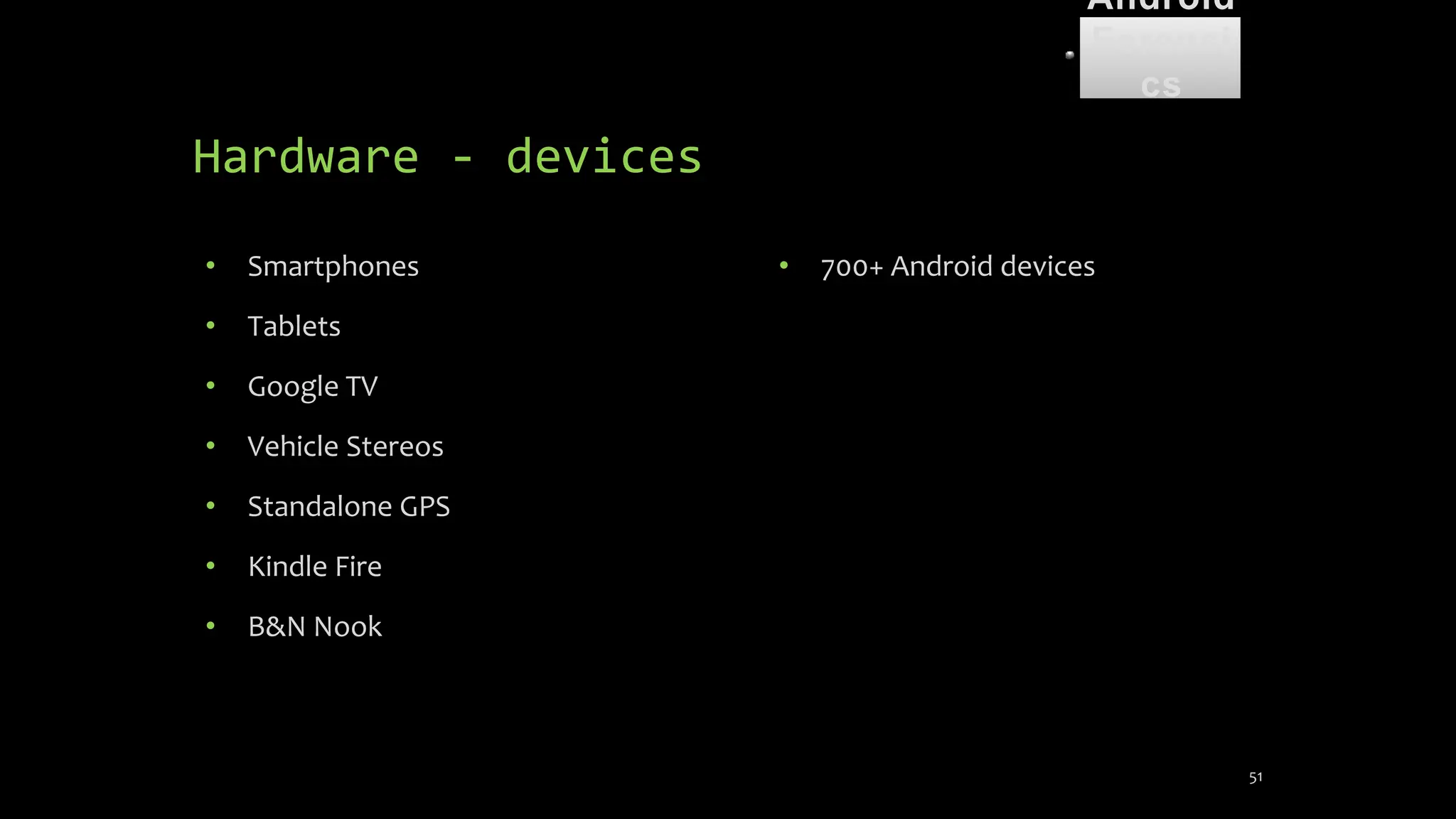

Hardware - devices • Smartphones • Tablets • Google TV • Vehicle Stereos • Standalone GPS • Kindle Fire • B&N Nook • 700+ Android devices 51 Android Forensi cs

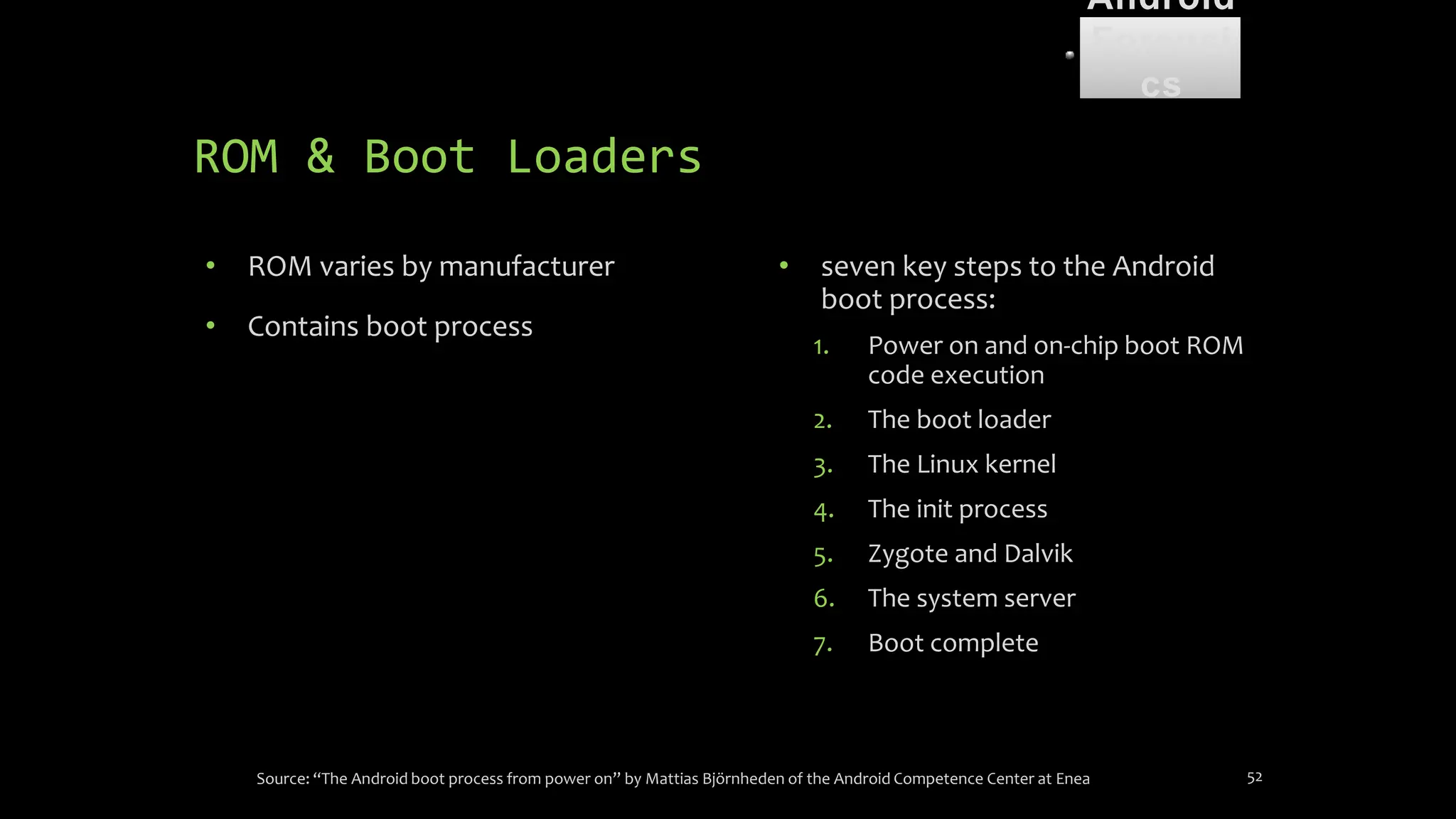

ROM & Boot Loaders • ROM varies by manufacturer • Contains boot process • seven key steps to the Android boot process: 1. Power on and on-chip boot ROM code execution 2. The boot loader 3. The Linux kernel 4. The init process 5. Zygote and Dalvik 6. The system server 7. Boot complete Source: “The Android boot process from power on” by Mattias Björnheden of the Android Competence Center at Enea 52 Android Forensi cs

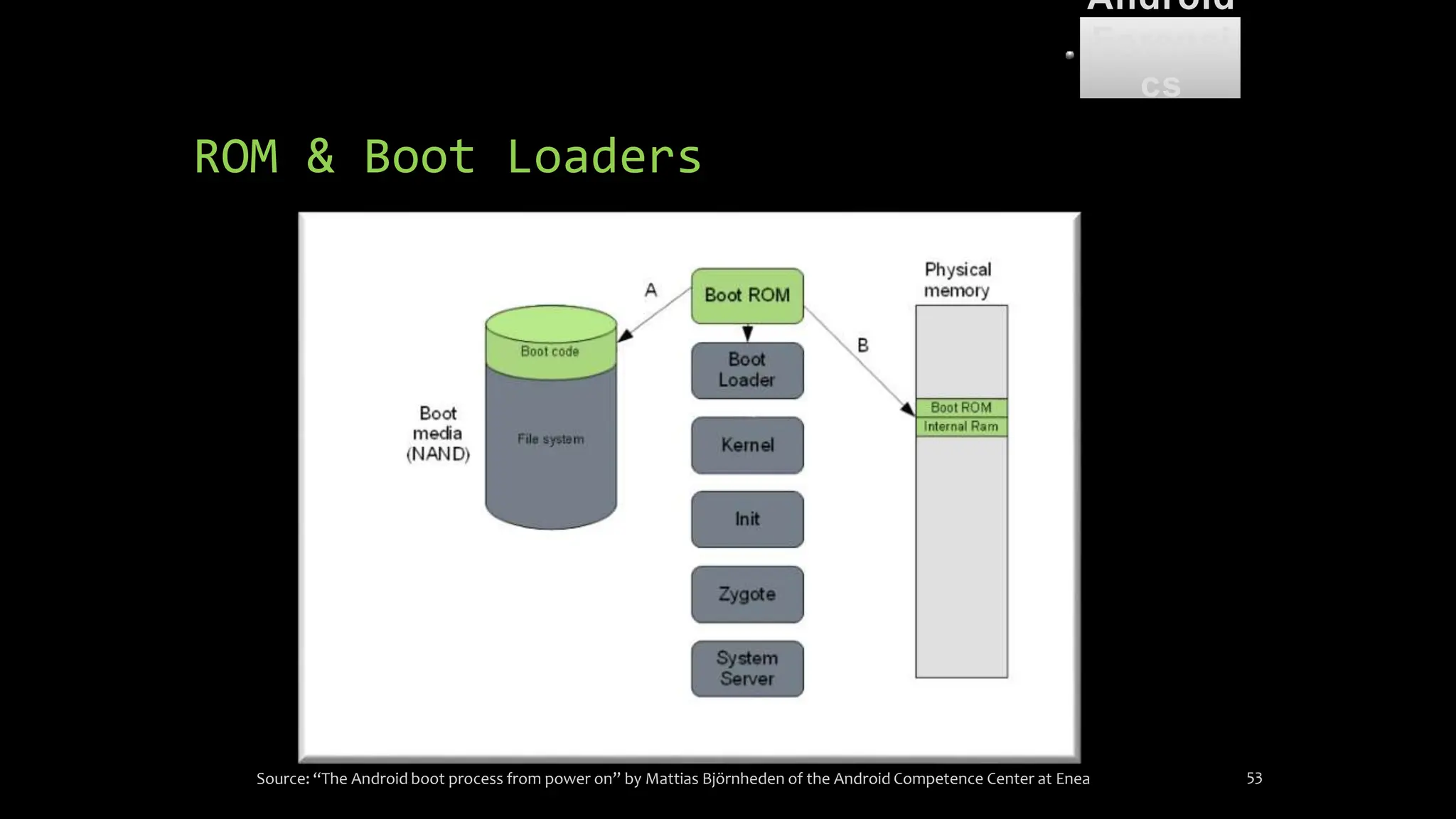

ROM & Boot Loaders Source: “The Android boot process from power on” by Mattias Björnheden of the Android Competence Center at Enea 53 Android Forensi cs

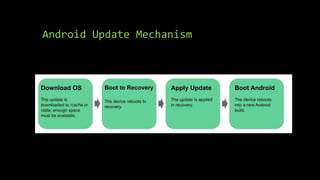

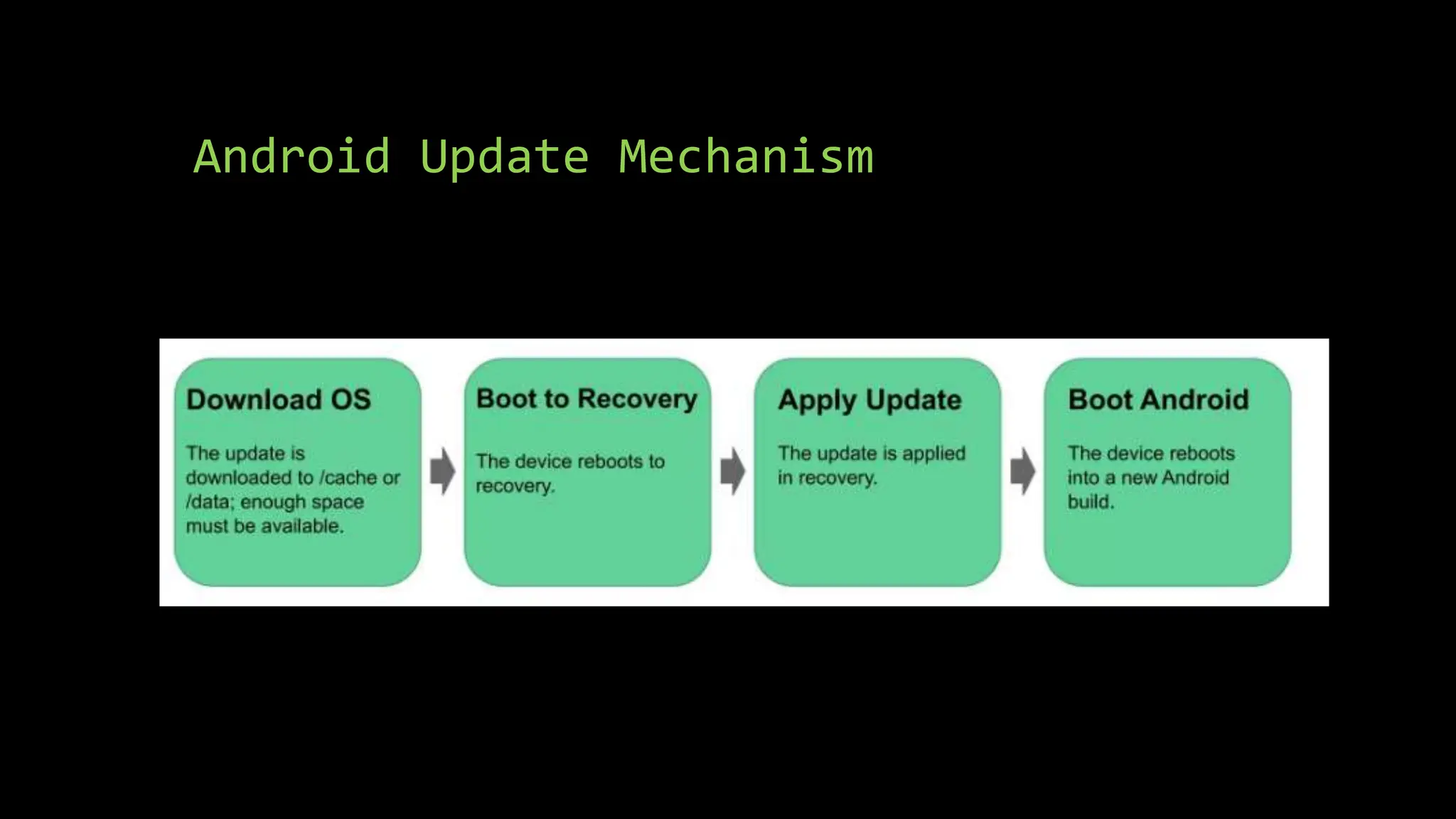

Android Update Mechanism

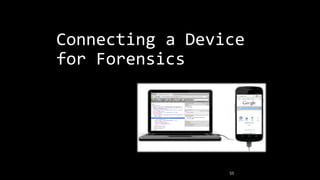

Connecting a Device for Forensics 55

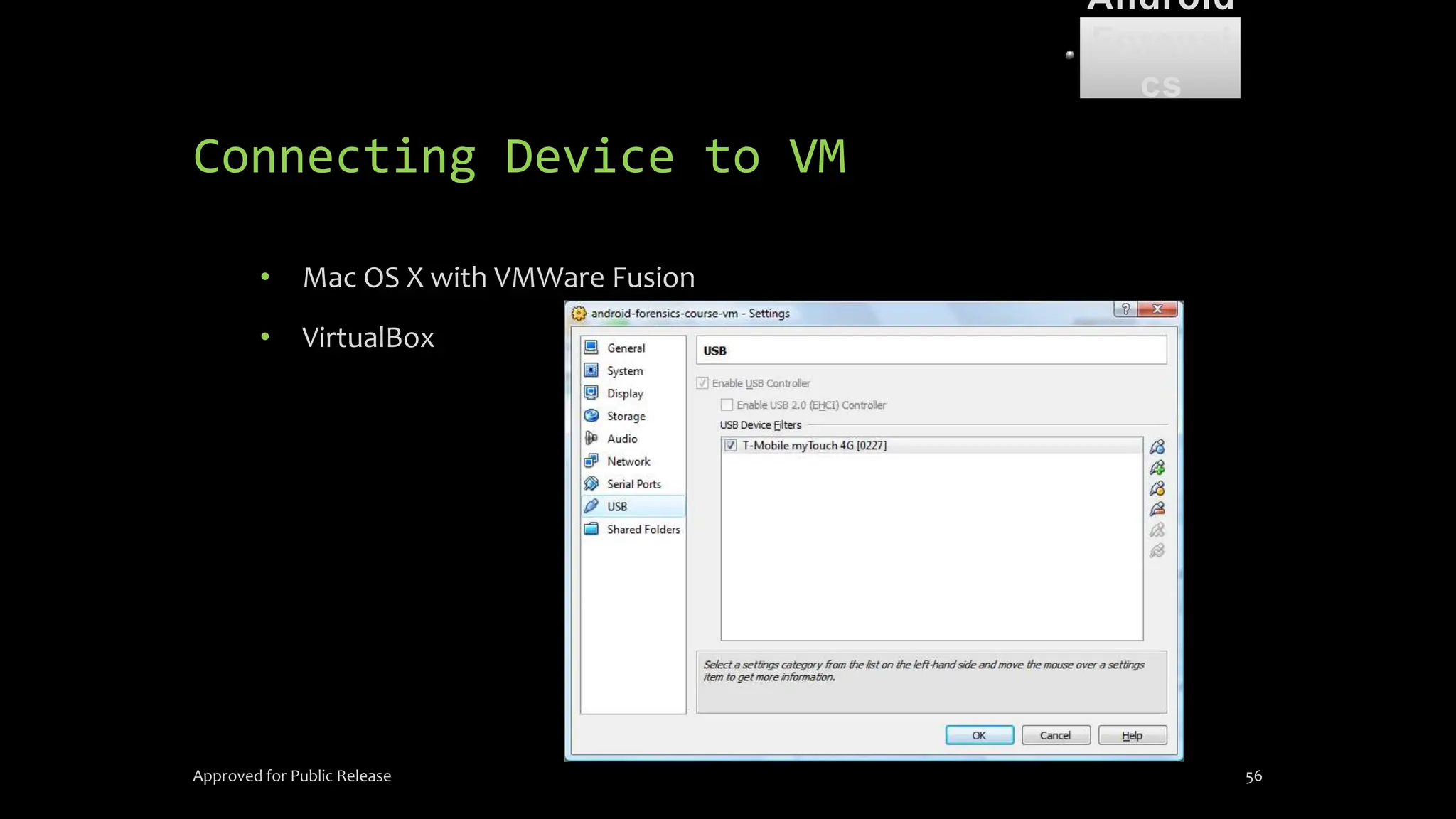

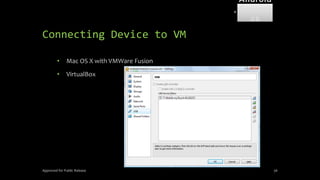

Connecting Device to VM • Mac OS X with VMWare Fusion • VirtualBox Approved for Public Release 56 Android Forensi cs

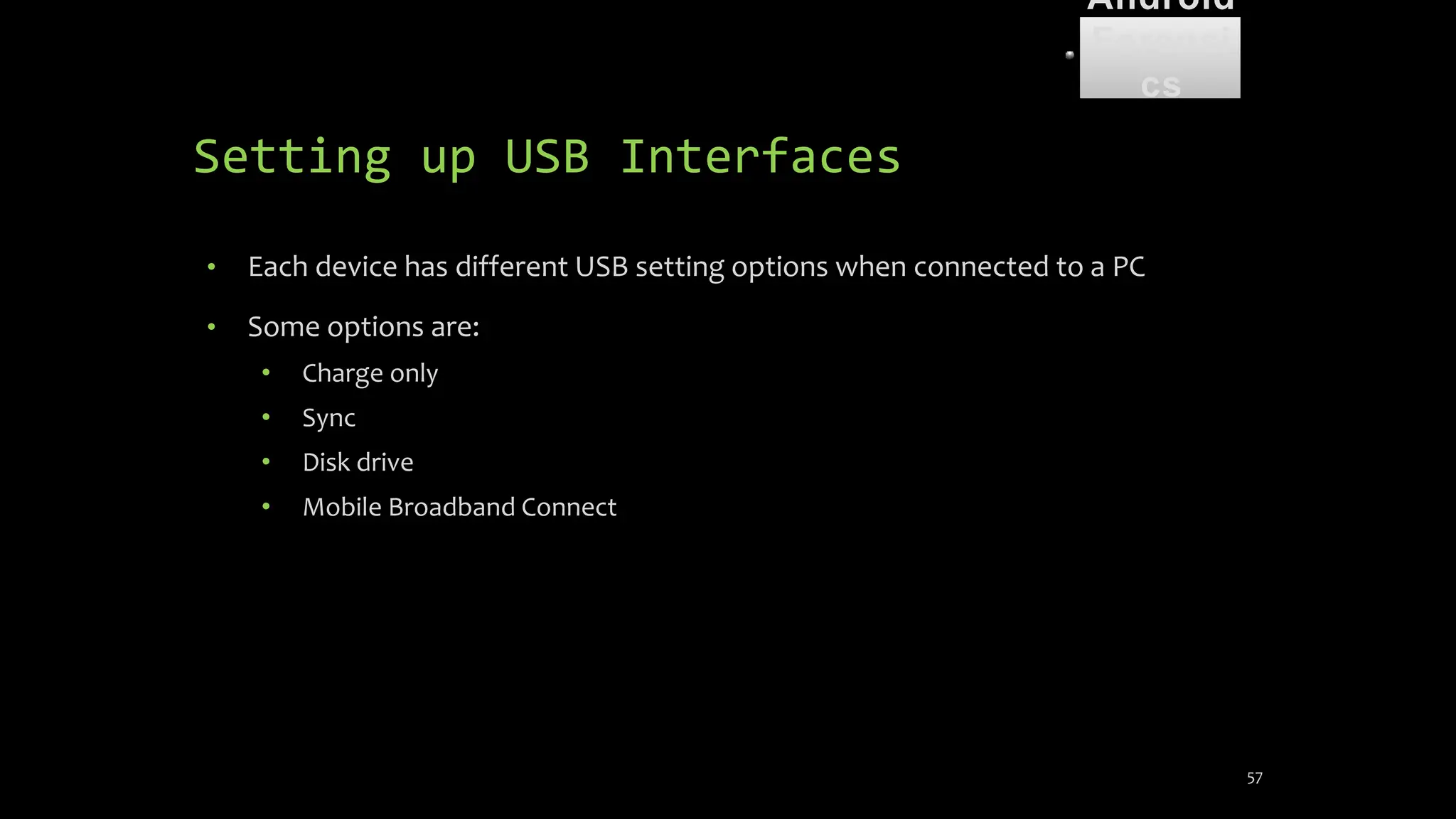

Setting up USB Interfaces • Each device has different USB setting options when connected to a PC • Some options are: • Charge only • Sync • Disk drive • Mobile Broadband Connect 57 Android Forensi cs

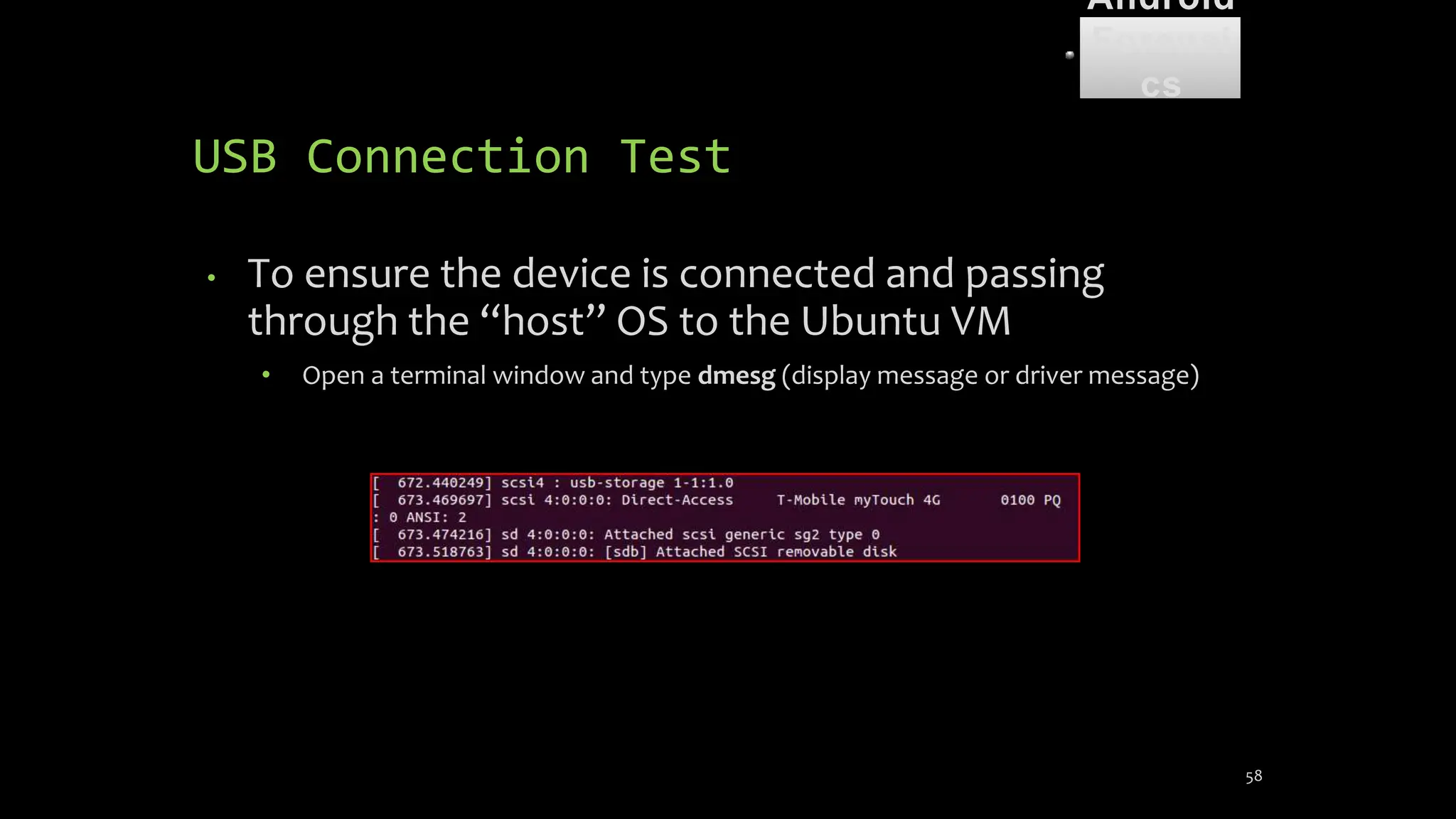

USB Connection Test • To ensure the device is connected and passing through the “host” OS to the Ubuntu VM • Open a terminal window and type dmesg (display message or driver message) 58 Android Forensi cs

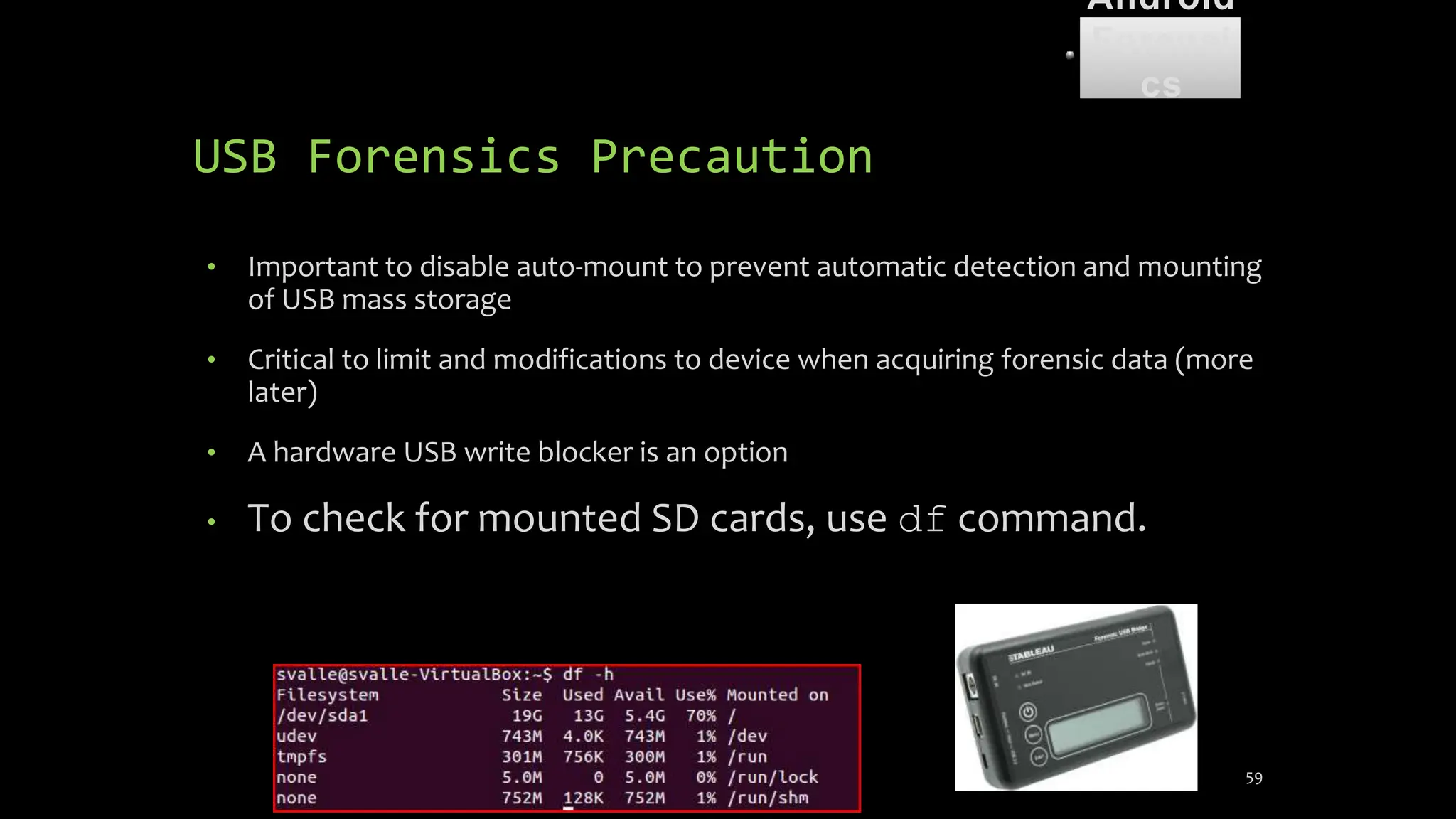

USB Forensics Precaution • Important to disable auto-mount to prevent automatic detection and mounting of USB mass storage • Critical to limit and modifications to device when acquiring forensic data (more later) • A hardware USB write blocker is an option • To check for mounted SD cards, use df command. 59 Android Forensi cs

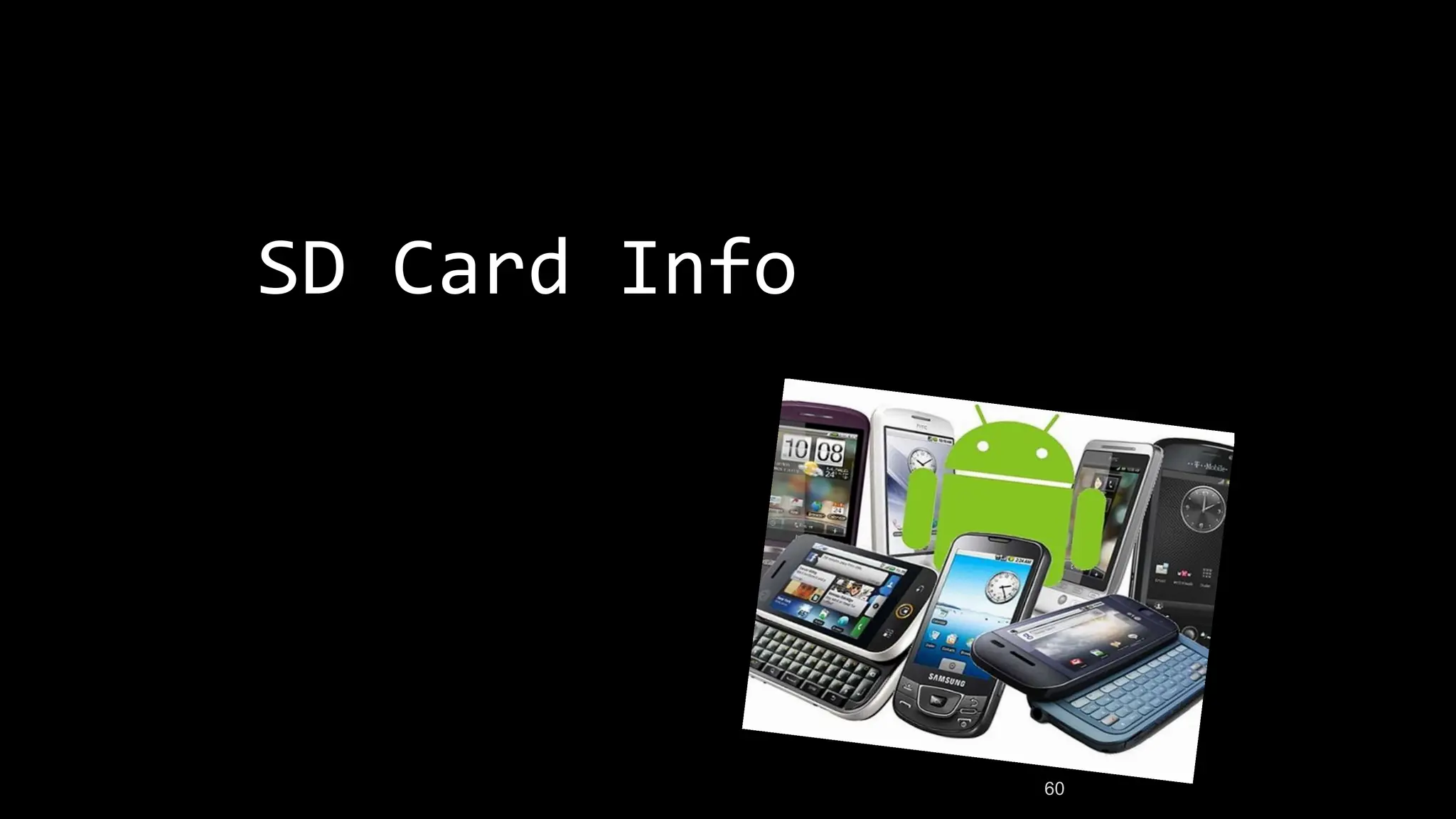

SD Card Info 60

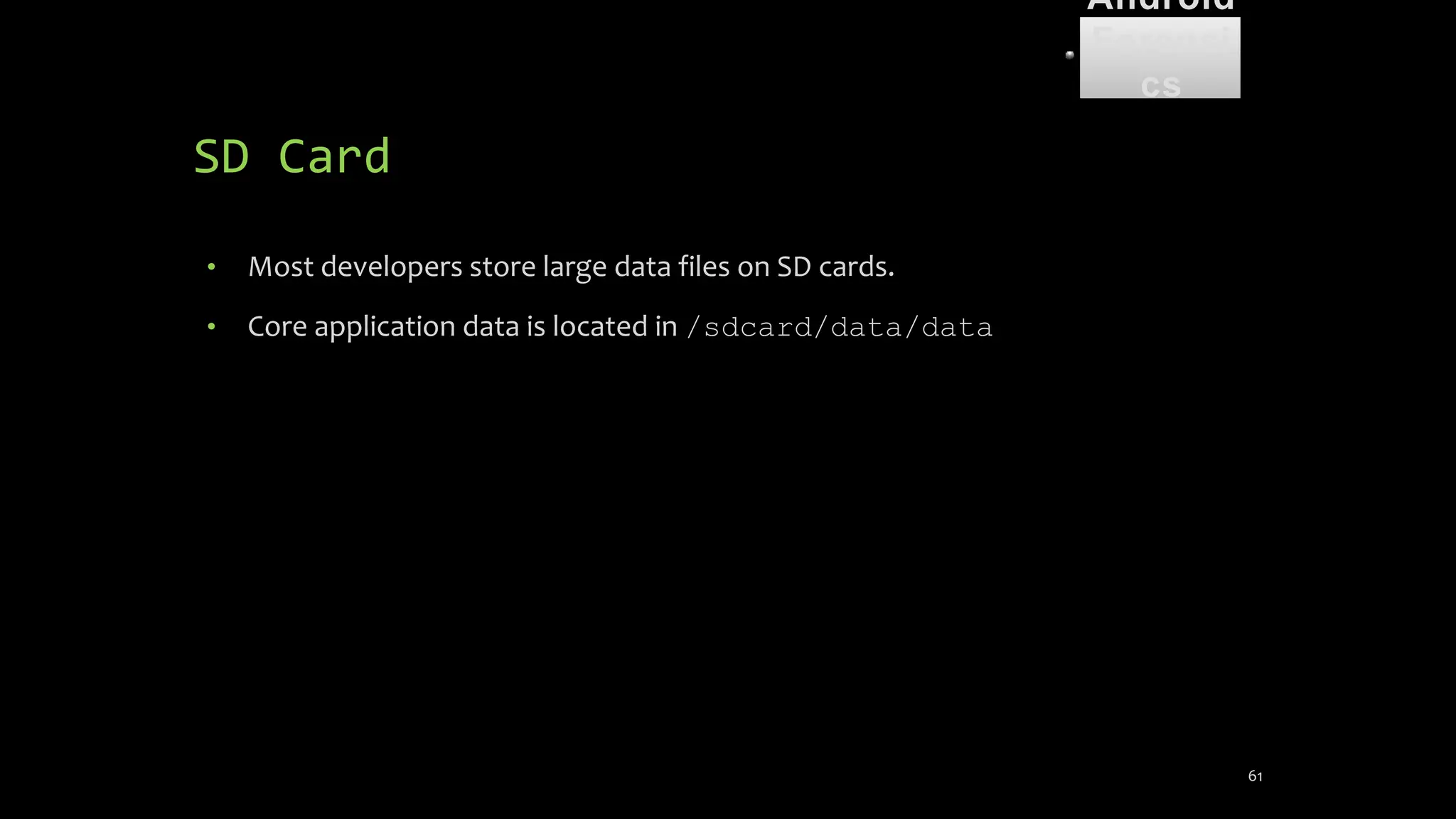

SD Card 61 • Most developers store large data files on SD cards. • Core application data is located in /sdcard/data/data Android Forensi cs

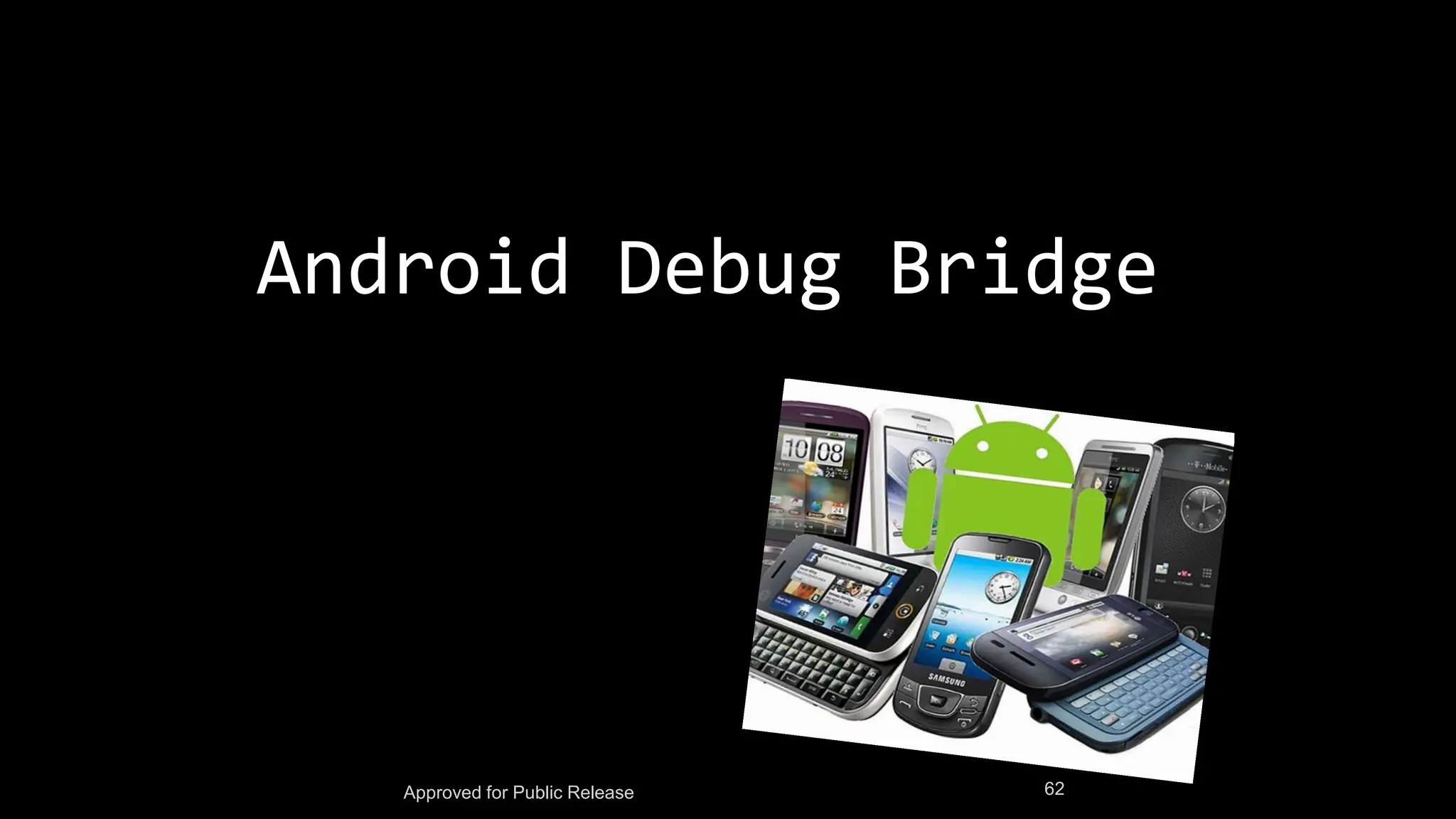

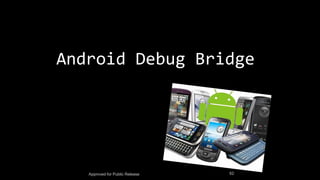

Android Debug Bridge Approved for Public Release 62

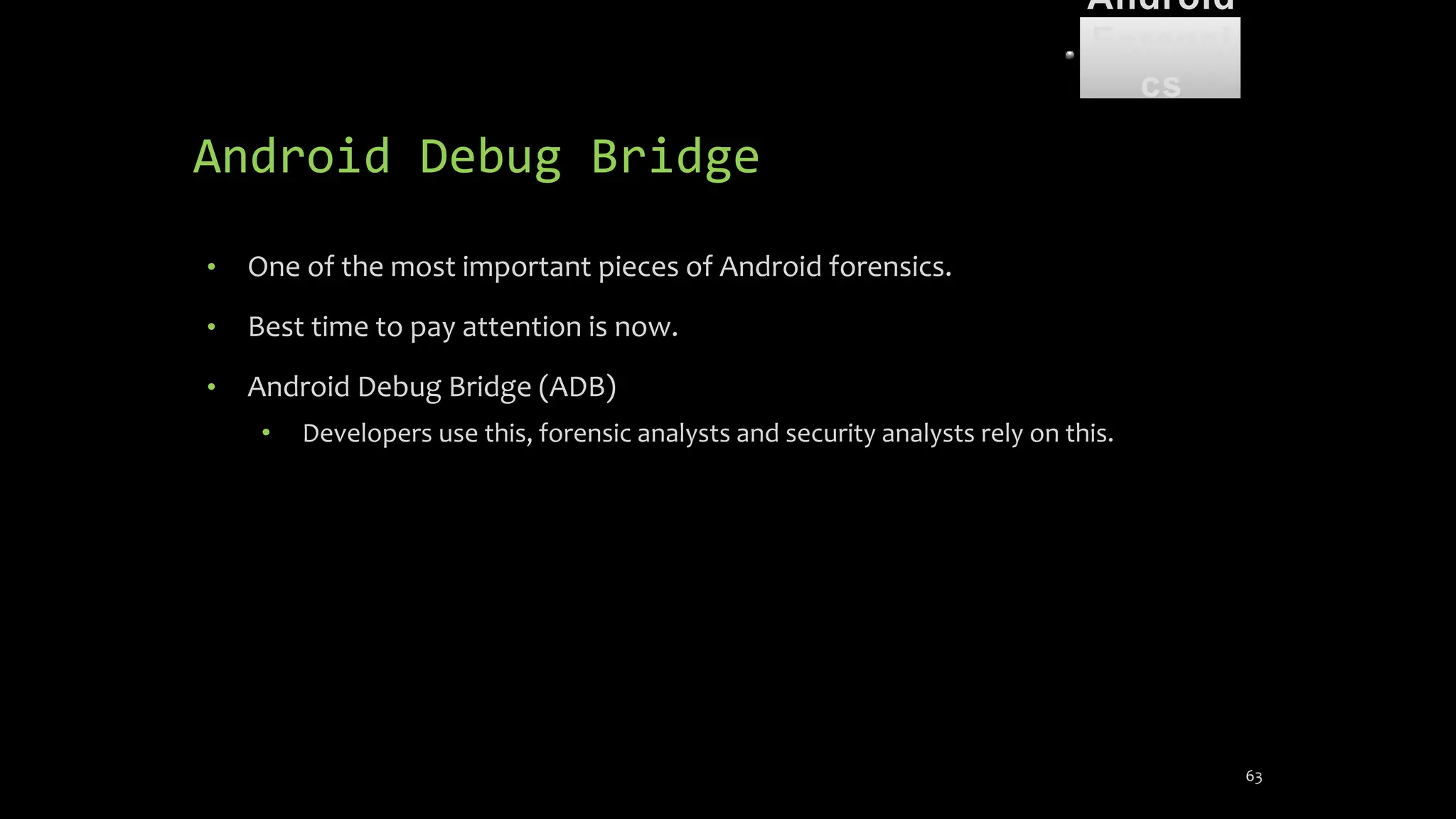

Android Debug Bridge • One of the most important pieces of Android forensics. • Best time to pay attention is now. • Android Debug Bridge (ADB) • Developers use this, forensic analysts and security analysts rely on this. 63 Android Forensi cs

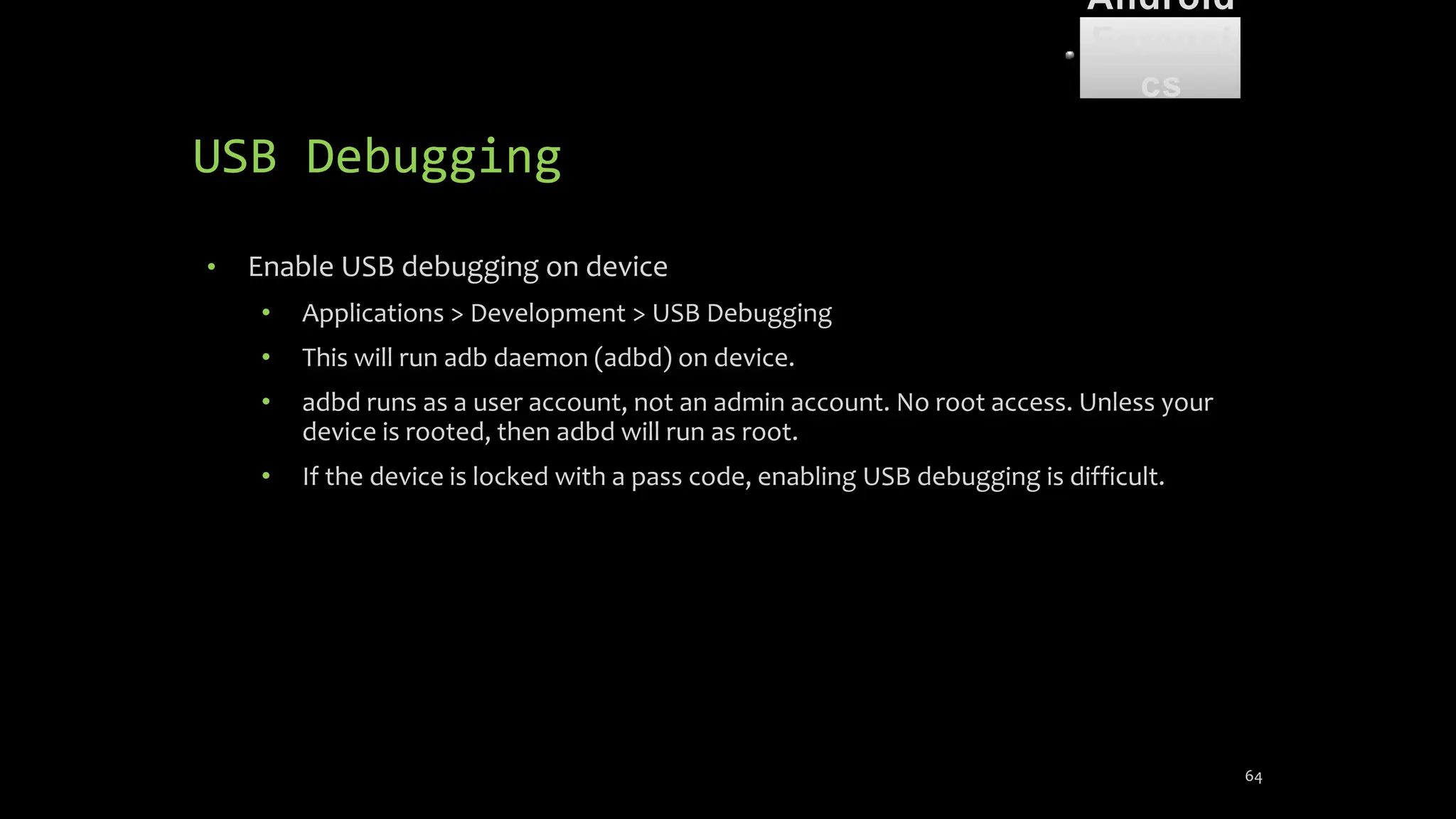

USB Debugging • Enable USB debugging on device • Applications > Development > USB Debugging • This will run adb daemon (adbd) on device. • adbd runs as a user account, not an admin account. No root access. Unless your device is rooted, then adbd will run as root. • If the device is locked with a pass code, enabling USB debugging is difficult. 64 Android Forensi cs

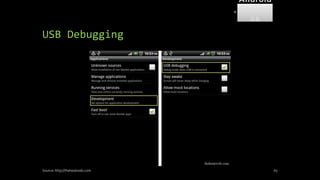

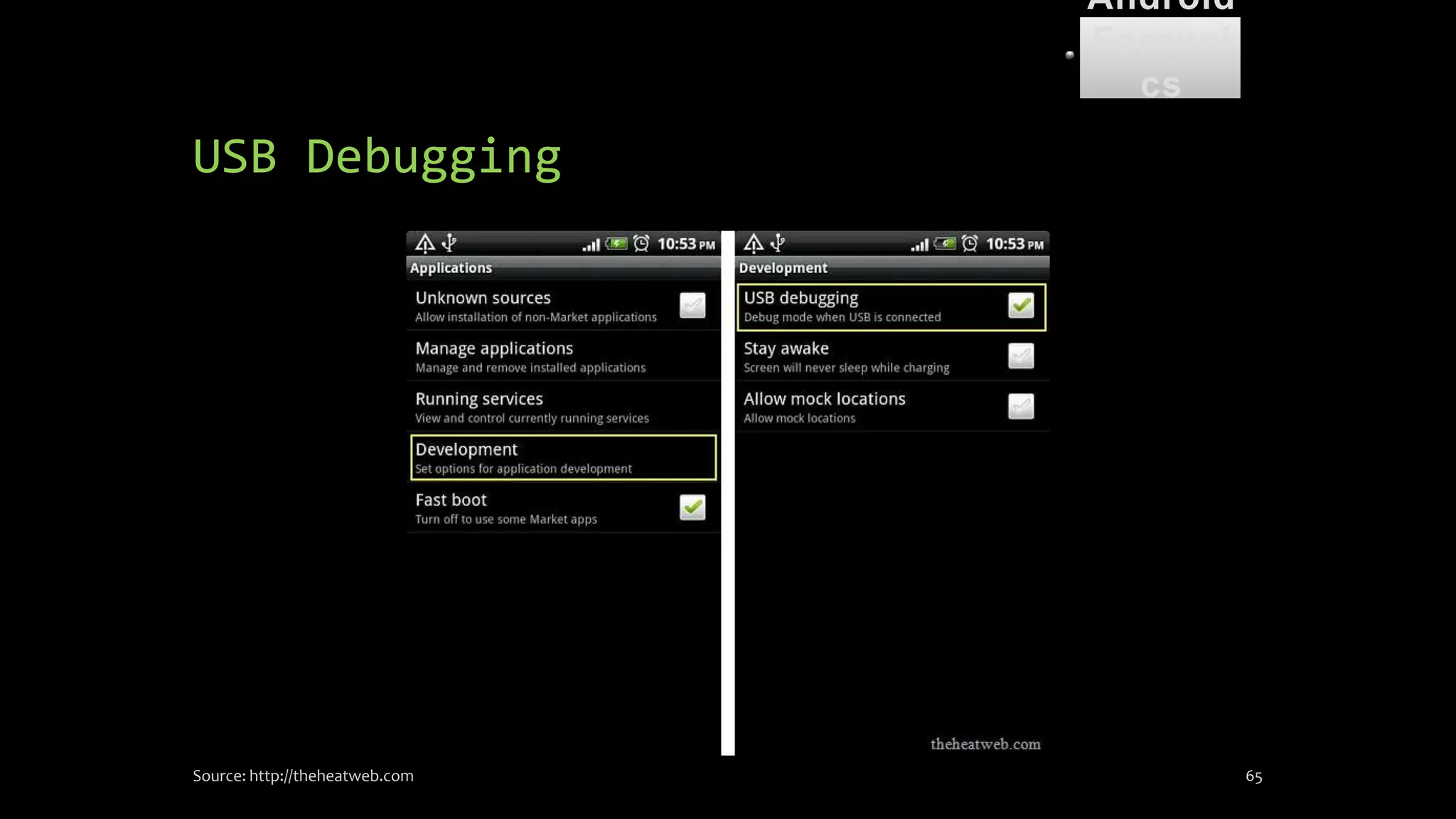

USB Debugging Source: http://theheatweb.com 65 Android Forensi cs
USB Debugging • Enable USB debugging on device • Applications > Development > USB Debugging • This will run adb daemon (adbd) on device. • adbd runs as a user account, not an admin account. No root access. Unless your device is rooted, then adbd will run as root. • If the device is locked with a pass code, enabling USB debugging is difficult. Approved for Public Release 66 Android Forensi cs

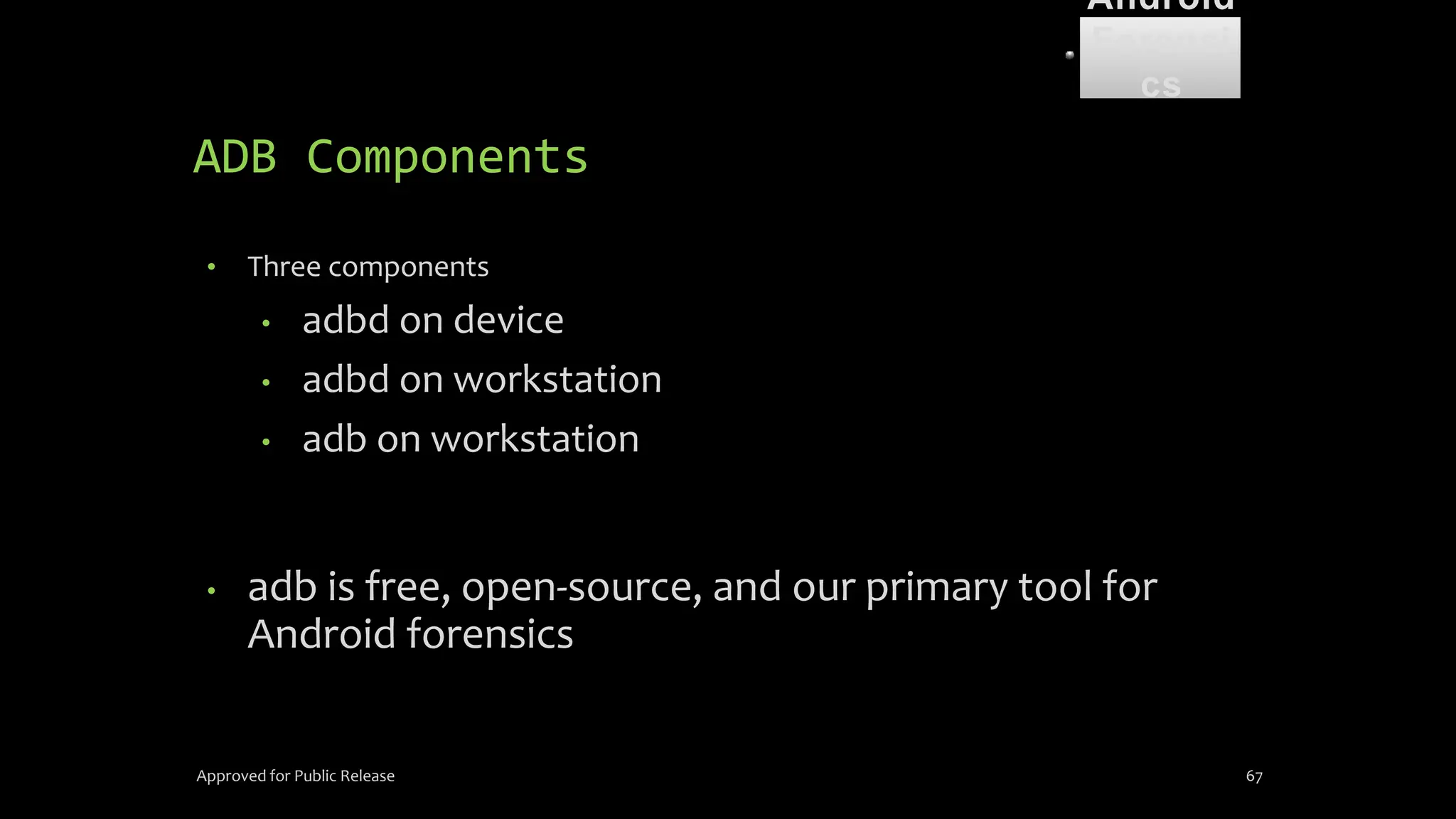

ADB Components • Three components • adbd on device • adbd on workstation • adb on workstation • adb is free, open-source, and our primary tool for Android forensics Approved for Public Release 67 Android Forensi cs

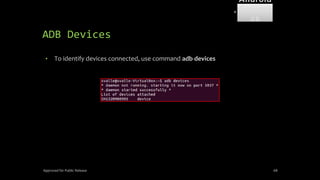

ADB Devices • To identify devices connected, use command adb devices Approved for Public Release 68 Android Forensi cs

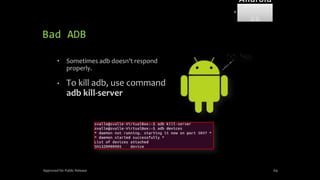

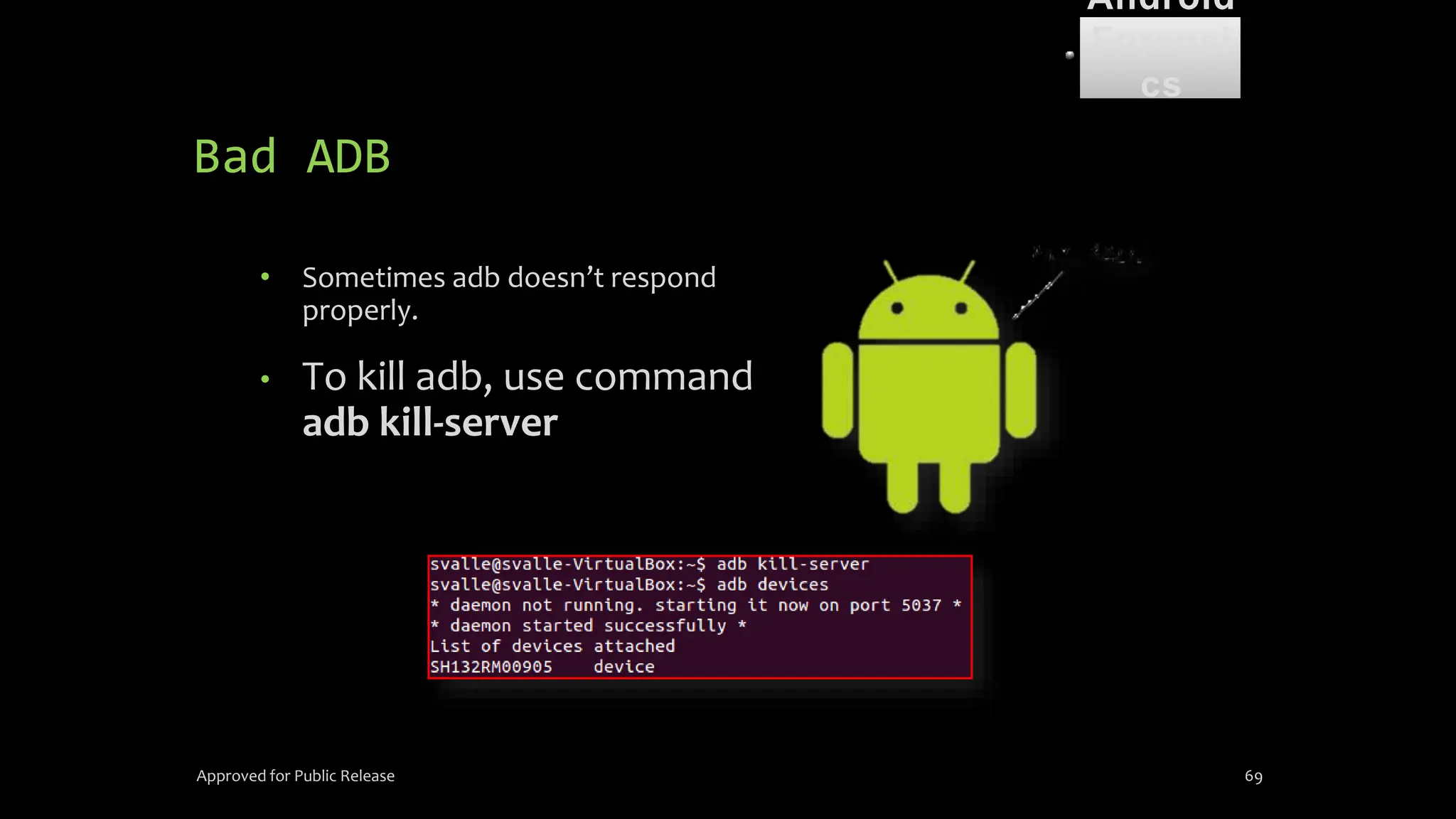

Bad ADB • Sometimes adb doesn’t respond properly. • To kill adb, use command adb kill-server Approved for Public Release 69 Android Forensi cs

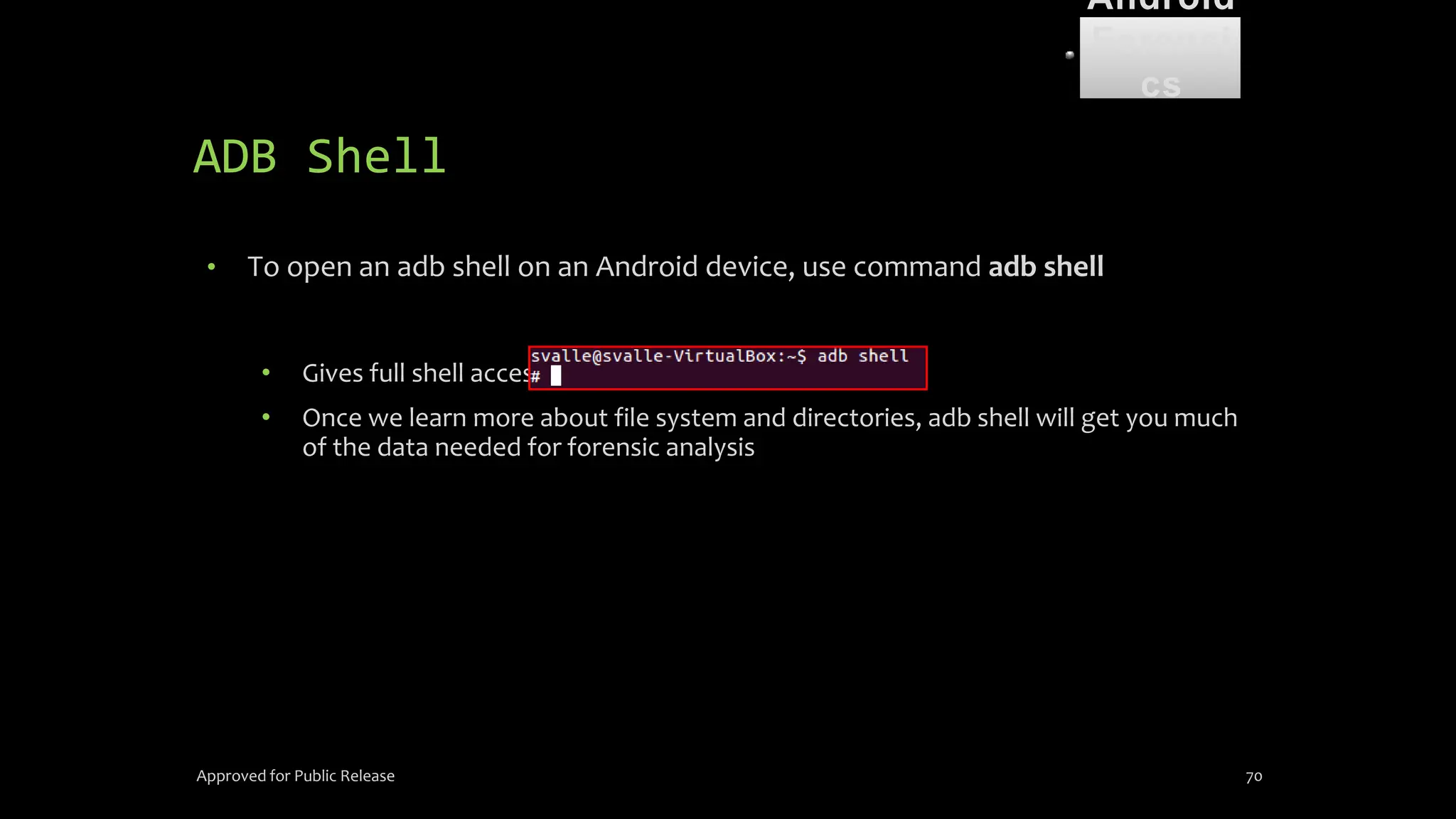

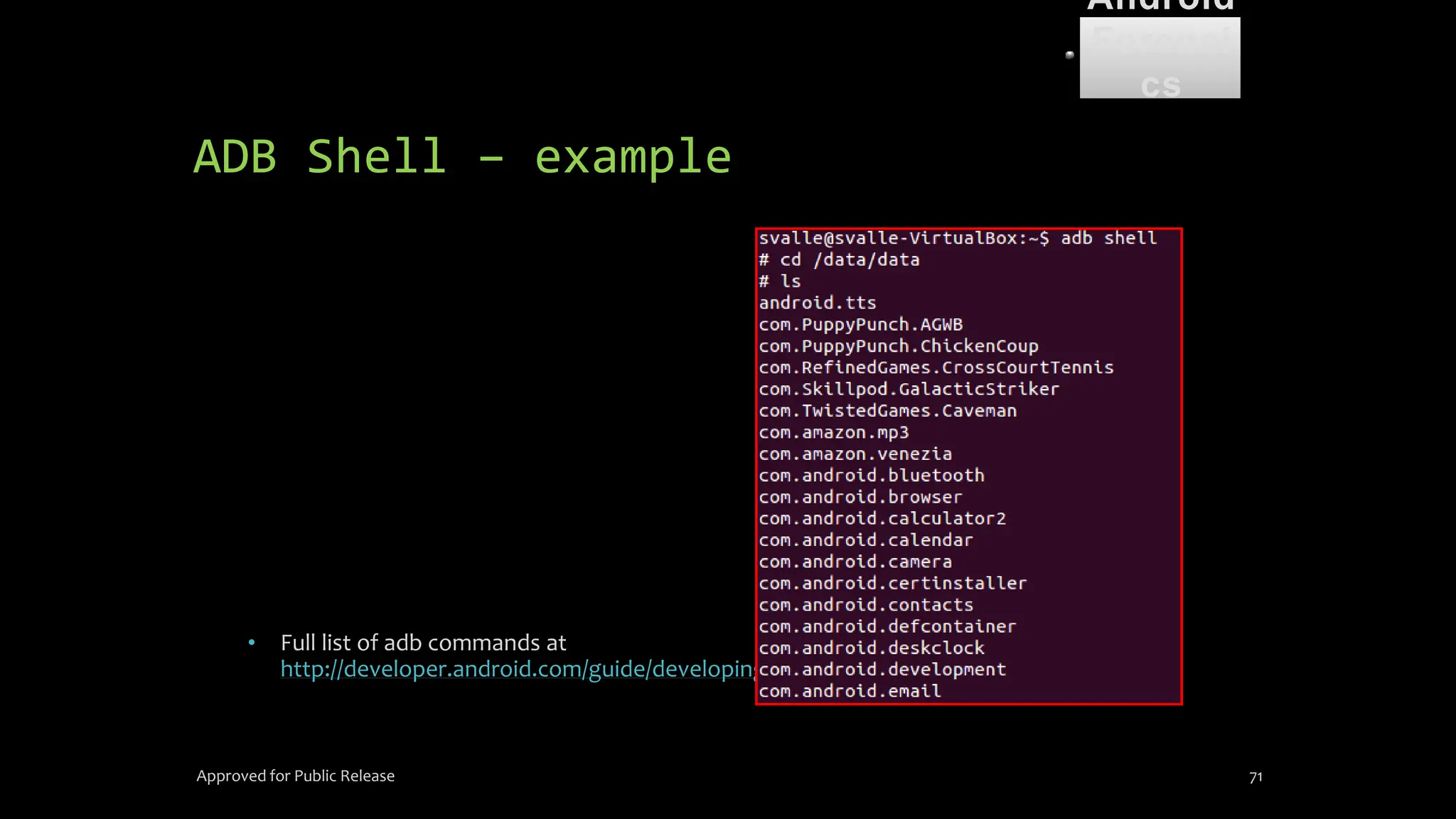

ADB Shell • To open an adb shell on an Android device, use command adb shell • Gives full shell access directly on device. • Once we learn more about file system and directories, adb shell will get you much of the data needed for forensic analysis Approved for Public Release 70 Android Forensi cs
• Full list of adb commands at http://developer.android.com/guide/developing/tools/adb.html ADB Shell – example Approved for Public Release 71 Android Forensi cs

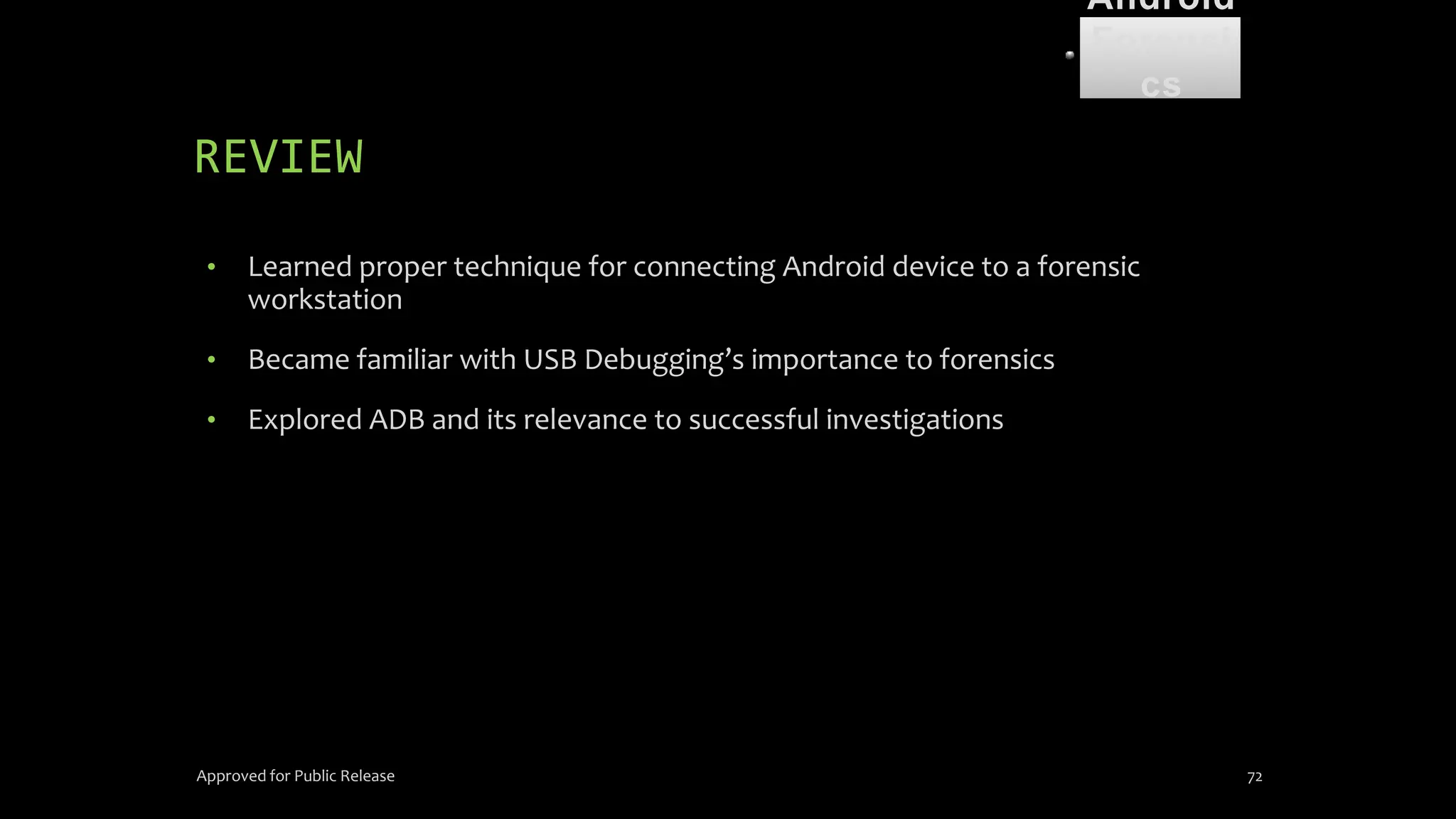

REVIEW • Learned proper technique for connecting Android device to a forensic workstation • Became familiar with USB Debugging’s importance to forensics • Explored ADB and its relevance to successful investigations Approved for Public Release 72 Android Forensi cs

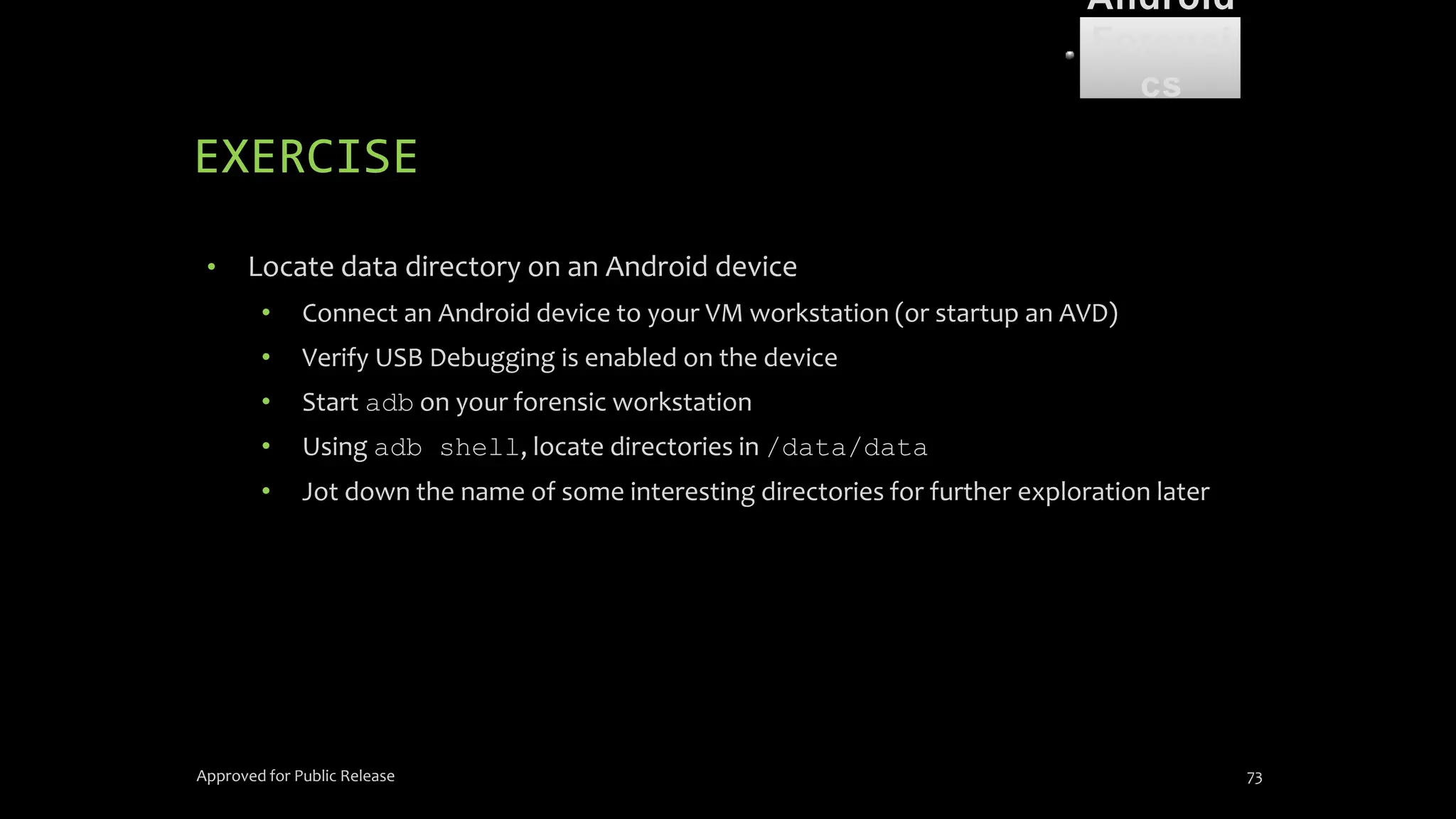

EXERCISE • Locate data directory on an Android device • Connect an Android device to your VM workstation (or startup an AVD) • Verify USB Debugging is enabled on the device • Start adb on your forensic workstation • Using adb shell, locate directories in /data/data • Jot down the name of some interesting directories for further exploration later Approved for Public Release 73 Android Forensi cs
File System & Data Approved for Public Release 74

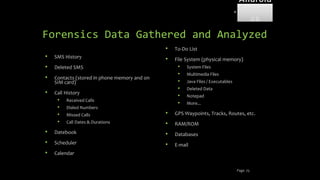

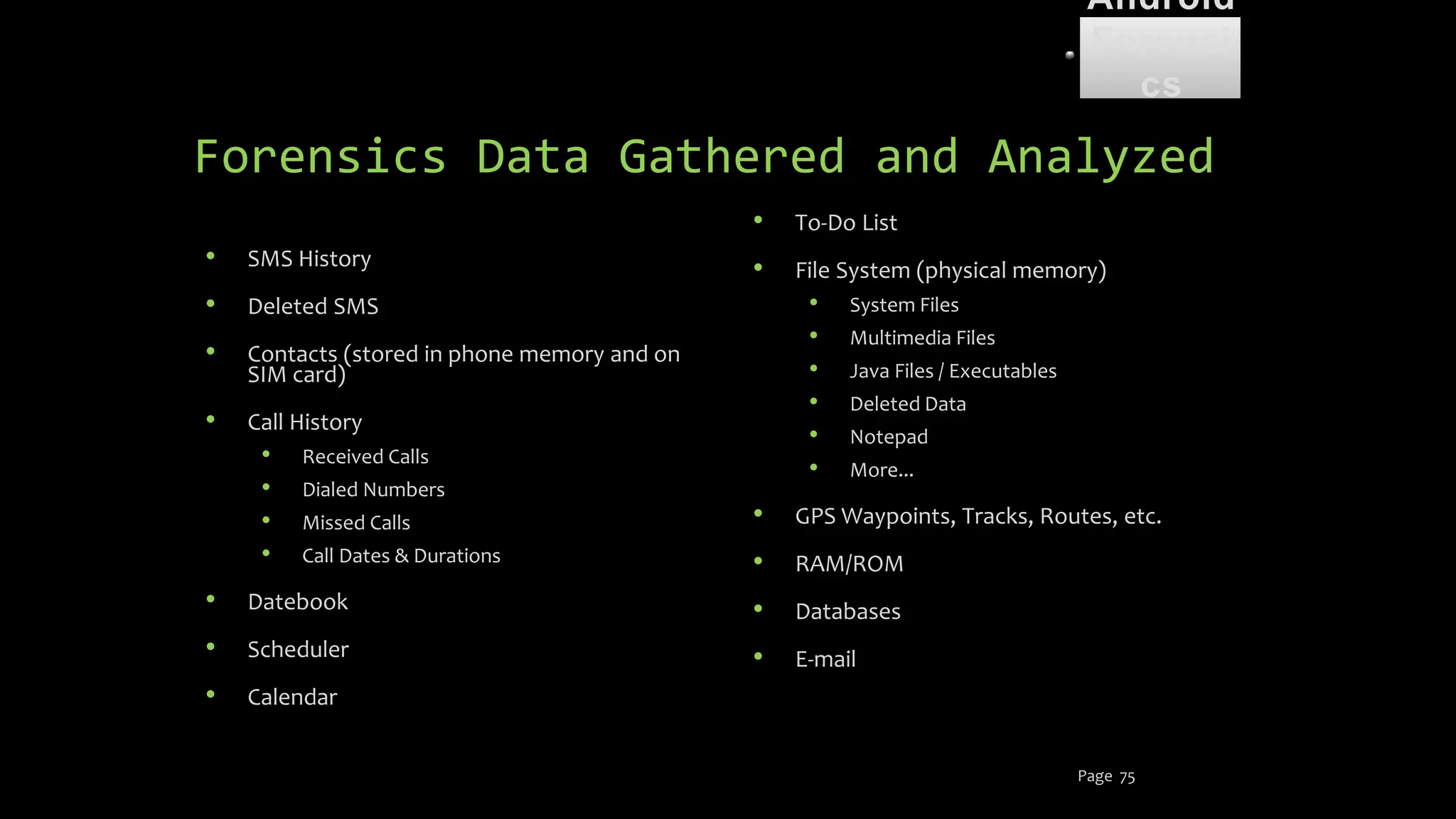

• SMS History • Deleted SMS • Contacts (stored in phone memory and on SIM card) • Call History • Received Calls • Dialed Numbers • Missed Calls • Call Dates & Durations • Datebook • Scheduler • Calendar • To-Do List • File System (physical memory) • System Files • Multimedia Files • Java Files / Executables • Deleted Data • Notepad • More... • GPS Waypoints, Tracks, Routes, etc. • RAM/ROM • Databases • E-mail Page 75 Forensics Data Gathered and Analyzed Android Forensi cs
File System & Data Overview • File Systems • Data Storage • What Data? • Important Directories • Five Data Storage Methods • Shared Preferences • Internal Storage • External Storage • SQLite • Network • Where else? Linux Kernel & Android Stack • dmesg • logcat • Forensically Thinking Approved for Public Release 76 Android Forensi cs

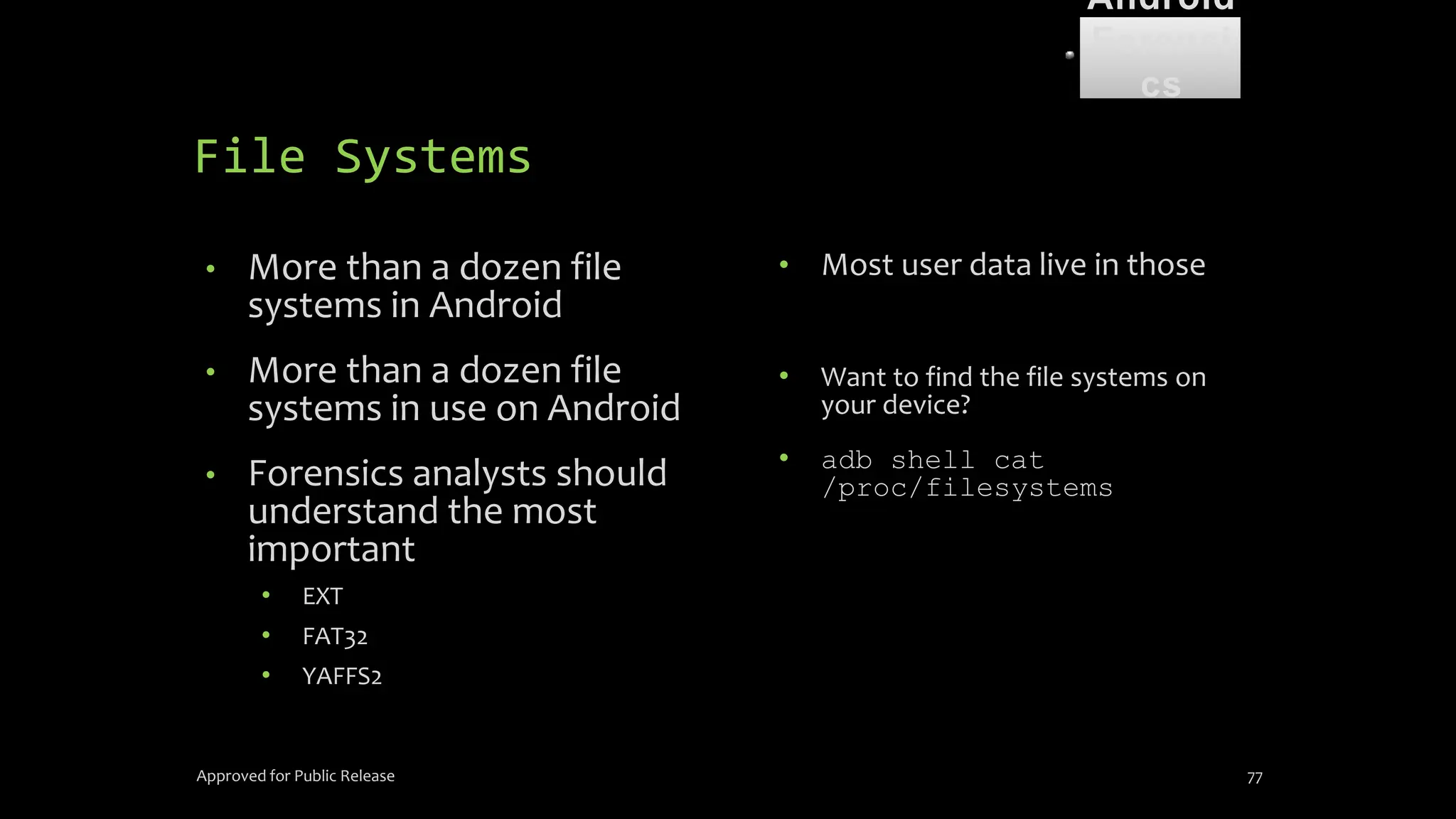

File Systems • More than a dozen file systems in Android • More than a dozen file systems in use on Android • Forensics analysts should understand the most important • EXT • FAT32 • YAFFS2 • Most user data live in those • Want to find the file systems on your device? • adb shell cat /proc/filesystems Approved for Public Release 77 Android Forensi cs

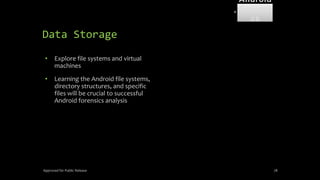

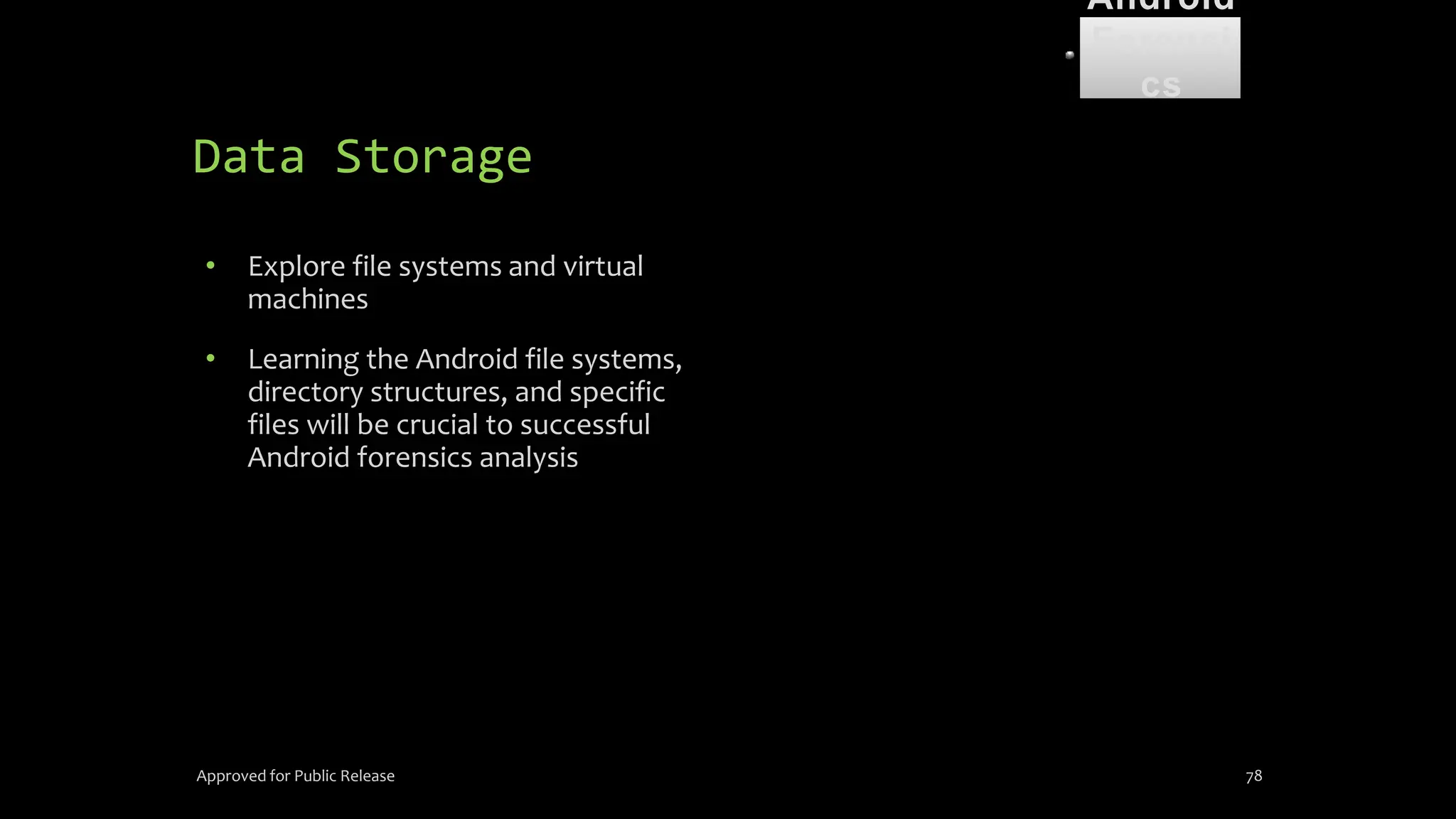

Data Storage • Explore file systems and virtual machines • Learning the Android file systems, directory structures, and specific files will be crucial to successful Android forensics analysis Approved for Public Release 78 Android Forensi cs

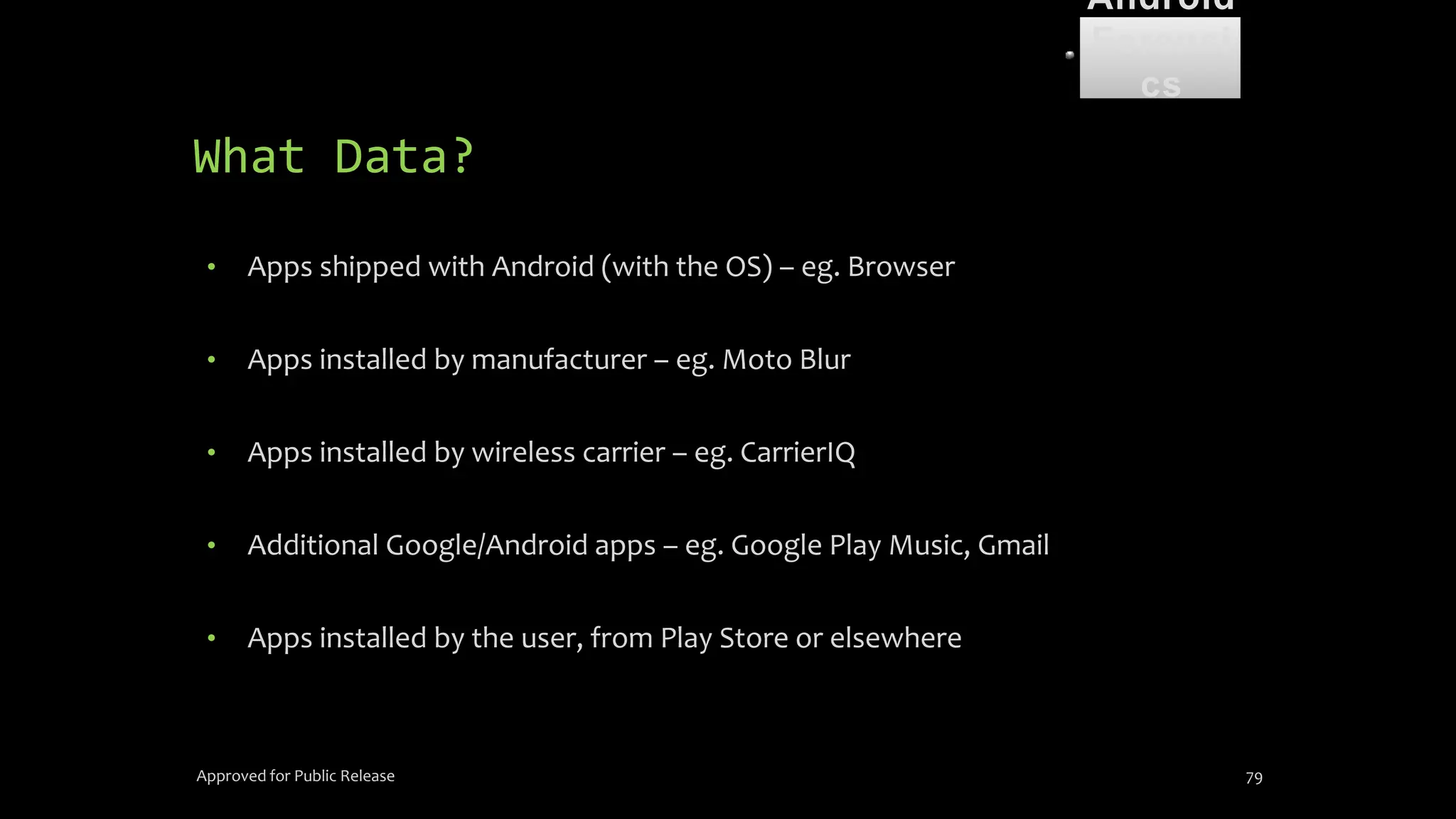

What Data? • Apps shipped with Android (with the OS) – eg. Browser • Apps installed by manufacturer – eg. Moto Blur • Apps installed by wireless carrier – eg. CarrierIQ • Additional Google/Android apps – eg. Google Play Music, Gmail • Apps installed by the user, from Play Store or elsewhere Approved for Public Release 79 Android Forensi cs

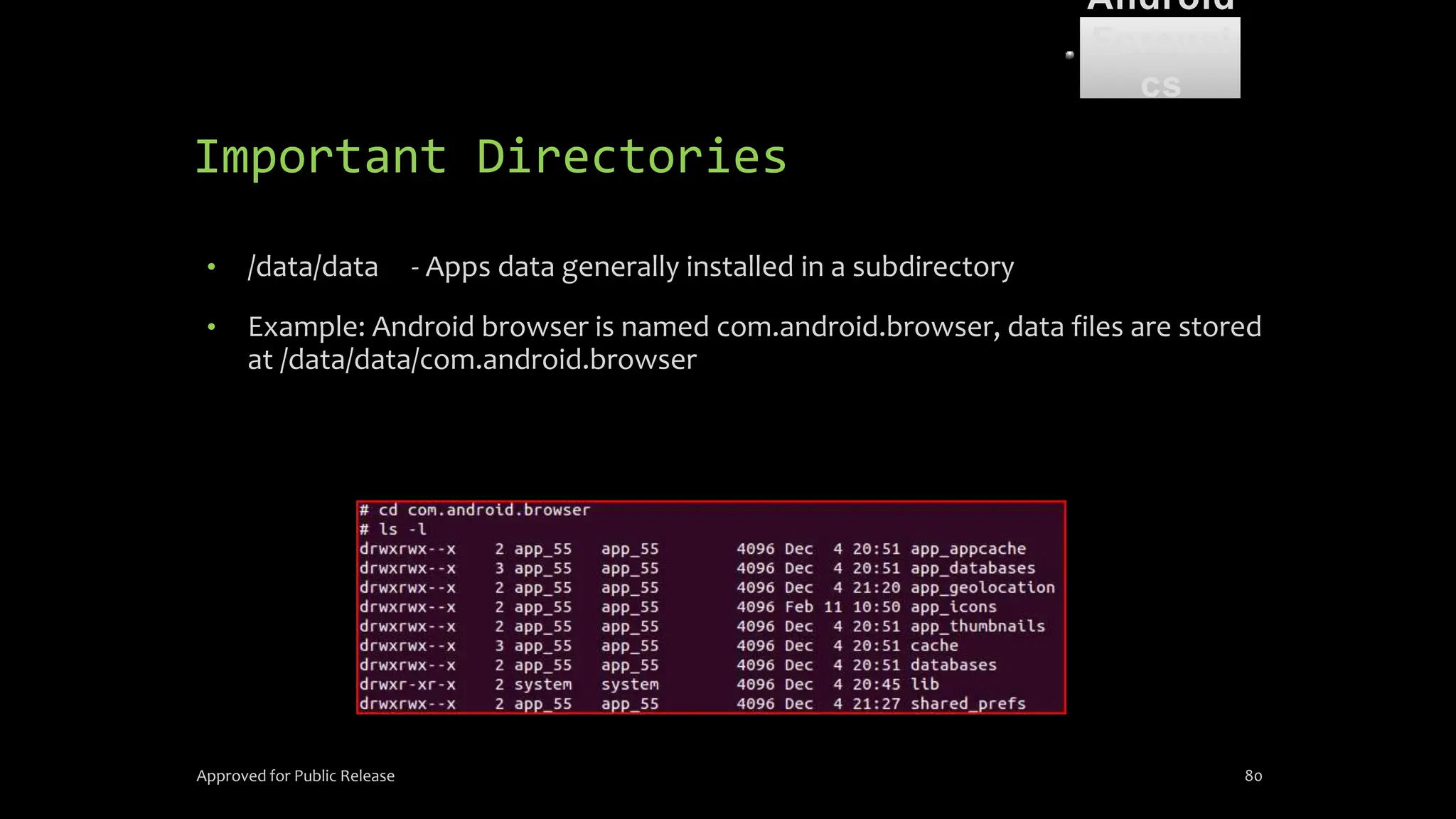

Important Directories • /data/data - Apps data generally installed in a subdirectory • Example: Android browser is named com.android.browser, data files are stored at /data/data/com.android.browser Approved for Public Release 80 Android Forensi cs

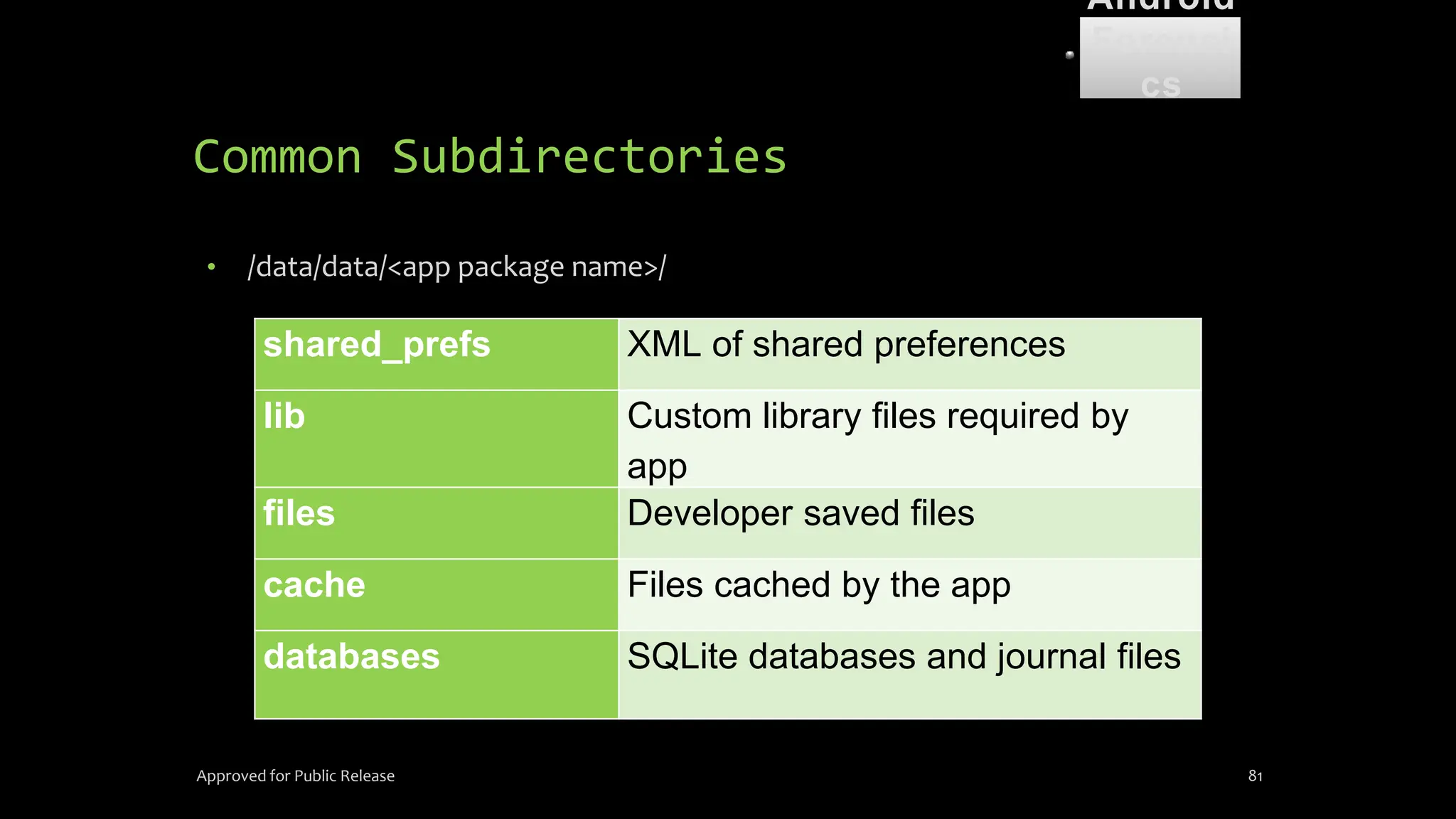

Common Subdirectories • /data/data/<app package name>/ Approved for Public Release 81 shared_prefs XML of shared preferences lib Custom library files required by app files Developer saved files cache Files cached by the app databases SQLite databases and journal files Android Forensi cs

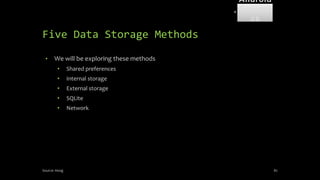

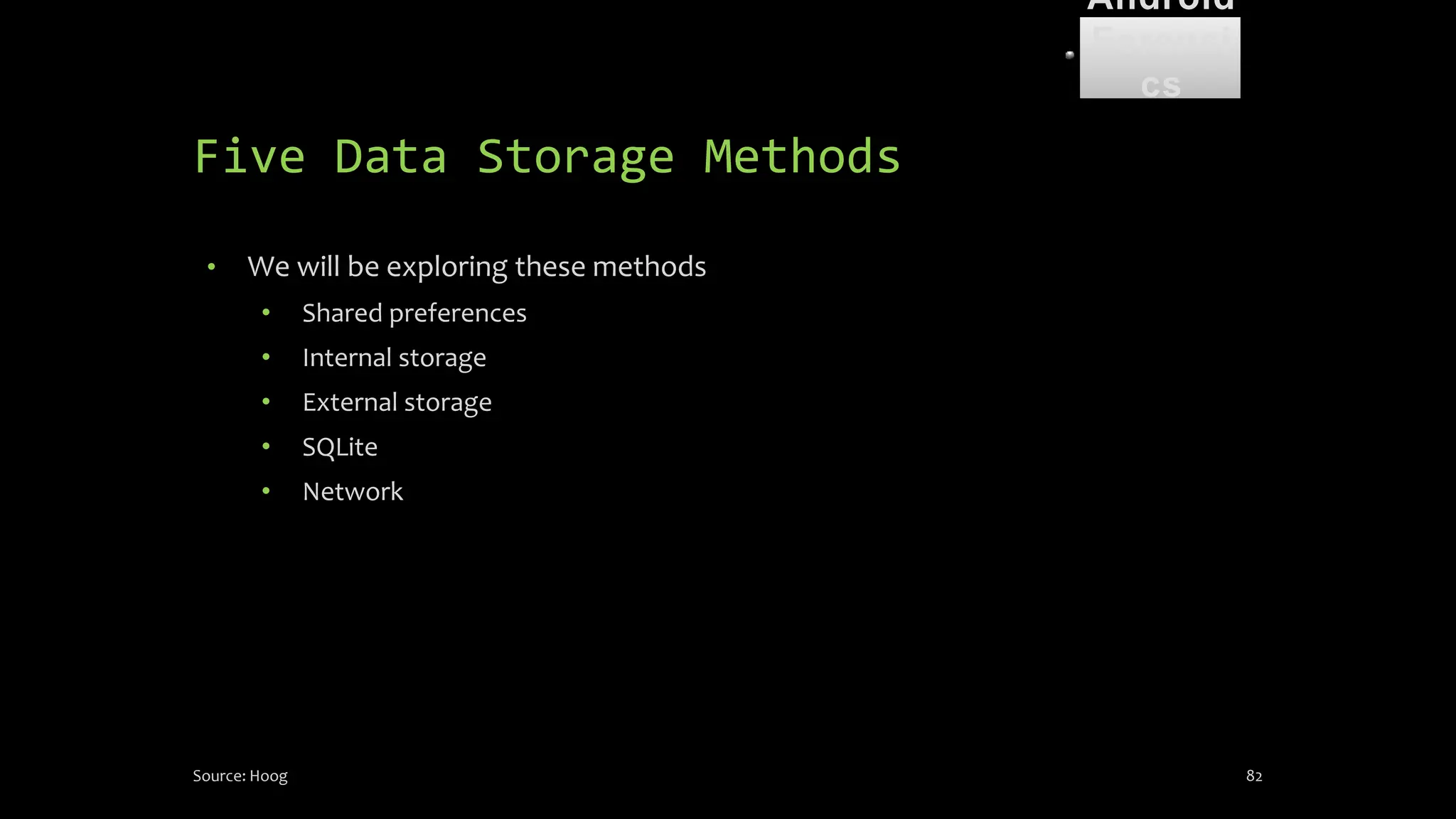

Five Data Storage Methods • We will be exploring these methods • Shared preferences • Internal storage • External storage • SQLite • Network Source: Hoog 82 Android Forensi cs

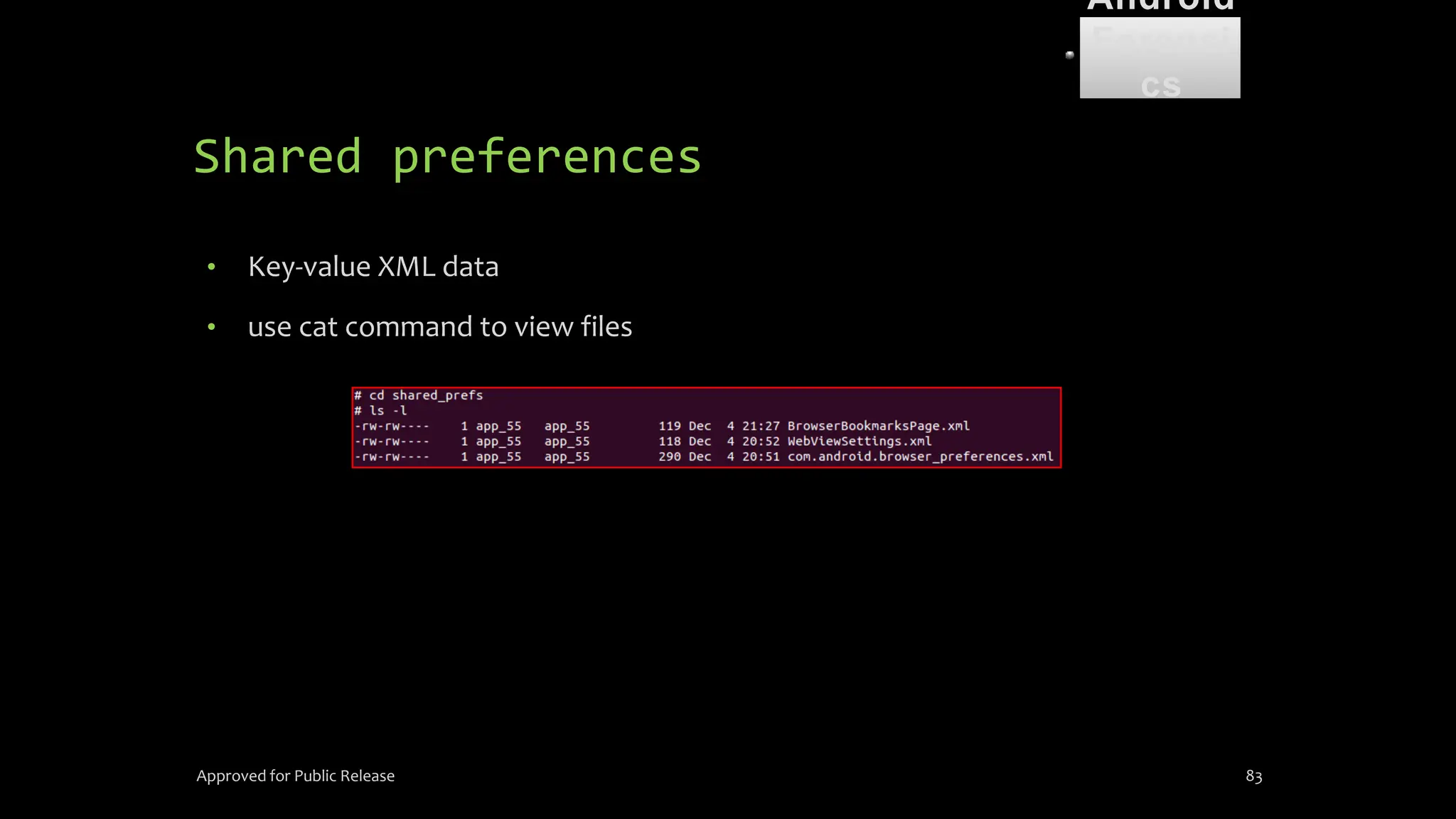

Shared preferences • Key-value XML data • use cat command to view files Approved for Public Release 83 Android Forensi cs

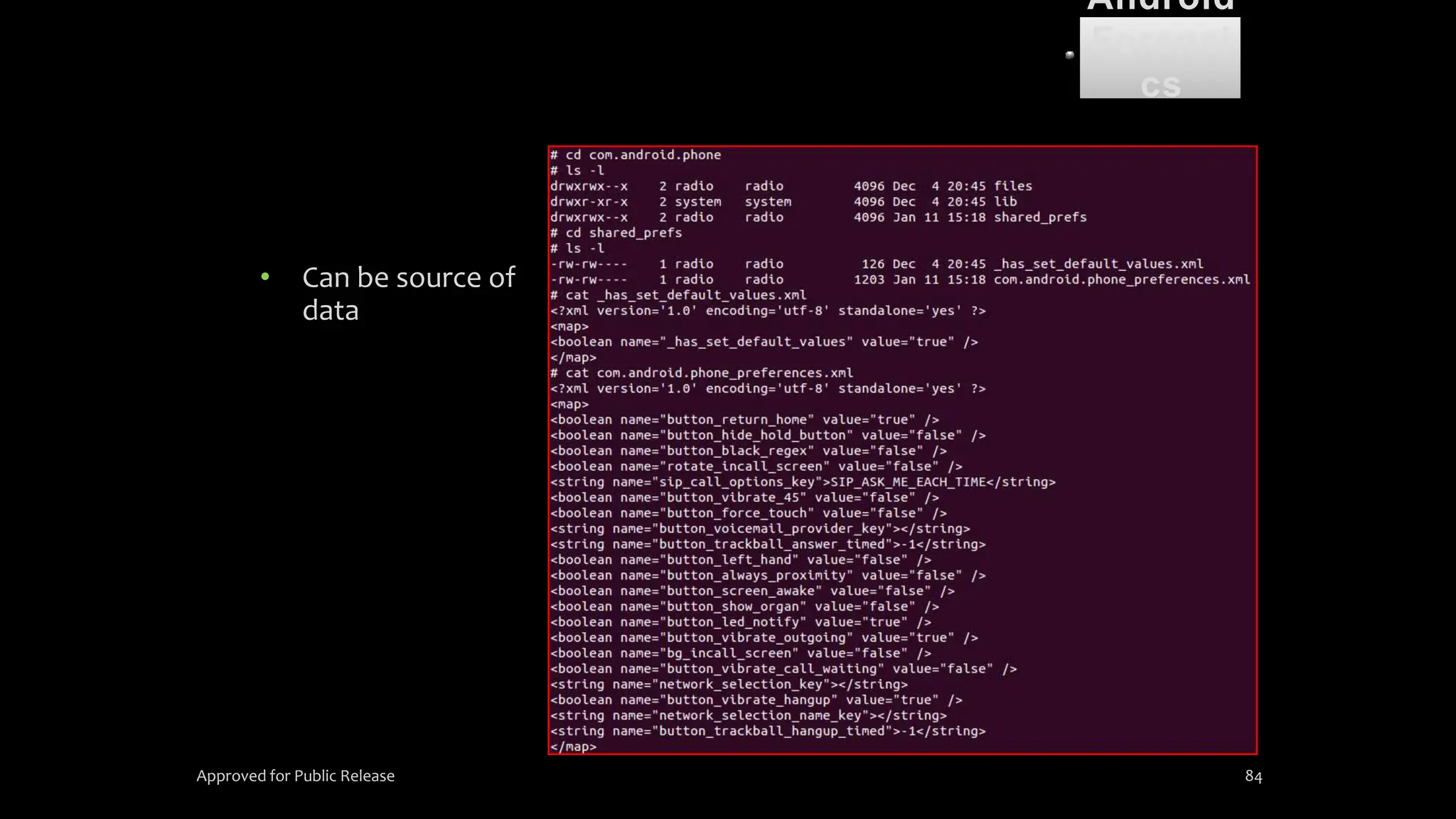

• Can be source of data Approved for Public Release 84 Android Forensi cs

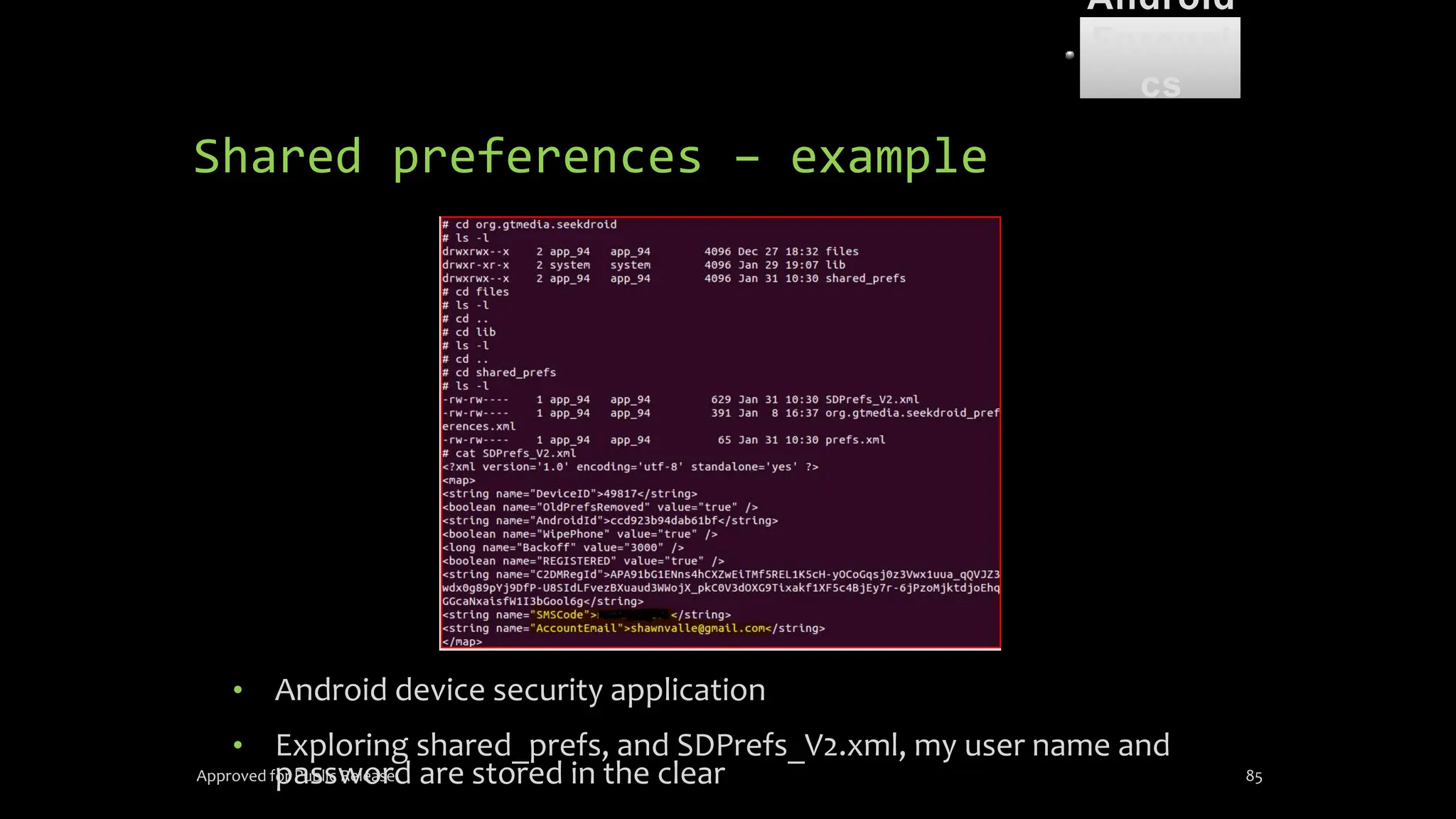

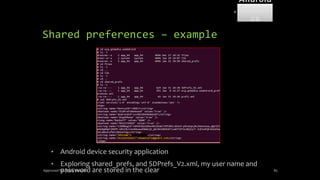

Shared preferences – example • Android device security application • Exploring shared_prefs, and SDPrefs_V2.xml, my user name and password are stored in the clear Approved for Public Release 85 Android Forensi cs

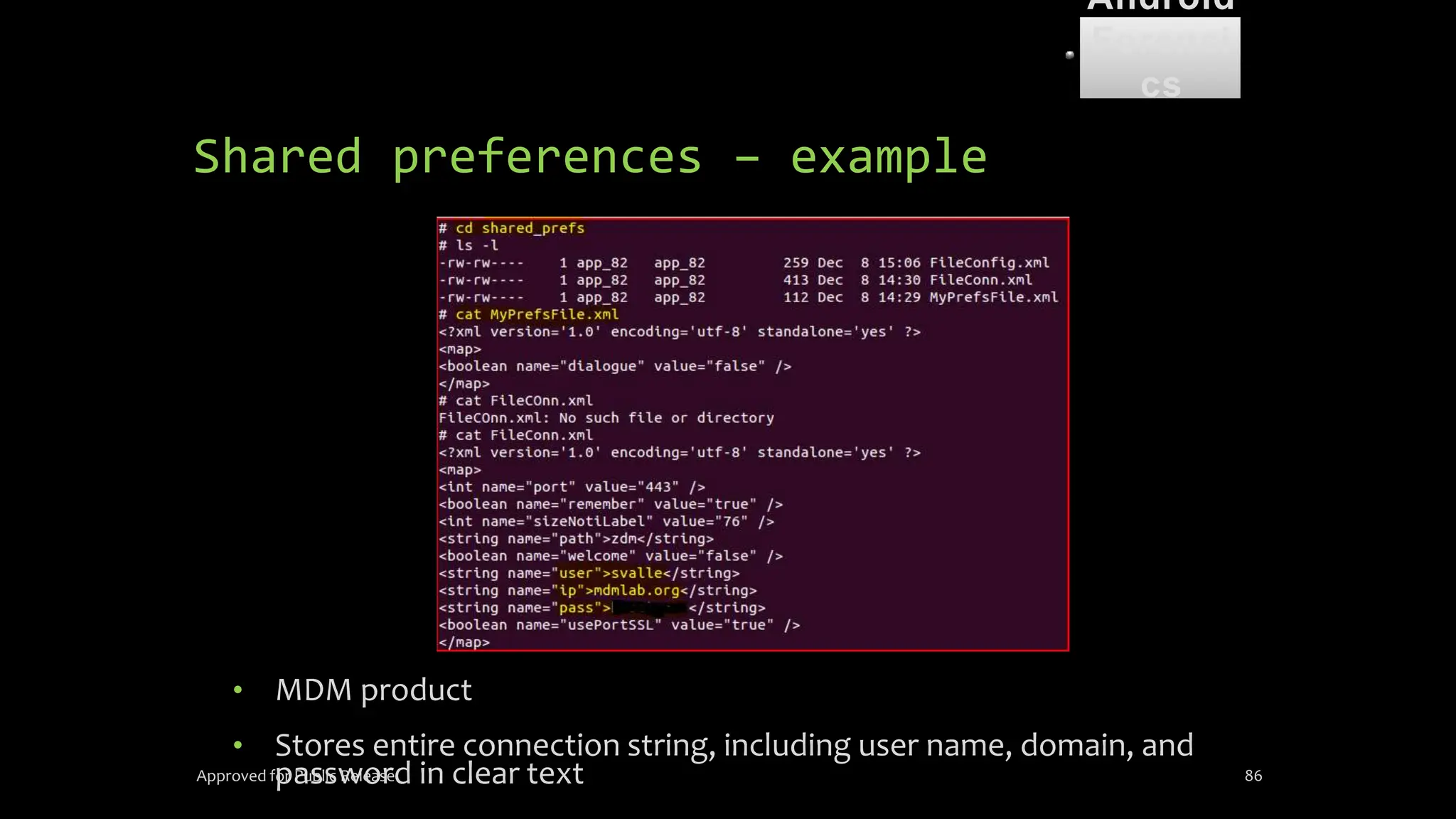

Shared preferences – example • MDM product • Stores entire connection string, including user name, domain, and password in clear text Approved for Public Release 86 Android Forensi cs

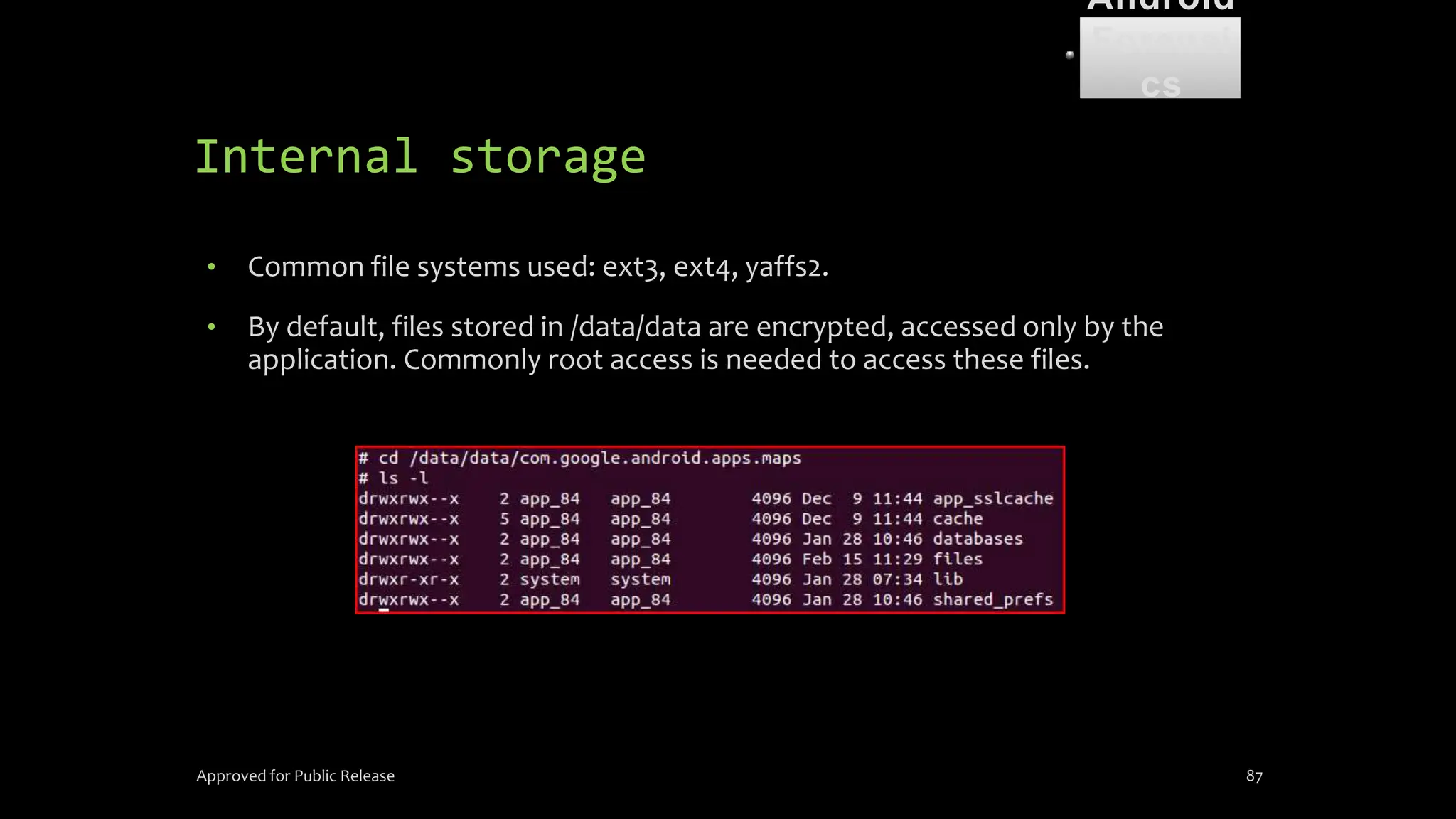

Internal storage • Common file systems used: ext3, ext4, yaffs2. • By default, files stored in /data/data are encrypted, accessed only by the application. Commonly root access is needed to access these files. Approved for Public Release 87 Android Forensi cs

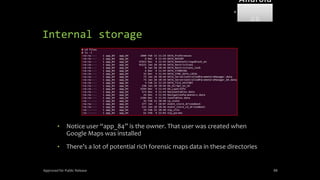

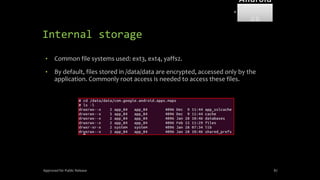

Internal storage • Notice user “app_84” is the owner. That user was created when Google Maps was installed • There’s a lot of potential rich forensic maps data in these directories Approved for Public Release 88 Android Forensi cs

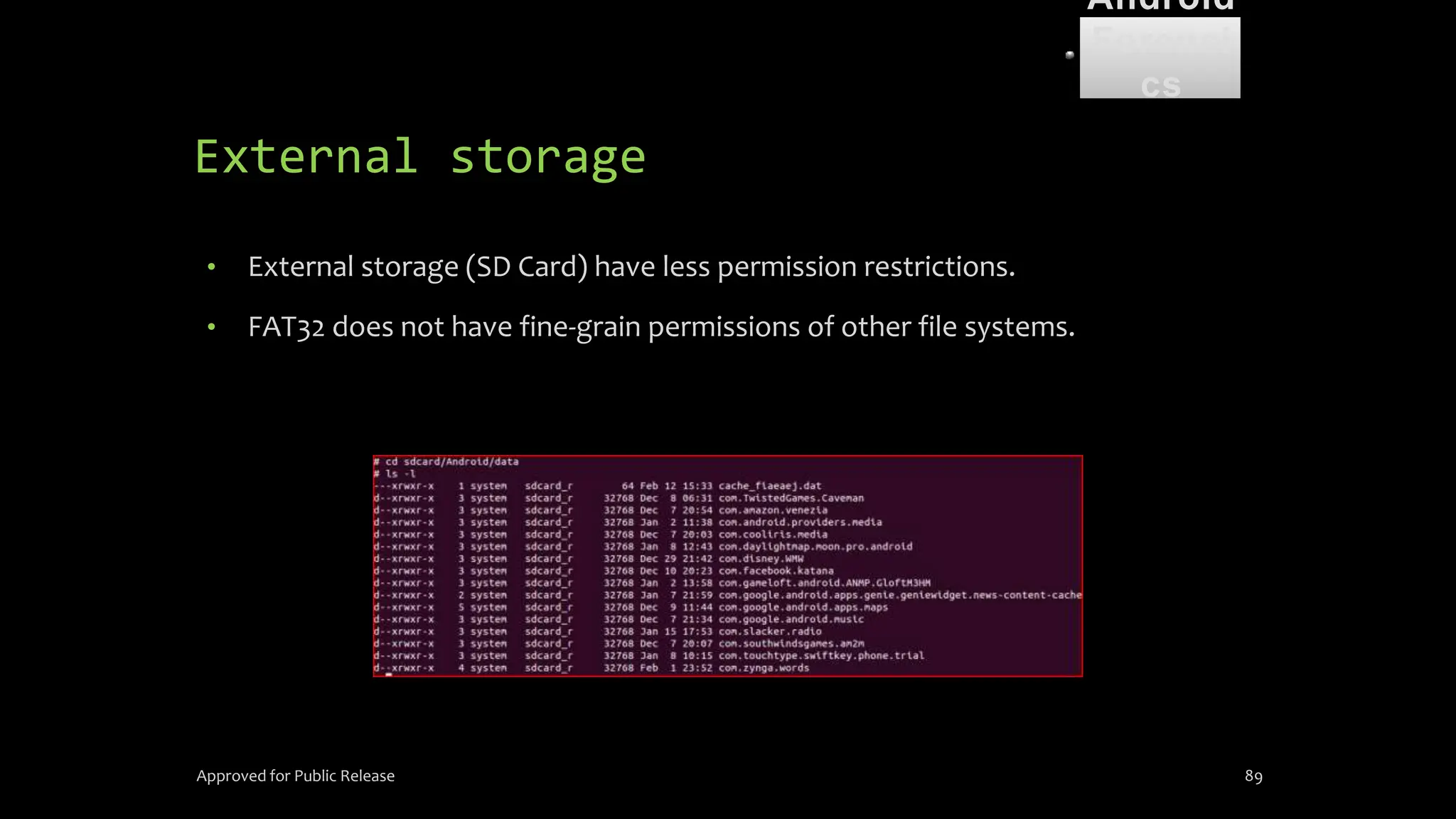

External storage • External storage (SD Card) have less permission restrictions. • FAT32 does not have fine-grain permissions of other file systems. Approved for Public Release 89 Android Forensi cs

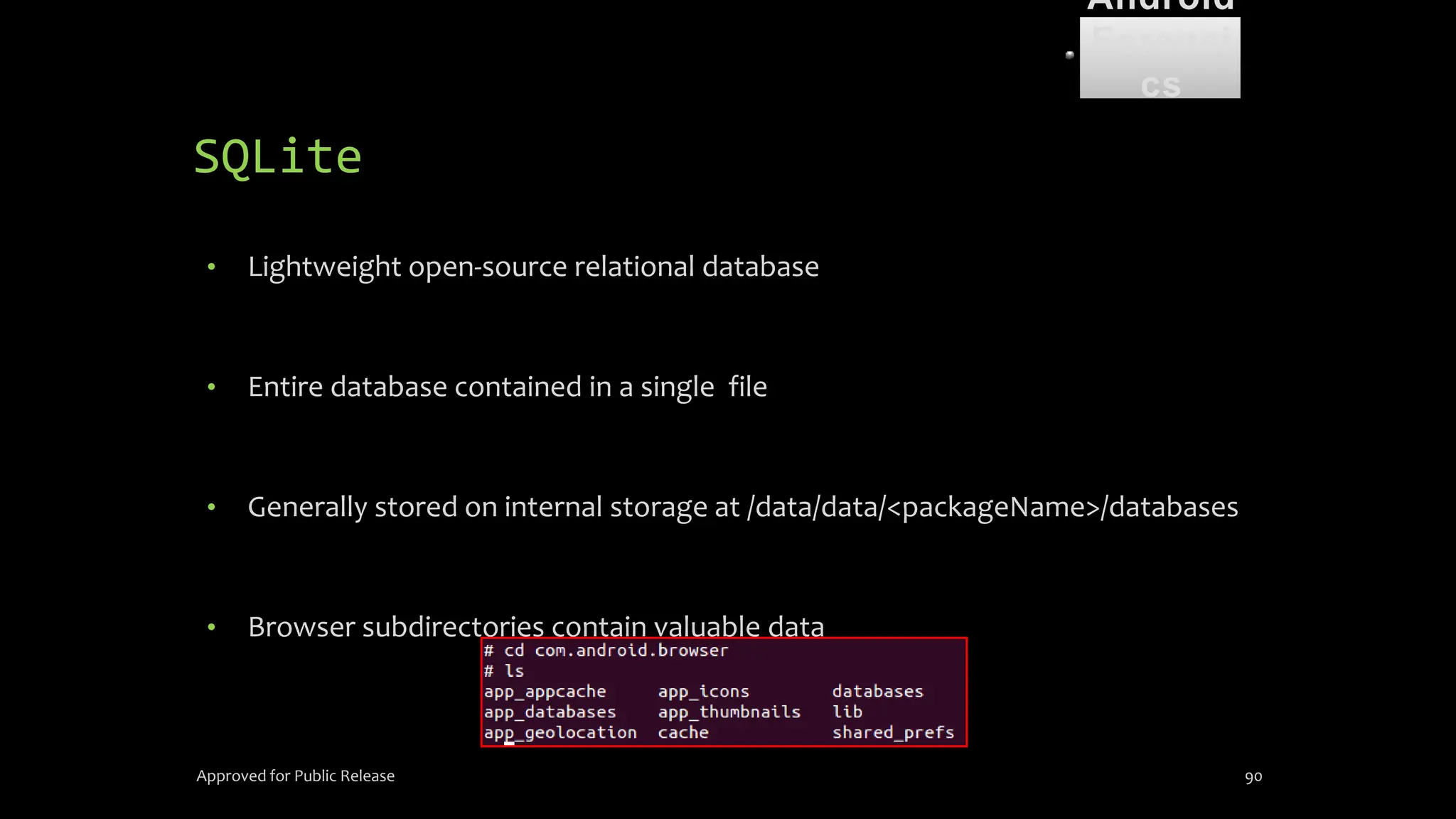

SQLite • Lightweight open-source relational database • Entire database contained in a single file • Generally stored on internal storage at /data/data/<packageName>/databases • Browser subdirectories contain valuable data Approved for Public Release 90 Android Forensi cs

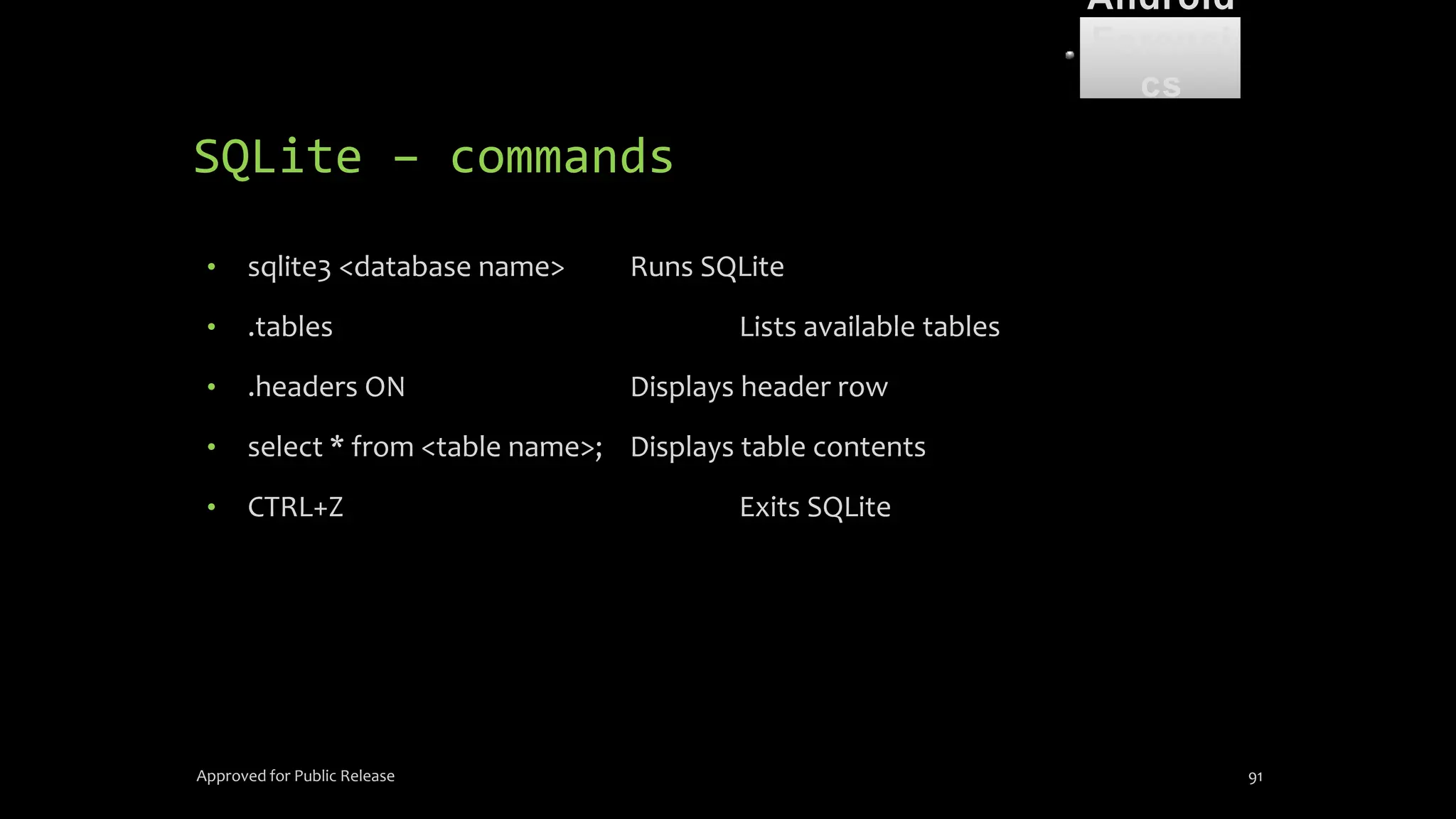

SQLite – commands • sqlite3 <database name> Runs SQLite • .tables Lists available tables • .headers ON Displays header row • select * from <table name>; Displays table contents • CTRL+Z Exits SQLite Approved for Public Release 91 Android Forensi cs

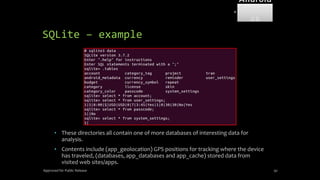

SQLite – example • These directories all contain one of more databases of interesting data for analysis. • Contents include (app_geolocation) GPS positions for tracking where the device has traveled, (databases, app_databases and app_cache) stored data from visited web sites/apps. Approved for Public Release 92 Android Forensi cs

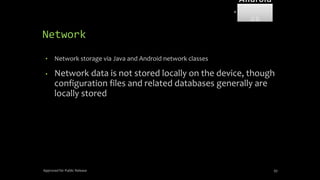

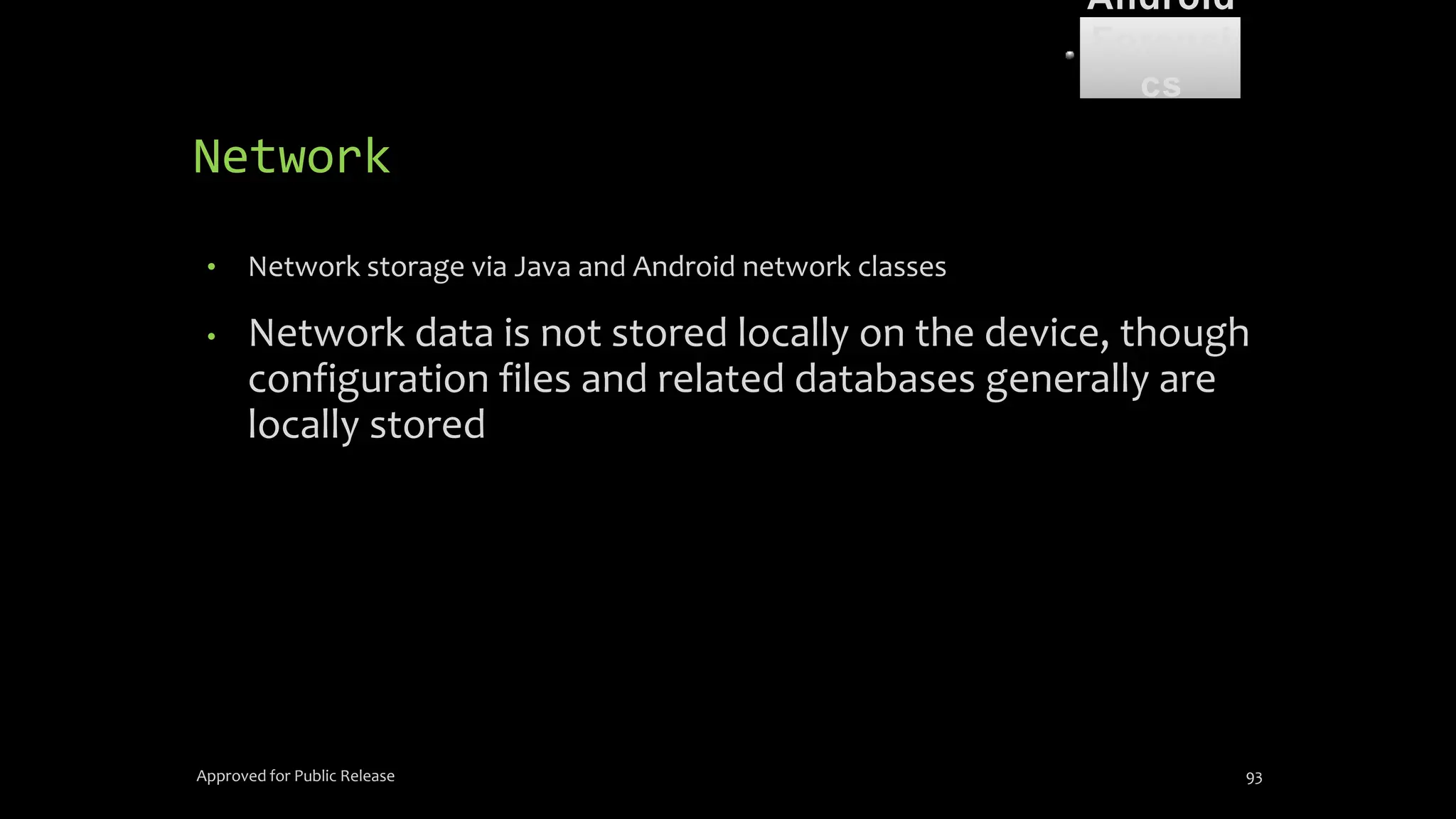

Network • Network storage via Java and Android network classes • Network data is not stored locally on the device, though configuration files and related databases generally are locally stored Approved for Public Release 93 Android Forensi cs

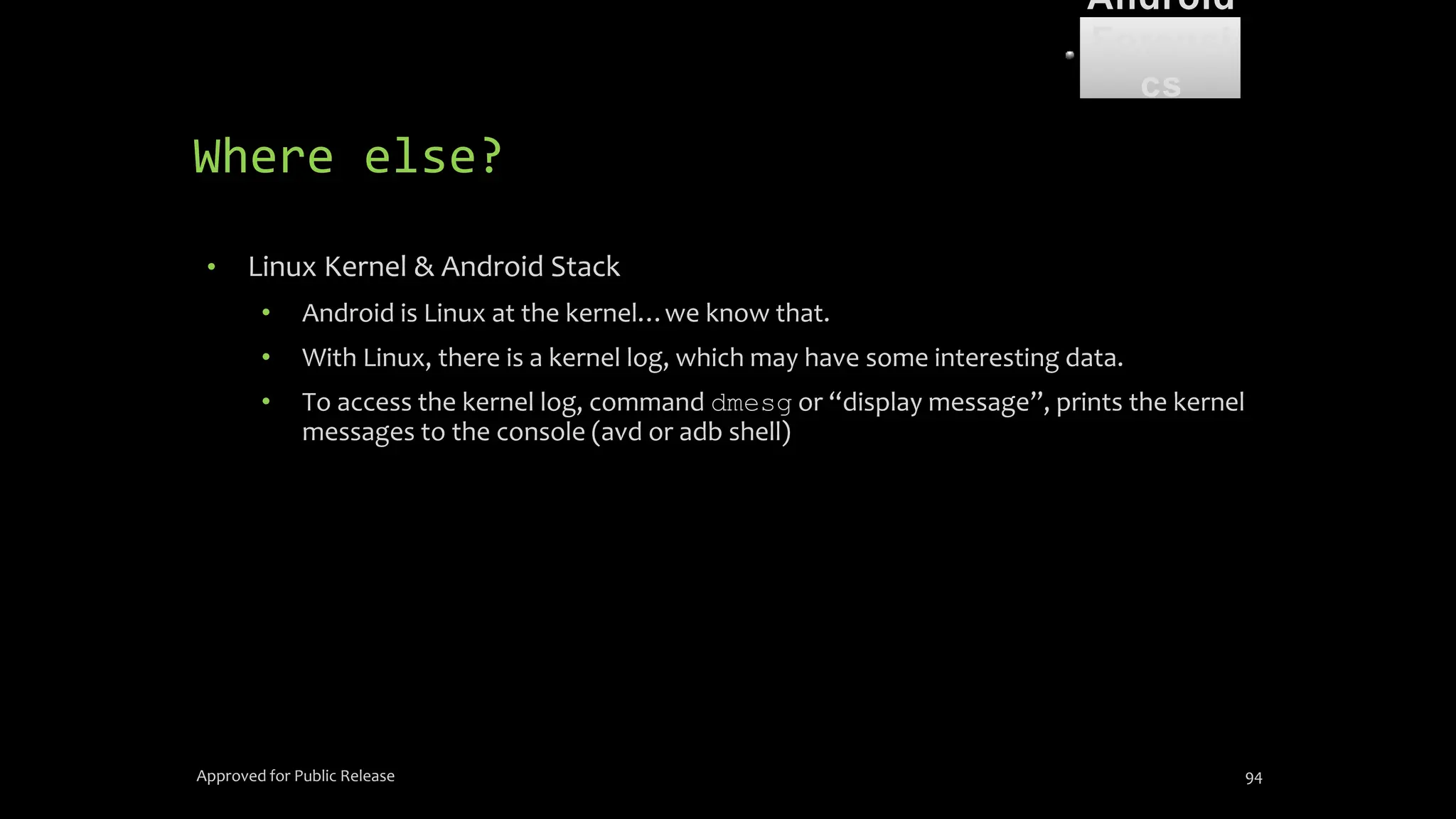

Where else? • Linux Kernel & Android Stack • Android is Linux at the kernel…we know that. • With Linux, there is a kernel log, which may have some interesting data. • To access the kernel log, command dmesg or “display message”, prints the kernel messages to the console (avd or adb shell) Approved for Public Release 94 Android Forensi cs

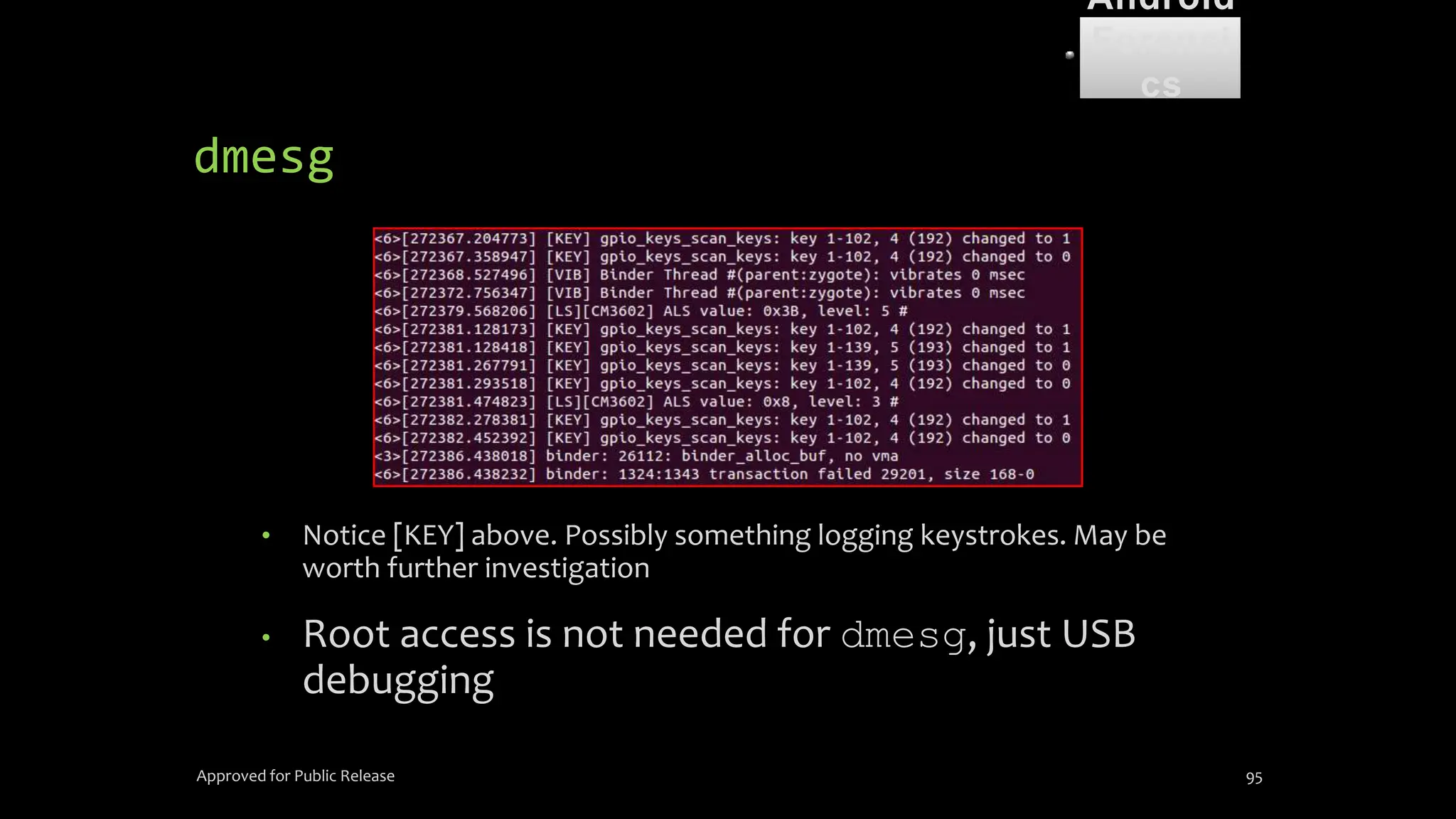

dmesg • Notice [KEY] above. Possibly something logging keystrokes. May be worth further investigation • Root access is not needed for dmesg, just USB debugging Approved for Public Release 95 Android Forensi cs

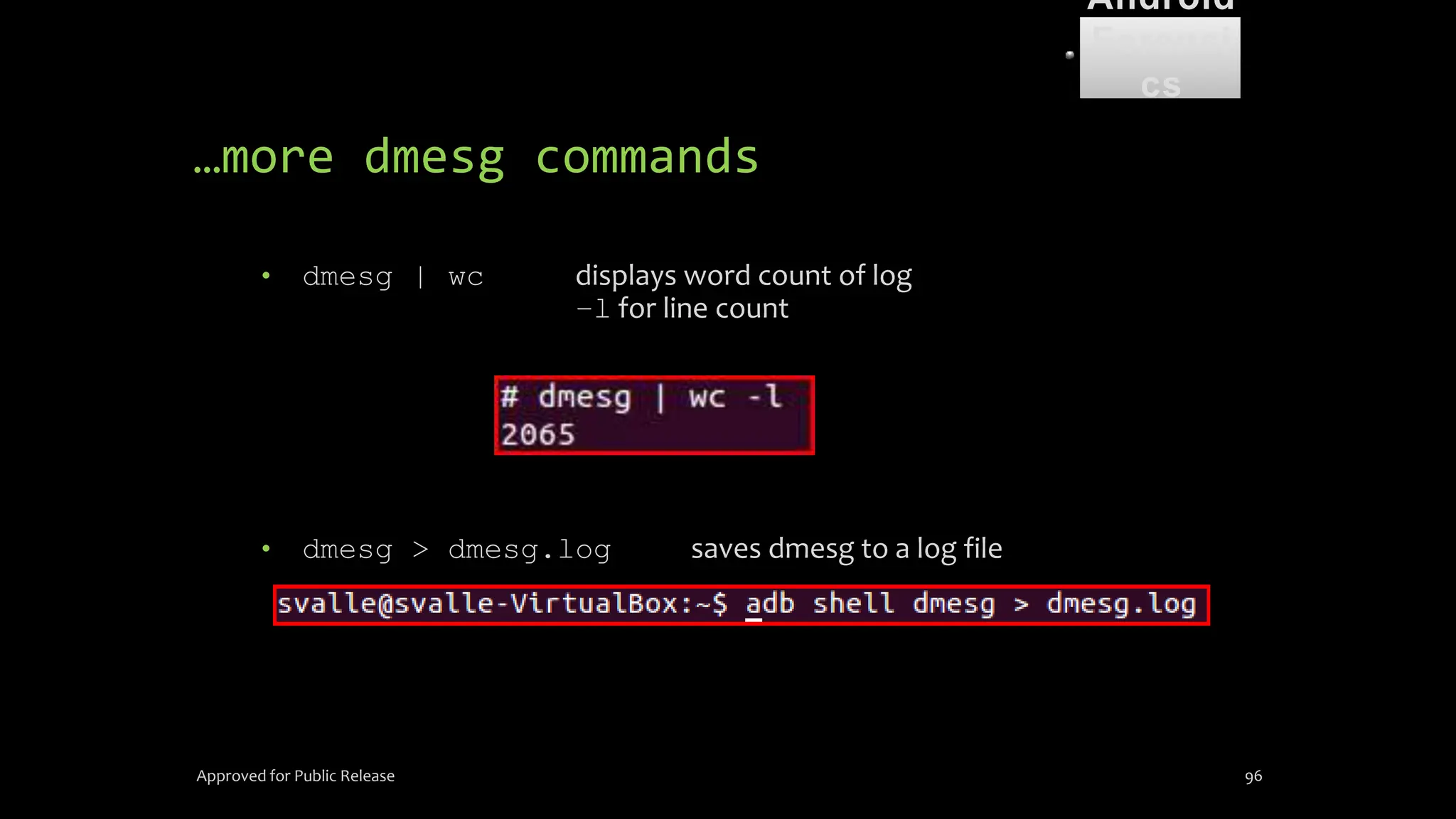

…more dmesg commands • dmesg | wc displays word count of log –l for line count • dmesg > dmesg.log saves dmesg to a log file Approved for Public Release 96 Android Forensi cs

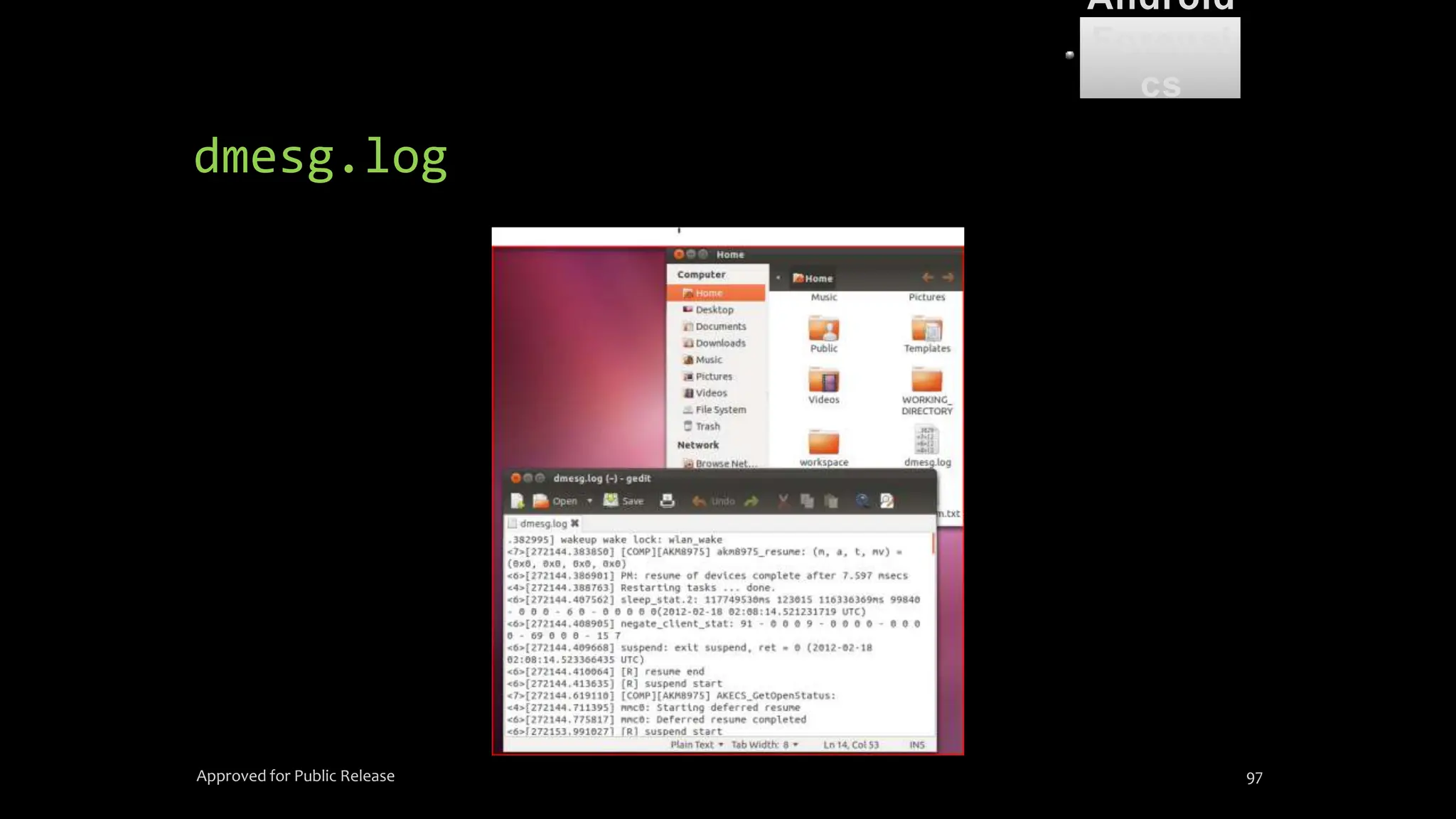

dmesg.log Approved for Public Release 97 Android Forensi cs

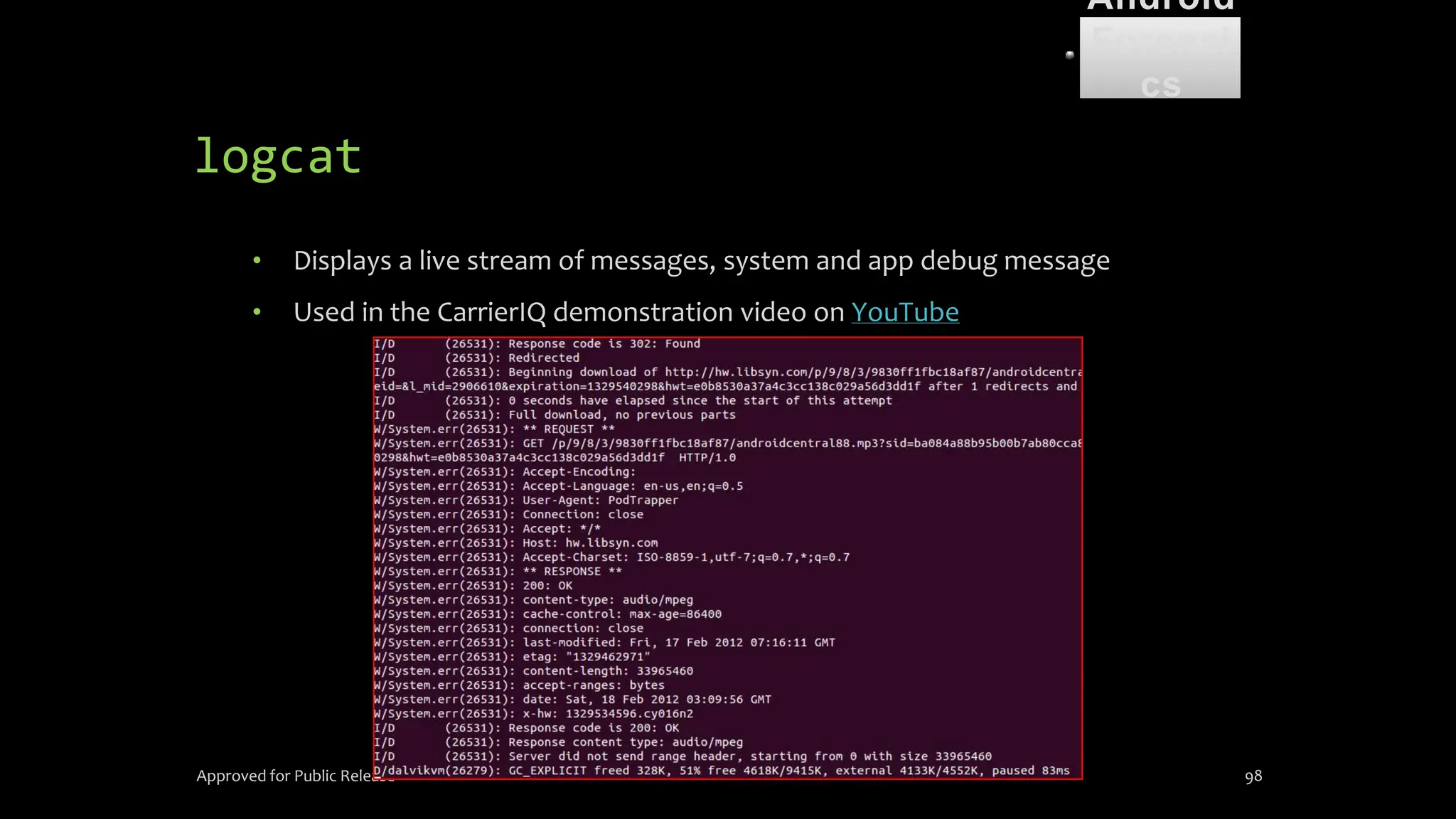

logcat • Displays a live stream of messages, system and app debug message • Used in the CarrierIQ demonstration video on YouTube Approved for Public Release 98 Android Forensi cs

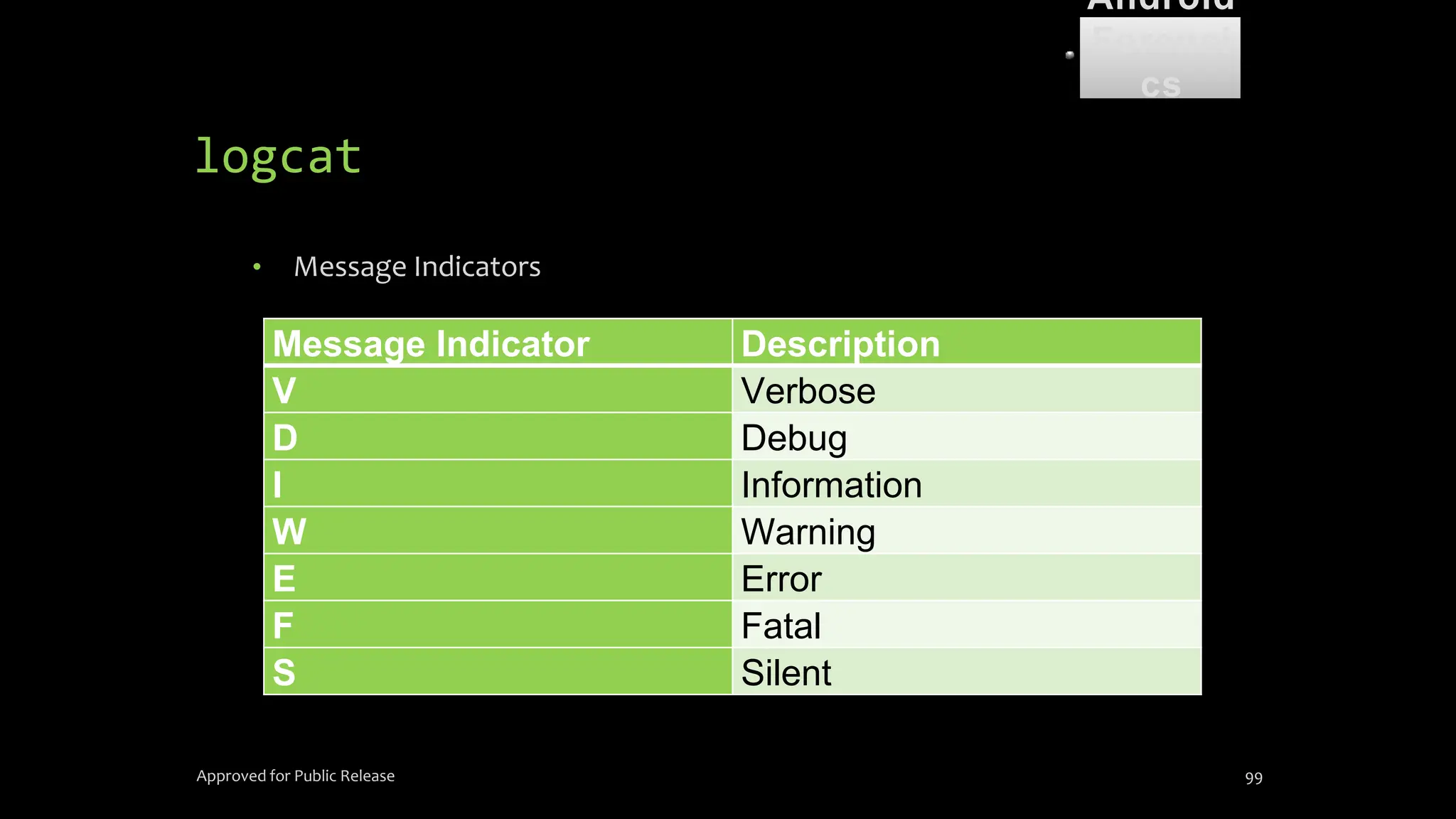

logcat • Message Indicators Approved for Public Release 99 Android Forensi cs Message Indicator Description V Verbose D Debug I Information W Warning E Error F Fatal S Silent

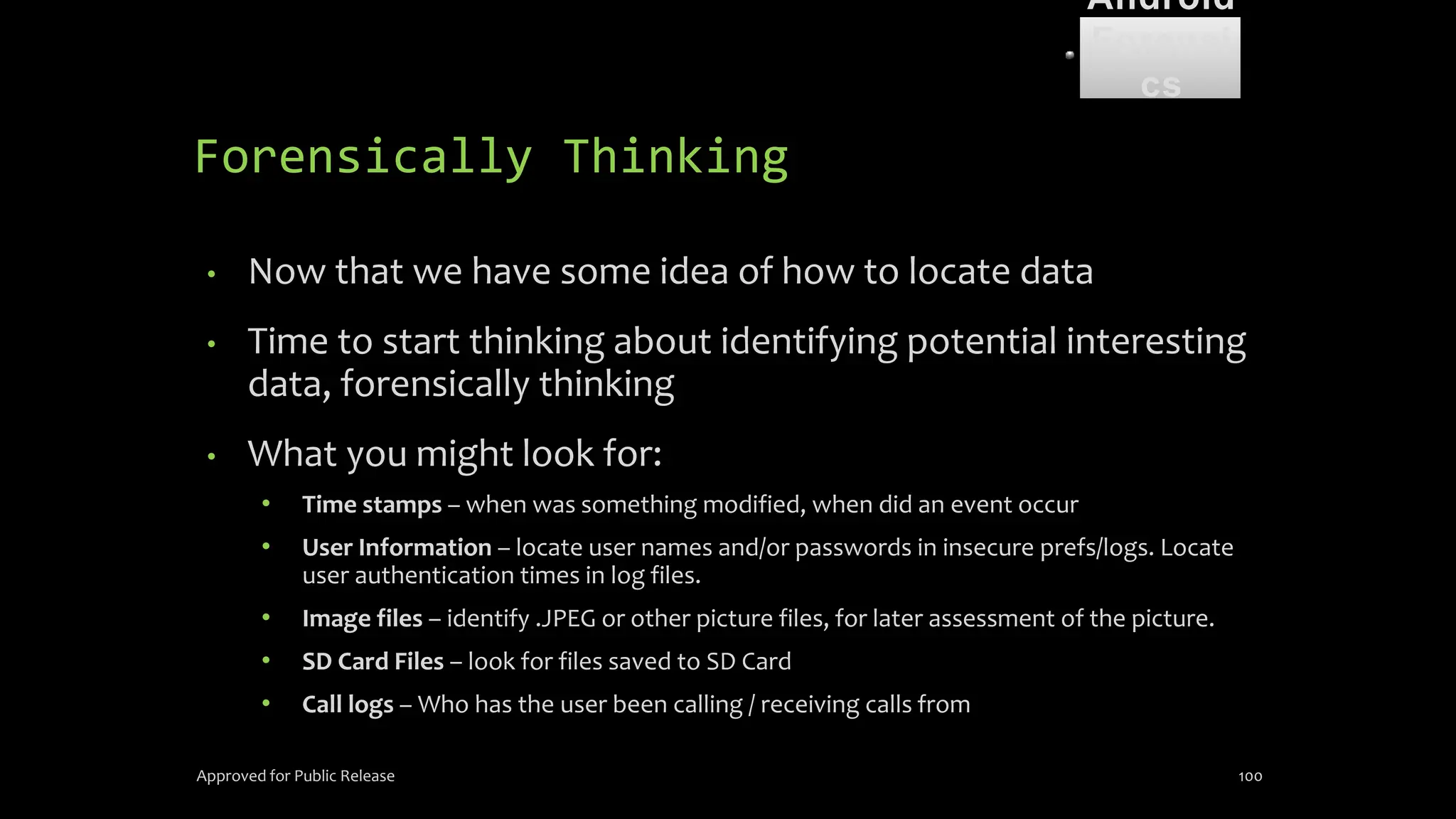

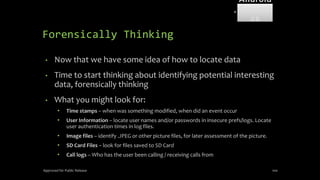

Forensically Thinking • Now that we have some idea of how to locate data • Time to start thinking about identifying potential interesting data, forensically thinking • What you might look for: • Time stamps – when was something modified, when did an event occur • User Information – locate user names and/or passwords in insecure prefs/logs. Locate user authentication times in log files. • Image files – identify .JPEG or other picture files, for later assessment of the picture. • SD Card Files – look for files saved to SD Card • Call logs – Who has the user been calling / receiving calls from Approved for Public Release 100 Android Forensi cs
REVIEW • Explored Android file system, internal and external • Located common directories for rich forensic information • Identified five key areas of stored persistent data • Explored application preference files to locate important forensic data • Explored databases in search of data for forensics analysis • Identified sensitive data stored insecurely Approved for Public Release 101 Android Forensi cs

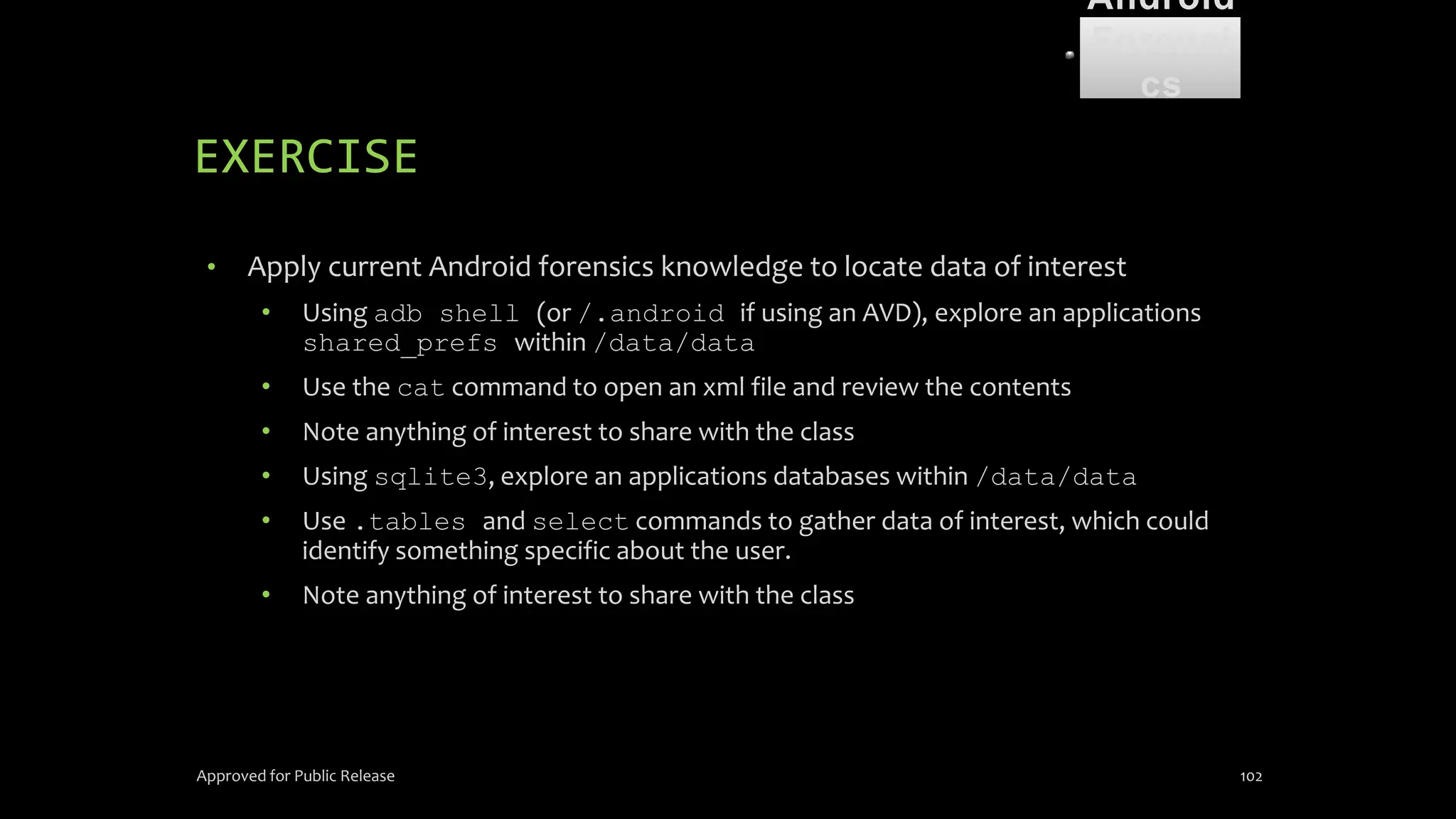

EXERCISE • Apply current Android forensics knowledge to locate data of interest • Using adb shell (or /.android if using an AVD), explore an applications shared_prefs within /data/data • Use the cat command to open an xml file and review the contents • Note anything of interest to share with the class • Using sqlite3, explore an applications databases within /data/data • Use .tables and select commands to gather data of interest, which could identify something specific about the user. • Note anything of interest to share with the class Approved for Public Release 102 Android Forensi cs

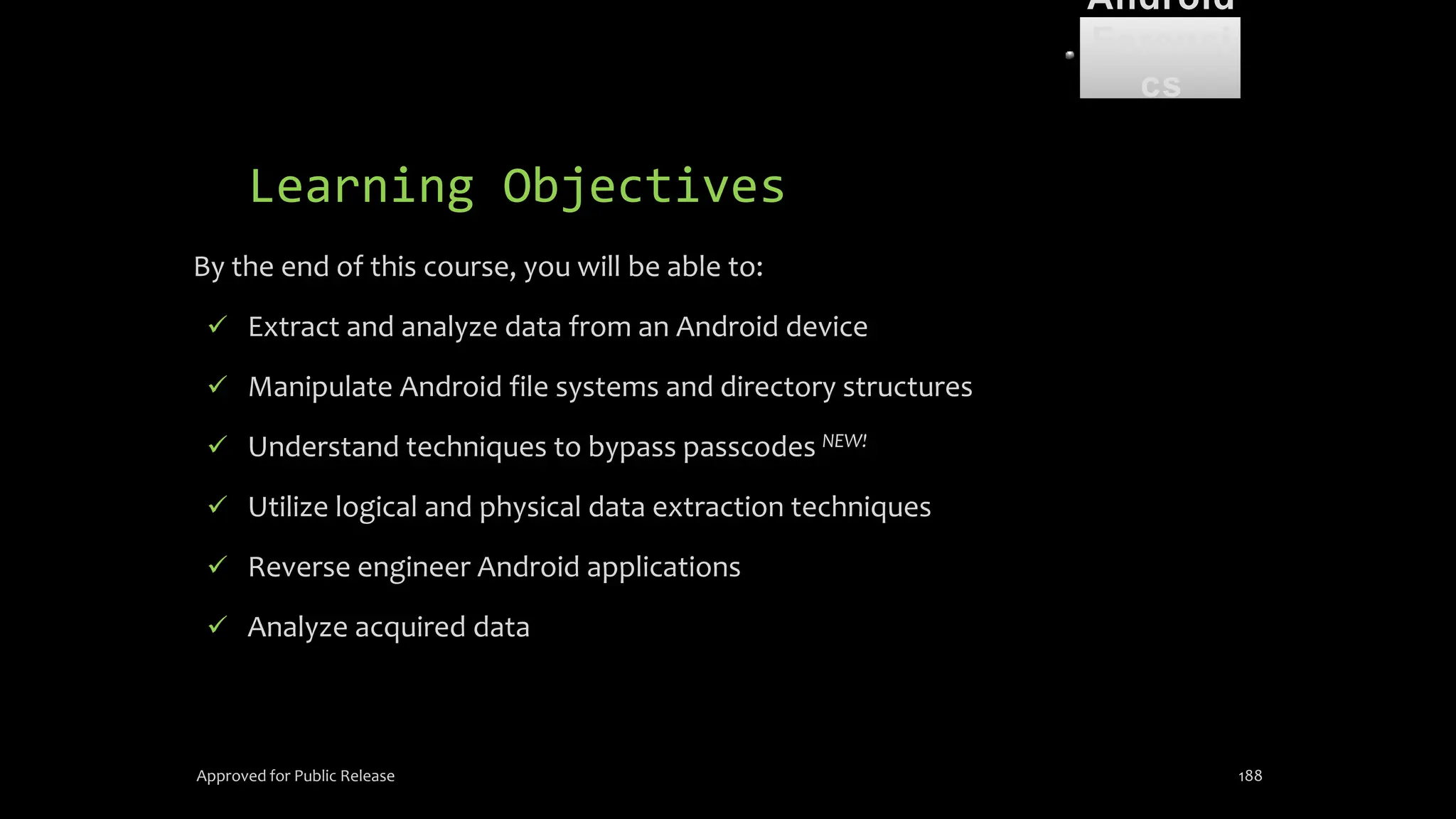

Learning Objectives By the end of this course, you will be able to:  Extract and analyze data from an Android device  Manipulate Android file systems and directory structures 3. Understand techniques to bypass passcodes NEW! 4. Utilize logical and physical data extraction techniques 5. Reverse engineer Android applications 6. Analyze acquired data Approved for Public Release 103 Android Forensi cs
Device Handling & Modification Approved for Public Release 104

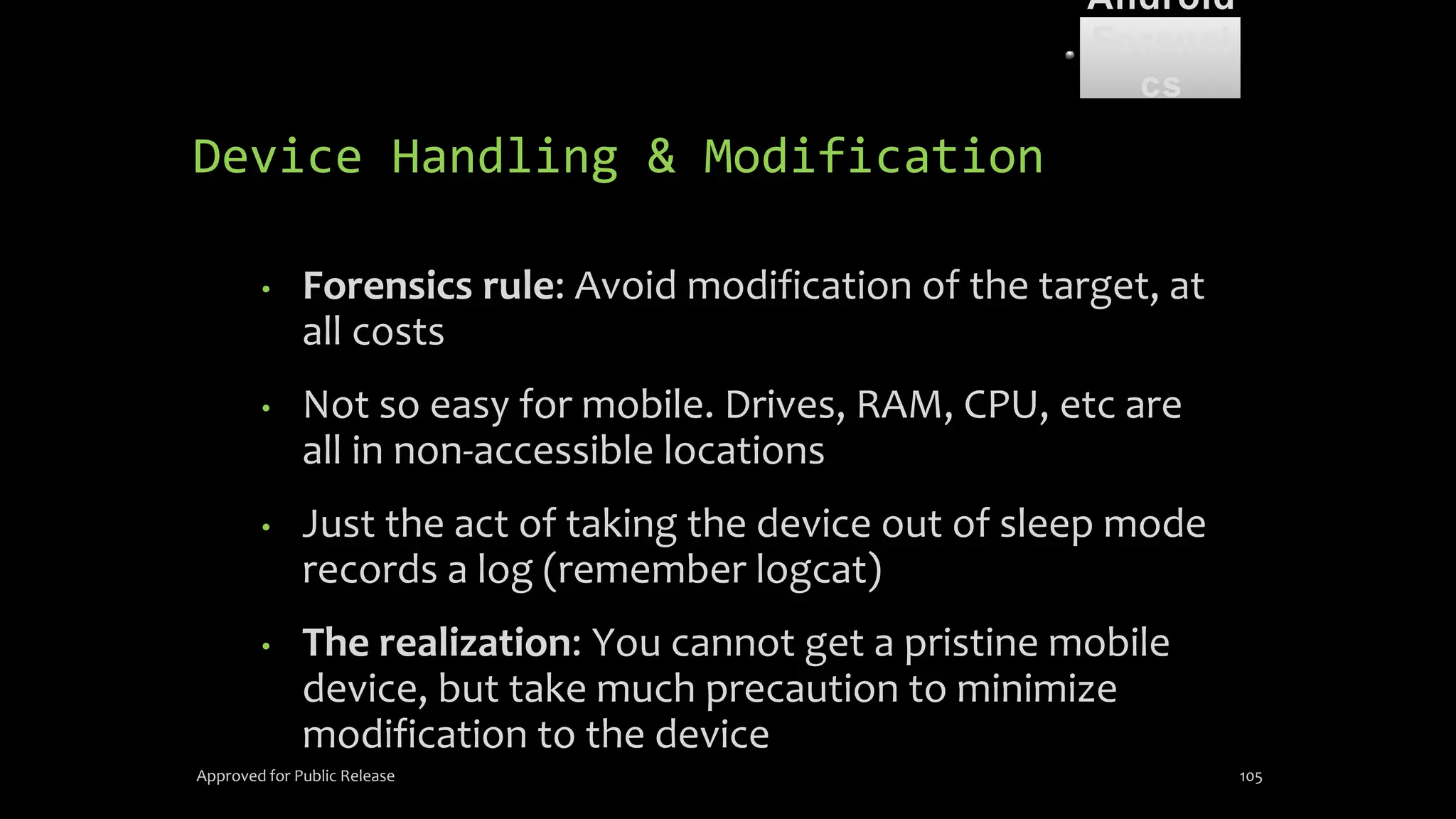

Device Handling & Modification • Forensics rule: Avoid modification of the target, at all costs • Not so easy for mobile. Drives, RAM, CPU, etc are all in non-accessible locations • Just the act of taking the device out of sleep mode records a log (remember logcat) • The realization: You cannot get a pristine mobile device, but take much precaution to minimize modification to the device Approved for Public Release 105 Android Forensi cs

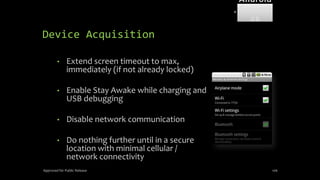

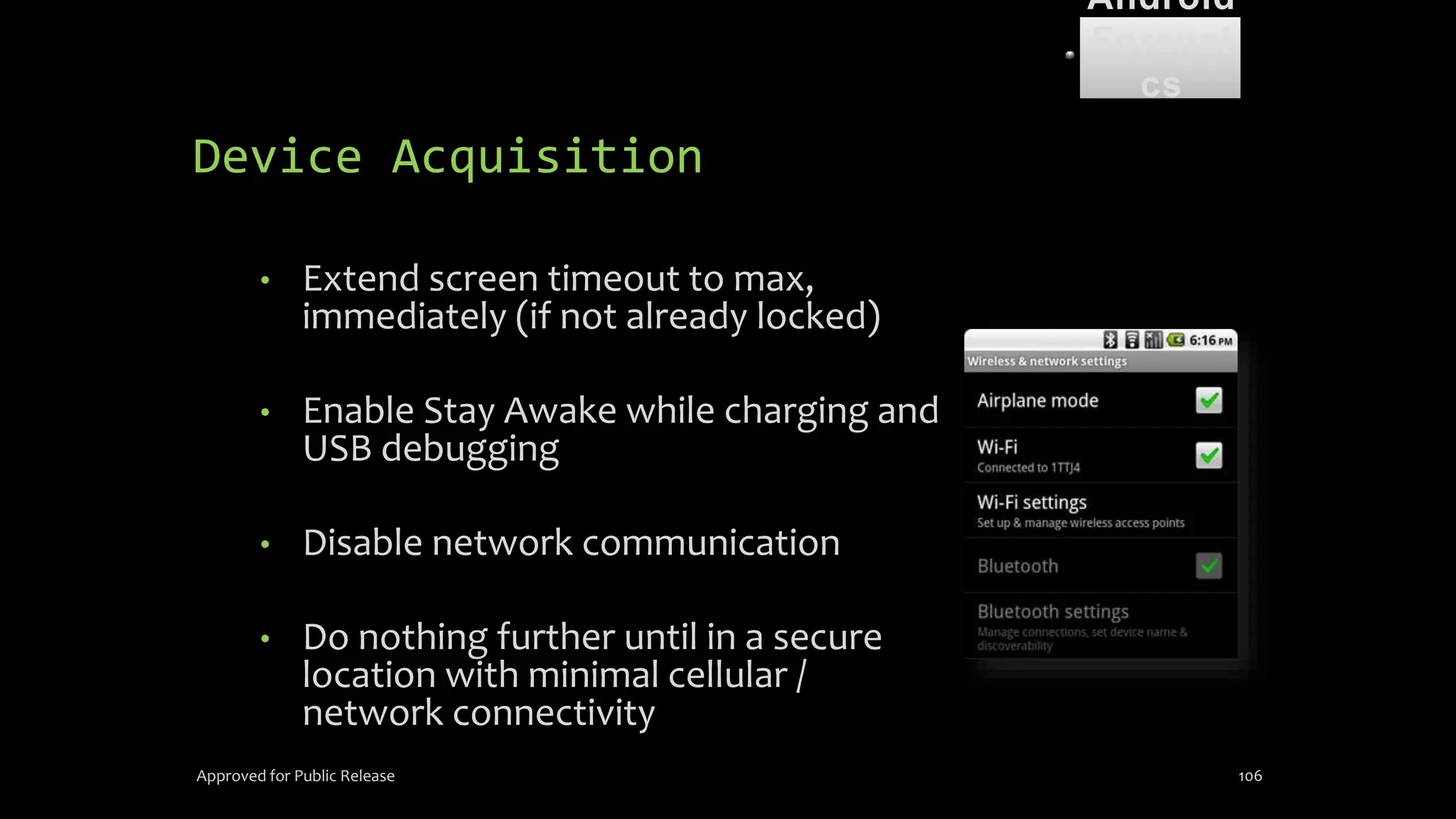

Device Acquisition • Extend screen timeout to max, immediately (if not already locked) • Enable Stay Awake while charging and USB debugging • Disable network communication • Do nothing further until in a secure location with minimal cellular / network connectivity Approved for Public Release 106 Android Forensi cs

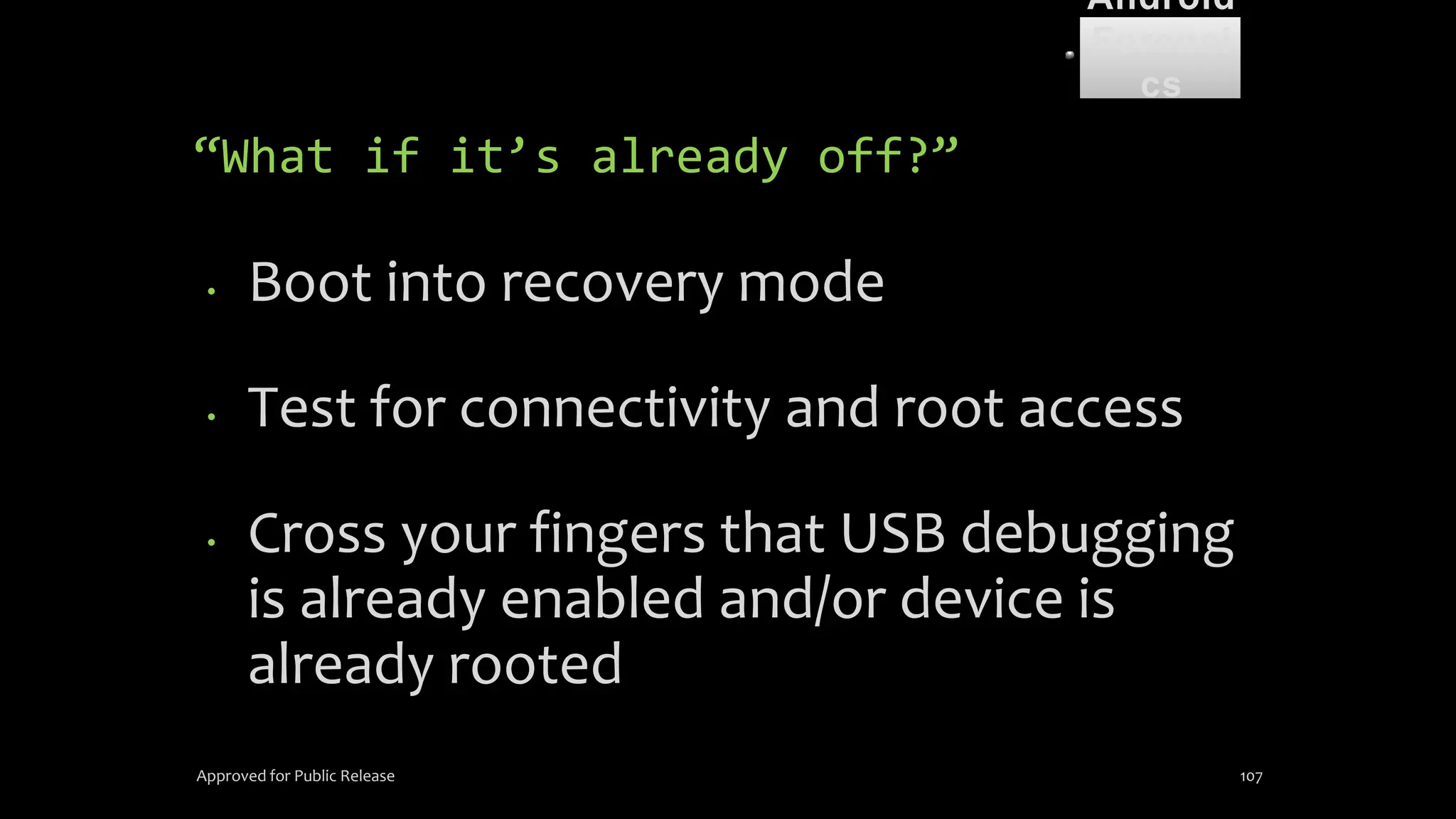

“What if it’s already off?” • Boot into recovery mode • Test for connectivity and root access • Cross your fingers that USB debugging is already enabled and/or device is already rooted Approved for Public Release 107 Android Forensi cs

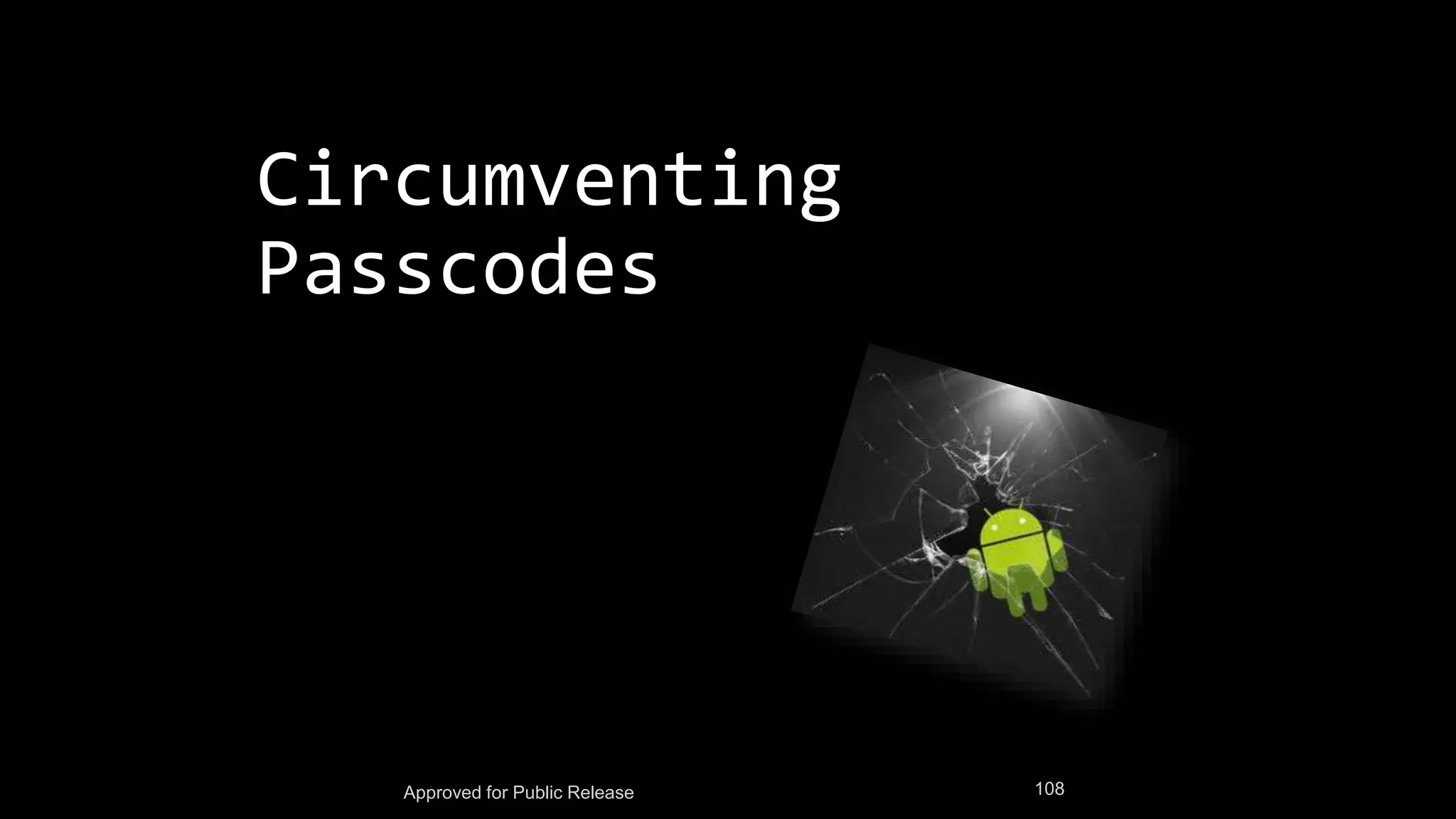

Circumventing Passcodes Approved for Public Release 108

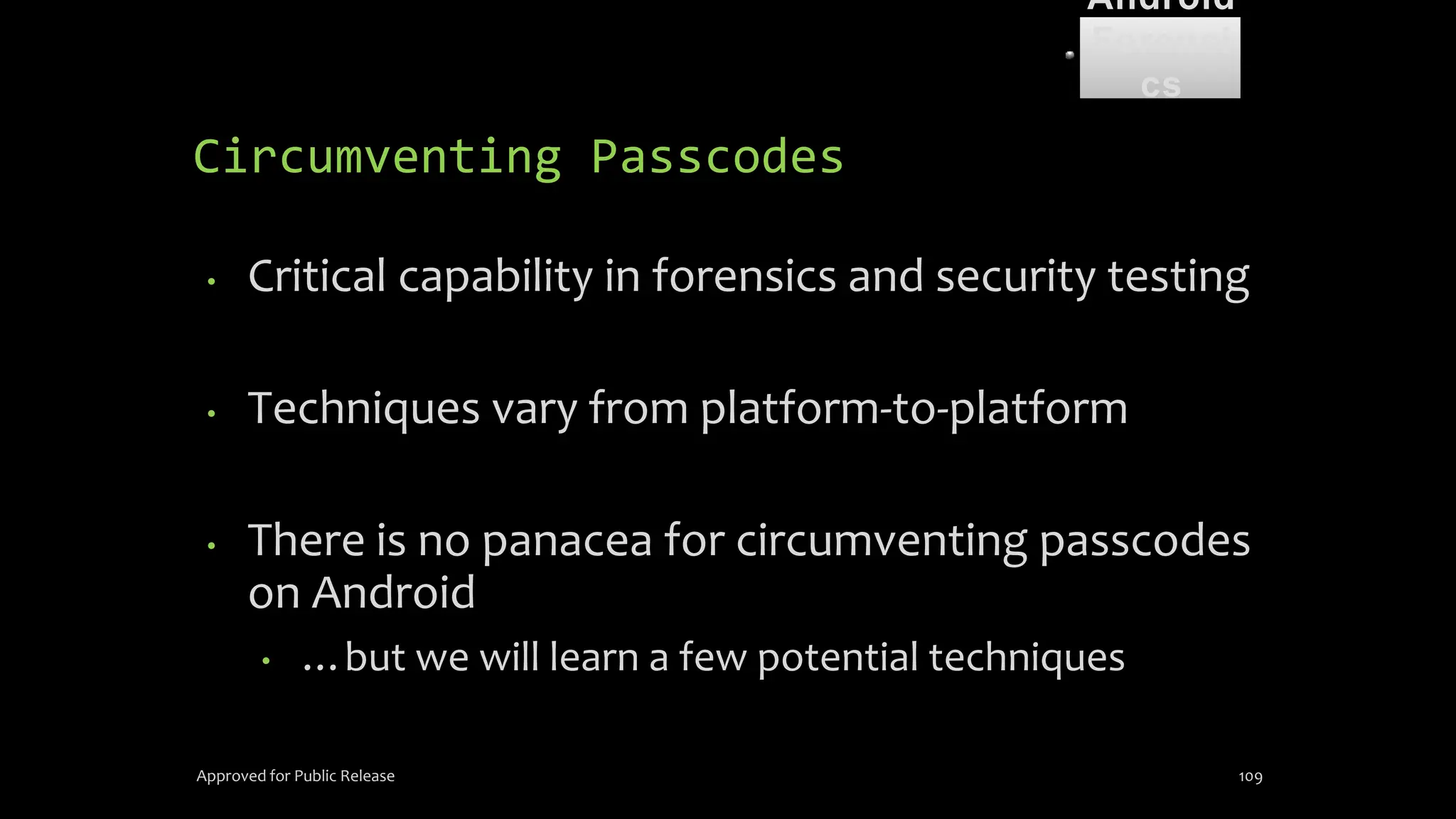

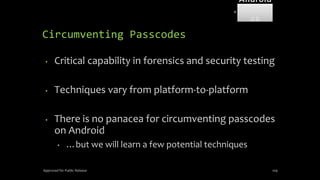

Circumventing Passcodes • Critical capability in forensics and security testing • Techniques vary from platform-to-platform • There is no panacea for circumventing passcodes on Android • …but we will learn a few potential techniques Approved for Public Release 109 Android Forensi cs

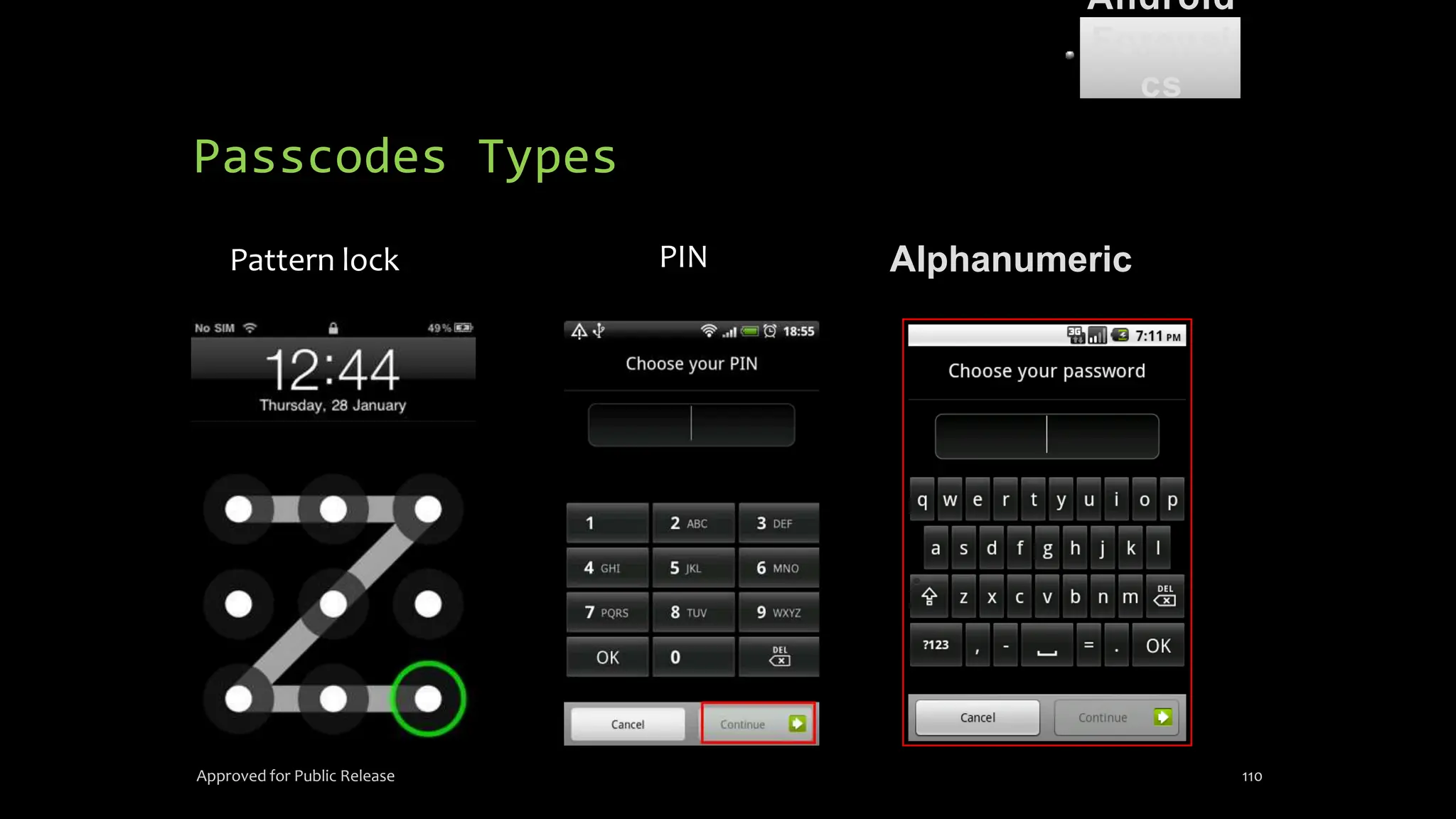

Passcodes Types Pattern lock PIN Approved for Public Release 110 Alphanumeric Android Forensi cs

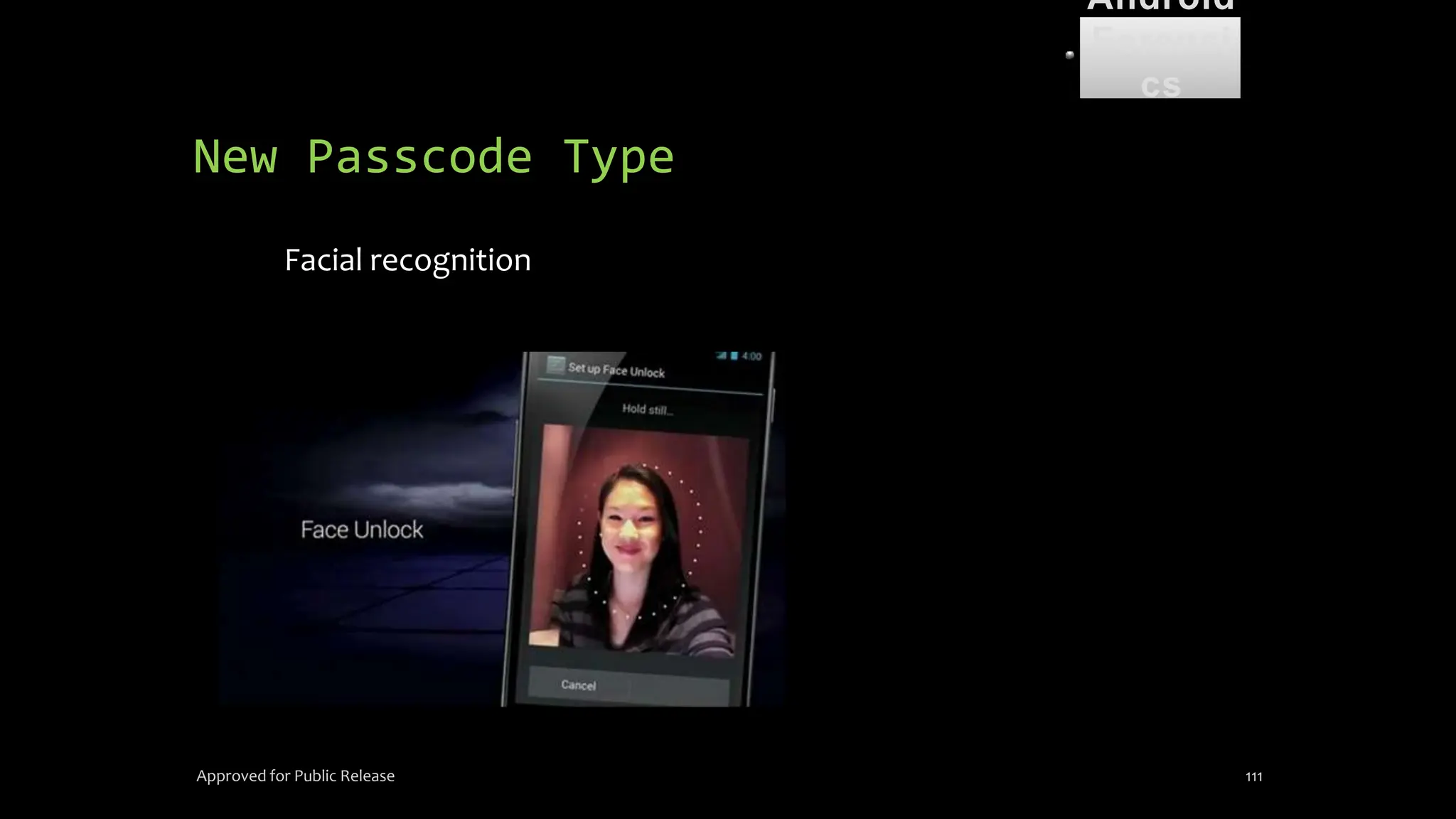

New Passcode Type Facial recognition Approved for Public Release 111 Android Forensi cs

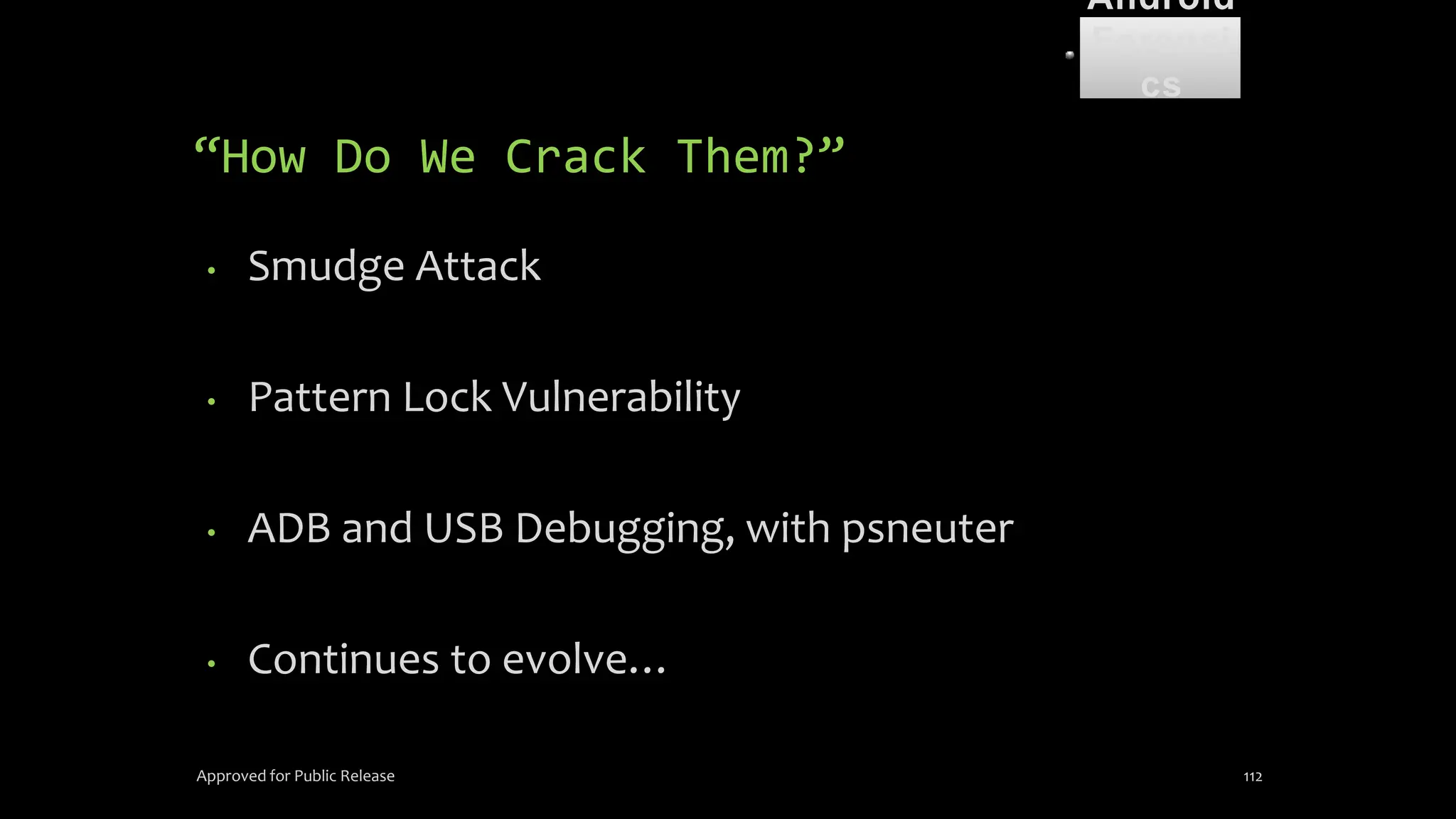

“How Do We Crack Them?” • Smudge Attack • Pattern Lock Vulnerability • ADB and USB Debugging, with psneuter • Continues to evolve… Approved for Public Release 112 Android Forensi cs

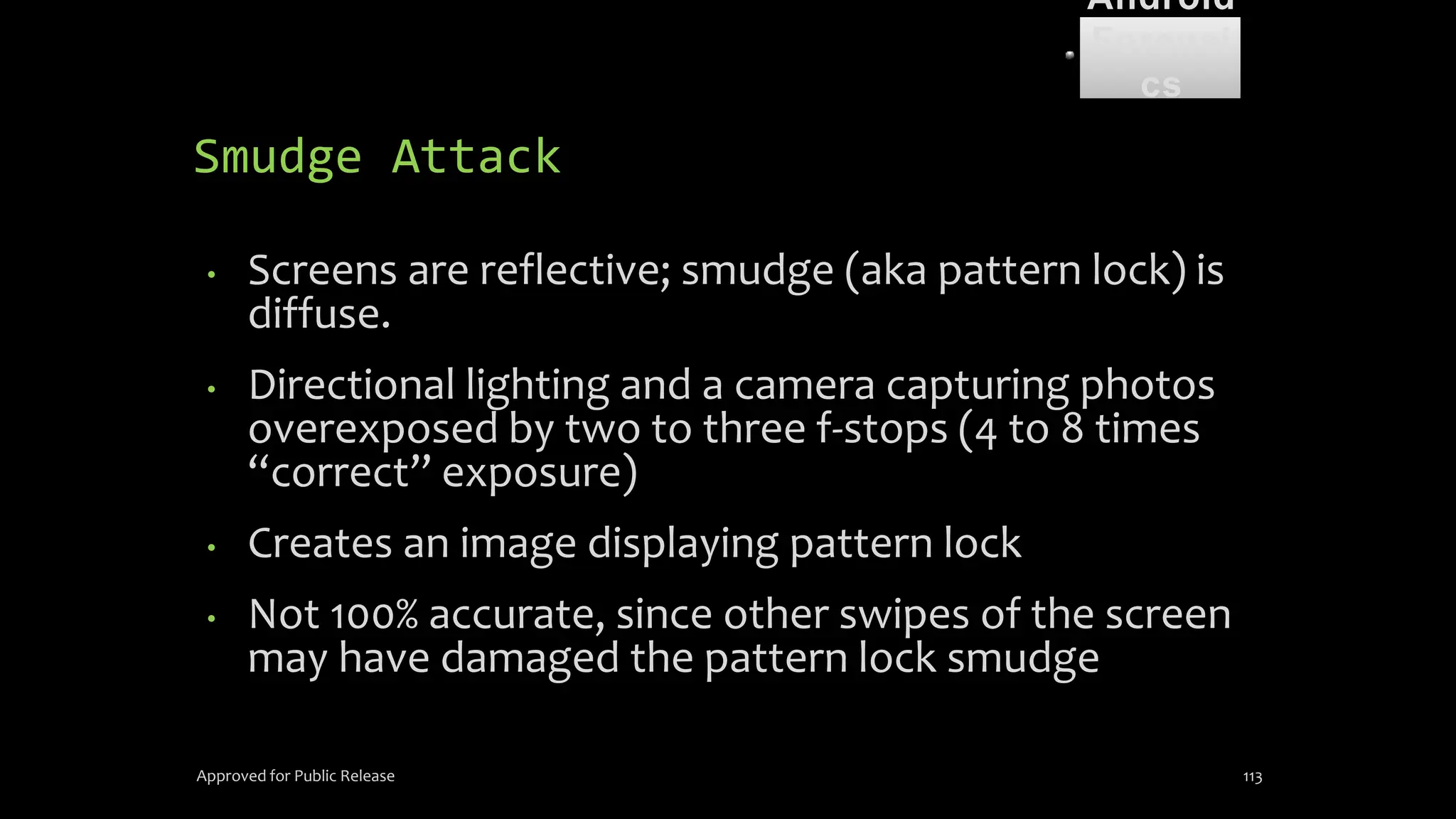

Smudge Attack • Screens are reflective; smudge (aka pattern lock) is diffuse. • Directional lighting and a camera capturing photos overexposed by two to three f-stops (4 to 8 times “correct” exposure) • Creates an image displaying pattern lock • Not 100% accurate, since other swipes of the screen may have damaged the pattern lock smudge Approved for Public Release 113 Android Forensi cs

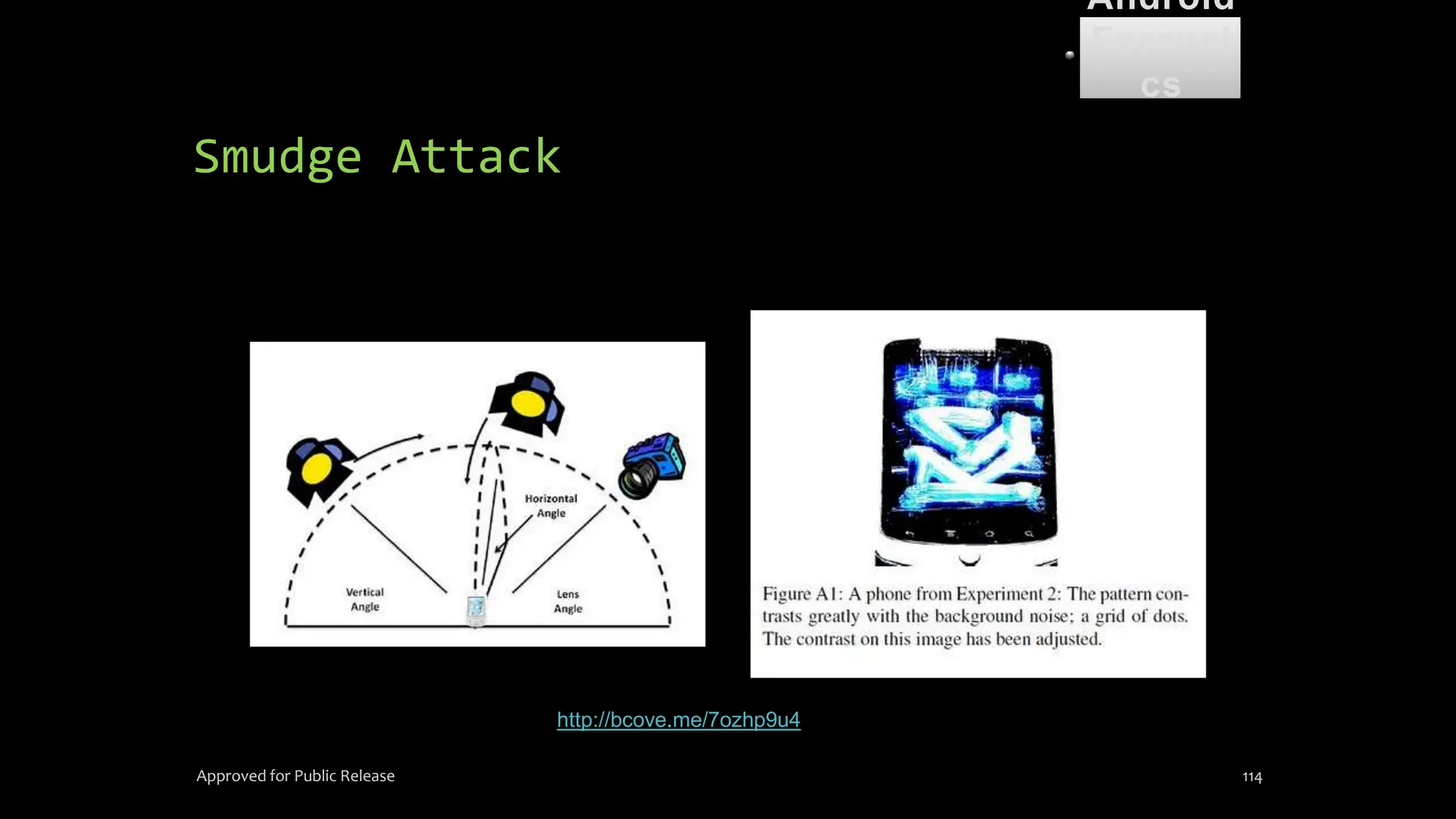

Smudge Attack Approved for Public Release 114 Android Forensi cs http://bcove.me/7ozhp9u4

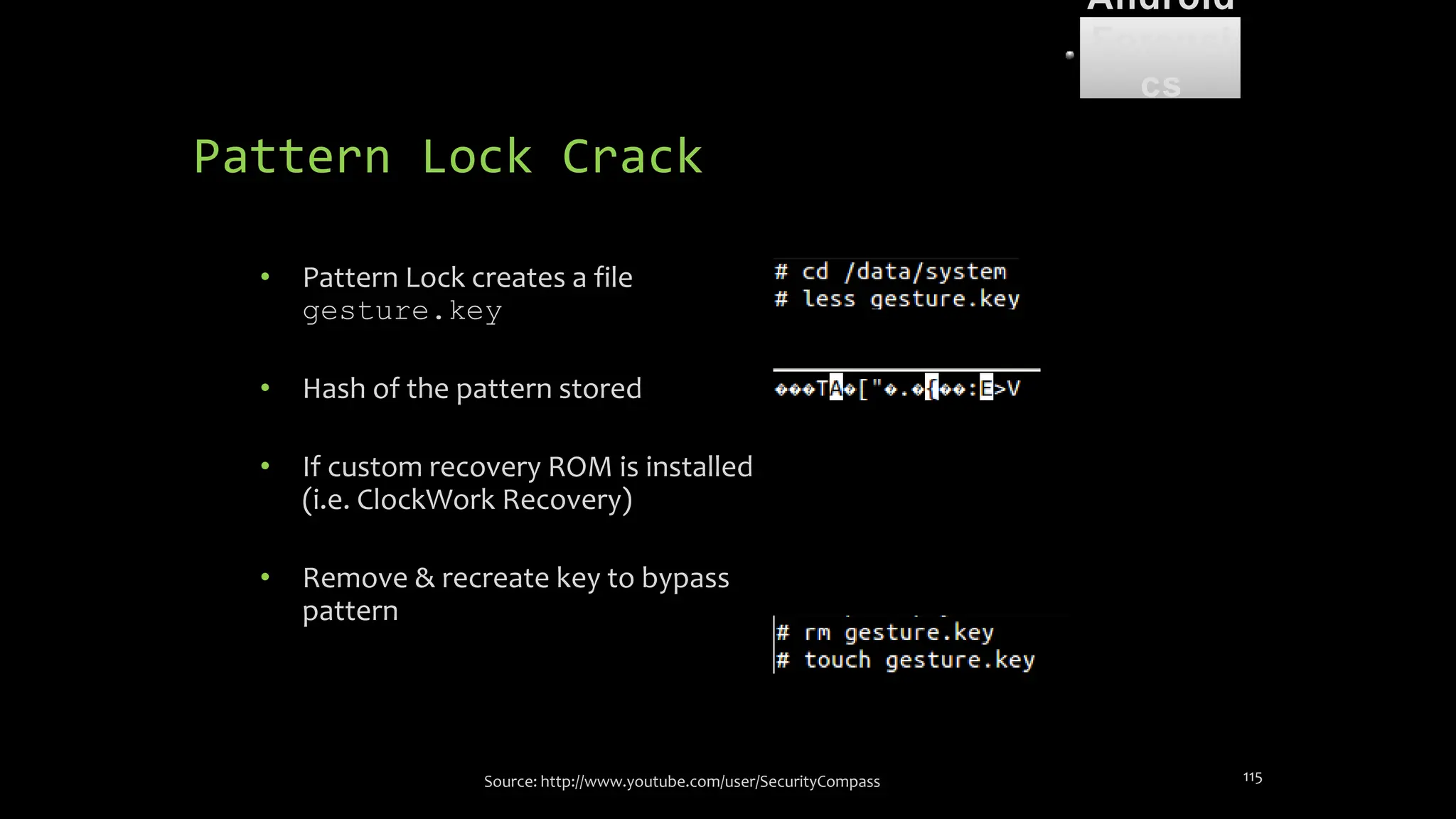

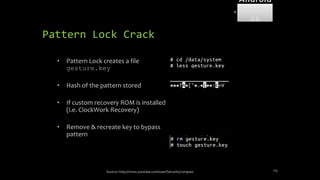

Pattern Lock Crack Source: http://www.youtube.com/user/SecurityCompass 115 Android Forensi cs • Pattern Lock creates a file gesture.key • Hash of the pattern stored • If custom recovery ROM is installed (i.e. ClockWork Recovery) • Remove & recreate key to bypass pattern
Gaining Root Approved for Public Release 116

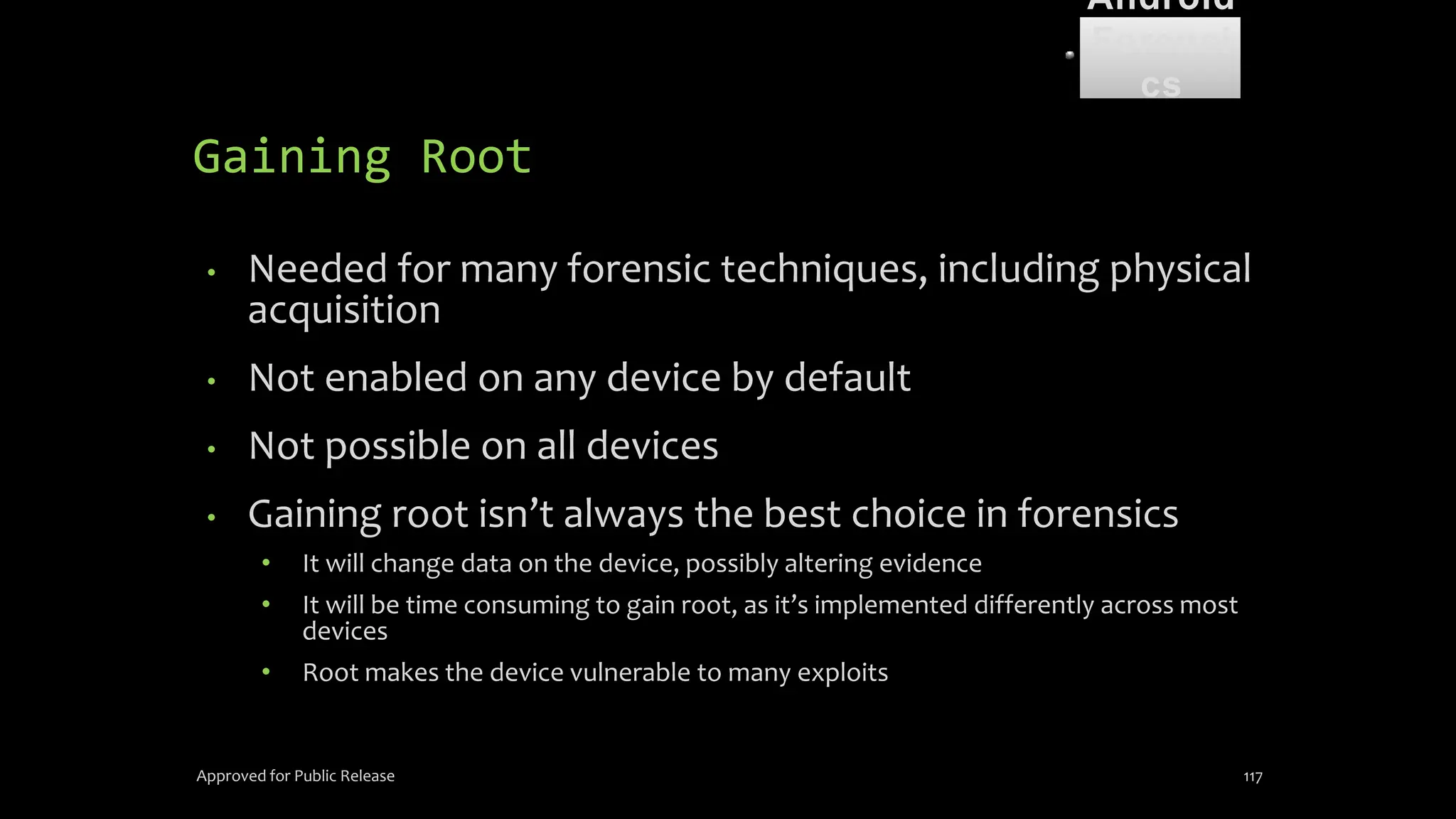

Gaining Root • Needed for many forensic techniques, including physical acquisition • Not enabled on any device by default • Not possible on all devices • Gaining root isn’t always the best choice in forensics • It will change data on the device, possibly altering evidence • It will be time consuming to gain root, as it’s implemented differently across most devices • Root makes the device vulnerable to many exploits Approved for Public Release 117 Android Forensi cs

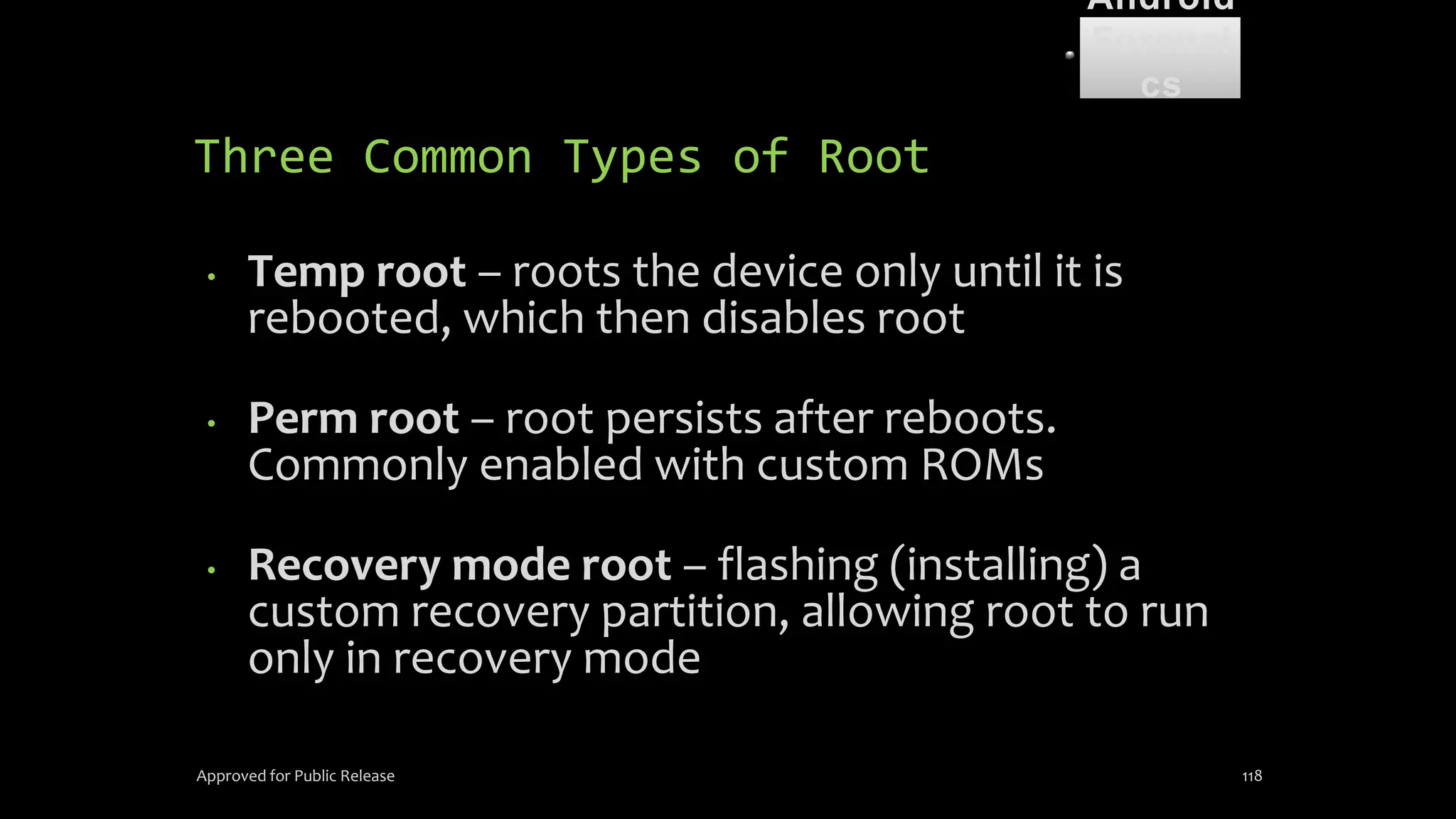

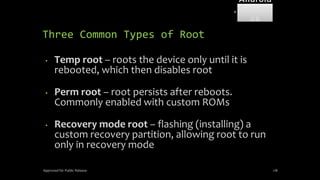

Three Common Types of Root • Temp root – roots the device only until it is rebooted, which then disables root • Perm root – root persists after reboots. Commonly enabled with custom ROMs • Recovery mode root – flashing (installing) a custom recovery partition, allowing root to run only in recovery mode Approved for Public Release 118 Android Forensi cs

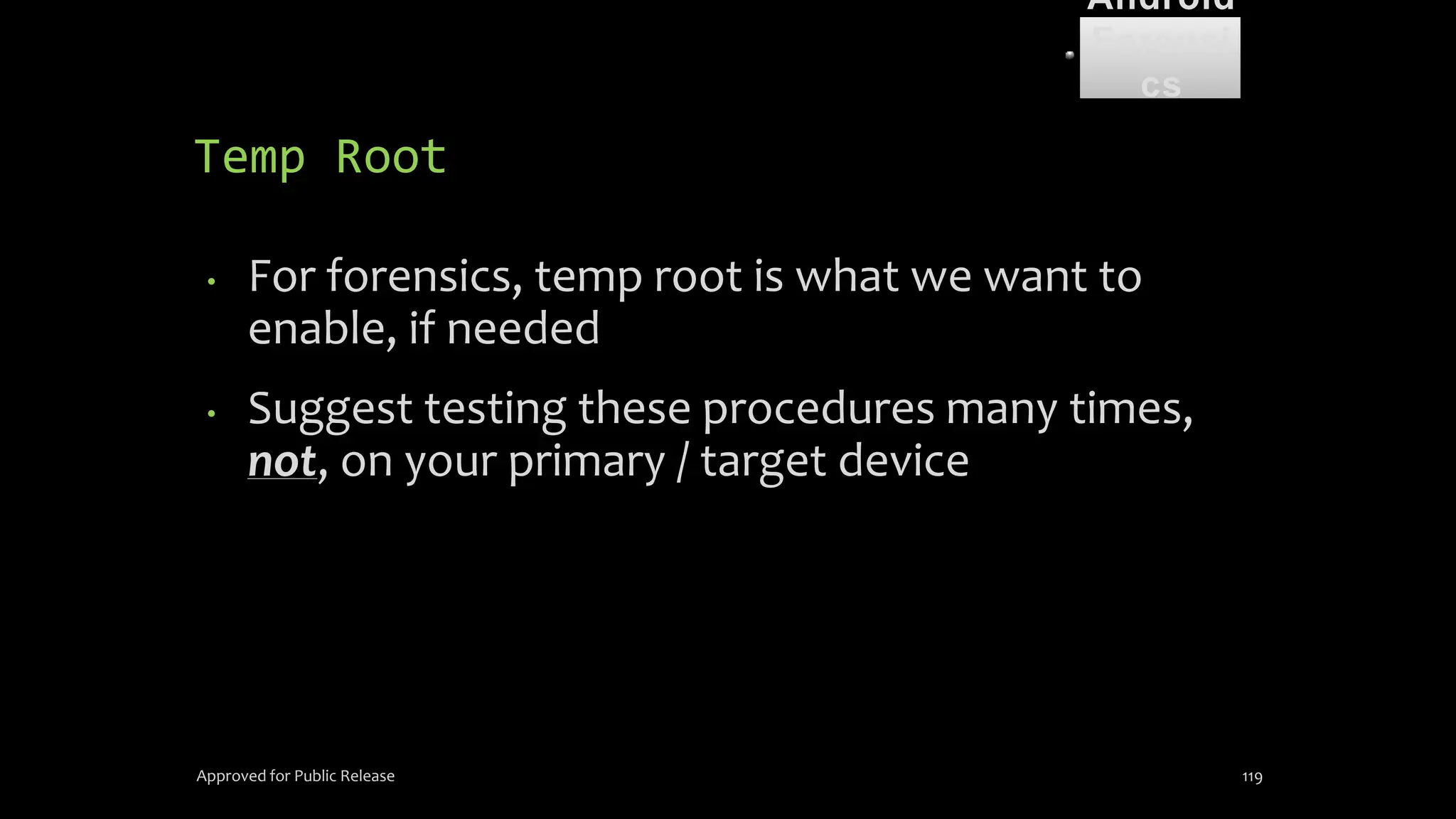

Temp Root • For forensics, temp root is what we want to enable, if needed • Suggest testing these procedures many times, not, on your primary / target device Approved for Public Release 119 Android Forensi cs

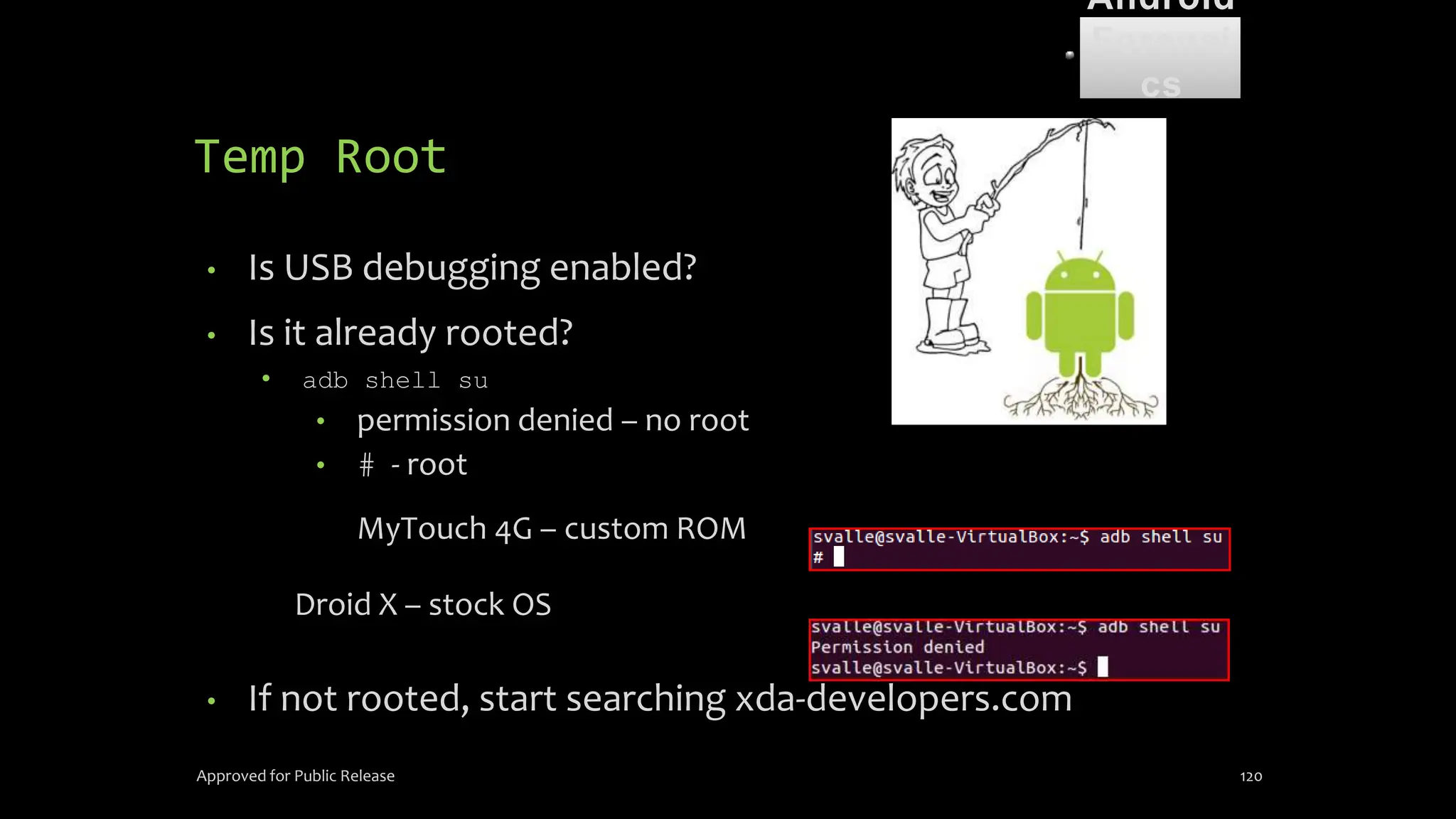

Temp Root • Is USB debugging enabled? • Is it already rooted? • adb shell su • permission denied – no root • # - root MyTouch 4G – custom ROM Droid X – stock OS • If not rooted, start searching xda-developers.com Approved for Public Release 120 Android Forensi cs

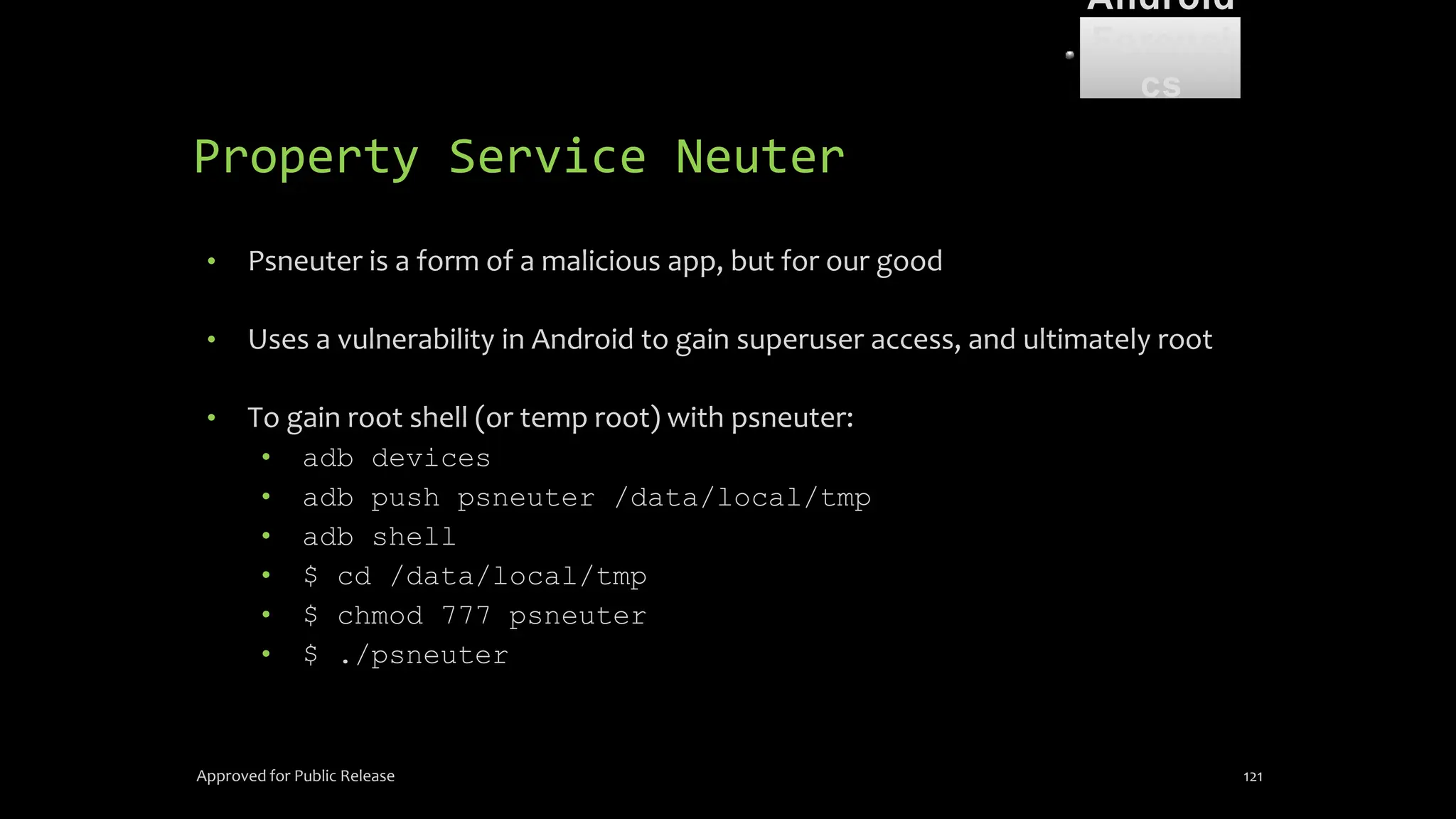

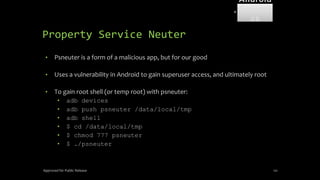

Property Service Neuter • Psneuter is a form of a malicious app, but for our good • Uses a vulnerability in Android to gain superuser access, and ultimately root • To gain root shell (or temp root) with psneuter: • adb devices • adb push psneuter /data/local/tmp • adb shell • $ cd /data/local/tmp • $ chmod 777 psneuter • $ ./psneuter Approved for Public Release 121 Android Forensi cs
Permanent Root • Not as common for forensics • We want to limit the footprint • Perm root leaves a HUGE footprint Approved for Public Release 122 Android Forensi cs

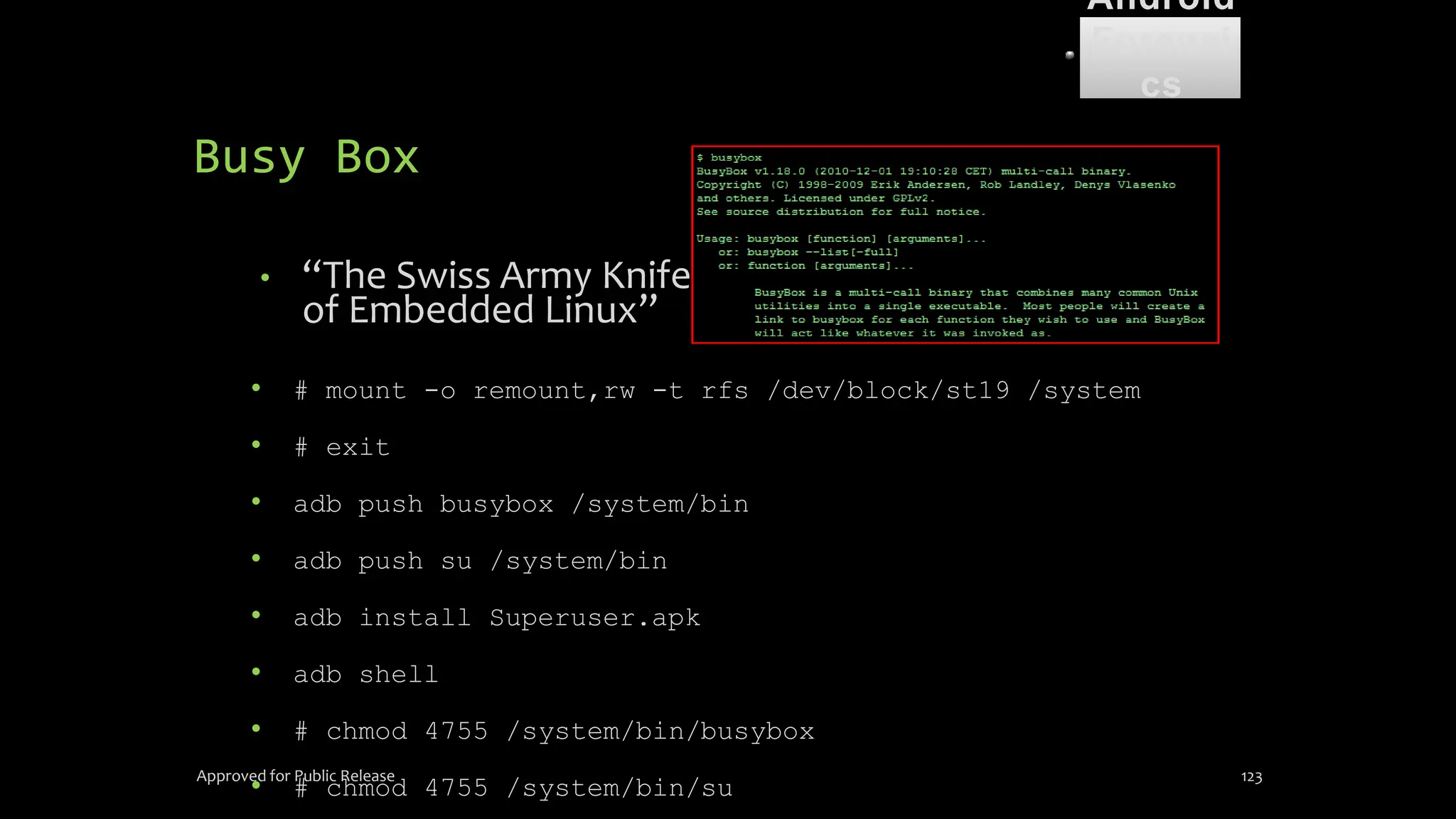

Busy Box • “The Swiss Army Knife of Embedded Linux” • # mount -o remount,rw -t rfs /dev/block/st19 /system • # exit • adb push busybox /system/bin • adb push su /system/bin • adb install Superuser.apk • adb shell • # chmod 4755 /system/bin/busybox • # chmod 4755 /system/bin/su Approved for Public Release 123 Android Forensi cs

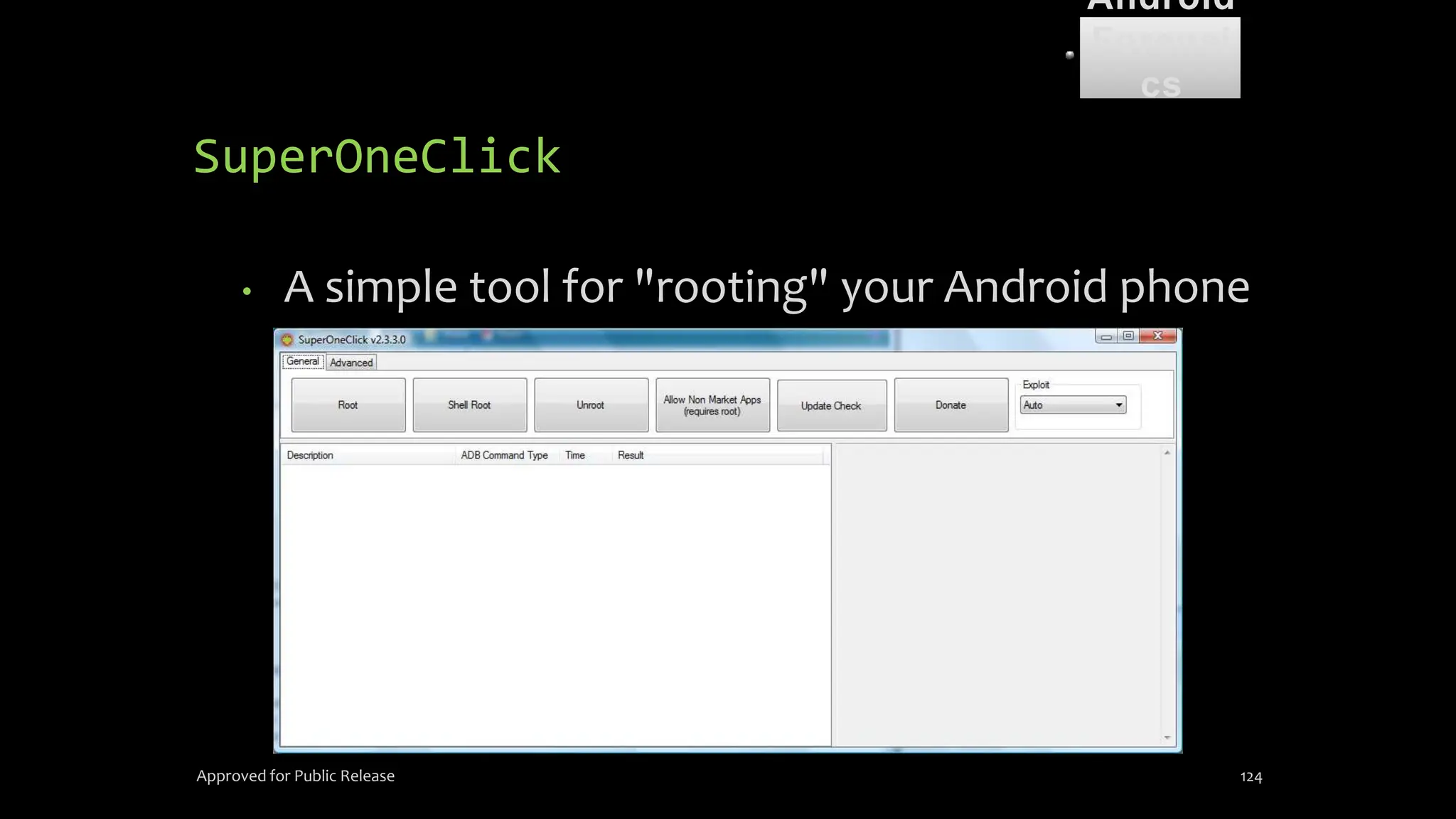

SuperOneClick • A simple tool for "rooting" your Android phone Approved for Public Release 124 Android Forensi cs

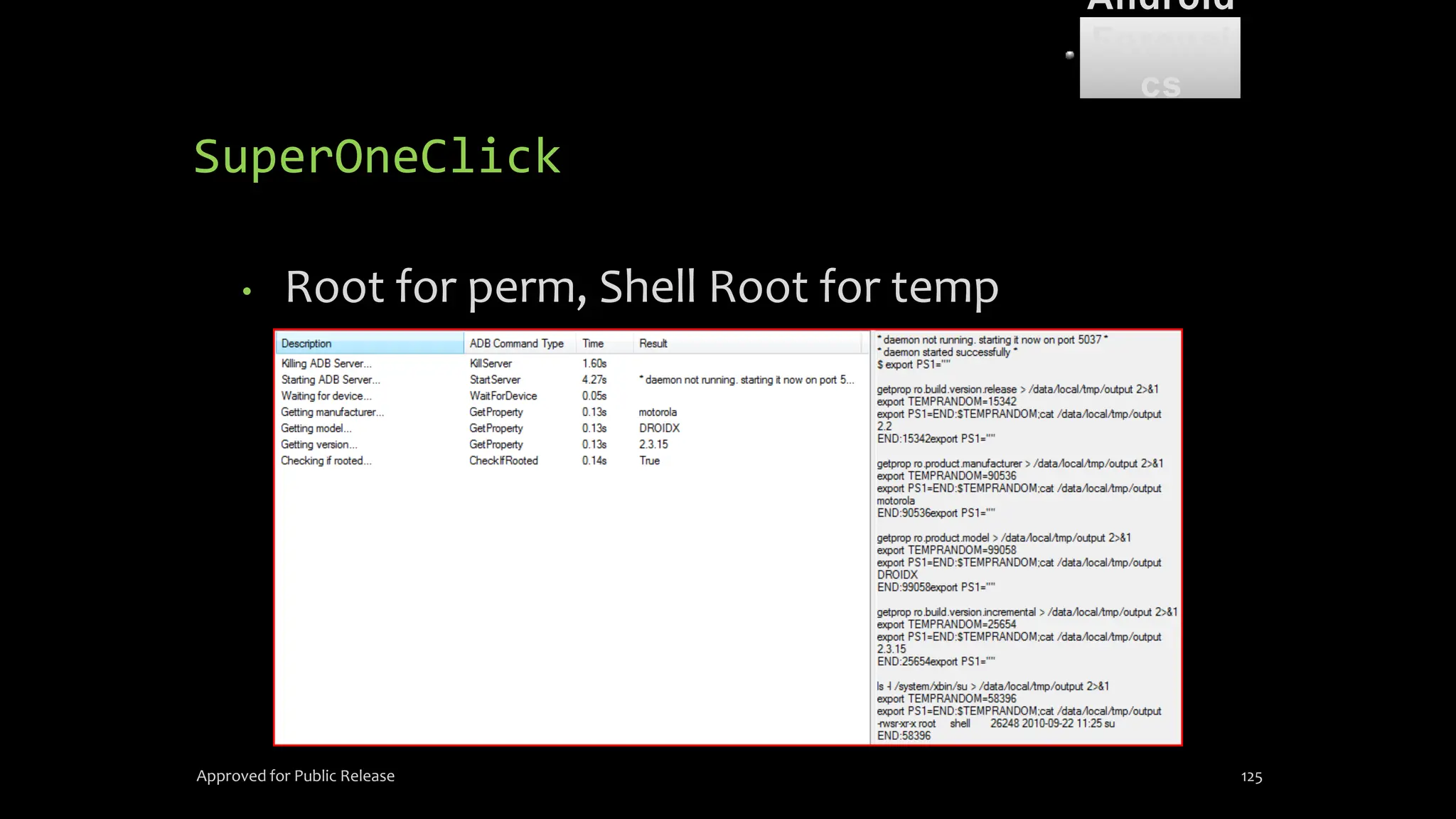

SuperOneClick • Root for perm, Shell Root for temp Approved for Public Release 125 Android Forensi cs

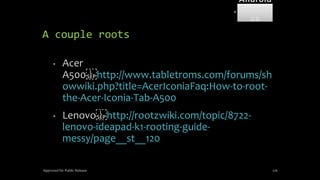

A couple roots • Acer A500 http://www.tabletroms.com/forums/sh owwiki.php?title=AcerIconiaFaq:How-to-root- the-Acer-Iconia-Tab-A500 • Lenovo http://rootzwiki.com/topic/8722- lenovo-ideapad-k1-rooting-guide- messy/page__st__120 Approved for Public Release 126 Android Forensi cs

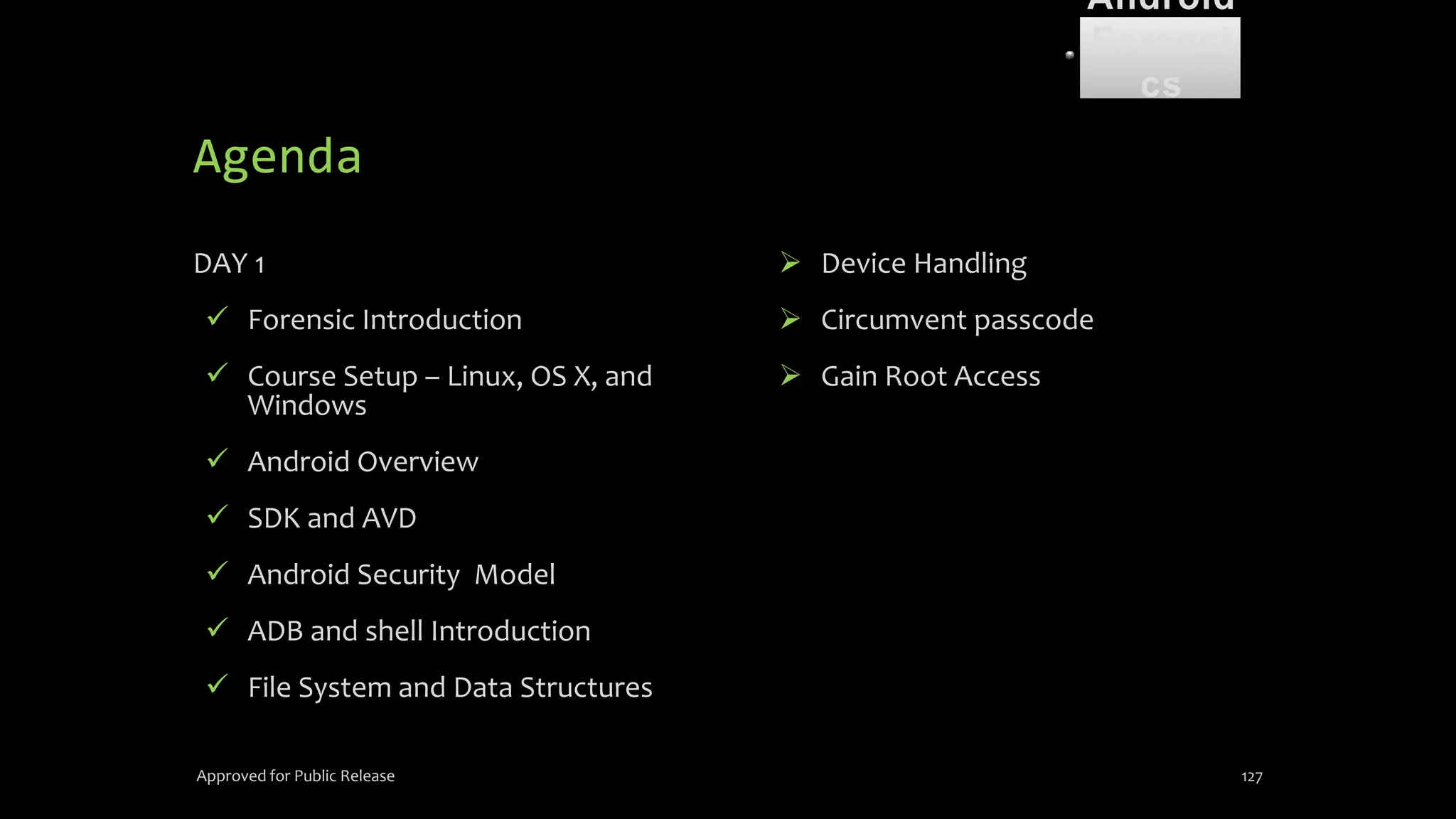

Agenda DAY 1  Forensic Introduction  Course Setup – Linux, OS X, and Windows  Android Overview  SDK and AVD  Android Security Model  ADB and shell Introduction  File System and Data Structures  Device Handling  Circumvent passcode  Gain Root Access Approved for Public Release 127 Android Forensi cs

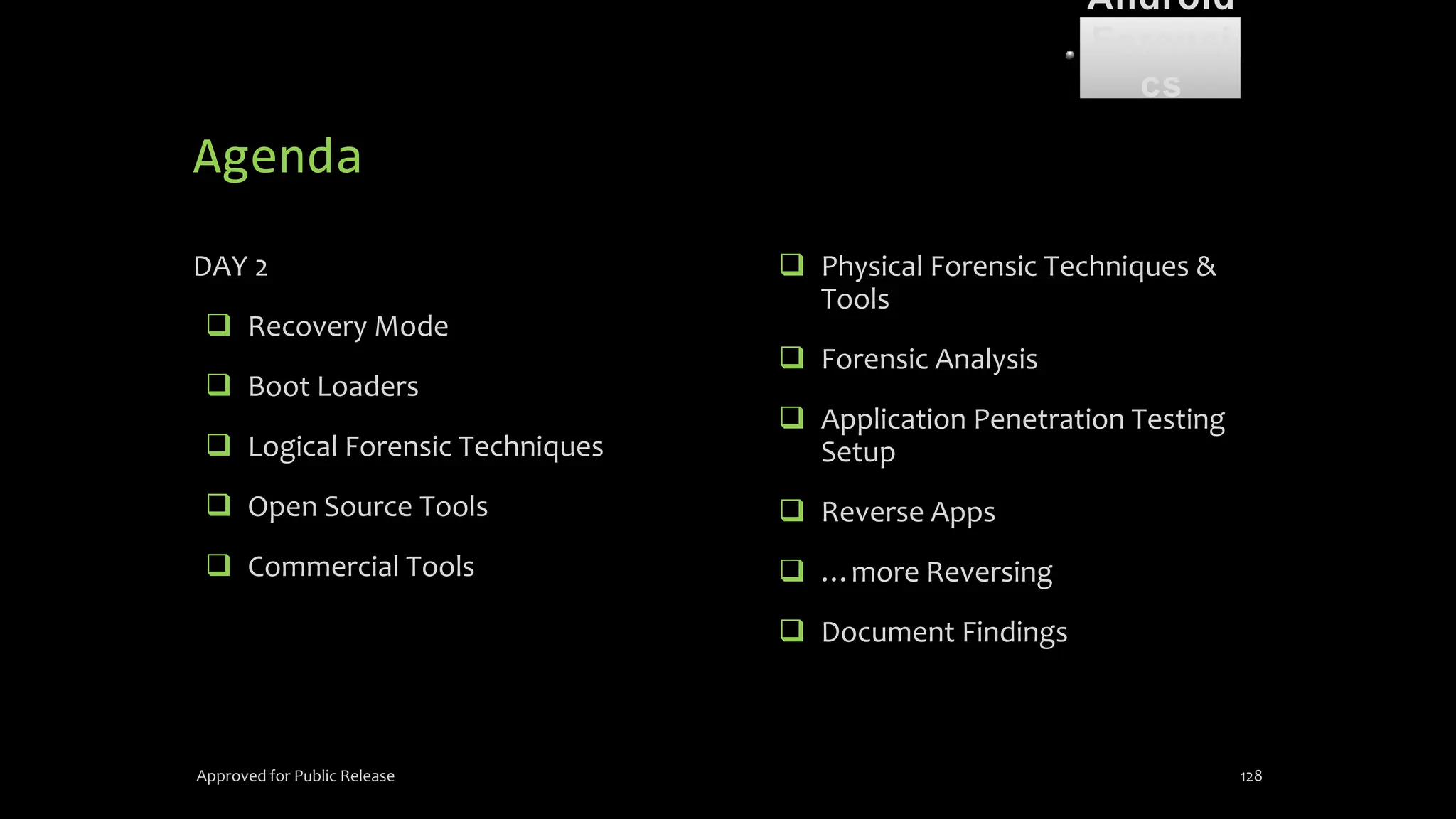

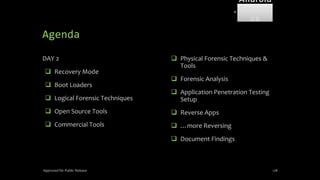

Agenda DAY 2  Recovery Mode  Boot Loaders  Logical Forensic Techniques  Open Source Tools  Commercial Tools  Physical Forensic Techniques & Tools  Forensic Analysis  Application Penetration Testing Setup  Reverse Apps  …more Reversing  Document Findings Approved for Public Release 128 Android Forensi cs

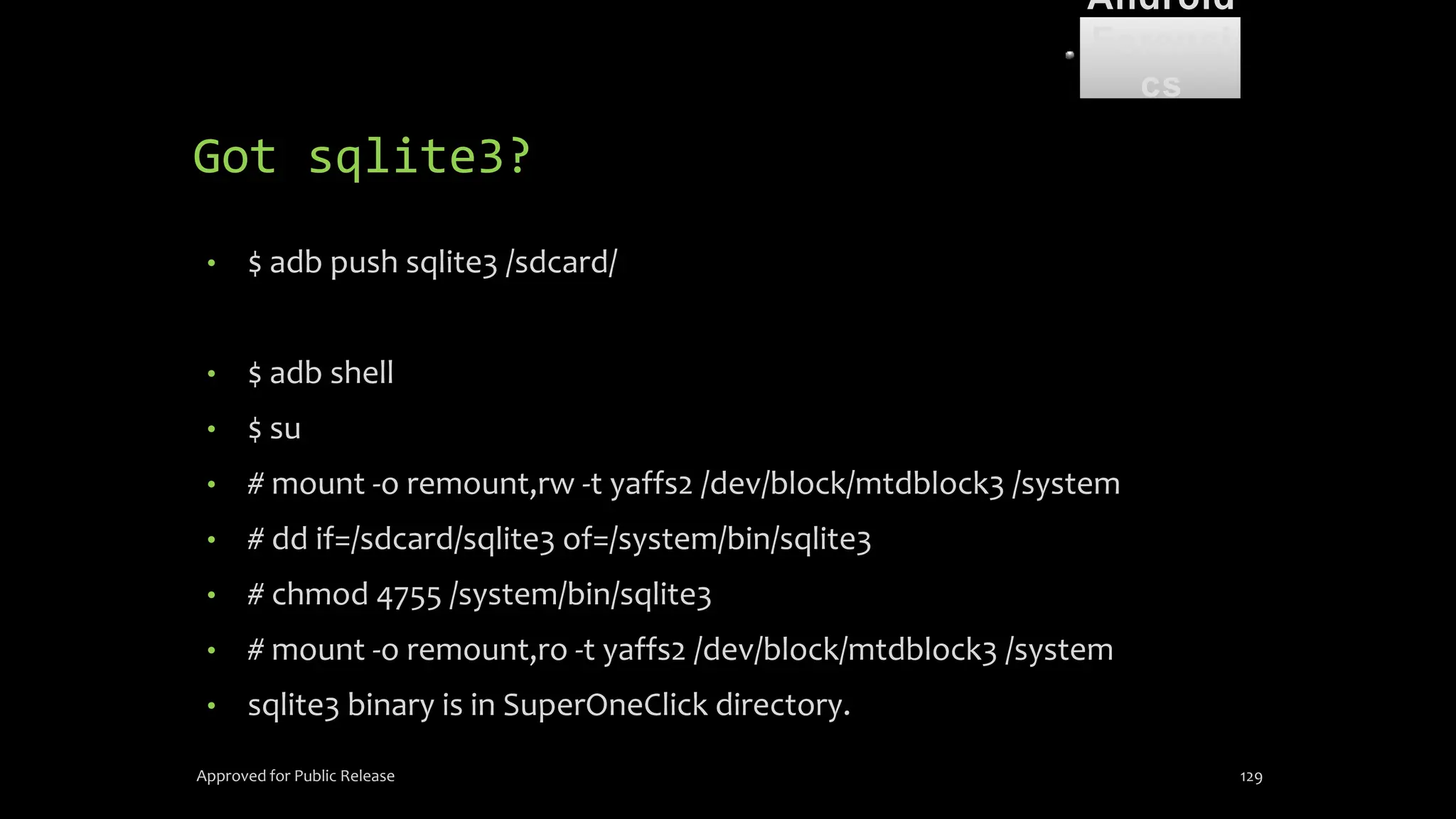

Got sqlite3? • $ adb push sqlite3 /sdcard/ • $ adb shell • $ su • # mount -o remount,rw -t yaffs2 /dev/block/mtdblock3 /system • # dd if=/sdcard/sqlite3 of=/system/bin/sqlite3 • # chmod 4755 /system/bin/sqlite3 • # mount -o remount,ro -t yaffs2 /dev/block/mtdblock3 /system • sqlite3 binary is in SuperOneClick directory. Approved for Public Release 129 Android Forensi cs
Recovery Mode Approved for Public Release 130

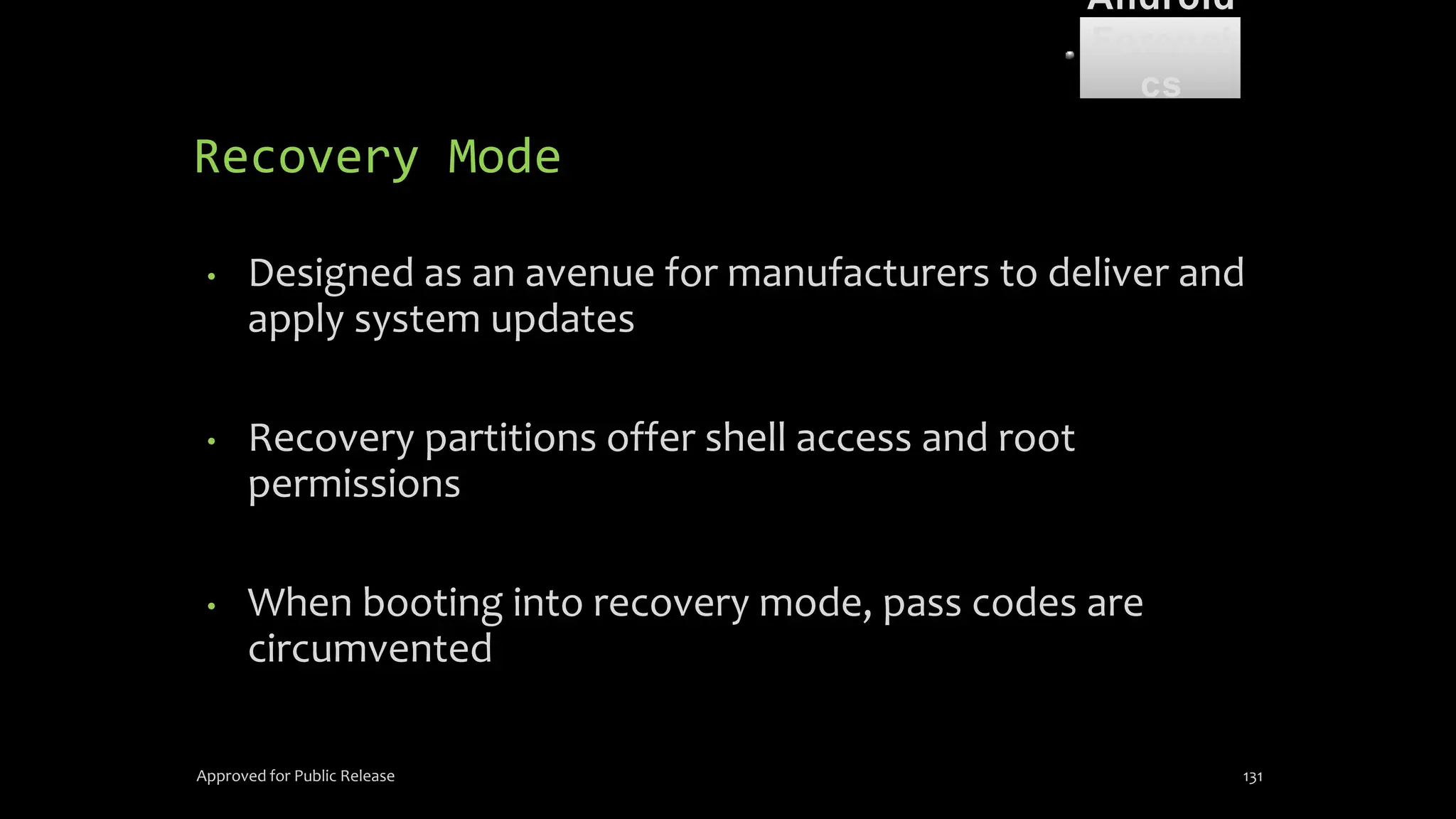

Recovery Mode • Designed as an avenue for manufacturers to deliver and apply system updates • Recovery partitions offer shell access and root permissions • When booting into recovery mode, pass codes are circumvented Approved for Public Release 131 Android Forensi cs

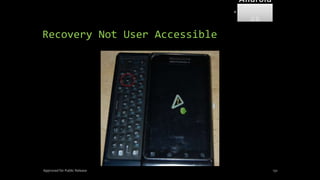

Recovery Not User Accessible Approved for Public Release 132 Android Forensi cs

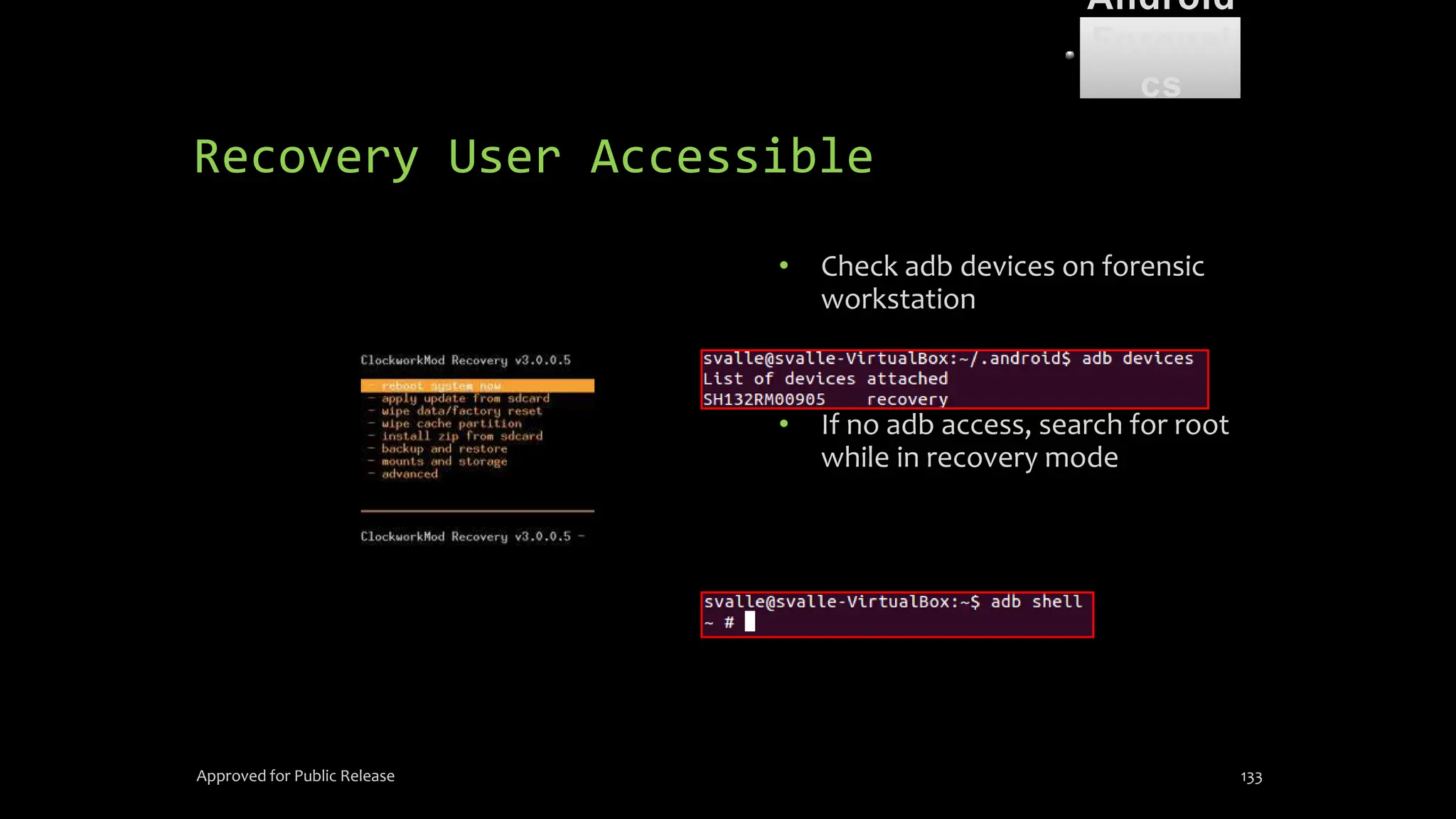

Recovery User Accessible • Check adb devices on forensic workstation • If no adb access, search for root while in recovery mode Approved for Public Release 133 Android Forensi cs

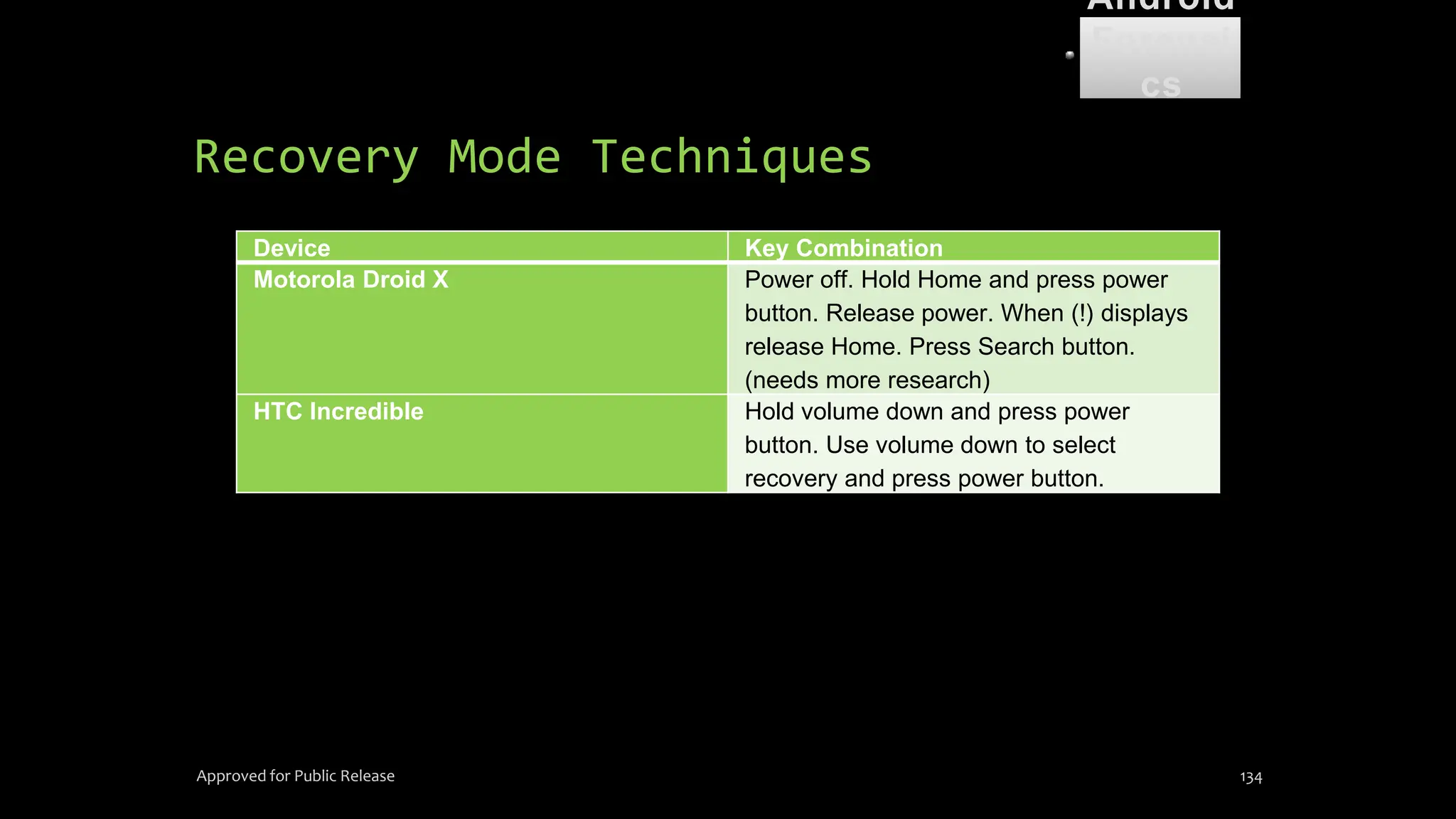

Recovery Mode Techniques Device Key Combination Motorola Droid X Power off. Hold Home and press power button. Release power. When (!) displays release Home. Press Search button. (needs more research) HTC Incredible Hold volume down and press power button. Use volume down to select recovery and press power button. Approved for Public Release 134 Android Forensi cs

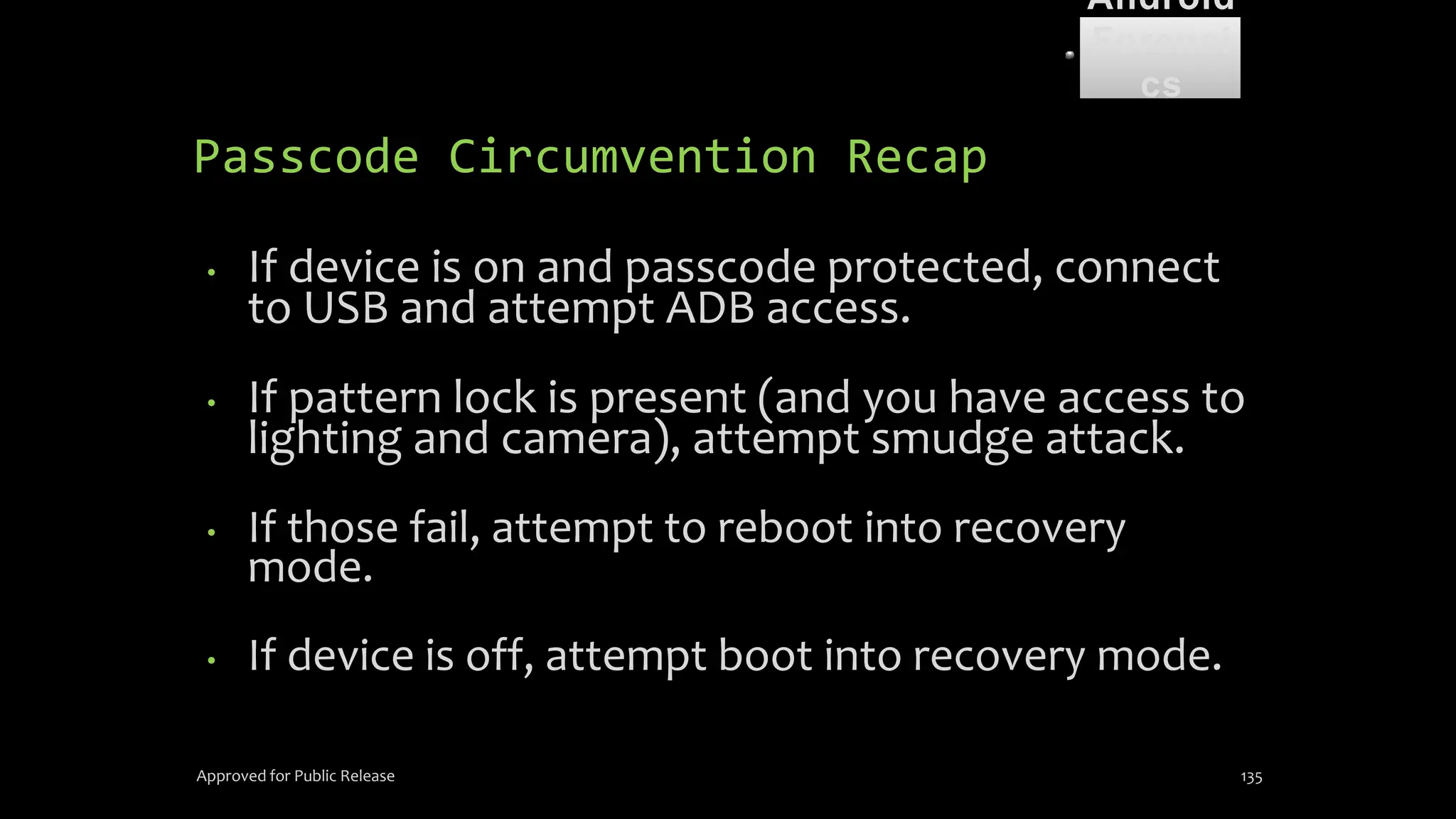

Passcode Circumvention Recap • If device is on and passcode protected, connect to USB and attempt ADB access. • If pattern lock is present (and you have access to lighting and camera), attempt smudge attack. • If those fail, attempt to reboot into recovery mode. • If device is off, attempt boot into recovery mode. Approved for Public Release 135 Android Forensi cs

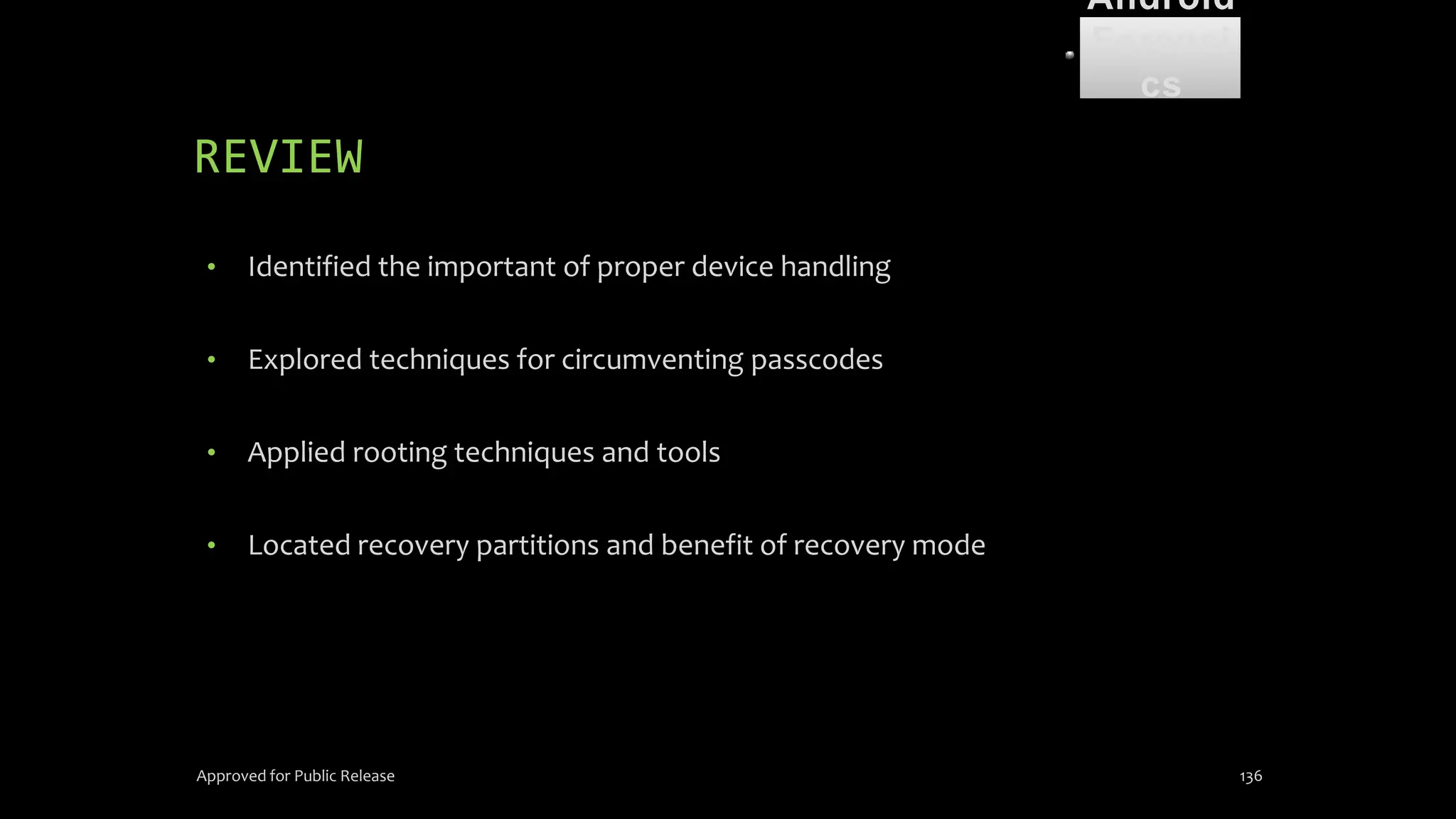

REVIEW • Identified the important of proper device handling • Explored techniques for circumventing passcodes • Applied rooting techniques and tools • Located recovery partitions and benefit of recovery mode Approved for Public Release 136 Android Forensi cs

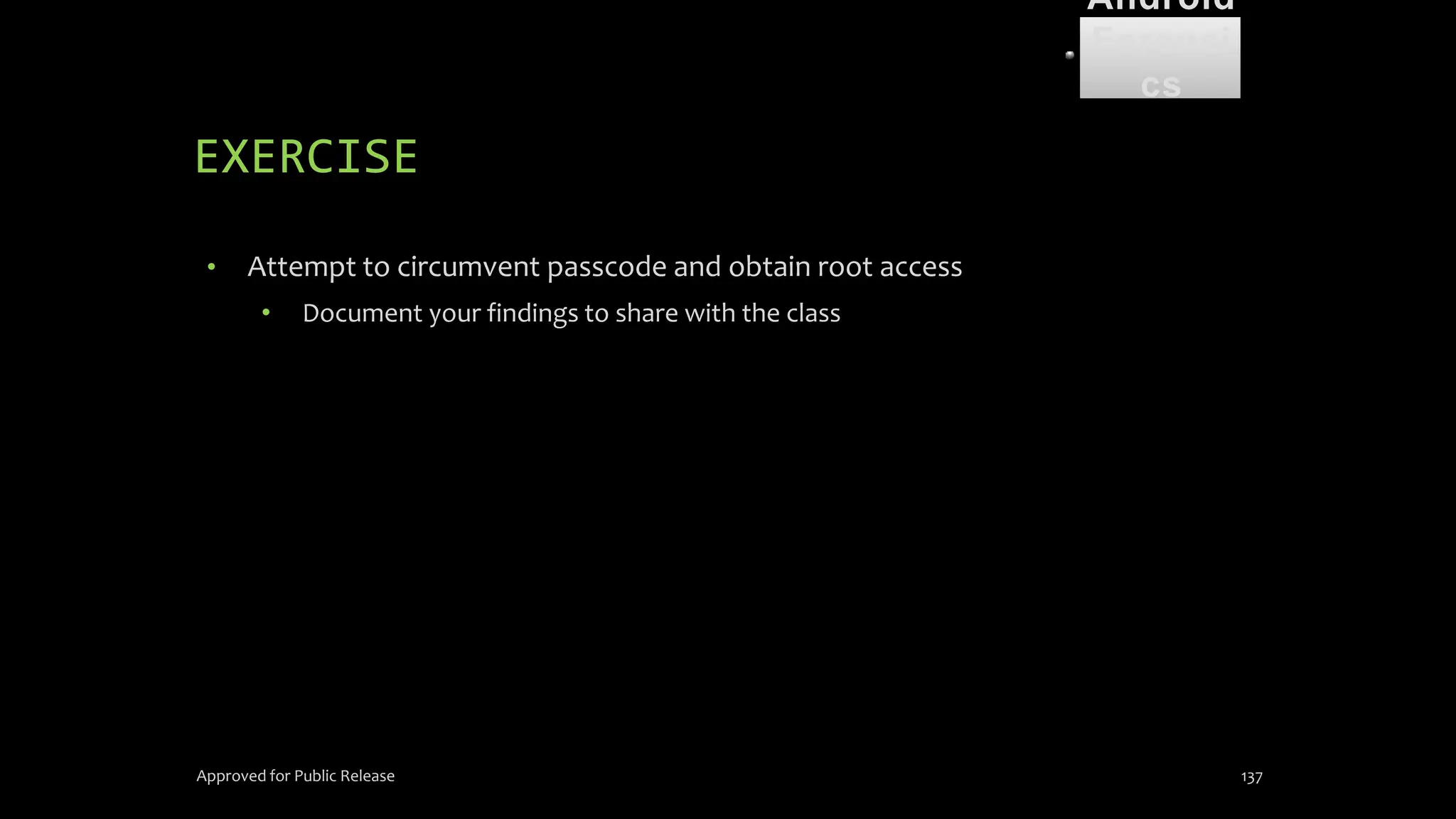

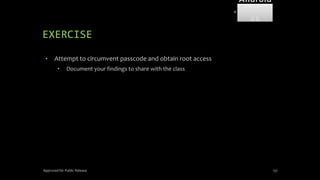

EXERCISE • Attempt to circumvent passcode and obtain root access • Document your findings to share with the class Approved for Public Release 137 Android Forensi cs
Learning Objectives By the end of this course, you will be able to:  Extract and analyze data from an Android device  Manipulate Android file systems and directory structures  Understand techniques to bypass passcodes NEW! 3. Utilize logical and physical data extraction techniques 4. Reverse engineer Android applications 5. Analyze acquired data Approved for Public Release 138 Android Forensi cs
Android Forensics Techniques Approved for Public Release 139

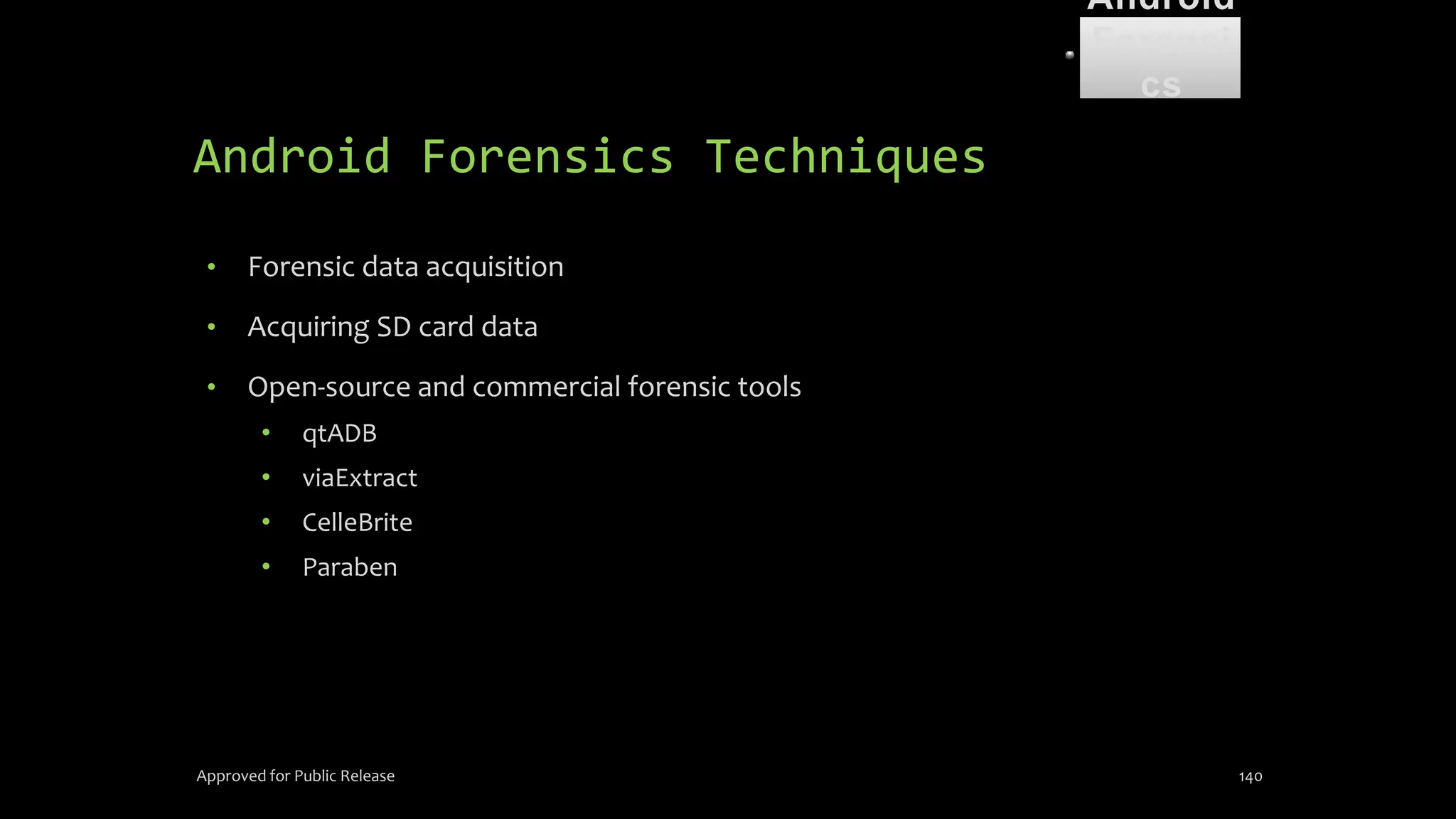

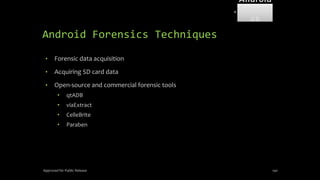

Android Forensics Techniques • Forensic data acquisition • Acquiring SD card data • Open-source and commercial forensic tools • qtADB • viaExtract • CelleBrite • Paraben Approved for Public Release 140 Android Forensi cs
Logical vs. Physical Acquisition Approved for Public Release 141

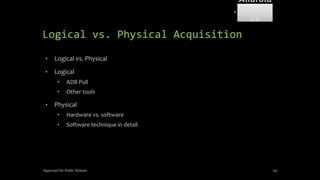

Logical vs. Physical Acquisition • Logical vs. Physical • Logical • ADB Pull • Other tools • Physical • Hardware vs. software • Software technique in detail Approved for Public Release 142 Android Forensi cs

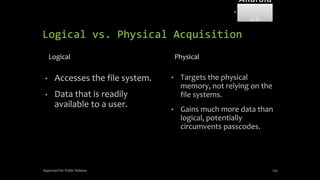

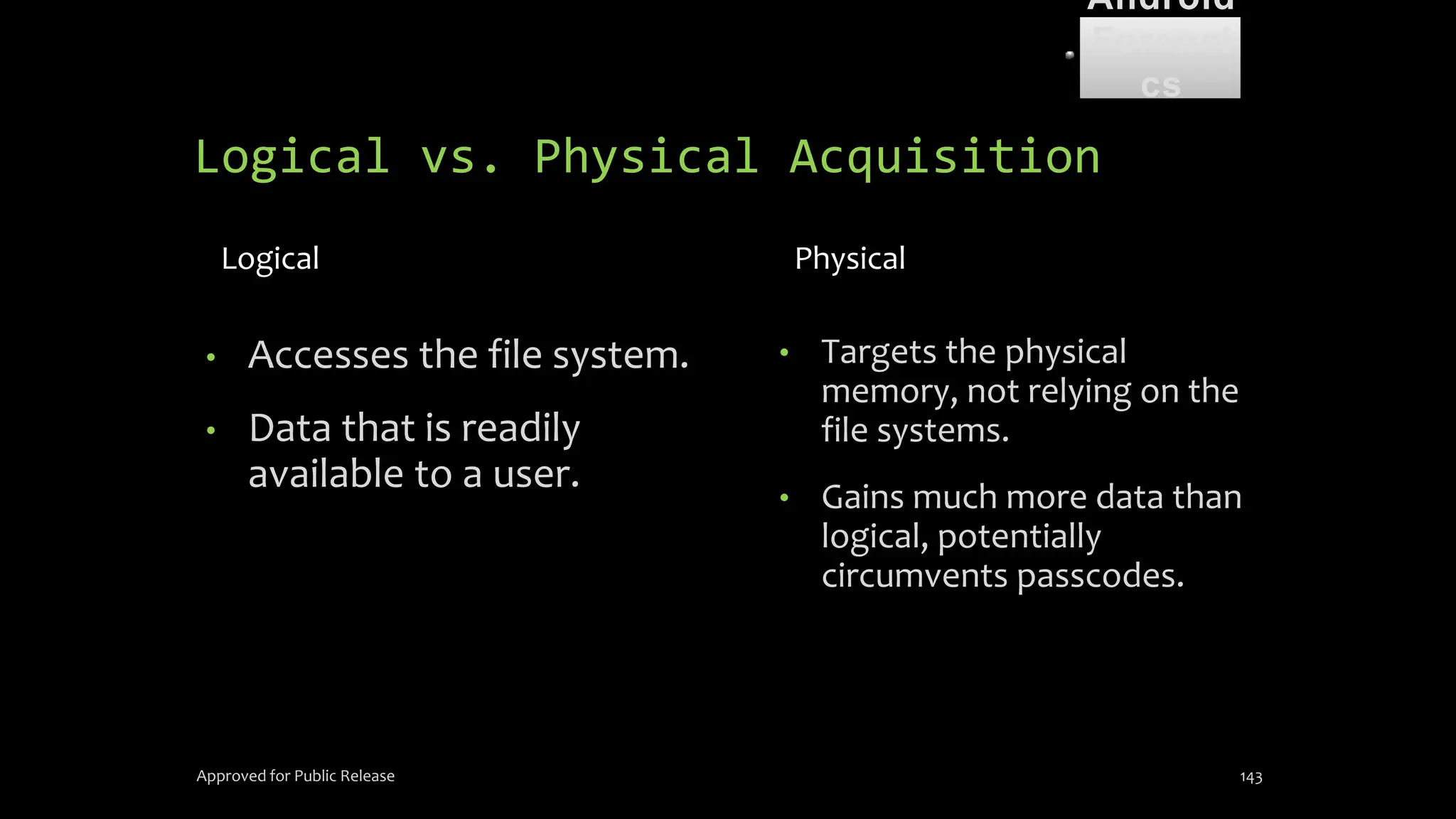

Logical vs. Physical Acquisition Logical Physical • Accesses the file system. • Data that is readily available to a user. • Targets the physical memory, not relying on the file systems. • Gains much more data than logical, potentially circumvents passcodes. Approved for Public Release 143 Android Forensi cs

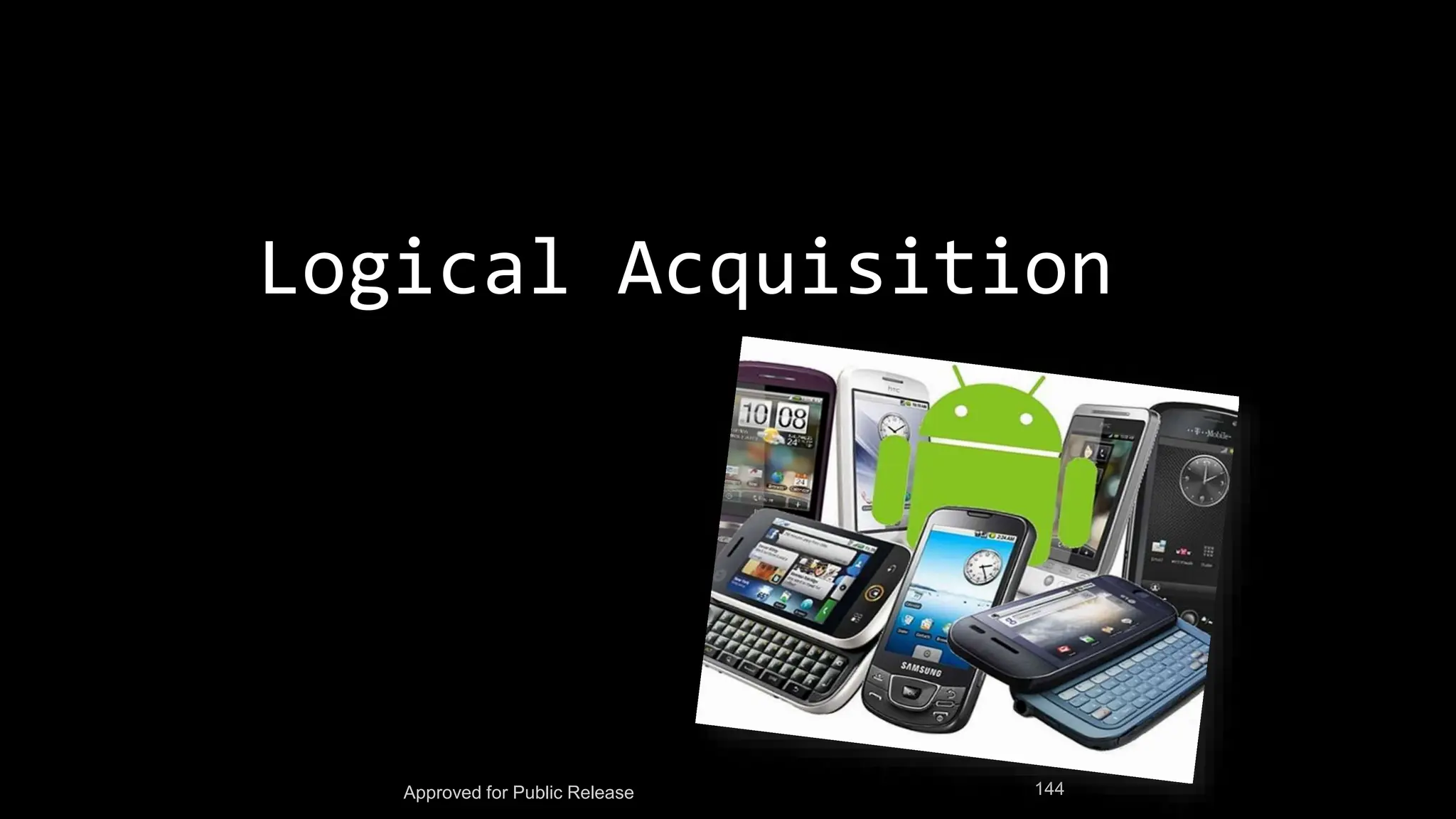

Logical Acquisition Approved for Public Release 144

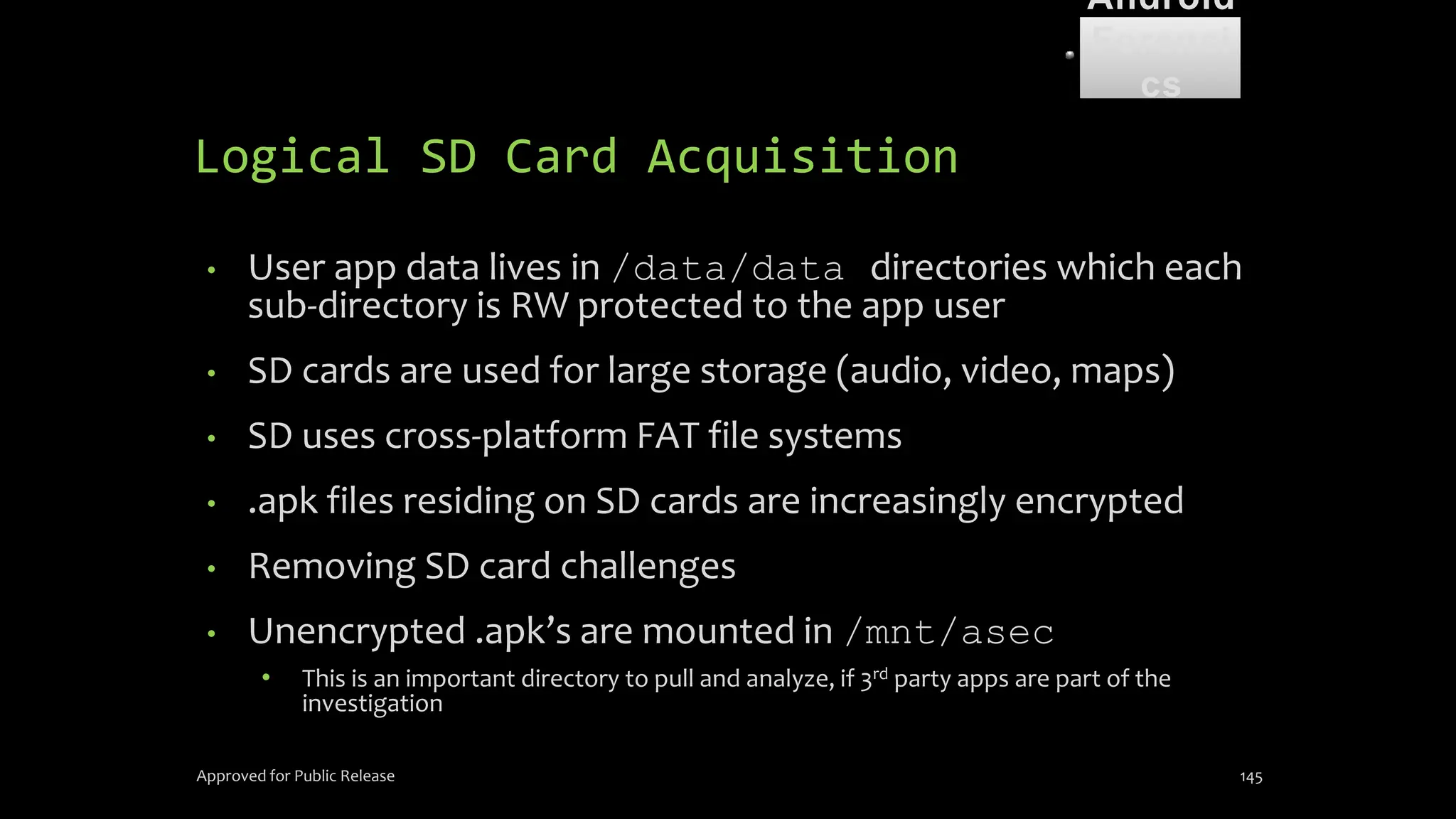

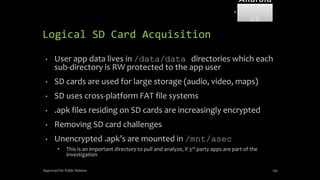

Logical SD Card Acquisition • User app data lives in /data/data directories which each sub-directory is RW protected to the app user • SD cards are used for large storage (audio, video, maps) • SD uses cross-platform FAT file systems • .apk files residing on SD cards are increasingly encrypted • Removing SD card challenges • Unencrypted .apk’s are mounted in /mnt/asec • This is an important directory to pull and analyze, if 3rd party apps are part of the investigation Approved for Public Release 145 Android Forensi cs

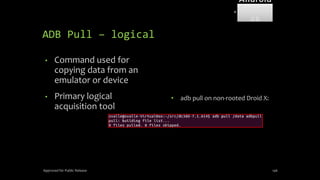

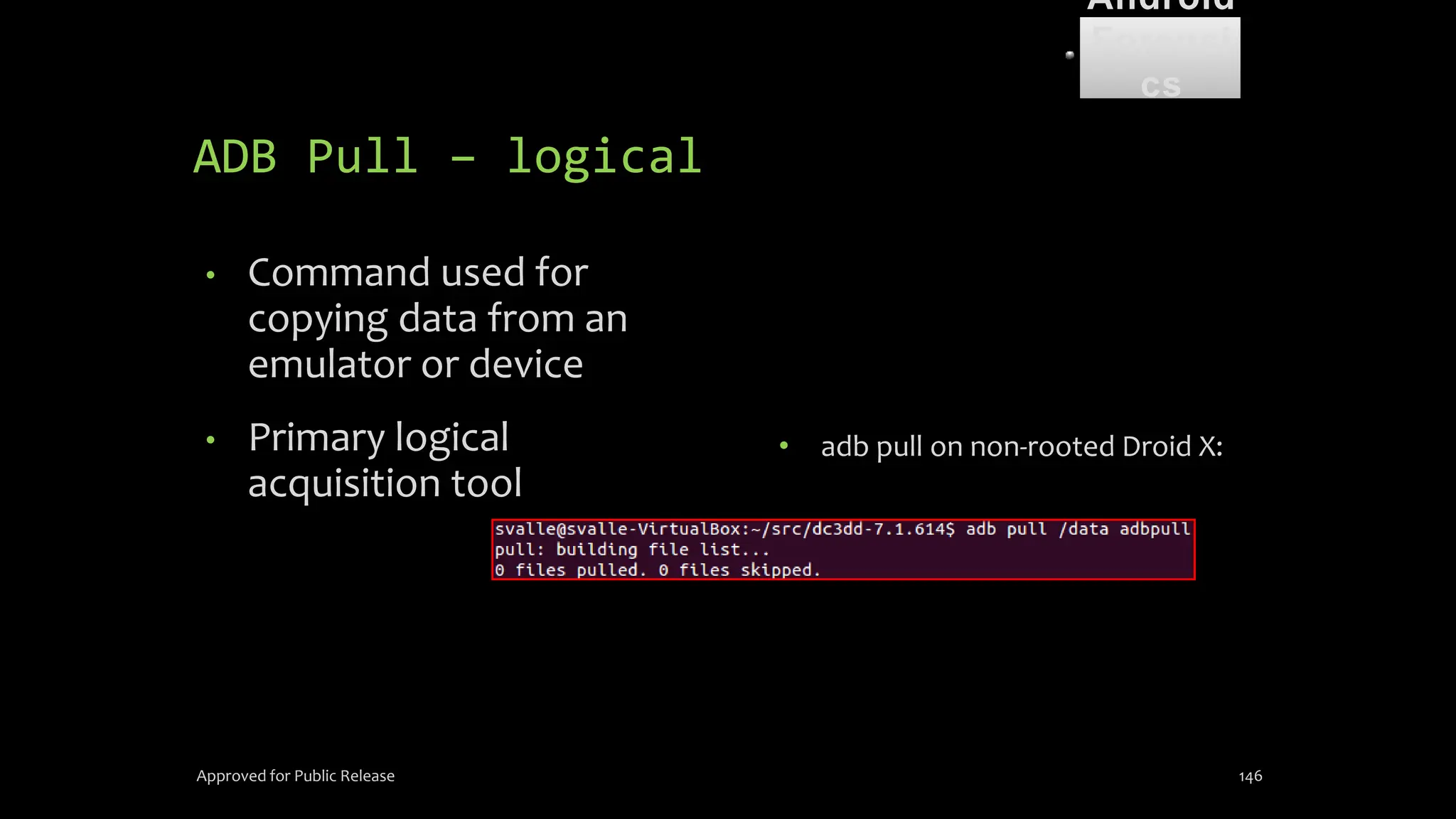

ADB Pull – logical • Command used for copying data from an emulator or device • Primary logical acquisition tool • adb pull on non-rooted Droid X: Approved for Public Release 146 Android Forensi cs

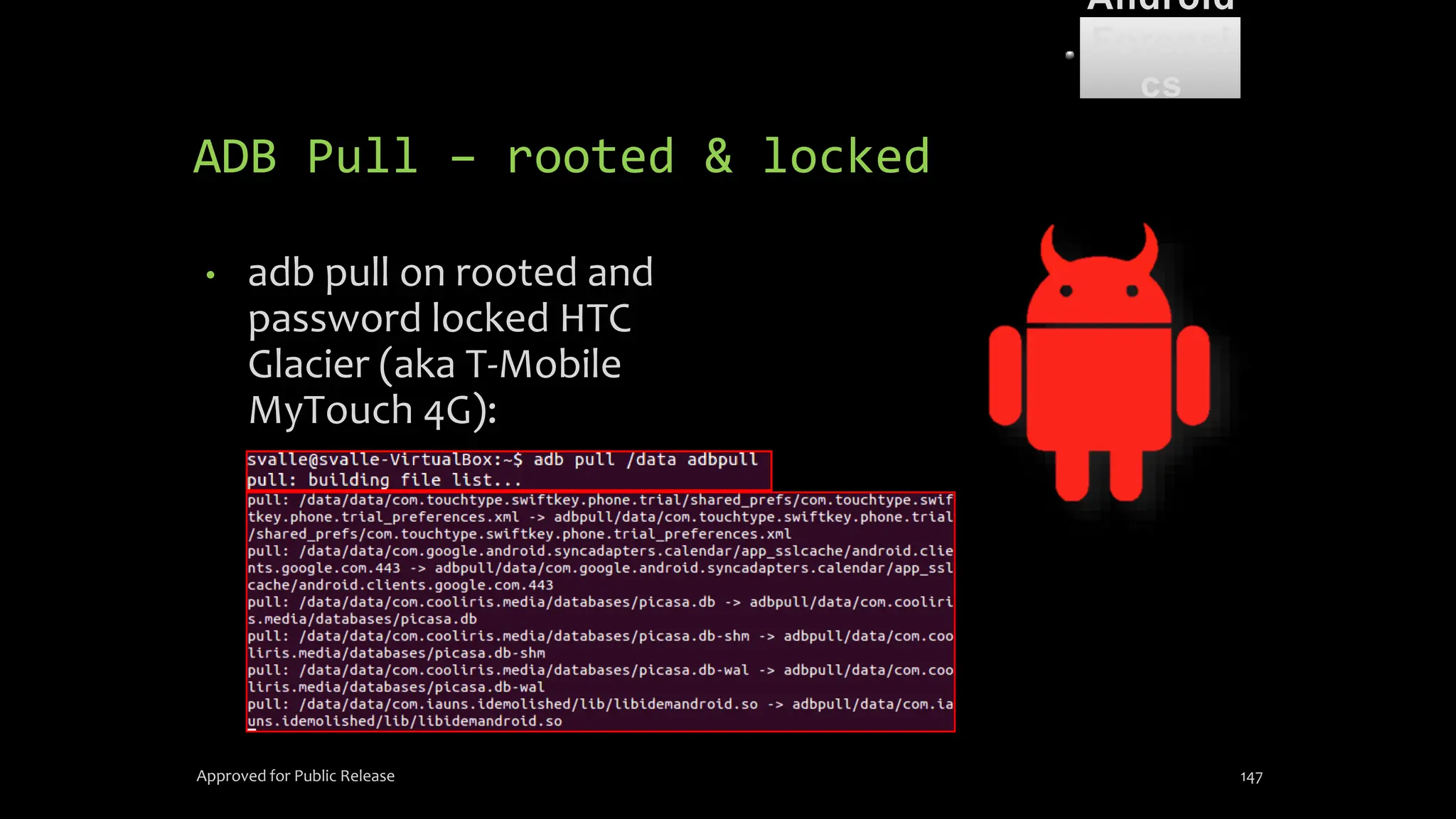

ADB Pull – rooted & locked • adb pull on rooted and password locked HTC Glacier (aka T-Mobile MyTouch 4G): Approved for Public Release 147 Android Forensi cs

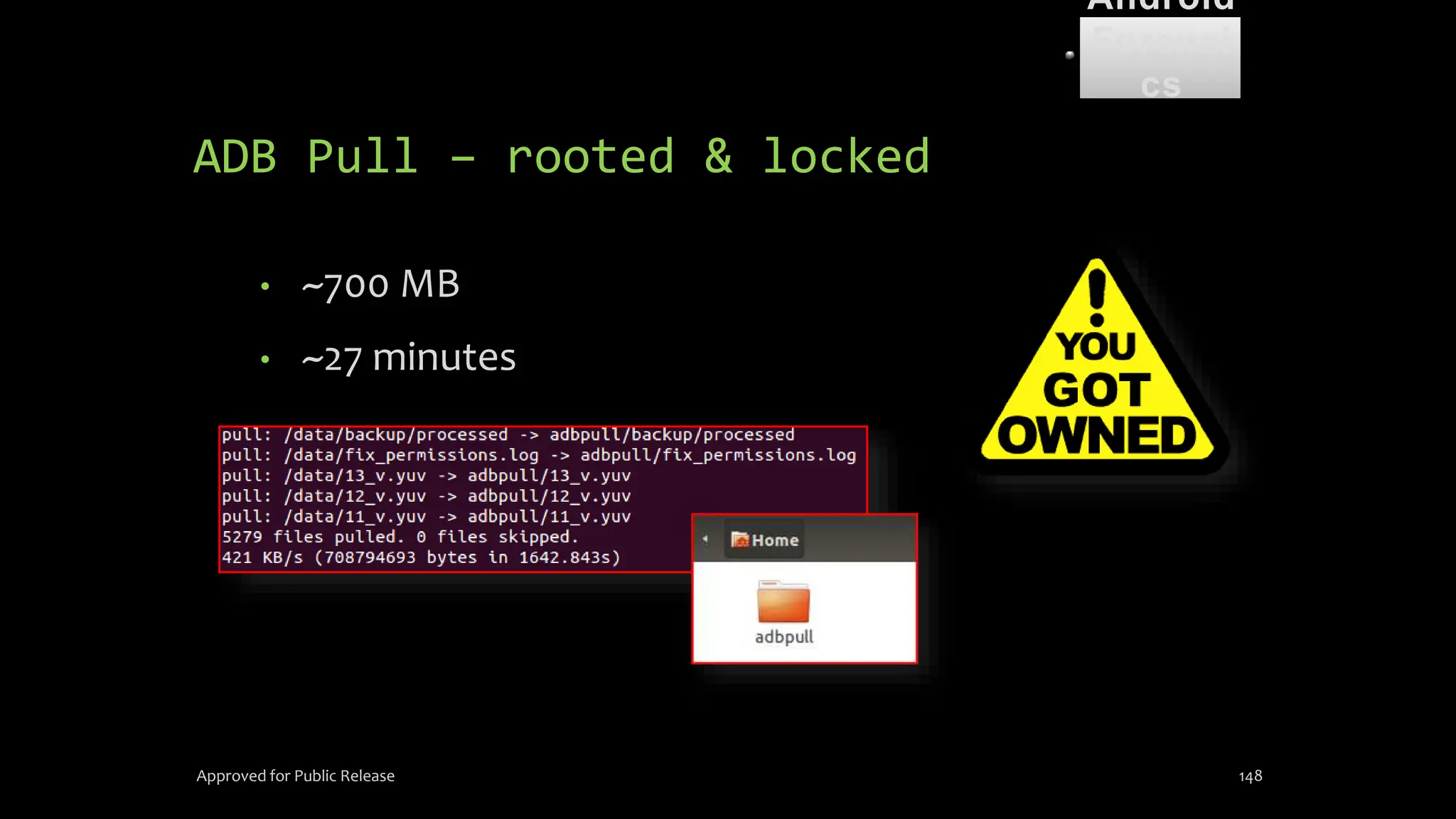

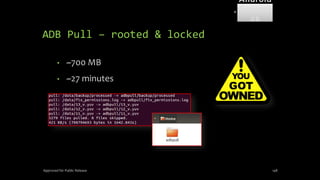

ADB Pull – rooted & locked • ~700 MB • ~27 minutes Approved for Public Release 148 Android Forensi cs
Tools and Time Savers Approved for Public Release 149

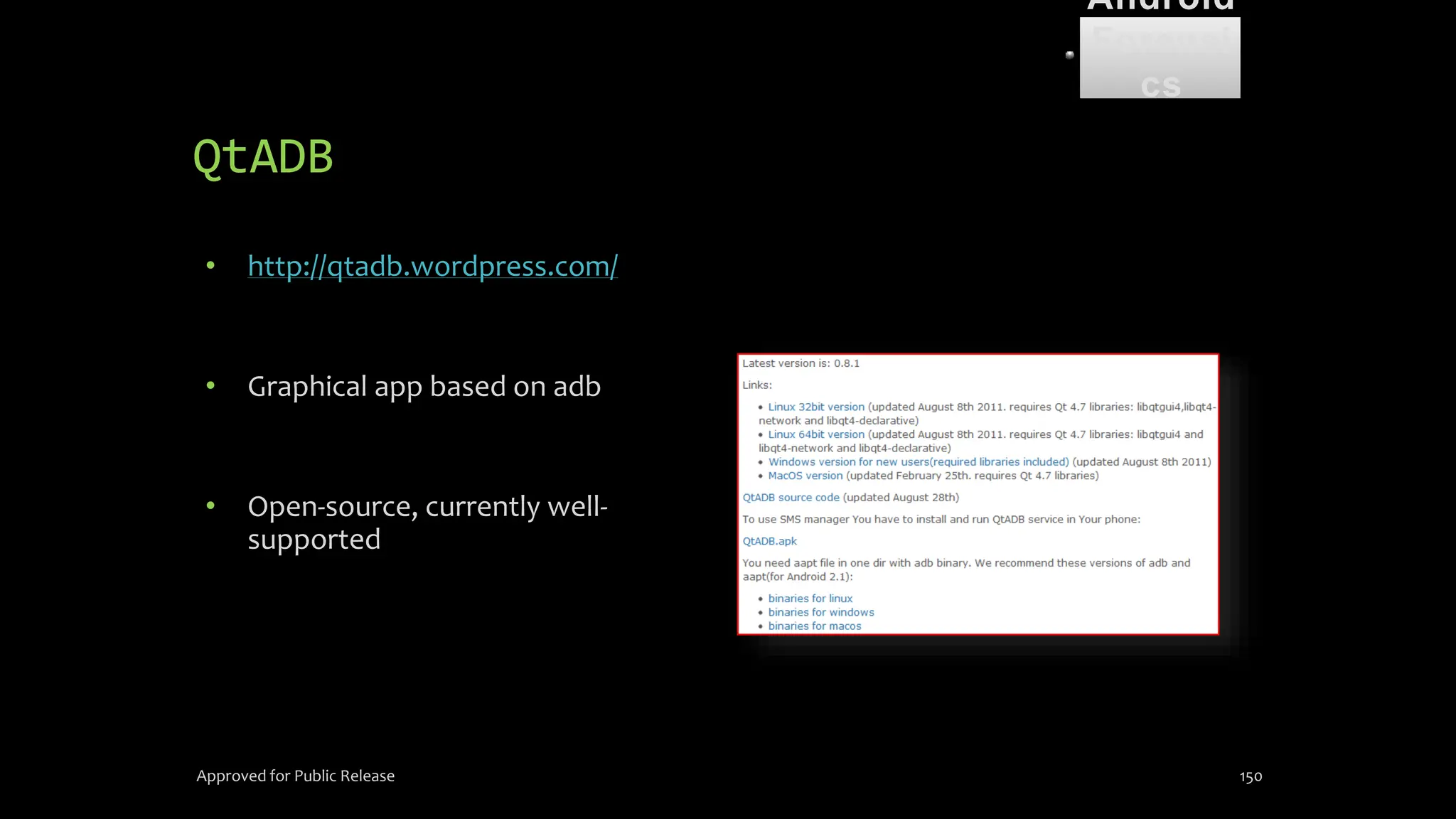

QtADB • http://qtadb.wordpress.com/ • Graphical app based on adb • Open-source, currently well- supported Approved for Public Release 150 Android Forensi cs

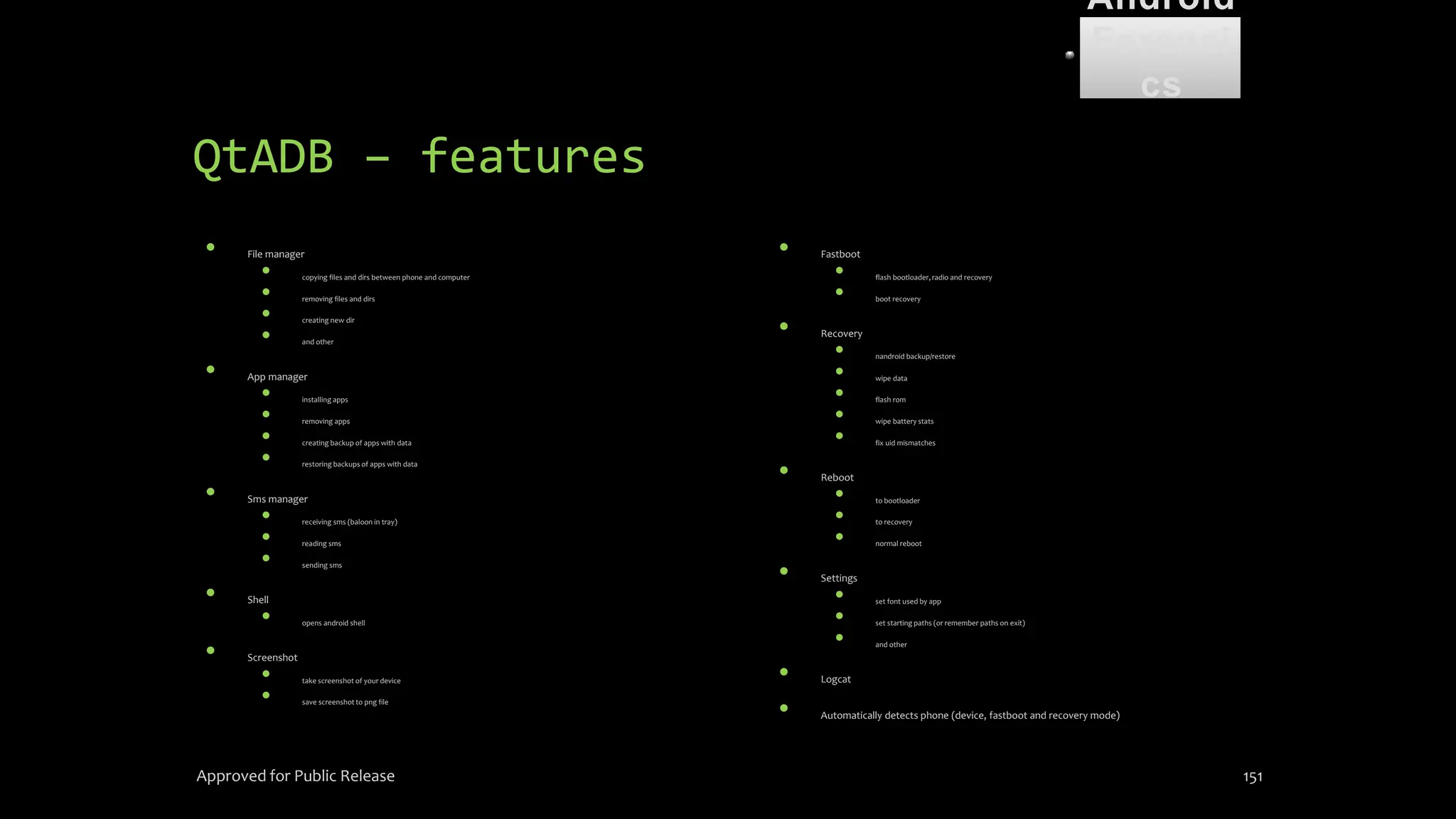

QtADB – features • File manager • copying files and dirs between phone and computer • removing files and dirs • creating new dir • and other • App manager • installing apps • removing apps • creating backup of apps with data • restoring backups of apps with data • Sms manager • receiving sms (baloon in tray) • reading sms • sending sms • Shell • opens android shell • Screenshot • take screenshot of your device • save screenshot to png file • Fastboot • flash bootloader, radio and recovery • boot recovery • Recovery • nandroid backup/restore • wipe data • flash rom • wipe battery stats • fix uid mismatches • Reboot • to bootloader • to recovery • normal reboot • Settings • set font used by app • set starting paths (or remember paths on exit) • and other • Logcat • Automatically detects phone (device, fastboot and recovery mode) Approved for Public Release 151 Android Forensi cs

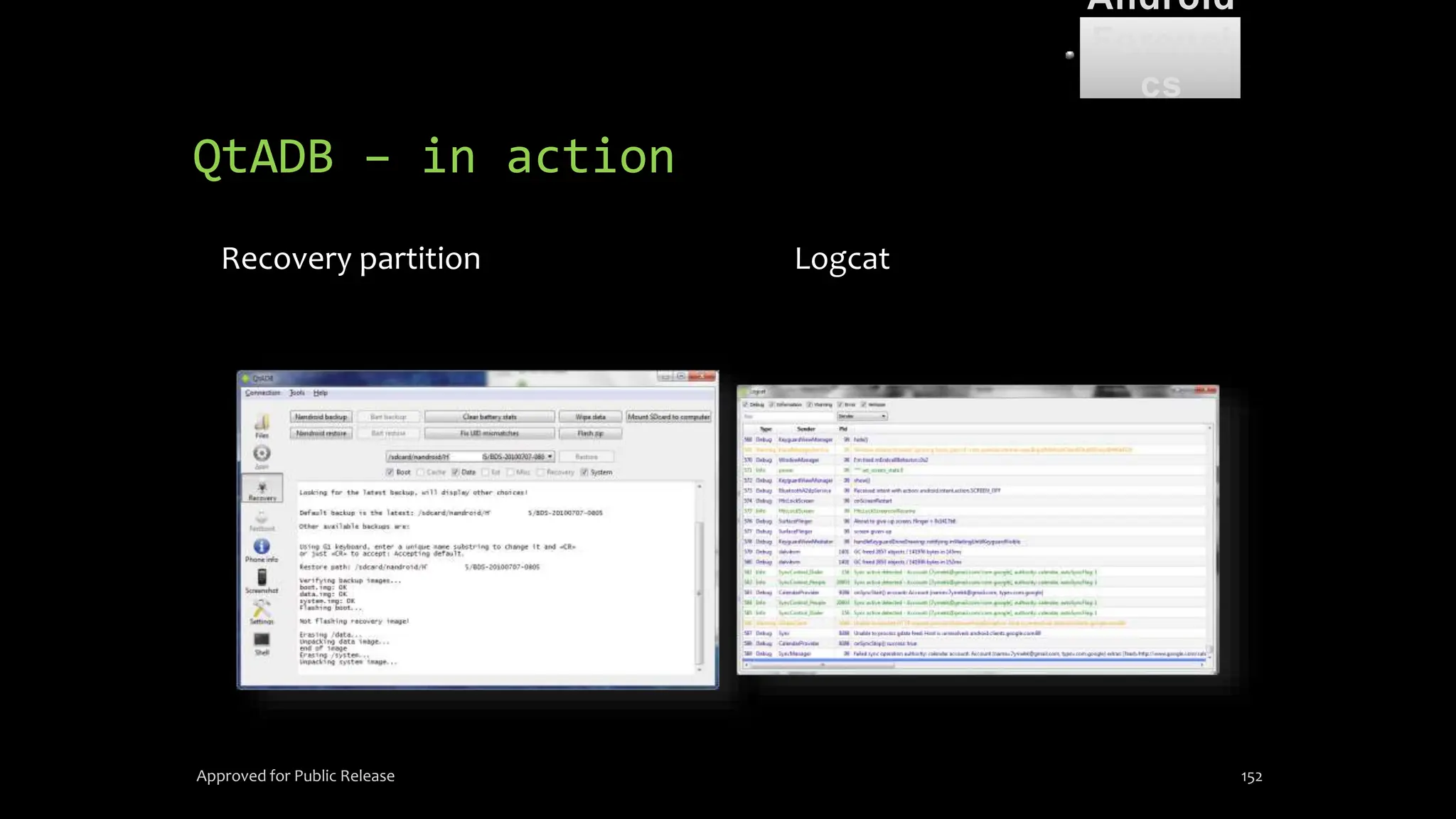

QtADB – in action Recovery partition Logcat Approved for Public Release 152 Android Forensi cs
QtADB – setup • Windows: • Must have Android SDK installed • ZIP contain all libraries • Extract to a permanent directory • Open QtADB application • Choose path to directory with adb and aapt binaries (example: C:Users<USERNAME>AppData LocalAndroidandroid- sdkplatform-tools) Approved for Public Release 153 Android Forensi cs

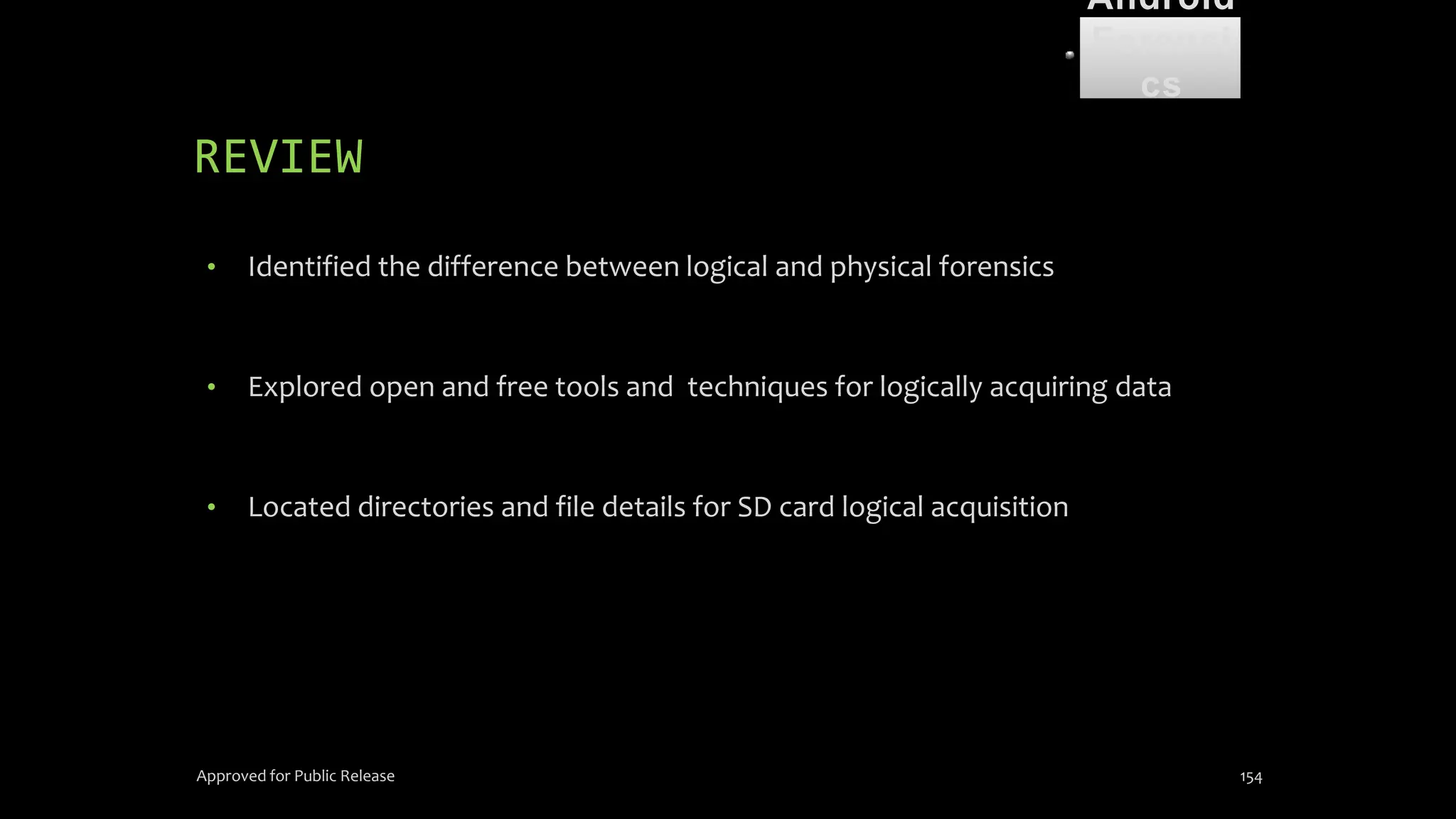

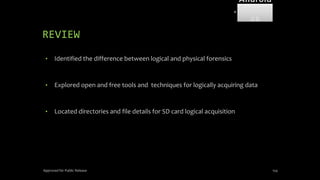

REVIEW • Identified the difference between logical and physical forensics • Explored open and free tools and techniques for logically acquiring data • Located directories and file details for SD card logical acquisition Approved for Public Release 154 Android Forensi cs
EXERCISE • Using either ADB or QtADB pull a logical acquisition from your device or AVD. • Verify pull successfully completed, and document size of data acquired. Approved for Public Release 155 Android Forensi cs

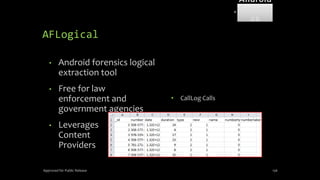

AFLogical • Android forensics logical extraction tool • Free for law enforcement and government agencies • Leverages Content Providers Approved for Public Release 156 Android Forensi cs • CallLog Calls

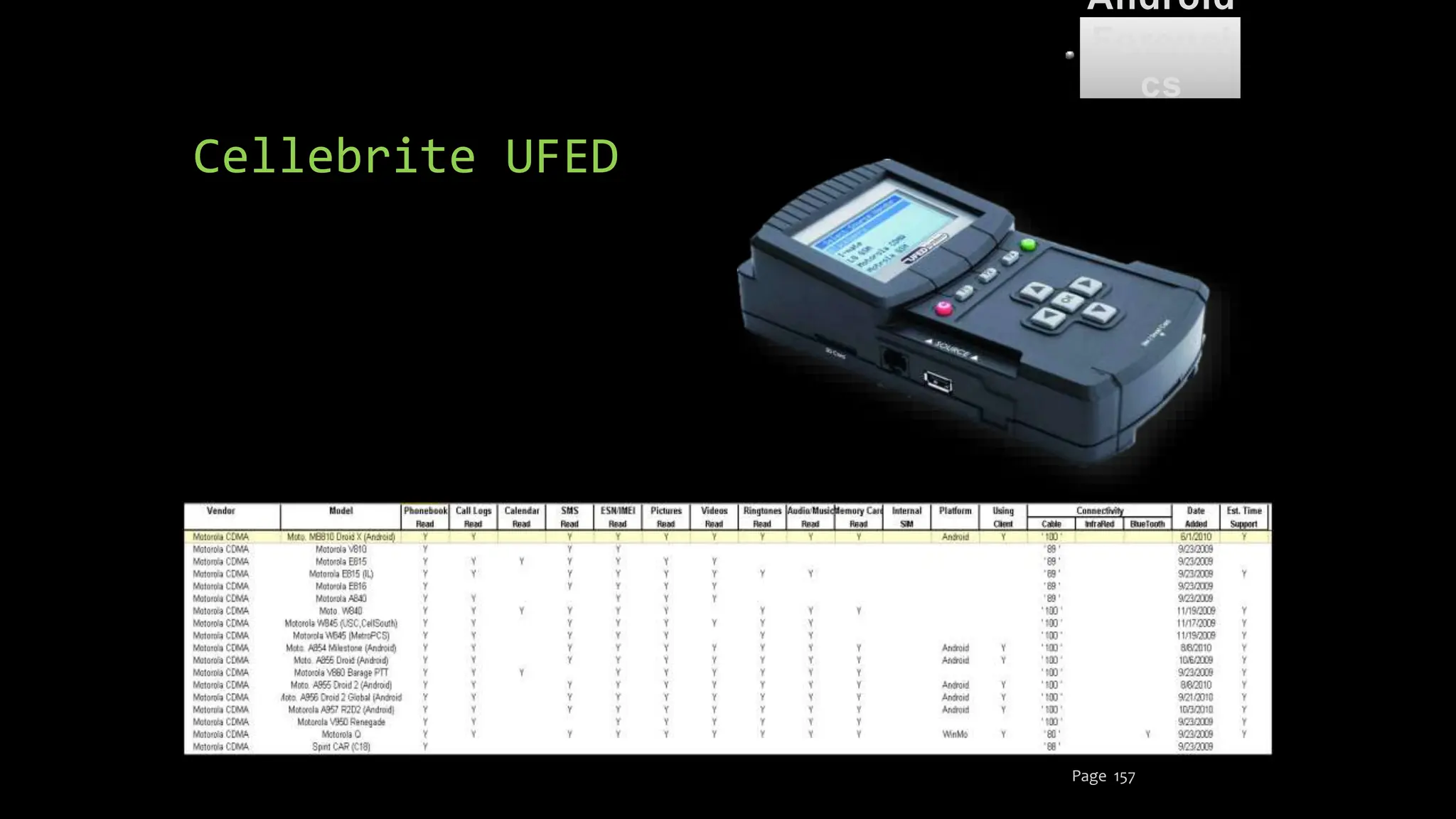

Cellebrite UFED Page 157 Android Forensi cs

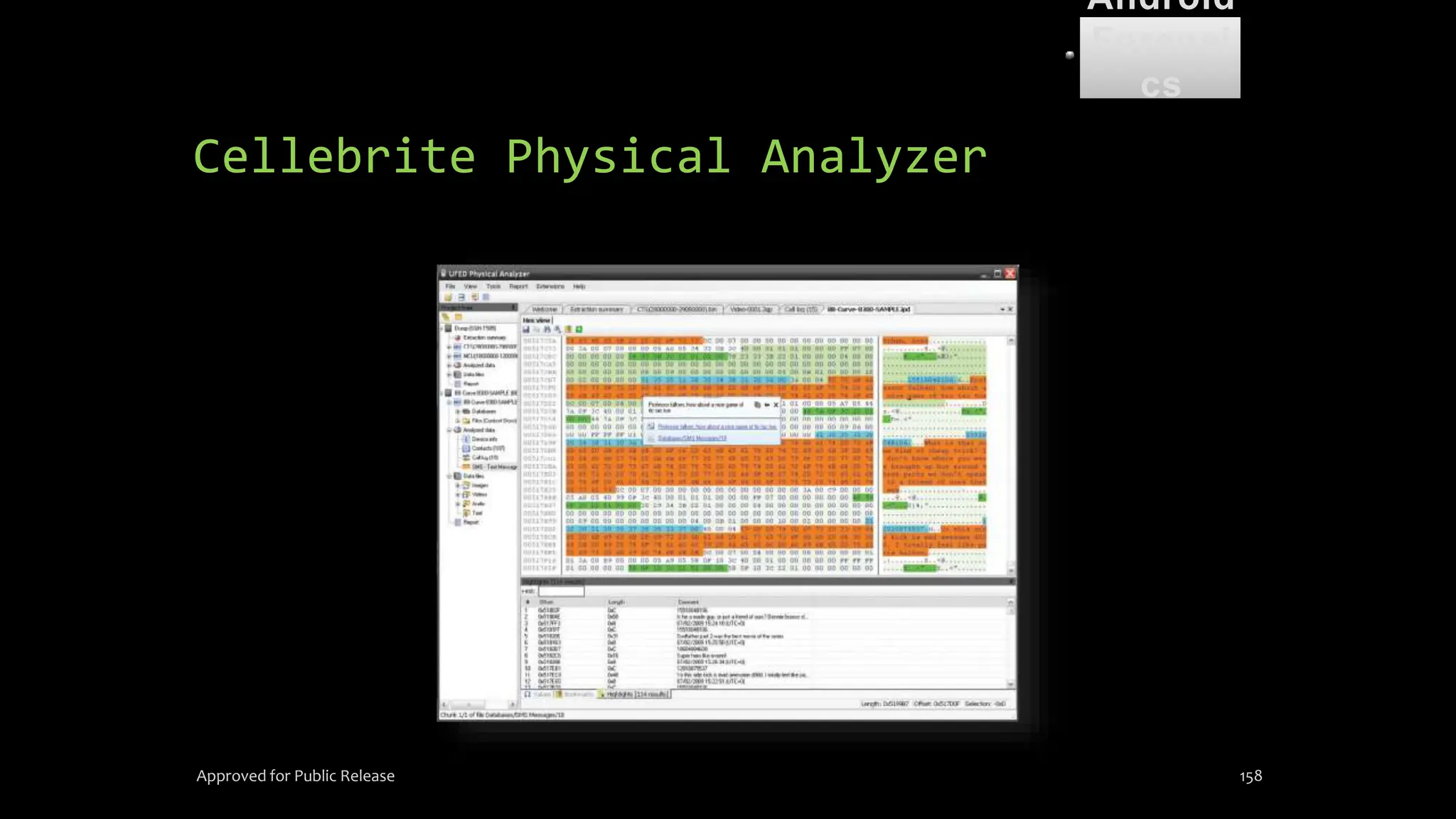

Cellebrite Physical Analyzer Approved for Public Release 158 Android Forensi cs
Paraben Device Seizure 159 Android Forensi cs

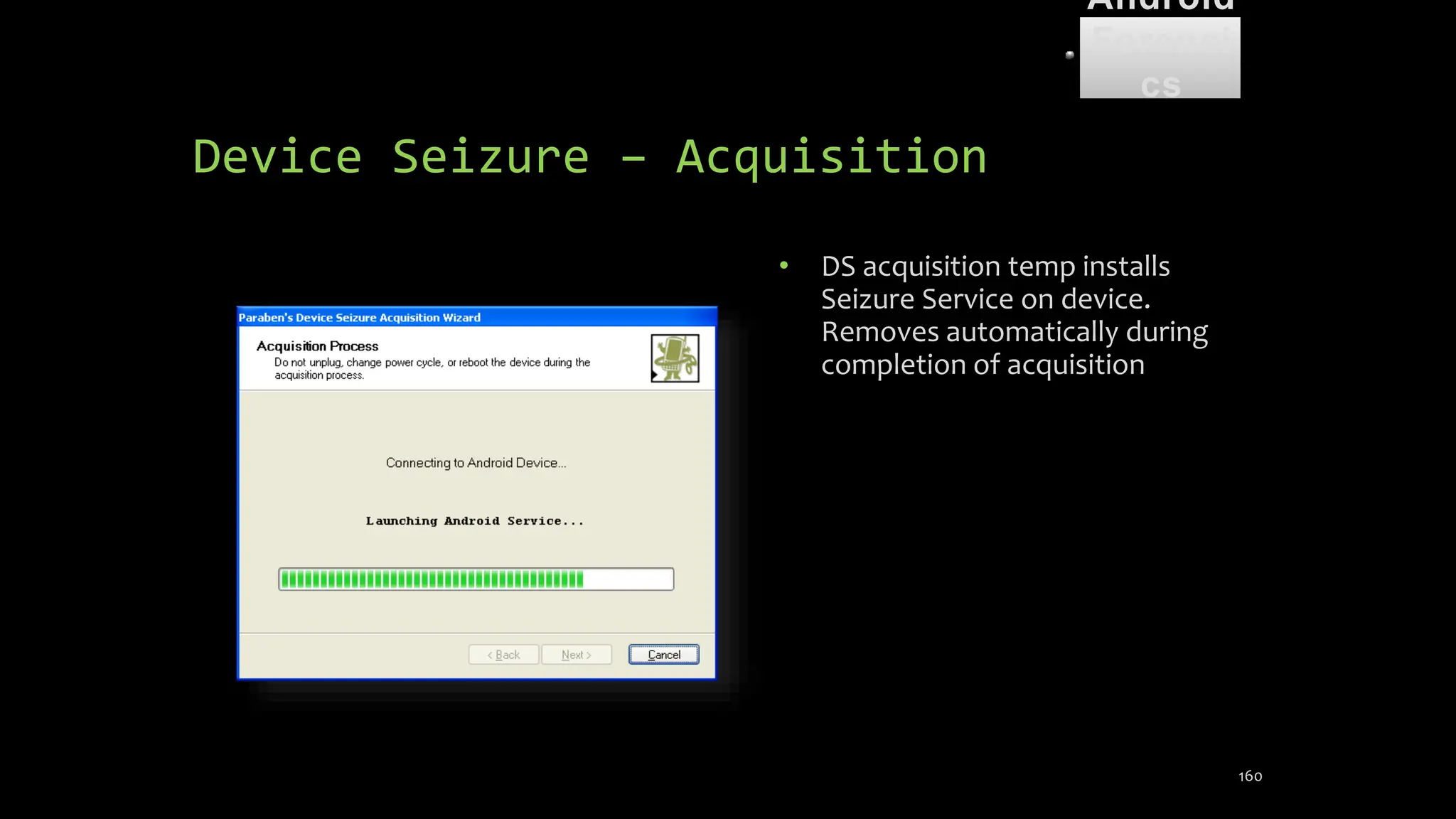

Device Seizure – Acquisition • DS acquisition temp installs Seizure Service on device. Removes automatically during completion of acquisition 160 Android Forensi cs

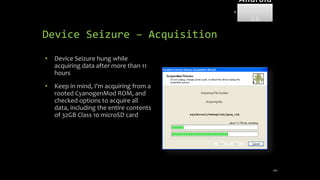

Device Seizure – Acquisition 161 • Device Seizure hung while acquiring data after more than 11 hours • Keep in mind, I'm acquiring from a rooted CyanogenMod ROM, and checked options to acquire all data, including the entire contents of 32GB Class 10 microSD card Android Forensi cs

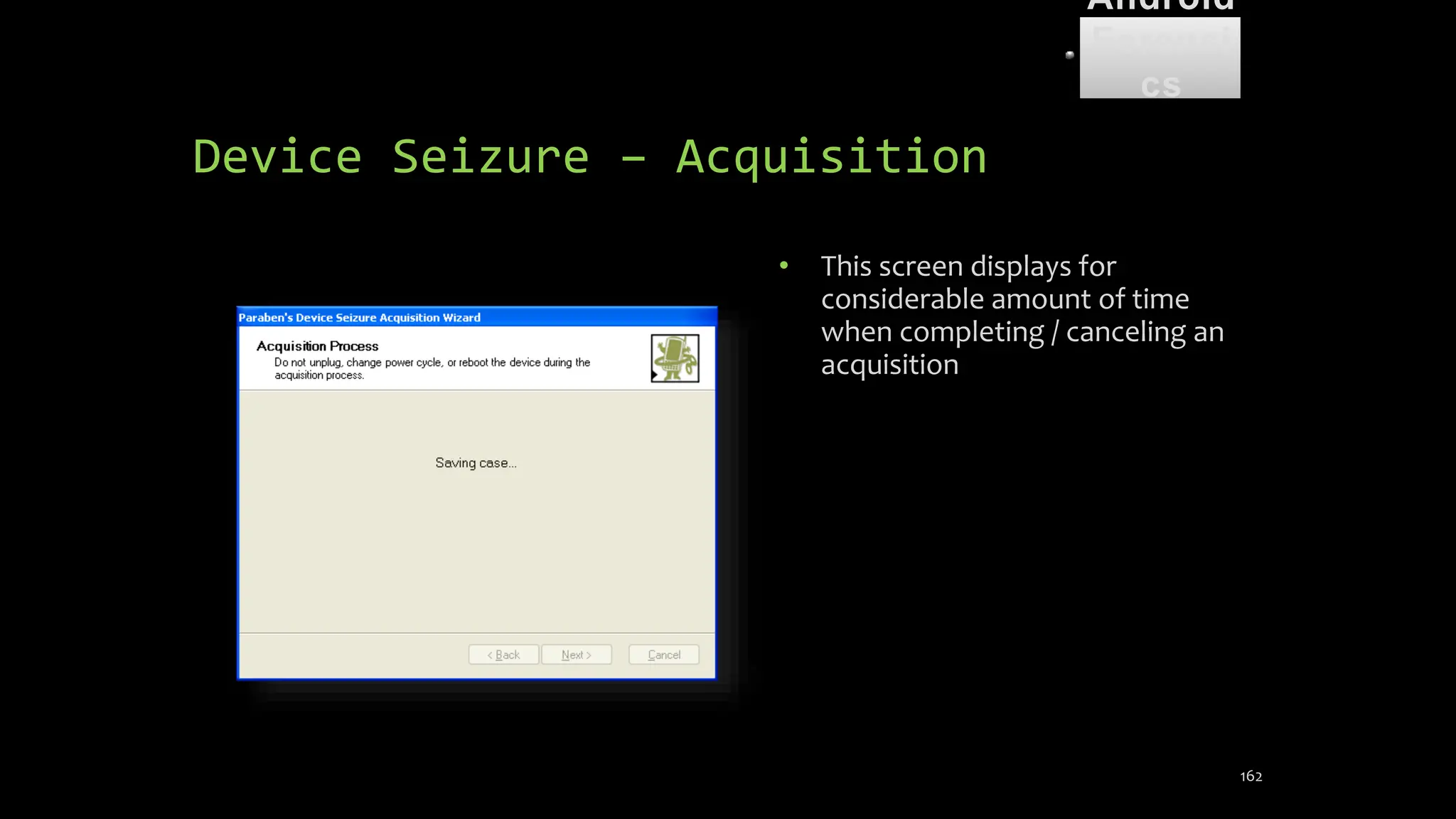

Device Seizure – Acquisition 162 • This screen displays for considerable amount of time when completing / canceling an acquisition Android Forensi cs

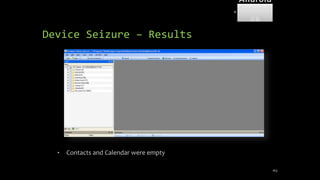

Device Seizure – Results 163 • Contacts and Calendar were empty Android Forensi cs

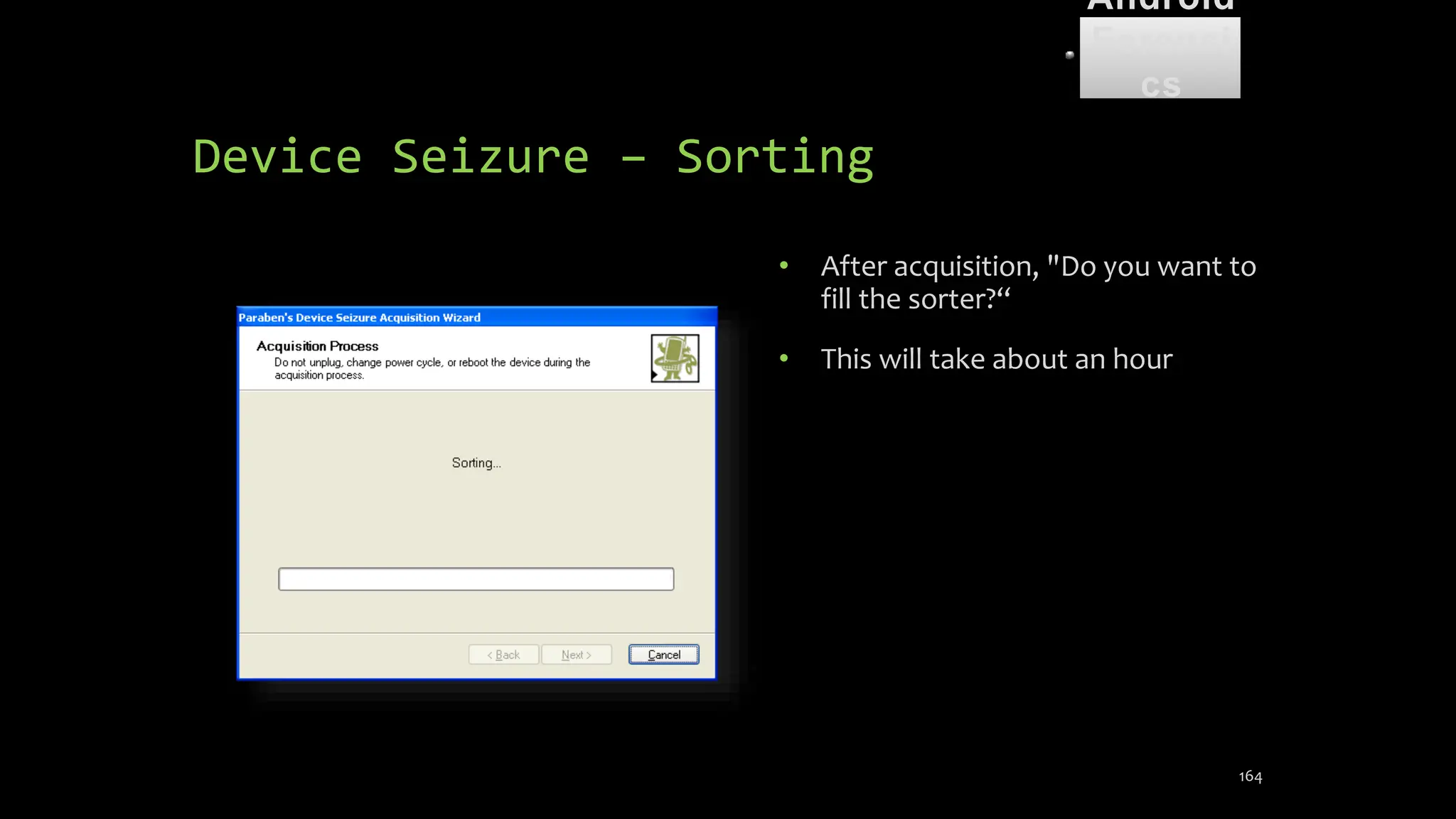

Device Seizure – Sorting 164 • After acquisition, "Do you want to fill the sorter?“ • This will take about an hour Android Forensi cs

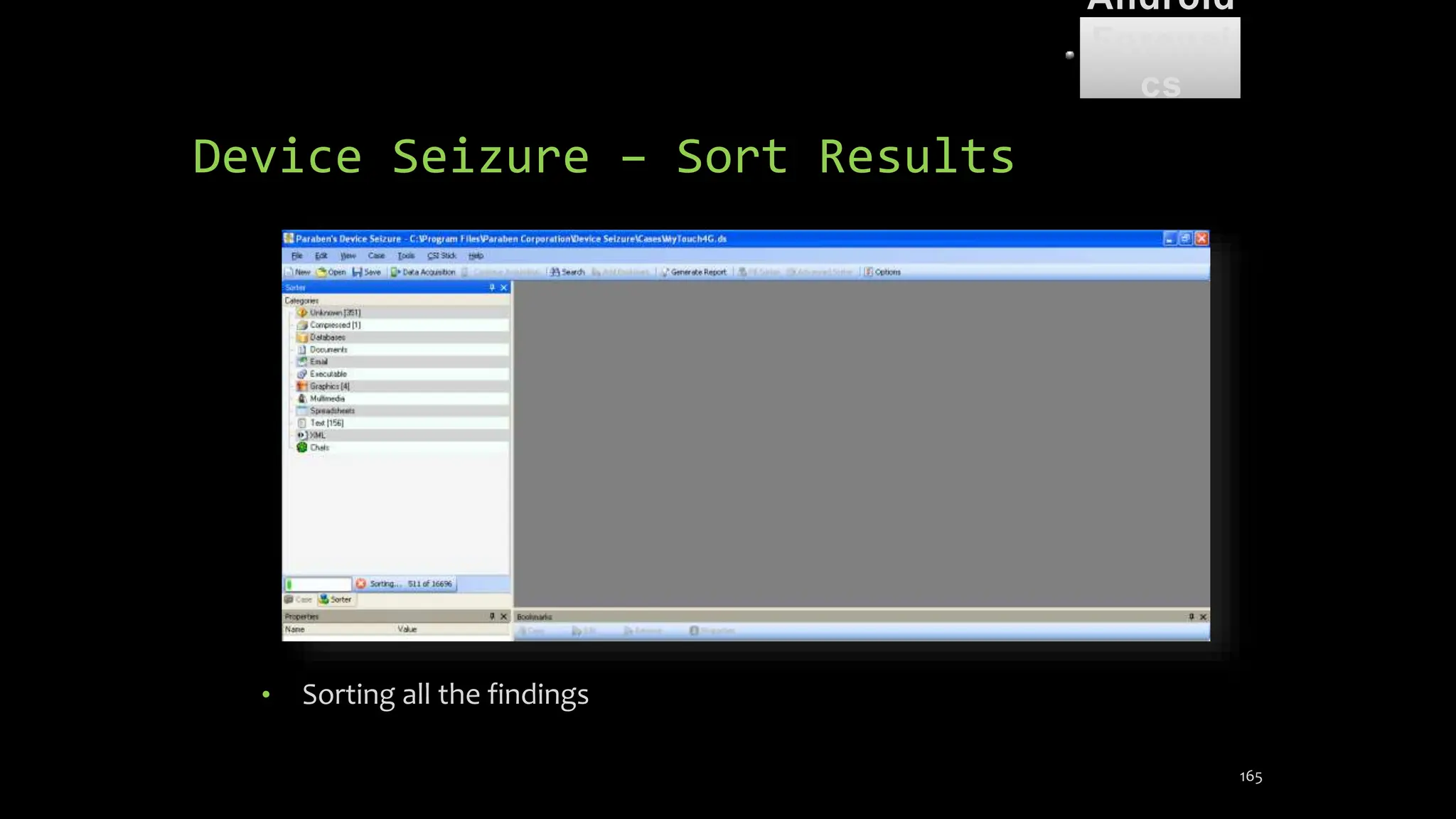

Device Seizure – Sort Results 165 • Sorting all the findings Android Forensi cs

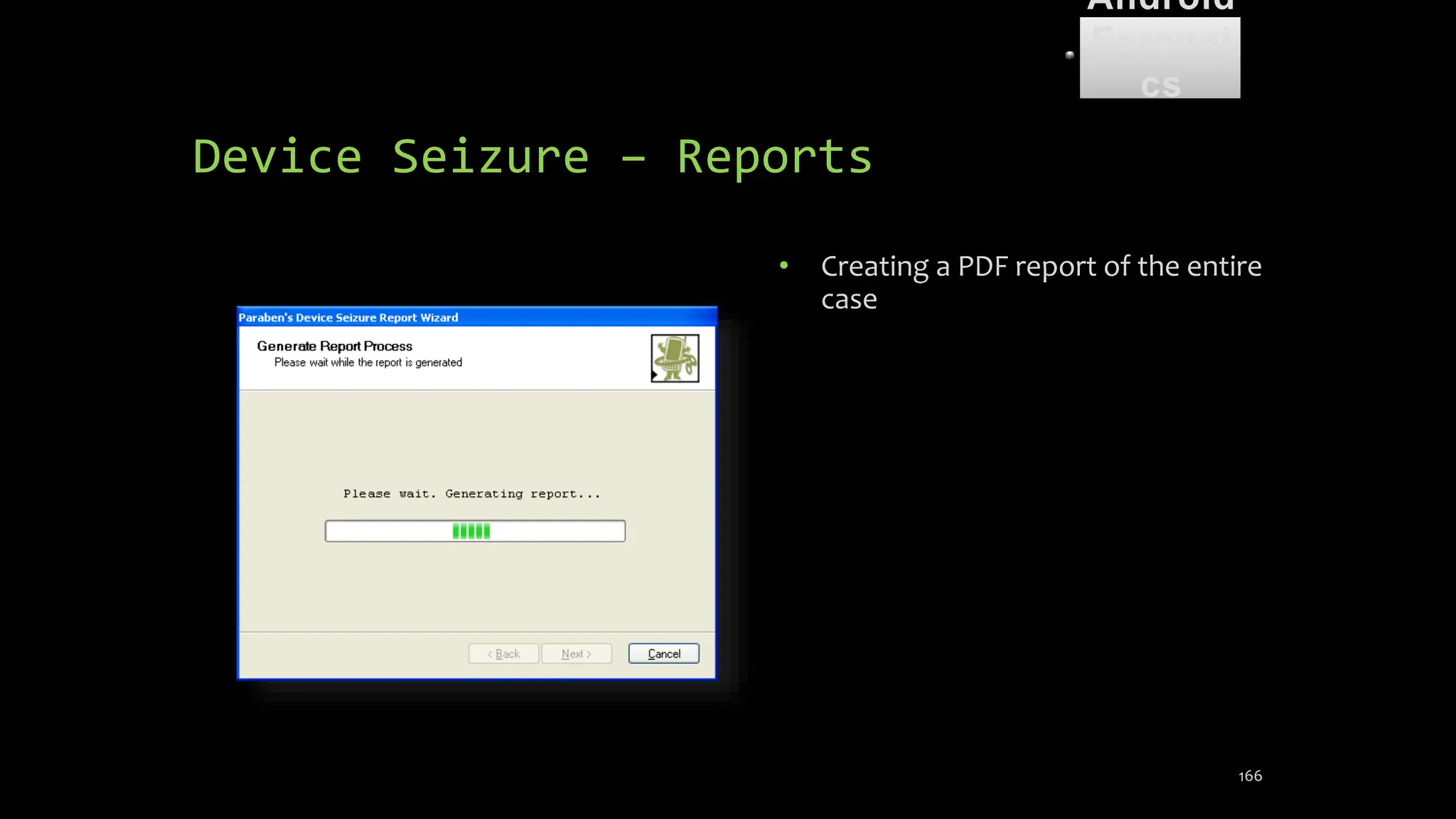

Device Seizure – Reports 166 • Creating a PDF report of the entire case Android Forensi cs
Device Seizure – Report 167 Android Forensi cs

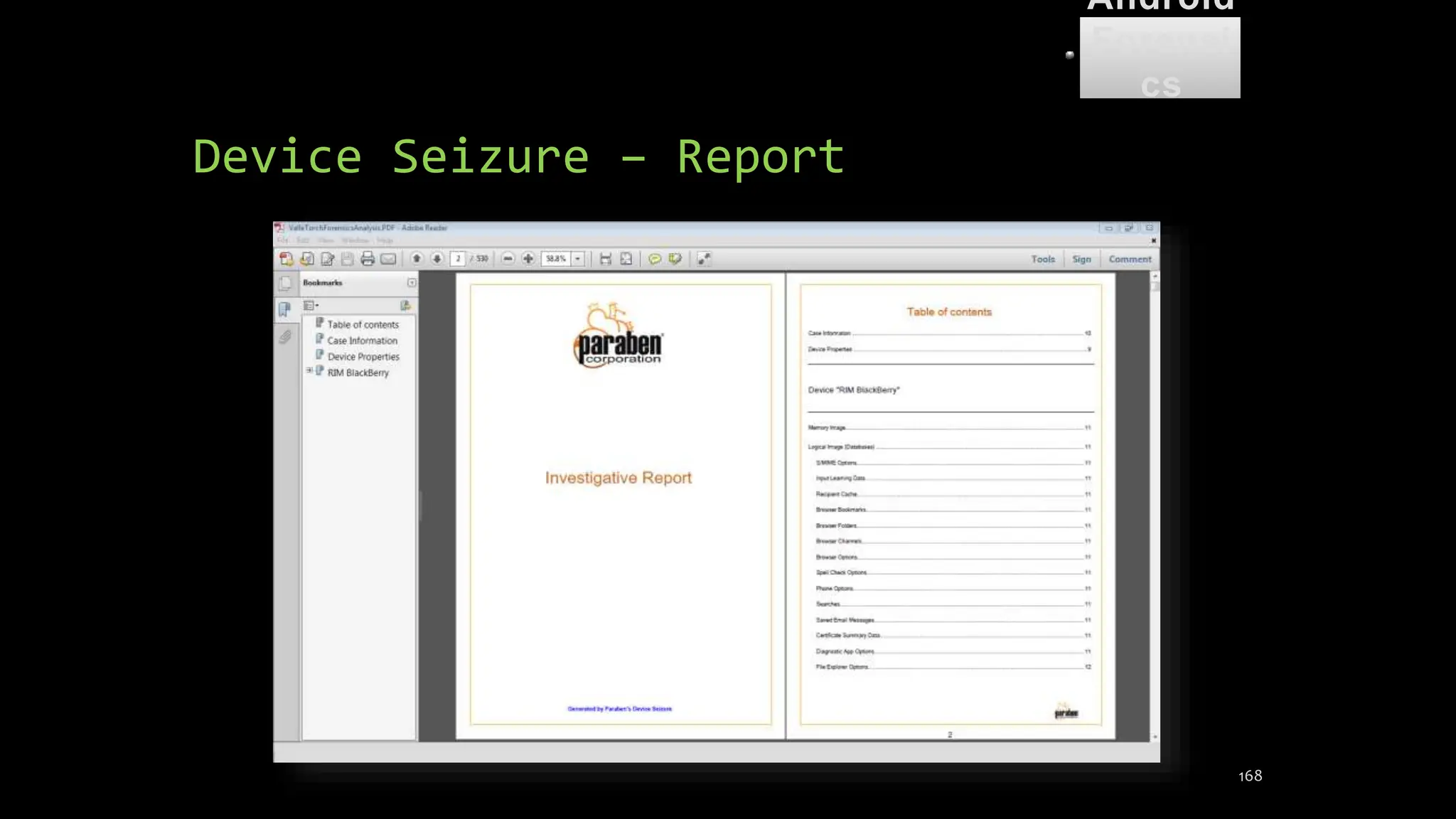

Device Seizure – Report 168 Android Forensi cs
Device Seizure – Report 169 Android Forensi cs
Physical Acquisition Approved for Public Release 170

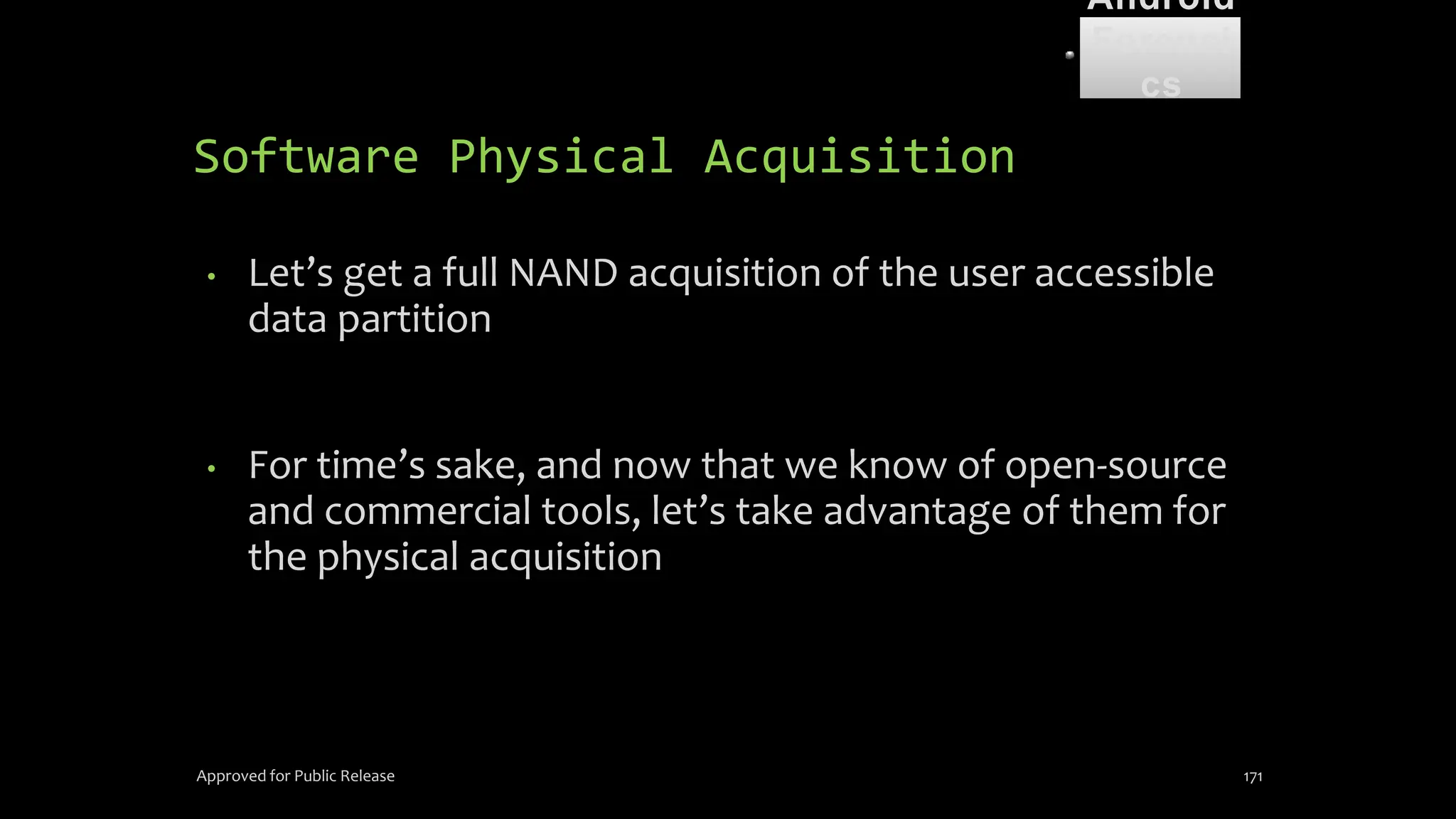

Software Physical Acquisition • Let’s get a full NAND acquisition of the user accessible data partition • For time’s sake, and now that we know of open-source and commercial tools, let’s take advantage of them for the physical acquisition Approved for Public Release 171 Android Forensi cs
Forensic Analysis Approved for Public Release 172

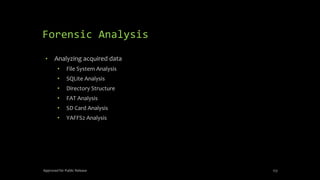

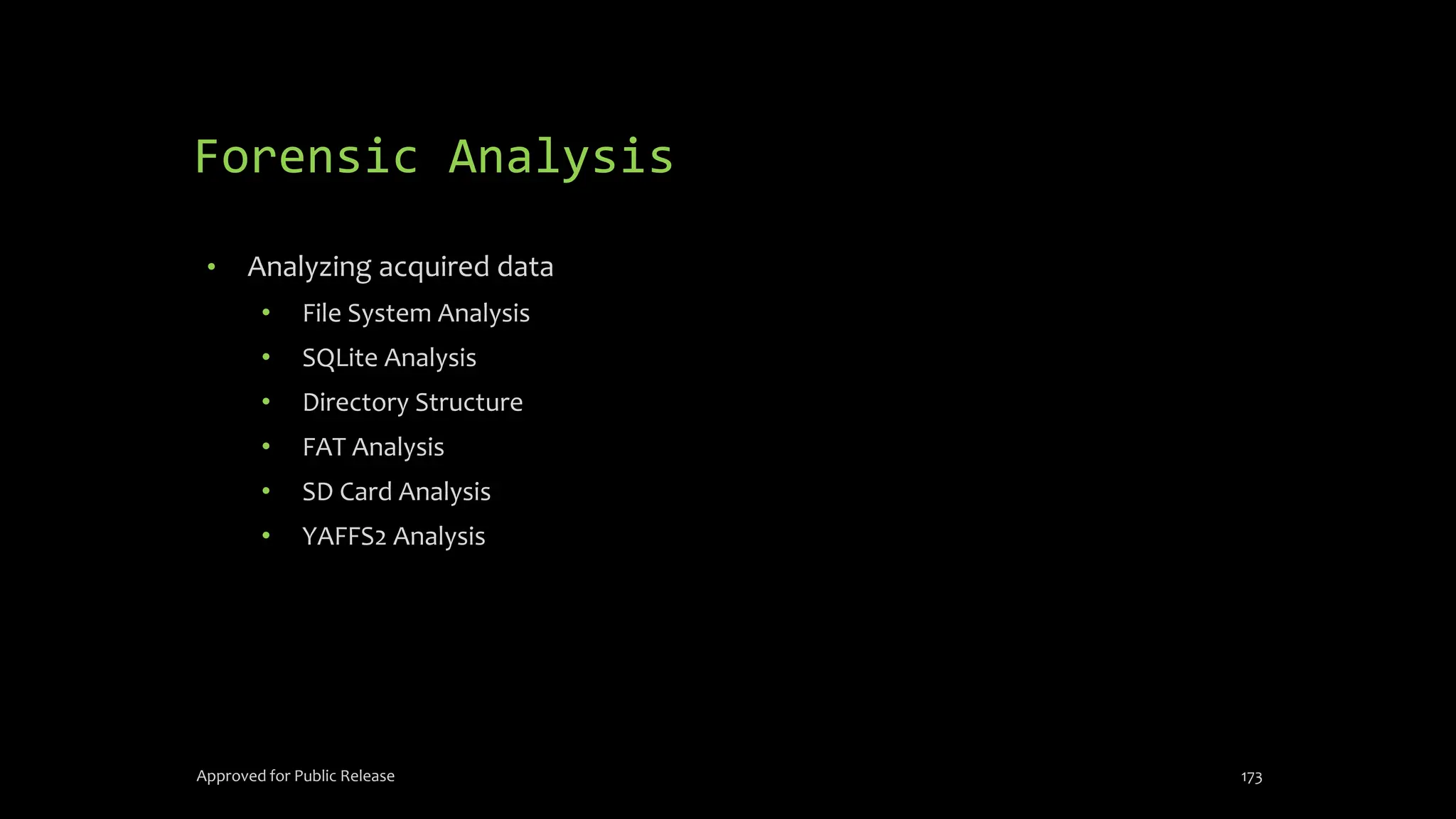

Forensic Analysis • Analyzing acquired data • File System Analysis • SQLite Analysis • Directory Structure • FAT Analysis • SD Card Analysis • YAFFS2 Analysis Approved for Public Release 173

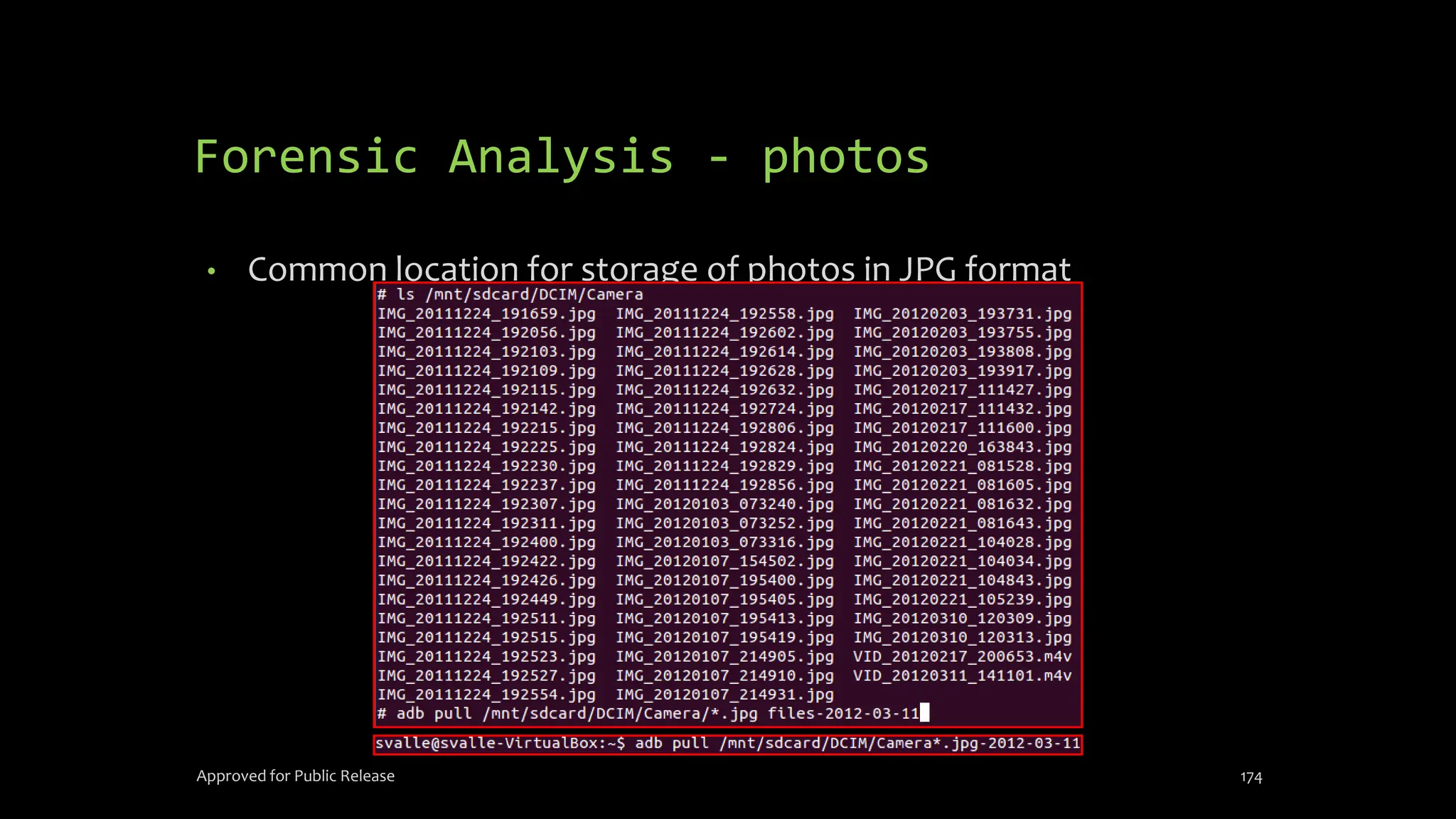

Forensic Analysis - photos • Common location for storage of photos in JPG format Approved for Public Release 174

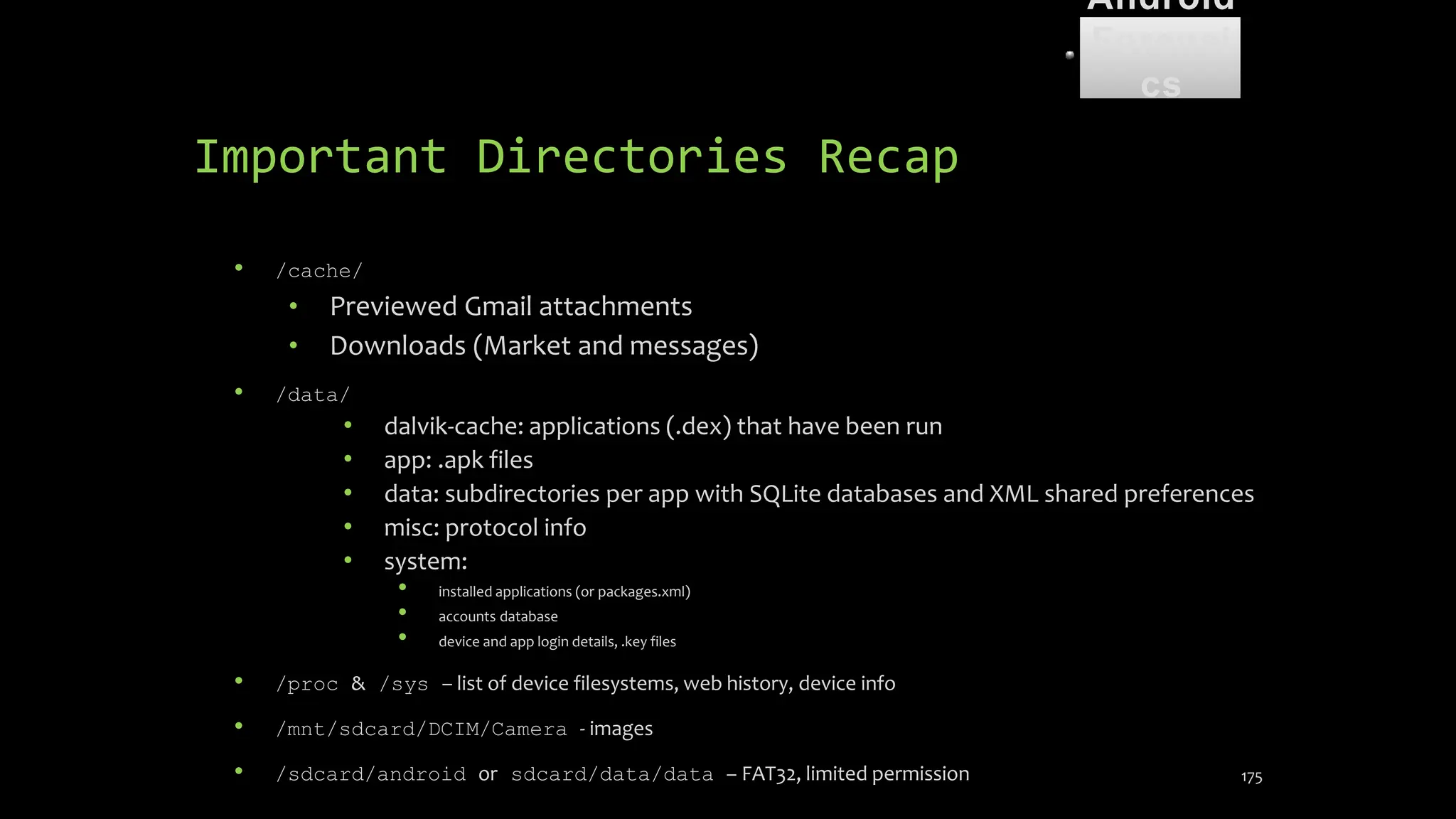

Important Directories Recap • /cache/ • Previewed Gmail attachments • Downloads (Market and messages) • /data/ • dalvik-cache: applications (.dex) that have been run • app: .apk files • data: subdirectories per app with SQLite databases and XML shared preferences • misc: protocol info • system: • installed applications (or packages.xml) • accounts database • device and app login details, .key files • /proc & /sys – list of device filesystems, web history, device info • /mnt/sdcard/DCIM/Camera - images • /sdcard/android or sdcard/data/data – FAT32, limited permission 175 Android Forensi cs
REVIEW • Explored several commercial Android forensics products • Identified the benefits and acquisition steps of physical forensics • Located the most important directories for analysis Approved for Public Release 176

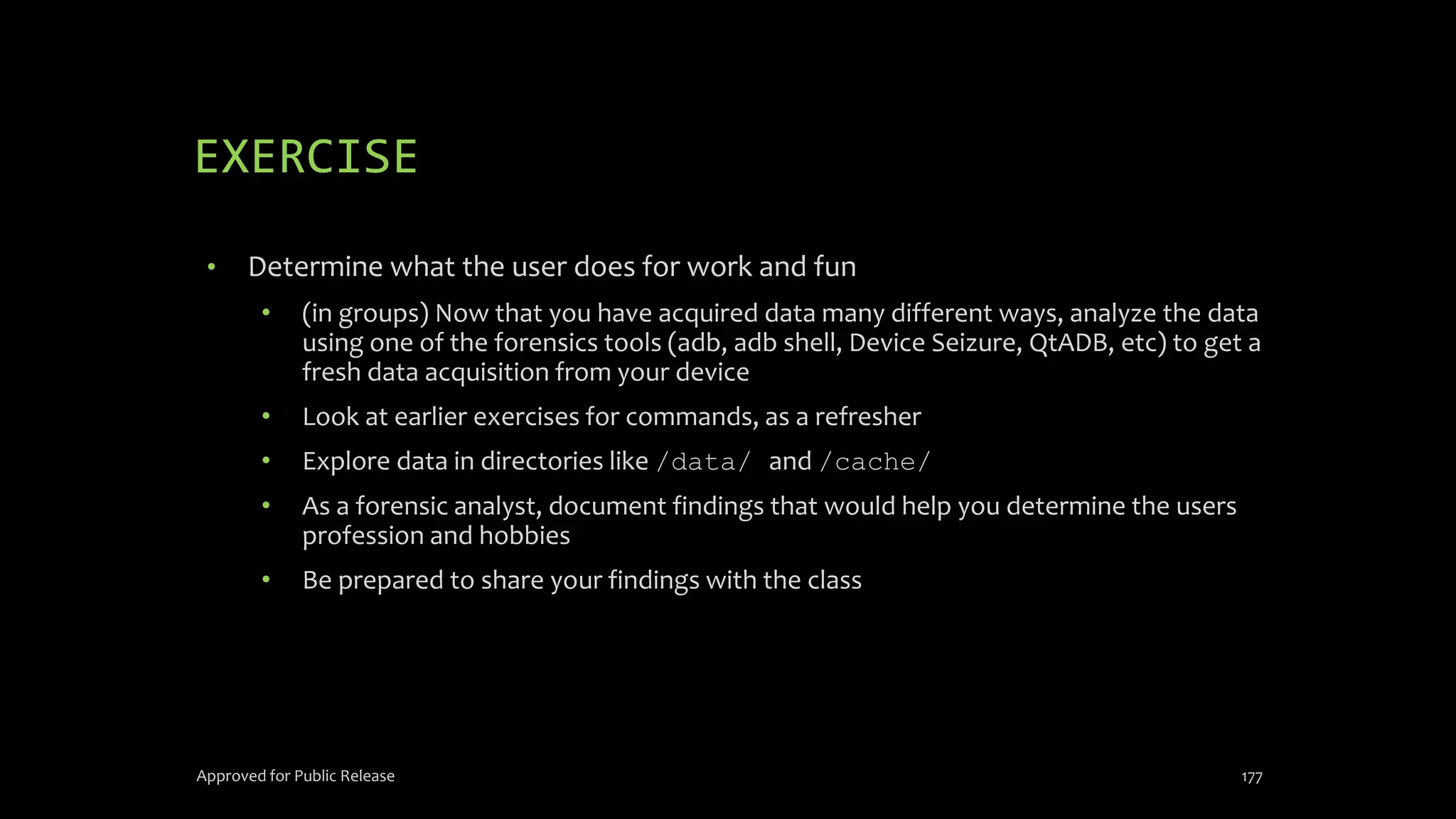

EXERCISE • Determine what the user does for work and fun • (in groups) Now that you have acquired data many different ways, analyze the data using one of the forensics tools (adb, adb shell, Device Seizure, QtADB, etc) to get a fresh data acquisition from your device • Look at earlier exercises for commands, as a refresher • Explore data in directories like /data/ and /cache/ • As a forensic analyst, document findings that would help you determine the users profession and hobbies • Be prepared to share your findings with the class Approved for Public Release 177
Learning Objectives By the end of this course, you will be able to:  Extract and analyze data from an Android device  Manipulate Android file systems and directory structures  Understand techniques to bypass passcodes  Utilize logical and physical data extraction techniques 4. Reverse engineer Android applications 5. Analyze acquired data Approved for Public Release 178 Android Forensi cs
Application Testing Reverse Engineering Apps Approved for Public Release 179

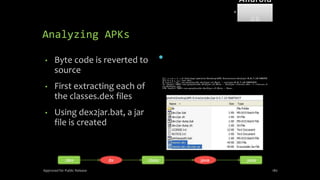

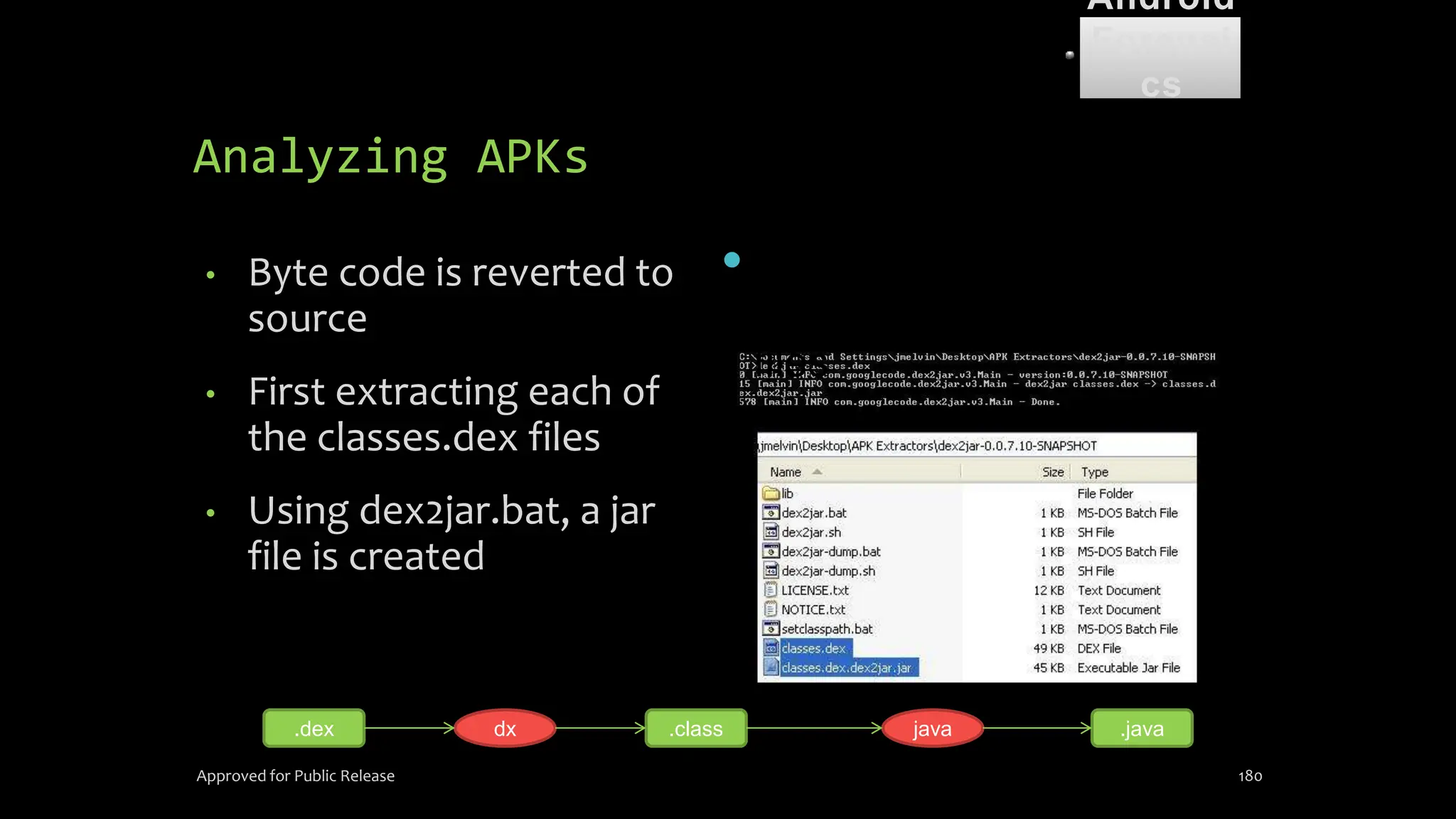

Analyzing APKs • Byte code is reverted to source • First extracting each of the classes.dex files • Using dex2jar.bat, a jar file is created Approved for Public Release 180 Android Forensi cs .java .class .dex java dx  Batch file used to convert dex files to jar files

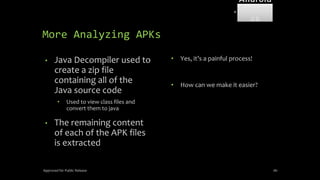

More Analyzing APKs • Java Decompiler used to create a zip file containing all of the Java source code • Used to view class files and convert them to java • The remaining content of each of the APK files is extracted Approved for Public Release 181 Android Forensi cs • Yes, it’s a painful process! • How can we make it easier?

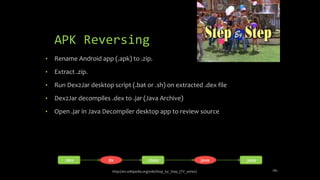

APK Reversing • Rename Android app (.apk) to .zip. • Extract .zip. • Run Dex2Jar desktop script (.bat or .sh) on extracted .dex file • Dex2Jar decompiles .dex to .jar (Java Archive) • Open .jar in Java Decompiler desktop app to review source http://en.wikipedia.org/wiki/Step_by_Step_(TV_series) 182 .java .class .dex java dx

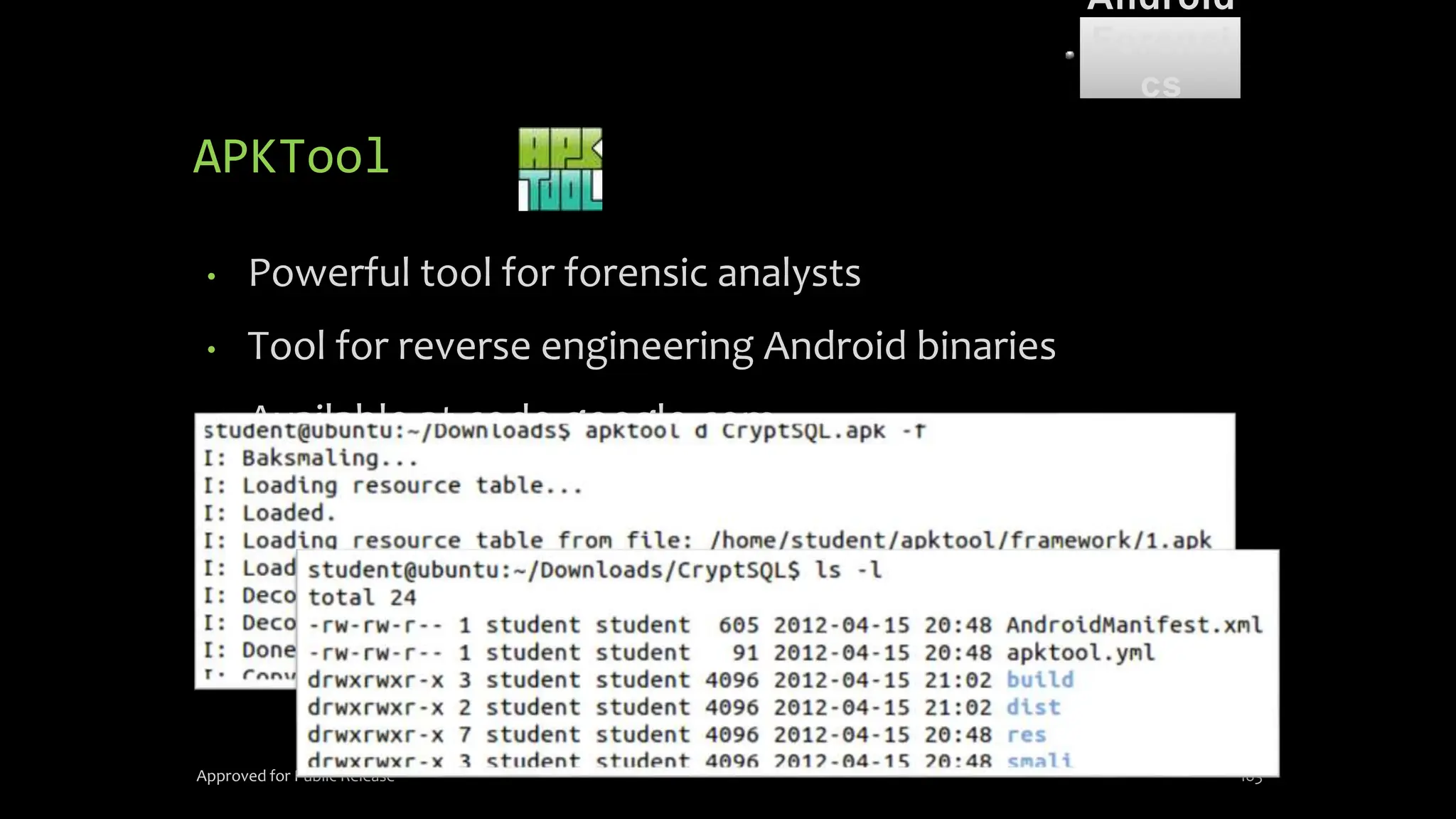

APKTool • Powerful tool for forensic analysts • Tool for reverse engineering Android binaries • Available at code.google.com Approved for Public Release 183 Android Forensi cs

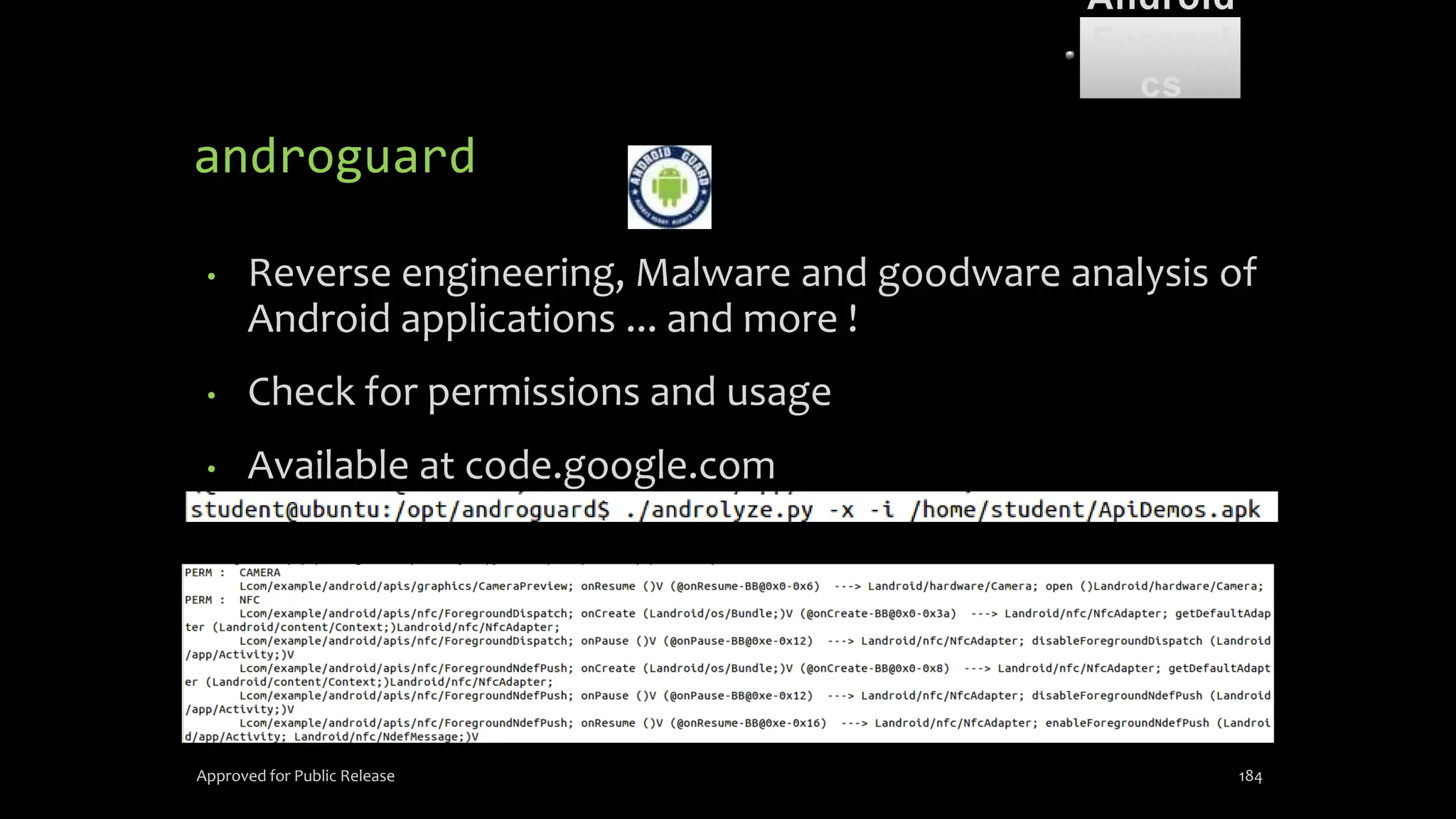

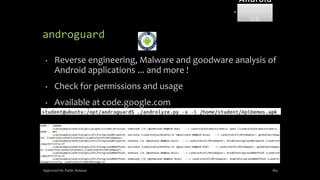

androguard • Reverse engineering, Malware and goodware analysis of Android applications ... and more ! • Check for permissions and usage • Available at code.google.com Approved for Public Release 184 Android Forensi cs

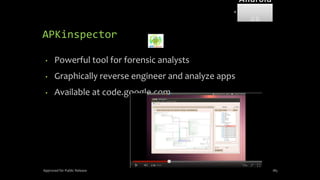

APKinspector • Powerful tool for forensic analysts • Graphically reverse engineer and analyze apps • Available at code.google.com Approved for Public Release 185 Android Forensi cs

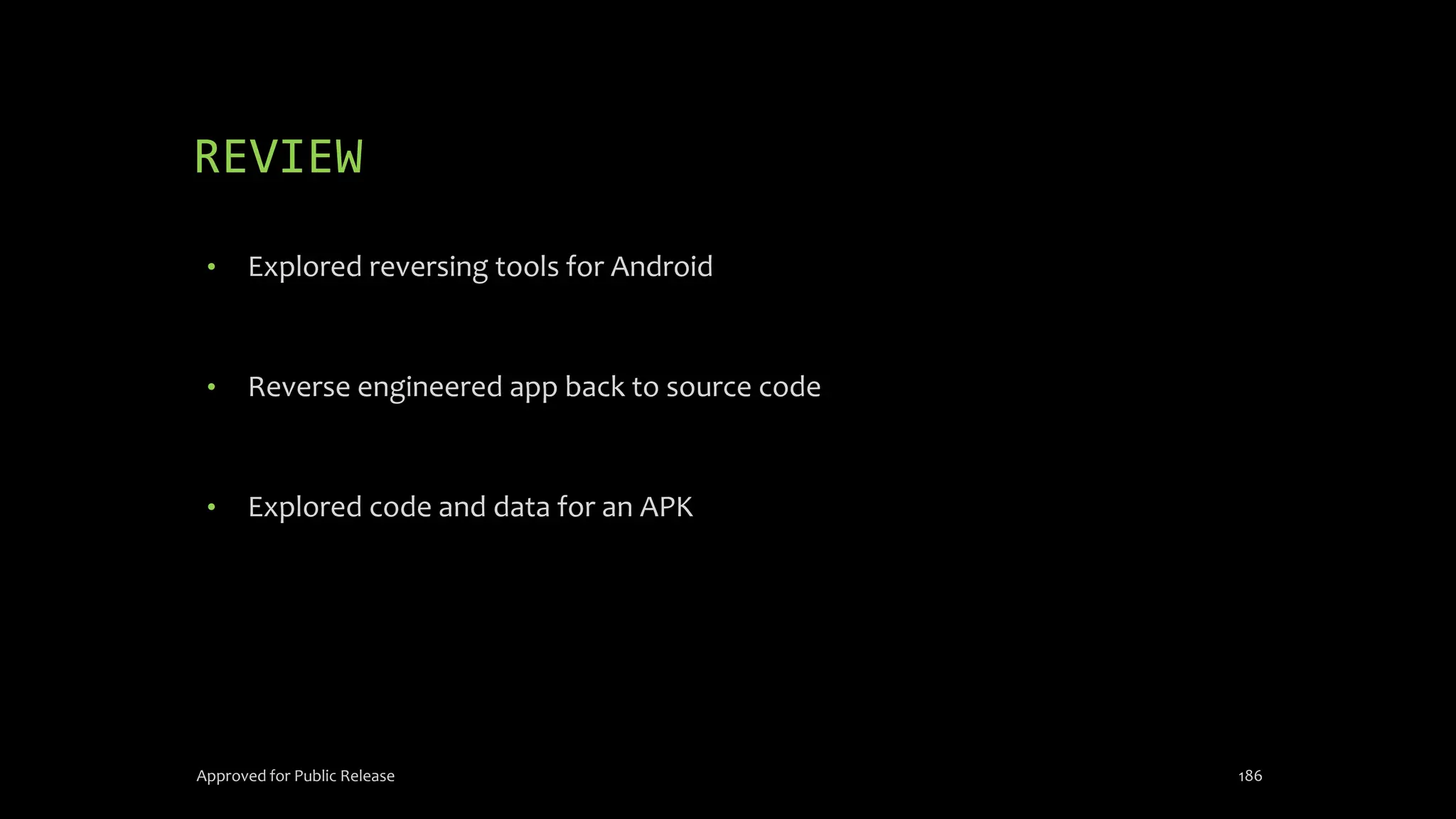

REVIEW • Explored reversing tools for Android • Reverse engineered app back to source code • Explored code and data for an APK Approved for Public Release 186

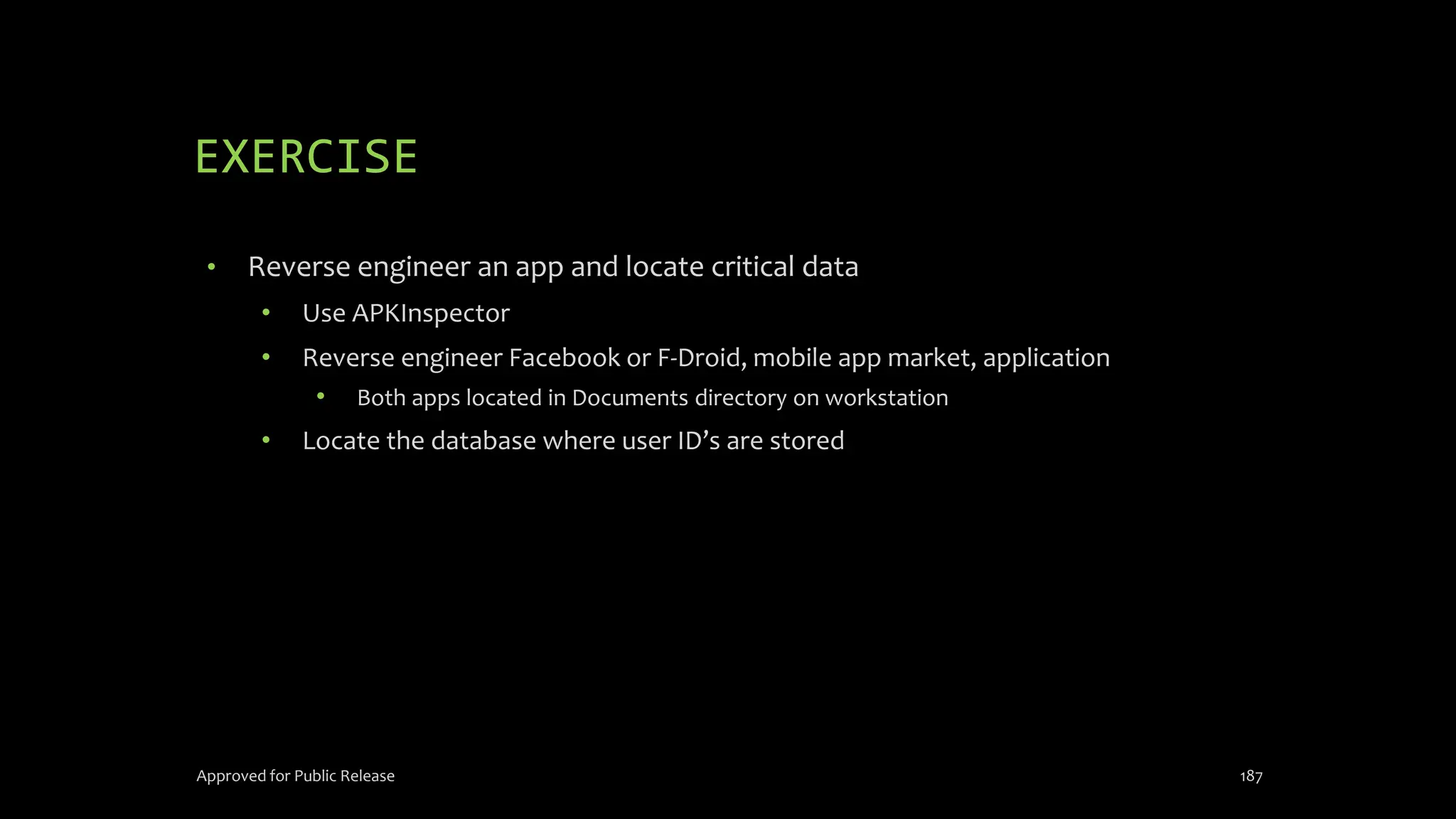

EXERCISE • Reverse engineer an app and locate critical data • Use APKInspector • Reverse engineer Facebook or F-Droid, mobile app market, application • Both apps located in Documents directory on workstation • Locate the database where user ID’s are stored Approved for Public Release 187
Learning Objectives By the end of this course, you will be able to:  Extract and analyze data from an Android device  Manipulate Android file systems and directory structures  Understand techniques to bypass passcodes NEW!  Utilize logical and physical data extraction techniques  Reverse engineer Android applications  Analyze acquired data Approved for Public Release 188 Android Forensi cs

More Related Content

PPTX
Computer forensics ppt
byNikhil Mashruwala

PPTX
Authentication service security
byPrachi Gulihar

PPTX
Analysis of digital evidence
byrakesh mishra

PPTX
Lightweight cryptography
byShivam Singh

PPTX
Mobile Forensics
byabdullah roomi

PPTX
Network security
byquest university nawabshah

PPTX
Presentation cyber forensics & ethical hacking
byAmbuj Kumar

PPTX
computer forensic tools-Hardware & Software tools
byN.Jagadish Kumar

Computer forensics ppt
byNikhil Mashruwala

Authentication service security
byPrachi Gulihar

Analysis of digital evidence
byrakesh mishra

Lightweight cryptography
byShivam Singh

Mobile Forensics
byabdullah roomi

Network security
byquest university nawabshah

Presentation cyber forensics & ethical hacking
byAmbuj Kumar

computer forensic tools-Hardware & Software tools
byN.Jagadish Kumar


What's hot

PPT
Clock synchronization in distributed system
bySunita Sahu

PDF
Digital Forensic: Brief Intro & Research Challenge
byAung Thu Rha Hein

PDF
Forensics Analysis and Validation
byJyothishmathi Institute of Technology and Science Karimnagar

PPTX
Chapter 2
byAli Broumandnia

PPTX
Strength of des &amp; block cipher principle
bySantosh Gupta

PPTX
Cyber Forensics Overview
byYansi Keim

ODT
Operating System Forensics
byArunJS5

PPTX
Digital Forensic ppt
bySuchita Rawat

PDF
6. Security Assessment and Testing
bySam Bowne

PPTX
Introduction to Cloud Security
byLegal Services National Technology Assistance Project (LSNTAP)

PPTX
Symbian Operating system
byPravin Shinde

PPTX
Digital Forensics by William C. Barker (NIST)
byAltheimPrivacy

PPT
Ch06 Wireless Network Security
byInformation Technology

PPTX
Unit-3.pptx
byRamya Nellutla

PDF
java question paper 5th sem
byshaikfarhan8

PPTX
Block Cipher and Operation Modes
bySHUBHA CHATURVEDI

PPTX
Cyber forensic-Evedidence collection tools
byN.Jagadish Kumar

PDF
Cyber Security and Cloud Computing
byKeet Sugathadasa

PPTX
Symmetric and asymmetric key
byTriad Square InfoSec

PDF
02 Types of Computer Forensics Technology - Notes
byKranthi

Clock synchronization in distributed system
bySunita Sahu

Digital Forensic: Brief Intro & Research Challenge
byAung Thu Rha Hein

Forensics Analysis and Validation
byJyothishmathi Institute of Technology and Science Karimnagar

Chapter 2
byAli Broumandnia

Strength of des &amp; block cipher principle
bySantosh Gupta

Cyber Forensics Overview
byYansi Keim

Operating System Forensics
byArunJS5

Digital Forensic ppt
bySuchita Rawat

6. Security Assessment and Testing
bySam Bowne

Introduction to Cloud Security
byLegal Services National Technology Assistance Project (LSNTAP)

Symbian Operating system
byPravin Shinde

Digital Forensics by William C. Barker (NIST)
byAltheimPrivacy

Ch06 Wireless Network Security
byInformation Technology

Unit-3.pptx
byRamya Nellutla

java question paper 5th sem
byshaikfarhan8

Block Cipher and Operation Modes
bySHUBHA CHATURVEDI

Cyber forensic-Evedidence collection tools
byN.Jagadish Kumar

Cyber Security and Cloud Computing
byKeet Sugathadasa

Symmetric and asymmetric key
byTriad Square InfoSec

02 Types of Computer Forensics Technology - Notes
byKranthi


Similar to Mobile Forensics and Investigation Android Forensics

PPT
Cell Phone and Mobile Devices Forensics.ppt
bymcjaya2024

PPT
Cell Phone and Mobile Devices Forensics.ppt
byChSamson2

PPTX
Network Forensics- Social Media Forensics
byDon Caeiro

PPTX
Mobile_Forensics- General Introduction & Software.pptx
bygouriuplenchwar63

PPTX
Mobile Forensics
byprimeteacher32

PPTX
811719104102_Tamilmannavan S.pptx
byDEVIKAS92

PPTX
Lect 6 computer forensics
byKabul Education University

PDF
Cell Phone and Mobile Devices Forensics
byArthyR3

PPTX
Mobile Phone Seizure Guide by Raghu Khimani
byDr Raghu Khimani

PPTX
Mobile device forensics
bySuresh Kumar

PPT
Digital forensics Computer and mobile forensic
bySyedaHira10

PPTX
Mobile Phone Forensics.pptx with infrastructure security topics and review
byanshumanpandey841

PDF
Mobile Forensic Webinar by Forensic Academy
byForensic Academy

PPT
Computer and Mobile Forensic Analysis
byGol D Roger

DOCX
ContentsMobile Forensic3Introduction3What It Is3How I.docx
byrichardnorman90310

PDF
Conceptual Study of Mobile Forensics
byijtsrd

PPTX
Why cant all_data_be_the_same
bySkyler Lewis

PDF
SOK:An overview of data extraction techniques from mobile phones
byAshish Sutar

PPTX
unit_4_network_cloud_forlensics_3_4.pptx
byzmulani8

PDF
IRJET - Android based Mobile Forensic and Comparison using Various Tools
byIRJET Journal

Cell Phone and Mobile Devices Forensics.ppt
bymcjaya2024

Cell Phone and Mobile Devices Forensics.ppt
byChSamson2

Network Forensics- Social Media Forensics
byDon Caeiro

Mobile_Forensics- General Introduction & Software.pptx
bygouriuplenchwar63

Mobile Forensics
byprimeteacher32

811719104102_Tamilmannavan S.pptx
byDEVIKAS92

Lect 6 computer forensics
byKabul Education University

Cell Phone and Mobile Devices Forensics
byArthyR3

Mobile Phone Seizure Guide by Raghu Khimani
byDr Raghu Khimani

Mobile device forensics
bySuresh Kumar

Digital forensics Computer and mobile forensic
bySyedaHira10

Mobile Phone Forensics.pptx with infrastructure security topics and review
byanshumanpandey841

Mobile Forensic Webinar by Forensic Academy
byForensic Academy

Computer and Mobile Forensic Analysis
byGol D Roger

ContentsMobile Forensic3Introduction3What It Is3How I.docx
byrichardnorman90310

Conceptual Study of Mobile Forensics
byijtsrd

Why cant all_data_be_the_same
bySkyler Lewis

SOK:An overview of data extraction techniques from mobile phones
byAshish Sutar

unit_4_network_cloud_forlensics_3_4.pptx
byzmulani8

IRJET - Android based Mobile Forensic and Comparison using Various Tools
byIRJET Journal


More from Don Caeiro

PPTX
Investigation and Analysis of Digital Evidence
byDon Caeiro

PPTX
Introduction to Incident Response Management
byDon Caeiro

PPT
Windows Forensics- Introduction and Analysis
byDon Caeiro

PPTX
Crime Scene Photography
byDon Caeiro

PPTX
Recording of Fingeprints
byDon Caeiro

PPTX
Legal Aspects of Questioned Documents
byDon Caeiro

PPTX
Criminal Justice System.pptx
byDon Caeiro

PPTX
Forensic Medicine
byDon Caeiro

PPTX
Securing the Crime Scene
byDon Caeiro

PPTX
Types of Crime Scenes
byDon Caeiro

PPTX
Biometrics
byDon Caeiro

PPTX
Working of Volatile and Non-Volatile memory
byDon Caeiro

PPTX
Introduction to Digital Forensics
byDon Caeiro

PPTX
Forensic engineering
byDon Caeiro

PPTX
Forensic archaeology
byDon Caeiro

PPTX
Currency notes and passports security features
byDon Caeiro

PPTX
Questioned documents Full PPT
byDon Caeiro

PDF
Footprint case study
byDon Caeiro

PPTX
Criminalistics Unit 3
byDon Caeiro

PPTX
Unit 2 crime and society
byDon Caeiro

Investigation and Analysis of Digital Evidence
byDon Caeiro

Introduction to Incident Response Management
byDon Caeiro

Windows Forensics- Introduction and Analysis
byDon Caeiro

Crime Scene Photography
byDon Caeiro

Recording of Fingeprints
byDon Caeiro

Legal Aspects of Questioned Documents
byDon Caeiro

Criminal Justice System.pptx
byDon Caeiro

Forensic Medicine
byDon Caeiro

Securing the Crime Scene
byDon Caeiro

Types of Crime Scenes
byDon Caeiro

Biometrics
byDon Caeiro

Working of Volatile and Non-Volatile memory
byDon Caeiro

Introduction to Digital Forensics
byDon Caeiro

Forensic engineering
byDon Caeiro

Forensic archaeology
byDon Caeiro

Currency notes and passports security features
byDon Caeiro

Questioned documents Full PPT
byDon Caeiro

Footprint case study
byDon Caeiro

Criminalistics Unit 3
byDon Caeiro

Unit 2 crime and society
byDon Caeiro


Recently uploaded

PPTX
Single entry System Vs Double entry System.pptx
bylavanyafranklin0804

PPTX
Agriculture Lesson Note for Grade 11 Chapter 3 & 4.pptx
byNajibMuhidin

PPTX
🧪“Blood Chemistry Tests in Pharmacy Practice: Clinical Laboratory Guide for P...
byBanny S.V

PPTX
Capitol Webinar October 2025 Dr. Jha.pptx
byCapitolTechU

PDF
BUSINESS ETHICS – UNIT V: Ethical Insights from Thirukkural and Modern Thought
byD NANEE

PDF
History of Department of AIHC and Archaeology_BHU
byBanaras Hindu University

PPTX
psychoanalytic Theory.pptx, MSc. Nursing
byKomalJaiswal46

PPTX
Exploring Entrepreneurial Qualities: A Curated Presentation for Grade 11 Busi...
bySamanthaNkoana

PPTX
THERAPEUTIC ENVIORNMENT.............pptx
byAneetaSharma15

PDF
Admin Slides for Oct'25 semester (Progression)
byGreat Files

PDF
Admin Slides for Oct'25 semester - PBO - MC1.pdf
byMark Kor

PPTX
Basics for Conducting Bibliometric Analysis - Dr Ahsan Riaz
bySystematic Reviews Network (SRN)

PDF
The Minority Caucus in Parliament has called on government to take immediate ...
bynservice241

PPTX
Capital Budgeting - Risk Analysis Using Sensitivity Analysis
bySundar B N

PDF
Slit lamp parts 2/ppt/notes/download.pdf
byAnmol Singh

PPTX
Classification and Applied Aspects of Joints.pptx
byMathew Joseph

PDF
BUSINESS ETHICS – UNIT I: Introduction to Business Ethics
byD NANEE

PPTX
ILA 2025 Prague CLS Presentation of Leadership journal
byjohanalvehus

PDF
Phase Equilibria and Colligative Properties.pdf
byMithil Fal Desai

PPTX
Common problems or challenges faced by Indian adolescents
byDr. Harpal Kaur

Single entry System Vs Double entry System.pptx
bylavanyafranklin0804

Agriculture Lesson Note for Grade 11 Chapter 3 & 4.pptx
byNajibMuhidin

🧪“Blood Chemistry Tests in Pharmacy Practice: Clinical Laboratory Guide for P...
byBanny S.V

Capitol Webinar October 2025 Dr. Jha.pptx
byCapitolTechU

BUSINESS ETHICS – UNIT V: Ethical Insights from Thirukkural and Modern Thought
byD NANEE

History of Department of AIHC and Archaeology_BHU
byBanaras Hindu University

psychoanalytic Theory.pptx, MSc. Nursing
byKomalJaiswal46

Exploring Entrepreneurial Qualities: A Curated Presentation for Grade 11 Busi...
bySamanthaNkoana

THERAPEUTIC ENVIORNMENT.............pptx
byAneetaSharma15

Admin Slides for Oct'25 semester (Progression)
byGreat Files

Admin Slides for Oct'25 semester - PBO - MC1.pdf
byMark Kor

Basics for Conducting Bibliometric Analysis - Dr Ahsan Riaz
bySystematic Reviews Network (SRN)

The Minority Caucus in Parliament has called on government to take immediate ...
bynservice241

Capital Budgeting - Risk Analysis Using Sensitivity Analysis
bySundar B N

Slit lamp parts 2/ppt/notes/download.pdf
byAnmol Singh

Classification and Applied Aspects of Joints.pptx
byMathew Joseph

BUSINESS ETHICS – UNIT I: Introduction to Business Ethics
byD NANEE

ILA 2025 Prague CLS Presentation of Leadership journal
byjohanalvehus

Phase Equilibria and Colligative Properties.pdf
byMithil Fal Desai

Common problems or challenges faced by Indian adolescents
byDr. Harpal Kaur


Mobile Forensics and Investigation Android Forensics

  • 1.
    Mobile and WirelessDevice Forensics Unit 3
  • 2.
    Understanding Mobile DeviceForensics • People store a wealth of information on cell phones • People don’t think about securing their cell phones • Items stored on cell phones: • Incoming, outgoing, and missed calls • Text and Short Message Service (SMS) messages • E-mail • Instant-messaging (IM) logs • Web pages • Pictures
  • 3.
    Understanding Mobile DeviceForensics (continued) • Items stored on cell phones: (continued) • Personal calendars • Address books • Music files • Voice recordings • Investigating cell phones and mobile devices is one of the most challenging tasks in digital forensics
  • 4.
    Inside Mobile Devices •Mobile devices can range from simple phones to small computers • Also called smart phones • Hardware components • Microprocessor, ROM, RAM, a digital signal processor, a radio module, a microphone and speaker, hardware interfaces, and an LCD display • Most basic phones have a proprietary OS • Although smart phones use stripped-down versions of PC operating systems
  • 5.
    Inside Mobile Devices(continued) • Phones store system data in electronically erasable programmable read-only memory (EEPROM) • Enables service providers to reprogram phones without having to physically access memory chips • OS is stored in ROM • Nonvolatile memory
  • 6.
  • 7.
    Inside Mobile Devices(continued) • Subscriber identity module (SIM) cards • Found most commonly in GSM devices • Microprocessor and from 16 KB to 4 MB EEPROM • Sometimes even more, up go 1 GB EEPROM • GSM refers to mobile phones as “mobile stations” and divides a station into two parts: • The SIM card and the mobile equipment (ME) • SIM cards come in two sizes • Portability of information makes SIM cards versatile
  • 8.
    Inside Mobile Devices(continued) • Subscriber identity module (SIM) cards (continued) • Additional SIM card purposes: • Identifies the subscriber to the network • Stores personal information • Stores address books and messages • Stores service-related information
  • 9.
    Inside PDAs • Personaldigital assistants (PDAs) • Can be separate devices from mobile phones • Most users carry them instead of a laptop • PDAs house a microprocessor, flash ROM, RAM, and various hardware components • The amount of information on a PDA varies depending on the model • Usually, you can retrieve a user’s calendar, address book, Web access, and other items
  • 10.
    Inside PDAs (continued) •Peripheral memory cards are used with PDAs • Compact Flash (CF) • MultiMedia Card (MMC) • Secure Digital (SD) • Most PDAs synchronize with a computer • Built-in slots for that purpose
  • 11.
    Understanding Acquisition Procedures forCell Phones and Mobile Devices
  • 12.
    Understanding Acquisition Procedures forCell Phones and Mobile Devices • The main concerns with mobile devices are loss of power and synchronization with PCs • All mobile devices have volatile memory • Making sure they don’t lose power before you can retrieve RAM data is critical • Mobile device attached to a PC via a cable or cradle/docking station should be disconnected from the PC immediately • Depending on the warrant or subpoena, the time of seizure might be relevant
  • 13.
    Understanding Acquisition Proceduresfor Cell Phones and Mobile Devices (continued) • Messages might be received on the mobile device after seizure • Isolate the device from incoming signals with one of the following options: • Place the device in a paint can • Use the Paraben Wireless StrongHold Bag • Use eight layers of antistatic bags to block the signal • The drawback to using these isolating options is that the mobile device is put into roaming mode • Which accelerates battery drainage
  • 14.
    Understanding Acquisition Proceduresfor Cell Phones and Mobile Devices (continued) • Check these areas in the forensics lab : • Internal memory • SIM card • Removable or external memory cards • System server • Checking system servers requires a search warrant or subpoena • SIM card file system is a hierarchical structure
  • 15.
    • MF: rootof the system • DF: directory files • EF: elementary data
  • 16.
    Understanding Acquisition Proceduresfor Cell Phones and Mobile Devices (continued) • Information that can be retrieved: • Service-related data, such as identifiers for the SIM card and the subscriber • Call data, such as numbers dialed • Message information • Location information • If power has been lost, PINs or other access codes might be required to view files
  • 17.
    Mobile Forensics Equipment •Mobile forensics is a new science • Biggest challenge is dealing with constantly changing models of cell phones • When you’re acquiring evidence, generally you’re performing two tasks: • Acting as though you’re a PC synchronizing with the device (to download data) • Reading the SIM card • First step is to identify the mobile device
  • 18.
    Mobile Forensics Equipment (continued) •Make sure you have installed the mobile device software on your forensic workstation • Attach the phone to its power supply and connect the correct cables • After you’ve connected the device • Start the forensics program and begin downloading the available information
  • 19.
    Mobile Forensics Equipment (continued) •SIM card readers • A combination hardware/software device used to access the SIM card • You need to be in a forensics lab equipped with appropriate antistatic devices • General procedure is as follows: • Remove the back panel of the device • Remove the battery • Under the battery, remove the SIM card from holder • Insert the SIM card into the card reader
  • 20.
    Mobile Forensics Equipment (continued) •SIM card readers (continued) • A variety of SIM card readers are on the market • Some are forensically sound and some are not • Documenting messages that haven’t been read yet is critical • Use a tool that takes pictures of each screen • Blackberries may require special hardware
  • 21.
    iPhone Forensics • MacLockPickII • Uses backup files • It can’t recover deleted files • MDBackUp Extract • Analyzes the iTunes mobile sync backup directory
  • 22.
  • 23.
    Mobile Forensics Tools •Paraben Software Device Seizure Toolbox • Contains cables, SIM card readers, and more • Data Pilot • Similar to Paraben • BitPim • Can view data on many phones, but it's not intended for forensics • MOBILedit! • Has a write-blocker
  • 24.
    Mobile Forensics Tools •SIMCon • Reads files on SIM cards • Recoveres deleted text messages • Archives files with MD5 and SHA-1 hashes • Software tools differ in the items they display and the level of detail
  • 27.
  • 28.
    External Memory Dump •refers to the process of acquiring data from the external memory storage of a mobile device • includes the device's microSD card or any other external storage media where user-generated data such as photos, videos, documents, and application data may be stored.
  • 29.
    Process of ExternalMemory Dump • Acquisition • Data Extraction • Analysis • can provide insights into a user's behavior, communication patterns, application usage, and even location information
  • 30.
    Physical Data Acquisitionof Mobile Phones • NAND Flash Memory • composed of memory cells, organized in a grid-like structure known as a memory array • cells are made up of floating-gate transistors and are arranged in blocks, which are further grouped into pages • floating-gate transistors can trap electrical charge, representing the 0s and 1s of digital data.
  • 31.
    • When datais written to a NAND flash memory cell, an electrical charge is applied to the floating gate, altering its state to represent the desired data • Data is erased from NAND flash memory through a process called block erase, which resets all the memory cells in a block to a predetermined state • Fast Access Times 1. High Density and Scalability • Endurance and Longevity • Power Efficiency
  • 32.
    Process of PhysicalData Acquisition Device Preparation Data Extraction Storage of Acquired Data Analysis and Interpretation
  • 33.
    Importance of PhysicalData Acquisition • enables the thorough examination of a mobile device's internal storage • complete and unaltered dataset that is essential for establishing the chronology of events • reconstructing the user's interactions and behaviors on the device. • facilitates the retrieval of system logs, application data, facilitates the retrieval of system logs, application data, cached information
  • 34.
    Logical Acquisition bit-by-bit copiesof logical storage objects from their allocated space the slack spaces cannot be acquired not possible to overcome the challenge of obtaining deleted data works best on unrooted mobile phones USB debugging mode needs to be enabled.
  • 35.
    Manual Acquisition • Withoutany cables or platforms • Using the phones touchscreen • Does not preserve the integrity of the evidence • Does not extract all the data on the phone • If off or protected then not possible.
  • 36.
    File system extraction •Android- Ext4 file system • Identify the file system • Access the file system structures • Data extraction and analysis • Metadata • Deleted data • User Activities • Application data • Data authenticity
  • 37.
    Android Forensics Shawn Valle shawnvalle atgmail dot com September 2012
  • 38.
  • 39.
    Android Overview &History • Google Mobile SVP Andy Rubin reported that over 2,000,000 Android devices were being activated each day as of February 2022 • 1,000,000 increase per day over just one year ago 39 Android Forensi cs
  • 40.
    Android Overview &History Date Event July 1, 2005 Google acquires Android, Inc. November 12, 2007 Android launched September 23, 2008 Android 1.0 platform released February 13, 2009 Android Market: USA takes paid apps April 15, 2009 Android 1.5 (Cupcake) platform released September 16, 2009 Android 1.6 (Donut) platform released October 5, 2009 Android 2.0/2.1 (Eclair) platform released May 20, 2010 Android 2.2 (Froyo) platform released December 6, 2010 Android 2.3 (Gingerbread) platform released February 2, 2011 Android 3.0 (Honeycomb) preview released November 14, 2011 Android 4.0 (Ice Cream Sandwich), 3.0 source released July 9, 2012 Android 4.1 (Jelly Bean) platform released 40
  • 41.
    Android Overview &History • Android Feature Introduction • More details come later • 1st Primary feature, always connected: GSM, CDMA, LTE, WiMax, WiFi • 2nd Market / Play: rich source for forensic analysts • 3rd Data Storage: Big part of the course • Flash (or NAND) memory • External SD card • Internal SD card 41
  • 42.
    Android Overview &History • Apps • As of January 2024, over 3.5 MILLION Android apps have been developed. Doubled since January 2018. • Apple maintains tight control over their App Store, requiring developers to submit to a sometimes lengthy review process and providing Apple with the final approval for an app. Apps can be denied based on a number of criteria, most notably if they contain any content Apple feels is objectionable. • Google, on the other hand, requires very little review to publish an app in the Android Market. While Google has the ability to ban a developer, remove an app from the Android Market, and even remotely uninstall apps from Android devices, in general their approach to app management is hands off. 42
  • 43.
    Android Open SourceProject • The Android Open Source Project (AOSP) is led by Google, and is tasked with the maintenance and development of Android. • It is good experience to download and install AOSP from source. • Not critical for all forensics analysts to get this deep into Android. May be helpful for deep analysis. 43
  • 44.
  • 45.
    Android & Forensics •Relatively new, emerged in ~2009 • Best known expert in the field is Andrew Hoog • Other leaders in the Android Security field include Jon Oberheide and Zach Lanier • Community is rapidly growing • In-house investigations on pilot / prototype apps • Penetration tests • Vulnerability assessments • Funded research 45
  • 46.
  • 47.
  • 48.
    Much ado abouthardware 48
  • 49.
    Hardware - core •CPU • Radio • Memory (RAM & NAND Flash) • GPS • WiFi • Bluetooth • SD Card • Screen • Camera(s) • Keyboard • Battery • USB • Accelerometer / Gyroscope • Speaker • Microphone • SIM 49 Android Forensi cs
  • 50.
    More Memory • Memory(RAM & NAND Flash) • Manufactured together into multichip package (MCP) http://www.hynix.com/products/mobile/mcp.jsp?menuNo=1&m=4&s=4 50 Android Forensi cs
  • 51.
    Hardware - devices •Smartphones • Tablets • Google TV • Vehicle Stereos • Standalone GPS • Kindle Fire • B&N Nook • 700+ Android devices 51 Android Forensi cs
  • 52.
    ROM & BootLoaders • ROM varies by manufacturer • Contains boot process • seven key steps to the Android boot process: 1. Power on and on-chip boot ROM code execution 2. The boot loader 3. The Linux kernel 4. The init process 5. Zygote and Dalvik 6. The system server 7. Boot complete Source: “The Android boot process from power on” by Mattias Björnheden of the Android Competence Center at Enea 52 Android Forensi cs
  • 53.
    ROM & BootLoaders Source: “The Android boot process from power on” by Mattias Björnheden of the Android Competence Center at Enea 53 Android Forensi cs
  • 54.
  • 55.
  • 56.
    Connecting Device toVM • Mac OS X with VMWare Fusion • VirtualBox Approved for Public Release 56 Android Forensi cs
  • 57.
    Setting up USBInterfaces • Each device has different USB setting options when connected to a PC • Some options are: • Charge only • Sync • Disk drive • Mobile Broadband Connect 57 Android Forensi cs
  • 58.
    USB Connection Test •To ensure the device is connected and passing through the “host” OS to the Ubuntu VM • Open a terminal window and type dmesg (display message or driver message) 58 Android Forensi cs
  • 59.
    USB Forensics Precaution •Important to disable auto-mount to prevent automatic detection and mounting of USB mass storage • Critical to limit and modifications to device when acquiring forensic data (more later) • A hardware USB write blocker is an option • To check for mounted SD cards, use df command. 59 Android Forensi cs
  • 60.
  • 61.
    SD Card 61 • Mostdevelopers store large data files on SD cards. • Core application data is located in /sdcard/data/data Android Forensi cs
  • 62.
    Android Debug Bridge Approvedfor Public Release 62
  • 63.
    Android Debug Bridge •One of the most important pieces of Android forensics. • Best time to pay attention is now. • Android Debug Bridge (ADB) • Developers use this, forensic analysts and security analysts rely on this. 63 Android Forensi cs
  • 64.
    USB Debugging • EnableUSB debugging on device • Applications > Development > USB Debugging • This will run adb daemon (adbd) on device. • adbd runs as a user account, not an admin account. No root access. Unless your device is rooted, then adbd will run as root. • If the device is locked with a pass code, enabling USB debugging is difficult. 64 Android Forensi cs
  • 65.
  • 66.
    USB Debugging • EnableUSB debugging on device • Applications > Development > USB Debugging • This will run adb daemon (adbd) on device. • adbd runs as a user account, not an admin account. No root access. Unless your device is rooted, then adbd will run as root. • If the device is locked with a pass code, enabling USB debugging is difficult. Approved for Public Release 66 Android Forensi cs
  • 67.
    ADB Components • Threecomponents • adbd on device • adbd on workstation • adb on workstation • adb is free, open-source, and our primary tool for Android forensics Approved for Public Release 67 Android Forensi cs
  • 68.
    ADB Devices • Toidentify devices connected, use command adb devices Approved for Public Release 68 Android Forensi cs
  • 69.
    Bad ADB • Sometimesadb doesn’t respond properly. • To kill adb, use command adb kill-server Approved for Public Release 69 Android Forensi cs
  • 70.
    ADB Shell • Toopen an adb shell on an Android device, use command adb shell • Gives full shell access directly on device. • Once we learn more about file system and directories, adb shell will get you much of the data needed for forensic analysis Approved for Public Release 70 Android Forensi cs
  • 71.
    • Full listof adb commands at http://developer.android.com/guide/developing/tools/adb.html ADB Shell – example Approved for Public Release 71 Android Forensi cs
  • 72.
    REVIEW • Learned propertechnique for connecting Android device to a forensic workstation • Became familiar with USB Debugging’s importance to forensics • Explored ADB and its relevance to successful investigations Approved for Public Release 72 Android Forensi cs
  • 73.
    EXERCISE • Locate datadirectory on an Android device • Connect an Android device to your VM workstation (or startup an AVD) • Verify USB Debugging is enabled on the device • Start adb on your forensic workstation • Using adb shell, locate directories in /data/data • Jot down the name of some interesting directories for further exploration later Approved for Public Release 73 Android Forensi cs
  • 74.
    File System & Data Approvedfor Public Release 74
  • 75.
    • SMS History •Deleted SMS • Contacts (stored in phone memory and on SIM card) • Call History • Received Calls • Dialed Numbers • Missed Calls • Call Dates & Durations • Datebook • Scheduler • Calendar • To-Do List • File System (physical memory) • System Files • Multimedia Files • Java Files / Executables • Deleted Data • Notepad • More... • GPS Waypoints, Tracks, Routes, etc. • RAM/ROM • Databases • E-mail Page 75 Forensics Data Gathered and Analyzed Android Forensi cs
  • 76.
    File System &Data Overview • File Systems • Data Storage • What Data? • Important Directories • Five Data Storage Methods • Shared Preferences • Internal Storage • External Storage • SQLite • Network • Where else? Linux Kernel & Android Stack • dmesg • logcat • Forensically Thinking Approved for Public Release 76 Android Forensi cs
  • 77.
    File Systems • Morethan a dozen file systems in Android • More than a dozen file systems in use on Android • Forensics analysts should understand the most important • EXT • FAT32 • YAFFS2 • Most user data live in those • Want to find the file systems on your device? • adb shell cat /proc/filesystems Approved for Public Release 77 Android Forensi cs
  • 78.
    Data Storage • Explorefile systems and virtual machines • Learning the Android file systems, directory structures, and specific files will be crucial to successful Android forensics analysis Approved for Public Release 78 Android Forensi cs
  • 79.
    What Data? • Appsshipped with Android (with the OS) – eg. Browser • Apps installed by manufacturer – eg. Moto Blur • Apps installed by wireless carrier – eg. CarrierIQ • Additional Google/Android apps – eg. Google Play Music, Gmail • Apps installed by the user, from Play Store or elsewhere Approved for Public Release 79 Android Forensi cs
  • 80.
    Important Directories • /data/data- Apps data generally installed in a subdirectory • Example: Android browser is named com.android.browser, data files are stored at /data/data/com.android.browser Approved for Public Release 80 Android Forensi cs
  • 81.
    Common Subdirectories • /data/data/<apppackage name>/ Approved for Public Release 81 shared_prefs XML of shared preferences lib Custom library files required by app files Developer saved files cache Files cached by the app databases SQLite databases and journal files Android Forensi cs
  • 82.
    Five Data StorageMethods • We will be exploring these methods • Shared preferences • Internal storage • External storage • SQLite • Network Source: Hoog 82 Android Forensi cs
  • 83.
    Shared preferences • Key-valueXML data • use cat command to view files Approved for Public Release 83 Android Forensi cs
  • 84.
    • Can besource of data Approved for Public Release 84 Android Forensi cs
  • 85.
    Shared preferences –example • Android device security application • Exploring shared_prefs, and SDPrefs_V2.xml, my user name and password are stored in the clear Approved for Public Release 85 Android Forensi cs
  • 86.
    Shared preferences –example • MDM product • Stores entire connection string, including user name, domain, and password in clear text Approved for Public Release 86 Android Forensi cs
  • 87.
    Internal storage • Commonfile systems used: ext3, ext4, yaffs2. • By default, files stored in /data/data are encrypted, accessed only by the application. Commonly root access is needed to access these files. Approved for Public Release 87 Android Forensi cs
  • 88.
    Internal storage • Noticeuser “app_84” is the owner. That user was created when Google Maps was installed • There’s a lot of potential rich forensic maps data in these directories Approved for Public Release 88 Android Forensi cs
  • 89.
    External storage • Externalstorage (SD Card) have less permission restrictions. • FAT32 does not have fine-grain permissions of other file systems. Approved for Public Release 89 Android Forensi cs
  • 90.
    SQLite • Lightweight open-sourcerelational database • Entire database contained in a single file • Generally stored on internal storage at /data/data/<packageName>/databases • Browser subdirectories contain valuable data Approved for Public Release 90 Android Forensi cs
  • 91.
    SQLite – commands •sqlite3 <database name> Runs SQLite • .tables Lists available tables • .headers ON Displays header row • select * from <table name>; Displays table contents • CTRL+Z Exits SQLite Approved for Public Release 91 Android Forensi cs
  • 92.
    SQLite – example •These directories all contain one of more databases of interesting data for analysis. • Contents include (app_geolocation) GPS positions for tracking where the device has traveled, (databases, app_databases and app_cache) stored data from visited web sites/apps. Approved for Public Release 92 Android Forensi cs
  • 93.
    Network • Network storagevia Java and Android network classes • Network data is not stored locally on the device, though configuration files and related databases generally are locally stored Approved for Public Release 93 Android Forensi cs
  • 94.
    Where else? • LinuxKernel & Android Stack • Android is Linux at the kernel…we know that. • With Linux, there is a kernel log, which may have some interesting data. • To access the kernel log, command dmesg or “display message”, prints the kernel messages to the console (avd or adb shell) Approved for Public Release 94 Android Forensi cs
  • 95.
    dmesg • Notice [KEY]above. Possibly something logging keystrokes. May be worth further investigation • Root access is not needed for dmesg, just USB debugging Approved for Public Release 95 Android Forensi cs
  • 96.
    …more dmesg commands •dmesg | wc displays word count of log –l for line count • dmesg > dmesg.log saves dmesg to a log file Approved for Public Release 96 Android Forensi cs
  • 97.
    dmesg.log Approved for PublicRelease 97 Android Forensi cs
  • 98.
    logcat • Displays alive stream of messages, system and app debug message • Used in the CarrierIQ demonstration video on YouTube Approved for Public Release 98 Android Forensi cs
  • 99.
    logcat • Message Indicators Approvedfor Public Release 99 Android Forensi cs Message Indicator Description V Verbose D Debug I Information W Warning E Error F Fatal S Silent
  • 100.
    Forensically Thinking • Nowthat we have some idea of how to locate data • Time to start thinking about identifying potential interesting data, forensically thinking • What you might look for: • Time stamps – when was something modified, when did an event occur • User Information – locate user names and/or passwords in insecure prefs/logs. Locate user authentication times in log files. • Image files – identify .JPEG or other picture files, for later assessment of the picture. • SD Card Files – look for files saved to SD Card • Call logs – Who has the user been calling / receiving calls from Approved for Public Release 100 Android Forensi cs
  • 101.
    REVIEW • Explored Androidfile system, internal and external • Located common directories for rich forensic information • Identified five key areas of stored persistent data • Explored application preference files to locate important forensic data • Explored databases in search of data for forensics analysis • Identified sensitive data stored insecurely Approved for Public Release 101 Android Forensi cs
  • 102.
    EXERCISE • Apply currentAndroid forensics knowledge to locate data of interest • Using adb shell (or /.android if using an AVD), explore an applications shared_prefs within /data/data • Use the cat command to open an xml file and review the contents • Note anything of interest to share with the class • Using sqlite3, explore an applications databases within /data/data • Use .tables and select commands to gather data of interest, which could identify something specific about the user. • Note anything of interest to share with the class Approved for Public Release 102 Android Forensi cs
  • 103.
    Learning Objectives By theend of this course, you will be able to:  Extract and analyze data from an Android device  Manipulate Android file systems and directory structures 3. Understand techniques to bypass passcodes NEW! 4. Utilize logical and physical data extraction techniques 5. Reverse engineer Android applications 6. Analyze acquired data Approved for Public Release 103 Android Forensi cs
  • 104.
  • 105.
    Device Handling &Modification • Forensics rule: Avoid modification of the target, at all costs • Not so easy for mobile. Drives, RAM, CPU, etc are all in non-accessible locations • Just the act of taking the device out of sleep mode records a log (remember logcat) • The realization: You cannot get a pristine mobile device, but take much precaution to minimize modification to the device Approved for Public Release 105 Android Forensi cs
  • 106.
    Device Acquisition • Extendscreen timeout to max, immediately (if not already locked) • Enable Stay Awake while charging and USB debugging • Disable network communication • Do nothing further until in a secure location with minimal cellular / network connectivity Approved for Public Release 106 Android Forensi cs
  • 107.
    “What if it’salready off?” • Boot into recovery mode • Test for connectivity and root access • Cross your fingers that USB debugging is already enabled and/or device is already rooted Approved for Public Release 107 Android Forensi cs
  • 108.
  • 109.
    Circumventing Passcodes • Criticalcapability in forensics and security testing • Techniques vary from platform-to-platform • There is no panacea for circumventing passcodes on Android • …but we will learn a few potential techniques Approved for Public Release 109 Android Forensi cs
  • 110.
    Passcodes Types Pattern lockPIN Approved for Public Release 110 Alphanumeric Android Forensi cs
  • 111.
    New Passcode Type Facialrecognition Approved for Public Release 111 Android Forensi cs
  • 112.
    “How Do WeCrack Them?” • Smudge Attack • Pattern Lock Vulnerability • ADB and USB Debugging, with psneuter • Continues to evolve… Approved for Public Release 112 Android Forensi cs
  • 113.
    Smudge Attack • Screensare reflective; smudge (aka pattern lock) is diffuse. • Directional lighting and a camera capturing photos overexposed by two to three f-stops (4 to 8 times “correct” exposure) • Creates an image displaying pattern lock • Not 100% accurate, since other swipes of the screen may have damaged the pattern lock smudge Approved for Public Release 113 Android Forensi cs
  • 114.
    Smudge Attack Approved forPublic Release 114 Android Forensi cs http://bcove.me/7ozhp9u4
  • 115.
    Pattern Lock Crack Source:http://www.youtube.com/user/SecurityCompass 115 Android Forensi cs • Pattern Lock creates a file gesture.key • Hash of the pattern stored • If custom recovery ROM is installed (i.e. ClockWork Recovery) • Remove & recreate key to bypass pattern
  • 116.
    Gaining Root Approved forPublic Release 116
  • 117.
    Gaining Root • Neededfor many forensic techniques, including physical acquisition • Not enabled on any device by default • Not possible on all devices • Gaining root isn’t always the best choice in forensics • It will change data on the device, possibly altering evidence • It will be time consuming to gain root, as it’s implemented differently across most devices • Root makes the device vulnerable to many exploits Approved for Public Release 117 Android Forensi cs
  • 118.
    Three Common Typesof Root • Temp root – roots the device only until it is rebooted, which then disables root • Perm root – root persists after reboots. Commonly enabled with custom ROMs • Recovery mode root – flashing (installing) a custom recovery partition, allowing root to run only in recovery mode Approved for Public Release 118 Android Forensi cs
  • 119.
    Temp Root • Forforensics, temp root is what we want to enable, if needed • Suggest testing these procedures many times, not, on your primary / target device Approved for Public Release 119 Android Forensi cs
  • 120.
    Temp Root • IsUSB debugging enabled? • Is it already rooted? • adb shell su • permission denied – no root • # - root MyTouch 4G – custom ROM Droid X – stock OS • If not rooted, start searching xda-developers.com Approved for Public Release 120 Android Forensi cs
  • 121.
    Property Service Neuter •Psneuter is a form of a malicious app, but for our good • Uses a vulnerability in Android to gain superuser access, and ultimately root • To gain root shell (or temp root) with psneuter: • adb devices • adb push psneuter /data/local/tmp • adb shell • $ cd /data/local/tmp • $ chmod 777 psneuter • $ ./psneuter Approved for Public Release 121 Android Forensi cs
  • 122.
    Permanent Root • Notas common for forensics • We want to limit the footprint • Perm root leaves a HUGE footprint Approved for Public Release 122 Android Forensi cs
  • 123.
    Busy Box • “TheSwiss Army Knife of Embedded Linux” • # mount -o remount,rw -t rfs /dev/block/st19 /system • # exit • adb push busybox /system/bin • adb push su /system/bin • adb install Superuser.apk • adb shell • # chmod 4755 /system/bin/busybox • # chmod 4755 /system/bin/su Approved for Public Release 123 Android Forensi cs
  • 124.
    SuperOneClick • A simpletool for "rooting" your Android phone Approved for Public Release 124 Android Forensi cs
  • 125.
    SuperOneClick • Root forperm, Shell Root for temp Approved for Public Release 125 Android Forensi cs
  • 126.
    A couple roots •Acer A500 http://www.tabletroms.com/forums/sh owwiki.php?title=AcerIconiaFaq:How-to-root- the-Acer-Iconia-Tab-A500 • Lenovo http://rootzwiki.com/topic/8722- lenovo-ideapad-k1-rooting-guide- messy/page__st__120 Approved for Public Release 126 Android Forensi cs
  • 127.
    Agenda DAY 1  ForensicIntroduction  Course Setup – Linux, OS X, and Windows  Android Overview  SDK and AVD  Android Security Model  ADB and shell Introduction  File System and Data Structures  Device Handling  Circumvent passcode  Gain Root Access Approved for Public Release 127 Android Forensi cs
  • 128.
    Agenda DAY 2  RecoveryMode  Boot Loaders  Logical Forensic Techniques  Open Source Tools  Commercial Tools  Physical Forensic Techniques & Tools  Forensic Analysis  Application Penetration Testing Setup  Reverse Apps  …more Reversing  Document Findings Approved for Public Release 128 Android Forensi cs
  • 129.
    Got sqlite3? • $adb push sqlite3 /sdcard/ • $ adb shell • $ su • # mount -o remount,rw -t yaffs2 /dev/block/mtdblock3 /system • # dd if=/sdcard/sqlite3 of=/system/bin/sqlite3 • # chmod 4755 /system/bin/sqlite3 • # mount -o remount,ro -t yaffs2 /dev/block/mtdblock3 /system • sqlite3 binary is in SuperOneClick directory. Approved for Public Release 129 Android Forensi cs
  • 130.
    Recovery Mode Approved forPublic Release 130
  • 131.
    Recovery Mode • Designedas an avenue for manufacturers to deliver and apply system updates • Recovery partitions offer shell access and root permissions • When booting into recovery mode, pass codes are circumvented Approved for Public Release 131 Android Forensi cs
  • 132.
    Recovery Not UserAccessible Approved for Public Release 132 Android Forensi cs
  • 133.
    Recovery User Accessible •Check adb devices on forensic workstation • If no adb access, search for root while in recovery mode Approved for Public Release 133 Android Forensi cs
  • 134.
    Recovery Mode Techniques DeviceKey Combination Motorola Droid X Power off. Hold Home and press power button. Release power. When (!) displays release Home. Press Search button. (needs more research) HTC Incredible Hold volume down and press power button. Use volume down to select recovery and press power button. Approved for Public Release 134 Android Forensi cs
  • 135.
    Passcode Circumvention Recap •If device is on and passcode protected, connect to USB and attempt ADB access. • If pattern lock is present (and you have access to lighting and camera), attempt smudge attack. • If those fail, attempt to reboot into recovery mode. • If device is off, attempt boot into recovery mode. Approved for Public Release 135 Android Forensi cs
  • 136.
    REVIEW • Identified theimportant of proper device handling • Explored techniques for circumventing passcodes • Applied rooting techniques and tools • Located recovery partitions and benefit of recovery mode Approved for Public Release 136 Android Forensi cs
  • 137.
    EXERCISE • Attempt tocircumvent passcode and obtain root access • Document your findings to share with the class Approved for Public Release 137 Android Forensi cs
  • 138.
    Learning Objectives By theend of this course, you will be able to:  Extract and analyze data from an Android device  Manipulate Android file systems and directory structures  Understand techniques to bypass passcodes NEW! 3. Utilize logical and physical data extraction techniques 4. Reverse engineer Android applications 5. Analyze acquired data Approved for Public Release 138 Android Forensi cs
  • 139.
  • 140.
    Android Forensics Techniques •Forensic data acquisition • Acquiring SD card data • Open-source and commercial forensic tools • qtADB • viaExtract • CelleBrite • Paraben Approved for Public Release 140 Android Forensi cs
  • 141.
  • 142.
    Logical vs. PhysicalAcquisition • Logical vs. Physical • Logical • ADB Pull • Other tools • Physical • Hardware vs. software • Software technique in detail Approved for Public Release 142 Android Forensi cs
  • 143.
    Logical vs. PhysicalAcquisition Logical Physical • Accesses the file system. • Data that is readily available to a user. • Targets the physical memory, not relying on the file systems. • Gains much more data than logical, potentially circumvents passcodes. Approved for Public Release 143 Android Forensi cs
  • 144.
  • 145.
    Logical SD CardAcquisition • User app data lives in /data/data directories which each sub-directory is RW protected to the app user • SD cards are used for large storage (audio, video, maps) • SD uses cross-platform FAT file systems • .apk files residing on SD cards are increasingly encrypted • Removing SD card challenges • Unencrypted .apk’s are mounted in /mnt/asec • This is an important directory to pull and analyze, if 3rd party apps are part of the investigation Approved for Public Release 145 Android Forensi cs
  • 146.
    ADB Pull –logical • Command used for copying data from an emulator or device • Primary logical acquisition tool • adb pull on non-rooted Droid X: Approved for Public Release 146 Android Forensi cs
  • 147.
    ADB Pull –rooted & locked • adb pull on rooted and password locked HTC Glacier (aka T-Mobile MyTouch 4G): Approved for Public Release 147 Android Forensi cs
  • 148.
    ADB Pull –rooted & locked • ~700 MB • ~27 minutes Approved for Public Release 148 Android Forensi cs
  • 149.
    Tools and Time Savers Approvedfor Public Release 149
  • 150.
    QtADB • http://qtadb.wordpress.com/ • Graphicalapp based on adb • Open-source, currently well- supported Approved for Public Release 150 Android Forensi cs
  • 151.
    QtADB – features •File manager • copying files and dirs between phone and computer • removing files and dirs • creating new dir • and other • App manager • installing apps • removing apps • creating backup of apps with data • restoring backups of apps with data • Sms manager • receiving sms (baloon in tray) • reading sms • sending sms • Shell • opens android shell • Screenshot • take screenshot of your device • save screenshot to png file • Fastboot • flash bootloader, radio and recovery • boot recovery • Recovery • nandroid backup/restore • wipe data • flash rom • wipe battery stats • fix uid mismatches • Reboot • to bootloader • to recovery • normal reboot • Settings • set font used by app • set starting paths (or remember paths on exit) • and other • Logcat • Automatically detects phone (device, fastboot and recovery mode) Approved for Public Release 151 Android Forensi cs
  • 152.
    QtADB – inaction Recovery partition Logcat Approved for Public Release 152 Android Forensi cs
  • 153.
    QtADB – setup •Windows: • Must have Android SDK installed • ZIP contain all libraries • Extract to a permanent directory • Open QtADB application • Choose path to directory with adb and aapt binaries (example: C:Users<USERNAME>AppData LocalAndroidandroid- sdkplatform-tools) Approved for Public Release 153 Android Forensi cs
  • 154.
    REVIEW • Identified thedifference between logical and physical forensics • Explored open and free tools and techniques for logically acquiring data • Located directories and file details for SD card logical acquisition Approved for Public Release 154 Android Forensi cs
  • 155.
    EXERCISE • Using eitherADB or QtADB pull a logical acquisition from your device or AVD. • Verify pull successfully completed, and document size of data acquired. Approved for Public Release 155 Android Forensi cs
  • 156.
    AFLogical • Android forensicslogical extraction tool • Free for law enforcement and government agencies • Leverages Content Providers Approved for Public Release 156 Android Forensi cs • CallLog Calls
  • 157.
  • 158.
    Cellebrite Physical Analyzer Approvedfor Public Release 158 Android Forensi cs
  • 159.
  • 160.
    Device Seizure –Acquisition • DS acquisition temp installs Seizure Service on device. Removes automatically during completion of acquisition 160 Android Forensi cs
  • 161.
    Device Seizure –Acquisition 161 • Device Seizure hung while acquiring data after more than 11 hours • Keep in mind, I'm acquiring from a rooted CyanogenMod ROM, and checked options to acquire all data, including the entire contents of 32GB Class 10 microSD card Android Forensi cs
  • 162.
    Device Seizure –Acquisition 162 • This screen displays for considerable amount of time when completing / canceling an acquisition Android Forensi cs
  • 163.
    Device Seizure –Results 163 • Contacts and Calendar were empty Android Forensi cs
  • 164.
    Device Seizure –Sorting 164 • After acquisition, "Do you want to fill the sorter?“ • This will take about an hour Android Forensi cs
  • 165.
    Device Seizure –Sort Results 165 • Sorting all the findings Android Forensi cs
  • 166.
    Device Seizure –Reports 166 • Creating a PDF report of the entire case Android Forensi cs
  • 167.
    Device Seizure –Report 167 Android Forensi cs
  • 168.
    Device Seizure –Report 168 Android Forensi cs
  • 169.
    Device Seizure –Report 169 Android Forensi cs
  • 170.
  • 171.
    Software Physical Acquisition •Let’s get a full NAND acquisition of the user accessible data partition • For time’s sake, and now that we know of open-source and commercial tools, let’s take advantage of them for the physical acquisition Approved for Public Release 171 Android Forensi cs
  • 172.
  • 173.
    Forensic Analysis • Analyzingacquired data • File System Analysis • SQLite Analysis • Directory Structure • FAT Analysis • SD Card Analysis • YAFFS2 Analysis Approved for Public Release 173
  • 174.
    Forensic Analysis -photos • Common location for storage of photos in JPG format Approved for Public Release 174
  • 175.
    Important Directories Recap •/cache/ • Previewed Gmail attachments • Downloads (Market and messages) • /data/ • dalvik-cache: applications (.dex) that have been run • app: .apk files • data: subdirectories per app with SQLite databases and XML shared preferences • misc: protocol info • system: • installed applications (or packages.xml) • accounts database • device and app login details, .key files • /proc & /sys – list of device filesystems, web history, device info • /mnt/sdcard/DCIM/Camera - images • /sdcard/android or sdcard/data/data – FAT32, limited permission 175 Android Forensi cs
  • 176.
    REVIEW • Explored severalcommercial Android forensics products • Identified the benefits and acquisition steps of physical forensics • Located the most important directories for analysis Approved for Public Release 176
  • 177.
    EXERCISE • Determine whatthe user does for work and fun • (in groups) Now that you have acquired data many different ways, analyze the data using one of the forensics tools (adb, adb shell, Device Seizure, QtADB, etc) to get a fresh data acquisition from your device • Look at earlier exercises for commands, as a refresher • Explore data in directories like /data/ and /cache/ • As a forensic analyst, document findings that would help you determine the users profession and hobbies • Be prepared to share your findings with the class Approved for Public Release 177
  • 178.
    Learning Objectives By theend of this course, you will be able to:  Extract and analyze data from an Android device  Manipulate Android file systems and directory structures  Understand techniques to bypass passcodes  Utilize logical and physical data extraction techniques 4. Reverse engineer Android applications 5. Analyze acquired data Approved for Public Release 178 Android Forensi cs
  • 179.
    Application Testing Reverse EngineeringApps Approved for Public Release 179
  • 180.
    Analyzing APKs • Bytecode is reverted to source • First extracting each of the classes.dex files • Using dex2jar.bat, a jar file is created Approved for Public Release 180 Android Forensi cs .java .class .dex java dx  Batch file used to convert dex files to jar files
  • 181.
    More Analyzing APKs •Java Decompiler used to create a zip file containing all of the Java source code • Used to view class files and convert them to java • The remaining content of each of the APK files is extracted Approved for Public Release 181 Android Forensi cs • Yes, it’s a painful process! • How can we make it easier?
  • 182.
    APK Reversing • RenameAndroid app (.apk) to .zip. • Extract .zip. • Run Dex2Jar desktop script (.bat or .sh) on extracted .dex file • Dex2Jar decompiles .dex to .jar (Java Archive) • Open .jar in Java Decompiler desktop app to review source http://en.wikipedia.org/wiki/Step_by_Step_(TV_series) 182 .java .class .dex java dx
  • 183.
    APKTool • Powerful toolfor forensic analysts • Tool for reverse engineering Android binaries • Available at code.google.com Approved for Public Release 183 Android Forensi cs
  • 184.
    androguard • Reverse engineering,Malware and goodware analysis of Android applications ... and more ! • Check for permissions and usage • Available at code.google.com Approved for Public Release 184 Android Forensi cs
  • 185.
    APKinspector • Powerful toolfor forensic analysts • Graphically reverse engineer and analyze apps • Available at code.google.com Approved for Public Release 185 Android Forensi cs
  • 186.
    REVIEW • Explored reversingtools for Android • Reverse engineered app back to source code • Explored code and data for an APK Approved for Public Release 186
  • 187.
    EXERCISE • Reverse engineeran app and locate critical data • Use APKInspector • Reverse engineer Facebook or F-Droid, mobile app market, application • Both apps located in Documents directory on workstation • Locate the database where user ID’s are stored Approved for Public Release 187
  • 188.
    Learning Objectives By theend of this course, you will be able to:  Extract and analyze data from an Android device  Manipulate Android file systems and directory structures  Understand techniques to bypass passcodes NEW!  Utilize logical and physical data extraction techniques  Reverse engineer Android applications  Analyze acquired data Approved for Public Release 188 Android Forensi cs
