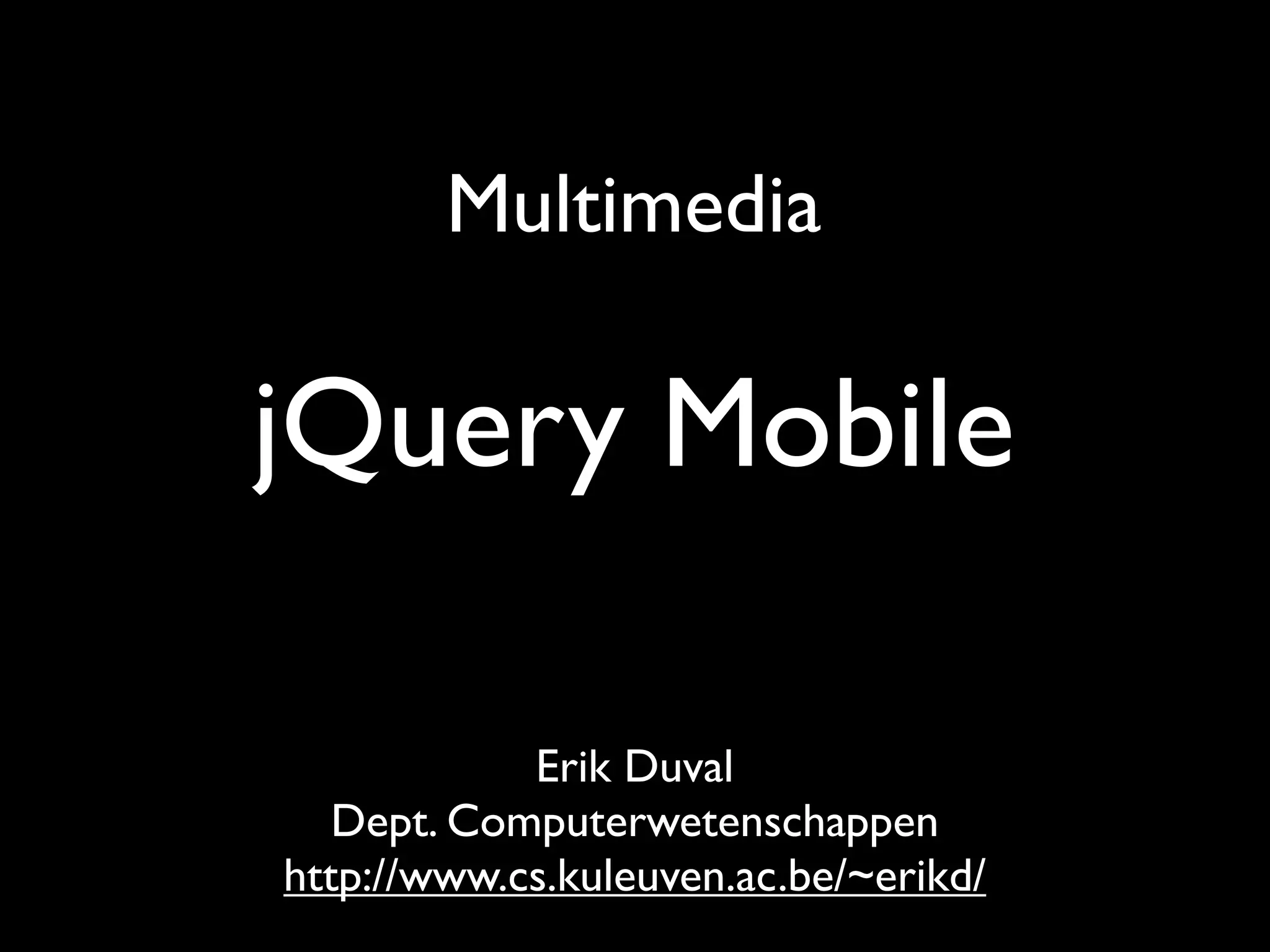

Multimedia

jQuery Mobile

            Erik Duval
   Dept. Computerwetenschappen
http://www.cs.kuleuven.ac.be/~erikd/

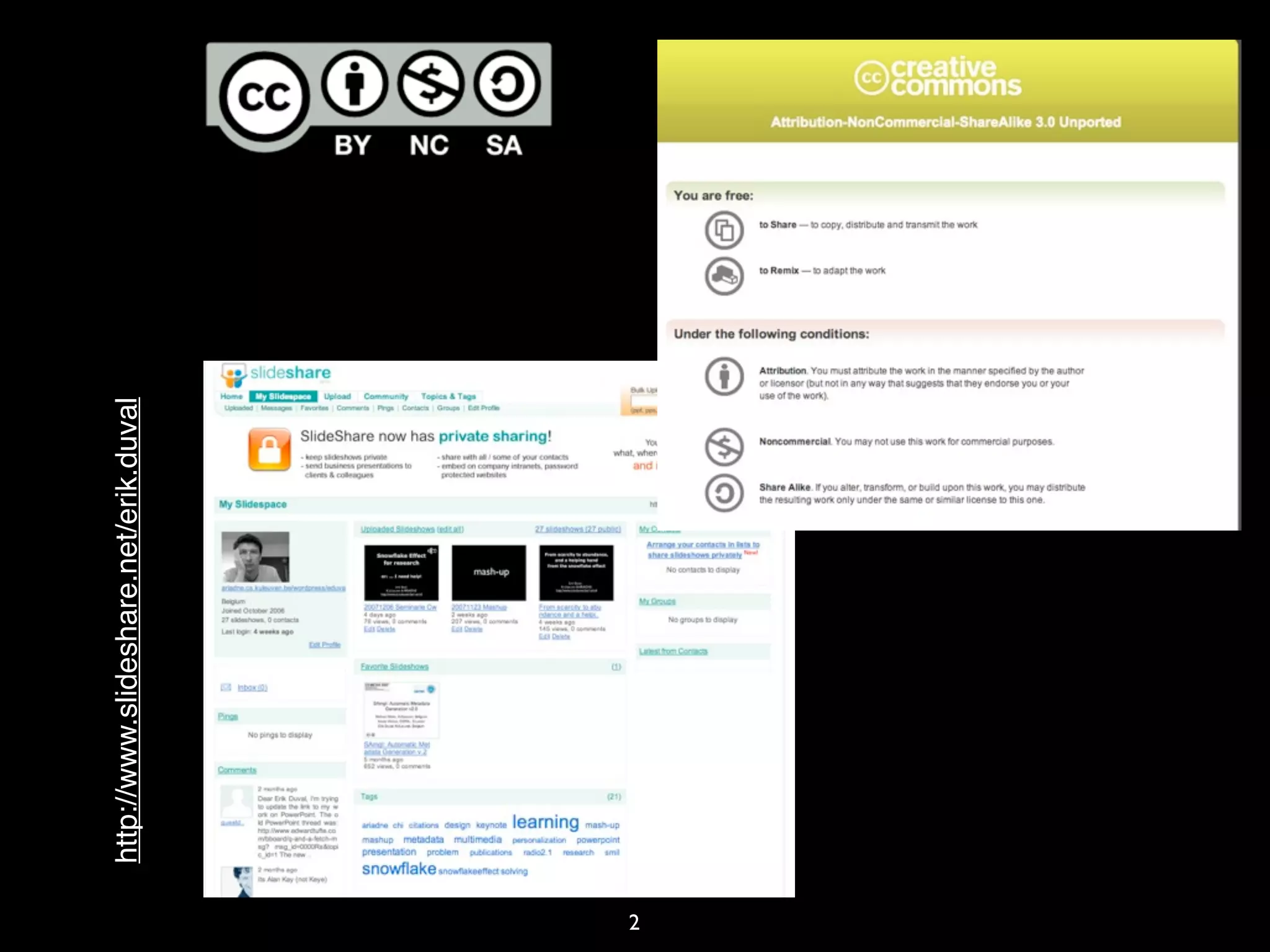

http://www.slideshare.net/erik.duval




2
wat denken jullie?



        3
built on jQuery & jQuery UI




           4
built on jQuery & jQuery UI




           4

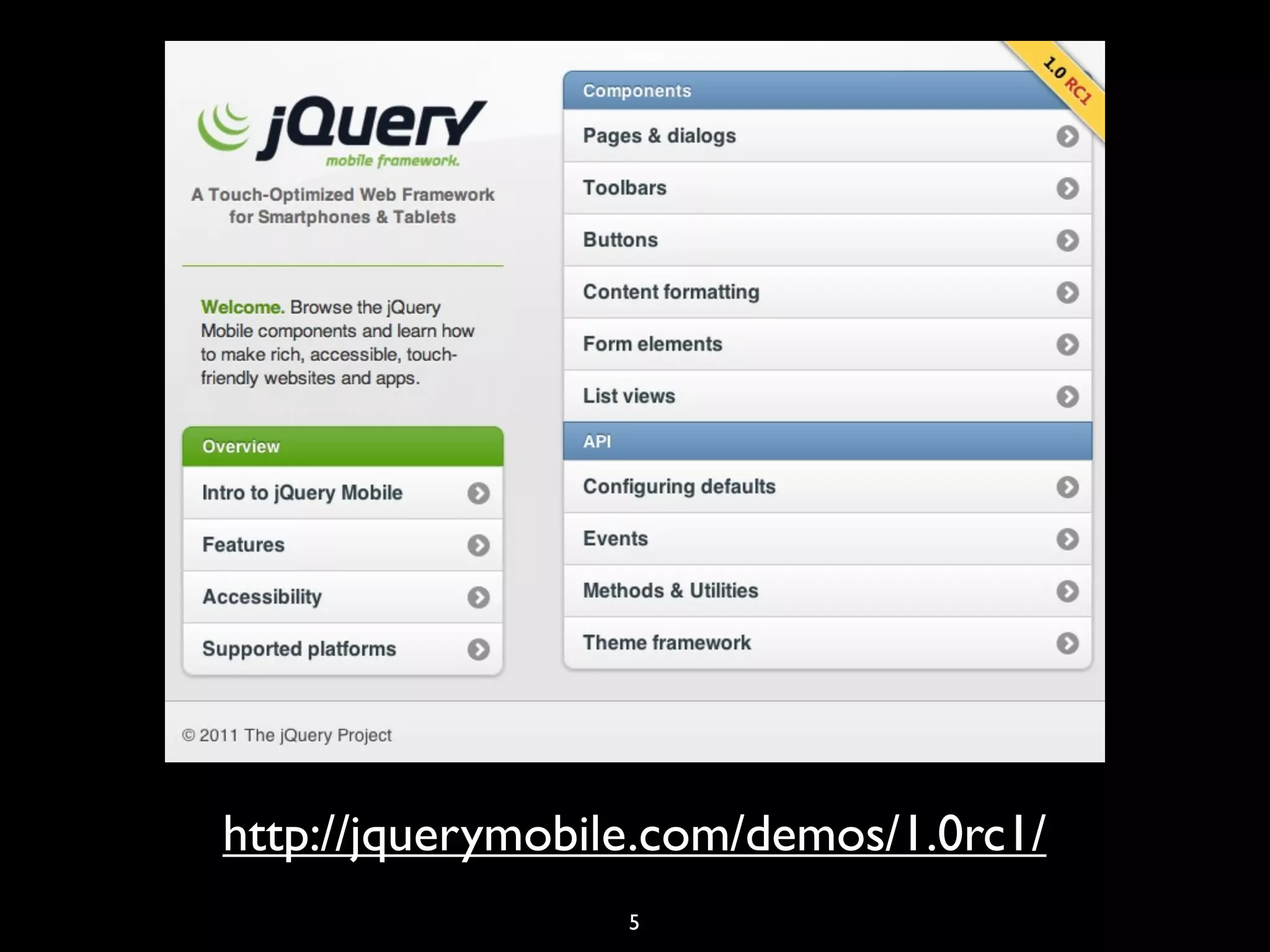

http://jquerymobile.com/demos/1.0rc1/
                  5

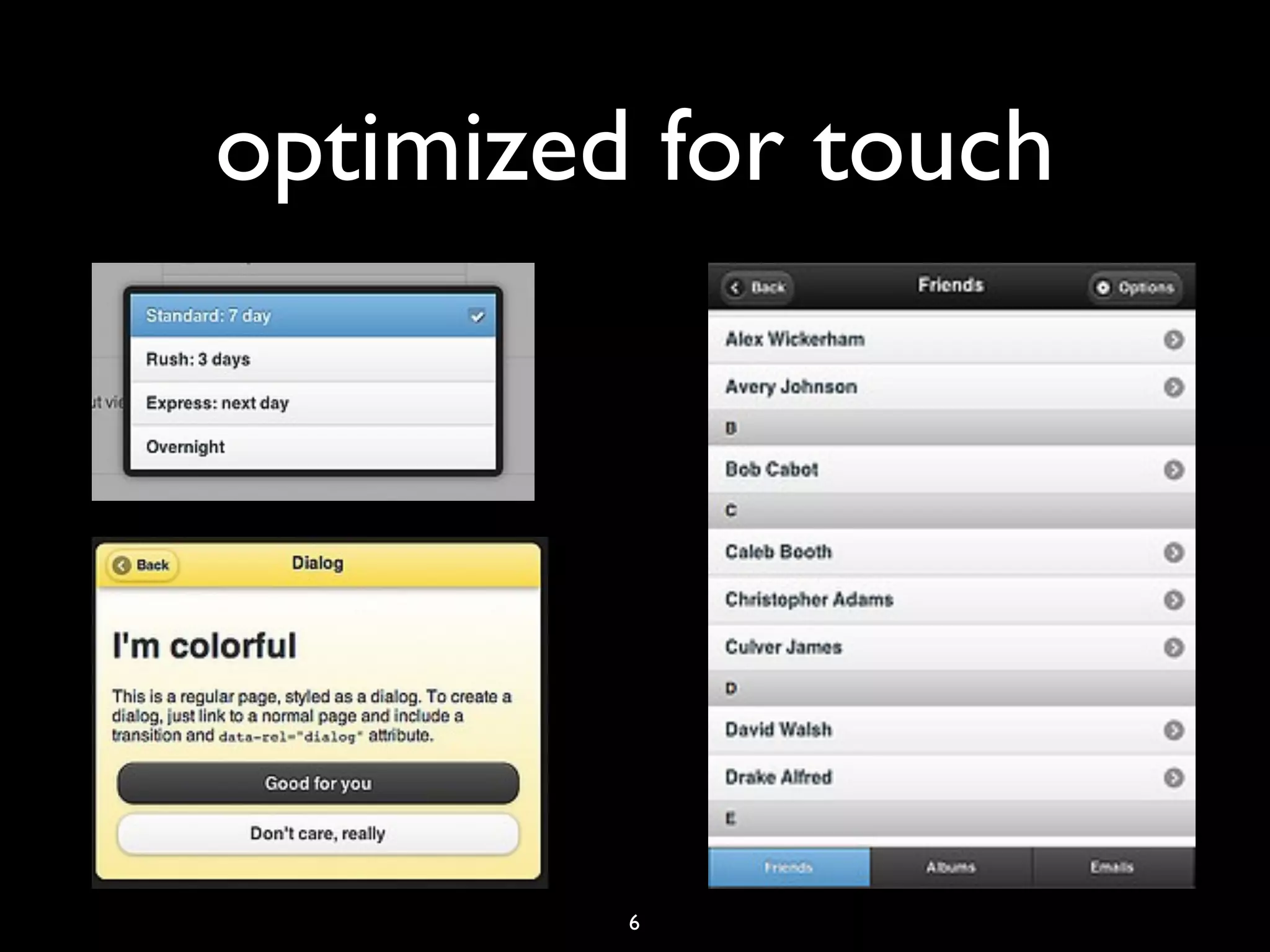

optimized for touch




         6

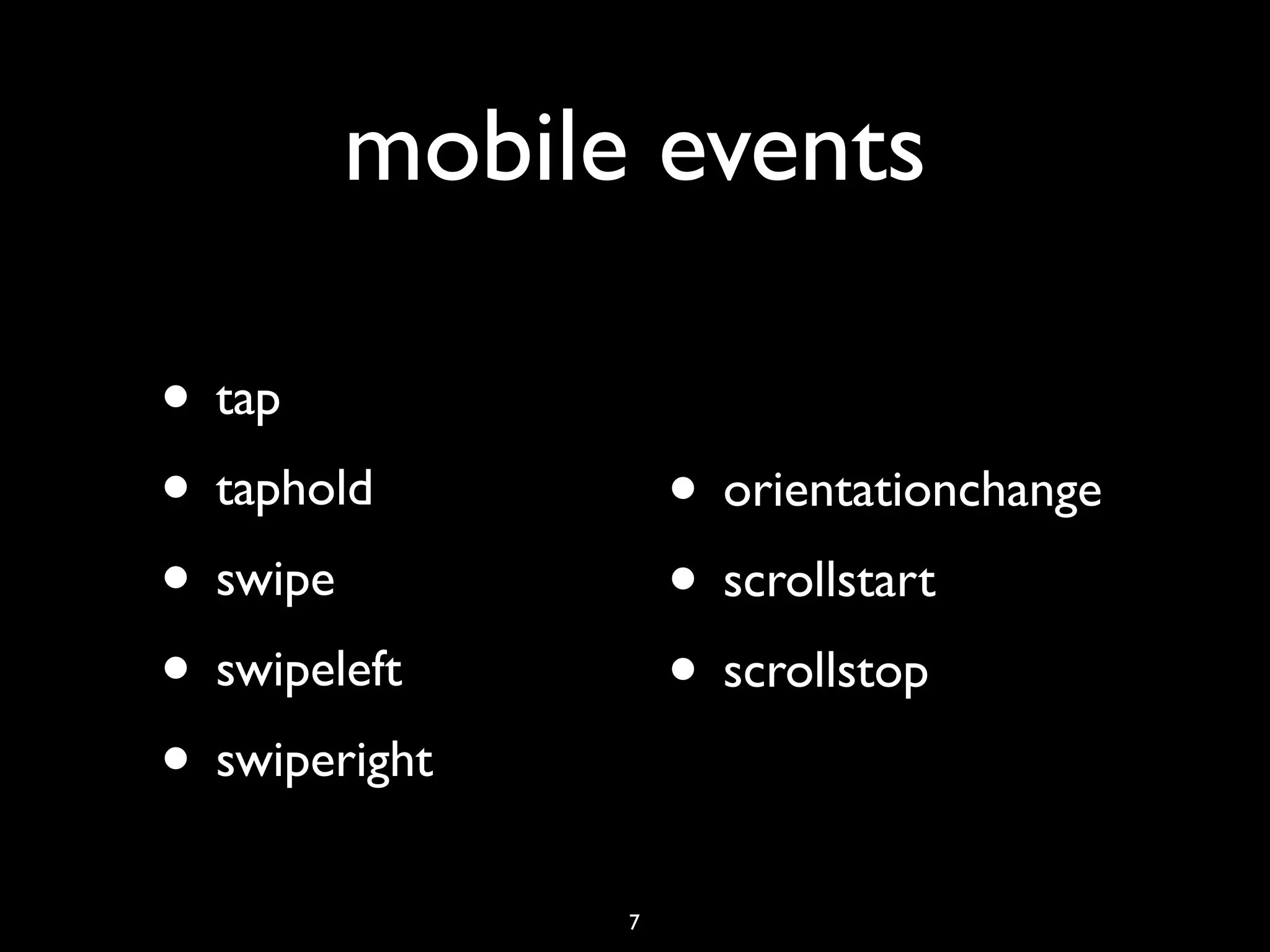

mobile events

• tap
• taphold          • orientationchange
• swipe            • scrollstart
• swipeleft        • scrollstop
• swiperight
               7

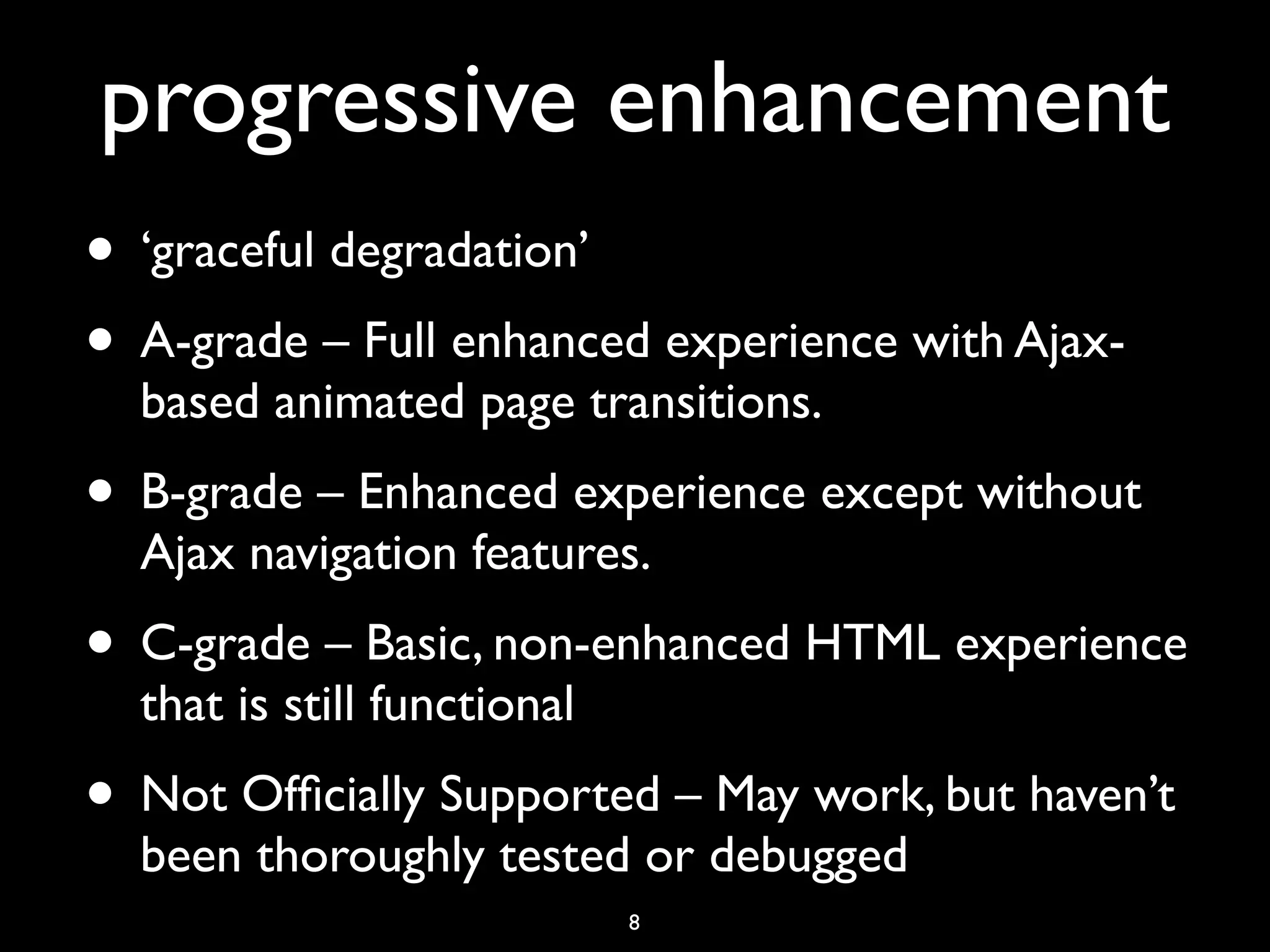

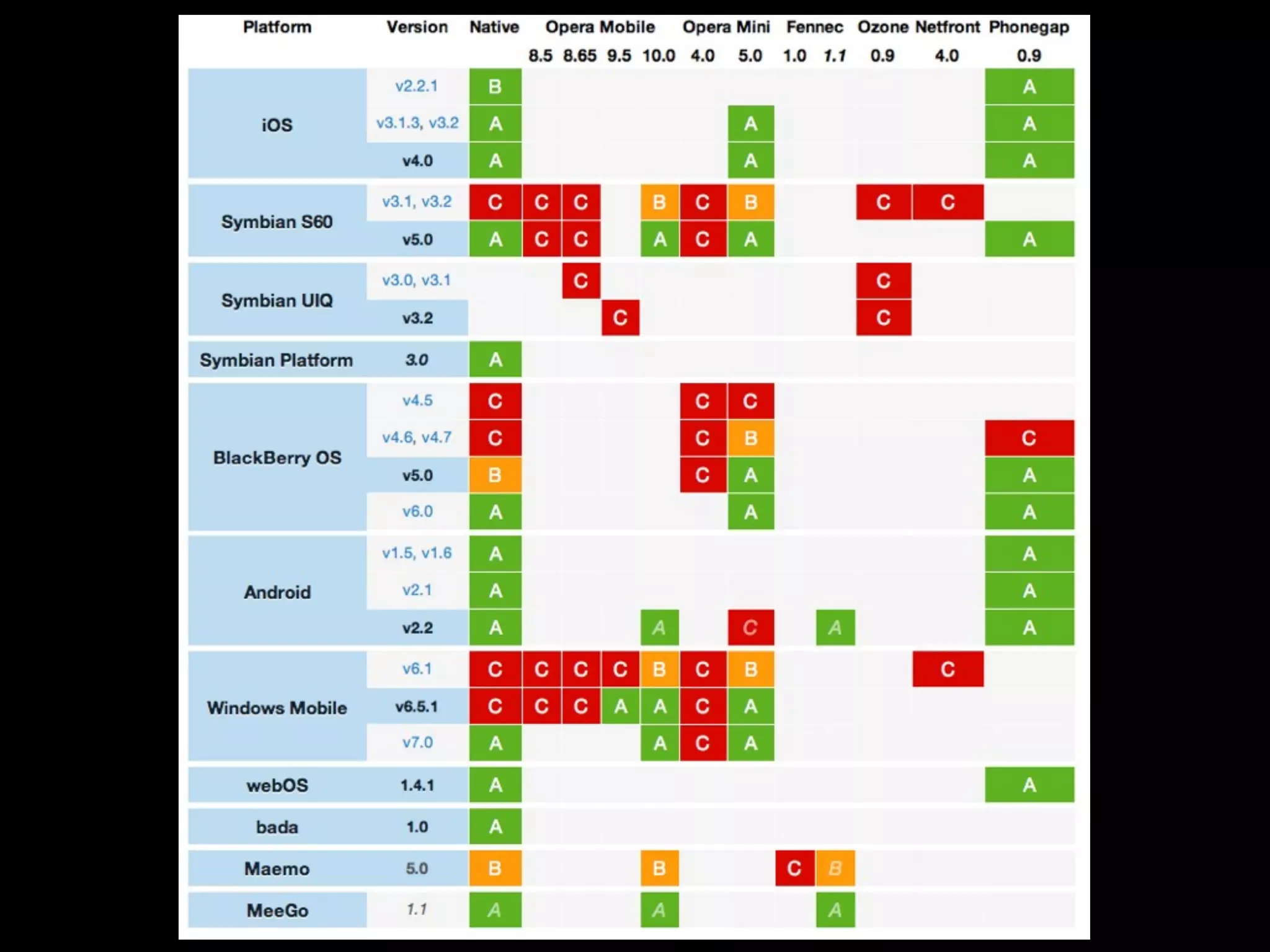

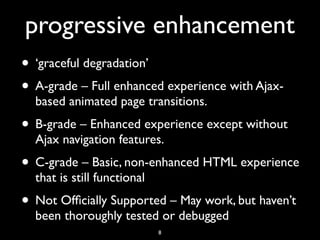

progressive enhancement
• ‘graceful degradation’
• A-grade – Full enhanced experience with Ajax-
  based animated page transitions.
• B-grade – Enhanced experience except without
  Ajax navigation features.
• C-grade – Basic, non-enhanced HTML experience
  that is still functional
• Not Officially Supported – May work, but haven’t
  been thoroughly tested or debugged
                             8
9

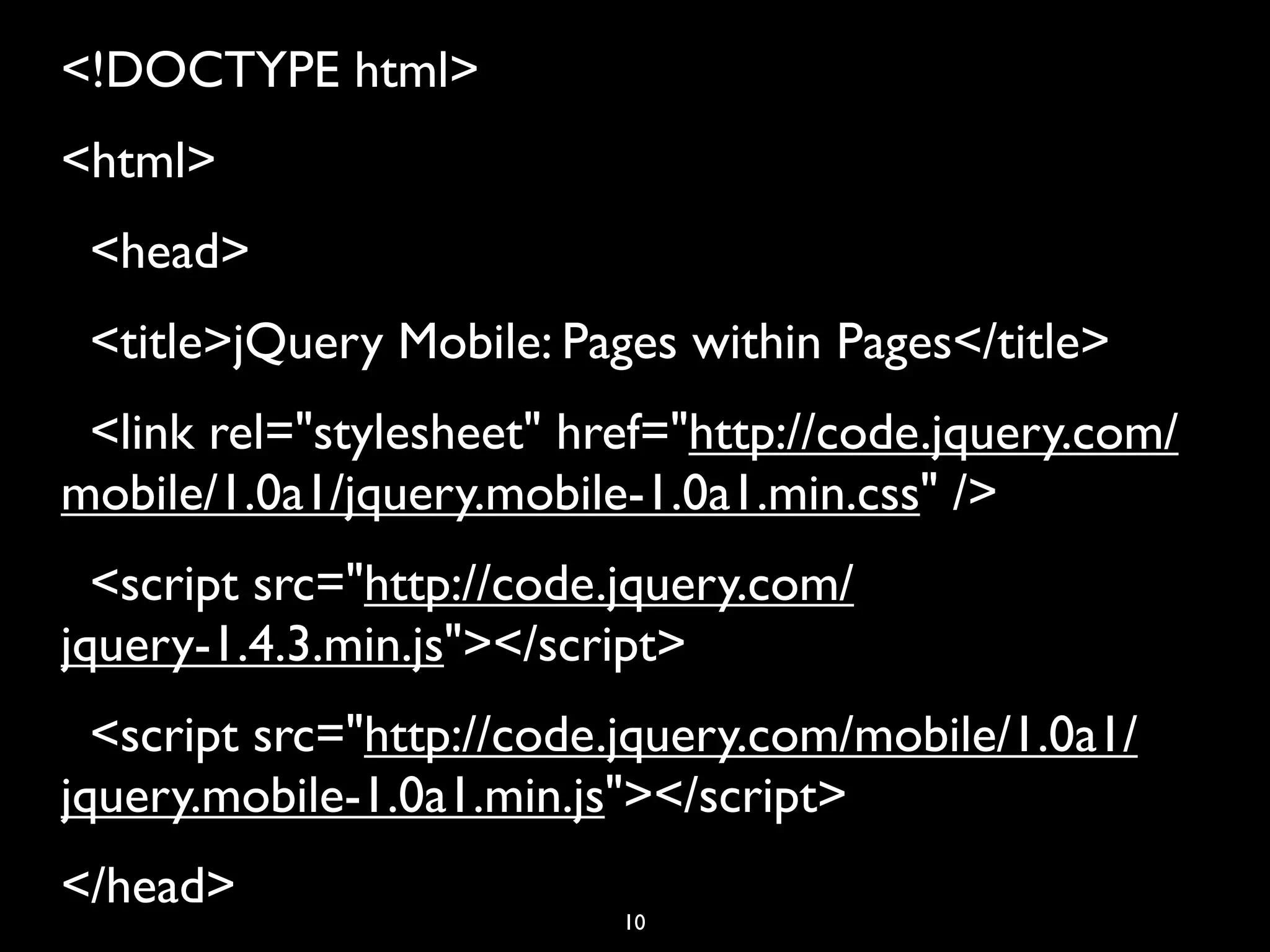

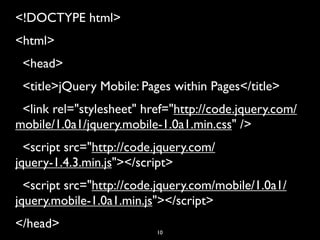

<!DOCTYPE html>
<html>
  <head>
  <title>jQuery Mobile: Pages within Pages</title>
  <link rel="stylesheet" href="http://code.jquery.com/
mobile/1.0a1/jquery.mobile-1.0a1.min.css" />
  <script src="http://code.jquery.com/
jquery-1.4.3.min.js"></script>
  <script src="http://code.jquery.com/mobile/1.0a1/
jquery.mobile-1.0a1.min.js"></script>
</head>
                           10

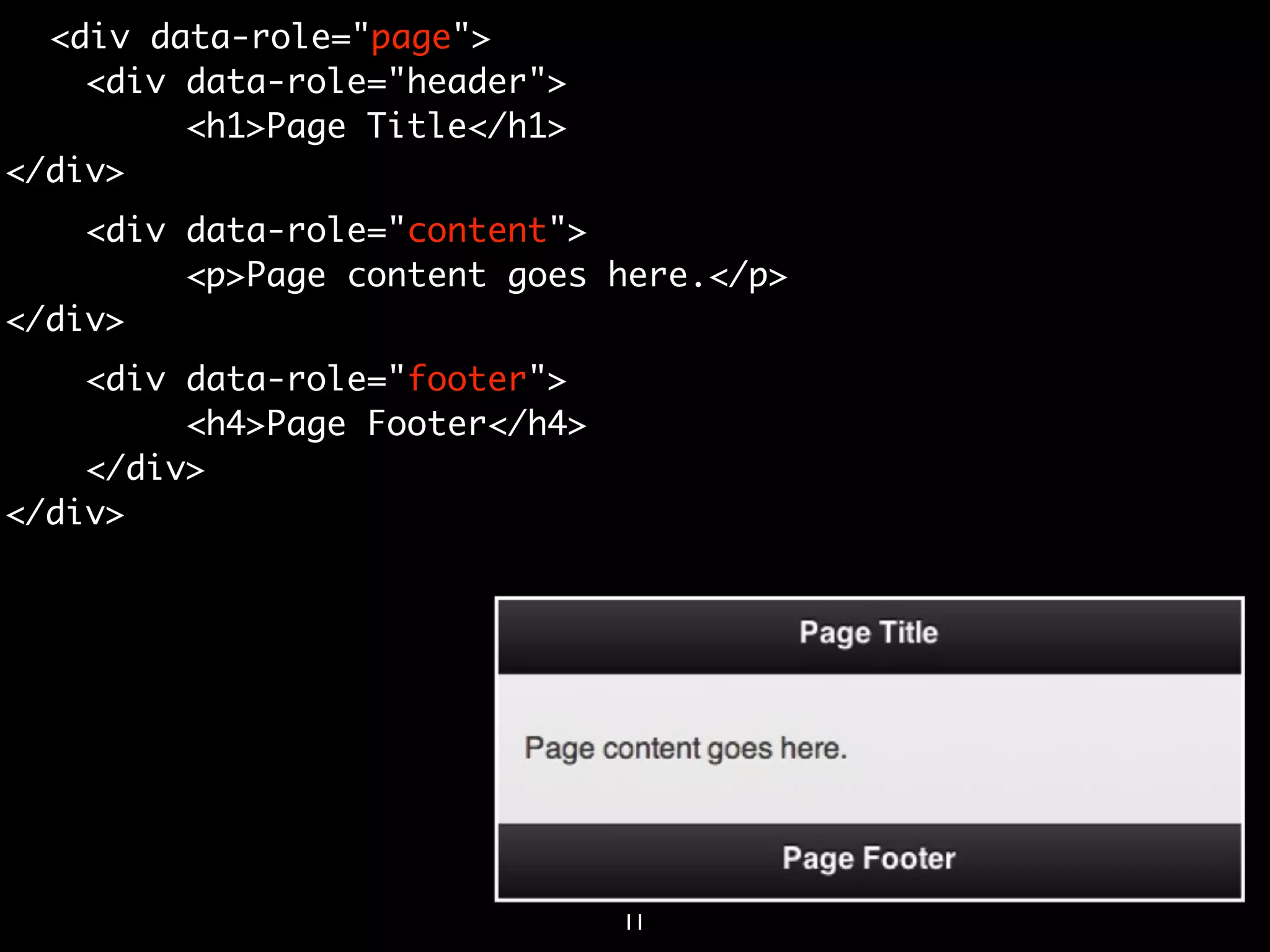

<div data-role="page">
    <div data-role="header">
         <h1>Page Title</h1>
</div>
    <div data-role="content">
         <p>Page content goes here.</p>
</div>
    <div data-role="footer">
         <h4>Page Footer</h4>
    </div>
</div>




                                11

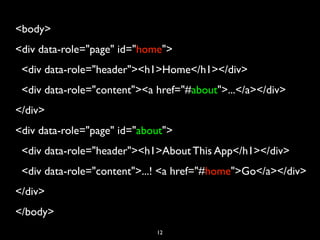

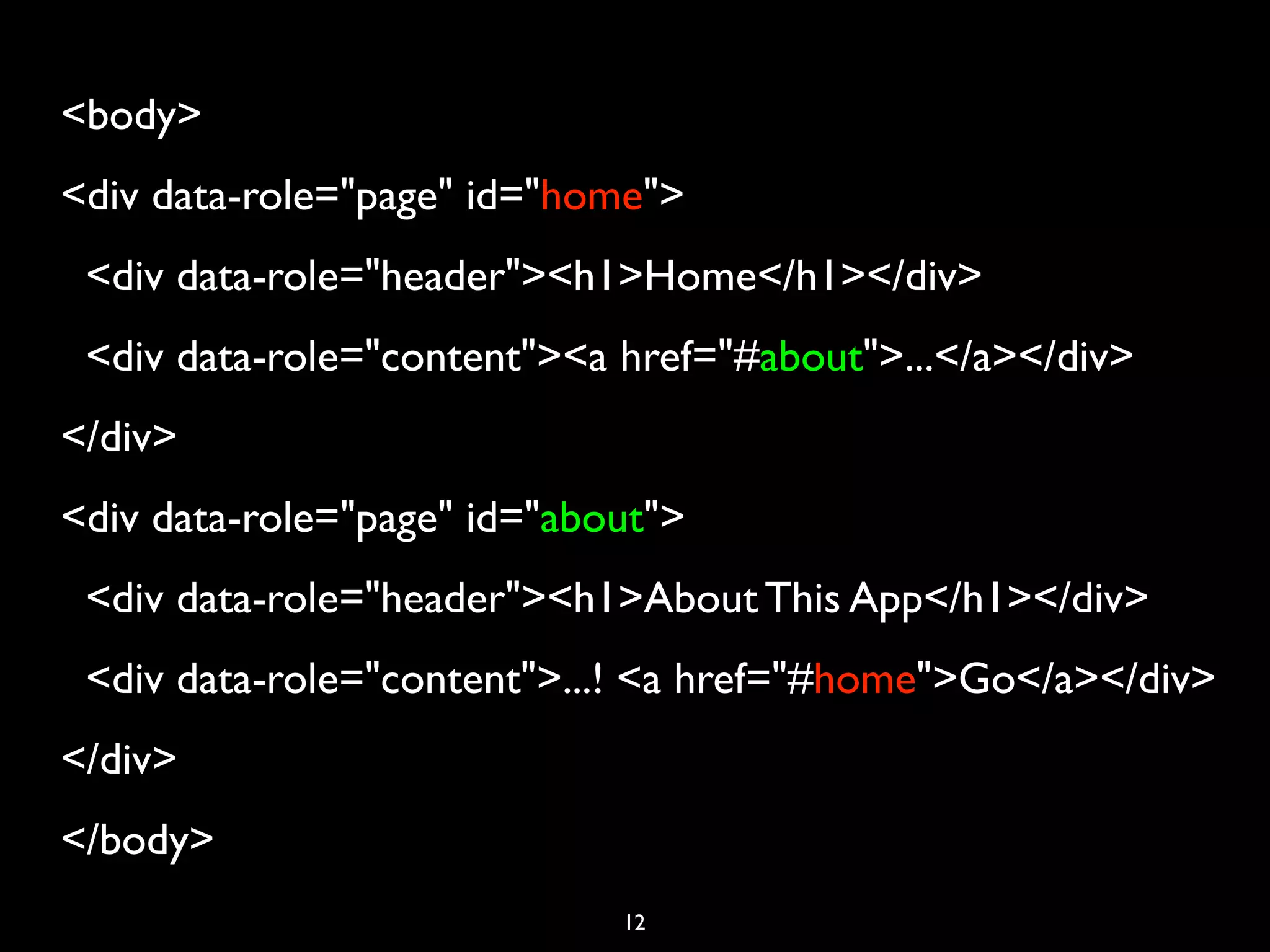

<body>
<div data-role="page" id="home">
  <div data-role="header"><h1>Home</h1></div>
  <div data-role="content"><a href="#about">...</a></div>
</div>
<div data-role="page" id="about">
  <div data-role="header"><h1>About This App</h1></div>
  <div data-role="content">...! <a href="#home">Go</a></div>
</div>
</body>
                              12

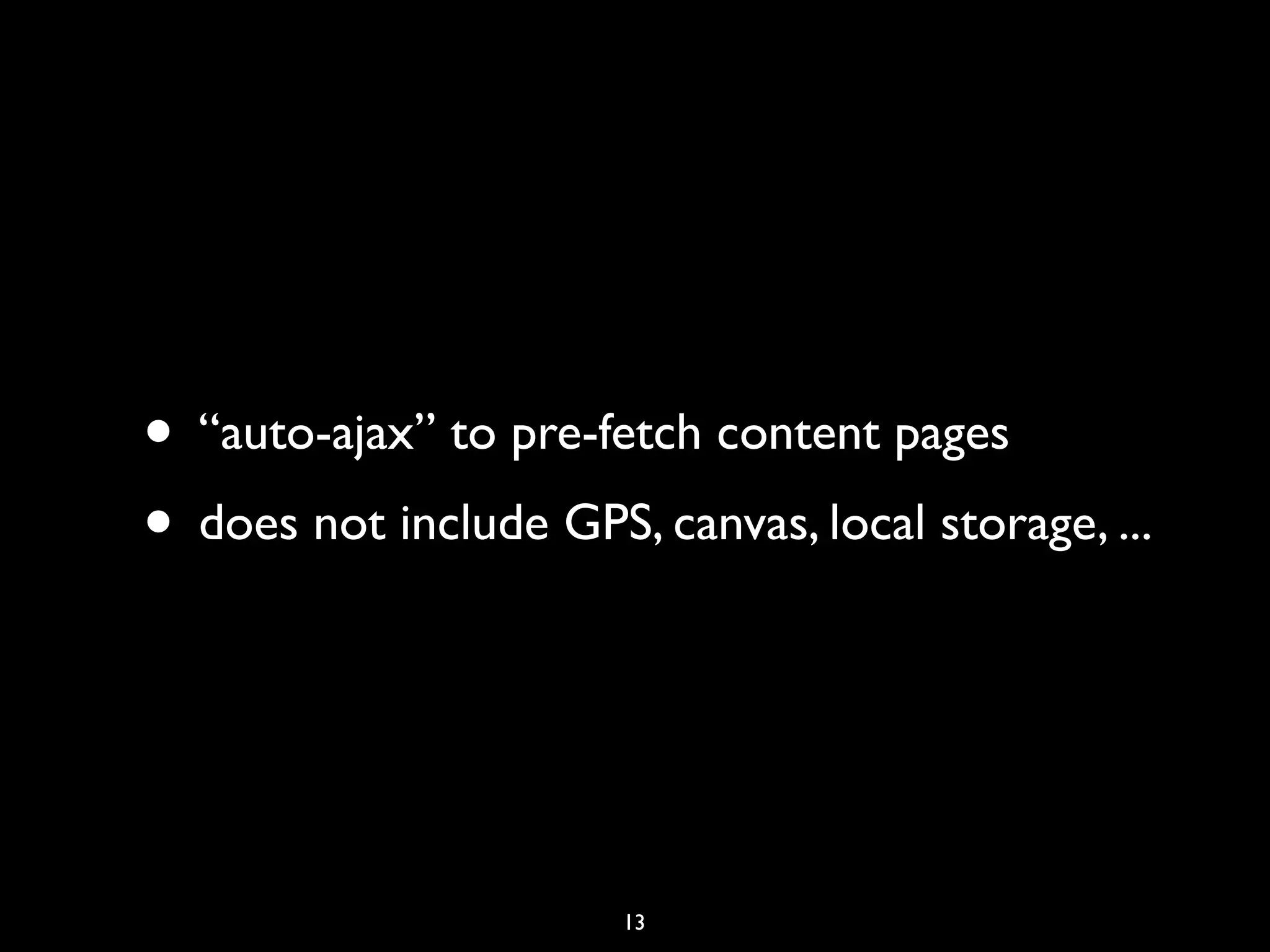

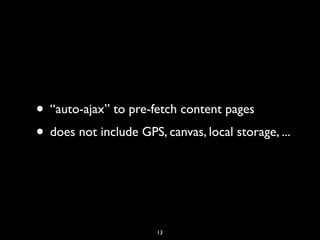

• “auto-ajax” to pre-fetch content pages
• does not include GPS, canvas, local storage, ...



                       13

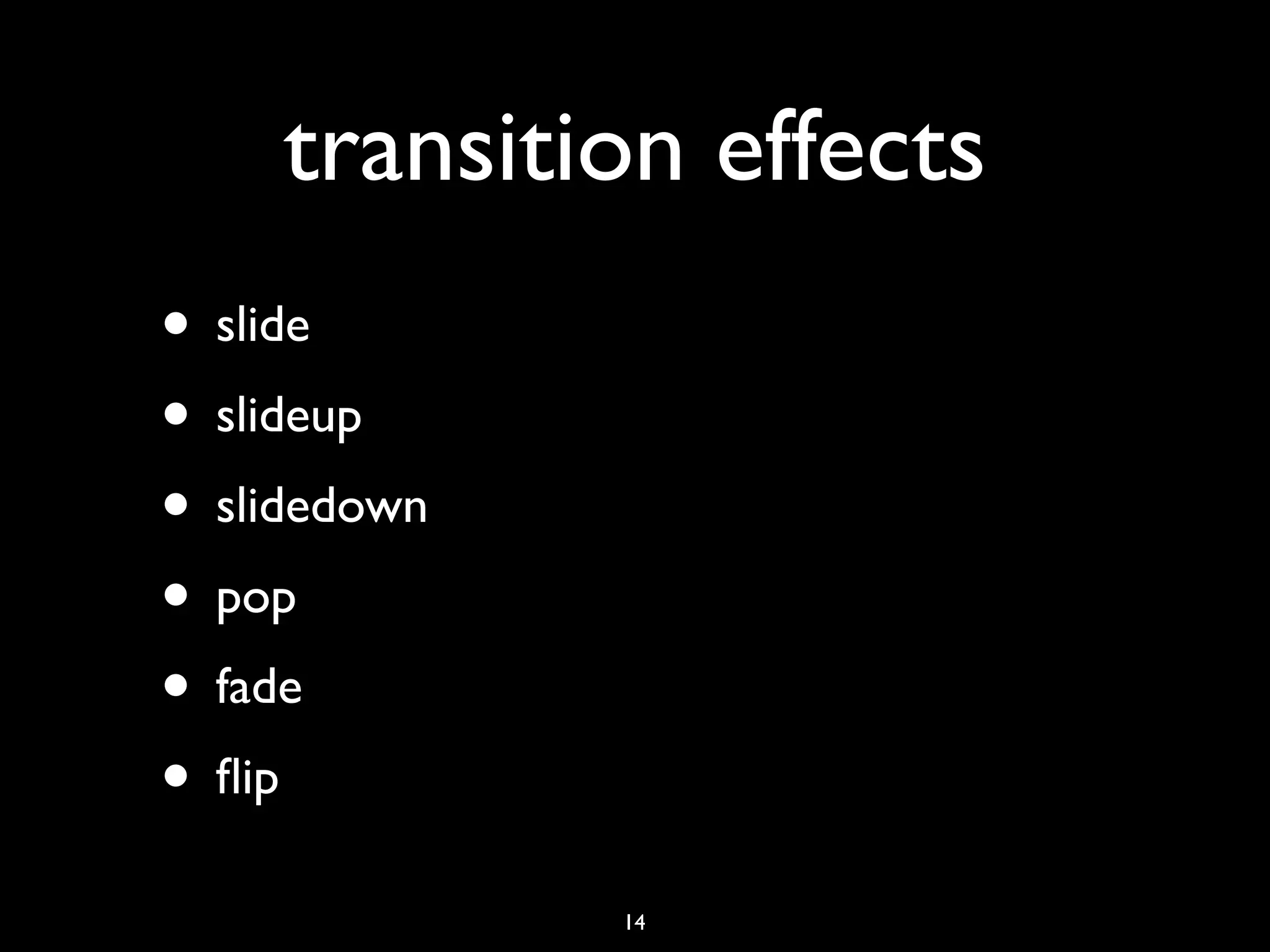

transition effects
• slide
• slideup
• slidedown
• pop
• fade
• flip
              14

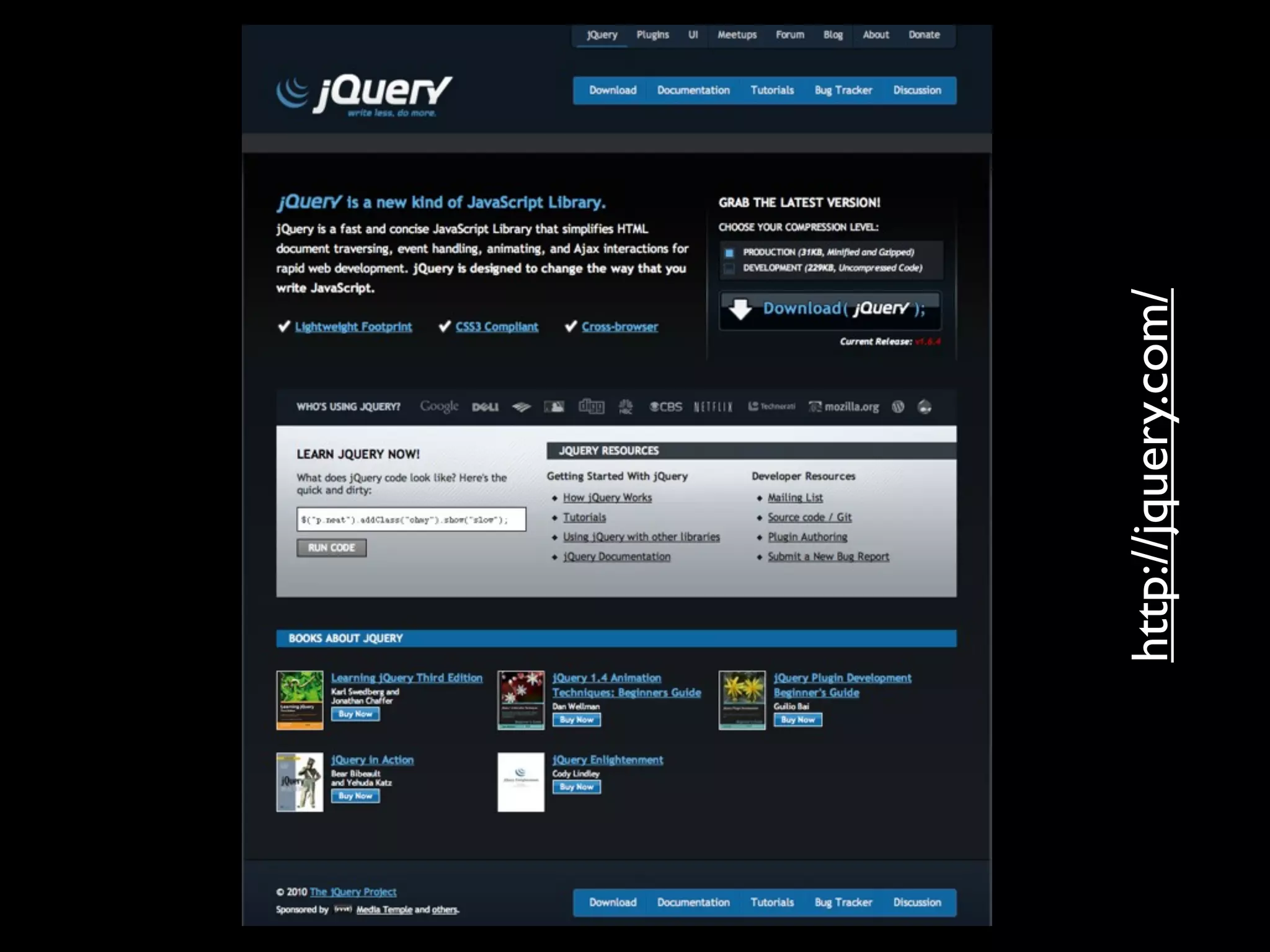

http://jquery.com/

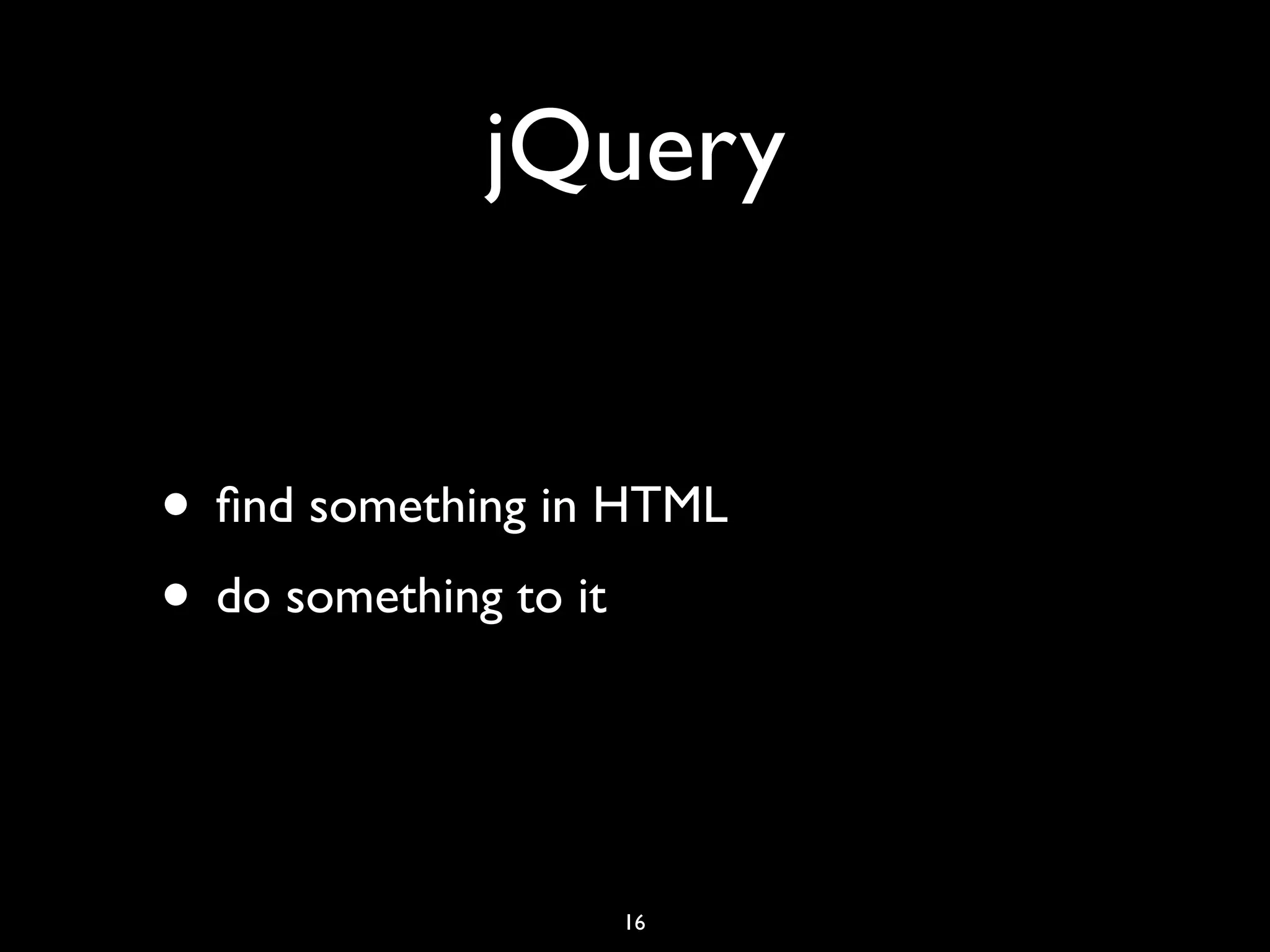

jQuery


• find something in HTML
• do something to it


                  16

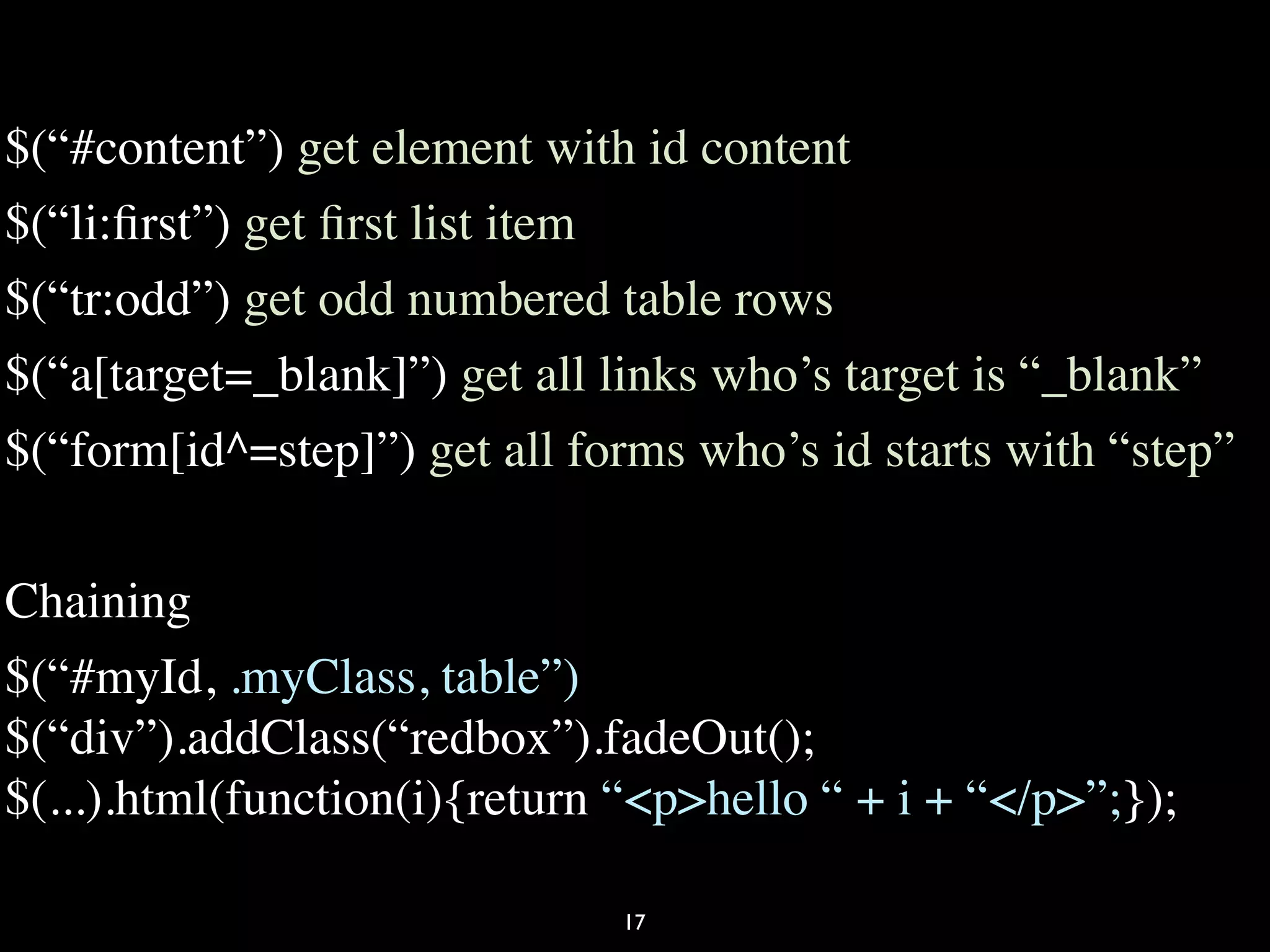

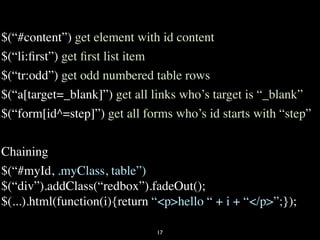

$(“#content”) get element with id content
$(“li:first”) get first list item
$(“tr:odd”) get odd numbered table rows
$(“a[target=_blank]”) get all links who’s target is “_blank”
$(“form[id^=step]”) get all forms who’s id starts with “step”

Chaining
$(“#myId, .myClass, table”)
$(“div”).addClass(“redbox”).fadeOut();
$(...).html(function(i){return “<p>hello “ + i + “</p>”;});

                               17

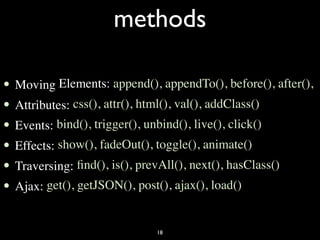

methods

•   Moving Elements: append(), appendTo(), before(), after(),
•   Attributes: css(), attr(), html(), val(), addClass()
•   Events: bind(), trigger(), unbind(), live(), click()
•   Effects: show(), fadeOut(), toggle(), animate()
•   Traversing: find(), is(), prevAll(), next(), hasClass()
•   Ajax: get(), getJSON(), post(), ajax(), load()


                                 18

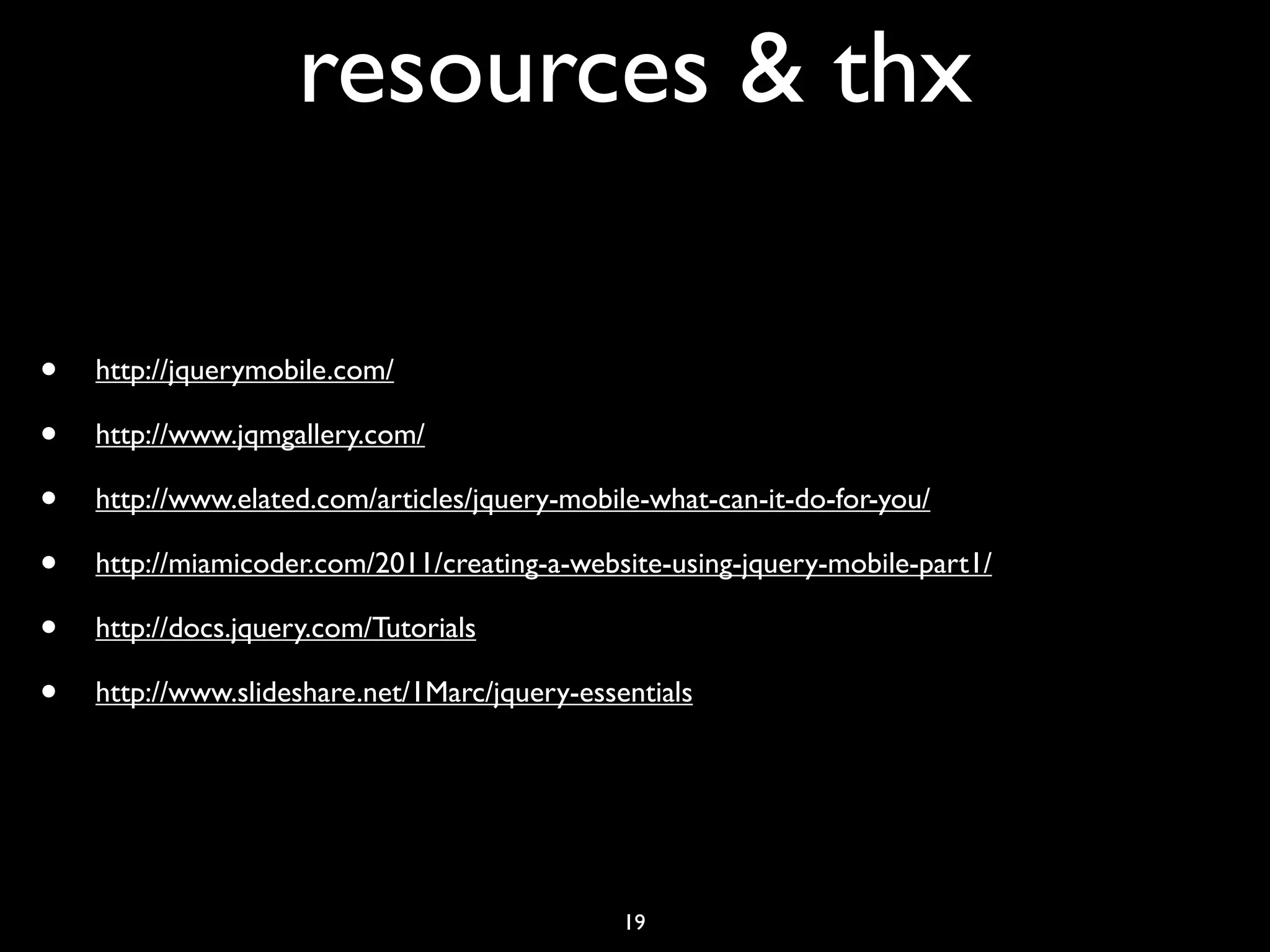

resources & thx

•   http://jquerymobile.com/

•   http://www.jqmgallery.com/

•   http://www.elated.com/articles/jquery-mobile-what-can-it-do-for-you/

•   http://miamicoder.com/2011/creating-a-website-using-jquery-mobile-part1/

•   http://docs.jquery.com/Tutorials

•   http://www.slideshare.net/1Marc/jquery-essentials




                                               19

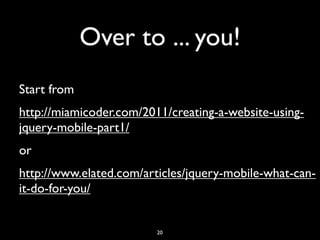

Over to ... you!
Start from
http://miamicoder.com/2011/creating-a-website-using-
jquery-mobile-part1/
or
http://www.elated.com/articles/jquery-mobile-what-can-
it-do-for-you/


                         20
Questions?
http://erikduval.wordpress.com/
       twitter: @ErikDuval
               21
