Download to read offline

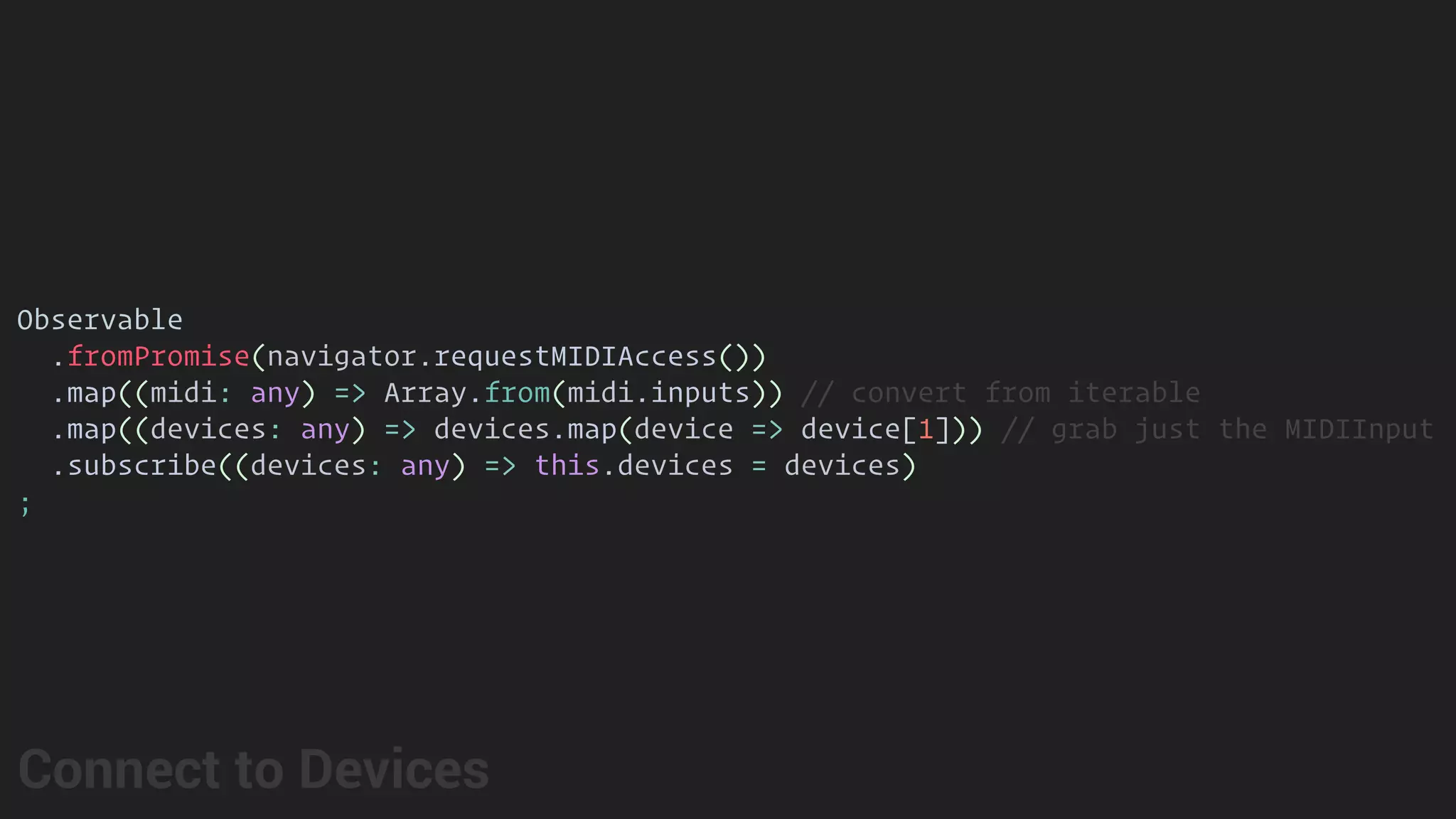

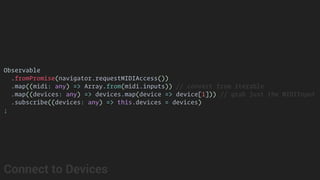

![Observable
.fromPromise(navigator.requestMIDIAccess())
.map((midi: any) => Array.from(midi.inputs)) // convert from iterable
.map((devices: any) => devices.map(device => device[1])) // grab just the MIDIInput
.subscribe((devices: any) => this.devices = devices)
;
Connect to Devices](https://image.slidesharecdn.com/mischief-maker-170410180927/85/ng-conf-2017-Angular-Mischief-Maker-Slides-3-320.jpg)
![private initMidiStream() {
const midiAccess$ = Observable.fromPromise(navigator.requestMIDIAccess());
const inputStream$ = midiAccess$.map((midi: any) => midi.inputs.values().next().value);
const messages$ = inputStream$
.filter(input => input !== undefined)
.flatMap(input => this.midiMessageAsObservable(input))
.map((message: any) => ({
status: message.data[0] & 0xf0,
data: [
message.data[1],
message.data[2],
],
}))
.subscribe(message => {
this.messages.unshift(message);
this.cd.detectChanges();
})
;
}
private midiMessageAsObservable(input) {
const source = new Subject();
input.onmidimessage = note => source.next(note);
return source.asObservable();
}
Capture Input](https://image.slidesharecdn.com/mischief-maker-170410180927/85/ng-conf-2017-Angular-Mischief-Maker-Slides-5-320.jpg)

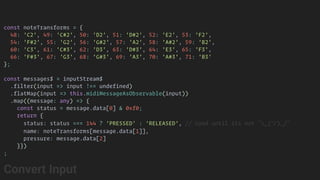

![const noteTransforms = {
48: 'C2', 49: 'C#2', 50: 'D2', 51: 'D#2', 52: 'E2', 53: 'F2',
54: 'F#2', 55: 'G2', 56: 'G#2', 57: 'A2', 58: 'A#2', 59: 'B2',
60: 'C3', 61: 'C#3', 62: 'D3', 63: 'D#3', 64: 'E3', 65: 'F3',
66: 'F#3', 67: 'G3', 68: 'G#3', 69: 'A3', 70: 'A#3', 71: 'B3'
};
const messages$ = inputStream$
.filter(input => input !== undefined)
.flatMap(input => this.midiMessageAsObservable(input))
.map((message: any) => {
const status = message.data[0] & 0xf0;
return {
status: status === 144 ? 'PRESSED' : 'RELEASED', // Good until its not ¯_(ツ)_/¯
name: noteTransforms[message.data[1]],
pressure: message.data[2]
}})
;
Convert Input](https://image.slidesharecdn.com/mischief-maker-170410180927/85/ng-conf-2017-Angular-Mischief-Maker-Slides-7-320.jpg)
![private midiMessageReceived(message: any) {
let cmd = message.status >> 4;24 pt
let noteNumber = noteTransforms[message.data[0]];
let velocity = 0;
if (message.data.length > 1) {
velocity = message.data[1] / 120; // needs to be between 0 and 1 and sometimes it is over 100 ¯_(ツ)_/¯
}
// MIDI noteon with velocity=0 is the same as noteoff
if (cmd === 8 || ((cmd === 9) && (velocity === 0))) { // noteoff
this.noteOff(noteNumber);
} else if (cmd === 9) { // note on
this.noteOn(noteNumber, velocity);
}
}
noteOn(note, velocity) {
this.synth.triggerAttack(note, null, velocity);
}
noteOff(note) {
this.synth.triggerRelease(note);
}
Play Midi Note](https://image.slidesharecdn.com/mischief-maker-170410180927/85/ng-conf-2017-Angular-Mischief-Maker-Slides-10-320.jpg)

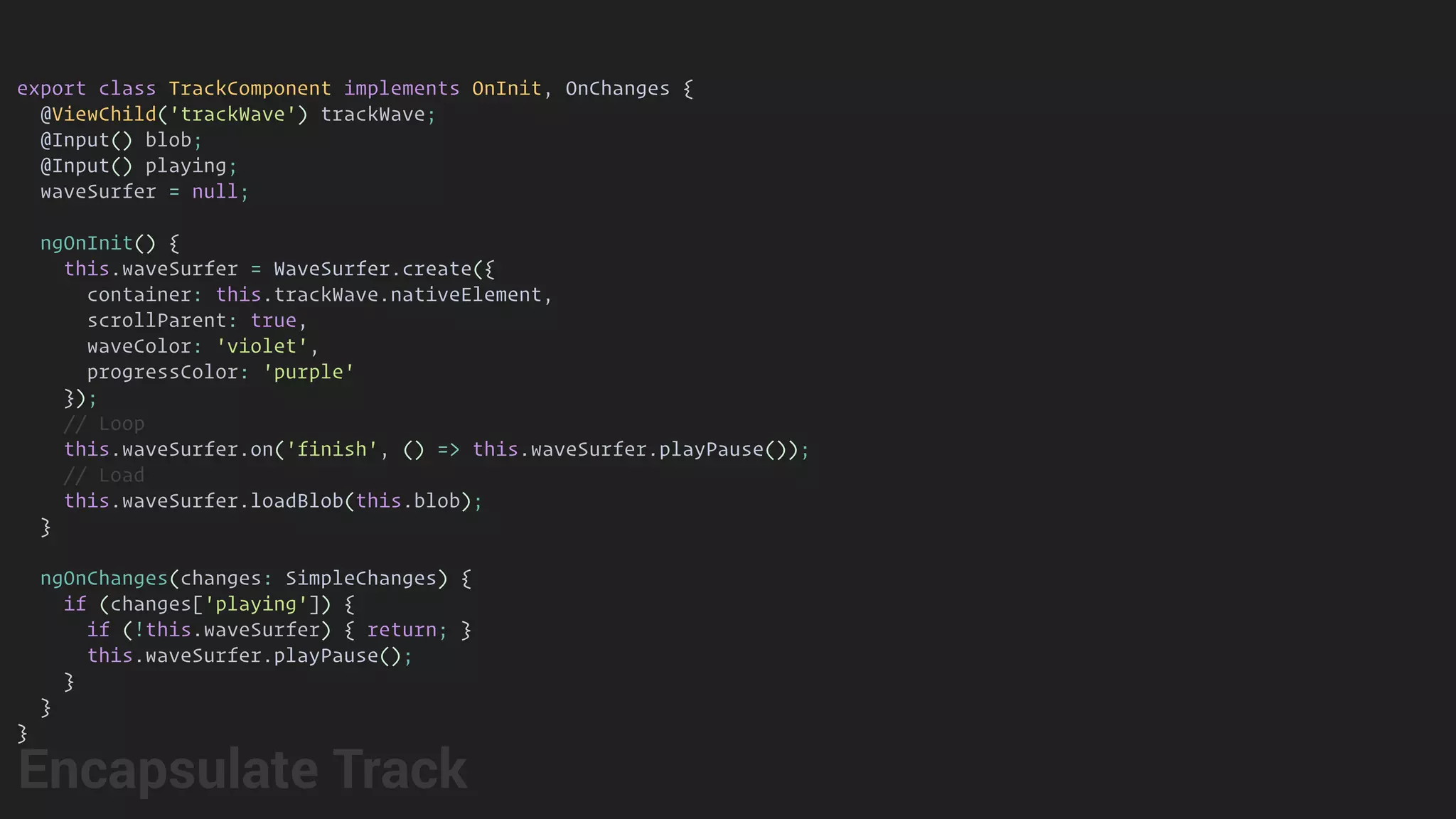

![export class TrackComponent implements OnInit, OnChanges {
@ViewChild('trackWave') trackWave;
@Input() blob;
@Input() playing;
waveSurfer = null;
ngOnInit() {
this.waveSurfer = WaveSurfer.create({
container: this.trackWave.nativeElement,
scrollParent: true,
waveColor: 'violet',
progressColor: 'purple'
});
// Loop
this.waveSurfer.on('finish', () => this.waveSurfer.playPause());
// Load
this.waveSurfer.loadBlob(this.blob);
}
ngOnChanges(changes: SimpleChanges) {
if (changes['playing']) {
if (!this.waveSurfer) { return; }
this.waveSurfer.playPause();
}
}
}
Encapsulate Track](https://image.slidesharecdn.com/mischief-maker-170410180927/85/ng-conf-2017-Angular-Mischief-Maker-Slides-15-320.jpg)

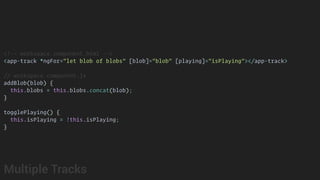

![<!-- workspace.component.html -->
<app-track *ngFor="let blob of blobs" [blob]="blob" [playing]="isPlaying"></app-track>
// workspace.component.js
addBlob(blob) {
this.blobs = this.blobs.concat(blob);
}
togglePlaying() {
this.isPlaying = !this.isPlaying;
}
Multiple Tracks](https://image.slidesharecdn.com/mischief-maker-170410180927/85/ng-conf-2017-Angular-Mischief-Maker-Slides-17-320.jpg)
![Observable
.fromPromise(navigator.requestMIDIAccess())
.map((midi: any) => Array.from(midi.inputs)) // convert from iterable
.map((devices: any) => devices.map(device => device[1])) // grab just the MIDIInput
.subscribe((devices: any) => this.devices = devices)
;
Connect to Devices](https://image.slidesharecdn.com/mischief-maker-170410180927/75/ng-conf-2017-Angular-Mischief-Maker-Slides-3-2048.jpg)

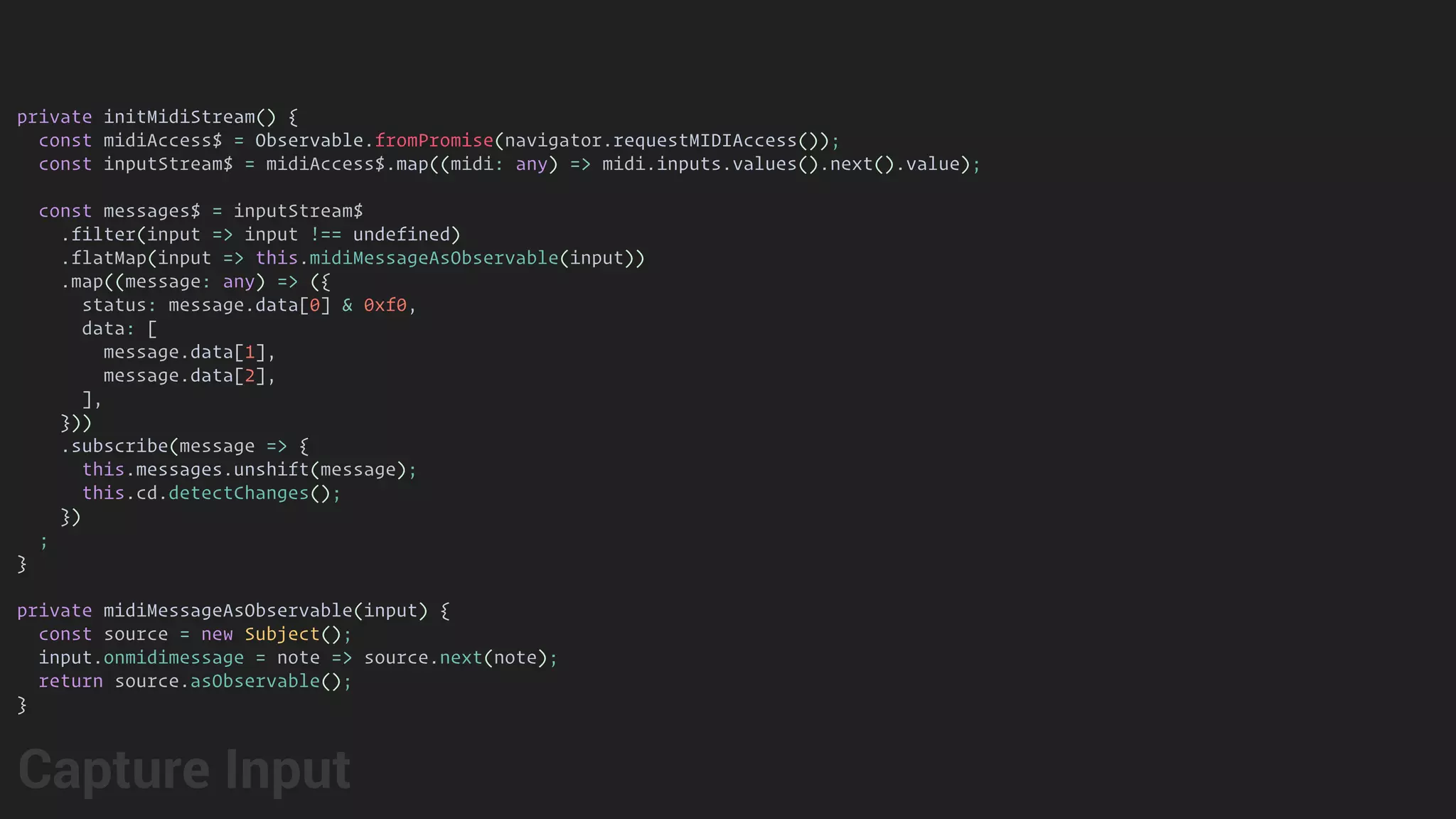

![private initMidiStream() {
const midiAccess$ = Observable.fromPromise(navigator.requestMIDIAccess());
const inputStream$ = midiAccess$.map((midi: any) => midi.inputs.values().next().value);
const messages$ = inputStream$
.filter(input => input !== undefined)
.flatMap(input => this.midiMessageAsObservable(input))
.map((message: any) => ({
status: message.data[0] & 0xf0,
data: [
message.data[1],
message.data[2],
],
}))
.subscribe(message => {
this.messages.unshift(message);
this.cd.detectChanges();
})
;
}
private midiMessageAsObservable(input) {
const source = new Subject();
input.onmidimessage = note => source.next(note);
return source.asObservable();
}
Capture Input](https://image.slidesharecdn.com/mischief-maker-170410180927/75/ng-conf-2017-Angular-Mischief-Maker-Slides-5-2048.jpg)

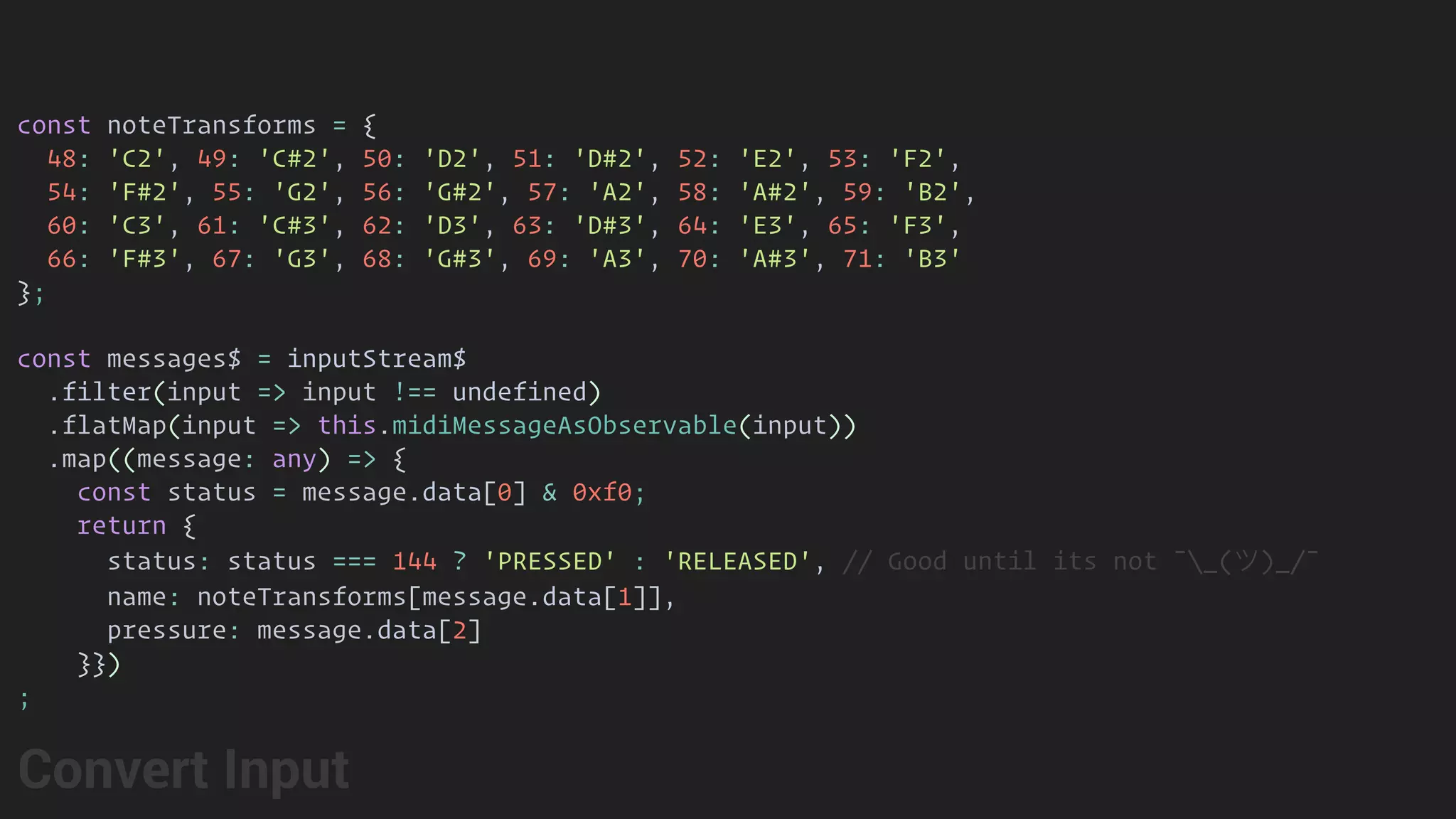

![const noteTransforms = {
48: 'C2', 49: 'C#2', 50: 'D2', 51: 'D#2', 52: 'E2', 53: 'F2',
54: 'F#2', 55: 'G2', 56: 'G#2', 57: 'A2', 58: 'A#2', 59: 'B2',
60: 'C3', 61: 'C#3', 62: 'D3', 63: 'D#3', 64: 'E3', 65: 'F3',
66: 'F#3', 67: 'G3', 68: 'G#3', 69: 'A3', 70: 'A#3', 71: 'B3'
};
const messages$ = inputStream$
.filter(input => input !== undefined)
.flatMap(input => this.midiMessageAsObservable(input))
.map((message: any) => {
const status = message.data[0] & 0xf0;
return {
status: status === 144 ? 'PRESSED' : 'RELEASED', // Good until its not ¯_(ツ)_/¯
name: noteTransforms[message.data[1]],
pressure: message.data[2]
}})
;
Convert Input](https://image.slidesharecdn.com/mischief-maker-170410180927/75/ng-conf-2017-Angular-Mischief-Maker-Slides-7-2048.jpg)

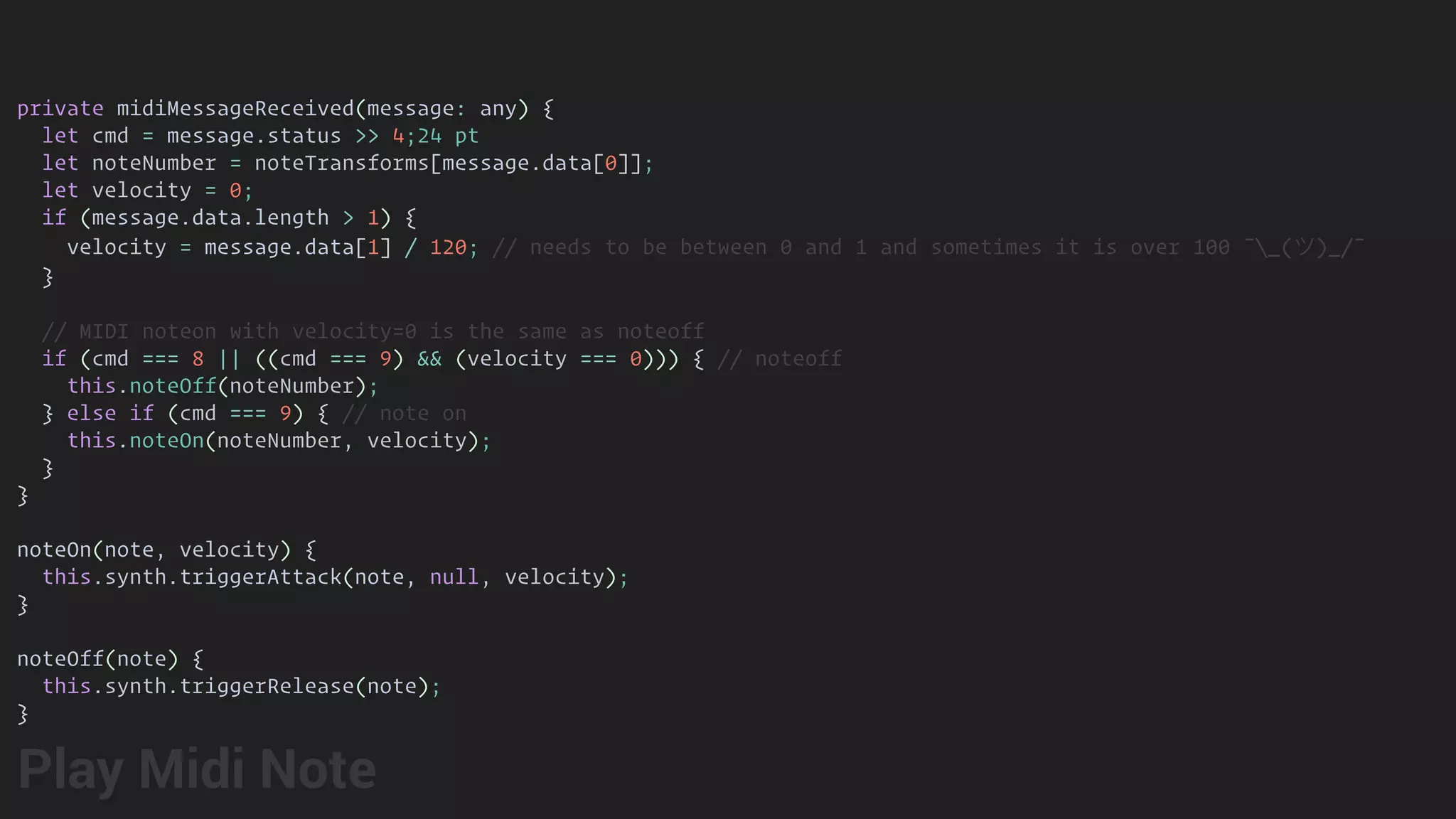

![private midiMessageReceived(message: any) {
let cmd = message.status >> 4;24 pt
let noteNumber = noteTransforms[message.data[0]];
let velocity = 0;
if (message.data.length > 1) {
velocity = message.data[1] / 120; // needs to be between 0 and 1 and sometimes it is over 100 ¯_(ツ)_/¯
}
// MIDI noteon with velocity=0 is the same as noteoff
if (cmd === 8 || ((cmd === 9) && (velocity === 0))) { // noteoff
this.noteOff(noteNumber);
} else if (cmd === 9) { // note on
this.noteOn(noteNumber, velocity);
}
}
noteOn(note, velocity) {
this.synth.triggerAttack(note, null, velocity);
}
noteOff(note) {
this.synth.triggerRelease(note);
}
Play Midi Note](https://image.slidesharecdn.com/mischief-maker-170410180927/75/ng-conf-2017-Angular-Mischief-Maker-Slides-10-2048.jpg)
![export class TrackComponent implements OnInit, OnChanges {
@ViewChild('trackWave') trackWave;
@Input() blob;
@Input() playing;
waveSurfer = null;
ngOnInit() {
this.waveSurfer = WaveSurfer.create({
container: this.trackWave.nativeElement,
scrollParent: true,
waveColor: 'violet',
progressColor: 'purple'
});
// Loop
this.waveSurfer.on('finish', () => this.waveSurfer.playPause());
// Load
this.waveSurfer.loadBlob(this.blob);
}
ngOnChanges(changes: SimpleChanges) {
if (changes['playing']) {
if (!this.waveSurfer) { return; }
this.waveSurfer.playPause();
}
}
}
Encapsulate Track](https://image.slidesharecdn.com/mischief-maker-170410180927/75/ng-conf-2017-Angular-Mischief-Maker-Slides-15-2048.jpg)

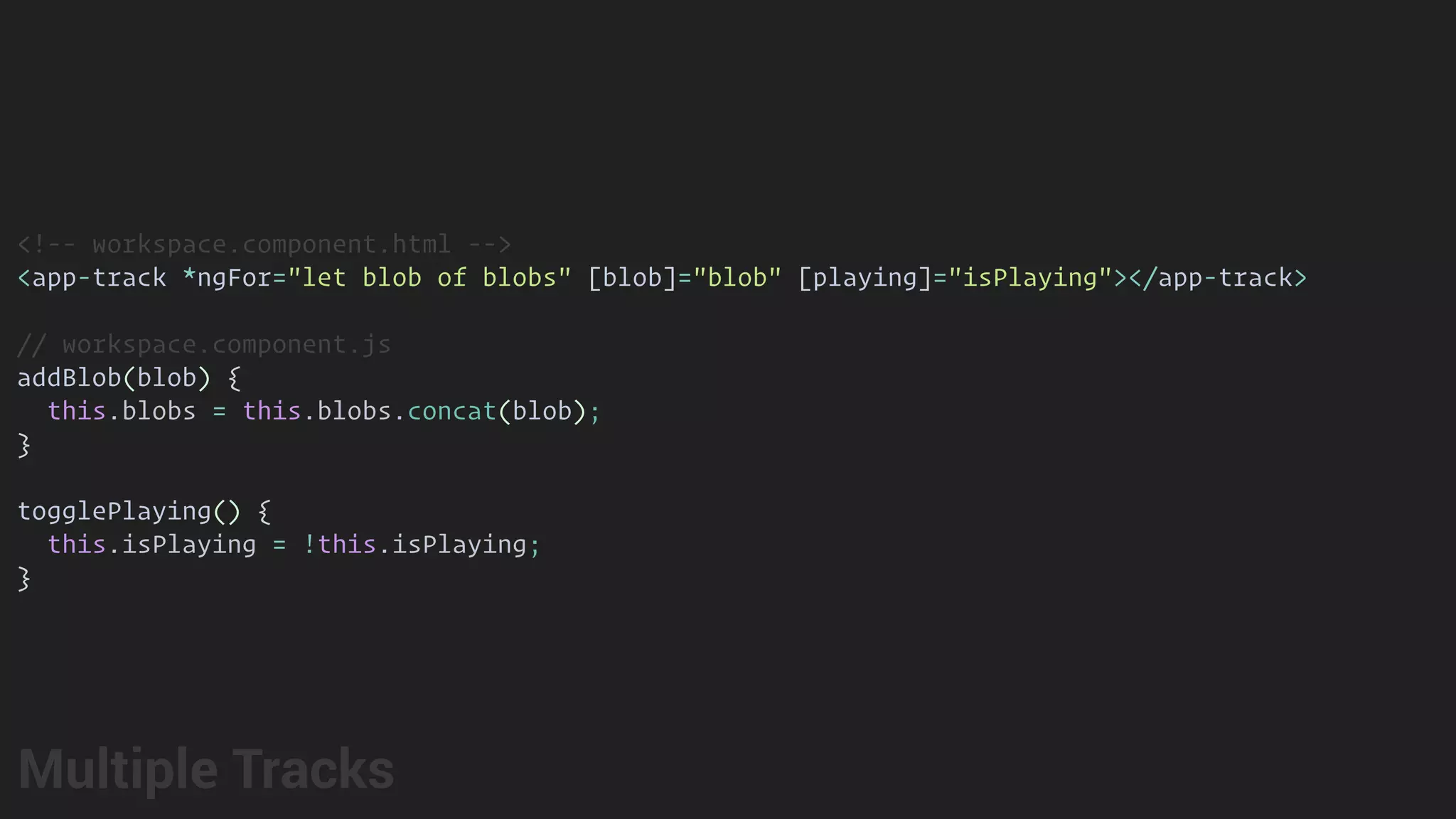

![<!-- workspace.component.html -->
<app-track *ngFor="let blob of blobs" [blob]="blob" [playing]="isPlaying"></app-track>
// workspace.component.js
addBlob(blob) {
this.blobs = this.blobs.concat(blob);
}
togglePlaying() {
this.isPlaying = !this.isPlaying;
}
Multiple Tracks](https://image.slidesharecdn.com/mischief-maker-170410180927/75/ng-conf-2017-Angular-Mischief-Maker-Slides-17-2048.jpg)
Uploaded byLukas Ruebbelke
ng-conf 2017: Angular Mischief Maker Slides
The document describes a JavaScript implementation for a MIDI synthesizer, detailing the process of accessing MIDI devices, capturing MIDI messages, and translating them into playable notes. It includes features for recording audio, processing buffers, and exporting sound files, along with a component for visualizing audio tracks. The text also contains lyrics that creatively express a fondness for Angular, likening it to a romantic relationship.
More Related Content
ng-conf 2017: Angular Mischief Maker Slides
- 1.
- 2.
- 3. Observable .fromPromise(navigator.requestMIDIAccess()) .map((midi: any) =>Array.from(midi.inputs)) // convert from iterable .map((devices: any) => devices.map(device => device[1])) // grab just the MIDIInput .subscribe((devices: any) => this.devices = devices) ; Connect to Devices
- 4.
- 5. private initMidiStream() { constmidiAccess$ = Observable.fromPromise(navigator.requestMIDIAccess()); const inputStream$ = midiAccess$.map((midi: any) => midi.inputs.values().next().value); const messages$ = inputStream$ .filter(input => input !== undefined) .flatMap(input => this.midiMessageAsObservable(input)) .map((message: any) => ({ status: message.data[0] & 0xf0, data: [ message.data[1], message.data[2], ], })) .subscribe(message => { this.messages.unshift(message); this.cd.detectChanges(); }) ; } private midiMessageAsObservable(input) { const source = new Subject(); input.onmidimessage = note => source.next(note); return source.asObservable(); } Capture Input
- 6.
- 7. const noteTransforms ={ 48: 'C2', 49: 'C#2', 50: 'D2', 51: 'D#2', 52: 'E2', 53: 'F2', 54: 'F#2', 55: 'G2', 56: 'G#2', 57: 'A2', 58: 'A#2', 59: 'B2', 60: 'C3', 61: 'C#3', 62: 'D3', 63: 'D#3', 64: 'E3', 65: 'F3', 66: 'F#3', 67: 'G3', 68: 'G#3', 69: 'A3', 70: 'A#3', 71: 'B3' }; const messages$ = inputStream$ .filter(input => input !== undefined) .flatMap(input => this.midiMessageAsObservable(input)) .map((message: any) => { const status = message.data[0] & 0xf0; return { status: status === 144 ? 'PRESSED' : 'RELEASED', // Good until its not ¯_(ツ)_/¯ name: noteTransforms[message.data[1]], pressure: message.data[2] }}) ; Convert Input
- 8.

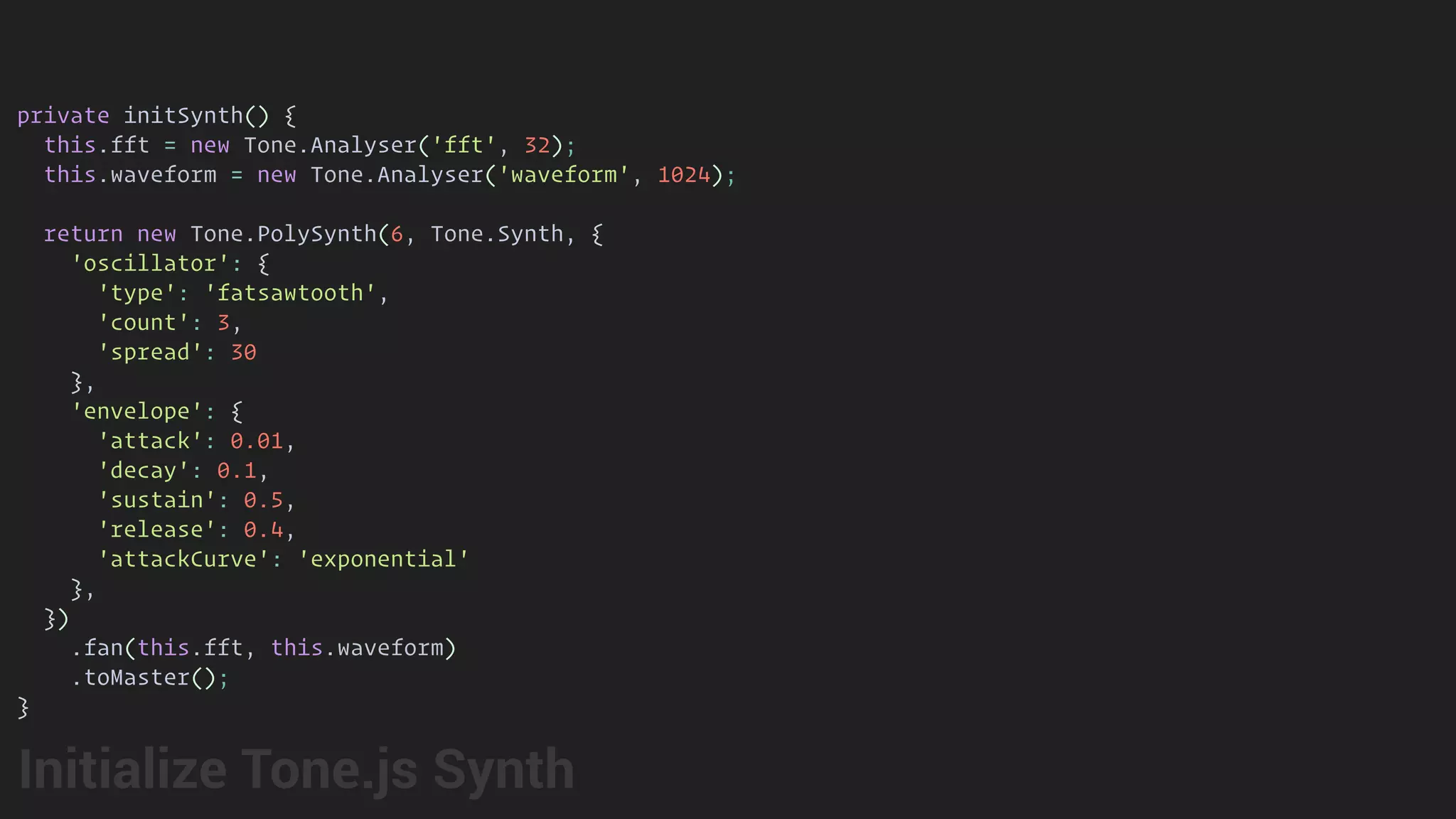

- 9. private initSynth() { this.fft= new Tone.Analyser('fft', 32); this.waveform = new Tone.Analyser('waveform', 1024); return new Tone.PolySynth(6, Tone.Synth, { 'oscillator': { 'type': 'fatsawtooth', 'count': 3, 'spread': 30 }, 'envelope': { 'attack': 0.01, 'decay': 0.1, 'sustain': 0.5, 'release': 0.4, 'attackCurve': 'exponential' }, }) .fan(this.fft, this.waveform) .toMaster(); } Initialize Tone.js Synth
- 10. private midiMessageReceived(message: any){ let cmd = message.status >> 4;24 pt let noteNumber = noteTransforms[message.data[0]]; let velocity = 0; if (message.data.length > 1) { velocity = message.data[1] / 120; // needs to be between 0 and 1 and sometimes it is over 100 ¯_(ツ)_/¯ } // MIDI noteon with velocity=0 is the same as noteoff if (cmd === 8 || ((cmd === 9) && (velocity === 0))) { // noteoff this.noteOff(noteNumber); } else if (cmd === 9) { // note on this.noteOn(noteNumber, velocity); } } noteOn(note, velocity) { this.synth.triggerAttack(note, null, velocity); } noteOff(note) { this.synth.triggerRelease(note); } Play Midi Note
- 11.

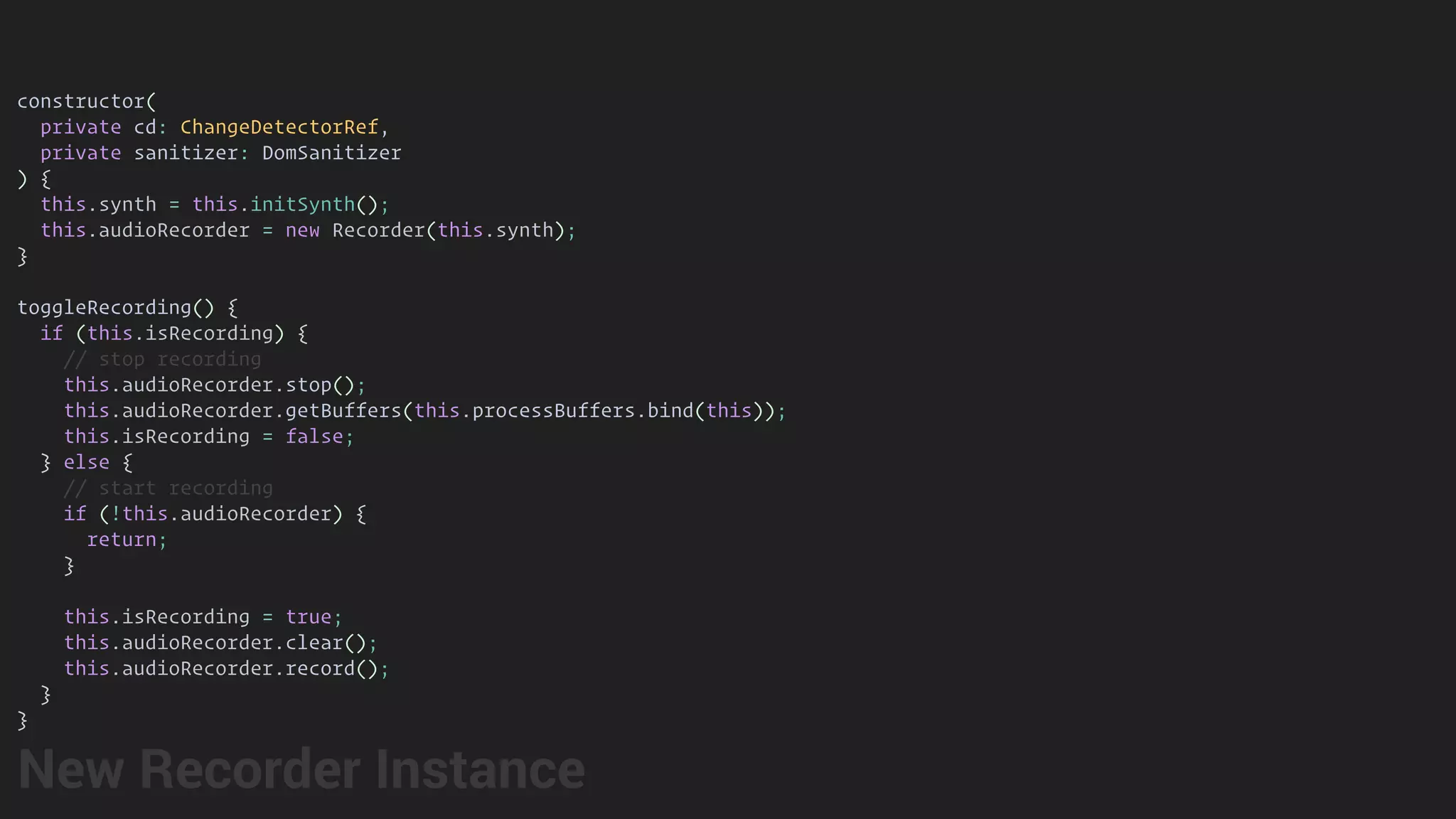

- 12. constructor( private cd: ChangeDetectorRef, privatesanitizer: DomSanitizer ) { this.synth = this.initSynth(); this.audioRecorder = new Recorder(this.synth); } toggleRecording() { if (this.isRecording) { // stop recording this.audioRecorder.stop(); this.audioRecorder.getBuffers(this.processBuffers.bind(this)); this.isRecording = false; } else { // start recording if (!this.audioRecorder) { return; } this.isRecording = true; this.audioRecorder.clear(); this.audioRecorder.record(); } } New Recorder Instance

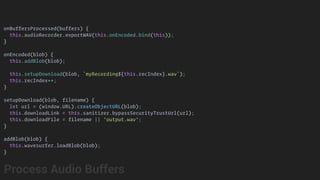

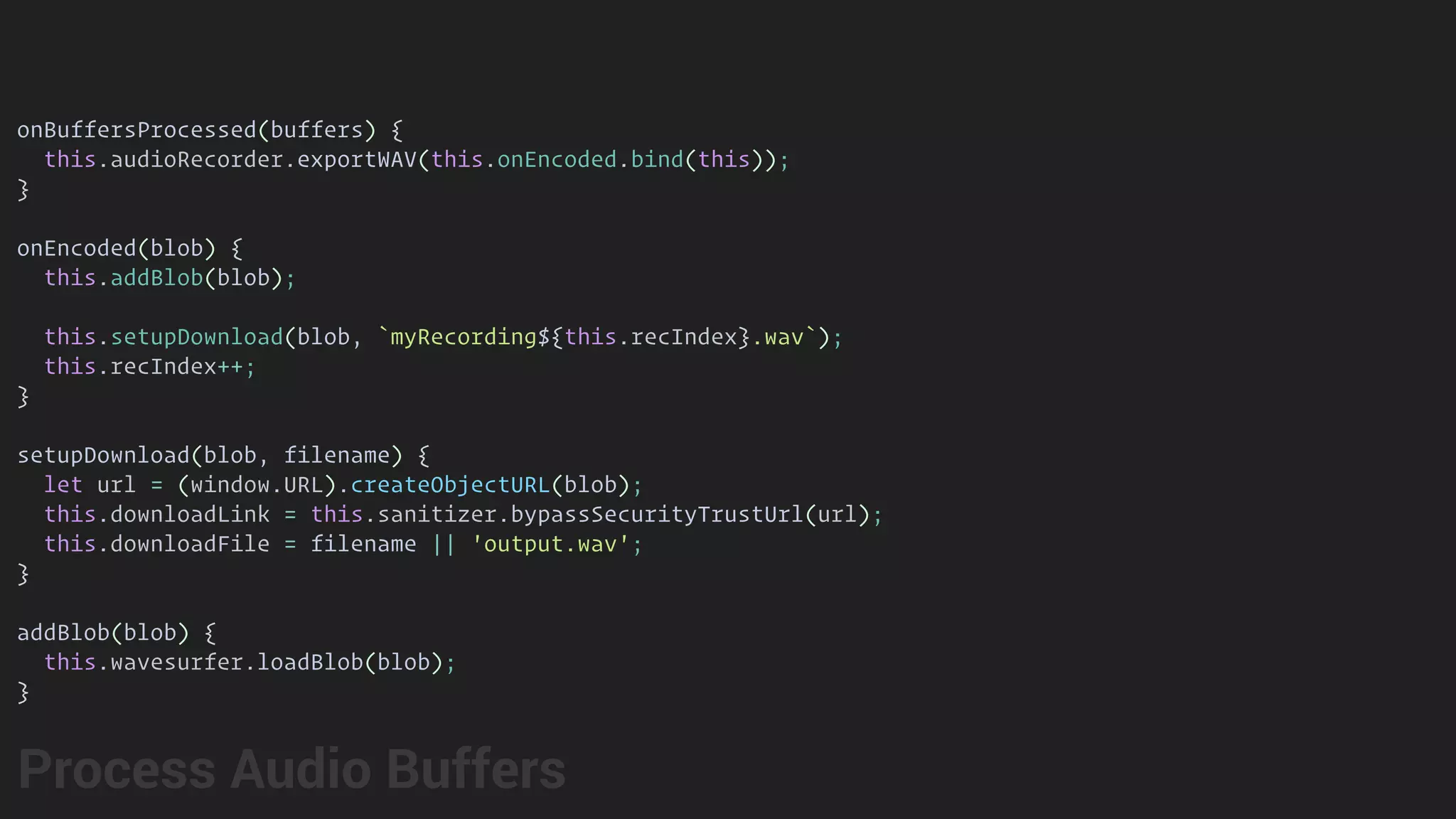

- 13. onBuffersProcessed(buffers) { this.audioRecorder.exportWAV(this.onEncoded.bind(this)); } onEncoded(blob) { this.addBlob(blob); this.setupDownload(blob,`myRecording${this.recIndex}.wav`); this.recIndex++; } setupDownload(blob, filename) { let url = (window.URL).createObjectURL(blob); this.downloadLink = this.sanitizer.bypassSecurityTrustUrl(url); this.downloadFile = filename || 'output.wav'; } addBlob(blob) { this.wavesurfer.loadBlob(blob); } Process Audio Buffers
- 14.
- 15. export class TrackComponentimplements OnInit, OnChanges { @ViewChild('trackWave') trackWave; @Input() blob; @Input() playing; waveSurfer = null; ngOnInit() { this.waveSurfer = WaveSurfer.create({ container: this.trackWave.nativeElement, scrollParent: true, waveColor: 'violet', progressColor: 'purple' }); // Loop this.waveSurfer.on('finish', () => this.waveSurfer.playPause()); // Load this.waveSurfer.loadBlob(this.blob); } ngOnChanges(changes: SimpleChanges) { if (changes['playing']) { if (!this.waveSurfer) { return; } this.waveSurfer.playPause(); } } } Encapsulate Track
- 16.
- 17. <!-- workspace.component.html --> <app-track*ngFor="let blob of blobs" [blob]="blob" [playing]="isPlaying"></app-track> // workspace.component.js addBlob(blob) { this.blobs = this.blobs.concat(blob); } togglePlaying() { this.isPlaying = !this.isPlaying; } Multiple Tracks
- 18.
- 19. First Verse I'm soattracted to what I observe Can't help reacting to the things I've heard I never stress about the state of you Because I'm first to know of anything you do
- 20. Chorus It's all about,Angular Baby you're ahead of the curve You've got all the tools I prefer I'mma let it out, ain't no doubt, all about that, Angular
- 21. Second Verse I lovethe way you're way ahead of time I say you're classy just to say you're fine You're more than just a CLI to me I think I might just love you universally
- 22. Chorus It's all about,Angular Baby you're ahead of the curve You've got all the tools I prefer I'mma let it out, ain't no doubt, all about that, Angular
- 23. Bridge It's semantics butI know you're mine Our romance is changing all the time So progressive, I can catch you offline Total package, you're one of a kind
- 24.
- 25. Chorus It's all about,Angular Baby you're ahead of the curve You've got all the tools I prefer I'mma let it out, ain't no doubt, all about that, Angular
- 26.
- 27.
- 28.
- 29.
- 30.
