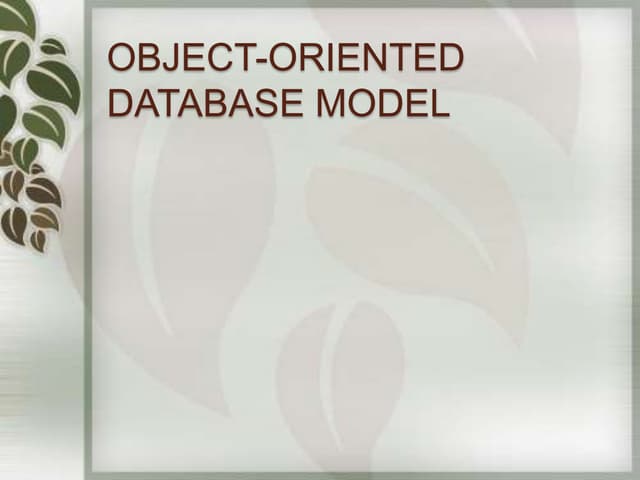

  OBJECT-ORIENTED DATABASE MODEL
• 2.
  history The first ofthis model was the semantic data model (SDM) developed by M. Hammer and D. Mcleon and published in 1981 in their database description with SDM : A Semantic Database Model
• 3.
   Since SDM is an object- oriented data model (OODM). In turn the OODM becomes the basis for the object oriented database model with the manage of through an object oriented database management system (OODBMS)
• 4.
  OBJECT-ORIENTED DATABASE MODEL
• 5.
   In the object oriented data model the (OODM). Both data and their relationship are contained in a single structure known us an object.
• 6.
   An object includes information about relationship between the facts within the object, as well as information about its relationship with other objects.
• 7.
  It is saidto be ‘’SEMANTIC DATA MODEL’’
• 8.
  The OO Datamodel components  An object is the abstraction of the real- word entity. An object represents only one occurrence of entity.
• 9.
   Attributes describe the property of an object.
• 10.
  example PERSON NAME SOCIAL NUMBER DATE OF BIRTH
• 11.
   Objects that are similar in characteristics are grouped in class.
• 12.
   Class: is a collection of similar objects with shared structure ( attributes) and behavior (method)  Method: represents areal word action such as finding a selected person’s name, changing person’s name or printing a persons address.
• 13.
   Classes are organized in class hierarchy. The class hierarchy resembles an up side down tree in which each class has only one parent.
• 14.
  PARENT PERSON COTUMER EMPLOYEE
• 15.
   Inheritance is the ability of an object within the class hierarchy to inherit the attributes and methods of the class above it.
• 17.
   Unified modeling language : describes a set of diagrams and symbols that can be used to graphically model a system.
• 18.
   UML class diagram: are used to represent data and their relationships within the larger UML object oriented system modeling language,
• 19.
   The object INVOICE representation of the INV__DATE invoice includes all INV__NUMBER INV__SHP__DATE related objects within INV__TOTAL the same box. The connectivity is (1 and COTUMER many)indicate the 1 relationship of the LINE related objects to the M invoice.
