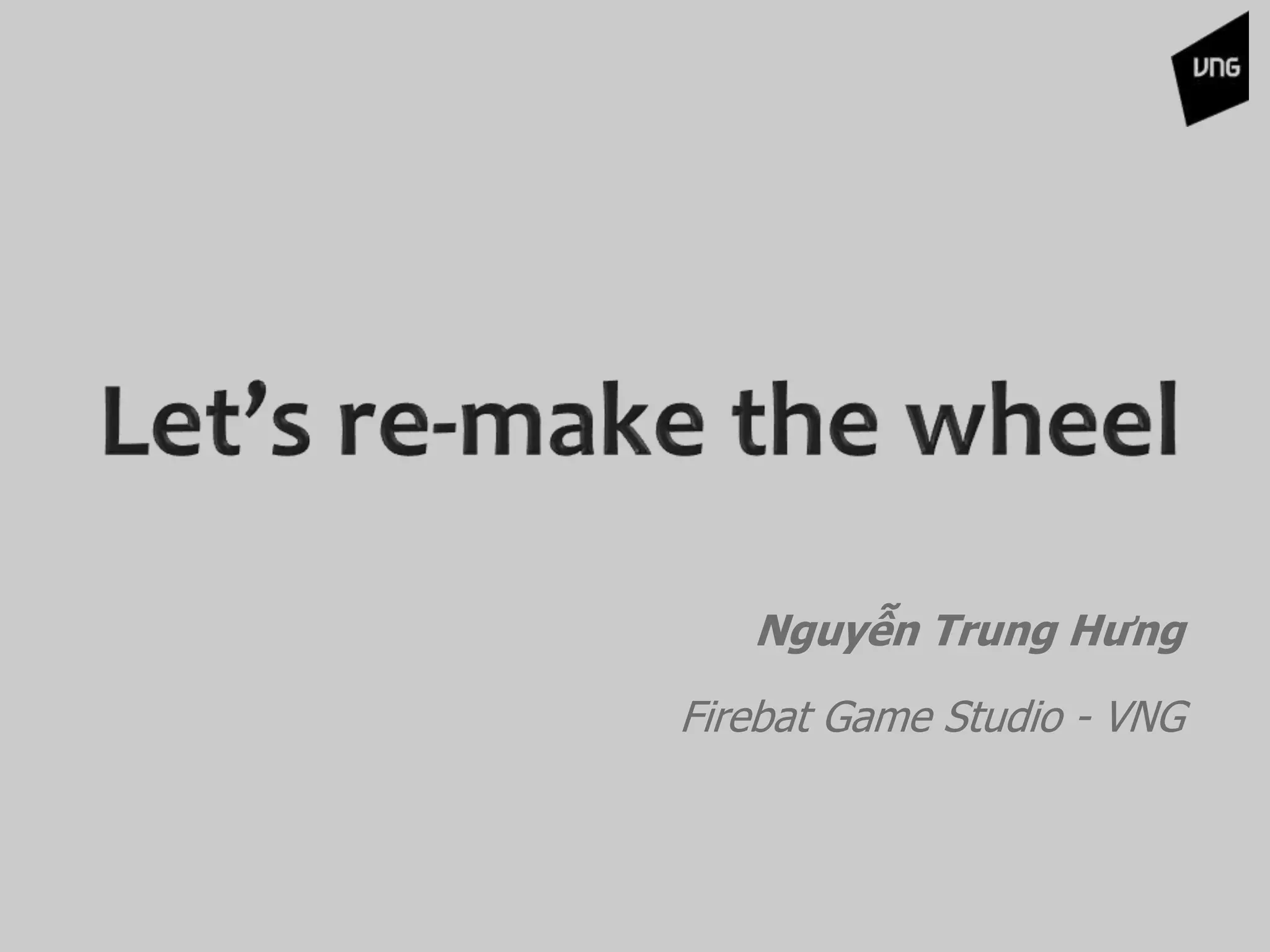

Ogdc 2013 lets remake the wheel

Nguyễn Trung Hưng
Firebat Game Studio - VNG

“DON’T RE-INVENT THE WHEEL”

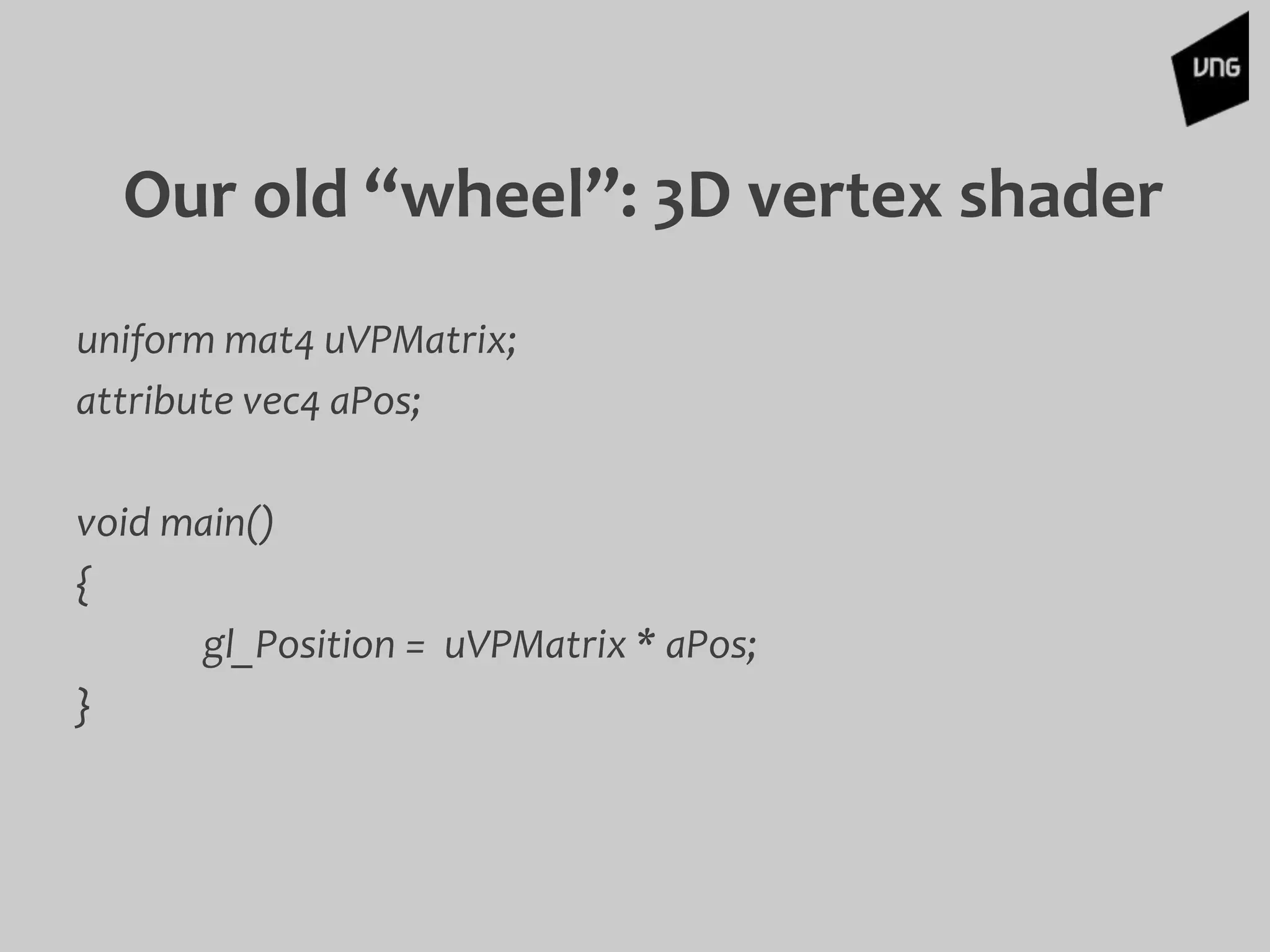

Our old “wheel”: 3D vertex shader
uniform mat4 uVPMatrix;
attribute vec4 aPos;
void main()
{
gl_Position = uVPMatrix * aPos;
}

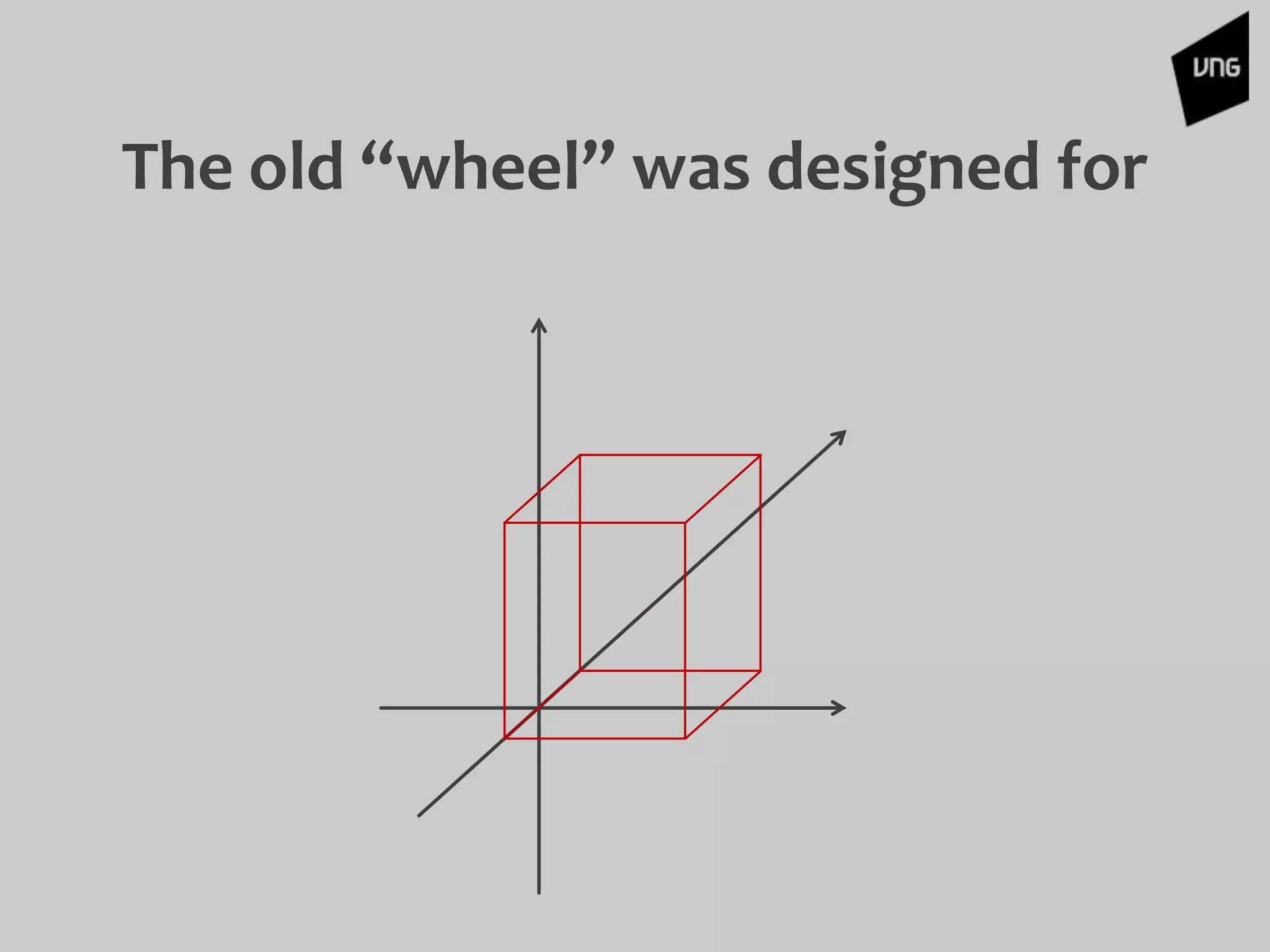

The old “wheel” was designed for

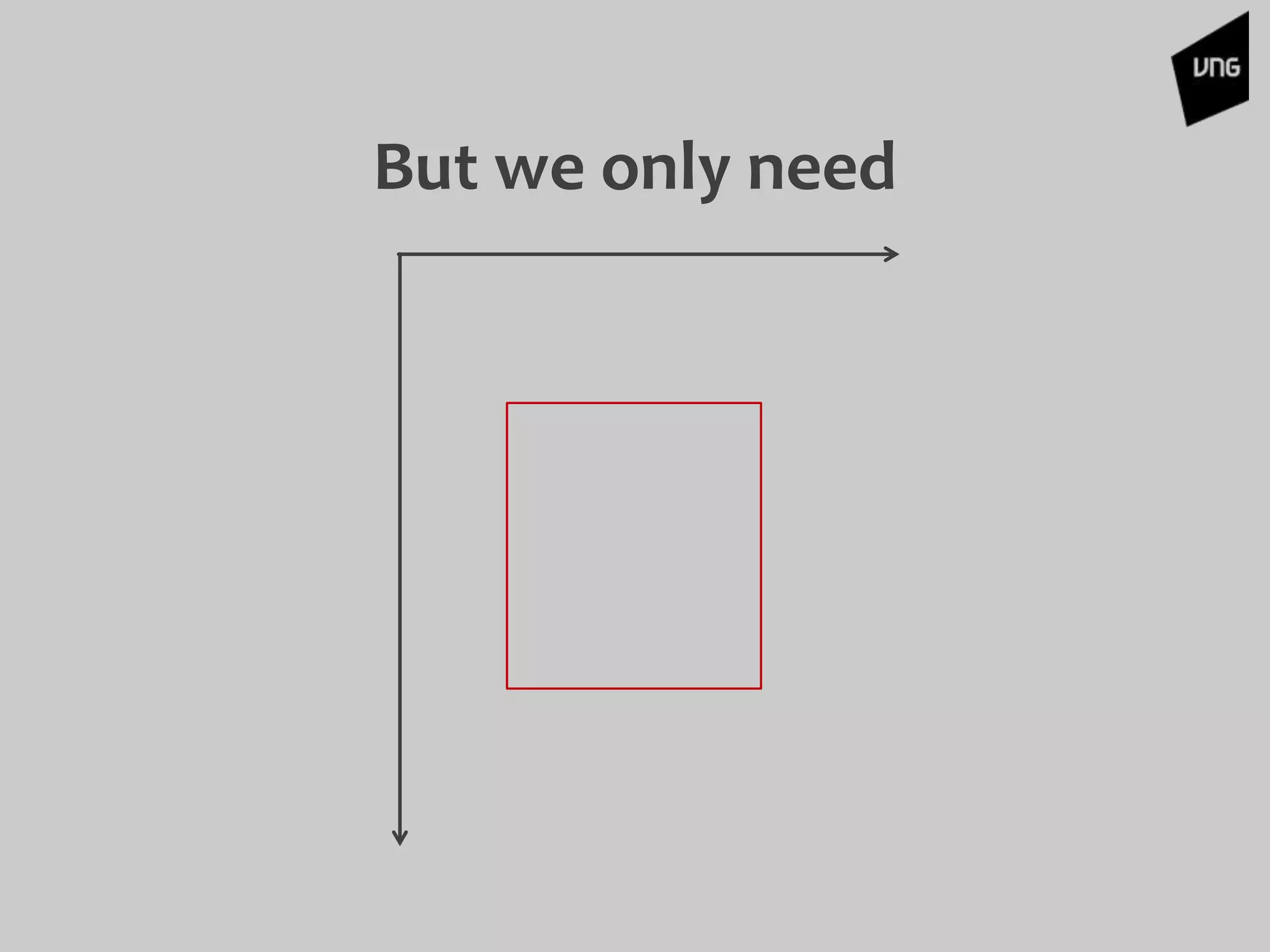

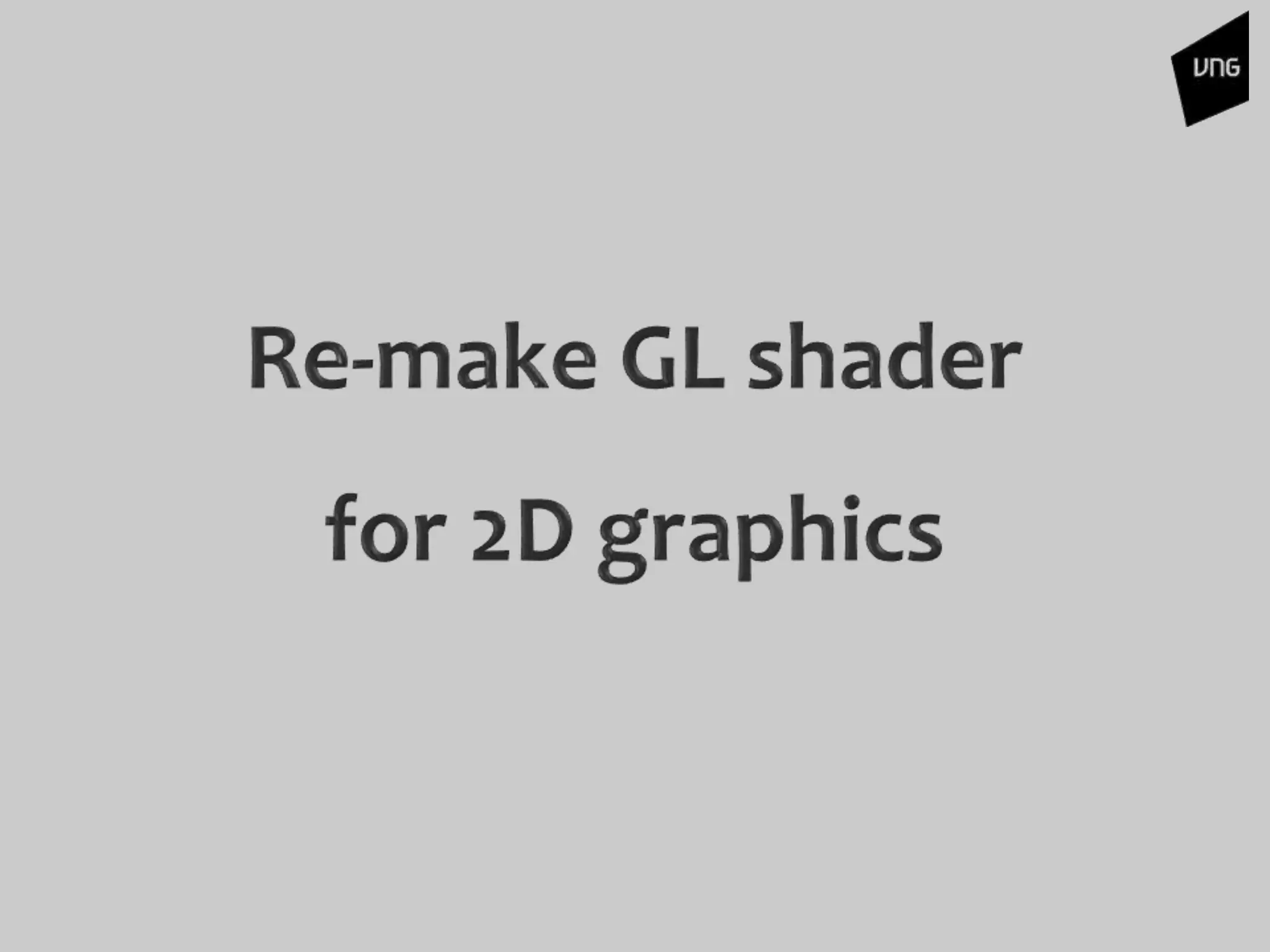

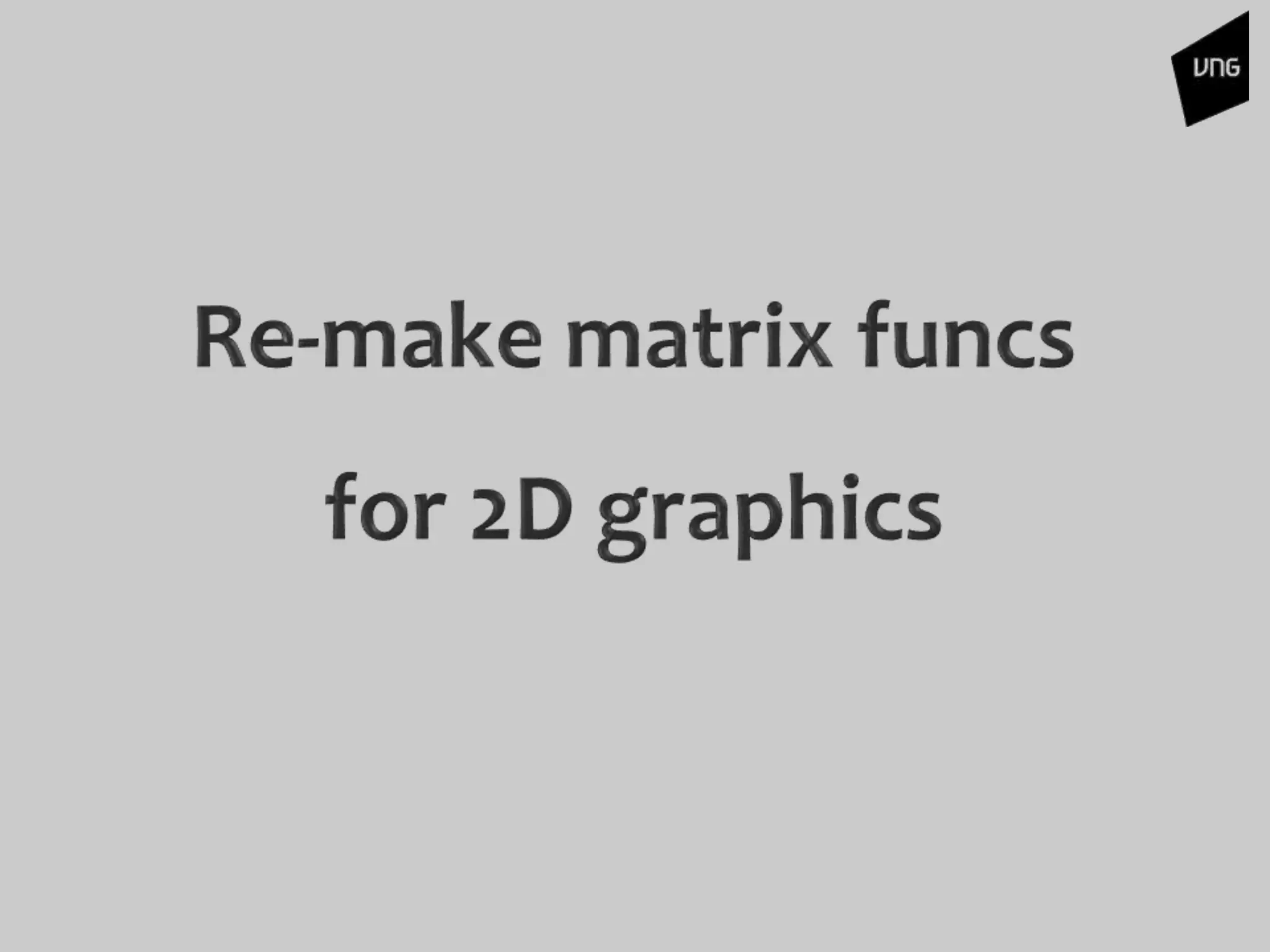

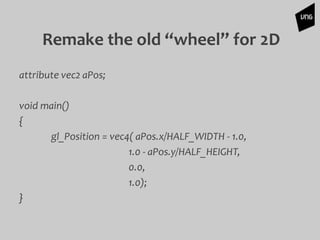

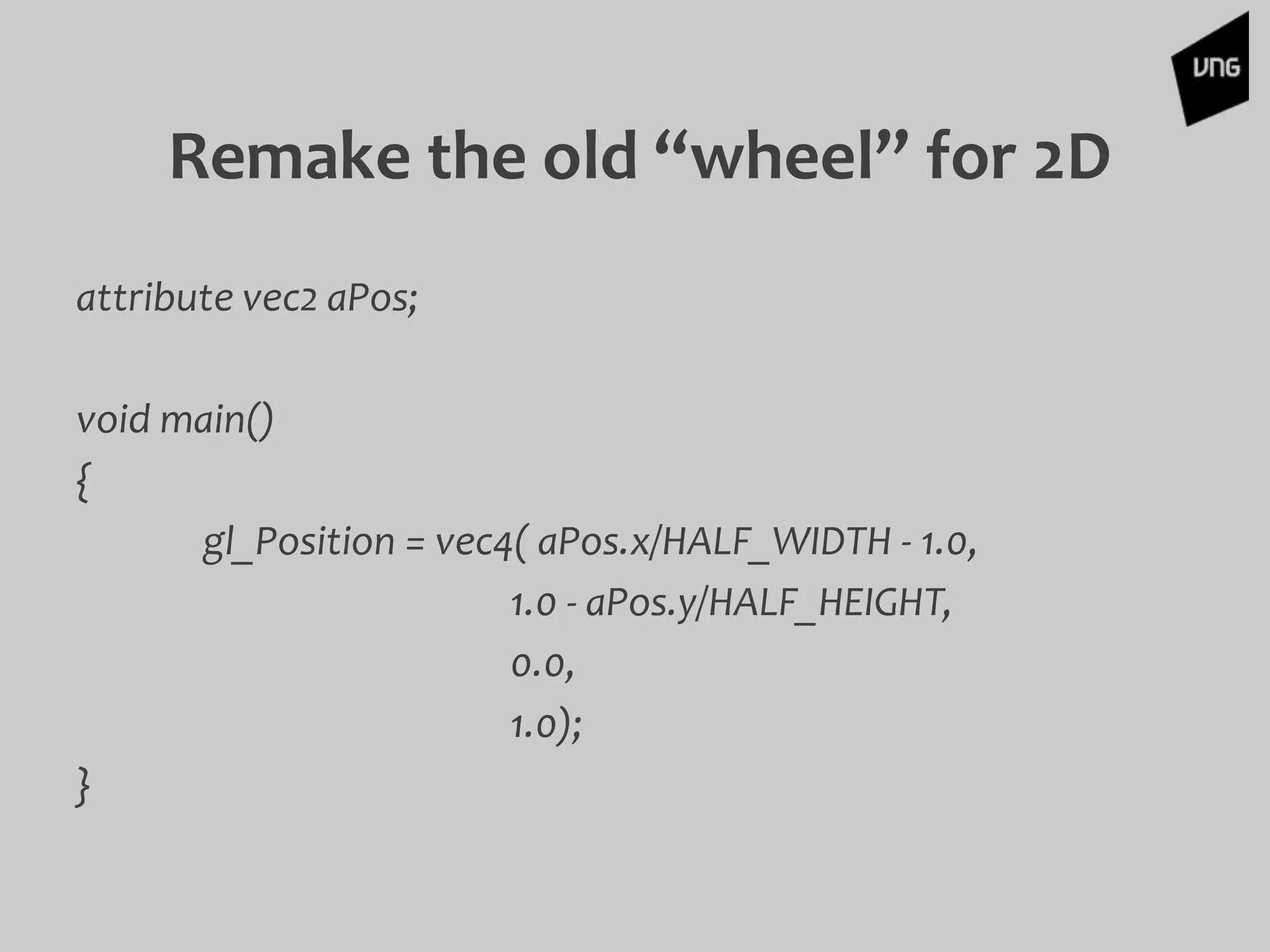

Remake the old “wheel” for 2D
attribute vec2 aPos;
void main()
{
gl_Position = vec4( aPos.x/HALF_WIDTH - 1.0,
1.0 - aPos.y/HALF_HEIGHT,
0.0,
1.0);
}

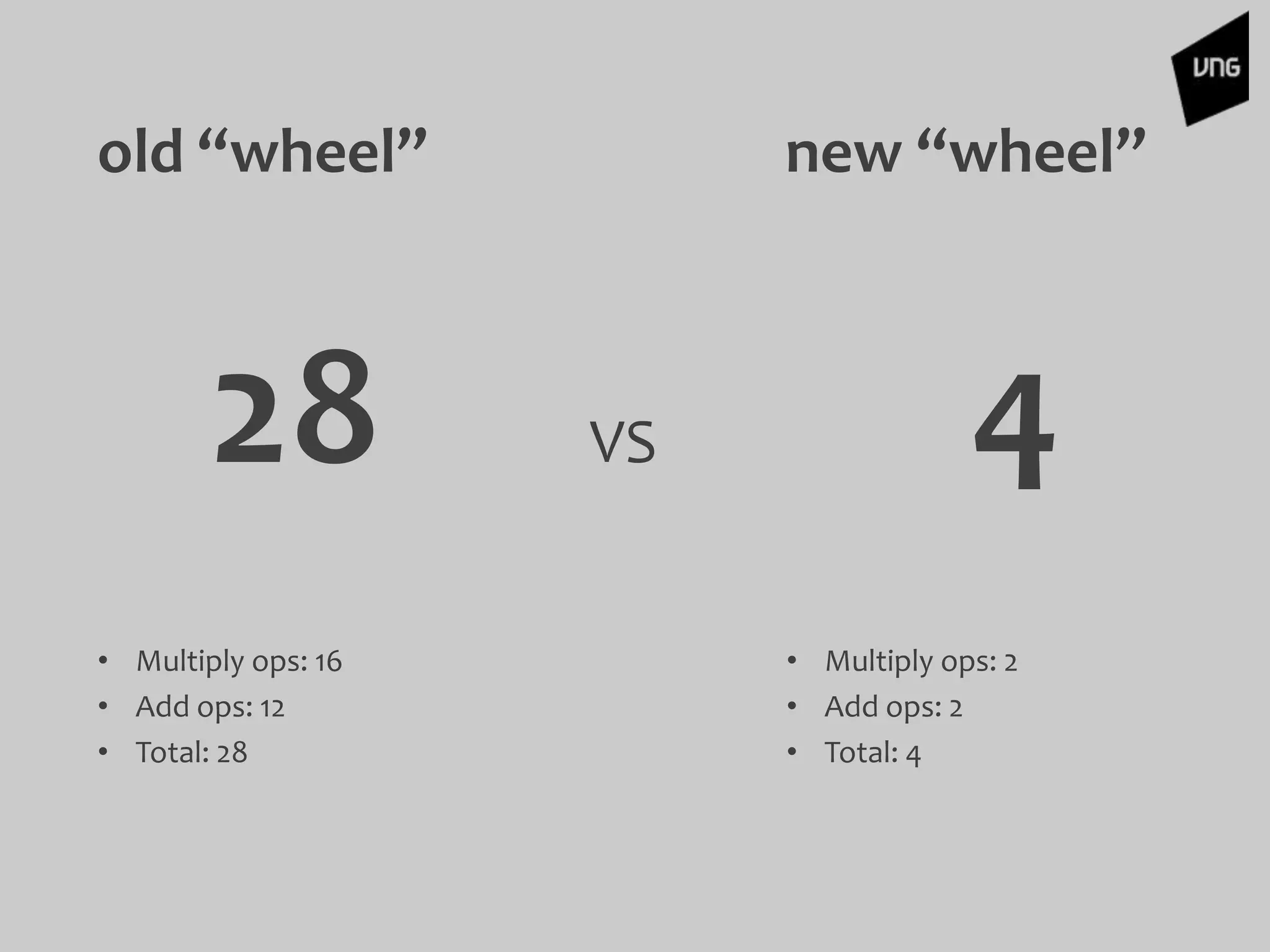

• Multiply ops: 16
• Add ops: 12
• Total: 28
• Multiply ops: 2
• Add ops: 2
• Total: 4
old “wheel”
28 VS 4
new “wheel”

ETC texture

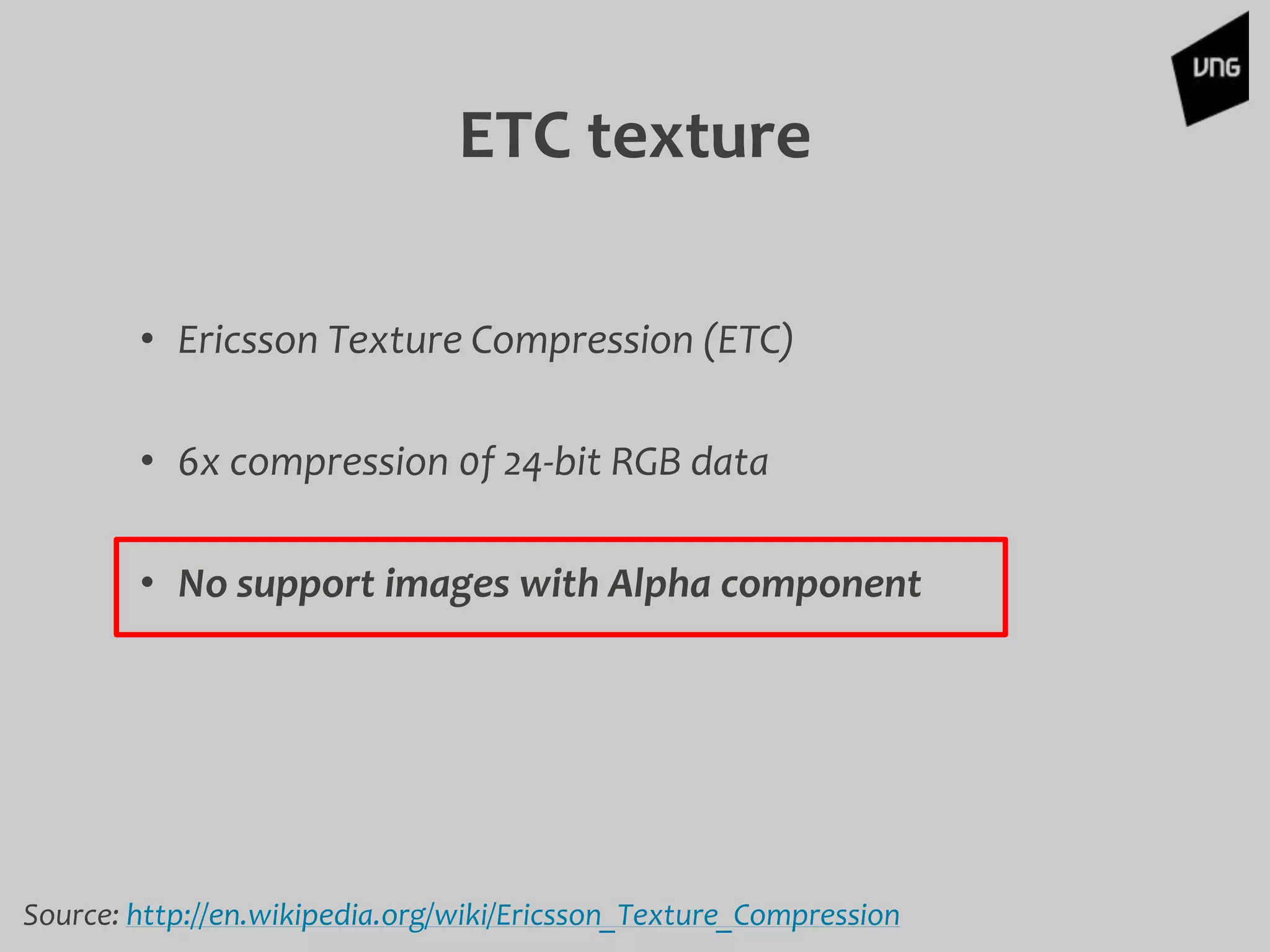

• Ericsson Texture Compression (ETC)
• 6x compression 0f 24-bit RGB data
• No support images with Alpha component
Source: http://en.wikipedia.org/wiki/Ericsson_Texture_Compression

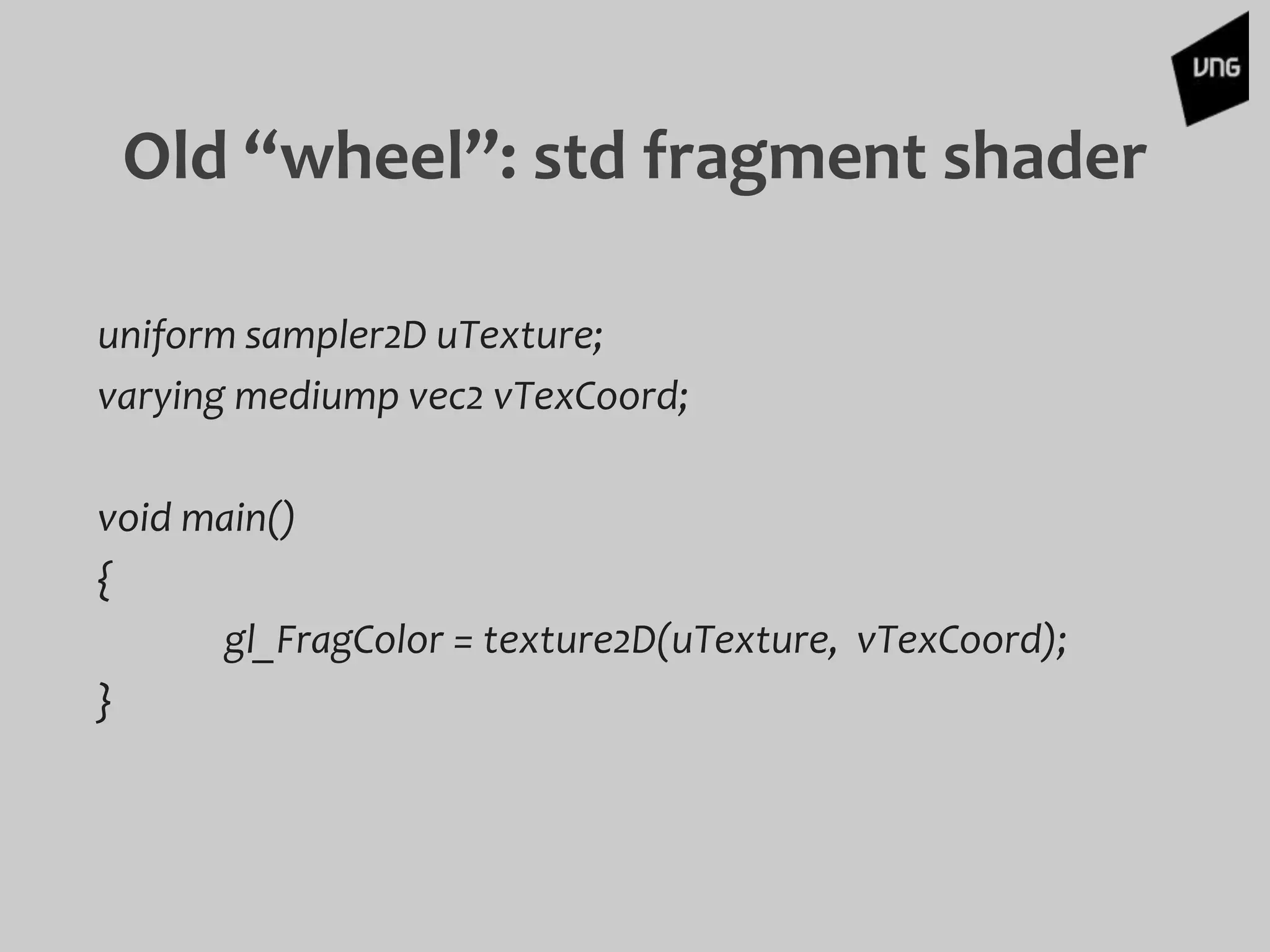

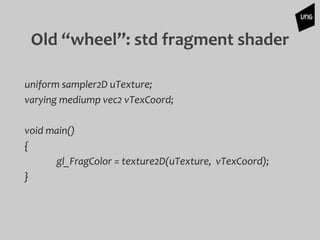

Old “wheel”: std fragment shader
uniform sampler2D uTexture;
varying mediump vec2 vTexCoord;
void main()
{
gl_FragColor = texture2D(uTexture, vTexCoord);
}

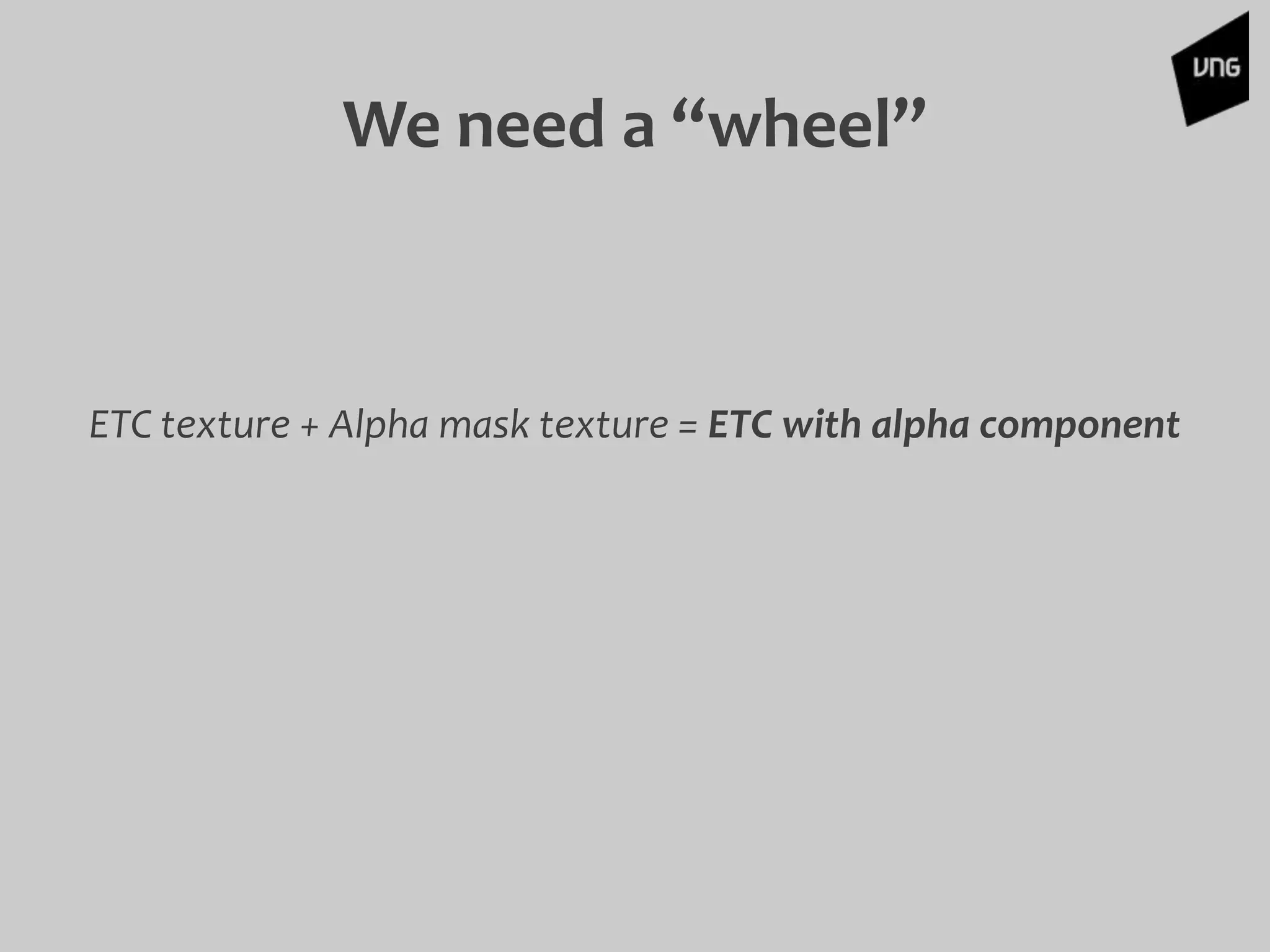

We need a “wheel”
ETC texture + Alpha mask texture = ETC with alpha component

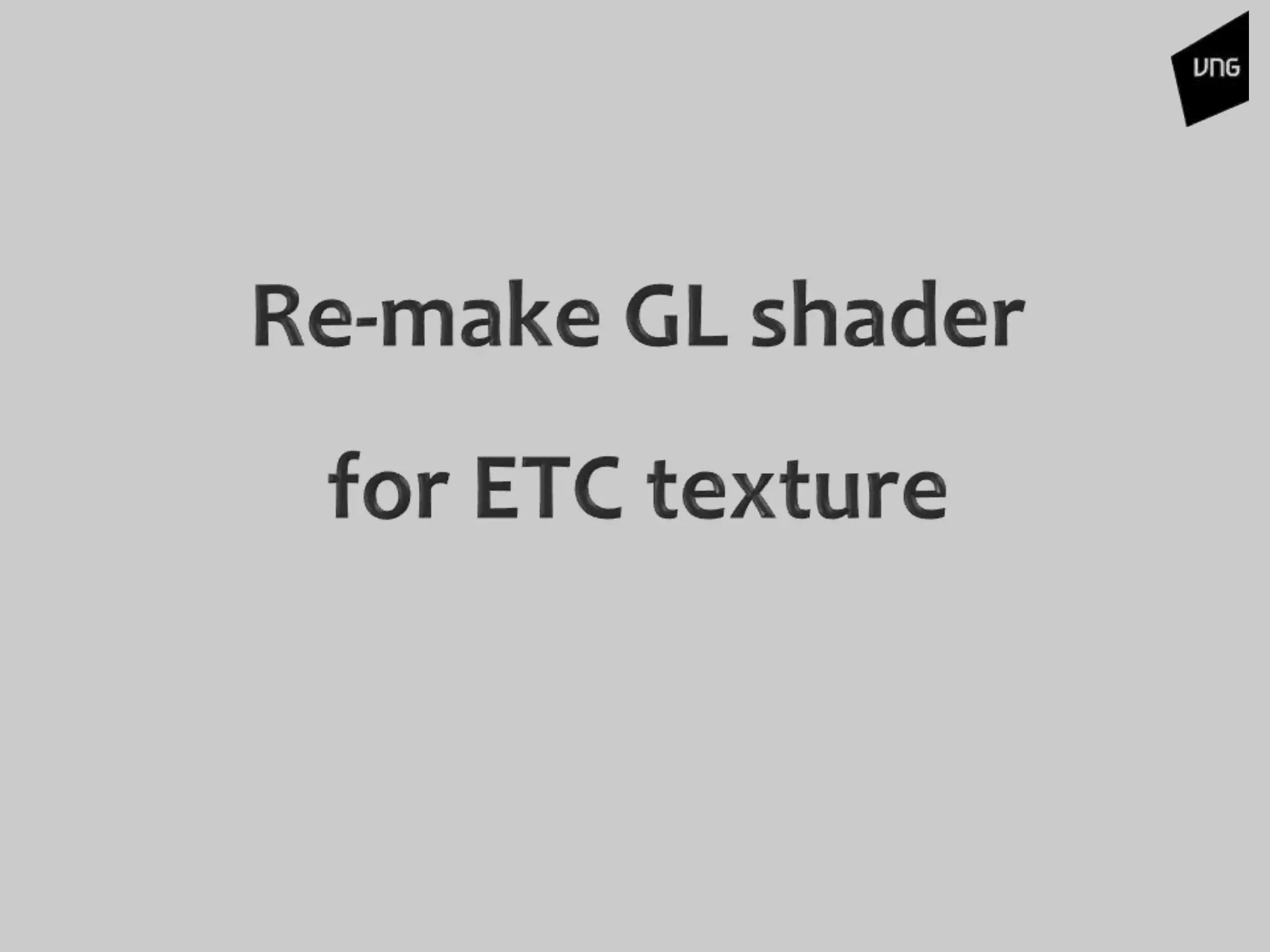

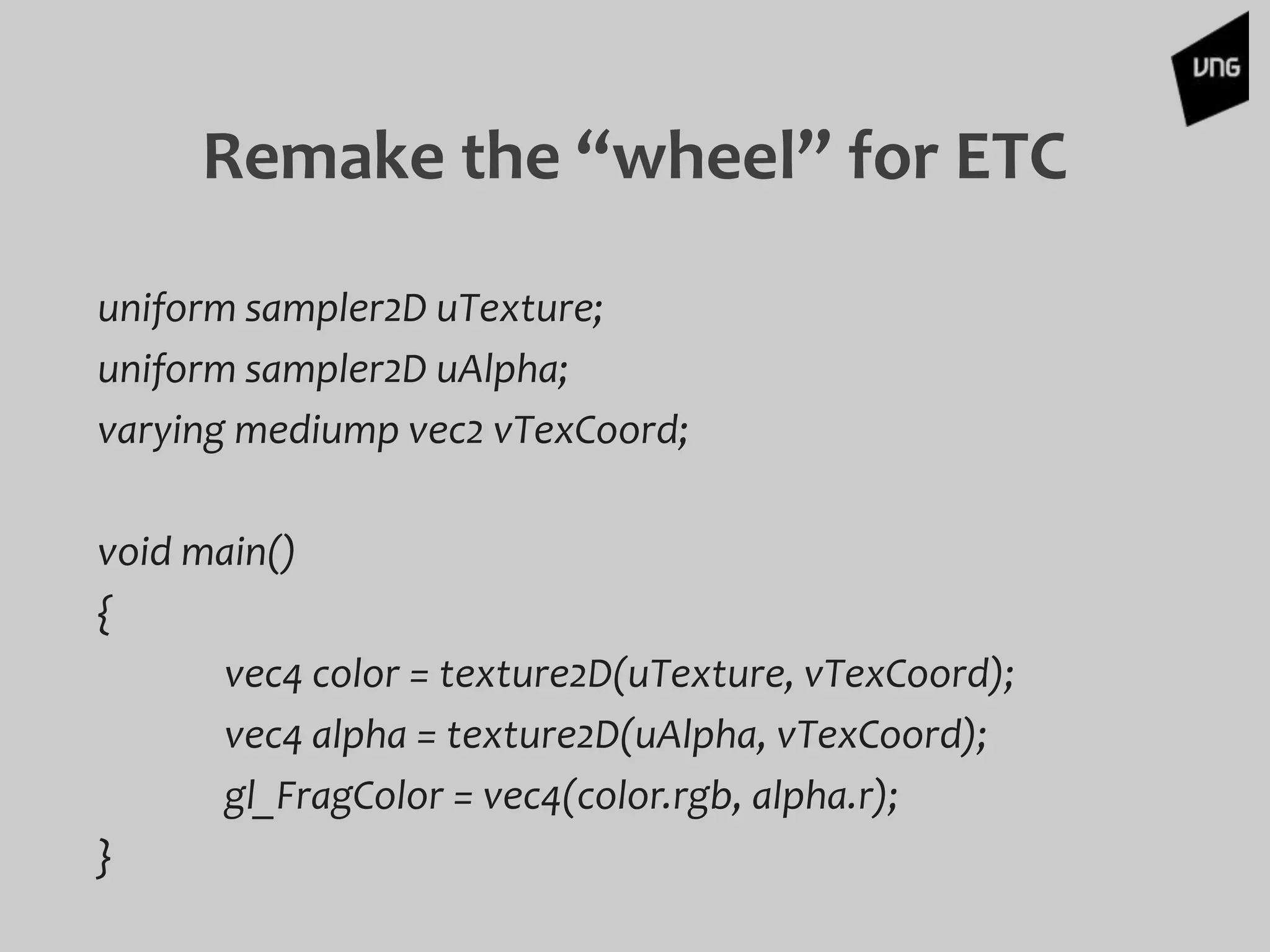

Remake the “wheel” for ETC
uniform sampler2D uAlpha;
void main()
{
vec4 color = texture2D(uTexture, vTexCoord);
vec4 alpha = texture2D(uAlpha, vTexCoord);
gl_FragColor = vec4(color.rgb, alpha.r);
}

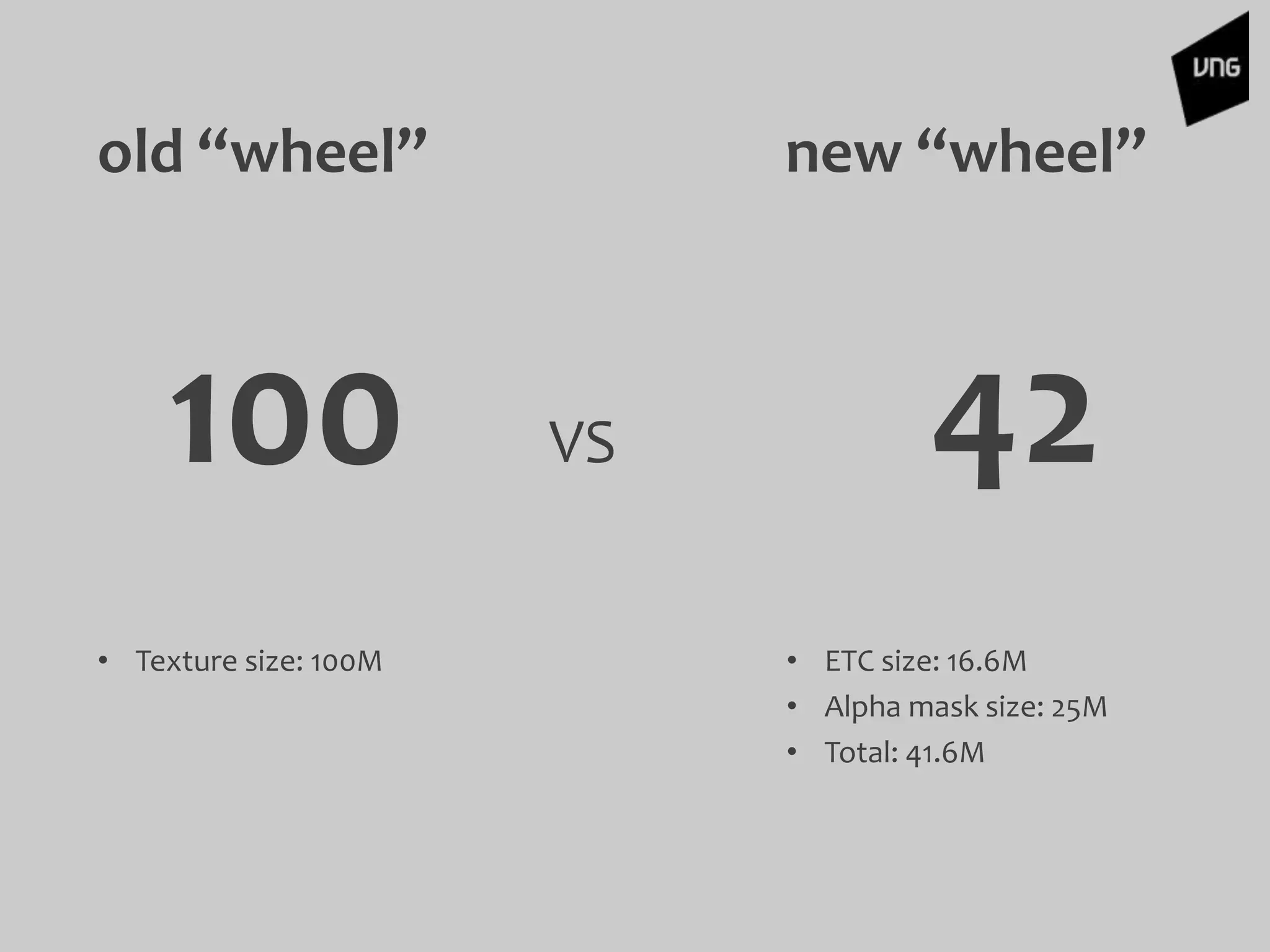

• Texture size: 100M • ETC size: 16.6M
• Alpha mask size: 25M
• Total: 41.6M
old “wheel”
100 VS 42
new “wheel”

How to bind 2 textures
and pass them to
fragment shader ?

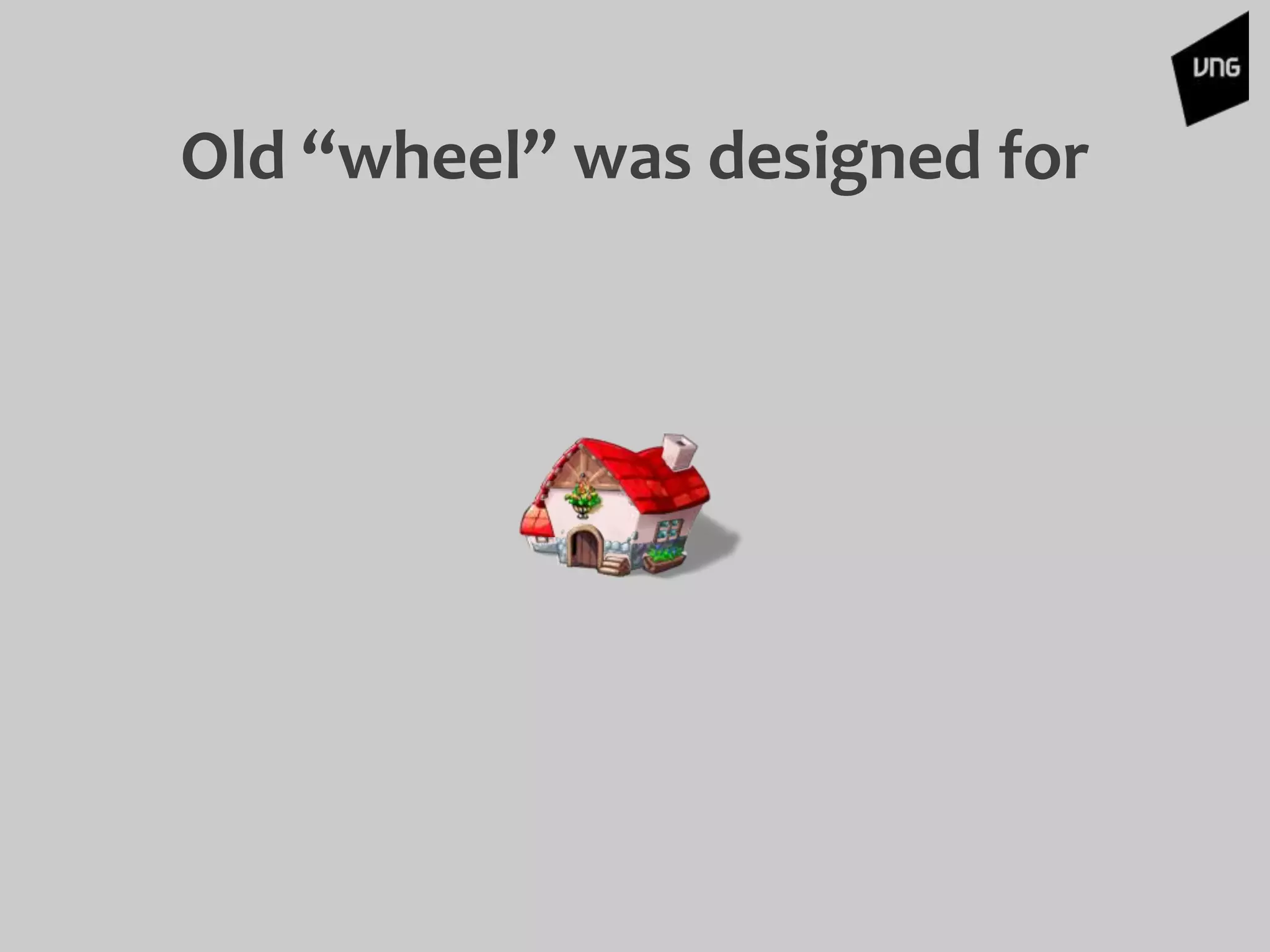

Old “wheel” was designed for

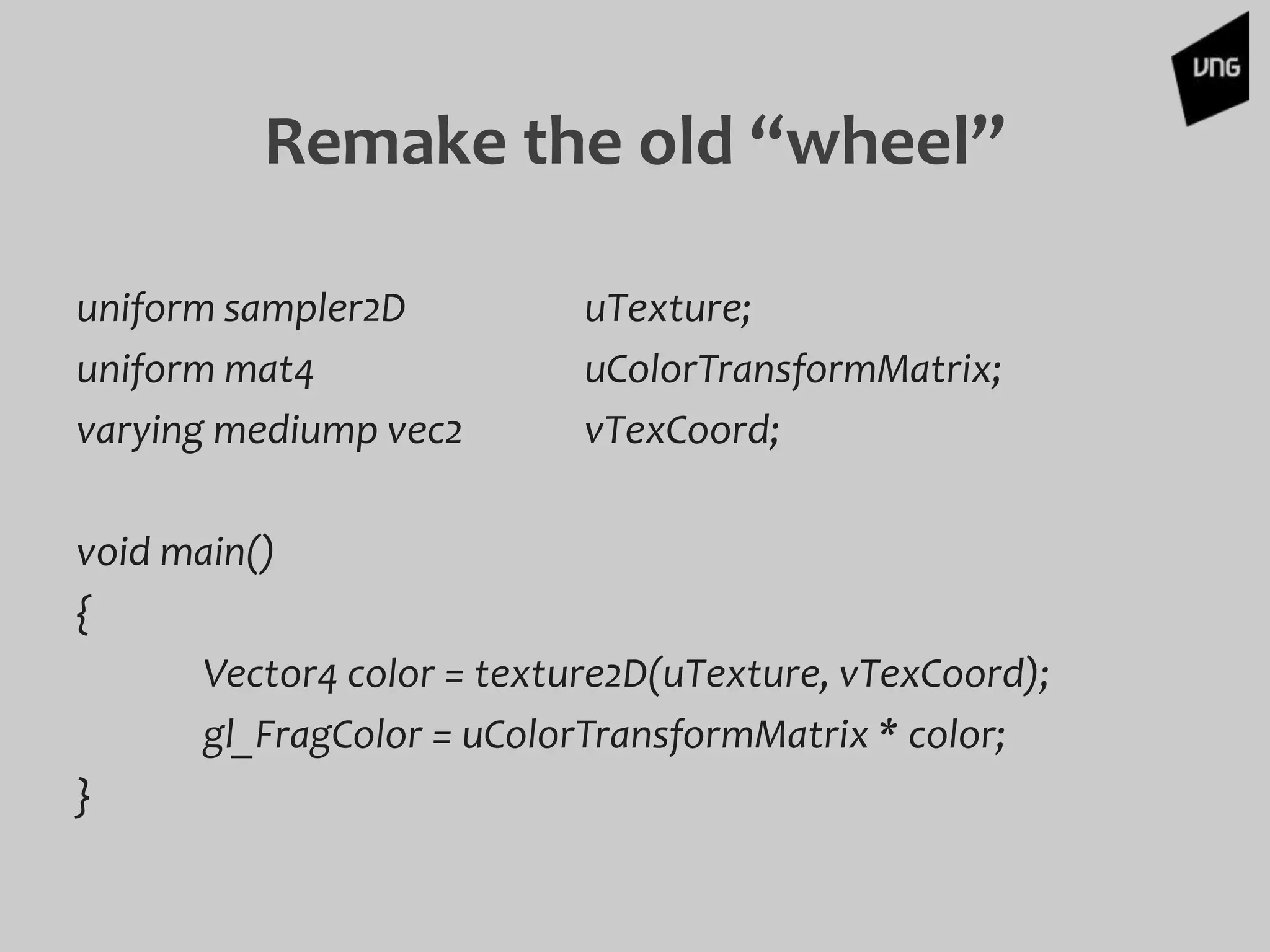

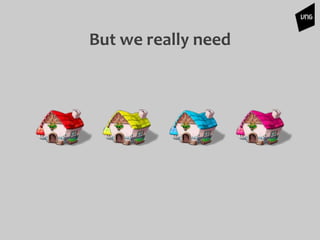

uniform mat4 uColorTransformMatrix;
void main()
{
Vector4 color = texture2D(uTexture, vTexCoord);
gl_FragColor = uColorTransformMatrix * color;
}

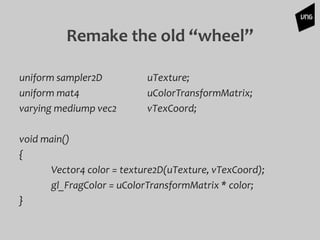

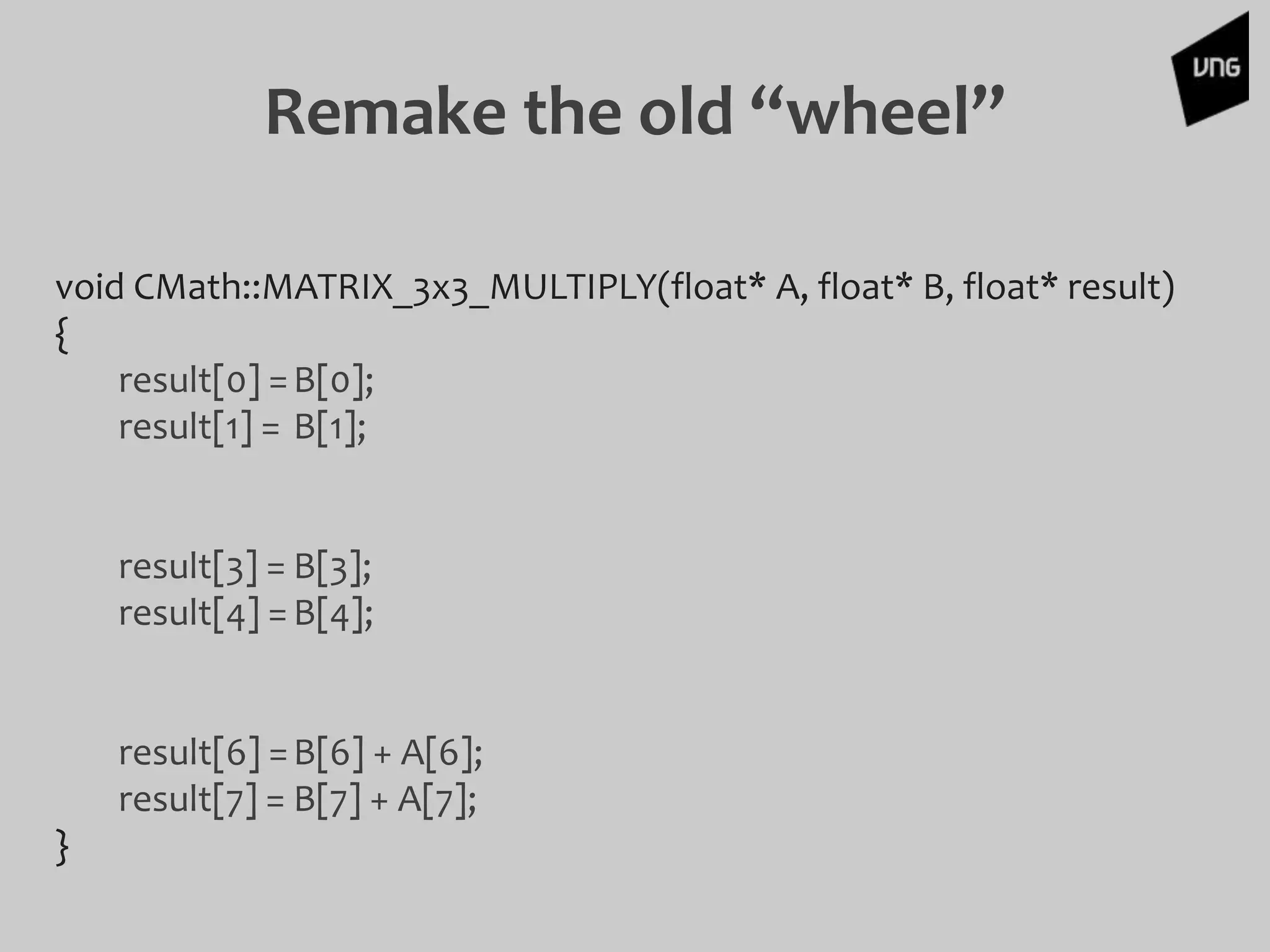

Remake the old “wheel”

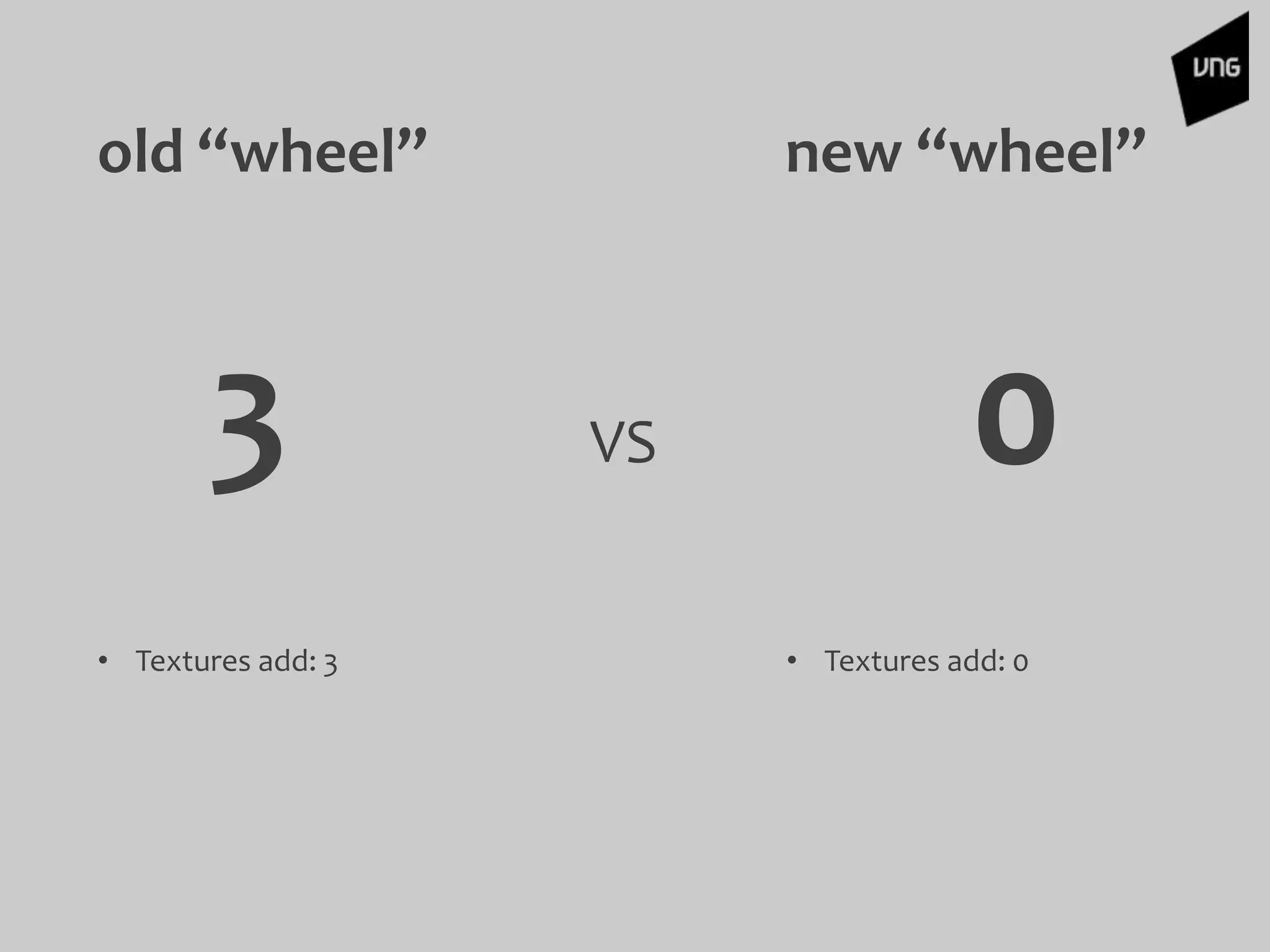

• Textures add: 3 • Textures add: 0
old “wheel”
3 VS 0
new “wheel”

How to make the color
transform matrix?

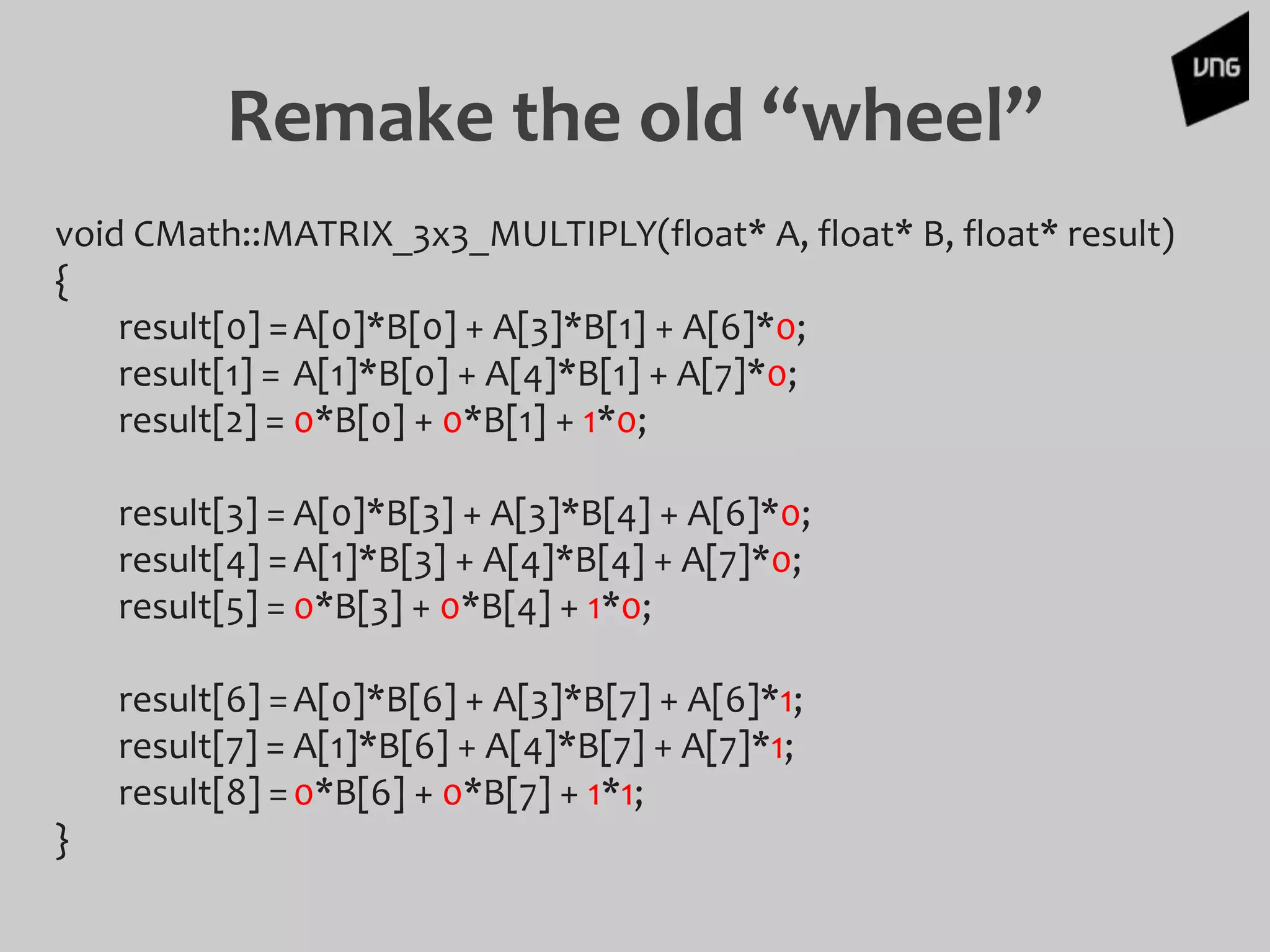

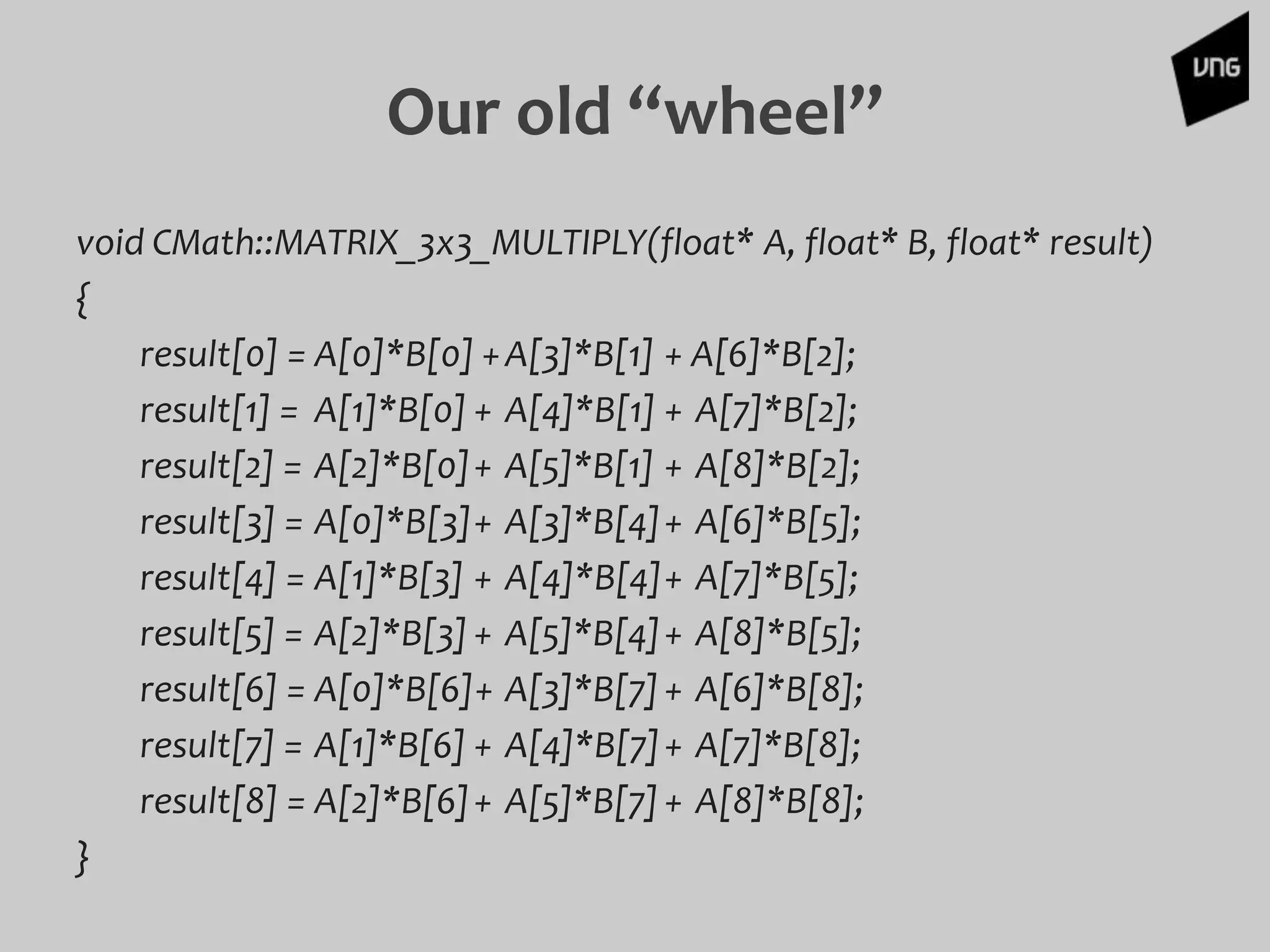

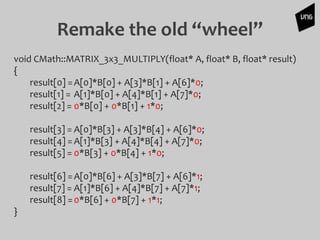

void CMath::MATRIX_3x3_MULTIPLY(float* A, float* B, float* result)
{
result[0] = A[0]*B[0] +A[3]*B[1] + A[6]*B[2];
result[1] = A[1]*B[0] + A[4]*B[1] + A[7]*B[2];
result[2] = A[2]*B[0]+ A[5]*B[1] + A[8]*B[2];
result[3] = A[0]*B[3]+ A[3]*B[4]+ A[6]*B[5];
result[4] = A[1]*B[3] + A[4]*B[4]+ A[7]*B[5];
result[5] = A[2]*B[3]+ A[5]*B[4]+ A[8]*B[5];
result[6] = A[0]*B[6]+ A[3]*B[7]+ A[6]*B[8];
result[7] = A[1]*B[6] + A[4]*B[7]+ A[7]*B[8];
result[8] = A[2]*B[6]+ A[5]*B[7]+ A[8]*B[8];
}
Our old “wheel”

m11 m12 m13
m21 m22 m23
m31 m32 m33

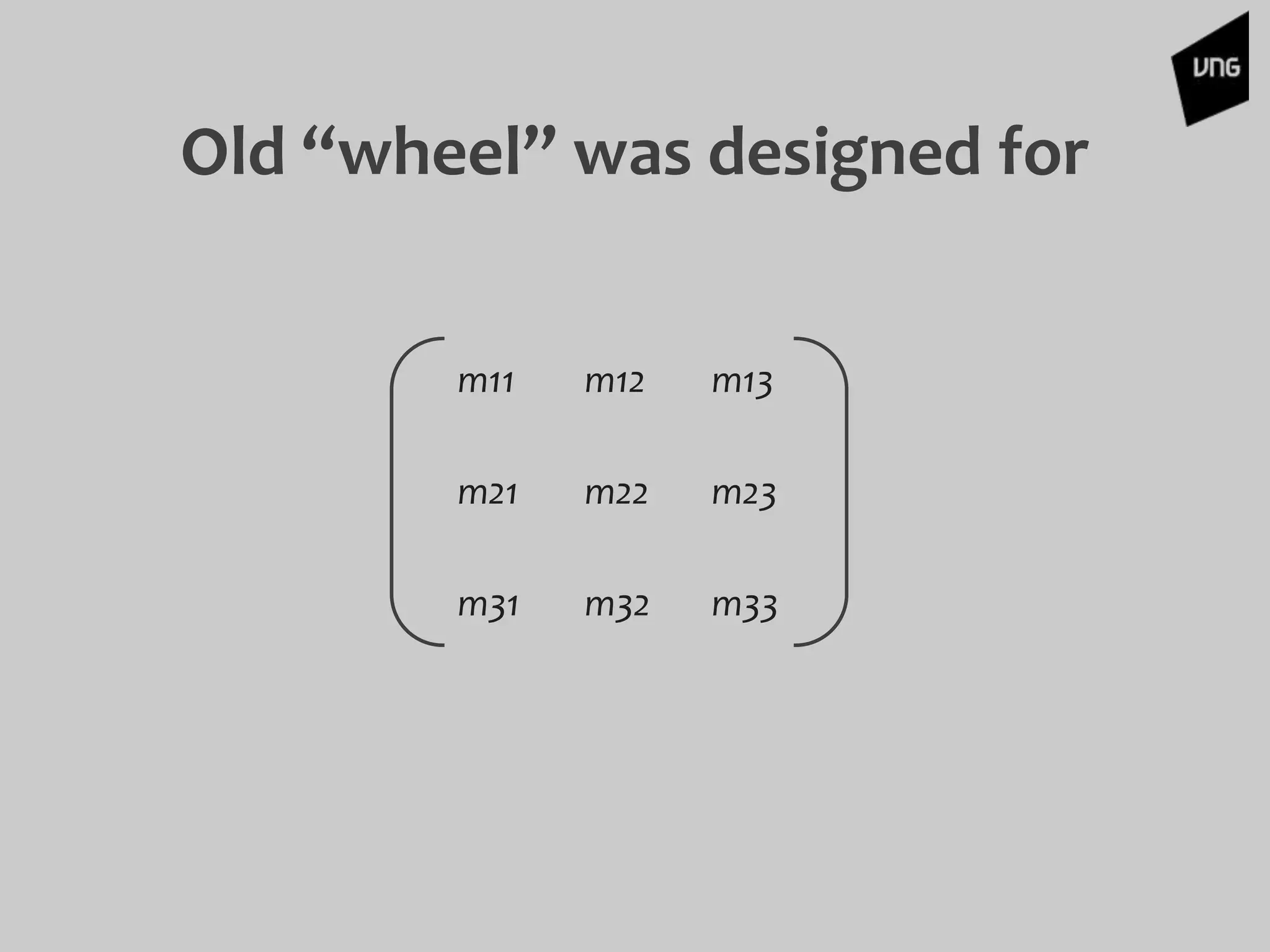

Old “wheel” was designed for

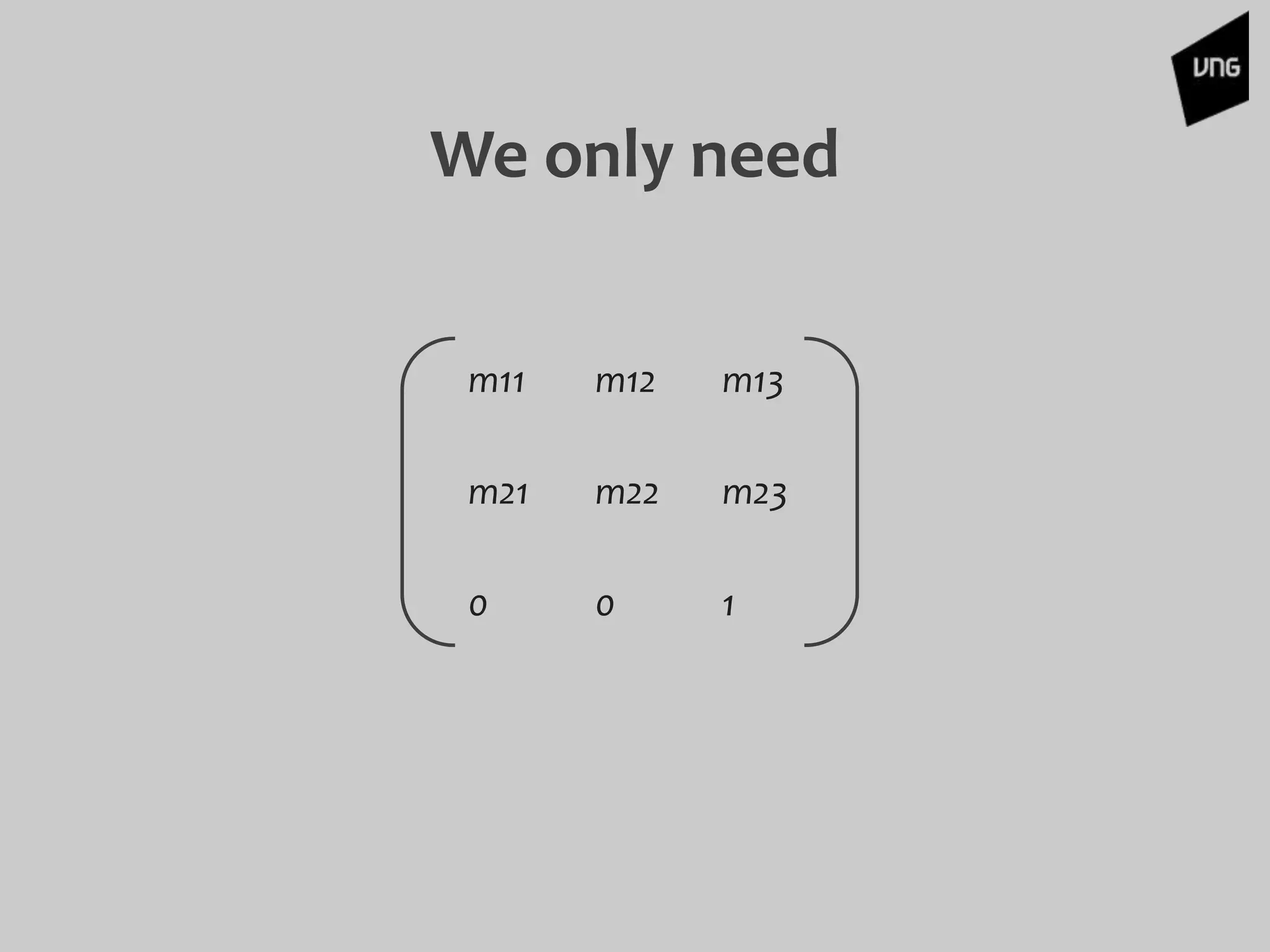

We only need
m11 m12 m13
m21 m22 m23
0 0 1

{
result[0] =A[0]*B[0] + A[3]*B[1] + A[6]*0;
result[1] = A[1]*B[0] + A[4]*B[1] + A[7]*0;
result[2] = 0*B[0] + 0*B[1] + 1*0;
result[3] = A[0]*B[3] + A[3]*B[4] + A[6]*0;
result[4] =A[1]*B[3] + A[4]*B[4] + A[7]*0;
result[5] = 0*B[3] + 0*B[4] + 1*0;
result[6] =A[0]*B[6] + A[3]*B[7] + A[6]*1;
result[7] = A[1]*B[6] + A[4]*B[7] + A[7]*1;
result[8] =0*B[6] + 0*B[7] + 1*1;
}

{

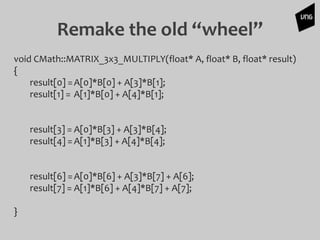

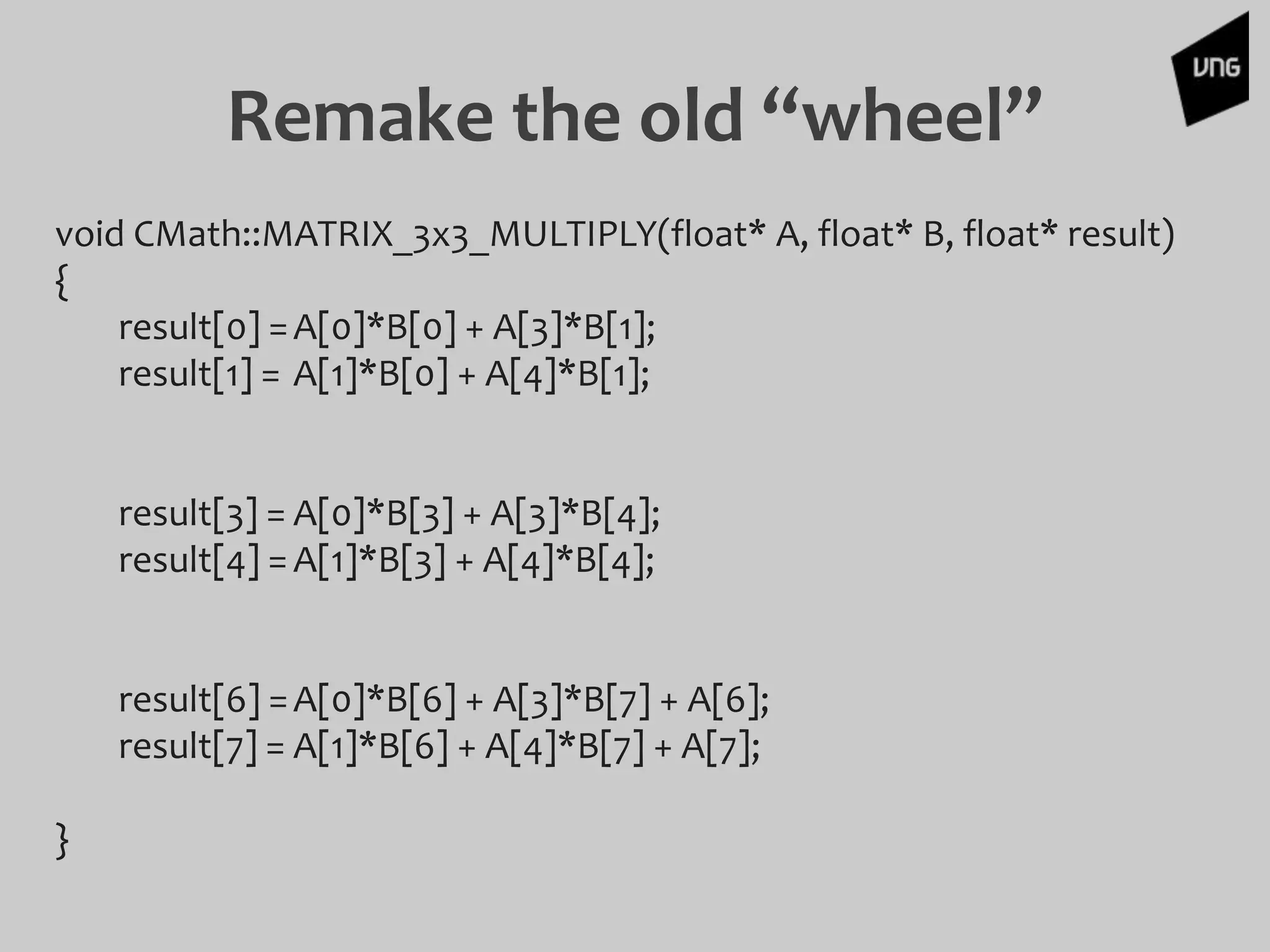

result[0] =A[0]*B[0] + A[3]*B[1];
result[1] = A[1]*B[0] + A[4]*B[1];
result[3] = A[0]*B[3] + A[3]*B[4];
result[4] =A[1]*B[3] + A[4]*B[4];
result[6] =A[0]*B[6] + A[3]*B[7] + A[6];
result[7] = A[1]*B[6] + A[4]*B[7] + A[7];
}

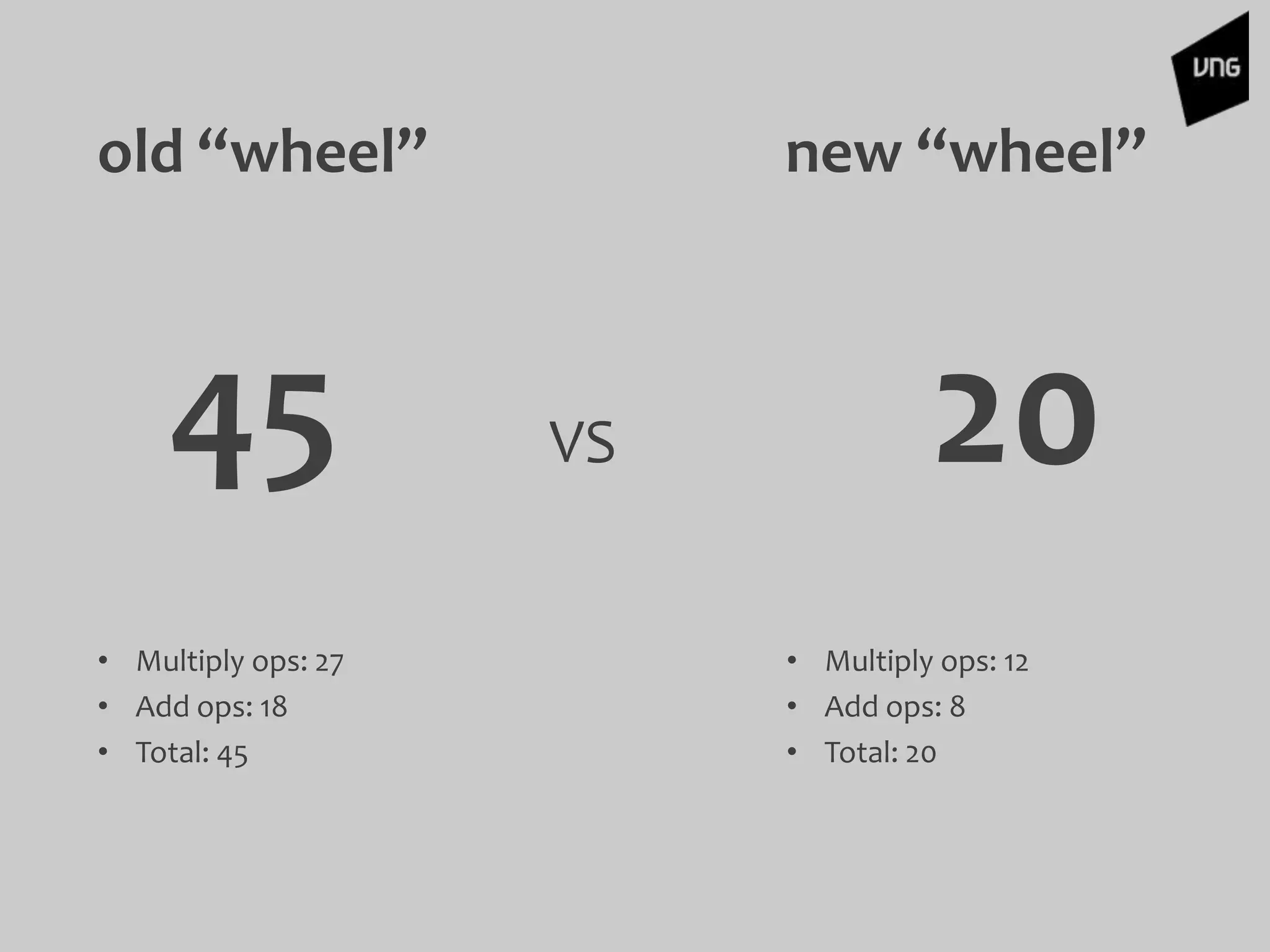

• Add ops: 18
• Total: 45
• Add ops: 8
• Total: 20
old “wheel”
45 VS 20
new “wheel”

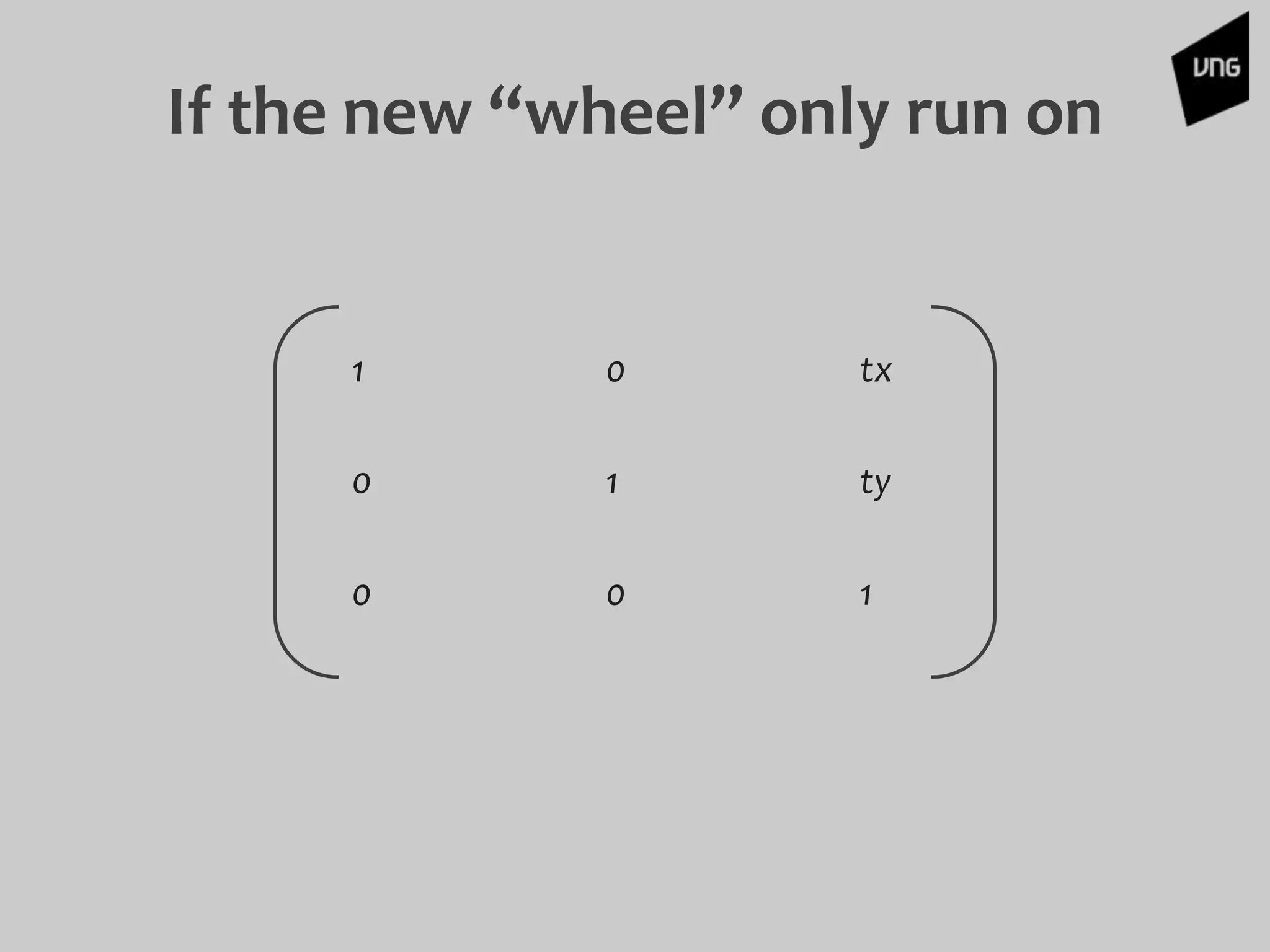

1 0 tx
0 1 ty
0 0 1
If the new “wheel” only run on

{

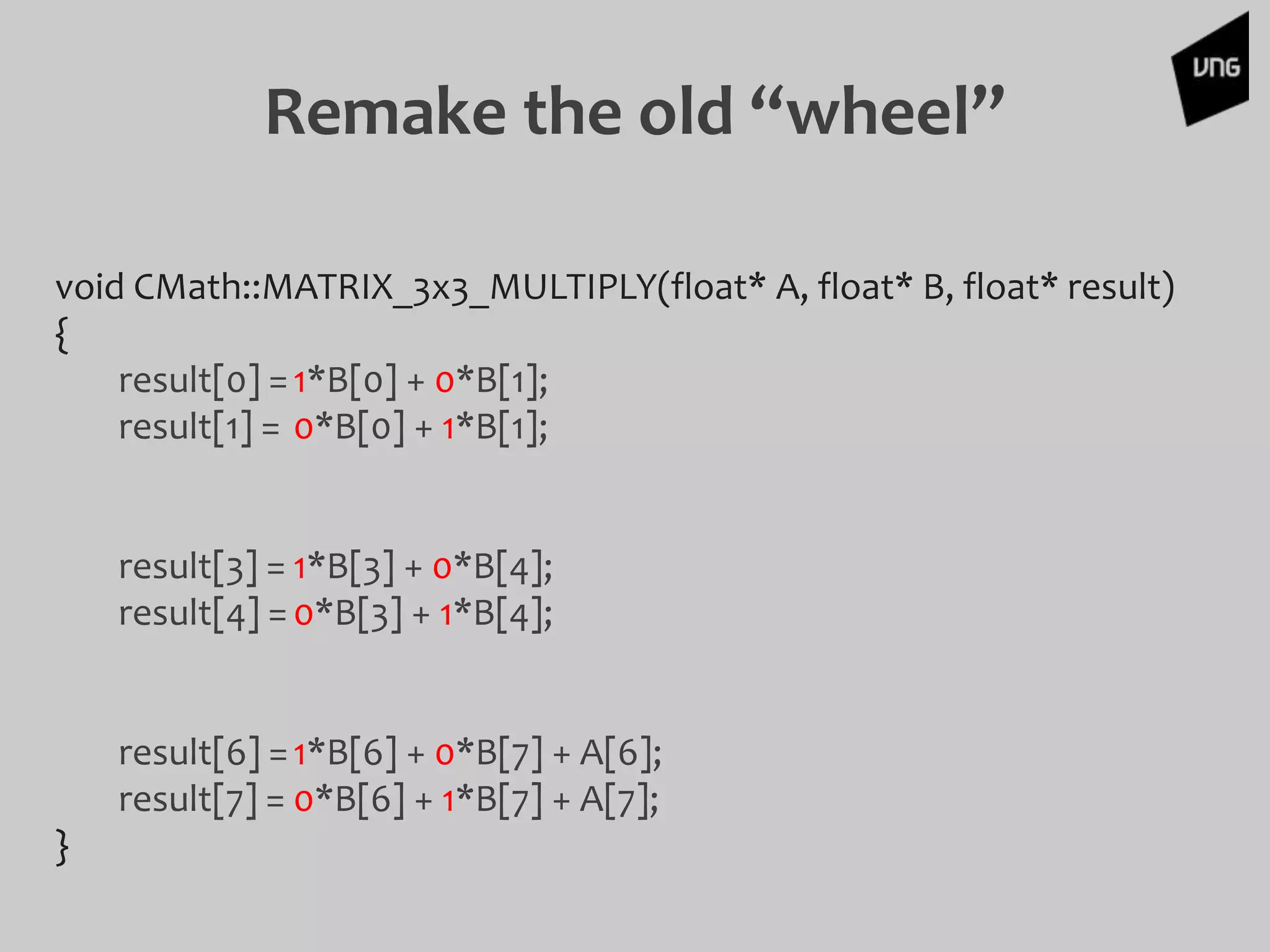

result[0] =1*B[0] + 0*B[1];
result[1] = 0*B[0] + 1*B[1];
result[3] = 1*B[3] + 0*B[4];
result[4] =0*B[3] + 1*B[4];
result[6] =1*B[6] + 0*B[7] + A[6];
result[7] = 0*B[6] + 1*B[7] + A[7];
}

{
result[0] =B[0];
result[1] = B[1];
result[3] = B[3];
result[4] =B[4];
result[6] =B[6] + A[6];
result[7] = B[7] + A[7];
}

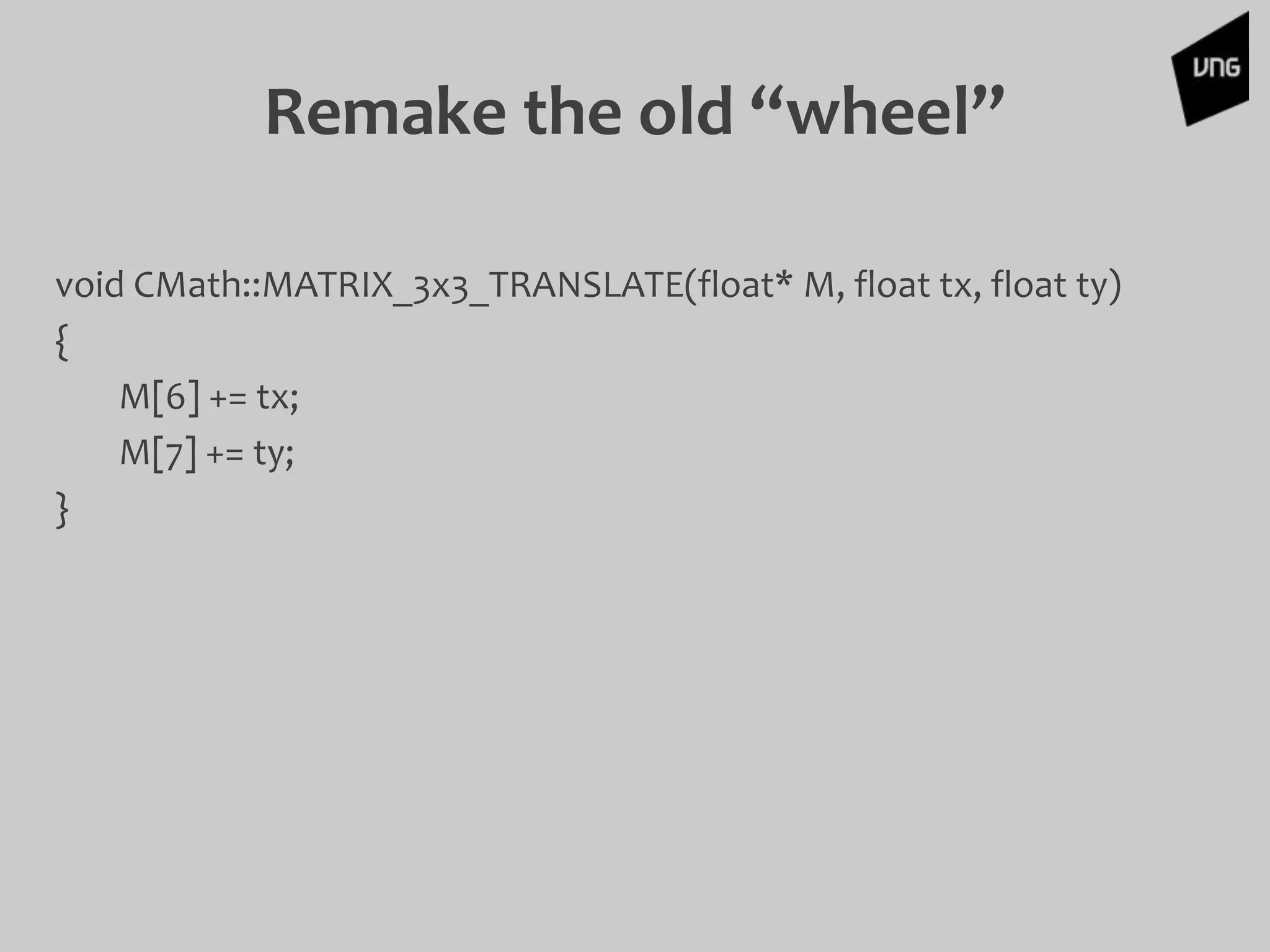

void CMath::MATRIX_3x3_TRANSLATE(float* M, float tx, float ty)
{
M[6] += tx;
M[7] += ty;
}

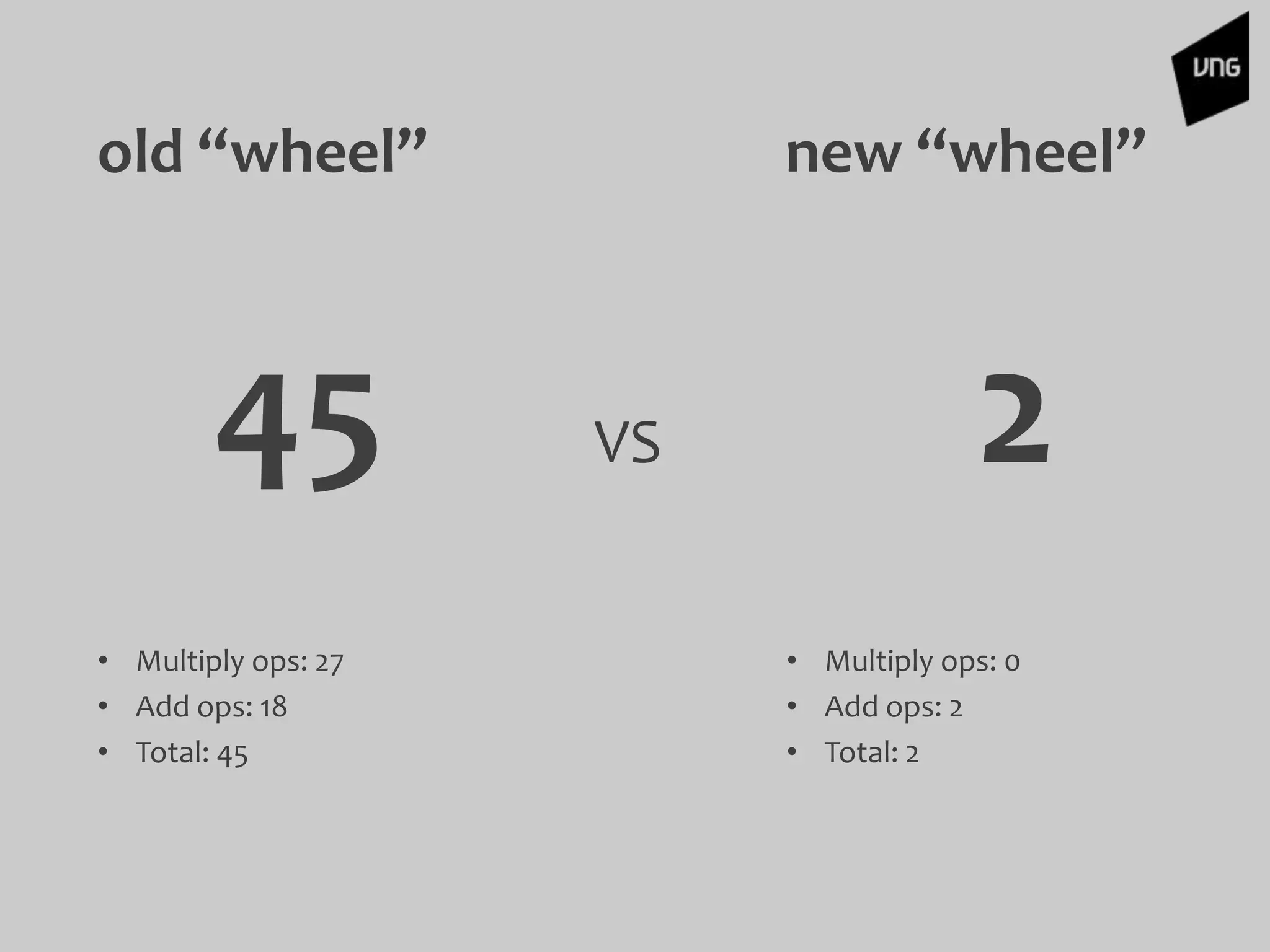

• Add ops: 18
• Total: 45
• Multiply ops: 0
• Add ops: 2
• Total: 2
old “wheel”
45 VS 2
new “wheel”

sx 0 0
0 sy 0
0 0 1

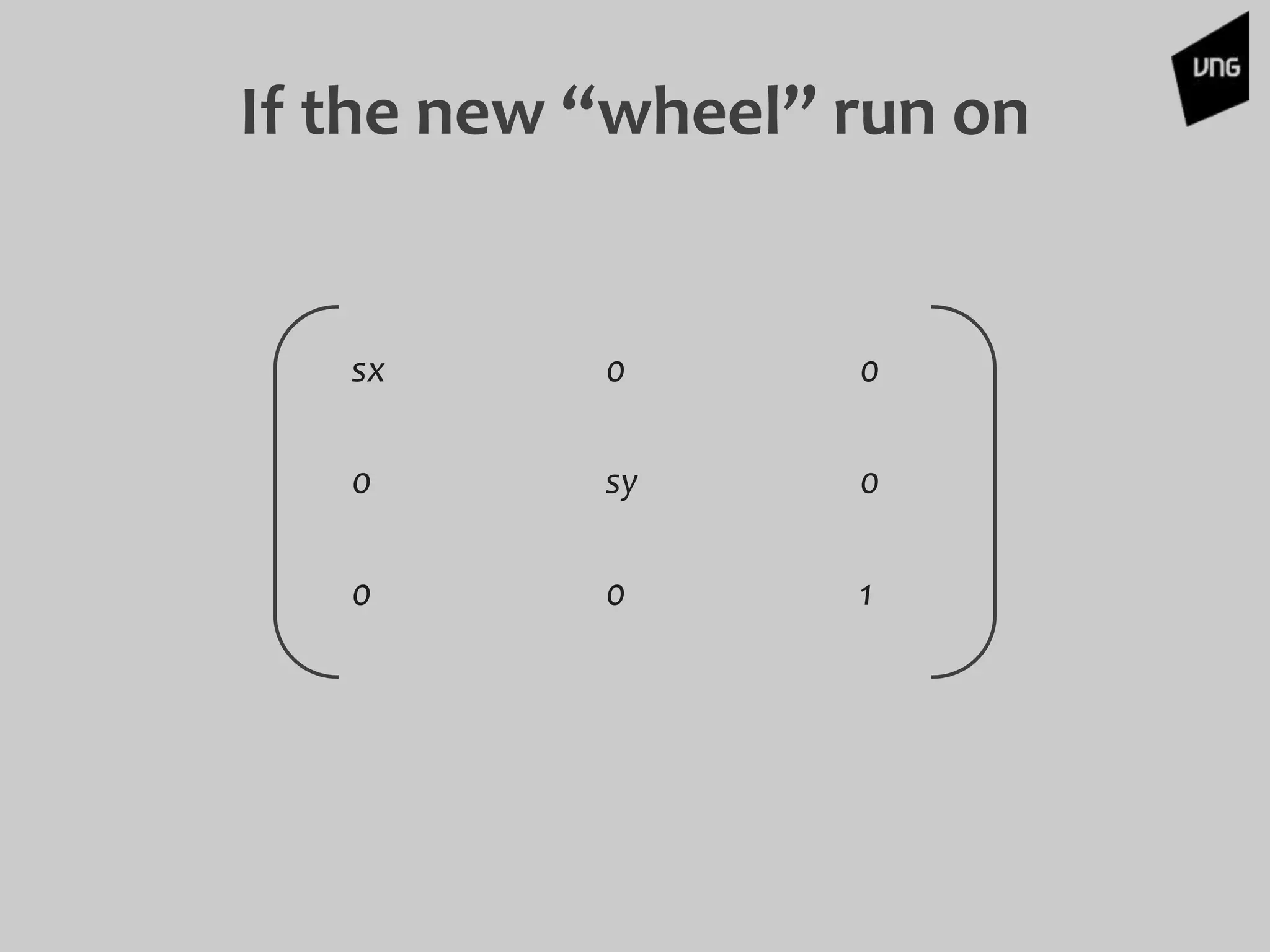

If the new “wheel” run on

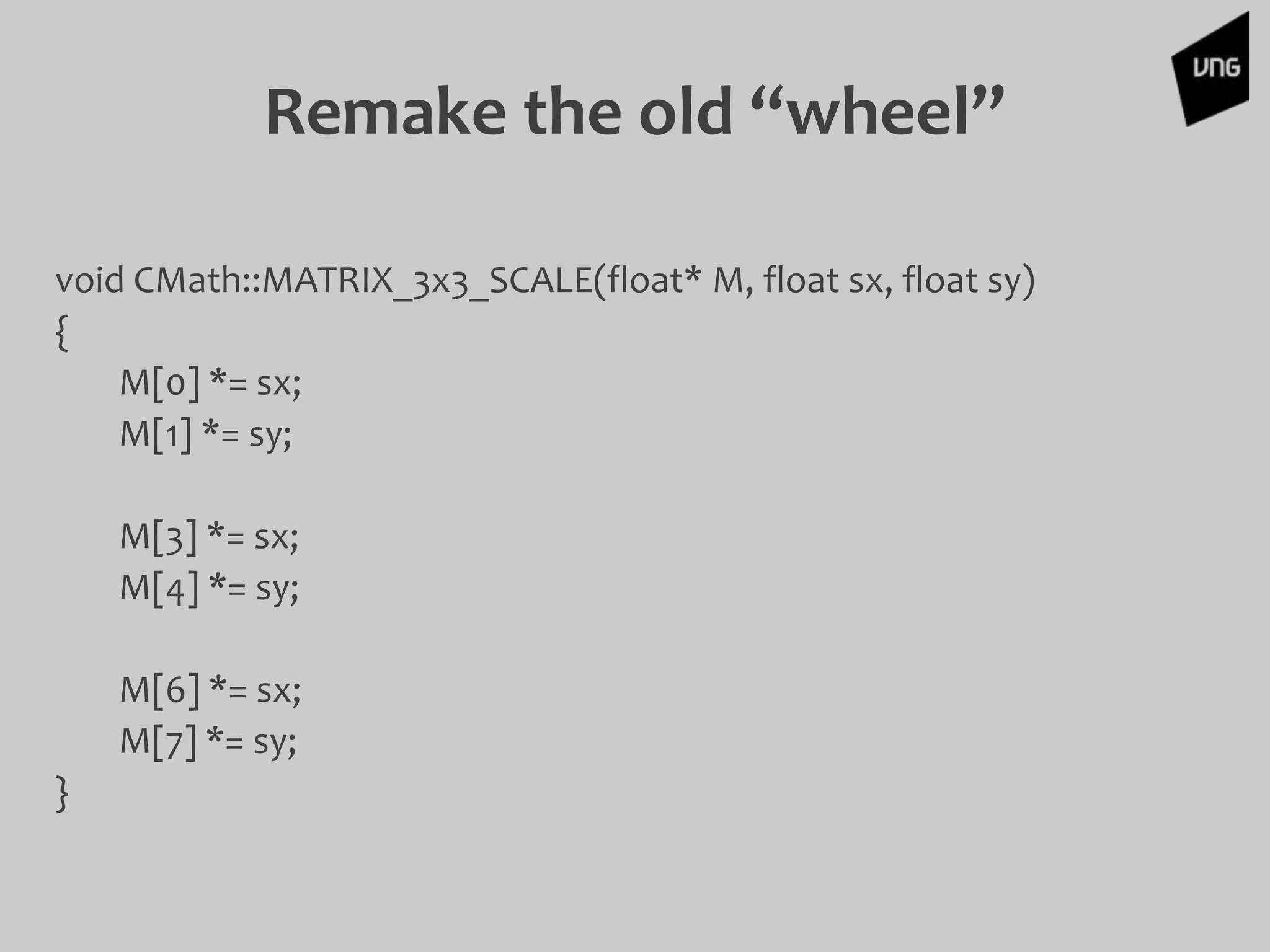

void CMath::MATRIX_3x3_SCALE(float* M, float sx, float sy)
{
M[0] *= sx;
M[1] *= sy;
M[3] *= sx;
M[4] *= sy;
M[6] *= sx;
M[7] *= sy;
}

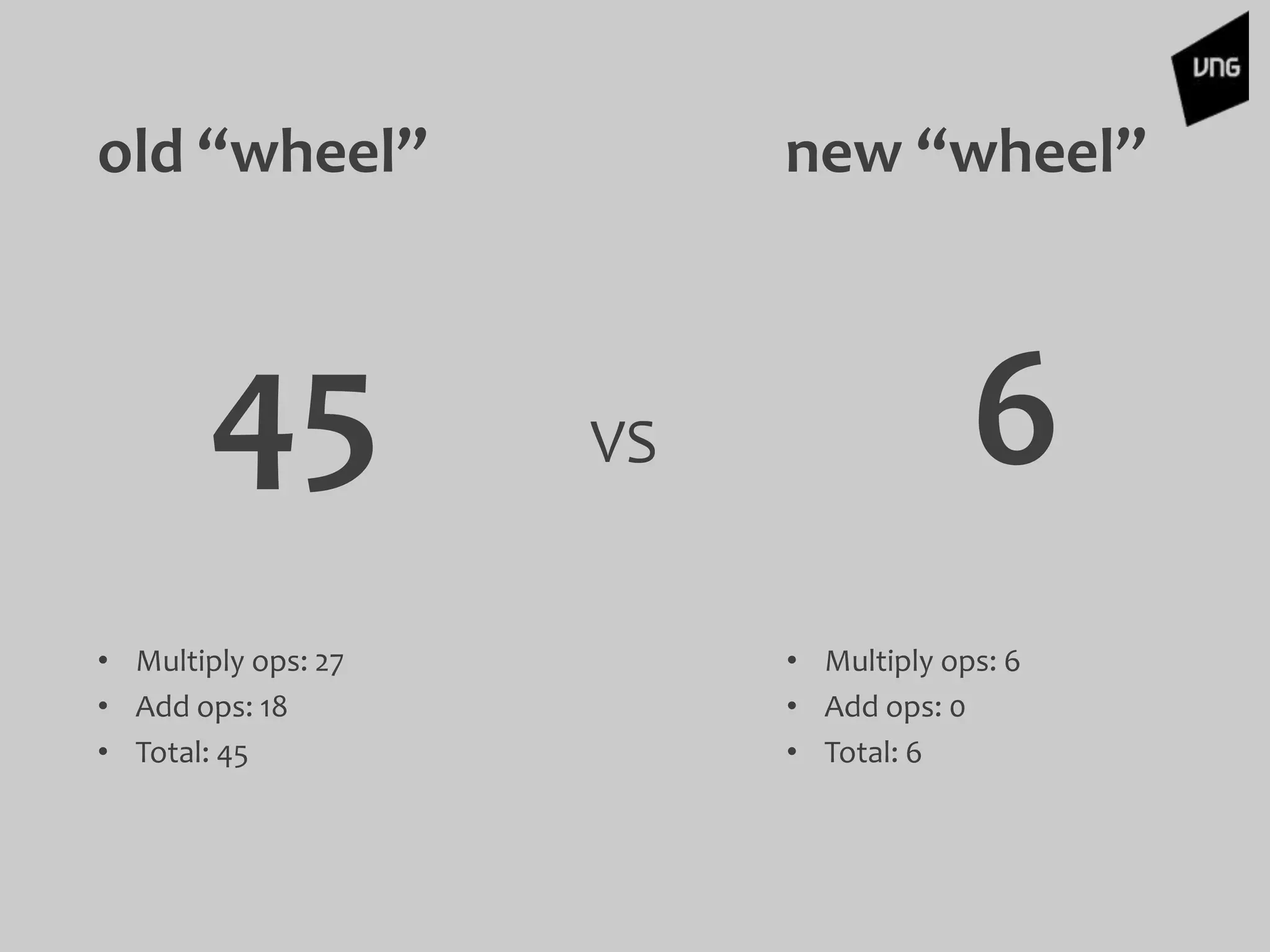

• Add ops: 18
• Total: 45
• Multiply ops: 6
• Add ops: 0
• Total: 6
old “wheel”
45 VS 6
new “wheel”

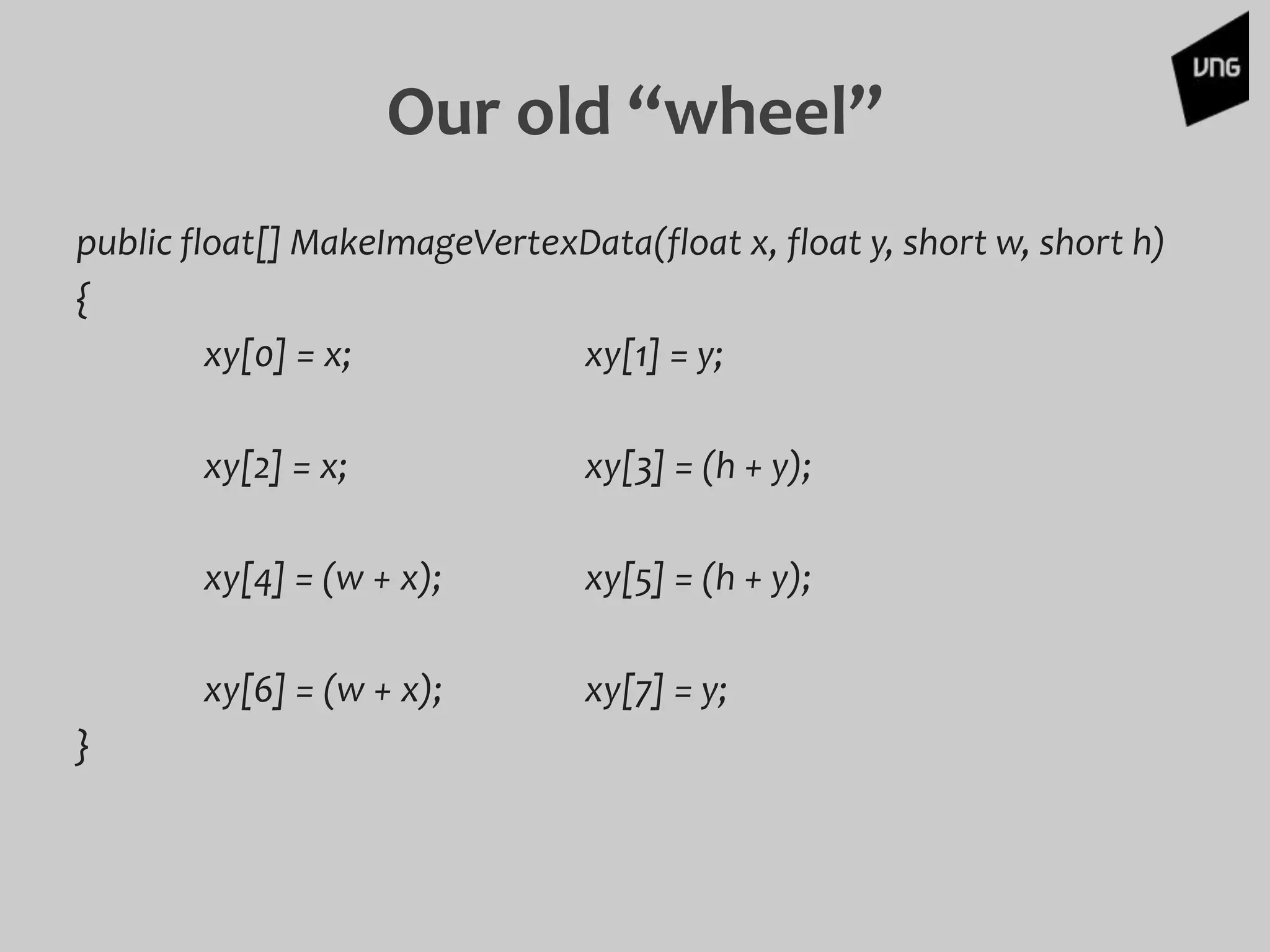

public float[] MakeImageVertexData(float x, float y, short w, short h)
{
xy[0] = x; xy[1] = y;
xy[2] = x; xy[3] = (h + y);
xy[4] = (w + x); xy[5] = (h + y);
xy[6] = (w + x); xy[7] = y;
}

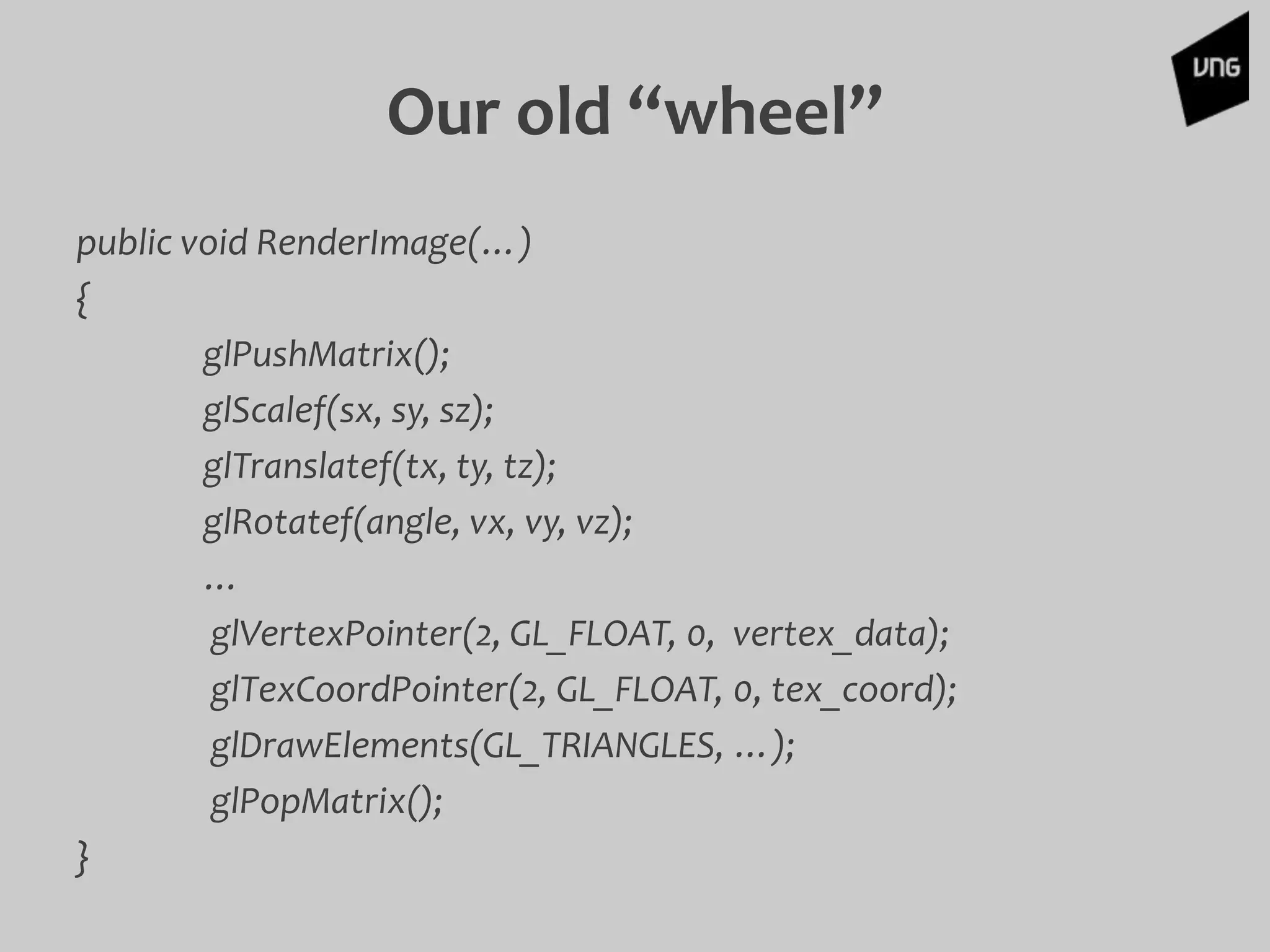

Our old “wheel”

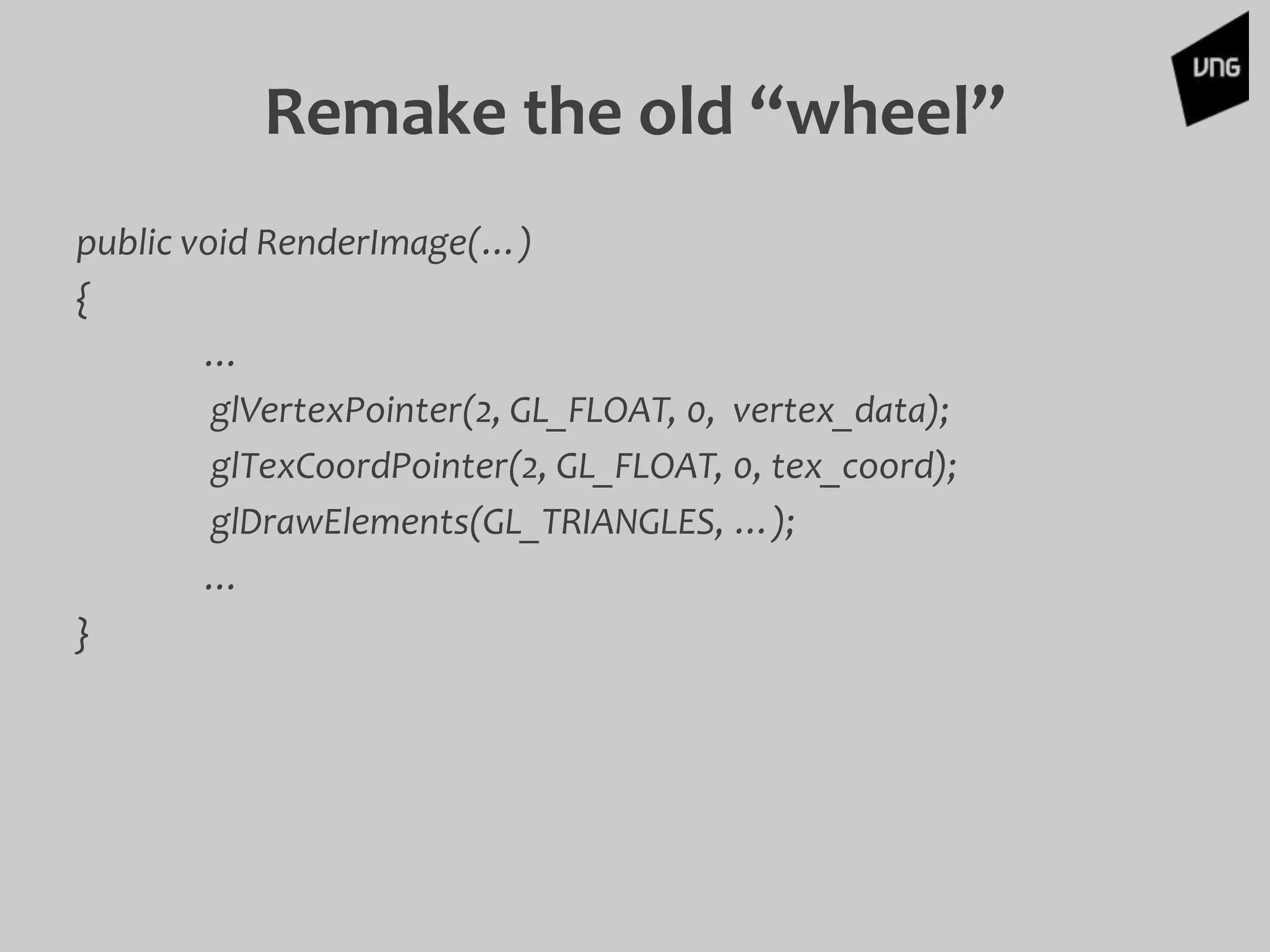

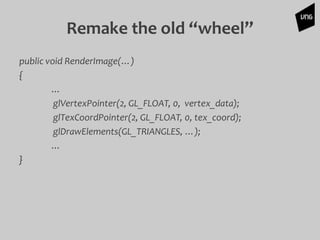

public void RenderImage(…)
{
glPushMatrix();
glScalef(sx, sy, sz);
glTranslatef(tx, ty, tz);
glRotatef(angle, vx, vy, vz);
…
glVertexPointer(2, GL_FLOAT, 0, vertex_data);
glTexCoordPointer(2, GL_FLOAT, 0, tex_coord);
glDrawElements(GL_TRIANGLES, …);
glPopMatrix();
}
Our old “wheel”

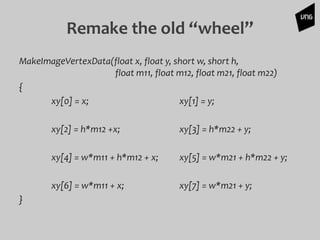

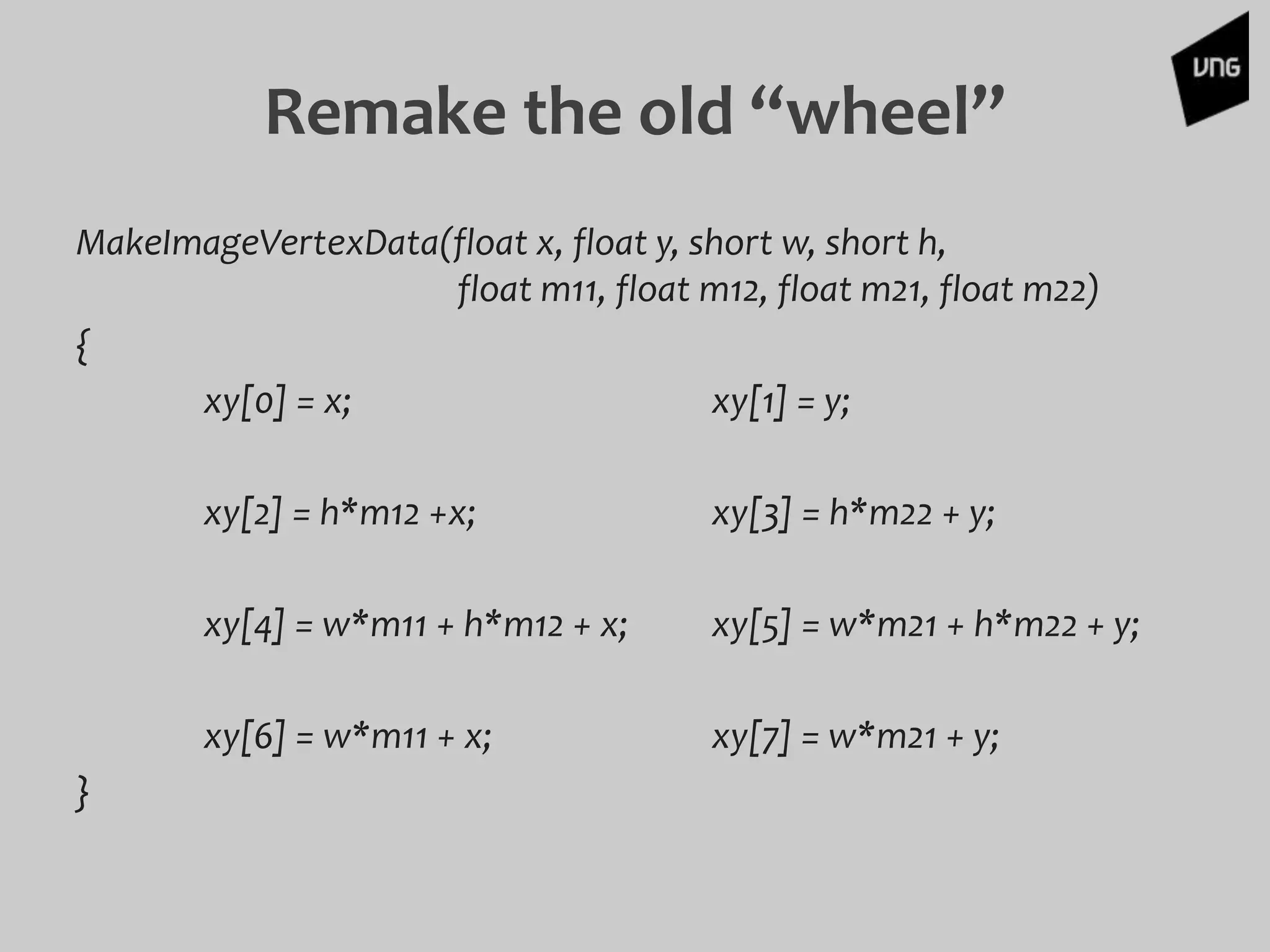

MakeImageVertexData(float x, float y, short w, short h,
float m11, float m12, float m21, float m22)
{
xy[0] = x; xy[1] = y;
xy[2] = h*m12 +x; xy[3] = h*m22 + y;
xy[4] = w*m11 + h*m12 + x; xy[5] = w*m21 + h*m22 + y;
xy[6] = w*m11 + x; xy[7] = w*m21 + y;
}

public void RenderImage(…)
{
…
glVertexPointer(2, GL_FLOAT, 0, vertex_data);
glTexCoordPointer(2, GL_FLOAT, 0, tex_coord);
glDrawElements(GL_TRIANGLES, …);
…
}

old “wheel”

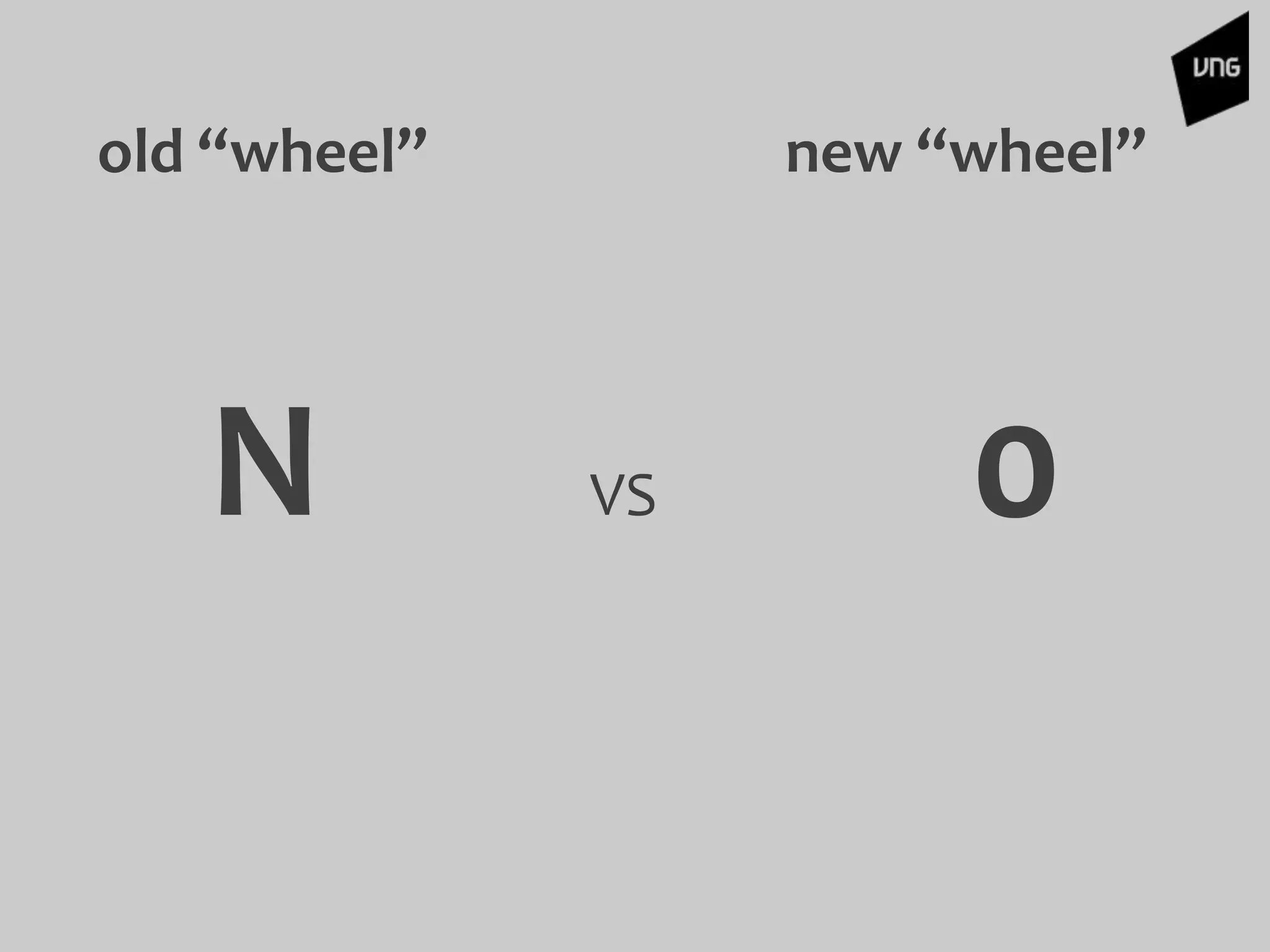

N VS 0
new “wheel”

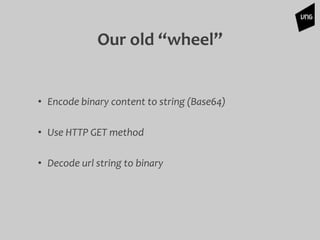

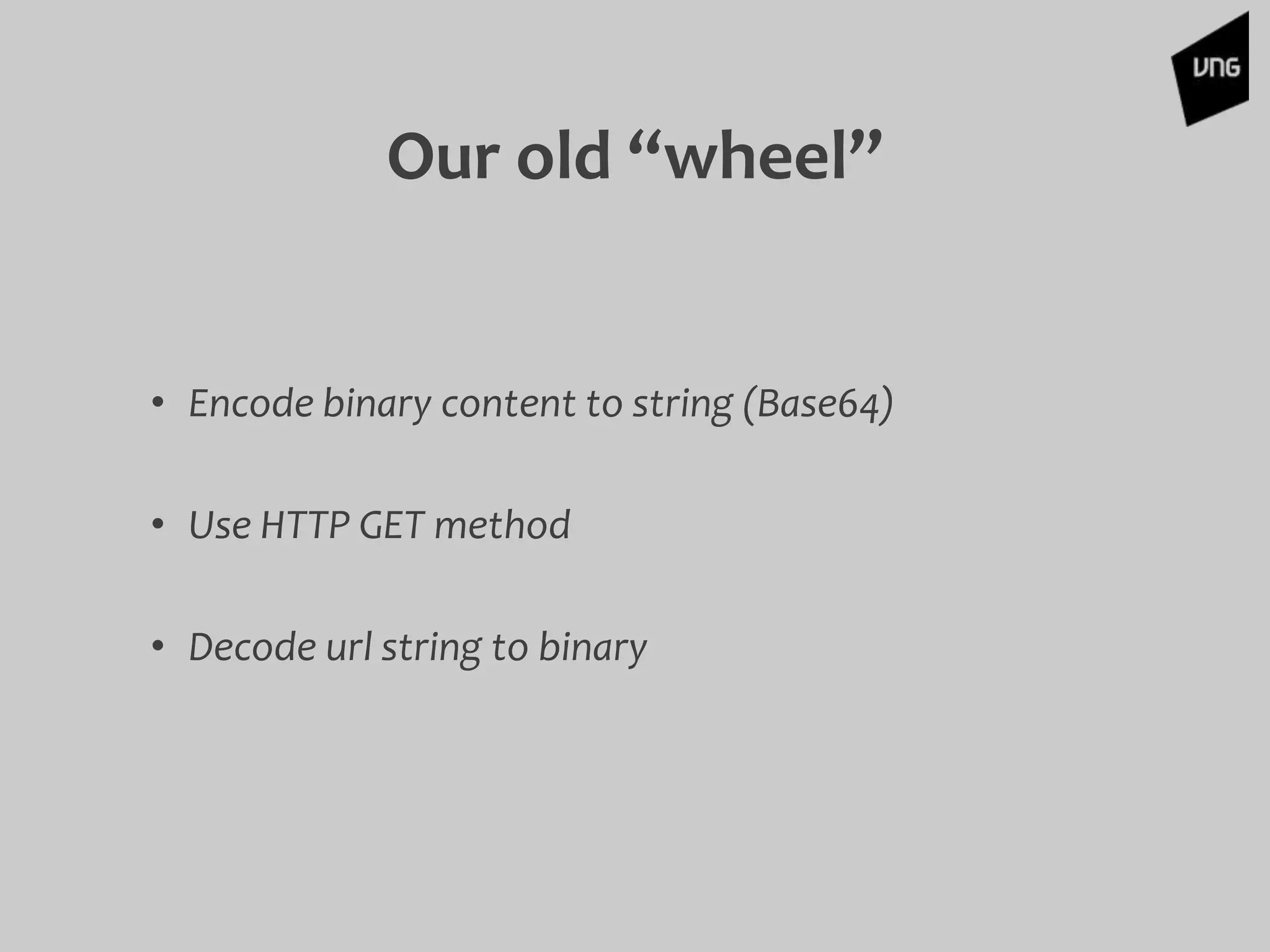

Our old “wheel”
• Encode binary content to string (Base64)
• Use HTTP GET method
• Decode url string to binary

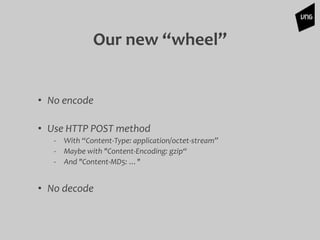

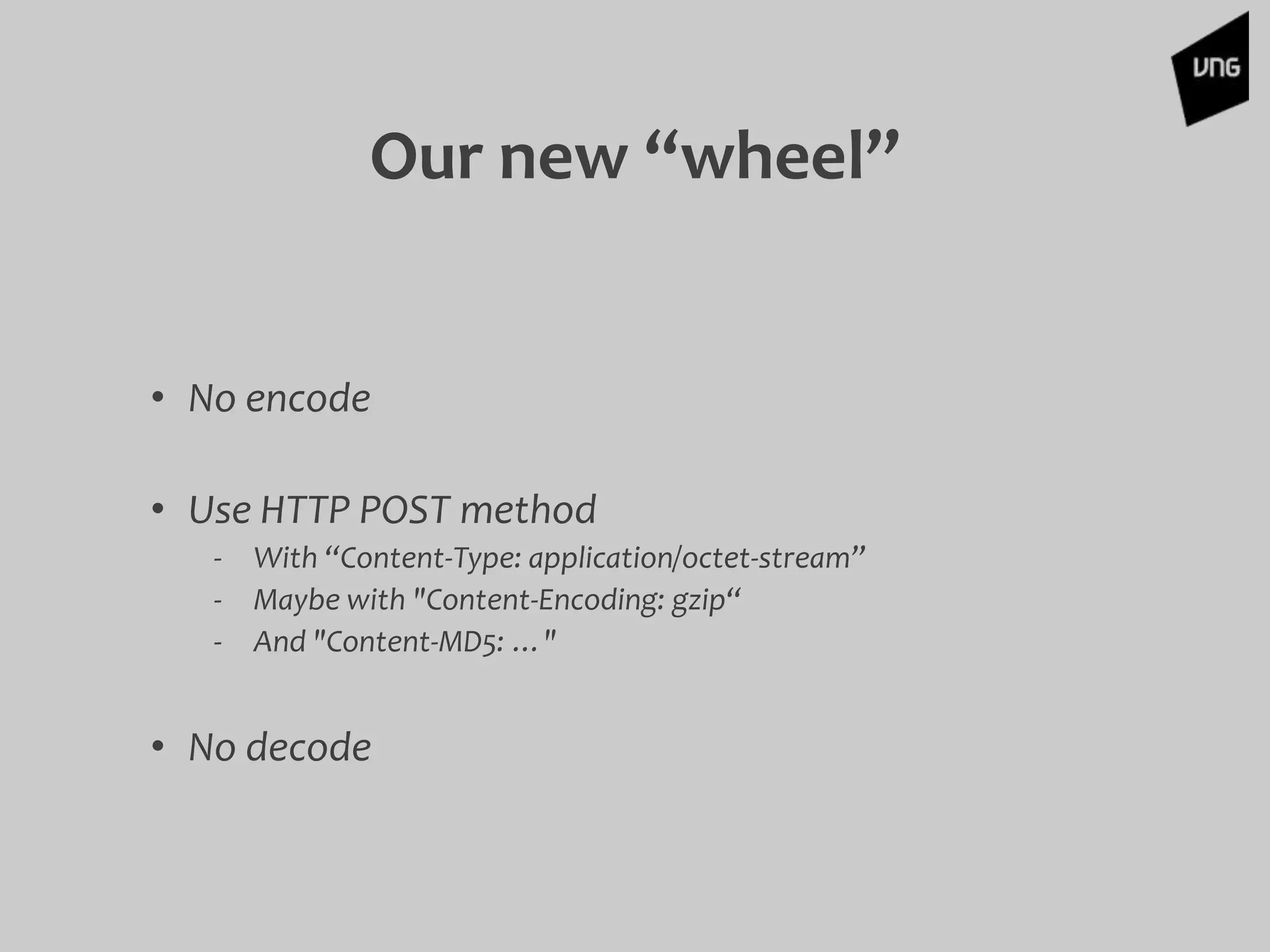

Our new “wheel”
• No encode
• Use HTTP POST method
- With “Content-Type: application/octet-stream”
- Maybe with "Content-Encoding: gzip“
- And "Content-MD5: …"
• No decode

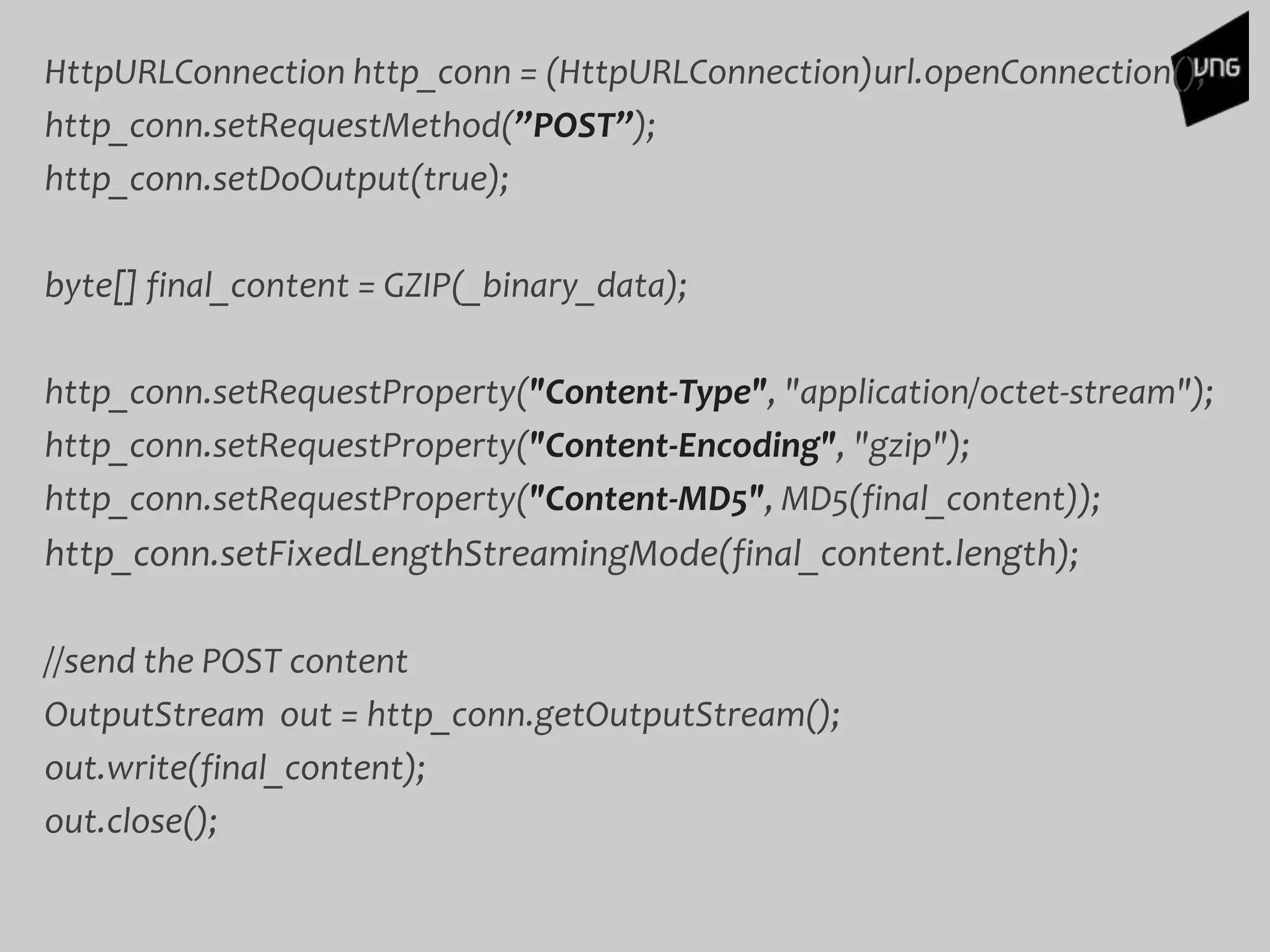

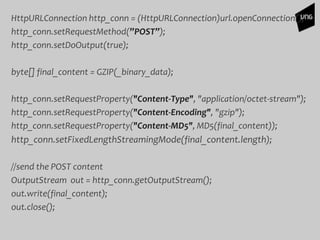

HttpURLConnection http_conn = (HttpURLConnection)url.openConnection();
http_conn.setRequestMethod(”POST”);
http_conn.setDoOutput(true);
byte[] final_content = GZIP(_binary_data);
http_conn.setRequestProperty("Content-Type", "application/octet-stream");
http_conn.setRequestProperty("Content-Encoding", "gzip");
http_conn.setRequestProperty("Content-MD5", MD5(final_content));
http_conn.setFixedLengthStreamingMode(final_content.length);
//send the POST content
OutputStream out = http_conn.getOutputStream();
out.write(final_content);
out.close();

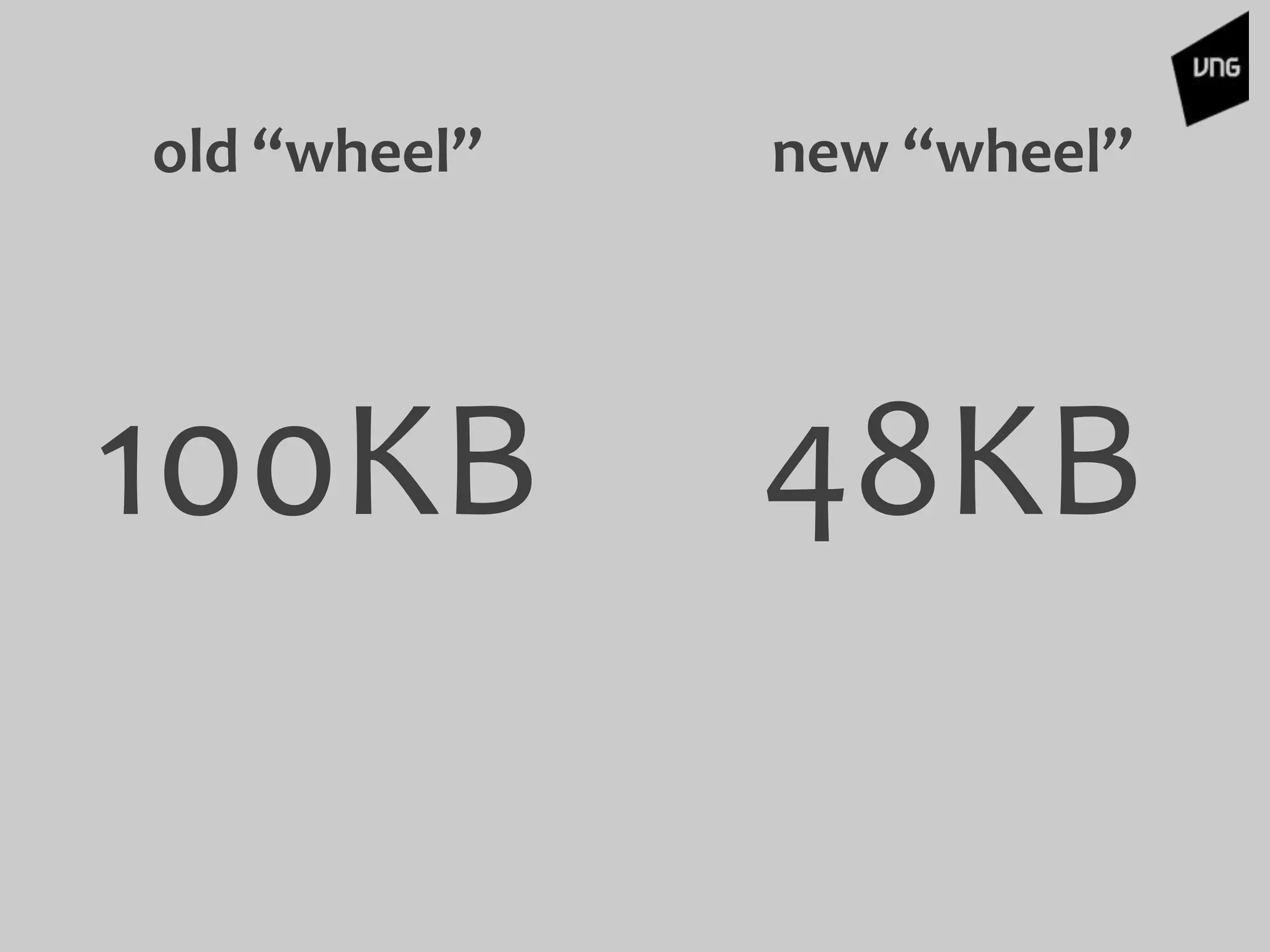

old “wheel”
100KB
new “wheel”
48KB

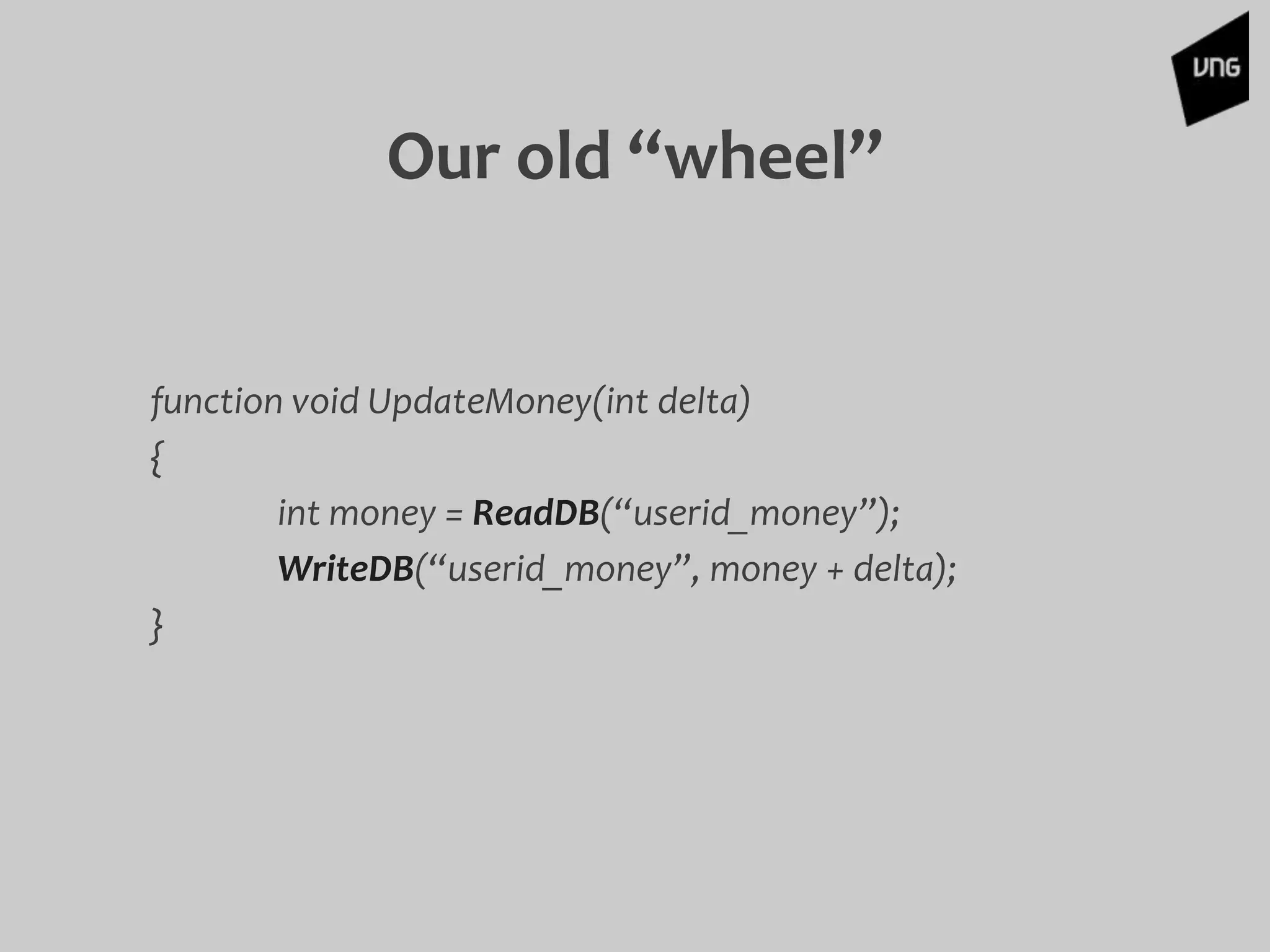

Our old “wheel”
function void UpdateMoney(int delta)
{
int money = ReadDB(“userid_money”);
WriteDB(“userid_money”, money + delta);
}

Old “wheel” was
designed for
single thread
But we need
multi-thread !!!

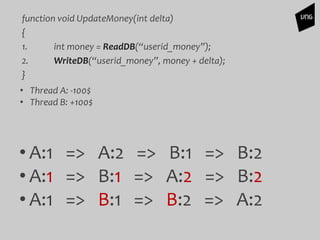

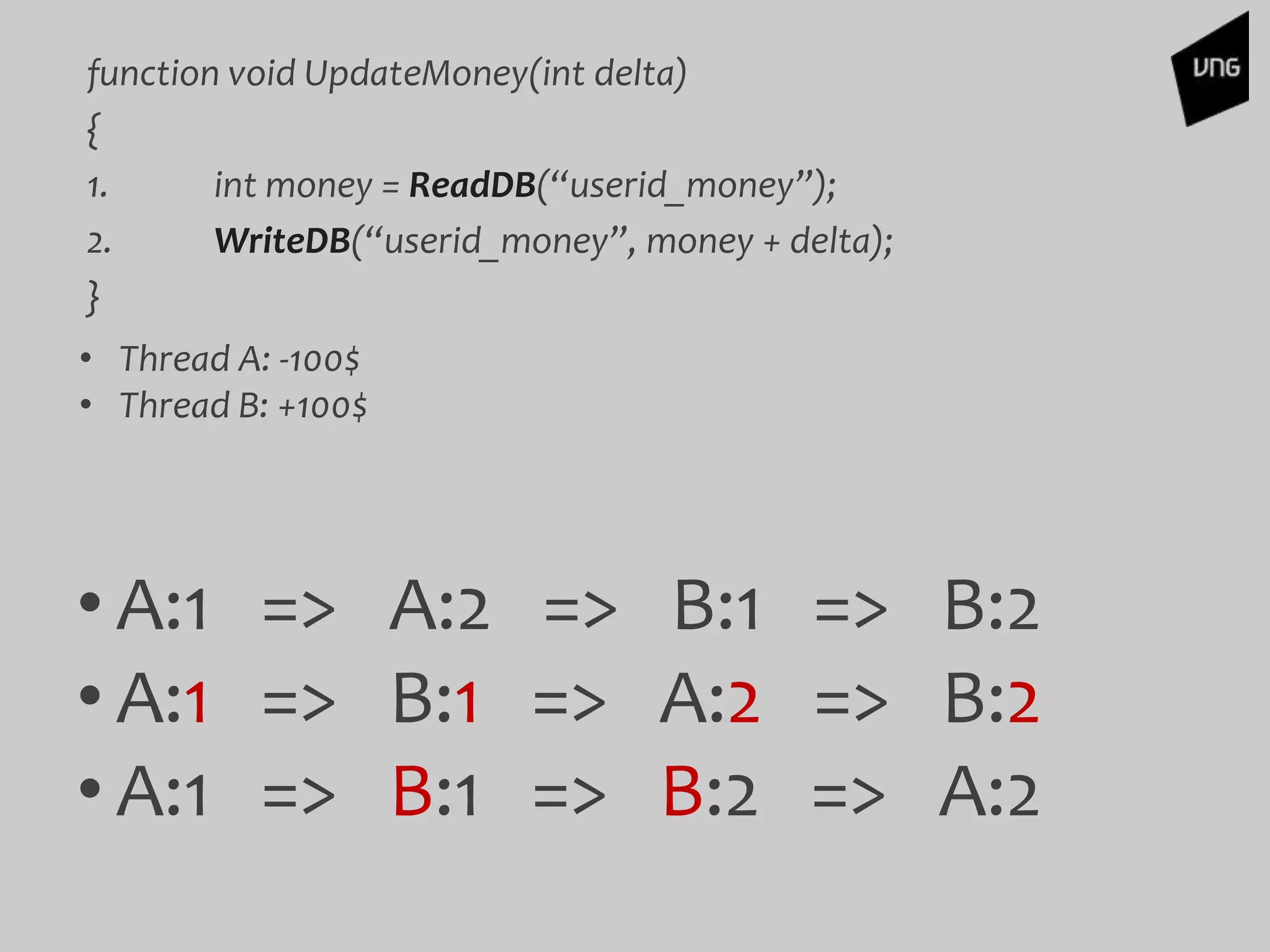

function void UpdateMoney(int delta)
{
1. int money = ReadDB(“userid_money”);
2. WriteDB(“userid_money”, money + delta);
}
• A:1 => A:2 => B:1 => B:2
• A:1 => B:1 => A:2 => B:2
• A:1 => B:1 => B:2 => A:2
• Thread A: -100$
• Thread B: +100$

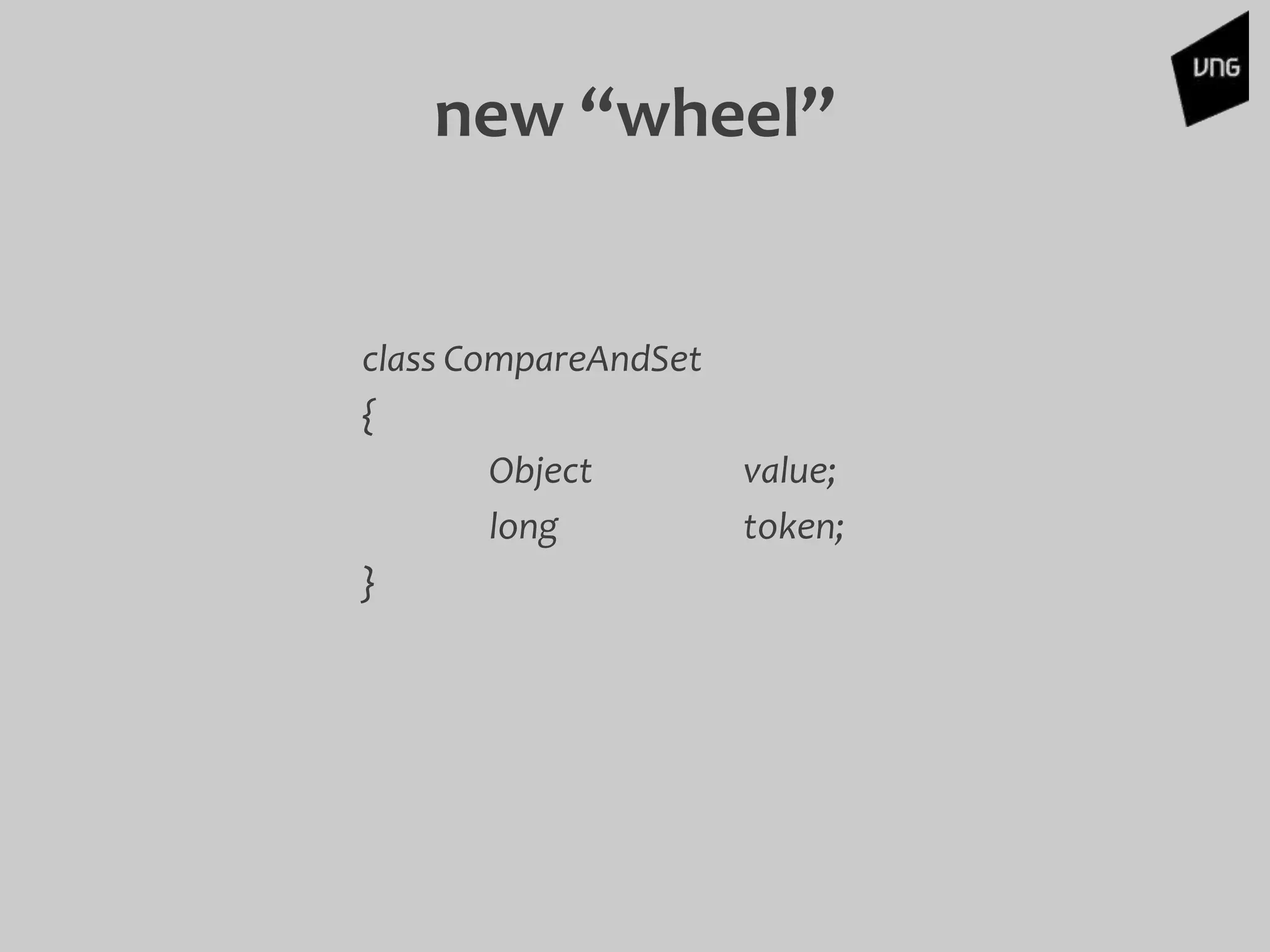

class CompareAndSet
{
Object value;
long token;
}

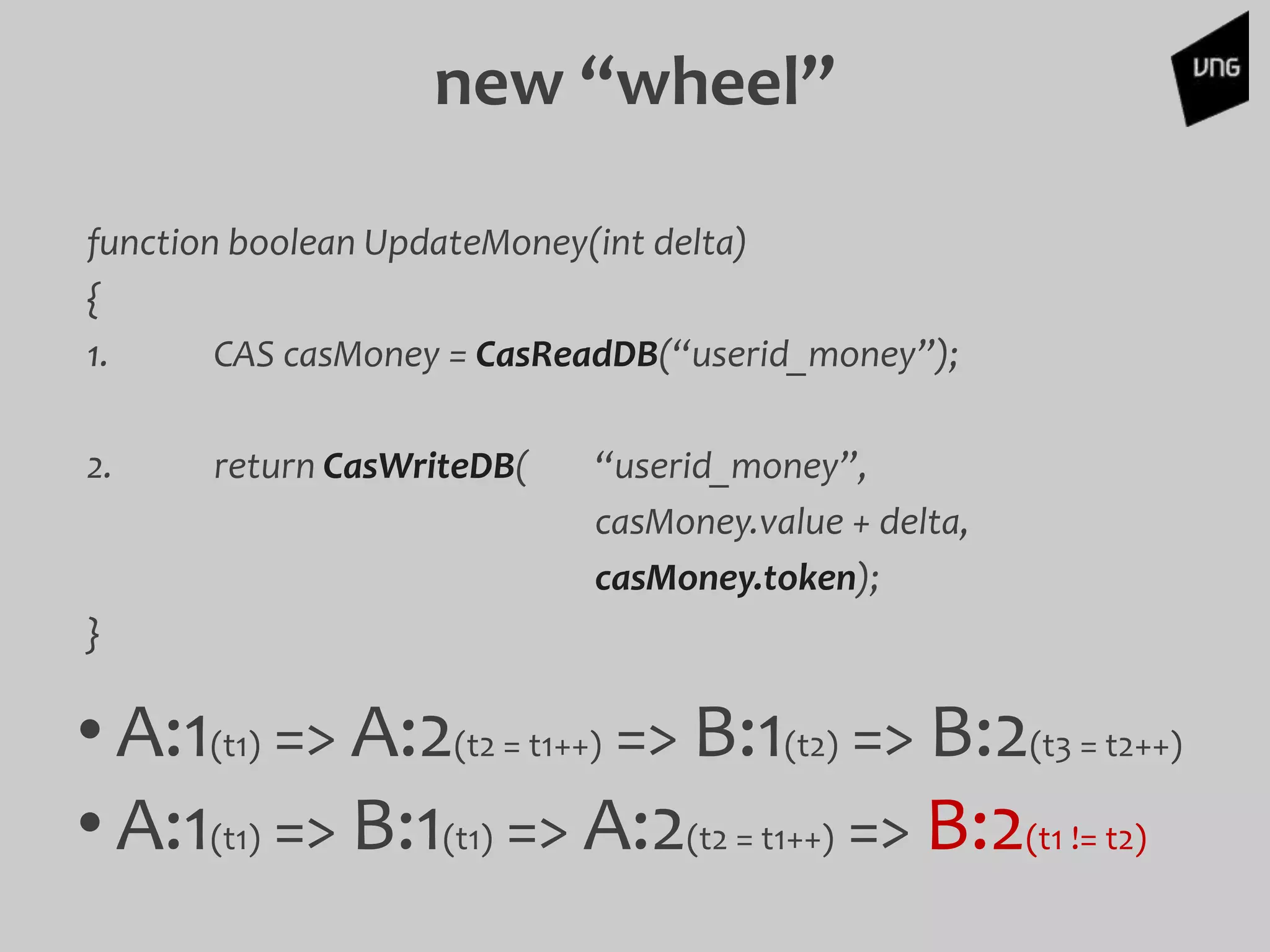

new “wheel”

function boolean UpdateMoney(int delta)
{
1. CAS casMoney = CasReadDB(“userid_money”);
2. return CasWriteDB( “userid_money”,
casMoney.value + delta,
casMoney.token);
}
• A:1(t1) => A:2(t2 = t1++) => B:1(t2) => B:2(t3 = t2++)
• A:1(t1) => B:1(t1) => A:2(t2 = t1++) => B:2(t1 != t2)
new “wheel”

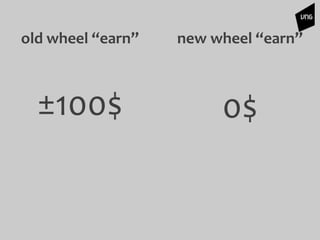

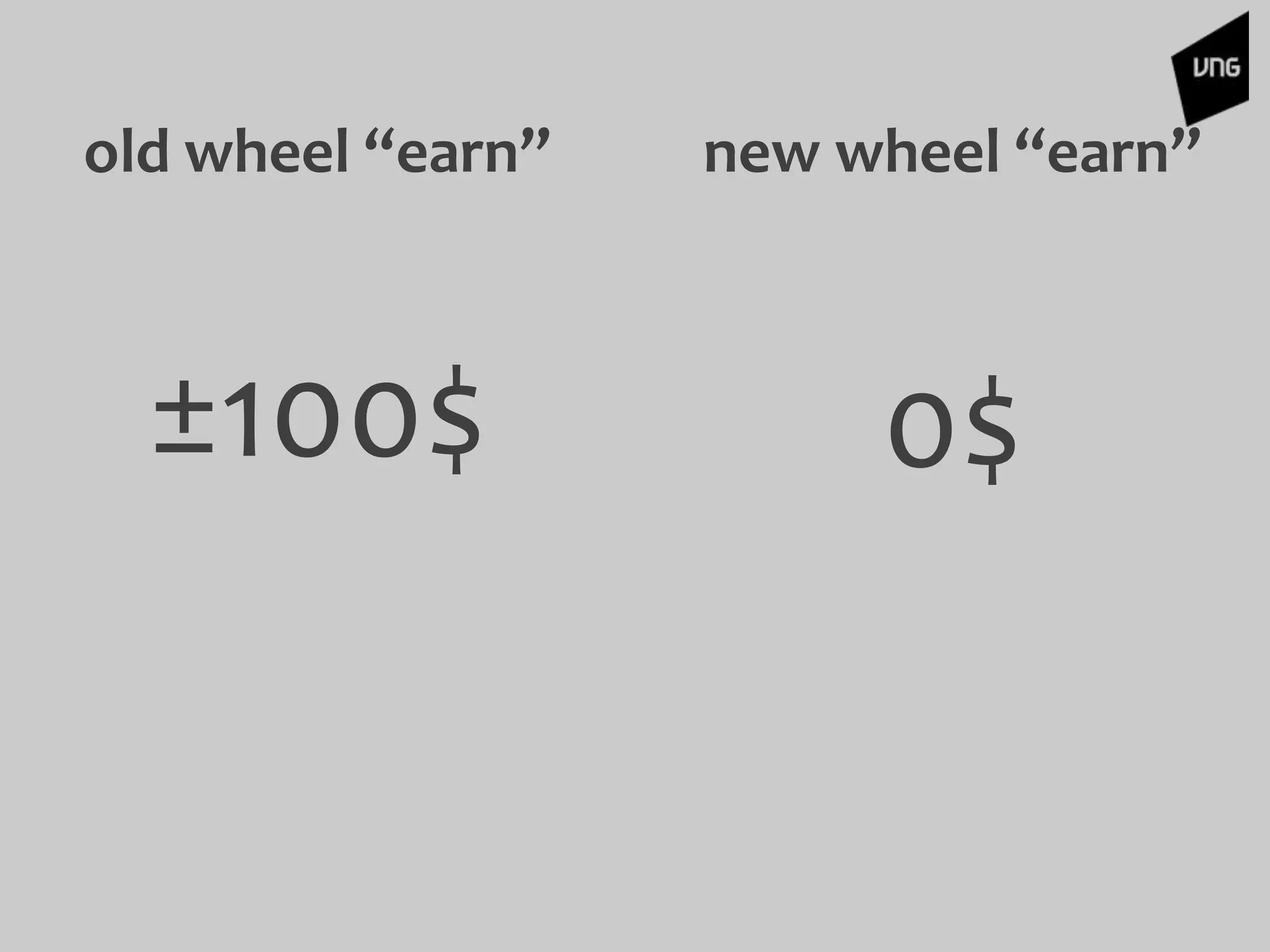

old wheel “earn”
±100$
new wheel “earn”
0$

The “wheel” which
you found on internet,
may be not designed for
your “vehicle”.
My exp

Understand your need if you want to remake your “wheel”.
My exp

Remaking usually helps you get a better result.
My exp

Even when it doesn’t get a better result, it always helps you gain more exp.
My exp

Ogdc 2013 lets remake the wheel
