9th SDN Expert Group Seminar - Session1

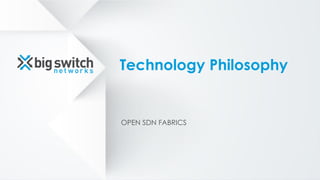

- 1. Modern SDN Solutionsfor Data Centers ROB SHERWOOD, CHIEF TECHNOLOGY OFFICER JULY 2015

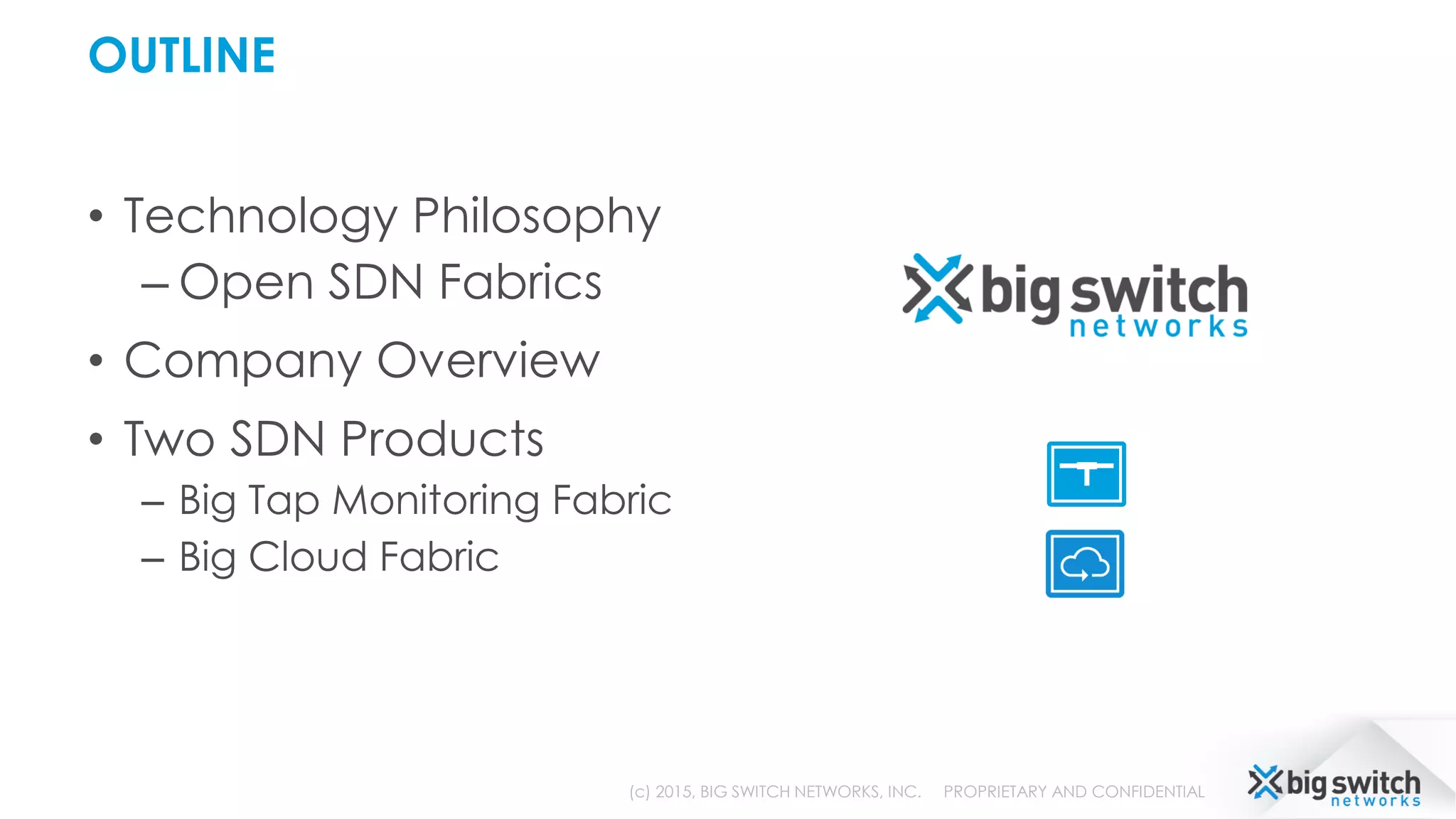

- 2. OUTLINE • Technology Philosophy –Open SDN Fabrics • Company Overview • Two SDN Products – Big Tap Monitoring Fabric – Big Cloud Fabric (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL
- 3.
- 4. (c) 2015, BIGSWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL Do you ? We take network designs proven in hyperscale data centers and adapt them as products for enterprise and service provider use

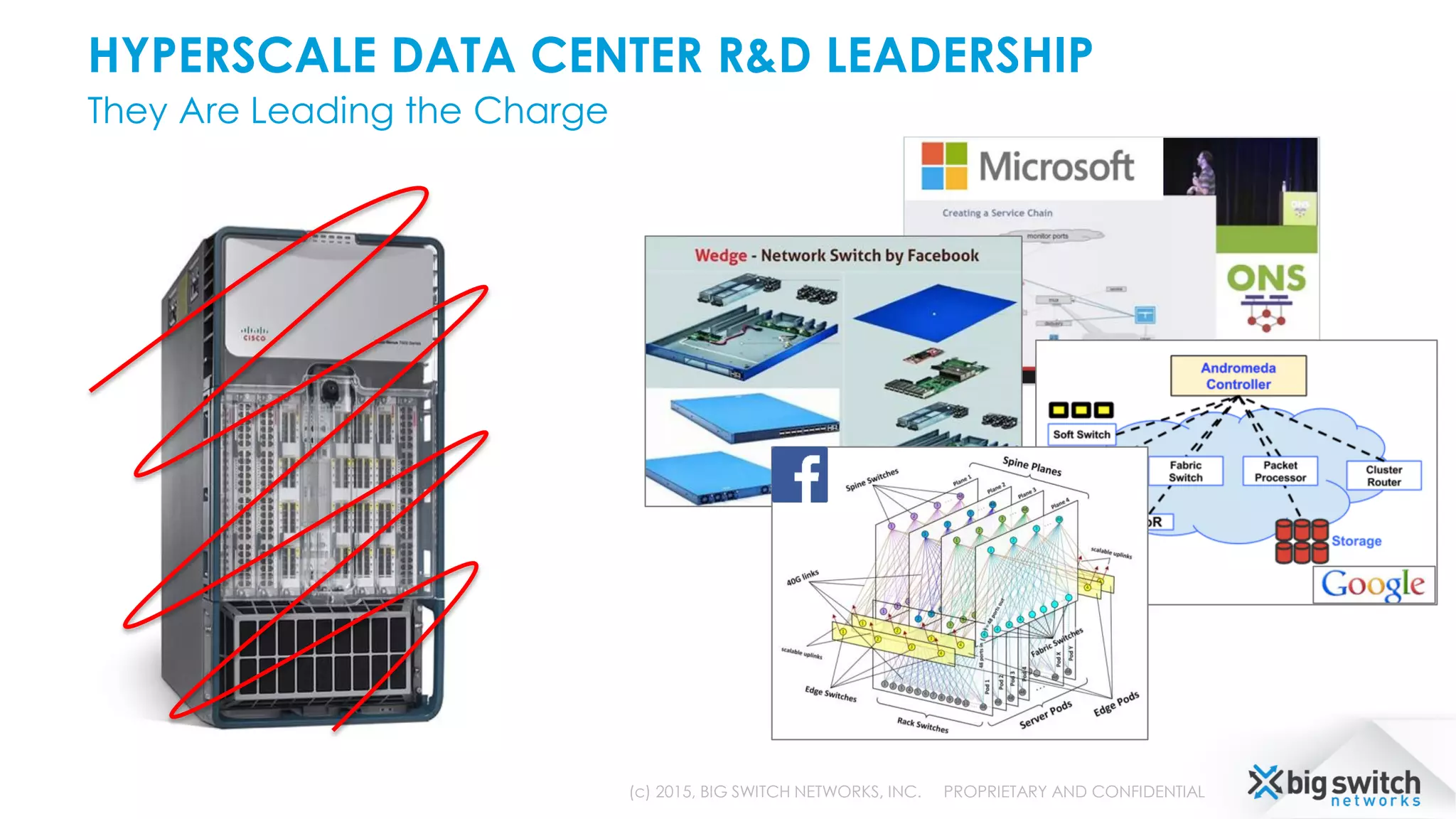

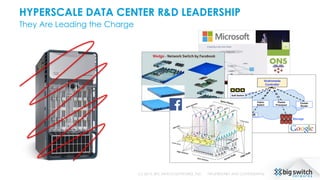

- 5. HYPERSCALE DATA CENTERR&D LEADERSHIP They Are Leading the Charge (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL

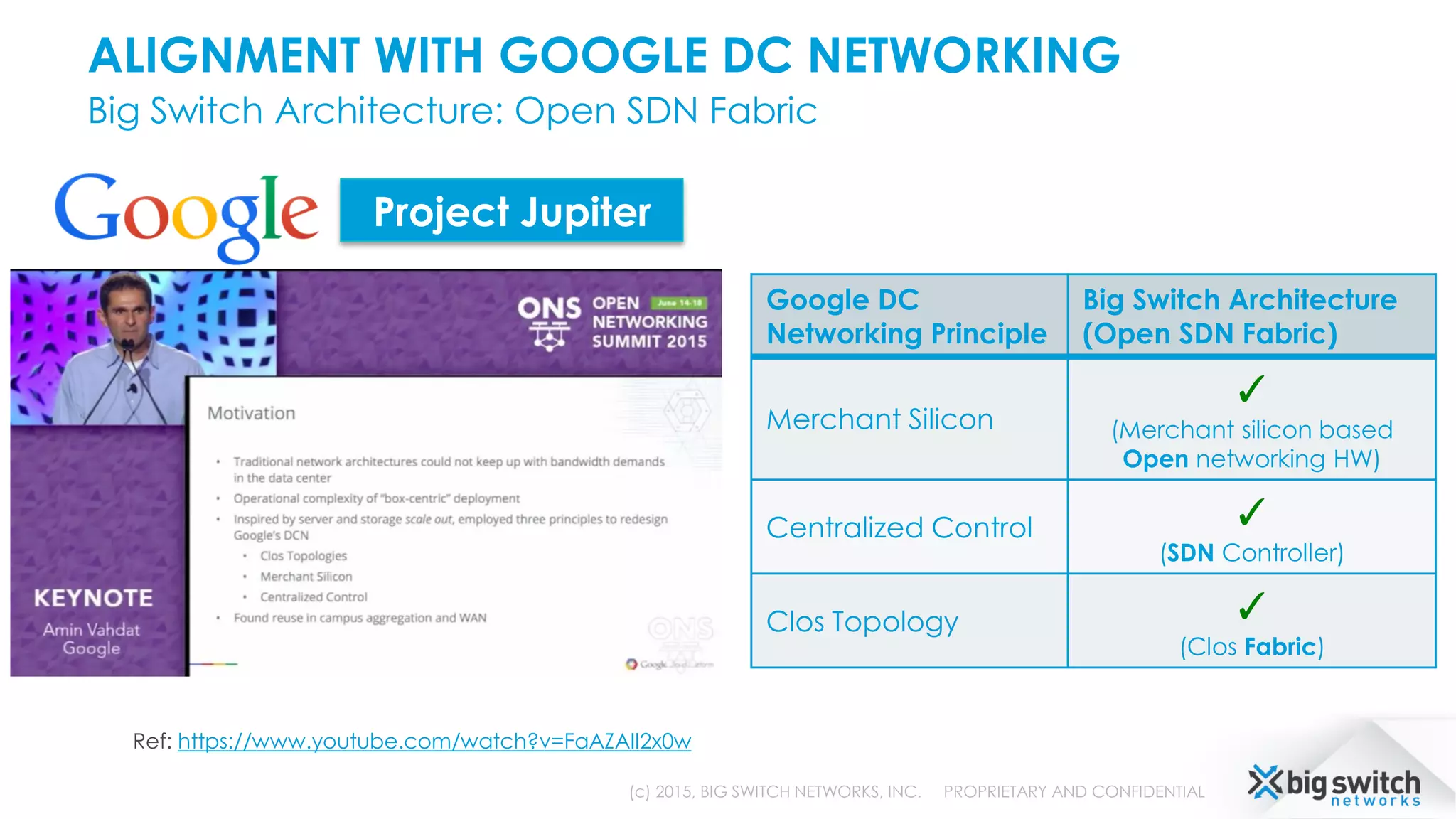

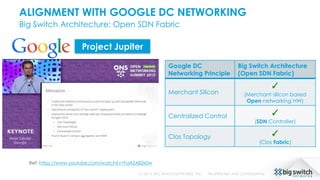

- 6. ALIGNMENT WITH GOOGLEDC NETWORKING Big Switch Architecture: Open SDN Fabric (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL Project Jupiter Ref: https://www.youtube.com/watch?v=FaAZAII2x0w Google DC Networking Principle Big Switch Architecture (Open SDN Fabric) Merchant Silicon ✓ (Merchant silicon based Open networking HW) Centralized Control ✓ (SDN Controller) Clos Topology ✓ (Clos Fabric)

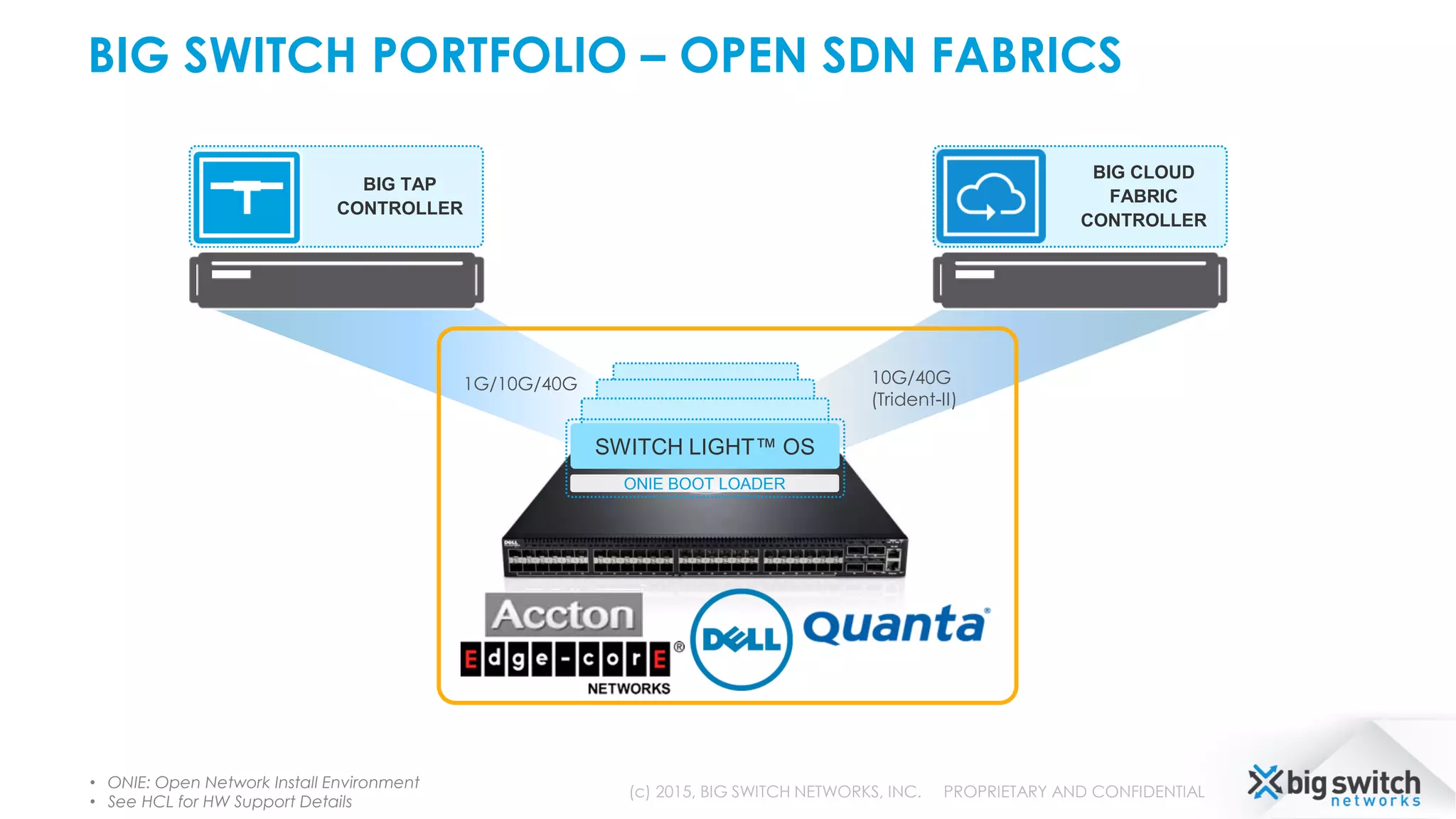

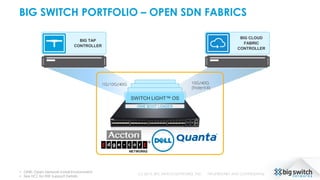

- 7. BIG SWITCH PORTFOLIO– OPEN SDN FABRICS BIG TAP CONTROLLER SWITCH LIGHT™ OS ONIE BOOT LOADER BIG CLOUD FABRIC CONTROLLER • ONIE: Open Network Install Environment • See HCL for HW Support Details 10G/40G (Trident-II) 1G/10G/40G (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL
- 8. EVOLUTION OF SDNARCHITECTURES Erector Set Fit for Purpose (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL SDN in 2010 SDN in 2015

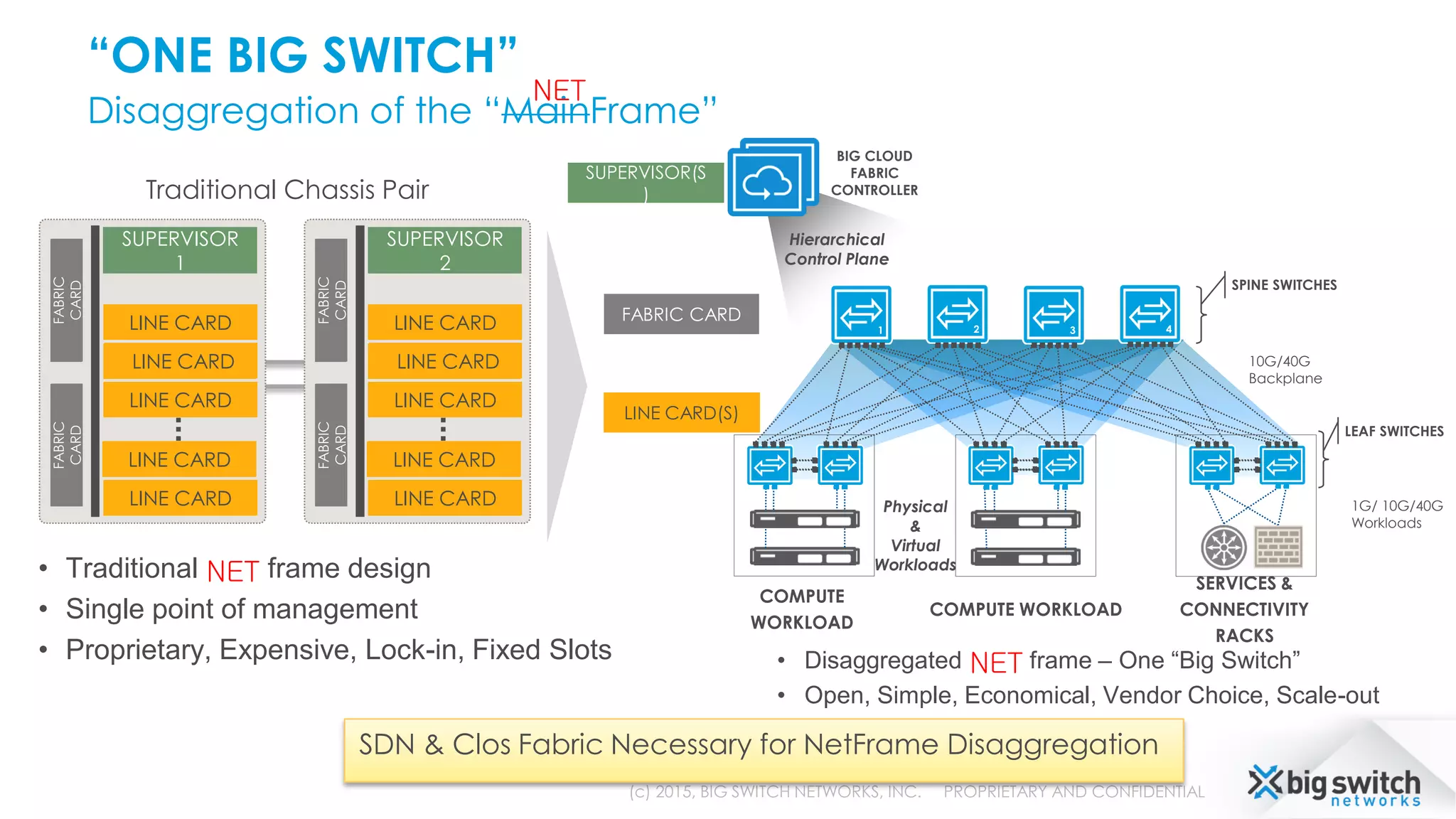

- 9. “ONE BIG SWITCH” Disaggregationof the “MainFrame” Traditional Chassis Pair FABRIC CARD SUPERVISOR(S ) LINE CARD(S) LINE CARD LINE CARD LINE CARD LINE CARD LINE CARD SUPERVISOR 2 FABRIC CARD FABRIC CARD LINE CARD LINE CARD LINE CARD LINE CARD LINE CARD SUPERVISOR 1 FABRIC CARD FABRIC CARD LINE CARD LINE CARD LINE CARD LINE CARD LINE CARD SUPERVISOR 2 FABRIC CARD FABRIC CARD LINE CARD LINE CARD LINE CARD LINE CARD LINE CARD SUPERVISOR 1 FABRIC CARD FABRIC CARD BIG CLOUD FABRIC CONTROLLER Hierarchical Control Plane 1 3 SPINE SWITCHES 2 10G/40G Backplane 41 32 4 COMPUTE WORKLOAD SERVICES & CONNECTIVITY RACKS COMPUTE WORKLOAD LEAF SWITCHES Physical & Virtual Workloads 1G/ 10G/40G Workloads • Disaggregated frame – One “Big Switch” • Open, Simple, Economical, Vendor Choice, Scale-out • Traditional frame design • Single point of management • Proprietary, Expensive, Lock-in, Fixed Slots (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL NET NET NET SDN & Clos Fabric Necessary for NetFrame Disaggregation

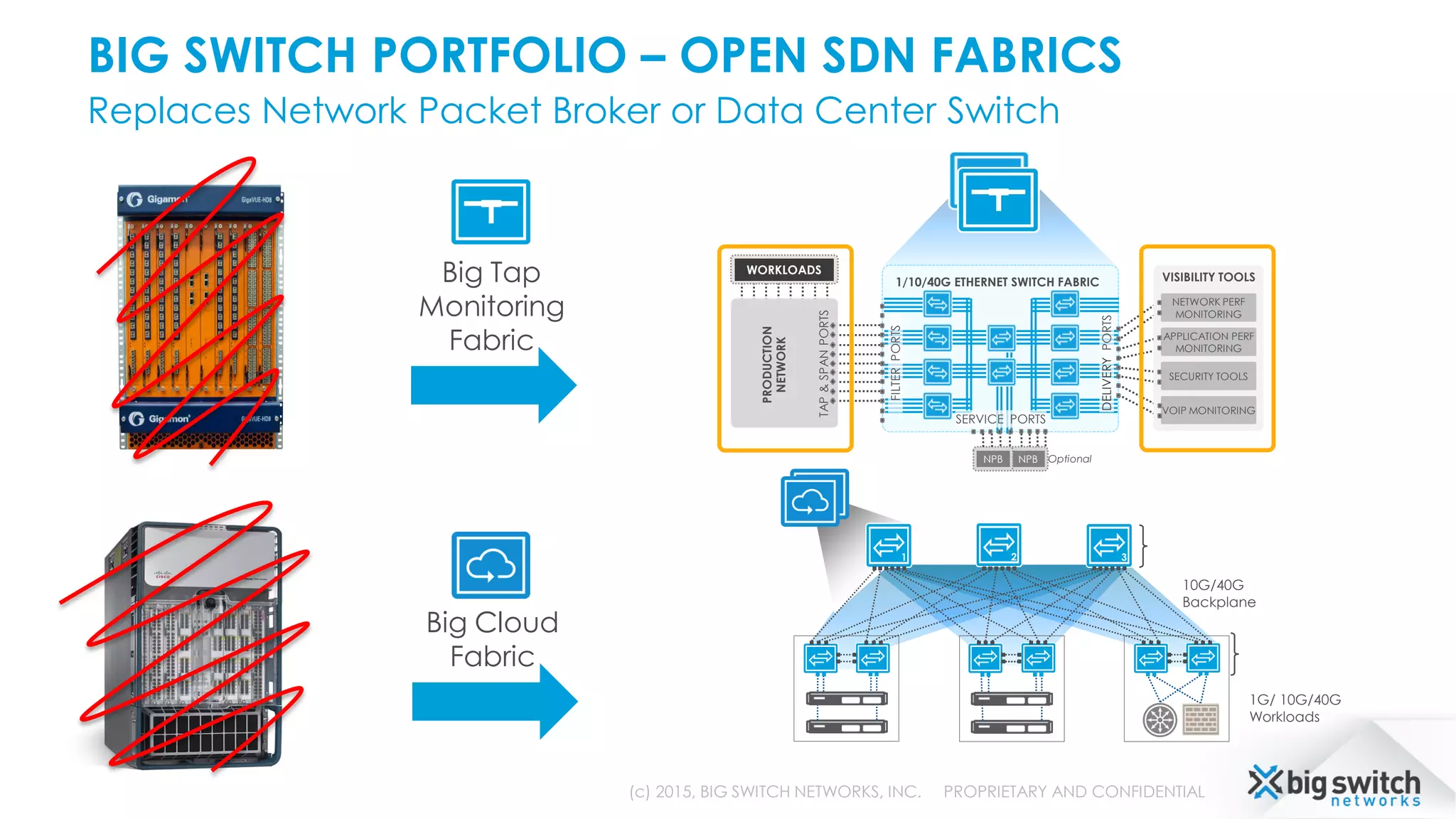

- 10. BIG SWITCH PORTFOLIO– OPEN SDN FABRICS Replaces Network Packet Broker or Data Center Switch (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL VISIBILITY TOOLS NETWORK PERF MONITORING APPLICATION PERF MONITORING SECURITY TOOLS VOIP MONITORING PRODUCTION NETWORK TAP&SPANPORTS WORKLOADS 1/10/40G ETHERNET SWITCH FABRIC FILTERPORTS SERVICE PORTS DELIVERYPORTS OptionalNPBNPB 1 32 1G/ 10G/40G Workloads 10G/40G Backplane Big Cloud Fabric Big Tap Monitoring Fabric
- 11.

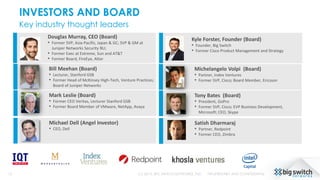

- 12. INVESTORS AND BOARD Keyindustry thought leaders 13 Bill Meehan (Board) • Lecturer, Stanford GSB • Former Head of McKinsey High-Tech, Venture Practices; Board of Juniper Networks Michelangelo Volpi (Board) • Partner, Index Ventures • Former SVP, Cisco; Board Member, Ericsson Mark Leslie (Board) • Former CEO Veritas, Lecturer Stanford GSB • Former Board Member of VMware, NetApp, Avaya Tony Bates (Board) • President, GoPro • Former SVP, Cisco; EVP Business Development, Microsoft; CEO, Skype Michael Dell (Angel Investor) • CEO, Dell Douglas Murray, CEO (Board) • Former SVP, Asia-Pacific, Japan & GC; SVP & GM at Juniper Networks Security BU; • Former Exec at Extreme, Sun and AT&T • Former Board, FireEye, Altor Kyle Forster, Founder (Board) • Founder, Big Switch • Former Cisco Product Management and Strategy Satish Dharmaraj • Partner, Redpoint • Former CEO, Zimbra (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL
- 13. BIG SWITCH NETWORKS MarketMomentum (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL Customer/Revenue Traction: • 5 quarters of 30-40% sequential growth, $1M+ BCF & BT customers • 1st ELA on both BCF & Big Tap products • Top customers expanding footprints (additional $1M deals in 2015) • Customers in North America, EMEA, Expansion to Japan, Korea. Dell partnership. Benefits Seen by Customers: • Operational Efficiencies – single mgmt. point & scale-out fabric, not box-by-box complexity. • 50%+ CapEx savings, ongoing OpEx benefits including via Analytics Industry Recognition: • Gartner Cool Vendor 2015 (Enterprise Networking) • Best of Interop SDN Finalist (VMware NSX, Cisco ACI, Big Switch BCF)

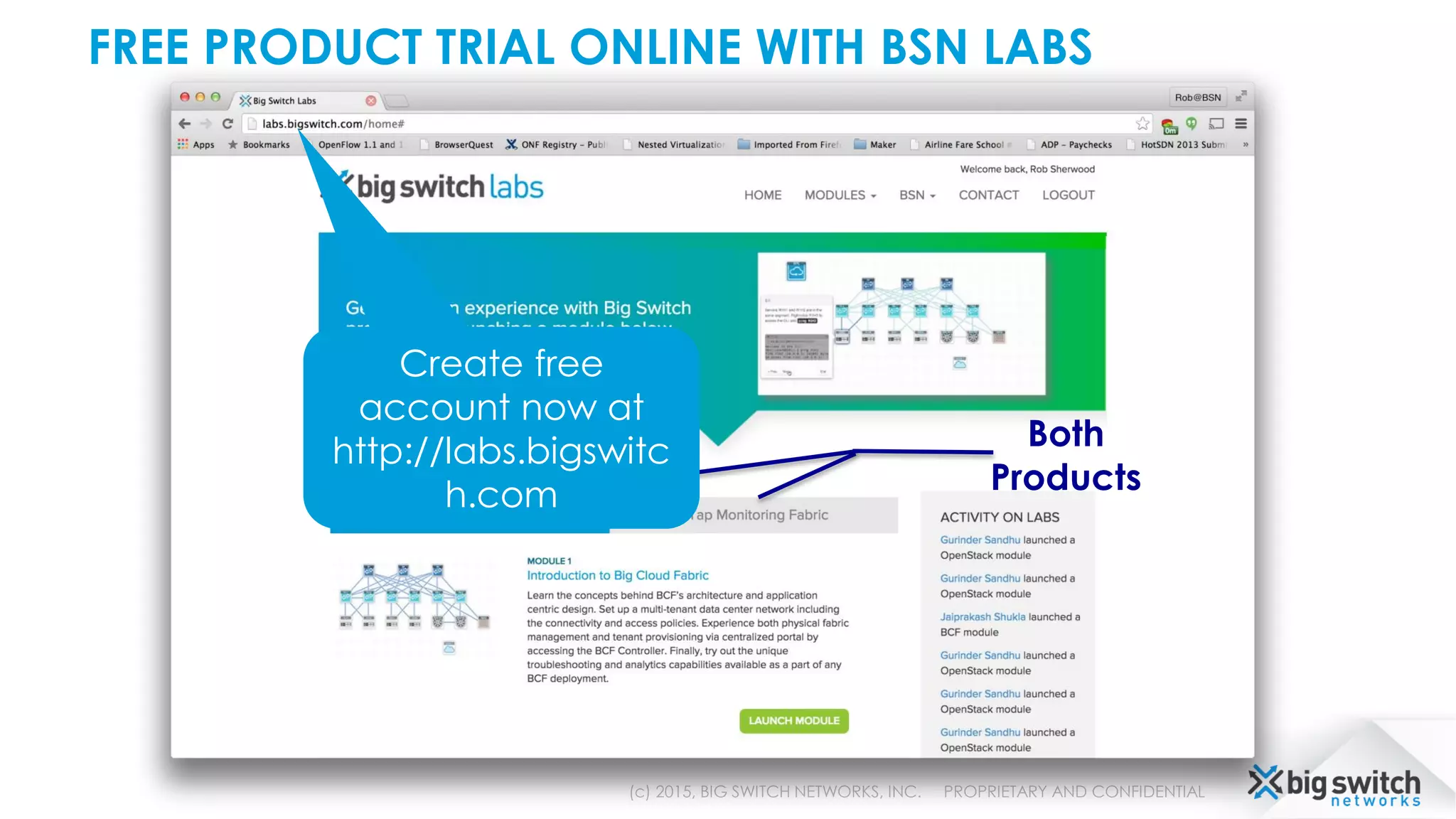

- 14. FREE PRODUCT TRIALONLINE WITH BSN LABS (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL Both Products Create free account now at http://labs.bigswitc h.com

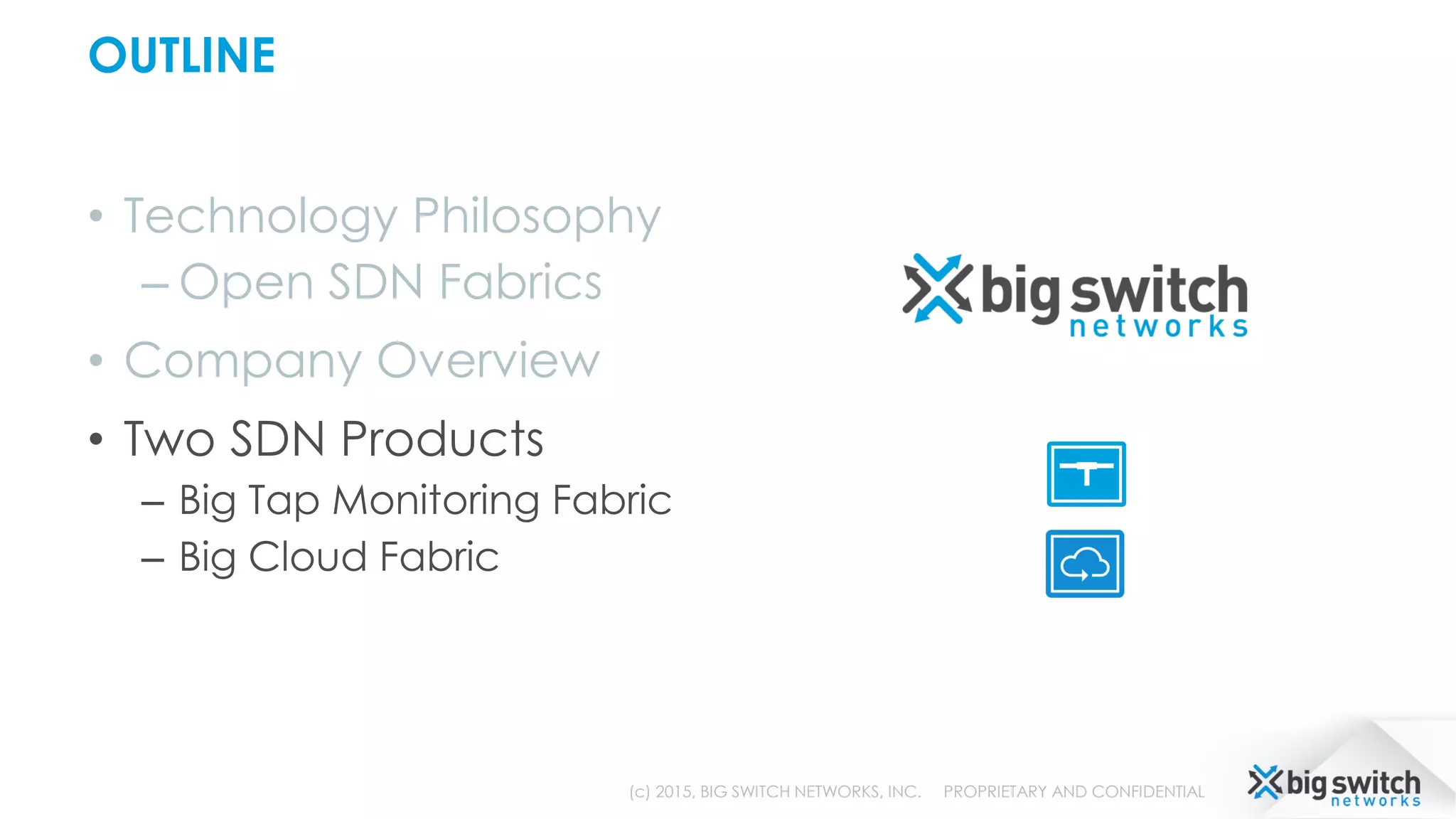

- 15. OUTLINE • Technology Philosophy –Open SDN Fabrics • Company Overview • Two SDN Products – Big Tap Monitoring Fabric – Big Cloud Fabric (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL
- 16. Big Tap MonitoringFabric

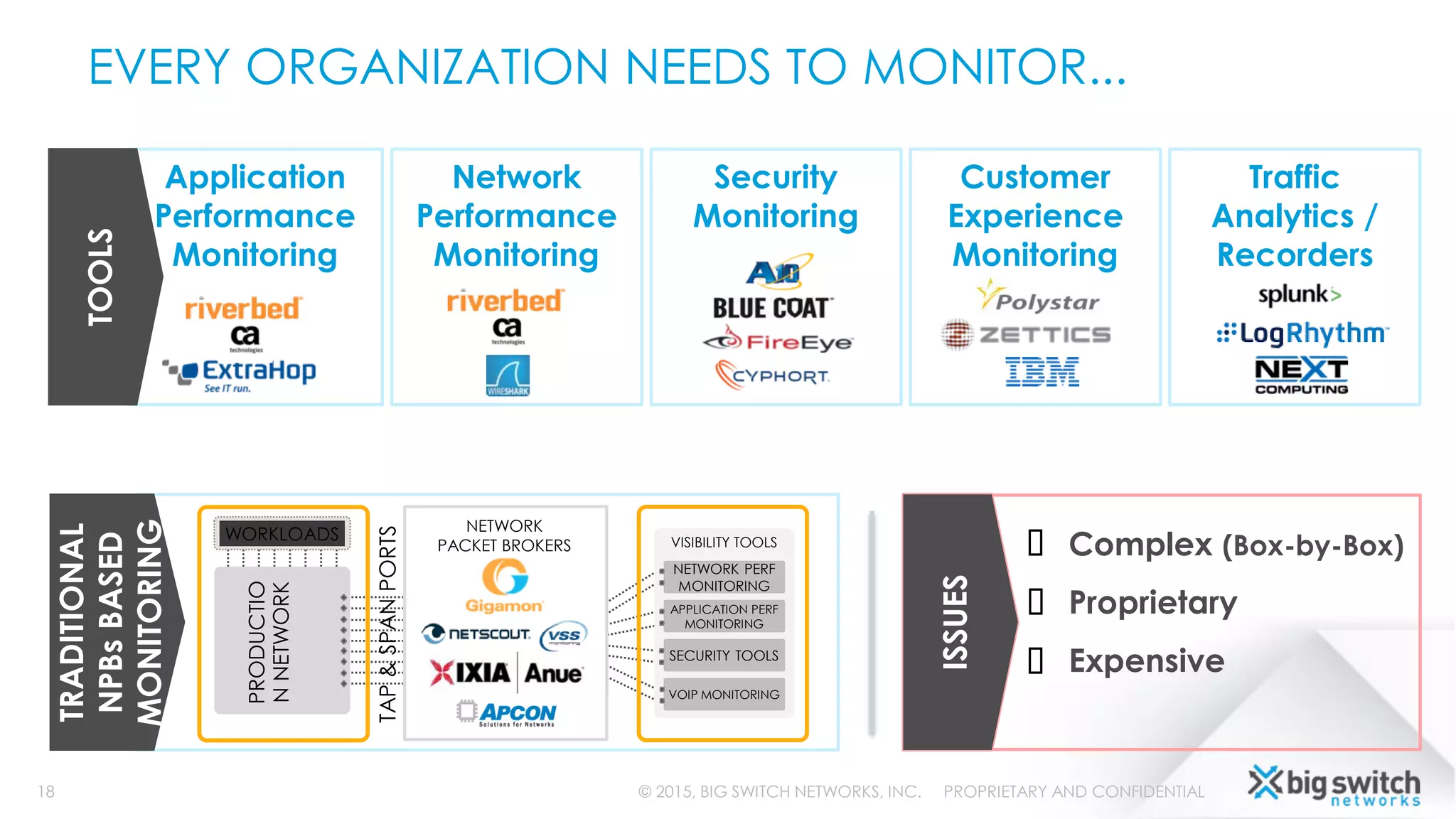

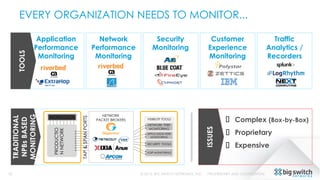

- 17. EVERY ORGANIZATION NEEDSTO MONITOR... © 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL18 Application Performance Monitoring Network Performance Monitoring Security Monitoring Traffic Analytics / Recorders Customer Experience Monitoring TOOLS TRADITIONAL NPBsBASED MONITORING VISIBILITY TOOLS NETWORK PERF MONITORING APPLICATION PERF MONITORING SECURITY TOOLS VOIP MONITORING PRODUCTIO NNETWORK TAP&SPANPORTS WORKLOADS NETWORK PACKET BROKERS ISSUES Complex (Box-by-Box) Proprietary Expensive

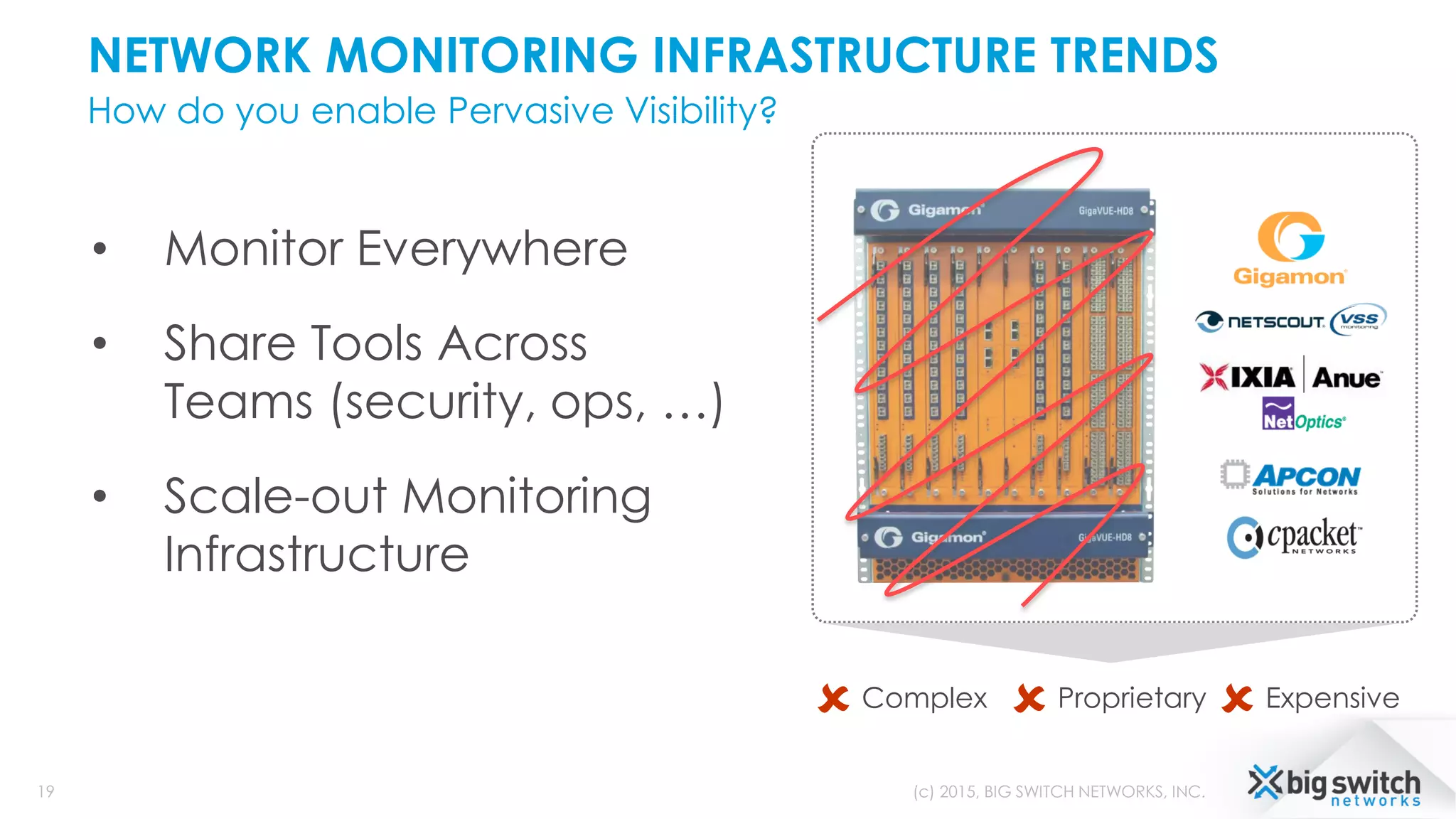

- 18. NETWORK MONITORING INFRASTRUCTURETRENDS How do you enable Pervasive Visibility? 19 (c) 2015, BIG SWITCH NETWORKS, INC. • Complex • Proprietary • Expensive • Monitor Everywhere • Share Tools Across Teams (security, ops, …) • Scale-out Monitoring Infrastructure

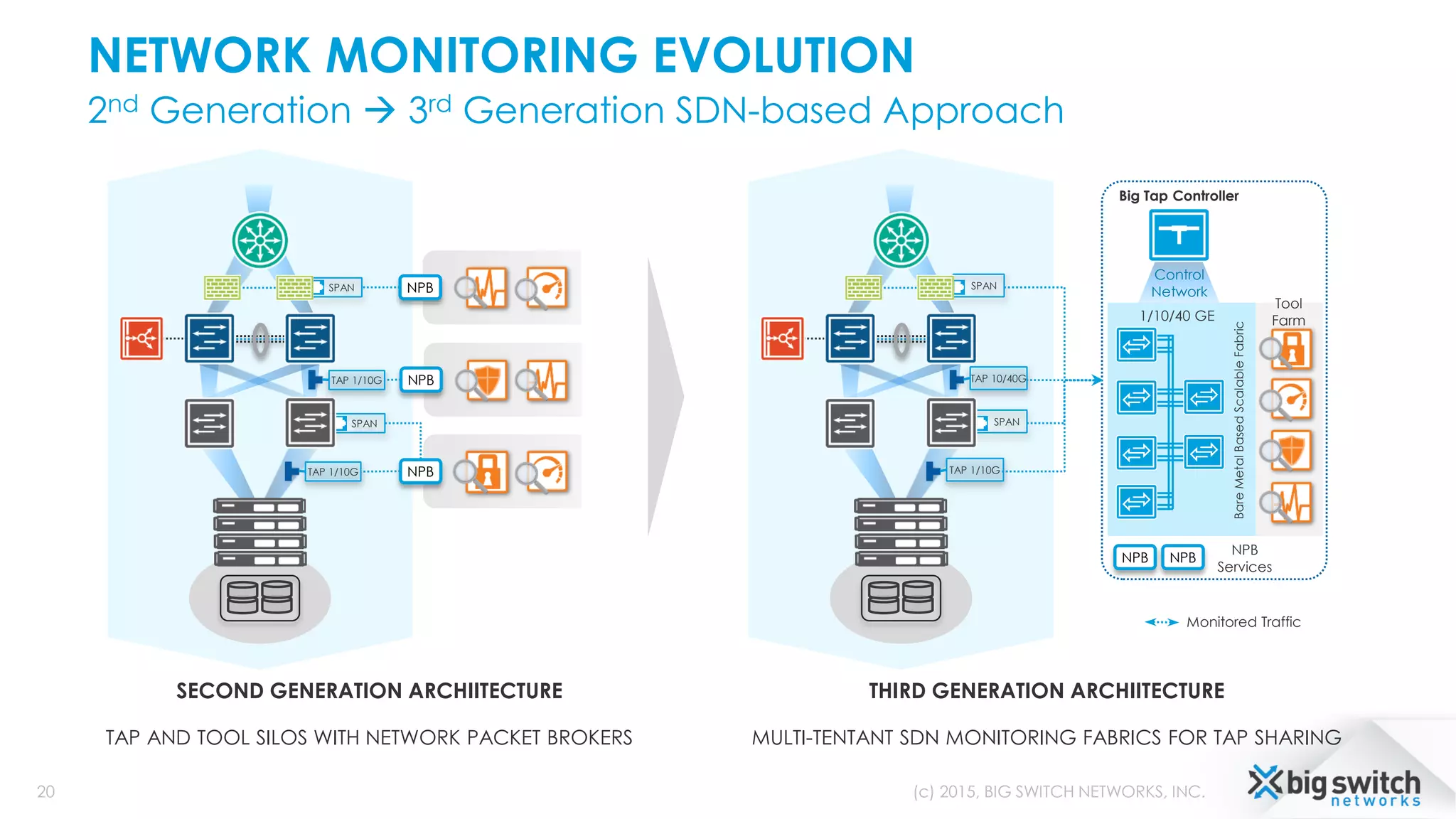

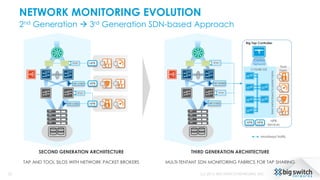

- 19. NETWORK MONITORING EVOLUTION 2ndGeneration 3rd Generation SDN-based Approach 20 (c) 2015, BIG SWITCH NETWORKS, INC. SECOND GENERATION ARCHIITECTURE TAP AND TOOL SILOS WITH NETWORK PACKET BROKERS SPAN SPAN TAP 1/10G TAP 1/10G NPB NPB NPB THIRD GENERATION ARCHIITECTURE MULTI-TENTANT SDN MONITORING FABRICS FOR TAP SHARING Control Network NPB NPB BareMetalBasedScalableFabric 1/10/40 GE Tool Farm NPB Services Big Tap Controller SPAN SPAN TAP 10/40G TAP 1/10G Monitored Traffic

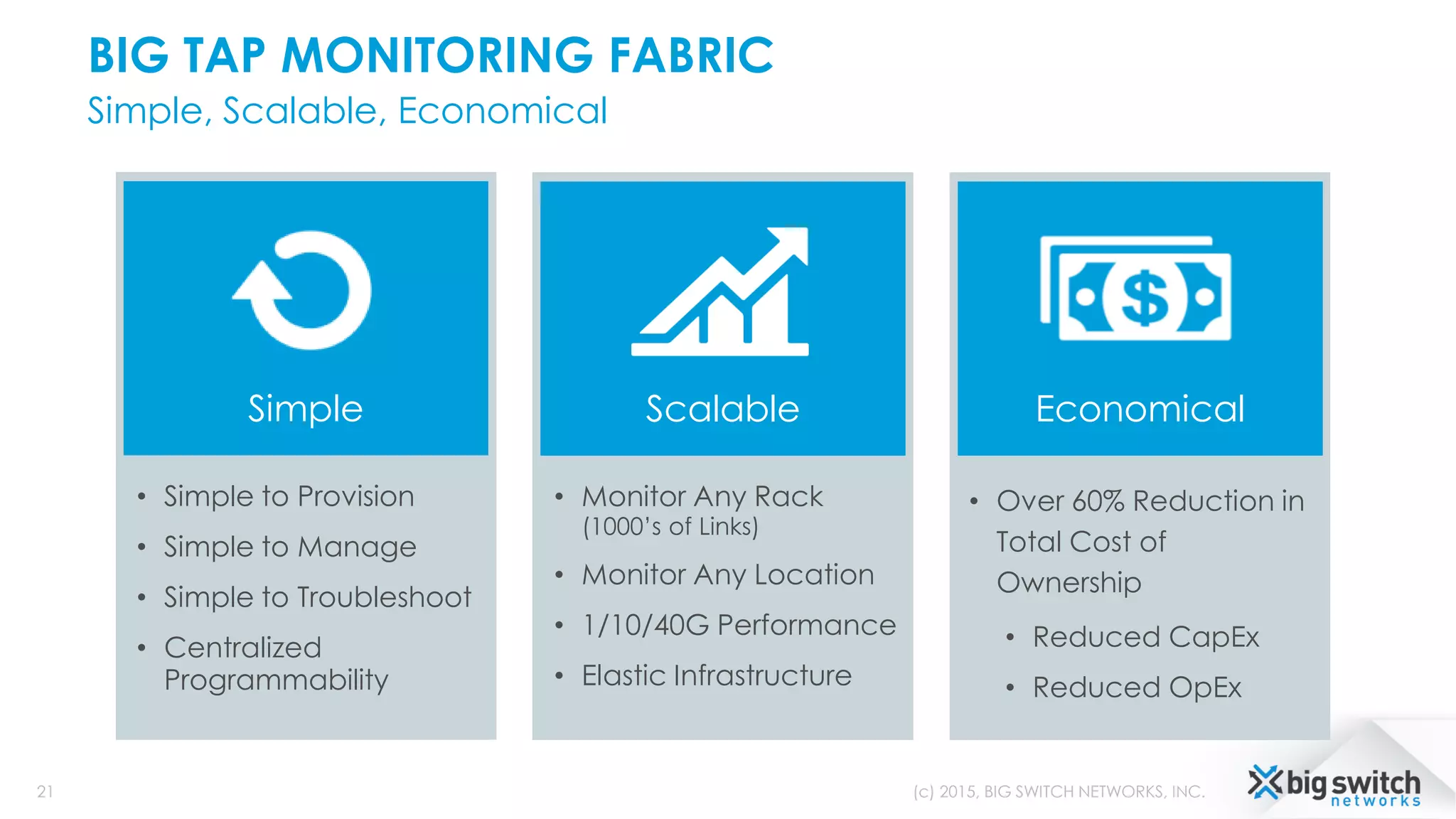

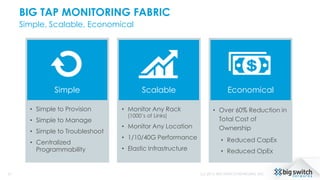

- 20. BIG TAP MONITORINGFABRIC Simple, Scalable, Economical 21 (c) 2015, BIG SWITCH NETWORKS, INC. • Simple to Provision • Simple to Manage • Simple to Troubleshoot • Centralized Programmability Simple • Monitor Any Rack (1000’s of Links) • Monitor Any Location • 1/10/40G Performance • Elastic Infrastructure Scalable • Over 60% Reduction in Total Cost of Ownership • Reduced CapEx • Reduced OpEx Economical

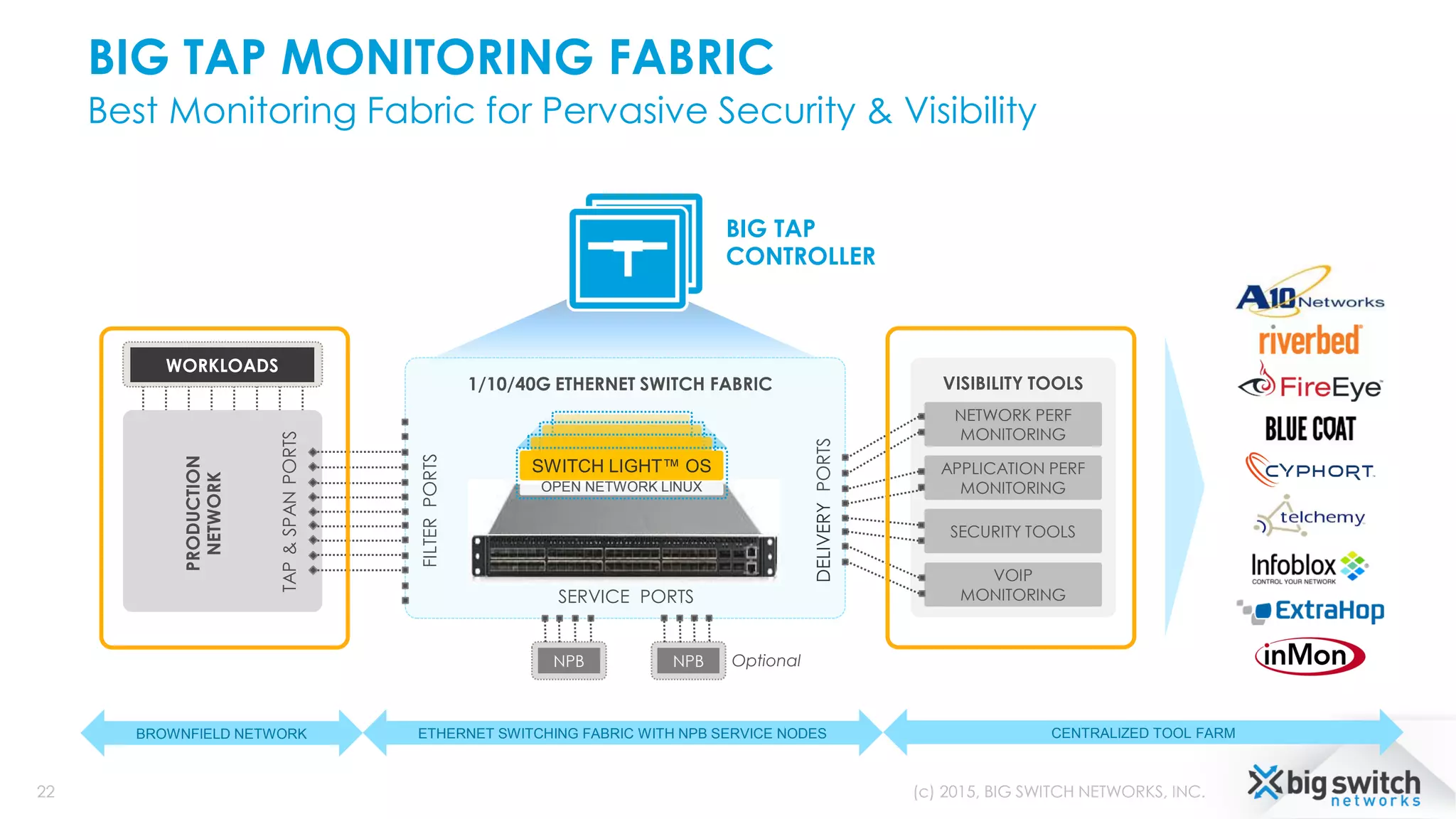

- 21. BIG TAP MONITORINGFABRIC Best Monitoring Fabric for Pervasive Security & Visibility BIG TAP CONTROLLER FILTERPORTS DELIVERYPORTS SERVICE PORTS VISIBILITY TOOLS NETWORK PERF MONITORING APPLICATION PERF MONITORING SECURITY TOOLS VOIP MONITORING PRODUCTION NETWORK TAP&SPANPORTS SWITCH LIGHT™ OS OPEN NETWORK LINUX 1/10/40G ETHERNET SWITCH FABRIC OptionalNPB NPB WORKLOADS BROWNFIELD NETWORK ETHERNET SWITCHING FABRIC WITH NPB SERVICE NODES CENTRALIZED TOOL FARM (c) 2015, BIG SWITCH NETWORKS, INC.22

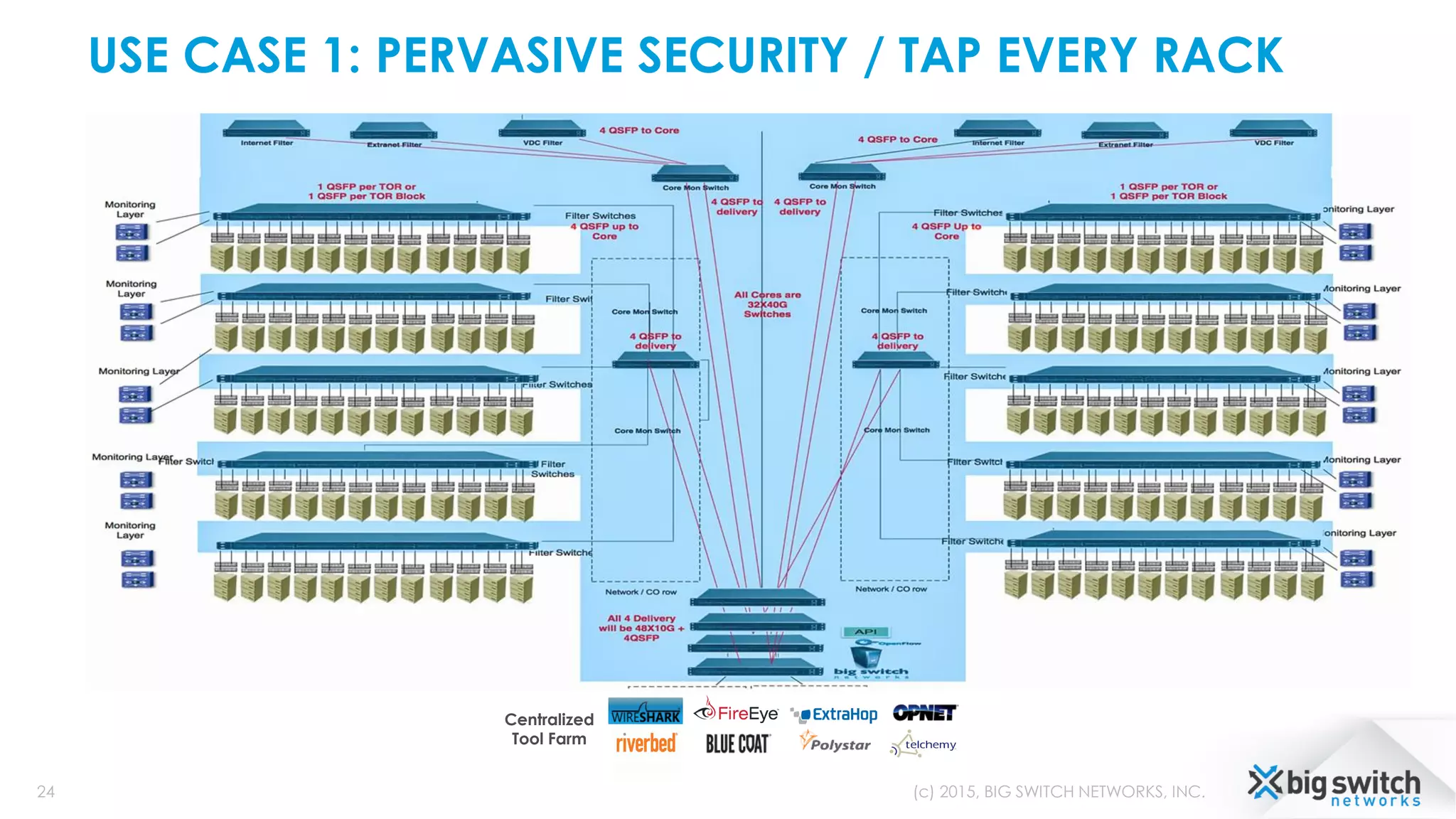

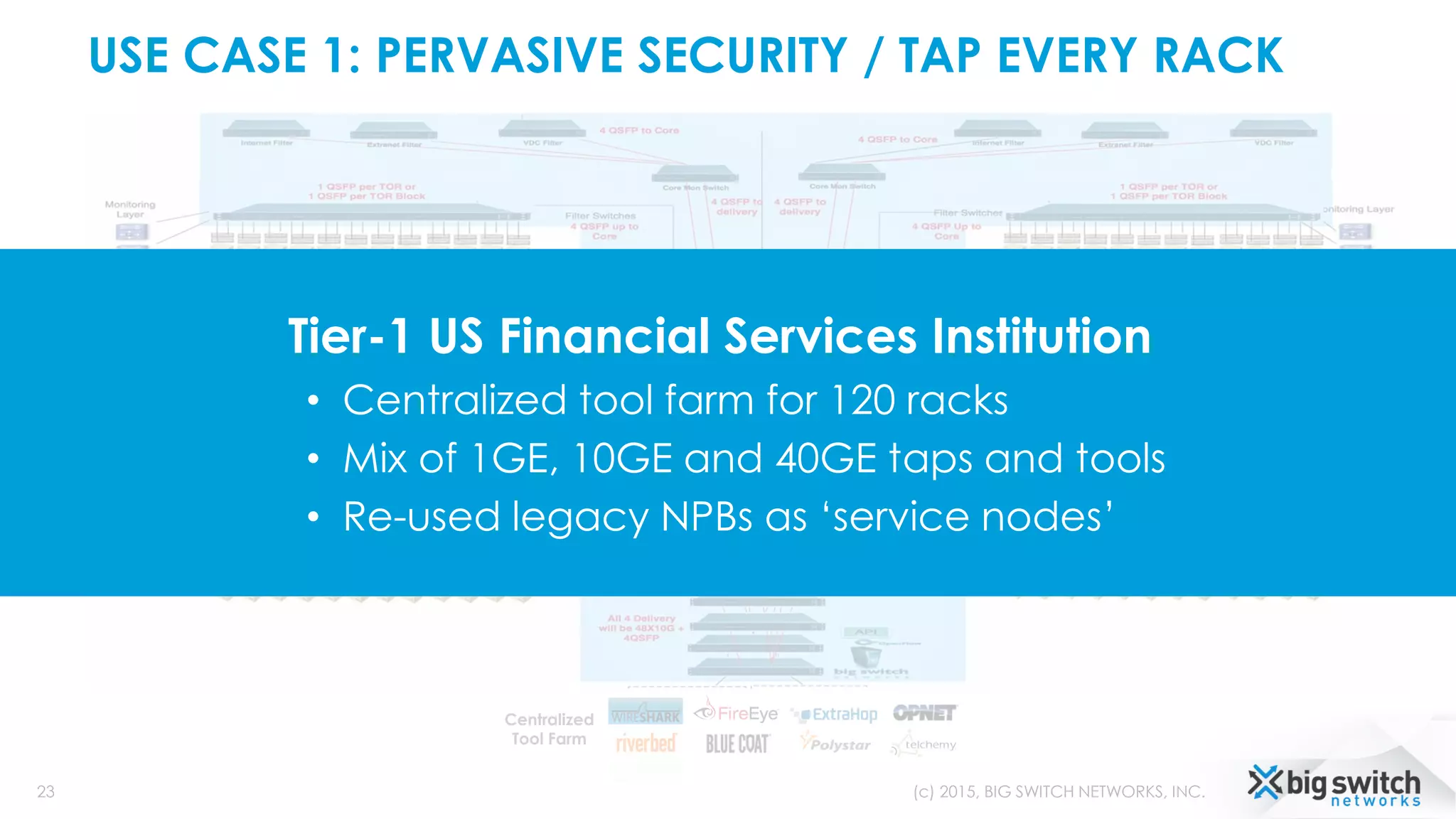

- 22. USE CASE 1:PERVASIVE SECURITY / TAP EVERY RACK 23 Centralized Tool Farm (c) 2015, BIG SWITCH NETWORKS, INC. Tier-1 US Financial Services Institution • Centralized tool farm for 120 racks • Mix of 1GE, 10GE and 40GE taps and tools • Re-used legacy NPBs as ‘service nodes’
- 23. USE CASE 1:PERVASIVE SECURITY / TAP EVERY RACK 24 Centralized Tool Farm (c) 2015, BIG SWITCH NETWORKS, INC.

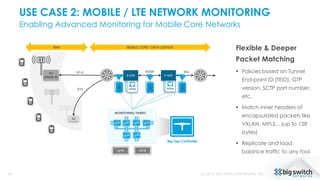

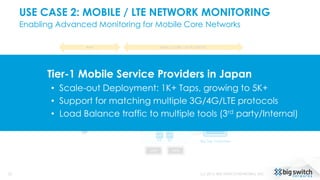

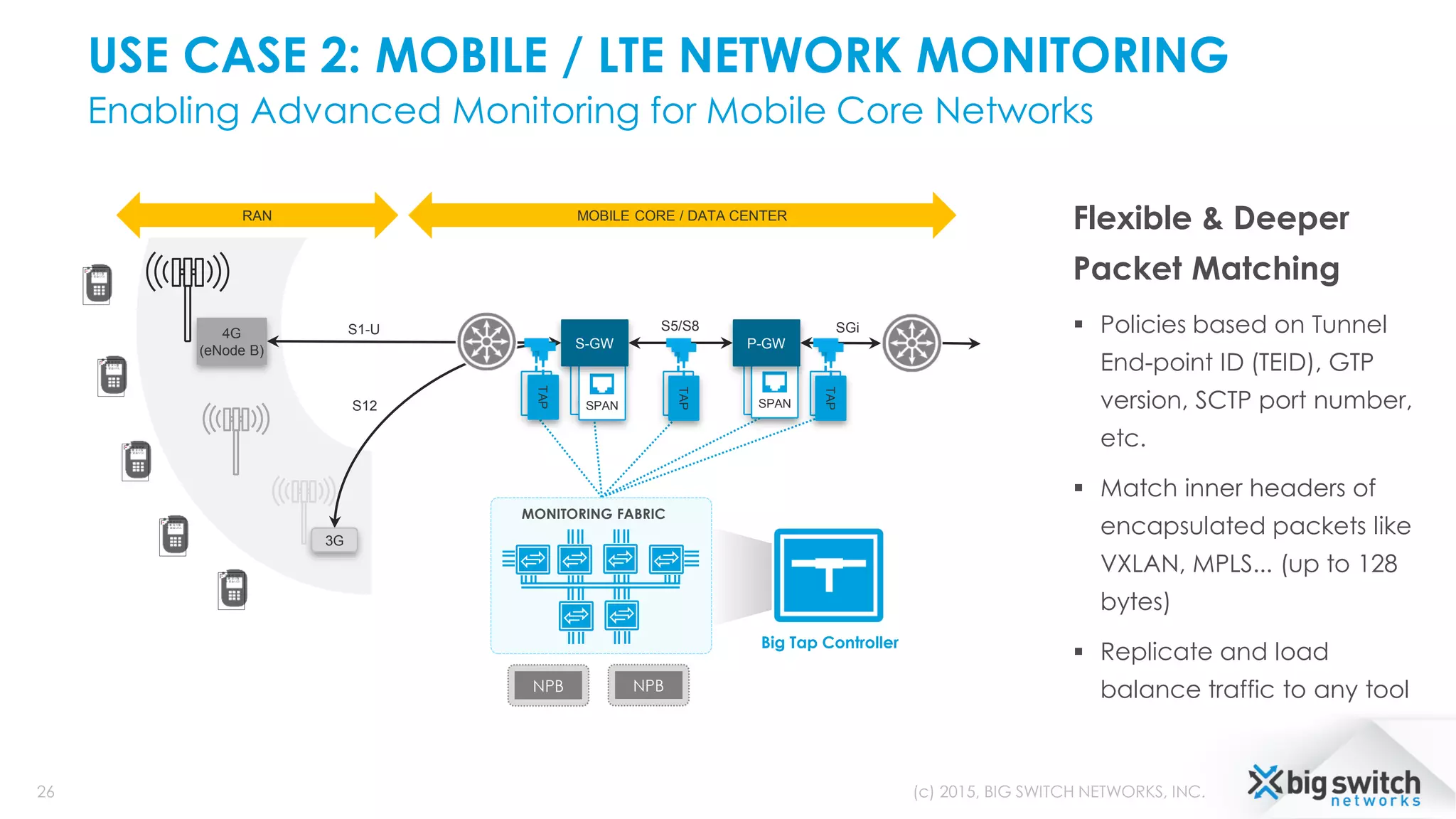

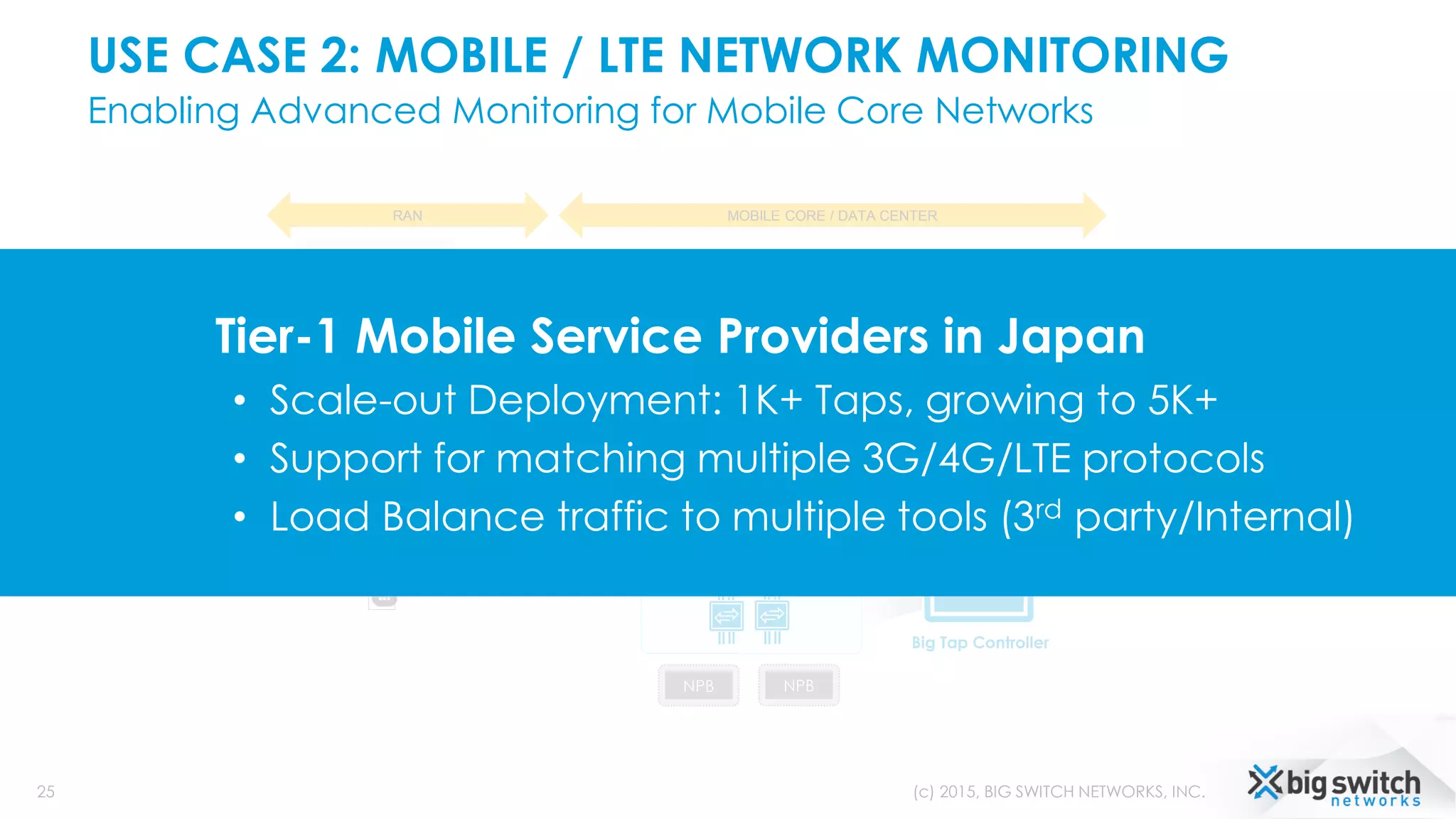

- 24. USE CASE 2:MOBILE / LTE NETWORK MONITORING Enabling Advanced Monitoring for Mobile Core Networks 25 (c) 2015, BIG SWITCH NETWORKS, INC. SPAN SPAN 4G (eNode B) RAN MOBILE CORE / DATA CENTER 3G S5/S8S1-U S12 SGi TAP TAP TAP TAP SPAN TAP TAP SPAN S-GW P-GW NPB MONITORING FABRIC NPB Big Tap Controller Tier-1 Mobile Service Providers in Japan • Scale-out Deployment: 1K+ Taps, growing to 5K+ • Support for matching multiple 3G/4G/LTE protocols • Load Balance traffic to multiple tools (3rd party/Internal)
- 25. USE CASE 2:MOBILE / LTE NETWORK MONITORING Enabling Advanced Monitoring for Mobile Core Networks 26 (c) 2015, BIG SWITCH NETWORKS, INC. SPAN SPAN 4G (eNode B) RAN MOBILE CORE / DATA CENTER 3G S5/S8S1-U S12 SGi TAP TAP TAP TAP SPAN TAP TAP SPAN S-GW P-GW NPB MONITORING FABRIC NPB Big Tap Controller Flexible & Deeper Packet Matching Policies based on Tunnel End-point ID (TEID), GTP version, SCTP port number, etc. Match inner headers of encapsulated packets like VXLAN, MPLS... (up to 128 bytes) Replicate and load balance traffic to any tool

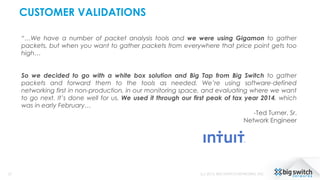

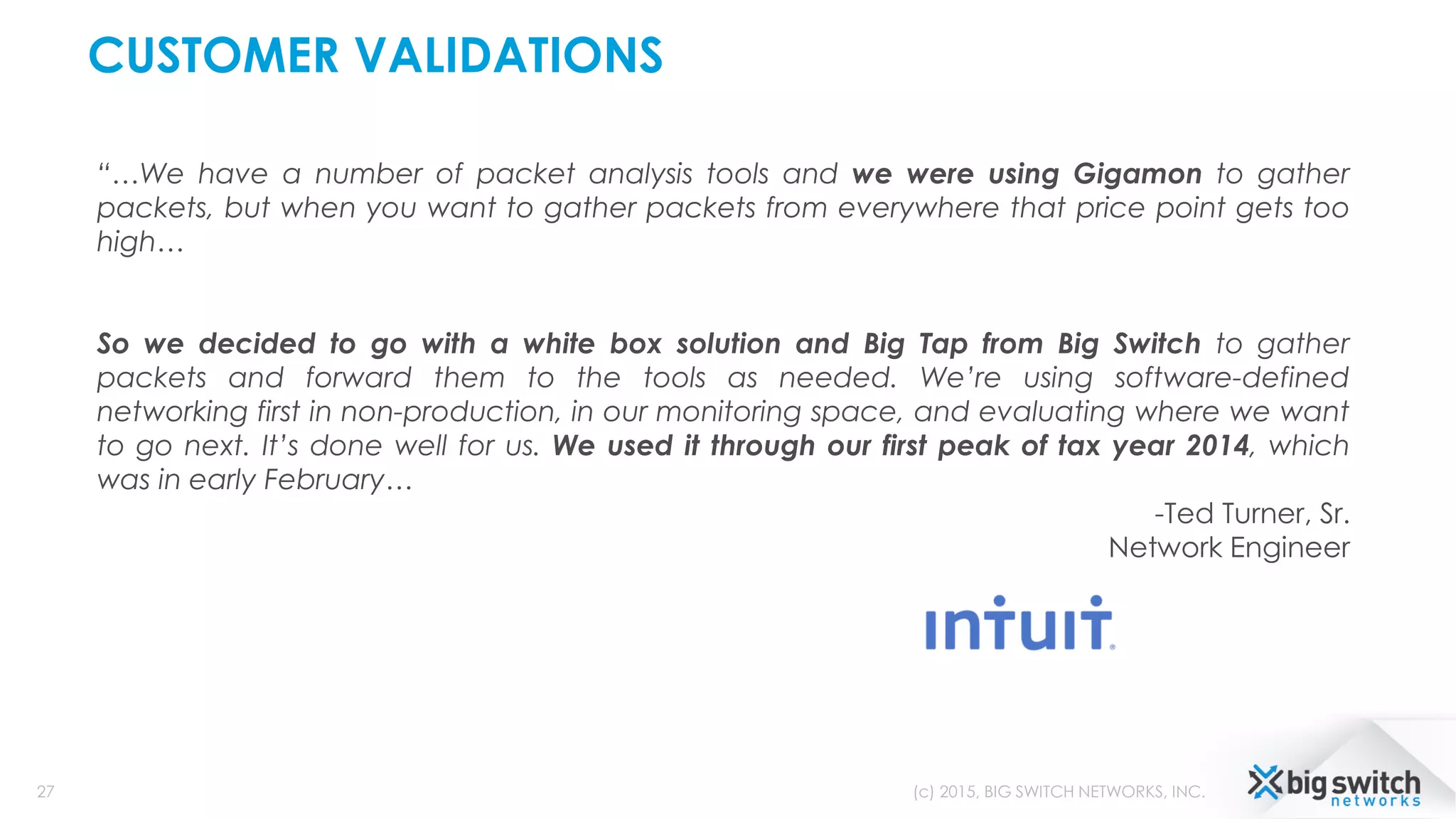

- 26. CUSTOMER VALIDATIONS 27 (c)2015, BIG SWITCH NETWORKS, INC. “…We have a number of packet analysis tools and we were using Gigamon to gather packets, but when you want to gather packets from everywhere that price point gets too high… So we decided to go with a white box solution and Big Tap from Big Switch to gather packets and forward them to the tools as needed. We’re using software-defined networking first in non-production, in our monitoring space, and evaluating where we want to go next. It’s done well for us. We used it through our first peak of tax year 2014, which was in early February… -Ted Turner, Sr. Network Engineer

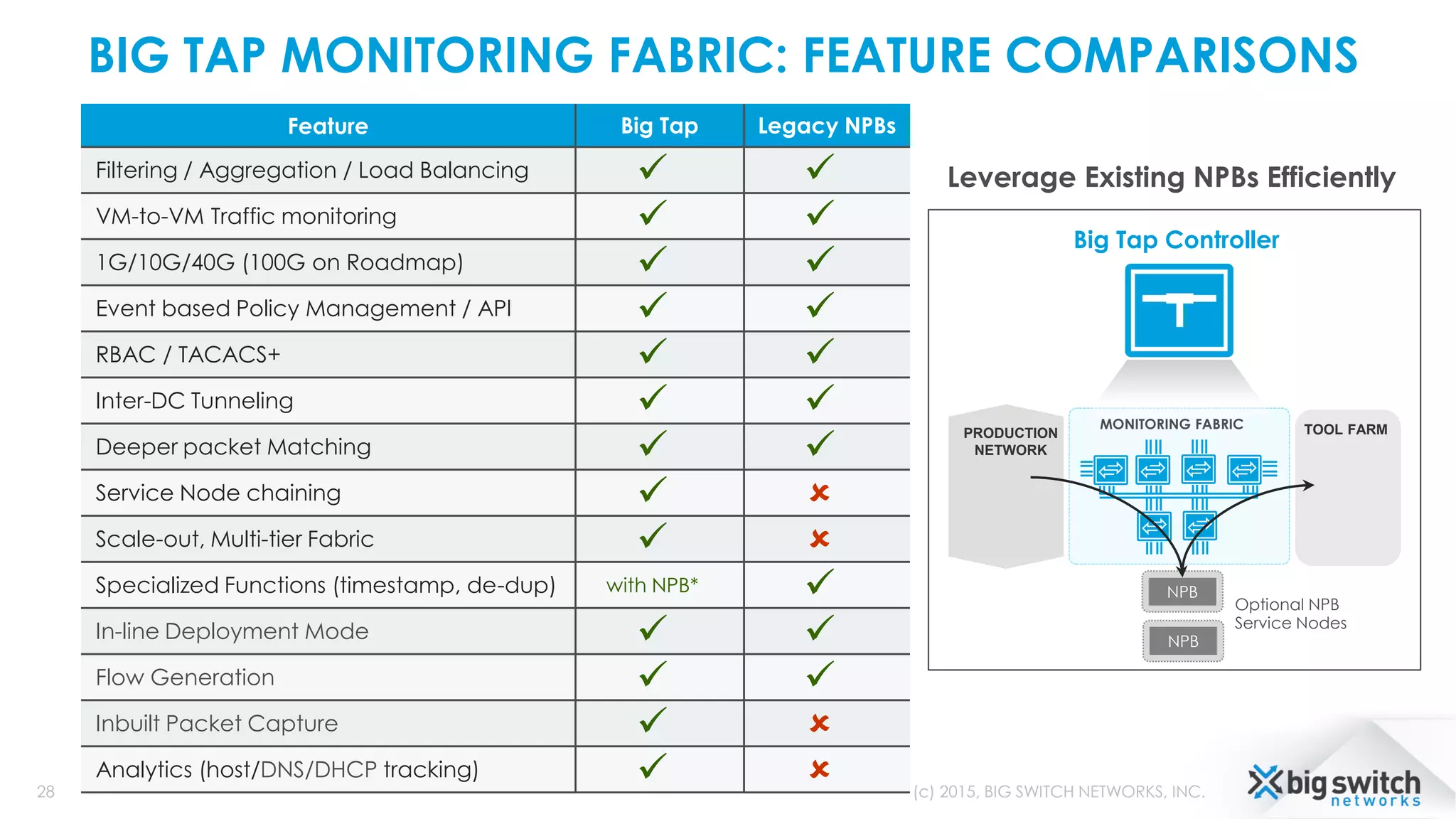

- 27. BIG TAP MONITORINGFABRIC: FEATURE COMPARISONS 28 (c) 2015, BIG SWITCH NETWORKS, INC. Feature Big Tap Legacy NPBs Filtering / Aggregation / Load Balancing VM-to-VM Traffic monitoring 1G/10G/40G (100G on Roadmap) Event based Policy Management / API RBAC / TACACS+ Inter-DC Tunneling Deeper packet Matching Service Node chaining Scale-out, Multi-tier Fabric Specialized Functions (timestamp, de-dup) with NPB* In-line Deployment Mode Flow Generation Inbuilt Packet Capture Analytics (host/DNS/DHCP tracking) NPB MONITORING FABRIC NPB Big Tap Controller PRODUCTION NETWORK TOOL FARM Leverage Existing NPBs Efficiently Optional NPB Service Nodes

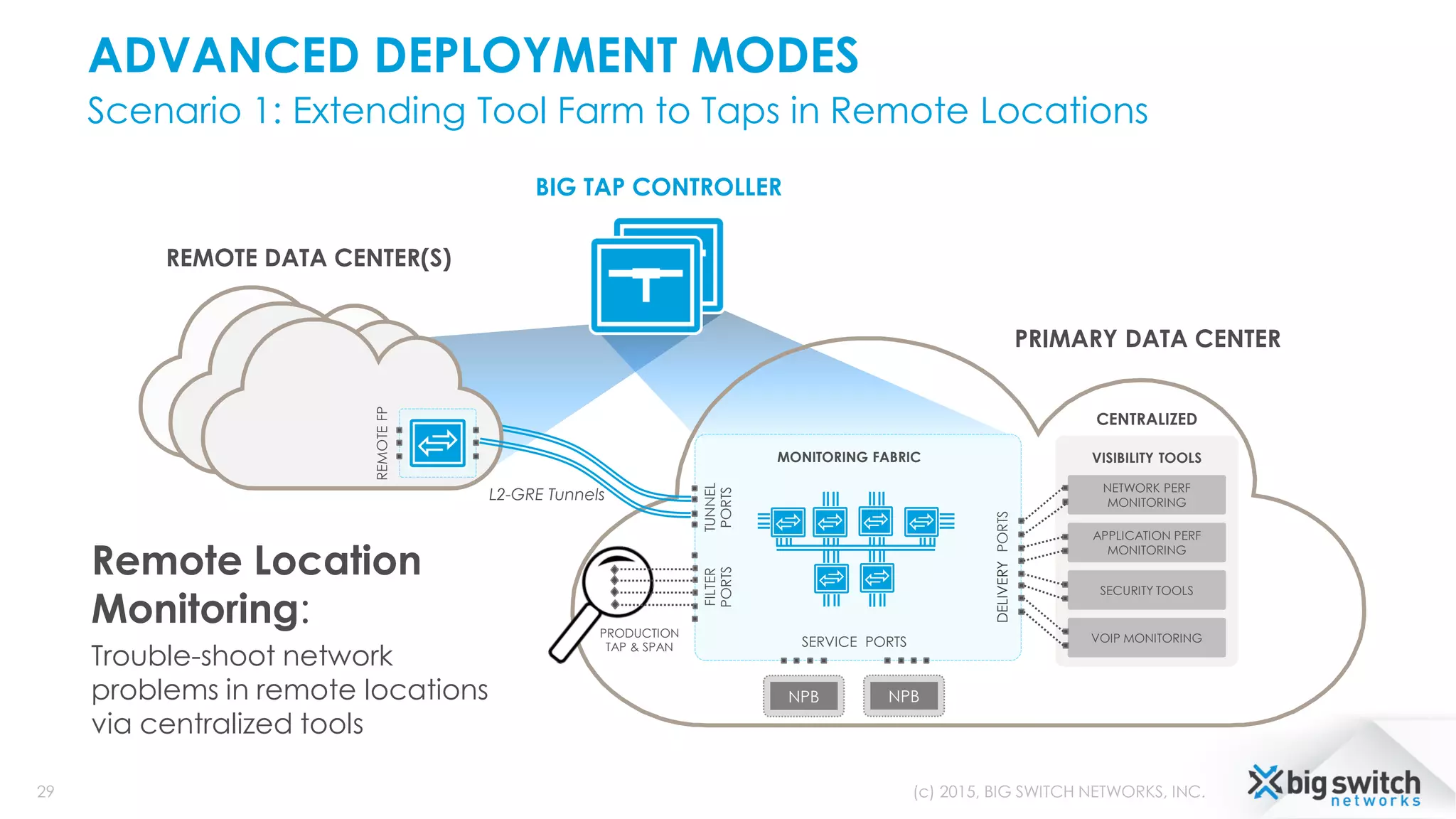

- 28. ADVANCED DEPLOYMENT MODES Scenario1: Extending Tool Farm to Taps in Remote Locations 29 (c) 2015, BIG SWITCH NETWORKS, INC. NPB FILTER PORTS DELIVERYPORTS SERVICE PORTS MONITORING FABRIC VISIBILITY TOOLS NETWORK PERF MONITORING APPLICATION PERF MONITORING SECURITY TOOLS VOIP MONITORING NPB PRIMARY DATA CENTER CENTRALIZED BIG TAP CONTROLLER REMOTE DATA CENTER(S) L2-GRE Tunnels REMOTEFP TUNNEL PORTS PRODUCTION TAP & SPAN Remote Location Monitoring: Trouble-shoot network problems in remote locations via centralized tools

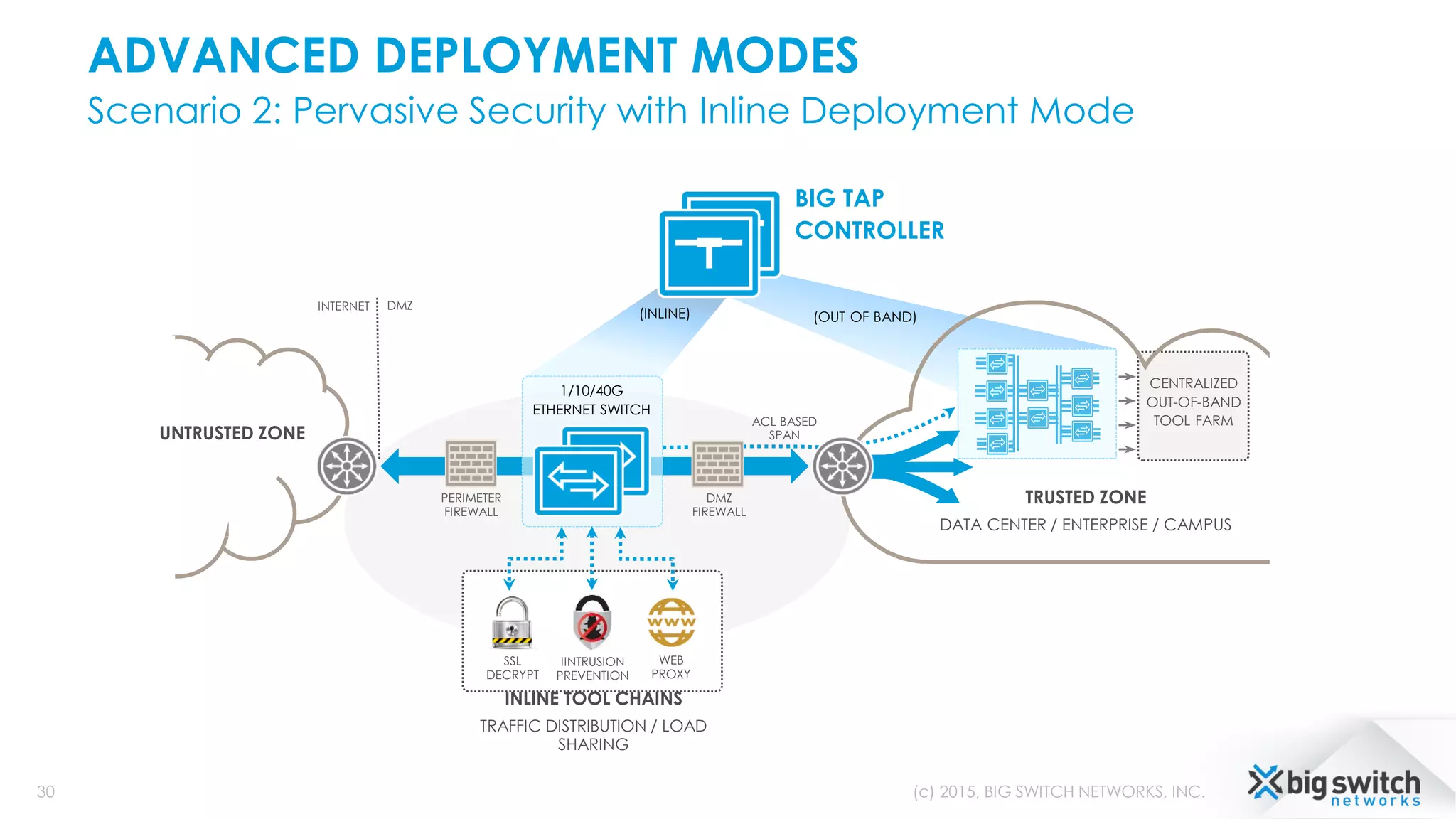

- 29. ADVANCED DEPLOYMENT MODES Scenario2: Pervasive Security with Inline Deployment Mode 30 (c) 2015, BIG SWITCH NETWORKS, INC. CENTRALIZED OUT-OF-BAND TOOL FARM INLINE TOOL CHAINS TRAFFIC DISTRIBUTION / LOAD SHARING BIG TAP CONTROLLER PERIMETER FIREWALL DMZ FIREWALL 1/10/40G ETHERNET SWITCH TRUSTED ZONE DATA CENTER / ENTERPRISE / CAMPUS UNTRUSTED ZONE ACL BASED SPAN WEB PROXY IINTRUSION PREVENTION SSL DECRYPT INTERNET DMZ (INLINE) (OUT OF BAND)
- 30.

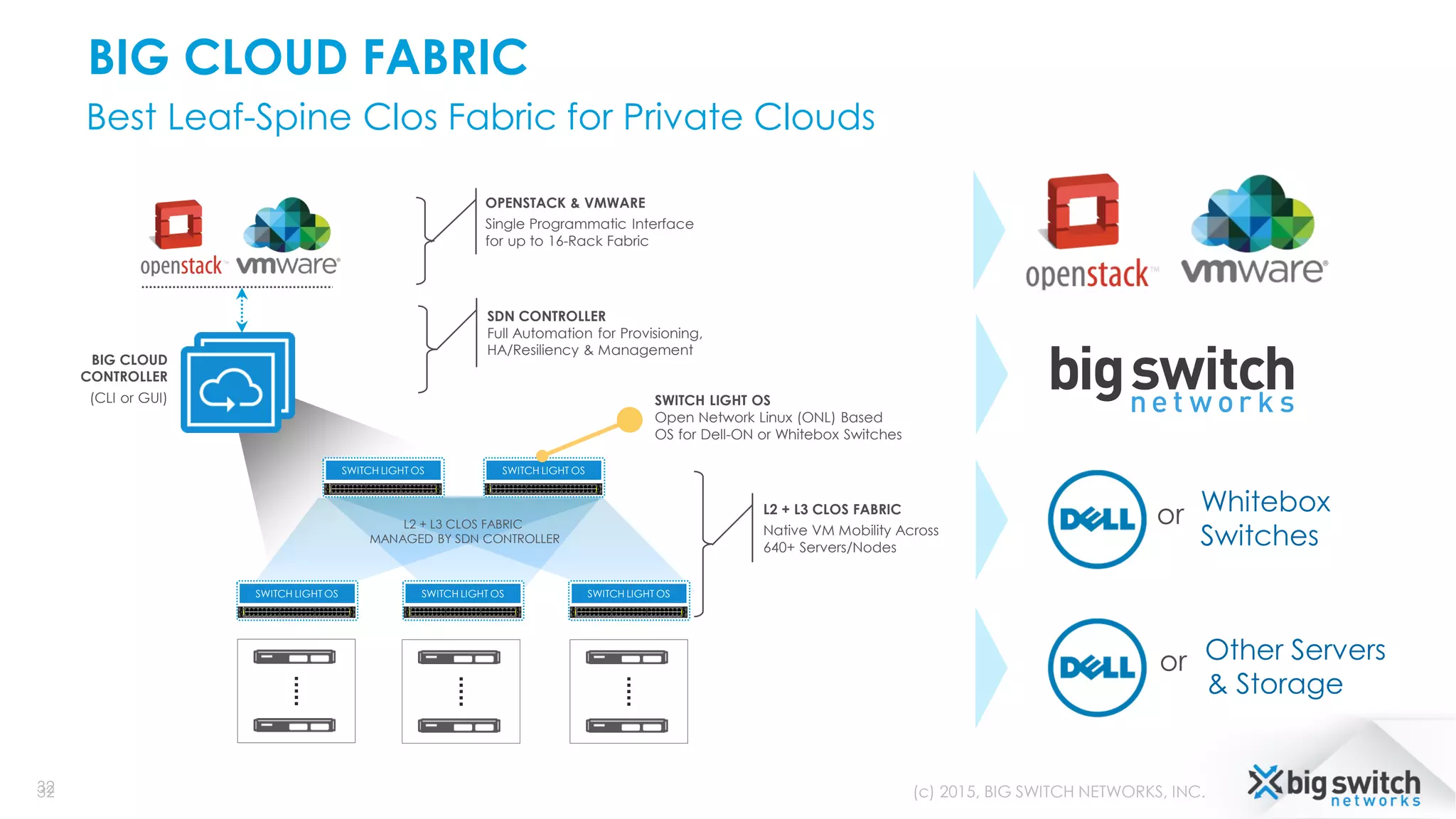

- 31. BIG CLOUD FABRIC BestLeaf-Spine Clos Fabric for Private Clouds 32 BIG CLOUD CONTROLLER (CLI or GUI) SWITCH LIGHT OS SWITCH LIGHT OS SWITCH LIGHT OS SWITCH LIGHT OS SWITCH LIGHT OS L2 + L3 CLOS FABRIC MANAGED BY SDN CONTROLLER OPENSTACK & VMWARE Single Programmatic Interface for up to 16-Rack Fabric SDN CONTROLLER Full Automation for Provisioning, HA/Resiliency & Management L2 + L3 CLOS FABRIC Native VM Mobility Across 640+ Servers/Nodes SWITCH LIGHT OS Open Network Linux (ONL) Based OS for Dell-ON or Whitebox Switches Whitebox Switches or Other Servers & Storage or (c) 2015, BIG SWITCH NETWORKS, INC.32

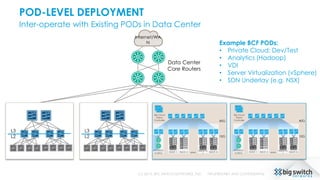

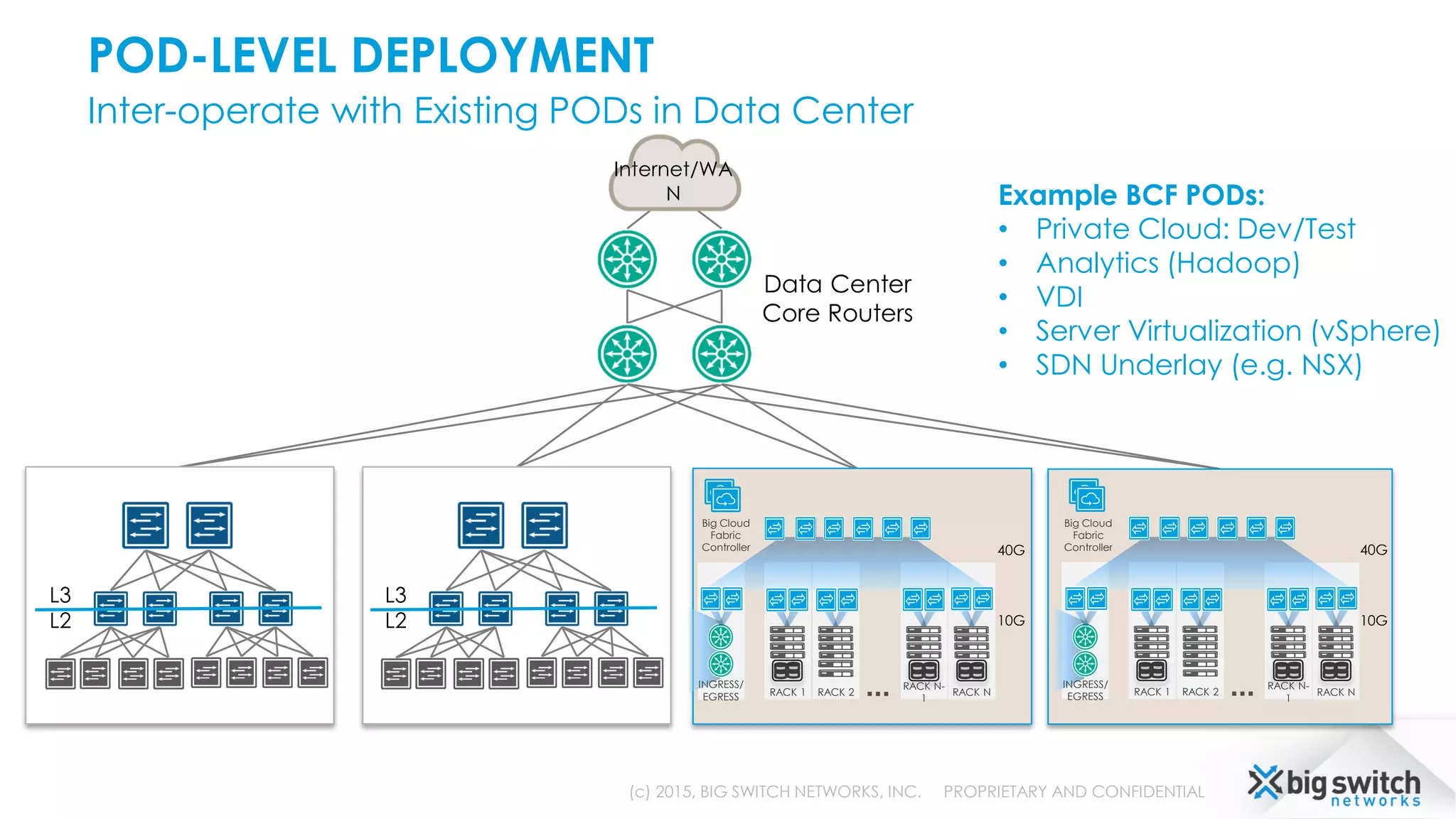

- 32. POD-LEVEL DEPLOYMENT Inter-operate withExisting PODs in Data Center (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL Data Center Core Routers L3 L2 L3 L2 Example BCF PODs: • Private Cloud: Dev/Test • Analytics (Hadoop) • VDI • Server Virtualization (vSphere) • SDN Underlay (e.g. NSX) Internet/WA N Big Cloud Fabric Controller RACK N RACK N- 1 RACK 2RACK 1 INGRESS/ EGRESS 40G 10G Big Cloud Fabric Controller RACK N RACK N- 1 RACK 2RACK 1 INGRESS/ EGRESS 40G 10G

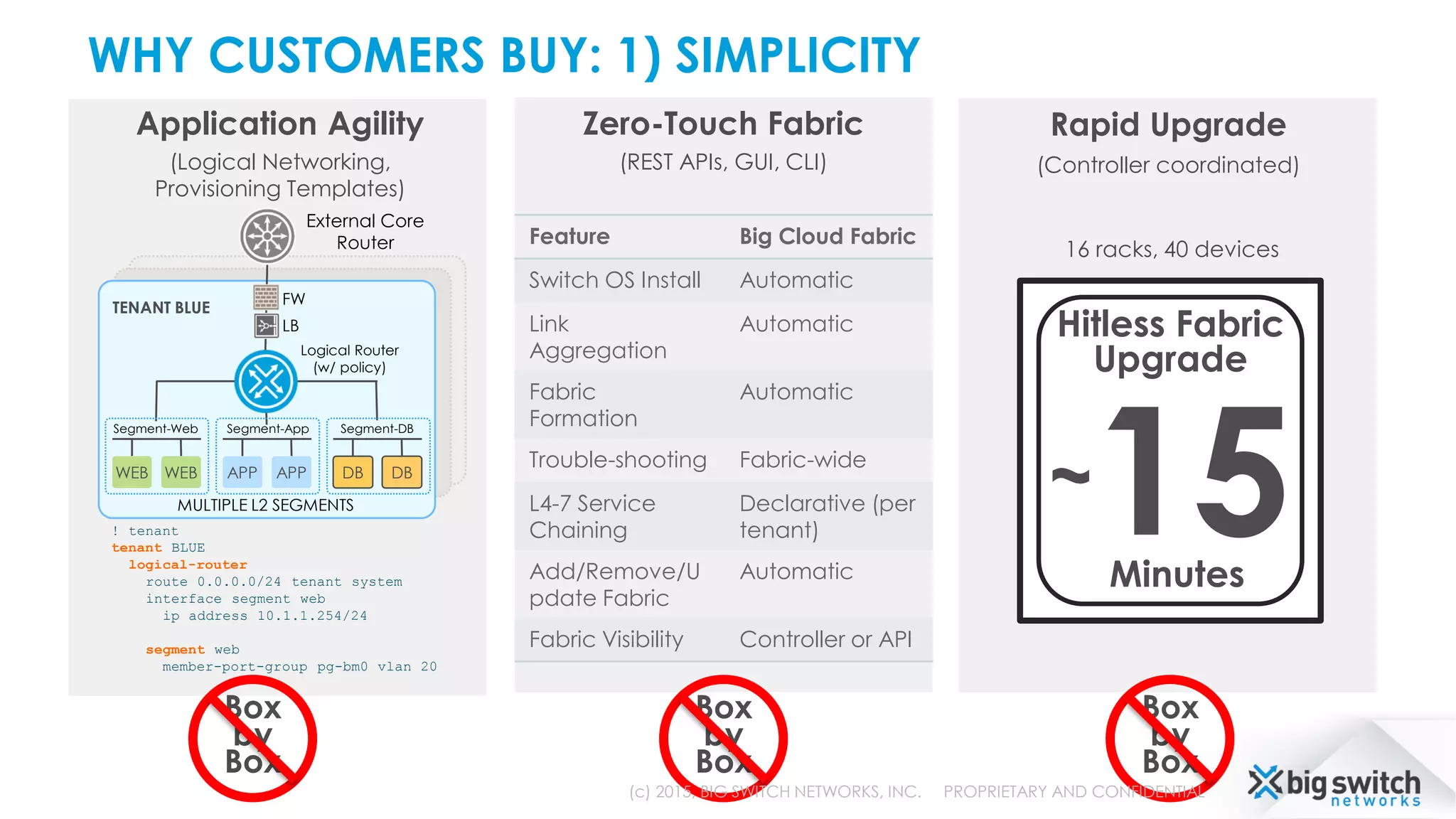

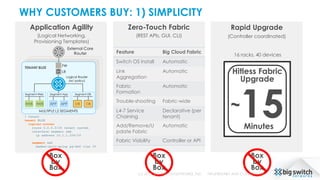

- 33. ! tenant tenant BLUE logical-router route0.0.0.0/24 tenant system interface segment web ip address 10.1.1.254/24 segment web member-port-group pg-bm0 vlan 20 WHY CUSTOMERS BUY: 1) SIMPLICITY External Core Router WEB WEB APP APP DB DB Segment-Web Segment-DB MULTIPLE L2 SEGMENTS Segment-App Logical Router (w/ policy) LB FW TENANT BLUE Application Agility (Logical Networking, Provisioning Templates) Hitless Fabric Upgrade ~15Minutes Rapid Upgrade (Controller coordinated) Zero-Touch Fabric (REST APIs, GUI, CLI) Box by Box Feature Big Cloud Fabric Switch OS Install Automatic Link Aggregation Automatic Fabric Formation Automatic Trouble-shooting Fabric-wide L4-7 Service Chaining Declarative (per tenant) Add/Remove/U pdate Fabric Automatic Fabric Visibility Controller or API Box by Box Box by Box 16 racks, 40 devices (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL

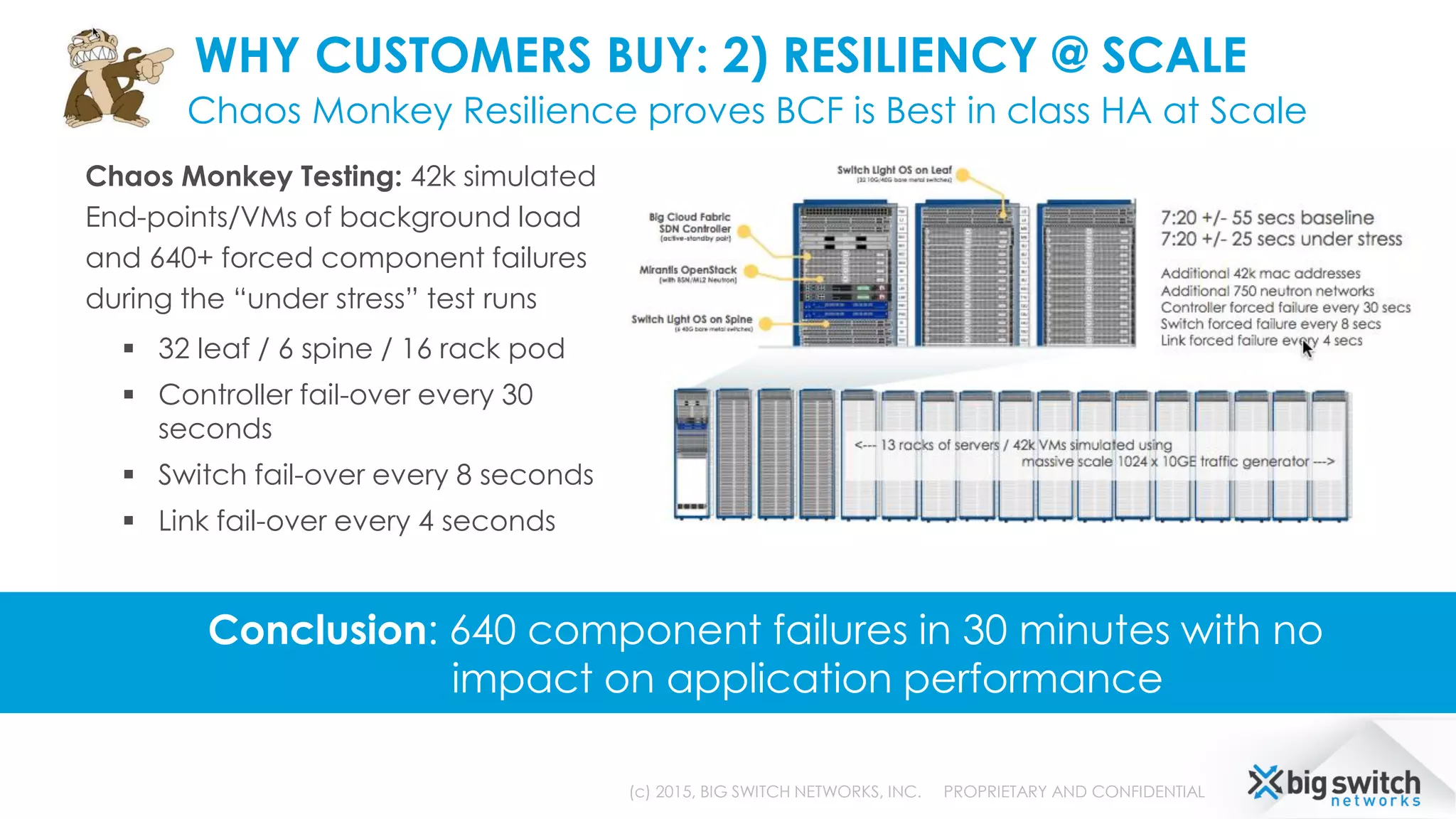

- 34. WHY CUSTOMERS BUY:2) RESILIENCY @ SCALE Chaos Monkey Resilience proves BCF is Best in class HA at Scale (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL Chaos Monkey Testing: 42k simulated End-points/VMs of background load and 640+ forced component failures during the “under stress” test runs 32 leaf / 6 spine / 16 rack pod Controller fail-over every 30 seconds Switch fail-over every 8 seconds Link fail-over every 4 seconds Conclusion: 640 component failures in 30 minutes with no impact on application performance

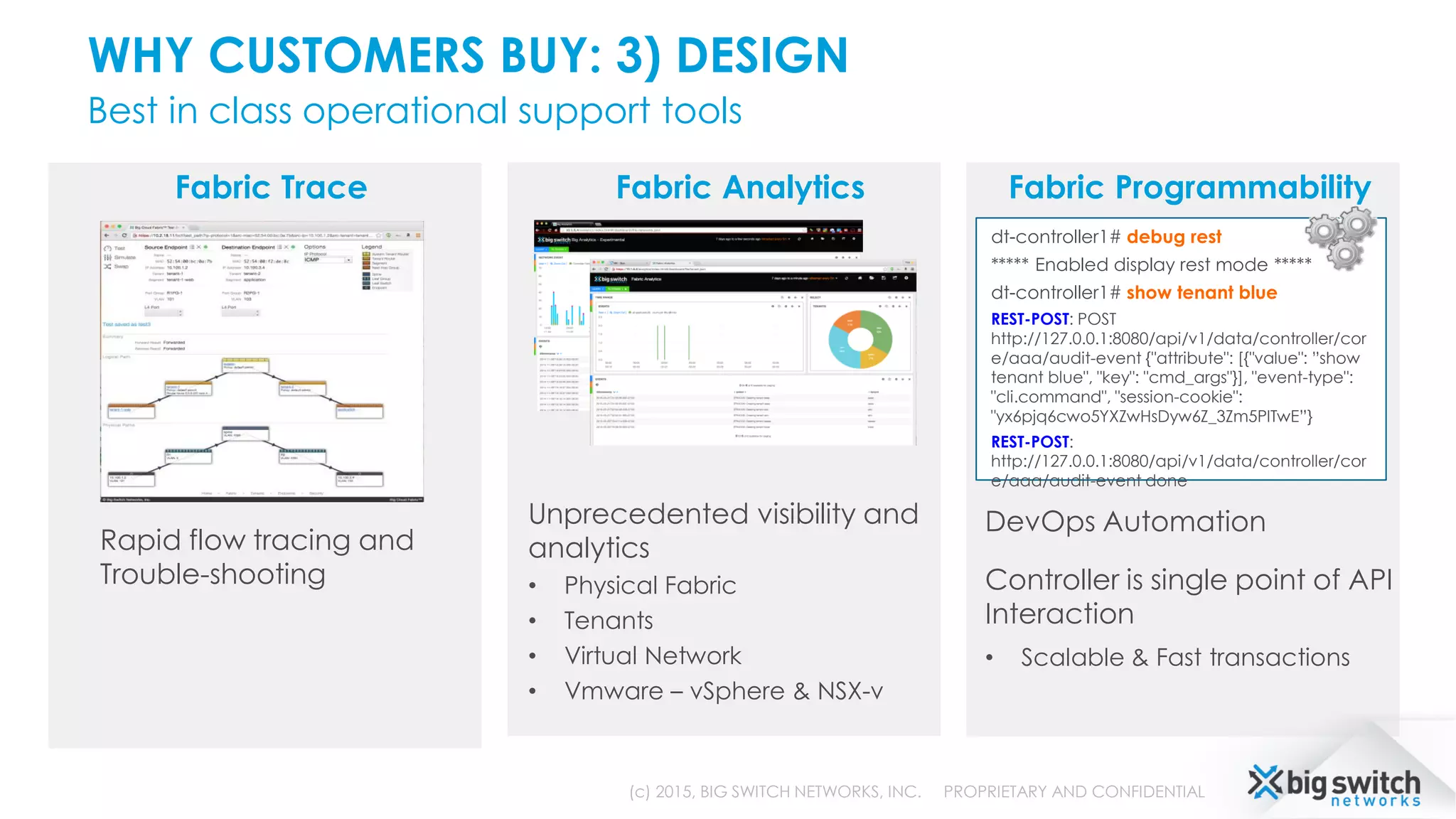

- 35. WHY CUSTOMERS BUY:3) DESIGN Best in class operational support tools (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL Rapid flow tracing and Trouble-shooting Fabric Trace Fabric Analytics Unprecedented visibility and analytics • Physical Fabric • Tenants • Virtual Network • Vmware – vSphere & NSX-v Fabric Programmability DevOps Automation Controller is single point of API Interaction • Scalable & Fast transactions dt-controller1# debug rest ***** Enabled display rest mode ***** dt-controller1# show tenant blue REST-POST: POST http://127.0.0.1:8080/api/v1/data/controller/cor e/aaa/audit-event {"attribute": [{"value": ”show tenant blue", "key": "cmd_args"}], "event-type": "cli.command", "session-cookie": "yx6pjq6cwo5YXZwHsDyw6Z_3Zm5PITwE”} REST-POST: http://127.0.0.1:8080/api/v1/data/controller/cor e/aaa/audit-event done

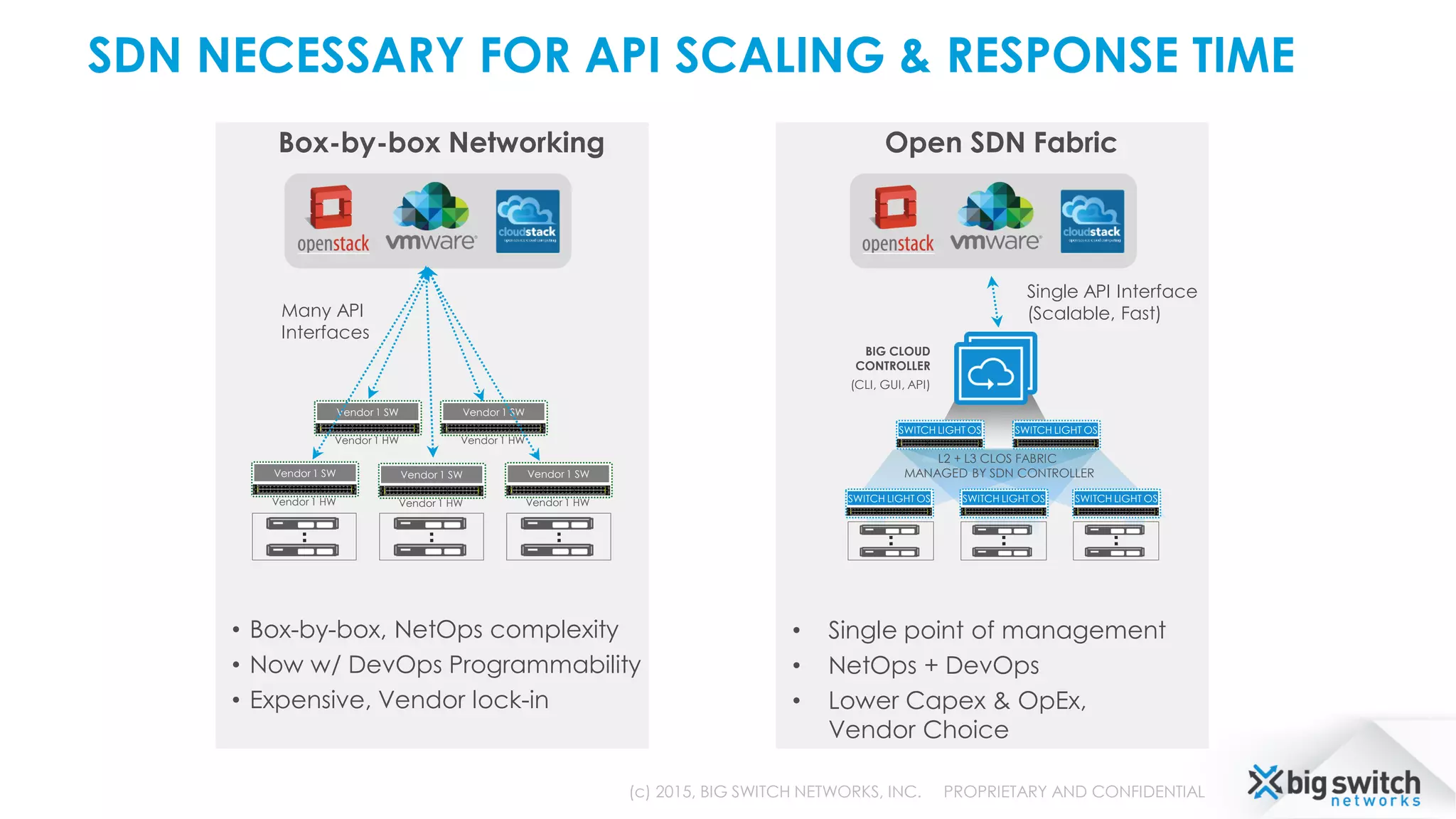

- 36. SDN NECESSARY FORAPI SCALING & RESPONSE TIME Box-by-box Networking Vendor 1 SW Vendor 1 HW Vendor 1 SW Vendor 1 HW Vendor 1 SW Vendor 1 HW Vendor 1 SW Vendor 1 HW Vendor 1 SW Vendor 1 HW • Box-by-box, NetOps complexity • Now w/ DevOps Programmability • Expensive, Vendor lock-in Many API Interfaces Open SDN Fabric SWITCH LIGHT OS SWITCH LIGHT OS SWITCH LIGHT OS SWITCH LIGHT OS SWITCH LIGHT OS L2 + L3 CLOS FABRIC MANAGED BY SDN CONTROLLER BIG CLOUD CONTROLLER (CLI, GUI, API) • Single point of management • NetOps + DevOps • Lower Capex & OpEx, Vendor Choice Single API Interface (Scalable, Fast) (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL

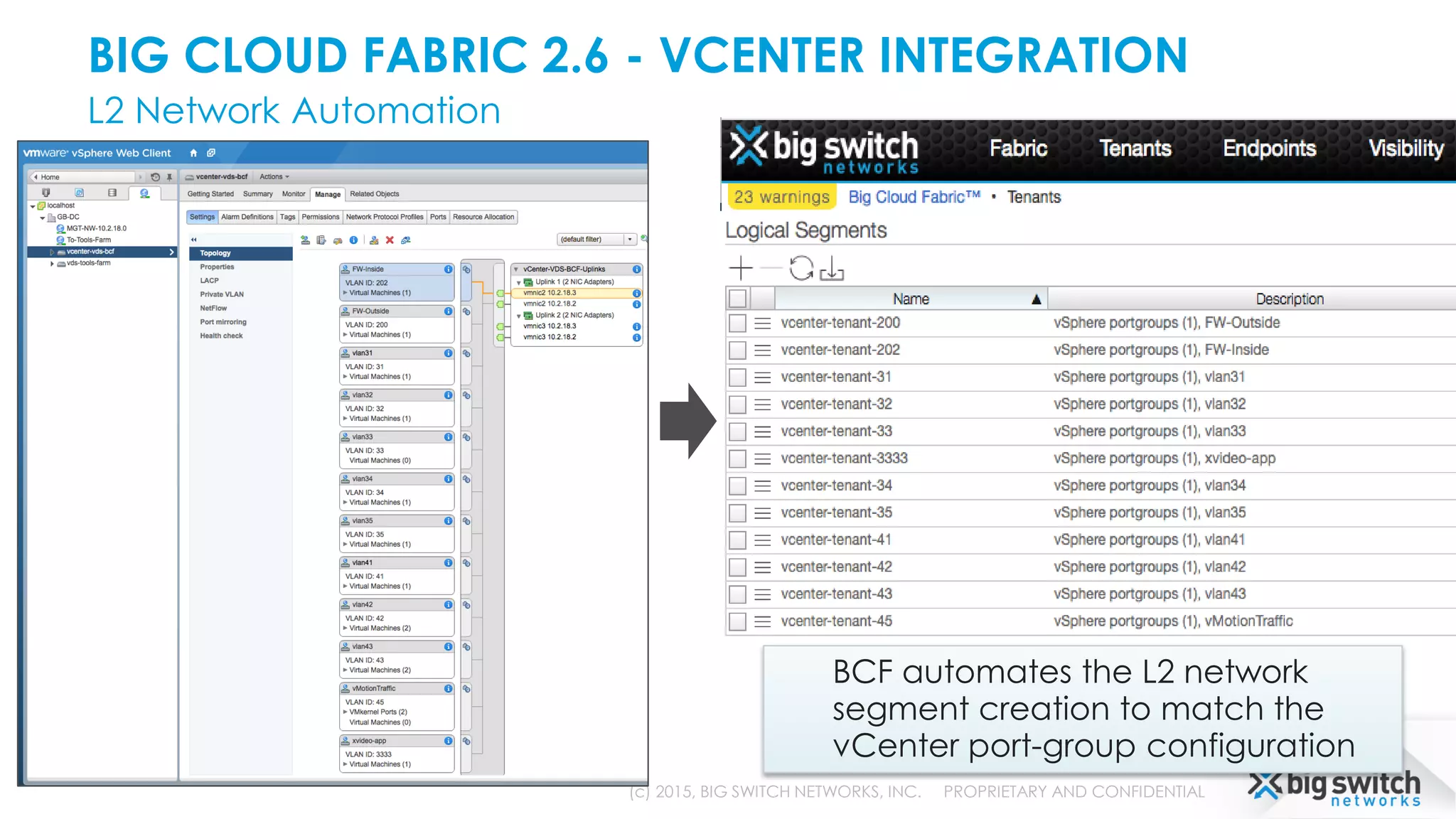

- 37. BIG CLOUD FABRIC2.6 - VCENTER INTEGRATION L2 Network Automation (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL BCF automates the L2 network segment creation to match the vCenter port-group configuration

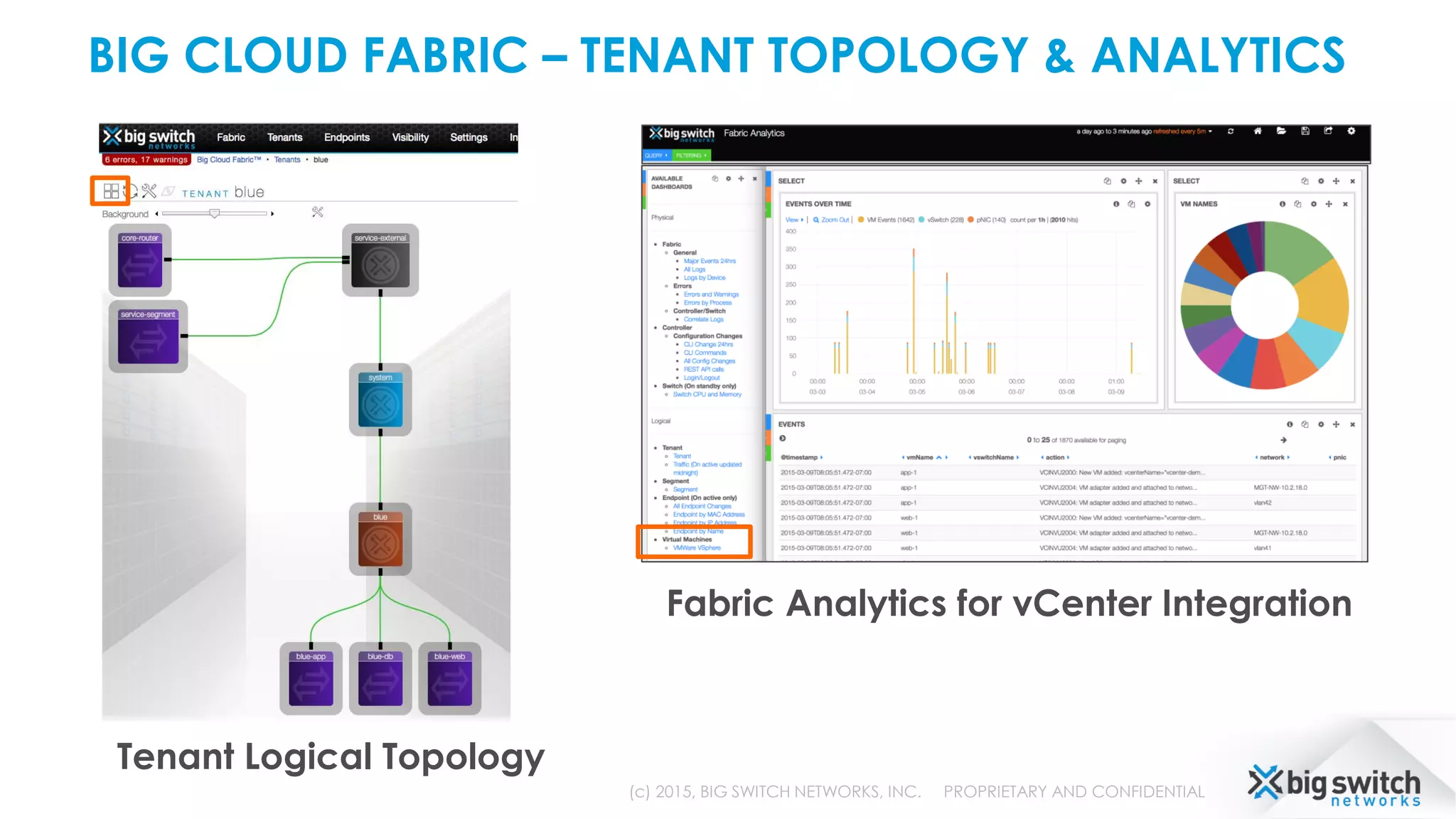

- 38. BIG CLOUD FABRIC– TENANT TOPOLOGY & ANALYTICS (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL Tenant Logical Topology Fabric Analytics for vCenter Integration

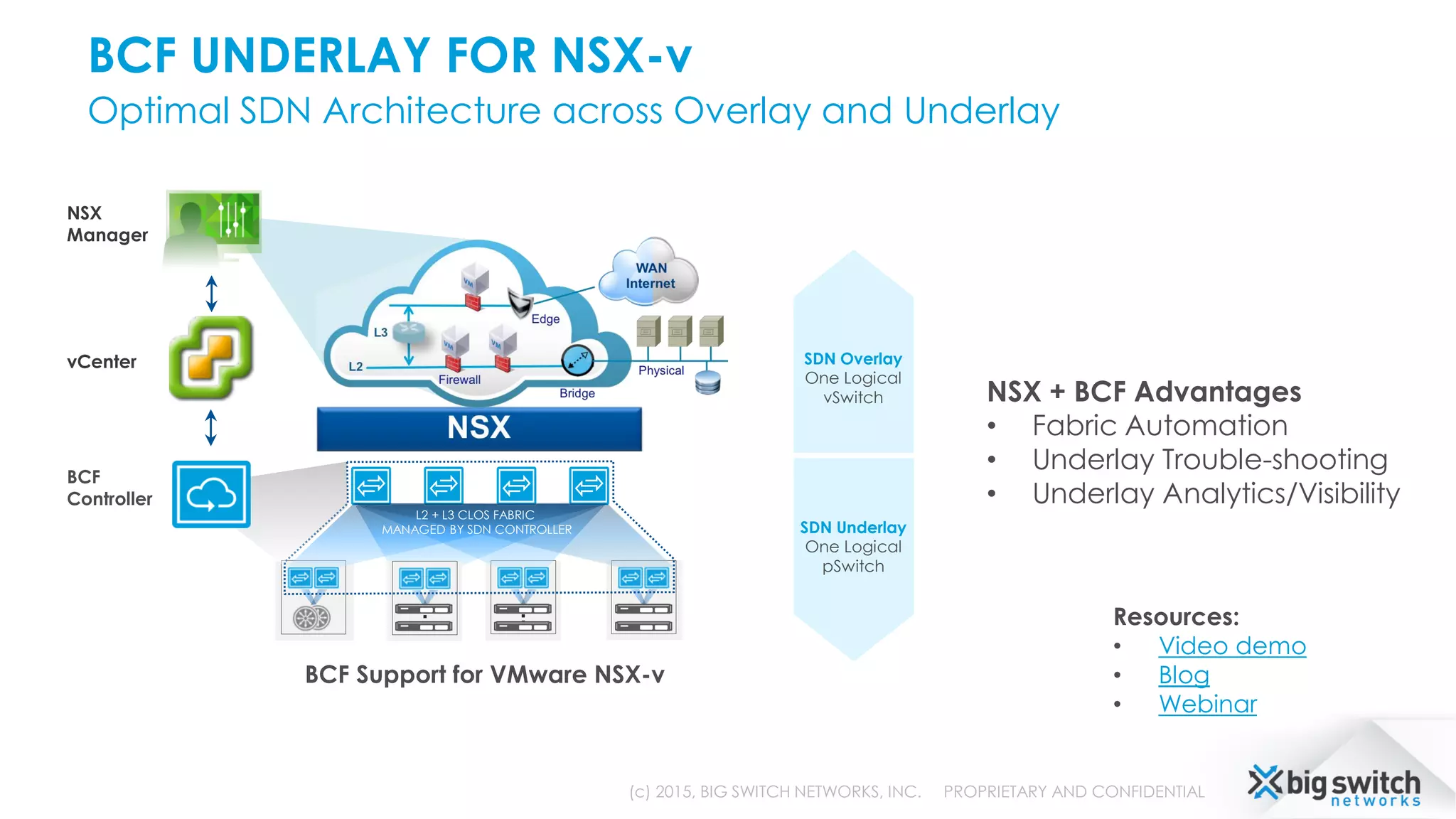

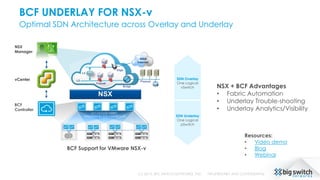

- 39. BCF UNDERLAY FORNSX-v Optimal SDN Architecture across Overlay and Underlay (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL BCF Support for VMware NSX-v vCenter NSX Manager L2 + L3 CLOS FABRIC MANAGED BY SDN CONTROLLER BCF Controller NSX + BCF Advantages • Fabric Automation • Underlay Trouble-shooting • Underlay Analytics/Visibility SDN Overlay One Logical vSwitch SDN Underlay One Logical pSwitch Resources: • Video demo • Blog • Webinar
- 40. FREE PRODUCT TRIALONLINE WITH BSN LABS (c) 2015, BIG SWITCH NETWORKS, INC. PROPRIETARY AND CONFIDENTIAL Both Products Create free account now at http://labs.bigswitc h.com

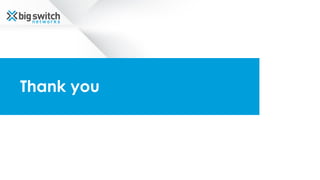

- 41.
