Parsing Expression With Xtext

The document describes the step-by-step parsing of the mathematical expression "(1 + 20) * 2" according to a specified grammar. The parsing breaks the expression down into a stack of syntactic elements including number literals, additions, multiplications, and primaries according to the grammar rules.

Downloaded 22 times
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition StackAST Grammar Text
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication StackAST Grammar Text
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression StackAST Grammar Text
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression StackAST Grammar Text
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression StackAST Grammar Text
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition StackAST Grammar Text
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition 5.Multiplication StackAST Grammar Text
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition 5.Multiplication 6.PrimaryExpression StackAST Grammar Text
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition 5.Multiplication 6.PrimaryExpression StackAST Grammar Text
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition 5.Multiplication 6.PrimaryExpression StackAST Grammar Text 1
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition 5.Multiplication 6.PrimaryExpression StackAST Grammar Text 1
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition 5.Multiplication StackAST Grammar Text 1 Reduce!
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition StackAST Grammar Text 1 Reduce!
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition StackAST Grammar Text 1
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition StackAST Grammar Text 1 +
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition StackAST Grammar Text 1 + current = ruleMultiplication(); // {AdditionalExpression.left=current} AdditionalExpression temp = new AdditionalExpression(); temp.setLeft(current); current = temp:
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition StackAST Grammar Text 1 +
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition StackAST Grammar Text 1 +
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition StackAST Grammar Text 1 +
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition 5.Multiplication StackAST Grammar Text 1 +
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition 5.Multiplication 6.PrimaryExpression StackAST Grammar Text 1 +
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition StackAST Grammar Text 1 + 20 Reduce!
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression StackAST Grammar Text 1 + 20 Reduce!
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression StackAST Grammar Text 1 + 20
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression StackAST Grammar Text 1 + 20
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication StackAST Grammar Text 1 + 20 Reduce!
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication StackAST Grammar Text 1 + 20 *
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication StackAST Grammar Text 1 + 20 *
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication StackAST Grammar Text 1 + 20 *
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication StackAST Grammar Text 1 + 20 *
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression StackAST Grammar Text 1 + 20 * 2
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression StackAST Grammar Text 1 + 20 * EOF 2
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication StackAST Grammar Text 1 + 20 * EOF Reduce! 2
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication StackAST Grammar Text 1 + 20 * EOF 2
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition StackAST Grammar Text 1 + 20 * EOF 2 Reduce!
Addition returns Expression: Multiplication ({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 StackAST Grammar Text 1 + 20 * EOF 2 Finished!

More Related Content

PDF
[NDC16] Effective Git
byChanwoong Kim

PDF
Solve cross cutting concerns with aspect oriented programming (aop)
bySiva Prasad Rao Janapati

PPTX
Java Foundations: Maps, Lambda and Stream API
bySvetlin Nakov

PDF
Rest in flask
byHamid Feizabadi

PDF
Effective testing with pytest
byHector Canto

PDF
Serializing EMF models with Xtext
bymeysholdt

PDF
Lambda Expressions in Java
byErhan Bagdemir

ODP
Beginners - Get Started With Unit Testing in .NET
byBaskar K

[NDC16] Effective Git
byChanwoong Kim

Solve cross cutting concerns with aspect oriented programming (aop)
bySiva Prasad Rao Janapati

Java Foundations: Maps, Lambda and Stream API
bySvetlin Nakov

Rest in flask
byHamid Feizabadi

Effective testing with pytest
byHector Canto

Serializing EMF models with Xtext
bymeysholdt

Lambda Expressions in Java
byErhan Bagdemir

Beginners - Get Started With Unit Testing in .NET
byBaskar K


What's hot

PDF
Angular js routing options
byNir Kaufman

PPTX
Advanced JavaScript
byNascenia IT

PPTX
Exception log practical_coding_guide, 예외와 로그 코딩 실용 가이드
by도형 임

PPTX
오래된 프로젝트에 Jenkins 적용해보기
by용호 최

ODP
API Testing With Katalon Studio
byKnoldus Inc.

PPTX
업적,칭호,타이틀 그게 뭐든간에...
bySeungYeon Jeong

PDF
간단한 블로그를 만들며 Django 이해하기
byKyoung Up Jung

PPT
Advanced JavaScript
byFu Cheng

PPTX
Unit testing in JavaScript with Jasmine and Karma
byAndrey Kolodnitsky

Angular js routing options
byNir Kaufman

Advanced JavaScript
byNascenia IT

Exception log practical_coding_guide, 예외와 로그 코딩 실용 가이드
by도형 임

오래된 프로젝트에 Jenkins 적용해보기
by용호 최

API Testing With Katalon Studio
byKnoldus Inc.

업적,칭호,타이틀 그게 뭐든간에...
bySeungYeon Jeong

간단한 블로그를 만들며 Django 이해하기
byKyoung Up Jung

Advanced JavaScript
byFu Cheng

Unit testing in JavaScript with Jasmine and Karma
byAndrey Kolodnitsky


More from Sven Efftinge

PDF
Language Engineering With Xtext
bySven Efftinge

PDF
Future of Xtext
bySven Efftinge

PDF
Auto-GWT : Better GWT Programming with Xtend
bySven Efftinge

PDF
Functional programming with Xtend
bySven Efftinge

PDF
Codegeneration With Xtend
bySven Efftinge

KEY
Gwt and Xtend
bySven Efftinge

KEY
Domain Specific Languages (EclipseCon 2012)
bySven Efftinge

KEY
Xtend @ EclipseCon 2012
bySven Efftinge

KEY
Eclipse Xtend
bySven Efftinge

PDF
This Is Not Your Father's Java
bySven Efftinge

KEY
Getting the most out of Java [Nordic Coding-2010]
bySven Efftinge

PDF
Xtext at MDD Day 2010
bySven Efftinge

PDF
Dependency Injection for Eclipse developers
bySven Efftinge

PDF
Xtext Webinar
bySven Efftinge

KEY
Challenges In Dsl Design
bySven Efftinge

KEY
Code Generation in Agile Projects
bySven Efftinge

KEY
Xtext Eclipse Con
bySven Efftinge

KEY
Generic Editor
bySven Efftinge

PDF
Eclipse Banking Day
bySven Efftinge

PDF
Bessere Softwareentwicklung (Itemis Wintercon)
bySven Efftinge

Language Engineering With Xtext
bySven Efftinge

Future of Xtext
bySven Efftinge

Auto-GWT : Better GWT Programming with Xtend
bySven Efftinge

Functional programming with Xtend
bySven Efftinge

Codegeneration With Xtend
bySven Efftinge

Gwt and Xtend
bySven Efftinge

Domain Specific Languages (EclipseCon 2012)
bySven Efftinge

Xtend @ EclipseCon 2012
bySven Efftinge

Eclipse Xtend
bySven Efftinge

This Is Not Your Father's Java
bySven Efftinge

Getting the most out of Java [Nordic Coding-2010]
bySven Efftinge

Xtext at MDD Day 2010
bySven Efftinge

Dependency Injection for Eclipse developers
bySven Efftinge

Xtext Webinar
bySven Efftinge

Challenges In Dsl Design
bySven Efftinge

Code Generation in Agile Projects
bySven Efftinge

Xtext Eclipse Con
bySven Efftinge

Generic Editor
bySven Efftinge

Eclipse Banking Day
bySven Efftinge

Bessere Softwareentwicklung (Itemis Wintercon)
bySven Efftinge


Recently uploaded

PPSX
Domain Centered Architecture for complex business domains
byRob Vens

PDF
Privacy-first in-browser Generative AI web apps: offline-ready, future-proof,...
byMaxim Salnikov

PDF
VADY Smart Data Flow – Automated Data Insights for Scalable Enterprise Decisions
byNewFangledVision

PDF
Practical Performance Tuning for Serverless Java on AWS- InfoQ Dev Summit
byVadym Kazulkin

PPTX
Financial Literacy for Software Developers
byBalanathanVirupasan

PPTX
Systems Programming Lecture Compute.pptx
byAdekunle25

PPTX
Oracle_AWS_Azure_GCP_Comparison_ModernTech.pptx
byVITS184D1

PDF
Making sense of AWS Serverless operations- AWS Community Day CEE 2025
byVadym Kazulkin

PDF
The new Volto Form Block, Plone Conference 2025
byRob Gietema

PPTX
AI-Powered Intelligent Agents for Fraud Detection
byleolucus1995

PPTX
Safe Confined Space Entry Monitoring_ Singapore Experts.pptx
byprasadexiga0

PPTX
Java Modern Puzzlers, a guide to new programming features
bySimon Ritter

PDF
Ensuring Regulatory Excellence with Insurance Compliance Software
byInsurance Tech Services

PDF
Driving Stress Detection Using Multimodal CNN with Nonlinear Representation o...
byPranjal Kumar

PPTX
Declarative Process Mining with MINERful, Reloaded
byCecilia Iacometta

PDF
Metrics, logs, traces, and mayhem_ introducing an observability adventure gam...
byImma Valls Bernaus

PDF
How can AI be used in Content Management Systems, Plone Conference 2025
byRob Gietema

PPTX
Integrated Billing, Accounting & Inventory Solution for MSMEs
byMoving Cloud

PDF
Dreamforce 2025: Welcome to the Agentic Enterprise
byDele Amefo

PDF
ASTC Conference 2025 - Bridging the Gap!
byGareth Oakes

Domain Centered Architecture for complex business domains
byRob Vens

Privacy-first in-browser Generative AI web apps: offline-ready, future-proof,...
byMaxim Salnikov

VADY Smart Data Flow – Automated Data Insights for Scalable Enterprise Decisions
byNewFangledVision

Practical Performance Tuning for Serverless Java on AWS- InfoQ Dev Summit
byVadym Kazulkin

Financial Literacy for Software Developers
byBalanathanVirupasan

Systems Programming Lecture Compute.pptx
byAdekunle25

Oracle_AWS_Azure_GCP_Comparison_ModernTech.pptx
byVITS184D1

Making sense of AWS Serverless operations- AWS Community Day CEE 2025
byVadym Kazulkin

The new Volto Form Block, Plone Conference 2025
byRob Gietema

AI-Powered Intelligent Agents for Fraud Detection
byleolucus1995

Safe Confined Space Entry Monitoring_ Singapore Experts.pptx
byprasadexiga0

Java Modern Puzzlers, a guide to new programming features
bySimon Ritter

Ensuring Regulatory Excellence with Insurance Compliance Software
byInsurance Tech Services

Driving Stress Detection Using Multimodal CNN with Nonlinear Representation o...
byPranjal Kumar

Declarative Process Mining with MINERful, Reloaded
byCecilia Iacometta

Metrics, logs, traces, and mayhem_ introducing an observability adventure gam...
byImma Valls Bernaus

How can AI be used in Content Management Systems, Plone Conference 2025
byRob Gietema

Integrated Billing, Accounting & Inventory Solution for MSMEs
byMoving Cloud

Dreamforce 2025: Welcome to the Agentic Enterprise
byDele Amefo

ASTC Conference 2025 - Bridging the Gap!
byGareth Oakes

In this document
Powered by AI

Explains the grammar rules for Addition and Multiplication expressions using `PrimaryExpression`, `NumberLiteral`, and examples like (1 + 20) * 2.

Details the structure of expressions including Addition, Multiplication, and PrimaryExpressions with specific rules for combining them.

Shows the addition of steps in expression evaluation, iterating components until a complete expression is formed, illustrating the process.

Presents the process of reducing addition and multiplication expressions, featuring key components involved in step reductions.

Explains the finalization of expressions and handling EOF in calculation with a focus on completing the structure of expressions.

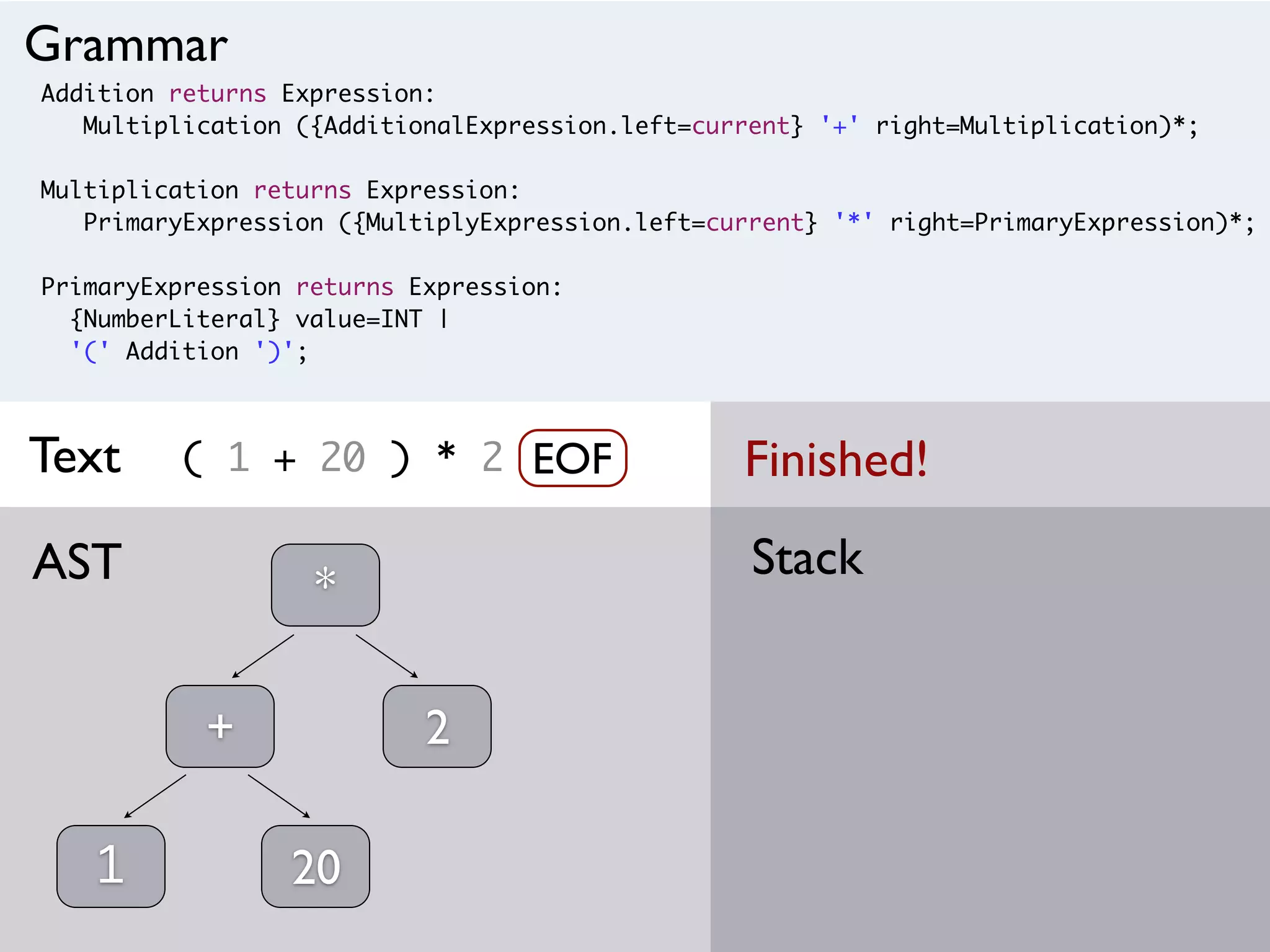

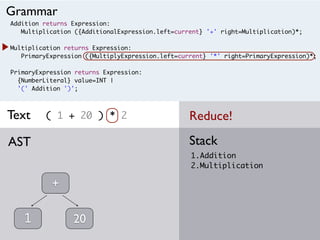

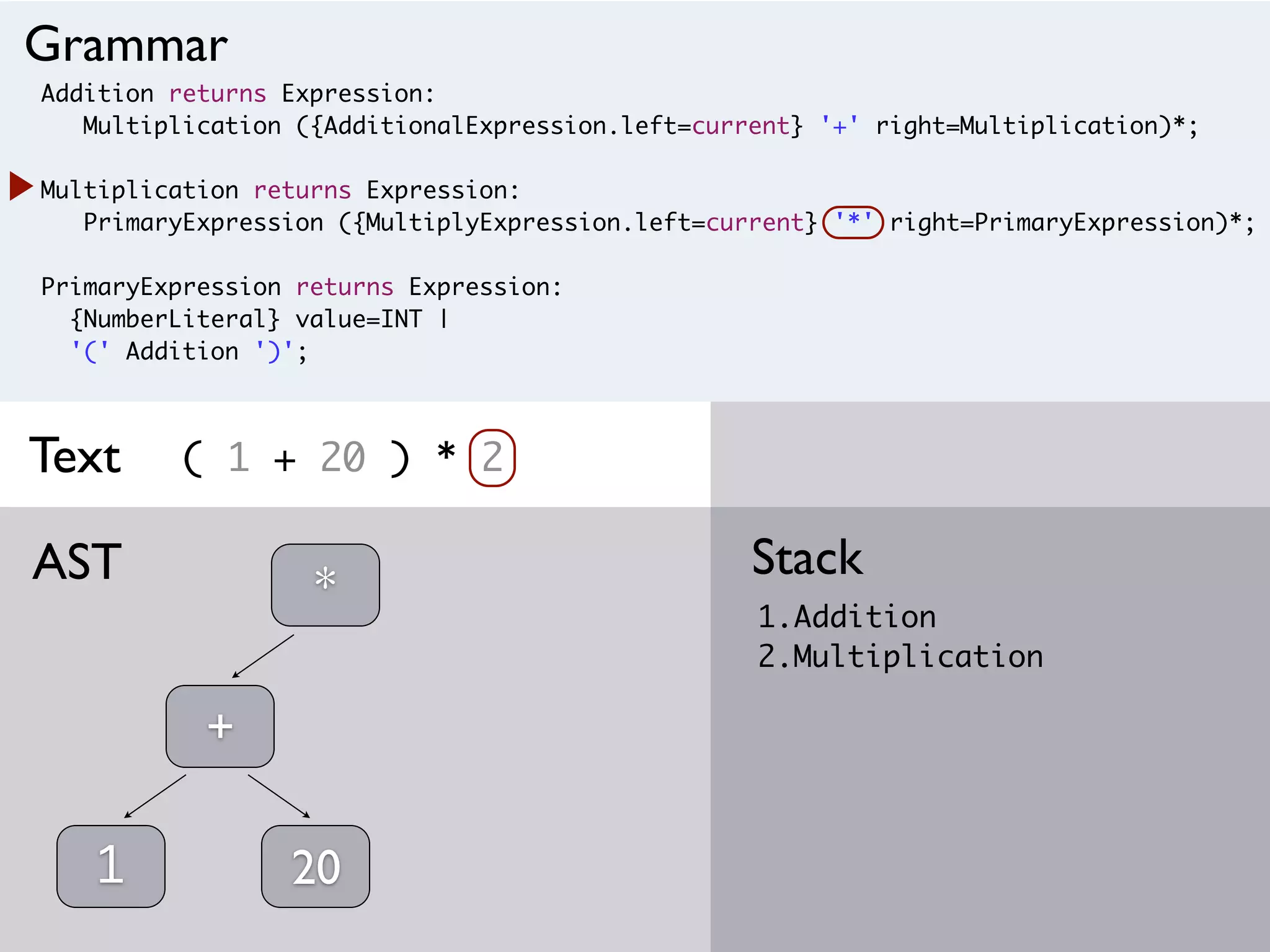

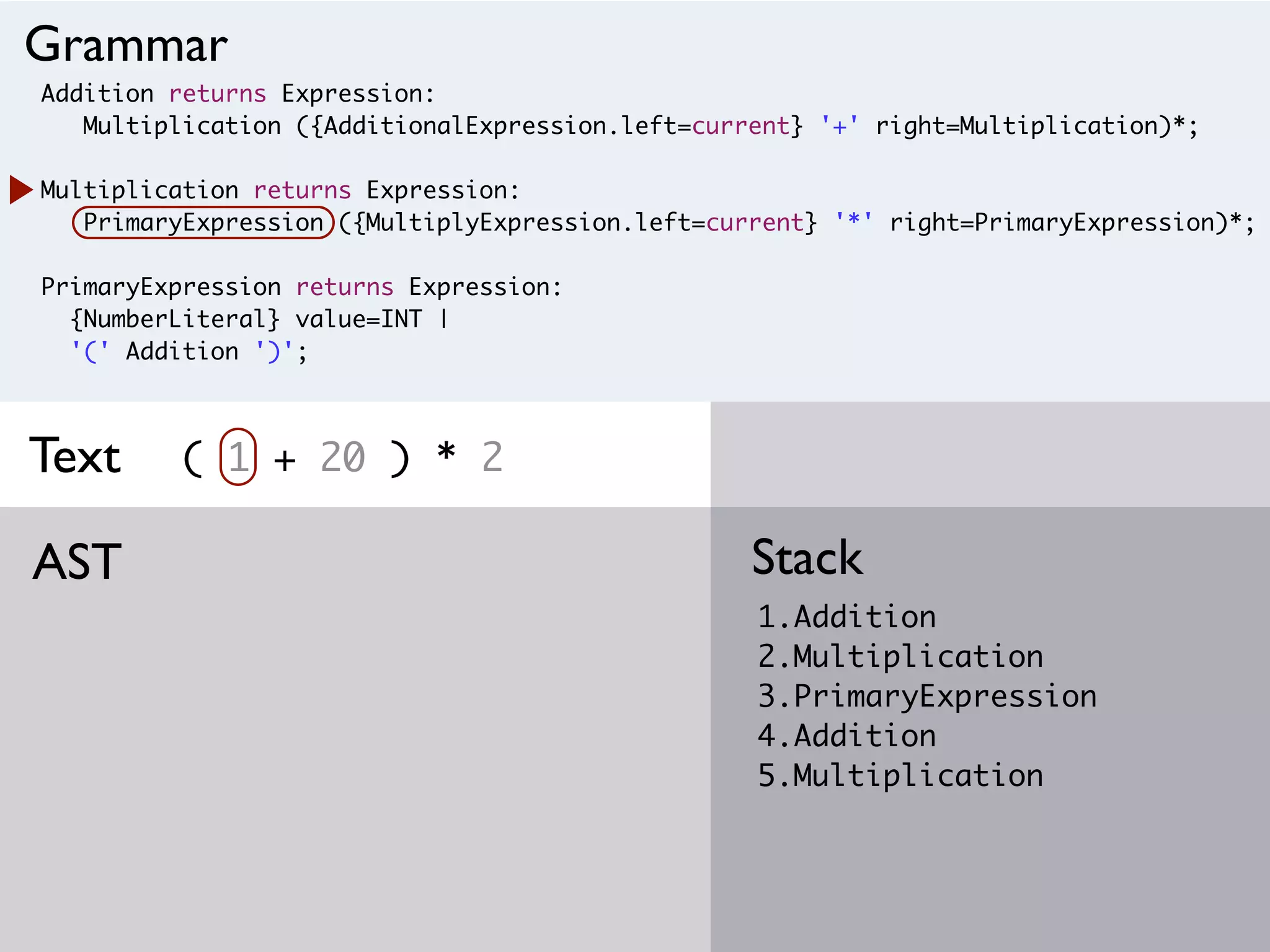

Parsing Expression With Xtext

  • 1.

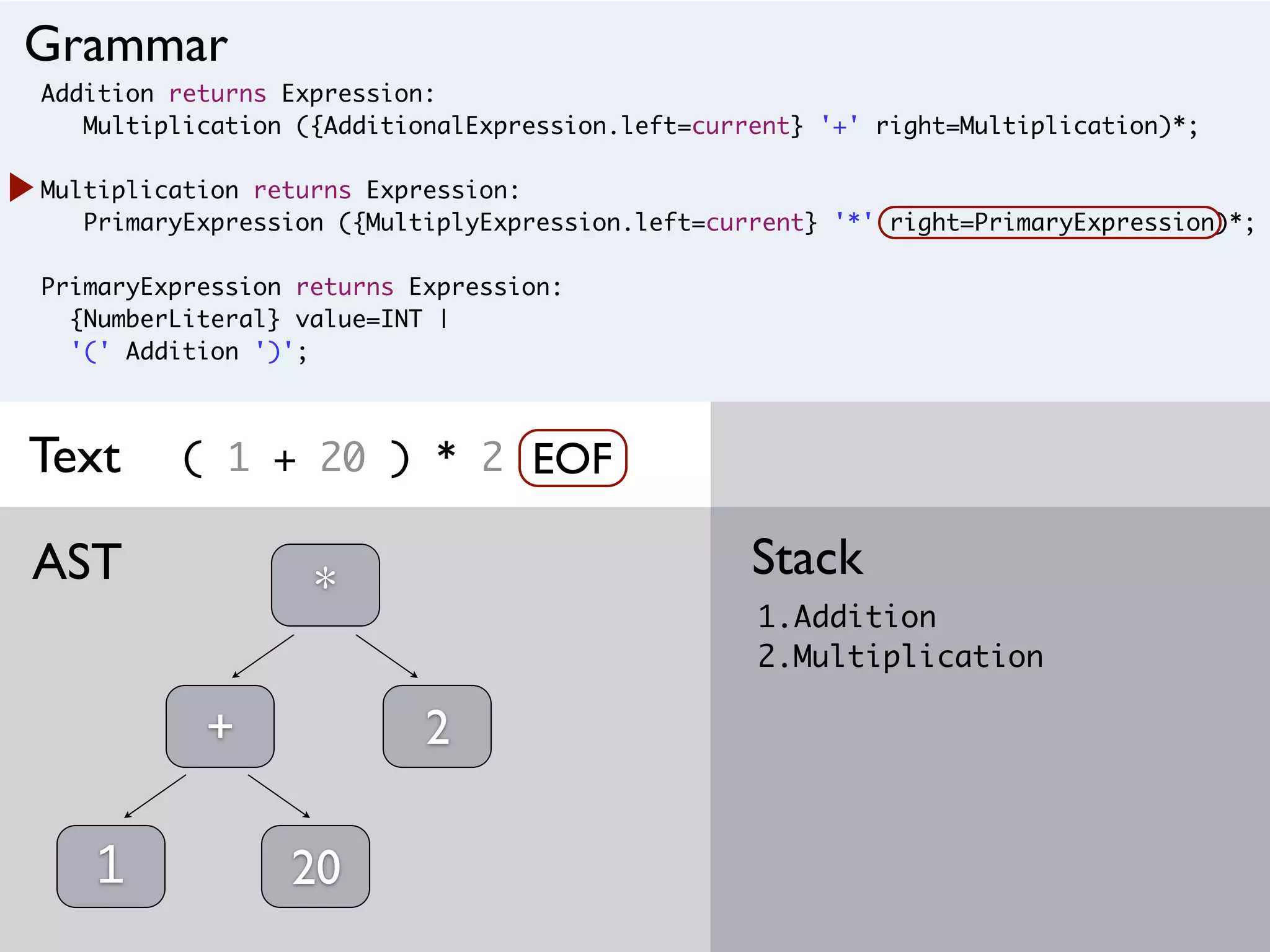

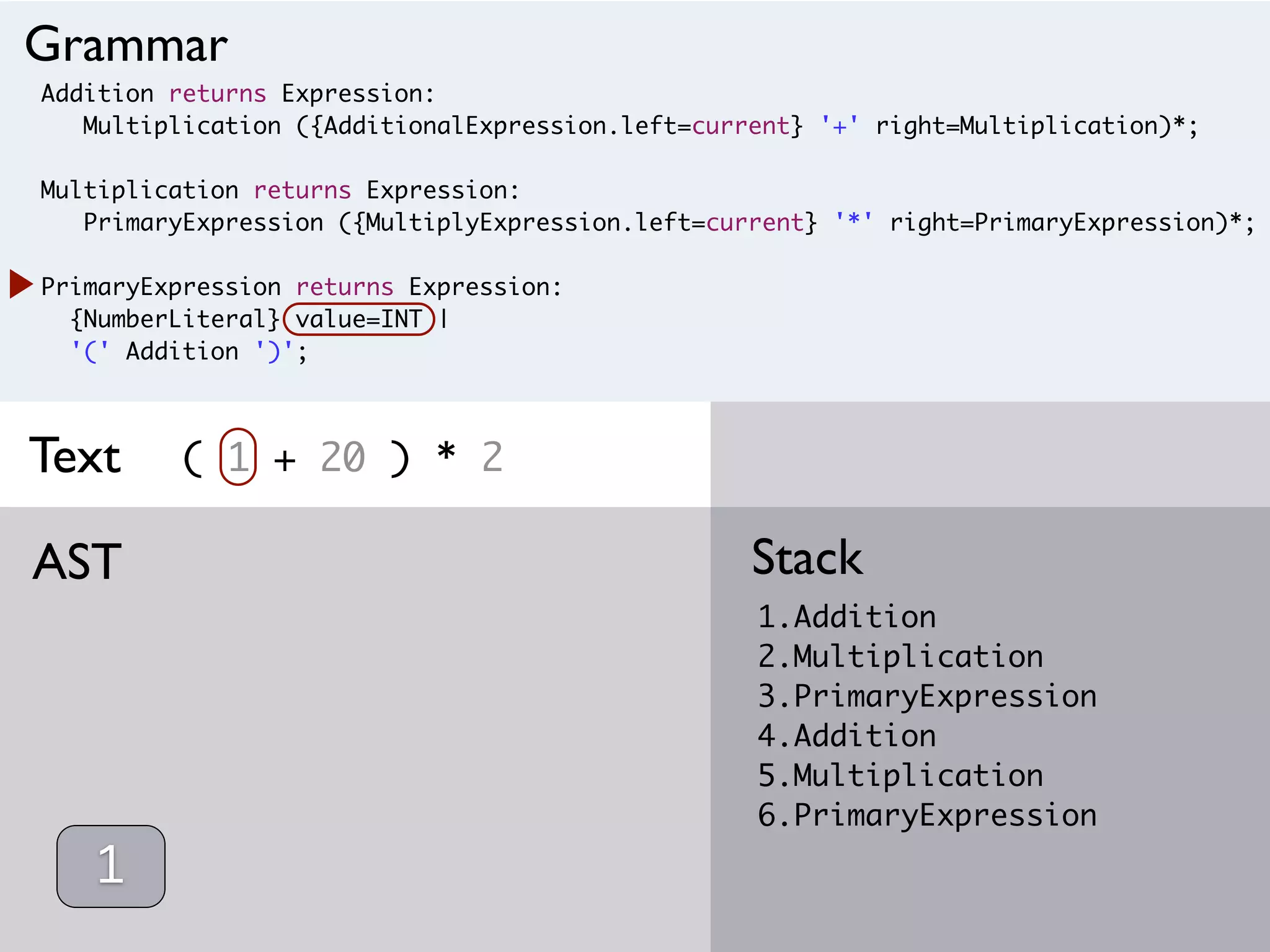

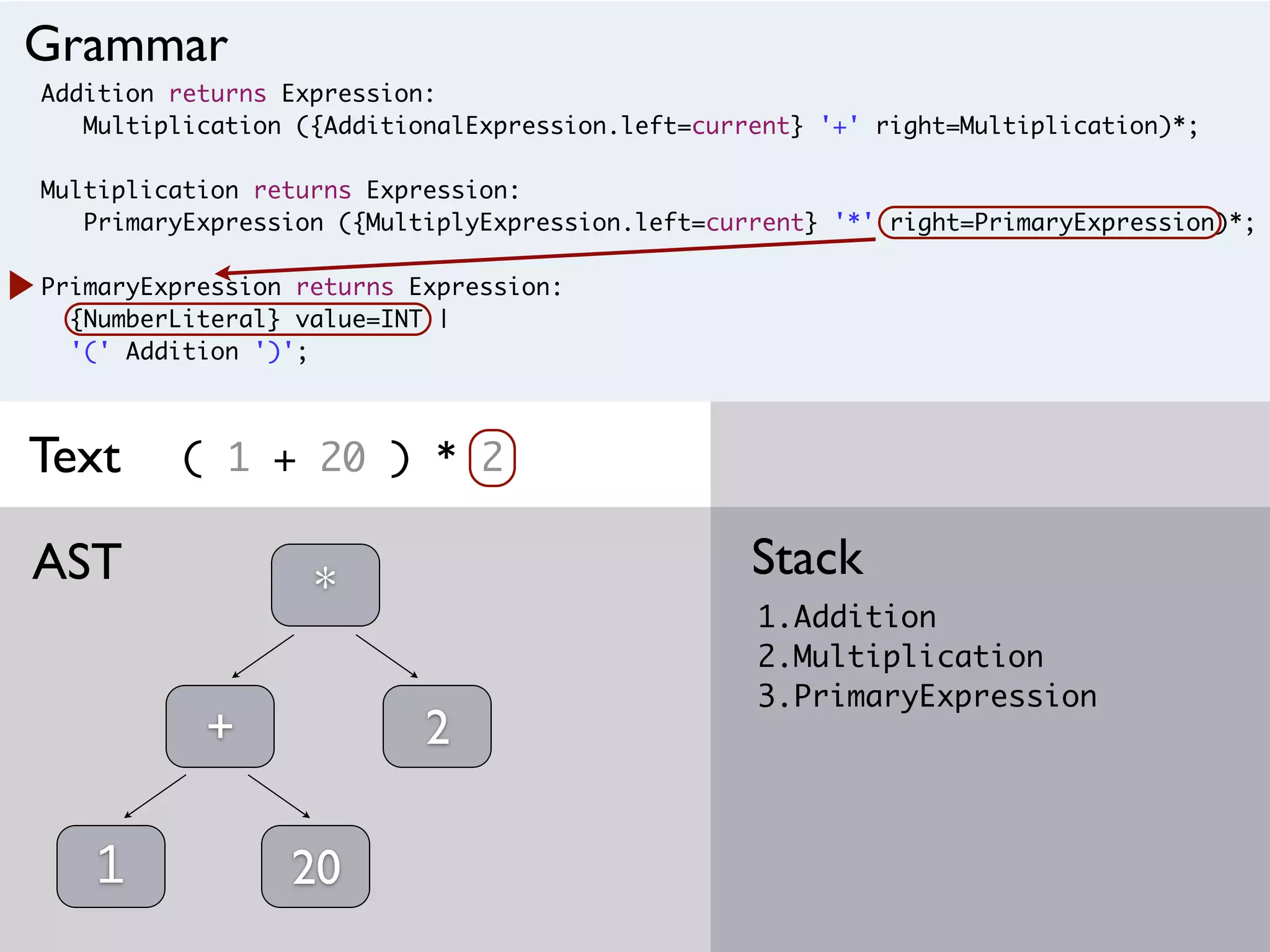

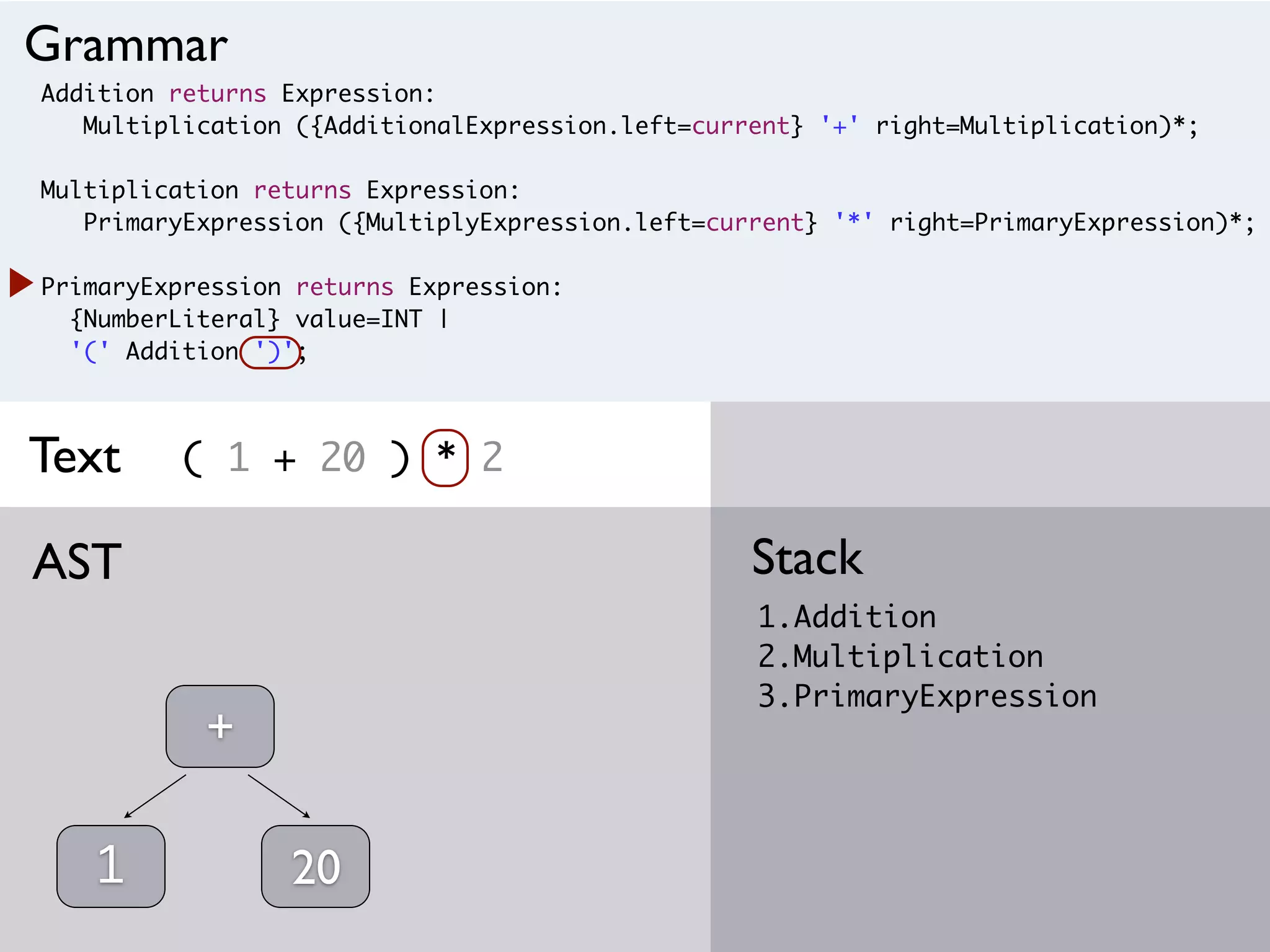

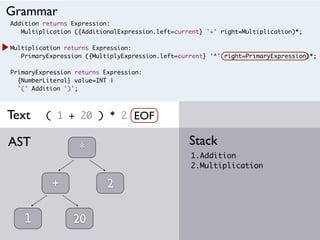

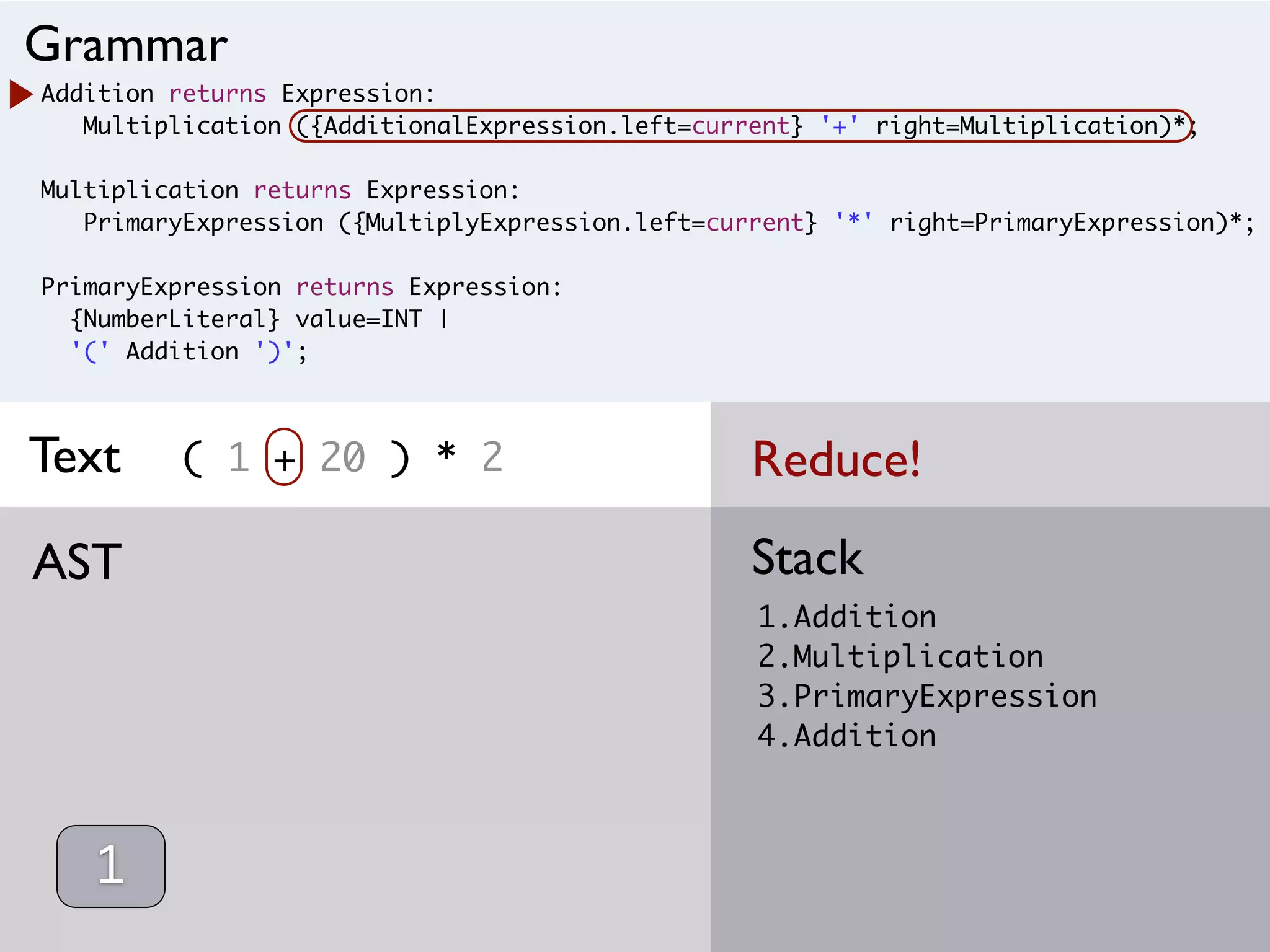

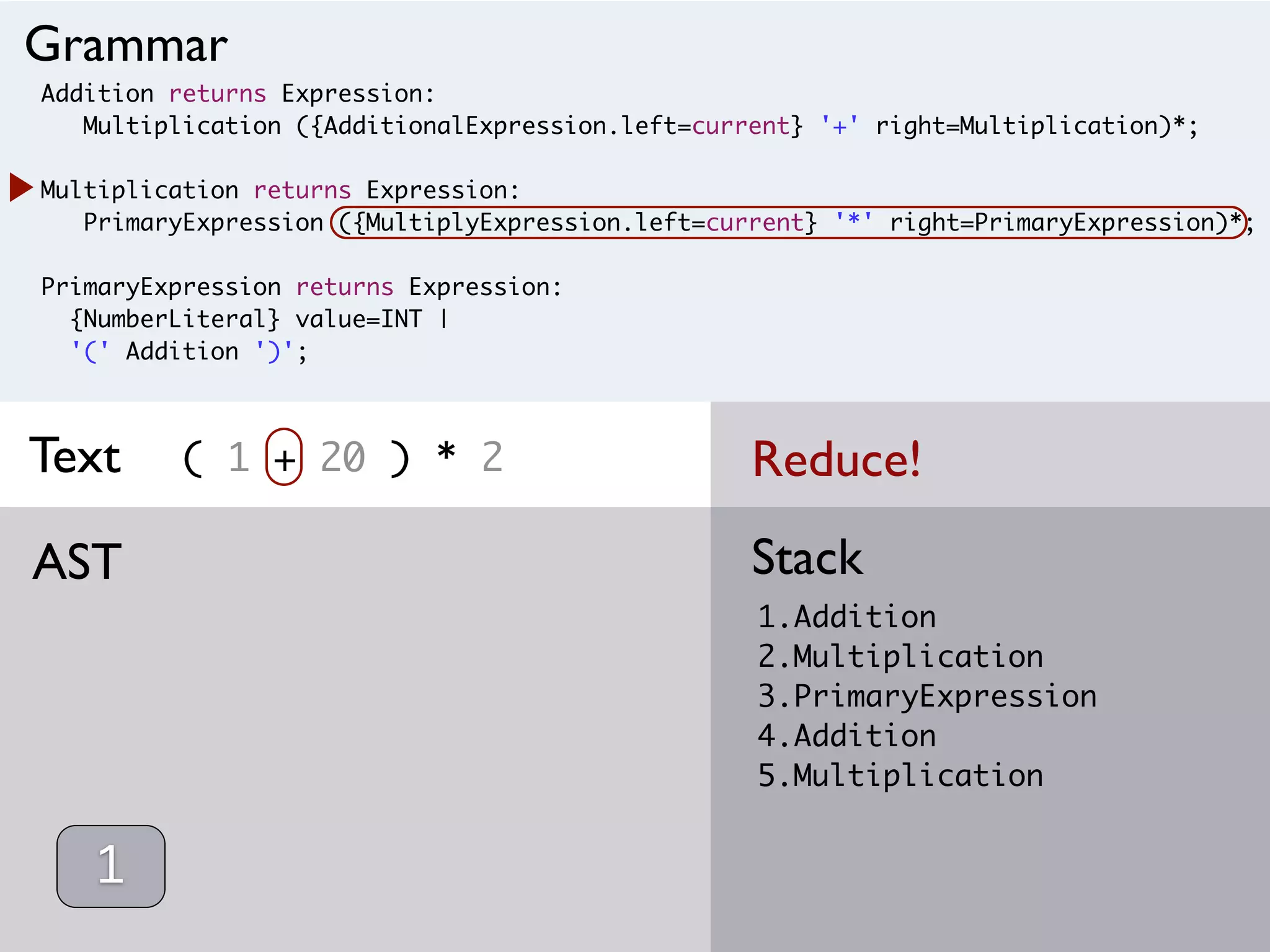

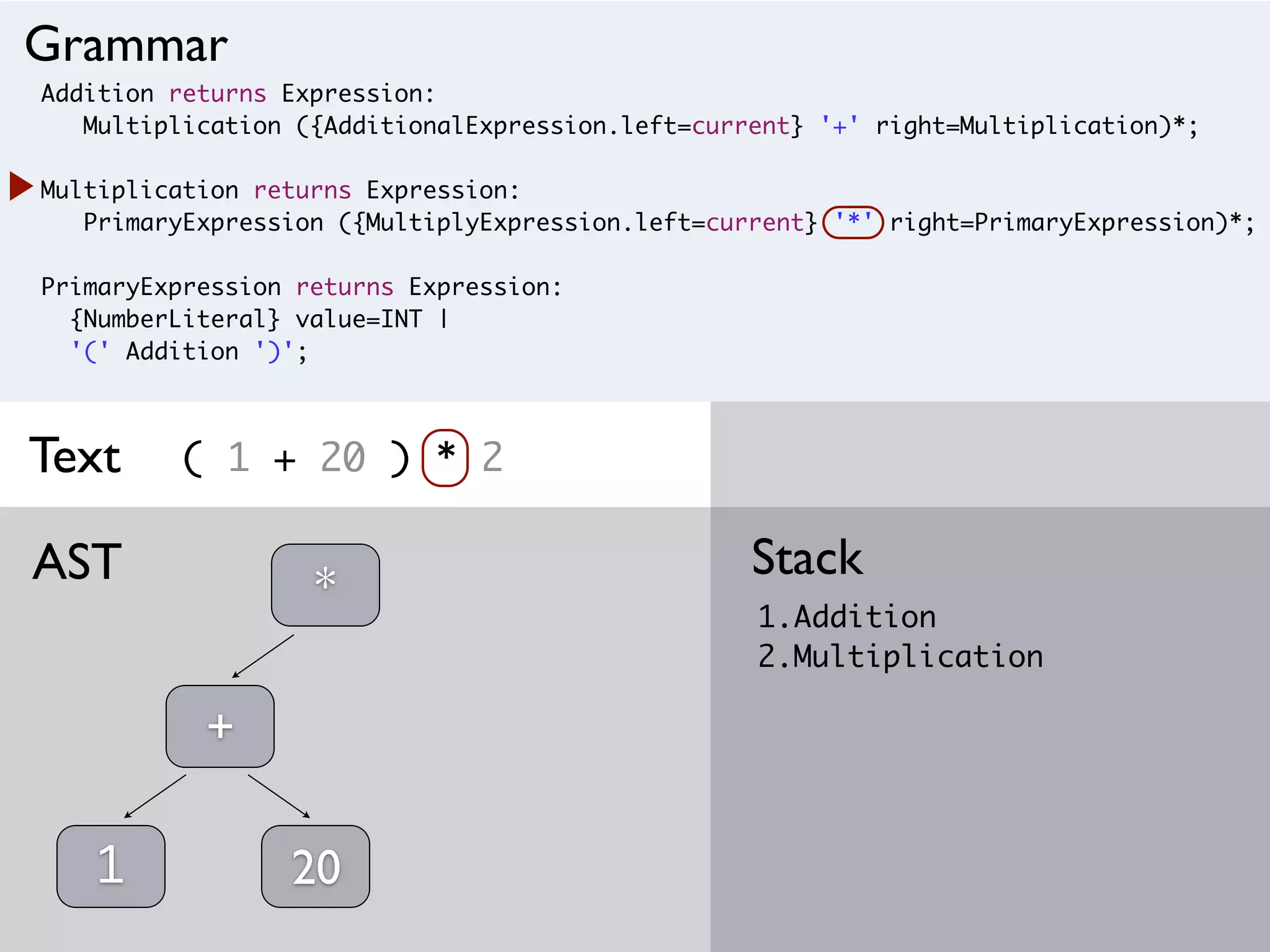

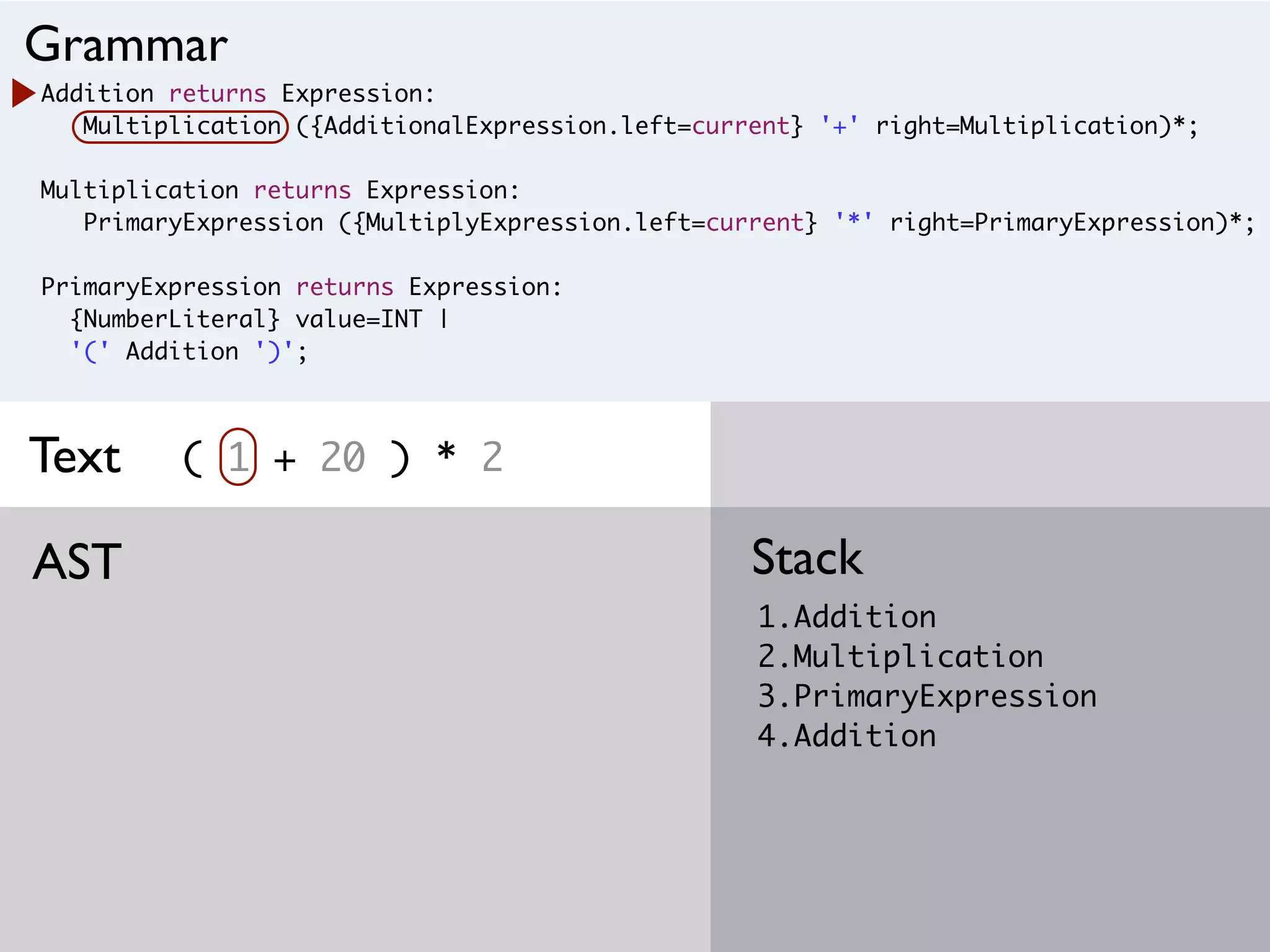

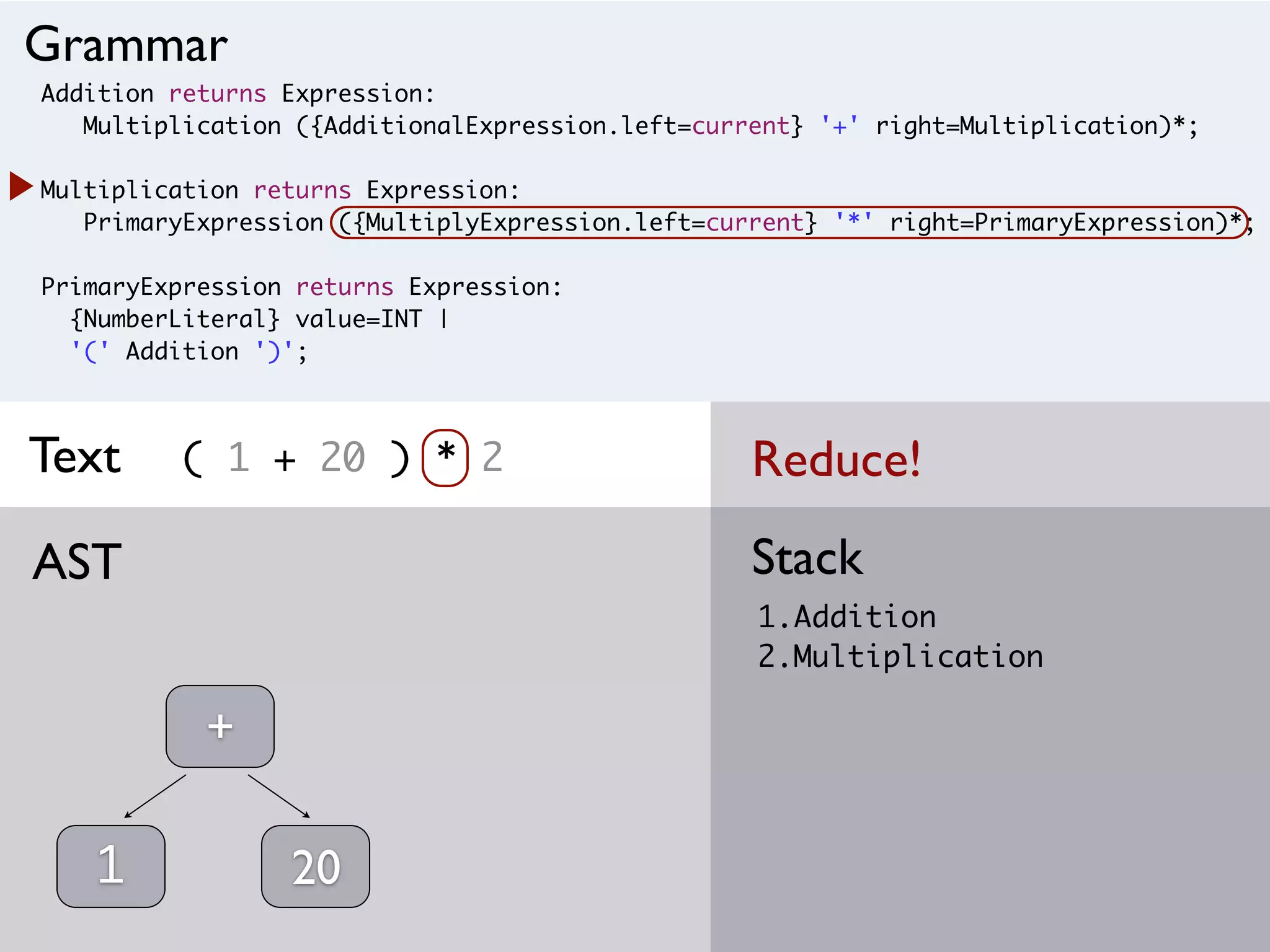

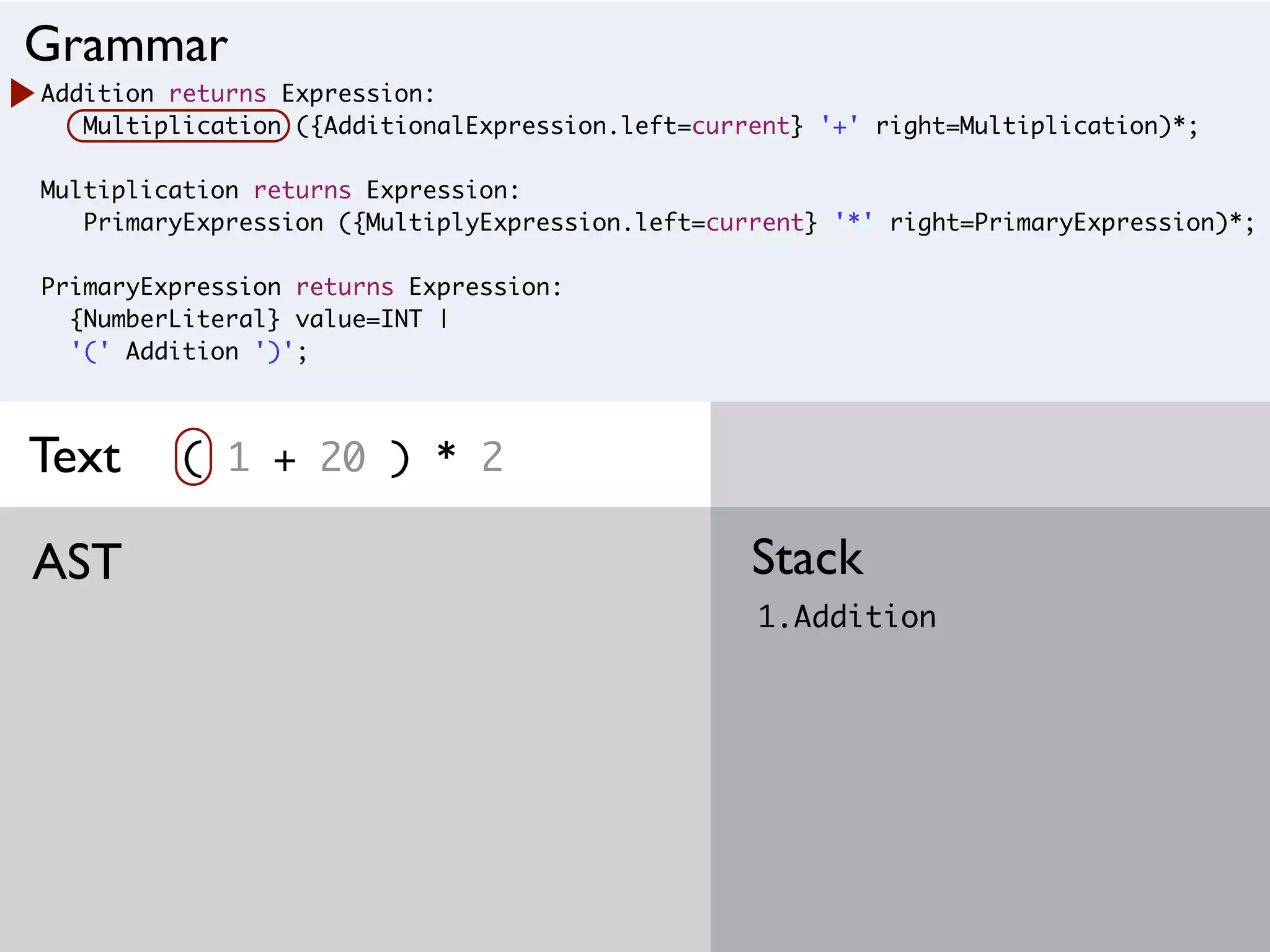

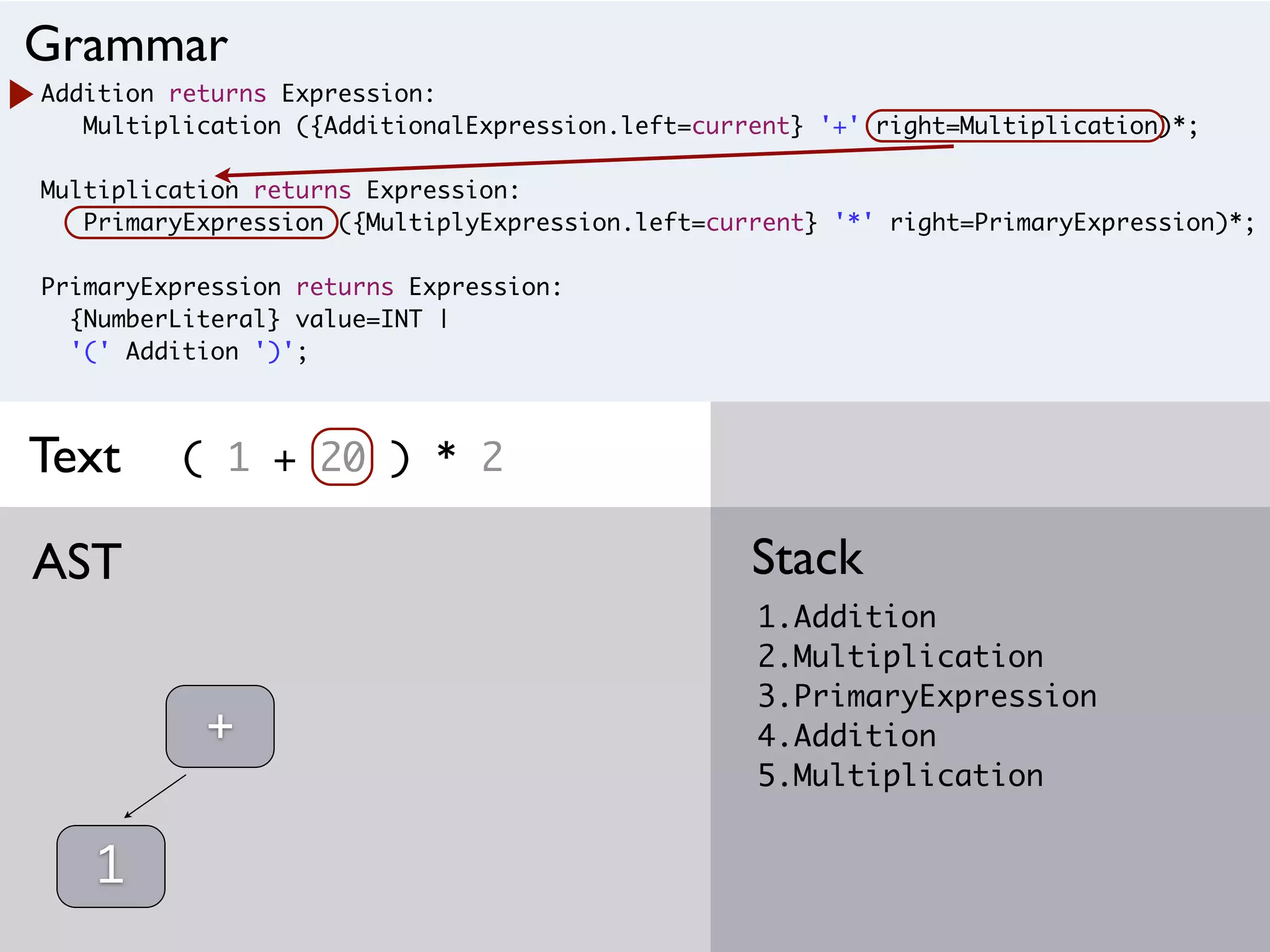

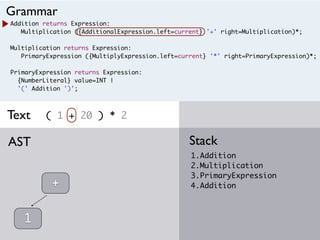

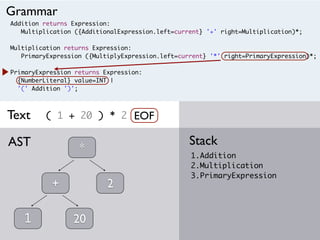

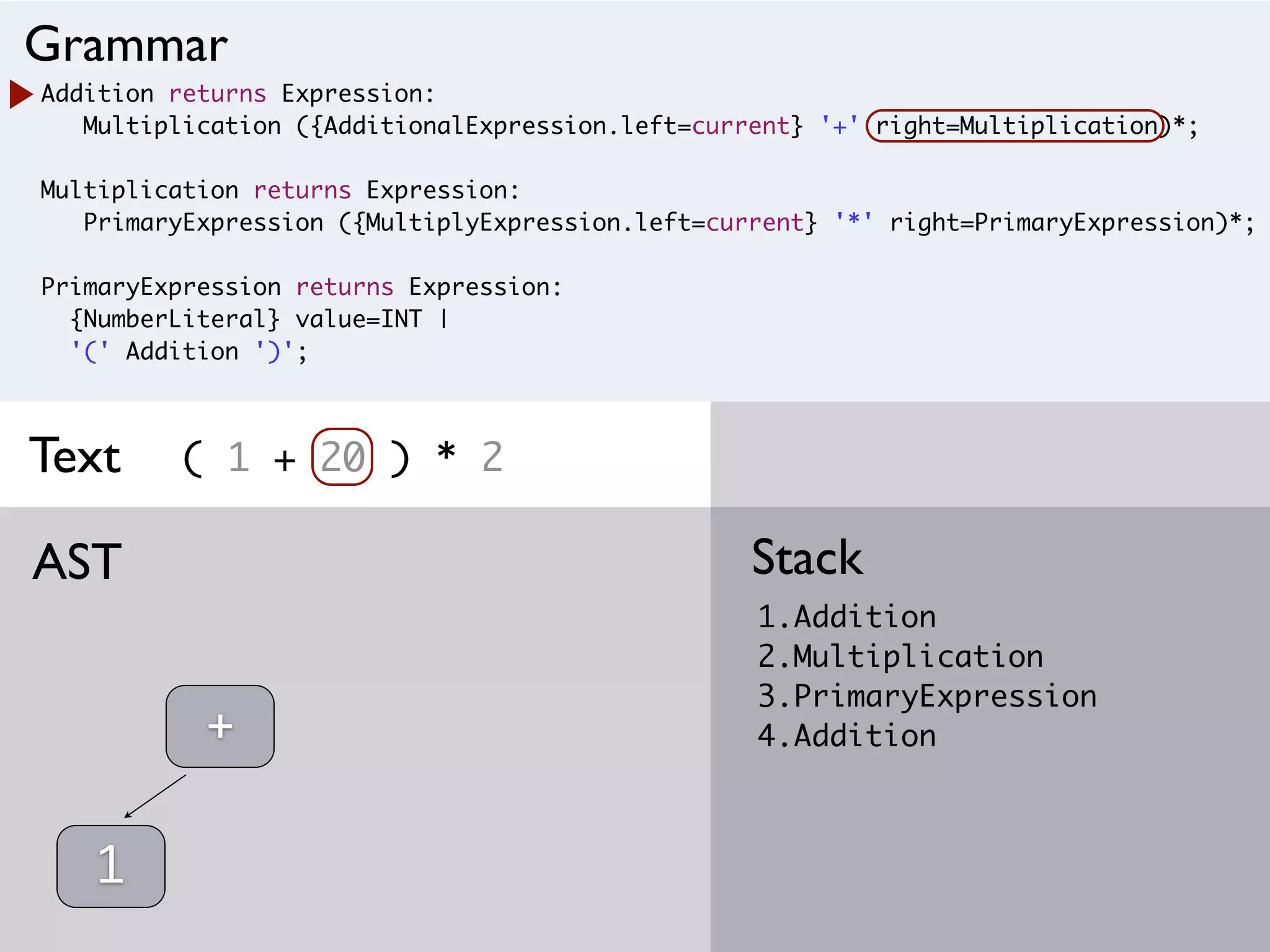

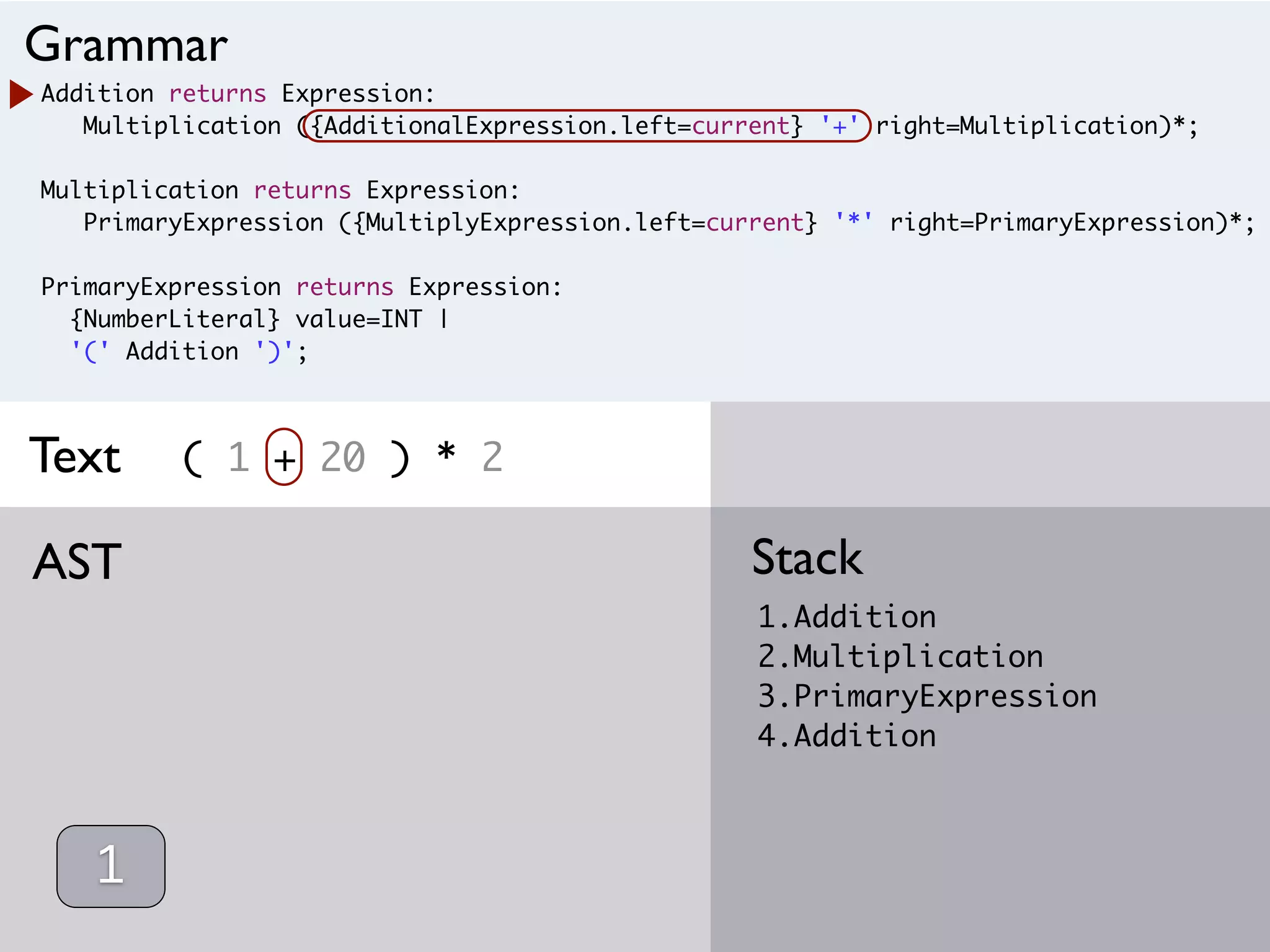

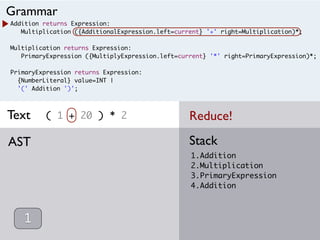

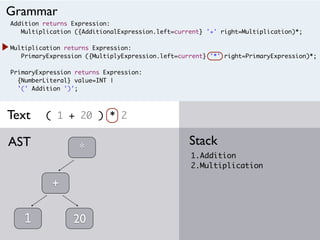

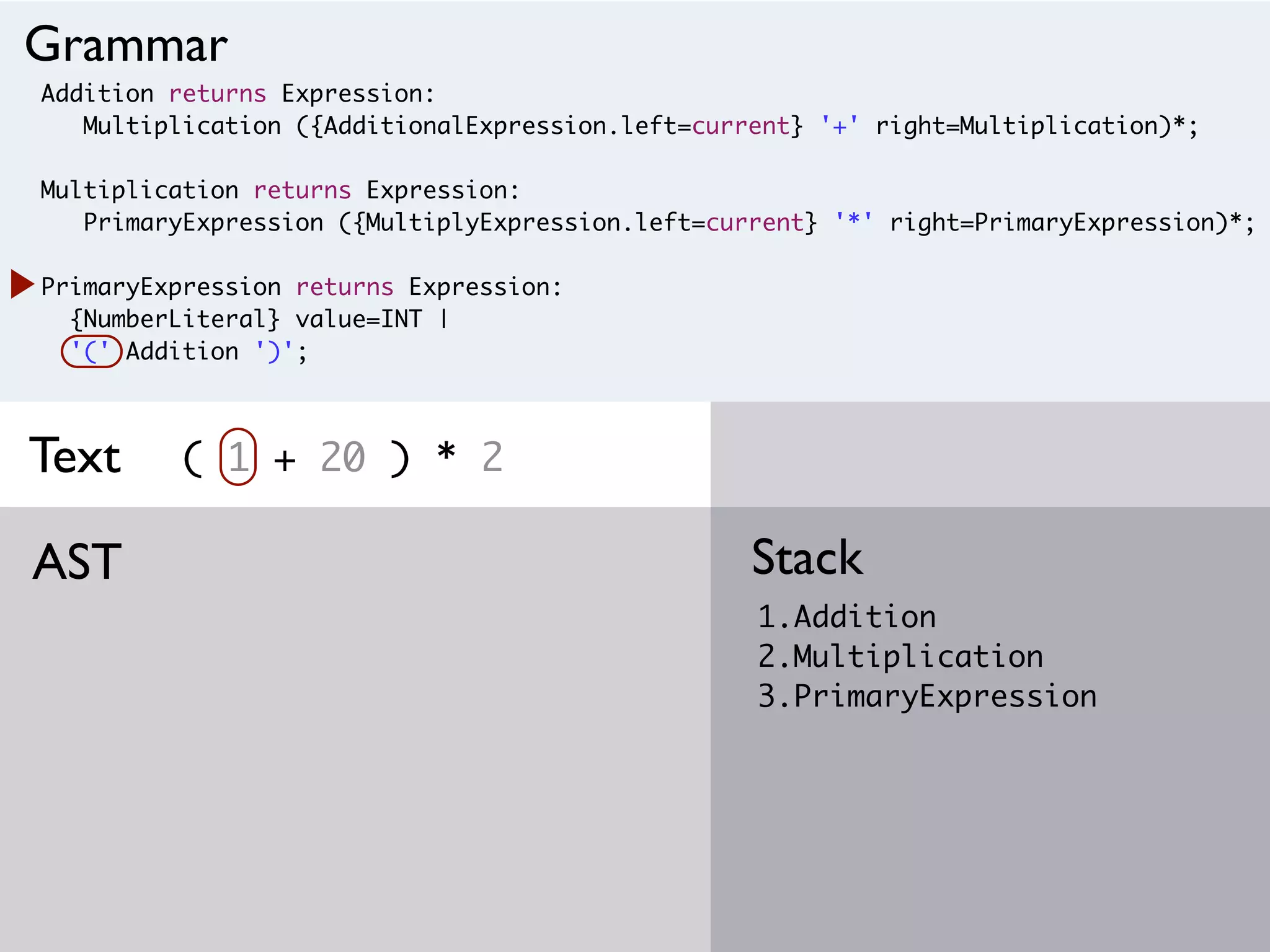

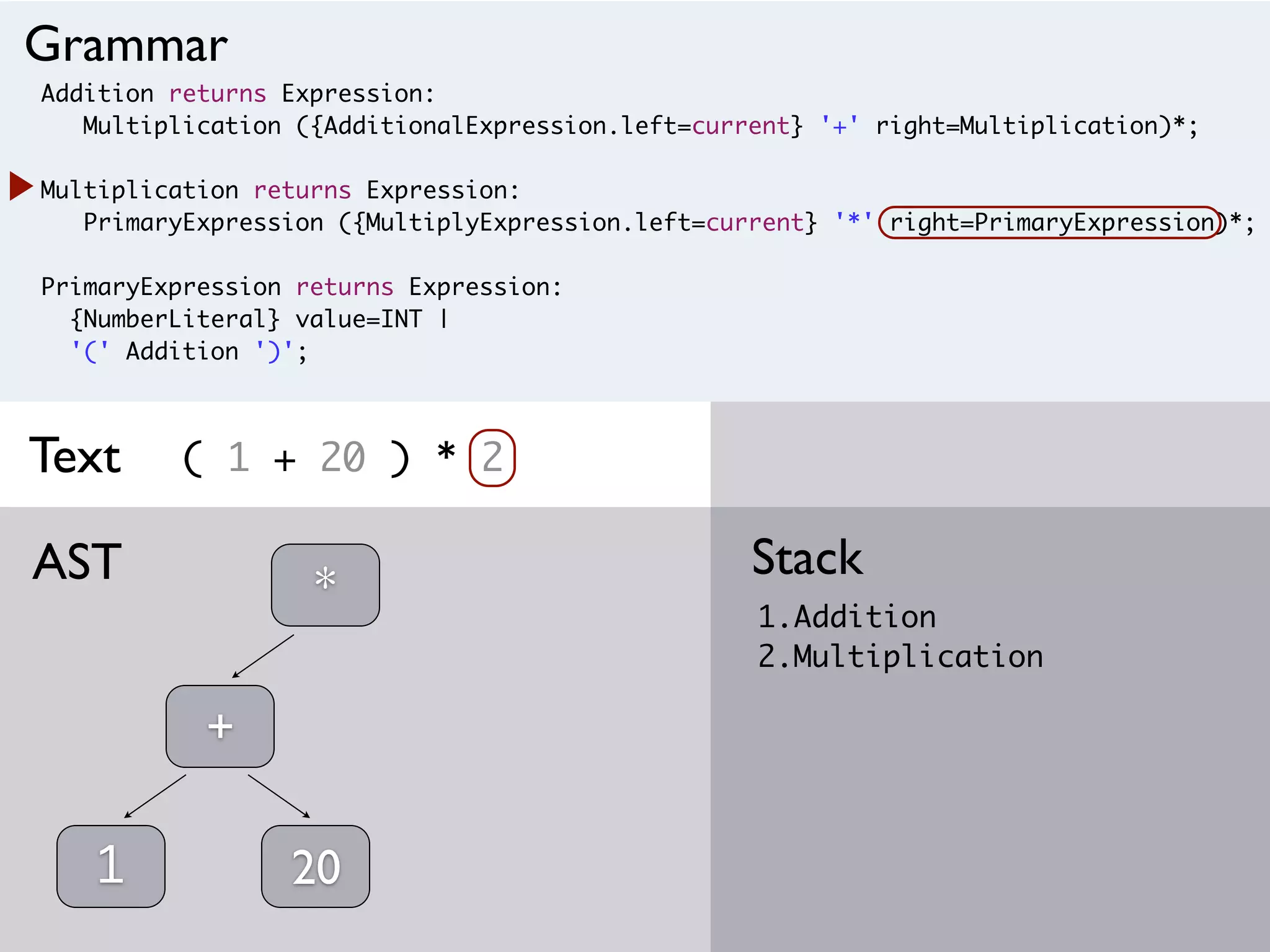

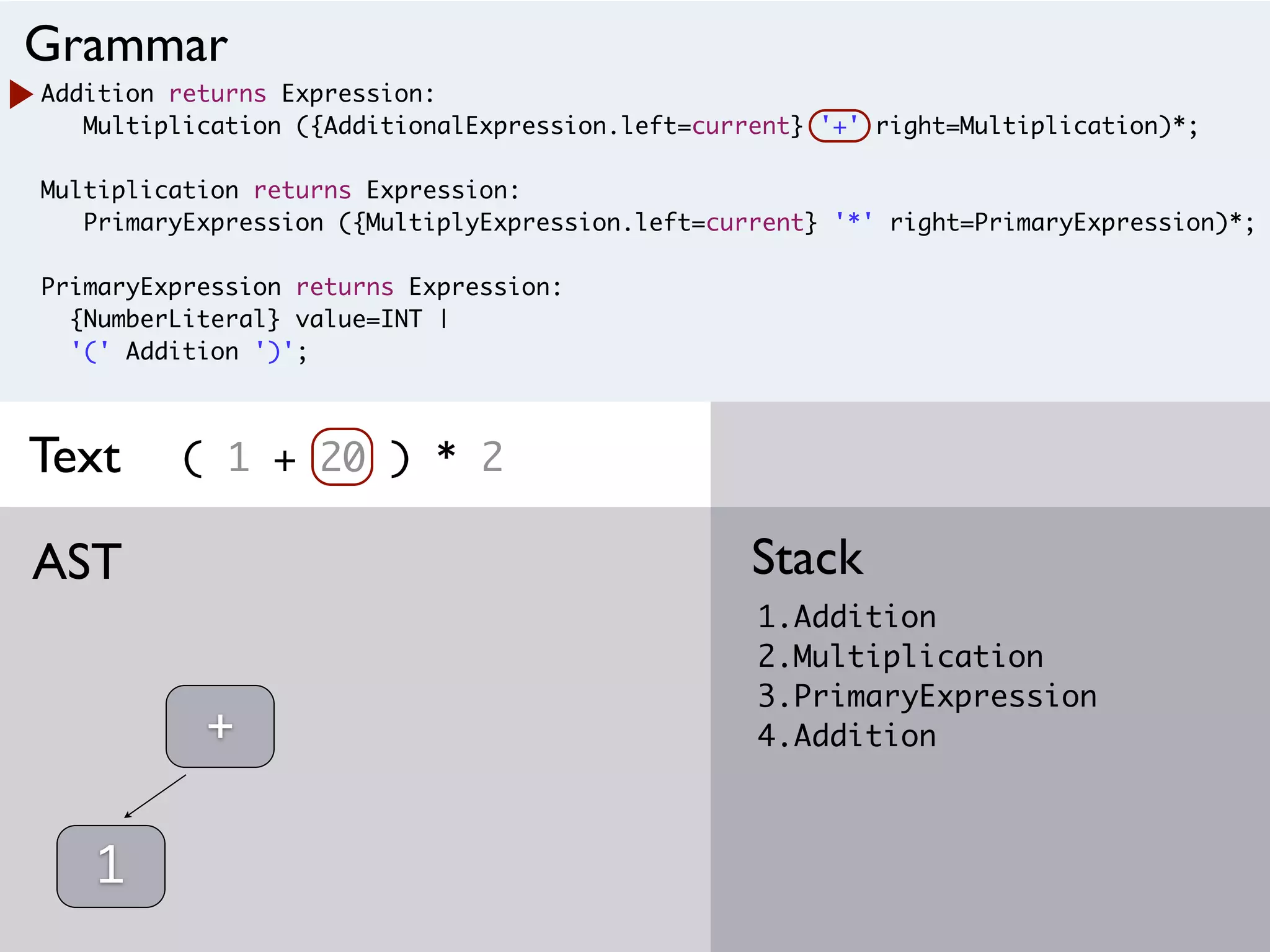

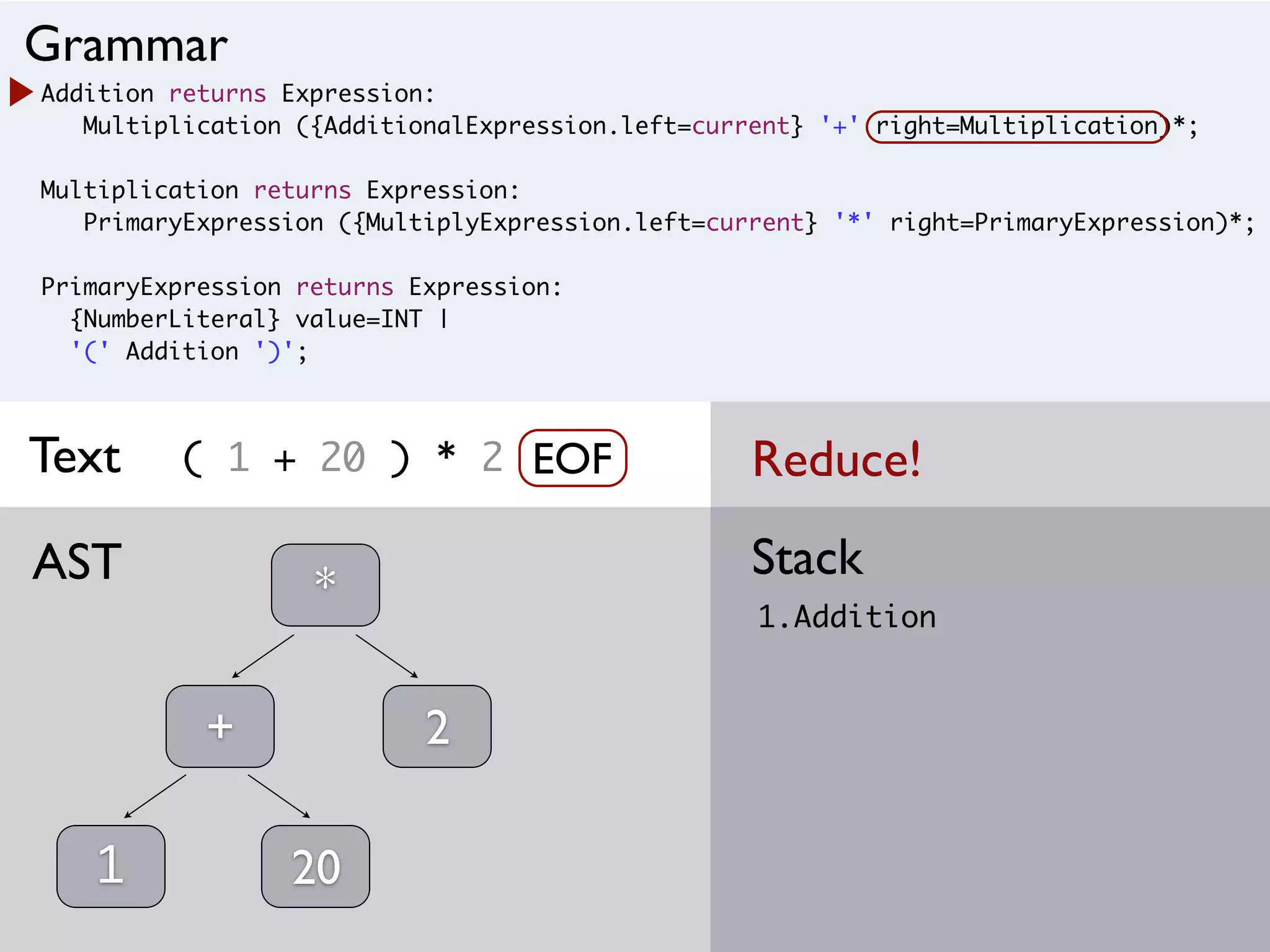

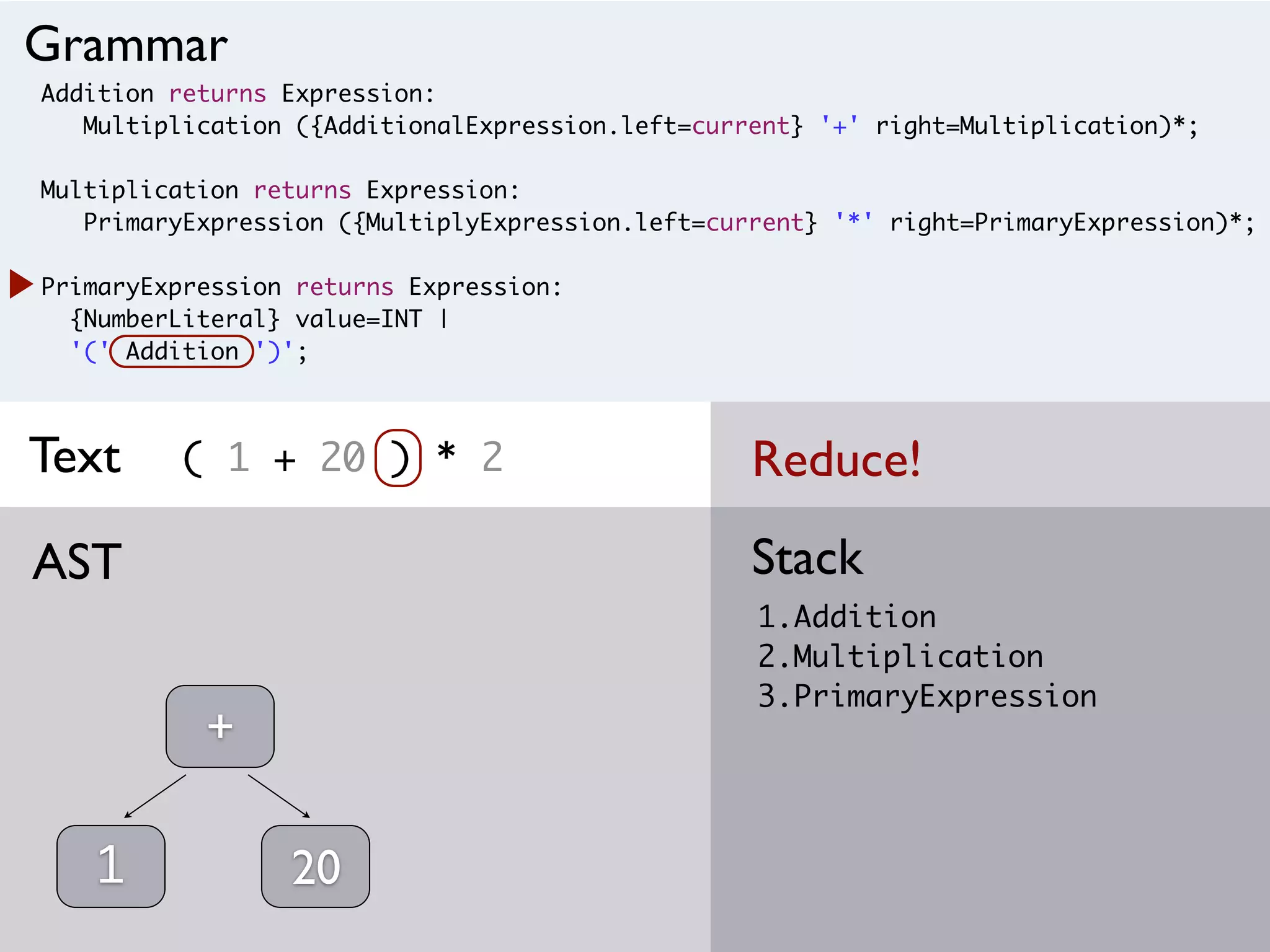

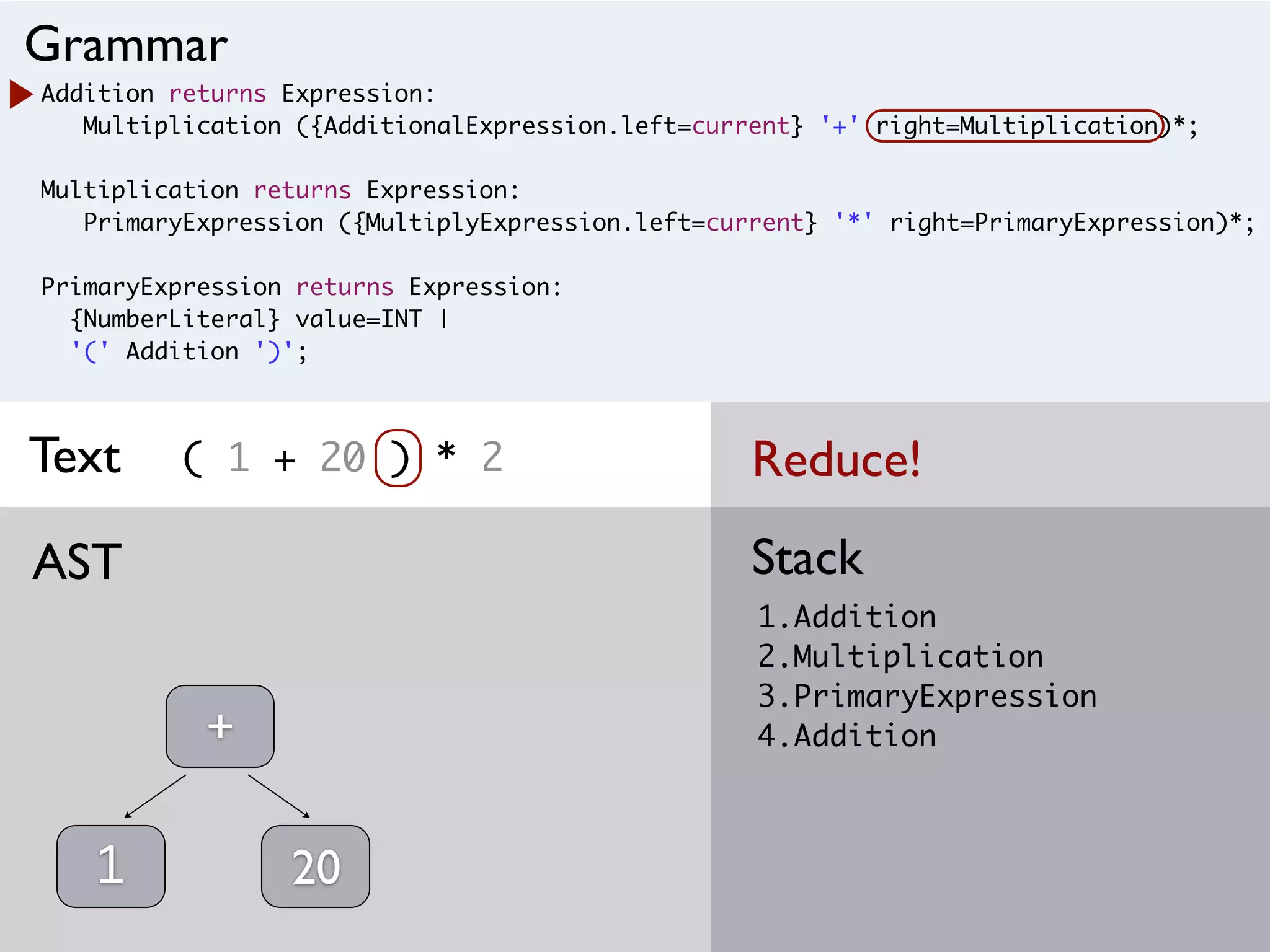

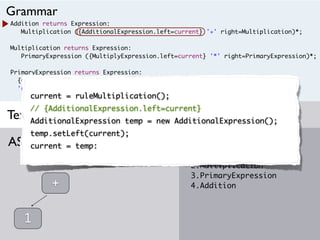

    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition StackAST Grammar Text
  • 2.

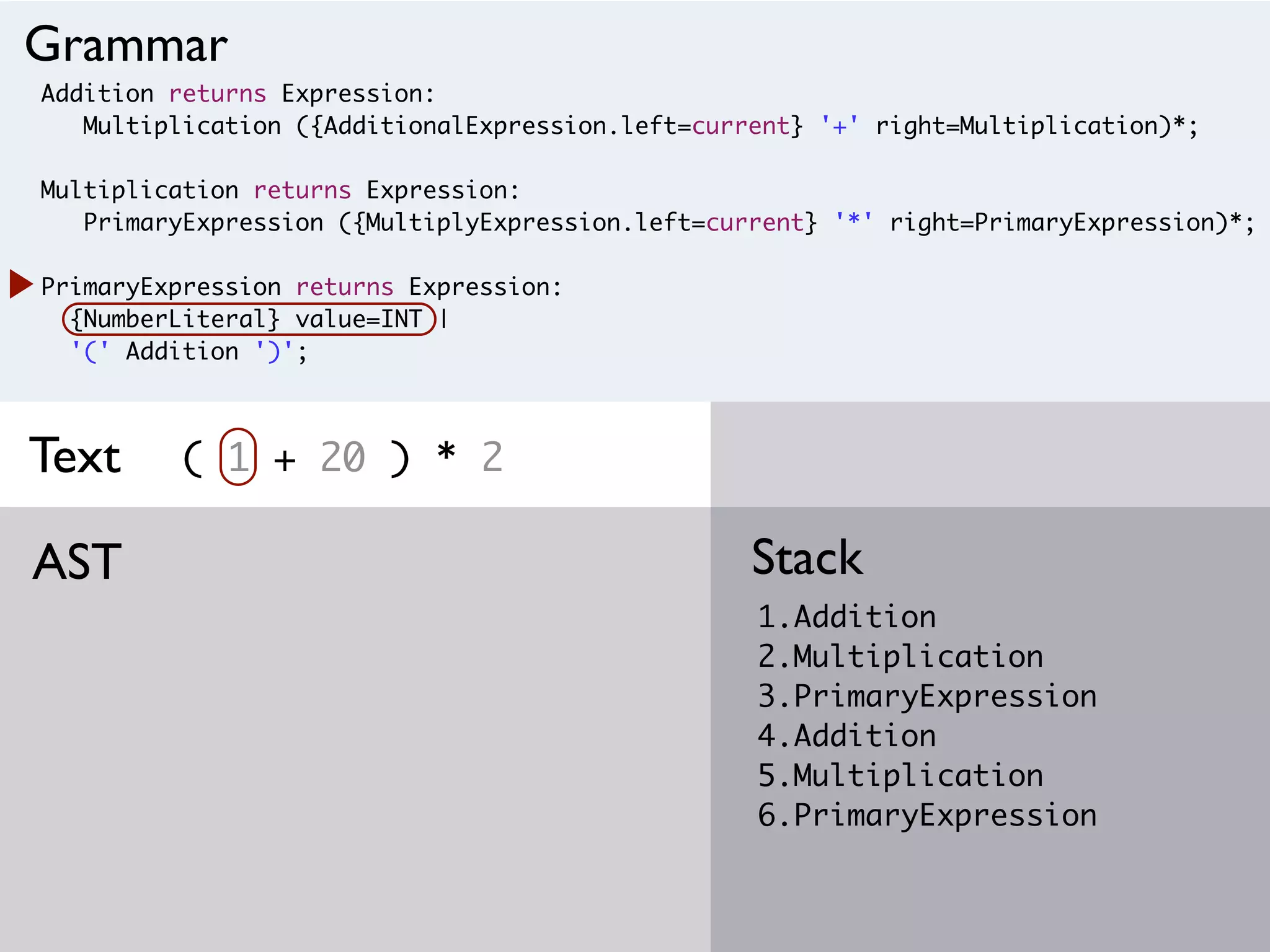

    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication StackAST Grammar Text
  • 3.

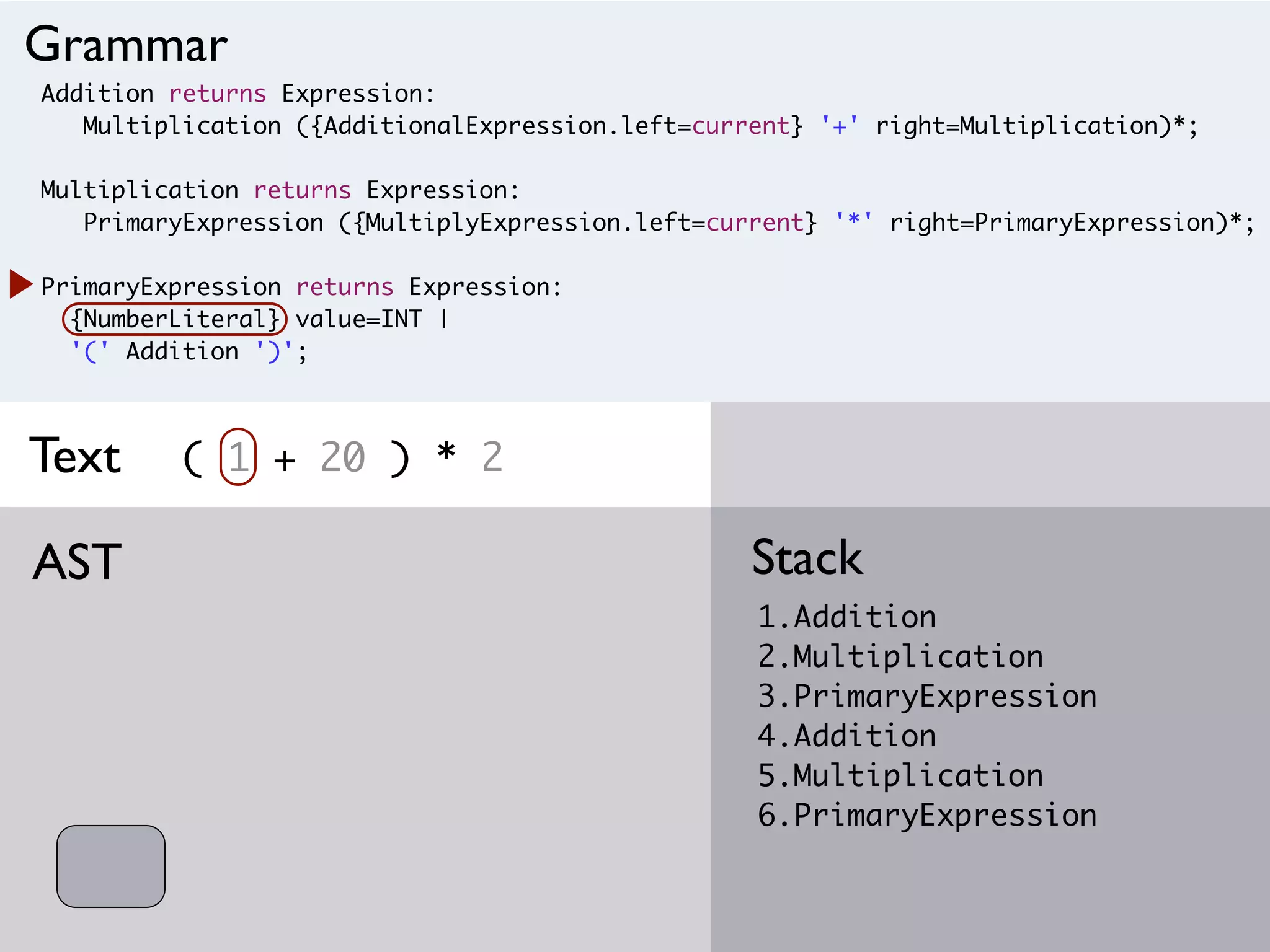

    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression StackAST Grammar Text
  • 4.

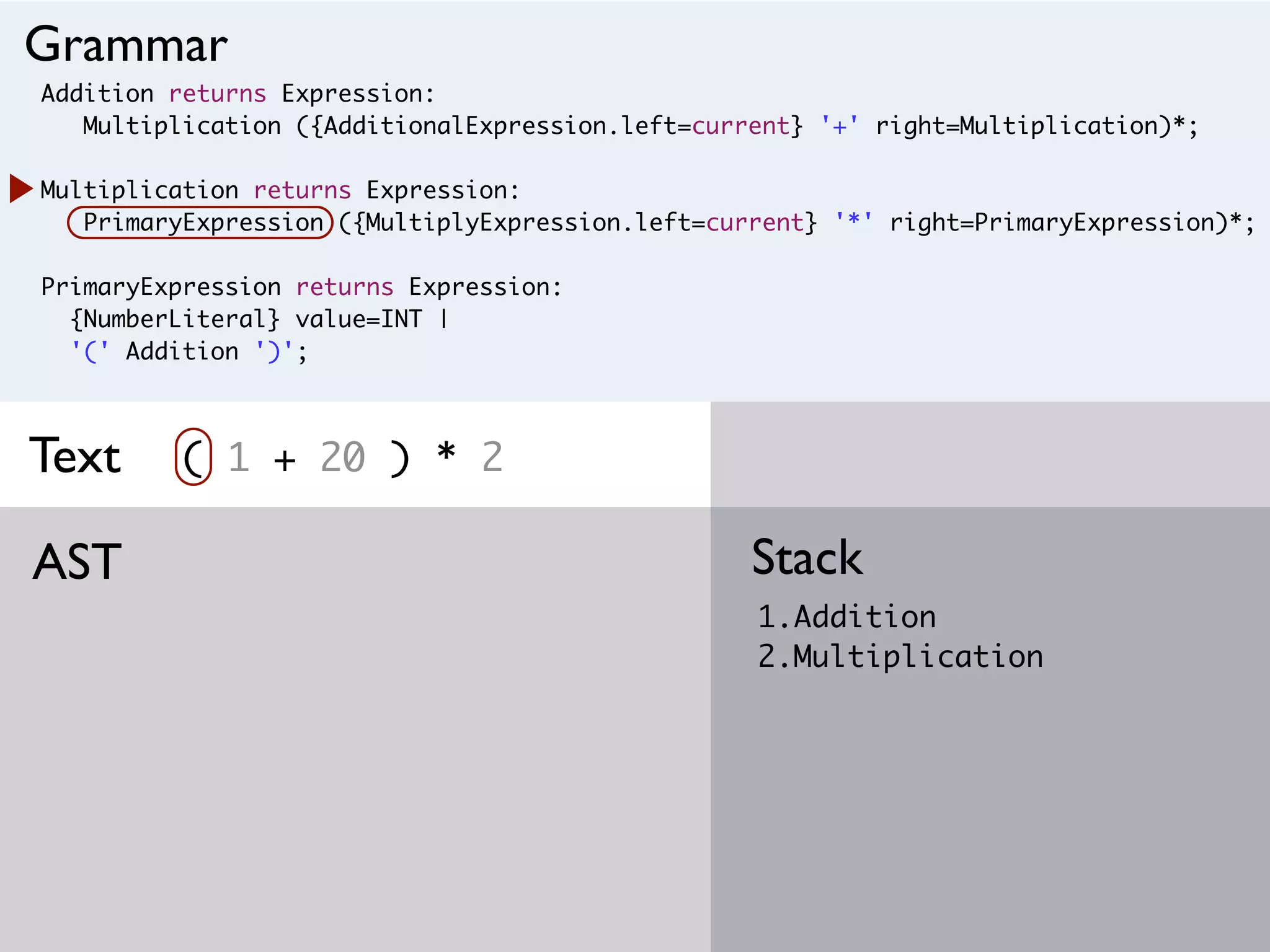

    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression StackAST Grammar Text
  • 5.

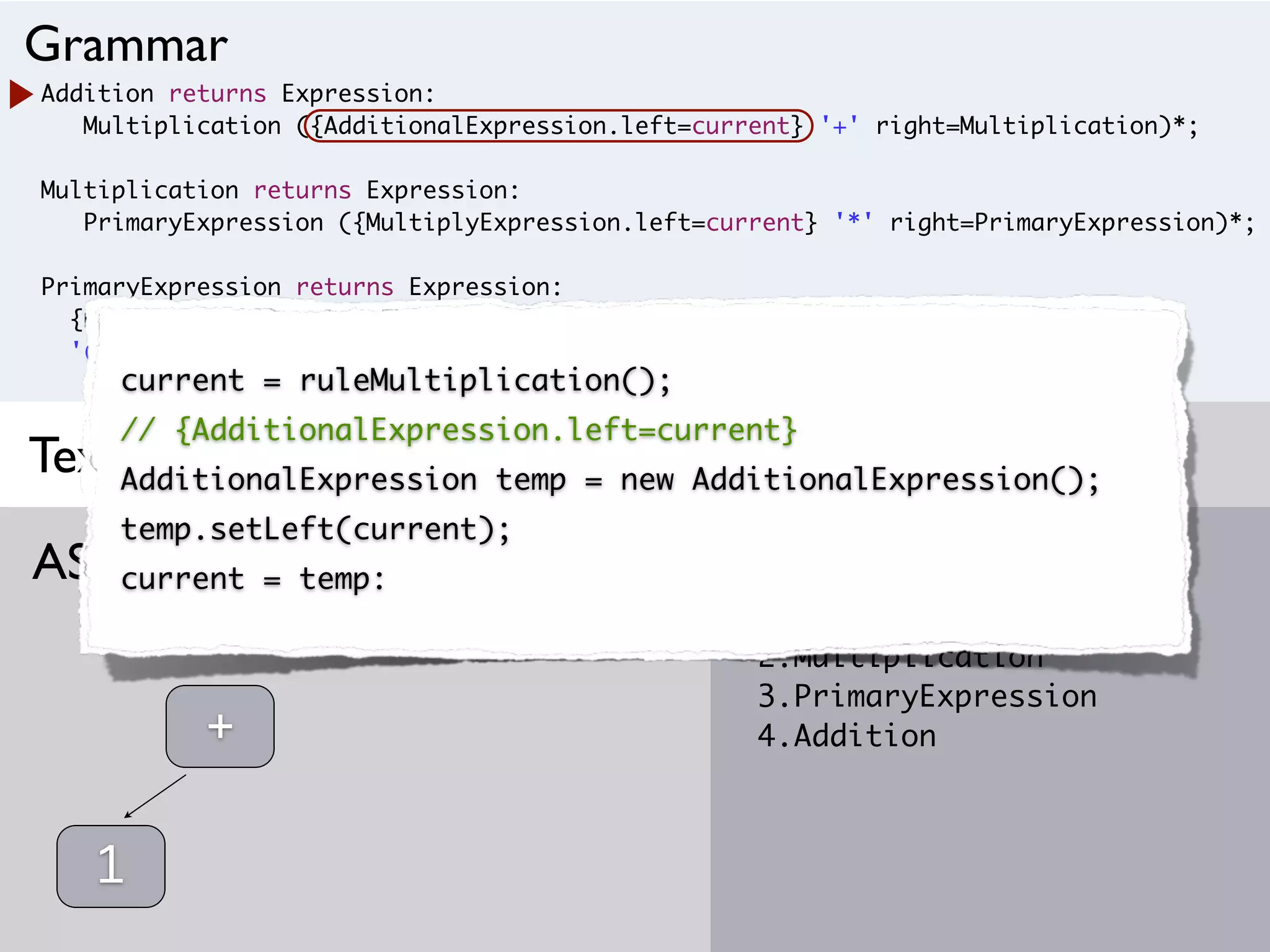

    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression StackAST Grammar Text
  • 6.

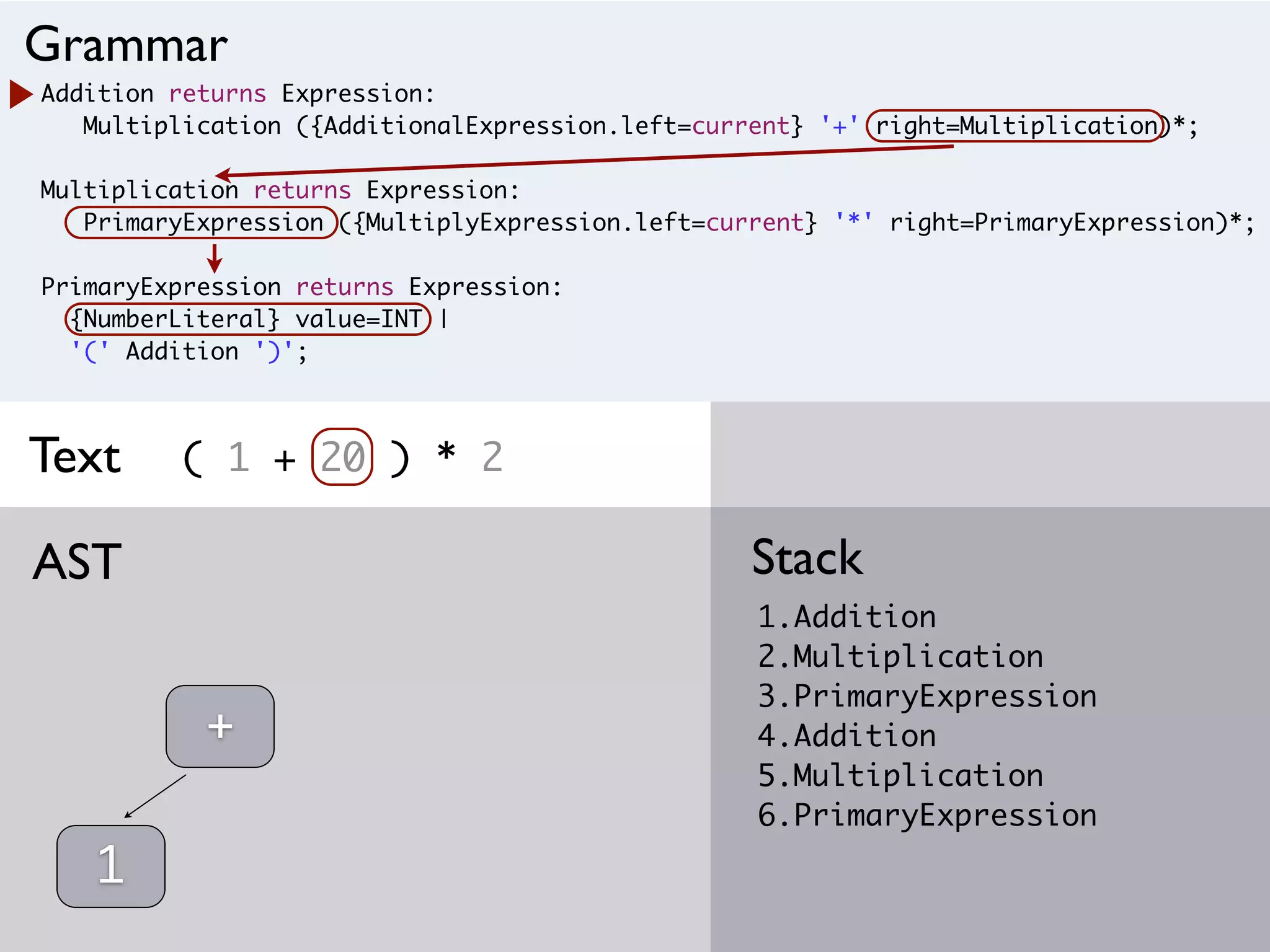

    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition StackAST Grammar Text
  • 7.

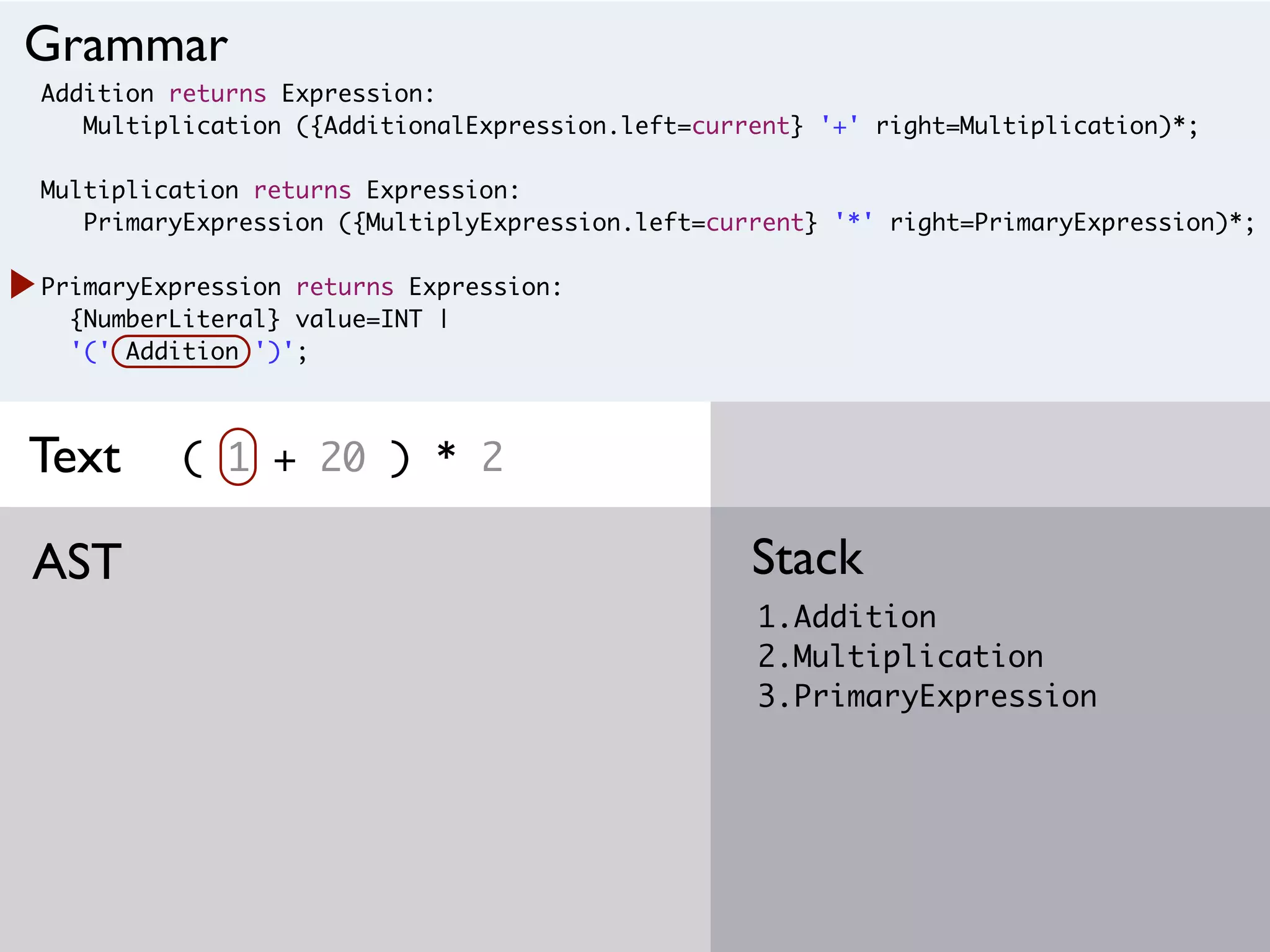

    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition 5.Multiplication StackAST Grammar Text
  • 8.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition 5.Multiplication 6.PrimaryExpression StackAST Grammar Text
  • 9.

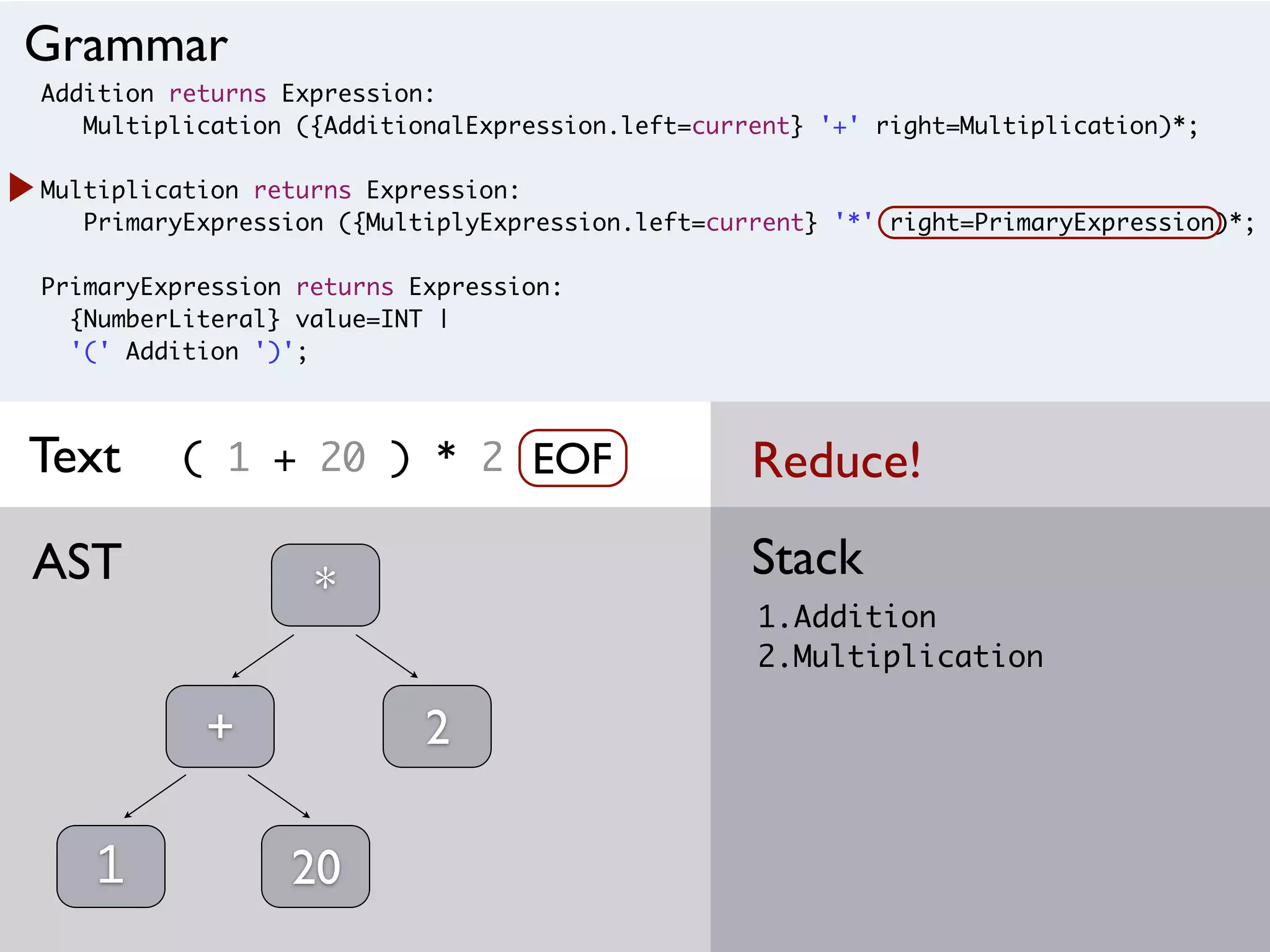

    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition 5.Multiplication 6.PrimaryExpression StackAST Grammar Text
  • 10.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition 5.Multiplication 6.PrimaryExpression StackAST Grammar Text 1
  • 11.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition 5.Multiplication 6.PrimaryExpression StackAST Grammar Text 1
  • 12.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition 5.Multiplication StackAST Grammar Text 1 Reduce!
  • 13.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition StackAST Grammar Text 1 Reduce!
  • 14.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition StackAST Grammar Text 1
  • 15.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition StackAST Grammar Text 1 +
  • 16.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition StackAST Grammar Text 1 + current = ruleMultiplication(); // {AdditionalExpression.left=current} AdditionalExpression temp = new AdditionalExpression(); temp.setLeft(current); current = temp:
  • 17.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition StackAST Grammar Text 1 +
  • 18.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition StackAST Grammar Text 1 +
  • 19.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition StackAST Grammar Text 1 +
  • 20.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition 5.Multiplication StackAST Grammar Text 1 +
  • 21.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition 5.Multiplication 6.PrimaryExpression StackAST Grammar Text 1 +
  • 22.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression 4.Addition StackAST Grammar Text 1 + 20 Reduce!
  • 23.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression StackAST Grammar Text 1 + 20 Reduce!
  • 24.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression StackAST Grammar Text 1 + 20
  • 25.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression StackAST Grammar Text 1 + 20
  • 26.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication StackAST Grammar Text 1 + 20 Reduce!
  • 27.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication StackAST Grammar Text 1 + 20 *
  • 28.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication StackAST Grammar Text 1 + 20 *
  • 29.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication StackAST Grammar Text 1 + 20 *
  • 30.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication StackAST Grammar Text 1 + 20 *
  • 31.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression StackAST Grammar Text 1 + 20 * 2
  • 32.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication 3.PrimaryExpression StackAST Grammar Text 1 + 20 * EOF 2
  • 33.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication StackAST Grammar Text 1 + 20 * EOF Reduce! 2
  • 34.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition 2.Multiplication StackAST Grammar Text 1 + 20 * EOF 2
  • 35.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 1.Addition StackAST Grammar Text 1 + 20 * EOF 2 Reduce!
  • 36.
    Addition returns Expression: Multiplication({AdditionalExpression.left=current} '+' right=Multiplication)*; Multiplication returns Expression: PrimaryExpression ({MultiplyExpression.left=current} '*' right=PrimaryExpression)*; PrimaryExpression returns Expression: {NumberLiteral} value=INT | '(' Addition ')'; ( 1 + 20 ) * 2 StackAST Grammar Text 1 + 20 * EOF 2 Finished!
