process creation OS

BITS, PILANI – K. K. BIRLA GOA CAMPUS
Operating Systems
(IS ZC362)
by
Mrs. Shubhangi Gawali
Dept. of CS and IS
07/16/14
BITS, PILANI – K.
K. BIRLA GOA
CAMPUS 1

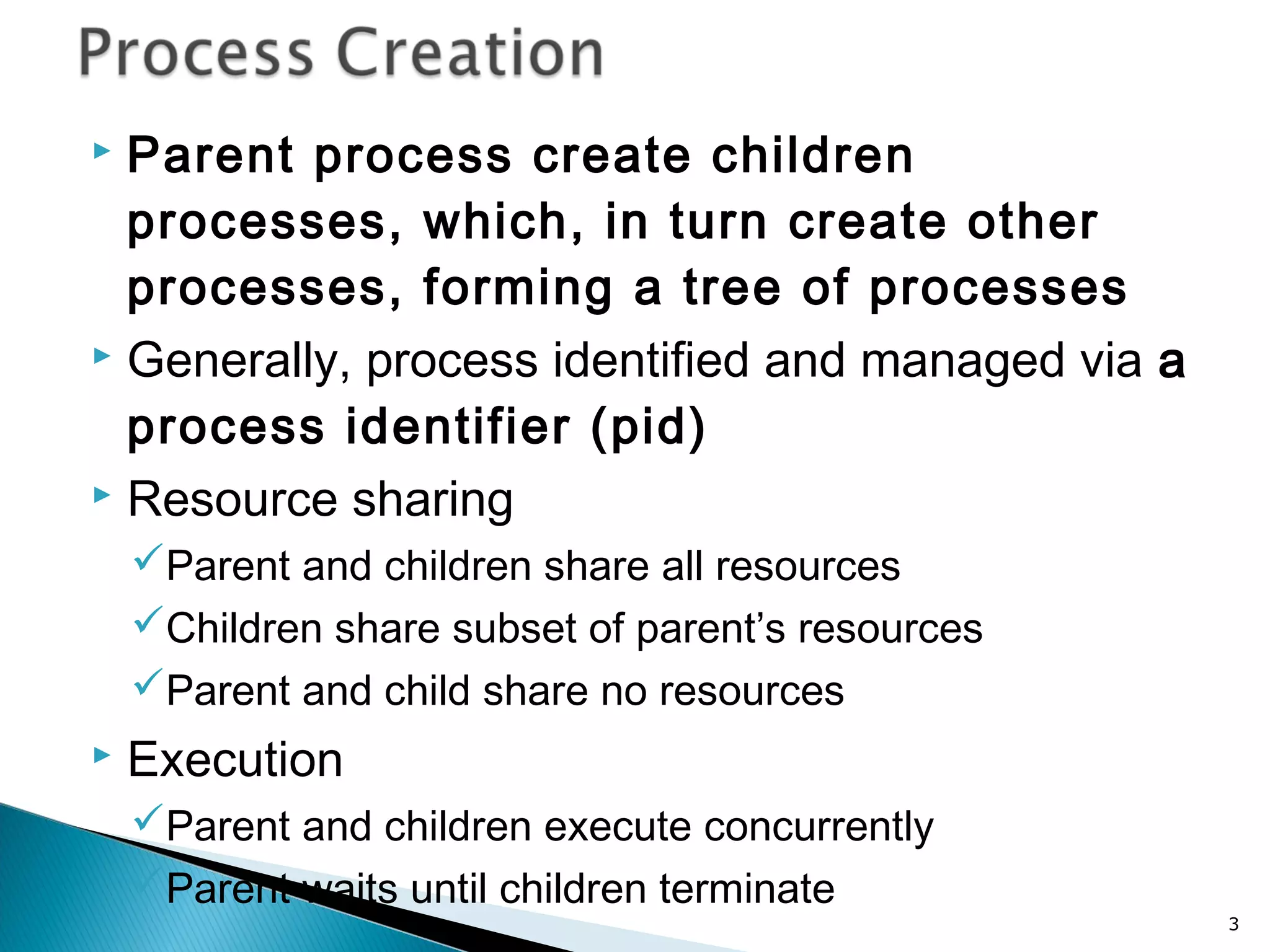

 Parent process create children
processes, which, in turn create other
processes, forming a tree of processes
 Generally, process identified and managed via a
process identifier (pid)
 Resource sharing
Parent and children share all resources
Children share subset of parent’s resources
Parent and child share no resources
 Execution
Parent and children execute concurrently
Parent waits until children terminate
3

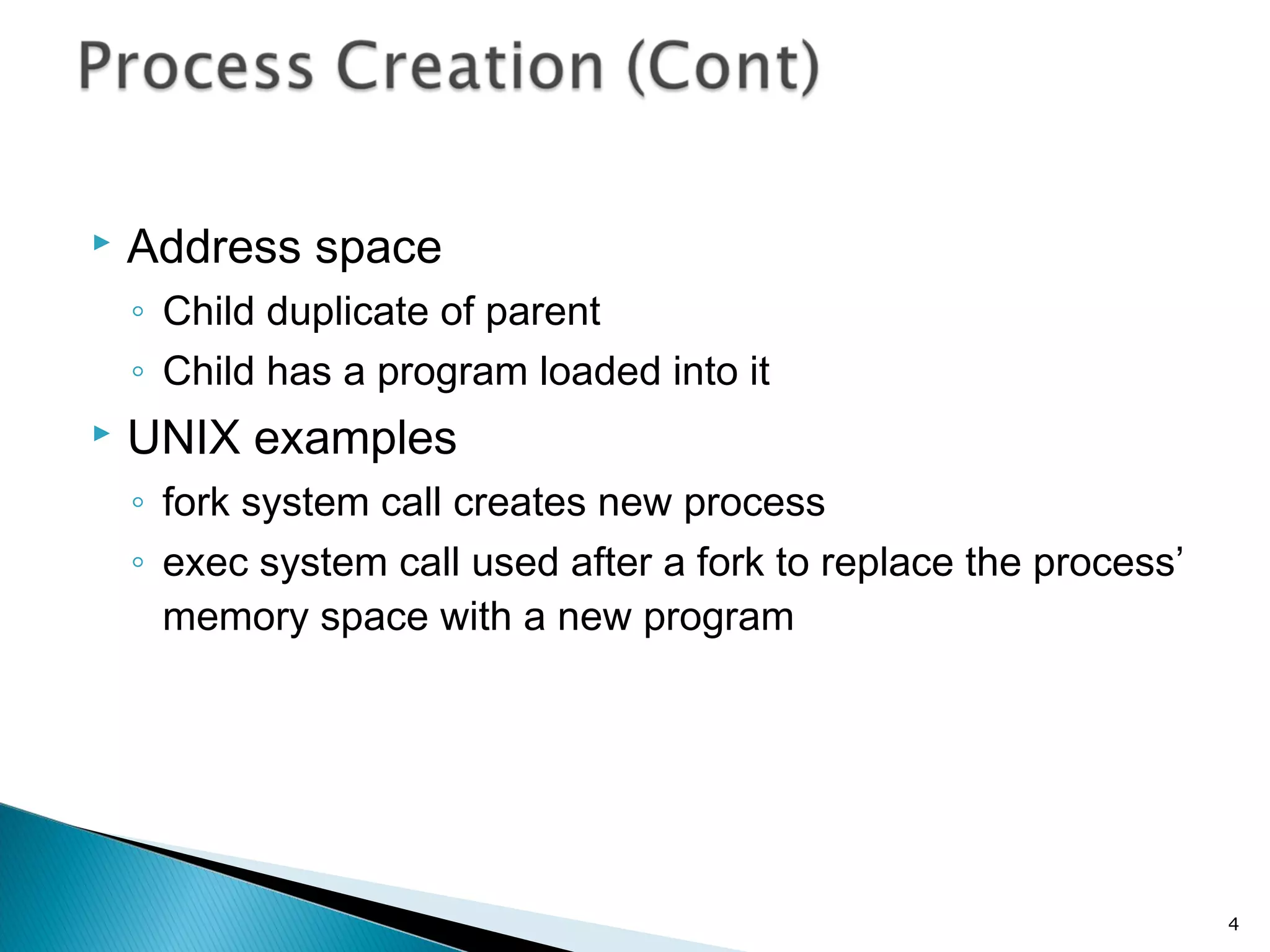

 Address space
◦ Child duplicate of parent
◦ Child has a program loaded into it
 UNIX examples
◦ fork system call creates new process
◦ exec system call used after a fork to replace the process’
memory space with a new program
4

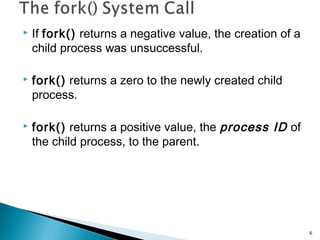

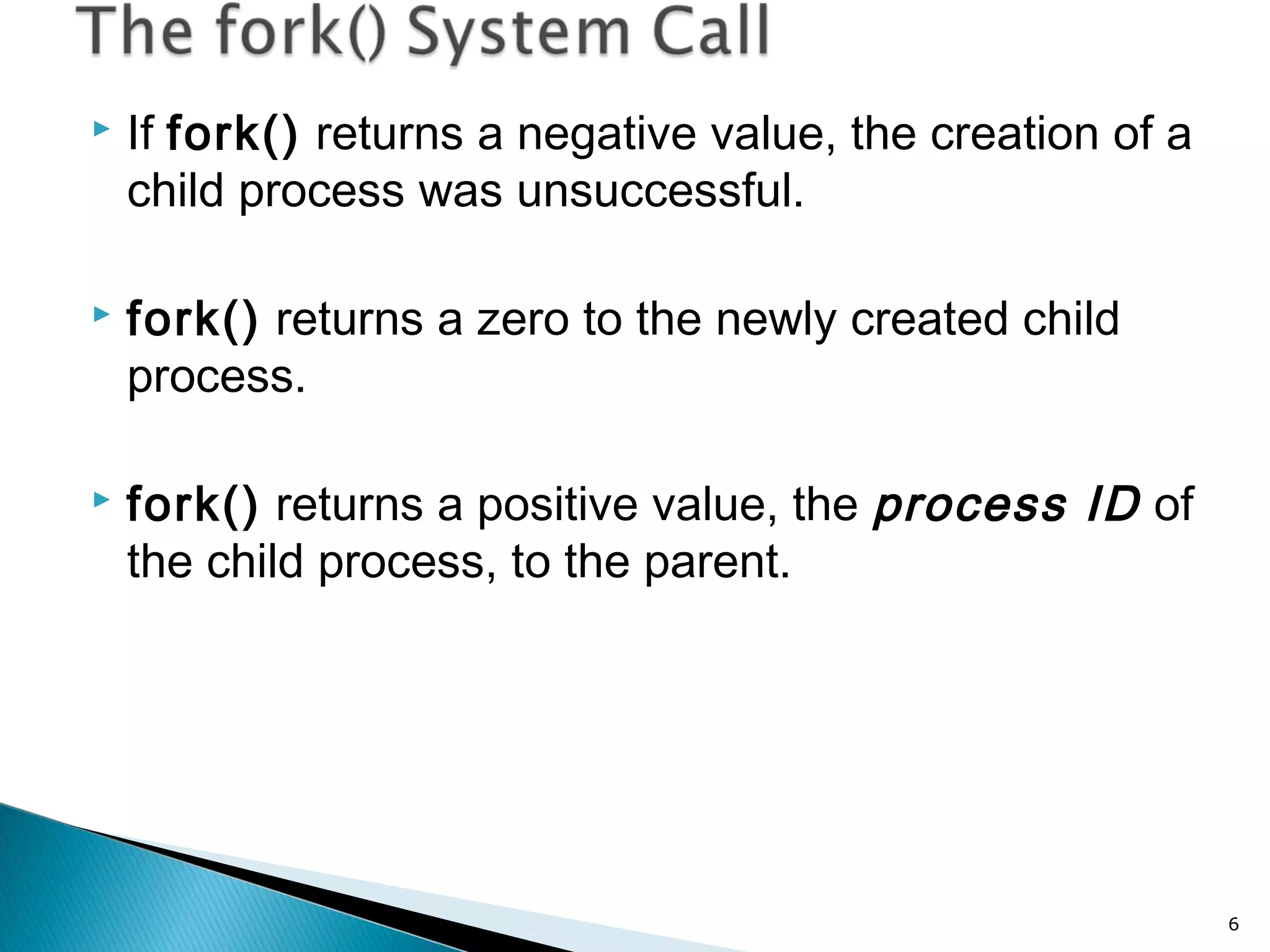

 If fork() returns a negative value, the creation of a
child process was unsuccessful.
 fork() returns a zero to the newly created child
process.
 fork() returns a positive value, the process ID of
the child process, to the parent.
6

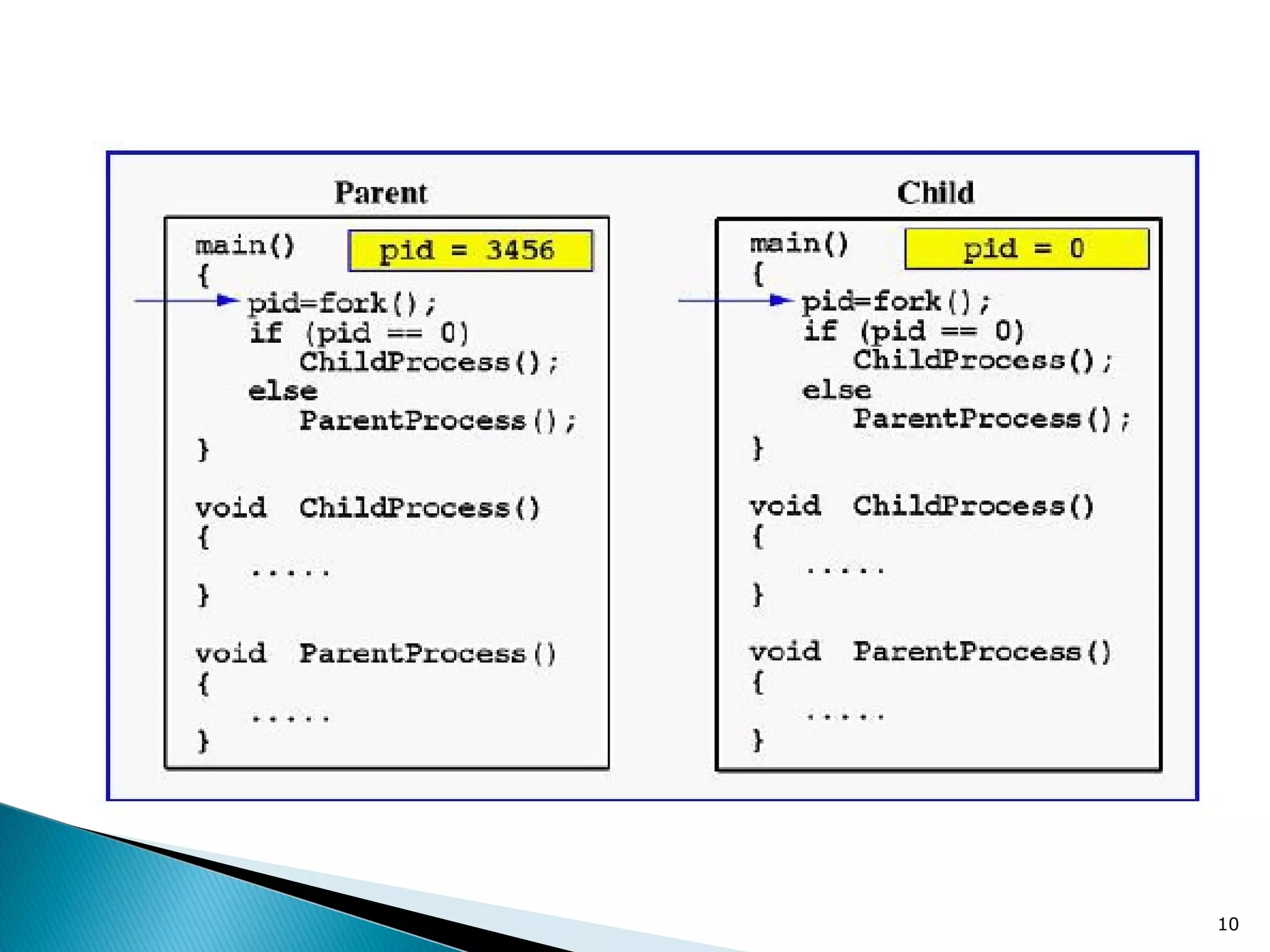

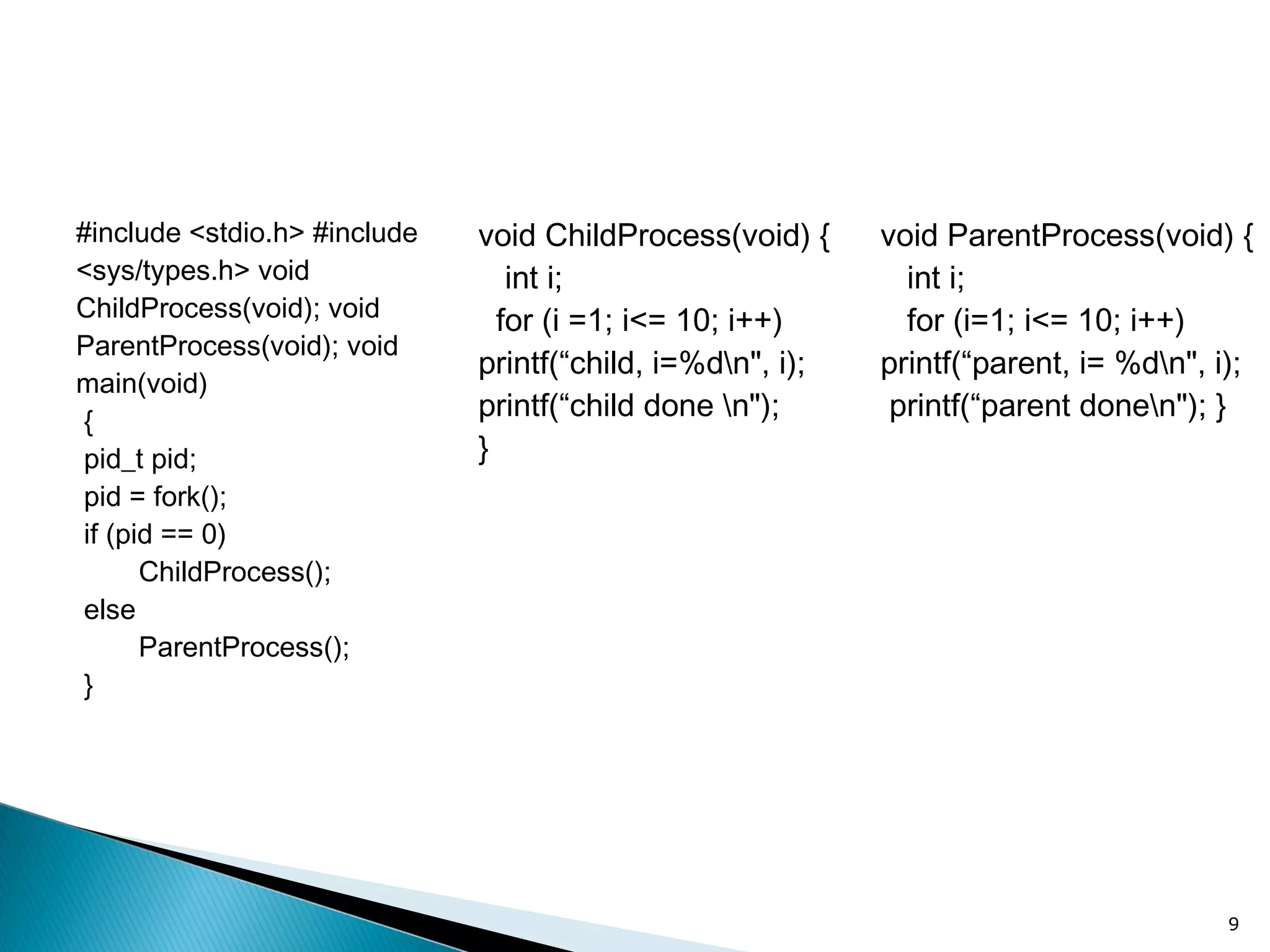

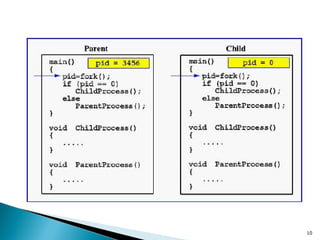

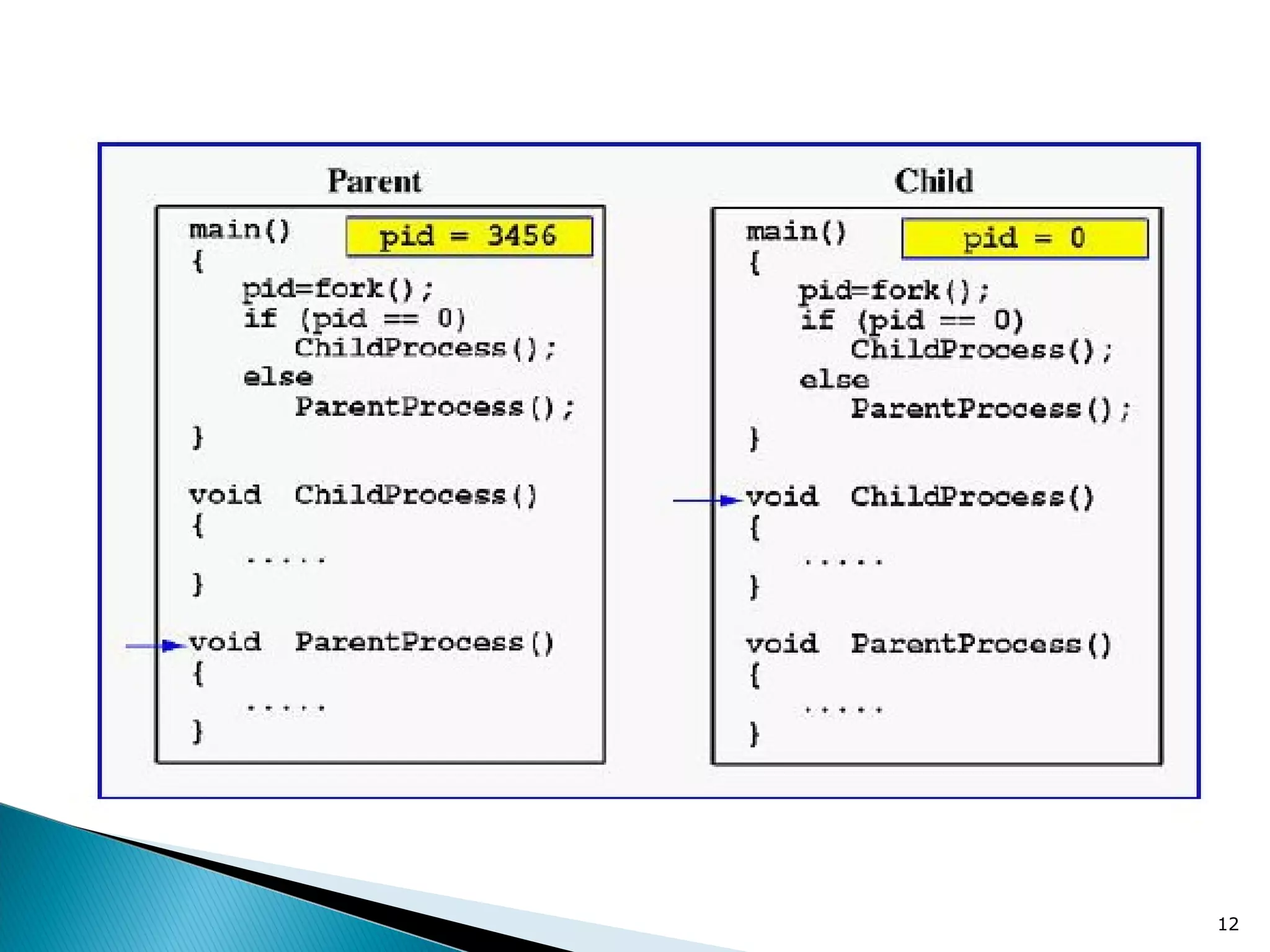

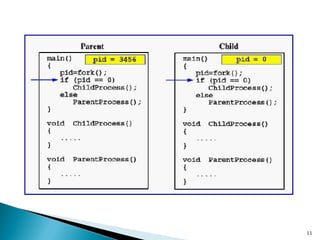

#include <stdio.h> #include
<sys/types.h> void
ChildProcess(void); void
ParentProcess(void); void
main(void)
{
pid_t pid;
pid = fork();
if (pid == 0)
ChildProcess();
else
ParentProcess();
}
void ChildProcess(void) {
int i;
for (i =1; i<= 10; i++)
printf(“child, i=%dn", i);
printf(“child done n");
}
void ParentProcess(void) {
int i;
for (i=1; i<= 10; i++)
printf(“parent, i= %dn", i);
printf(“parent donen"); }
9

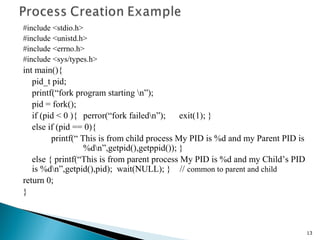

#include <stdio.h>
#include <unistd.h>
#include <errno.h>
#include <sys/types.h>
int main(){
pid_t pid;
printf(“fork program starting n”);
pid = fork();
if (pid < 0 ){ perror(“fork failedn”); exit(1); }
else if (pid == 0){
printf(“ This is from child process My PID is %d and my Parent PID is
%dn”,getpid(),getppid()); }
else { printf(“This is from parent process My PID is %d and my Child’s PID
is %dn”,getpid(),pid); wait(NULL); } // common to parent and child
return 0;
}
13

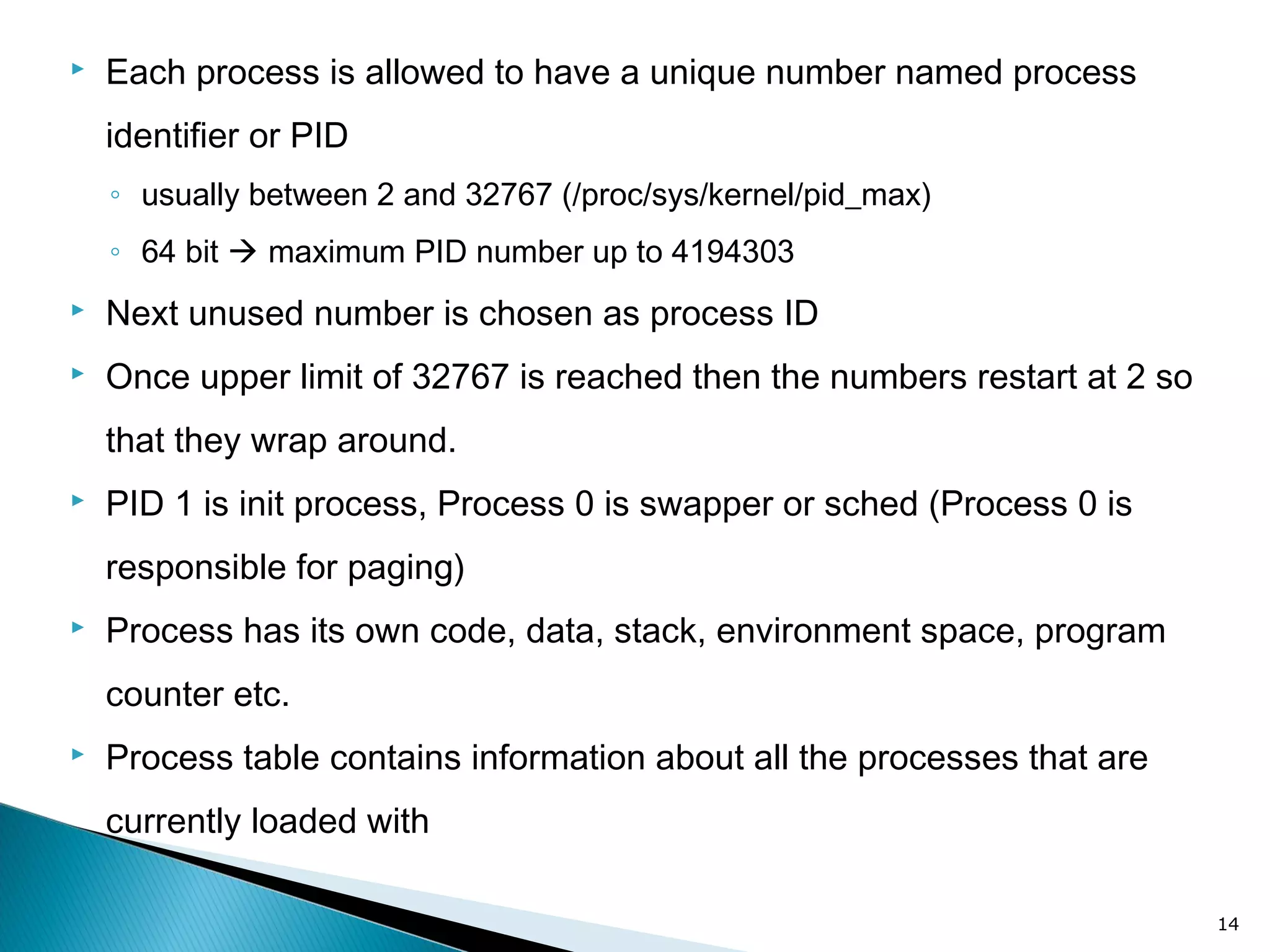

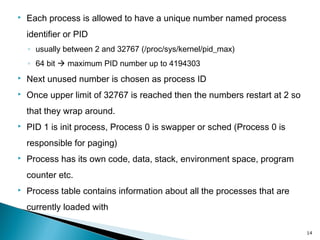

 Each process is allowed to have a unique number named process
identifier or PID
◦ usually between 2 and 32767 (/proc/sys/kernel/pid_max)
◦ 64 bit  maximum PID number up to 4194303
 Next unused number is chosen as process ID
 Once upper limit of 32767 is reached then the numbers restart at 2 so
that they wrap around.
 PID 1 is init process, Process 0 is swapper or sched (Process 0 is
responsible for paging)
 Process has its own code, data, stack, environment space, program
counter etc.
 Process table contains information about all the processes that are
currently loaded with
14

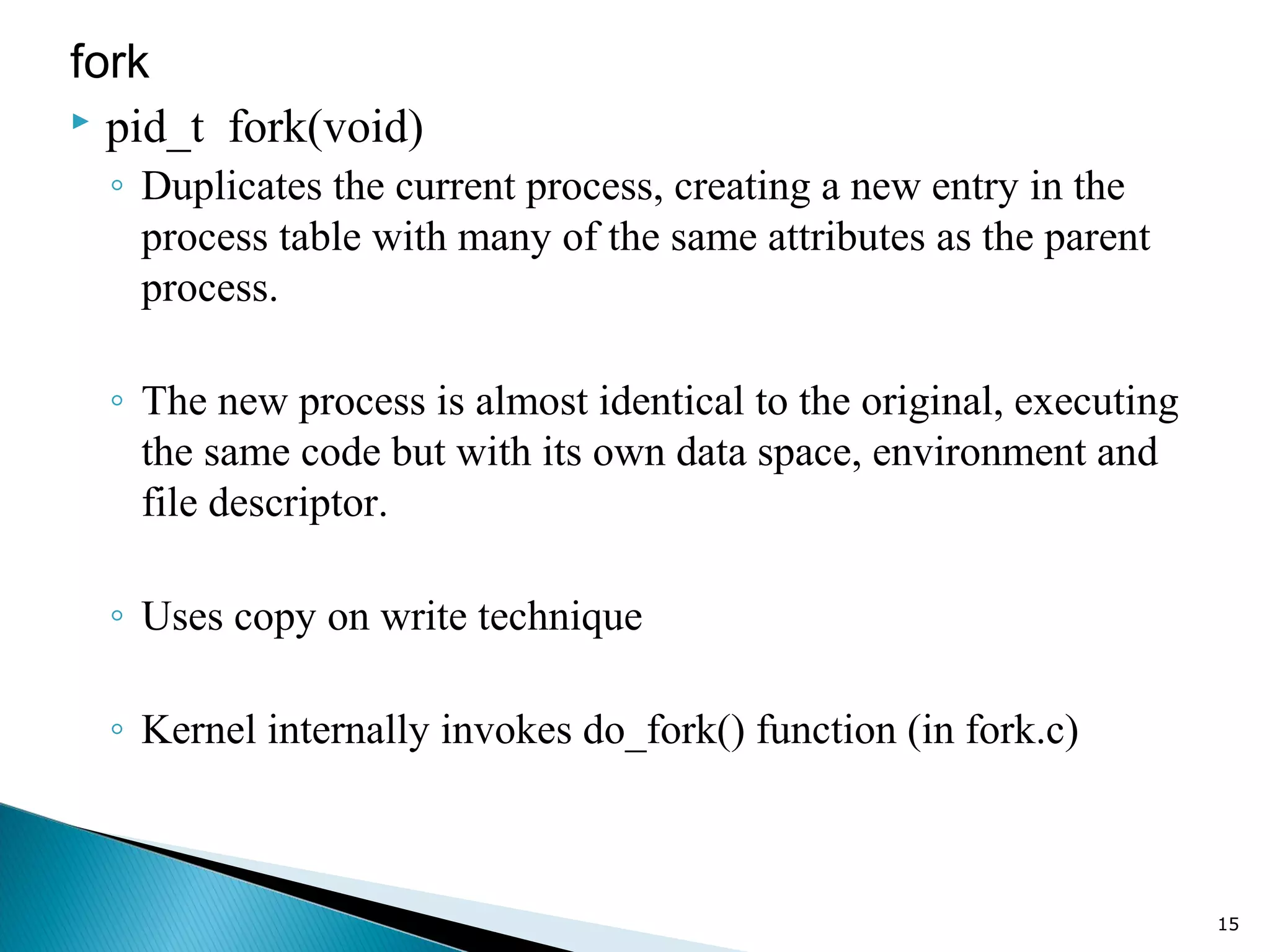

fork
 pid_t fork(void)
◦ Duplicates the current process, creating a new entry in the
process table with many of the same attributes as the parent
process.
◦ The new process is almost identical to the original, executing
the same code but with its own data space, environment and
file descriptor.
◦ Uses copy on write technique
◦ Kernel internally invokes do_fork() function (in fork.c)
15

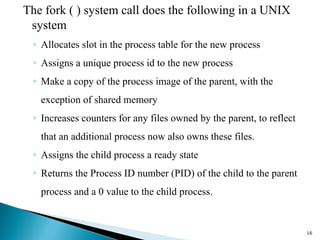

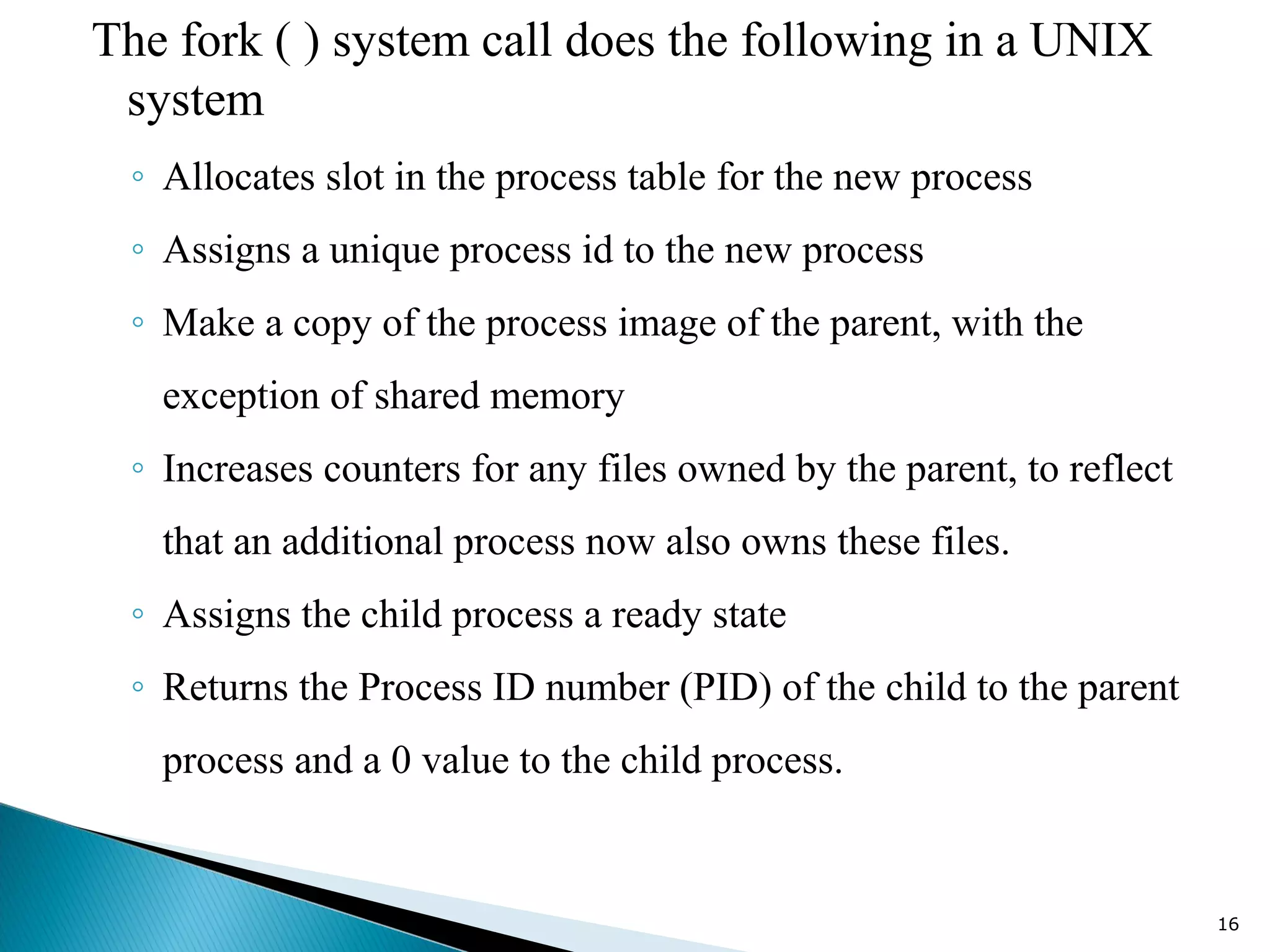

The fork ( ) system call does the following in a UNIX
system
◦ Allocates slot in the process table for the new process
◦ Assigns a unique process id to the new process
◦ Make a copy of the process image of the parent, with the
exception of shared memory
◦ Increases counters for any files owned by the parent, to reflect
that an additional process now also owns these files.
◦ Assigns the child process a ready state
◦ Returns the Process ID number (PID) of the child to the parent
process and a 0 value to the child process.
16

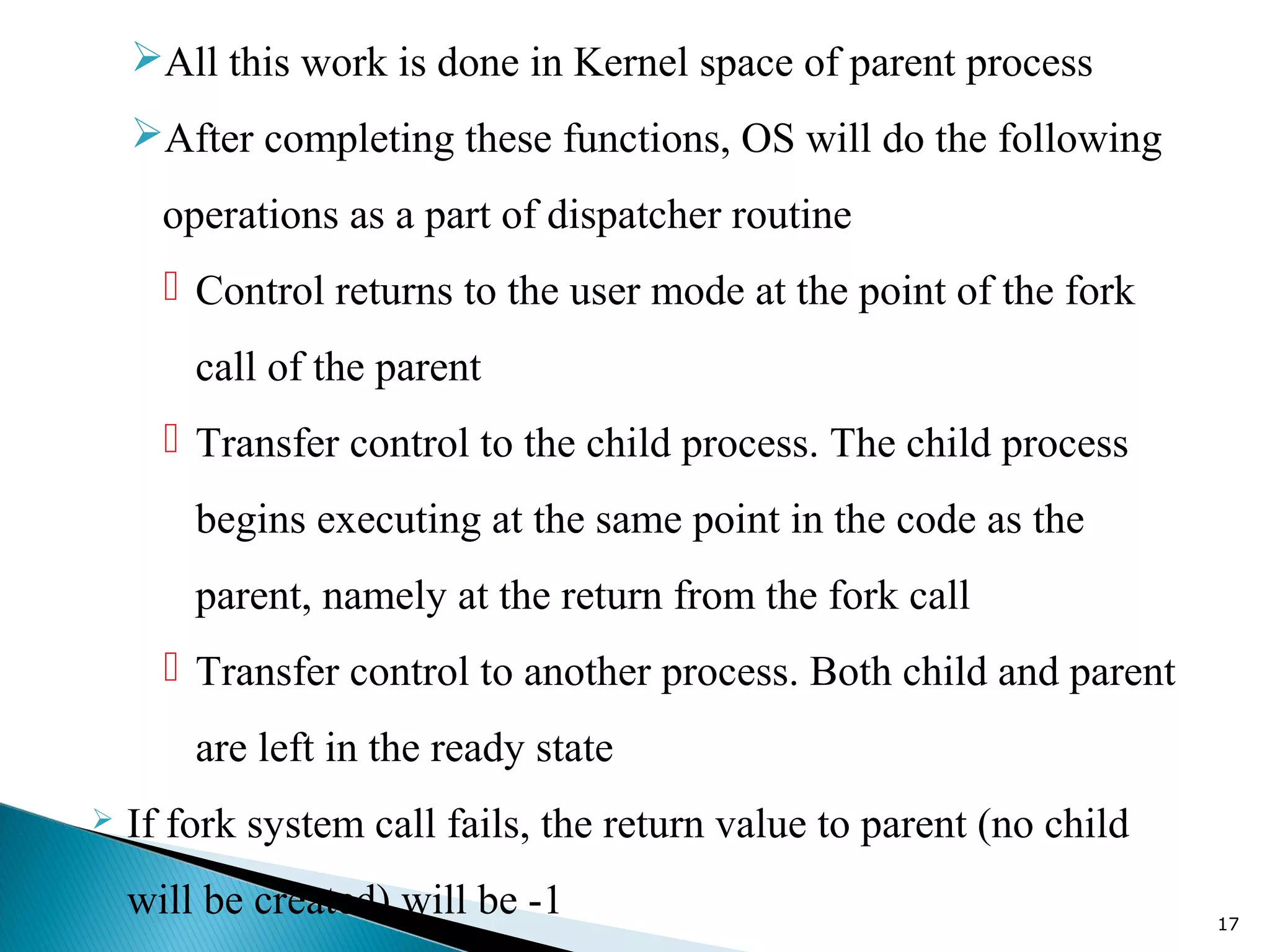

All this work is done in Kernel space of parent process
After completing these functions, OS will do the following
operations as a part of dispatcher routine
 Control returns to the user mode at the point of the fork
call of the parent
 Transfer control to the child process. The child process
begins executing at the same point in the code as the
parent, namely at the return from the fork call
 Transfer control to another process. Both child and parent
are left in the ready state
 If fork system call fails, the return value to parent (no child
will be created) will be -1 17

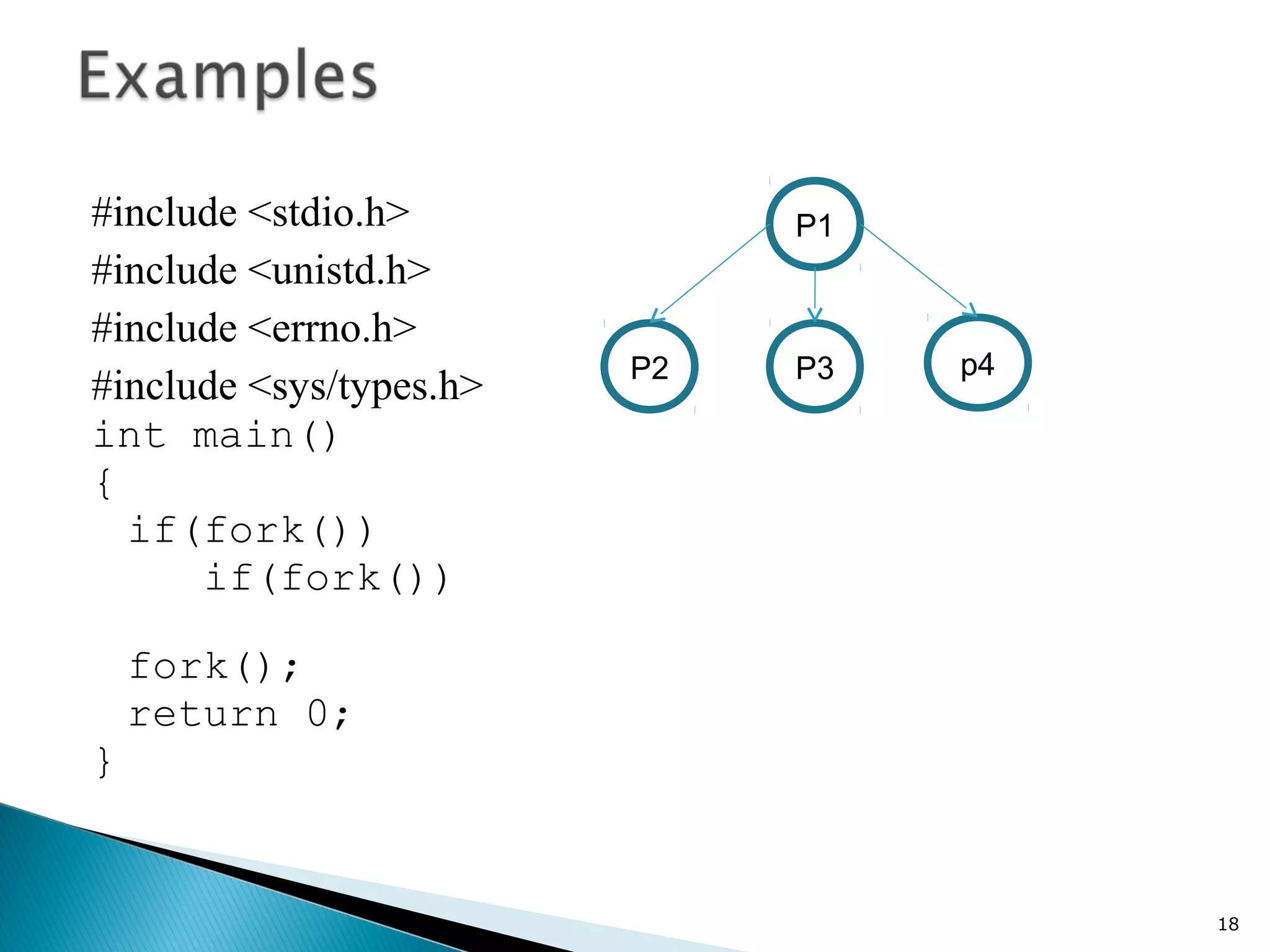

#include <stdio.h>
#include <unistd.h>
#include <errno.h>
int main()
{
if(fork())
if(fork())
fork();
return 0;
}
P1
P2 P3 p4
18

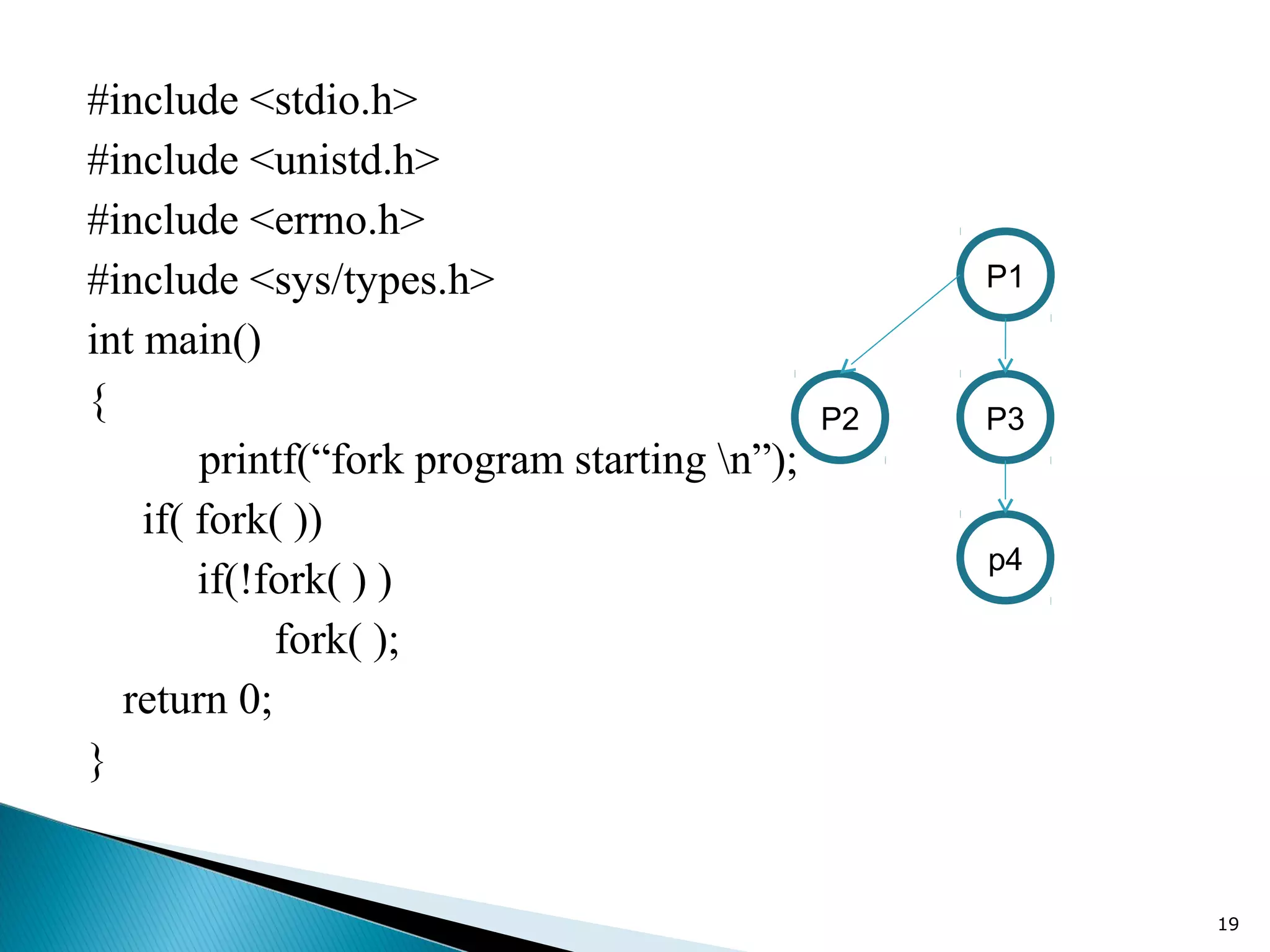

#include <stdio.h>
#include <unistd.h>
#include <errno.h>
int main()
{
if( fork( ))
if(!fork( ) )
fork( );
return 0;
}
19
P1
P2 P3
p4

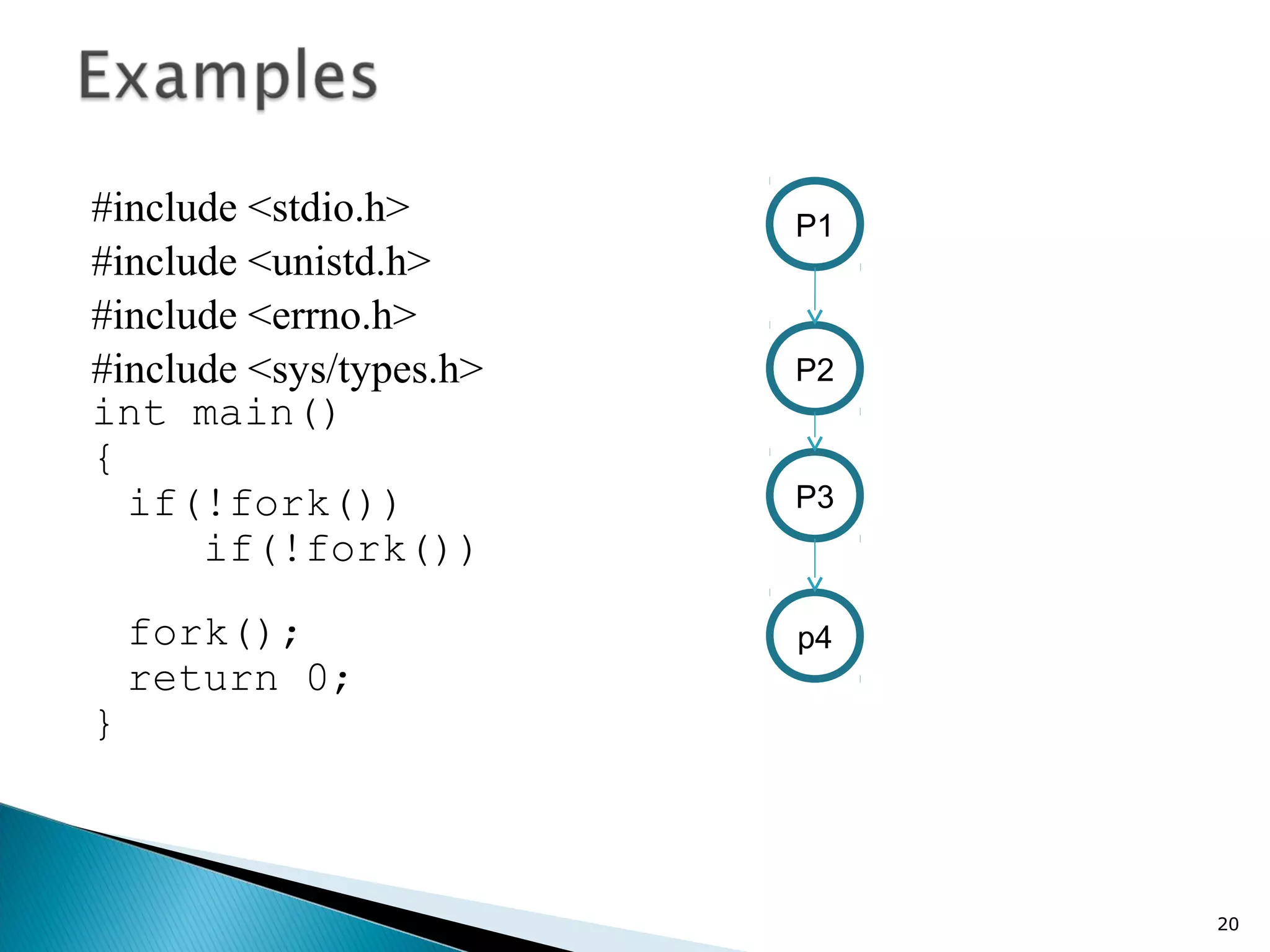

#include <stdio.h>
#include <unistd.h>
#include <errno.h>
int main()
{
if(!fork())
if(!fork())
fork();
return 0;
}
P1
P2
P3
p4
20

21

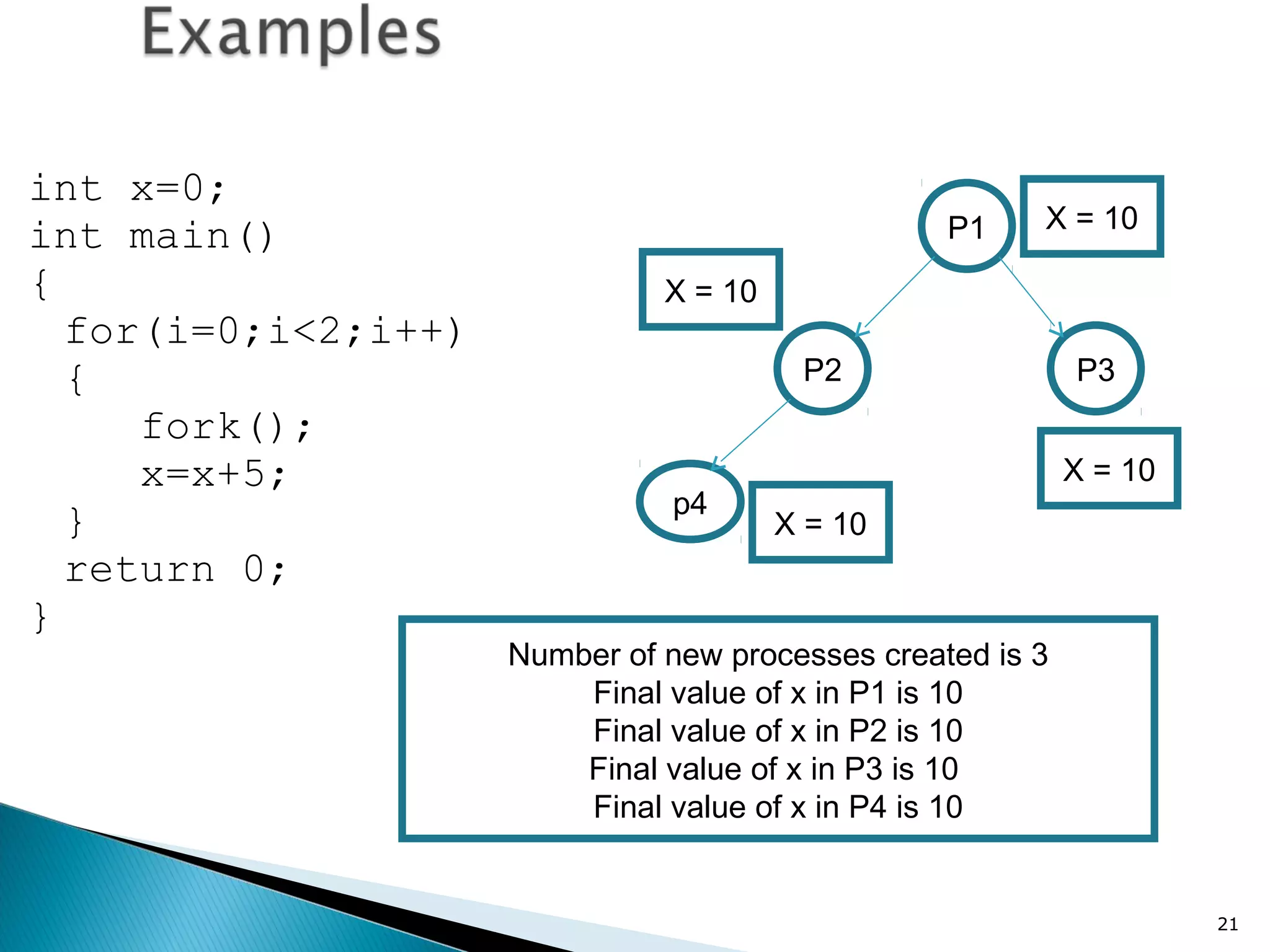

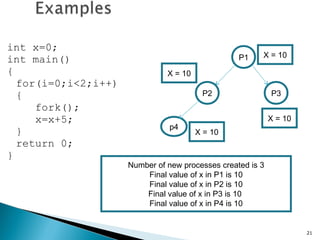

int x=0;
int main()
{
for(i=0;i<2;i++)
{
fork();
x=x+5;
}
return 0;
}
P1
P2 P3
p4
X = 10
X = 10
X = 10
X = 10
Number of new processes created is 3
Final value of x in P1 is 10

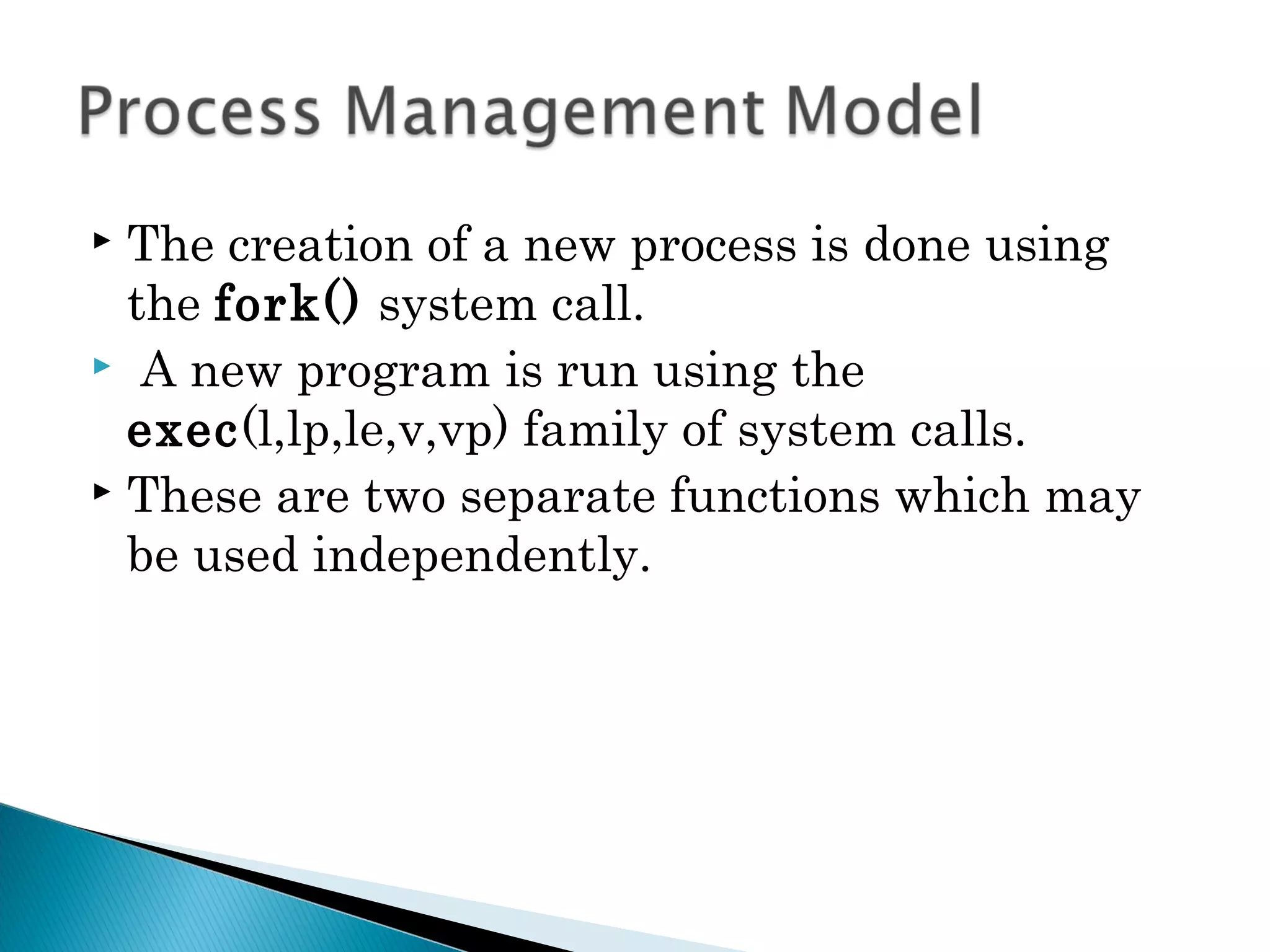

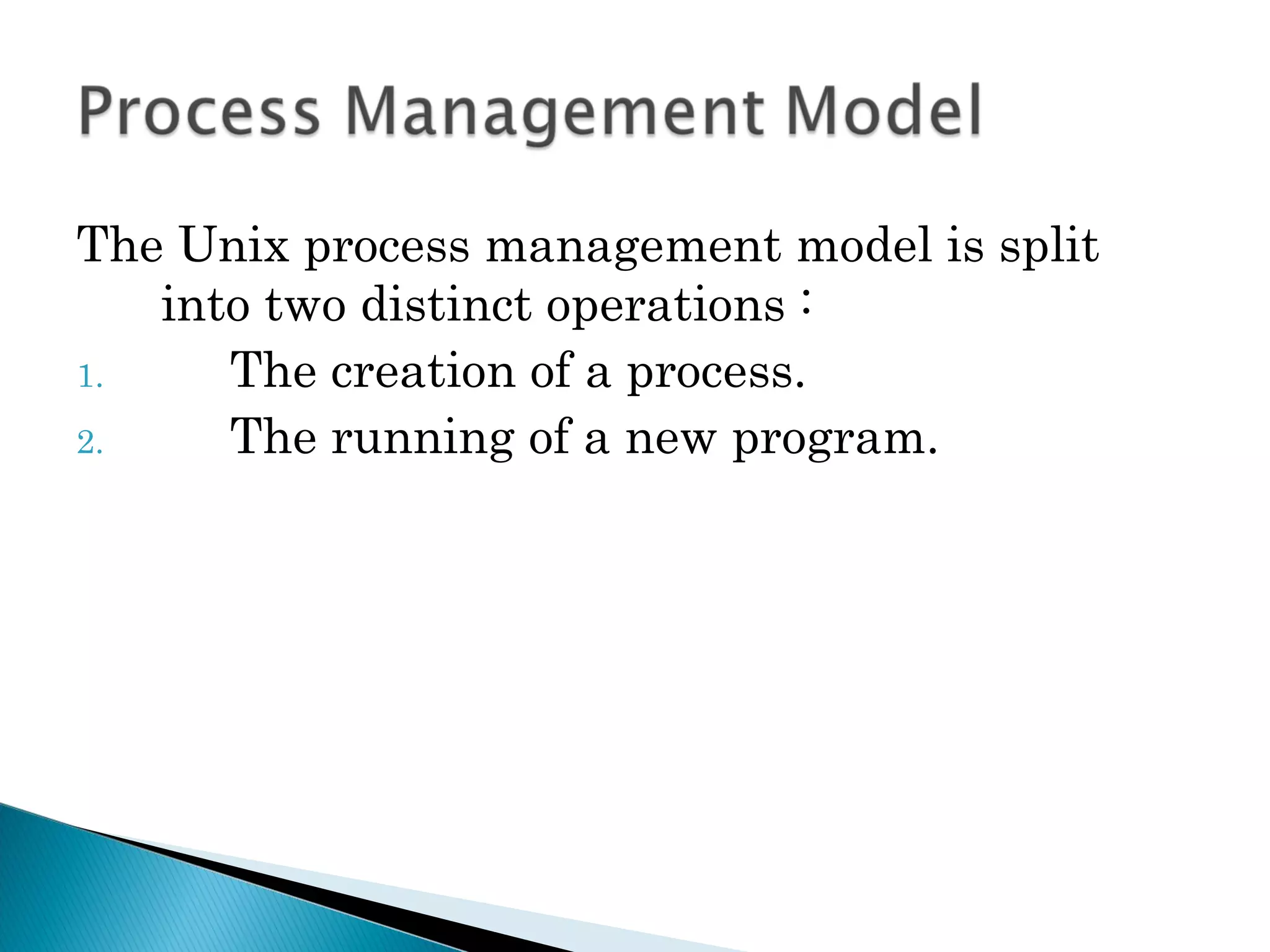

The Unix process management model is split
into two distinct operations :
1. The creation of a process.
2. The running of a new program.

 The creation of a new process is done using
the fork() system call.
 A new program is run using the
exec(l,lp,le,v,vp) family of system calls.
 These are two separate functions which may
be used independently.

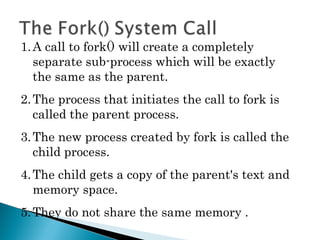

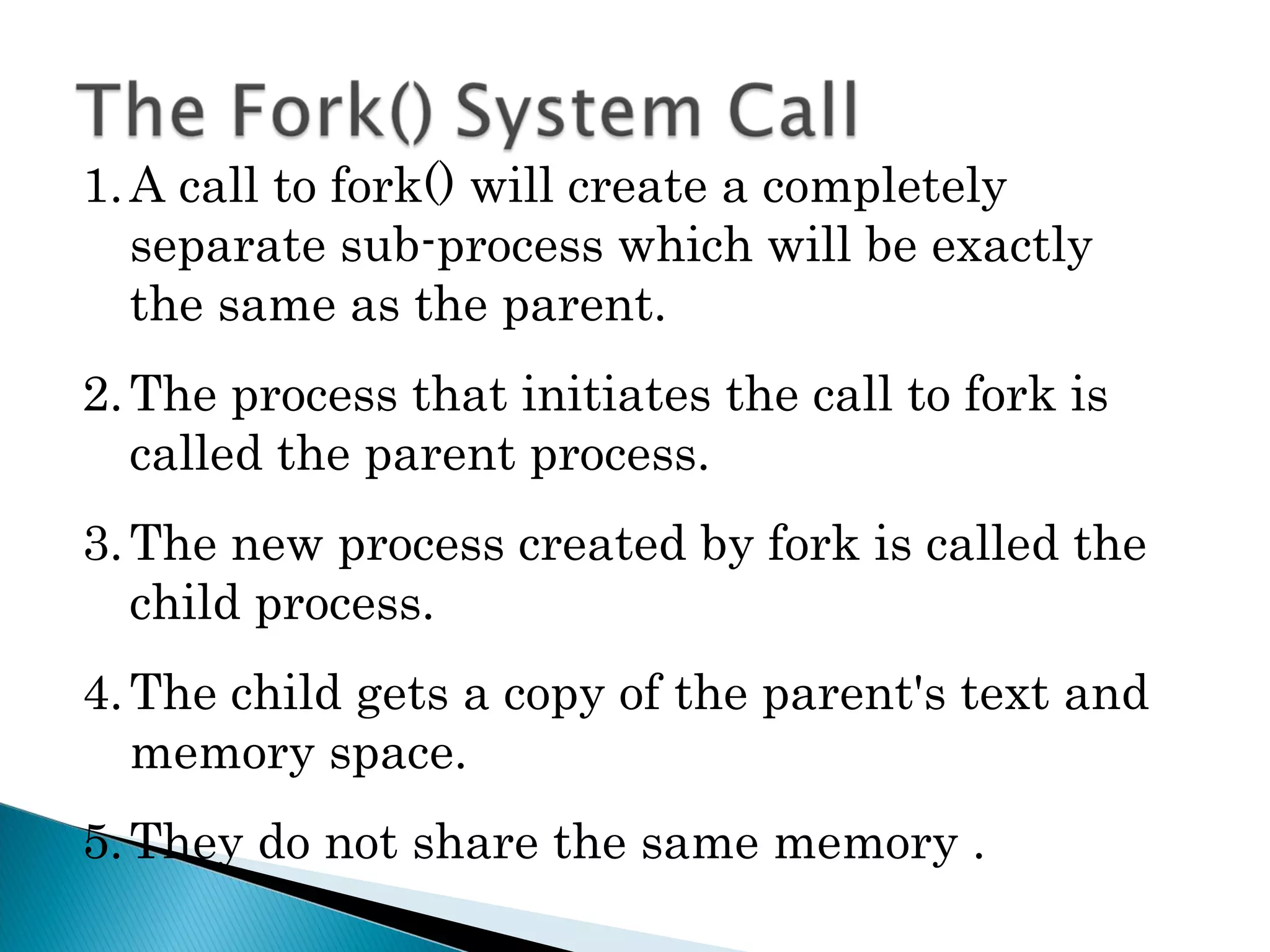

1.A call to fork() will create a completely
separate sub-process which will be exactly
the same as the parent.
2.The process that initiates the call to fork is
called the parent process.
3.The new process created by fork is called the
child process.
4.The child gets a copy of the parent's text and
memory space.
5.They do not share the same memory .

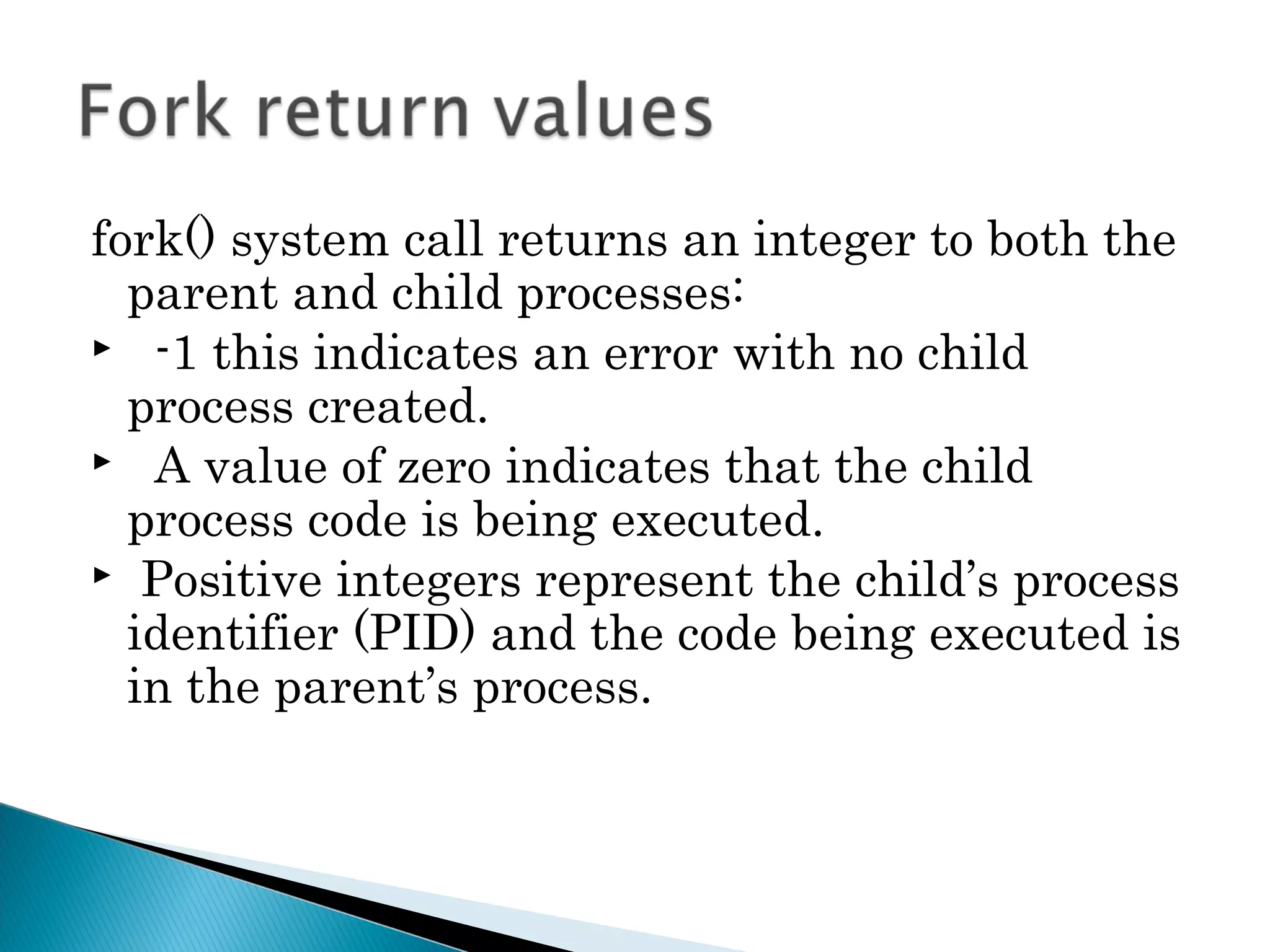

fork() system call returns an integer to both the
parent and child processes:
 -1 this indicates an error with no child
process created.
 A value of zero indicates that the child
process code is being executed.
 Positive integers represent the child’s process
identifier (PID) and the code being executed is
in the parent’s process.

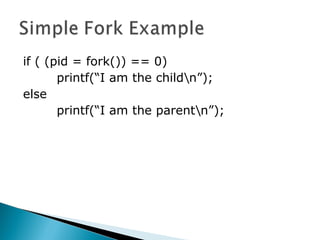

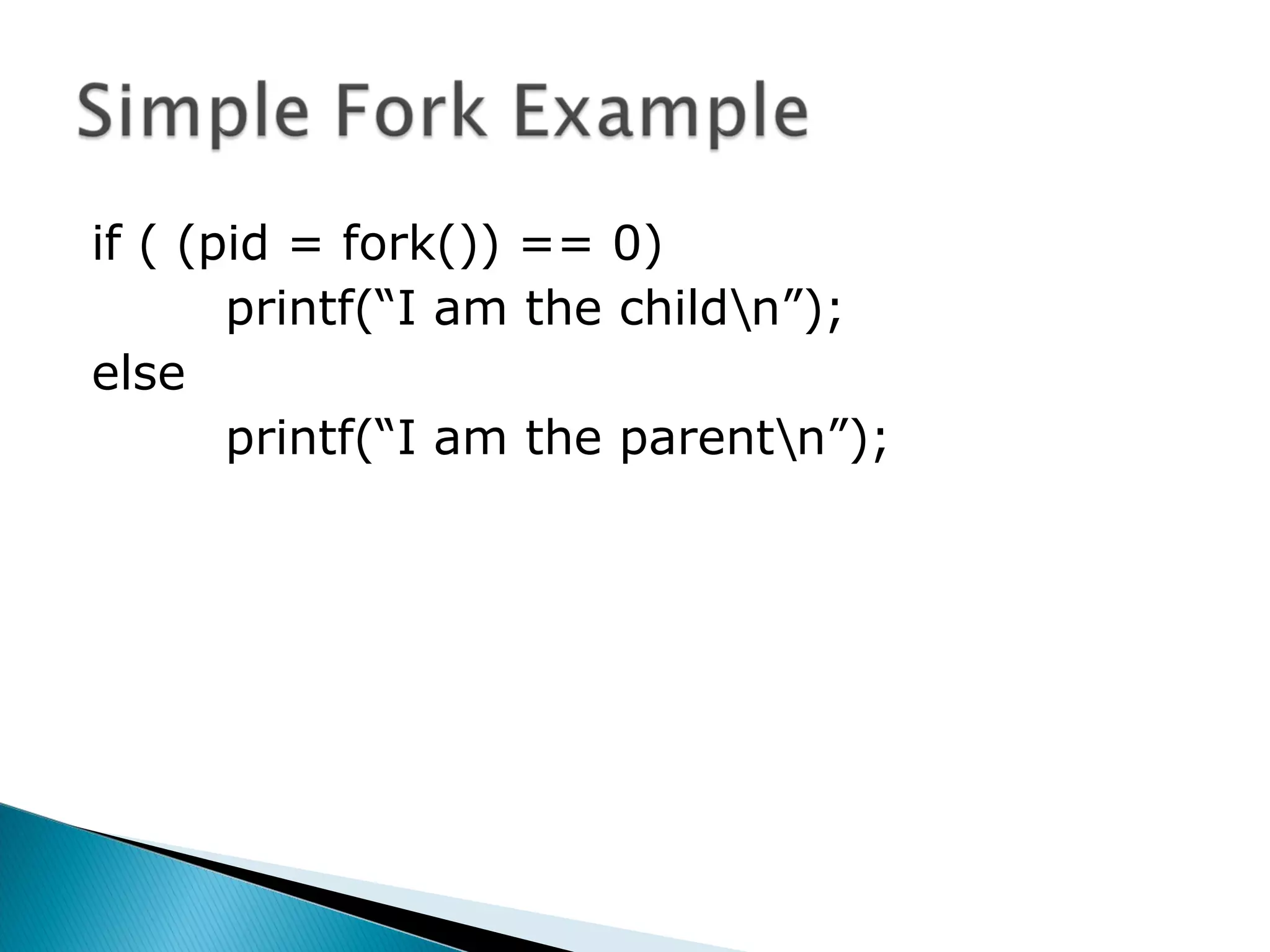

if ( (pid = fork()) == 0)
printf(“I am the childn”);
else
printf(“I am the parentn”);

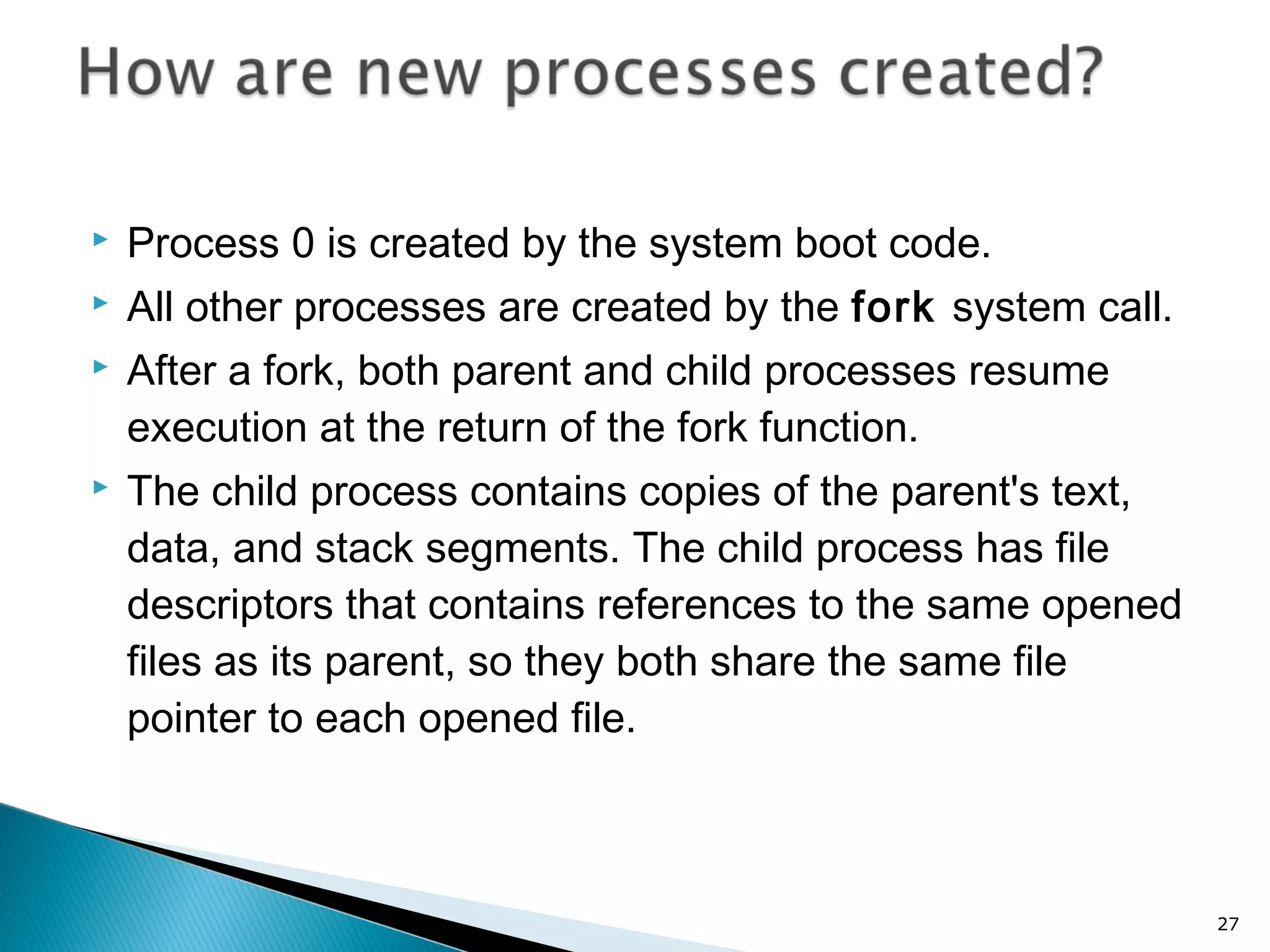

 Process 0 is created by the system boot code.
 All other processes are created by the fork system call.
 After a fork, both parent and child processes resume
execution at the return of the fork function.
 The child process contains copies of the parent's text,
data, and stack segments. The child process has file
descriptors that contains references to the same opened
files as its parent, so they both share the same file
pointer to each opened file.
27

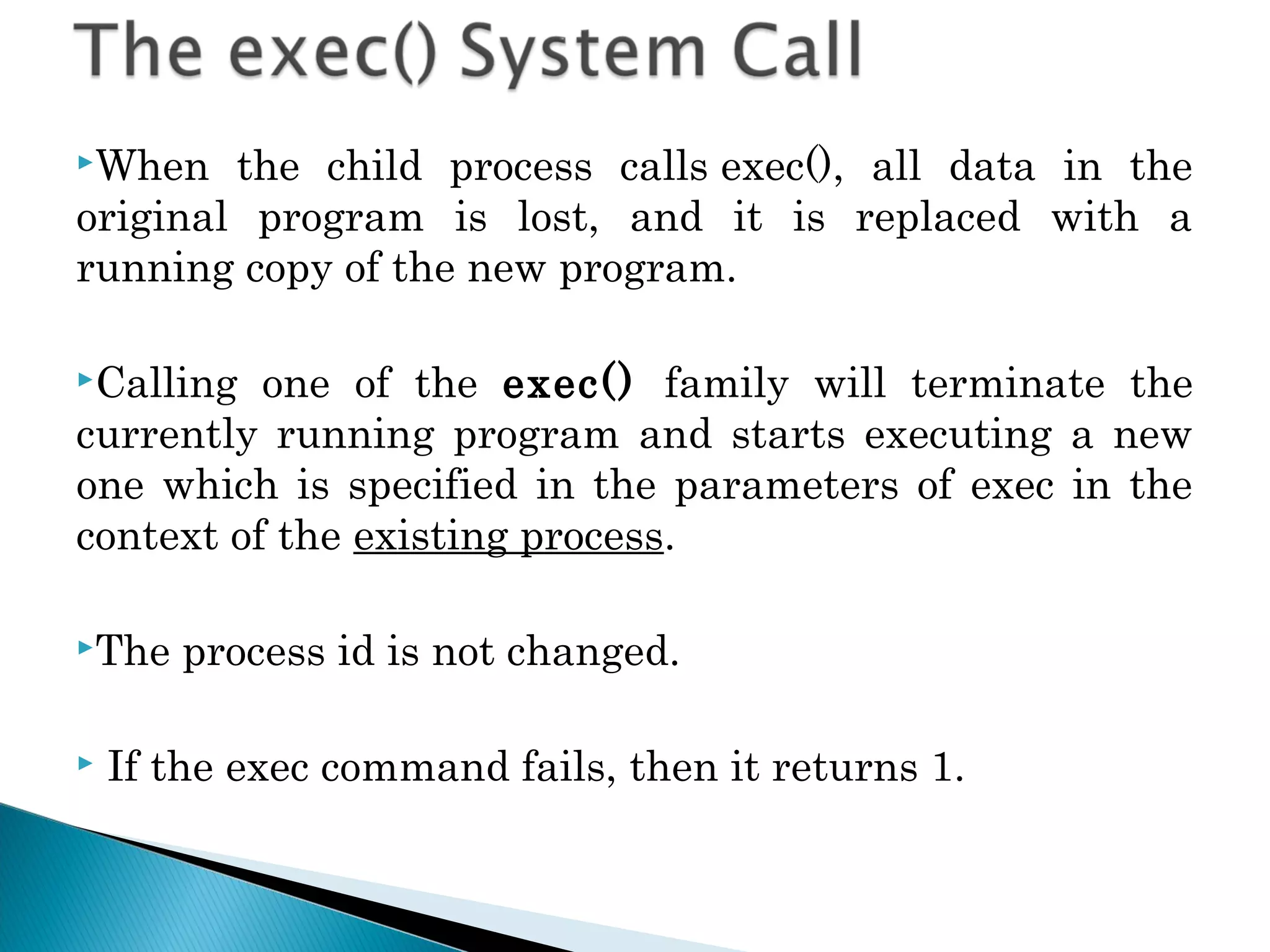

When the child process calls exec(), all data in the
original program is lost, and it is replaced with a
running copy of the new program.
Calling one of the exec() family will terminate the
currently running program and starts executing a new
one which is specified in the parameters of exec in the
context of the existing process.
The process id is not changed.
 If the exec command fails, then it returns 1.

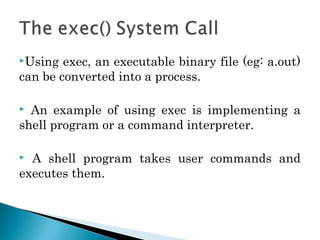

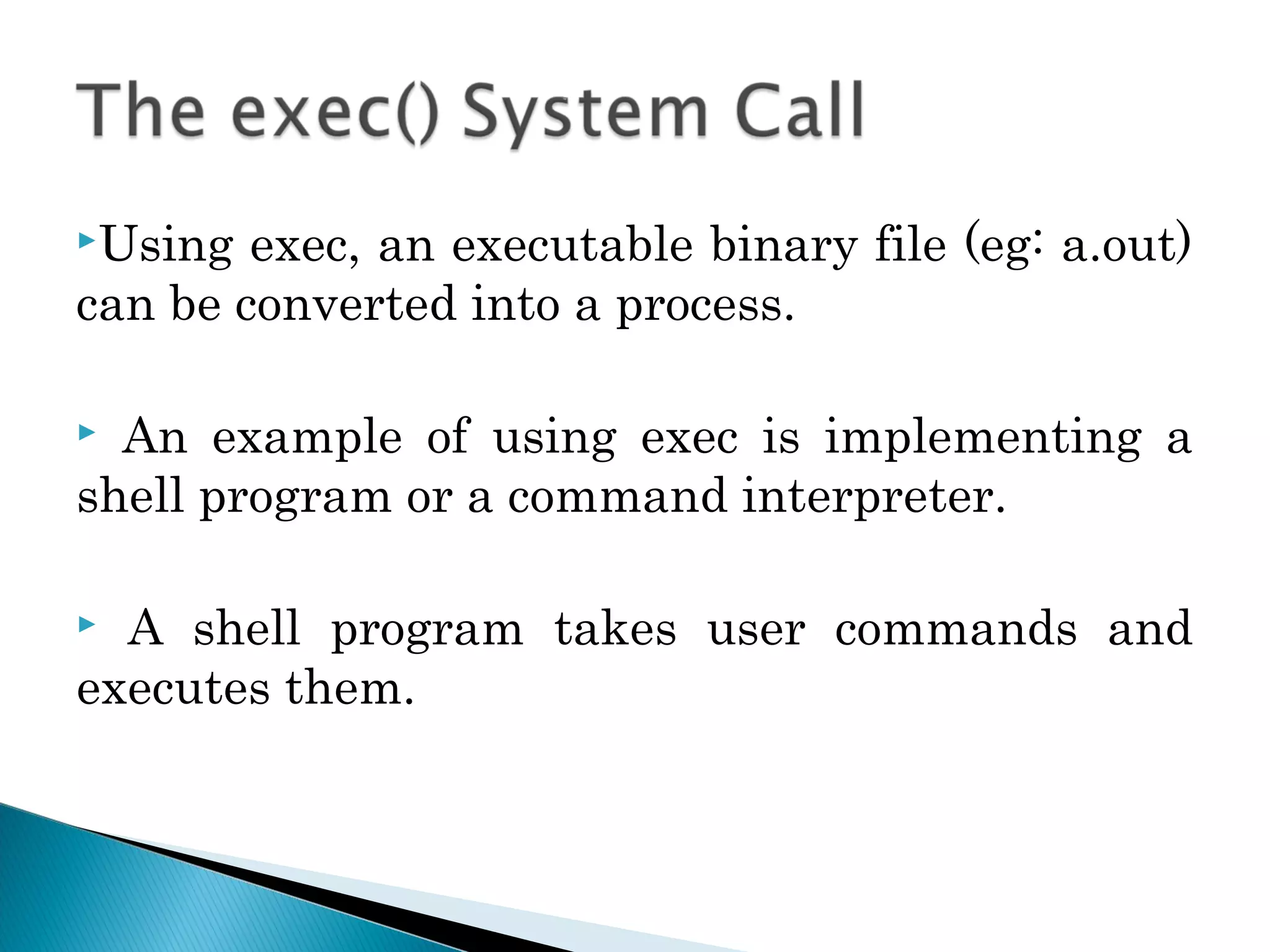

Using exec, an executable binary file (eg: a.out)
can be converted into a process.
 An example of using exec is implementing a
shell program or a command interpreter.
 A shell program takes user commands and
executes them.

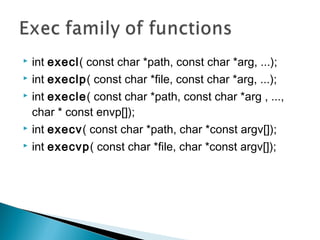

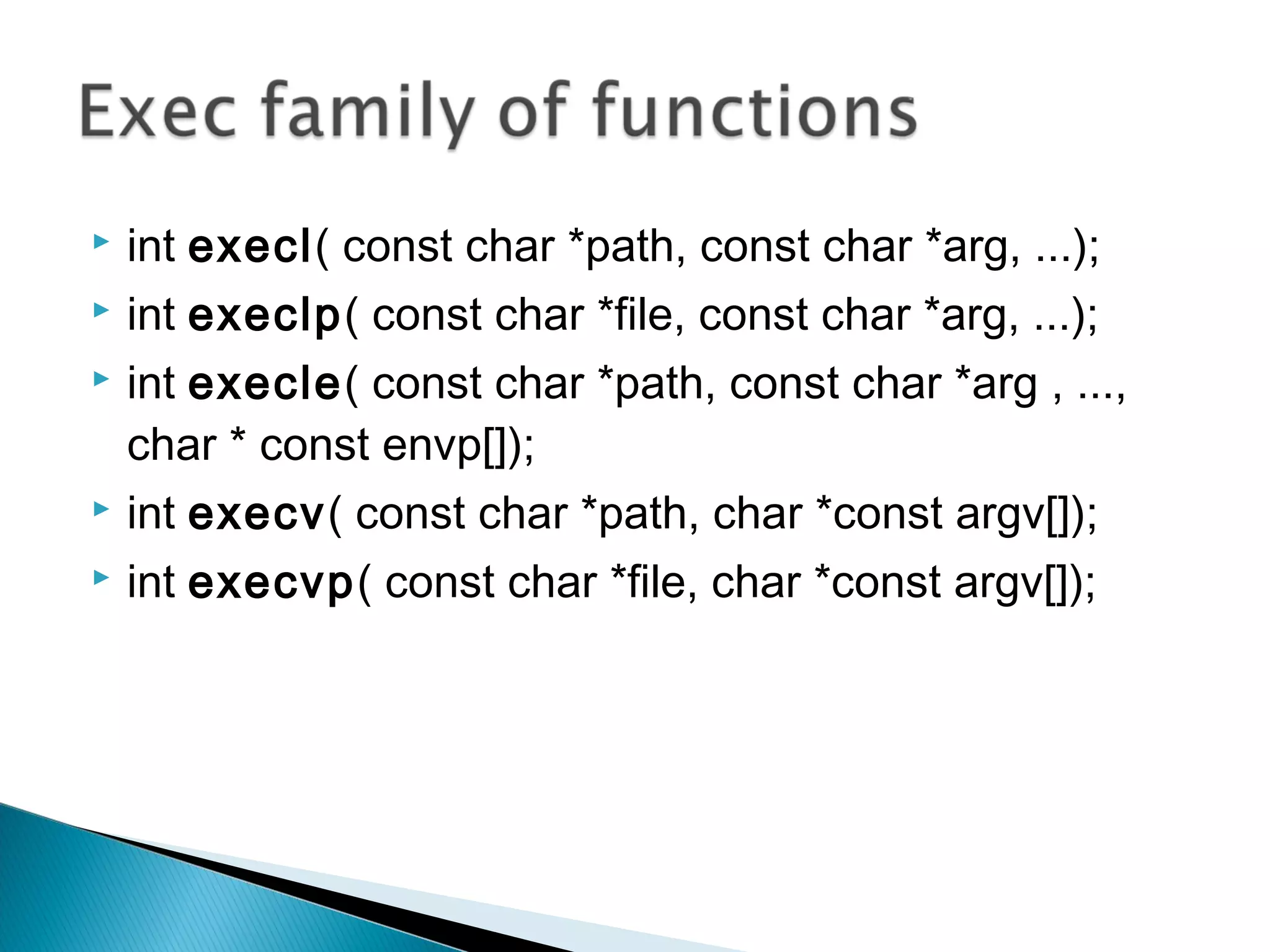

 int execl( const char *path, const char *arg, ...);
 int execlp( const char *file, const char *arg, ...);
 int execle( const char *path, const char *arg , ...,
char * const envp[]);
 int execv( const char *path, char *const argv[]);
 int execvp( const char *file, char *const argv[]);

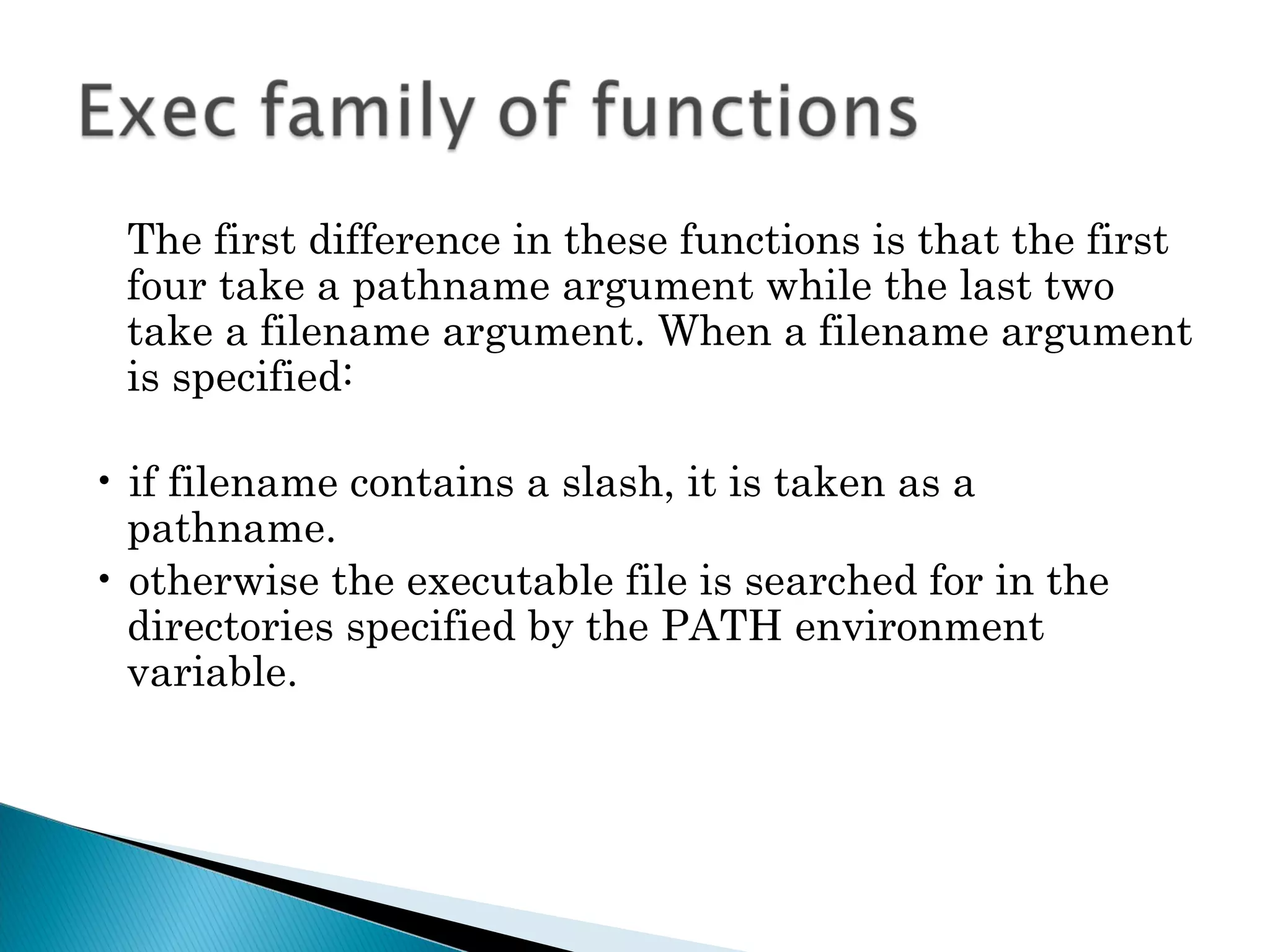

The first difference in these functions is that the first
four take a pathname argument while the last two
take a filename argument. When a filename argument
is specified:
• if filename contains a slash, it is taken as a
pathname.
• otherwise the executable file is searched for in the
directories specified by the PATH environment
variable.

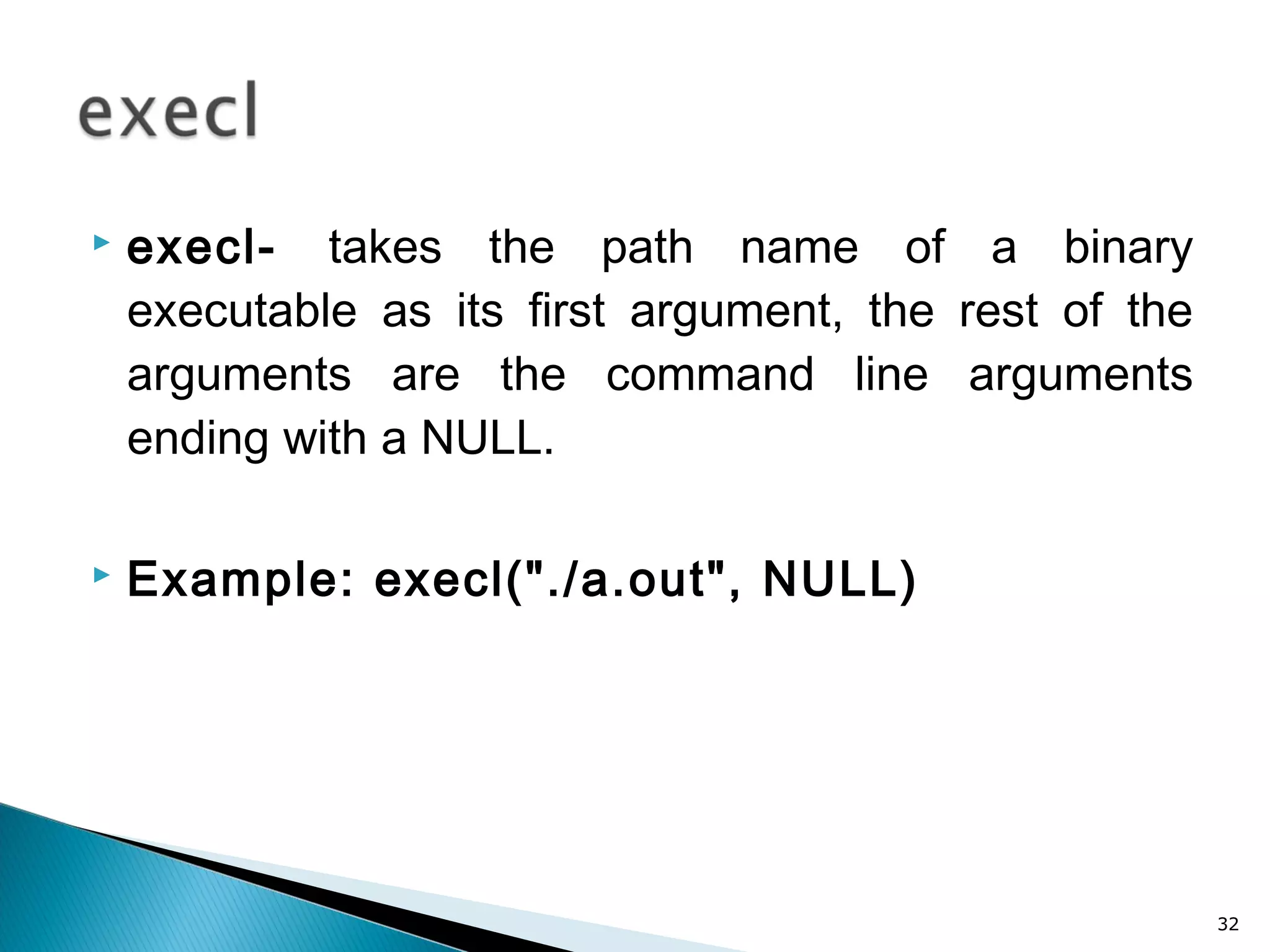

 execl- takes the path name of a binary
executable as its first argument, the rest of the
arguments are the command line arguments
ending with a NULL.
 Example: execl("./a.out", NULL)
32

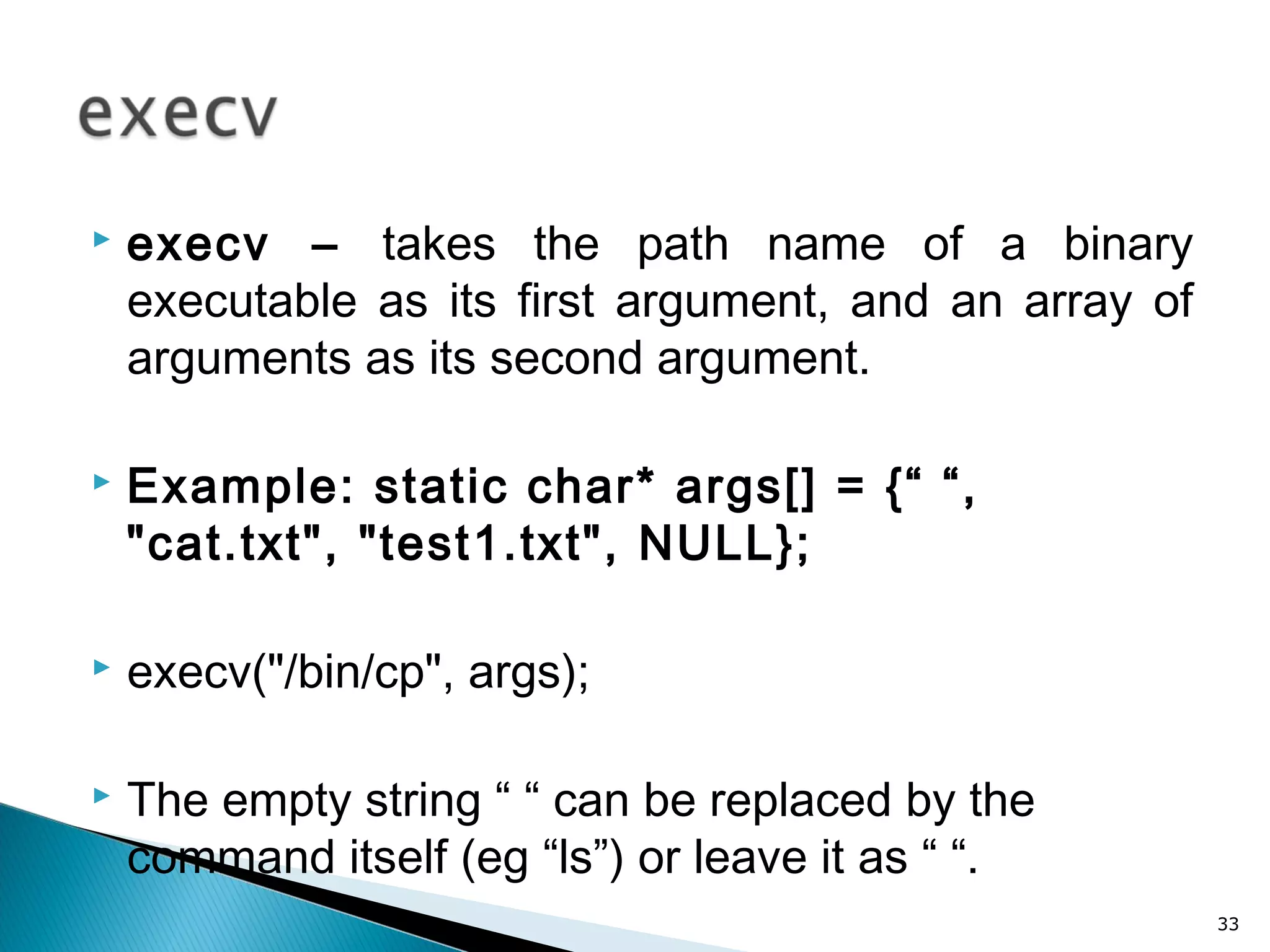

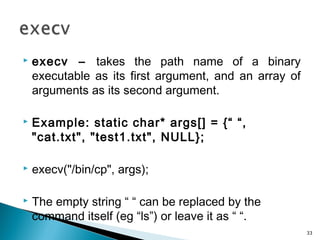

 execv – takes the path name of a binary
executable as its first argument, and an array of
arguments as its second argument.
 Example: static char* args[] = {“ “,
"cat.txt", "test1.txt", NULL};
 execv("/bin/cp", args);
 The empty string “ “ can be replaced by the
command itself (eg “ls”) or leave it as “ “.
33

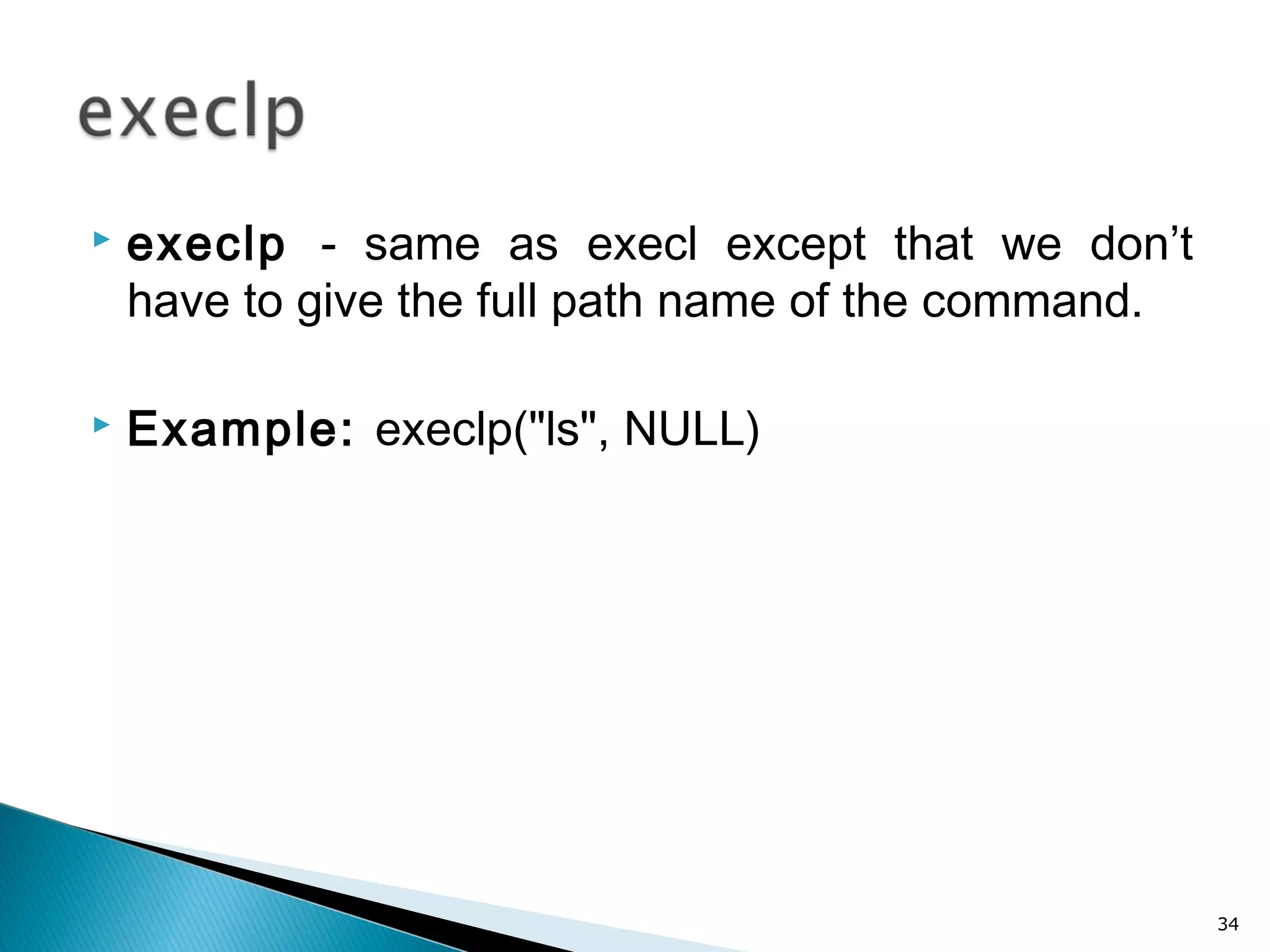

 execlp - same as execl except that we don’t
have to give the full path name of the command.
 Example: execlp("ls", NULL)
34

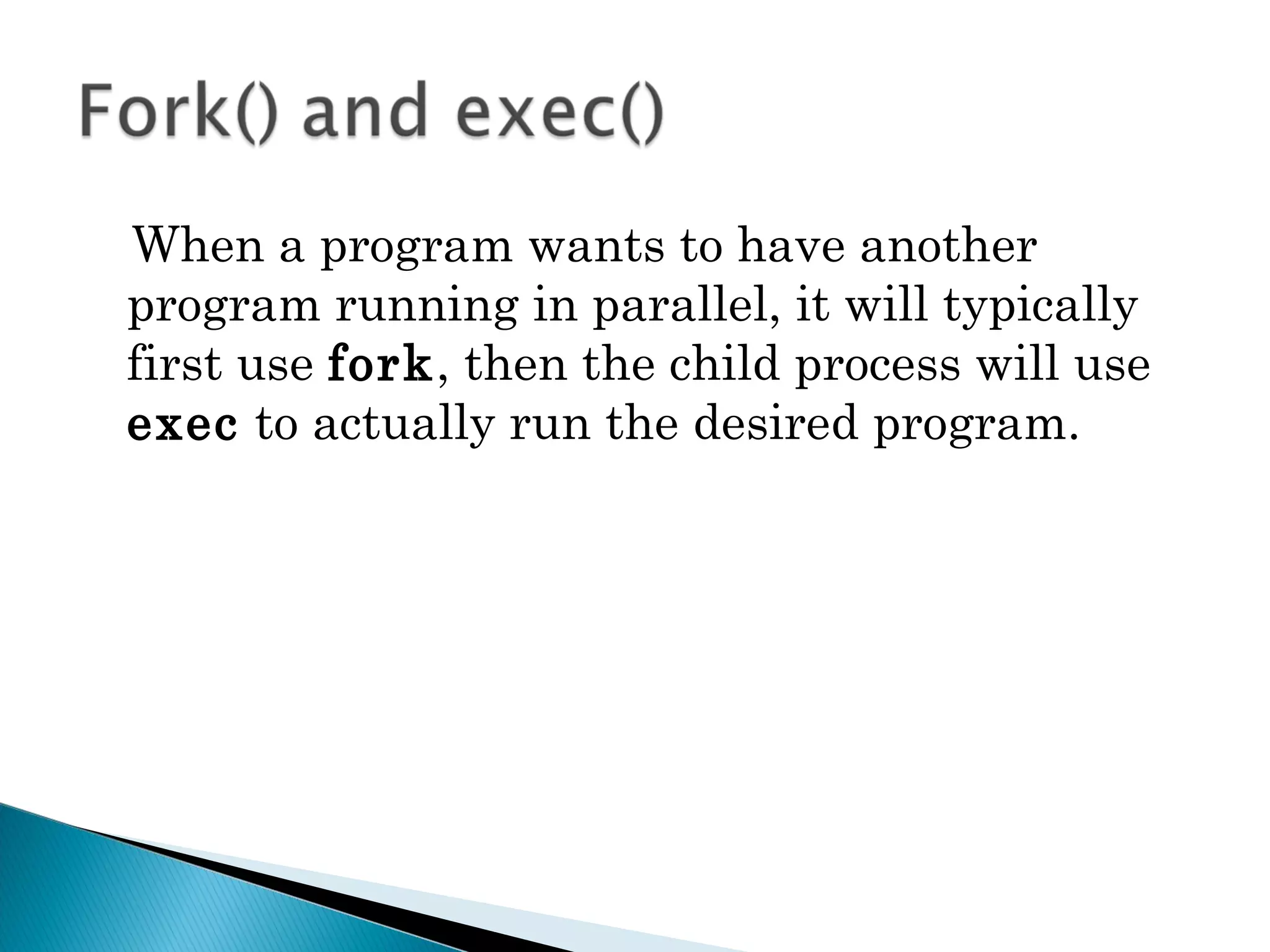

When a program wants to have another
program running in parallel, it will typically
first use fork, then the child process will use
exec to actually run the desired program.

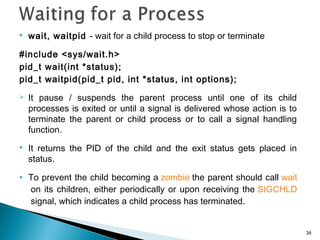

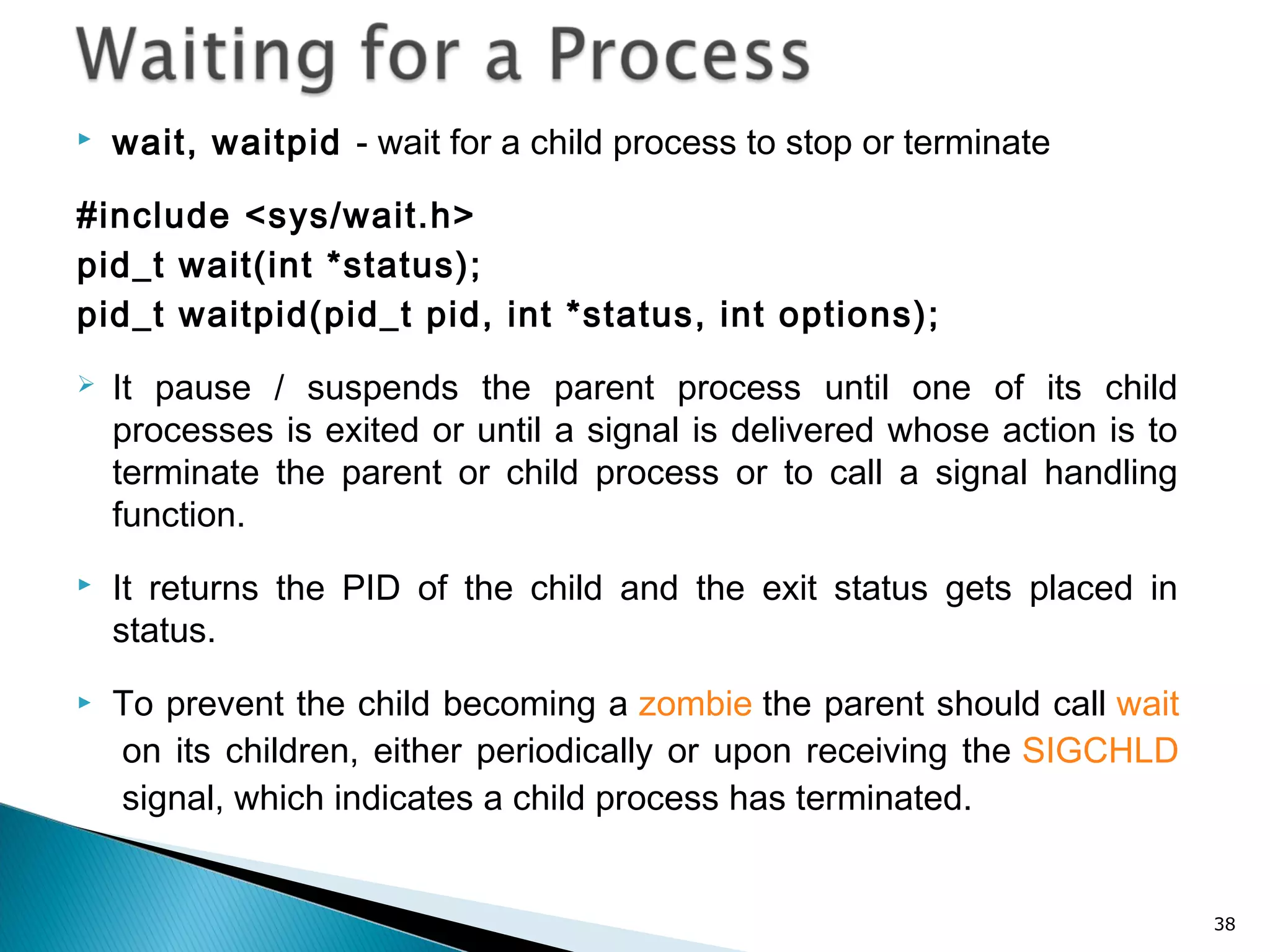

 wait, waitpid - wait for a child process to stop or terminate
#include <sys/wait.h>
pid_t wait(int *status);
pid_t waitpid(pid_t pid, int *status, int options);
 It pause / suspends the parent process until one of its child
processes is exited or until a signal is delivered whose action is to
terminate the parent or child process or to call a signal handling
function.
 It returns the PID of the child and the exit status gets placed in
status.
 To prevent the child becoming a zombie the parent should call wait
on its children, either periodically or upon receiving the SIGCHLD
signal, which indicates a child process has terminated.
38

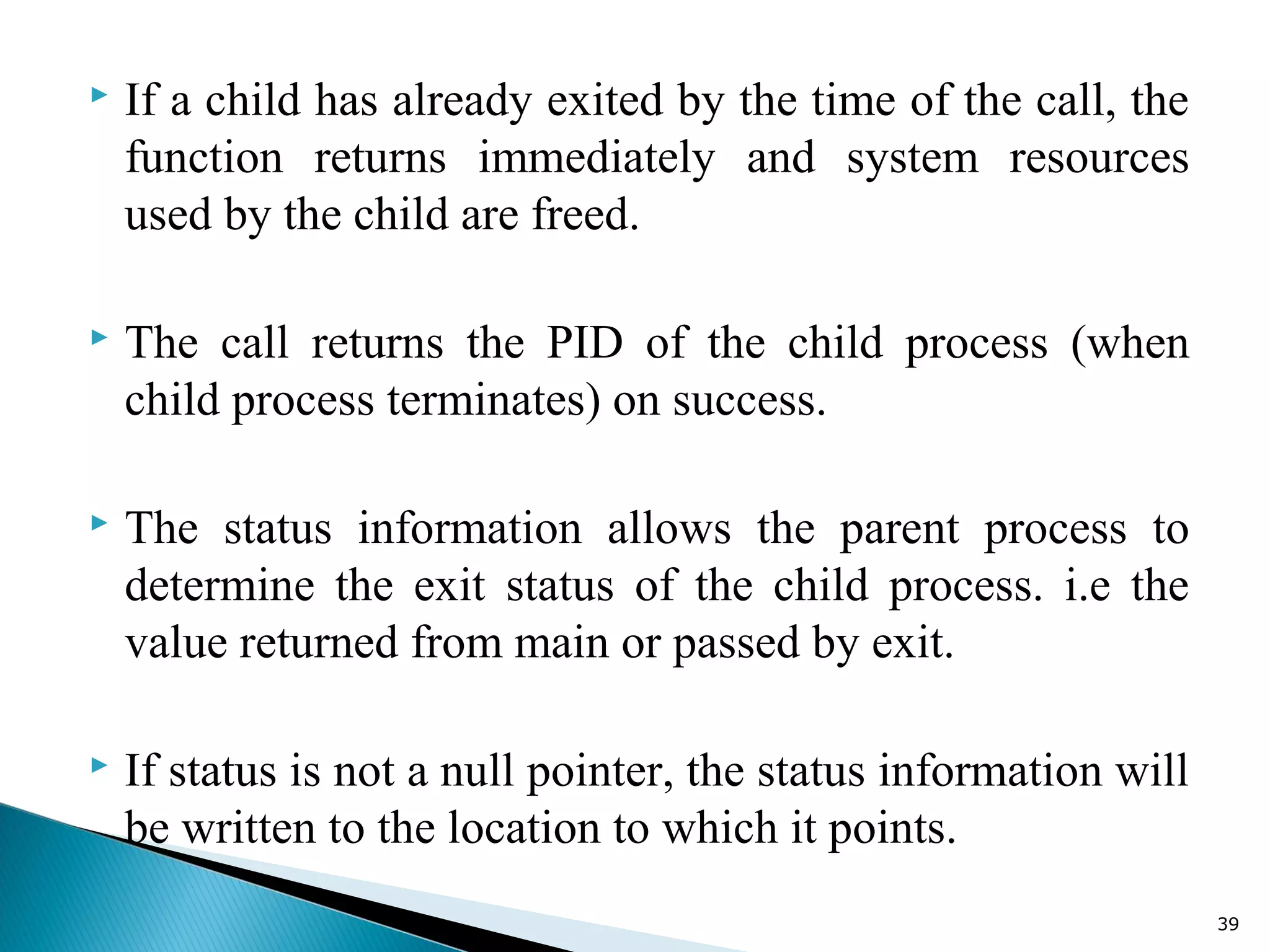

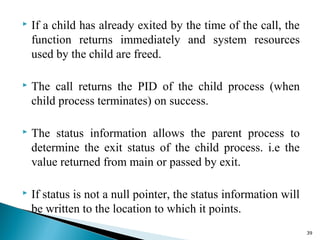

 If a child has already exited by the time of the call, the
function returns immediately and system resources
used by the child are freed.
 The call returns the PID of the child process (when
child process terminates) on success.
 The status information allows the parent process to
determine the exit status of the child process. i.e the
value returned from main or passed by exit.
 If status is not a null pointer, the status information will
be written to the location to which it points.
39

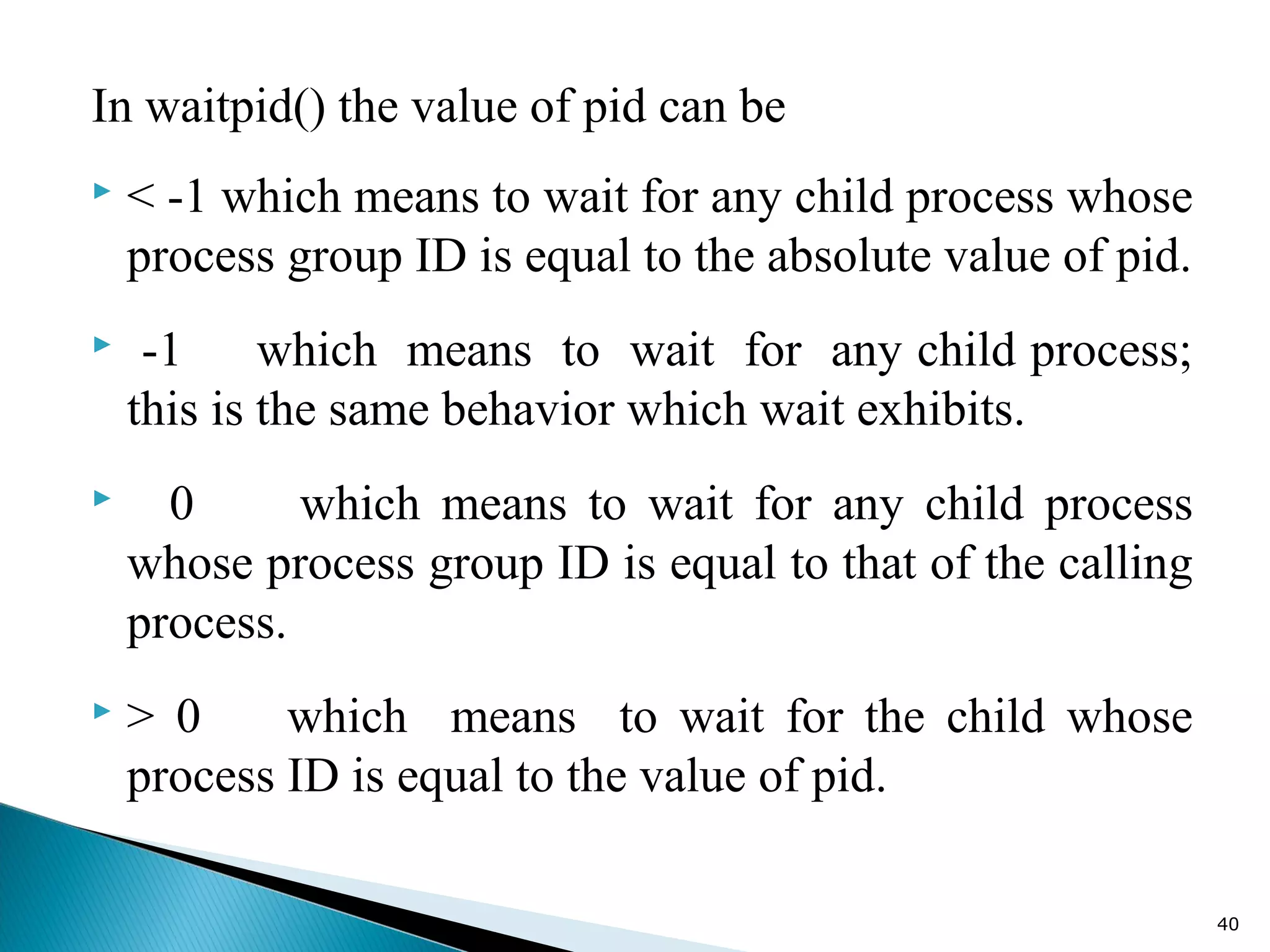

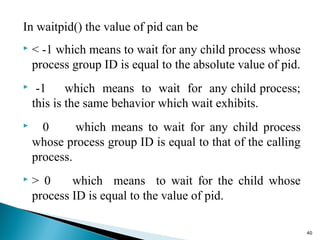

In waitpid() the value of pid can be
 < -1 which means to wait for any child process whose
process group ID is equal to the absolute value of pid.
 -1 which means to wait for any child process;
this is the same behavior which wait exhibits.
 0 which means to wait for any child process
whose process group ID is equal to that of the calling
process.
 > 0 which means to wait for the child whose
process ID is equal to the value of pid.
40

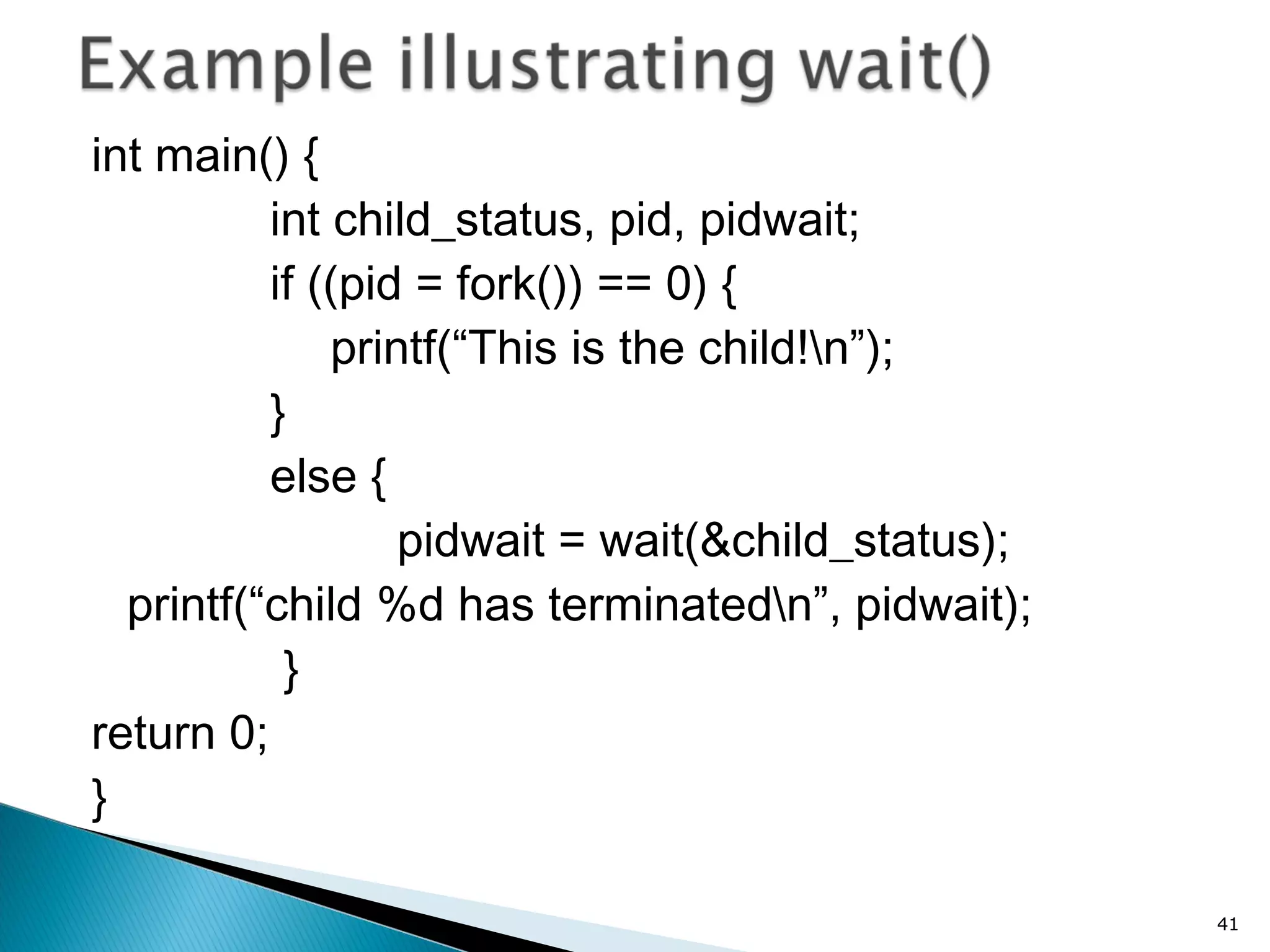

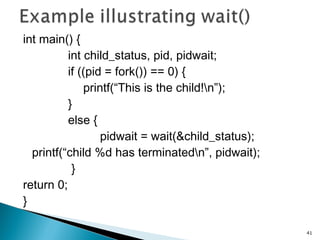

int main() {
int child_status, pid, pidwait;
if ((pid = fork()) == 0) {
printf(“This is the child!n”);
}
else {
pidwait = wait(&child_status);
printf(“child %d has terminatedn”, pidwait);
}
return 0;
}
41

42

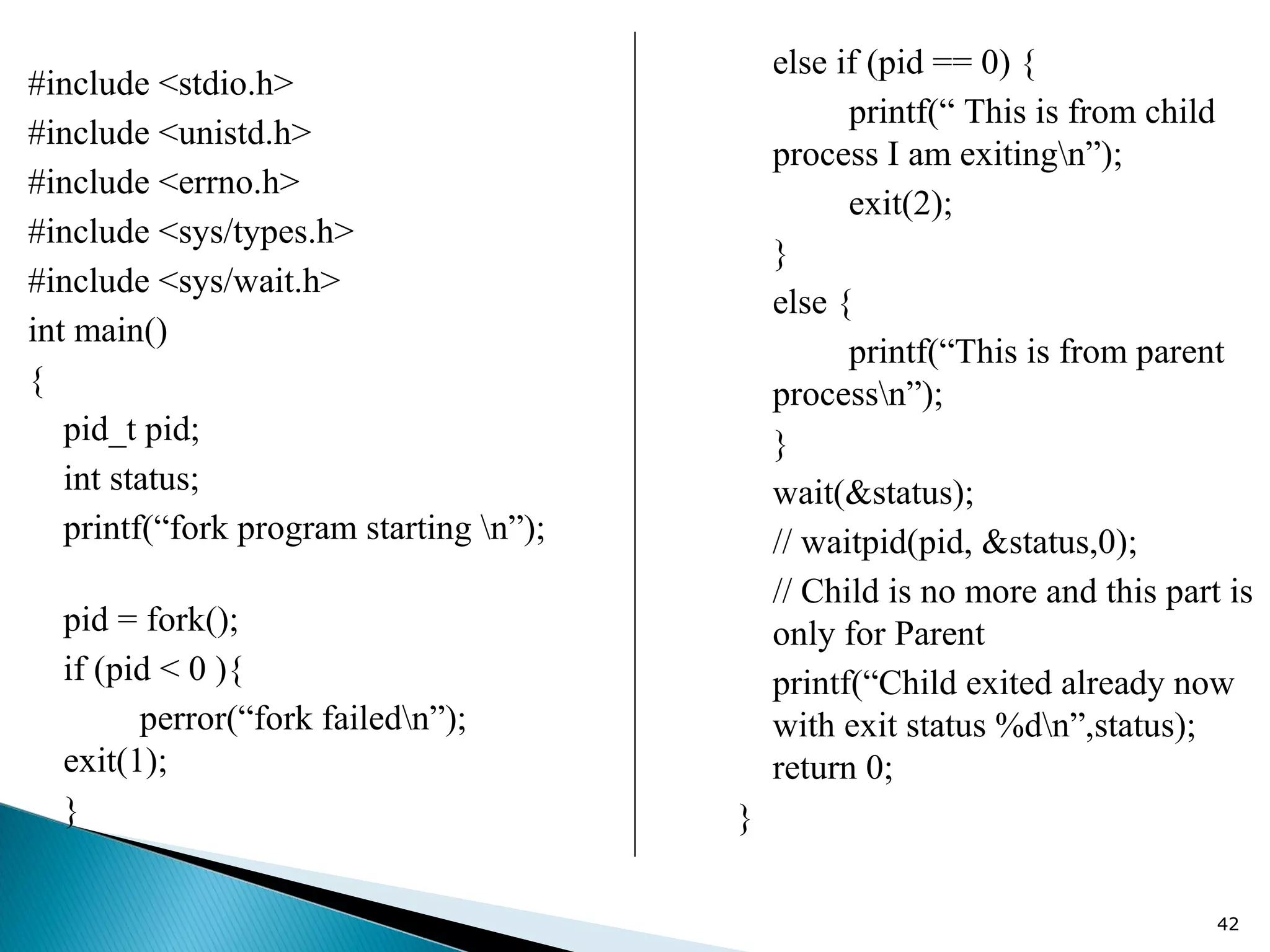

else if (pid == 0) {
printf(“ This is from child
process I am exitingn”);
exit(2);
}
else {
printf(“This is from parent
processn”);
}
wait(&status);
// waitpid(pid, &status,0);
// Child is no more and this part is
only for Parent
printf(“Child exited already now
with exit status %dn”,status);
return 0;
}
#include <stdio.h>
#include <unistd.h>
#include <errno.h>
int main()
{
pid_t pid;
int status;
pid = fork();
if (pid < 0 ){
perror(“fork failedn”);
exit(1);
}

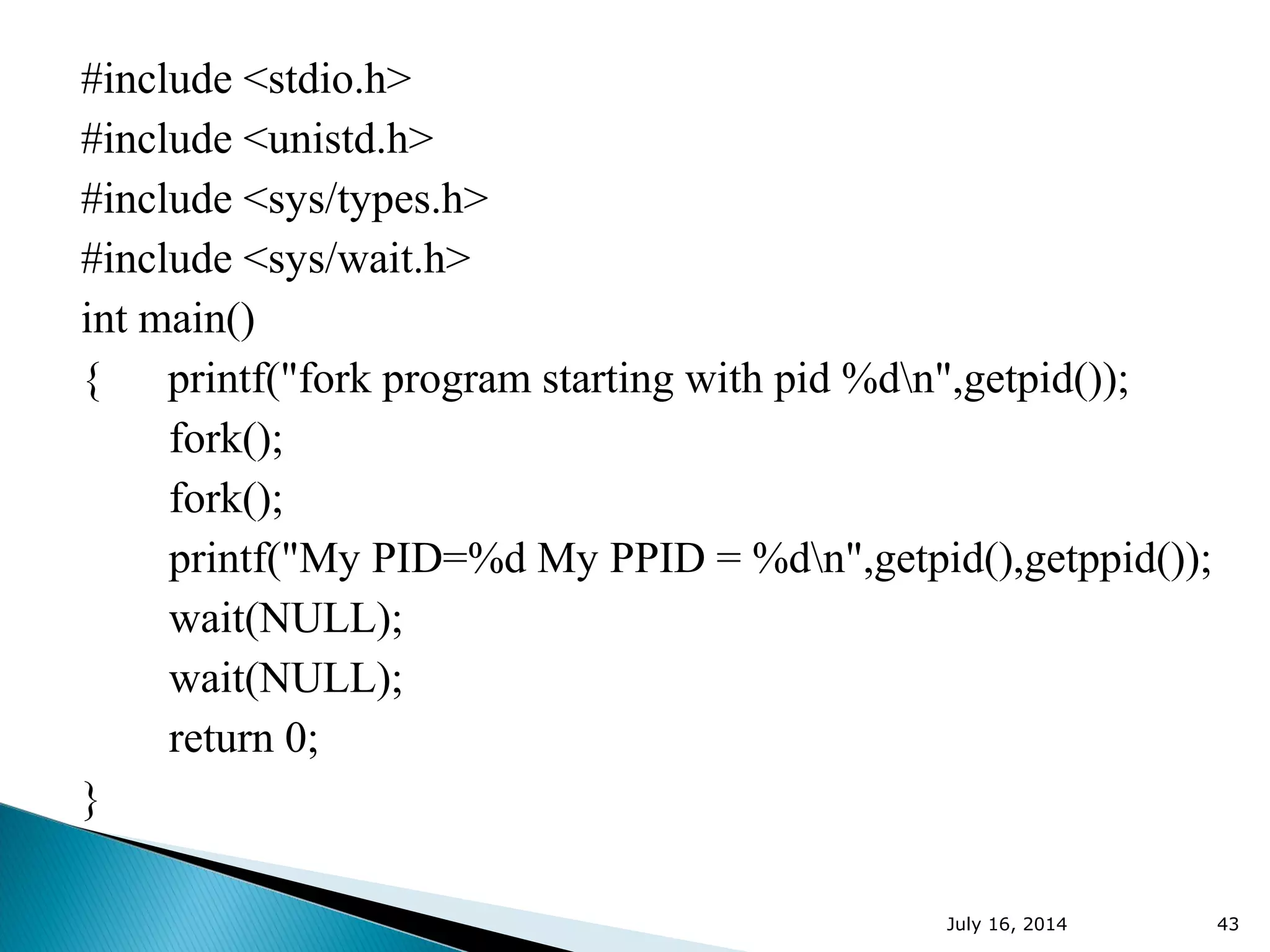

#include <stdio.h>
#include <unistd.h>
int main()
{ printf("fork program starting with pid %dn",getpid());
fork();
fork();
printf("My PID=%d My PPID = %dn",getpid(),getppid());
wait(NULL);
wait(NULL);
return 0;
}
July 16, 2014 43

#include <stdio.h>
#include <unistd.h>
int main()
{ int i;
printf("fork program starting with pid %dn",getpid());
for(i=0;i<2;i++)
fork();
printf("My PID=%d My PPID = %dn",getpid(),getppid());
while(wait(NULL)!= -1);
return 0;
}
July 16, 2014 44

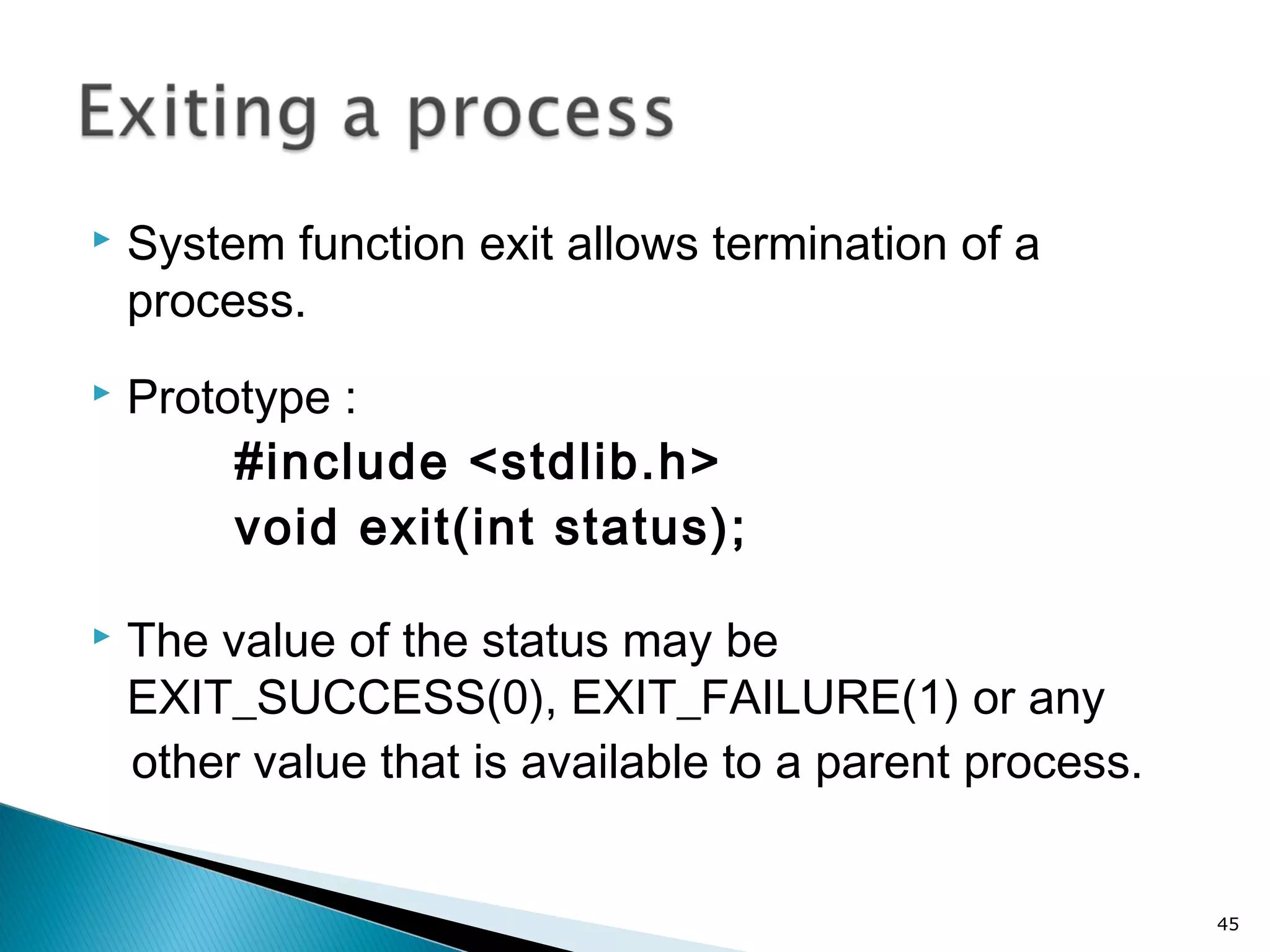

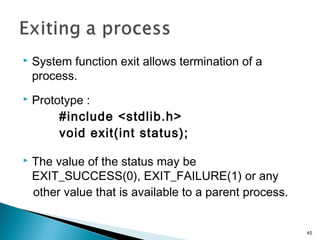

 System function exit allows termination of a
process.
 Prototype :
#include <stdlib.h>
void exit(int status);
 The value of the status may be
EXIT_SUCCESS(0), EXIT_FAILURE(1) or any
other value that is available to a parent process.
45

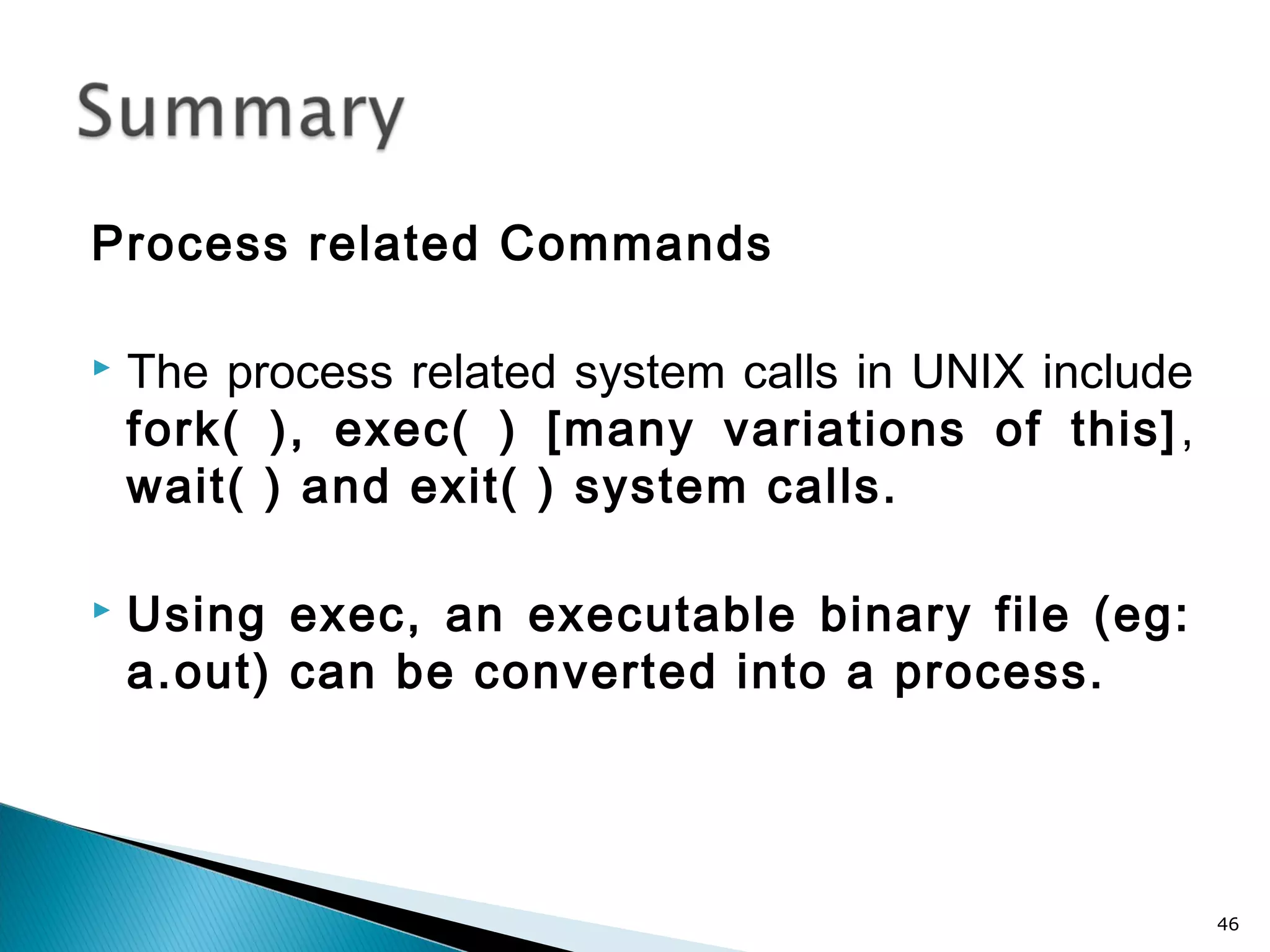

Process related Commands
 The process related system calls in UNIX include
fork( ), exec( ) [many variations of this],
wait( ) and exit( ) system calls.
 Using exec, an executable binary file (eg:
a.out) can be converted into a process.
46

process creation OS

More Related Content

What's hot

Similar to process creation OS

Recently uploaded

process creation OS

Editor's Notes
