Puppet devops wdec
This document discusses configuring Cisco devices using Puppet and Chef automation tools. It provides an overview of: - The benefits of automated configuration vs manual configuration such as reliability, auditing, and drift correction. - How Puppet and Chef work by maintaining configuration state in code and transitioning systems from current to desired state in an idempotent way. - Key components of Puppet like the Puppet master, catalogs, and Puppet agents. And key components of Chef like the Chef server, cookbooks, recipes, and Chef clients. - Cisco's One-PK which provides an API and SDK for developing applications to control and configure Cisco devices, and how Puppet and Chef agents are
More Related Content
Puppet devops wdec
- 1. Cisco configuration automation usingpuppet/chef Amsterdam DevOps Meetup © 2010 Cisco and/or its affiliates. All rights reserved. 1

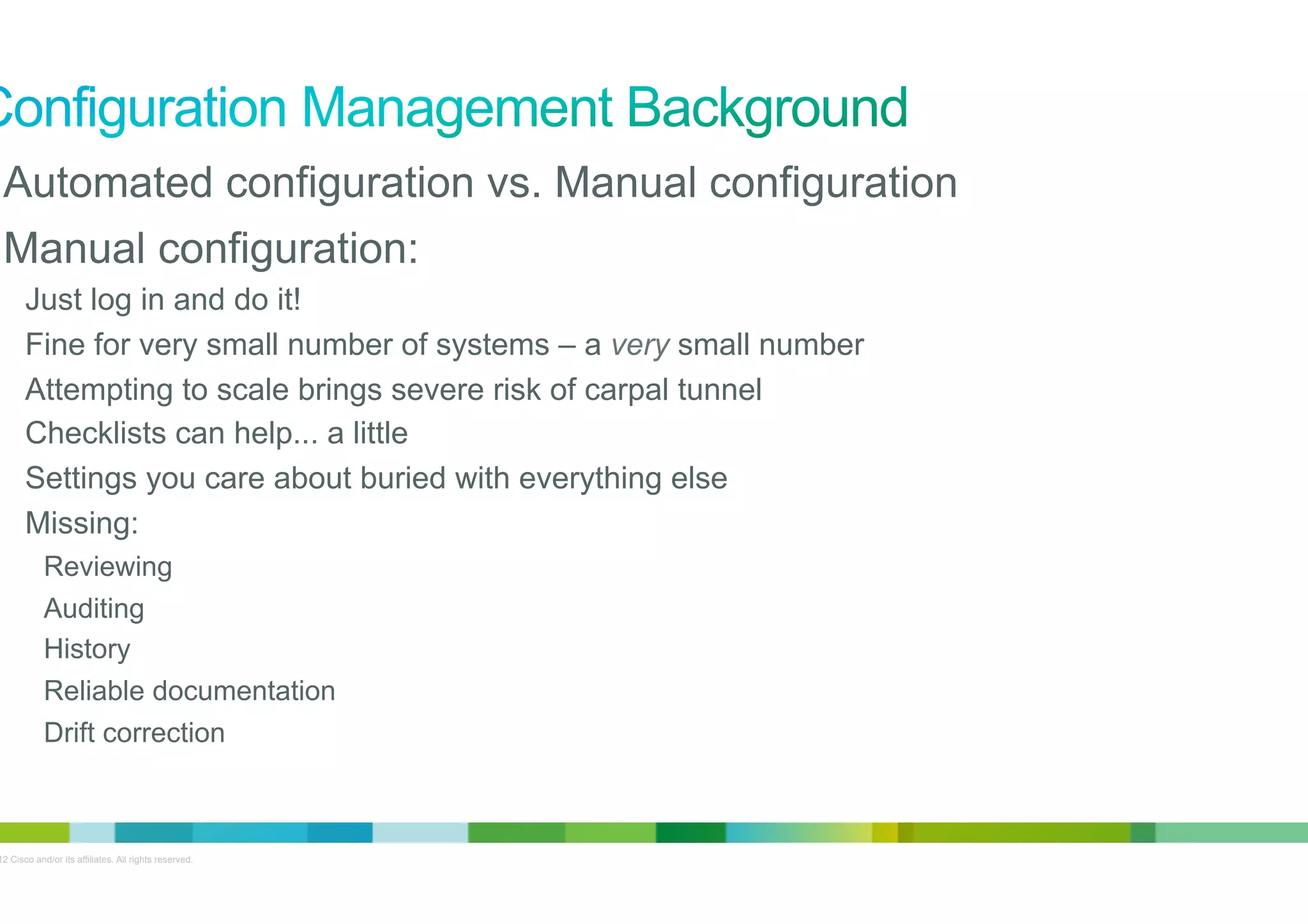

- 2. • Automated configurationvs. Manual configuration • Manual configuration: Just log in and do it! Fine for very small number of systems – a very small number Attempting to scale brings severe risk of carpal tunnel Checklists can help... a little Settings you care about buried with everything else Missing: Reviewing Auditing History Reliable documentation Drift correction © 2012 Cisco and/or its affiliates. All rights reserved. 2

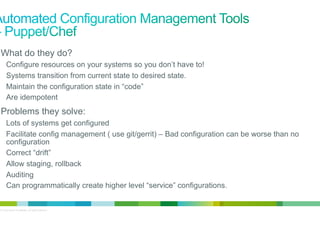

- 3. • What dothey do? Configure resources on your systems so you don’t have to! Systems transition from current state to desired state. Maintain the configuration state in “code” Are idempotent • Problems they solve: Lots of systems get configured Facilitate config management ( use git/gerrit) – Bad configuration can be worse than no configuration Correct “drift” Allow staging, rollback Auditing Can programmatically create higher level “service” configurations. © 2012 Cisco and/or its affiliates. All rights reserved. 3

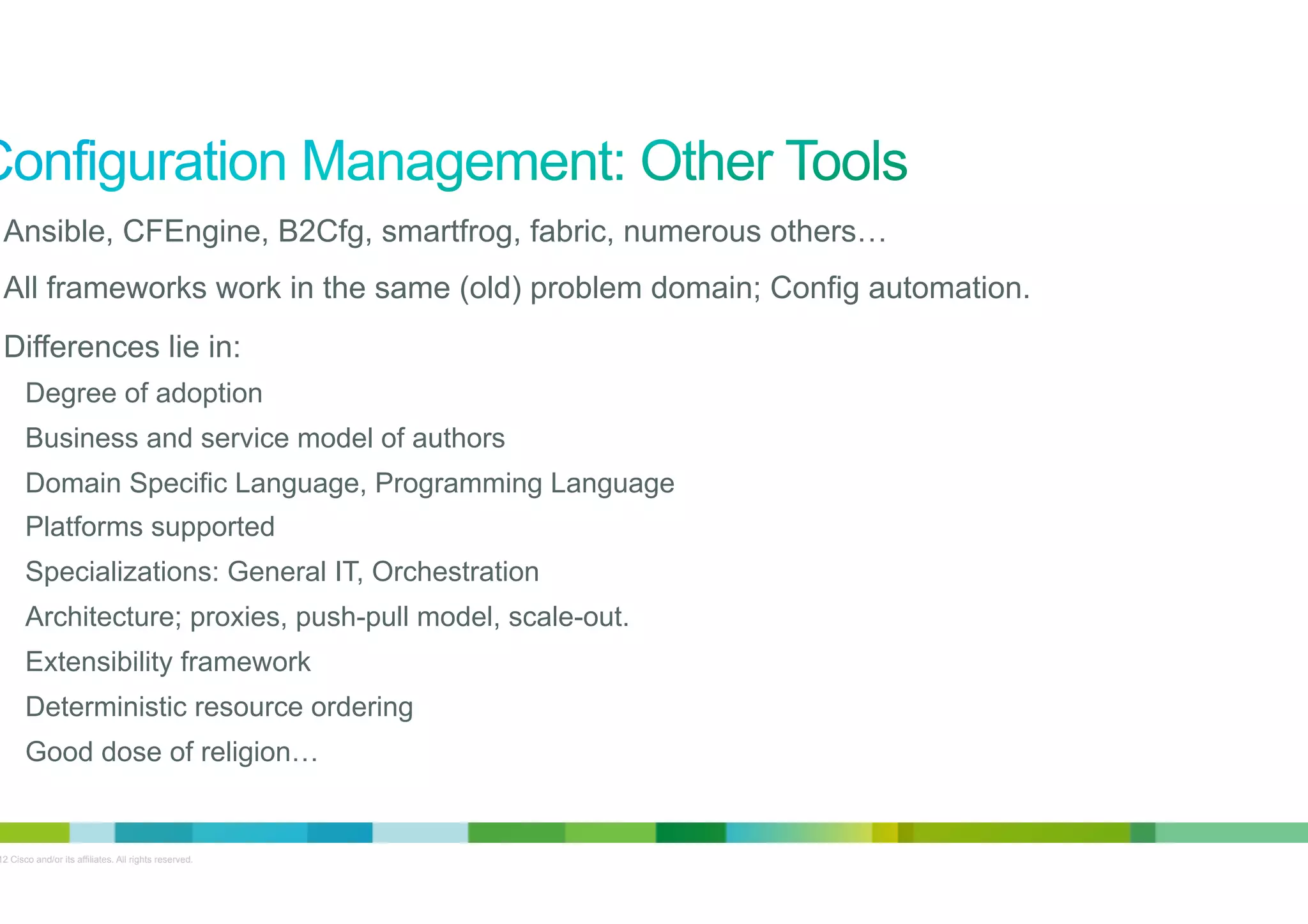

- 4. • Ansible, CFEngine,B2Cfg, smartfrog, fabric, numerous others… • All frameworks work in the same (old) problem domain; Config automation. • Differences lie in: Degree of adoption Business and service model of authors Domain Specific Language, Programming Language Platforms supported Specializations: General IT, Orchestration Architecture; proxies, push-pull model, scale-out. Extensibility framework Deterministic resource ordering Good dose of religion… © 2012 Cisco and/or its affiliates. All rights reserved. 4

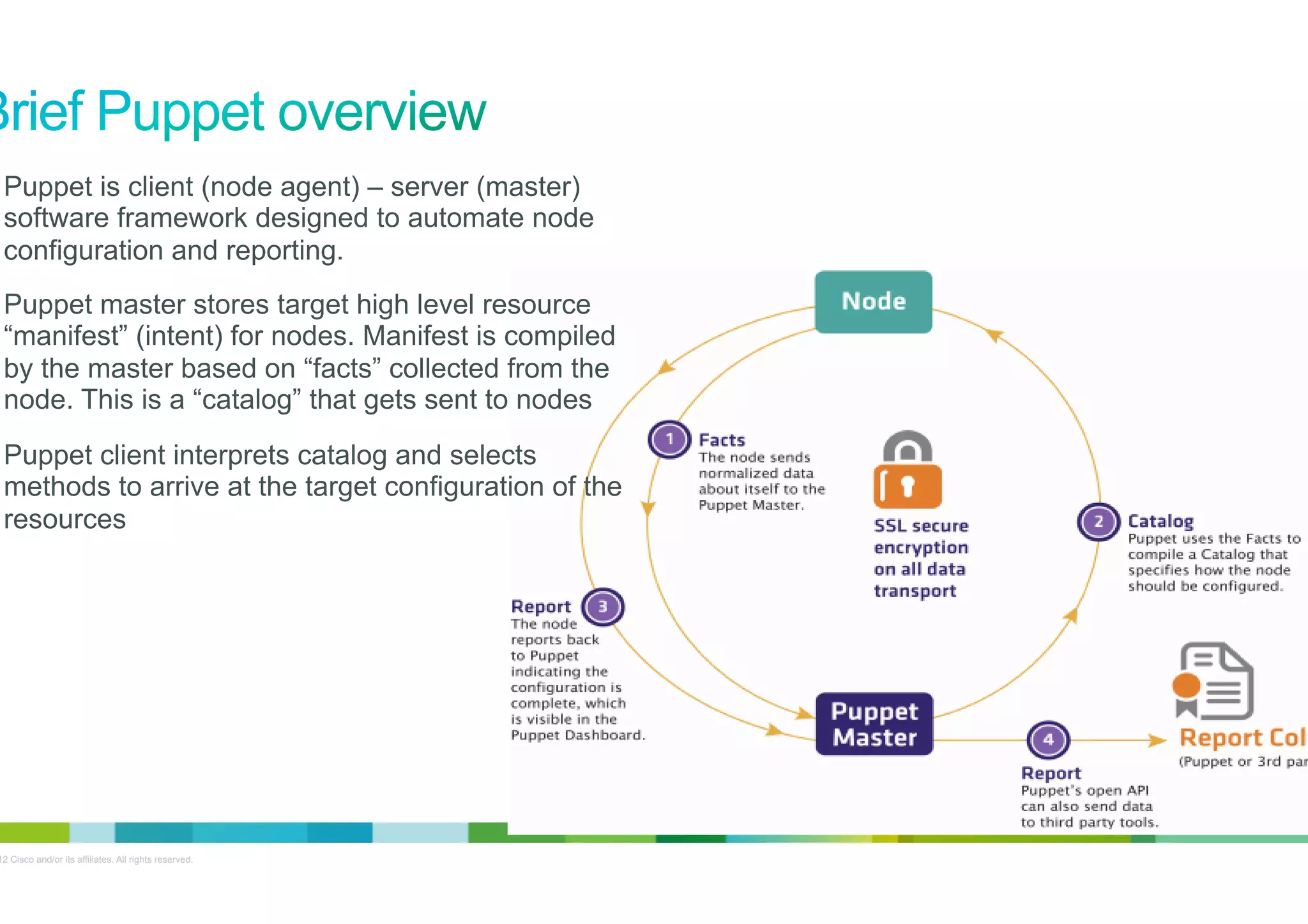

- 5. • Puppet isclient (node agent) – server (master) software framework designed to automate node configuration and reporting. • Puppet master stores target high level resource “manifest” (intent) for nodes. Manifest is compiled by the master based on “facts” collected from the node. This is a “catalog” that gets sent to nodes • Puppet client interprets catalog and selects methods to arrive at the target configuration of the resources © 2012 Cisco and/or its affiliates. All rights reserved. 5

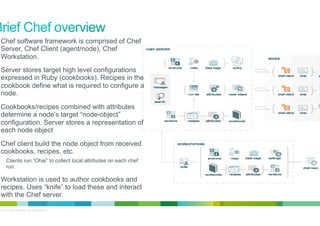

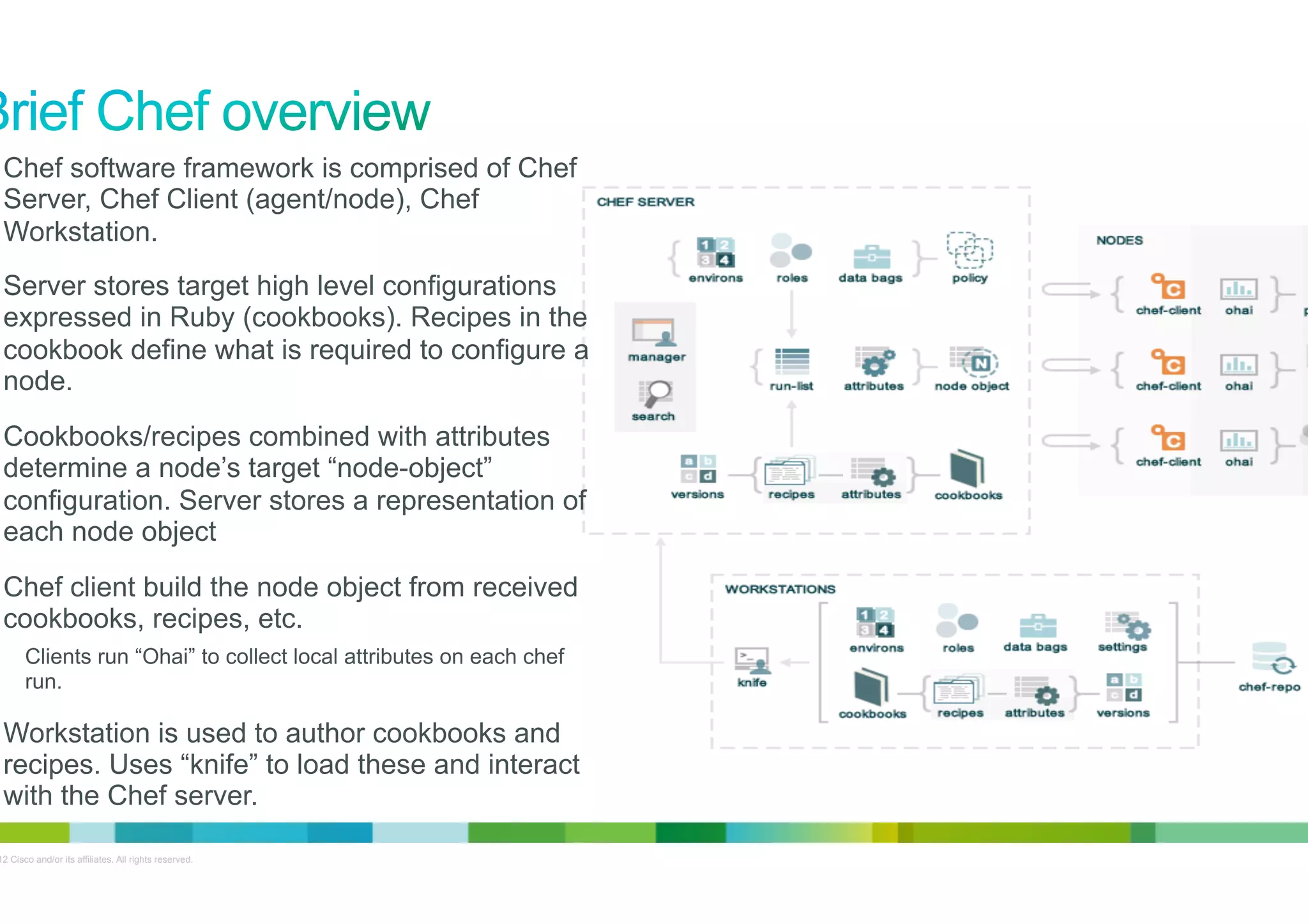

- 6. • Chef softwareframework is comprised of Chef Server, Chef Client (agent/node), Chef Workstation. • Server stores target high level configurations expressed in Ruby (cookbooks). Recipes in the cookbook define what is required to configure a node. • Cookbooks/recipes combined with attributes determine a node’s target “node-object” configuration. Server stores a representation of each node object • Chef client build the node object from received cookbooks, recipes, etc. Clients run “Ohai” to collect local attributes on each chef run. • Workstation is used to author cookbooks and recipes. Uses “knife” to load these and interact with the Chef server. © 2012 Cisco and/or its affiliates. All rights reserved. 6

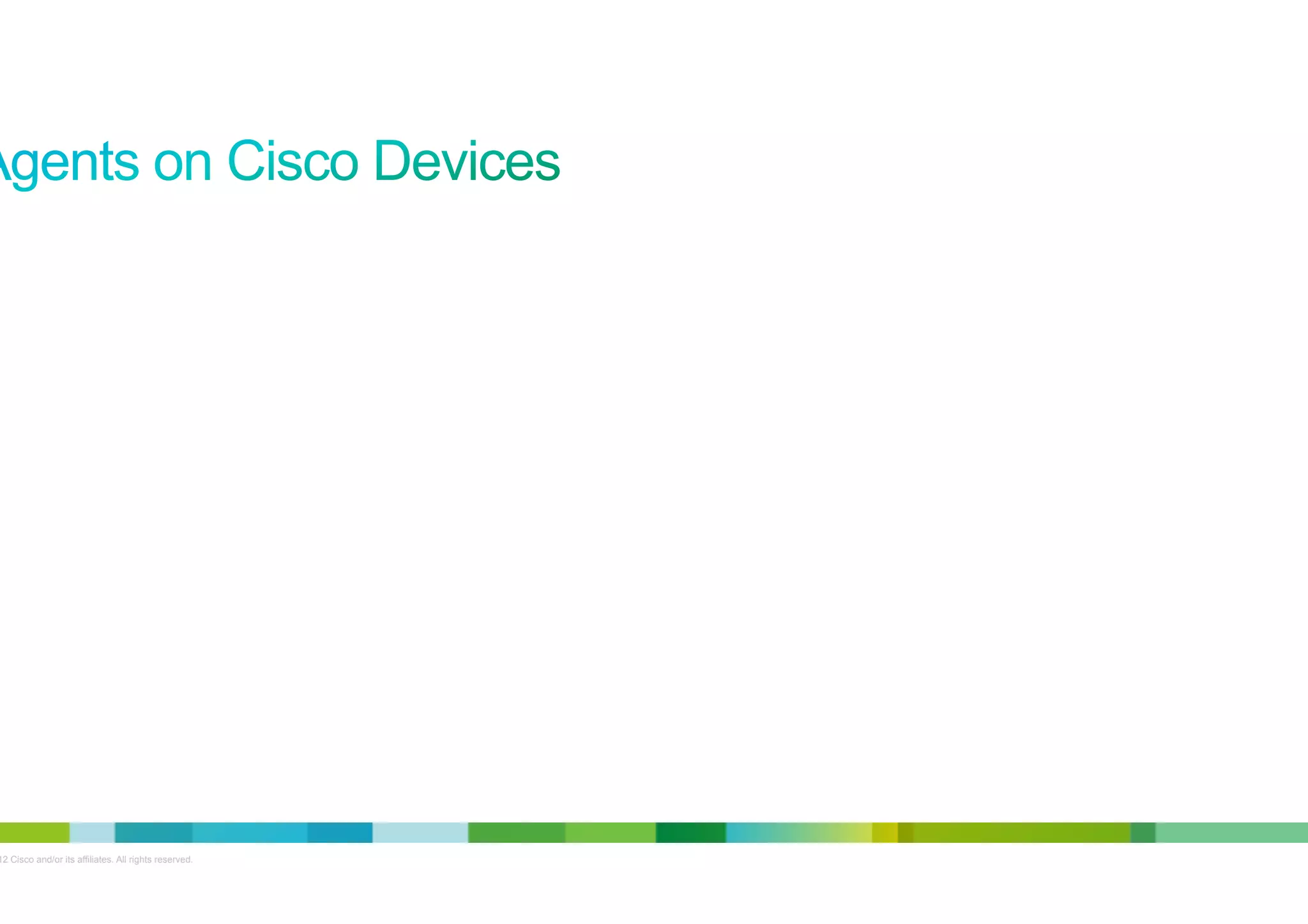

- 7. © 2012 Ciscoand/or its affiliates. All rights reserved. 7

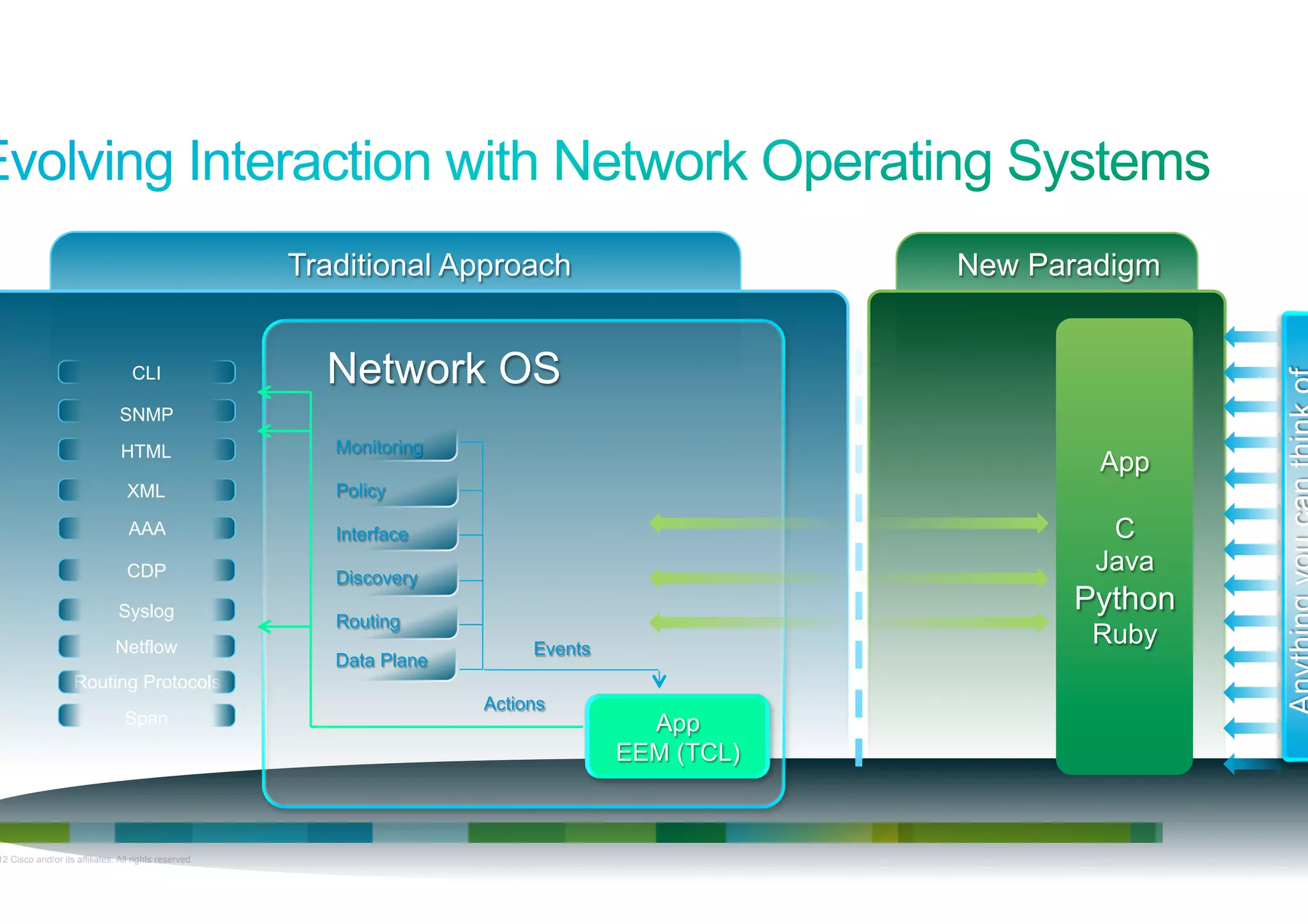

- 8. CLI New Paradigm Network OS SNMP HTML Monitoring XML AAA Interface CDP App Policy Discovery Syslog Netflow C Java Python Routing DataPlane Ruby Events Routing Protocols Span © 2012 Cisco and/or its affiliates. All rights reserved. Actions App EEM (TCL) Anything you can think of Traditional Approach 8

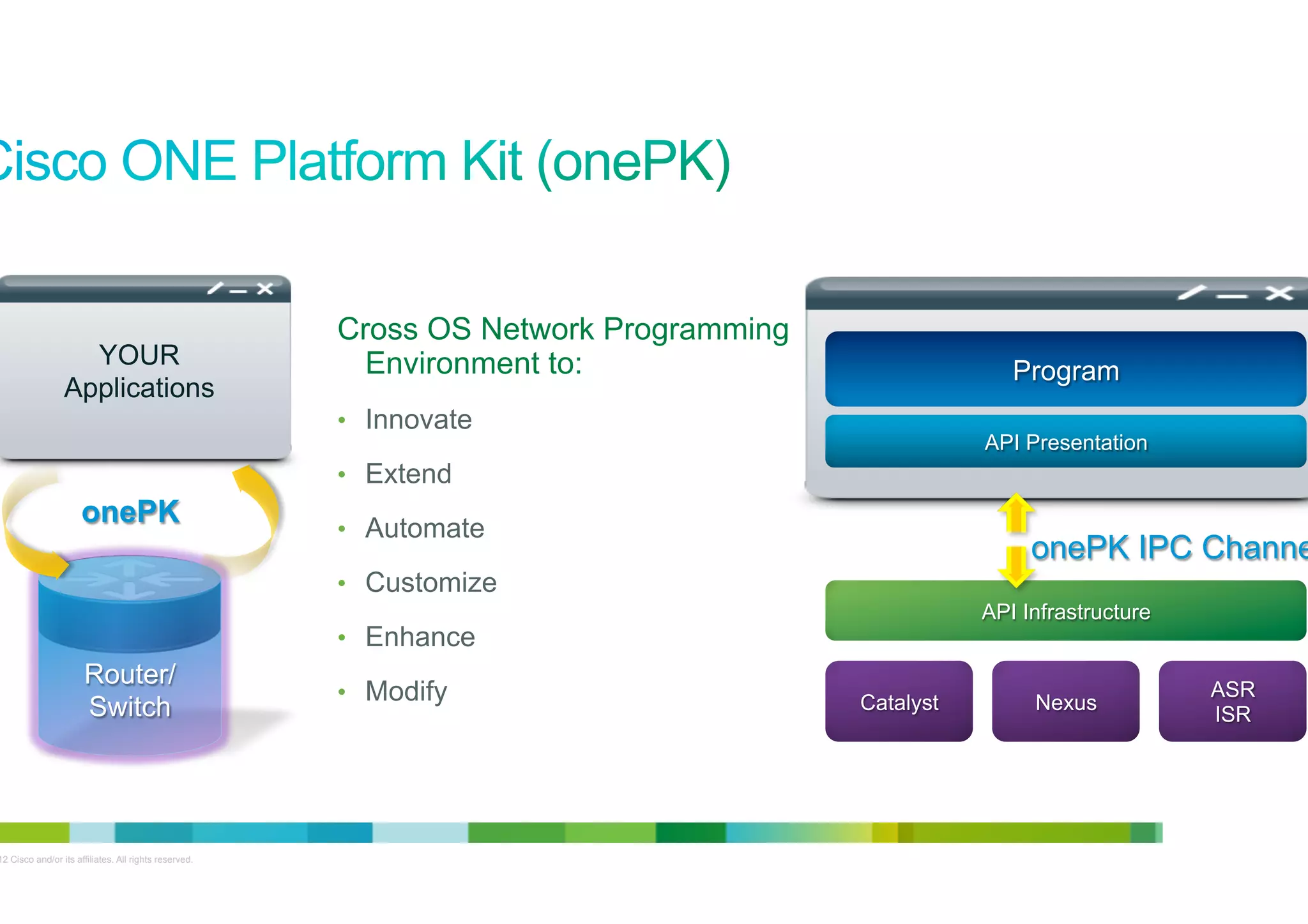

- 9. YOUR Applications Cross OS NetworkProgramming Environment to: Program • Innovate API Presentation • Extend onePK • Automate onePK IPC Channel • Customize API Infrastructure • Enhance Router/ Switch © 2012 Cisco and/or its affiliates. All rights reserved. • Modify Catalyst Nexus ASR ISR 9

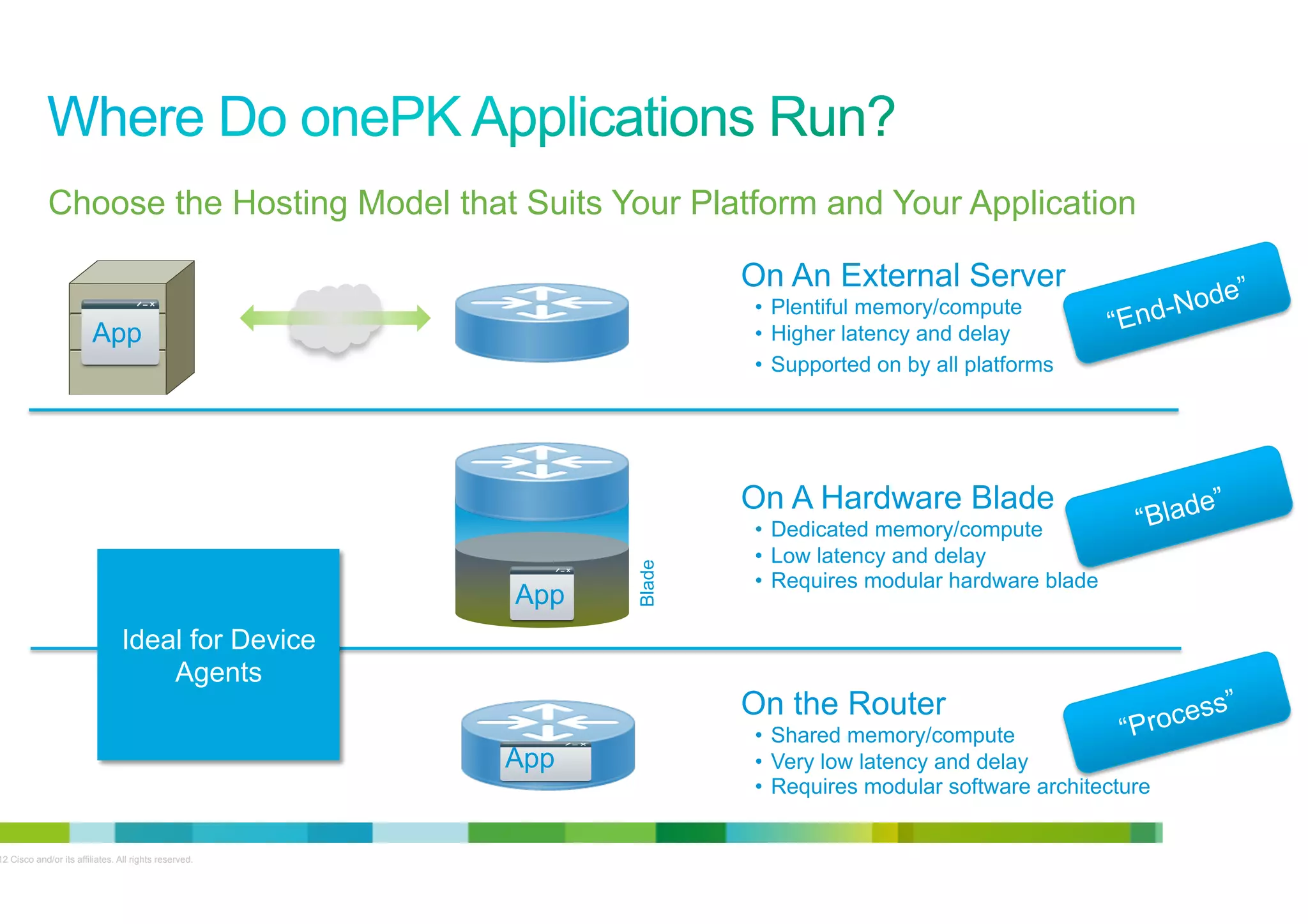

- 10. Choose the HostingModel that Suits Your Platform and Your Application On An External Server • Plentiful memory/compute • Higher latency and delay • Supported on by all platforms App App Ideal for Device Agents • Dedicated memory/compute • Low latency and delay • Requires modular hardware blade On the Router App © 2012 Cisco and/or its affiliates. All rights reserved. Blade On A Hardware Blade -No “End “Blad e” e “Proc • Shared memory/compute • Very low latency and delay • Requires modular software architecture de” ss” 10 10

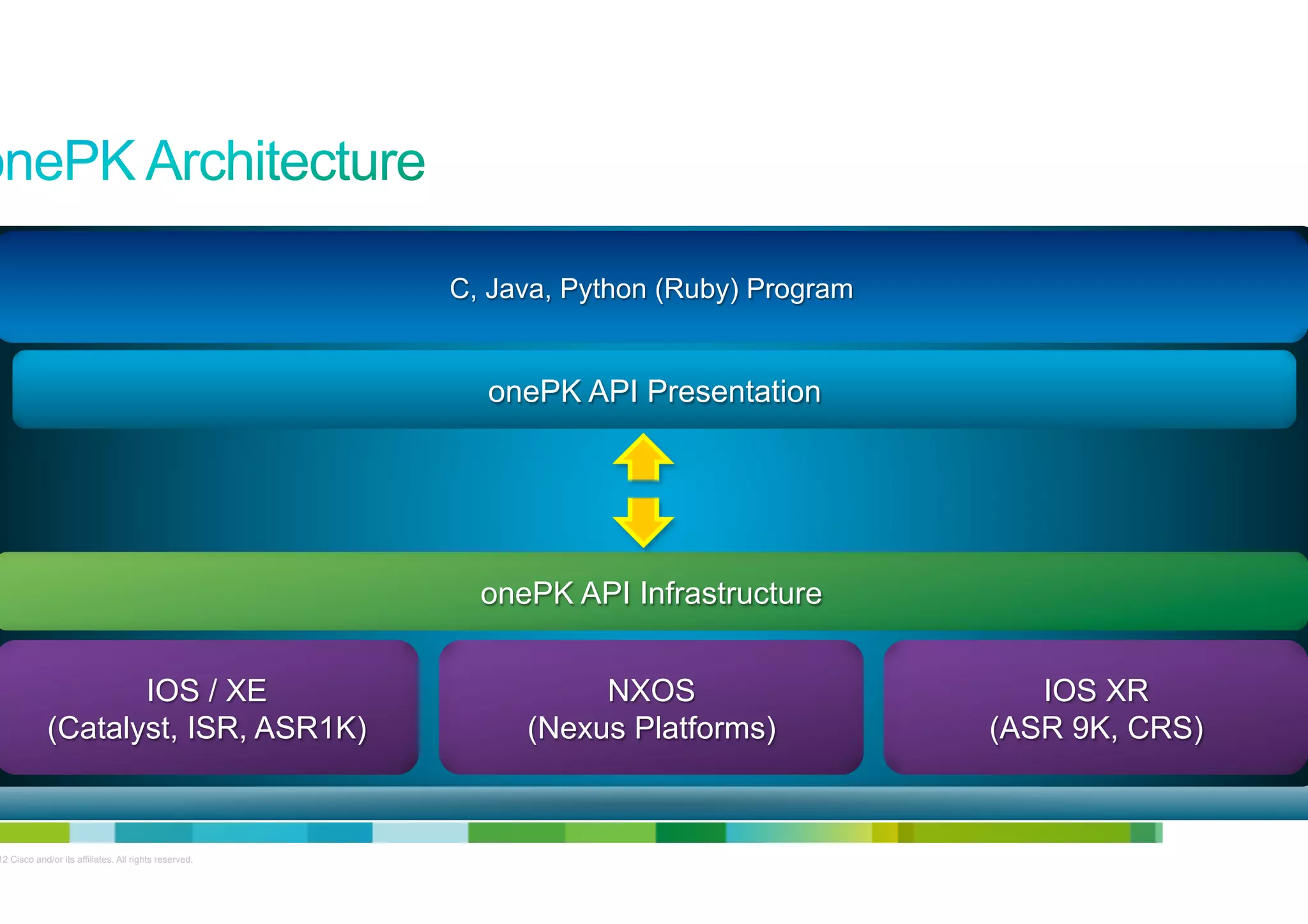

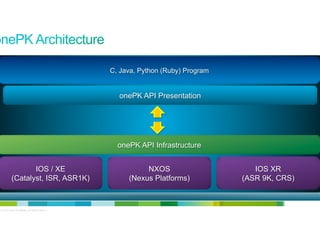

- 11. C, Java, Python(Ruby) Program onePK API Presentation onePK API Infrastructure IOS / XE (Catalyst, ISR, ASR1K) © 2012 Cisco and/or its affiliates. All rights reserved. NXOS (Nexus Platforms) IOS XR (ASR 9K, CRS) 11

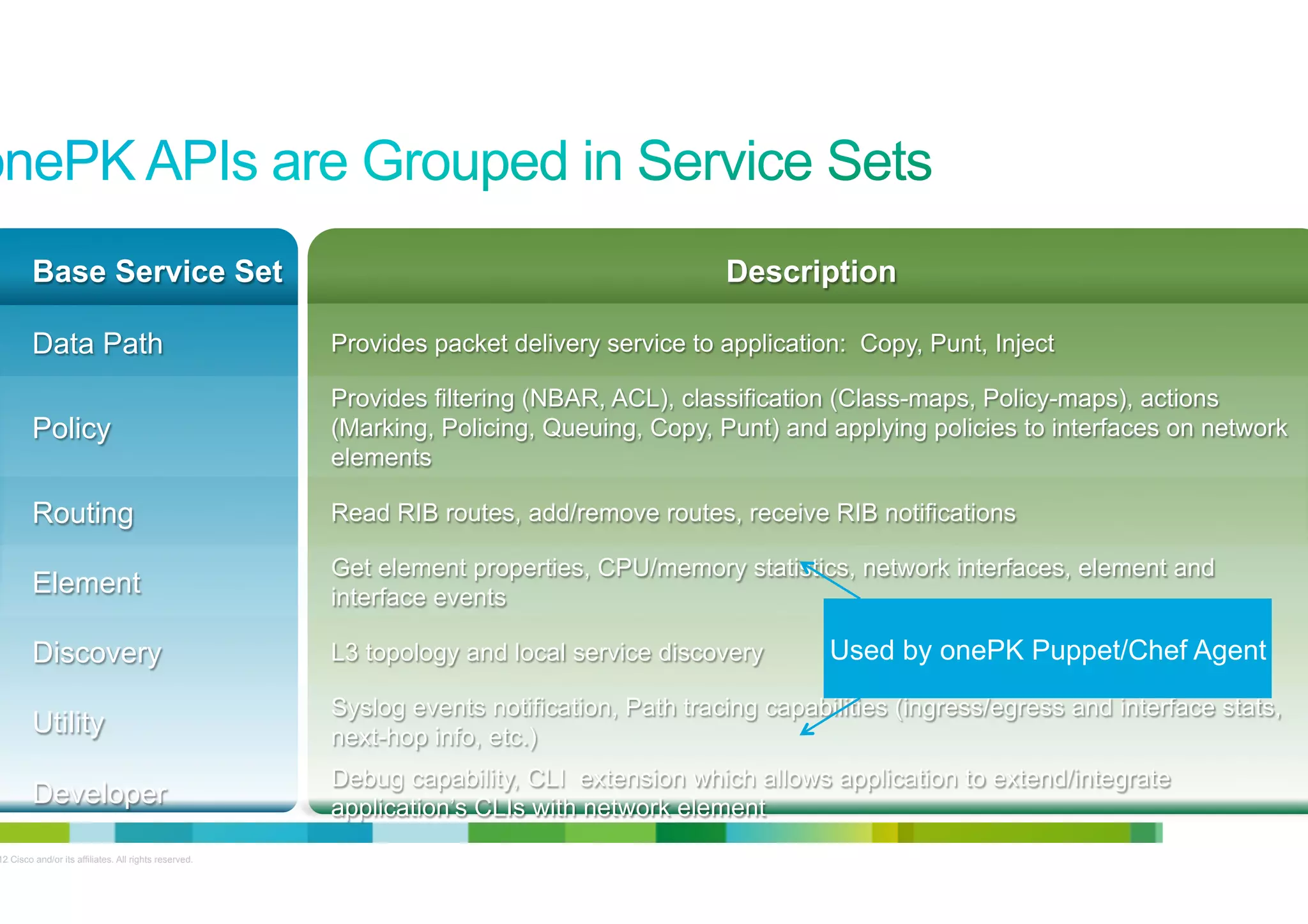

- 12. Base Service Set Description DataPath Provides packet delivery service to application: Copy, Punt, Inject Policy Provides filtering (NBAR, ACL), classification (Class-maps, Policy-maps), actions (Marking, Policing, Queuing, Copy, Punt) and applying policies to interfaces on network elements Routing Read RIB routes, add/remove routes, receive RIB notifications Element Get element properties, CPU/memory statistics, network interfaces, element and interface events Discovery L3 topology and local service discovery Utility Syslog events notification, Path tracing capabilities (ingress/egress and interface stats, next-hop info, etc.) Developer Debug capability, CLI extension which allows application to extend/integrate application’s CLIs with network element © 2012 Cisco and/or its affiliates. All rights reserved. Used by onePK Puppet/Chef Agent 12

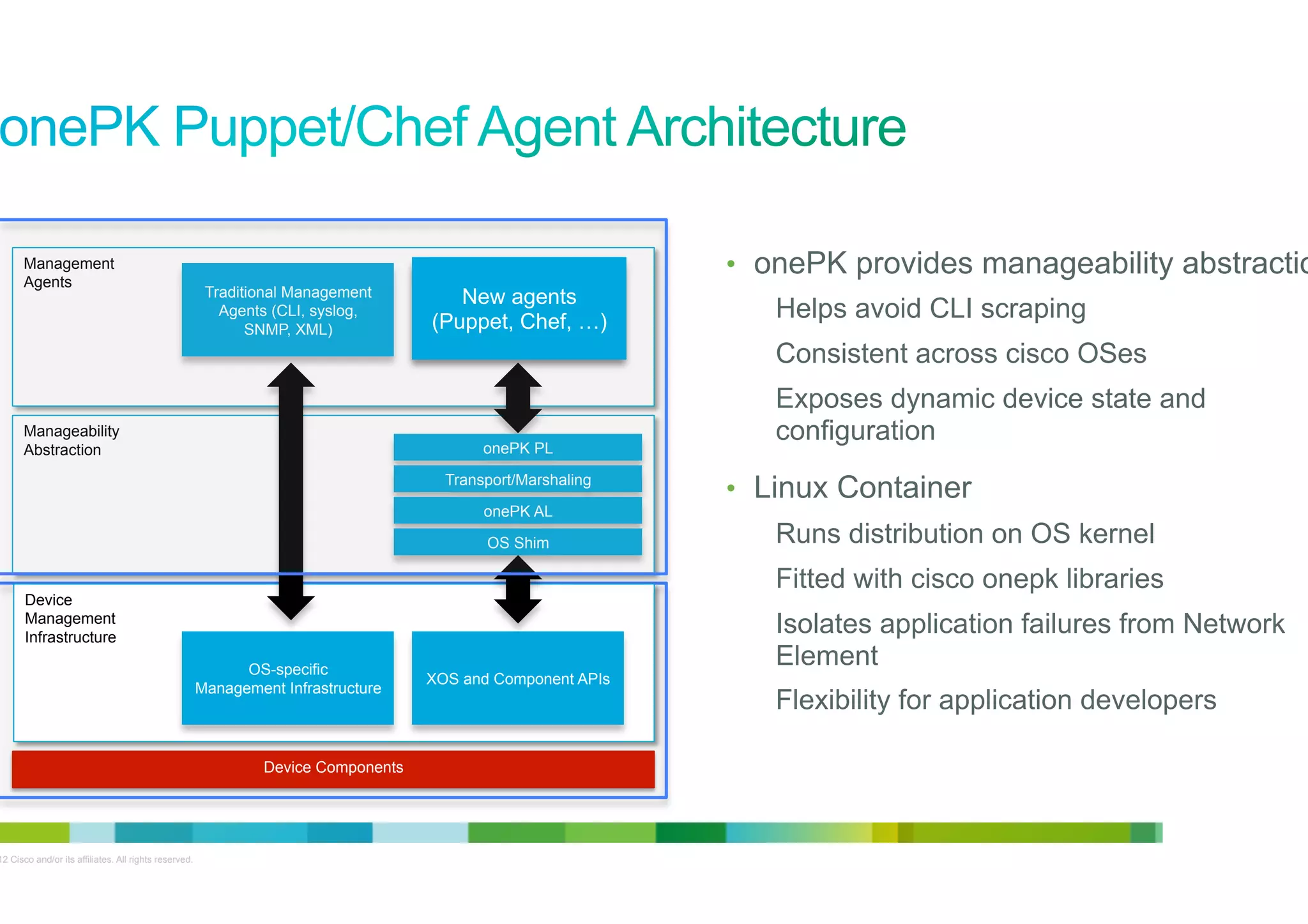

- 13. Linux Container Management Agents • onePKprovides manageability abstraction. Traditional Management Agents (CLI, syslog, SNMP, XML) Manageability Abstraction Next Generation New agents Management (Puppet, Chef,..) Agents (Puppet, …) onePK PL Transport/Marshaling onePK AL OS Shim Consistent across cisco OSes Exposes dynamic device state and configuration • Linux Container Runs distribution on OS kernel Fitted with cisco onepk libraries Device Management Infrastructure NXOS Helps avoid CLI scraping OS-specific Management Infrastructure XOS and Component APIs Isolates application failures from Network Element Flexibility for application developers Device Components © 2012 Cisco and/or its affiliates. All rights reserved. 13

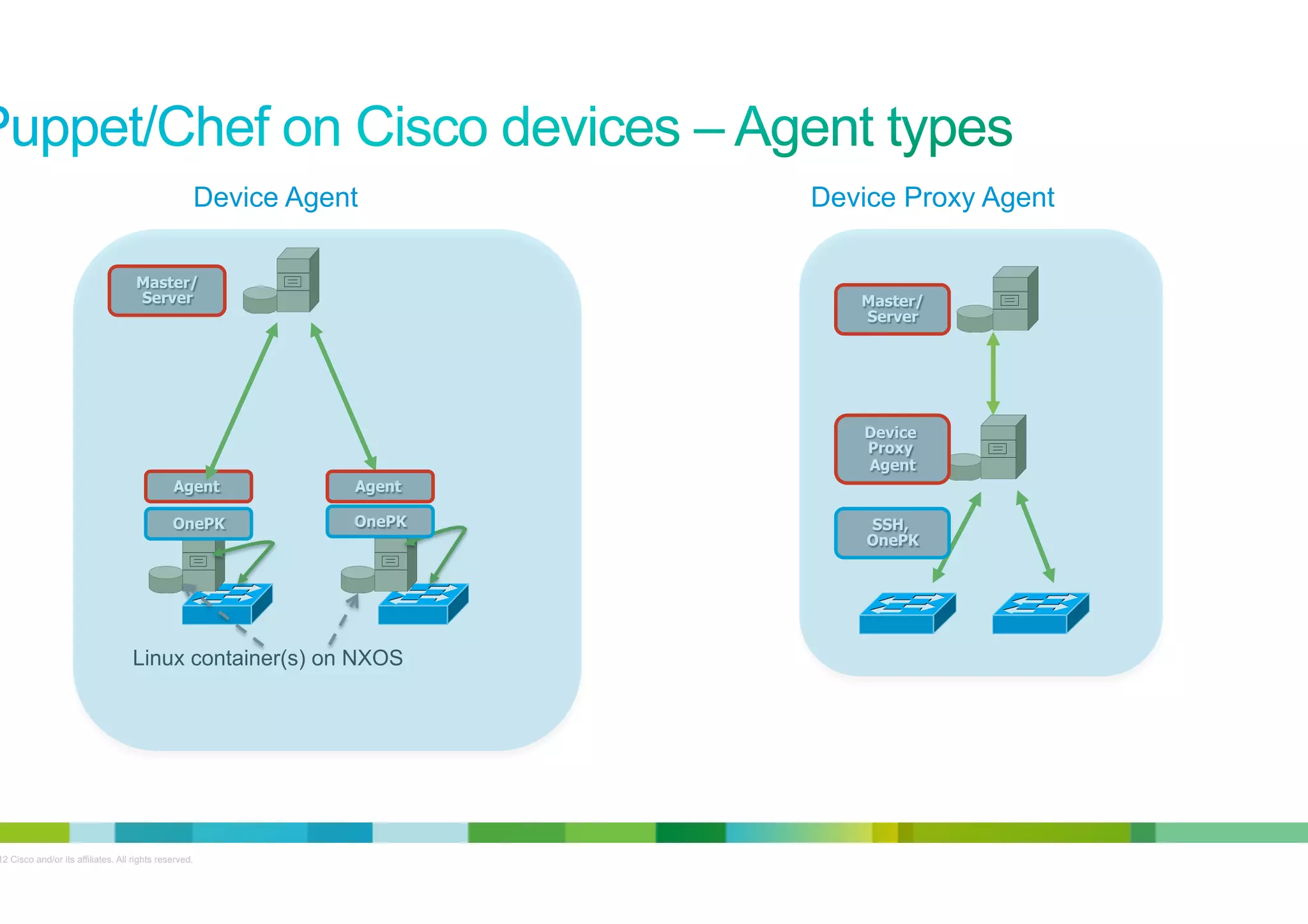

- 14. Device Agent Master/ Server Device ProxyAgent Master/ Server Device Proxy Agent Agent Agent OnePK OnePK SSH, OnePK Linux container(s) on NXOS © 2012 Cisco and/or its affiliates. All rights reserved. 14

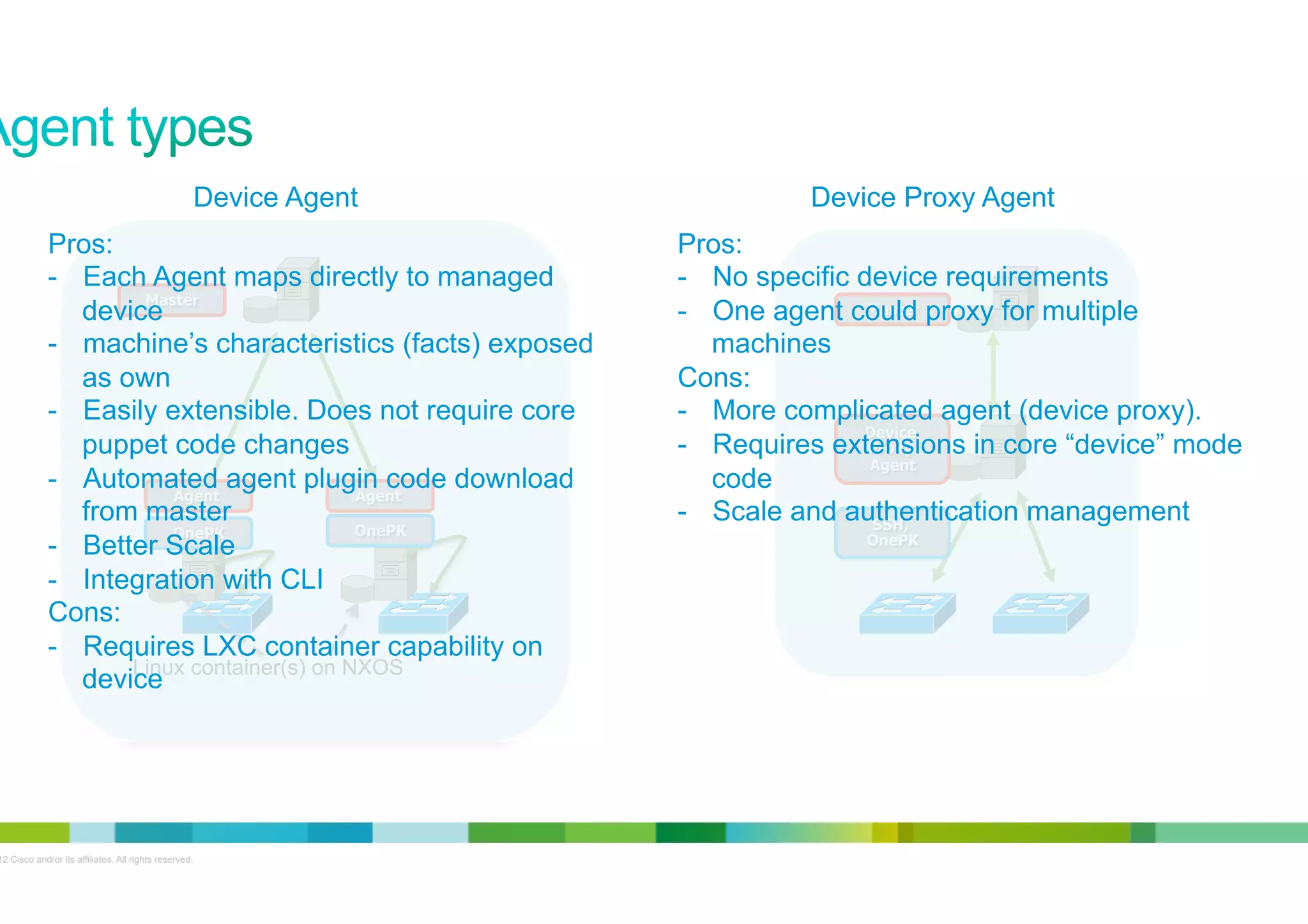

- 15. Device Agent Pros: - EachAgent maps directly to managed Master device - machine’s characteristics (facts) exposed as own - Easily extensible. Does not require core puppet code changes - Automated agent plugin code download Agent Agent from master OnePK OnePK - Better Scale - Integration with CLI Cons: - Requires LXC container capability on Linux device container(s) on NXOS © 2012 Cisco and/or its affiliates. All rights reserved. Device Proxy Agent Pros: - No specific device requirements Master - One agent could proxy for multiple machines Cons: - More complicated agent (device proxy). Device Proxy - Requires extensions in core “device” mode Agent code - Scale and authentication management SSH, OnePK 15
- 16. © 2012 Ciscoand/or its affiliates. All rights reserved. 16

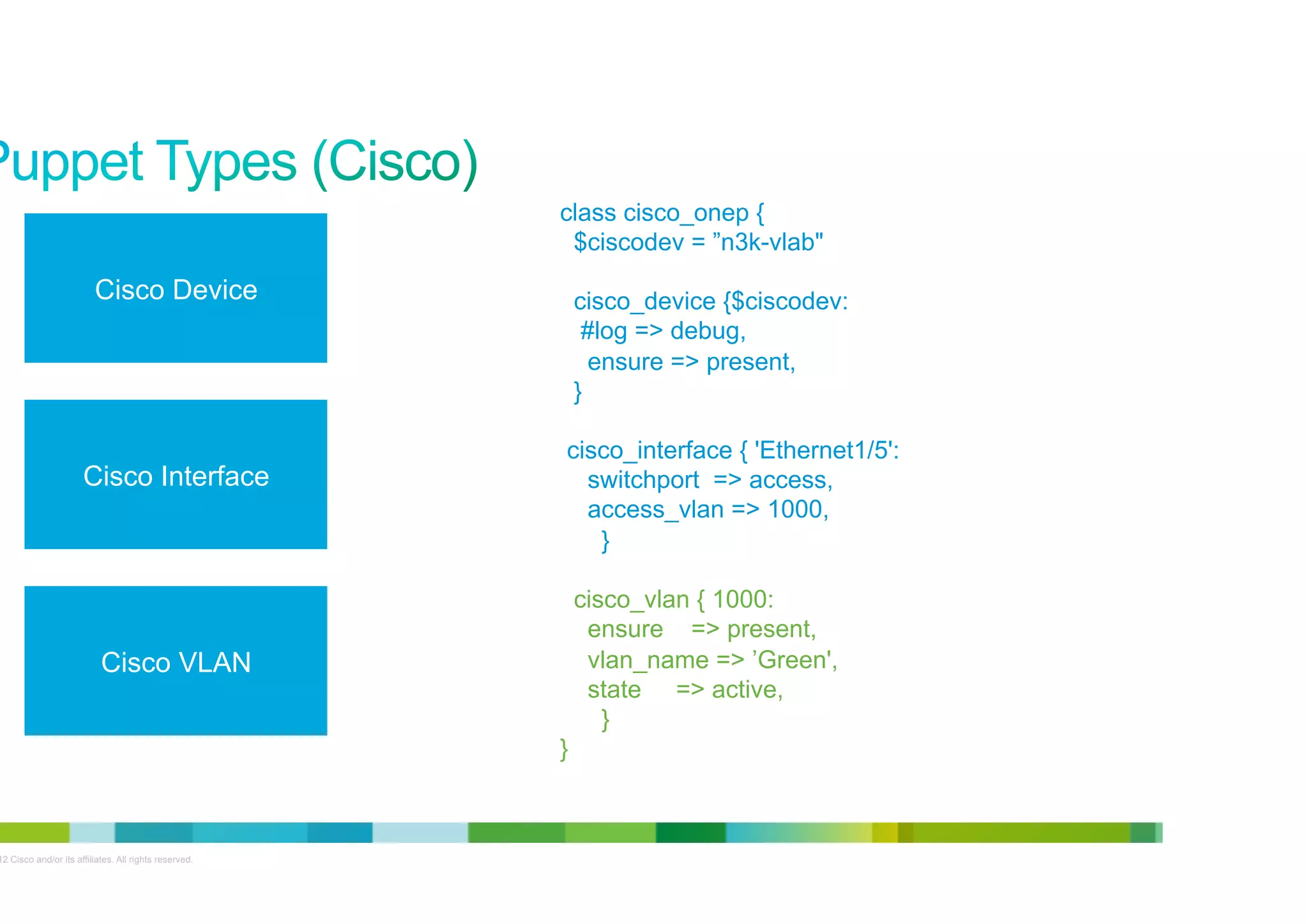

- 17. class cisco_onep { $ciscodev= ”n3k-vlab" Cisco Device Cisco Interface cisco_device {$ciscodev: #log => debug, ensure => present, } cisco_interface { 'Ethernet1/5': switchport => access, access_vlan => 1000, } cisco_vlan { 1000: ensure => present, vlan_name => ’Green', state => active, } Cisco VLAN } © 2012 Cisco and/or its affiliates. All rights reserved. 17

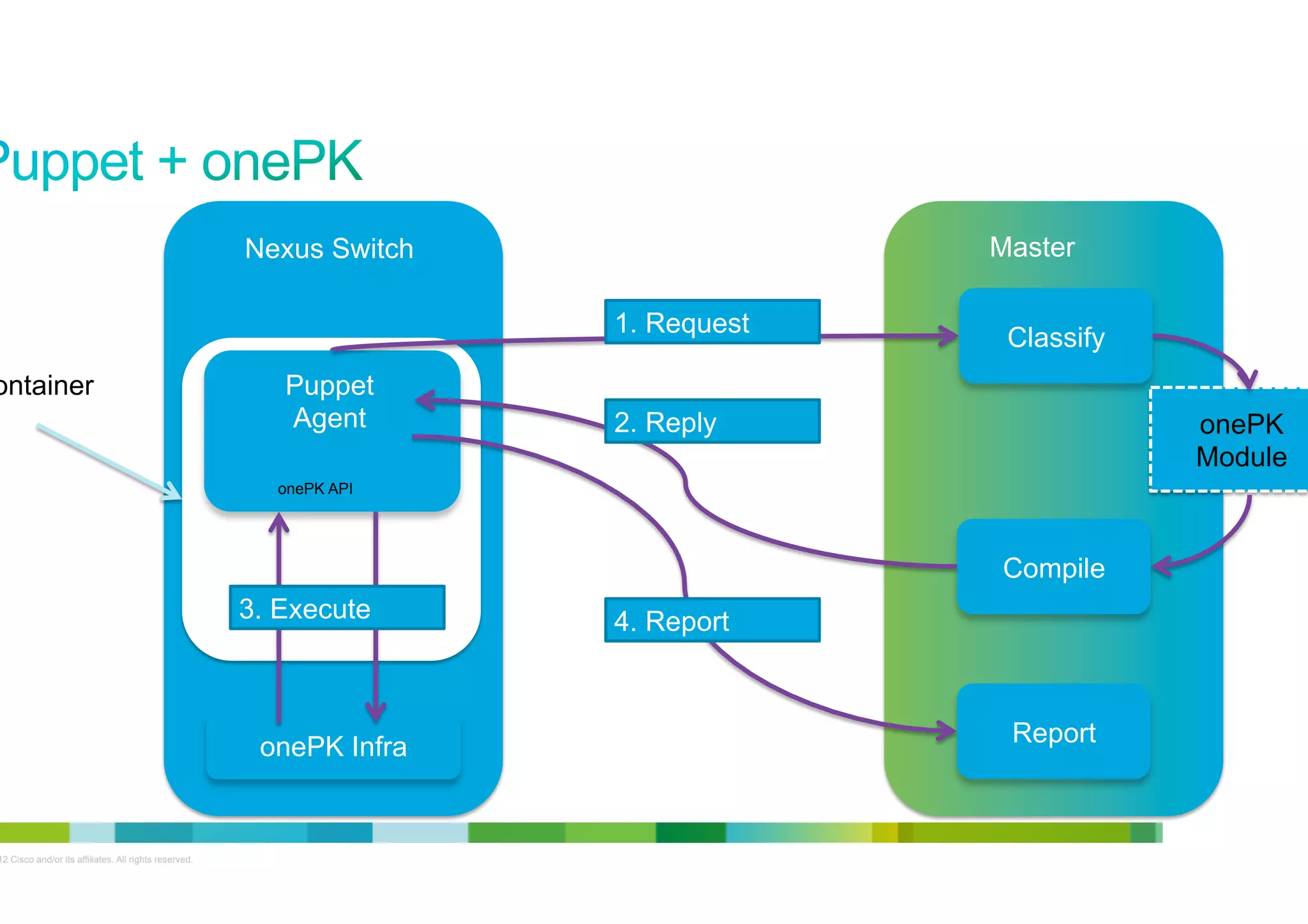

- 18. Master Nexus Switch 1. Request Container Puppet Agent Classify 2.Reply onePK Module onePK API Compile 3. Execute onePK Infra © 2012 Cisco and/or its affiliates. All rights reserved. 4. Report Report 18

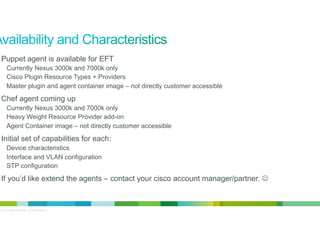

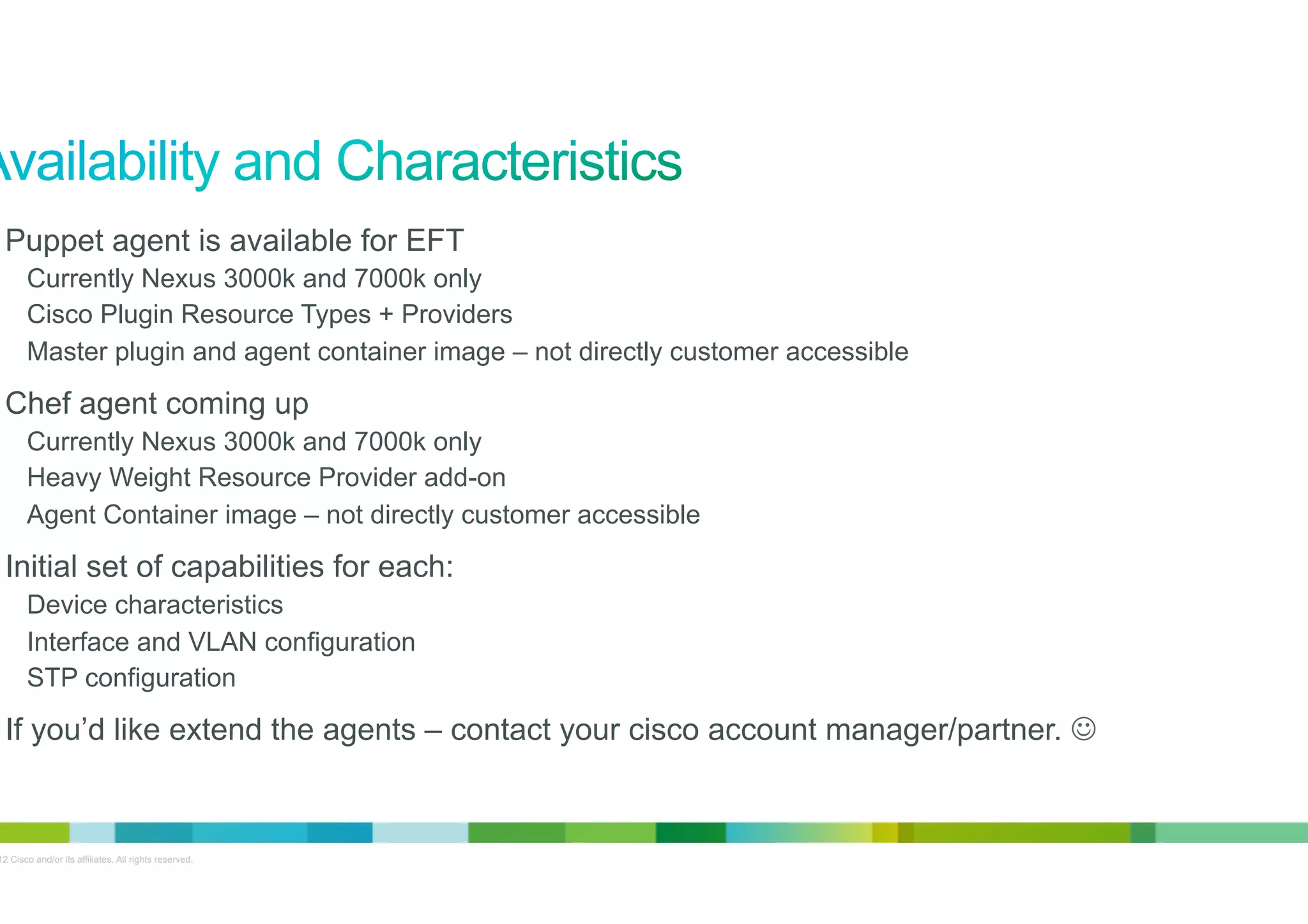

- 19. • Puppet agentis available for EFT Currently Nexus 3000k and 7000k only Cisco Plugin Resource Types + Providers Master plugin and agent container image – not directly customer accessible • Chef agent coming up Currently Nexus 3000k and 7000k only Heavy Weight Resource Provider add-on Agent Container image – not directly customer accessible • Initial set of capabilities for each: Device characteristics Interface and VLAN configuration STP configuration • If you’d like extend the agents – contact your cisco account manager/partner. J © 2012 Cisco and/or its affiliates. All rights reserved. 19

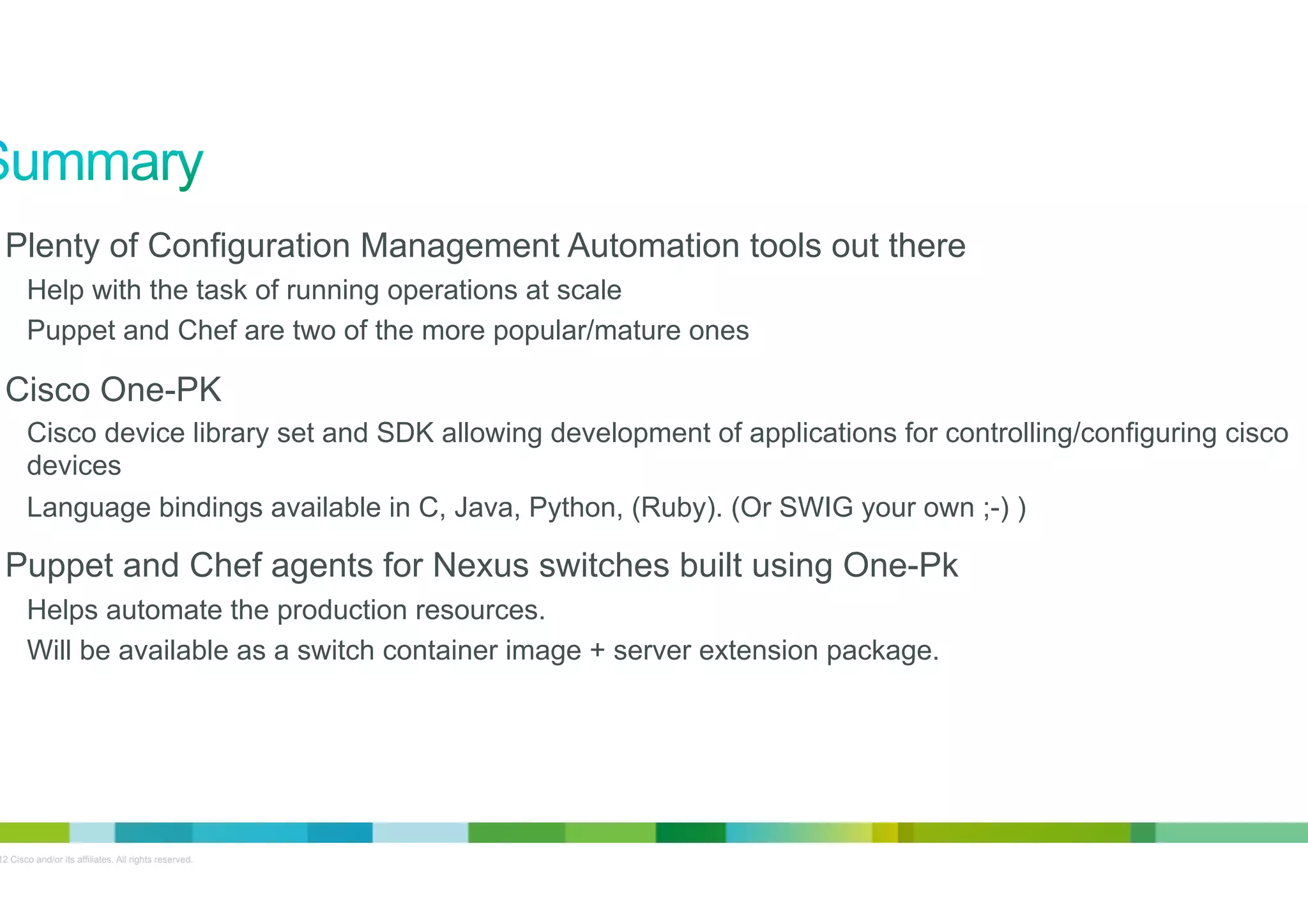

- 20. • Plenty ofConfiguration Management Automation tools out there Help with the task of running operations at scale Puppet and Chef are two of the more popular/mature ones • Cisco One-PK Cisco device library set and SDK allowing development of applications for controlling/configuring cisco devices Language bindings available in C, Java, Python, (Ruby). (Or SWIG your own ;-) ) • Puppet and Chef agents for Nexus switches built using One-Pk Helps automate the production resources. Will be available as a switch container image + server extension package. © 2012 Cisco and/or its affiliates. All rights reserved. 20

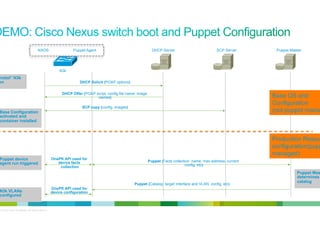

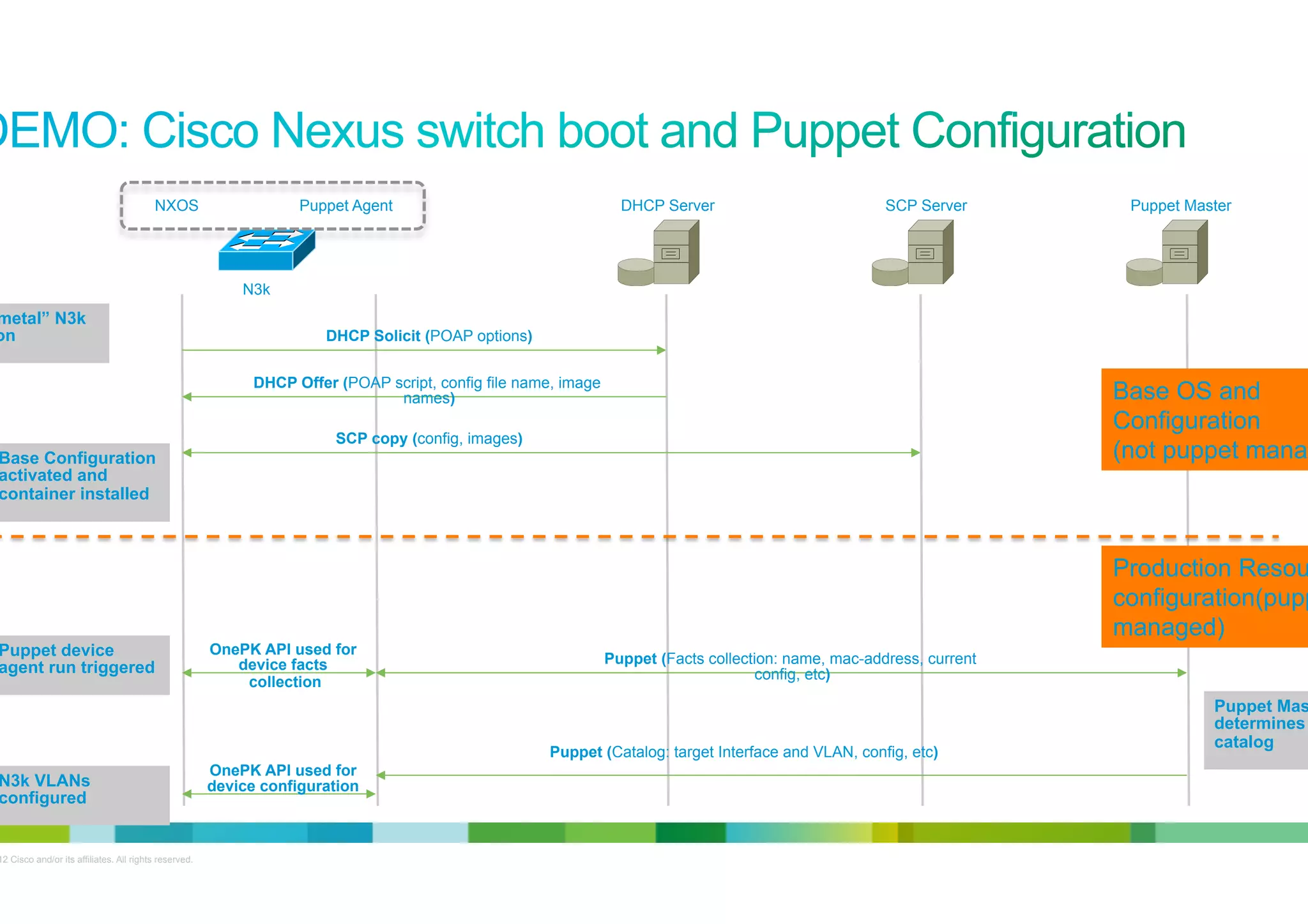

- 21. NXOS Puppet Agent DHCP Server SCPServer Puppet Master N3k “bare –metal” N3k Power-on DHCP Solicit (POAP options) DHCP Offer (POAP script, config file name, image names) Base OS and Configuration (not puppet managed) SCP copy (config, images) Base Configuration activated and container installed Puppet device agent run triggered OnePK API used for device facts collection Production Resources configuration(puppet managed) Puppet (Facts collection: name, mac-address, current config, etc) Puppet (Catalog: target Interface and VLAN, config, etc) N3k VLANs configured © 2012 Cisco and/or its affiliates. All rights reserved. Puppet Master determines catalog OnePK API used for device configuration 21
- 22. Thank you © 2012Cisco and/or its affiliates. All rights reserved. 2010 22

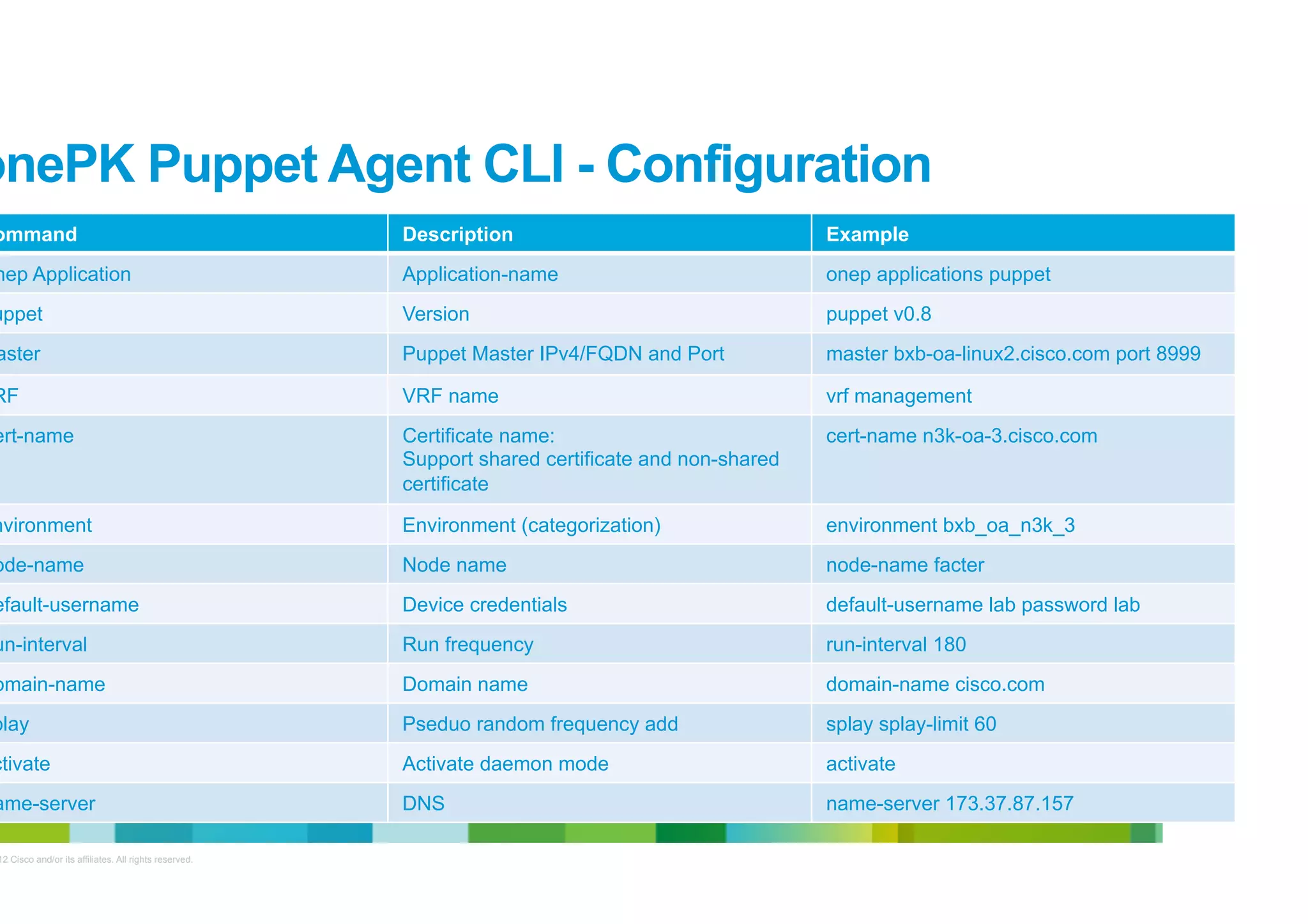

- 23. onePK Puppet AgentCLI - Configuration Command Description Example Onep Application Application-name onep applications puppet Puppet Version puppet v0.8 Master Puppet Master IPv4/FQDN and Port master bxb-oa-linux2.cisco.com port 8999 VRF VRF name vrf management Cert-name Certificate name: Support shared certificate and non-shared certificate cert-name n3k-oa-3.cisco.com Environment Environment (categorization) environment bxb_oa_n3k_3 Node-name Node name node-name facter Default-username Device credentials default-username lab password lab Run-interval Run frequency run-interval 180 Domain-name Domain name domain-name cisco.com Splay Pseduo random frequency add splay splay-limit 60 Activate Activate daemon mode activate Name-server DNS name-server 173.37.87.157 © 2012 Cisco and/or its affiliates. All rights reserved. 23

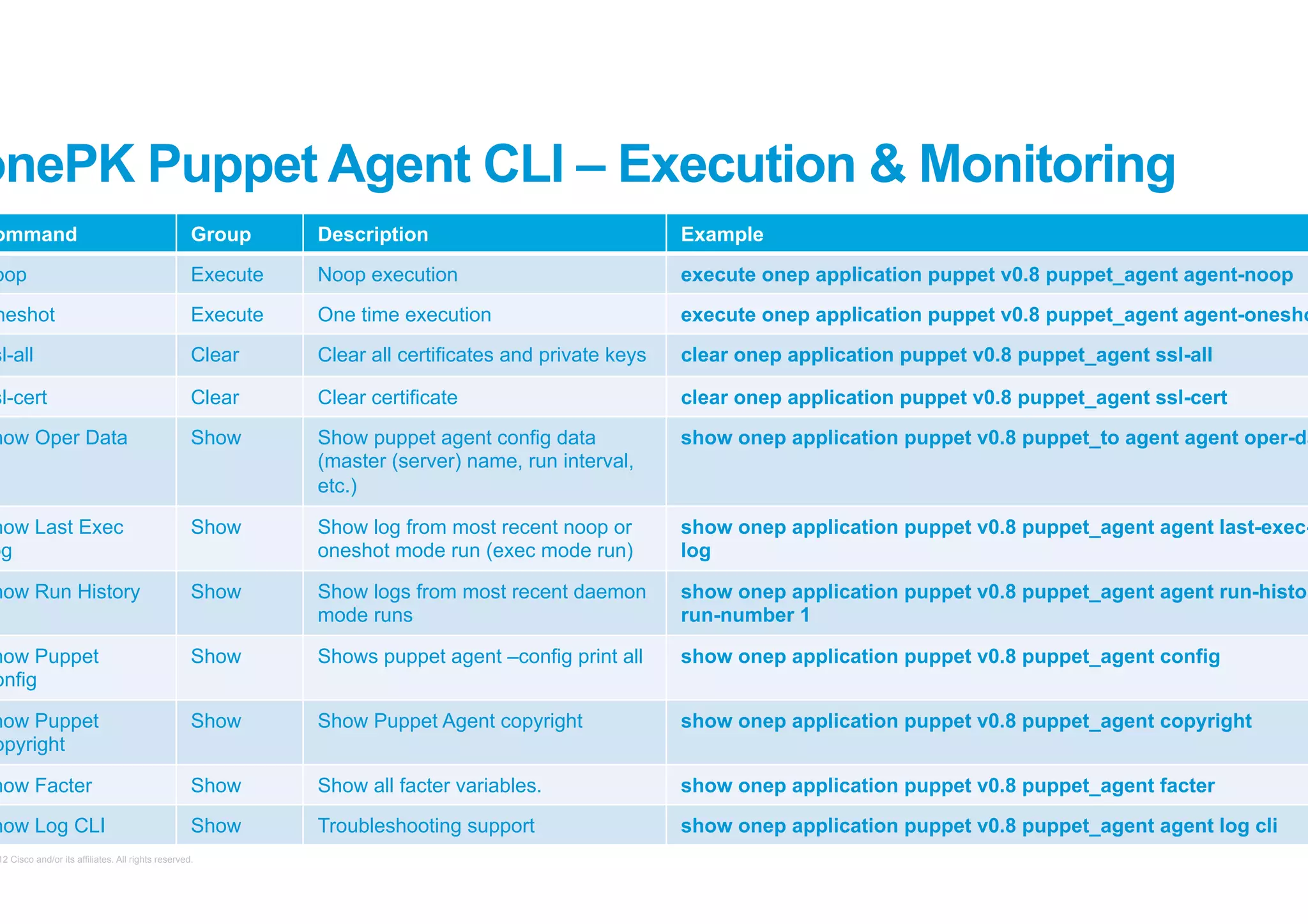

- 24. onePK Puppet AgentCLI – Execution & Monitoring Command Group Description Example Noop Execute Noop execution execute onep application puppet v0.8 puppet_agent agent-noop Oneshot Execute One time execution execute onep application puppet v0.8 puppet_agent agent-oneshot Ssl-all Clear Clear all certificates and private keys clear onep application puppet v0.8 puppet_agent ssl-all Ssl-cert Clear Clear certificate clear onep application puppet v0.8 puppet_agent ssl-cert Show Oper Data Show Show puppet agent config data (master (server) name, run interval, etc.) show onep application puppet v0.8 puppet_to agent agent oper-data Show Last Exec Log Show Show log from most recent noop or oneshot mode run (exec mode run) show onep application puppet v0.8 puppet_agent agent last-execlog Show Run History Show Show logs from most recent daemon mode runs show onep application puppet v0.8 puppet_agent agent run-history run-number 1 Show Puppet Config Show Shows puppet agent –config print all show onep application puppet v0.8 puppet_agent config Show Puppet Copyright Show Show Puppet Agent copyright show onep application puppet v0.8 puppet_agent copyright Show Facter Show Show all facter variables. show onep application puppet v0.8 puppet_agent facter Show Log CLI Show Troubleshooting support show onep application puppet v0.8 puppet_agent agent log cli © 2012 Cisco and/or its affiliates. All rights reserved. 24

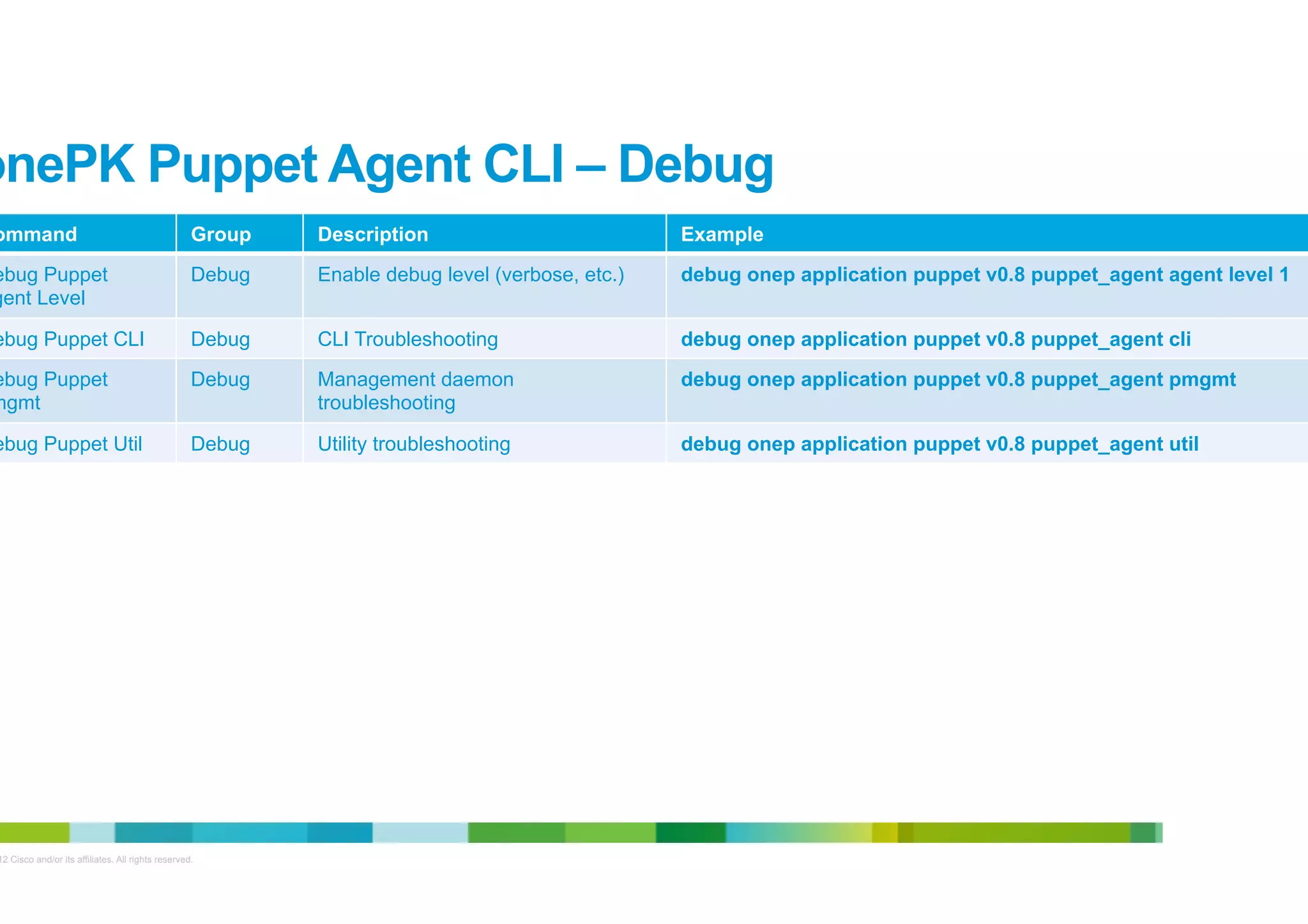

- 25. onePK Puppet AgentCLI – Debug Command Group Description Example Debug Puppet Agent Level Debug Enable debug level (verbose, etc.) debug onep application puppet v0.8 puppet_agent agent level 1 Debug Puppet CLI Debug CLI Troubleshooting debug onep application puppet v0.8 puppet_agent cli Debug Puppet pmgmt Debug Management daemon troubleshooting debug onep application puppet v0.8 puppet_agent pmgmt Debug Puppet Util Debug Utility troubleshooting debug onep application puppet v0.8 puppet_agent util © 2012 Cisco and/or its affiliates. All rights reserved. 25
- 26. © 2012 Ciscoand/or its affiliates. All rights reserved. 26
