Quick Introduction to git
Distributed version control with git provides a brief introduction to git. It discusses why git was created, what git is, the git object model of blobs, trees and commits, collaborating through local and remote repositories, branching and merging, and an overview of the basic git workflow. The document provides resources for learning more about git.
In this document
Powered by AI
Overview of the presentation on distributed version control using Git.
Discusses the advantages of using Git for version control.
Illustrates potential collaboration conflicts among users Bob, Carol, Alice, and Ted.
Defines Git as a distributed version control system developed by Linus Torvalds in 2005.
Explains Git's structure focusing on blobs, trees, commits, and tags representing file changes.
Discusses the concept of HEAD and its significance in tracking branches.
Outlines steps to create a Git repository and stage and commit changes.
Illustrates the collaboration flow between John and Jane with local and public repos.
Details how pulling merges changes between collaborators' repositories.
Explains the actions of branching, origin, and how commits are organized in Git.
Provides initial steps for setting up Git, including installation and file management tips.
Discusses further functionalities in Git like merging, conflict resolution, and utilizing graphical tools.
Lists resources where users can find more information about Git.

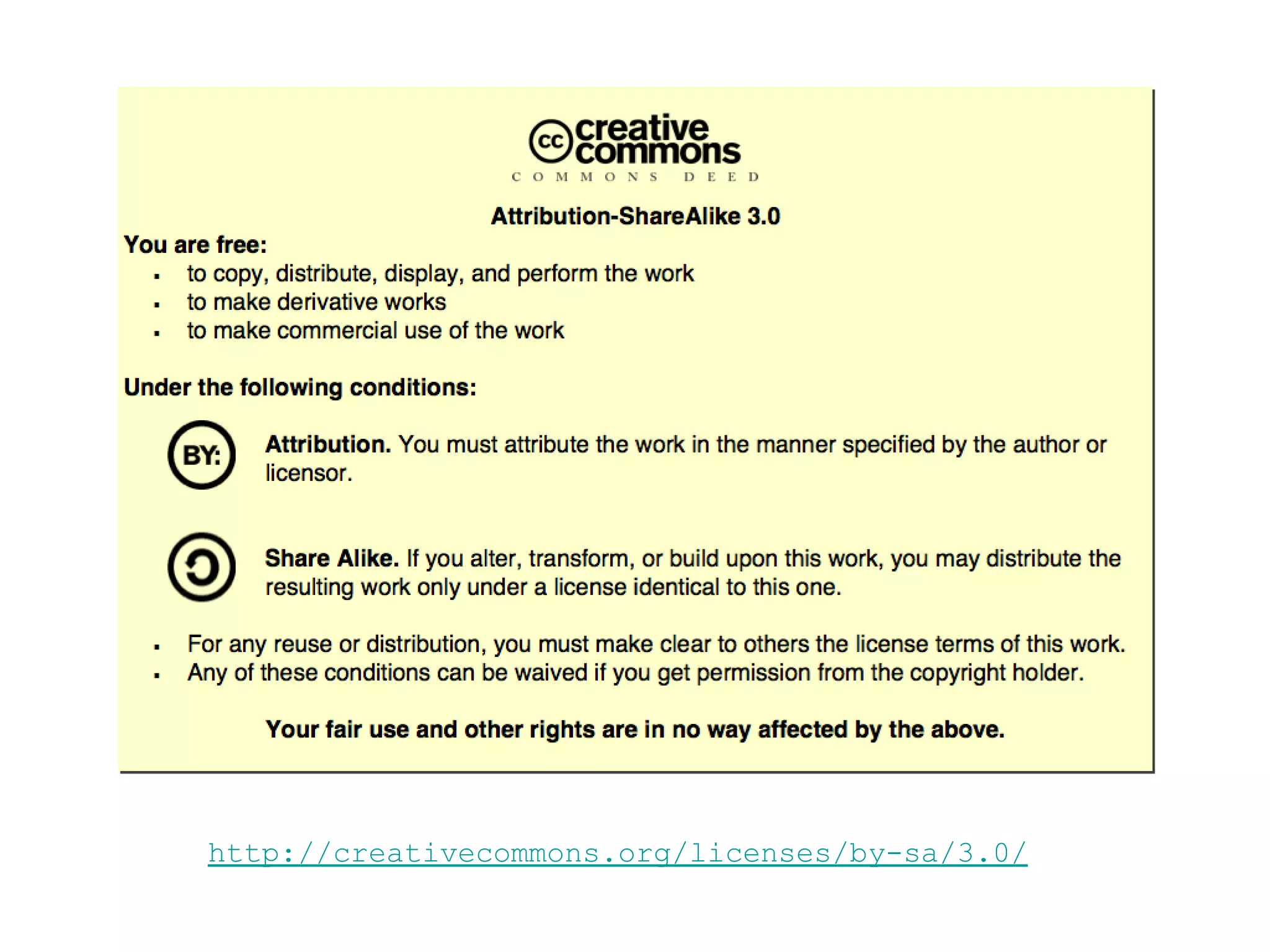

Provides licensing information related to the content shared.
More Related Content
Quick Introduction to git
- 1. Distributed version controlwith git — a brief introduction Joel Krebs Slides by Oscar Nierstrasz
- 2.

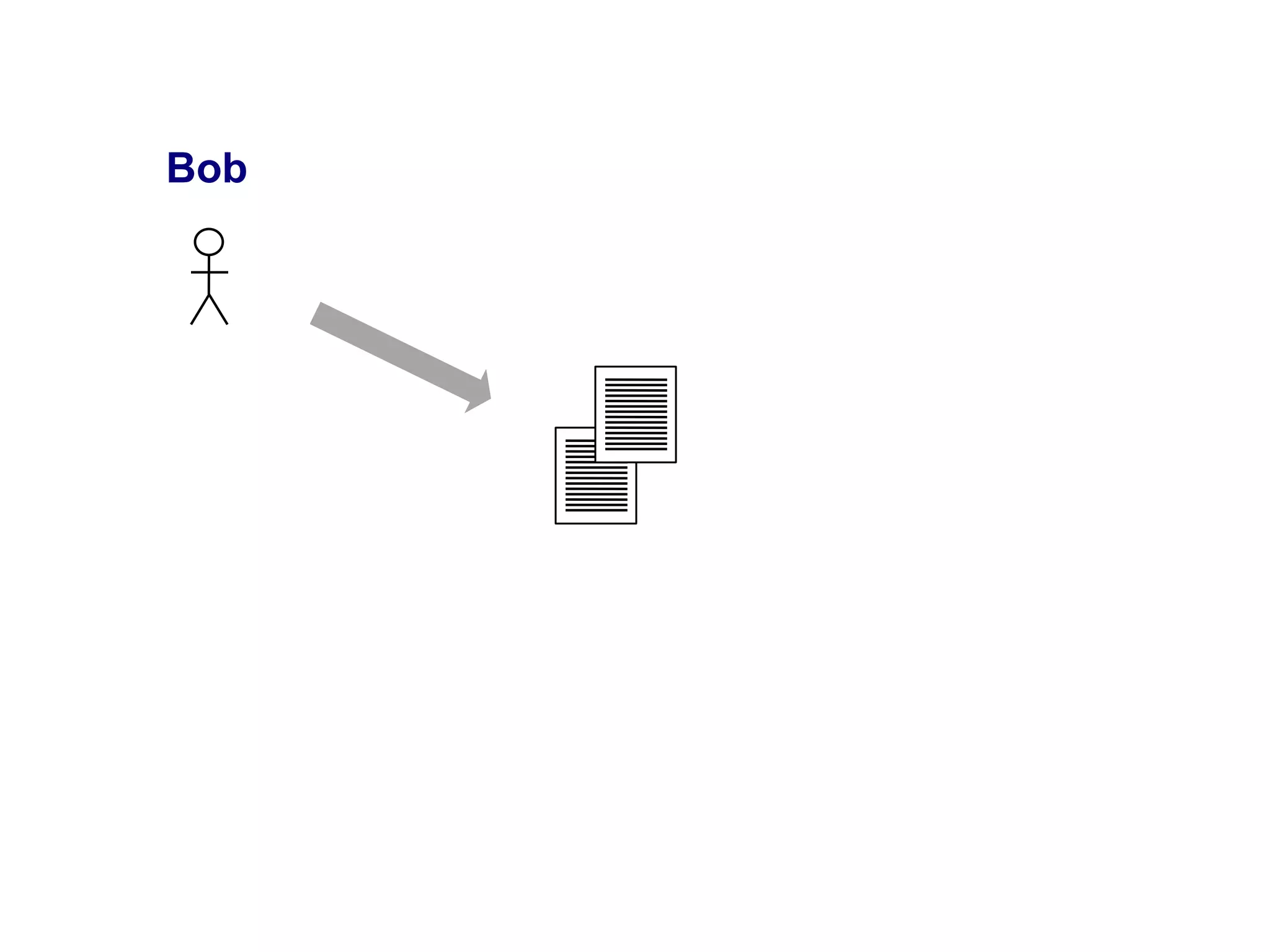

- 3.

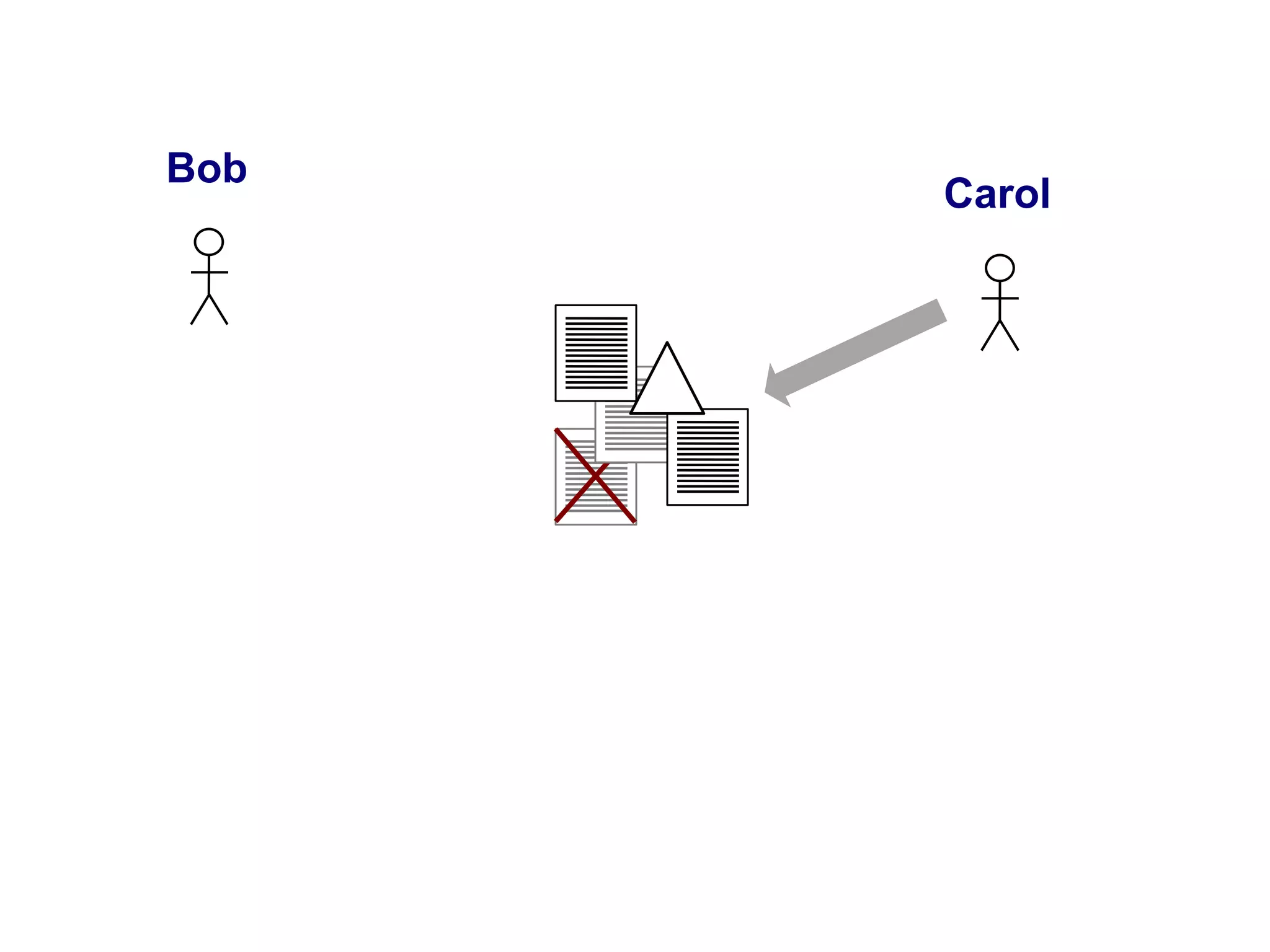

- 4. Bob Carol

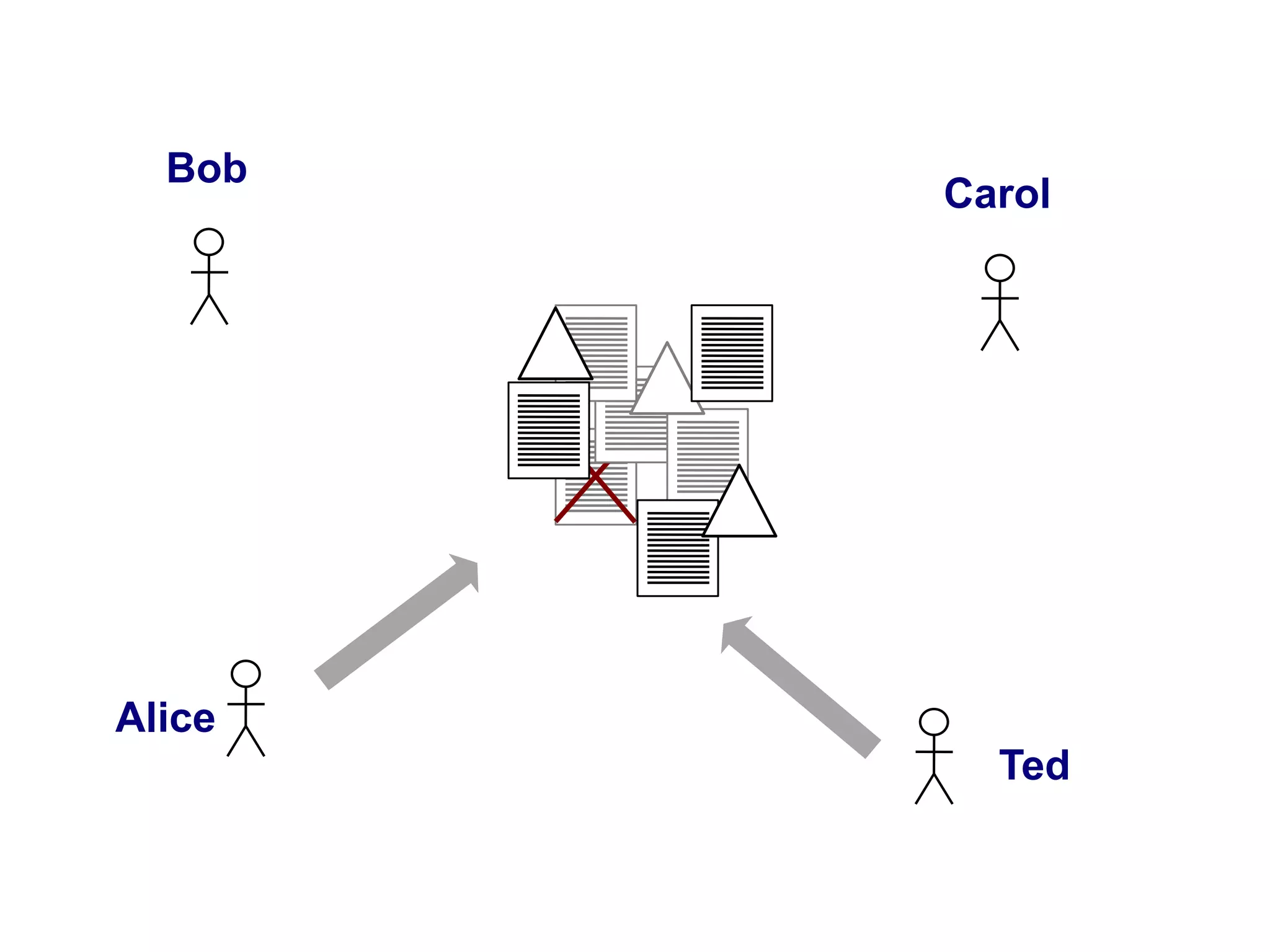

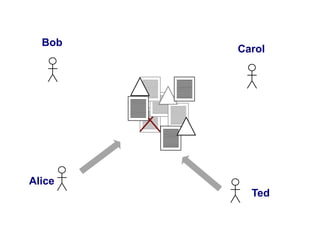

- 5. Bob Carol Alice Ted

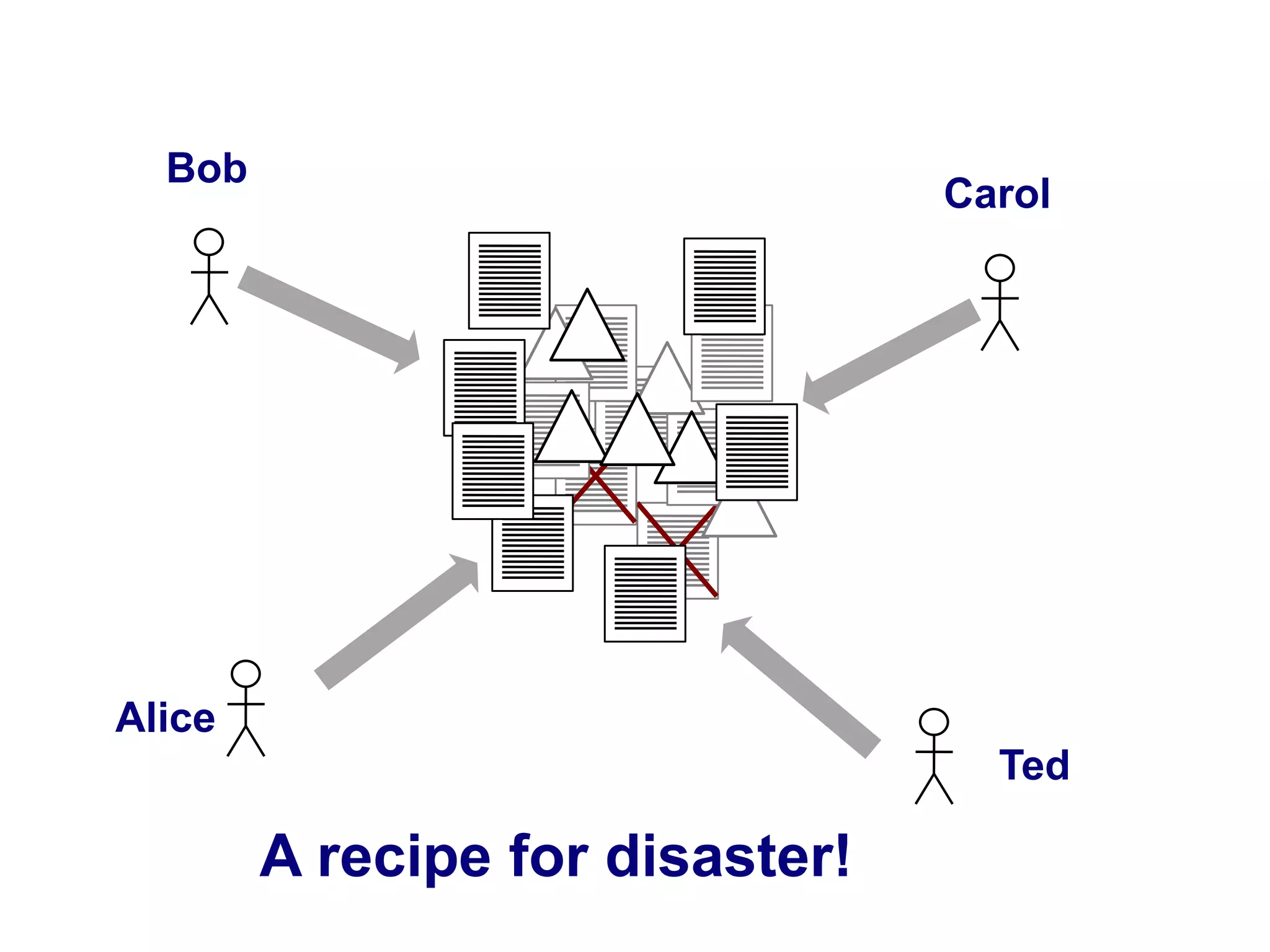

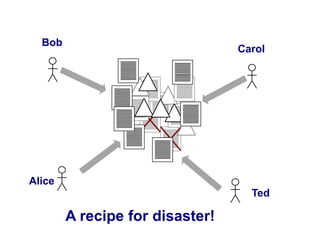

- 6. Bob Carol Alice Ted A recipe for disaster!

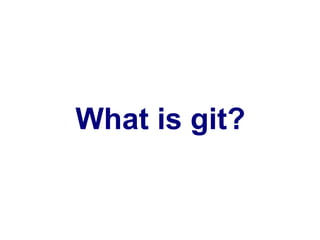

- 7.

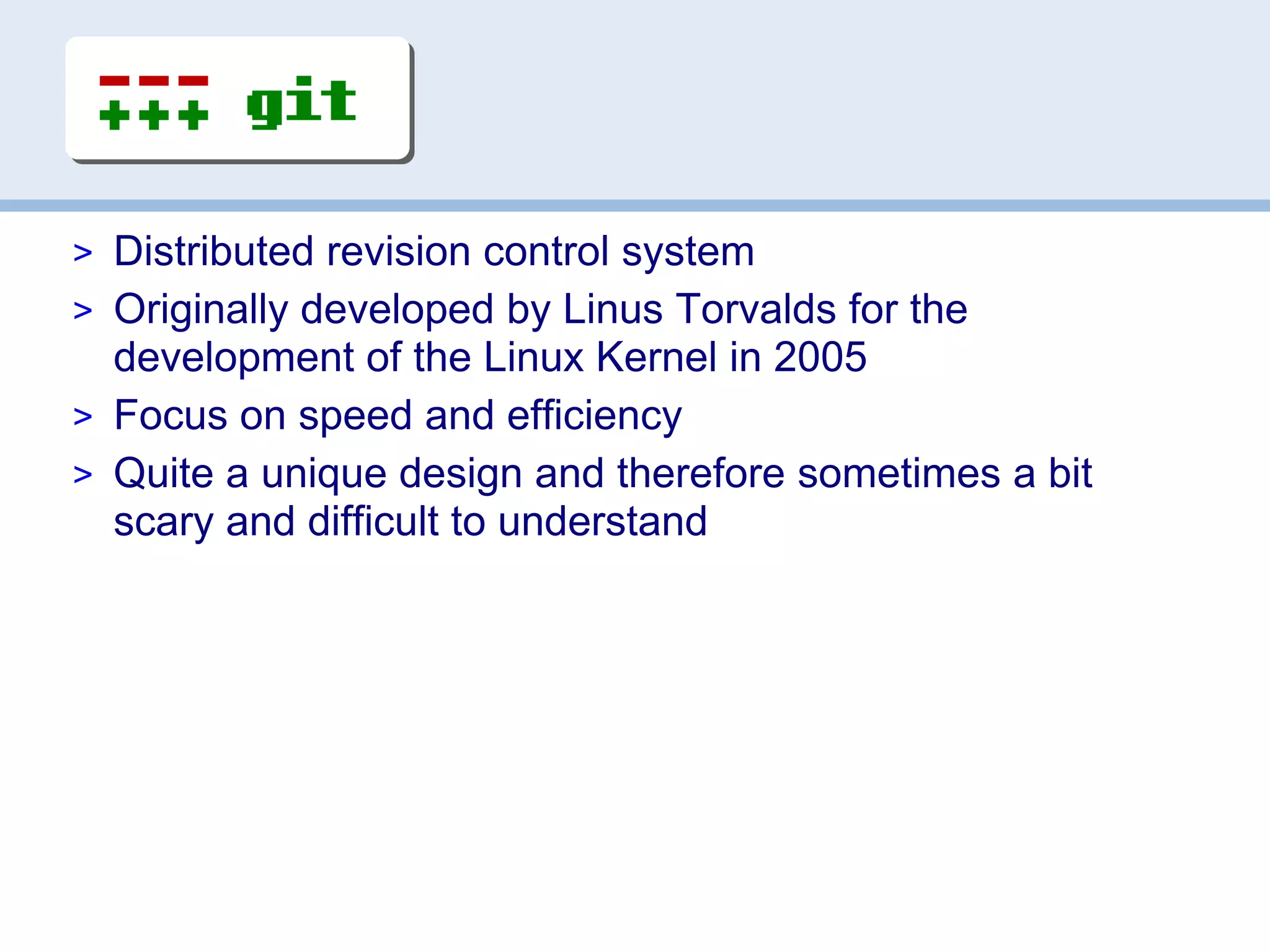

- 8. > Distributed revisioncontrol system > Originally developed by Linus Torvalds for the development of the Linux Kernel in 2005 > Focus on speed and efficiency > Quite a unique design and therefore sometimes a bit scary and difficult to understand
- 9. The git objectmodel

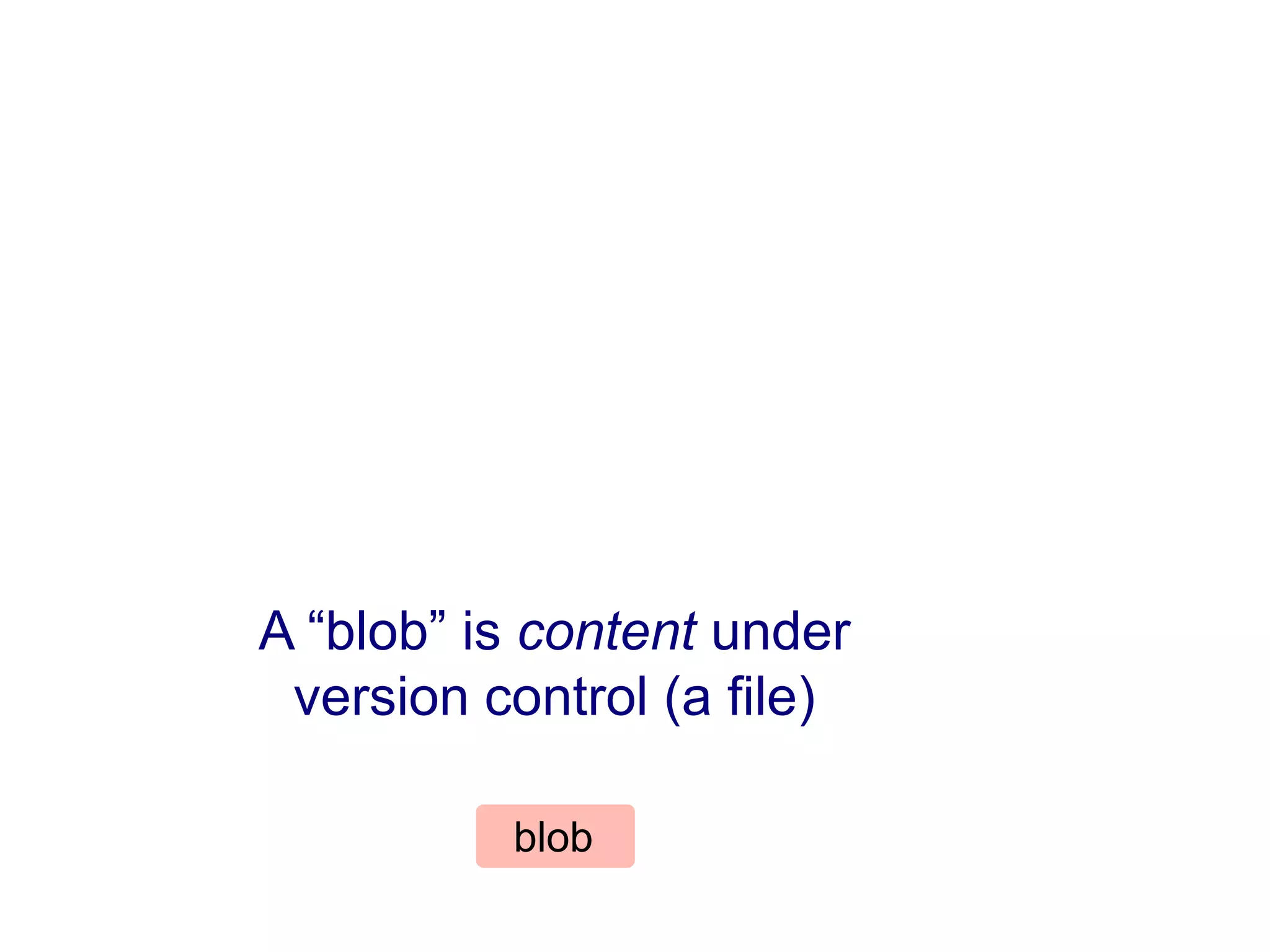

- 10. A “blob” iscontent under version control (a file) blob

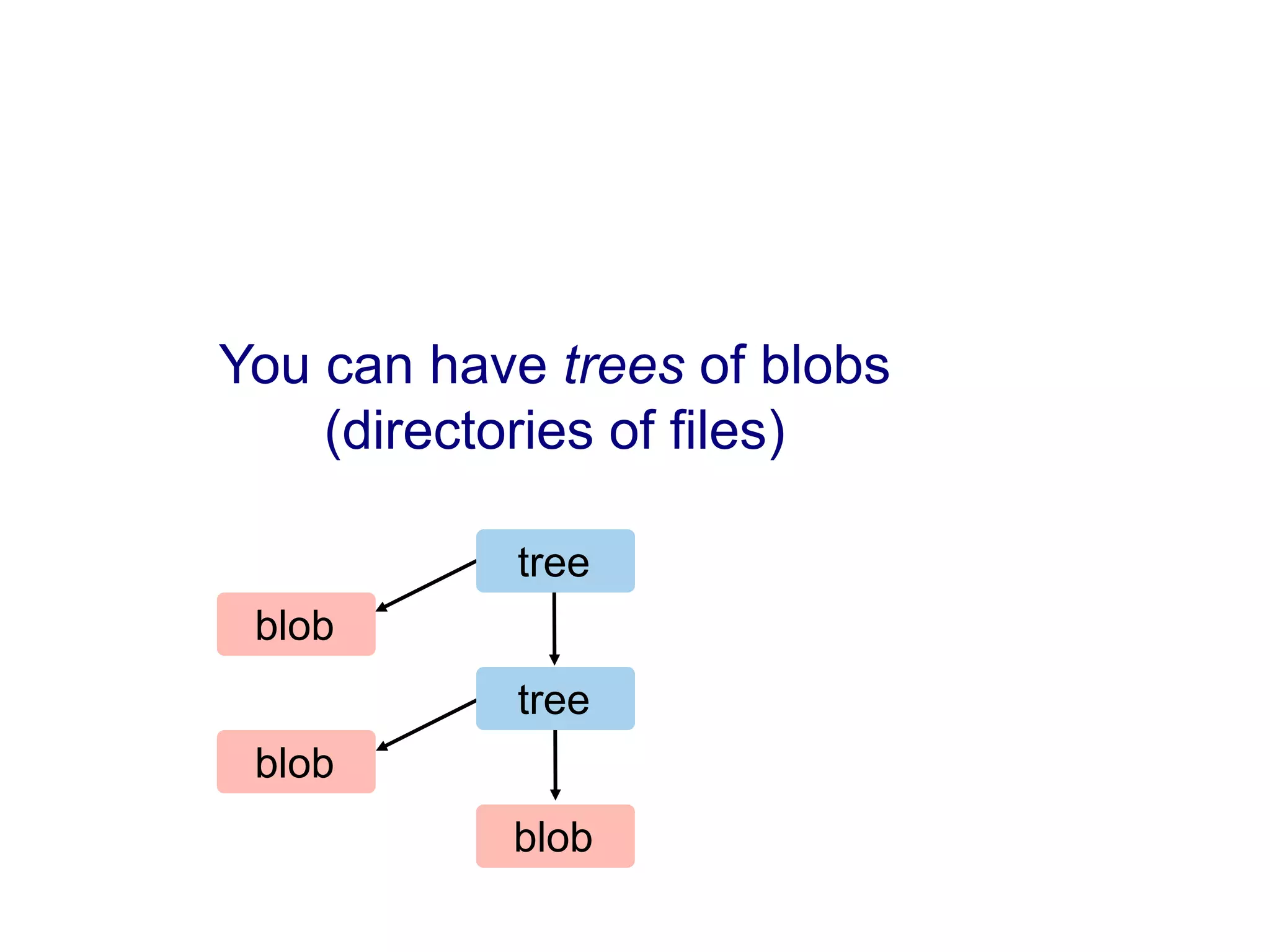

- 11. You can havetrees of blobs (directories of files) tree blob tree blob blob

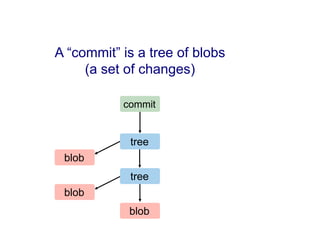

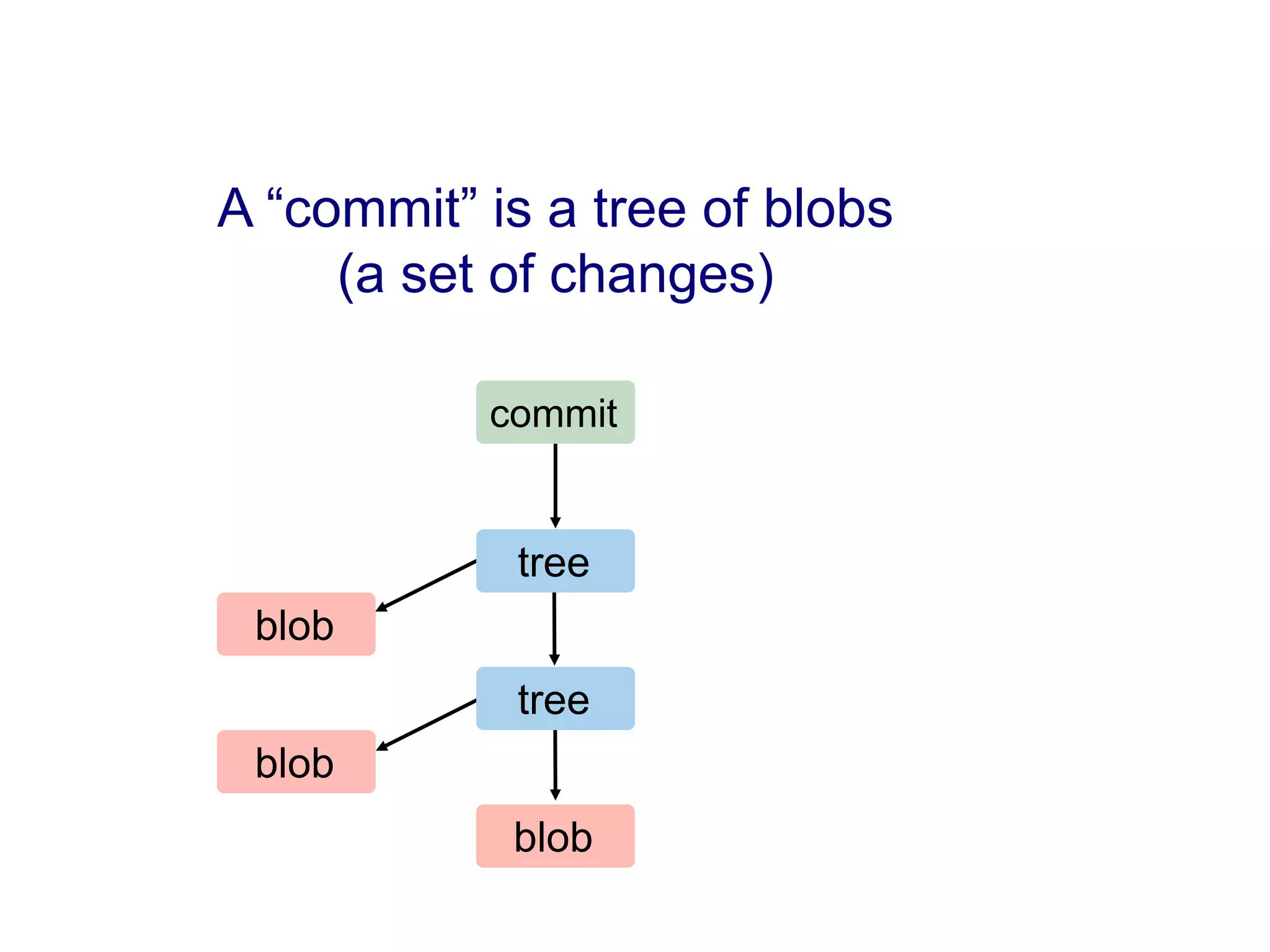

- 12. A “commit” isa tree of blobs (a set of changes) commit tree blob tree blob blob

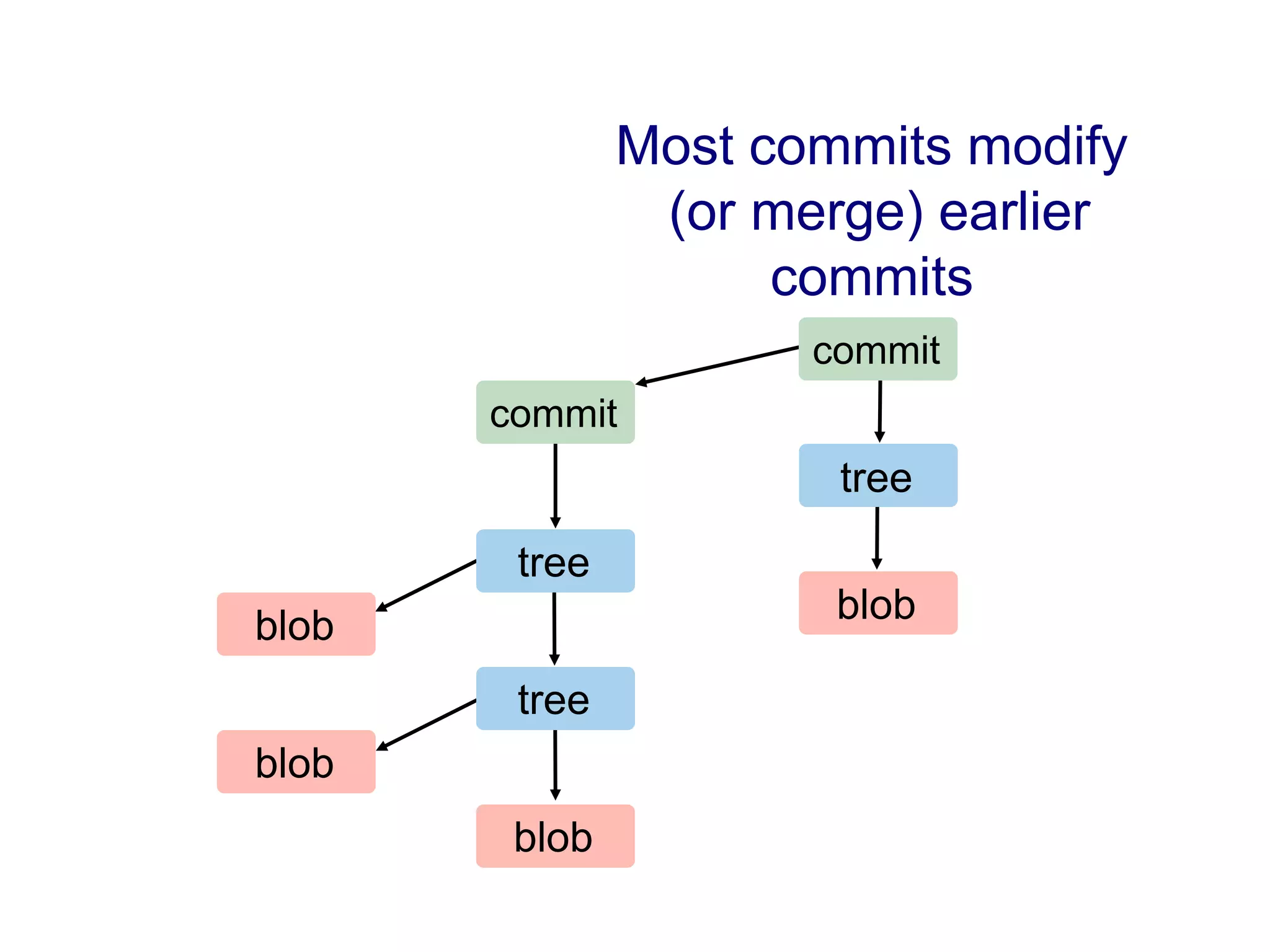

- 13. Most commits modify (or merge) earlier commits commit commit tree tree blob blob tree blob blob

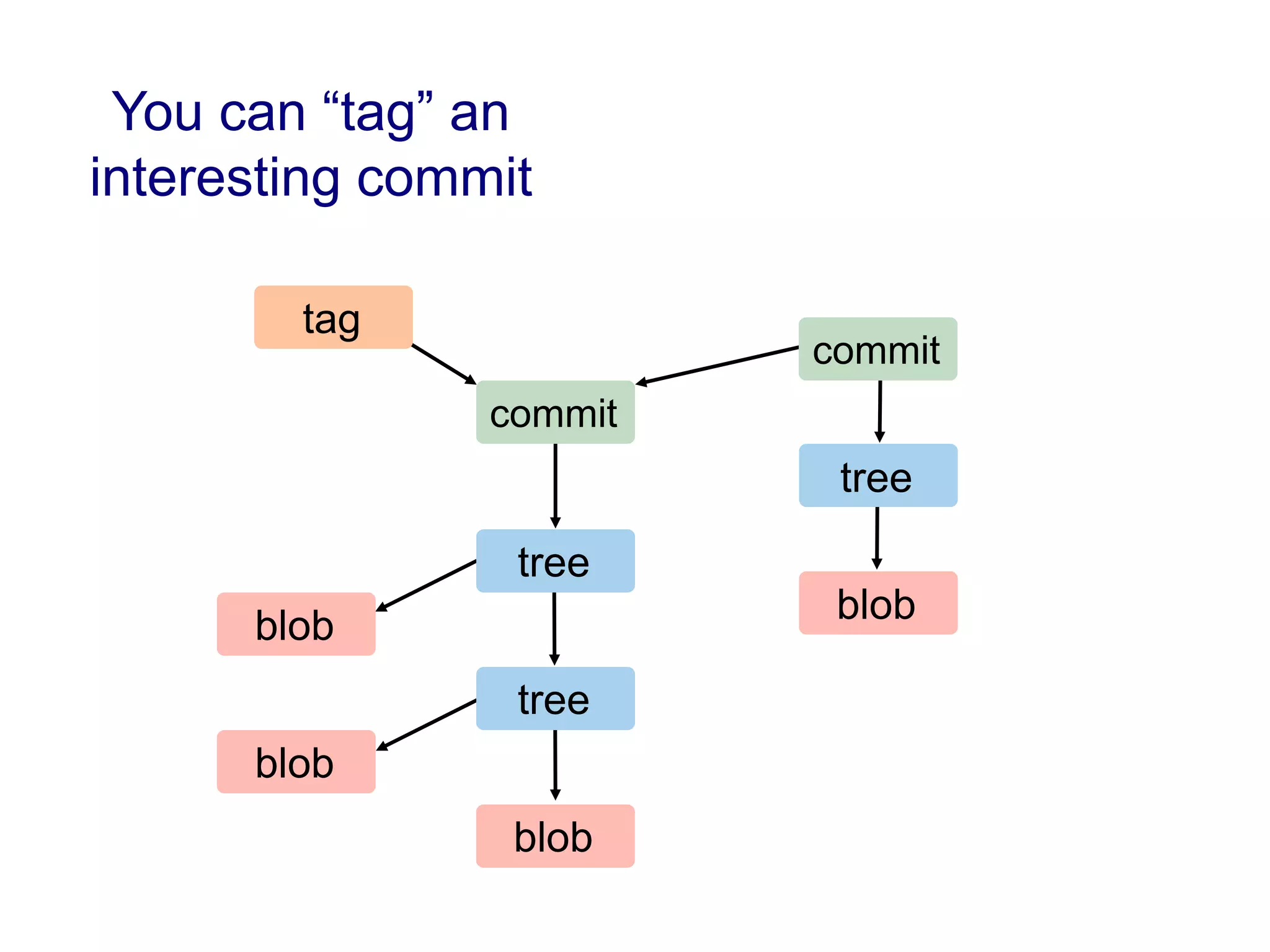

- 14. You can “tag”an interesting commit tag commit commit tree tree blob blob tree blob blob

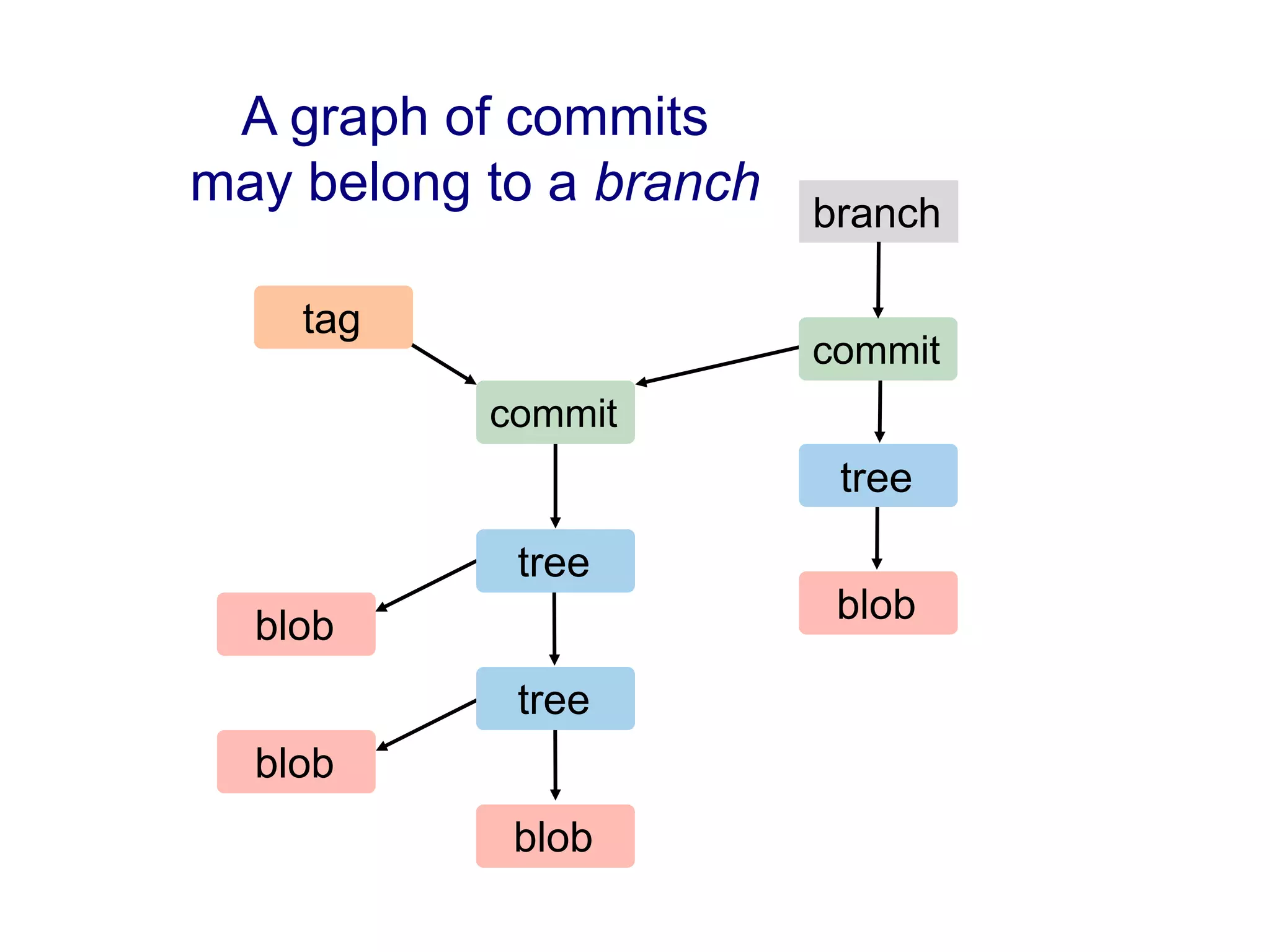

- 15. A graph ofcommits may belong to a branch branch tag commit commit tree tree blob blob tree blob blob

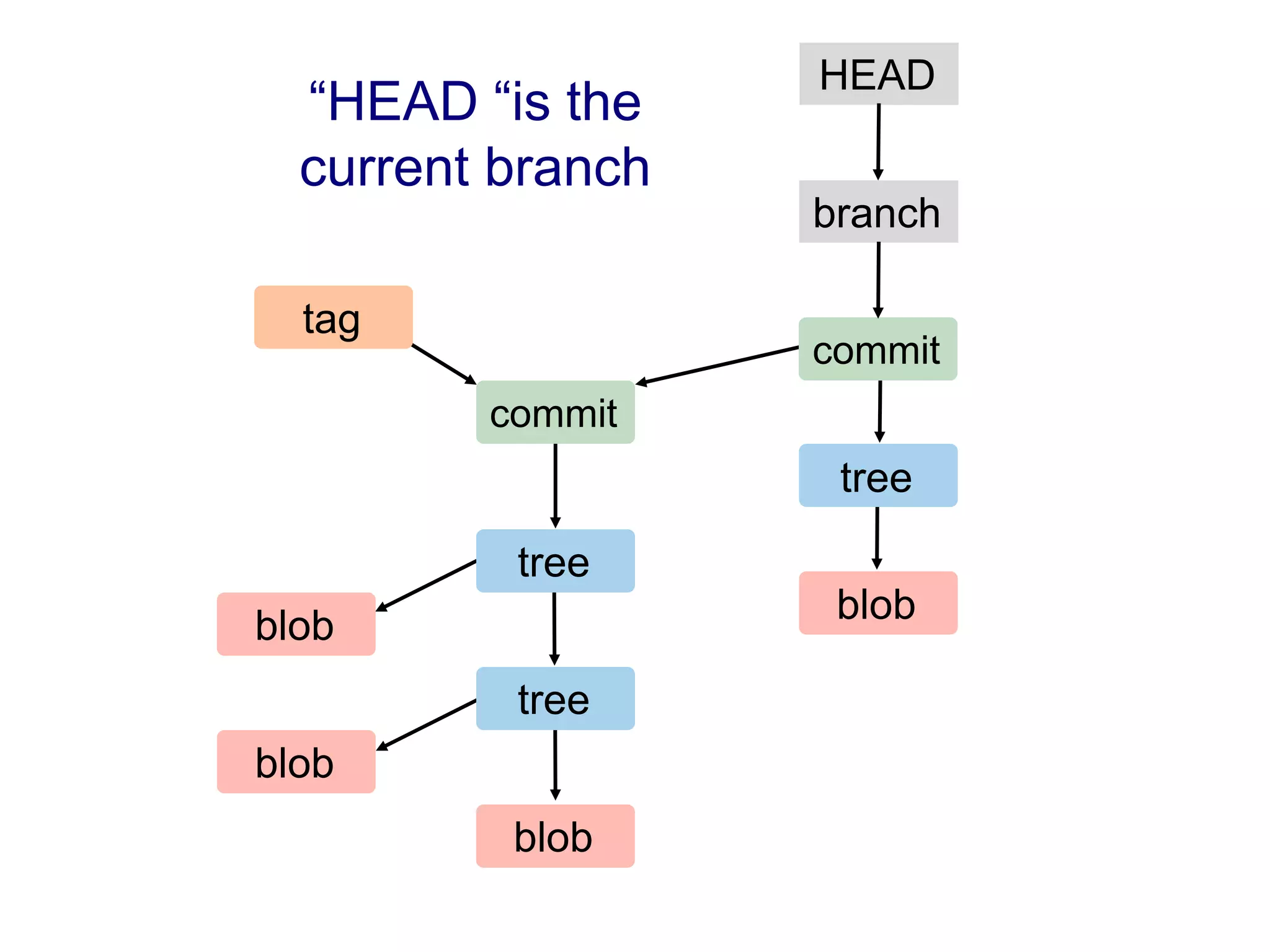

- 16. HEAD “HEAD“is the current branch branch tag commit commit tree tree blob blob tree blob blob

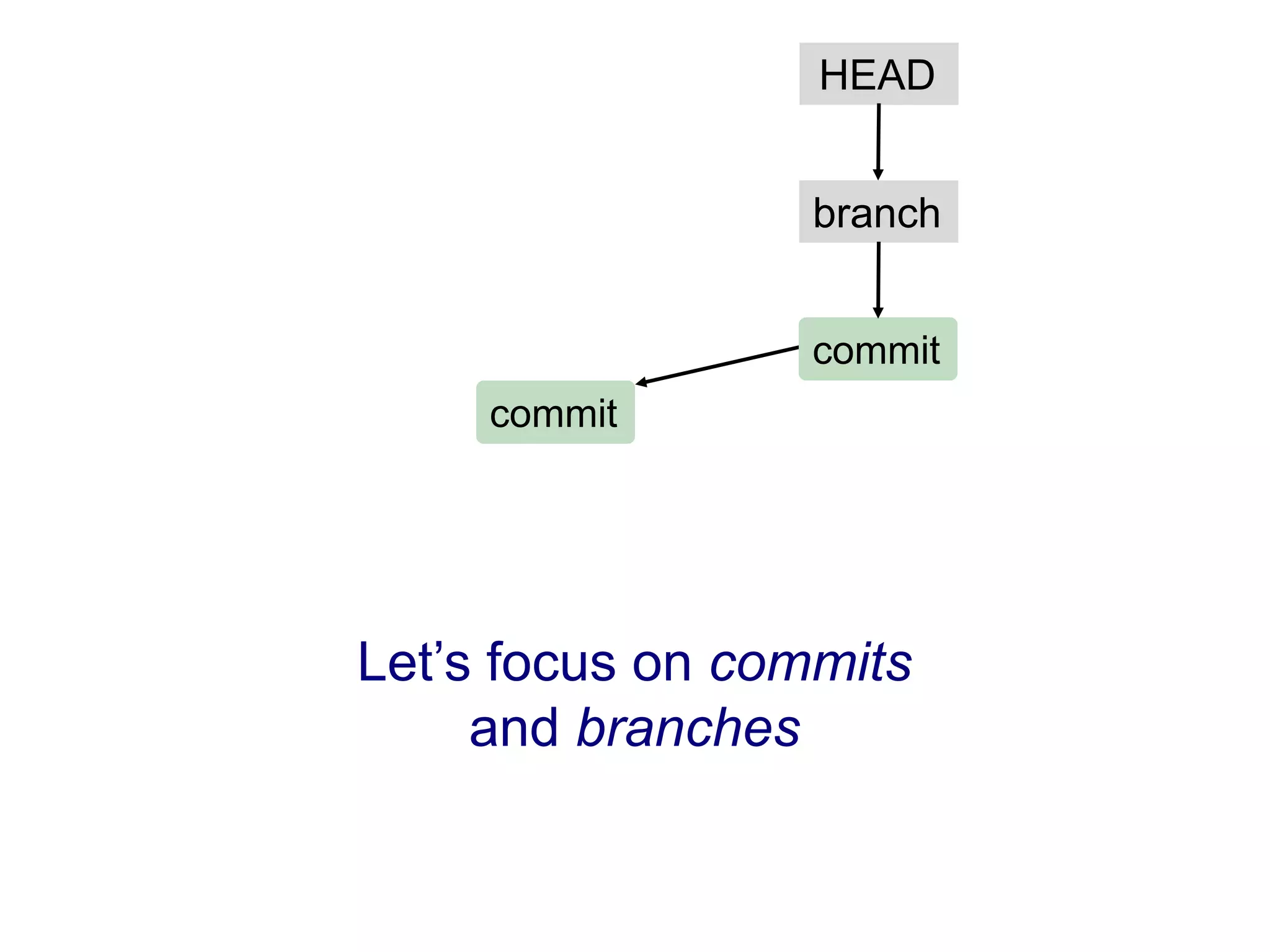

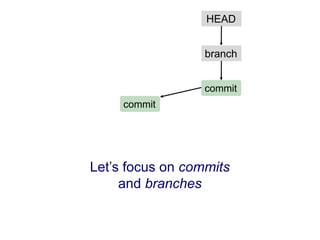

- 17. HEAD branch commit commit Let’s focus on commits and branches
- 18.

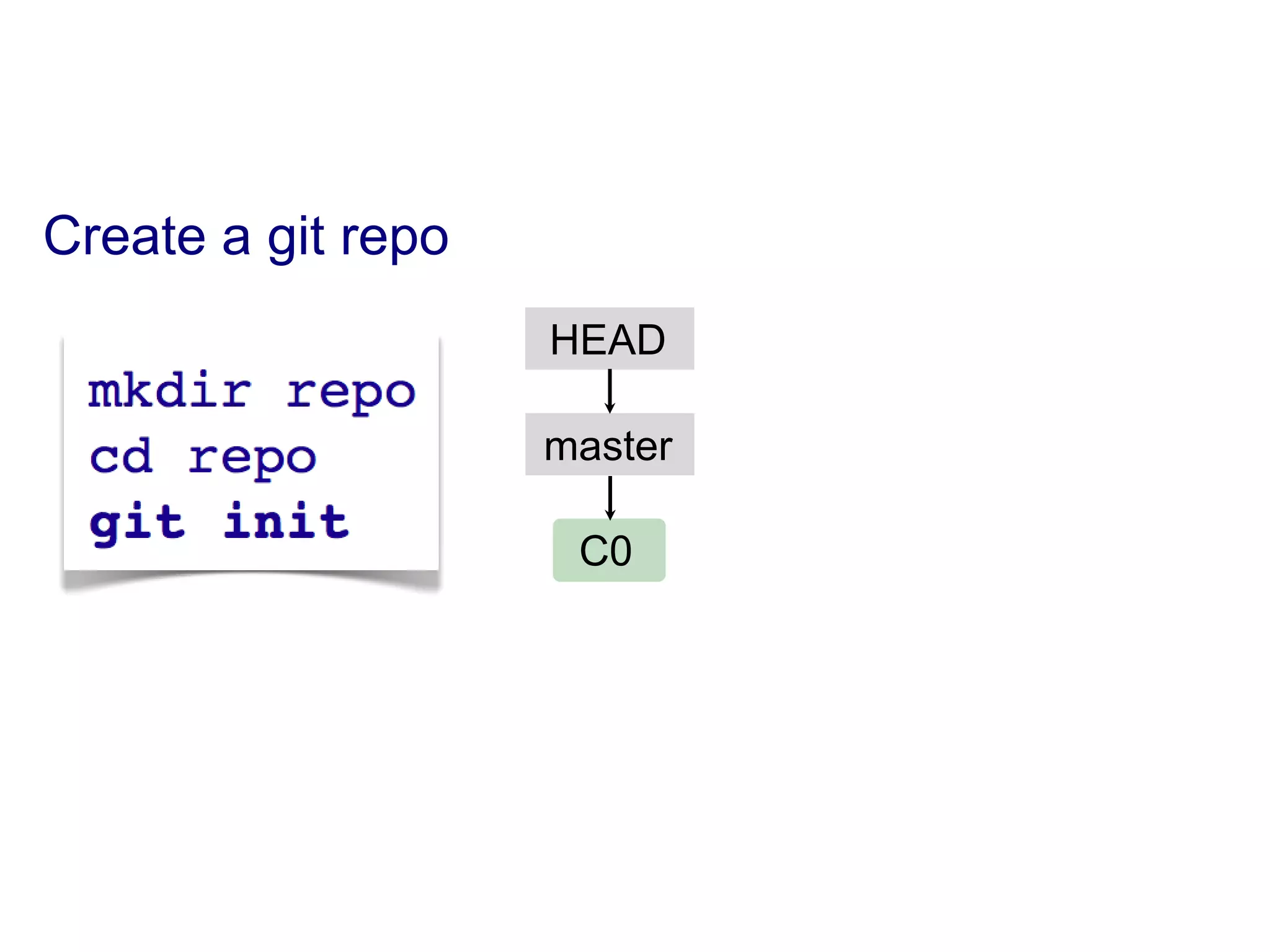

- 19. Create a gitrepo HEAD master C0

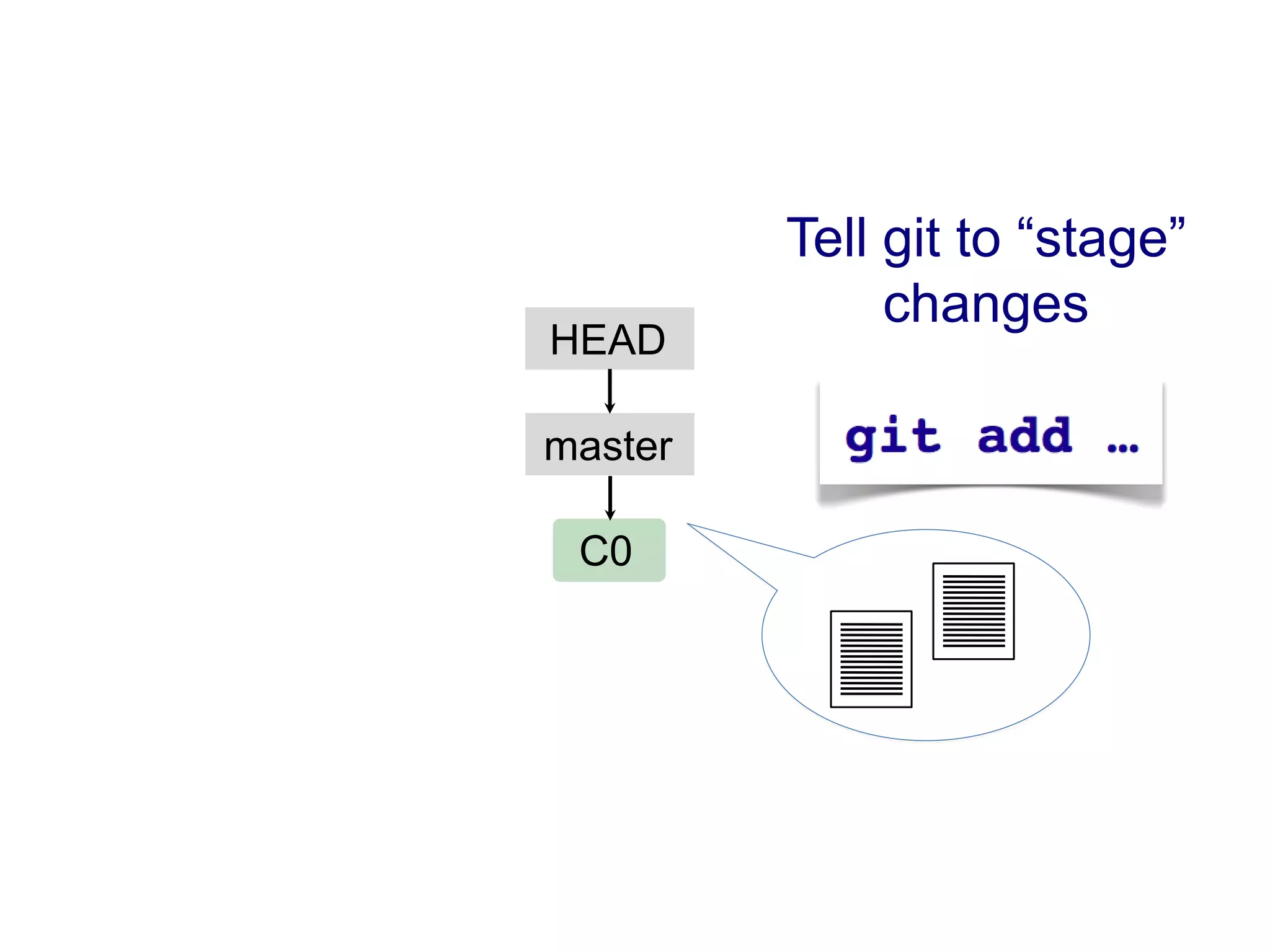

- 20. Tell git to“stage” changes HEAD master C0

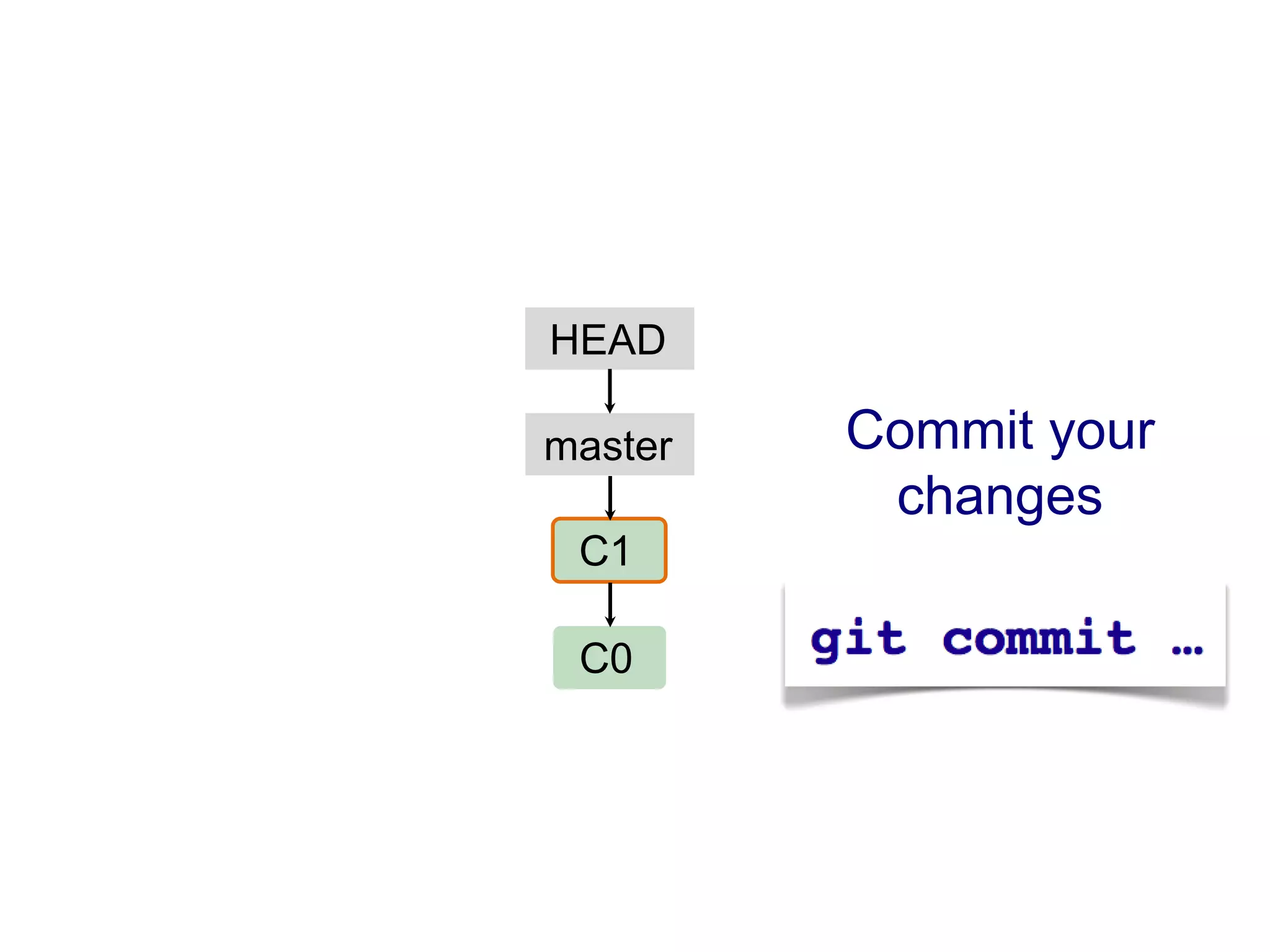

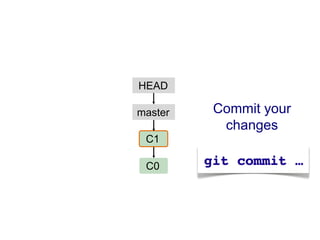

- 21. HEAD master Commit your changes C1 C0
- 22.

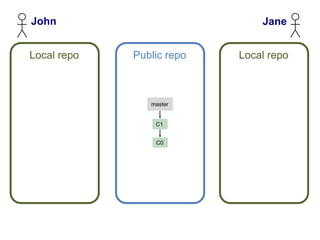

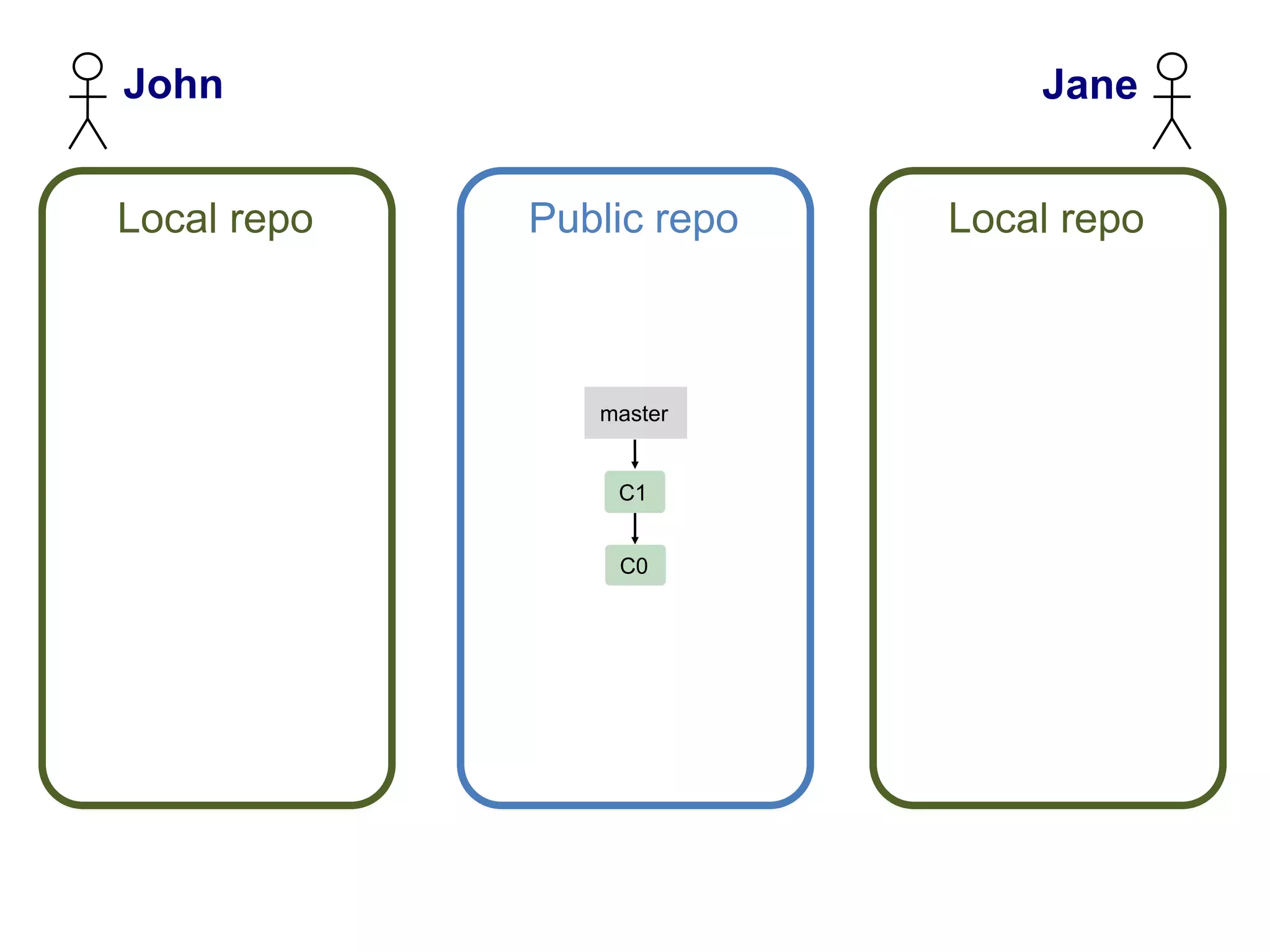

- 23. John Jane Local repo Public repo Local repo master C1 C0

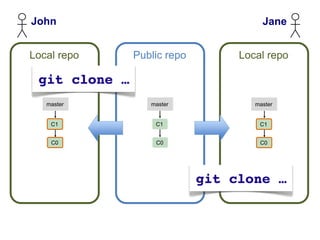

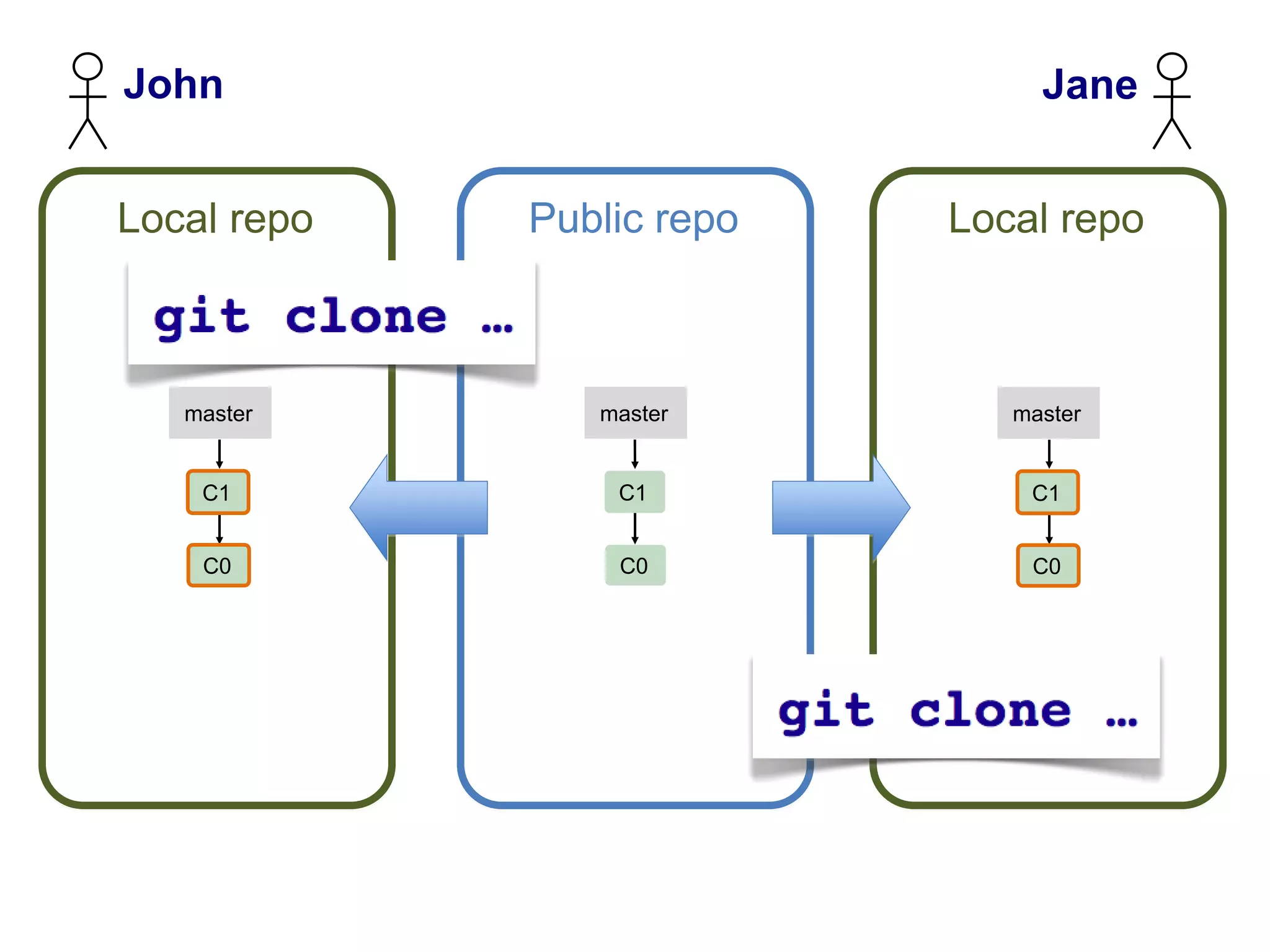

- 24. John Jane Local repo Public repo Local repo master master master C1 C1 C1 C0 C0 C0

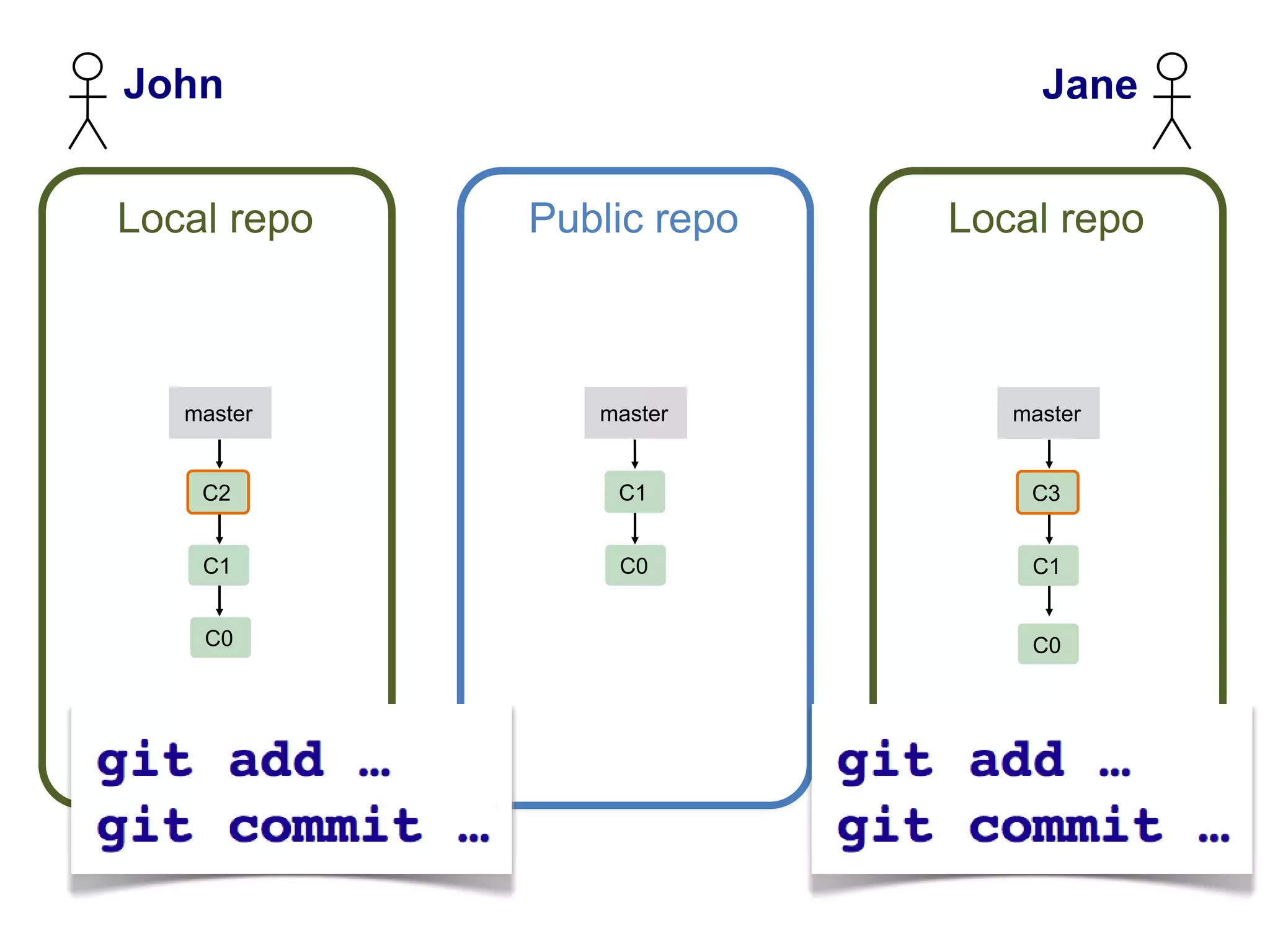

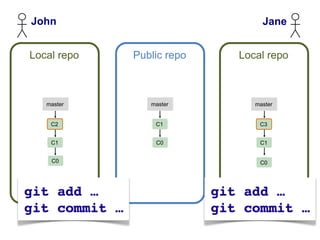

- 25. John Jane Local repo Public repo Local repo master master master C2 C1 C3 C1 C0 C1 C0 C0

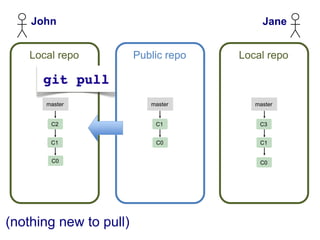

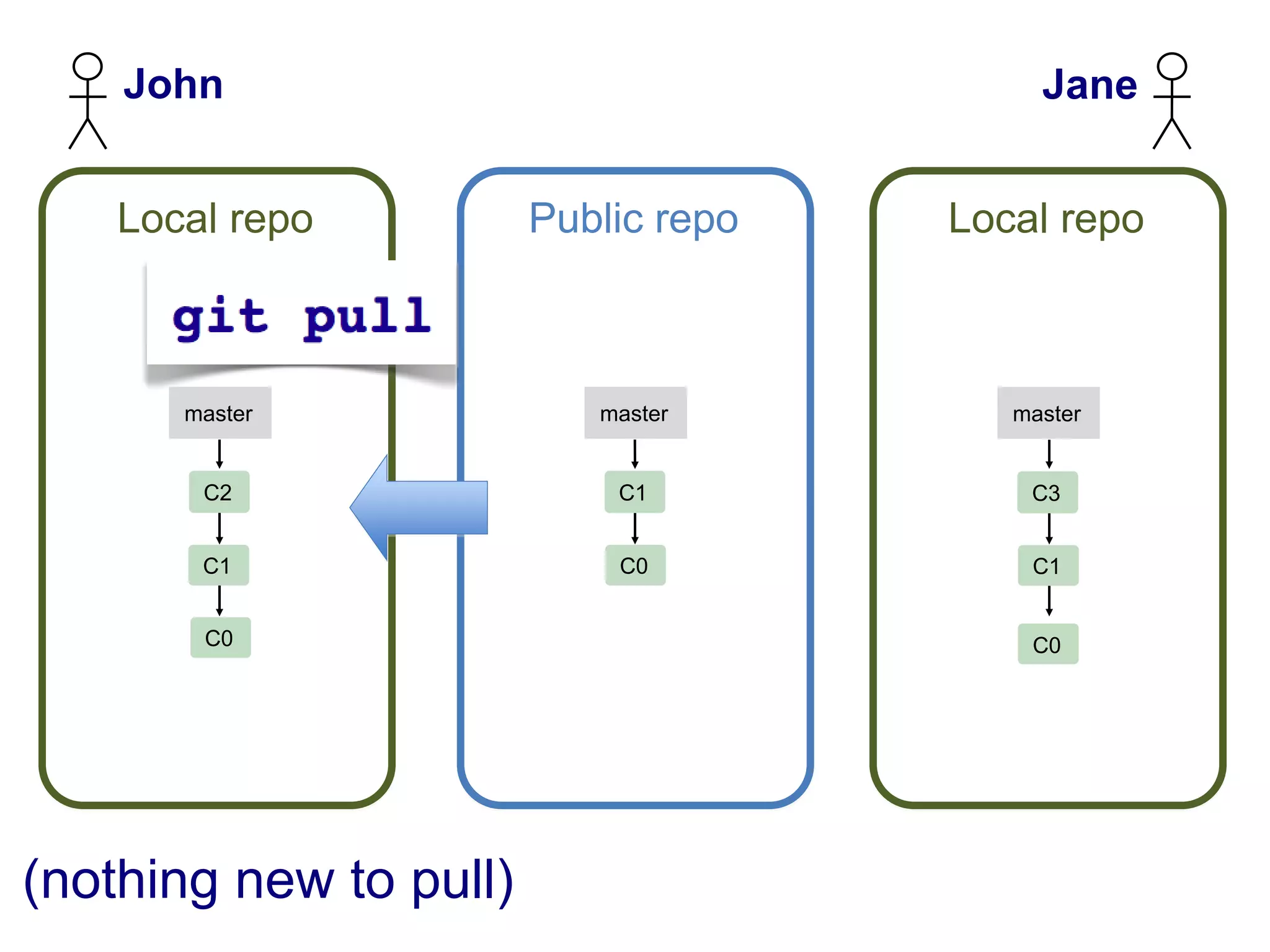

- 26. John Jane Local repo Public repo Local repo master master master C2 C1 C3 C1 C0 C1 C0 C0 (nothing new to pull)

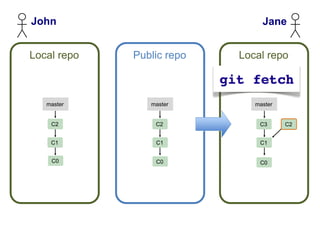

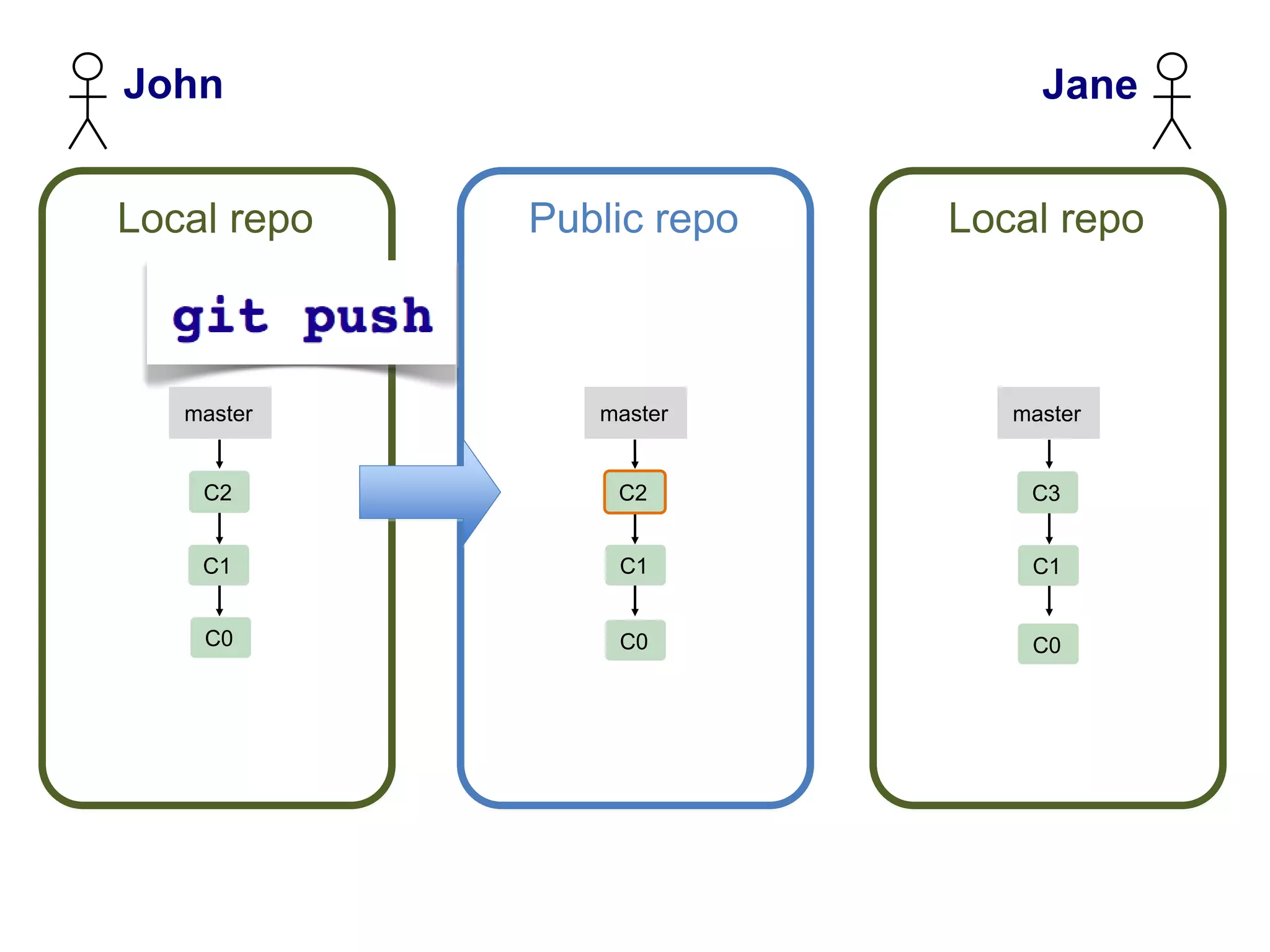

- 27. John Jane Local repo Public repo Local repo master master master C2 C2 C3 C1 C1 C1 C0 C0 C0

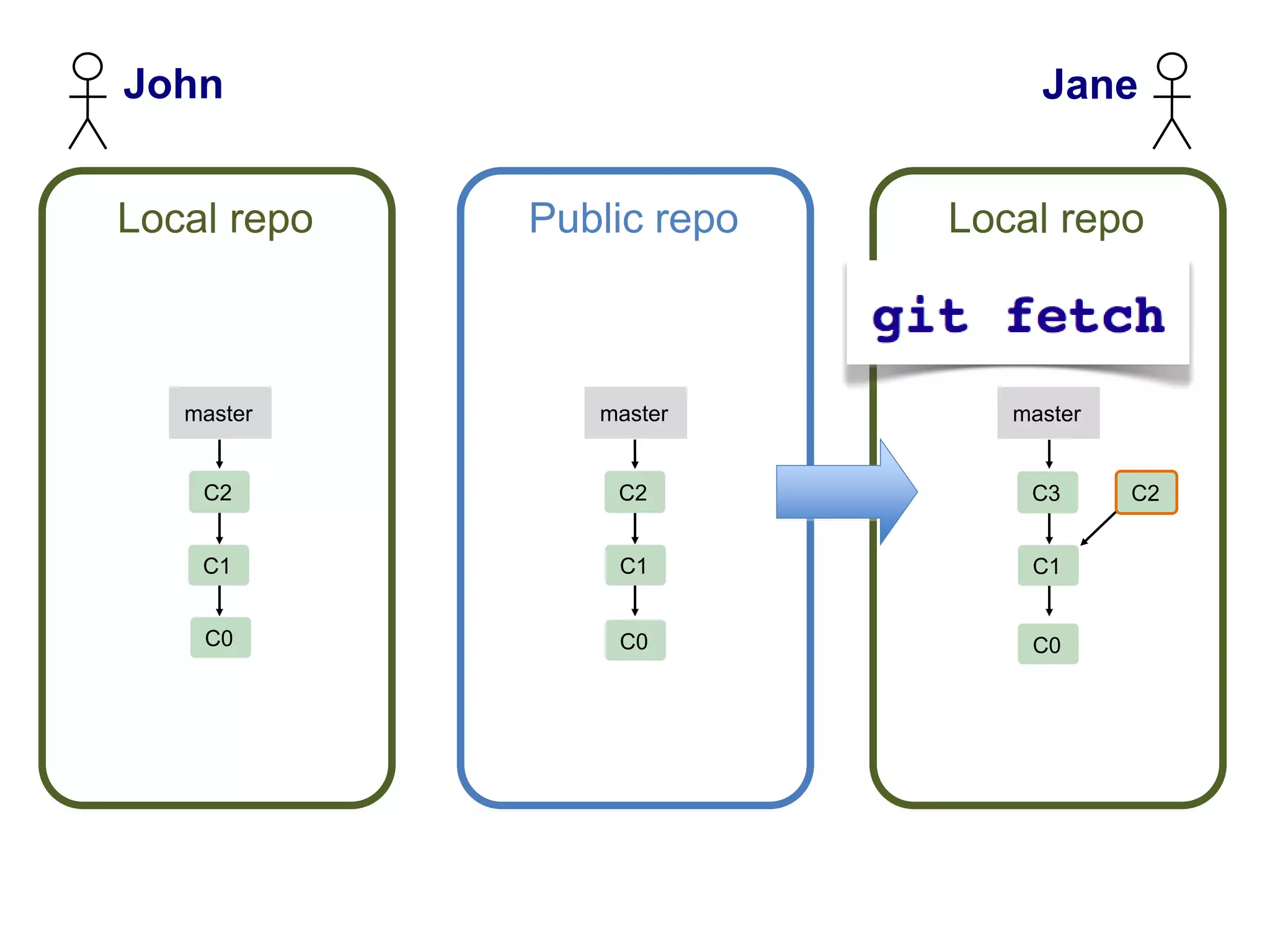

- 28. John Jane Local repo Public repo Local repo master master master C2 C2 C3 C2 C1 C1 C1 C0 C0 C0

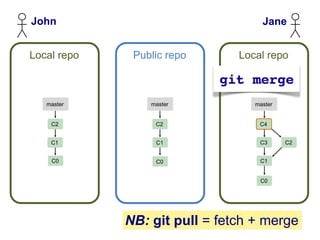

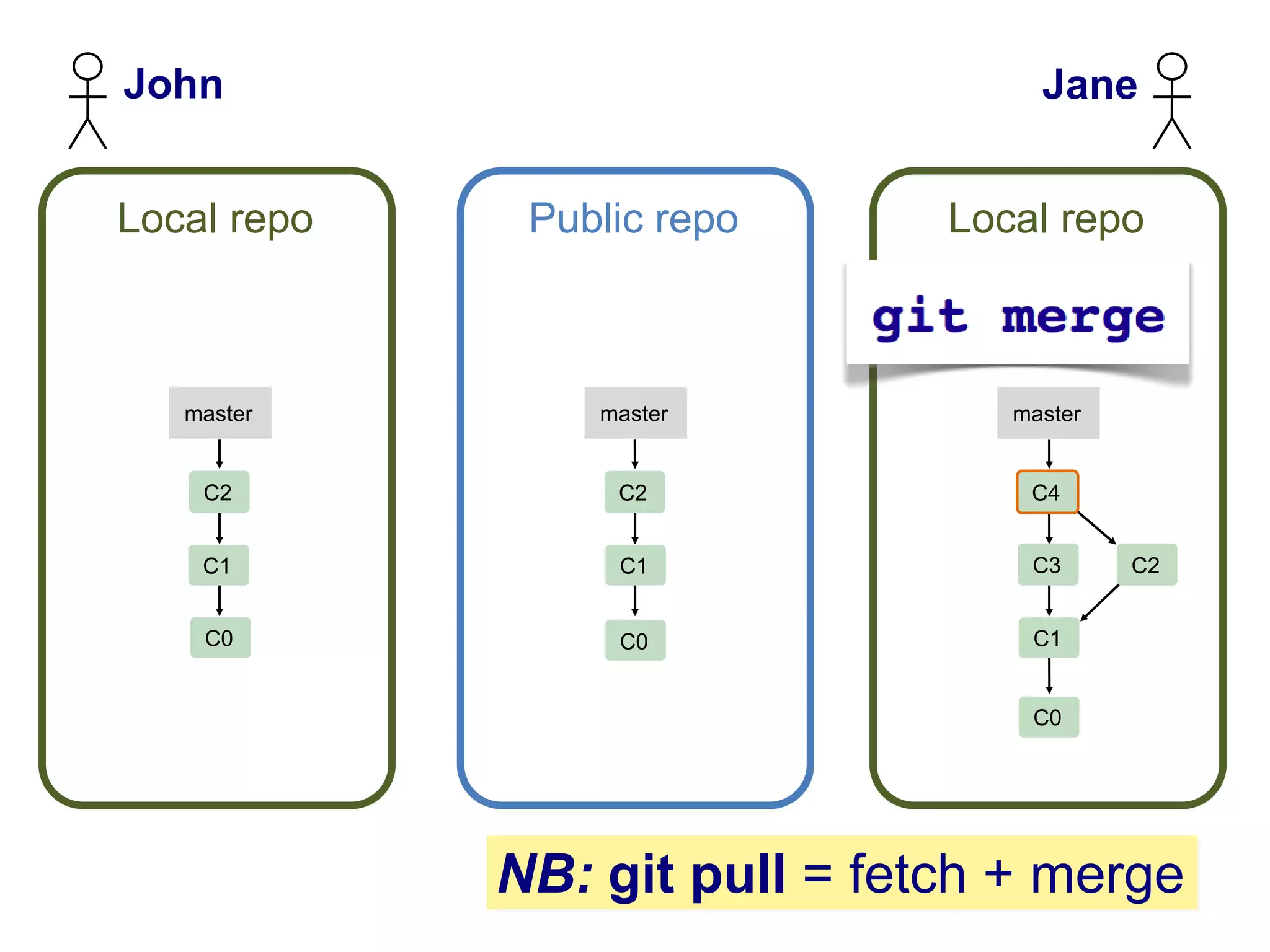

- 29. John Jane Local repo Public repo Local repo master master master C2 C2 C4 C1 C1 C3 C2 C0 C0 C1 C0 NB: git pull = fetch + merge

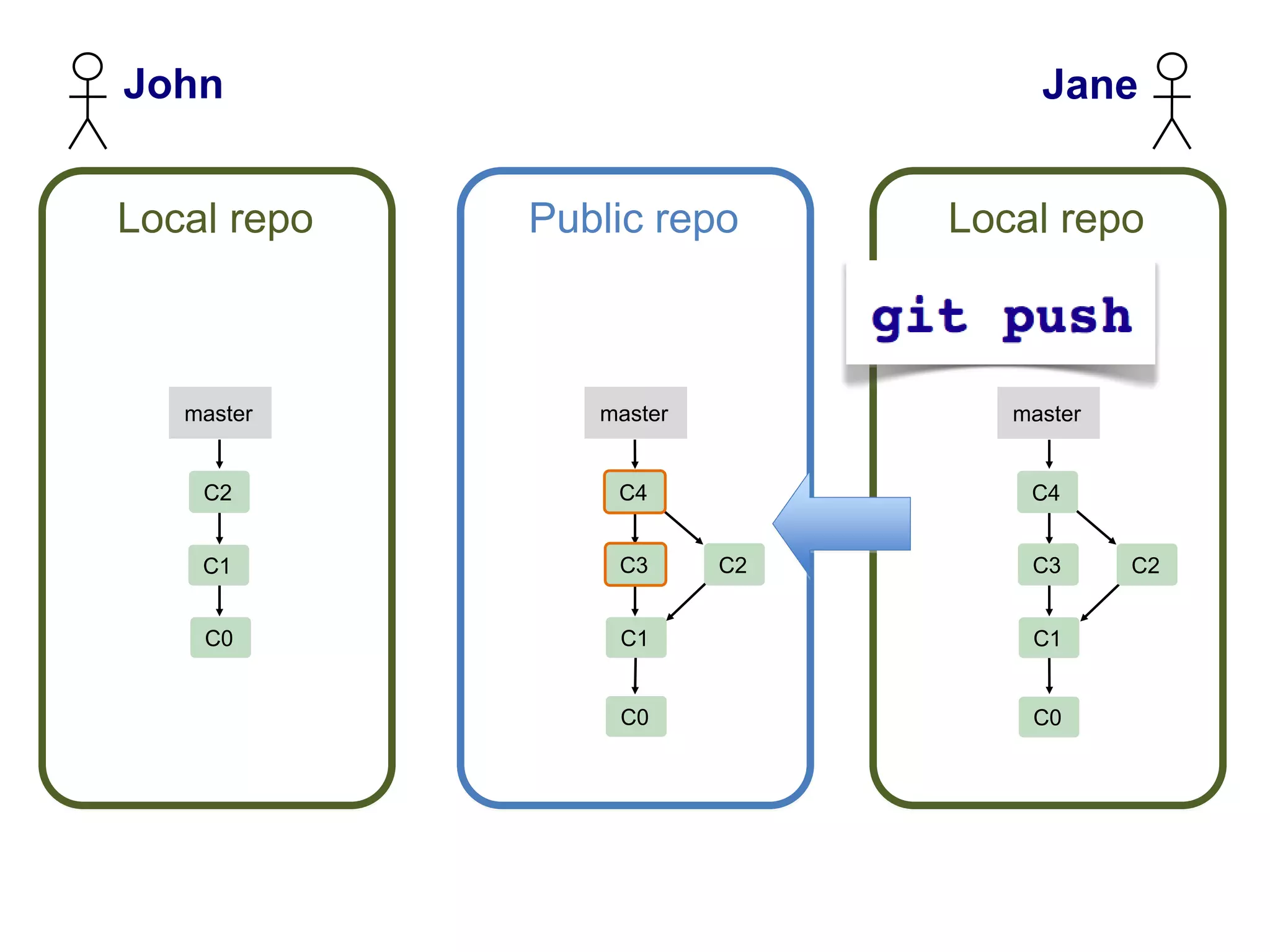

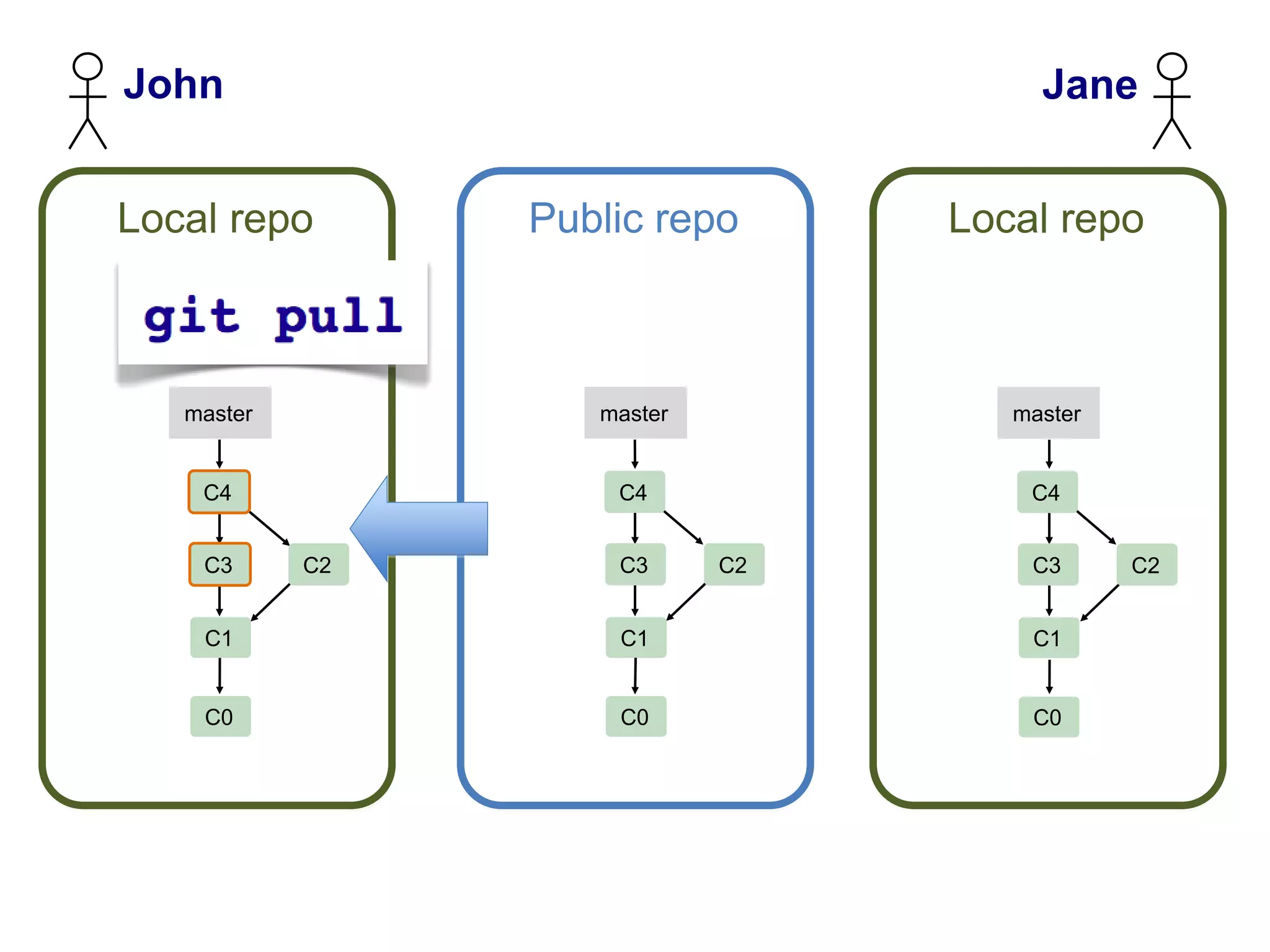

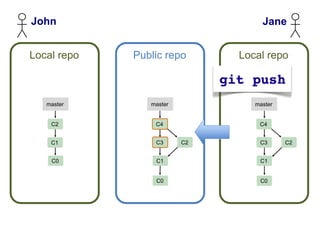

- 30. John Jane Local repo Public repo Local repo master master master C2 C4 C4 C1 C3 C2 C3 C2 C0 C1 C1 C0 C0

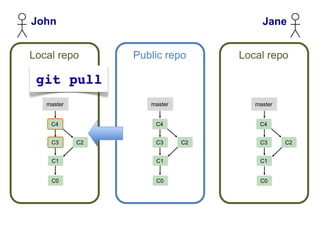

- 31. John Jane Local repo Public repo Local repo master master master C4 C4 C4 C3 C2 C3 C2 C3 C2 C1 C1 C1 C0 C0 C0
- 32.

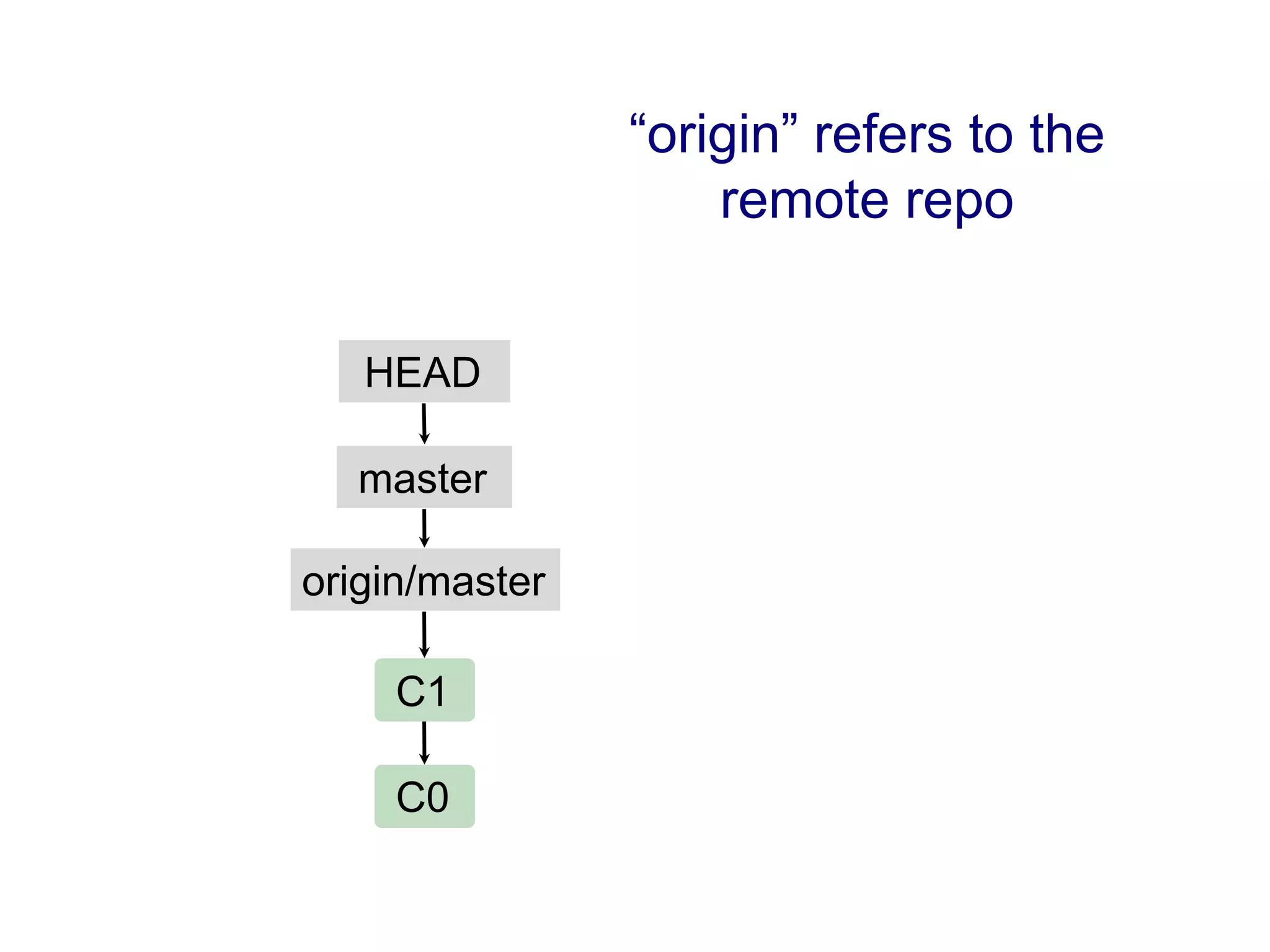

- 33. “origin” refers tothe remote repo HEAD master origin/master C1 C0

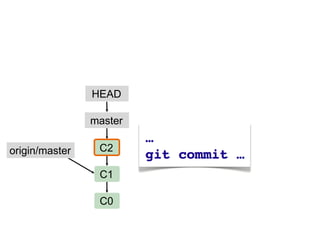

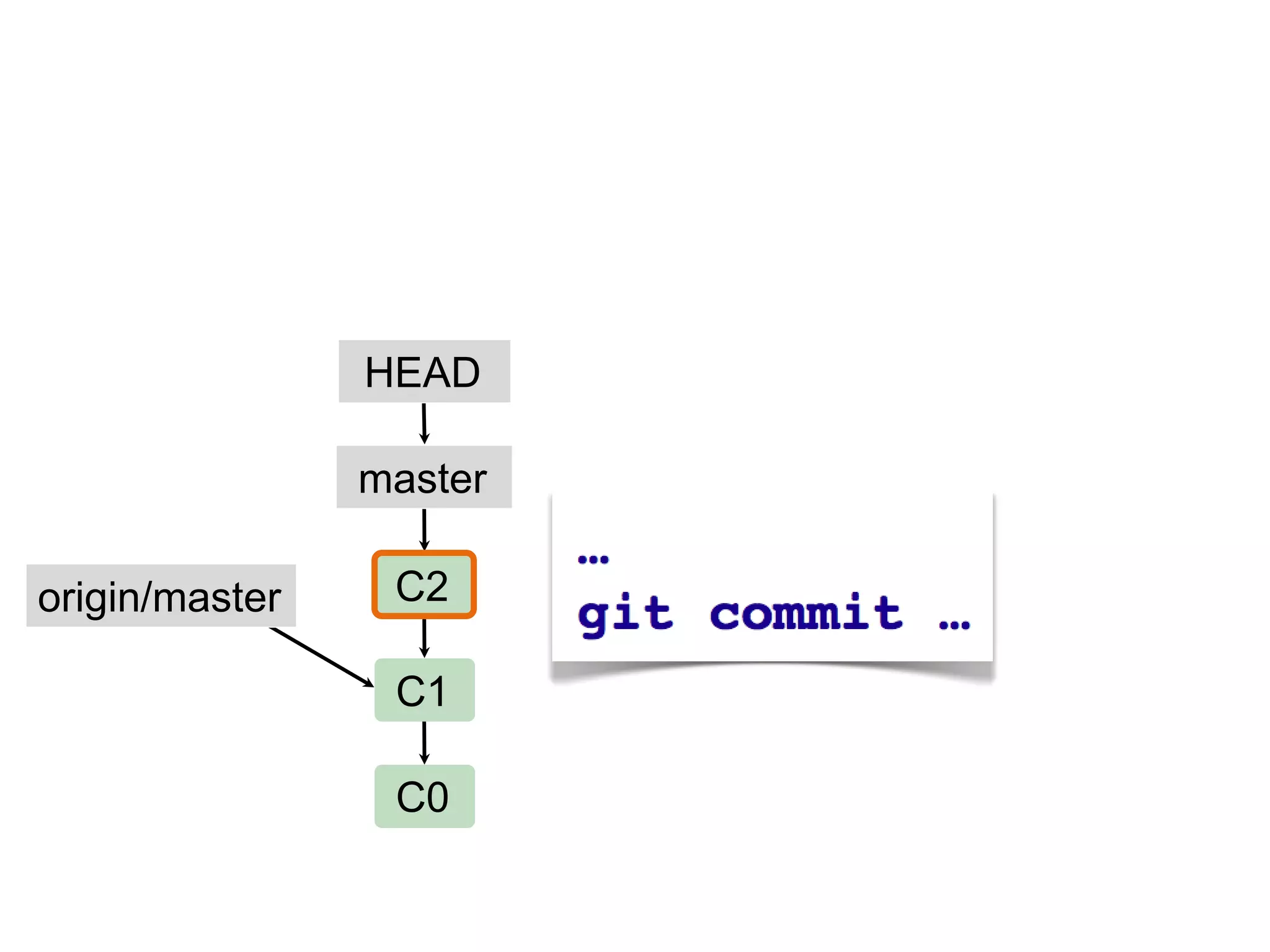

- 34. HEAD master origin/master C2 C1 C0

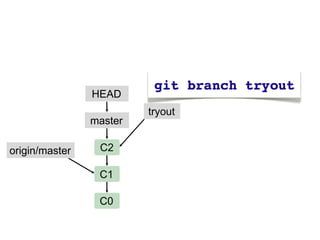

- 35. HEAD tryout master origin/master C2 C1 C0

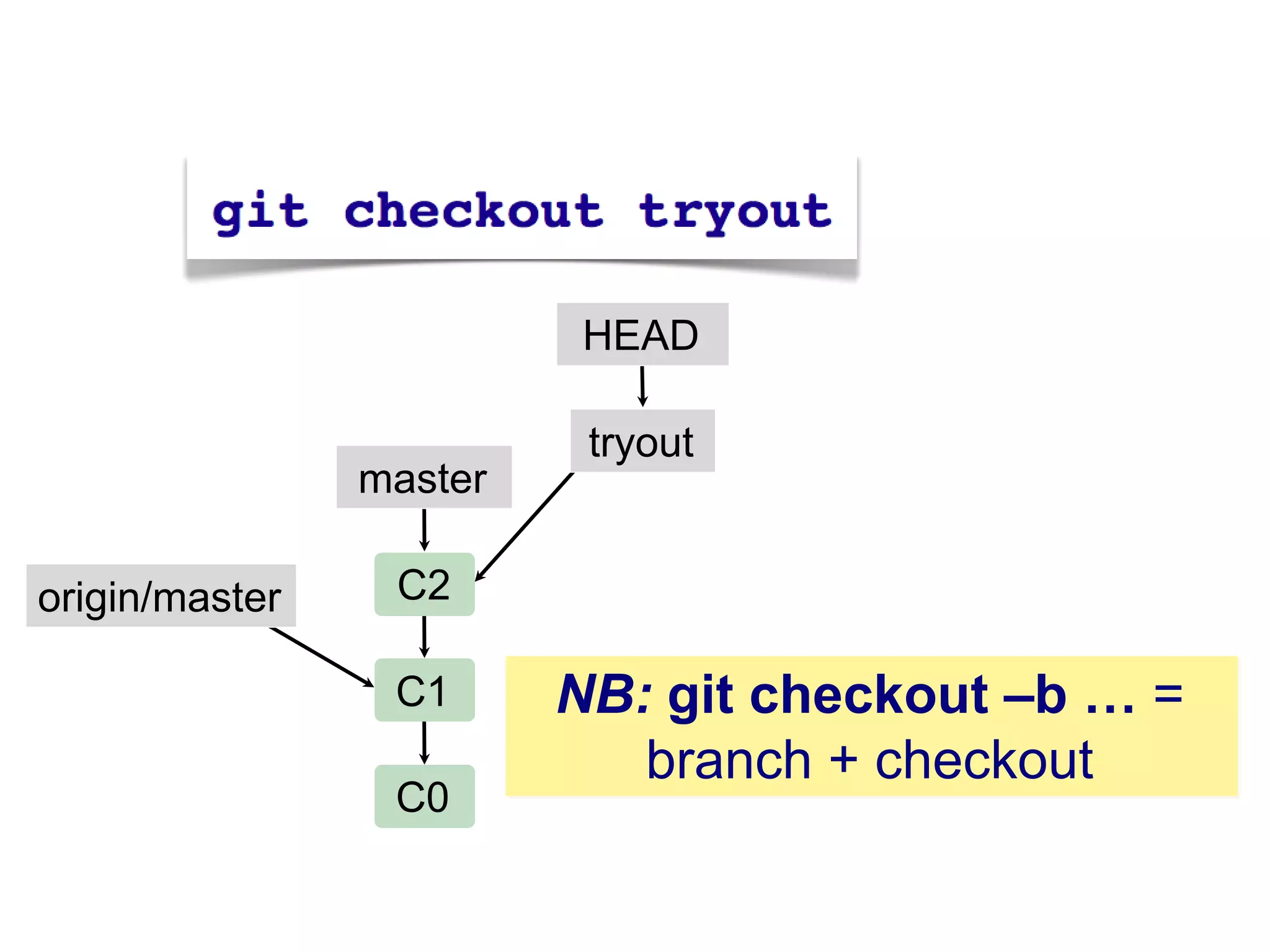

- 36. HEAD tryout master origin/master C2 C1 NB: git checkout –b … = branch + checkout C0

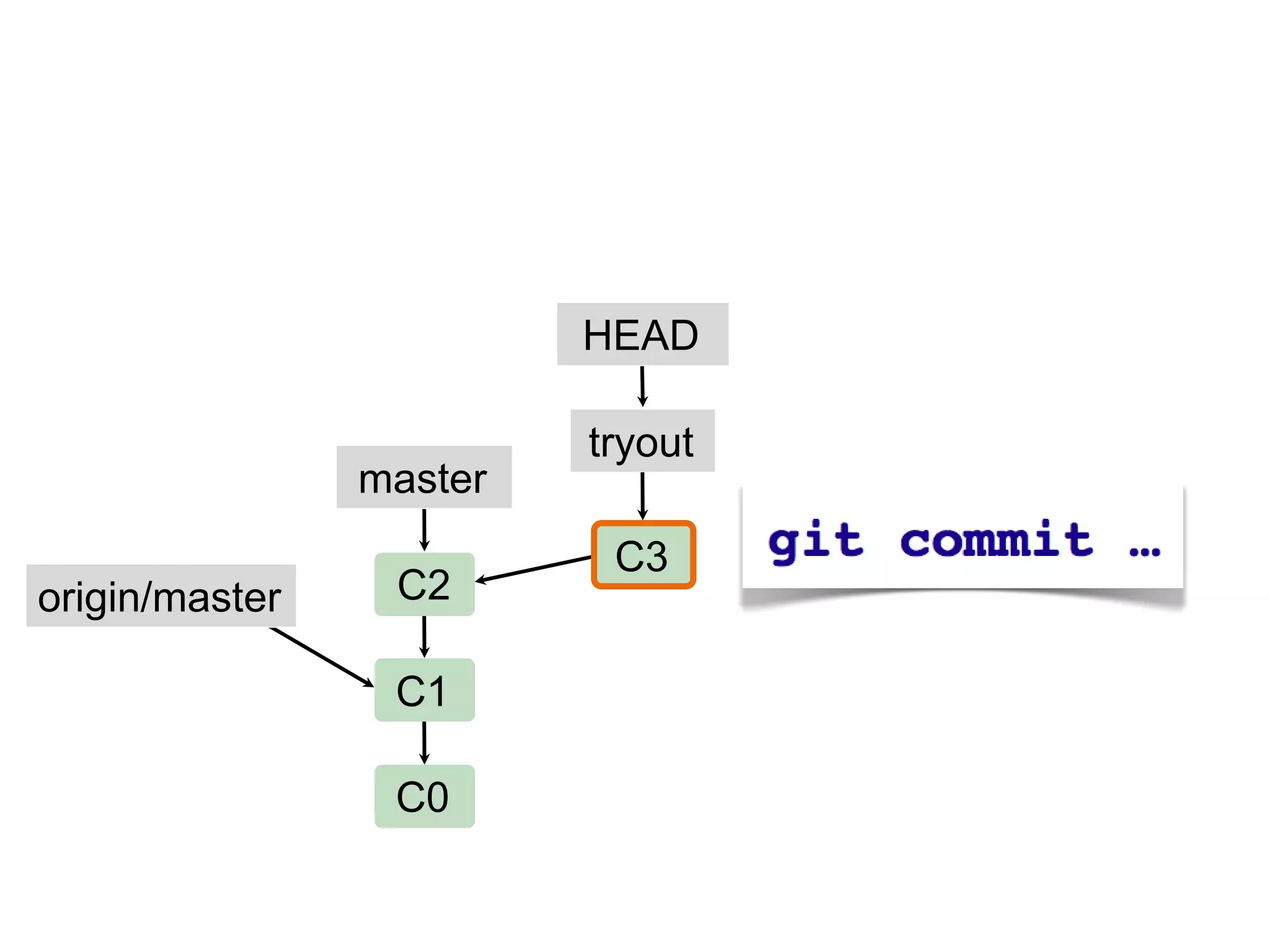

- 37. HEAD tryout master C3 origin/master C2 C1 C0

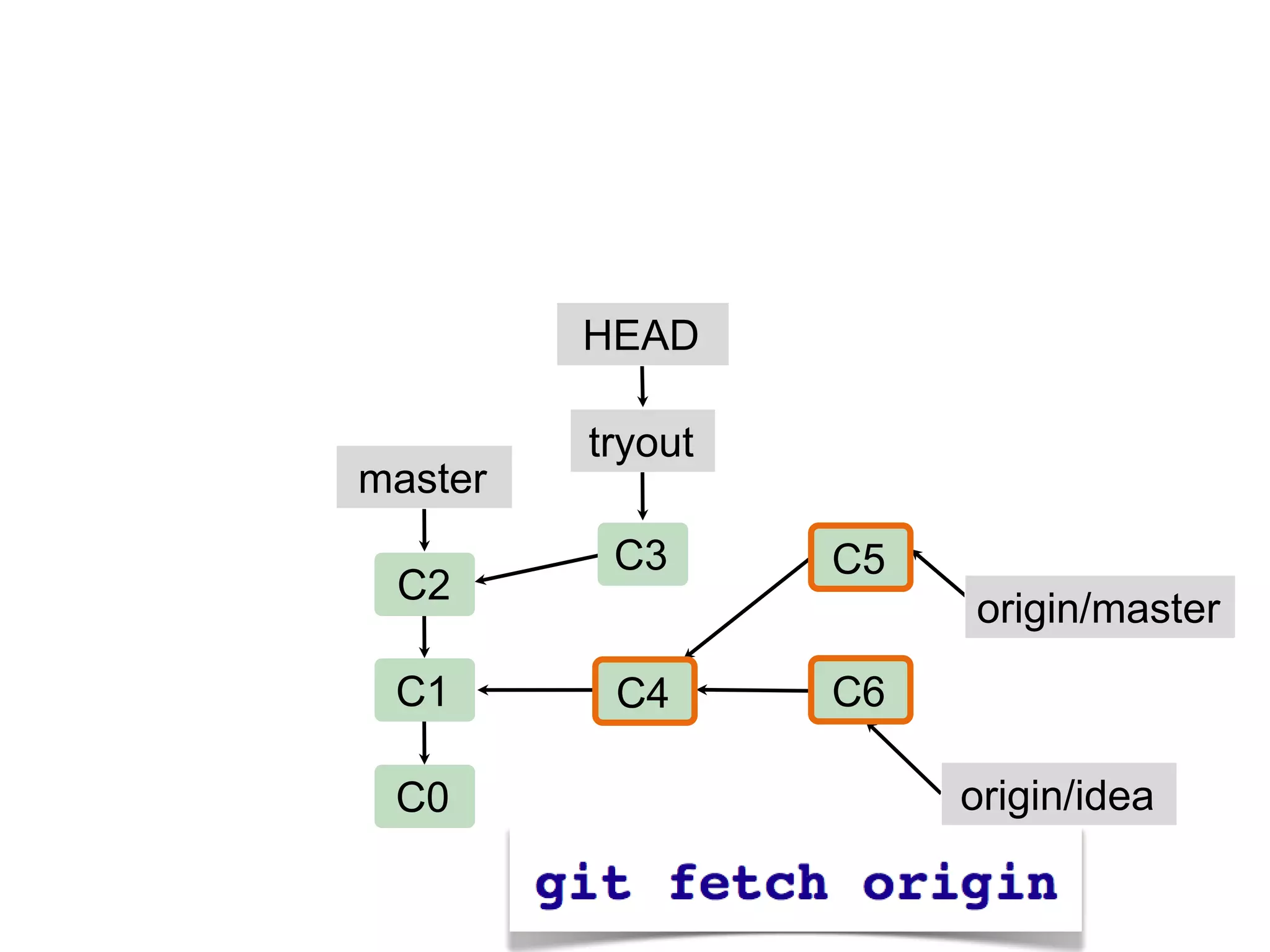

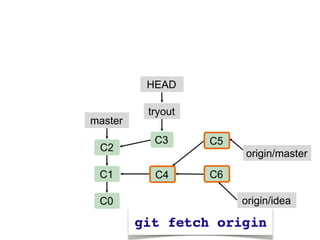

- 38. HEAD tryout master C3 C5 C2 origin/master C1 C4 C6 C0 origin/idea
- 39. HEAD tryout C7 master C3 C5 C2 origin/master C1 C4 C6 C0 origin/idea

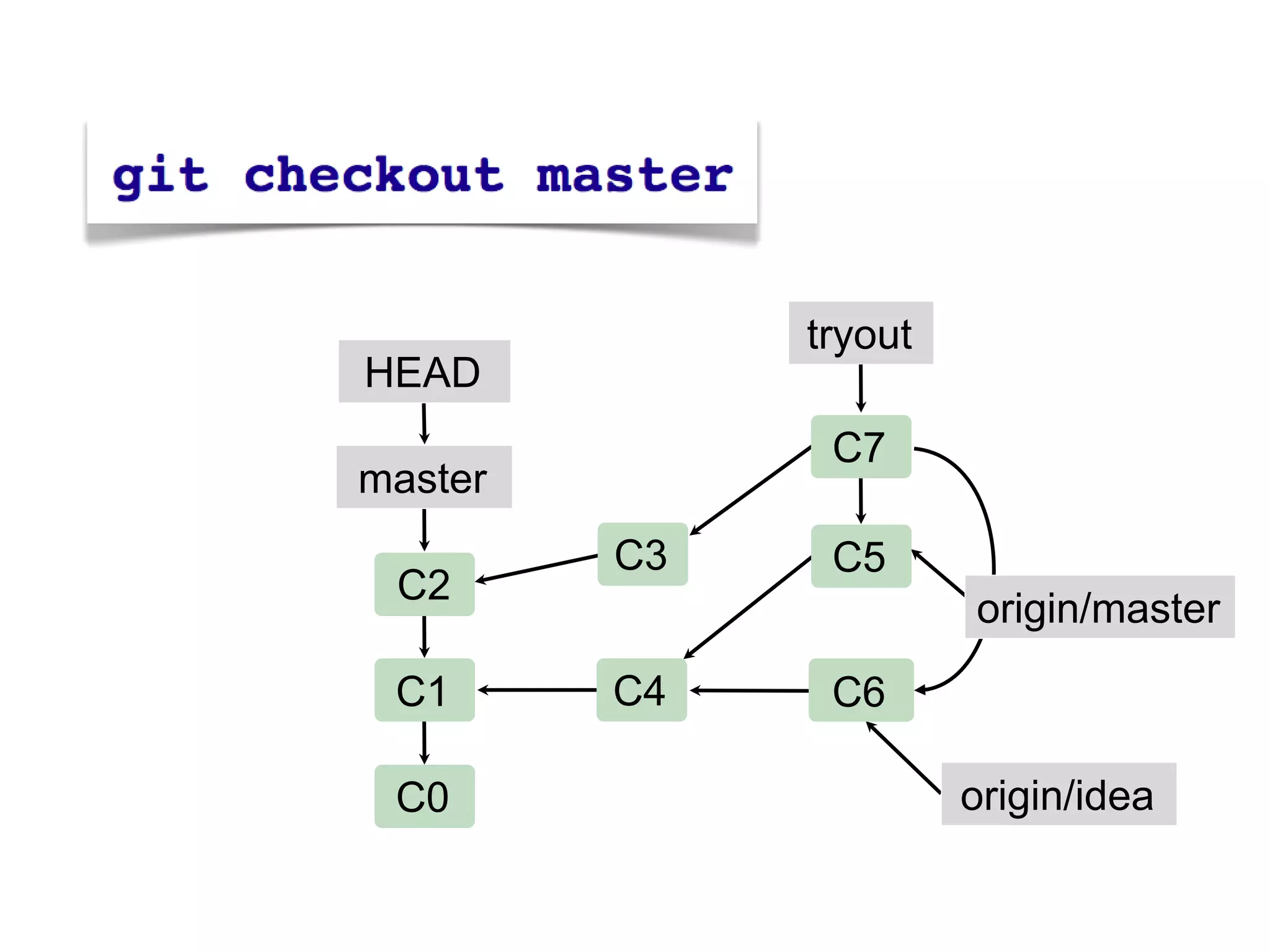

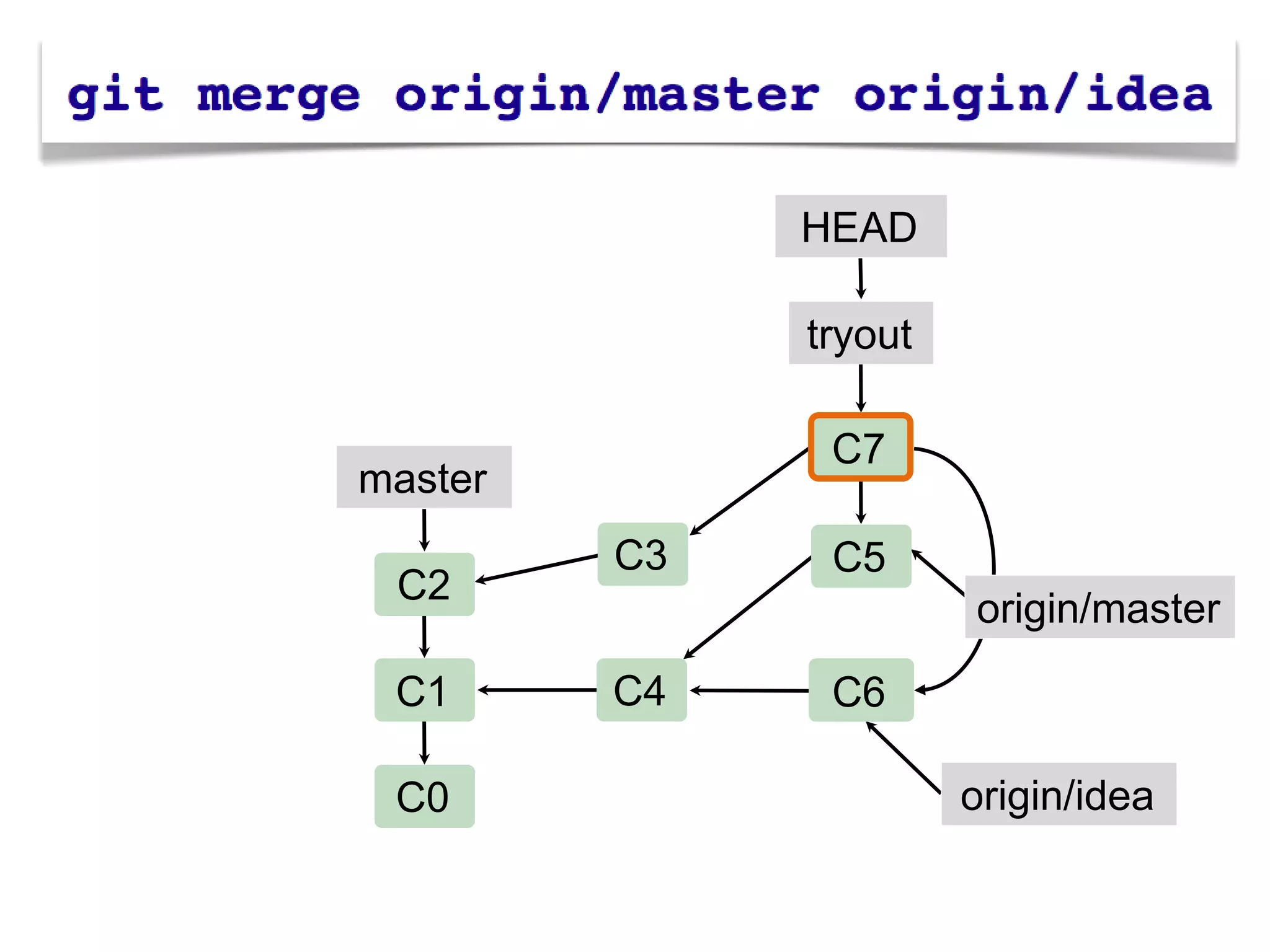

- 40. tryout HEAD C7 master C3 C5 C2 origin/master C1 C4 C6 C0 origin/idea

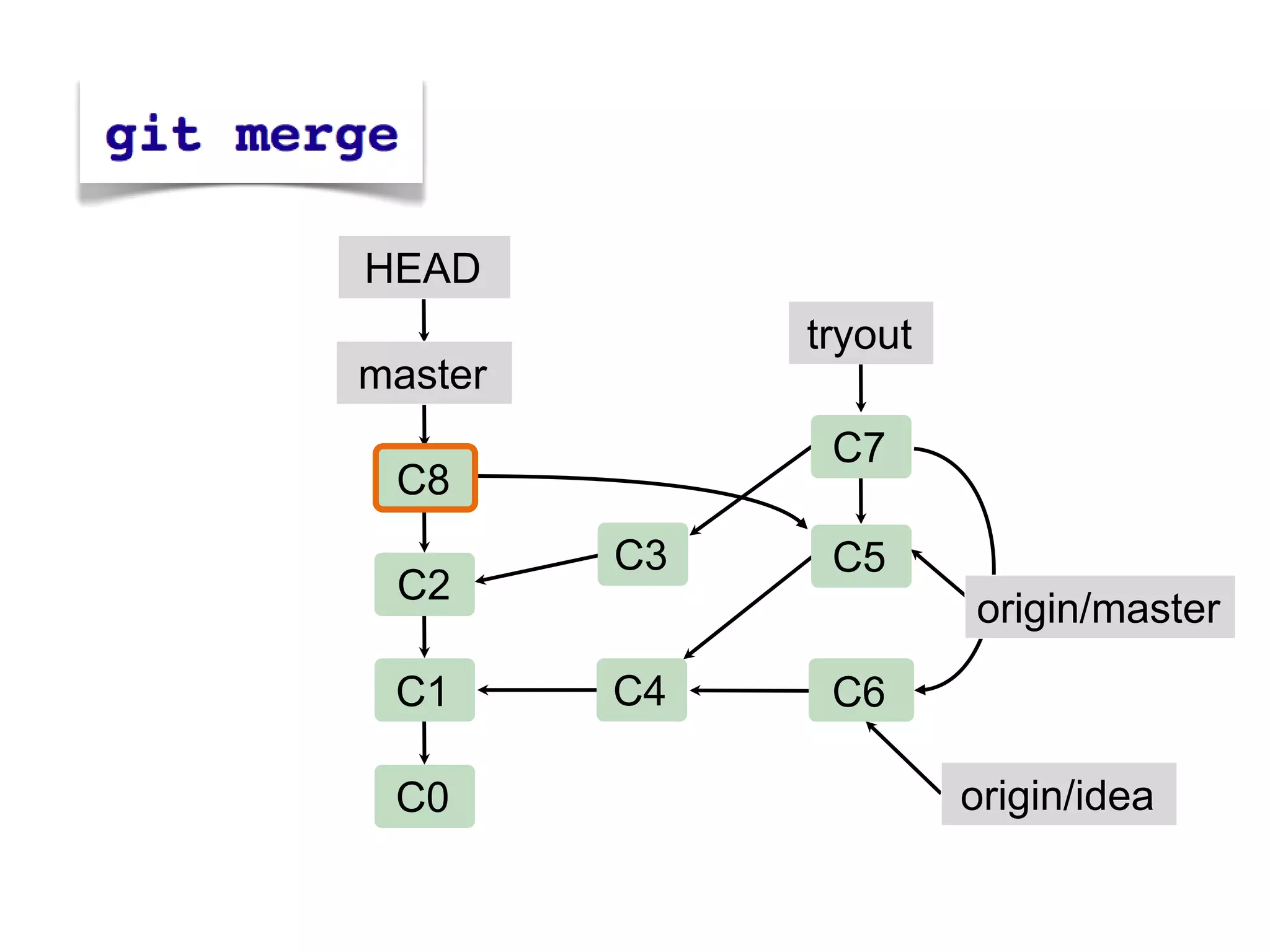

- 41. HEAD tryout master C7 C8 C3 C5 C2 origin/master C1 C4 C6 C0 origin/idea

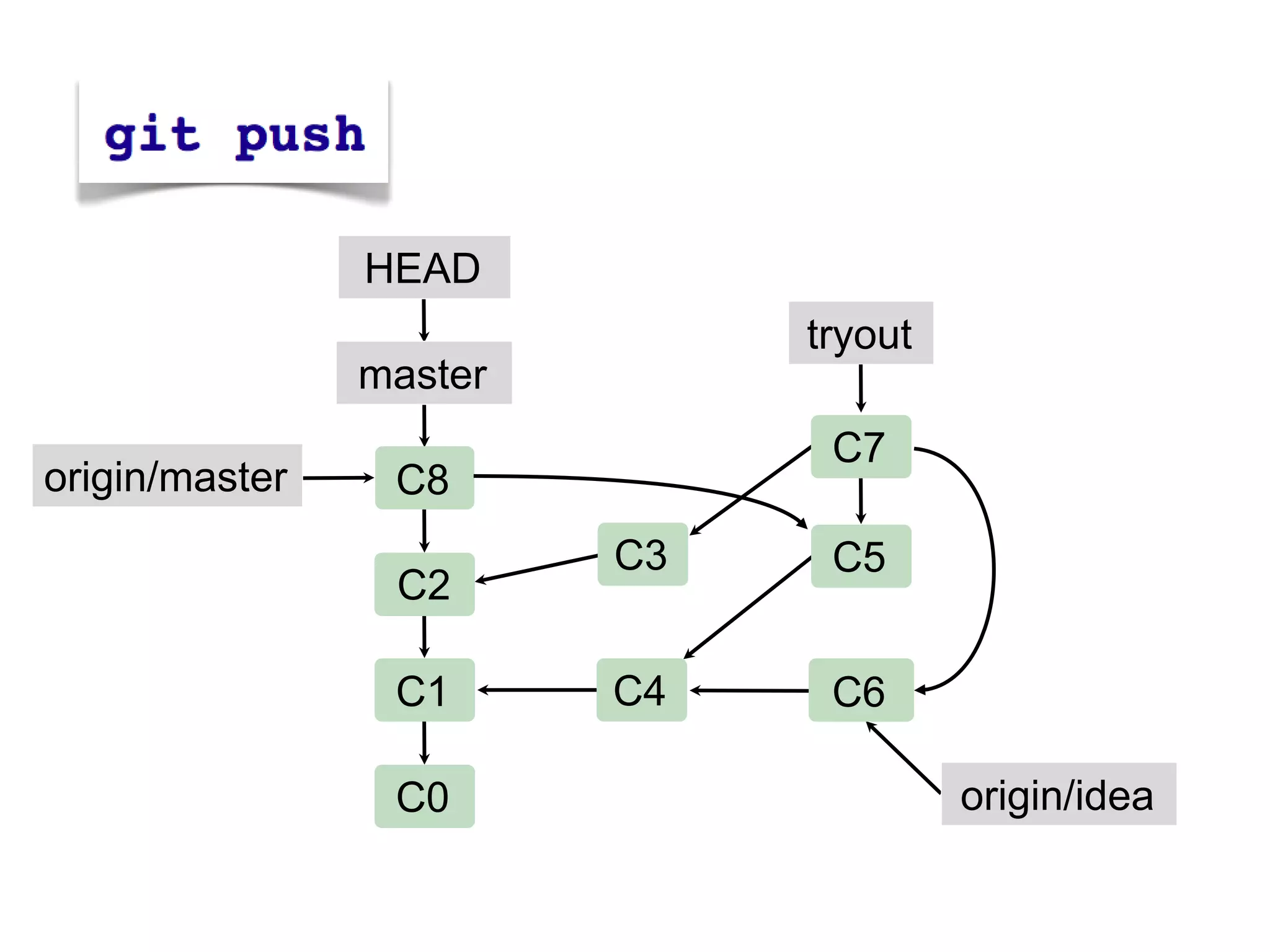

- 42. HEAD tryout master C7 origin/master C8 C3 C5 C2 C1 C4 C6 C0 origin/idea

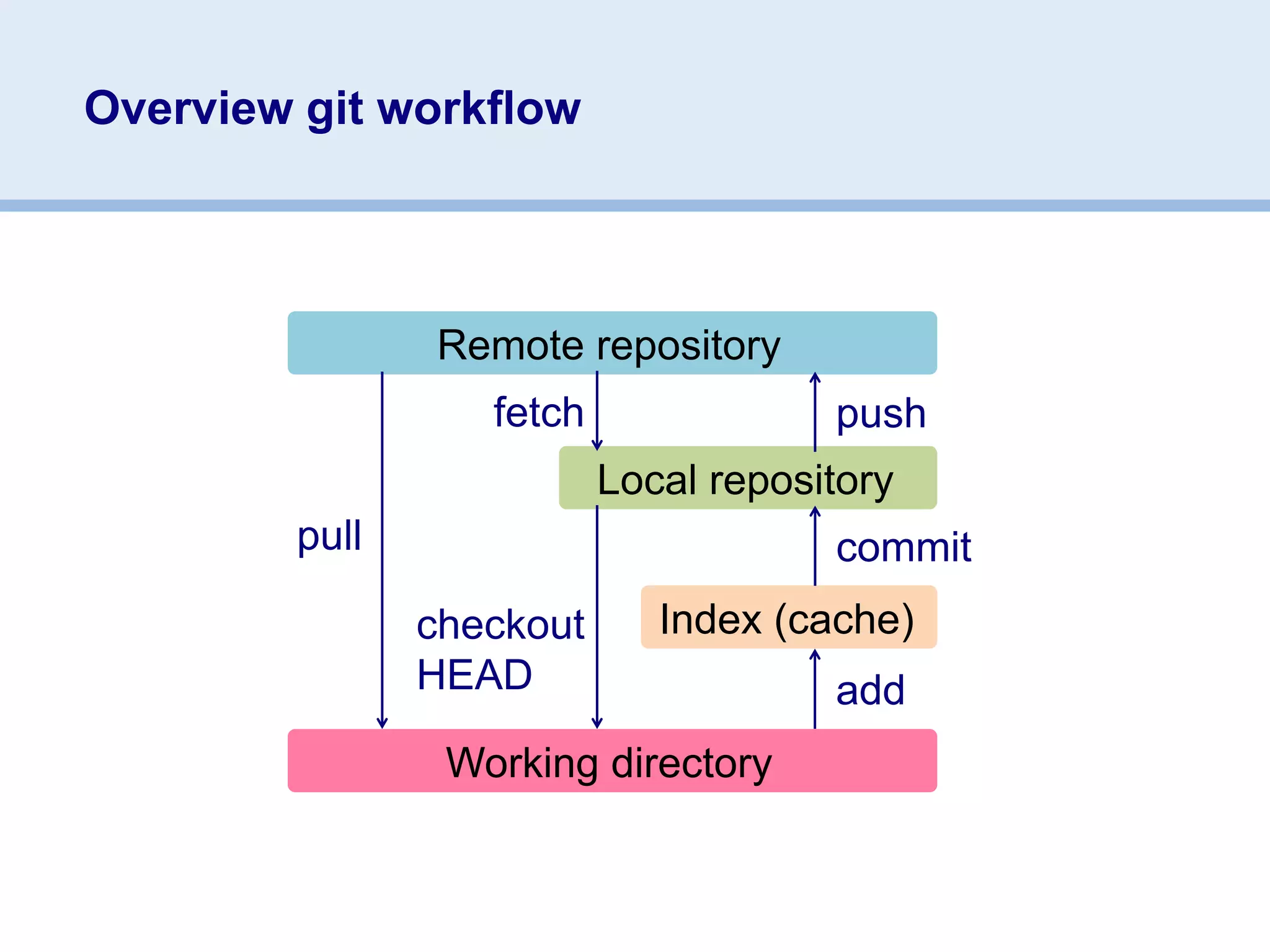

- 43. Overview git workflow Remote repository fetch push Local repository pull commit checkout Index (cache) HEAD add Working directory
- 44.

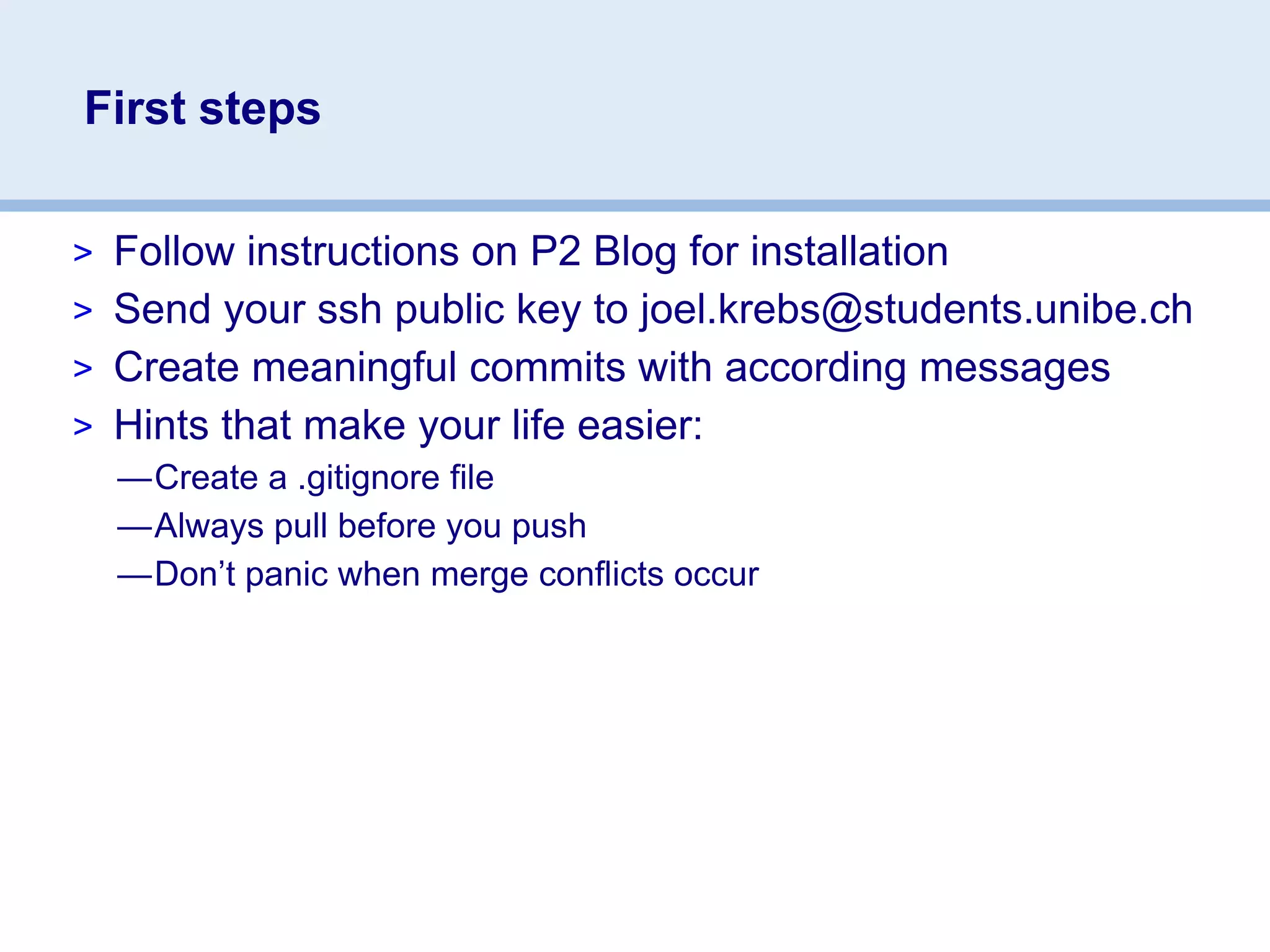

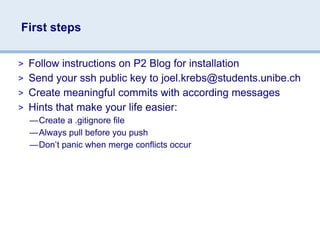

- 45. First steps > Followinstructions on P2 Blog for installation > Send your ssh public key to joel.krebs@students.unibe.ch > Create meaningful commits with according messages > Hints that make your life easier: —Create a .gitignore file —Always pull before you push —Don’t panic when merge conflicts occur
- 46.

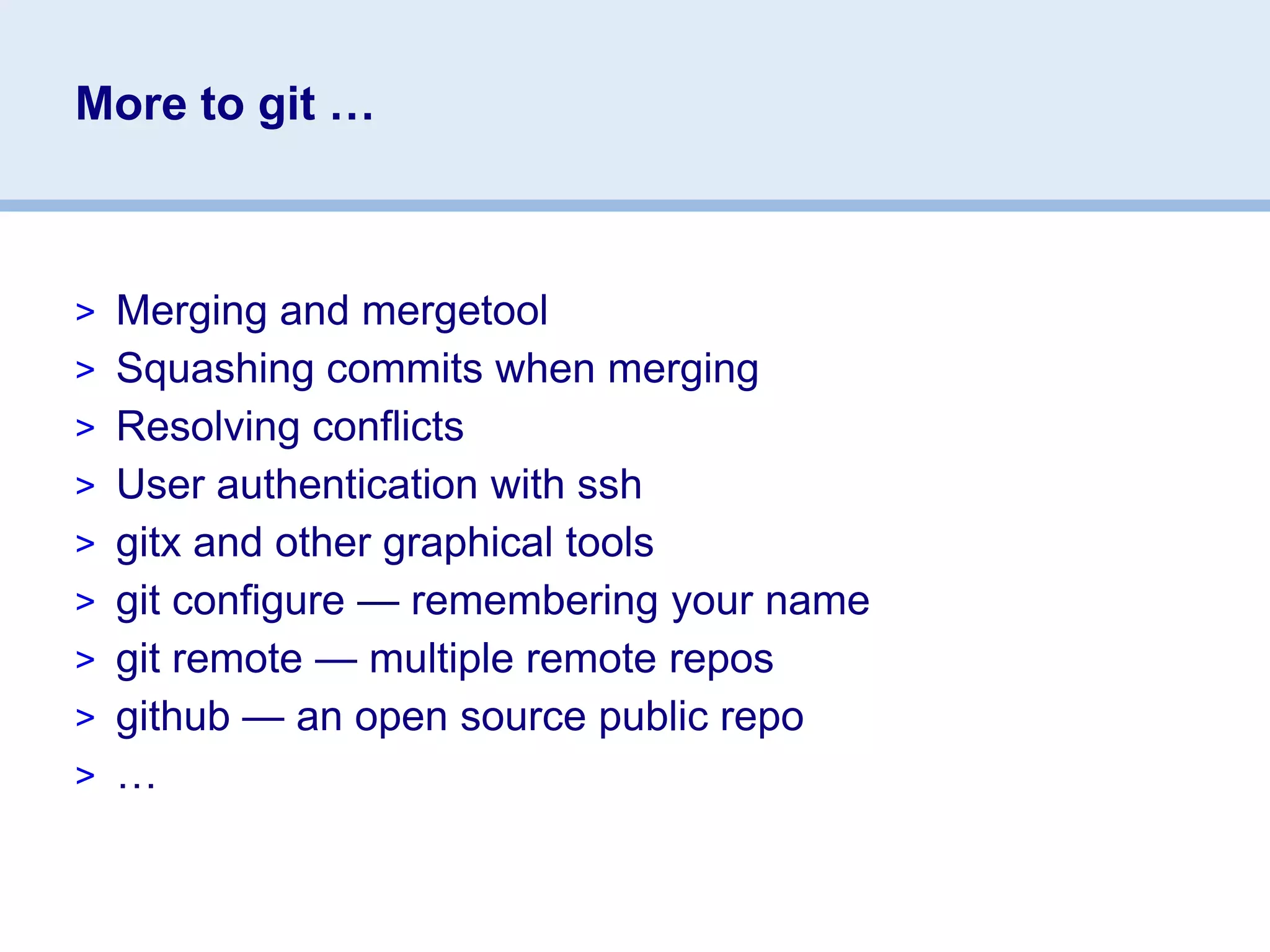

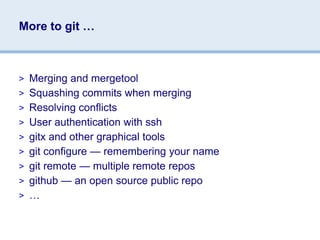

- 47. More to git… > Merging and mergetool > Squashing commits when merging > Resolving conflicts > User authentication with ssh > gitx and other graphical tools > git configure — remembering your name > git remote — multiple remote repos > github — an open source public repo > …
- 48. Resources http://git-scm.com/ http://book.git-scm.com/index.html http://gitready.com/ https://github.com/ http://www.slideshare.net/chacon/getting-git http://oreilly.com/
