Refactoring to a Single Page Application
The document outlines a presentation by Marcello Teodori on refactoring traditional web applications into single-page applications (SPAs). It emphasizes the benefits of using microservices for the backend, the restructuring of code without impacting functionality, and various strategies for enhancing user experience. Key takeaways include the importance of a solid test suite, effective team collaboration, and ongoing iterations to improve application performance.
More Related Content
Similar to Refactoring to a Single Page Application
Refactoring to a Single Page Application
- 1. Refactoring to a SinglePage Application Marcello Teodori ROME 18-19 MARCH 2016

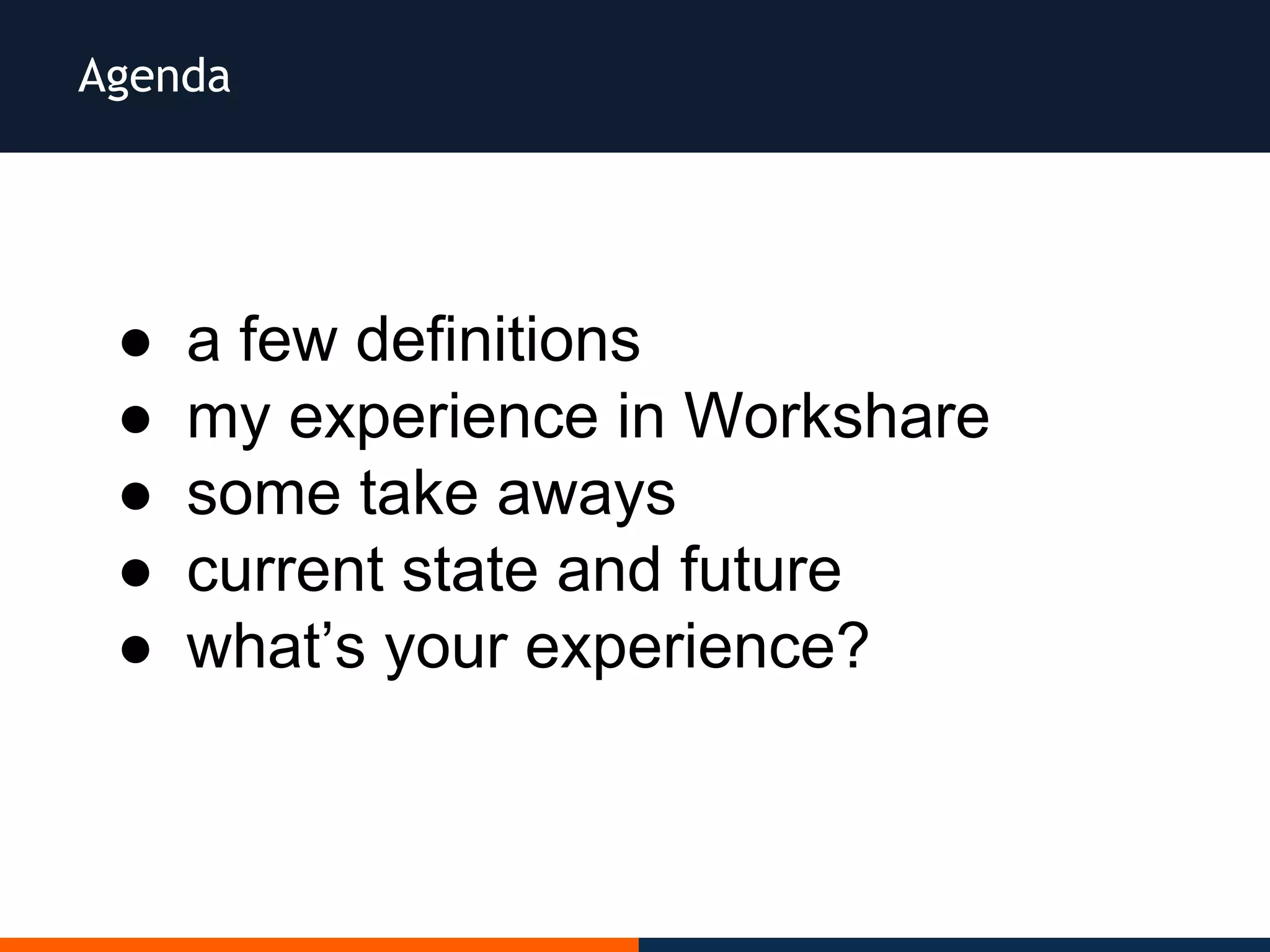

- 2. Agenda ● a fewdefinitions ● my experience in Workshare ● some take aways ● current state and future ● what’s your experience?

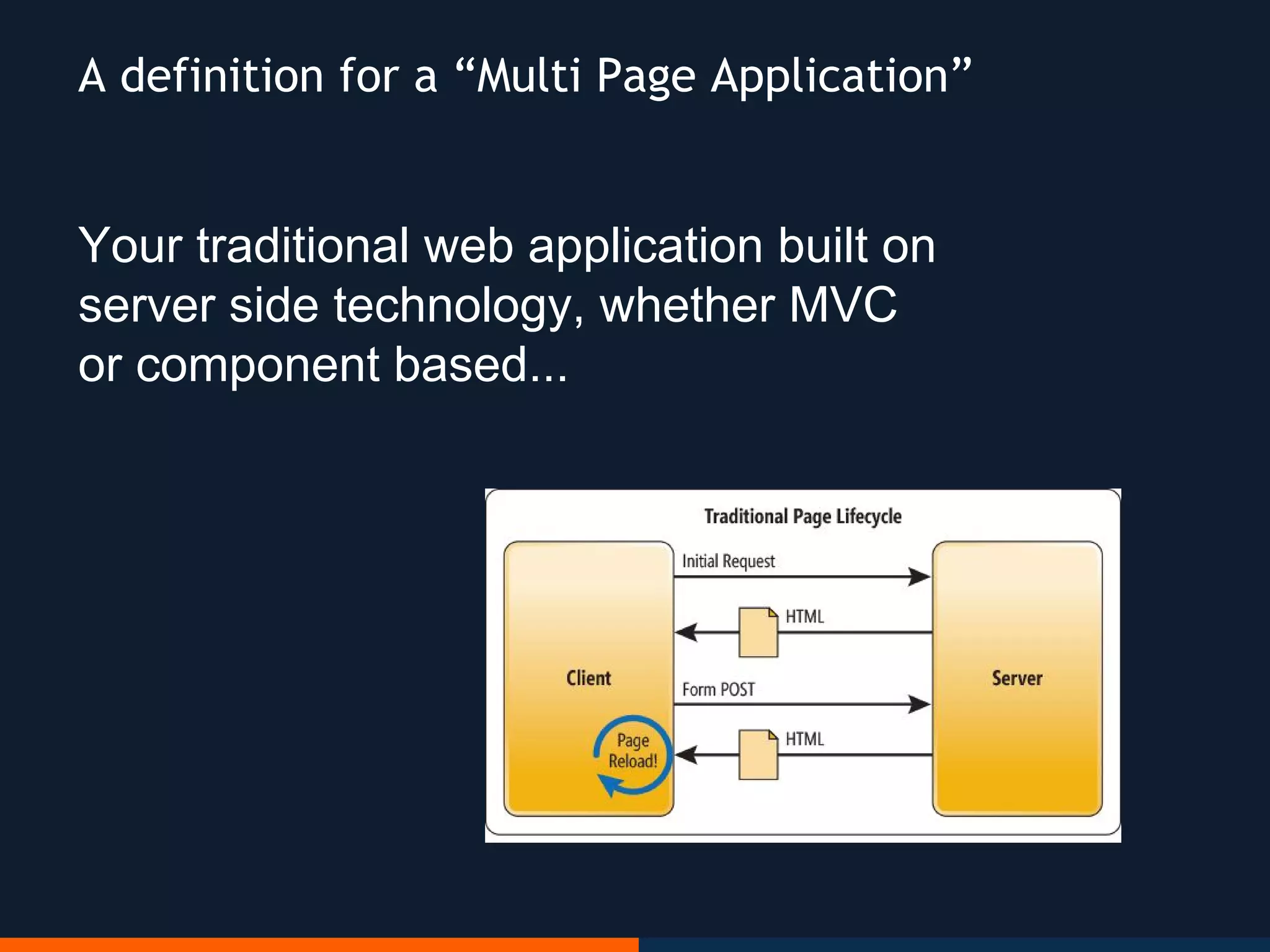

- 3. Your traditional webapplication built on server side technology, whether MVC or component based... A definition for a “Multi Page Application”

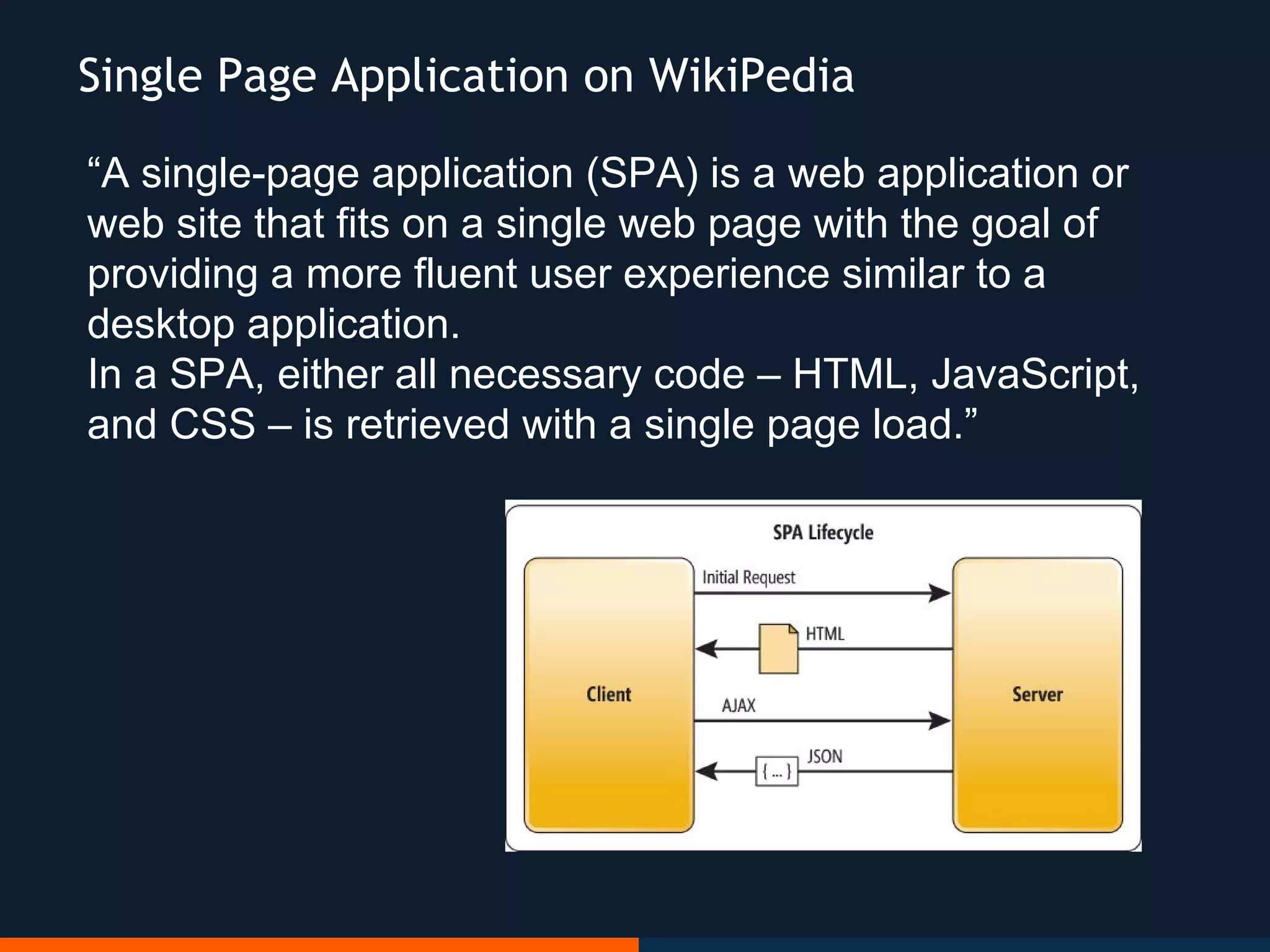

- 4. “A single-page application(SPA) is a web application or web site that fits on a single web page with the goal of providing a more fluent user experience similar to a desktop application. In a SPA, either all necessary code – HTML, JavaScript, and CSS – is retrieved with a single page load.” Single Page Application on WikiPedia

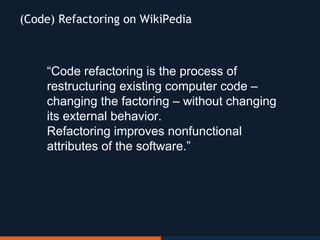

- 5. “Code refactoring isthe process of restructuring existing computer code – changing the factoring – without changing its external behavior. Refactoring improves nonfunctional attributes of the software.” (Code) Refactoring on WikiPedia

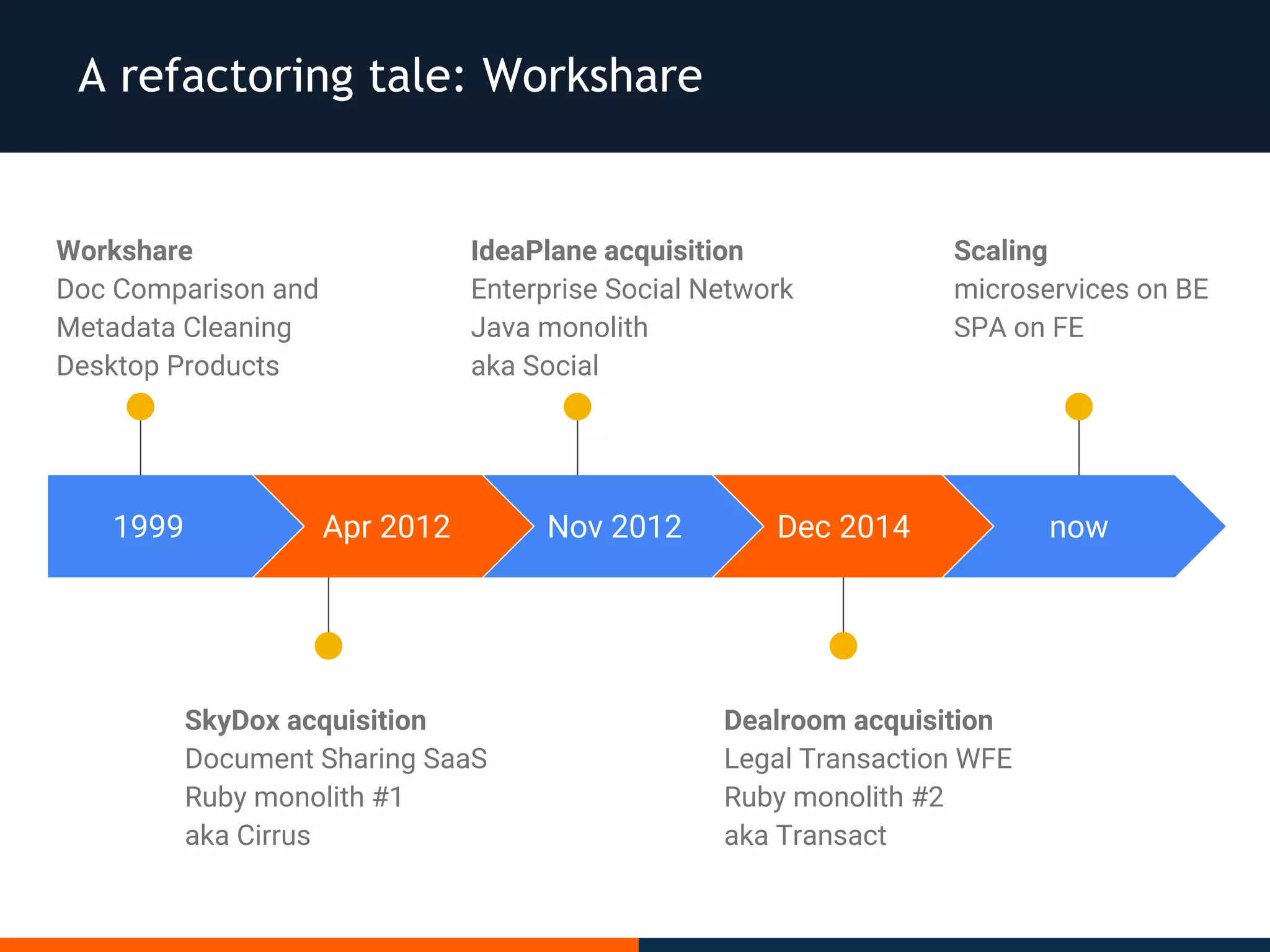

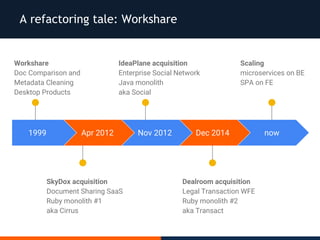

- 6. A refactoring tale:Workshare 1999 Workshare Doc Comparison and Metadata Cleaning Desktop Products Apr 2012 SkyDox acquisition Document Sharing SaaS Ruby monolith #1 aka Cirrus Nov 2012 IdeaPlane acquisition Enterprise Social Network Java monolith aka Social Dec 2014 Dealroom acquisition Legal Transaction WFE Ruby monolith #2 aka Transact now Scaling microservices on BE SPA on FE

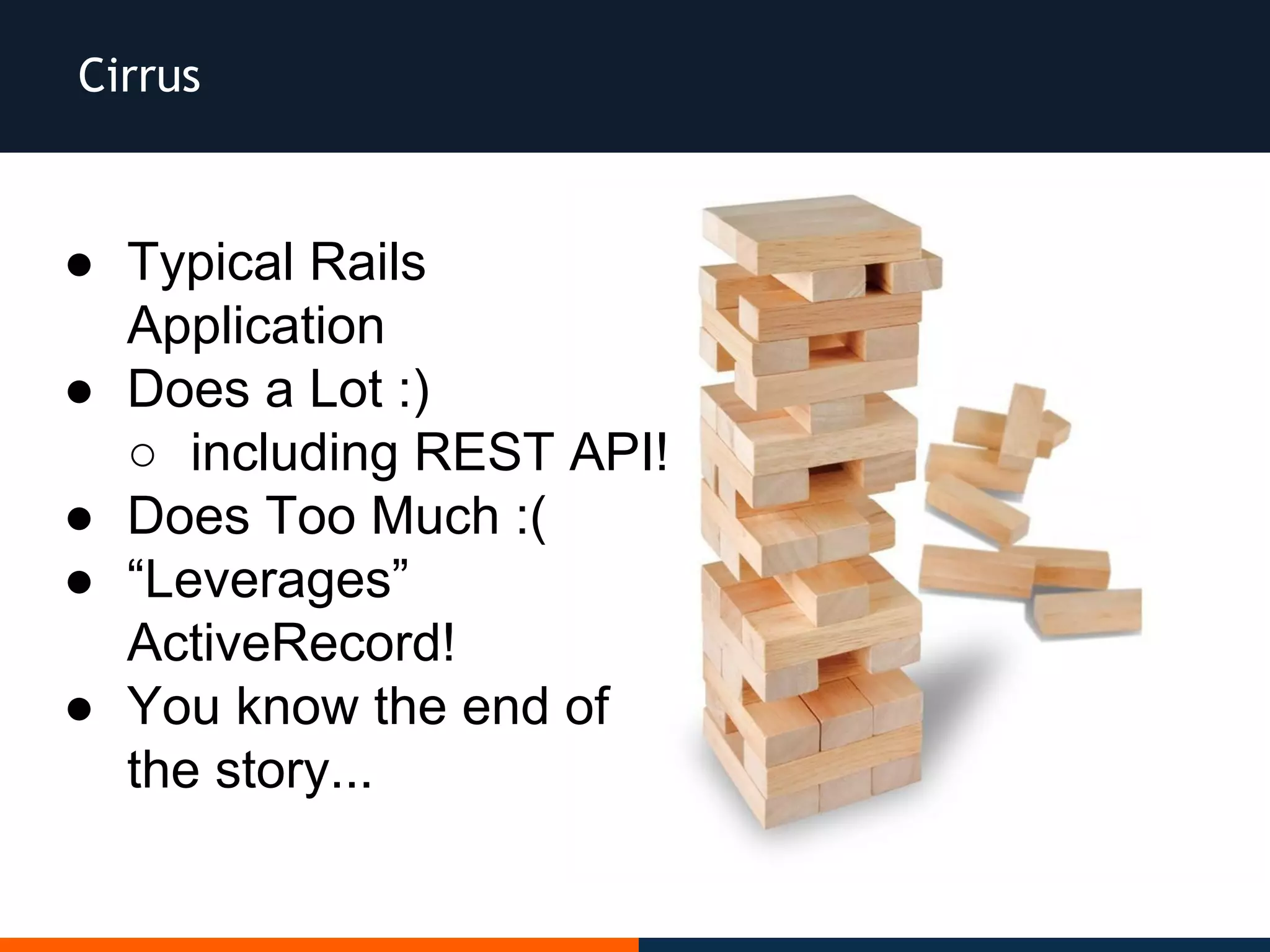

- 7. Cirrus ● Typical Rails Application ●Does a Lot :) ○ including REST API! ● Does Too Much :( ● “Leverages” ActiveRecord! ● You know the end of the story...
- 8.

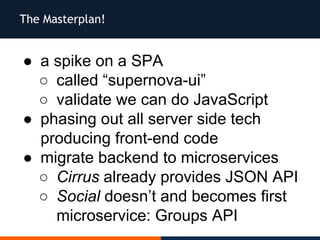

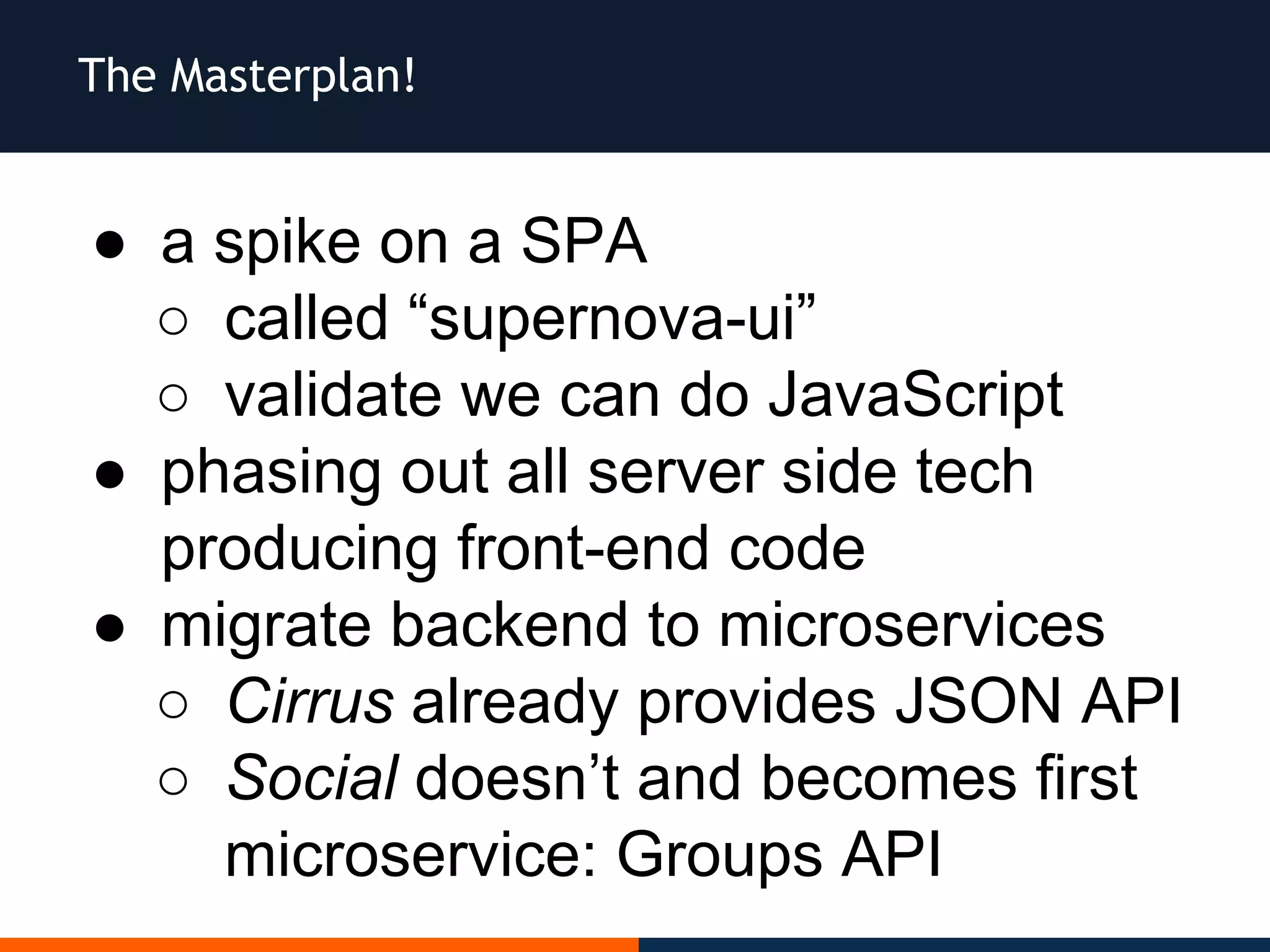

- 9. The Masterplan! ● aspike on a SPA ○ called “supernova-ui” ○ validate we can do JavaScript ● phasing out all server side tech producing front-end code ● migrate backend to microservices ○ Cirrus already provides JSON API ○ Social doesn’t and becomes first microservice: Groups API
- 10.

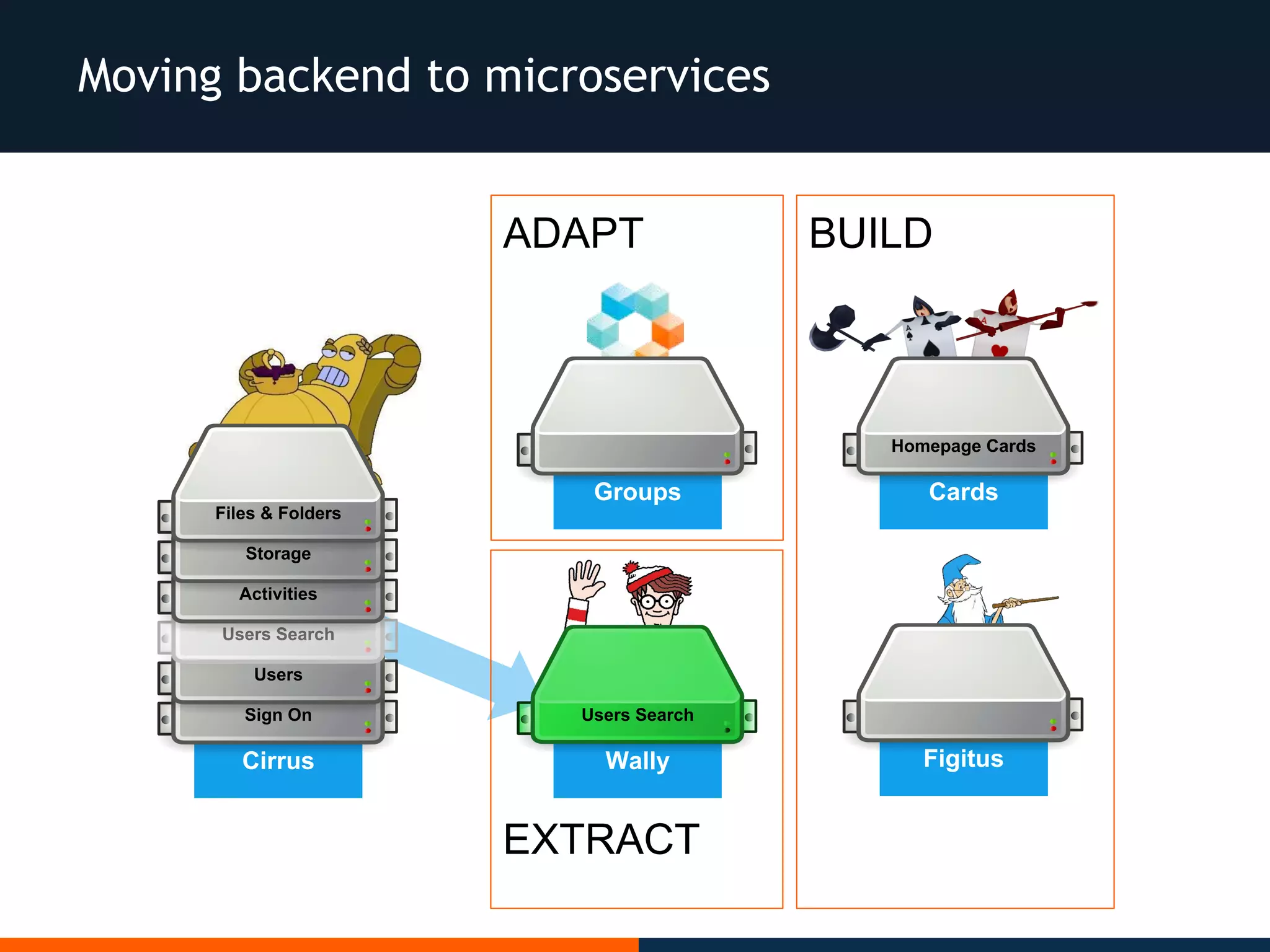

- 11. Moving backend tomicroservices Wally Users Search Groups Social Cards Homepage Cards Cirrus Sign On Users Users Search Activities Storage Files & Folders Figitus ADAPT BUILD EXTRACT

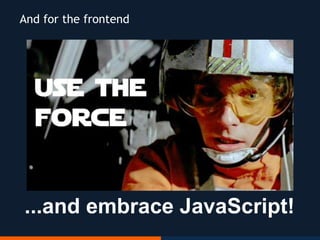

- 12. ...and embrace JavaScript! Andfor the frontend

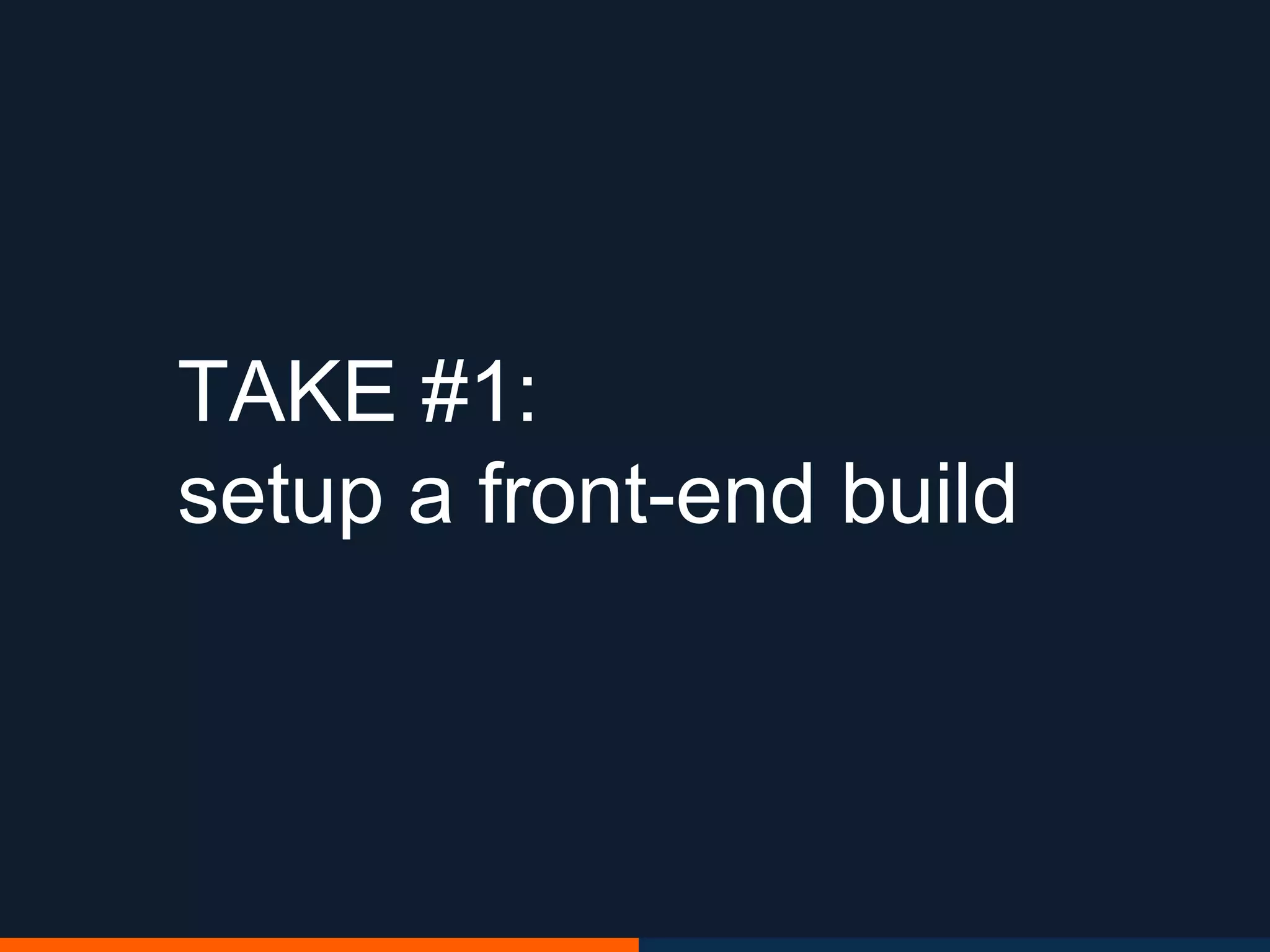

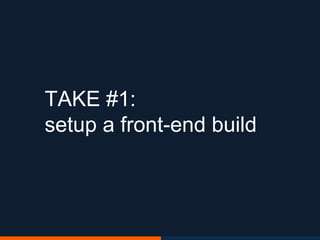

- 13. TAKE #1: setup afront-end build

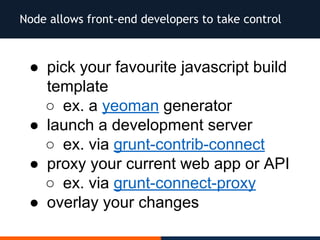

- 14. Node allows front-enddevelopers to take control ● pick your favourite javascript build template ○ ex. a yeoman generator ● launch a development server ○ ex. via grunt-contrib-connect ● proxy your current web app or API ○ ex. via grunt-connect-proxy ● overlay your changes

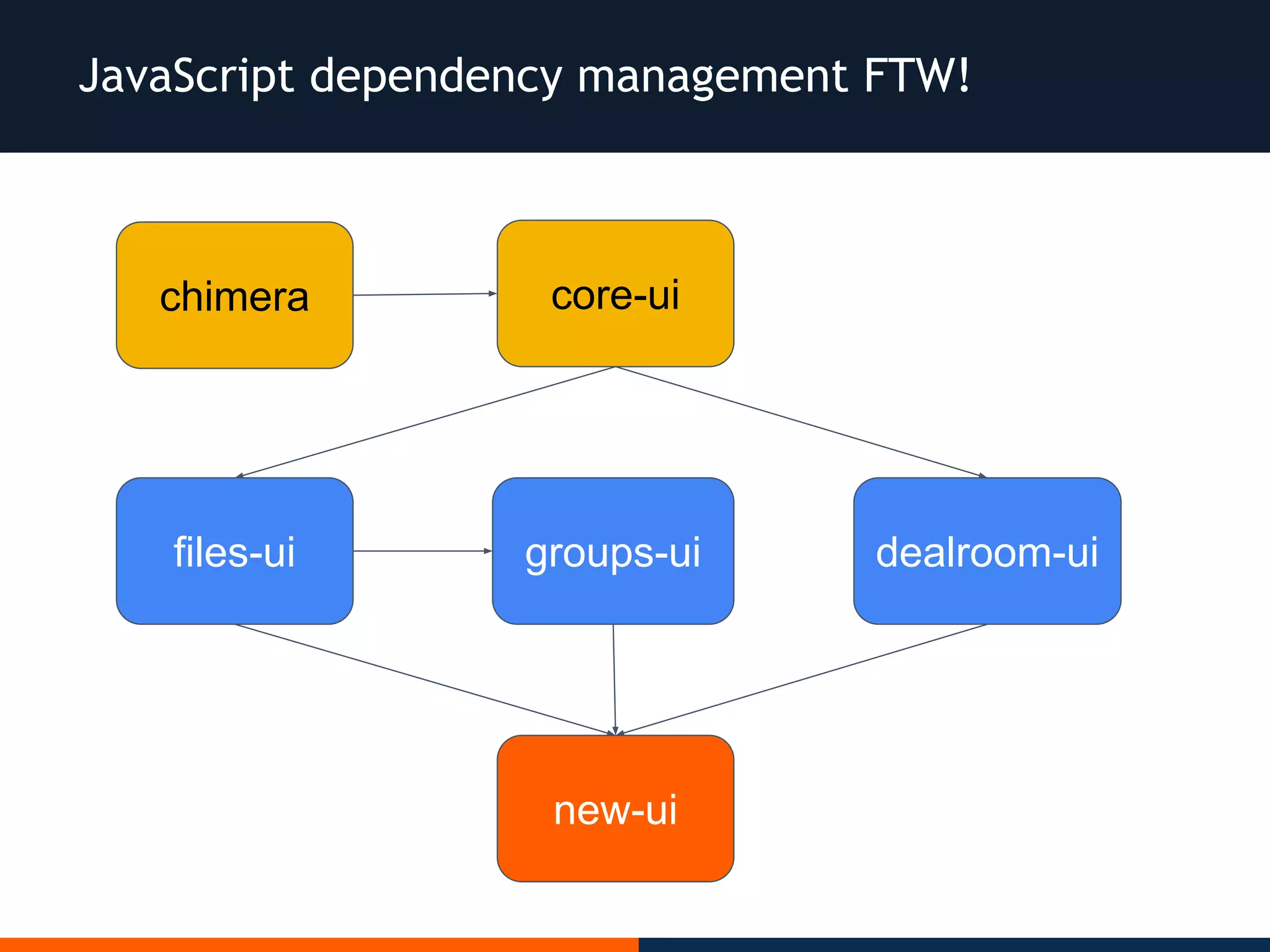

- 15. JavaScript dependency managementFTW! chimera core-ui files-ui groups-ui dealroom-ui new-ui

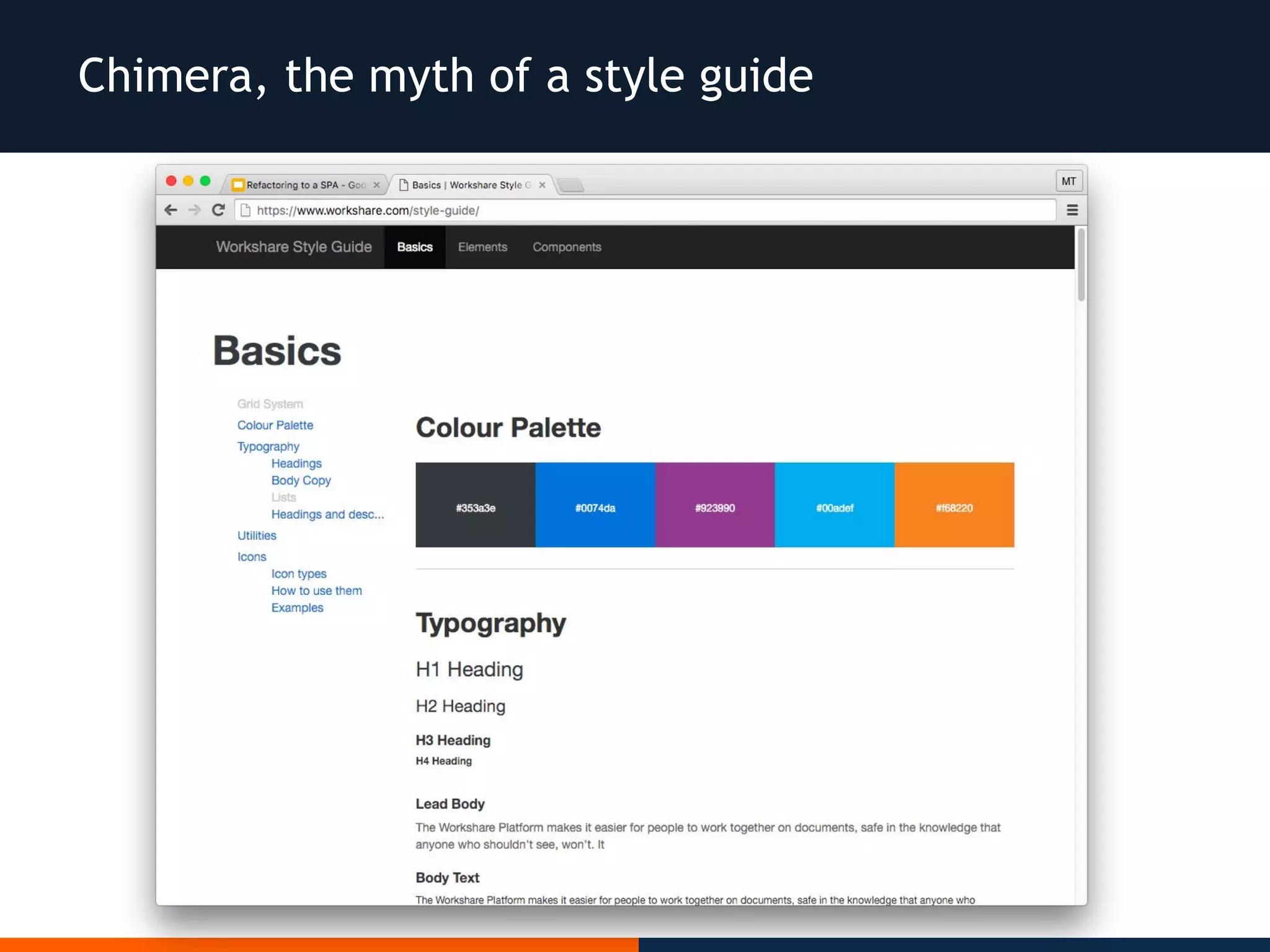

- 16. Chimera, the mythof a style guide

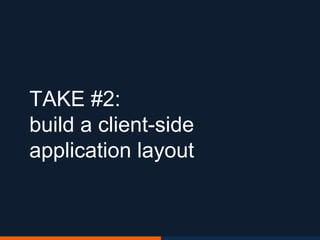

- 17. TAKE #2: build aclient-side application layout

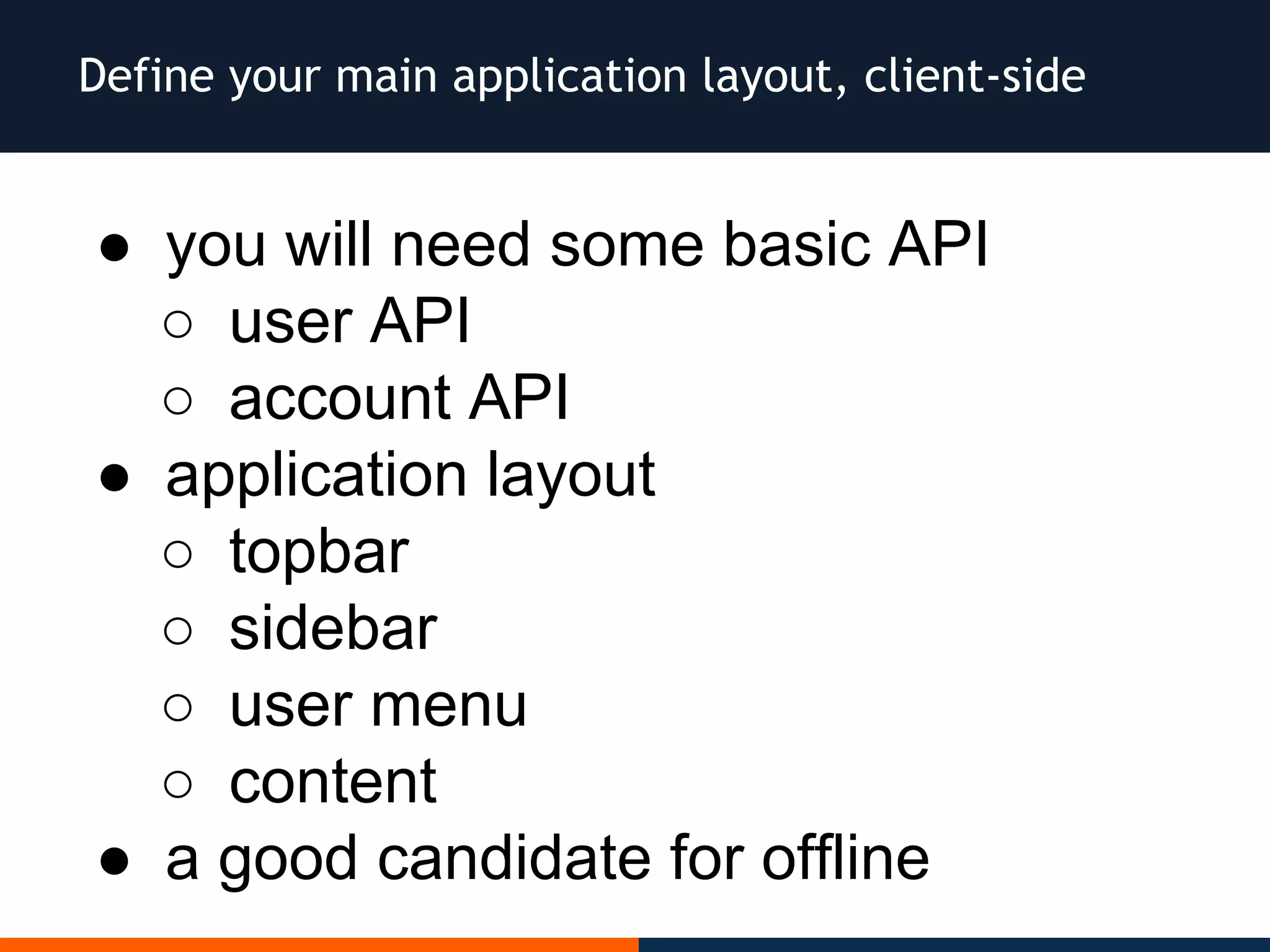

- 18. Define your mainapplication layout, client-side ● you will need some basic API ○ user API ○ account API ● application layout ○ topbar ○ sidebar ○ user menu ○ content ● a good candidate for offline

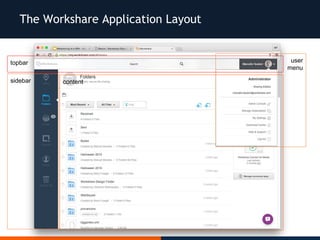

- 19. The Workshare ApplicationLayout topbar contentsidebar user menu
- 20. TAKE #3: leave loginwhere it is

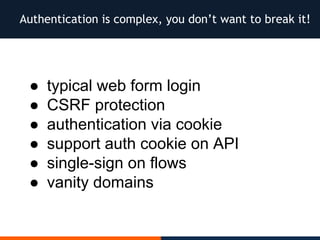

- 21. Authentication is complex,you don’t want to break it! ● typical web form login ● CSRF protection ● authentication via cookie ● support auth cookie on API ● single-sign on flows ● vanity domains

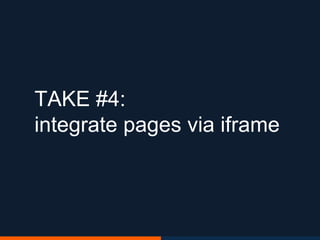

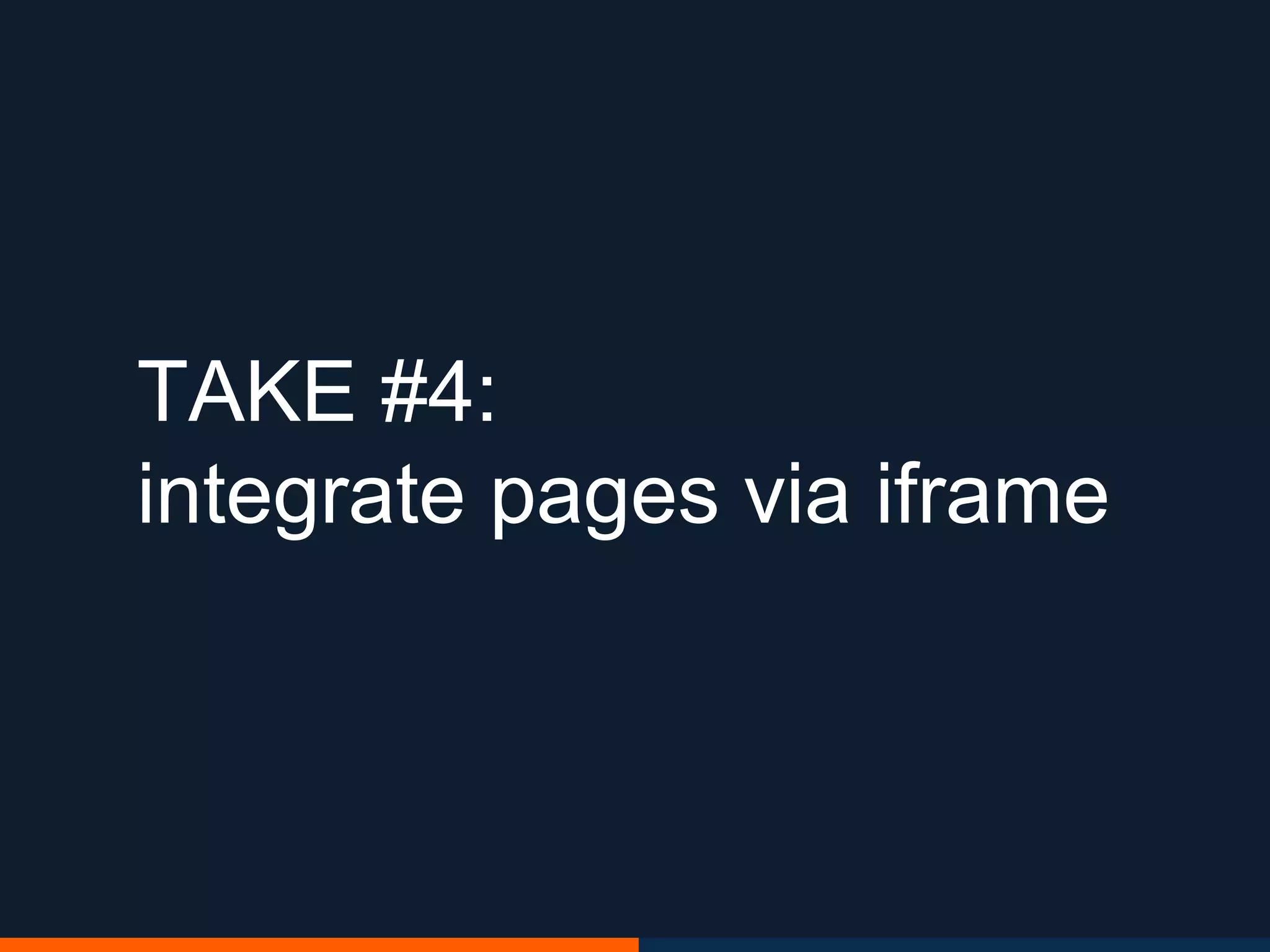

- 22. TAKE #4: integrate pagesvia iframe

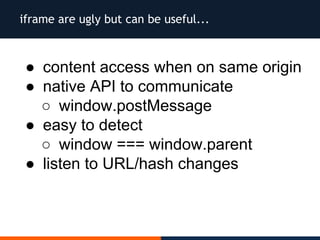

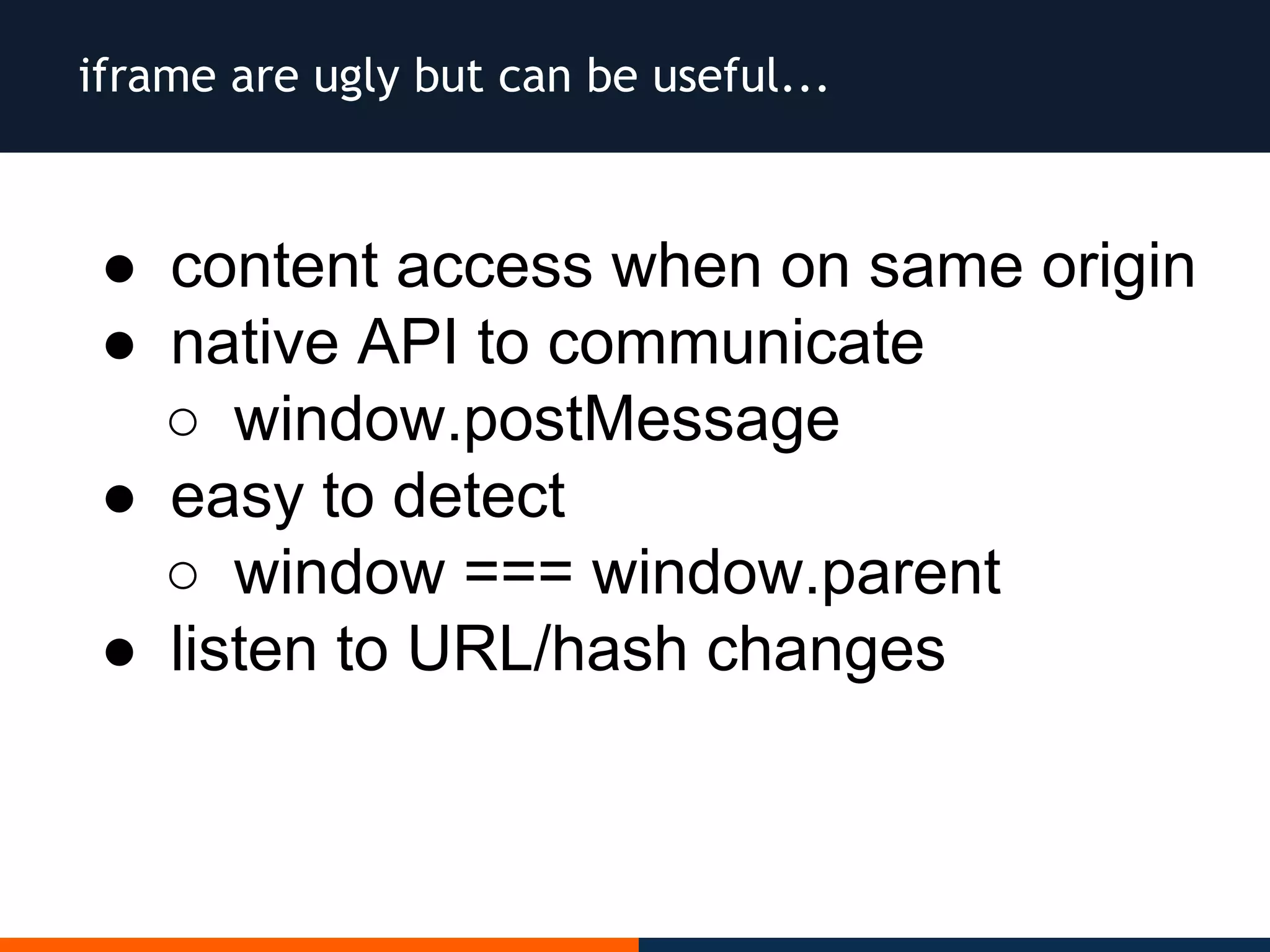

- 23. iframe are uglybut can be useful... ● content access when on same origin ● native API to communicate ○ window.postMessage ● easy to detect ○ window === window.parent ● listen to URL/hash changes

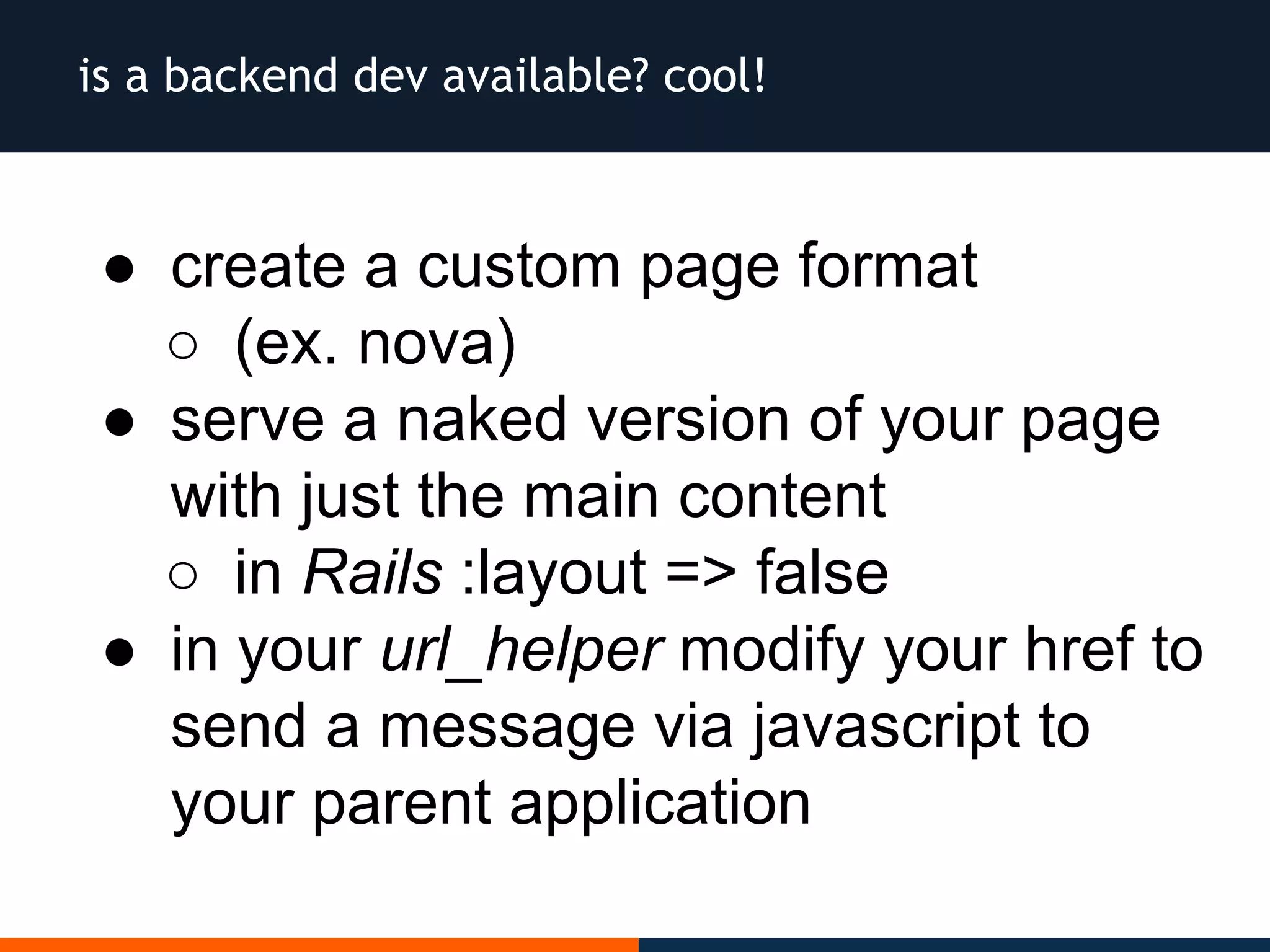

- 24. is a backenddev available? cool! ● create a custom page format ○ (ex. nova) ● serve a naked version of your page with just the main content ○ in Rails :layout => false ● in your url_helper modify your href to send a message via javascript to your parent application

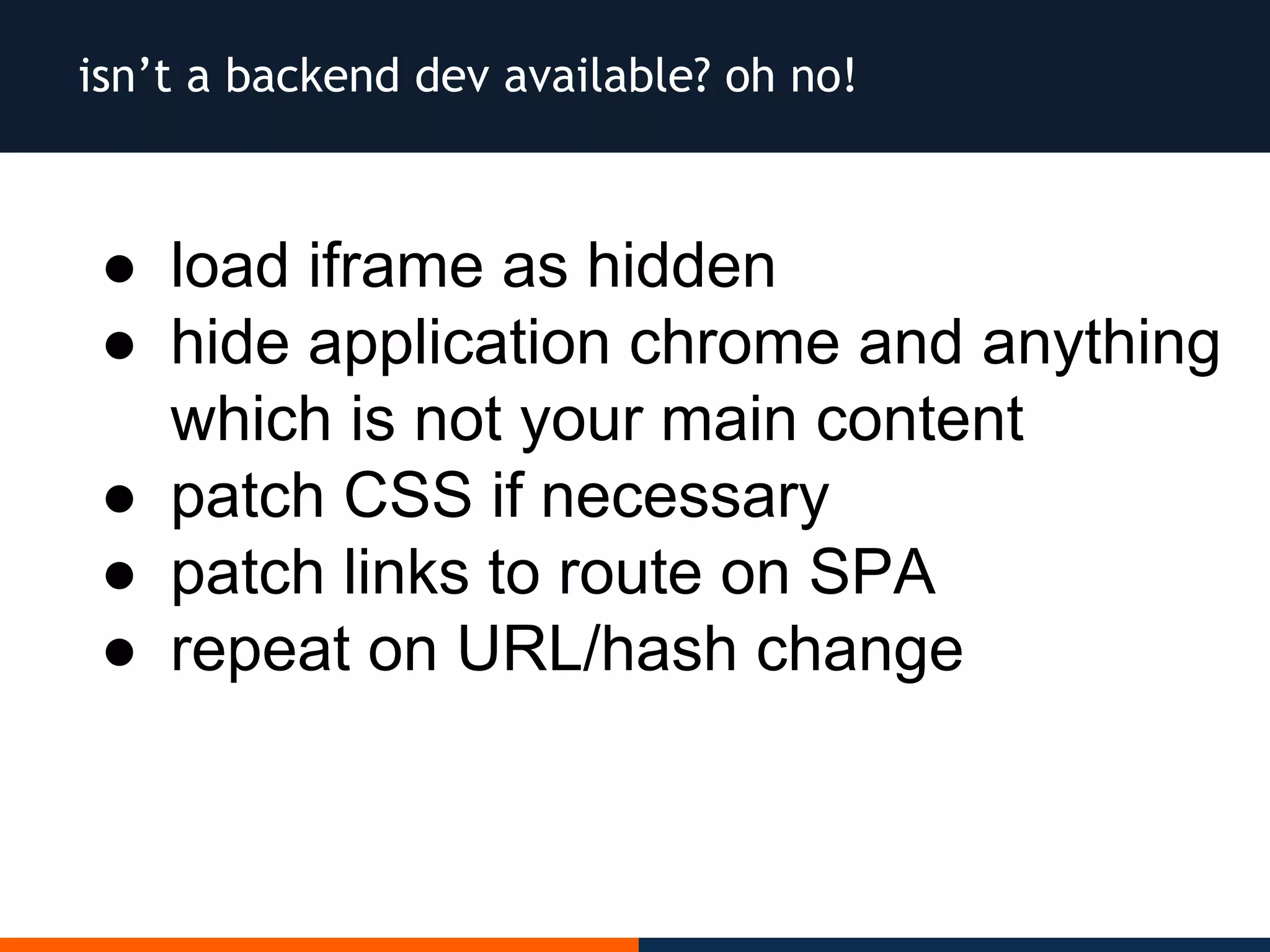

- 25. isn’t a backenddev available? oh no! ● load iframe as hidden ● hide application chrome and anything which is not your main content ● patch CSS if necessary ● patch links to route on SPA ● repeat on URL/hash change

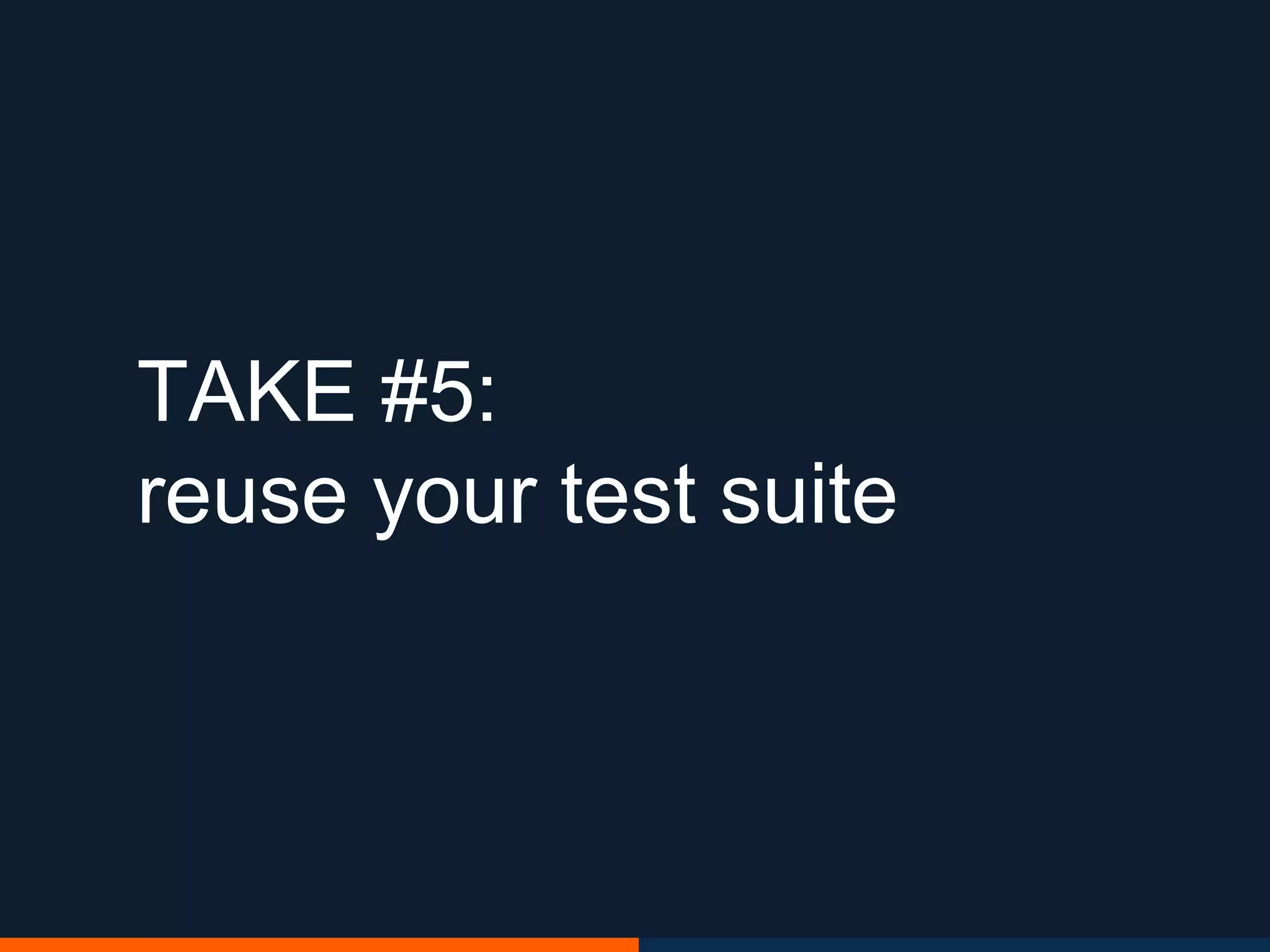

- 26. TAKE #5: reuse yourtest suite

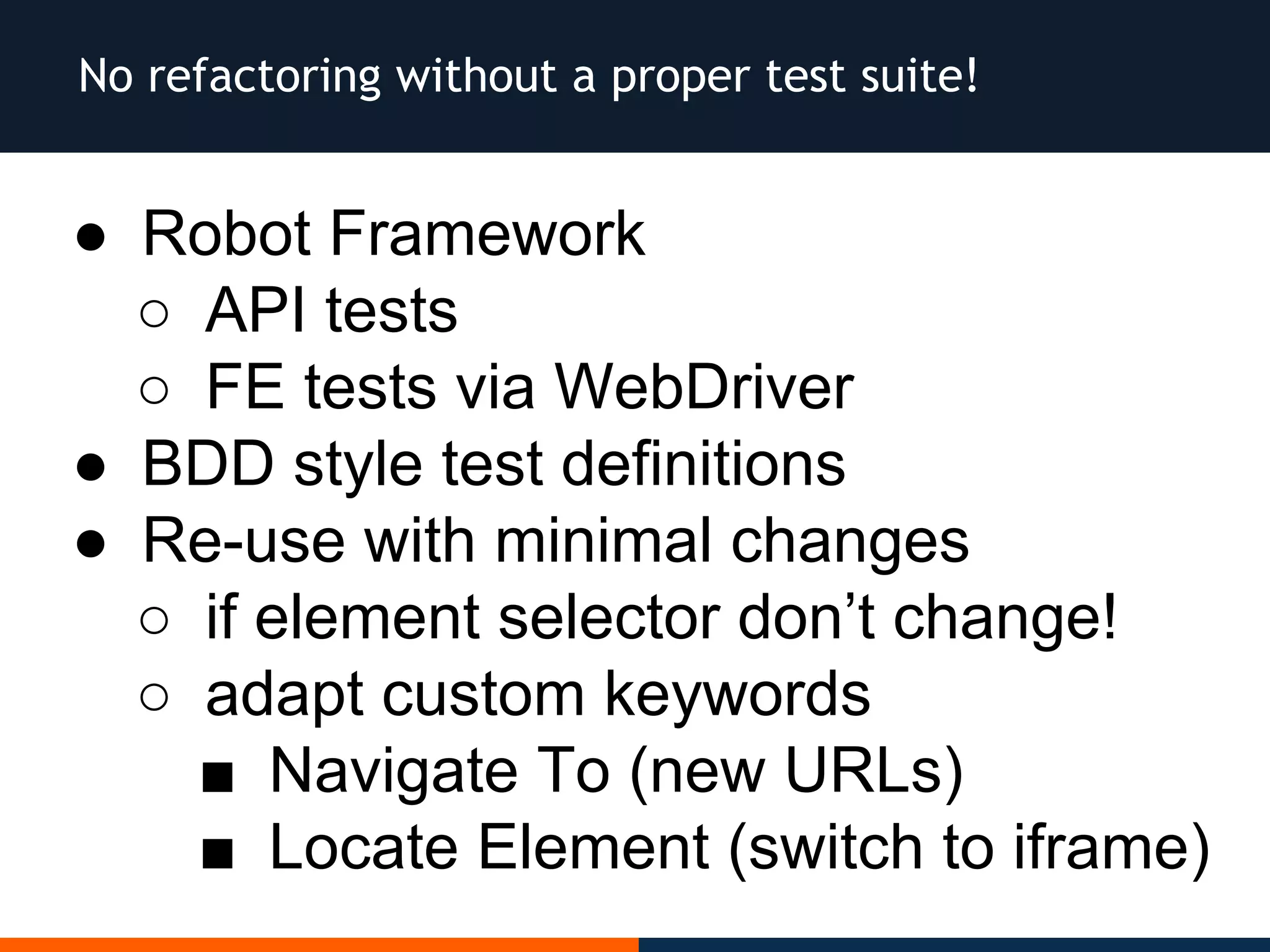

- 27. No refactoring withouta proper test suite! ● Robot Framework ○ API tests ○ FE tests via WebDriver ● BDD style test definitions ● Re-use with minimal changes ○ if element selector don’t change! ○ adapt custom keywords ■ Navigate To (new URLs) ■ Locate Element (switch to iframe)

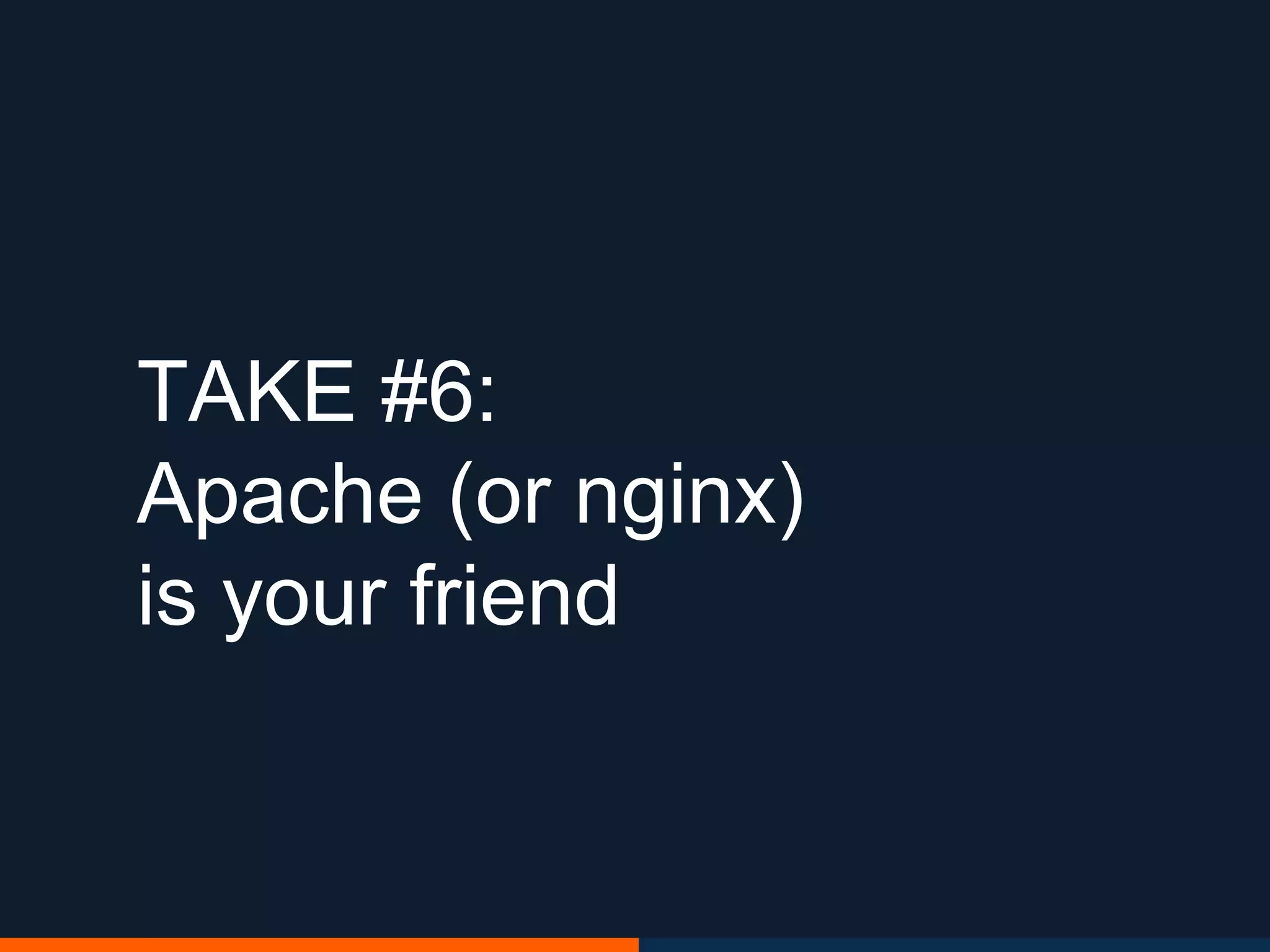

- 28. TAKE #6: Apache (ornginx) is your friend

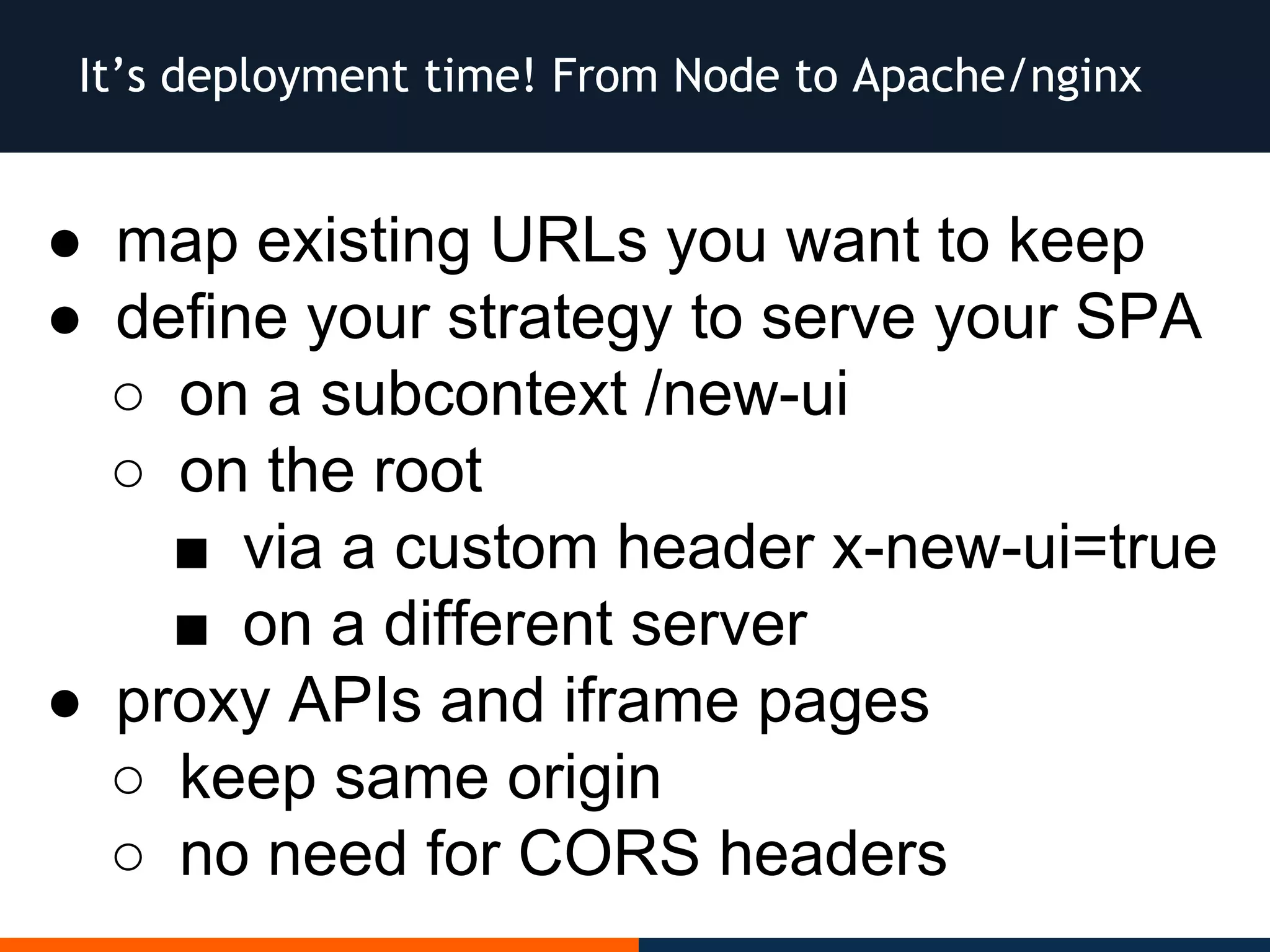

- 29. ● map existingURLs you want to keep ● define your strategy to serve your SPA ○ on a subcontext /new-ui ○ on the root ■ via a custom header x-new-ui=true ■ on a different server ● proxy APIs and iframe pages ○ keep same origin ○ no need for CORS headers It’s deployment time! From Node to Apache/nginx

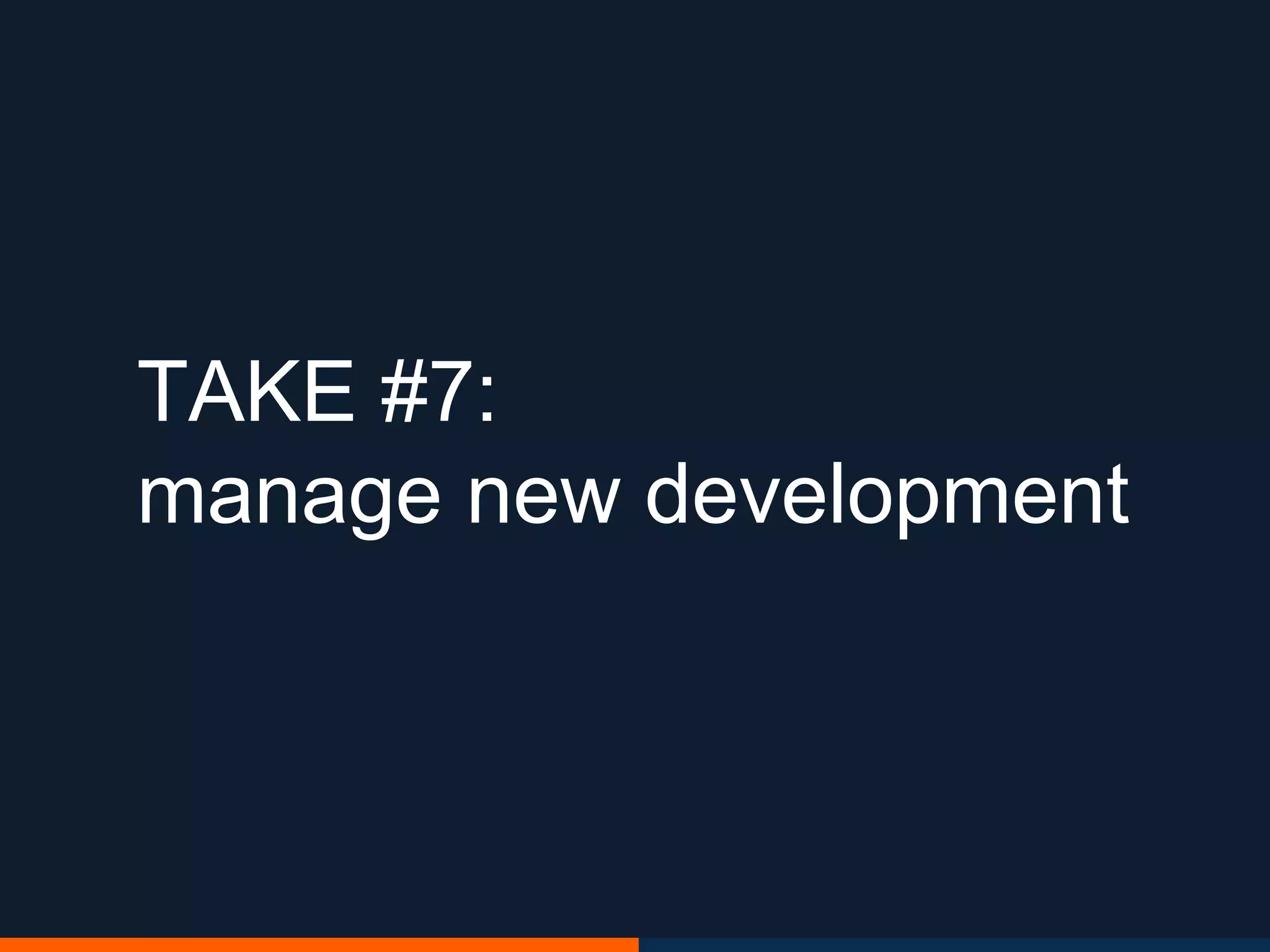

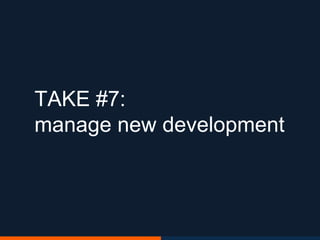

- 30. TAKE #7: manage newdevelopment

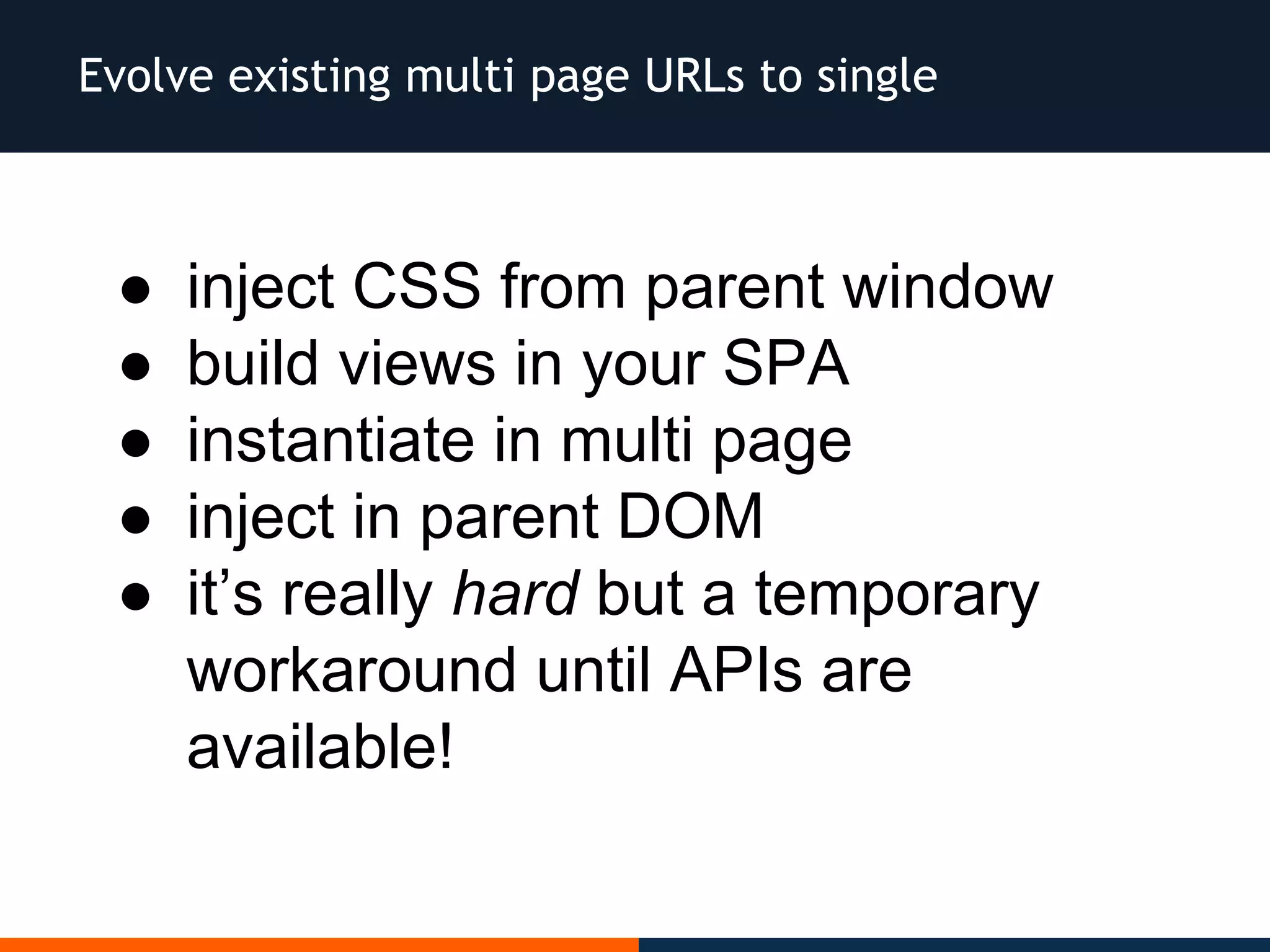

- 31. Evolve existing multipage URLs to single ● inject CSS from parent window ● build views in your SPA ● instantiate in multi page ● inject in parent DOM ● it’s really hard but a temporary workaround until APIs are available!

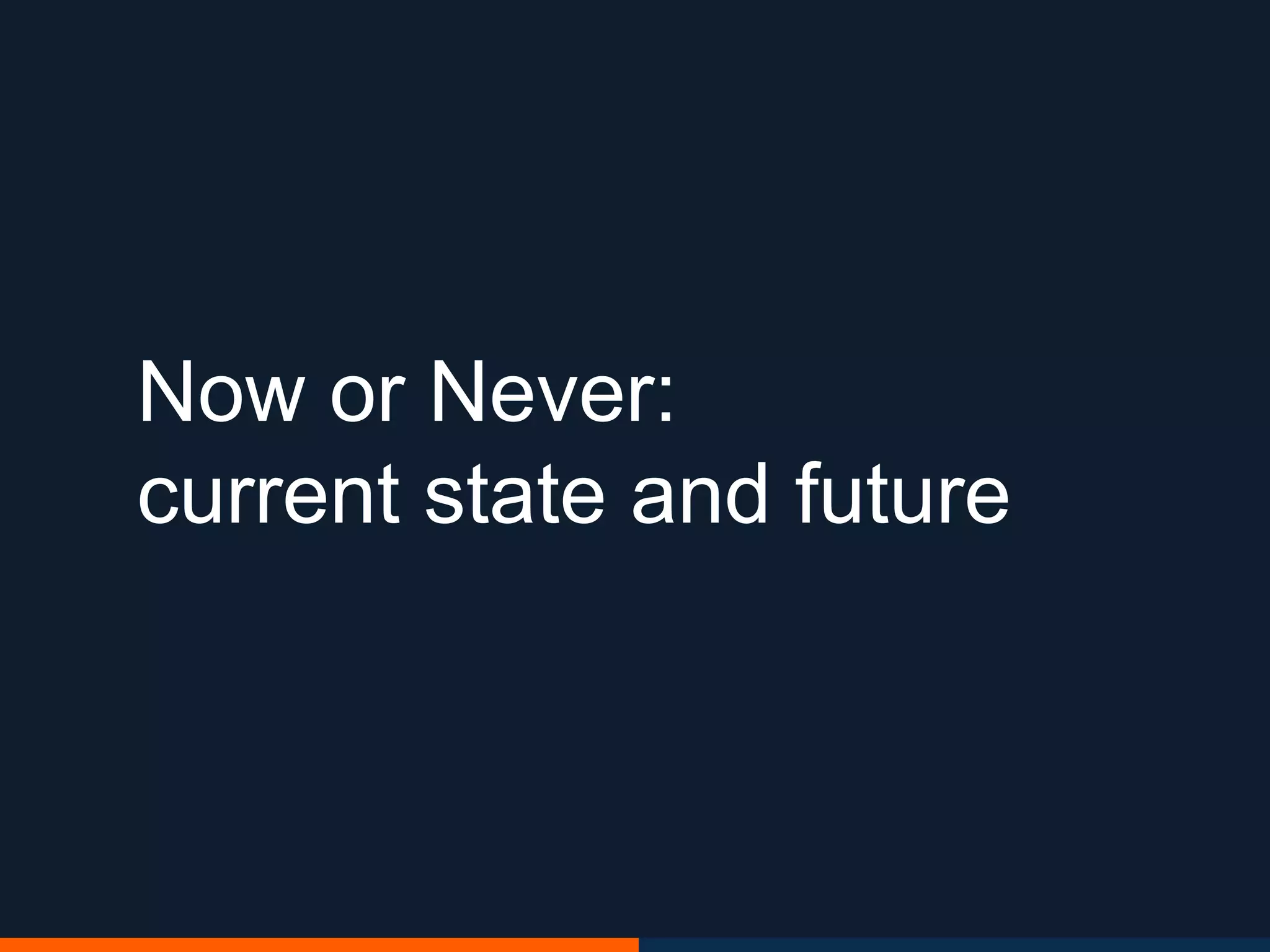

- 32. Now or Never: currentstate and future

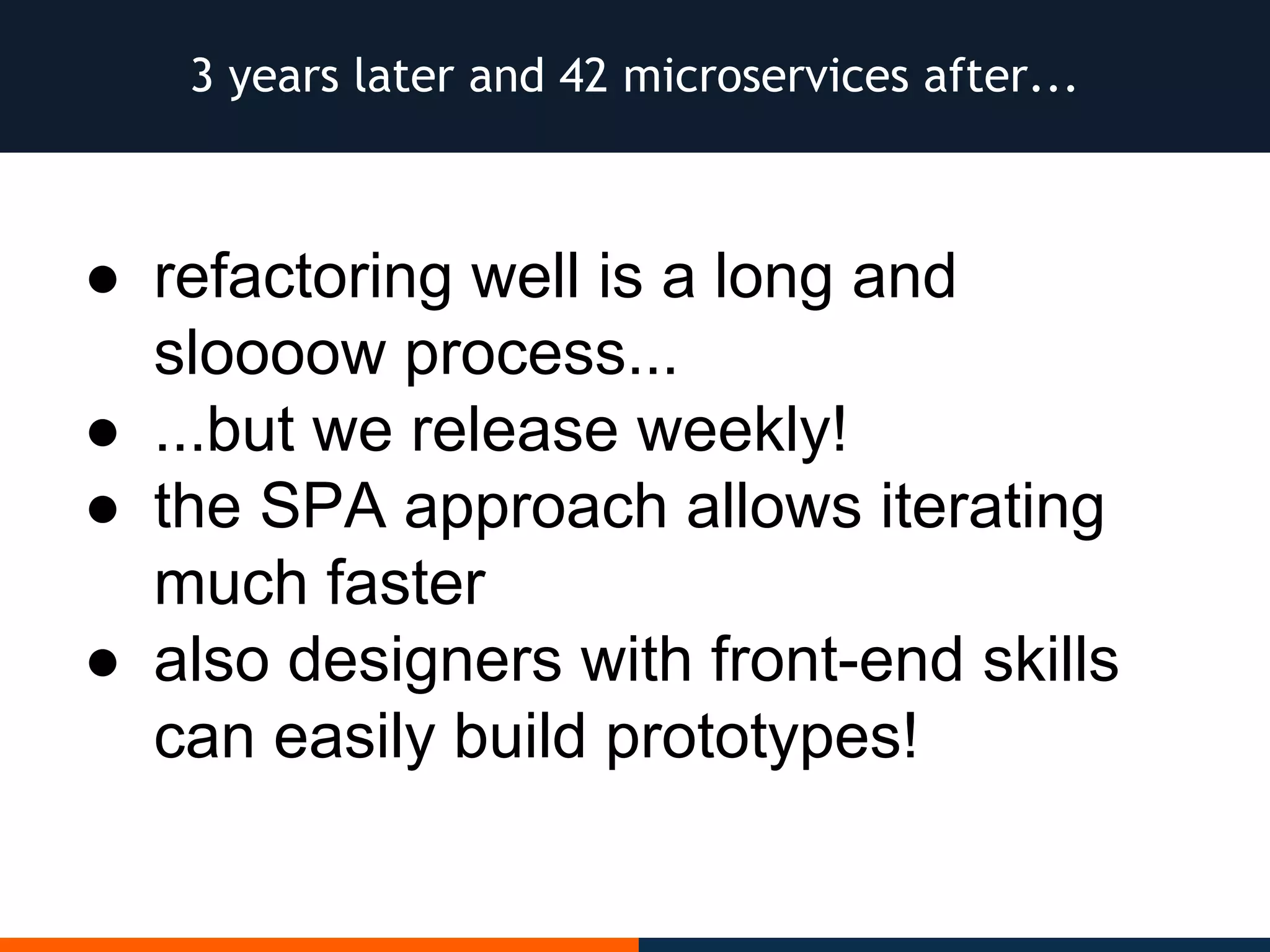

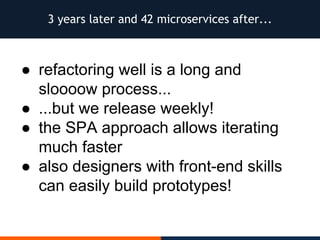

- 33. 3 years laterand 42 microservices after... ● refactoring well is a long and sloooow process... ● ...but we release weekly! ● the SPA approach allows iterating much faster ● also designers with front-end skills can easily build prototypes!

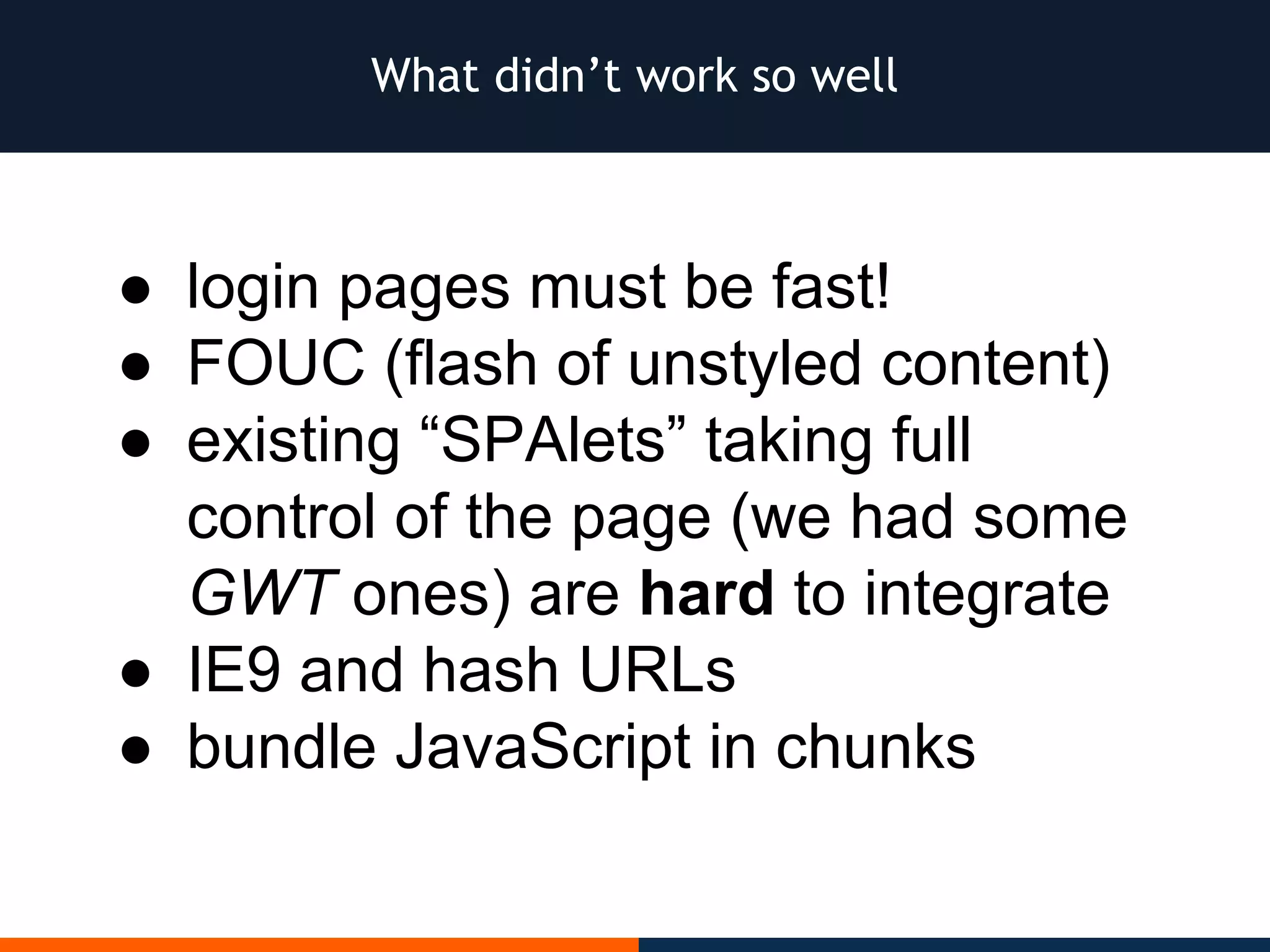

- 34. What didn’t workso well ● login pages must be fast! ● FOUC (flash of unstyled content) ● existing “SPAlets” taking full control of the page (we had some GWT ones) are hard to integrate ● IE9 and hash URLs ● bundle JavaScript in chunks

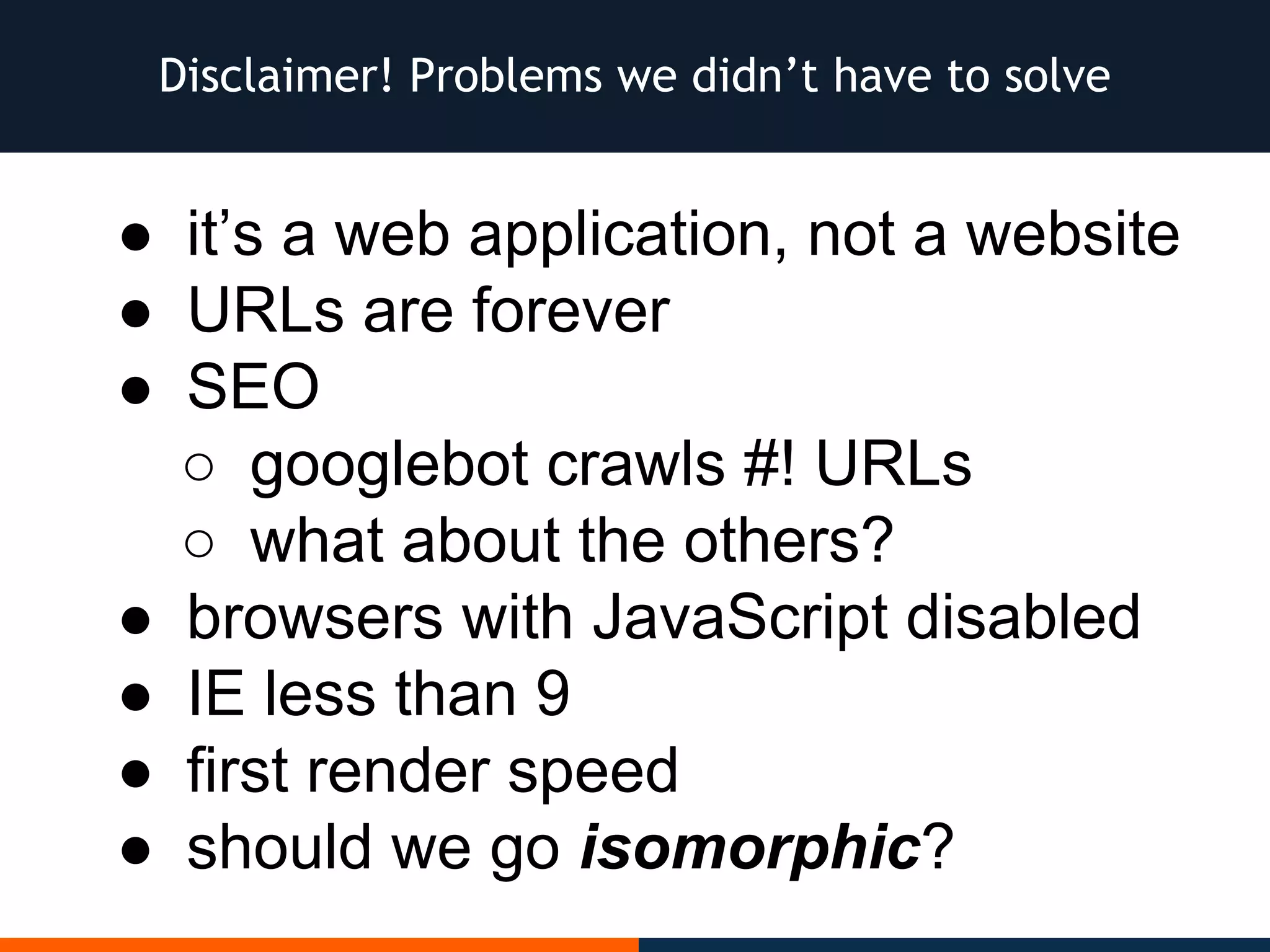

- 35. Disclaimer! Problems wedidn’t have to solve ● it’s a web application, not a website ● URLs are forever ● SEO ○ googlebot crawls #! URLs ○ what about the others? ● browsers with JavaScript disabled ● IE less than 9 ● first render speed ● should we go isomorphic?

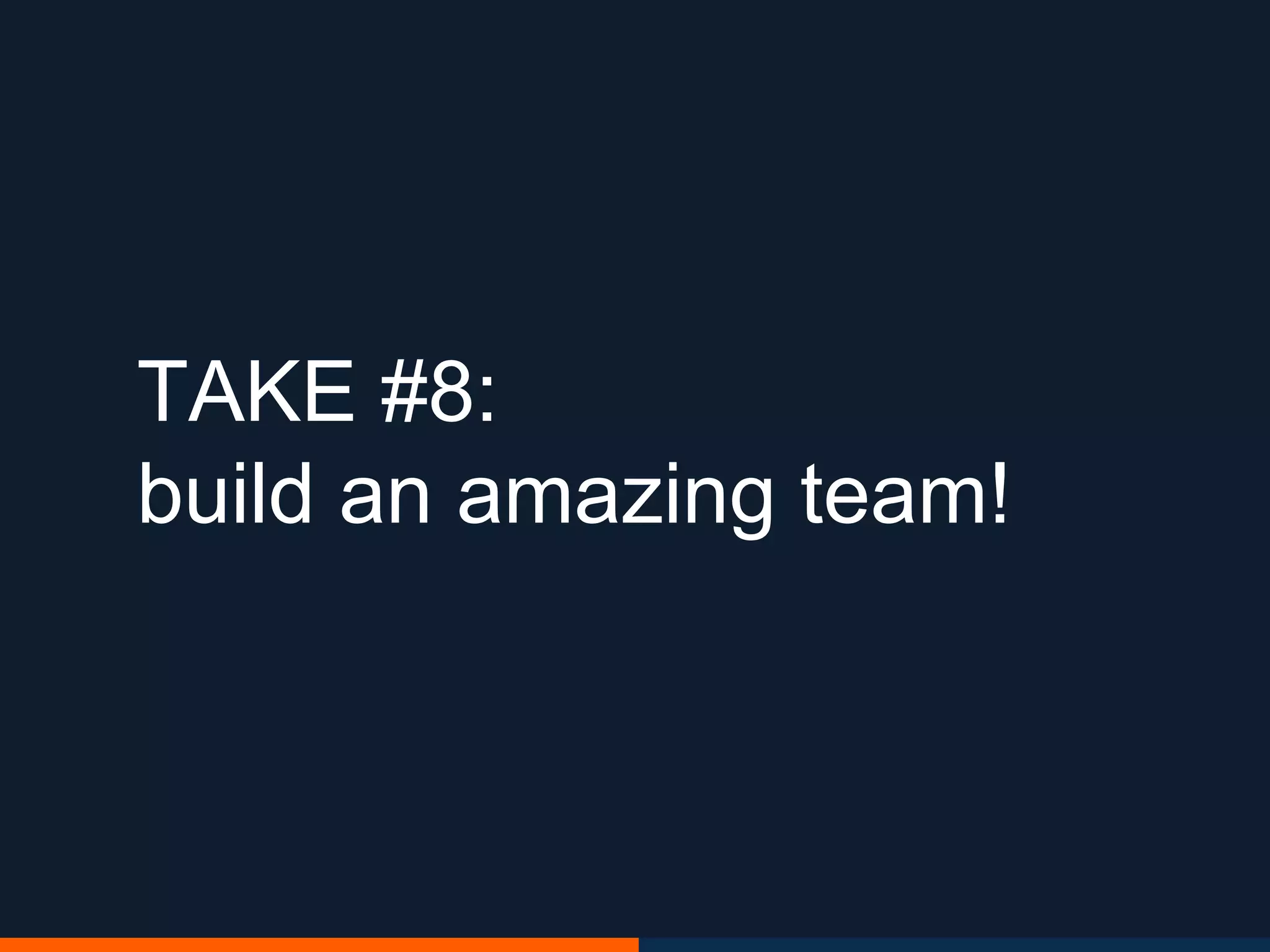

- 36. TAKE #8: build anamazing team!
- 37. Frontend and Backendteams working together the Web Squad builds the web frontend user interface... …but the Cirrus Squad provides the API our features build upon!
- 38.

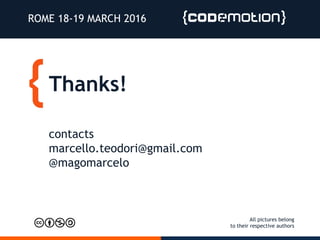

- 39. Thanks! ROME 18-19 MARCH2016 contacts marcello.teodori@gmail.com @magomarcelo All pictures belong to their respective authors
