Refactoring with SOLID - Telerik India DevCon 2013

Refactoring Applications
using SOLID Principles

Steve Smith
Telerik
ardalis.com @ardalis

Follow me at twitter.com/ardalis

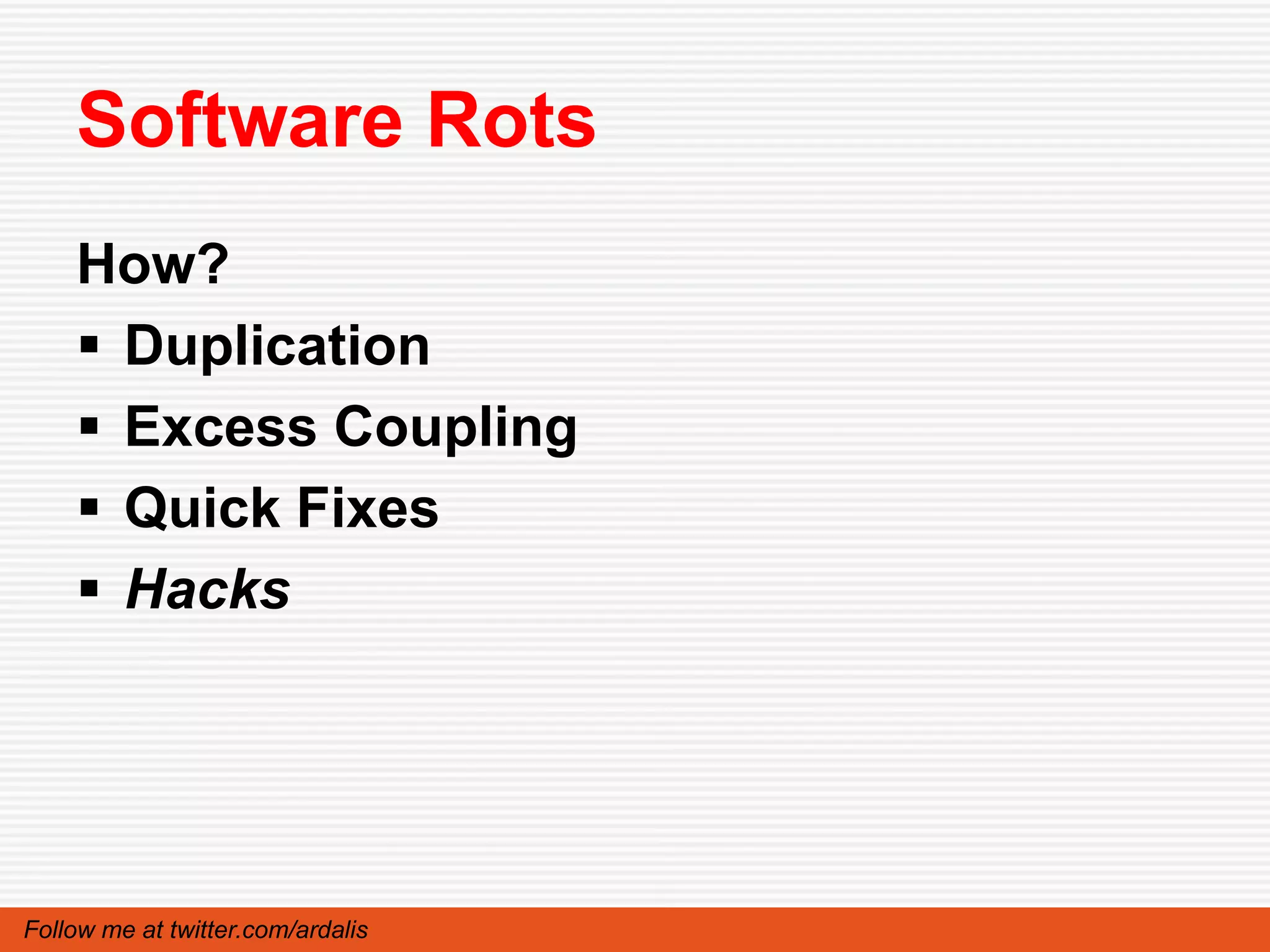

Software Rots
How?
 Duplication
 Excess Coupling
 Quick Fixes
 Hacks

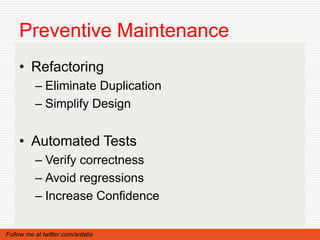

Preventive Maintenance
• Refactoring
– Eliminate Duplication
– Simplify Design

• Automated Tests
– Verify correctness
– Avoid regressions
– Increase Confidence

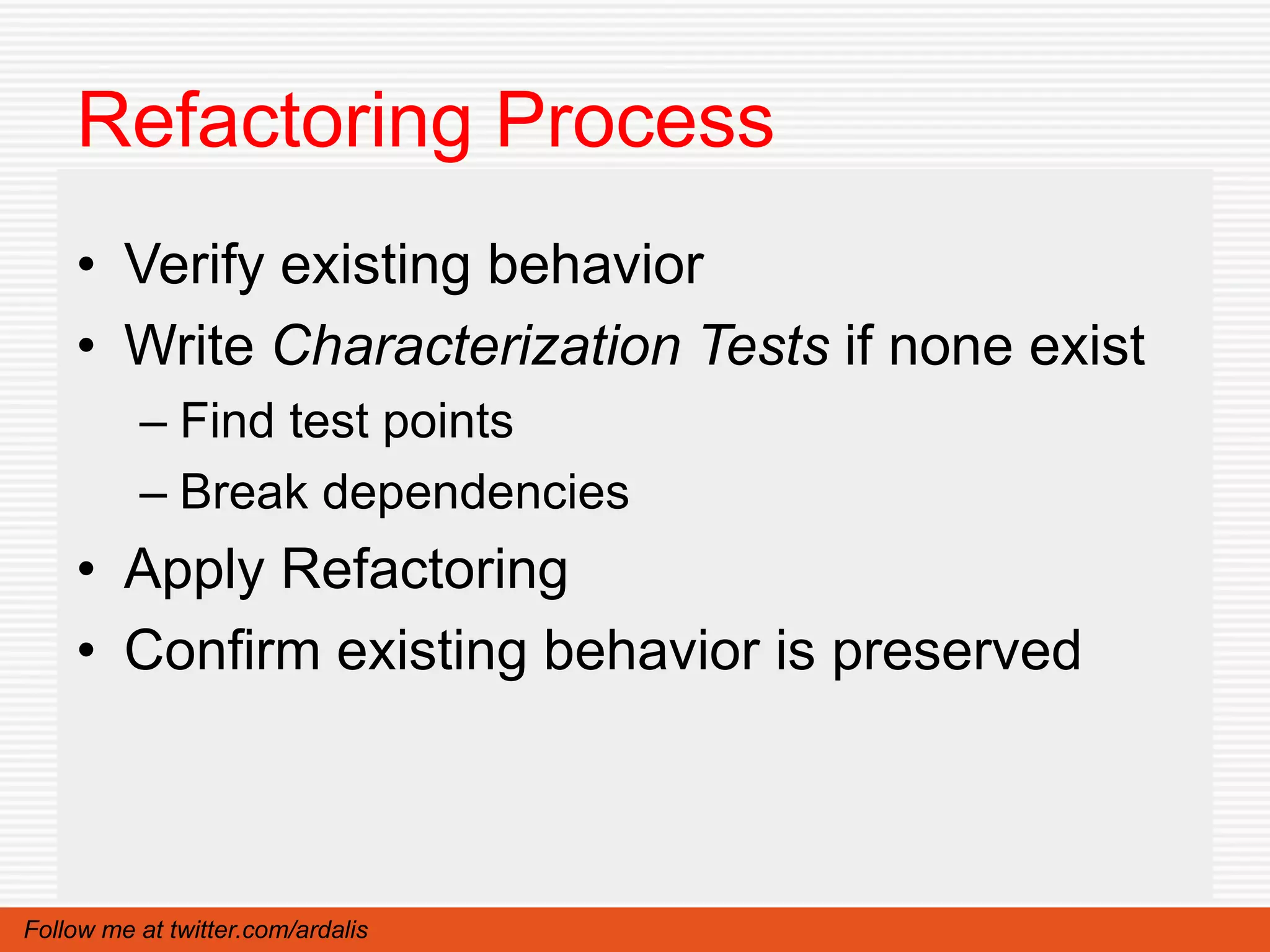

Refactoring Process
• Verify existing behavior
• Write Characterization Tests if none exist
– Find test points
– Break dependencies
• Apply Refactoring
• Confirm existing behavior is preserved

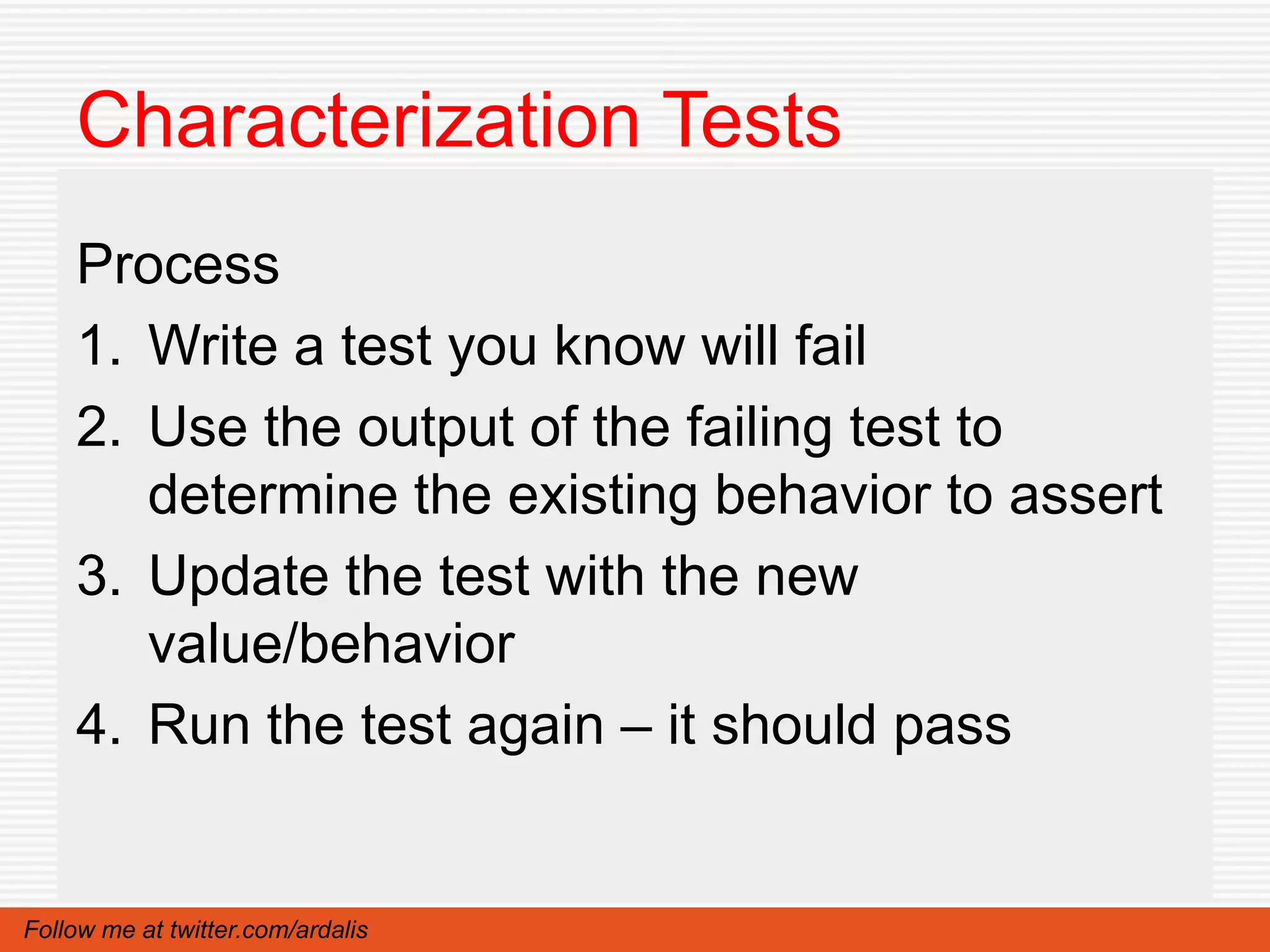

Characterization Tests
Process
1. Write a test you know will fail
2. Use the output of the failing test to
determine the existing behavior to assert
3. Update the test with the new
value/behavior
4. Run the test again – it should pass


SOLID
Principles

http://flickr.com/photos/kevinkemmerer/2772526725

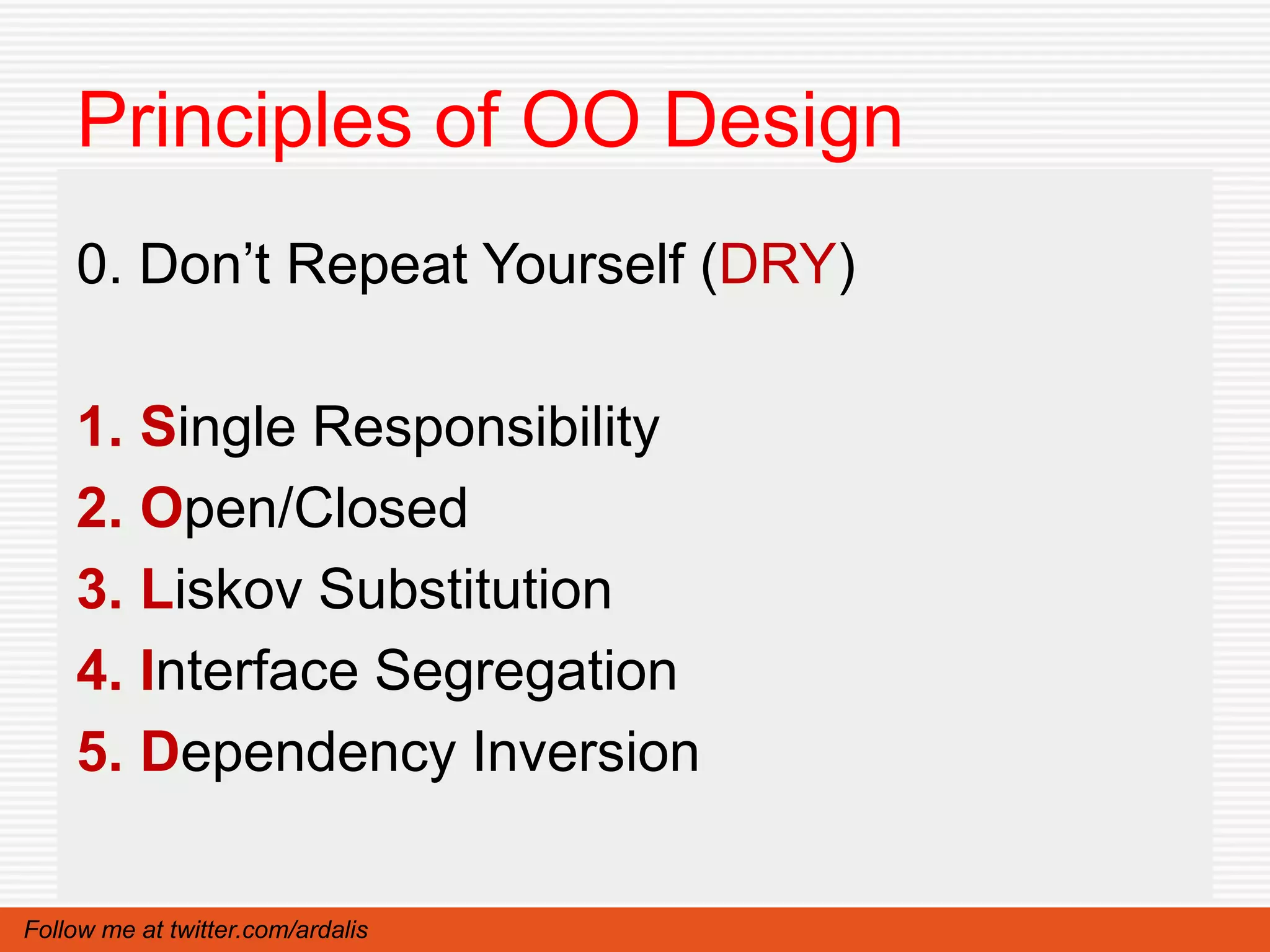

Principles of OO Design
0. Don’t Repeat Yourself (DRY)

1. Single Responsibility
2. Open/Closed
3. Liskov Substitution
4. Interface Segregation
5. Dependency Inversion

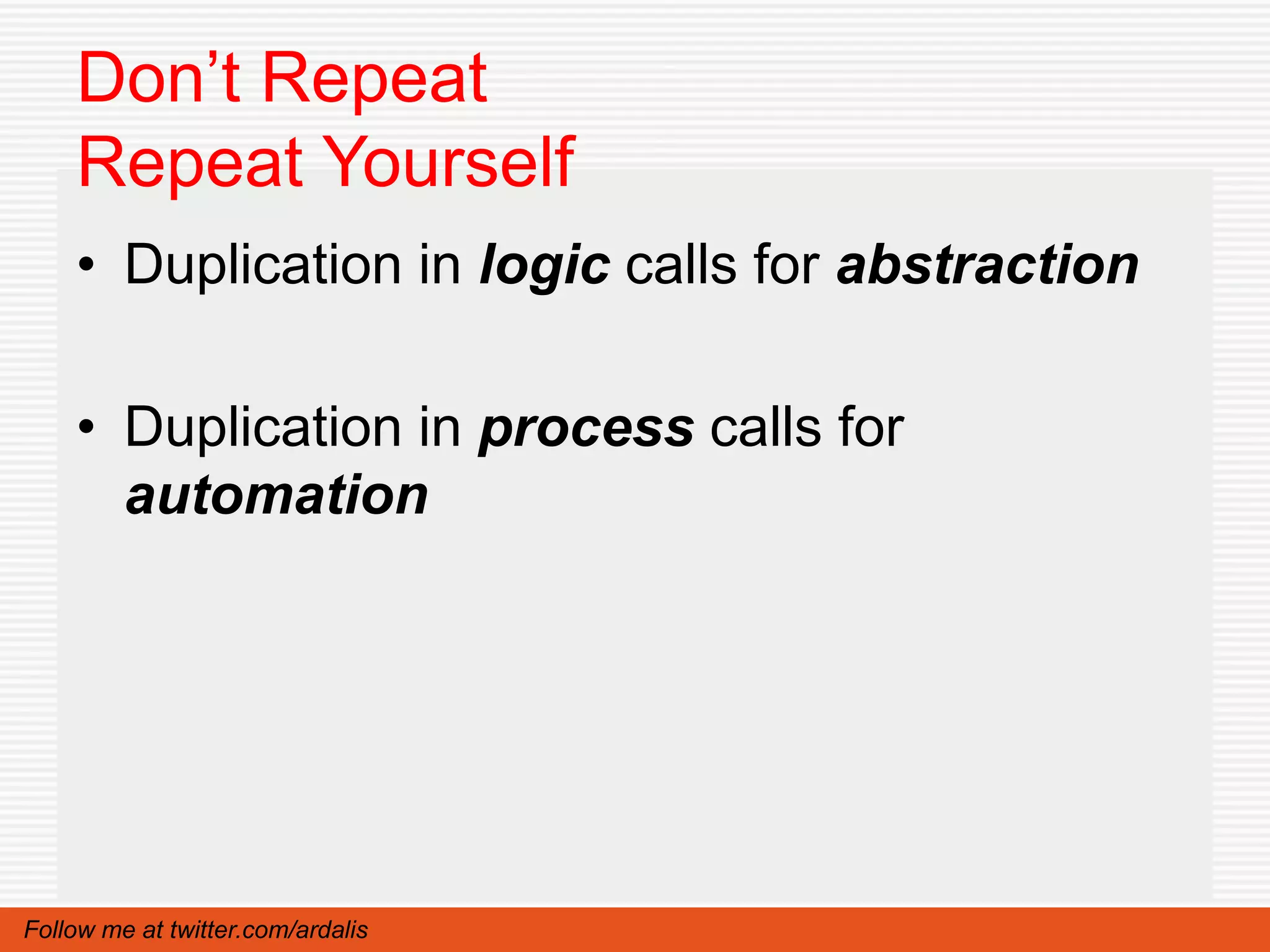

Don’t Repeat
Repeat Yourself
• Duplication in logic calls for abstraction

• Duplication in process calls for
automation

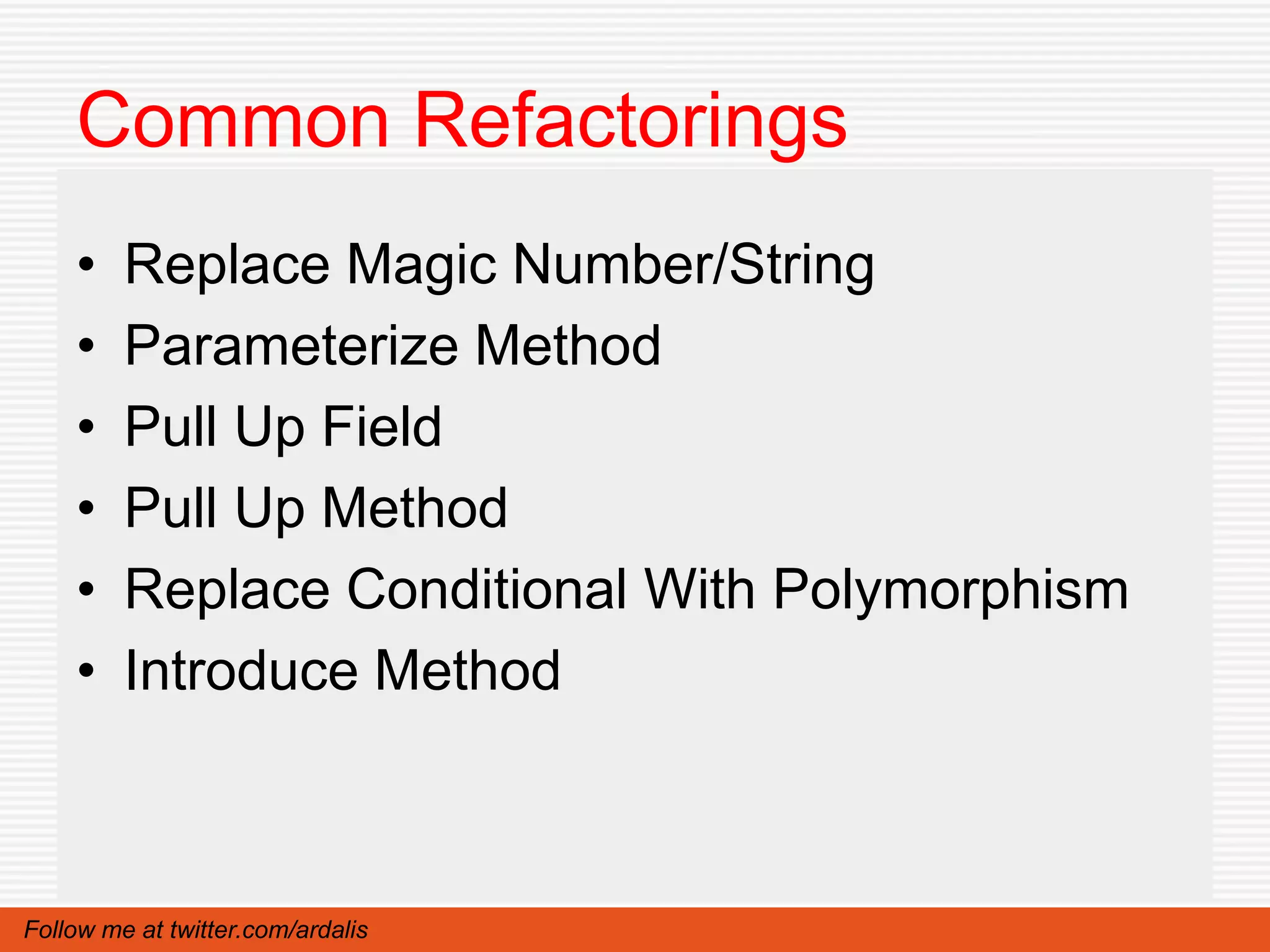

Common Refactorings
• Replace Magic Number/String
• Parameterize Method
• Pull Up Field
• Pull Up Method
• Replace Conditional With Polymorphism
• Introduce Method

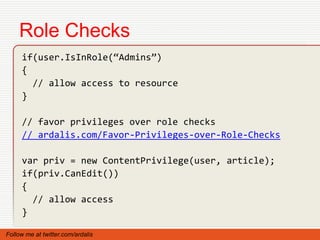

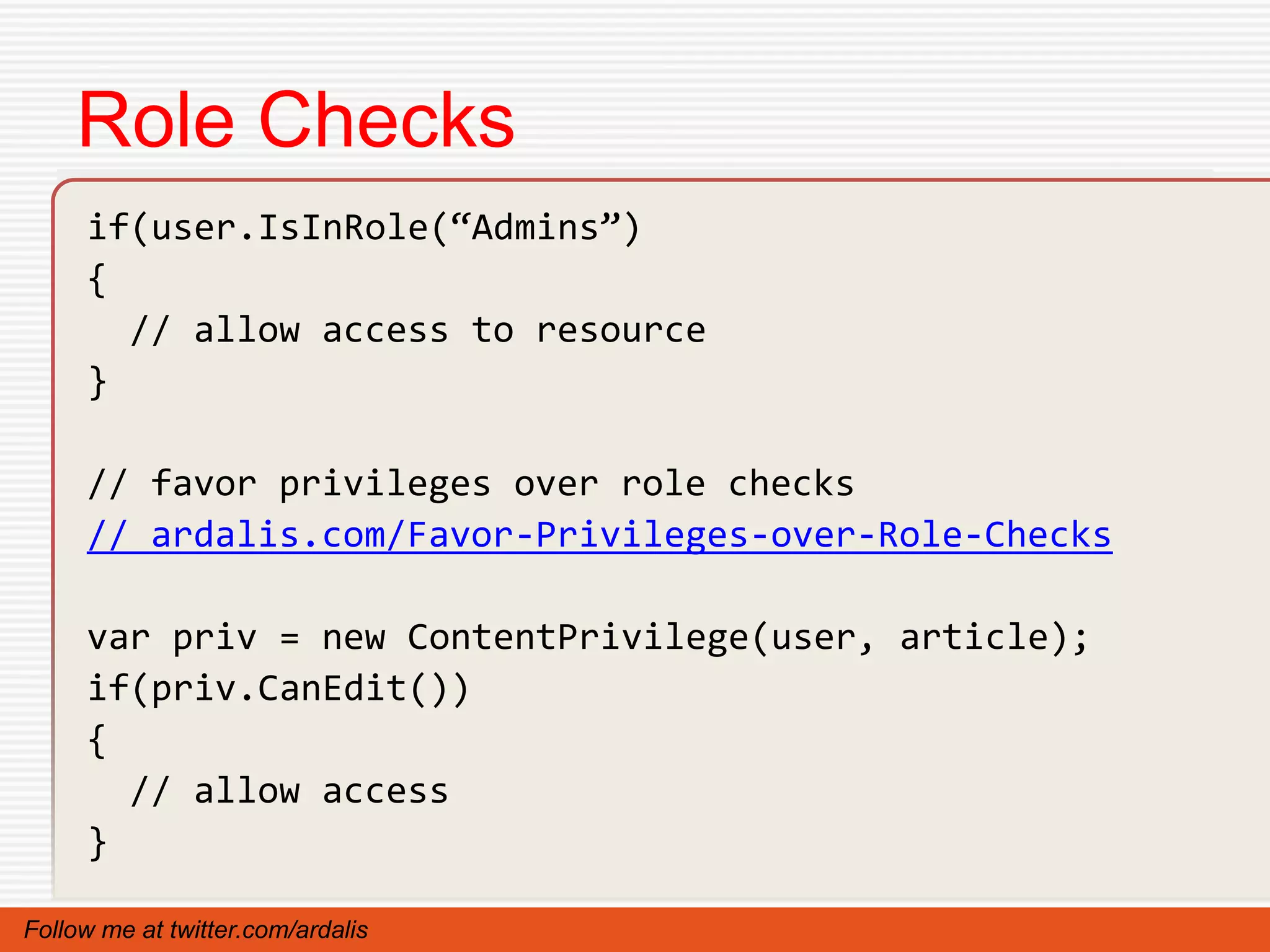

Role Checks
if(user.IsInRole(“Admins”)
{
// allow access to resource
}

// favor privileges over role checks
// ardalis.com/Favor-Privileges-over-Role-Checks

var priv = new ContentPrivilege(user, article);
if(priv.CanEdit())
{
// allow access
}

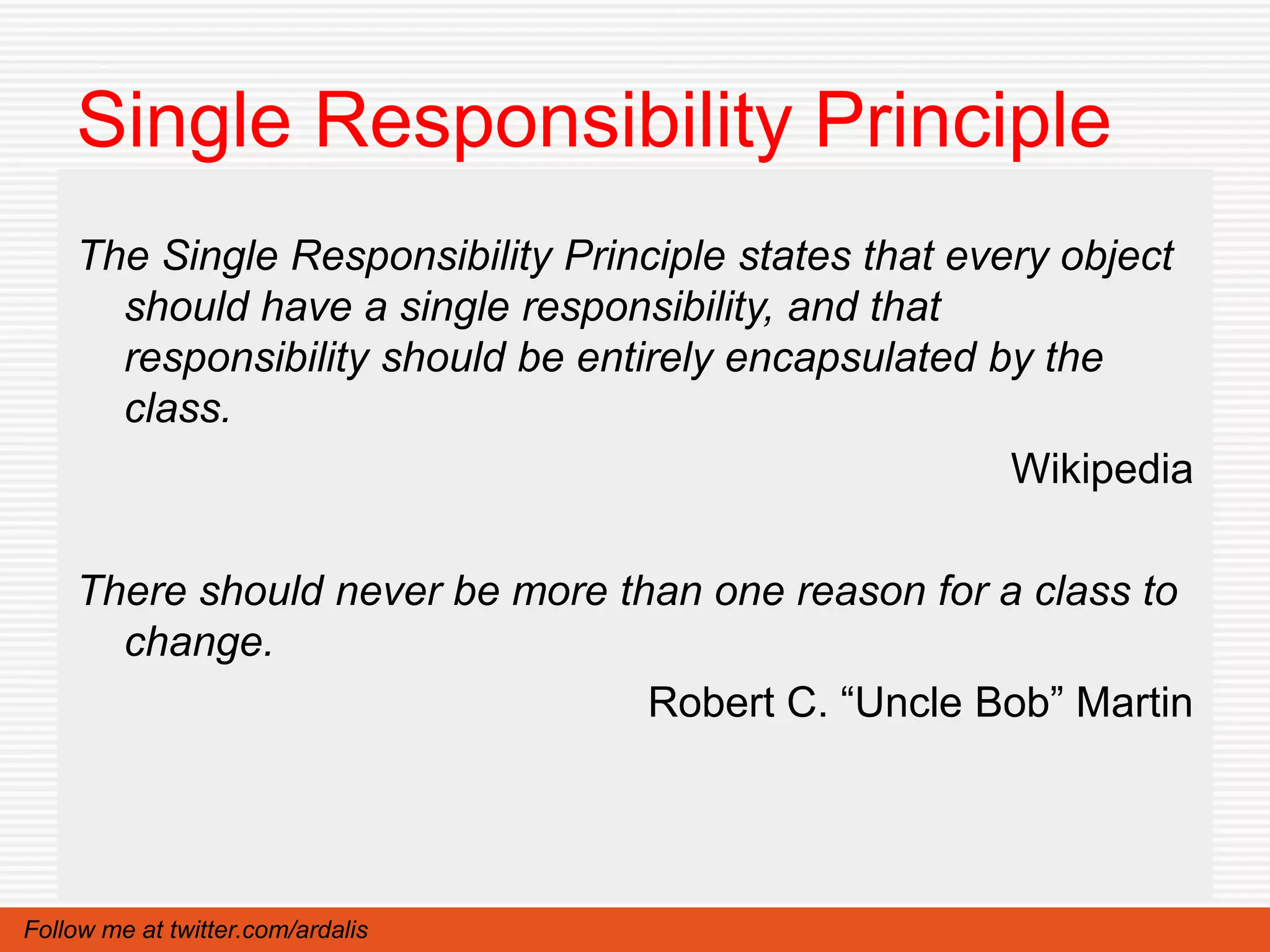

Single Responsibility Principle
The Single Responsibility Principle states that every object
should have a single responsibility, and that
responsibility should be entirely encapsulated by the
class.
Wikipedia

There should never be more than one reason for a class to
change.
Robert C. “Uncle Bob” Martin

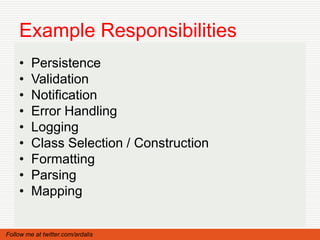

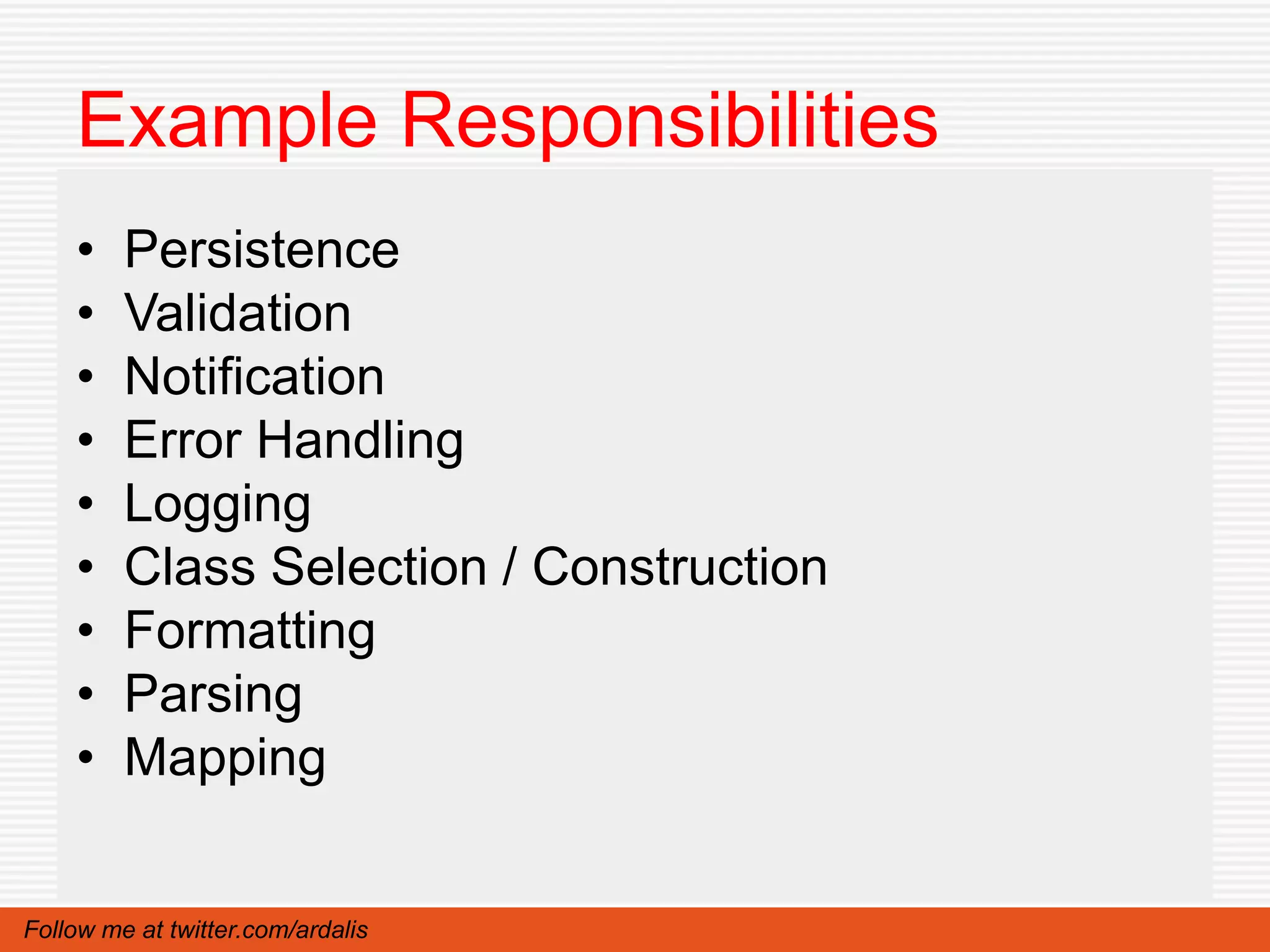

Example Responsibilities
• Persistence
• Validation
• Notification
• Error Handling
• Logging
• Class Selection / Construction
• Formatting
• Parsing
• Mapping

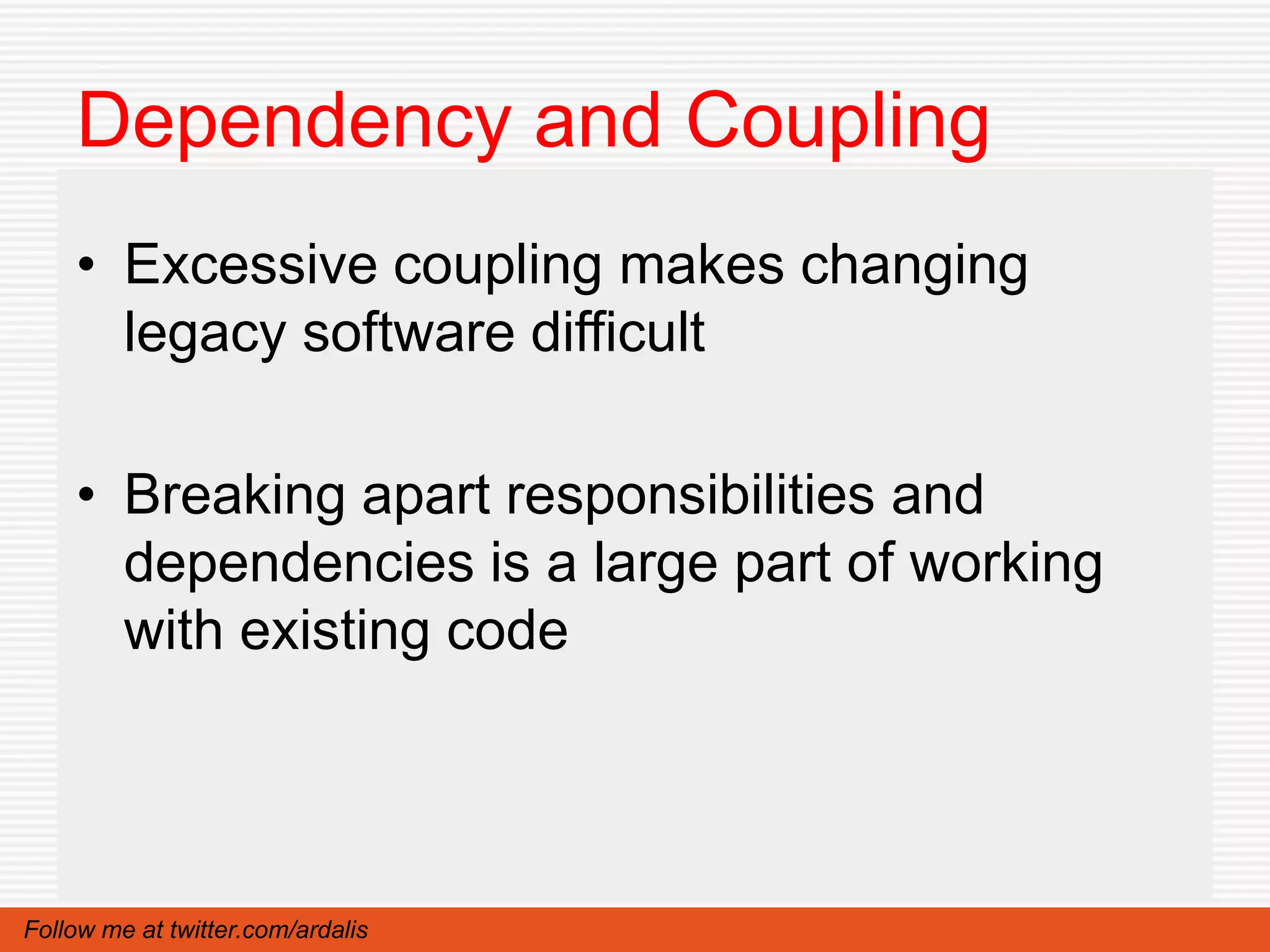

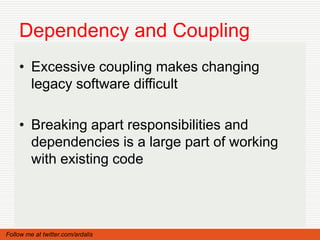

Dependency and Coupling
• Excessive coupling makes changing
legacy software difficult

• Breaking apart responsibilities and
dependencies is a large part of working
with existing code

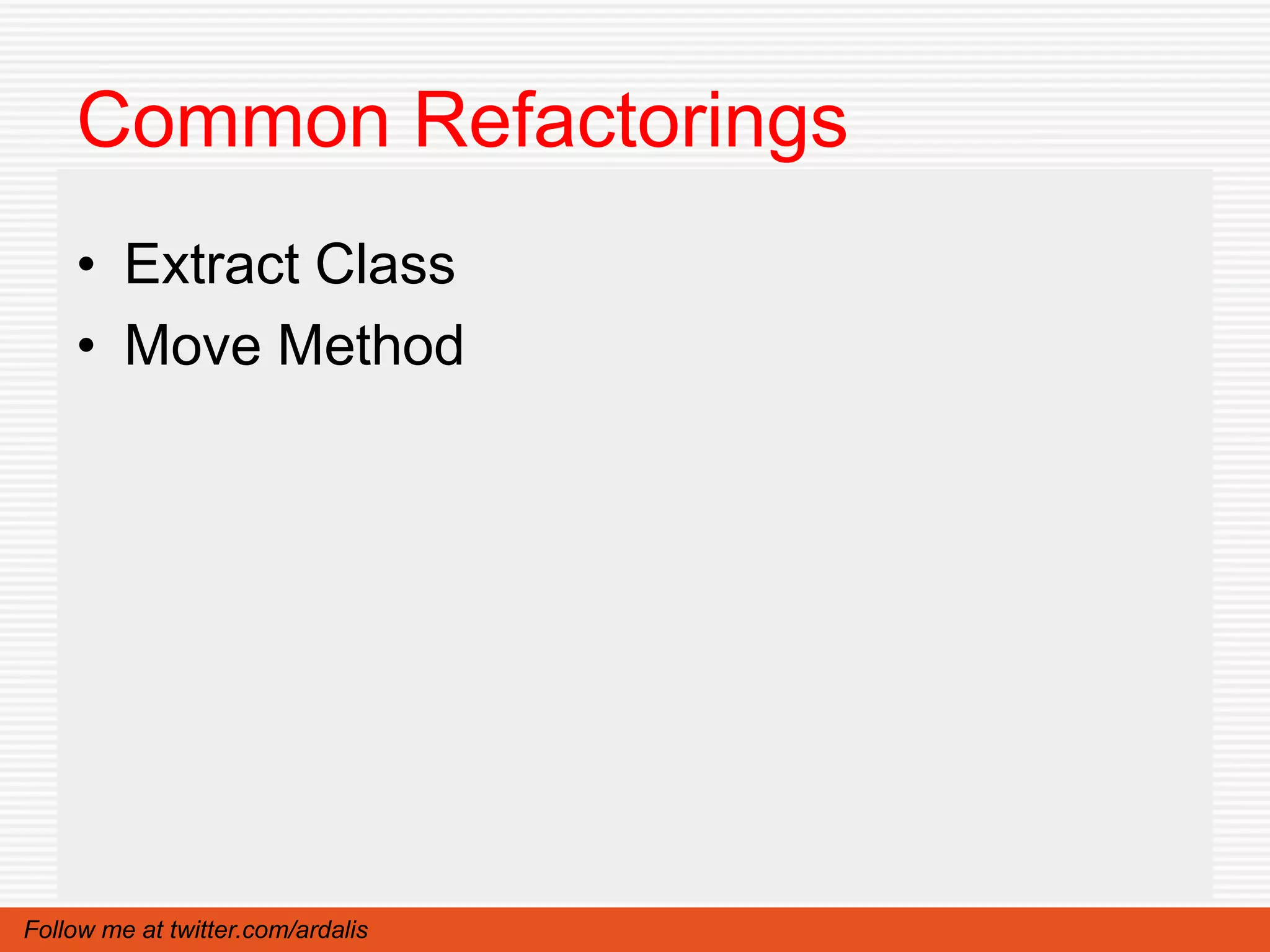

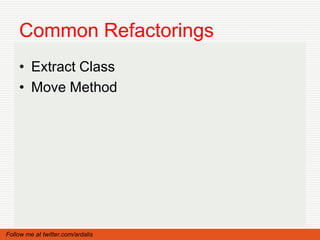

Common Refactorings
• Extract Class
• Move Method

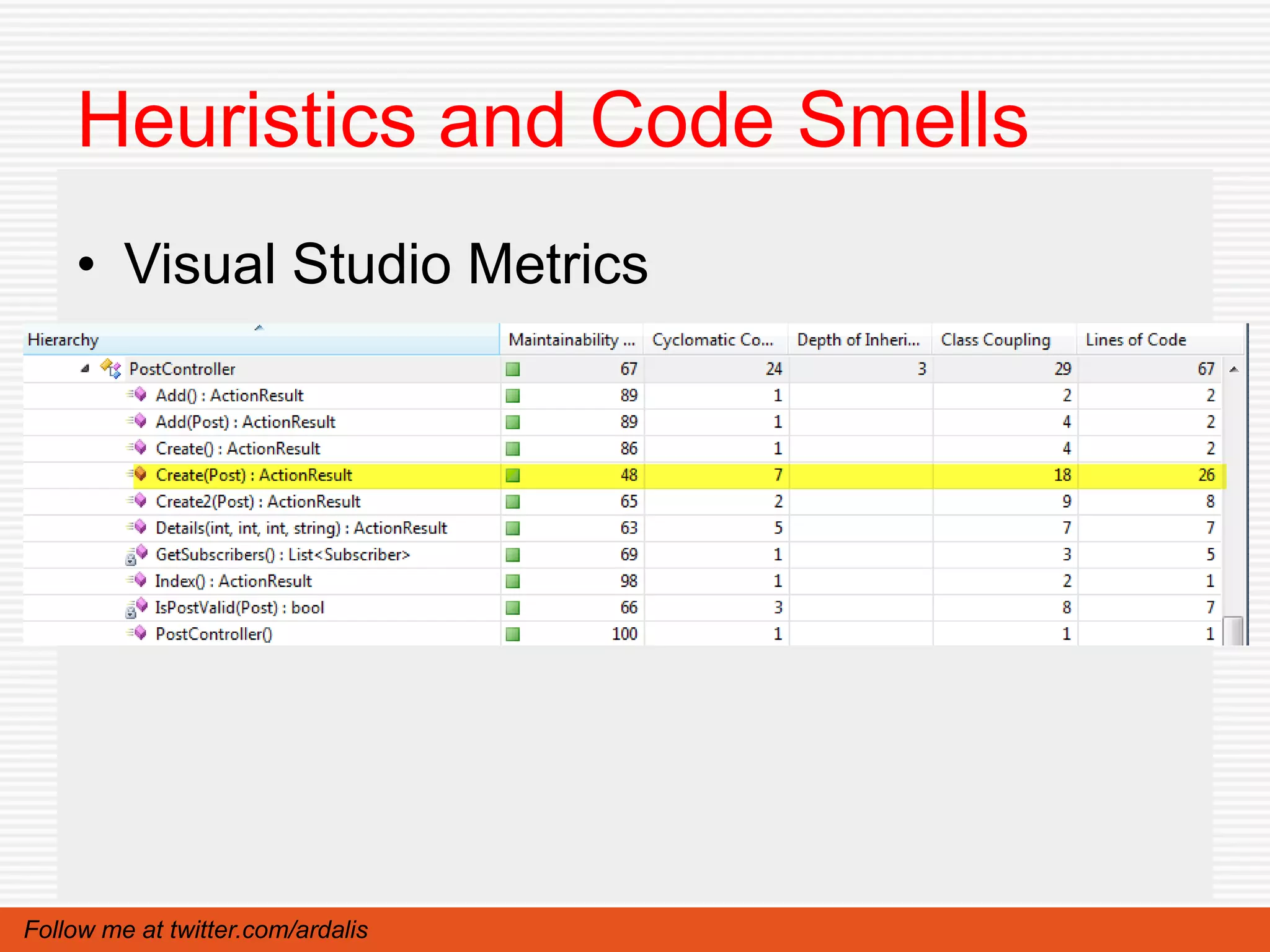

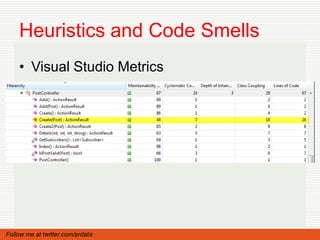

Heuristics and Code Smells
• Visual Studio Metrics

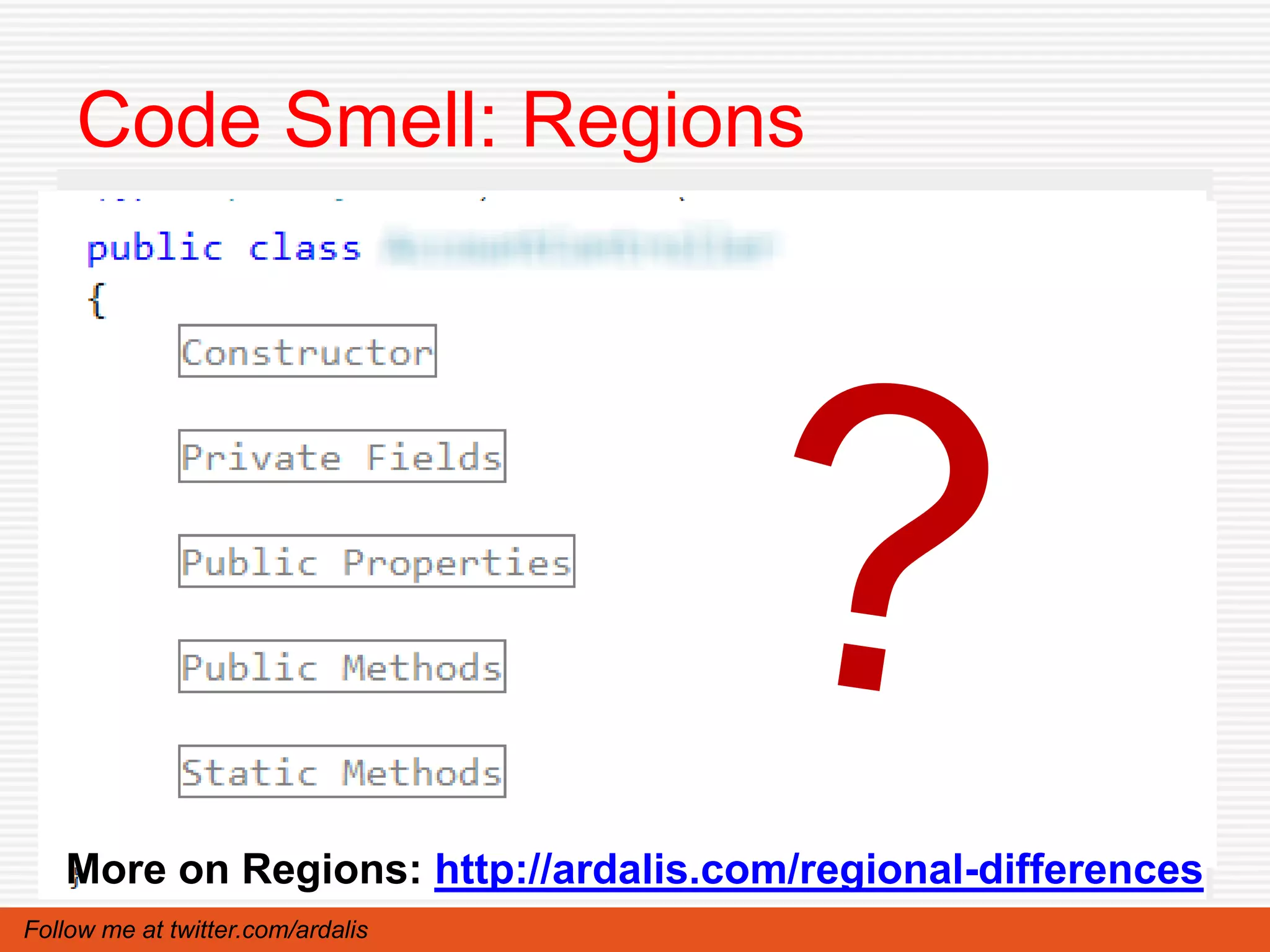

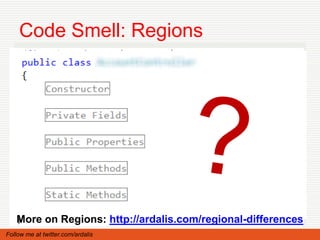

Code Smell: Regions

More on Regions: http://ardalis.com/regional-differences

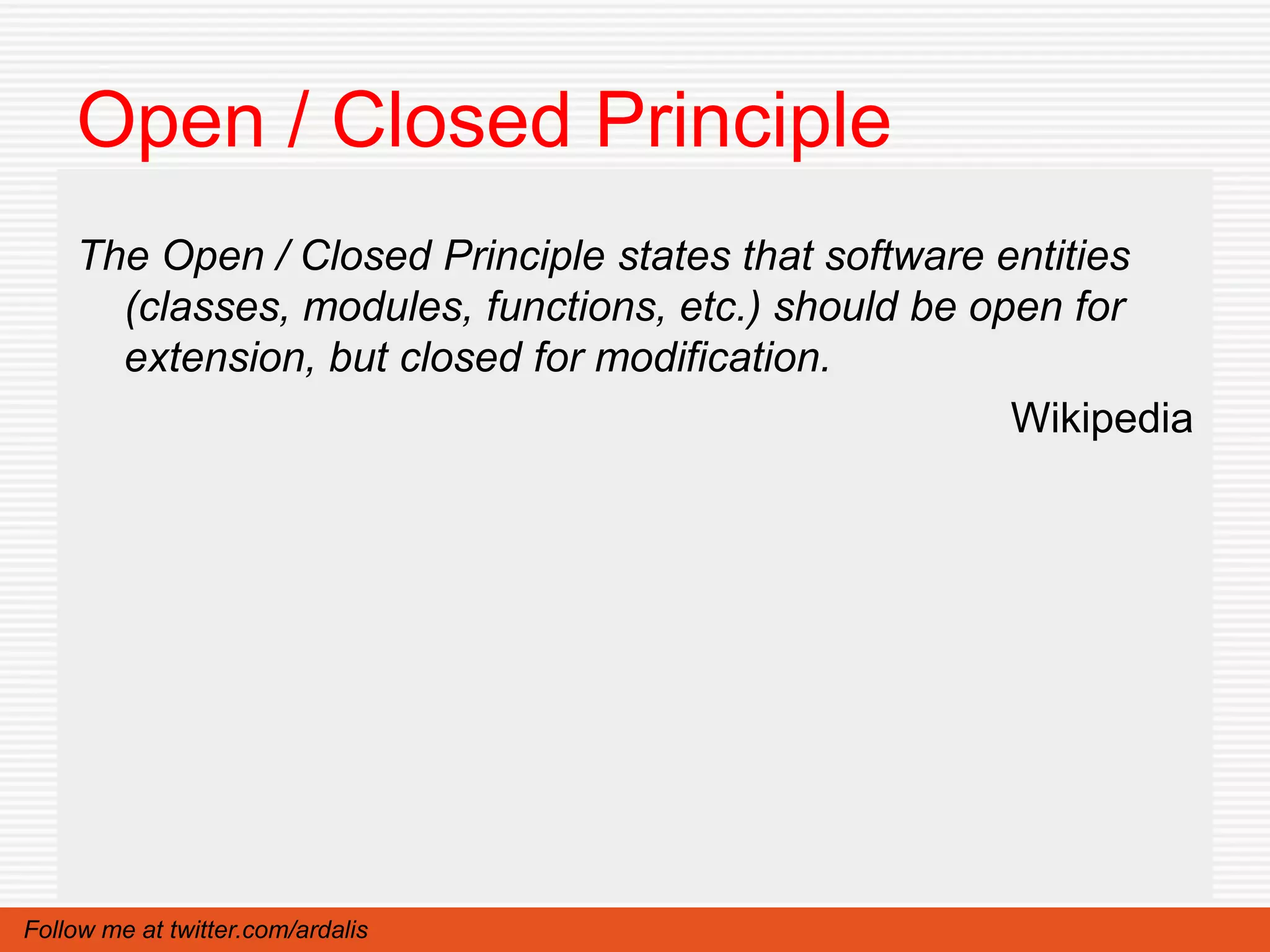

Open / Closed Principle
The Open / Closed Principle states that software entities
(classes, modules, functions, etc.) should be open for
extension, but closed for modification.
Wikipedia

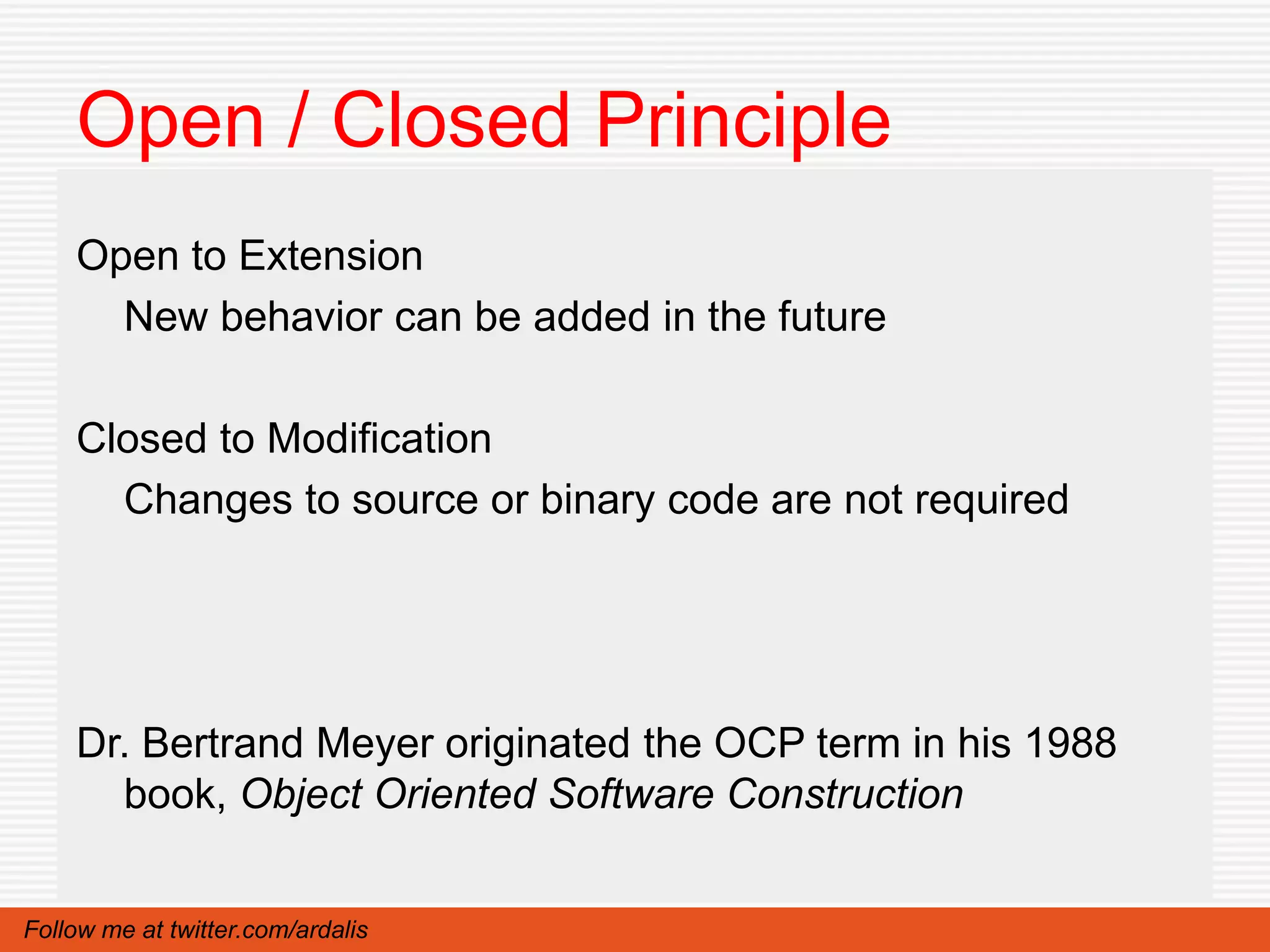

Open / Closed Principle
Open to Extension
New behavior can be added in the future

Closed to Modification
Changes to source or binary code are not required

Dr. Bertrand Meyer originated the OCP term in his 1988
book, Object Oriented Software Construction

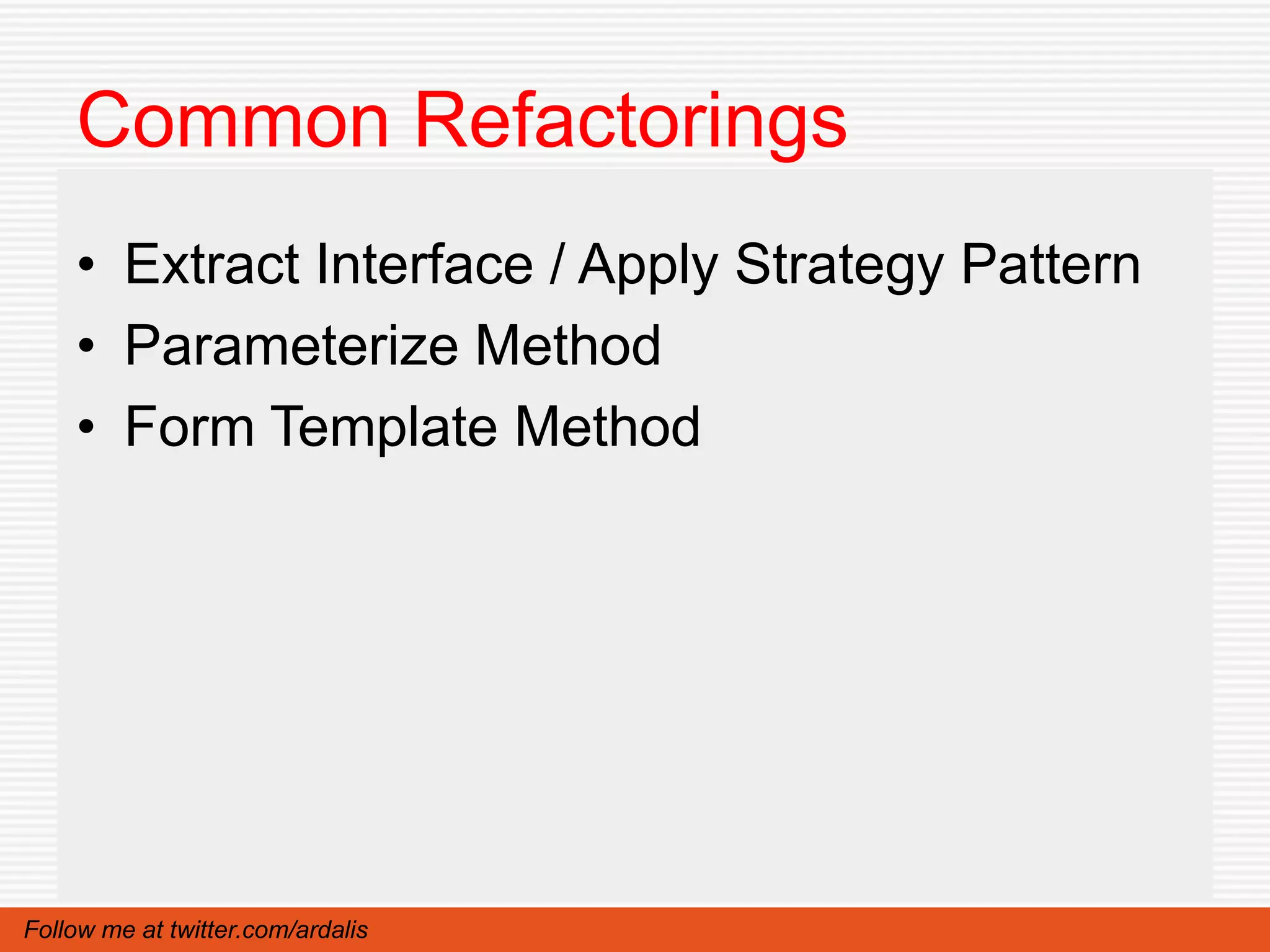

Common Refactorings
• Extract Interface / Apply Strategy Pattern
• Parameterize Method
• Form Template Method


OCP Fail

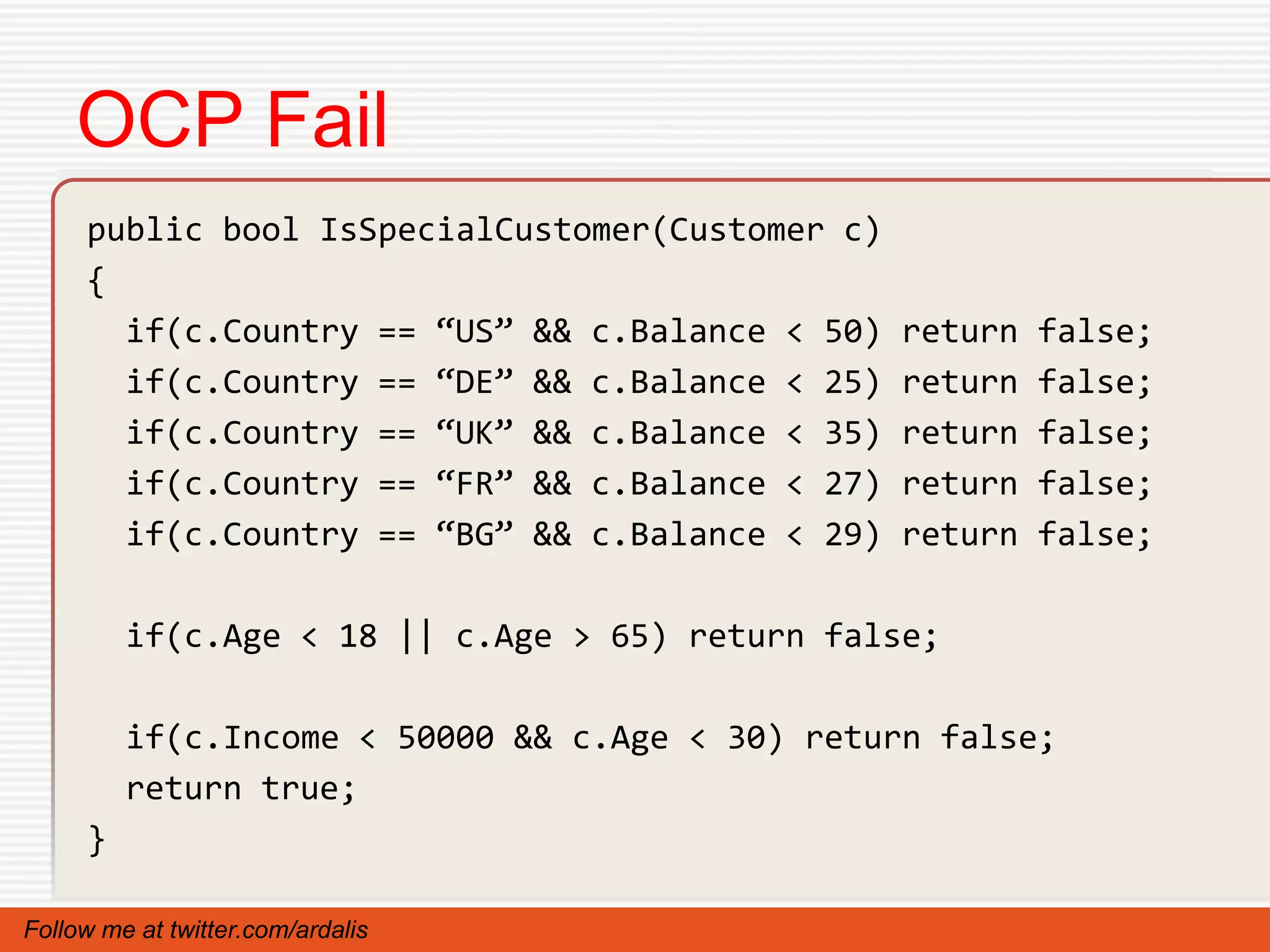

OCP Fail
public bool IsSpecialCustomer(Customer c)
{
if(c.Country == “US” && c.Balance < 50) return false;
if(c.Country == “DE” && c.Balance < 25) return false;
if(c.Country == “UK” && c.Balance < 35) return false;
if(c.Country == “FR” && c.Balance < 27) return false;
if(c.Country == “BG” && c.Balance < 29) return false;

if(c.Age < 18 || c.Age > 65) return false;

if(c.Income < 50000 && c.Age < 30) return false;
return true;
}

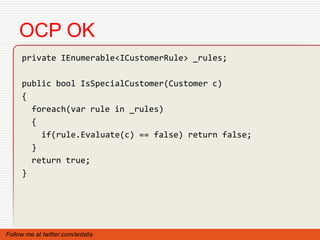

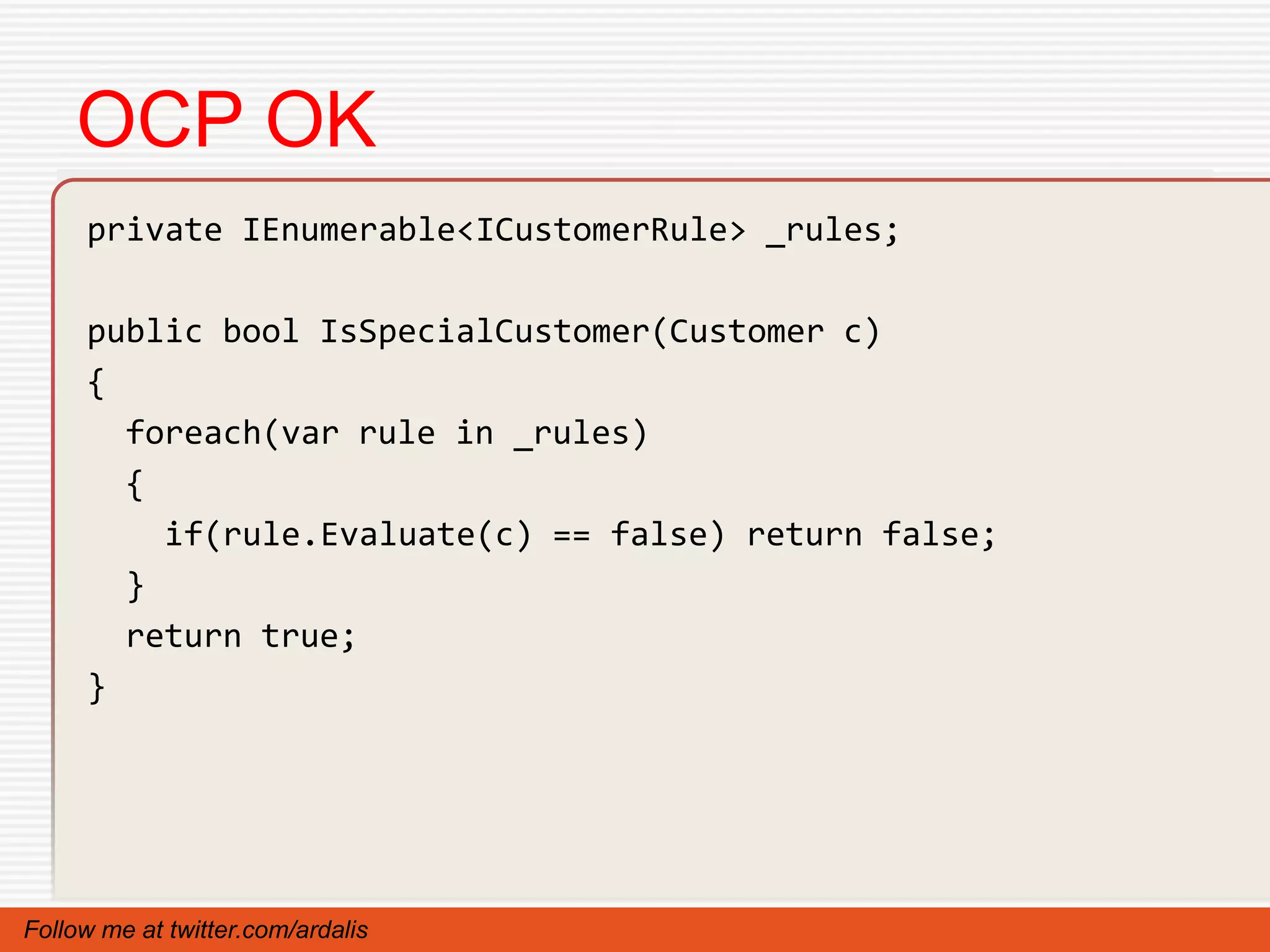

OCP OK
private IEnumerable<ICustomerRule> _rules;

public bool IsSpecialCustomer(Customer c)
{
foreach(var rule in _rules)
{
if(rule.Evaluate(c) == false) return false;
}
return true;
}

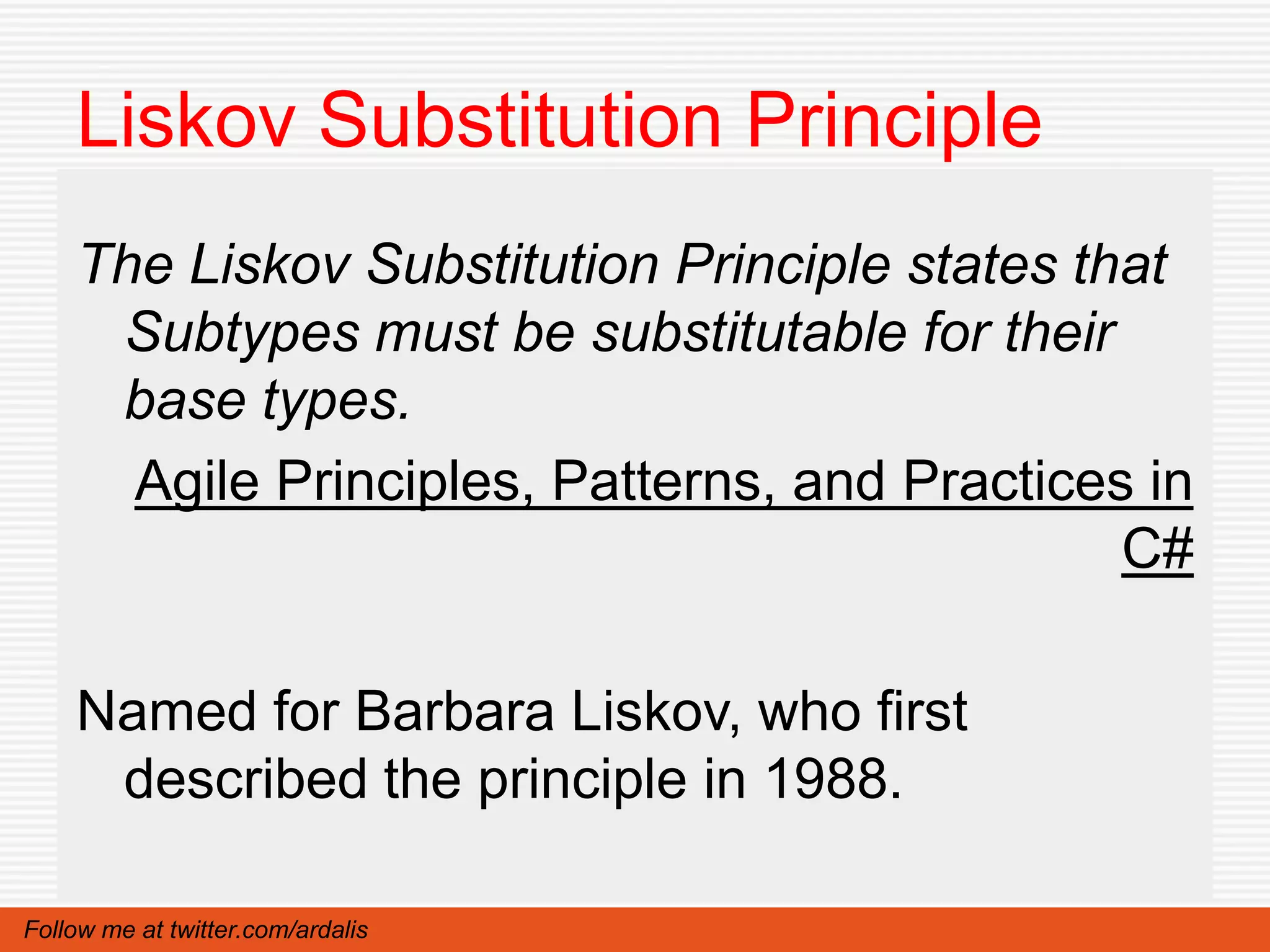

Liskov Substitution Principle
The Liskov Substitution Principle states that
Subtypes must be substitutable for their
base types.
Agile Principles, Patterns, and Practices in
C#

Named for Barbara Liskov, who first
described the principle in 1988.

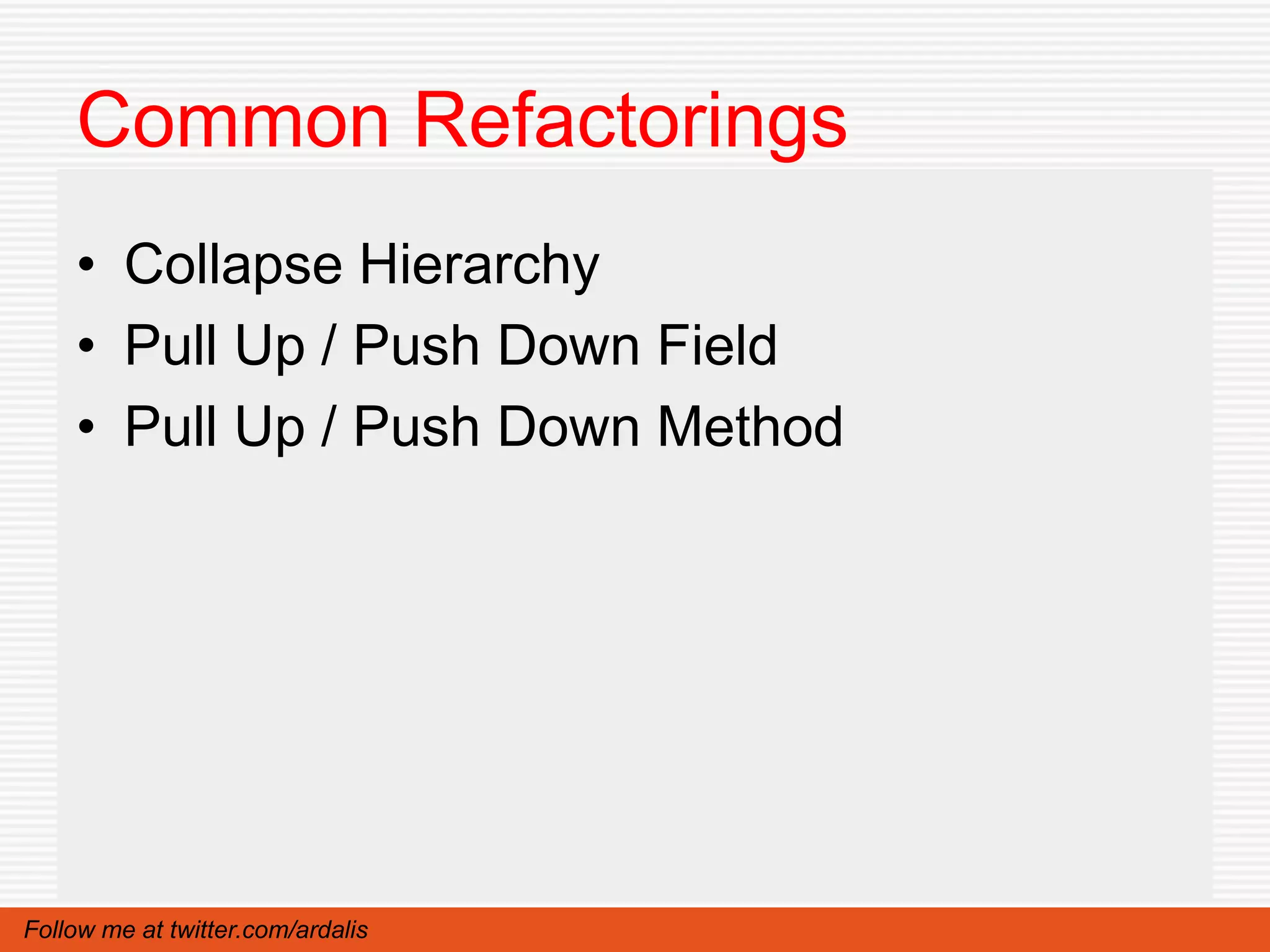

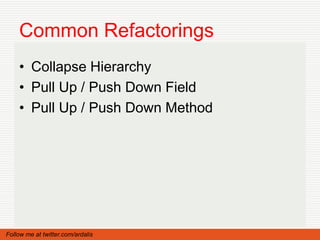

Common Refactorings
• Collapse Hierarchy
• Pull Up / Push Down Field
• Pull Up / Push Down Method

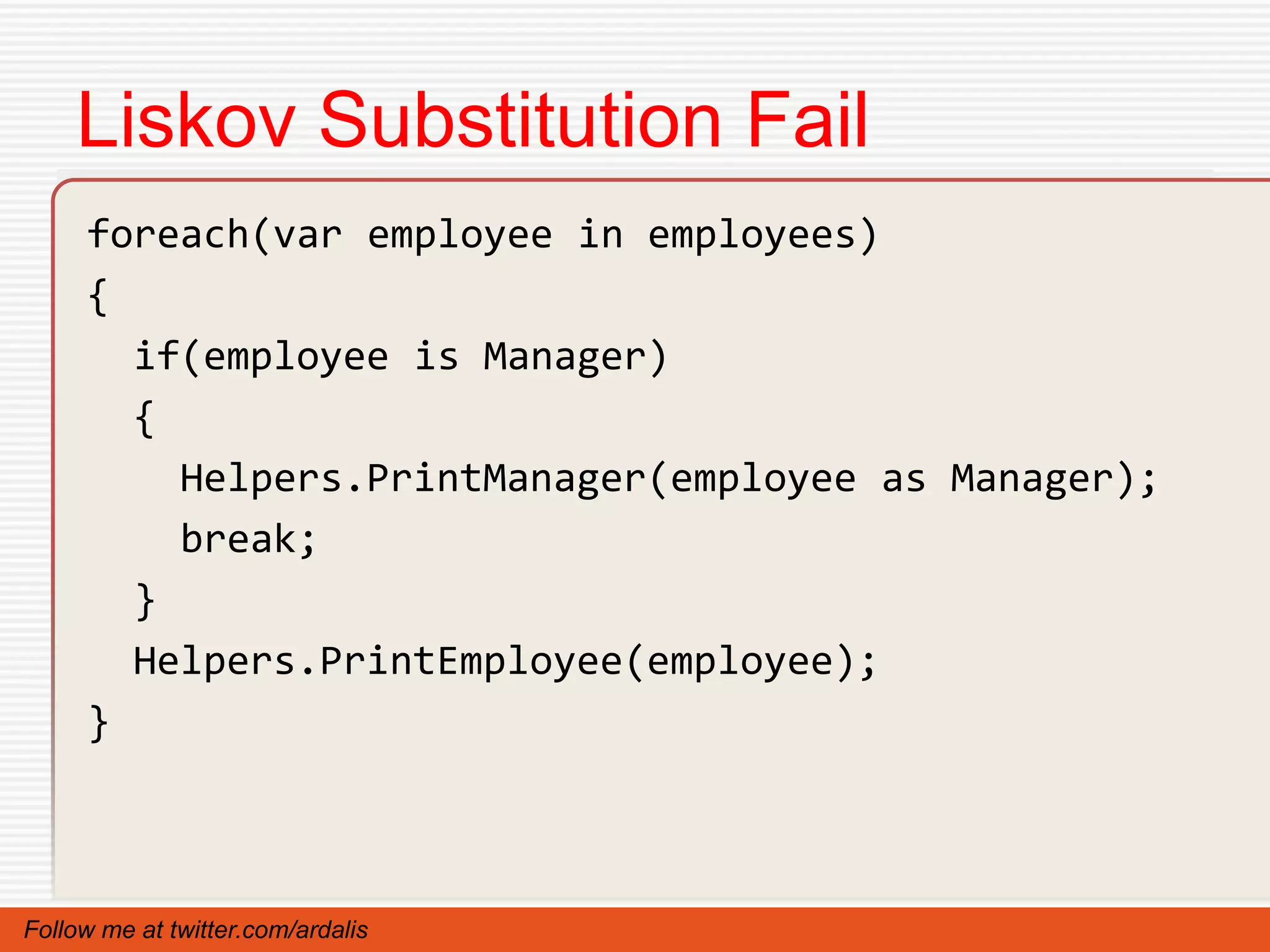

Liskov Substitution Fail
foreach(var employee in employees)
{
if(employee is Manager)
{
Helpers.PrintManager(employee as Manager);
break;
}
Helpers.PrintEmployee(employee);
}

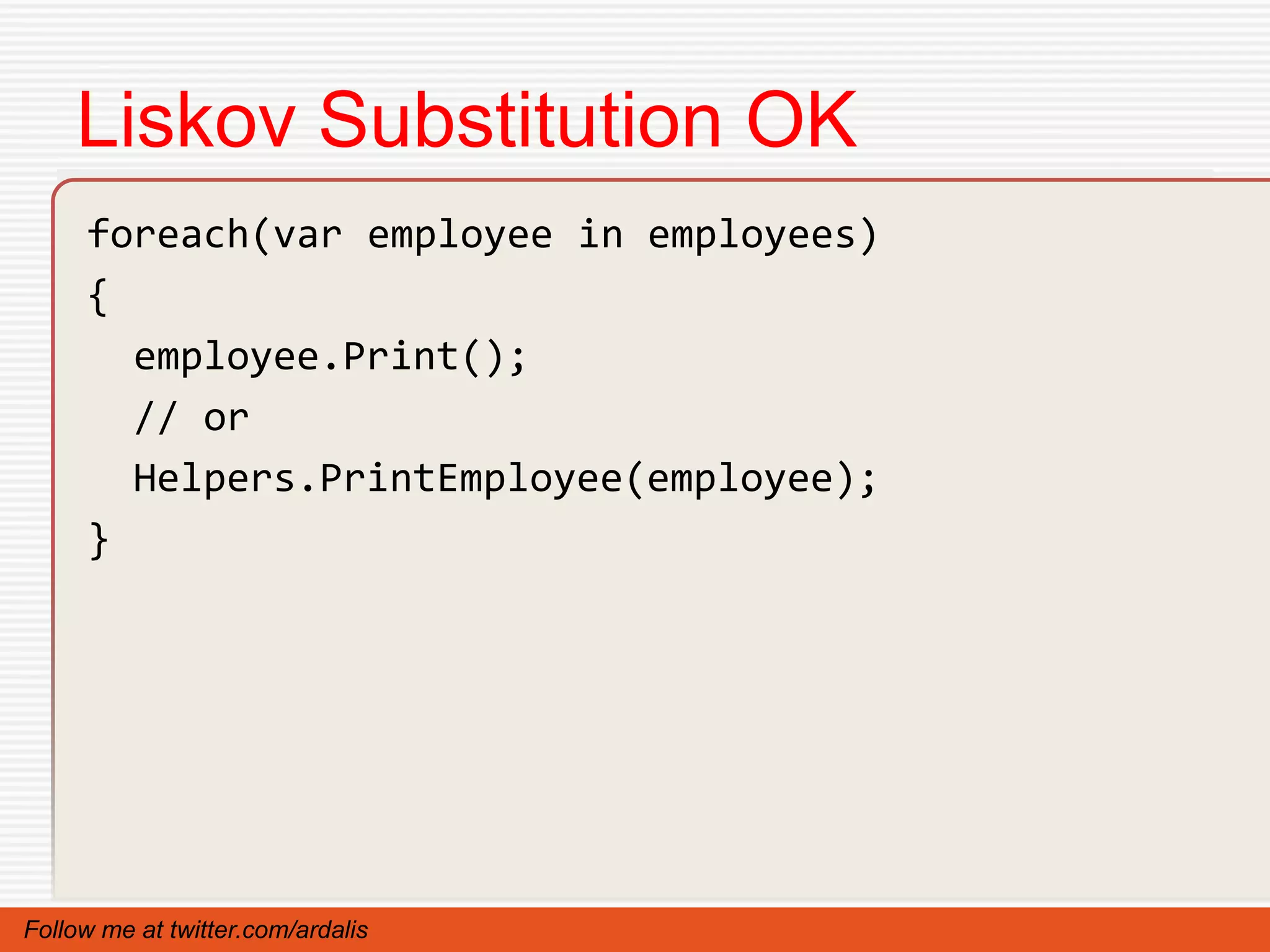

Liskov Substitution OK
foreach(var employee in employees)
{
employee.Print();
// or
Helpers.PrintEmployee(employee);
}

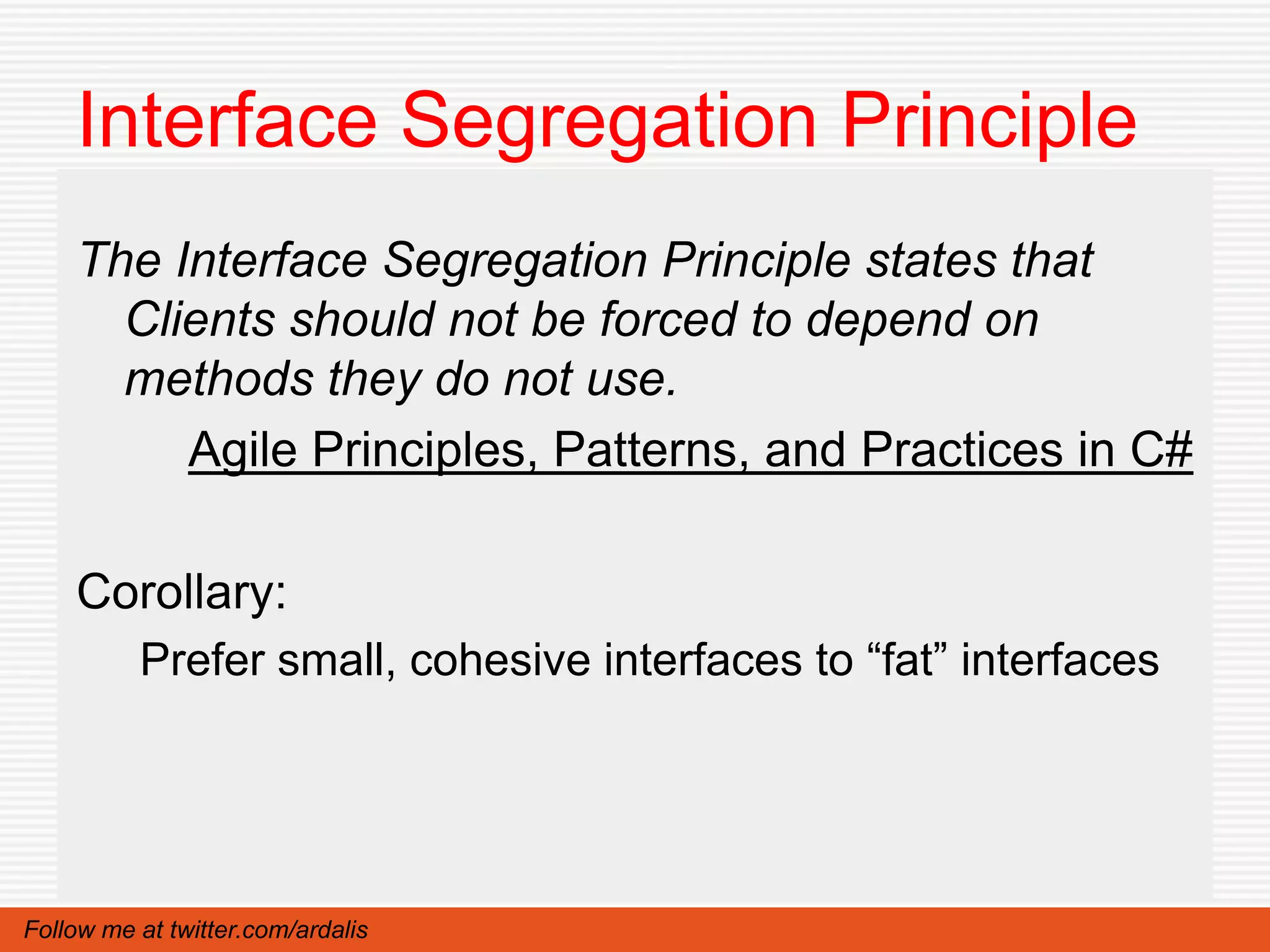

Interface Segregation Principle
The Interface Segregation Principle states that
Clients should not be forced to depend on
methods they do not use.
Agile Principles, Patterns, and Practices in C#

Corollary:
Prefer small, cohesive interfaces to “fat” interfaces


Common Refactorings
• Extract Interface

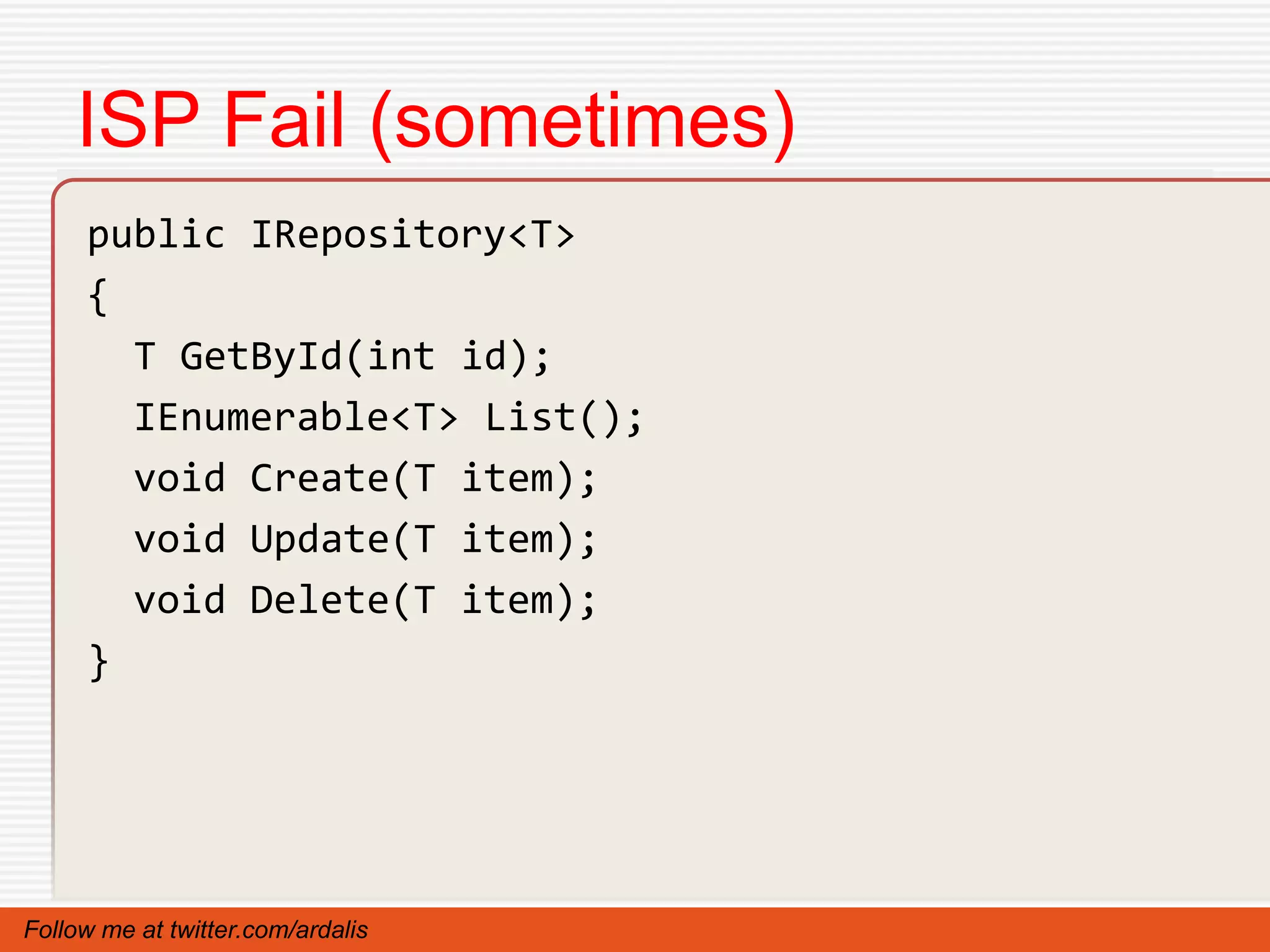

ISP Fail (sometimes)
public IRepository<T>
{
T GetById(int id);
IEnumerable<T> List();
void Create(T item);
void Update(T item);
void Delete(T item);
}

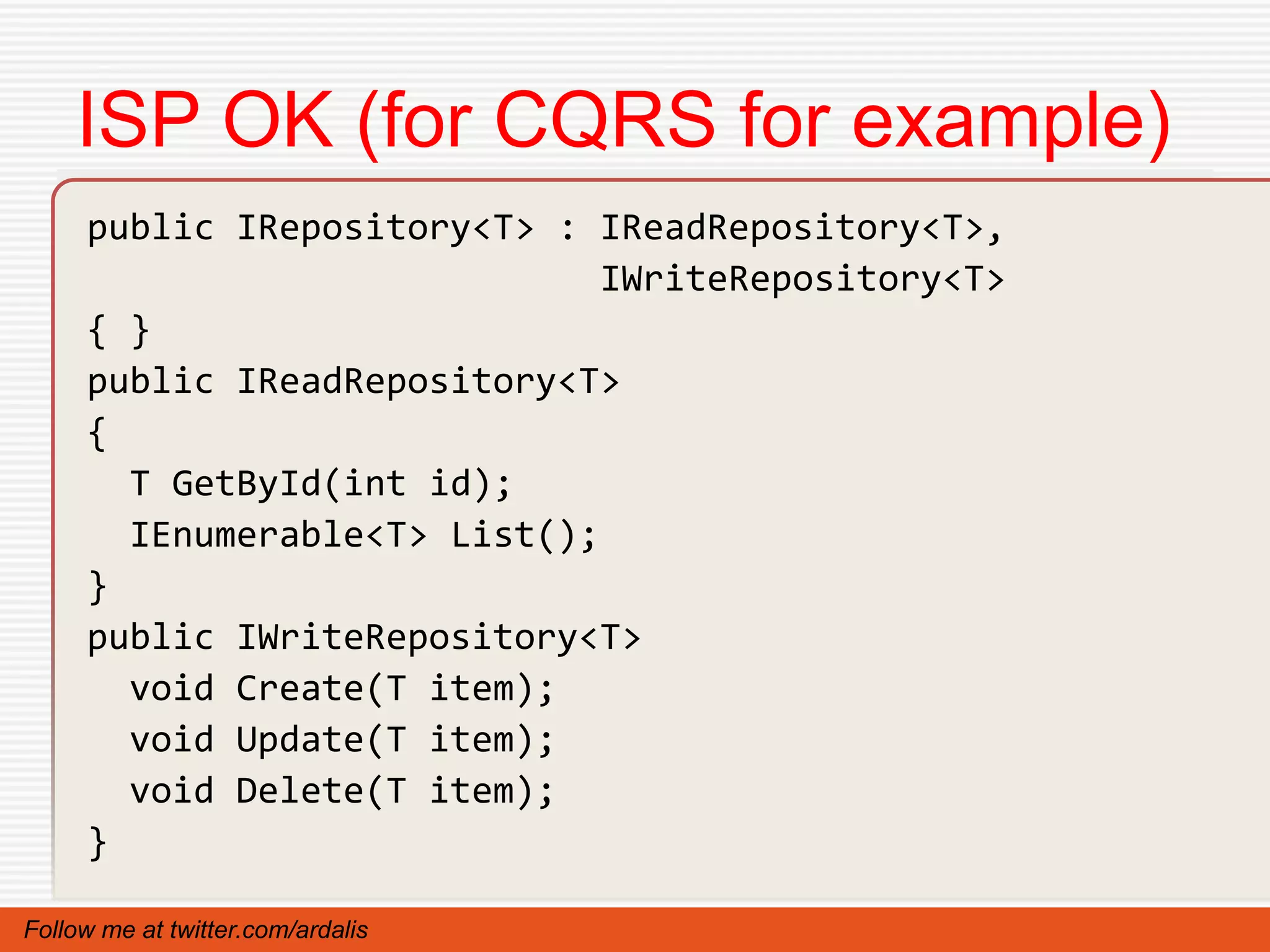

ISP OK (for CQRS for example)
public IRepository<T> : IReadRepository<T>,
IWriteRepository<T>
{ }
public IReadRepository<T>
{
T GetById(int id);
IEnumerable<T> List();
}
public IWriteRepository<T>
void Create(T item);
void Update(T item);
void Delete(T item);
}

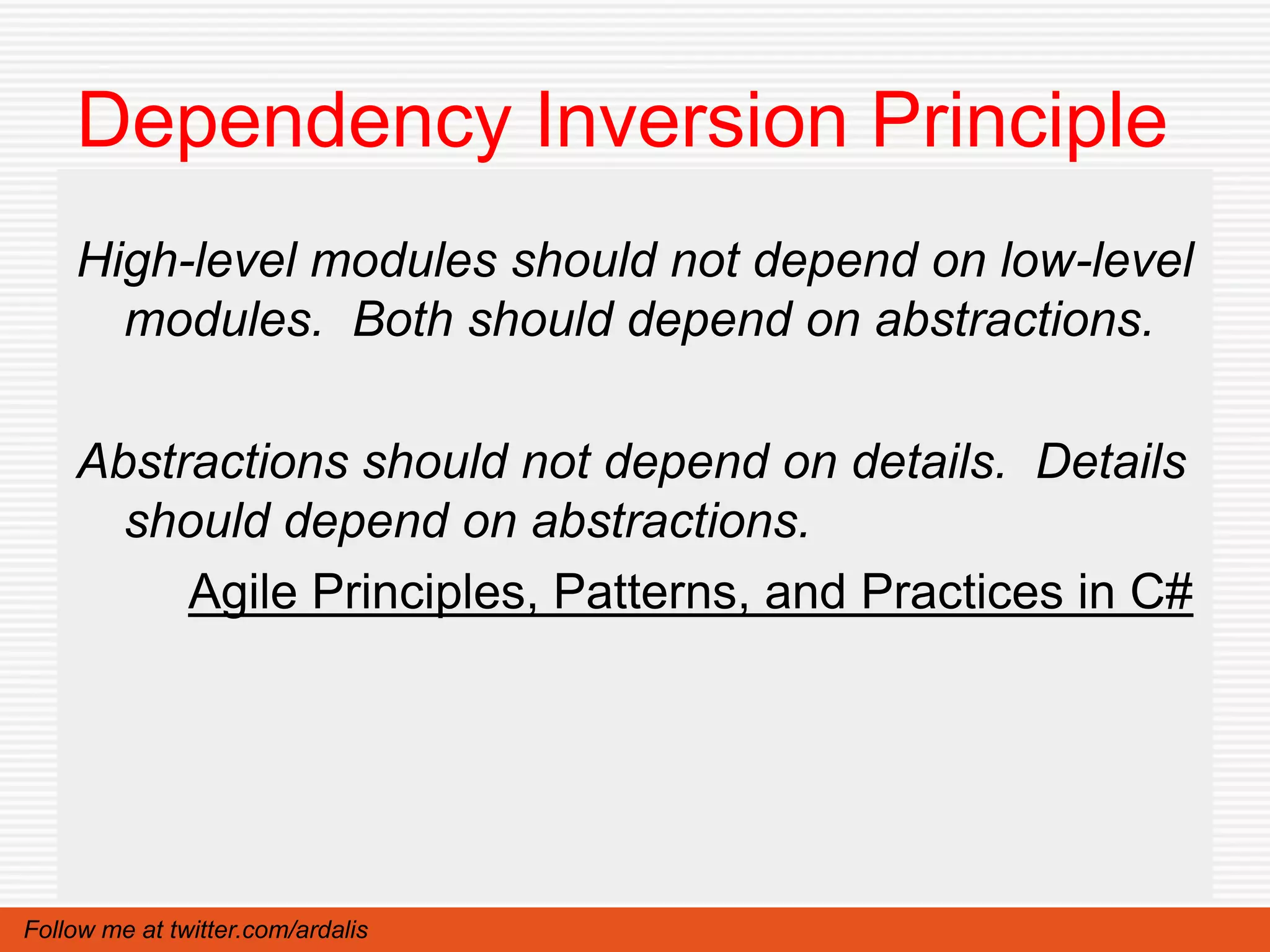

Dependency Inversion Principle
High-level modules should not depend on low-level
modules. Both should depend on abstractions.

Abstractions should not depend on details. Details
should depend on abstractions.
Agile Principles, Patterns, and Practices in C#

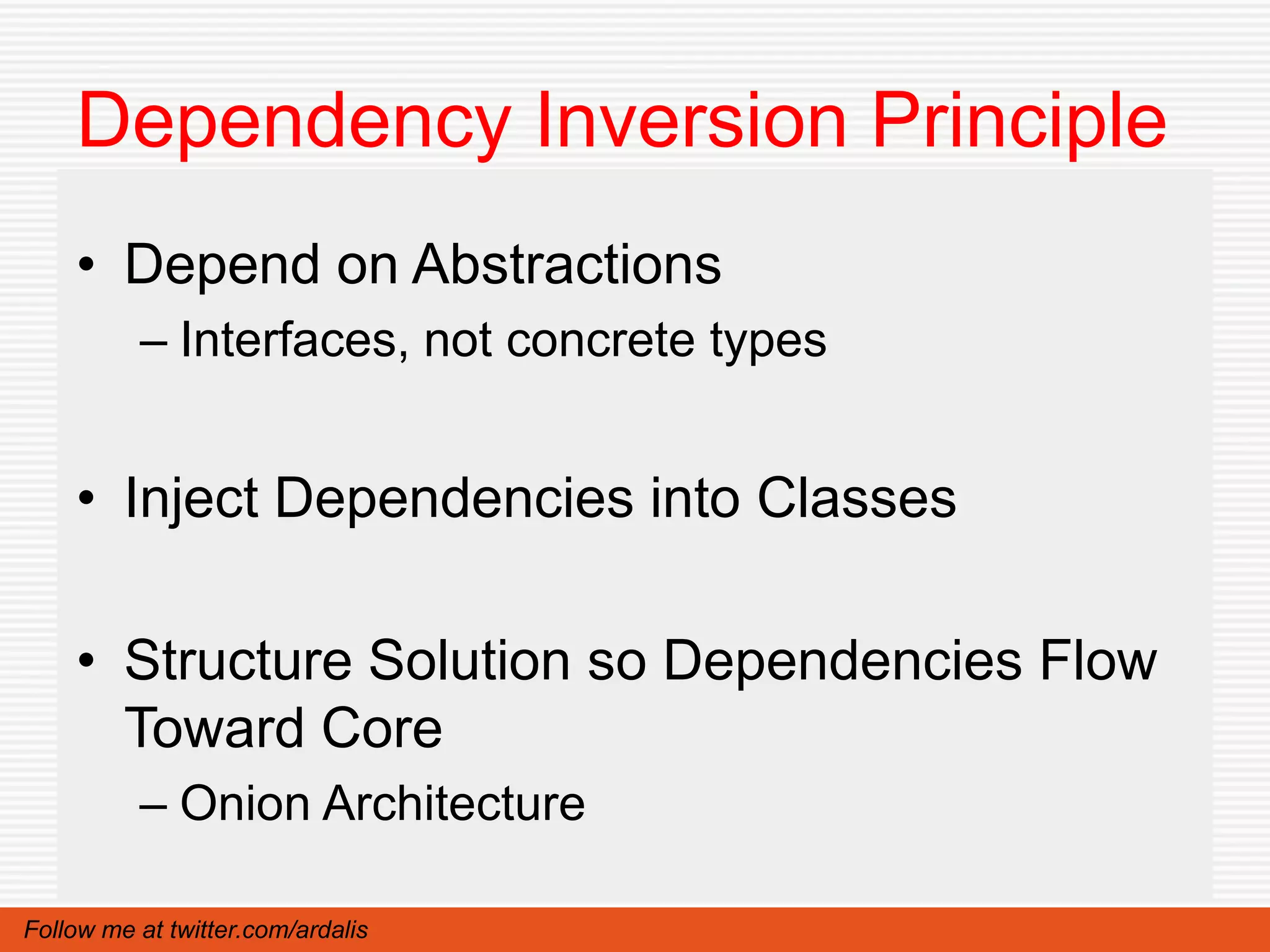

Dependency Inversion Principle
• Depend on Abstractions
– Interfaces, not concrete types

• Inject Dependencies into Classes

• Structure Solution so Dependencies Flow
Toward Core
– Onion Architecture

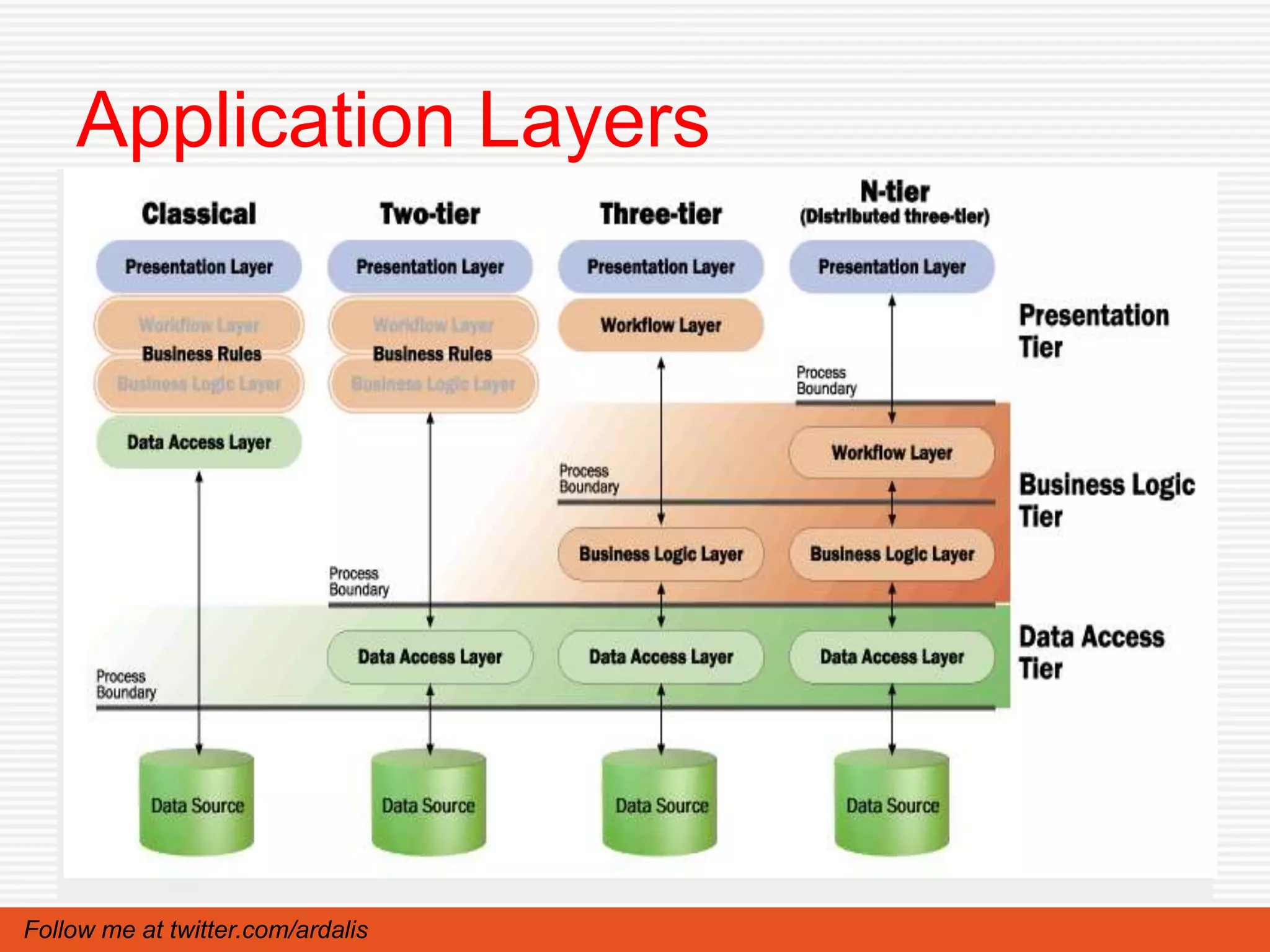

Application Layers


Compile Time

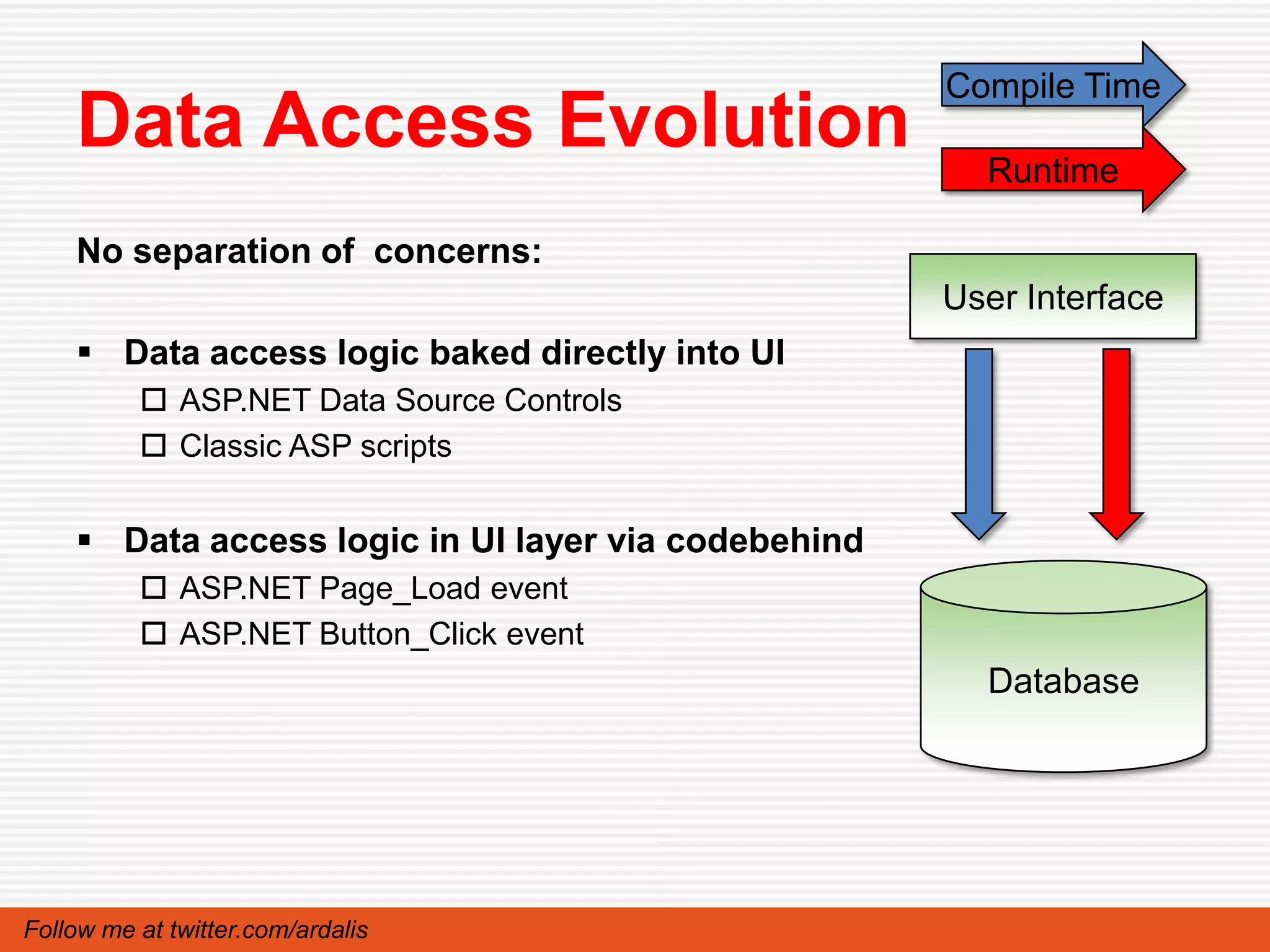

Data Access Evolution Runtime

No separation of concerns:
User Interface
 Data access logic baked directly into UI
 ASP.NET Data Source Controls
 Classic ASP scripts

 Data access logic in UI layer via codebehind
 ASP.NET Page_Load event
 ASP.NET Button_Click event
Database

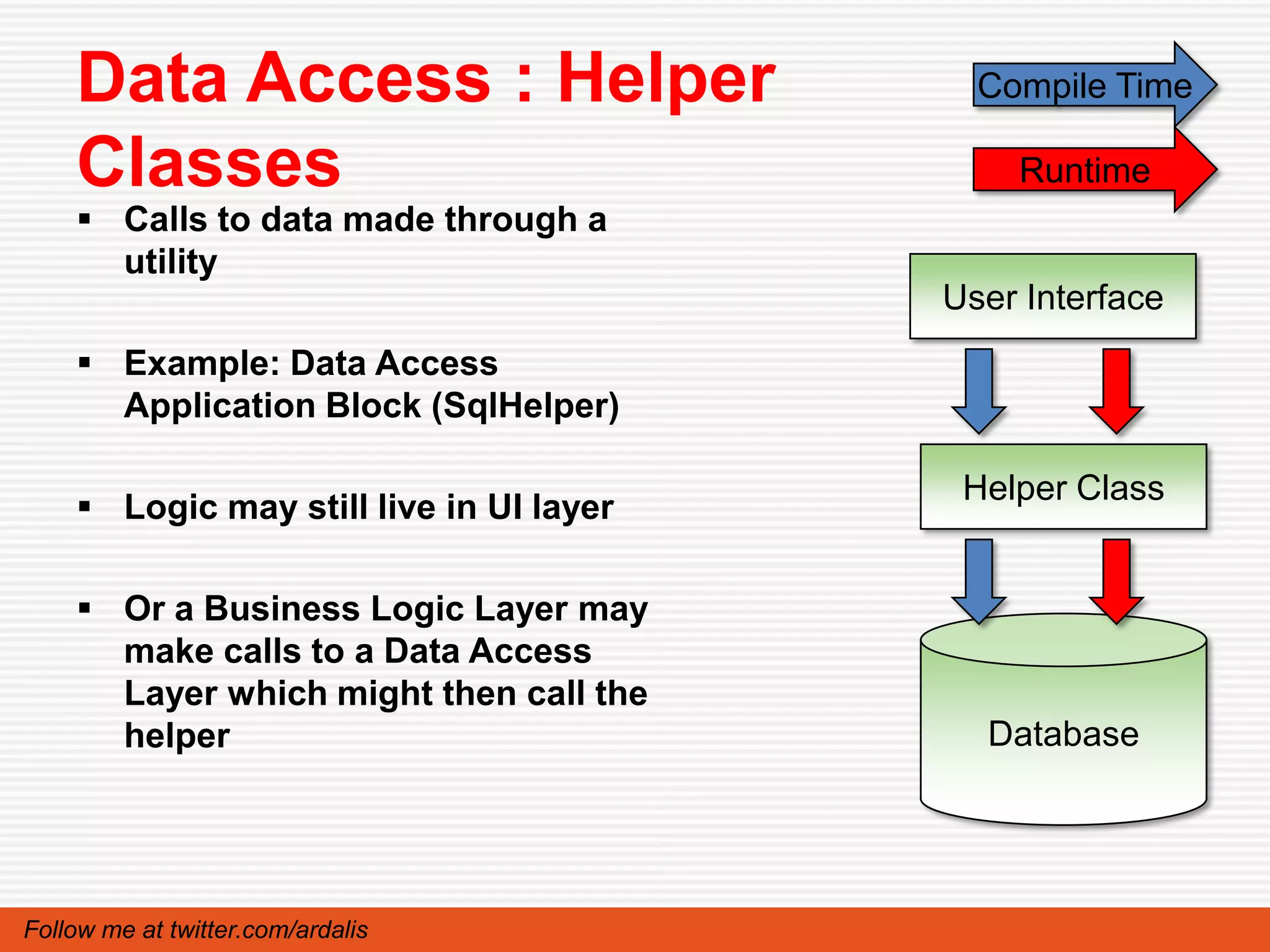

Data Access : Helper Compile Time

Classes Runtime
 Calls to data made through a
utility
User Interface
 Example: Data Access
Application Block (SqlHelper)

Helper Class
 Logic may still live in UI layer

 Or a Business Logic Layer may
make calls to a Data Access
Layer which might then call the
helper Database

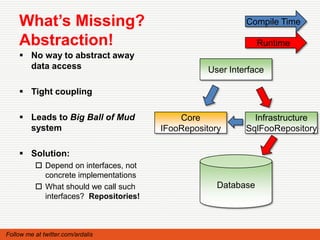

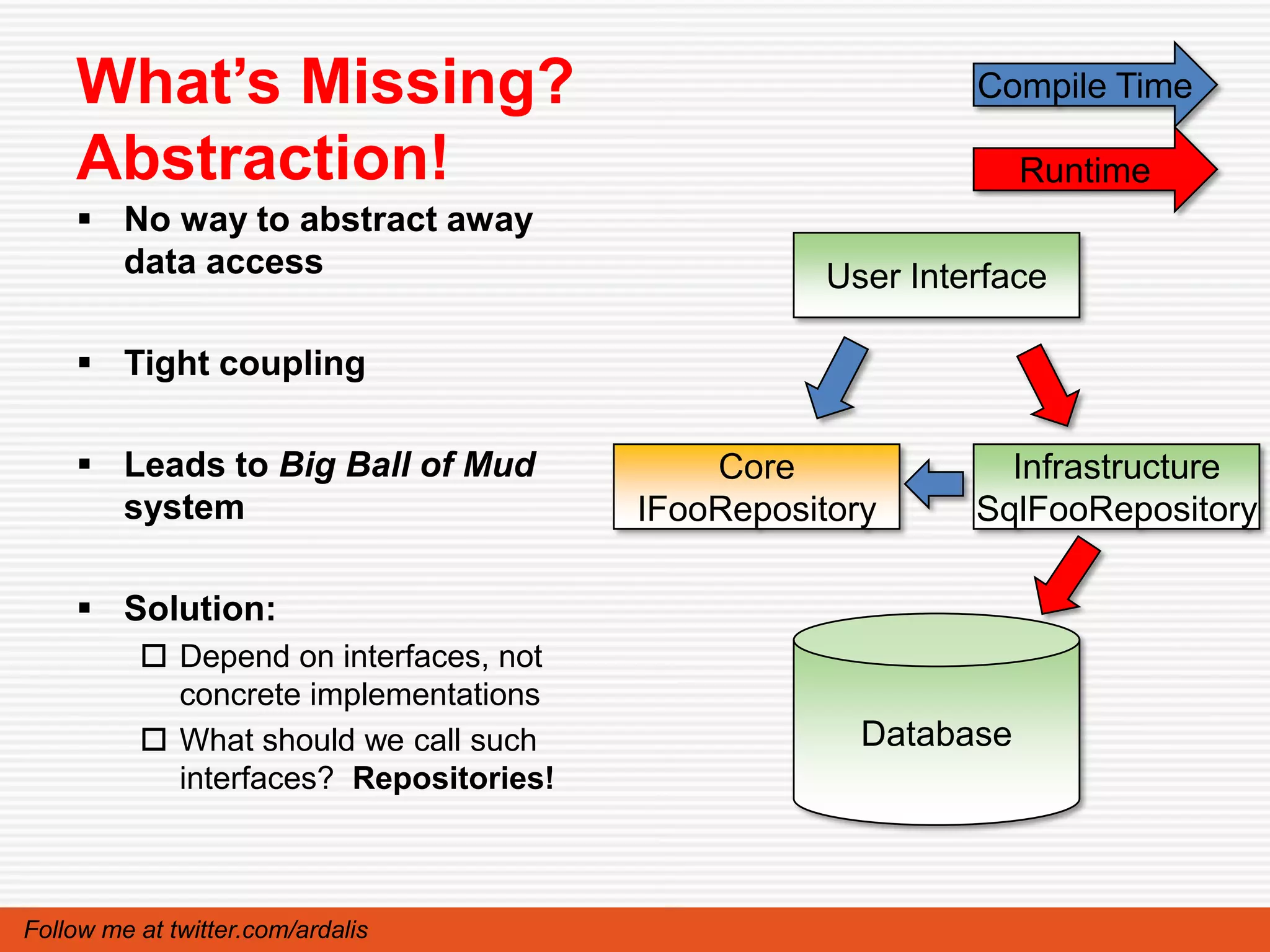

What’s Missing? Compile Time

Abstraction! Runtime
 No way to abstract away
data access User Interface

 Tight coupling

 Leads to Big Ball of Mud Core Infrastructure
system IFooRepository SqlFooRepository

 Solution:
 Depend on interfaces, not
concrete implementations
 What should we call such Database
interfaces? Repositories!

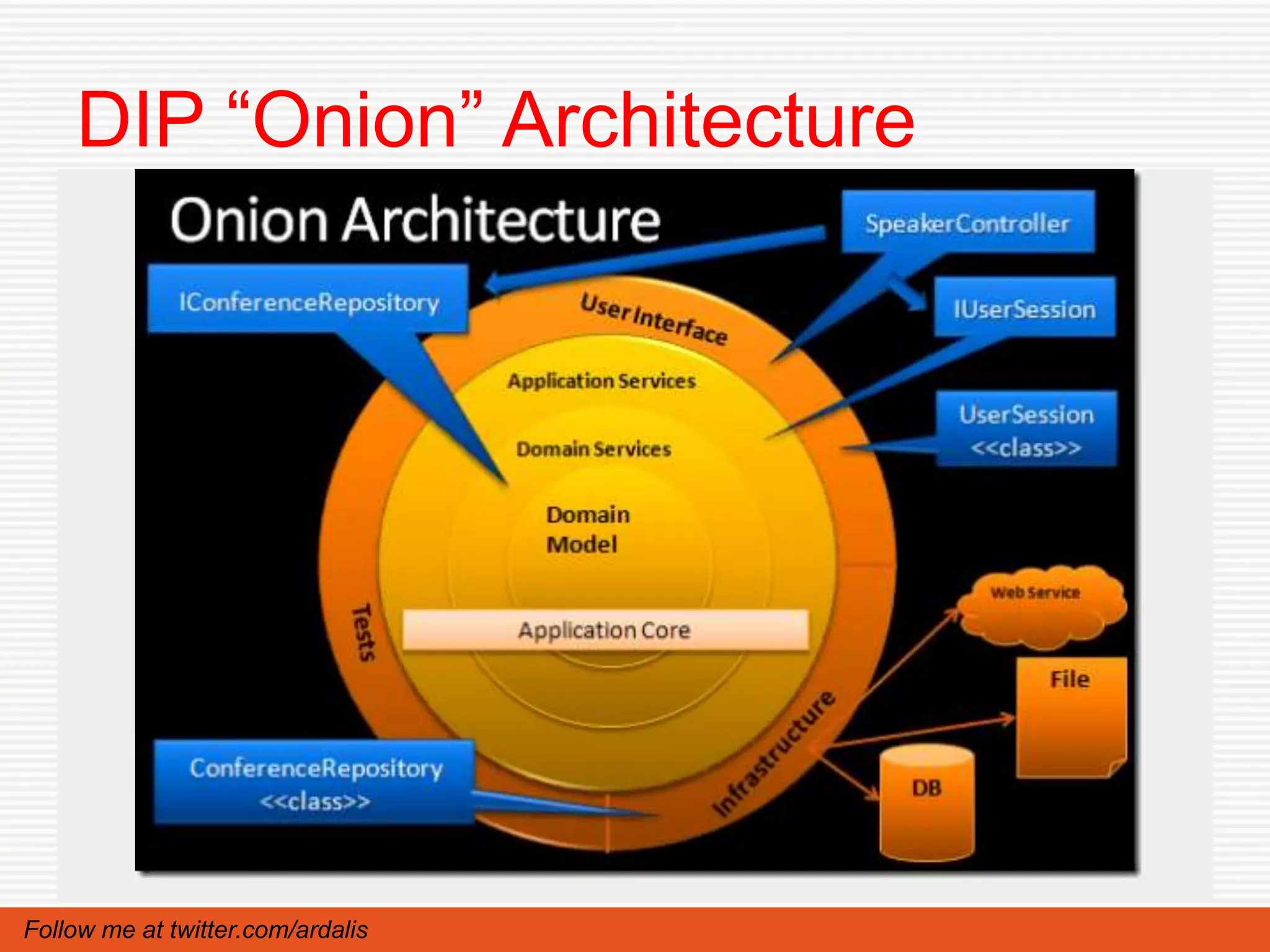

DIP “Onion” Architecture

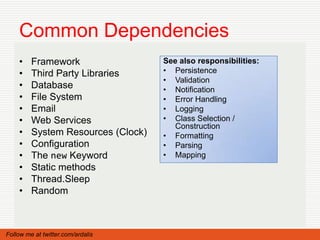

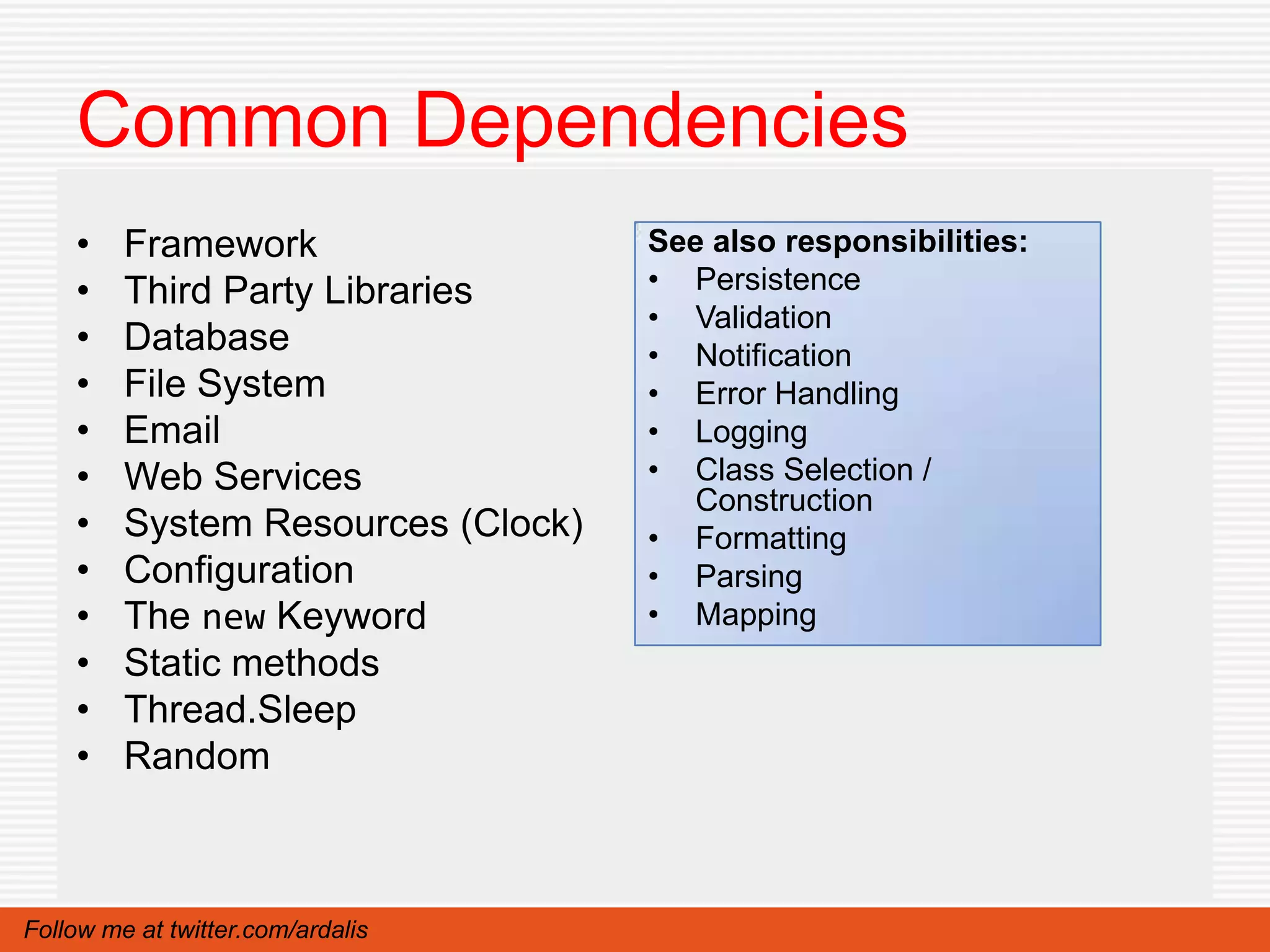

Common Dependencies
• Framework See also responsibilities:
• Third Party Libraries • Persistence
• Validation
• Database • Notification
• File System • Error Handling
• Email • Logging
• Web Services • Class Selection /
Construction
• System Resources (Clock) • Formatting
• Configuration • Parsing
• The new Keyword • Mapping
• Static methods
• Thread.Sleep
• Random

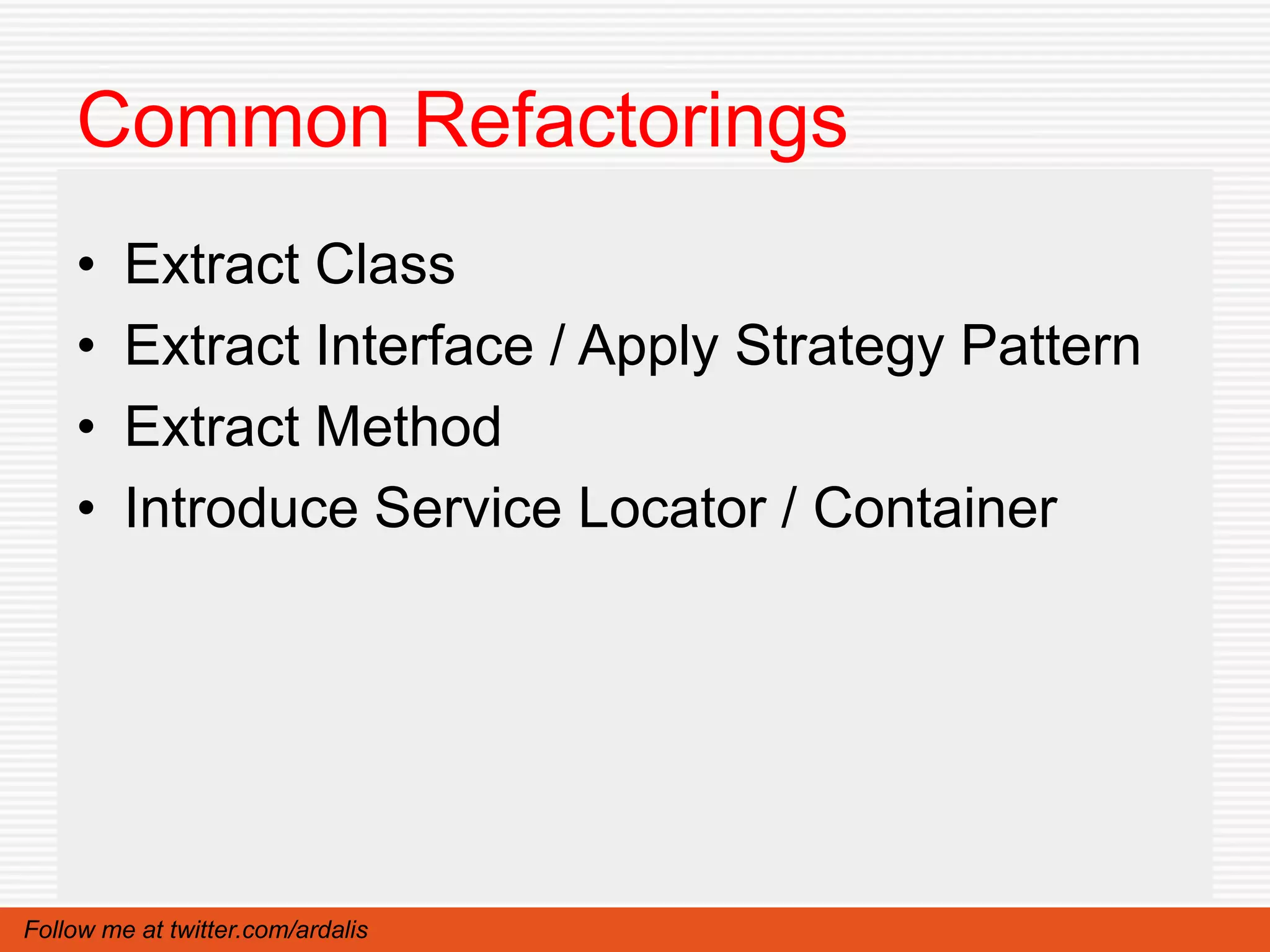

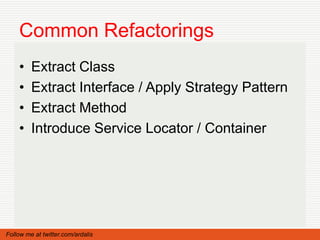

Common Refactorings
• Extract Class
• Extract Interface / Apply Strategy Pattern
• Extract Method
• Introduce Service Locator / Container

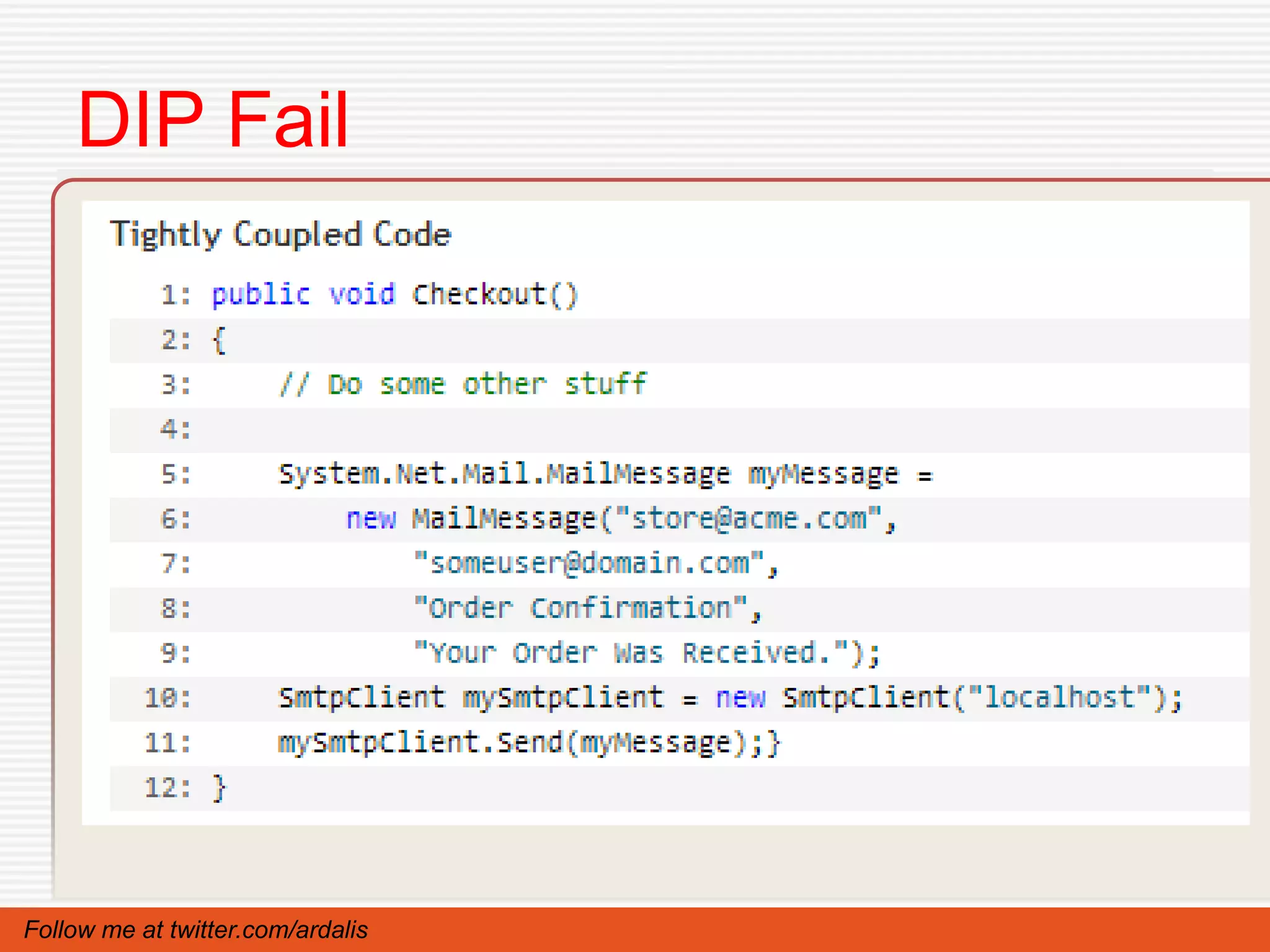

DIP Fail

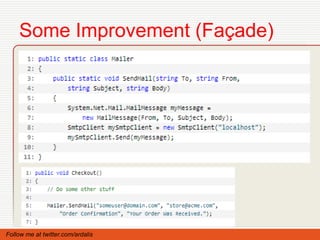

Some Improvement (Façade)

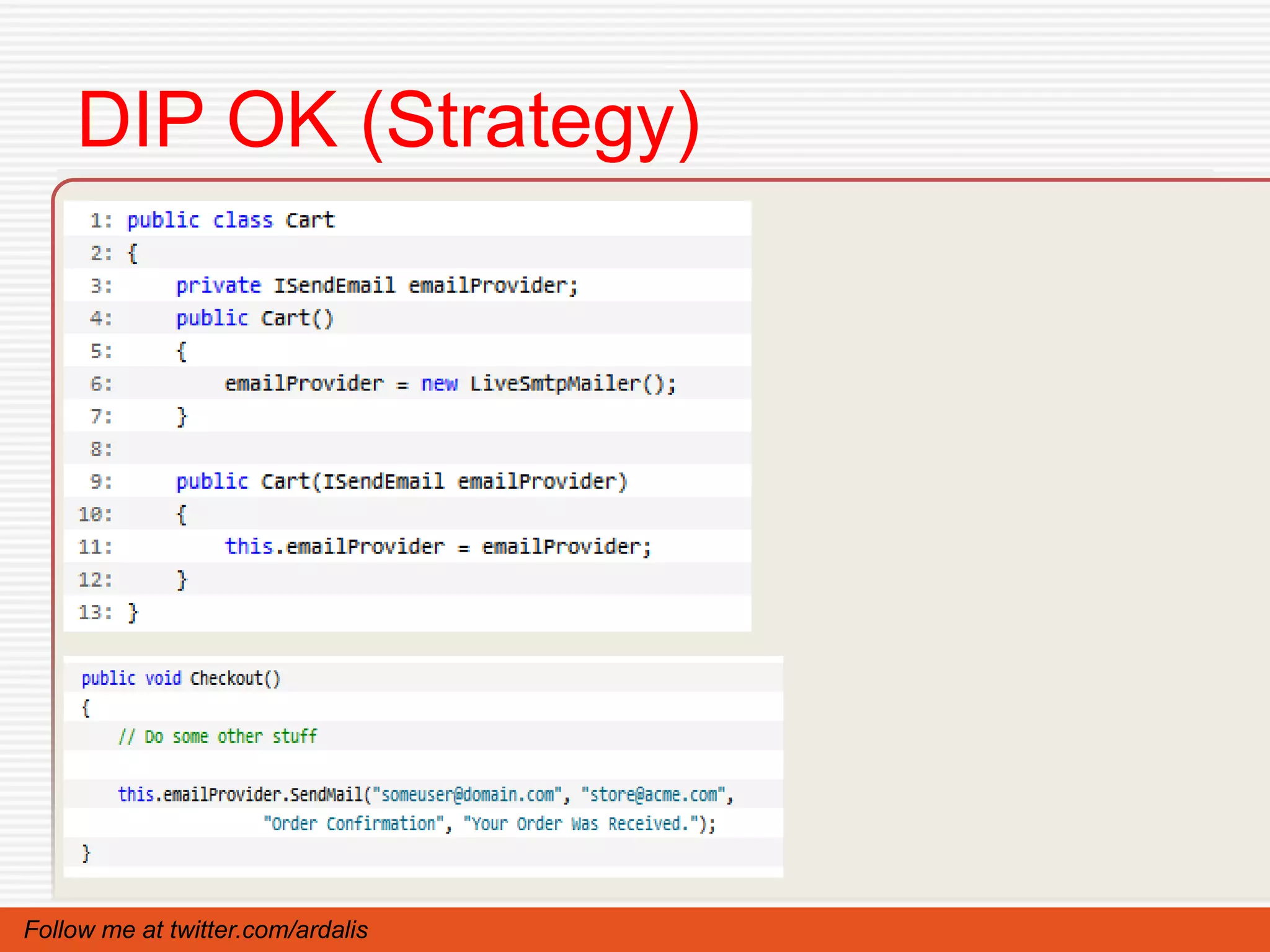

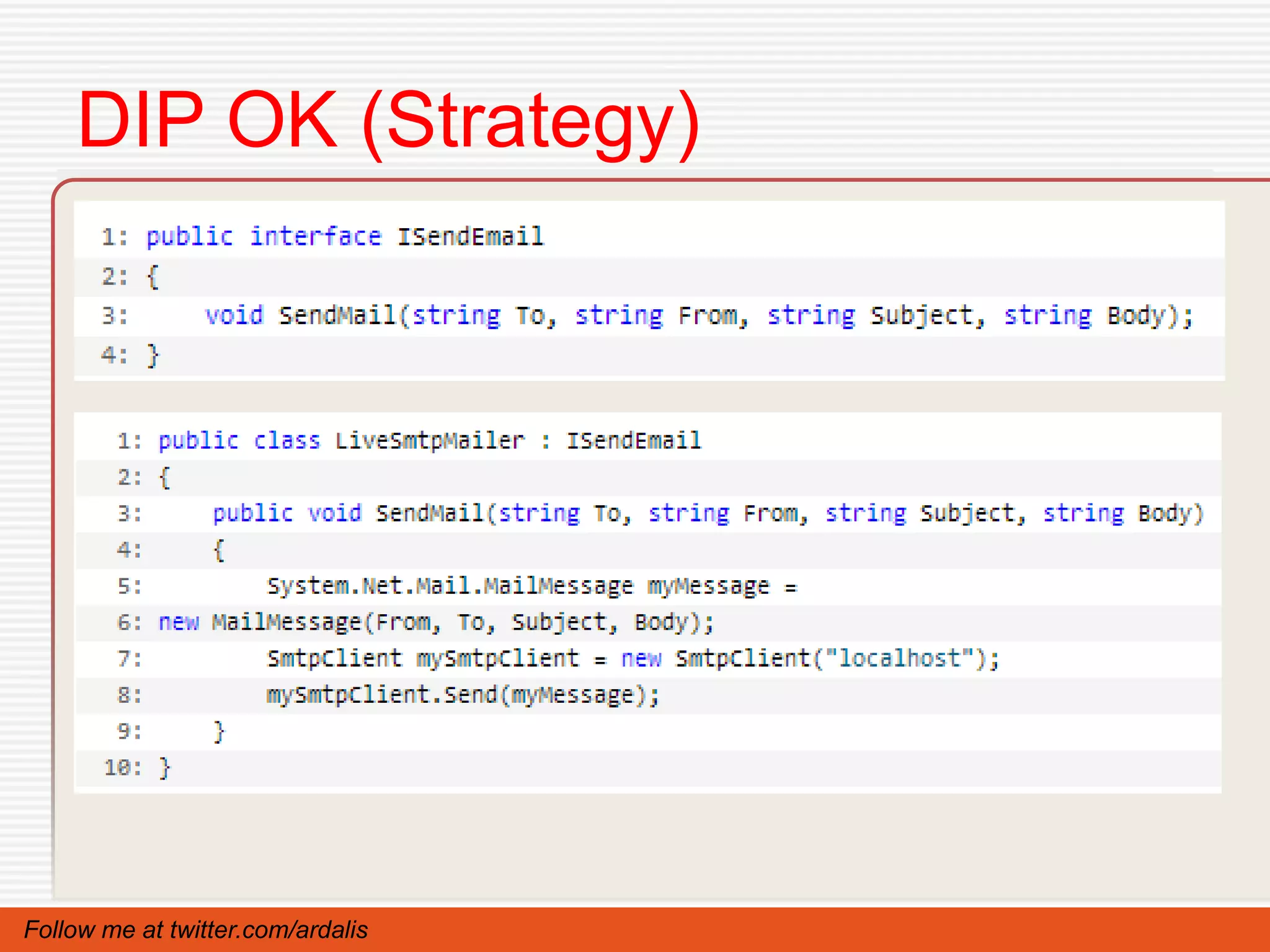

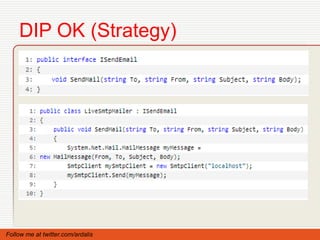

DIP OK (Strategy)

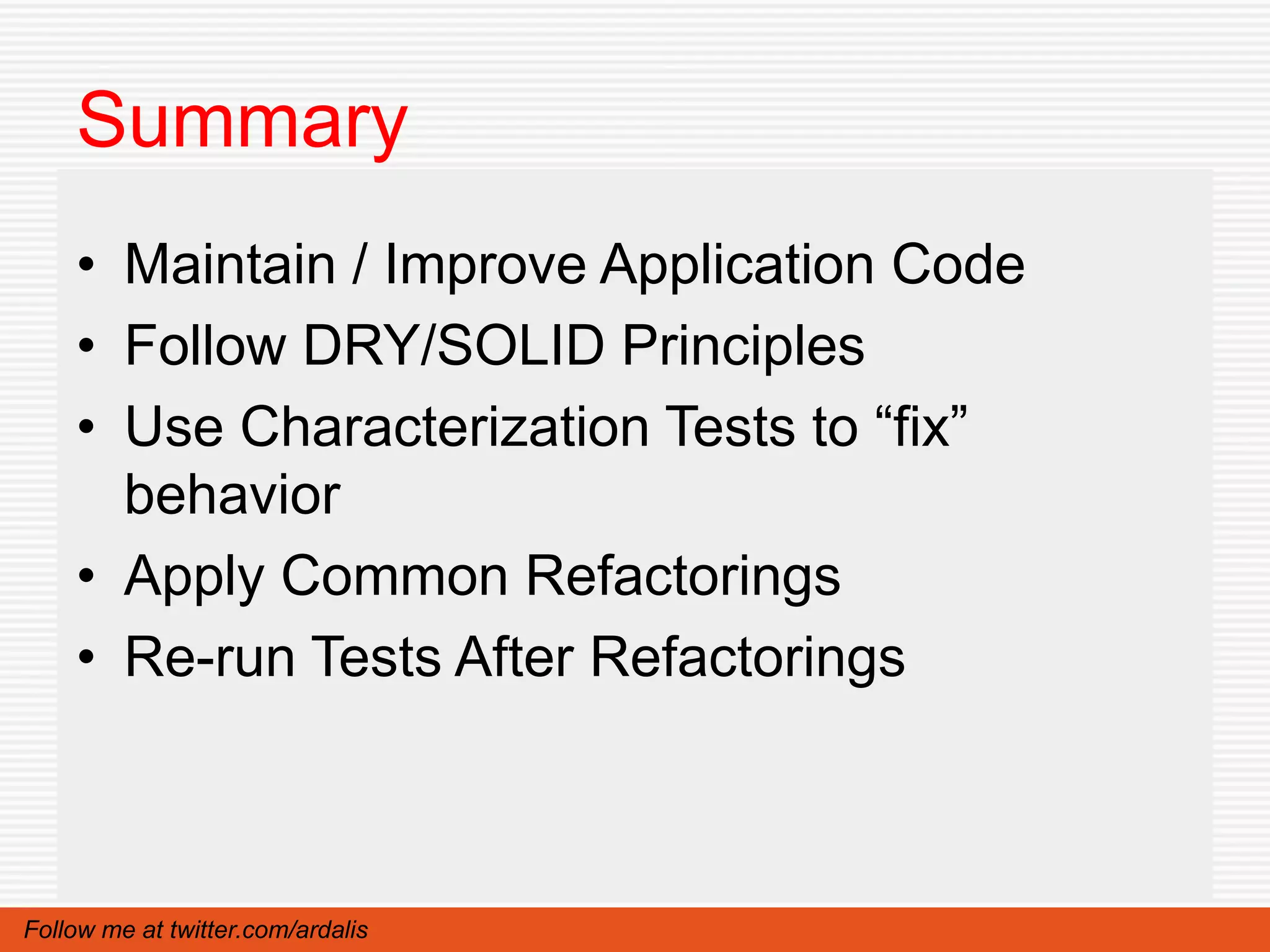

Summary
• Maintain / Improve Application Code
• Follow DRY/SOLID Principles
• Use Characterization Tests to “fix”
behavior
• Apply Common Refactorings
• Re-run Tests After Refactorings

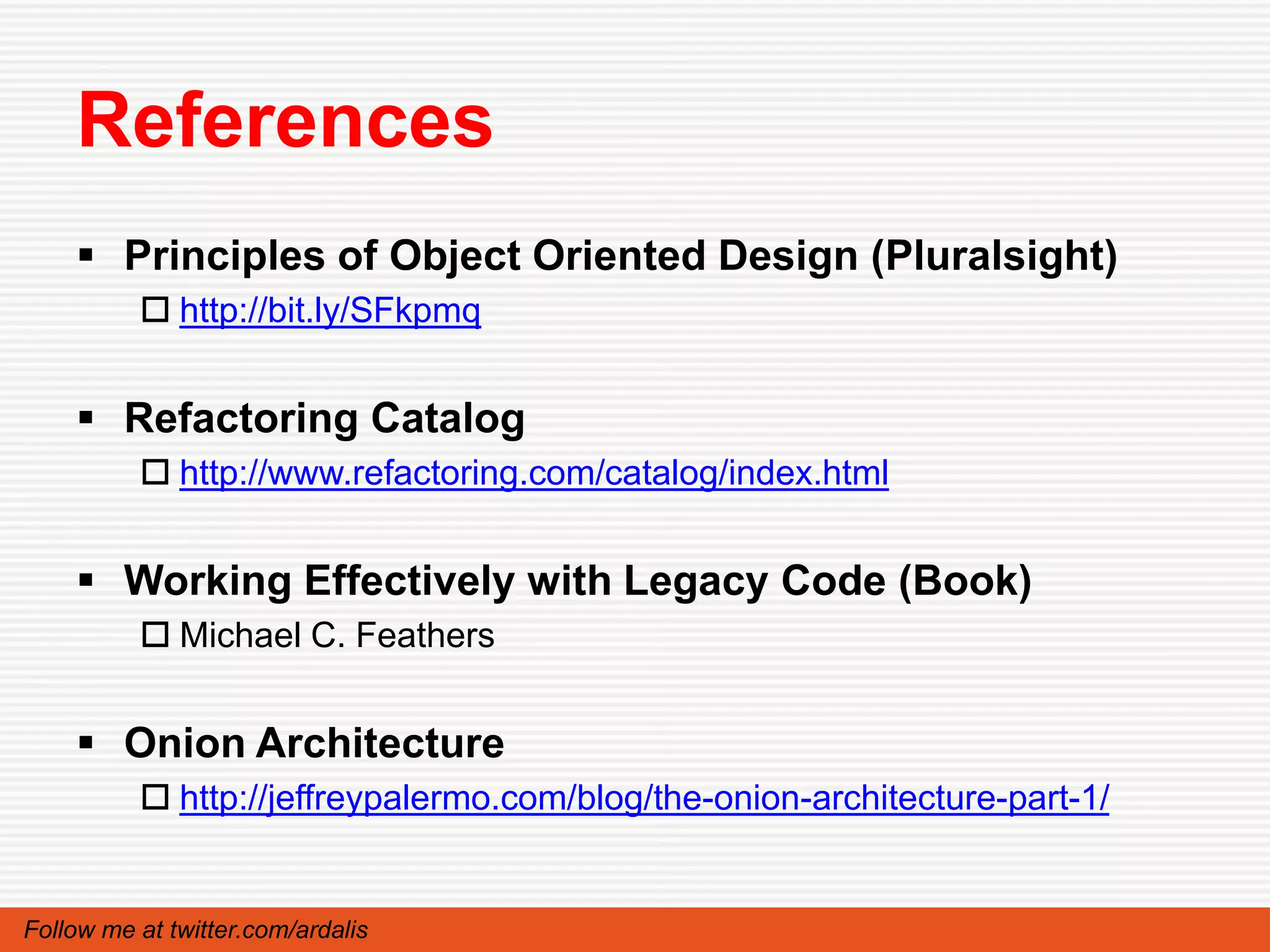

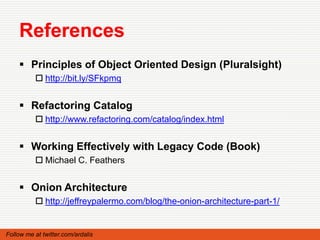

References
 Principles of Object Oriented Design (Pluralsight)
 http://bit.ly/SFkpmq

 Refactoring Catalog
 http://www.refactoring.com/catalog/index.html

 Working Effectively with Legacy Code (Book)
 Michael C. Feathers

 Onion Architecture
 http://jeffreypalermo.com/blog/the-onion-architecture-part-1/

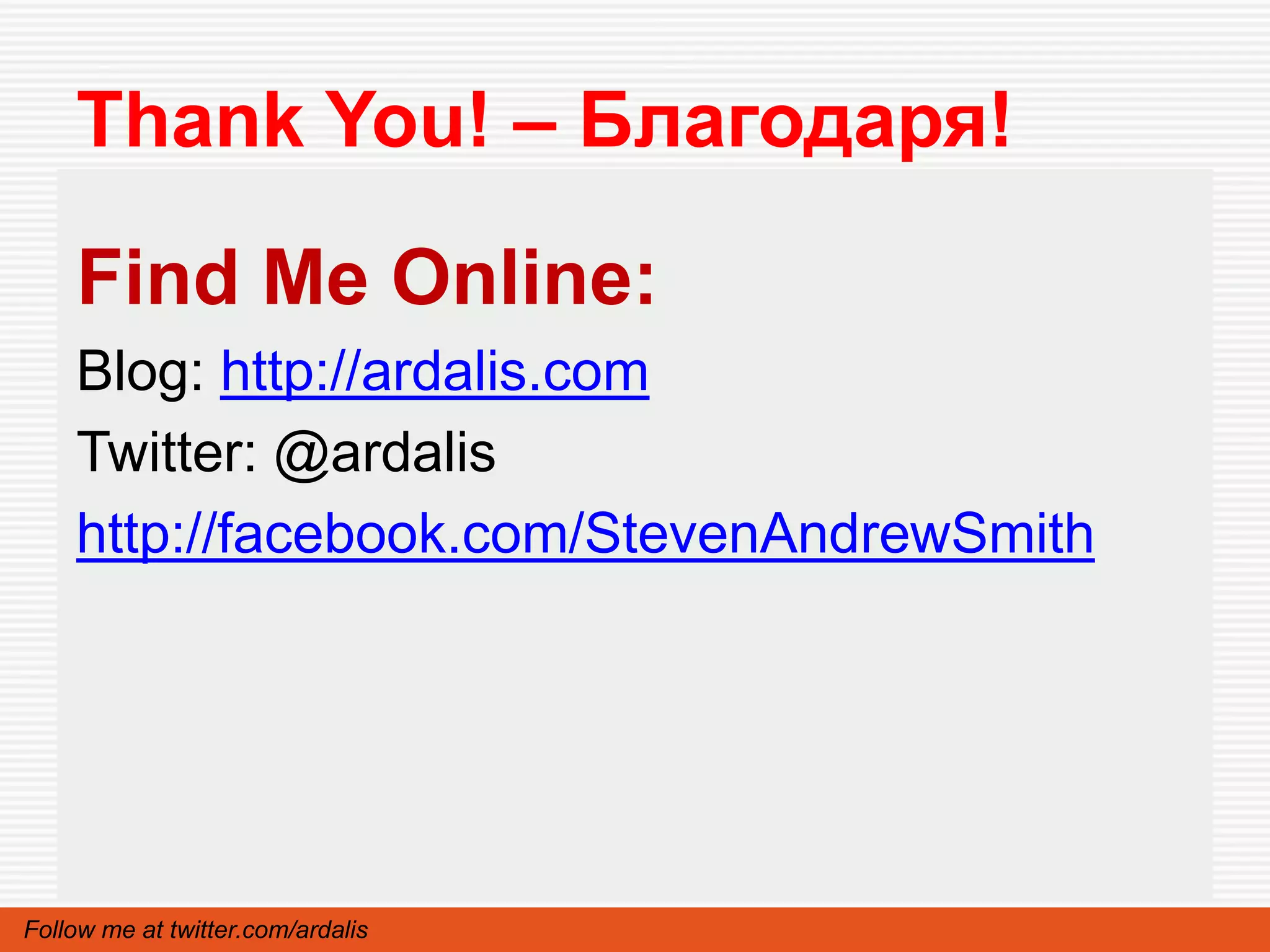

Thank You! – Благодаря!

Find Me Online:
Blog: http://ardalis.com
Twitter: @ardalis
http://facebook.com/StevenAndrewSmith

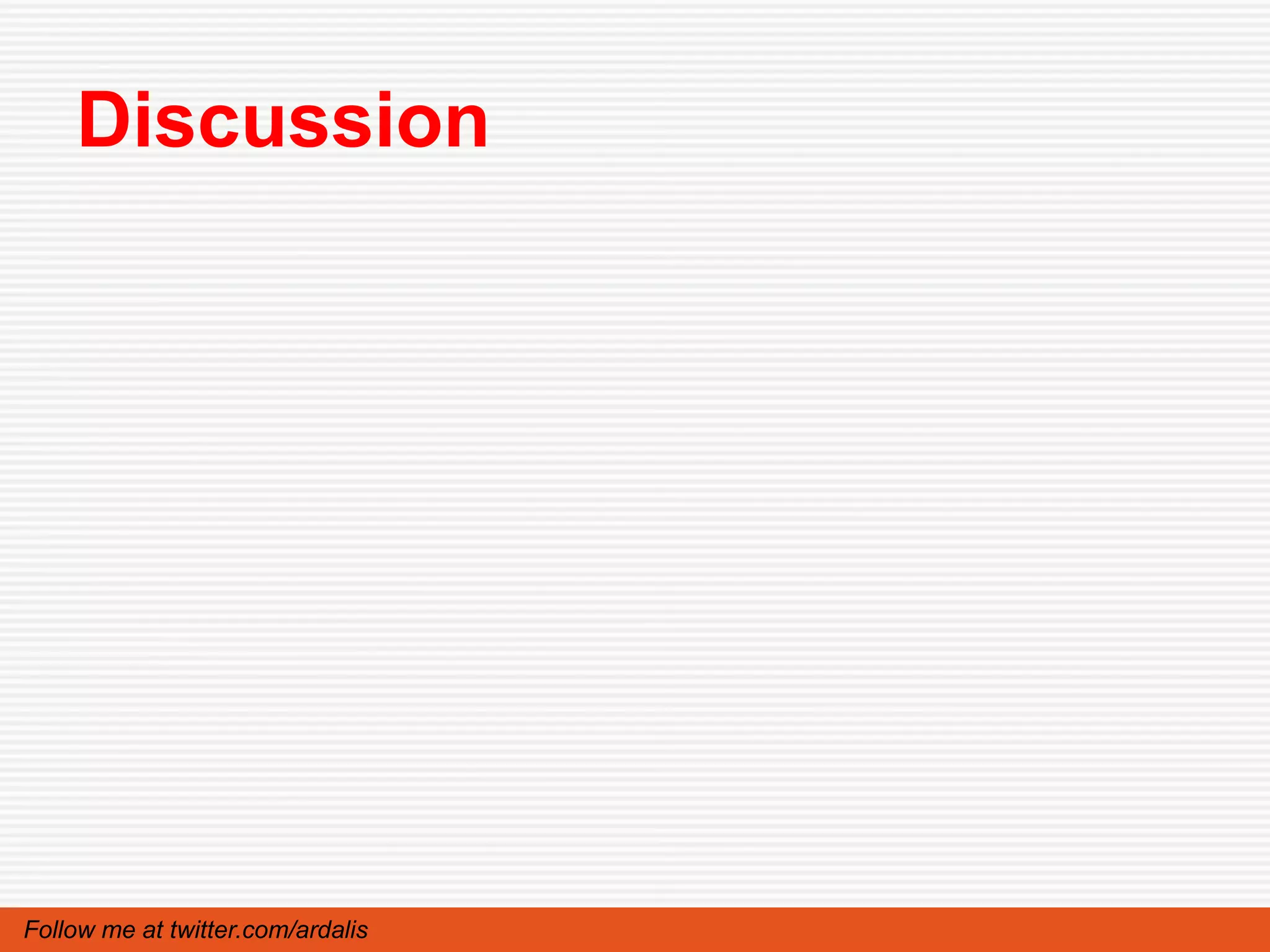

Discussion
