RESTful APIs in .NET

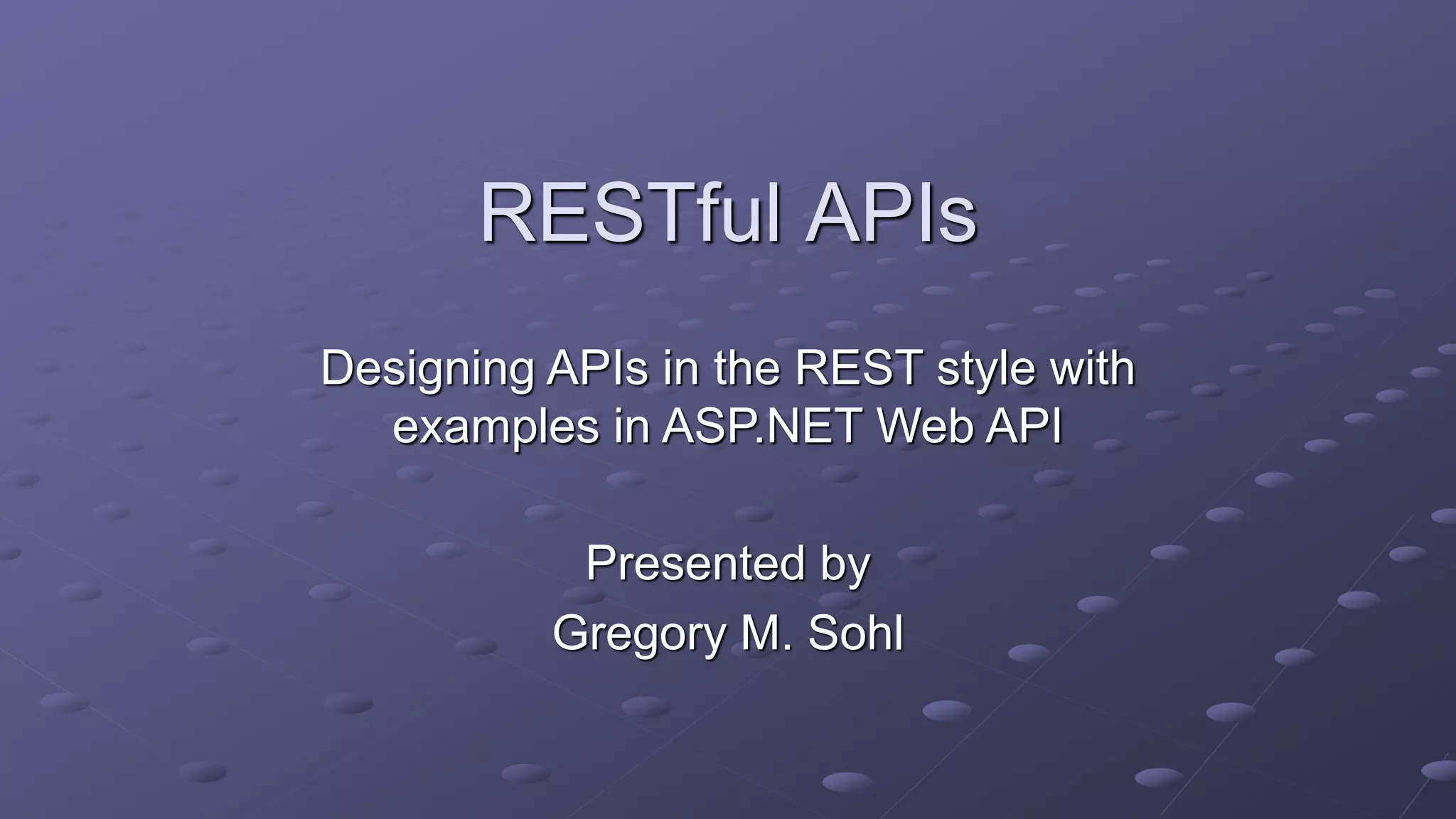

- 1. RESTful APIs Presented by GregoryM. Sohl Designing APIs in the REST style with examples in ASP.NET Web API

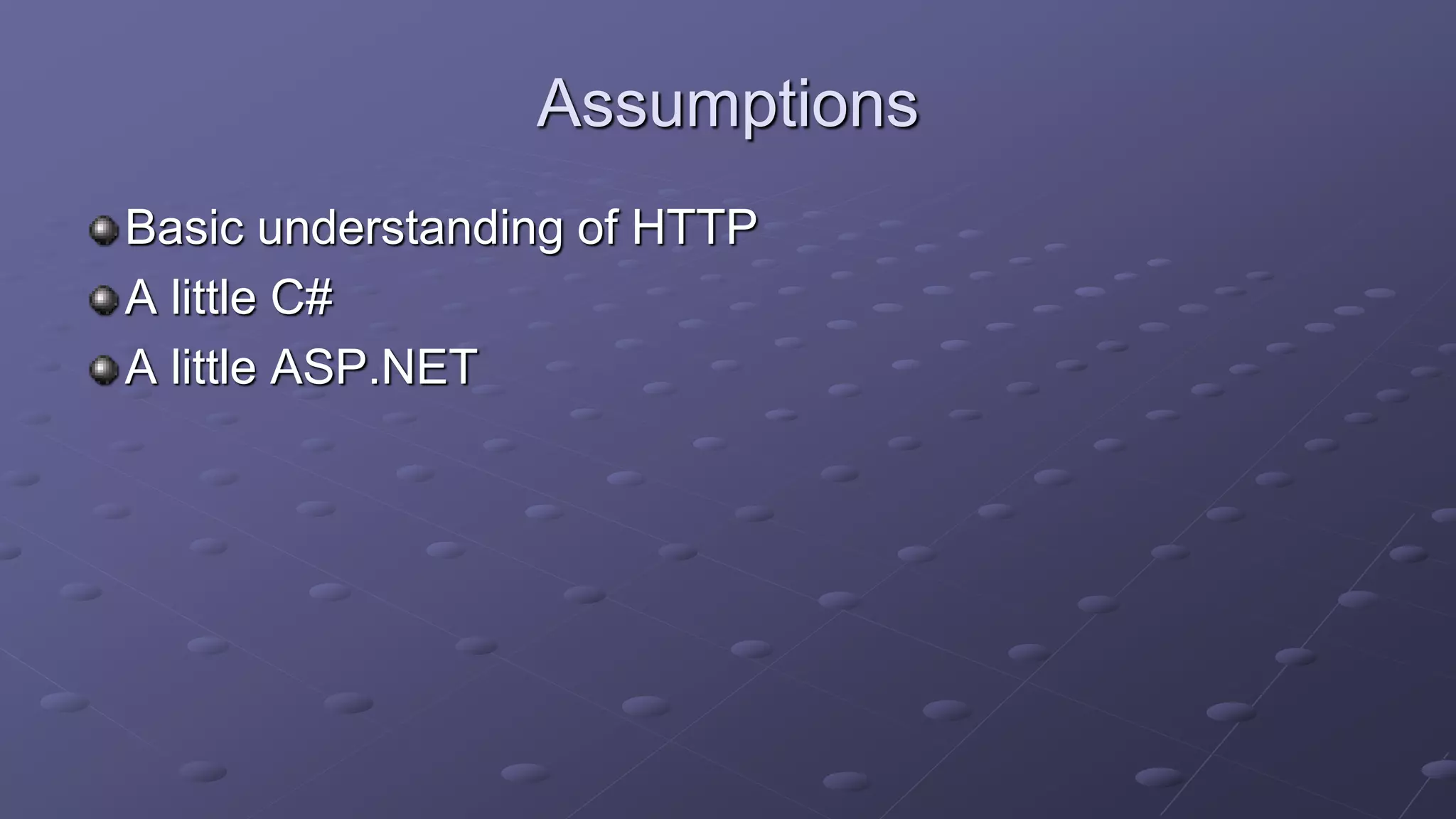

- 2. Assumptions Basic understanding ofHTTP A little C# A little ASP.NET
- 3. Background Described in RoyFielding dissertation in 2000 Roots back to 1994 Roy was a key contributor to HTTP and URI Style of building APIs in distributed hypermedia systems It is not Particular Framework or Technology Set of Standards Design Pattern

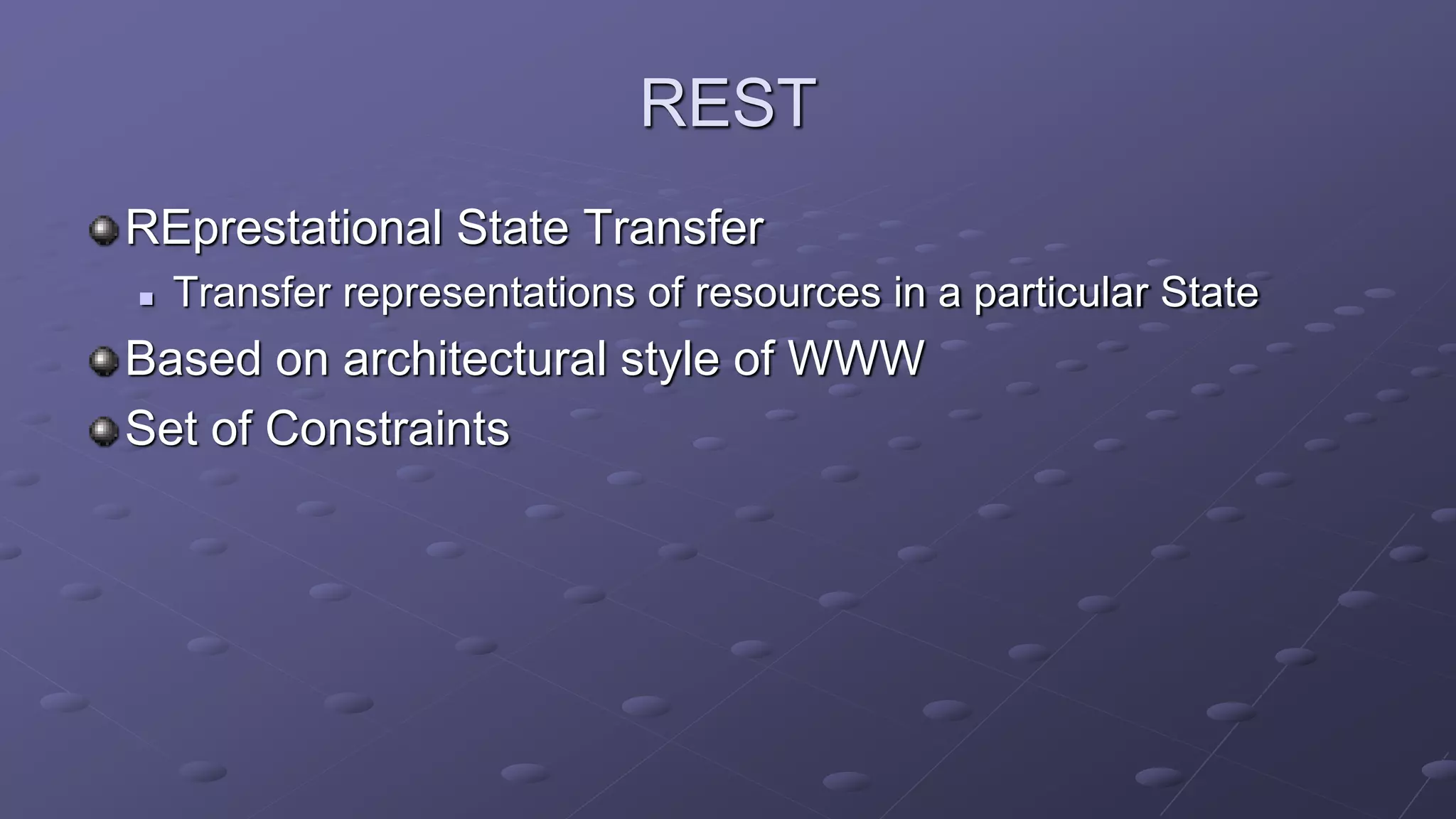

- 4. REST REprestational State Transfer Transfer representations of resources in a particular State Based on architectural style of WWW Set of Constraints

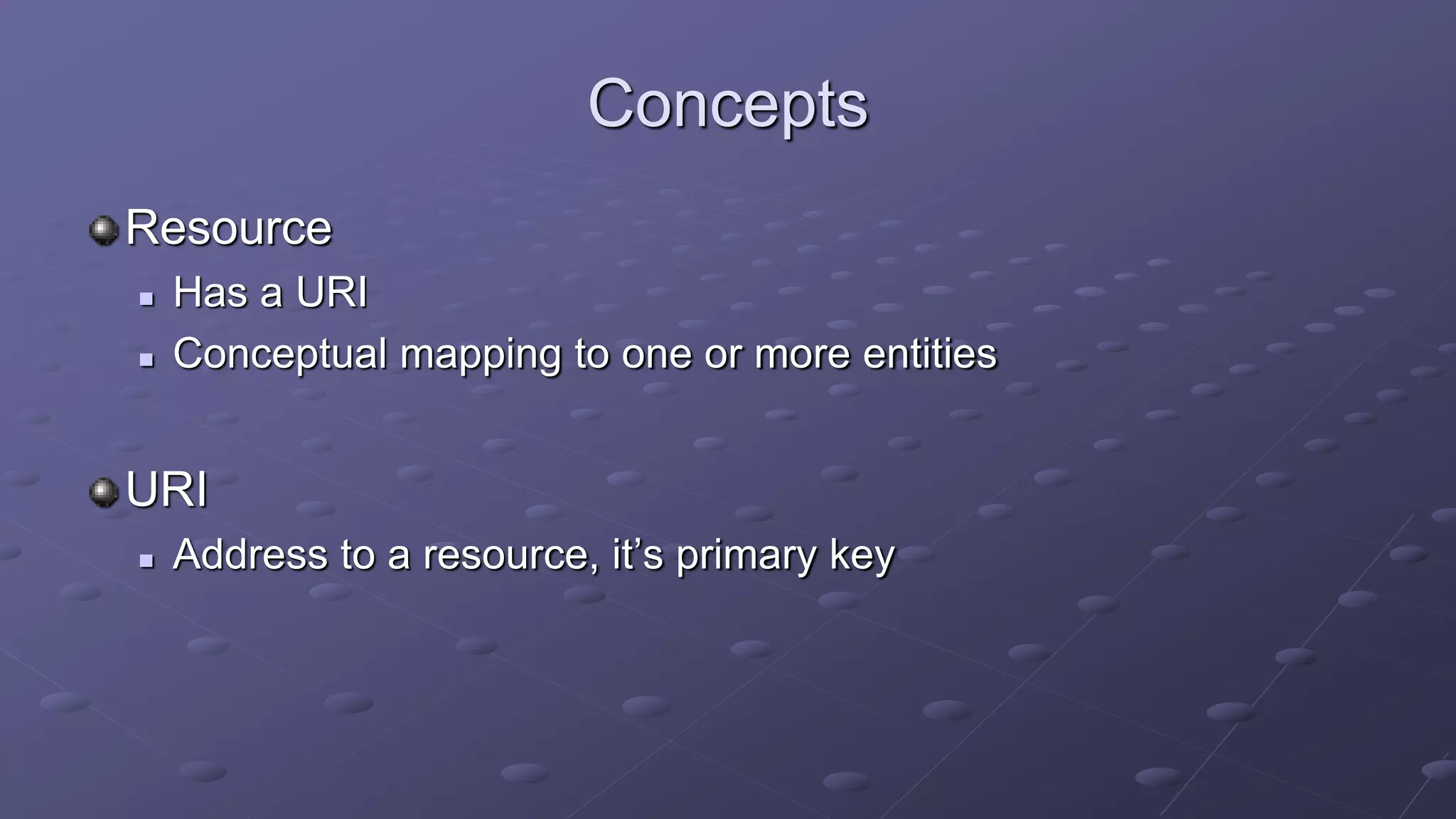

- 5. Concepts Resource Has aURI Conceptual mapping to one or more entities URI Address to a resource, it’s primary key
- 6. Concepts Representation Snapshot ofa resource NOT the resource itself Media Type A format for the representation Commonly JSON or XML – but no limits

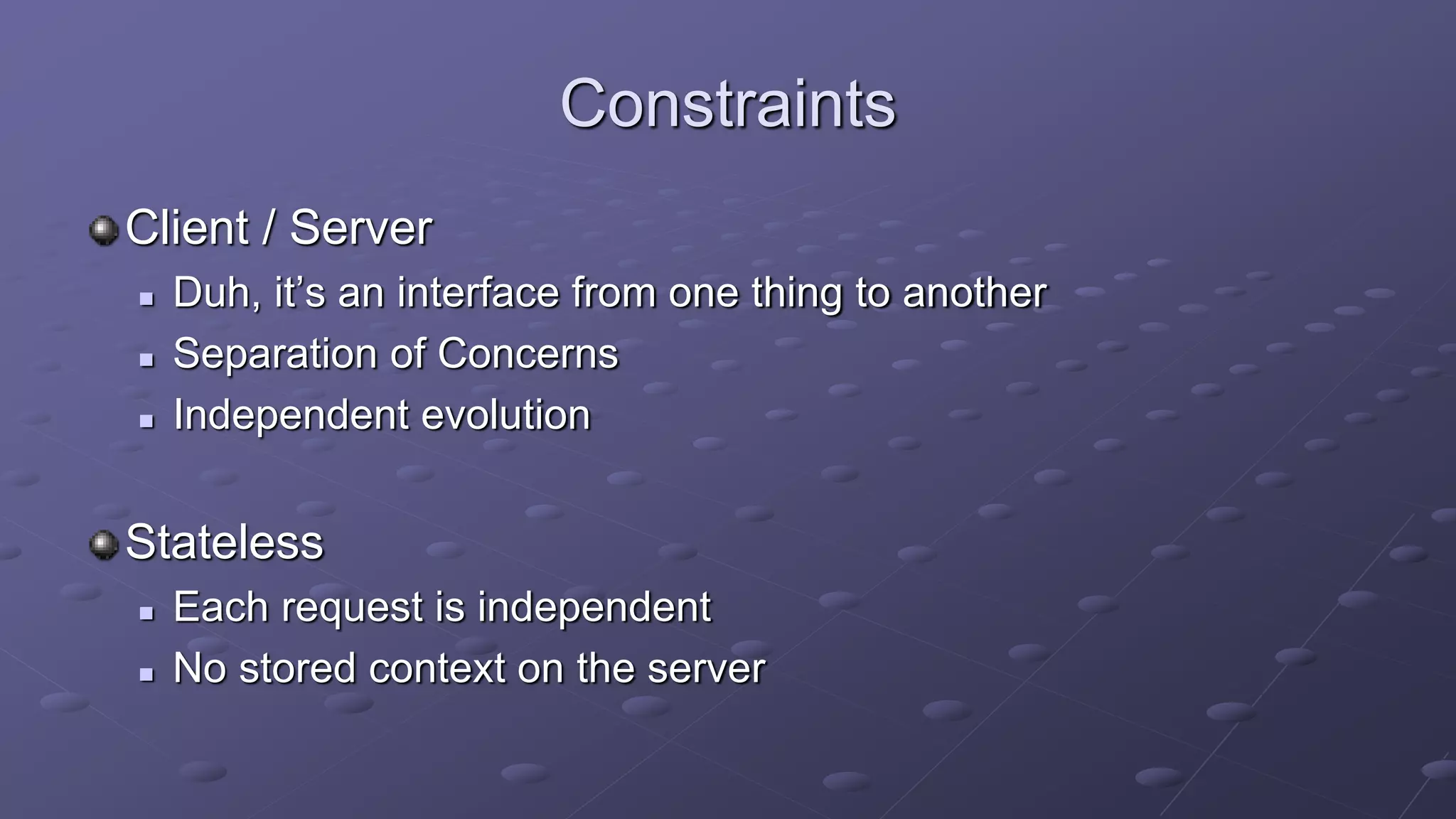

- 7. Constraints Client / Server Duh, it’s an interface from one thing to another Separation of Concerns Independent evolution Stateless Each request is independent No stored context on the server

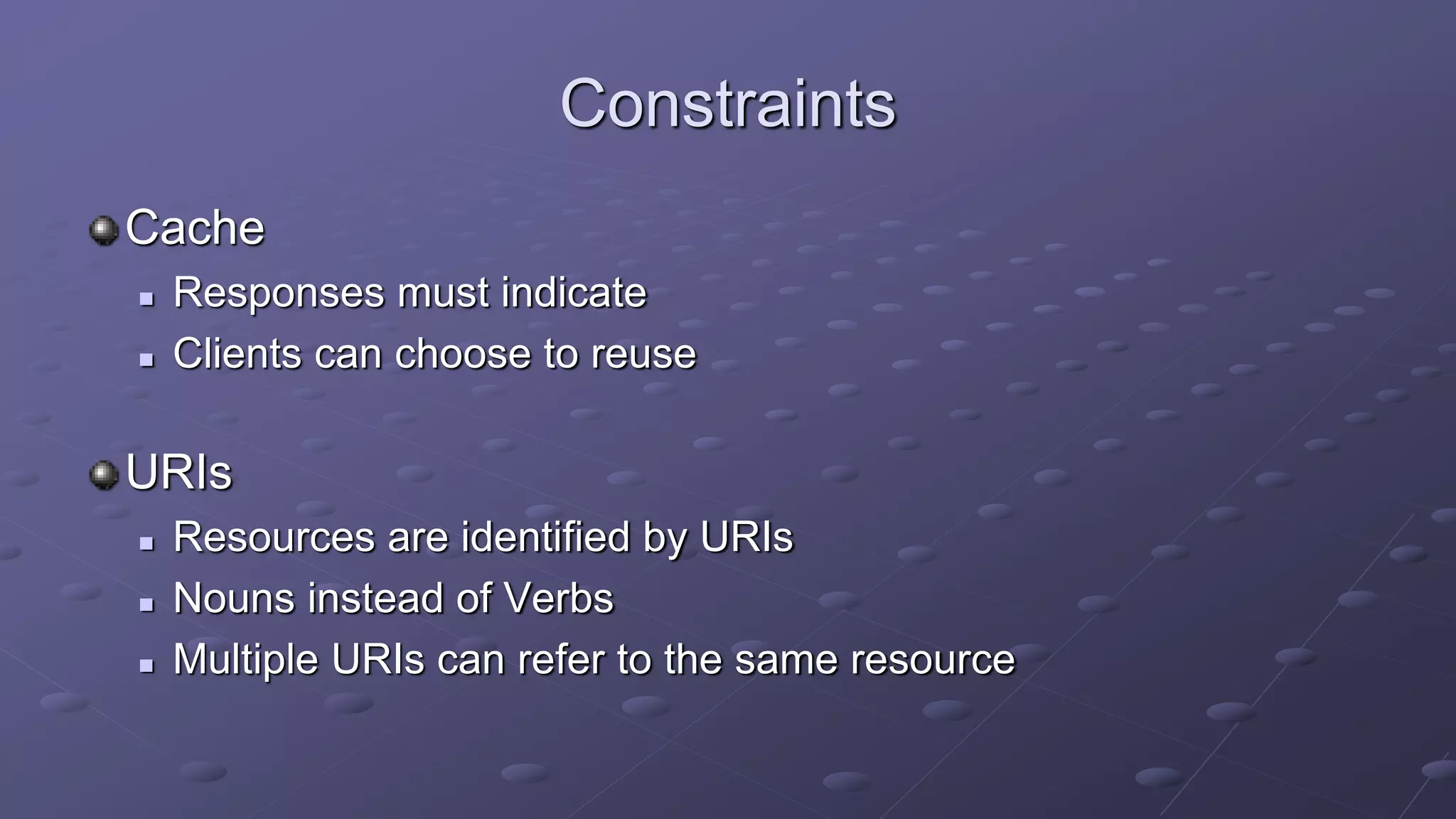

- 8. Constraints Cache Responses mustindicate Clients can choose to reuse URIs Resources are identified by URIs Nouns instead of Verbs Multiple URIs can refer to the same resource

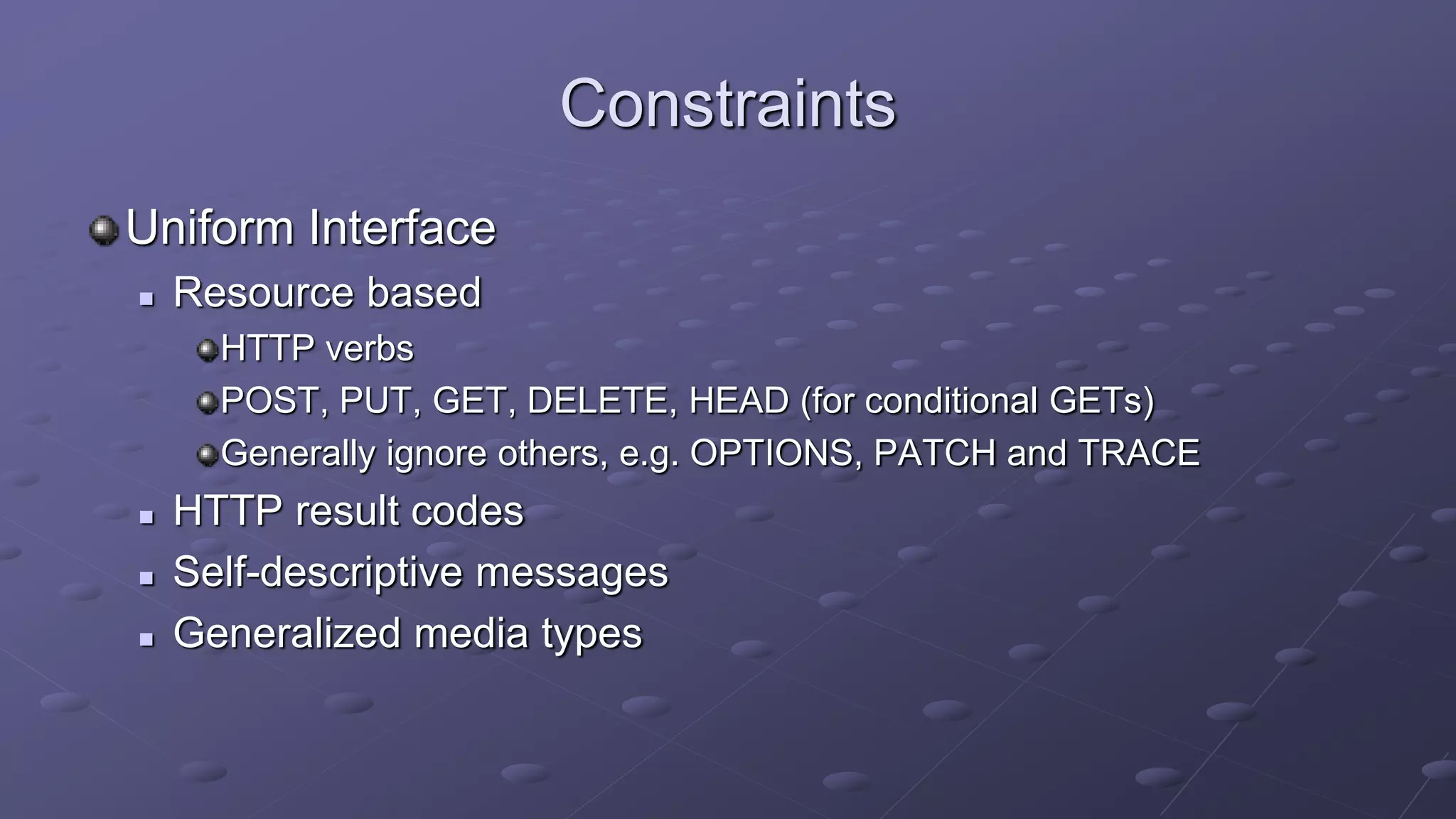

- 9. Constraints Uniform Interface Resourcebased HTTP verbs POST, PUT, GET, DELETE, HEAD (for conditional GETs) Generally ignore others, e.g. OPTIONS, PATCH and TRACE HTTP result codes Self-descriptive messages Generalized media types

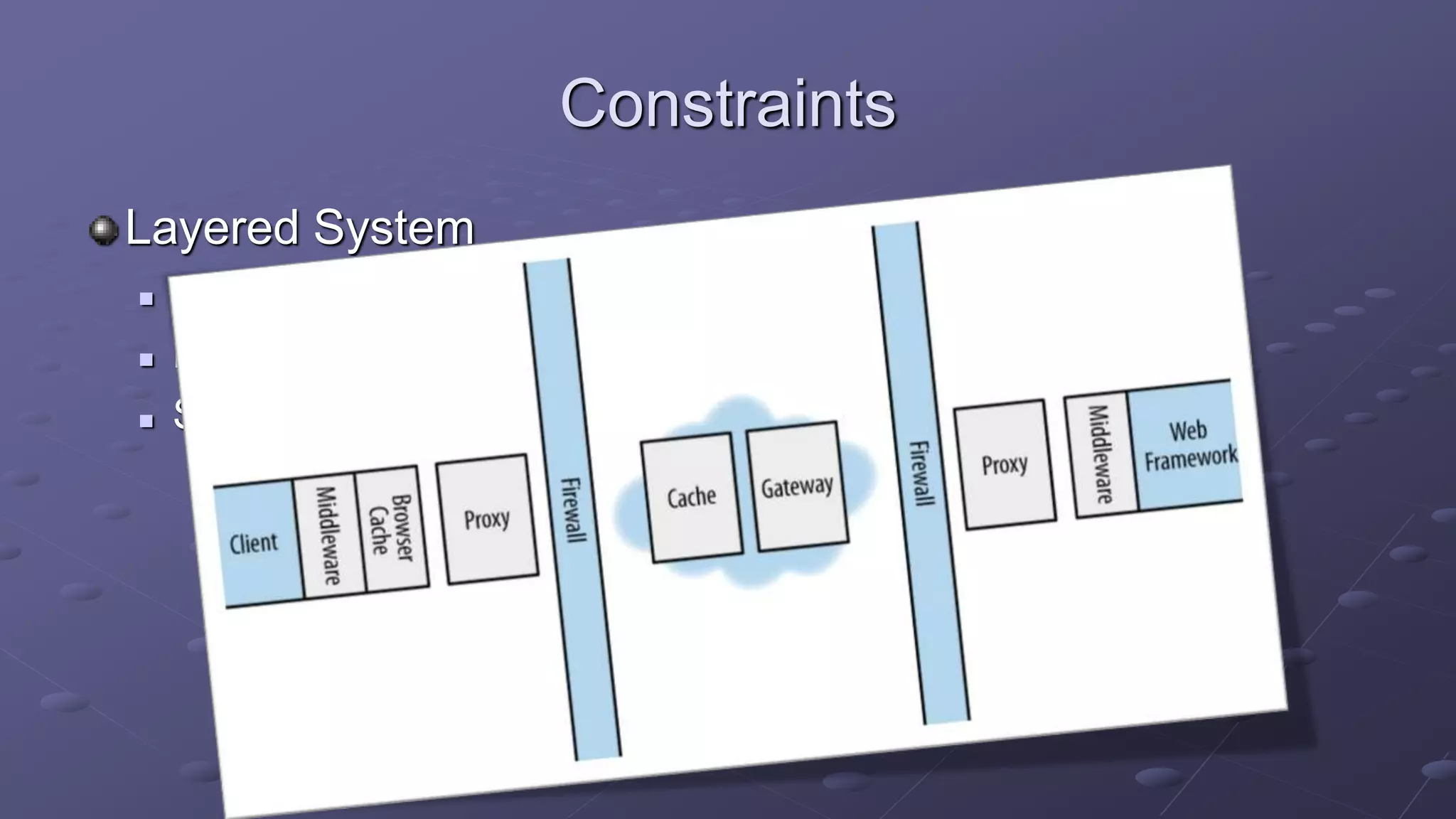

- 10. Constraints Layered System Clientnot necessarily talking directly to server Layers can only “see” each other Supports firewalls, proxies, etc.

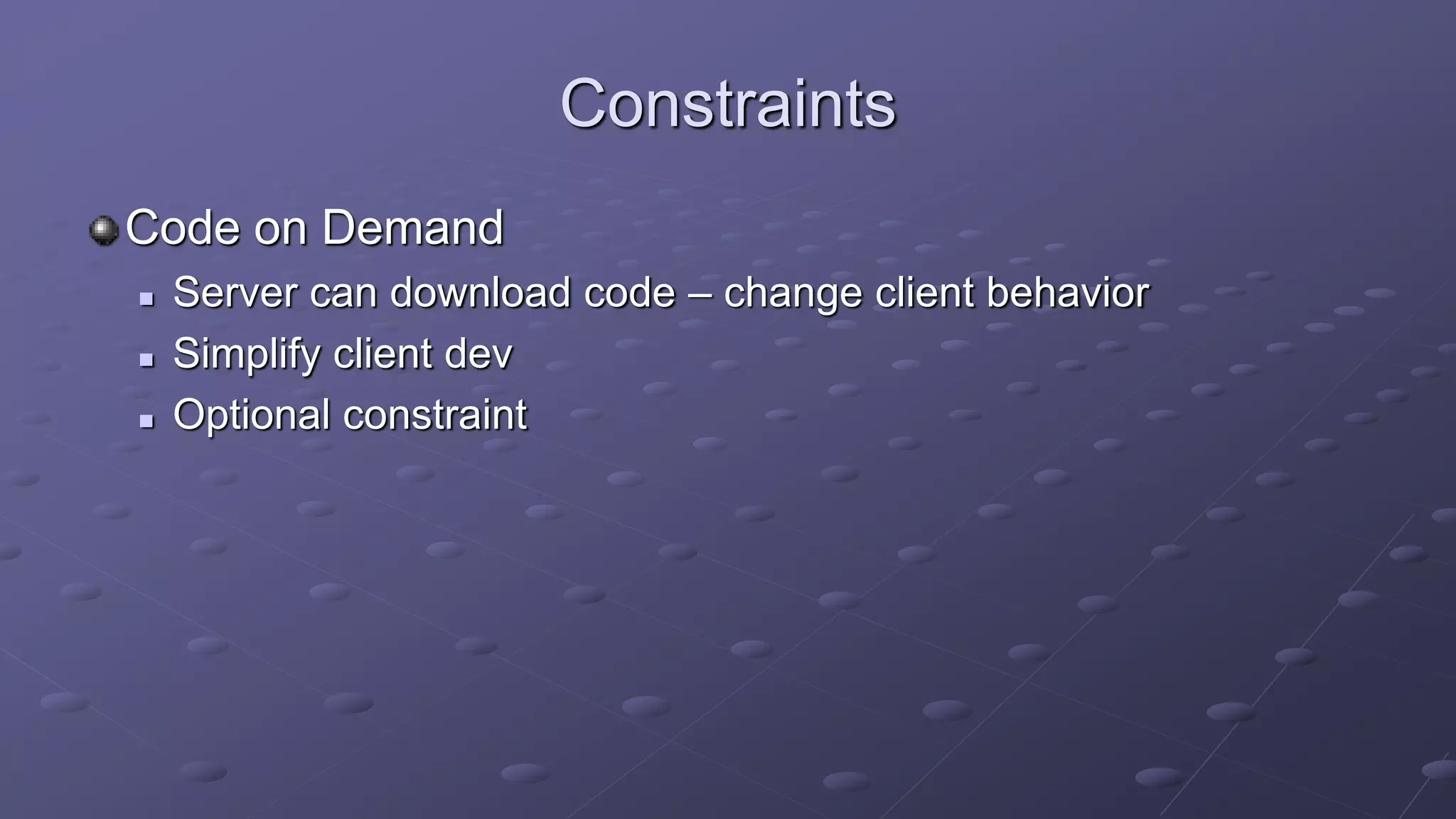

- 11. Constraints Code on Demand Server can download code – change client behavior Simplify client dev Optional constraint

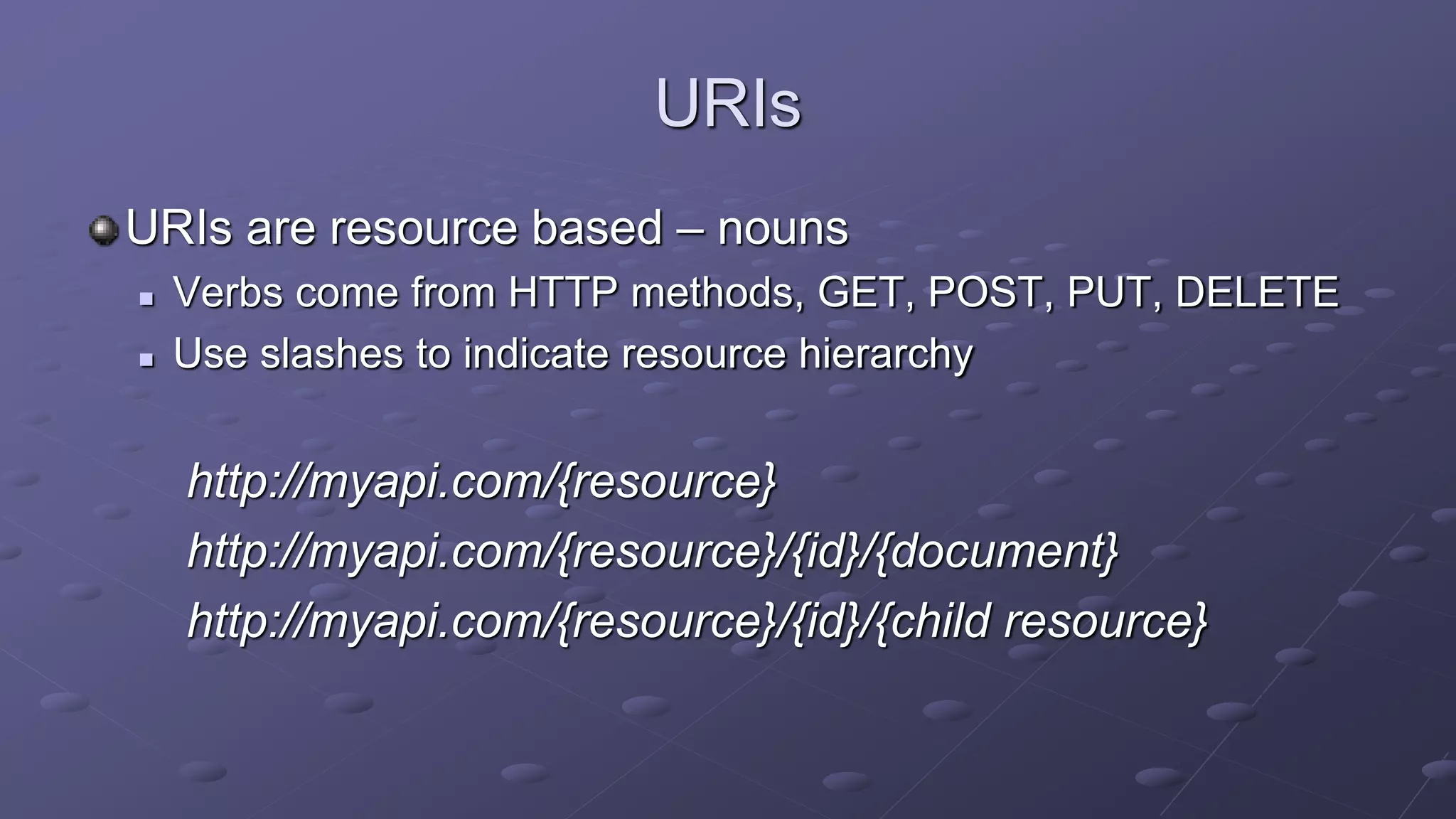

- 12. URIs URIs are resourcebased – nouns Verbs come from HTTP methods, GET, POST, PUT, DELETE Use slashes to indicate resource hierarchy http://myapi.com/{resource} http://myapi.com/{resource}/{id}/{document} http://myapi.com/{resource}/{id}/{child resource}

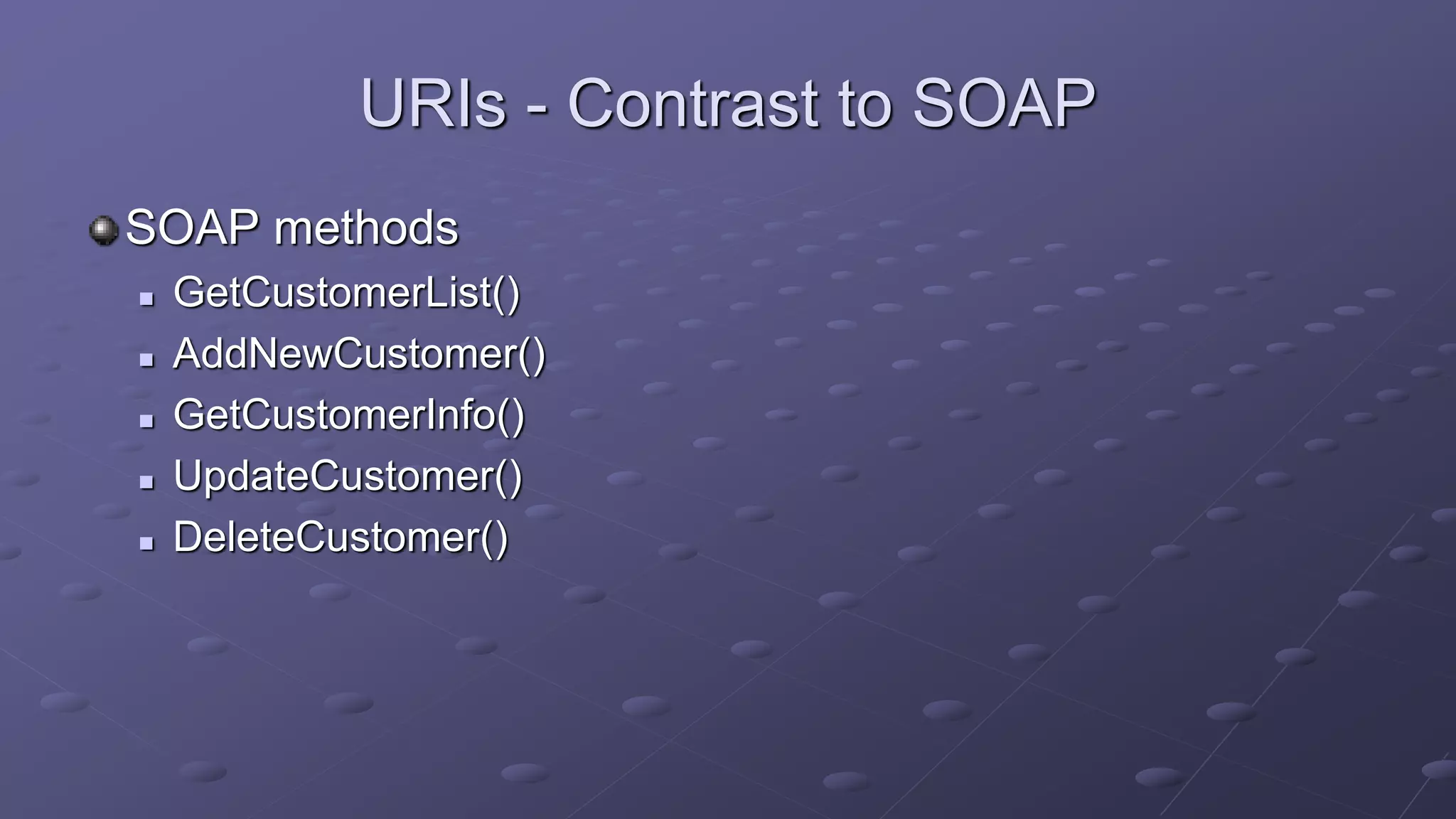

- 13. URIs - Contrastto SOAP SOAP methods GetCustomerList() AddNewCustomer() GetCustomerInfo() UpdateCustomer() DeleteCustomer()

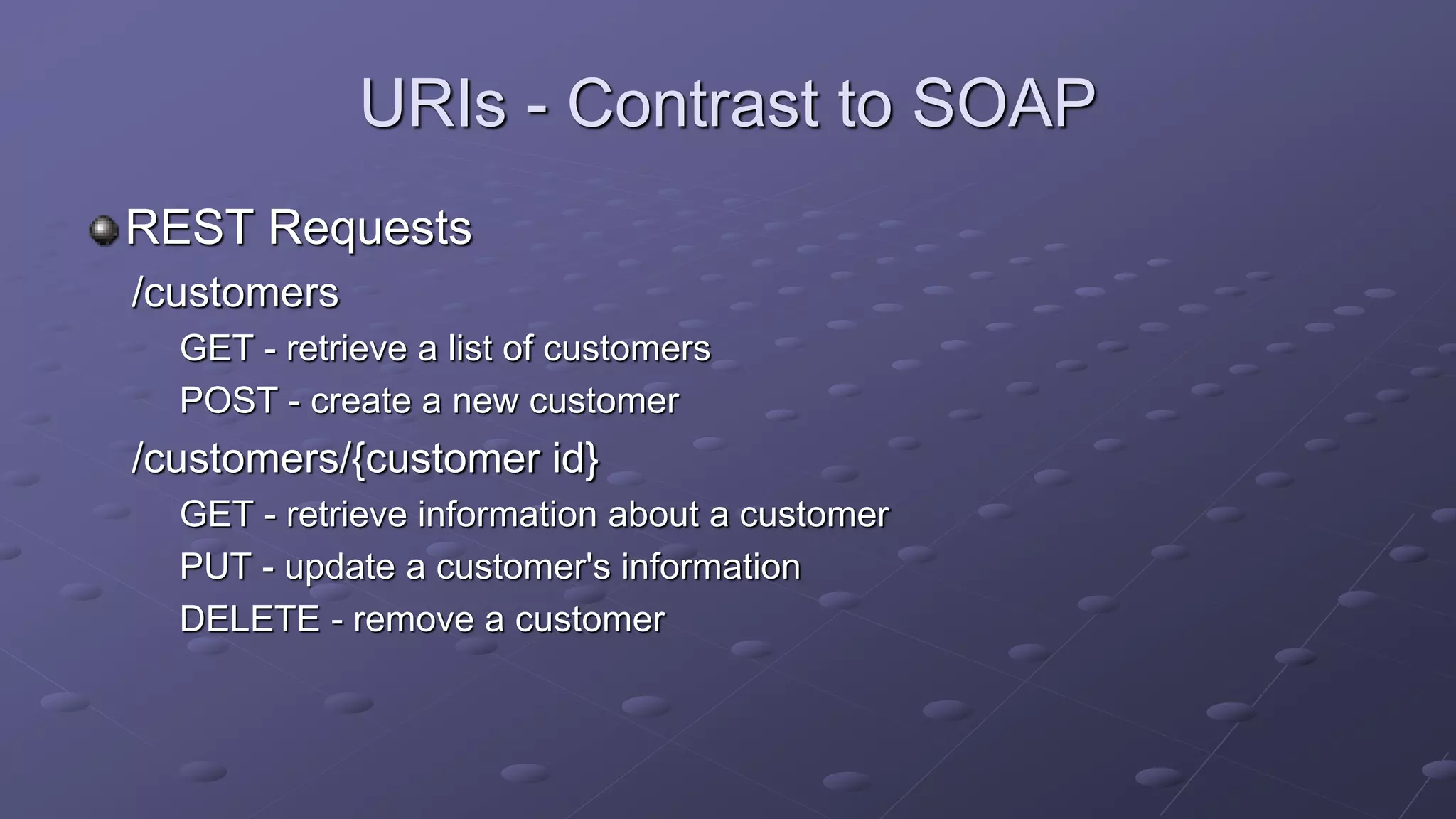

- 14. URIs - Contrastto SOAP REST Requests /customers GET - retrieve a list of customers POST - create a new customer /customers/{customer id} GET - retrieve information about a customer PUT - update a customer's information DELETE - remove a customer

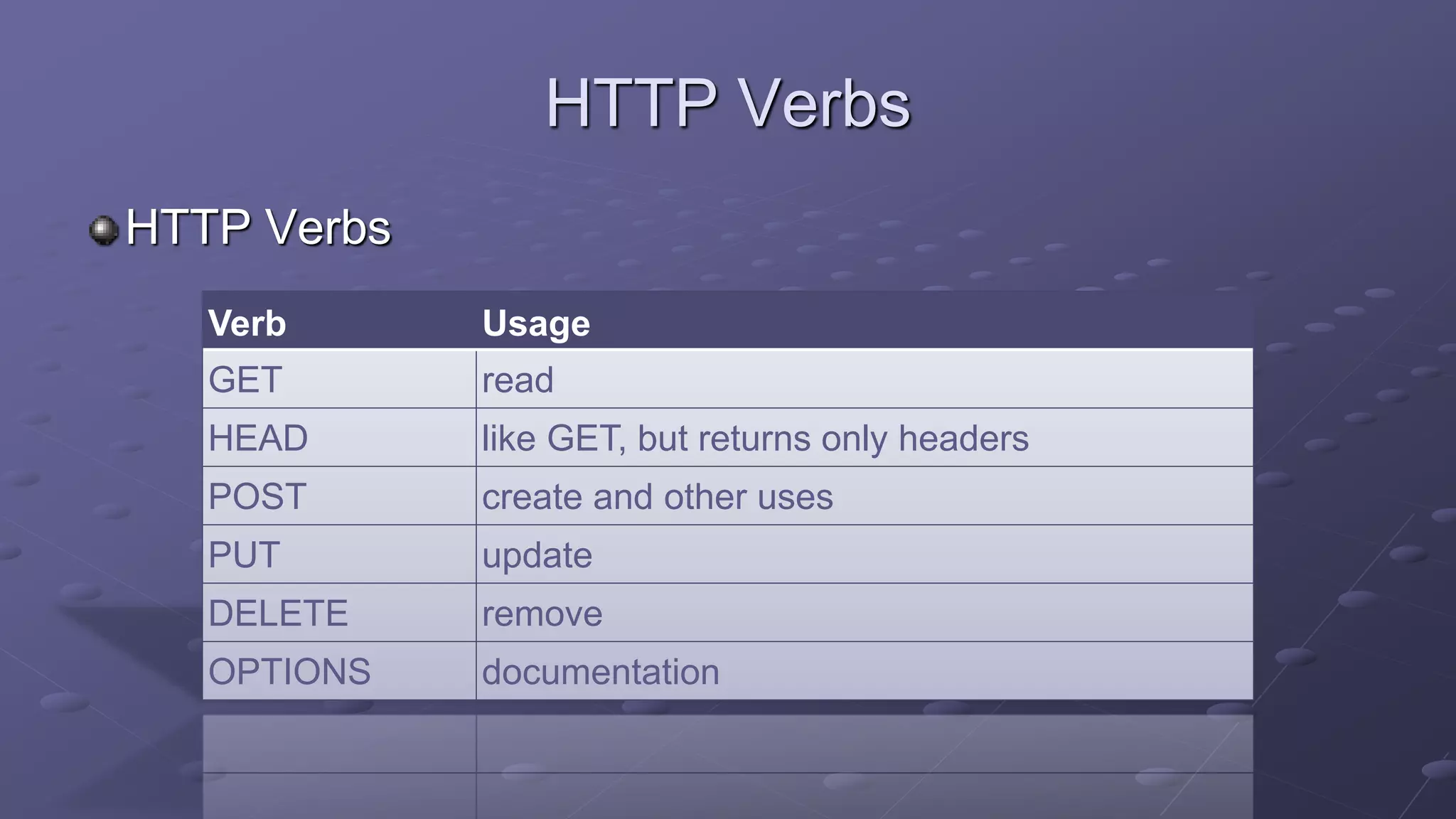

- 15. HTTP Verbs HTTP Verbs VerbUsage GET read HEAD like GET, but returns only headers POST create and other uses PUT update DELETE remove OPTIONS documentation

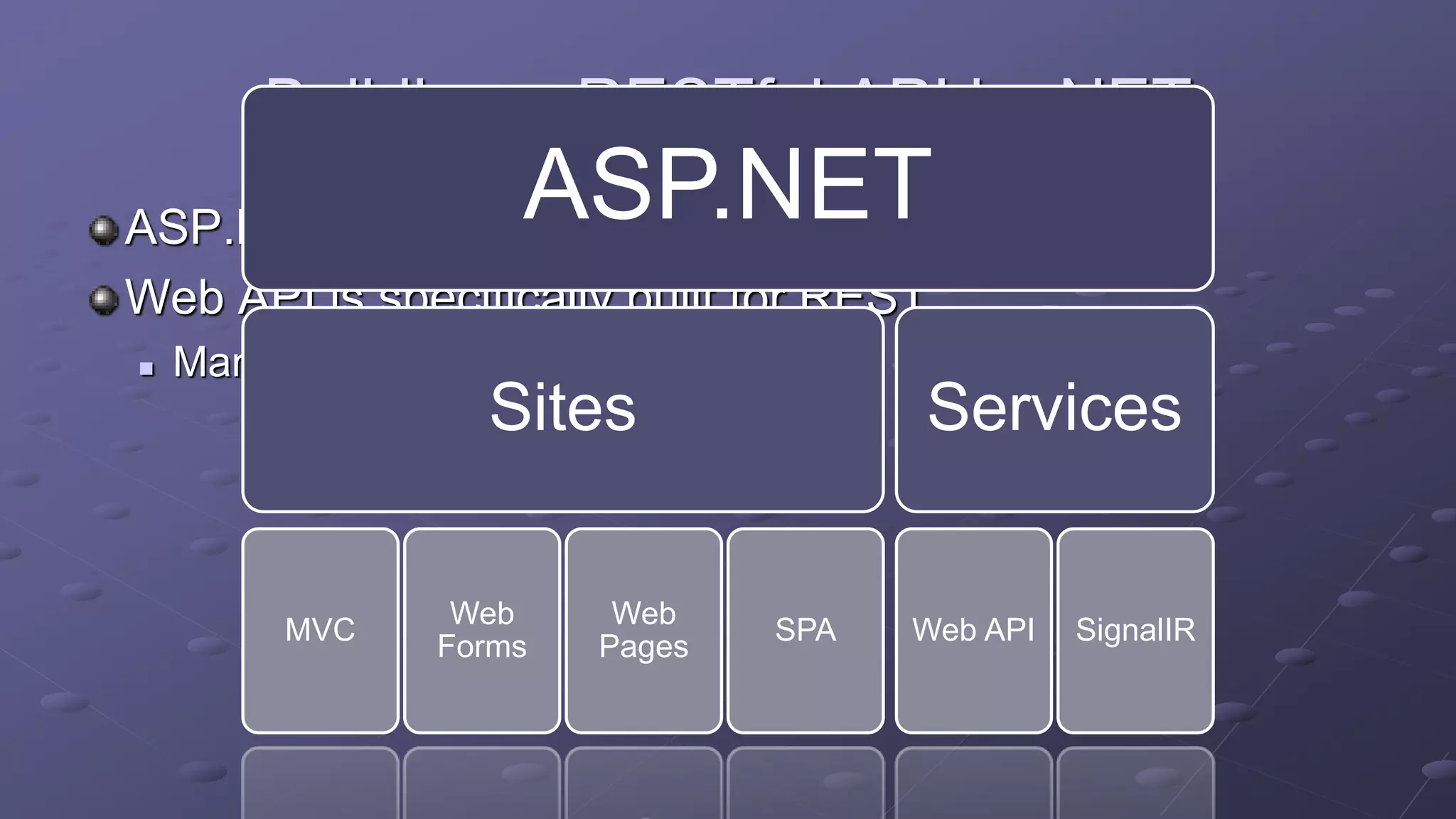

- 16. Building a RESTfulAPI in .NET ASP.NET - Great platform for REST style Web API is specifically built for REST Many facilities and helpers built in ASP.NET Sites MVC Web Forms Web Pages SPA Services Web API SignalIR

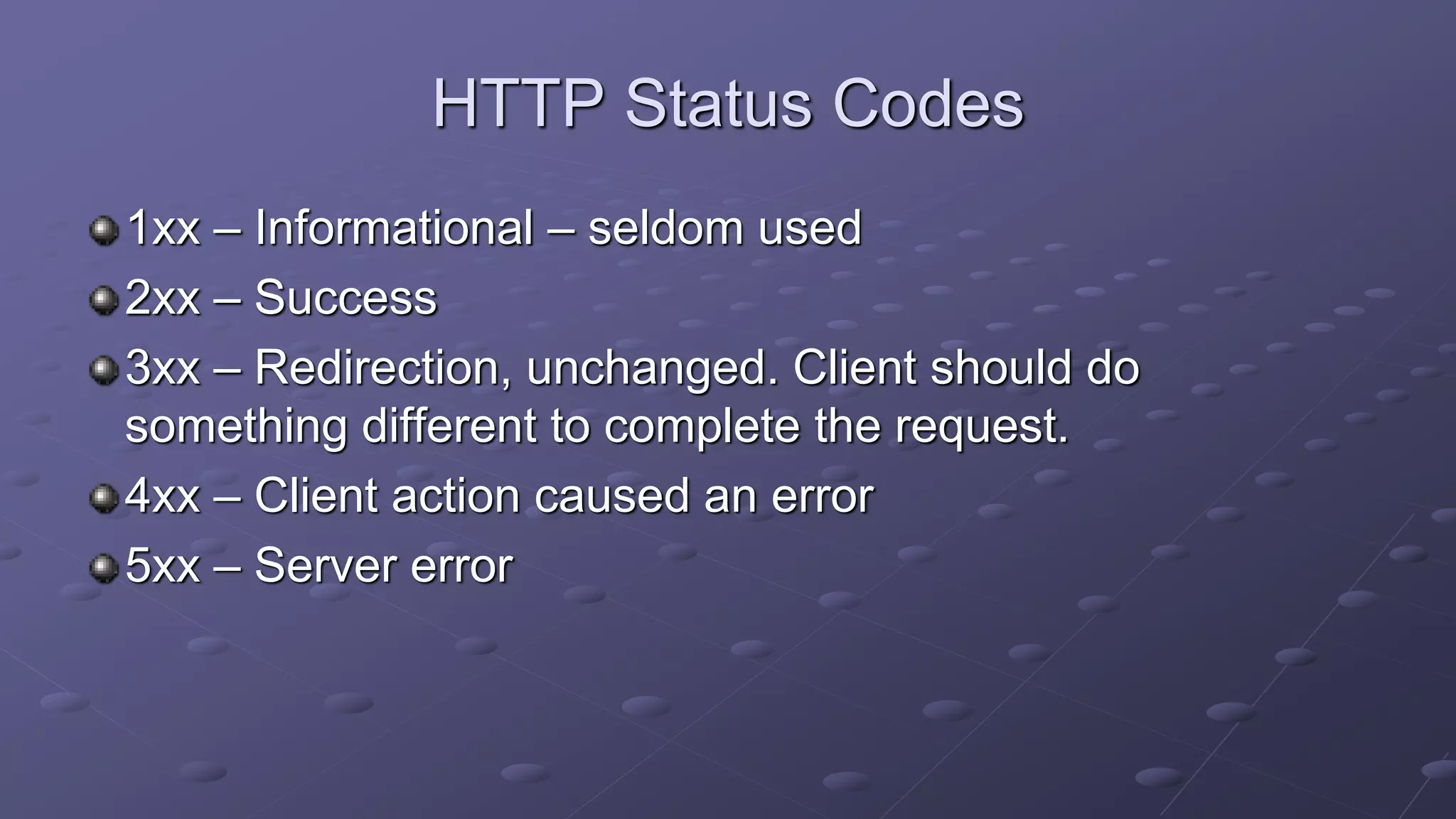

- 17. HTTP Status Codes 1xx– Informational – seldom used 2xx – Success 3xx – Redirection, unchanged. Client should do something different to complete the request. 4xx – Client action caused an error 5xx – Server error

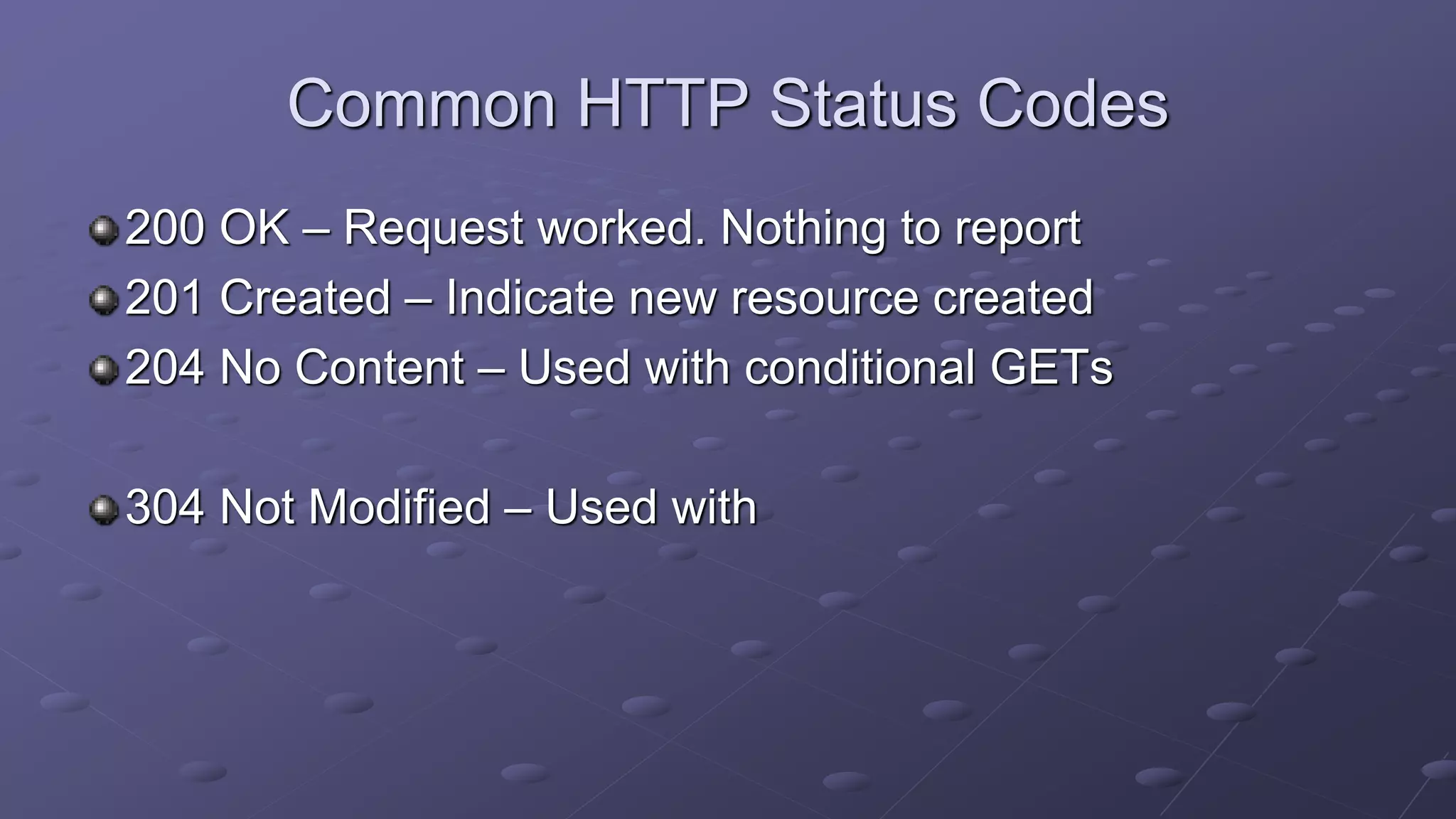

- 18. Common HTTP StatusCodes 200 OK – Request worked. Nothing to report 201 Created – Indicate new resource created 204 No Content – Used with conditional GETs 304 Not Modified – Used with

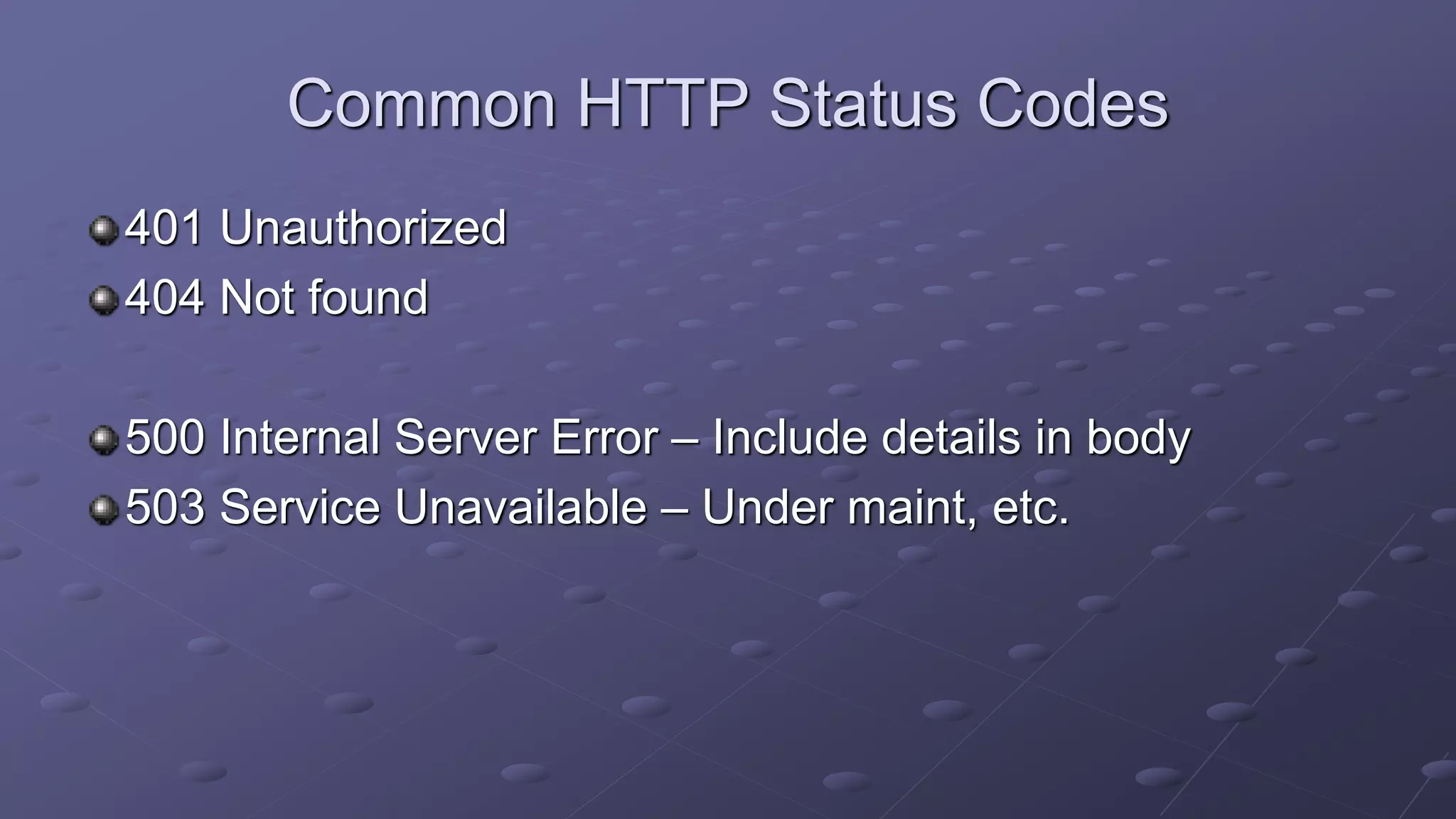

- 19. Common HTTP StatusCodes 401 Unauthorized 404 Not found 500 Internal Server Error – Include details in body 503 Service Unavailable – Under maint, etc.

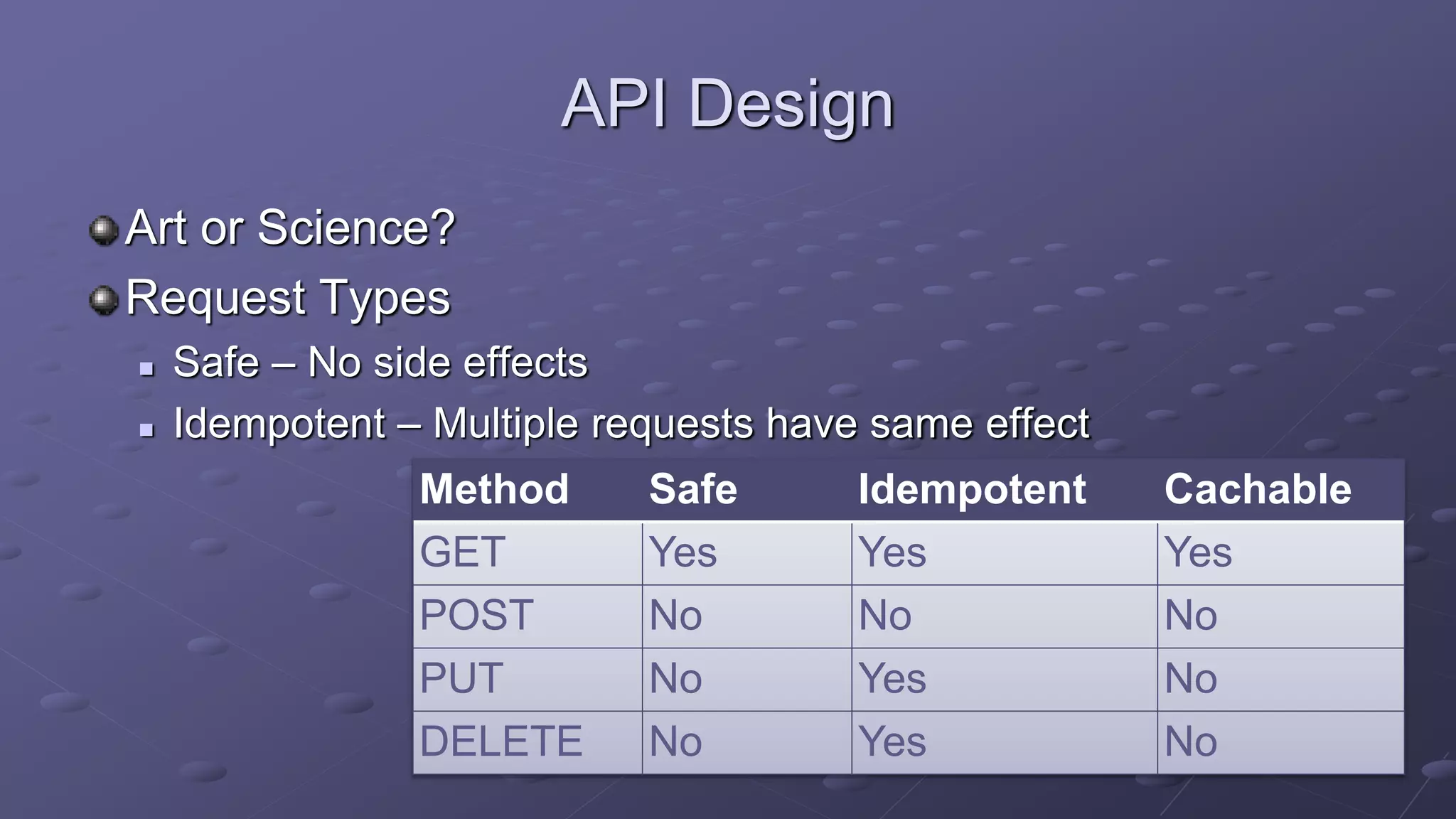

- 20. API Design Art orScience? Request Types Safe – No side effects Idempotent – Multiple requests have same effect Method Safe Idempotent Cachable GET Yes Yes Yes POST No No No PUT No Yes No DELETE No Yes No

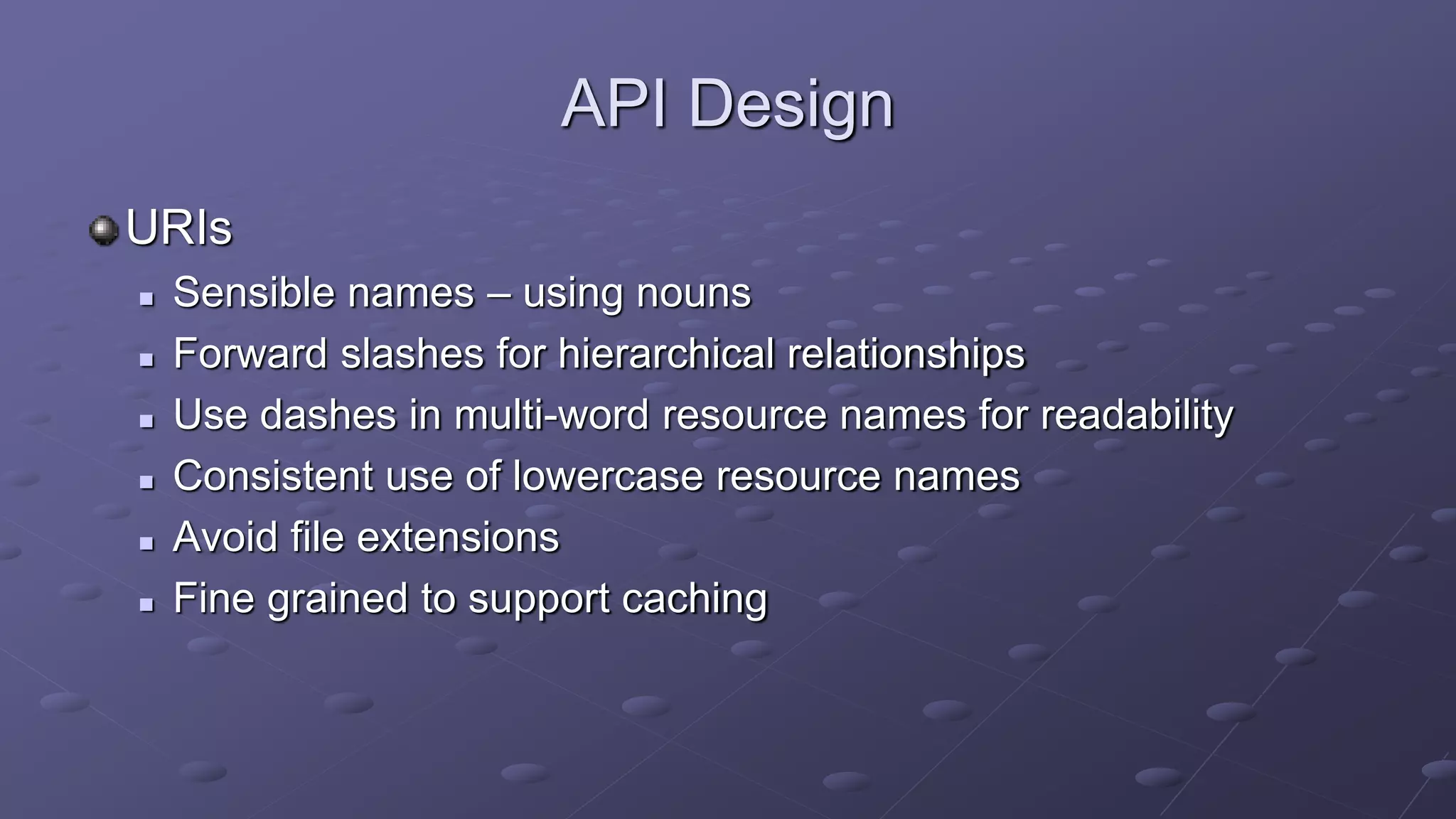

- 21. API Design URIs Sensiblenames – using nouns Forward slashes for hierarchical relationships Use dashes in multi-word resource names for readability Consistent use of lowercase resource names Avoid file extensions Fine grained to support caching
- 22. API Design Representation Formats Choose appropriate media types JSON, XML, domain specific Client indicates preference via Accept header

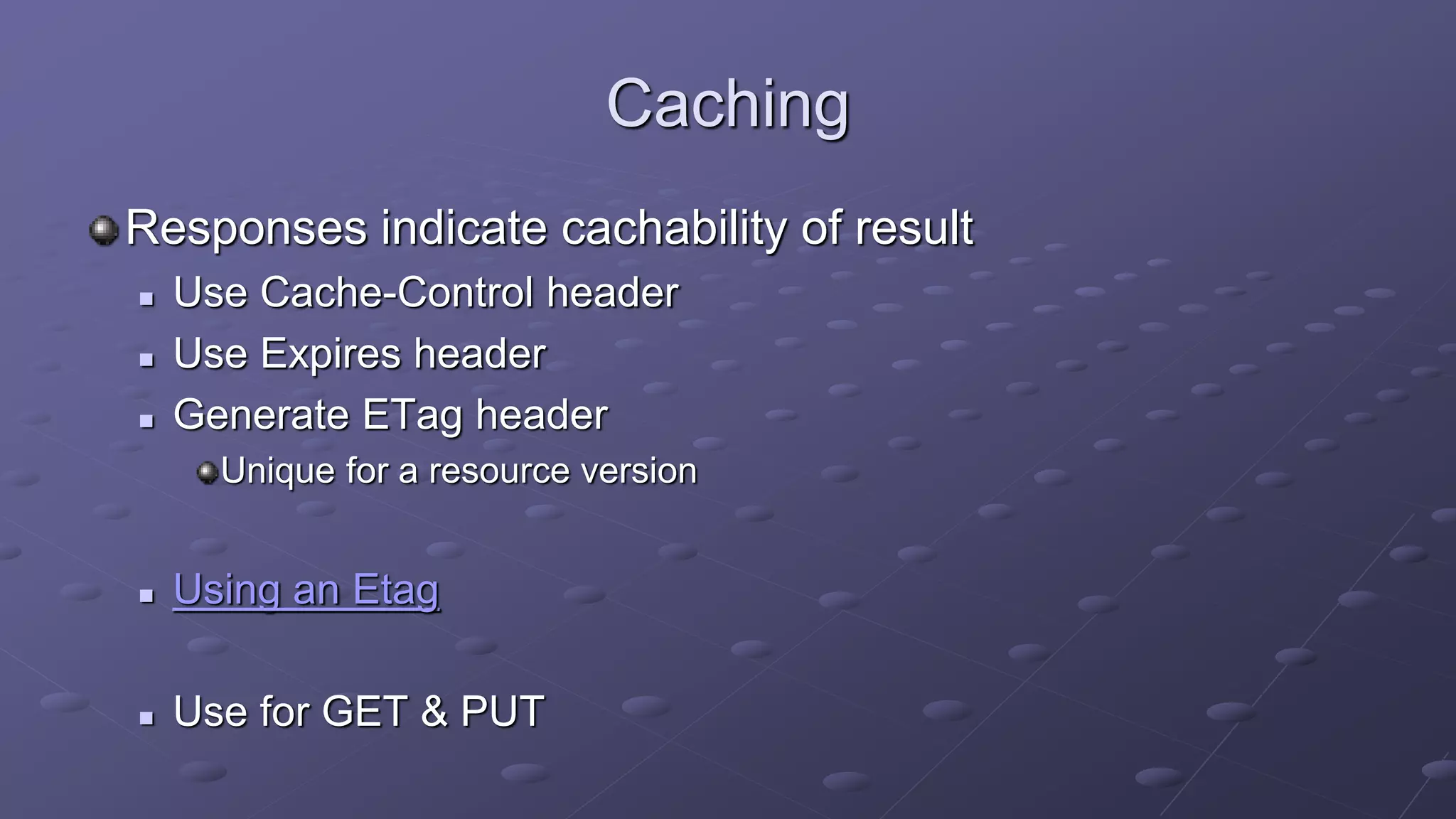

- 23. Caching Responses indicate cachabilityof result Use Cache-Control header Use Expires header Generate ETag header Unique for a resource version Using an Etag Use for GET & PUT

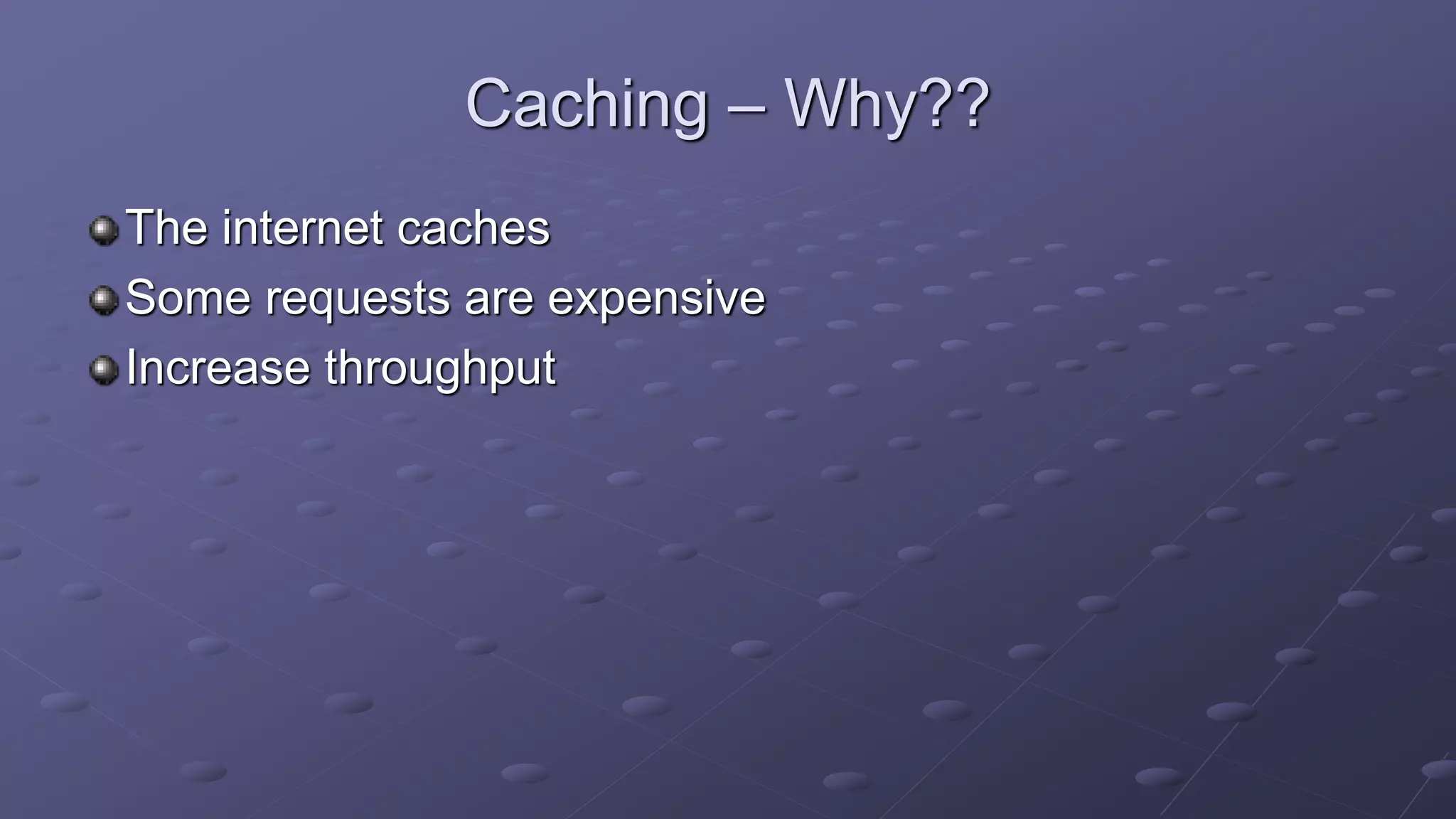

- 24. Caching – Why?? Theinternet caches Some requests are expensive Increase throughput

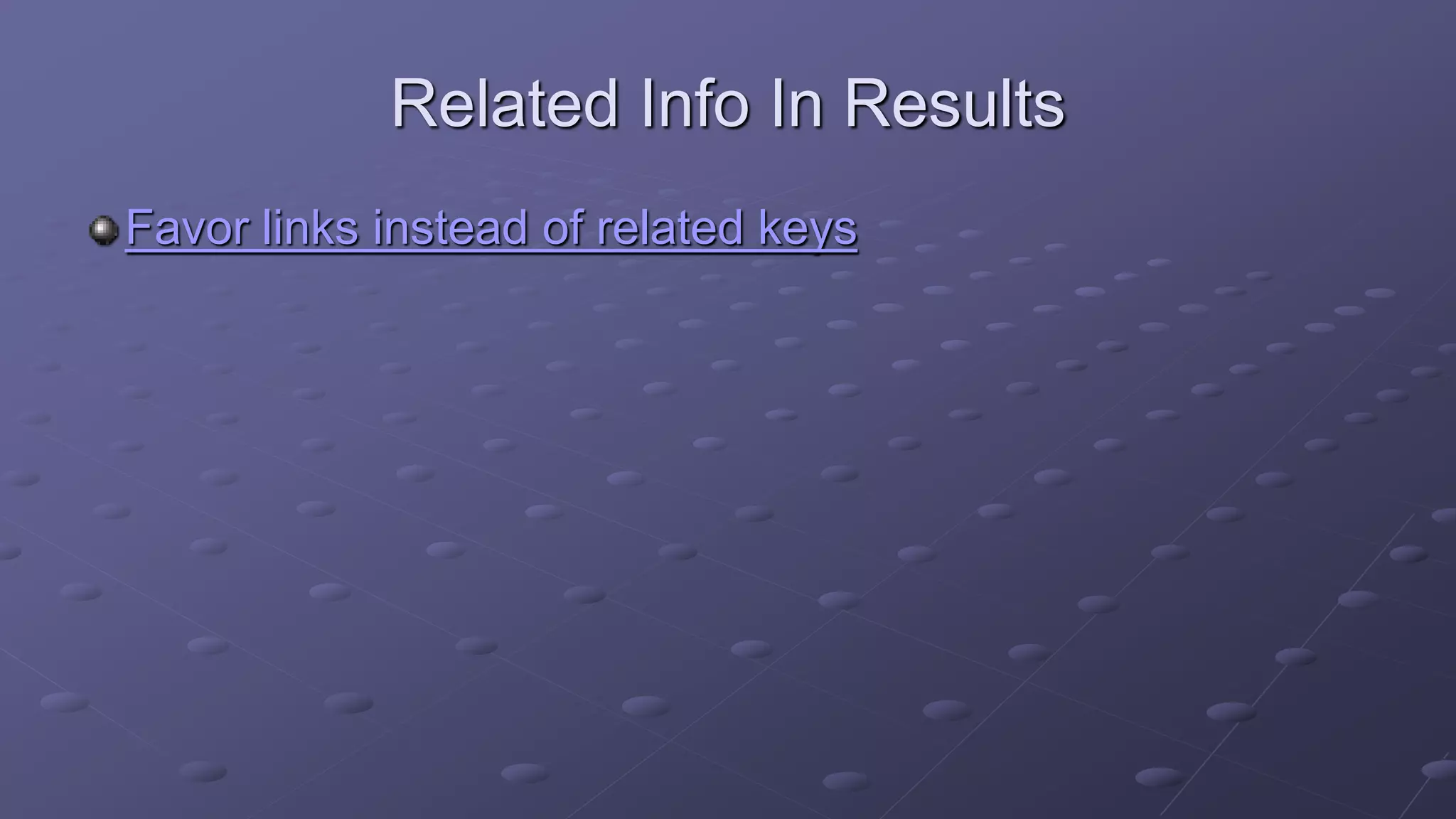

- 25. Related Info InResults Favor links instead of related keys

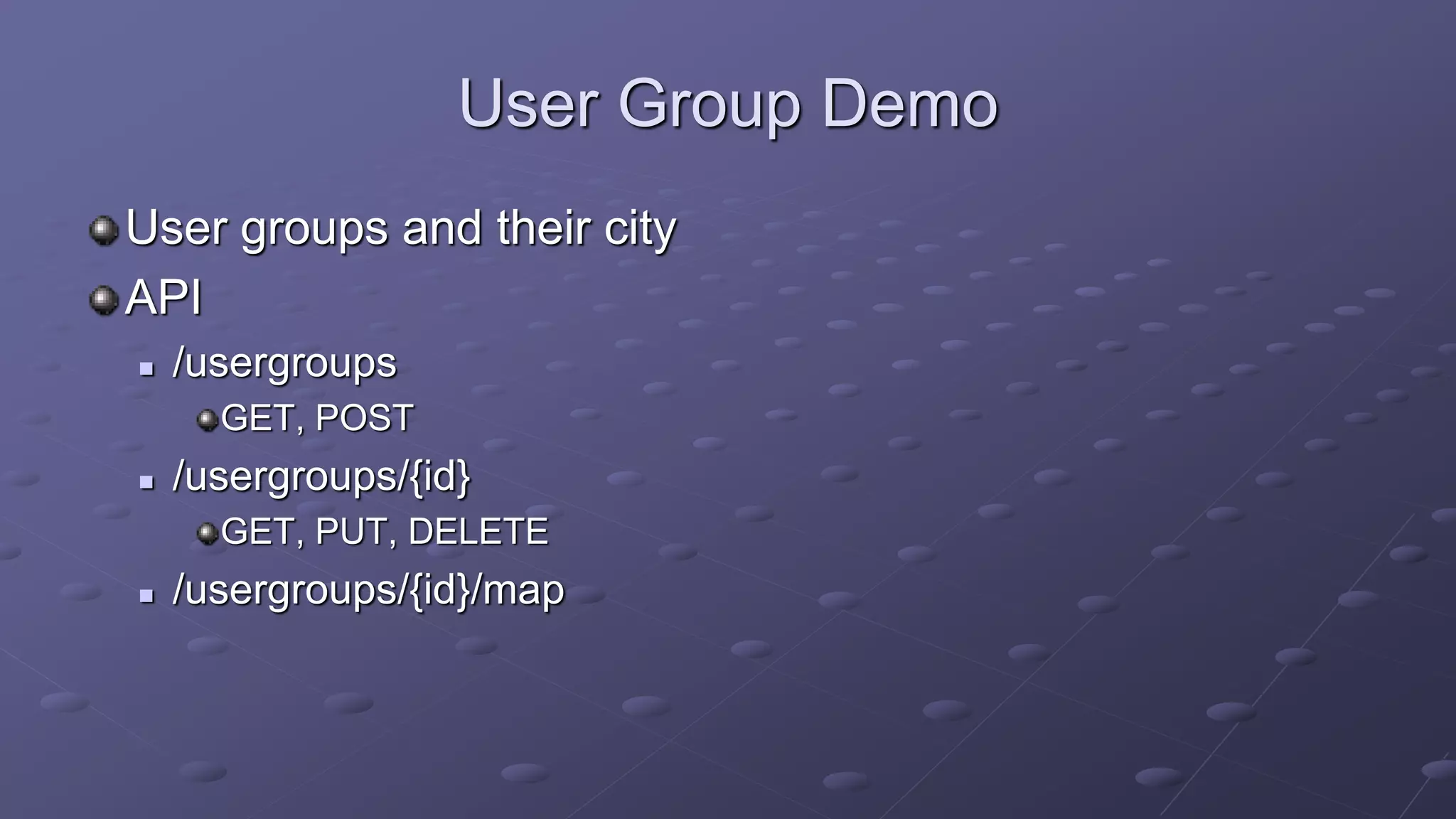

- 26. User Group Demo Usergroups and their city API /usergroups GET, POST /usergroups/{id} GET, PUT, DELETE /usergroups/{id}/map

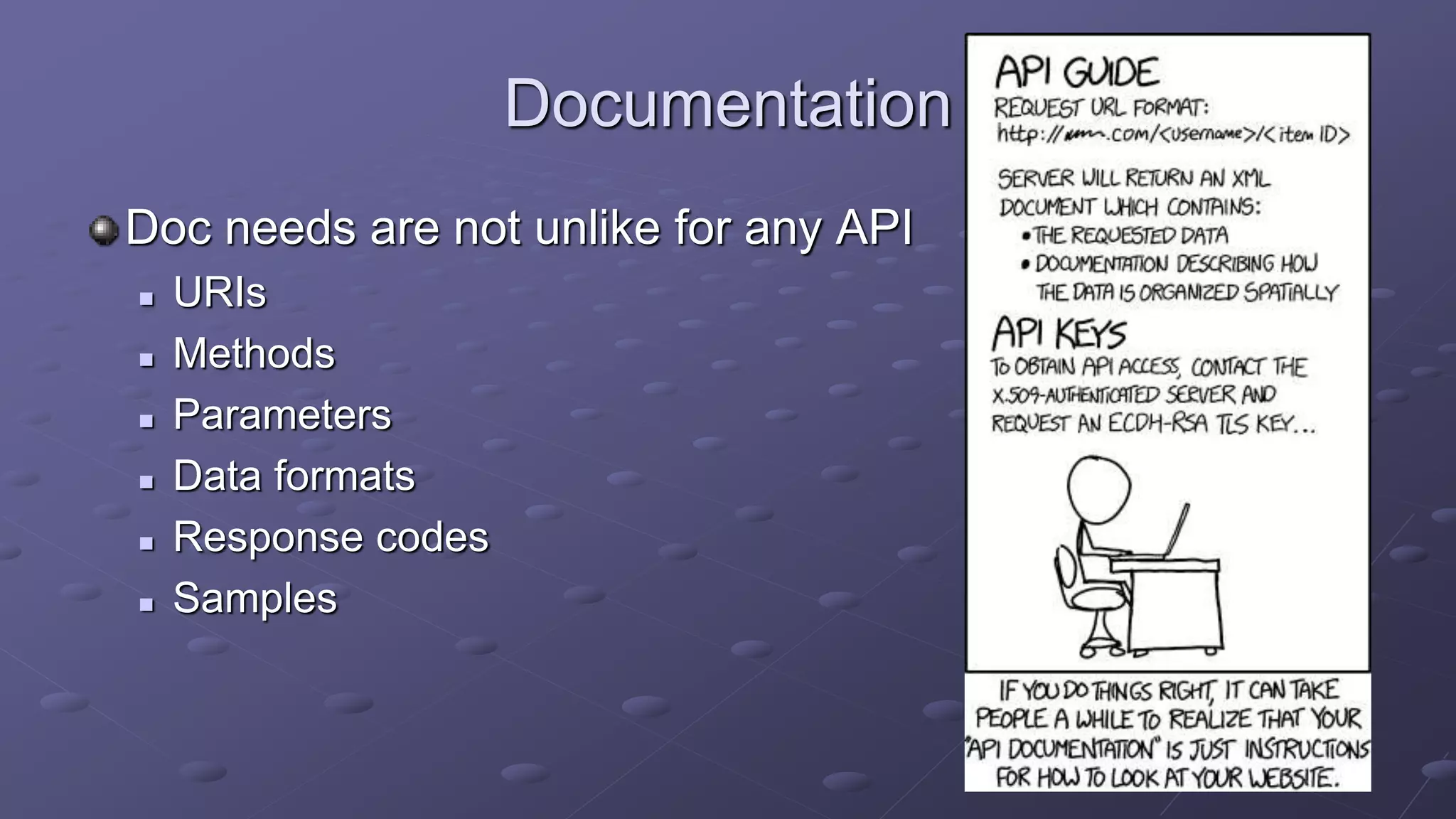

- 27. Documentation Doc needs arenot unlike for any API URIs Methods Parameters Data formats Response codes Samples

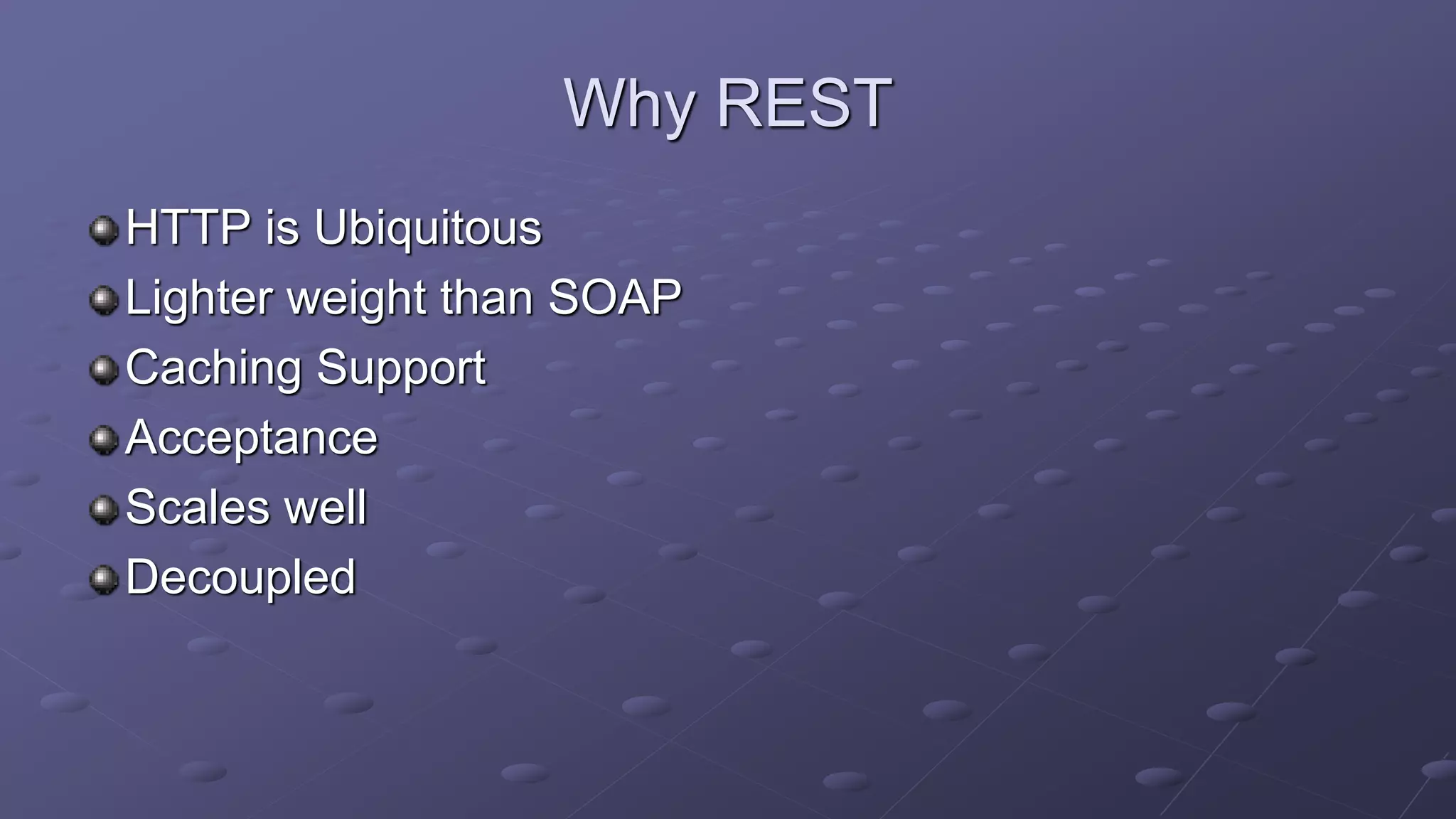

- 28. Why REST HTTP isUbiquitous Lighter weight than SOAP Caching Support Acceptance Scales well Decoupled

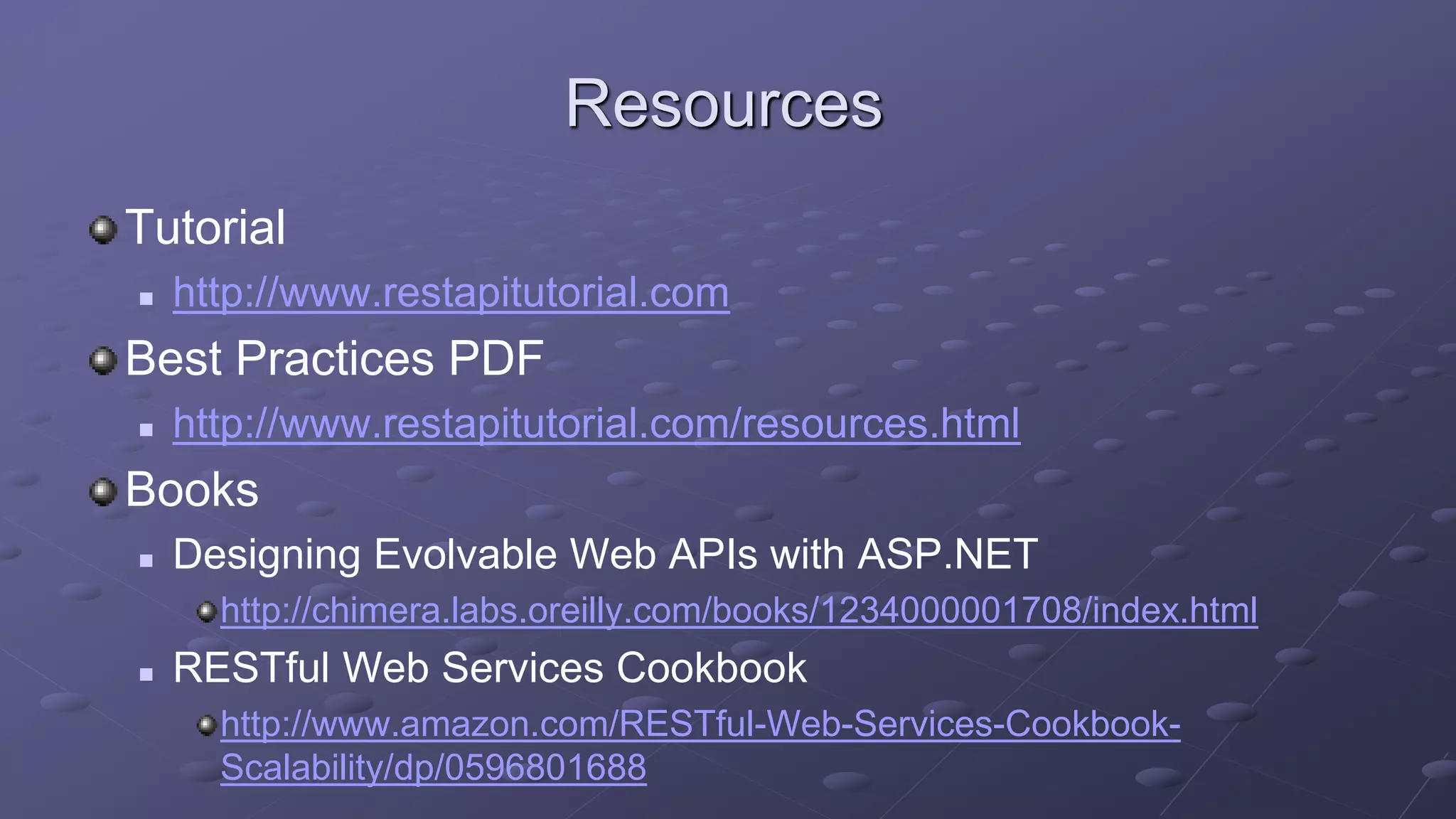

- 29. Resources Tutorial http://www.restapitutorial.com Best PracticesPDF http://www.restapitutorial.com/resources.html Books Designing Evolvable Web APIs with ASP.NET http://chimera.labs.oreilly.com/books/1234000001708/index.html RESTful Web Services Cookbook http://www.amazon.com/RESTful-Web-Services-Cookbook- Scalability/dp/0596801688

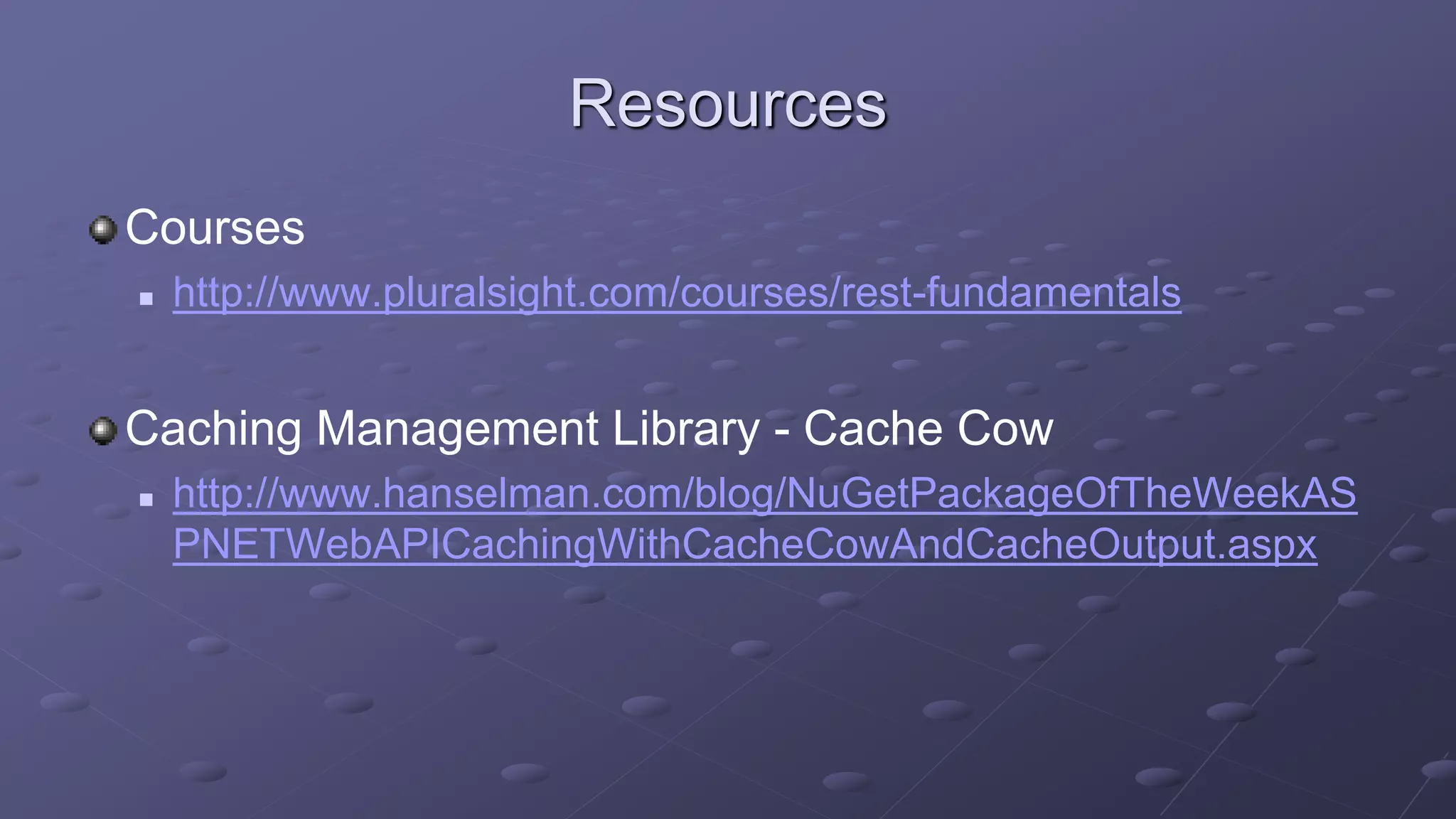

- 30. Resources Courses http://www.pluralsight.com/courses/rest-fundamentals Caching ManagementLibrary - Cache Cow http://www.hanselman.com/blog/NuGetPackageOfTheWeekAS PNETWebAPICachingWithCacheCowAndCacheOutput.aspx
