RNUG - HCL Notes V11 Performance Boost
The document discusses performance optimization for the HCL Notes client, detailing issues that cause slow startups and poor performance, as well as tips for improvement. It emphasizes cleaning up old directories, optimizing JVM settings, and adjusting notes.ini configurations to enhance efficiency. Additionally, it highlights the importance of keeping software updated and understanding the impact of caching on performance.
More Related Content
Similar to RNUG - HCL Notes V11 Performance Boost
RNUG - HCL Notes V11 Performance Boost
- 1. Make Your DataWork For You HCL Notes V11 Performance Boost Christoph Adler 10th October 2019
- 2. Christoph Adler -Senior Consultant at panagenda 18+ years of Lotus / IBM / HCL solutions experience Focused on • Notes Client Management • Analysis and Optimization of Notes/Domino infrastructures • Application Modernization Good to know • German • Bass player • Husband, Geek, likes Music, Football (soccer) and Beer
- 3.

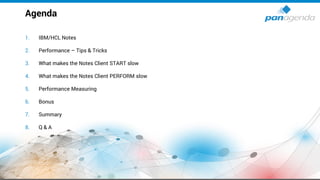

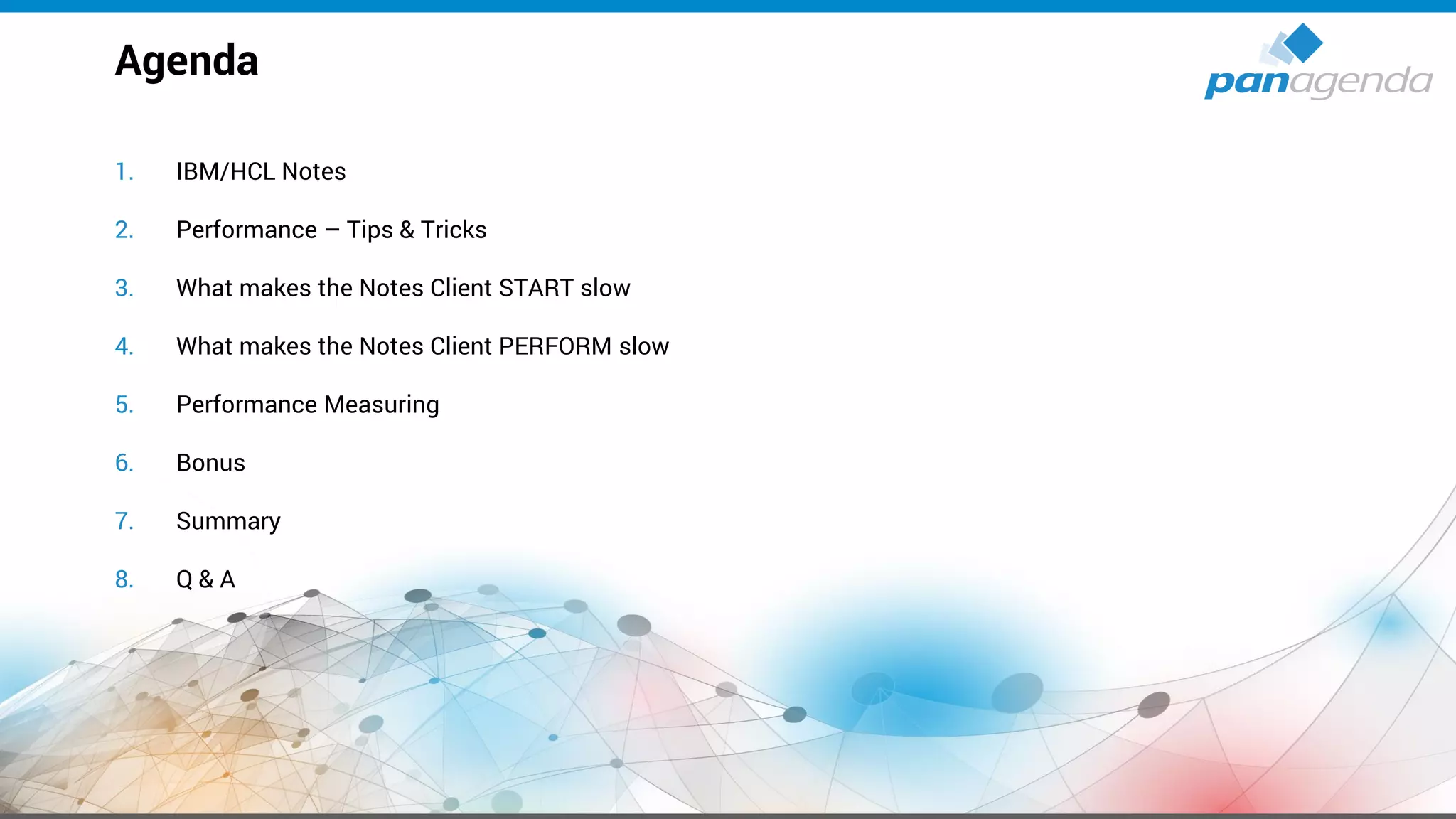

- 4. 1. IBM/HCL Notes 2.Performance – Tips & Tricks 3. What makes the Notes Client START slow 4. What makes the Notes Client PERFORM slow 5. Performance Measuring 6. Bonus 7. Summary 8. Q & A Agenda
- 5. Make Your DataWork For You IBM/HCL Notes

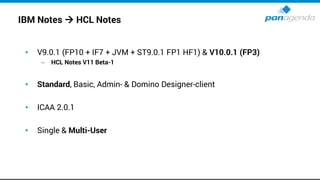

- 6. IBM Notes →HCL Notes • V9.0.1 (FP10 + IF7 + JVM + ST9.0.1 FP1 HF1) & V10.0.1 (FP3) – HCL Notes V11 Beta-1 • Standard, Basic, Admin- & Domino Designer-client • ICAA 2.0.1 • Single & Multi-User

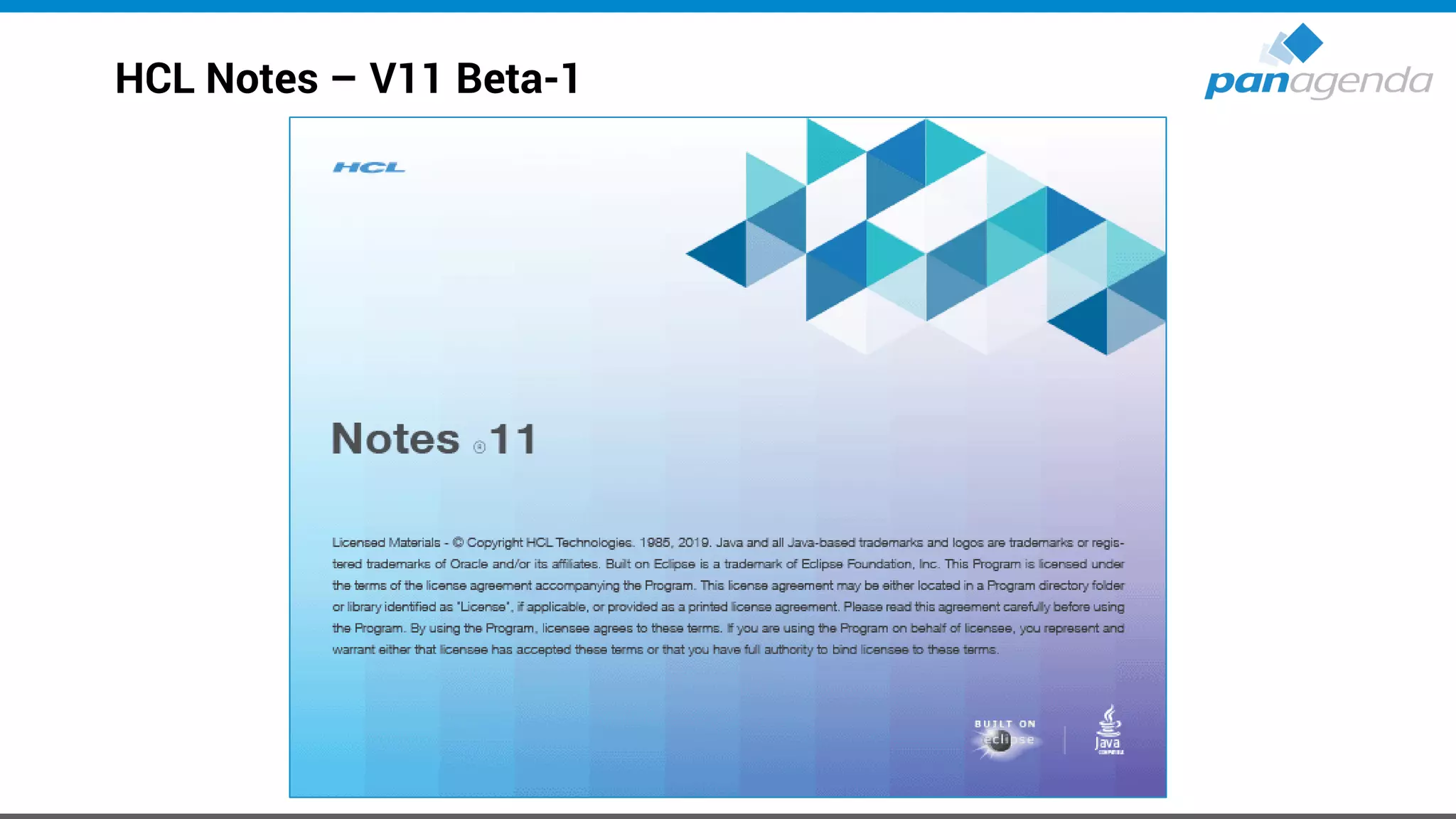

- 7. HCL Notes –V11 Beta-1

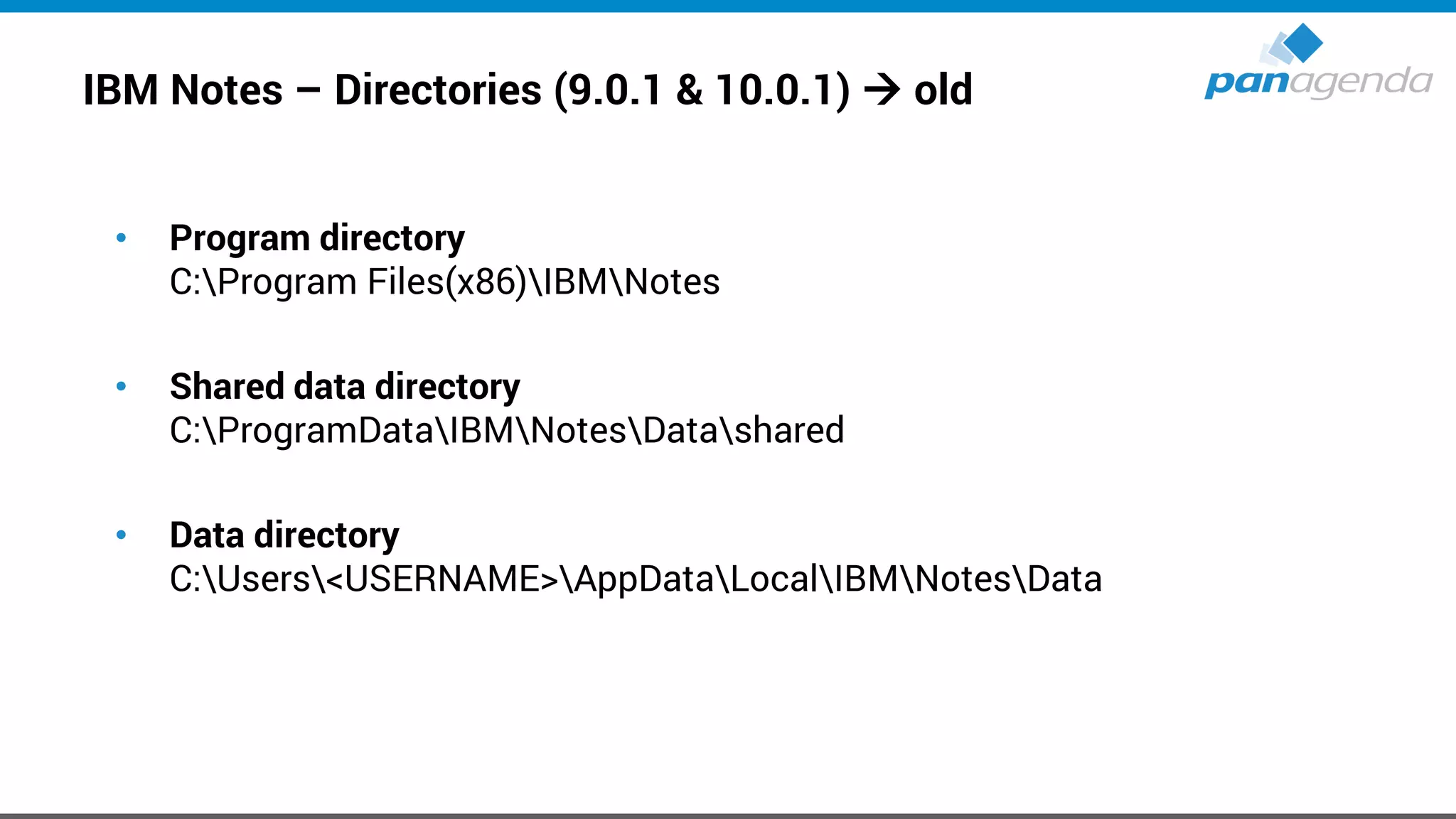

- 8. IBM Notes –Directories (9.0.1 & 10.0.1) → old • Program directory C:Program Files(x86)IBMNotes • Shared data directory C:ProgramDataIBMNotesDatashared • Data directory C:Users<USERNAME>AppDataLocalIBMNotesData

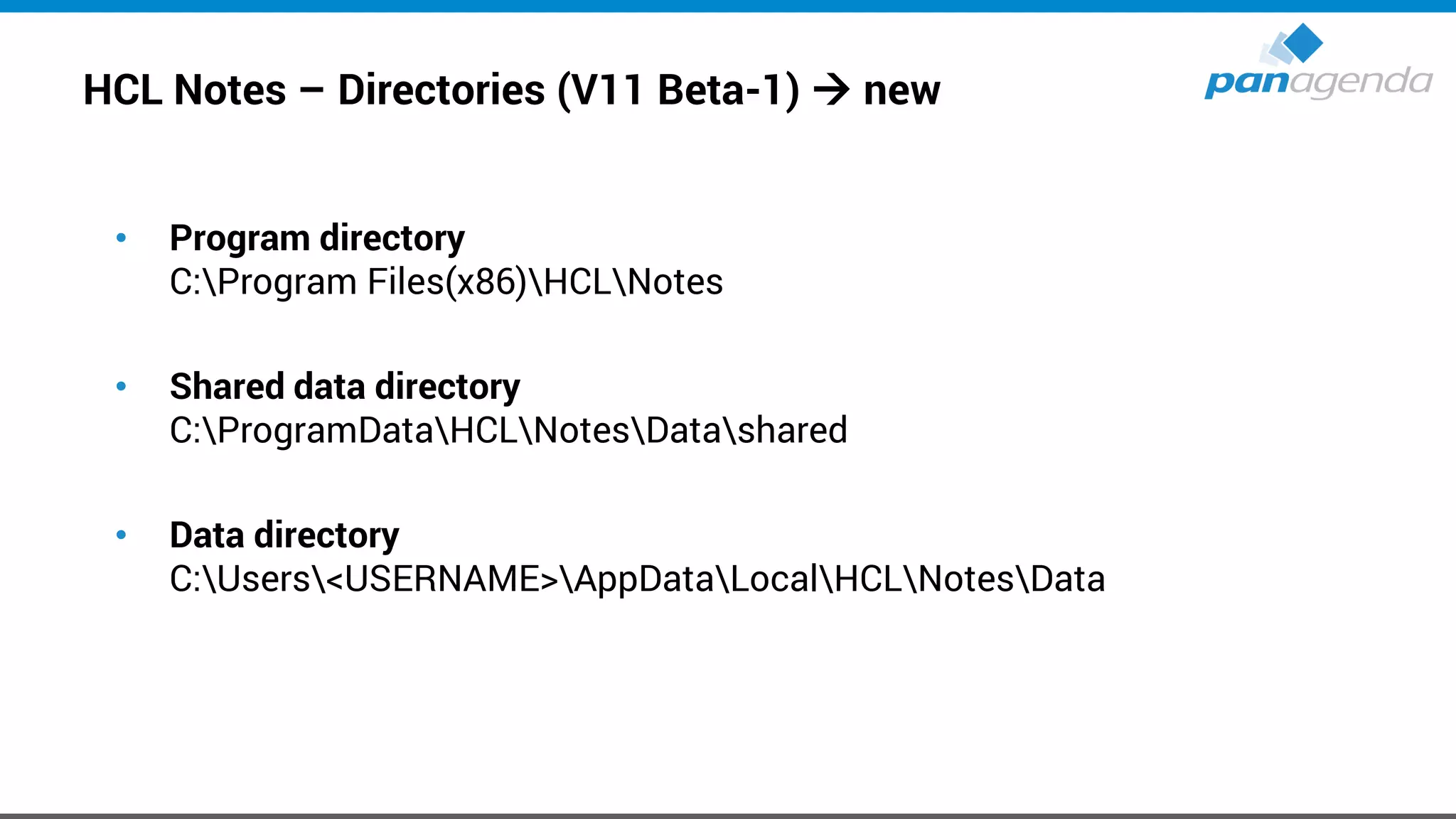

- 9. HCL Notes –Directories (V11 Beta-1) → new • Program directory C:Program Files(x86)HCLNotes • Shared data directory C:ProgramDataHCLNotesDatashared • Data directory C:Users<USERNAME>AppDataLocalHCLNotesData

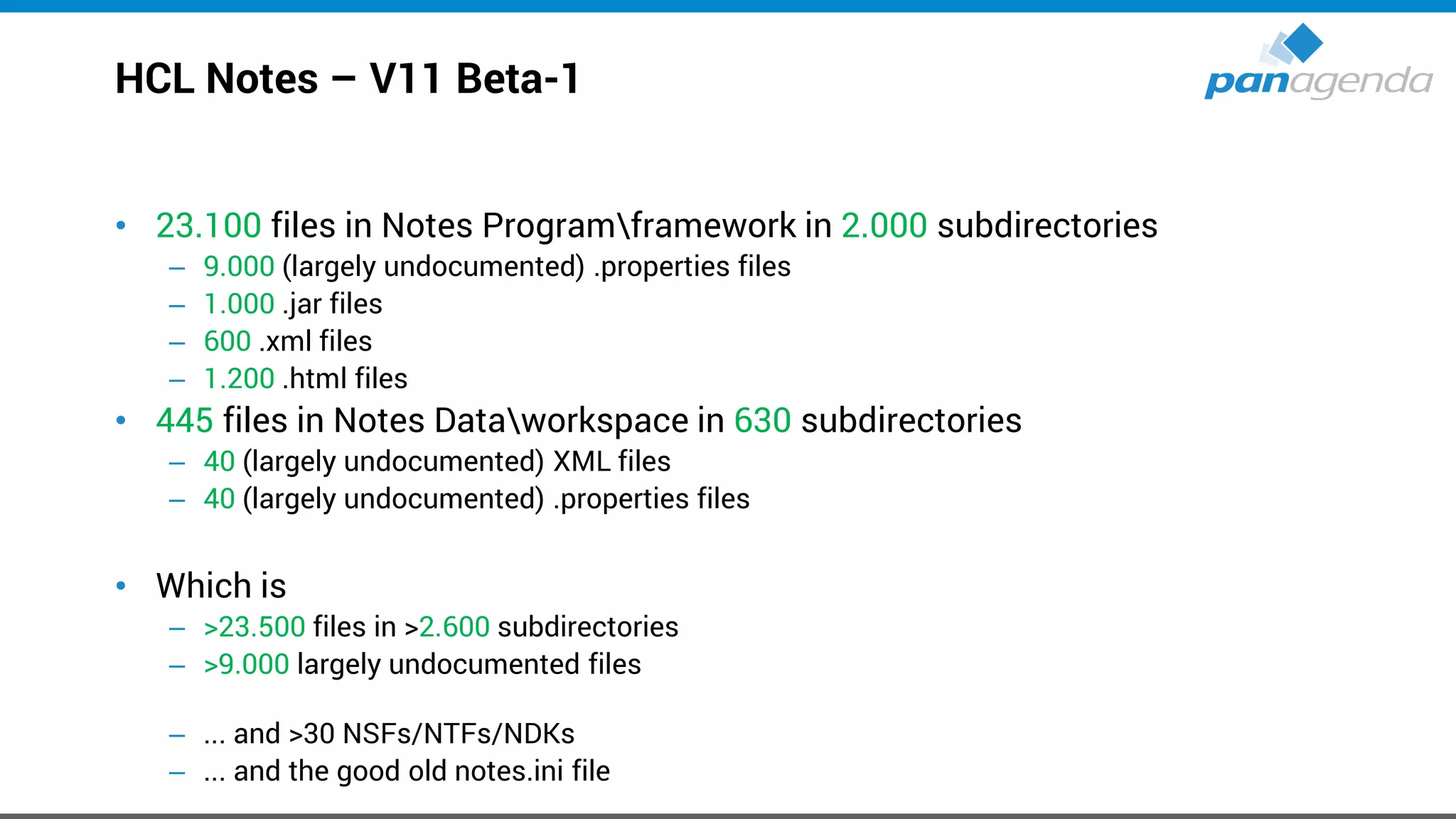

- 10. HCL Notes –V11 Beta-1 • 23.100 files in Notes Programframework in 2.000 subdirectories – 9.000 (largely undocumented) .properties files – 1.000 .jar files – 600 .xml files – 1.200 .html files • 445 files in Notes Dataworkspace in 630 subdirectories – 40 (largely undocumented) XML files – 40 (largely undocumented) .properties files • Which is – >23.500 files in >2.600 subdirectories – >9.000 largely undocumented files – ... and >30 NSFs/NTFs/NDKs – ... and the good old notes.ini file

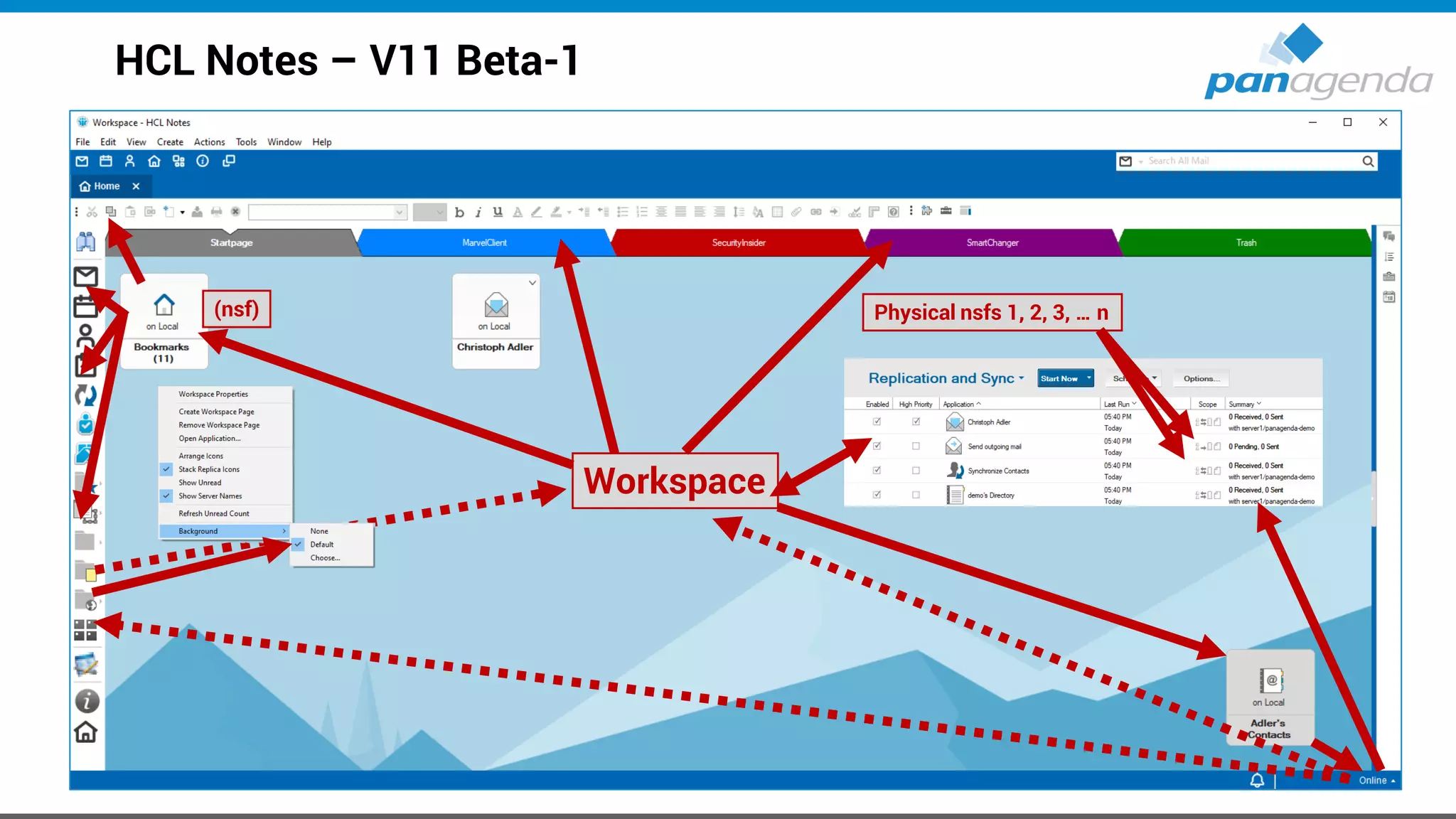

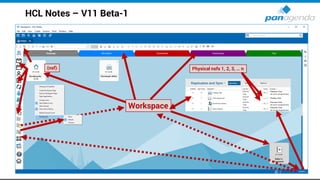

- 11. HCL Notes –V11 Beta-1 Workspace (nsf) Physical nsfs 1, 2, 3, … n
- 12. Make Your DataWork For You Performance – Tips & Tricks

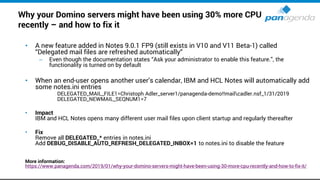

- 13. Why your Dominoservers might have been using 30% more CPU recently – and how to fix it • A new feature added in Notes 9.0.1 FP9 (still exists in V10 and V11 Beta-1) called “Delegated mail files are refreshed automatically“ – Even though the documentation states “Ask your administrator to enable this feature.”, the functionality is turned on by default • When an end-user opens another user’s calendar, IBM and HCL Notes will automatically add some notes.ini entries DELEGATED_MAIL_FILE1=Christoph Adler_server1/panagenda-demo!!mailcadler.nsf_1/31/2019 DELEGATED_NEWMAIL_SEQNUM1=7 • Impact IBM and HCL Notes opens many different user mail files upon client startup and regularly thereafter • Fix Remove all DELEGATED_* entries in notes.ini Add DEBUG_DISABLE_AUTO_REFRESH_DELEGATED_INBOX=1 to notes.ini to disable the feature More information: https://www.panagenda.com/2019/01/why-your-domino-servers-might-have-been-using-30-more-cpu-recently-and-how-to-fix-it/

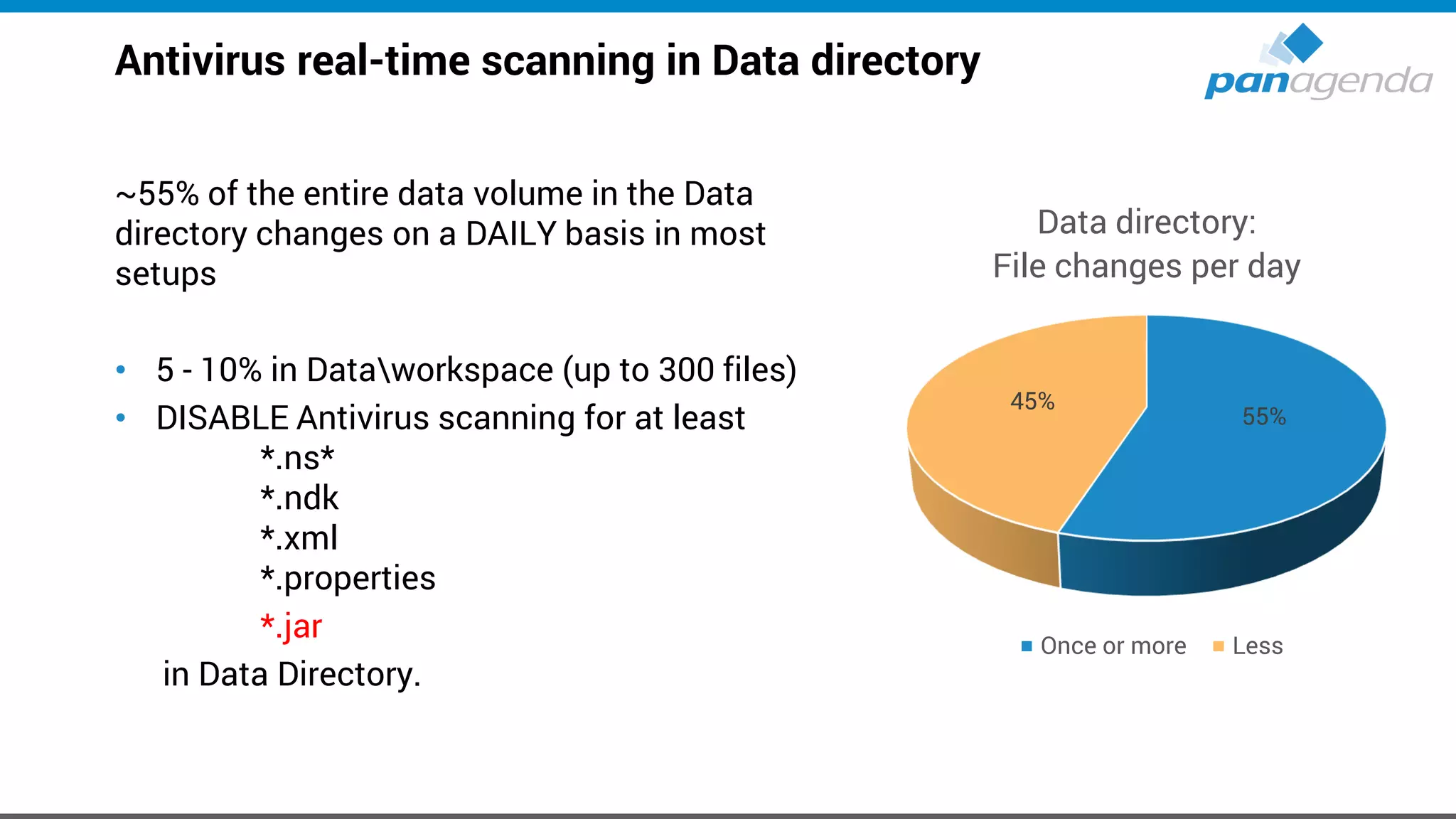

- 14. Antivirus real-time scanningin Data directory ~55% of the entire data volume in the Data directory changes on a DAILY basis in most setups • 5 - 10% in Dataworkspace (up to 300 files) • DISABLE Antivirus scanning for at least *.ns* *.ndk *.xml *.properties *.jar in Data Directory. 55% 45% Data directory: File changes per day Once or more Less

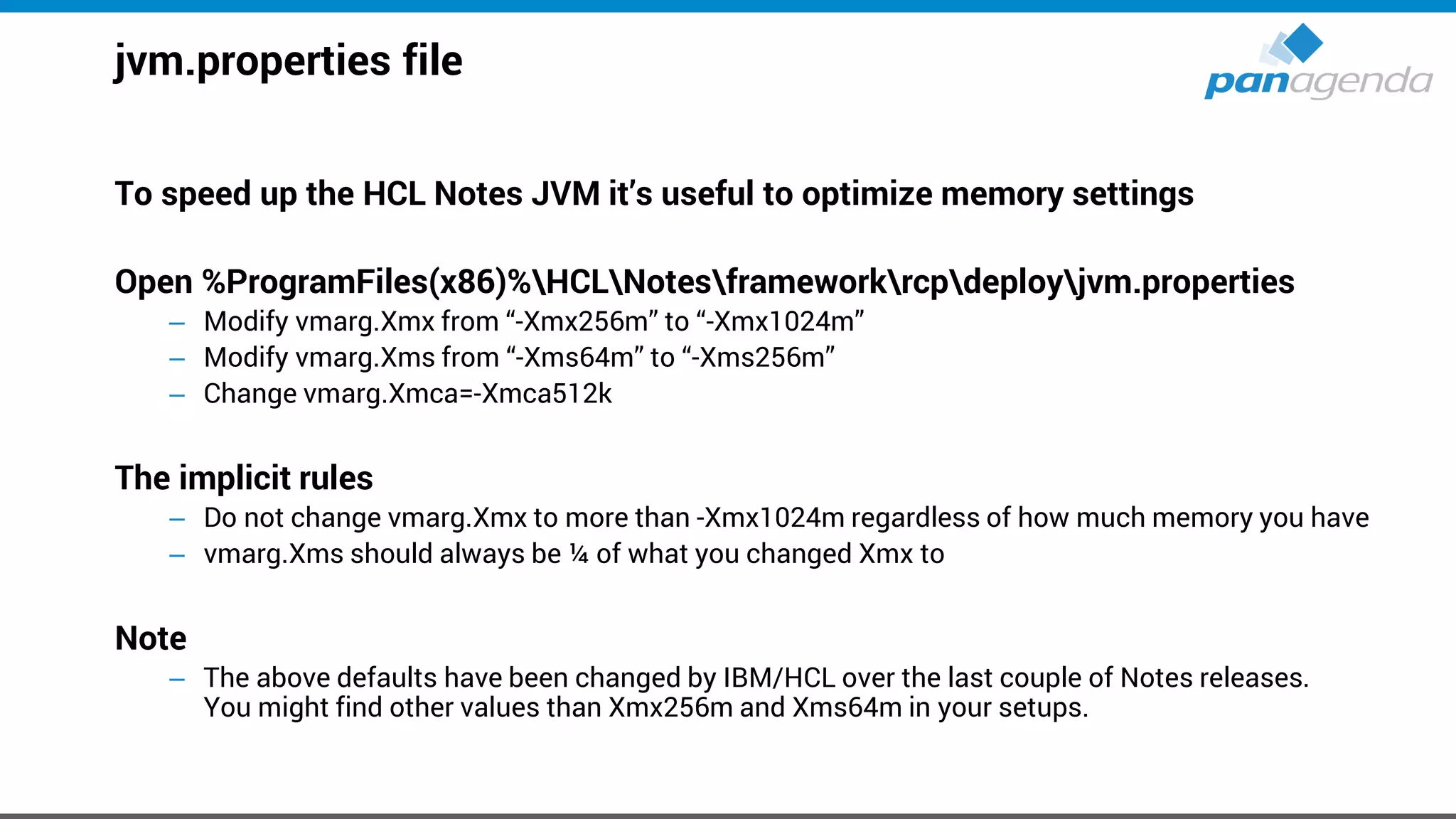

- 15. jvm.properties file To speedup the HCL Notes JVM it’s useful to optimize memory settings Open %ProgramFiles(x86)%HCLNotesframeworkrcpdeployjvm.properties – Modify vmarg.Xmx from “-Xmx256m” to “-Xmx1024m” – Modify vmarg.Xms from “-Xms64m” to “-Xms256m” – Change vmarg.Xmca=-Xmca512k The implicit rules – Do not change vmarg.Xmx to more than -Xmx1024m regardless of how much memory you have – vmarg.Xms should always be ¼ of what you changed Xmx to Note – The above defaults have been changed by IBM/HCL over the last couple of Notes releases. You might find other values than Xmx256m and Xms64m in your setups.
- 16. Make Your DataWork For You What makes the Notes Client START slow

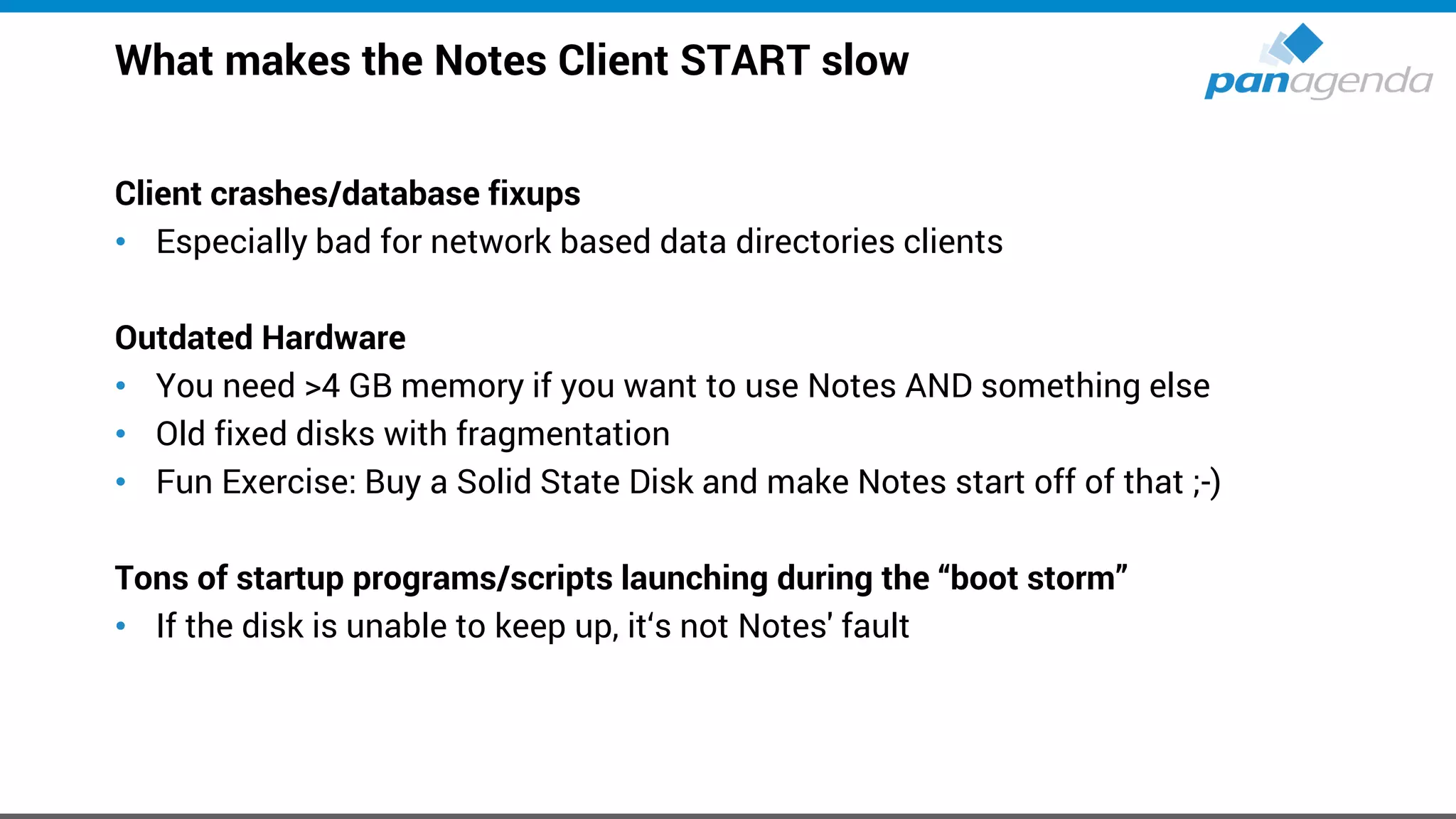

- 17. What makes theNotes Client START slow Client crashes/database fixups • Especially bad for network based data directories clients Outdated Hardware • You need >4 GB memory if you want to use Notes AND something else • Old fixed disks with fragmentation • Fun Exercise: Buy a Solid State Disk and make Notes start off of that ;-) Tons of startup programs/scripts launching during the “boot storm” • If the disk is unable to keep up, it‘s not Notes' fault

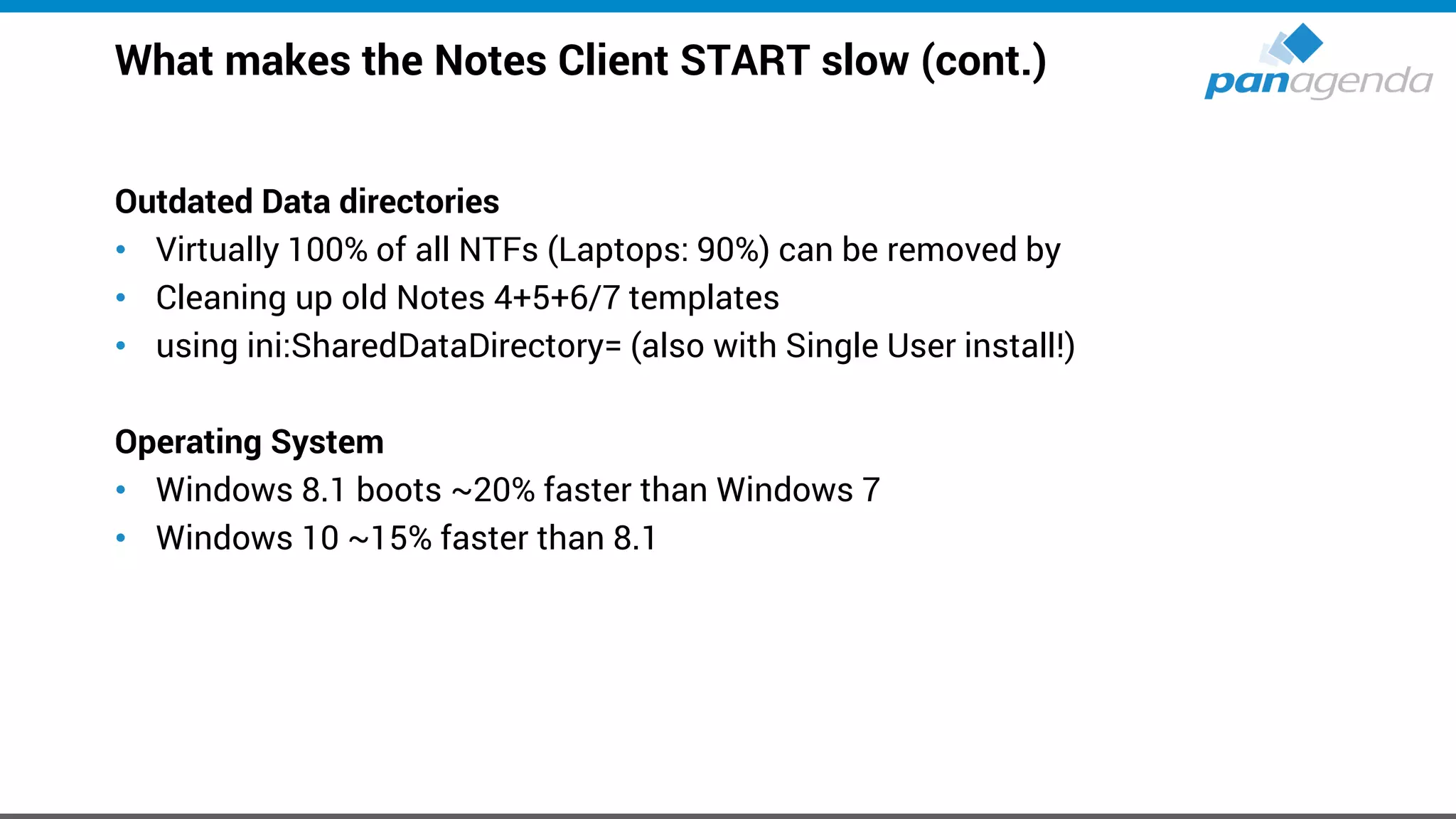

- 18. What makes theNotes Client START slow (cont.) Outdated Data directories • Virtually 100% of all NTFs (Laptops: 90%) can be removed by • Cleaning up old Notes 4+5+6/7 templates • using ini:SharedDataDirectory= (also with Single User install!) Operating System • Windows 8.1 boots ~20% faster than Windows 7 • Windows 10 ~15% faster than 8.1

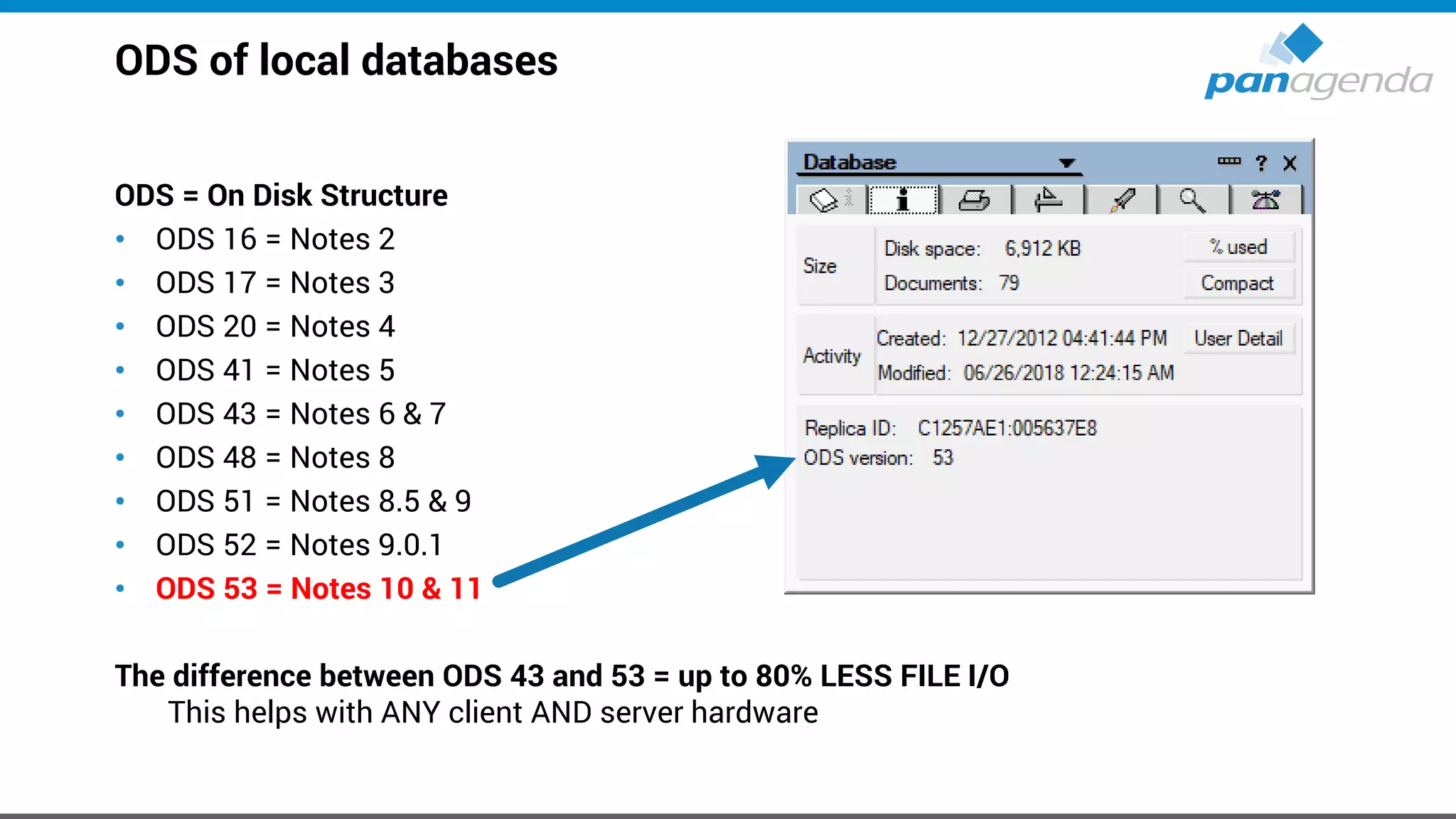

- 19. ODS of localdatabases ODS = On Disk Structure • ODS 16 = Notes 2 • ODS 17 = Notes 3 • ODS 20 = Notes 4 • ODS 41 = Notes 5 • ODS 43 = Notes 6 & 7 • ODS 48 = Notes 8 • ODS 51 = Notes 8.5 & 9 • ODS 52 = Notes 9.0.1 • ODS 53 = Notes 10 & 11 The difference between ODS 43 and 53 = up to 80% LESS FILE I/O This helps with ANY client AND server hardware

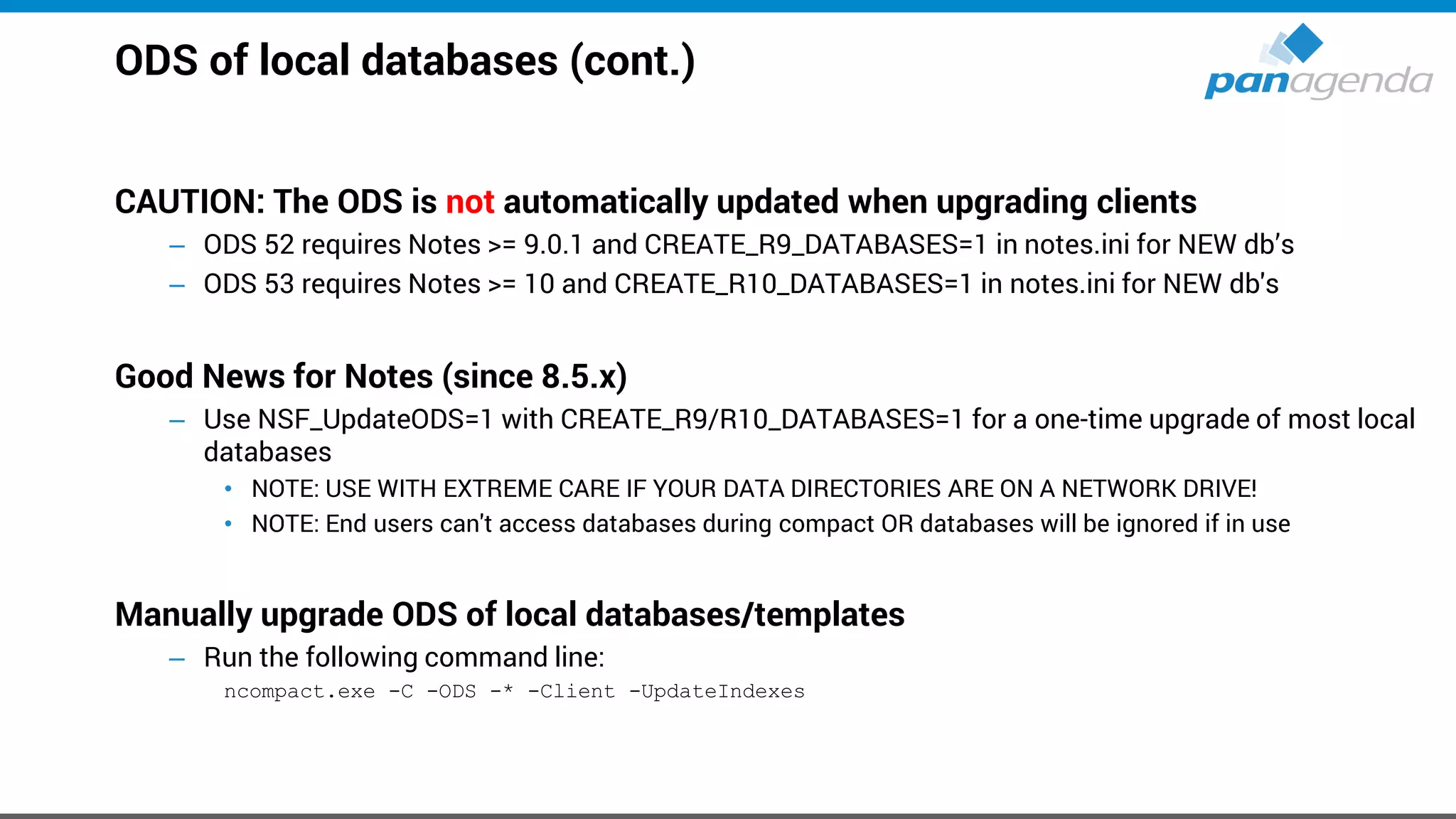

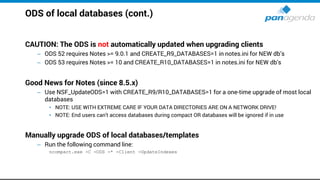

- 20. ODS of localdatabases (cont.) CAUTION: The ODS is not automatically updated when upgrading clients – ODS 52 requires Notes >= 9.0.1 and CREATE_R9_DATABASES=1 in notes.ini for NEW db’s – ODS 53 requires Notes >= 10 and CREATE_R10_DATABASES=1 in notes.ini for NEW db's Good News for Notes (since 8.5.x) – Use NSF_UpdateODS=1 with CREATE_R9/R10_DATABASES=1 for a one-time upgrade of most local databases • NOTE: USE WITH EXTREME CARE IF YOUR DATA DIRECTORIES ARE ON A NETWORK DRIVE! • NOTE: End users can't access databases during compact OR databases will be ignored if in use Manually upgrade ODS of local databases/templates – Run the following command line: ncompact.exe -C -ODS -* -Client -UpdateIndexes
- 21. Make Your DataWork For You What makes the Notes Client PERFORM slow

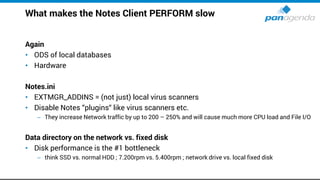

- 22. What makes theNotes Client PERFORM slow Again • ODS of local databases • Hardware Notes.ini • EXTMGR_ADDINS = (not just) local virus scanners • Disable Notes “plugins“ like virus scanners etc. – They increase Network traffic by up to 200 – 250% and will cause much more CPU load and File I/O Data directory on the network vs. fixed disk • Disk performance is the #1 bottleneck – think SSD vs. normal HDD ; 7.200rpm vs. 5.400rpm ; network drive vs. local fixed disk

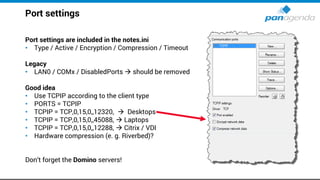

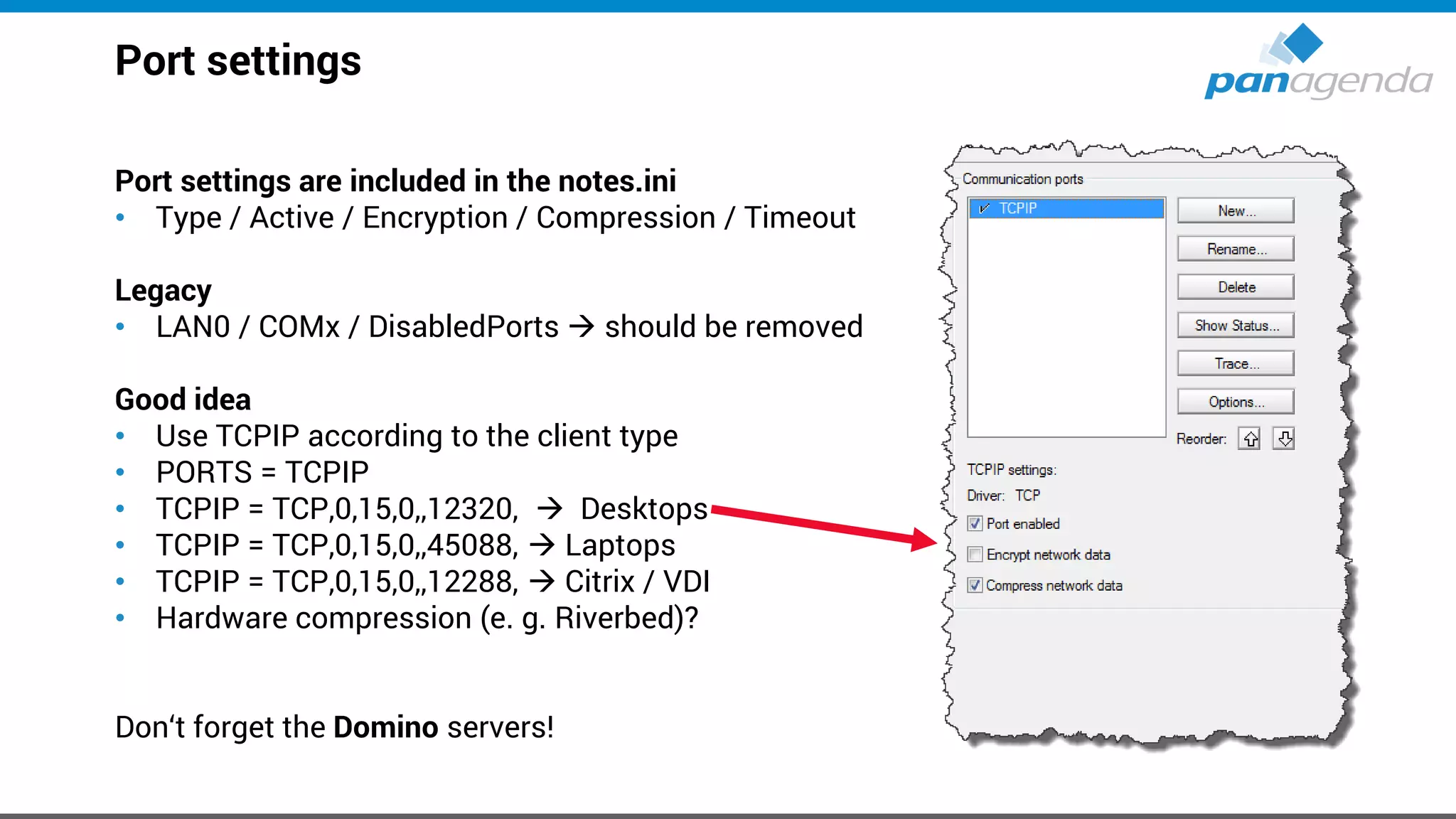

- 23. Port settings Port settingsare included in the notes.ini • Type / Active / Encryption / Compression / Timeout Legacy • LAN0 / COMx / DisabledPorts → should be removed Good idea • Use TCPIP according to the client type • PORTS = TCPIP • TCPIP = TCP,0,15,0,,12320, → Desktops • TCPIP = TCP,0,15,0,,45088, → Laptops • TCPIP = TCP,0,15,0,,12288, → Citrix / VDI • Hardware compression (e. g. Riverbed)? Don‘t forget the Domino servers!

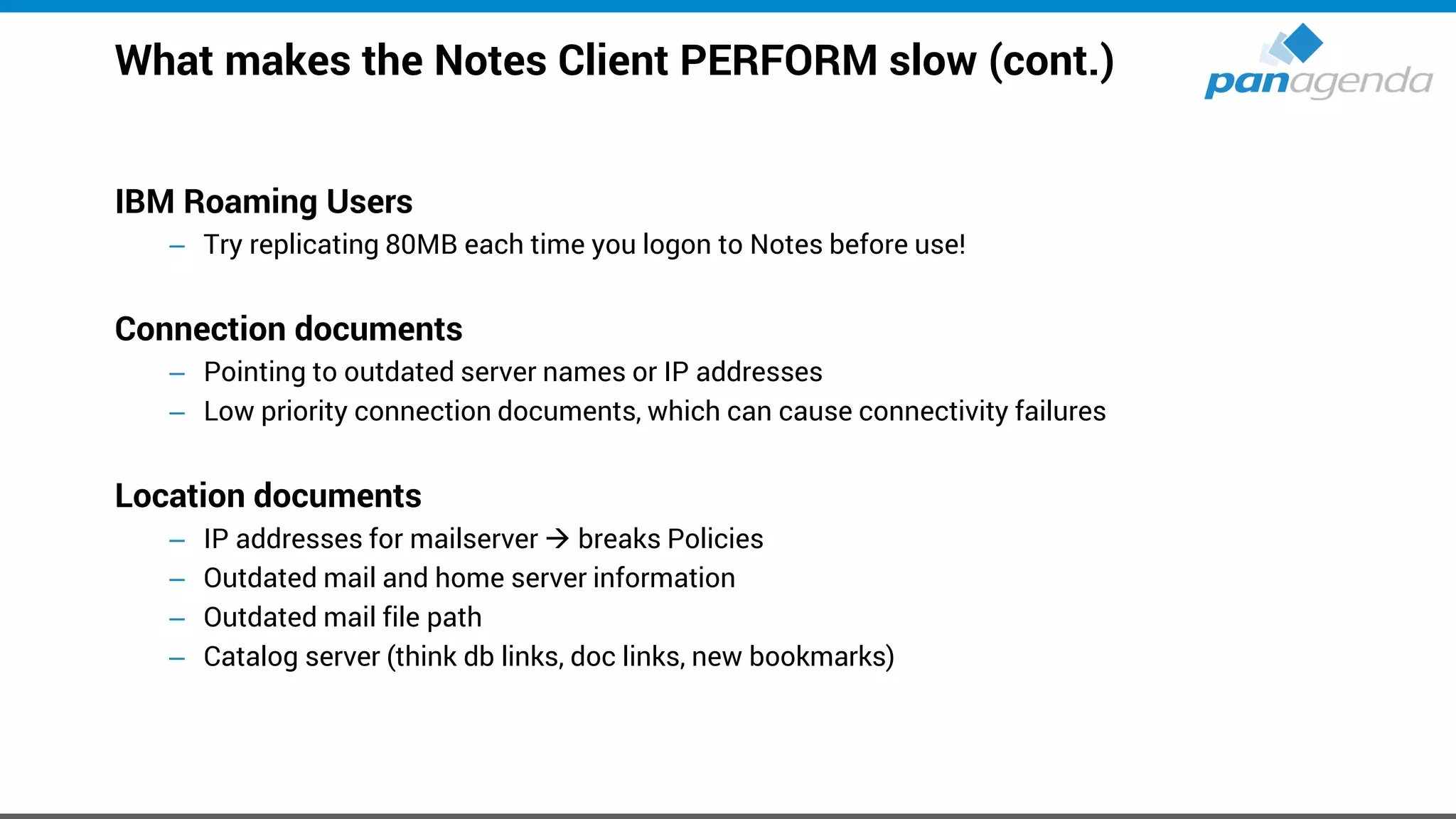

- 24. What makes theNotes Client PERFORM slow (cont.) IBM Roaming Users – Try replicating 80MB each time you logon to Notes before use! Connection documents – Pointing to outdated server names or IP addresses – Low priority connection documents, which can cause connectivity failures Location documents – IP addresses for mailserver → breaks Policies – Outdated mail and home server information – Outdated mail file path – Catalog server (think db links, doc links, new bookmarks)

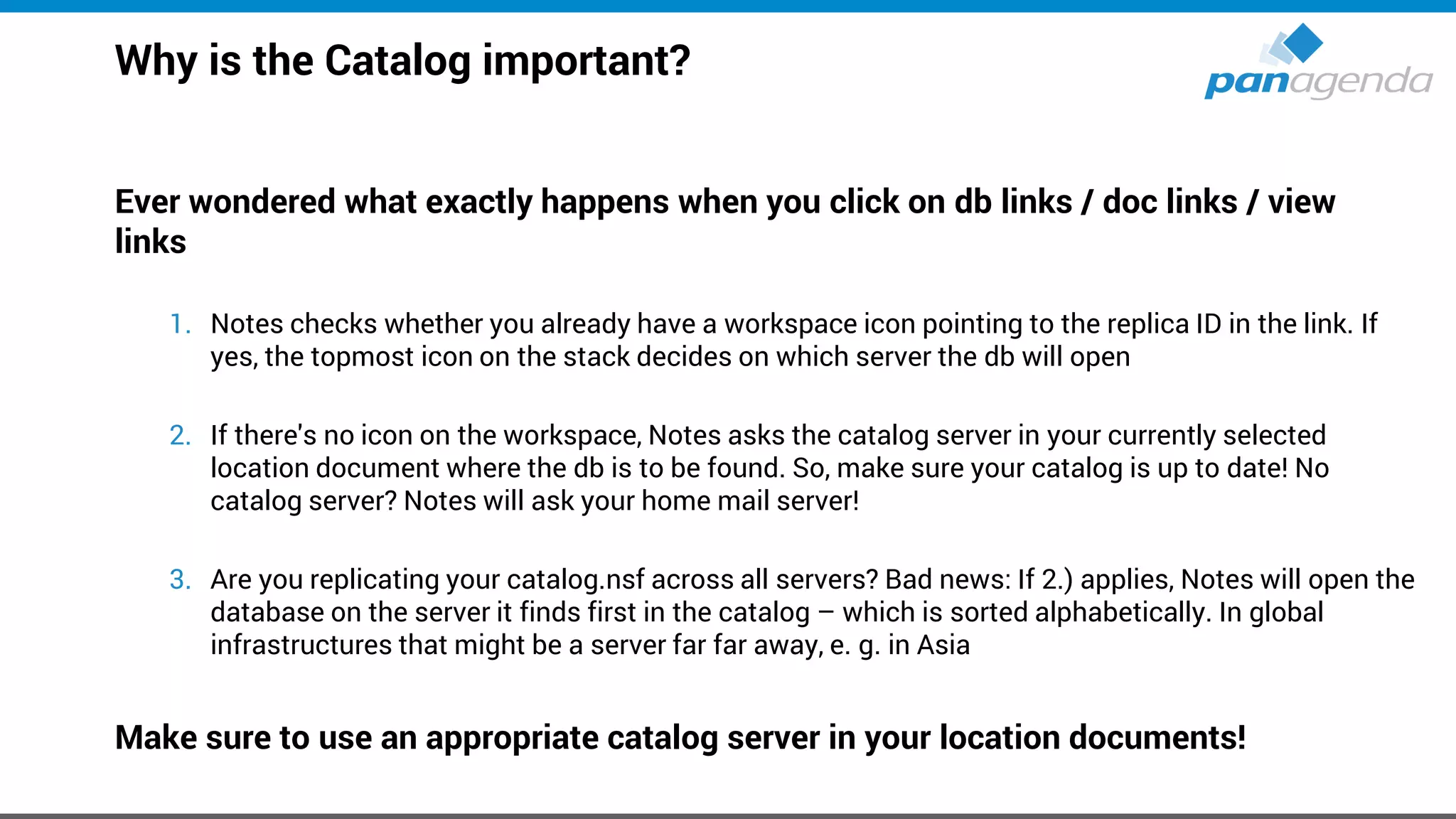

- 25. Why is theCatalog important? Ever wondered what exactly happens when you click on db links / doc links / view links 1. Notes checks whether you already have a workspace icon pointing to the replica ID in the link. If yes, the topmost icon on the stack decides on which server the db will open 2. If there's no icon on the workspace, Notes asks the catalog server in your currently selected location document where the db is to be found. So, make sure your catalog is up to date! No catalog server? Notes will ask your home mail server! 3. Are you replicating your catalog.nsf across all servers? Bad news: If 2.) applies, Notes will open the database on the server it finds first in the catalog – which is sorted alphabetically. In global infrastructures that might be a server far far away, e. g. in Asia Make sure to use an appropriate catalog server in your location documents!
- 26. Make Your DataWork For You Performance Measuring
- 27. Performance Measuring withClient Clocking NOTE: All of this should only be done on “ONE” client – slows down client, creates huge log files! Use the following to see and measure client performance – CLIENT_CLOCK=1 – CONSOLE_LOG_ENABLED=1 – Debug_Outfile=c:debug.txt – Debug_Console=1 – DEBUG_TCP_ALL=1 (use only if needed) Fileserver or local disk Performance Debugging is virtually impossible – If on >= 8.5 try adding DEBUGGINGWCTENABLED=16386 in Notes

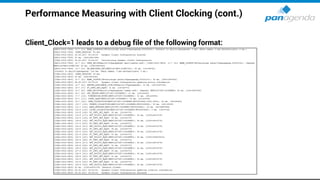

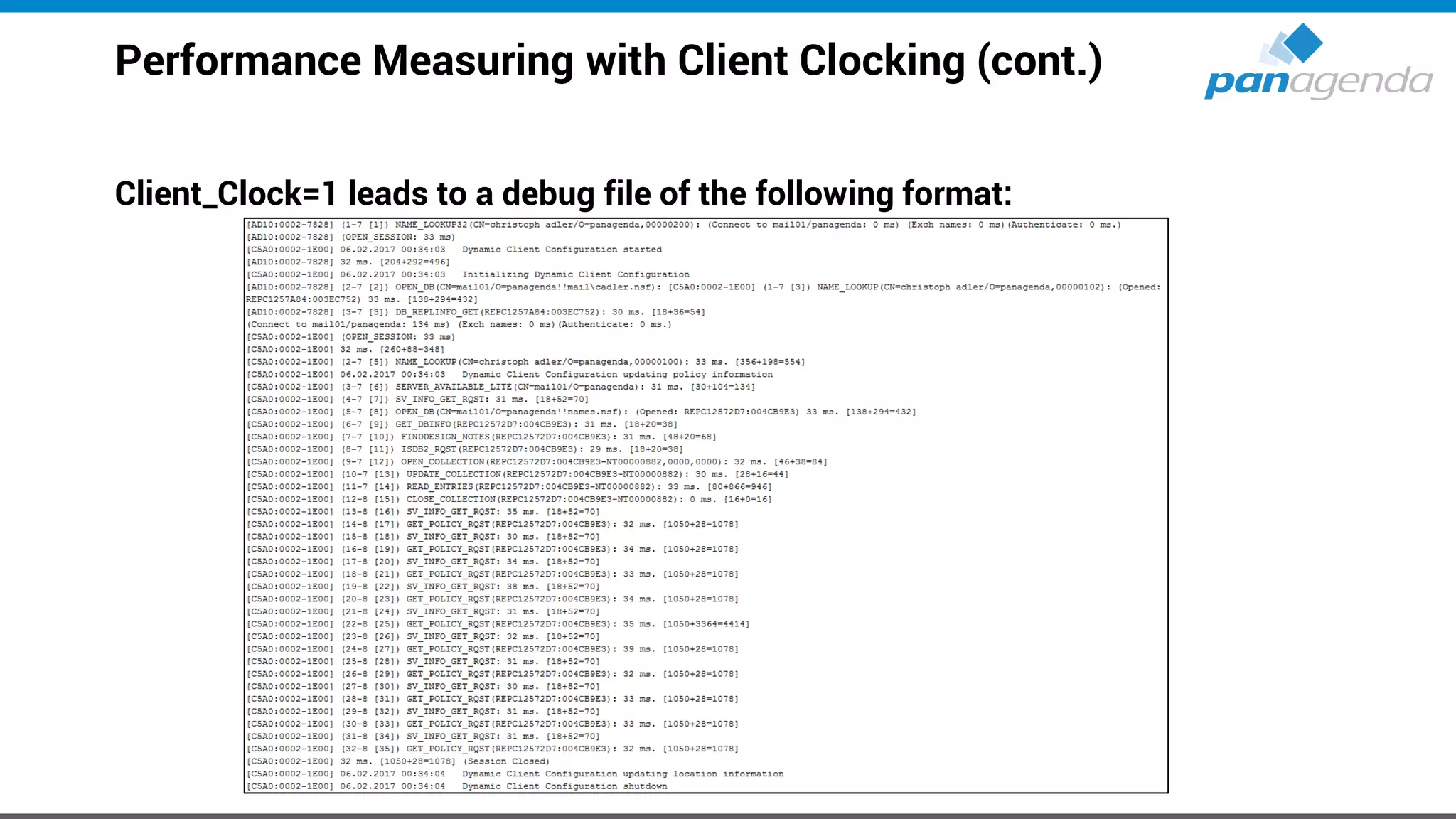

- 28. Performance Measuring withClient Clocking (cont.) Client_Clock=1 leads to a debug file of the following format:

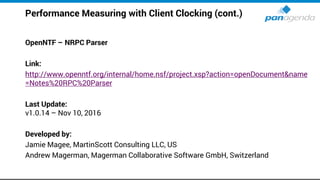

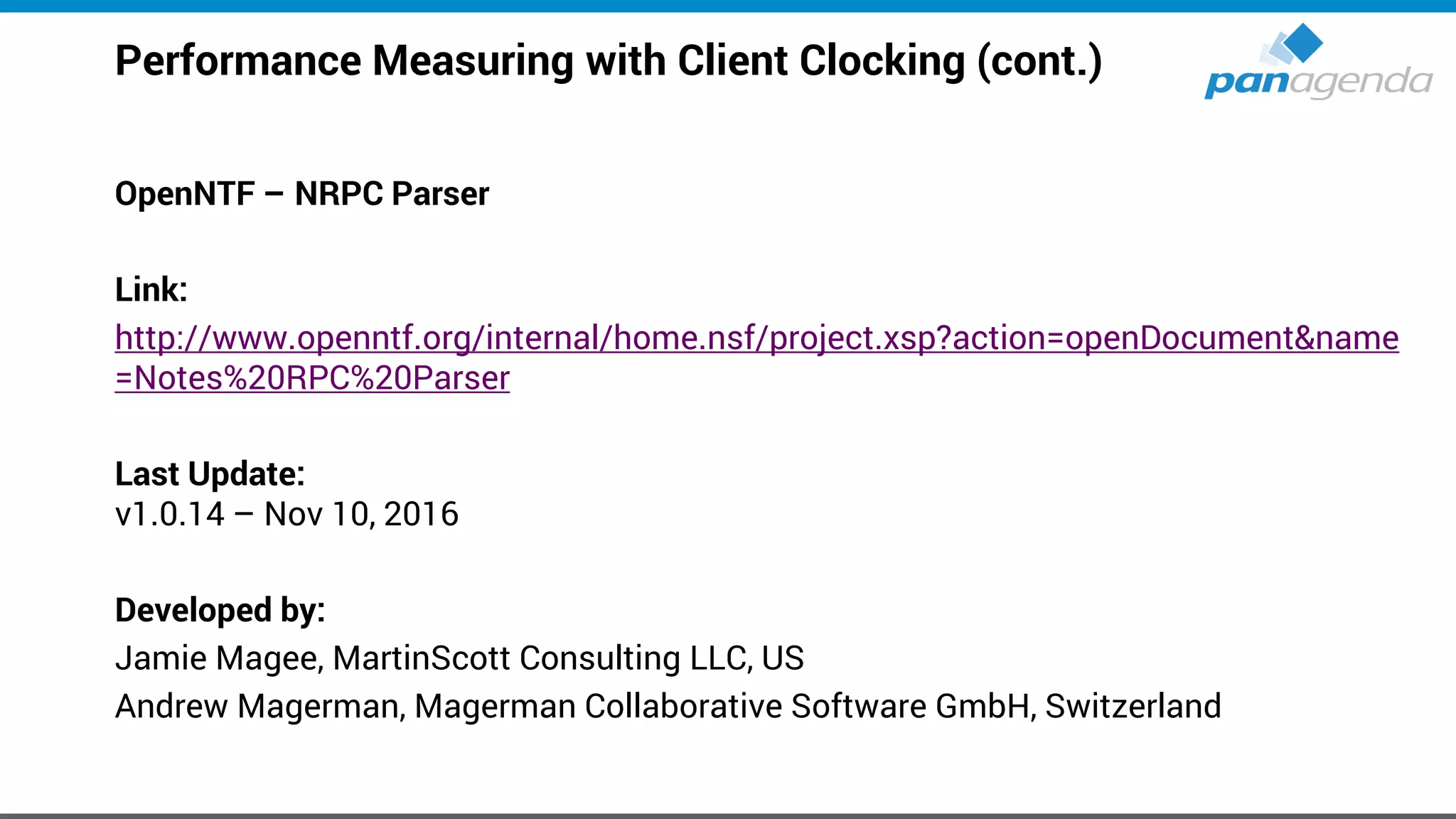

- 29. Performance Measuring withClient Clocking (cont.) OpenNTF – NRPC Parser Link: http://www.openntf.org/internal/home.nsf/project.xsp?action=openDocument&name =Notes%20RPC%20Parser Last Update: v1.0.14 – Nov 10, 2016 Developed by: Jamie Magee, MartinScott Consulting LLC, US Andrew Magerman, Magerman Collaborative Software GmbH, Switzerland

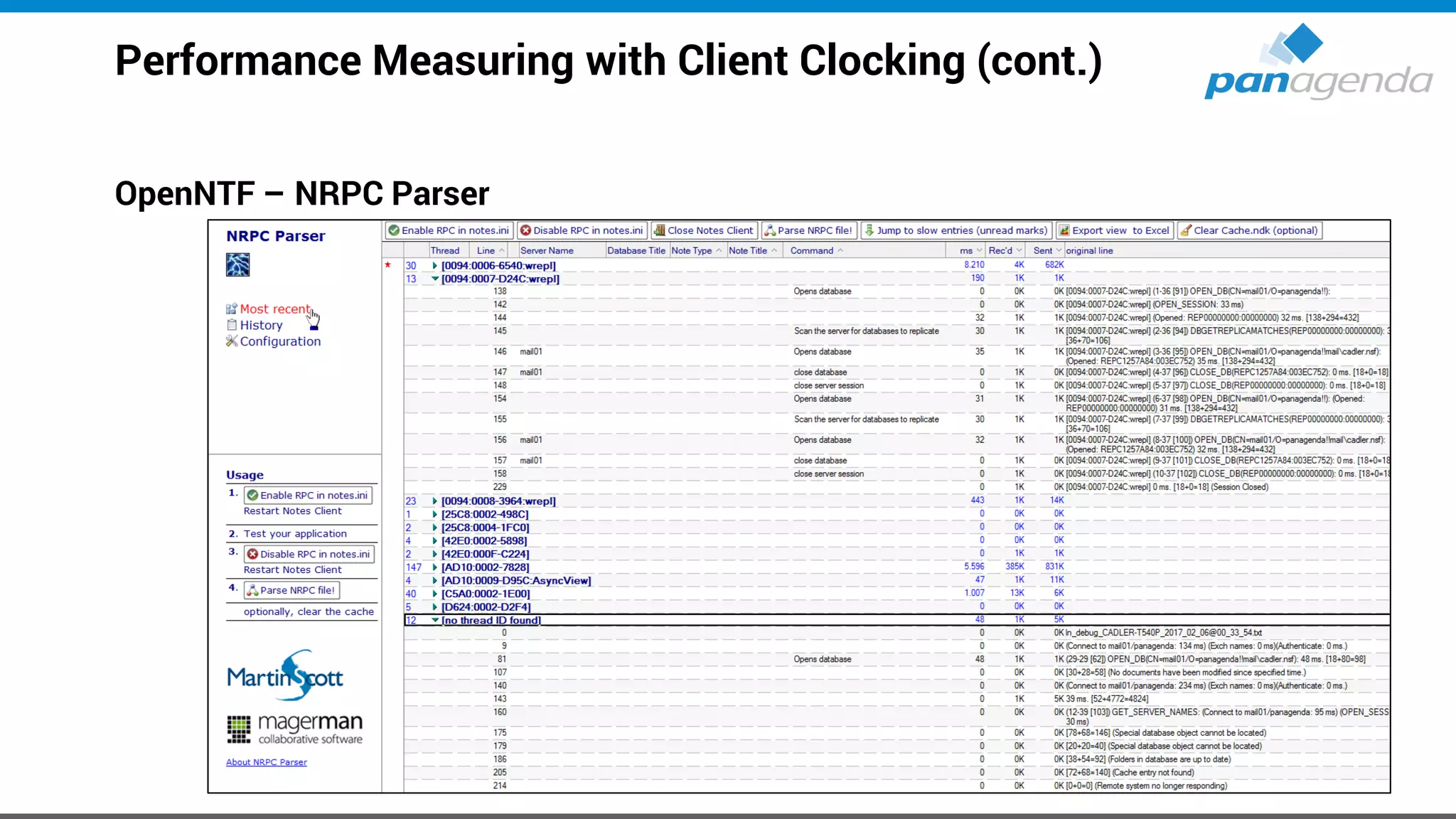

- 30. Performance Measuring withClient Clocking (cont.) OpenNTF – NRPC Parser
- 31. Make Your DataWork For You Bonus
- 32. Performance Tuning –Understanding cache.ndk We've all been “advised to”/guilty of deleting the cache.ndk in an effort to cure Notes performance problems/symptoms – Some companies even delete cache.ndk on a scheduled basis HOWEVER, let us explain the impact of that on Notes performance ... – Increases traffic between client and server by 4,000% (forty times more traffic, yes) (10,000+% if the data directory is on a network drive) – The more databases end users use, the worse it gets – There is always a root cause – deleting cache.ndk only fixes symptoms – Let's look at some detailed traffic analysis for just ONE application (the mail file) of ONE user ...

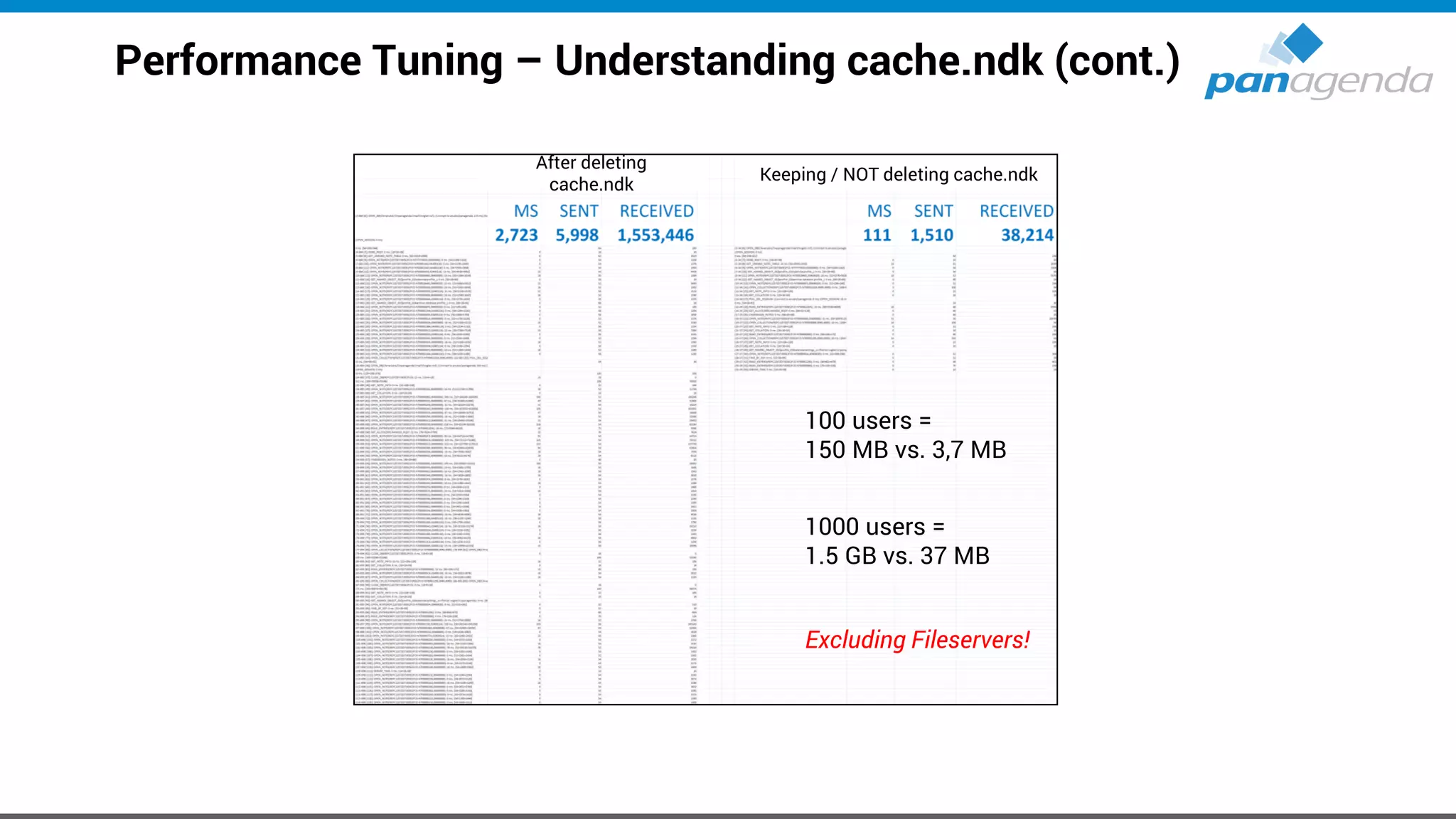

- 33. Performance Tuning –Understanding cache.ndk (cont.) 100 users = 150 MB vs. 3,7 MB 1000 users = 1.5 GB vs. 37 MB Excluding Fileservers! After deleting cache.ndk Keeping / NOT deleting cache.ndk
- 34. Make Your DataWork For You Summary

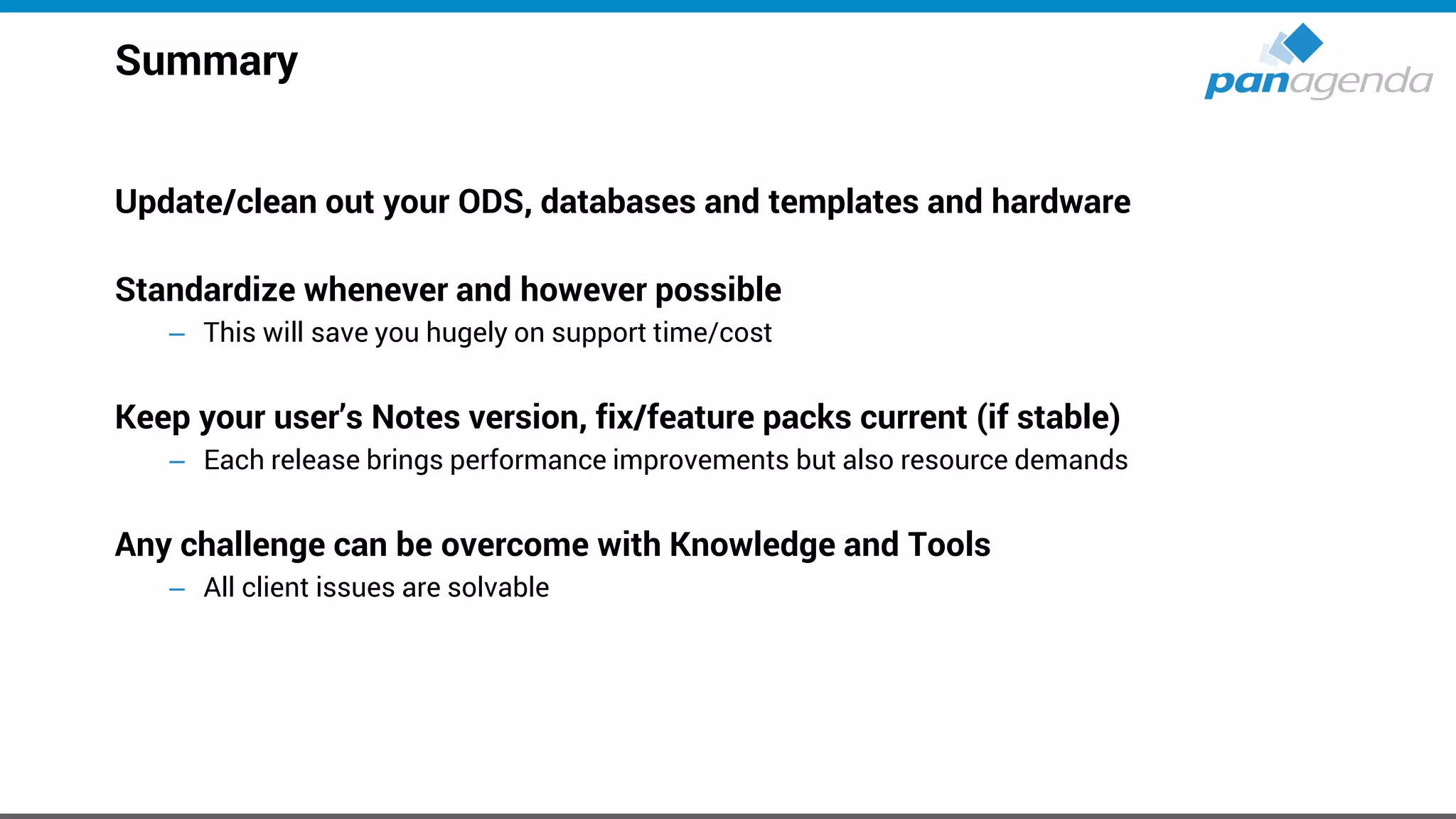

- 35. Summary Update/clean out yourODS, databases and templates and hardware Standardize whenever and however possible – This will save you hugely on support time/cost Keep your user’s Notes version, fix/feature packs current (if stable) – Each release brings performance improvements but also resource demands Any challenge can be overcome with Knowledge and Tools – All client issues are solvable
- 36. Make Your DataWork For You Q & A
- 37. Thank you! /Спасибо! Christoph Adler @cadler80 Senior Consultant panagenda christoph.adler@panagenda.com

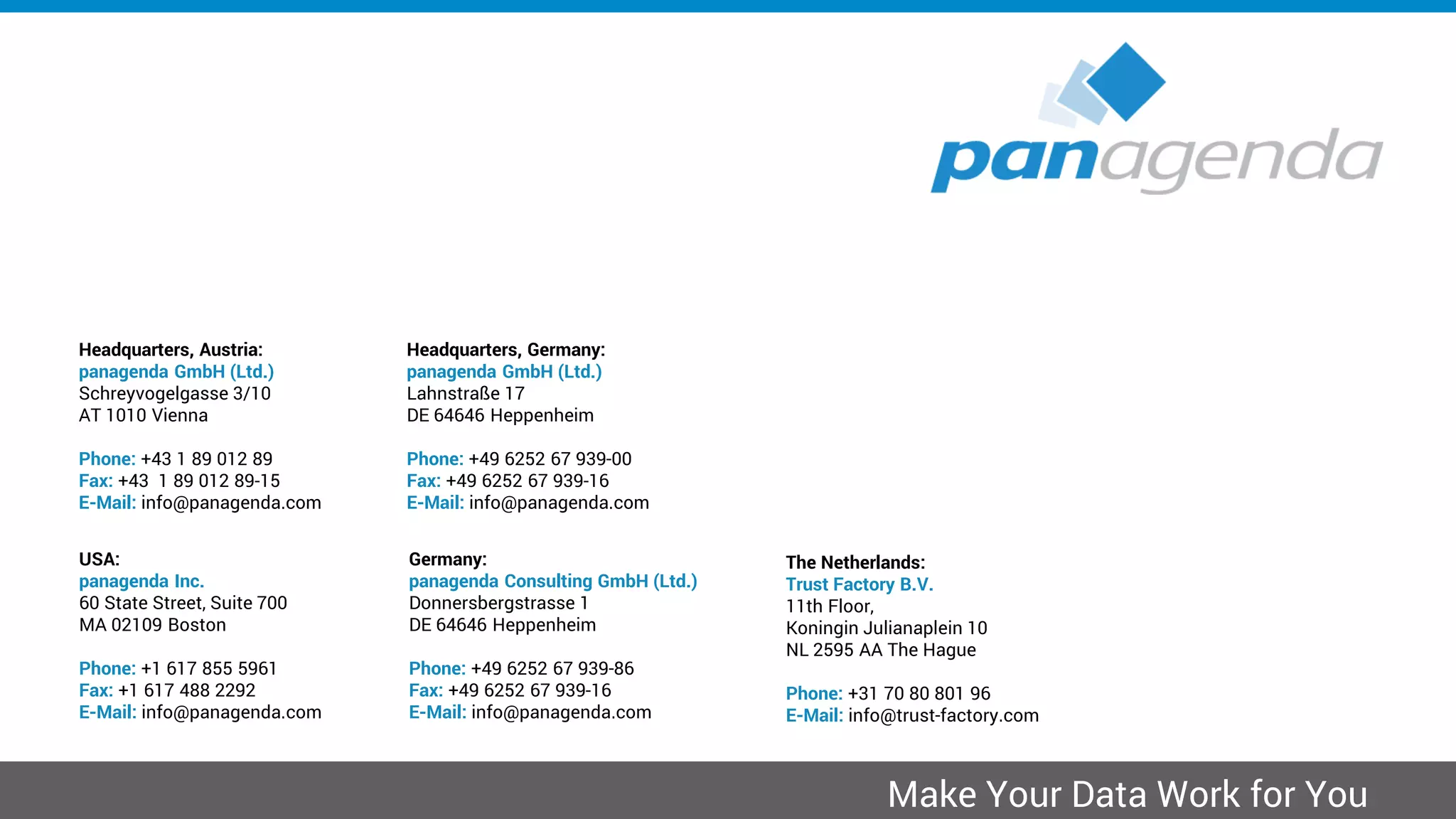

- 38. Headquarters, Austria: panagenda GmbH(Ltd.) Schreyvogelgasse 3/10 AT 1010 Vienna Phone: +43 1 89 012 89 Fax: +43 1 89 012 89-15 E-Mail: info@panagenda.com Headquarters, Germany: panagenda GmbH (Ltd.) Lahnstraße 17 DE 64646 Heppenheim Phone: +49 6252 67 939-00 Fax: +49 6252 67 939-16 E-Mail: info@panagenda.com USA: panagenda Inc. 60 State Street, Suite 700 MA 02109 Boston Phone: +1 617 855 5961 Fax: +1 617 488 2292 E-Mail: info@panagenda.com Germany: panagenda Consulting GmbH (Ltd.) Donnersbergstrasse 1 DE 64646 Heppenheim Phone: +49 6252 67 939-86 Fax: +49 6252 67 939-16 E-Mail: info@panagenda.com The Netherlands: Trust Factory B.V. 11th Floor, Koningin Julianaplein 10 NL 2595 AA The Hague Phone: +31 70 80 801 96 E-Mail: info@trust-factory.com © 2007-2015 panagenda Make Your Data Work for You
