![BIST Activate FIS
Byte 3 Byte 2 Byte 1 Byte 0
0 Reserved [ TASLFPRV ] Reserved FIS Type 58h
1 Data [31:24] Data [23:16] Data [15:8] Data [7:0]
2 Data [31:24] Data [23:16] Data [15:8] Data [7:0]
T - Far end transmit only – transmit Dwords defined in words 1 & 2
A - No ALIGN transmission (valid only with T)
S - Bypass scrambling (valid only with T)
L - Far end retimed loopback with ALIGN insertion
F - Far end analog loopback
P - Transmit primitives defined in words 1 & 2 of the FIS
R - Reserved
V - Vendor Unique Test Mode – other bits undefined](https://image.slidesharecdn.com/sata-140613142548-phpapp02/85/SATA-Protocol-60-320.jpg)
![BIST Activate FIS
Byte 3 Byte 2 Byte 1 Byte 0
0 Reserved [ TASLFPRV ] Reserved FIS Type 58h
1 Data [31:24] Data [23:16] Data [15:8] Data [7:0]
2 Data [31:24] Data [23:16] Data [15:8] Data [7:0]
T - Far end transmit only – transmit Dwords defined in words 1 & 2
A - No ALIGN transmission (valid only with T)
S - Bypass scrambling (valid only with T)
L - Far end retimed loopback with ALIGN insertion
F - Far end analog loopback
P - Transmit primitives defined in words 1 & 2 of the FIS
R - Reserved
V - Vendor Unique Test Mode – other bits undefined](https://image.slidesharecdn.com/sata-140613142548-phpapp02/75/SATA-Protocol-60-2048.jpg)
Uploaded byNirav Desai
SATA Protocol
This document discusses the history and technical details of Serial ATA (SATA) storage interfaces. It covers: - The evolution of parallel ATA standards over time and their limitations that led to SATA. - The key benefits of SATA including smaller connectors, higher speeds, and support for multiple devices via point-to-point connections. - An overview of the SATA architecture and protocol stack, including the physical, link, and transport layers. - Details of the physical layer such as connectors, cabling, and out-of-band signaling. - How the link layer implements 8b/10b encoding, scrambling, frame structure, and flow control primitives.
More Related Content
SATA Protocol
- 1.

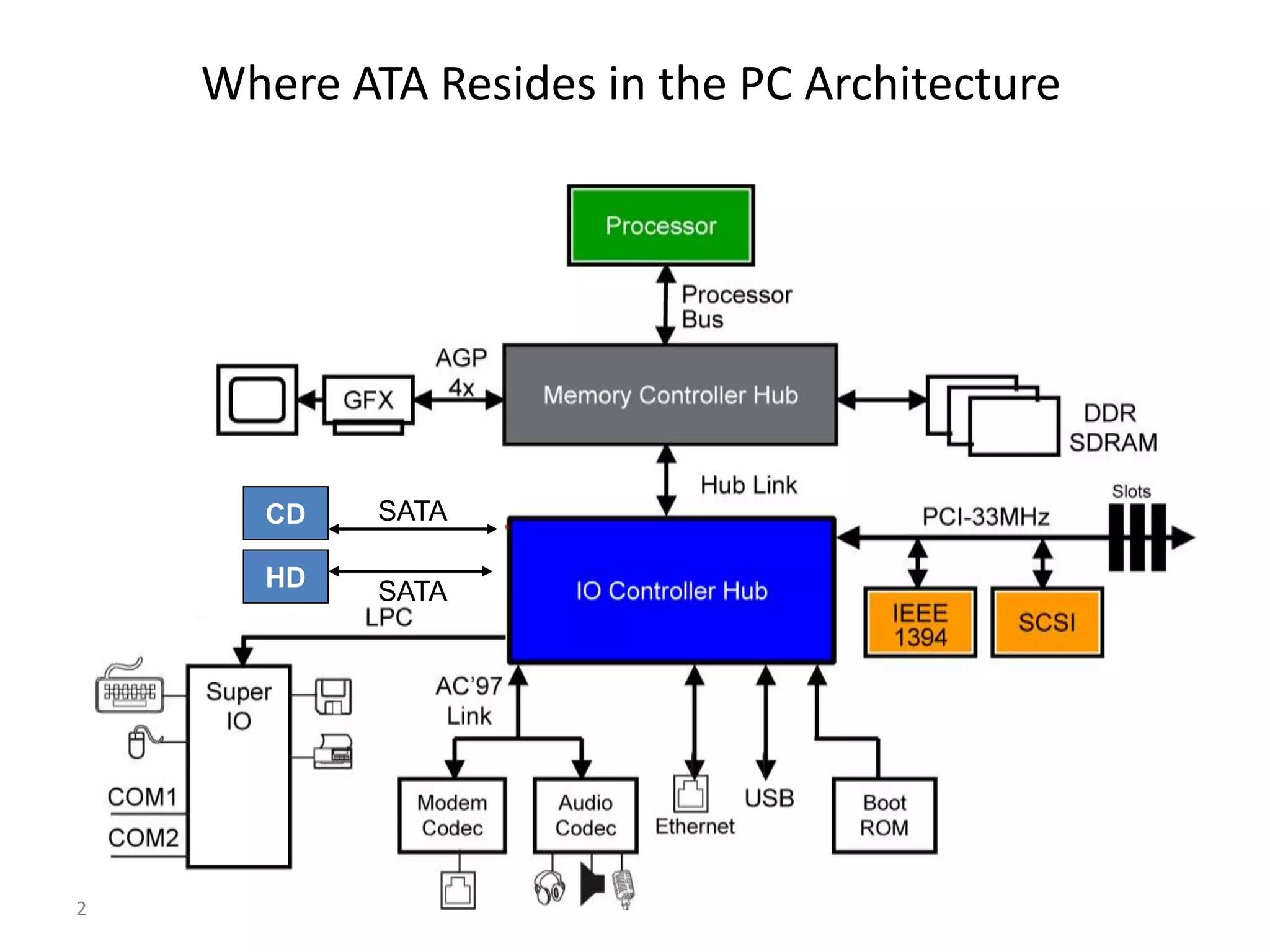

- 2. 2 Where ATA Residesin the PC Architecture CD HD SATA SATA

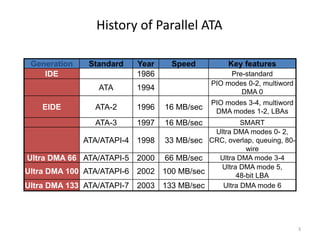

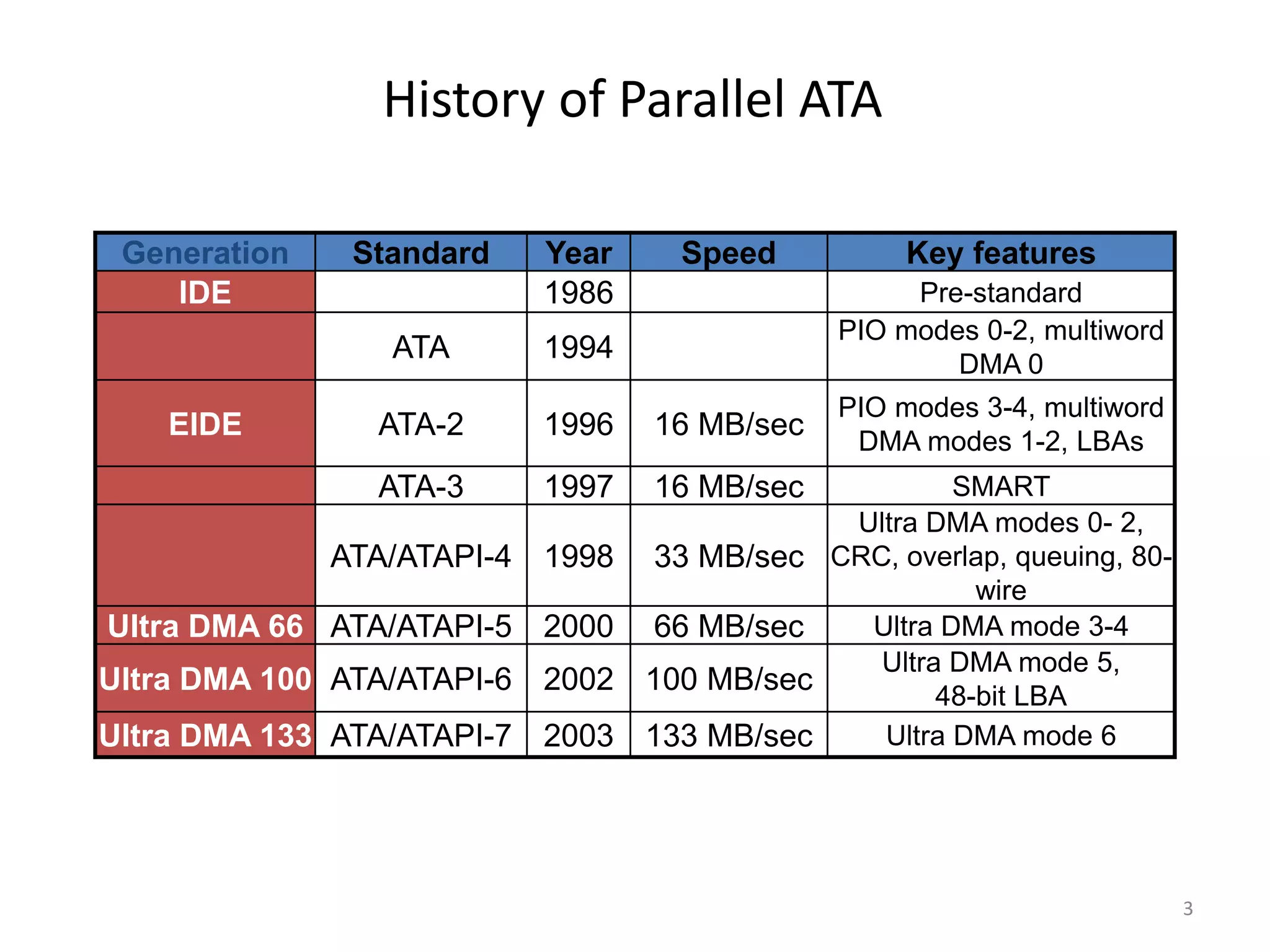

- 3. 3 History of ParallelATA Generation Standard Year Speed Key features IDE 1986 Pre-standard ATA 1994 PIO modes 0-2, multiword DMA 0 EIDE ATA-2 1996 16 MB/sec PIO modes 3-4, multiword DMA modes 1-2, LBAs ATA-3 1997 16 MB/sec SMART ATA/ATAPI-4 1998 33 MB/sec Ultra DMA modes 0- 2, CRC, overlap, queuing, 80- wire Ultra DMA 66 ATA/ATAPI-5 2000 66 MB/sec Ultra DMA mode 3-4 Ultra DMA 100 ATA/ATAPI-6 2002 100 MB/sec Ultra DMA mode 5, 48-bit LBA Ultra DMA 133 ATA/ATAPI-7 2003 133 MB/sec Ultra DMA mode 6

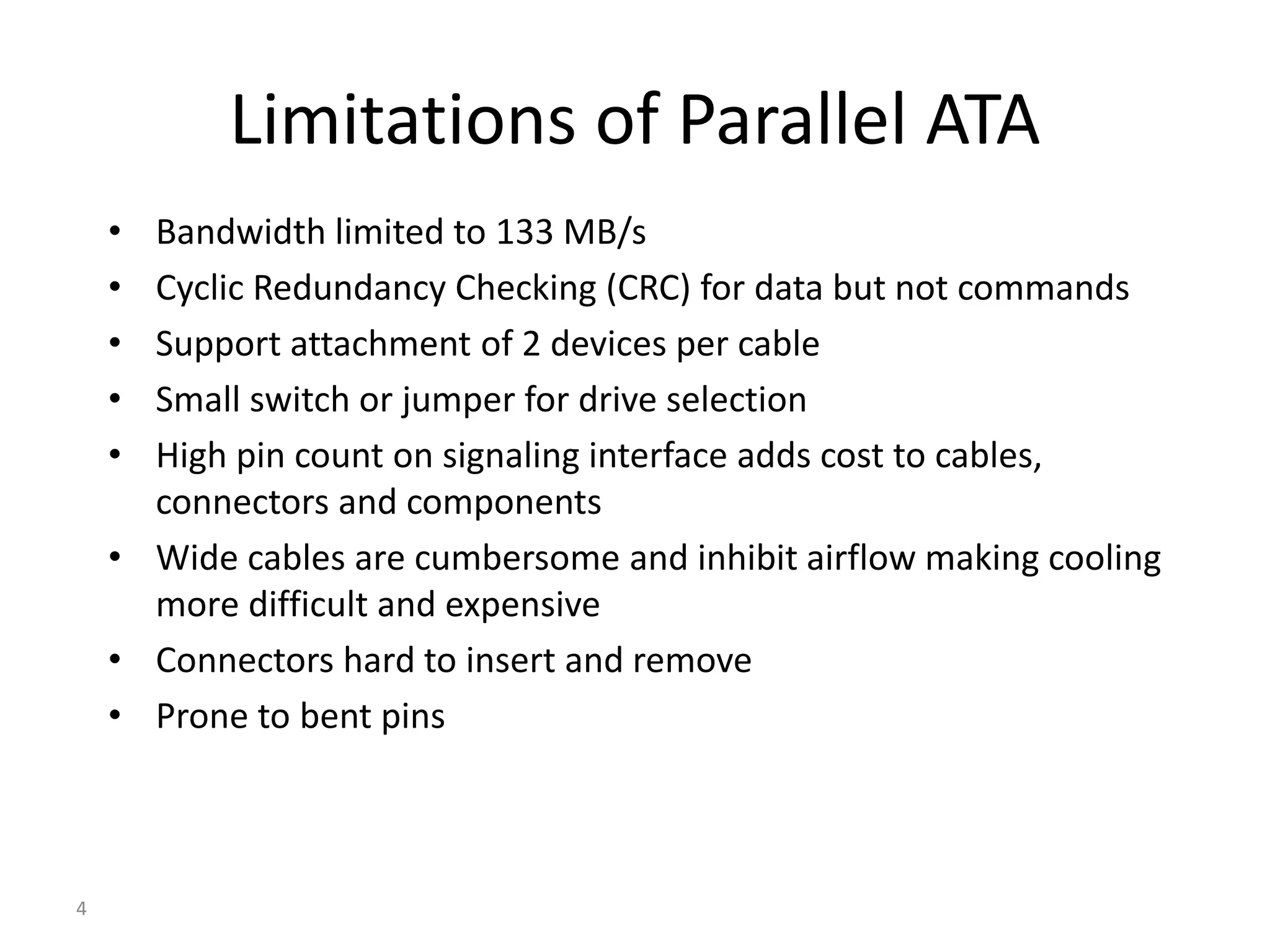

- 4. 4 • Bandwidth limitedto 133 MB/s • Cyclic Redundancy Checking (CRC) for data but not commands • Support attachment of 2 devices per cable • Small switch or jumper for drive selection • High pin count on signaling interface adds cost to cables, connectors and components • Wide cables are cumbersome and inhibit airflow making cooling more difficult and expensive • Connectors hard to insert and remove • Prone to bent pins Limitations of Parallel ATA

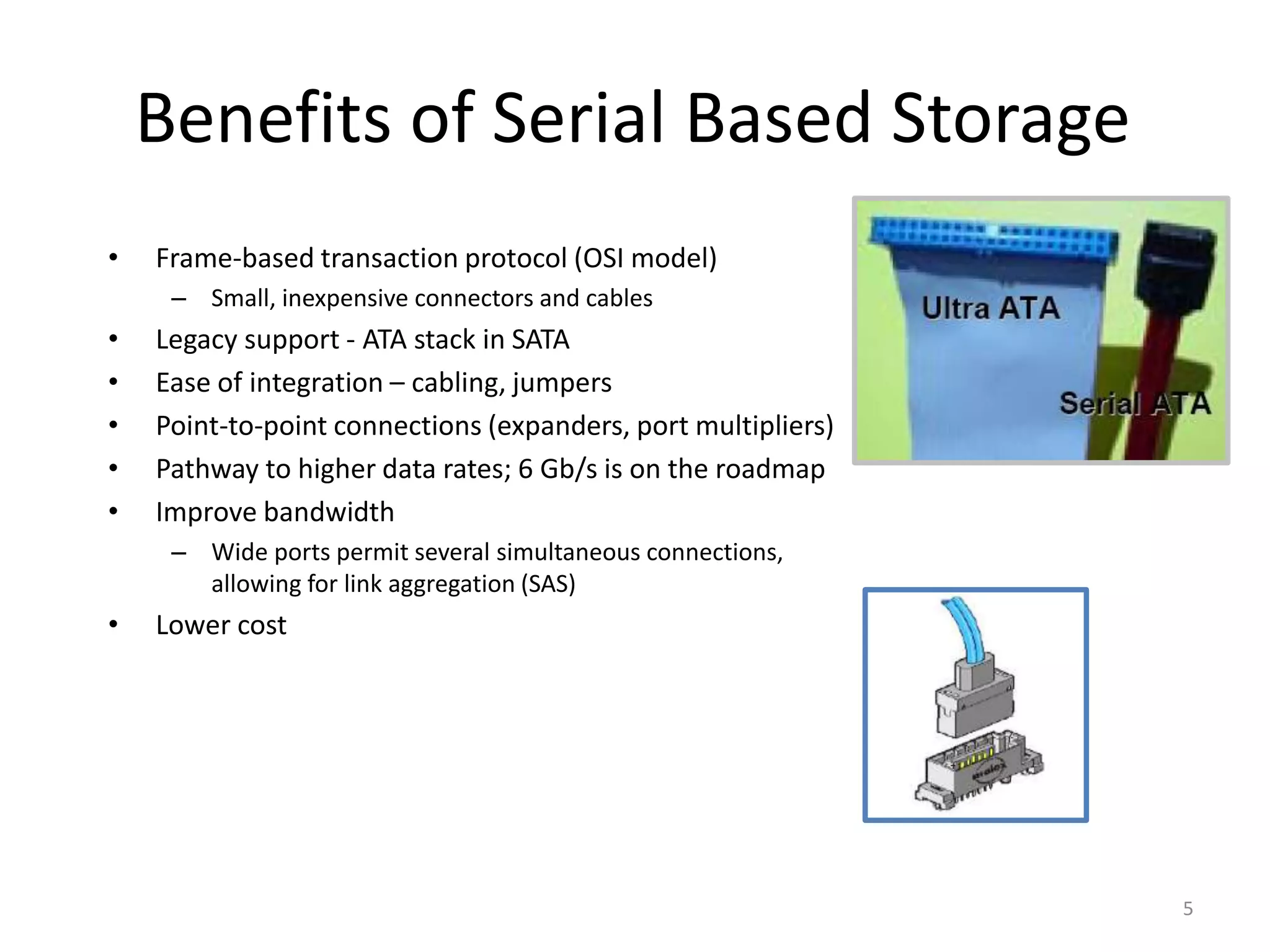

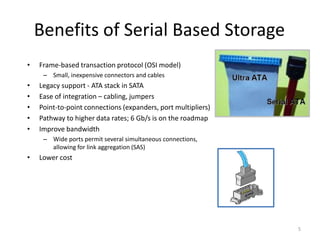

- 5. 5 Benefits of SerialBased Storage • Frame-based transaction protocol (OSI model) – Small, inexpensive connectors and cables • Legacy support - ATA stack in SATA • Ease of integration – cabling, jumpers • Point-to-point connections (expanders, port multipliers) • Pathway to higher data rates; 6 Gb/s is on the roadmap • Improve bandwidth – Wide ports permit several simultaneous connections, allowing for link aggregation (SAS) • Lower cost

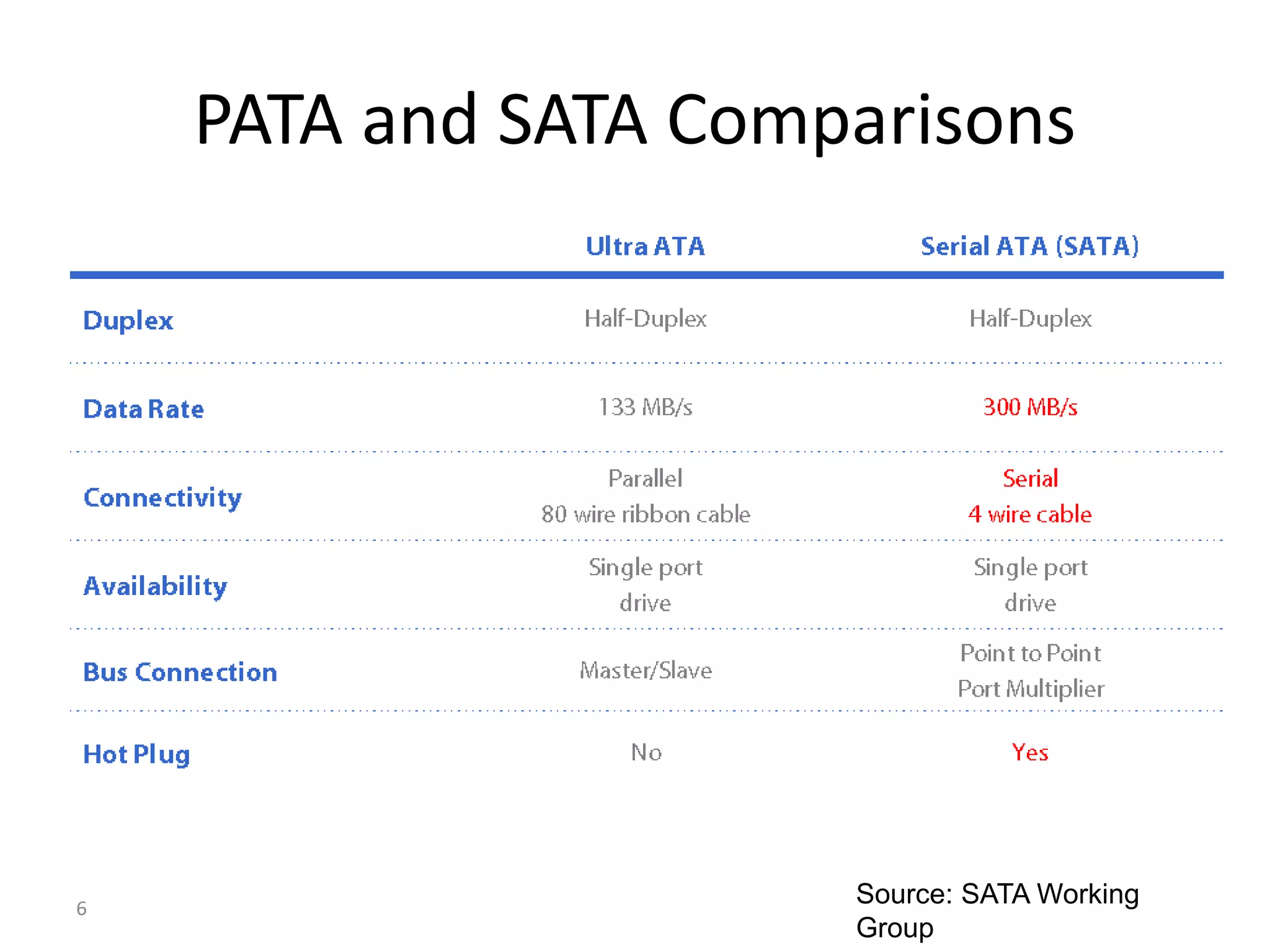

- 6. 6 PATA and SATAComparisons Source: SATA Working Group

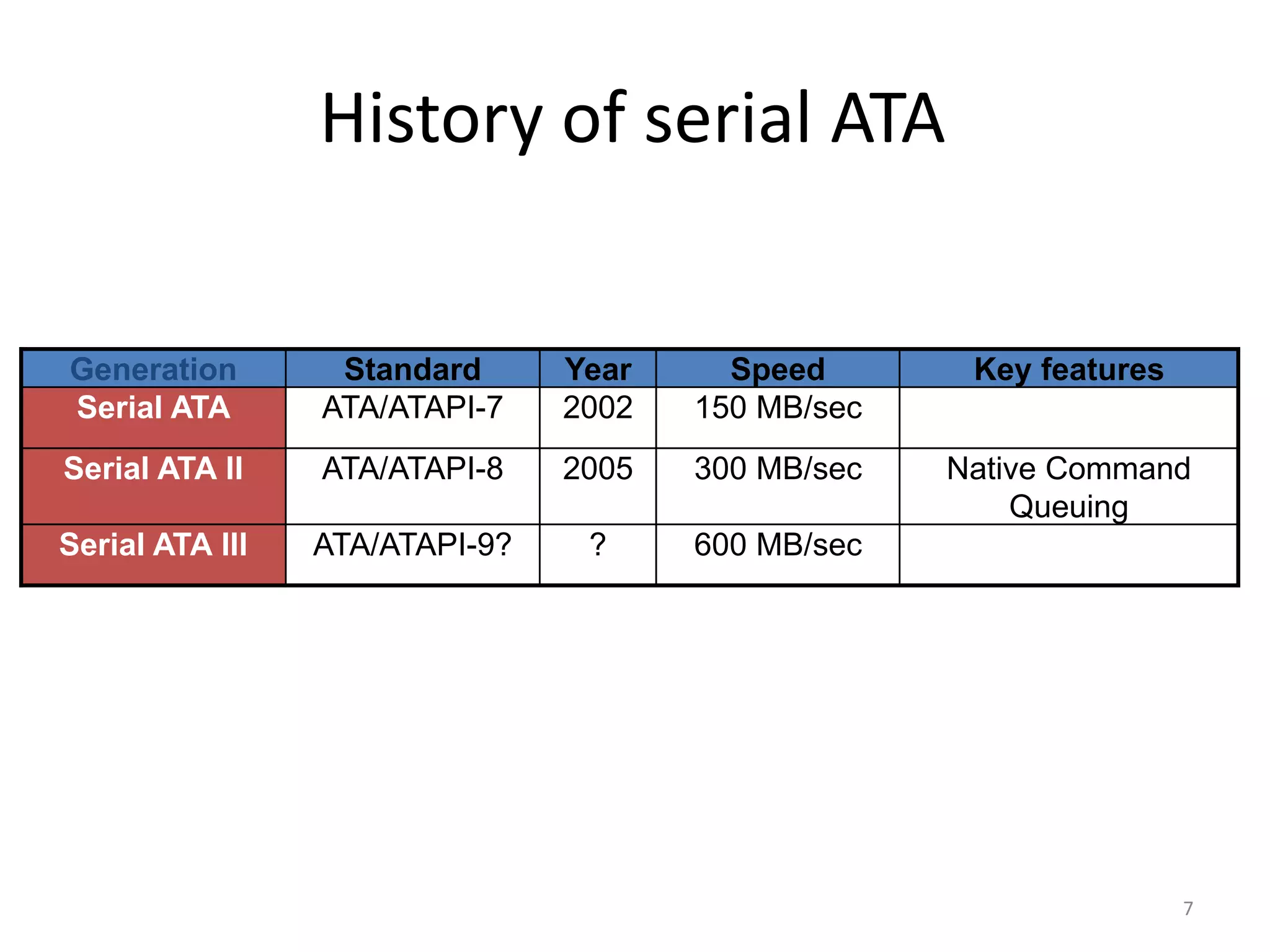

- 7. 7 History of serialATA Generation Standard Year Speed Key features Serial ATA ATA/ATAPI-7 2002 150 MB/sec Serial ATA II ATA/ATAPI-8 2005 300 MB/sec Native Command Queuing Serial ATA III ATA/ATAPI-9? ? 600 MB/sec

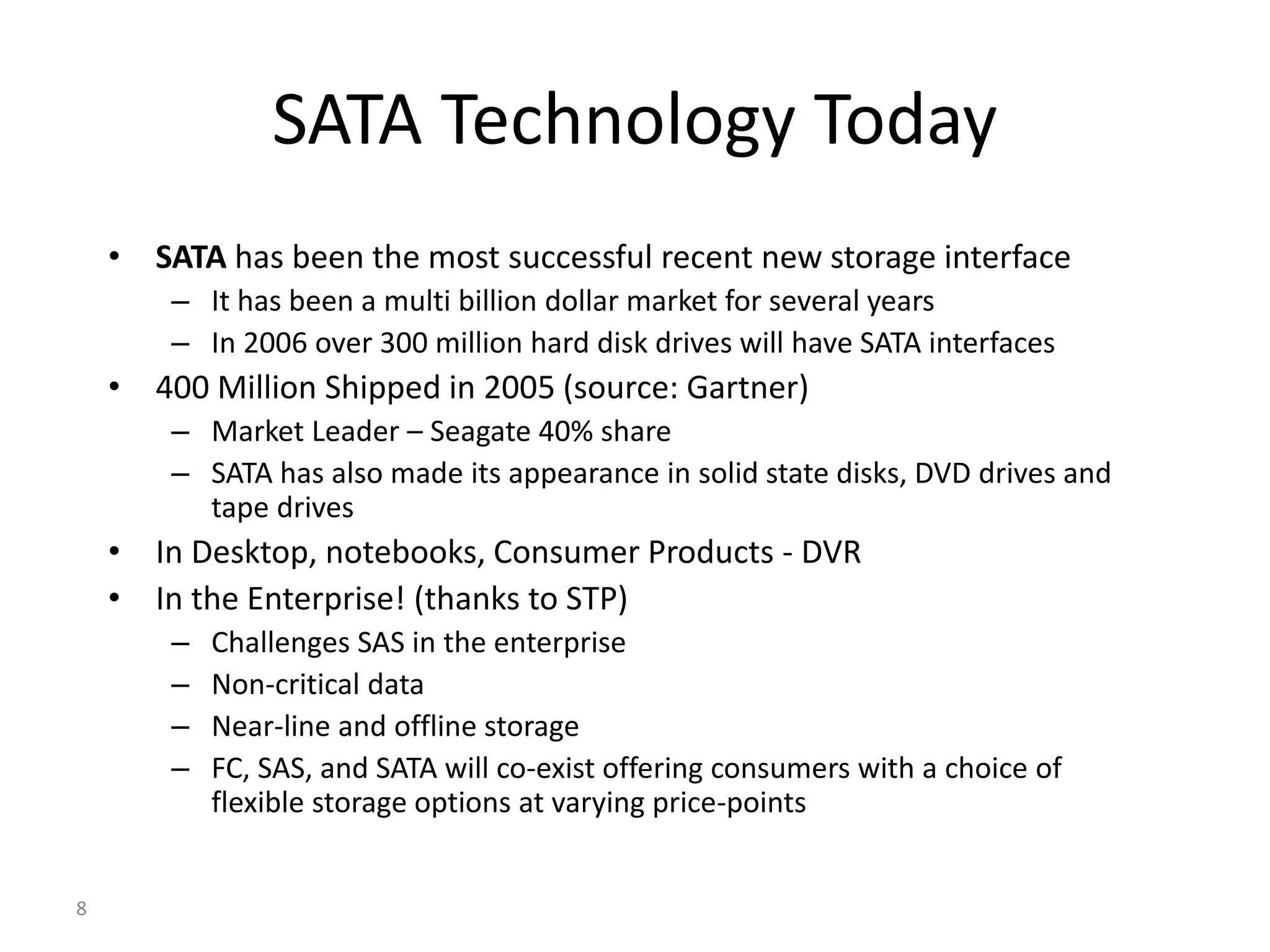

- 8. 8 SATA Technology Today •SATA has been the most successful recent new storage interface – It has been a multi billion dollar market for several years – In 2006 over 300 million hard disk drives will have SATA interfaces • 400 Million Shipped in 2005 (source: Gartner) – Market Leader – Seagate 40% share – SATA has also made its appearance in solid state disks, DVD drives and tape drives • In Desktop, notebooks, Consumer Products - DVR • In the Enterprise! (thanks to STP) – Challenges SAS in the enterprise – Non-critical data – Near-line and offline storage – FC, SAS, and SATA will co-exist offering consumers with a choice of flexible storage options at varying price-points

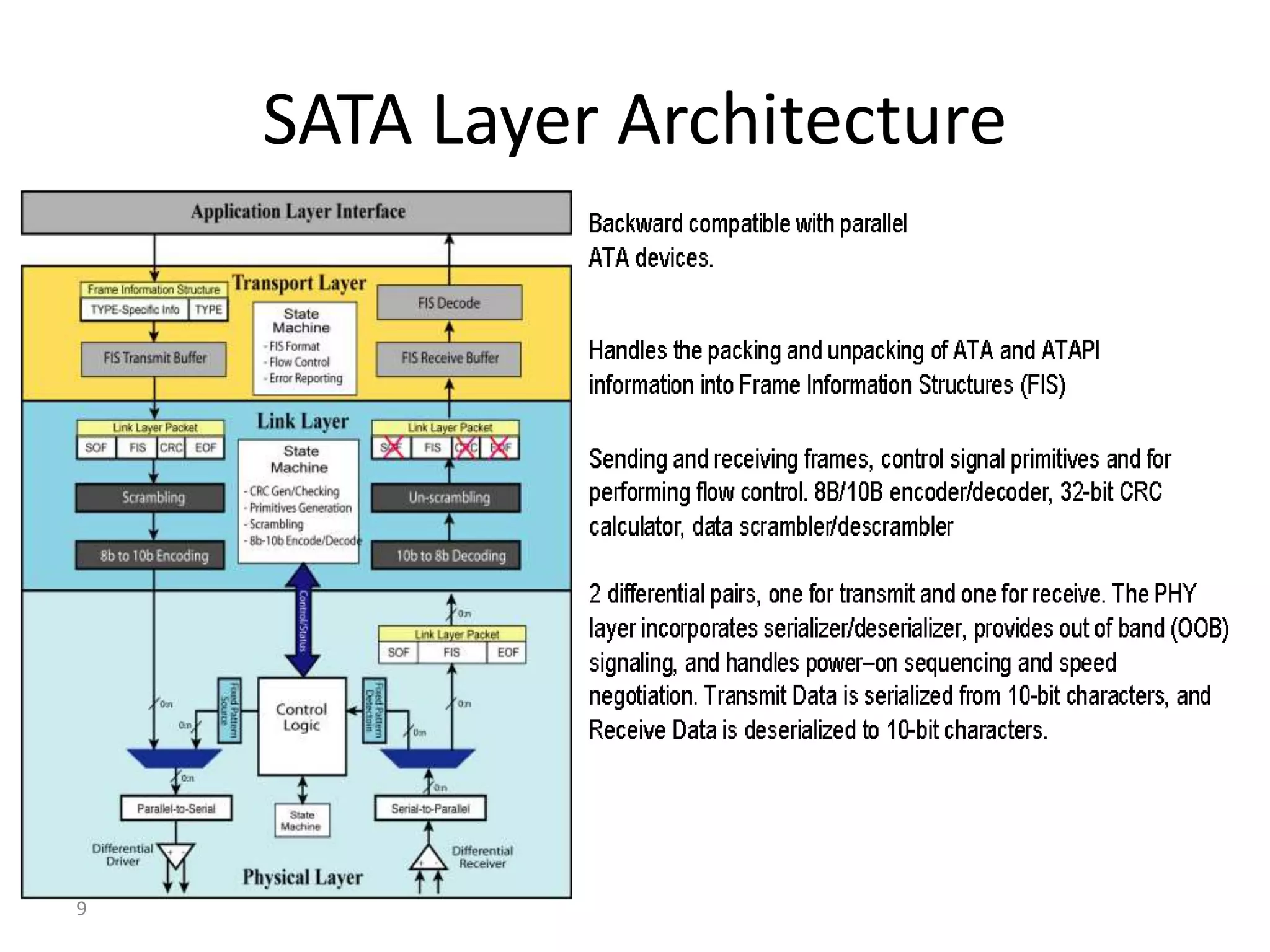

- 9.

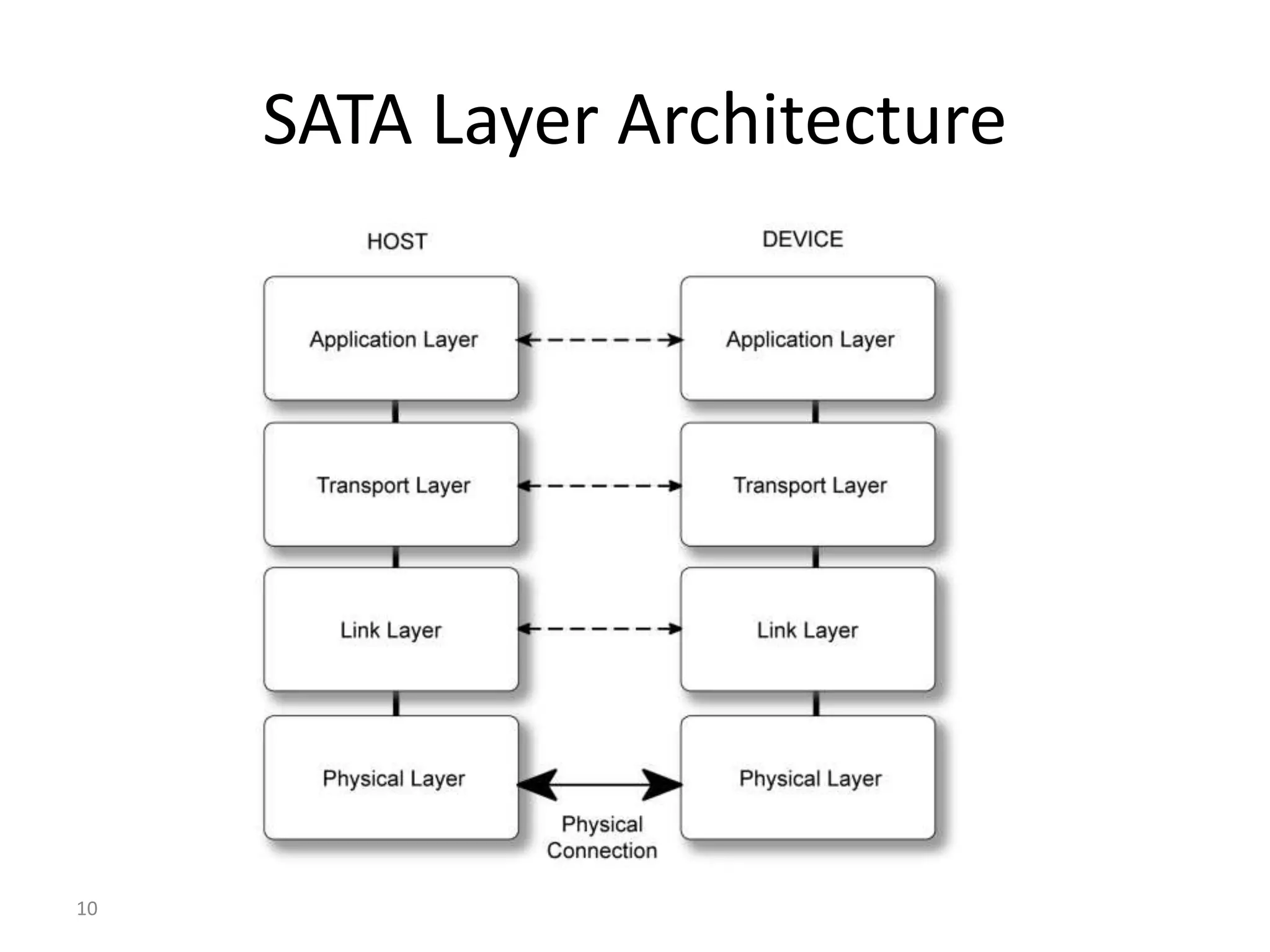

- 10.

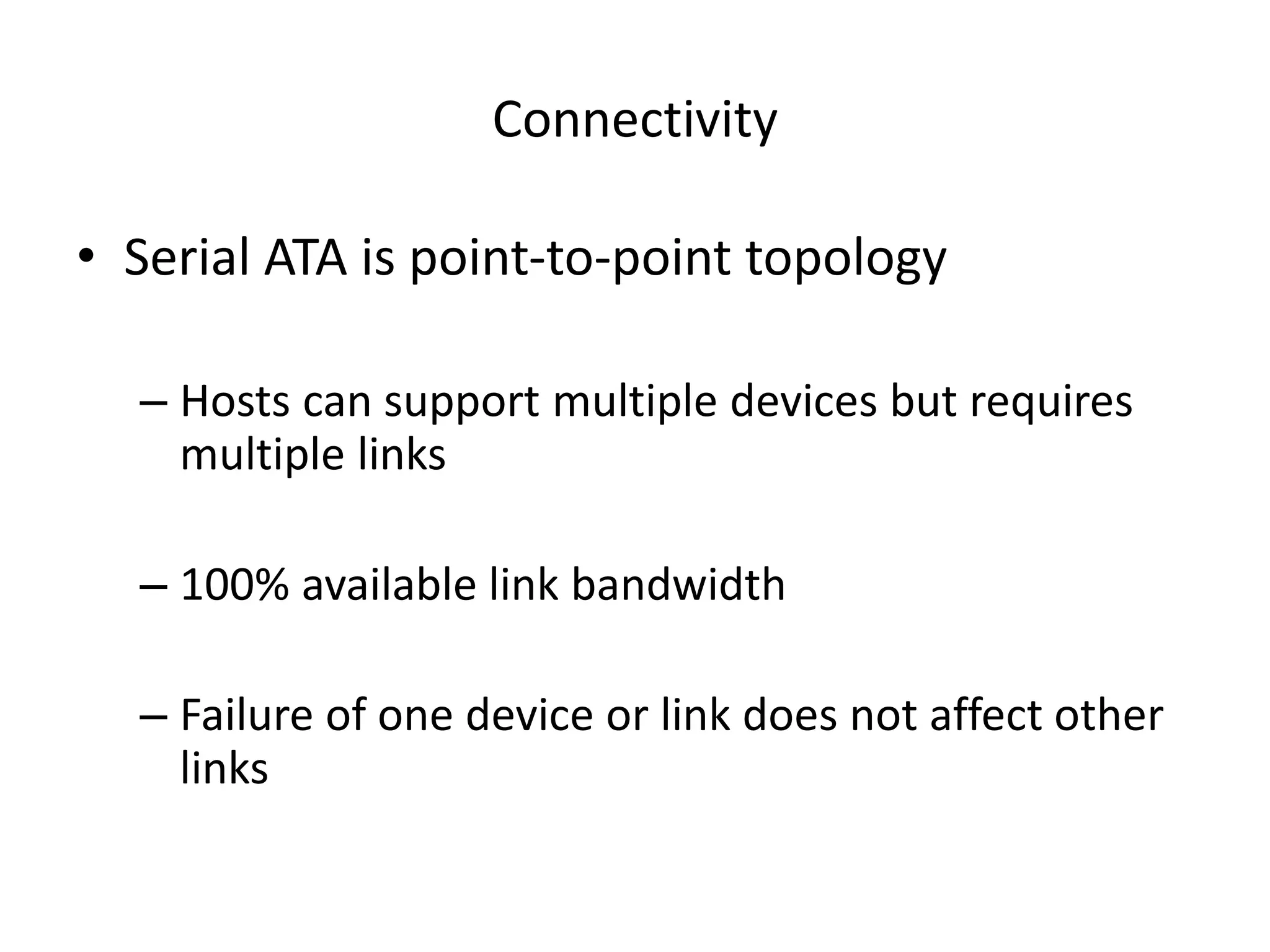

- 11. Connectivity • Serial ATAis point-to-point topology – Hosts can support multiple devices but requires multiple links – 100% available link bandwidth – Failure of one device or link does not affect other links

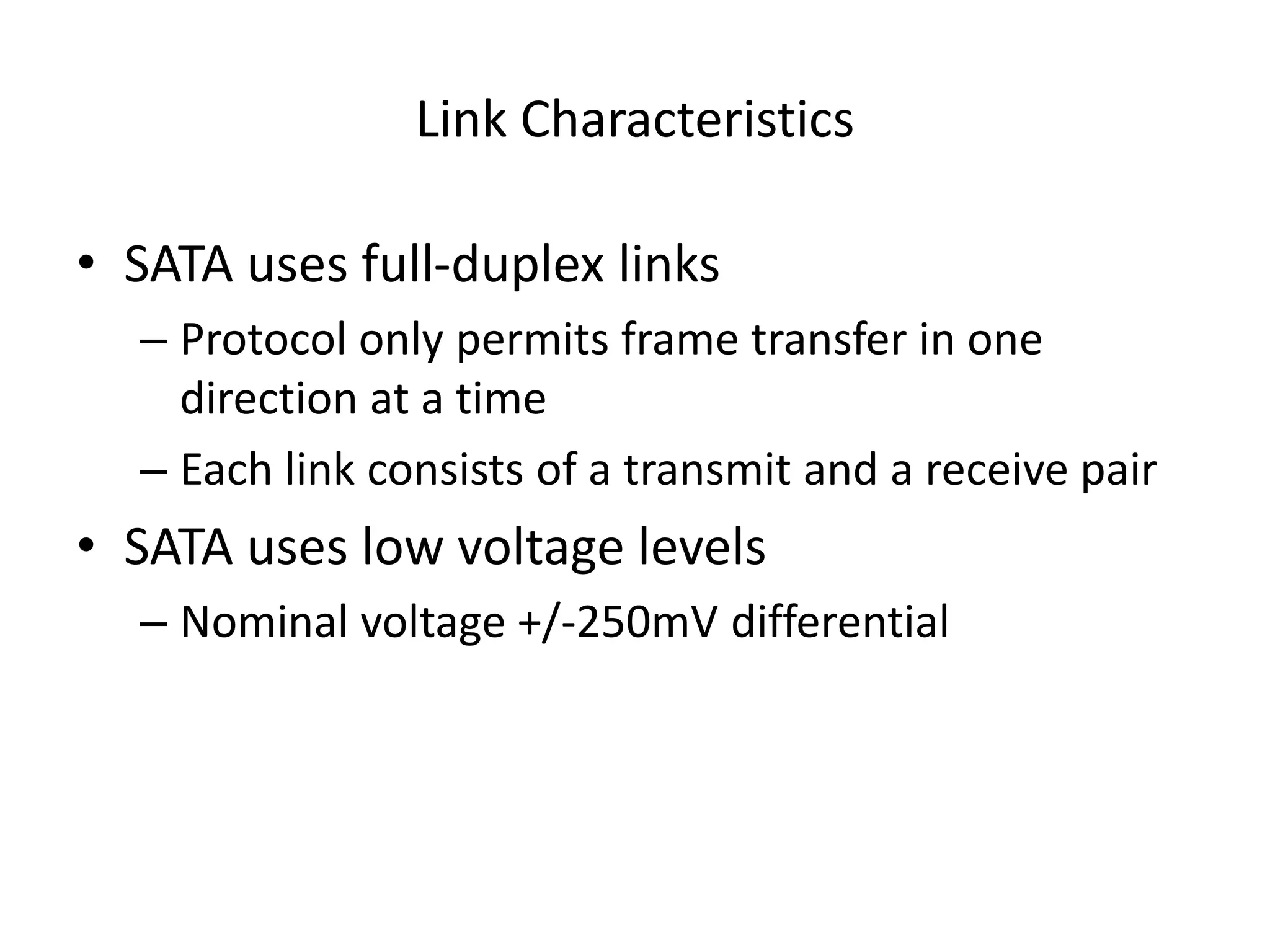

- 12. Link Characteristics • SATAuses full-duplex links – Protocol only permits frame transfer in one direction at a time – Each link consists of a transmit and a receive pair • SATA uses low voltage levels – Nominal voltage +/-250mV differential

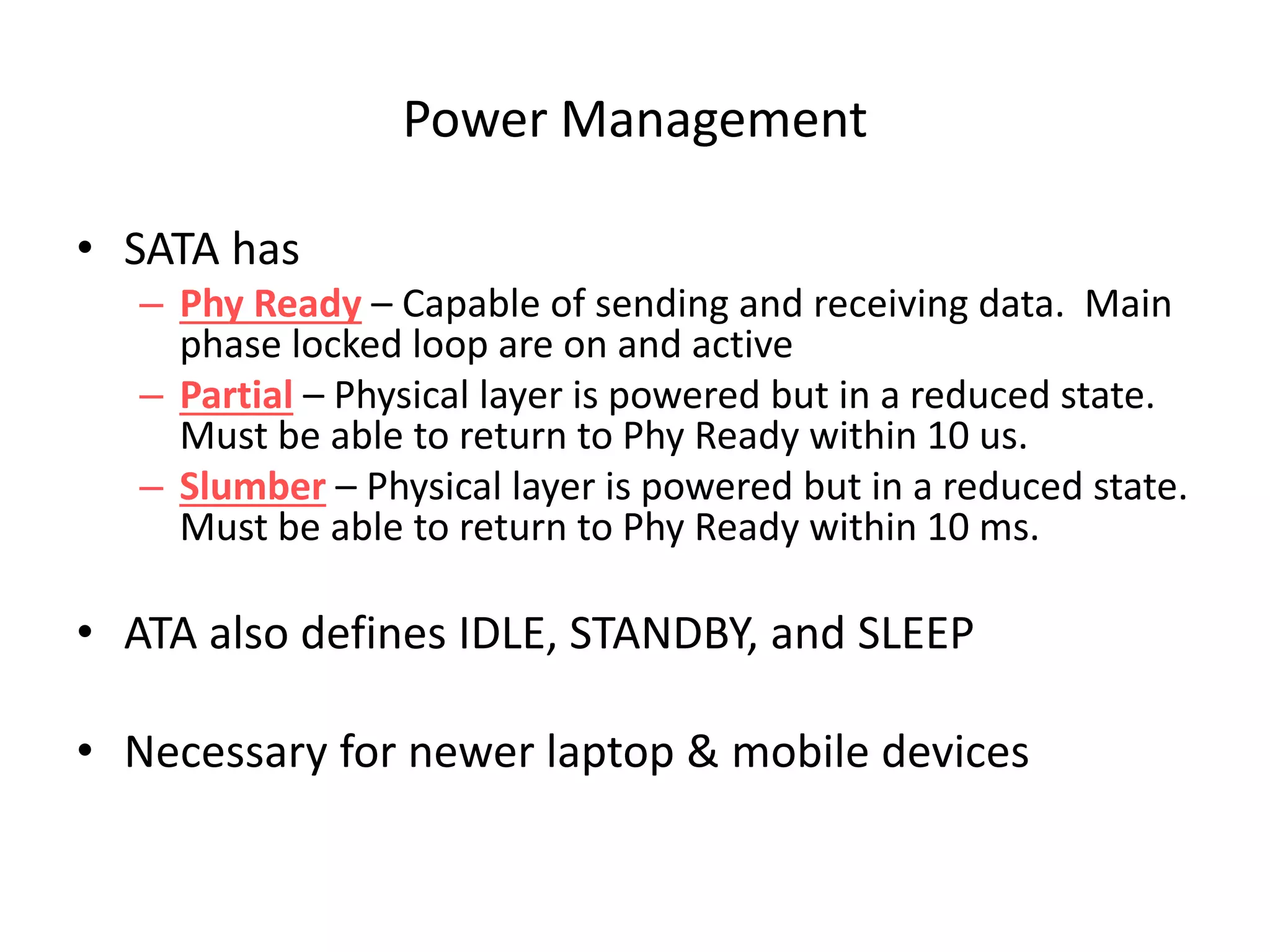

- 13. Power Management • SATAhas – Phy Ready – Capable of sending and receiving data. Main phase locked loop are on and active – Partial – Physical layer is powered but in a reduced state. Must be able to return to Phy Ready within 10 us. – Slumber – Physical layer is powered but in a reduced state. Must be able to return to Phy Ready within 10 ms. • ATA also defines IDLE, STANDBY, and SLEEP • Necessary for newer laptop & mobile devices

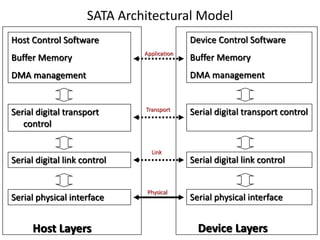

- 14. SATA Architectural Model DeviceControl Software Buffer Memory DMA management Serial digital transport control Serial digital link control Serial physical interface Device Layers Host Control Software Buffer Memory DMA management Host Layers Serial digital transport control Serial digital link control Serial physical interface Application Transport Link Physical

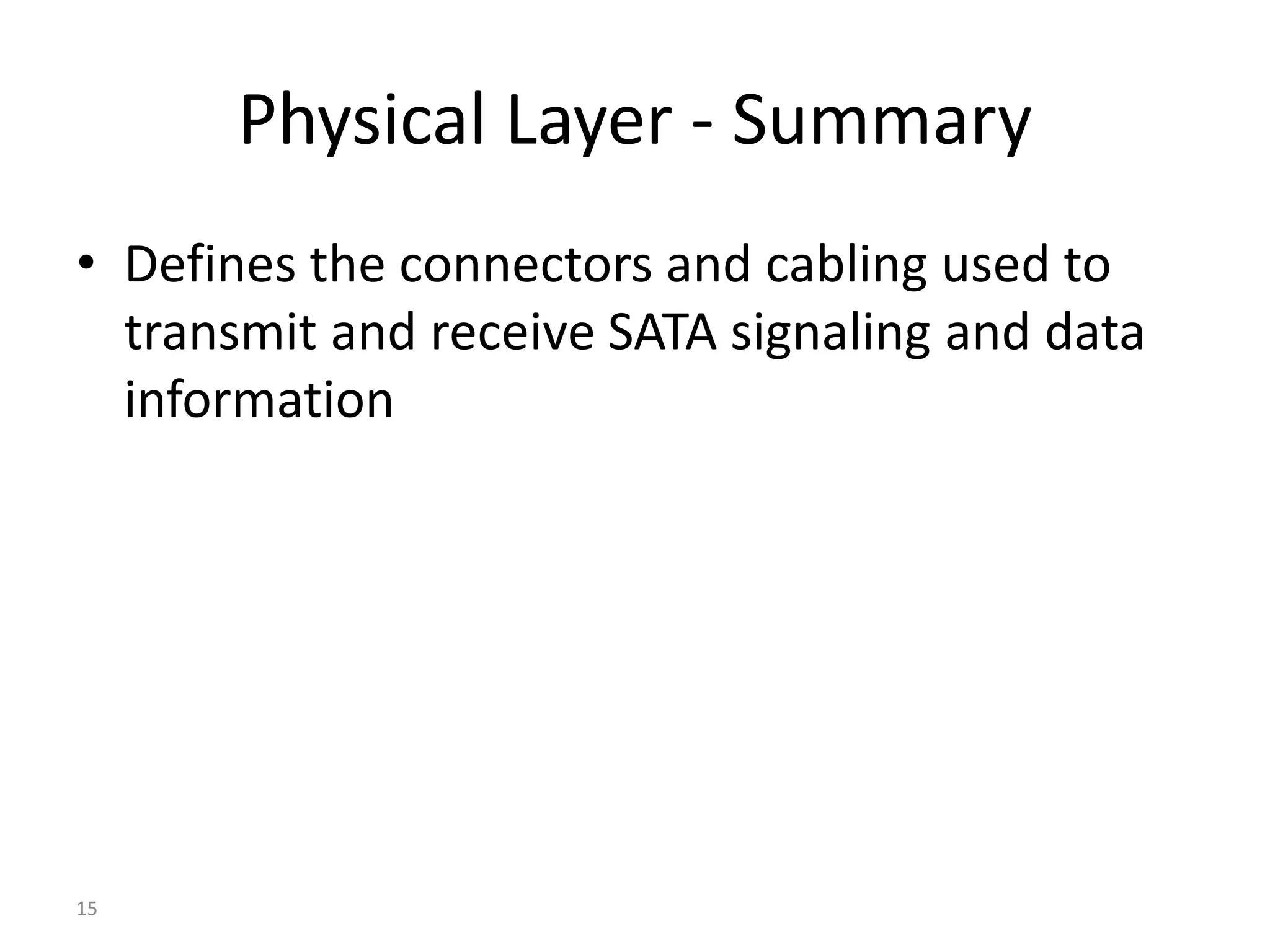

- 15. 15 Physical Layer -Summary • Defines the connectors and cabling used to transmit and receive SATA signaling and data information

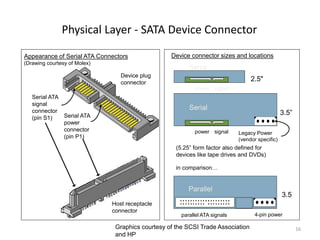

- 16. 16 Physical Layer -SATA Device Connector Serial ATA signal connector (pin S1) Appearance of Serial ATA Connectors (Drawing courtesy of Molex) parallel ATA signals 4-pin power 3.5” Parallel power signal 2.5" Serial Device connector sizes and locations Device plug connector Host receptacle connector power signal 3.5” Serial Legacy Power (vendor specific) Serial ATA power connector (pin P1) (5.25” form factor also defined for devices like tape drives and DVDs) in comparison… Graphics courtesy of the SCSI Trade Association and HP

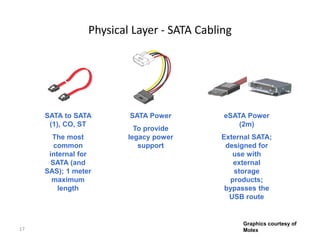

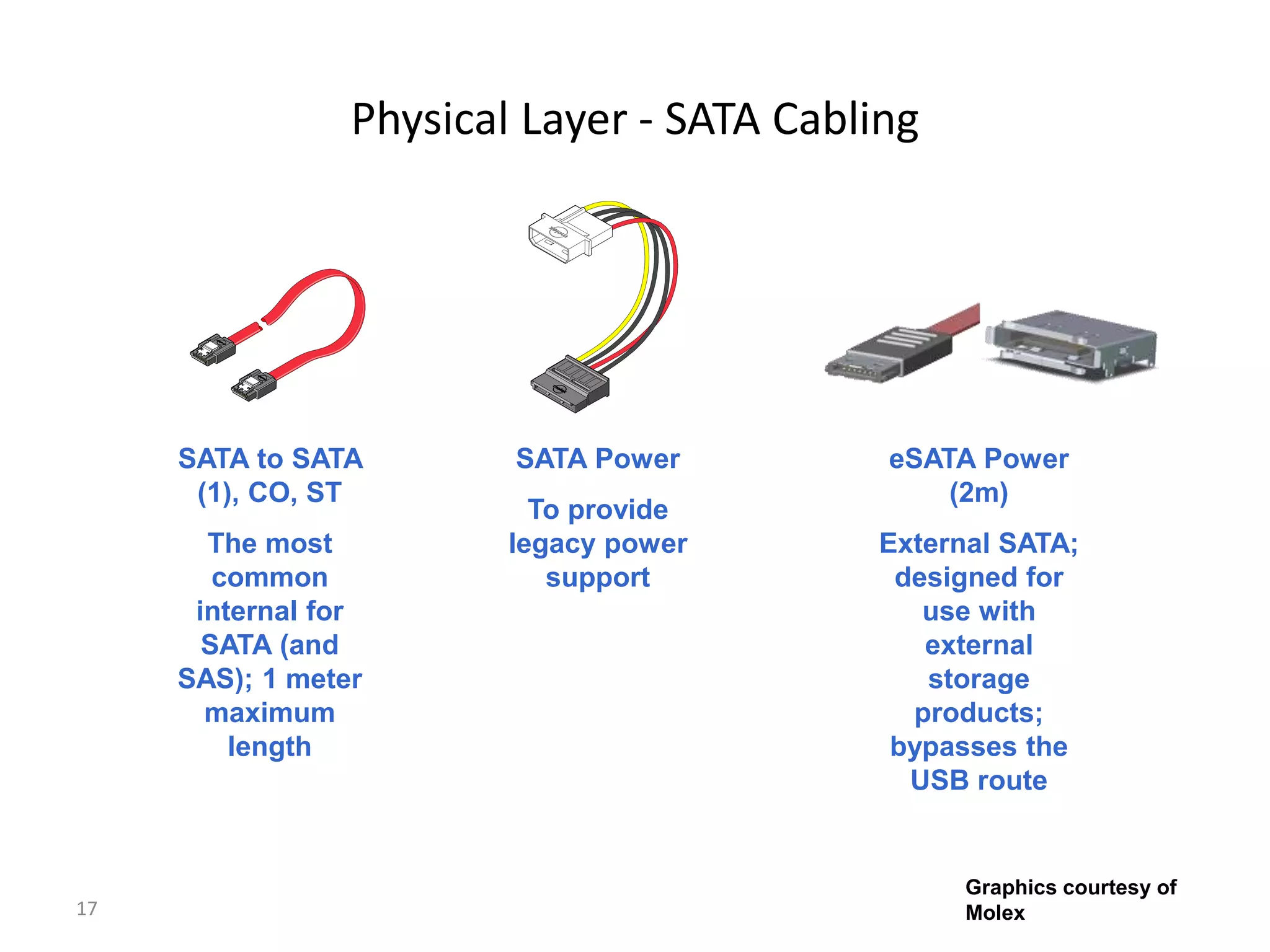

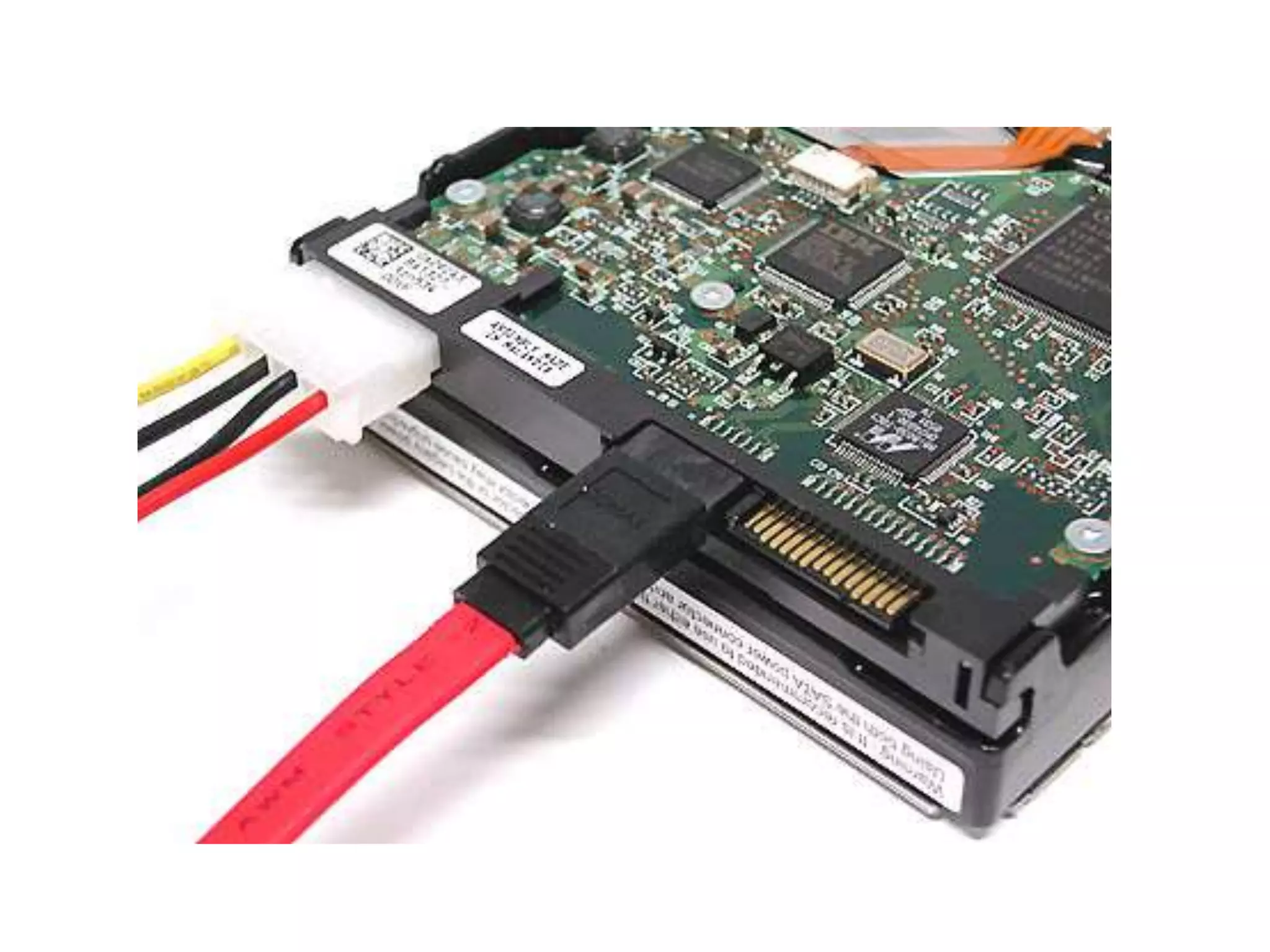

- 17. 17 Physical Layer -SATA Cabling Graphics courtesy of Molex SATA to SATA (1), CO, ST The most common internal for SATA (and SAS); 1 meter maximum length SATA Power To provide legacy power support eSATA Power (2m) External SATA; designed for use with external storage products; bypasses the USB route

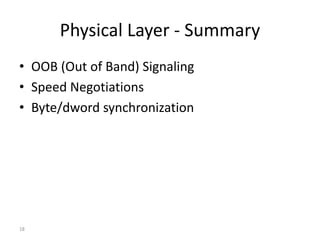

- 18. 18 Physical Layer -Summary • OOB (Out of Band) Signaling • Speed Negotiations • Byte/dword synchronization

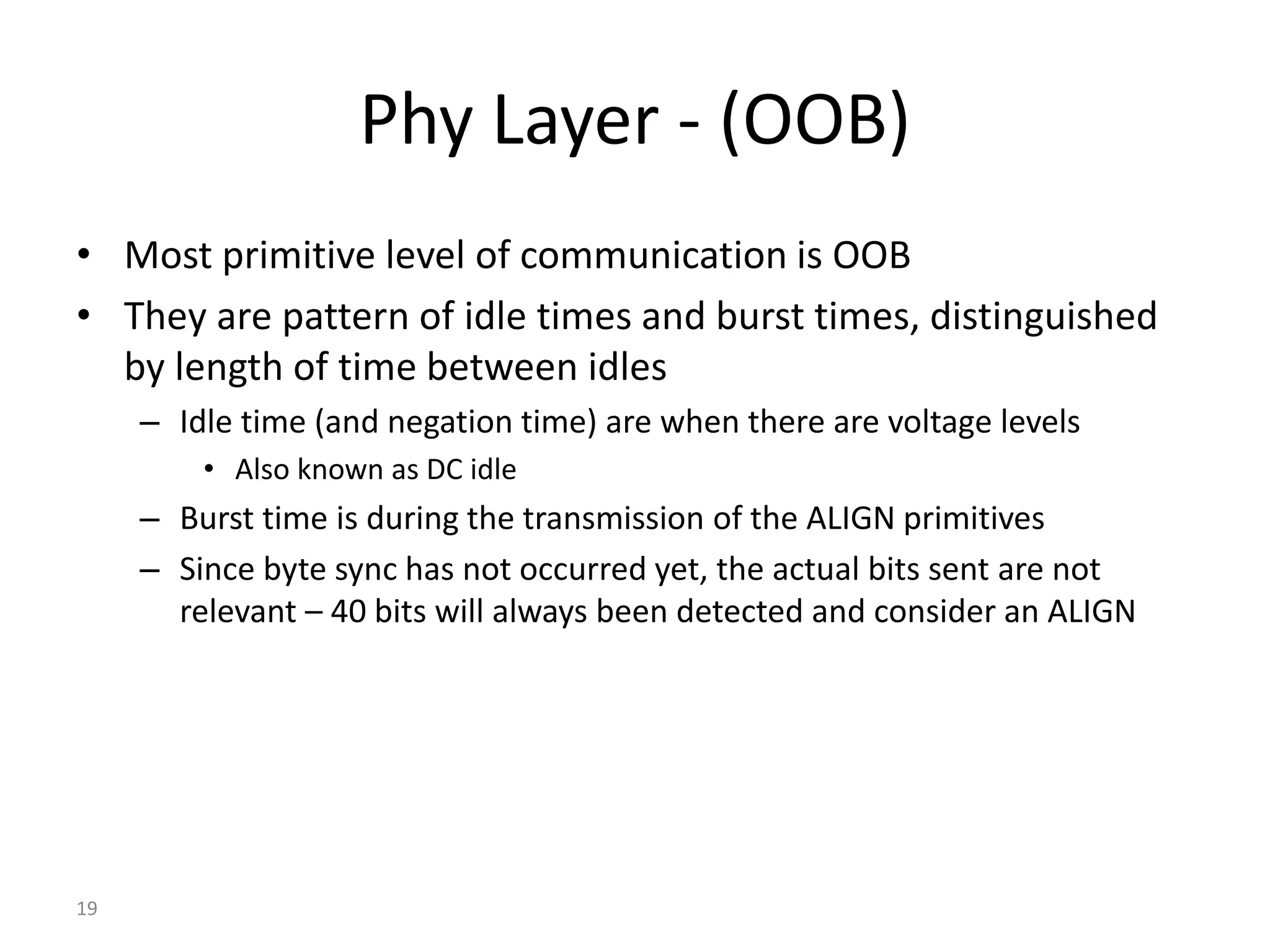

- 19. 19 Phy Layer -(OOB) • Most primitive level of communication is OOB • They are pattern of idle times and burst times, distinguished by length of time between idles – Idle time (and negation time) are when there are voltage levels • Also known as DC idle – Burst time is during the transmission of the ALIGN primitives – Since byte sync has not occurred yet, the actual bits sent are not relevant – 40 bits will always been detected and consider an ALIGN

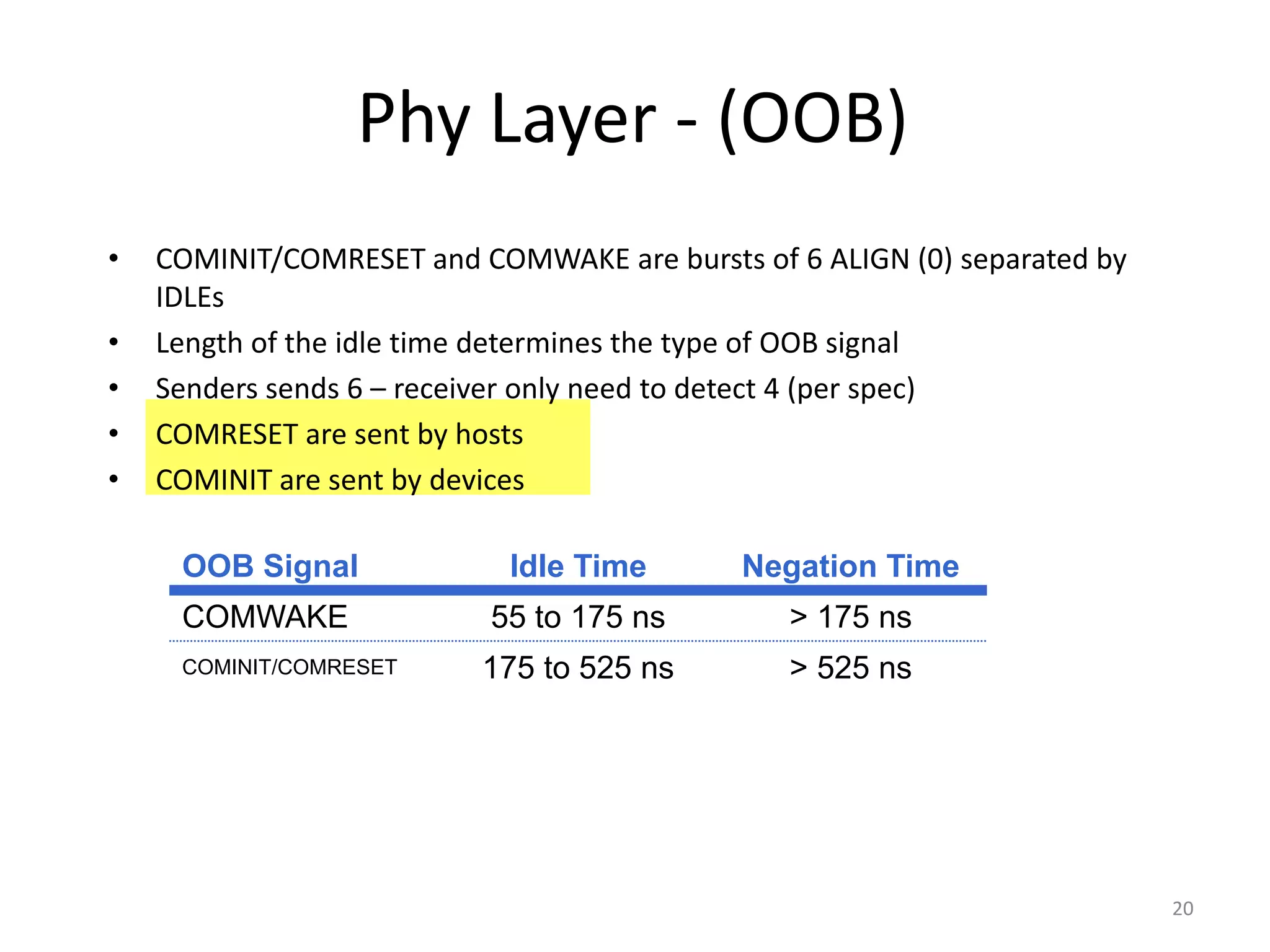

- 20. 20 Phy Layer -(OOB) • COMINIT/COMRESET and COMWAKE are bursts of 6 ALIGN (0) separated by IDLEs • Length of the idle time determines the type of OOB signal • Senders sends 6 – receiver only need to detect 4 (per spec) • COMRESET are sent by hosts • COMINIT are sent by devices OOB Signal Idle Time Negation Time COMWAKE 55 to 175 ns > 175 ns COMINIT/COMRESET 175 to 525 ns > 525 ns

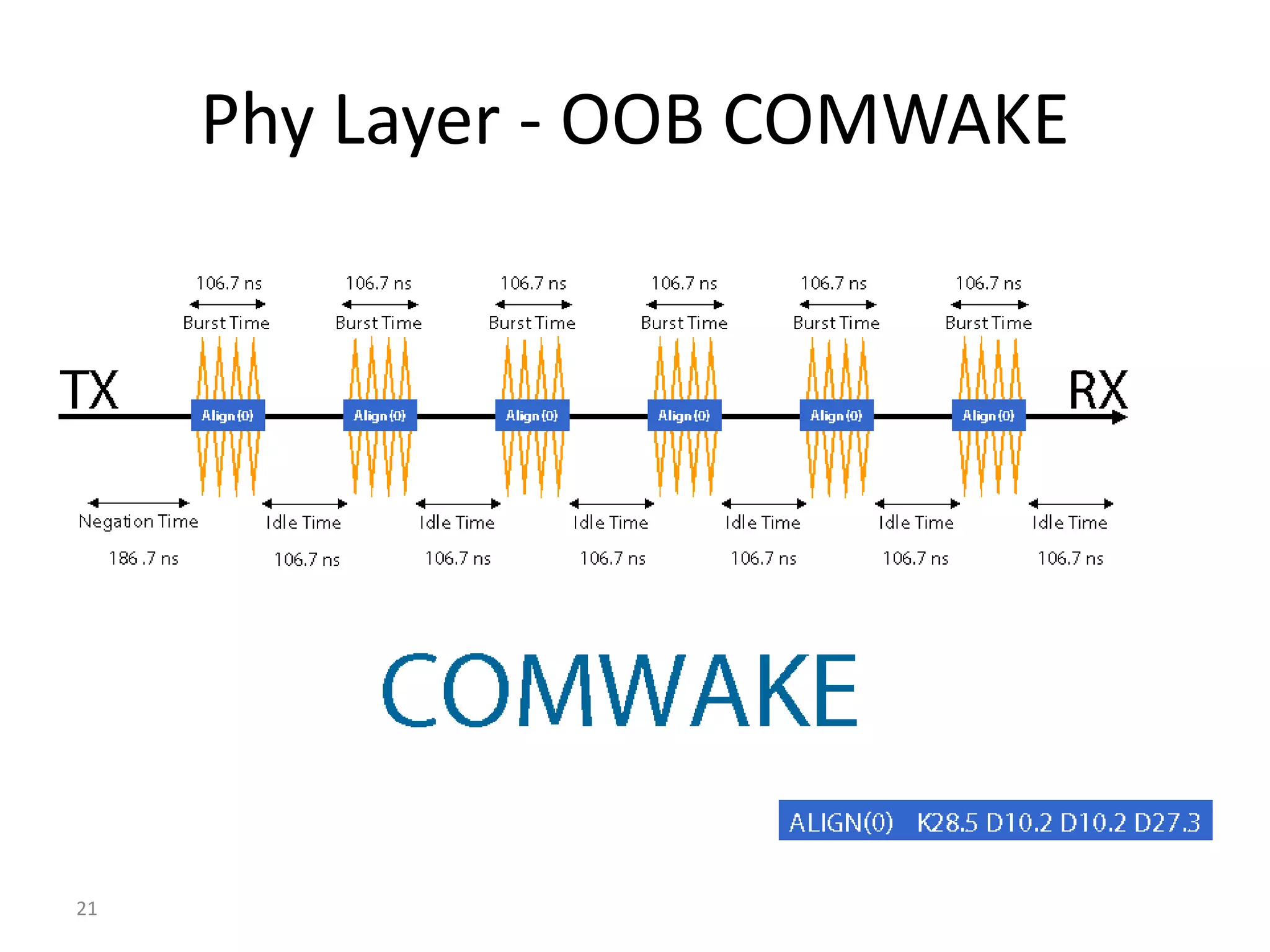

- 21. 21 Phy Layer -OOB COMWAKE

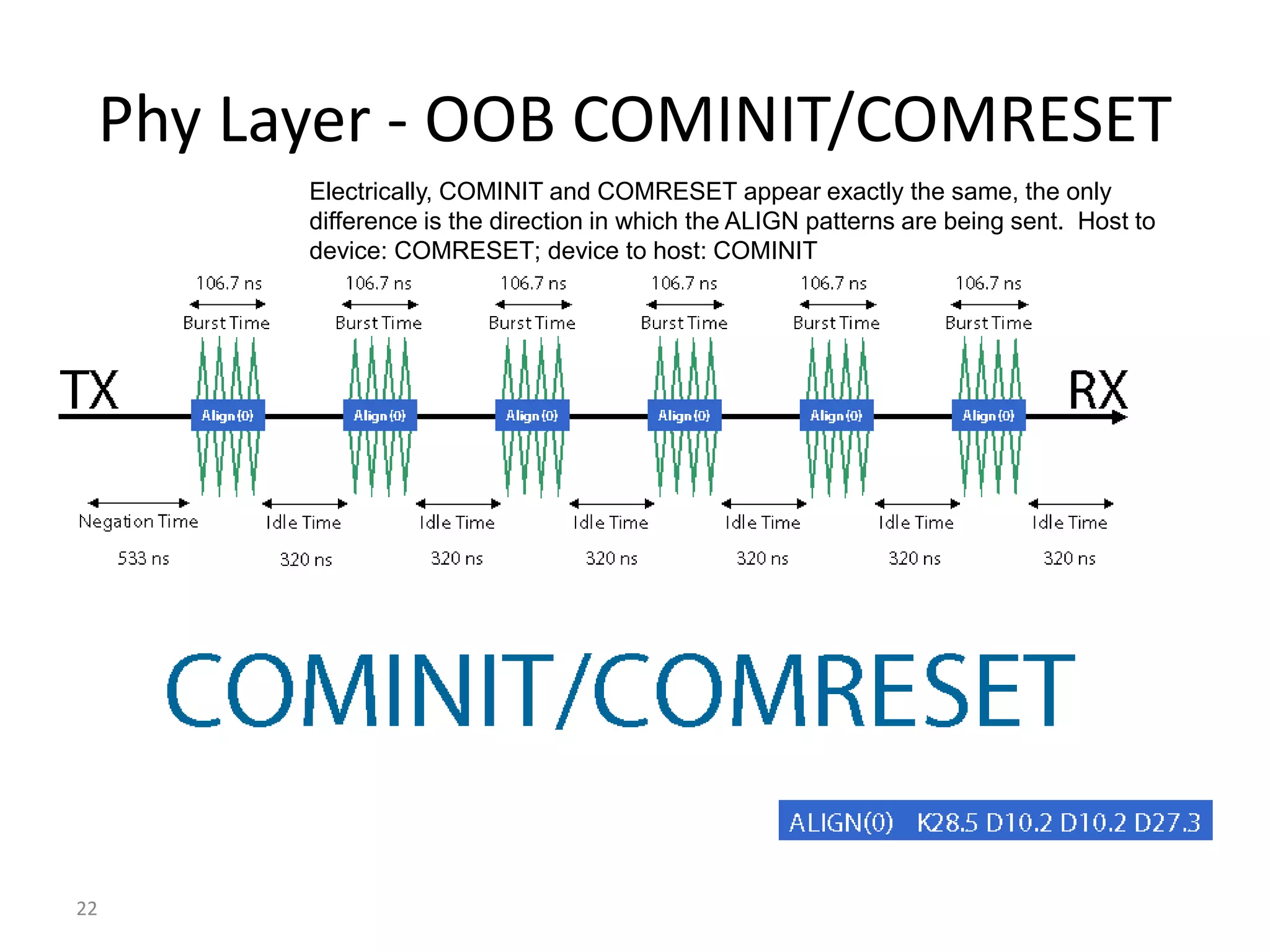

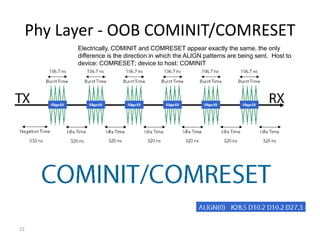

- 22. 22 Phy Layer -OOB COMINIT/COMRESET Electrically, COMINIT and COMRESET appear exactly the same, the only difference is the direction in which the ALIGN patterns are being sent. Host to device: COMRESET; device to host: COMINIT

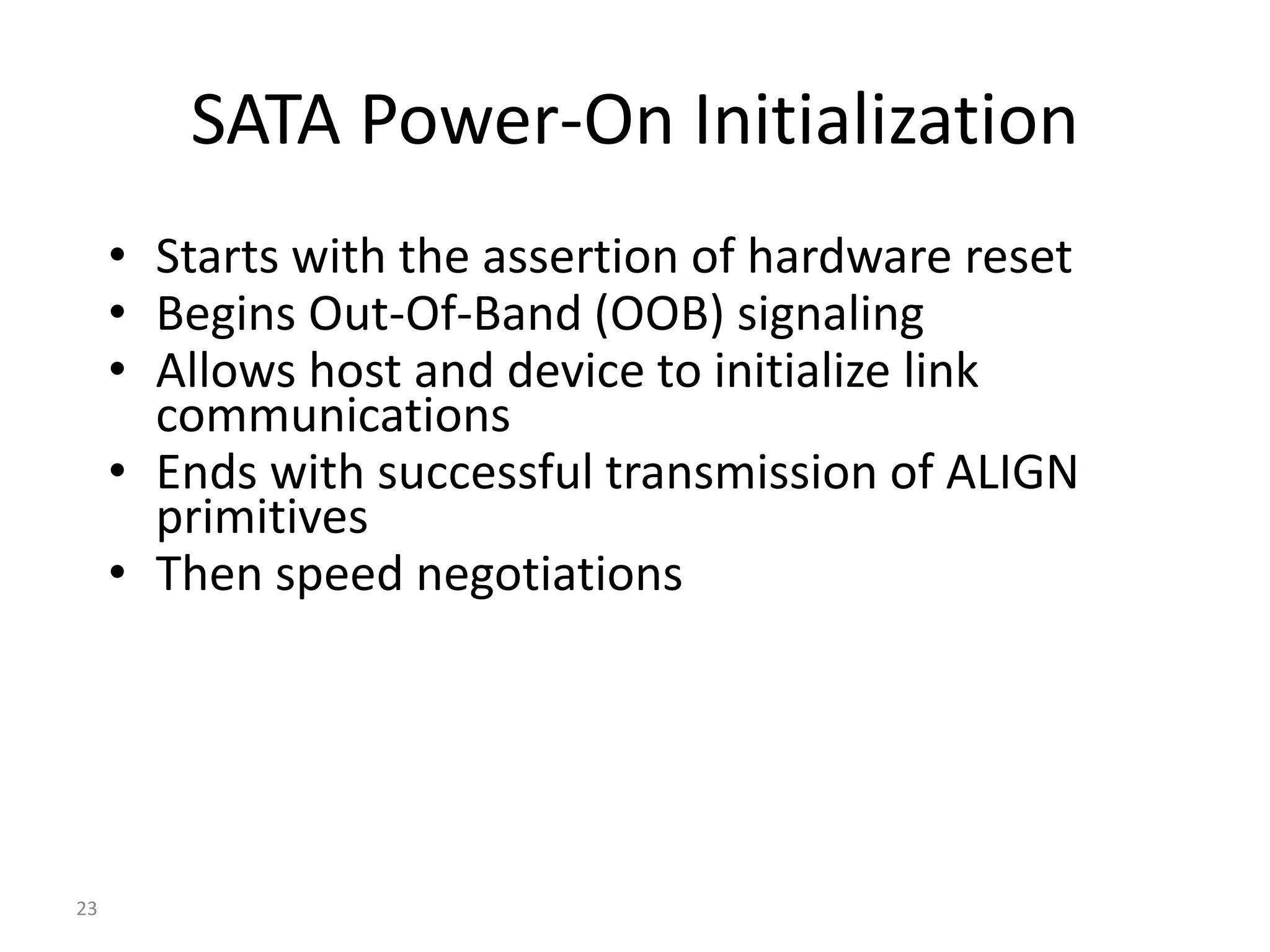

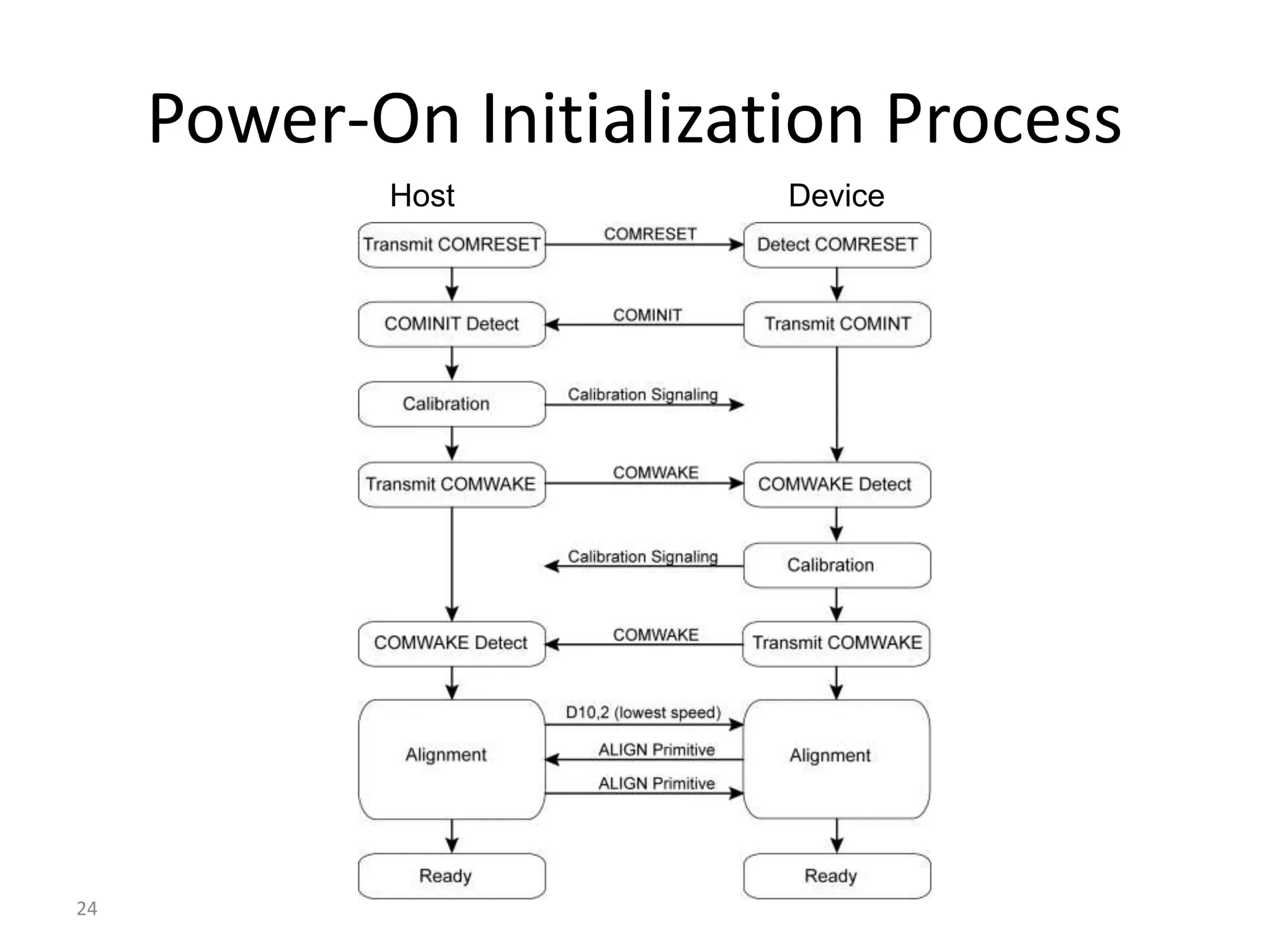

- 23. 23 SATA Power-On Initialization •Starts with the assertion of hardware reset • Begins Out-Of-Band (OOB) signaling • Allows host and device to initialize link communications • Ends with successful transmission of ALIGN primitives • Then speed negotiations
- 24.

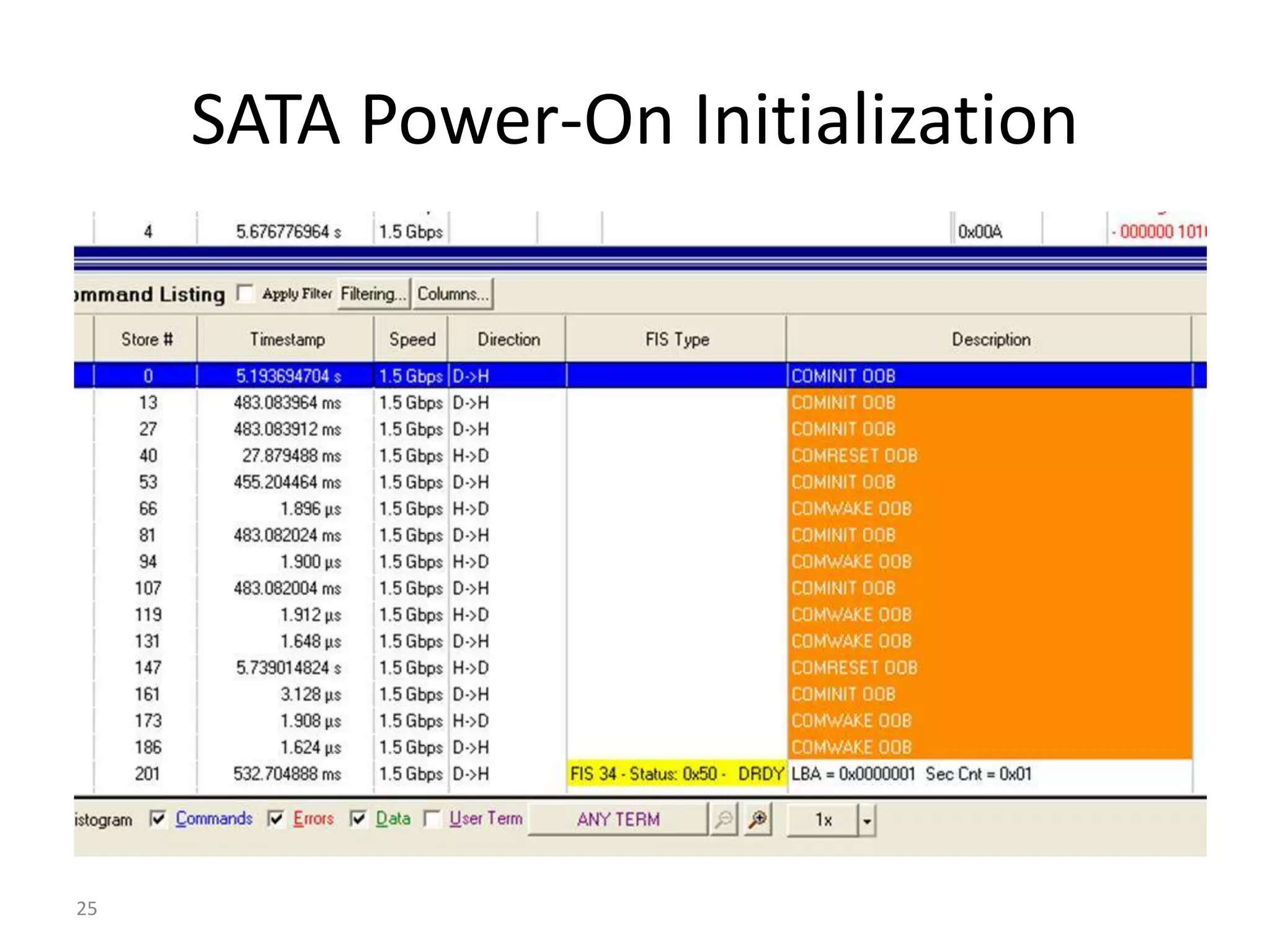

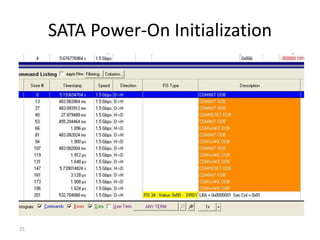

- 25.

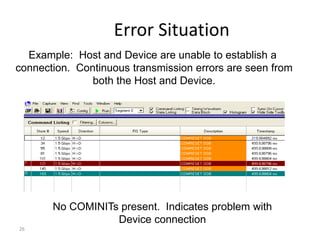

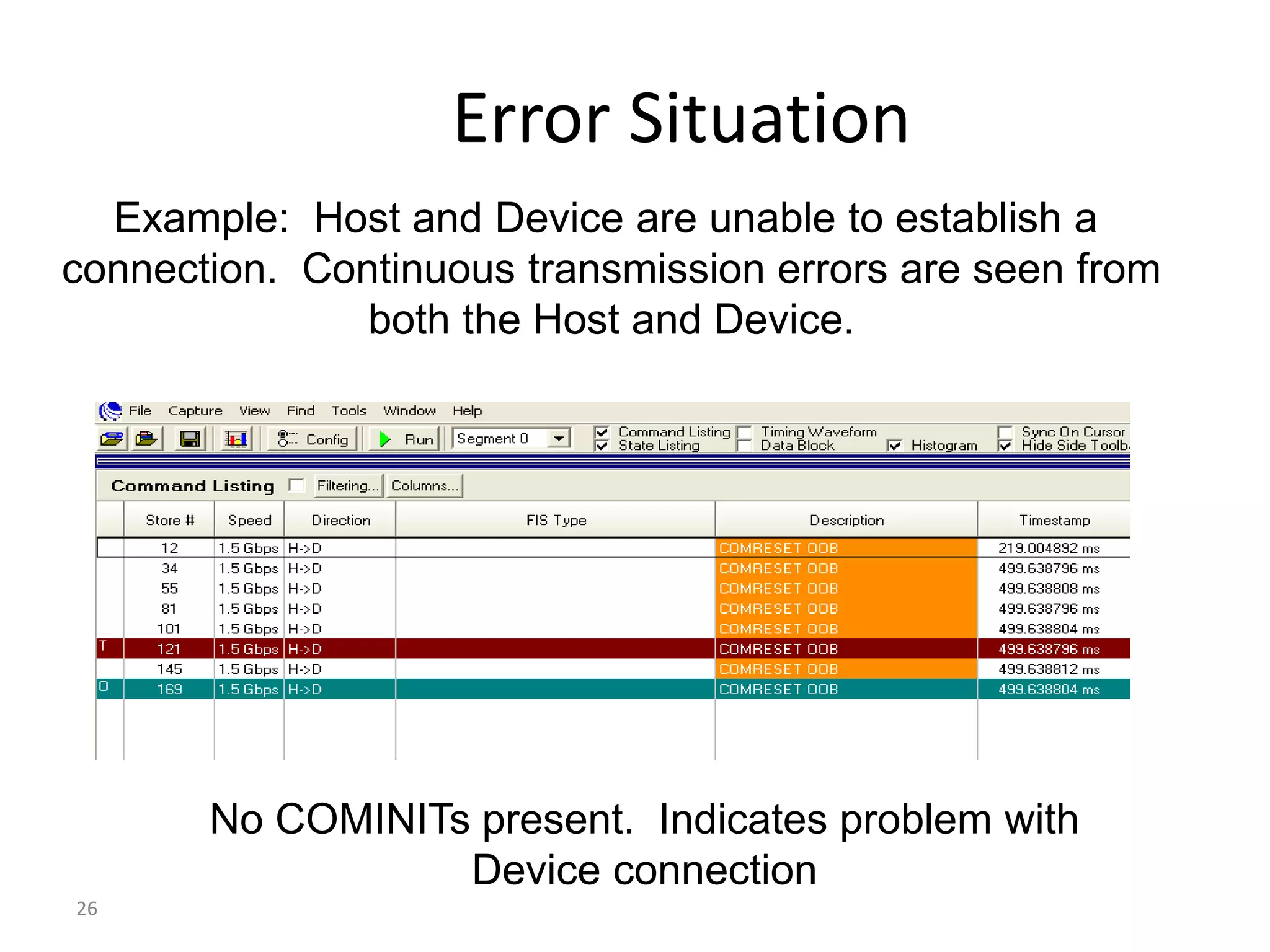

- 26. 26 Error Situation Example: Hostand Device are unable to establish a connection. Continuous transmission errors are seen from both the Host and Device. No COMINITs present. Indicates problem with Device connection
- 27.

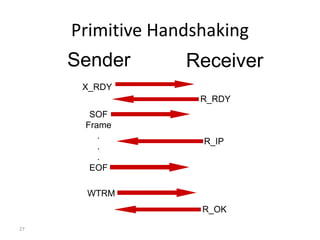

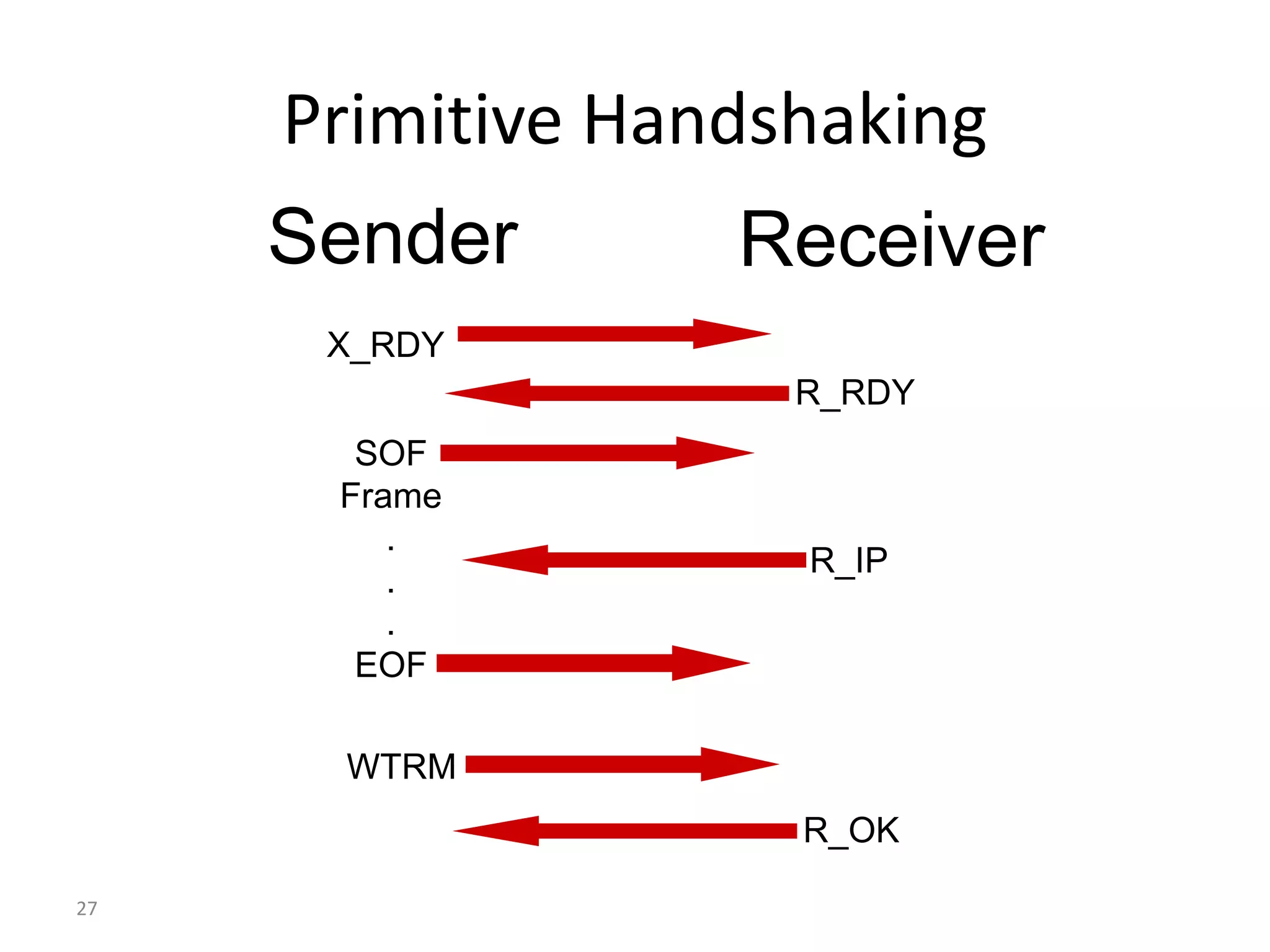

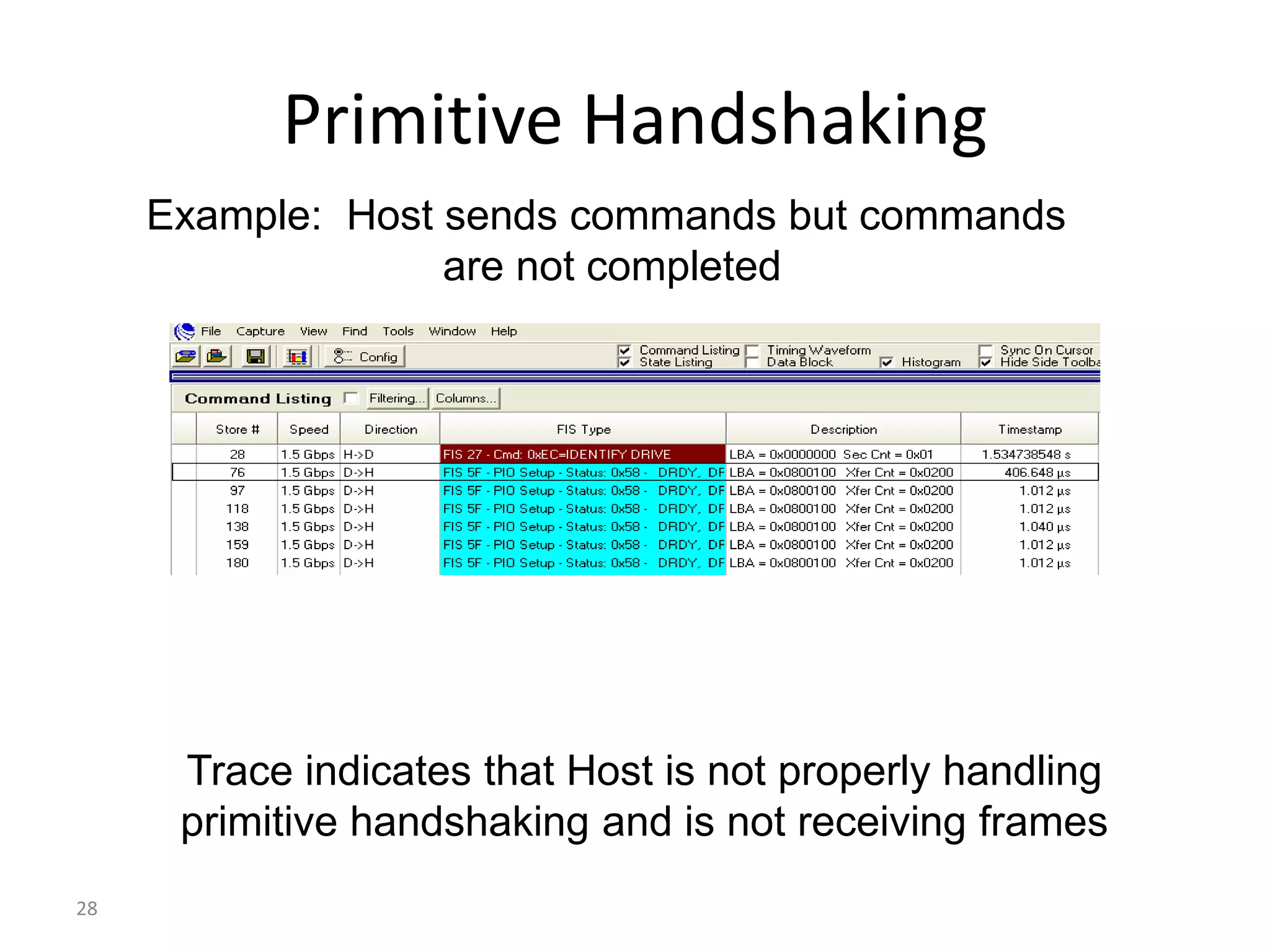

- 28. 28 Primitive Handshaking Example: Hostsends commands but commands are not completed Trace indicates that Host is not properly handling primitive handshaking and is not receiving frames

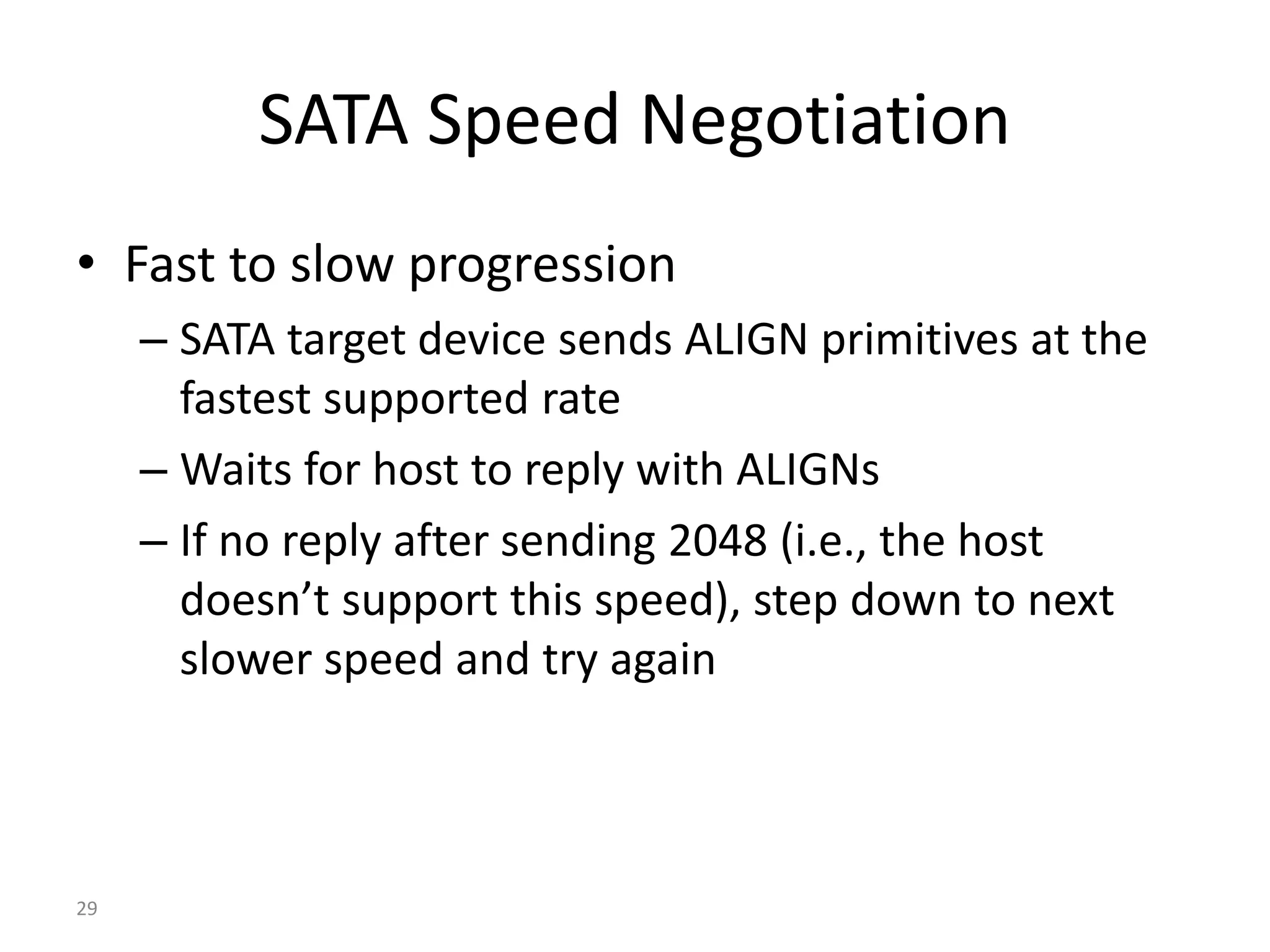

- 29. 29 SATA Speed Negotiation •Fast to slow progression – SATA target device sends ALIGN primitives at the fastest supported rate – Waits for host to reply with ALIGNs – If no reply after sending 2048 (i.e., the host doesn’t support this speed), step down to next slower speed and try again

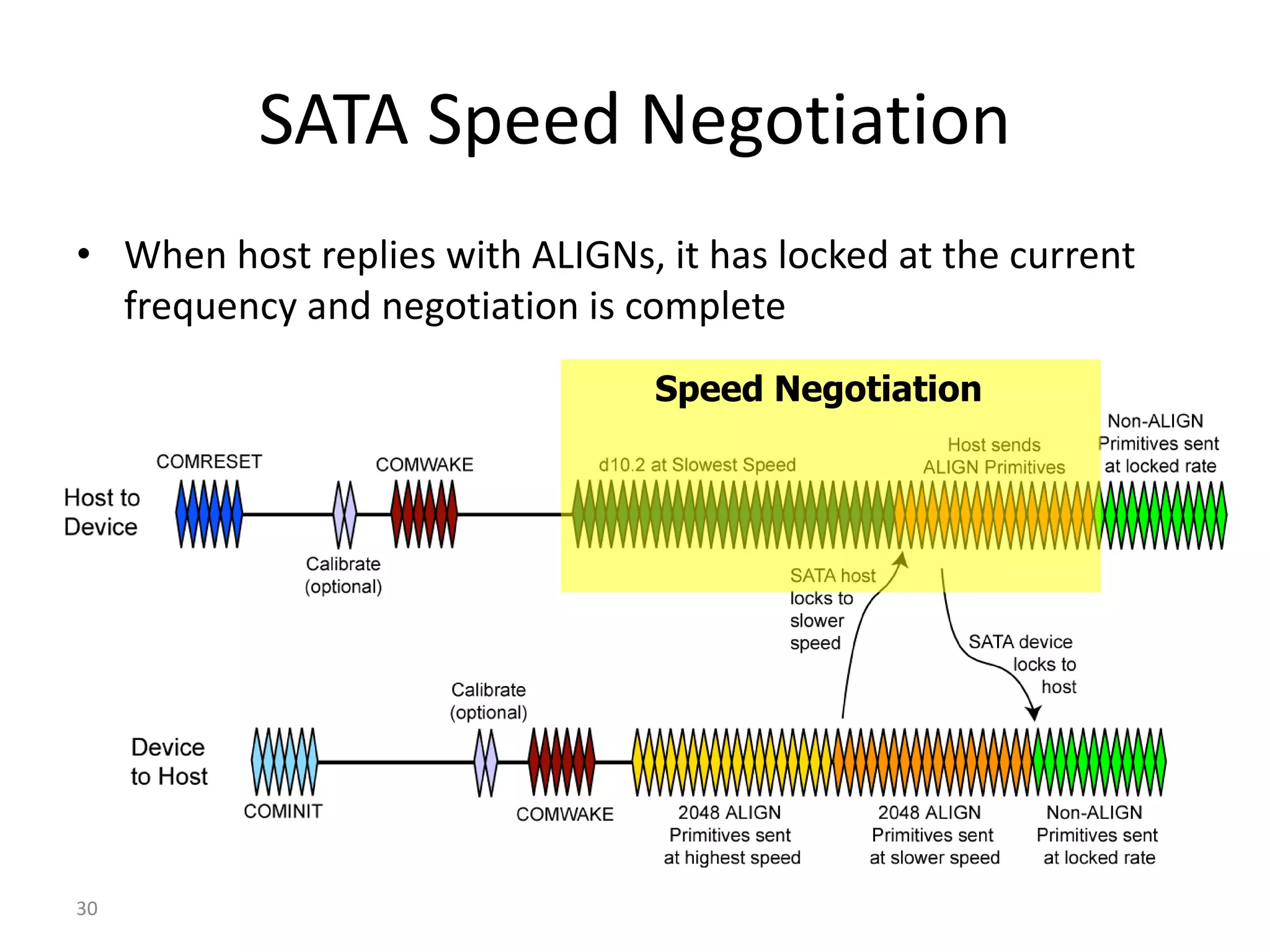

- 30. 30 SATA Speed Negotiation •When host replies with ALIGNs, it has locked at the current frequency and negotiation is complete Speed Negotiation

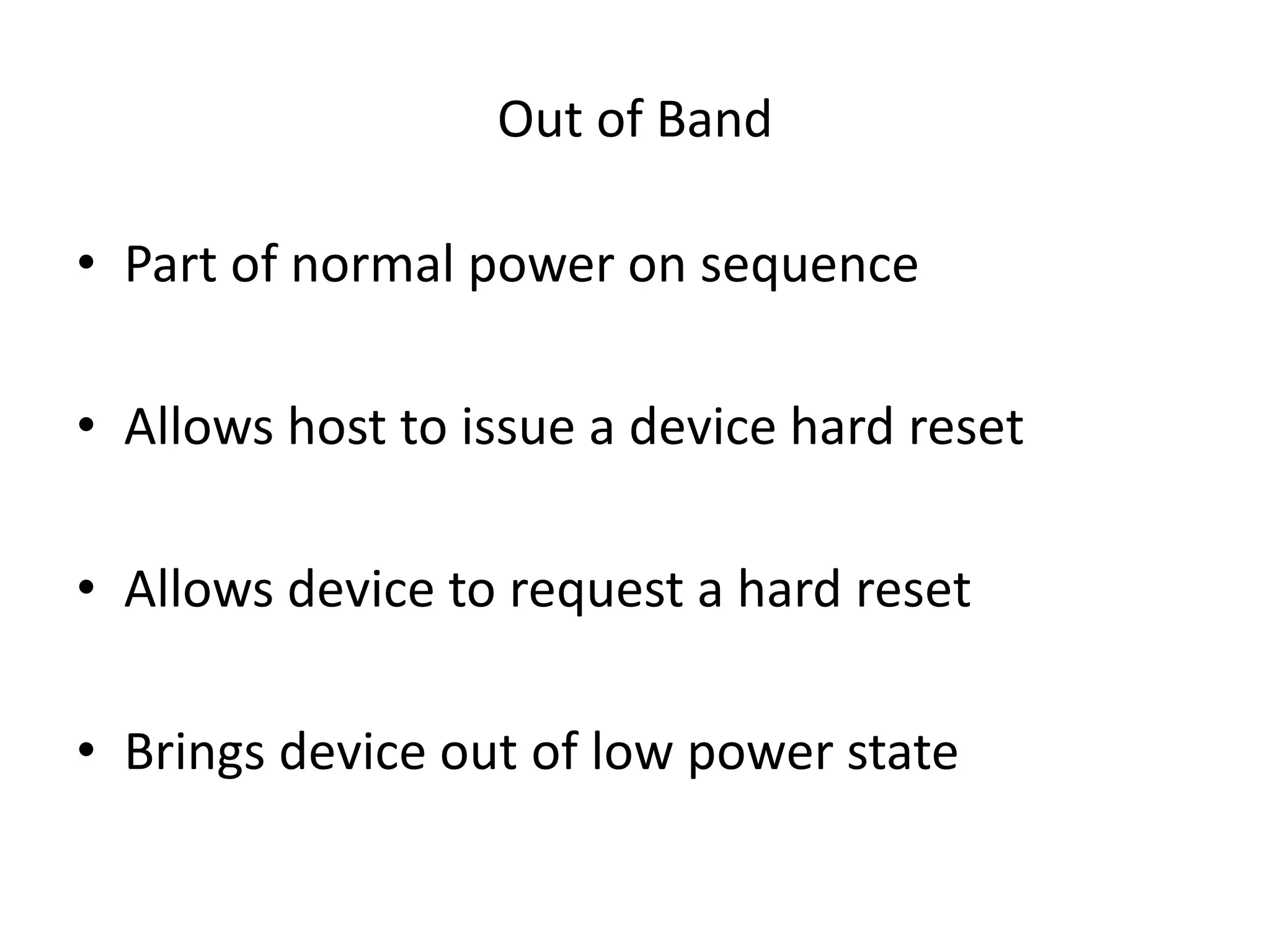

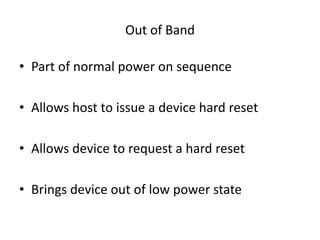

- 31. Out of Band •Part of normal power on sequence • Allows host to issue a device hard reset • Allows device to request a hard reset • Brings device out of low power state

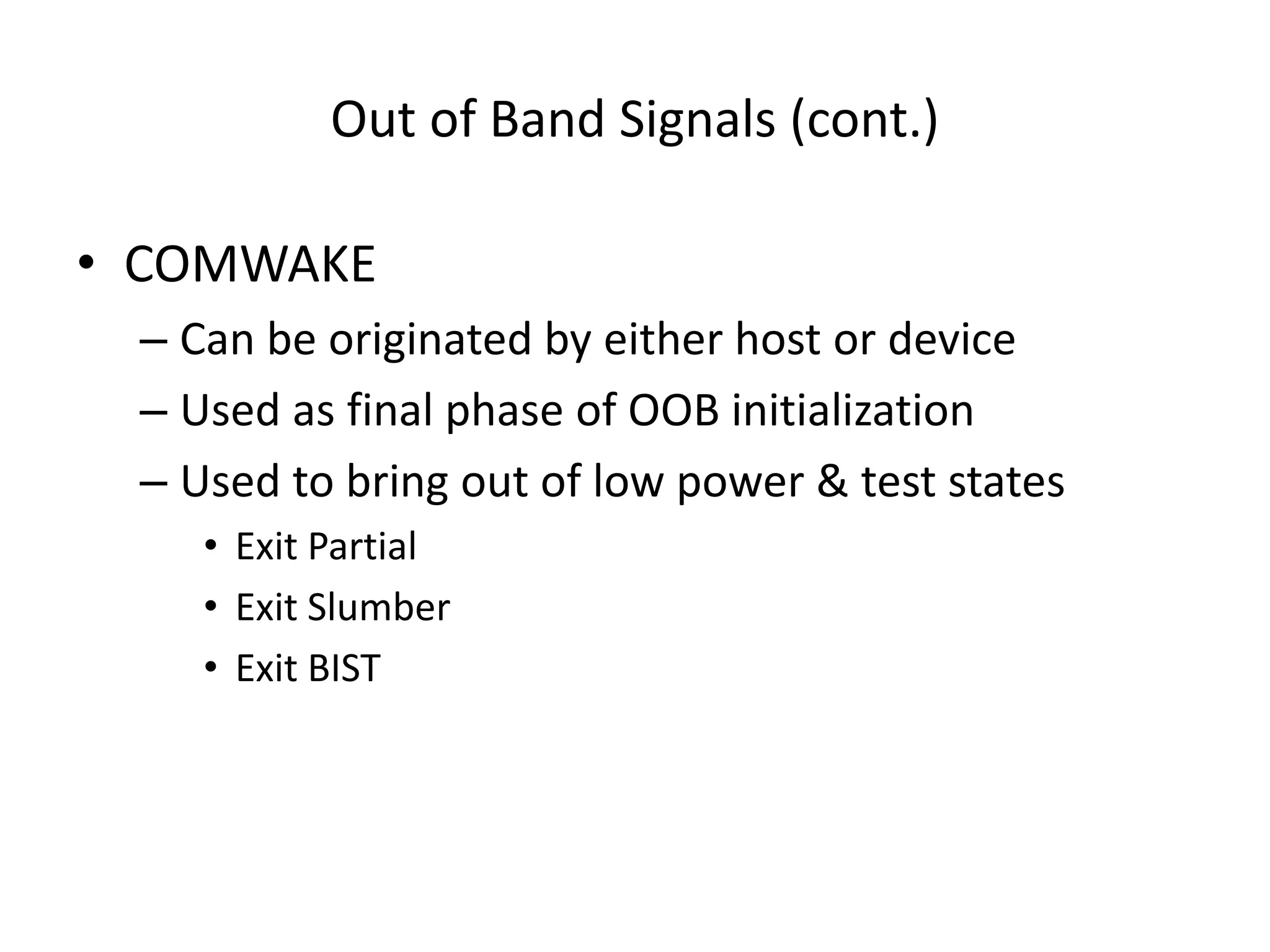

- 32. Out of BandSignals (cont.) • COMWAKE – Can be originated by either host or device – Used as final phase of OOB initialization – Used to bring out of low power & test states • Exit Partial • Exit Slumber • Exit BIST

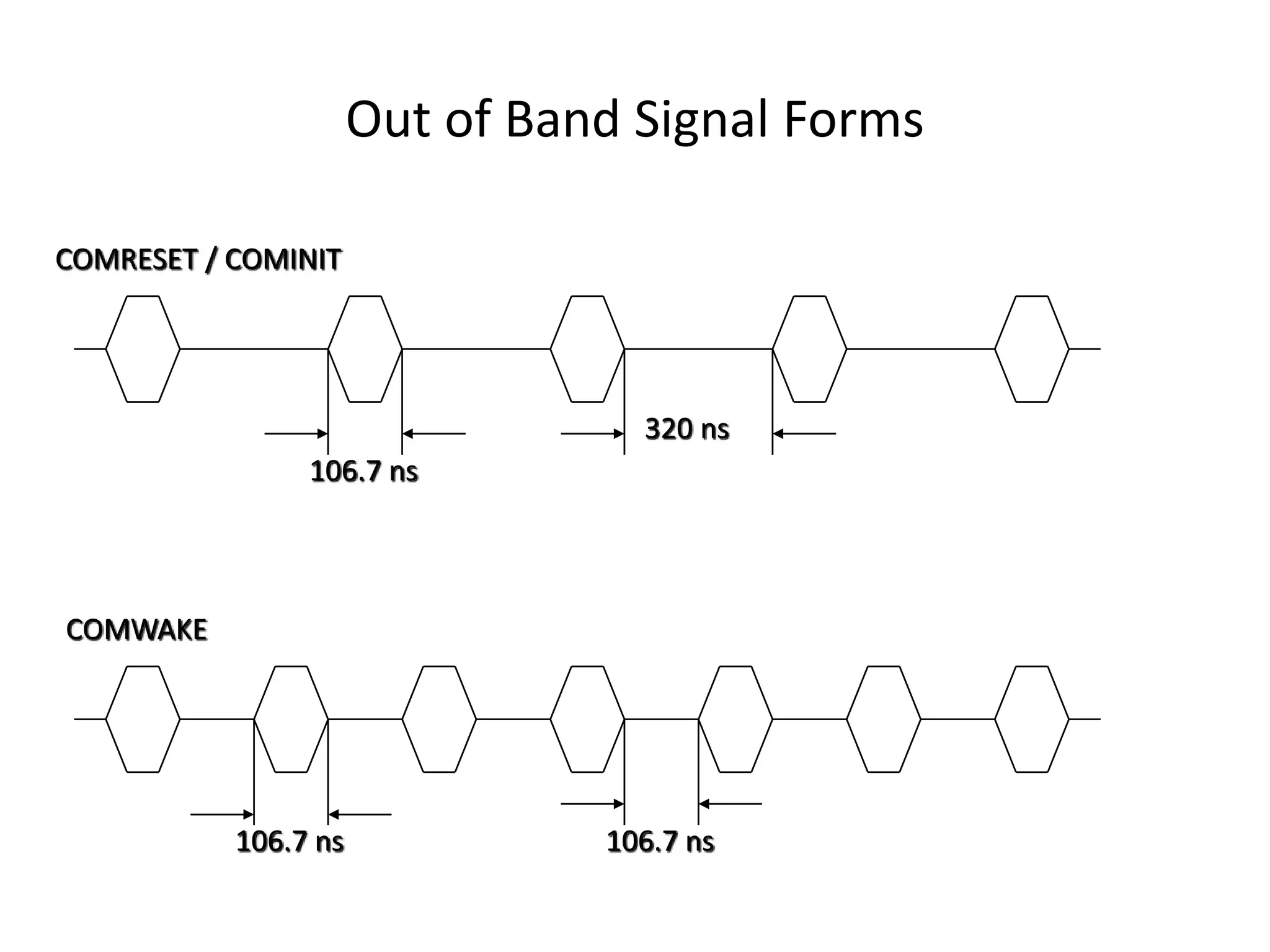

- 33. Out of BandSignal Forms COMRESET / COMINIT COMWAKE 106.7 ns 106.7 ns 106.7 ns 320 ns

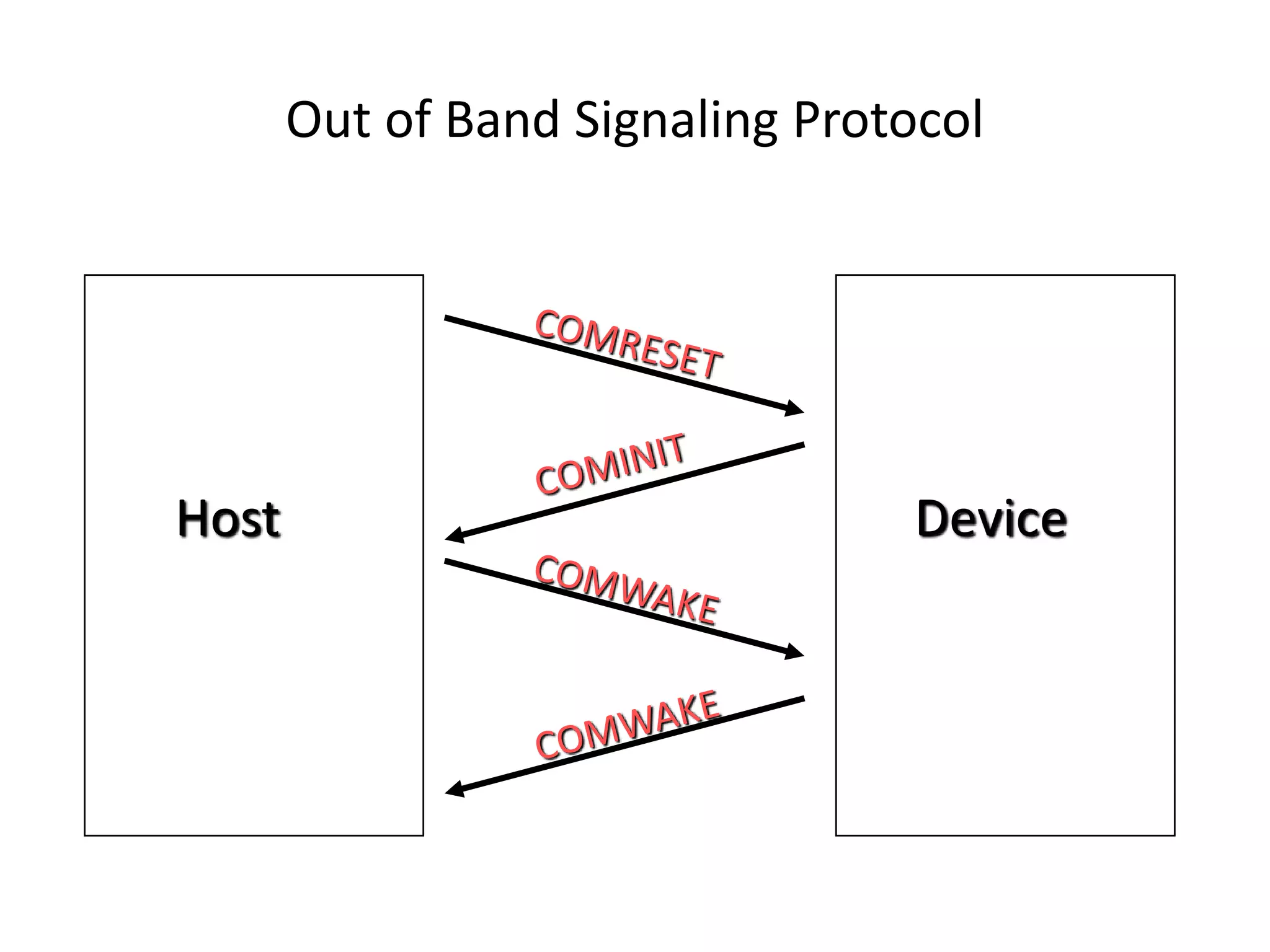

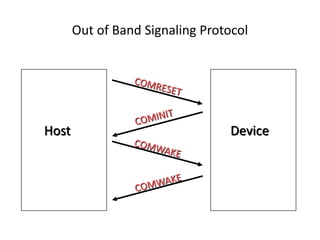

- 34. Out of BandSignaling Protocol Host Device

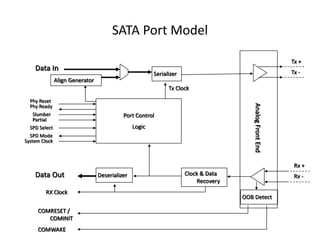

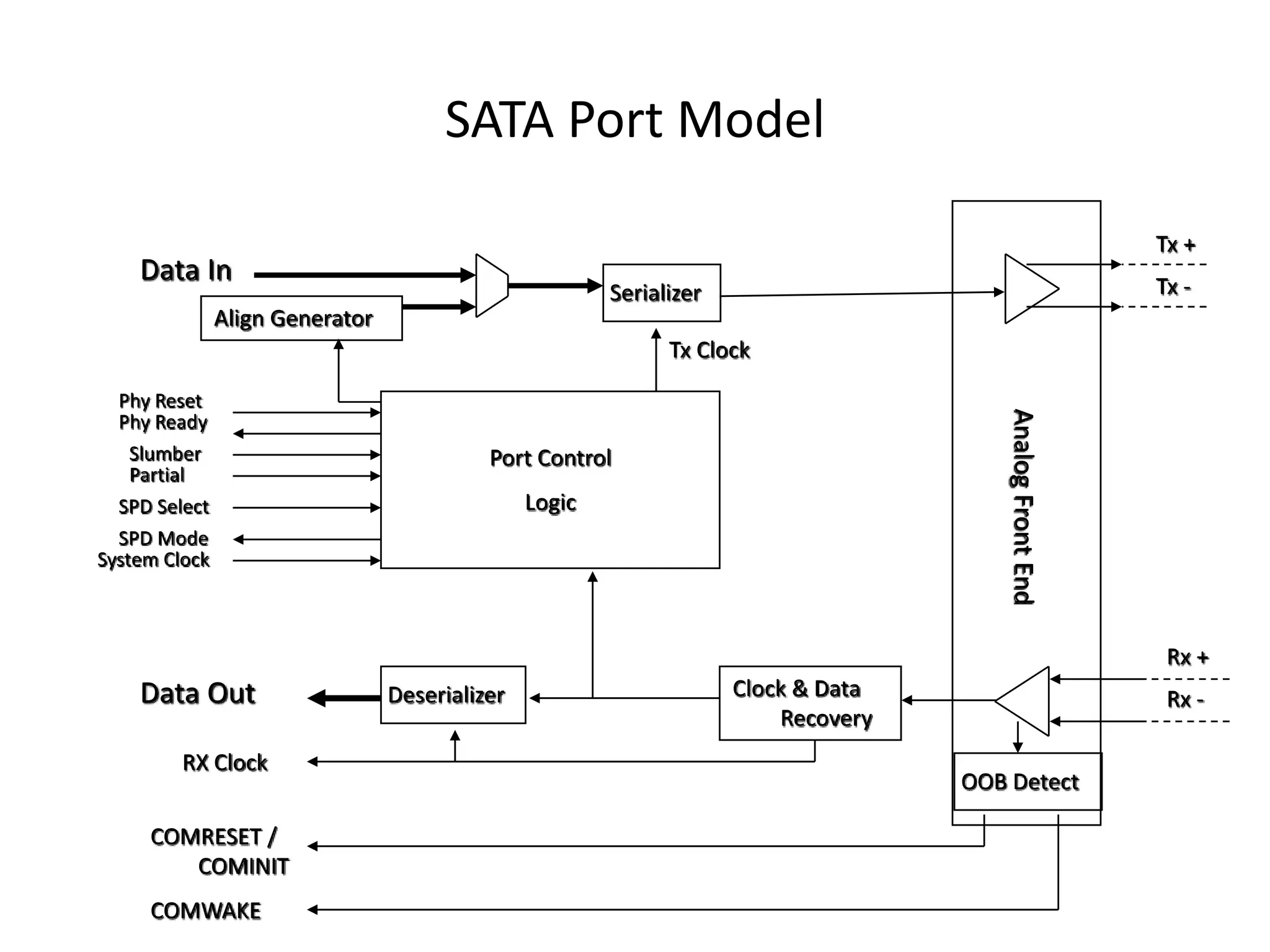

- 35. SATA Port Model Clock& Data Recovery Serializer Deserializer AnalogFrontEnd OOB Detect COMRESET / COMINIT COMWAKE Data Out RX Clock Port Control Logic Tx Clock Align Generator Data In Phy Reset Phy Ready Slumber Partial SPD Mode System Clock SPD Select Tx + Tx - Rx - Rx +
- 36. SATA Architectural Model DeviceControl Software Buffer Memory DMA management Serial digital transport control Serial digital link control Serial physical interface Device Layers Host Control Software Buffer Memory DMA management Host Layers Serial digital transport control Serial digital link control Serial physical interface Application Transport Link Physical

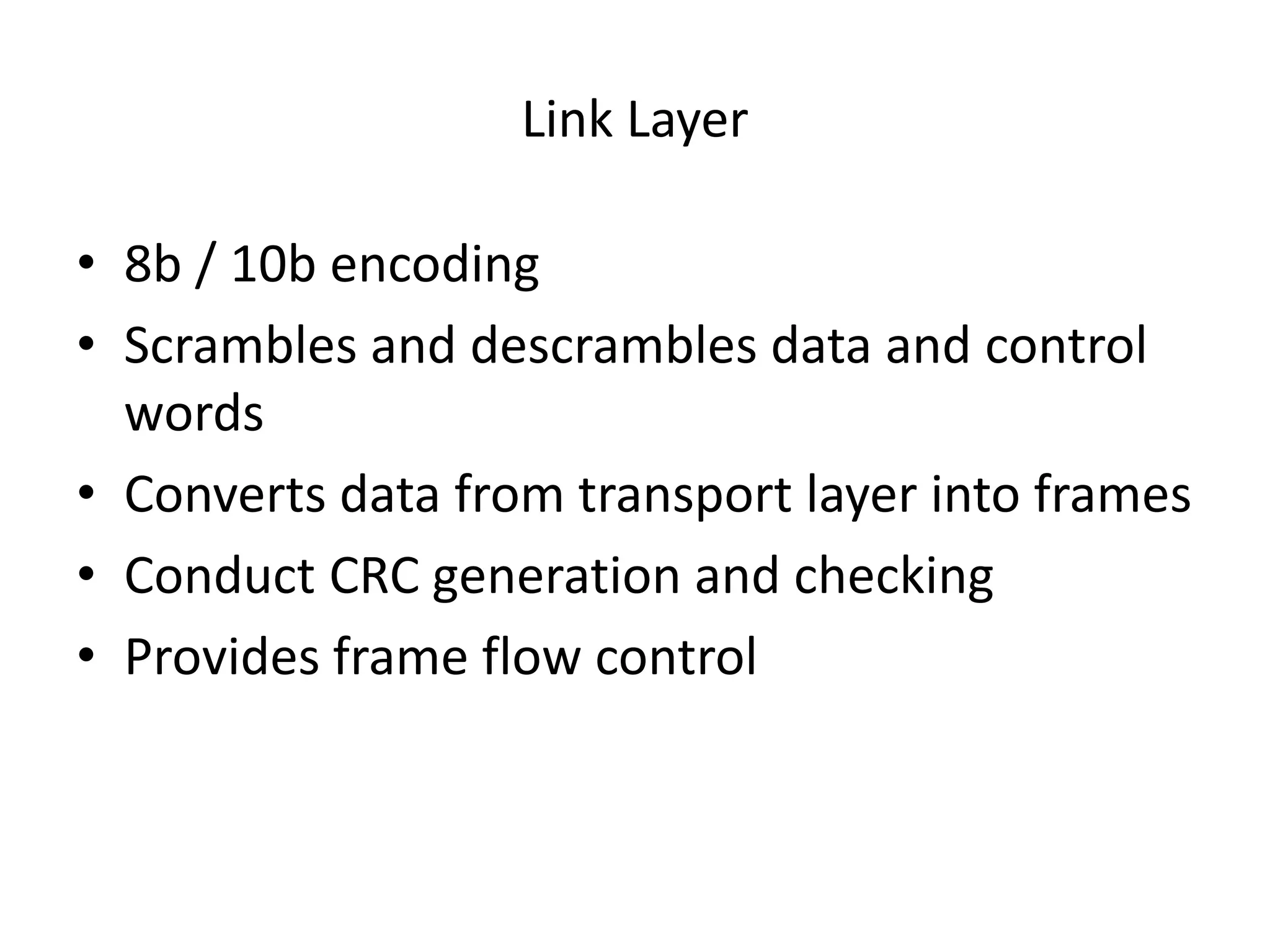

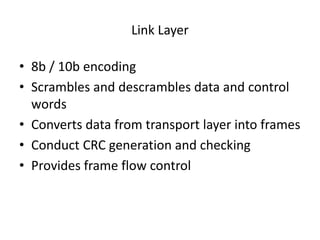

- 37. Link Layer • 8b/ 10b encoding • Scrambles and descrambles data and control words • Converts data from transport layer into frames • Conduct CRC generation and checking • Provides frame flow control

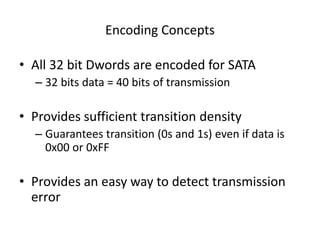

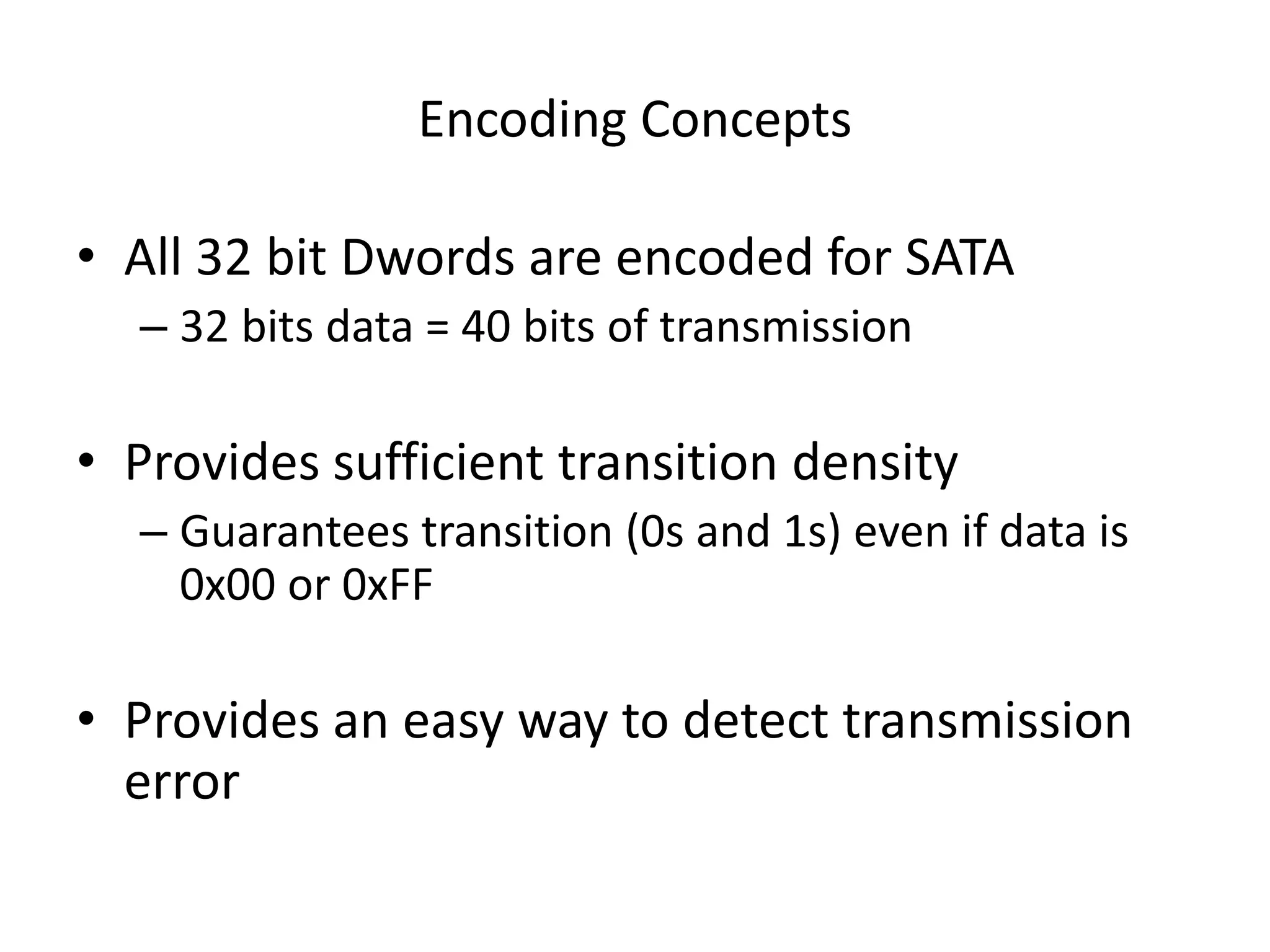

- 38. Encoding Concepts • All32 bit Dwords are encoded for SATA – 32 bits data = 40 bits of transmission • Provides sufficient transition density – Guarantees transition (0s and 1s) even if data is 0x00 or 0xFF • Provides an easy way to detect transmission error

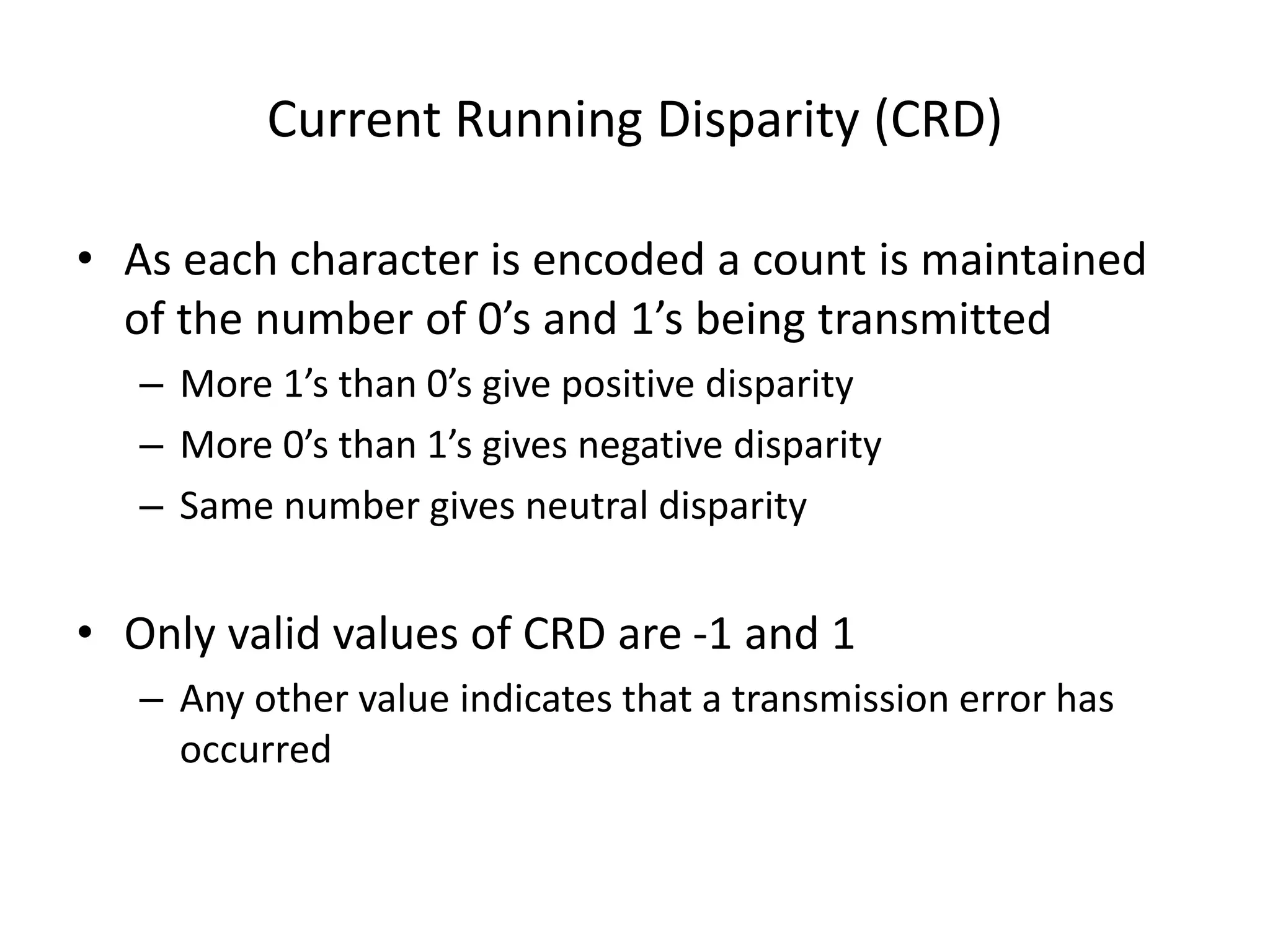

- 39. Current Running Disparity(CRD) • As each character is encoded a count is maintained of the number of 0’s and 1’s being transmitted – More 1’s than 0’s give positive disparity – More 0’s than 1’s gives negative disparity – Same number gives neutral disparity • Only valid values of CRD are -1 and 1 – Any other value indicates that a transmission error has occurred

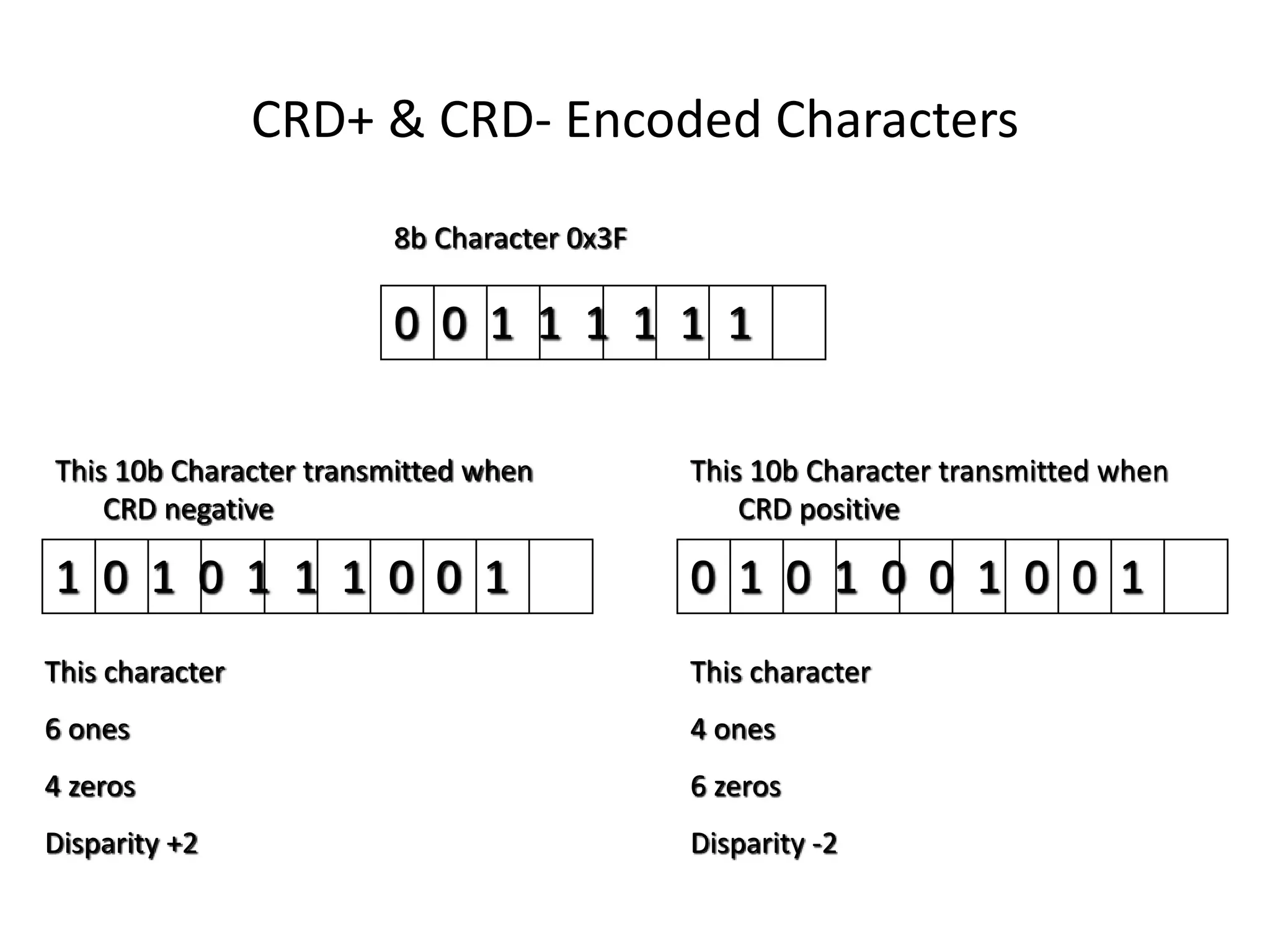

- 40. CRD+ & CRD-Encoded Characters 0 0 1 1 1 1 1 1 1 0 1 0 1 1 1 0 0 1 0 1 0 1 0 0 1 0 0 1 8b Character 0x3F This 10b Character transmitted when CRD negative This 10b Character transmitted when CRD positive This character 6 ones 4 zeros Disparity +2 This character 4 ones 6 zeros Disparity -2

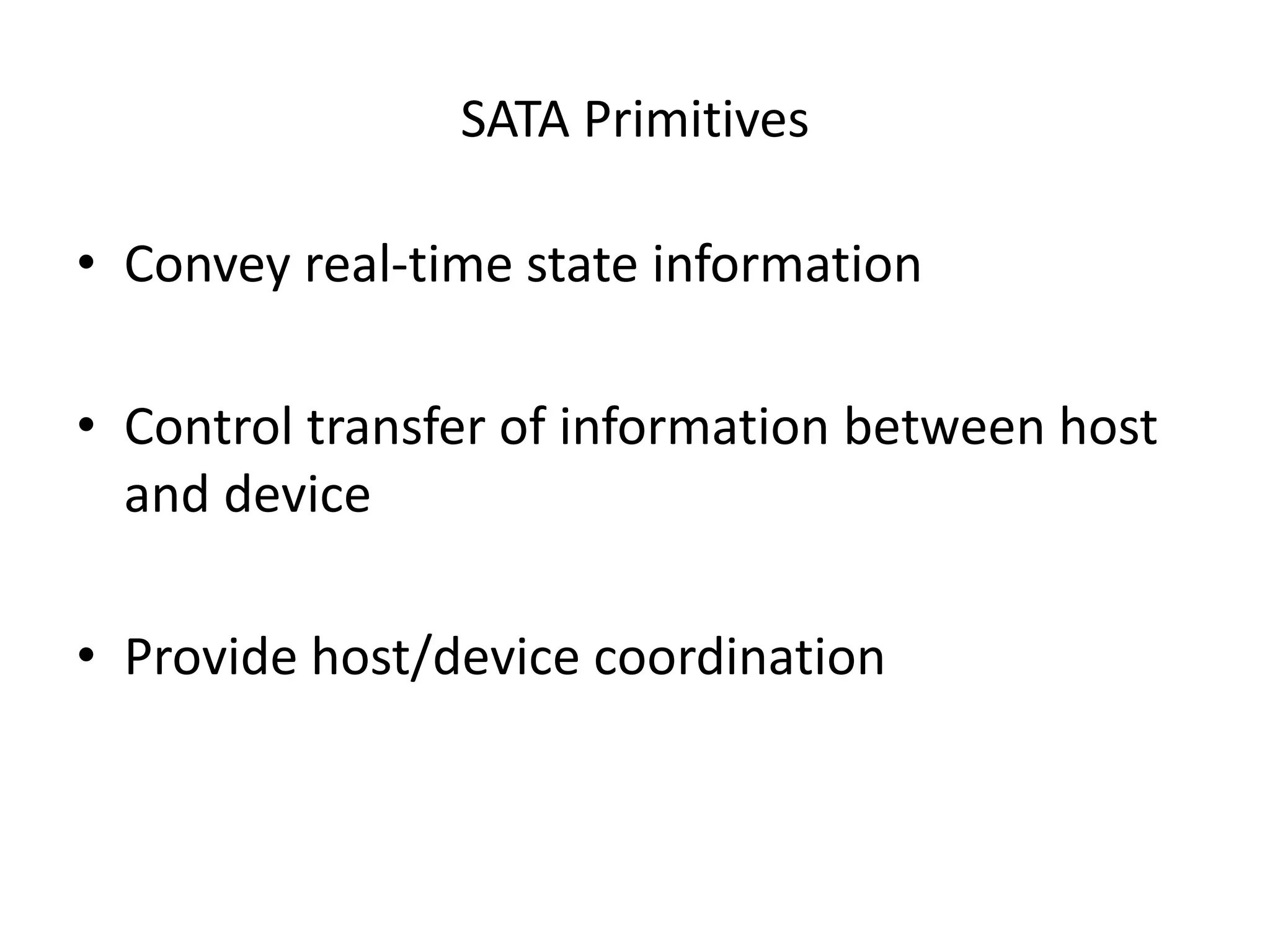

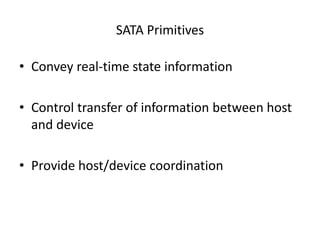

- 41. SATA Primitives • Conveyreal-time state information • Control transfer of information between host and device • Provide host/device coordination

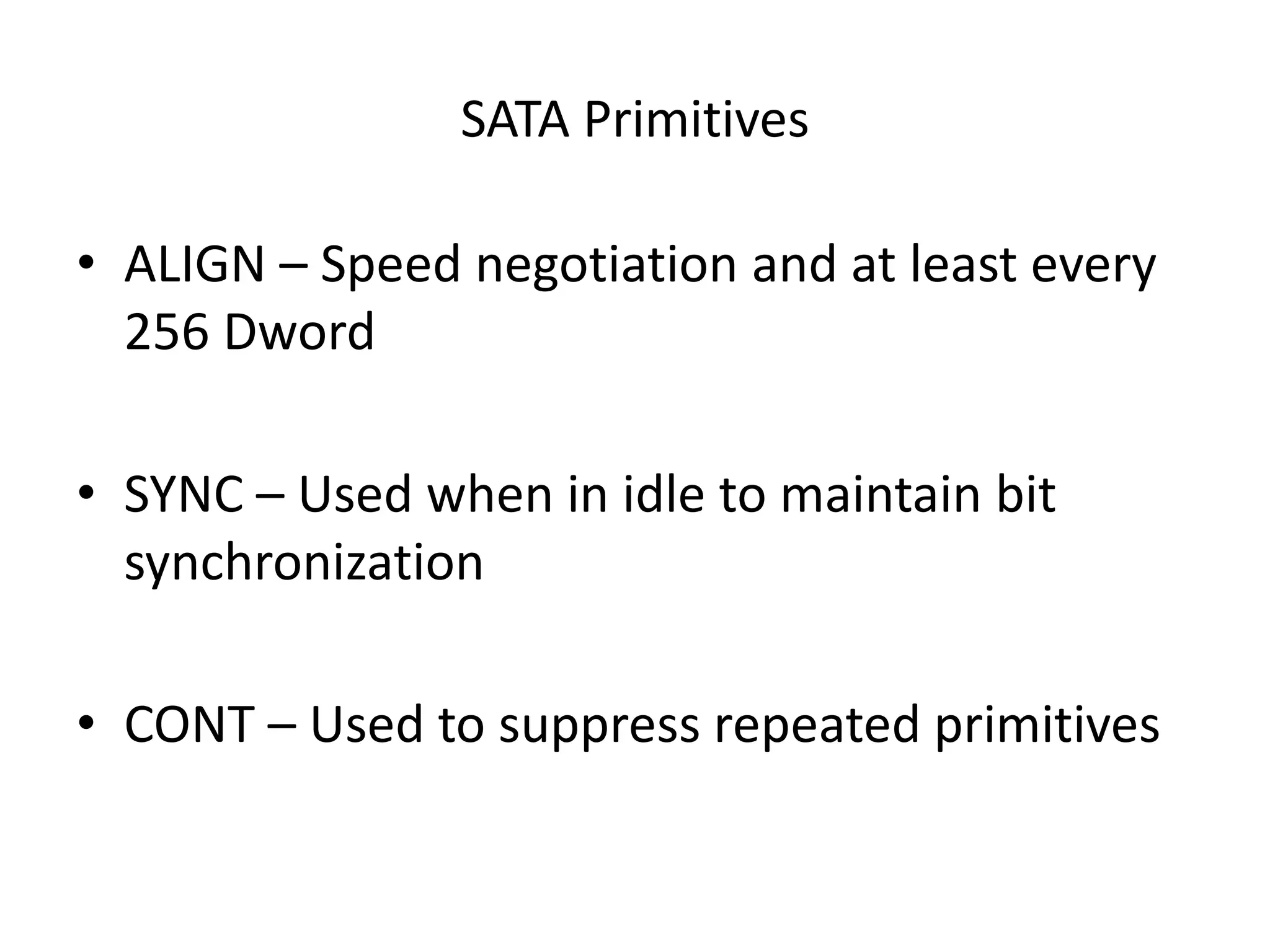

- 42. SATA Primitives • ALIGN– Speed negotiation and at least every 256 Dword • SYNC – Used when in idle to maintain bit synchronization • CONT – Used to suppress repeated primitives

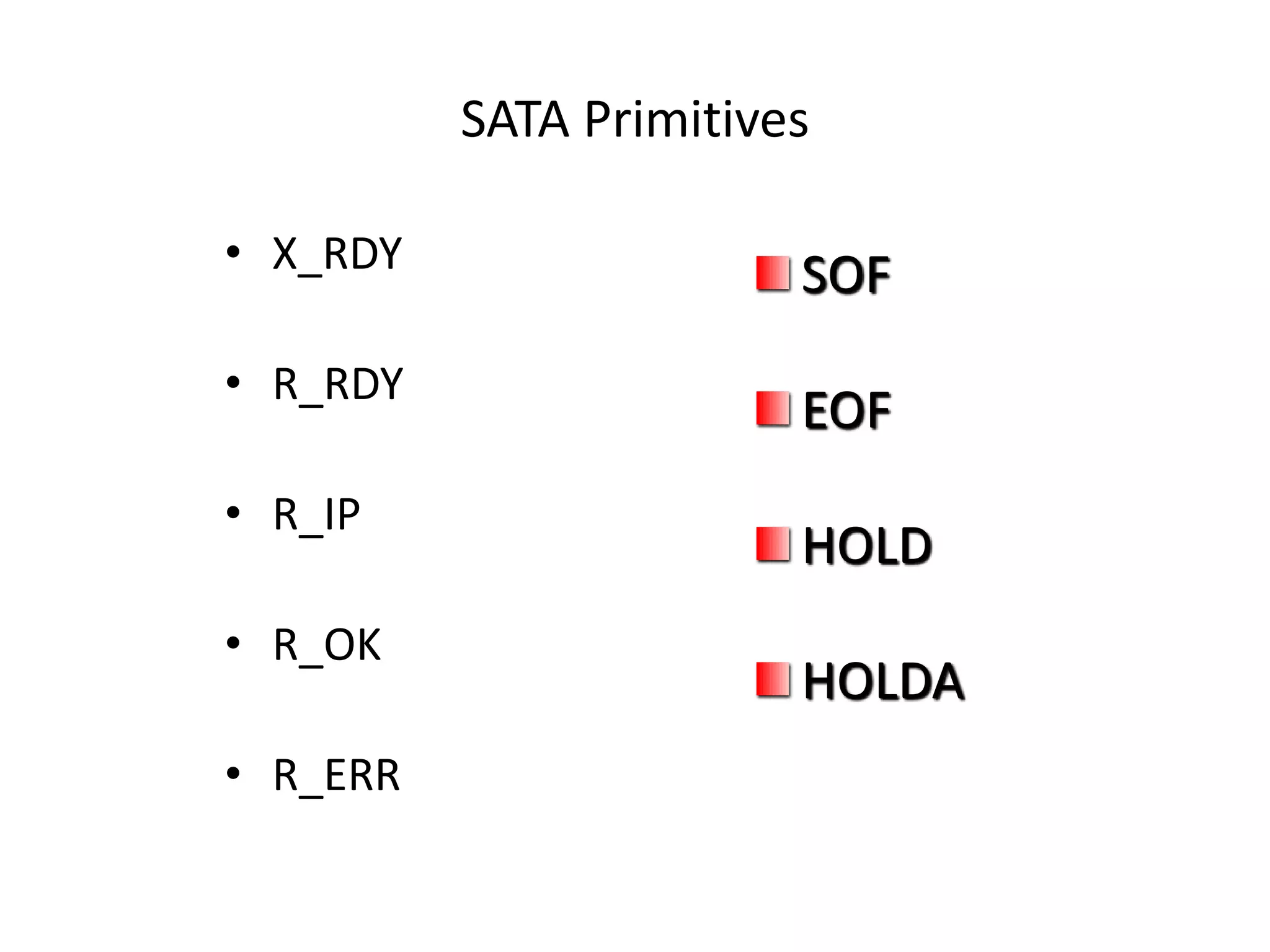

- 43. SATA Primitives • X_RDY •R_RDY • R_IP • R_OK • R_ERR SOF EOF HOLD HOLDA

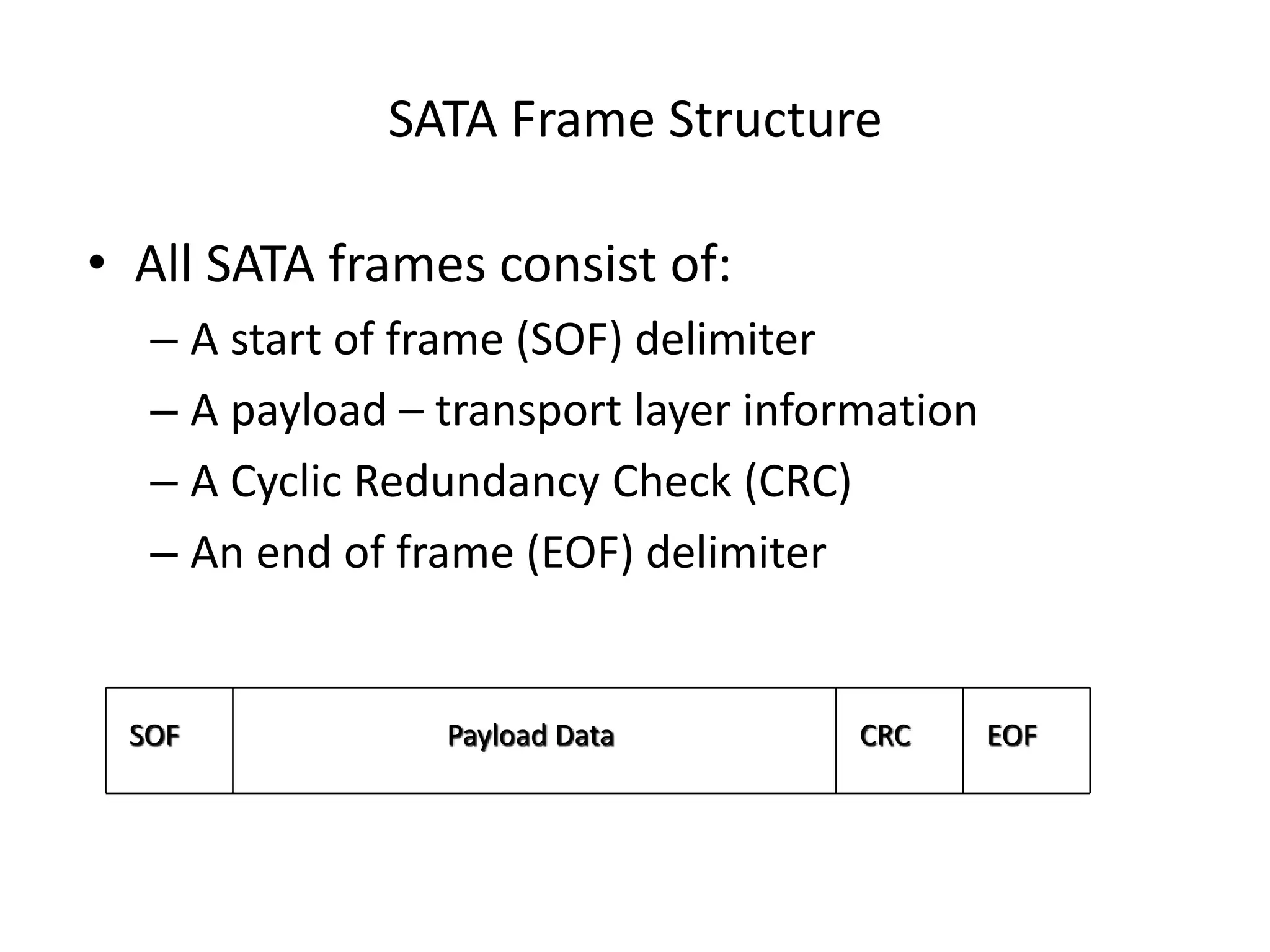

- 44. SATA Frame Structure •All SATA frames consist of: – A start of frame (SOF) delimiter – A payload – transport layer information – A Cyclic Redundancy Check (CRC) – An end of frame (EOF) delimiter SOF CRC EOFPayload Data
- 45. Link Layer Protocol(1) SYNCSYNCSYNCSYNCSYNCSYNC SYNC SYNCSYNCSYNCSYNCSYNC Host Device
- 46. Link Layer Protocol(2) SYNCSYNCX_RDYX_RDYX_RDYX_RDY SYNC SYNCSYNCSYNCSYNCSYNC Host Device
- 47. Link Layer Protocol(3) X_RDYX_RDYX_RDYX_RDYX_RDYX_RDY SYNC R_RDYR_RDYR_RDYR_RDYSYNC Host Device

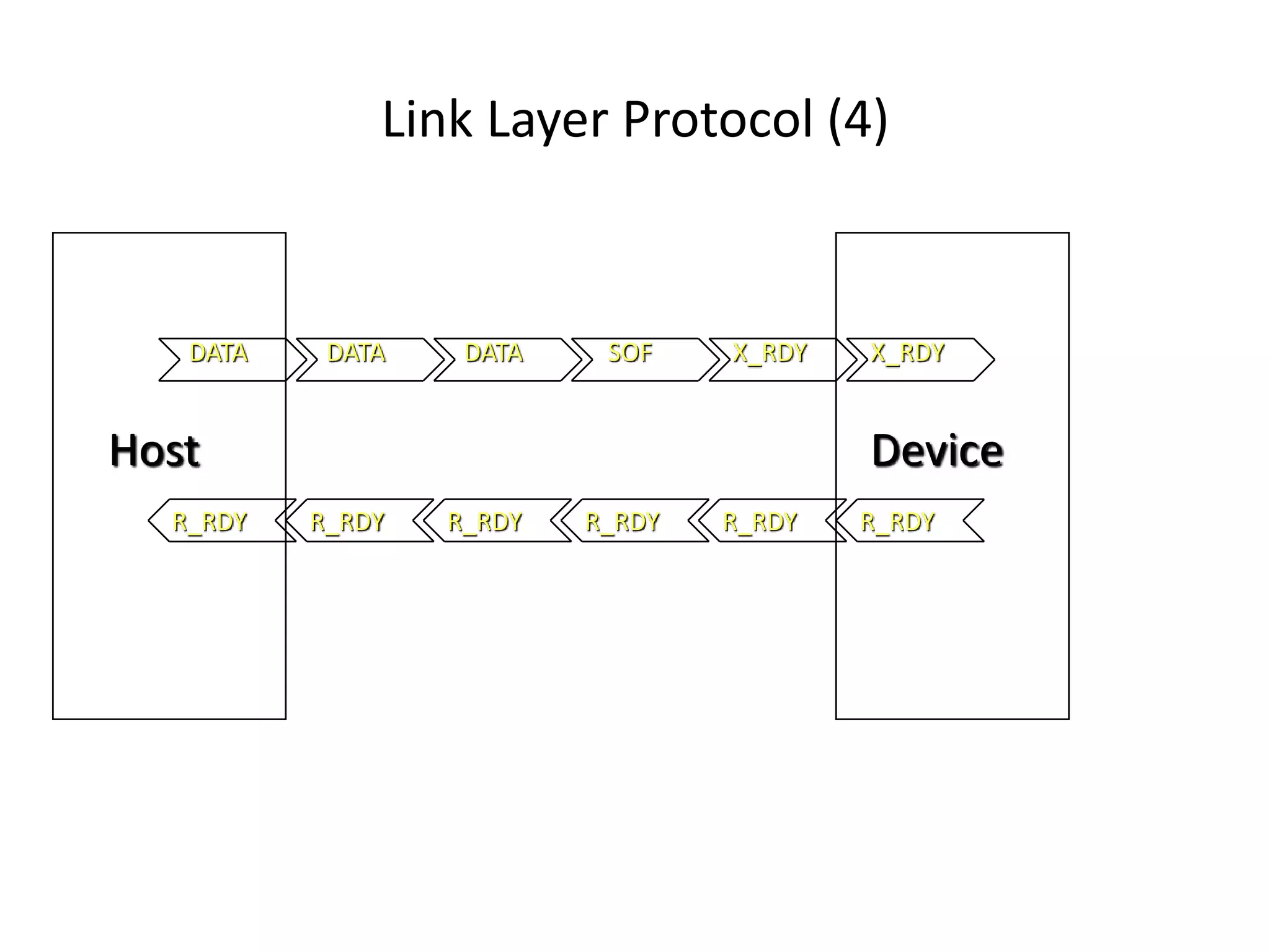

- 48. Link Layer Protocol(4) X_RDYX_RDYSOFDATADATADATA R_RDY R_RDYR_RDYR_RDYR_RDYR_RDY Host Device
- 49. Link Layer Protocol(5) DATADATADATADATADATADATA R_RDY R_IPR_IPR_IPR_IPR_RDY Host Device
- 50. Link Layer Protocol(6) DATADATACRCEOFWTRMWTRM R_IP R_IPR_IPR_IPR_IPR_IP Host Device
- 51. Link Layer Protocol(7) CRCEOFWTRMWTRMWTRMWTRM R_IP R_IPR_IPR_IPR_IPR_IP Host Device
- 52. Link Layer Protocol(8) WTRMWTRMWTRMWTRMWTRMWTRM R_IP R_OKR_OKR_OKR_OKR_IP Host Device
- 53. Link Layer Protocol(9) WTRMWTRMSYNCSYNCSYNCSYNC R_OK R_OKR_OKR_OKR_OKR_OK Host Device

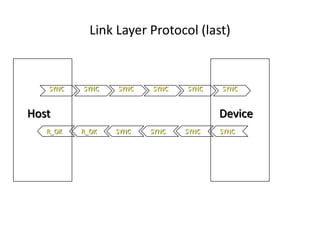

- 54. Link Layer Protocol(last) SYNCSYNCSYNCSYNCSYNCSYNC R_OK SYNCSYNCSYNCSYNCR_OK Host Device
- 55. SATA Architectural Model DeviceControl Software Buffer Memory DMA management Serial digital transport control Serial digital link control Serial physical interface Device Layers Host Control Software Buffer Memory DMA management Host Layers Serial digital transport control Serial digital link control Serial physical interface Application Transport Link Physical

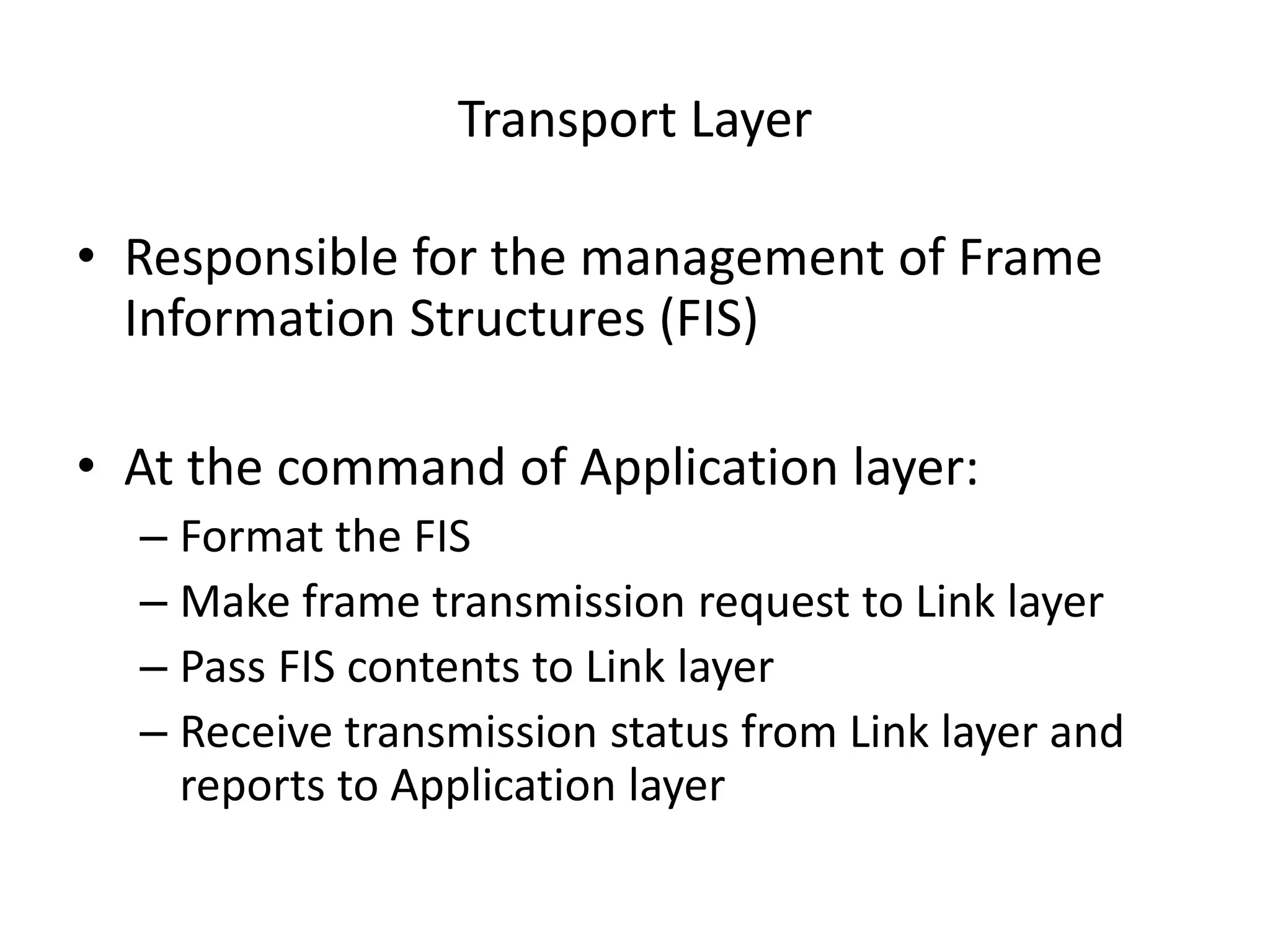

- 56. Transport Layer • Responsiblefor the management of Frame Information Structures (FIS) • At the command of Application layer: – Format the FIS – Make frame transmission request to Link layer – Pass FIS contents to Link layer – Receive transmission status from Link layer and reports to Application layer

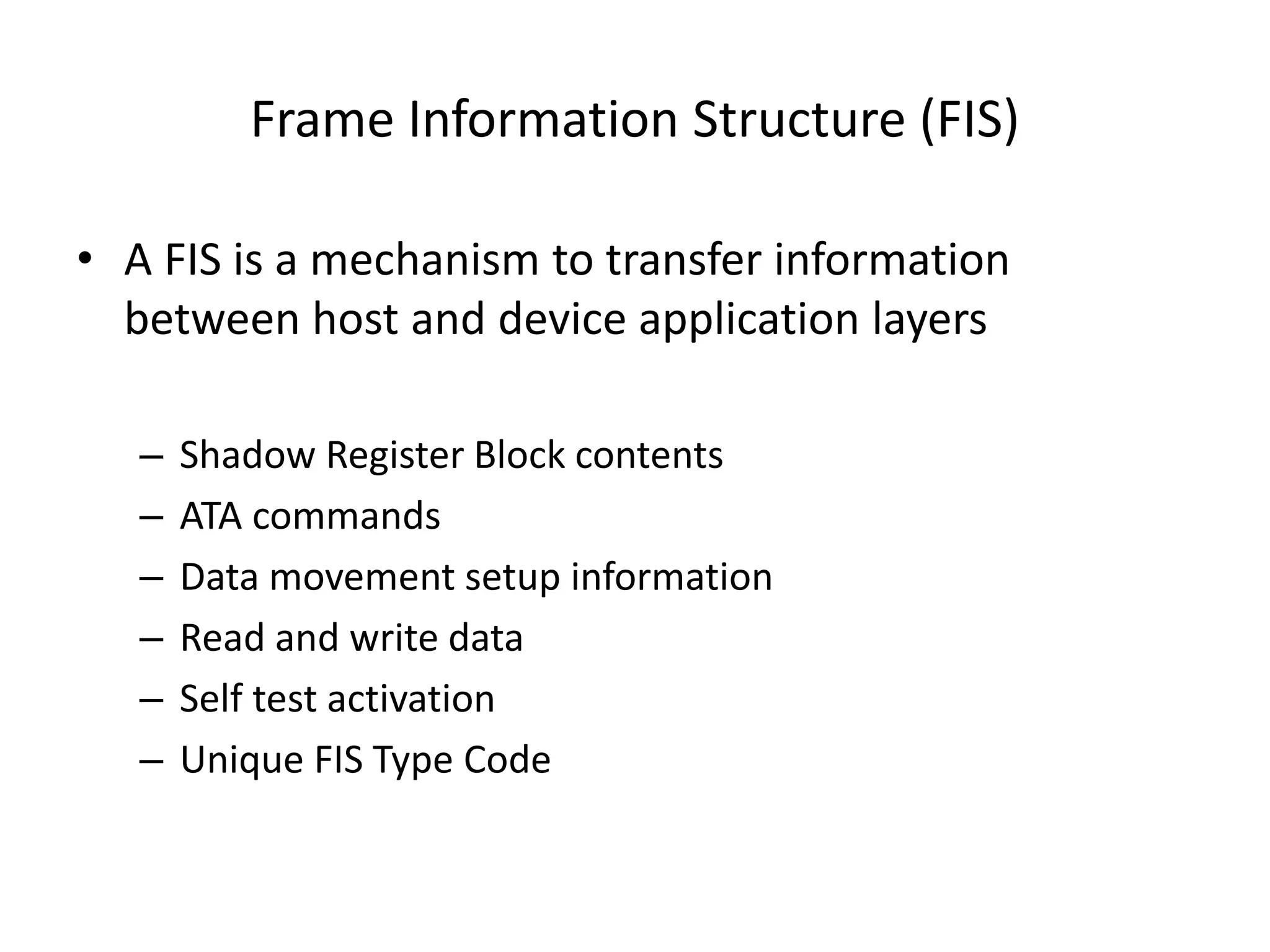

- 57. Frame Information Structure(FIS) • A FIS is a mechanism to transfer information between host and device application layers – Shadow Register Block contents – ATA commands – Data movement setup information – Read and write data – Self test activation – Unique FIS Type Code

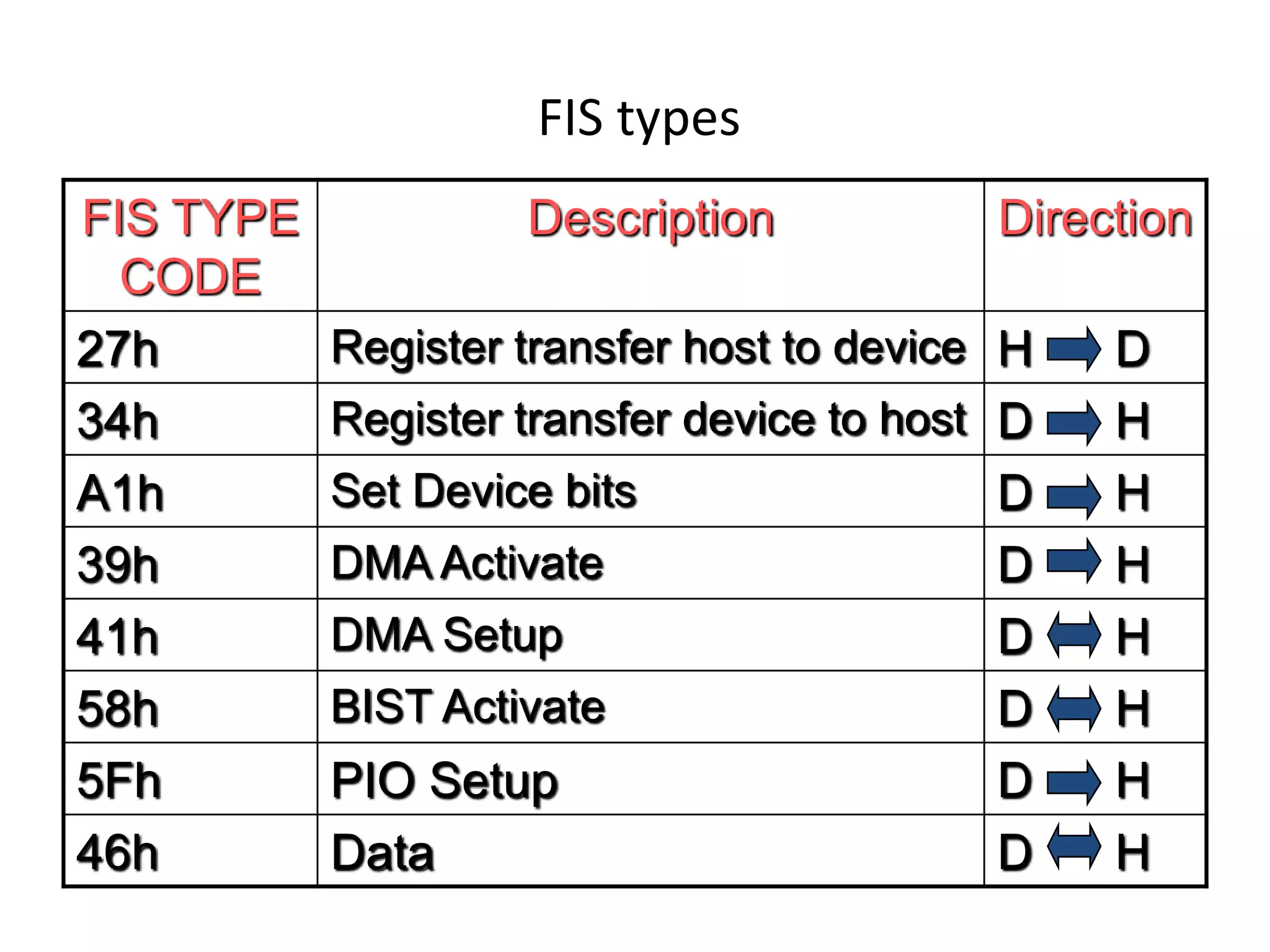

- 58. FIS types FIS TYPE CODE DescriptionDirection 27h Register transfer host to device H D 34h Register transfer device to host D H A1h Set Device bits D H 39h DMA Activate D H 41h DMA Setup D H 58h BIST Activate D H 5Fh PIO Setup D H 46h Data D H

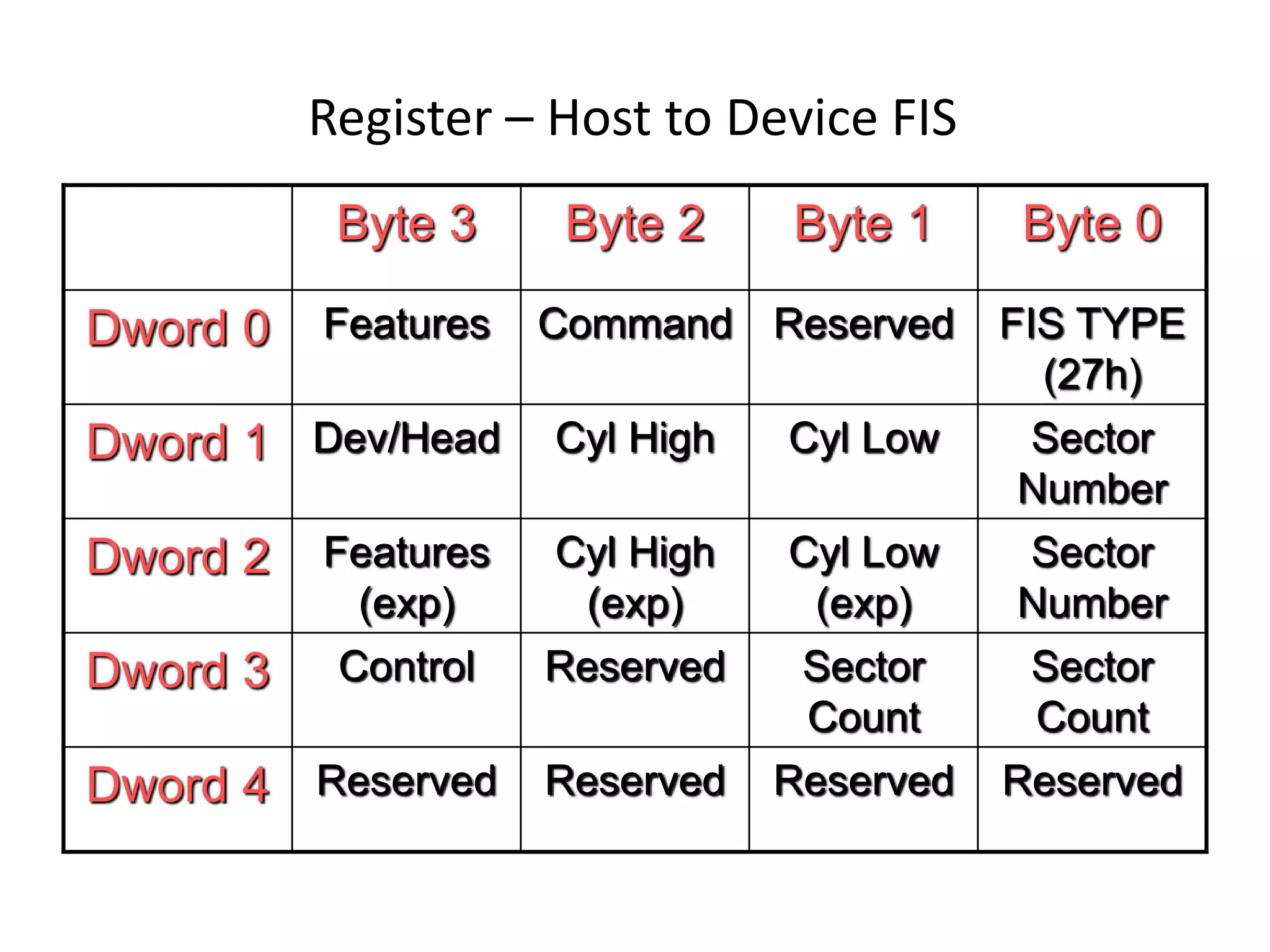

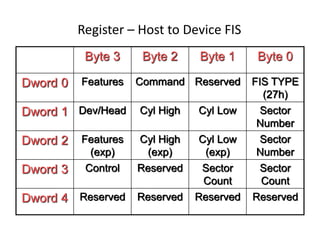

- 59. Register – Hostto Device FIS Byte 3 Byte 2 Byte 1 Byte 0 Dword 0 Features Command Reserved FIS TYPE (27h) Dword 1 Dev/Head Cyl High Cyl Low Sector Number Dword 2 Features (exp) Cyl High (exp) Cyl Low (exp) Sector Number Dword 3 Control Reserved Sector Count Sector Count Dword 4 Reserved Reserved Reserved Reserved

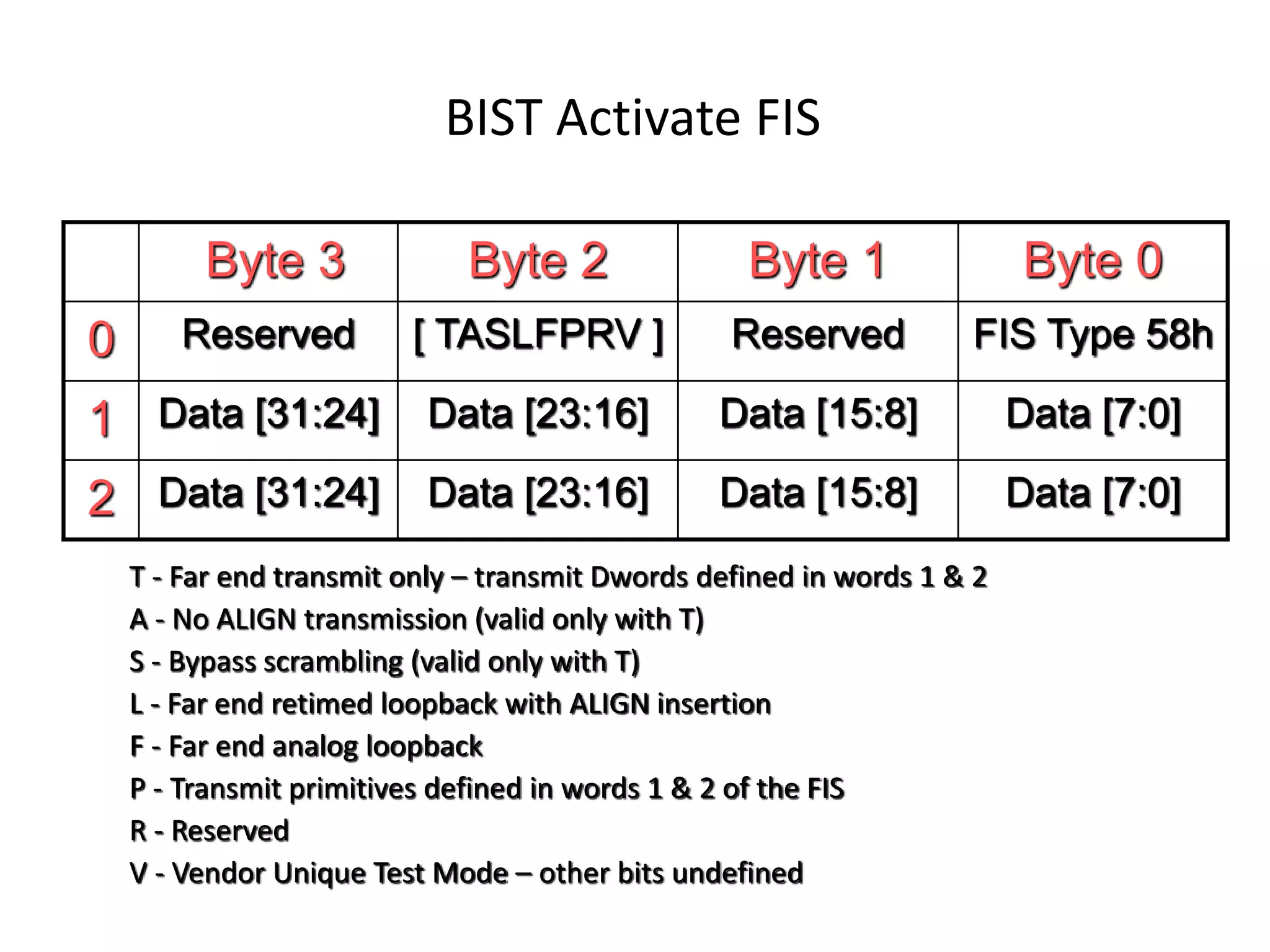

- 60. BIST Activate FIS Byte3 Byte 2 Byte 1 Byte 0 0 Reserved [ TASLFPRV ] Reserved FIS Type 58h 1 Data [31:24] Data [23:16] Data [15:8] Data [7:0] 2 Data [31:24] Data [23:16] Data [15:8] Data [7:0] T - Far end transmit only – transmit Dwords defined in words 1 & 2 A - No ALIGN transmission (valid only with T) S - Bypass scrambling (valid only with T) L - Far end retimed loopback with ALIGN insertion F - Far end analog loopback P - Transmit primitives defined in words 1 & 2 of the FIS R - Reserved V - Vendor Unique Test Mode – other bits undefined

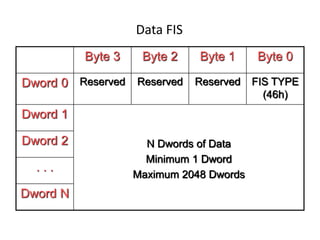

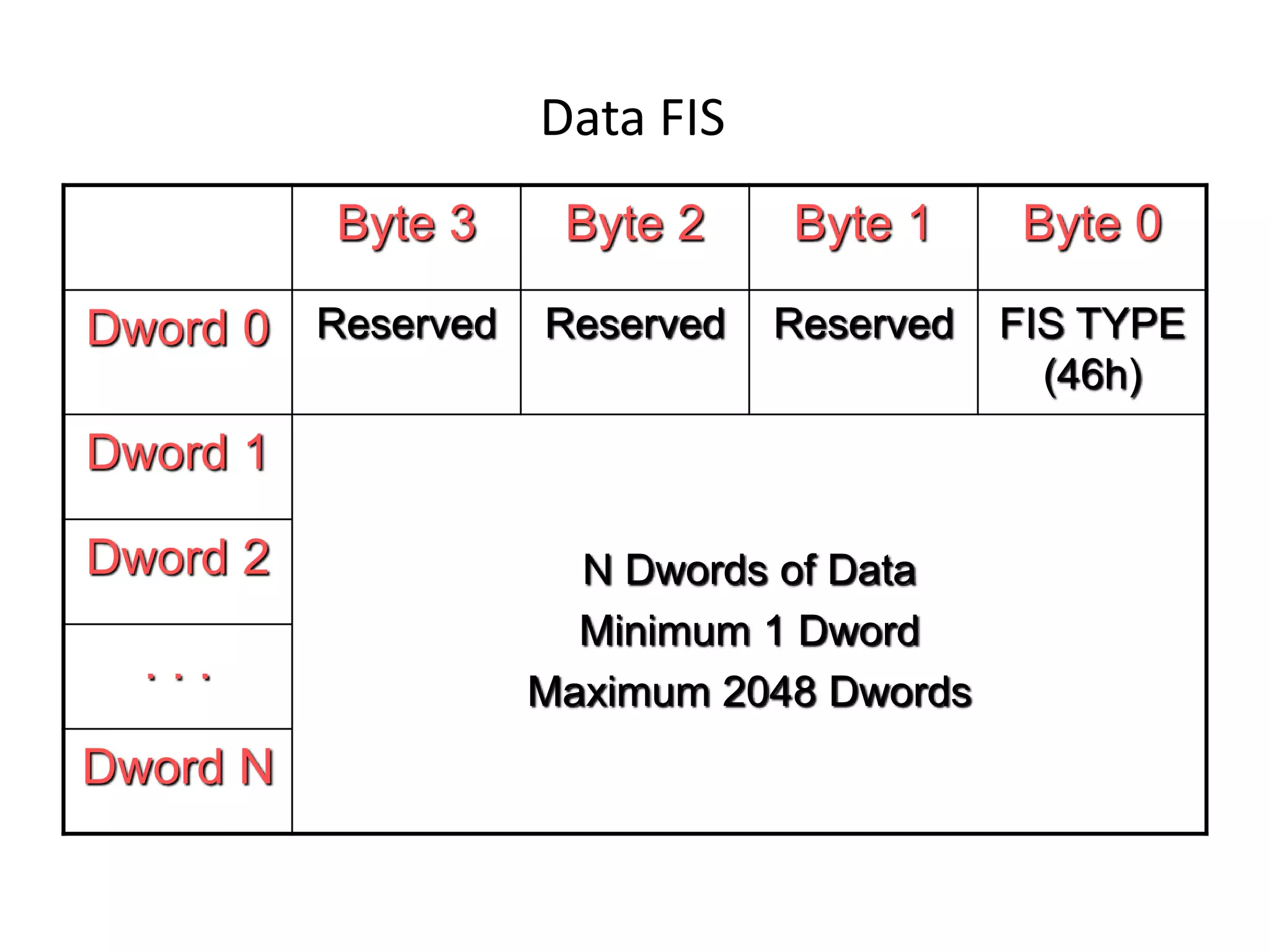

- 61. Data FIS Byte 3Byte 2 Byte 1 Byte 0 Dword 0 Reserved Reserved Reserved FIS TYPE (46h) Dword 1 N Dwords of Data Minimum 1 Dword Maximum 2048 Dwords Dword 2 . . . Dword N

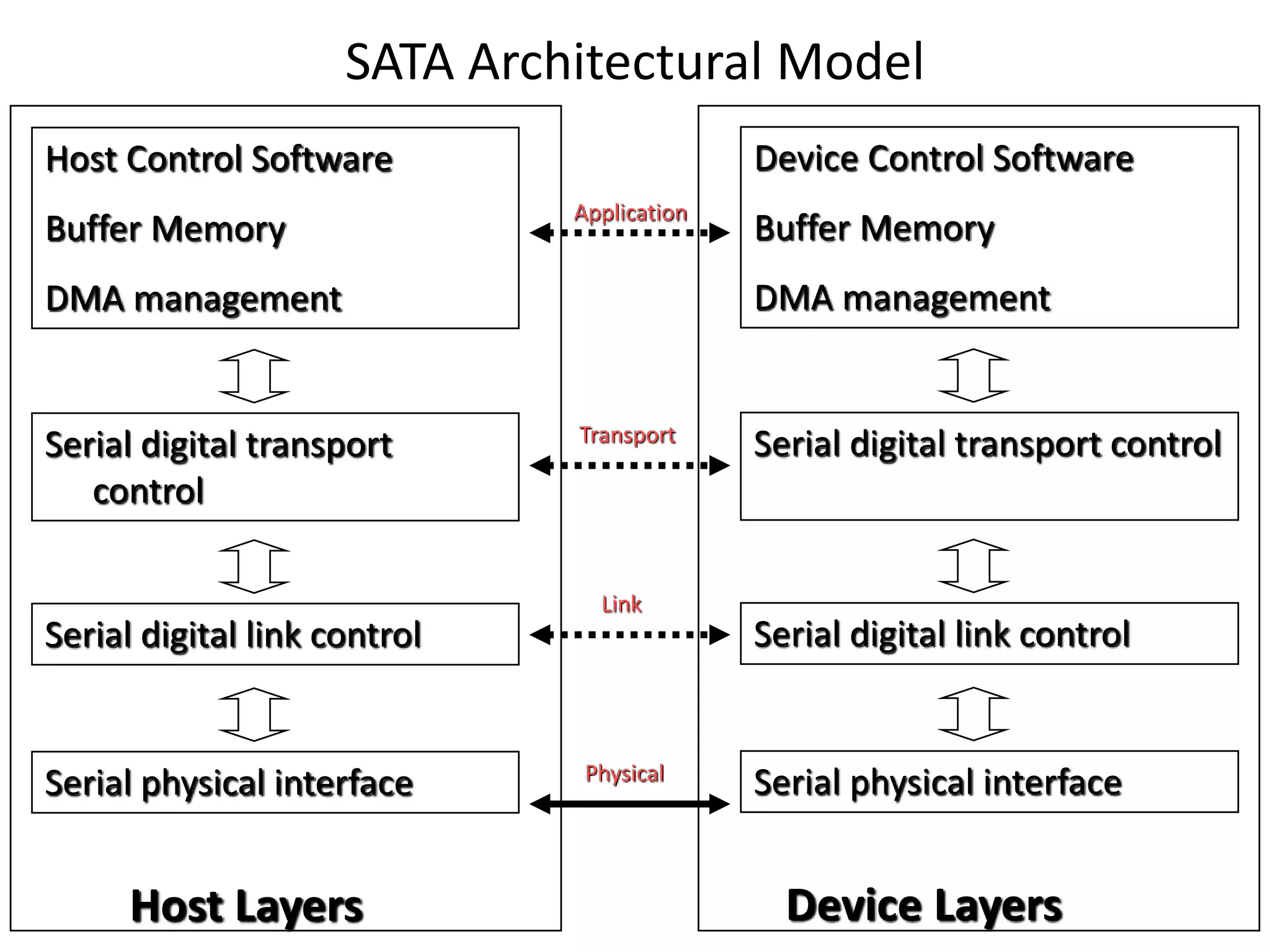

- 62. SATA Architectural Model DeviceControl Software Buffer Memory DMA management Serial digital transport control Serial digital link control Serial physical interface Device Layers Host Control Software Buffer Memory DMA management Host Layers Serial digital transport control Serial digital link control Serial physical interface Application Transport Link Physical

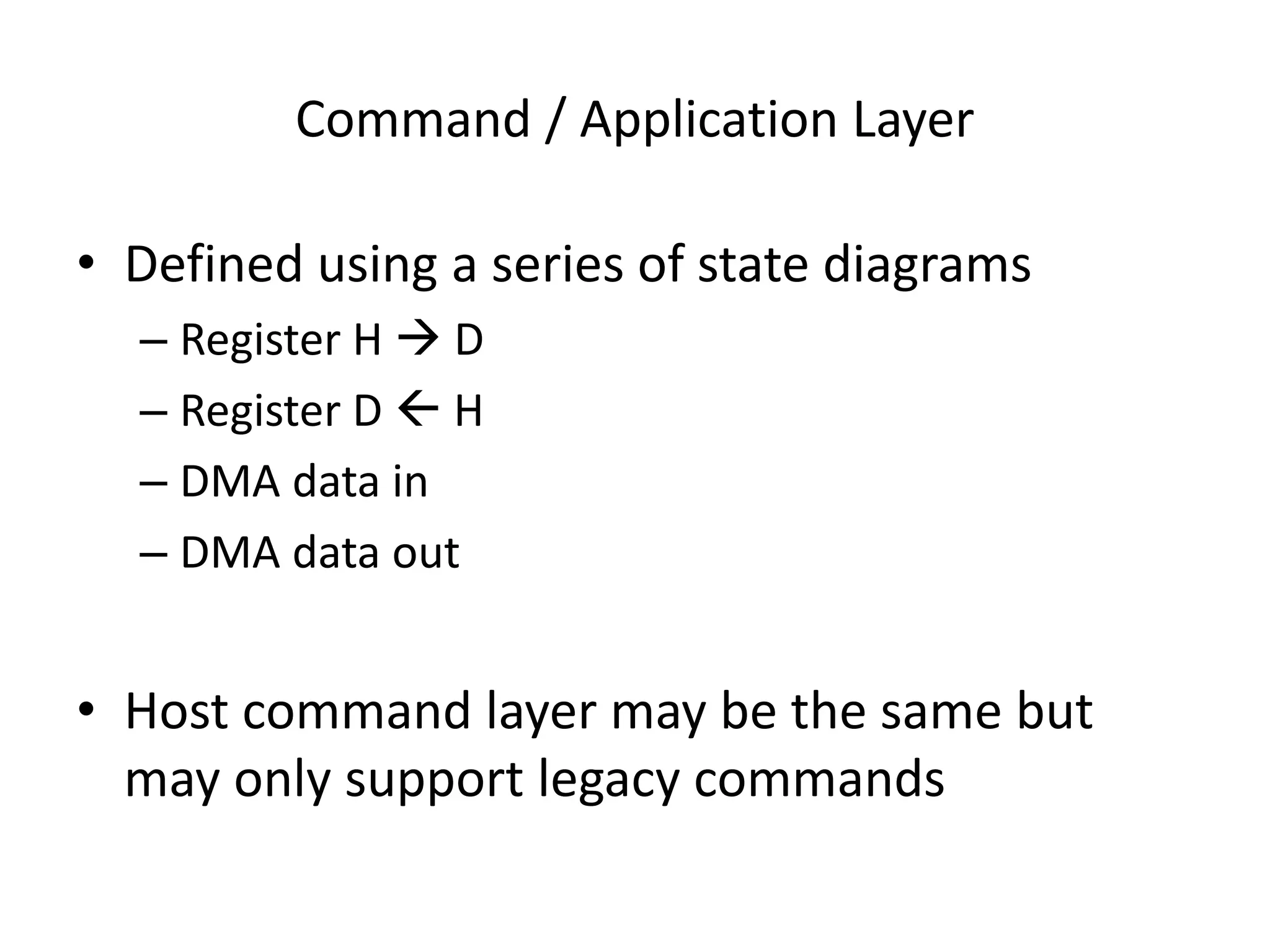

- 63. Command / ApplicationLayer • Defined using a series of state diagrams – Register H D – Register D H – DMA data in – DMA data out • Host command layer may be the same but may only support legacy commands

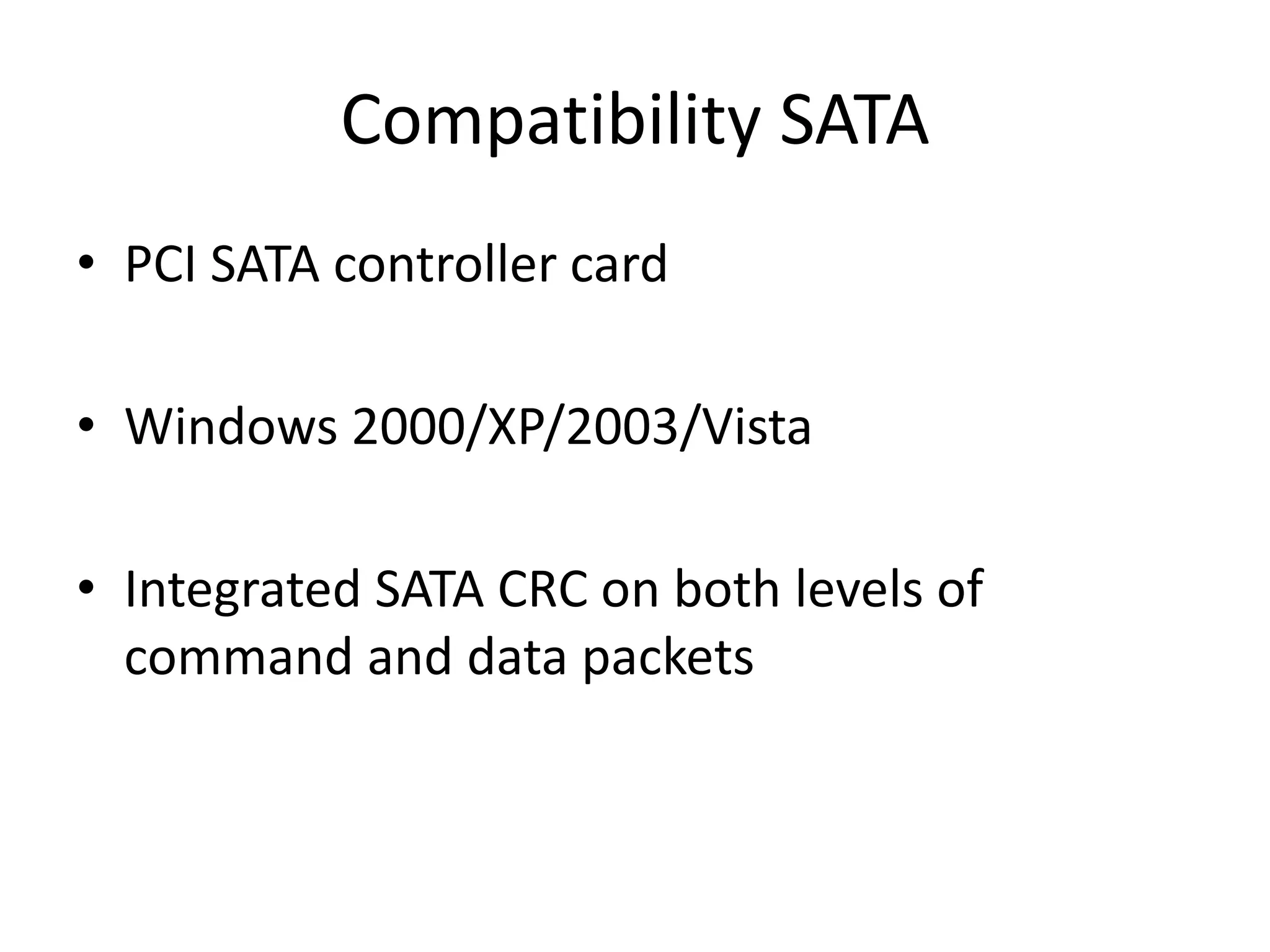

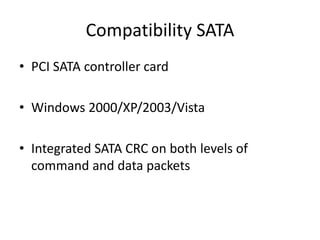

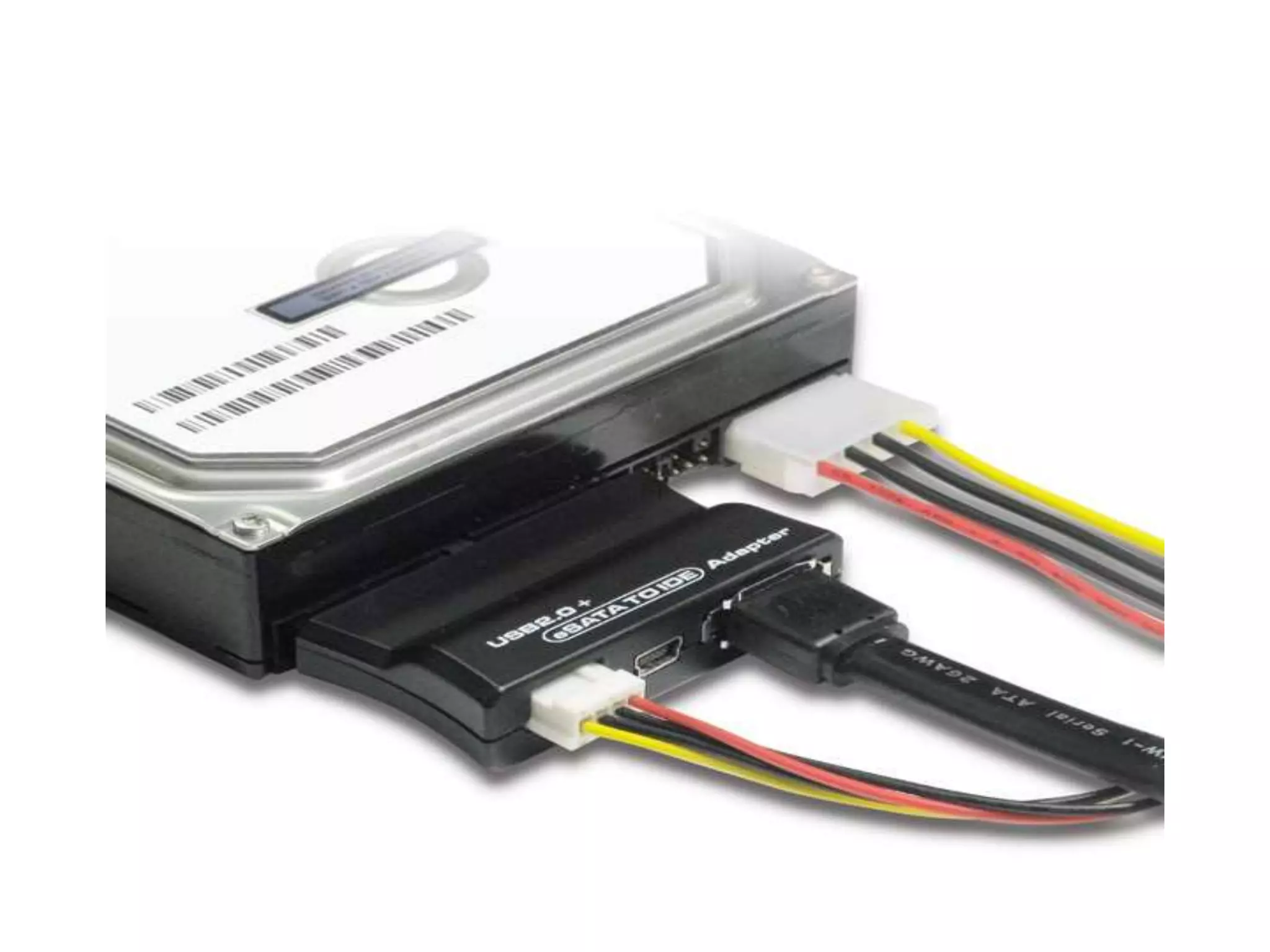

- 65. Compatibility SATA • PCISATA controller card • Windows 2000/XP/2003/Vista • Integrated SATA CRC on both levels of command and data packets
