Search for Vulnerabilities Using Static Code Analysis

Search for Vulnerabilities Using Static Code Analysis

• 1.
  Search for Vulnerabilities UsingStatic Code Analysis Evgeniy Ryzhkov evg@viva64.com Andrey Karpov Karpov@viva64.com www.viva64.com
• 2.

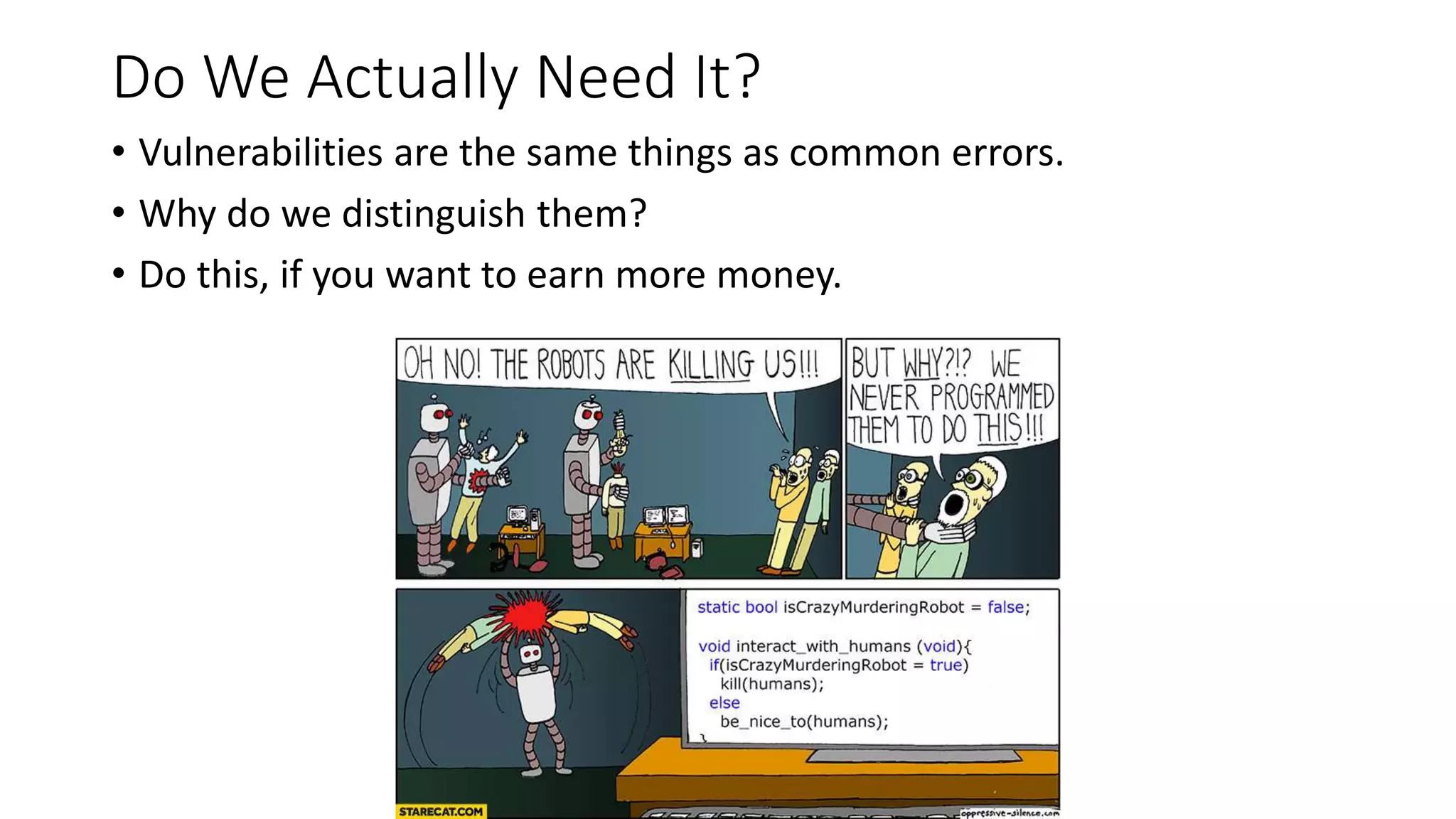

  Do We ActuallyNeed It? • Vulnerabilities are the same things as common errors. • Why do we distinguish them? • Do this, if you want to earn more money.
• 3.
  Analogy • Servers • Farms •Clusters • Data storages • Boring stuff
• 4.
  Clouds • Fashionable • Youthful •Prestigious • You get paid more
• 5.
  A Banter orNot a Banter, That Is the Question • Now it is better to be, for example, not an admin, but a DevOps-specialist. • It is even better to be SecDevOps!
• 6.
  Let’s Talk AboutHow to Become a Programmer More Valuable Security Expert.
• 7.
  We Cannot DoWithout a Boring Terminology • CWE - Common Weakness Enumeration • CVE - Common Vulnerabilities and Exposures • Relationship
• 8.

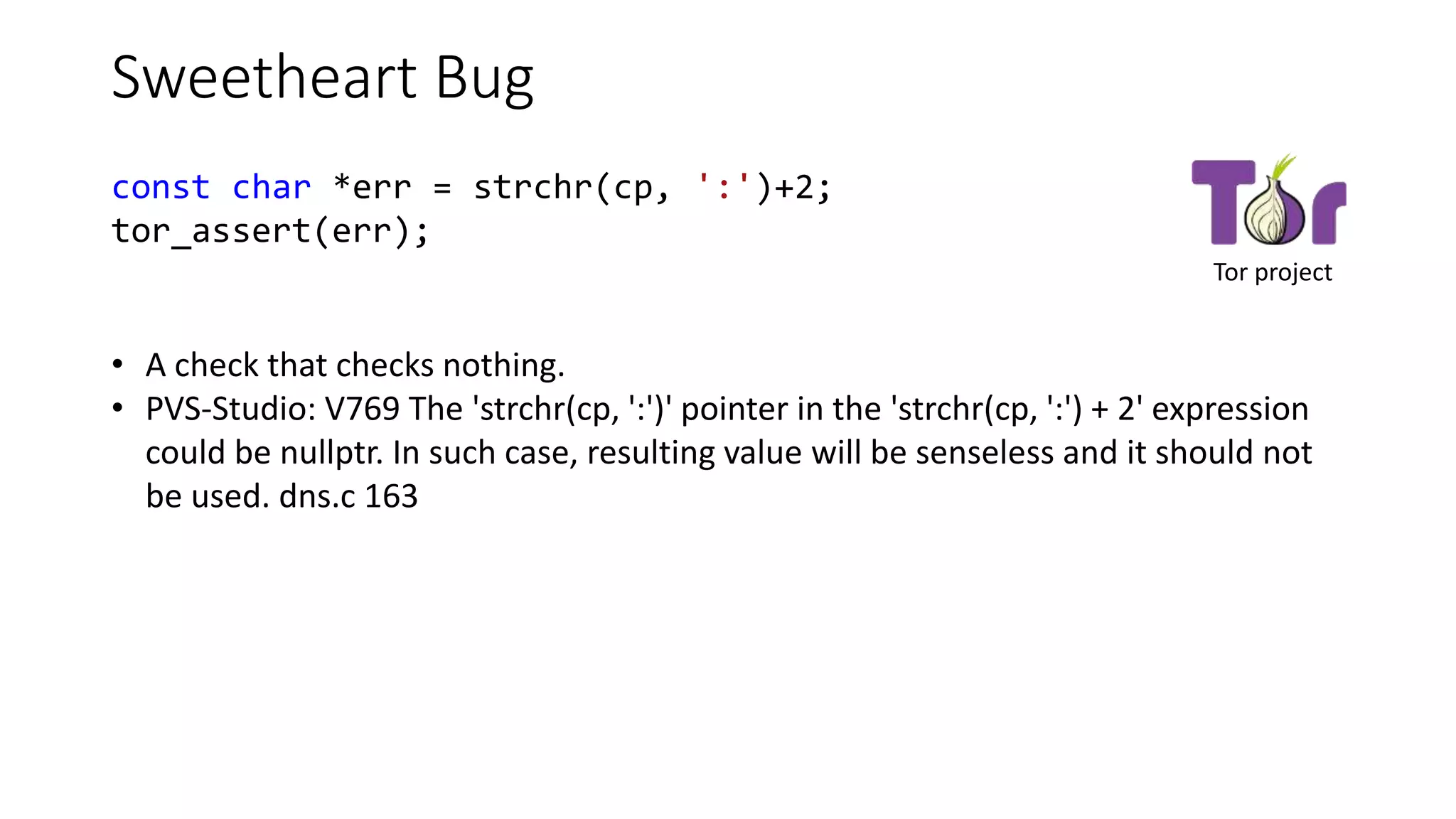

  Sweetheart Bug const char*err = strchr(cp, ':')+2; tor_assert(err); • A check that checks nothing. • PVS-Studio: V769 The 'strchr(cp, ':')' pointer in the 'strchr(cp, ':') + 2' expression could be nullptr. In such case, resulting value will be senseless and it should not be used. dns.c 163 Tor project
• 9.

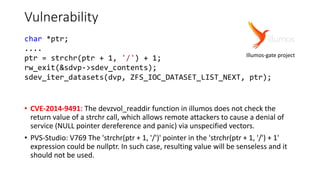

  Vulnerability • CVE-2014-9491: Thedevzvol_readdir function in illumos does not check the return value of a strchr call, which allows remote attackers to cause a denial of service (NULL pointer dereference and panic) via unspecified vectors. • PVS-Studio: V769 The 'strchr(ptr + 1, '/')' pointer in the 'strchr(ptr + 1, '/') + 1' expression could be nullptr. In such case, resulting value will be senseless and it should not be used. char *ptr; .... ptr = strchr(ptr + 1, '/') + 1; rw_exit(&sdvp->sdev_contents); sdev_iter_datasets(dvp, ZFS_IOC_DATASET_LIST_NEXT, ptr); Illumos-gate project
• 10.

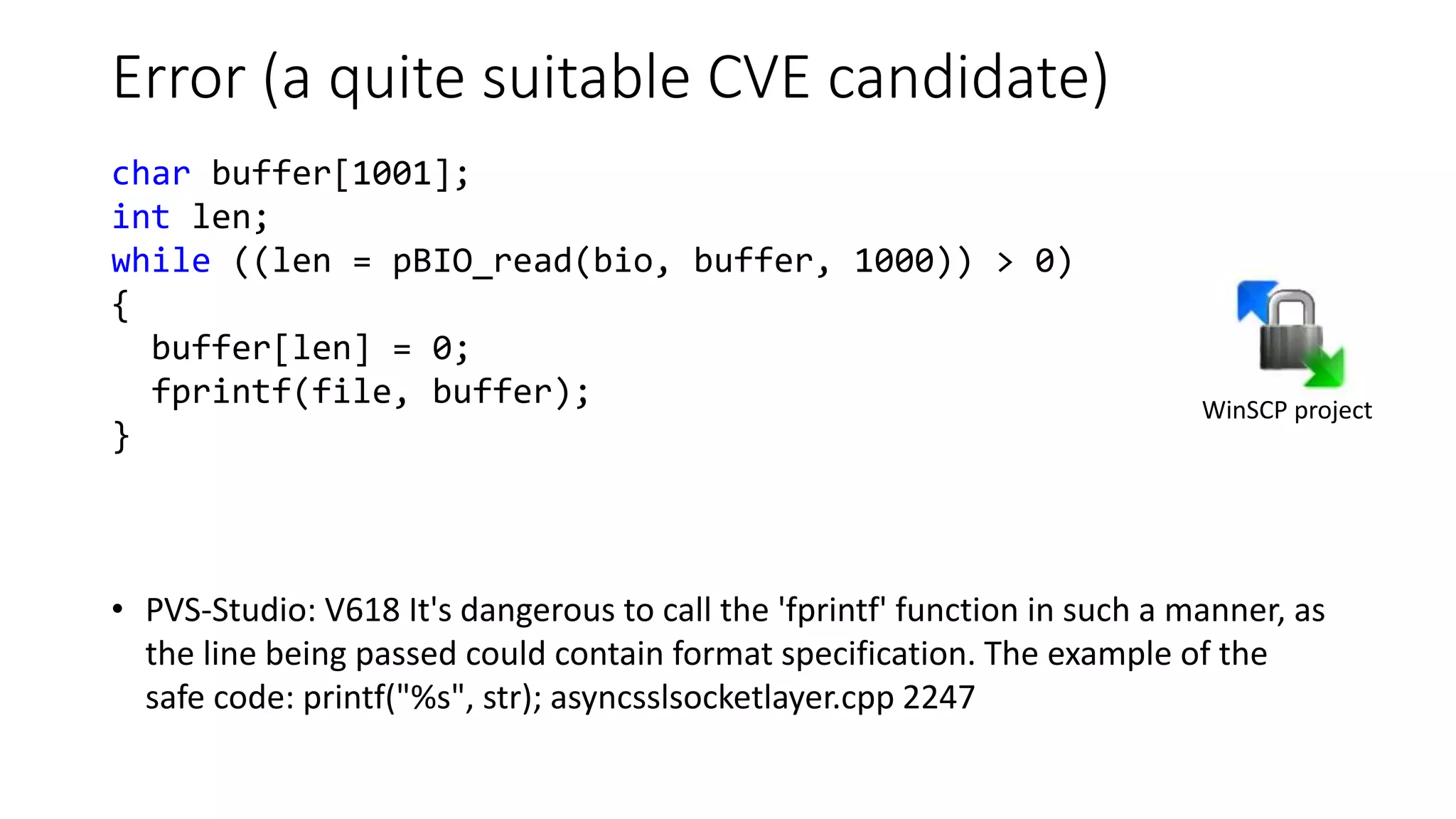

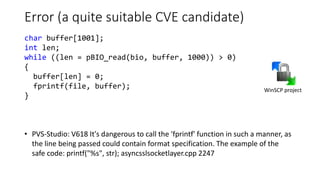

  Error (a quitesuitable CVE candidate) • PVS-Studio: V618 It's dangerous to call the 'fprintf' function in such a manner, as the line being passed could contain format specification. The example of the safe code: printf("%s", str); asyncsslsocketlayer.cpp 2247 WinSCP project char buffer[1001]; int len; while ((len = pBIO_read(bio, buffer, 1000)) > 0) { buffer[len] = 0; fprintf(file, buffer); }
• 11.

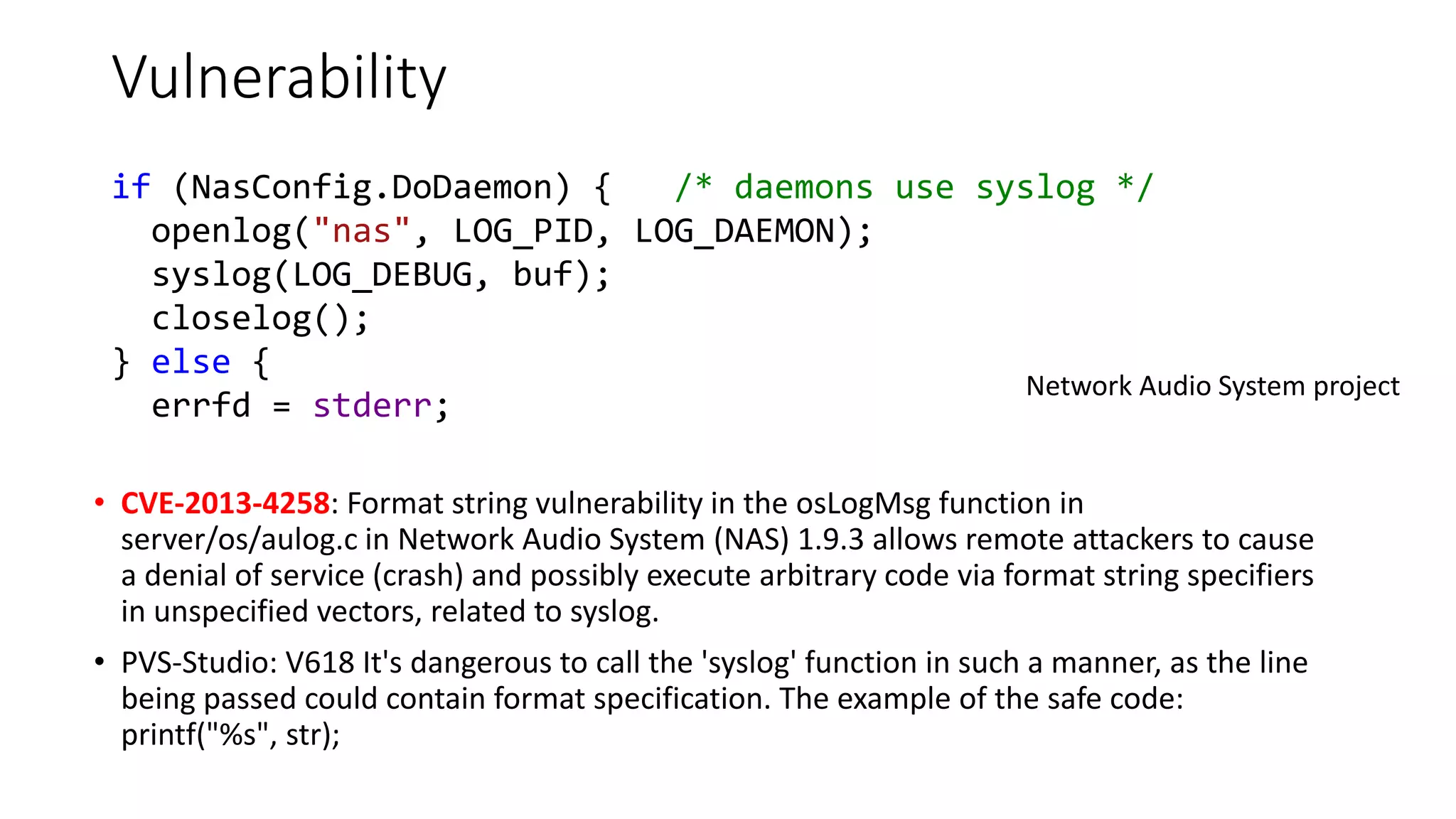

  Vulnerability • CVE-2013-4258: Formatstring vulnerability in the osLogMsg function in server/os/aulog.c in Network Audio System (NAS) 1.9.3 allows remote attackers to cause a denial of service (crash) and possibly execute arbitrary code via format string specifiers in unspecified vectors, related to syslog. • PVS-Studio: V618 It's dangerous to call the 'syslog' function in such a manner, as the line being passed could contain format specification. The example of the safe code: printf("%s", str); Network Audio System project if (NasConfig.DoDaemon) { /* daemons use syslog */ openlog("nas", LOG_PID, LOG_DAEMON); syslog(LOG_DEBUG, buf); closelog(); } else { errfd = stderr;
• 12.

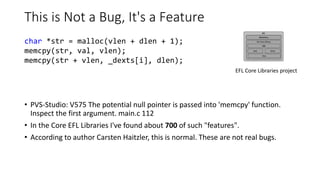

  This is Nota Bug, It's a Feature • PVS-Studio: V575 The potential null pointer is passed into 'memcpy' function. Inspect the first argument. main.c 112 • In the Core EFL Libraries I've found about 700 of such "features". • According to author Carsten Haitzler, this is normal. These are not real bugs. char *str = malloc(vlen + dlen + 1); memcpy(str, val, vlen); memcpy(str + vlen, _dexts[i], dlen); EFL Core Libraries project
• 13.

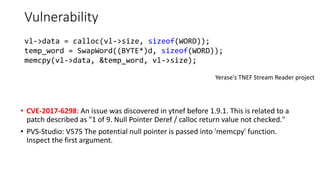

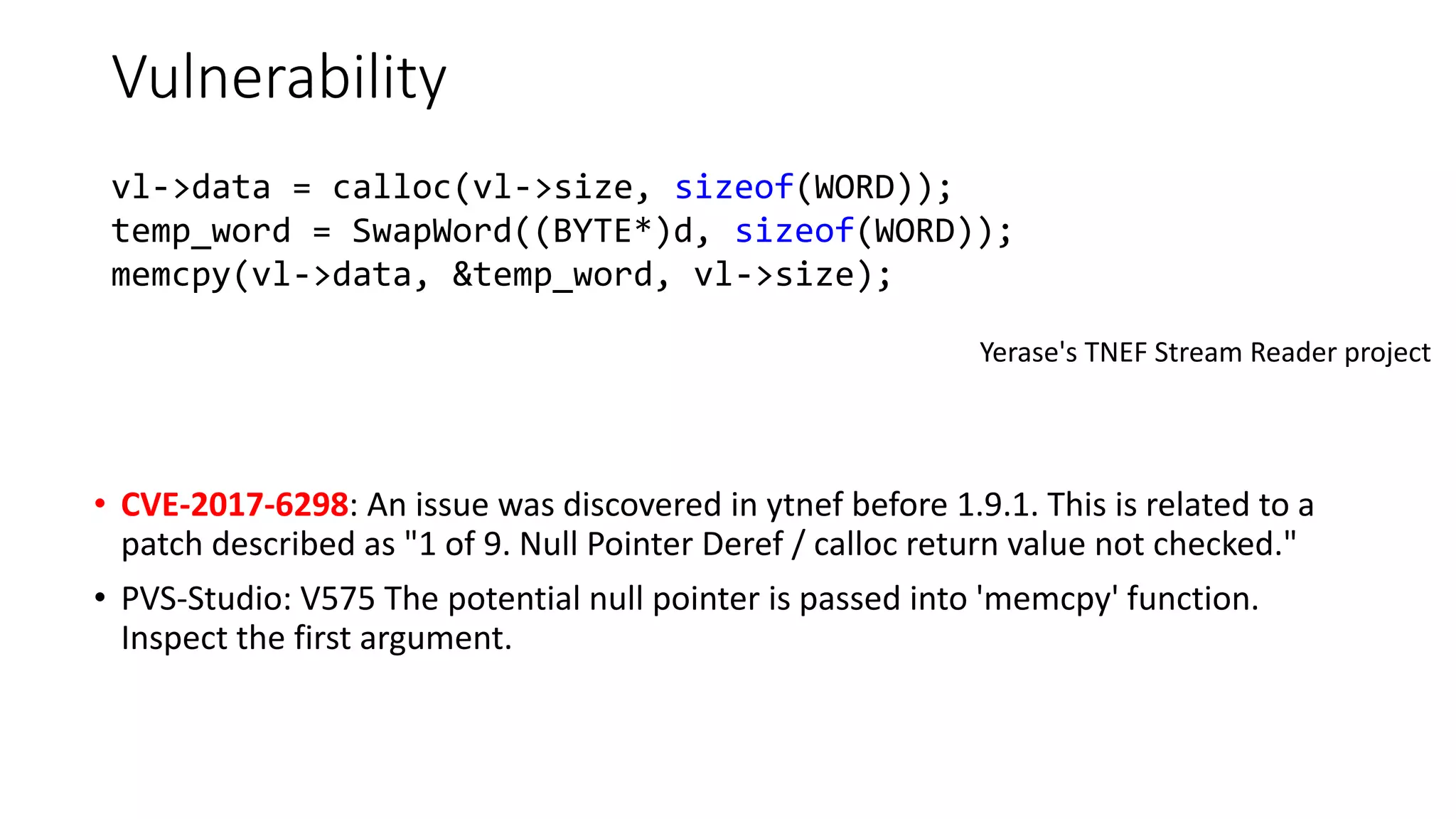

  Vulnerability • CVE-2017-6298: Anissue was discovered in ytnef before 1.9.1. This is related to a patch described as "1 of 9. Null Pointer Deref / calloc return value not checked." • PVS-Studio: V575 The potential null pointer is passed into 'memcpy' function. Inspect the first argument. Yerase's TNEF Stream Reader project vl->data = calloc(vl->size, sizeof(WORD)); temp_word = SwapWord((BYTE*)d, sizeof(WORD)); memcpy(vl->data, &temp_word, vl->size);
• 14.
  Not a Bug,But a Nonsense • PVS-Studio: V642 Saving the 'memcmp' function result inside the 'unsigned char' type variable is inappropriate. The significant bits could be lost breaking the program's logic. host.c 1789 u8 other = memcmp(requester->frame_rcvd.iaf.sas_addr, iphy->frame_rcvd.iaf.sas_addr, sizeof(requester->frame_rcvd.iaf.sas_addr)); if (other == 0) { .... } Linux Kernel
• 15.

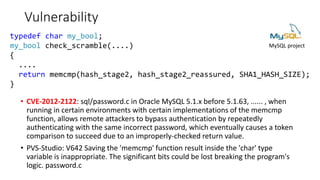

  Vulnerability • CVE-2012-2122: sql/password.cin Oracle MySQL 5.1.x before 5.1.63, ...... , when running in certain environments with certain implementations of the memcmp function, allows remote attackers to bypass authentication by repeatedly authenticating with the same incorrect password, which eventually causes a token comparison to succeed due to an improperly-checked return value. • PVS-Studio: V642 Saving the 'memcmp' function result inside the 'char' type variable is inappropriate. The significant bits could be lost breaking the program's logic. password.c MySQL project typedef char my_bool; my_bool check_scramble(....) { .... return memcmp(hash_stage2, hash_stage2_reassured, SHA1_HASH_SIZE); }
• 16.

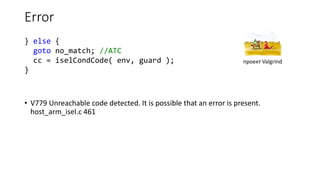

  Error • V779 Unreachablecode detected. It is possible that an error is present. host_arm_isel.c 461 } else { goto no_match; //ATC cc = iselCondCode( env, guard ); } проект Valgrind
• 17.

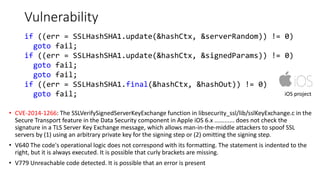

  Vulnerability • CVE-2014-1266: TheSSLVerifySignedServerKeyExchange function in libsecurity_ssl/lib/sslKeyExchange.c in the Secure Transport feature in the Data Security component in Apple iOS 6.x ............ does not check the signature in a TLS Server Key Exchange message, which allows man-in-the-middle attackers to spoof SSL servers by (1) using an arbitrary private key for the signing step or (2) omitting the signing step. • V640 The code's operational logic does not correspond with its formatting. The statement is indented to the right, but it is always executed. It is possible that curly brackets are missing. • V779 Unreachable code detected. It is possible that an error is present iOS project if ((err = SSLHashSHA1.update(&hashCtx, &serverRandom)) != 0) goto fail; if ((err = SSLHashSHA1.update(&hashCtx, &signedParams)) != 0) goto fail; goto fail; if ((err = SSLHashSHA1.final(&hashCtx, &hashOut)) != 0) goto fail;
• 18.
  Error Vulnerability The WayBig Bosses See the World • From the point of view of a programmer, errors are about the same as potential vulnerabilities. • Although non-programmers perceive them in a different way:
• 19.

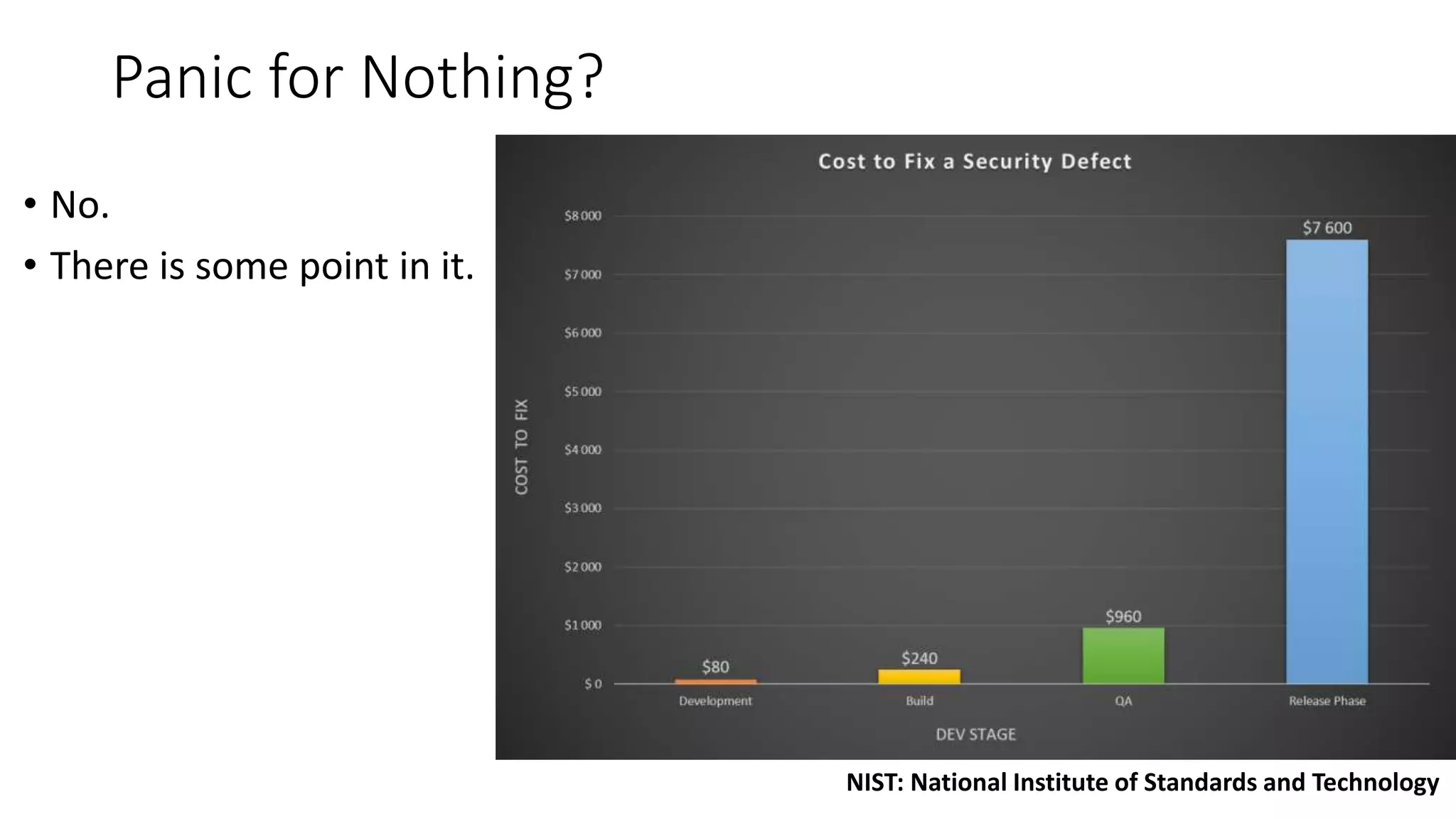

  Panic for Nothing? •No. • There is some point in it. NIST: National Institute of Standards and Technology
• 20.

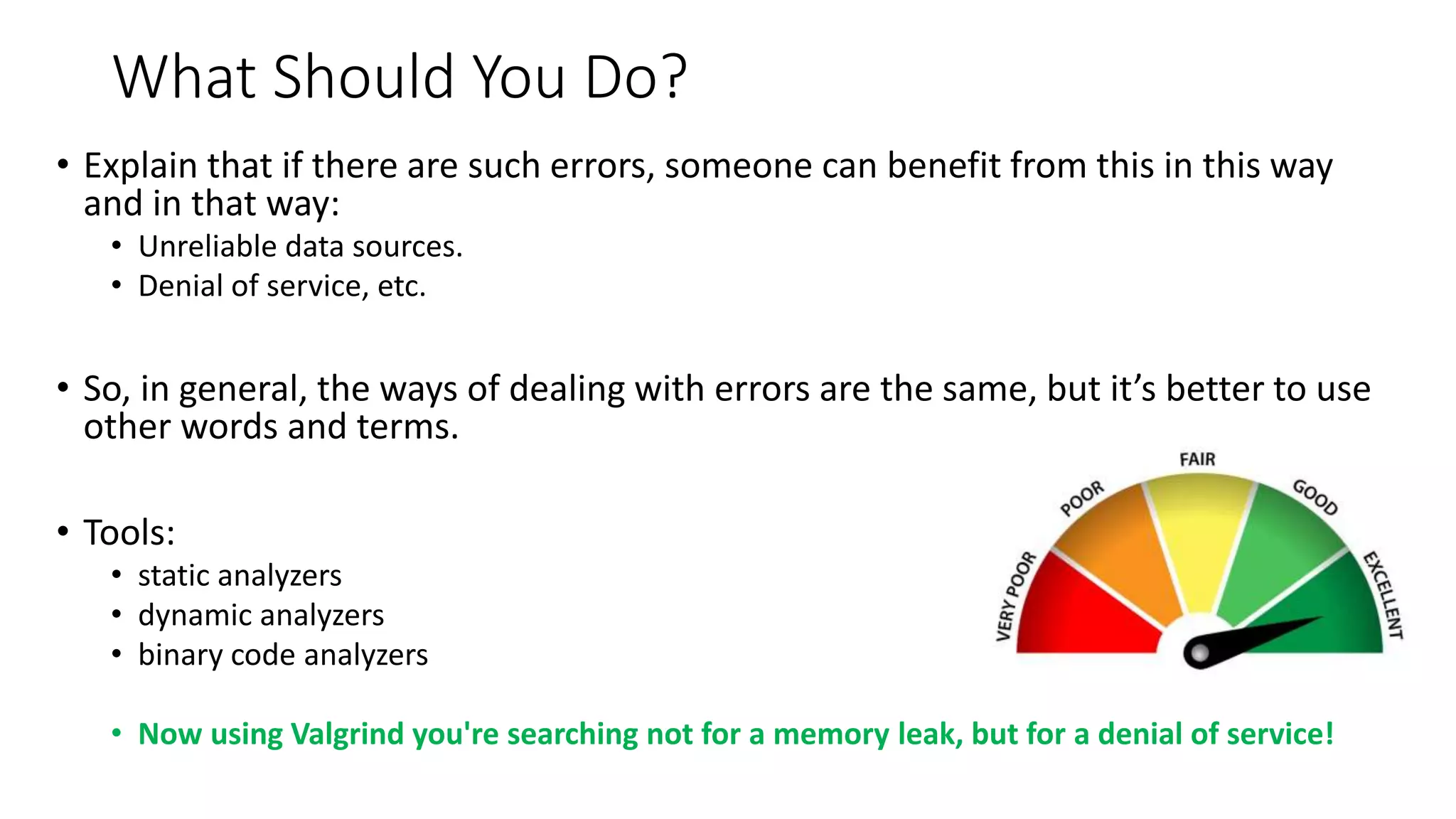

  What Should YouDo? • Explain that if there are such errors, someone can benefit from this in this way and in that way: • Unreliable data sources. • Denial of service, etc. • So, in general, the ways of dealing with errors are the same, but it’s better to use other words and terms. • Tools: • static analyzers • dynamic analyzers • binary code analyzers • Now using Valgrind you're searching not for a memory leak, but for a denial of service!
• 21.

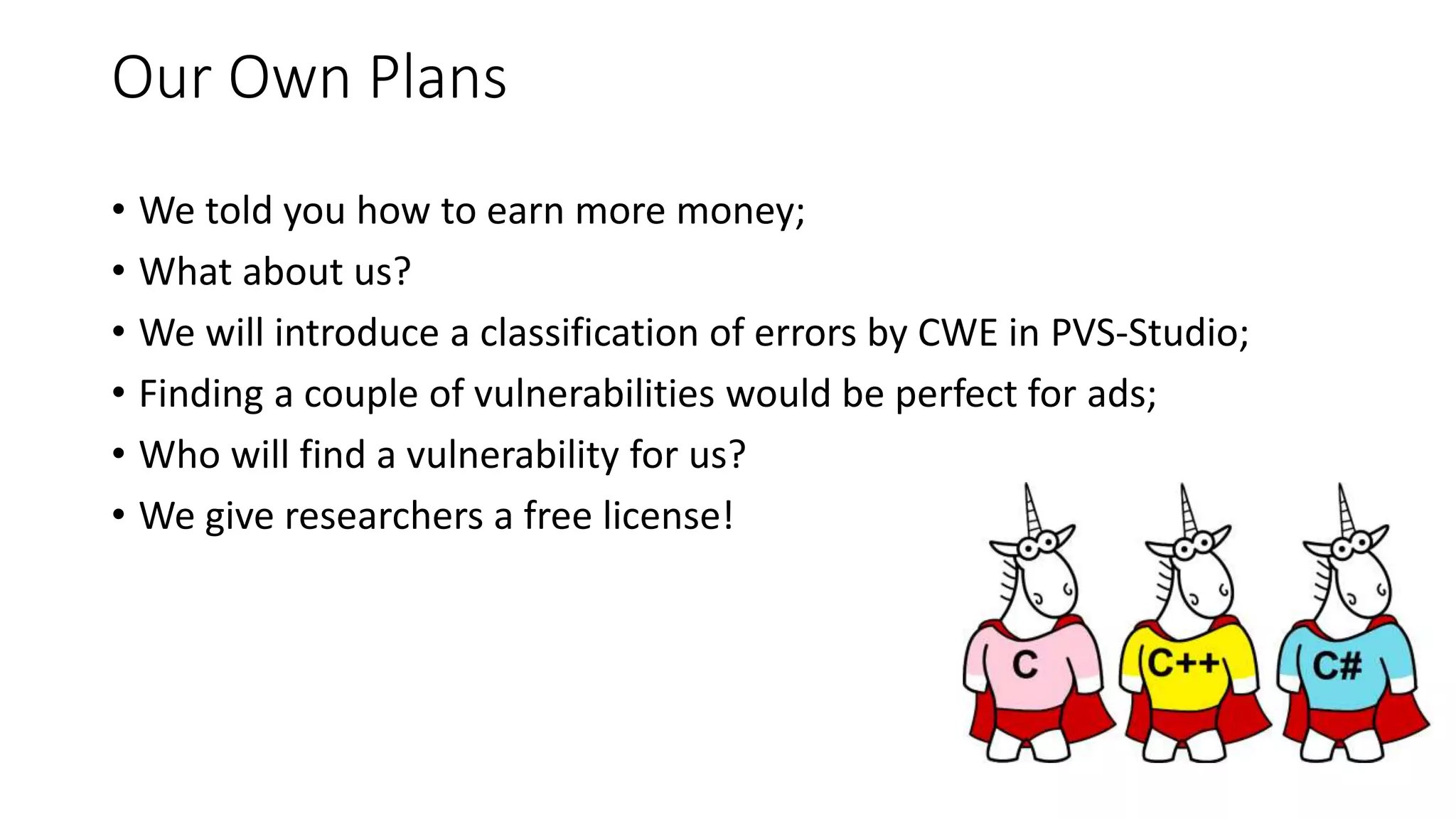

  Our Own Plans •We told you how to earn more money; • What about us? • We will introduce a classification of errors by CWE in PVS-Studio; • Finding a couple of vulnerabilities would be perfect for ads; • Who will find a vulnerability for us? • We give researchers a free license!
• 22.

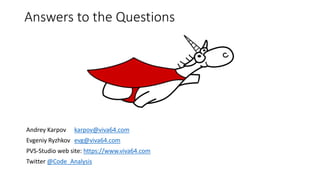

  Answers to theQuestions Andrey Karpov karpov@viva64.com Evgeniy Ryzhkov evg@viva64.com PVS-Studio web site: https://www.viva64.com Twitter @Code_Analysis
