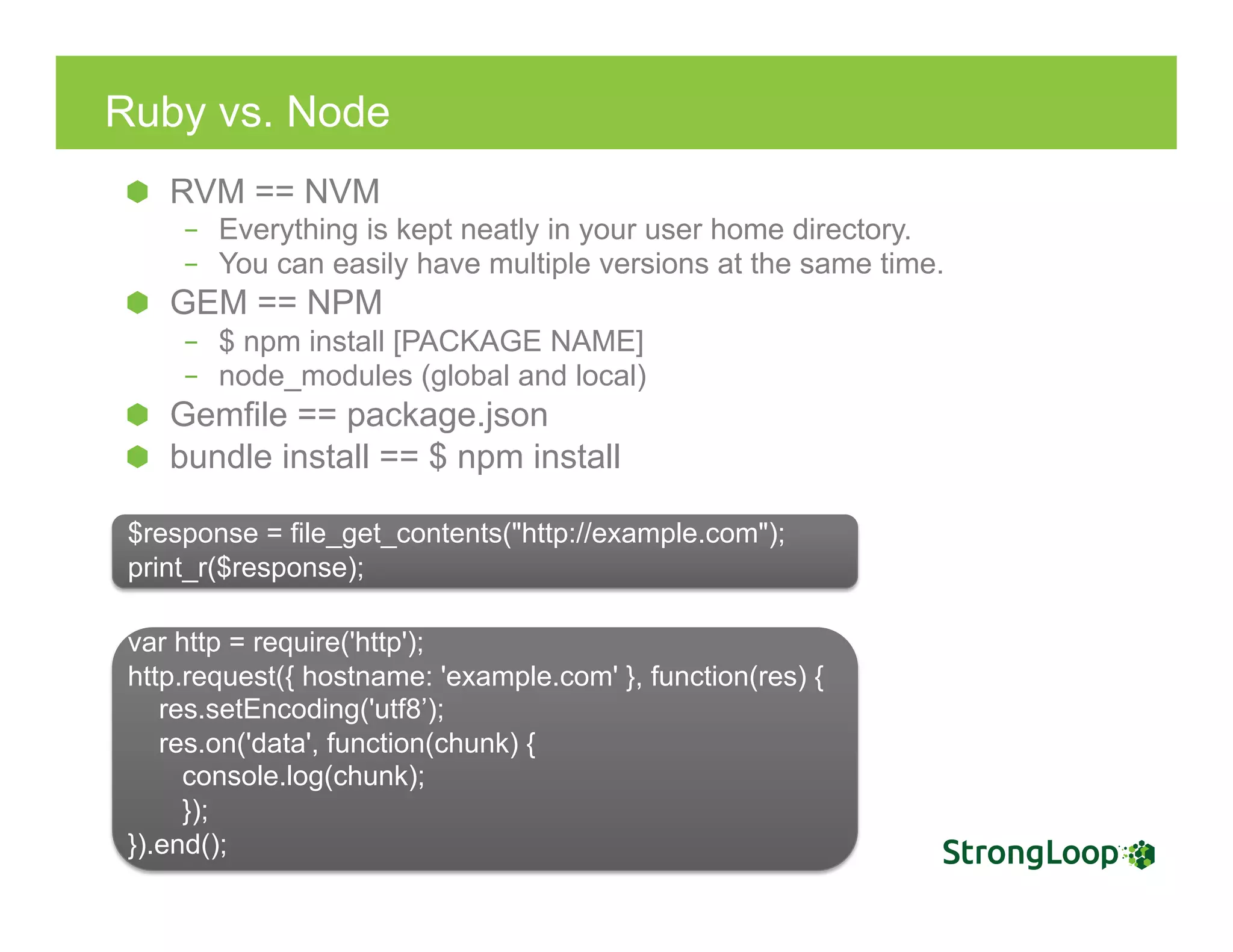

![Ruby vs. Node
RVM == NVM
– Everything is kept neatly in your user home directory.
– You can easily have multiple versions at the same time.
GEM == NPM
– $ npm install [PACKAGE NAME]
– node_modules (global and local)
Gemfile == package.json
bundle install == $ npm install
$response = file_get_contents("http://example.com");
print_r($response);
var http = require('http');
http.request({ hostname: 'example.com' }, function(res) {
res.setEncoding('utf8’);
res.on('data', function(chunk) {
console.log(chunk);
});
}).end();](https://image.slidesharecdn.com/seattlenodeworkshop-150521230913-lva1-app6892/85/Seattle-StrongLoop-Node-js-Workshop-11-320.jpg)
![Ruby vs. Node
RVM == NVM
– Everything is kept neatly in your user home directory.
– You can easily have multiple versions at the same time.
GEM == NPM
– $ npm install [PACKAGE NAME]
– node_modules (global and local)
Gemfile == package.json
bundle install == $ npm install
$response = file_get_contents("http://example.com");
print_r($response);
var http = require('http');
http.request({ hostname: 'example.com' }, function(res) {
res.setEncoding('utf8’);
res.on('data', function(chunk) {
console.log(chunk);
});
}).end();](https://image.slidesharecdn.com/seattlenodeworkshop-150521230913-lva1-app6892/75/Seattle-StrongLoop-Node-js-Workshop-11-2048.jpg)
More Related Content
Similar to Seattle StrongLoop Node.js Workshop
Seattle StrongLoop Node.js Workshop
- 1. Shubhra Kar |Products & Education twitter:@shubhrakar {“Node.js”: “APIs @hyperscale”}
- 2. About me u J2EE andSOA architect u Performance architect u Node, mBaaS & APIs
- 3. These guys sentme ! Bert Belder Ben Noordhuis Node/io core Raymond Feng Ritchie Martori LoopBack & Express core Sam Roberts Miroslav Bajtos Ryan Graham
- 4.

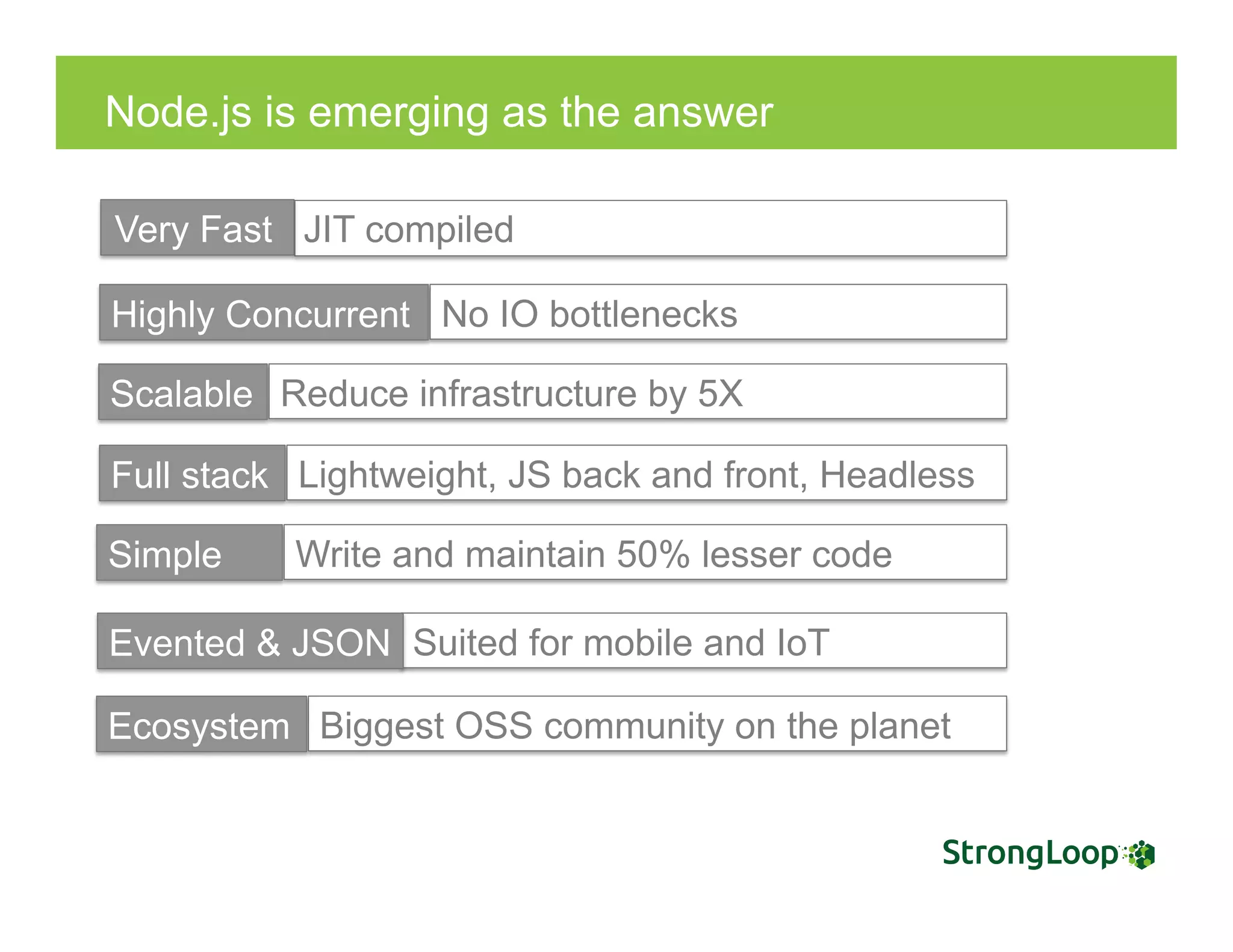

- 5. No IO bottlenecksHighlyConcurrent Very Fast JIT compiled Node.js is emerging as the answer Reduce infrastructure by 5XScalable Lightweight, JS back and front, HeadlessFull stack Write and maintain 50% lesser codeSimple Suited for mobile and IoTEvented & JSON Biggest OSS community on the planetEcosystem
- 6.

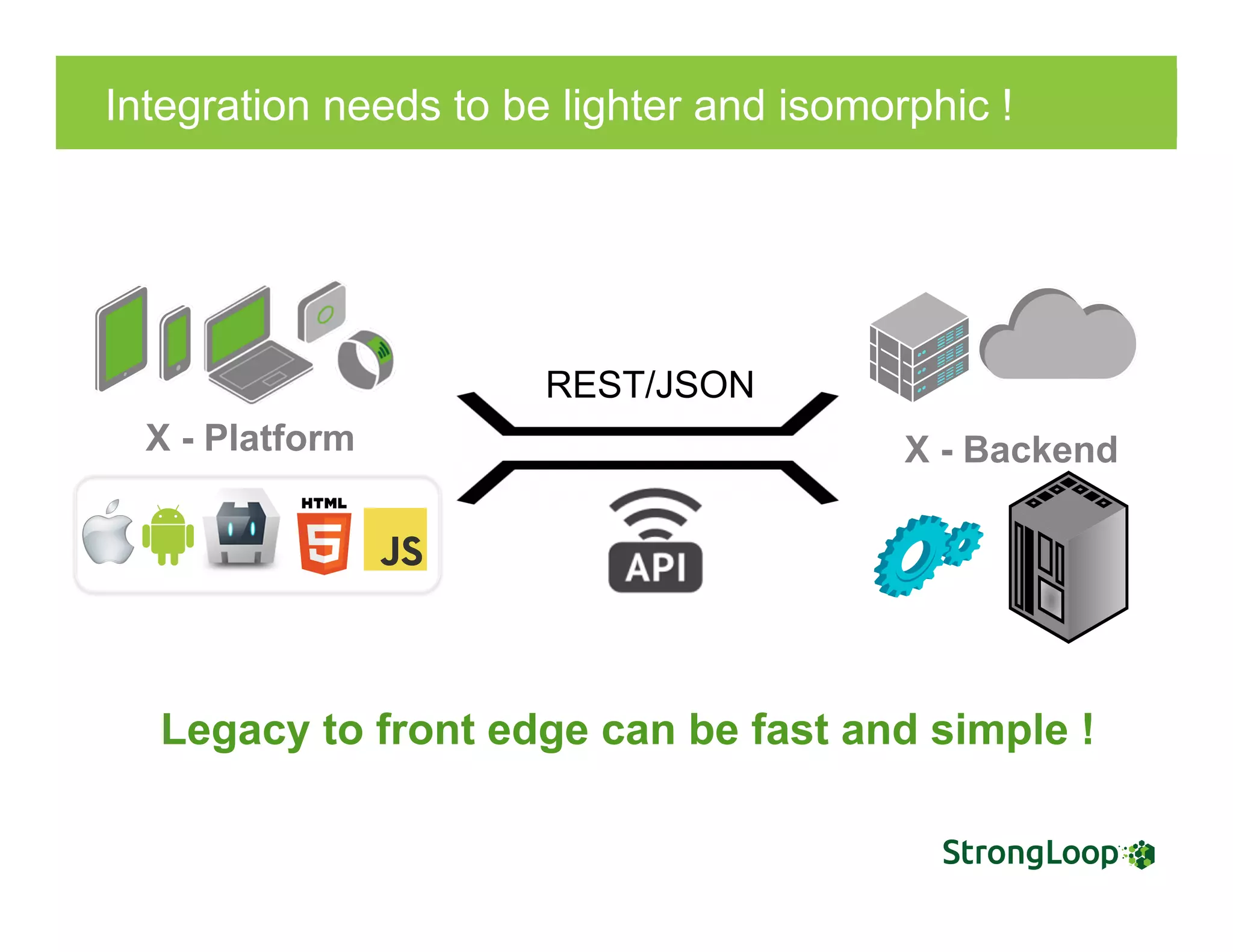

- 7. Integration needs tobe lighter and isomorphic ! REST/JSON X - Platform Relational Database Clustered Database Security Gateway Cloud Laptop ( not requested but useful) Connections Tablet Phone IoT SDK API SE Quick Example o App Server Relational Database Clustered Database Security Gateway Cloud Firewall SOA Bus ( not sure on this one) Laptop ( not requested but useful) Connections Tablet Phone IoT SDK API SERVER Items for ACL Quick Example of Use App Server Add On App Server X - Backend Legacy to front edge can be fast and simple !

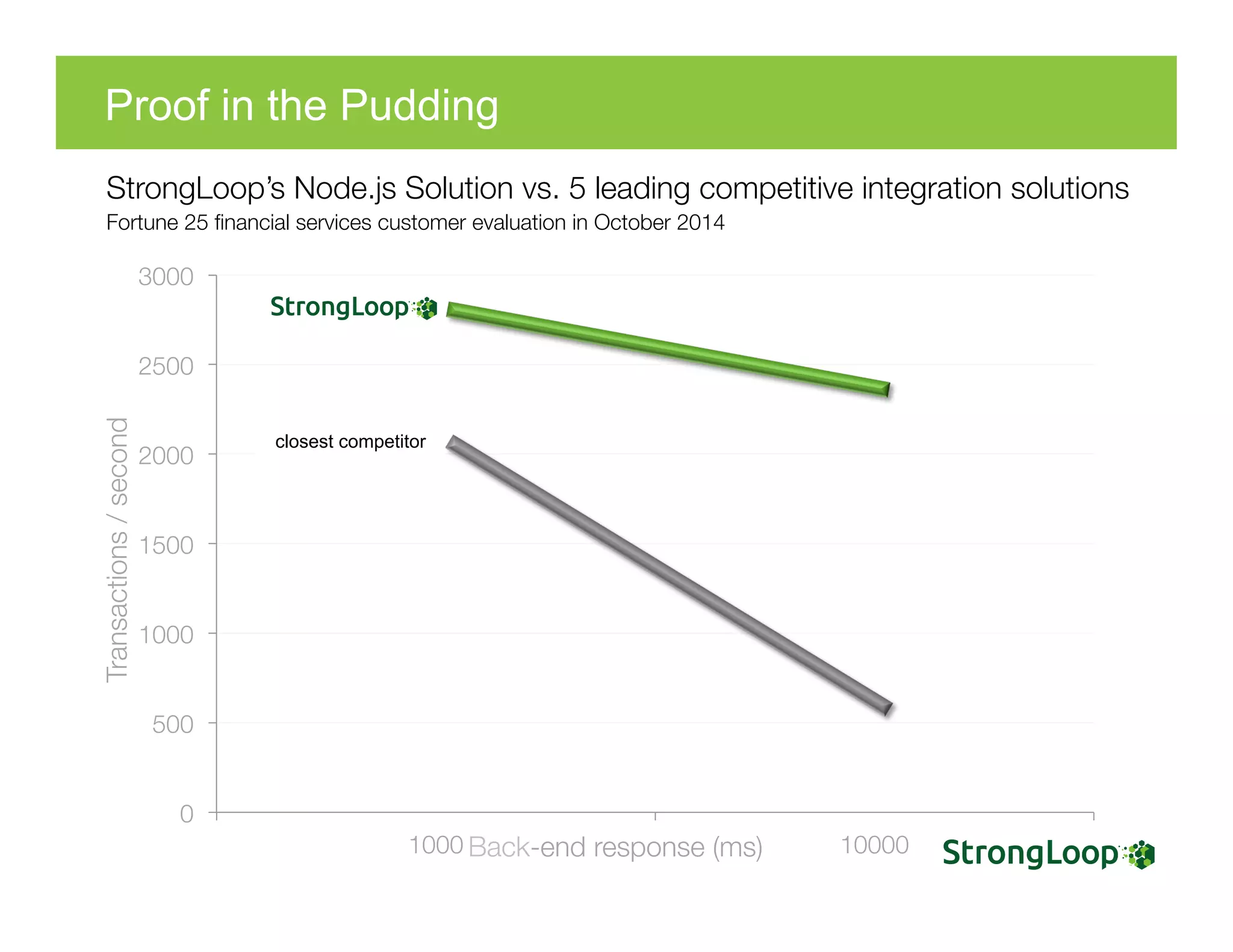

- 8. Proof in thePudding 0 500 1000 1500 2000 2500 3000 1000 10000 Transactions/second Back-end response (ms) StrongLoop’s Node.js Solution vs. 5 leading competitive integration solutions Fortune 25 financial services customer evaluation in October 2014 " leading competitor closest competitor
- 9. Nodies are notjust Silicon Valley hipsters !
- 10.
- 11. Ruby vs. Node RVM == NVM – Everything is kept neatly in your user home directory. – You can easily have multiple versions at the same time. GEM == NPM – $ npm install [PACKAGE NAME] – node_modules (global and local) Gemfile == package.json bundle install == $ npm install $response = file_get_contents("http://example.com"); print_r($response); var http = require('http'); http.request({ hostname: 'example.com' }, function(res) { res.setEncoding('utf8’); res.on('data', function(chunk) { console.log(chunk); }); }).end();

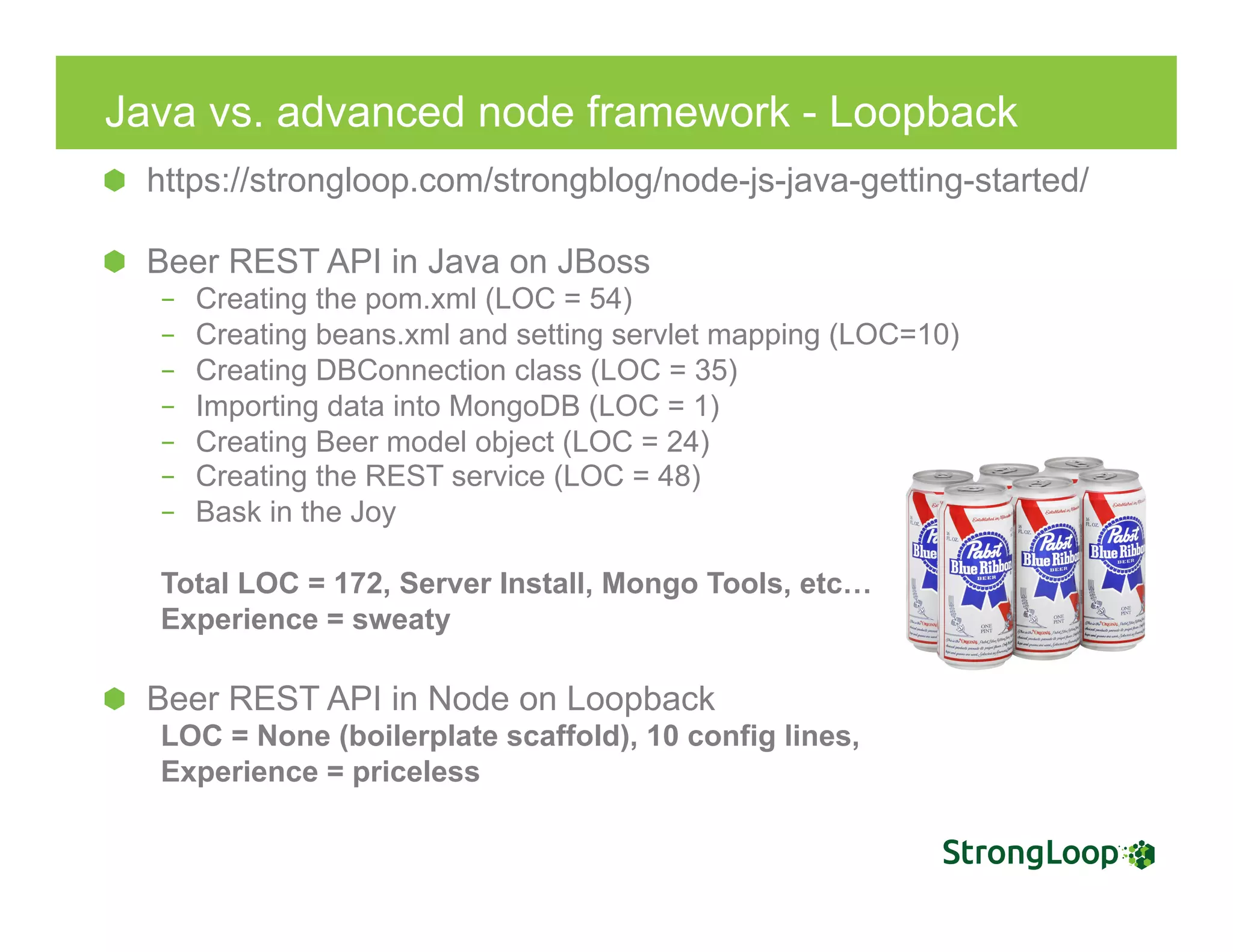

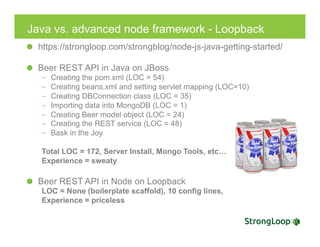

- 12. Java vs. advancednode framework - Loopback https://strongloop.com/strongblog/node-js-java-getting-started/ Beer REST API in Java on JBoss – Creating the pom.xml (LOC = 54) – Creating beans.xml and setting servlet mapping (LOC=10) – Creating DBConnection class (LOC = 35) – Importing data into MongoDB (LOC = 1) – Creating Beer model object (LOC = 24) – Creating the REST service (LOC = 48) – Bask in the Joy Total LOC = 172, Server Install, Mongo Tools, etc… Experience = sweaty Beer REST API in Node on Loopback LOC = None (boilerplate scaffold), 10 config lines, Experience = priceless

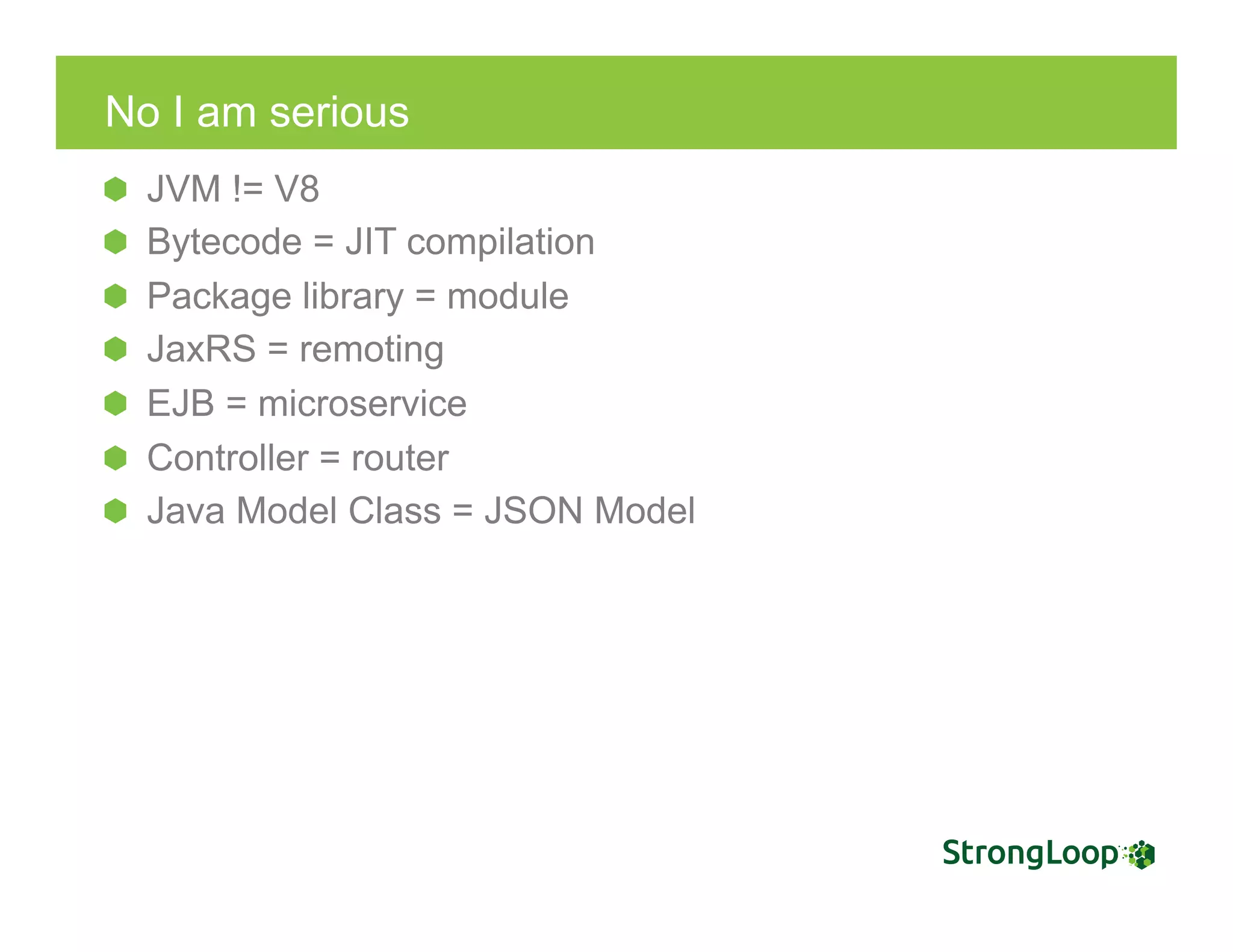

- 13. No I amserious JVM != V8 Bytecode = JIT compilation Package library = module JaxRS = remoting EJB = microservice Controller = router Java Model Class = JSON Model
- 14.
- 15. Evolution is inevitable! Thick Web SaaS Mobile IoT

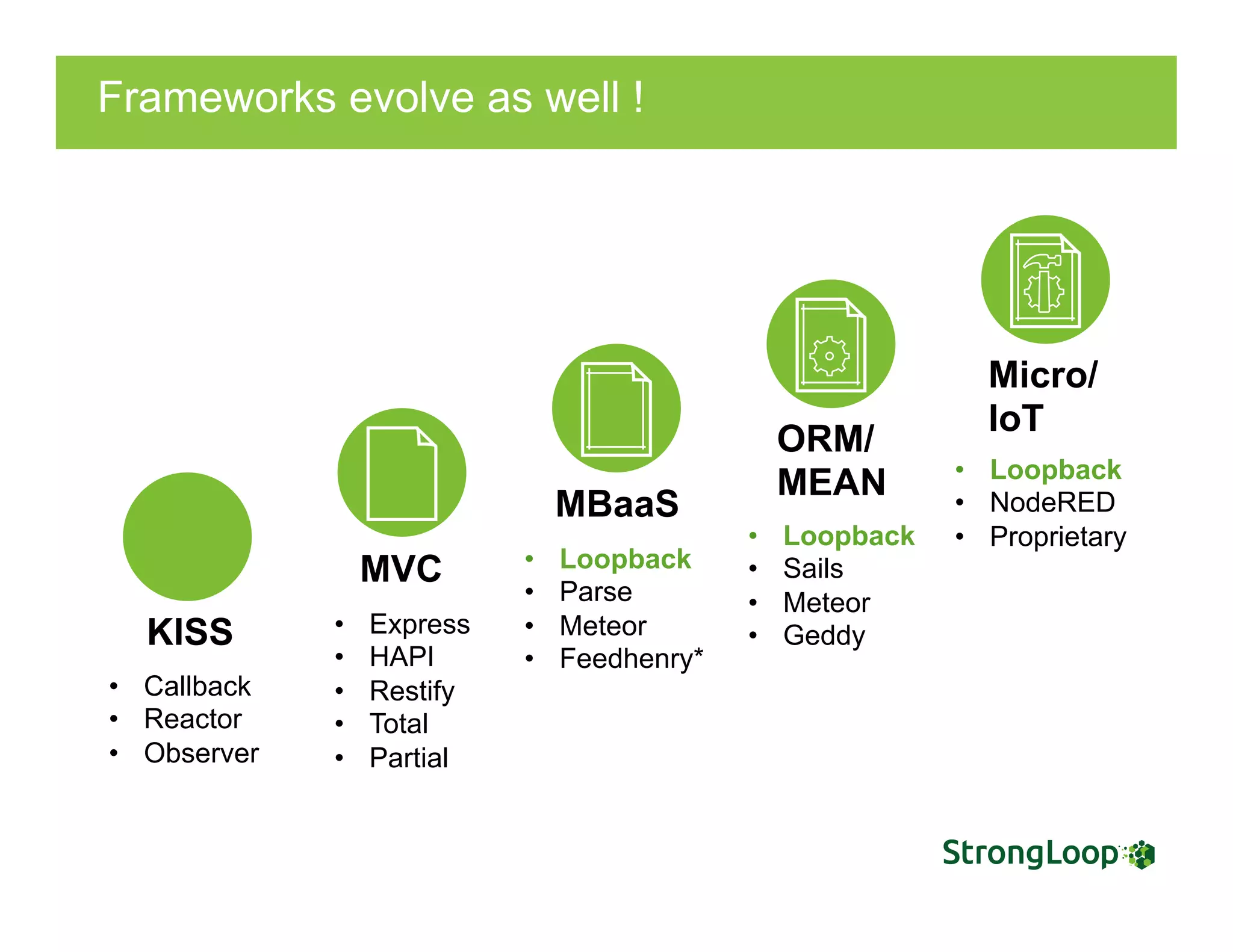

- 16. Frameworks evolve aswell ! • Callback • Reactor • Observer • Express • HAPI • Restify • Total • Partial • Loopback • Parse • Meteor • Feedhenry* • Loopback • Sails • Meteor • Geddy • Loopback • NodeRED • Proprietary KISS MVC MBaaS ORM/ MEAN Micro/ loT

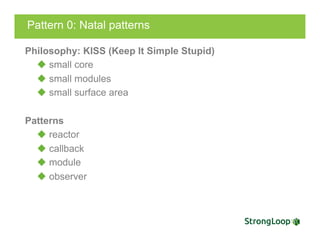

- 17. Pattern 0: Natalpatterns Philosophy: KISS (Keep It Simple Stupid) u small core u small modules u small surface area Patterns u reactor u callback u module u observer

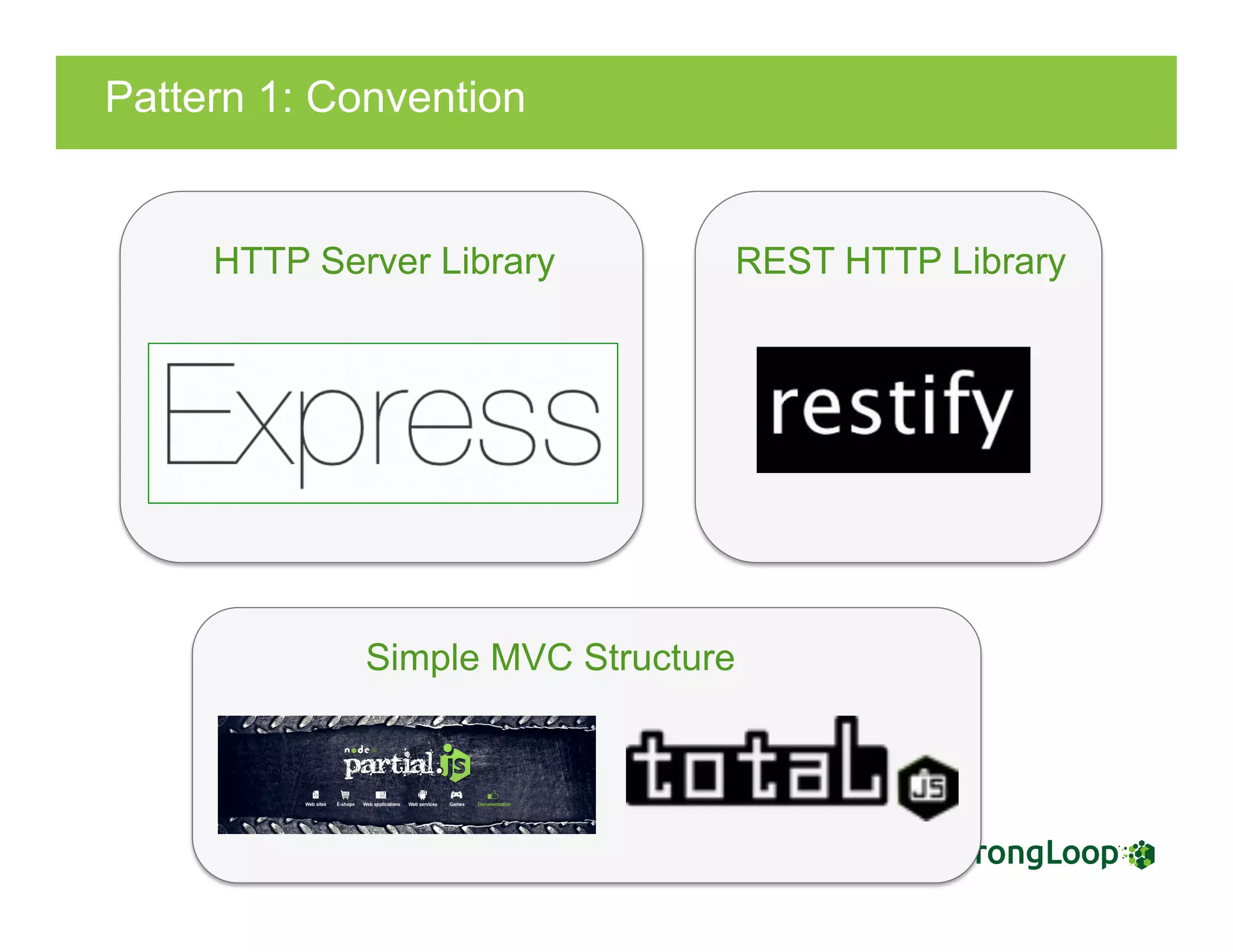

- 18. Pattern 1: Convention HTTPServer Library REST HTTP Library Simple MVC Structure

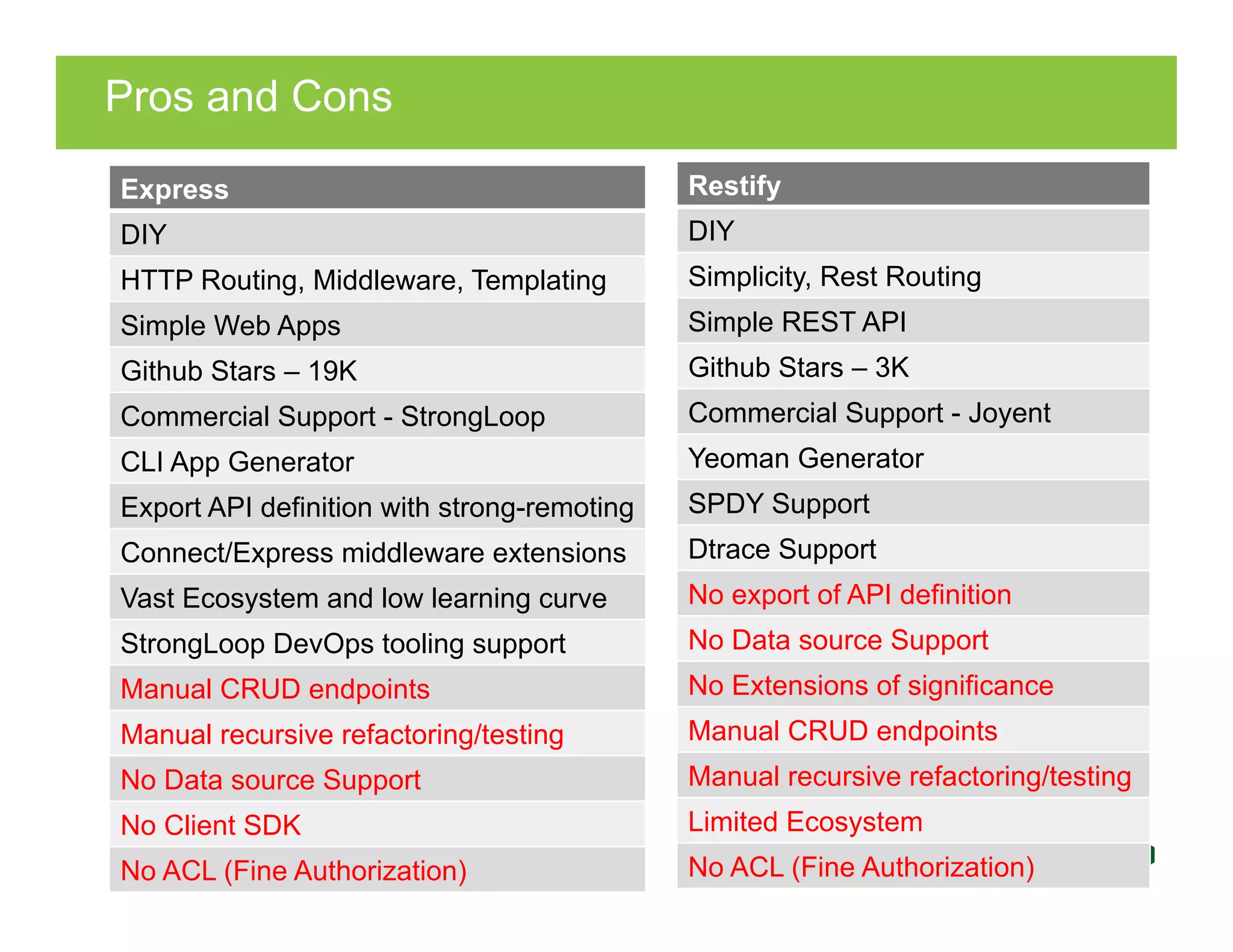

- 19. Pros and Cons Express DIY HTTPRouting, Middleware, Templating Simple Web Apps Github Stars – 19K Commercial Support - StrongLoop CLI App Generator Export API definition with strong-remoting Connect/Express middleware extensions Vast Ecosystem and low learning curve StrongLoop DevOps tooling support Manual CRUD endpoints Manual recursive refactoring/testing No Data source Support No Client SDK No ACL (Fine Authorization) Restify DIY Simplicity, Rest Routing Simple REST API Github Stars – 3K Commercial Support - Joyent Yeoman Generator SPDY Support Dtrace Support No export of API definition No Data source Support No Extensions of significance Manual CRUD endpoints Manual recursive refactoring/testing Limited Ecosystem No ACL (Fine Authorization)

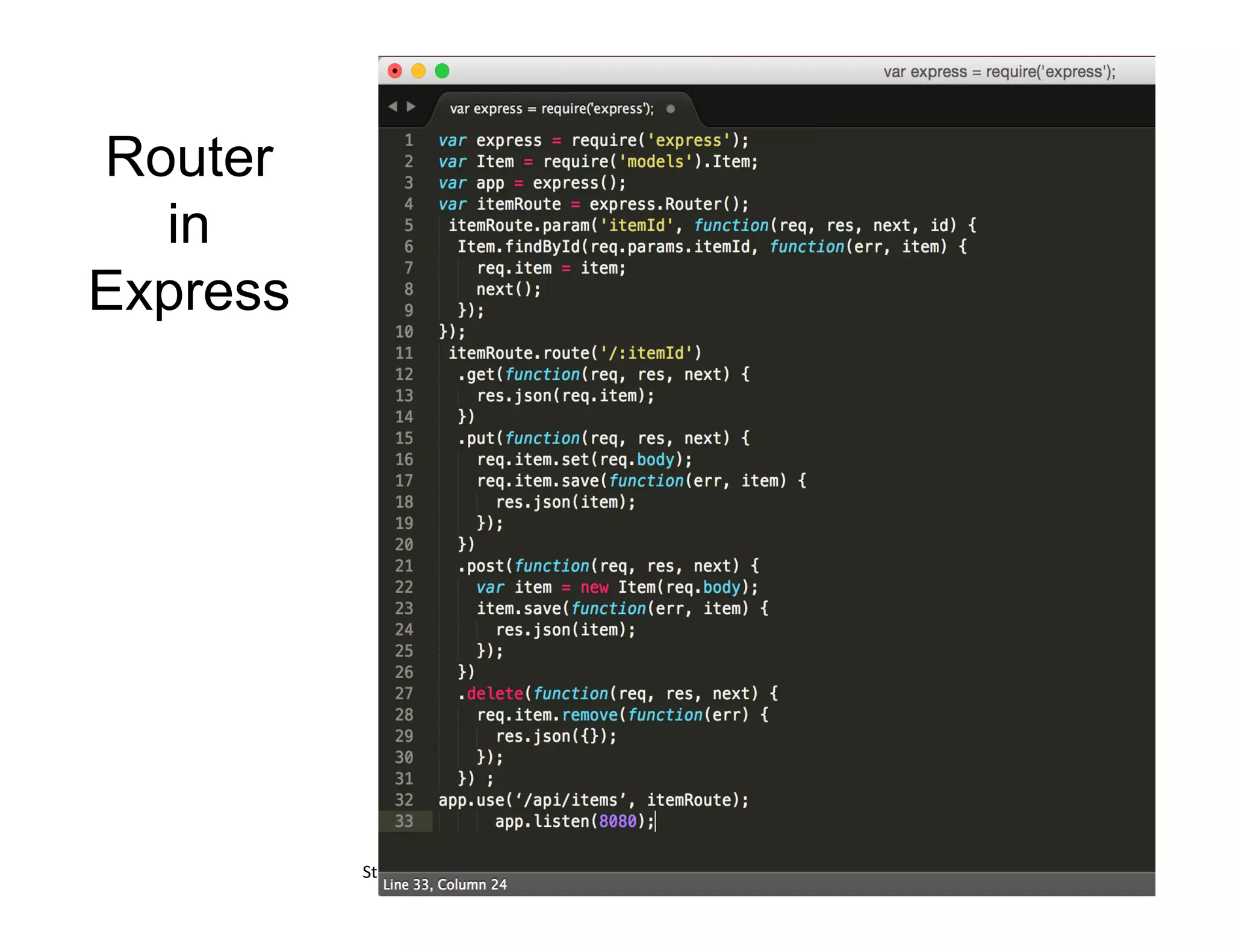

- 20. Router in Express StrongLoop Confiden.al and Proprietary Informa.on – © 2015

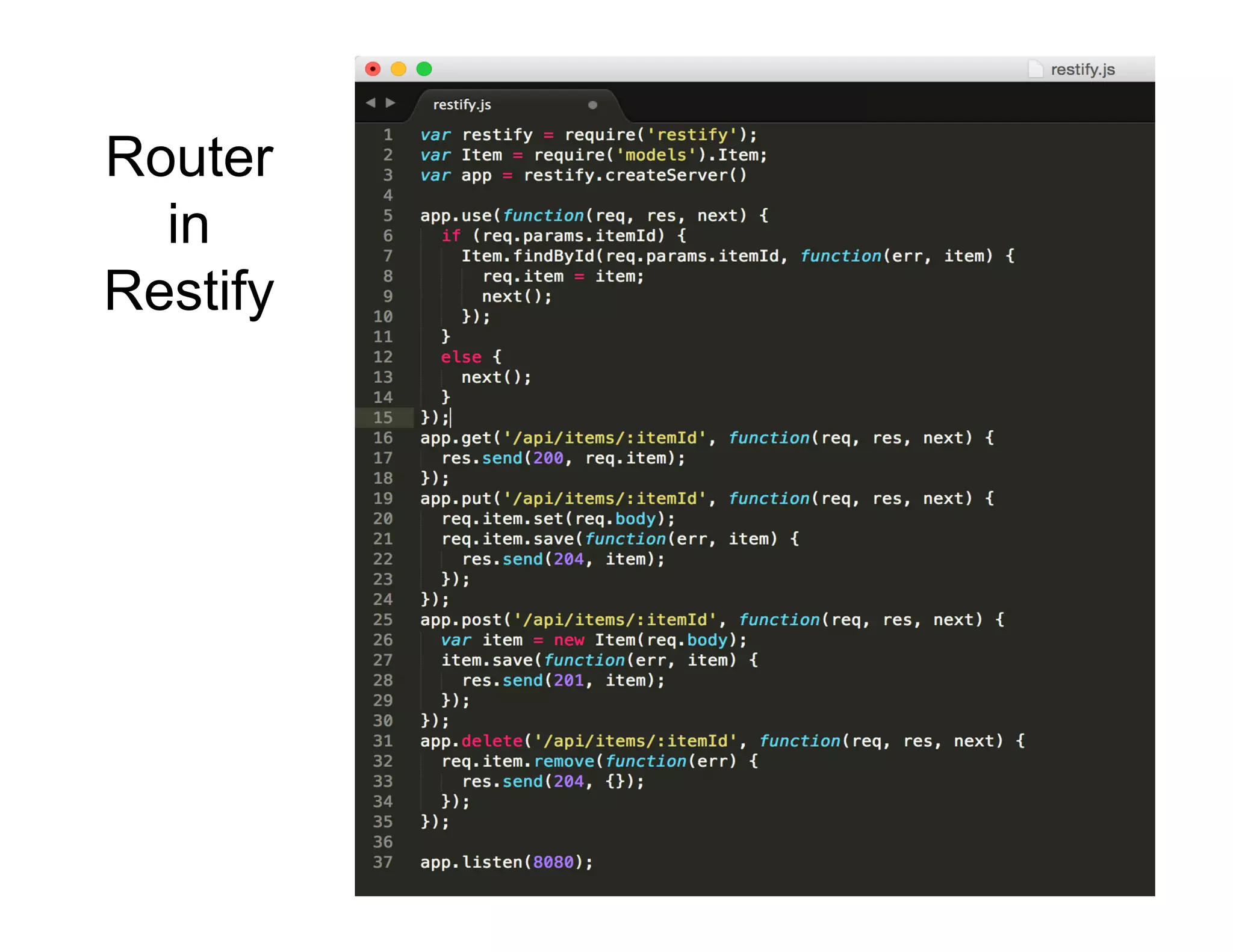

- 21. Router in Restify StrongLoop Confiden.al and Proprietary Informa.on – © 2015

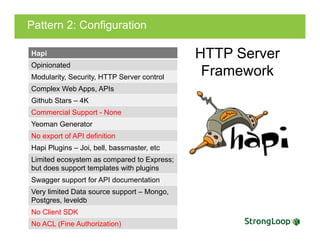

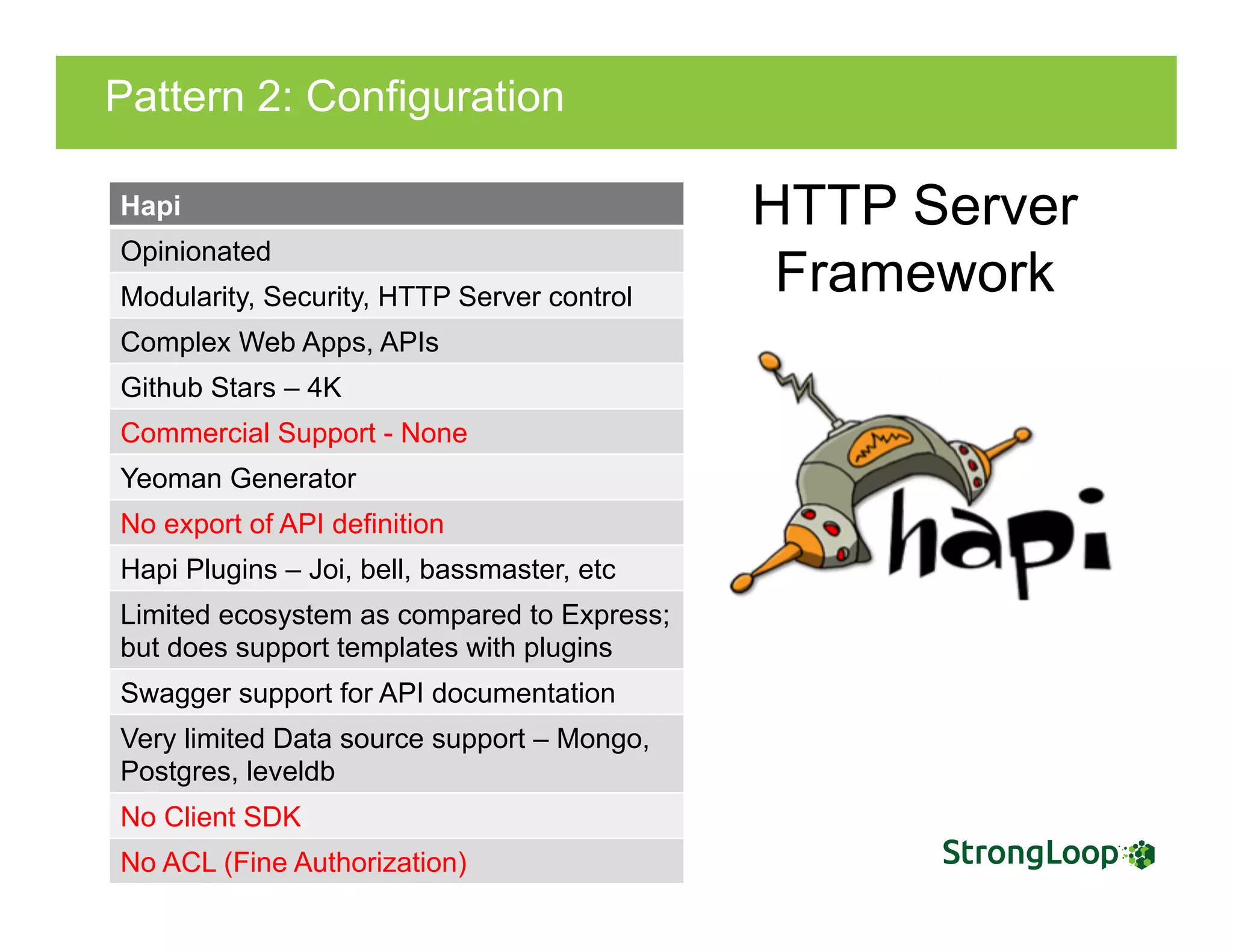

- 22. Pattern 2: Configuration HTTPServer Framework Hapi Opinionated Modularity, Security, HTTP Server control Complex Web Apps, APIs Github Stars – 4K Commercial Support - None Yeoman Generator No export of API definition Hapi Plugins – Joi, bell, bassmaster, etc Limited ecosystem as compared to Express; but does support templates with plugins Swagger support for API documentation Very limited Data source support – Mongo, Postgres, leveldb No Client SDK No ACL (Fine Authorization)

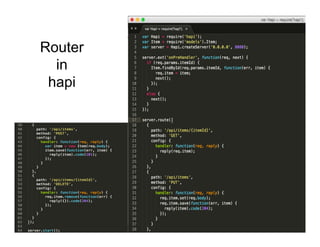

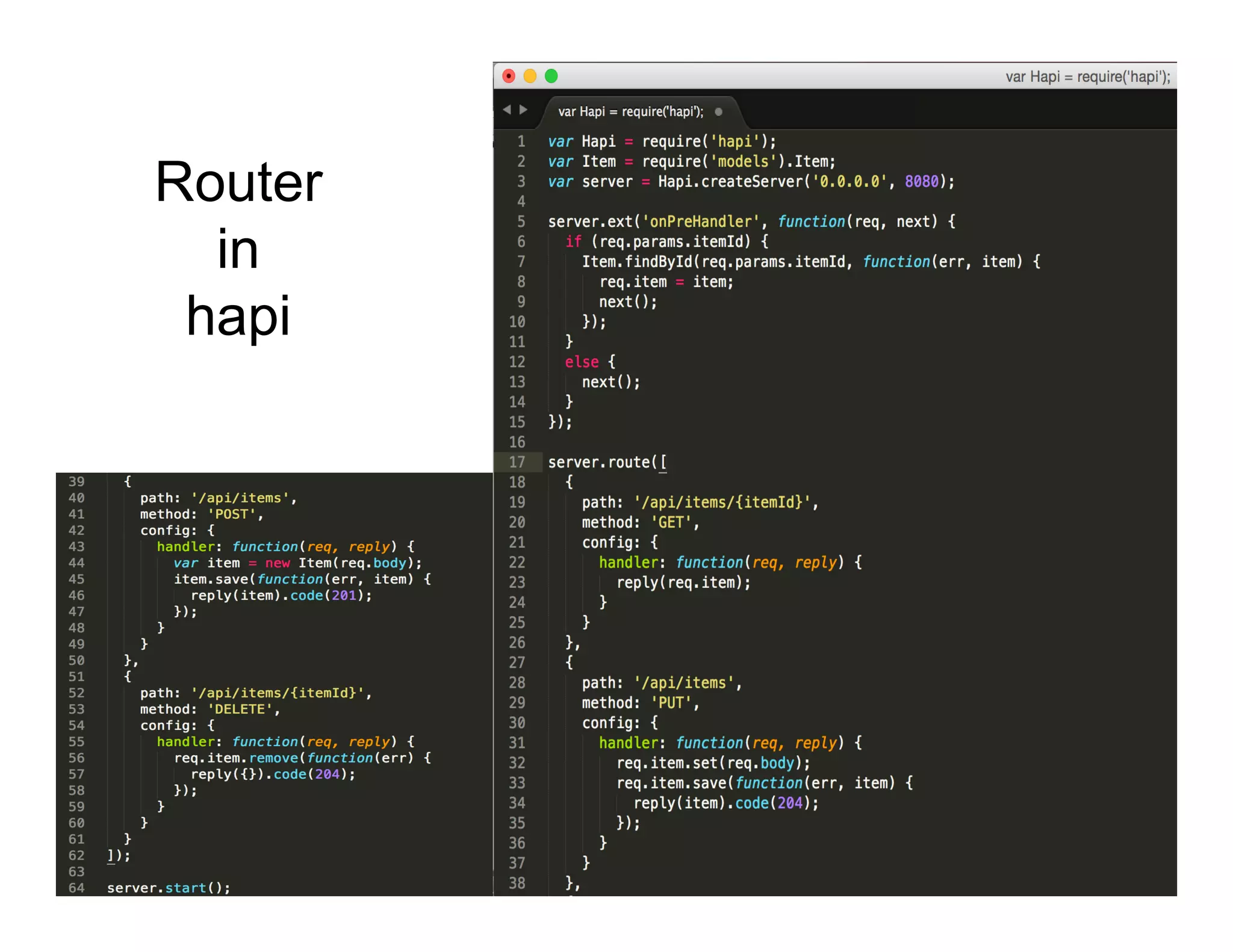

- 23. Router in hapi StrongLoop Confiden.al and Proprietary Informa.on – © 2015

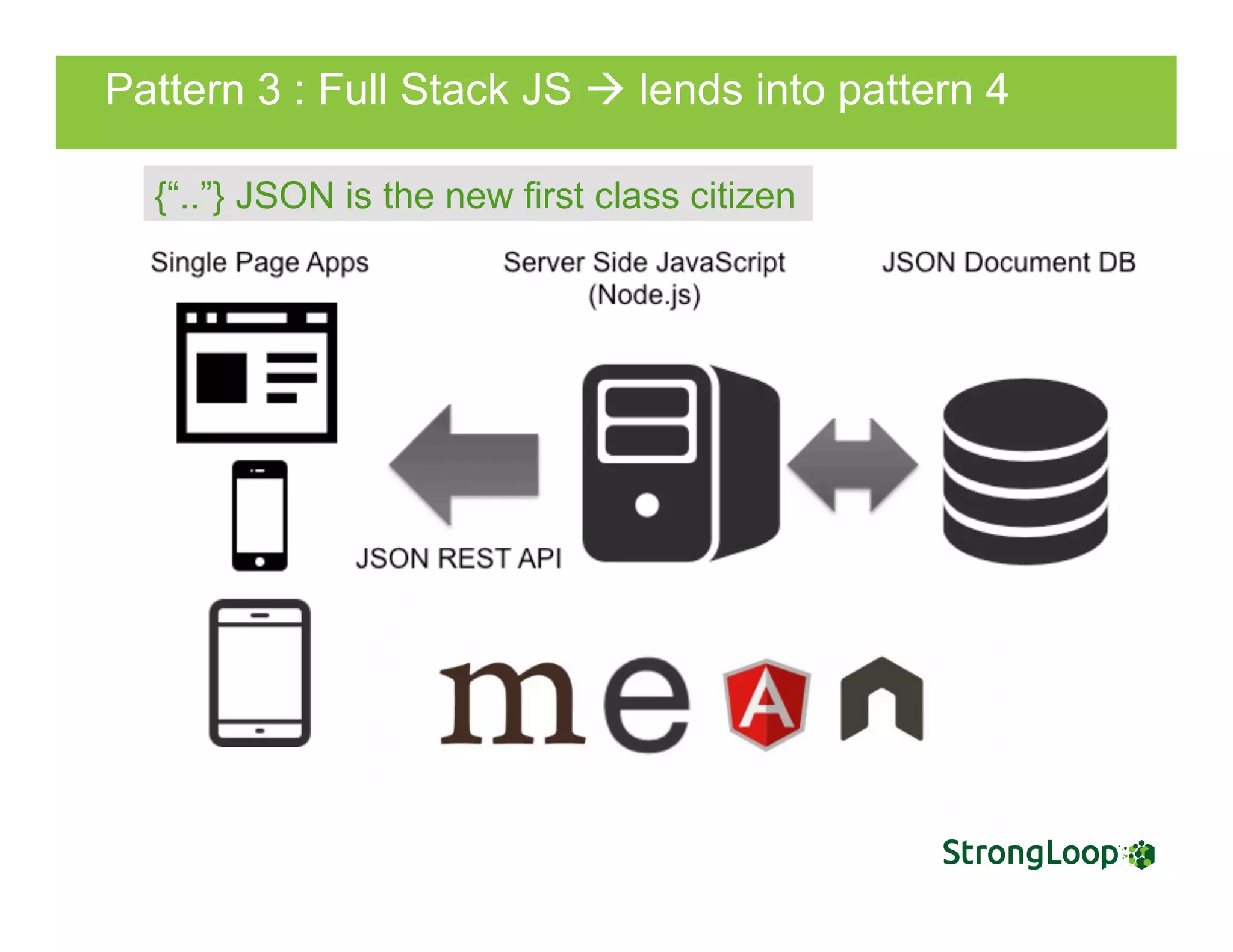

- 24. Pattern 3 :Full Stack JS à lends into pattern 4 {“..”} JSON is the new first class citizen

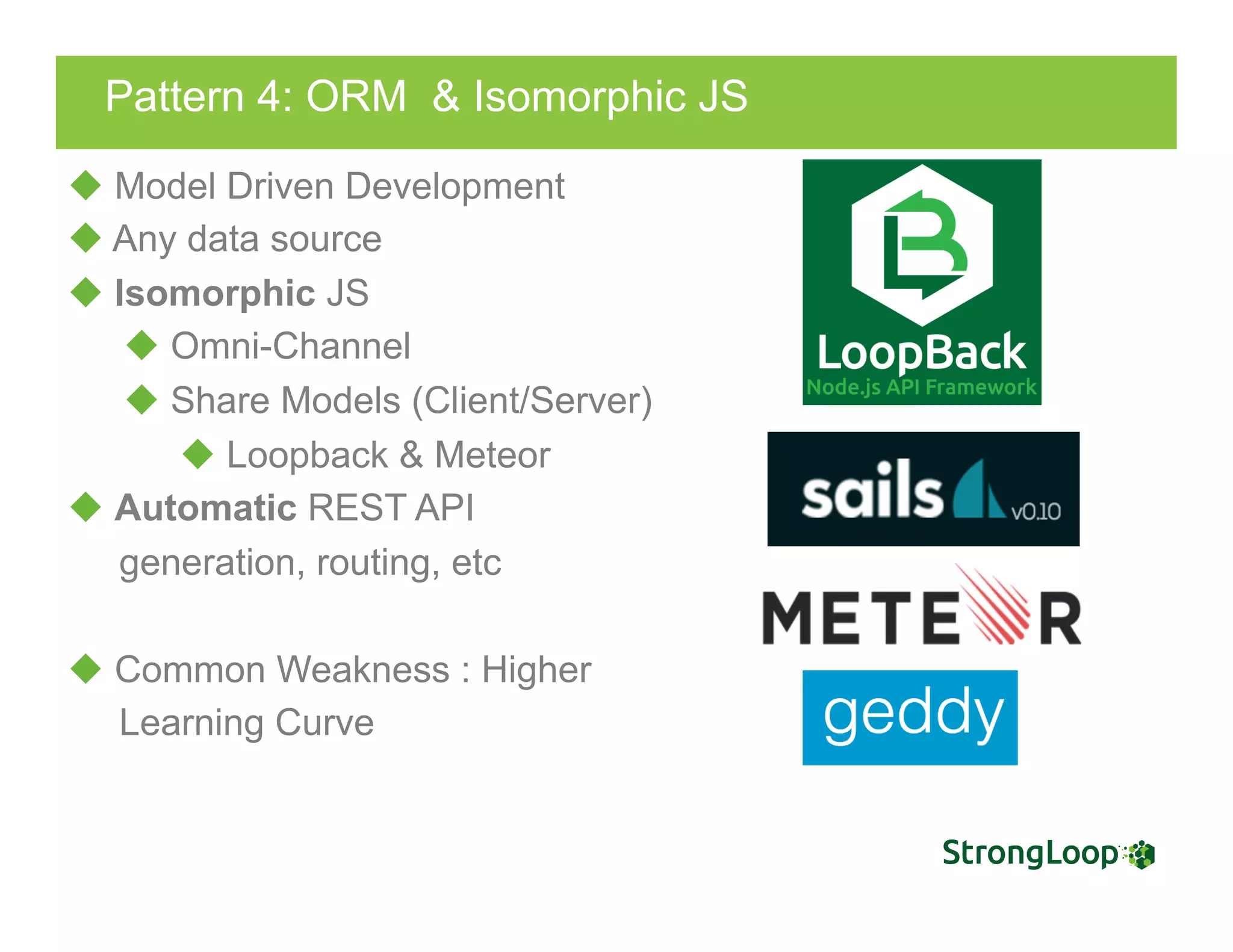

- 25. Pattern 4: ORM& Isomorphic JS u Model Driven Development u Any data source u Isomorphic JS u Omni-Channel u Share Models (Client/Server) u Loopback & Meteor u Automatic REST API generation, routing, etc u Common Weakness : Higher Learning Curve

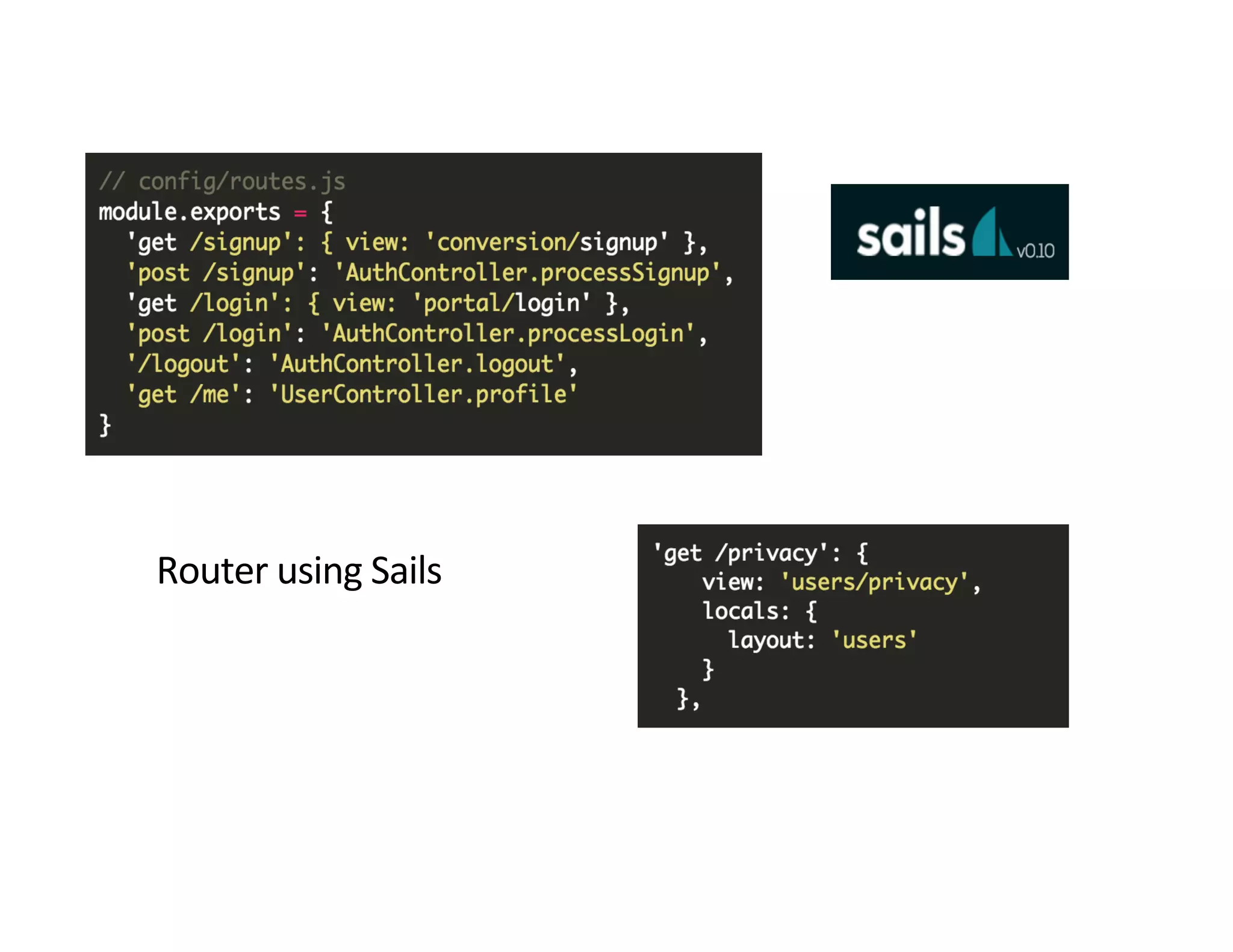

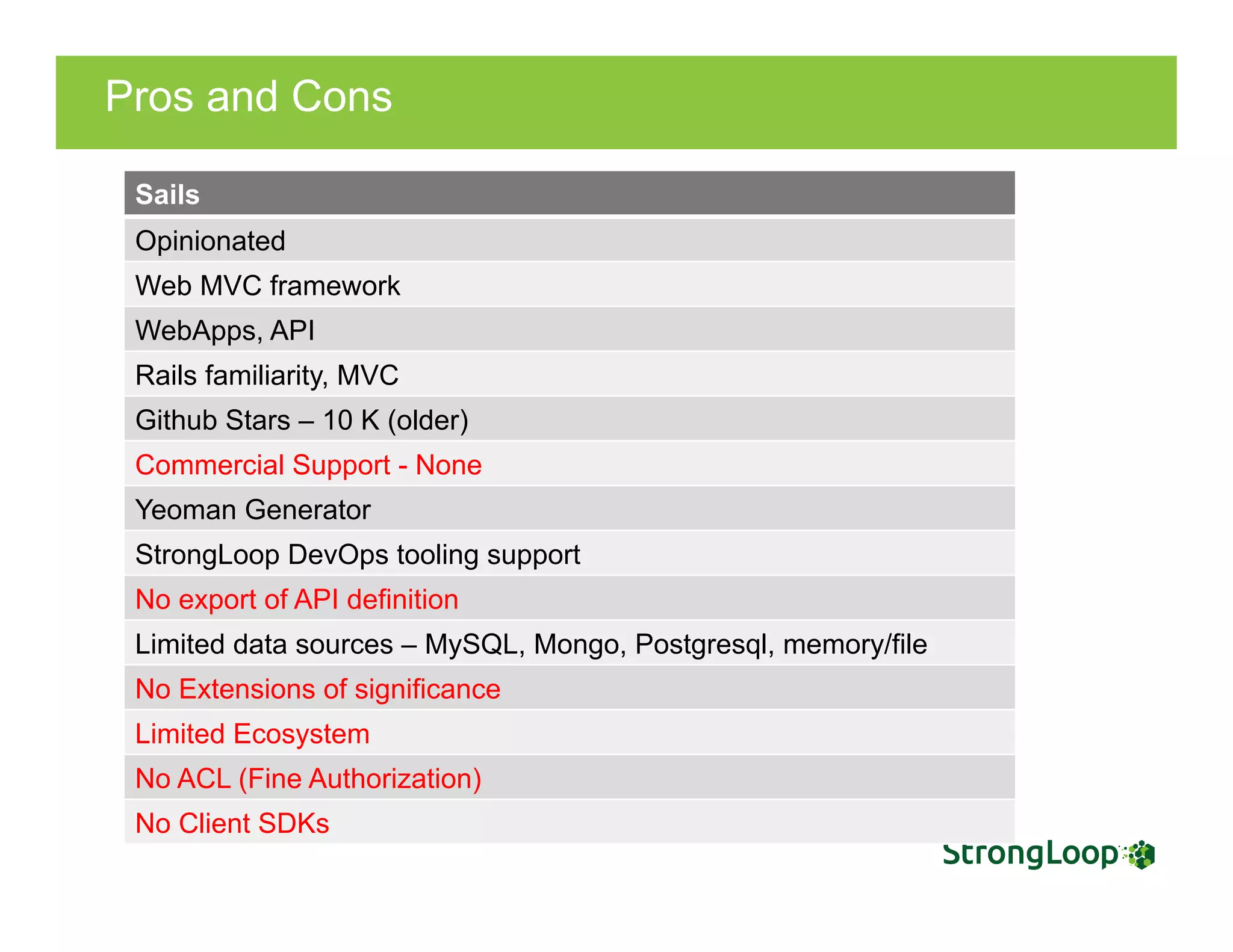

- 26. Sails Opinionated Web MVC framework WebApps,API Rails familiarity, MVC Github Stars – 10 K (older) Commercial Support - None Yeoman Generator StrongLoop DevOps tooling support No export of API definition Limited data sources – MySQL, Mongo, Postgresql, memory/file No Extensions of significance Limited Ecosystem No ACL (Fine Authorization) No Client SDKs Pros and Cons

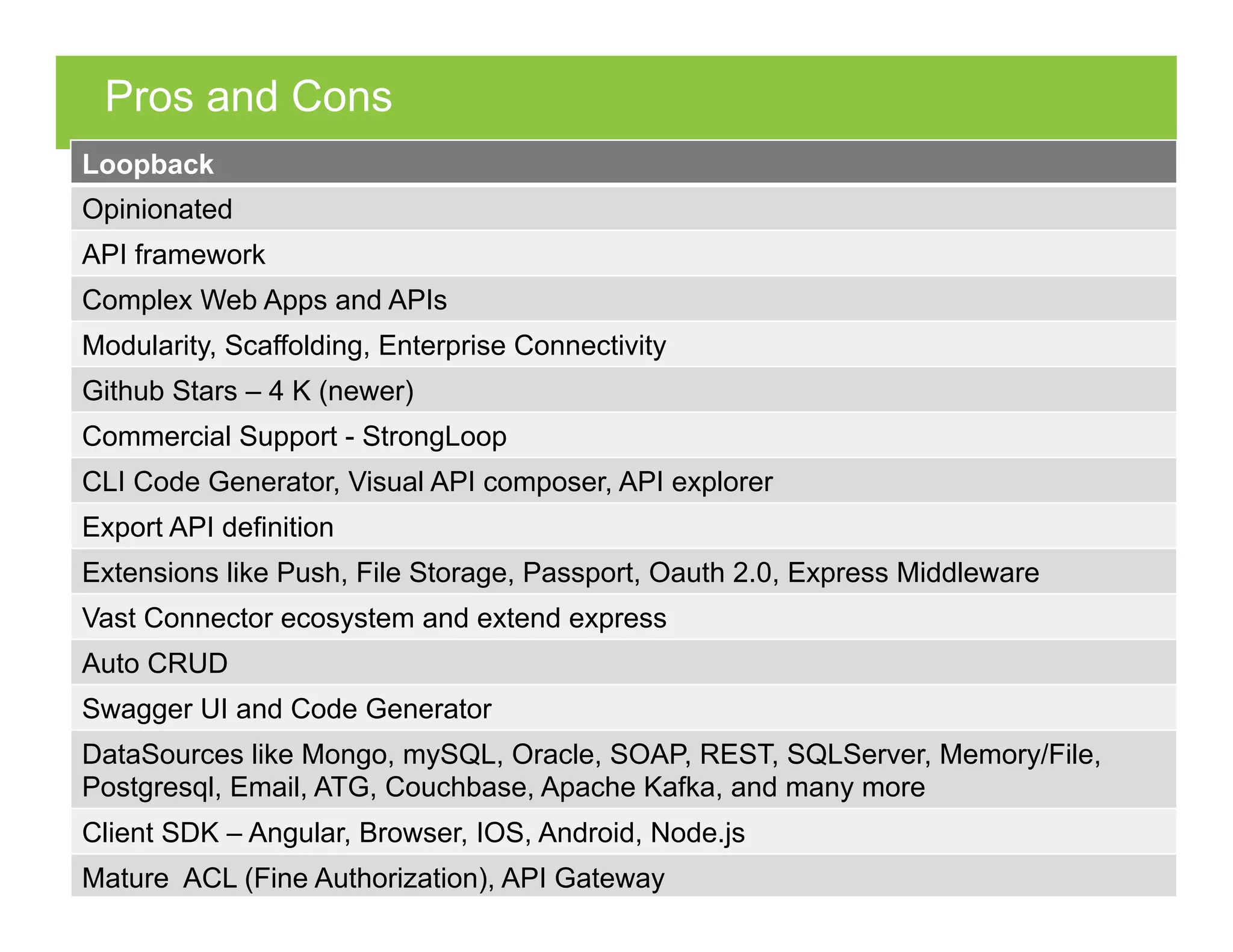

- 27. Loopback Opinionated API framework Complex WebApps and APIs Modularity, Scaffolding, Enterprise Connectivity Github Stars – 4 K (newer) Commercial Support - StrongLoop CLI Code Generator, Visual API composer, API explorer Export API definition Extensions like Push, File Storage, Passport, Oauth 2.0, Express Middleware Vast Connector ecosystem and extend express Auto CRUD Swagger UI and Code Generator DataSources like Mongo, mySQL, Oracle, SOAP, REST, SQLServer, Memory/File, Postgresql, Email, ATG, Couchbase, Apache Kafka, and many more Client SDK – Angular, Browser, IOS, Android, Node.js Mature ACL (Fine Authorization), API Gateway Pros and Cons

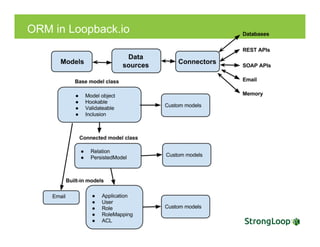

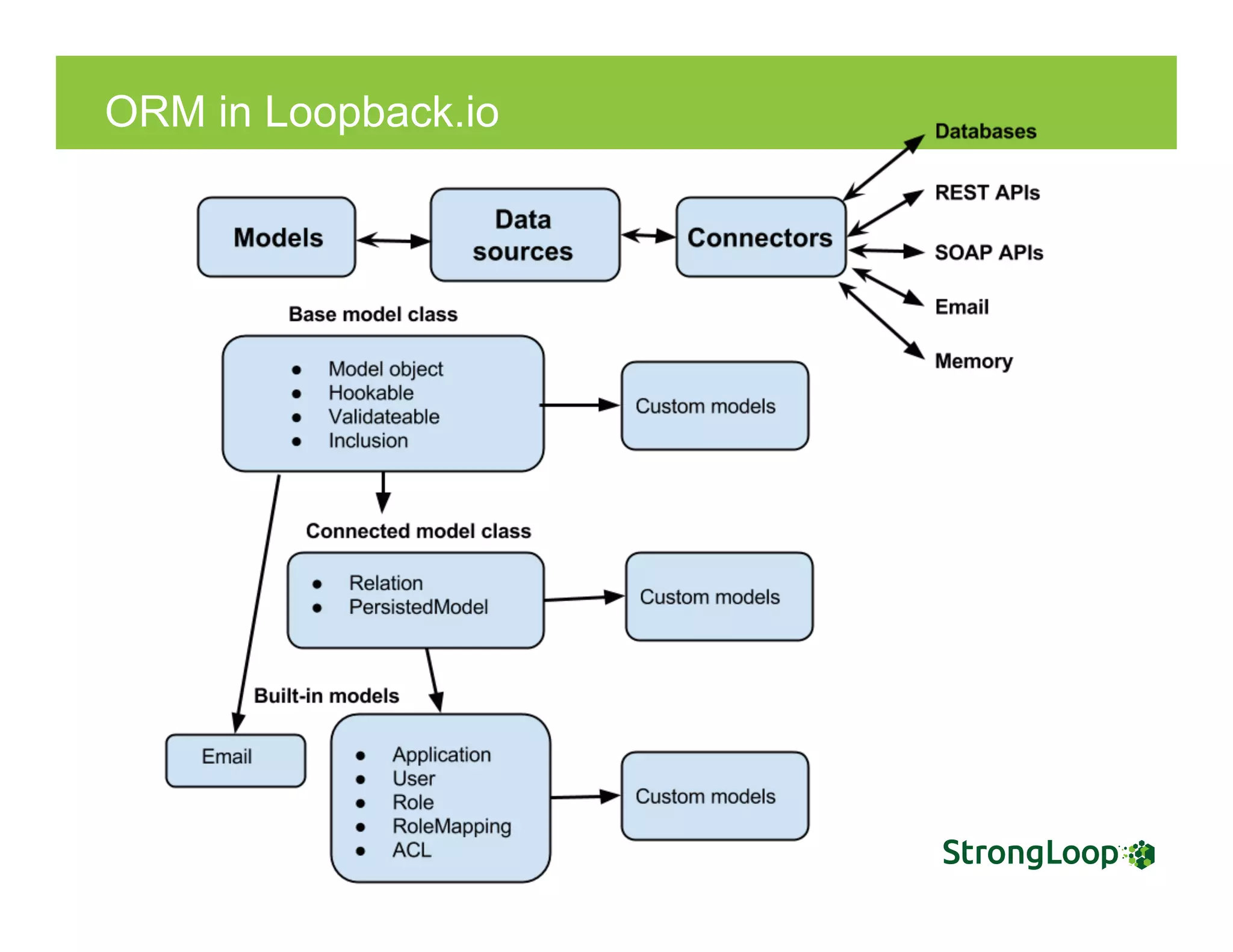

- 28.

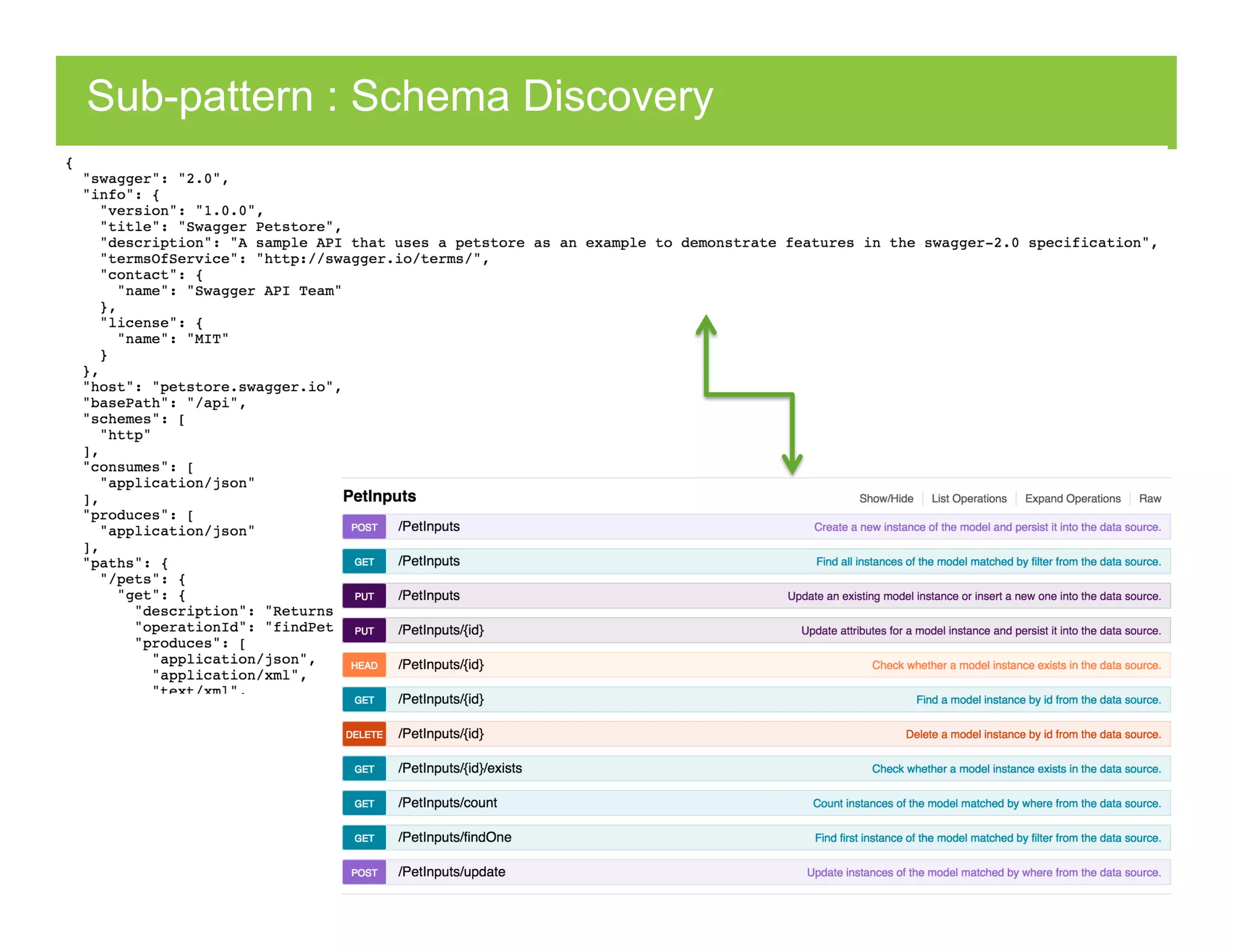

- 29. Sub-pattern : SchemaDiscovery

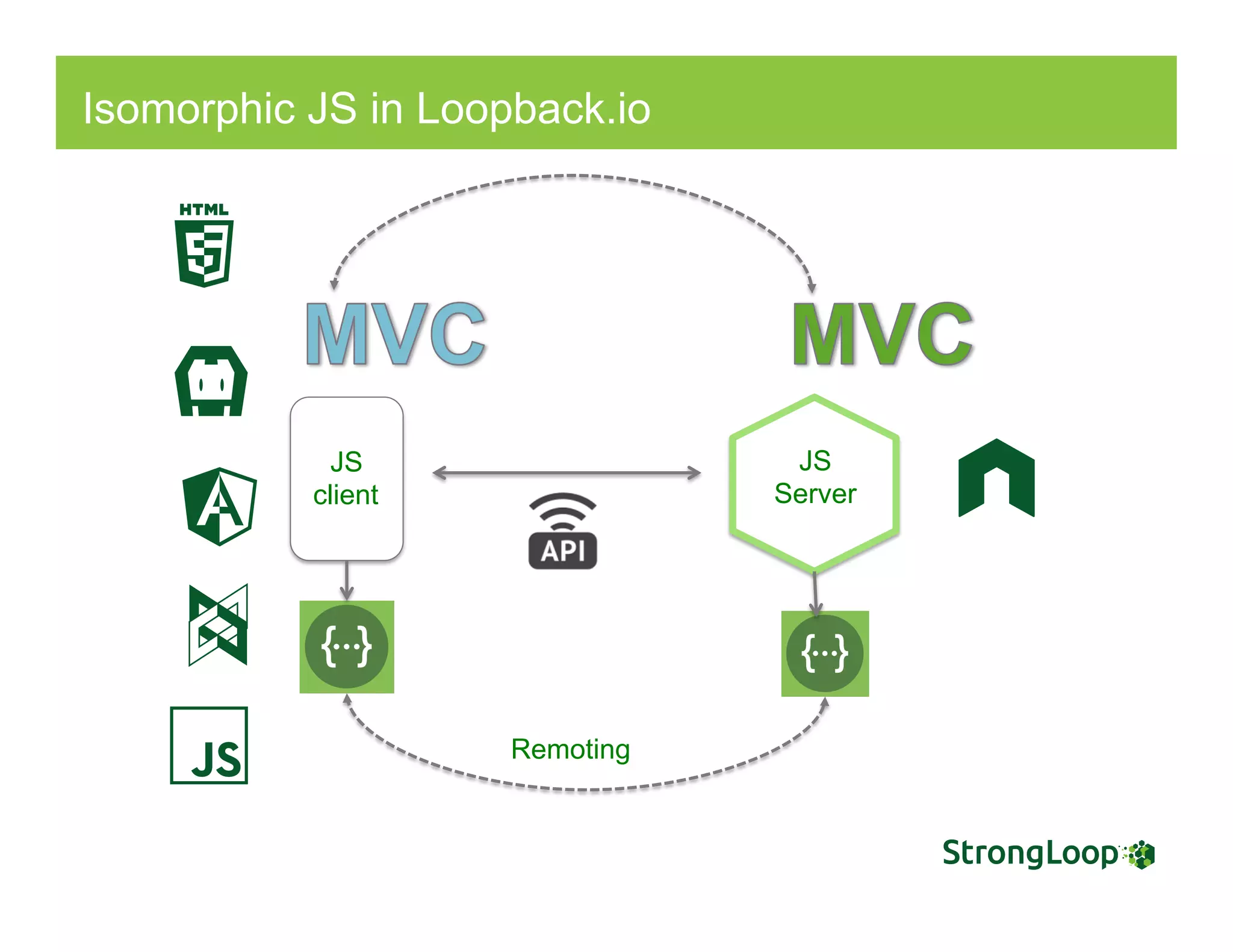

- 30. Isomorphic JS inLoopback.io JS client JS Server Remoting

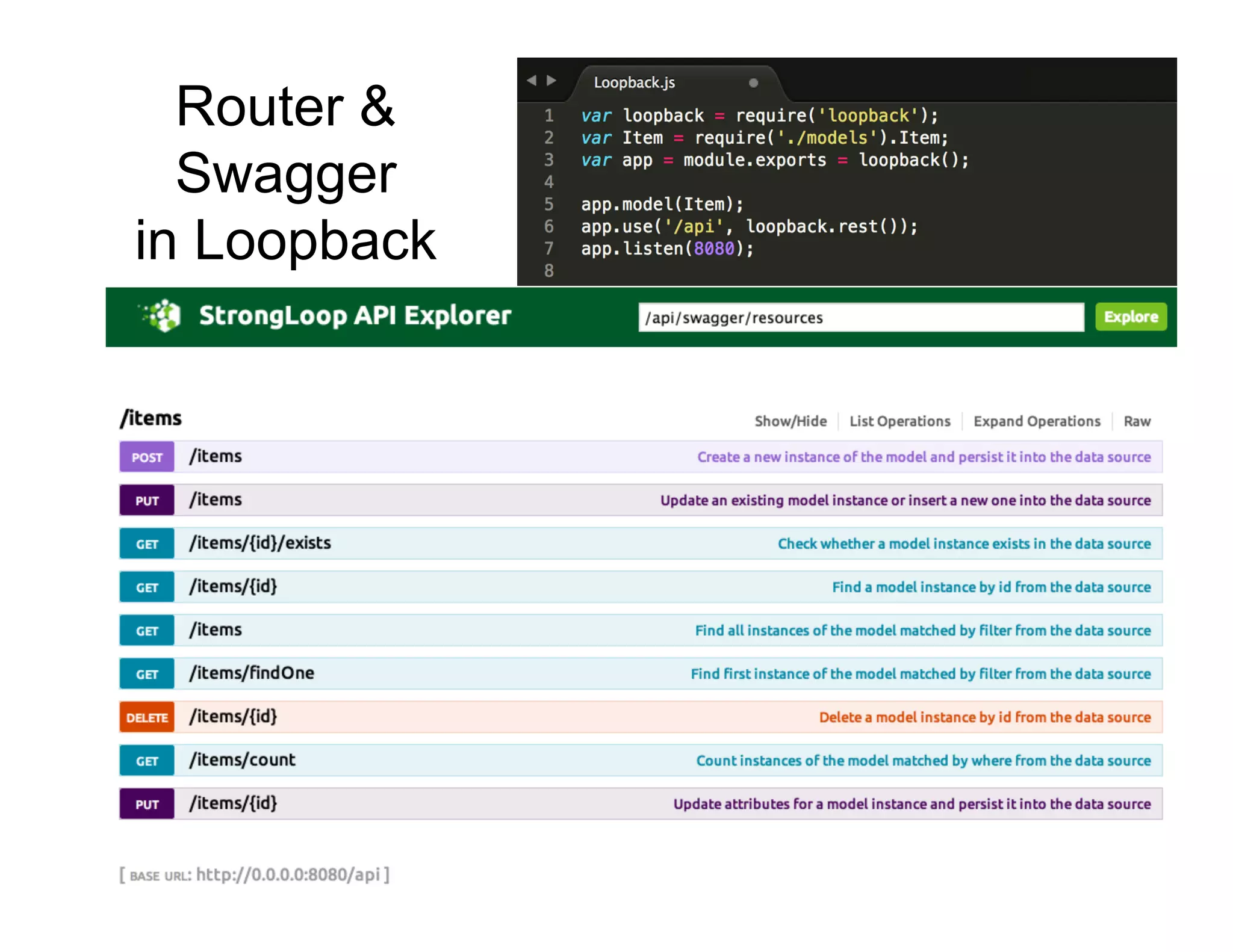

- 31. Router & Swagger in Loopback StrongLoop Confiden.al and Proprietary Informa.on – © 2015
- 32.

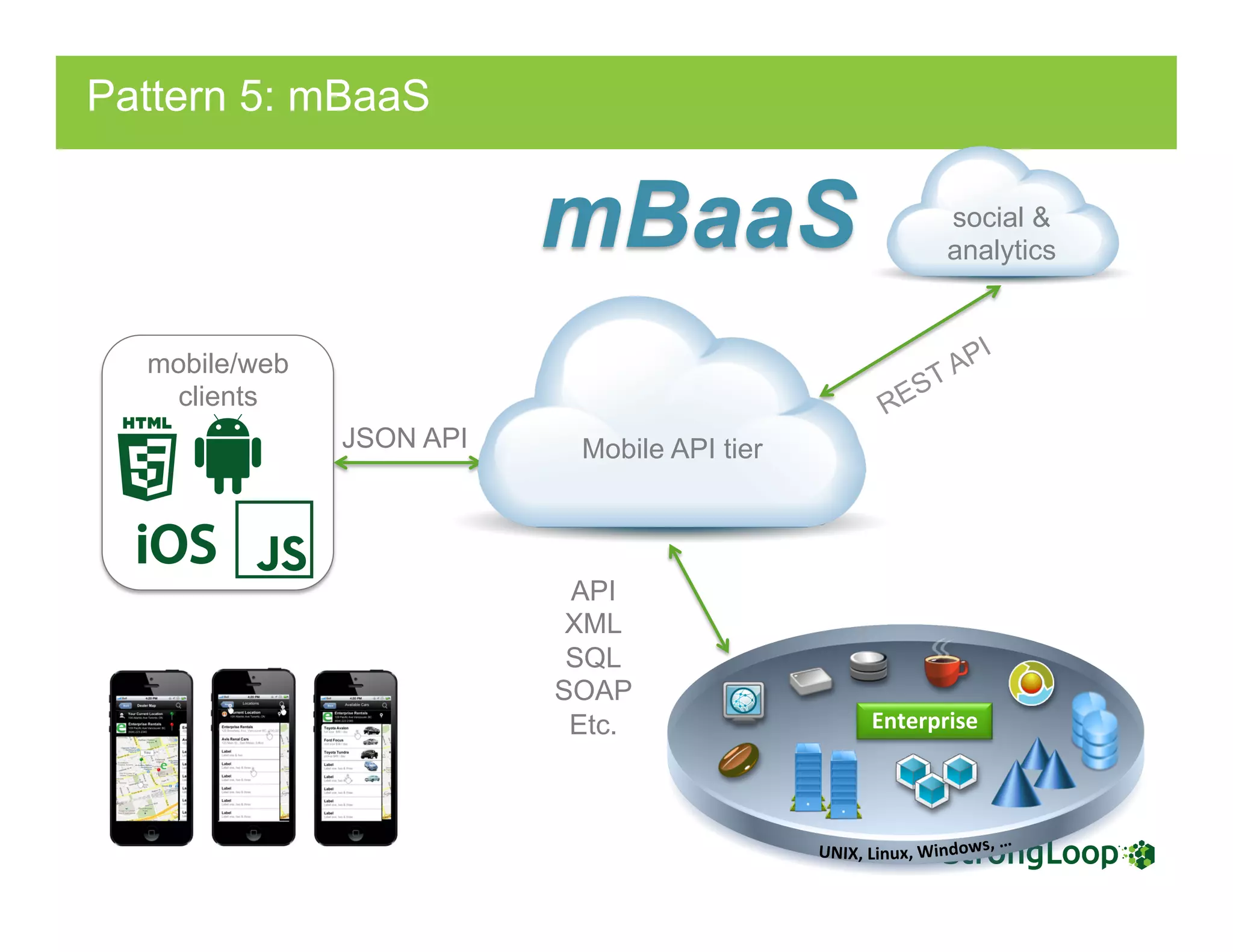

- 33. mobile/web clients social & analytics JSON API API XML SQL SOAP Etc. mBaaS MobileAPI tier Enterprise Pattern 5: mBaaS

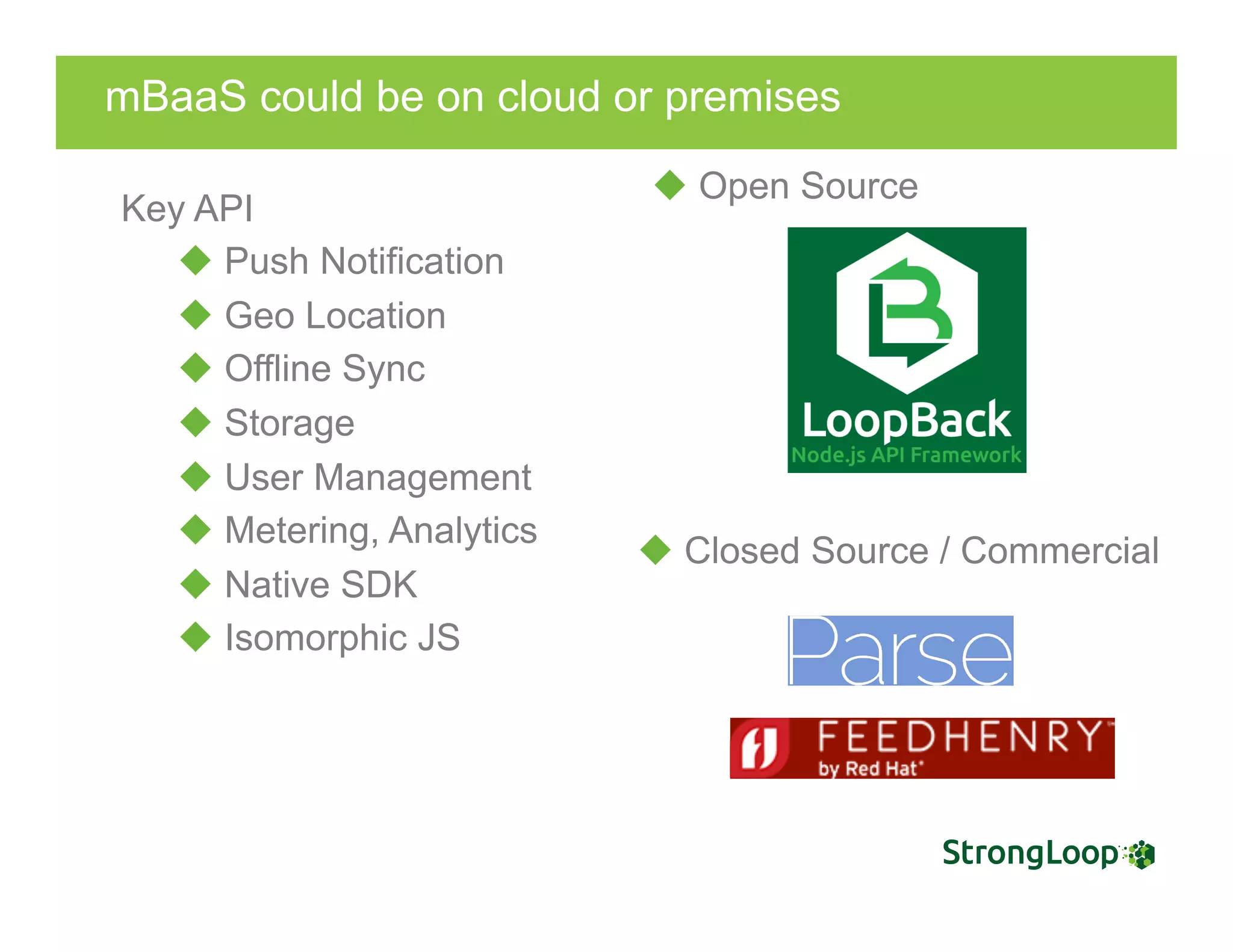

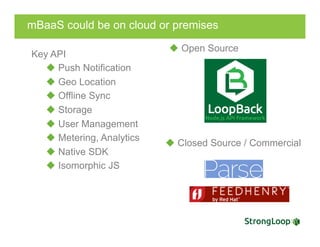

- 34. mBaaS could beon cloud or premises u Closed Source / Commercial u Open Source Key API u Push Notification u Geo Location u Offline Sync u Storage u User Management u Metering, Analytics u Native SDK u Isomorphic JS
- 35.

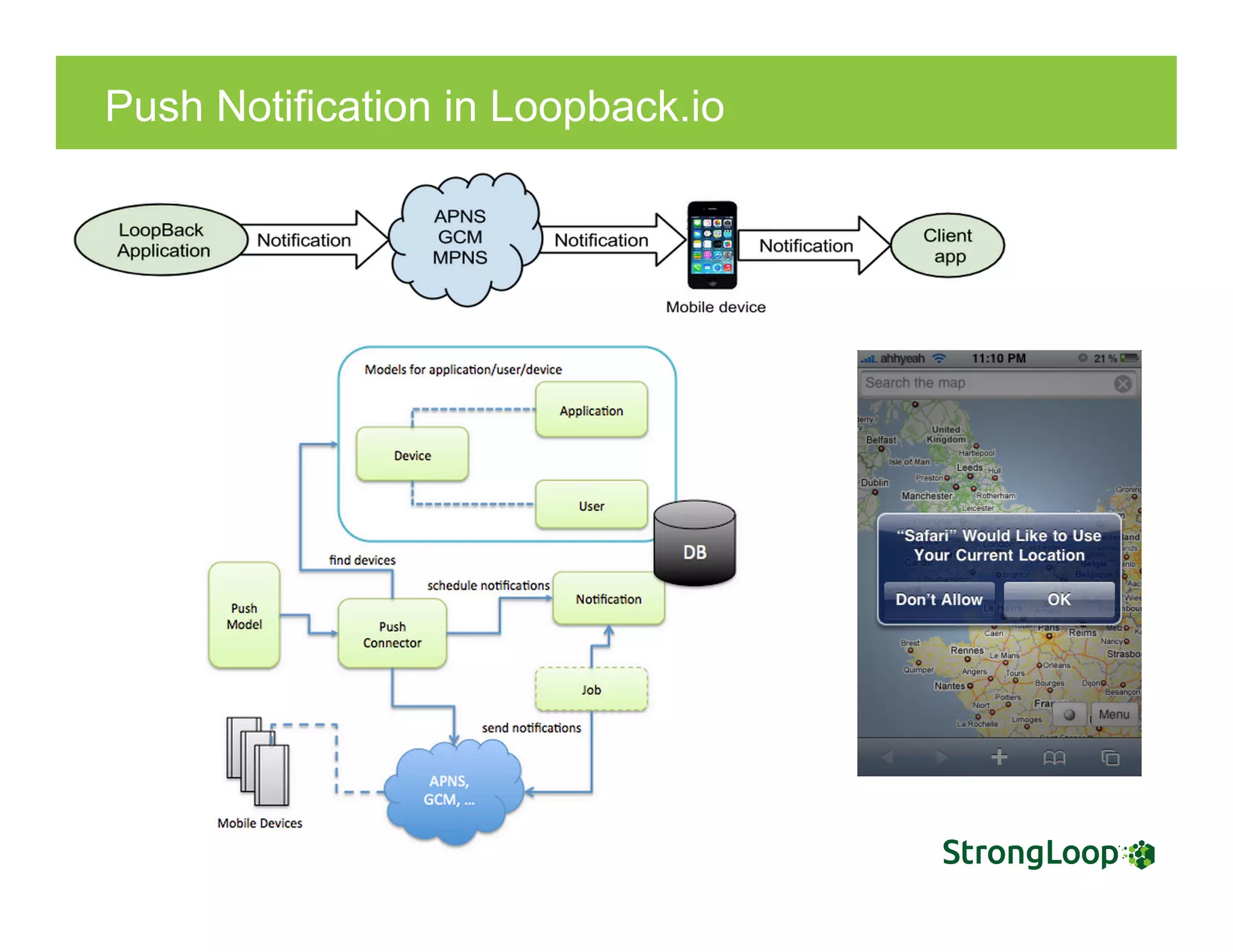

- 36. Push Notification inLoopback.io

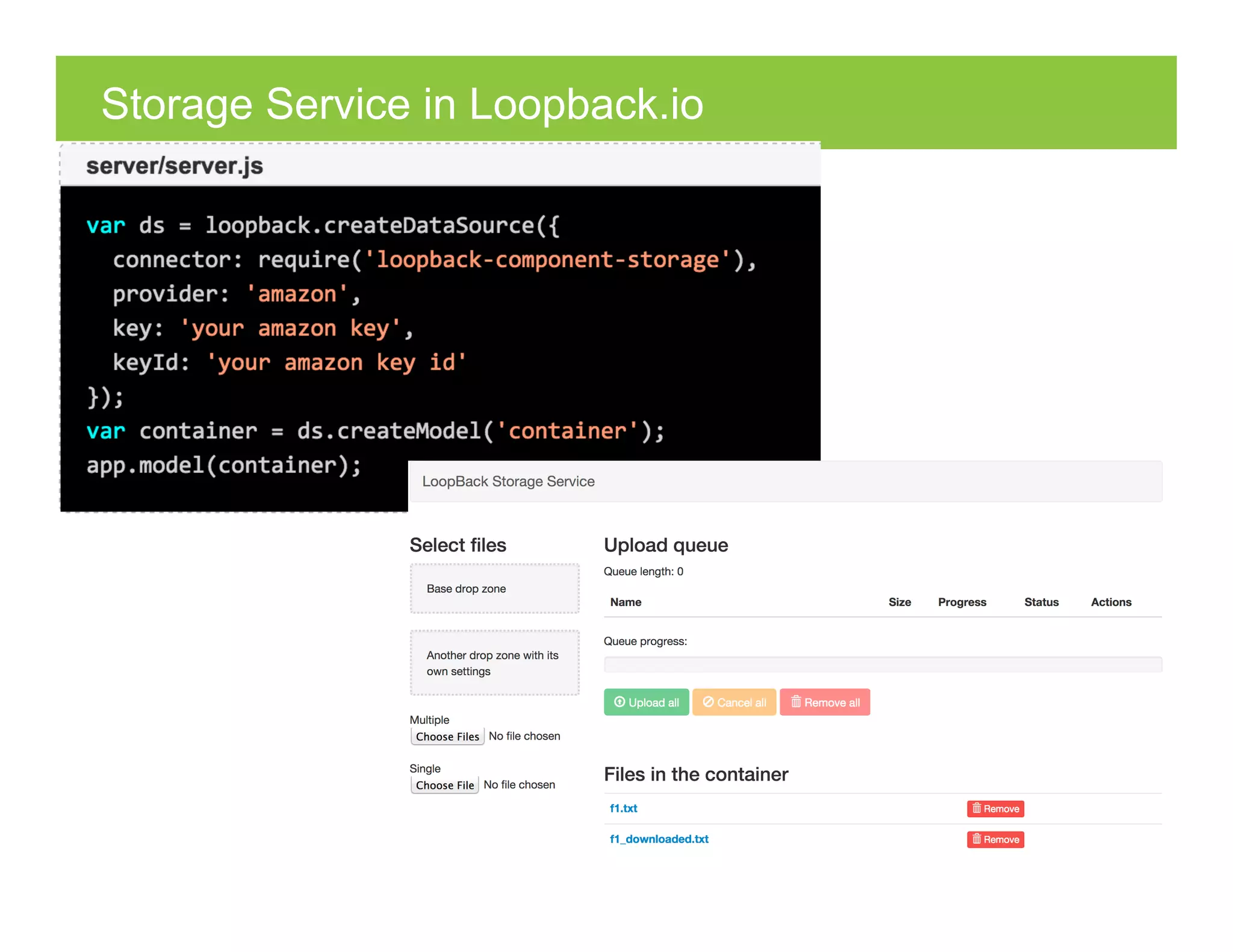

- 37. Storage Service inLoopback.io 37
- 38. Wait …what isthis API Gateway thingy then ?

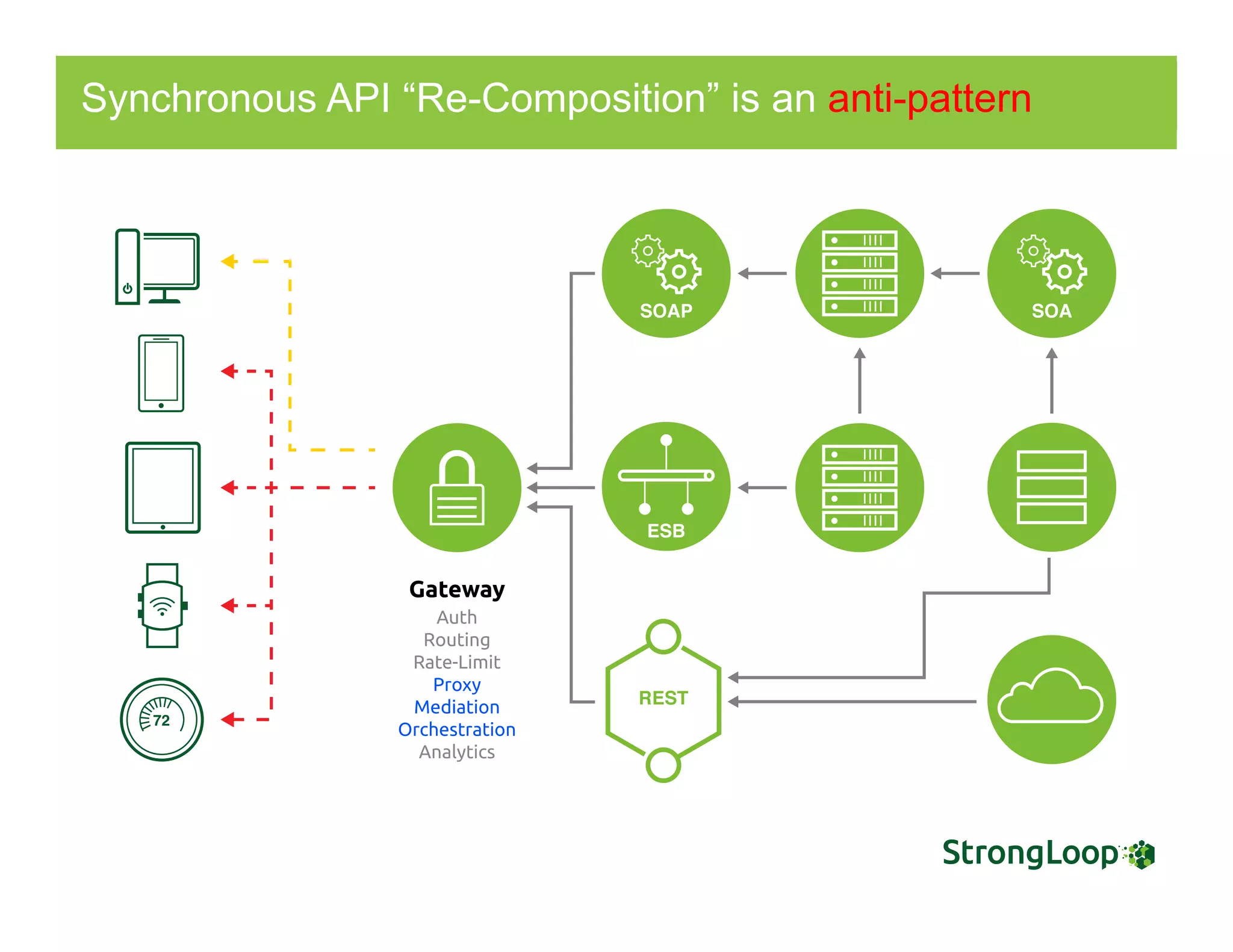

- 39. Synchronous API “Re-Composition”is an anti-pattern

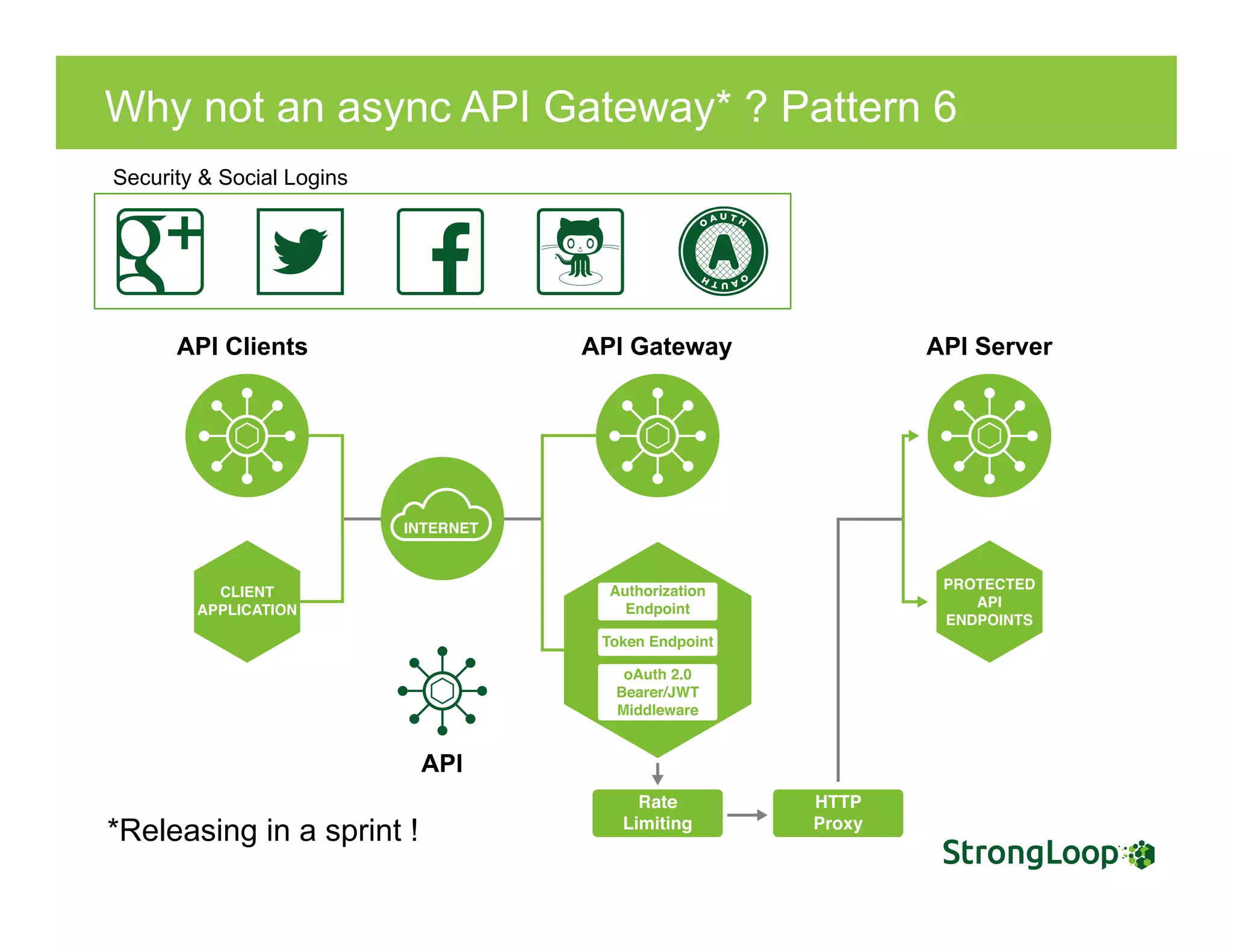

- 40. Security & SocialLogins Why not an async API Gateway* ? Pattern 6 API Clients API Gateway API Server API *Releasing in a sprint !

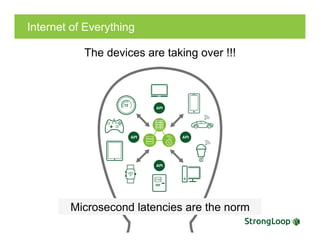

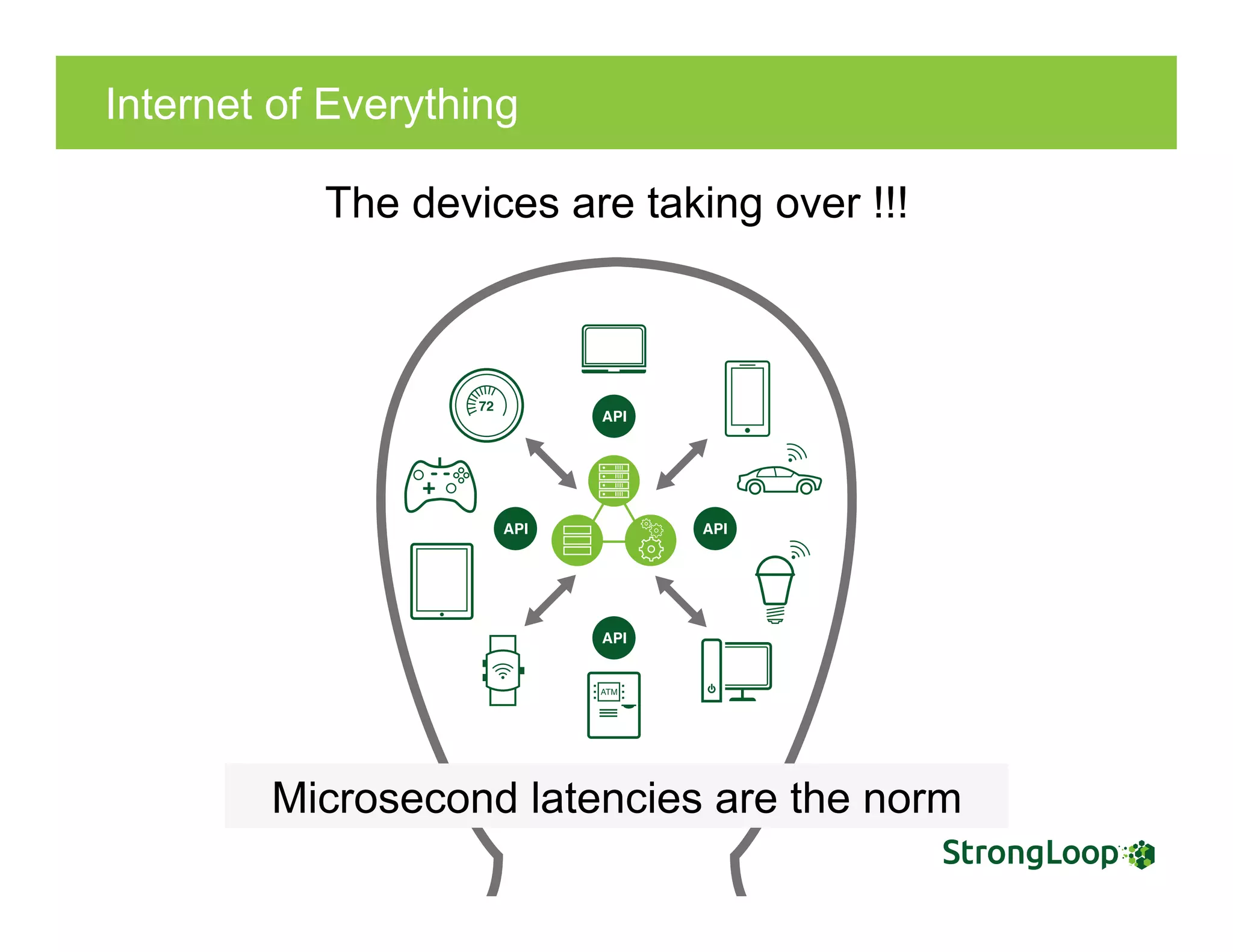

- 41. Internet of Everything Thedevices are taking over !!! Microsecond latencies are the norm

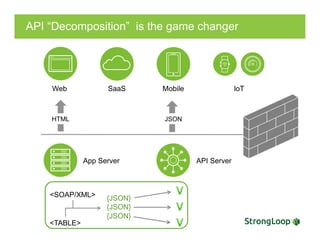

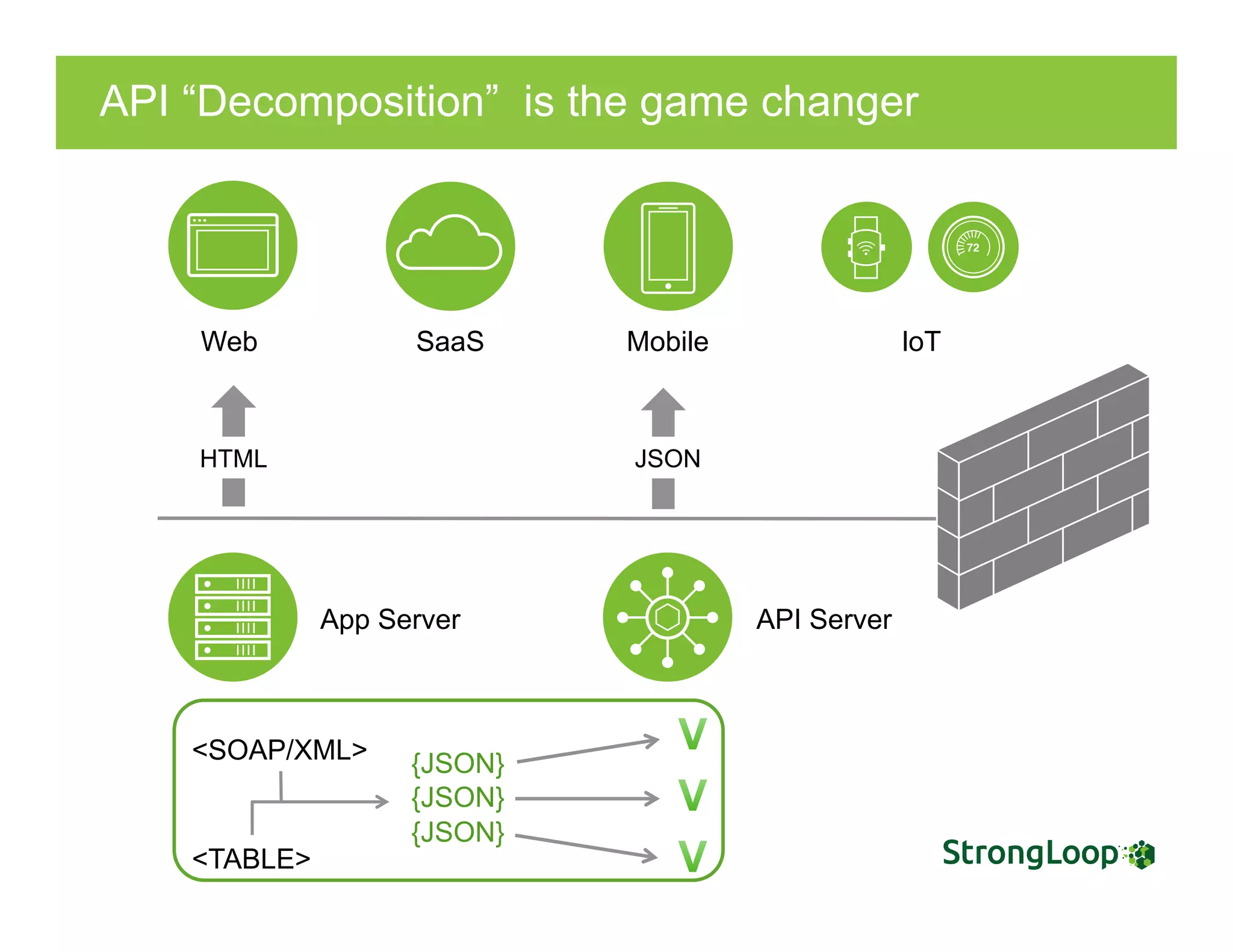

- 42. API “Decomposition” isthe game changer {JSON} {JSON} {JSON}<SOAP/XML> <TABLE> Web SaaS Mobile loT HTML JSON App Server API Server

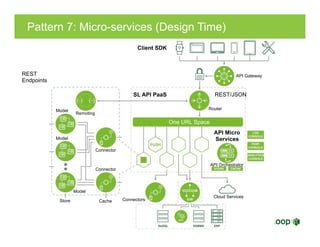

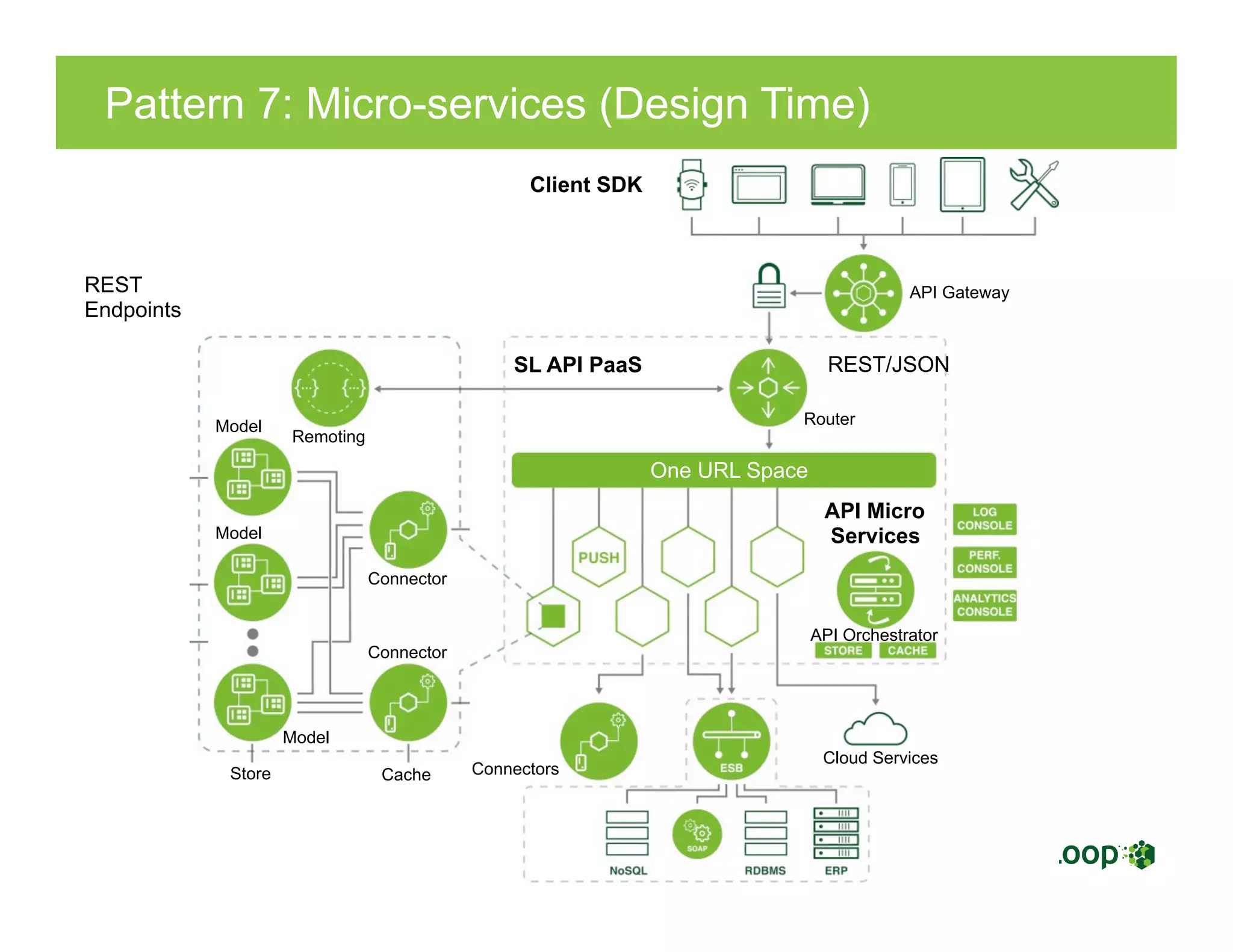

- 43. Pattern 7: Micro-services(Design Time) Client SDK REST Endpoints Store Cache API Micro Services One URL Space SL API PaaS REST/JSON API Gateway Router Remoting Model API Orchestrator Cloud Services Model Model Connector Connector Connectors
- 44. Now I know!!!

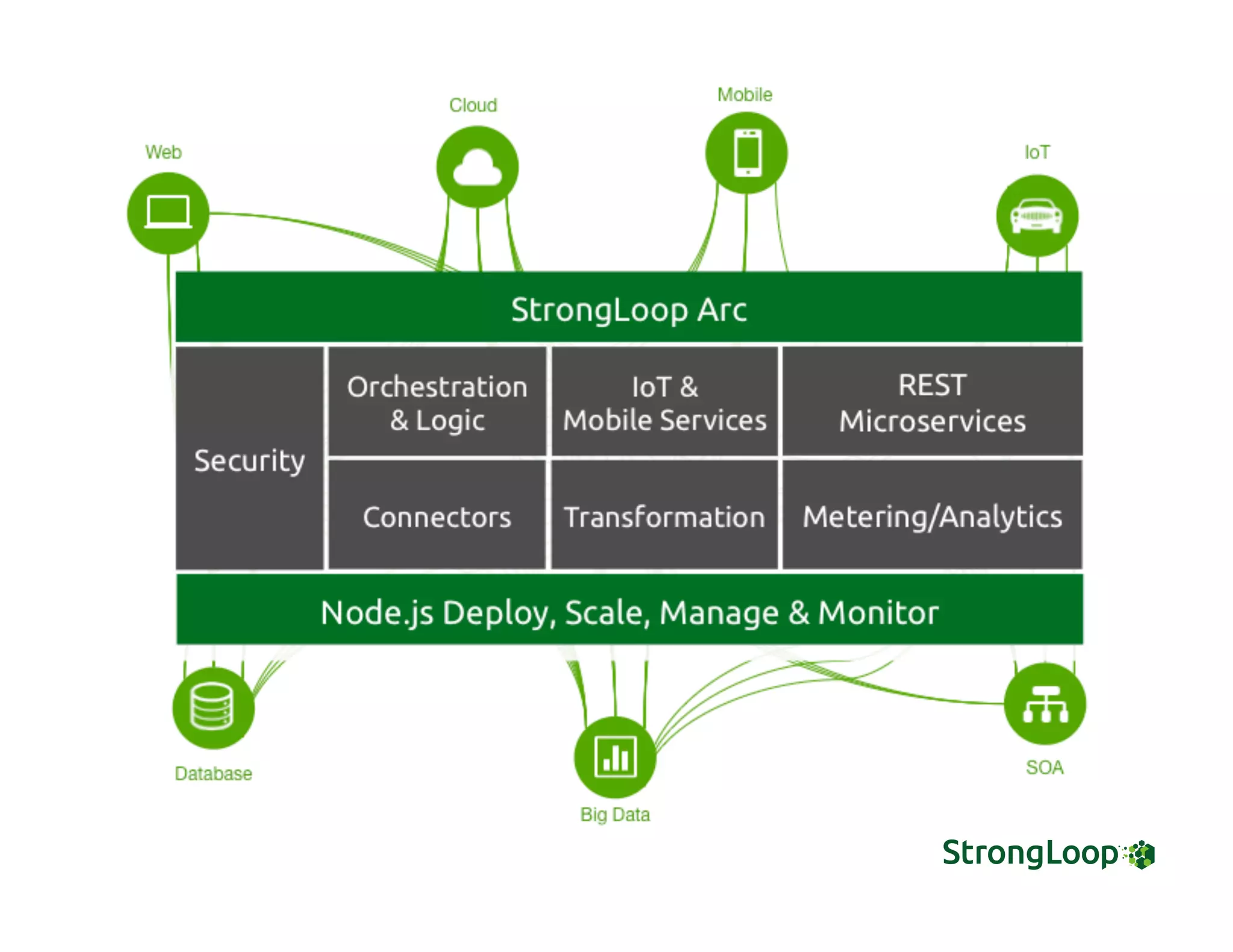

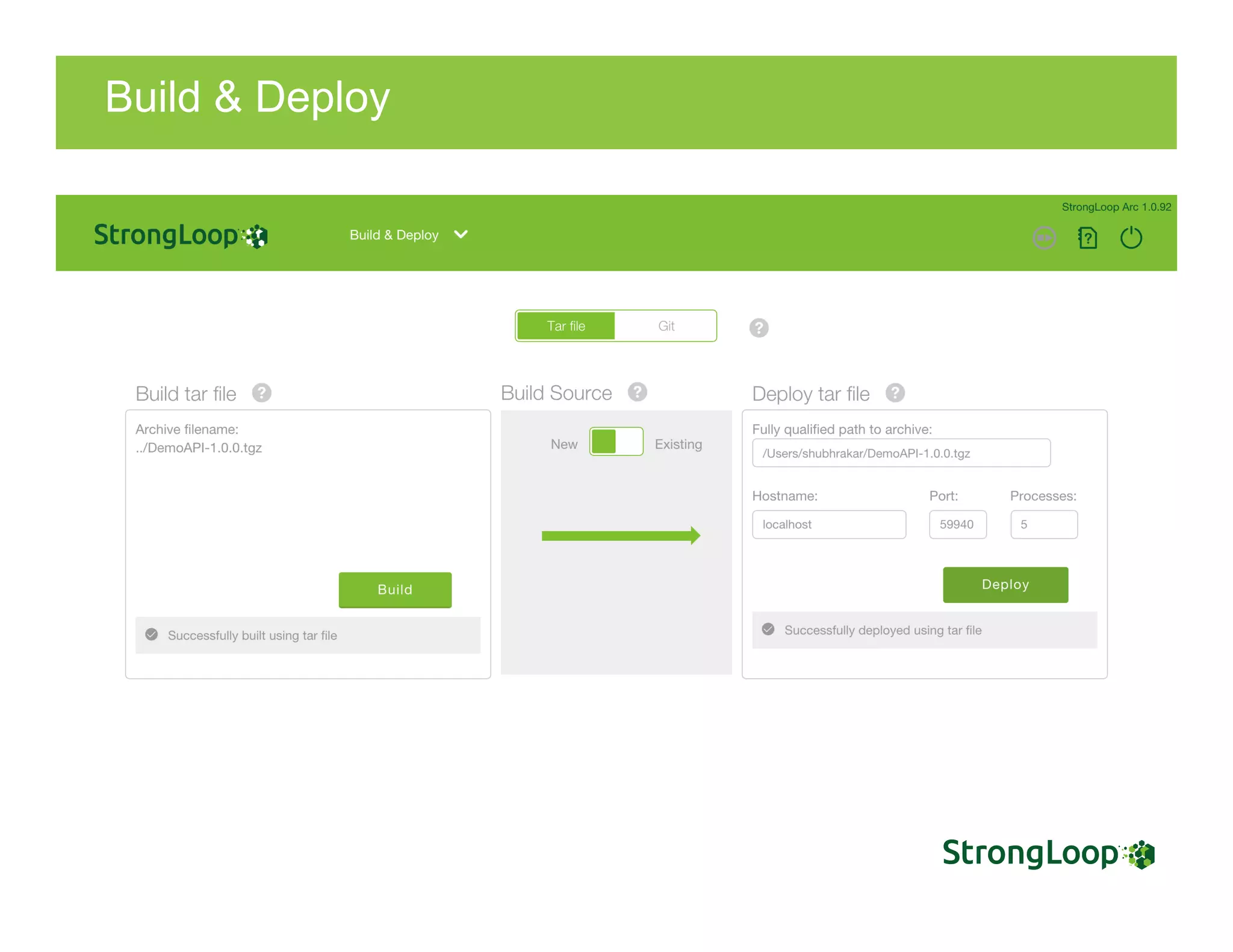

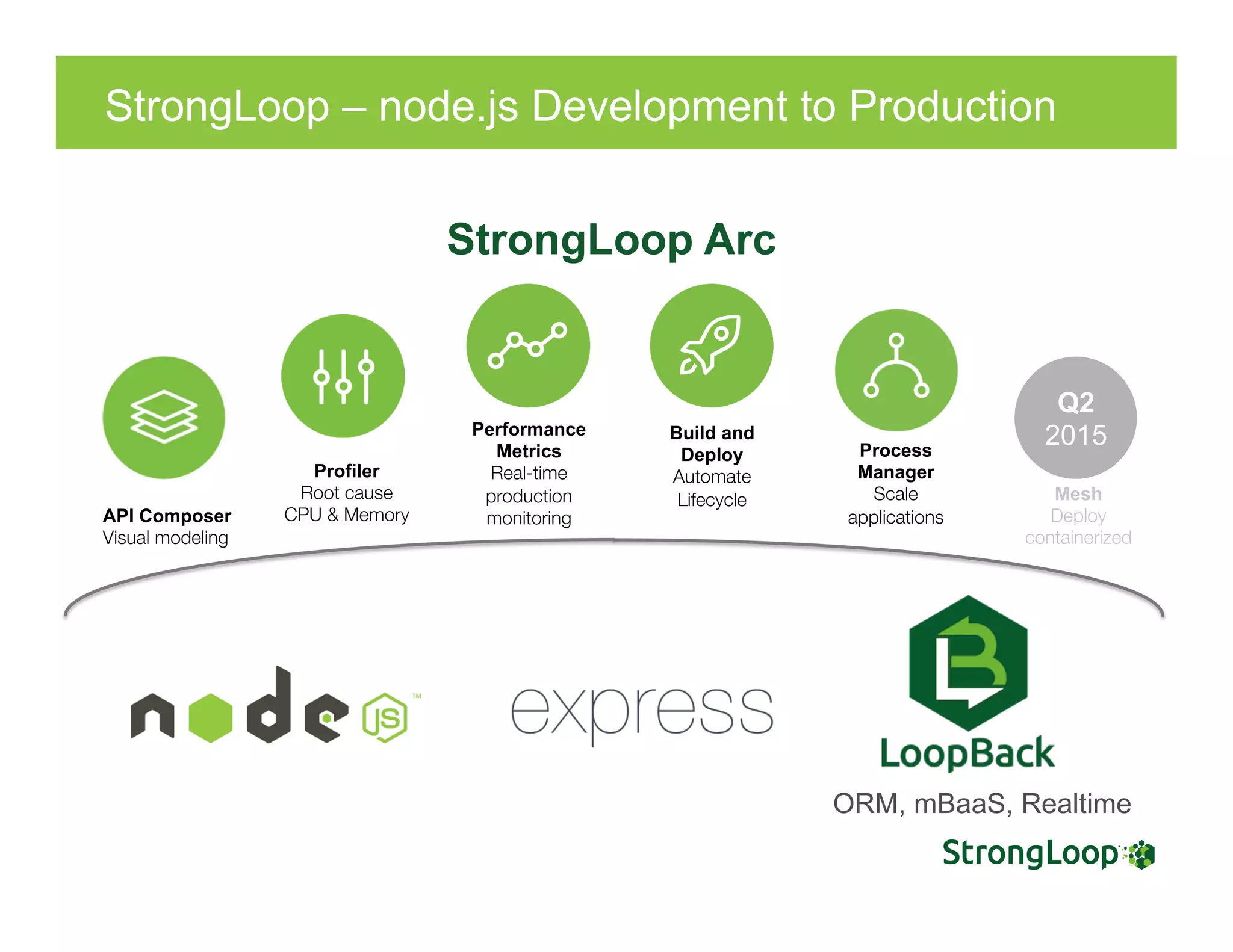

- 45. StrongLoop – node.jsDevelopment to Production Build and Deploy Automate Lifecycle Performance Metrics Real-time production monitoring Profiler Root cause CPU & Memory API Composer Visual modeling StrongLoop Arc Process Manager Scale applications" Q2 2015 Mesh Deploy containerized ORM, mBaaS, Realtime

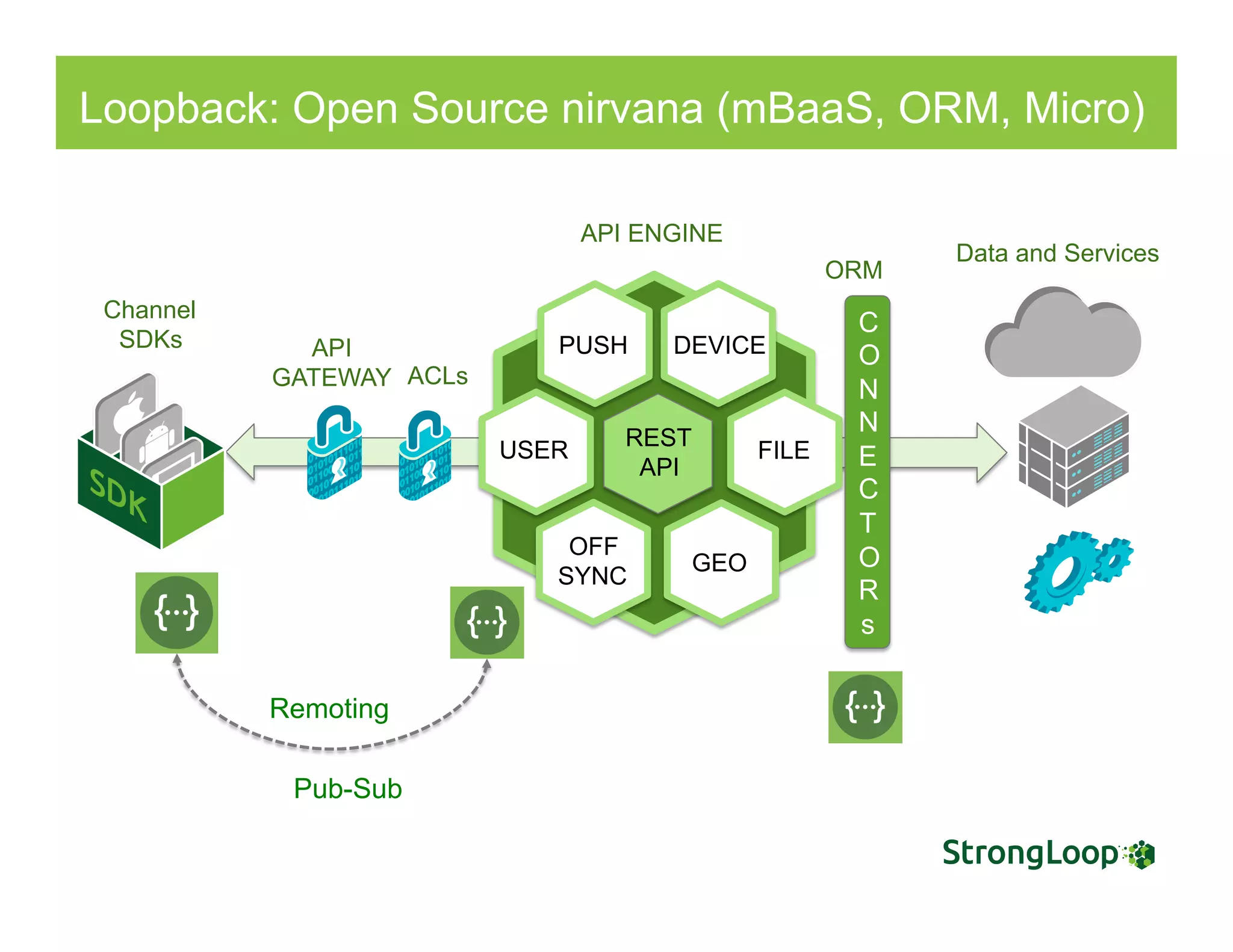

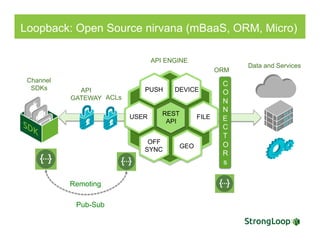

- 47. Loopback: Open Sourcenirvana (mBaaS, ORM, Micro) REST API PUSH GEO OFF SYNC DEVICE USER FILE API GATEWAY Channel SDKs API ENGINE C O N N E C T O R s atabase Clustered Database Security Gateway Cloud Firewall SOA Bus ( not sure on this one) uested but useful) nnections Tablet Phone IoT SDK API SERVER Items for ACL Quick Example of Use App Server Add On App Server ORM ACLsRelational Database Clustered Database Security Gateway Cloud Firewall SOA Bus ( not sure on this one) Laptop ( not requested but useful) Connections Tablet Phone IoT SDK API SERVER Items for ACL Quick Example of Use App Server Add On App Server Relational Database Clustered Database Security G Laptop ( not requested but useful) Connections Tablet Phone IoT SDK App Server Relational Database Clustered Database Security Gateway Cloud Firewall SOA Bus ( not sure on this one) Laptop ( not requested but useful) Connections Tablet Phone IoT SDK API SERVER Items for ACL Quick Example of Use App Server Add On App Server Data and Services Remoting Pub-Sub

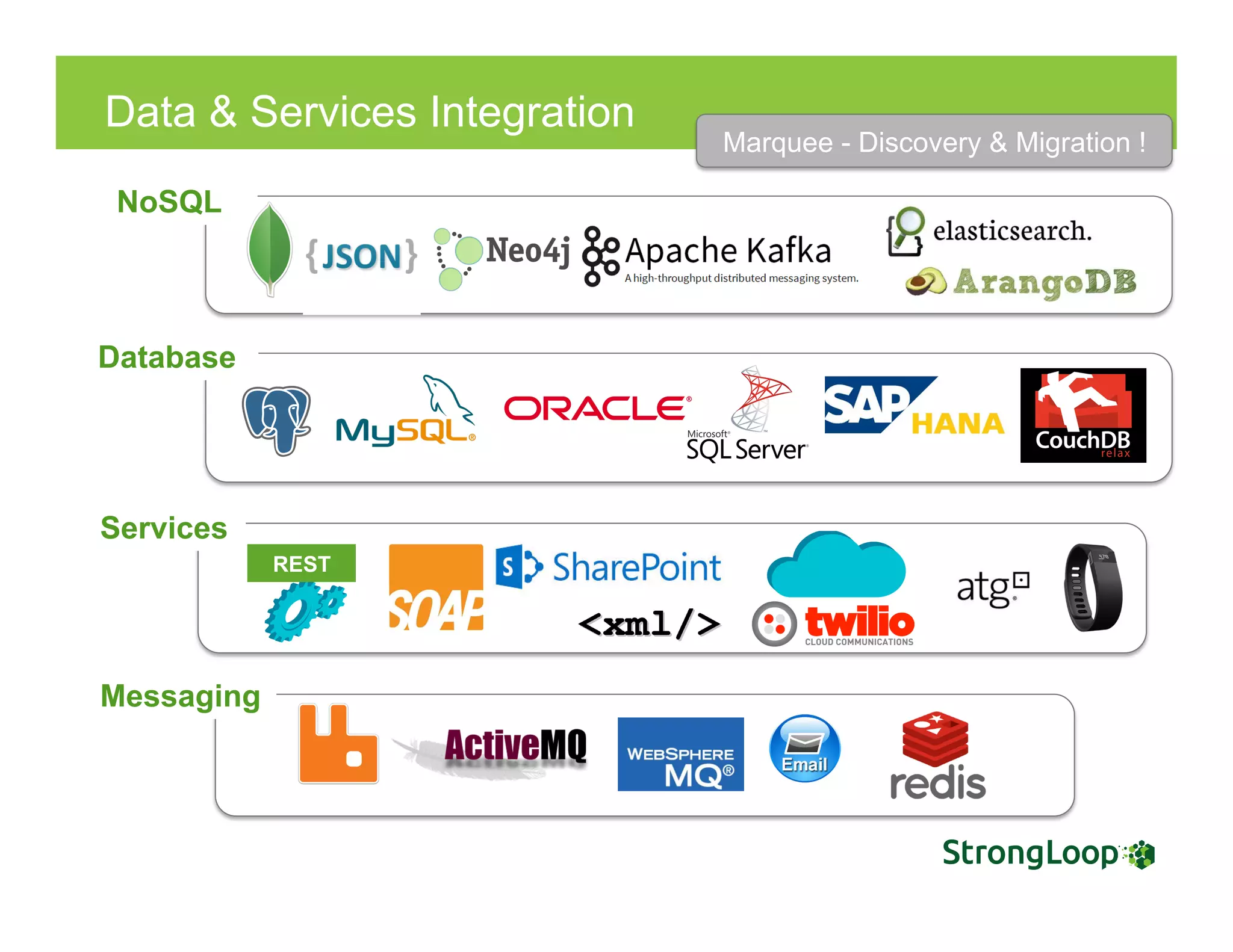

- 48. Data & ServicesIntegration Services Relational Database Clustered Database Security Gateway Cloud Firewall SOA Bus ( not sure on this one) Laptop ( not requested but useful) Connections Tablet Phone IoT SDK API SERVER Items for ACL Quick Example of Use App Server Add On App Server Storage y Cloud Firewall SOA Bus ( not sure on this one) API SERVER Items for ACL Quick Example of Use App Server Add On REST Messaging Database NoSQL Marquee - Discovery & Migration !

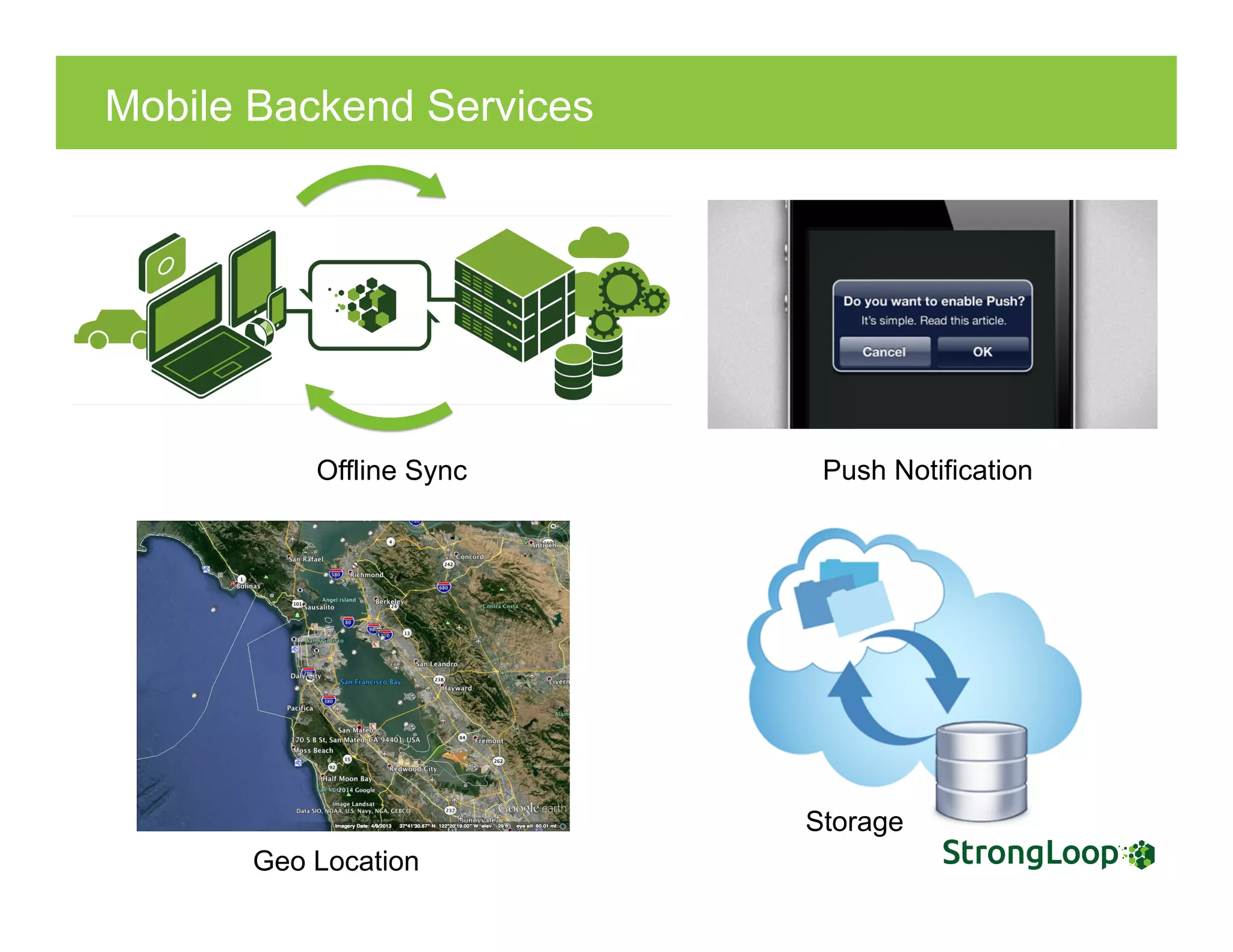

- 49. Mobile Backend Services OfflineSync Geo Location Push Notification Storage

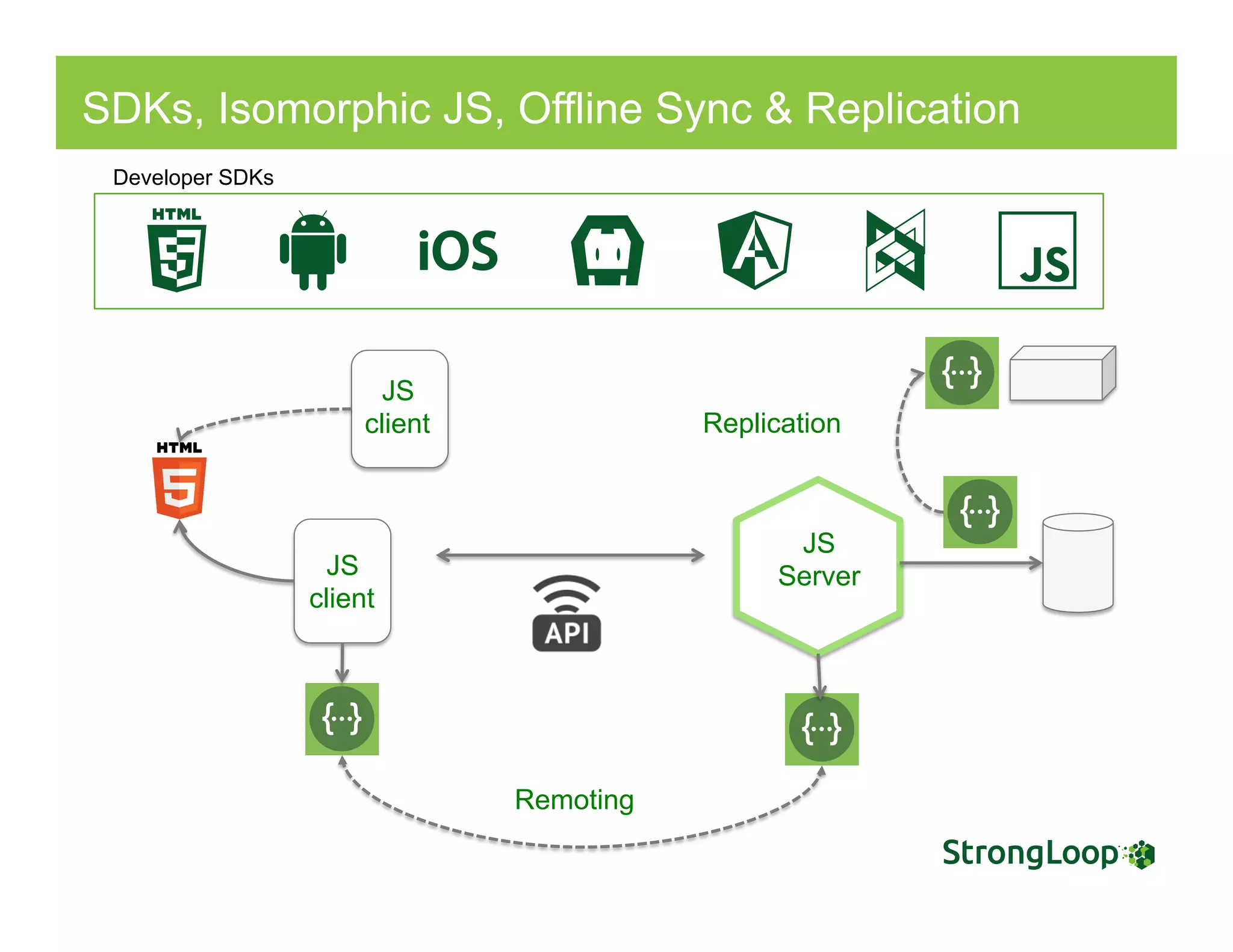

- 50. SDKs, Isomorphic JS,Offline Sync & Replication JS client JS Server Remoting JS client Replication Developer SDKs
- 51.

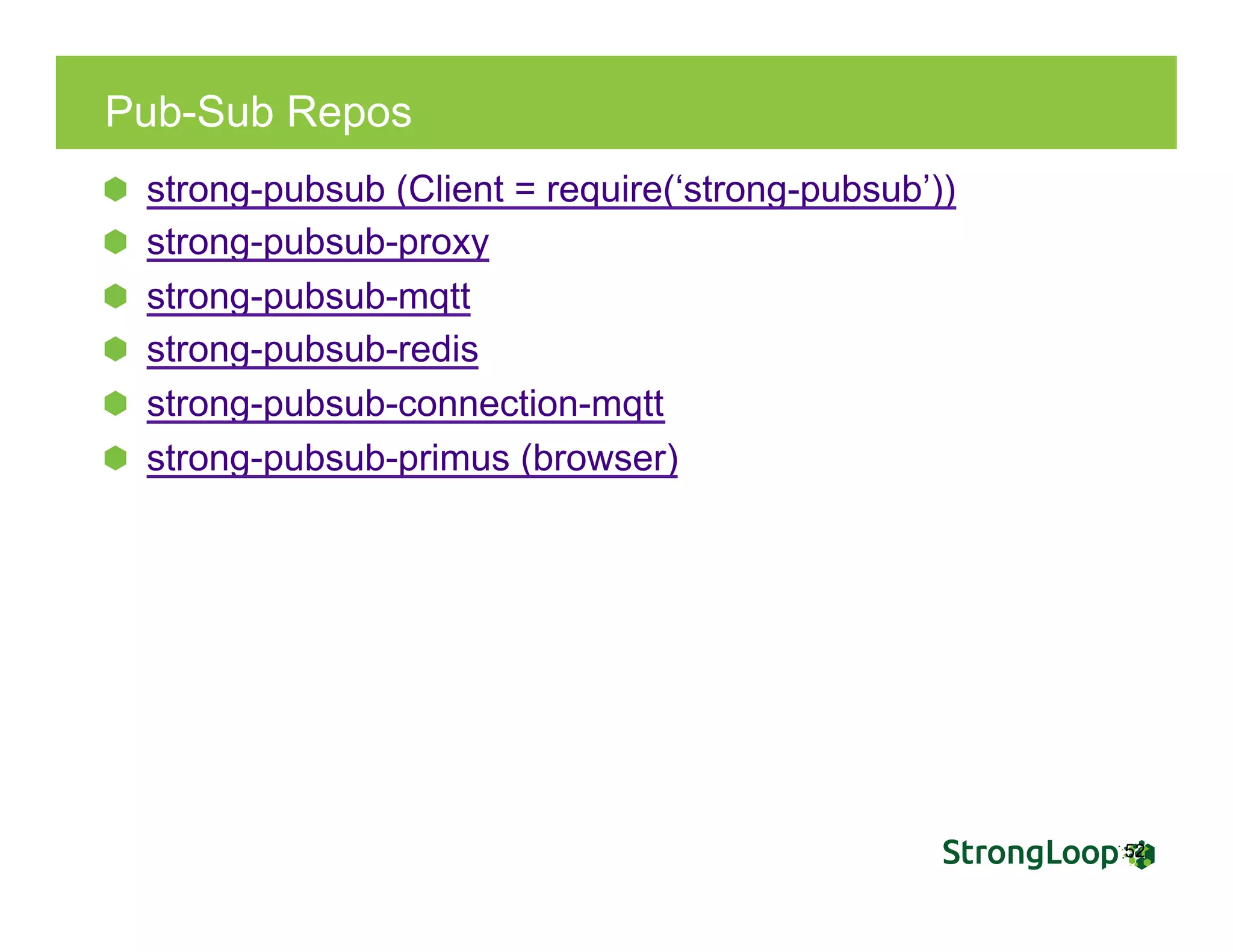

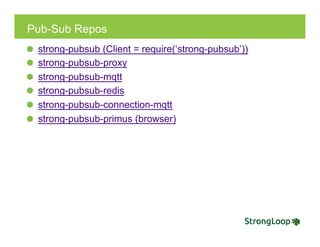

- 52. Pub-Sub Repos strong-pubsub (Client= require(‘strong-pubsub’)) strong-pubsub-proxy strong-pubsub-mqtt strong-pubsub-redis strong-pubsub-connection-mqtt strong-pubsub-primus (browser) 52
- 53.

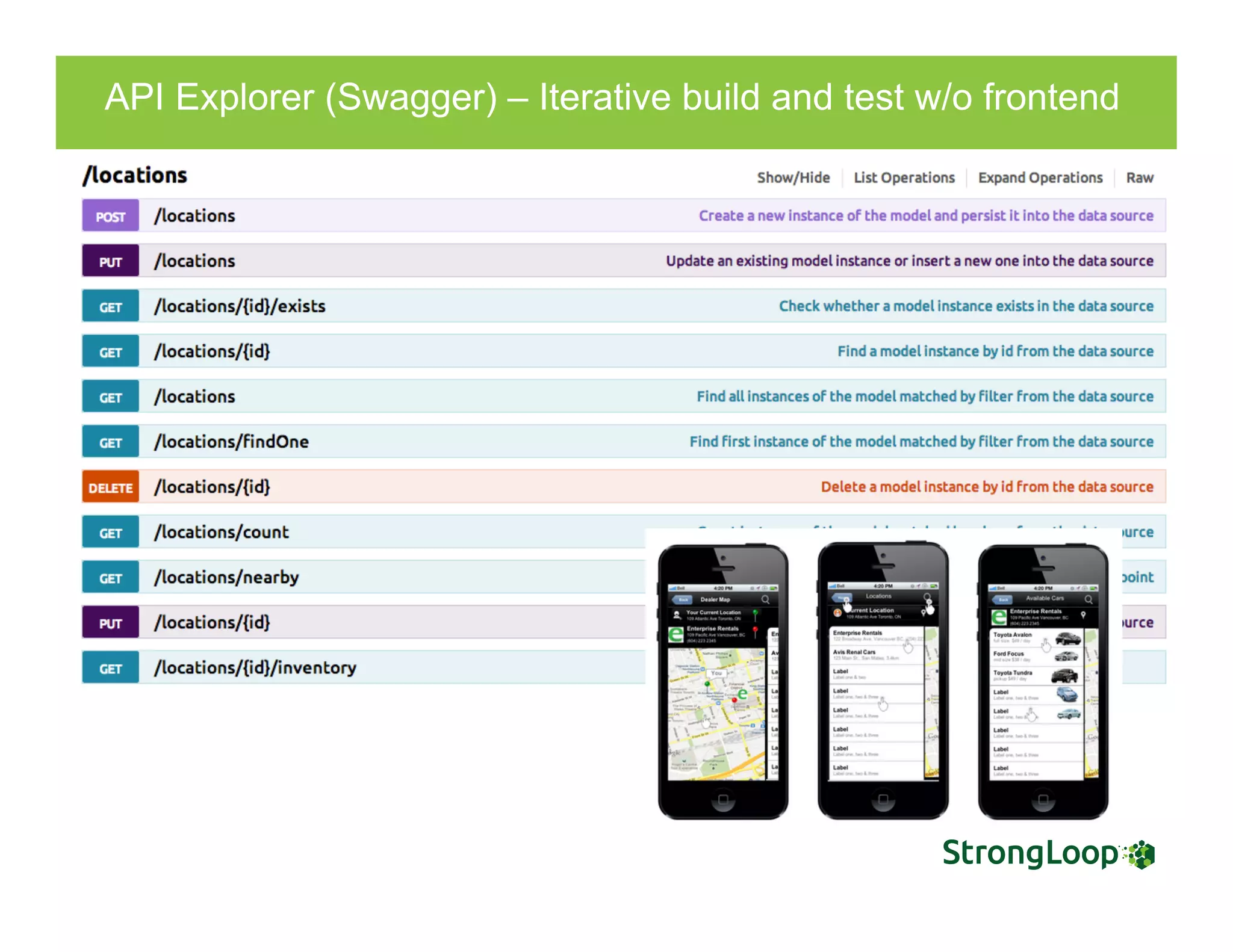

- 54. API Explorer (Swagger)– Iterative build and test w/o frontend

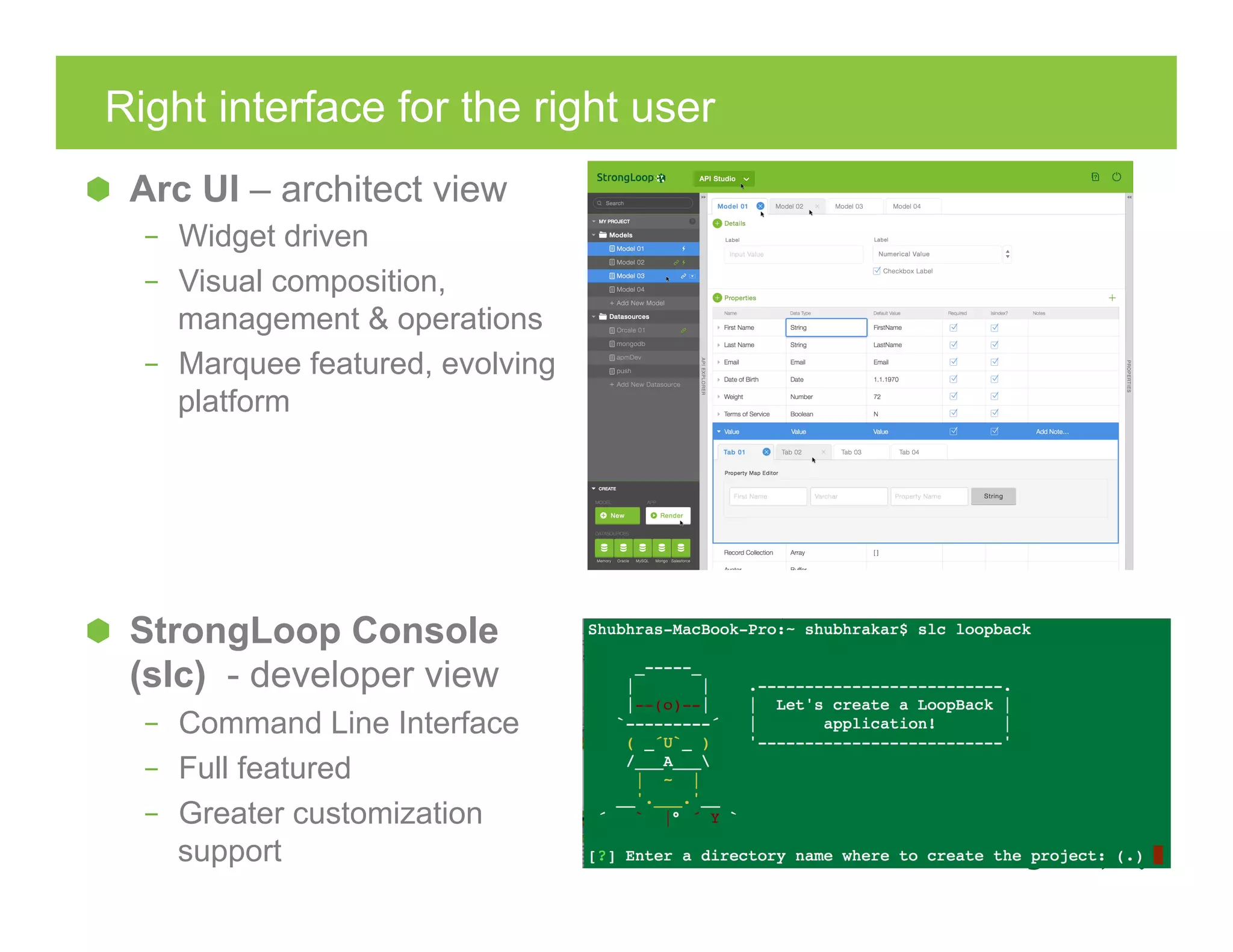

- 55. Right interface forthe right user Arc UI – architect view – Widget driven – Visual composition, management & operations – Marquee featured, evolving platform StrongLoop Console (slc) - developer view – Command Line Interface – Full featured – Greater customization support
- 56.
- 57.

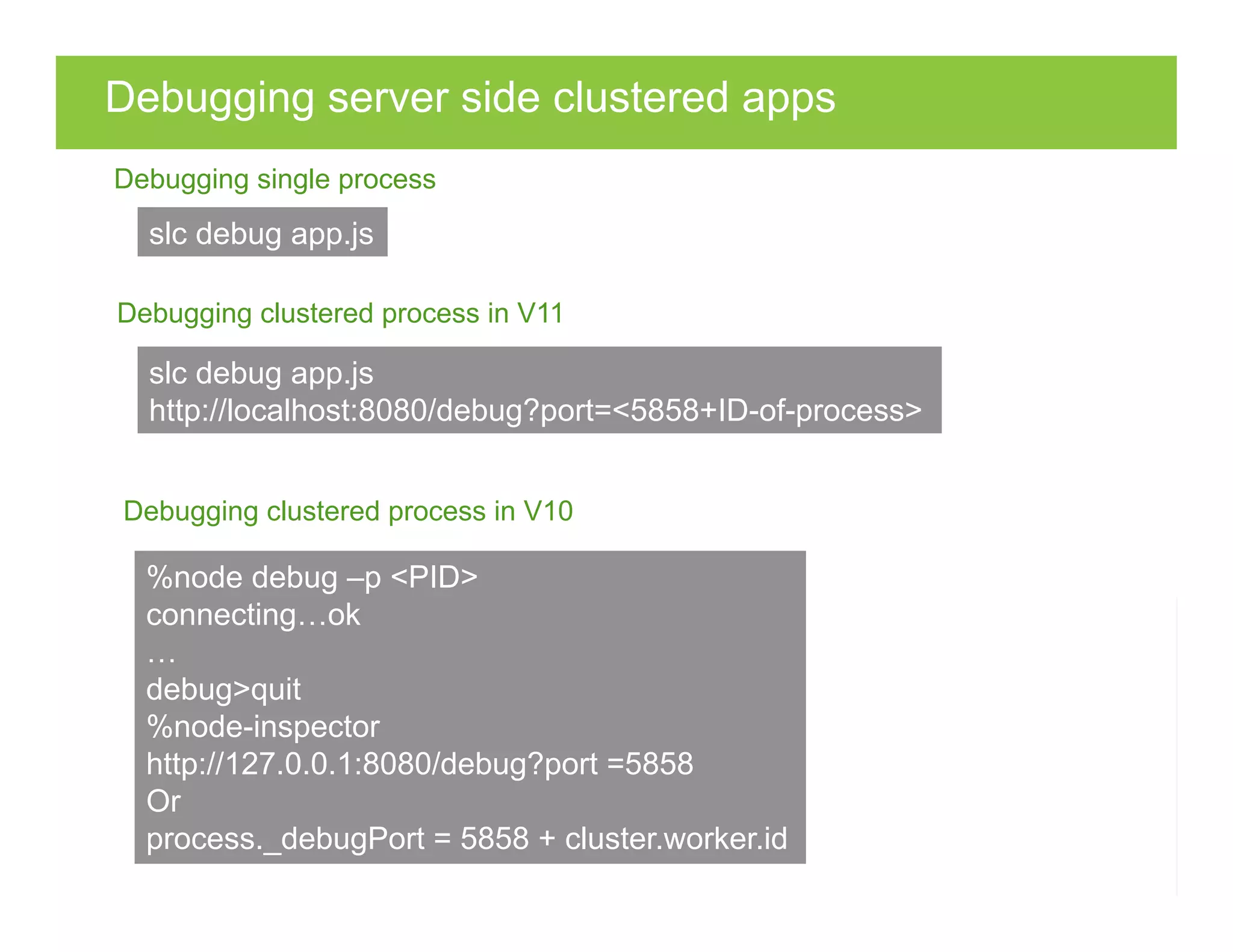

- 58. Debugging server sideclustered apps slc debug app.js Debugging single process slc debug app.js http://localhost:8080/debug?port=<5858+ID-of-process> Debugging clustered process in V11 %node debug –p <PID> connecting…ok … debug>quit %node-inspector http://127.0.0.1:8080/debug?port =5858 Or process._debugPort = 5858 + cluster.worker.id Debugging clustered process in V10
- 59.

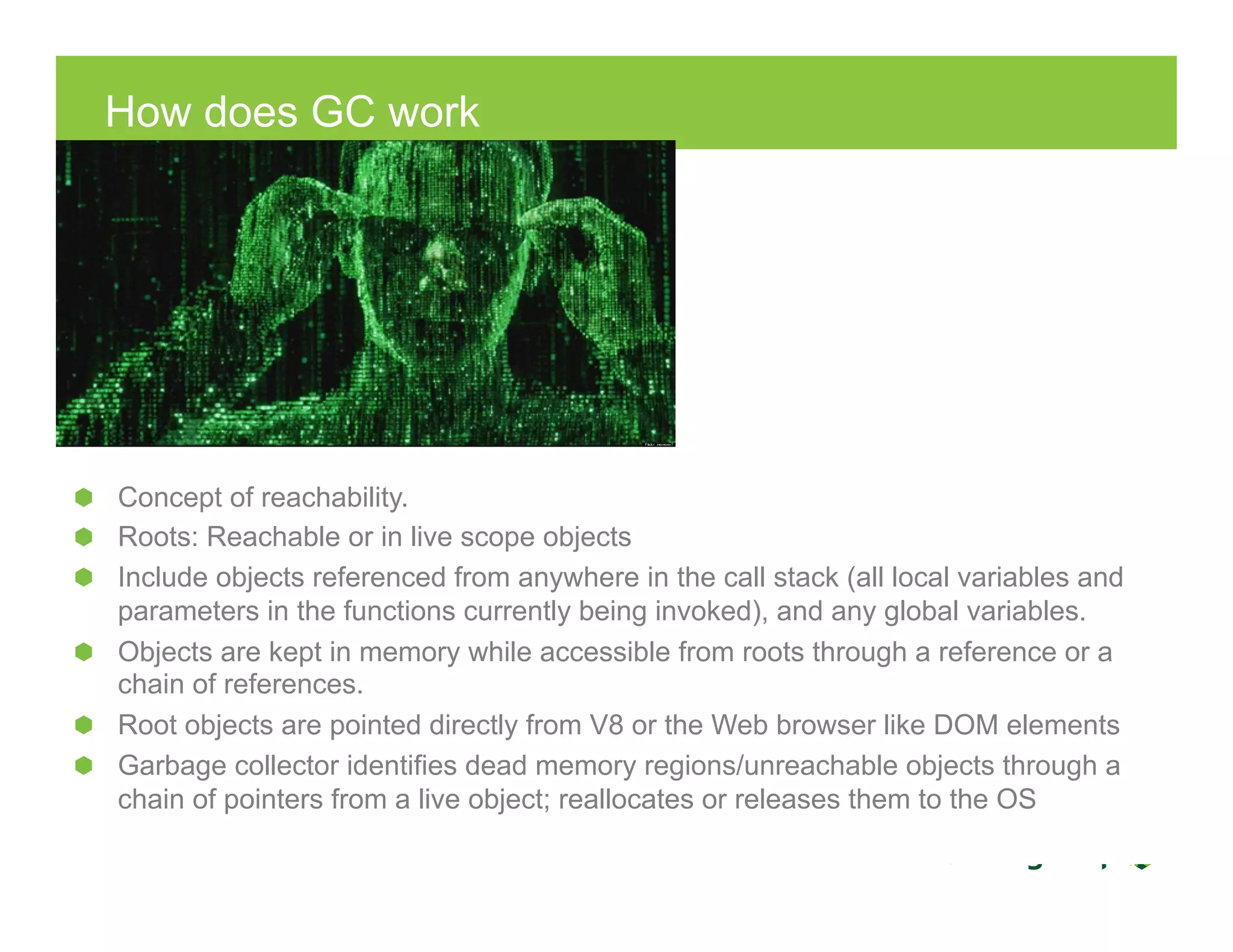

- 60. How does GCwork Concept of reachability. Roots: Reachable or in live scope objects Include objects referenced from anywhere in the call stack (all local variables and parameters in the functions currently being invoked), and any global variables. Objects are kept in memory while accessible from roots through a reference or a chain of references. Root objects are pointed directly from V8 or the Web browser like DOM elements Garbage collector identifies dead memory regions/unreachable objects through a chain of pointers from a live object; reallocates or releases them to the OS

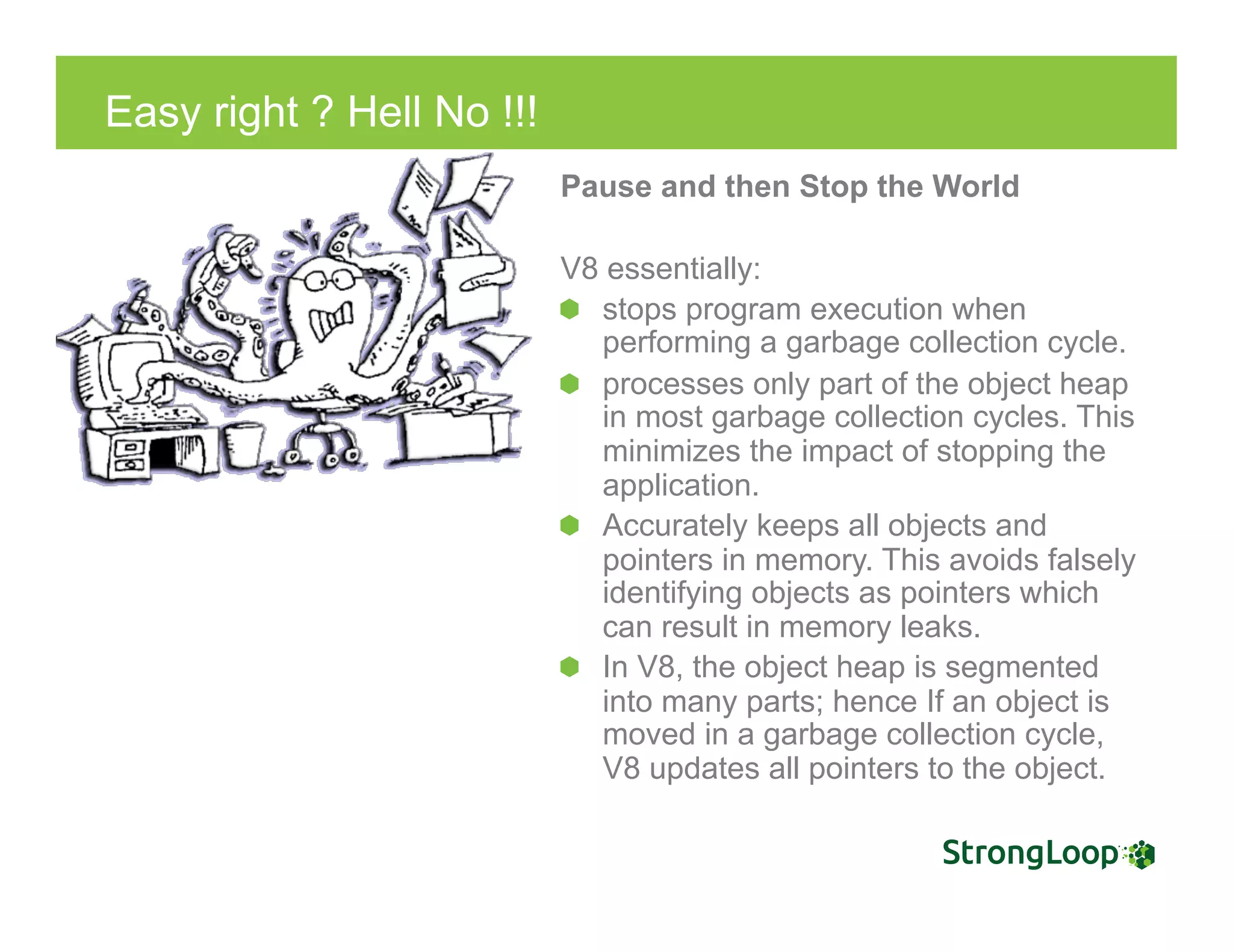

- 61. Easy right ?Hell No !!! Pause and then Stop the World V8 essentially: stops program execution when performing a garbage collection cycle. processes only part of the object heap in most garbage collection cycles. This minimizes the impact of stopping the application. Accurately keeps all objects and pointers in memory. This avoids falsely identifying objects as pointers which can result in memory leaks. In V8, the object heap is segmented into many parts; hence If an object is moved in a garbage collection cycle, V8 updates all pointers to the object.

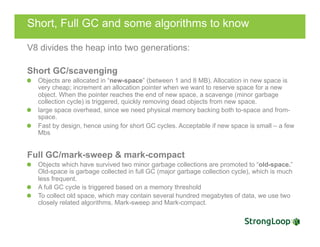

- 62. Short, Full GCand some algorithms to know V8 divides the heap into two generations: Short GC/scavenging Objects are allocated in “new-space” (between 1 and 8 MB). Allocation in new space is very cheap; increment an allocation pointer when we want to reserve space for a new object. When the pointer reaches the end of new space, a scavenge (minor garbage collection cycle) is triggered, quickly removing dead objects from new space. large space overhead, since we need physical memory backing both to-space and from- space. Fast by design, hence using for short GC cycles. Acceptable if new space is small – a few Mbs Full GC/mark-sweep & mark-compact Objects which have survived two minor garbage collections are promoted to “old-space.” Old-space is garbage collected in full GC (major garbage collection cycle), which is much less frequent. A full GC cycle is triggered based on a memory threshold To collect old space, which may contain several hundred megabytes of data, we use two closely related algorithms, Mark-sweep and Mark-compact.

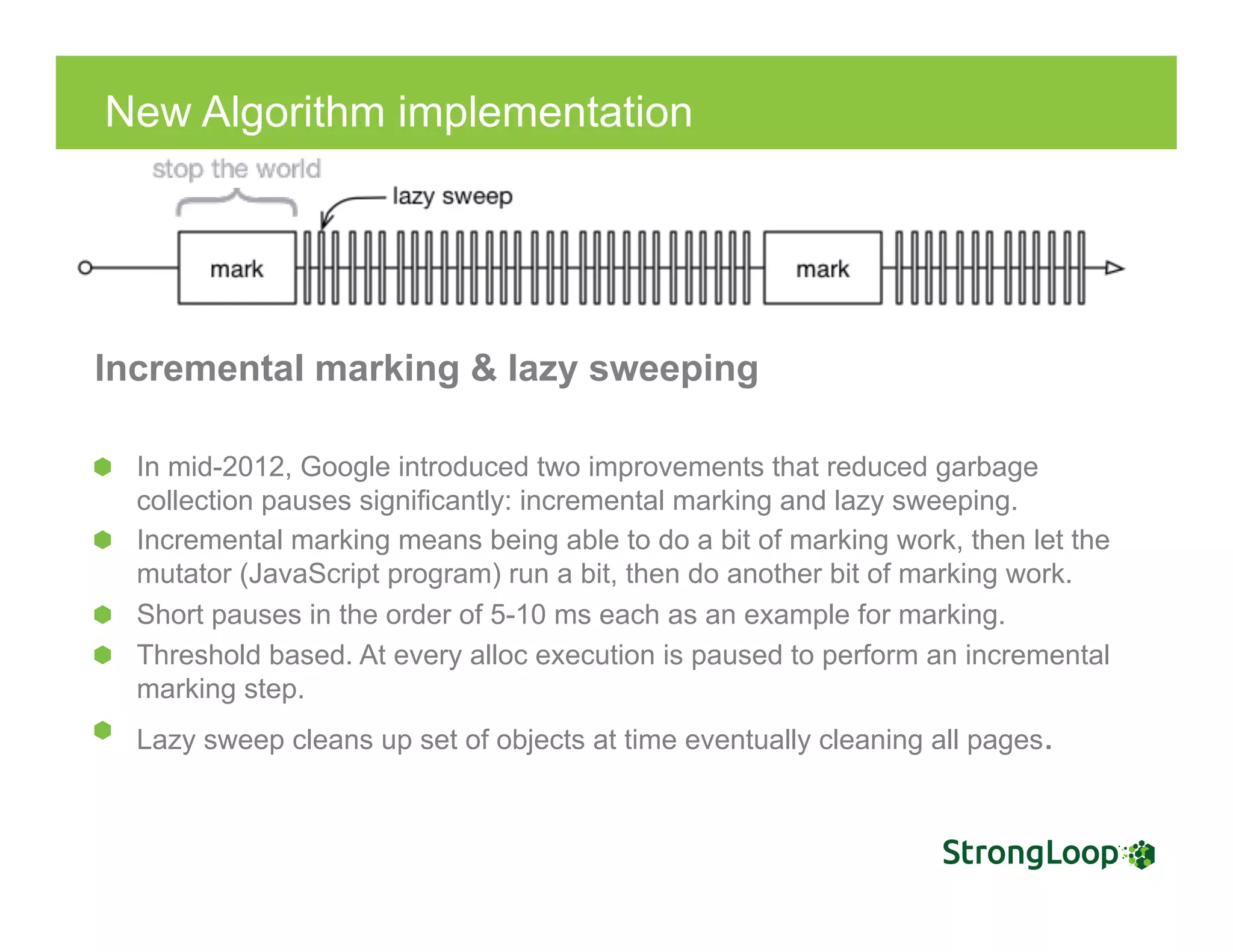

- 63. New Algorithm implementation Incrementalmarking & lazy sweeping In mid-2012, Google introduced two improvements that reduced garbage collection pauses significantly: incremental marking and lazy sweeping. Incremental marking means being able to do a bit of marking work, then let the mutator (JavaScript program) run a bit, then do another bit of marking work. Short pauses in the order of 5-10 ms each as an example for marking. Threshold based. At every alloc execution is paused to perform an incremental marking step. Lazy sweep cleans up set of objects at time eventually cleaning all pages.
- 64.

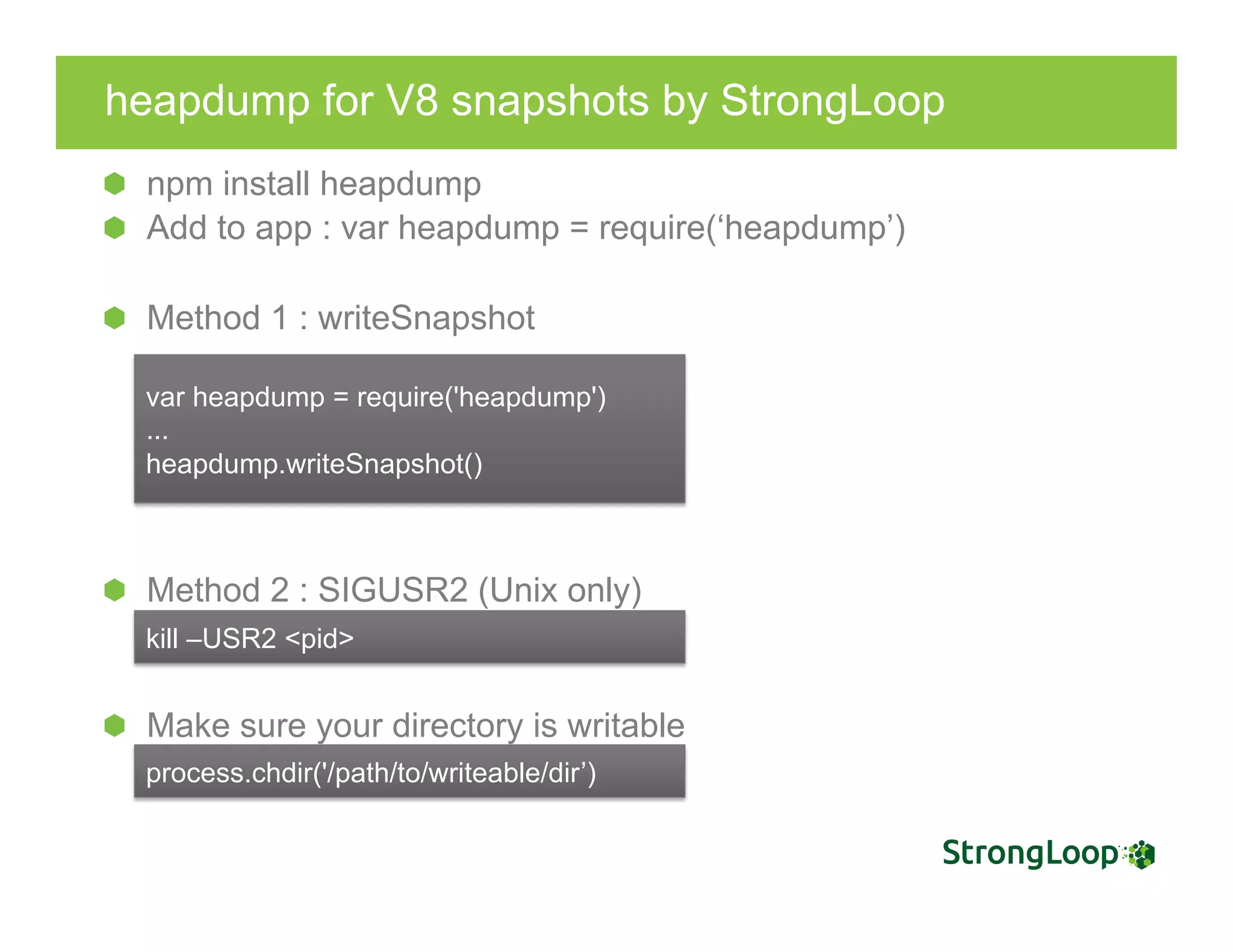

- 65. heapdump for V8snapshots by StrongLoop npm install heapdump Add to app : var heapdump = require(‘heapdump’) Method 1 : writeSnapshot Method 2 : SIGUSR2 (Unix only) Make sure your directory is writable var heapdump = require('heapdump') ... heapdump.writeSnapshot() kill –USR2 <pid> process.chdir('/path/to/writeable/dir’)

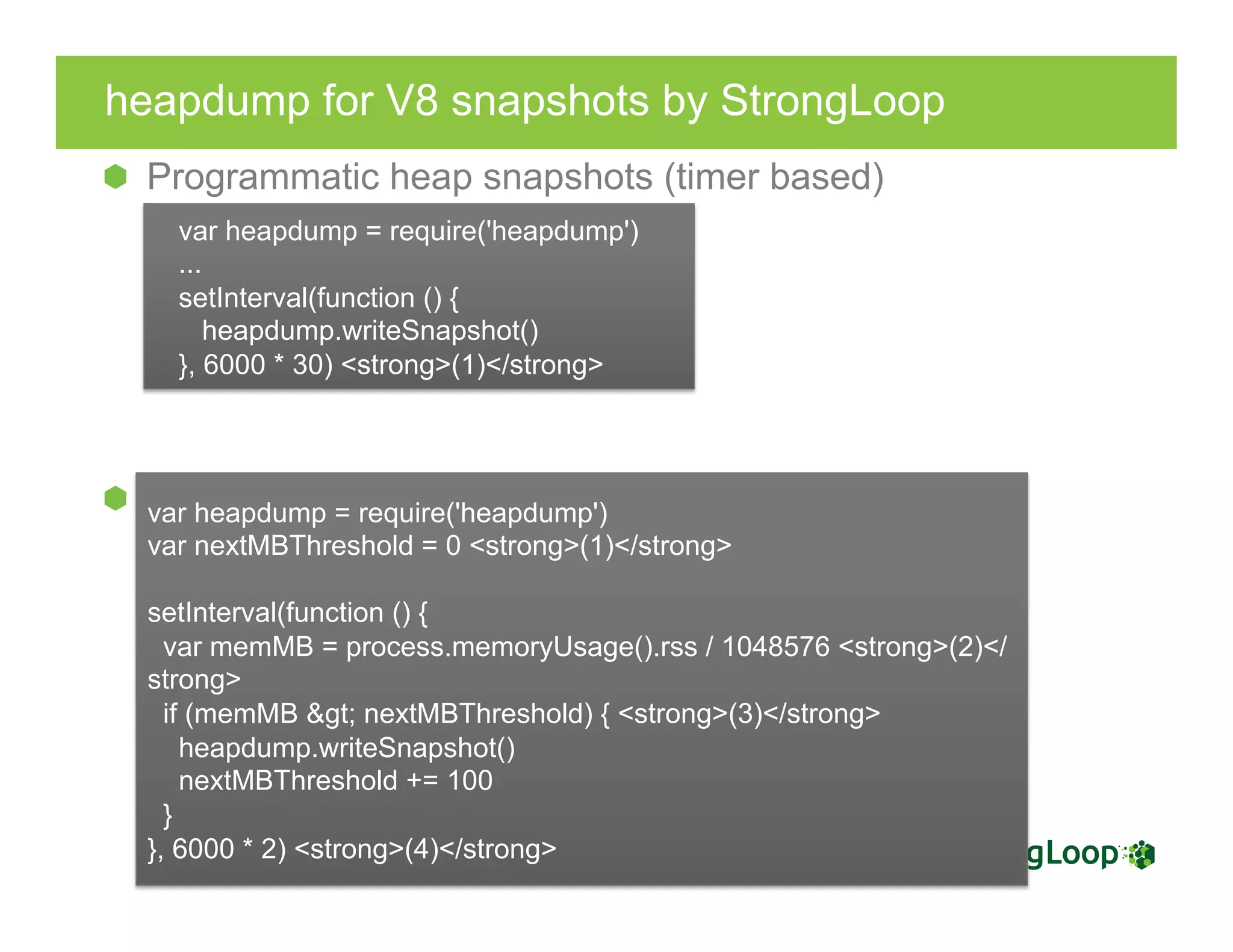

- 66. heapdump for V8snapshots by StrongLoop Programmatic heap snapshots (timer based) Programmatic heap snapshots (threshold based) var heapdump = require('heapdump') ... setInterval(function () { heapdump.writeSnapshot() }, 6000 * 30) <strong>(1)</strong> var heapdump = require('heapdump') var nextMBThreshold = 0 <strong>(1)</strong> setInterval(function () { var memMB = process.memoryUsage().rss / 1048576 <strong>(2)</ strong> if (memMB > nextMBThreshold) { <strong>(3)</strong> heapdump.writeSnapshot() nextMBThreshold += 100 } }, 6000 * 2) <strong>(4)</strong>

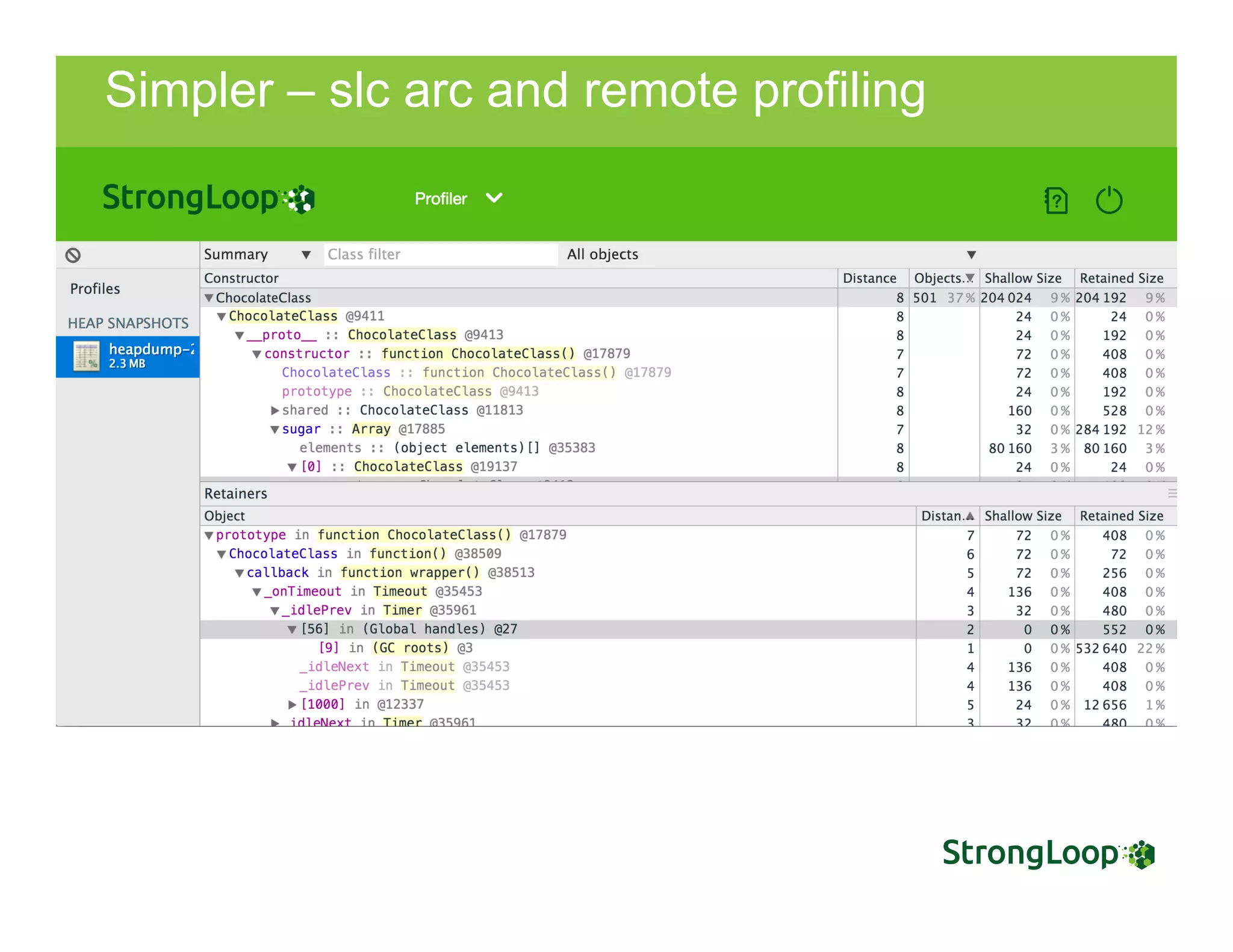

- 67. Simpler – slcarc and remote profiling
- 68.

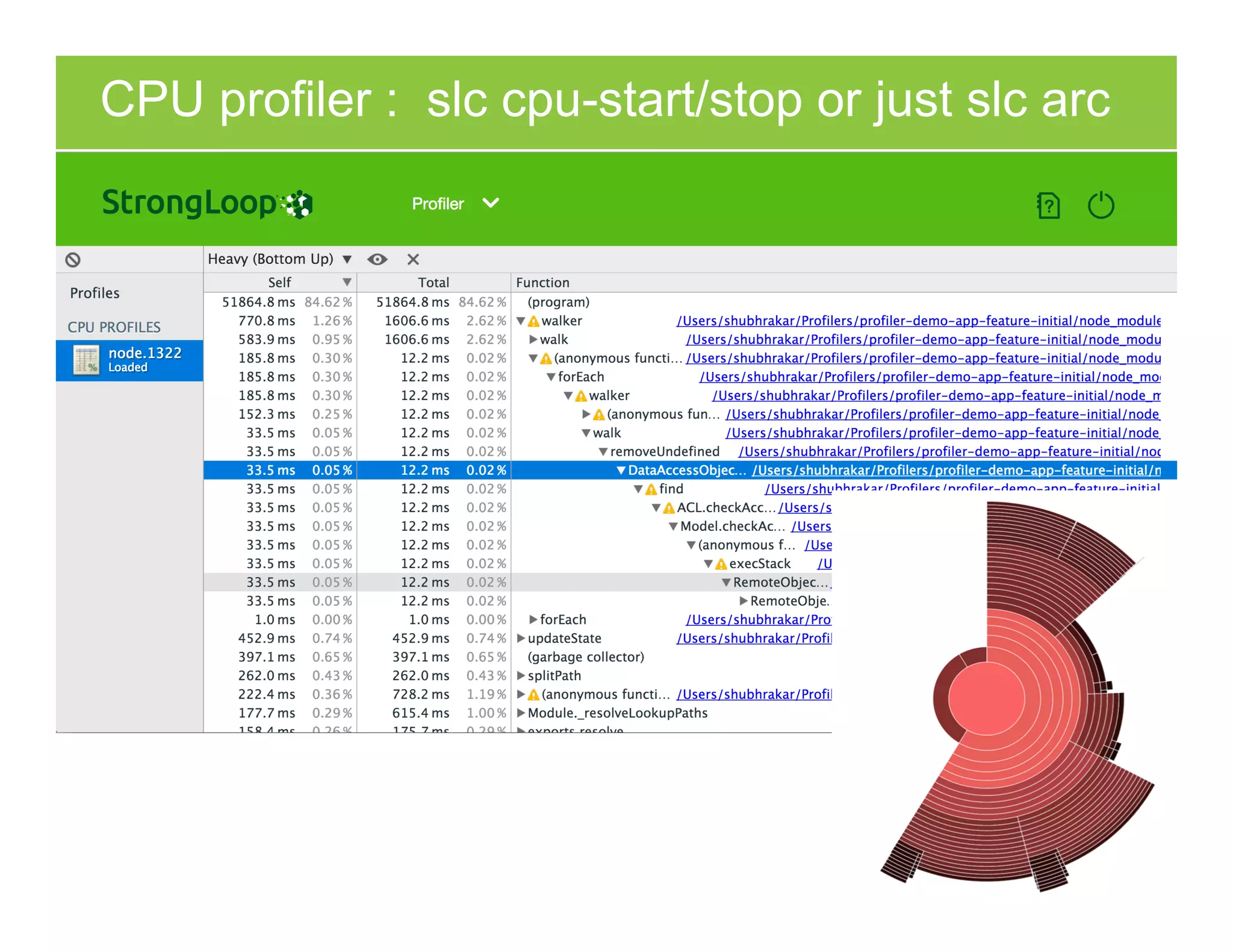

- 69. CPU profiler :slc cpu-start/stop or just slc arc
- 70. How we fixeda real production problem

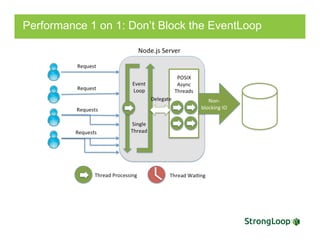

- 71. Performance 1 on1: Don’t Block the EventLoop

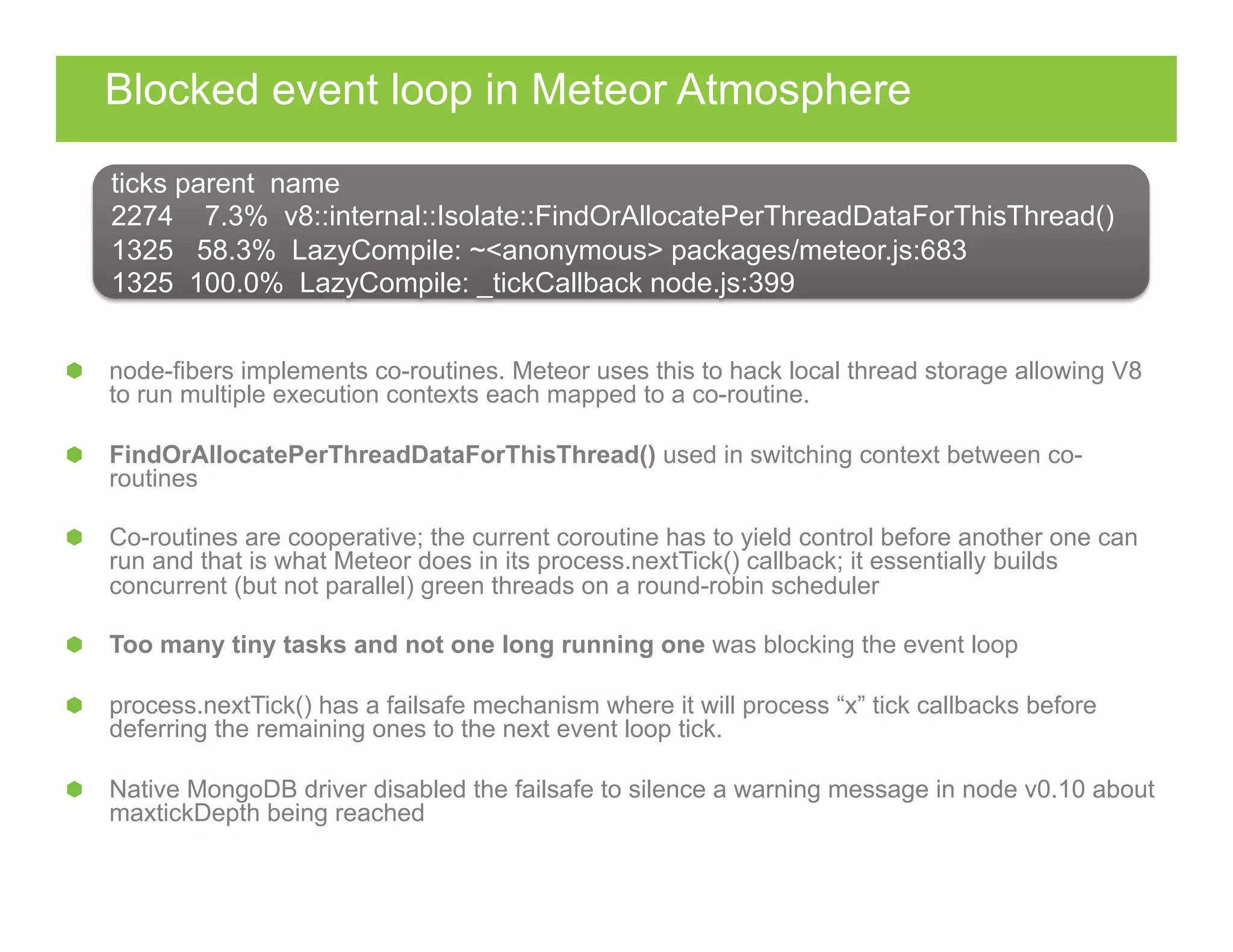

- 72. Blocked event loopin Meteor Atmosphere node-fibers implements co-routines. Meteor uses this to hack local thread storage allowing V8 to run multiple execution contexts each mapped to a co-routine. FindOrAllocatePerThreadDataForThisThread() used in switching context between co- routines Co-routines are cooperative; the current coroutine has to yield control before another one can run and that is what Meteor does in its process.nextTick() callback; it essentially builds concurrent (but not parallel) green threads on a round-robin scheduler Too many tiny tasks and not one long running one was blocking the event loop process.nextTick() has a failsafe mechanism where it will process “x” tick callbacks before deferring the remaining ones to the next event loop tick. Native MongoDB driver disabled the failsafe to silence a warning message in node v0.10 about maxtickDepth being reached ticks parent name 2274 7.3% v8::internal::Isolate::FindOrAllocatePerThreadDataForThisThread() 1325 58.3% LazyCompile: ~<anonymous> packages/meteor.js:683 1325 100.0% LazyCompile: _tickCallback node.js:399

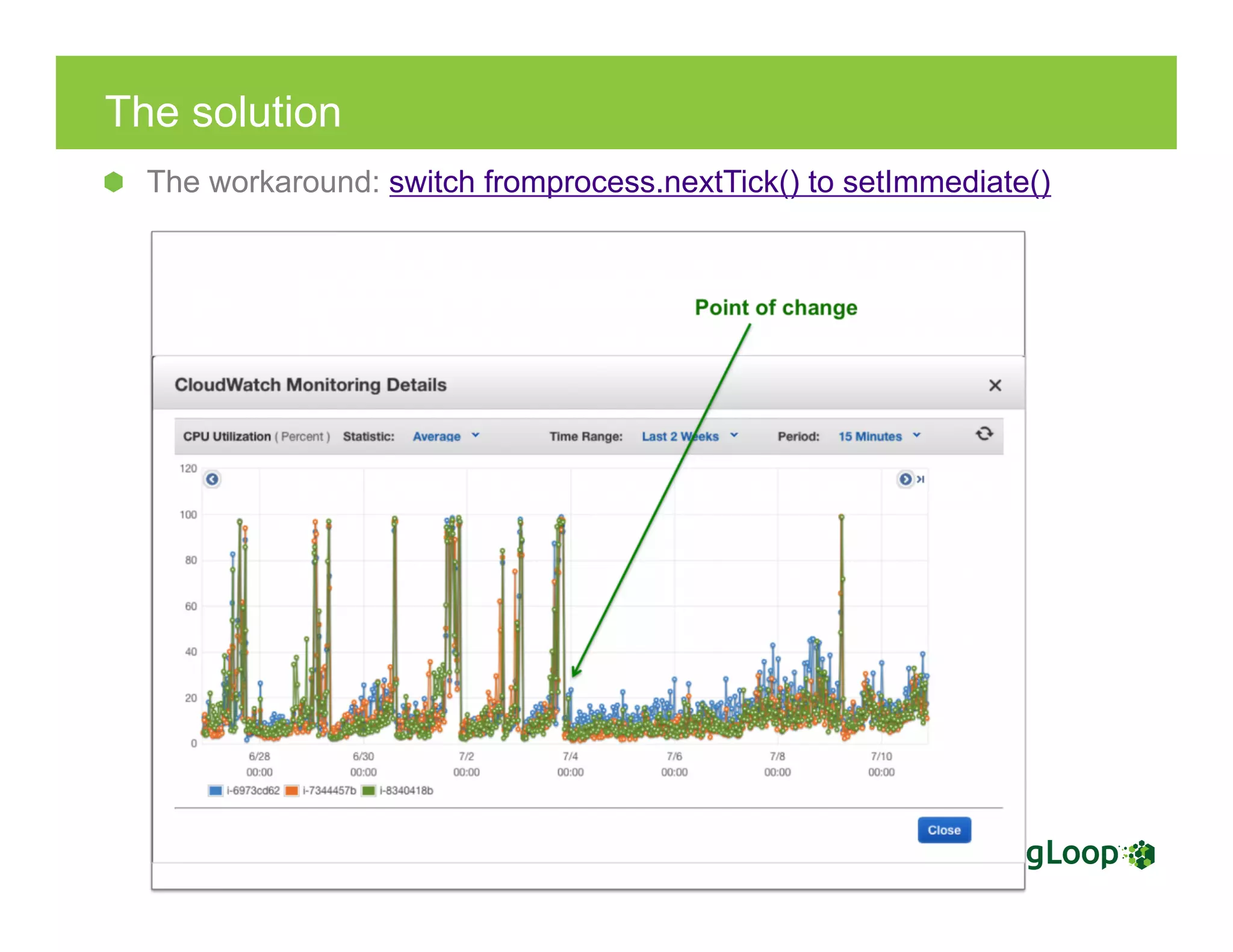

- 73. The solution Theworkaround: switch fromprocess.nextTick() to setImmediate()
- 74.

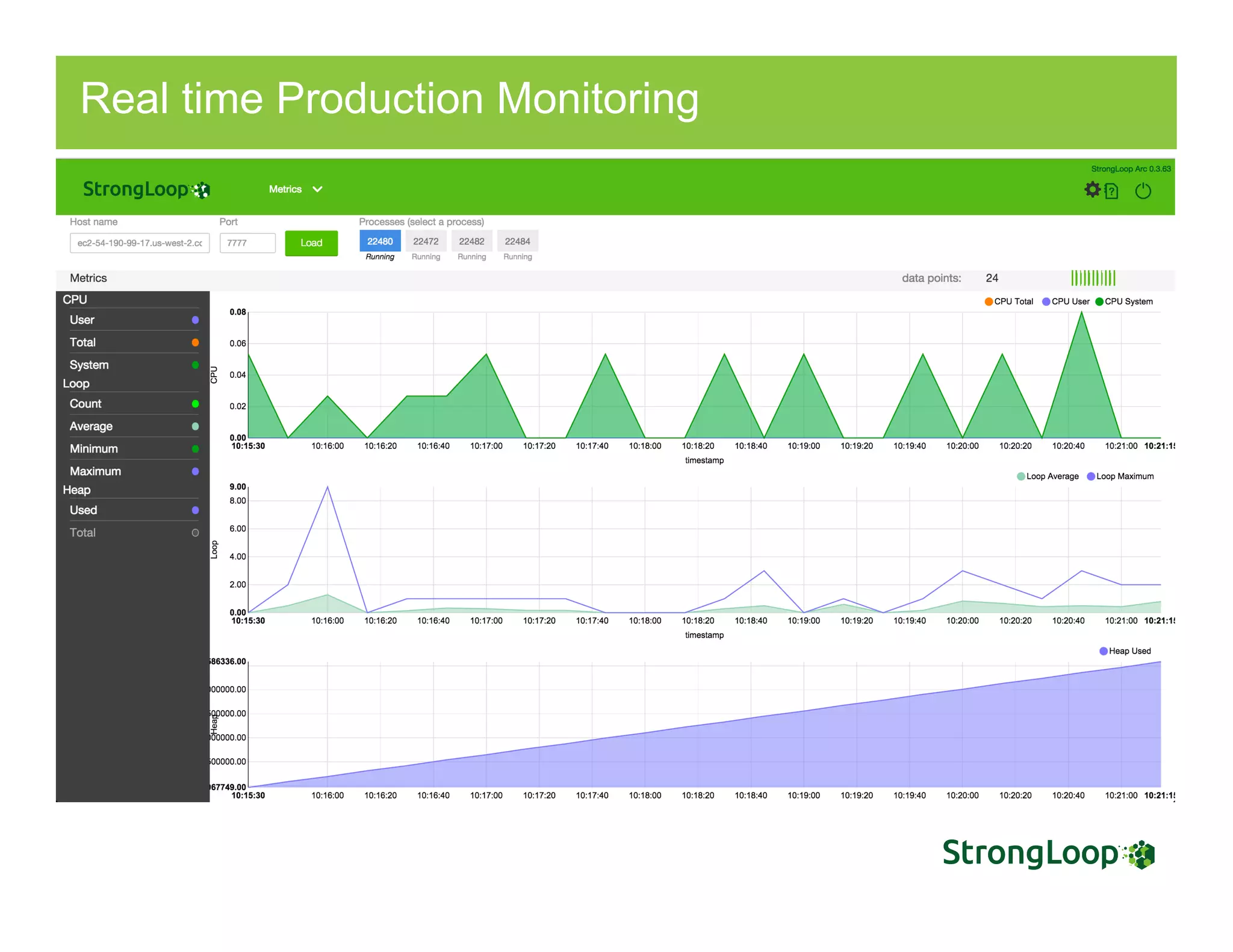

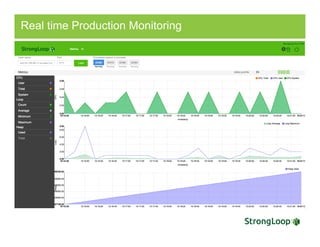

- 75. Real time ProductionMonitoring

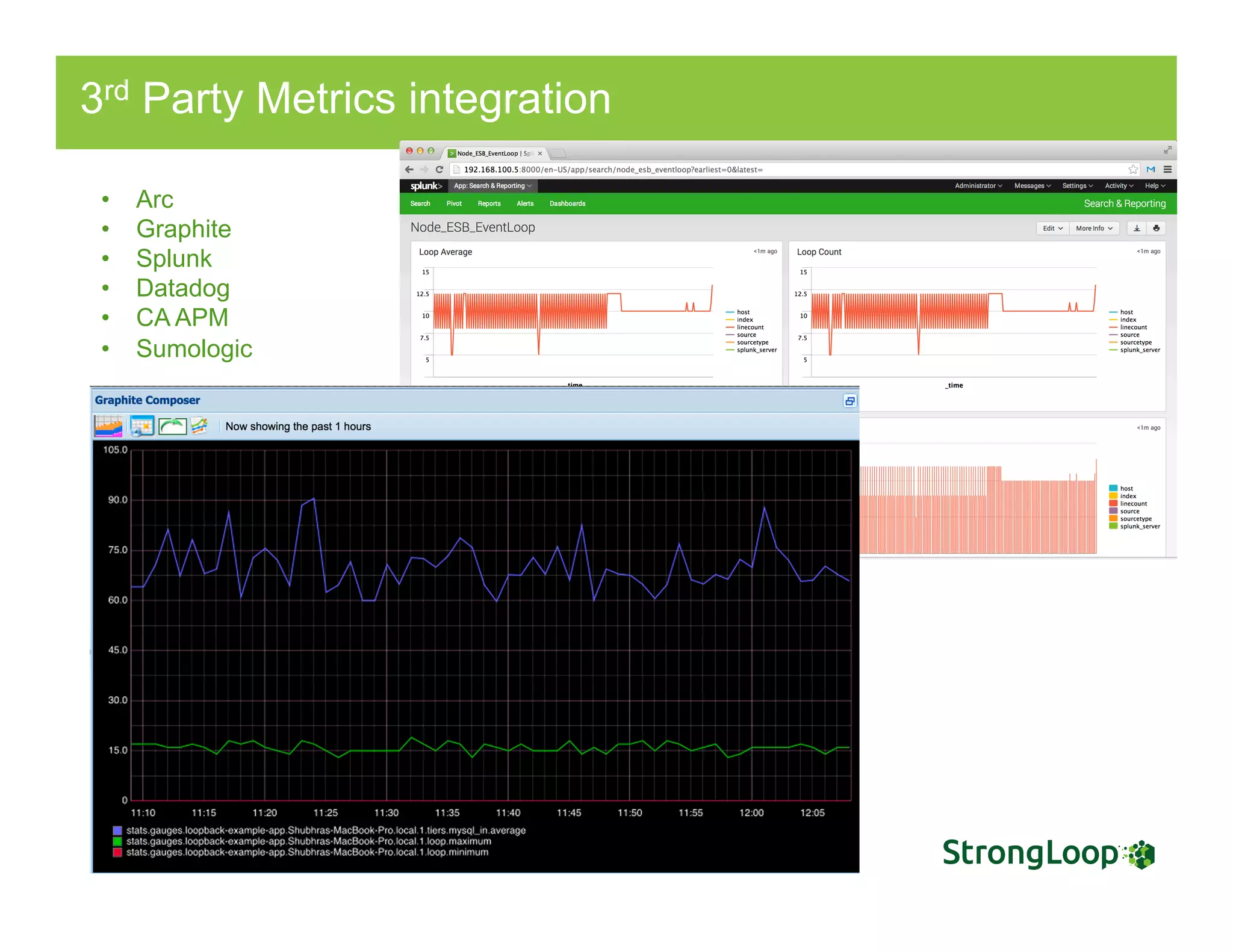

- 76. 3rd Party Metricsintegration • Arc • Graphite • Splunk • Datadog • CA APM • Sumologic
- 77.

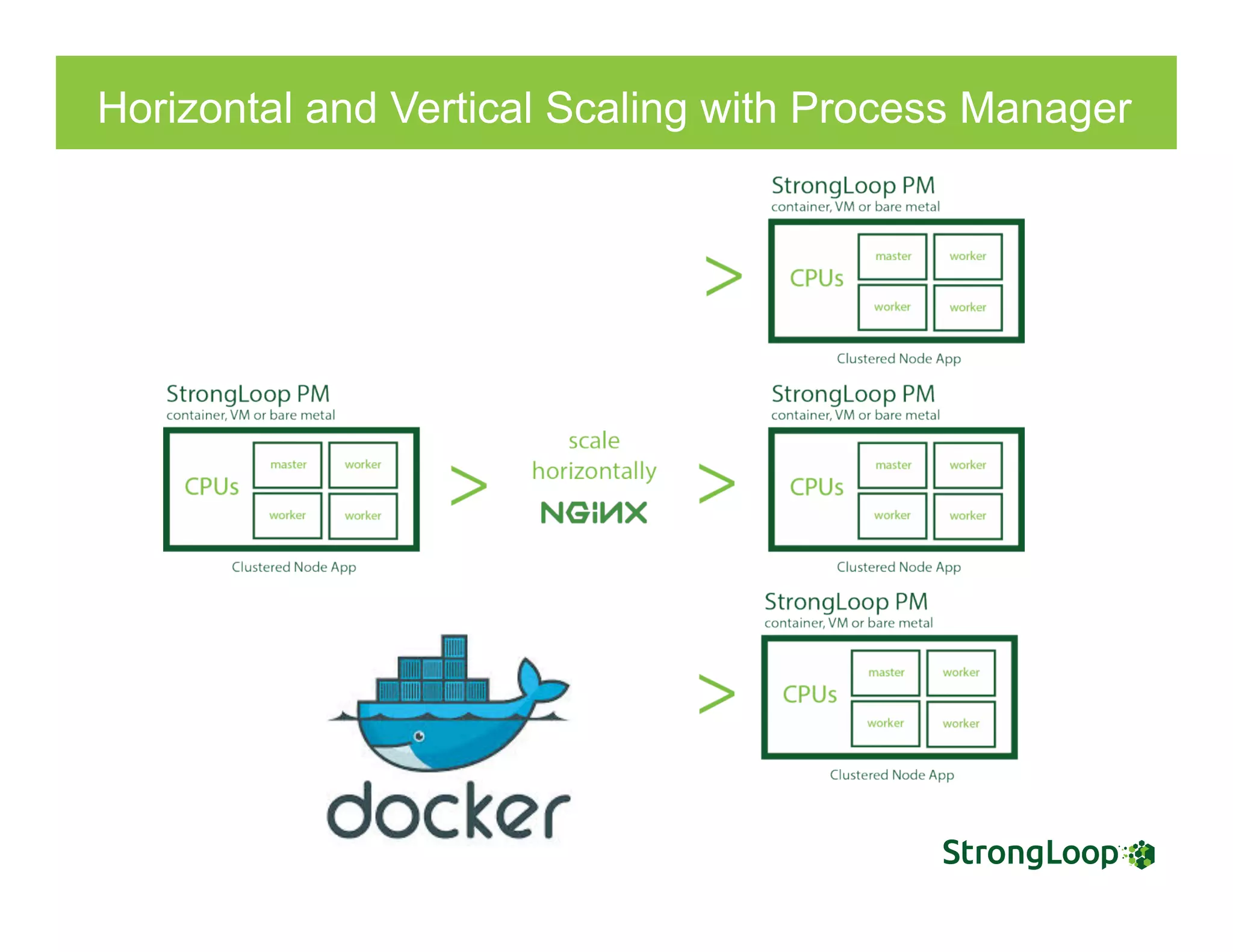

- 78. Horizontal and VerticalScaling with Process Manager
- 79.

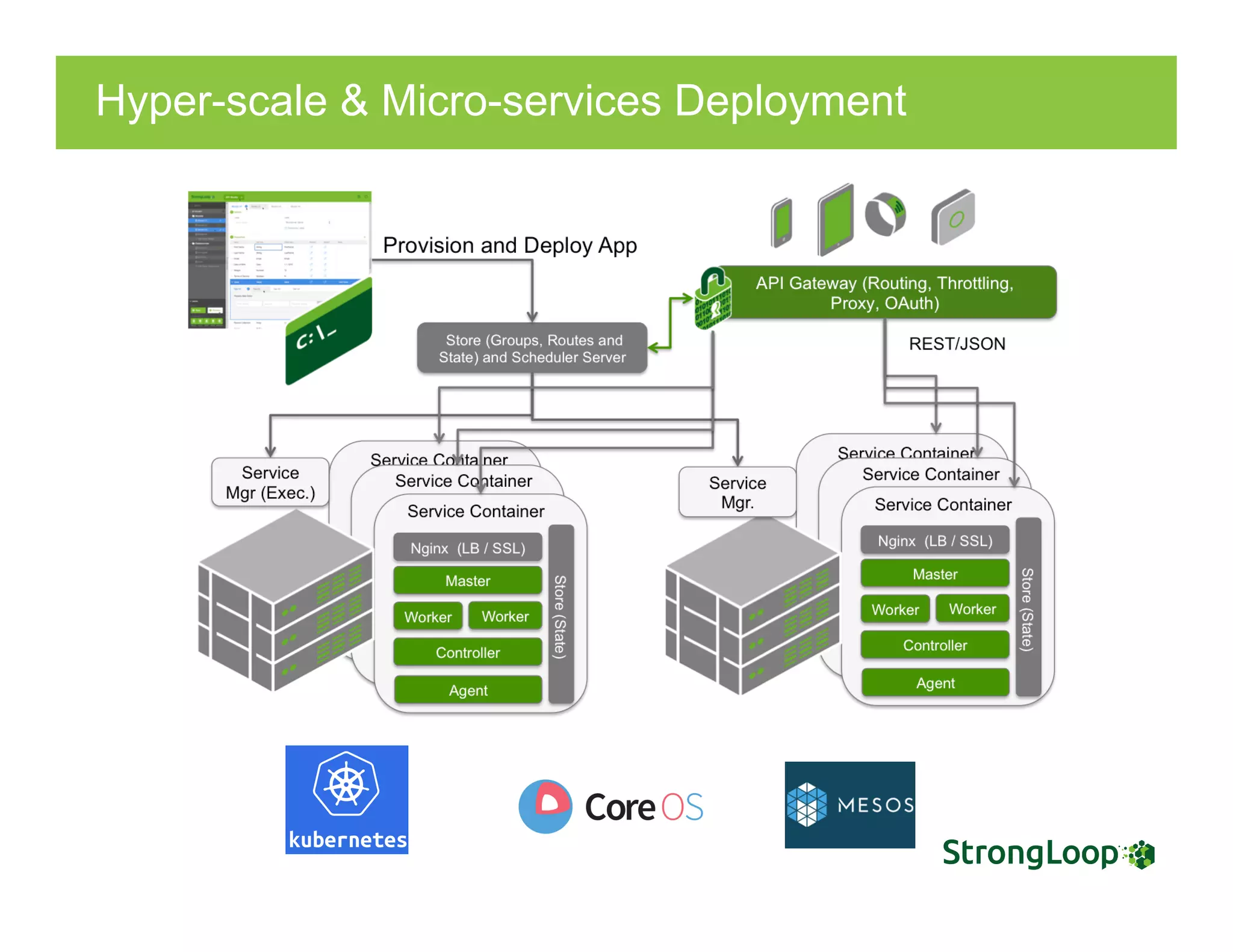

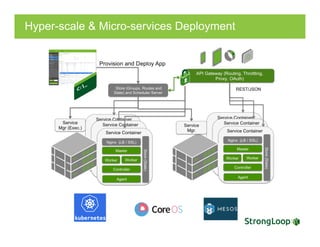

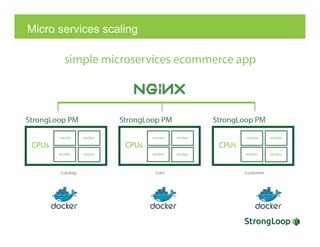

- 80. Hyper-scale & Micro-servicesDeployment
- 81. First there wasNode Thank you! JUST WIN, BABY!
