SIL for First Time Learners
The document discusses SIL (Swift Intermediate Language), which is the intermediate representation used by the Swift compiler. It provides an overview of SIL and how the Swift compiler uses it, demonstrates converting Swift code to SIL, and shows how optimizations are performed from raw SIL to canonical SIL. Examples are given of memory optimizations and how flag settings can control optimizations. In summary, learning SIL provides insights into how the Swift compiler works and is worthwhile for optimization.
More Related Content
Similar to SIL for First Time Learners
![[FT-11][suhorng] “Poor Man's” Undergraduate Compilers](https://cdn.slidesharecdn.com/ss_thumbnails/poormansundergraduatecompilers-140421081114-phpapp01-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
![[Deprecated] Integrating libSyntax into the compiler pipeline](https://cdn.slidesharecdn.com/ss_thumbnails/libsyntax-190802104309-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
SIL for First Time Learners
- 2. Hi, I'm Yusuke @kitasuke SILfor First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018
- 3. Why SIL? SIL forFirst Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

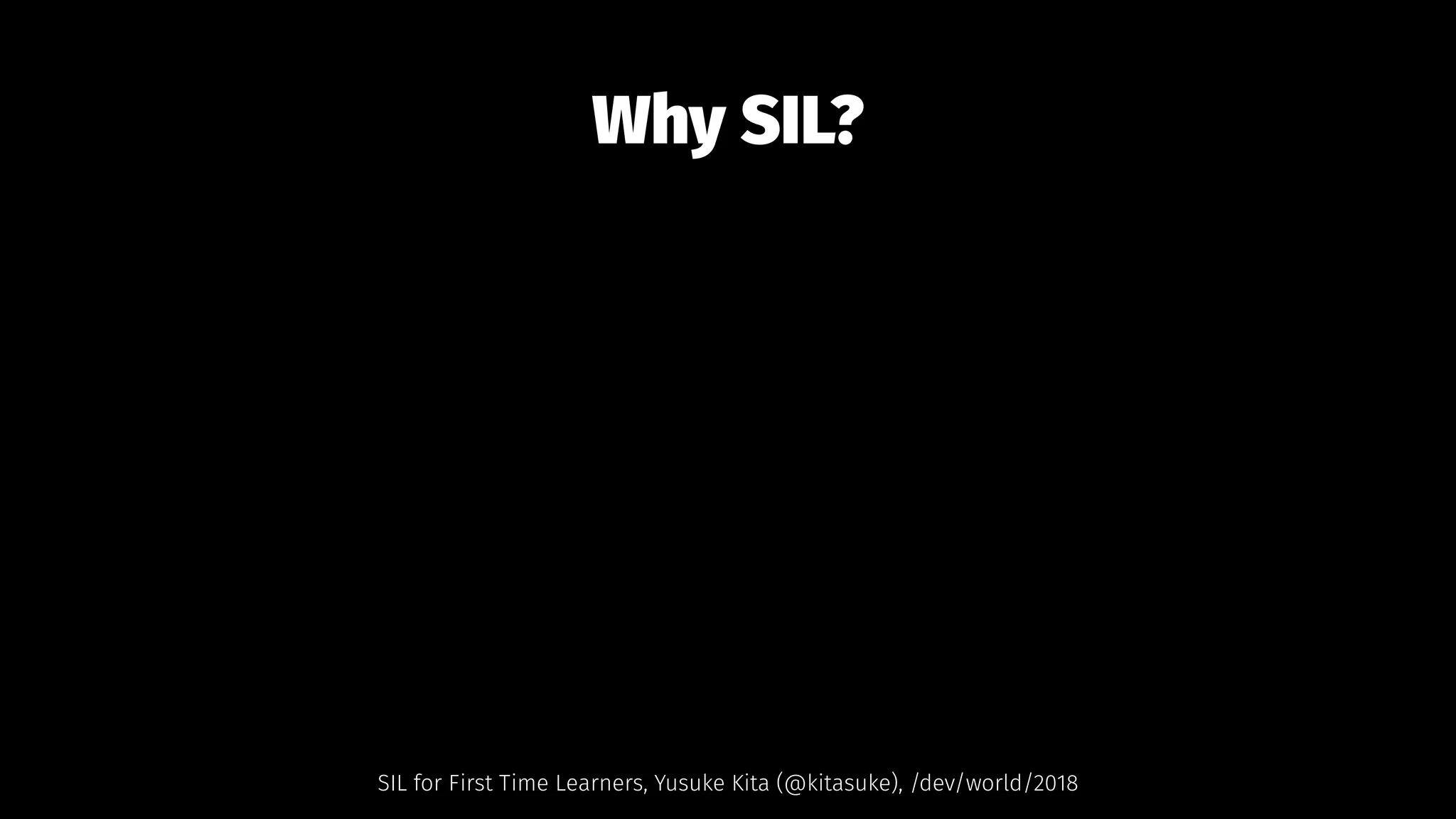

- 4. Why SIL? SIL forFirst Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

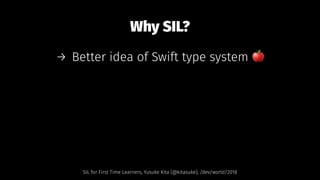

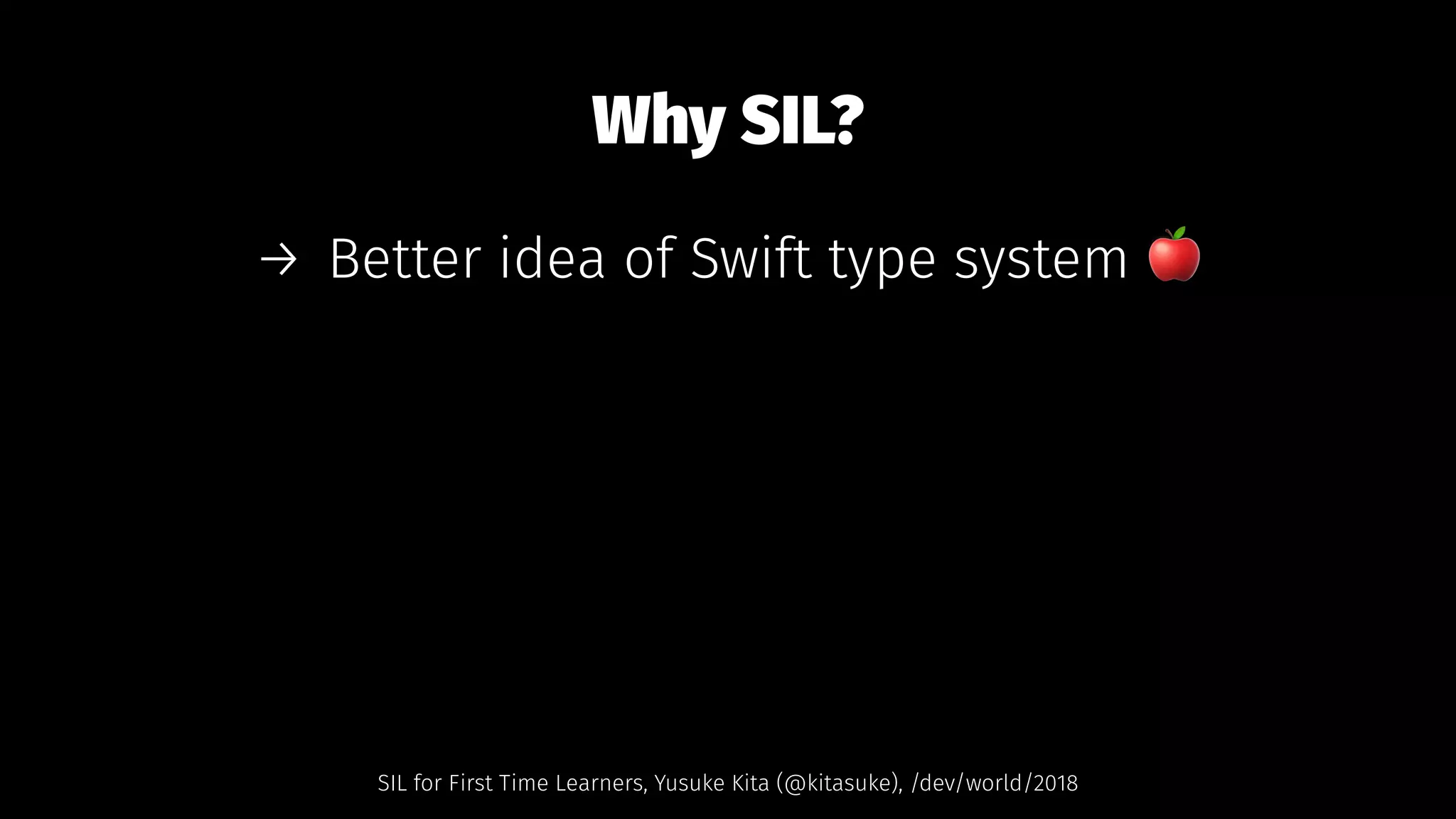

- 5. Why SIL? → Betteridea of Swift type system ! SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

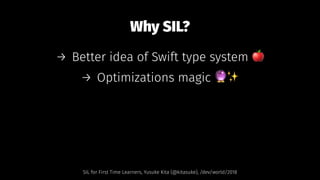

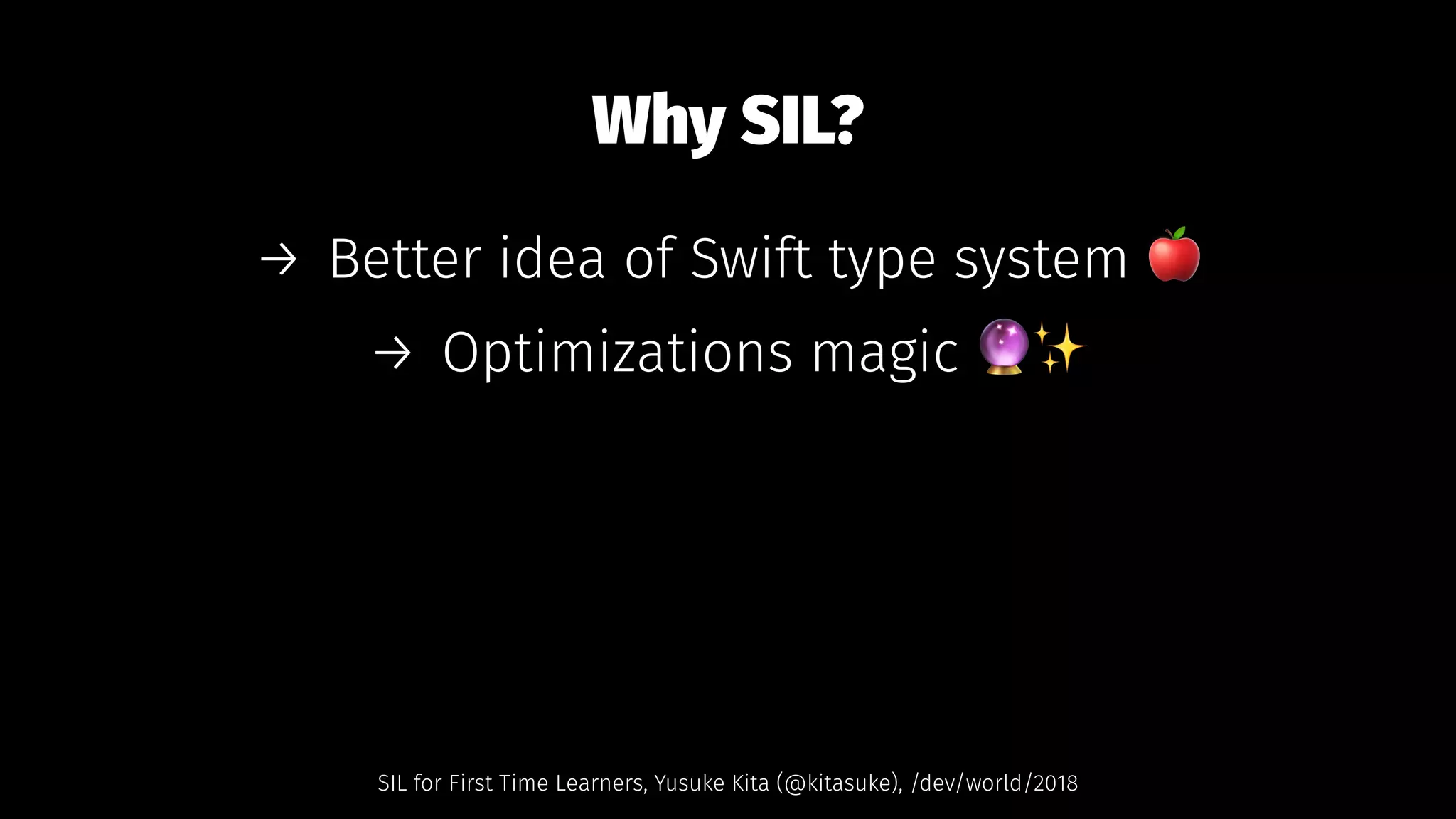

- 6. Why SIL? → Betteridea of Swift type system ! → Optimizations magic "✨ SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

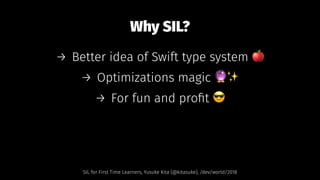

- 7. Why SIL? → Betteridea of Swift type system ! → Optimizations magic "✨ → For fun and profit $ SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018
- 8. SIL SIL for FirstTime Learners, Yusuke Kita (@kitasuke), /dev/world/2018
- 9. Swift Intermediate LanguageSIL for FirstTime Learners, Yusuke Kita (@kitasuke), /dev/world/2018
- 10. SIL is alanguage specific Intermediate Representation SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018
- 11. Swift SIL for FirstTime Learners, Yusuke Kita (@kitasuke), /dev/world/2018
- 12. Swift Compiler SIL forFirst Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

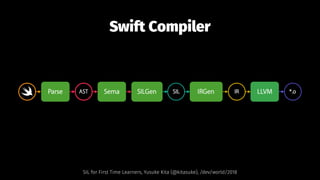

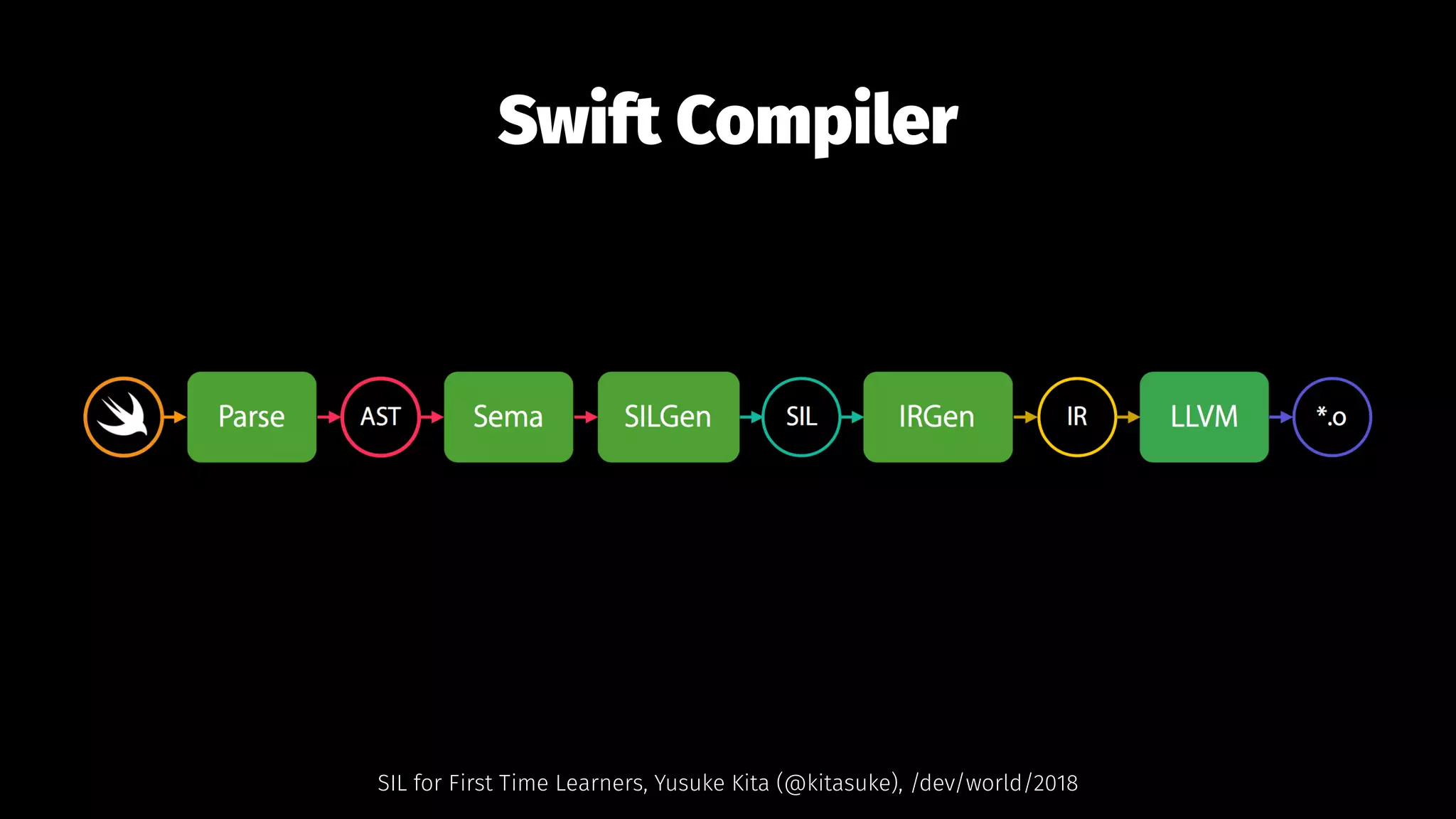

- 13. Swift Compiler SIL forFirst Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

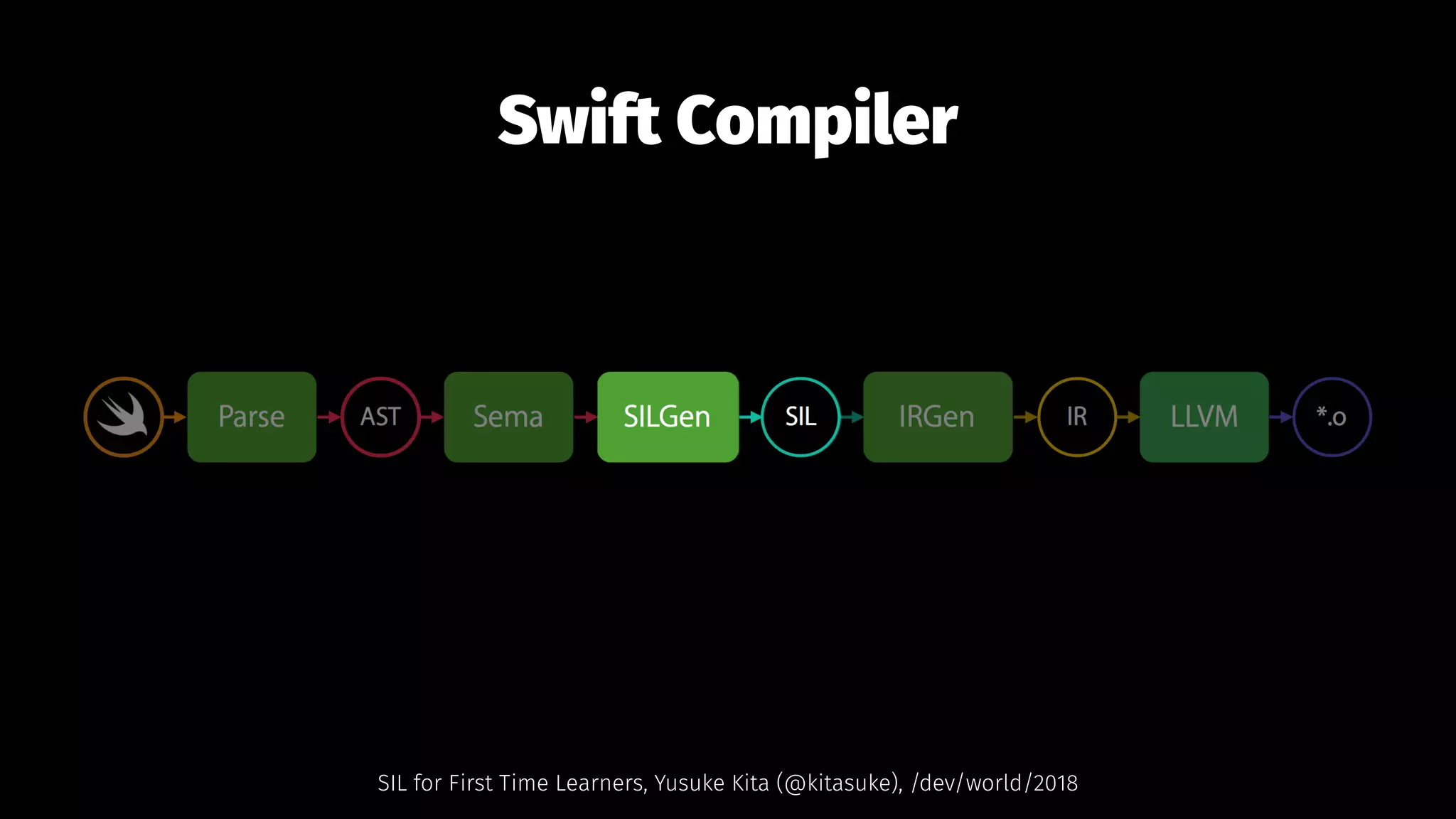

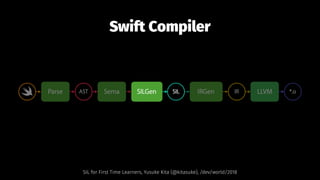

- 14. Swift Compiler SIL forFirst Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

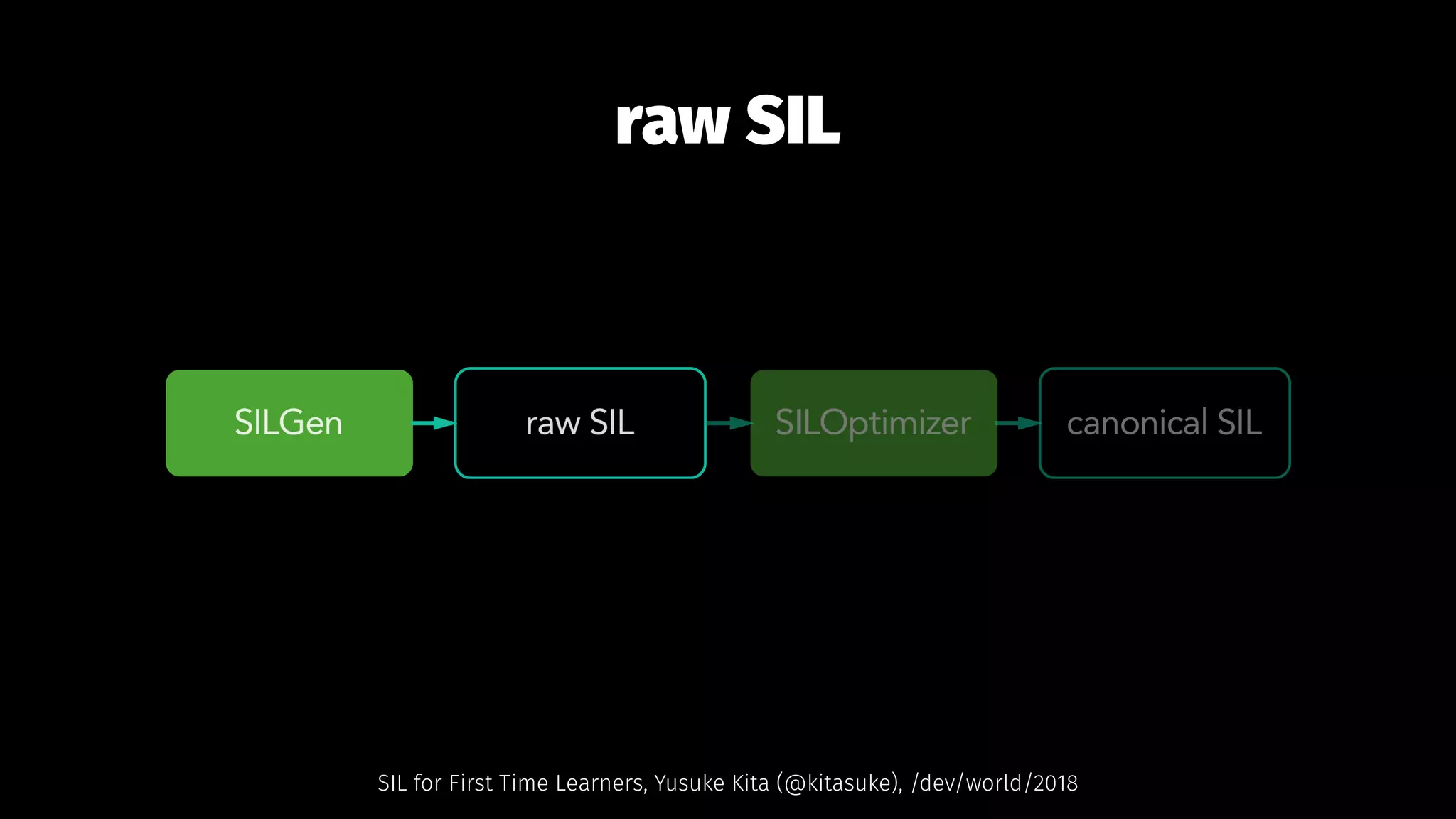

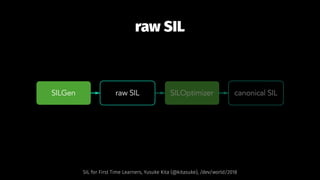

- 15. raw SIL SIL forFirst Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

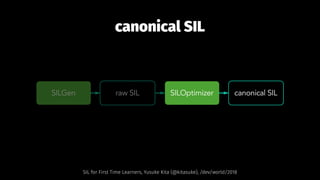

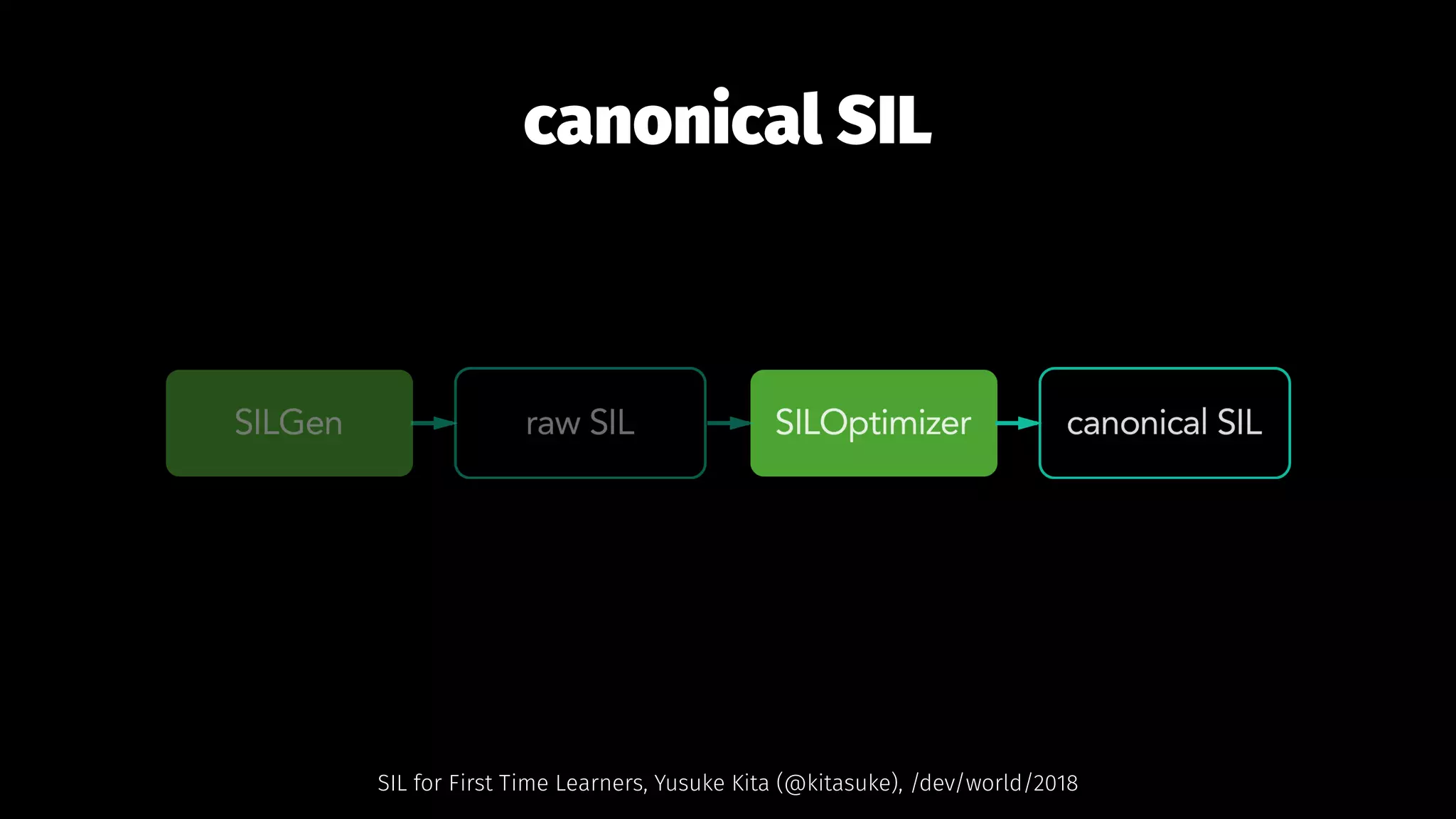

- 16. canonical SIL SIL forFirst Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018
- 17. Objective-C SIL for FirstTime Learners, Yusuke Kita (@kitasuke), /dev/world/2018
- 18. Clang SIL for FirstTime Learners, Yusuke Kita (@kitasuke), /dev/world/2018

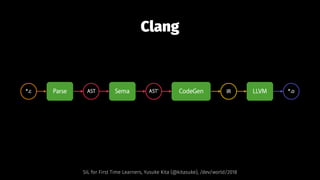

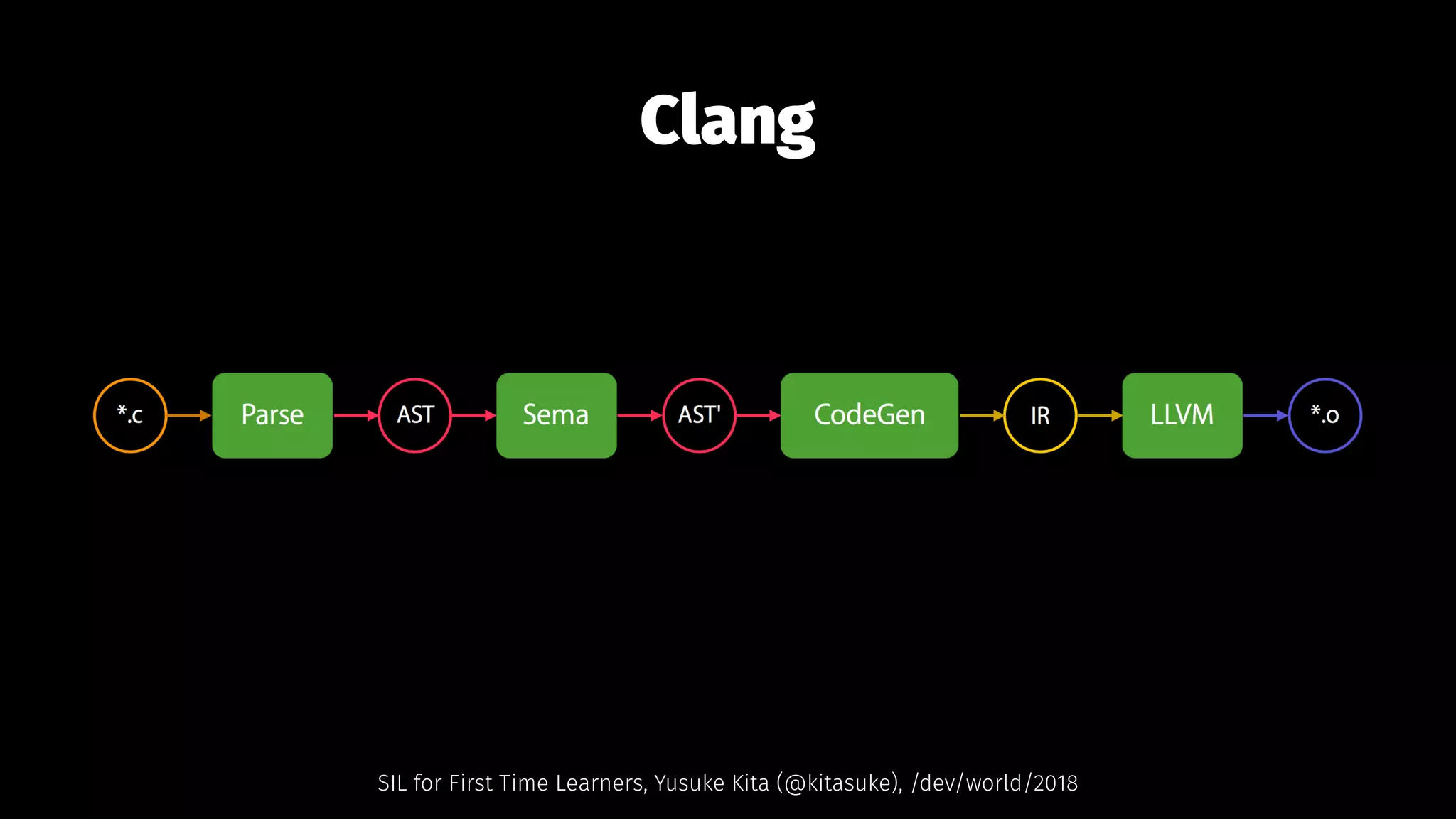

- 19. Clang SIL for FirstTime Learners, Yusuke Kita (@kitasuke), /dev/world/2018
- 20. SIL SIL for FirstTime Learners, Yusuke Kita (@kitasuke), /dev/world/2018

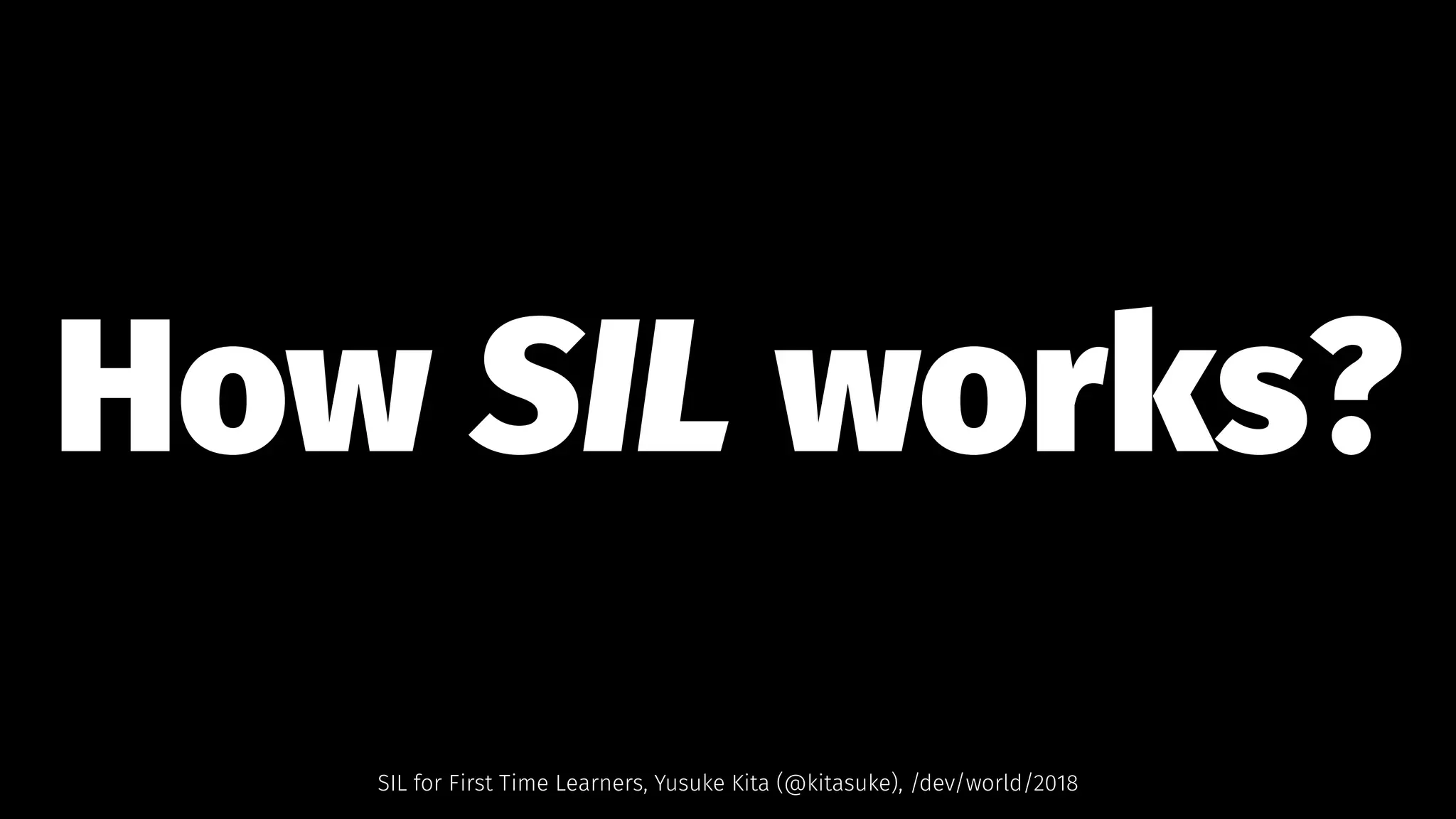

- 21. How SIL works? SILfor First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

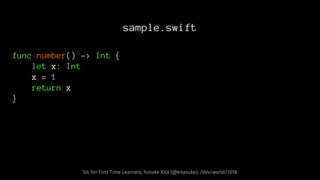

- 22. sample.swift func number() ->Int { let x: Int x = 1 return x } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

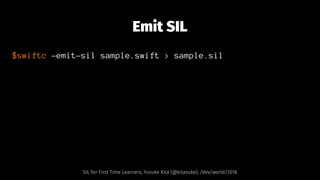

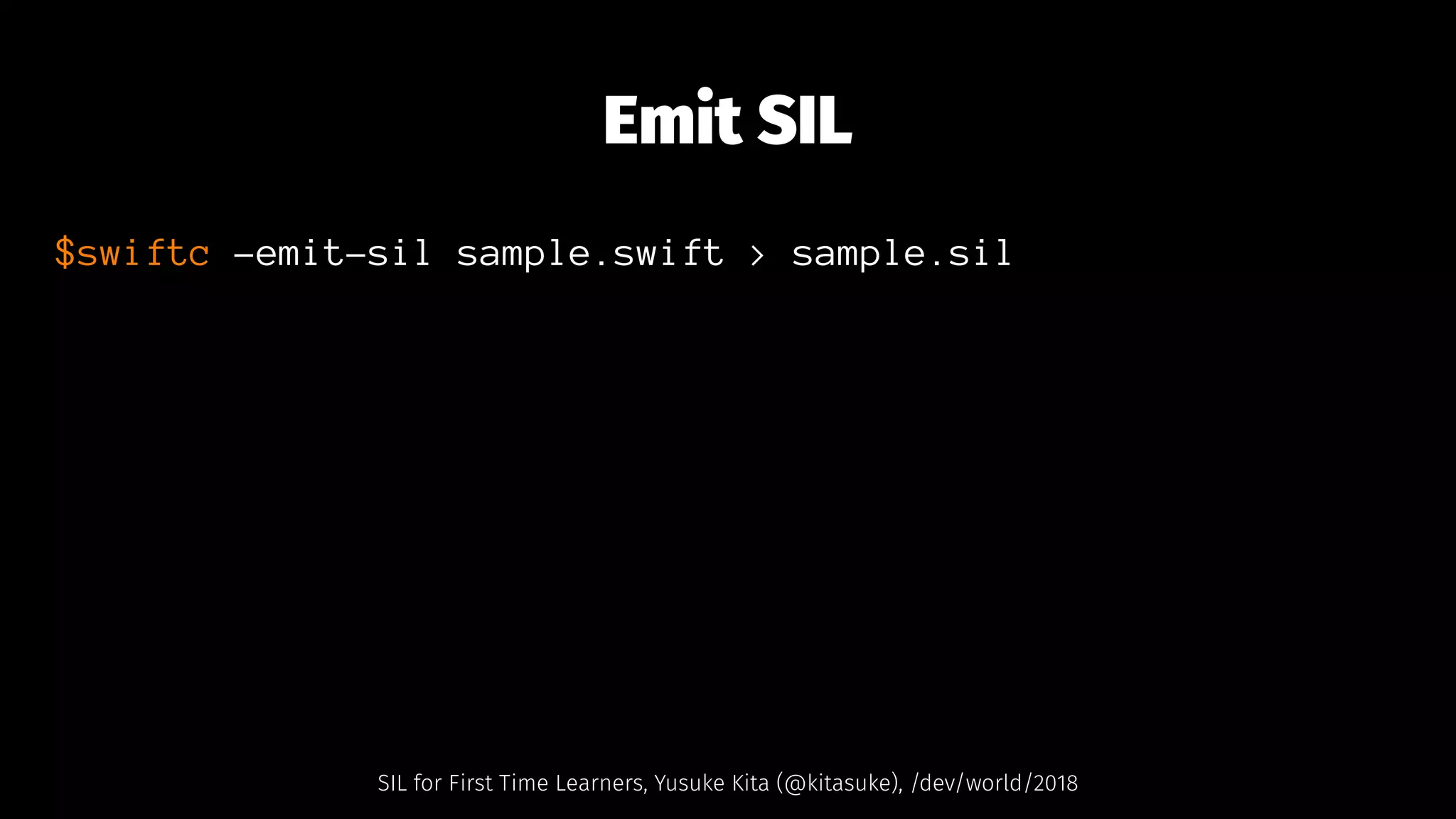

- 23. Emit SIL $swiftc -emit-silsample.swift > sample.sil SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

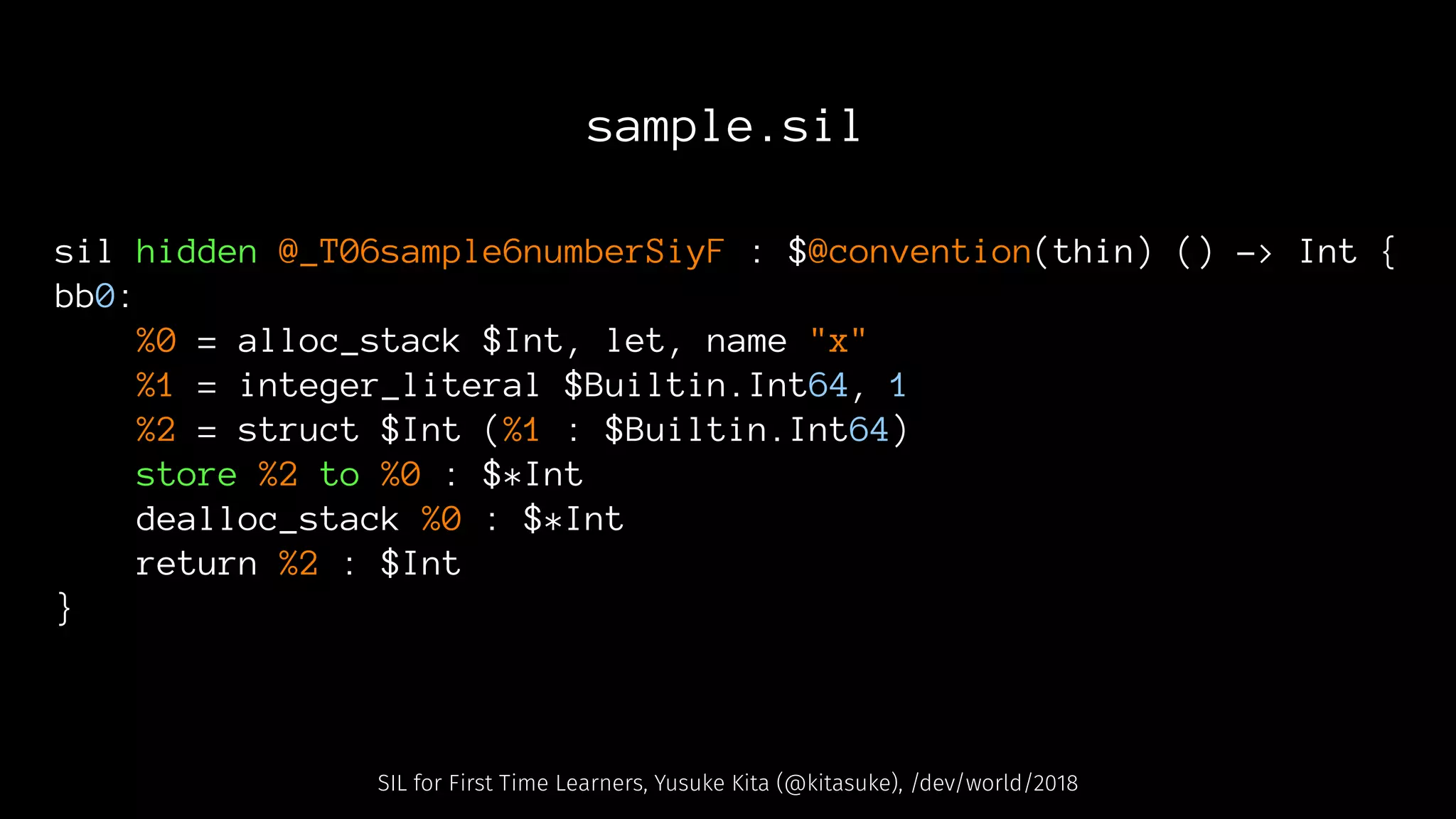

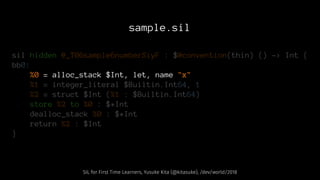

- 24. sample.sil sil hidden @_T06sample6numberSiyF: $@convention(thin) () -> Int { bb0: %0 = alloc_stack $Int, let, name "x" %1 = integer_literal $Builtin.Int64, 1 %2 = struct $Int (%1 : $Builtin.Int64) store %2 to %0 : $*Int dealloc_stack %0 : $*Int return %2 : $Int } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

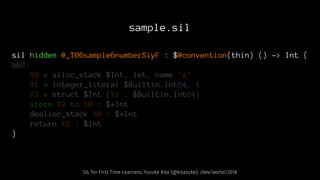

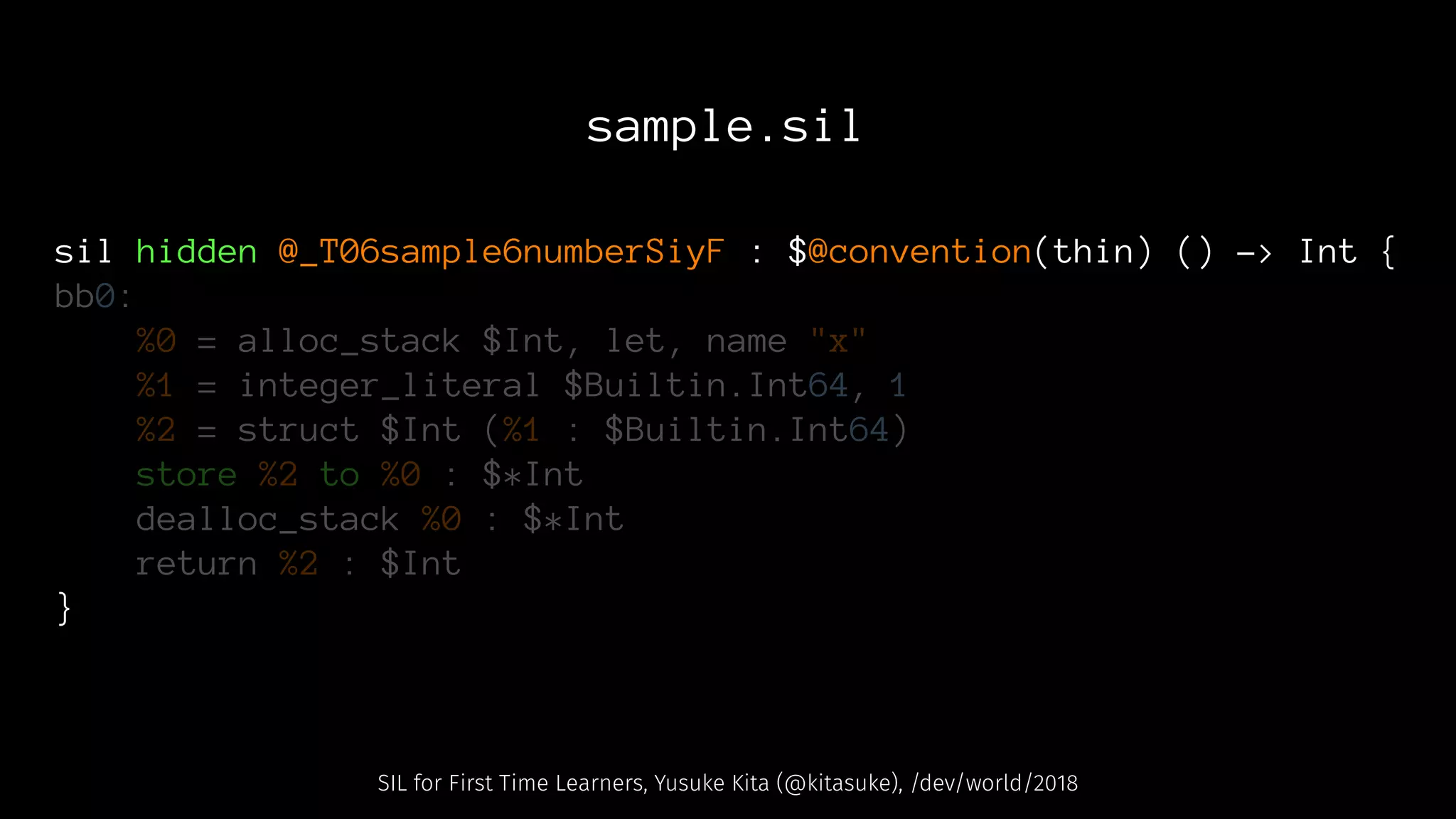

- 25. sample.sil sil hidden @_T06sample6numberSiyF: $@convention(thin) () -> Int { bb0: %0 = alloc_stack $Int, let, name "x" %1 = integer_literal $Builtin.Int64, 1 %2 = struct $Int (%1 : $Builtin.Int64) store %2 to %0 : $*Int dealloc_stack %0 : $*Int return %2 : $Int } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

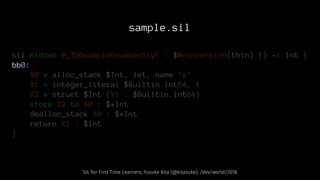

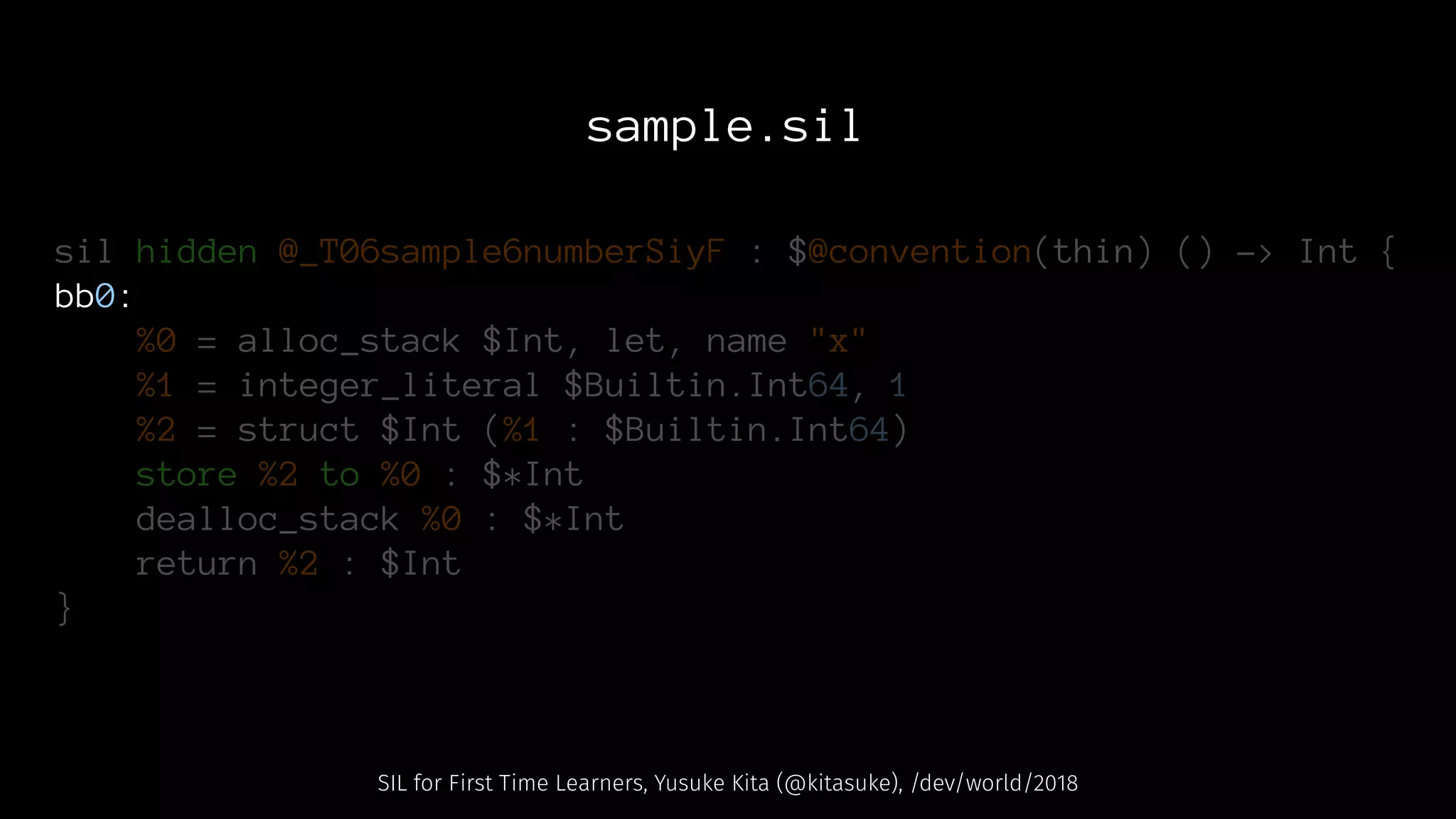

- 26. sample.sil sil hidden @_T06sample6numberSiyF: $@convention(thin) () -> Int { bb0: %0 = alloc_stack $Int, let, name "x" %1 = integer_literal $Builtin.Int64, 1 %2 = struct $Int (%1 : $Builtin.Int64) store %2 to %0 : $*Int dealloc_stack %0 : $*Int return %2 : $Int } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

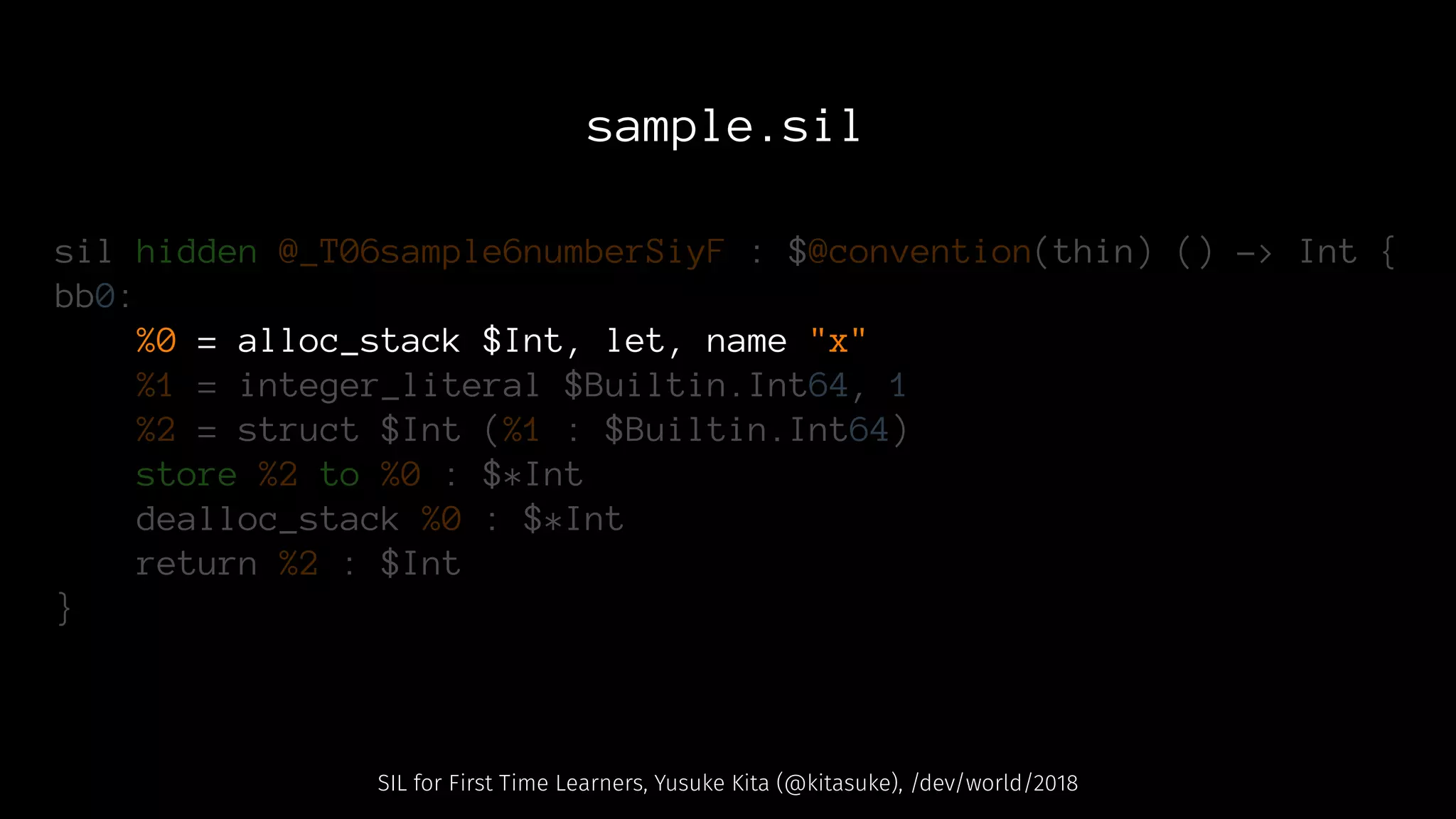

- 27. sample.sil sil hidden @_T06sample6numberSiyF: $@convention(thin) () -> Int { bb0: %0 = alloc_stack $Int, let, name "x" %1 = integer_literal $Builtin.Int64, 1 %2 = struct $Int (%1 : $Builtin.Int64) store %2 to %0 : $*Int dealloc_stack %0 : $*Int return %2 : $Int } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

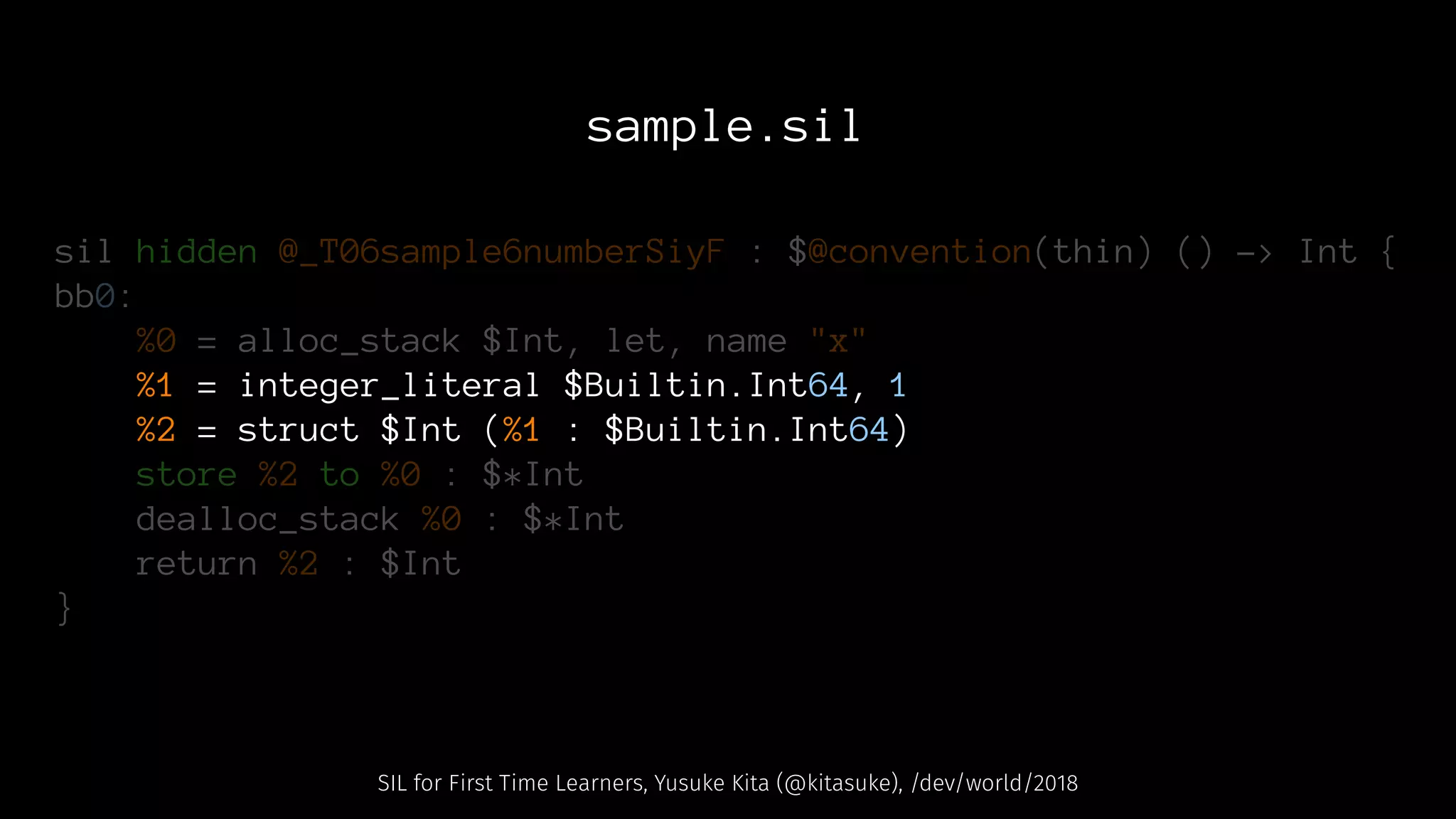

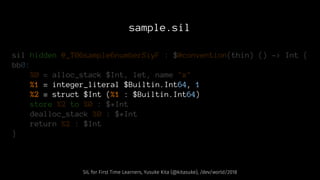

- 28. sample.sil sil hidden @_T06sample6numberSiyF: $@convention(thin) () -> Int { bb0: %0 = alloc_stack $Int, let, name "x" %1 = integer_literal $Builtin.Int64, 1 %2 = struct $Int (%1 : $Builtin.Int64) store %2 to %0 : $*Int dealloc_stack %0 : $*Int return %2 : $Int } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

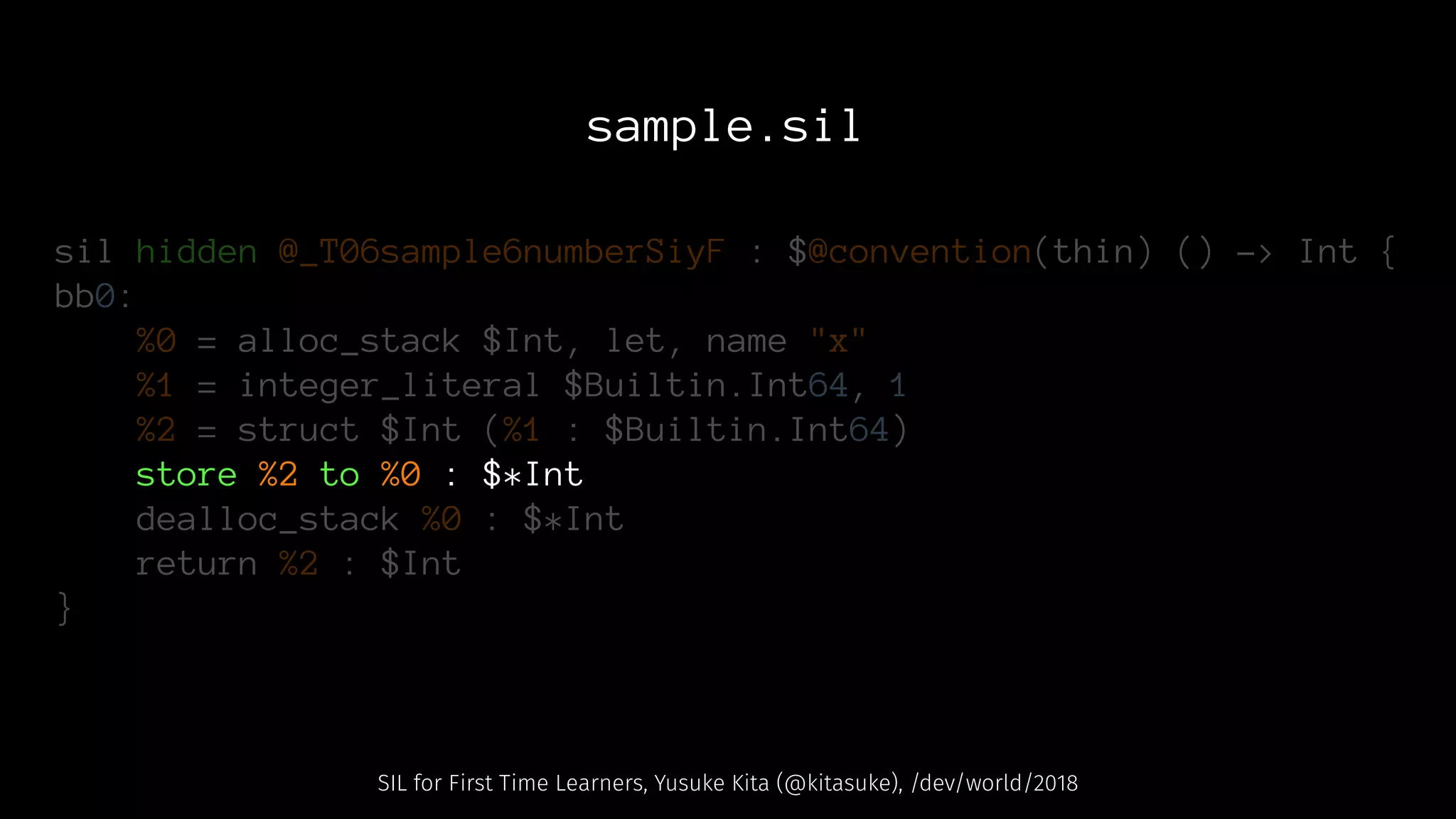

- 29. sample.sil sil hidden @_T06sample6numberSiyF: $@convention(thin) () -> Int { bb0: %0 = alloc_stack $Int, let, name "x" %1 = integer_literal $Builtin.Int64, 1 %2 = struct $Int (%1 : $Builtin.Int64) store %2 to %0 : $*Int dealloc_stack %0 : $*Int return %2 : $Int } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

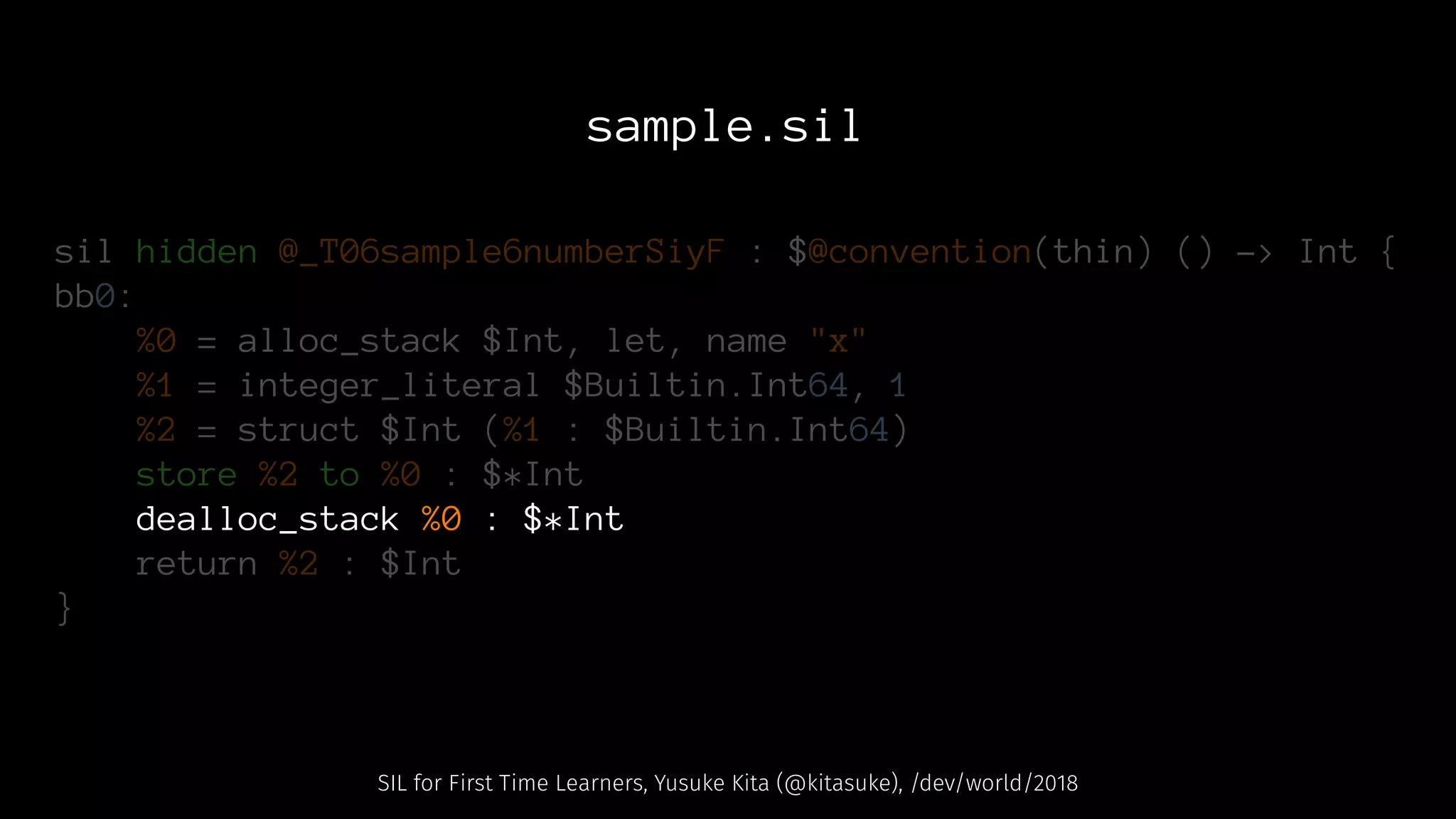

- 30. sample.sil sil hidden @_T06sample6numberSiyF: $@convention(thin) () -> Int { bb0: %0 = alloc_stack $Int, let, name "x" %1 = integer_literal $Builtin.Int64, 1 %2 = struct $Int (%1 : $Builtin.Int64) store %2 to %0 : $*Int dealloc_stack %0 : $*Int return %2 : $Int } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

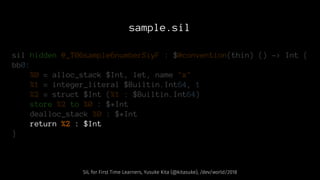

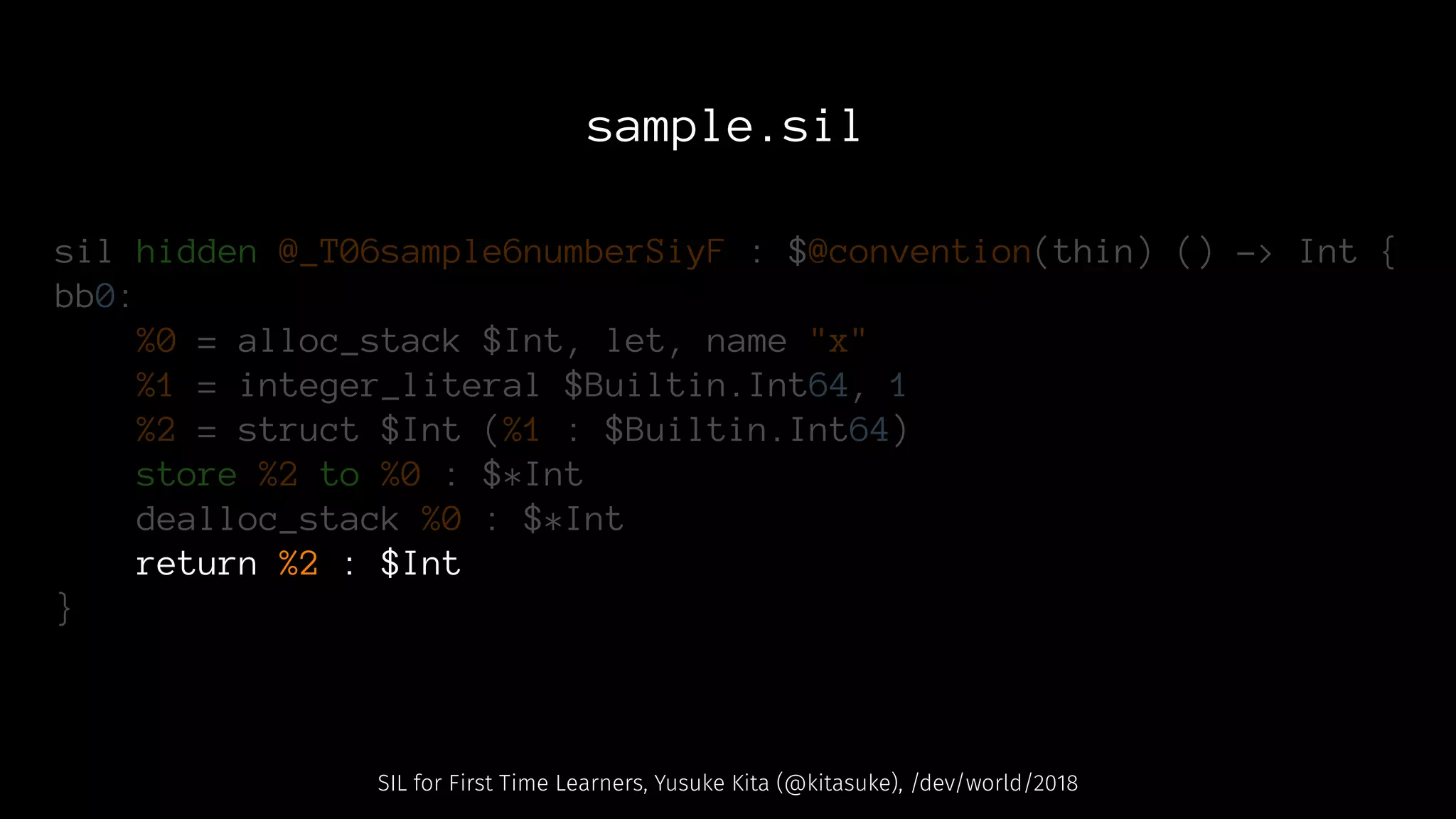

- 31. sample.sil sil hidden @_T06sample6numberSiyF: $@convention(thin) () -> Int { bb0: %0 = alloc_stack $Int, let, name "x" %1 = integer_literal $Builtin.Int64, 1 %2 = struct $Int (%1 : $Builtin.Int64) store %2 to %0 : $*Int dealloc_stack %0 : $*Int return %2 : $Int } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

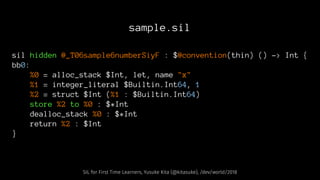

- 32. sample.sil sil hidden @_T06sample6numberSiyF: $@convention(thin) () -> Int { bb0: %0 = alloc_stack $Int, let, name "x" %1 = integer_literal $Builtin.Int64, 1 %2 = struct $Int (%1 : $Builtin.Int64) store %2 to %0 : $*Int dealloc_stack %0 : $*Int return %2 : $Int } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

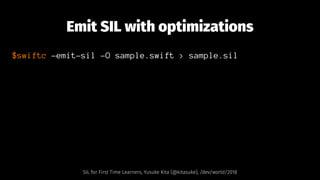

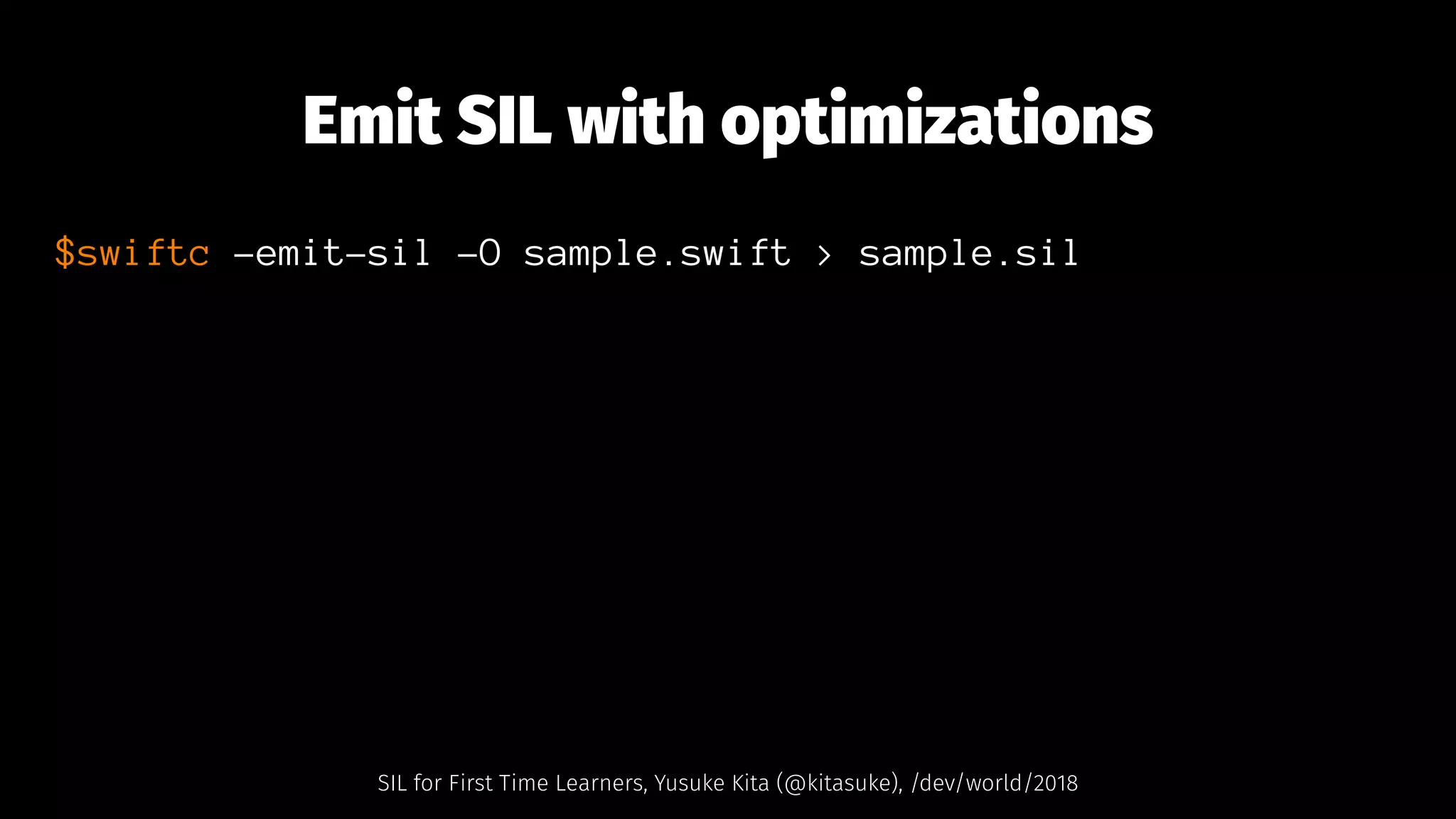

- 33. Emit SIL withoptimizations $swiftc -emit-sil -O sample.swift > sample.sil SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018
- 34. sample.sil with optimizations silhidden @_T06sample6numberSiyF : $@convention(thin) () -> Int { bb0: %0 = integer_literal $Builtin.Int64, 1 %1 = struct $Int (%0 : $Builtin.Int64) return %1 : $Int } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

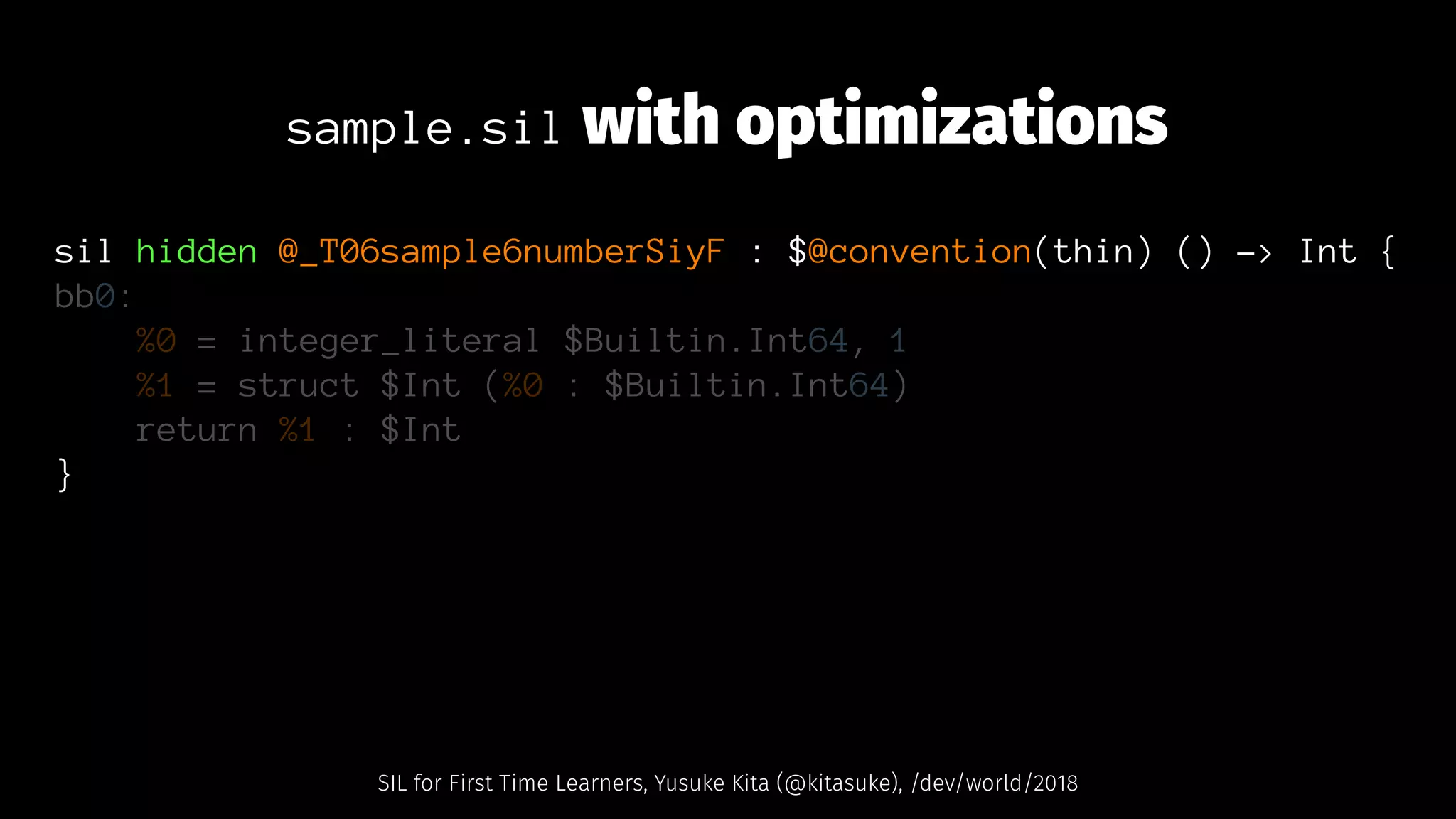

- 35. sample.sil with optimizations silhidden @_T06sample6numberSiyF : $@convention(thin) () -> Int { bb0: %0 = integer_literal $Builtin.Int64, 1 %1 = struct $Int (%0 : $Builtin.Int64) return %1 : $Int } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

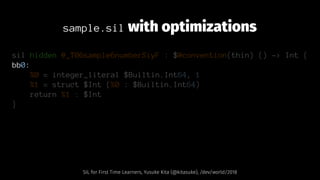

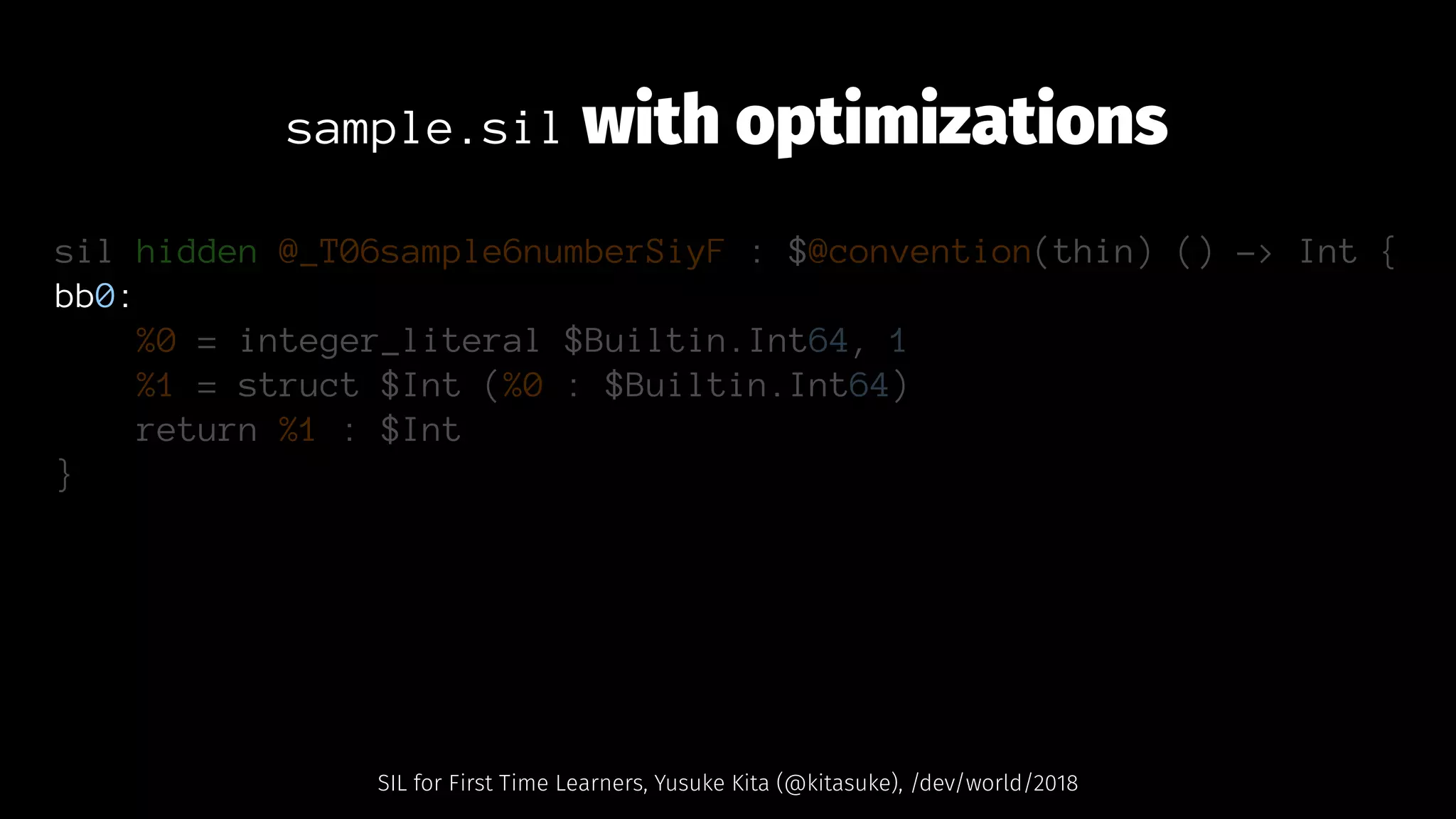

- 36. sample.sil with optimizations silhidden @_T06sample6numberSiyF : $@convention(thin) () -> Int { bb0: %0 = integer_literal $Builtin.Int64, 1 %1 = struct $Int (%0 : $Builtin.Int64) return %1 : $Int } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

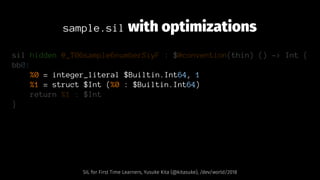

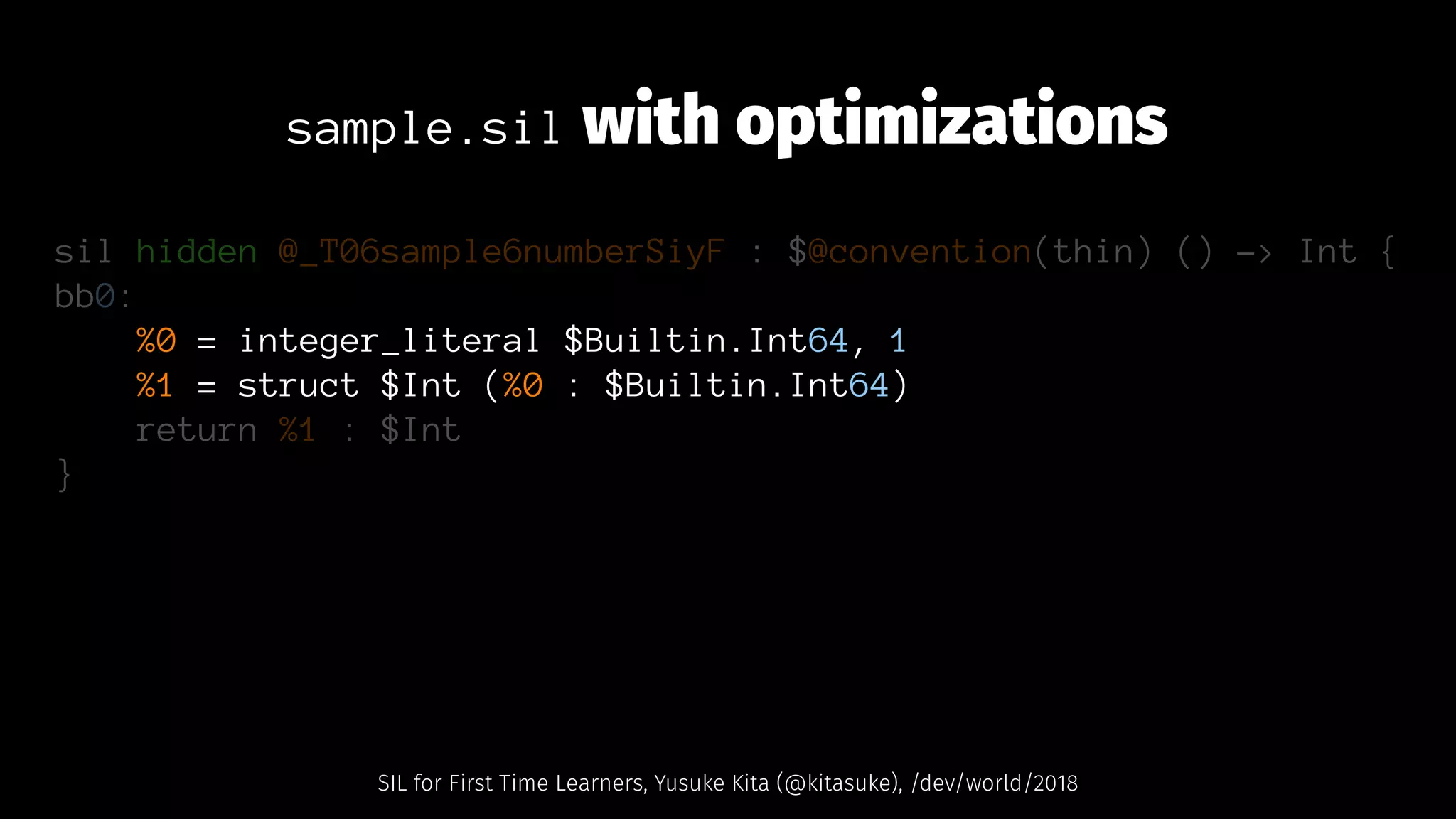

- 37. sample.sil with optimizations silhidden @_T06sample6numberSiyF : $@convention(thin) () -> Int { bb0: %0 = integer_literal $Builtin.Int64, 1 %1 = struct $Int (%0 : $Builtin.Int64) return %1 : $Int } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

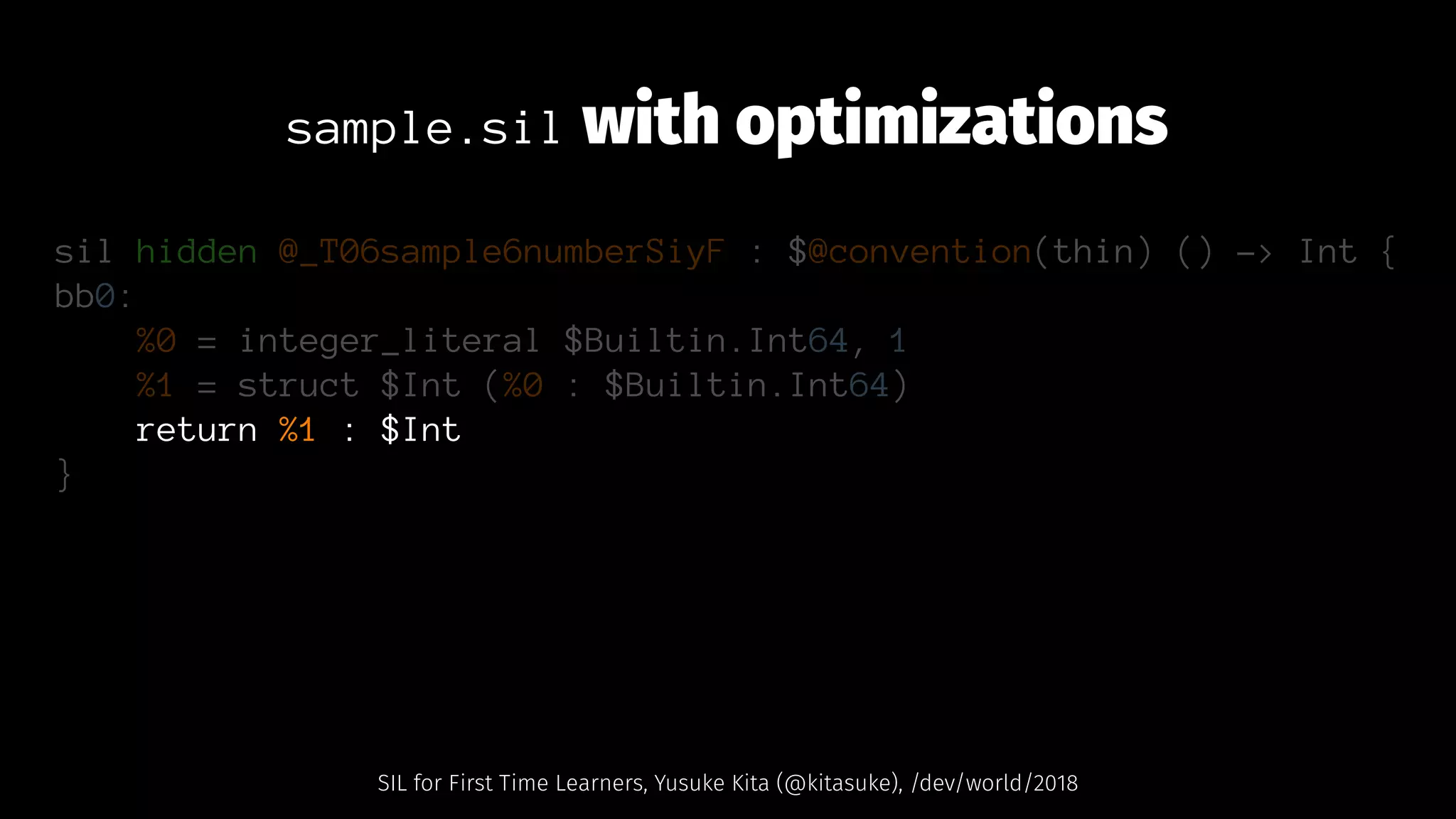

- 38. sample.sil with optimizations silhidden @_T06sample6numberSiyF : $@convention(thin) () -> Int { bb0: %0 = integer_literal $Builtin.Int64, 1 %1 = struct $Int (%0 : $Builtin.Int64) return %1 : $Int } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

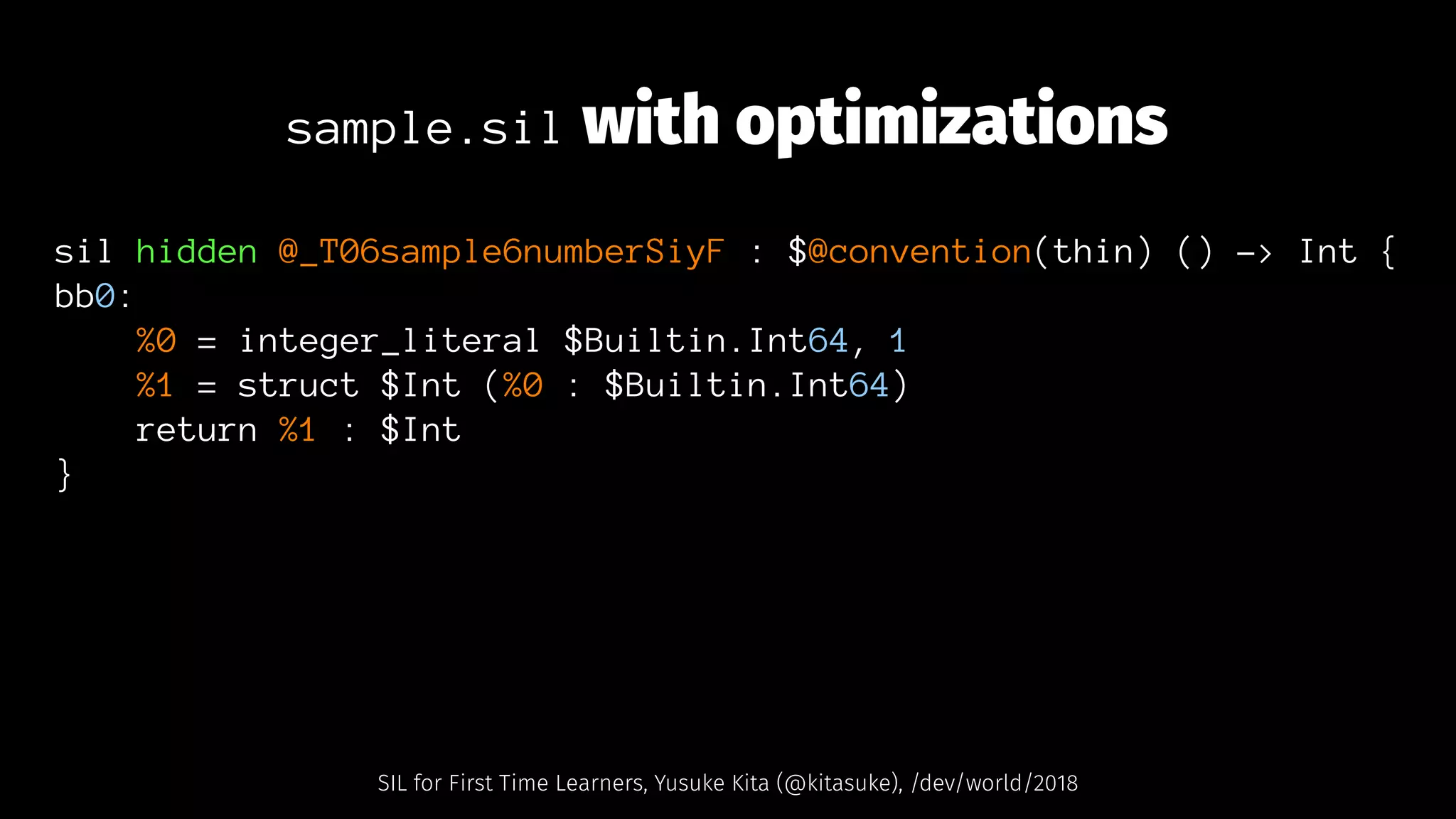

- 39. sample.sil with optimizations silhidden @_T06sample6numberSiyF : $@convention(thin) () -> Int { bb0: %0 = integer_literal $Builtin.Int64, 1 %1 = struct $Int (%0 : $Builtin.Int64) return %1 : $Int } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

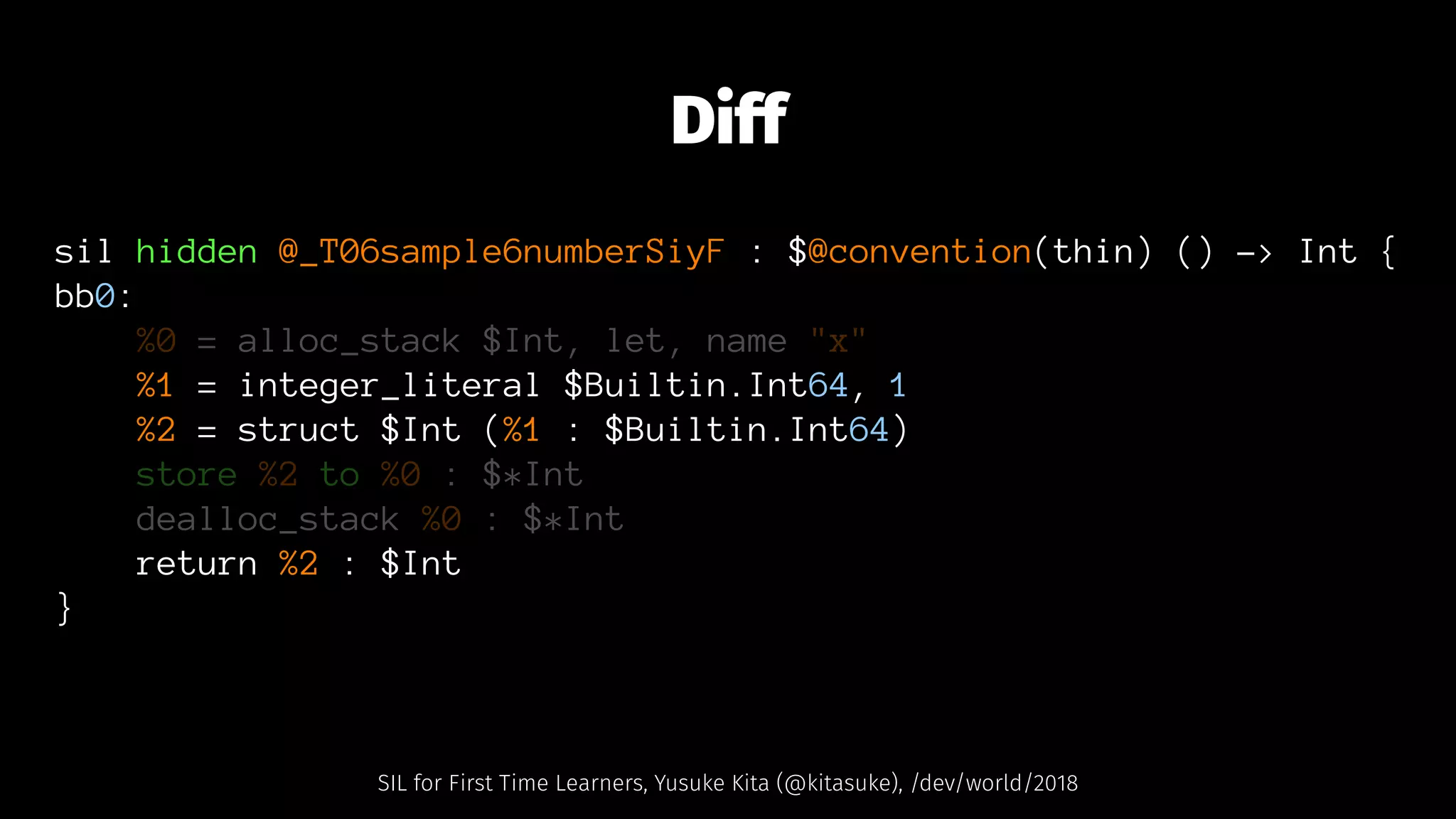

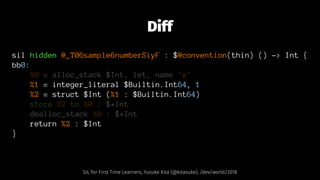

- 40. Diff sil hidden @_T06sample6numberSiyF: $@convention(thin) () -> Int { bb0: %0 = alloc_stack $Int, let, name "x" %1 = integer_literal $Builtin.Int64, 1 %2 = struct $Int (%1 : $Builtin.Int64) store %2 to %0 : $*Int dealloc_stack %0 : $*Int return %2 : $Int } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

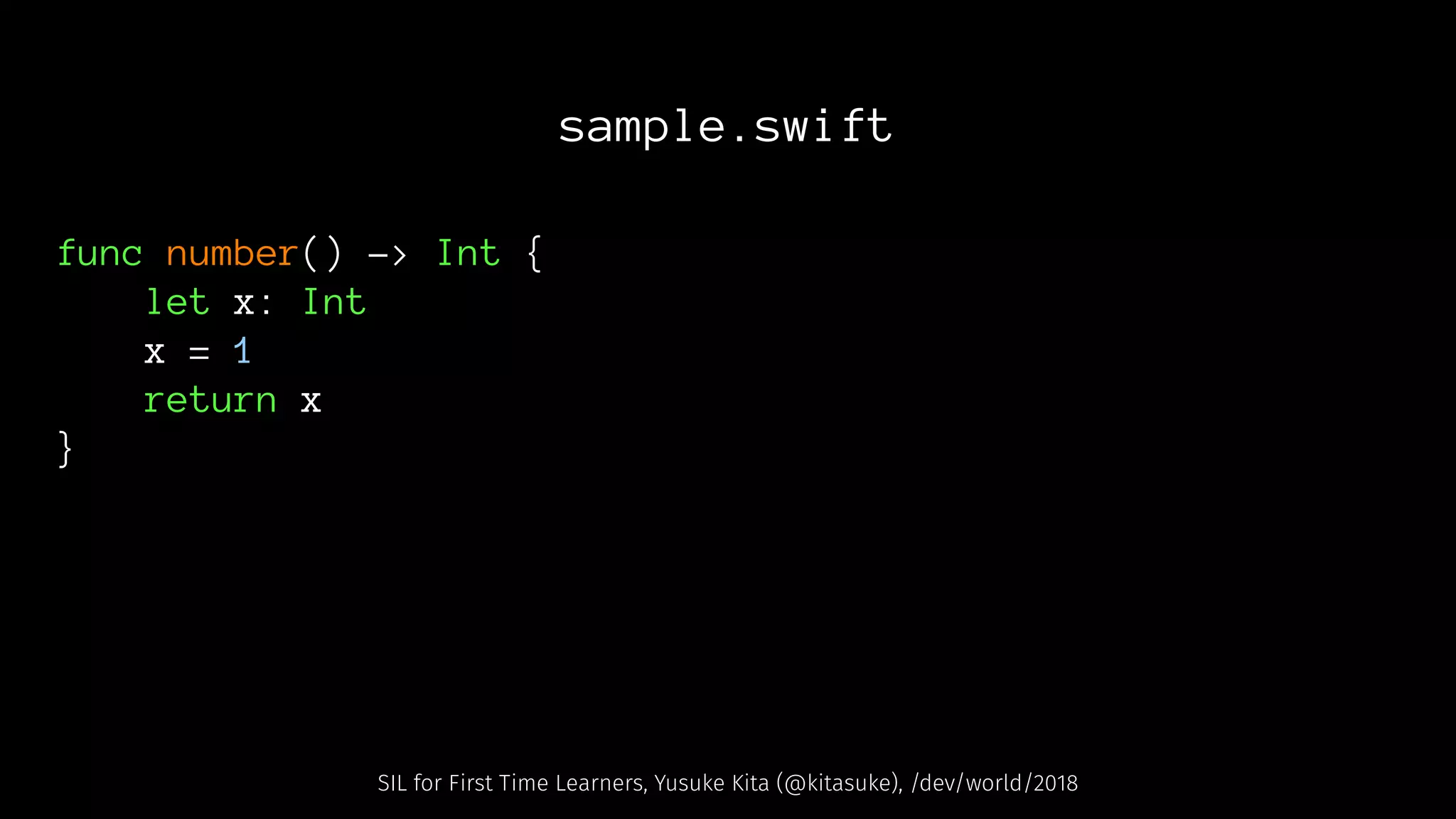

- 41. sample.swift func number() ->Int { let x: Int x = 1 return x } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

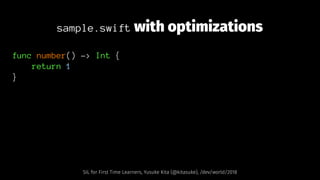

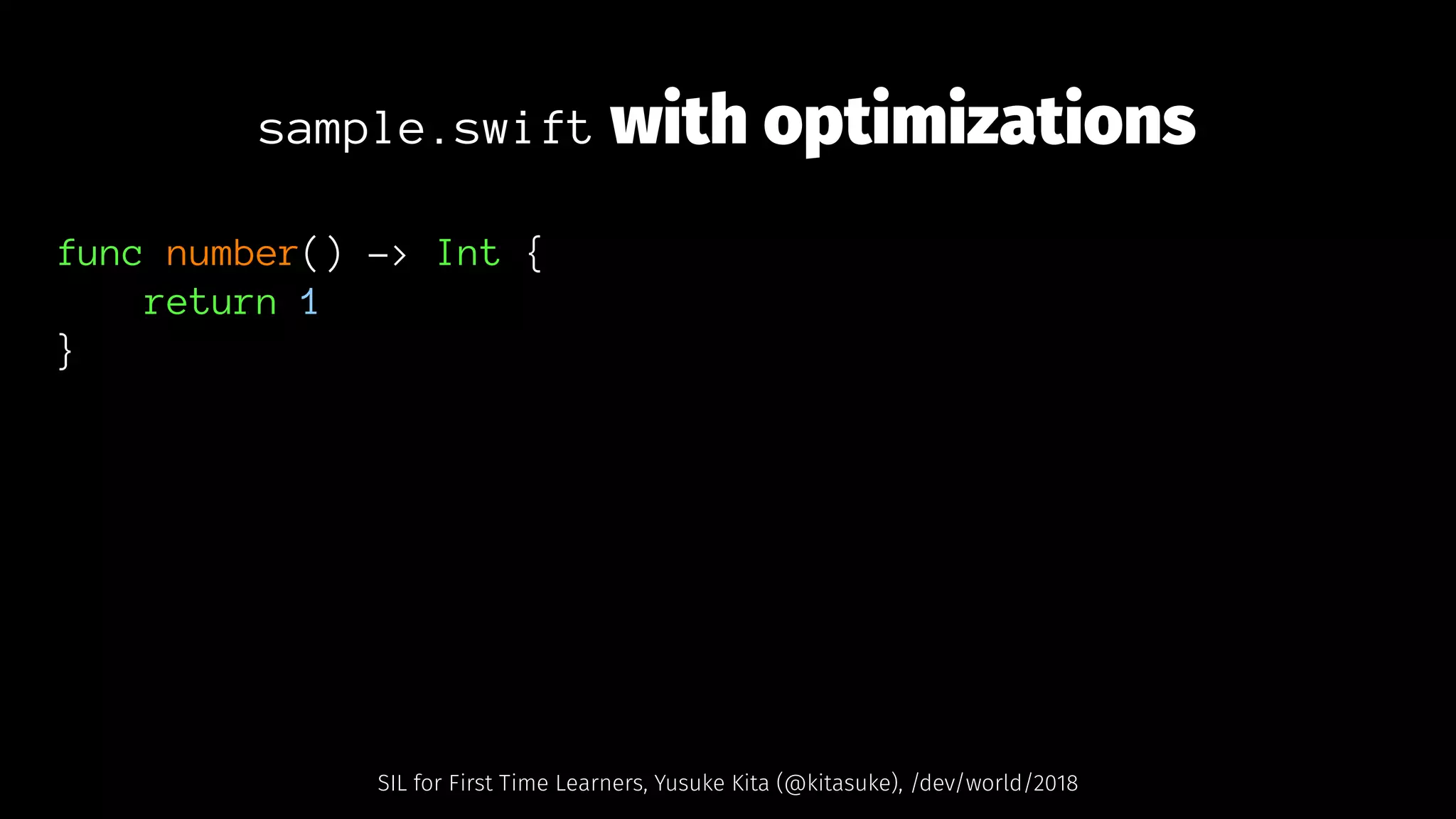

- 42. sample.swift with optimizations funcnumber() -> Int { return 1 } SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

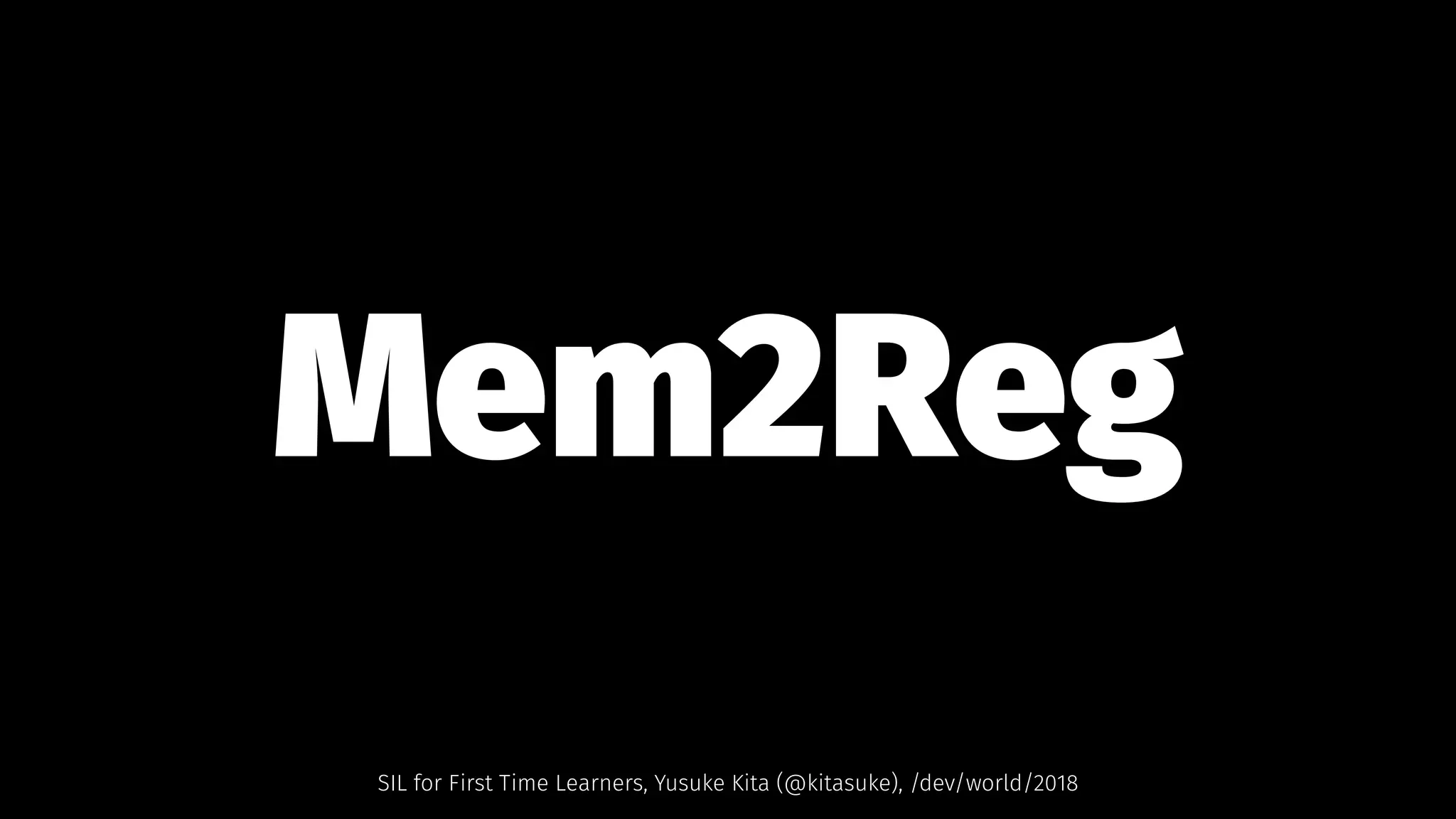

- 43. Mem2Reg SIL for FirstTime Learners, Yusuke Kita (@kitasuke), /dev/world/2018
- 44. Register Promotion of StackAllocations SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018
- 45. Optimizations !✨ SIL forFirst Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

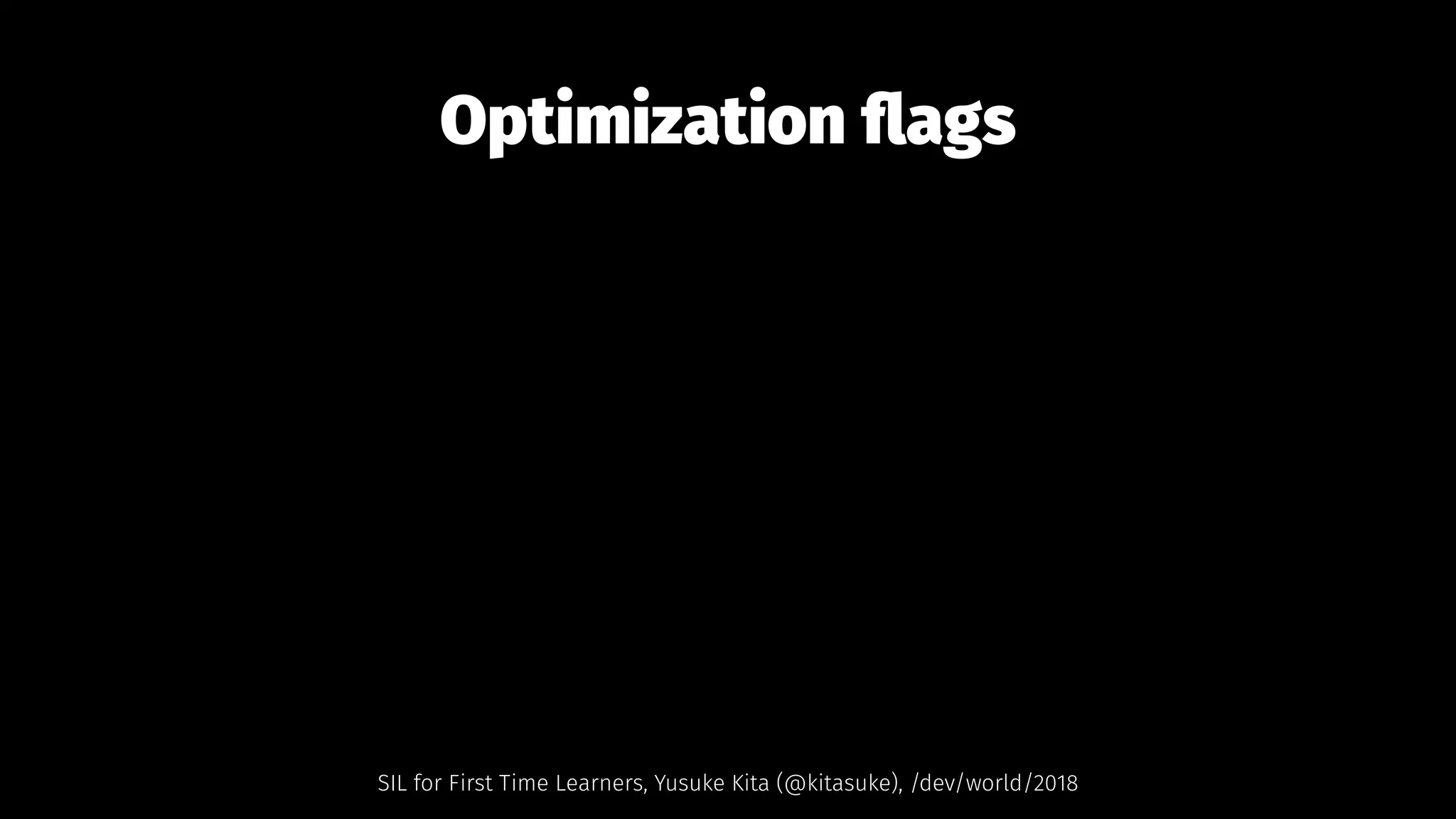

- 46. Optimization flags SIL forFirst Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

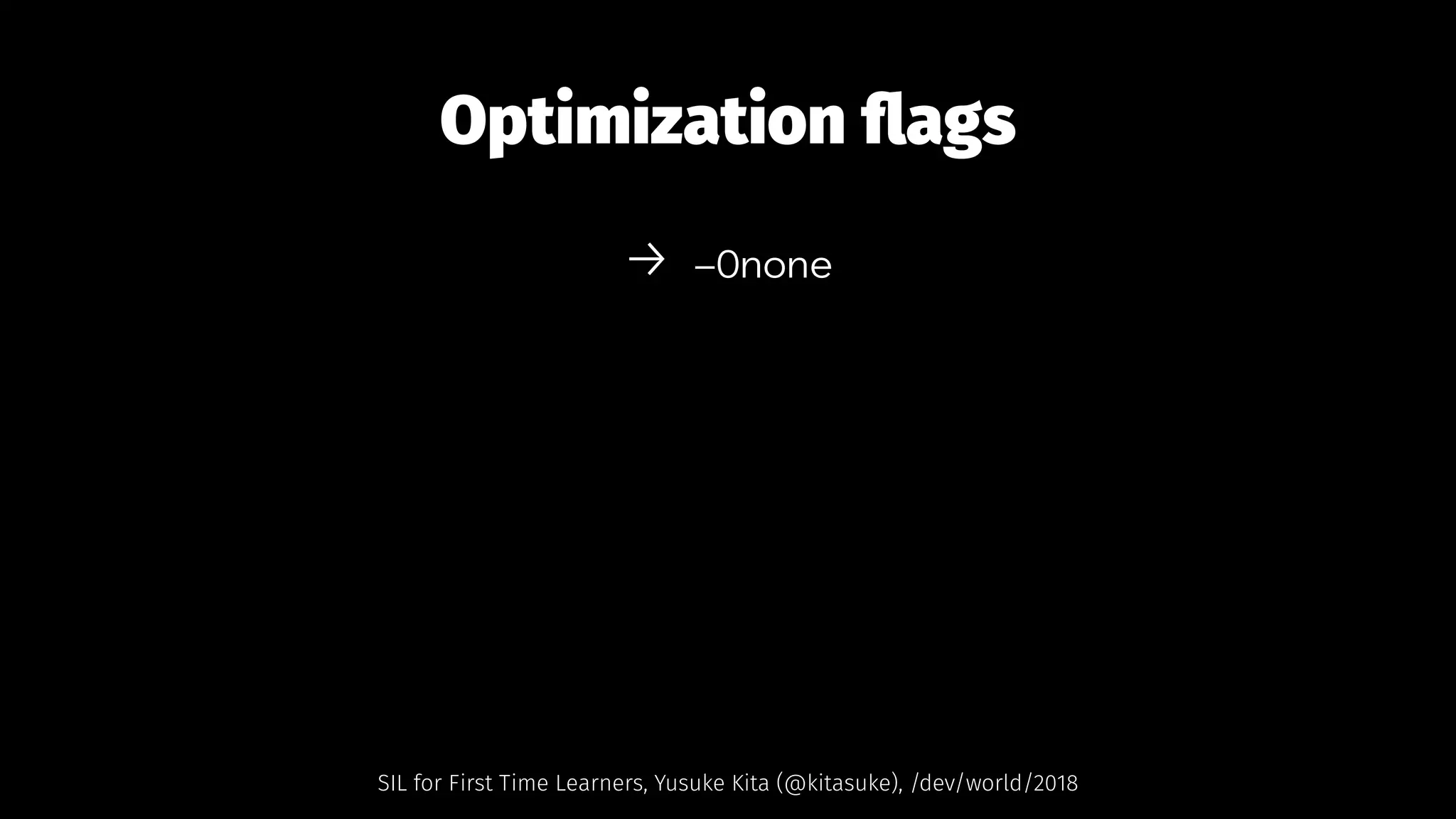

- 47. Optimization flags → -Onone SILfor First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

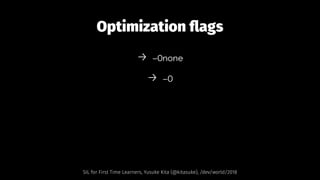

- 48. Optimization flags → -Onone →-O SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

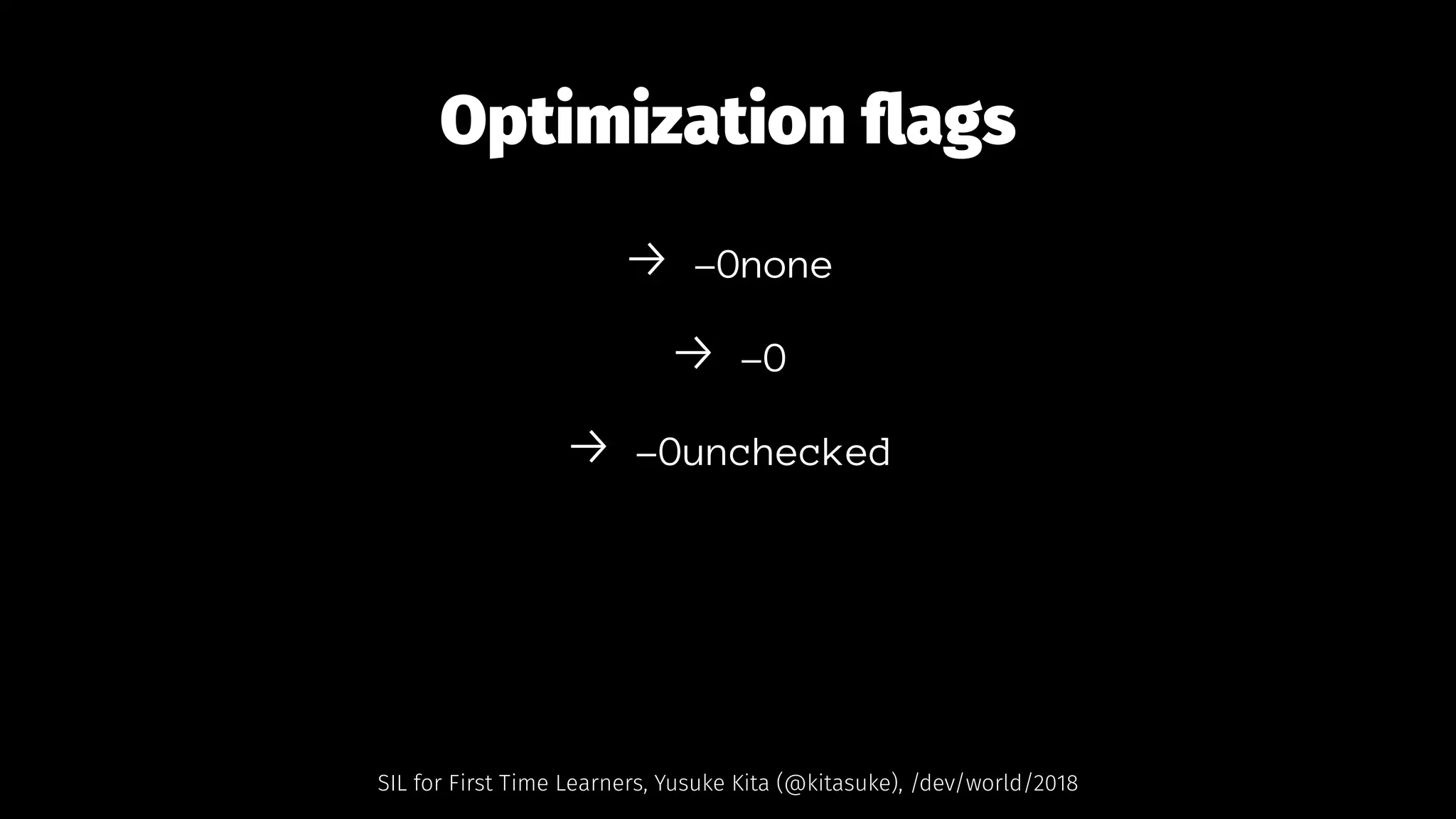

- 49. Optimization flags → -Onone →-O → -Ounchecked SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

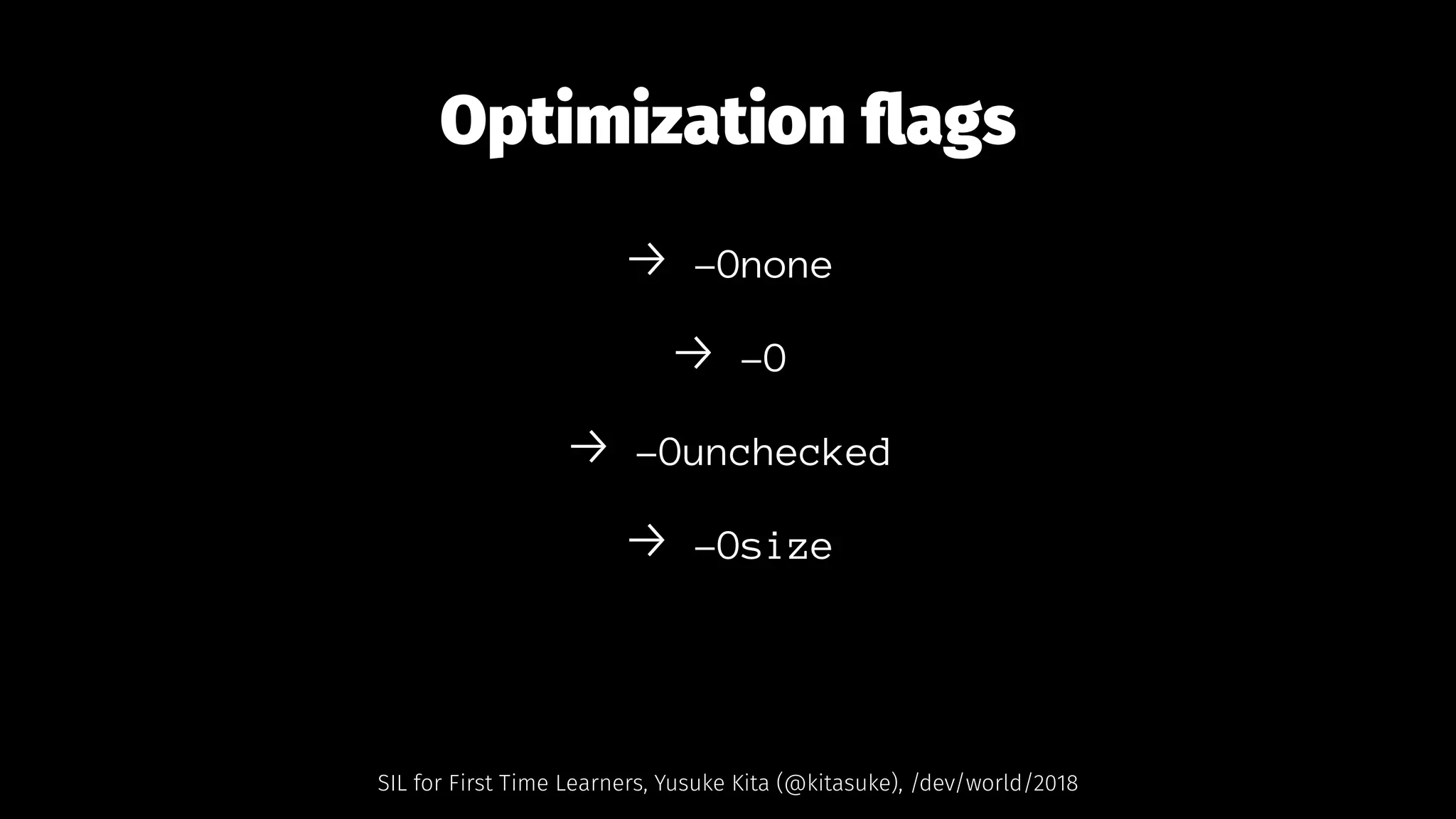

- 50. Optimization flags → -Onone →-O → -Ounchecked → -Osize SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

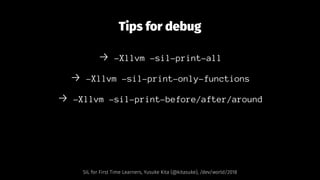

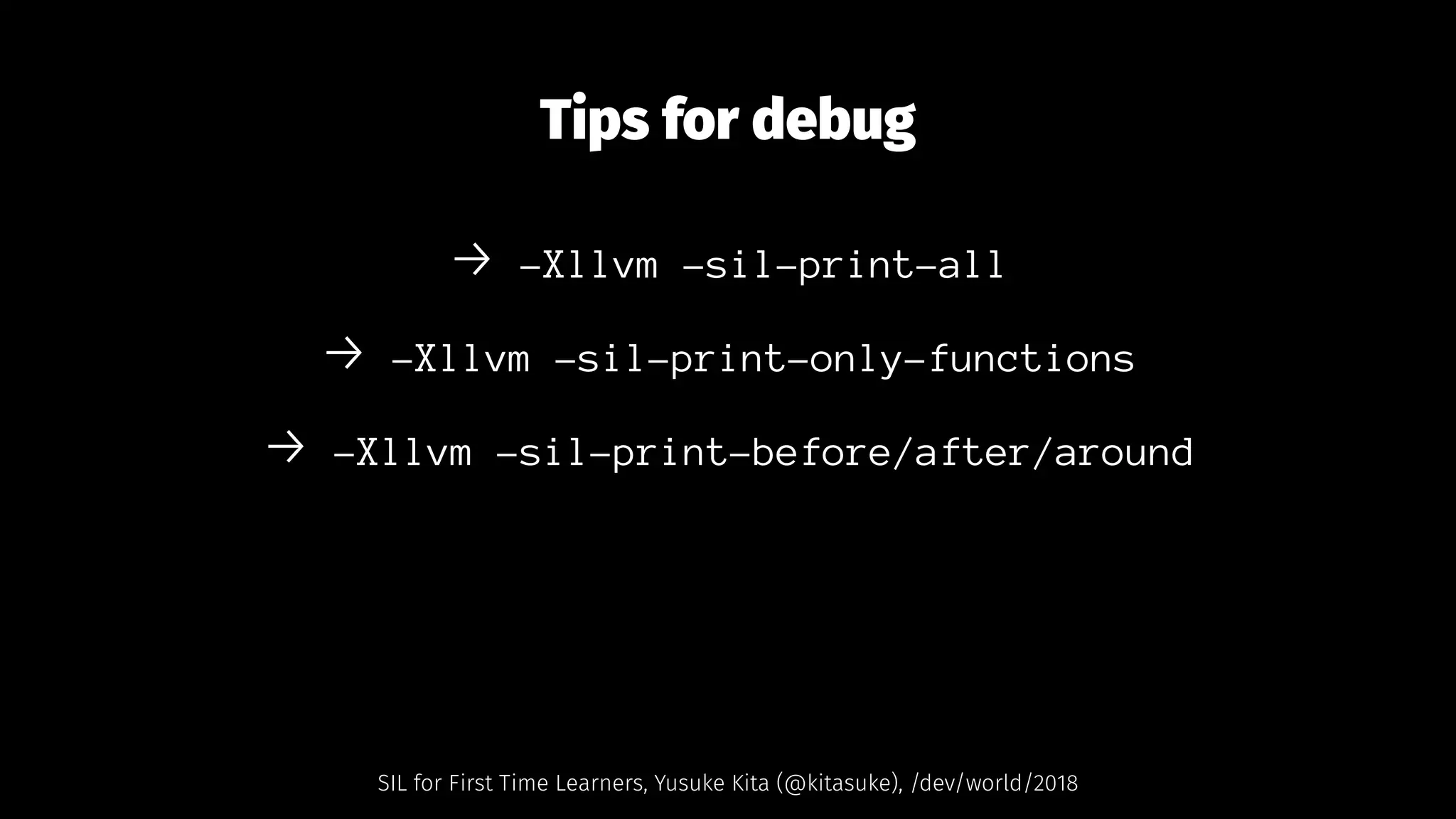

- 51. Tips for debug →-Xllvm -sil-print-all → -Xllvm -sil-print-only-functions → -Xllvm -sil-print-before/after/around SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018
- 52. Summary SIL for FirstTime Learners, Yusuke Kita (@kitasuke), /dev/world/2018

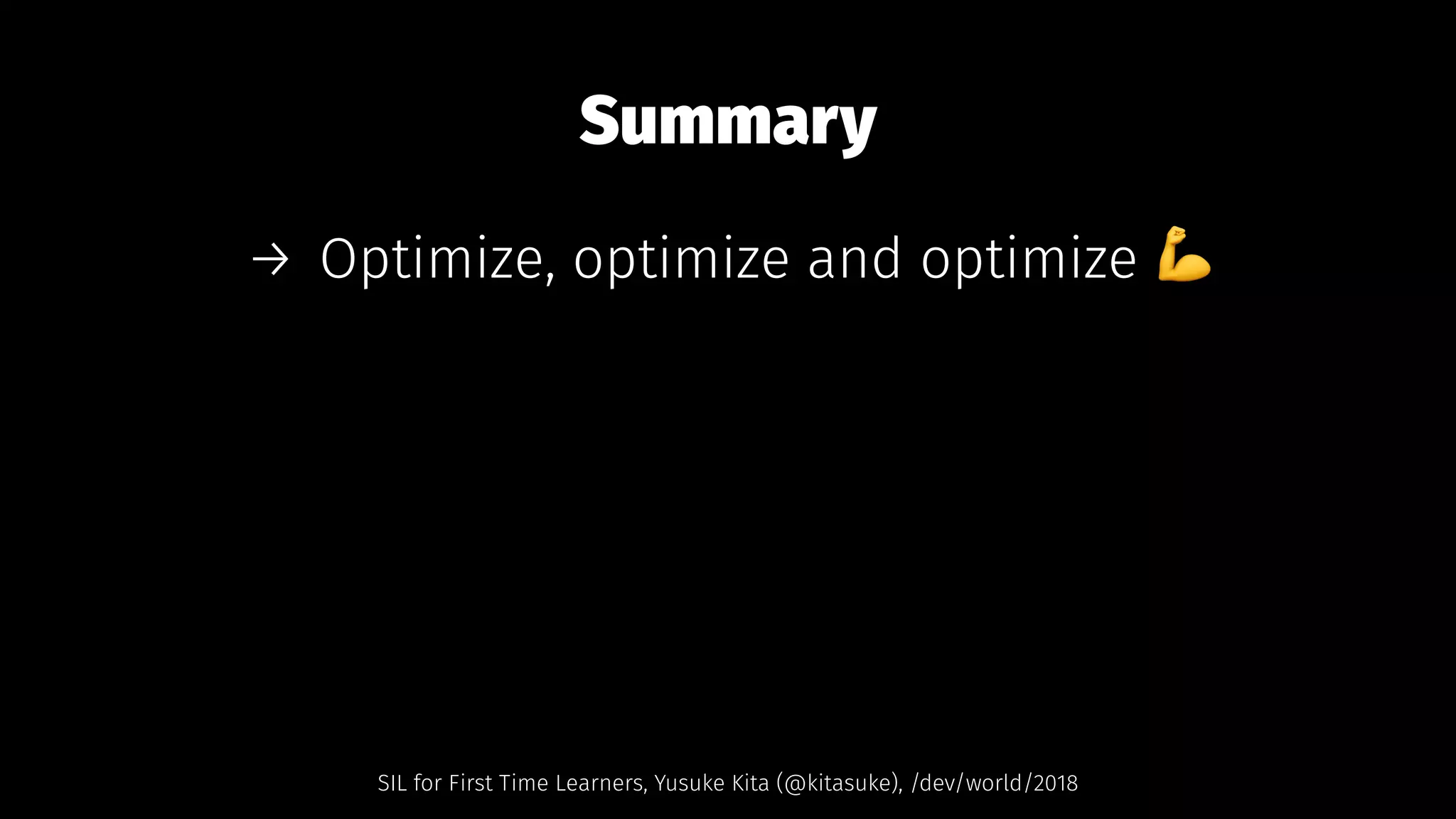

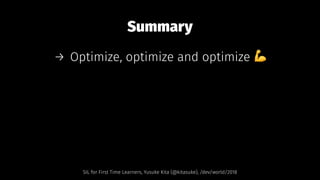

- 53. Summary → Optimize, optimizeand optimize ! SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018
- 54. Summary → Optimize, optimizeand optimize ! → Better idea of how Swift Compiler works " SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

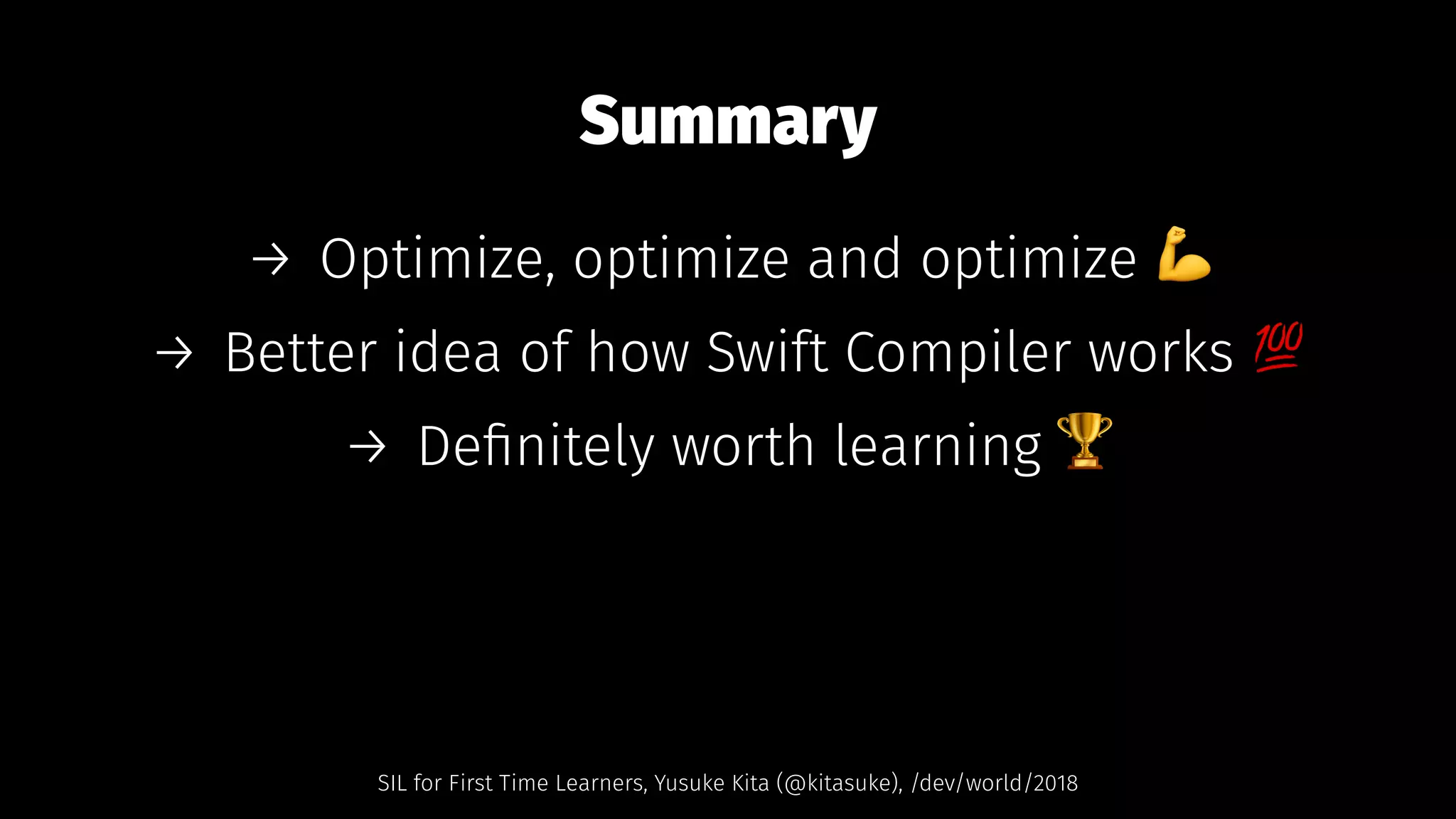

- 55. Summary → Optimize, optimizeand optimize ! → Better idea of how Swift Compiler works " → Definitely worth learning # SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018

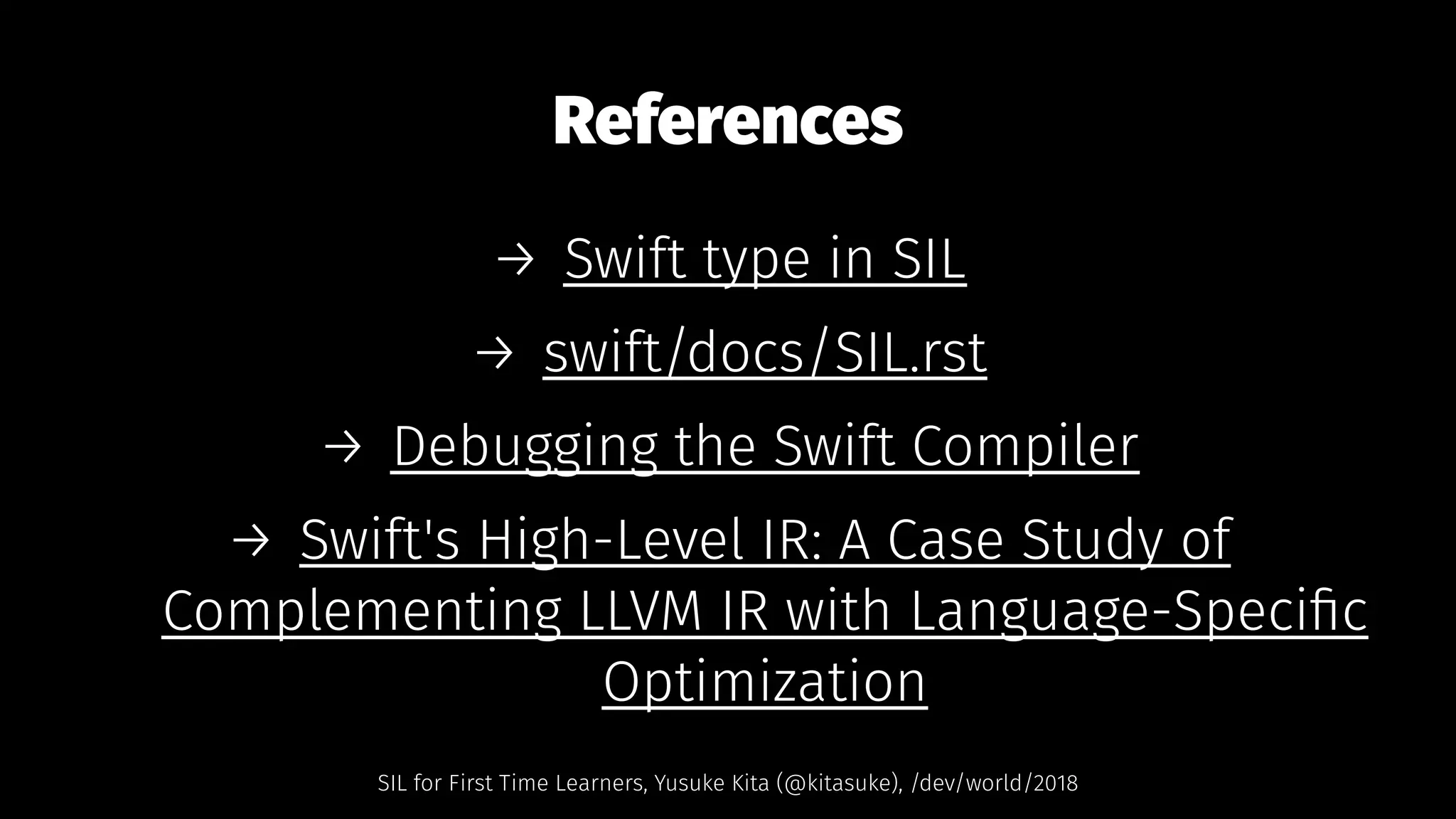

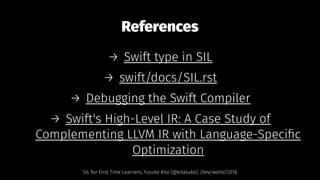

- 56. References → Swift typein SIL → swift/docs/SIL.rst → Debugging the Swift Compiler → Swift's High-Level IR: A Case Study of Complementing LLVM IR with Language-Specific Optimization SIL for First Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018
- 57. Thank you! SIL forFirst Time Learners, Yusuke Kita (@kitasuke), /dev/world/2018
