Software Requirements in Software Engineering SE5

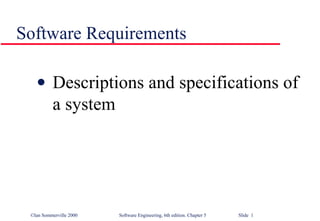

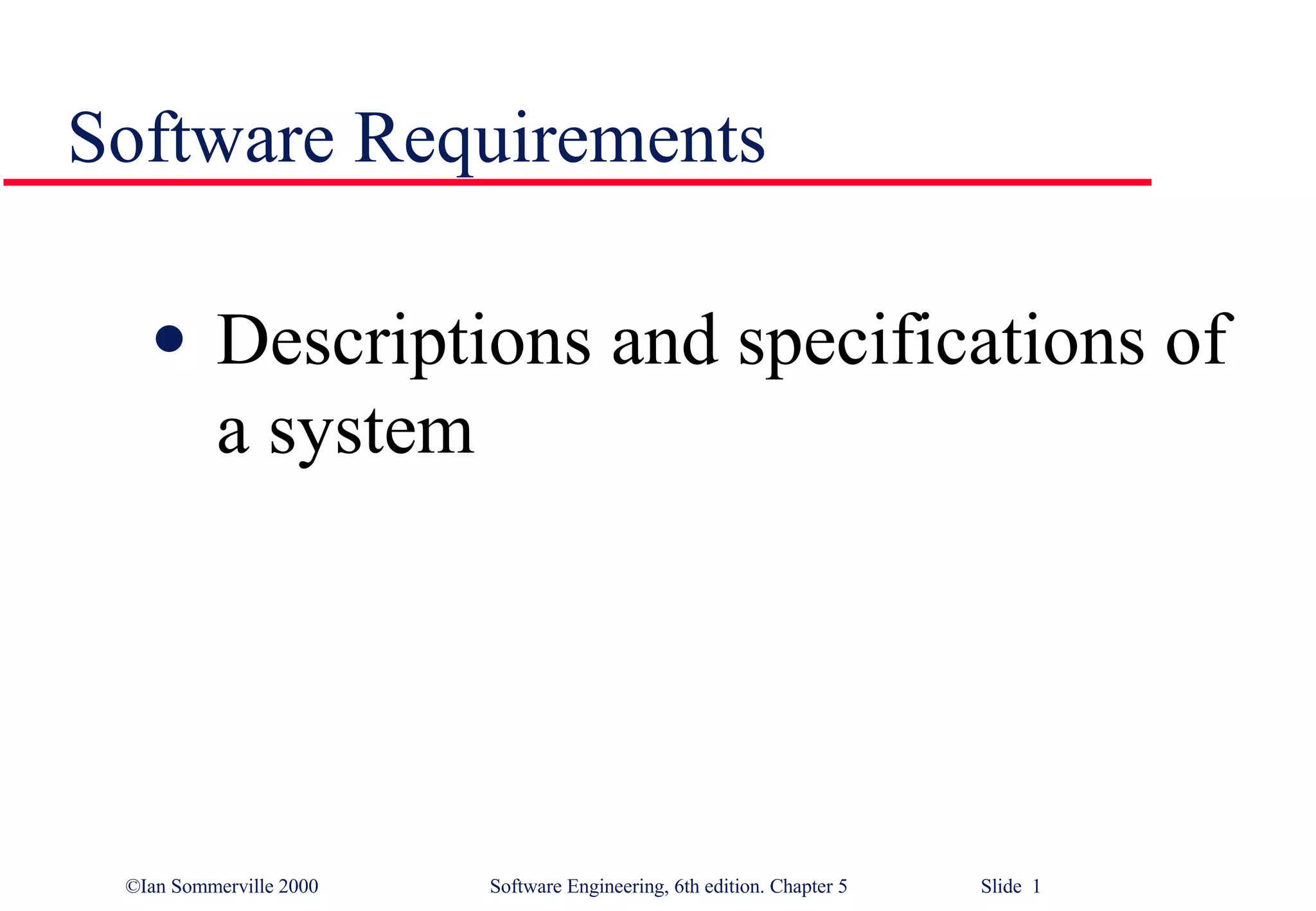

- 1. Software Requirements Descriptionsand specifications of a system

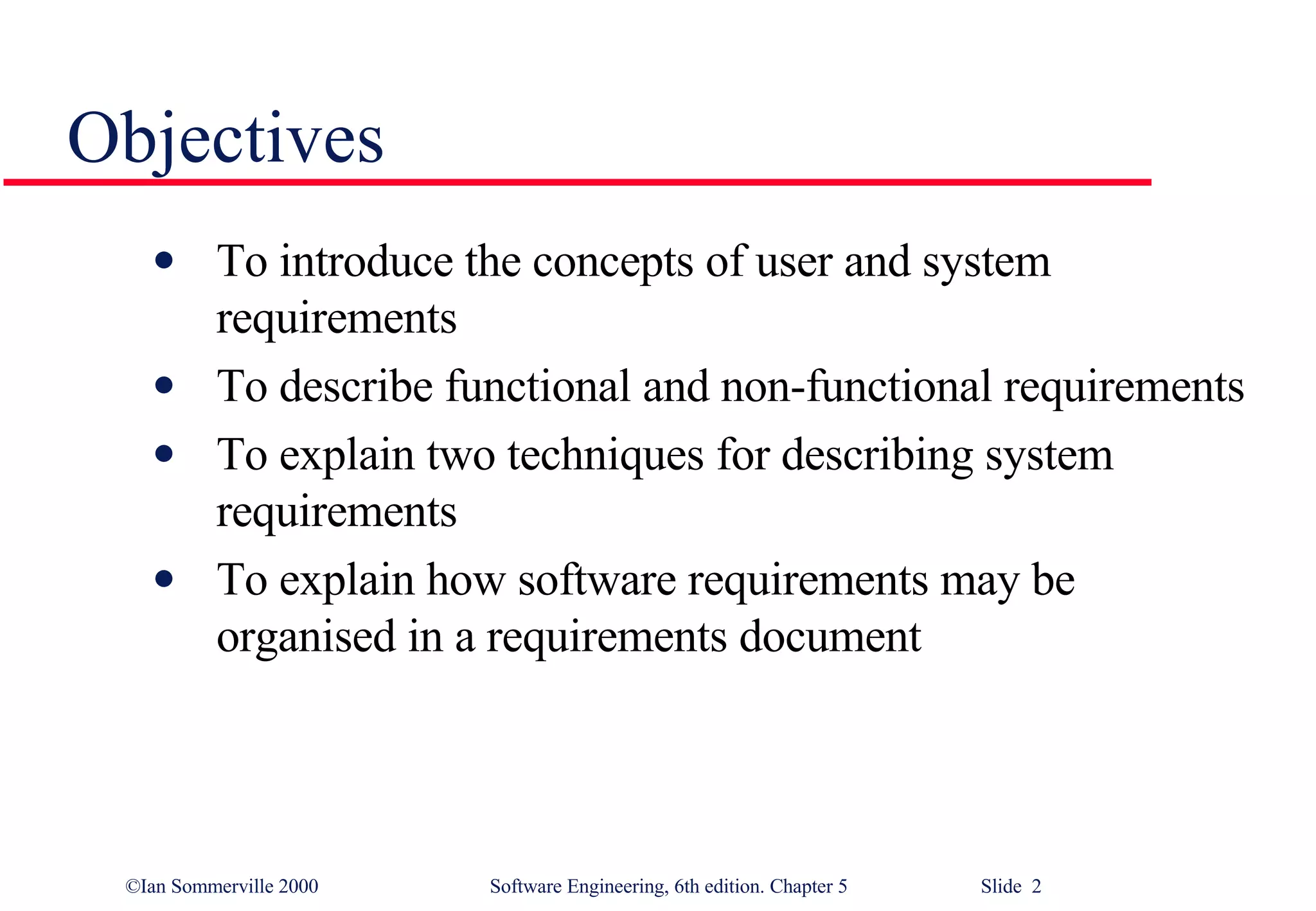

- 2. Objectives To introducethe concepts of user and system requirements To describe functional and non-functional requirements To explain two techniques for describing system requirements To explain how software requirements may be organised in a requirements document

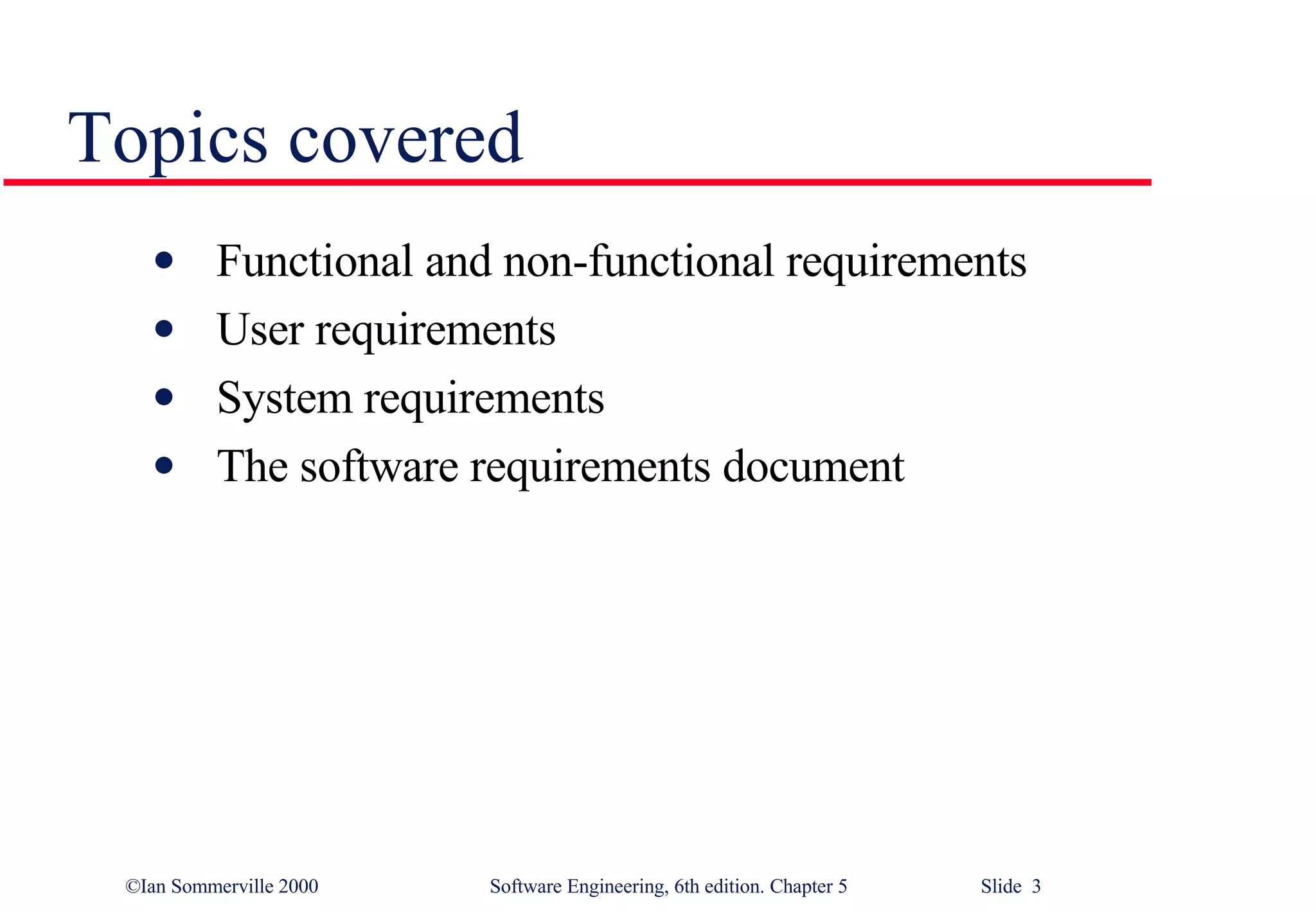

- 3. Topics covered Functionaland non-functional requirements User requirements System requirements The software requirements document

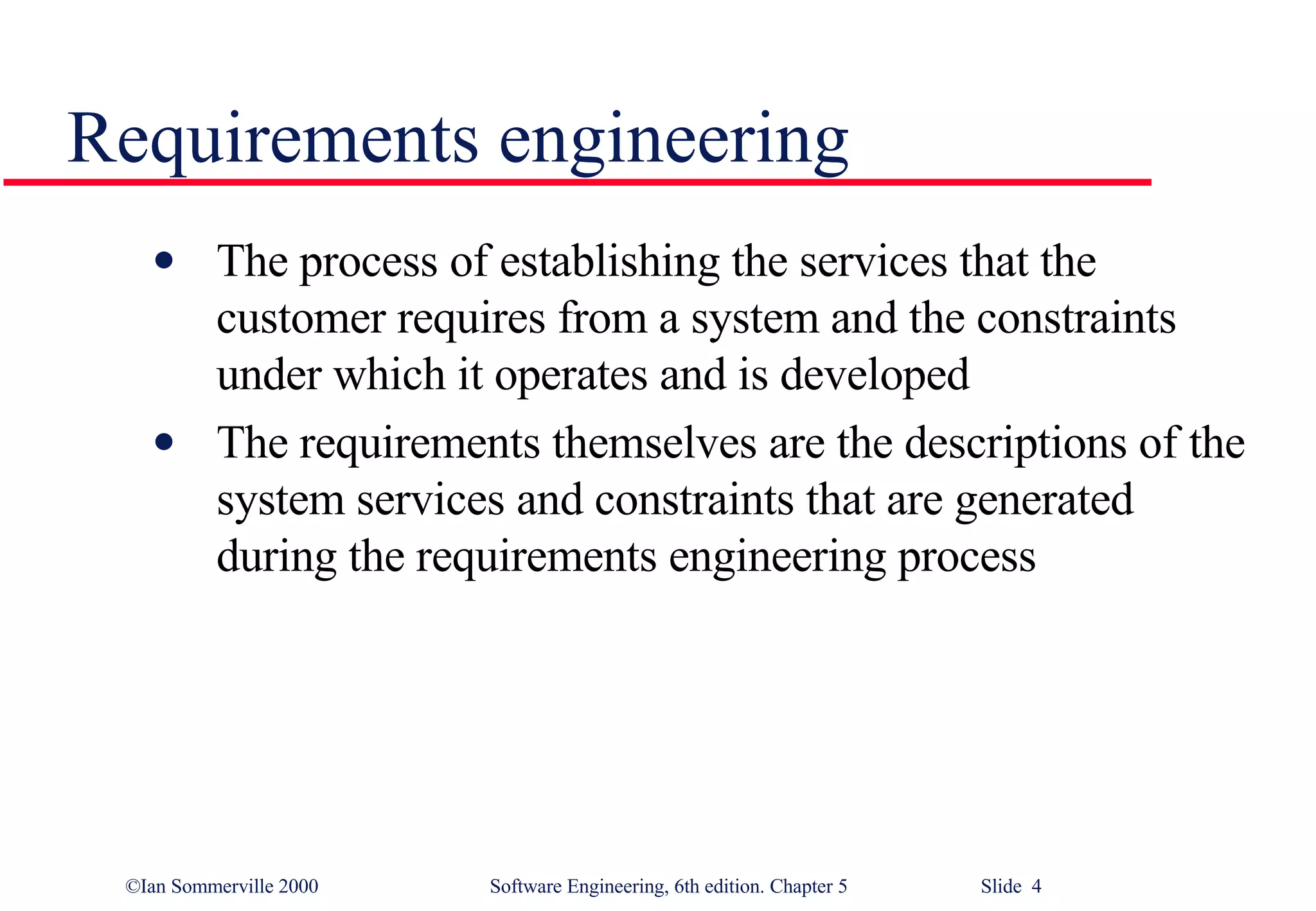

- 4. Requirements engineering Theprocess of establishing the services that the customer requires from a system and the constraints under which it operates and is developed The requirements themselves are the descriptions of the system services and constraints that are generated during the requirements engineering process

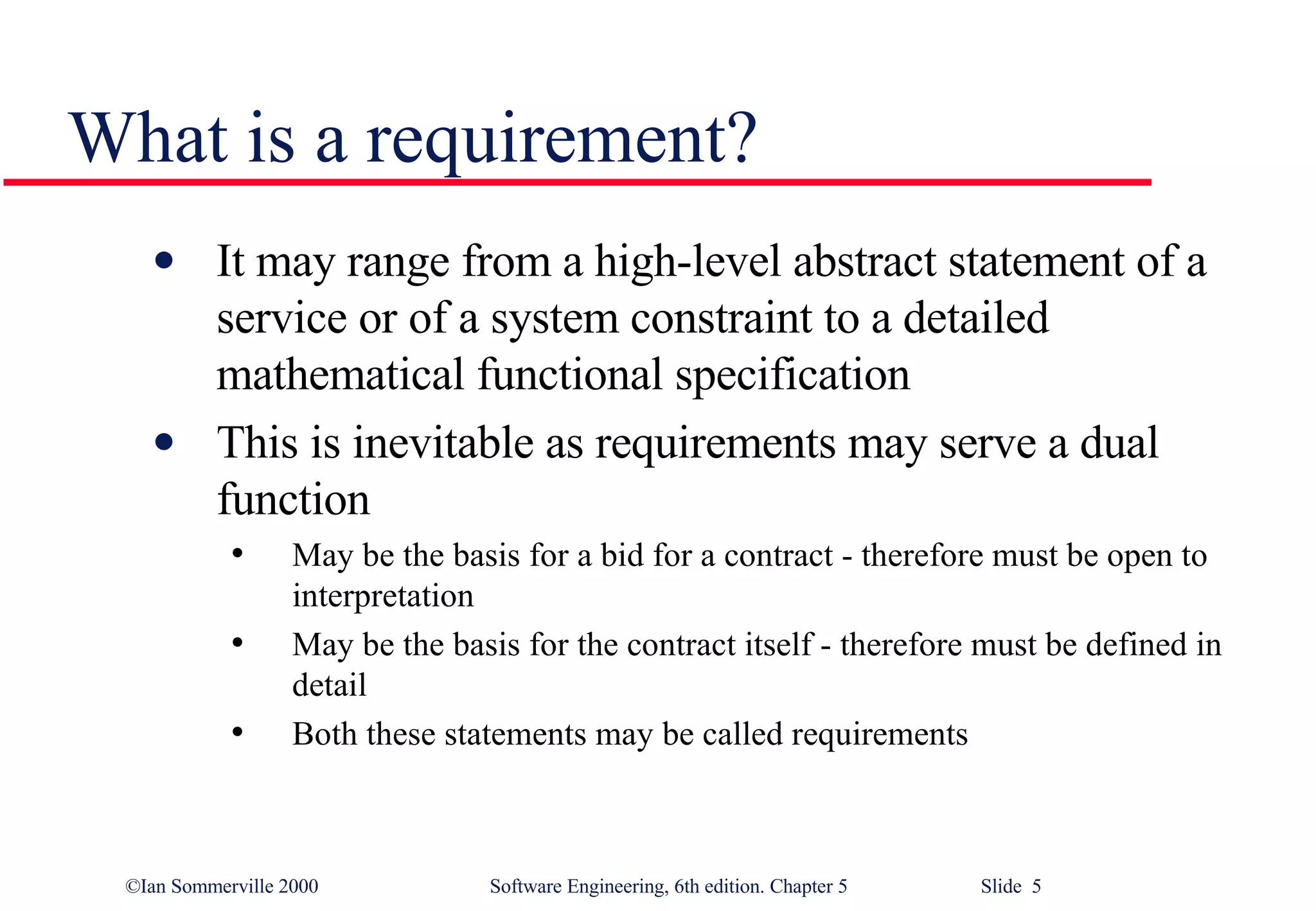

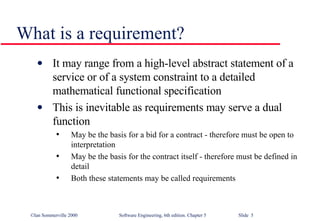

- 5. What is arequirement? It may range from a high-level abstract statement of a service or of a system constraint to a detailed mathematical functional specification This is inevitable as requirements may serve a dual function May be the basis for a bid for a contract - therefore must be open to interpretation May be the basis for the contract itself - therefore must be defined in detail Both these statements may be called requirements

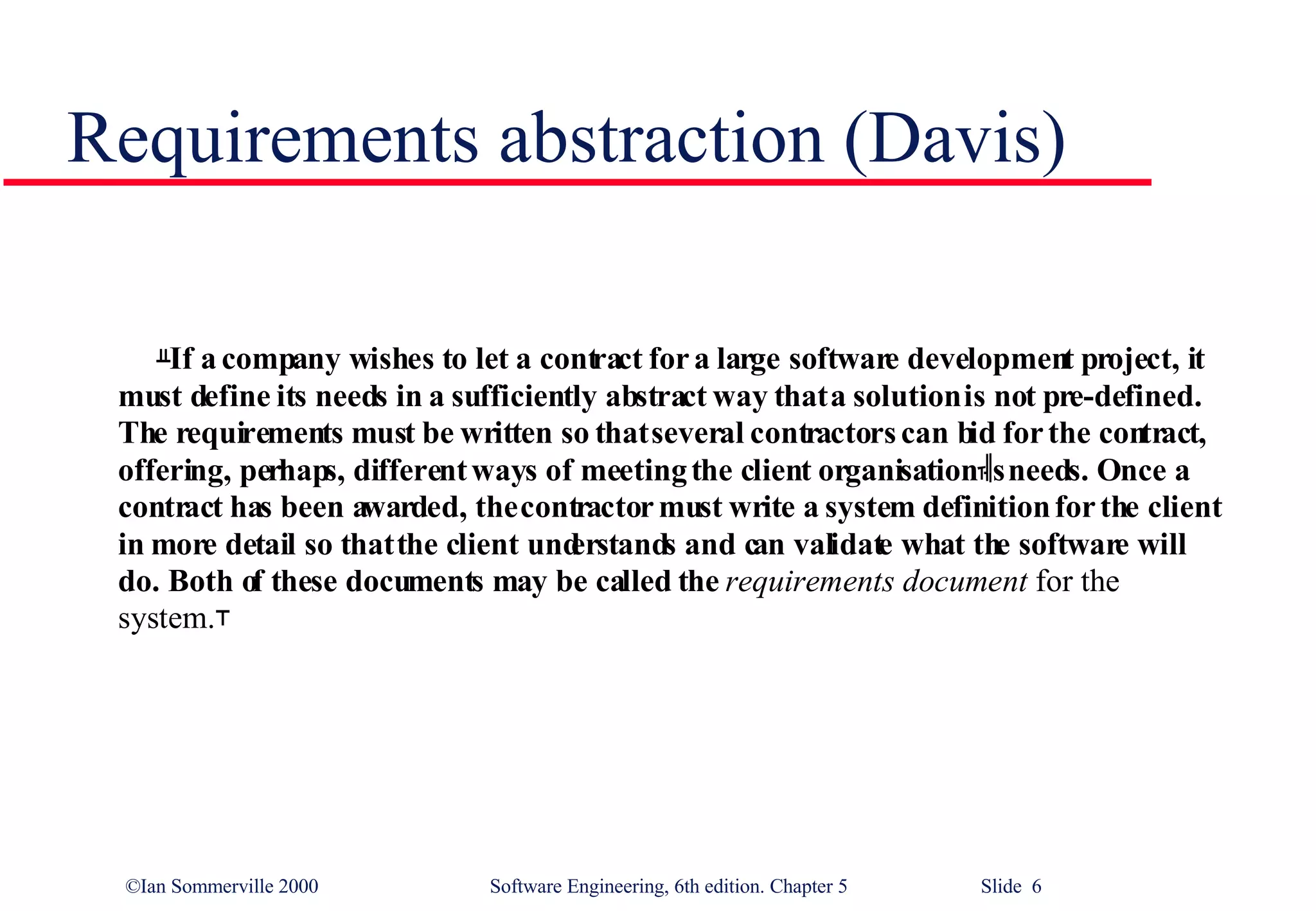

- 6.

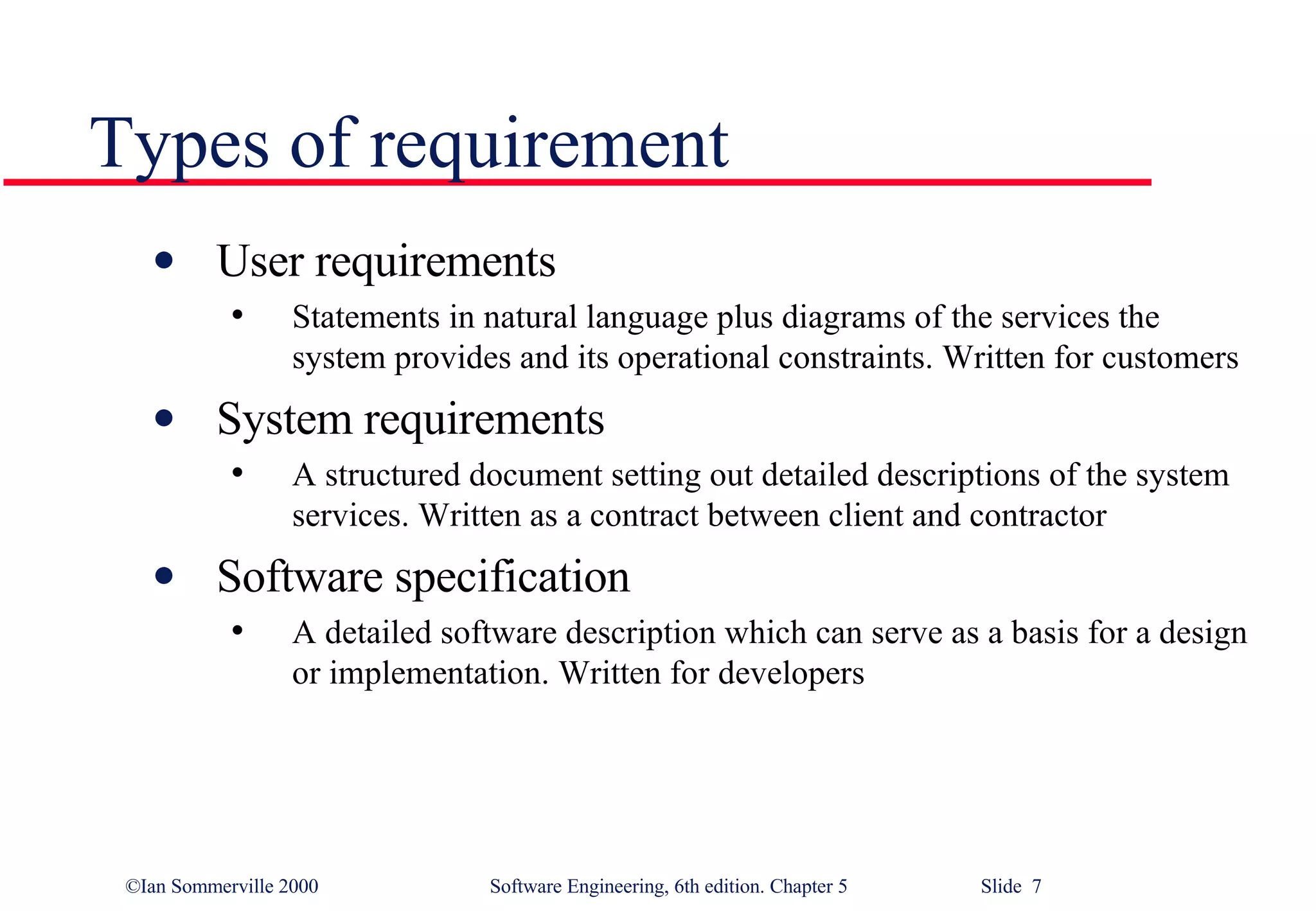

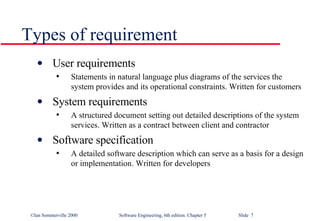

- 7. Types of requirementUser requirements Statements in natural language plus diagrams of the services the system provides and its operational constraints. Written for customers System requirements A structured document setting out detailed descriptions of the system services. Written as a contract between client and contractor Software specification A detailed software description which can serve as a basis for a design or implementation. Written for developers
- 8.
- 9.

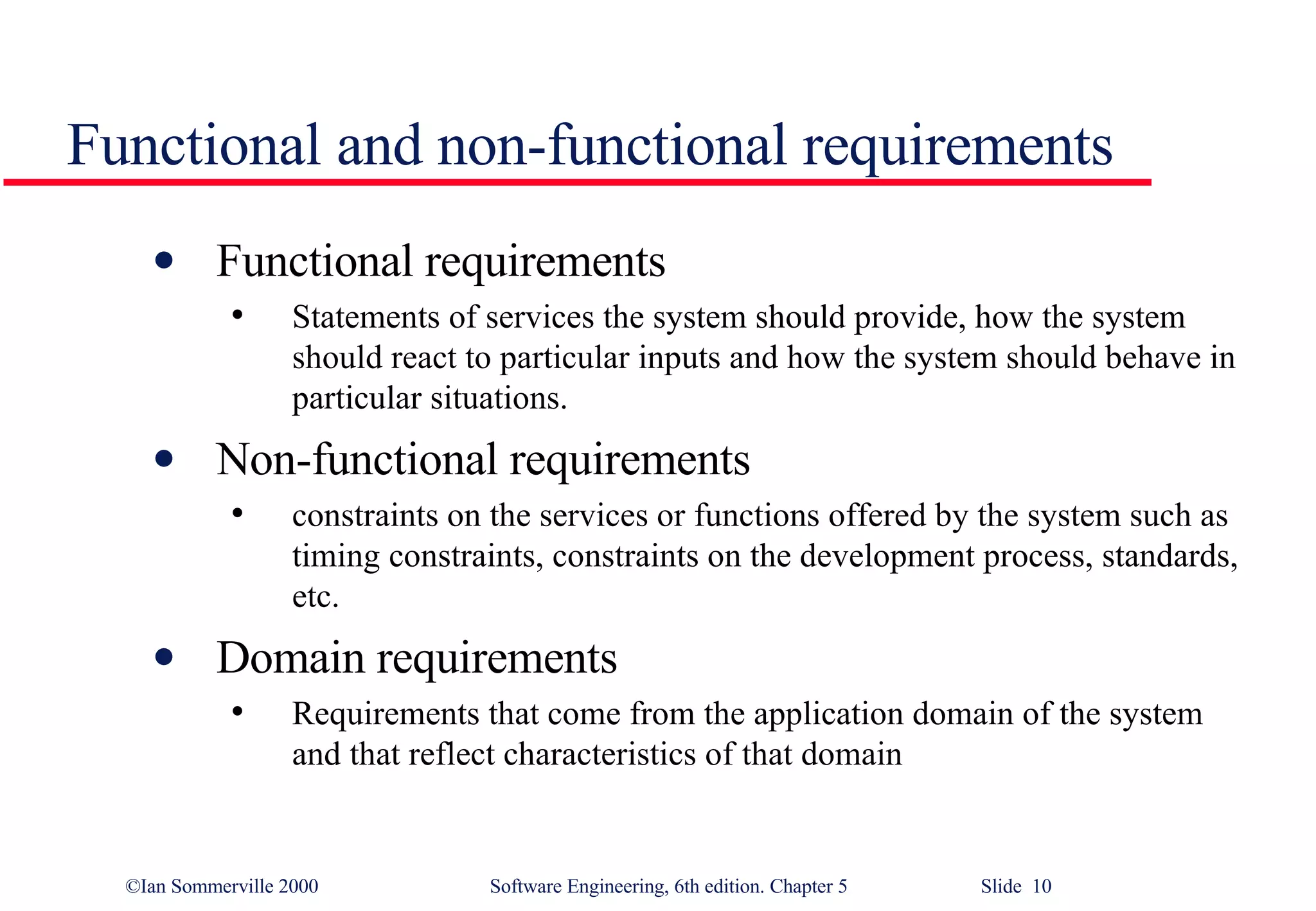

- 10. Functional and non-functionalrequirements Functional requirements Statements of services the system should provide, how the system should react to particular inputs and how the system should behave in particular situations. Non-functional requirements constraints on the services or functions offered by the system such as timing constraints, constraints on the development process, standards, etc. Domain requirements Requirements that come from the application domain of the system and that reflect characteristics of that domain

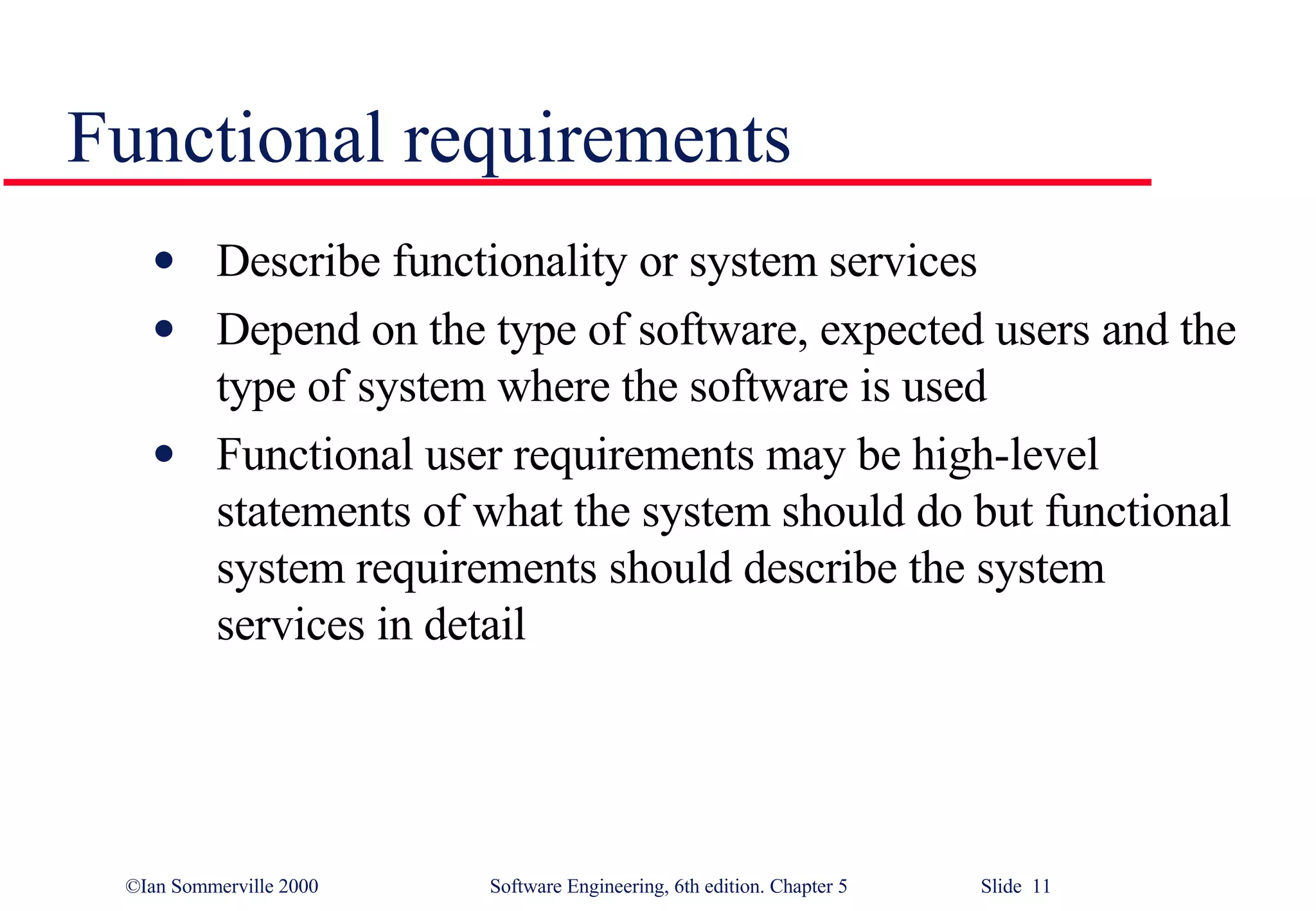

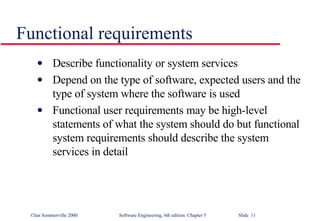

- 11. Functional requirements Describefunctionality or system services Depend on the type of software, expected users and the type of system where the software is used Functional user requirements may be high-level statements of what the system should do but functional system requirements should describe the system services in detail

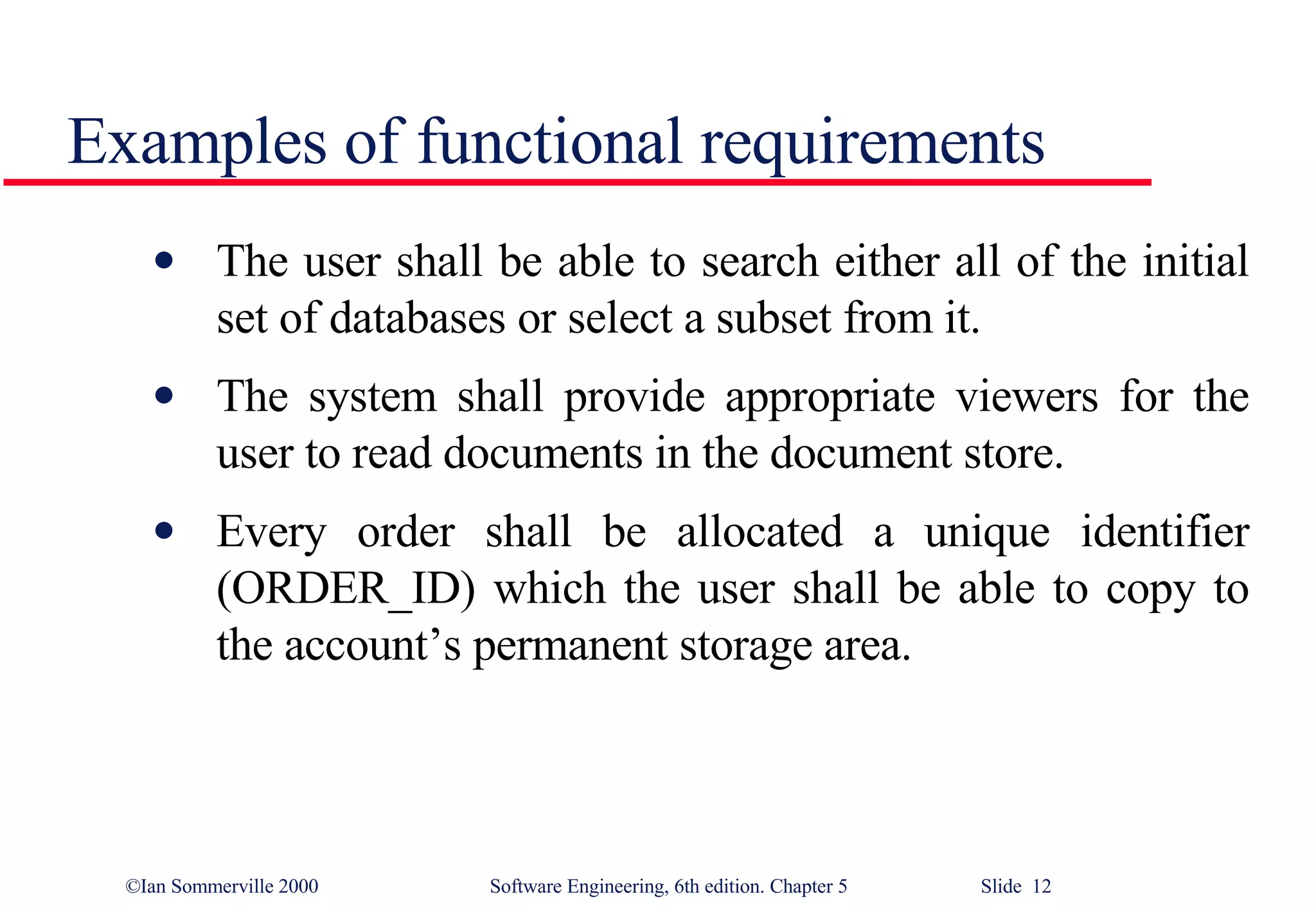

- 12. Examples of functionalrequirements The user shall be able to search either all of the initial set of databases or select a subset from it. The system shall provide appropriate viewers for the user to read documents in the document store. Every order shall be allocated a unique identifier (ORDER_ID) which the user shall be able to copy to the account’s permanent storage area.

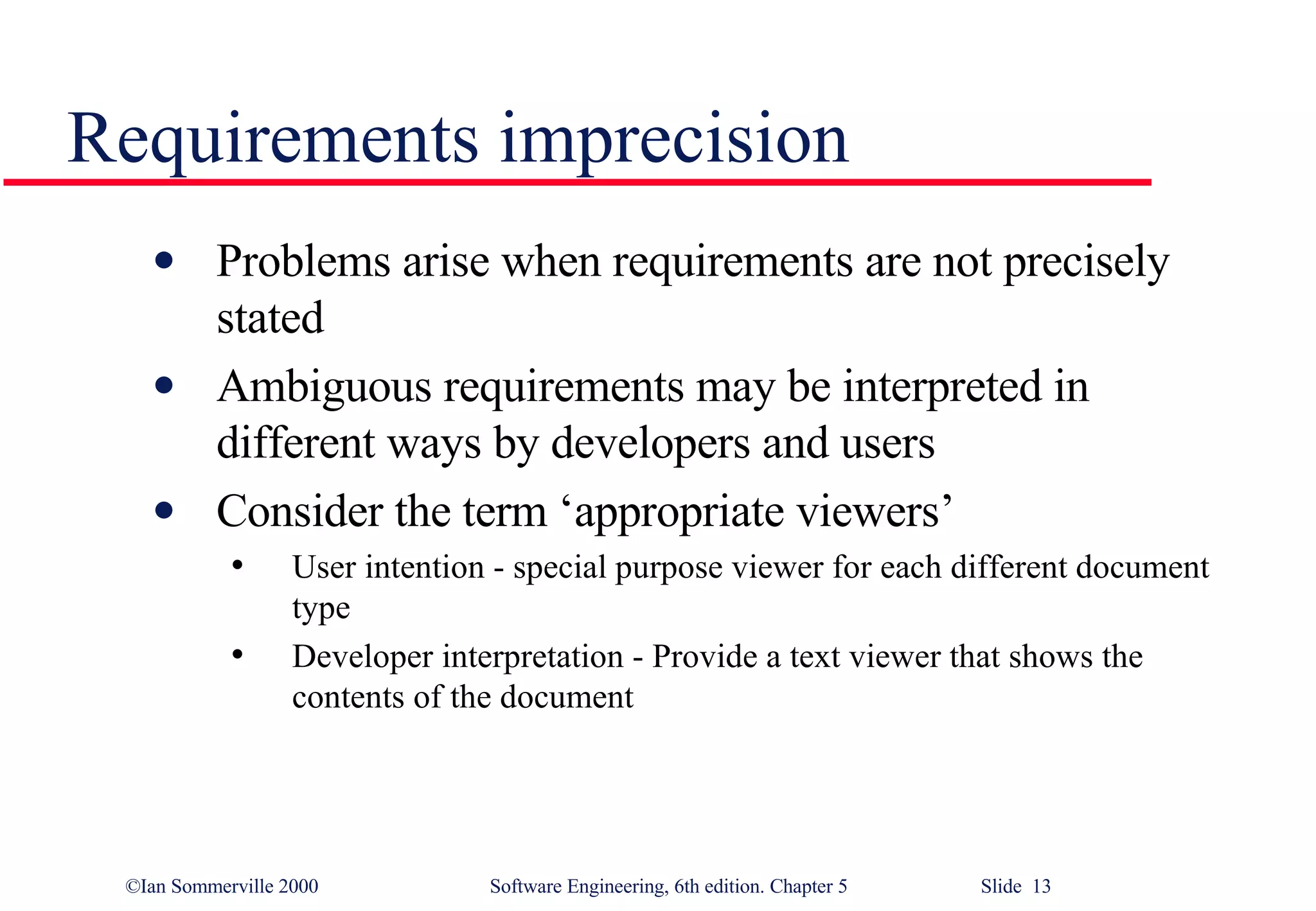

- 13. Requirements imprecision Problemsarise when requirements are not precisely stated Ambiguous requirements may be interpreted in different ways by developers and users Consider the term ‘appropriate viewers’ User intention - special purpose viewer for each different document type Developer interpretation - Provide a text viewer that shows the contents of the document

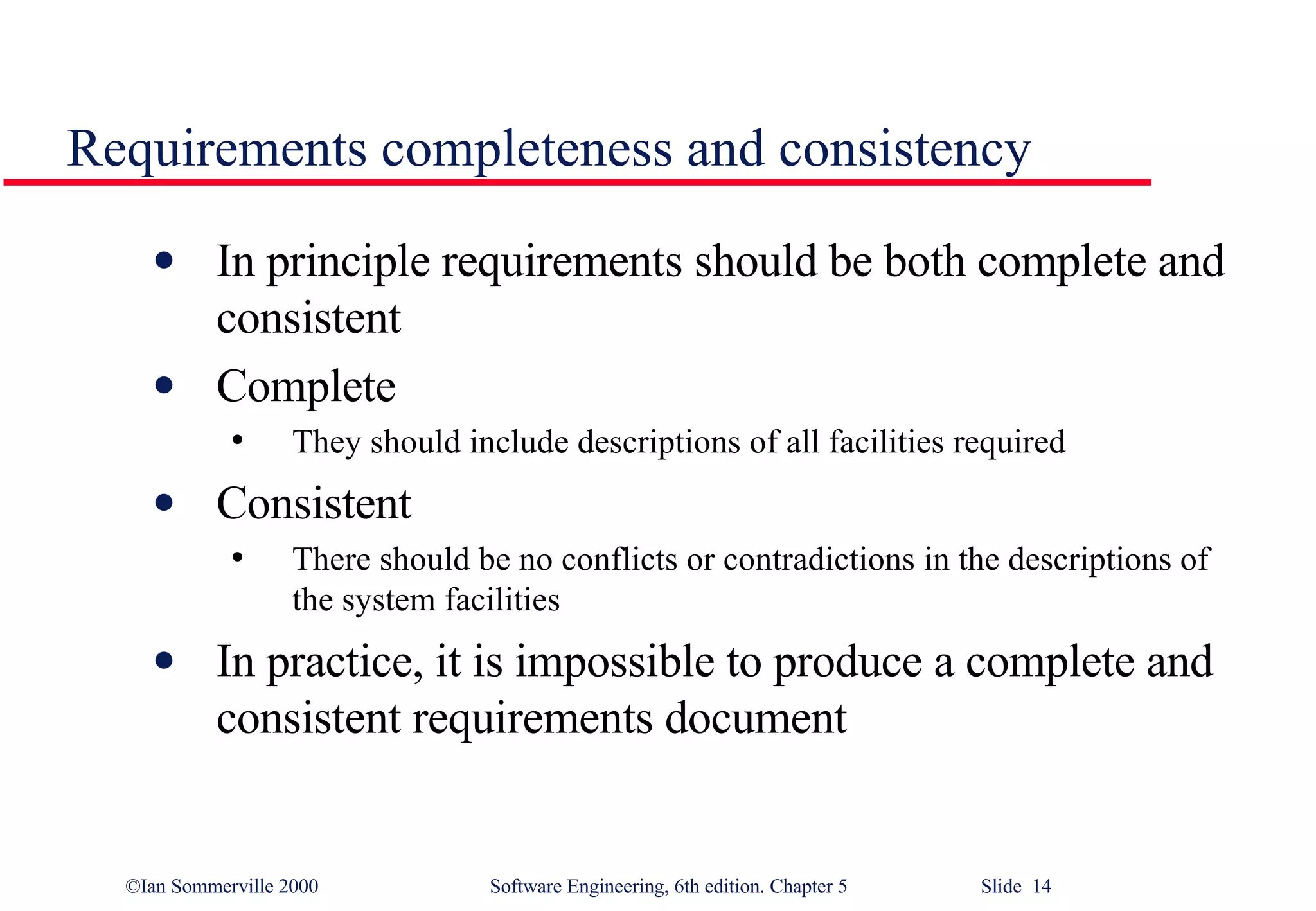

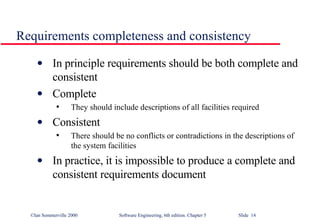

- 14. Requirements completeness andconsistency In principle requirements should be both complete and consistent Complete They should include descriptions of all facilities required Consistent There should be no conflicts or contradictions in the descriptions of the system facilities In practice, it is impossible to produce a complete and consistent requirements document

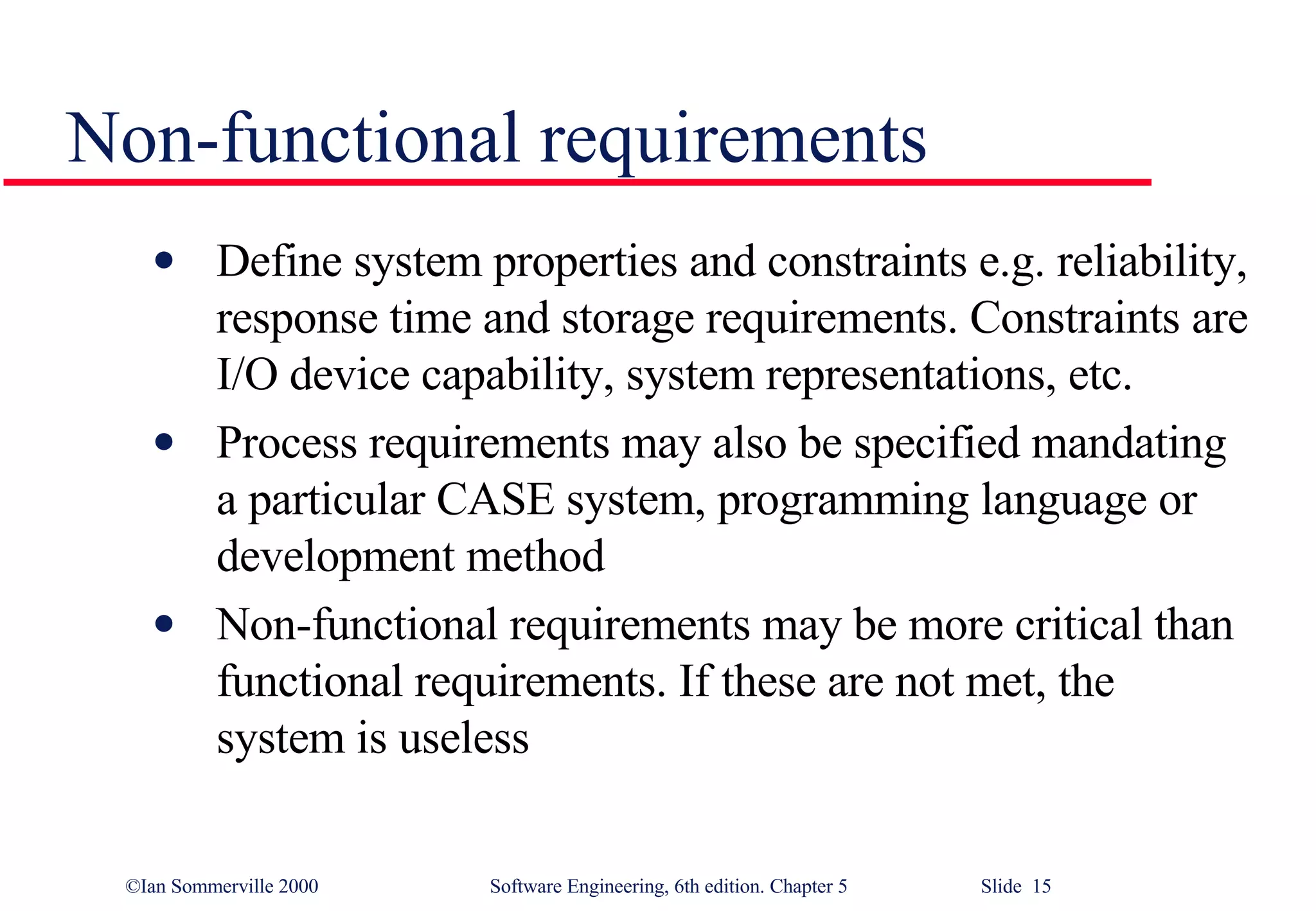

- 15. Non-functional requirements Definesystem properties and constraints e.g. reliability, response time and storage requirements. Constraints are I/O device capability, system representations, etc. Process requirements may also be specified mandating a particular CASE system, programming language or development method Non-functional requirements may be more critical than functional requirements. If these are not met, the system is useless

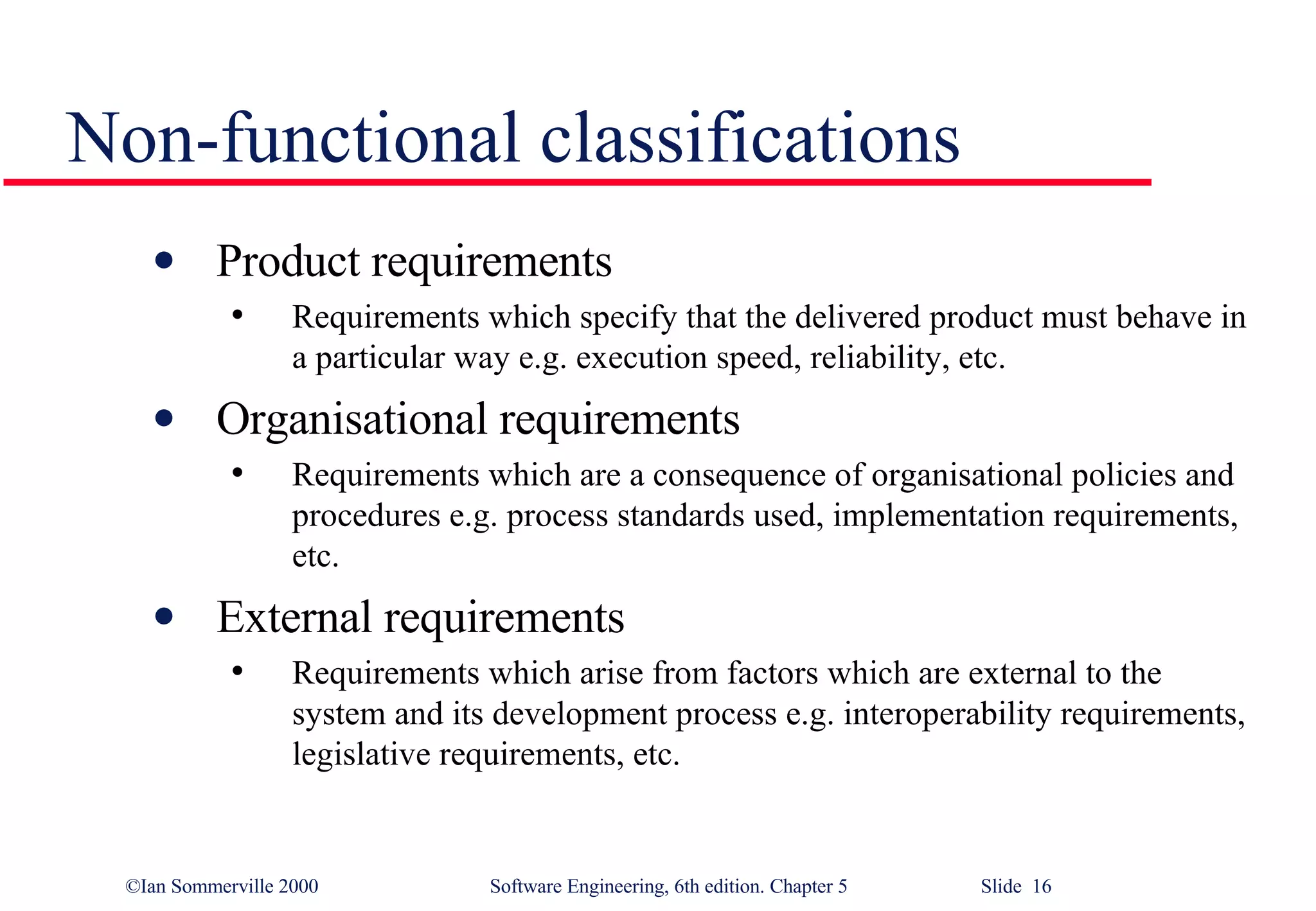

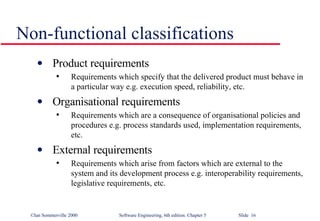

- 16. Non-functional classifications Productrequirements Requirements which specify that the delivered product must behave in a particular way e.g. execution speed, reliability, etc. Organisational requirements Requirements which are a consequence of organisational policies and procedures e.g. process standards used, implementation requirements, etc. External requirements Requirements which arise from factors which are external to the system and its development process e.g. interoperability requirements, legislative requirements, etc.
- 17.

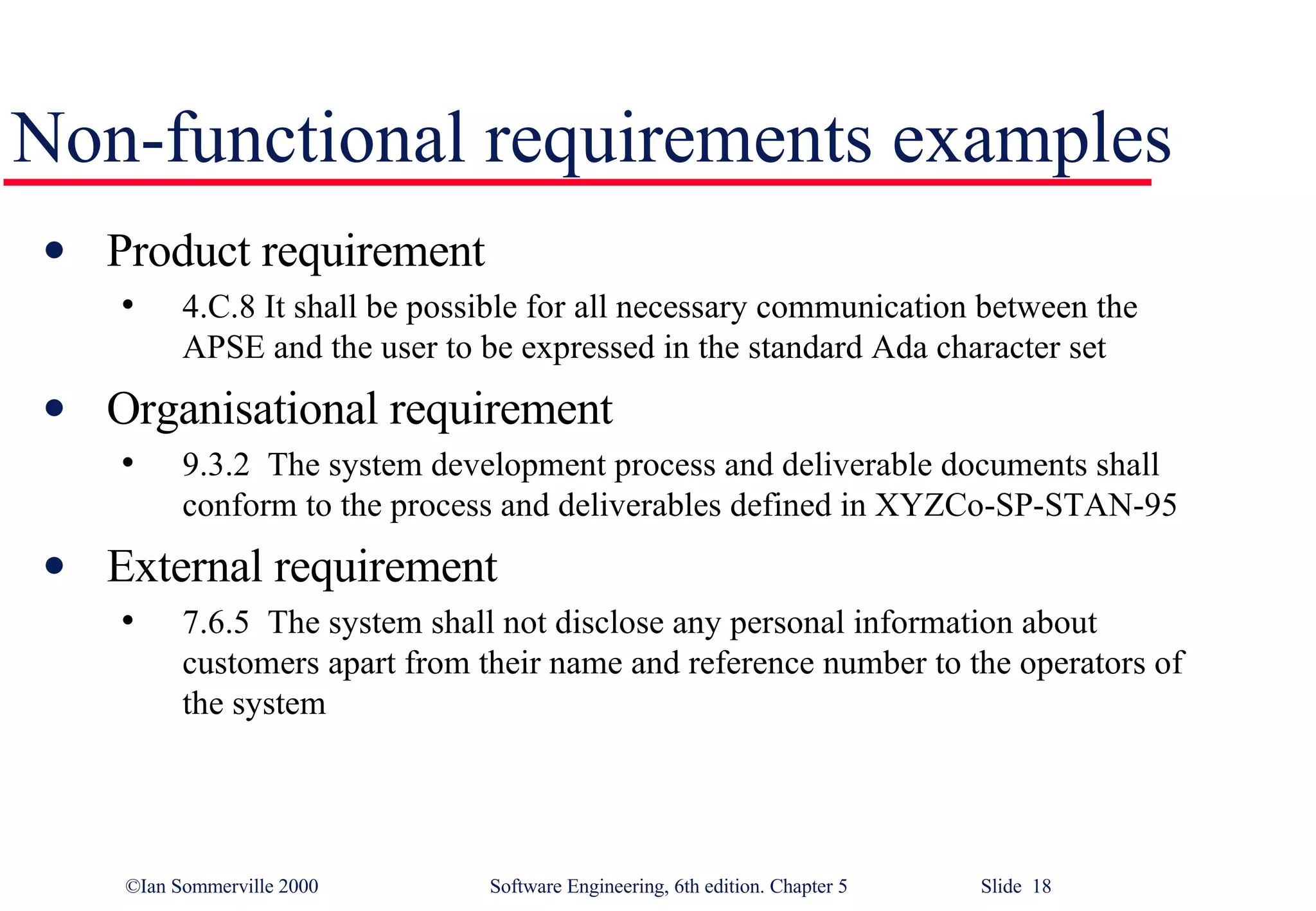

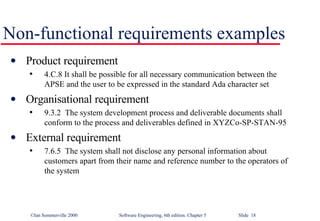

- 18. Non-functional requirements examplesProduct requirement 4.C.8 It shall be possible for all necessary communication between the APSE and the user to be expressed in the standard Ada character set Organisational requirement 9.3.2 The system development process and deliverable documents shall conform to the process and deliverables defined in XYZCo-SP-STAN-95 External requirement 7.6.5 The system shall not disclose any personal information about customers apart from their name and reference number to the operators of the system

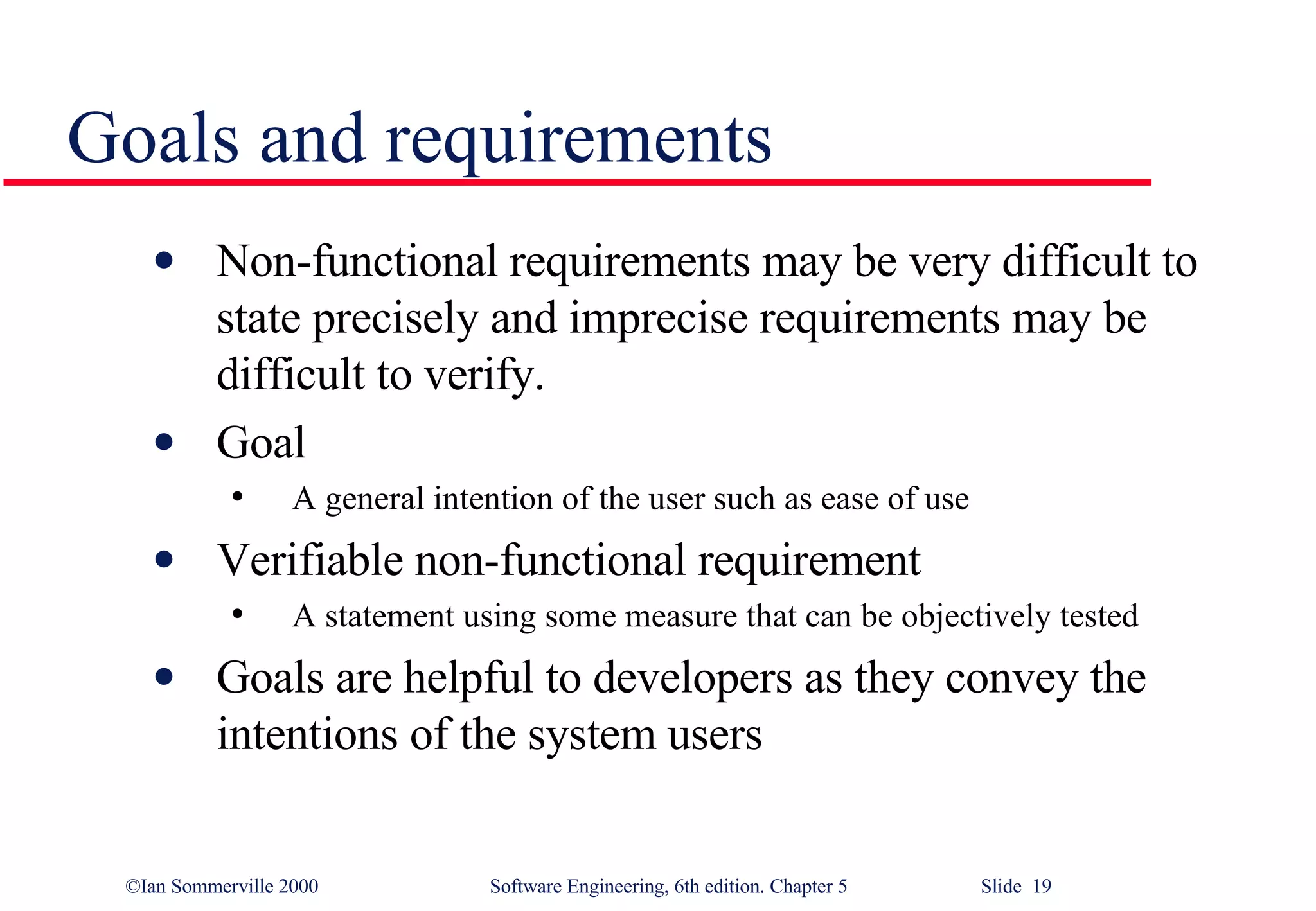

- 19. Goals and requirementsNon-functional requirements may be very difficult to state precisely and imprecise requirements may be difficult to verify. Goal A general intention of the user such as ease of use Verifiable non-functional requirement A statement using some measure that can be objectively tested Goals are helpful to developers as they convey the intentions of the system users

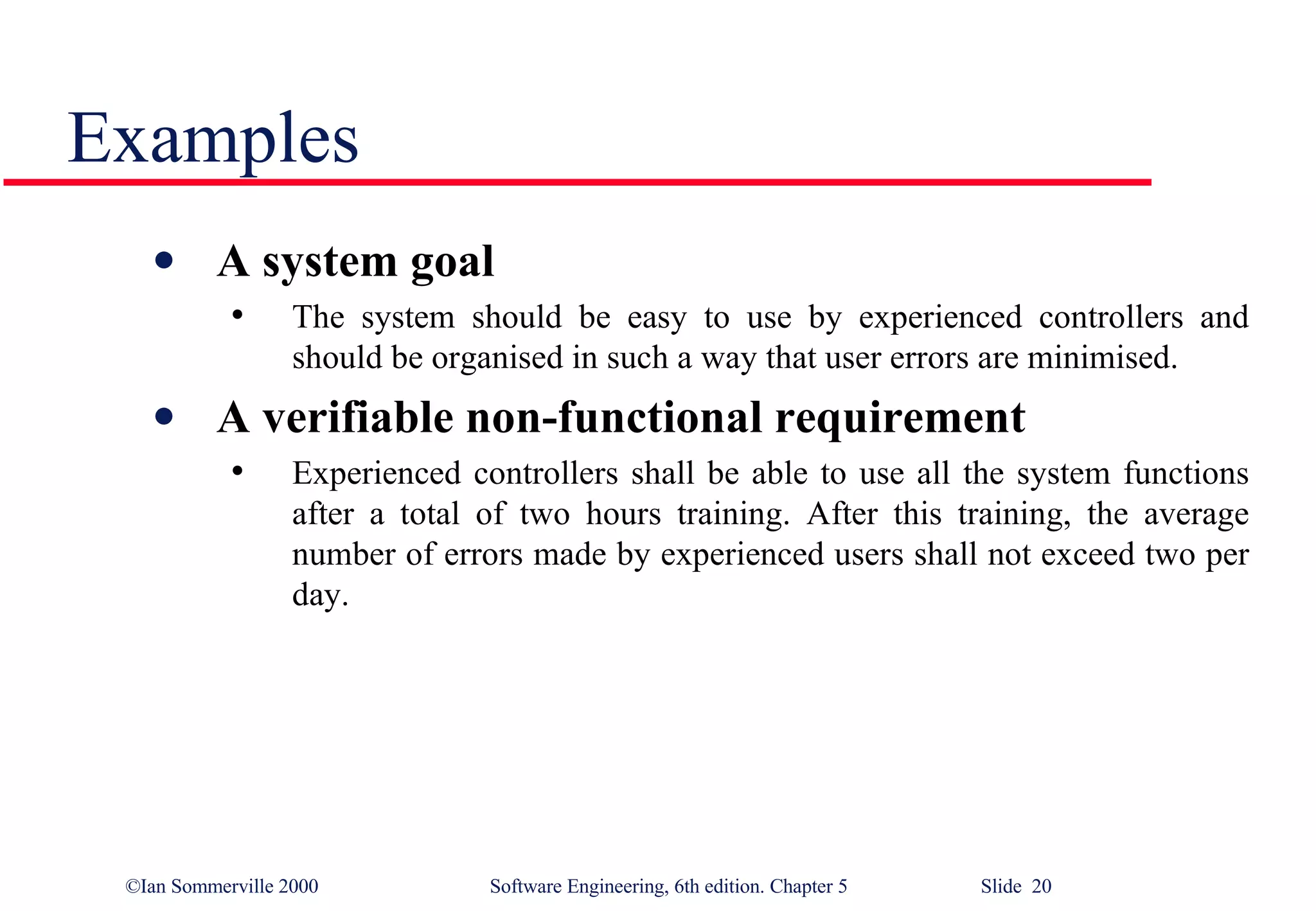

- 20. Examples A systemgoal The system should be easy to use by experienced controllers and should be organised in such a way that user errors are minimised. A verifiable non-functional requirement Experienced controllers shall be able to use all the system functions after a total of two hours training. After this training, the average number of errors made by experienced users shall not exceed two per day.
- 21.

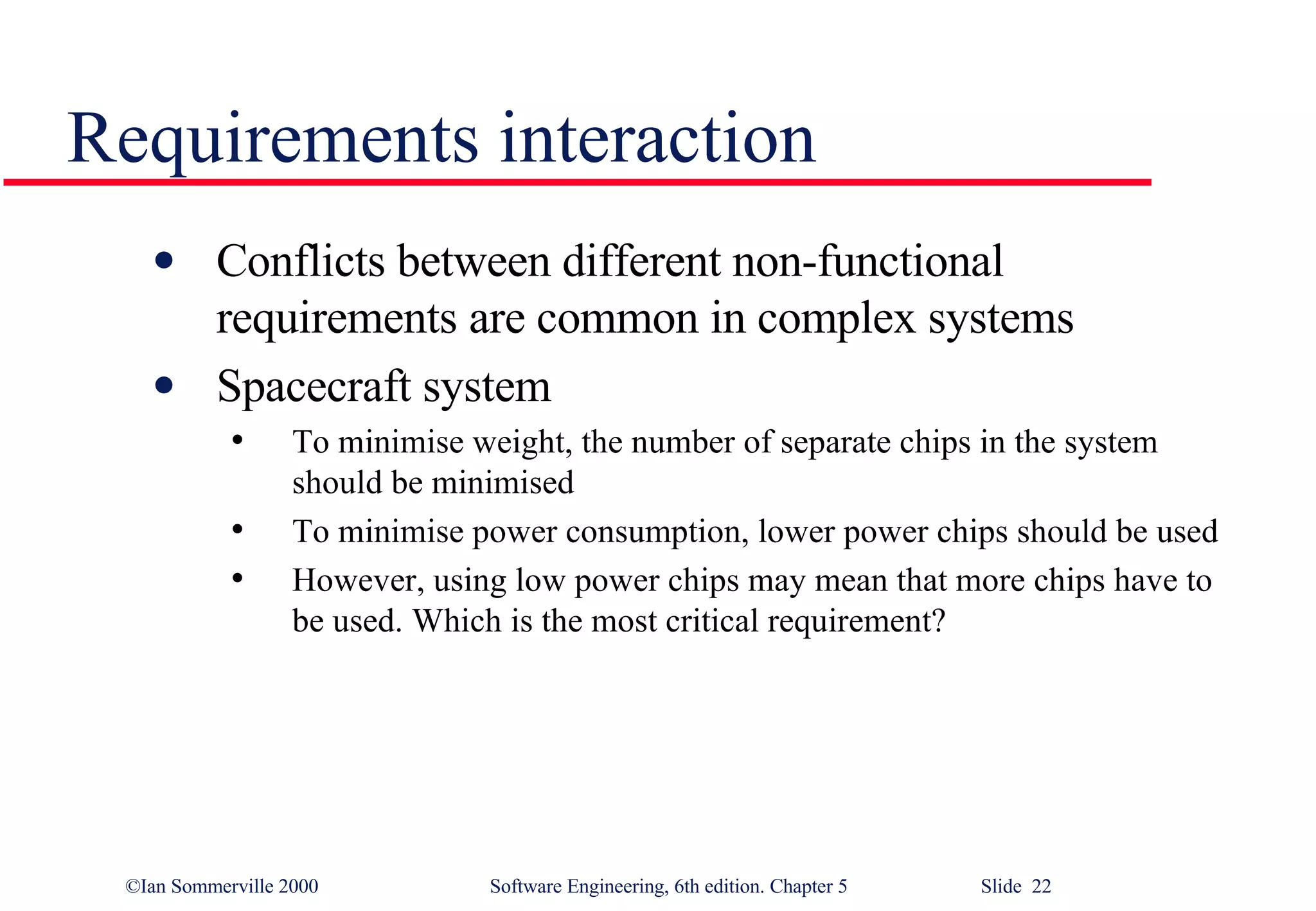

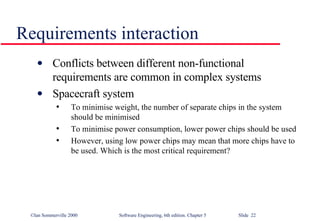

- 22. Requirements interaction Conflictsbetween different non-functional requirements are common in complex systems Spacecraft system To minimise weight, the number of separate chips in the system should be minimised To minimise power consumption, lower power chips should be used However, using low power chips may mean that more chips have to be used. Which is the most critical requirement?

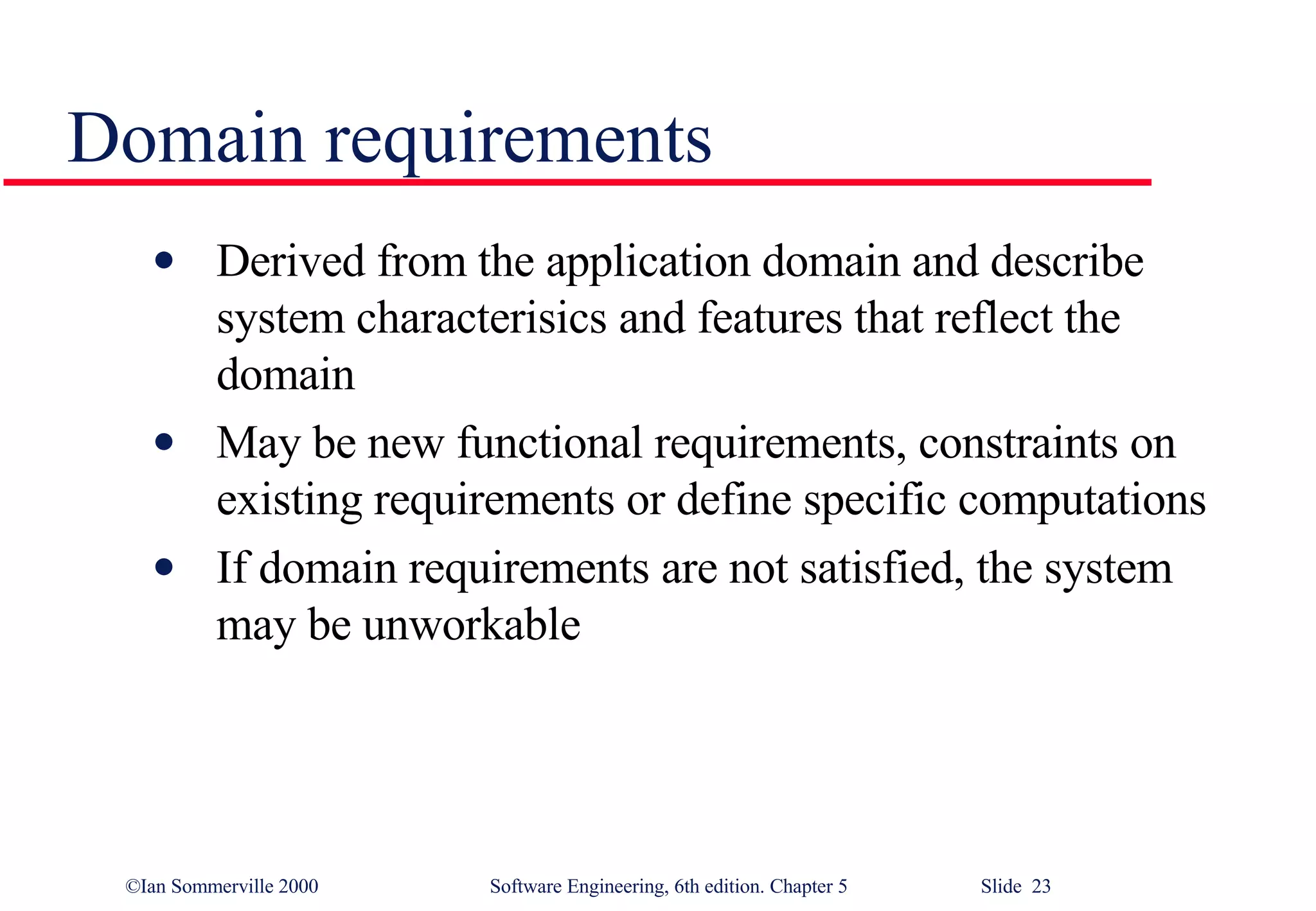

- 23. Domain requirements Derivedfrom the application domain and describe system characterisics and features that reflect the domain May be new functional requirements, constraints on existing requirements or define specific computations If domain requirements are not satisfied, the system may be unworkable

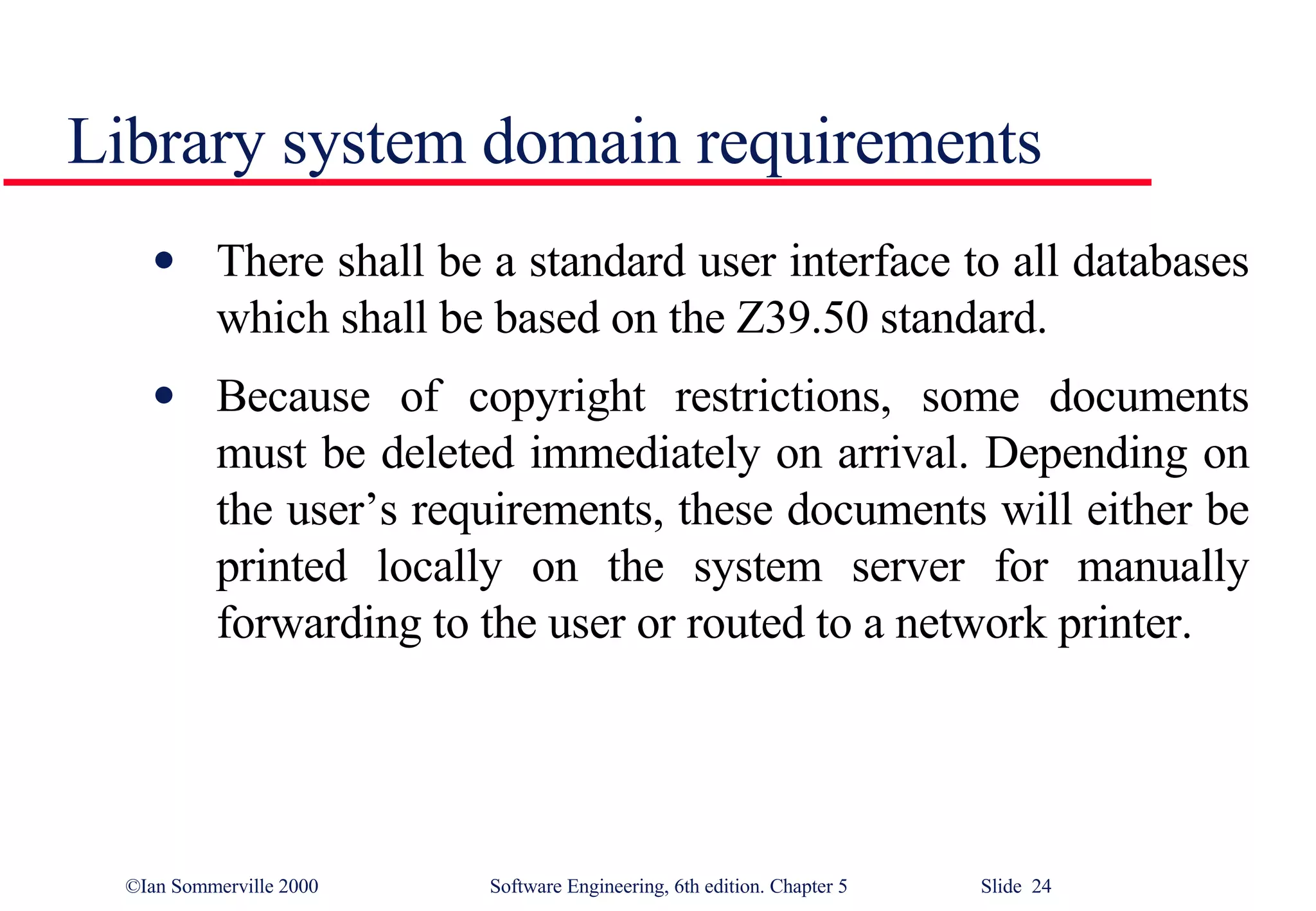

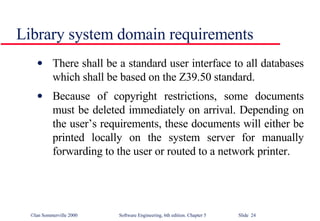

- 24. Library system domainrequirements There shall be a standard user interface to all databases which shall be based on the Z39.50 standard. Because of copyright restrictions, some documents must be deleted immediately on arrival. Depending on the user’s requirements, these documents will either be printed locally on the system server for manually forwarding to the user or routed to a network printer.

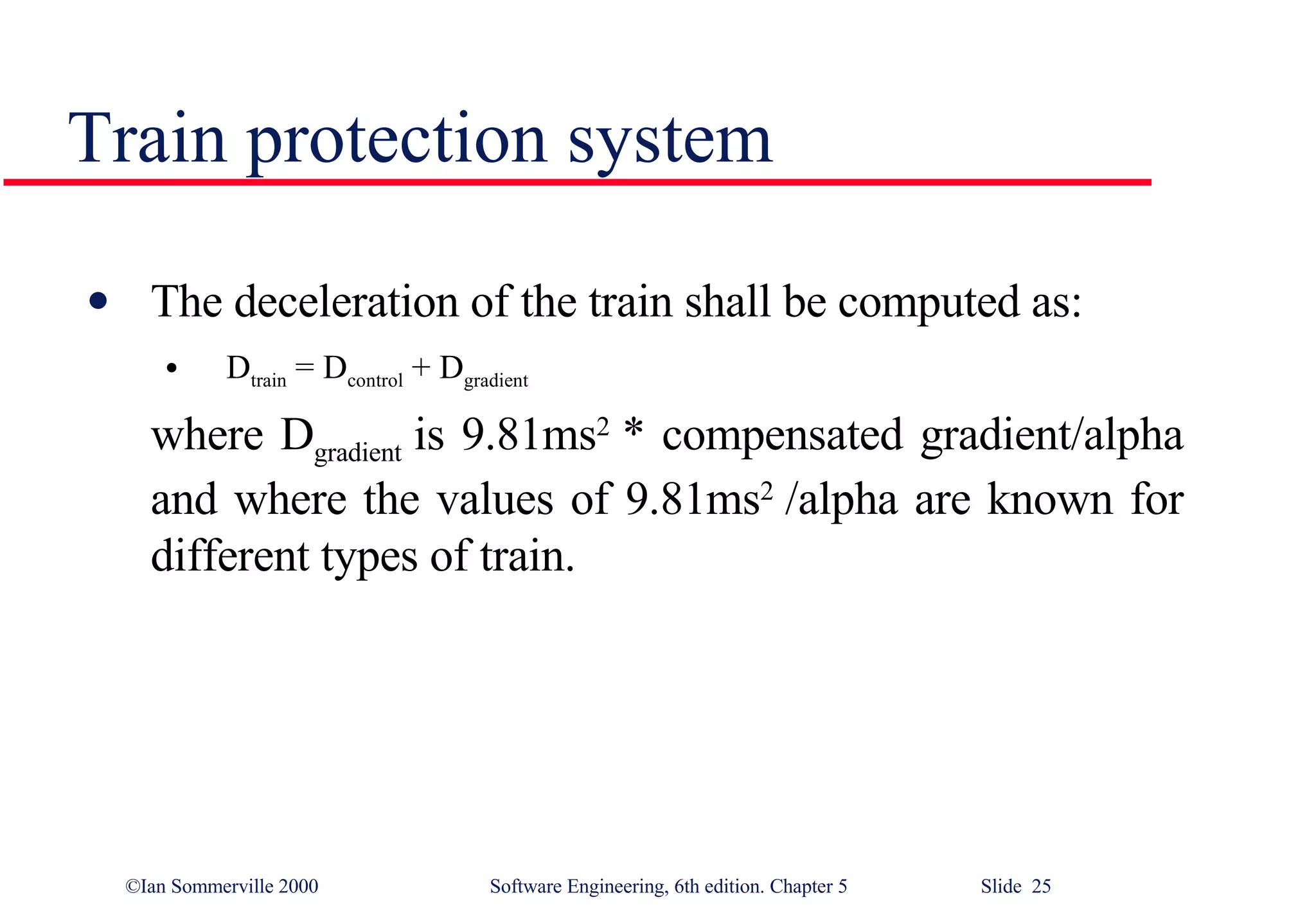

- 25. Train protection systemThe deceleration of the train shall be computed as: D train = D control + D gradient where D gradient is 9.81ms 2 * compensated gradient/alpha and where the values of 9.81ms 2 /alpha are known for different types of train.

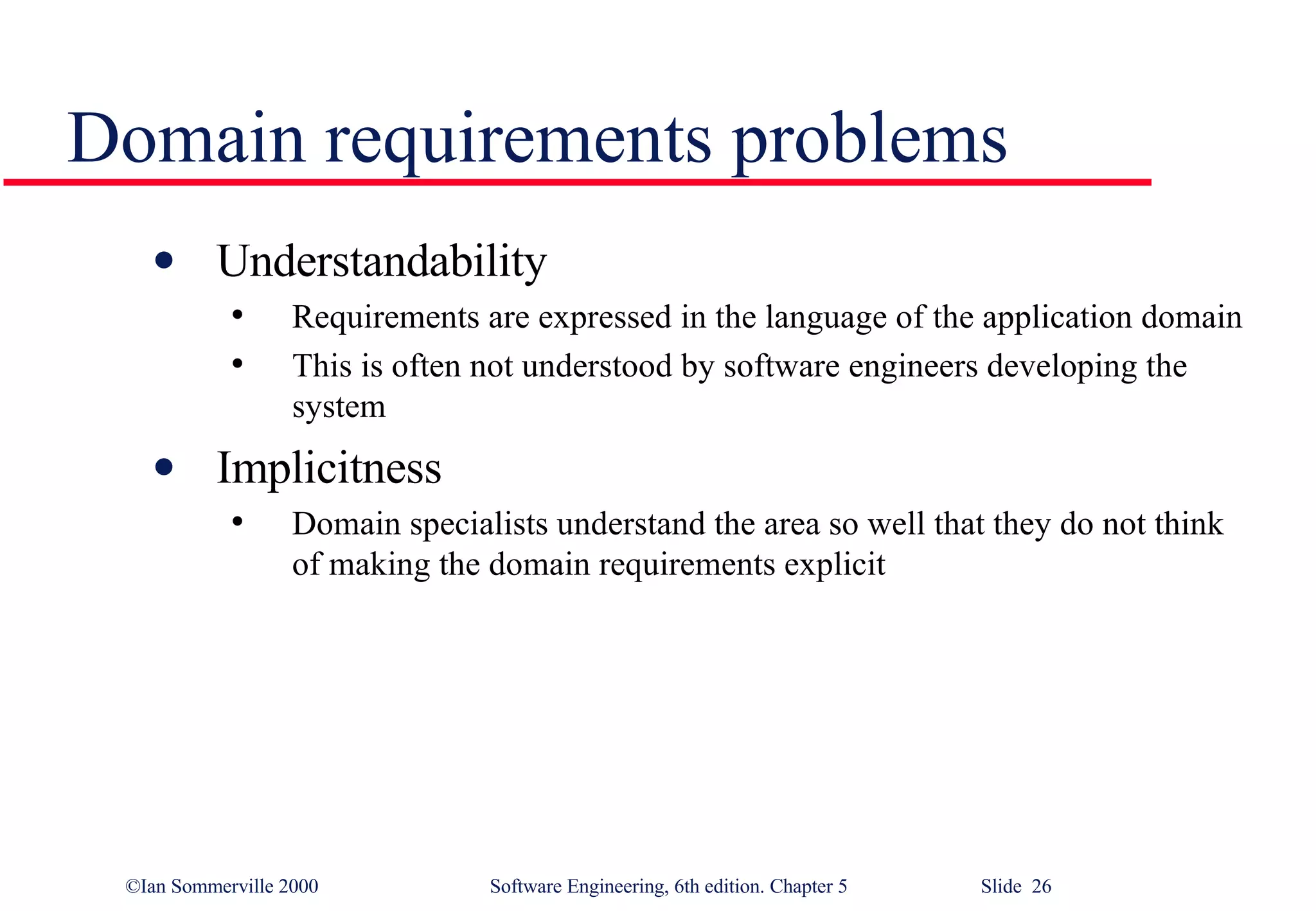

- 26. Domain requirements problemsUnderstandability Requirements are expressed in the language of the application domain This is often not understood by software engineers developing the system Implicitness Domain specialists understand the area so well that they do not think of making the domain requirements explicit

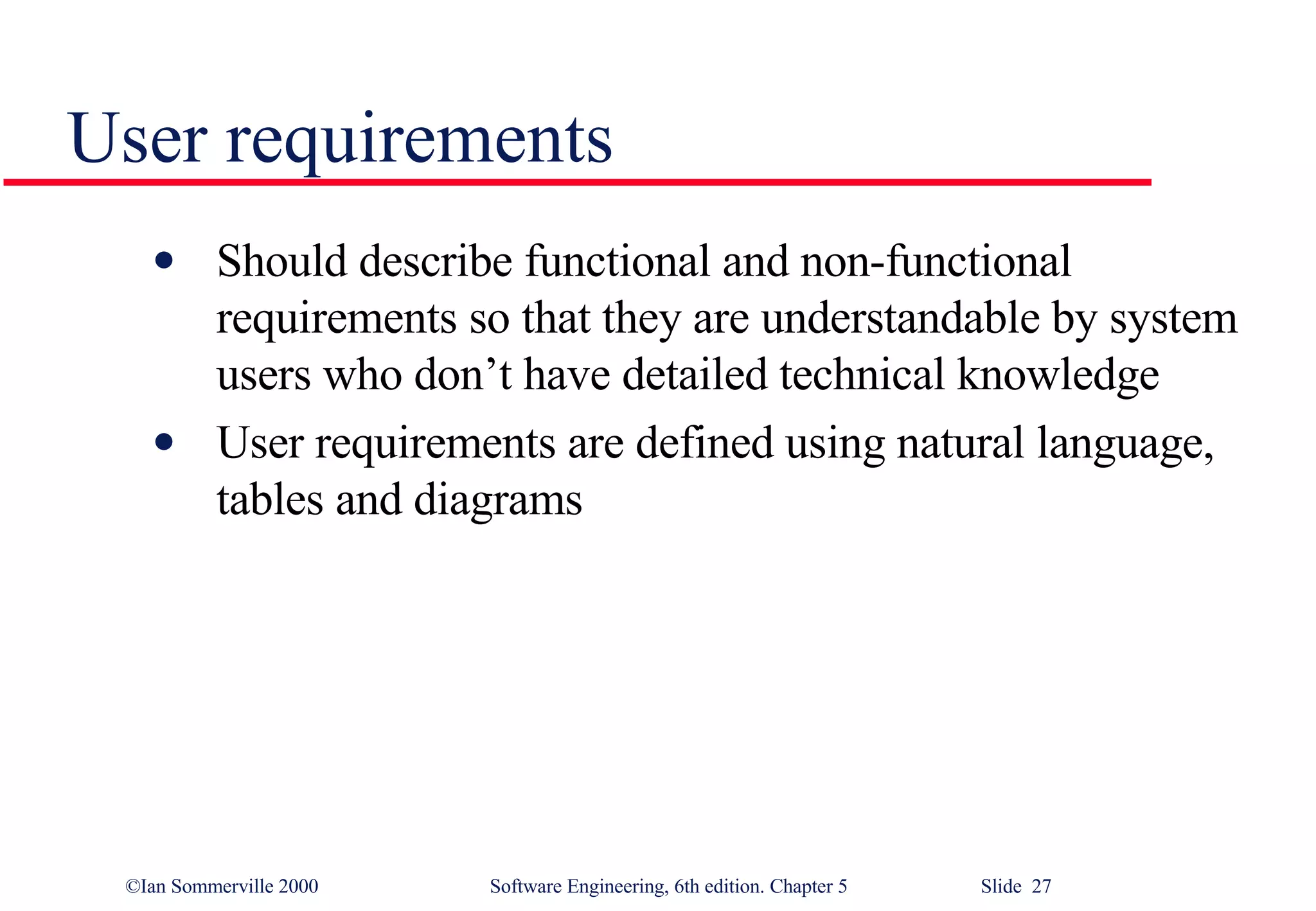

- 27. User requirements Shoulddescribe functional and non-functional requirements so that they are understandable by system users who don’t have detailed technical knowledge User requirements are defined using natural language, tables and diagrams

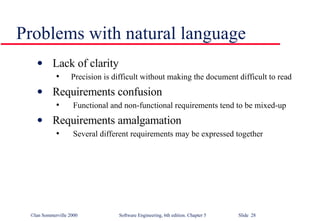

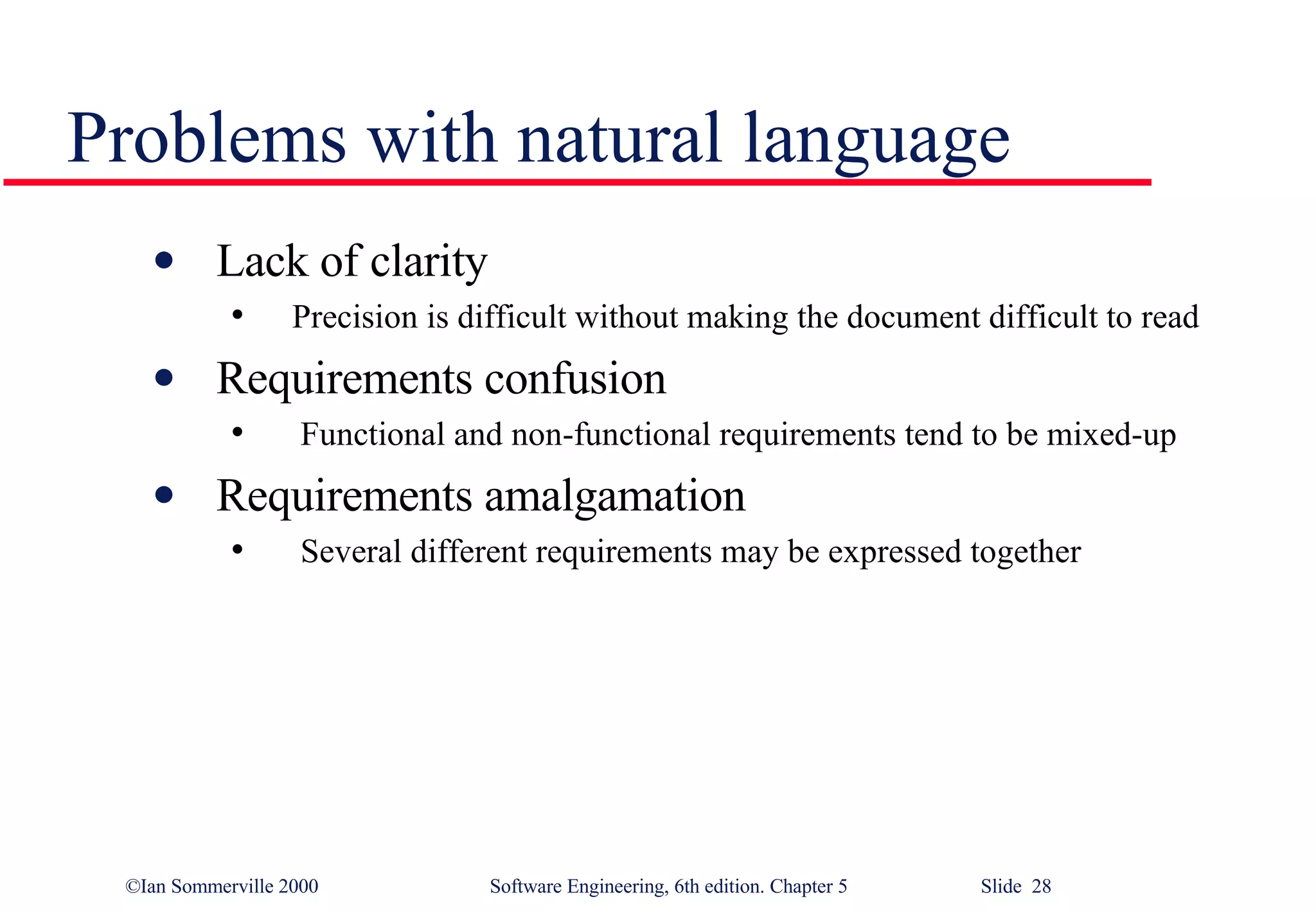

- 28. Problems with naturallanguage Lack of clarity Precision is difficult without making the document difficult to read Requirements confusion Functional and non-functional requirements tend to be mixed-up Requirements amalgamation Several different requirements may be expressed together

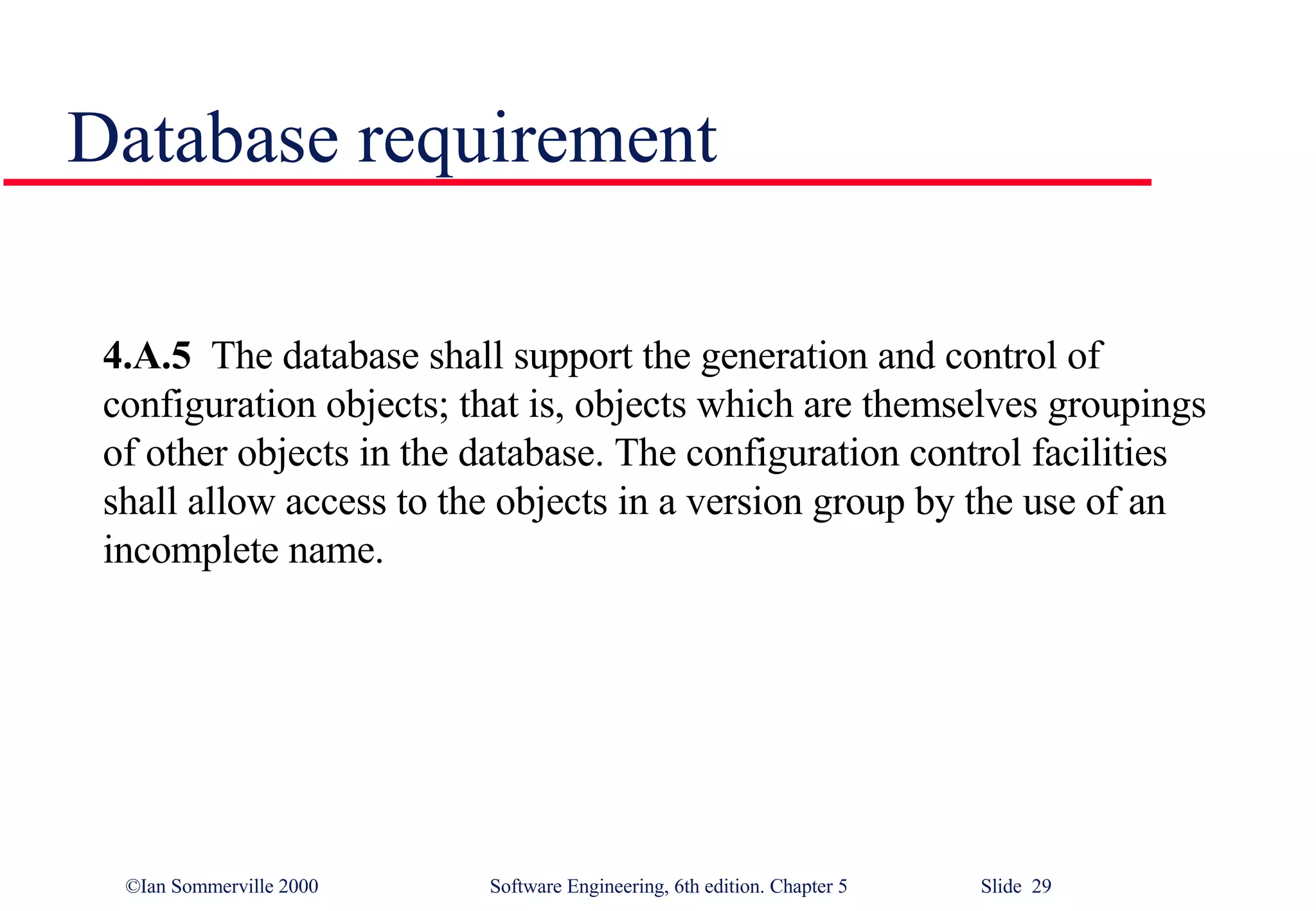

- 29. Database requirement 4.A.5 The database shall support the generation and control of configuration objects; that is, objects which are themselves groupings of other objects in the database. The configuration control facilities shall allow access to the objects in a version group by the use of an incomplete name.

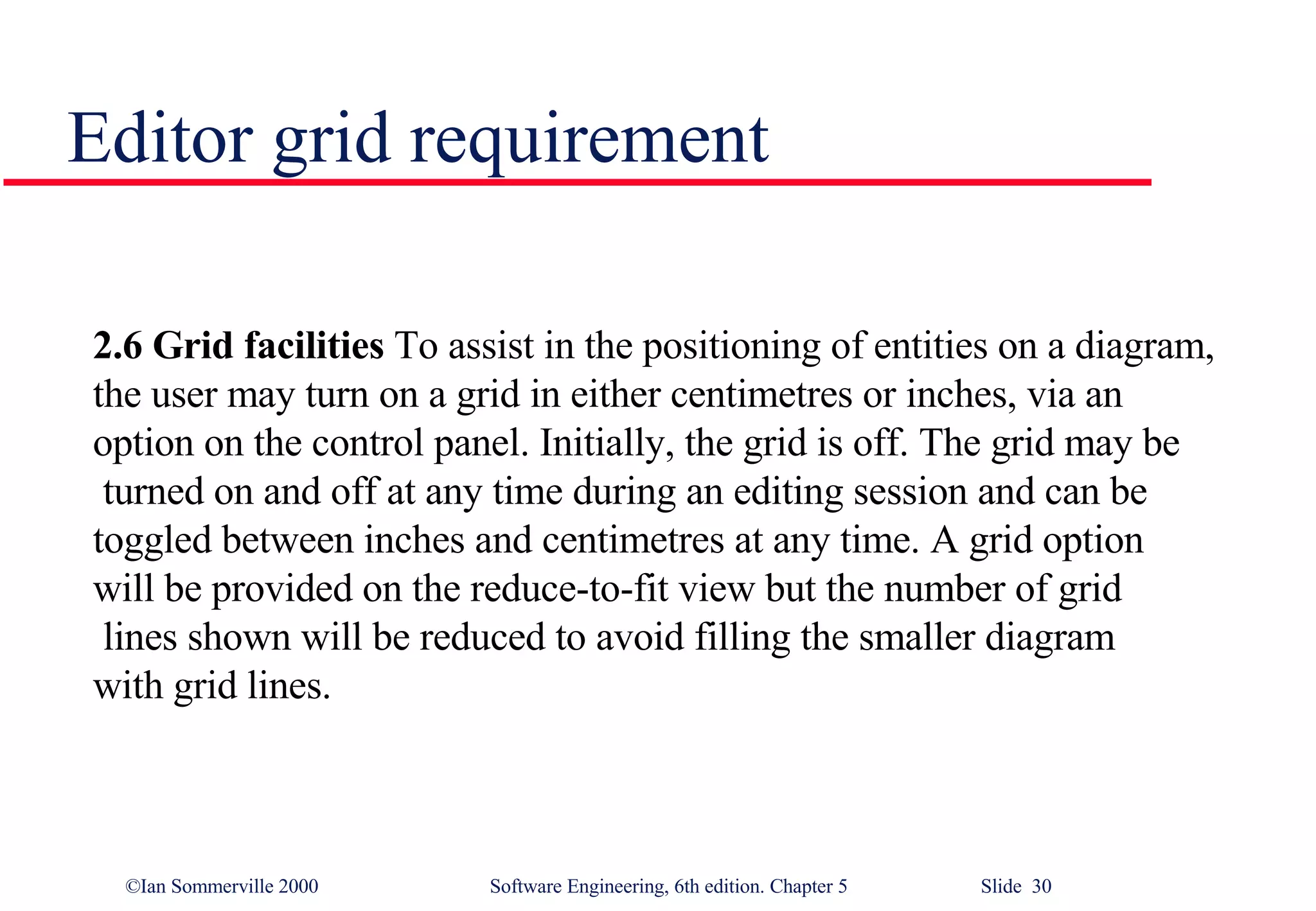

- 30. Editor grid requirement2.6 Grid facilities To assist in the positioning of entities on a diagram, the user may turn on a grid in either centimetres or inches, via an option on the control panel. Initially, the grid is off. The grid may be turned on and off at any time during an editing session and can be toggled between inches and centimetres at any time. A grid option will be provided on the reduce-to-fit view but the number of grid lines shown will be reduced to avoid filling the smaller diagram with grid lines.

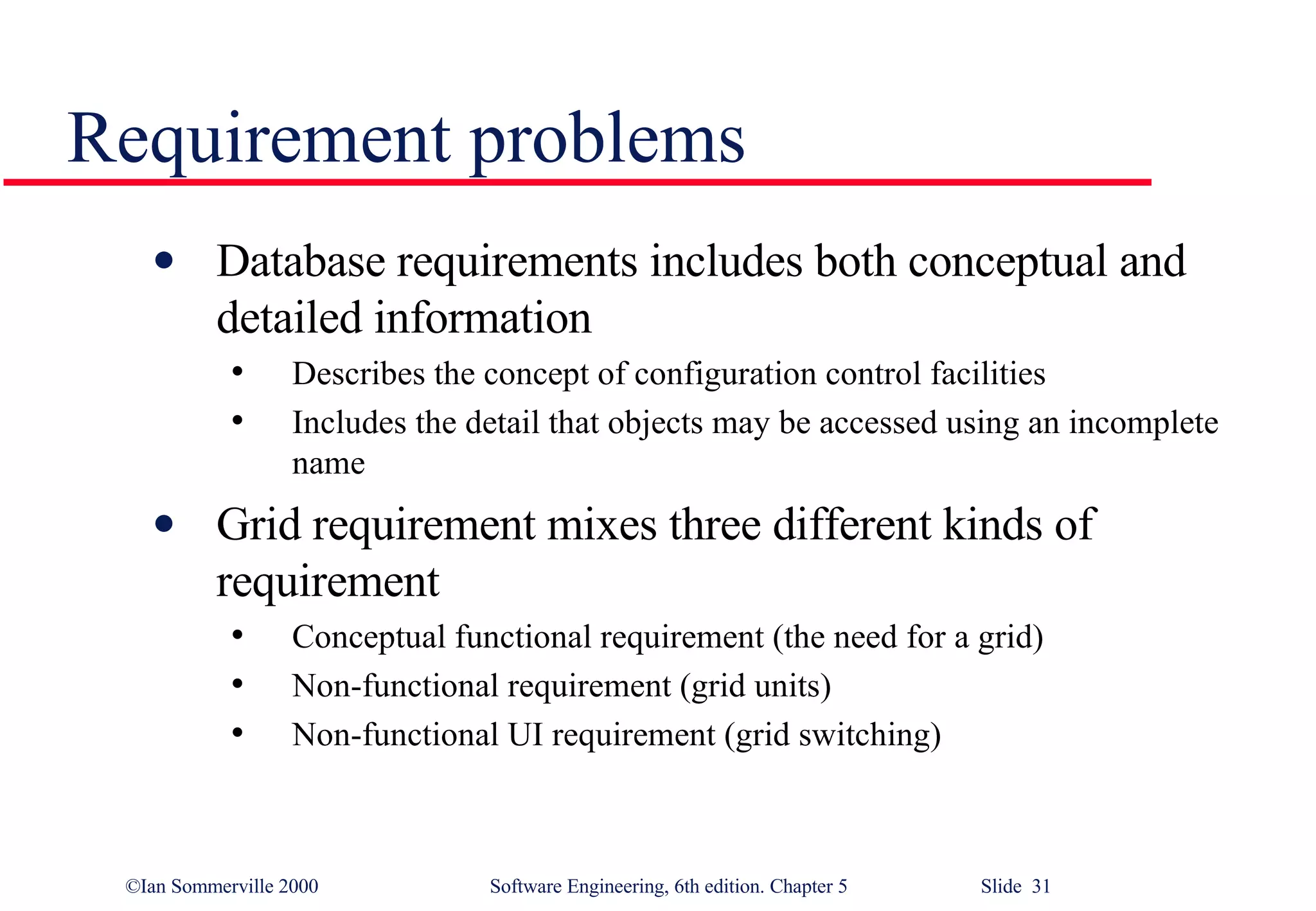

- 31. Requirement problems Databaserequirements includes both conceptual and detailed information Describes the concept of configuration control facilities Includes the detail that objects may be accessed using an incomplete name Grid requirement mixes three different kinds of requirement Conceptual functional requirement (the need for a grid) Non-functional requirement (grid units) Non-functional UI requirement (grid switching)

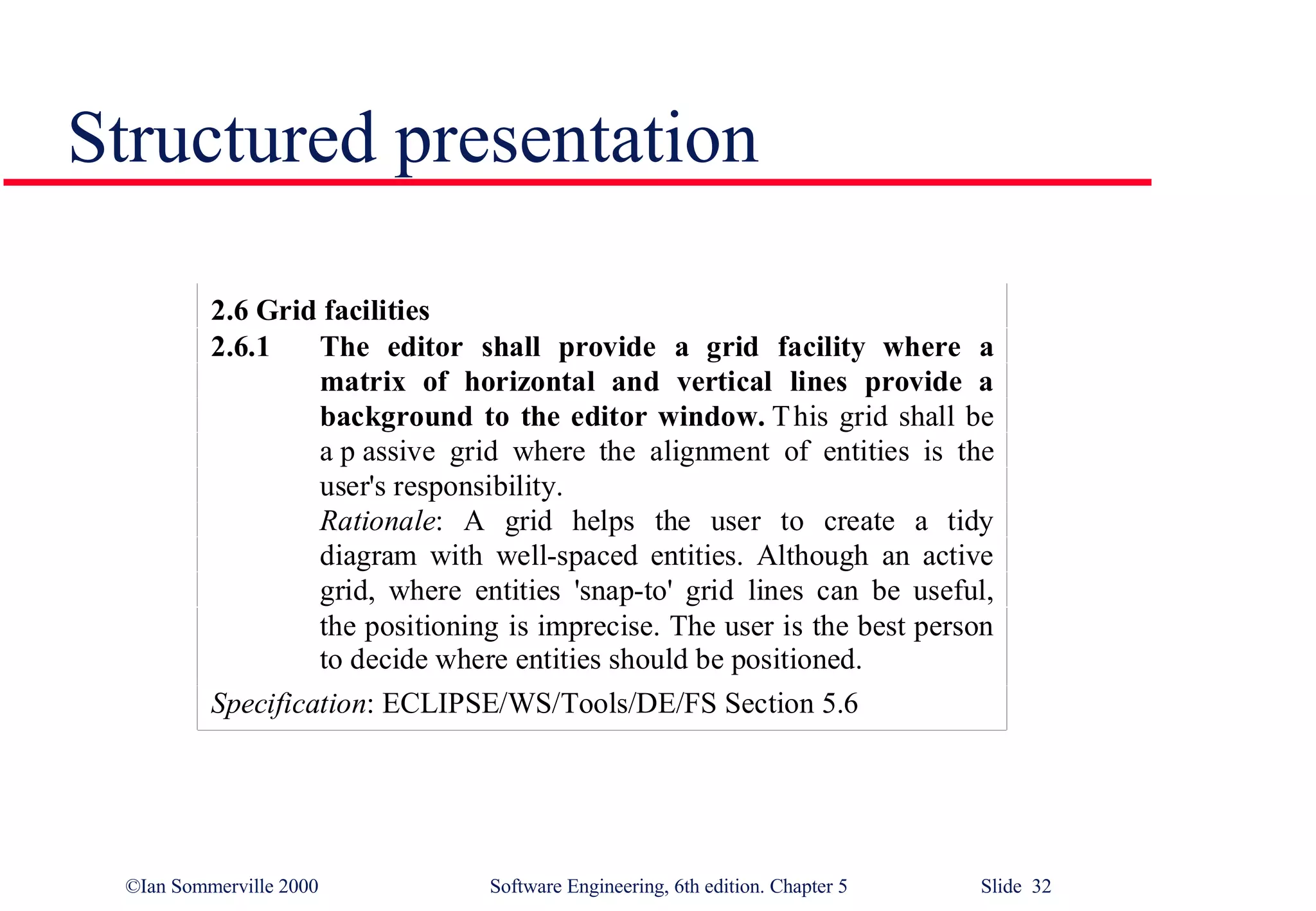

- 32.

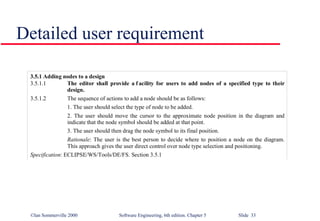

- 33.

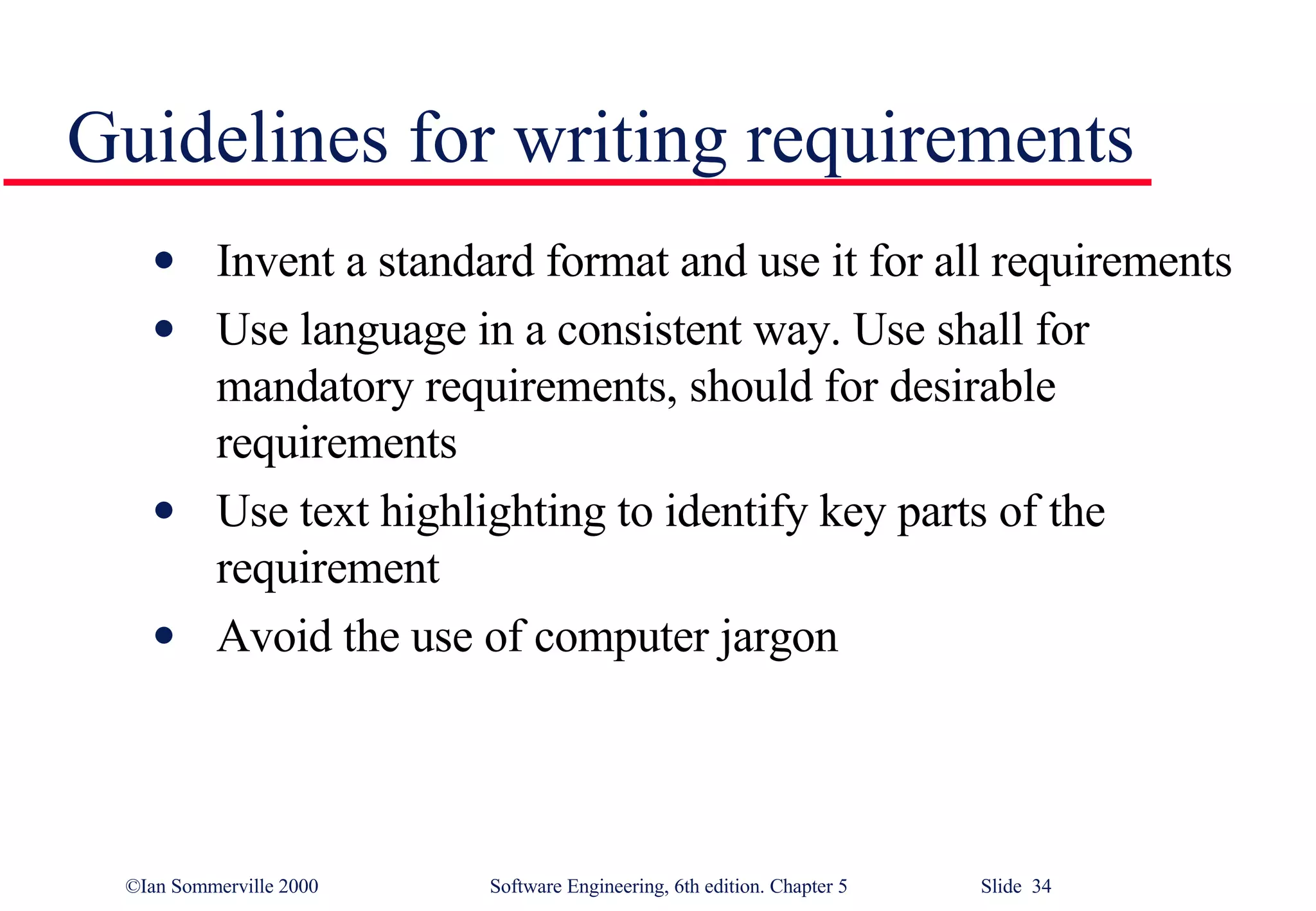

- 34. Guidelines for writingrequirements Invent a standard format and use it for all requirements Use language in a consistent way. Use shall for mandatory requirements, should for desirable requirements Use text highlighting to identify key parts of the requirement Avoid the use of computer jargon

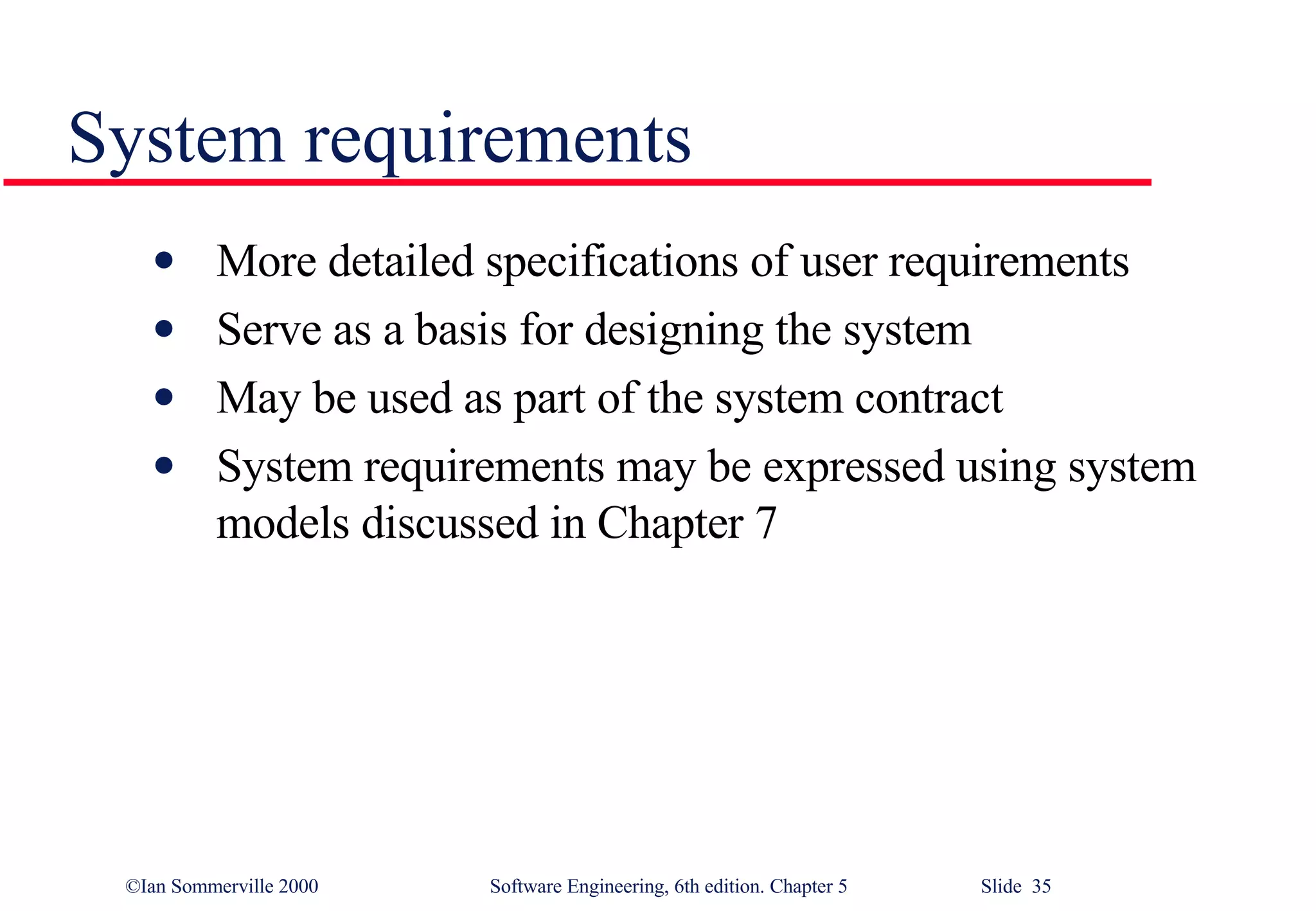

- 35. System requirements Moredetailed specifications of user requirements Serve as a basis for designing the system May be used as part of the system contract System requirements may be expressed using system models discussed in Chapter 7

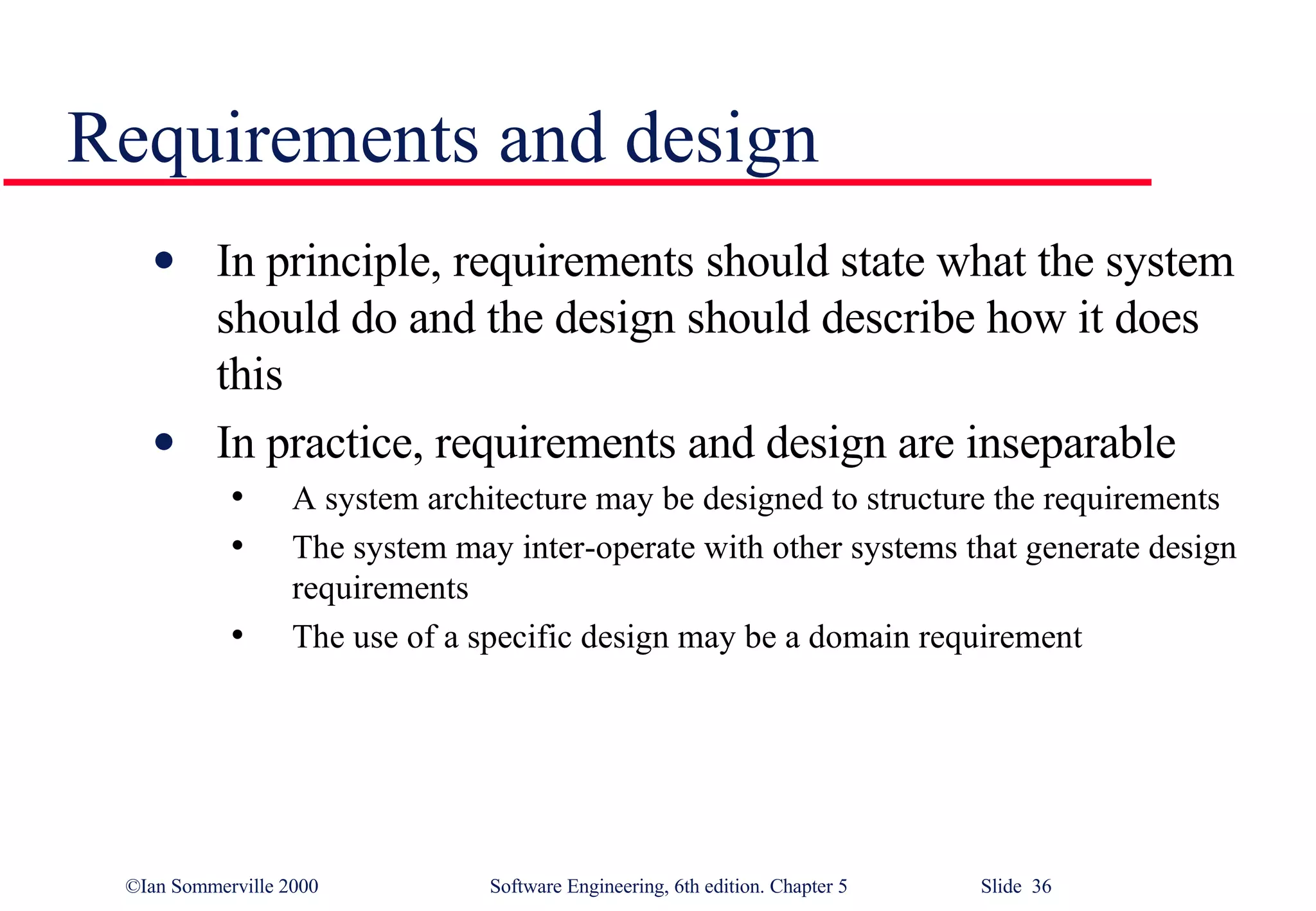

- 36. Requirements and designIn principle, requirements should state what the system should do and the design should describe how it does this In practice, requirements and design are inseparable A system architecture may be designed to structure the requirements The system may inter-operate with other systems that generate design requirements The use of a specific design may be a domain requirement

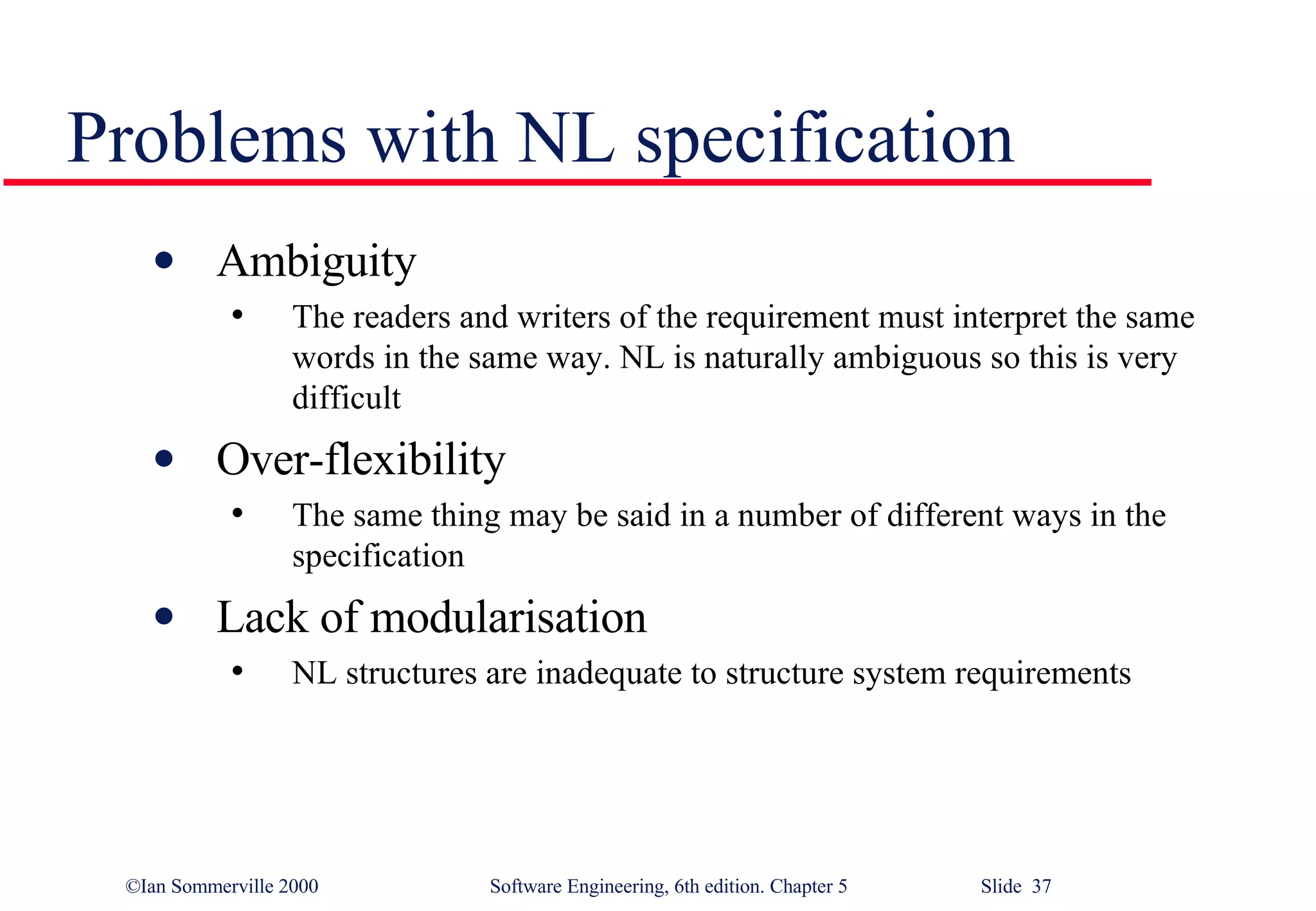

- 37. Problems with NLspecification Ambiguity The readers and writers of the requirement must interpret the same words in the same way. NL is naturally ambiguous so this is very difficult Over-flexibility The same thing may be said in a number of different ways in the specification Lack of modularisation NL structures are inadequate to structure system requirements

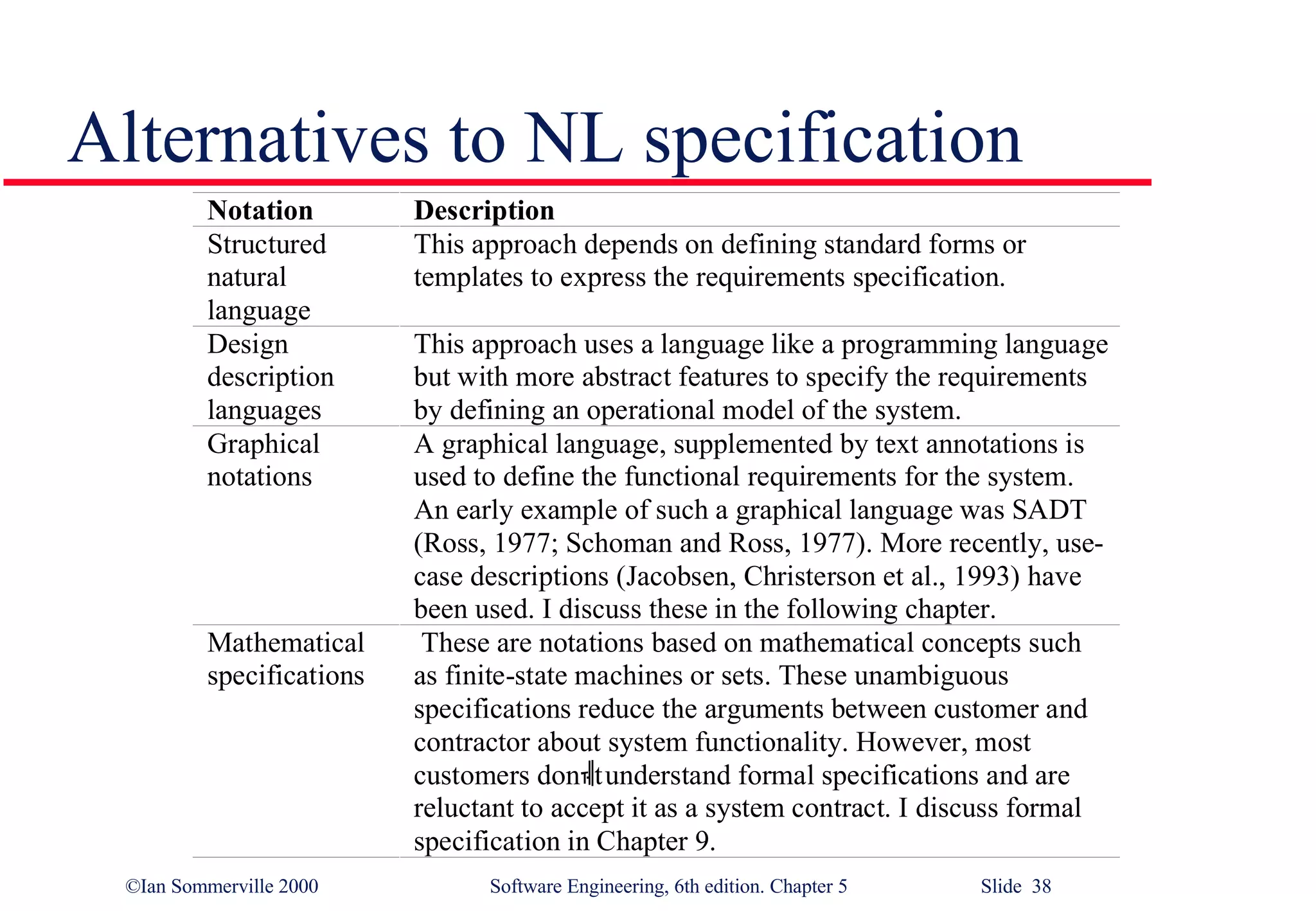

- 38. Alternatives to NLspecification

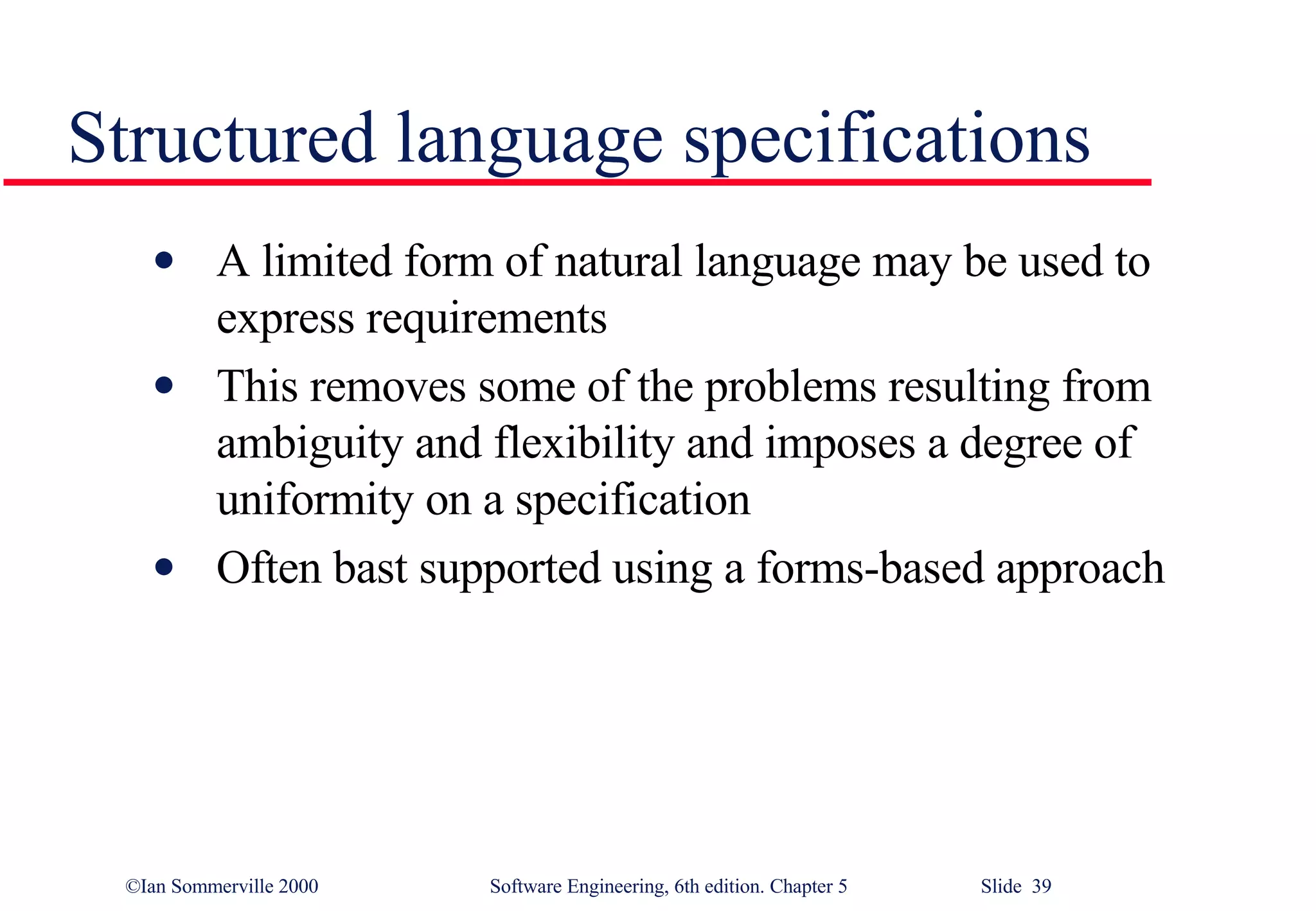

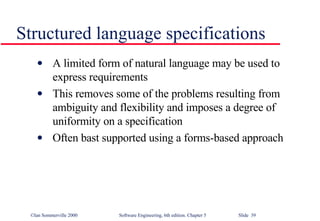

- 39. Structured language specificationsA limited form of natural language may be used to express requirements This removes some of the problems resulting from ambiguity and flexibility and imposes a degree of uniformity on a specification Often bast supported using a forms-based approach

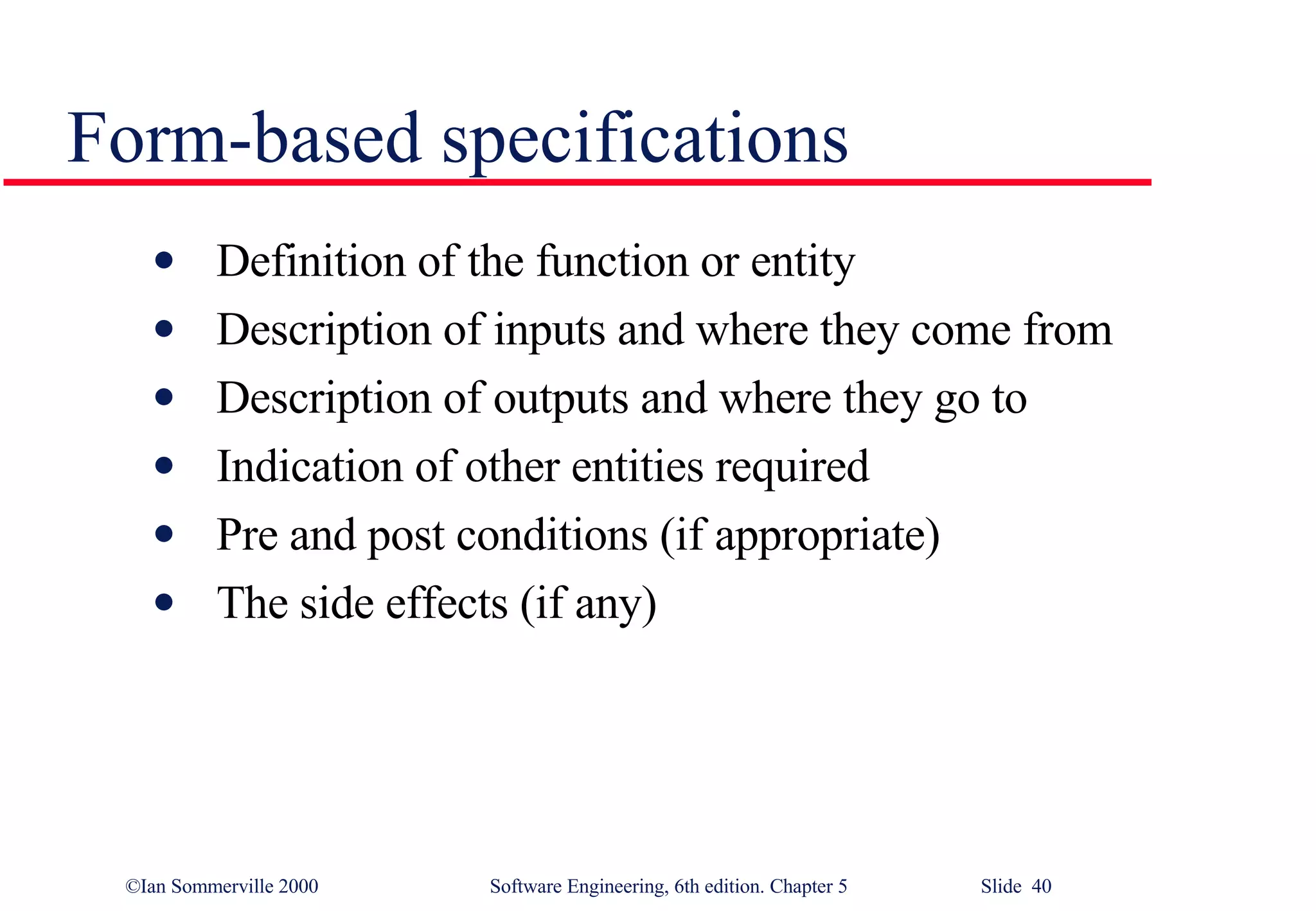

- 40. Form-based specifications Definitionof the function or entity Description of inputs and where they come from Description of outputs and where they go to Indication of other entities required Pre and post conditions (if appropriate) The side effects (if any)

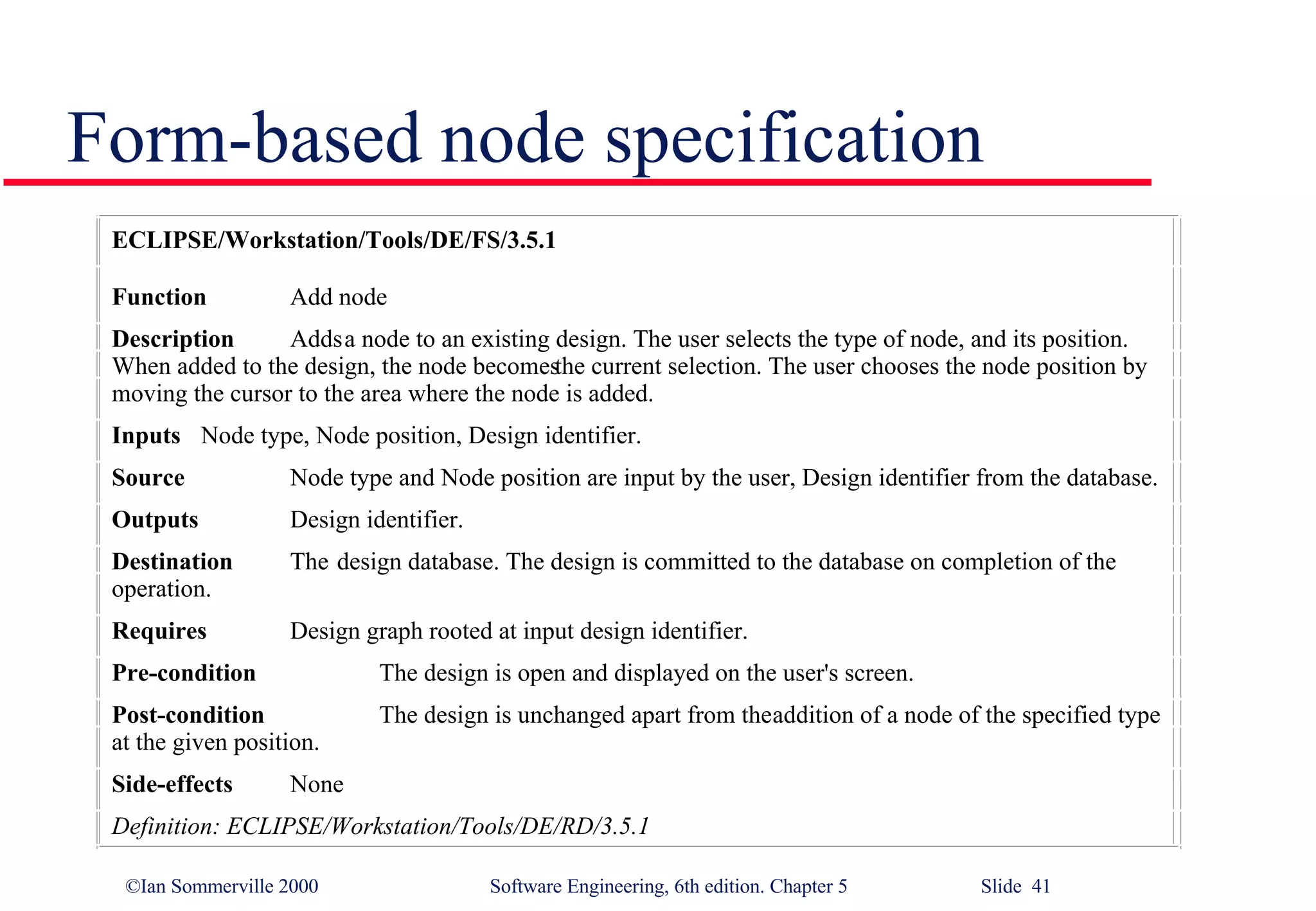

- 41.

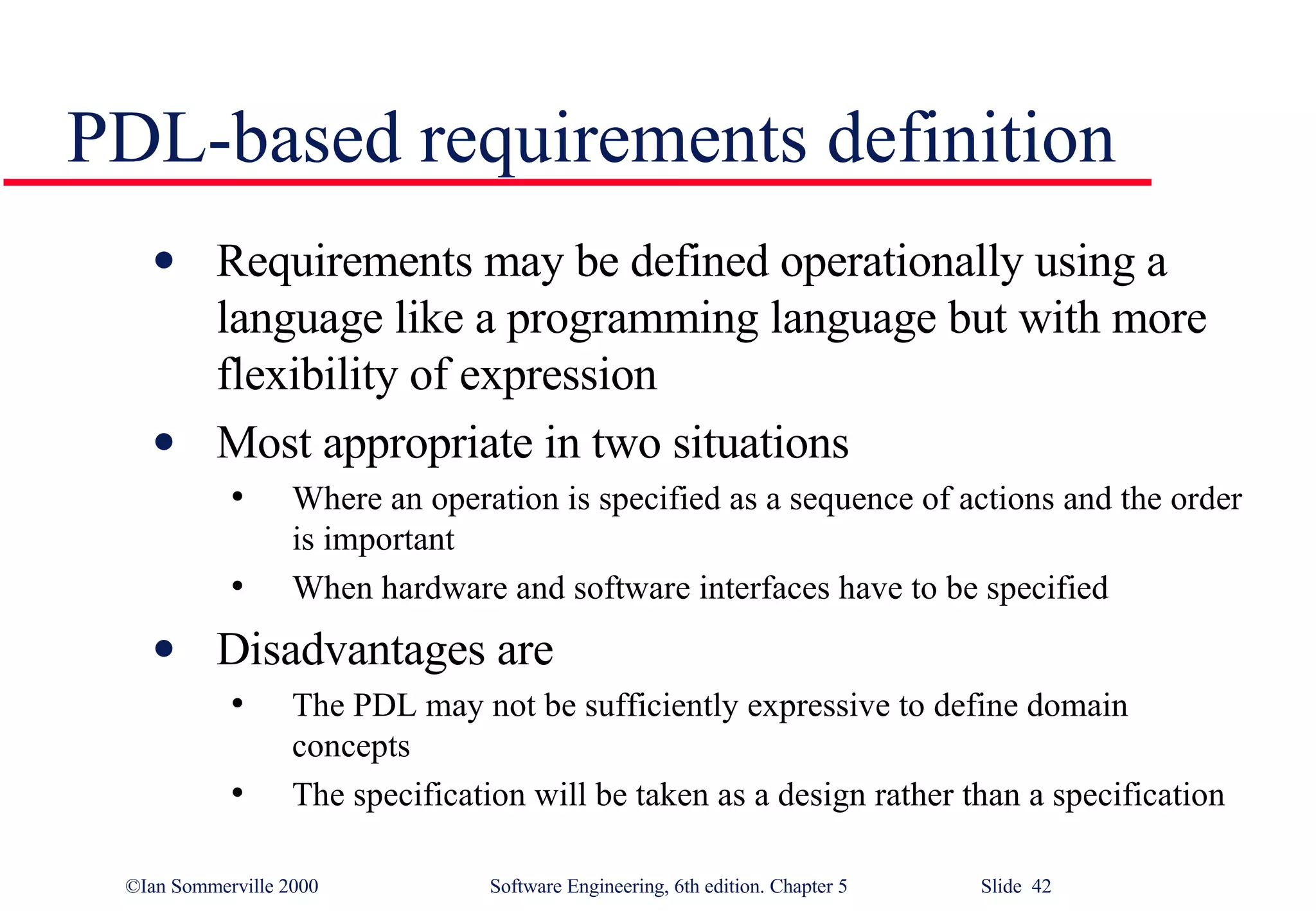

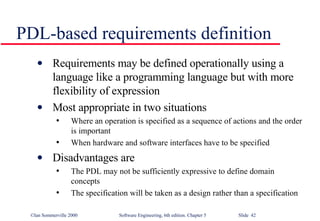

- 42. PDL-based requirements definitionRequirements may be defined operationally using a language like a programming language but with more flexibility of expression Most appropriate in two situations Where an operation is specified as a sequence of actions and the order is important When hardware and software interfaces have to be specified Disadvantages are The PDL may not be sufficiently expressive to define domain concepts The specification will be taken as a design rather than a specification

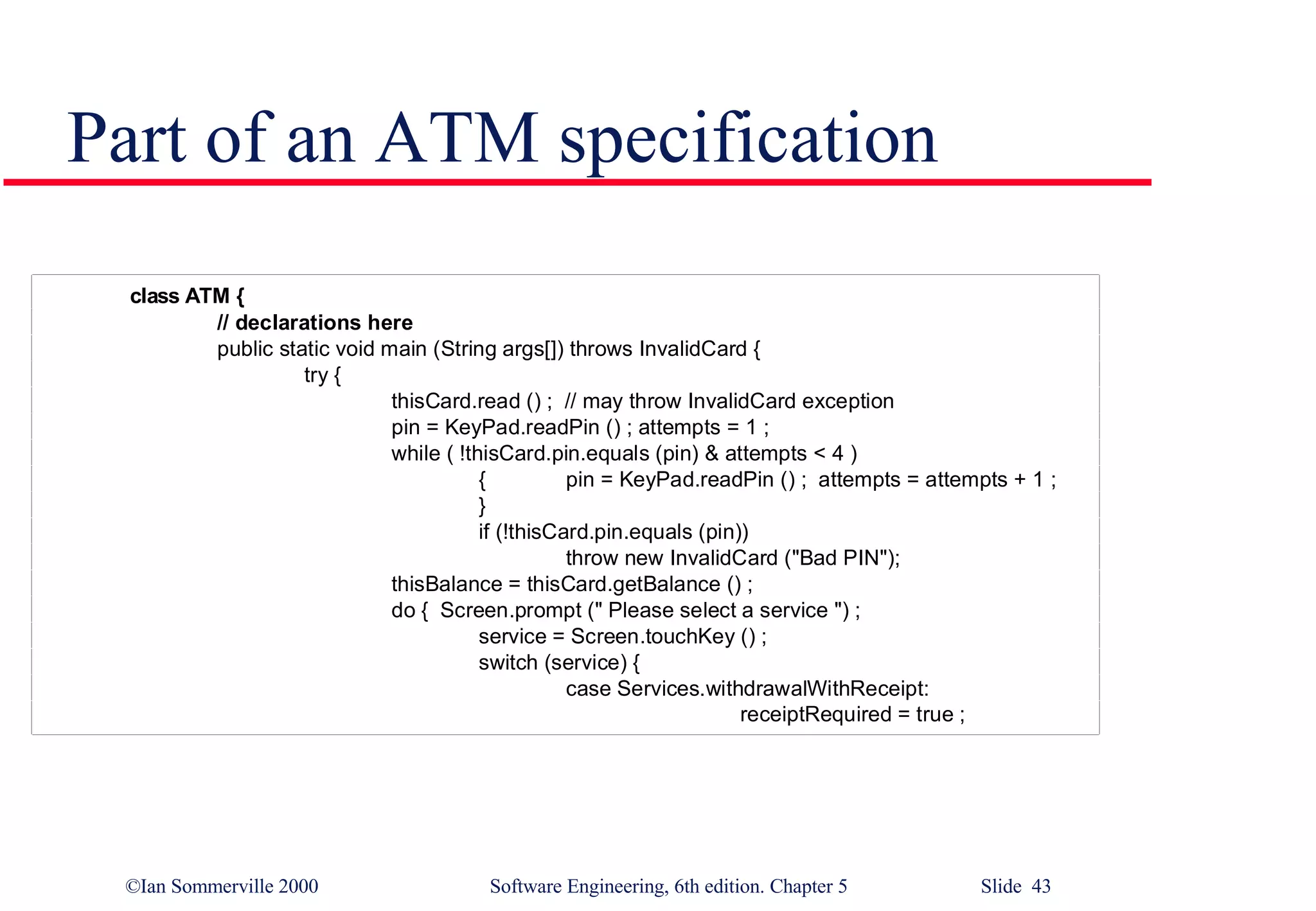

- 43. Part of anATM specification

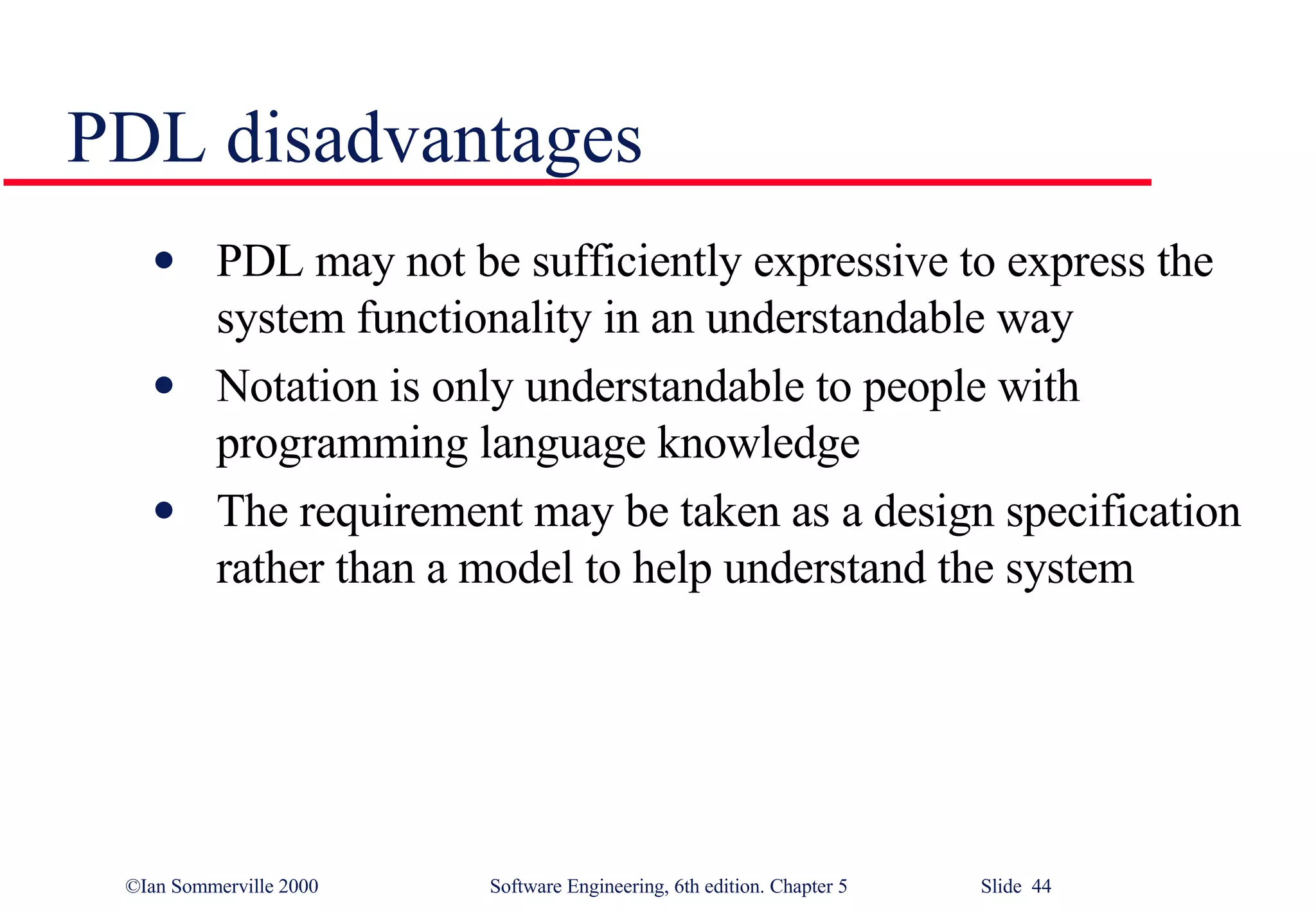

- 44. PDL disadvantages PDLmay not be sufficiently expressive to express the system functionality in an understandable way Notation is only understandable to people with programming language knowledge The requirement may be taken as a design specification rather than a model to help understand the system

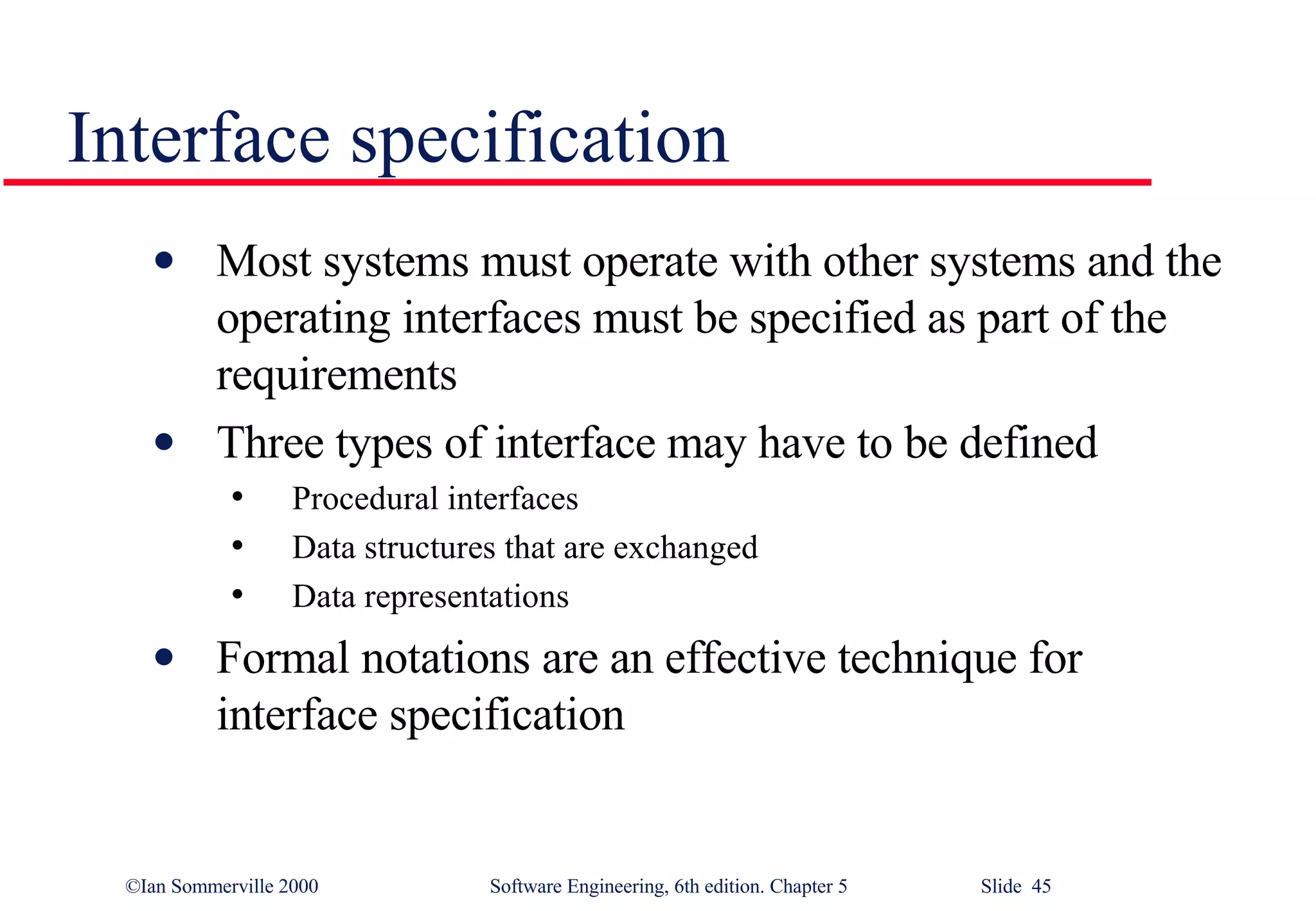

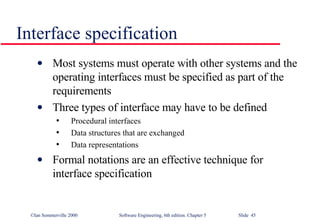

- 45. Interface specification Mostsystems must operate with other systems and the operating interfaces must be specified as part of the requirements Three types of interface may have to be defined Procedural interfaces Data structures that are exchanged Data representations Formal notations are an effective technique for interface specification
- 46.

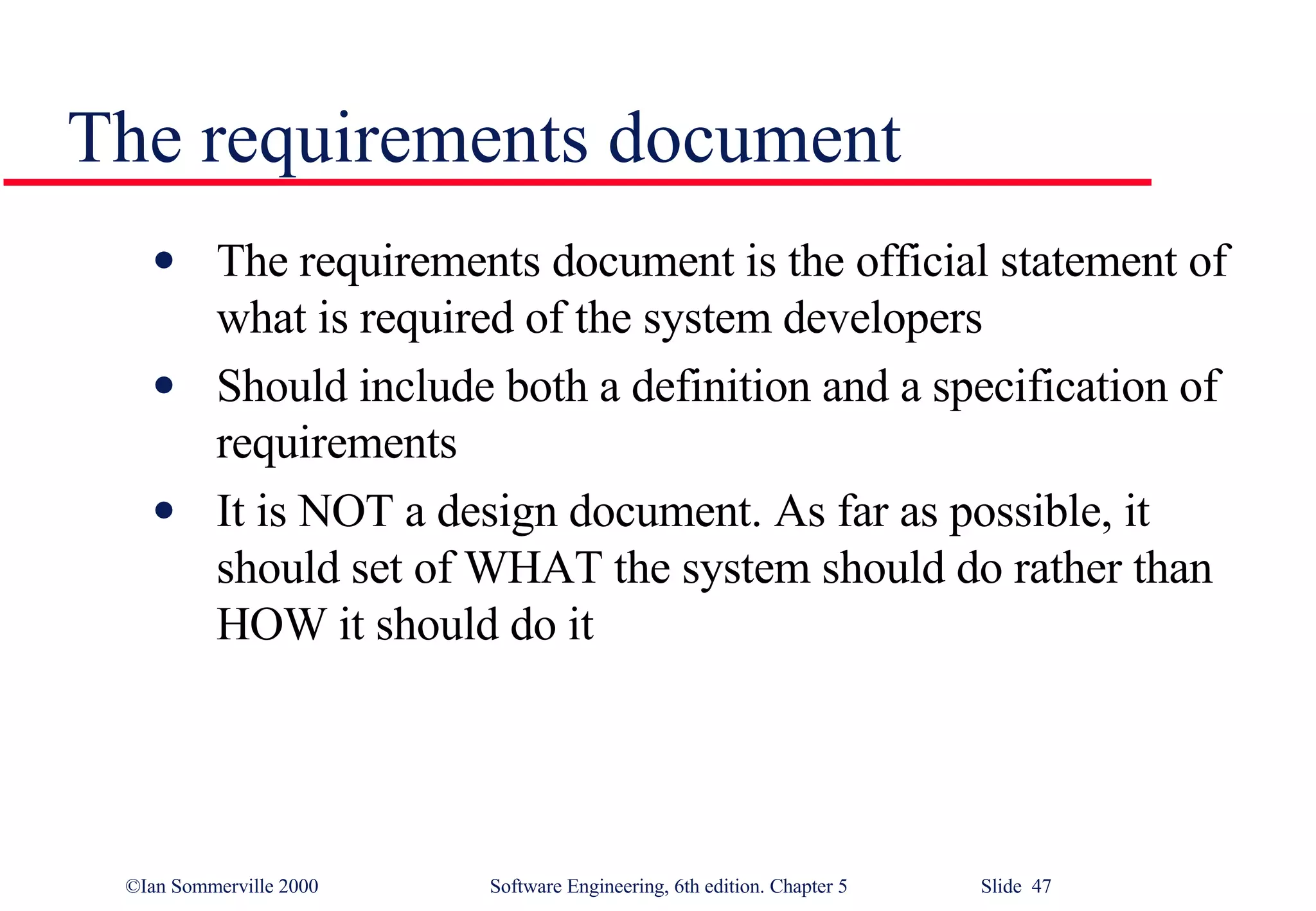

- 47. The requirements documentThe requirements document is the official statement of what is required of the system developers Should include both a definition and a specification of requirements It is NOT a design document. As far as possible, it should set of WHAT the system should do rather than HOW it should do it
- 48. Users of arequirements document

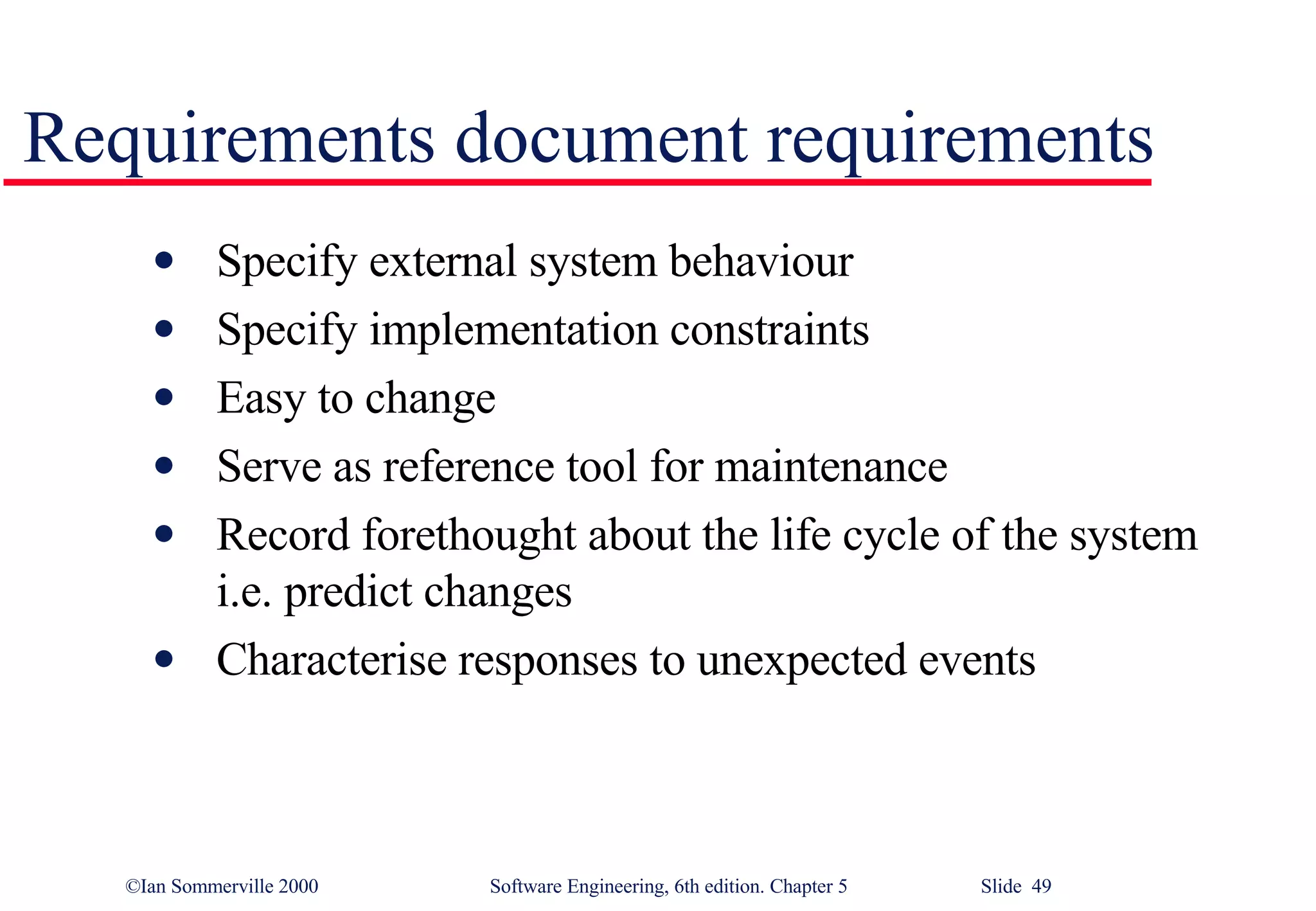

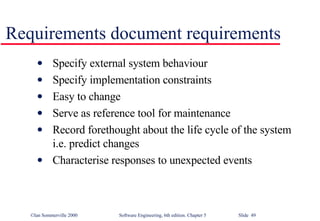

- 49. Requirements document requirementsSpecify external system behaviour Specify implementation constraints Easy to change Serve as reference tool for maintenance Record forethought about the life cycle of the system i.e. predict changes Characterise responses to unexpected events

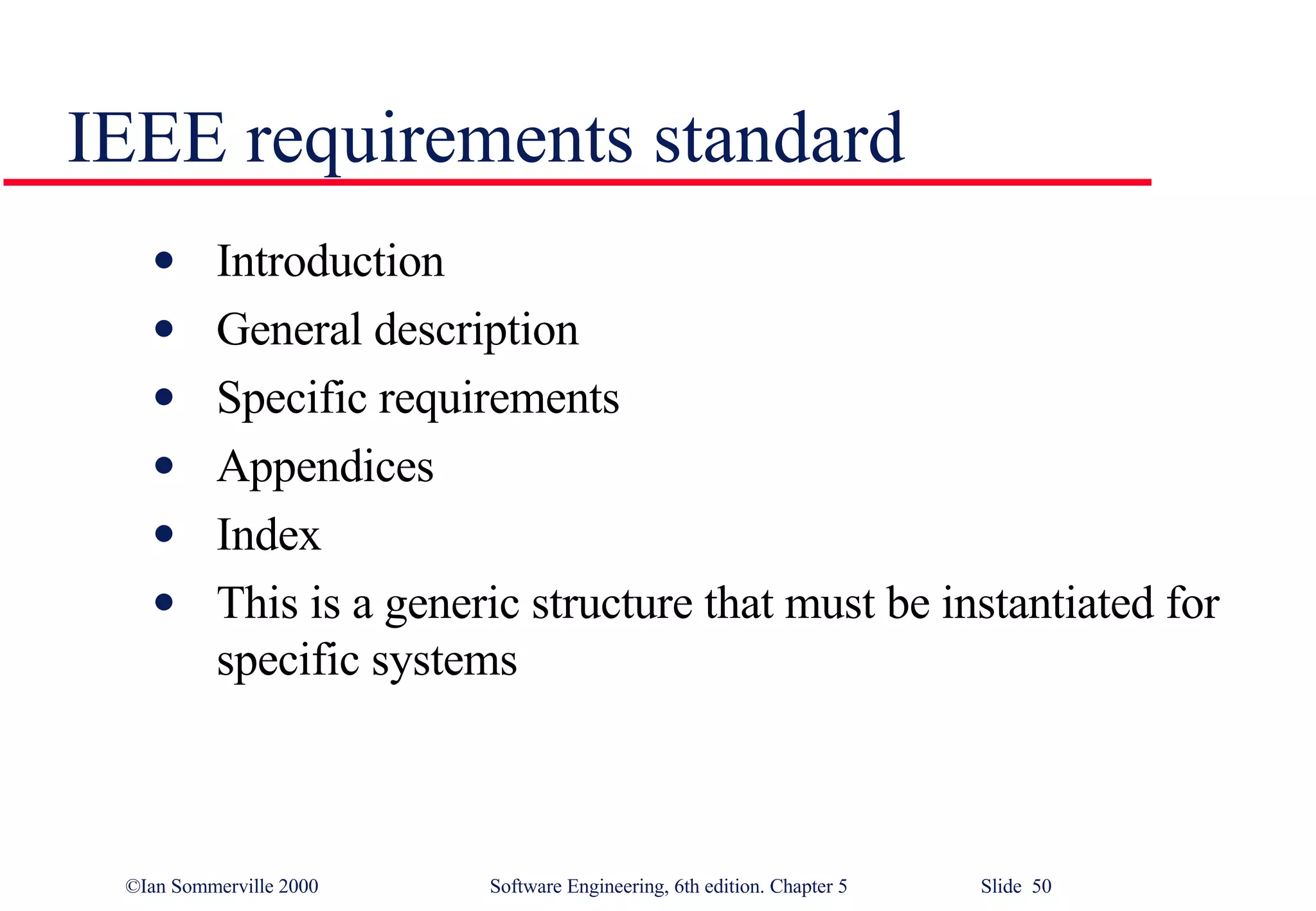

- 50. IEEE requirements standardIntroduction General description Specific requirements Appendices Index This is a generic structure that must be instantiated for specific systems

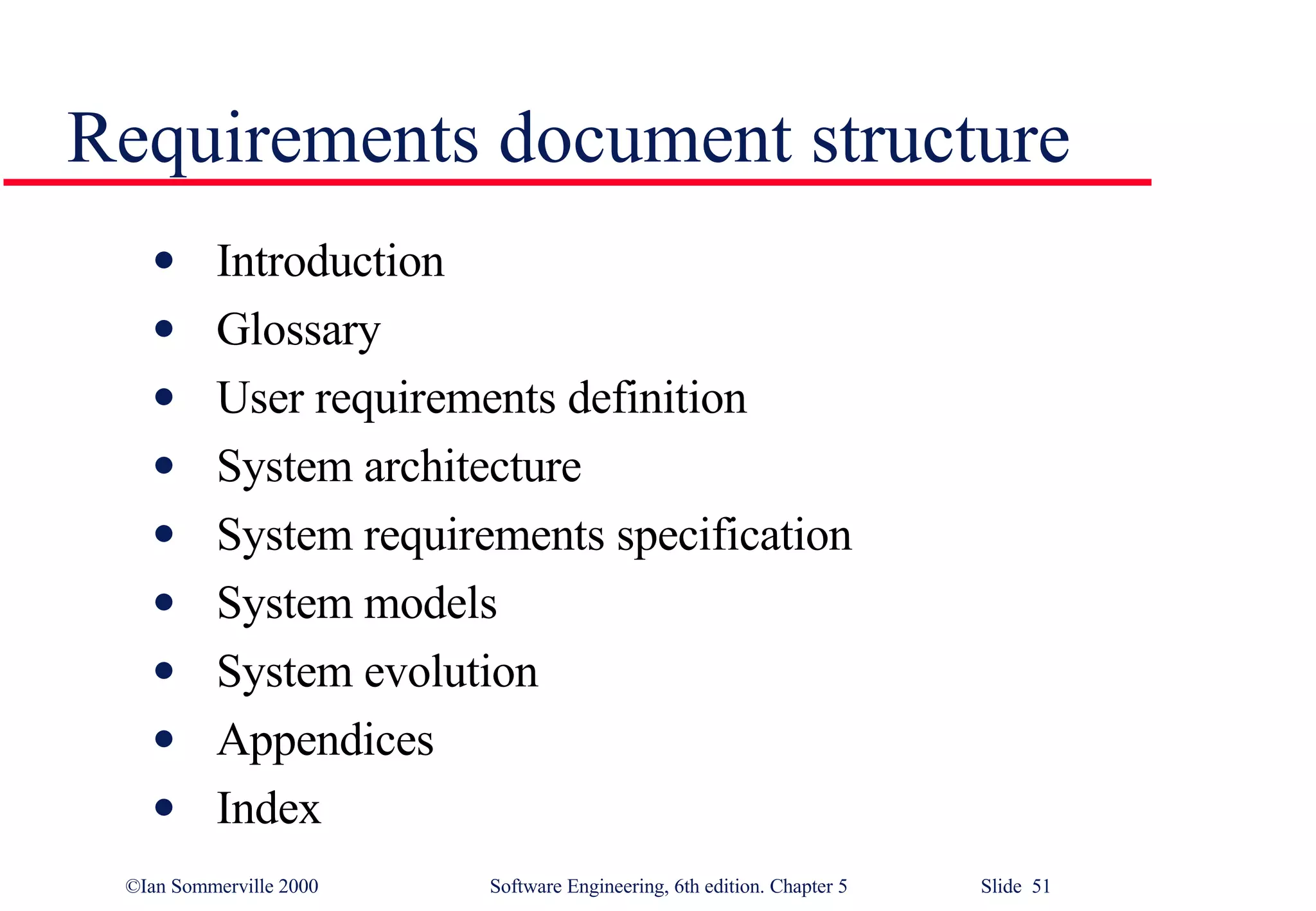

- 51. Requirements document structureIntroduction Glossary User requirements definition System architecture System requirements specification System models System evolution Appendices Index

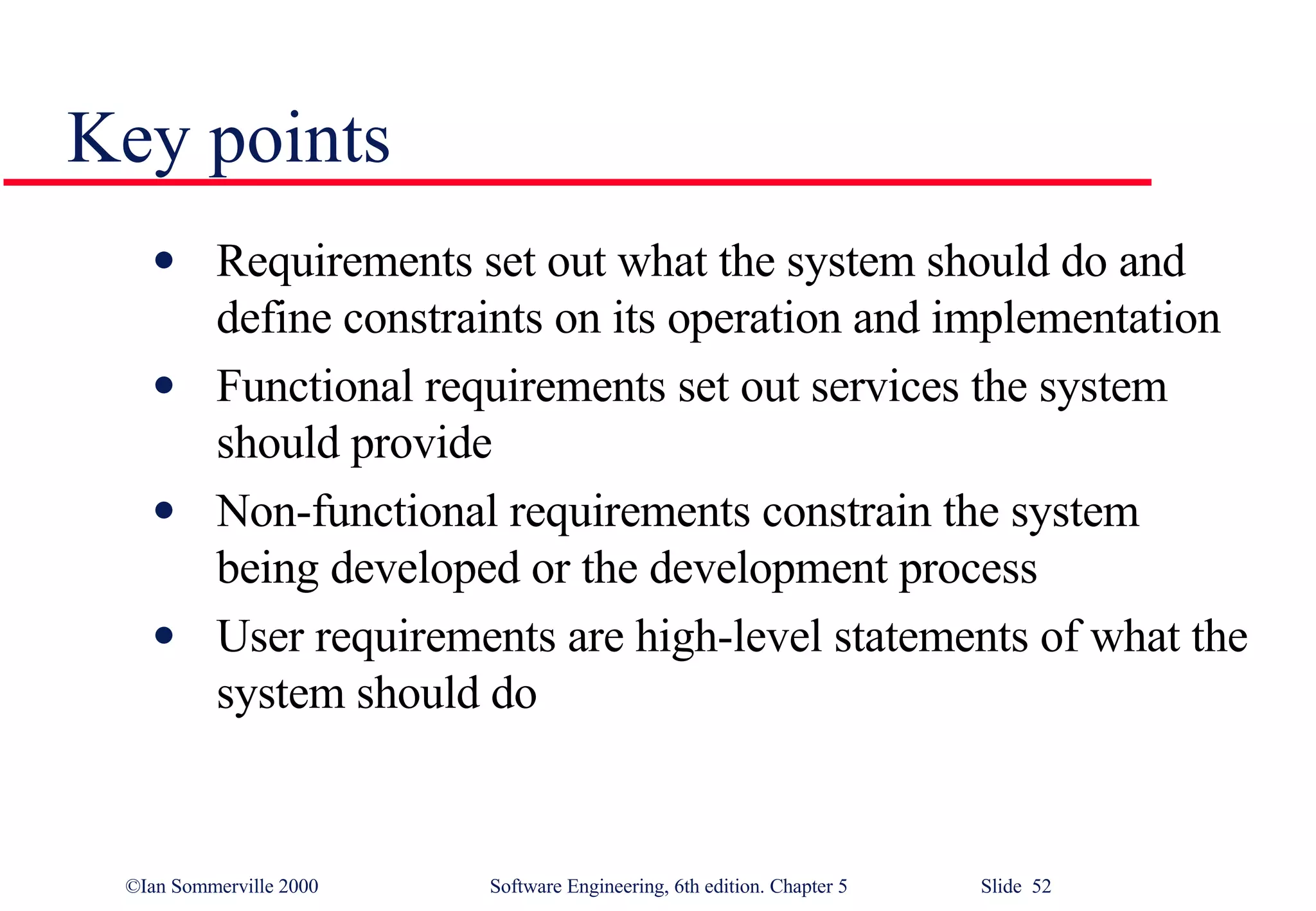

- 52. Key points Requirementsset out what the system should do and define constraints on its operation and implementation Functional requirements set out services the system should provide Non-functional requirements constrain the system being developed or the development process User requirements are high-level statements of what the system should do

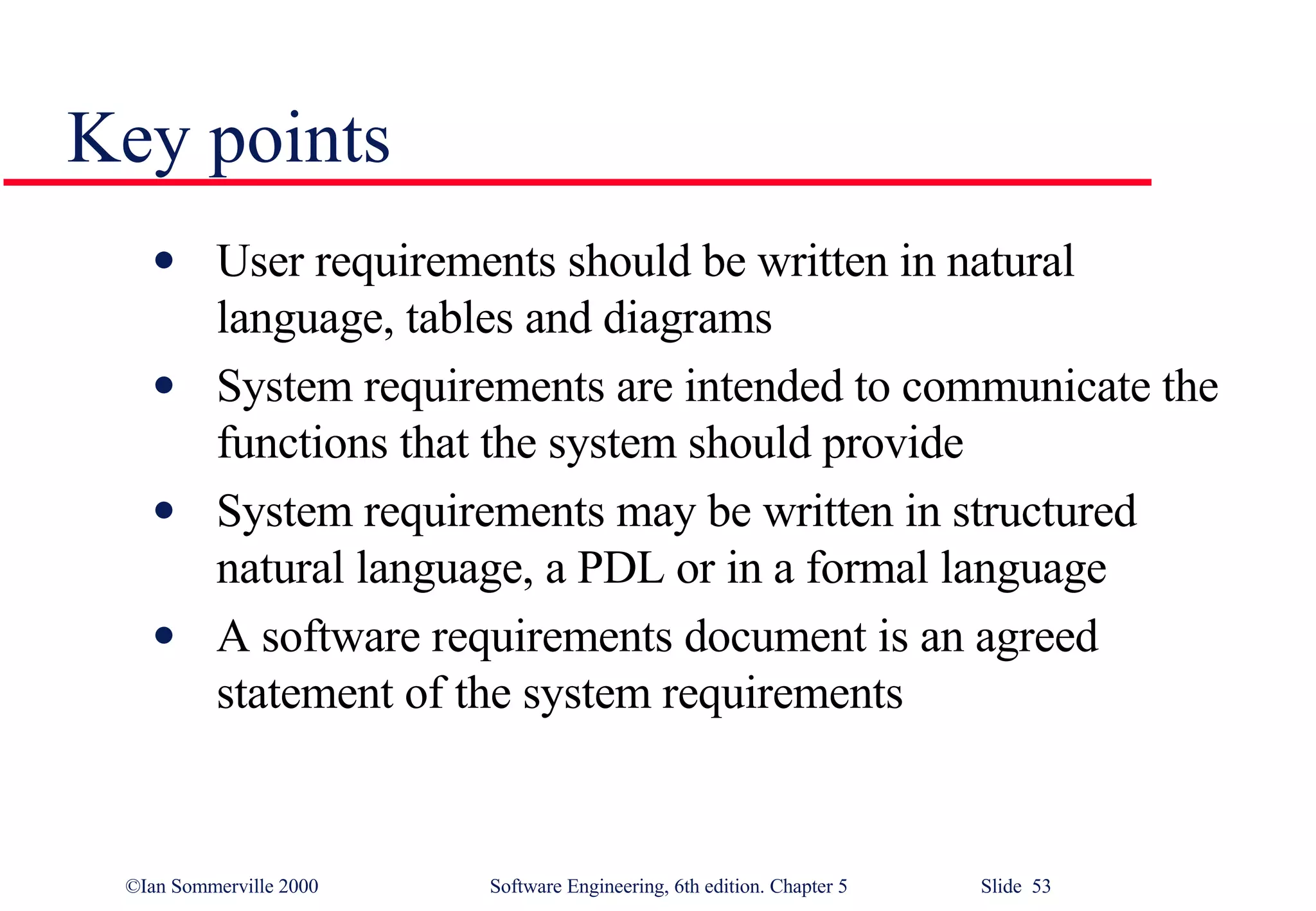

- 53. Key points Userrequirements should be written in natural language, tables and diagrams System requirements are intended to communicate the functions that the system should provide System requirements may be written in structured natural language, a PDL or in a formal language A software requirements document is an agreed statement of the system requirements
