Дмитрий Демчук. Кроссплатформенный краш-репорт

Кроссплатформенный краш-репорт.
Обзор возможностей google breakpad.
Докладчик: Демчук Дмитрий
Руководитель С++ отдела

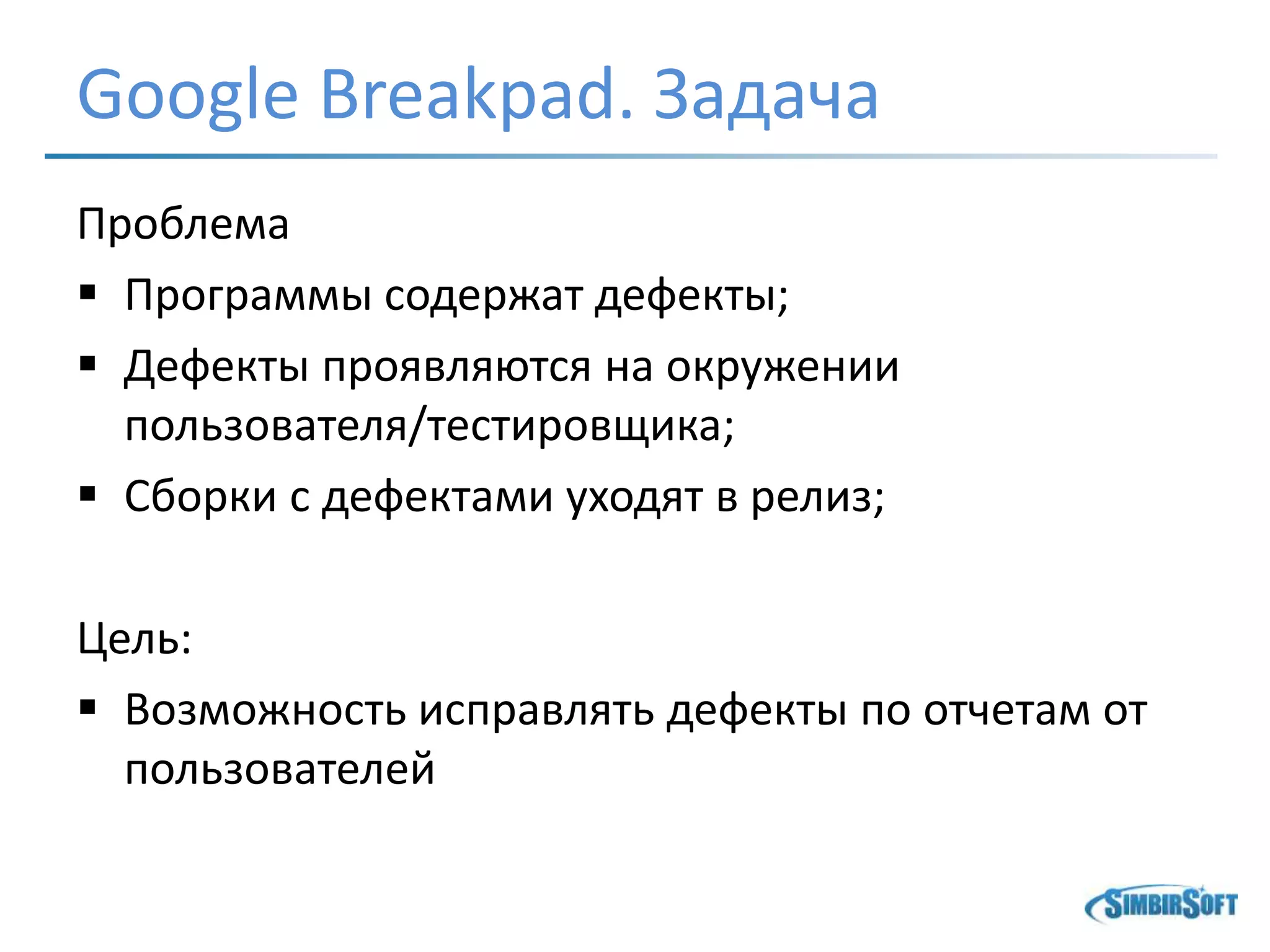

Google Breakpad. Задача
Проблема
 Программы содержат дефекты;
 Дефекты проявляются на окружении
пользователя/тестировщика;
 Сборки с дефектами уходят в релиз;
Цель:
 Возможность исправлять дефекты по отчетам от
пользователей

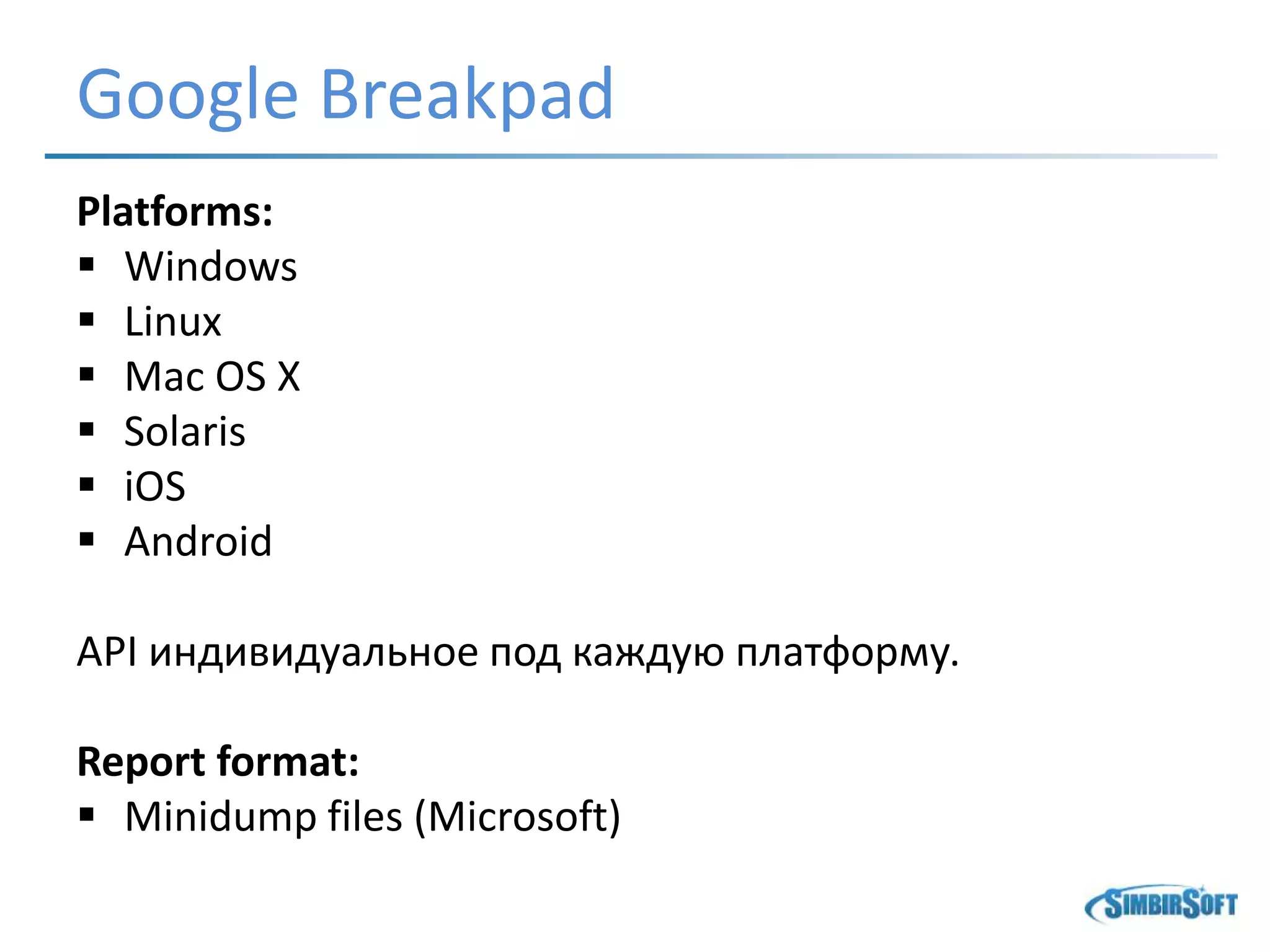

Google Breakpad
Platforms:
 Windows
 Linux
 Mac OS X
 Solaris
 iOS
 Android
API индивидуальное под каждую платформу.
Report format:
 Minidump files (Microsoft)

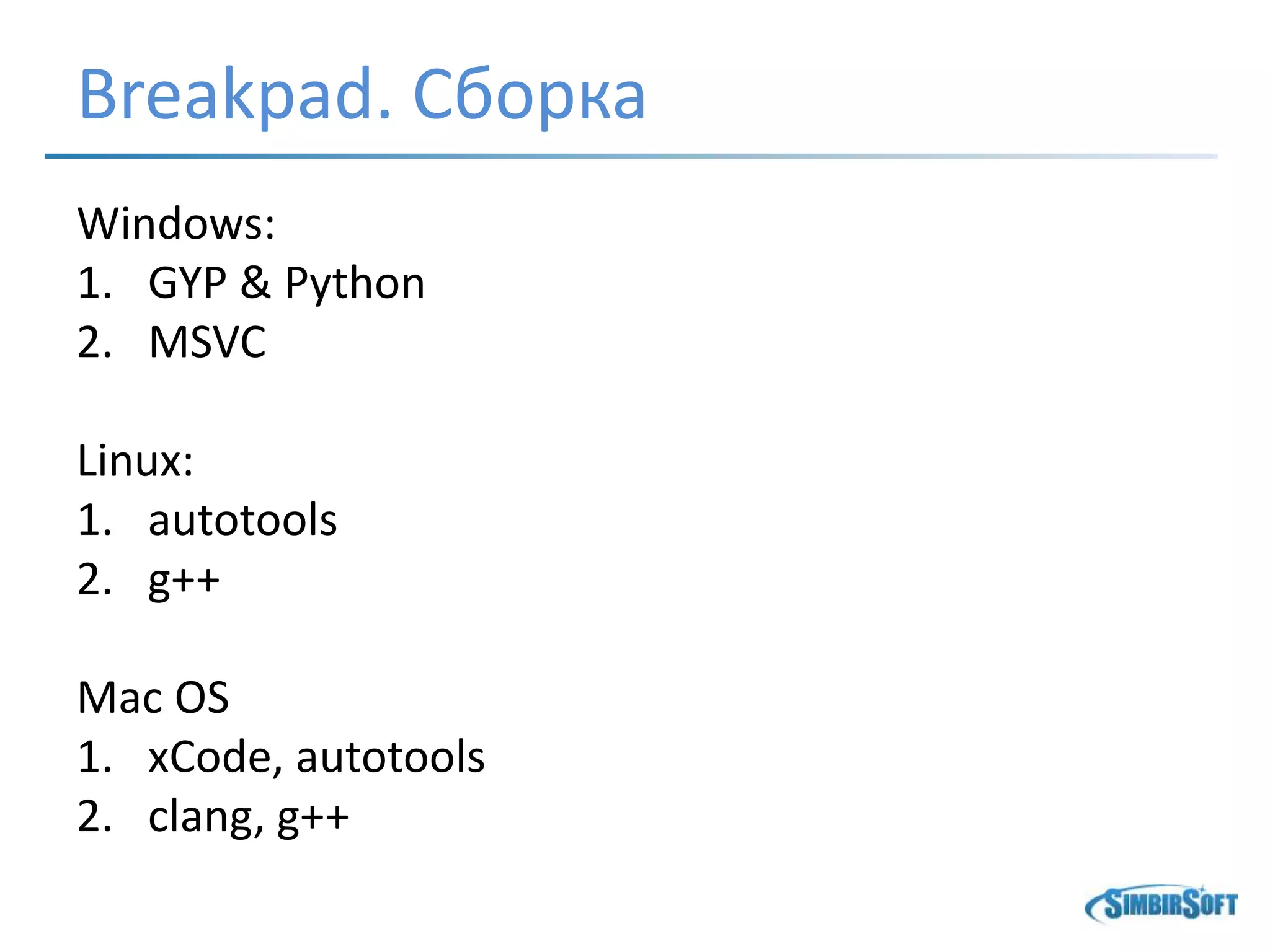

Breakpad. Сборка
Windows:
1. GYP & Python
2. MSVC
Linux:
1. autotools
2. g++
Mac OS
1. xCode, autotools
2. clang, g++

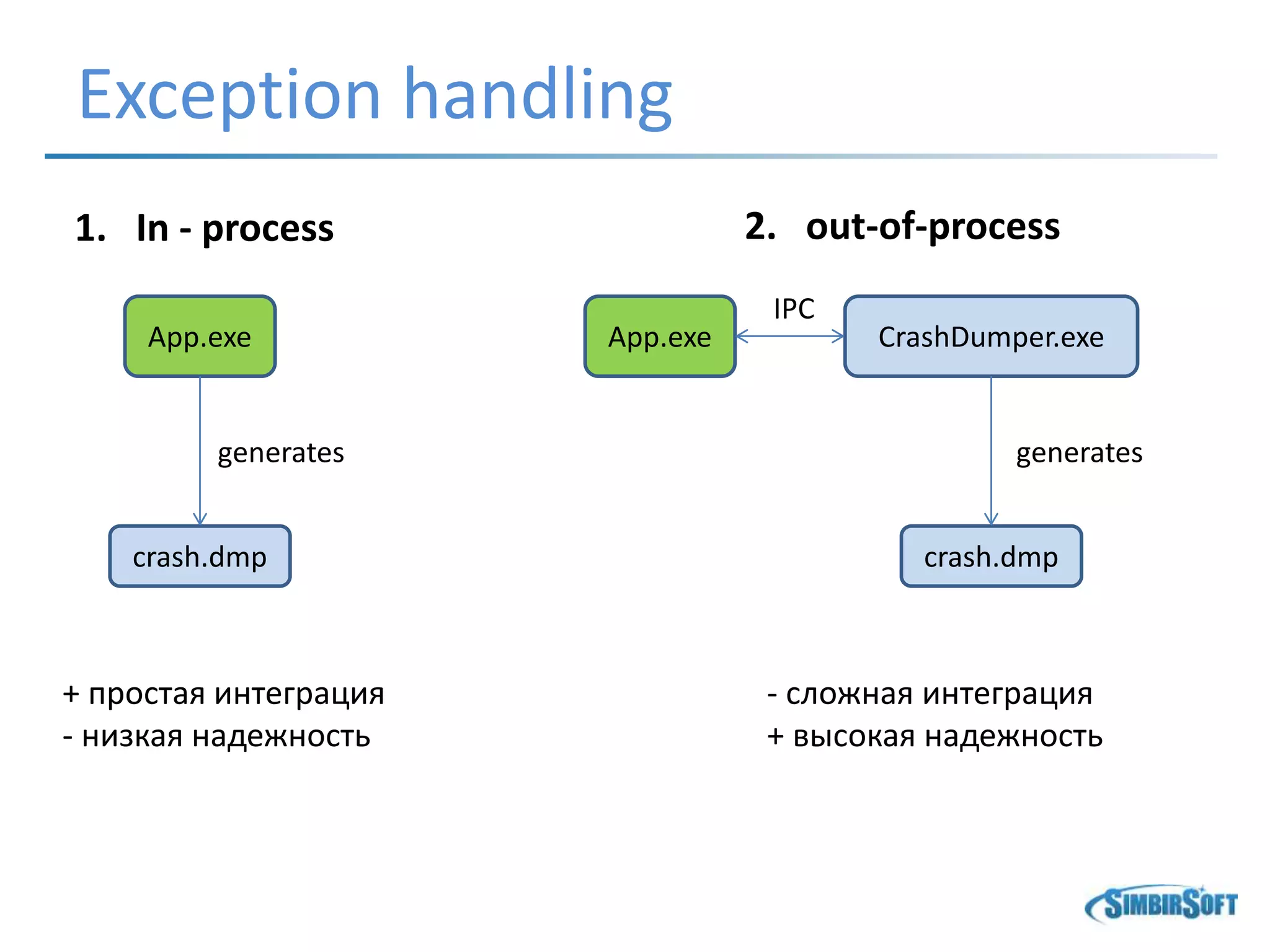

Exception handling
App.exe
1. In - process
App.exe
2. out-of-process
crash.dmp crash.dmp
generates
CrashDumper.exe
IPC
generates
+ простая интеграция
- низкая надежность
- сложная интеграция
+ высокая надежность

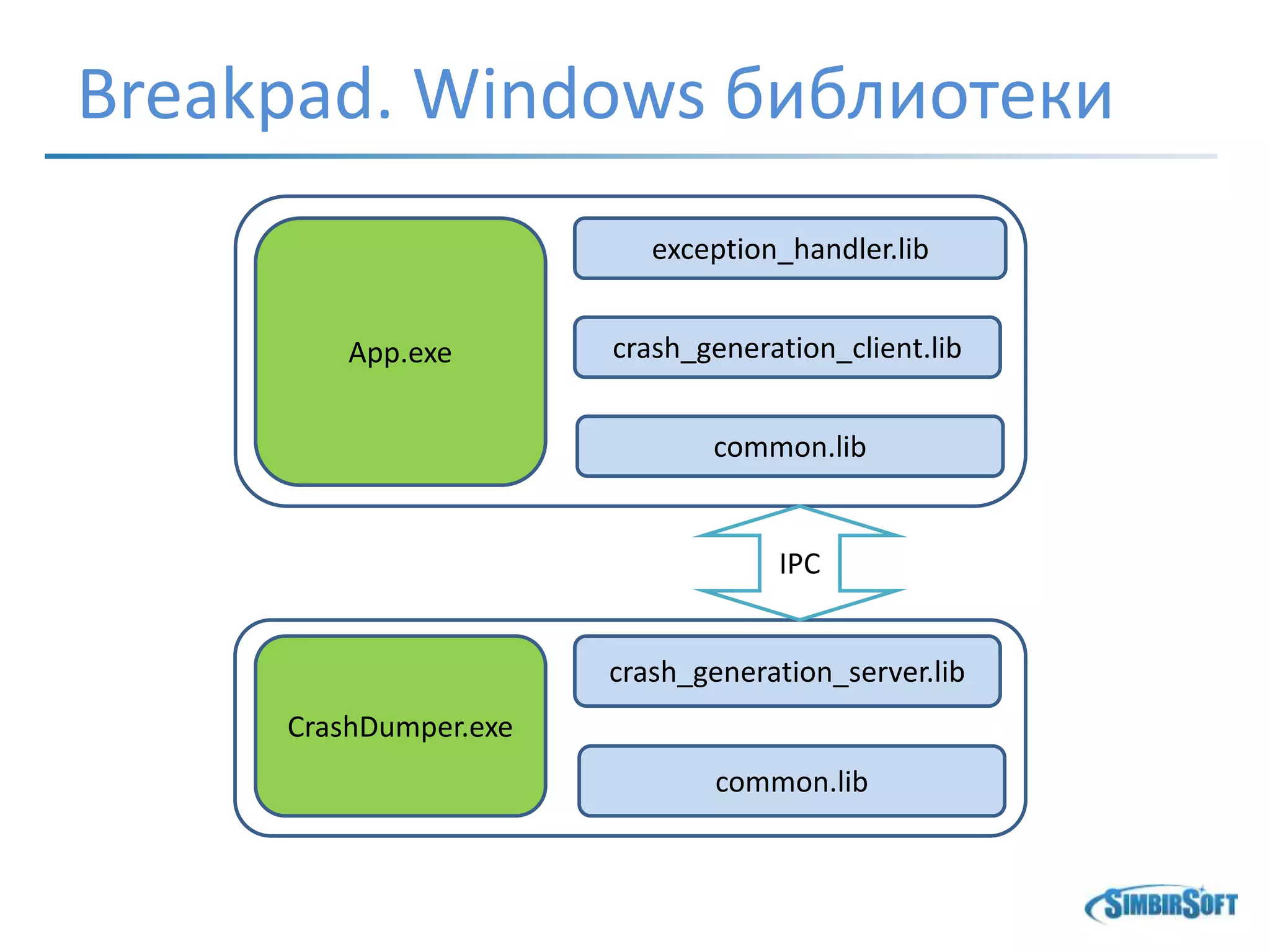

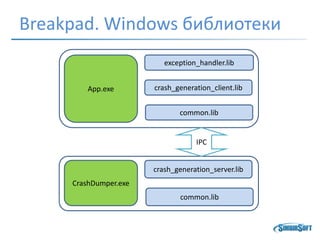

Breakpad. Windows библиотеки
common.lib
exception_handler.lib
crash_generation_client.lib
crash_generation_server.lib
App.exe
common.lib
CrashDumper.exe
IPC

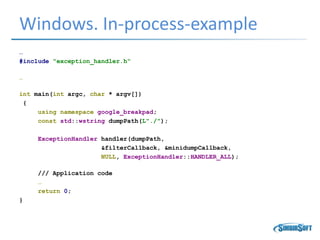

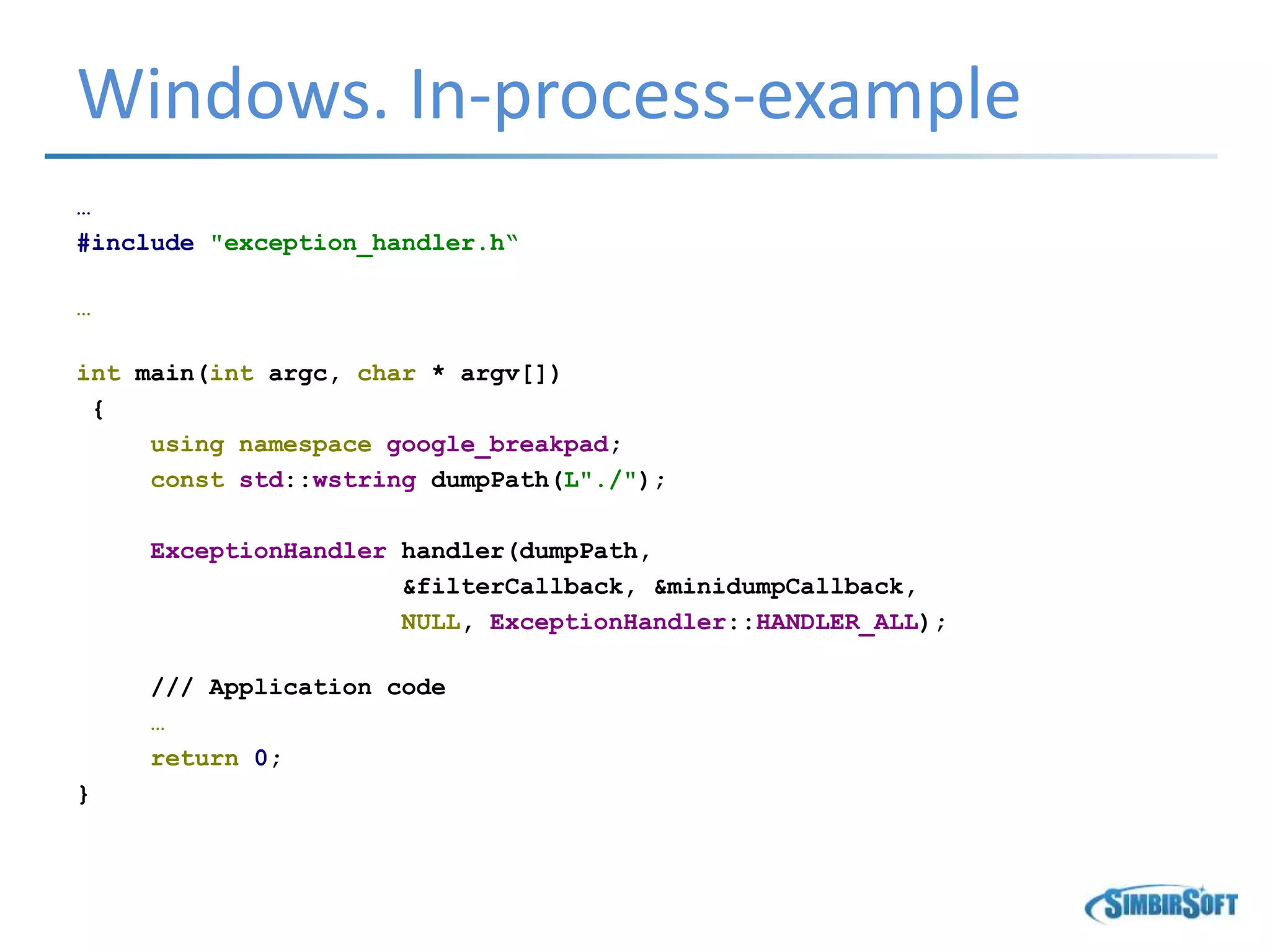

Windows. In-process-example
…
#include "exception_handler.h“
…
int main(int argc, char * argv[])
{
using namespace google_breakpad;
const std::wstring dumpPath(L"./");
ExceptionHandler handler(dumpPath,
&filterCallback, &minidumpCallback,
NULL, ExceptionHandler::HANDLER_ALL);
/// Application code
…
return 0;
}

…

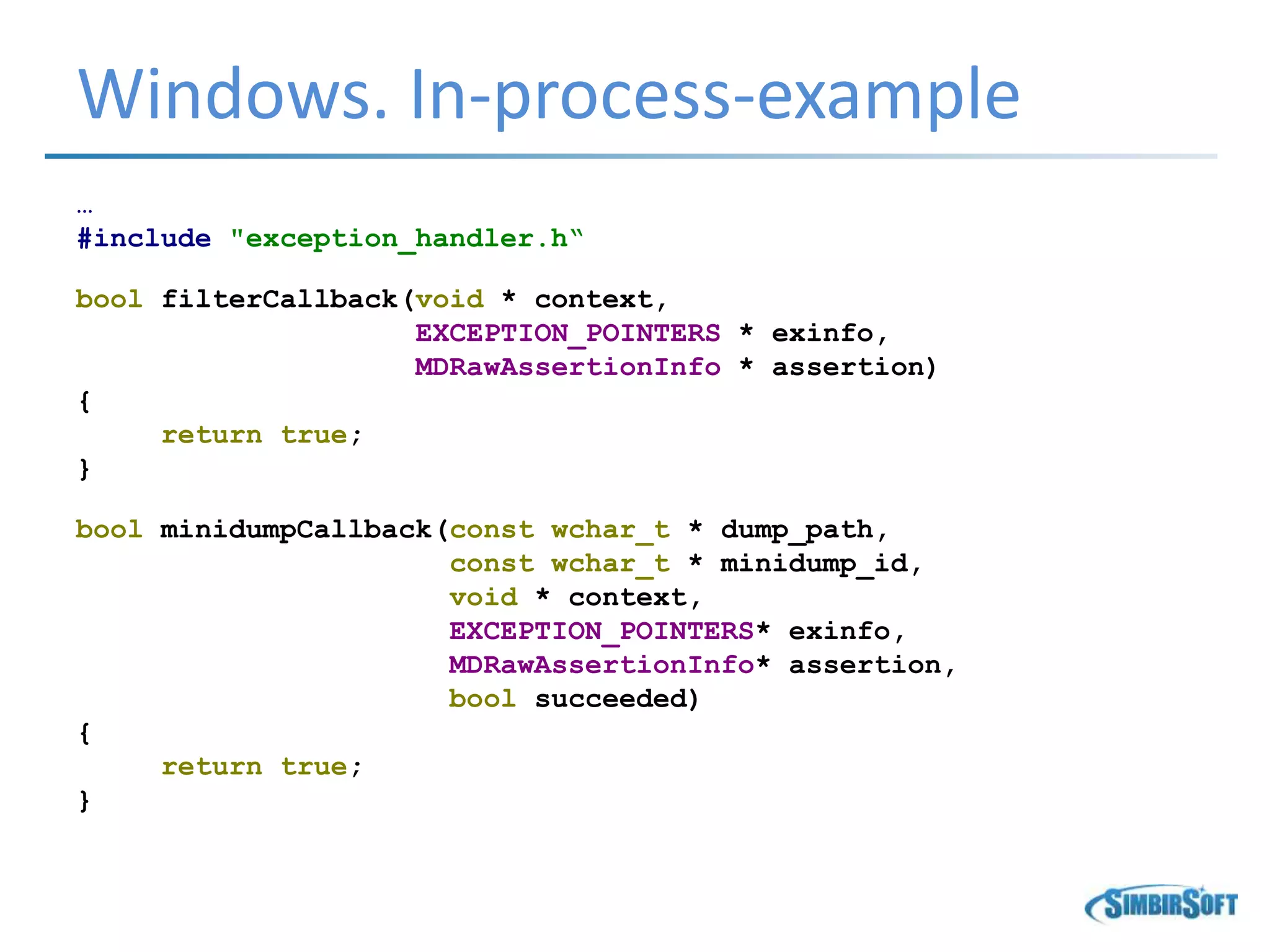

bool filterCallback(void * context,
EXCEPTION_POINTERS * exinfo,
MDRawAssertionInfo * assertion)
{
return true;
}
bool minidumpCallback(const wchar_t * dump_path,
const wchar_t * minidump_id,
void * context,
EXCEPTION_POINTERS* exinfo,
MDRawAssertionInfo* assertion,
bool succeeded)
{
return true;
}

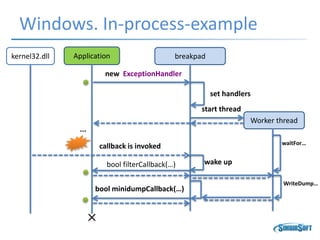

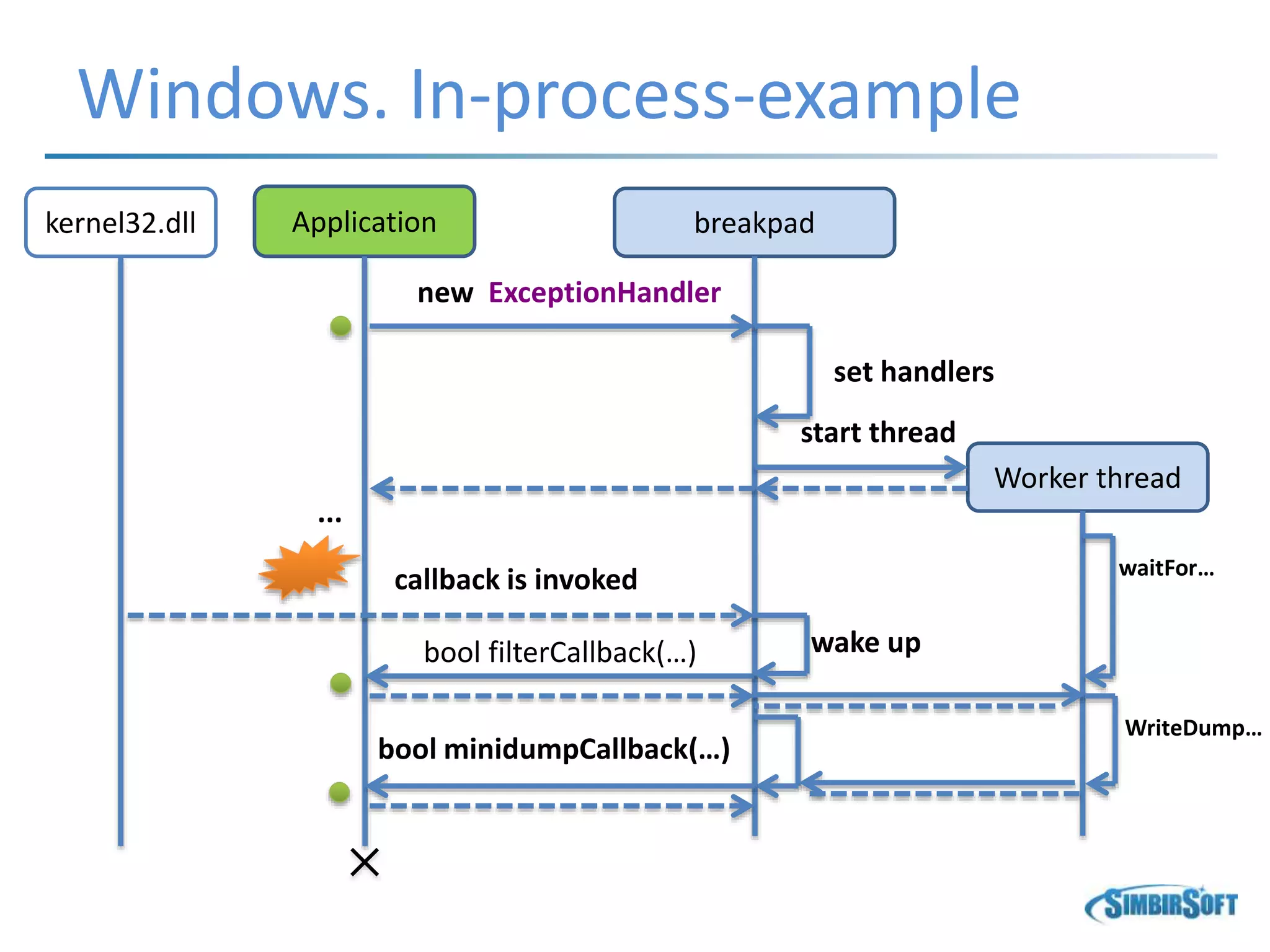

Application breakpad
new ExceptionHandler
set handlers
Worker thread
waitFor…
...
kernel32.dll
callback is invoked
start thread
wake upbool filterCallback(…)
WriteDump…
bool minidumpCallback(…)

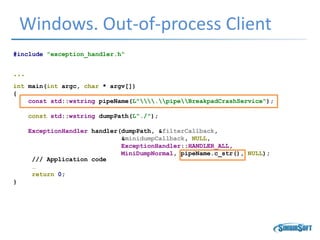

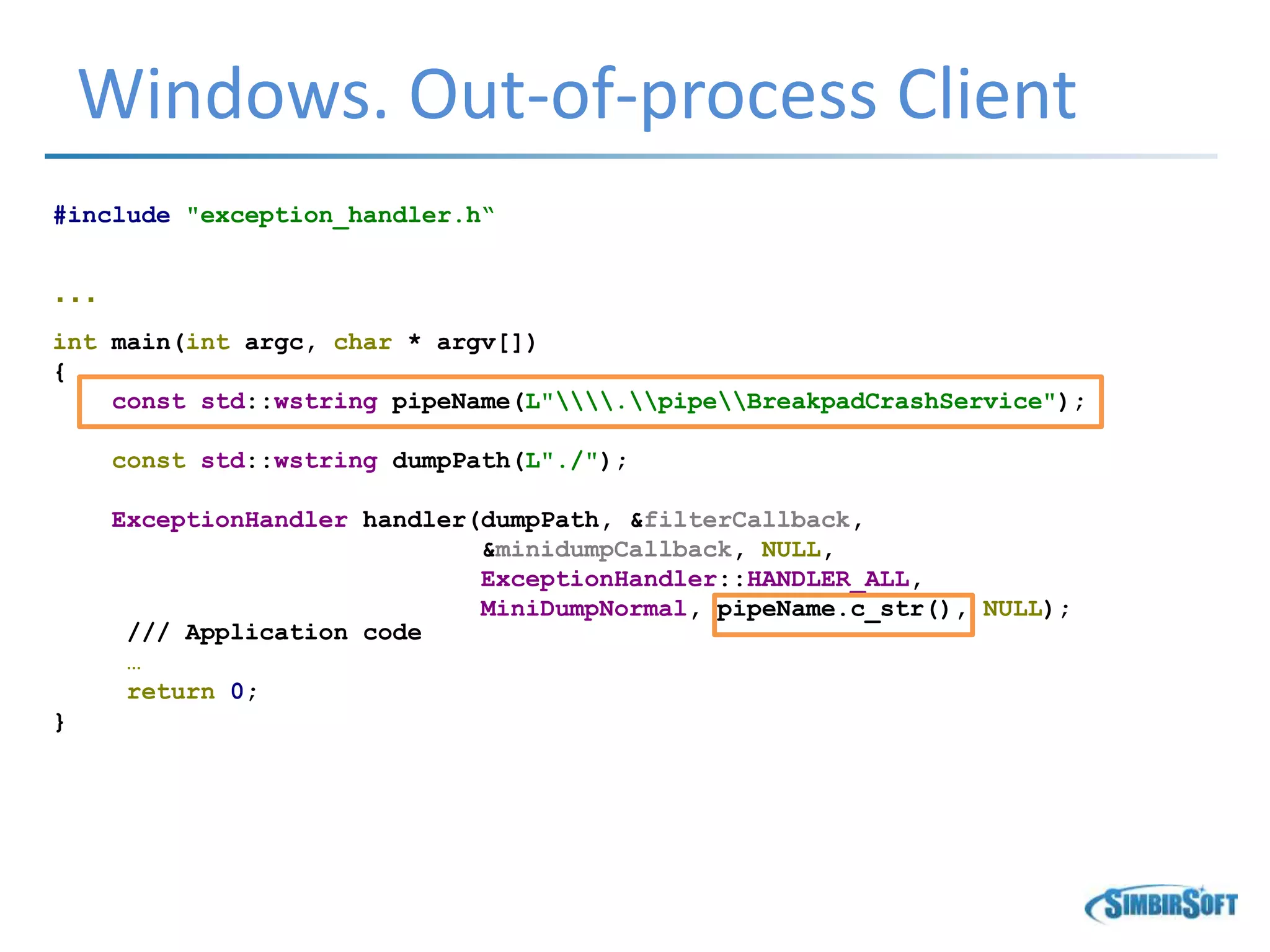

Windows. Out-of-process Client
…
{
const std::wstring pipeName(L".pipeBreakpadCrashService");
ExceptionHandler handler(dumpPath, &filterCallback,
&minidumpCallback, NULL,
ExceptionHandler::HANDLER_ALL,
MiniDumpNormal, pipeName.c_str(), NULL);
…
return 0;
}

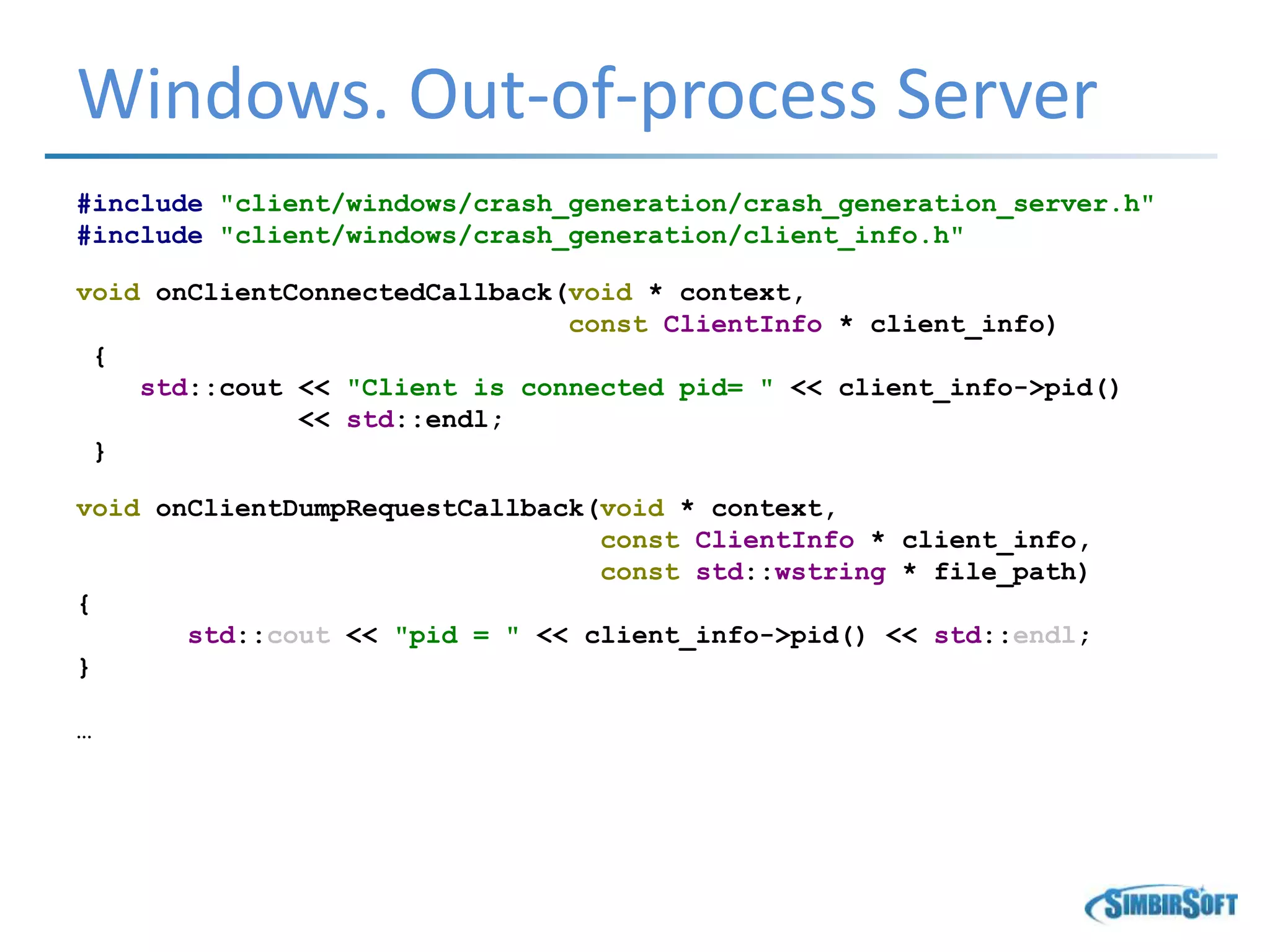

Windows. Out-of-process Server
#include "client/windows/crash_generation/crash_generation_server.h"
#include "client/windows/crash_generation/client_info.h"
void onClientConnectedCallback(void * context,
const ClientInfo * client_info)
{
std::cout << "Client is connected pid= " << client_info->pid()
<< std::endl;
}
void onClientDumpRequestCallback(void * context,
const ClientInfo * client_info,
const std::wstring * file_path)
{
std::cout << "pid = " << client_info->pid() << std::endl;
}
…

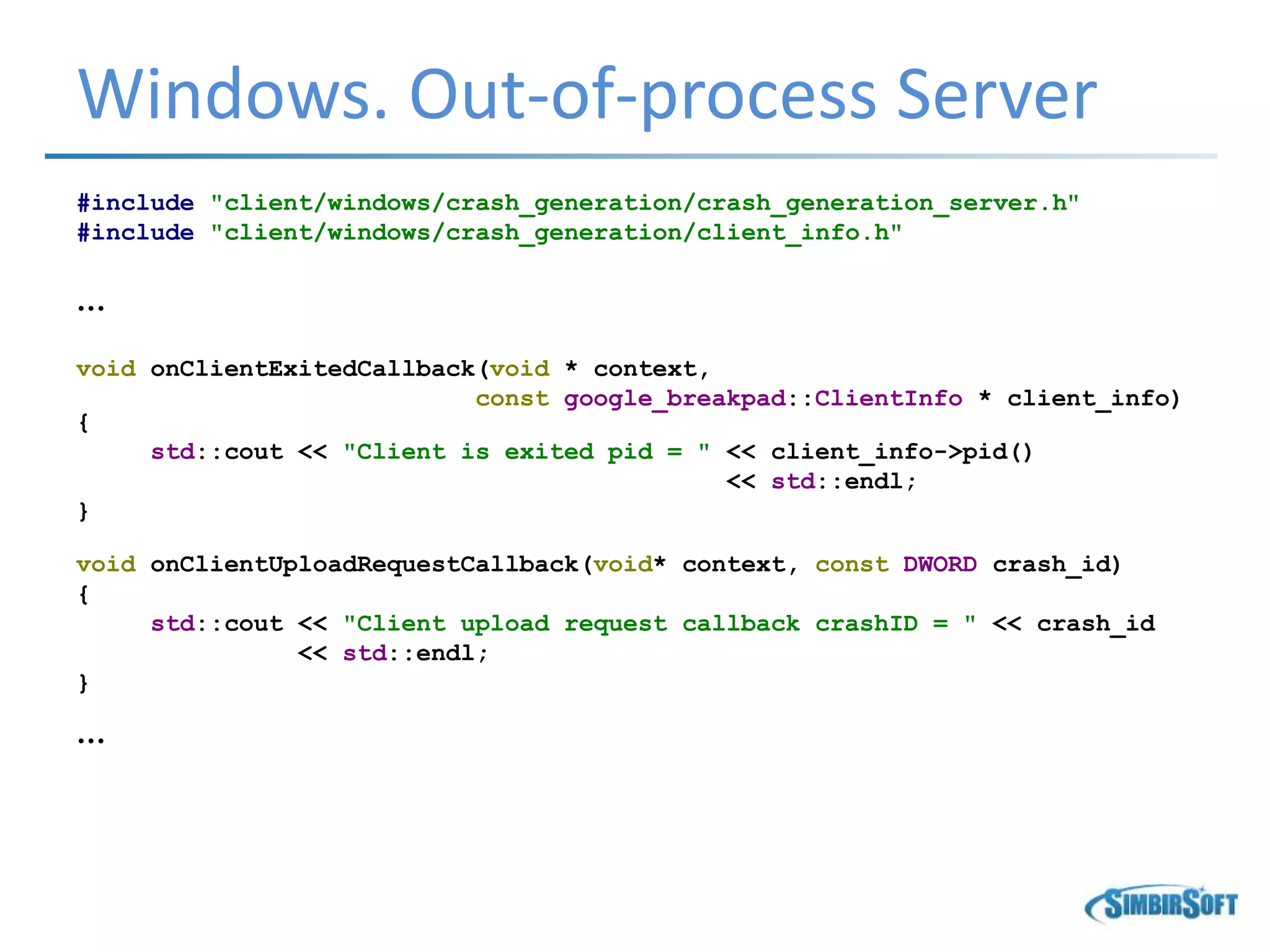

#include "client/windows/crash_generation/crash_generation_server.h"
#include "client/windows/crash_generation/client_info.h"
…
void onClientExitedCallback(void * context,
const google_breakpad::ClientInfo * client_info)
{
std::cout << "Client is exited pid = " << client_info->pid()
<< std::endl;
}
void onClientUploadRequestCallback(void* context, const DWORD crash_id)
{
std::cout << "Client upload request callback crashID = " << crash_id
<< std::endl;
}
…

…
{
const std::wstring pipeName(L".pipeBreakpadCrashService");
CrashGenerationServer server(pipeName, NULL,
onClientConnectedCallback, NULL,
onClientDumpRequestCallback, NULL,
onClientExitedCallback, NULL,
onClientUploadRequestCallback, NULL,
true, &dumpPath);
if (!server.Start())
return -1;
Sleep(INFINITE);
return 0;
}

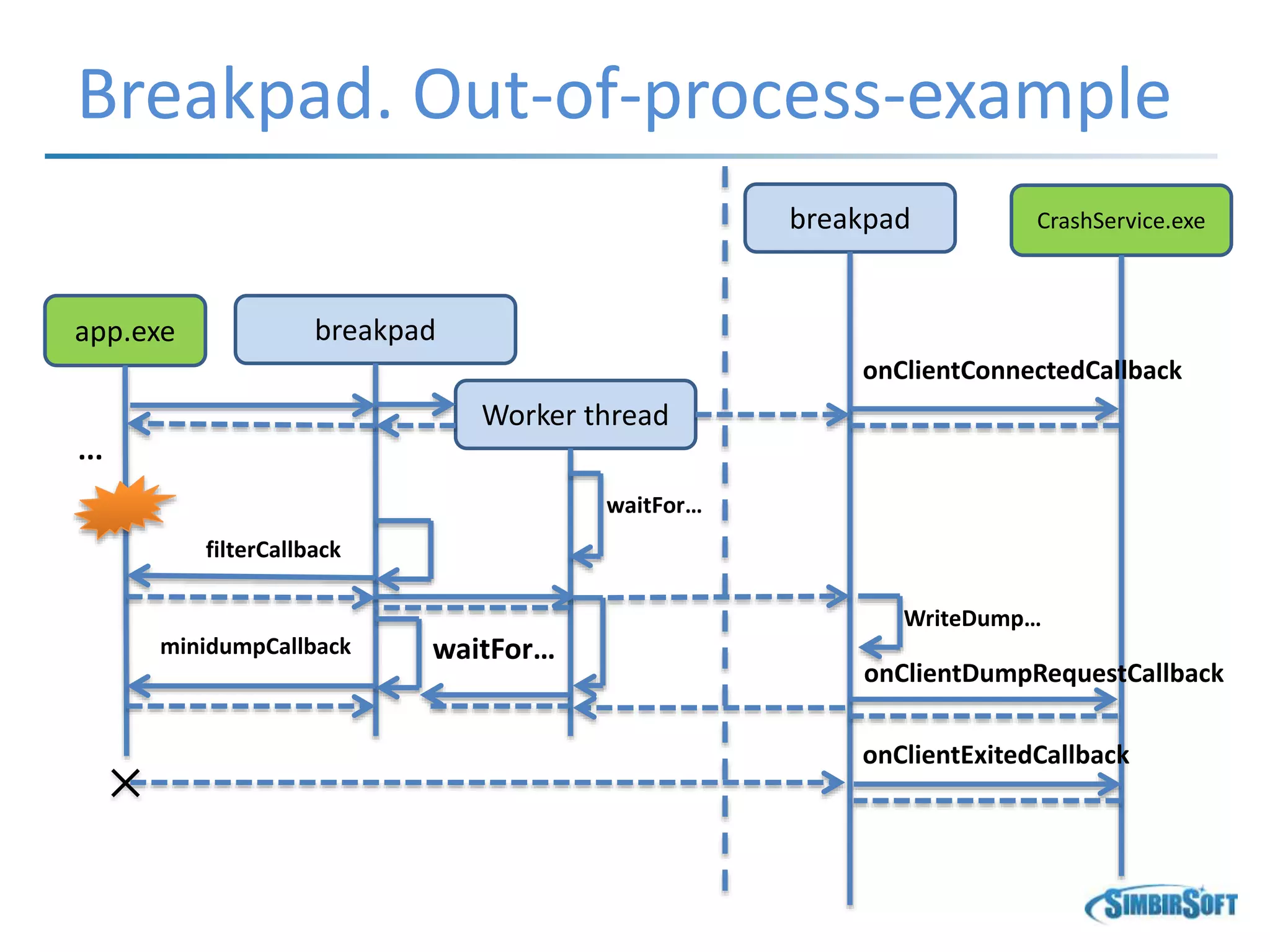

Breakpad. Out-of-process-example
app.exe breakpad
Worker thread
waitFor…
...
filterCallback
WriteDump…
waitFor…minidumpCallback
breakpad CrashService.exe
onClientConnectedCallback
onClientDumpRequestCallback
onClientExitedCallback

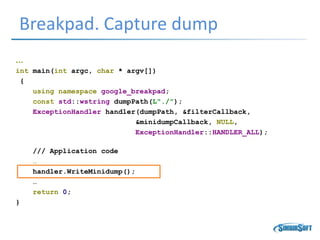

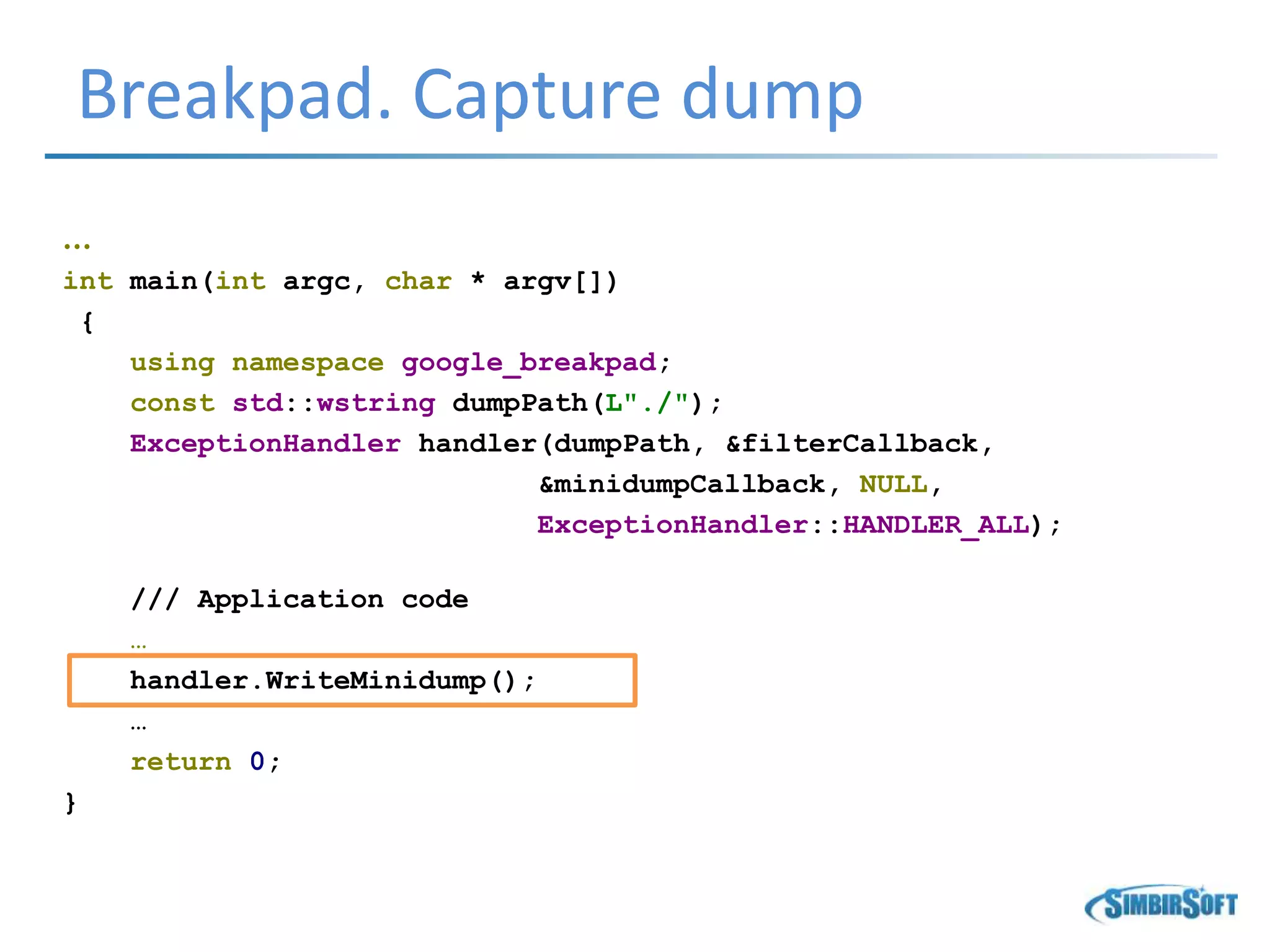

Breakpad. Capture dump
…
{
ExceptionHandler handler(dumpPath, &filterCallback,
ExceptionHandler::HANDLER_ALL);
…
handler.WriteMinidump();
…
return 0;
}

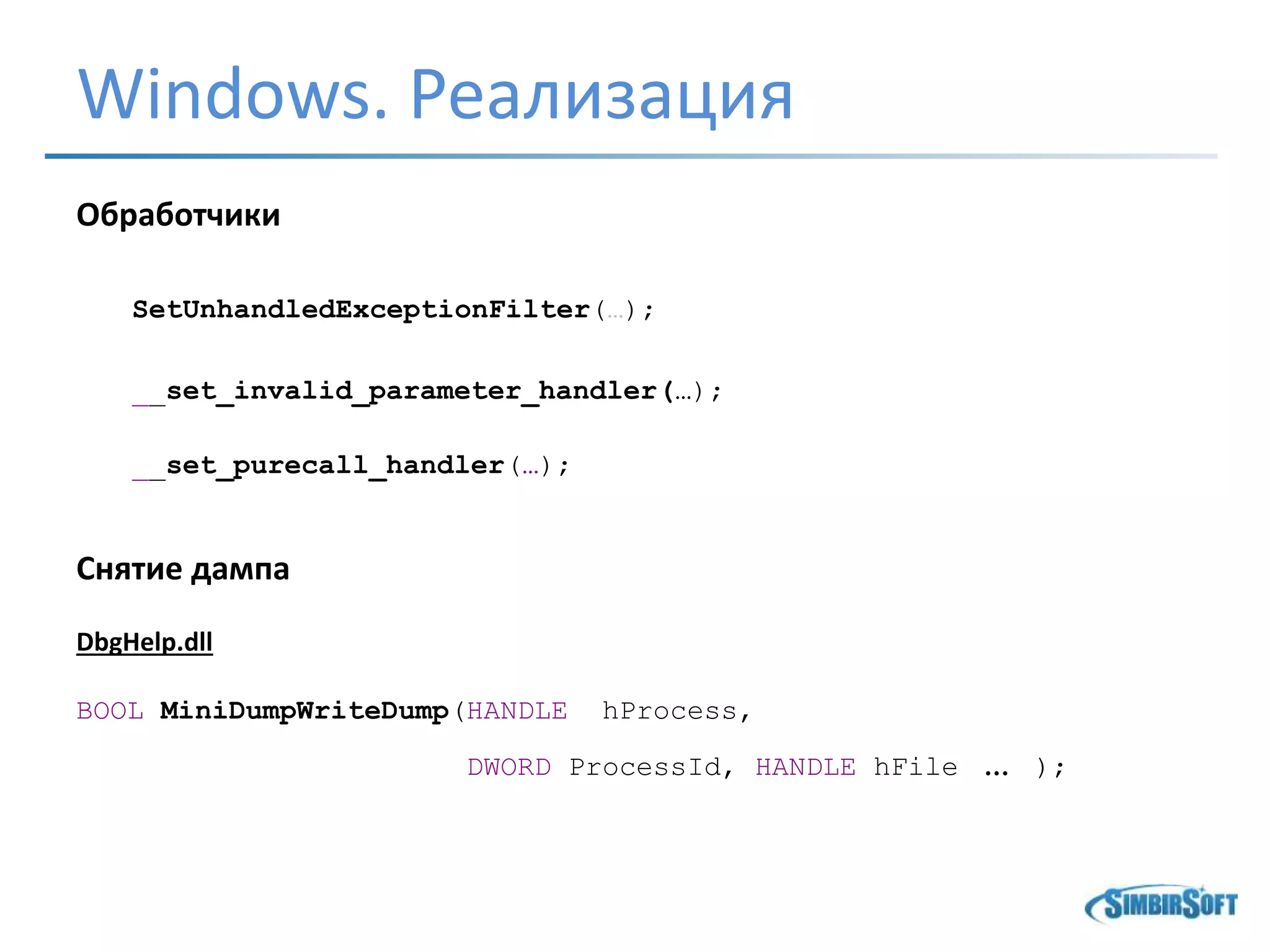

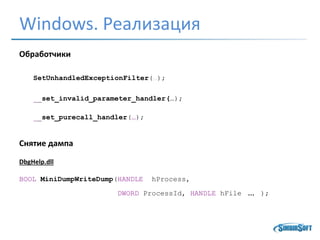

Windows. Реализация
Обработчики
SetUnhandledExceptionFilter(…);
__set_invalid_parameter_handler(…);
__set_purecall_handler(…);
Снятие дампа
DbgHelp.dll
BOOL MiniDumpWriteDump(HANDLE hProcess,
DWORD ProcessId, HANDLE hFile … );

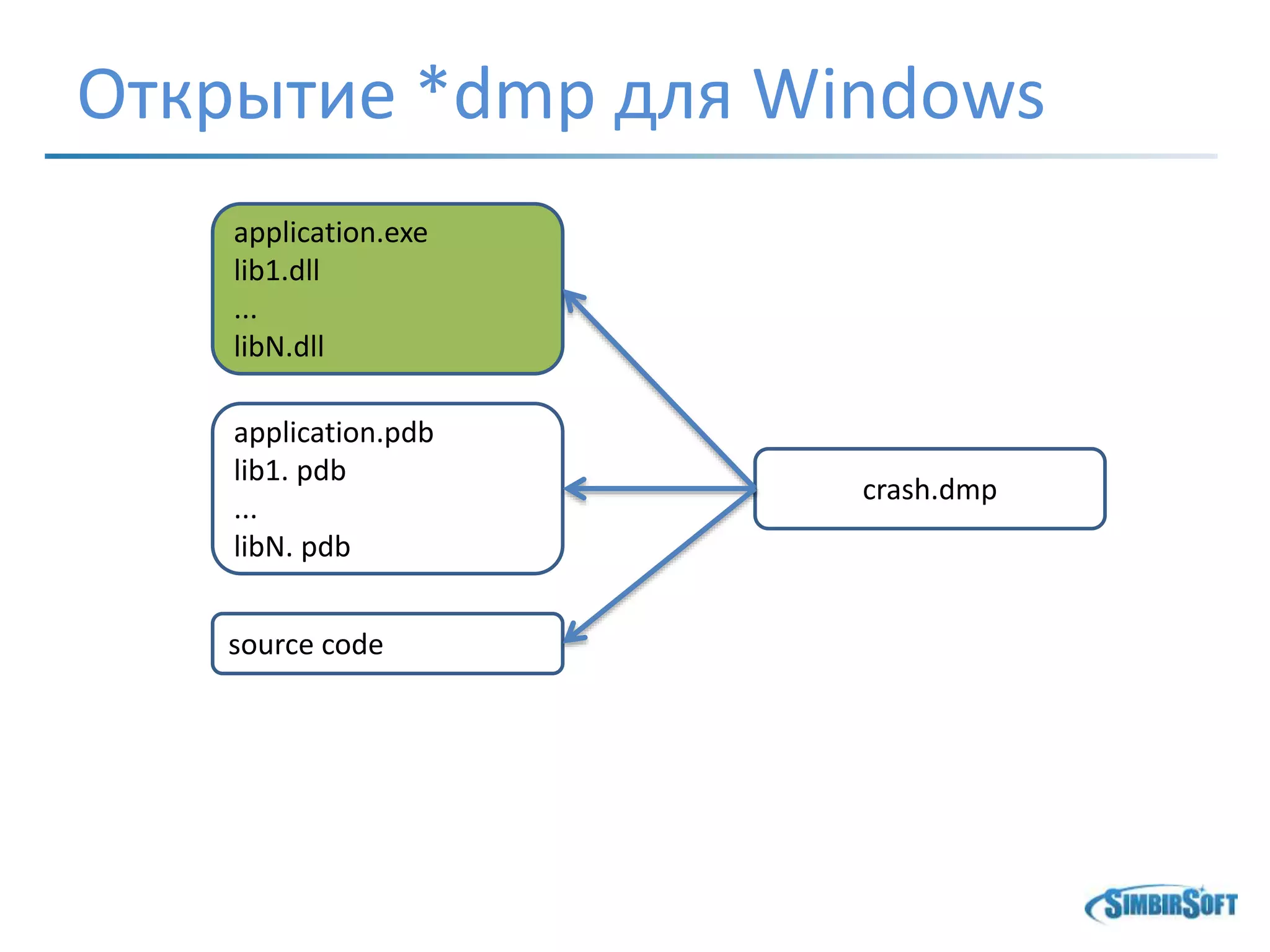

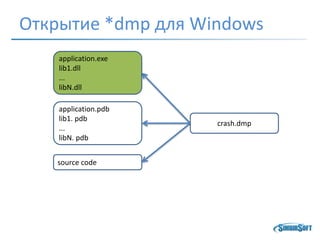

Открытие *dmp для Windows
application.exe
lib1.dll
...
libN.dll
application.pdb
lib1. pdb
...
libN. pdb
source code
crash.dmp

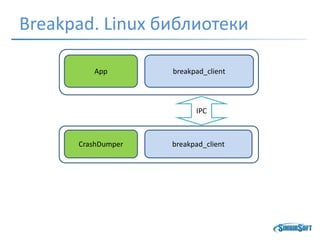

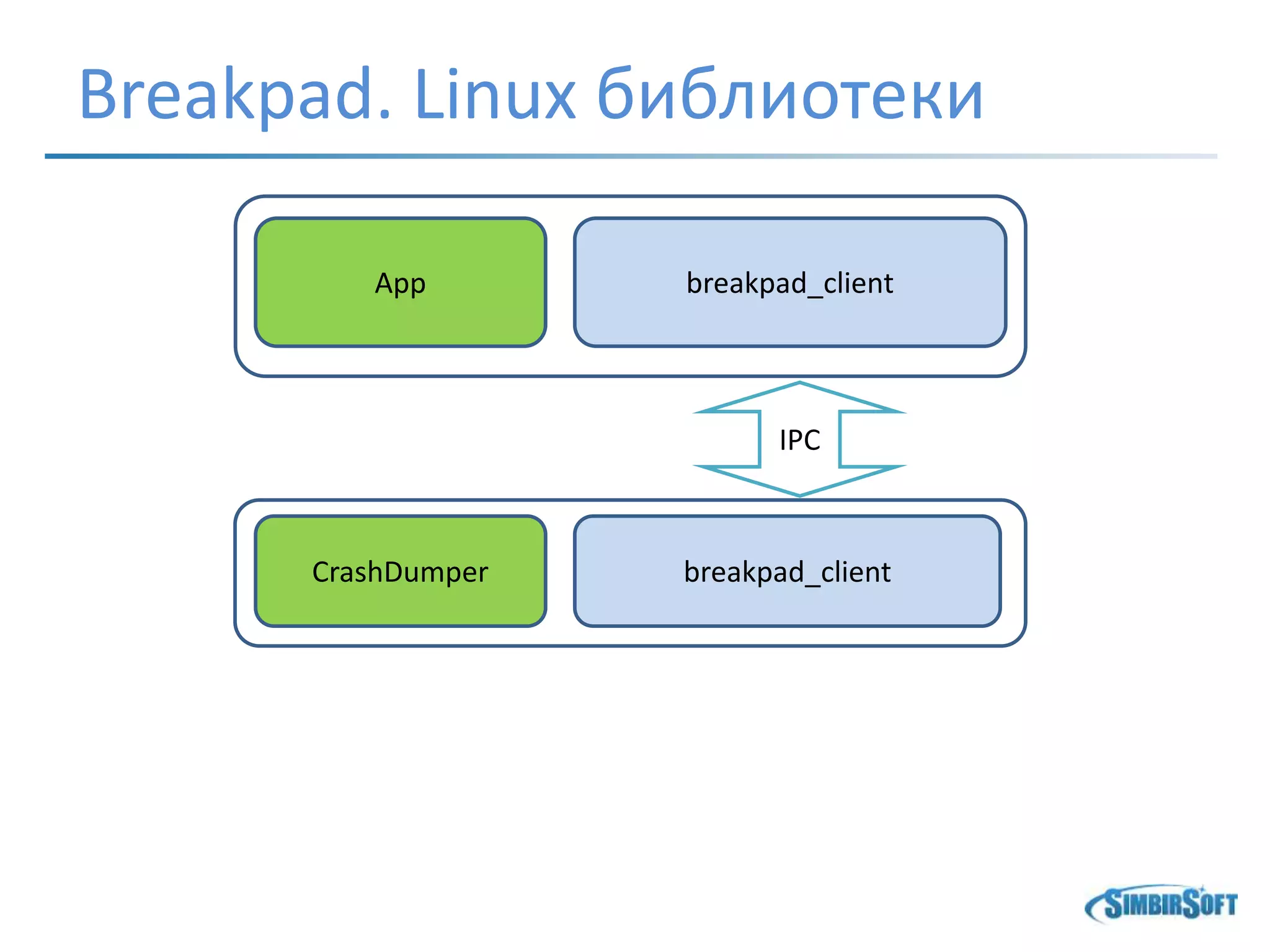

Breakpad. Linux библиотеки
breakpad_client
breakpad_client
App
CrashDumper
IPC

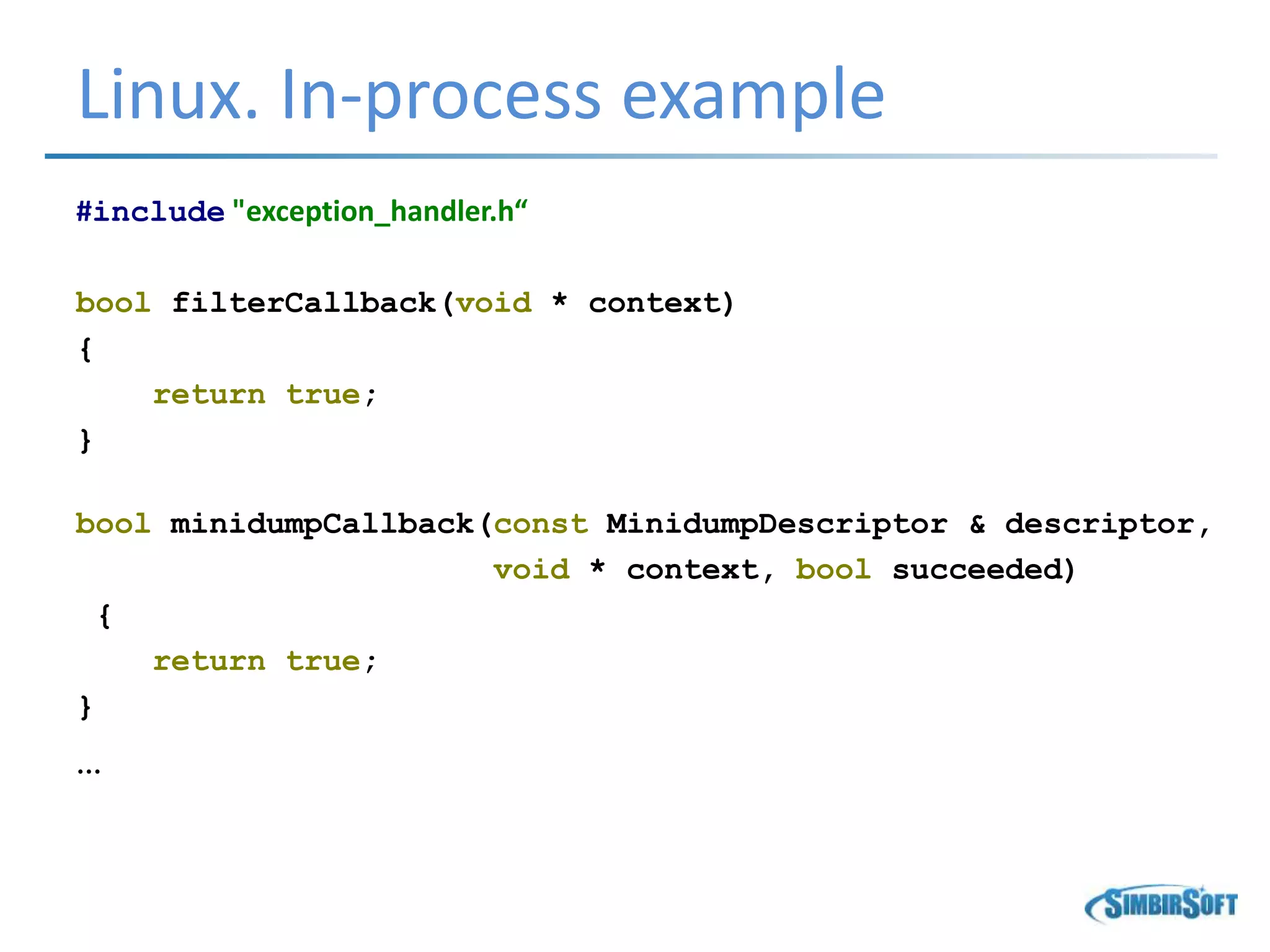

Linux. In-process example
bool filterCallback(void * context)
{
return true;
}
bool minidumpCallback(const MinidumpDescriptor & descriptor,
void * context, bool succeeded)
{
return true;
}
…

…
{
MinidumpDescriptor descriptor("./");
ExceptionHandler handler(descriptor, &filterCallback,
true, -1);
…
return 0;
}

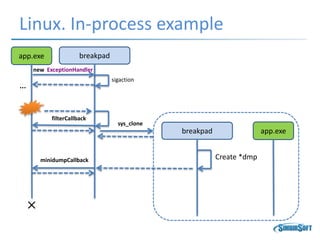

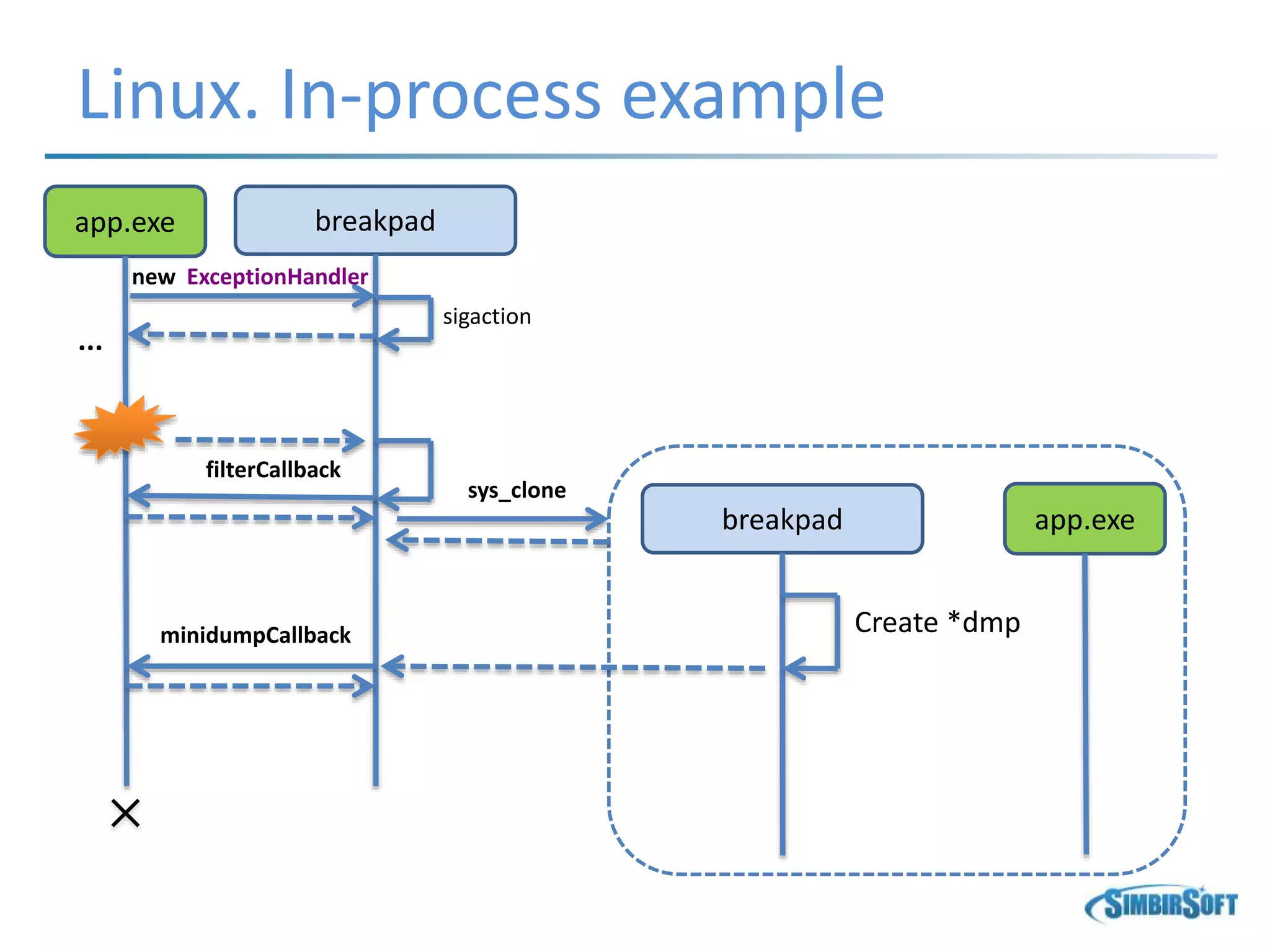

app.exe breakpad
...
filterCallback
minidumpCallback
sigaction
app.exebreakpad
sys_clone
Create *dmp
new ExceptionHandler

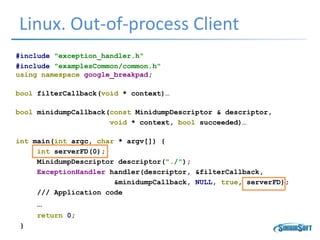

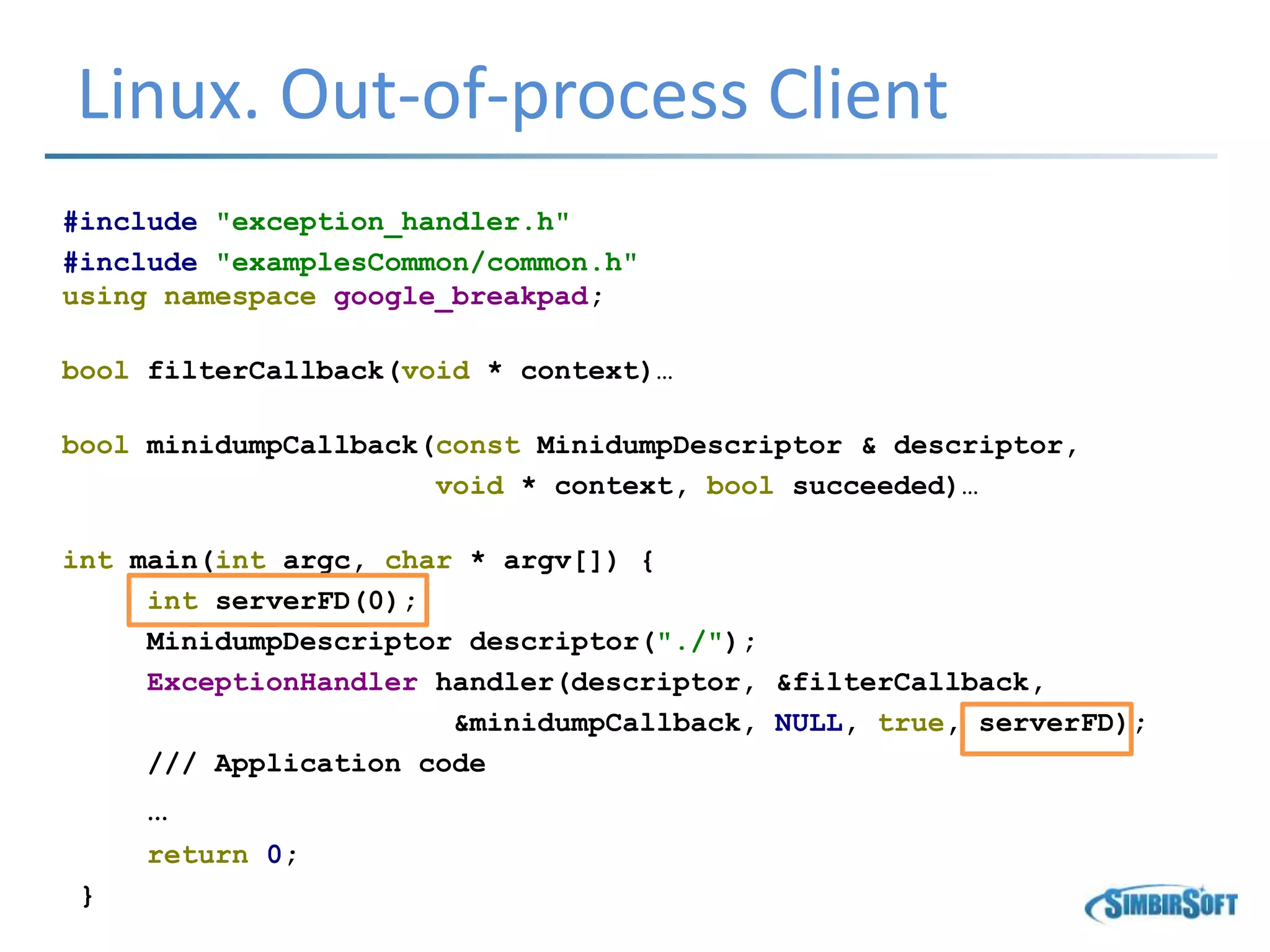

Linux. Out-of-process Client
#include "exception_handler.h"
#include "examplesCommon/common.h"
bool filterCallback(void * context)…
bool minidumpCallback(const MinidumpDescriptor & descriptor,
void * context, bool succeeded)…
int main(int argc, char * argv[]) {
int serverFD(0);
MinidumpDescriptor descriptor("./");
ExceptionHandler handler(descriptor, &filterCallback,
&minidumpCallback, NULL, true, serverFD);
…
return 0;
}

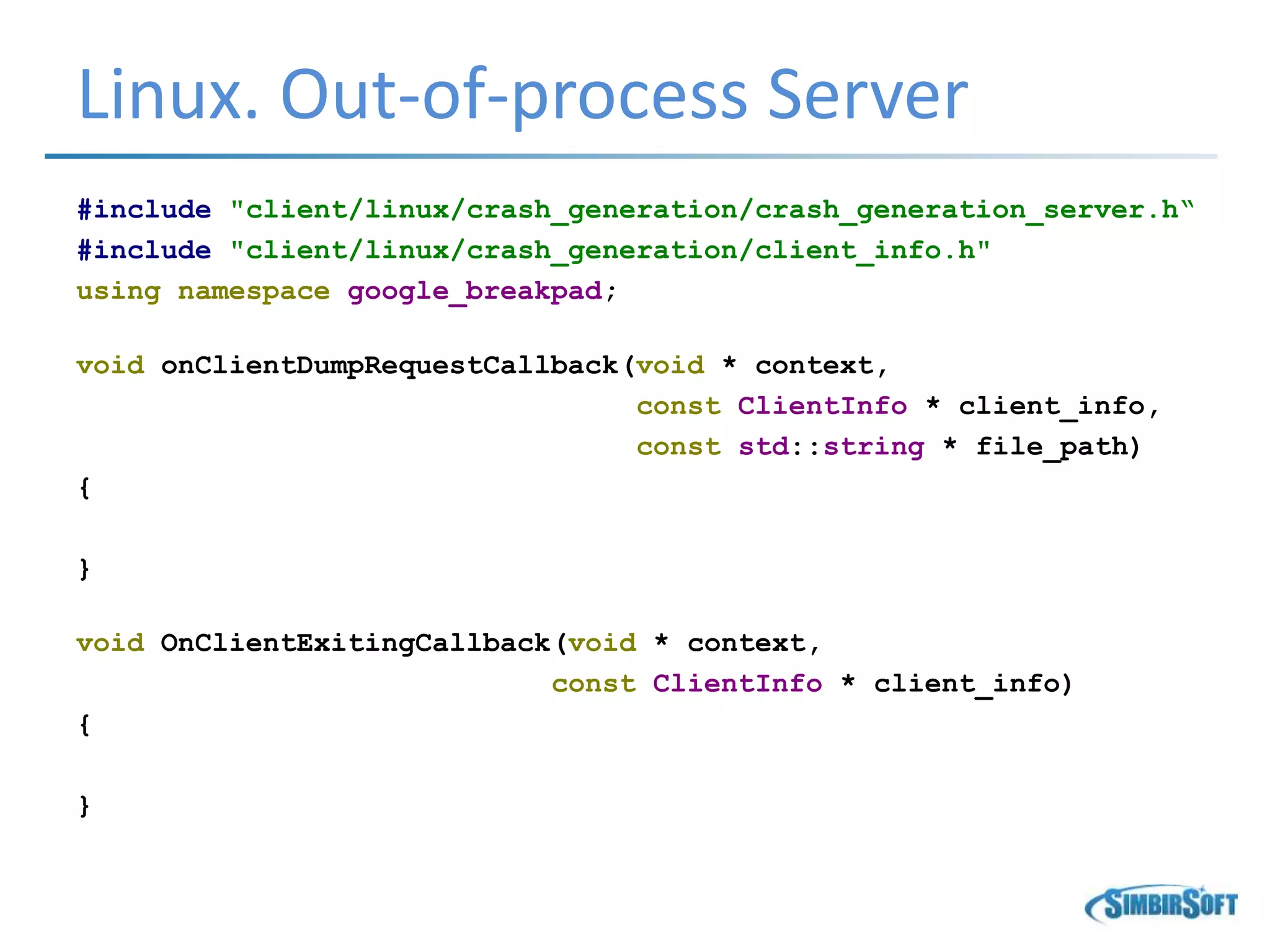

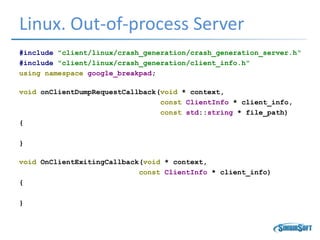

Linux. Out-of-process Server
#include "client/linux/crash_generation/crash_generation_server.h“
#include "client/linux/crash_generation/client_info.h"
void onClientDumpRequestCallback(void * context,
const ClientInfo * client_info,
const std::string * file_path)
{
}
void OnClientExitingCallback(void * context,
const ClientInfo * client_info)
{
}

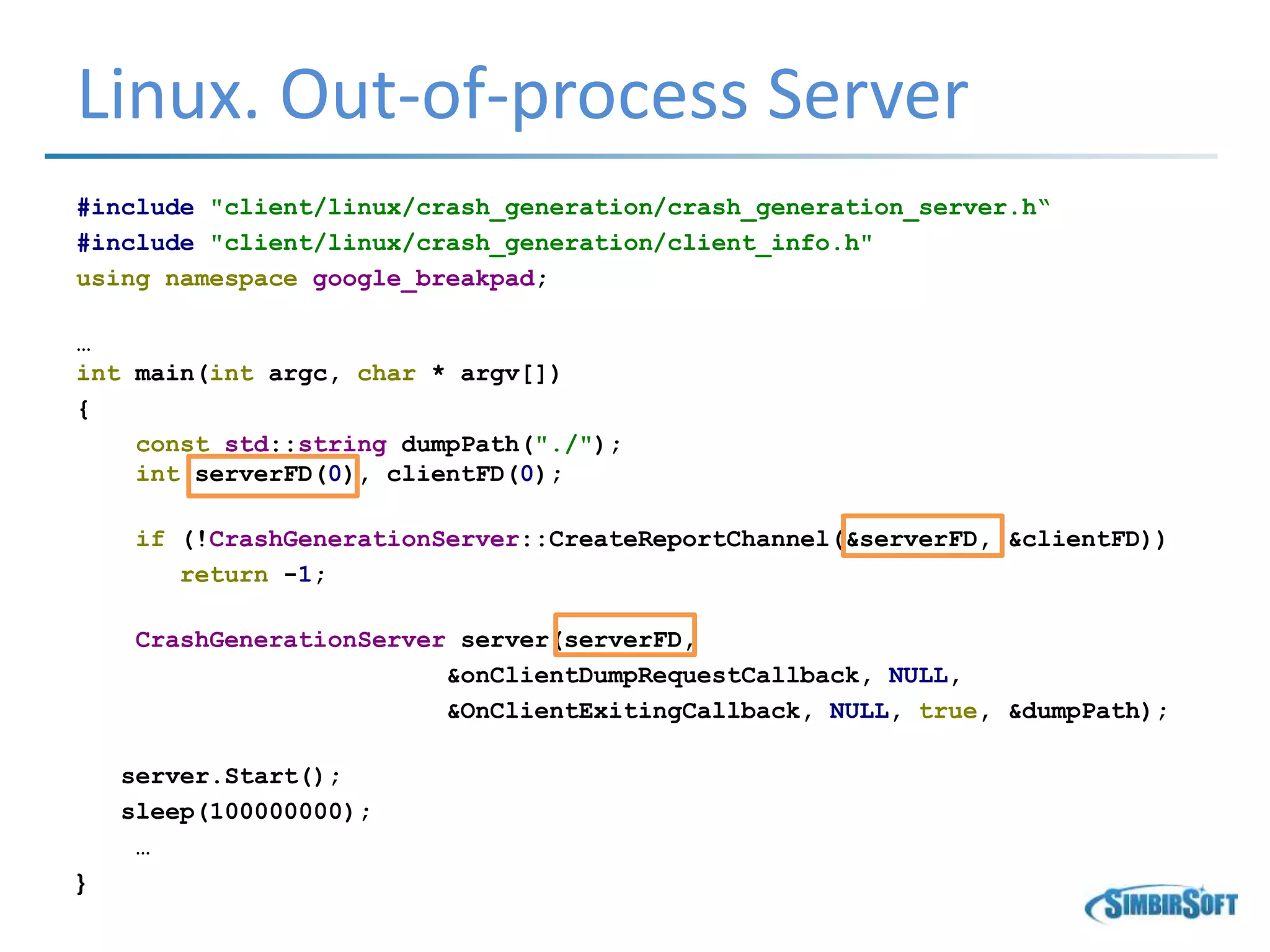

Linux. Out-of-process Server
#include "client/linux/crash_generation/crash_generation_server.h“
#include "client/linux/crash_generation/client_info.h"
…
{
const std::string dumpPath("./");
int serverFD(0), clientFD(0);
if (!CrashGenerationServer::CreateReportChannel(&serverFD, &clientFD))
return -1;
CrashGenerationServer server(serverFD,
&onClientDumpRequestCallback, NULL,
&OnClientExitingCallback, NULL, true, &dumpPath);
server.Start();
sleep(100000000);
…
}

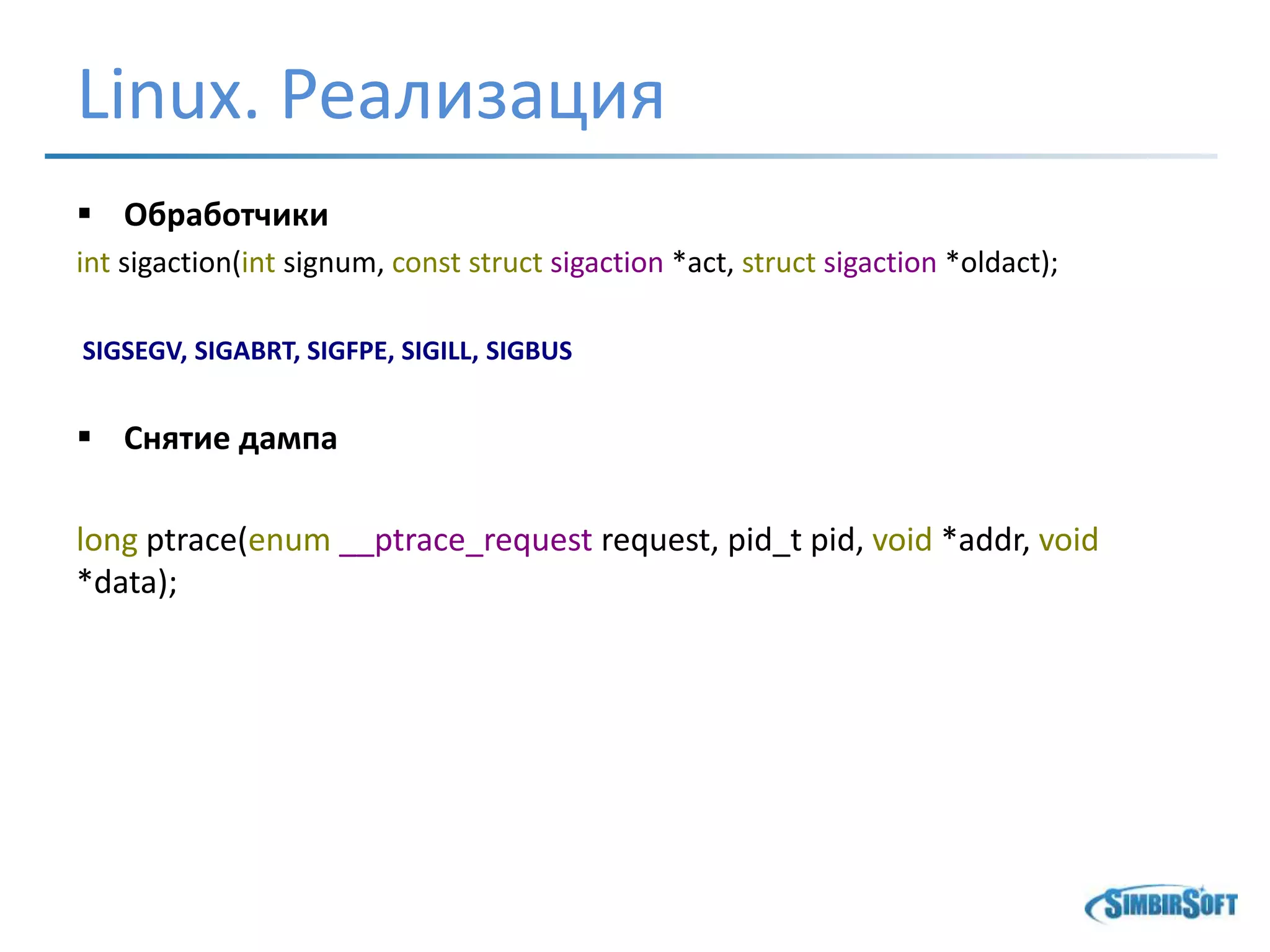

Linux. Реализация
 Обработчики
int sigaction(int signum, const struct sigaction *act, struct sigaction *oldact);
SIGSEGV, SIGABRT, SIGFPE, SIGILL, SIGBUS
 Снятие дампа
long ptrace(enum __ptrace_request request, pid_t pid, void *addr, void
*data);

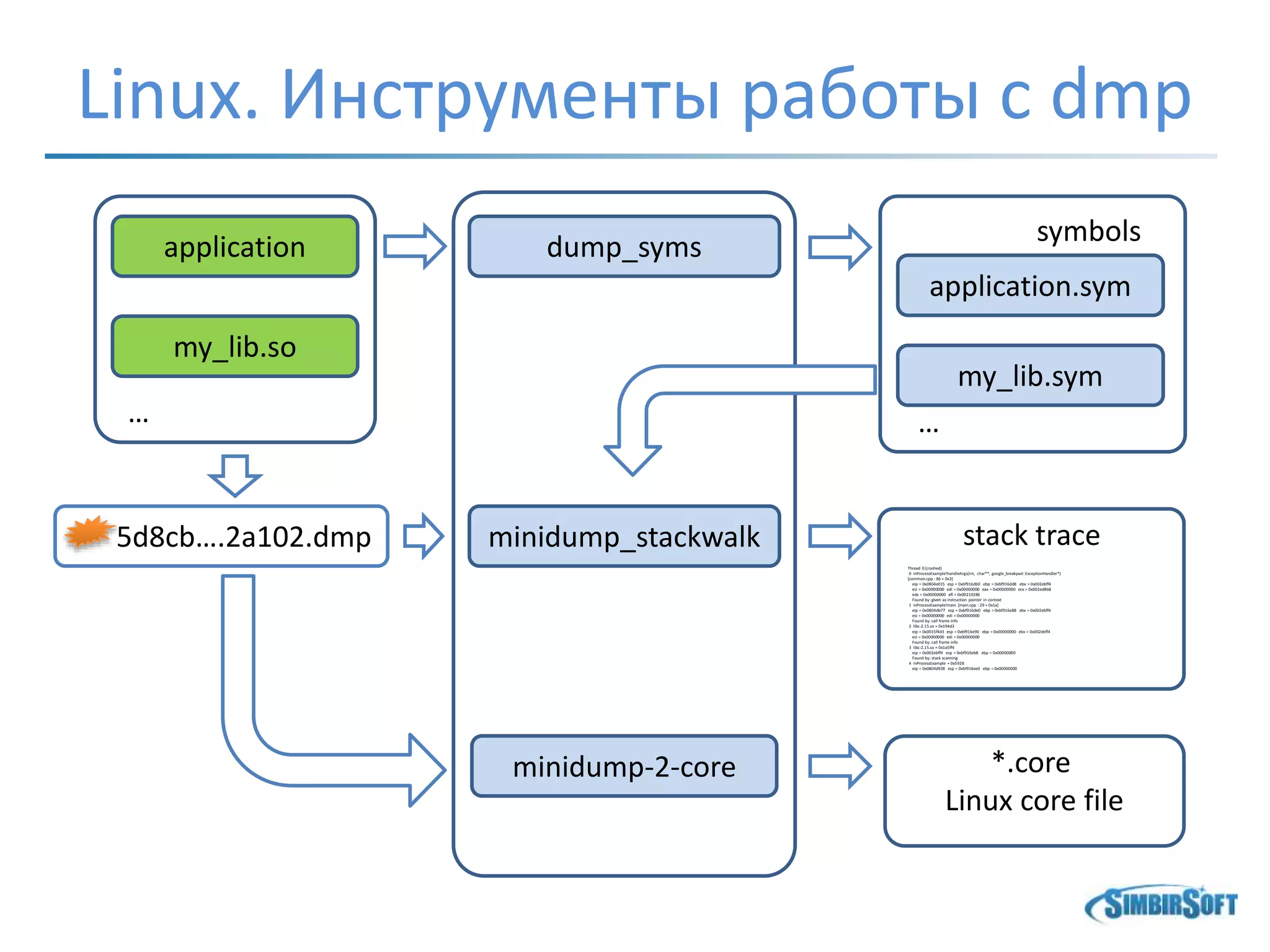

Linux. Инструменты работы с dmp
5d8cb….2a102.dmp
dump_symsapplication
my_lib.so
application.sym
my_lib.sym
symbols
… …
minidump_stackwalk stack trace
Thread 0 (crashed)
0 inProcessExample!handleArgs(int, char**, google_breakpad::ExceptionHandler*)
[common.cpp : 86 + 0x3]
eip = 0x0804e015 esp = 0xbf916db0 ebp = 0xbf916dd8 ebx = 0x002ebff4
esi = 0x00000000 edi = 0x00000000 eax = 0x00000000 ecx = 0x002ed8b8
edx = 0x00000000 efl = 0x00210286
Found by: given as instruction pointer in context
1 inProcessExample!main [main.cpp : 29 + 0x1a]
eip = 0x0804db77 esp = 0xbf916de0 ebp = 0xbf916e88 ebx = 0x002ebff4
esi = 0x00000000 edi = 0x00000000
Found by: call frame info
2 libc-2.15.so + 0x194d3
eip = 0x0015f4d3 esp = 0xbf916e90 ebp = 0x00000000 ebx = 0x002ebff4
esi = 0x00000000 edi = 0x00000000
3 libc-2.15.so + 0x1a5ff4
eip = 0x002ebff4 esp = 0xbf916eb8 ebp = 0x00000000
Found by: stack scanning
4 inProcessExample + 0x5928
eip = 0x0804d928 esp = 0xbf916ee0 ebp = 0x00000000
minidump-2-core *.core
Linux core file

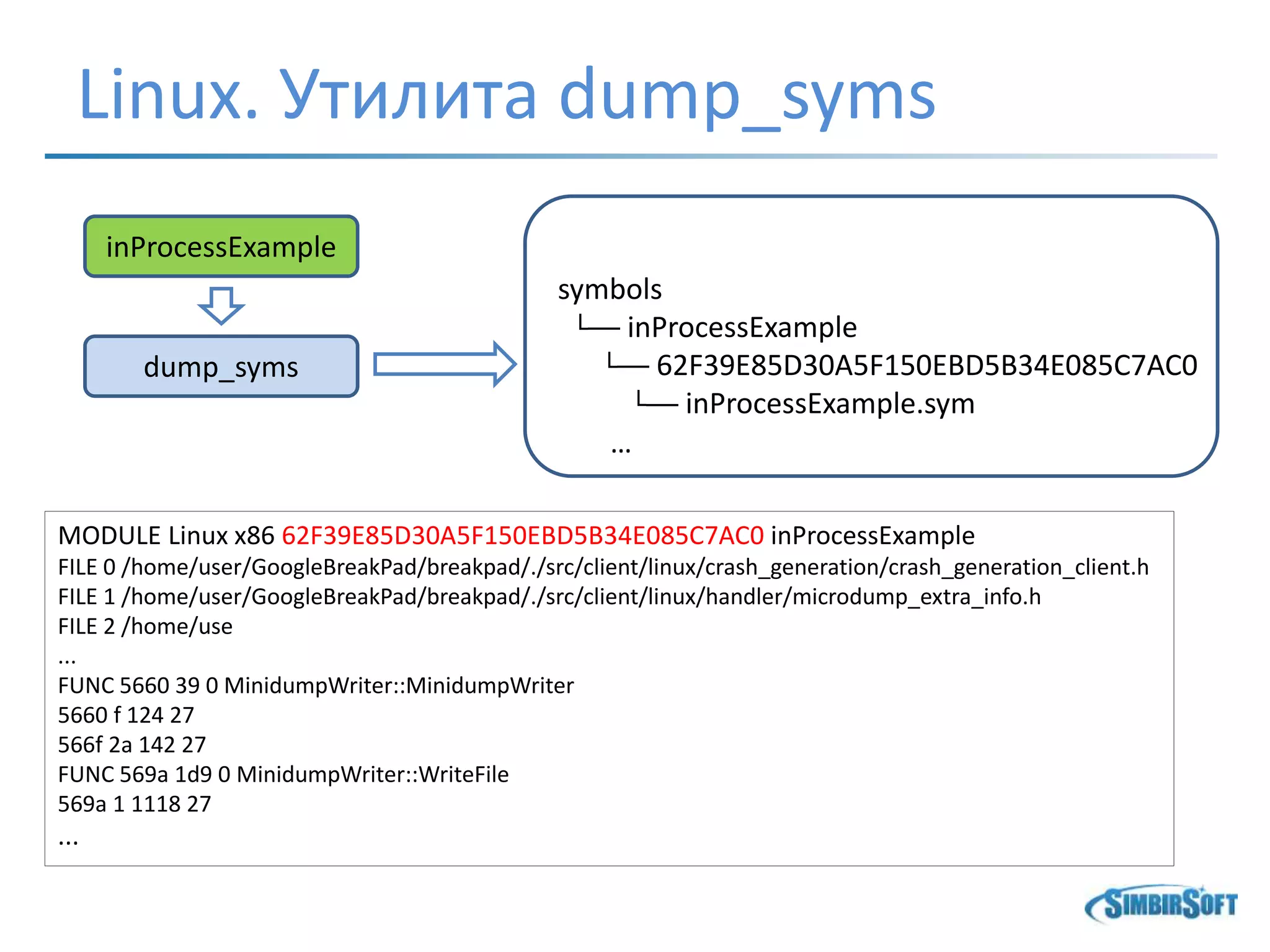

Linux. Утилита dump_syms
dump_syms
inProcessExample
…
MODULE Linux x86 62F39E85D30A5F150EBD5B34E085C7AC0 inProcessExample
FILE 0 /home/user/GoogleBreakPad/breakpad/./src/client/linux/crash_generation/crash_generation_client.h
FILE 1 /home/user/GoogleBreakPad/breakpad/./src/client/linux/handler/microdump_extra_info.h
FILE 2 /home/use
...
FUNC 5660 39 0 MinidumpWriter::MinidumpWriter
5660 f 124 27
566f 2a 142 27
FUNC 569a 1d9 0 MinidumpWriter::WriteFile
569a 1 1118 27
...
symbols
└── inProcessExample
└── 62F39E85D30A5F150EBD5B34E085C7AC0
└── inProcessExample.sym

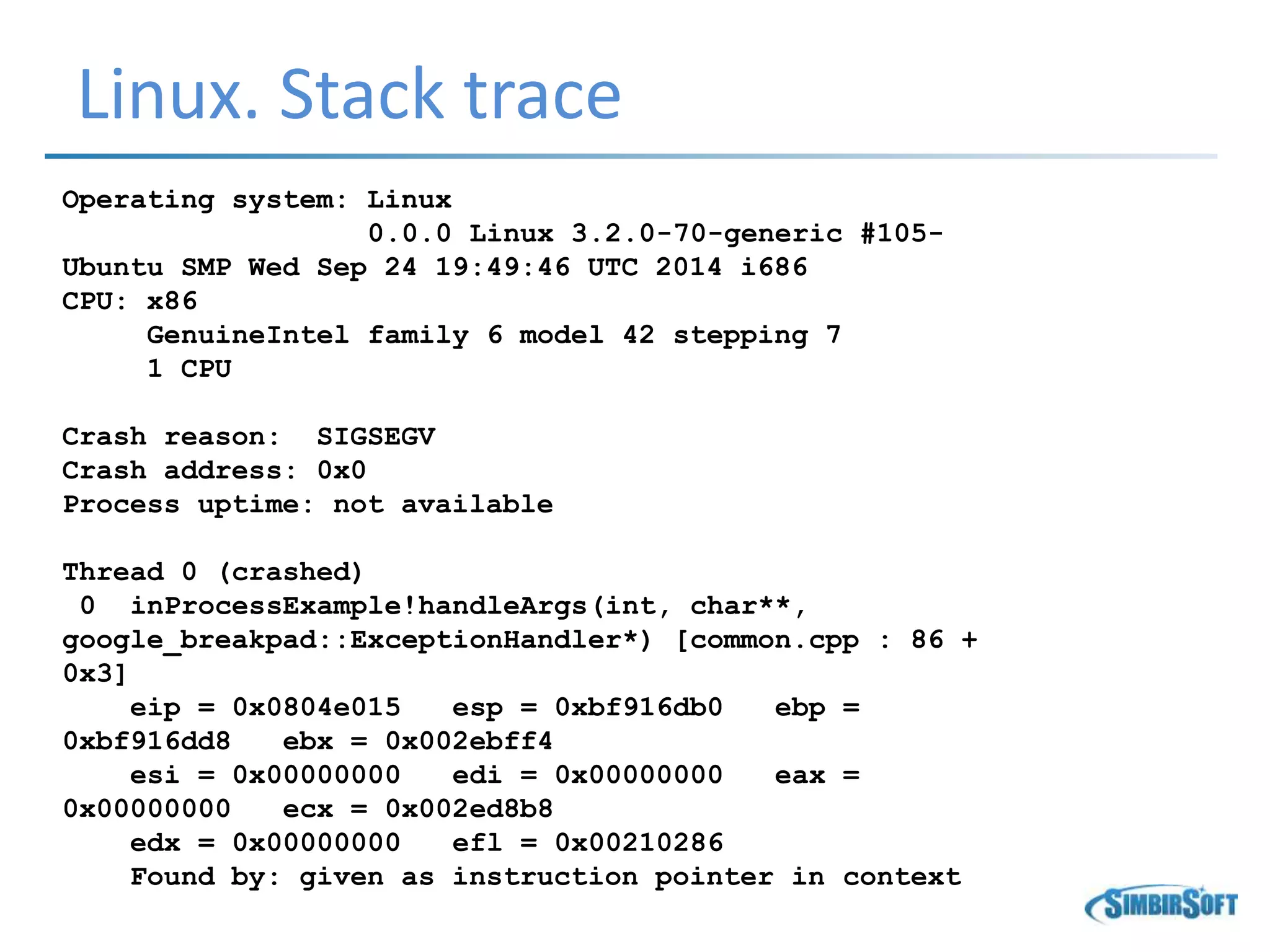

Linux. Stack trace
Operating system: Linux
0.0.0 Linux 3.2.0-70-generic #105-
Ubuntu SMP Wed Sep 24 19:49:46 UTC 2014 i686
CPU: x86
GenuineIntel family 6 model 42 stepping 7
1 CPU
Crash reason: SIGSEGV
Crash address: 0x0
Process uptime: not available
Thread 0 (crashed)
0 inProcessExample!handleArgs(int, char**,
google_breakpad::ExceptionHandler*) [common.cpp : 86 +
0x3]
eip = 0x0804e015 esp = 0xbf916db0 ebp =
0xbf916dd8 ebx = 0x002ebff4
esi = 0x00000000 edi = 0x00000000 eax =
0x00000000 ecx = 0x002ed8b8
edx = 0x00000000 efl = 0x00210286

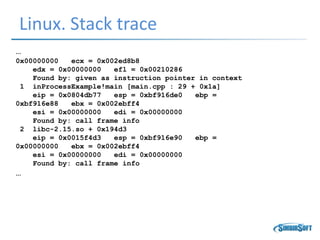

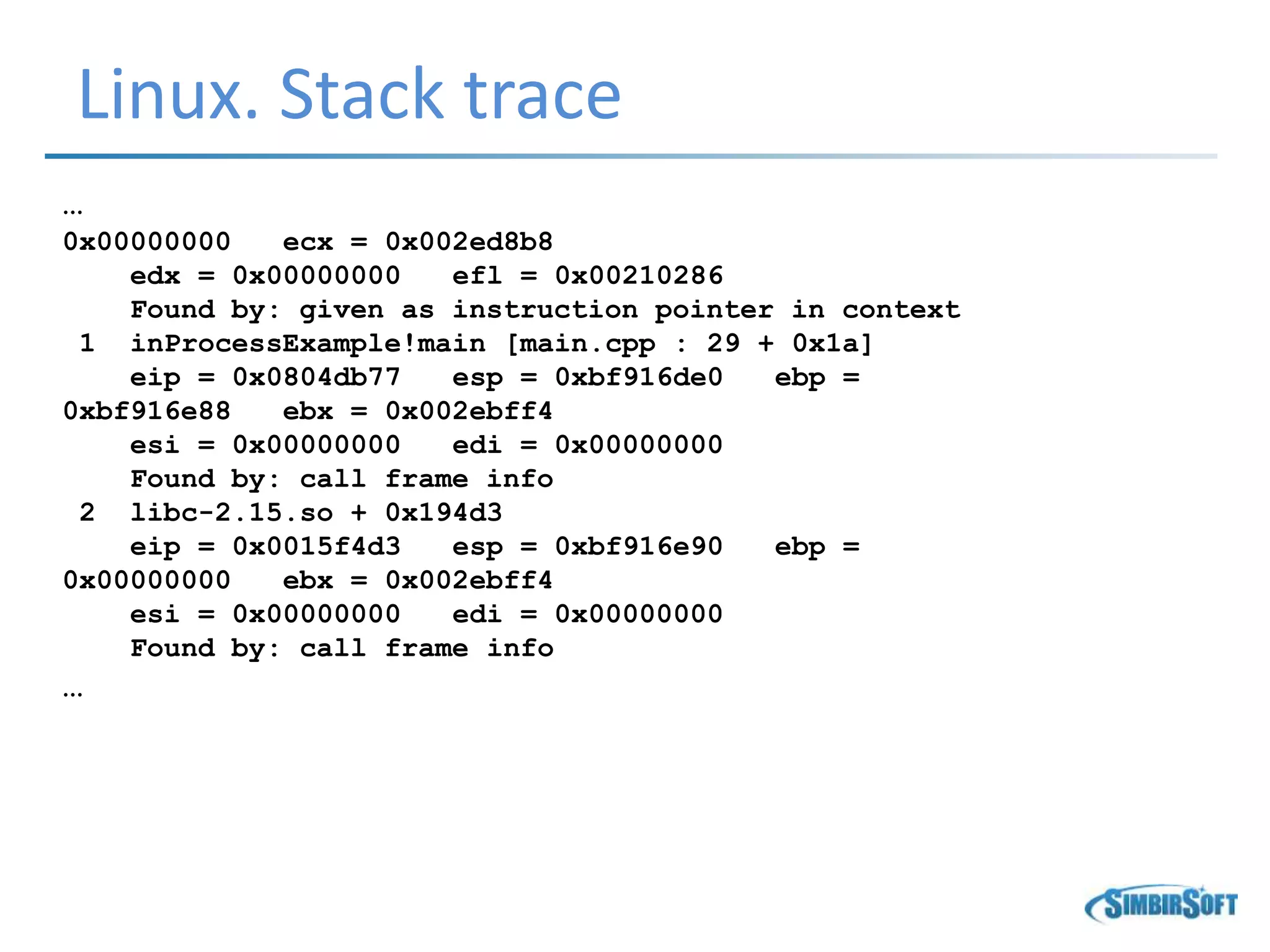

Linux. Stack trace
…
0x00000000 ecx = 0x002ed8b8
edx = 0x00000000 efl = 0x00210286
1 inProcessExample!main [main.cpp : 29 + 0x1a]
eip = 0x0804db77 esp = 0xbf916de0 ebp =
0xbf916e88 ebx = 0x002ebff4
esi = 0x00000000 edi = 0x00000000
2 libc-2.15.so + 0x194d3
eip = 0x0015f4d3 esp = 0xbf916e90 ebp =
0x00000000 ebx = 0x002ebff4
esi = 0x00000000 edi = 0x00000000
…

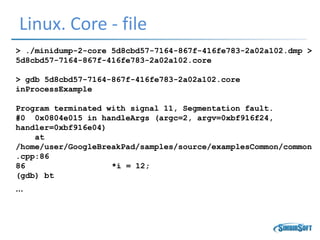

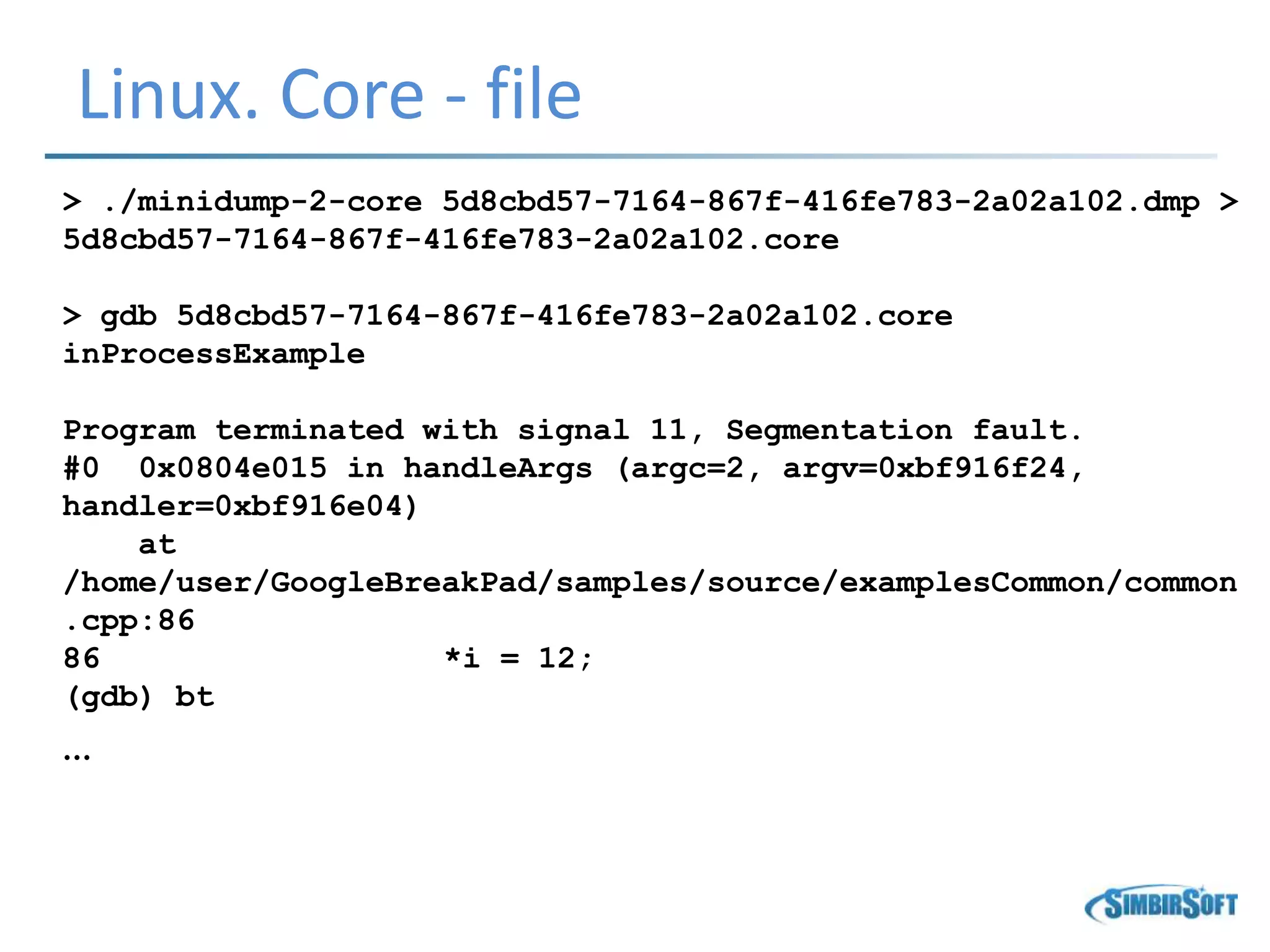

Linux. Core - file
> ./minidump-2-core 5d8cbd57-7164-867f-416fe783-2a02a102.dmp >
5d8cbd57-7164-867f-416fe783-2a02a102.core
> gdb 5d8cbd57-7164-867f-416fe783-2a02a102.core
inProcessExample
Program terminated with signal 11, Segmentation fault.
#0 0x0804e015 in handleArgs (argc=2, argv=0xbf916f24,
handler=0xbf916e04)
at
/home/user/GoogleBreakPad/samples/source/examplesCommon/common
.cpp:86
86 *i = 12;
(gdb) bt
…

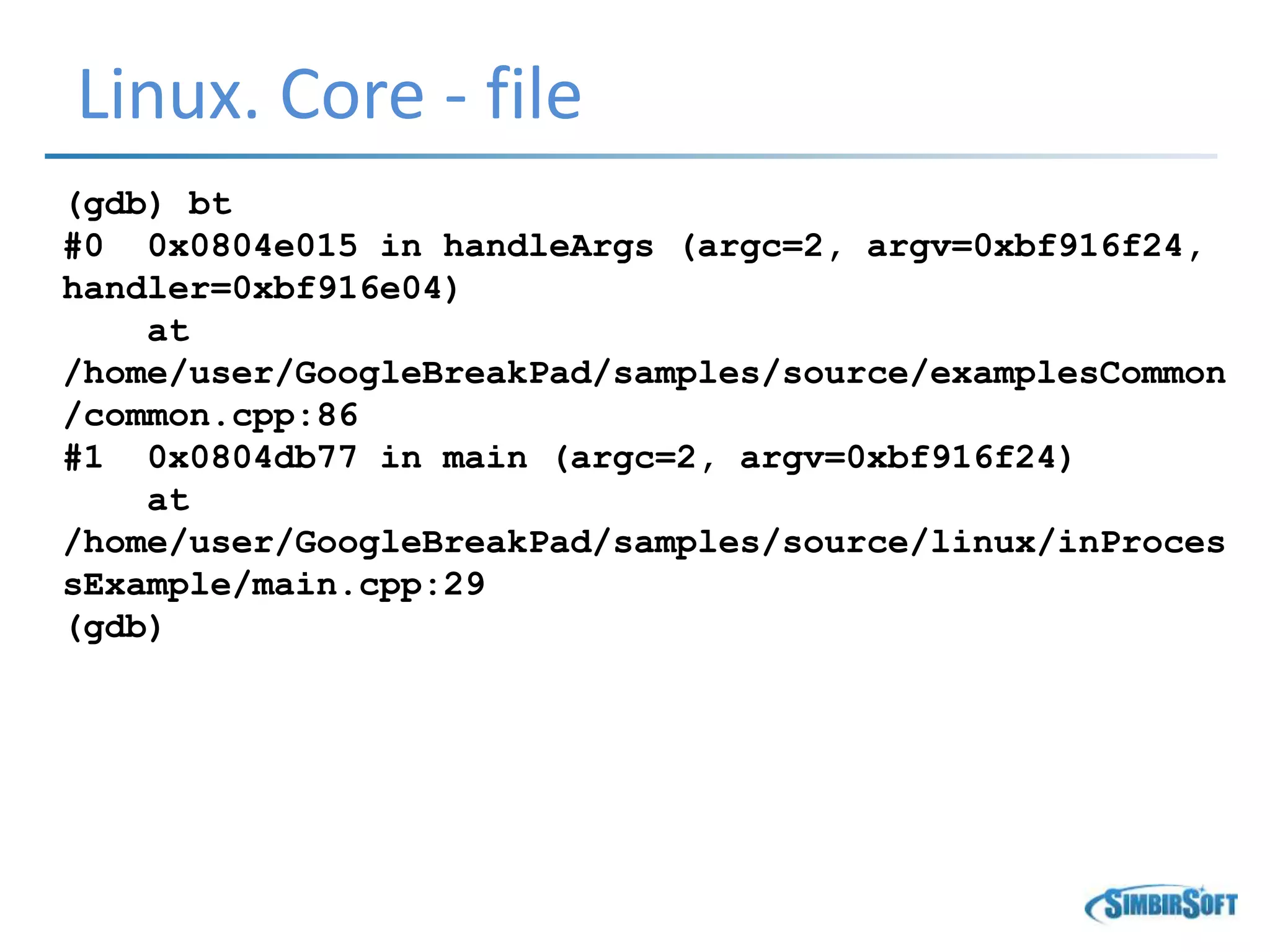

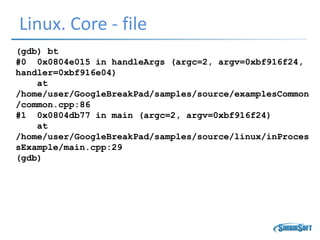

Linux. Core - file
(gdb) bt
#0 0x0804e015 in handleArgs (argc=2, argv=0xbf916f24,
handler=0xbf916e04)
at
/home/user/GoogleBreakPad/samples/source/examplesCommon
/common.cpp:86
#1 0x0804db77 in main (argc=2, argv=0xbf916f24)
at
/home/user/GoogleBreakPad/samples/source/linux/inProces
sExample/main.cpp:29
(gdb)

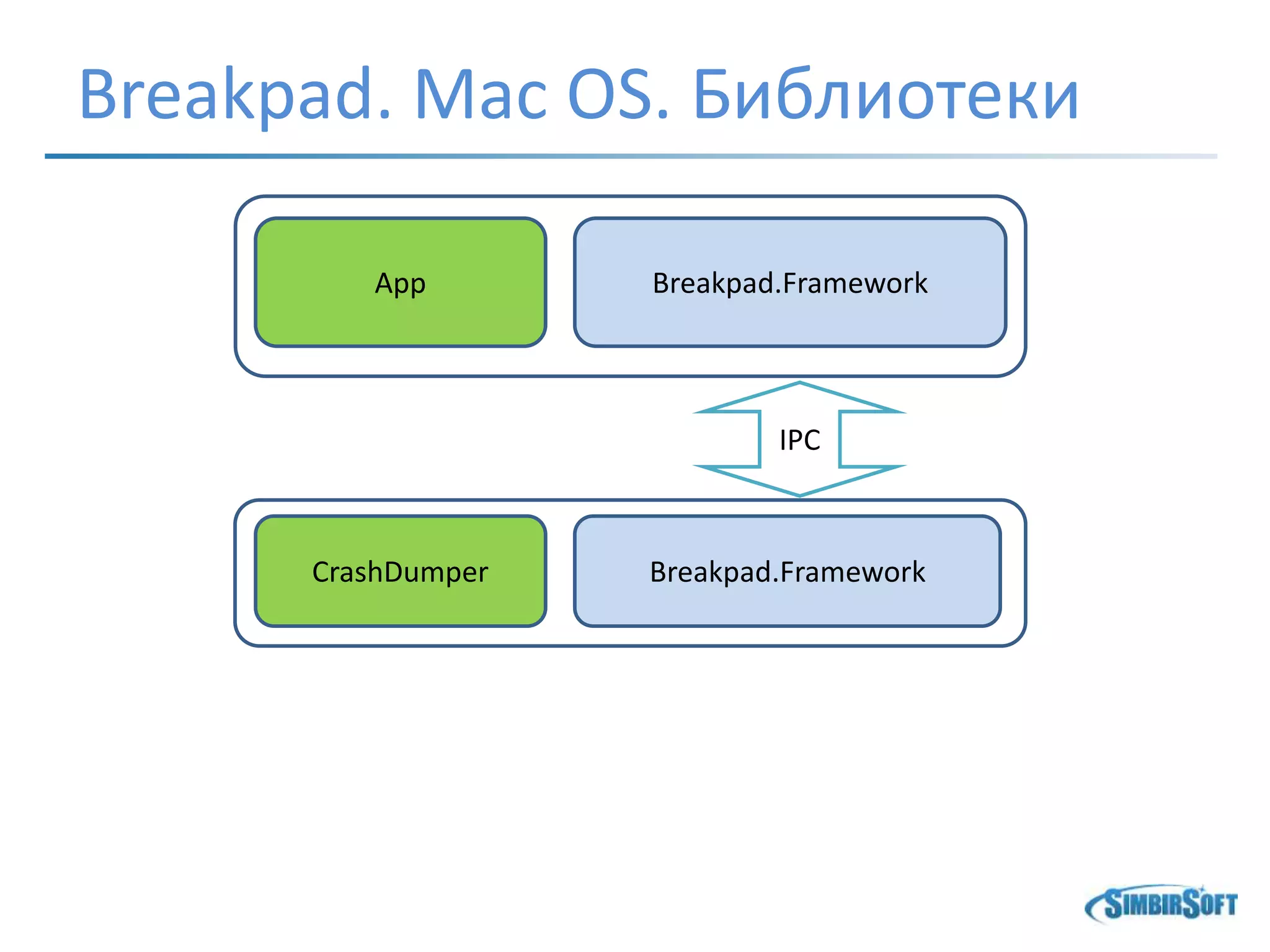

Breakpad. Mac OS. Библиотеки
Breakpad.Framework
Breakpad.Framework
App
CrashDumper
IPC

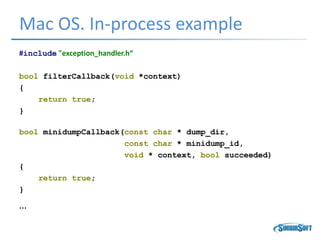

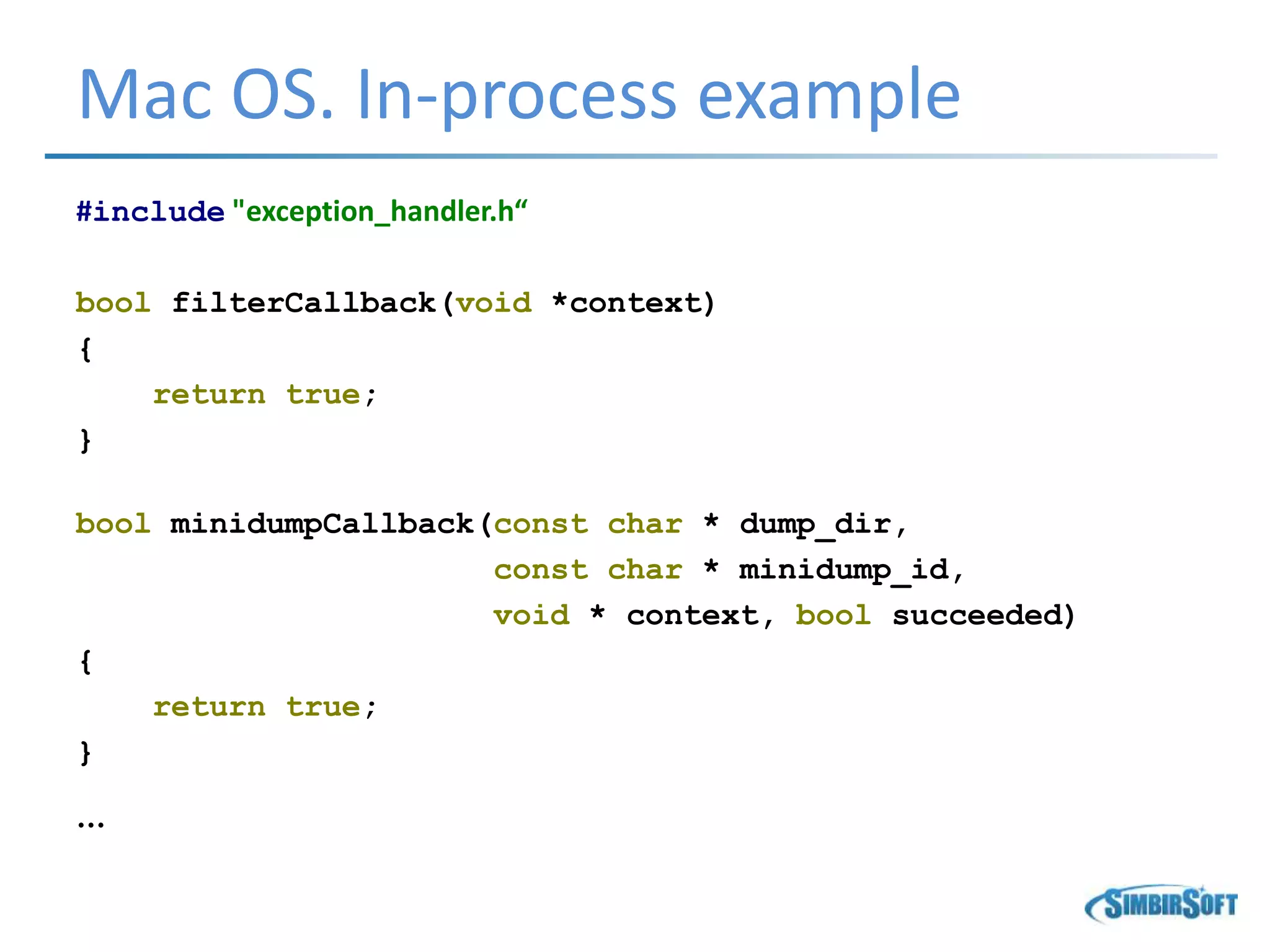

Mac OS. In-process example
bool filterCallback(void *context)
{
return true;
}
bool minidumpCallback(const char * dump_dir,
const char * minidump_id,
void * context, bool succeeded)
{
return true;
}
…

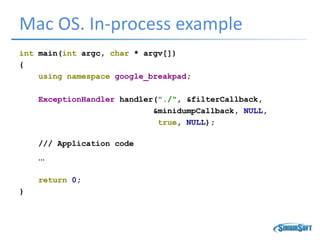

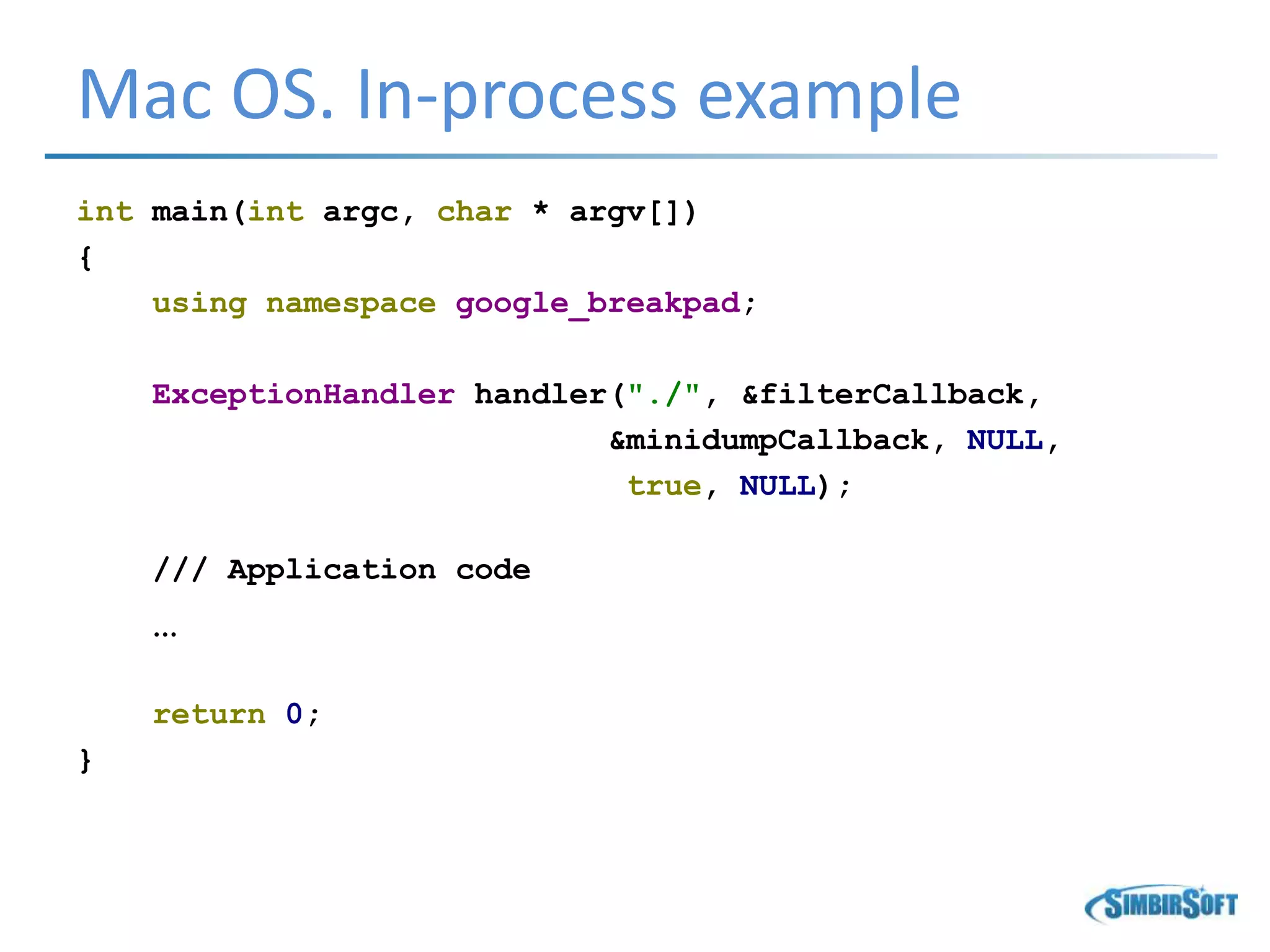

Mac OS. In-process example
{
ExceptionHandler handler("./", &filterCallback,
true, NULL);
…
return 0;
}

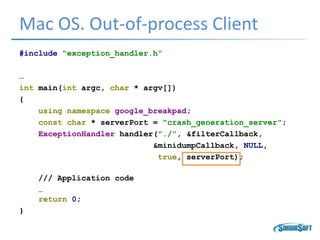

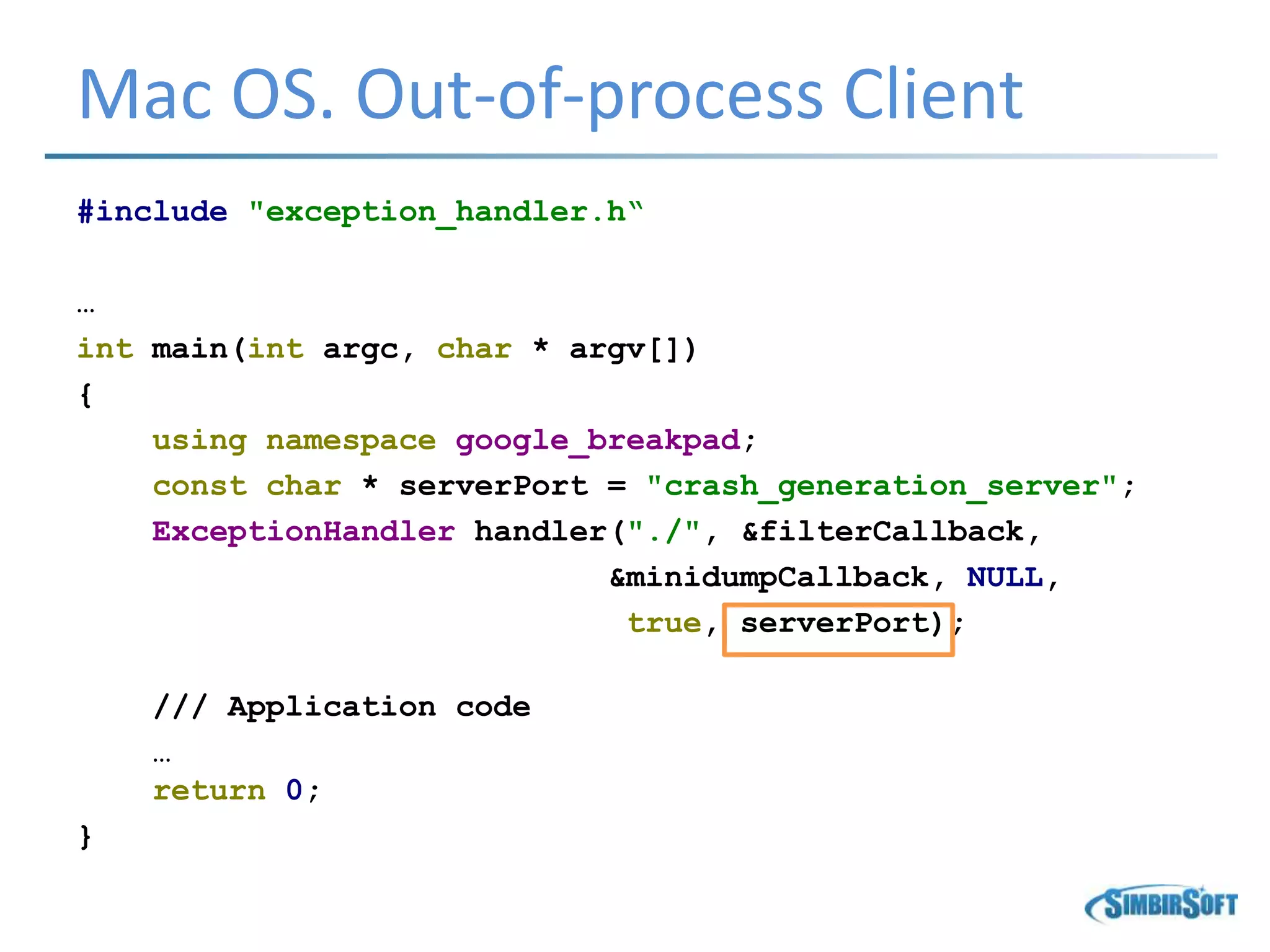

Mac OS. Out-of-process Client
…
{
const char * serverPort = "crash_generation_server";
ExceptionHandler handler("./", &filterCallback,
true, serverPort);
…
return 0;
}

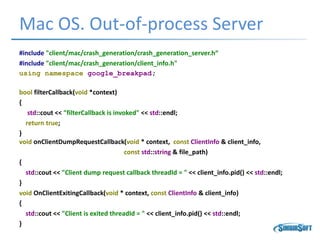

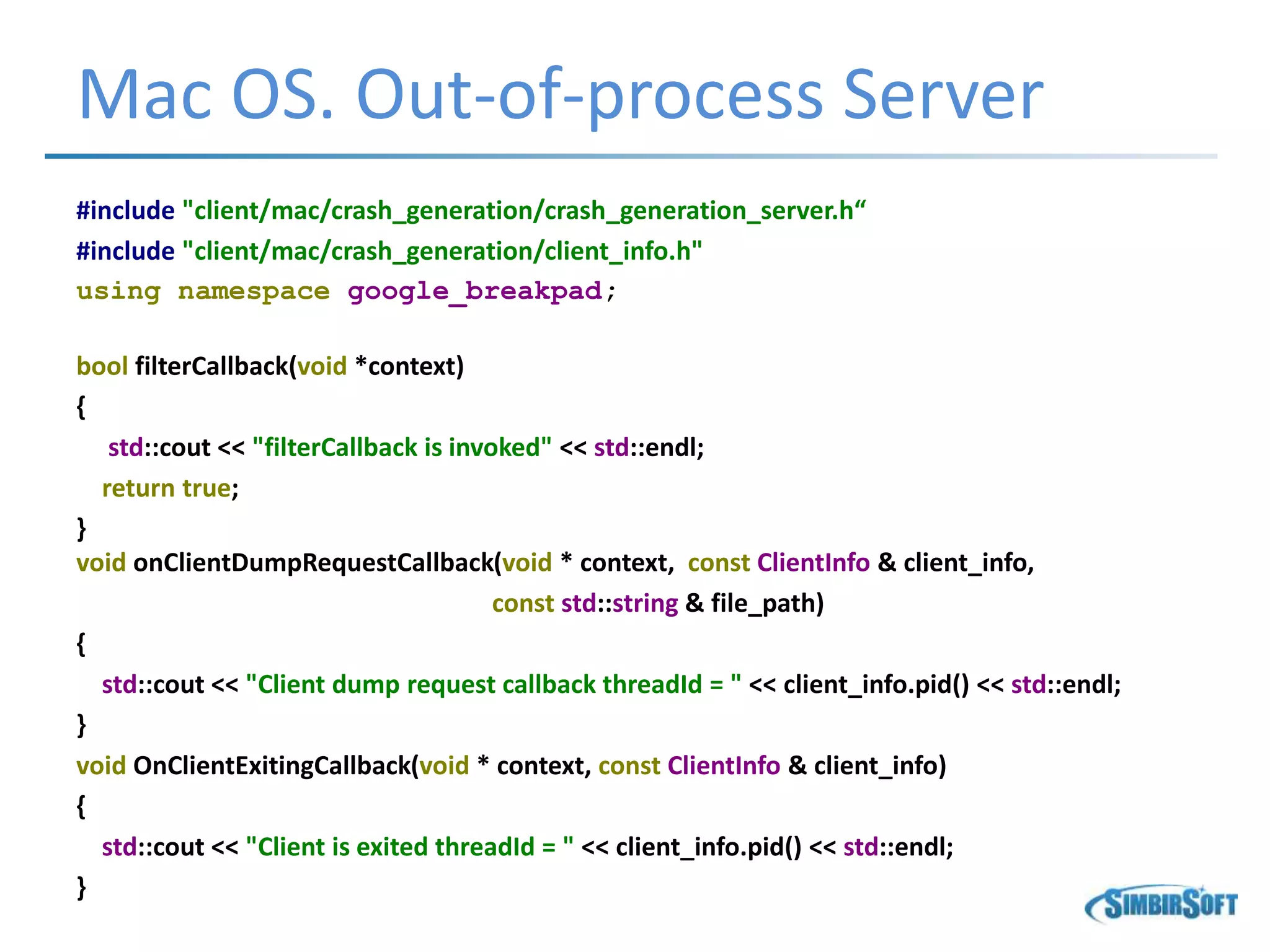

Mac OS. Out-of-process Server
#include "client/mac/crash_generation/crash_generation_server.h“
#include "client/mac/crash_generation/client_info.h"
bool filterCallback(void *context)
{
std::cout << "filterCallback is invoked" << std::endl;
return true;
}
void onClientDumpRequestCallback(void * context, const ClientInfo & client_info,
const std::string & file_path)
{
std::cout << "Client dump request callback threadId = " << client_info.pid() << std::endl;
}
void OnClientExitingCallback(void * context, const ClientInfo & client_info)
{
std::cout << "Client is exited threadId = " << client_info.pid() << std::endl;
}

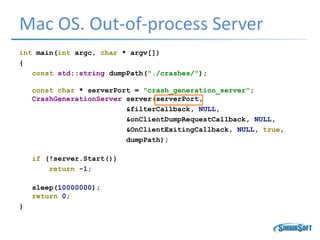

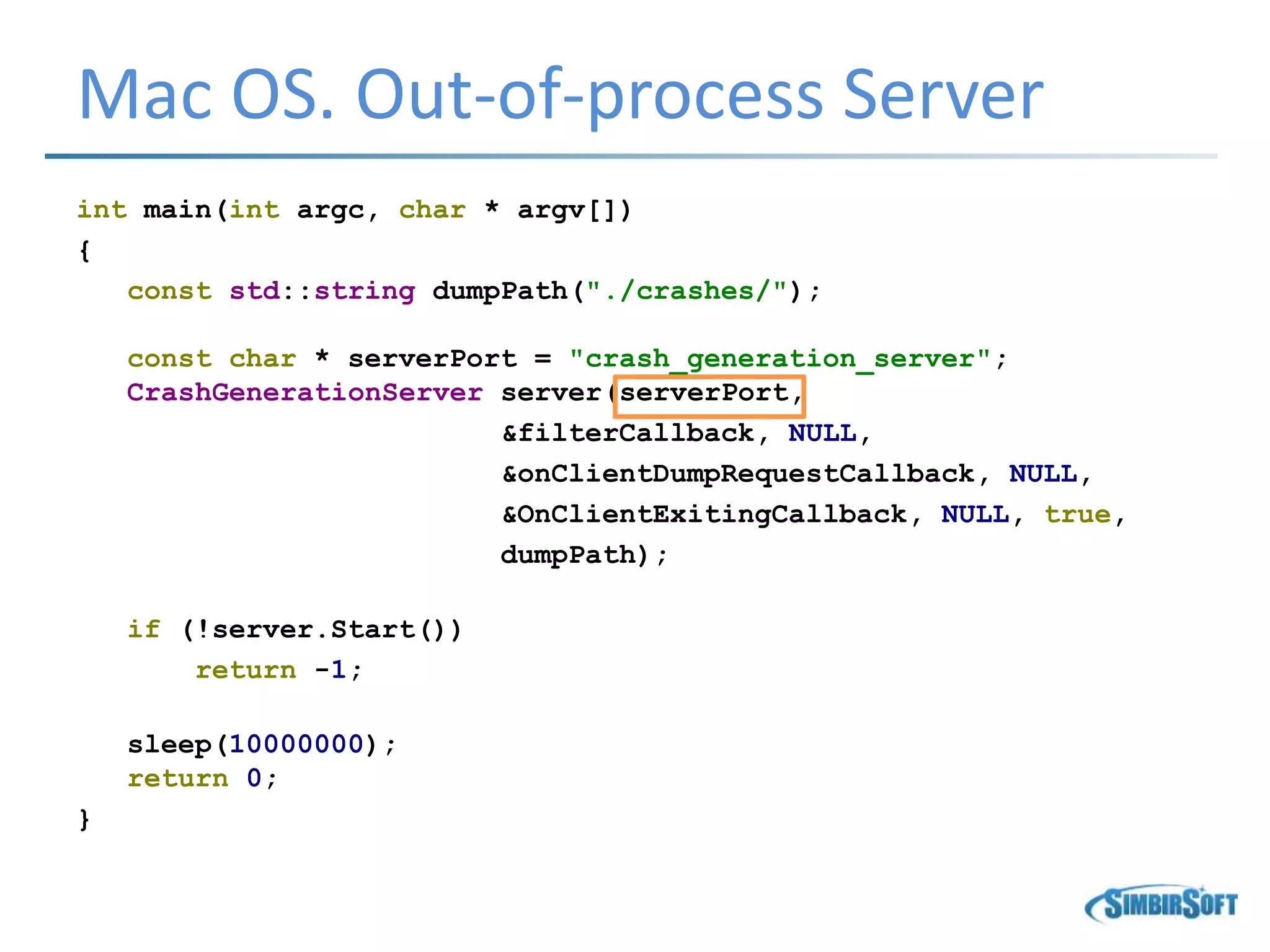

Mac OS. Out-of-process Server
{
const std::string dumpPath("./crashes/");
const char * serverPort = "crash_generation_server";
CrashGenerationServer server(serverPort,
&filterCallback, NULL,
&onClientDumpRequestCallback, NULL,
&OnClientExitingCallback, NULL, true,
dumpPath);
if (!server.Start())
return -1;
sleep(10000000);
return 0;
}

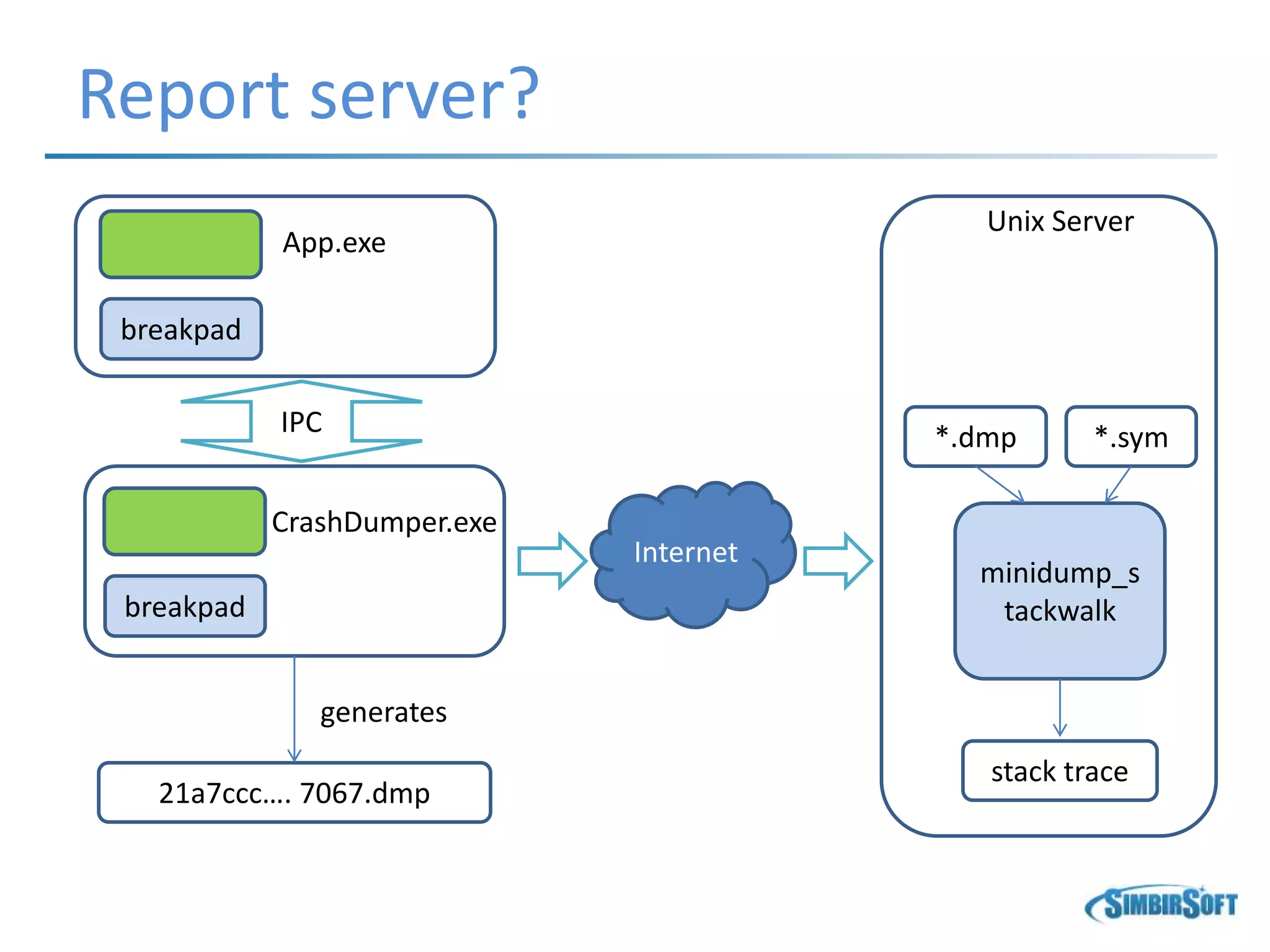

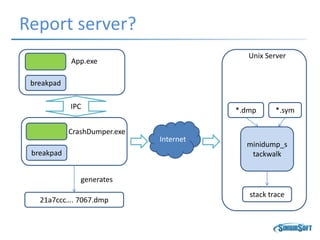

Report server?
breakpad
App.exe
CrashDumper.exe
breakpad
IPC
21a7ccc…. 7067.dmp
generates
Internet
Unix Server
minidump_s
tackwalk
*.dmp *.sym
stack trace

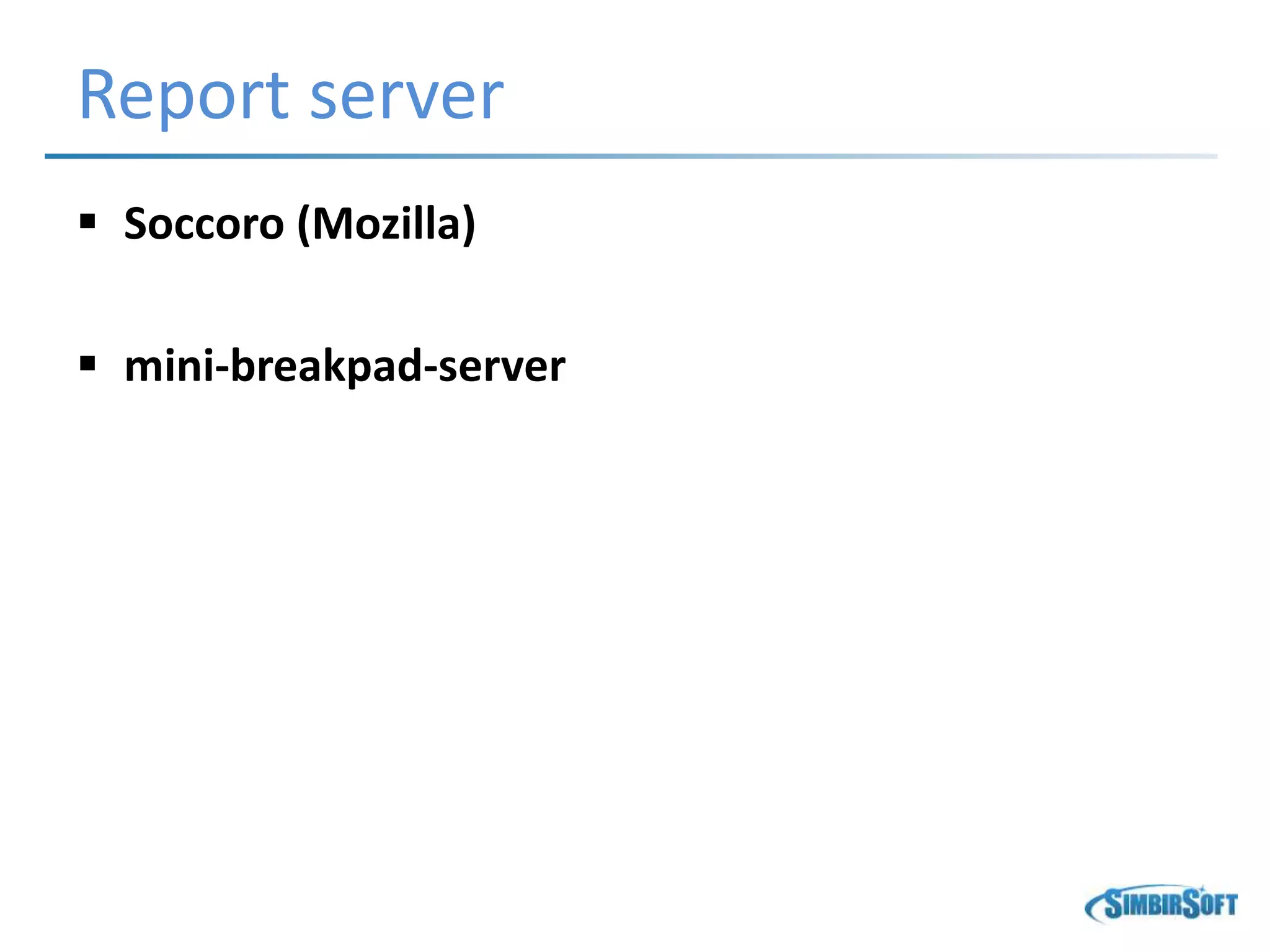

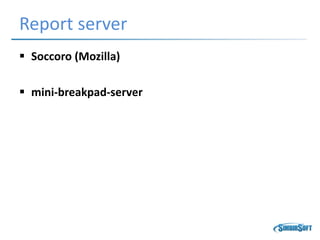

Report server
 Soccoro (Mozilla)
 mini-breakpad-server

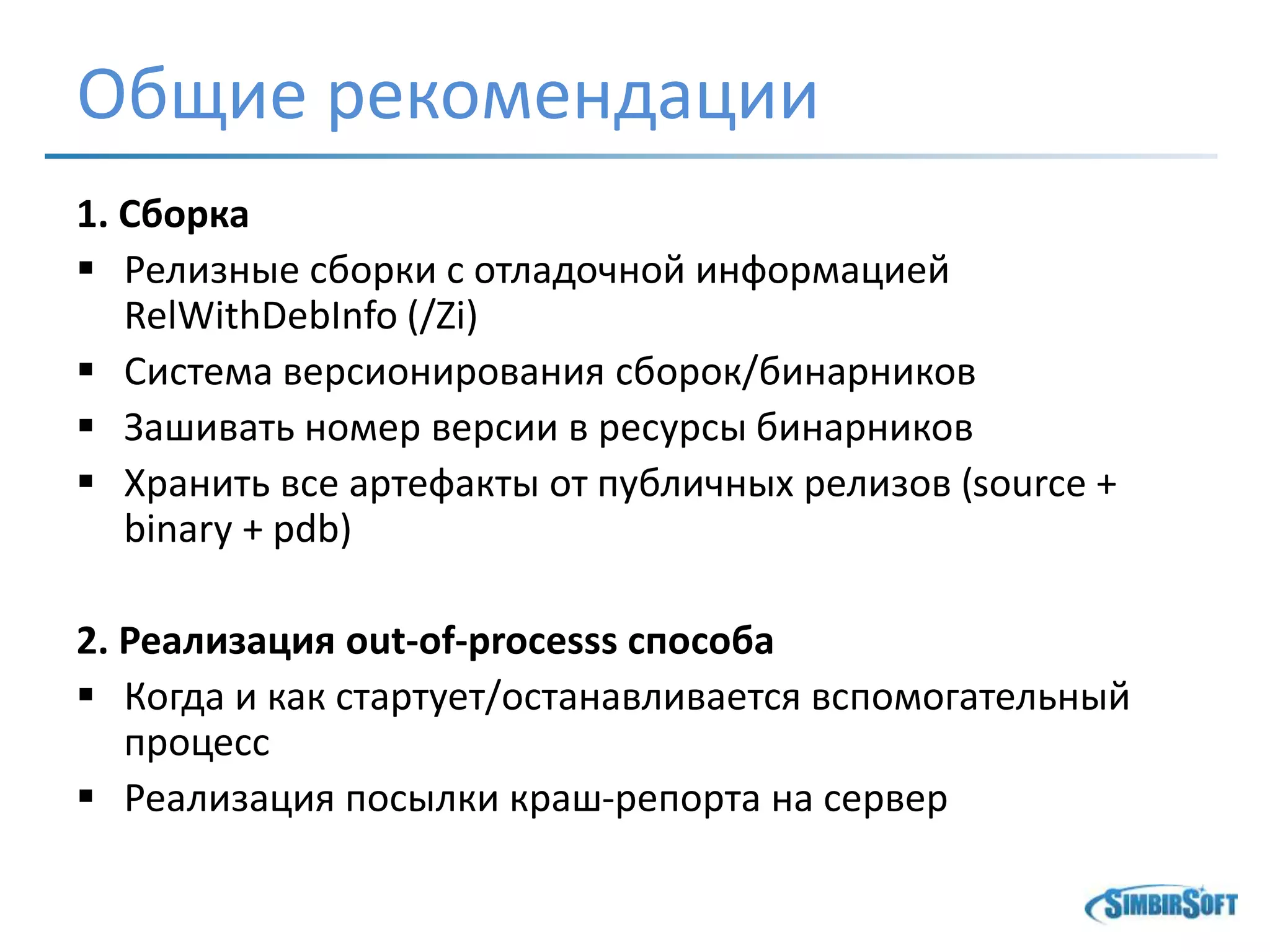

Общие рекомендации
1. Сборка
 Релизные сборки с отладочной информацией
RelWithDebInfo (/Zi)
 Система версионирования сборок/бинарников
 Зашивать номер версии в ресурсы бинарников
 Хранить все артефакты от публичных релизов (source +
binary + pdb)
2. Реализация out-of-processs способа
 Когда и как стартует/останавливается вспомогательный
процесс
 Реализация посылки краш-репорта на сервер

Спасибо за внимание!
Докладчик: Демчук Дмитрий

Дмитрий Демчук. Кроссплатформенный краш-репорт

More Related Content

What's hot

Viewers also liked

More from Sergey Platonov

Recently uploaded

Дмитрий Демчук. Кроссплатформенный краш-репорт
