Super Fast Application development with Mura CMS

Super Fast Application 
Development with Mura CMS

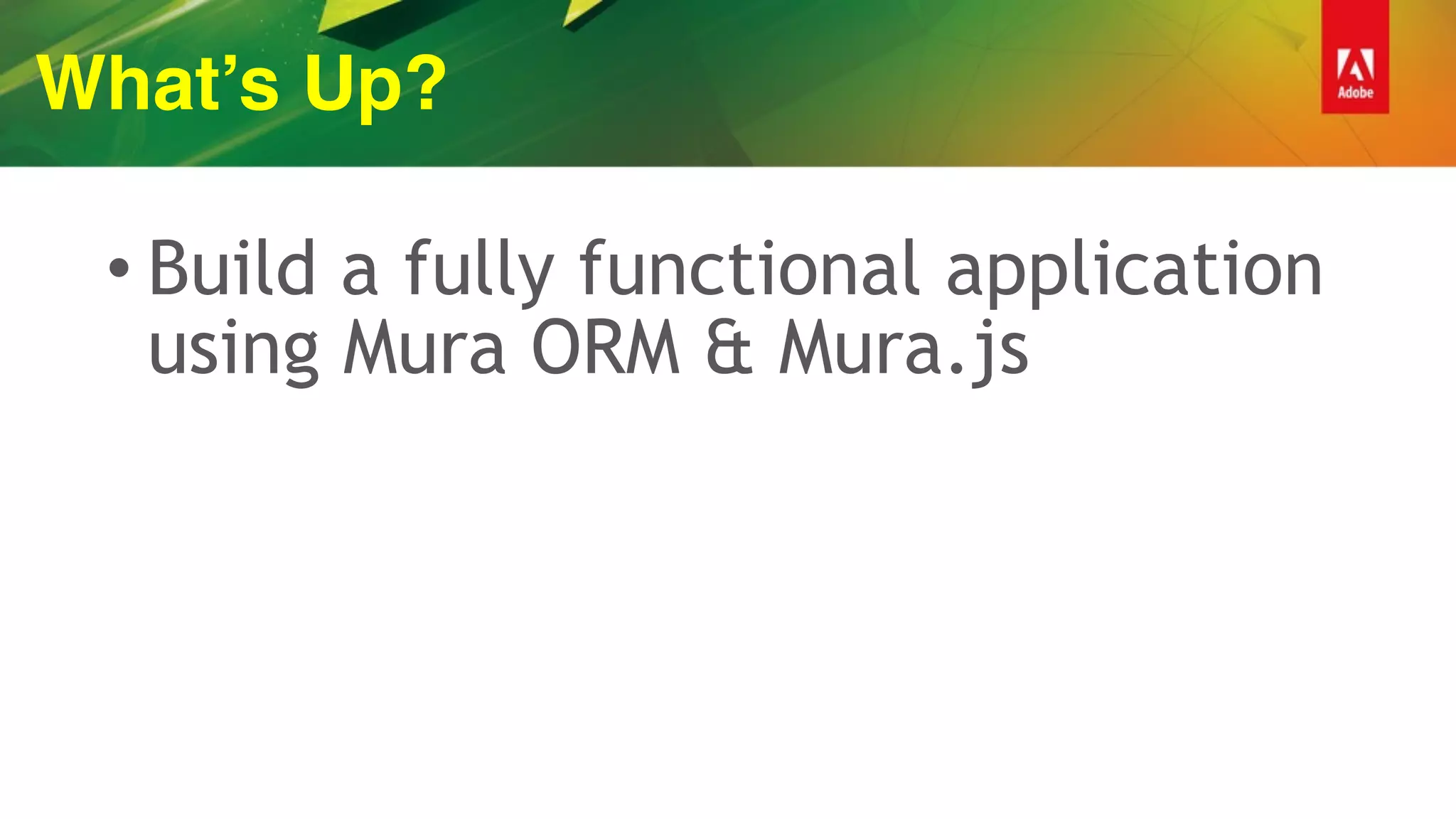

What’s Up?
• Build a fully functional application
using Mura ORM & Mura.js

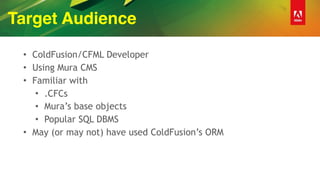

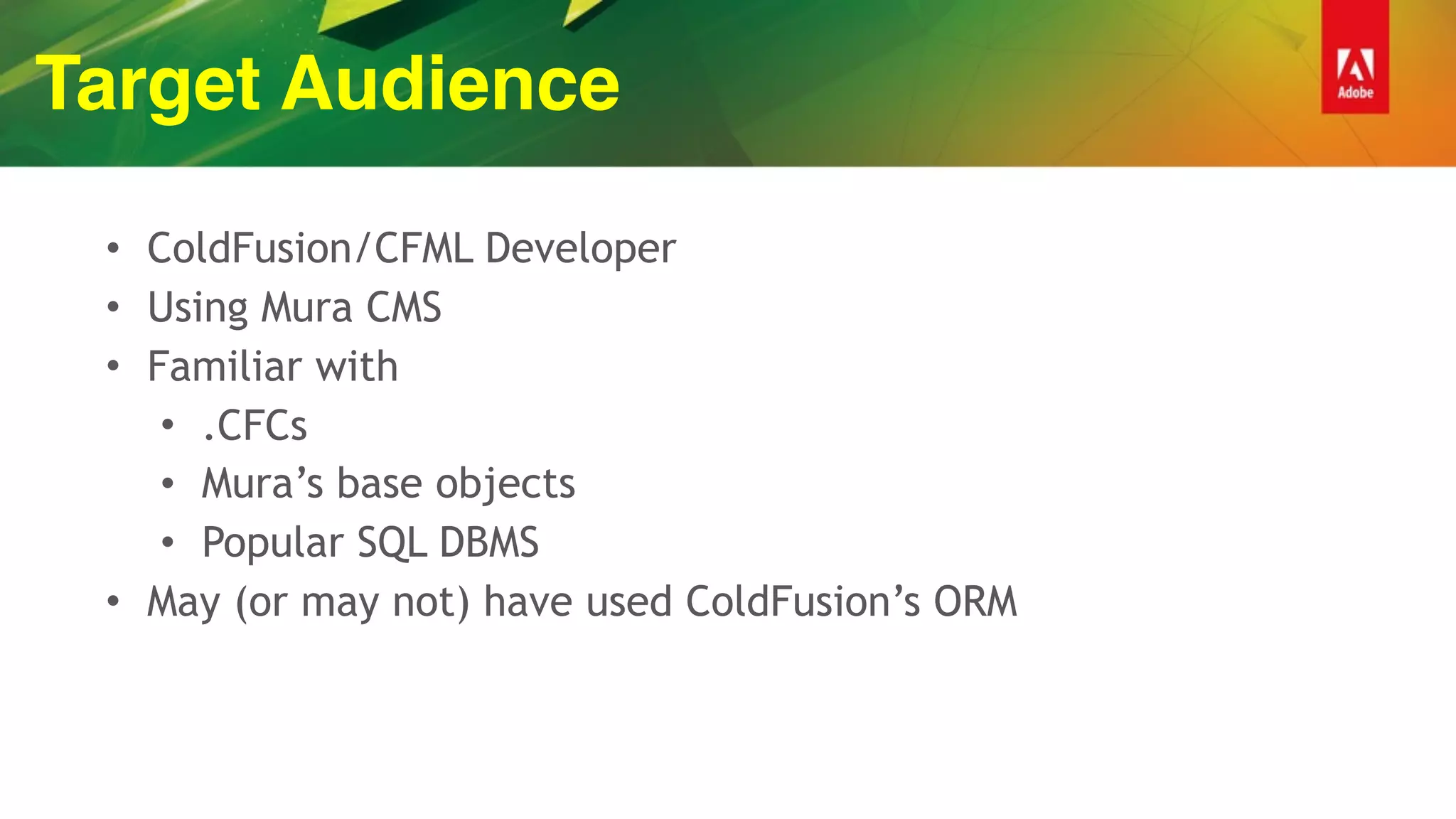

Target Audience
• ColdFusion/CFML Developer
• Using Mura CMS
• Familiar with
• .CFCs
• Mura’s base objects
• Popular SQL DBMS
• May (or may not) have used ColdFusion’s ORM

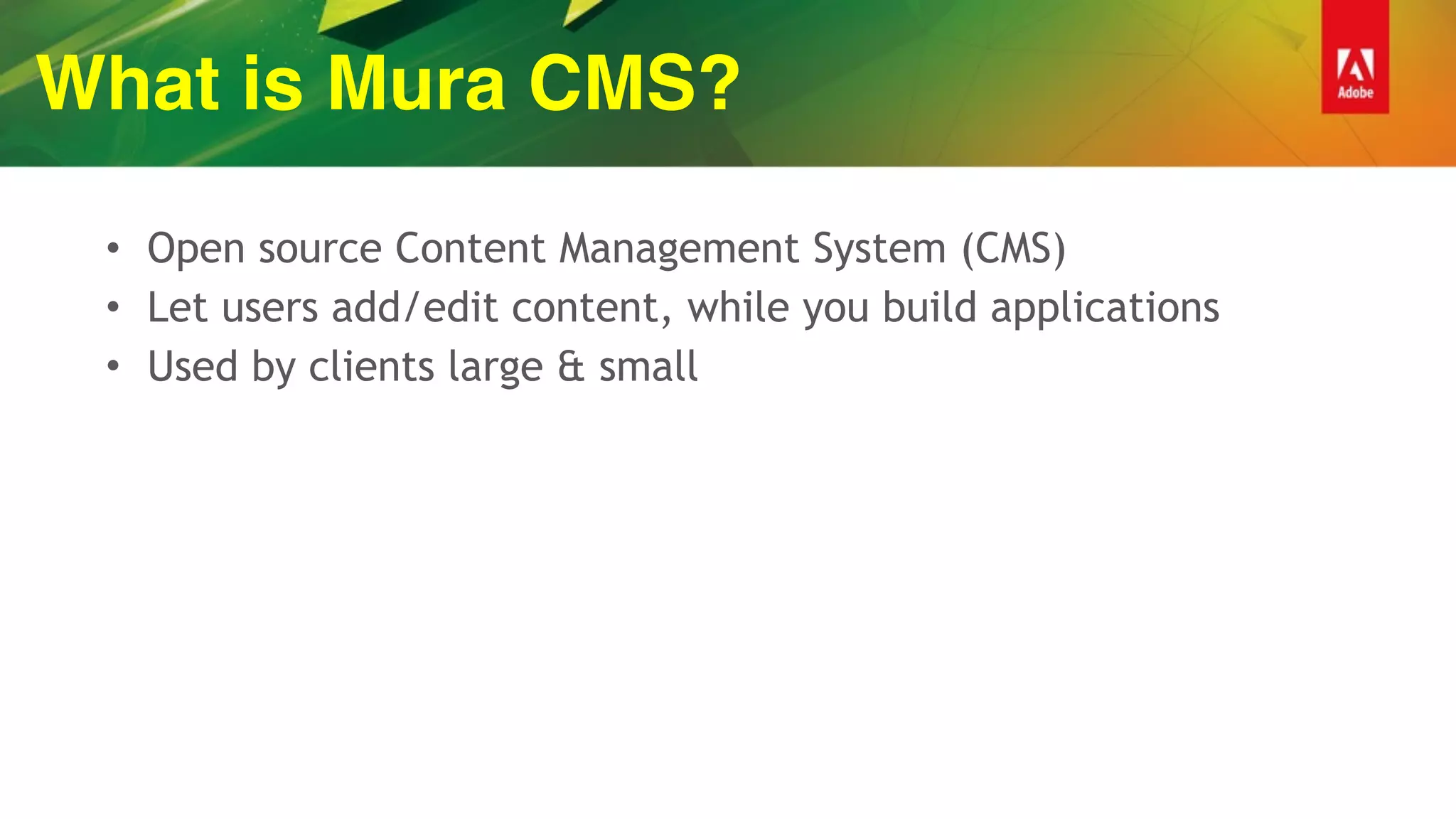

What is Mura CMS?
• Open source Content Management System (CMS)
• Let users add/edit content, while you build applications
• Used by clients large & small

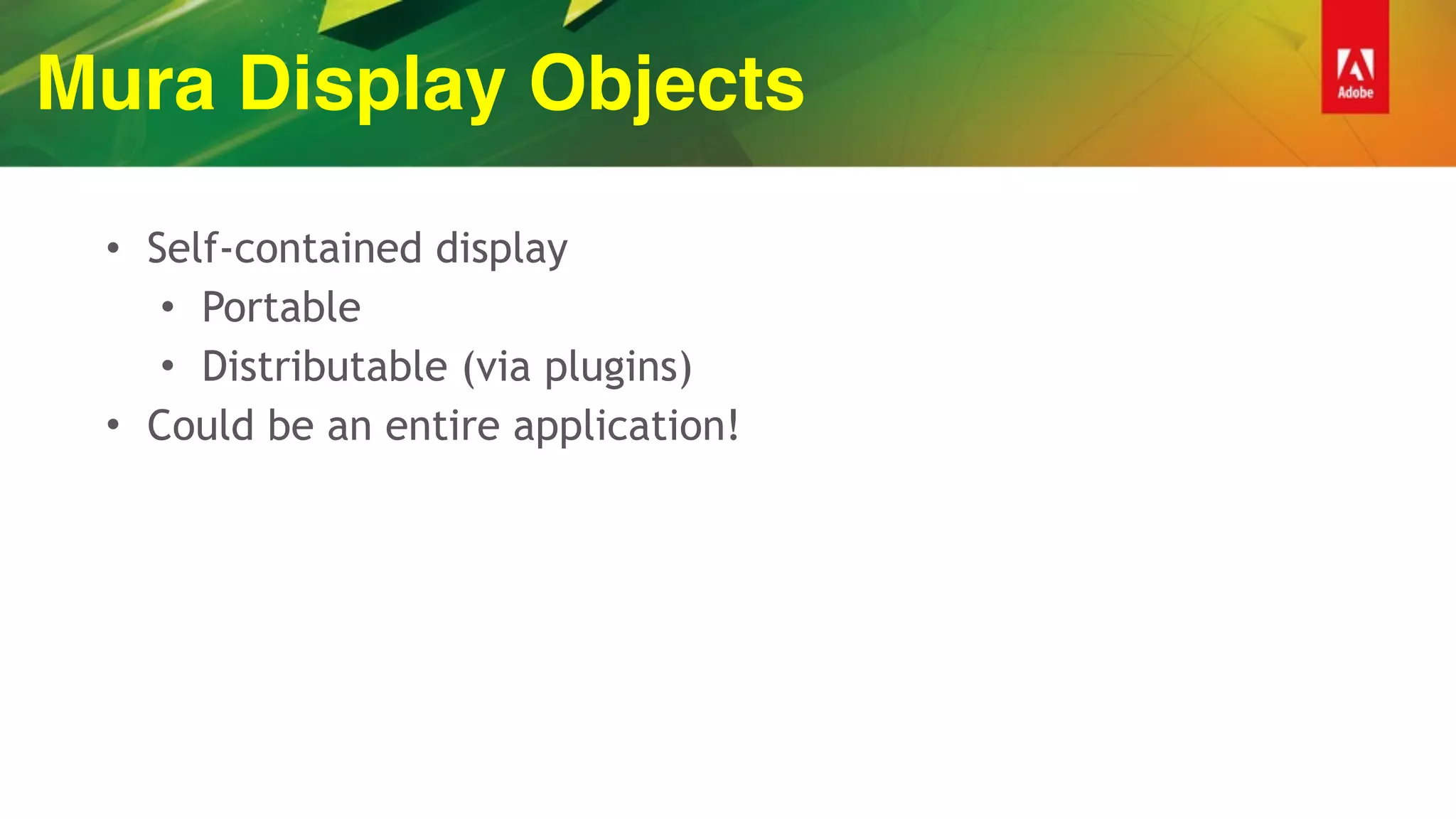

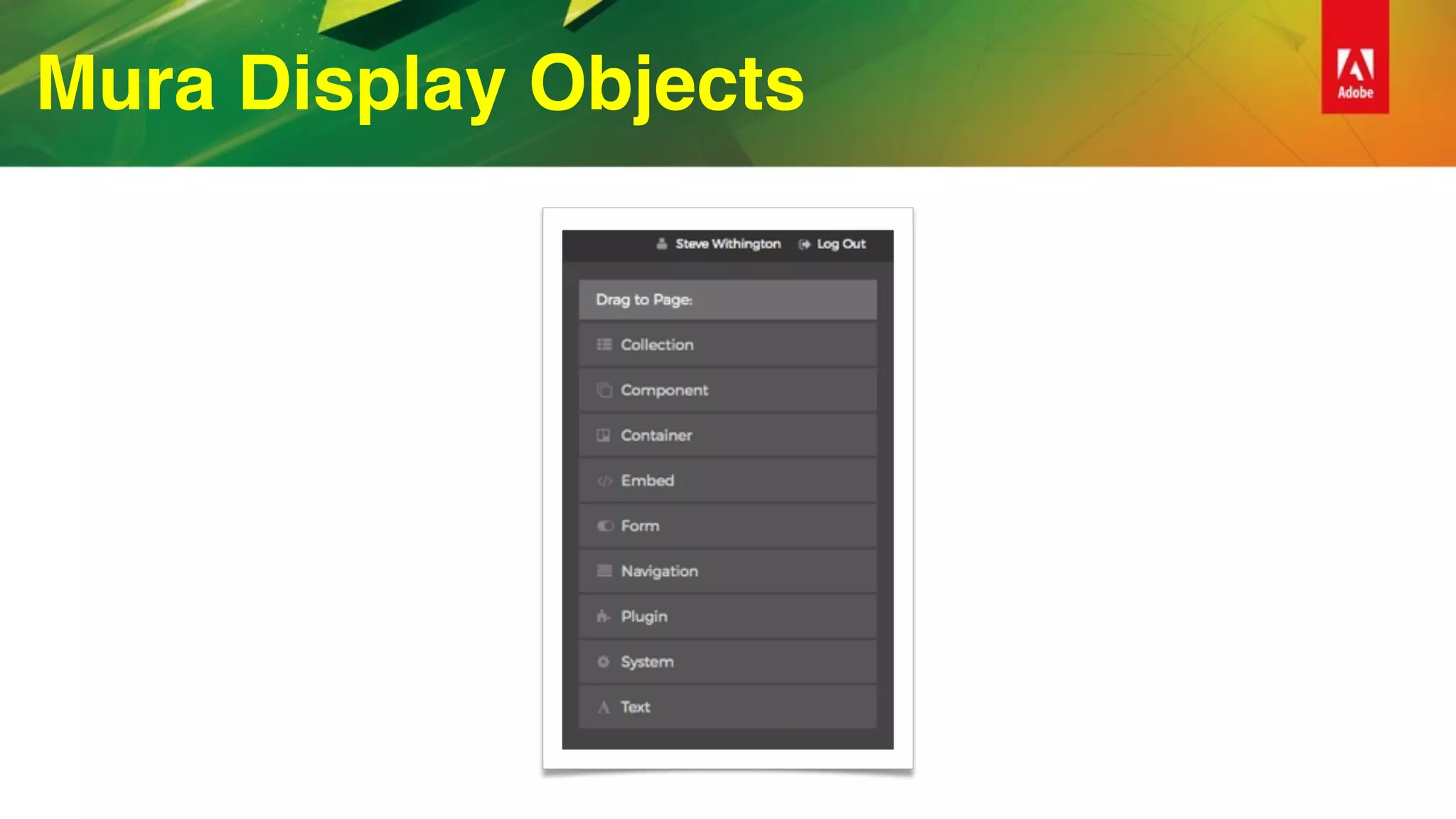

Mura Display Objects
• Self-contained display
• Portable
• Distributable (via plugins)
• Could be an entire application!

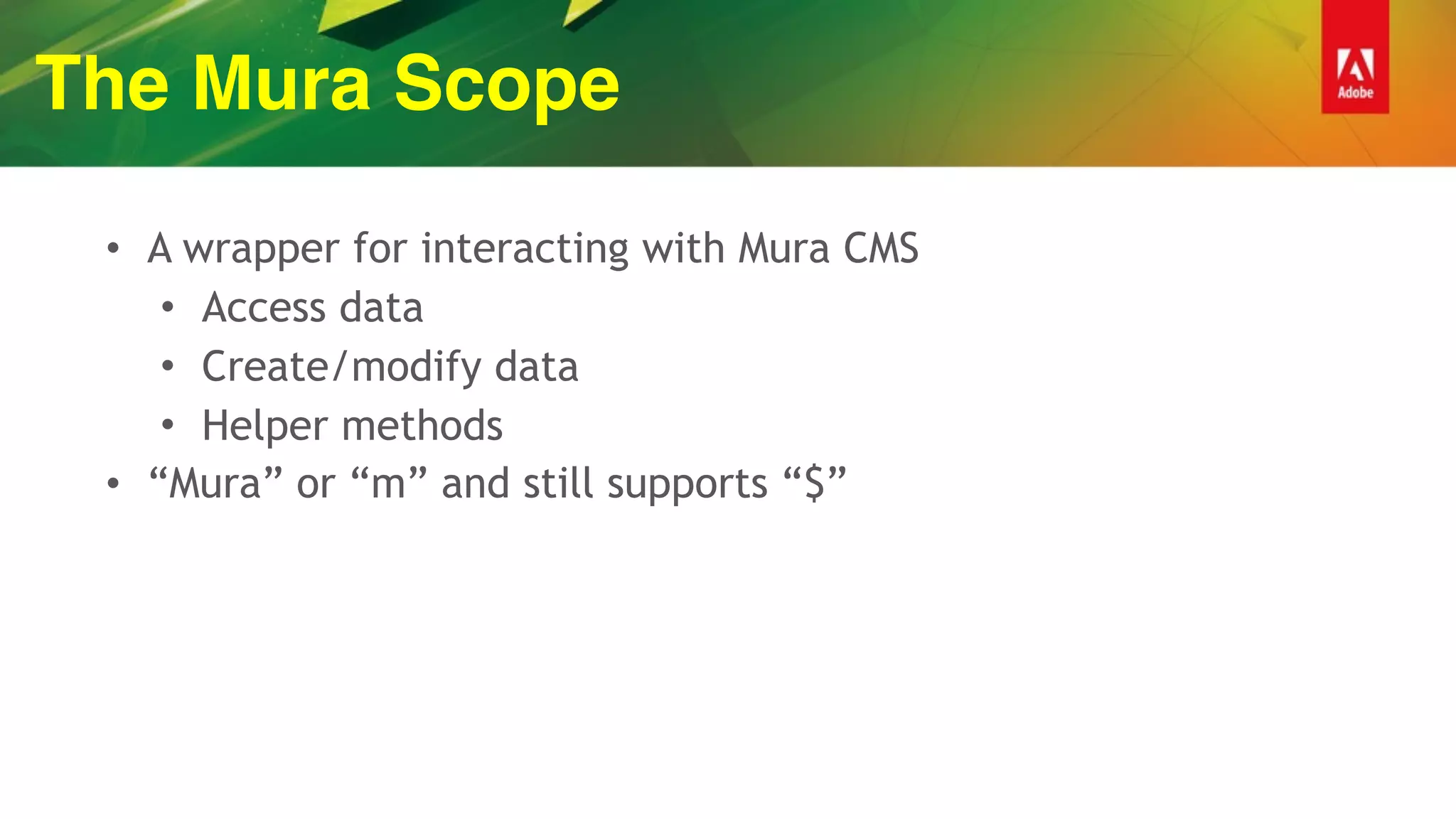

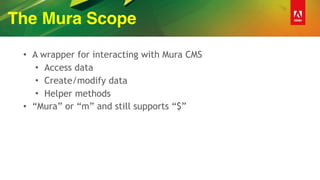

The Mura Scope
• A wrapper for interacting with Mura CMS
• Access data
• Create/modify data
• Helper methods
• “Mura” or “m” and still supports “$”

Mura Display Objects 
Part 1

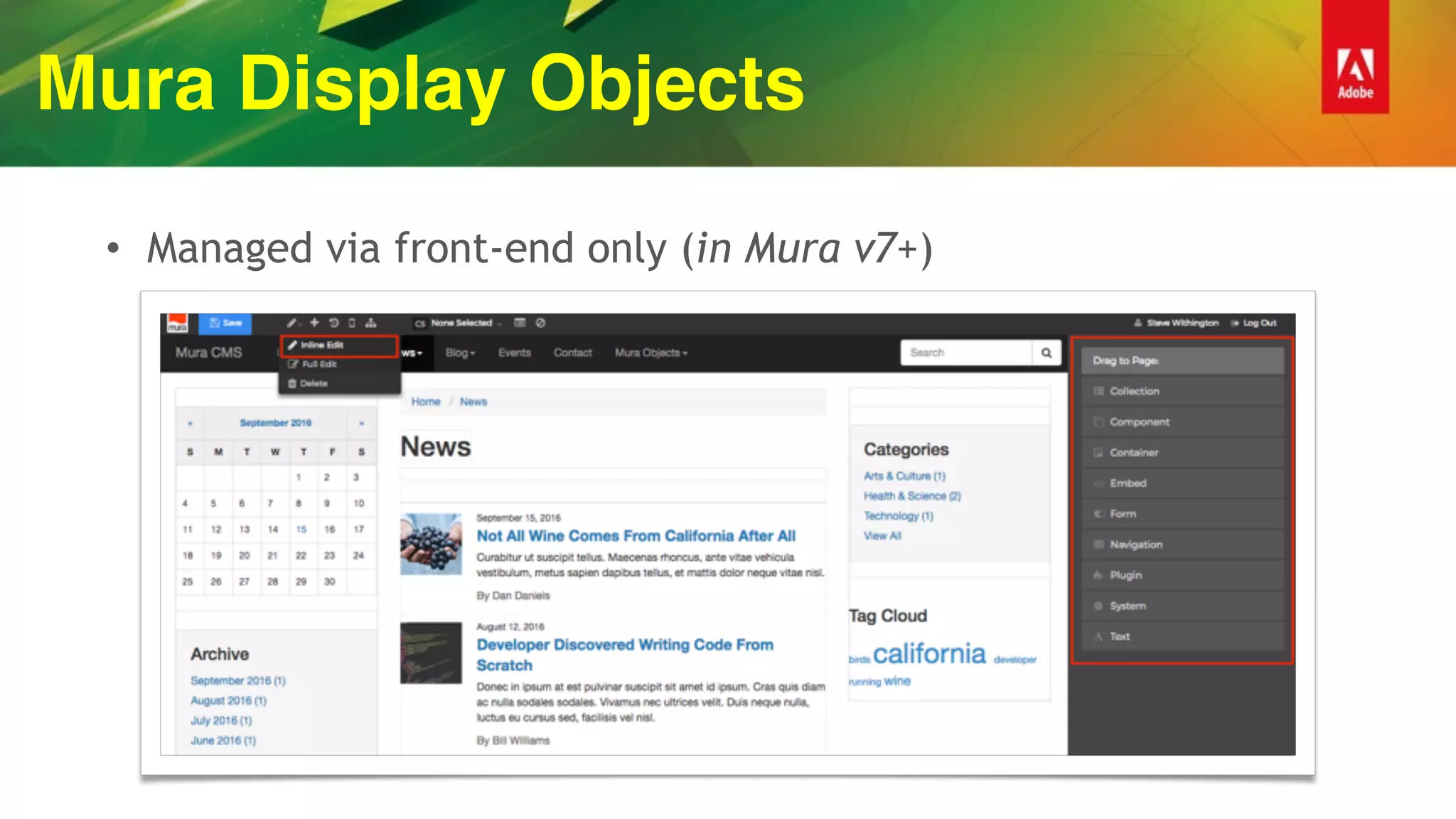

• Managed via front-end only (in Mura v7+)

• Directory based format
{SiteID}/includes/themes/{ThemeName}/display_objects/
{SiteID}/includes/display_objects/

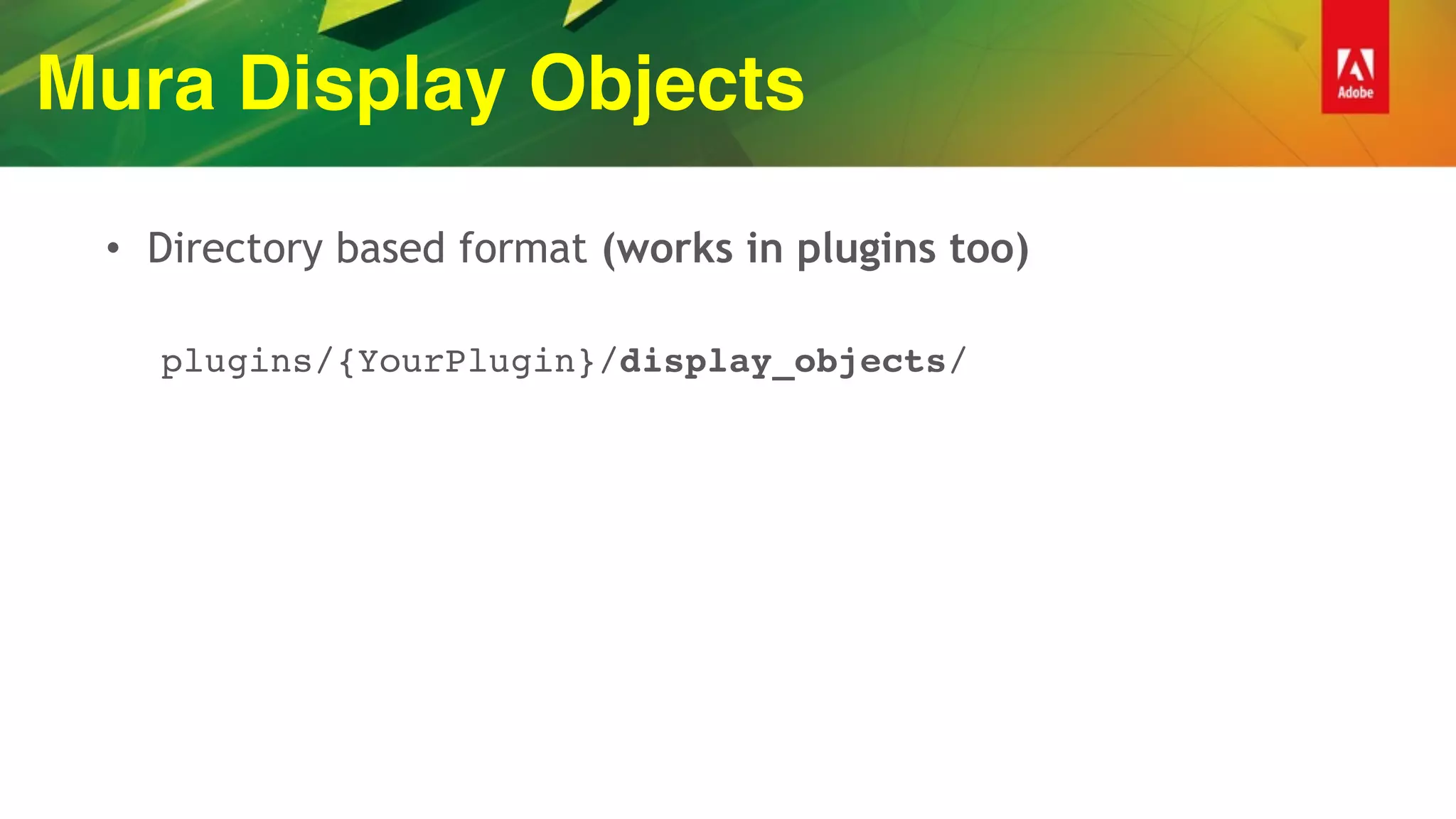

• Directory based format (works in plugins too)
plugins/{YourPlugin}/display_objects/

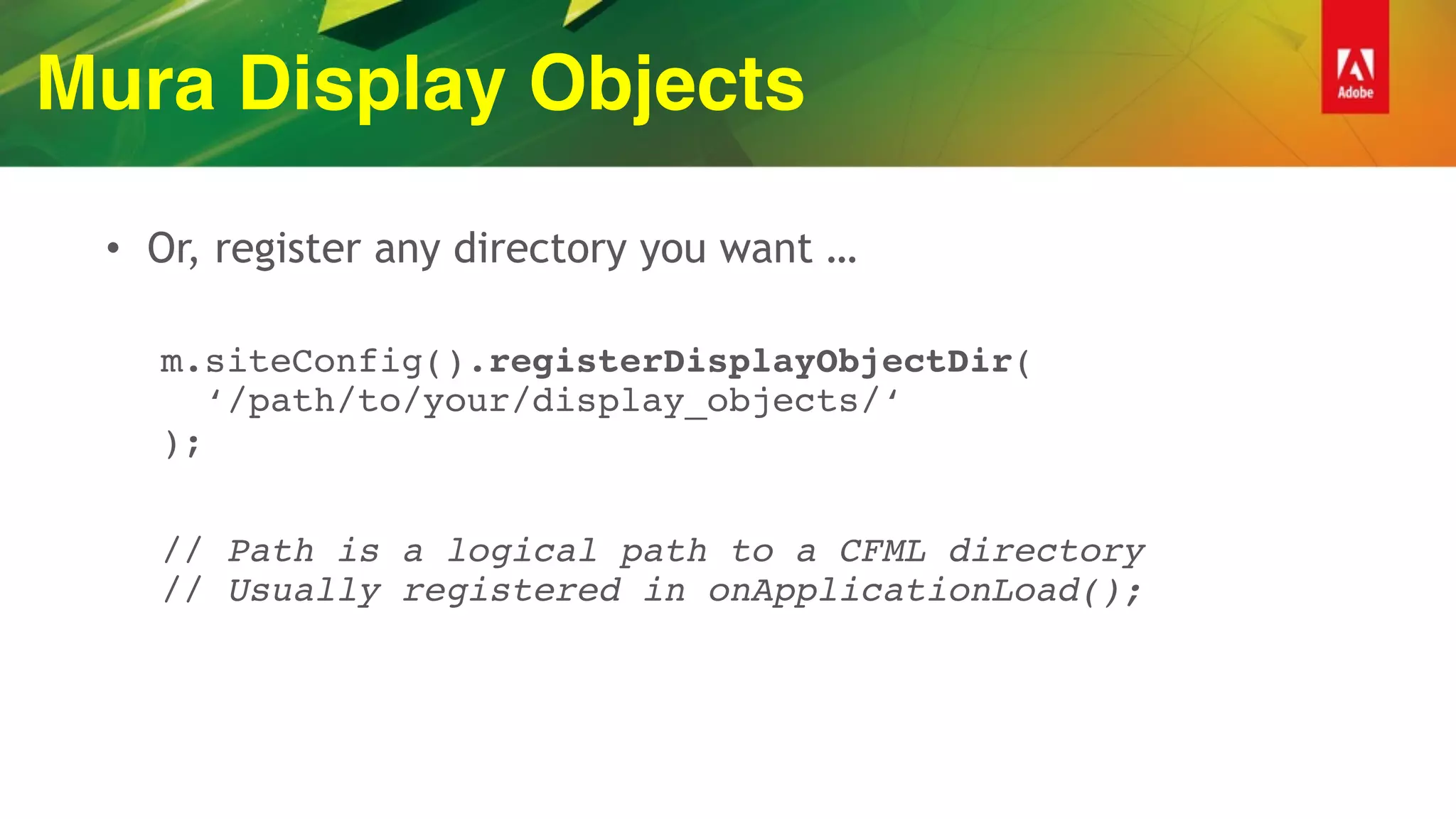

• Or, register any directory you want …
m.siteConfig().registerDisplayObjectDir( 
‘/path/to/your/display_objects/‘ 
);
// Path is a logical path to a CFML directory 
// Usually registered in onApplicationLoad();

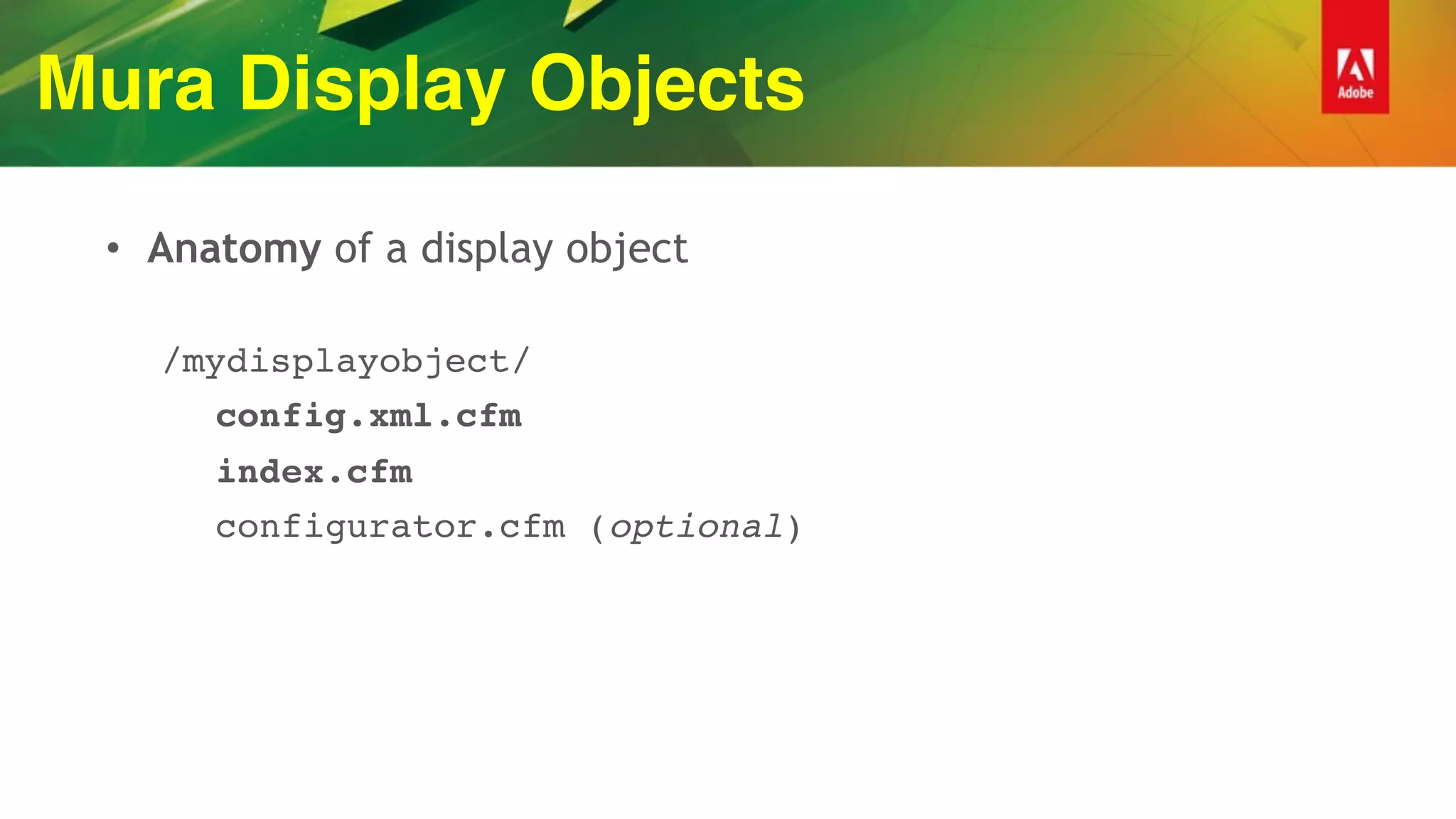

• Anatomy of a display object
/mydisplayobject/
config.xml.cfm
index.cfm
configurator.cfm (optional)

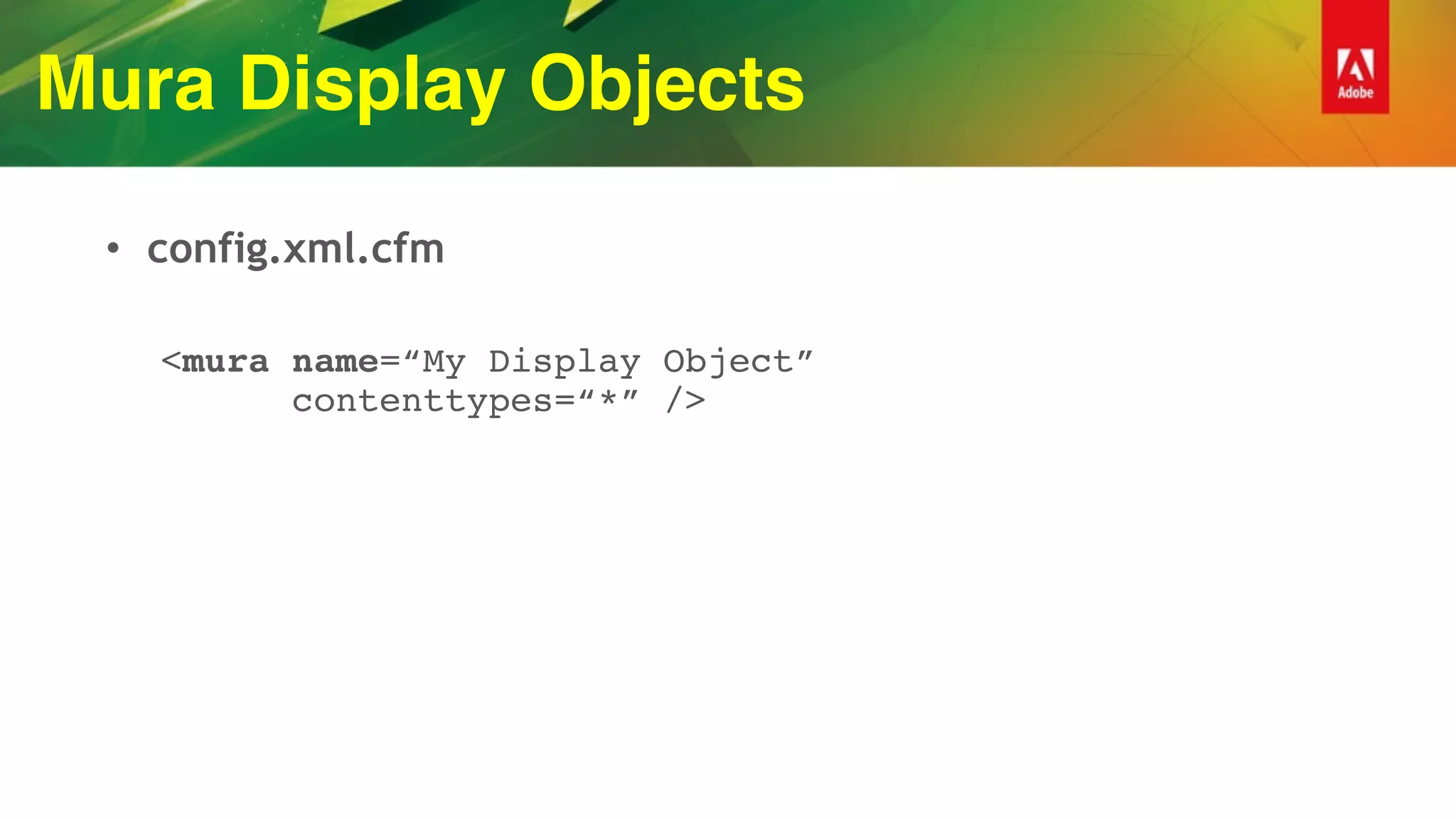

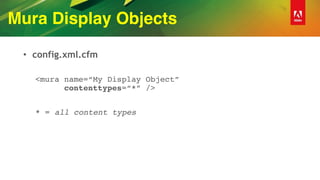

• config.xml.cfm

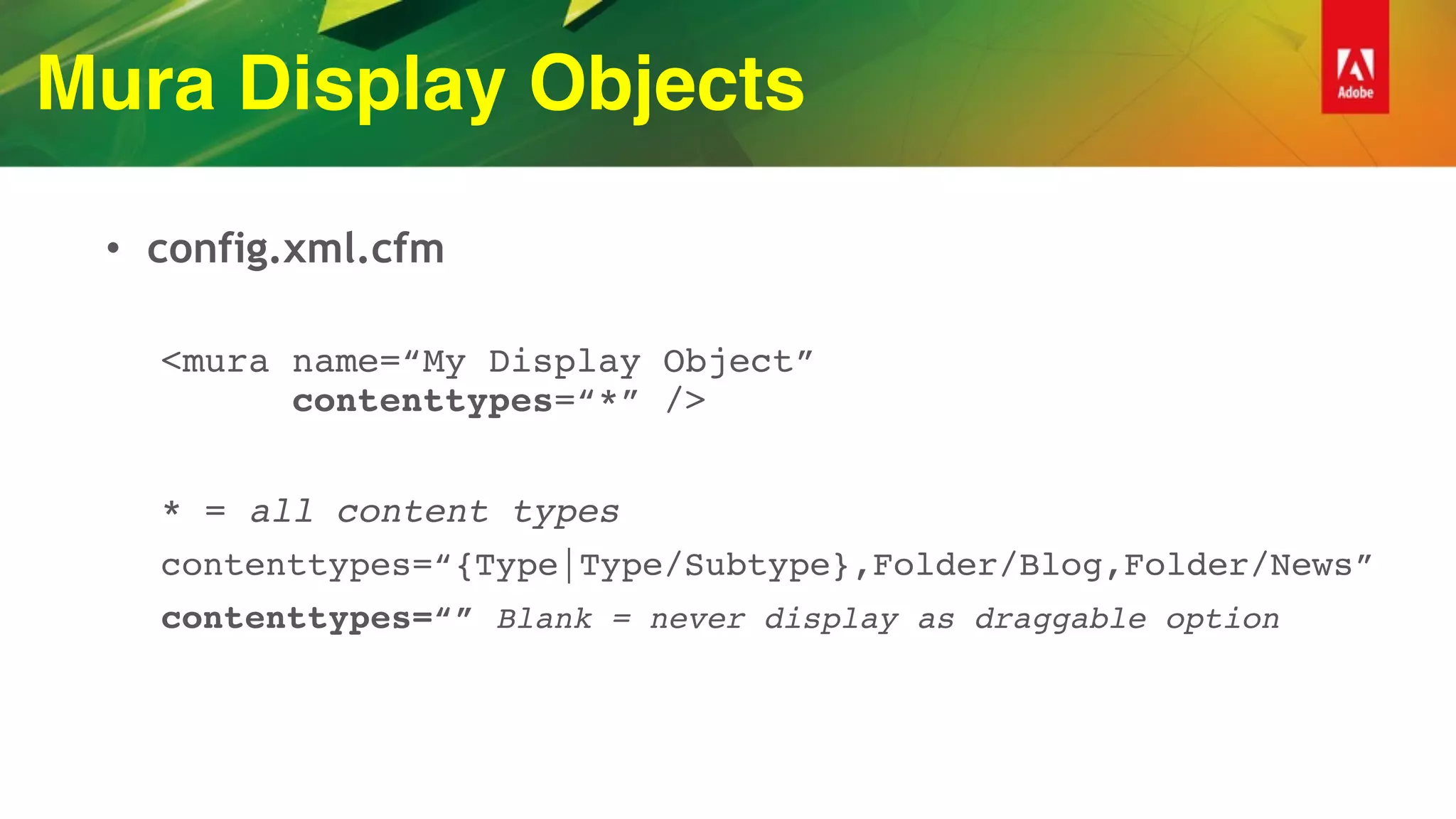

<mura name=“My Display Object” 
contenttypes=“*” />

• config.xml.cfm
* = all content types

• config.xml.cfm
contenttypes=“{Type|Type/Subtype},Folder/Blog,Folder/News”

• config.xml.cfm
contenttypes=“{Type|Type/Subtype},Folder/Blog,Folder/News”
contenttypes=“” Blank = never display as draggable option

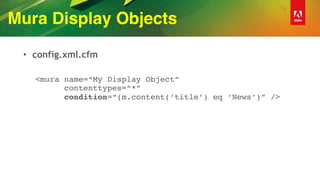

• config.xml.cfm

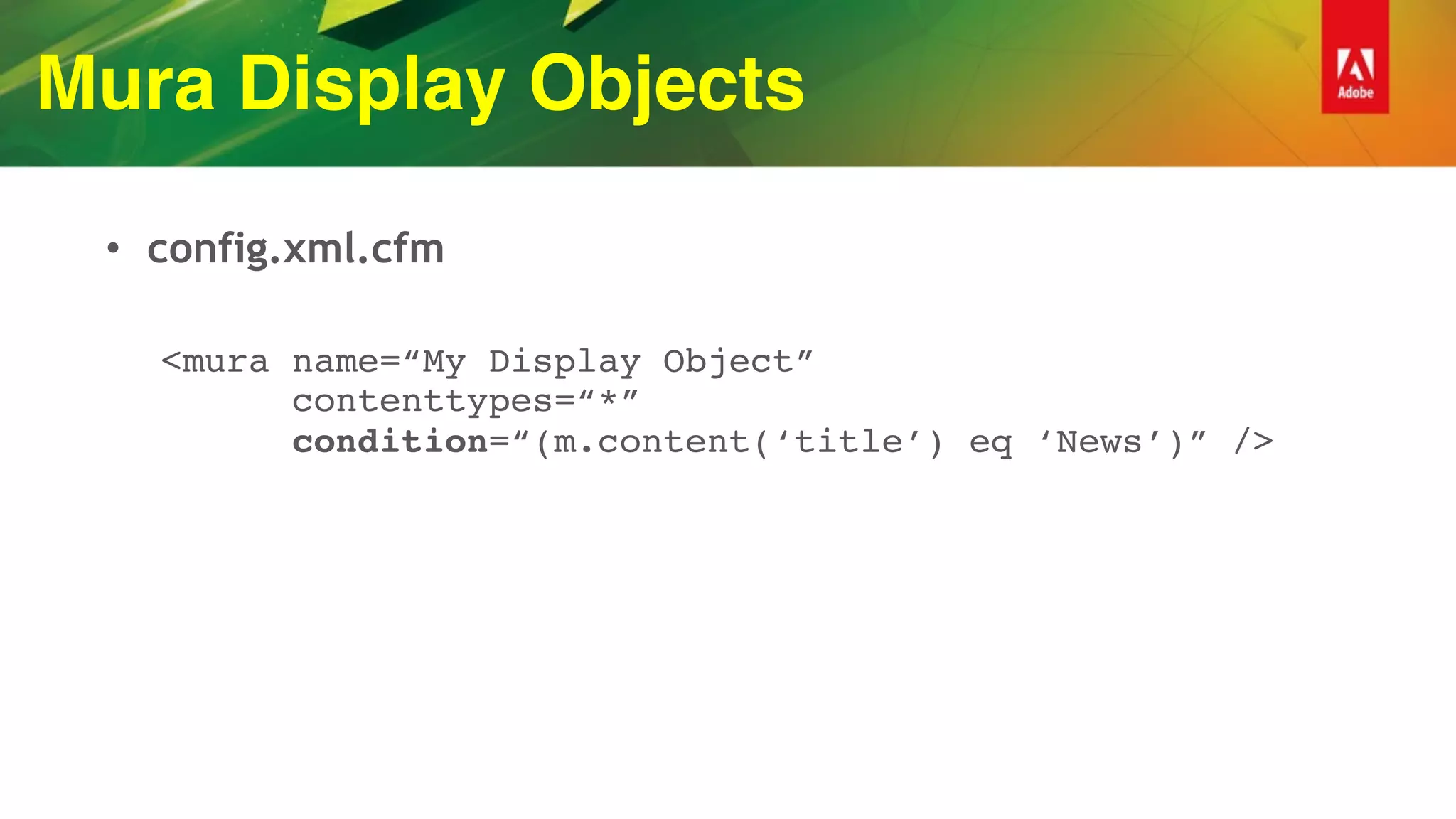

contenttypes=“*” 
condition=“(m.content(‘title’) eq ‘News’)” />

• config.xml.cfm
contenttypes=“*” 
iconclass=“mi-somefontawesomeiconclass” />

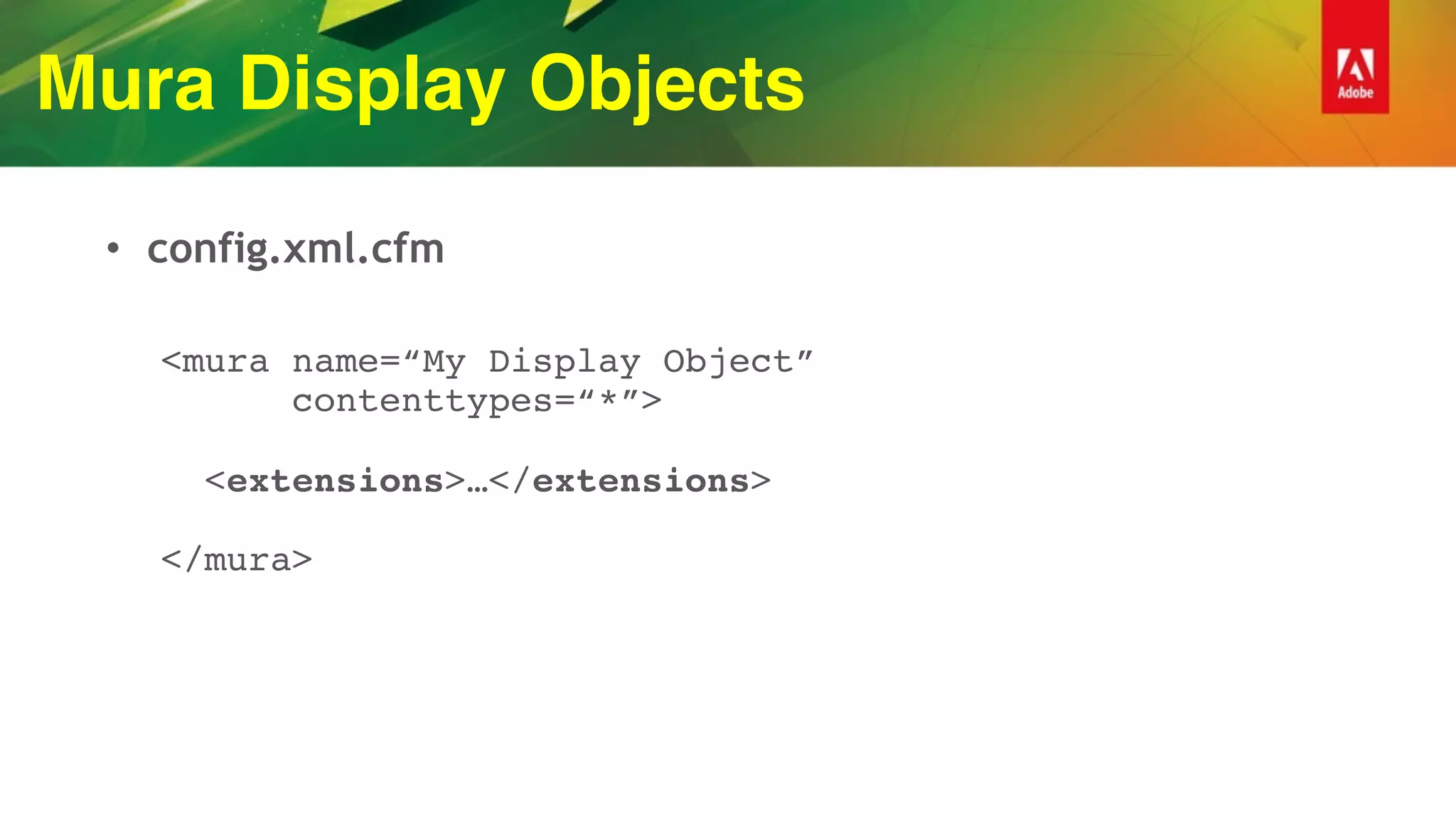

• config.xml.cfm
contenttypes=“*”> 
 
<extensions>…</extensions> 
 
</mura>

• config.xml.cfm
contenttypes=“*”> 
 
<extensions>…</extensions> 
 
<imagesizes> 
<imagesize name=“yoursize” width=“100” height=“100”/> 
</imagesizes> 
 
</mura>

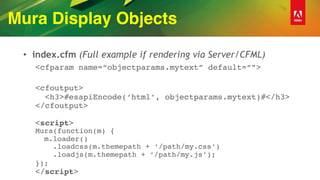

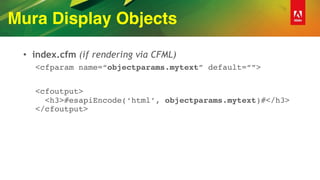

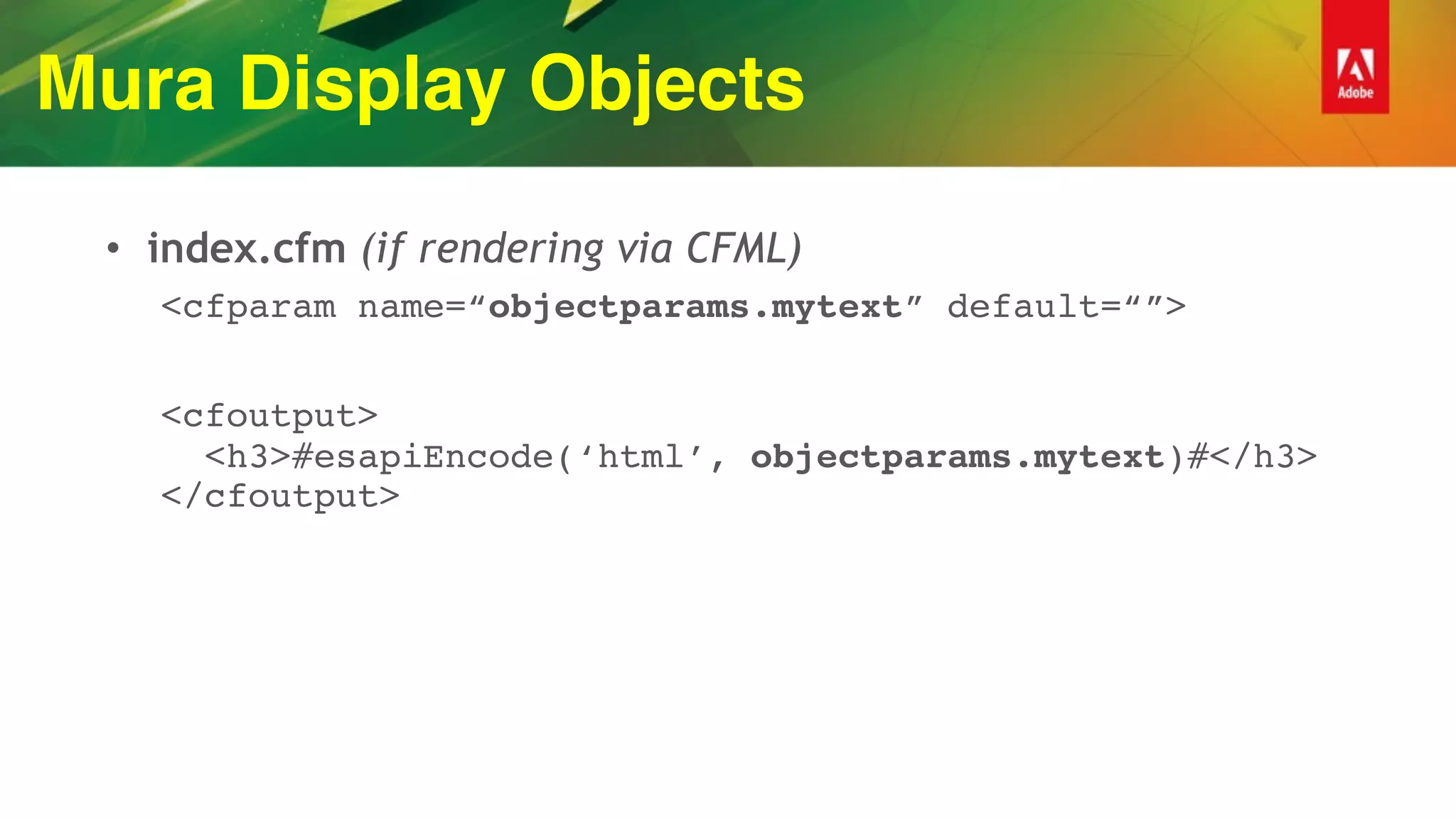

• index.cfm (if rendering via CFML)
<cfparam name=“objectparams.mytext” default=“”>
<cfoutput> 
<h3>#esapiEncode(‘html’, objectparams.mytext)#</h3> 
</cfoutput>

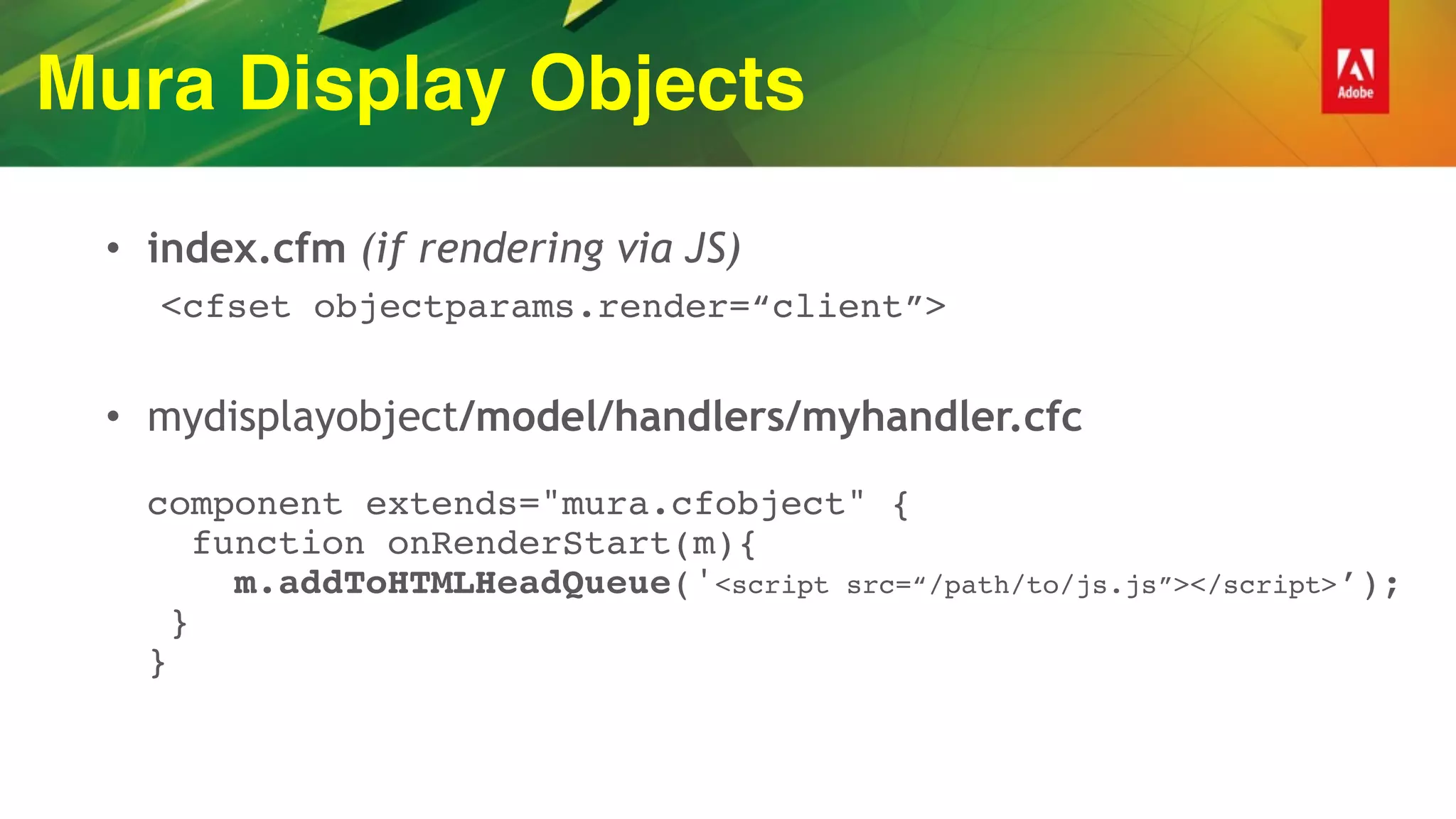

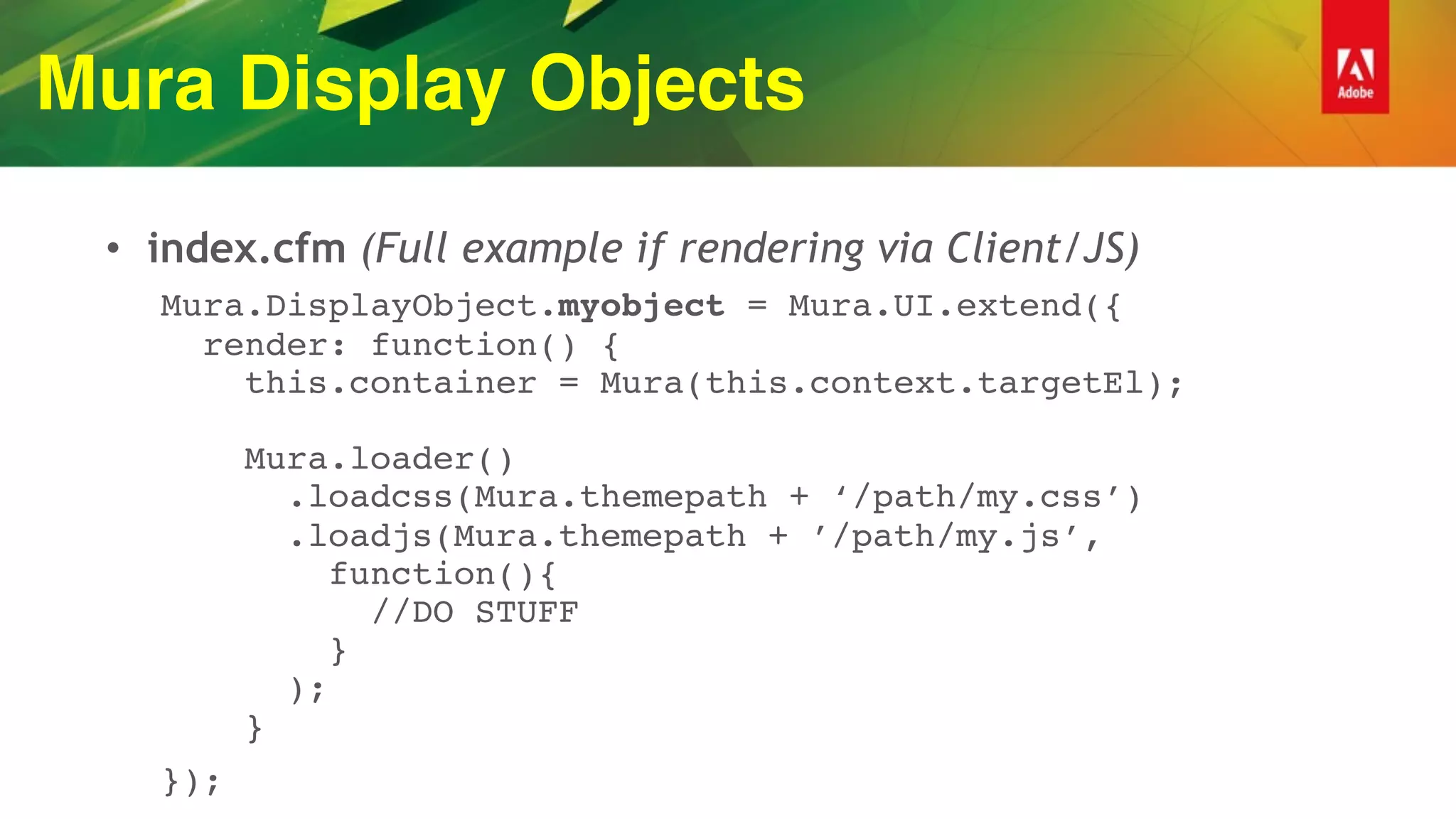

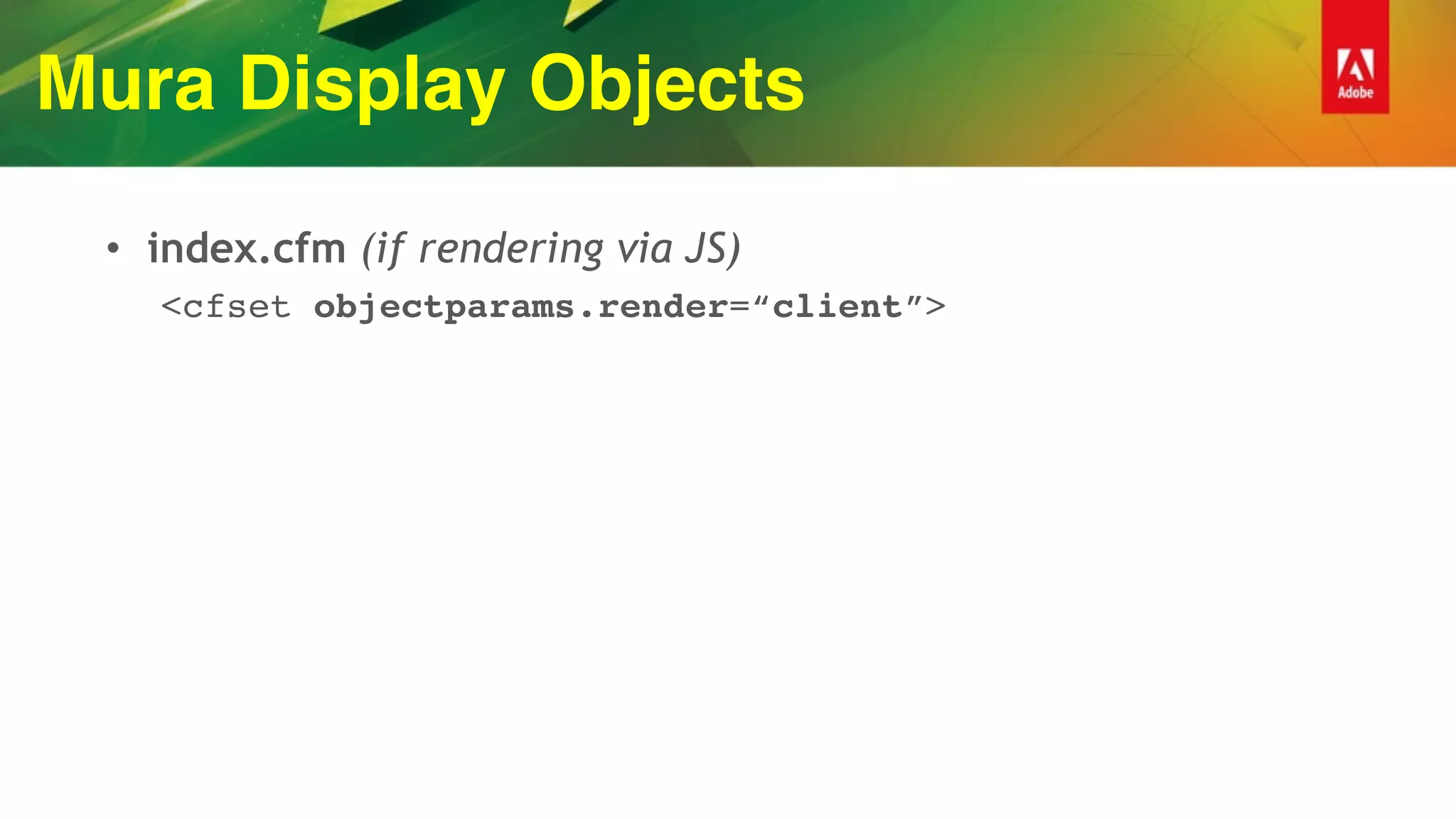

• index.cfm (if rendering via JS)
<cfset objectparams.render=“client”>

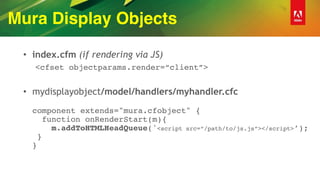

• index.cfm (if rendering via JS)
<cfset objectparams.render=“client”>
• mydisplayobject/model/handlers/myhandler.cfc 
 
component extends="mura.cfobject" { 
function onRenderStart(m){ 
m.addToHTMLHeadQueue('<script src=“/path/to/js.js”></script>’); 
} 
}

• configurator.cfm (optional)
<cfparam name=“objectparams.mytext” default=“”> 
 
 
<cfoutput> 
<div class=“mura-control-group”> 
<label class=“mura-control-label”>My Text</label> 
<input type=“text” 
name=“mytext” 
class=“objectParam” 
value=“#esapiEncode(‘html_attr’, objectparams.mytext#”> 
</cfoutput>

• configurator.cfm (optional)
 
<cf_objectconfigurator> 
<cfoutput> 
<div class=“mura-control-group”> 
<label class=“mura-control-label”>My Text</label> 
<input type=“text” 
name=“mytext” 
class=“objectParam” 
value=“#esapiEncode(‘html_attr’, objectparams.mytext#”> 
</cfoutput> 
</cf_objectconfigurator>

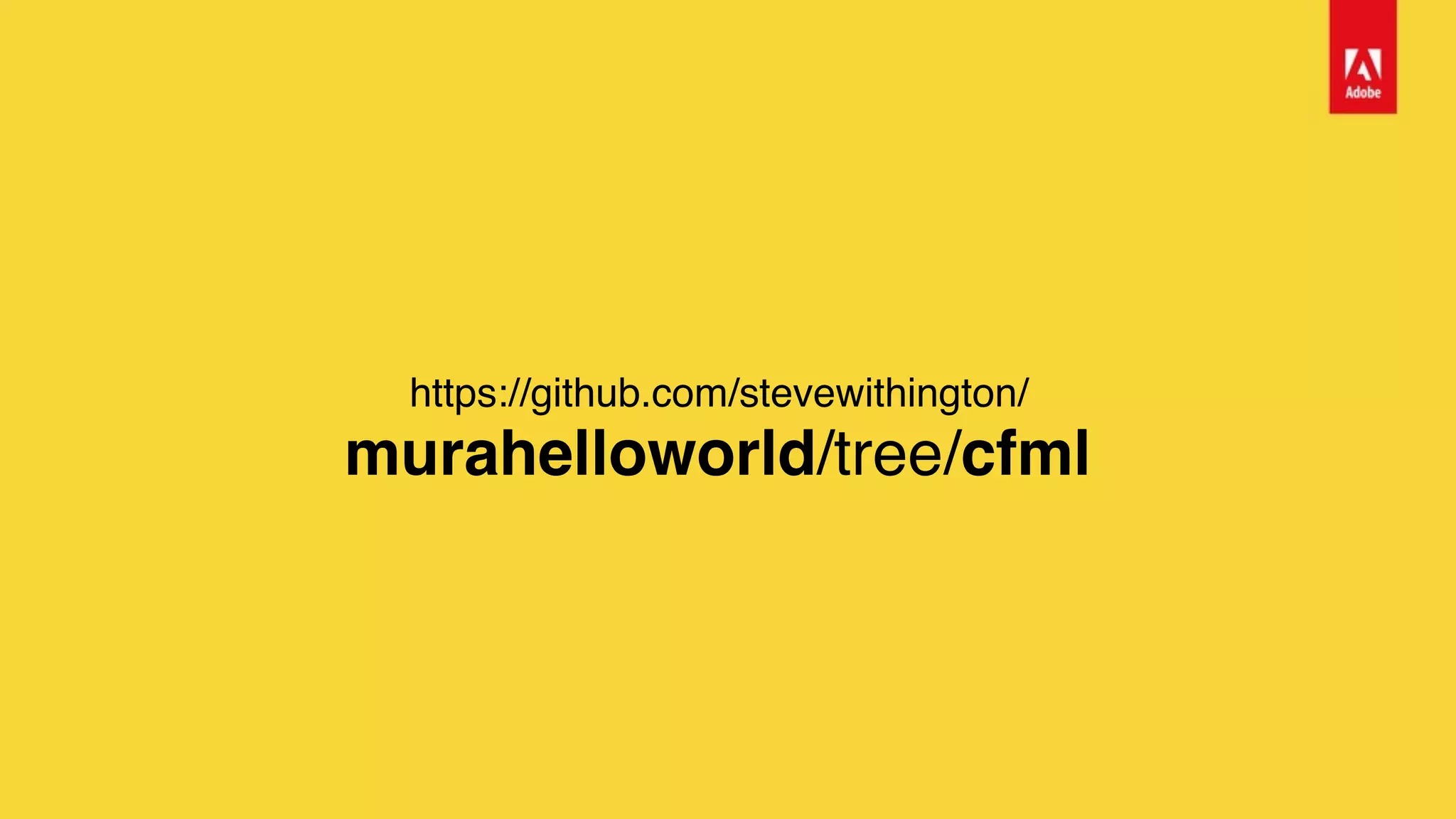

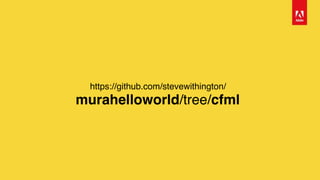

https://github.com/stevewithington/ 
murahelloworld/tree/cfml

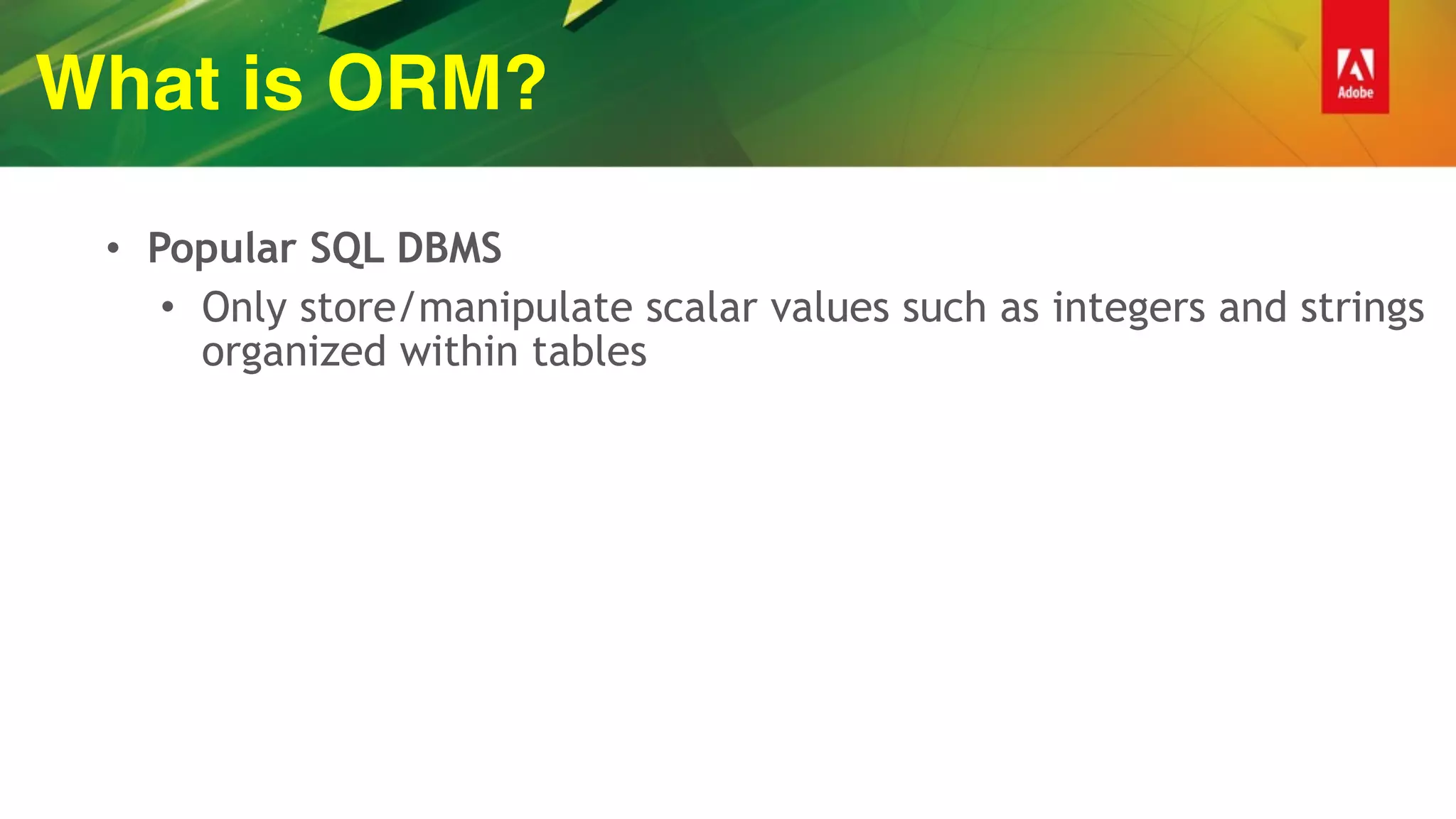

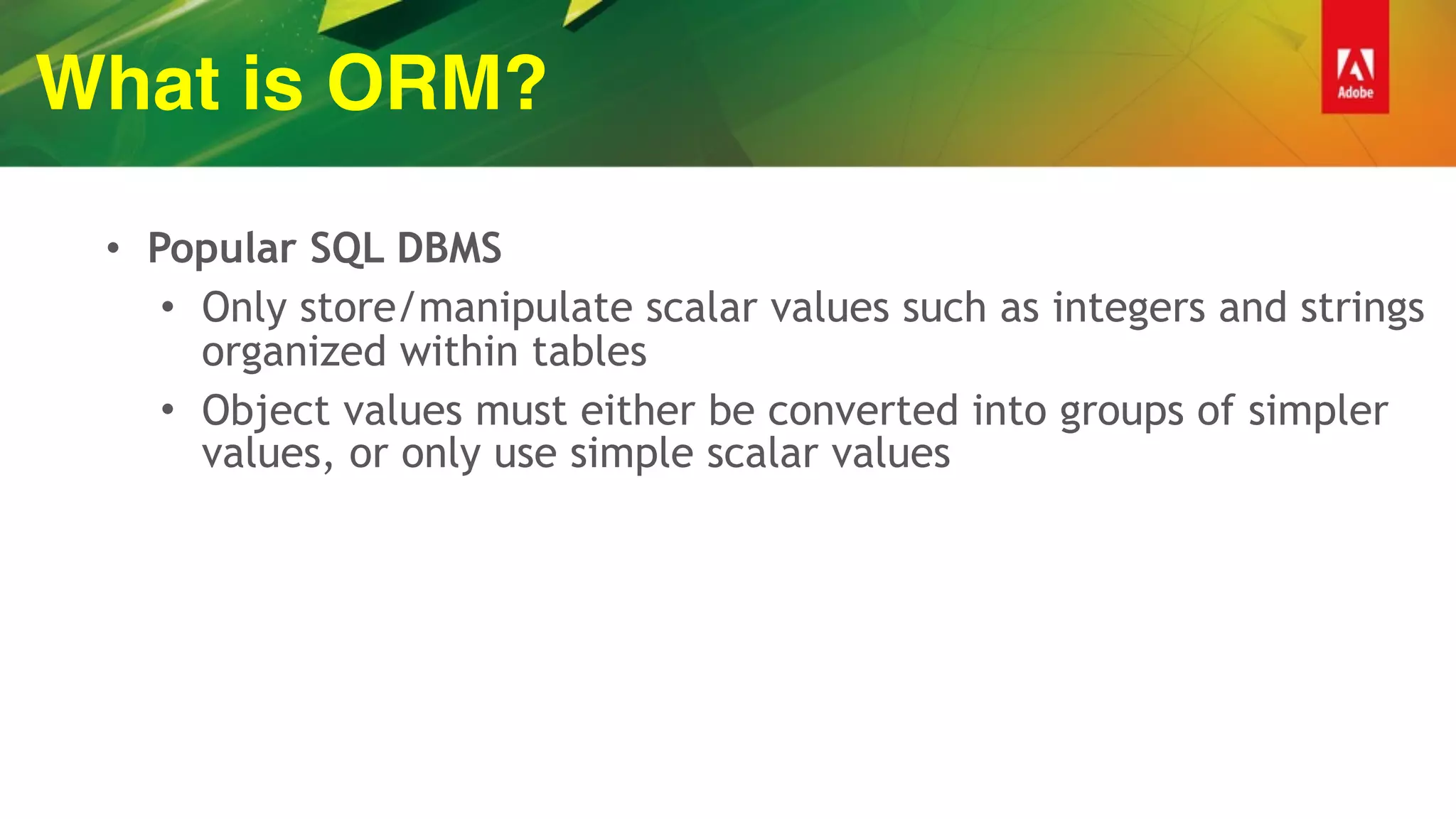

What is ORM?
• Only store/manipulate scalar values such as integers and strings
organized within tables

What is ORM?
• Only store/manipulate scalar values such as integers and strings
organized within tables
• Object values must either be converted into groups of simpler
values, or only use simple scalar values

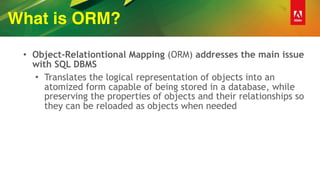

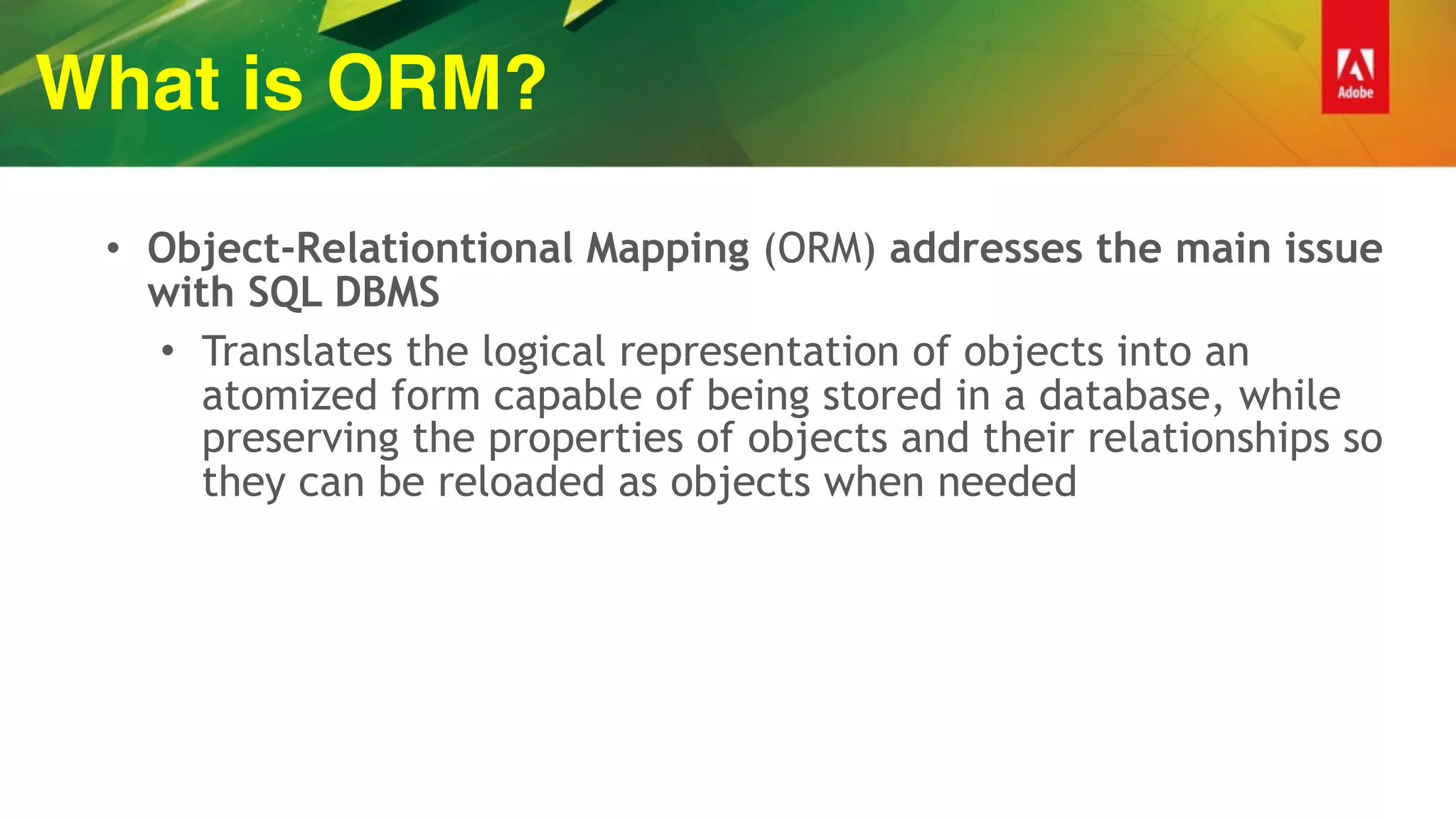

What is ORM?
• Object-Relationtional Mapping (ORM) addresses the main issue
with SQL DBMS
• Translates the logical representation of objects into an
atomized form capable of being stored in a database, while
preserving the properties of objects and their relationships so
they can be reloaded as objects when needed

What is ORM?
• Object-Relational Mapping (ORM) is essentially a
“virtual object database”

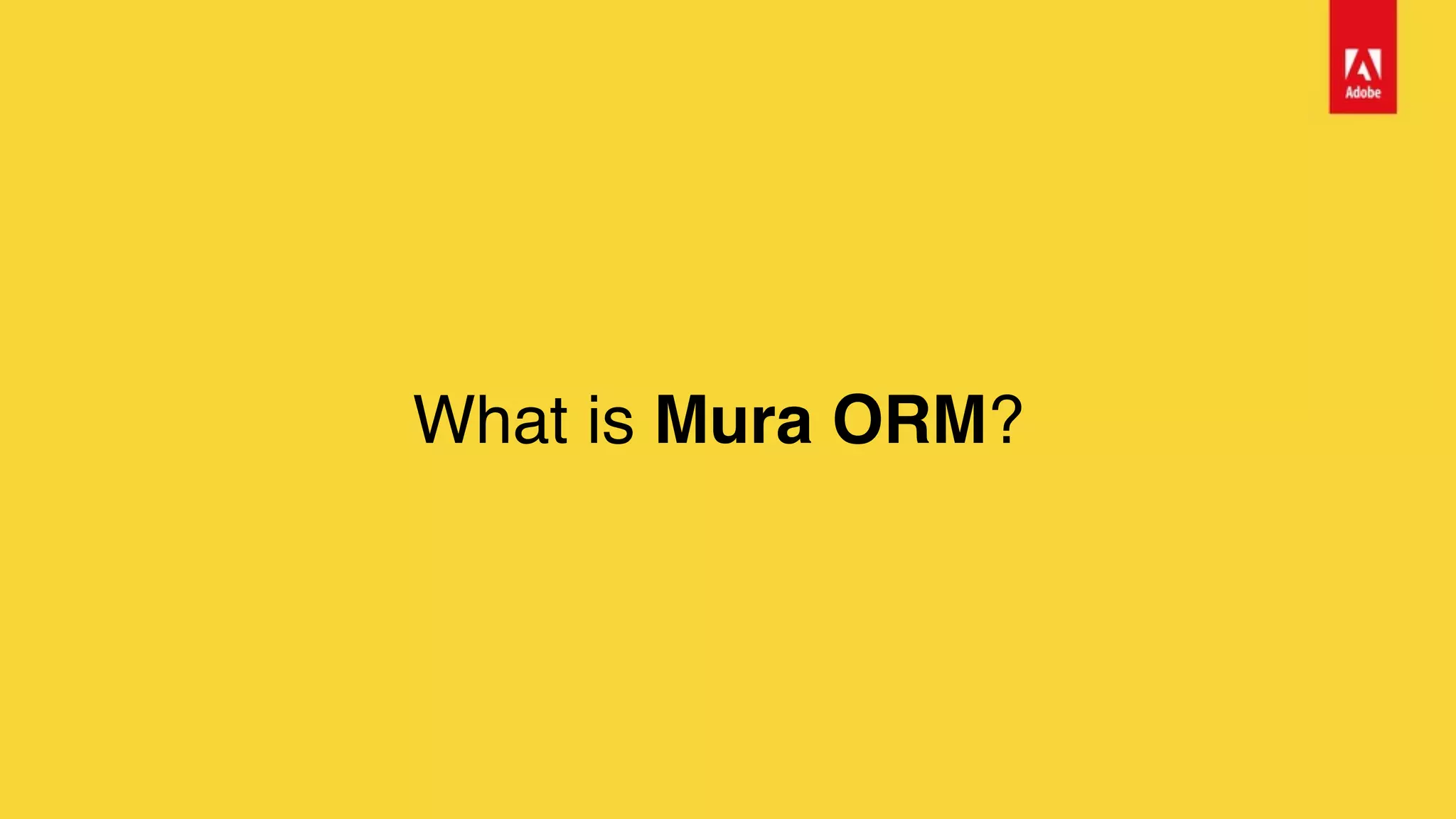

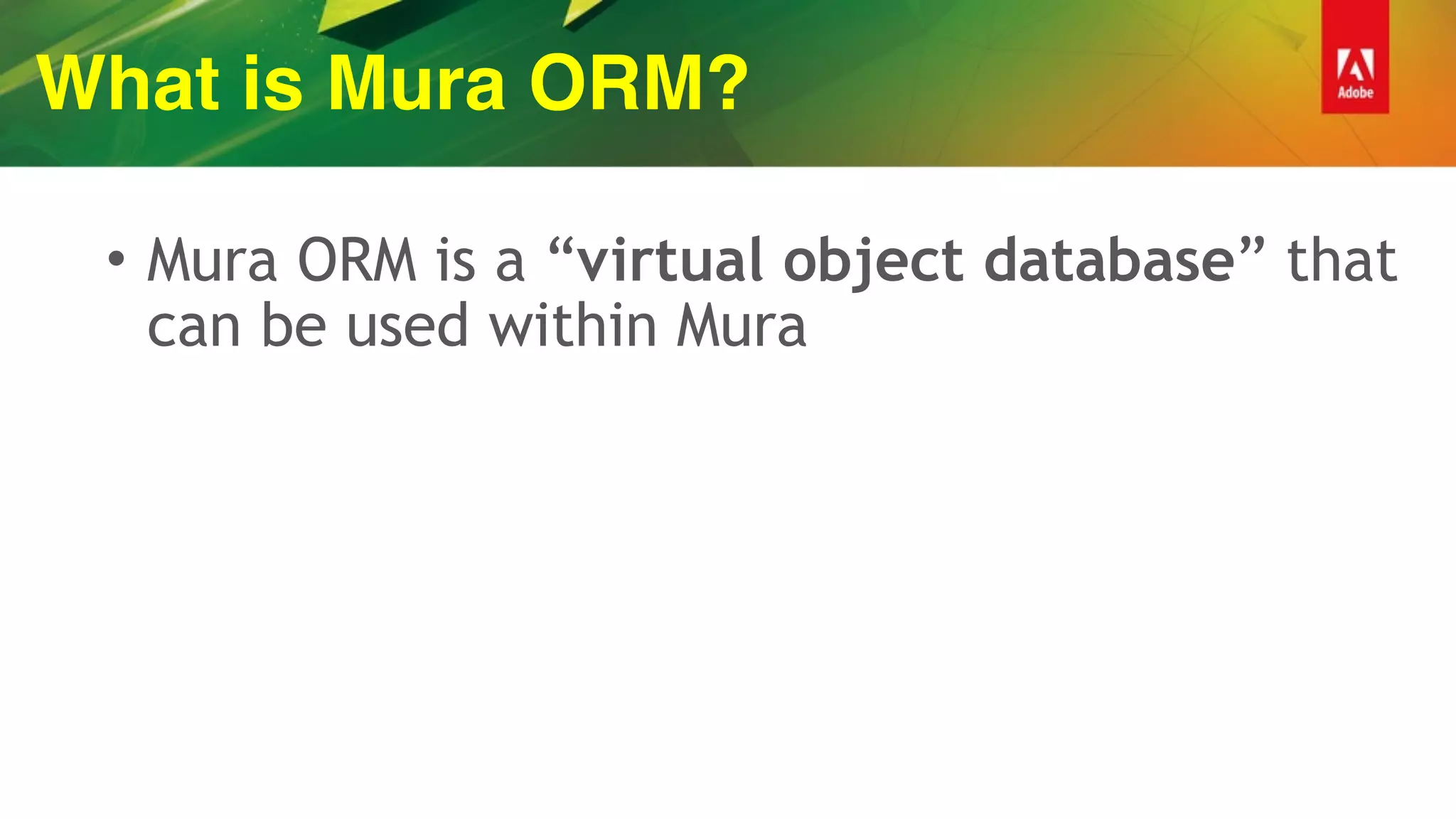

What is Mura ORM?
• Mura ORM is a “virtual object database” that
can be used within Mura

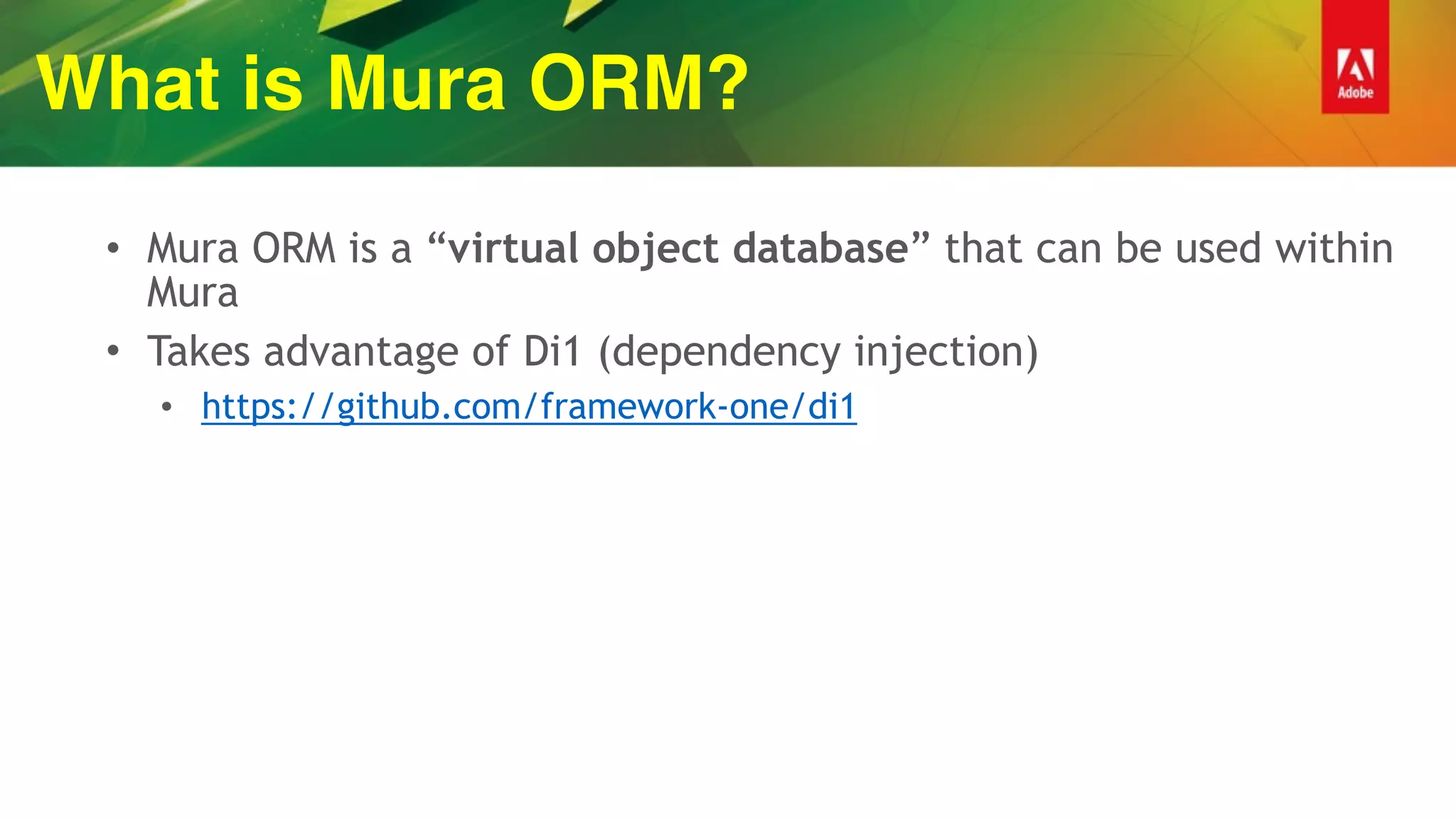

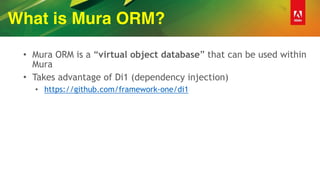

What is Mura ORM?

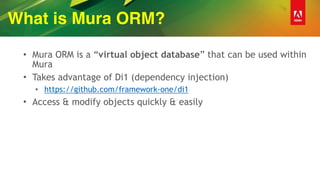

• Mura ORM is a “virtual object database” that can be used within
Mura
• Takes advantage of Di1 (dependency injection)
• https://github.com/framework-one/di1

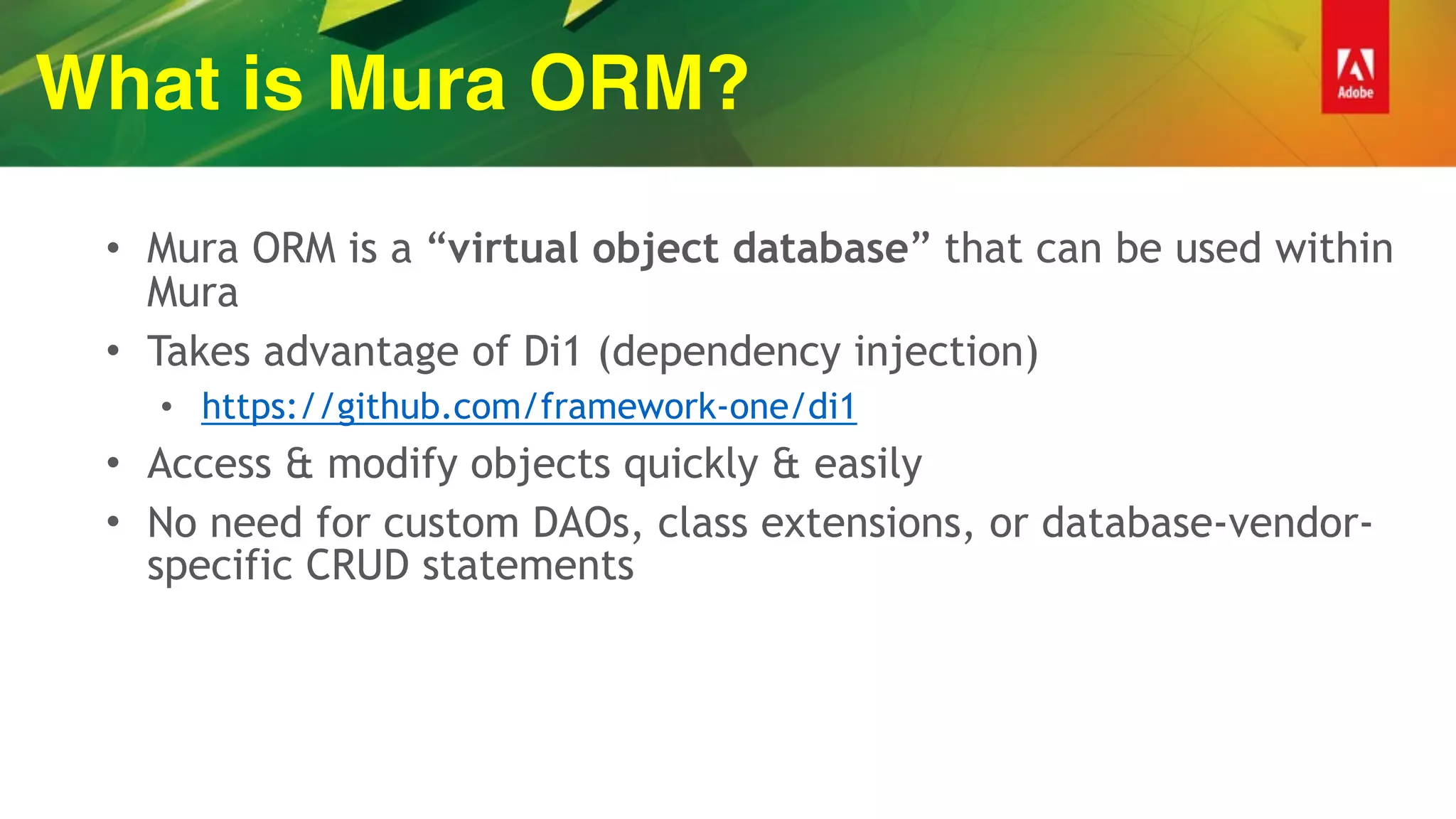

What is Mura ORM?
Mura
• Access & modify objects quickly & easily

What is Mura ORM?
Mura
• No need for custom DAOs, class extensions, or database-vendor-
specific CRUD statements

What is Mura ORM?
Mura
• No need for custom DAOs, class extensions, or database-vendor-
specific CRUD statements
• Similar to ColdFusion-based Hibernate ORM (but not the same!)

Mura ORM Configuration

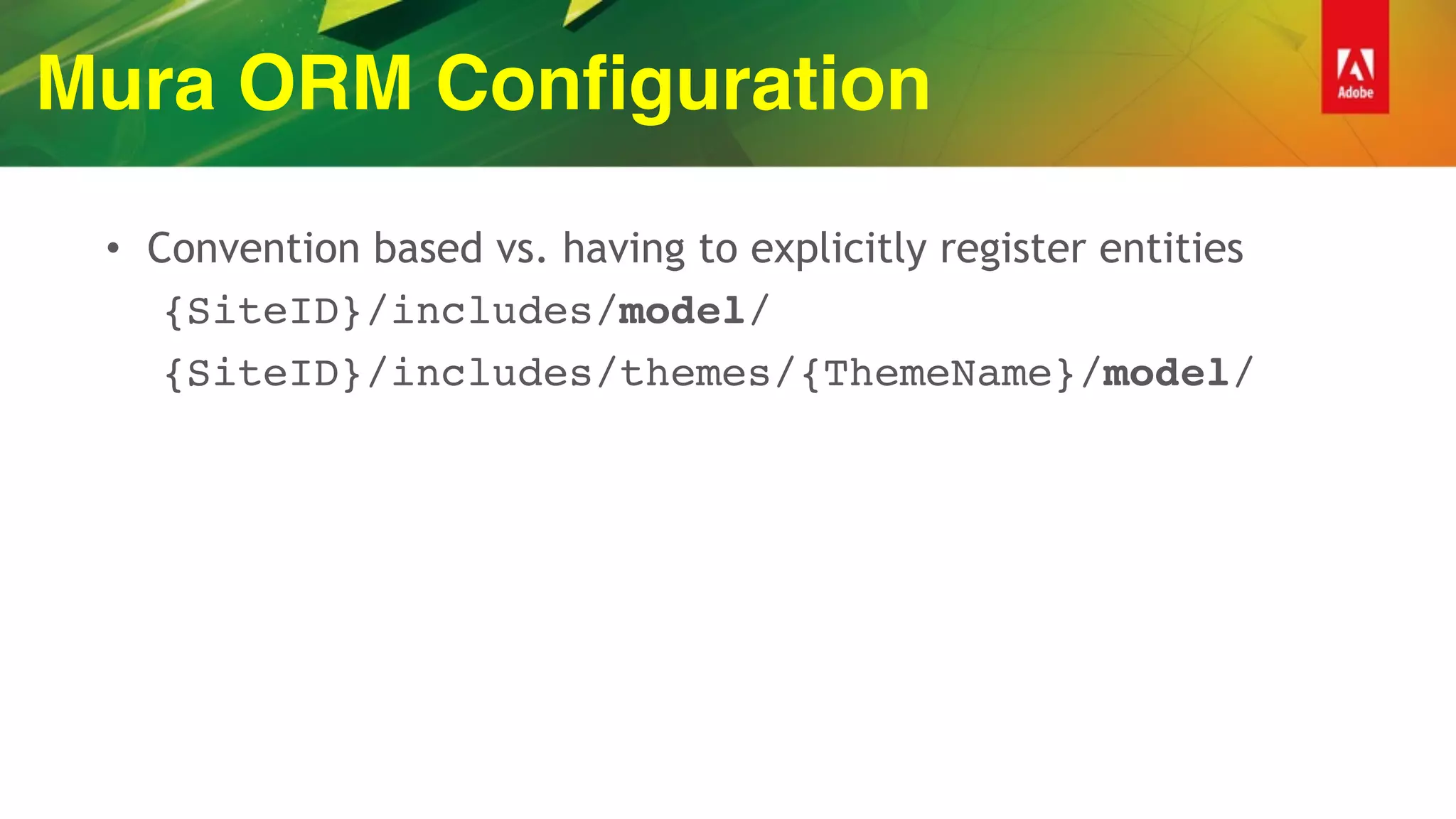

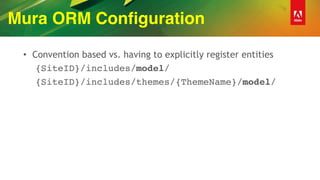

• Convention based vs. having to explicitly register entities
{SiteID}/includes/model/
{SiteID}/includes/themes/{ThemeName}/model/

• Convention based vs. having to explicitly register entities
{SiteID}/includes/model/
{SiteID}/includes/themes/{ThemeName}/model/
 
Or any display object’s “model” directory!
../display_objects/mydisplayobject/model/

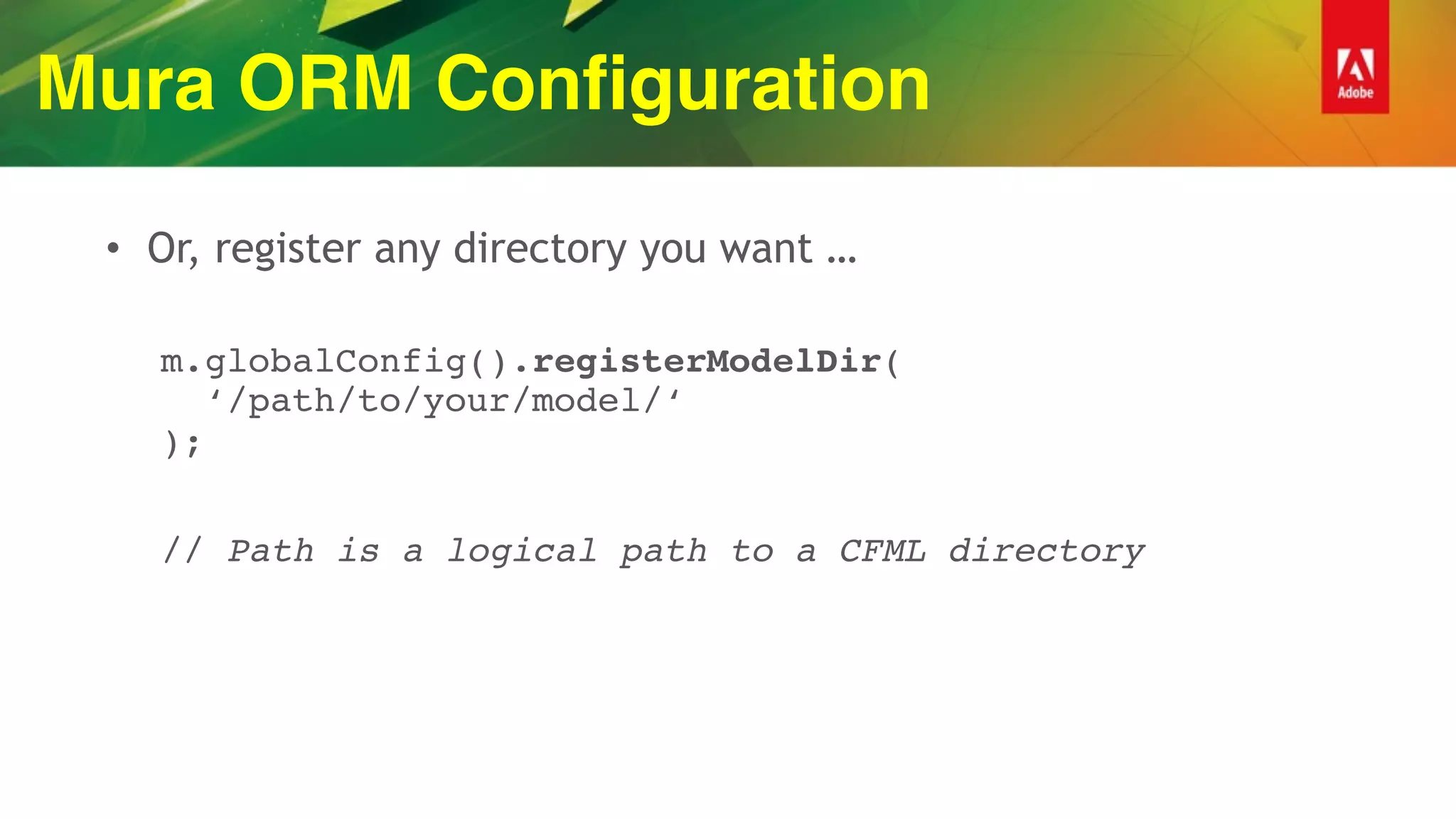

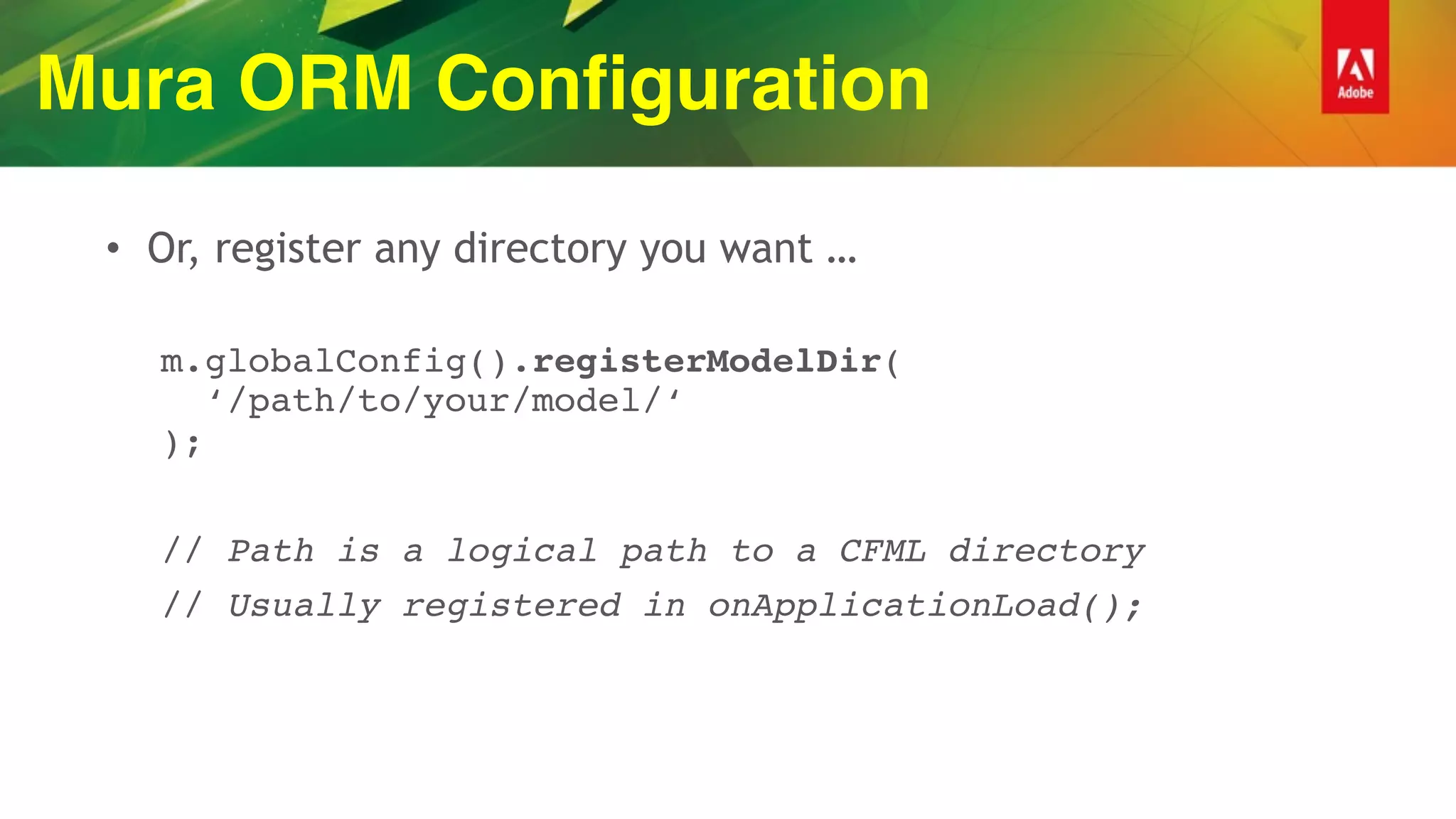

m.globalConfig().registerModelDir( 
‘/path/to/your/model/‘ 
);
// Path is a logical path to a CFML directory

m.globalConfig().registerModelDir( 
‘/path/to/your/model/‘ 
);

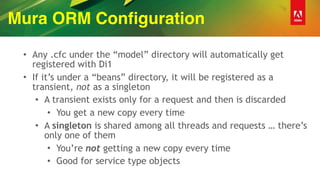

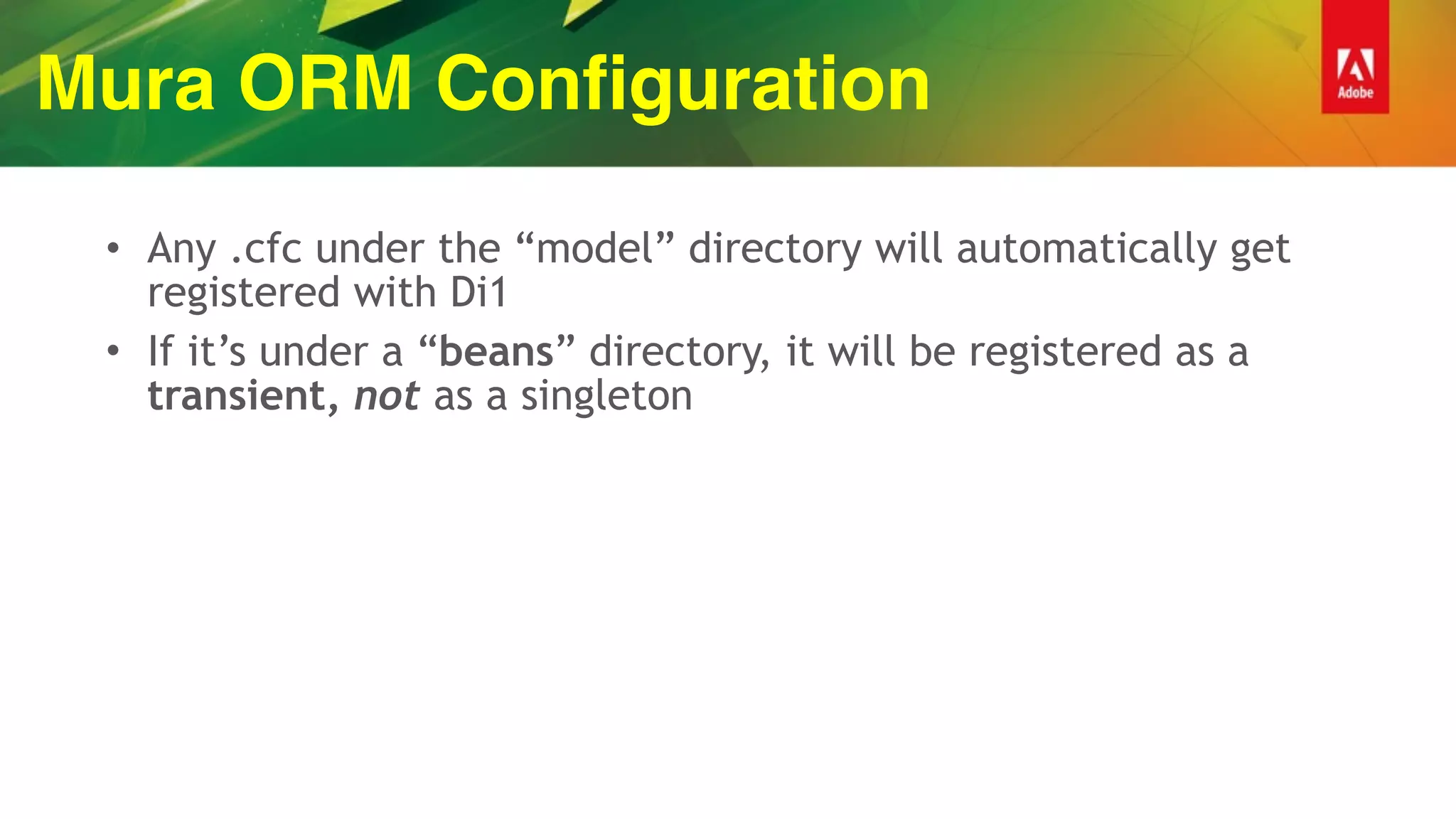

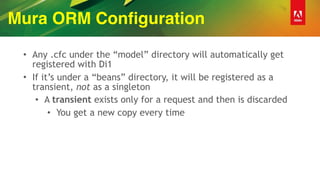

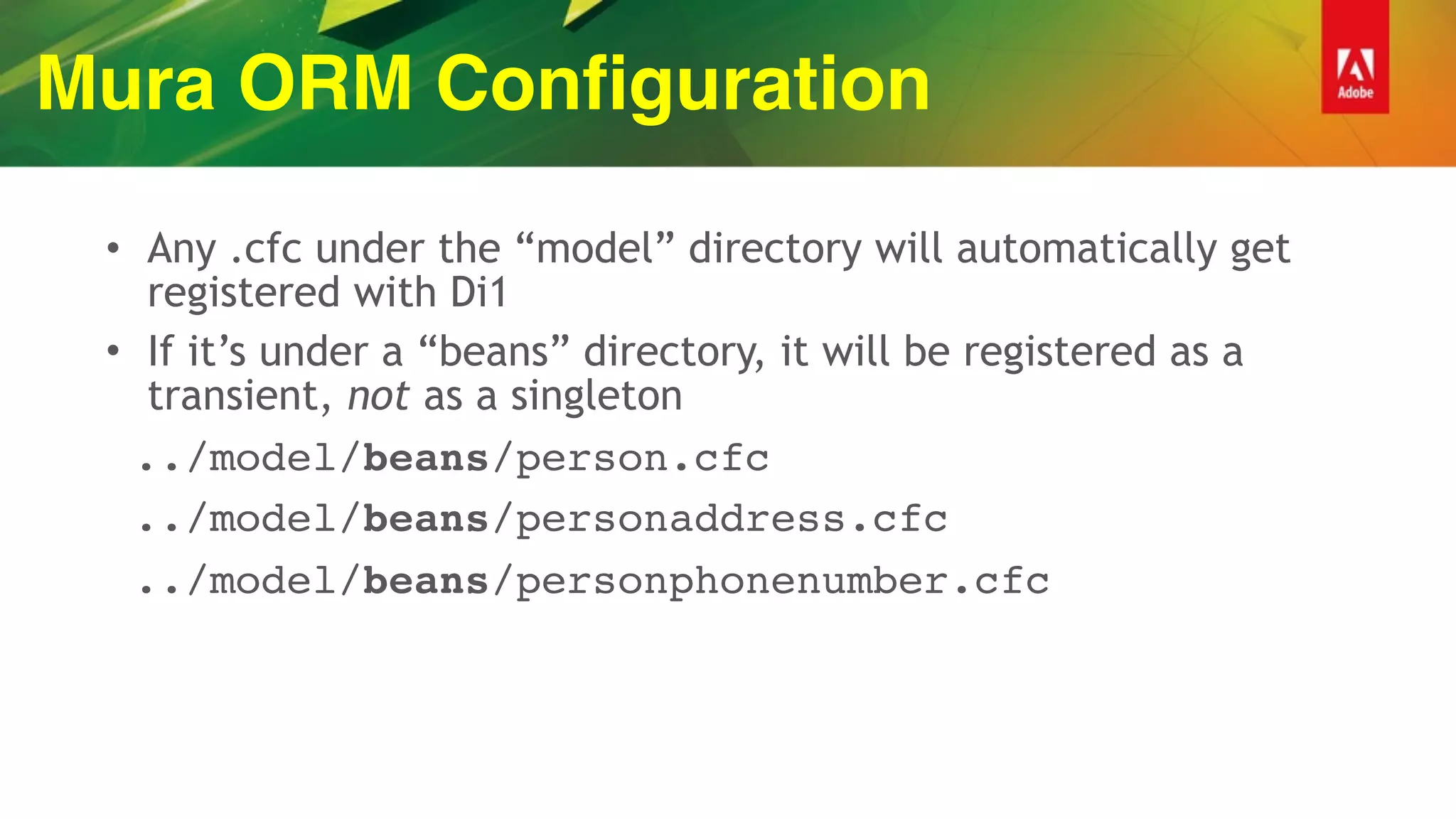

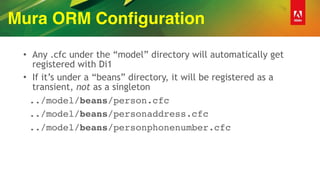

• Any .cfc under the “model” directory will automatically get
registered with Di1

registered with Di1
• If it’s under a “beans” directory, it will be registered as a
transient, not as a singleton

registered with Di1
• A transient exists only for a request and then is discarded
• You get a new copy every time

registered with Di1
• A transient exists only for a request and then is discarded
• You get a new copy every time
• A singleton is shared among all threads and requests … there’s
only one of them
• You’re not getting a new copy every time
• Good for service type objects

registered with Di1
../model/beans/person.cfc
../model/beans/personaddress.cfc
../model/beans/personphonenumber.cfc

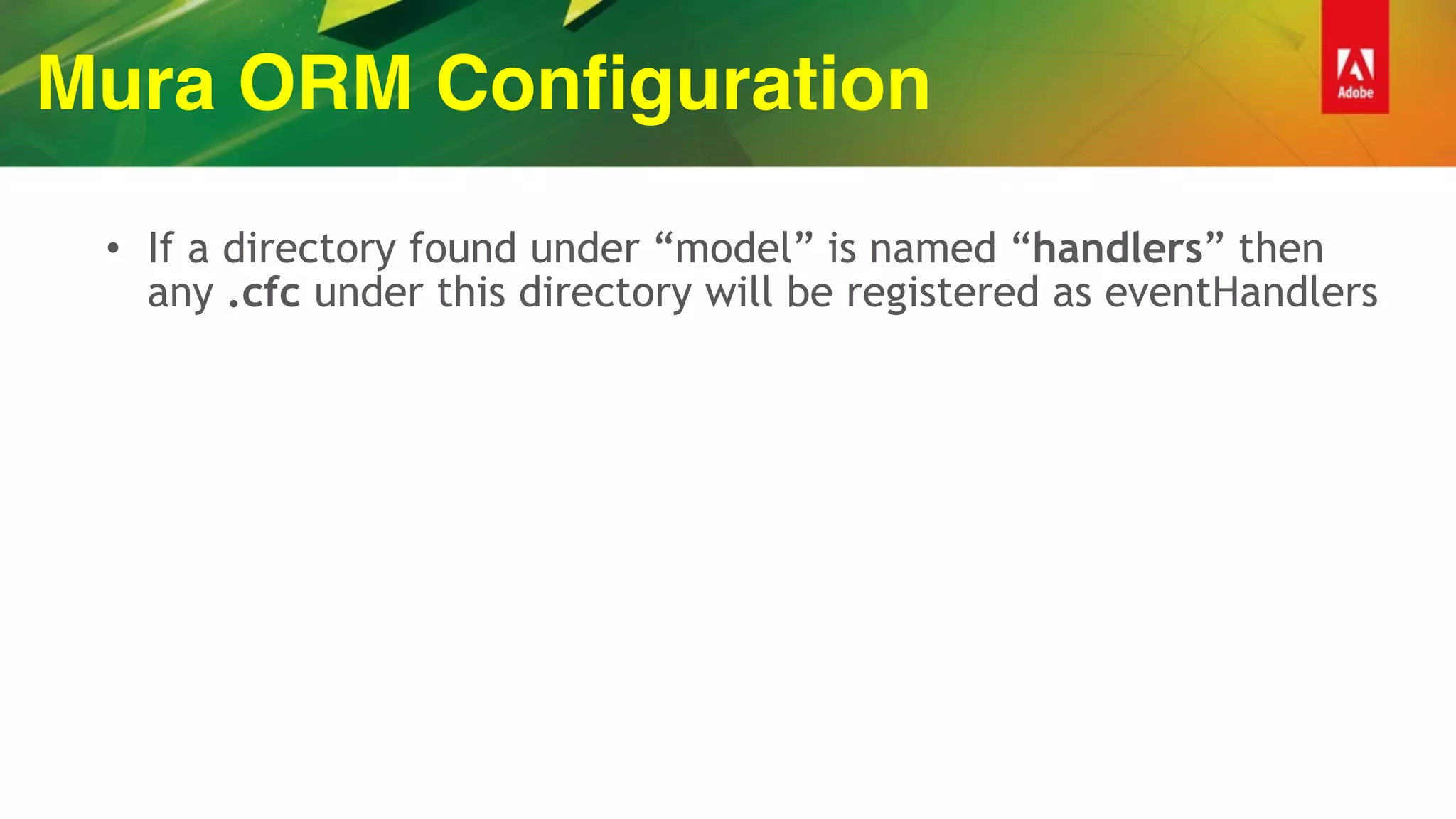

• If a directory found under “model” is named “handlers” then
any .cfc under this directory will be registered as eventHandlers

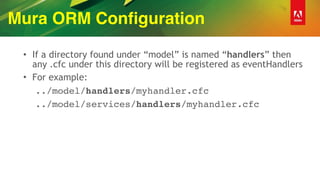

• If a directory found under “model” is named “handlers” then
any .cfc under this directory will be registered as eventHandlers
• For example:
../model/handlers/myhandler.cfc
../model/services/handlers/myhandler.cfc

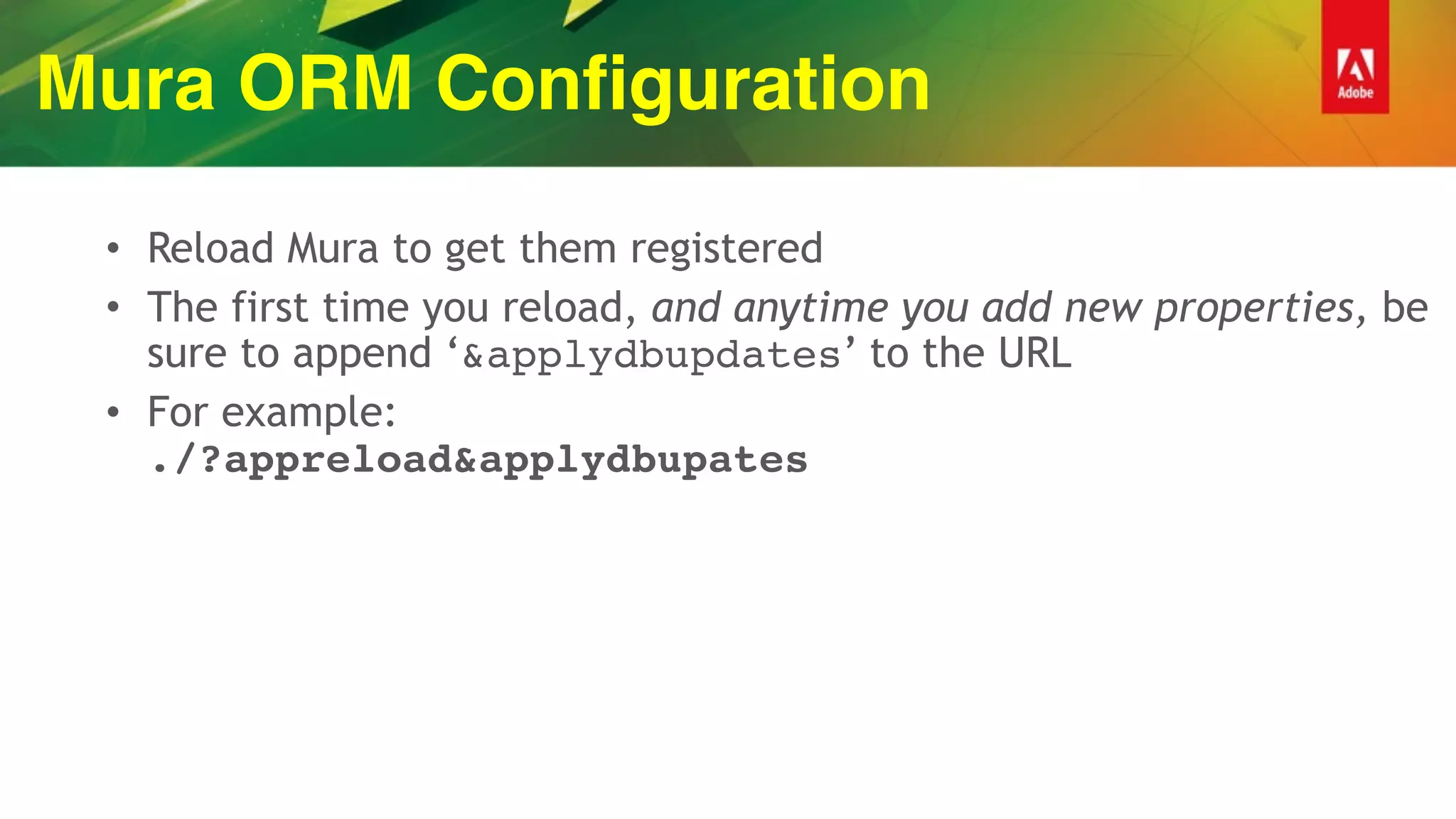

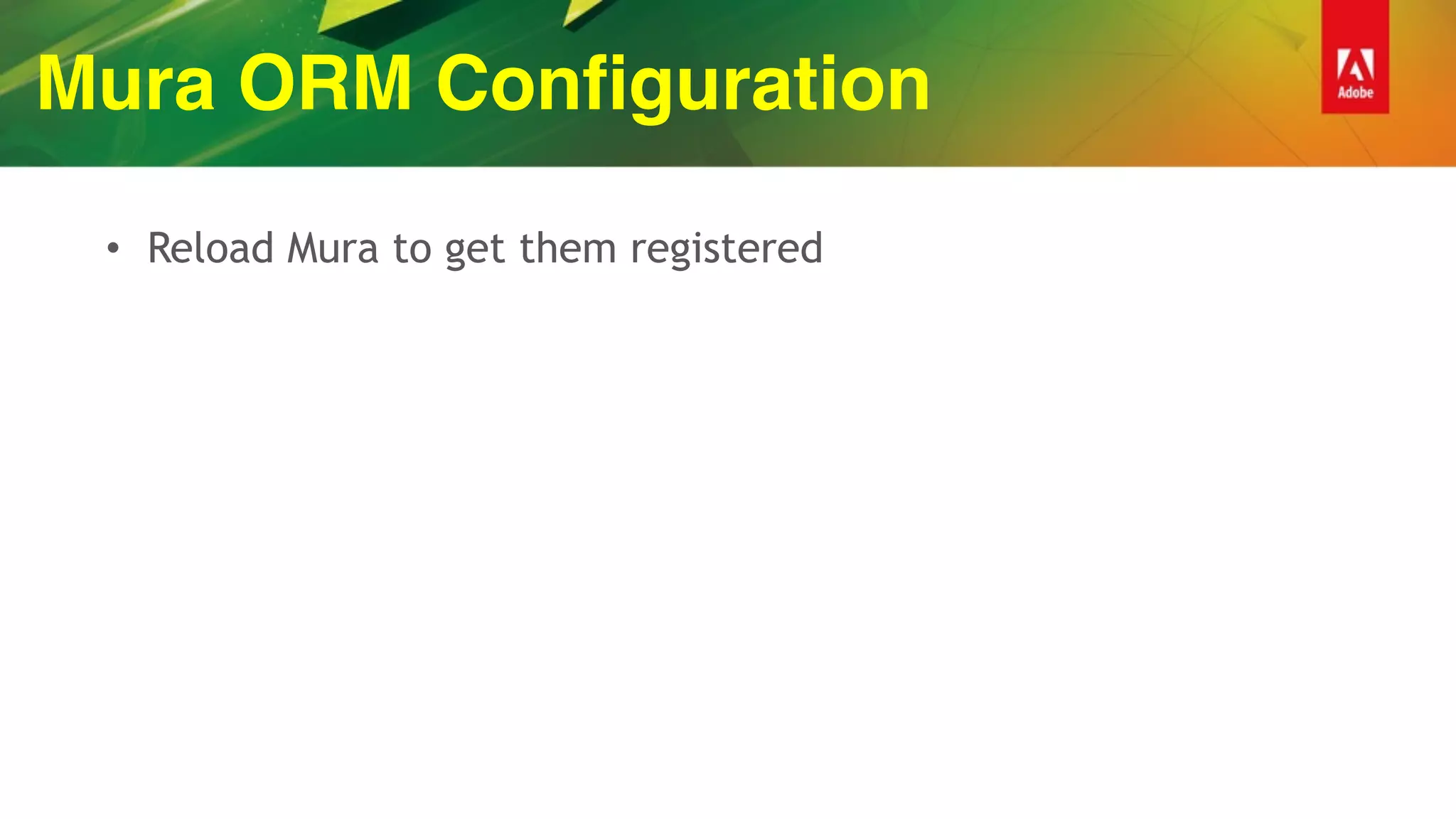

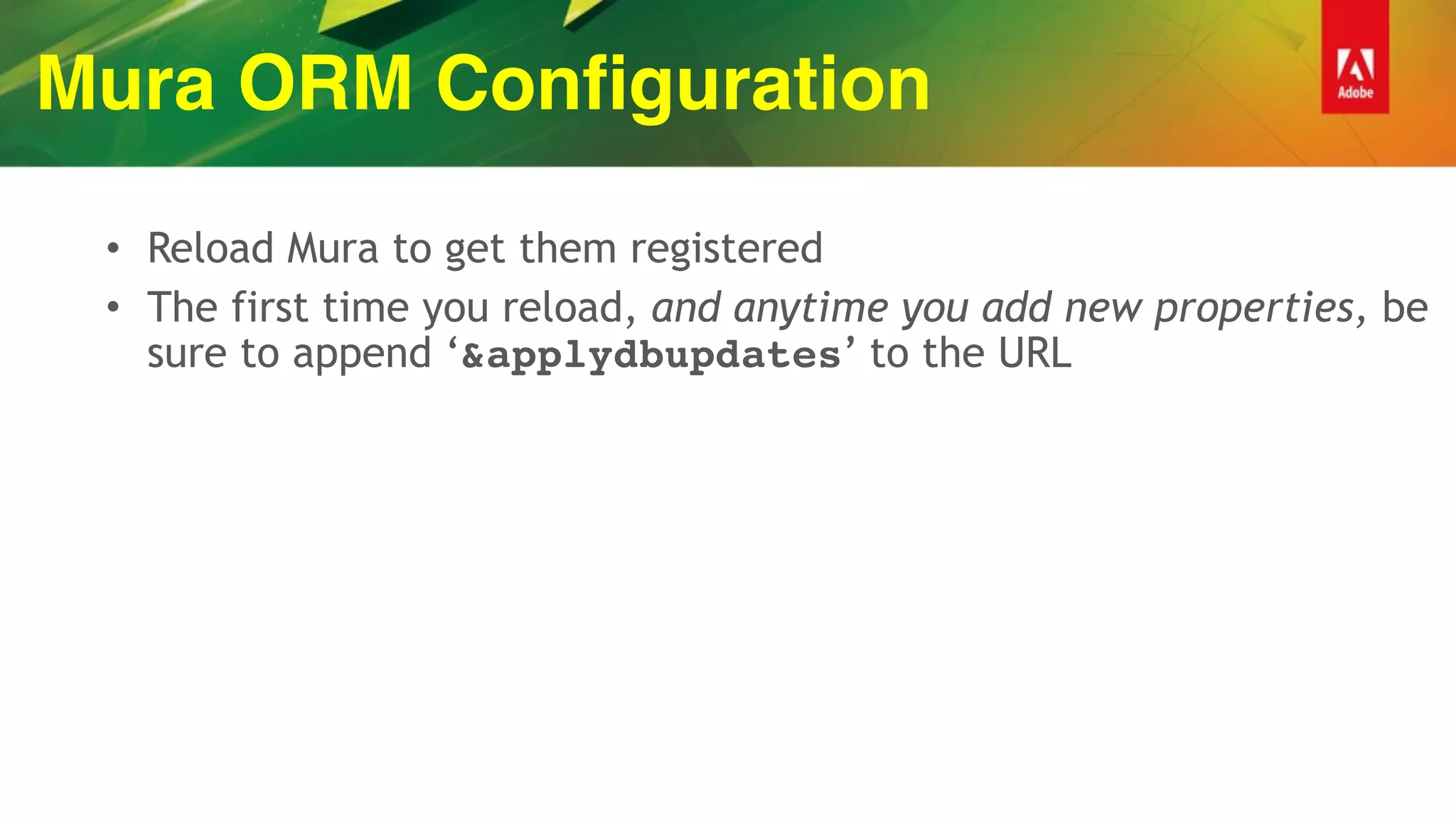

• Reload Mura to get them registered

• The first time you reload, and anytime you add new properties, be
sure to append ‘&applydbupdates’ to the URL

• The first time you reload, and anytime you add new properties, be
sure to append ‘&applydbupdates’ to the URL
• For example:  
./?appreload&applydbupates

Part 2

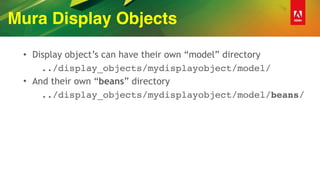

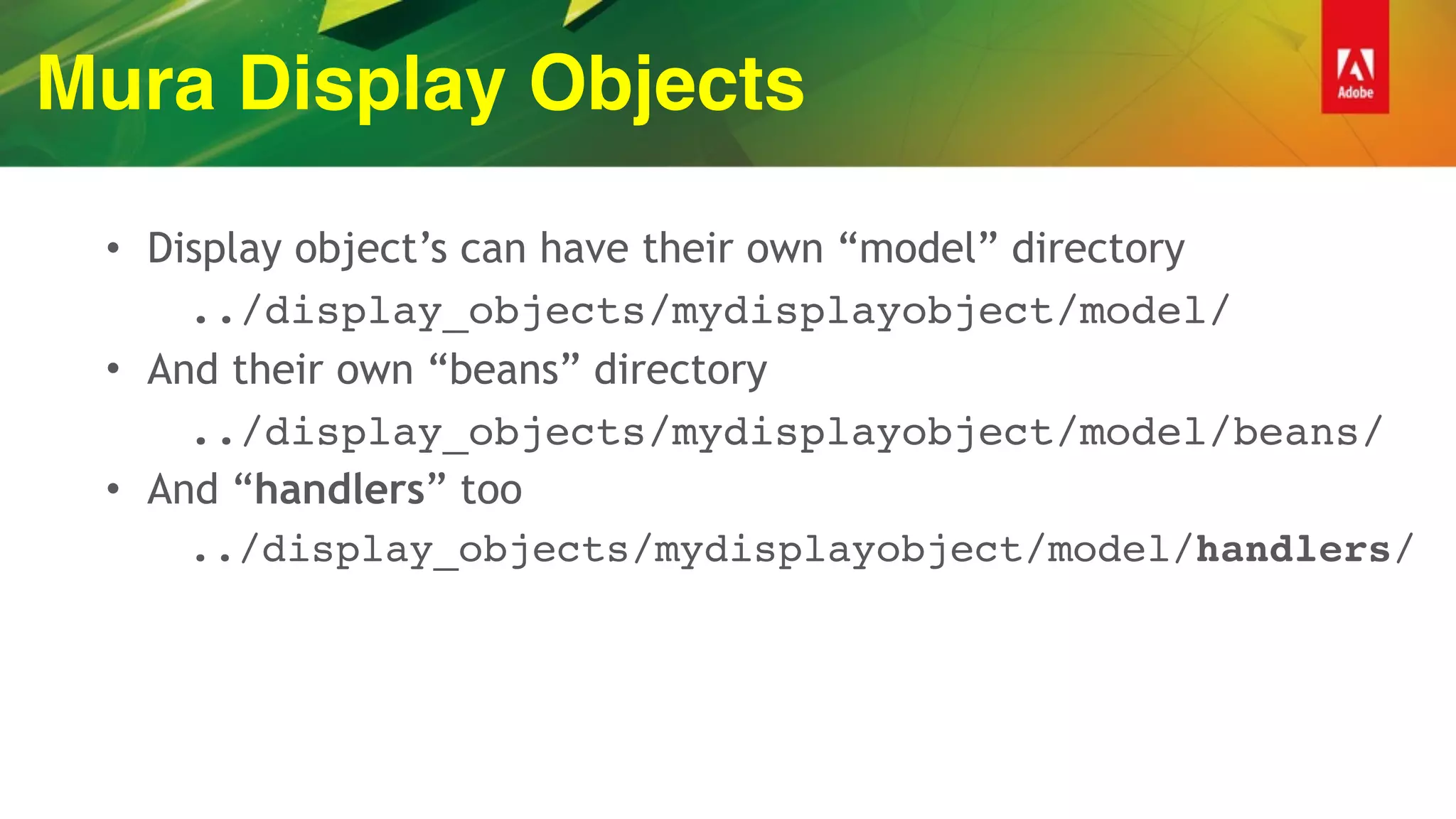

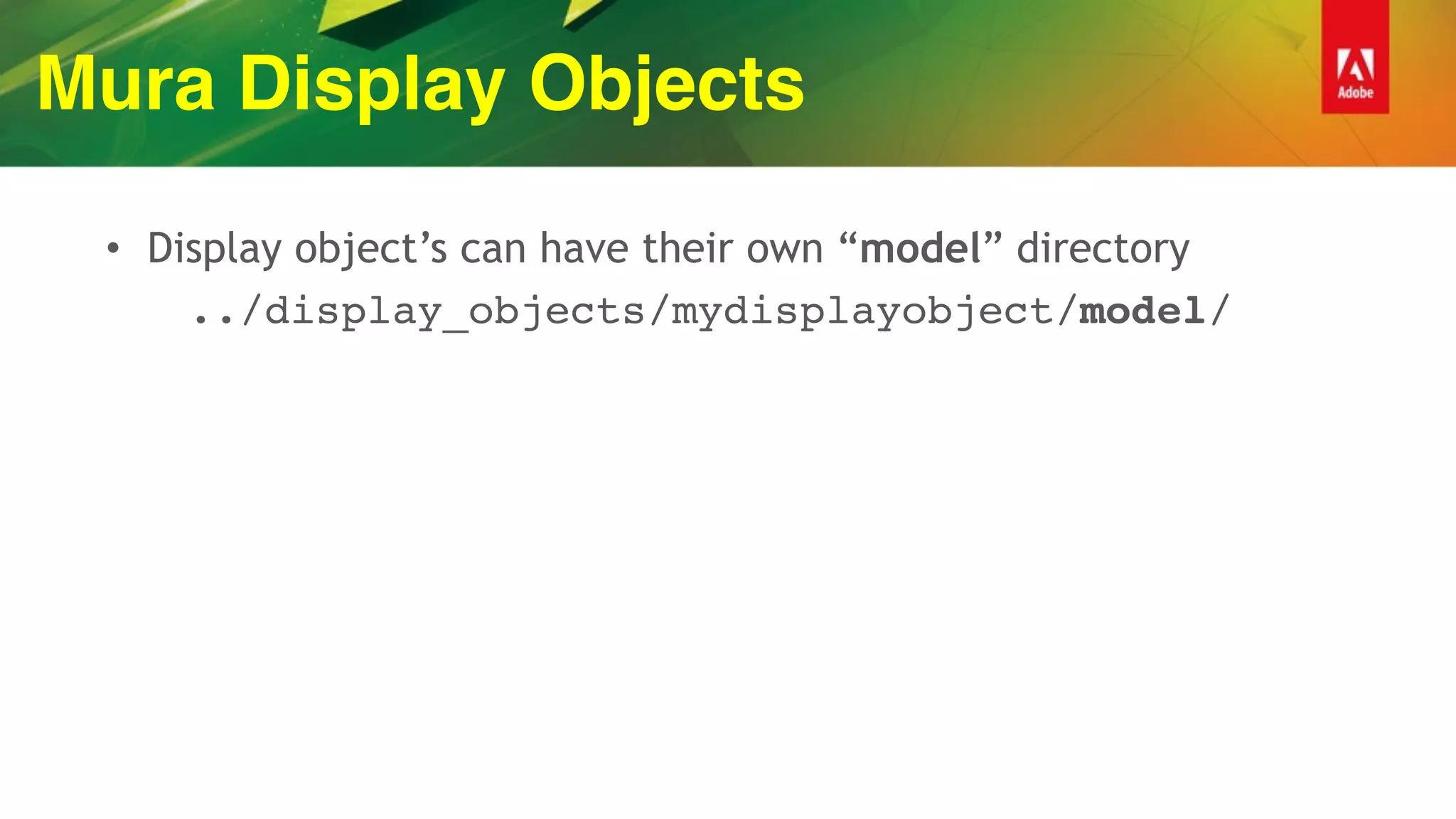

• Display object’s can have their own “model” directory

• And their own “beans” directory
../display_objects/mydisplayobject/model/beans/

• And their own “beans” directory
../display_objects/mydisplayobject/model/beans/
• And “handlers” too
../display_objects/mydisplayobject/model/handlers/

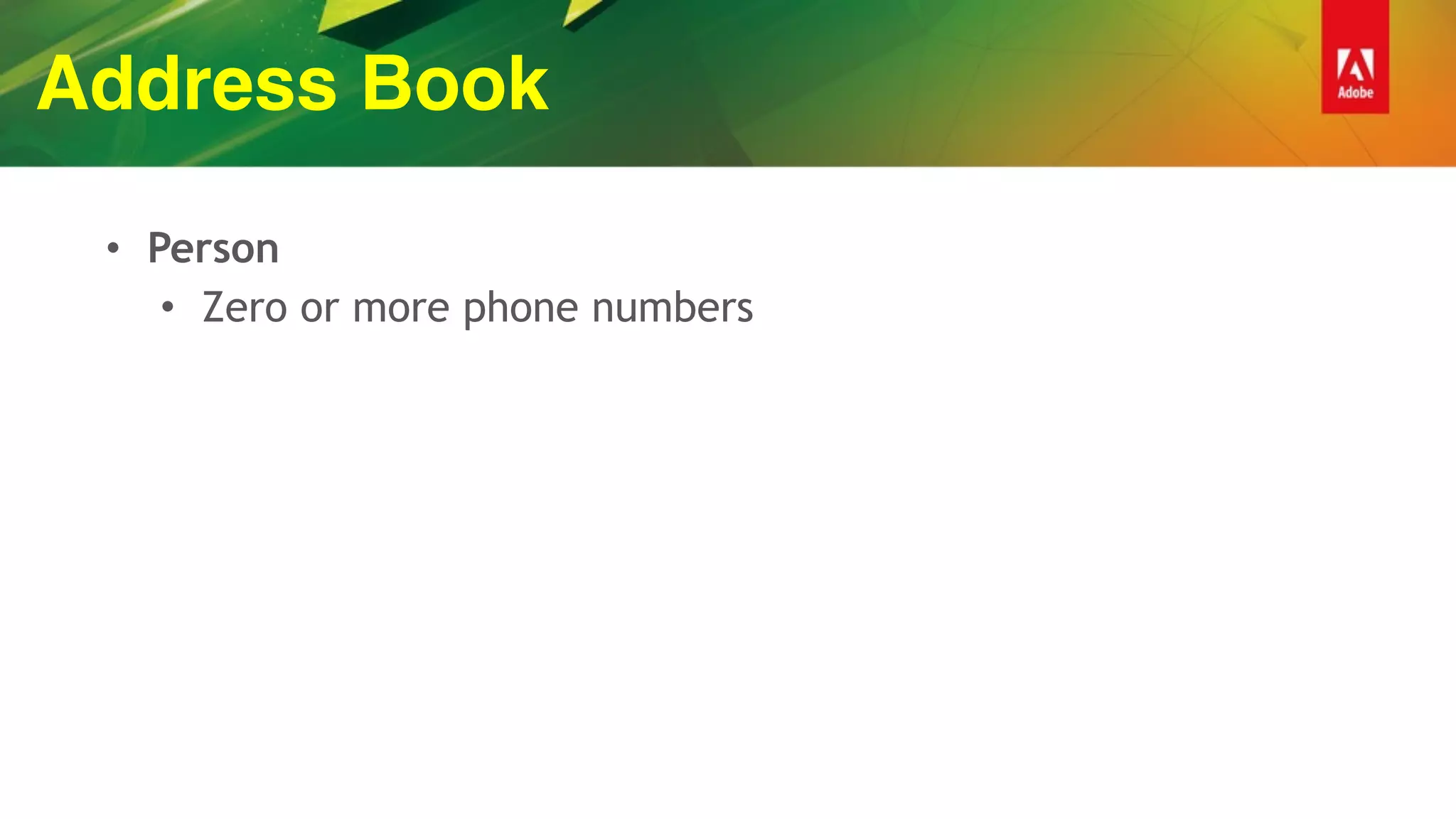

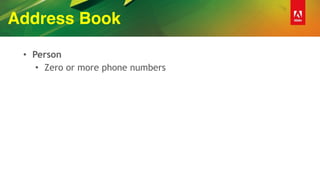

Address Book
• Person
• Zero or more phone numbers

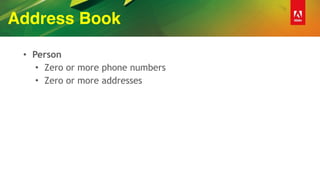

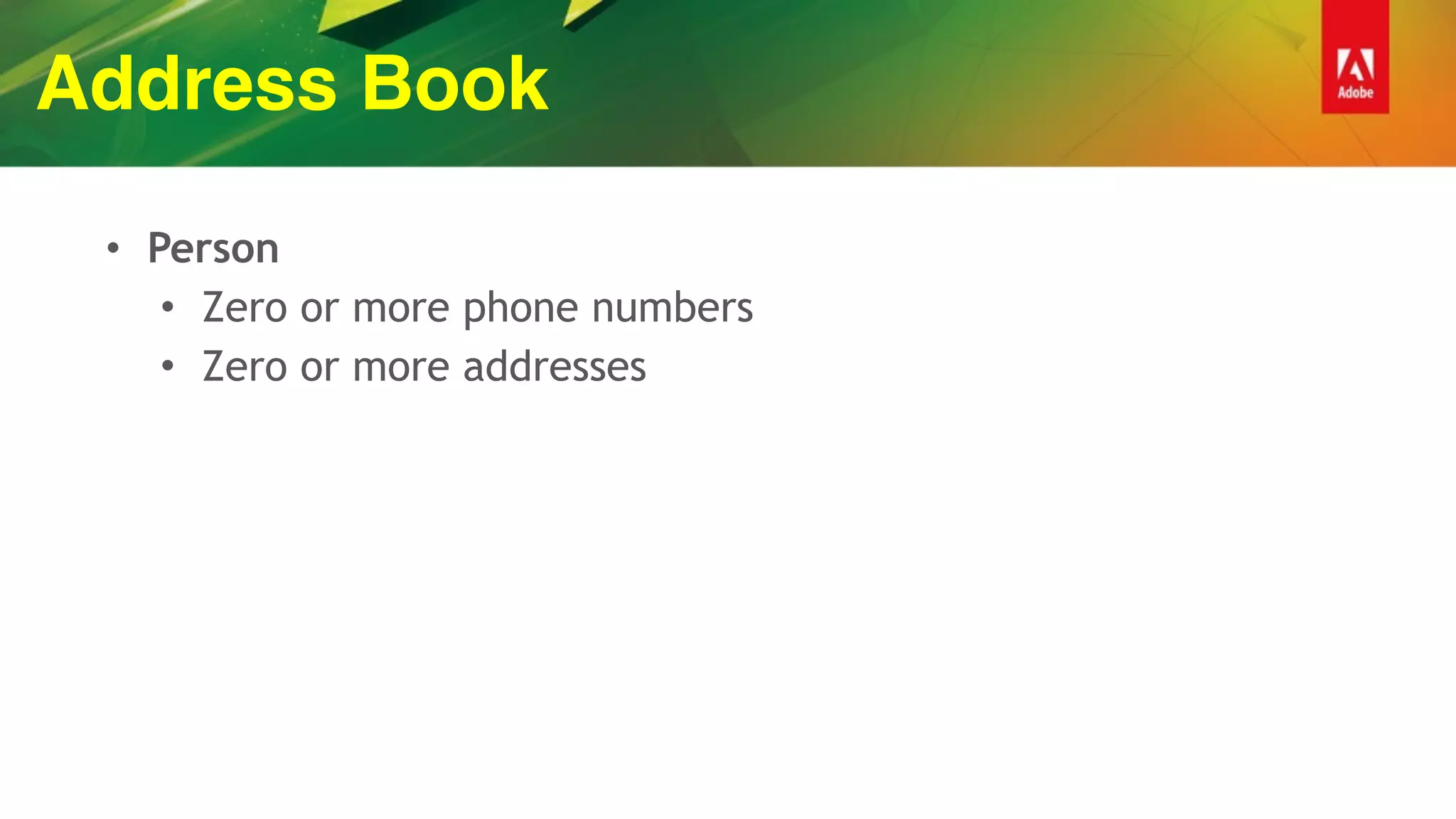

Address Book
• Person
• Zero or more phone numbers
• Zero or more addresses

Address Book

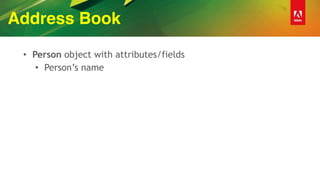

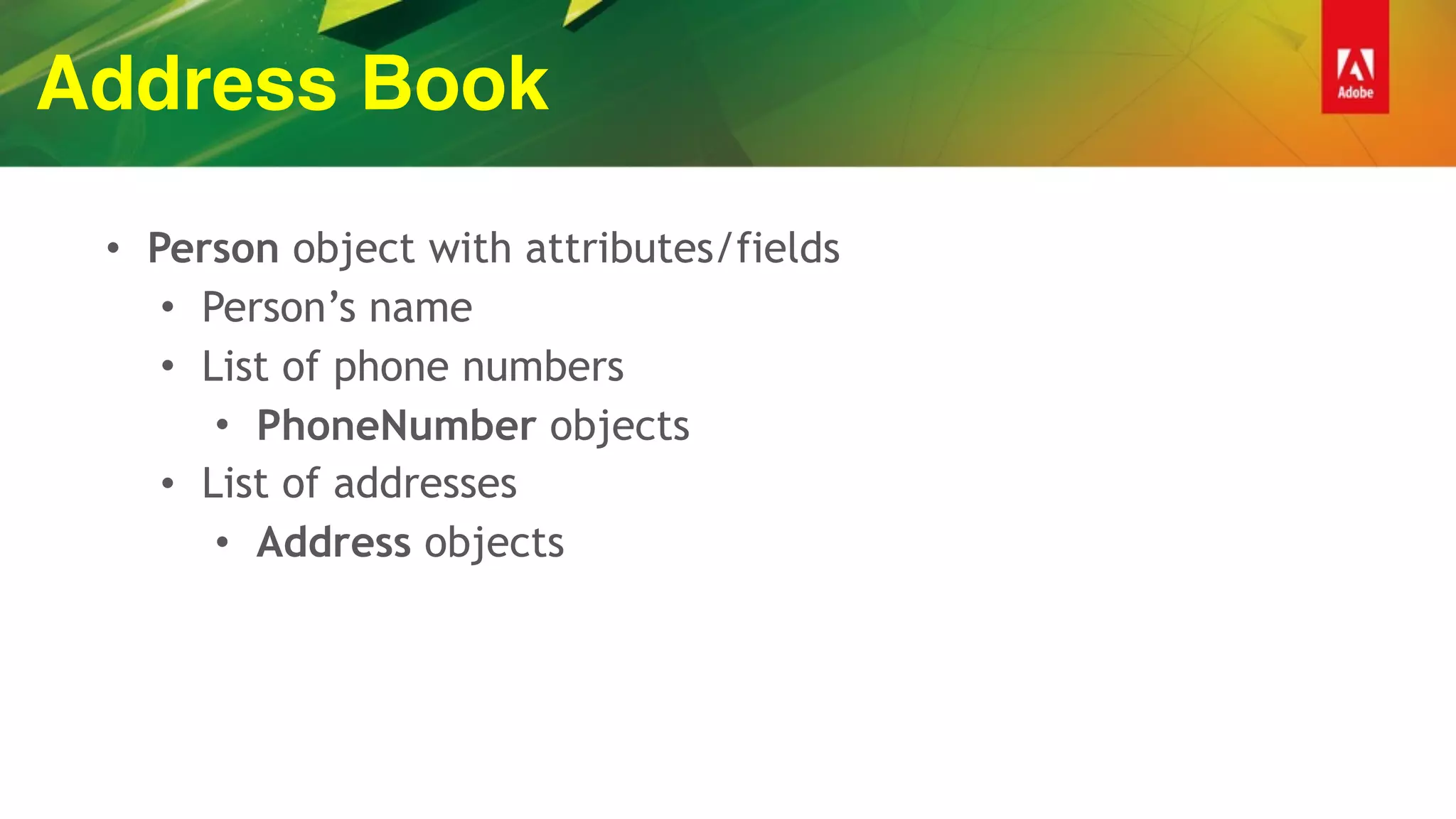

• Person object with attributes/fields

Address Book
• Person’s name

Address Book
• Person’s name
• List of phone numbers
• PhoneNumber objects

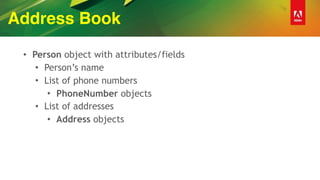

Address Book
• Person’s name
• List of phone numbers
• PhoneNumber objects
• List of addresses
• Address objects

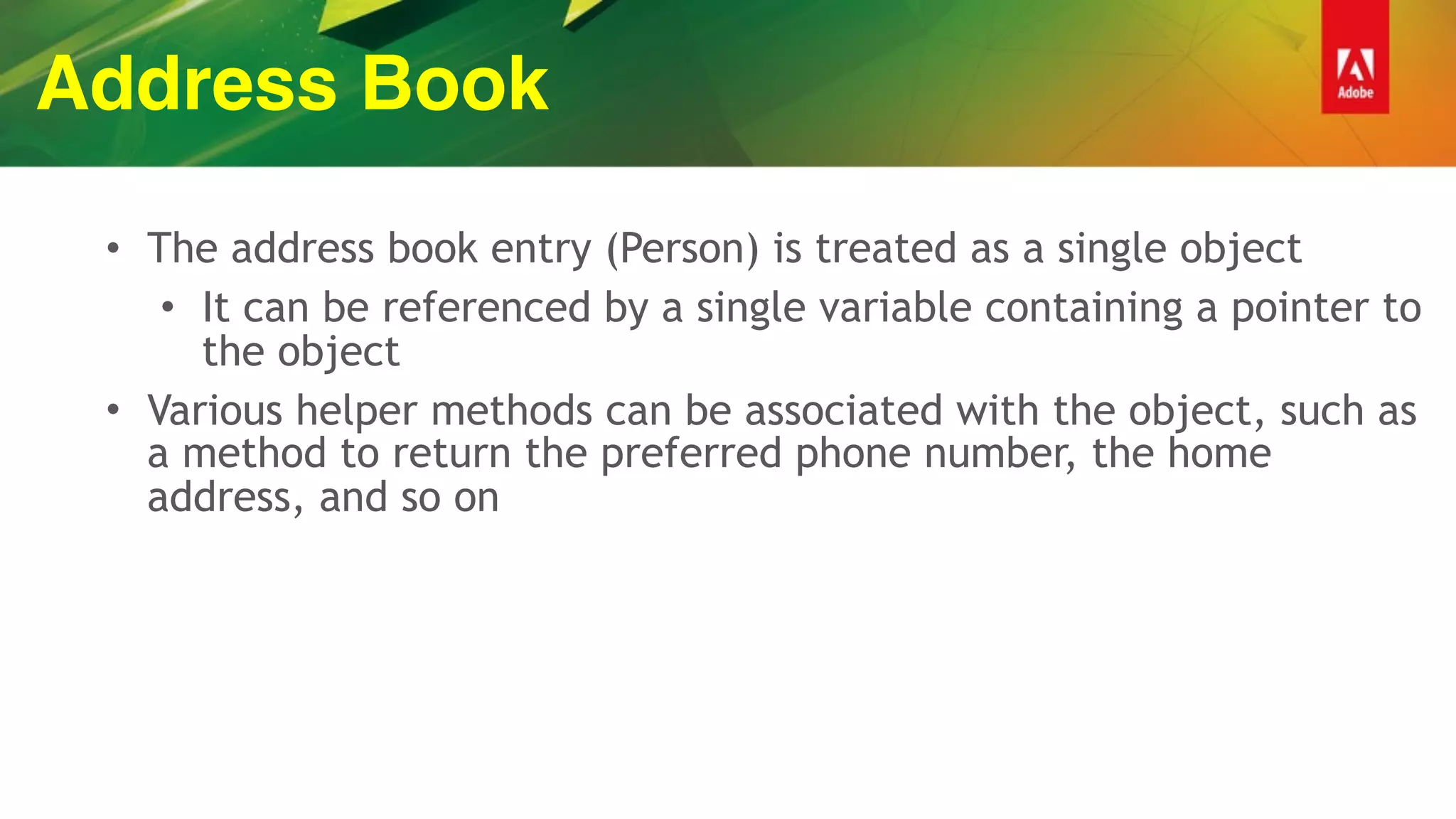

Address Book

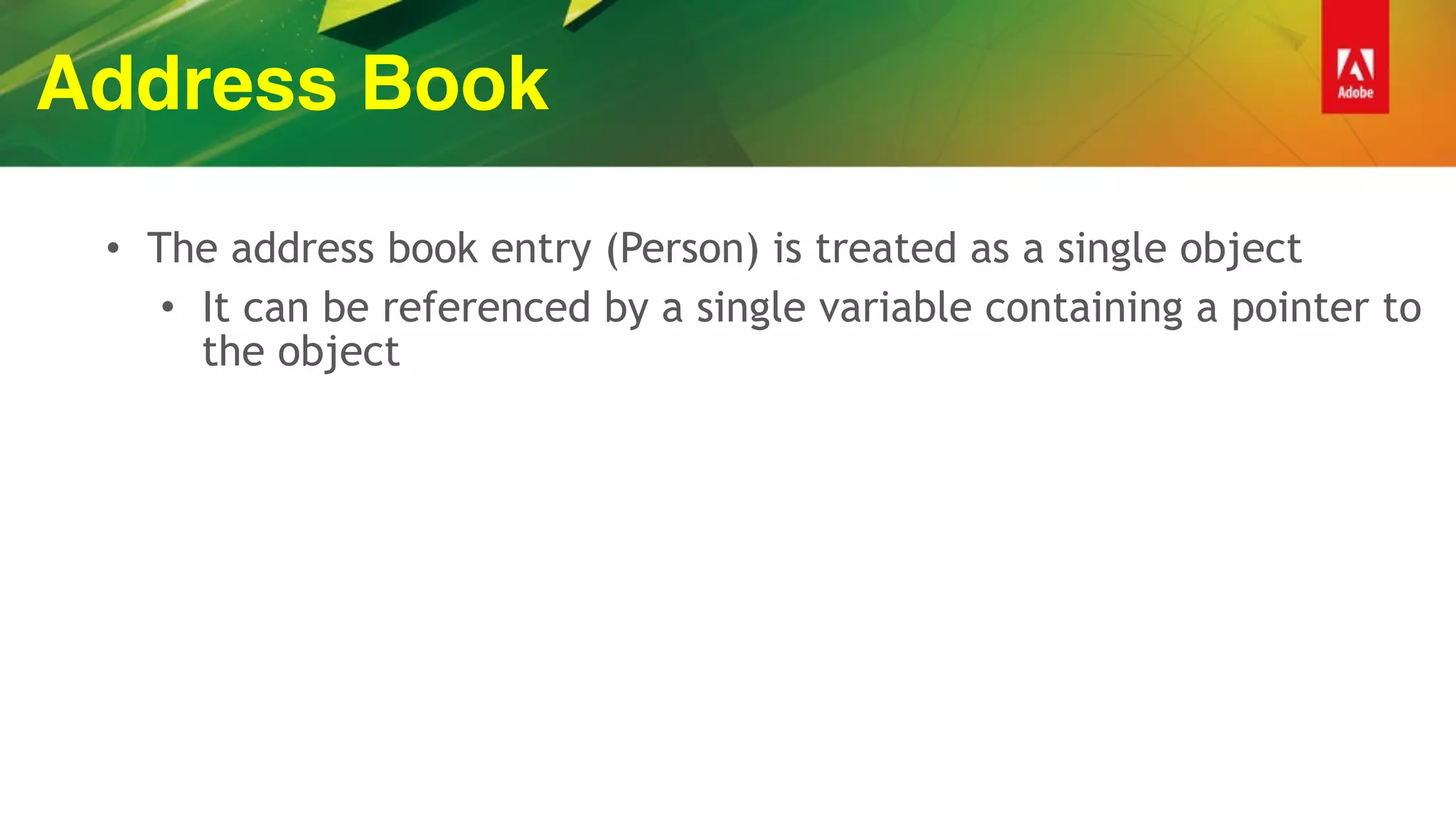

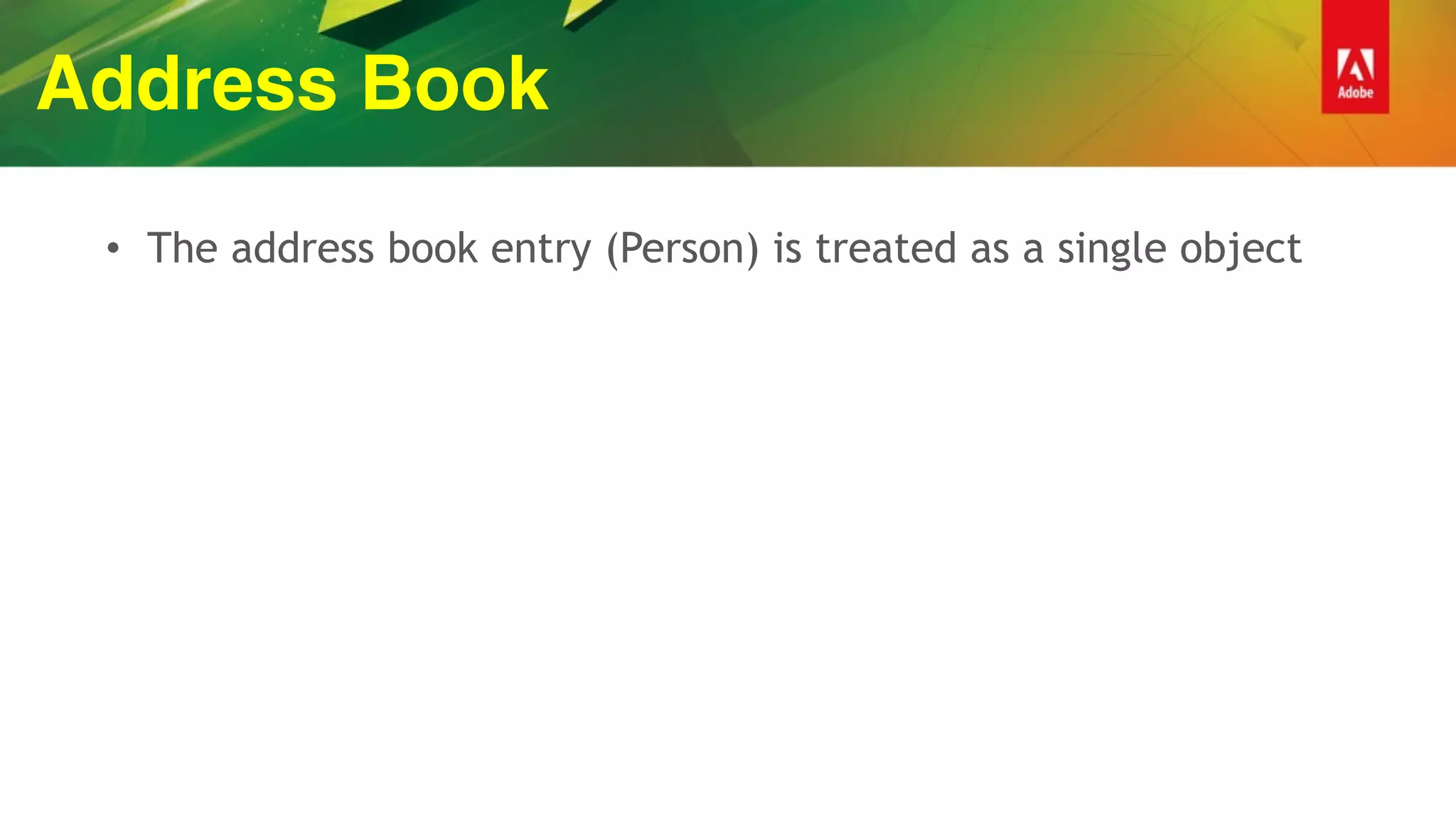

• The address book entry (Person) is treated as a single object

Address Book
• It can be referenced by a single variable containing a pointer to
the object

Address Book
• It can be referenced by a single variable containing a pointer to
the object
• Various helper methods can be associated with the object, such as
a method to return the preferred phone number, the home
address, and so on

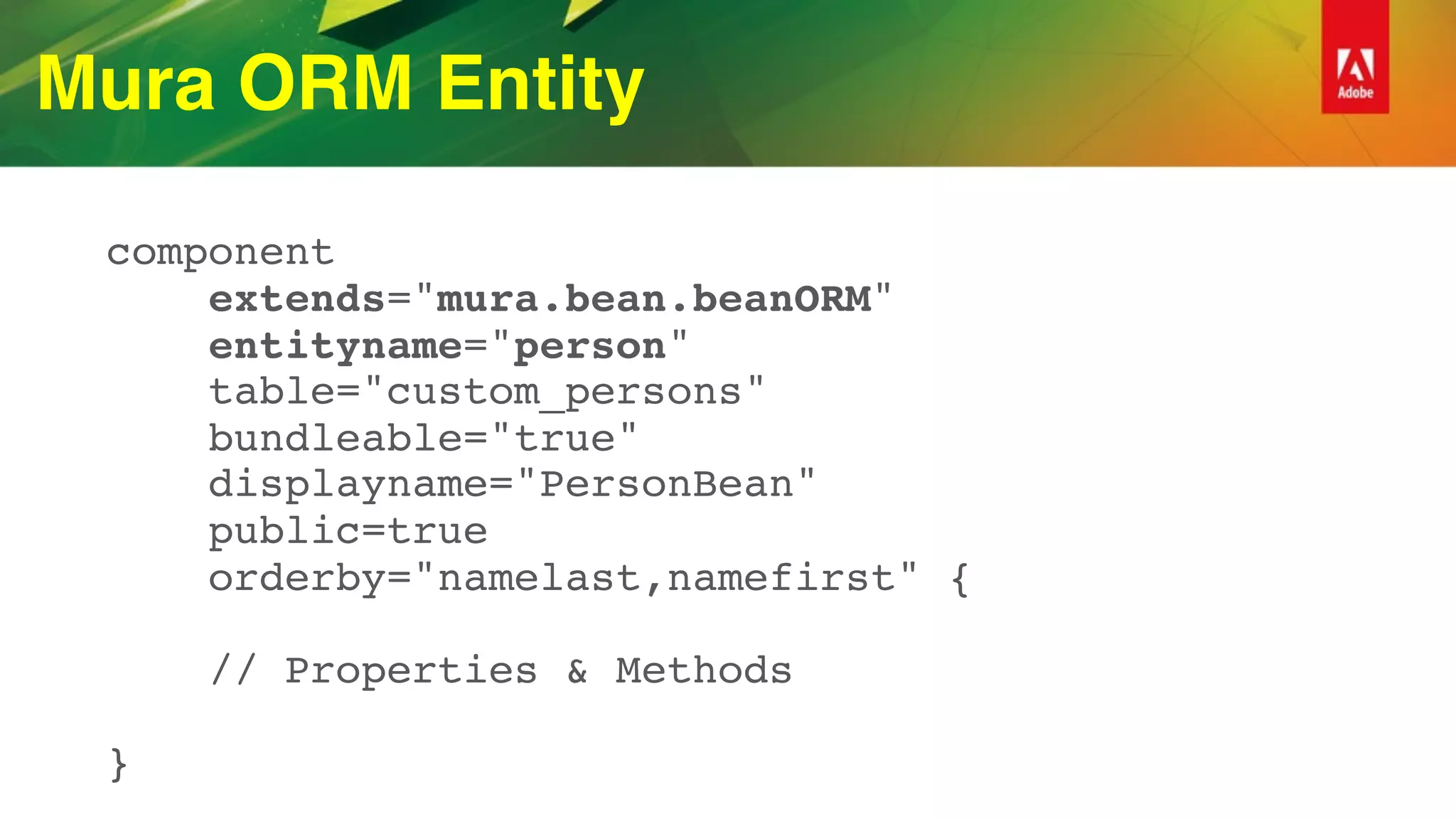

Mura ORM Entity
component 
extends="mura.bean.beanORM" 
entityname="person" 
table="custom_persons" 
bundleable="true" 
displayname="PersonBean" 
public=true 
orderby="namelast,namefirst" { 
 
// Properties & Methods 
 
}

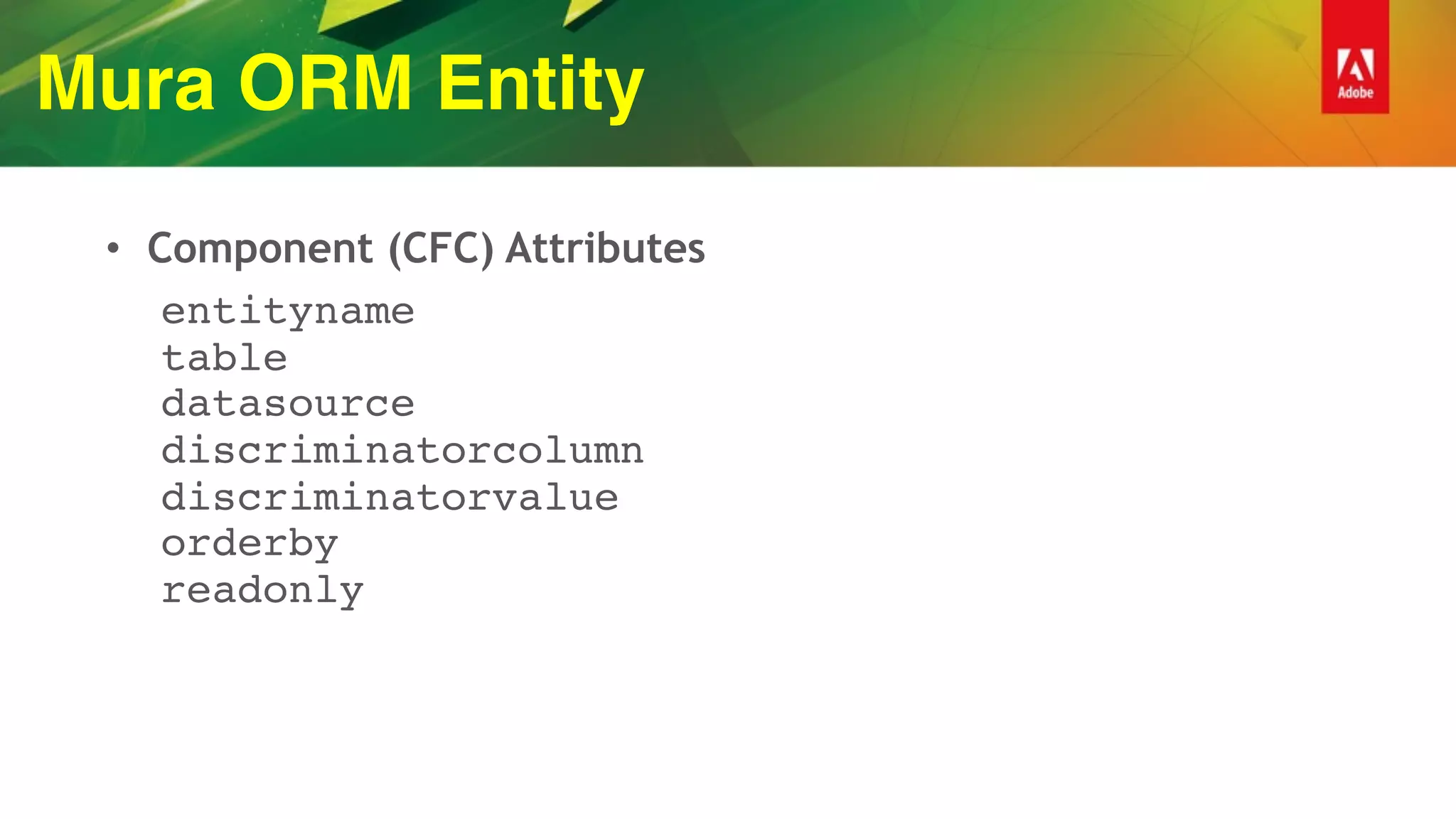

Mura ORM Entity
• Component (CFC) Attributes
entityname  
table 
datasource 
discriminatorcolumn  
discriminatorvalue 
orderby 
readonly

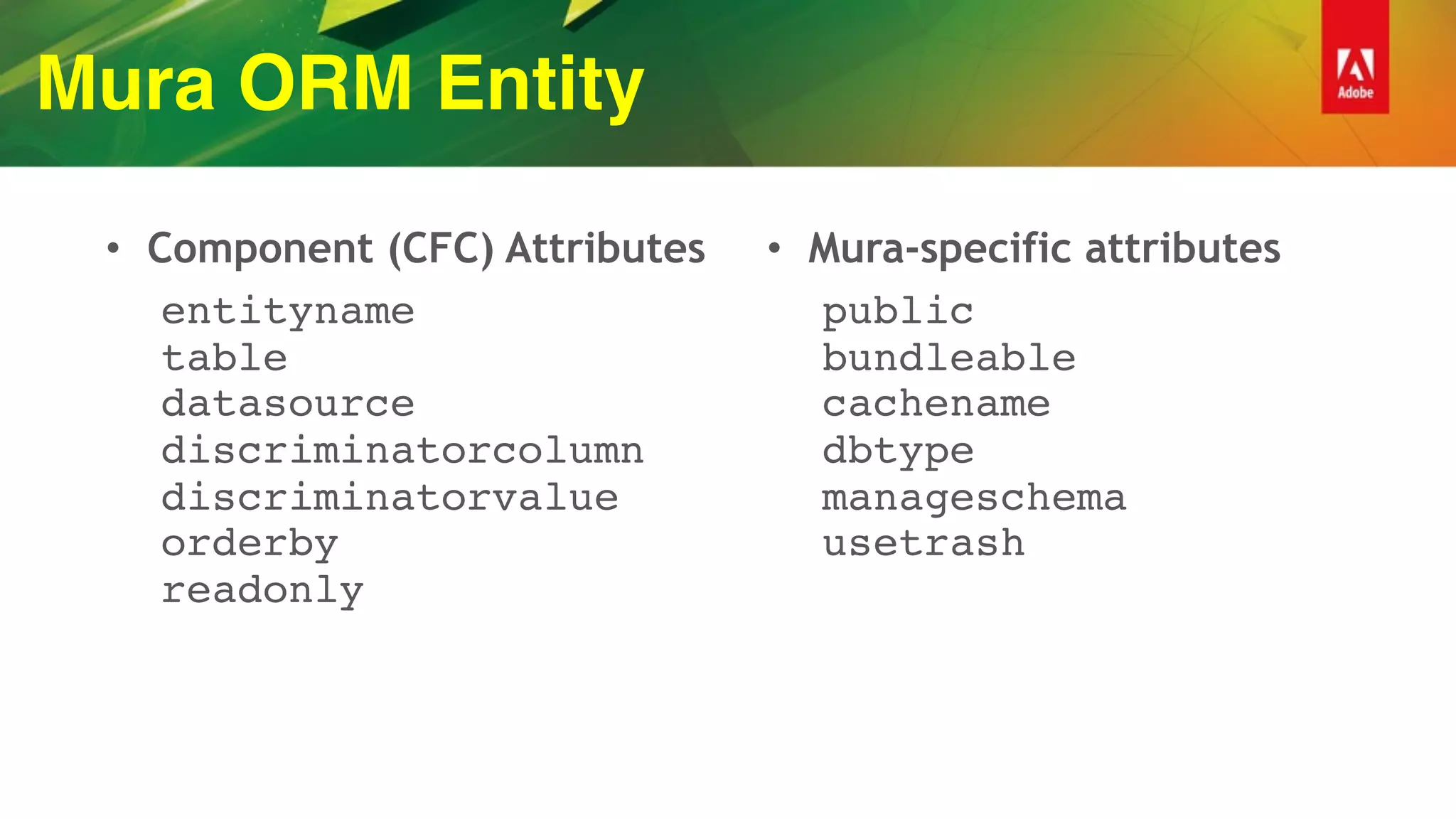

Mura ORM Entity
• Component (CFC) Attributes
entityname  
table 
datasource 
discriminatorcolumn  
discriminatorvalue 
orderby 
readonly
• Mura-specific attributes
public 
bundleable  
cachename 
dbtype 
manageschema 
usetrash

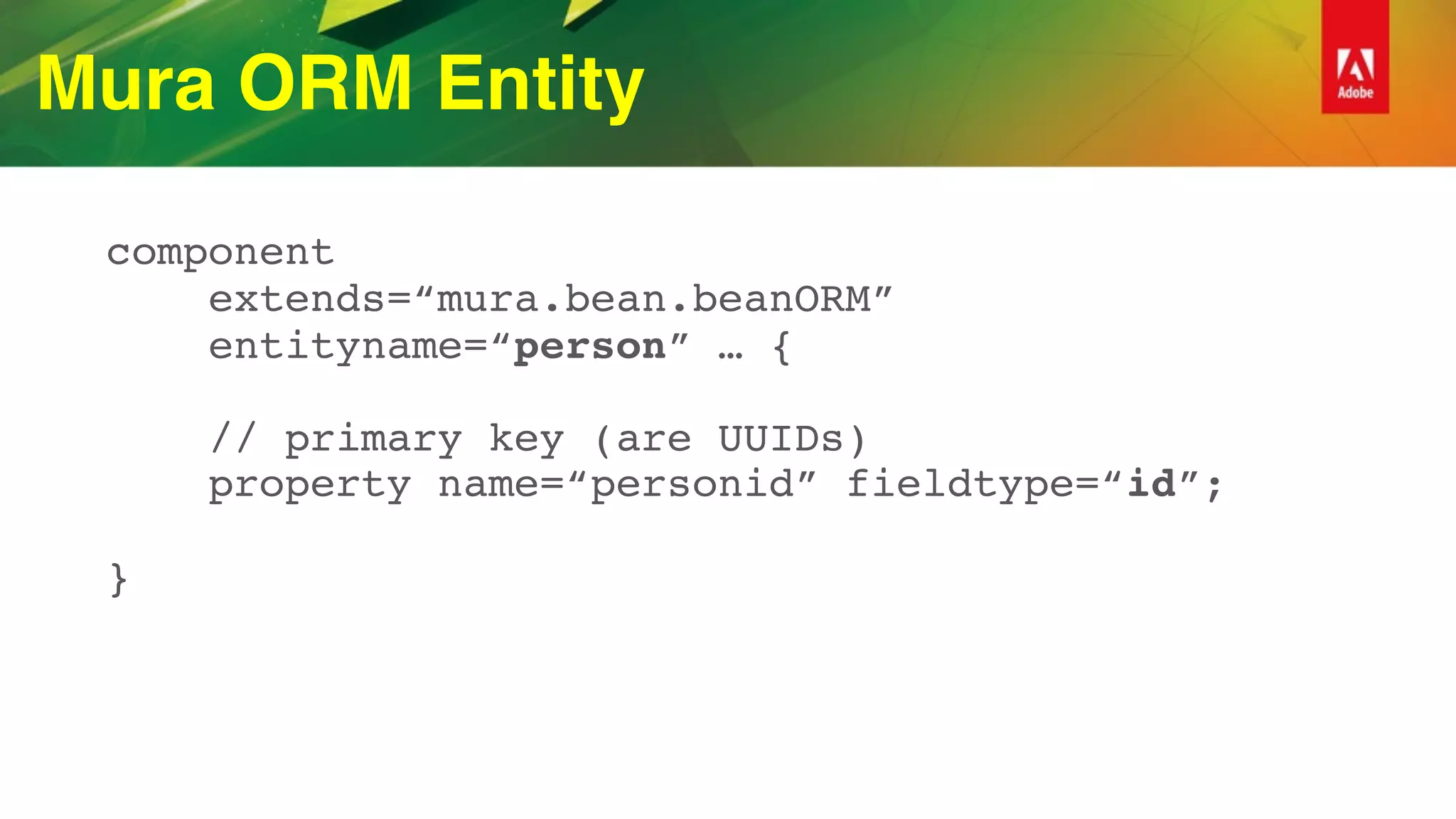

Mura ORM Entity
component 
extends=“mura.bean.beanORM” 
entityname=“person” … { 
 
// primary key (are UUIDs) 
property name=“personid” fieldtype=“id”; 
 
}

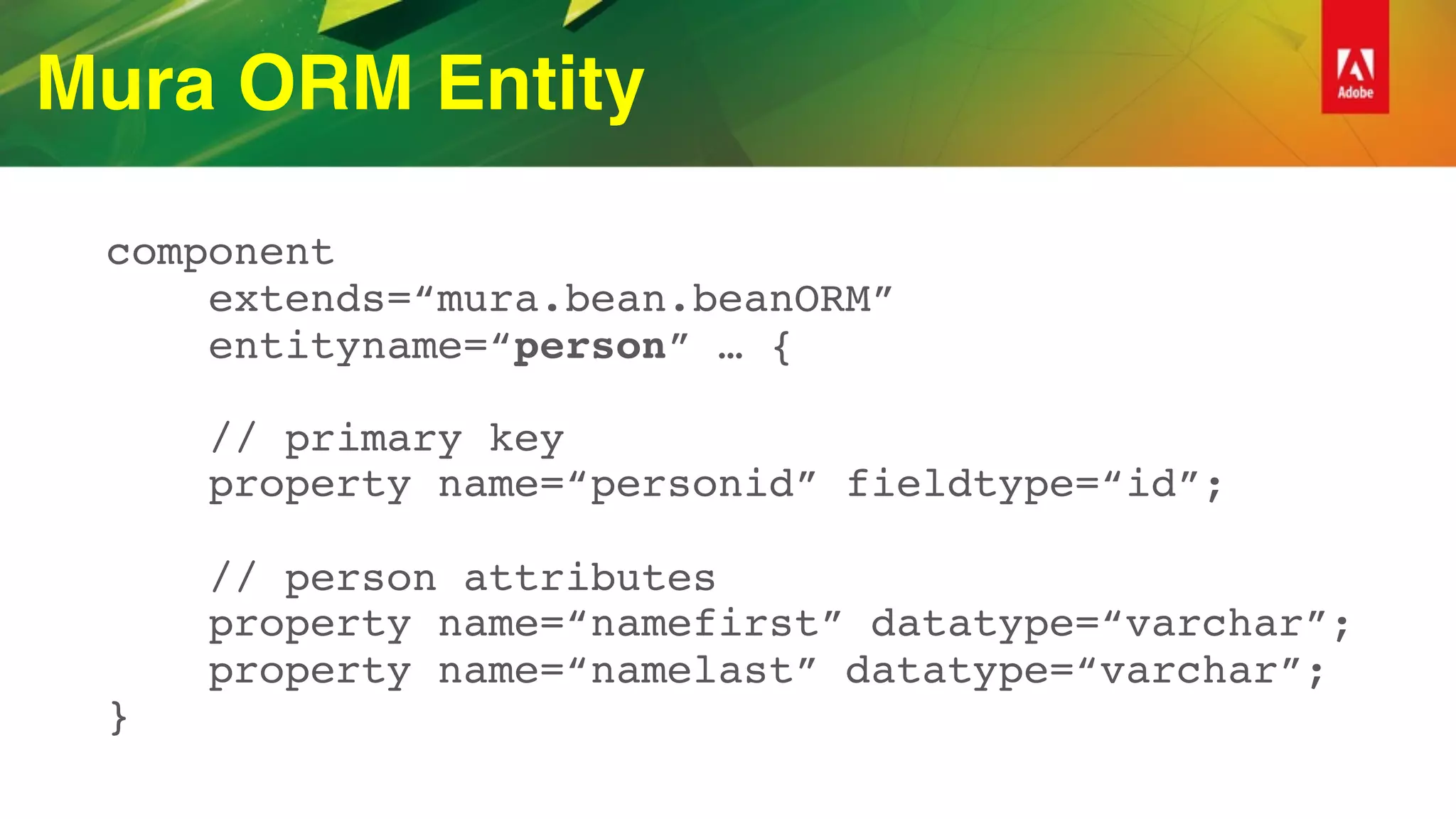

Mura ORM Entity
component 
 
// primary key 
property name=“personid” fieldtype=“id”; 
 
// person attributes 
property name=“namefirst” datatype=“varchar”; 
property name=“namelast” datatype=“varchar”; 
}

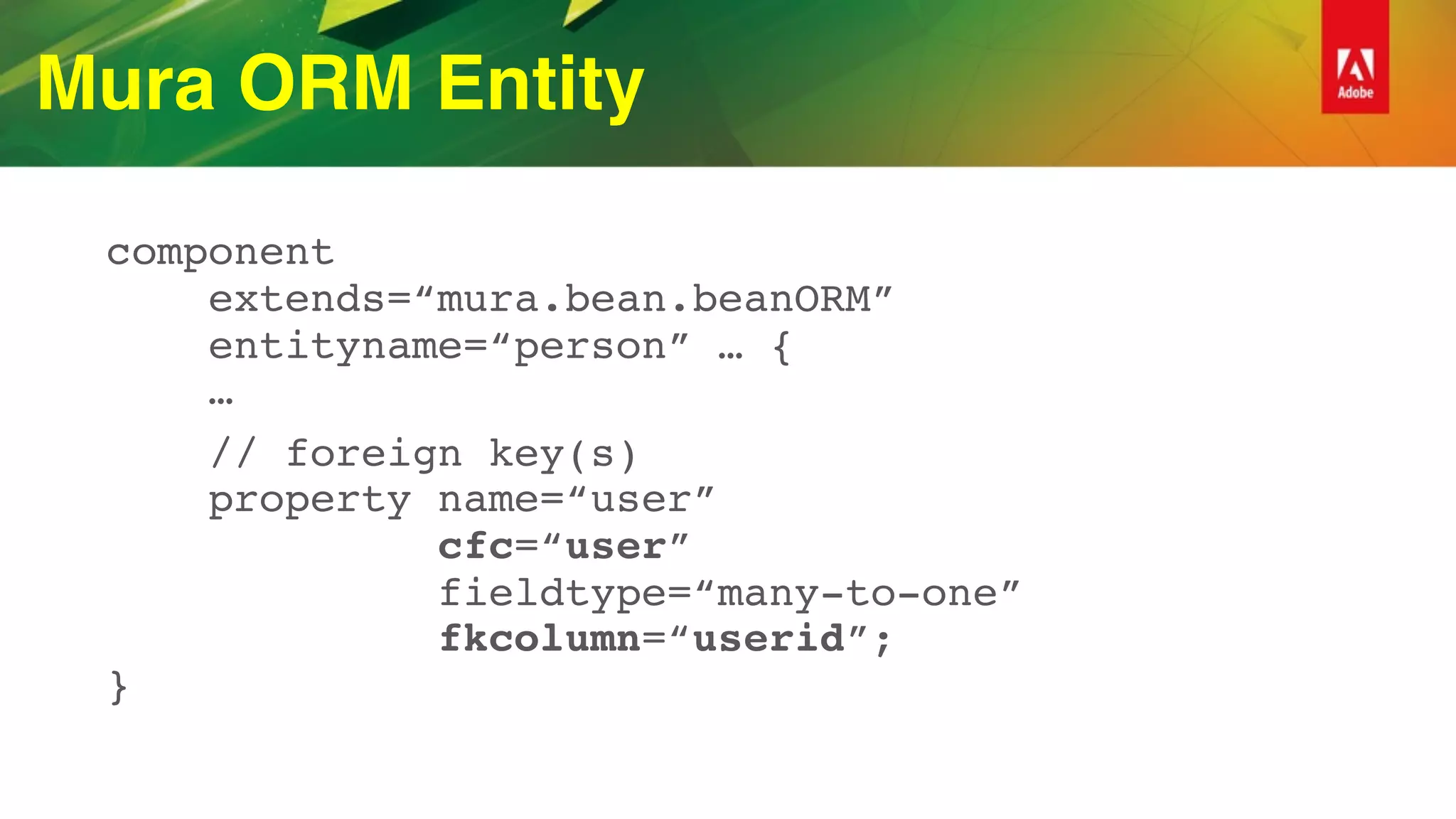

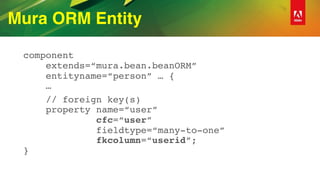

Mura ORM Entity
component 
…
// foreign key(s) 
property name=“user”  
cfc=“user”  
fieldtype=“many-to-one”  
fkcolumn=“userid”; 
}

Mura ORM Entity
component 
…
// relationship(s) 
property name=“phonenumbers”  
singularname=“phonenumber” 
cfc=“personphonenumber”  
fieldtype=“one-to-many” 
cascade=“delete”; 
}

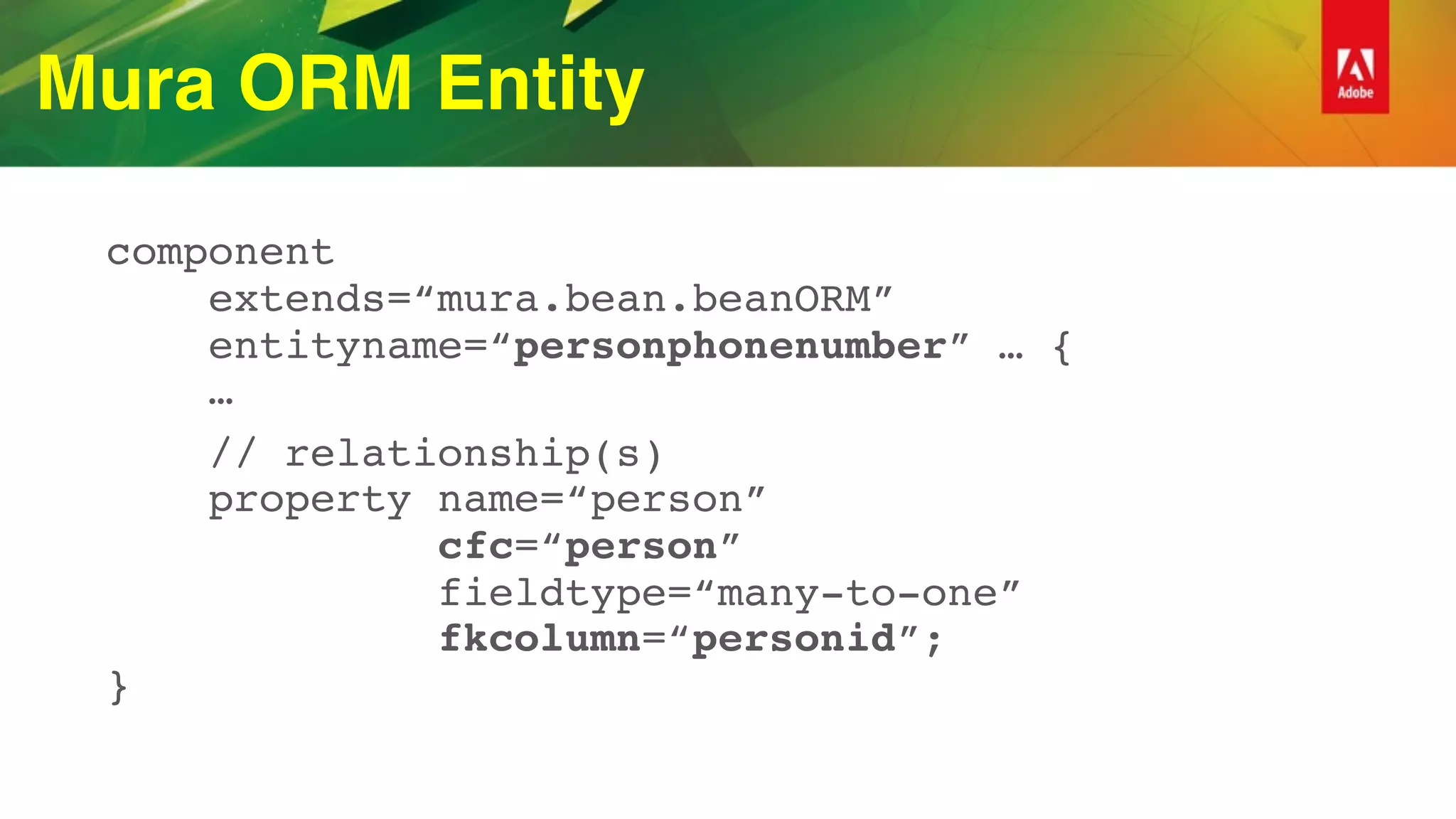

Mura ORM Entity
component 
entityname=“personphonenumber” … { 
…
// relationship(s) 
property name=“person”  
cfc=“person”  
fieldtype=“many-to-one” 
fkcolumn=“personid”; 
}

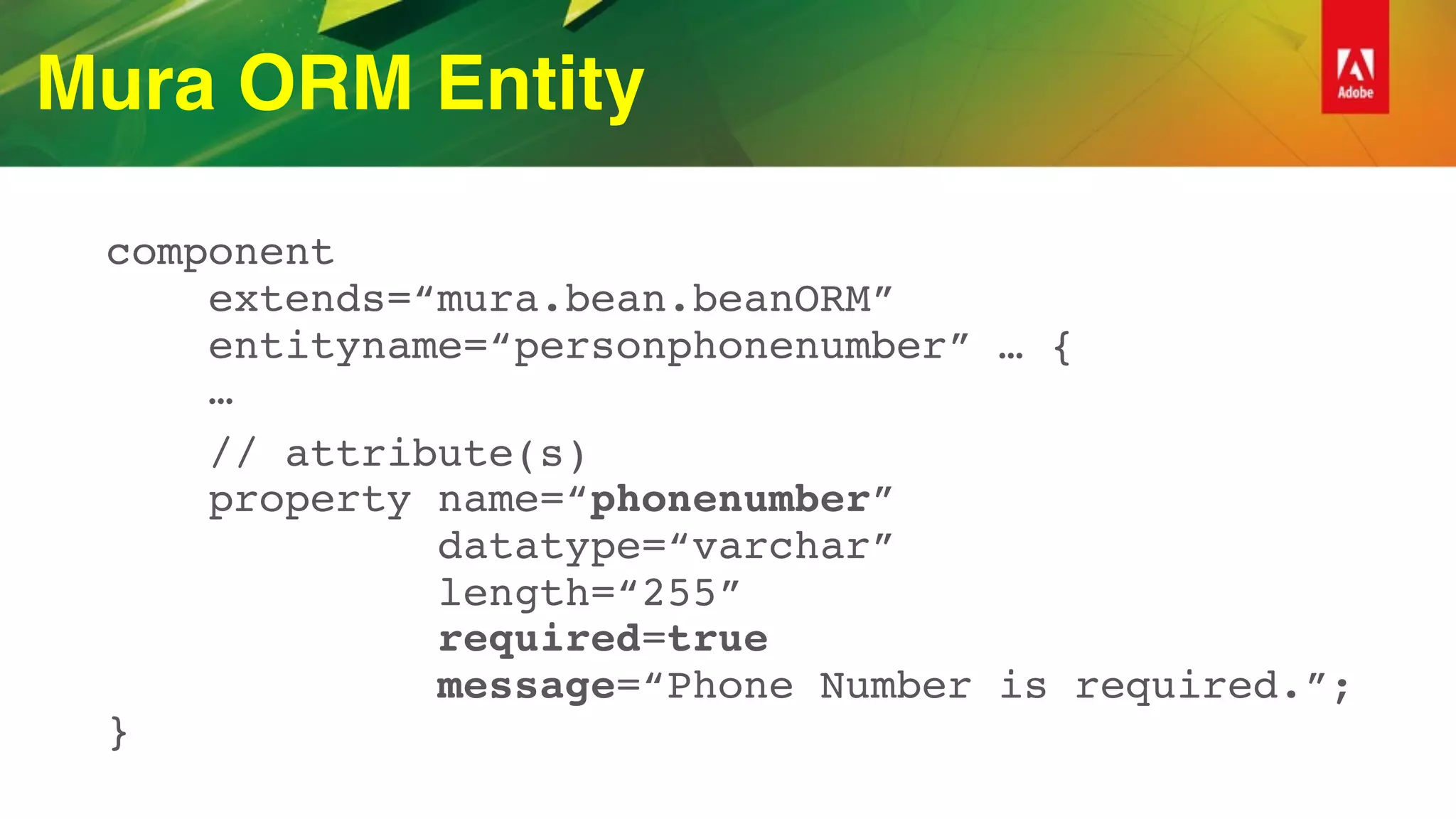

Mura ORM Entity
component 
entityname=“personphonenumber” … { 
…
// attribute(s) 
property name=“phonenumber”  
datatype=“varchar” 
length=“255” 
required=true 
message=“Phone Number is required.”; 
}

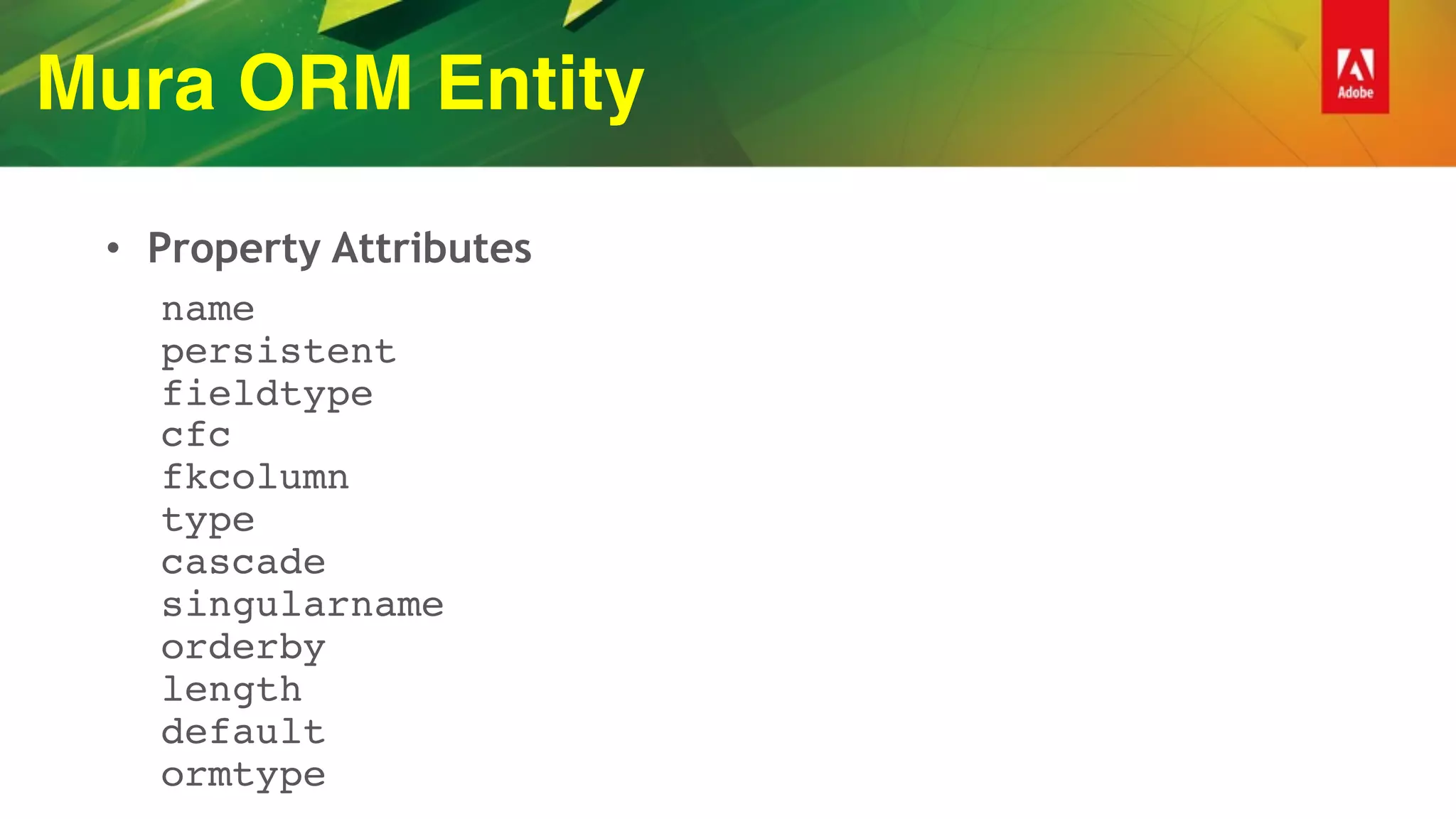

Mura ORM Entity
• Property Attributes
name 
persistent 
fieldtype 
cfc 
fkcolumn 
type 
cascade 
singularname 
orderby 
length 
default 
ormtype

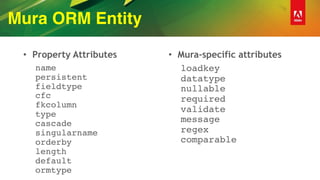

Mura ORM Entity
• Property Attributes
name 
persistent 
fieldtype 
cfc 
fkcolumn 
type 
cascade 
singularname 
orderby 
length 
default 
ormtype
• Mura-specific attributes
loadkey 
datatype 
nullable 
required 
validate 
message 
regex 
comparable

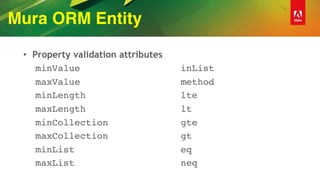

Mura ORM Entity
• Property validation attributes
minValue
maxValue
minLength
maxLength
minCollection
maxCollection
minList
maxList
inList
method
lte
lt
gte
gt
eq
neq

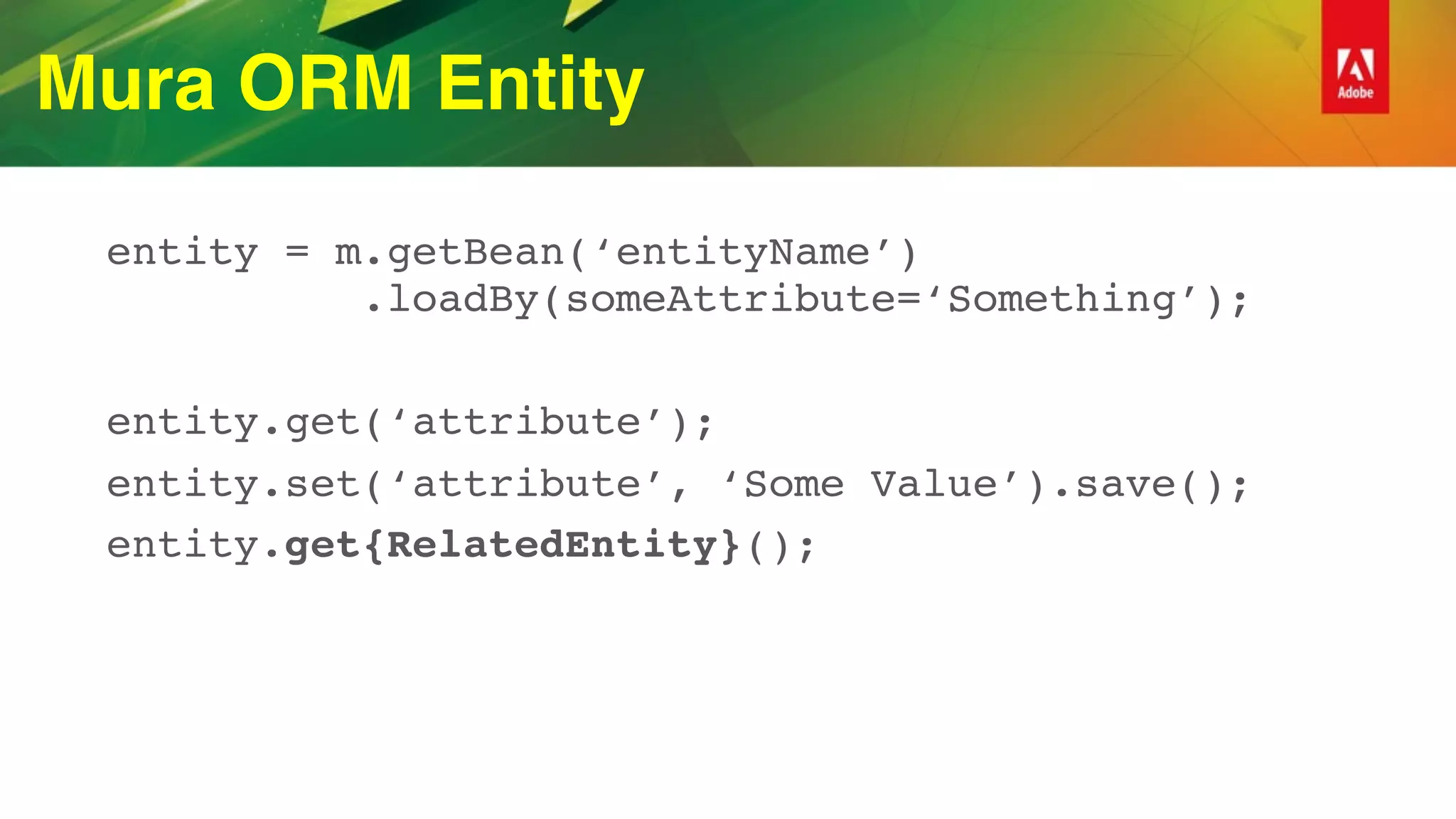

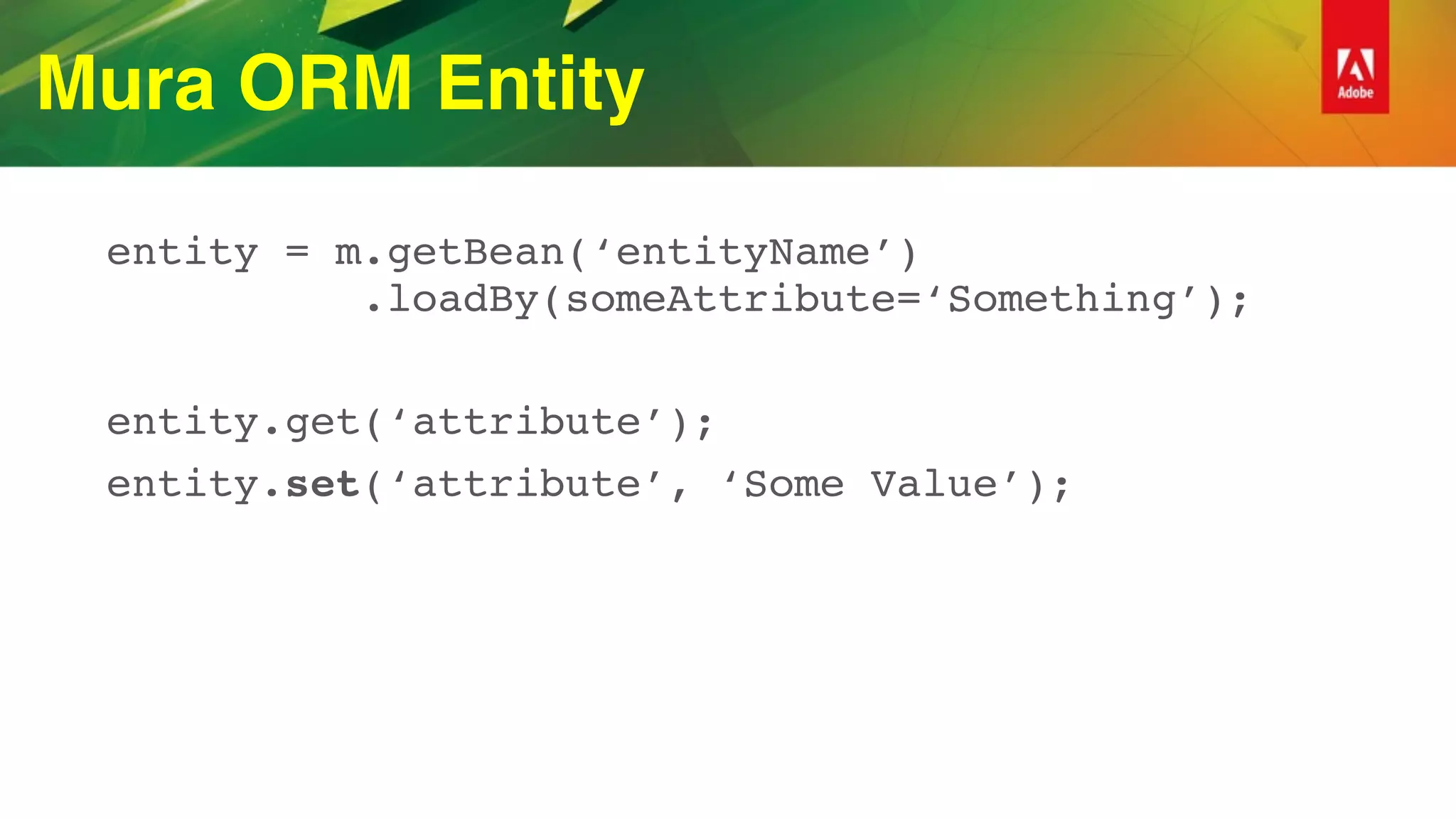

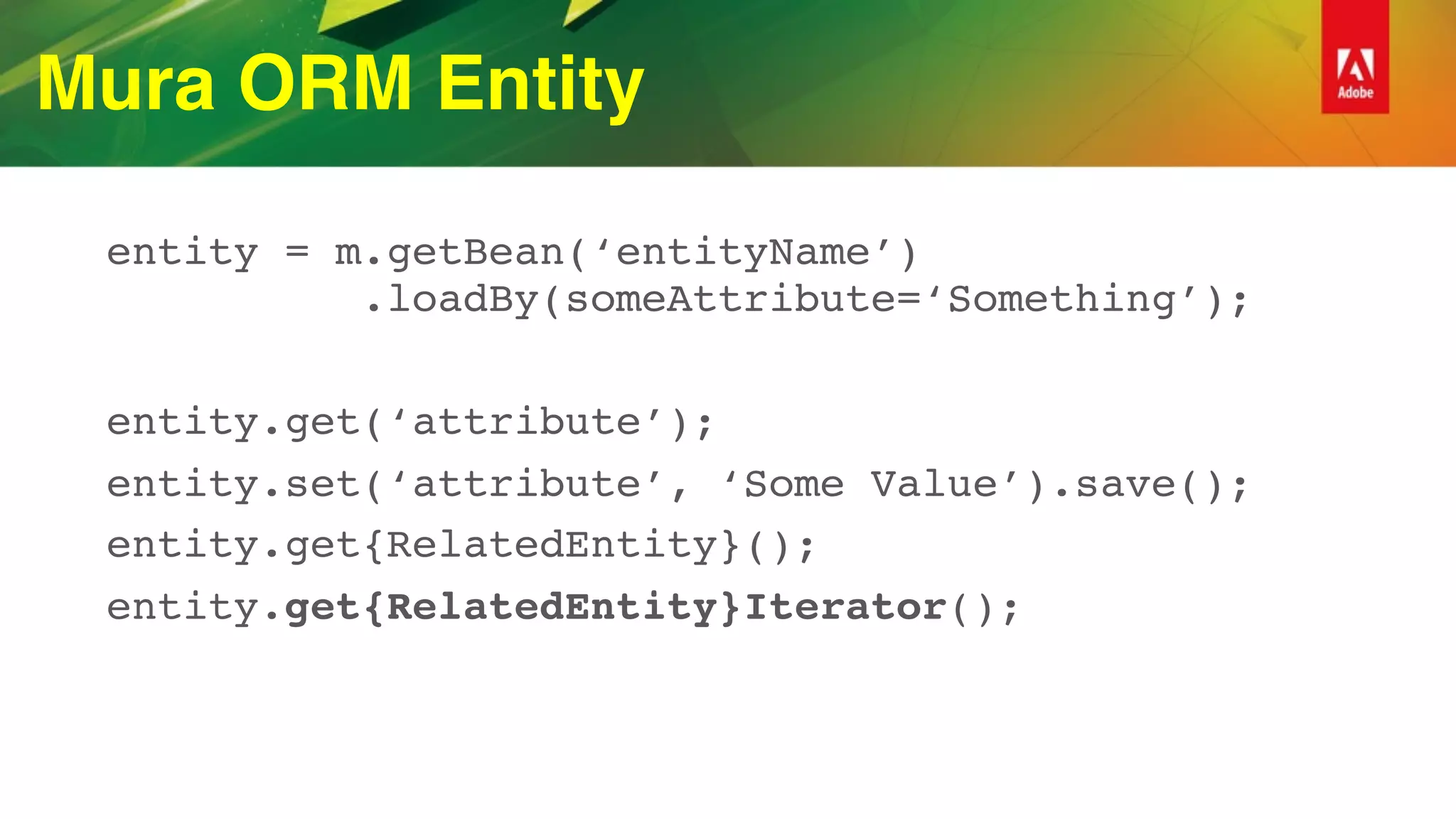

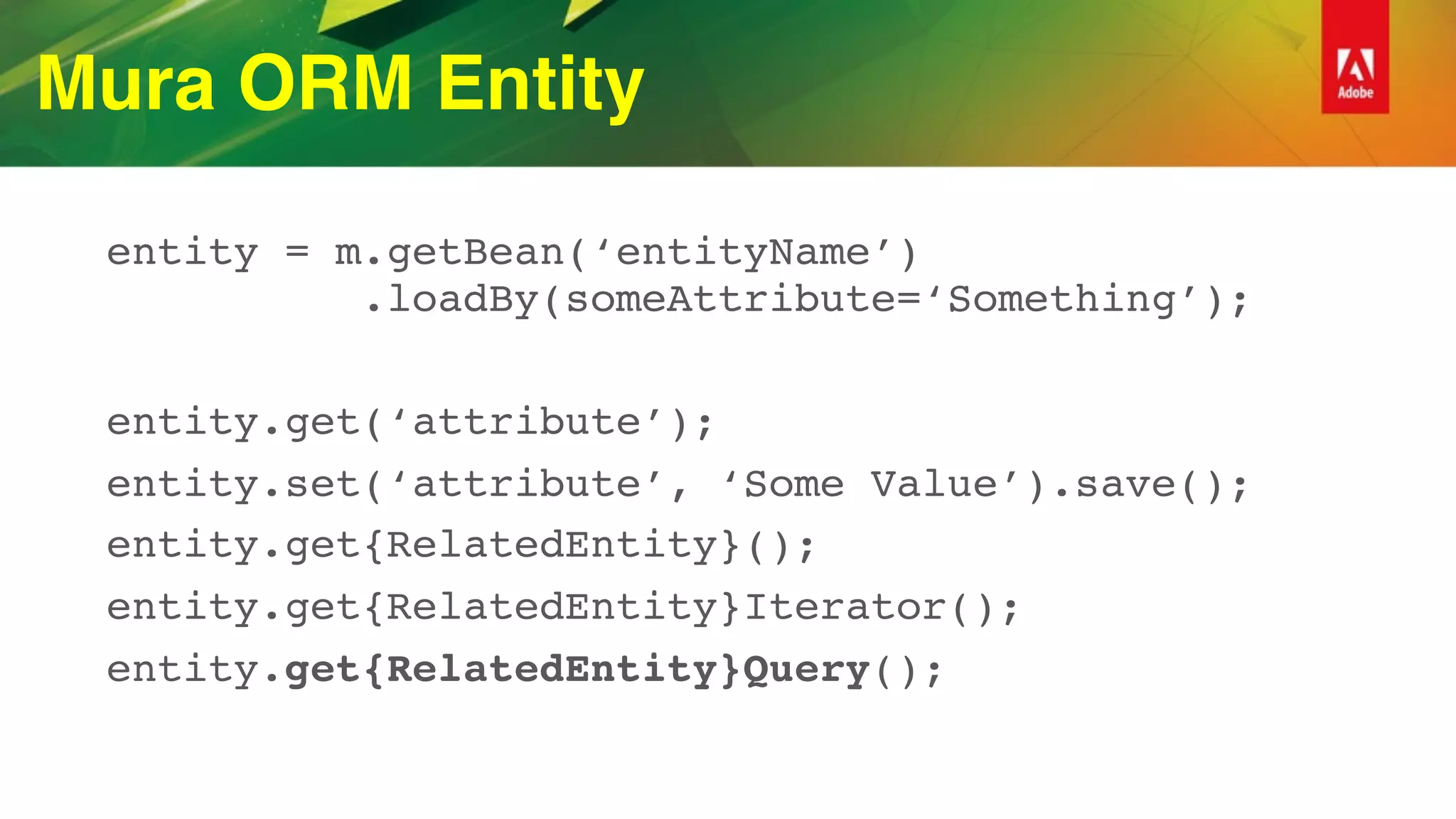

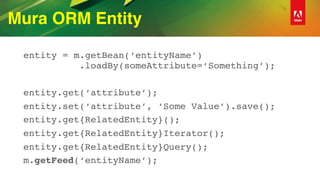

Mura ORM Entity

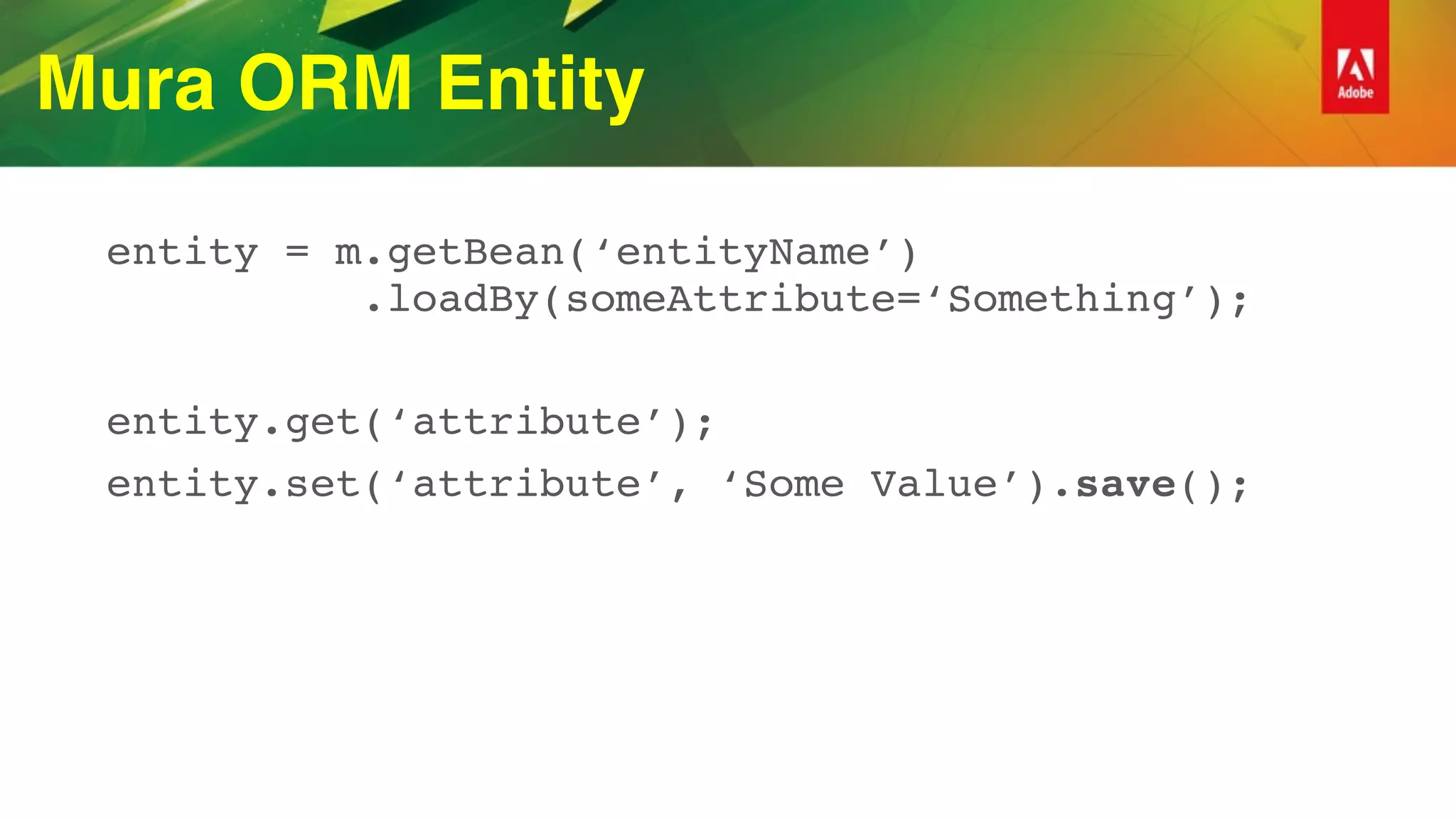

entity = m.getBean(‘entityName’) 
.loadBy(someAttribute=‘Something’);

Mura ORM Entity
entity.get(‘attribute’);

Mura ORM Entity
entity.set(‘attribute’, ‘Some Value’);

Mura ORM Entity
entity.set(‘attribute’, ‘Some Value’).save();

Mura ORM Entity
entity.get{RelatedEntity}();

Mura ORM Entity
entity.get{RelatedEntity}Iterator();

Mura ORM Entity
entity.get{RelatedEntity}Query();

Mura ORM Entity
entity.get{RelatedEntity}Query();
m.getFeed(‘entityName’);

Mura ORM Entity

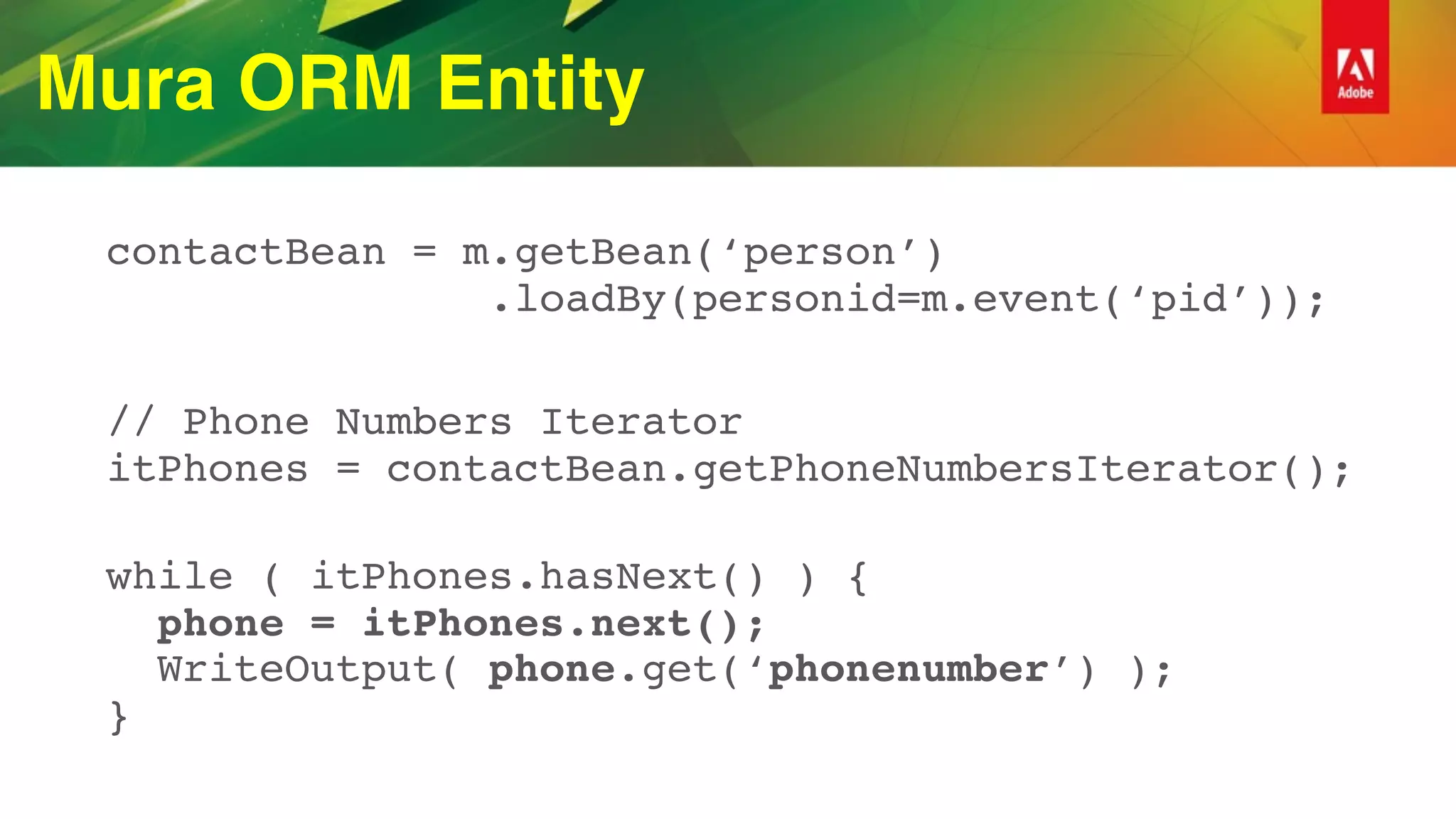

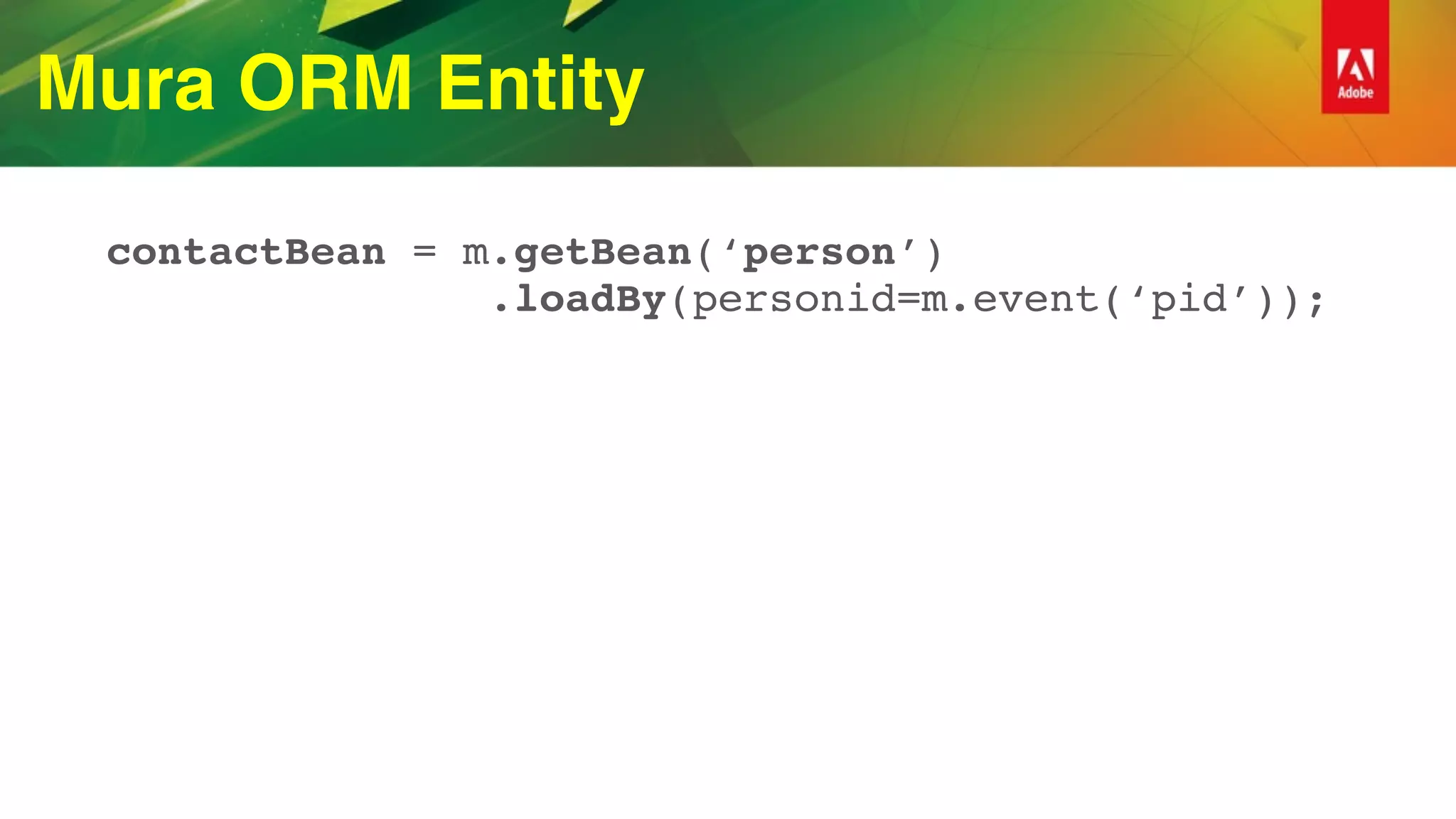

contactBean = m.getBean(‘person’) 
.loadBy(personid=m.event(‘pid’));

Mura ORM Entity
if ( contactBean.exists() ) {  
// This bean exists!
} else { 
// Do something if it’s a new bean
}

Mura ORM Entity
// Phone Numbers Iterator 
itPhones = contactBean.getPhoneNumbersIterator();

Mura ORM Entity
// Phone Numbers Iterator 
itPhones = contactBean.getPhoneNumbersIterator();
 
while ( itPhones.hasNext() ) { 
phone = itPhones.next(); 
WriteOutput( phone.get(‘phonenumber’) ); 
}

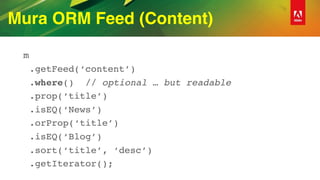

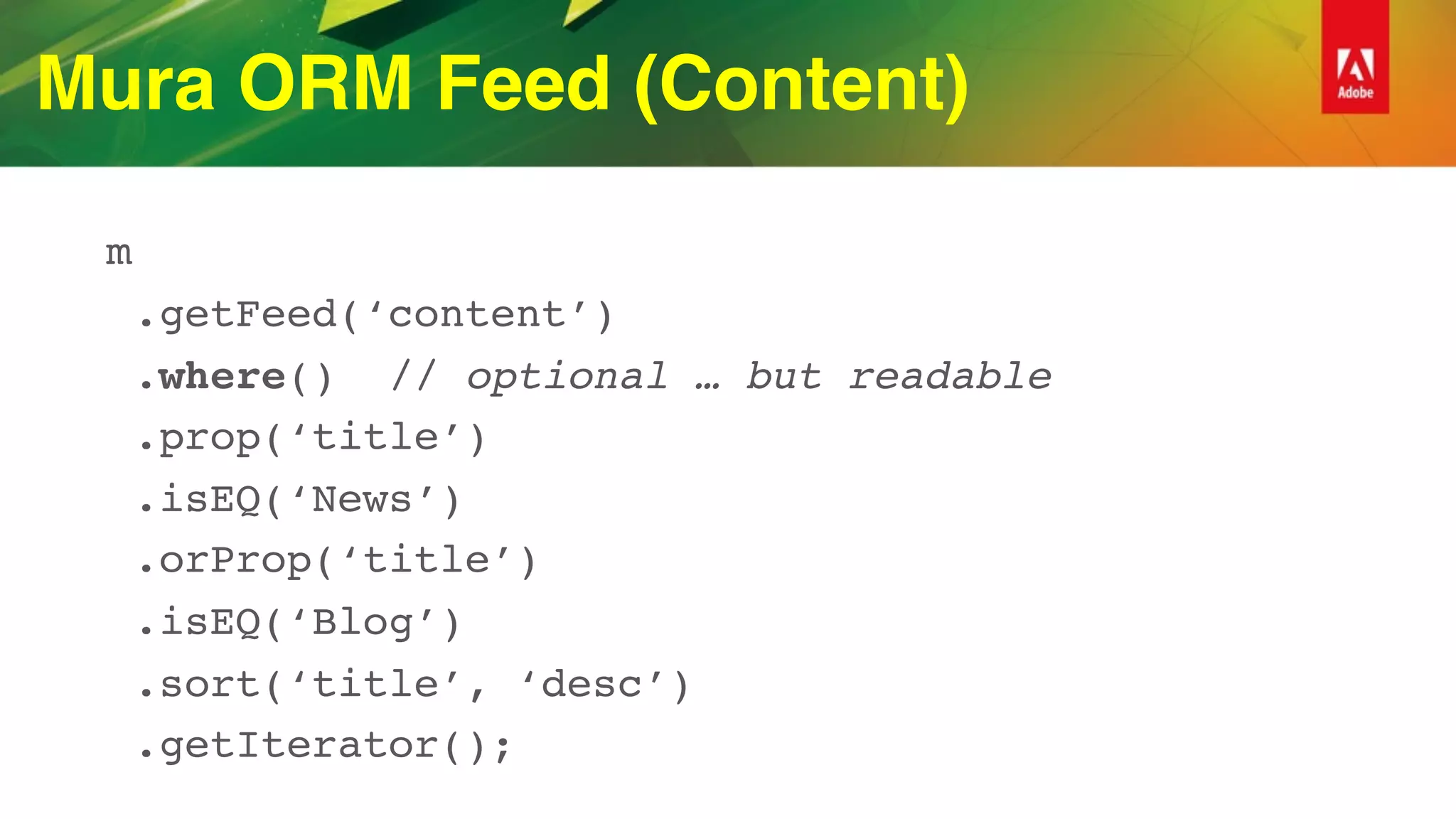

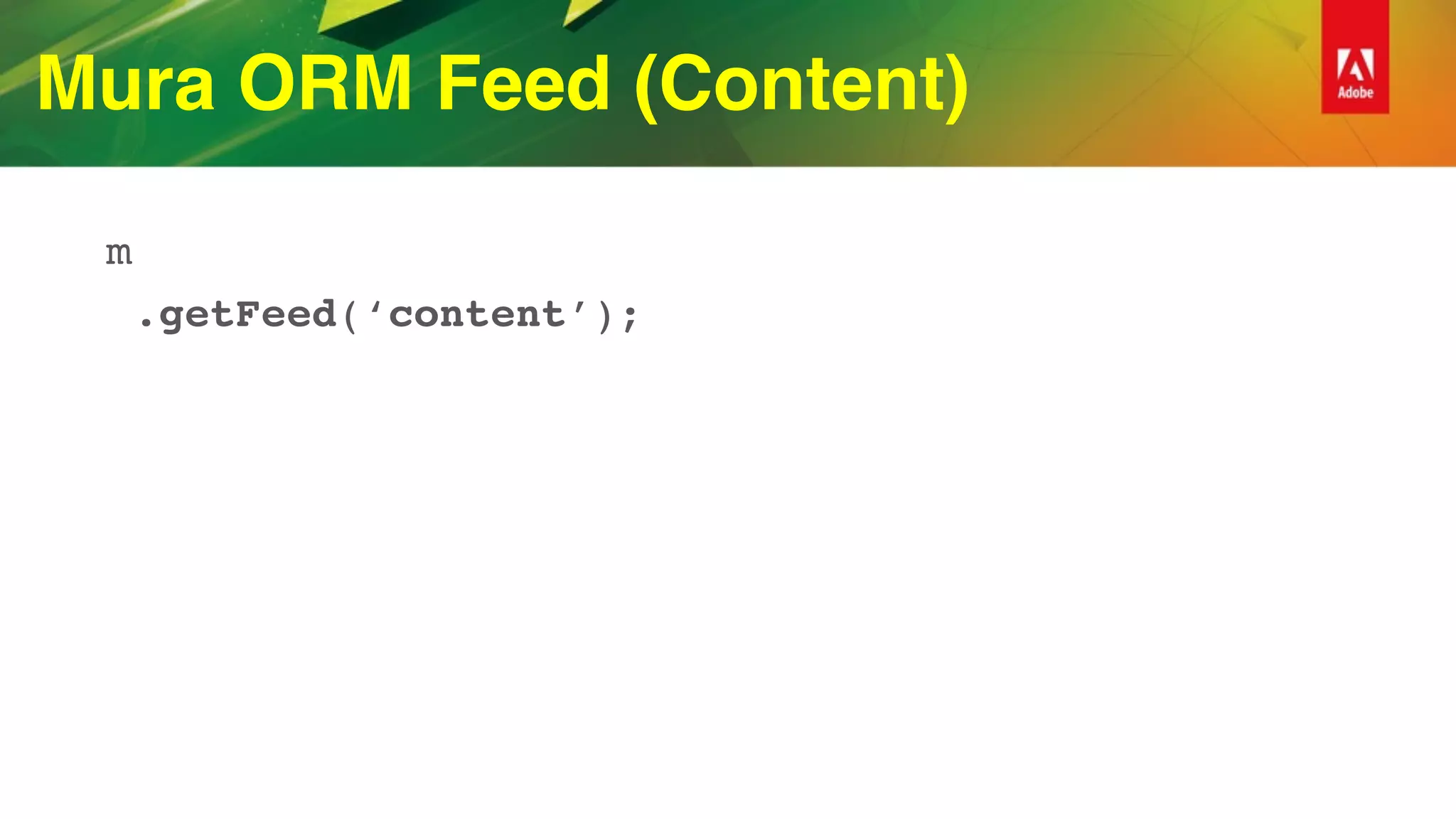

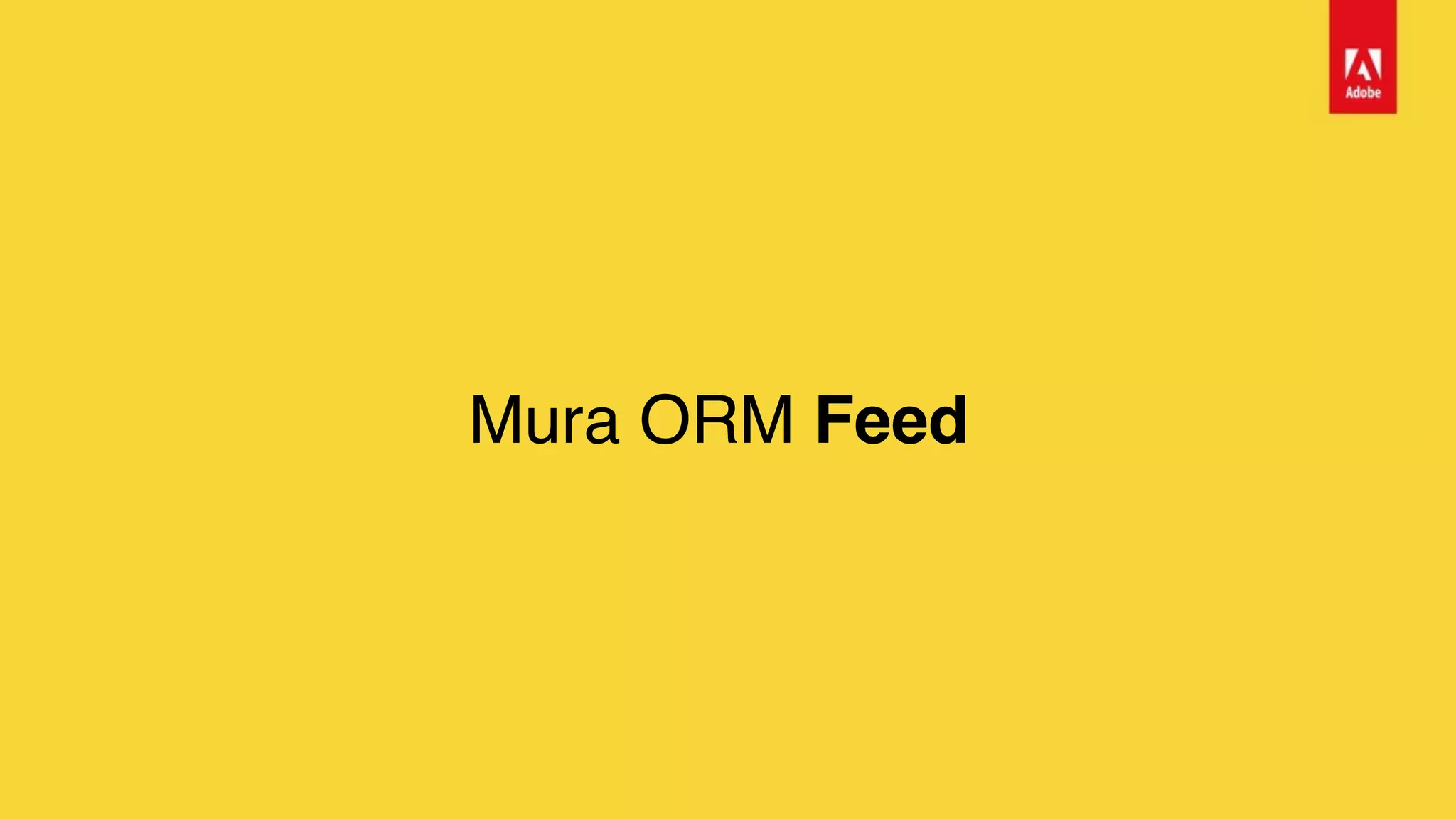

Mura ORM Feed (Content)
m
.getFeed(‘content’);

Mura ORM Feed (Content)
m
.getFeed(‘content’)
.where() // optional … but readable
.prop(‘title’)
.isEQ(‘News’)
.orProp(‘title’)
.isEQ(‘Blog’)
.sort(‘title’, ‘desc’)
.getIterator();

Mura ORM Feed (Entity)
m
.getFeed(‘person’)
.where()
.prop(‘namefirst’)
.containsValue(m.event(‘namefirst’))
.orProp(‘namelast’)
.isEQ(m.event(‘namelast’))
.getIterator();

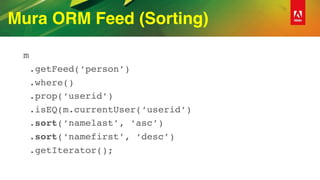

Mura ORM Feed (Sorting)
m
.getFeed(‘person’)
.where()
.prop(‘userid’)
.isEQ(m.currentUser(‘userid’)
.sort(‘namelast’, ‘asc’)
.sort(‘namefirst’, ‘desc’)
.getIterator();

Mura ORM Feed (Methods)
m
.getFeed([entityname])
.where()
.prop([property])
.andProp([property])
.orProp([property])
.isEQ([criteria])
.isNEQ([criteria])
.isLT([criteria])
.isLTE([criteria])
.isGT([criteria])
.isGTE([criteria])
.containsValue([criteria])
.null()
.beginsWith([criteria])
.endsWith([criteria])
.openGrouping()
.andOpenGrouping()
.closeGrouping()
.sort([property],[asc||desc])
.itemsPerPage([itemsPerPage])
.maxItems([maxItems])
.isIn([list criteria])
.isNotIn([list criteria])
.innerJoin([relatedEntity])
.leftJoin([relatedEntity])
.getQuery()
.getIterator()

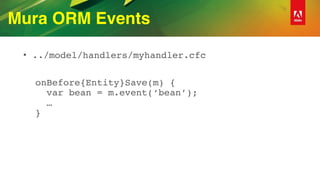

Mura ORM Events
• ../model/handlers/myhandler.cfc

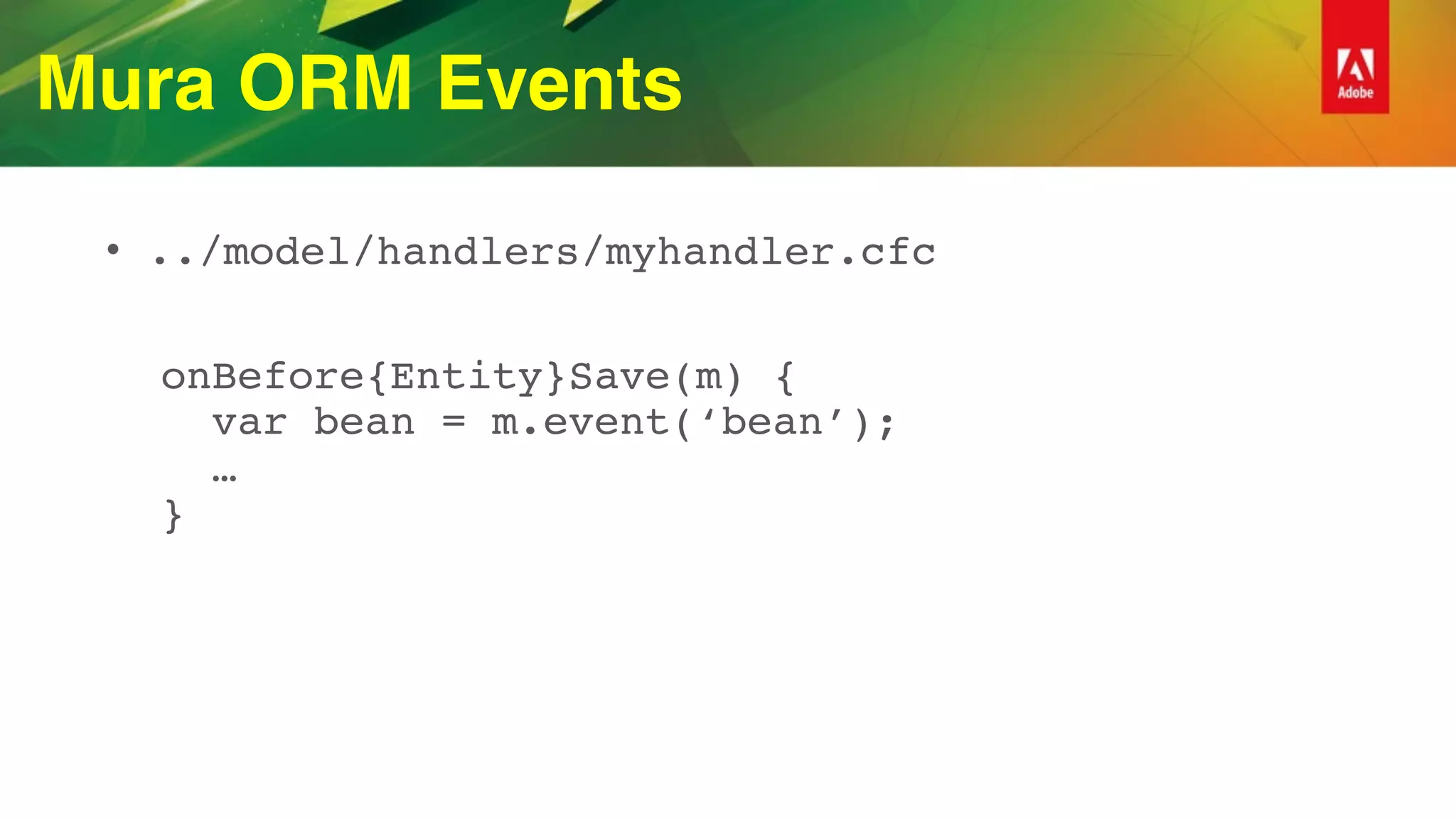

Mura ORM Events
onBefore{Entity}Save(m) { 
var bean = m.event(‘bean’); 
…  
}

Mura ORM Events
onBefore{Entity}Save(m) { 
var bean = m.event(‘bean’); 
…  
}
// Plus any other Mura event listeners you want!

Mura ORM Events
• Support for ColdFusion/CFML ORM Events 
preLoad();
preUpdate();
preCreate();
preInsert();
preDelete();
 
postLoad();
postUpdate();
postCreate();
postInsert();
postDelete();

muracontacts/tree/cfml

Mura.js

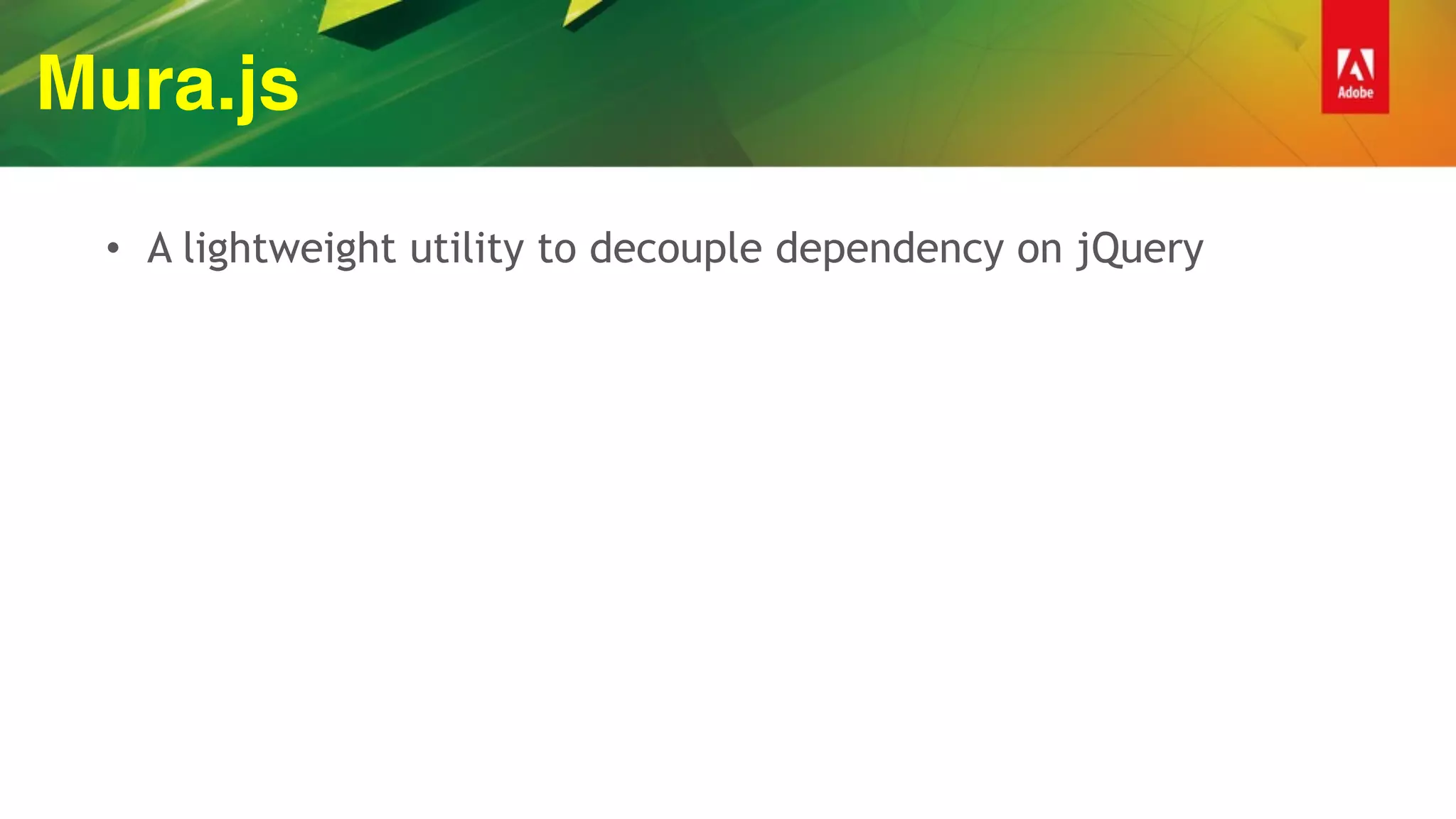

• A lightweight utility to decouple dependency on jQuery

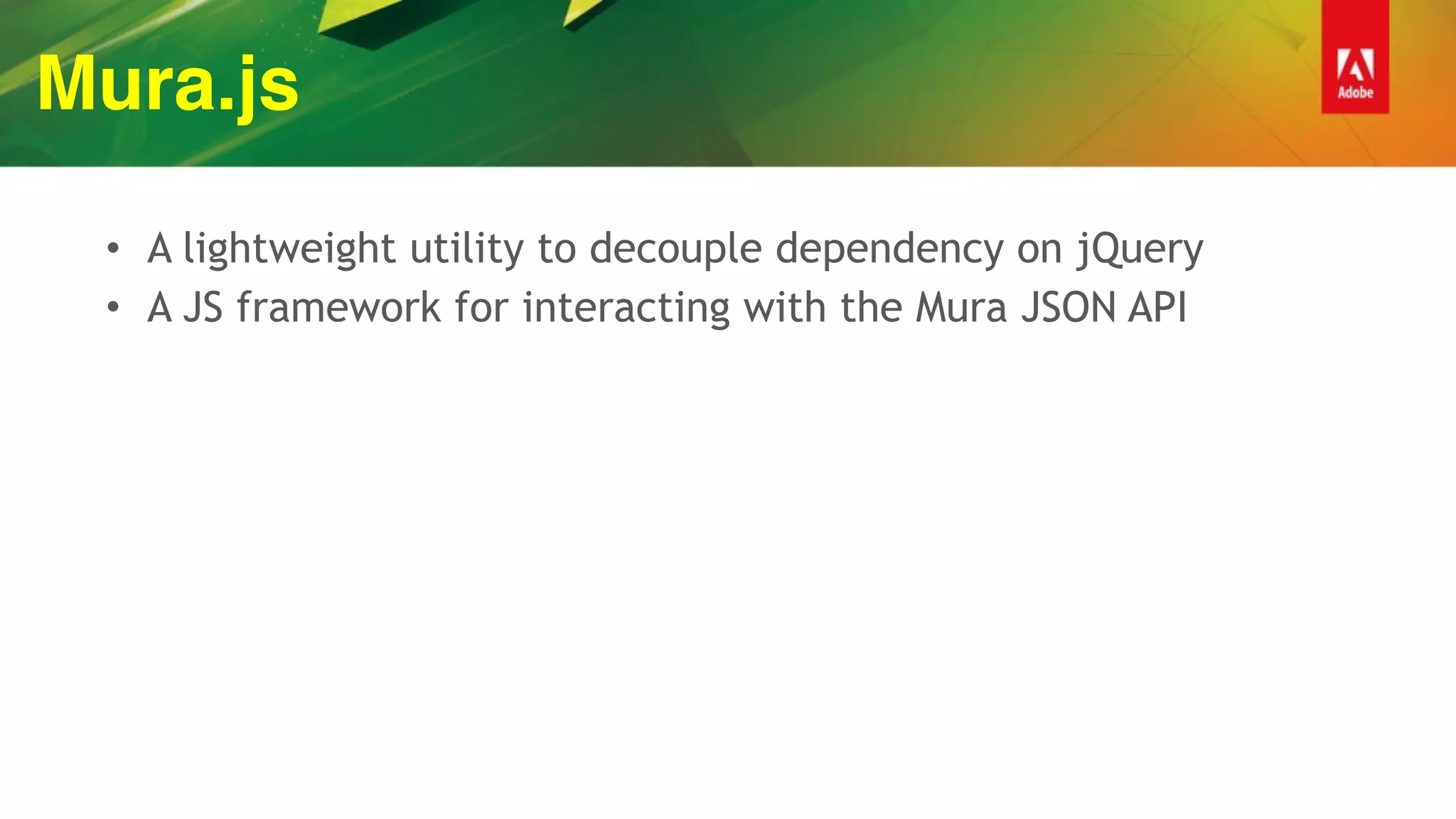

Mura.js
• A lightweight utility to decouple dependency on jQuery
• A JS framework for interacting with the Mura JSON API

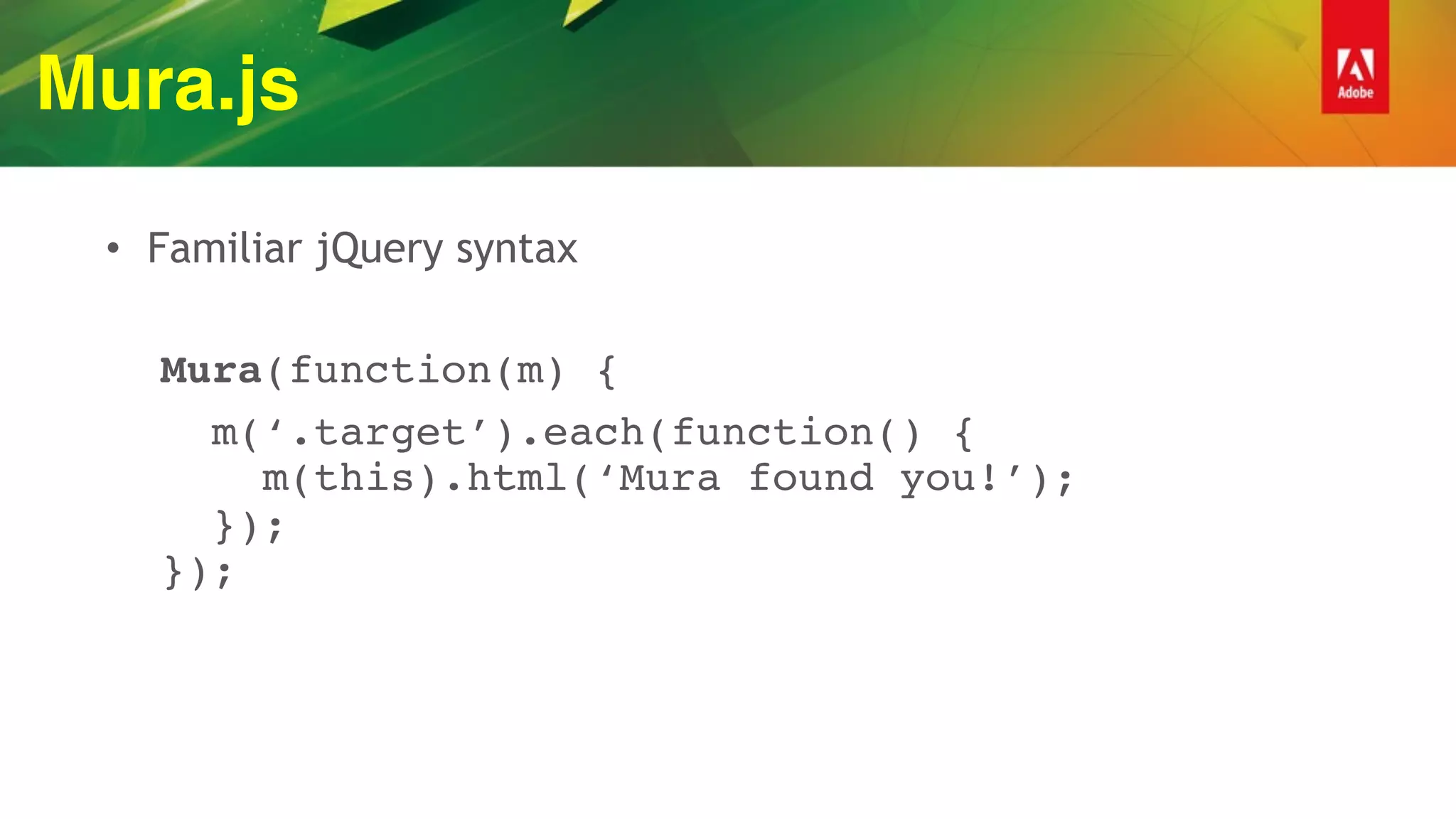

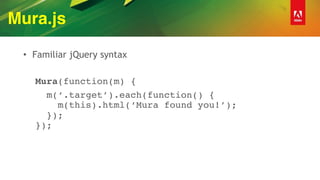

Mura.js
• Familiar jQuery syntax
Mura(function(m) {
m(‘.target’).each(function() { 
m(this).html(‘Mura found you!’); 
}); 
});

Mura.js

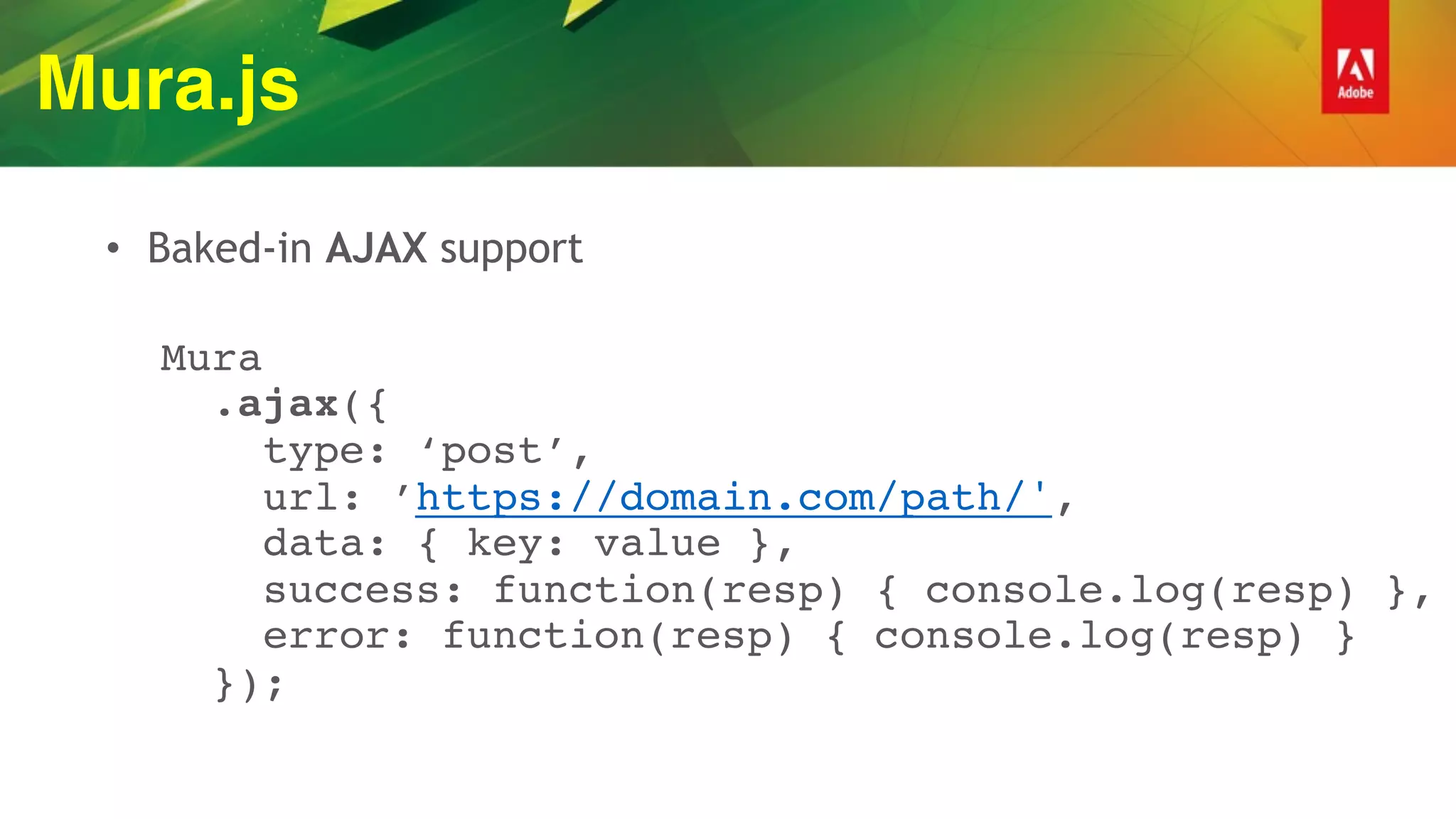

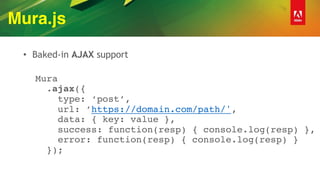

• Baked-in AJAX support
 
Mura 
.ajax({ 
type: ‘post’, 
url: ’https://domain.com/path/', 
data: { key: value }, 
success: function(resp) { console.log(resp) }, 
error: function(resp) { console.log(resp) } 
});

Mura.js
• Baked-in AJAX support & JS promises
 
Mura 
.get(‘https://domain.com/path/') 
.then(function(resp) { 
// success 
Mura(‘#target’).html(resp.data.html); 
}, function(e) { 
// fail 
});

Mura.js

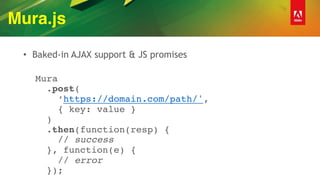

• Baked-in AJAX support & JS promises
 
Mura 
.post( 
‘https://domain.com/path/', 
{ key: value } 
) 
// success 
}, function(e) {  
// error  
});

Mura.js
• JS promises can be stacked like Russian dolls
 
Mura.get(‘https://domain.com/path/') 
// success 
Mura.get(‘https://domain.com?id=' + resp.id) 
.then(function(newresp) { 
Mura(‘#target’).html(newresp.html); 
}); 
}, function(e) {  
// error  
});

Mura.js

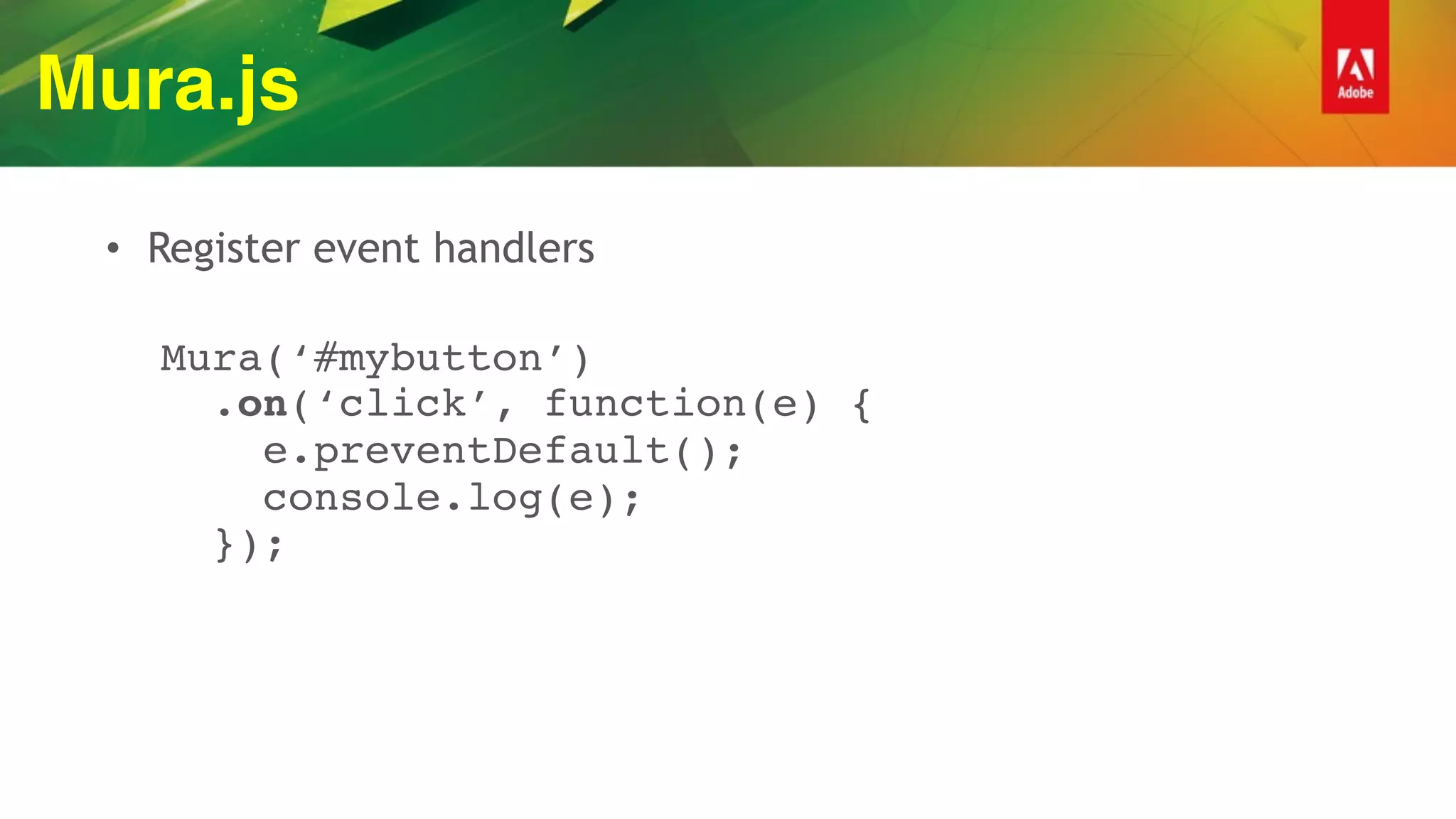

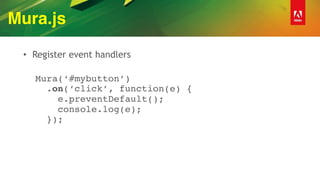

• Register event handlers
 
Mura(‘#mybutton’) 
.on(‘click’, function(e) { 
e.preventDefault(); 
console.log(e); 
});

Mura.js

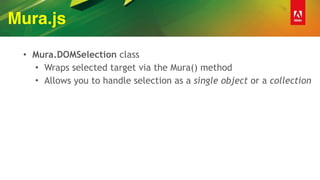

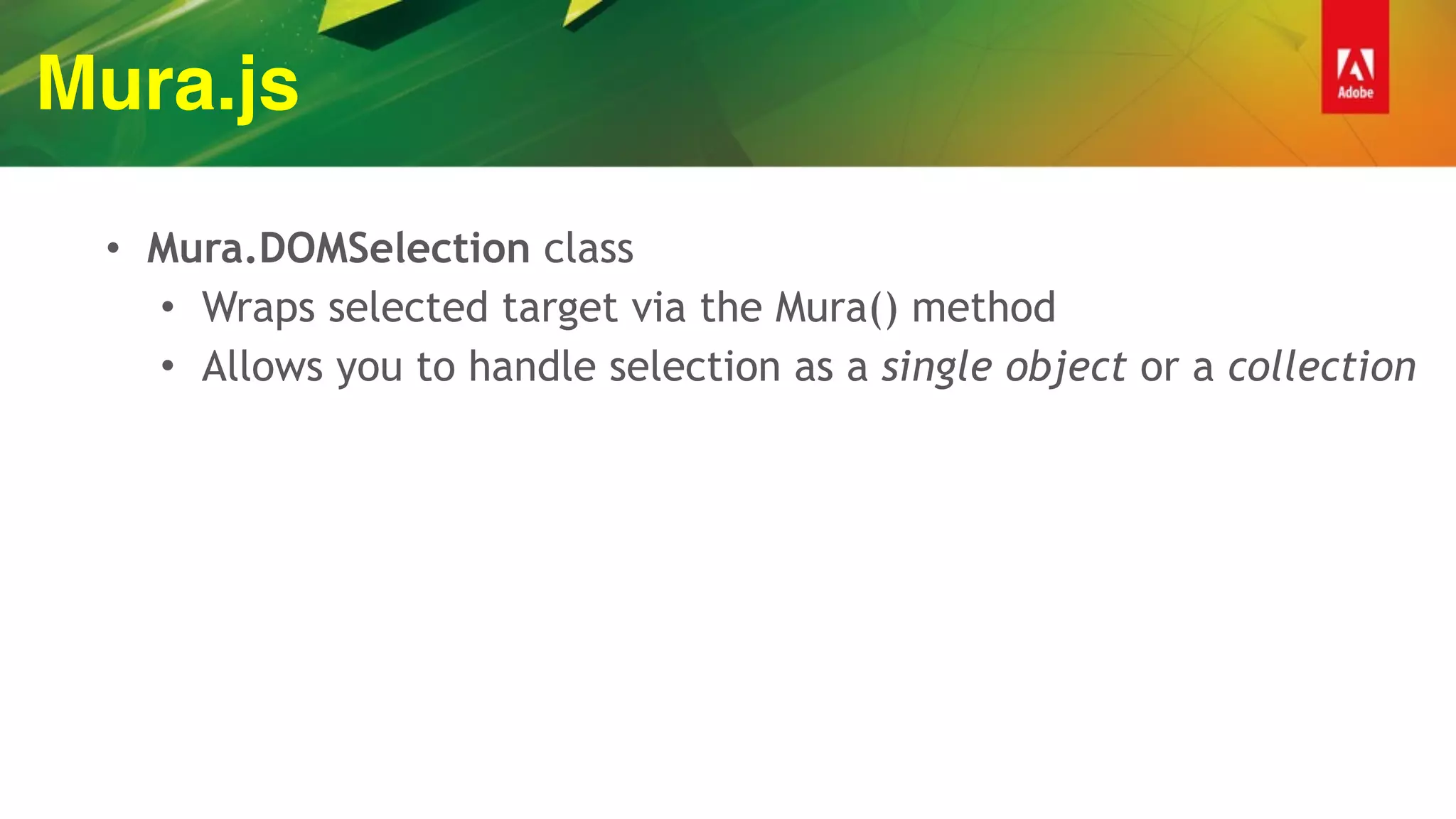

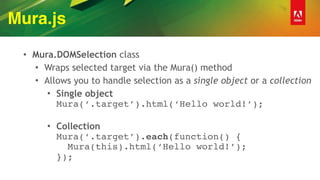

• Mura.DOMSelection class
• Wraps selected target via the Mura() method

Mura.js
• Allows you to handle selection as a single object or a collection

Mura.js
• Single object 
Mura(‘.target’).html(‘Hello world!’);

Mura.js
• Single object 
Mura(‘.target’).html(‘Hello world!’); 
• Collection 
Mura(‘.target’).each(function() { 
Mura(this).html(‘Hello world!’); 
});

Mura.js
• Supported methods can be found under: 
 
{SiteID}/js/src/mura.domselection.js

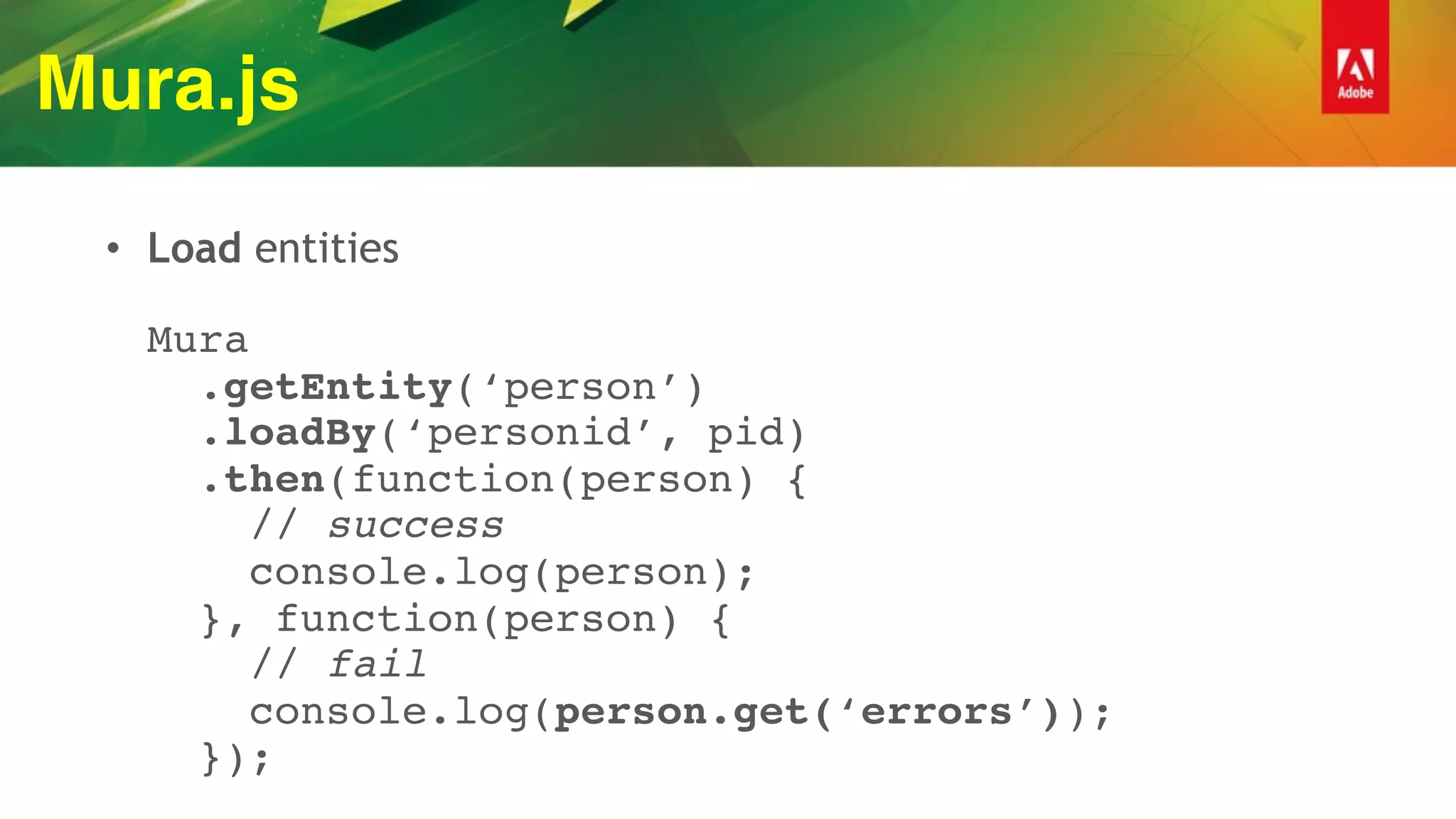

Mura.js
• Load entities 
 
Mura 
.getEntity(‘person’) 
.loadBy(‘personid’, pid) 
.then(function(person) { 
// success 
console.log(person); 
}, function(person) { 
// fail 
console.log(person.get(‘errors’)); 
});

Mura.js

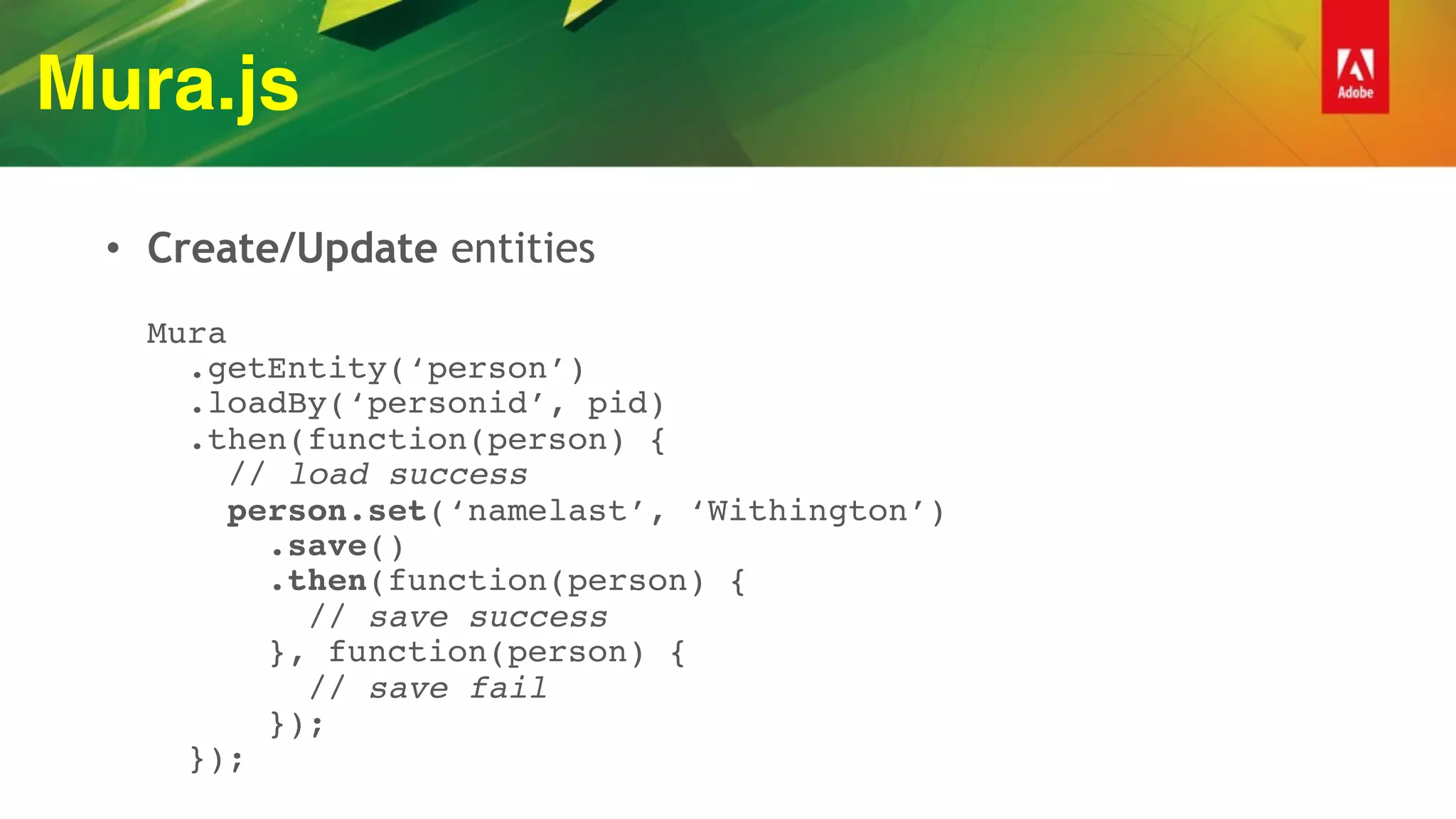

• Create/Update entities 
 
Mura 
// load success 
person.set(‘namelast’, ‘Withington’) 
.save() 
// save success 
}, function(person) {  
// save fail  
}); 
});

Mura.js
• Delete entities 
 
Mura 
// load success 
person 
.delete() 
// delete success 
}, function(person) {  
// delete fail  
}); 
});

Mura.js
• Feed API 
 
Mura 
.getFeed(‘person’) 
.where() // optional 
.prop(‘namelast’).isEQ(‘Levine’) 
.orProp(‘namelast’).beginsWith(‘Withing’) 
.getQuery() 
.then(function(people) { 
// success 
people.each(function(prsn, idx) { 
console.log(prsn.get(‘namefirst’) + ‘ ‘ + prsn.get(‘namelast’)); 
}); 
});

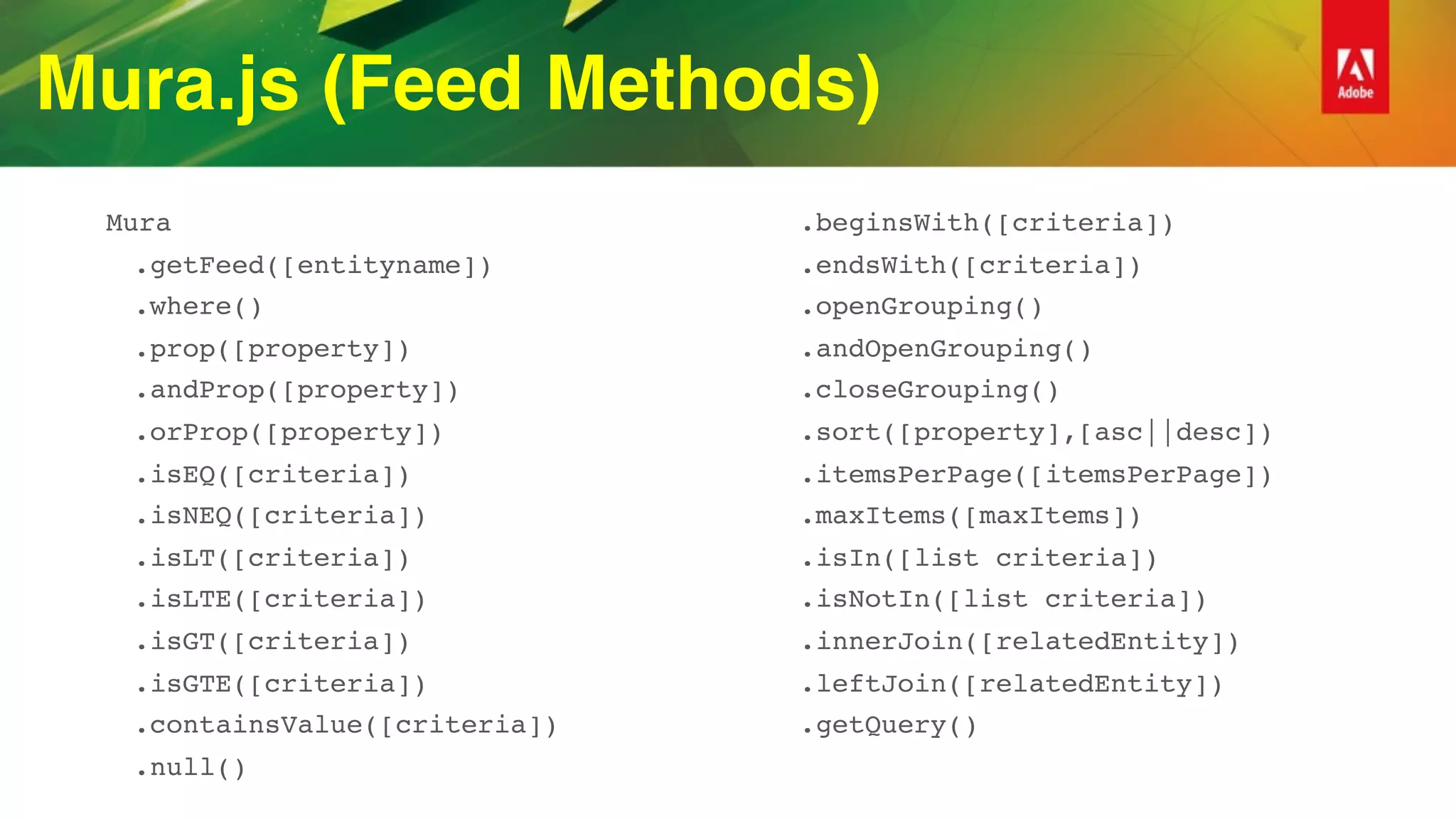

Mura.js (Feed Methods)
Mura
.getFeed([entityname])
.where()
.prop([property])
.andProp([property])
.orProp([property])
.isEQ([criteria])
.isNEQ([criteria])
.isLT([criteria])
.isLTE([criteria])
.isGT([criteria])
.isGTE([criteria])
.containsValue([criteria])
.null()
.beginsWith([criteria])
.endsWith([criteria])
.openGrouping()
.andOpenGrouping()
.closeGrouping()
.sort([property],[asc||desc])
.itemsPerPage([itemsPerPage])
.maxItems([maxItems])
.isIn([list criteria])
.isNotIn([list criteria])
.innerJoin([relatedEntity])
.leftJoin([relatedEntity])
.getQuery()

Part 3

• Loading JS/CSS files 
 
Mura(function(m) { 
m.loader() 
.loadcss(m.themepath + ‘/path/all.css’, {media:’all’}) 
.loadcss(m.themepath + ‘/path/print.css’, {media:’print’}) 
.loadjs( 
m.themepath + ’/path/script1.js’, 
function() { 
// Now do something with the loaded JS  
} 
); 
});

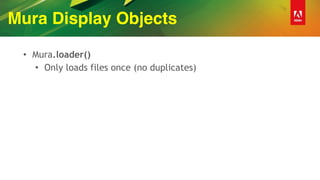

• Mura.loader()
• Only loads files once (no duplicates)

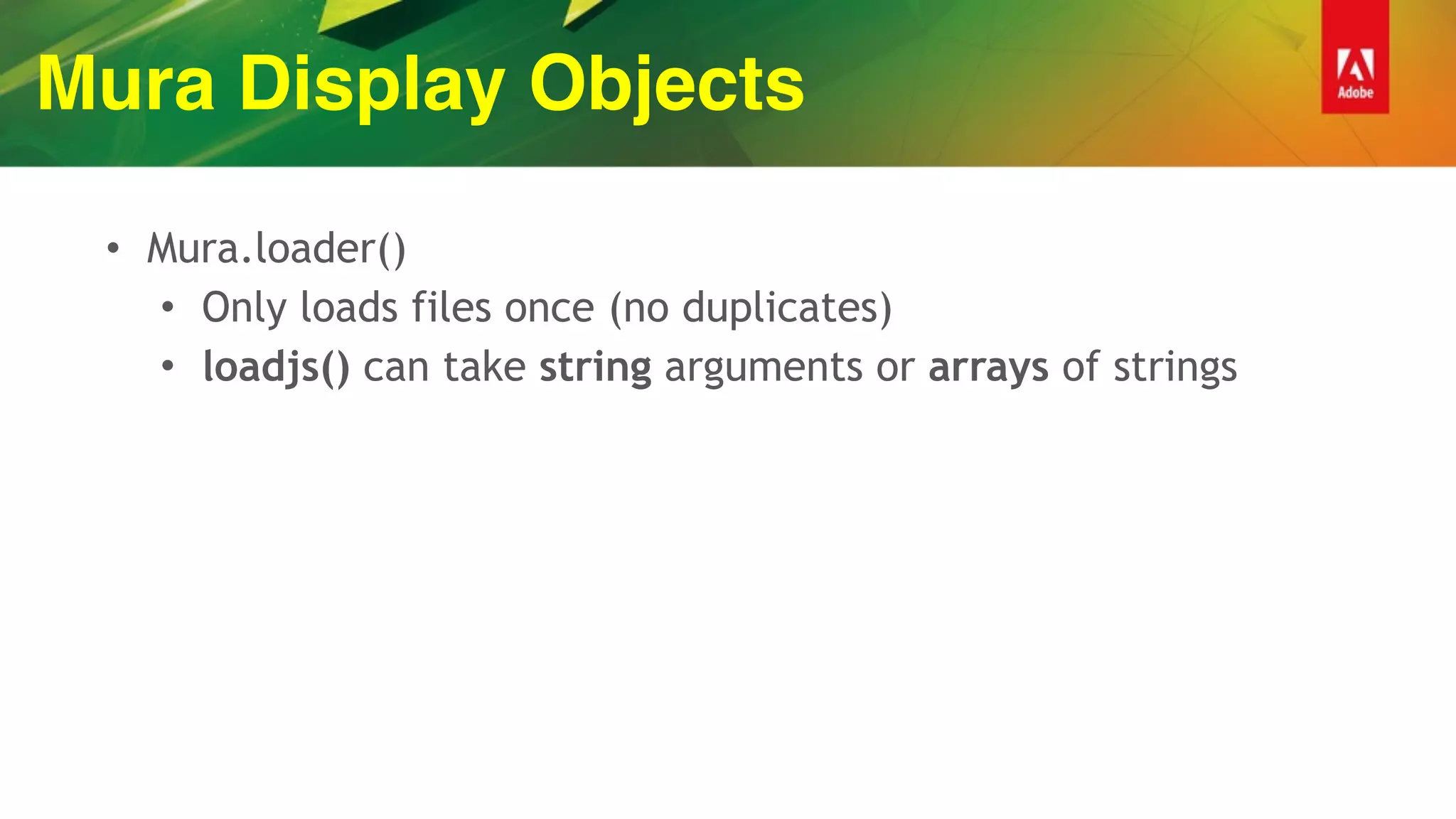

• Mura.loader()
• loadjs() can take string arguments or arrays of strings

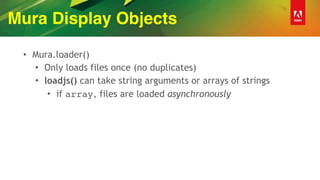

• Mura.loader()
• if array, files are loaded asynchronously

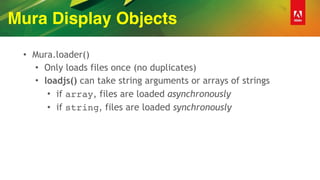

• Mura.loader()
• if array, files are loaded asynchronously
• if string, files are loaded synchronously

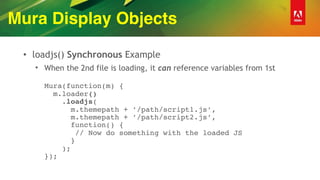

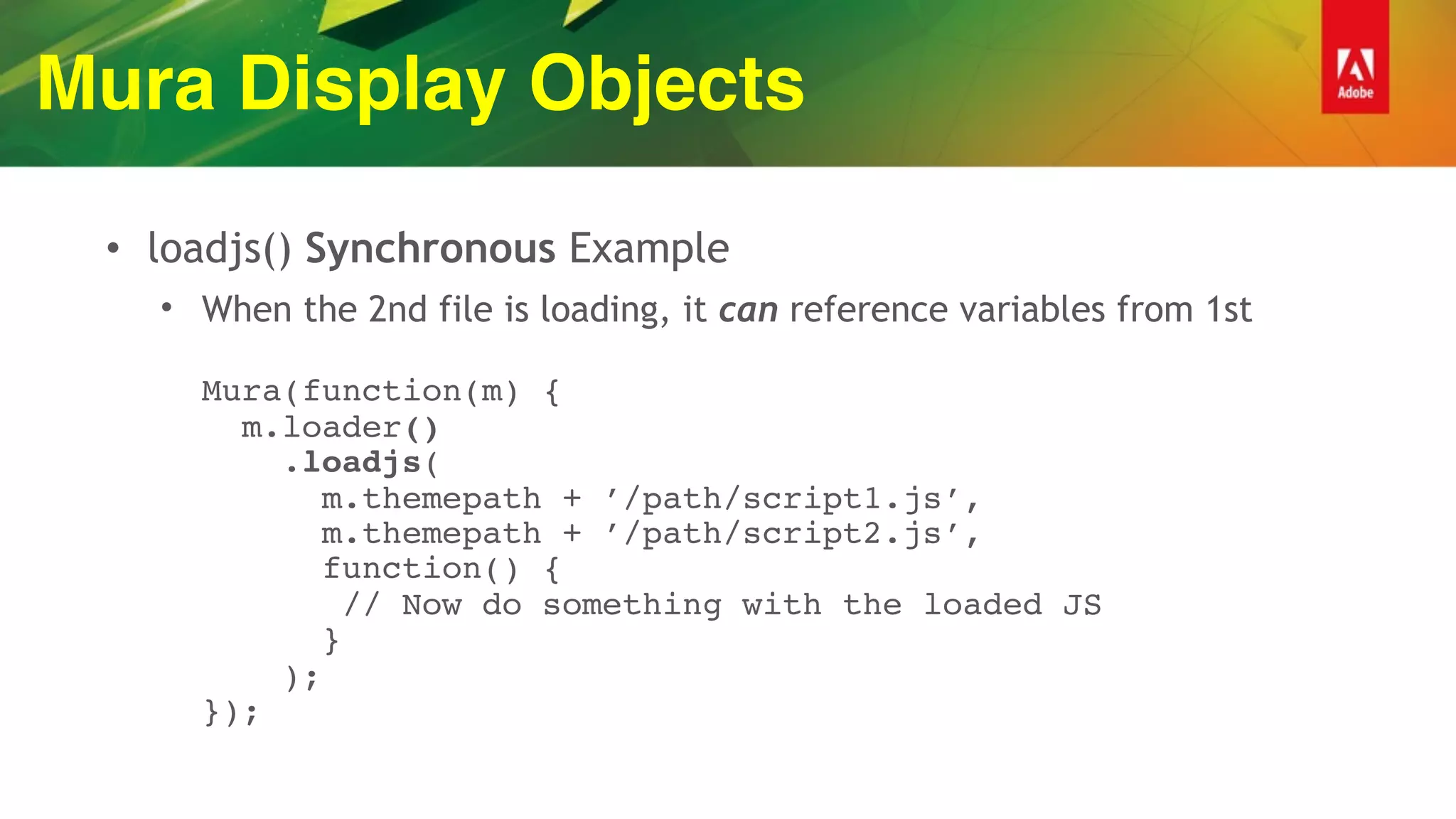

• loadjs() Synchronous Example
• When the 2nd file is loading, it can reference variables from 1st 
 
m.loader() 
.loadjs( 
function() { 
} 
); 
});

• loadjs() Asynchronous Example
• When the 2nd file is loading, it cannot reference variables from 1st 
 
m.loader() 
.loadjs( 
[ 
m.themepath + ’/path/script2.js’ 
], 
function() { 
} 
); 
});

• index.cfm (Full example if rendering via Server/CFML)
<cfoutput> 
<h3>#esapiEncode(‘html’, objectparams.mytext)#</h3> 
</cfoutput> 
 
<script> 
m.loader() 
.loadcss(m.themepath + ‘/path/my.css’) 
.loadjs(m.themepath + ’/path/my.js’); 
}); 
</script>

• index.cfm (Full example if rendering via Client/JS)
Mura.DisplayObject.myobject = Mura.UI.extend({ 
render: function() { 
this.container = Mura(this.context.targetEl); 
 
Mura.loader() 
.loadcss(Mura.themepath + ‘/path/my.css’) 
.loadjs(Mura.themepath + ’/path/my.js’, 
function(){ 
//DO STUFF 
} 
); 
}
});

murahelloworld/tree/js

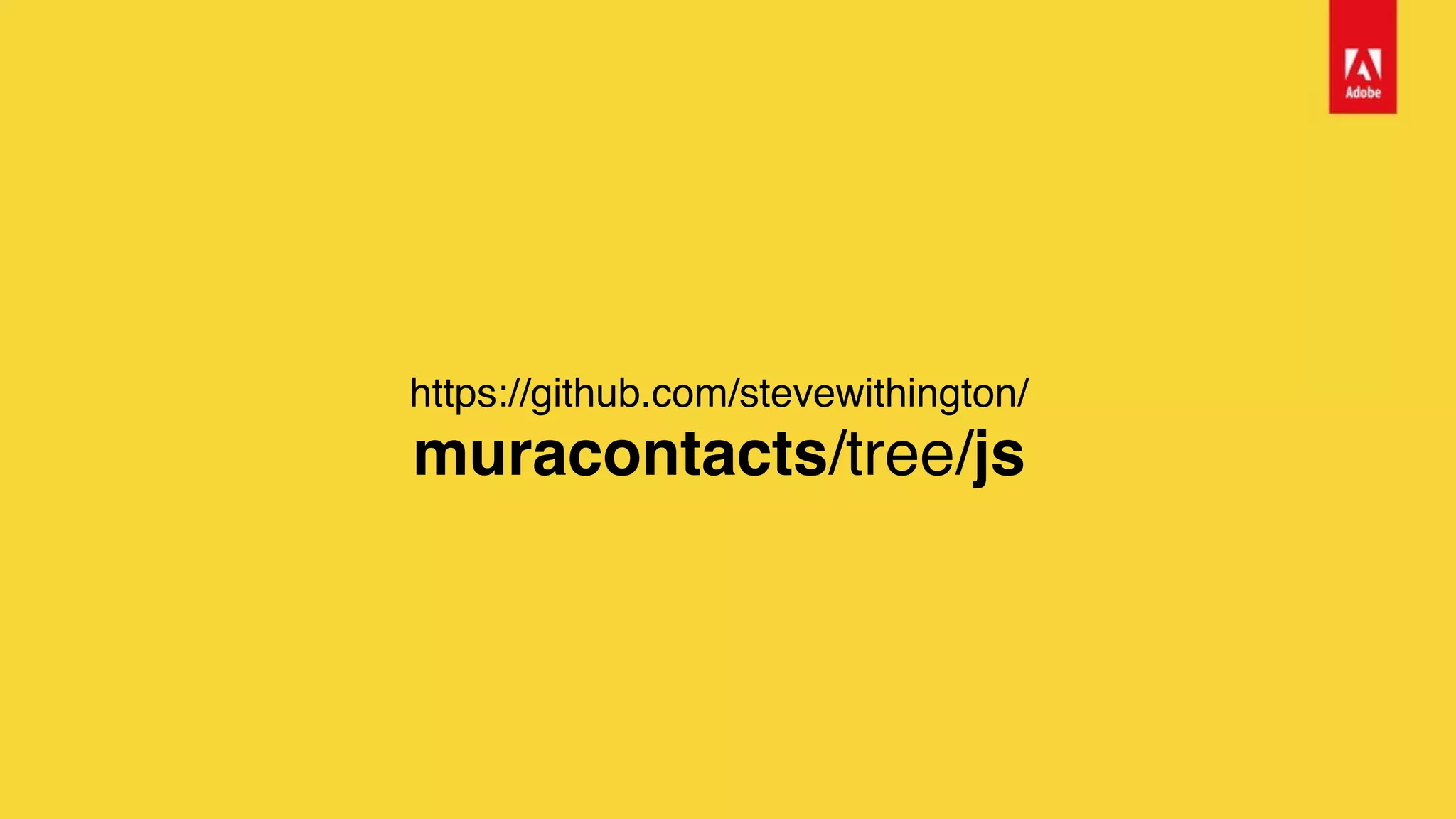

muracontacts/tree/js

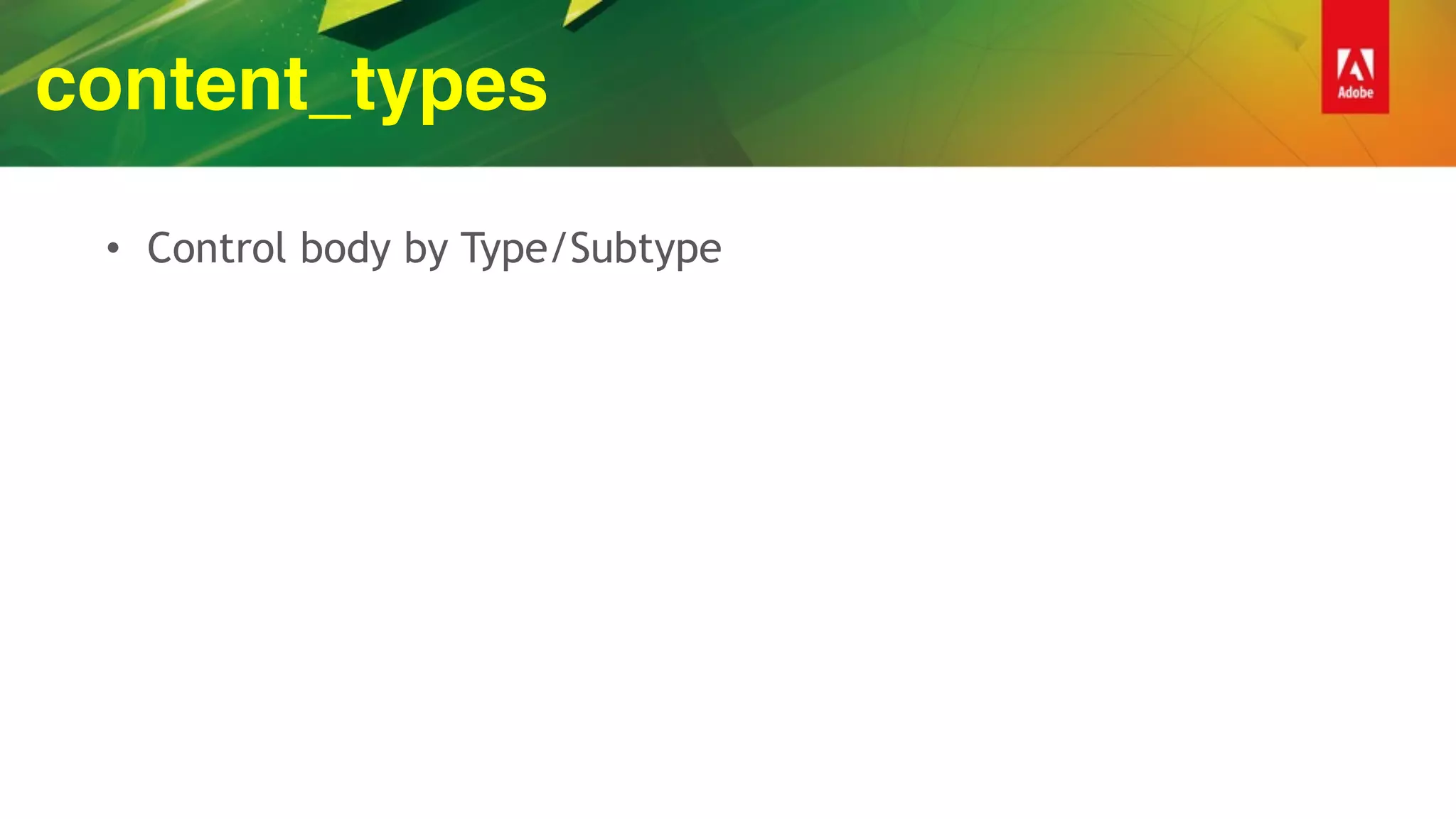

content_types
• Control body by Type/Subtype

content_types

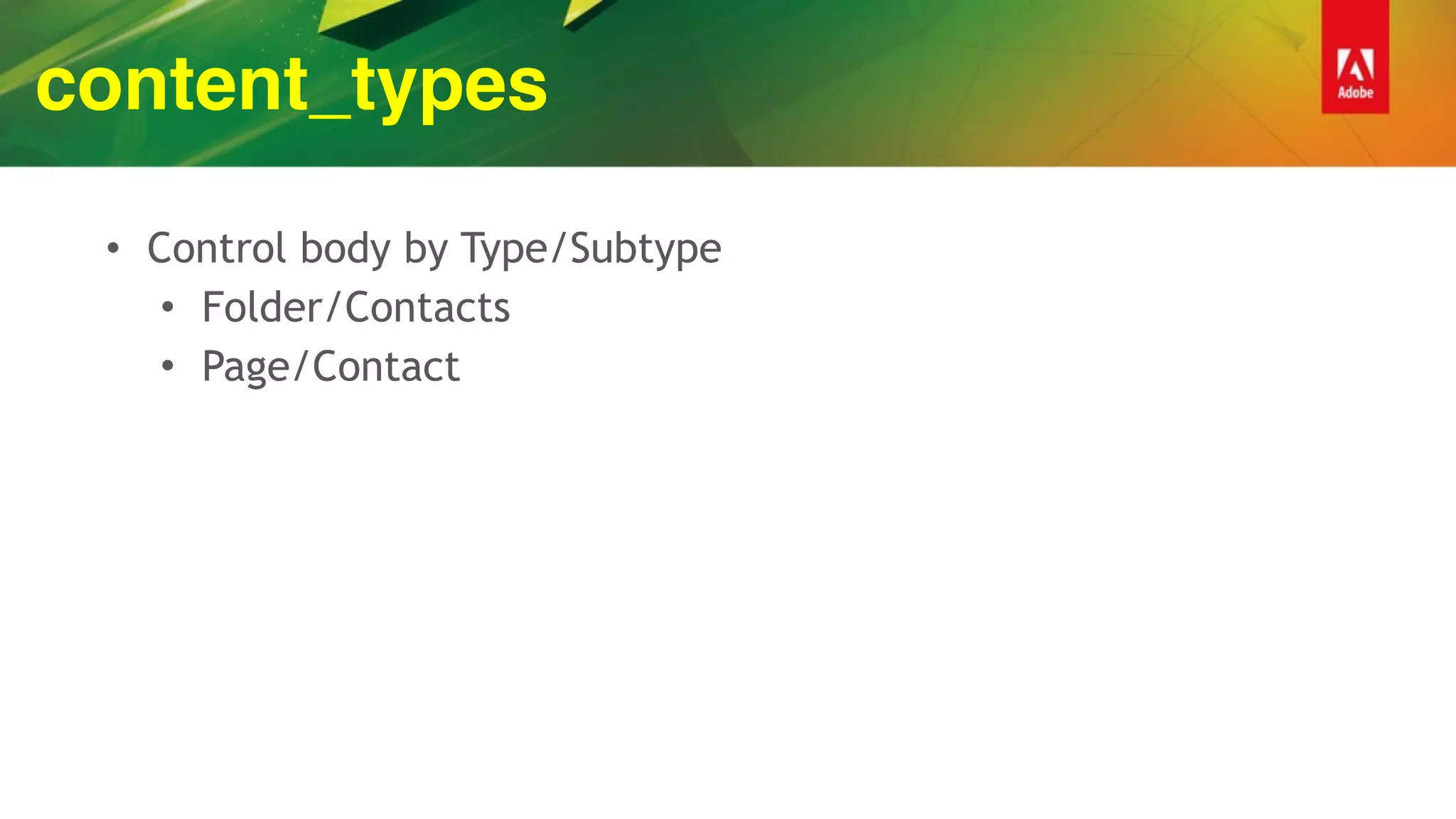

• Control body by Type/Subtype
• Folder/Contacts
• Page/Contact

content_types

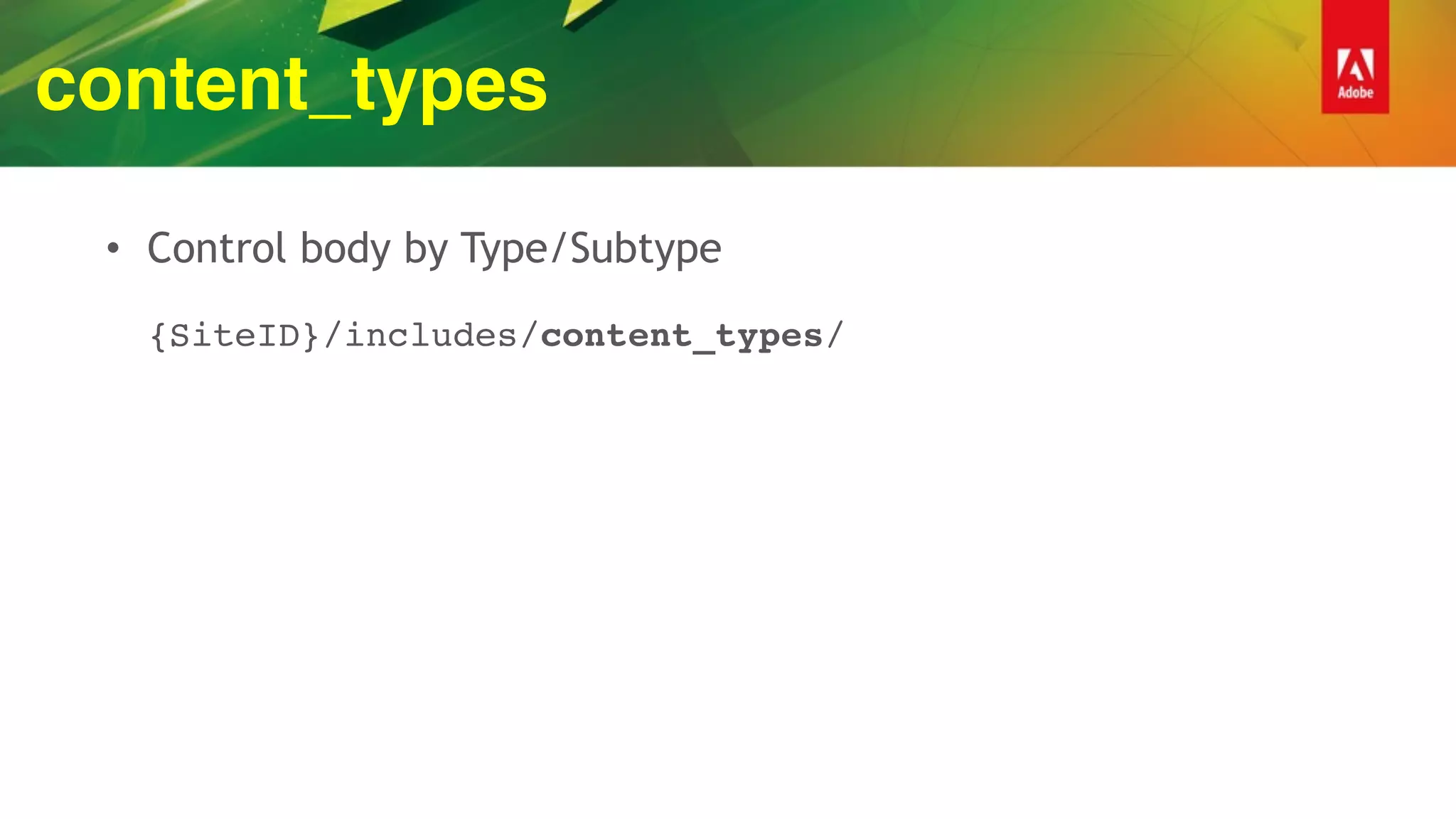

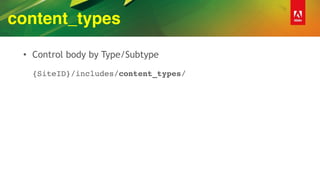

• Control body by Type/Subtype 
 
{SiteID}/includes/content_types/

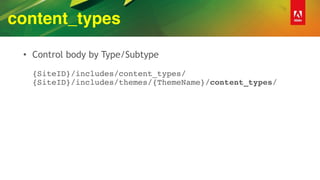

content_types
 
{SiteID}/includes/content_types/ 
{SiteID}/includes/themes/{ThemeName}/content_types/

content_types

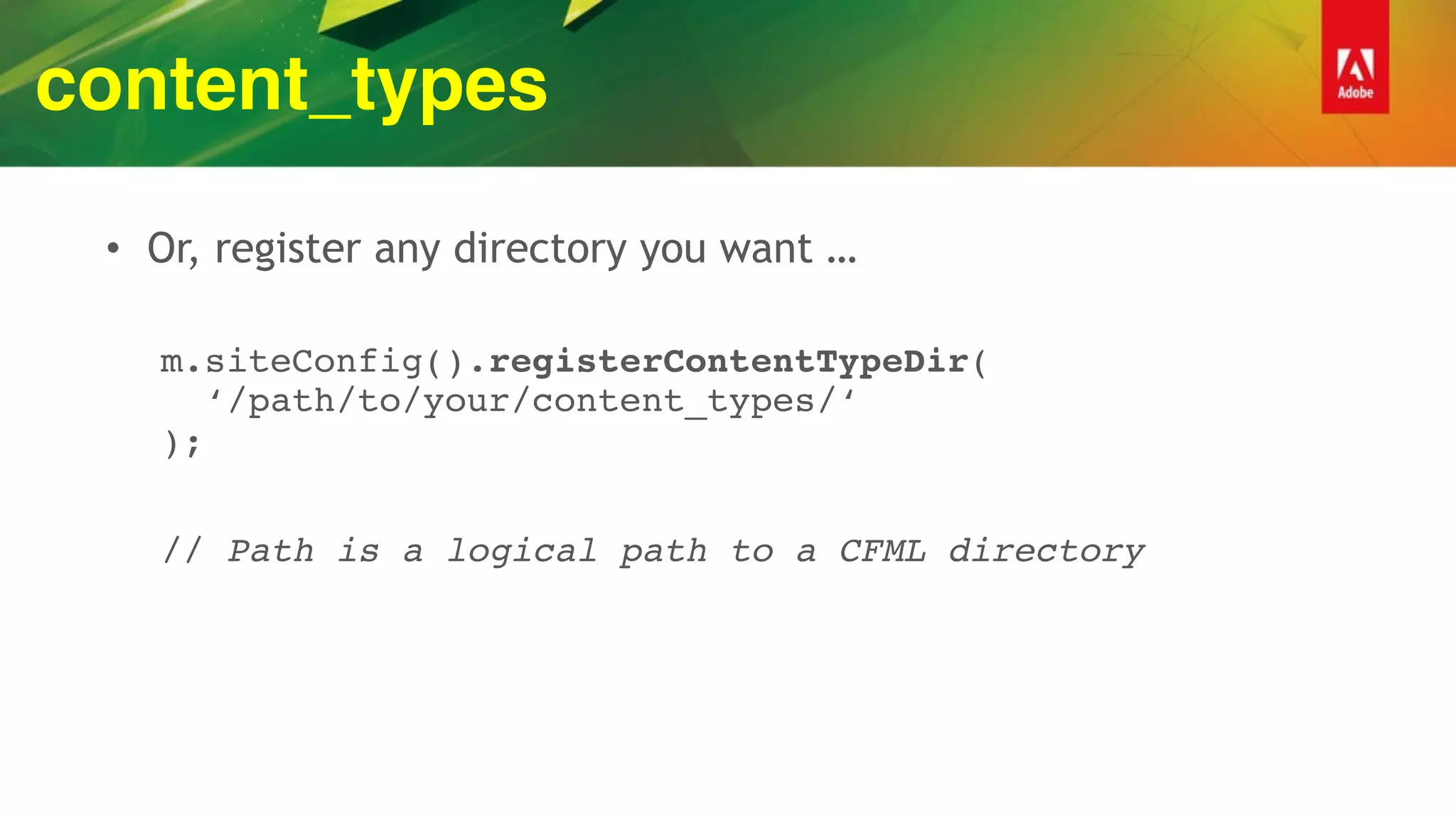

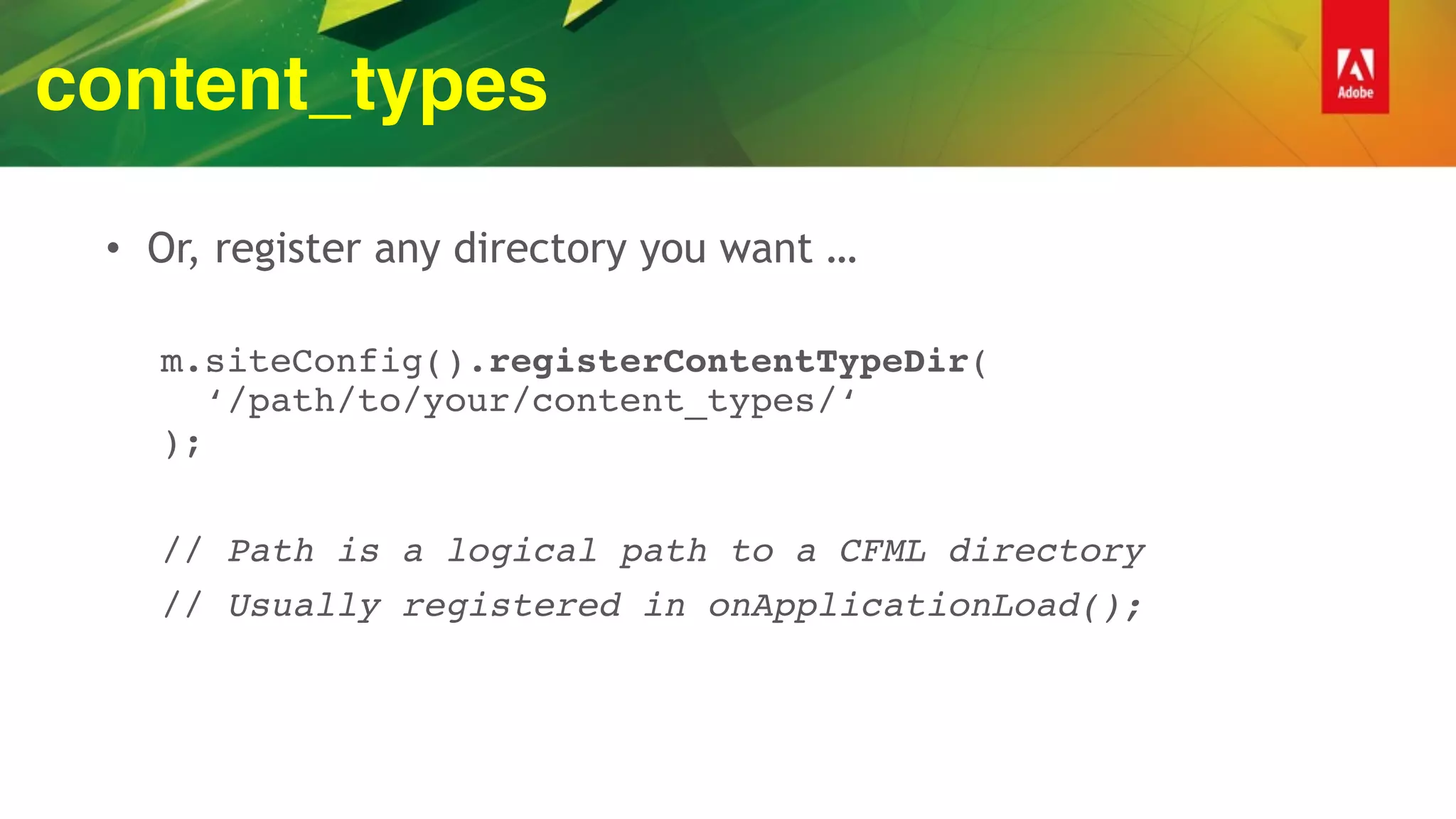

m.siteConfig().registerContentTypeDir( 
‘/path/to/your/content_types/‘ 
);

content_types
 

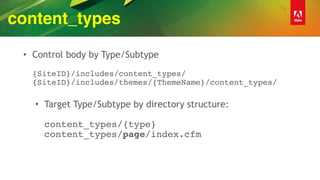

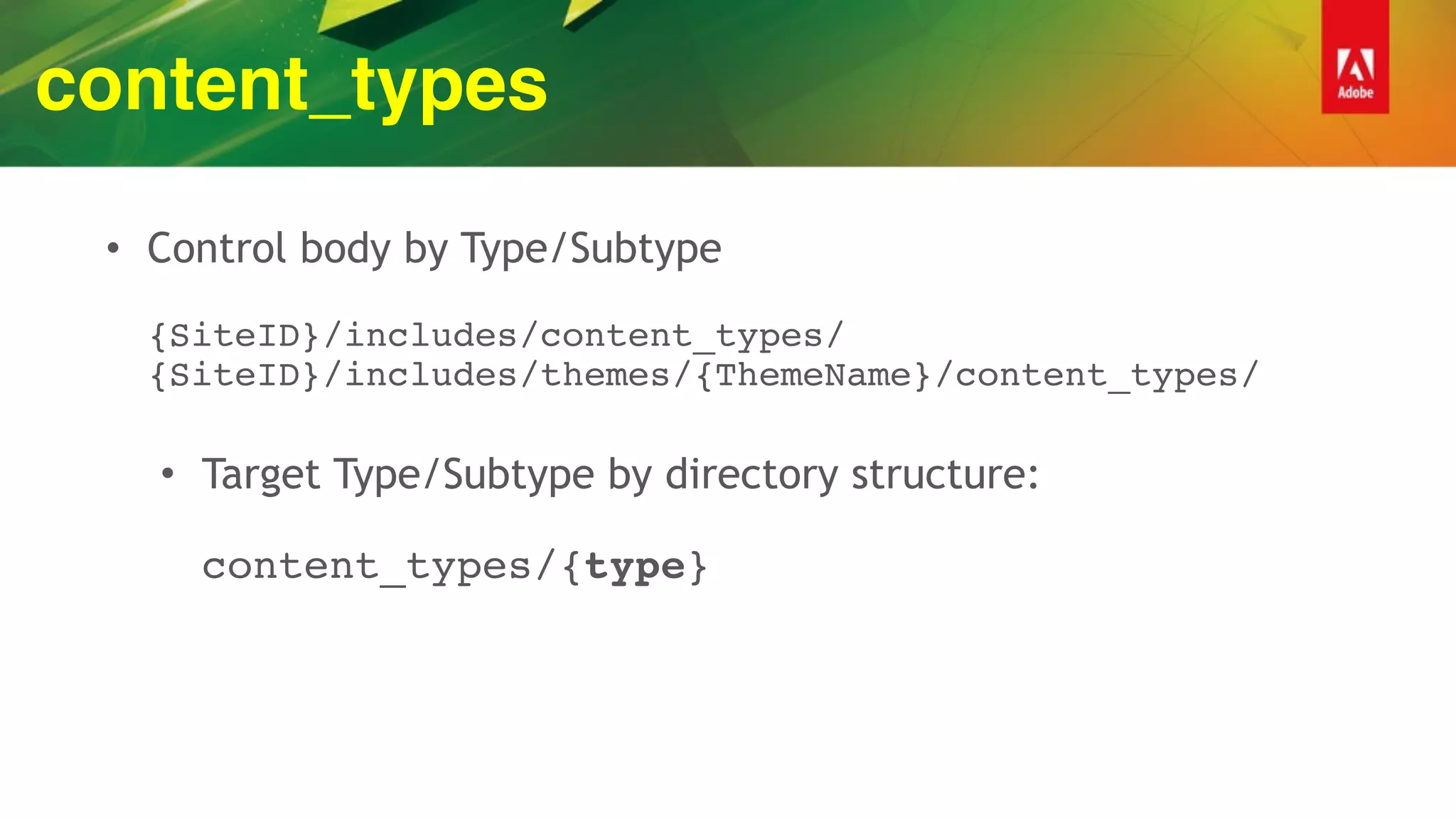

{SiteID}/includes/themes/{ThemeName}/content_types/ 
• Target Type/Subtype by directory structure: 
 
content_types/{type}

content_types
 
 
content_types/{type} 
content_types/page/index.cfm

content_types
 
 
content_types/page/index.cfm 
 
content_types/{type}_{subtype}

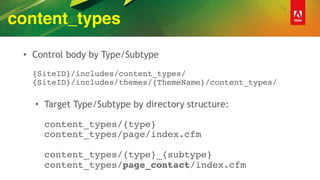

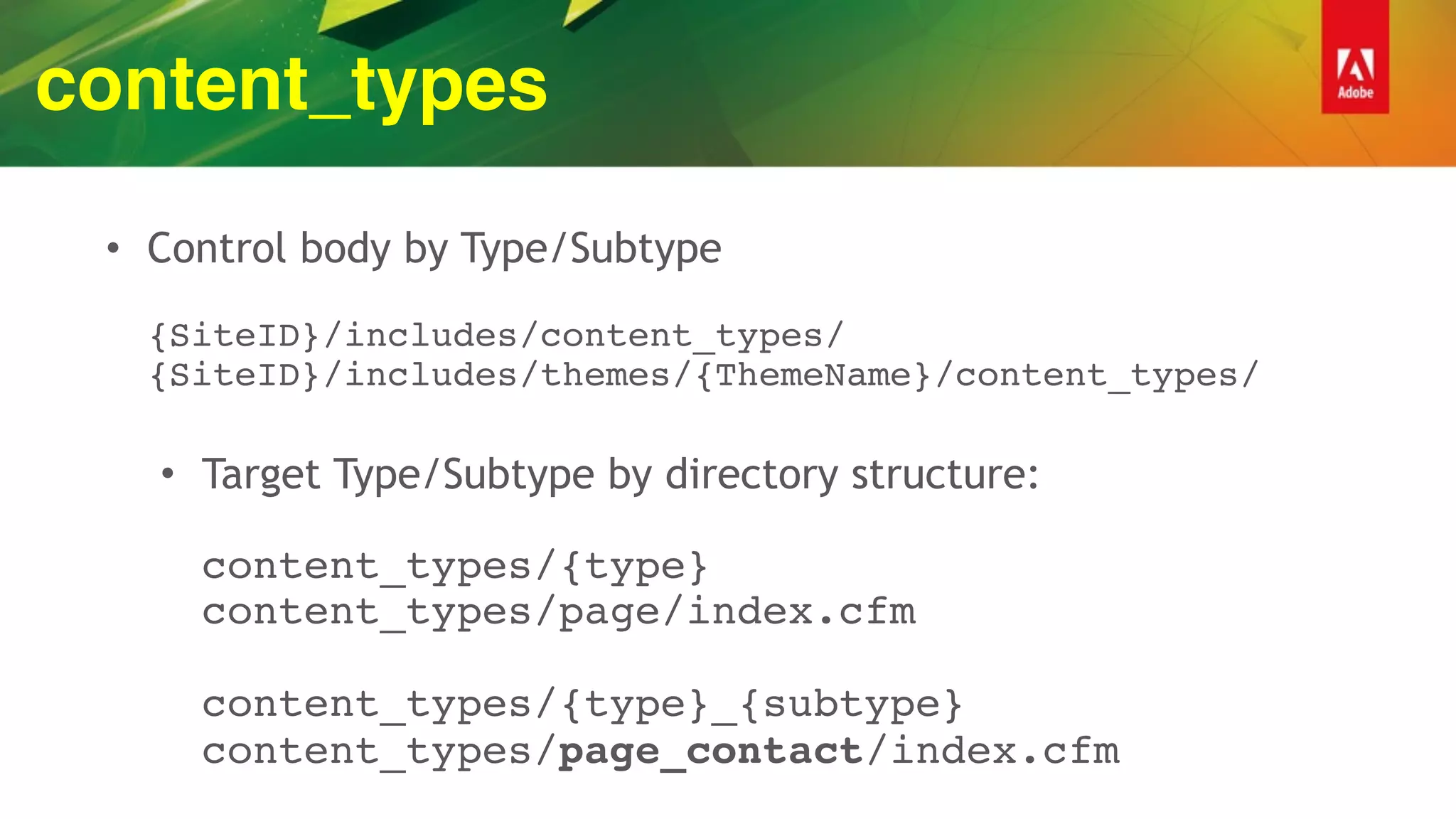

content_types
 
 
content_types/page/index.cfm 
 
content_types/{type}_{subtype} 
content_types/page_contact/index.cfm

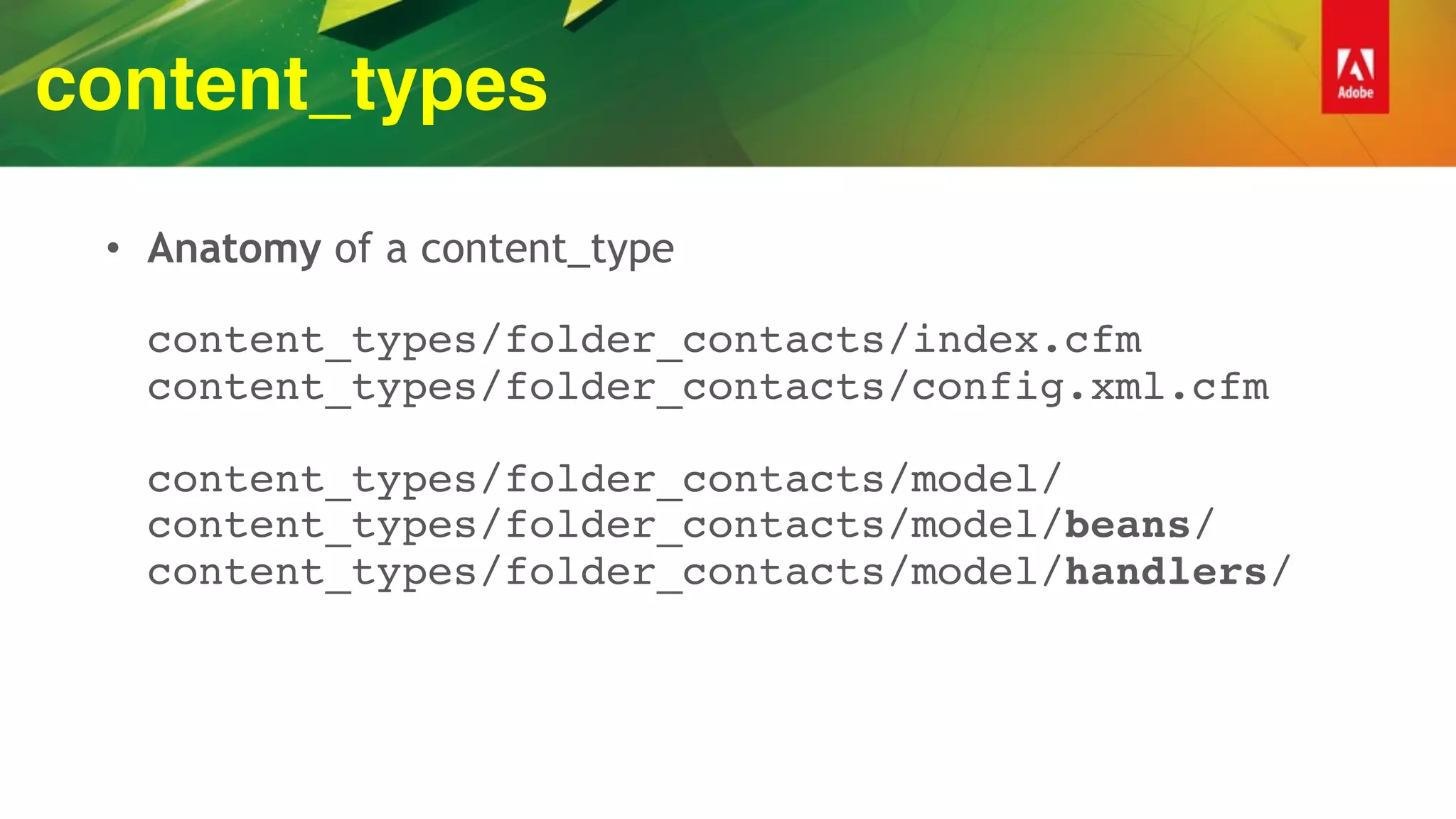

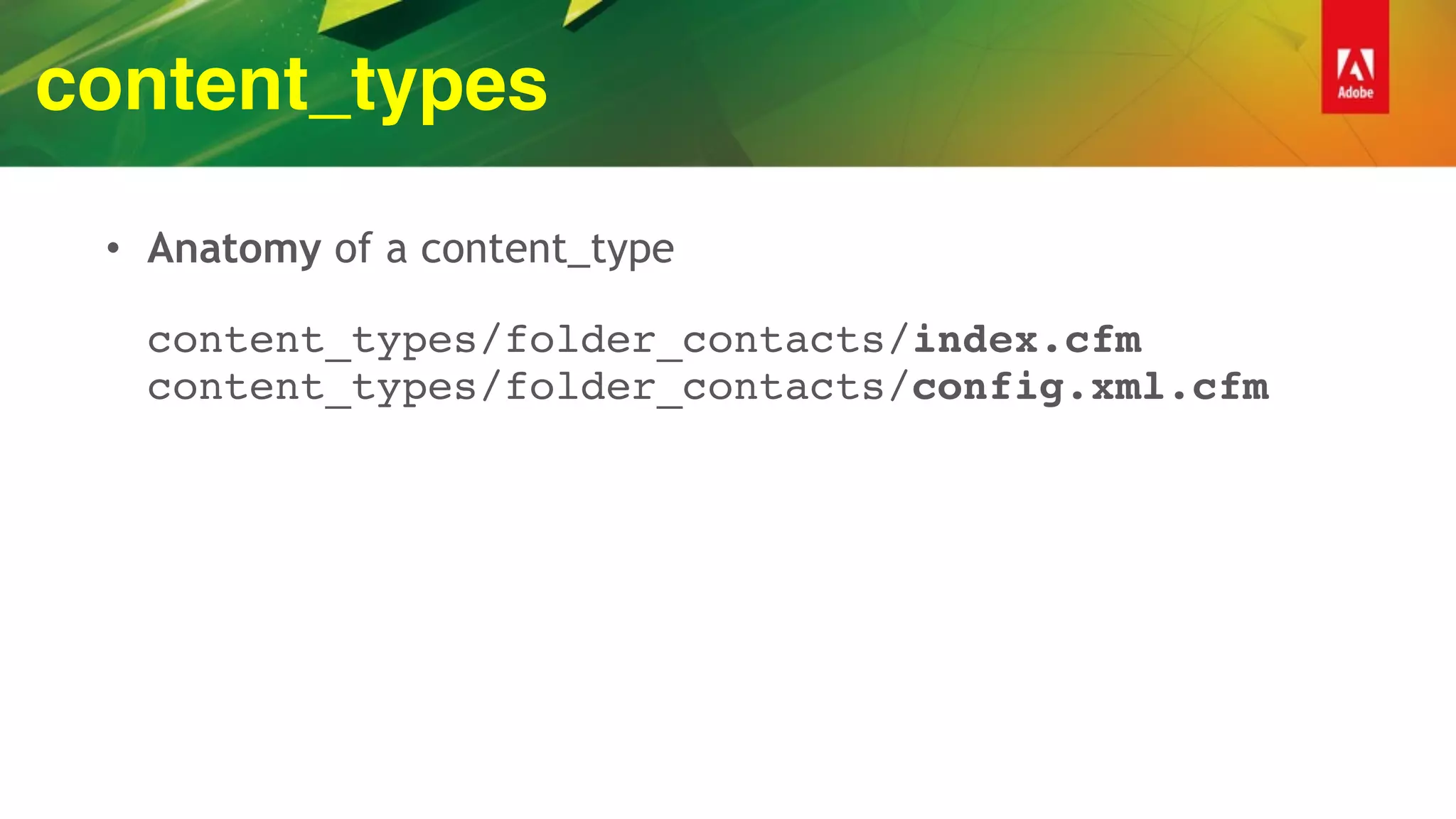

content_types

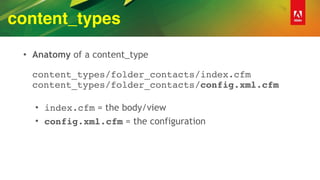

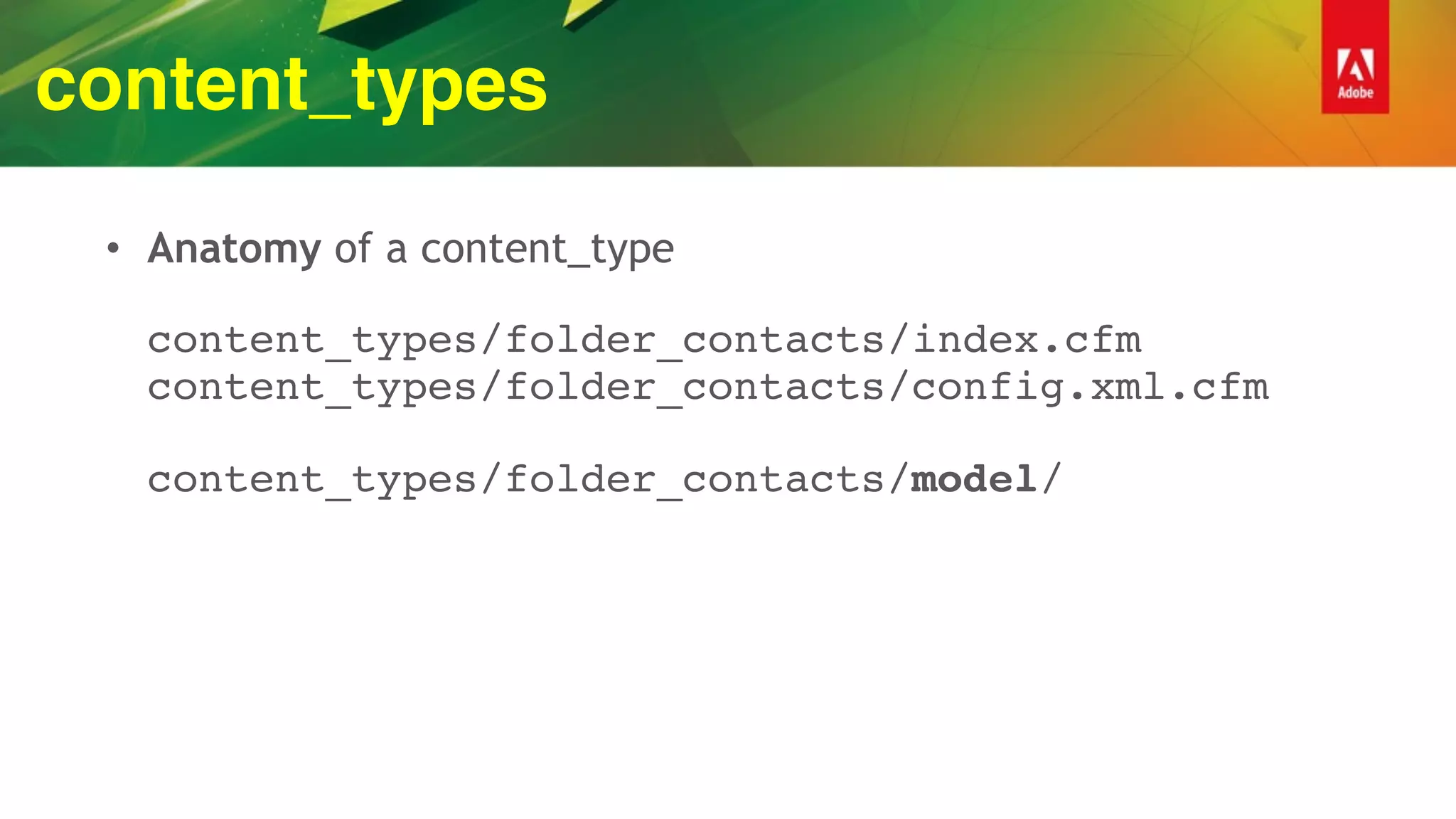

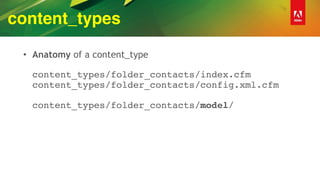

• Anatomy of a content_type 
 
content_types/folder_contacts/index.cfm 
content_types/folder_contacts/config.xml.cfm

content_types
 
content_types/folder_contacts/config.xml.cfm 
• index.cfm = the body/view

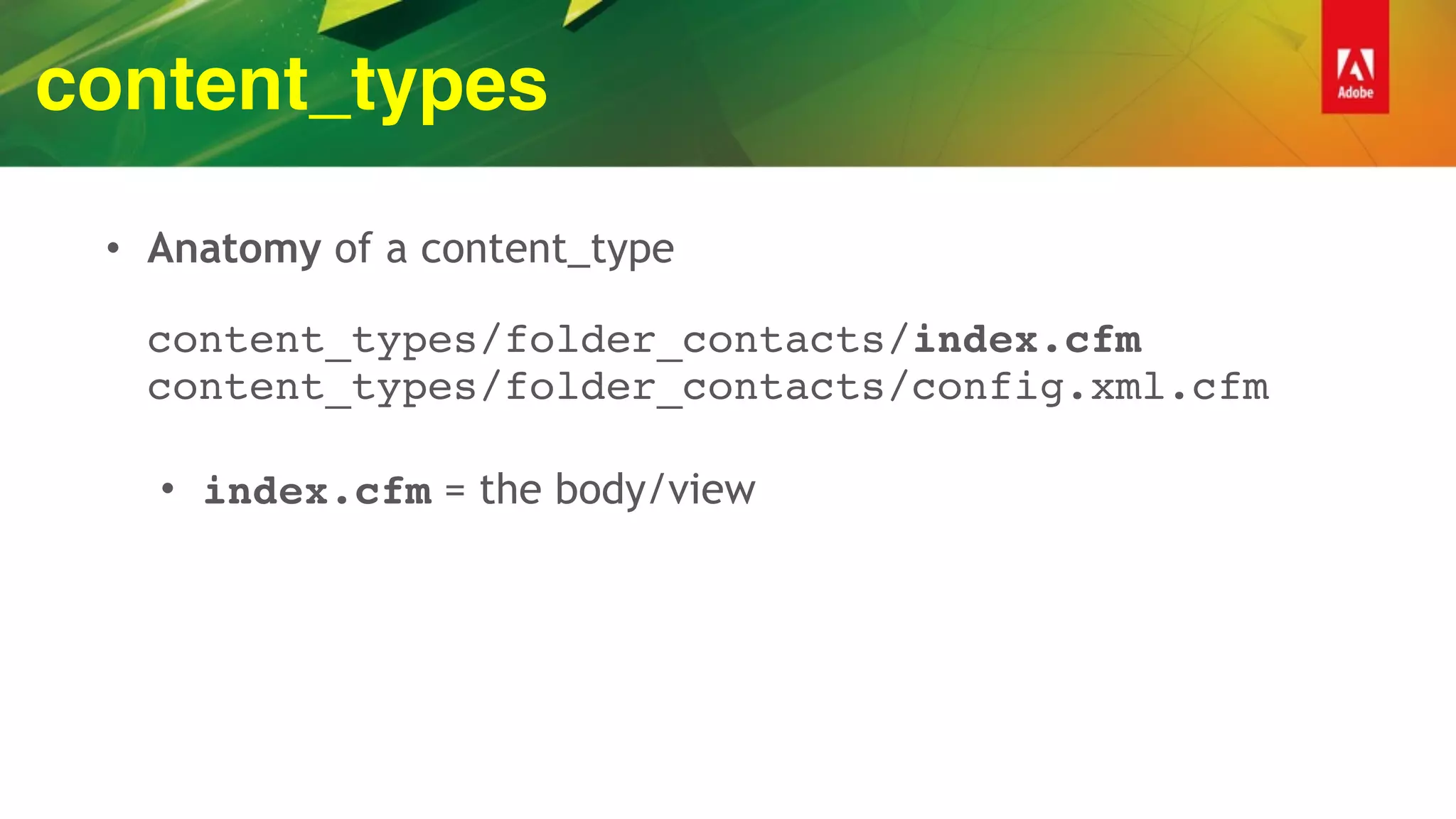

content_types
 
• index.cfm = the body/view
• config.xml.cfm = the configuration

content_types
 
 
content_types/folder_contacts/model/

content_types
 
 
content_types/folder_contacts/model/ 
content_types/folder_contacts/model/beans/ 
content_types/folder_contacts/model/handlers/

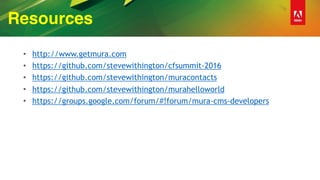

Resources
• http://www.getmura.com
• https://github.com/stevewithington/cfsummit-2016
• https://github.com/stevewithington/muracontacts
• https://github.com/stevewithington/murahelloworld
• https://groups.google.com/forum/#!forum/mura-cms-developers

Super Fast Application development with Mura CMS

More Related Content

What's hot

Viewers also liked

Similar to Super Fast Application development with Mura CMS

More from ColdFusionConference

Recently uploaded

Super Fast Application development with Mura CMS
