Service approach for development Rest API in Symfony2
This document provides an overview of REST (REpresentational State Transfer) and developing REST APIs in Symfony2. It discusses the history and architectural constraints of REST, including being client-server, stateless, cacheable, layered, and having a uniform interface. It also covers REST maturity levels, content negotiation, HTTP methods and status codes, and the HATEOAS principle of providing hypermedia controls. The document concludes by stating it will continue discussing developing REST APIs in Symfony2 in future parts.
More Related Content
Similar to Service approach for development Rest API in Symfony2
Service approach for development Rest API in Symfony2
- 1. Service approach for developmentRest API in Symfony2 Aleksey Kryvtsov @ Web-developer at CPCS alkryvtsov@gmail.com
- 2.

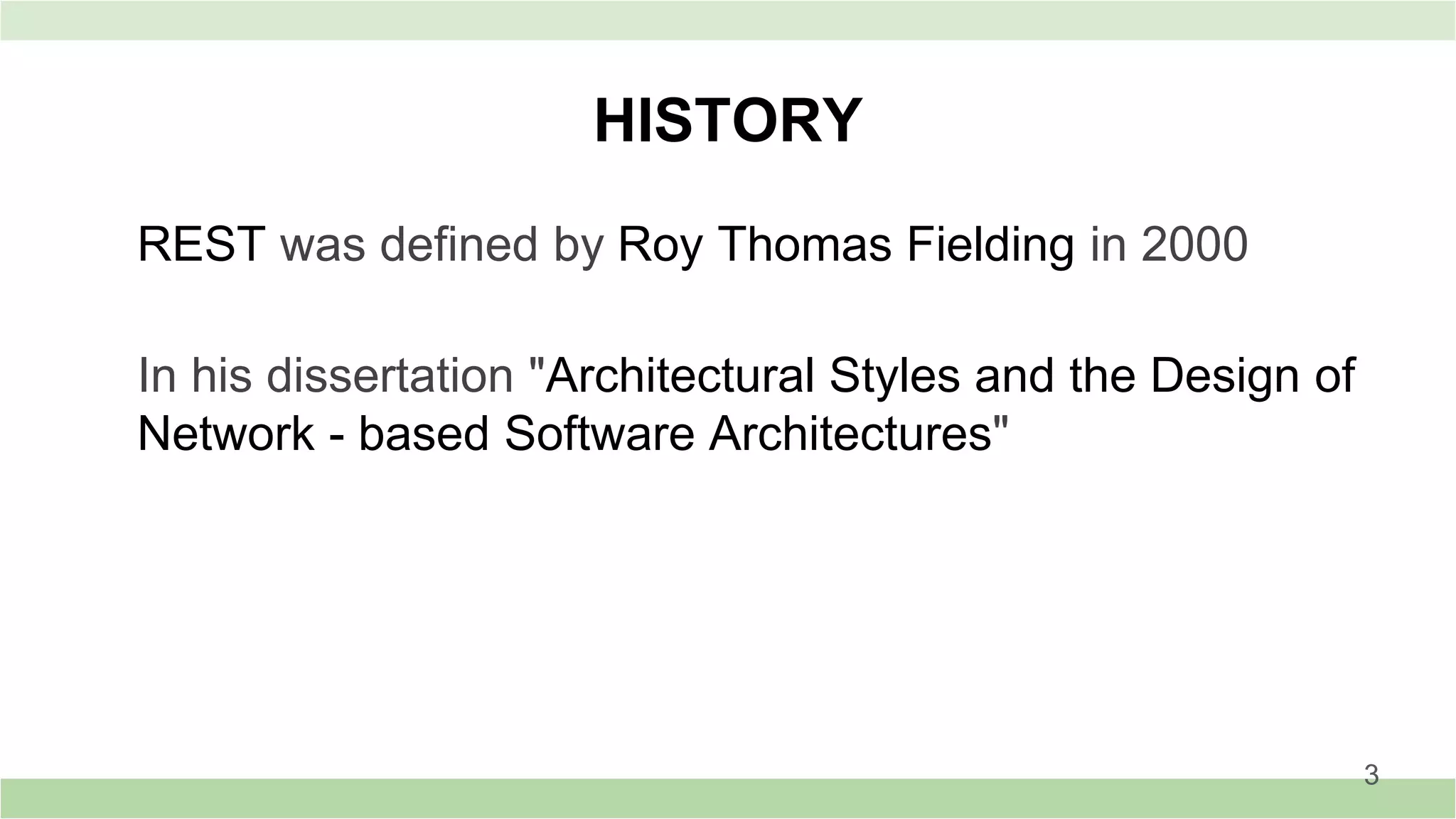

- 3. HISTORY REST was definedby Roy Thomas Fielding in 2000 In his dissertation "Architectural Styles and the Design of Network - based Software Architectures" 3

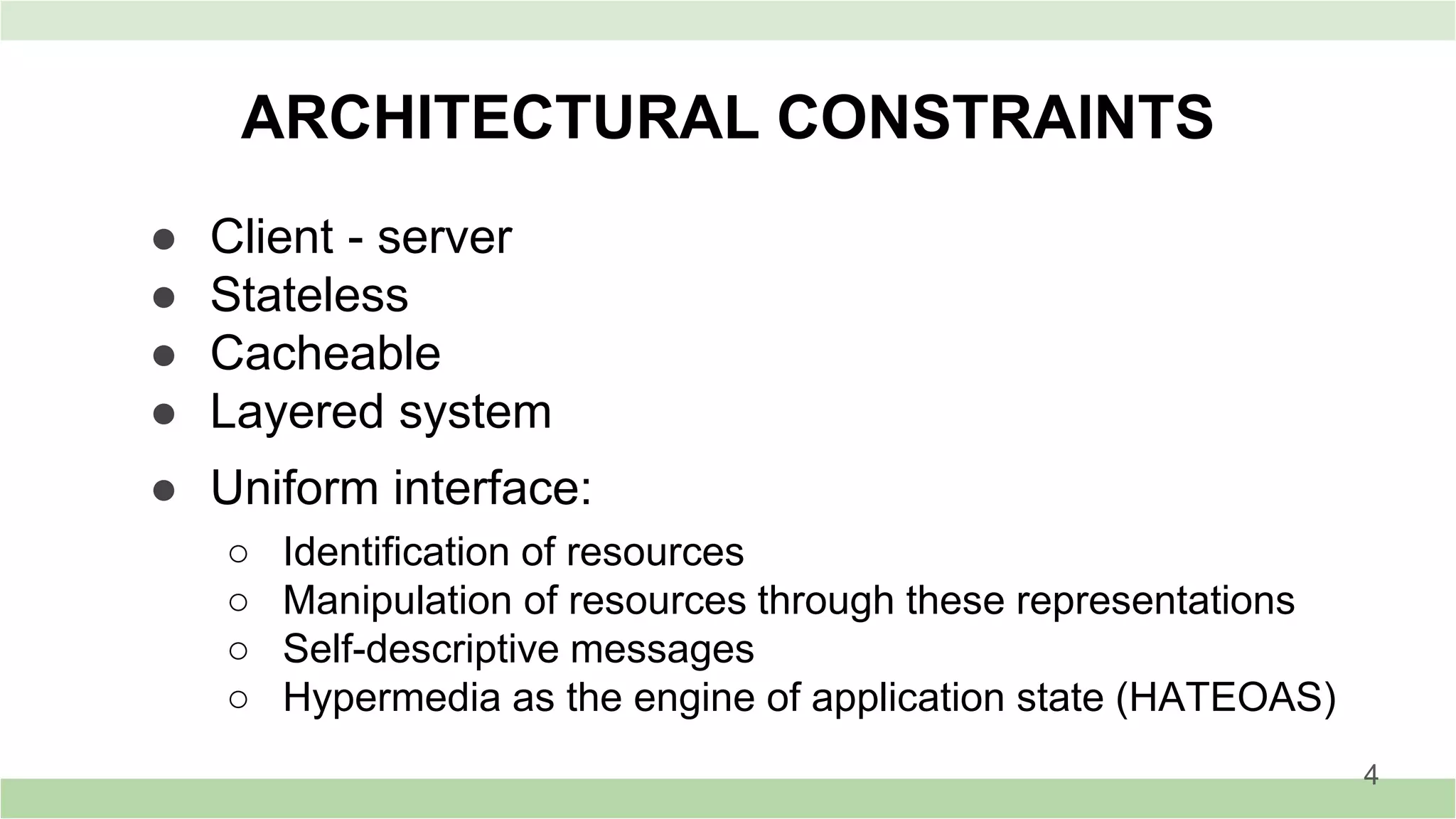

- 4. ● Client -server ● Stateless ● Cacheable ● Layered system ● Uniform interface: ○ Identification of resources ○ Manipulation of resources through these representations ○ Self-descriptive messages ○ Hypermedia as the engine of application state (HATEOAS) ARCHITECTURAL CONSTRAINTS 4

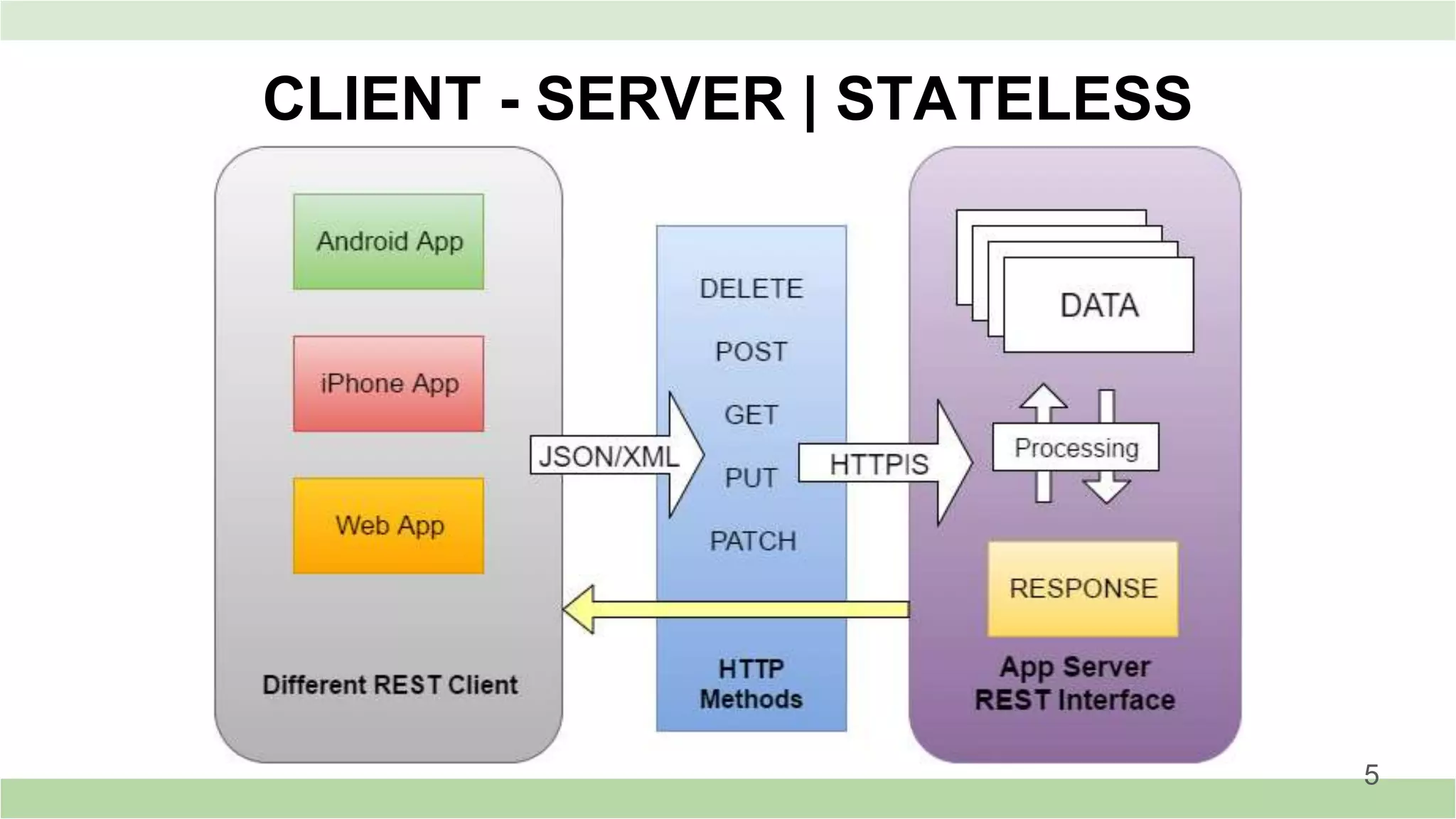

- 5. CLIENT - SERVER| STATELESS 5

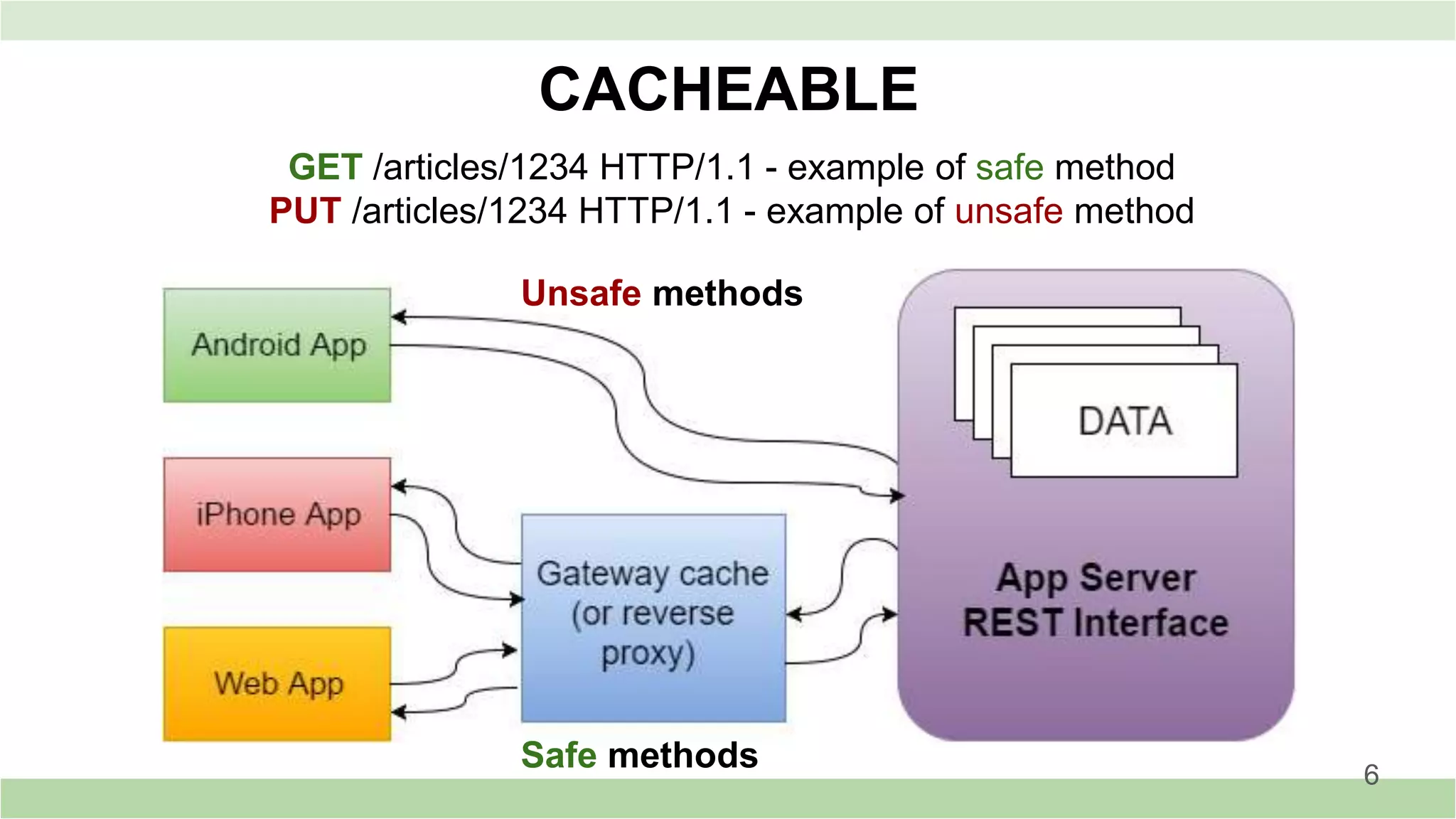

- 6. CACHEABLE Unsafe methods Safe methods GET/articles/1234 HTTP/1.1 - example of safe method PUT /articles/1234 HTTP/1.1 - example of unsafe method 6

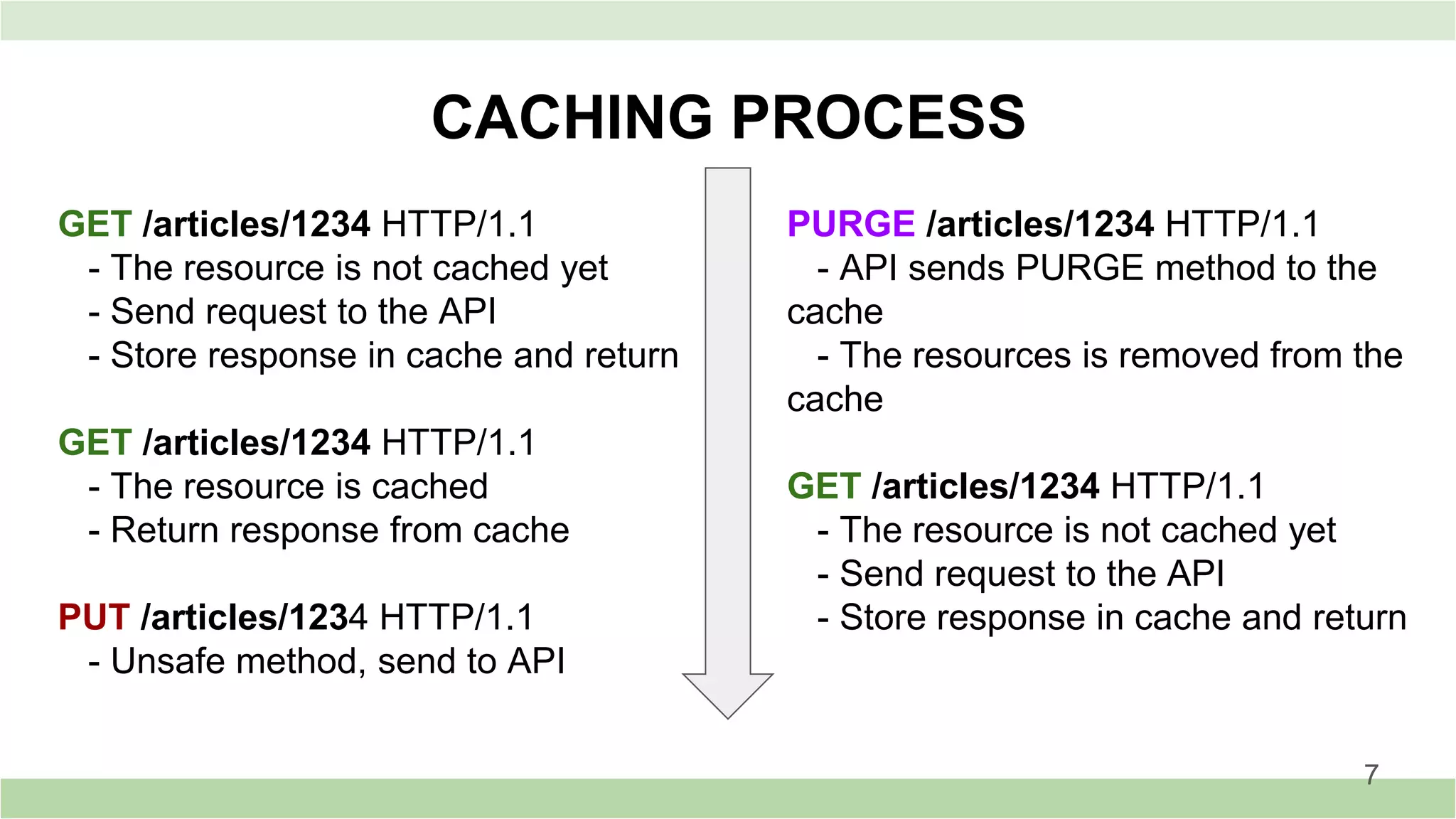

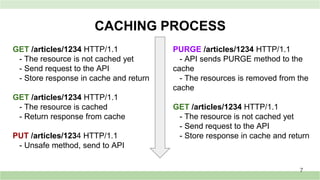

- 7. CACHING PROCESS GET /articles/1234HTTP/1.1 - The resource is not cached yet - Send request to the API - Store response in cache and return GET /articles/1234 HTTP/1.1 - The resource is cached - Return response from cache PUT /articles/1234 HTTP/1.1 - Unsafe method, send to API PURGE /articles/1234 HTTP/1.1 - API sends PURGE method to the cache - The resources is removed from the cache GET /articles/1234 HTTP/1.1 - The resource is not cached yet - Send request to the API - Store response in cache and return 7

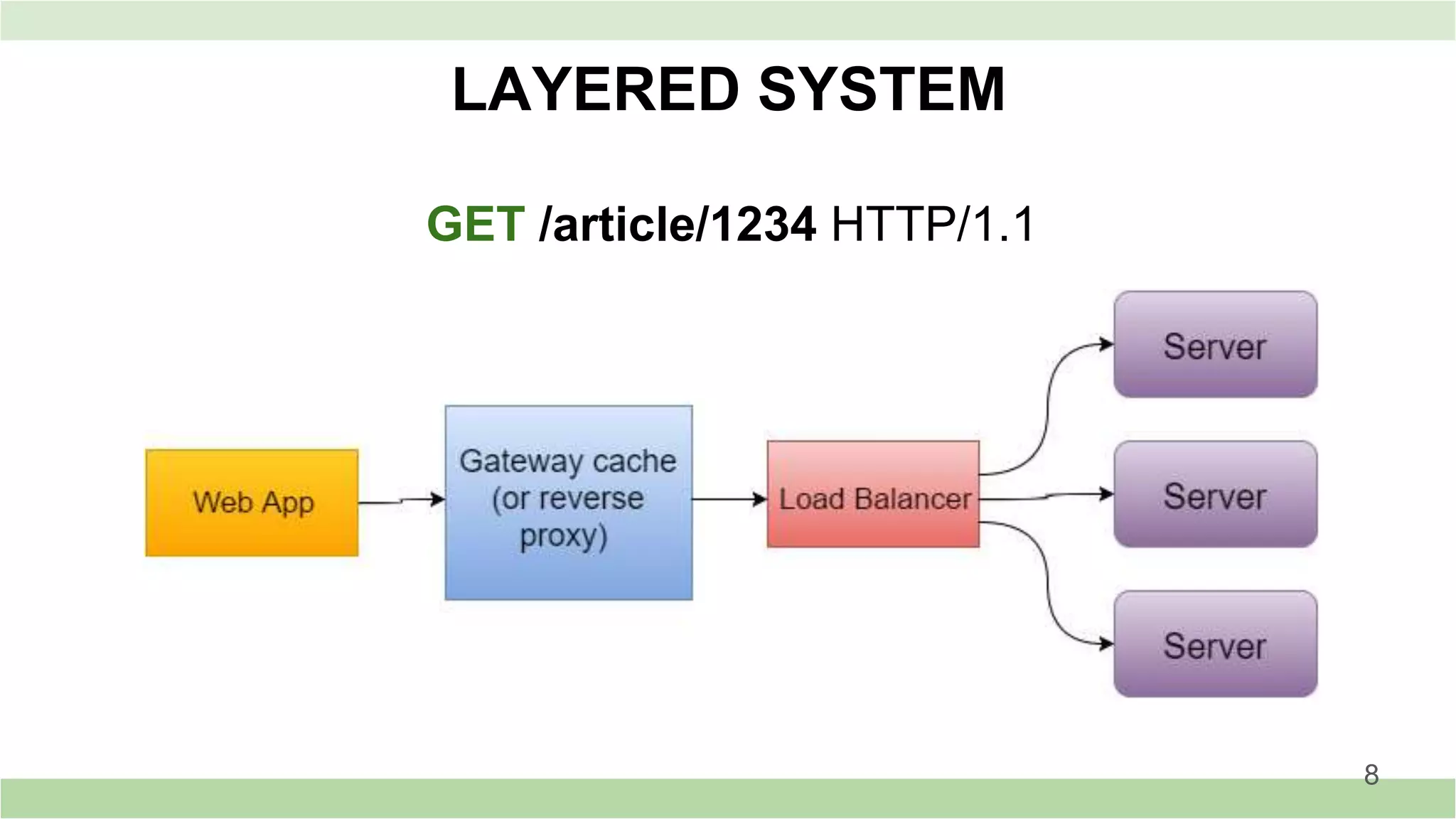

- 8. LAYERED SYSTEM GET /article/1234HTTP/1.1 8

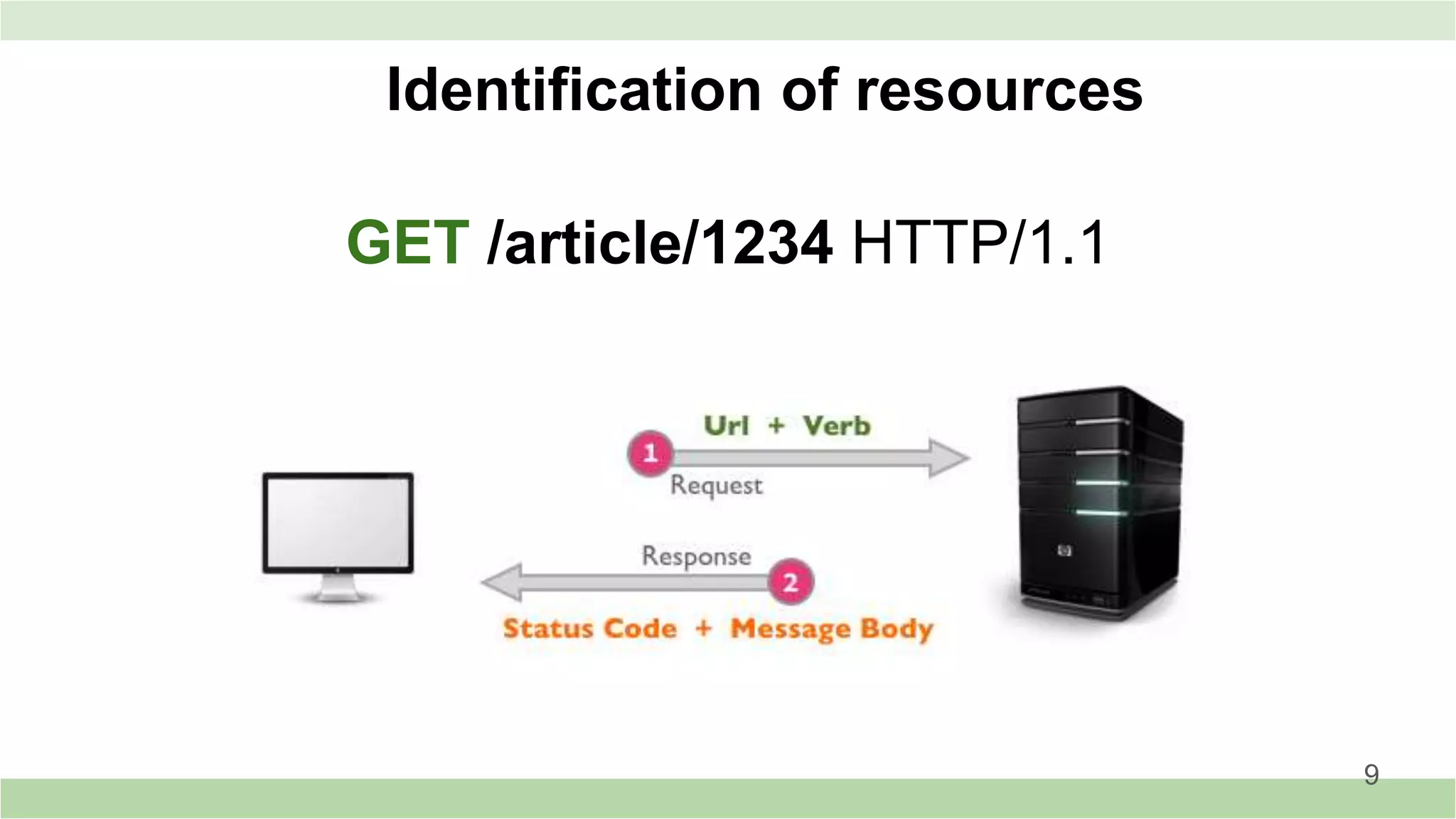

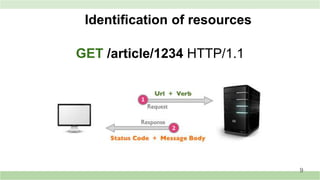

- 9. Identification of resources GET/article/1234 HTTP/1.1 9

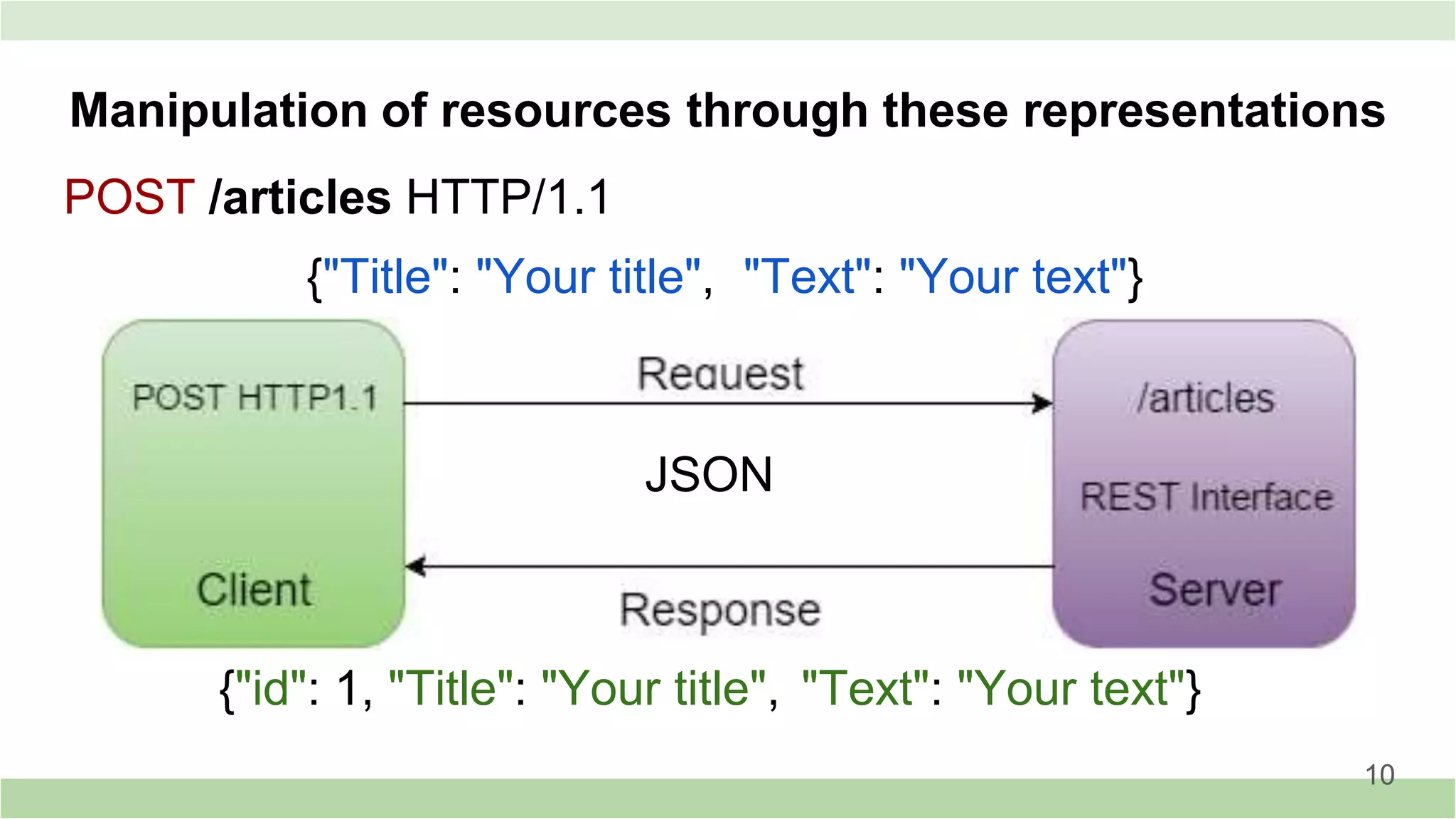

- 10. Manipulation of resourcesthrough these representations {"Title": "Your title", "Text": "Your text"} {"id": 1, "Title": "Your title", "Text": "Your text"} JSON POST /articles HTTP/1.1 10

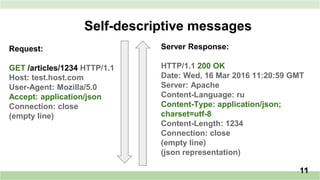

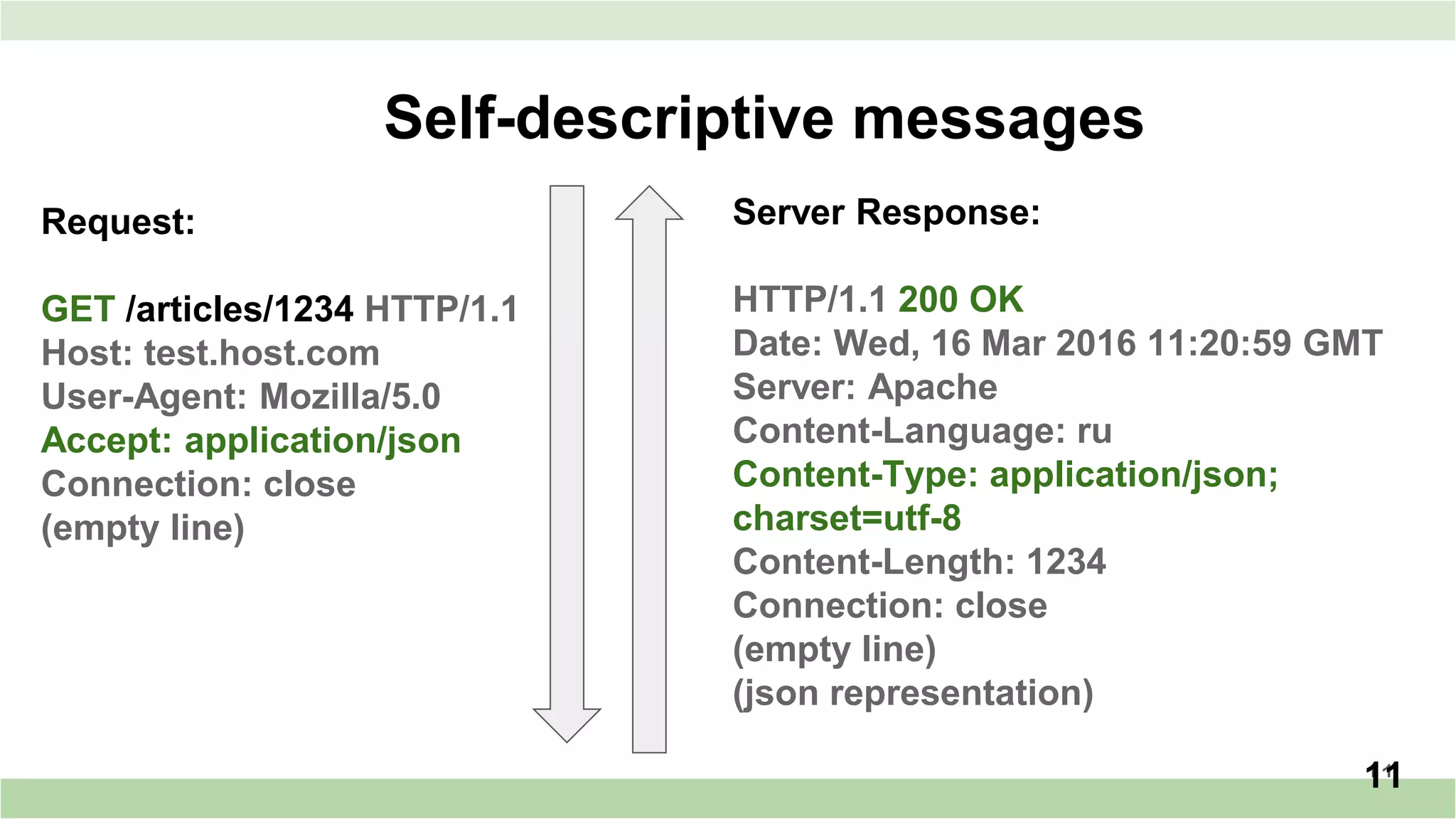

- 11. 11 Self-descriptive messages Request: GET /articles/1234HTTP/1.1 Host: test.host.com User-Agent: Mozilla/5.0 Accept: application/json Connection: close (empty line) 11 Server Response: HTTP/1.1 200 OK Date: Wed, 16 Mar 2016 11:20:59 GMT Server: Apache Content-Language: ru Content-Type: application/json; charset=utf-8 Content-Length: 1234 Connection: close (empty line) (json representation)

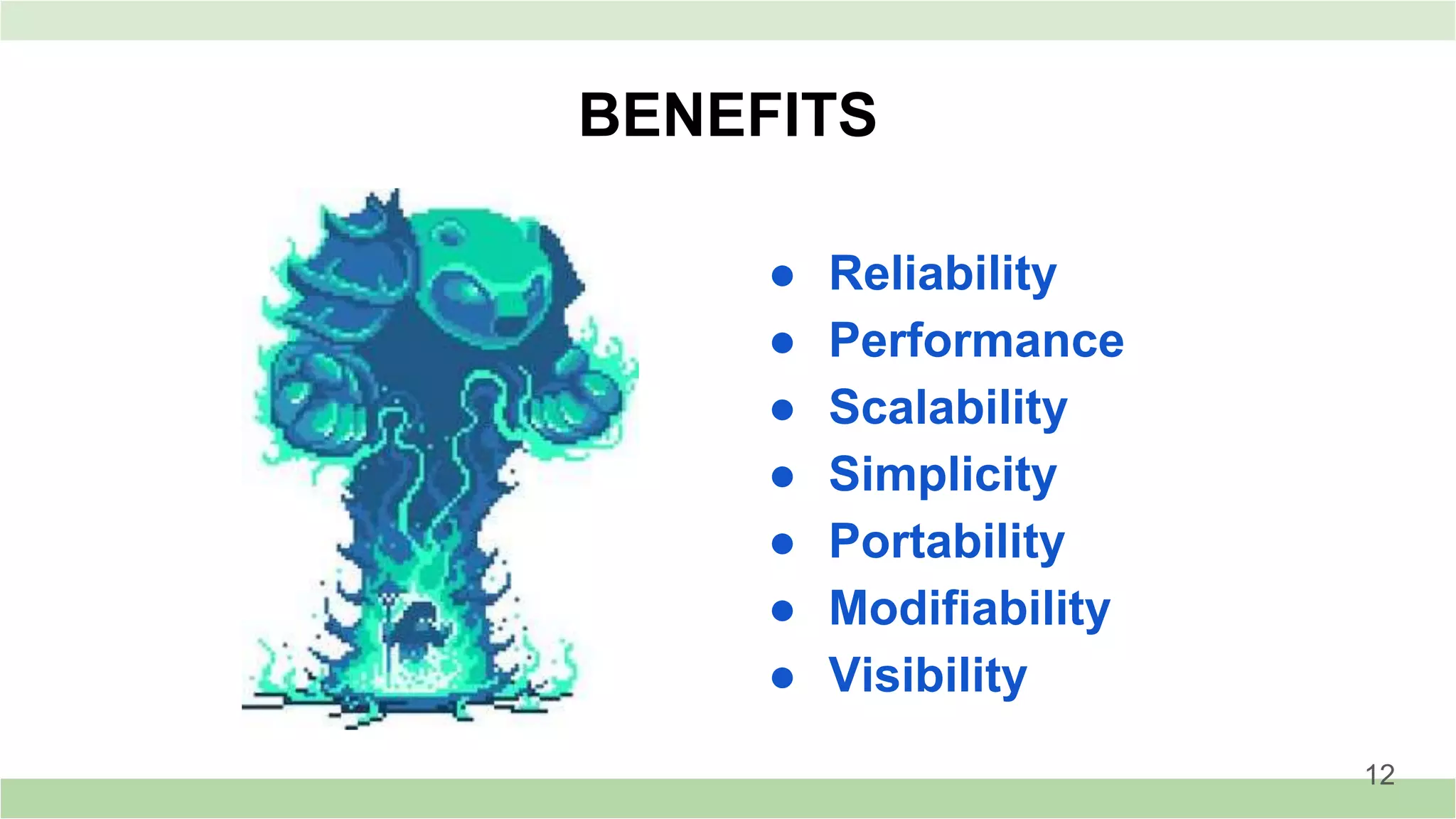

- 12. BENEFITS ● Reliability ● Performance ●Scalability ● Simplicity ● Portability ● Modifiability ● Visibility 12

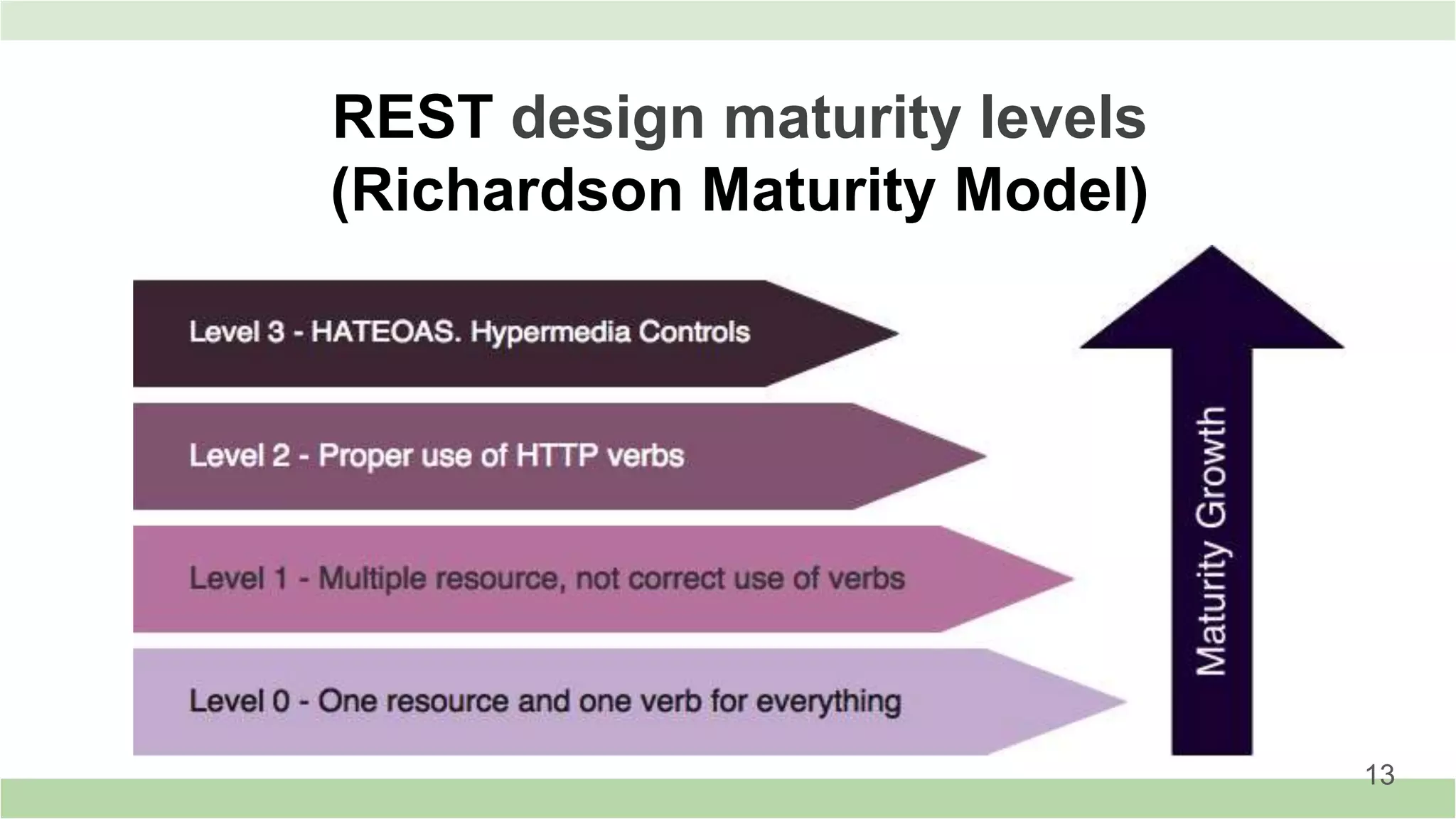

- 13. REST design maturitylevels (Richardson Maturity Model) 13

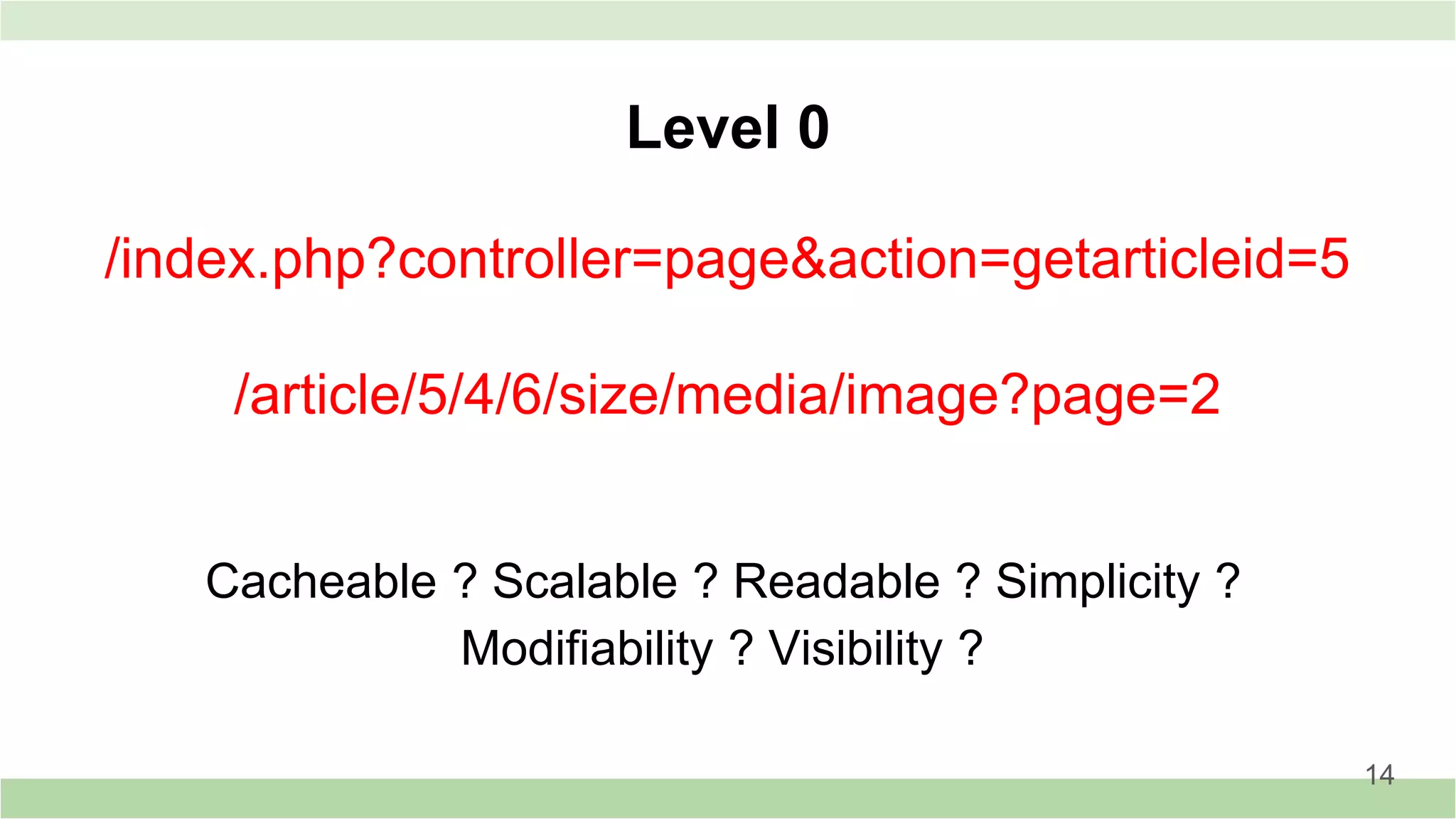

- 14. /index.php?controller=page&action=getarticleid=5 /article/5/4/6/size/media/image?page=2 Level 0 Cacheable ?Scalable ? Readable ? Simplicity ? Modifiability ? Visibility ? 14

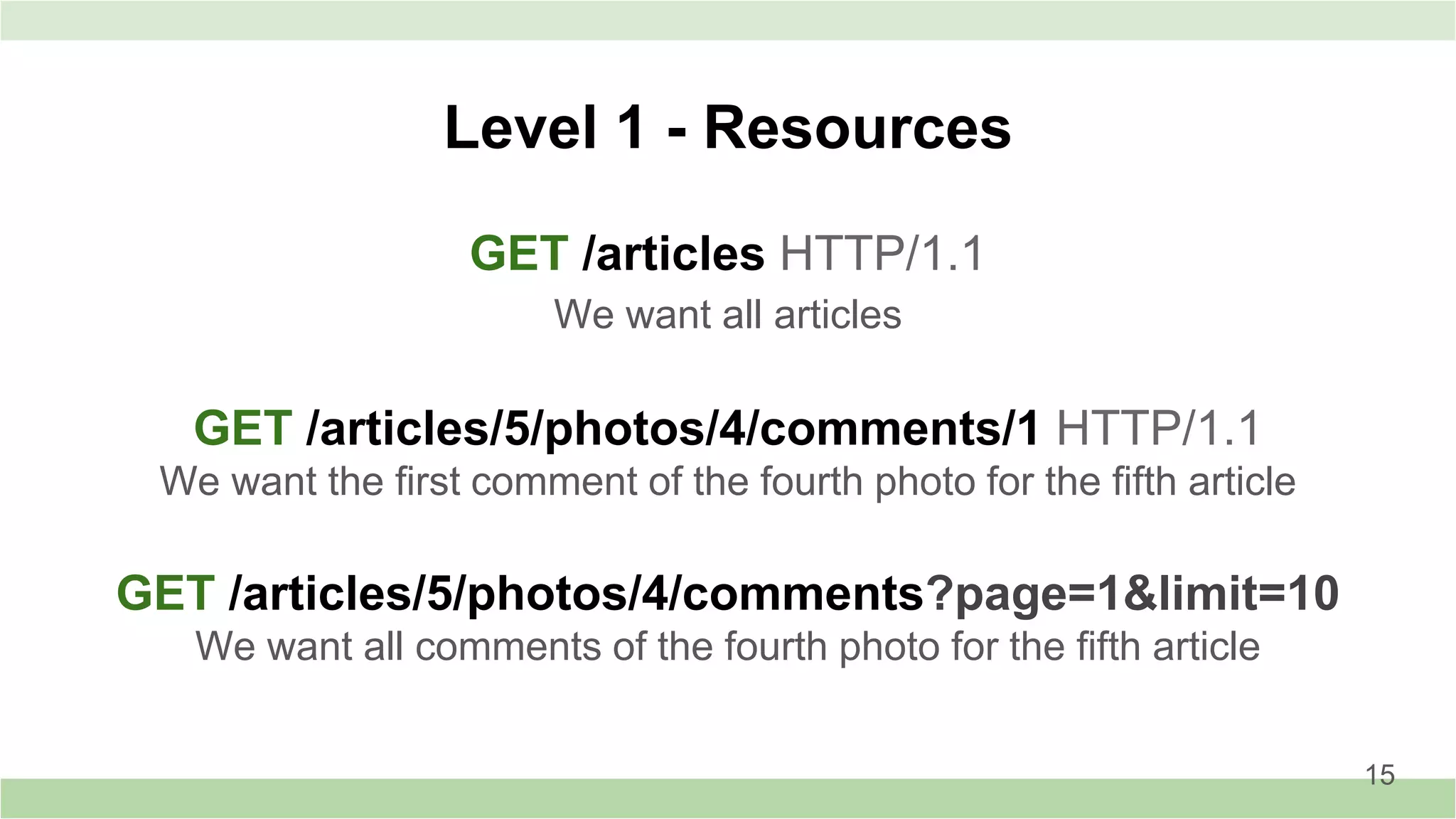

- 15. GET /articles HTTP/1.1 Wewant all articles GET /articles/5/photos/4/comments/1 HTTP/1.1 We want the first comment of the fourth photo for the fifth article GET /articles/5/photos/4/comments?page=1&limit=10 We want all comments of the fourth photo for the fifth article Level 1 - Resources 15

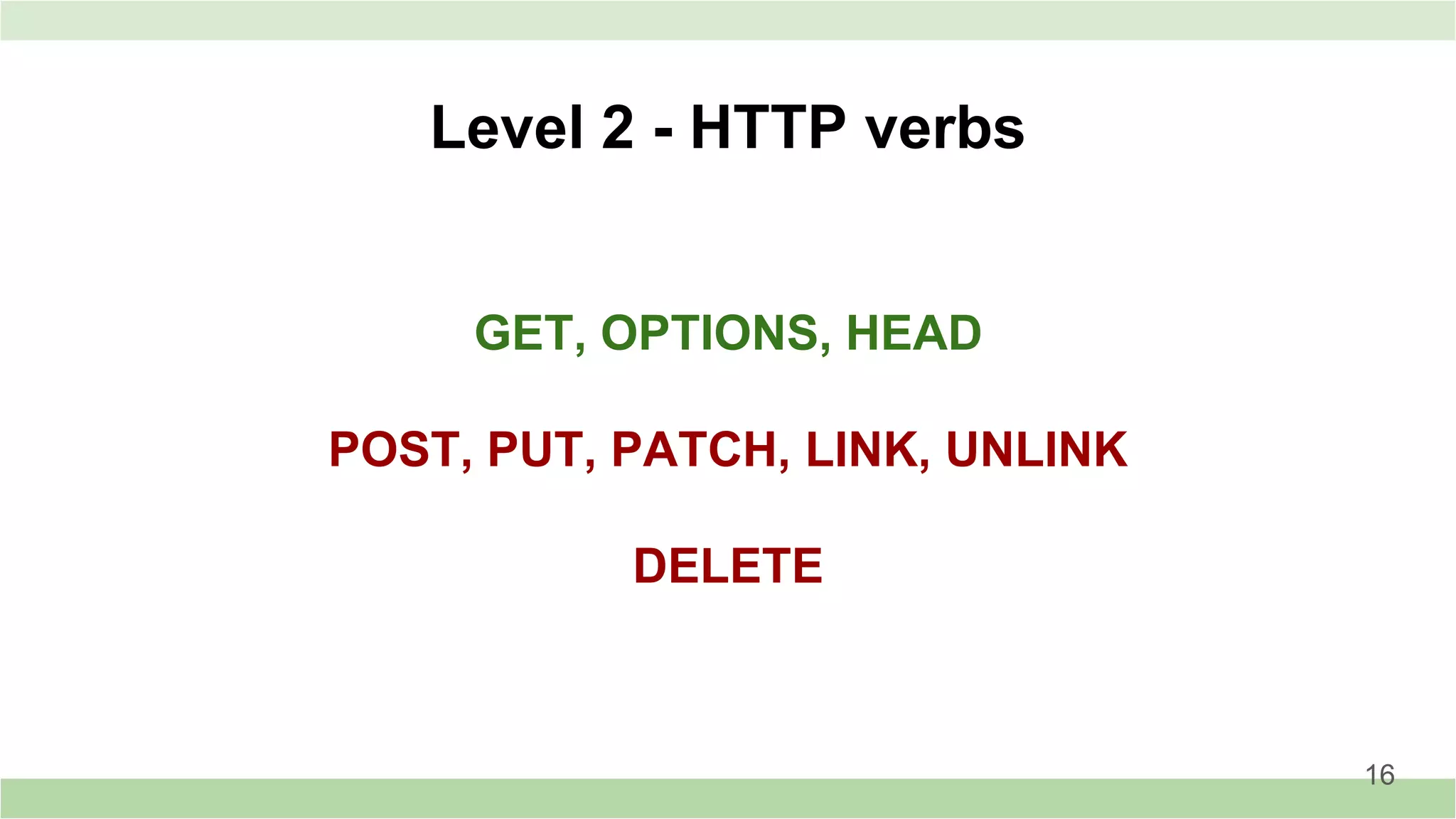

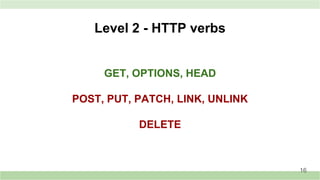

- 16. GET, OPTIONS, HEAD POST,PUT, PATCH, LINK, UNLINK DELETE Level 2 - HTTP verbs 16

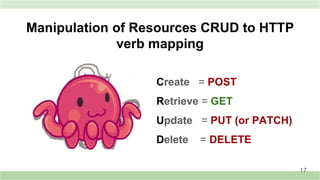

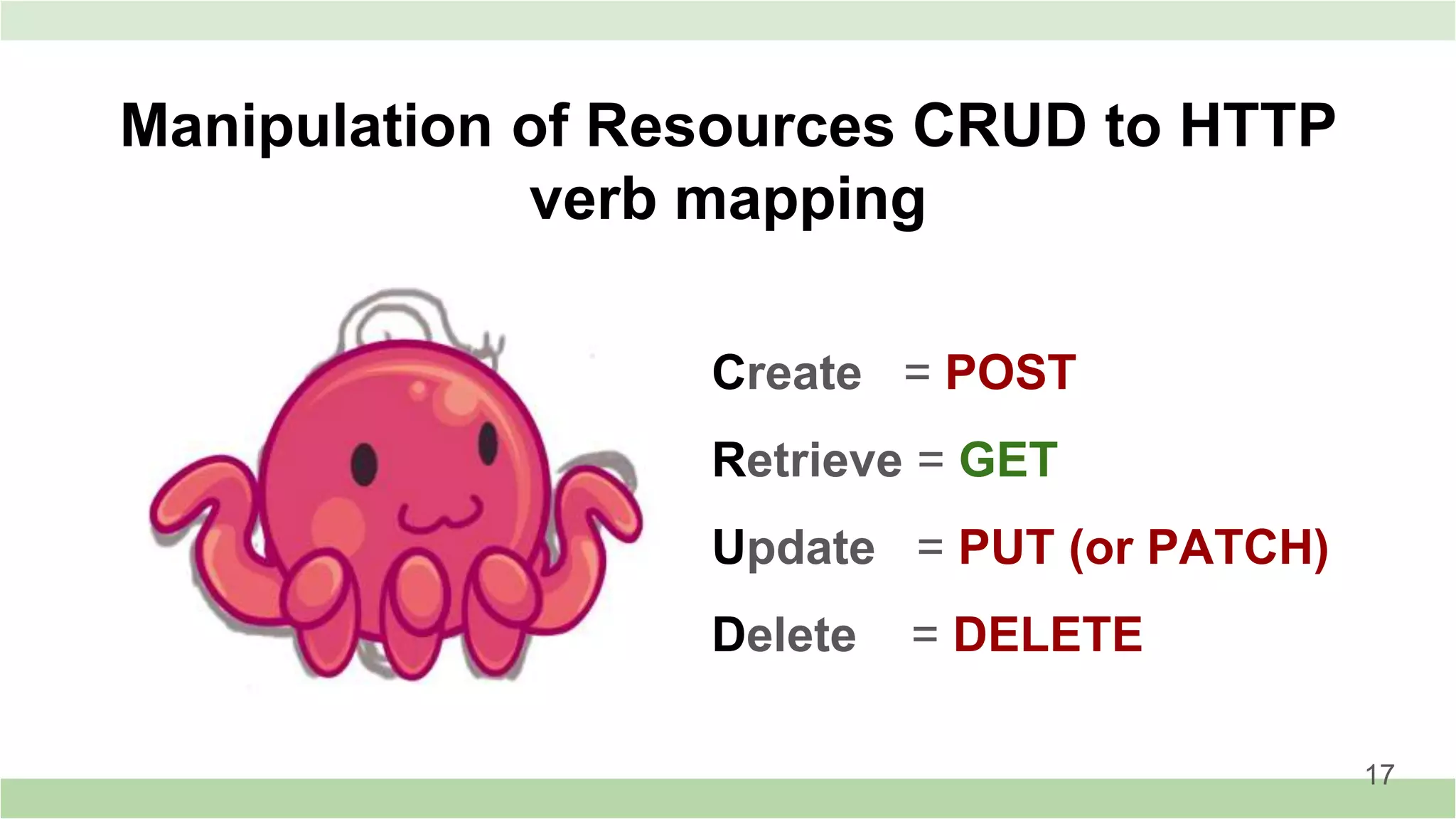

- 17. Manipulation of ResourcesCRUD to HTTP verb mapping Create = POST Retrieve = GET Update = PUT (or PATCH) Delete = DELETE 17

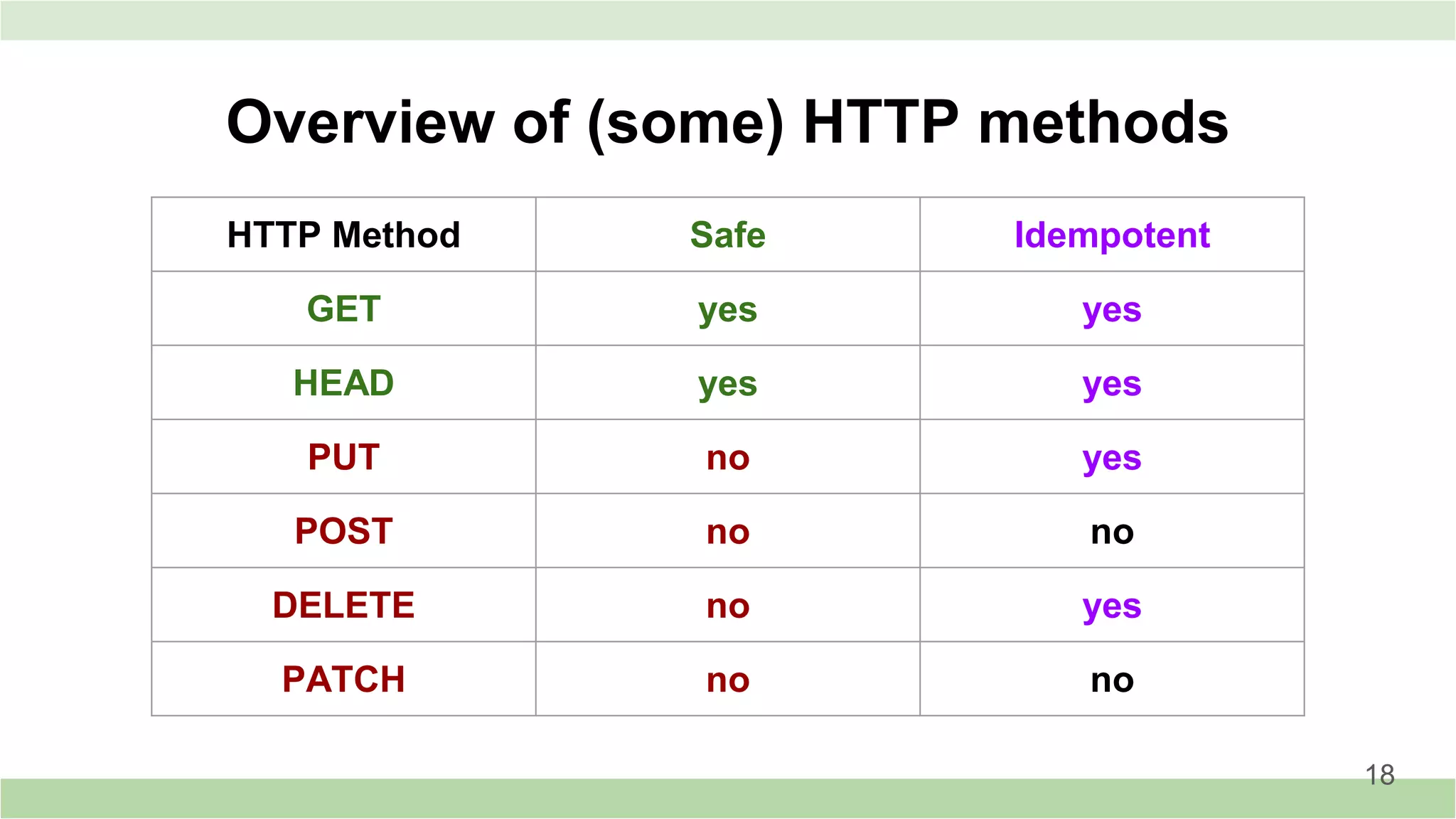

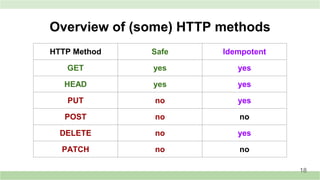

- 18. Overview of (some)HTTP methods HTTP Method Safe Idempotent GET yes yes HEAD yes yes PUT no yes POST no no DELETE no yes PATCH no no 18

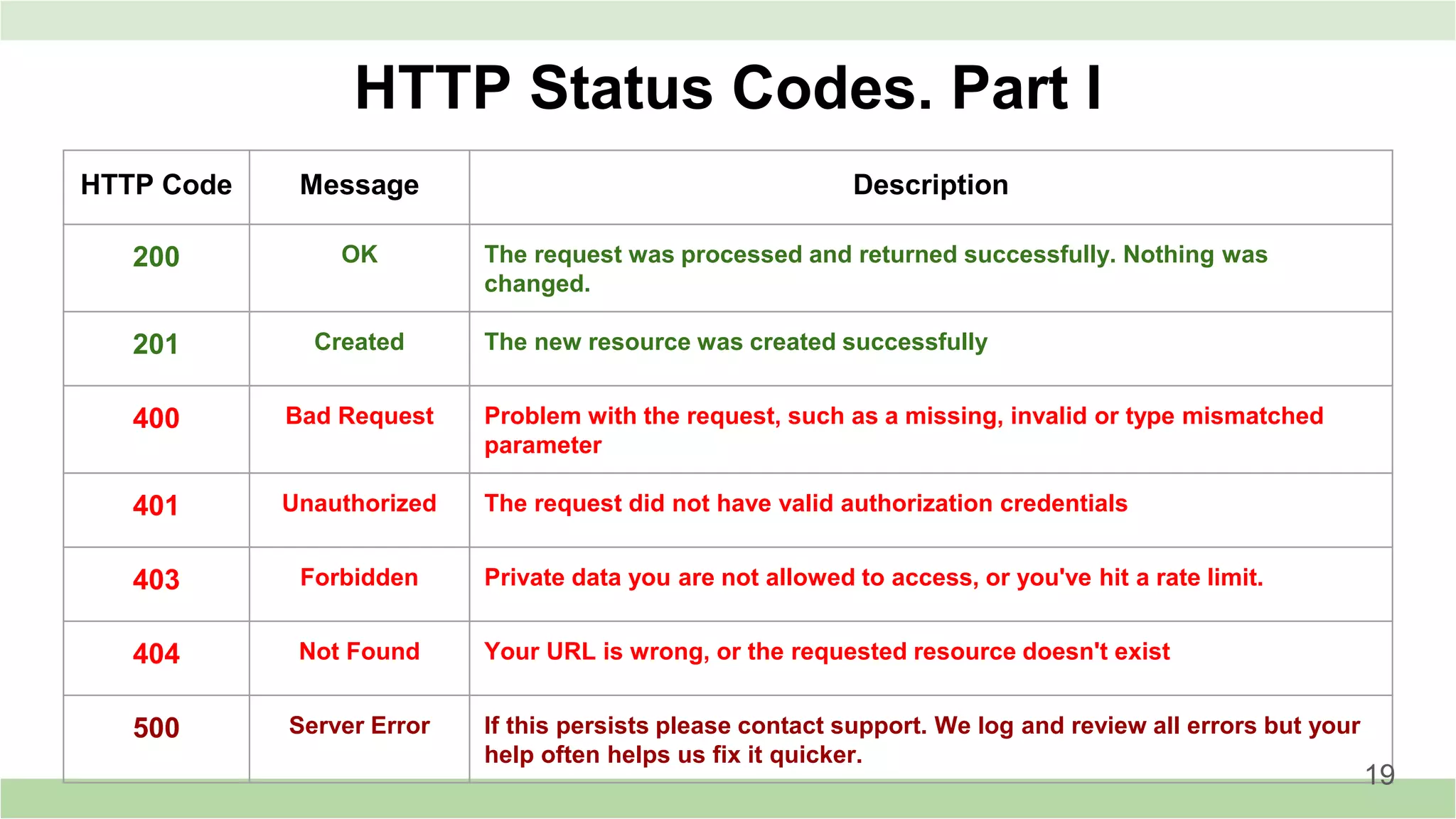

- 19. HTTP Status Codes.Part I HTTP Code Message Description 200 OK The request was processed and returned successfully. Nothing was changed. 201 Created The new resource was created successfully 400 Bad Request Problem with the request, such as a missing, invalid or type mismatched parameter 401 Unauthorized The request did not have valid authorization credentials 403 Forbidden Private data you are not allowed to access, or you've hit a rate limit. 404 Not Found Your URL is wrong, or the requested resource doesn't exist 500 Server Error If this persists please contact support. We log and review all errors but your help often helps us fix it quicker. 19

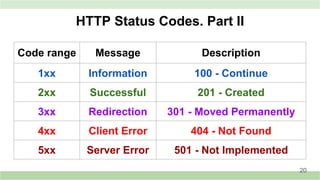

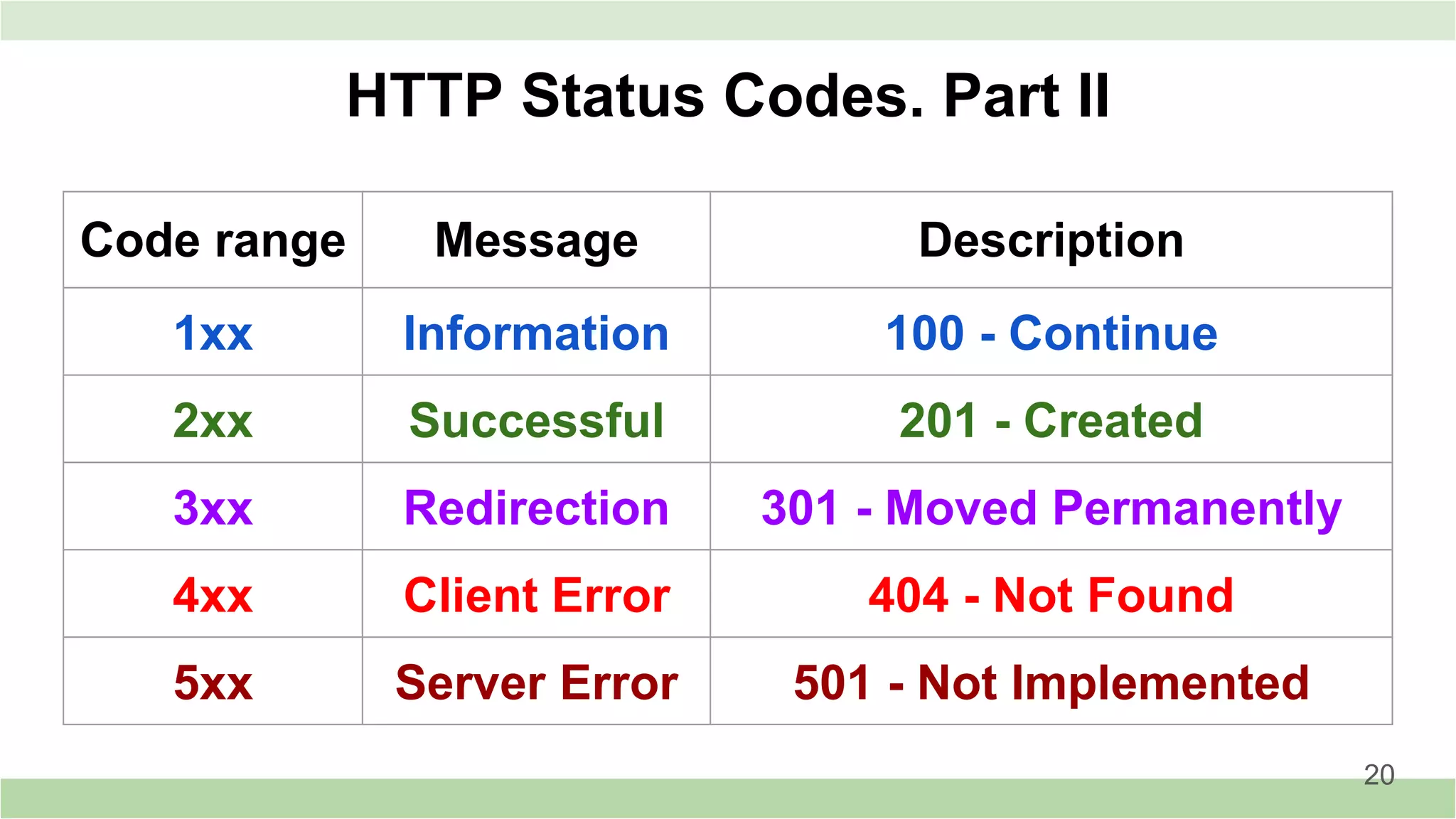

- 20. HTTP Status Codes.Part II Code range Message Description 1xx Information 100 - Continue 2xx Successful 201 - Created 3xx Redirection 301 - Moved Permanently 4xx Client Error 404 - Not Found 5xx Server Error 501 - Not Implemented 20

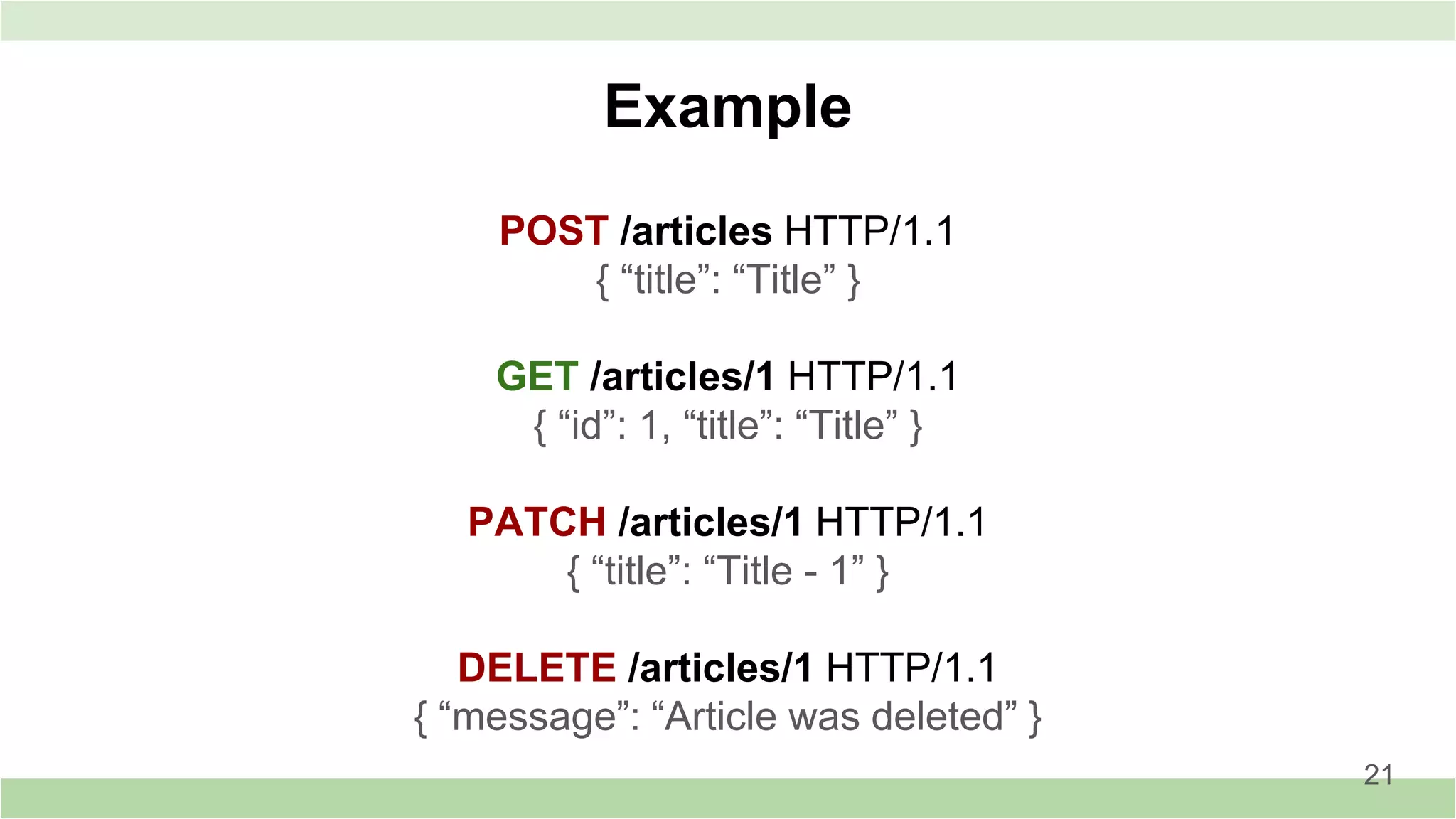

- 21. POST /articles HTTP/1.1 {“title”: “Title” } GET /articles/1 HTTP/1.1 { “id”: 1, “title”: “Title” } PATCH /articles/1 HTTP/1.1 { “title”: “Title - 1” } DELETE /articles/1 HTTP/1.1 { “message”: “Article was deleted” } Example 21

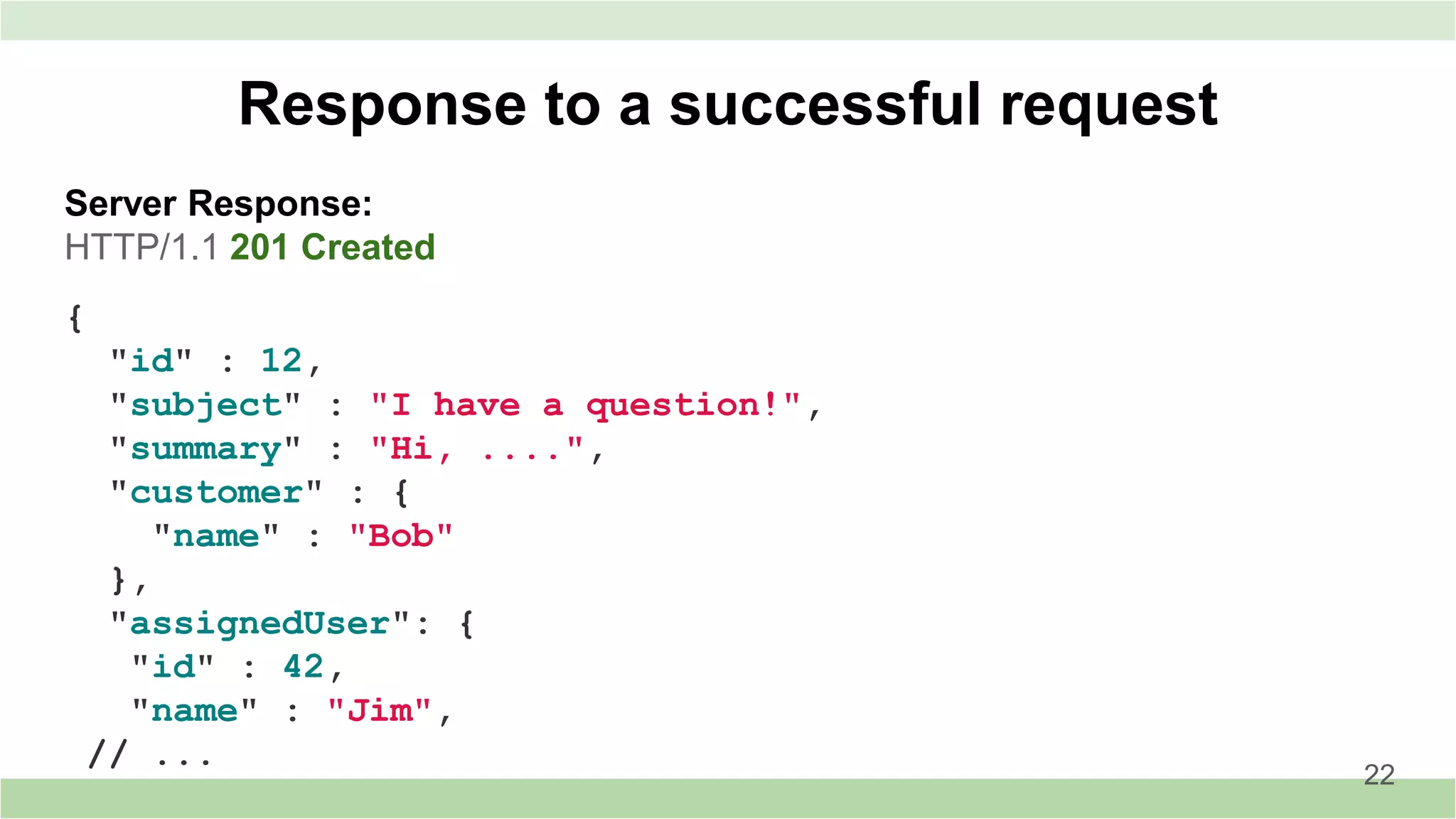

- 22. Server Response: HTTP/1.1 201Created Response to a successful request 22 { "id" : 12, "subject" : "I have a question!", "summary" : "Hi, ....", "customer" : { "name" : "Bob" }, "assignedUser": { "id" : 42, "name" : "Jim", // ...

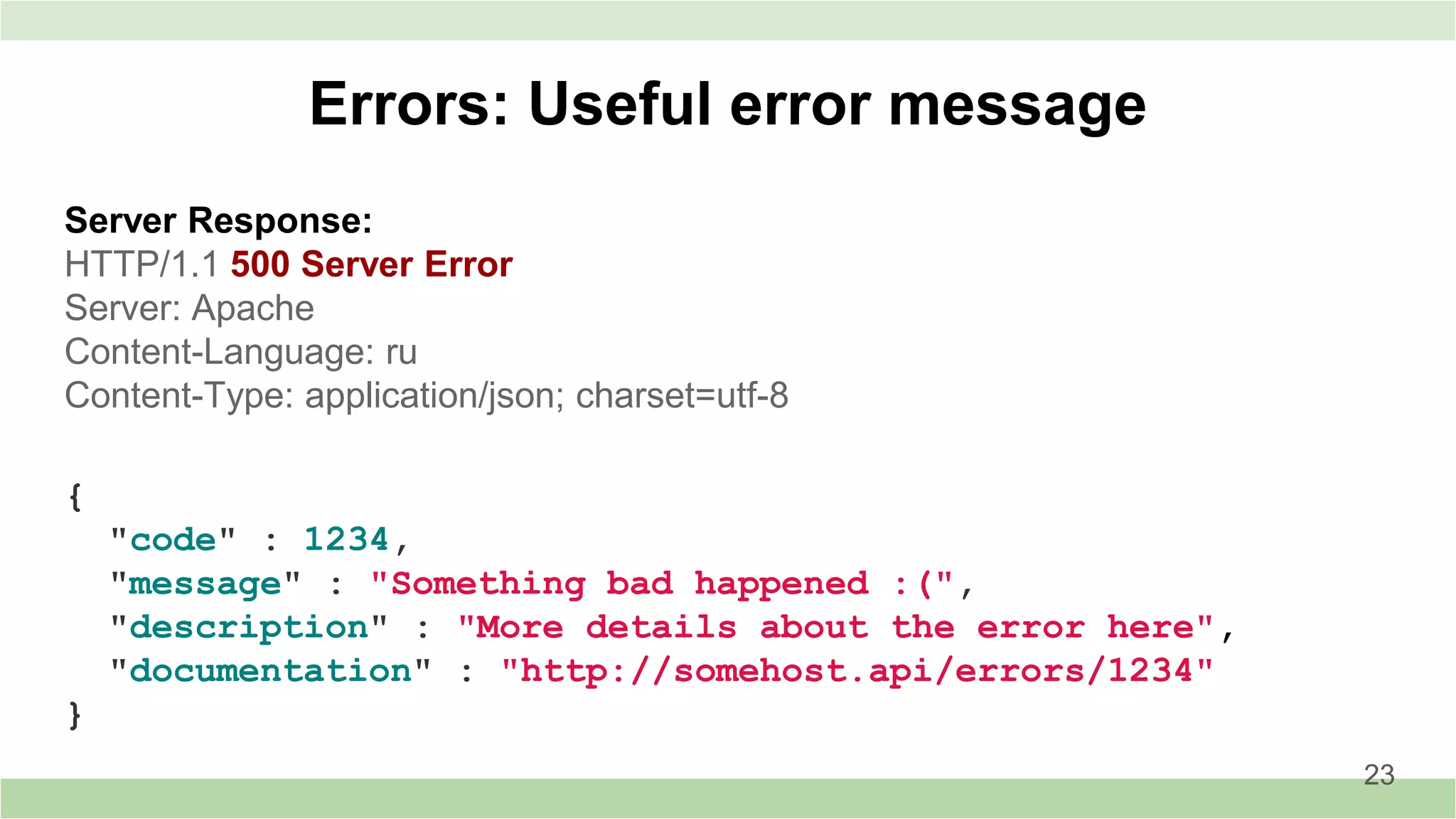

- 23. Server Response: HTTP/1.1 500Server Error Server: Apache Content-Language: ru Content-Type: application/json; charset=utf-8 Errors: Useful error message 23 { "code" : 1234, "message" : "Something bad happened :(", "description" : "More details about the error here", "documentation" : "http://somehost.api/errors/1234" }

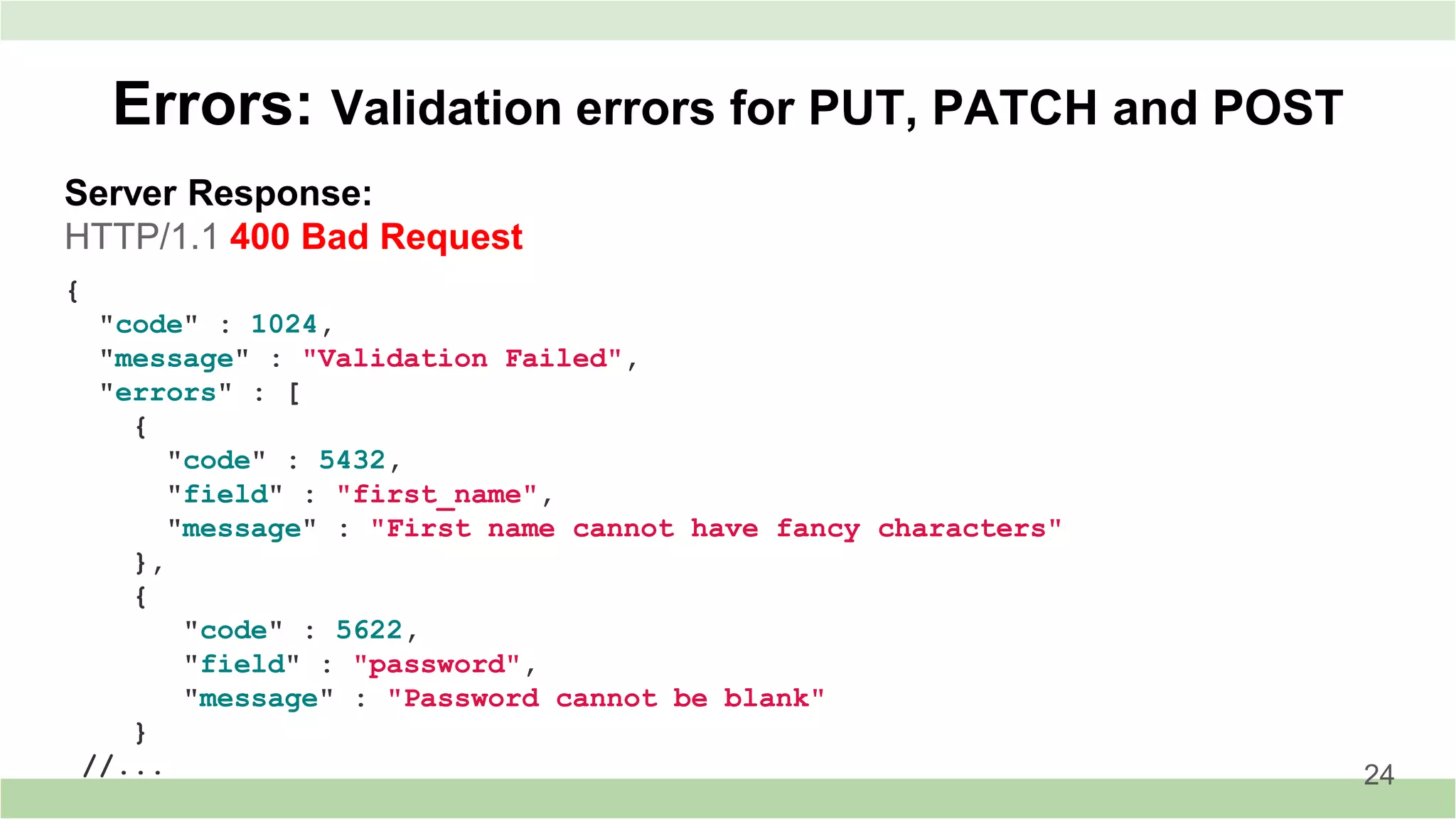

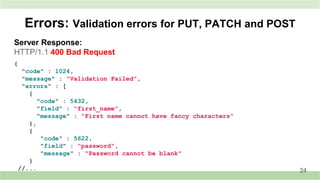

- 24. Server Response: HTTP/1.1 400Bad Request Errors: Validation errors for PUT, PATCH and POST 24 { "code" : 1024, "message" : "Validation Failed", "errors" : [ { "code" : 5432, "field" : "first_name", "message" : "First name cannot have fancy characters" }, { "code" : 5622, "field" : "password", "message" : "Password cannot be blank" } //...

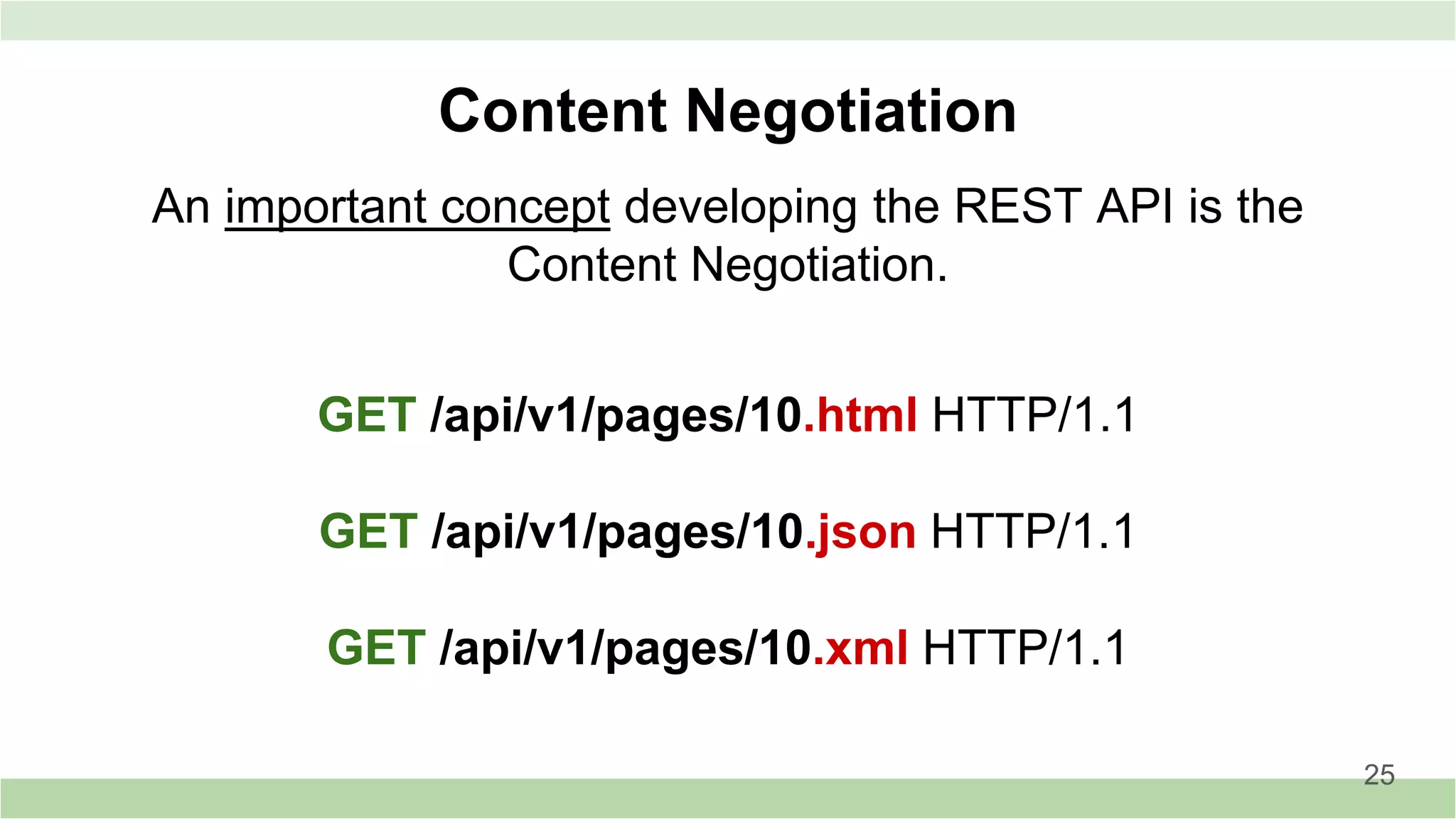

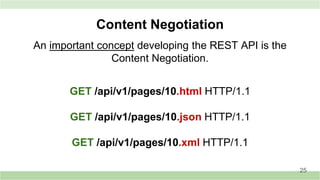

- 25. An important conceptdeveloping the REST API is the Content Negotiation. GET /api/v1/pages/10.html HTTP/1.1 GET /api/v1/pages/10.json HTTP/1.1 GET /api/v1/pages/10.xml HTTP/1.1 Content Negotiation 25

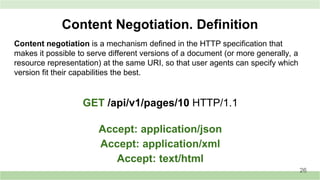

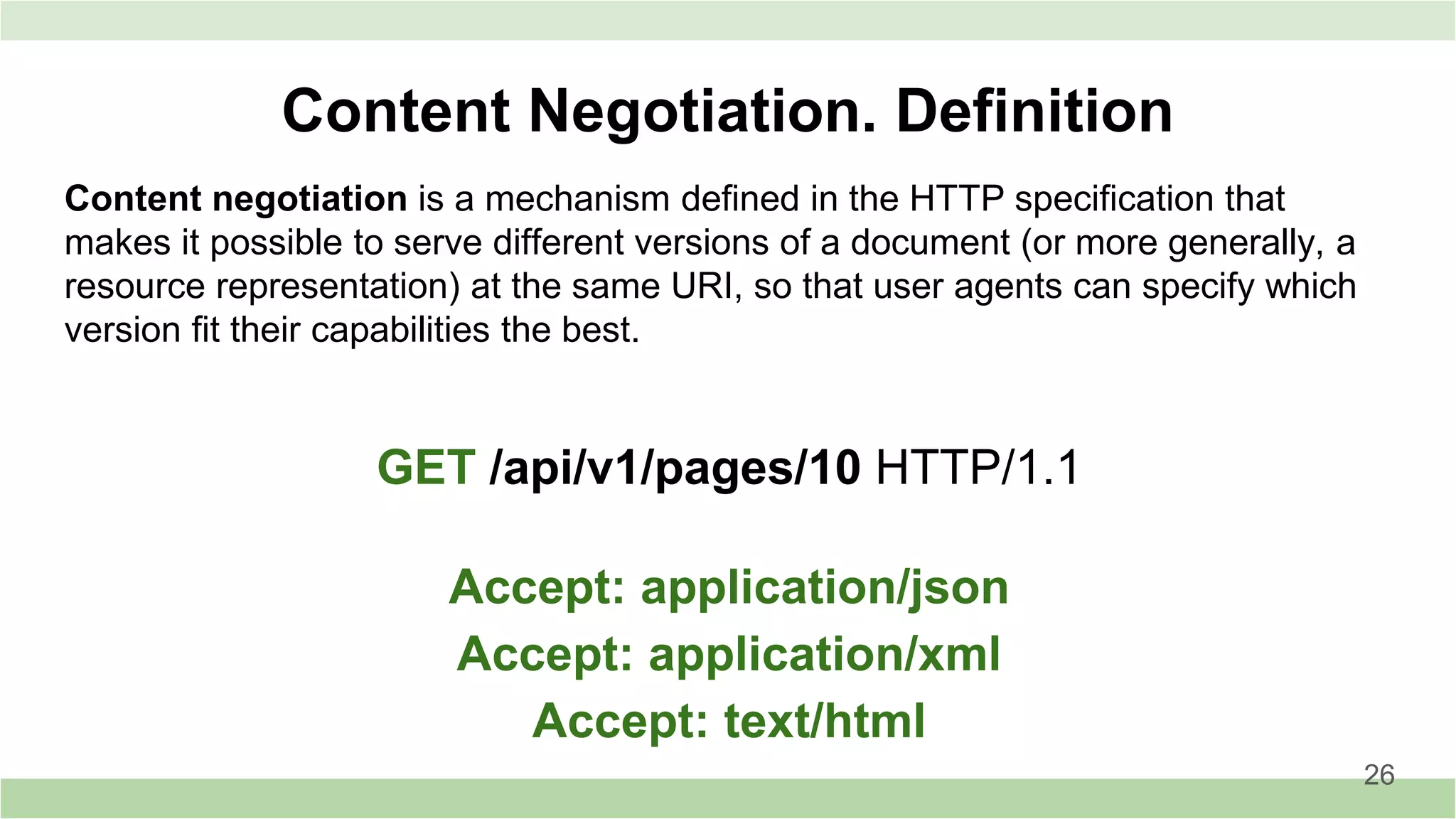

- 26. Content negotiation isa mechanism defined in the HTTP specification that makes it possible to serve different versions of a document (or more generally, a resource representation) at the same URI, so that user agents can specify which version fit their capabilities the best. Content Negotiation. Definition GET /api/v1/pages/10 HTTP/1.1 Accept: application/json Accept: application/xml Accept: text/html 26

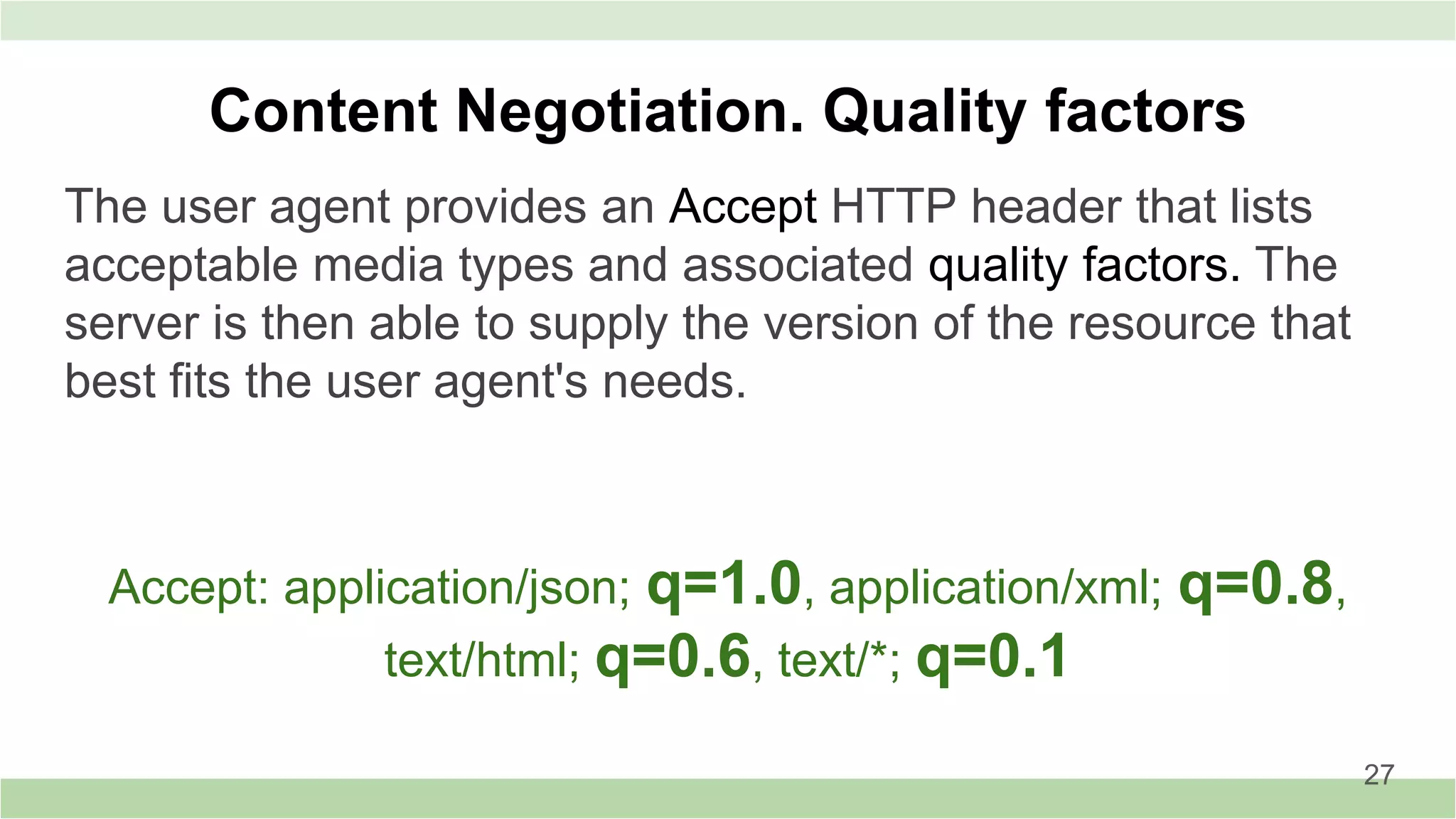

- 27. The user agentprovides an Accept HTTP header that lists acceptable media types and associated quality factors. The server is then able to supply the version of the resource that best fits the user agent's needs. Content Negotiation. Quality factors Accept: application/json; q=1.0, application/xml; q=0.8, text/html; q=0.6, text/*; q=0.1 27

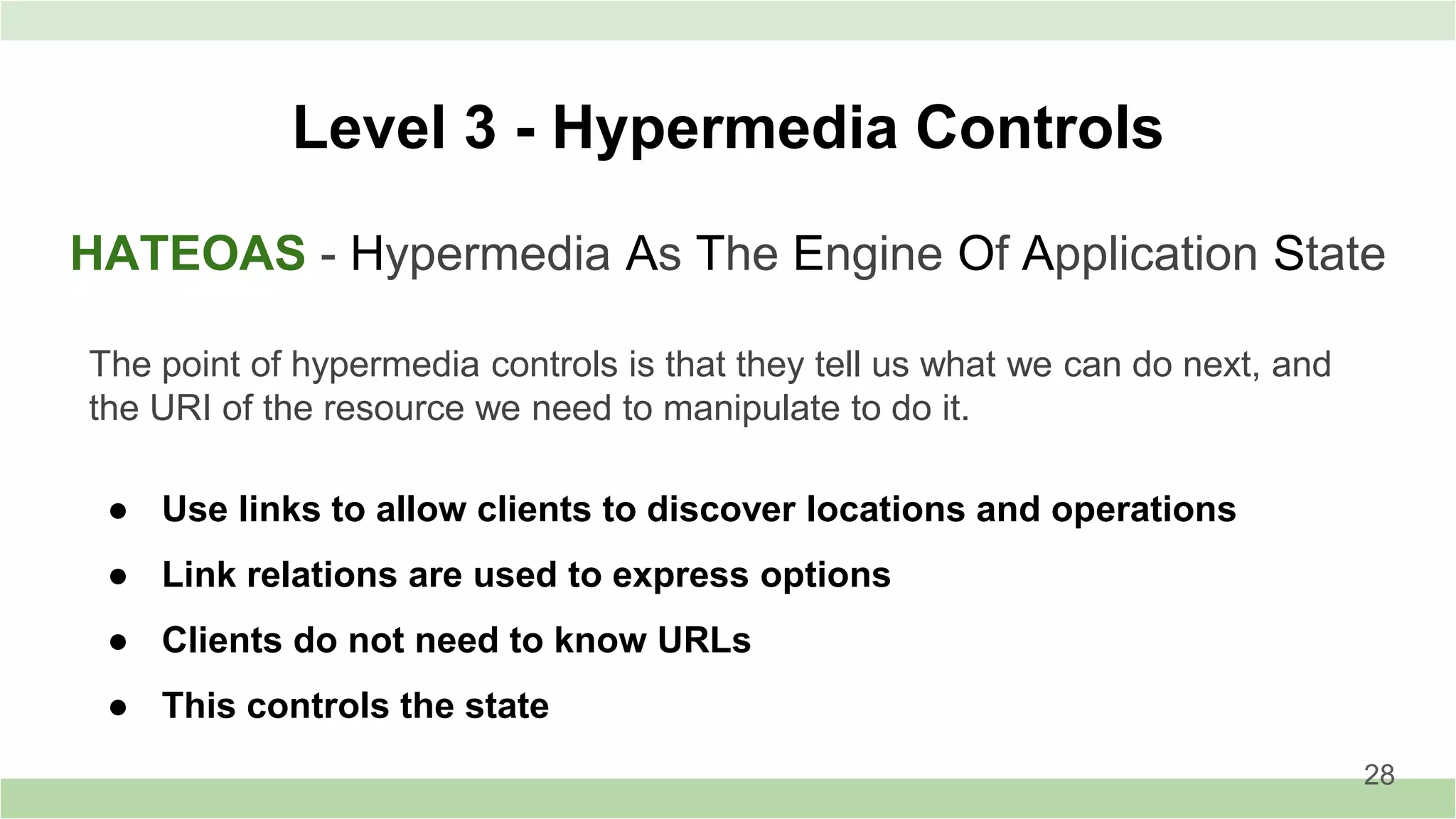

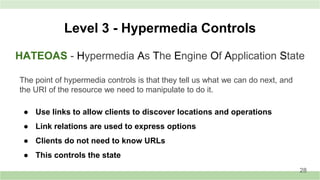

- 28. HATEOAS - HypermediaAs The Engine Of Application State Level 3 - Hypermedia Controls The point of hypermedia controls is that they tell us what we can do next, and the URI of the resource we need to manipulate to do it. ● Use links to allow clients to discover locations and operations ● Link relations are used to express options ● Clients do not need to know URLs ● This controls the state 28

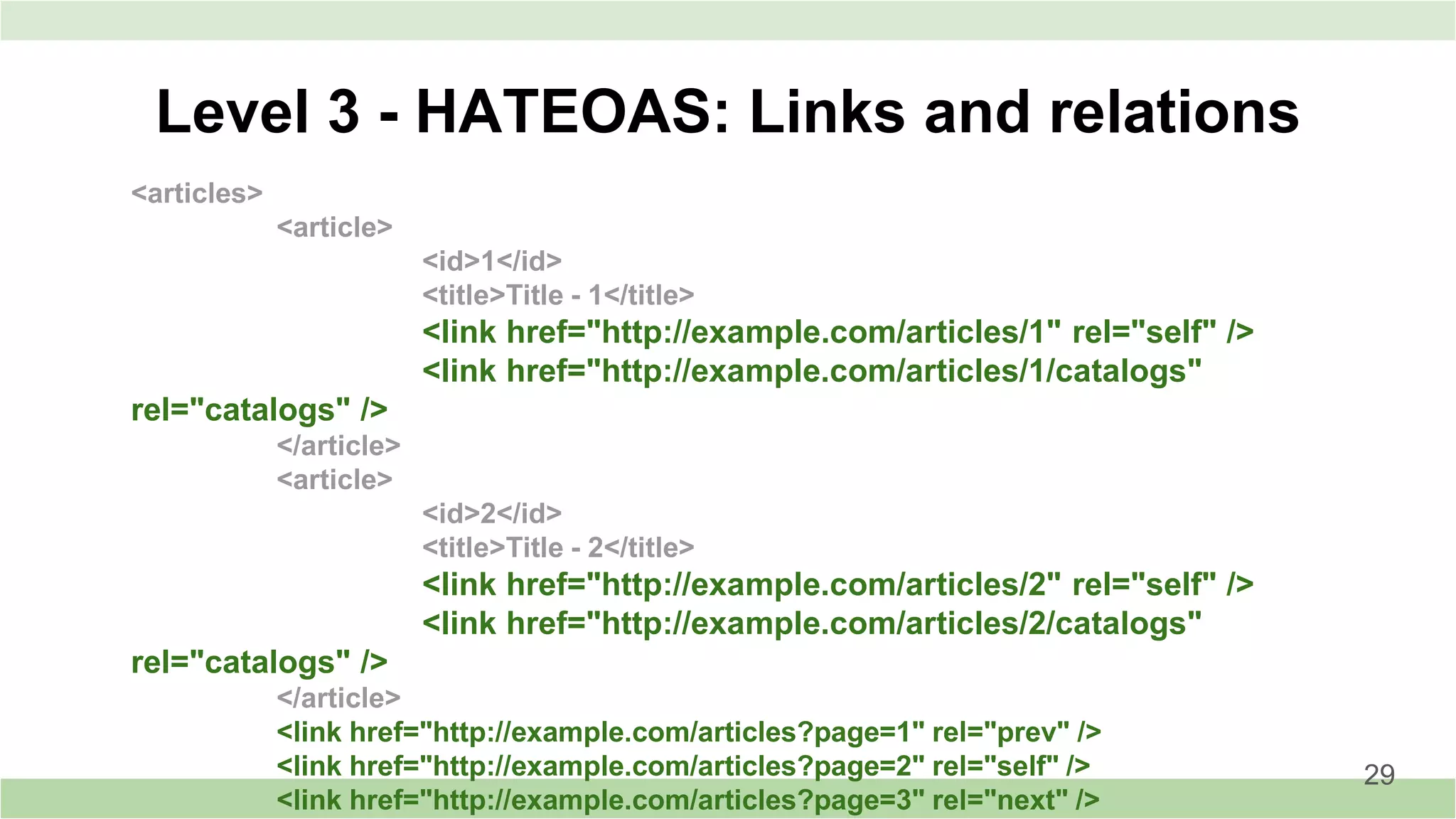

- 29. Level 3 -HATEOAS: Links and relations <articles> <article> <id>1</id> <title>Title - 1</title> <link href="http://example.com/articles/1" rel="self" /> <link href="http://example.com/articles/1/catalogs" rel="catalogs" /> </article> <article> <id>2</id> <title>Title - 2</title> <link href="http://example.com/articles/2" rel="self" /> <link href="http://example.com/articles/2/catalogs" rel="catalogs" /> </article> <link href="http://example.com/articles?page=1" rel="prev" /> <link href="http://example.com/articles?page=2" rel="self" /> <link href="http://example.com/articles?page=3" rel="next" /> 29

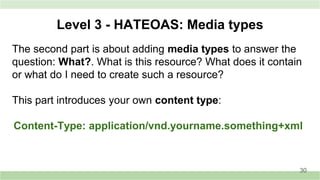

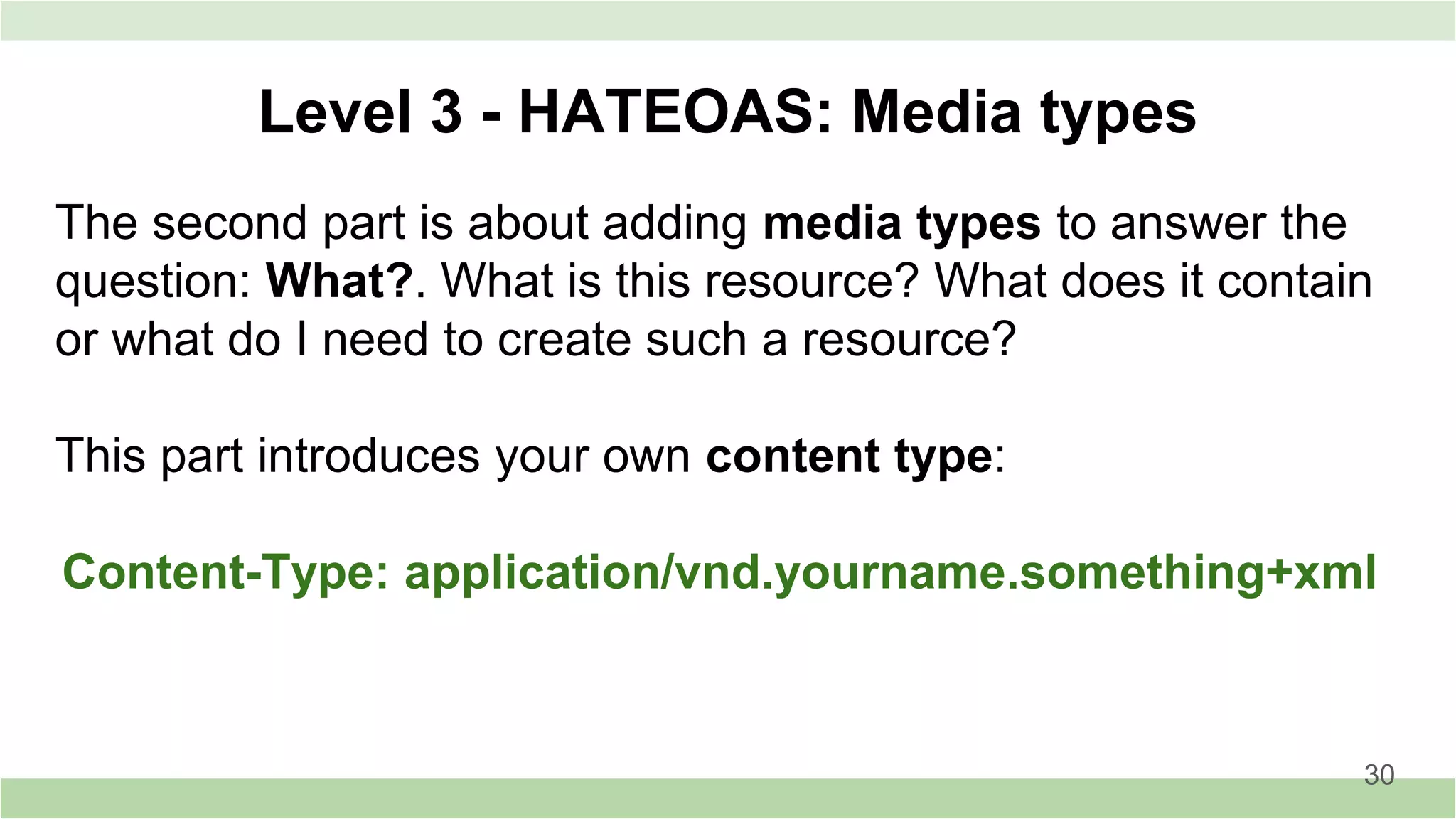

- 30. Level 3 -HATEOAS: Media types The second part is about adding media types to answer the question: What?. What is this resource? What does it contain or what do I need to create such a resource? This part introduces your own content type: Content-Type: application/vnd.yourname.something+xml 30

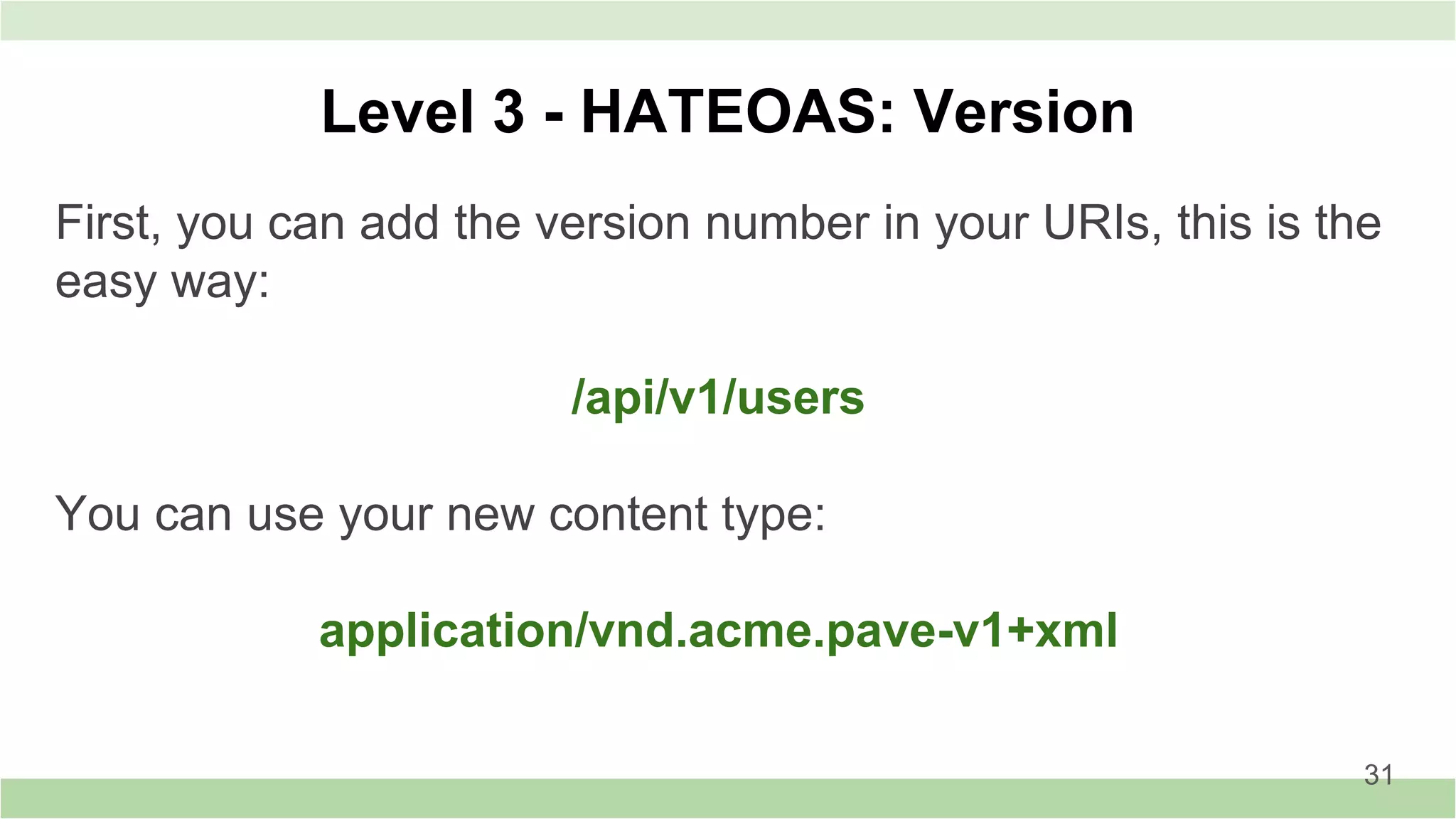

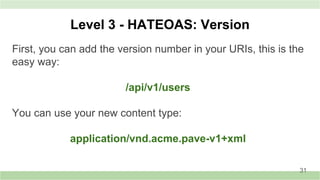

- 31. Level 3 -HATEOAS: Version First, you can add the version number in your URIs, this is the easy way: /api/v1/users You can use your new content type: application/vnd.acme.pave-v1+xml 31
- 32. Development Rest APIin Symfony2 32
- 33.

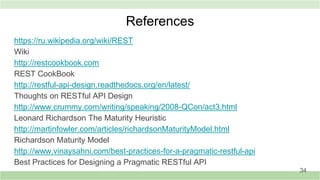

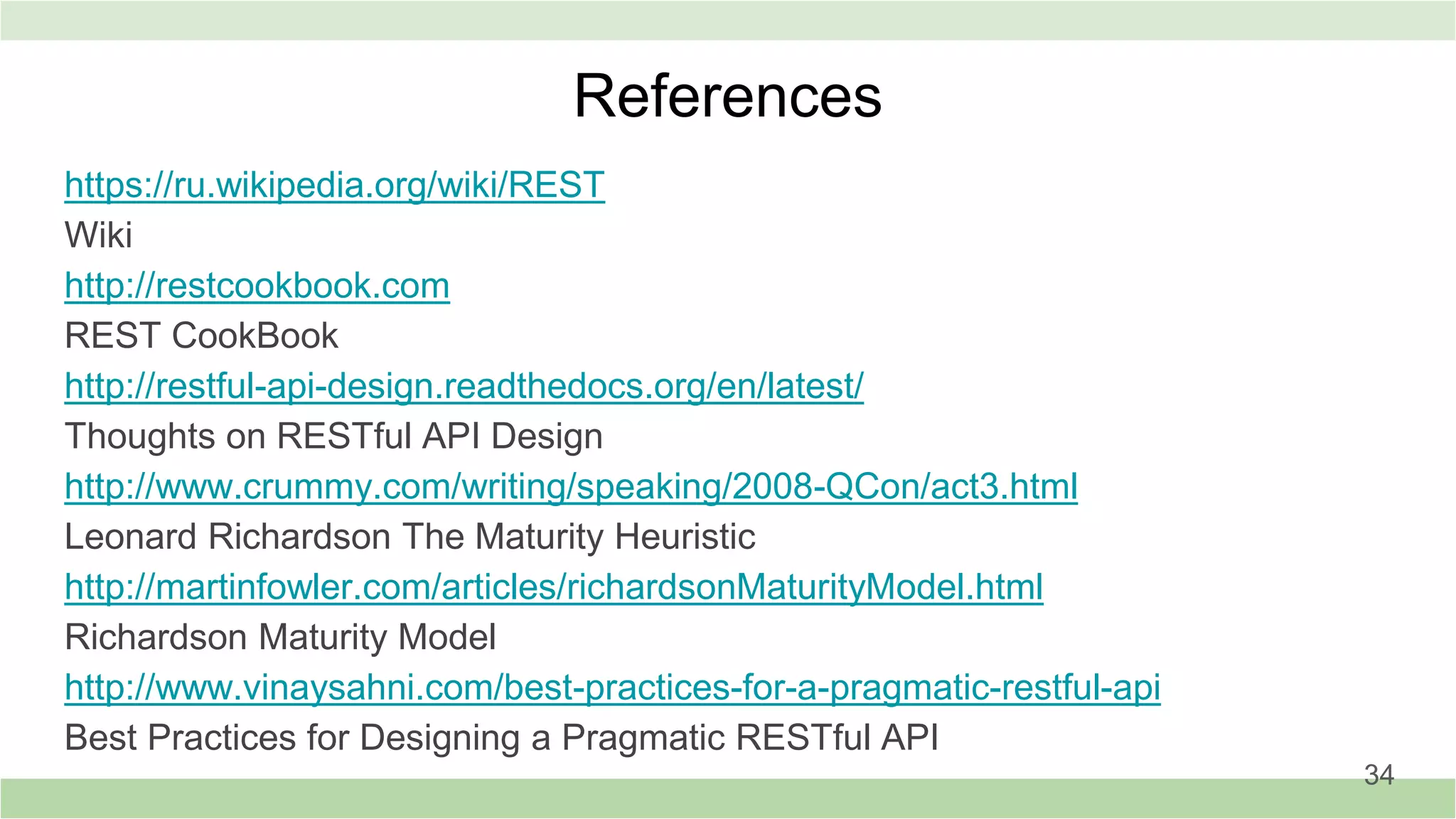

- 34. References https://ru.wikipedia.org/wiki/REST Wiki http://restcookbook.com REST CookBook http://restful-api-design.readthedocs.org/en/latest/ Thoughts onRESTful API Design http://www.crummy.com/writing/speaking/2008-QCon/act3.html Leonard Richardson The Maturity Heuristiс http://martinfowler.com/articles/richardsonMaturityModel.html Richardson Maturity Model http://www.vinaysahni.com/best-practices-for-a-pragmatic-restful-api Best Practices for Designing a Pragmatic RESTful API 34
- 35. Thank you Questions ? AlekseyKryvtsov alkryvtsov@gmail.com 35
