Test-Driven Documentation for your REST(ful) service

Test-Driven Documentation
for your RESTful service
by Jeroen Reijn

JEROEN REIJN
Software Architect at Luminis /Amsterdam
• Focus on productivity and Developer Experience
• Been building APIs for the Web since 2010
• Writes most of his code in Java
• Tweets @jreijn

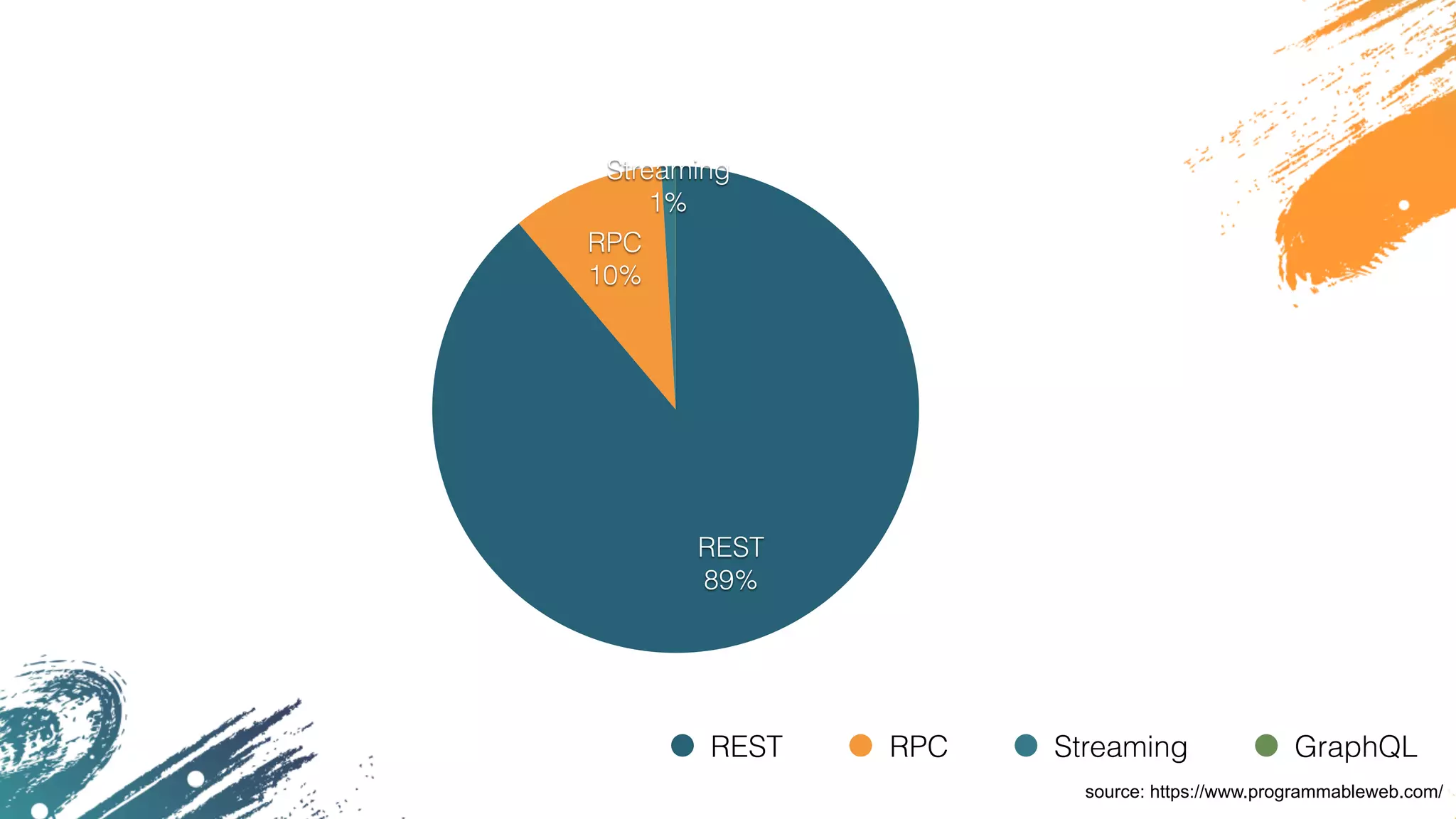

source: https://www.programmableweb.com/

Streaming
1%
RPC
10%
REST
89%
REST RPC Streaming GraphQL
source: https://www.programmableweb.com/

Source: http://geek-and-poke.com/geekandpoke/2013/6/14/insulting-made-easy

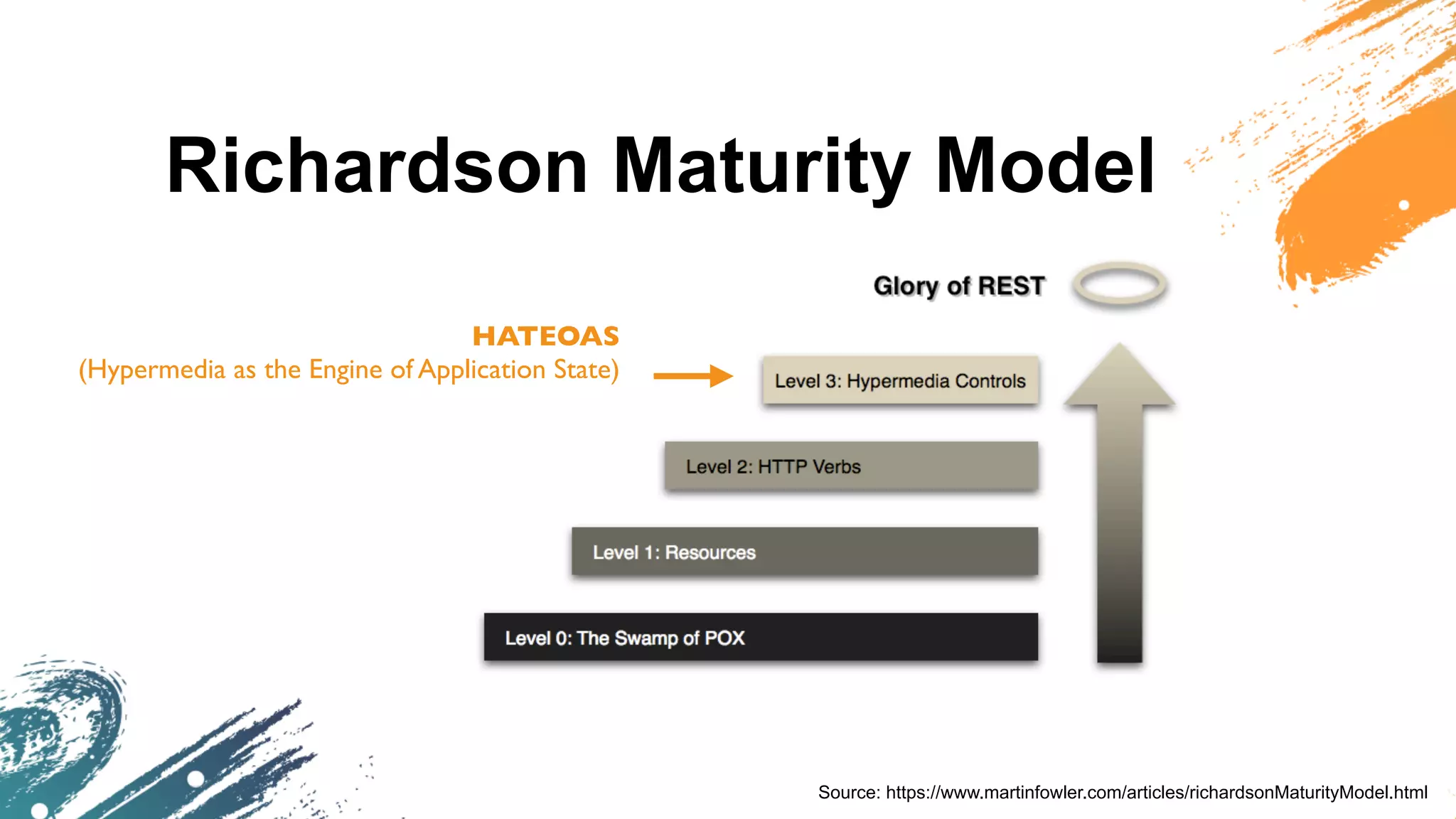

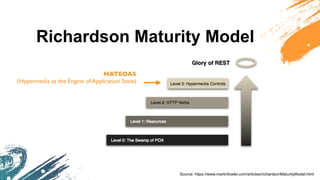

Richardson Maturity Model
Source: https://www.martinfowler.com/articles/richardsonMaturityModel.html
HATEOAS
(Hypermedia as the Engine of Application State)

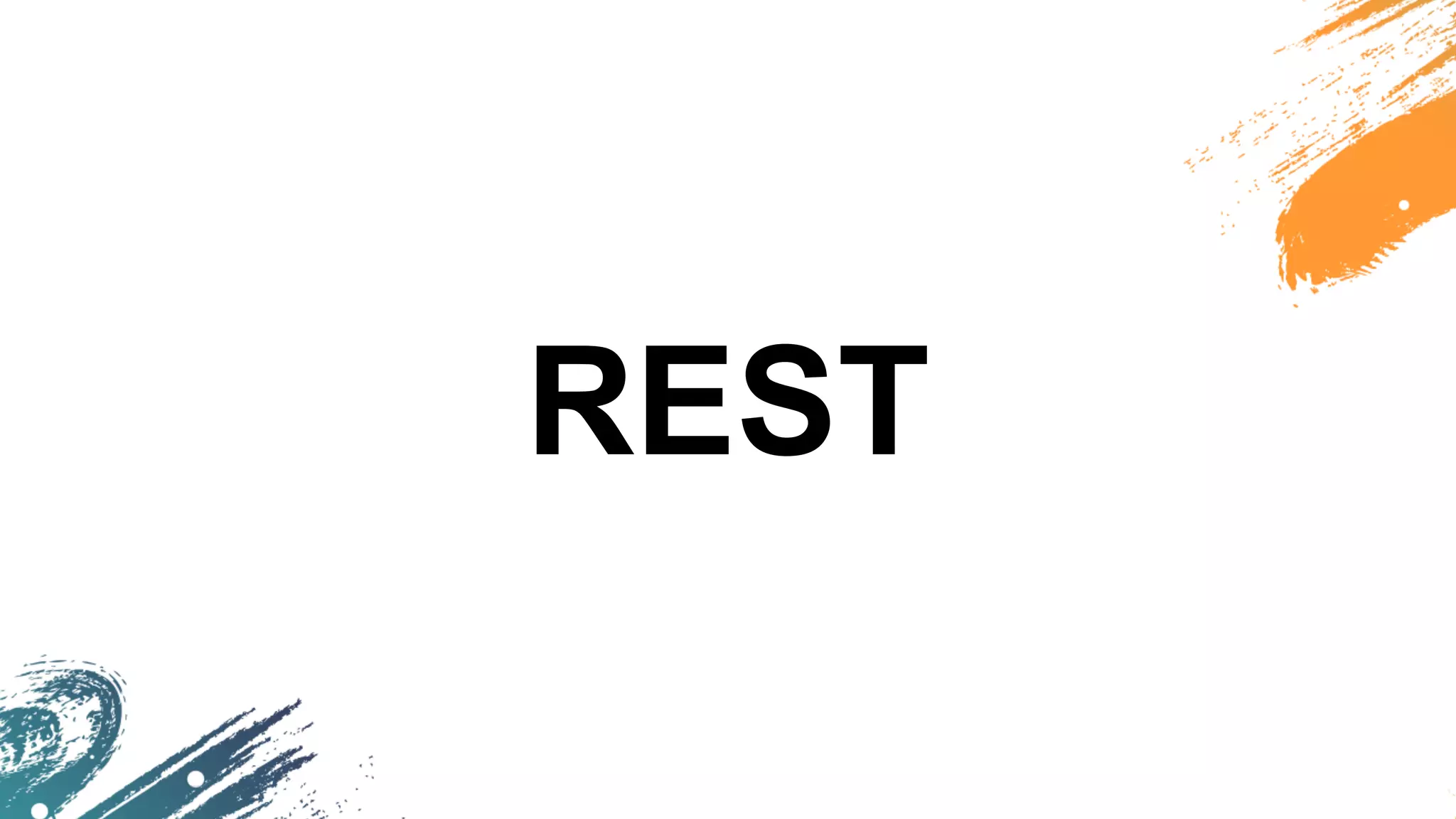

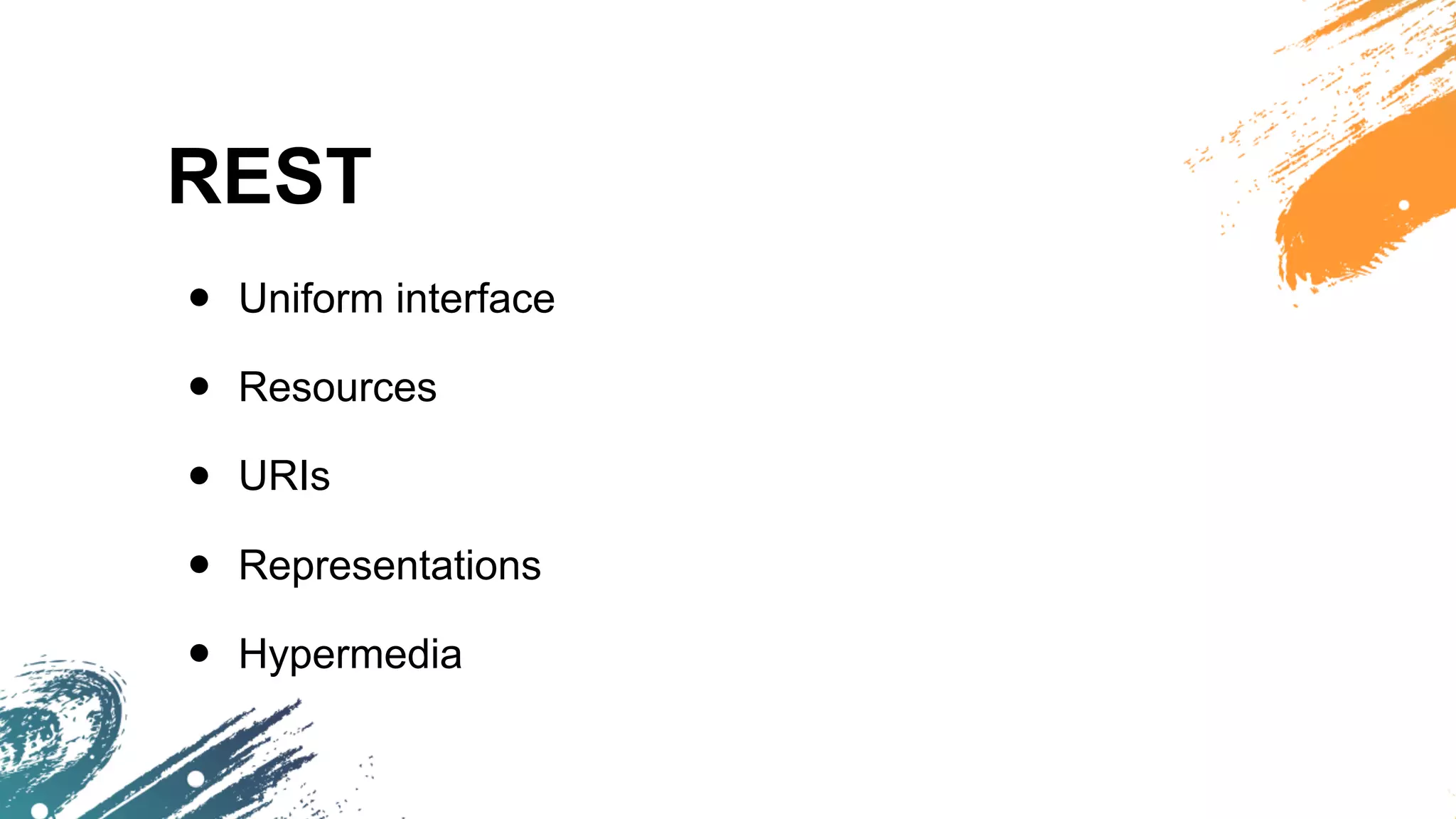

REST
• Uniform interface
• Resources
• URIs
• Representations
• Hypermedia

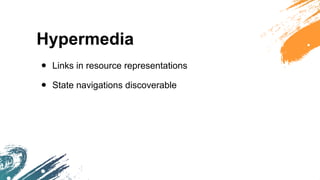

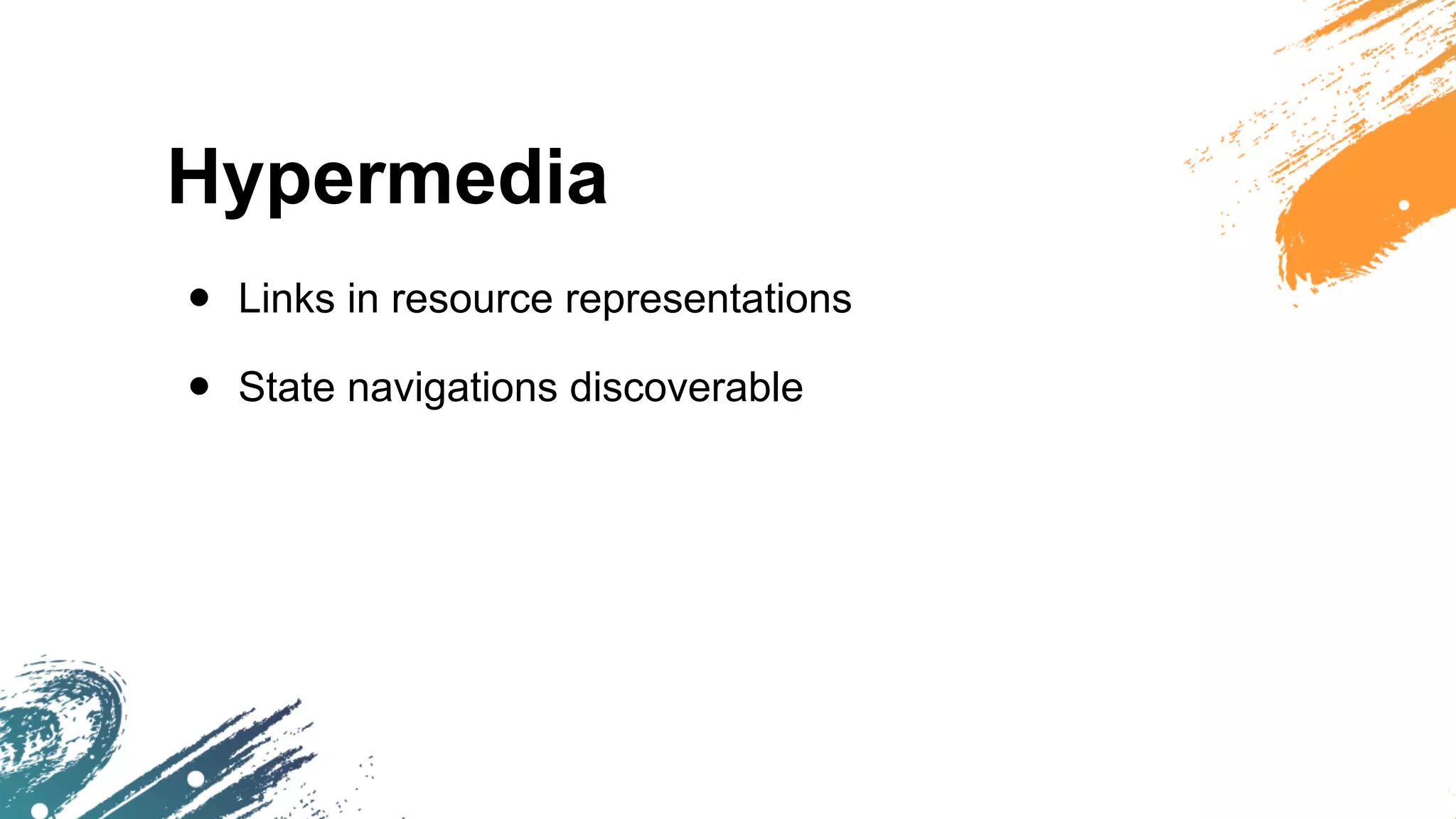

Hypermedia
• Links in resource representations
• State navigations discoverable

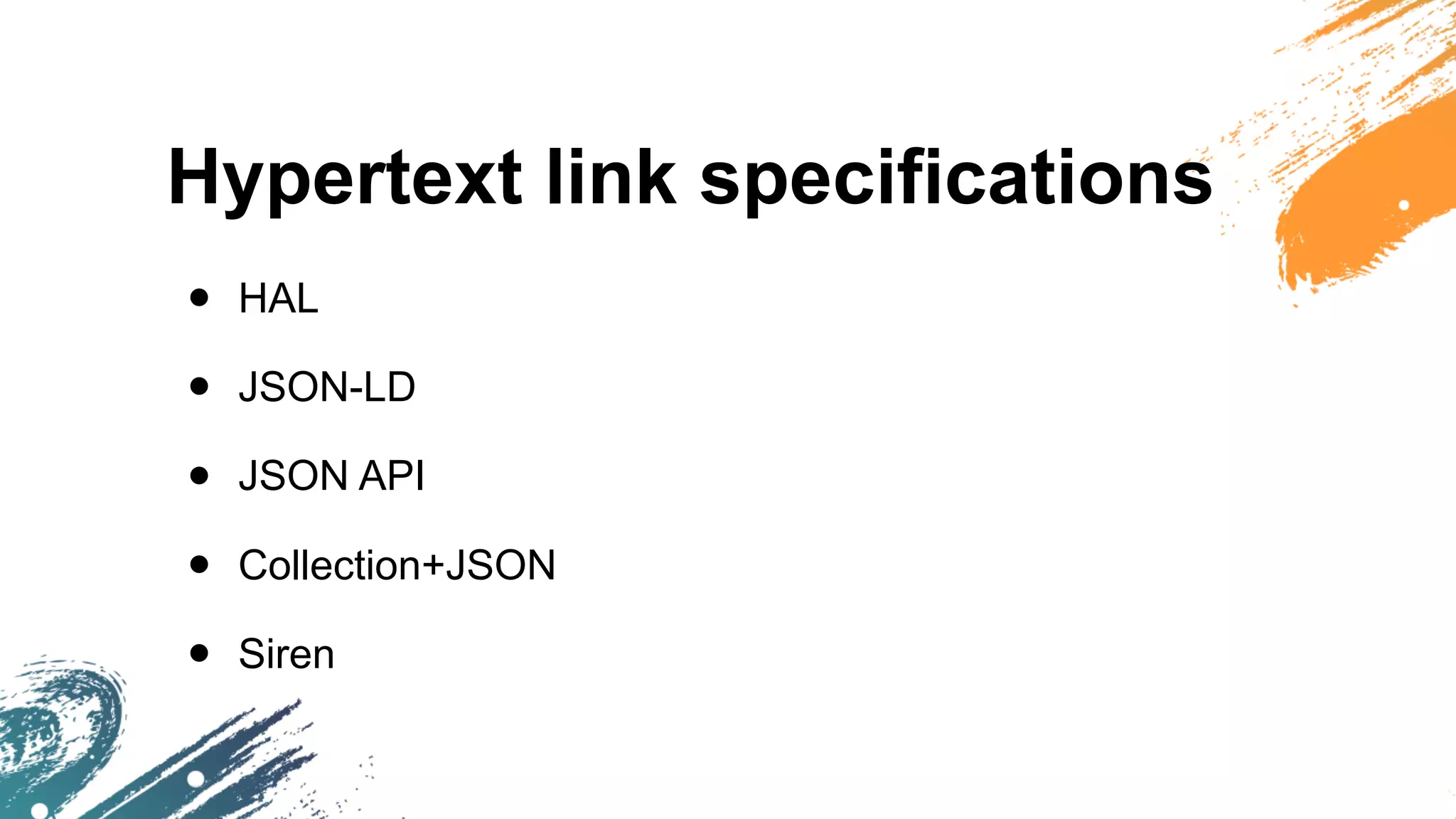

Hypertext link specifications
• HAL
• JSON-LD
• JSON API
• Collection+JSON
• Siren

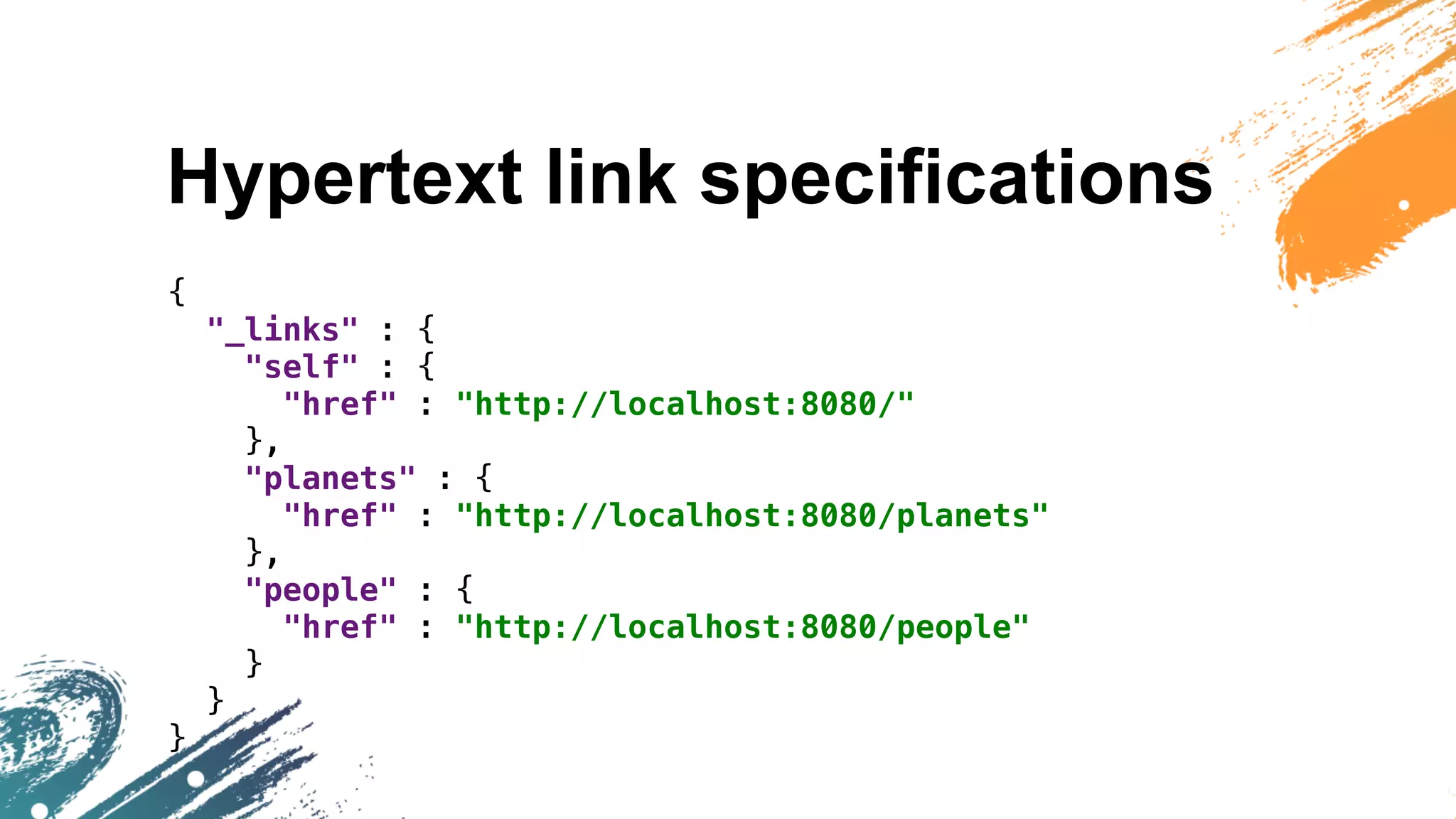

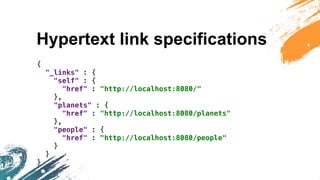

Hypertext link specifications
{
"_links" : {
"self" : {
"href" : "http://localhost:8080/"
},
"planets" : {
"href" : "http://localhost:8080/planets"
},
"people" : {
"href" : "http://localhost:8080/people"
}
}
}

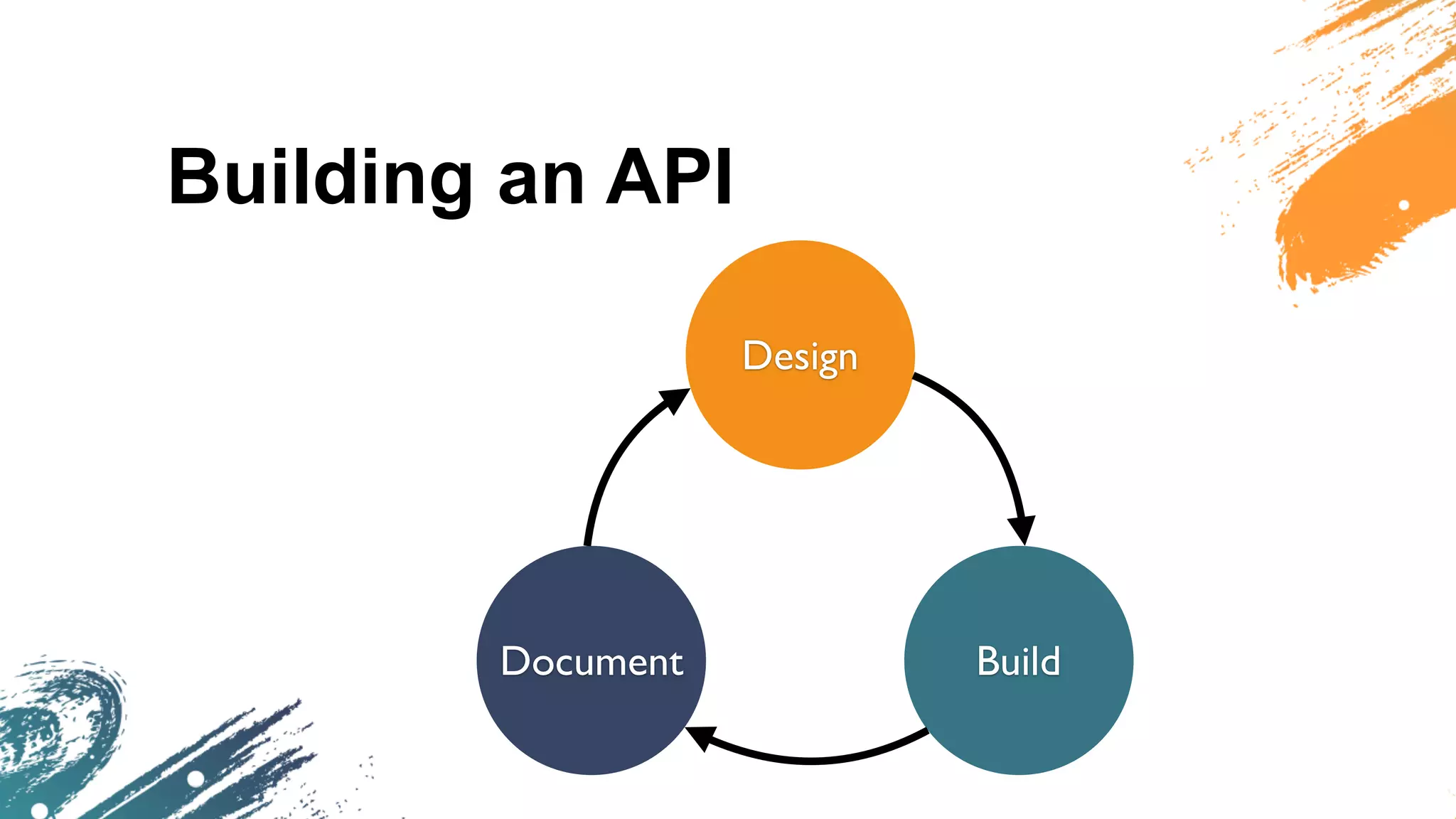

Building an API
Design
BuildDocument

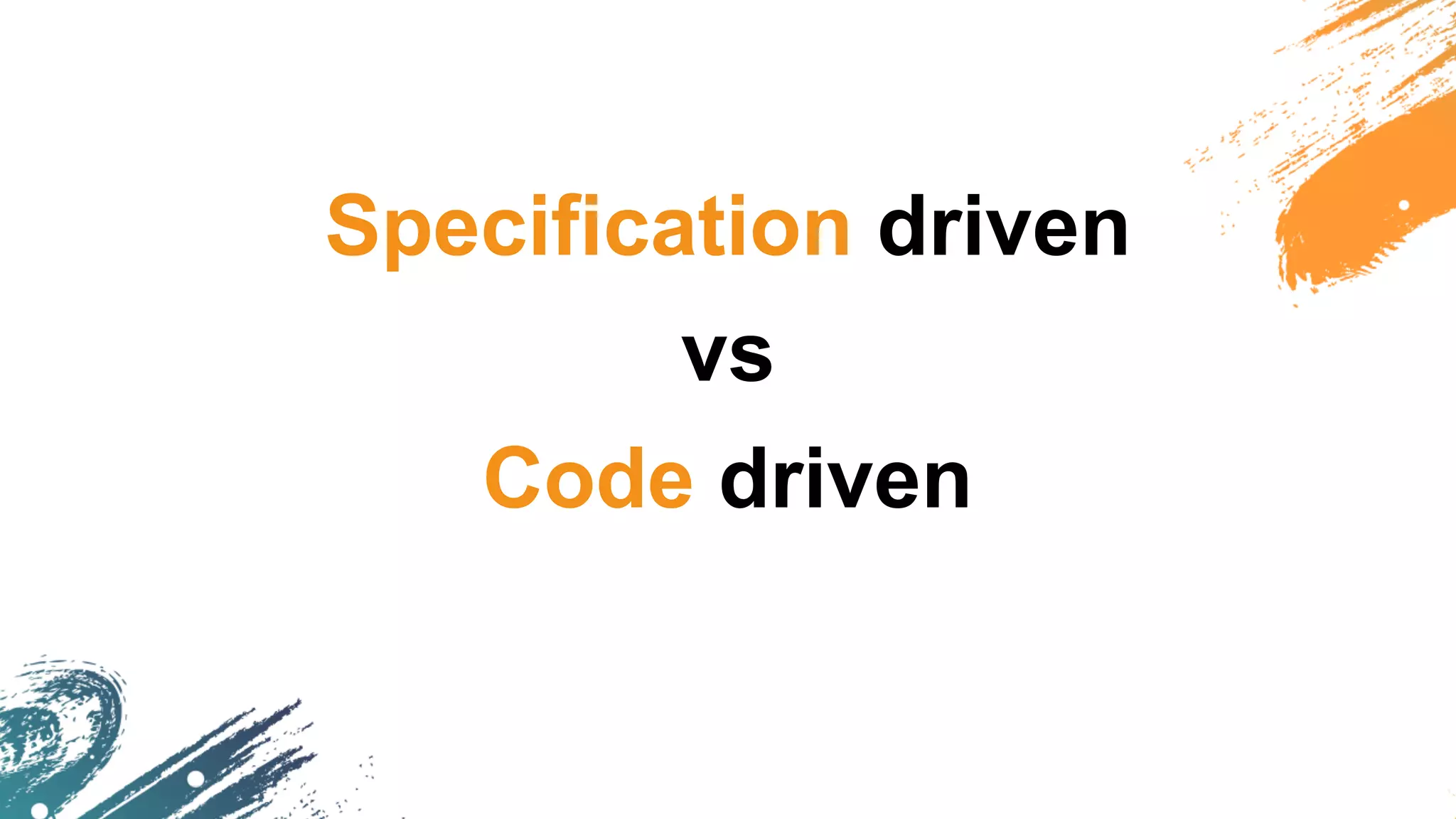

Specification driven
vs
Code driven

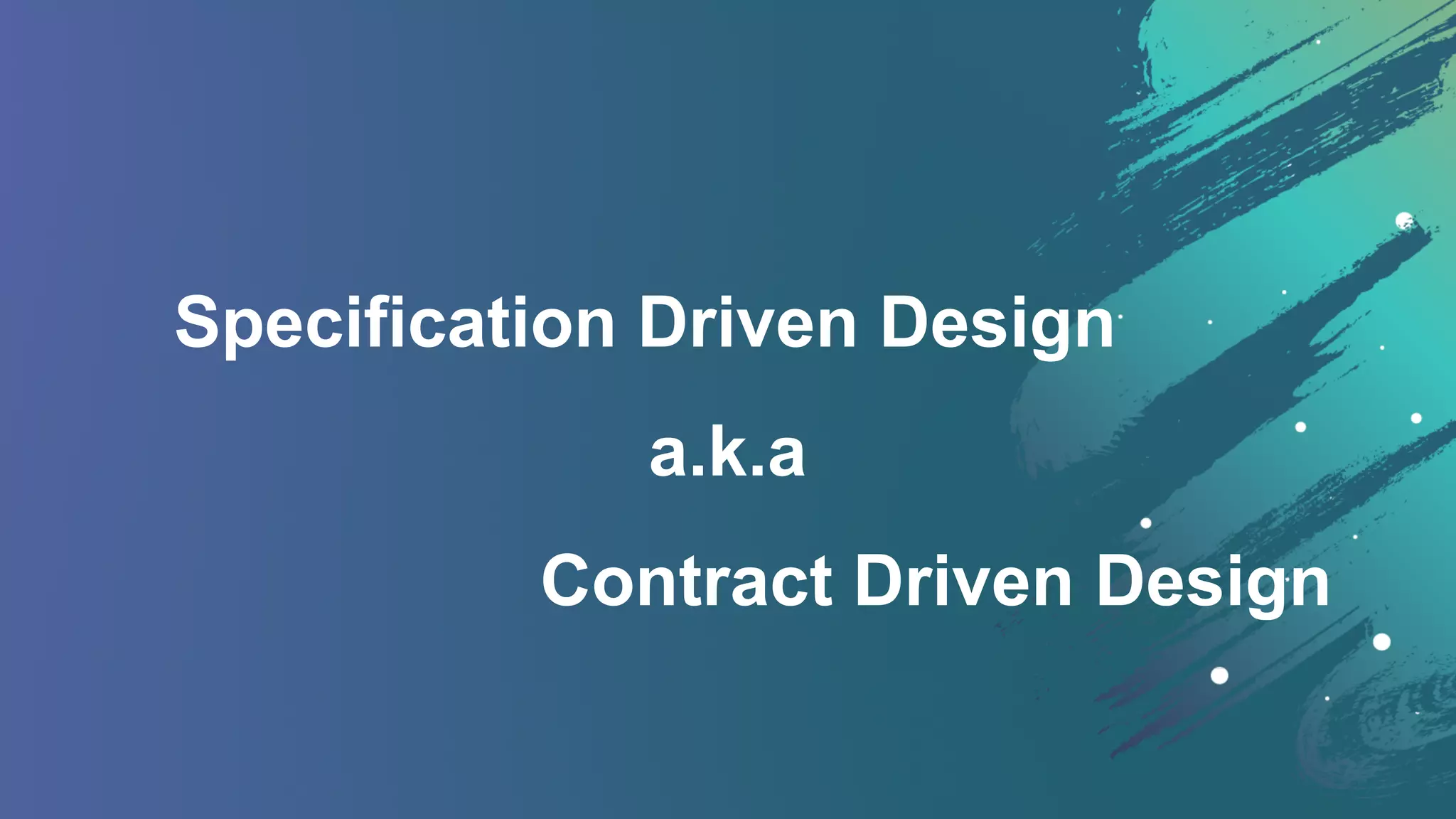

Specification Driven Design
Contract Driven Design
a.k.a

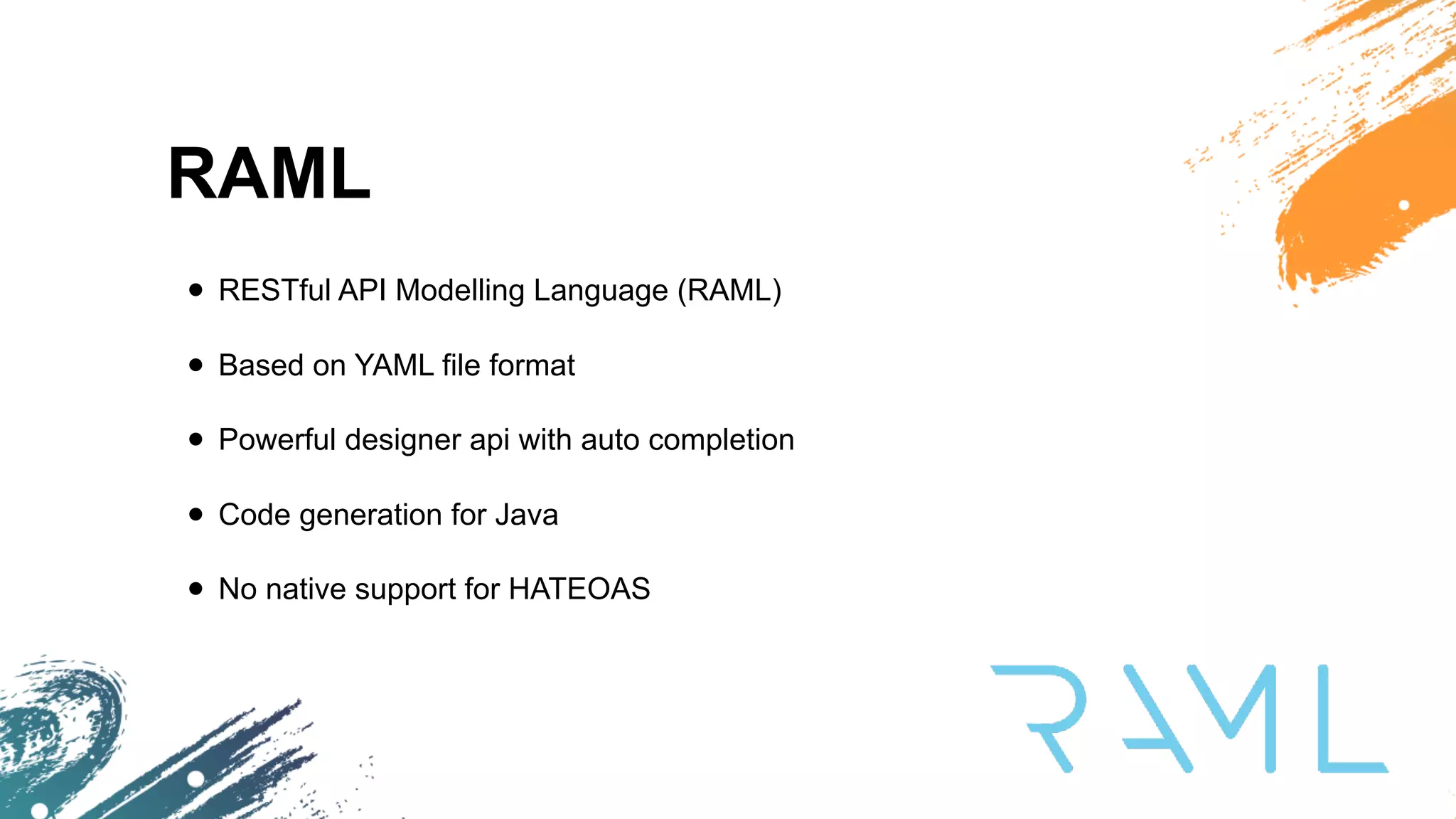

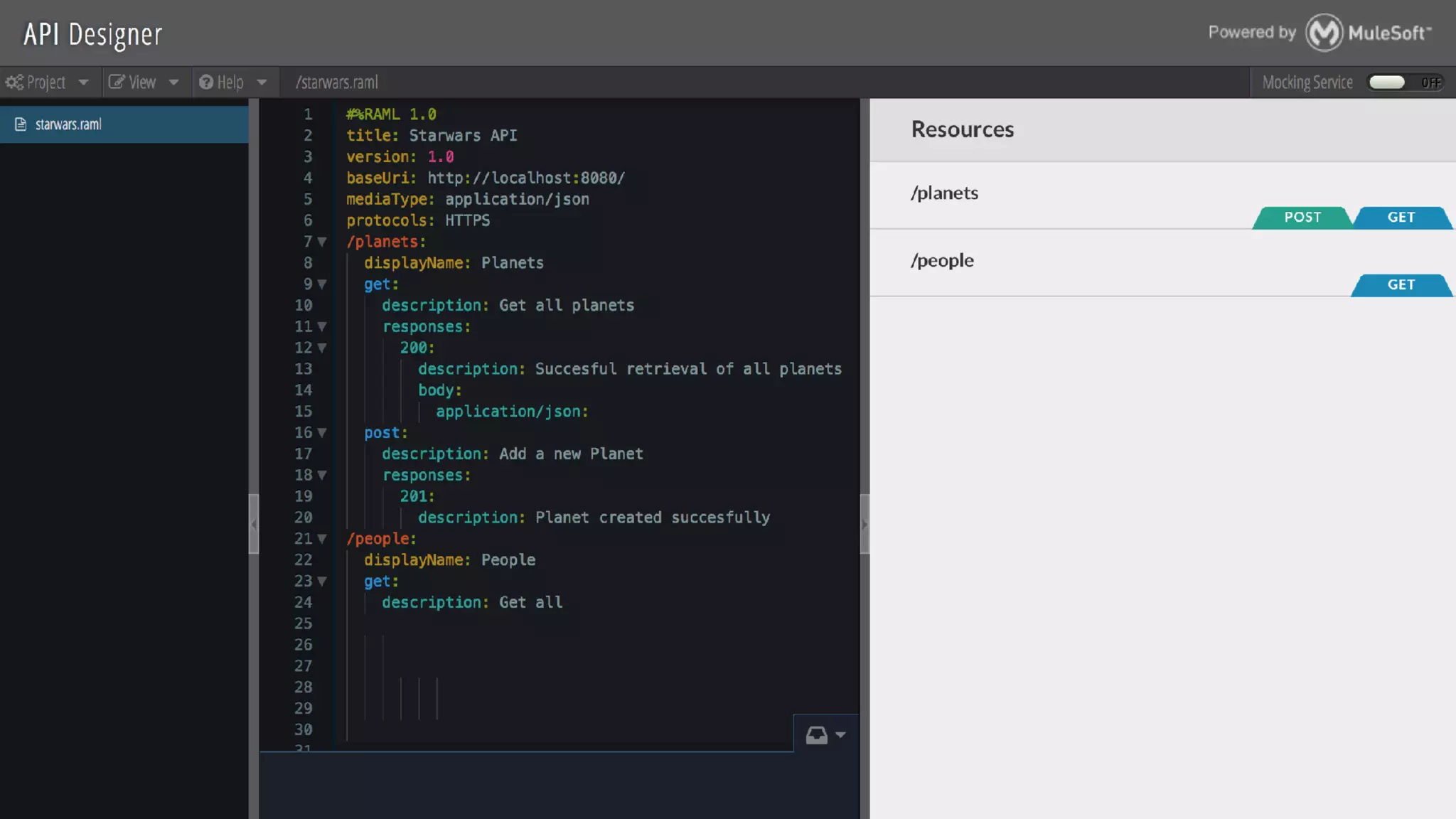

RAML
• RESTful API Modelling Language (RAML)
• Based on YAML file format
• Powerful designer api with auto completion
• Code generation for Java
• No native support for HATEOAS

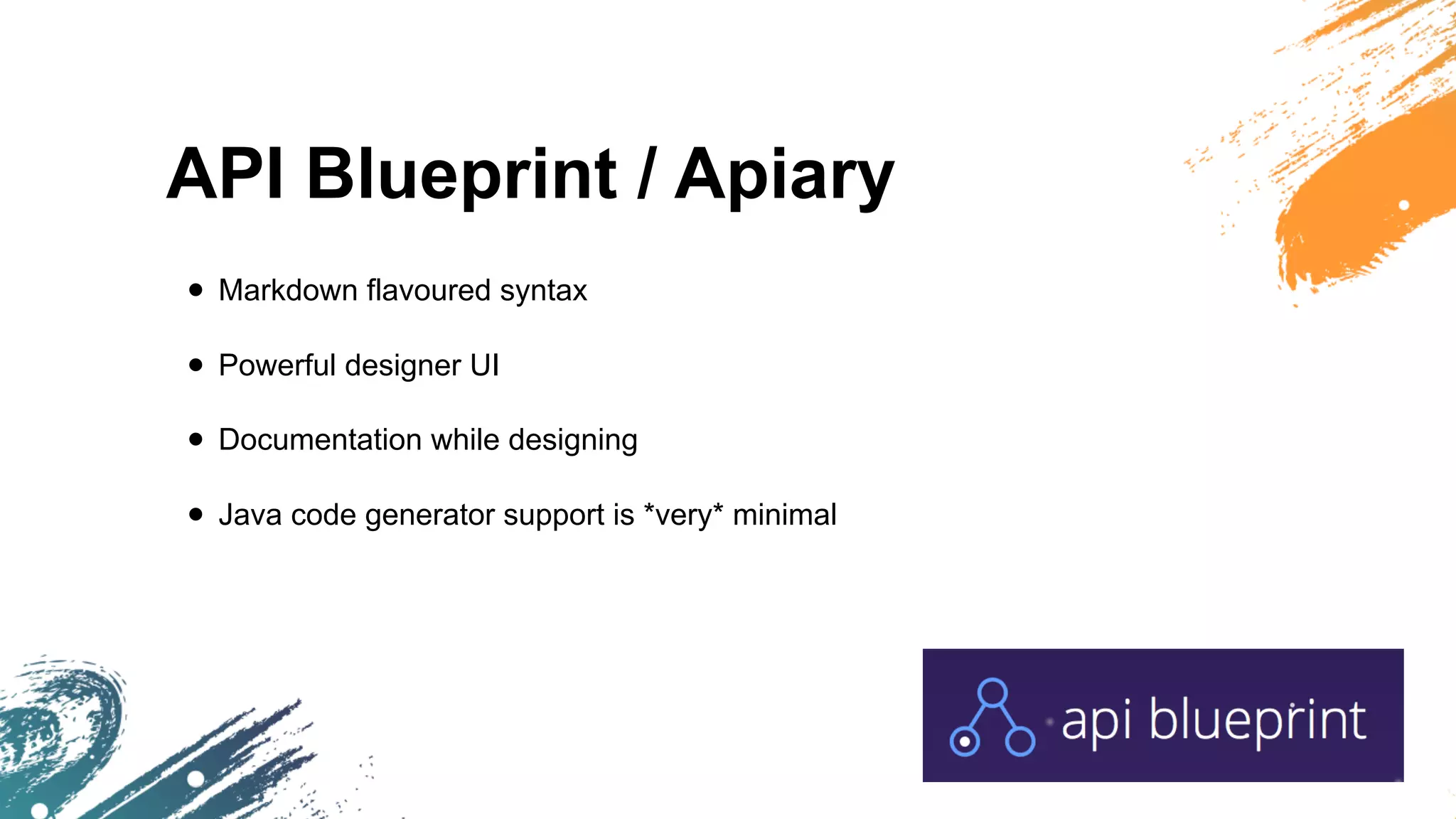

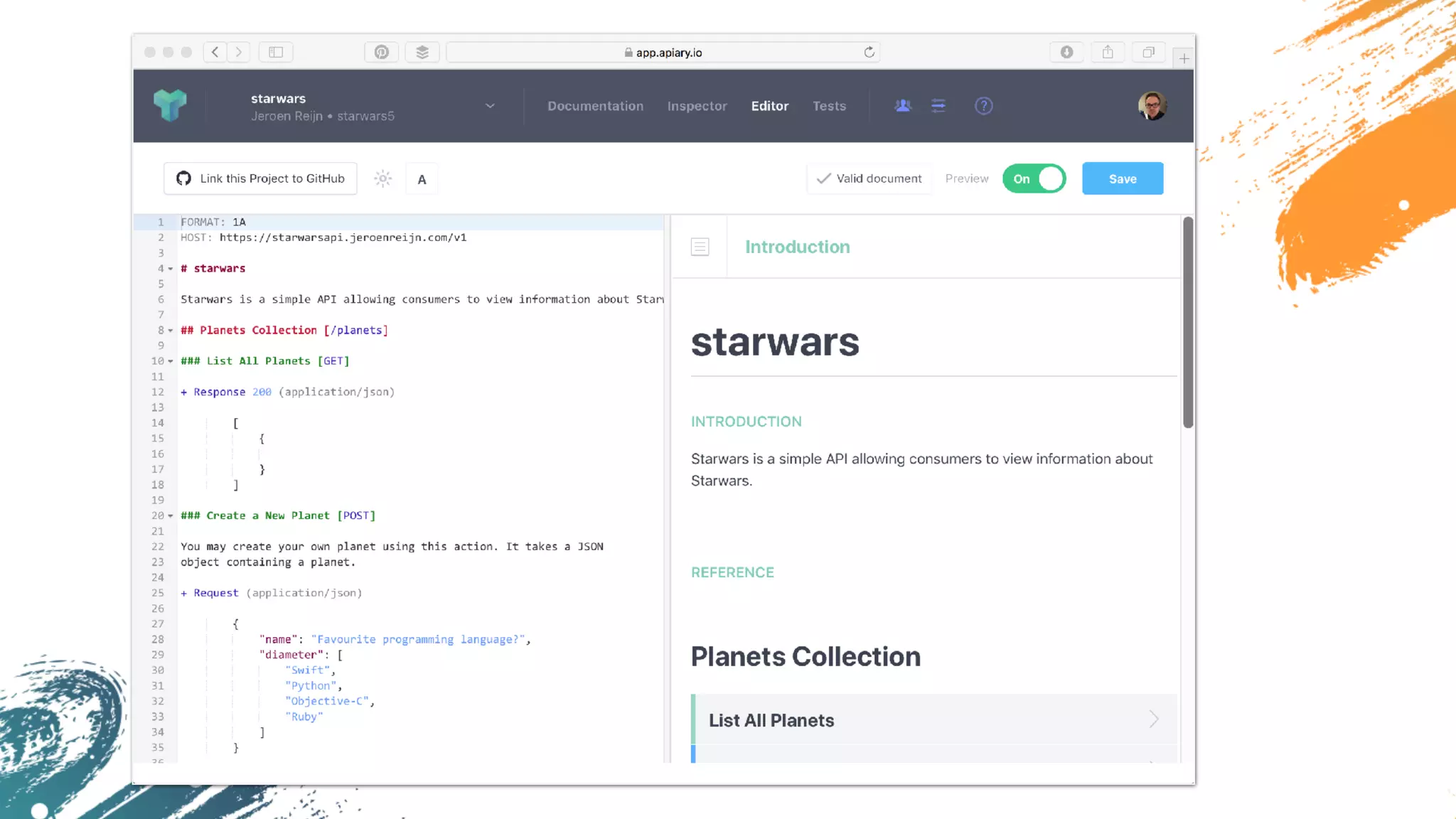

API Blueprint / Apiary
• Markdown flavoured syntax
• Powerful designer UI
• Documentation while designing
• Java code generator support is *very* minimal

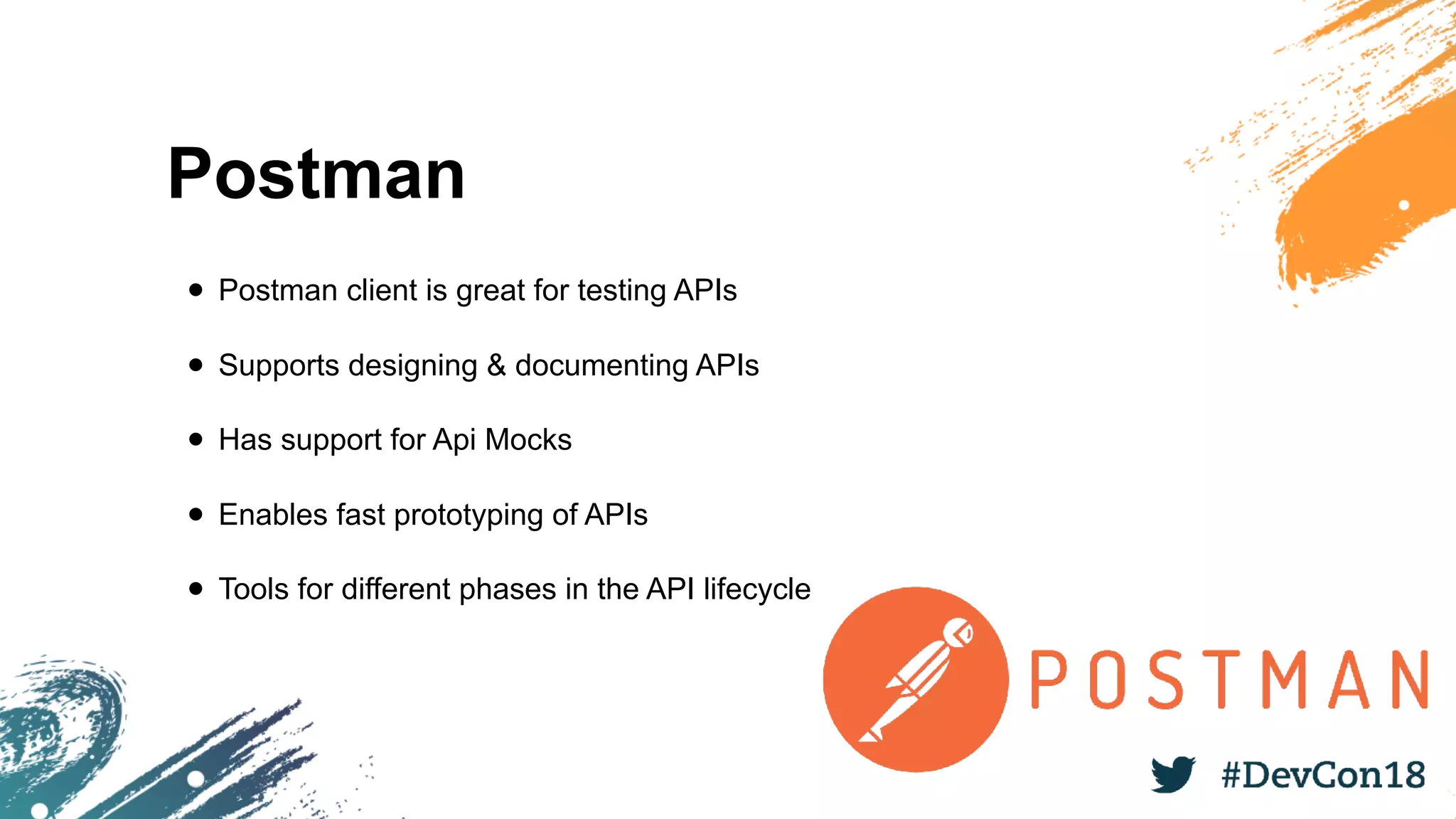

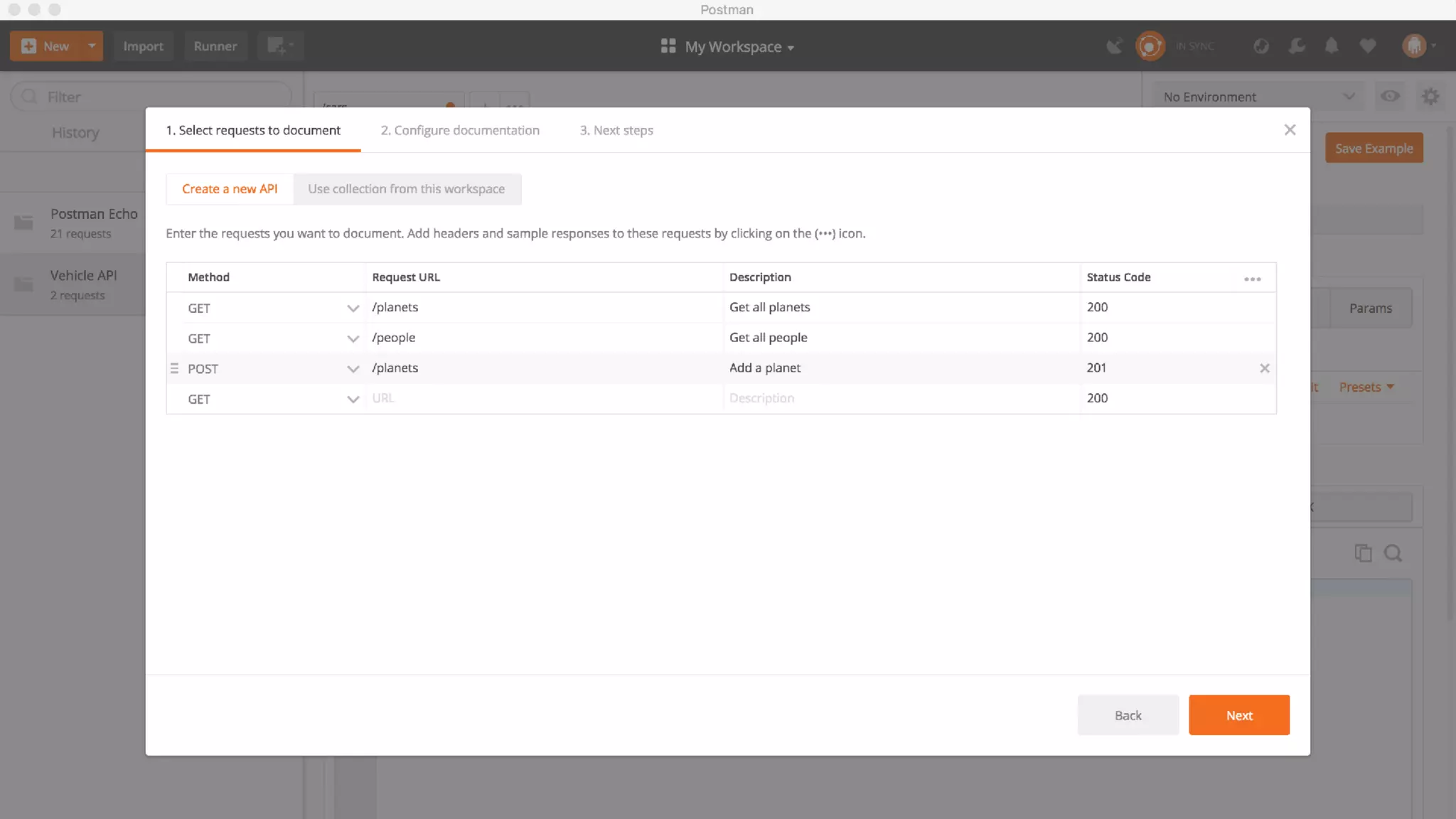

Postman
• Postman client is great for testing APIs
• Supports designing & documenting APIs
• Has support for Api Mocks
• Enables fast prototyping of APIs
• Tools for different phases in the API lifecycle

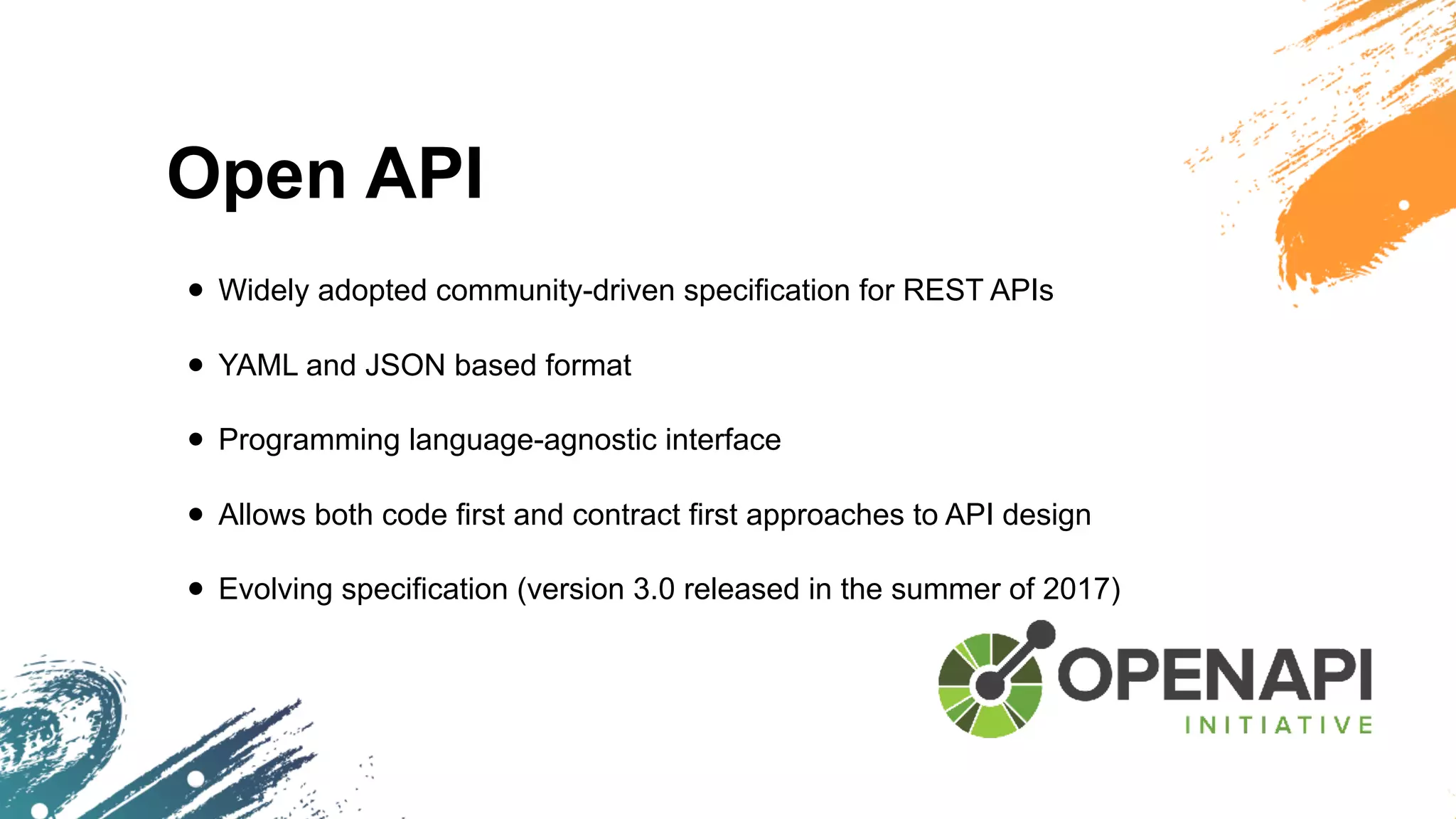

Open API
• Widely adopted community-driven specification for REST APIs
• YAML and JSON based format
• Programming language-agnostic interface
• Allows both code first and contract first approaches to API design
• Evolving specification (version 3.0 released in the summer of 2017)

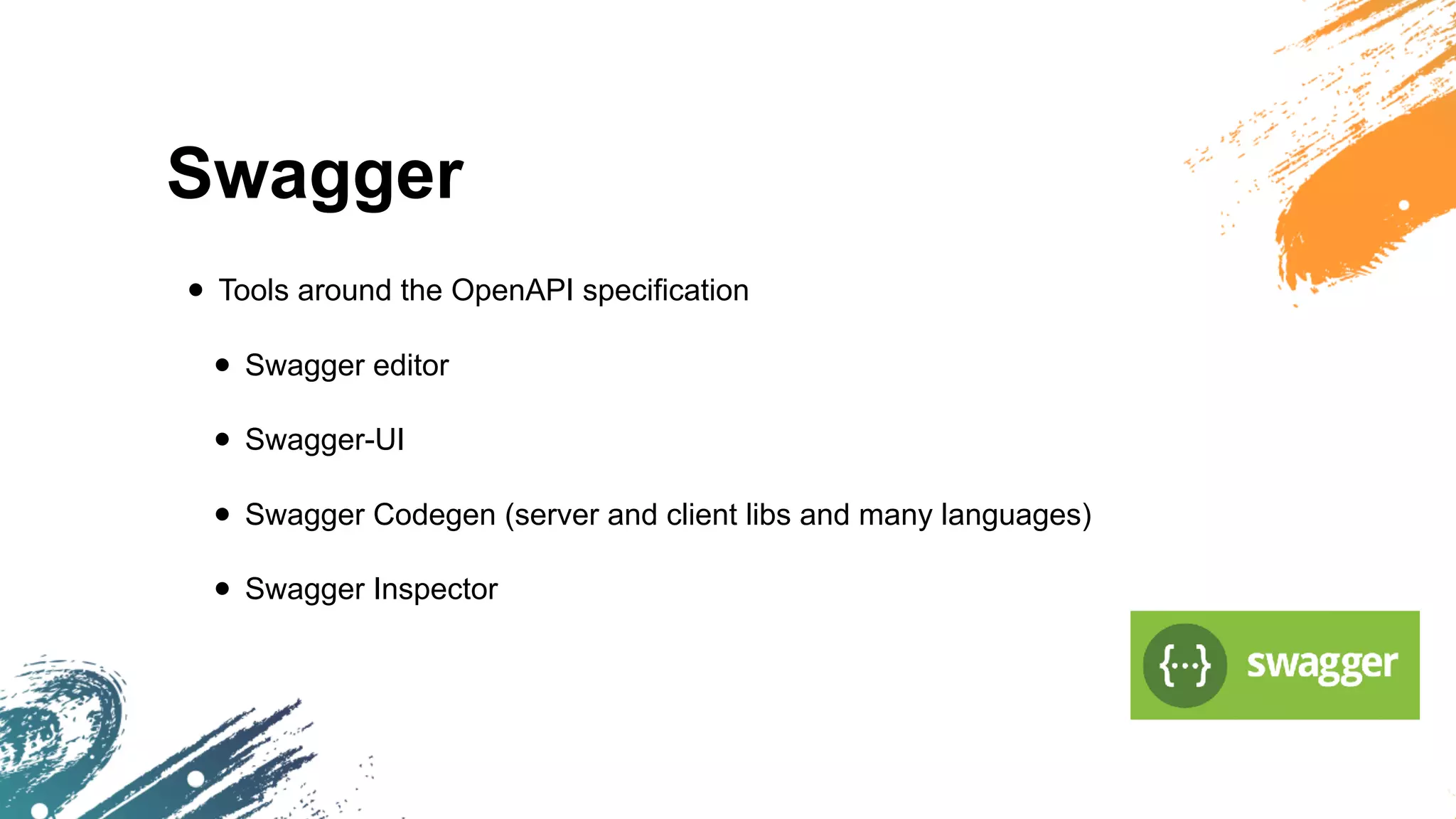

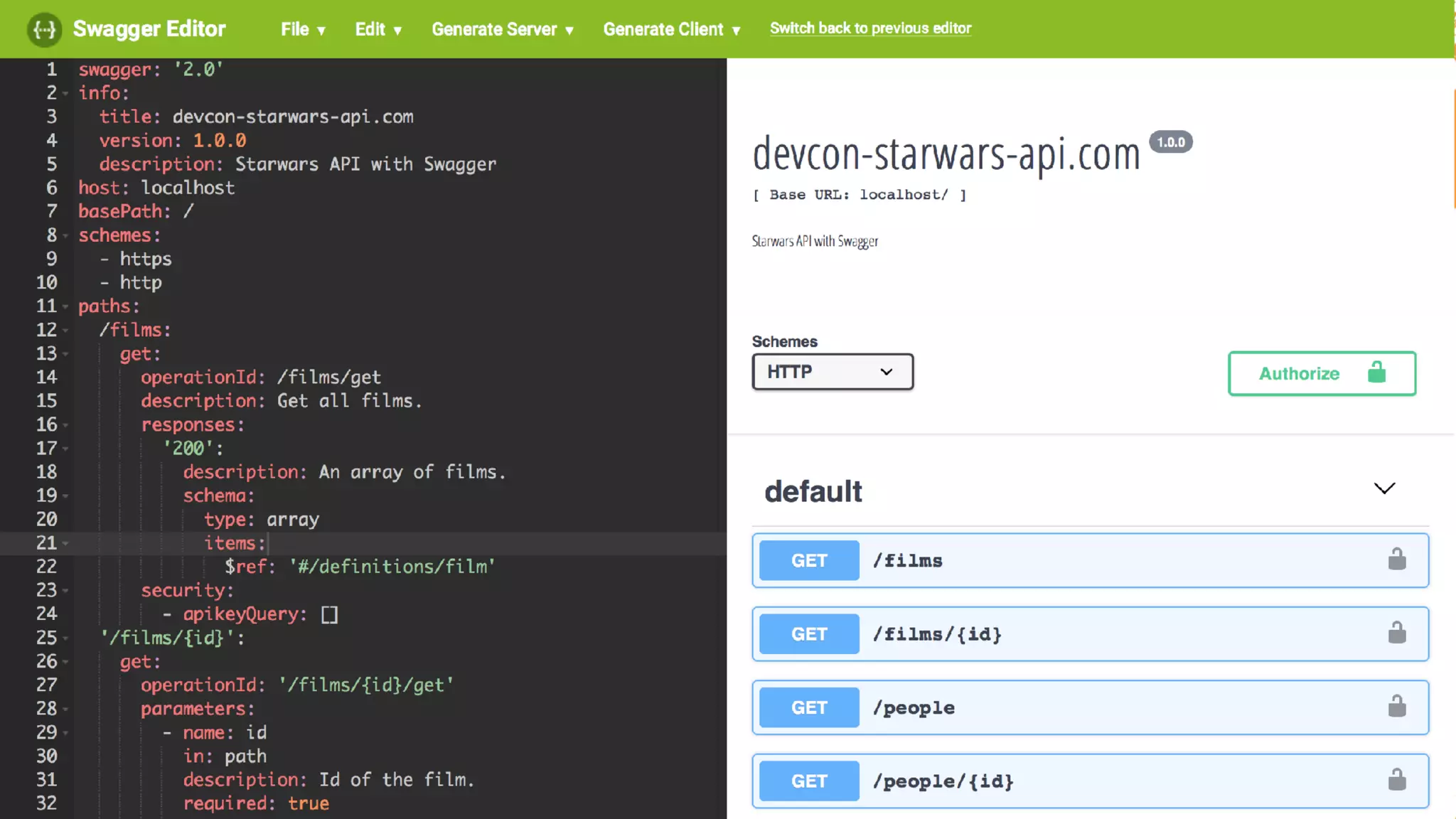

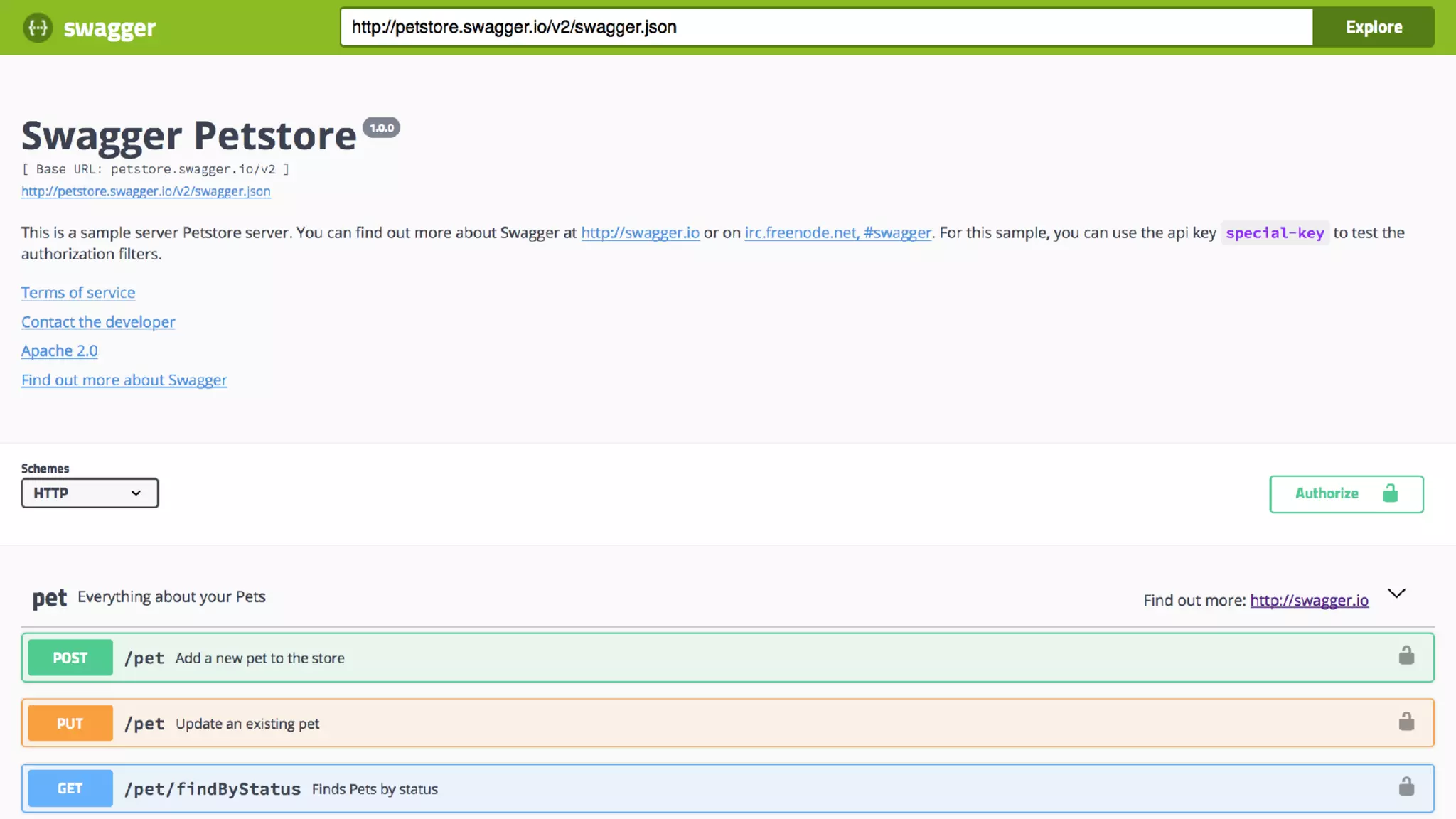

Swagger
• Tools around the OpenAPI specification

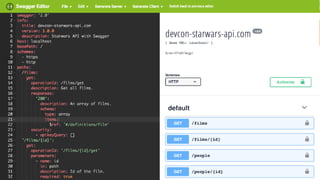

• Swagger editor
• Swagger-UI
• Swagger Codegen (server and client libs and many languages)
• Swagger Inspector

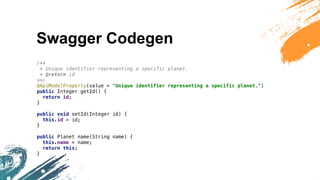

Swagger Codegen
/**
* Unique identifier representing a specific planet.
* @return id
**/
@ApiModelProperty(value = "Unique identifier representing a specific planet.")
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public Planet name(String name) {
this.name = name;
return this;
}

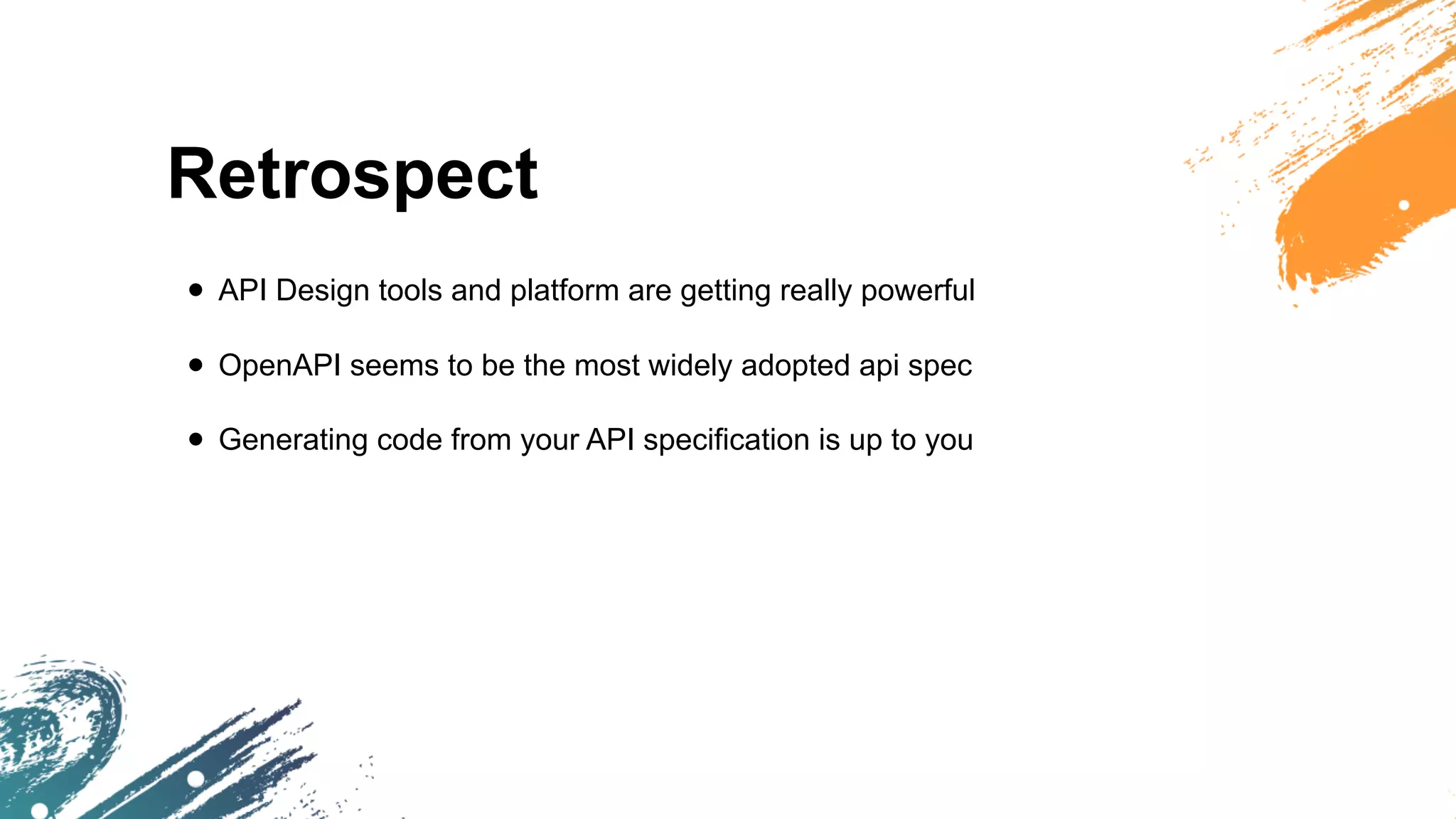

Retrospect
• API Design tools and platform are getting really powerful
• OpenAPI seems to be the most widely adopted api spec
• Generating code from your API specification is up to you

“ An API is only as good  
as its documentation! ”

Let’s talk about API documentation

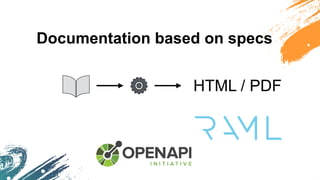

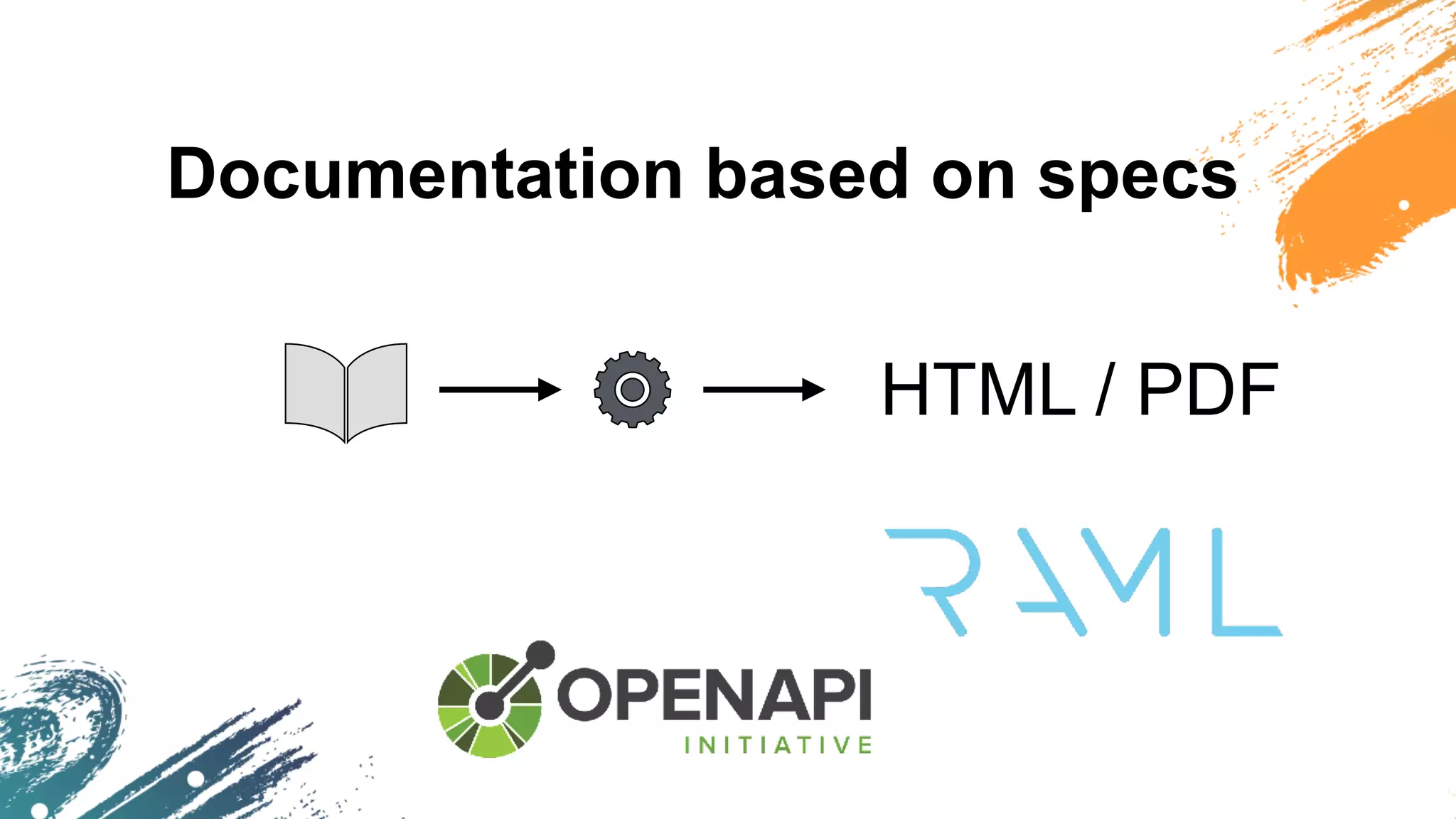

Documentation based on specs
HTML / PDF

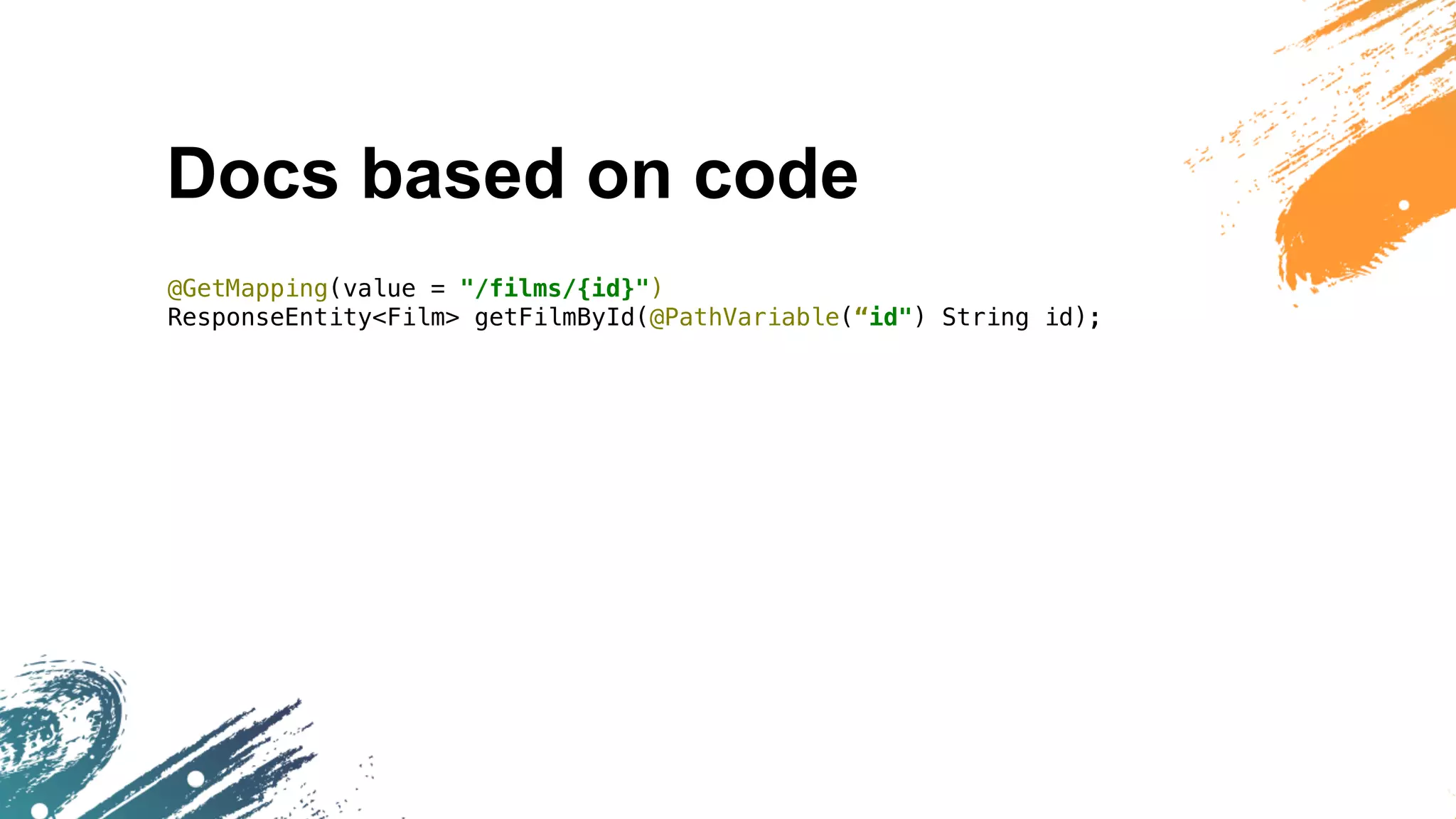

Docs based on code
@GetMapping(value = "/films/{id}")
ResponseEntity<Film> getFilmById(@PathVariable(“id") String id);

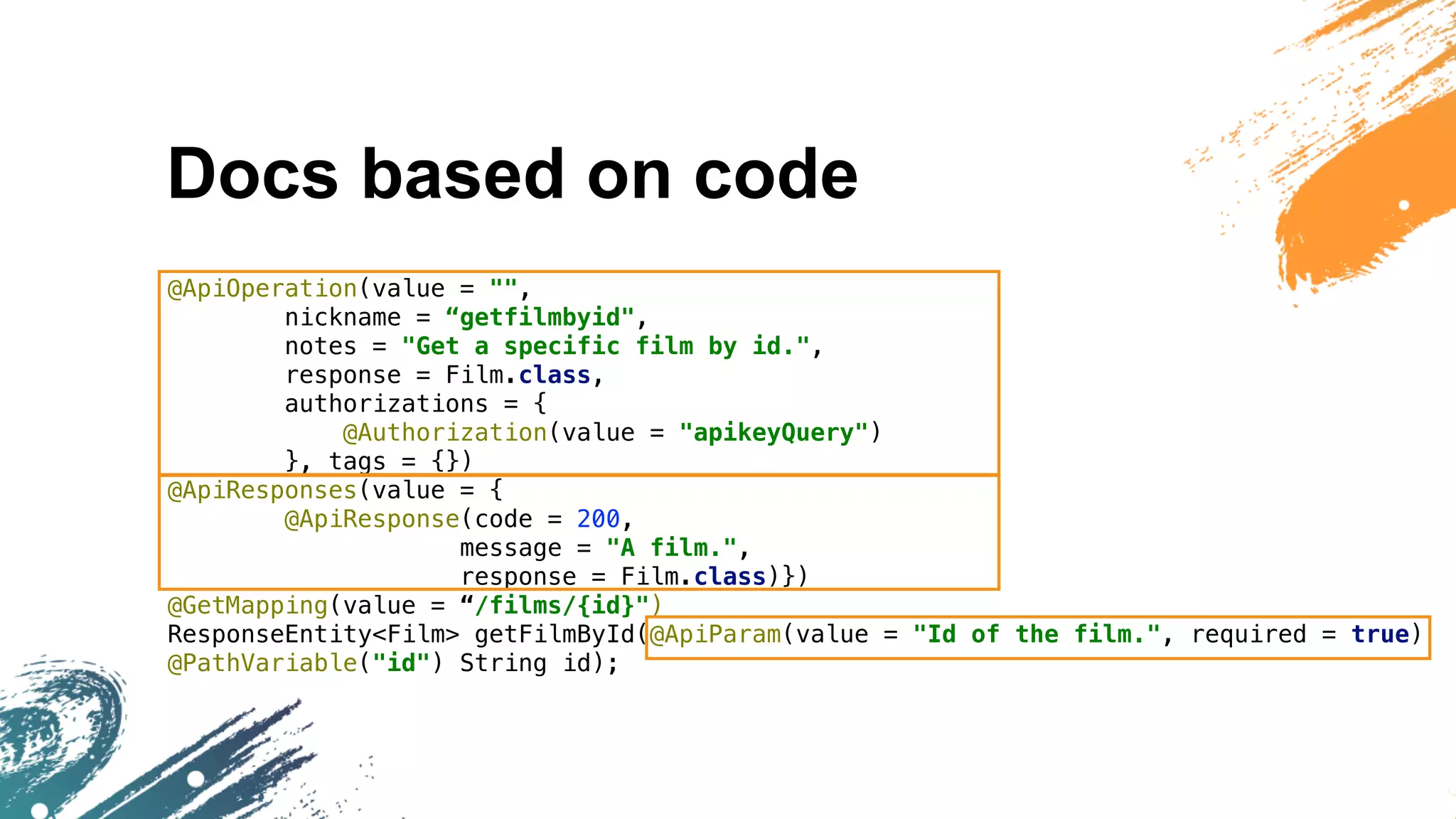

Docs based on code
@ApiOperation(value = "",
nickname = “getfilmbyid",
notes = "Get a specific film by id.",
response = Film.class,
authorizations = {
@Authorization(value = "apikeyQuery")
}, tags = {})
@ApiResponses(value = {
@ApiResponse(code = 200,
message = "A film.",
response = Film.class)})
@GetMapping(value = “/films/{id}")
ResponseEntity<Film> getFilmById(@ApiParam(value = "Id of the film.", required = true)
@PathVariable("id") String id);

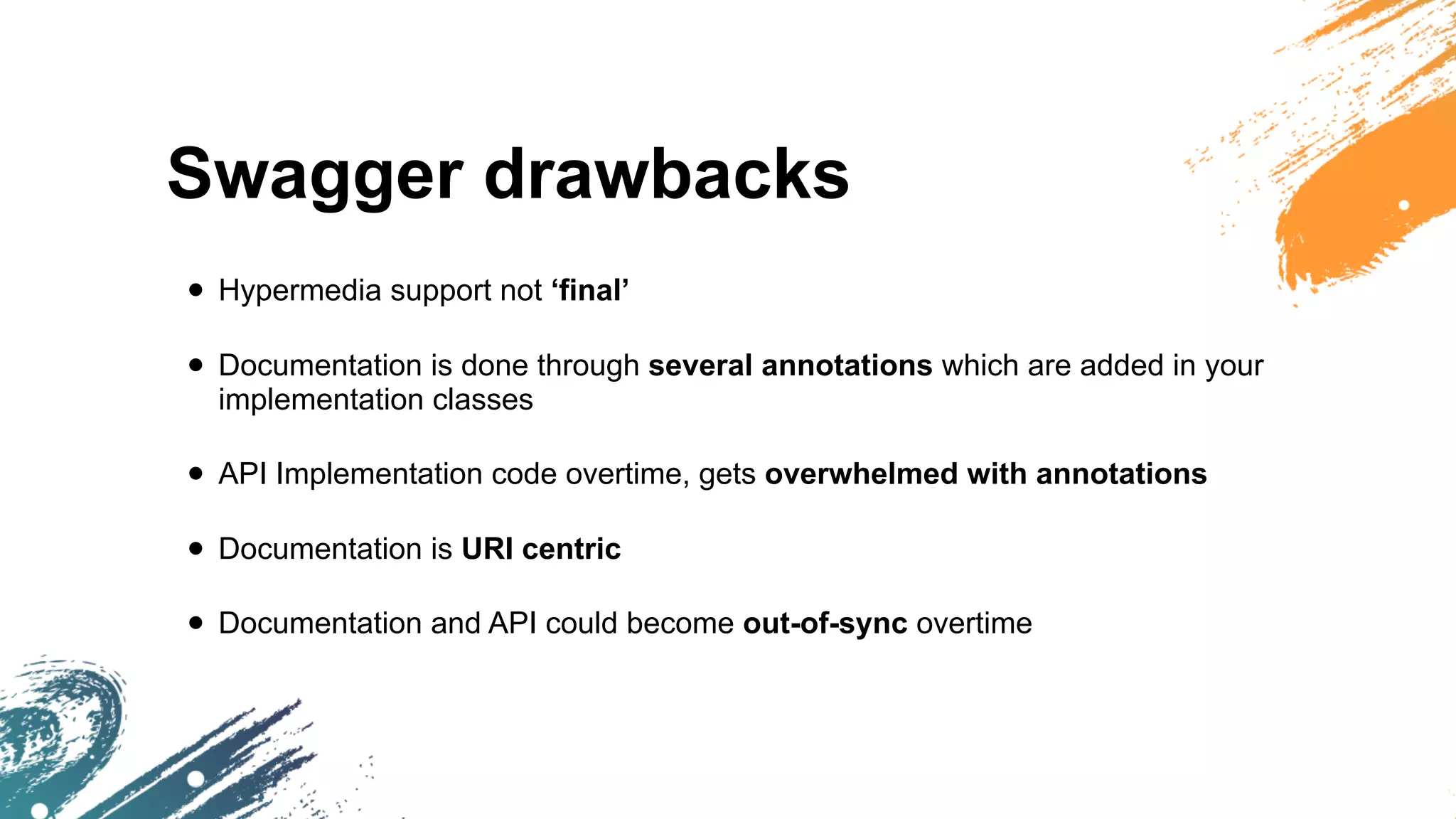

Swagger drawbacks
• Hypermedia support not ‘final’
• Documentation is done through several annotations which are added in your
implementation classes
• API Implementation code overtime, gets overwhelmed with annotations
• Documentation is URI centric
• Documentation and API could become out-of-sync overtime

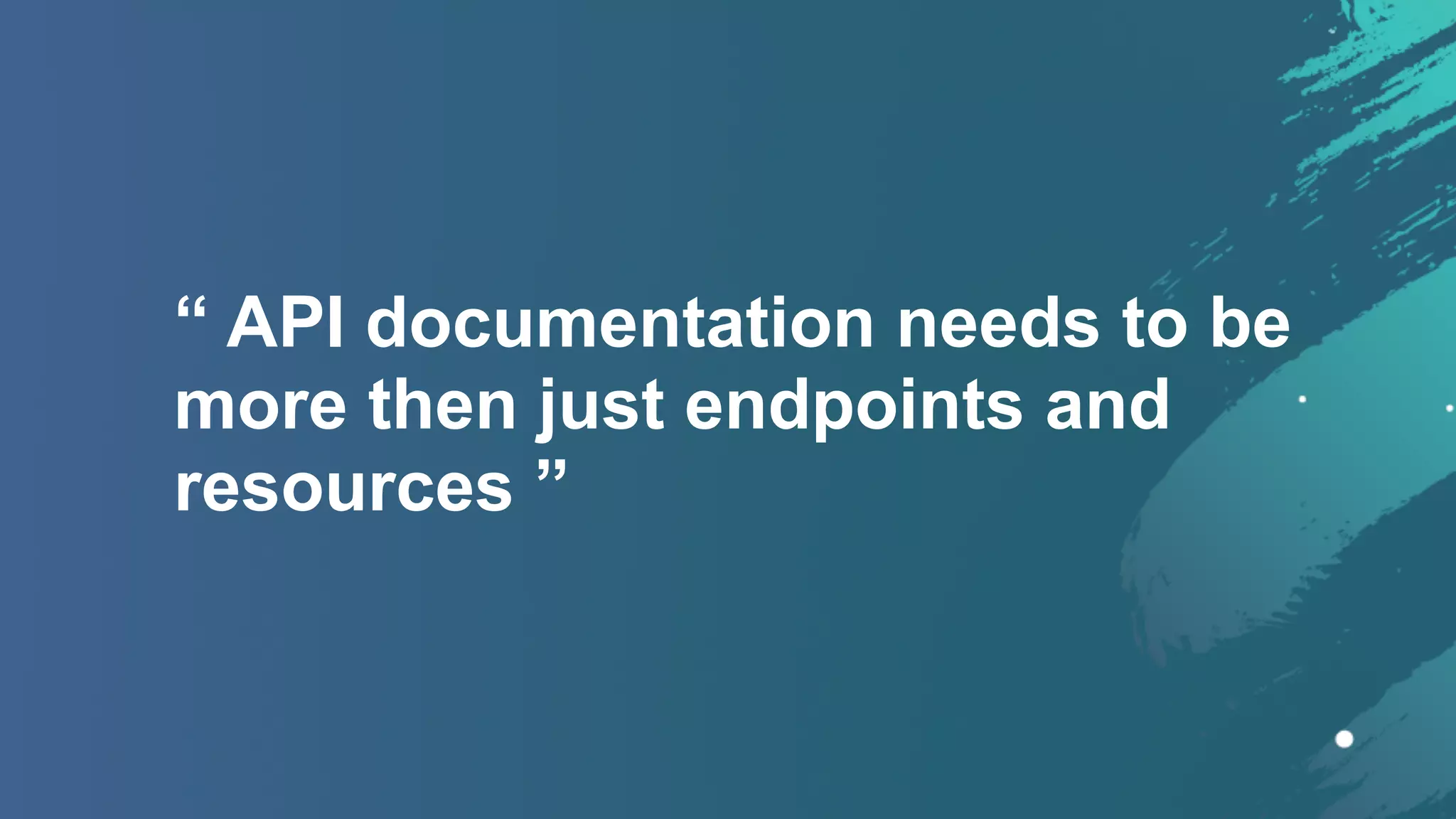

“ API documentation needs to be
more then just endpoints and
resources ”

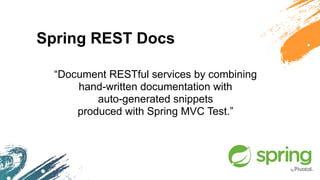

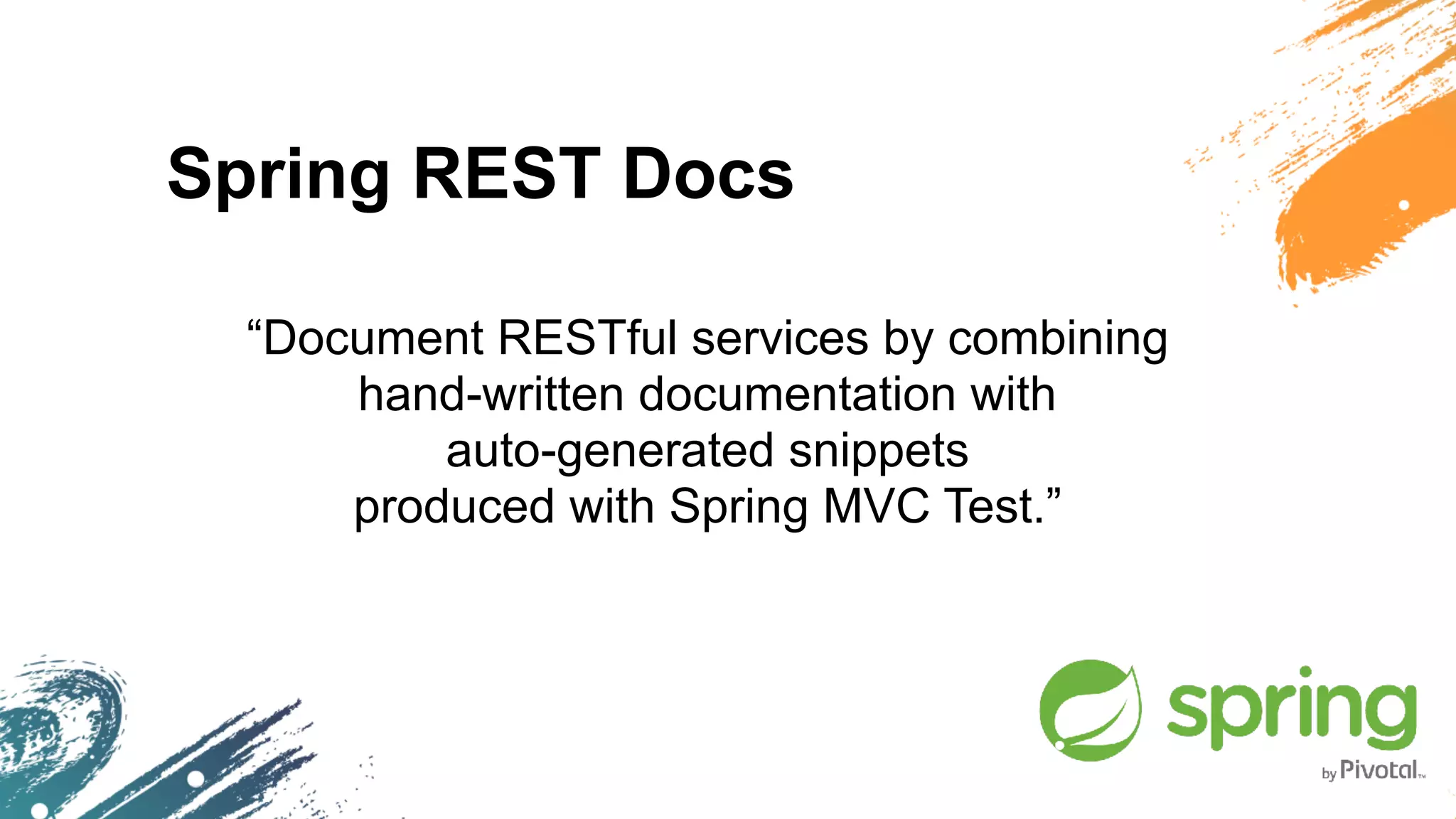

Spring REST Docs
“Document RESTful services by combining  
hand-written documentation with  
auto-generated snippets  
produced with Spring MVC Test.”

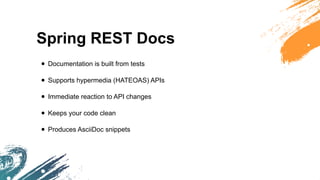

Spring REST Docs
• Documentation is built from tests
• Supports hypermedia (HATEOAS) APIs
• Immediate reaction to API changes
• Keeps your code clean

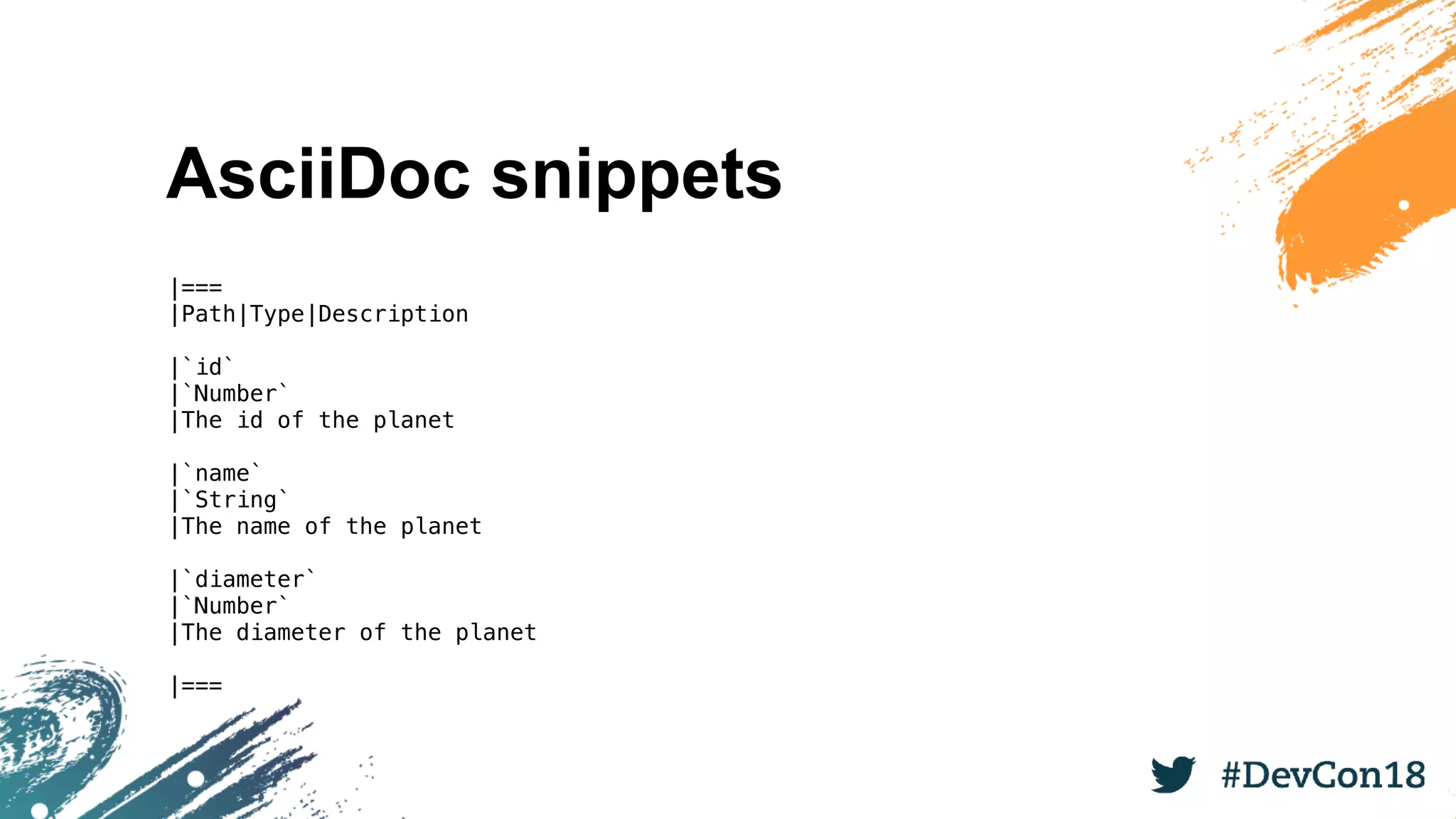

• Produces AsciiDoc snippets

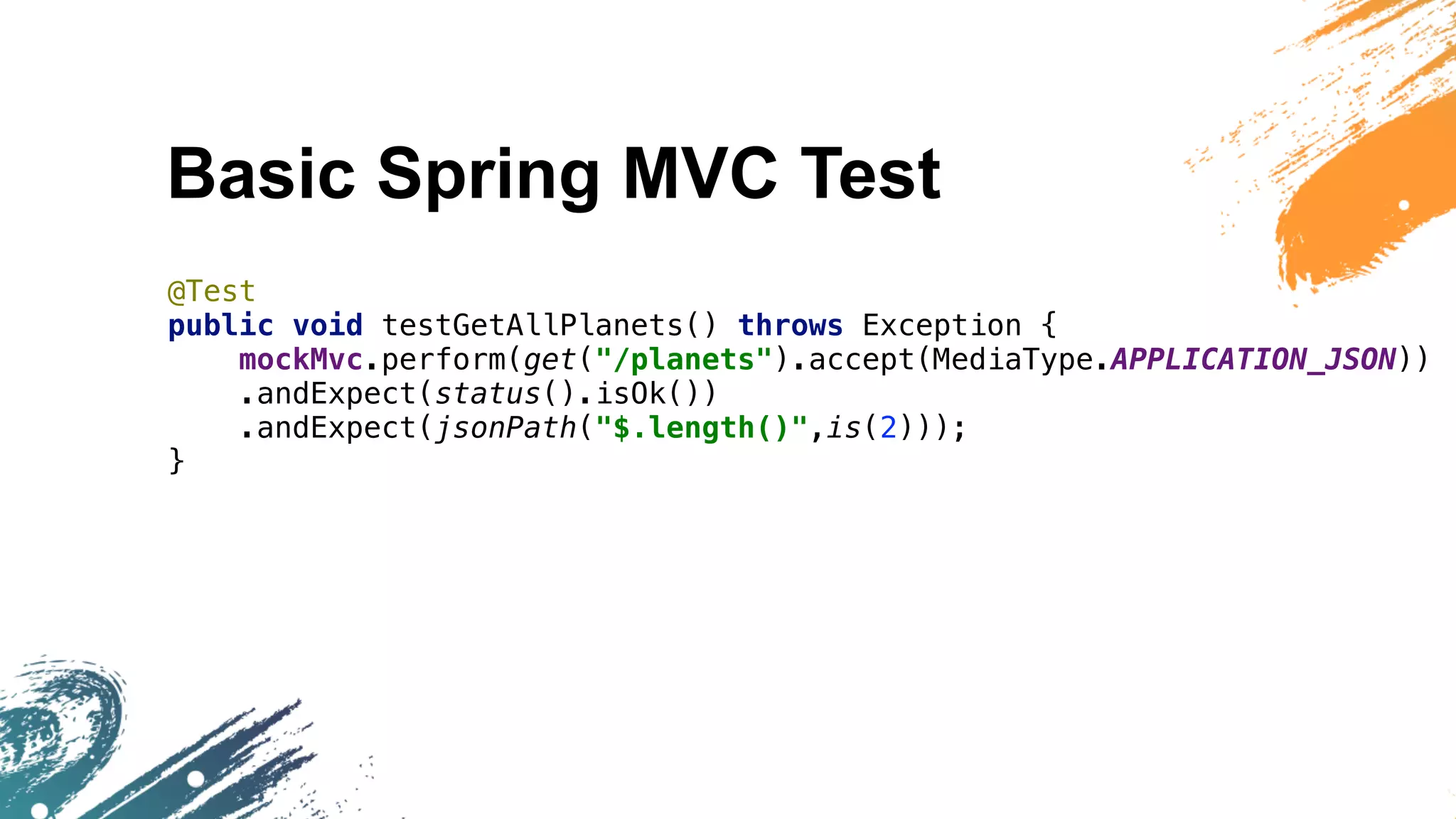

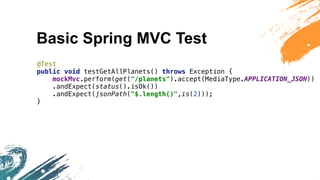

Basic Spring MVC Test
@Test
public void testGetAllPlanets() throws Exception {
mockMvc.perform(get("/planets").accept(MediaType.APPLICATION_JSON))
.andExpect(status().isOk())
.andExpect(jsonPath("$.length()",is(2)));
}

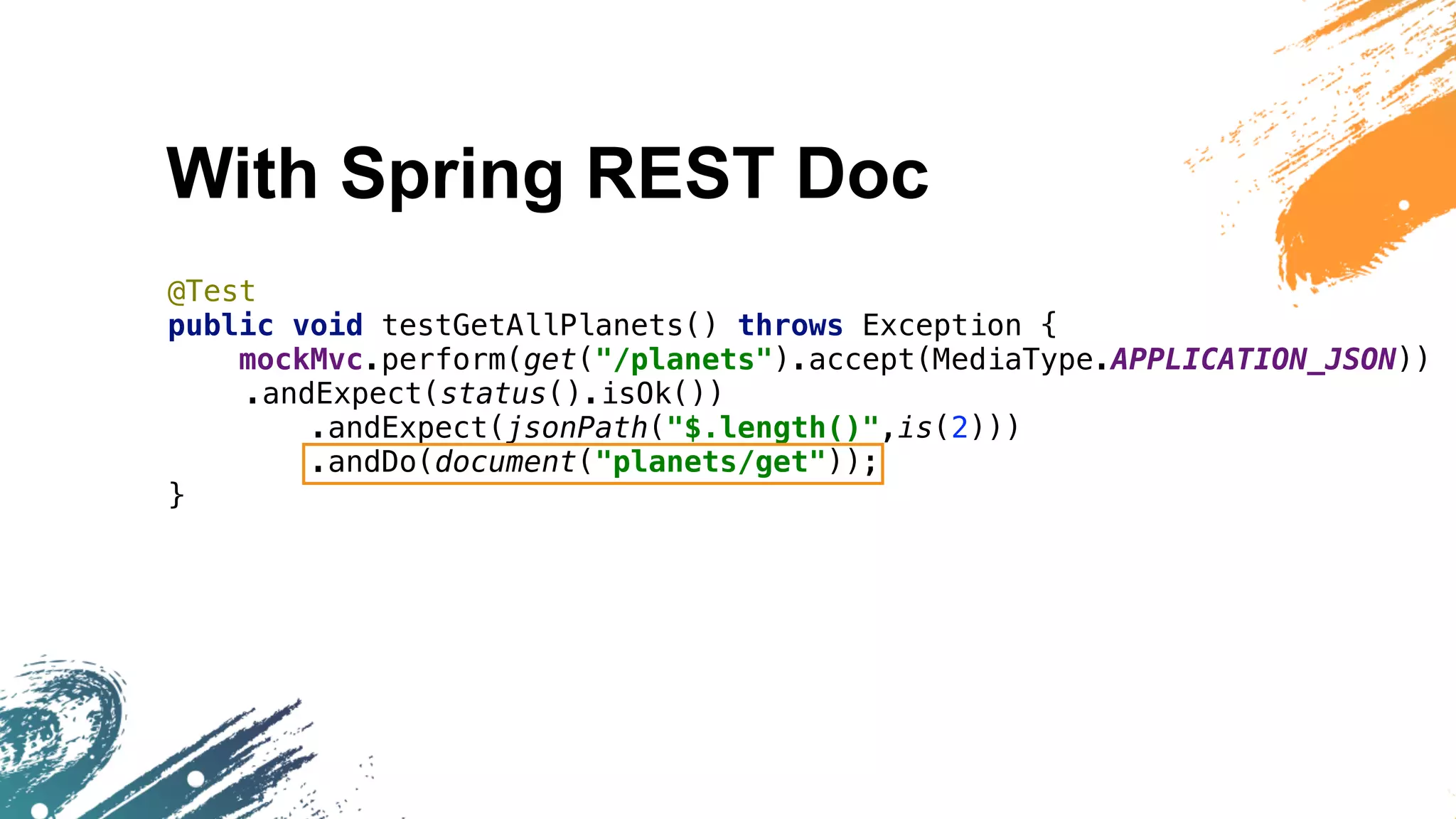

With Spring REST Doc
@Test
public void testGetAllPlanets() throws Exception {
mockMvc.perform(get("/planets").accept(MediaType.APPLICATION_JSON))
.andExpect(status().isOk())
.andExpect(jsonPath("$.length()",is(2)))
.andDo(document("planets/get"));
}

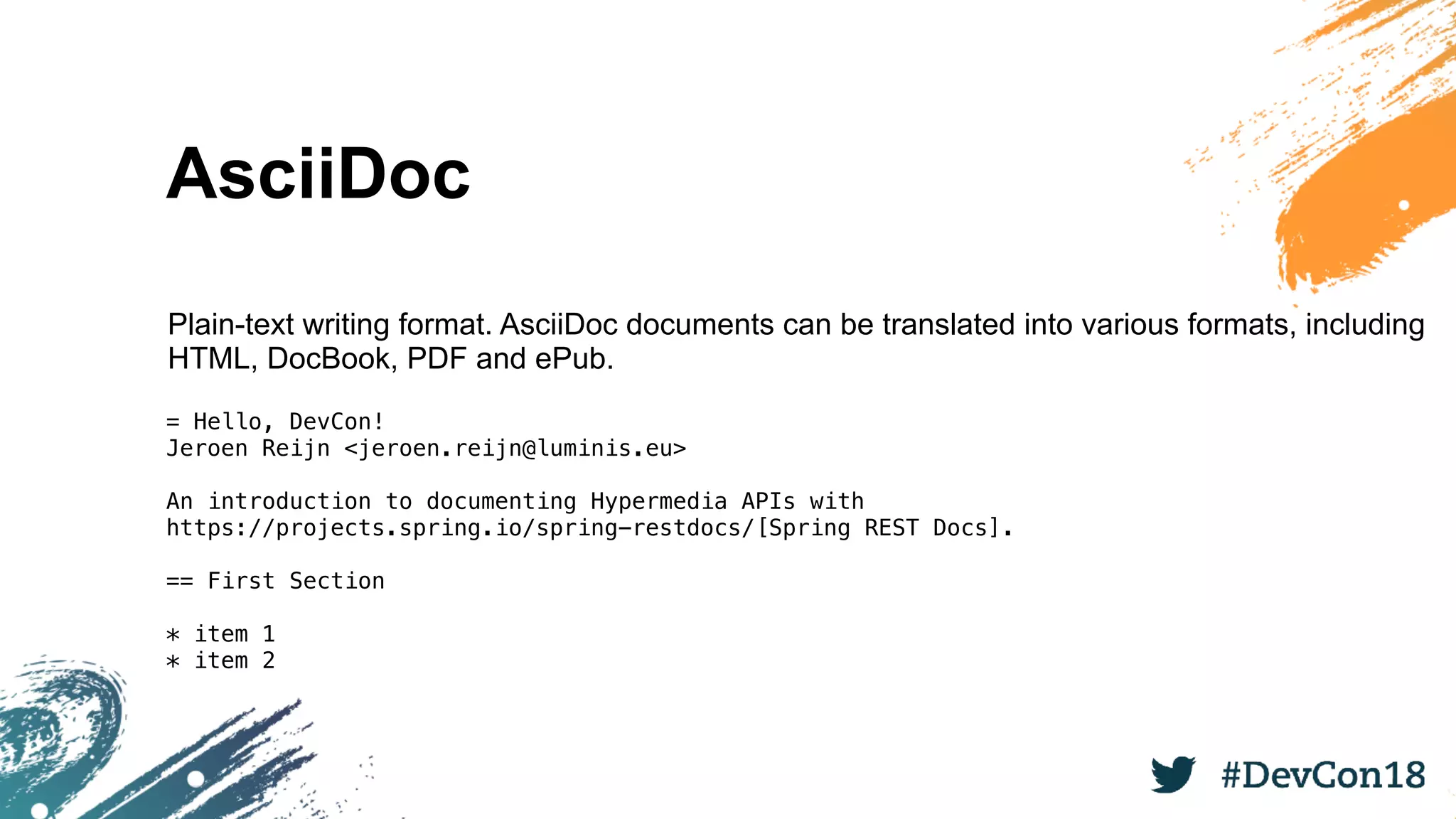

AsciiDoc
Plain-text writing format. AsciiDoc documents can be translated into various formats, including
HTML, DocBook, PDF and ePub.
= Hello, DevCon!
Jeroen Reijn <jeroen.reijn@luminis.eu>
An introduction to documenting Hypermedia APIs with
https://projects.spring.io/spring-restdocs/[Spring REST Docs].
== First Section
* item 1
* item 2

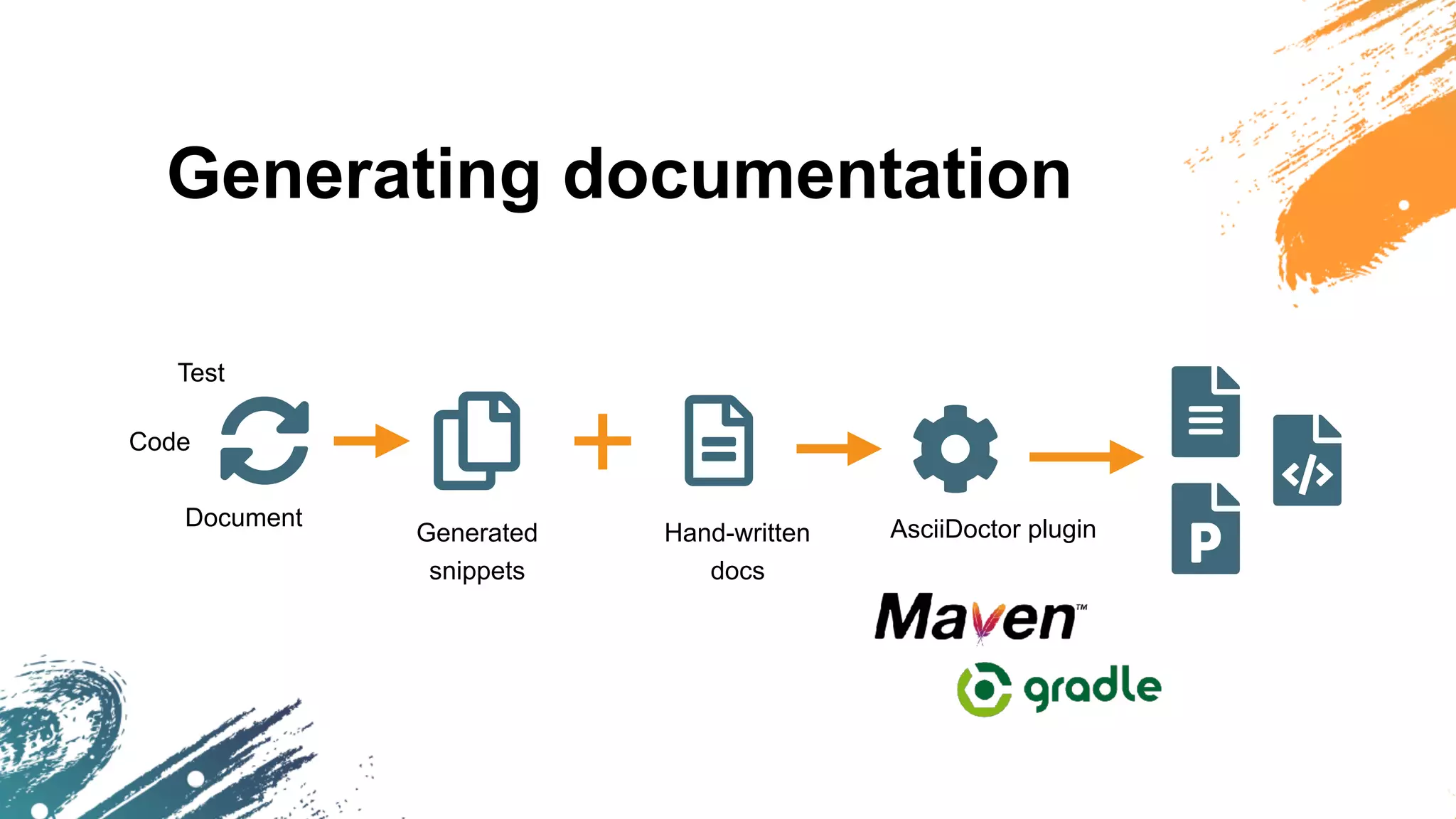

Generating documentation
Test
Generated
snippets
AsciiDoctor pluginHand-written
docs
Code
Document

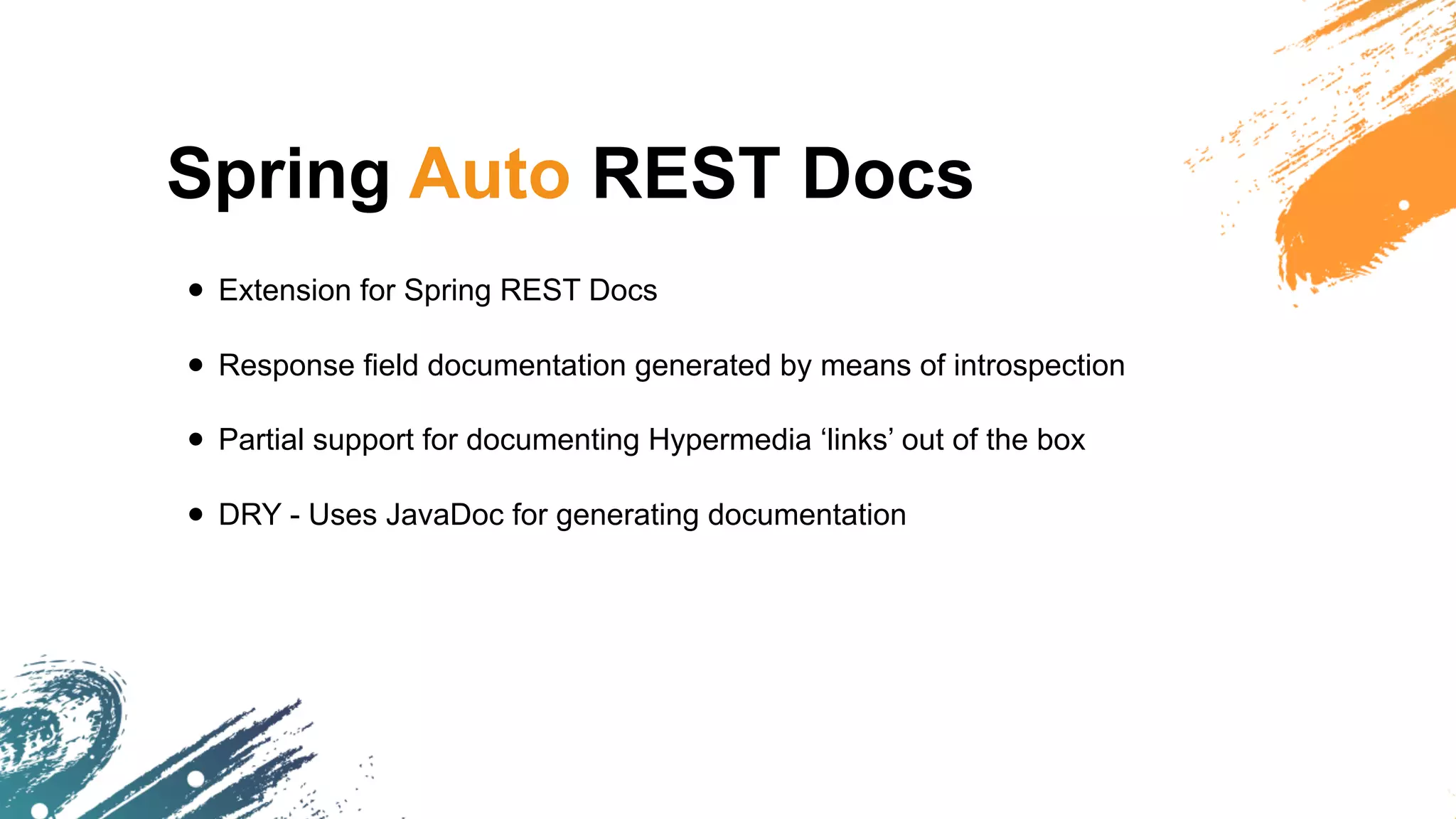

Spring Auto REST Docs
• Extension for Spring REST Docs
• Response field documentation generated by means of introspection
• Partial support for documenting Hypermedia ‘links’ out of the box
• DRY - Uses JavaDoc for generating documentation

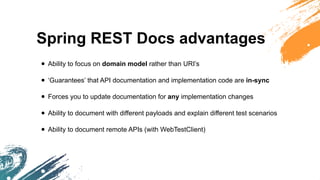

Spring REST Docs advantages
• Ability to focus on domain model rather than URI’s
• ‘Guarantees’ that API documentation and implementation code are in-sync
• Forces you to update documentation for any implementation changes
• Ability to document with different payloads and explain different test scenarios
• Ability to document remote APIs (with WebTestClient)

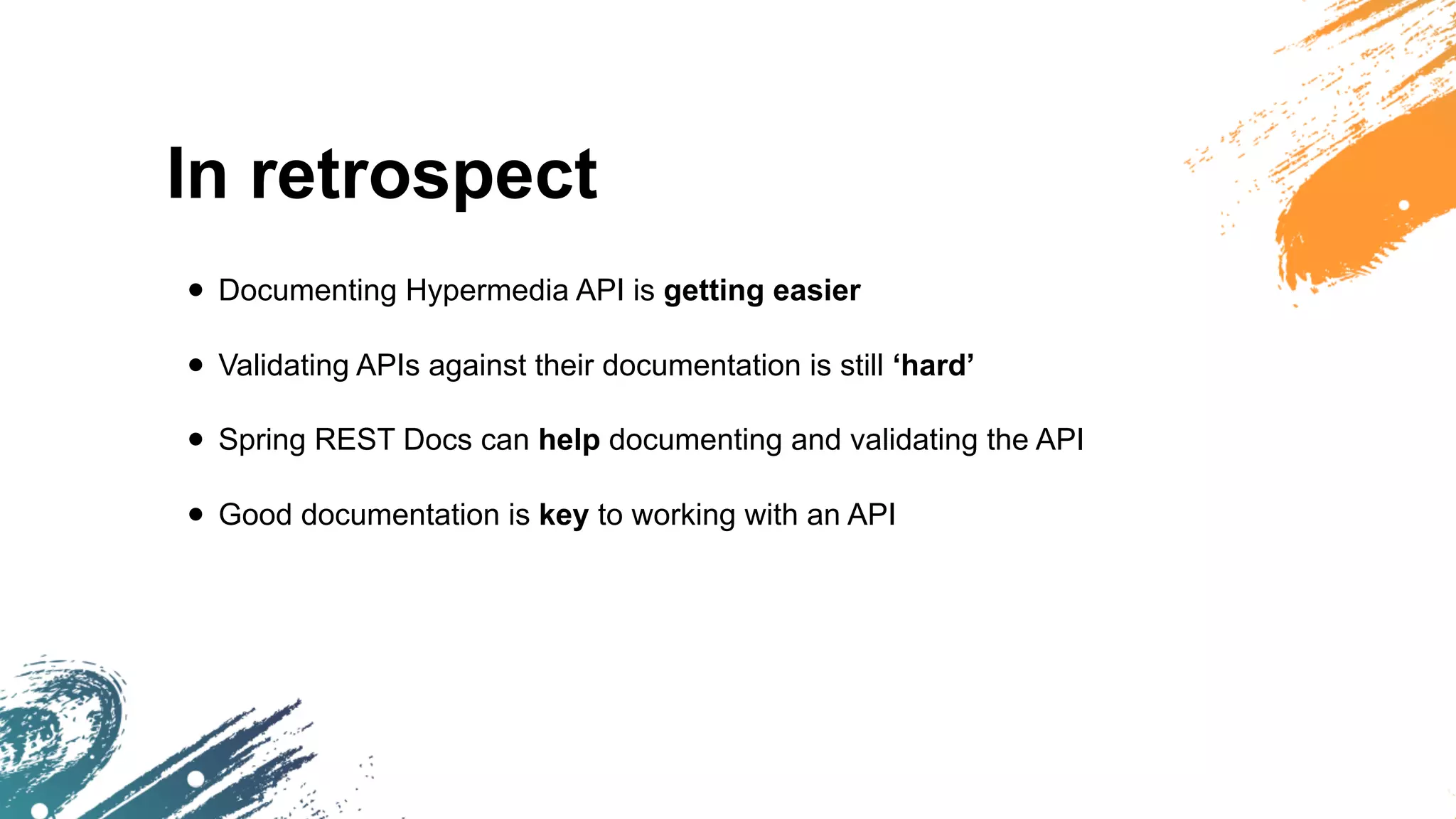

In retrospect
• Documenting Hypermedia API is getting easier
• Validating APIs against their documentation is still ‘hard’
• Spring REST Docs can help documenting and validating the API
• Good documentation is key to working with an API

Those who stand for nothing,
fall for anything - Alexander
Hamilton
?Thank you
Questions? is powered by
Don’t forget to vote!
