Unit Tests? It is Very Simple and Easy!

© 2015 Return on Intelligence, Inc. Confidential 1
Traning for beginers in UT development
Designed by LibreOffice, Kubuntu 14.04, A.Tylevich, 2016
Unit Tests ? It is very simple and easy!

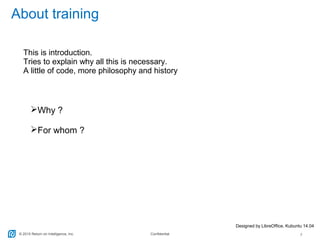

About training
This is introduction.
Tries to explain why all this is necessary.
A little of code, more philosophy and history
Why ?
For whom ?
Designed by LibreOffice, Kubuntu 14.04

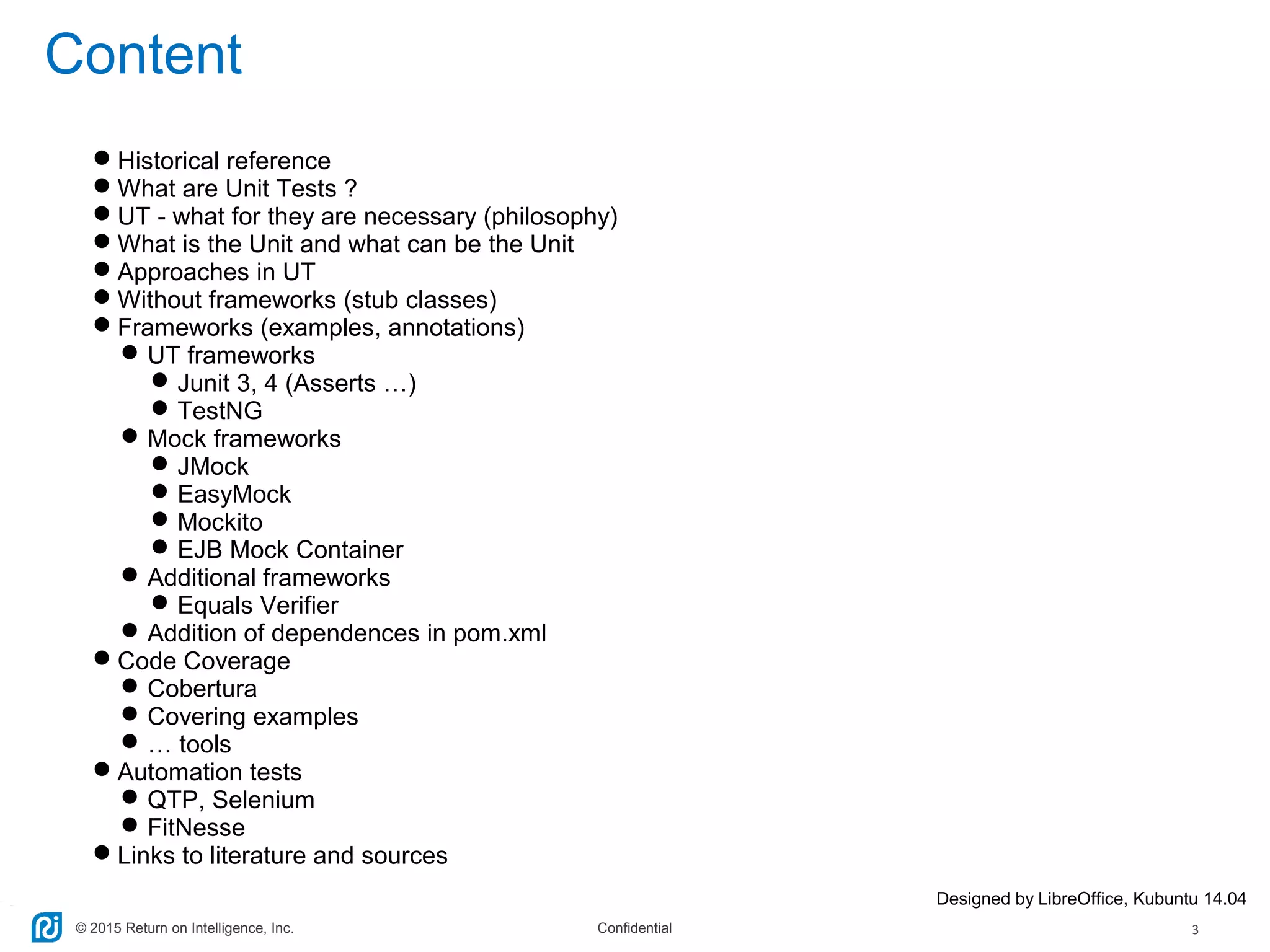

Content
Historical reference
What are Unit Tests ?
UT - what for they are necessary (philosophy)
What is the Unit and what can be the Unit
Approaches in UT
Without frameworks (stub classes)
Frameworks (examples, annotations)
UT frameworks
Junit 3, 4 (Asserts …)
TestNG
Mock frameworks
JMock
EasyMock
Mockito
EJB Mock Container
Additional frameworks
Equals Verifier
Addition of dependences in pom.xml
Code Coverage
Cobertura
Covering examples
… tools
Automation tests
QTP, Selenium
FitNesse
Links to literature and sources

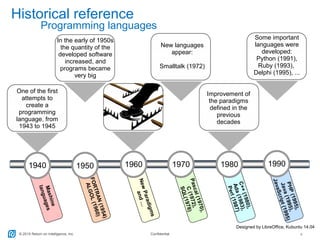

One of the first
attempts to
create a
programming
language, from
1943 to 1945
1940 1980 1990
In the early of 1950s
the quantity of the
developed software
increased, and
programs became
very big
1950
FORTRAN(1954)
ALGOL(1960)
Mashine
languages
Pascal(1970),
C(1972),
SQL(1978)
C++(1980),
Ada(1983),
Perl(1987)
PHP(1995),
Java(1995),
JavaScript(1995)
Some important
languages were
developed:
Python (1991),
Ruby (1993),
Delphi (1995), ...
Improvement of
the paradigms
defined in the
previous
decades
NewParadigms
and…

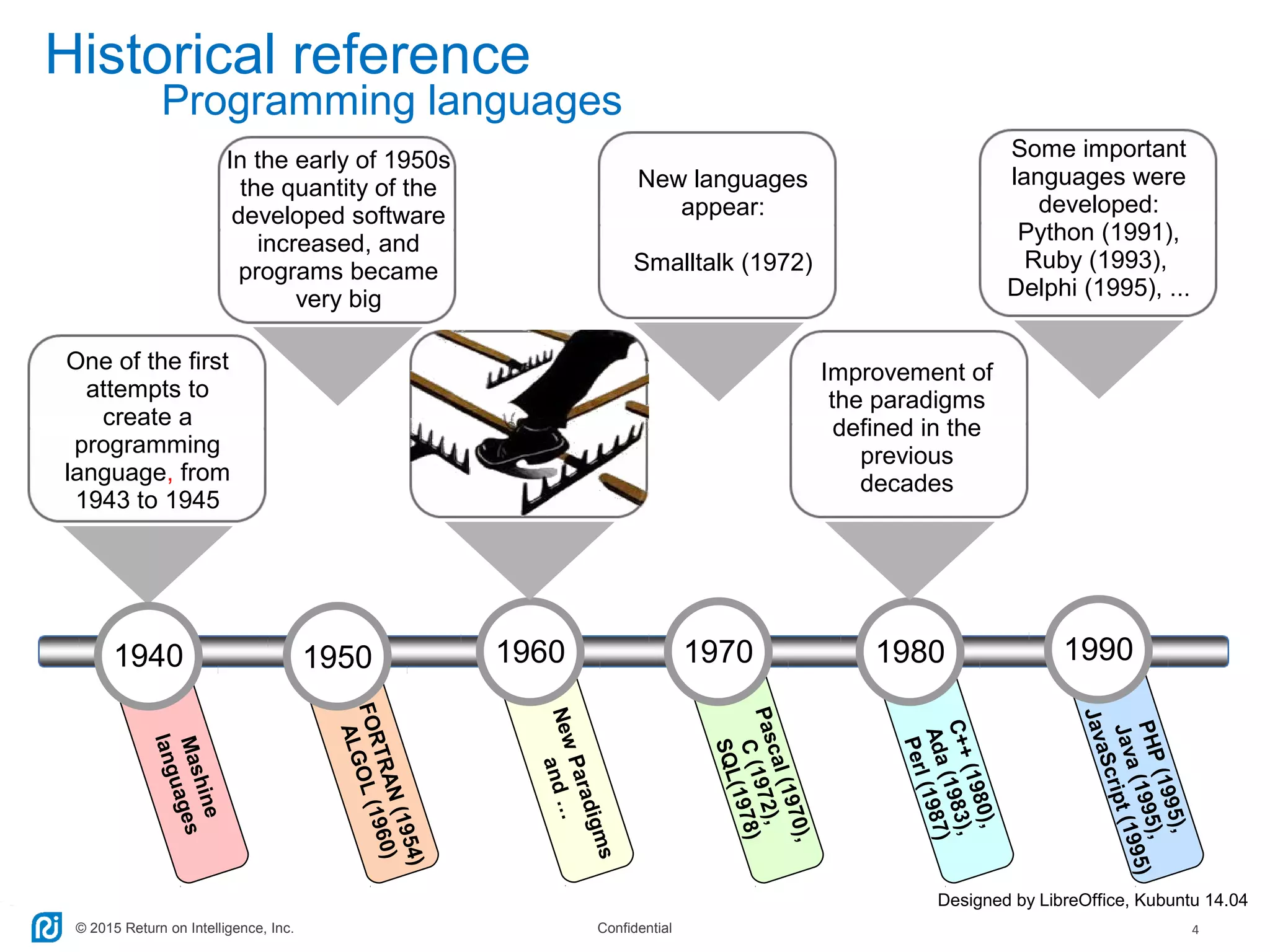

Historical reference
Programming languages
1960
New languages
appear:
Smalltalk (1972)
1970

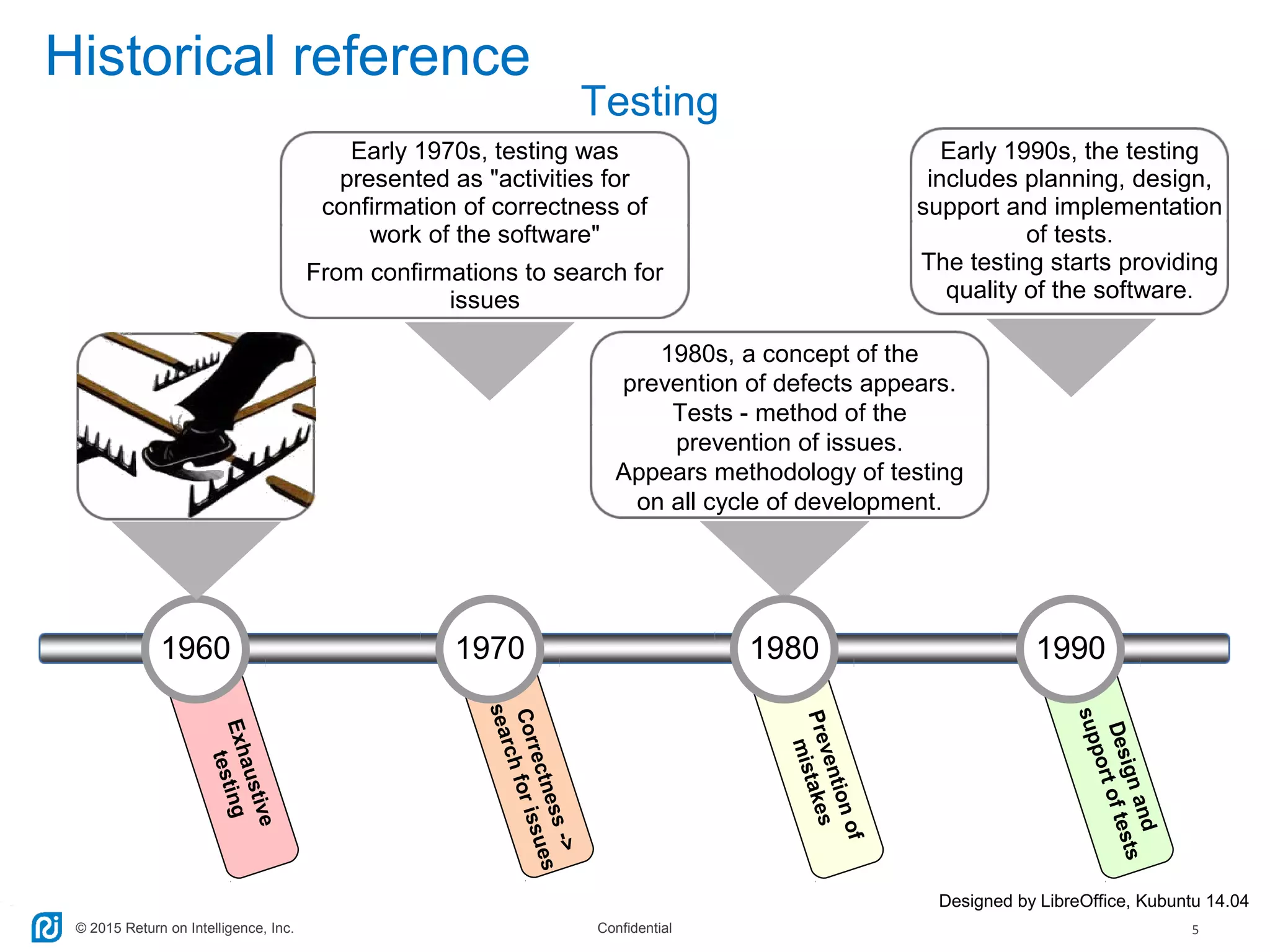

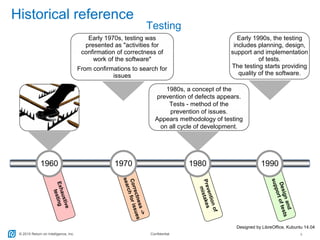

Testing
1980
Correctness->
searchforissues
Preventionof
mistakes
Designand
supportoftests
Early 1990s, the testing
includes planning, design,
support and implementation
of tests.
The testing starts providing
quality of the software.
1980s, a concept of the
prevention of defects appears.
Tests - method of the
prevention of issues.
Appears methodology of testing
on all cycle of development.
Exhaustive
testing
Early 1970s, testing was
presented as "activities for
confirmation of correctness of
work of the software"
From confirmations to search for
issues
1970 19901960

Framework SUnit appears for Smalltalk language in 1998 .
Testing
SUnit represented structure and functionality to xUnit.
CppUnit - a framework for C ++
DUnit - the tool for the environment of development of Delphi
JUnit - library for Java
NUnit - environment a unit testing for .NET
phpUnit - library for PHP
vbUnit - Visual Basic
JsUnit (Jasmine) - JavaScript

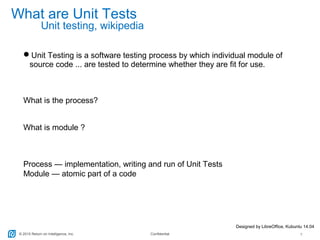

What are Unit Tests
Unit Testing is a software testing process by which individual module of
source code ... are tested to determine whether they are fit for use.
What is the process?
What is module ?
Process — implementation, writing and run of Unit Tests
Module — atomic part of a code
Unit testing, wikipedia

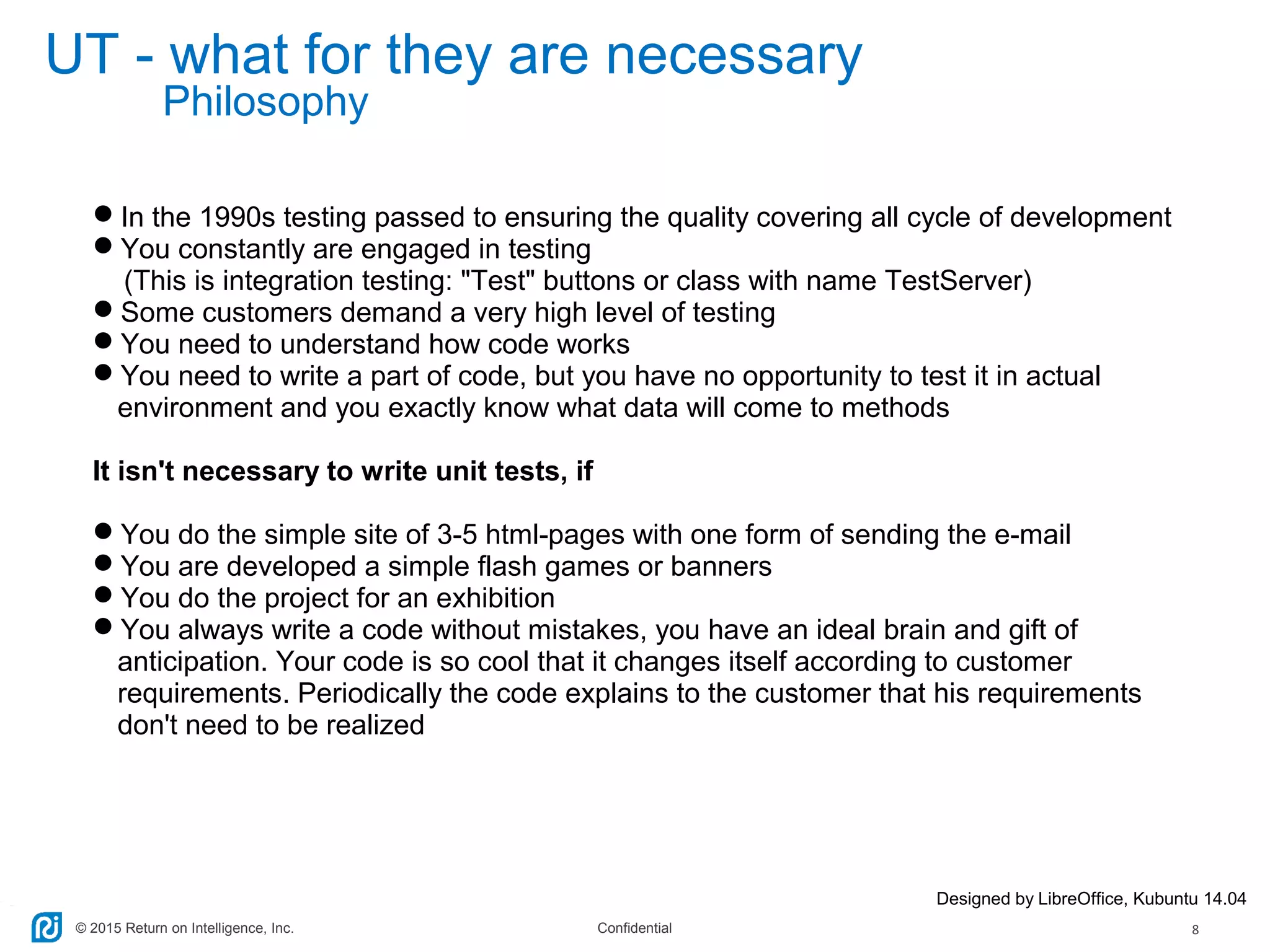

UT - what for they are necessary
In the 1990s testing passed to ensuring the quality covering all cycle of development
You constantly are engaged in testing
(This is integration testing: "Test" buttons or class with name TestServer)
Some customers demand a very high level of testing
You need to understand how code works
You need to write a part of code, but you have no opportunity to test it in actual
environment and you exactly know what data will come to methods
It isn't necessary to write unit tests, if
You do the simple site of 3-5 html-pages with one form of sending the e-mail
You are developed a simple flash games or banners
You do the project for an exhibition
You always write a code without mistakes, you have an ideal brain and gift of
anticipation. Your code is so cool that it changes itself according to customer
requirements. Periodically the code explains to the customer that his requirements
don't need to be realized
Philosophy

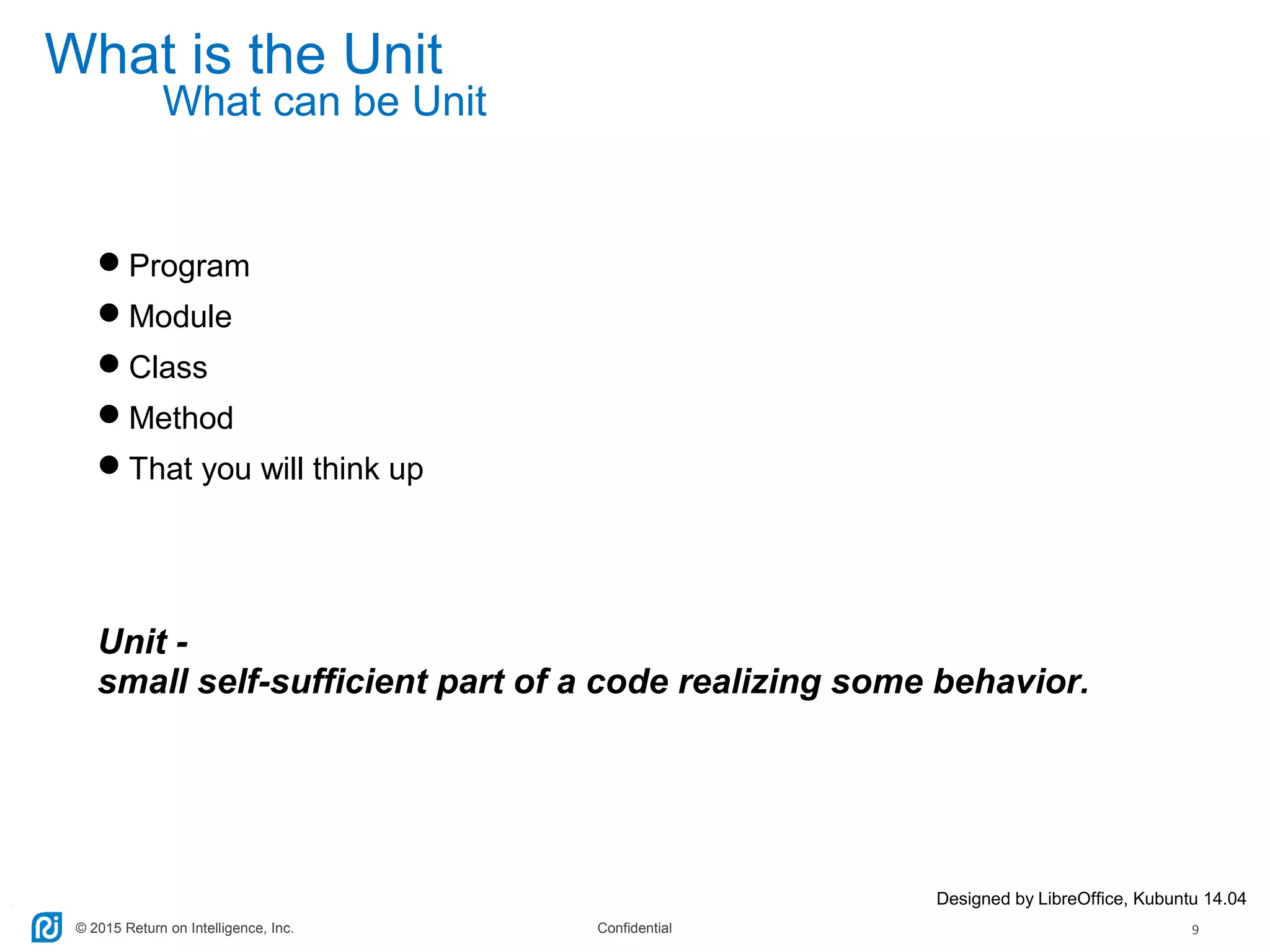

What is the Unit
Program
Module
Class
Method
That you will think up
Unit -
small self-sufficient part of a code realizing some behavior.
What can be Unit

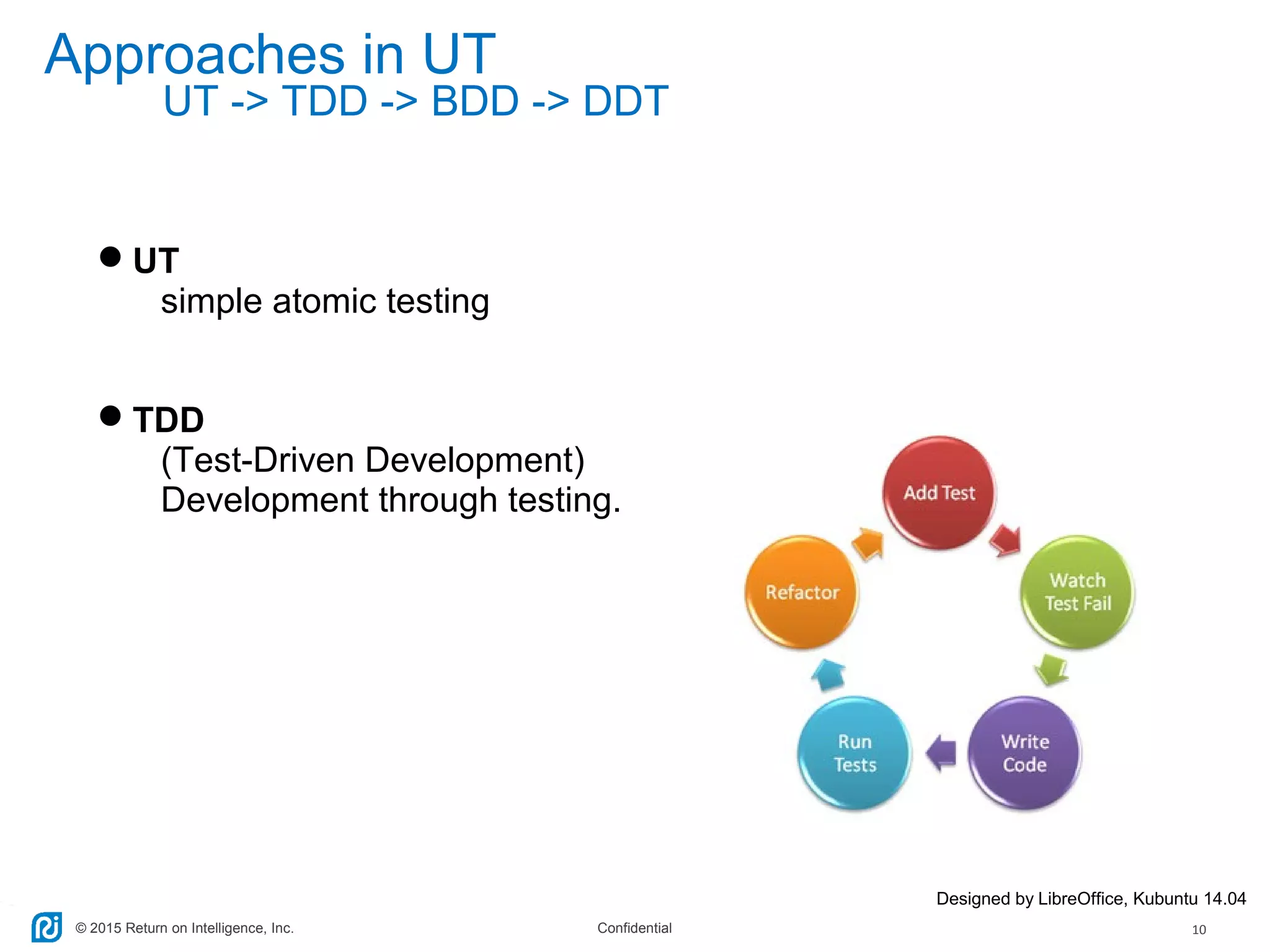

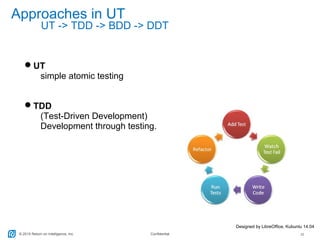

Approaches in UT
UT
simple atomic testing
TDD
(Test-Driven Development)
Development through testing.
UT -> TDD -> BDD -> DDT

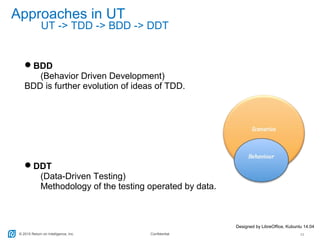

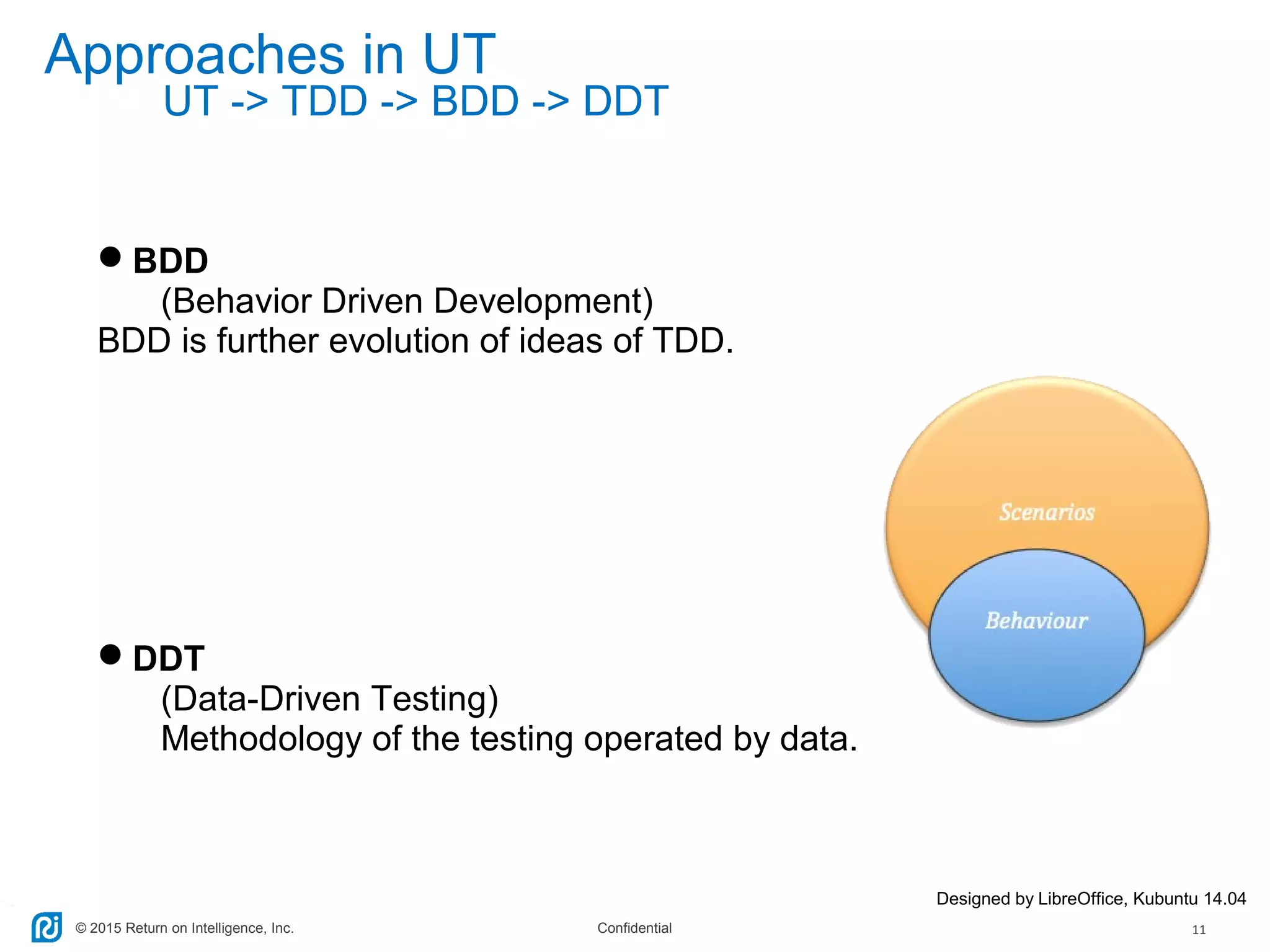

Approaches in UT
BDD
(Behavior Driven Development)
BDD is further evolution of ideas of TDD.
DDT
(Data-Driven Testing)
Methodology of the testing operated by data.
UT -> TDD -> BDD -> DDT

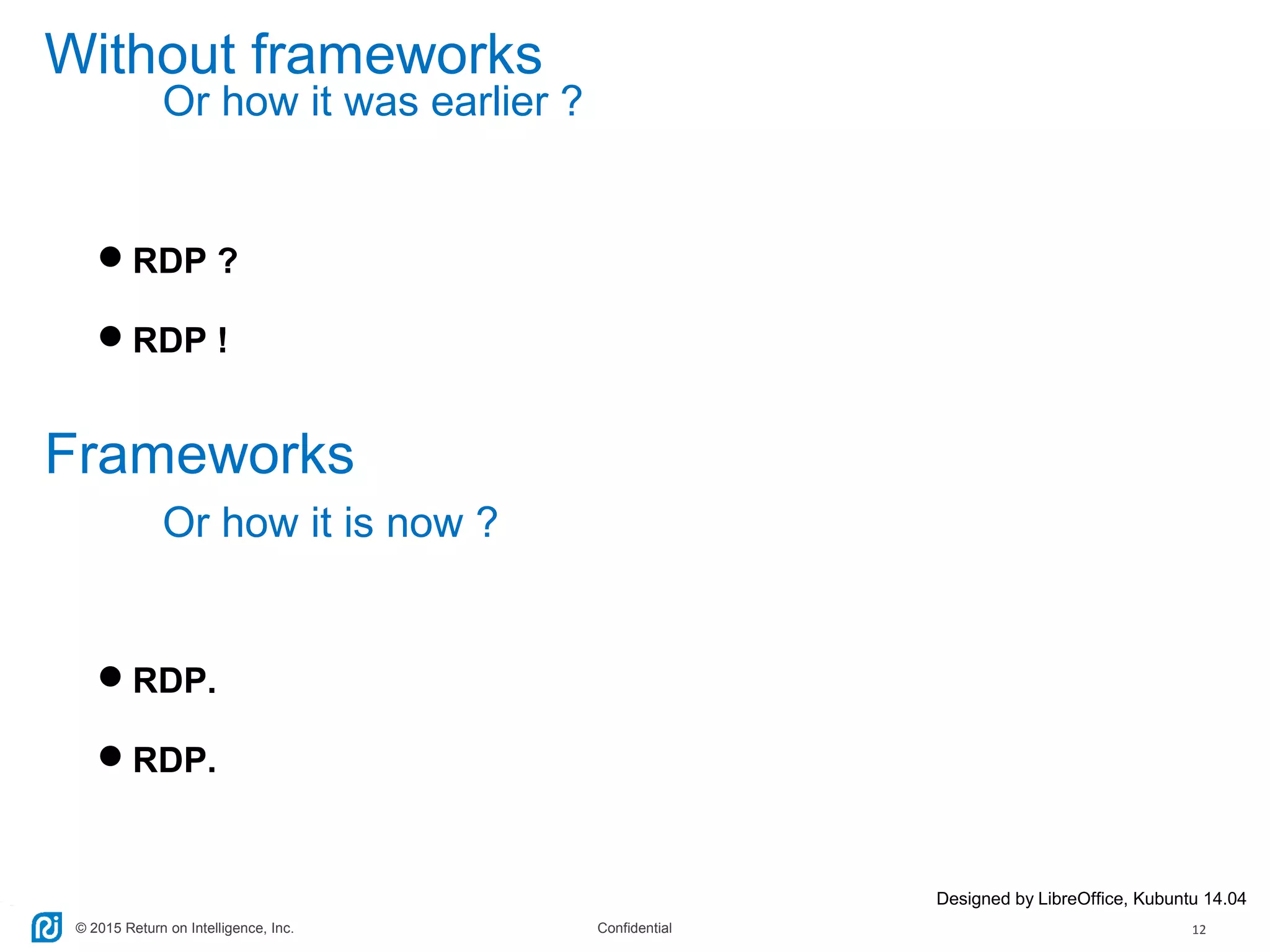

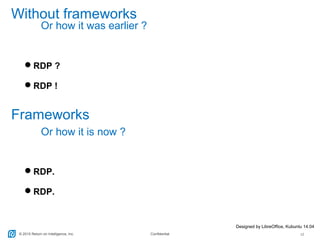

Without frameworks
RDP ?
RDP !
Or how it was earlier ?
Frameworks
Or how it is now ?
RDP.
RDP.

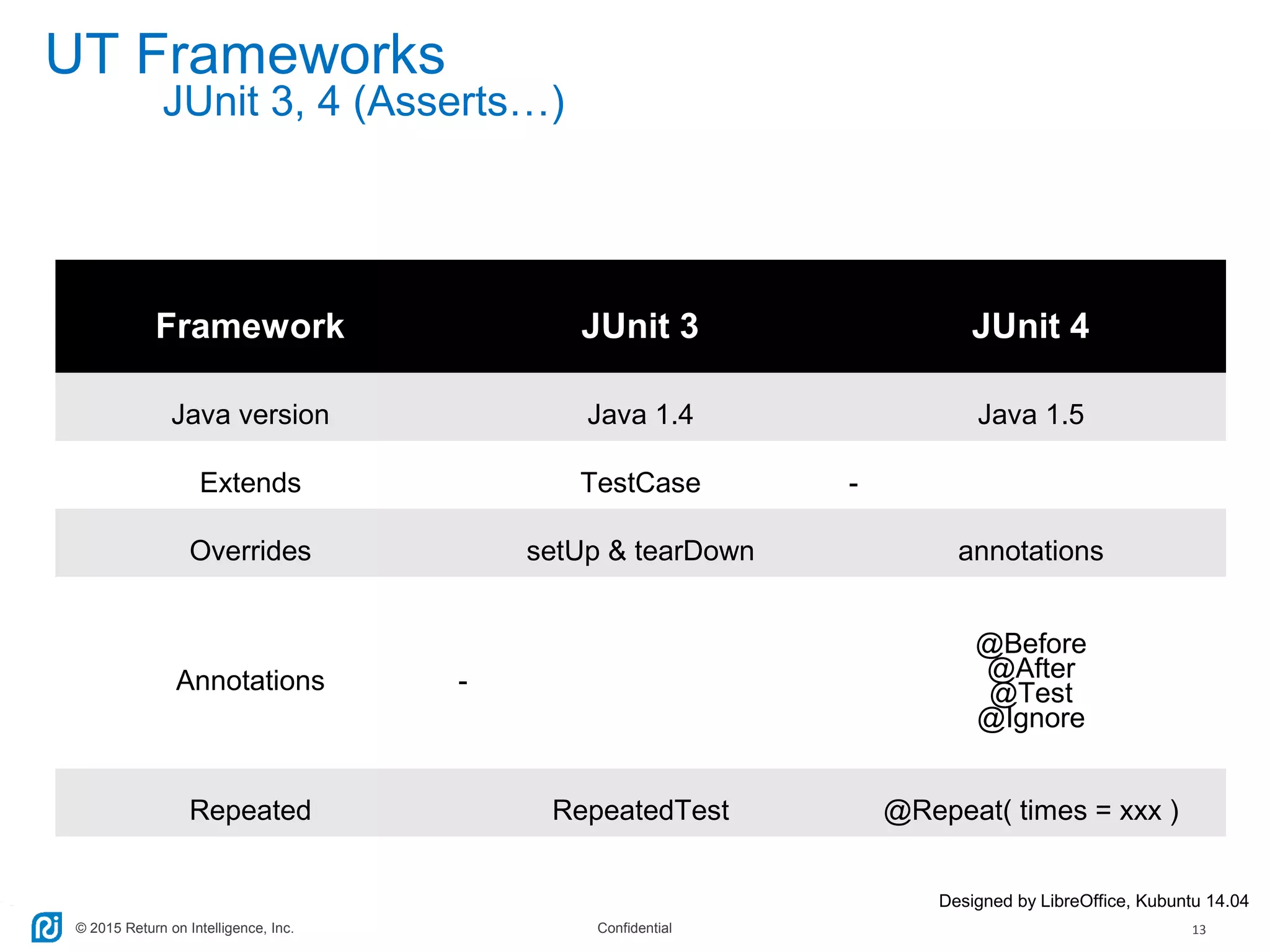

Framework JUnit 3 JUnit 4
Java version Java 1.4 Java 1.5
Extends TestCase -
Overrides setUp & tearDown annotations
Annotations -
@Before
@After
@Test
@Ignore
Repeated RepeatedTest @Repeat( times = xxx )
UT Frameworks
JUnit 3, 4 (Asserts…)

UT Frameworks

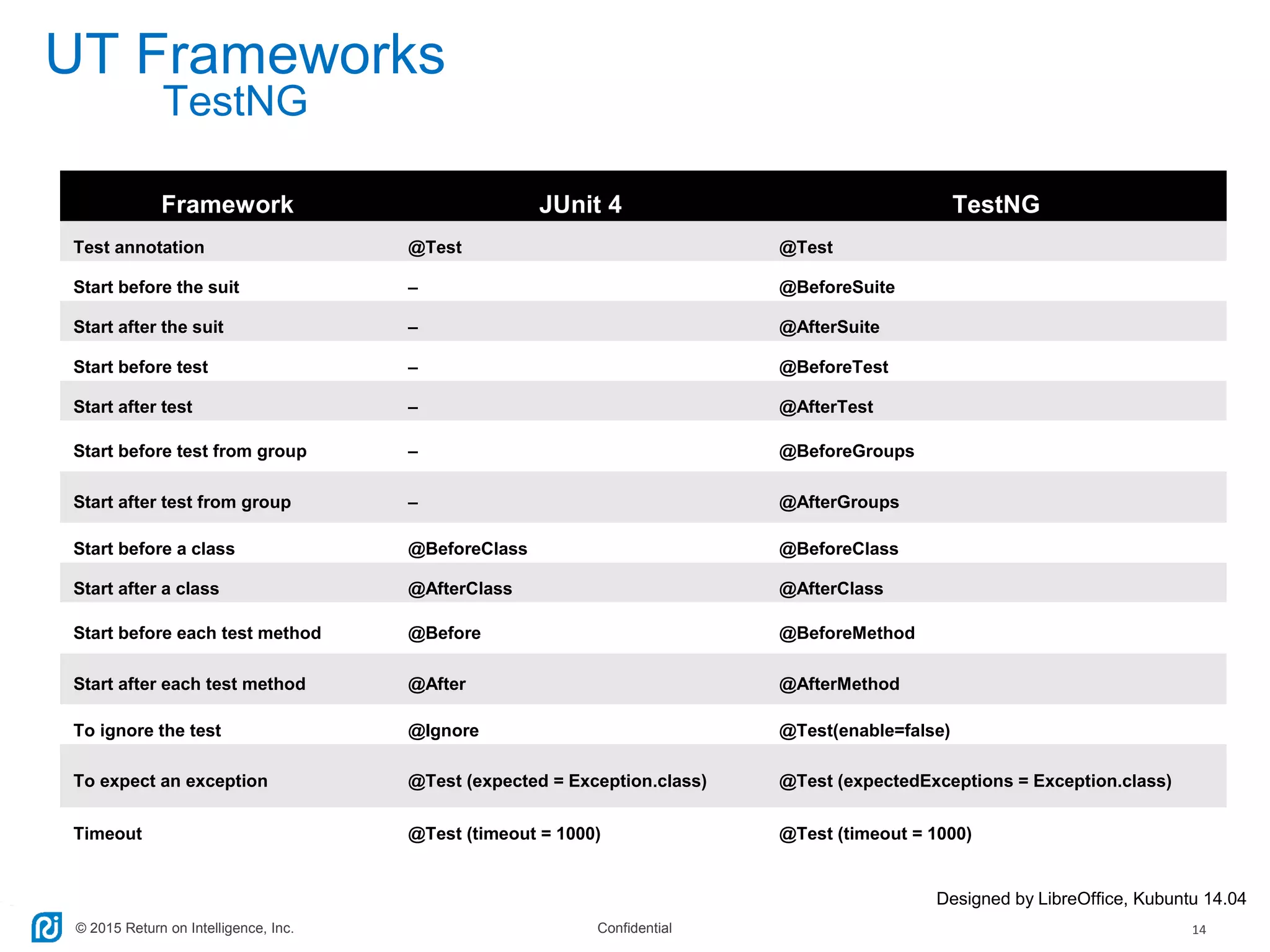

TestNG
Framework JUnit 4 TestNG
Test annotation @Test @Test
Start before the suit – @BeforeSuite
Start after the suit – @AfterSuite
Start before test – @BeforeTest
Start after test – @AfterTest
Start before test from group – @BeforeGroups
Start after test from group – @AfterGroups
Start before a class @BeforeClass @BeforeClass
Start after a class @AfterClass @AfterClass
Start before each test method @Before @BeforeMethod
Start after each test method @After @AfterMethod
To ignore the test @Ignore @Test(enable=false)
To expect an exception @Test (expected = Exception.class) @Test (expectedExceptions = Exception.class)
Timeout @Test (timeout = 1000) @Test (timeout = 1000)

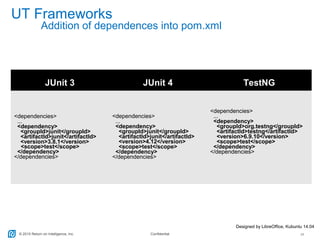

UT Frameworks
Addition of dependences into pom.xml
JUnit 3 JUnit 4 TestNG
<dependencies>
...
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>3.8.1</version>
<scope>test</scope>
</dependency>
</dependencies>
<dependencies>
...
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
<scope>test</scope>
</dependency>
</dependencies>
<dependencies>
...
<dependency>
<groupId>org.testng</groupId>
<artifactId>testng</artifactId>
<scope>test</scope>
</dependency>
</dependencies>

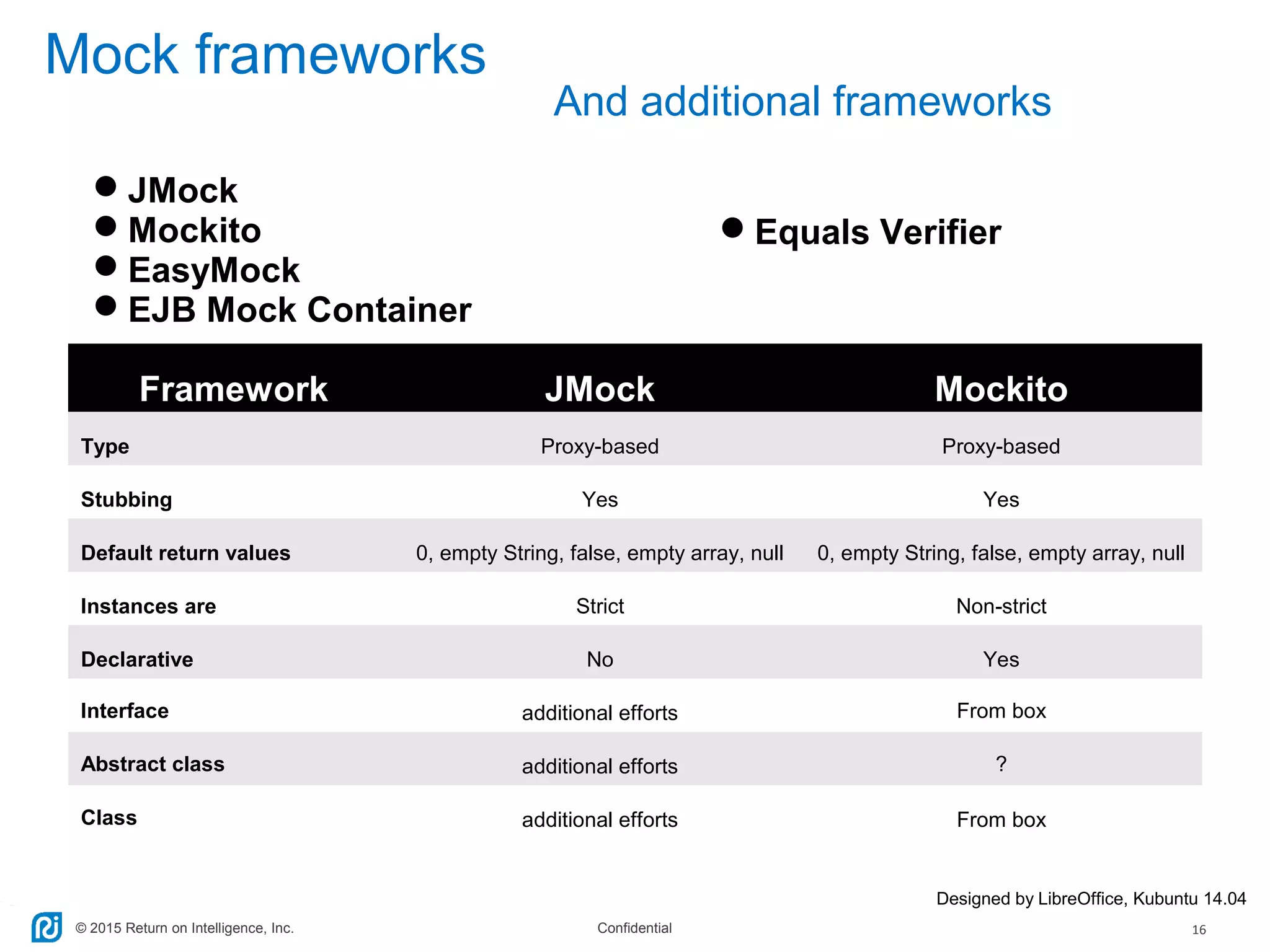

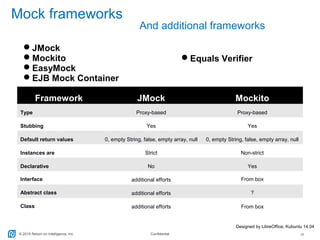

Mock frameworks
And additional frameworks
JMock
Mockito
EasyMock
EJB Mock Container
Equals Verifier
Framework JMock Mockito
Type Proxy-based Proxy-based
Stubbing Yes Yes
Default return values 0, empty String, false, empty array, null 0, empty String, false, empty array, null
Instances are Strict Non-strict
Declarative No Yes
Interface additional efforts From box
Abstract class additional efforts ?
Class additional efforts From box

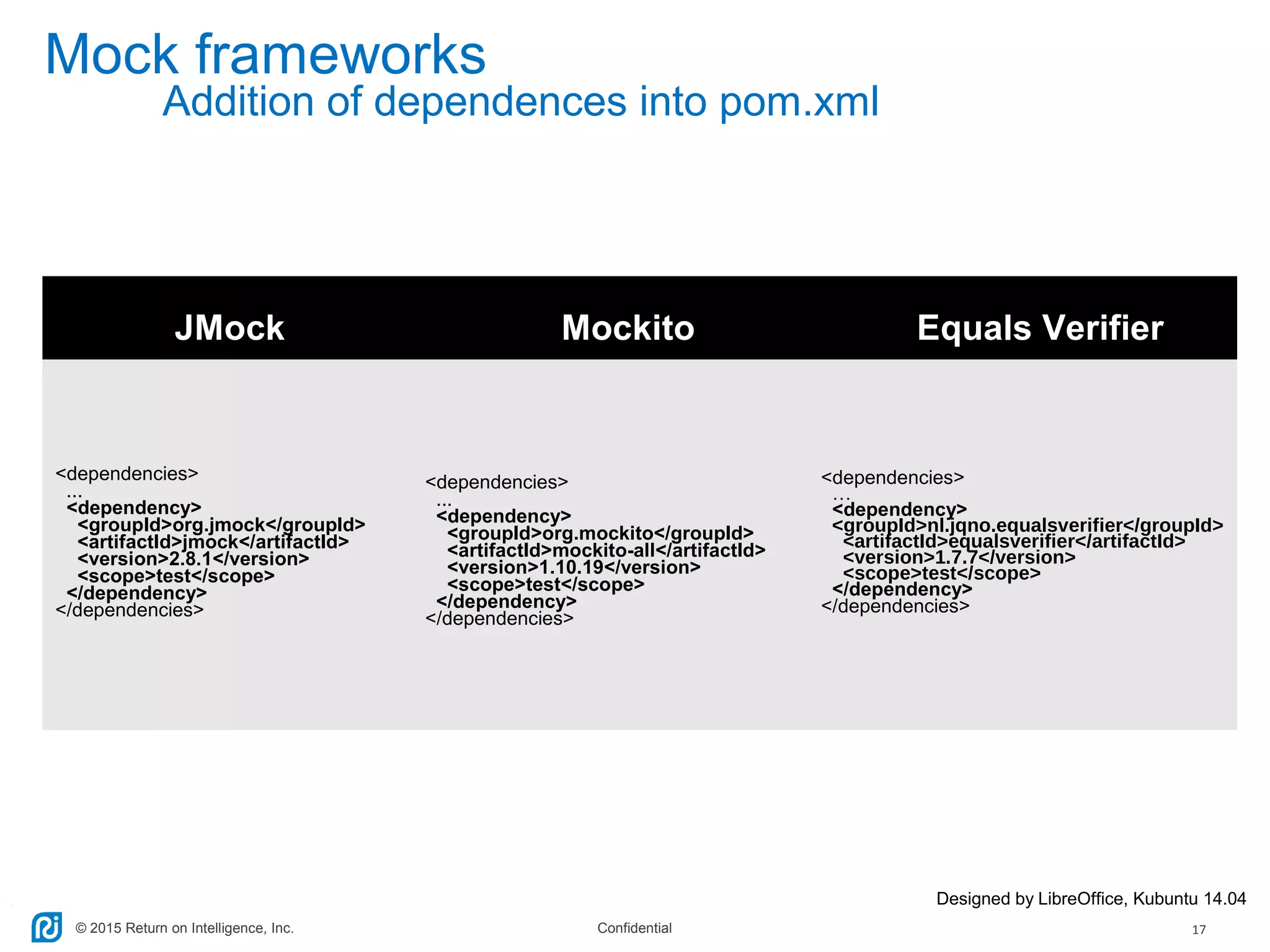

Mock frameworks
Addition of dependences into pom.xml
JMock Mockito Equals Verifier
<dependencies>
...
<dependency>
<groupId>org.jmock</groupId>
<artifactId>jmock</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
<dependencies>
...
<dependency>
<groupId>org.mockito</groupId>
<artifactId>mockito-all</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
<dependencies>
…
<dependency>
<groupId>nl.jqno.equalsverifier</groupId>
<artifactId>equalsverifier</artifactId>
<scope>test</scope>
</dependency>
</dependencies>

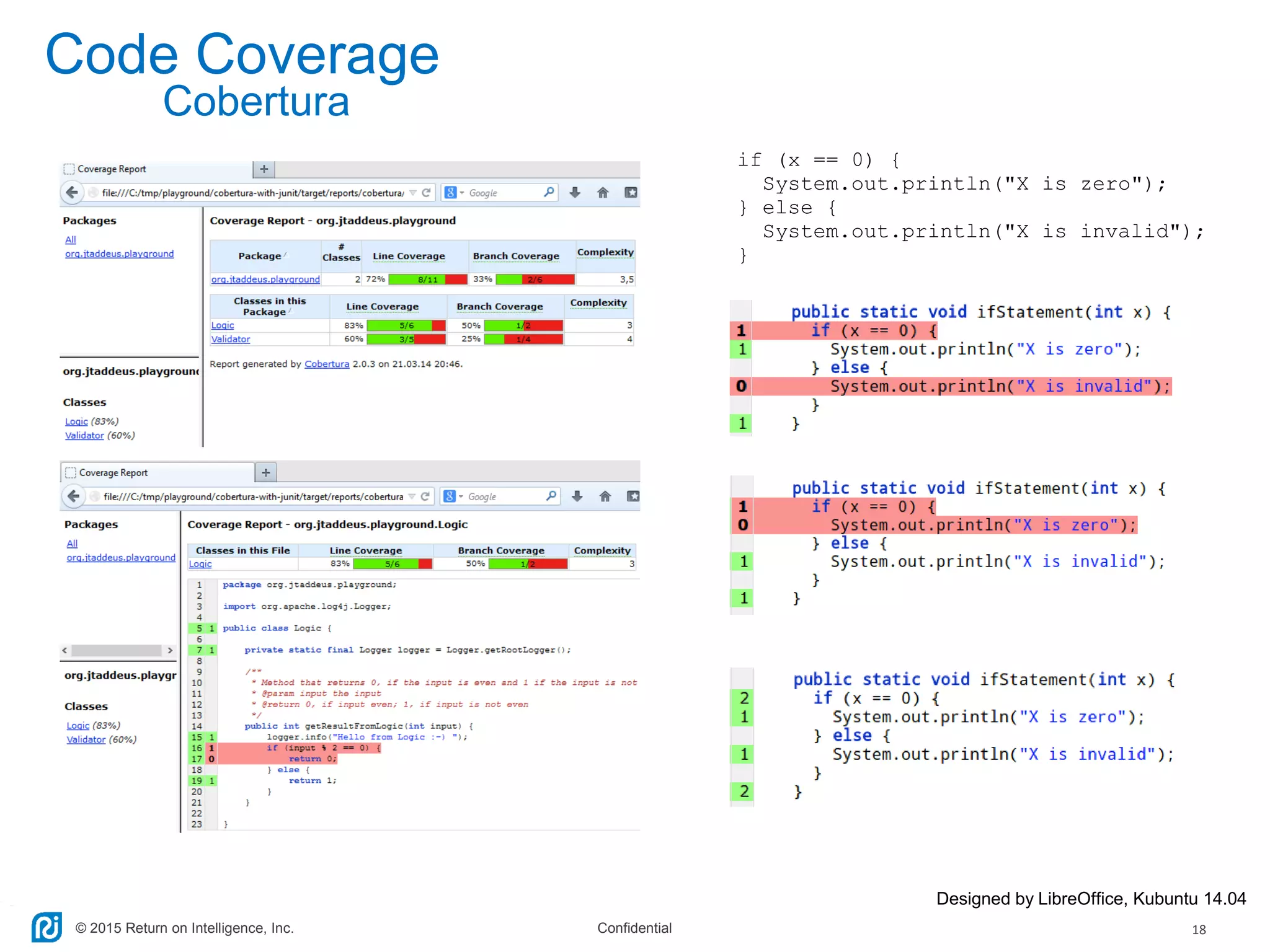

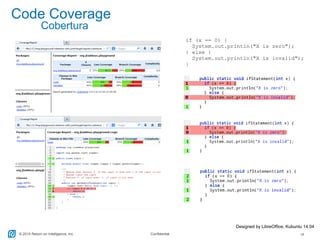

Code Coverage
Cobertura
if (x == 0) {
System.out.println("X is zero");
} else {
System.out.println("X is invalid");
}

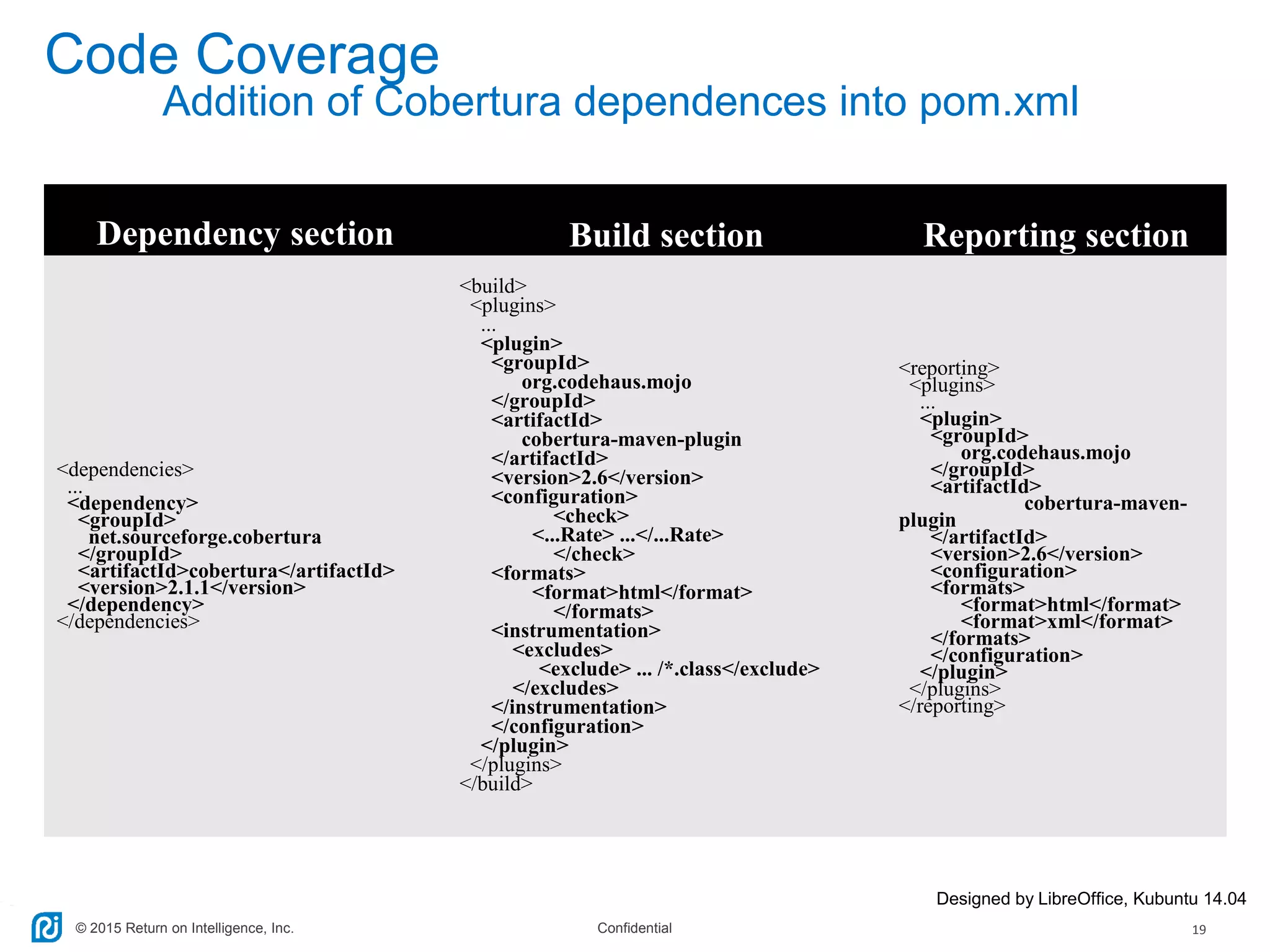

Code Coverage
Addition of Cobertura dependences into pom.xml
Dependency section Build section Reporting section
<dependencies>
...
<dependency>
<groupId>
net.sourceforge.cobertura
</groupId>
<artifactId>cobertura</artifactId>
</dependency>
</dependencies>
<build>
<plugins>
...
<plugin>
<groupId>
org.codehaus.mojo
</groupId>
<artifactId>
cobertura-maven-plugin
</artifactId>
<configuration>
<check>
<...Rate> ...</...Rate>
</check>
<formats>
<format>html</format>
</formats>
<instrumentation>
<excludes>
<exclude> ... /*.class</exclude>
</excludes>
</instrumentation>
</configuration>
</plugin>
</plugins>
</build>
<reporting>
<plugins>
...
<plugin>
<groupId>
org.codehaus.mojo
</groupId>
<artifactId>
cobertura-maven-
plugin
</artifactId>
<configuration>
<formats>
<format>html</format>
<format>xml</format>
</formats>
</configuration>
</plugin>
</plugins>
</reporting>

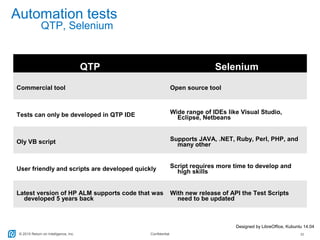

Automation tests
QTP, Selenium
QTP Selenium
Commercial tool Open source tool
Tests can only be developed in QTP IDE Wide range of IDEs like Visual Studio,
Eclipse, Netbeans
Oly VB script Supports JAVA, .NET, Ruby, Perl, PHP, and
many other
User friendly and scripts are developed quickly Script requires more time to develop and
high skills
Latest version of HP ALM supports code that was
developed 5 years back
With new release of API the Test Scripts
need to be updated

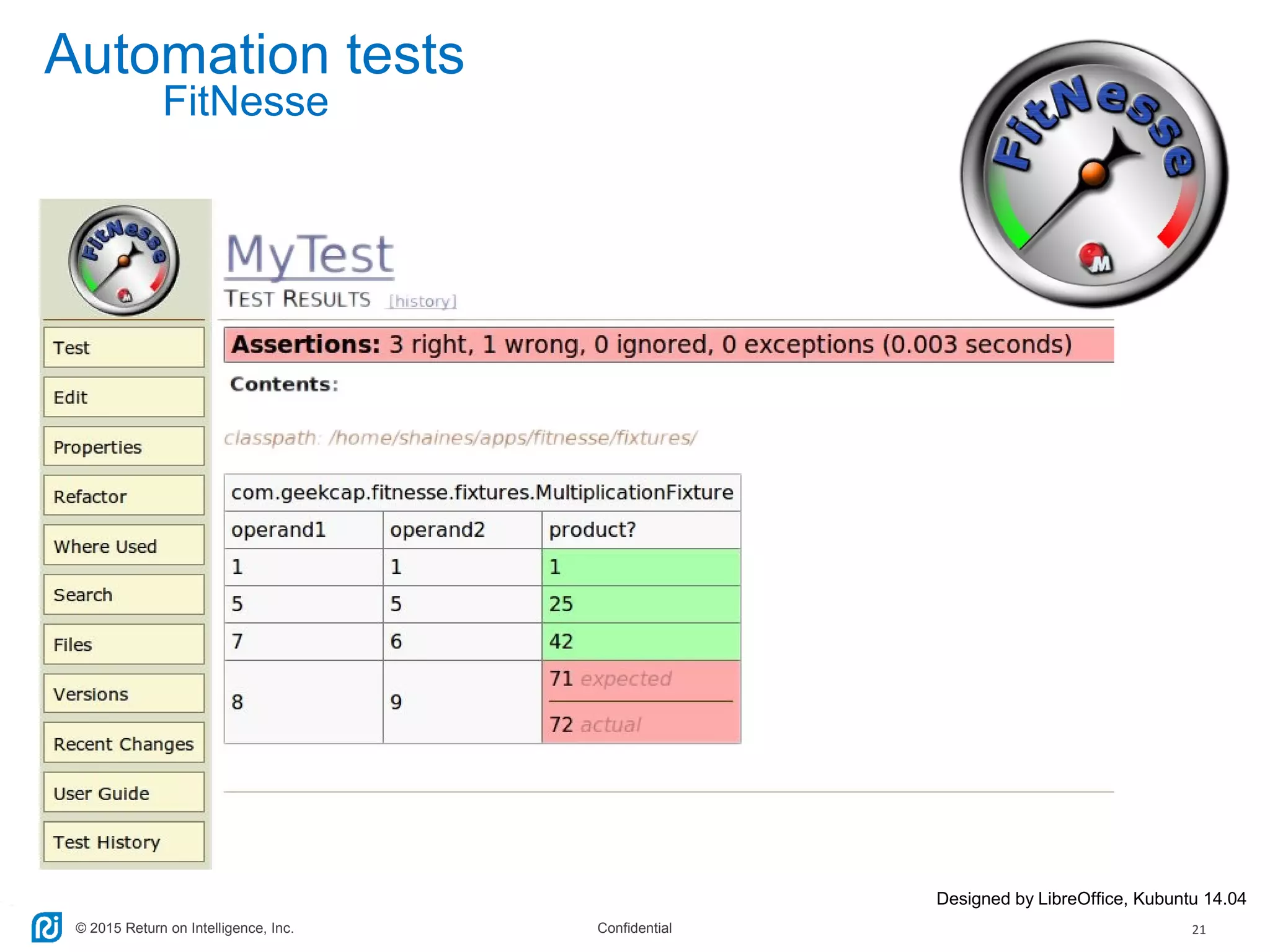

Automation tests
FitNesse

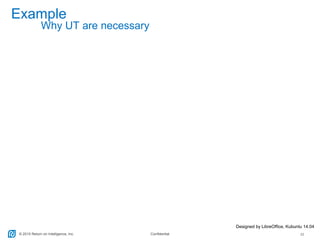

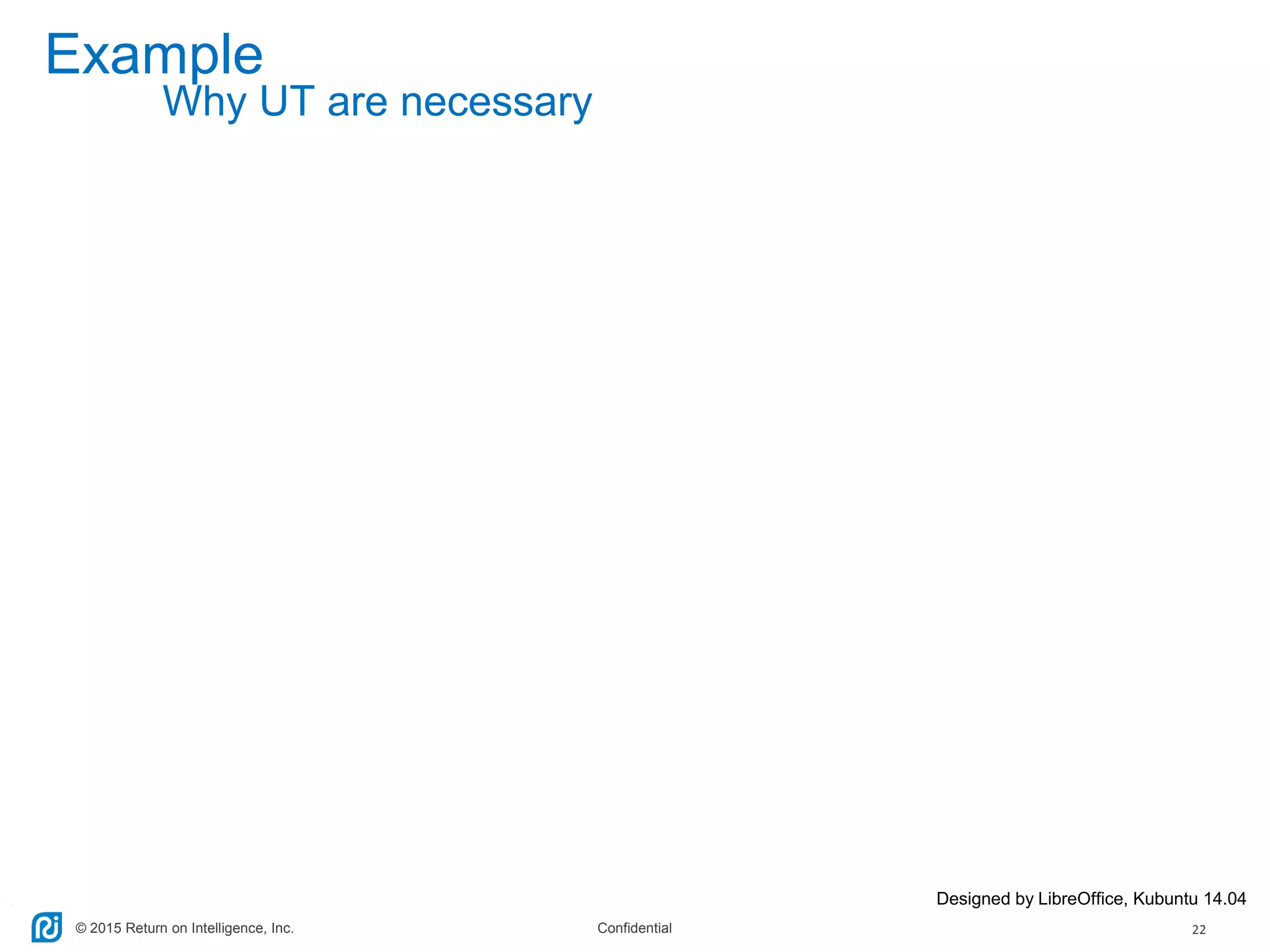

Example
Why UT are necessary

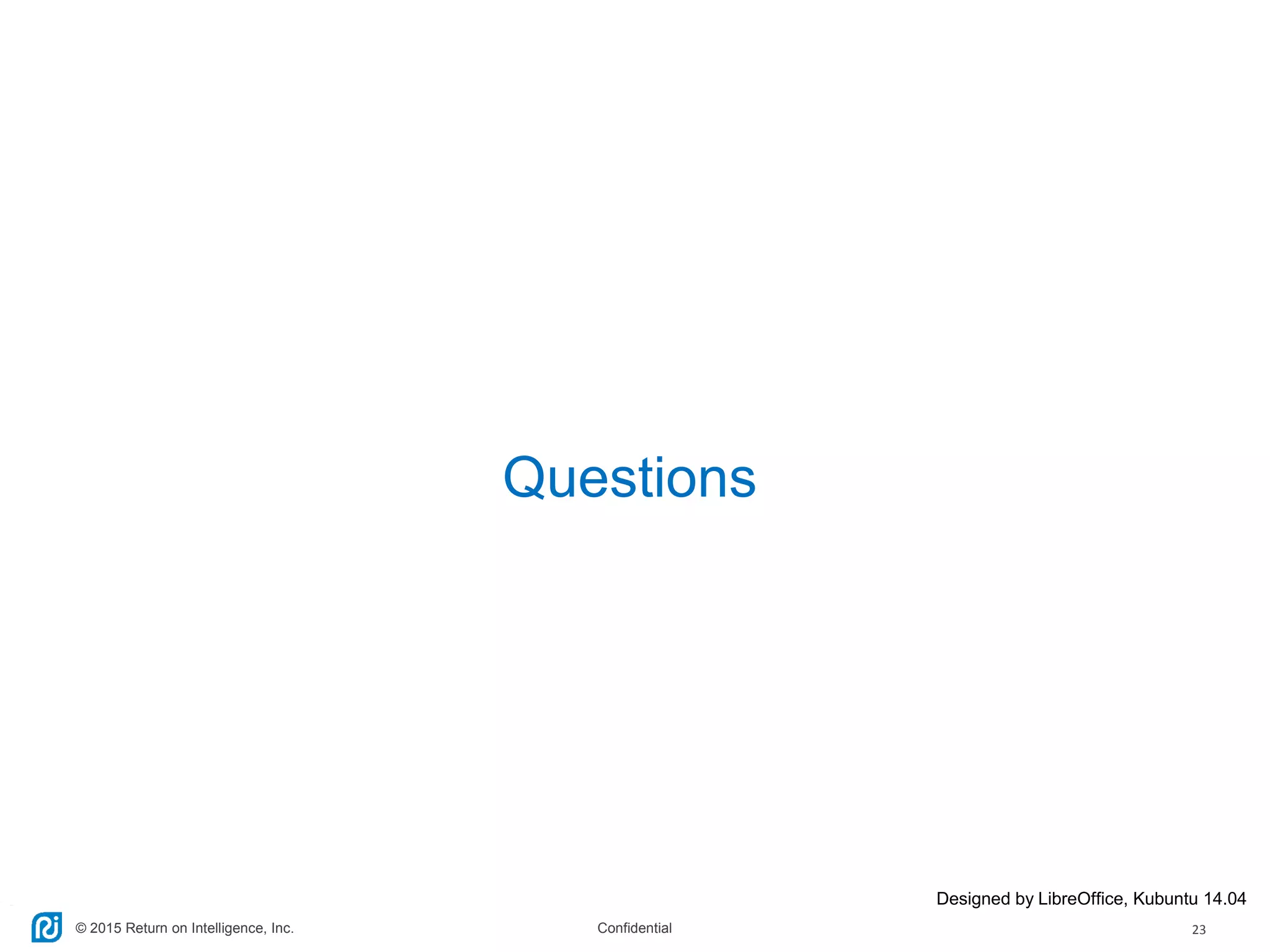

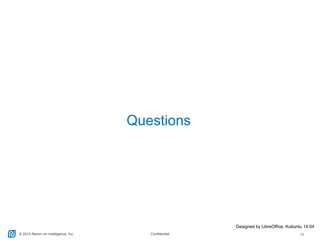

Questions

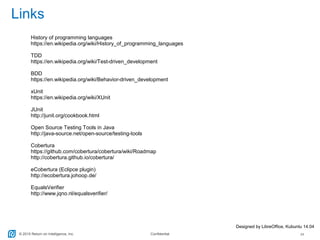

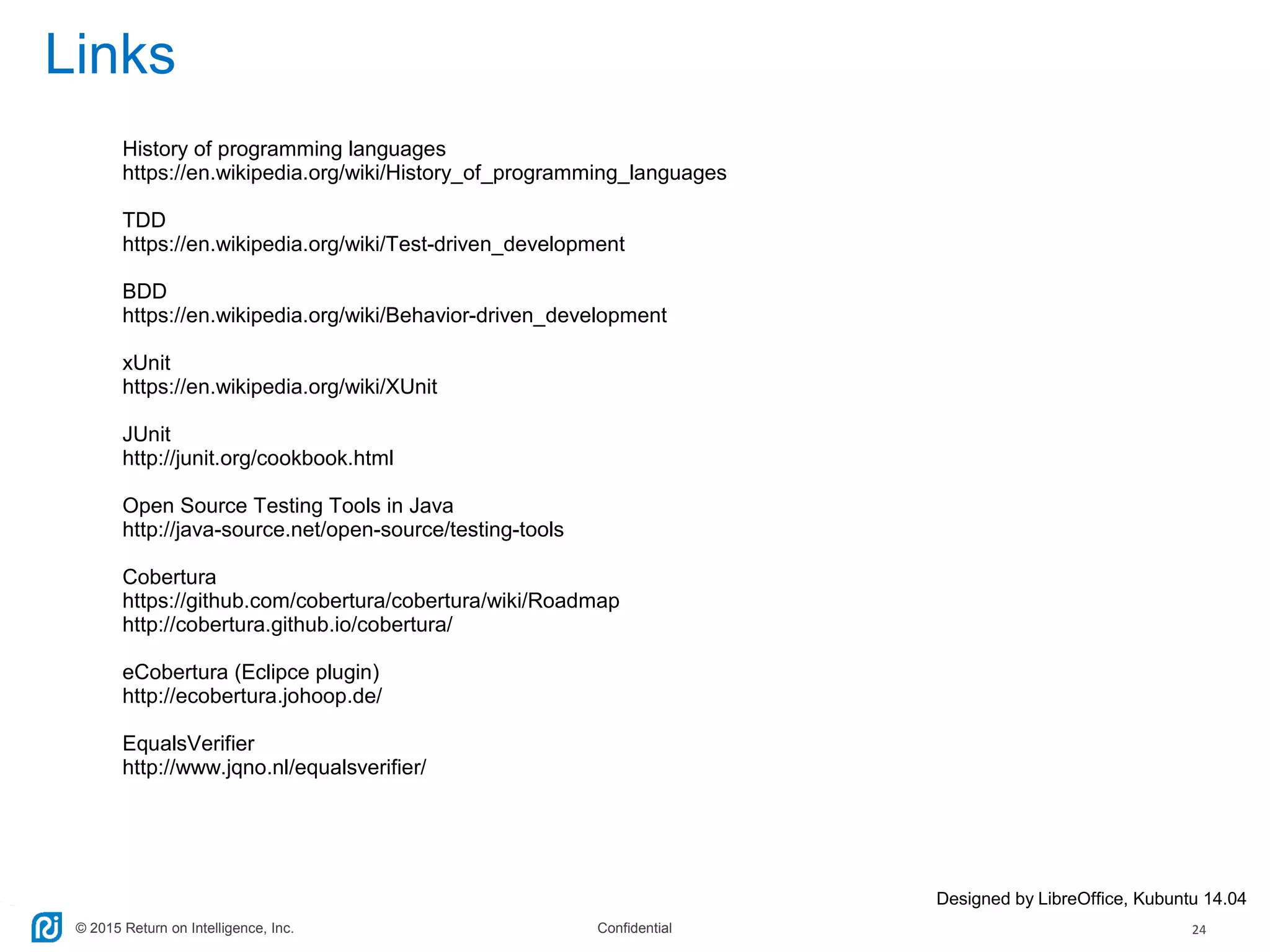

Links
History of programming languages
https://en.wikipedia.org/wiki/History_of_programming_languages
TDD
https://en.wikipedia.org/wiki/Test-driven_development
BDD
https://en.wikipedia.org/wiki/Behavior-driven_development
xUnit
https://en.wikipedia.org/wiki/XUnit
JUnit
http://junit.org/cookbook.html
Open Source Testing Tools in Java
http://java-source.net/open-source/testing-tools
Cobertura
https://github.com/cobertura/cobertura/wiki/Roadmap
http://cobertura.github.io/cobertura/
eCobertura (Eclipce plugin)
http://ecobertura.johoop.de/
EqualsVerifier
http://www.jqno.nl/equalsverifier/

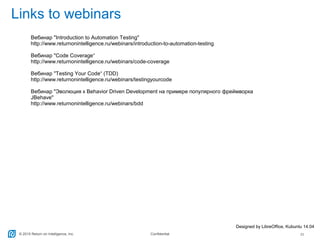

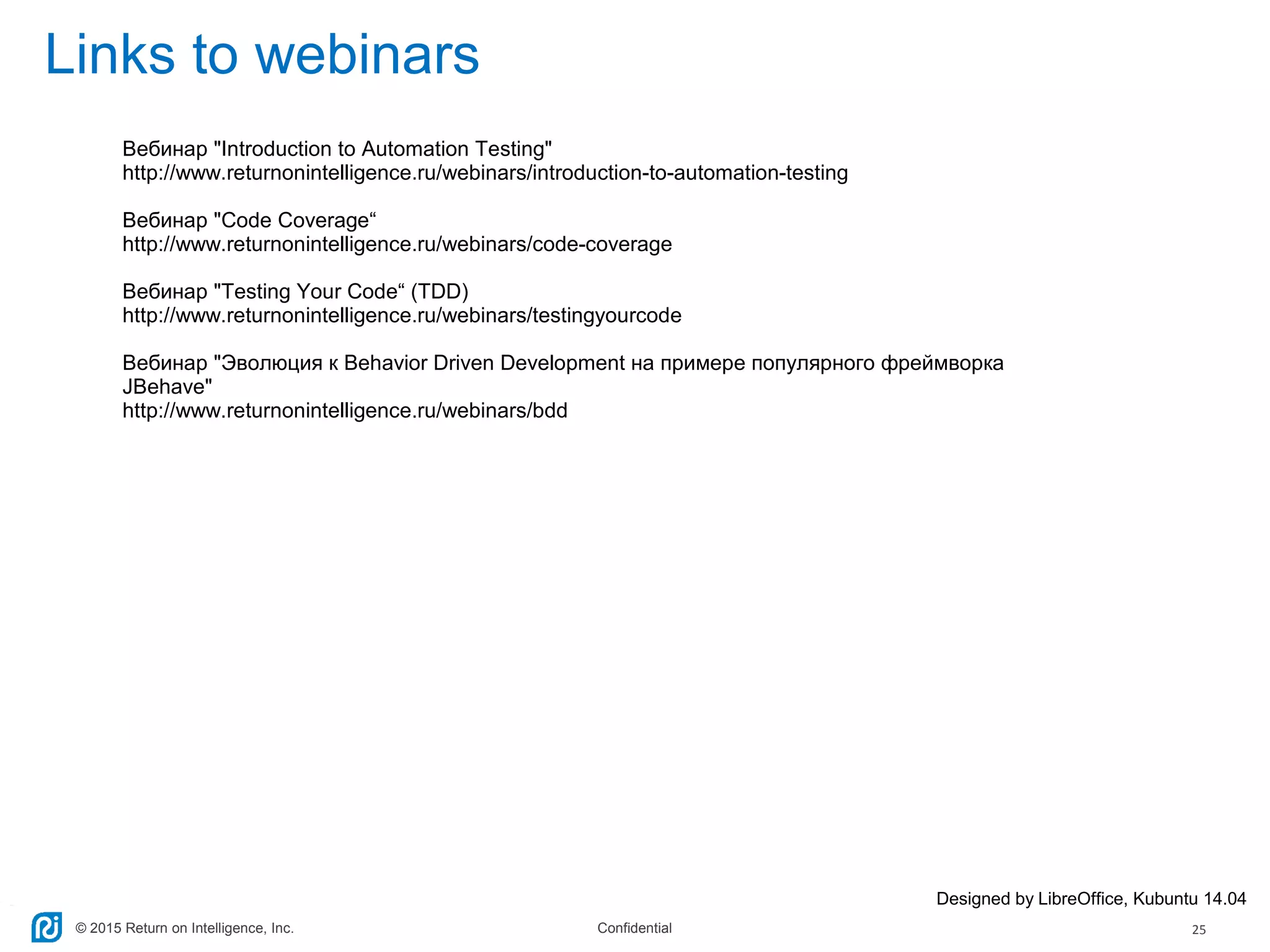

Links to webinars
Вебинар "Introduction to Automation Testing"
http://www.returnonintelligence.ru/webinars/introduction-to-automation-testing
Вебинар "Code Coverage“
http://www.returnonintelligence.ru/webinars/code-coverage
Вебинар "Testing Your Code“ (TDD)
http://www.returnonintelligence.ru/webinars/testingyourcode
Вебинар "Эволюция к Behavior Driven Development на примере популярного фреймворка
JBehave"
http://www.returnonintelligence.ru/webinars/bdd
