Using ScyllaDB for Extreme Scale Workloads
- 1. Using ScyllaDB for ExtremeScale Workloads Tzach Livyatan, VP Product, ScyllaDB Attila Tóth, Developer Advocate, ScyllaDB
- 2. Poll How often doyou scale your database?
- 3. Presenters Attila Tóth, DeveloperAdvocate + Working as a software engineer / dev advocate in the data space for 6+ years + Lives in Budapest, Hungary Tzach Livyatan, VP Product + Working for product manager for ages. + Lives in Tel Aviv, Israel

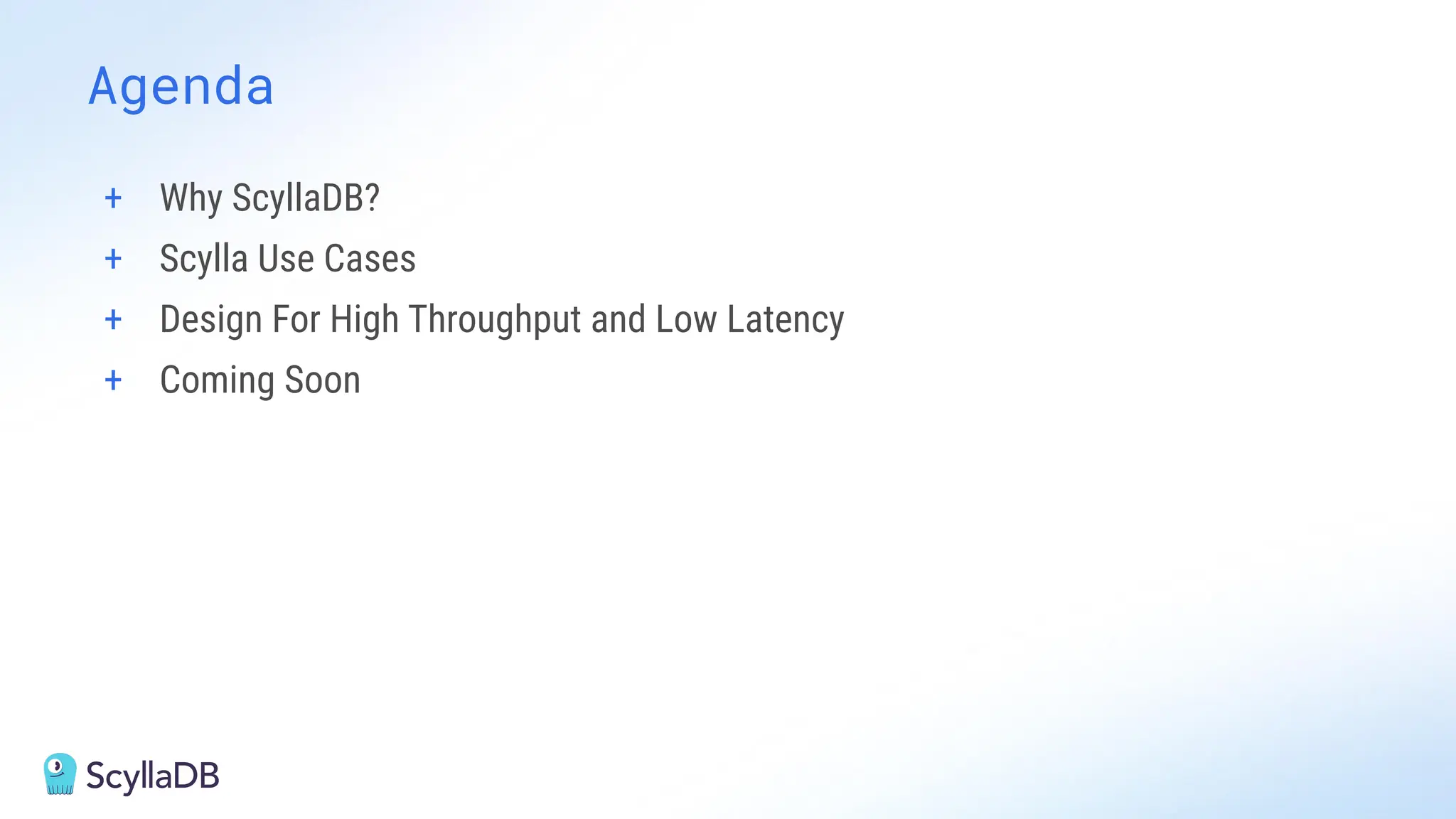

- 4. Agenda + Why ScyllaDB? +Scylla Use Cases + Design For High Throughput and Low Latency + Coming Soon

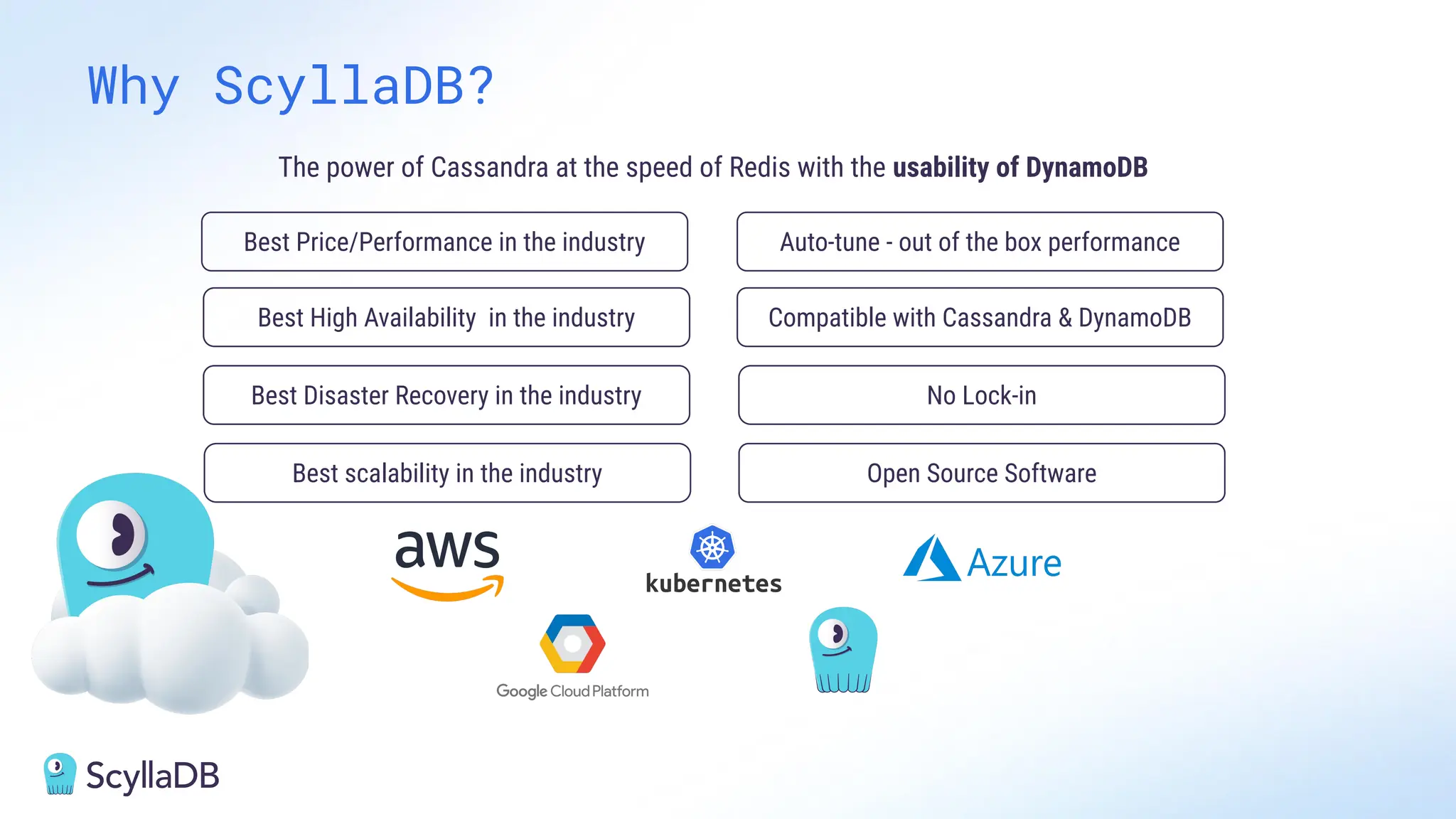

- 5. Why ScyllaDB? Best HighAvailability in the industry Best Disaster Recovery in the industry Best scalability in the industry Best Price/Performance in the industry Auto-tune - out of the box performance Compatible with Cassandra & DynamoDB The power of Cassandra at the speed of Redis with the usability of DynamoDB No Lock-in Open Source Software
- 6. +400 Gamechangers LeverageScyllaDB

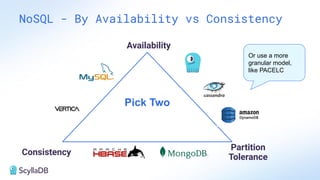

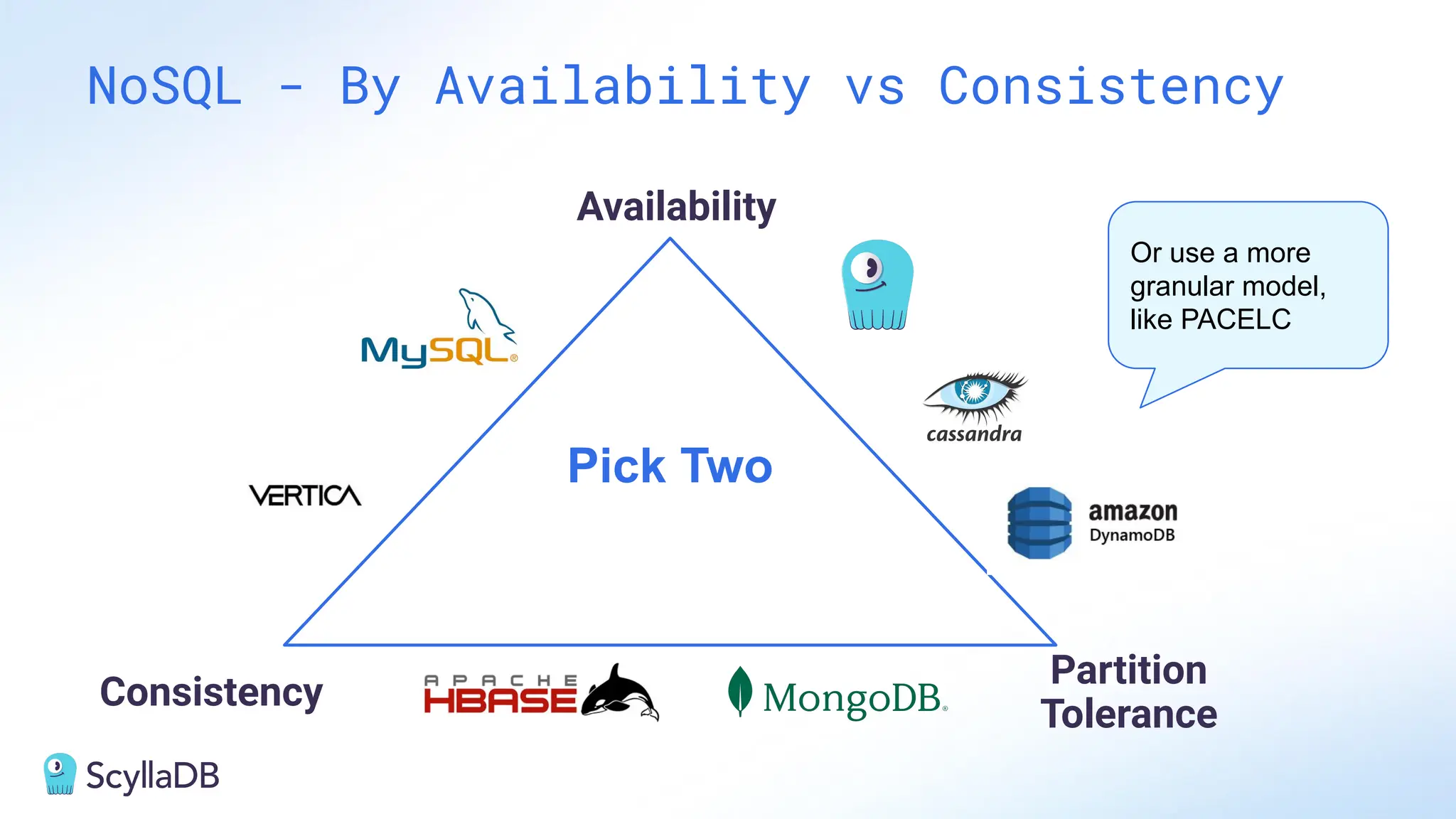

- 7. NoSQL - ByAvailability vs Consistency Pick Two Availability Partition Tolerance Consistency Or use a more granular model, like PACELC

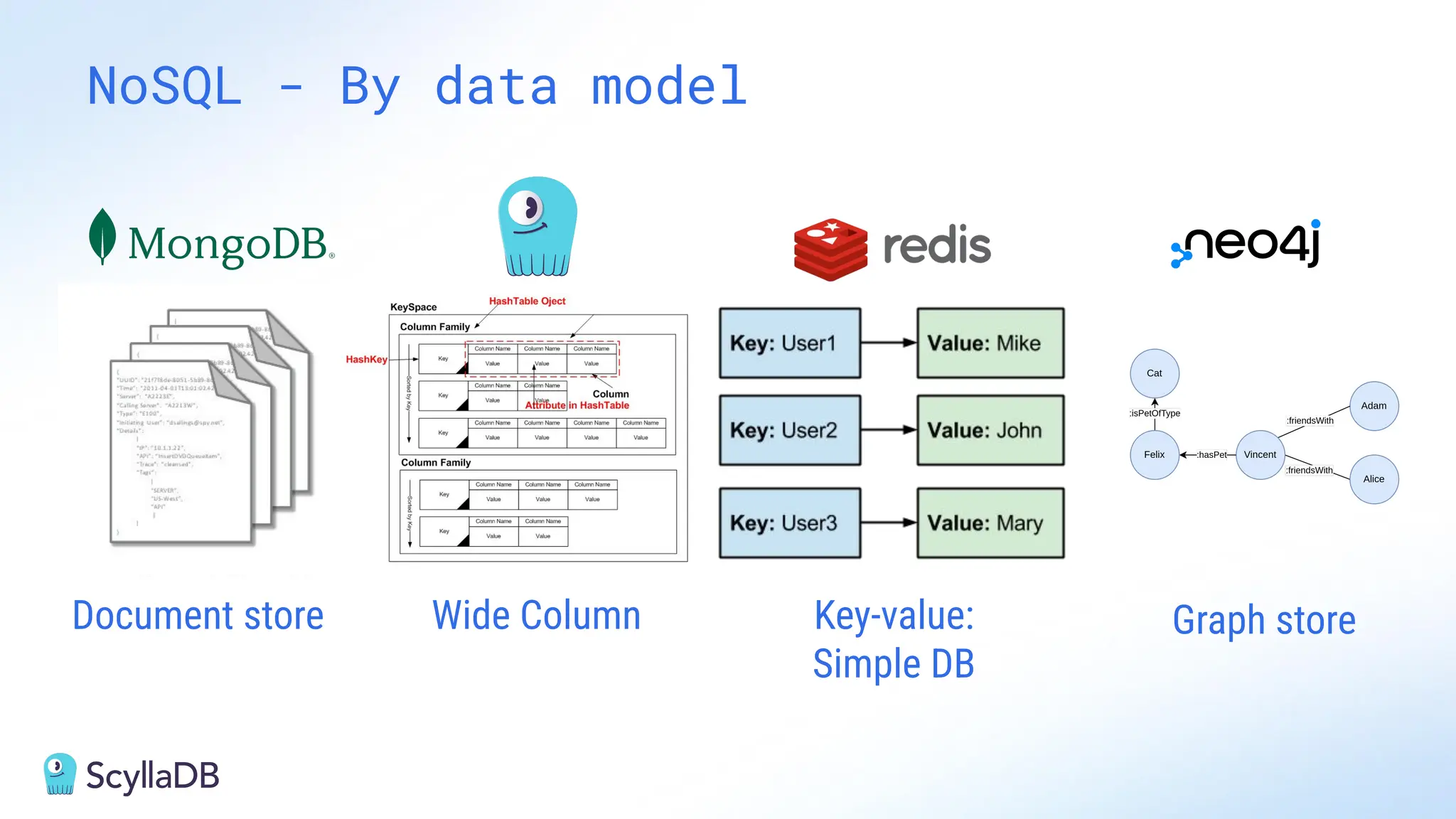

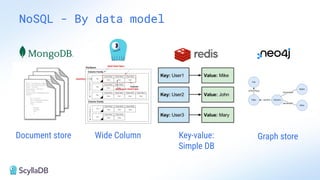

- 8. Document store WideColumn Key-value: Simple DB NoSQL - By data model Graph store

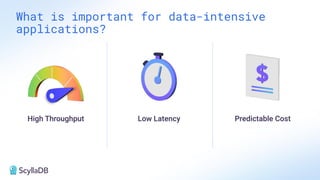

- 9. What is importantfor data-intensive applications? High Throughput Low Latency Predictable Cost

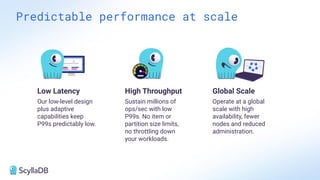

- 10. Predictable performance atscale Low Latency Our low-level design plus adaptive capabilities keep P99s predictably low. High Throughput Sustain millions of ops/sec with low P99s. No item or partition size limits, no throttling down your workloads. Global Scale Operate at a global scale with high availability, fewer nodes and reduced administration.

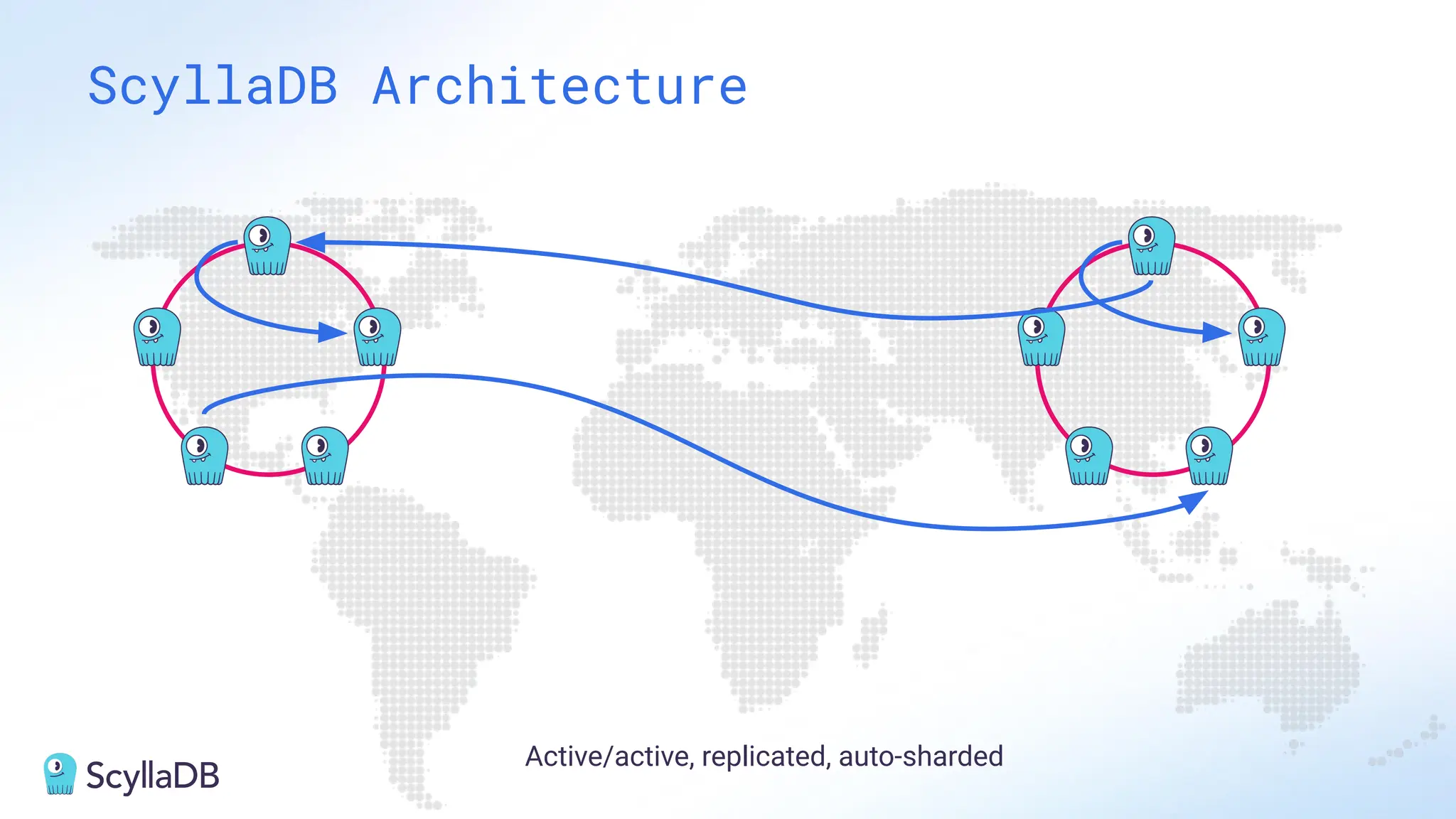

- 11. Active/active, replicated, auto-sharded ScyllaDBArchitecture

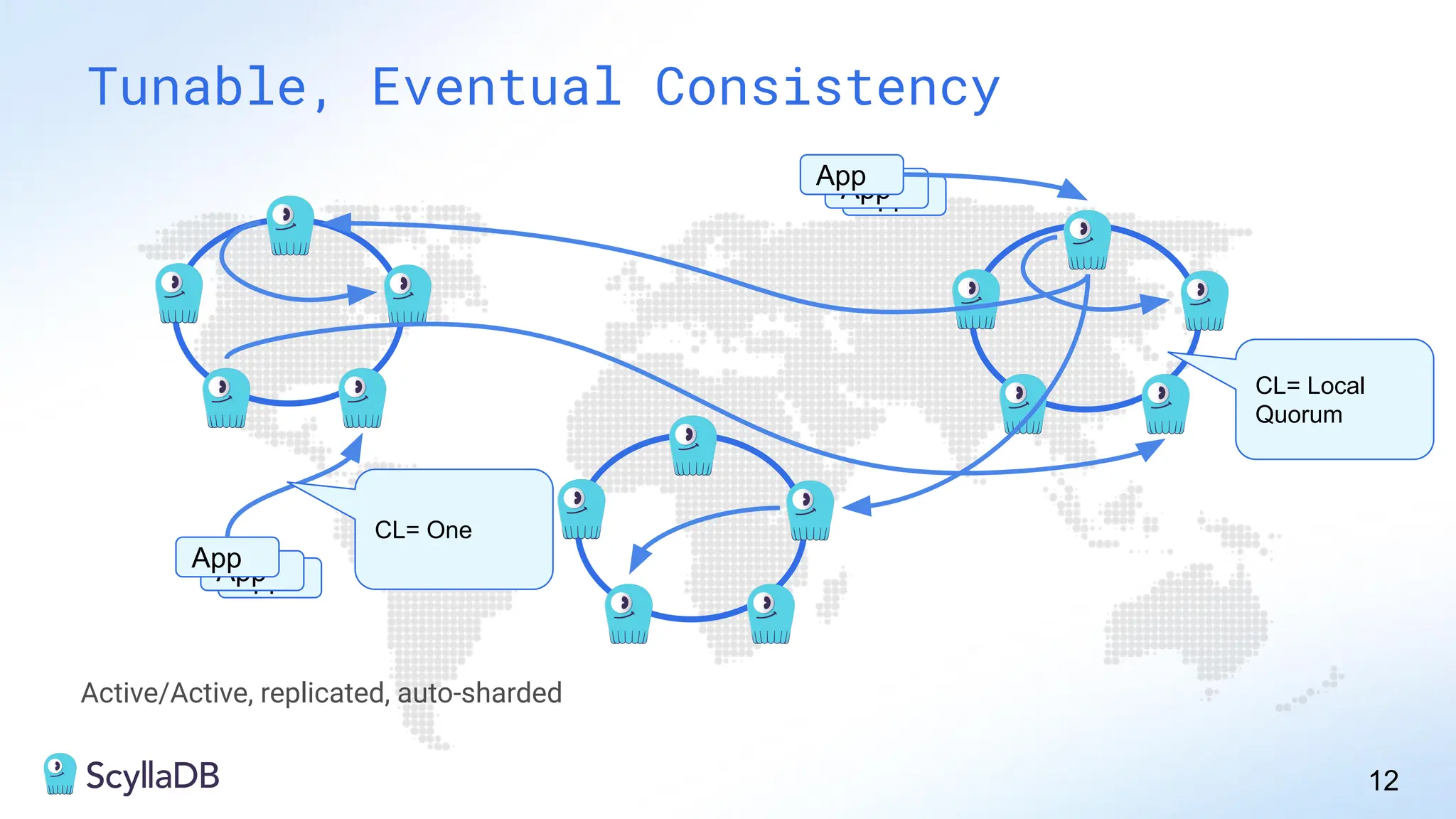

- 12. Active/Active, replicated, auto-sharded 12 Tunable,Eventual Consistency App App App App App App CL= Local Quorum CL= One
- 13.

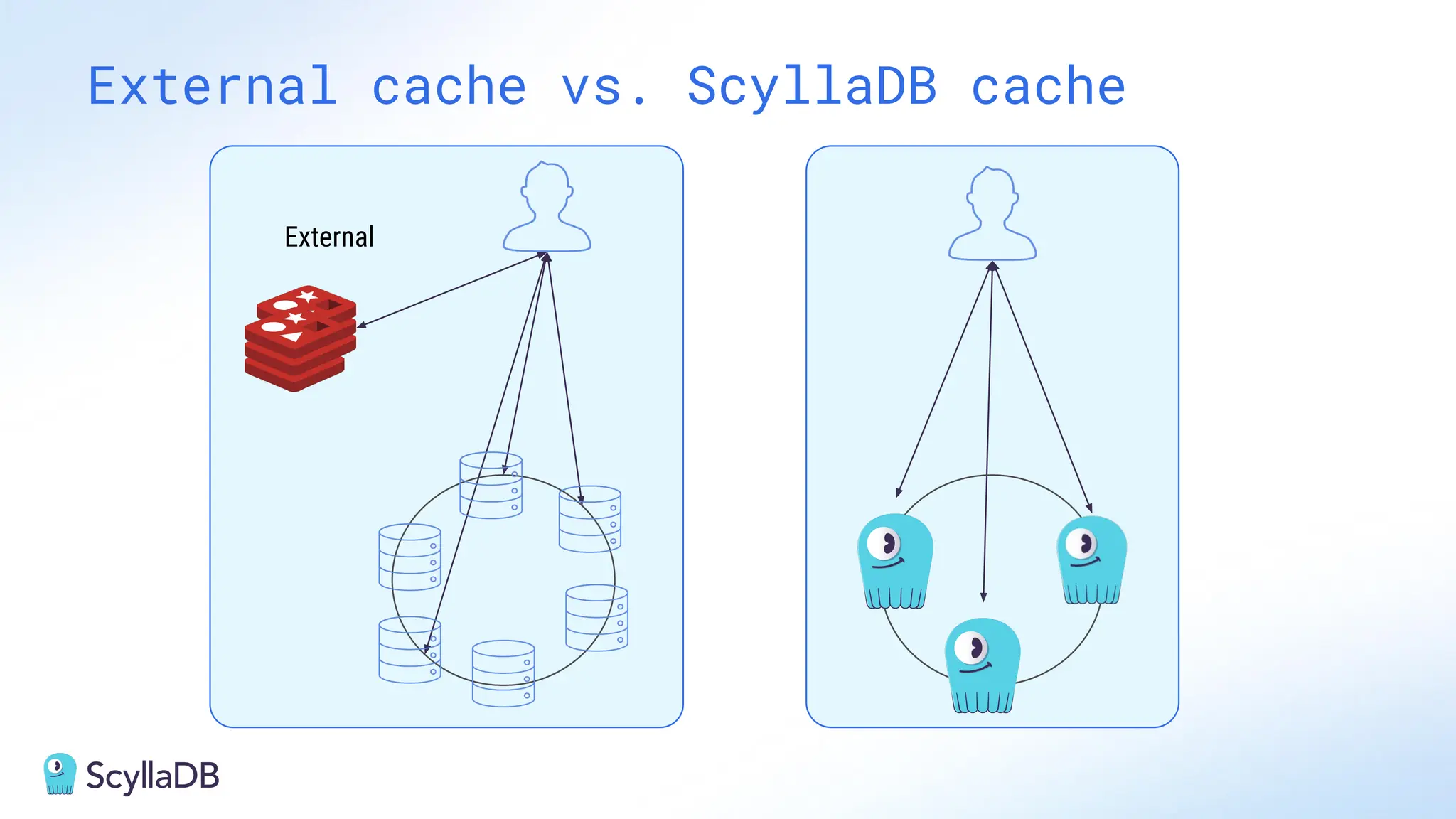

- 14. External cache vs.ScyllaDB cache External

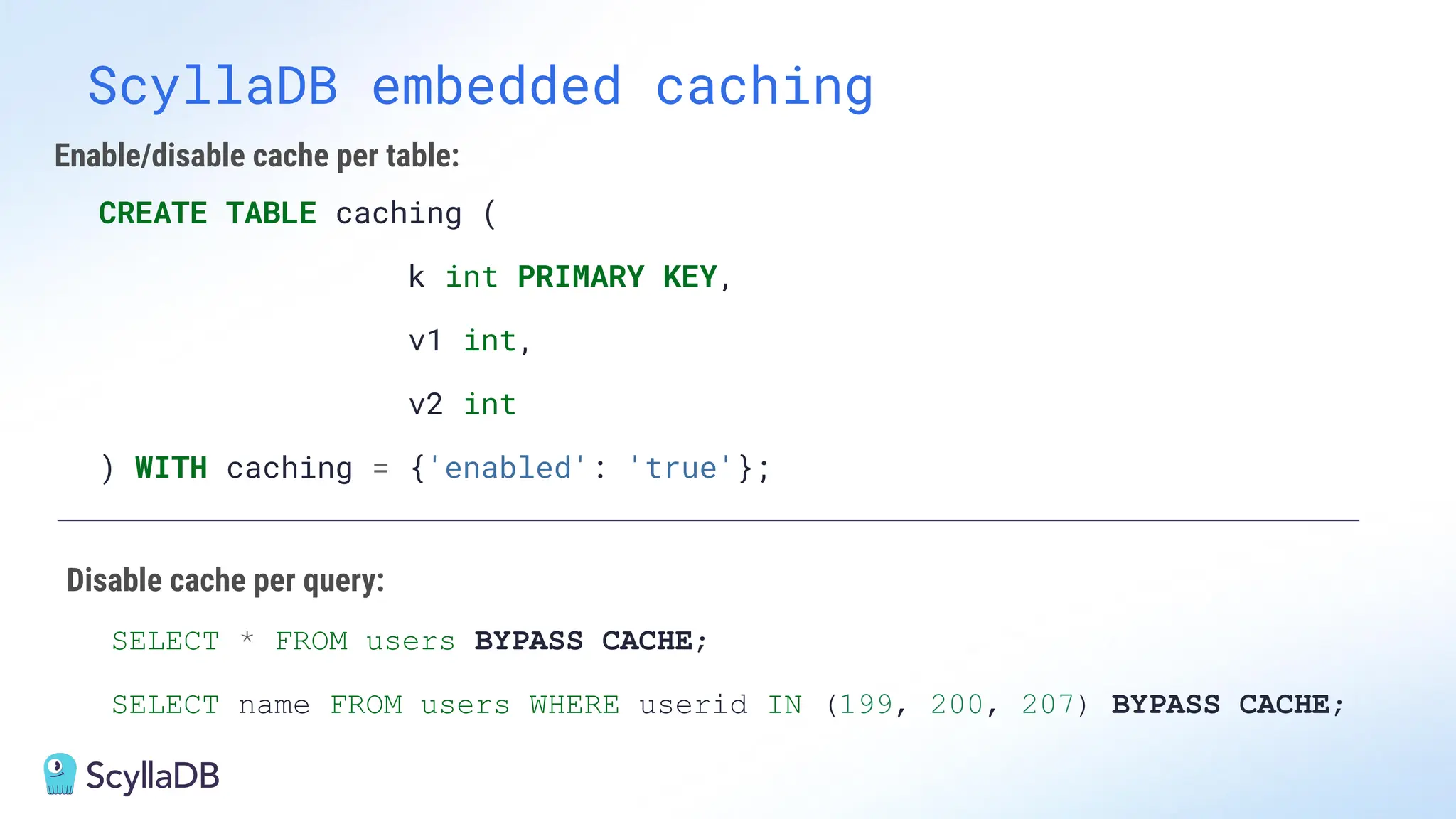

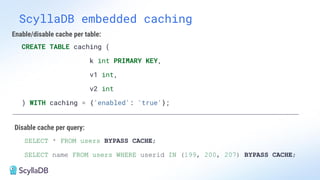

- 15. ScyllaDB embedded caching CREATETABLE caching ( k int PRIMARY KEY, v1 int, v2 int ) WITH caching = {'enabled': 'true'}; SELECT * FROM users BYPASS CACHE; SELECT name FROM users WHERE userid IN (199, 200, 207) BYPASS CACHE; Enable/disable cache per table: Disable cache per query:

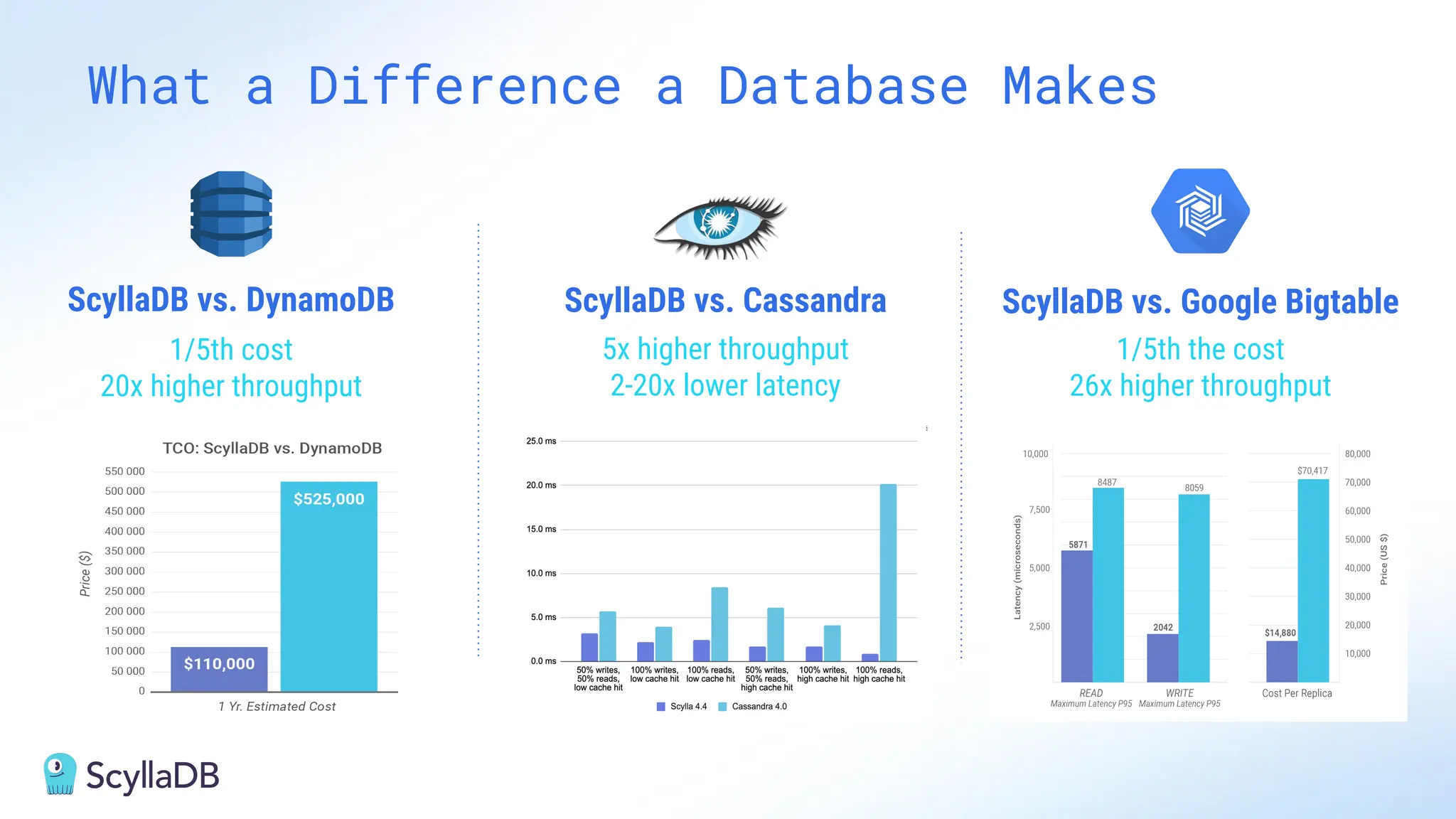

- 16. ScyllaDB vs. DynamoDB 1/5thcost 20x higher throughput ScyllaDB vs. Google Bigtable 1/5th the cost 26x higher throughput ScyllaDB vs. Cassandra 5x higher throughput 2-20x lower latency What a Difference a Database Makes

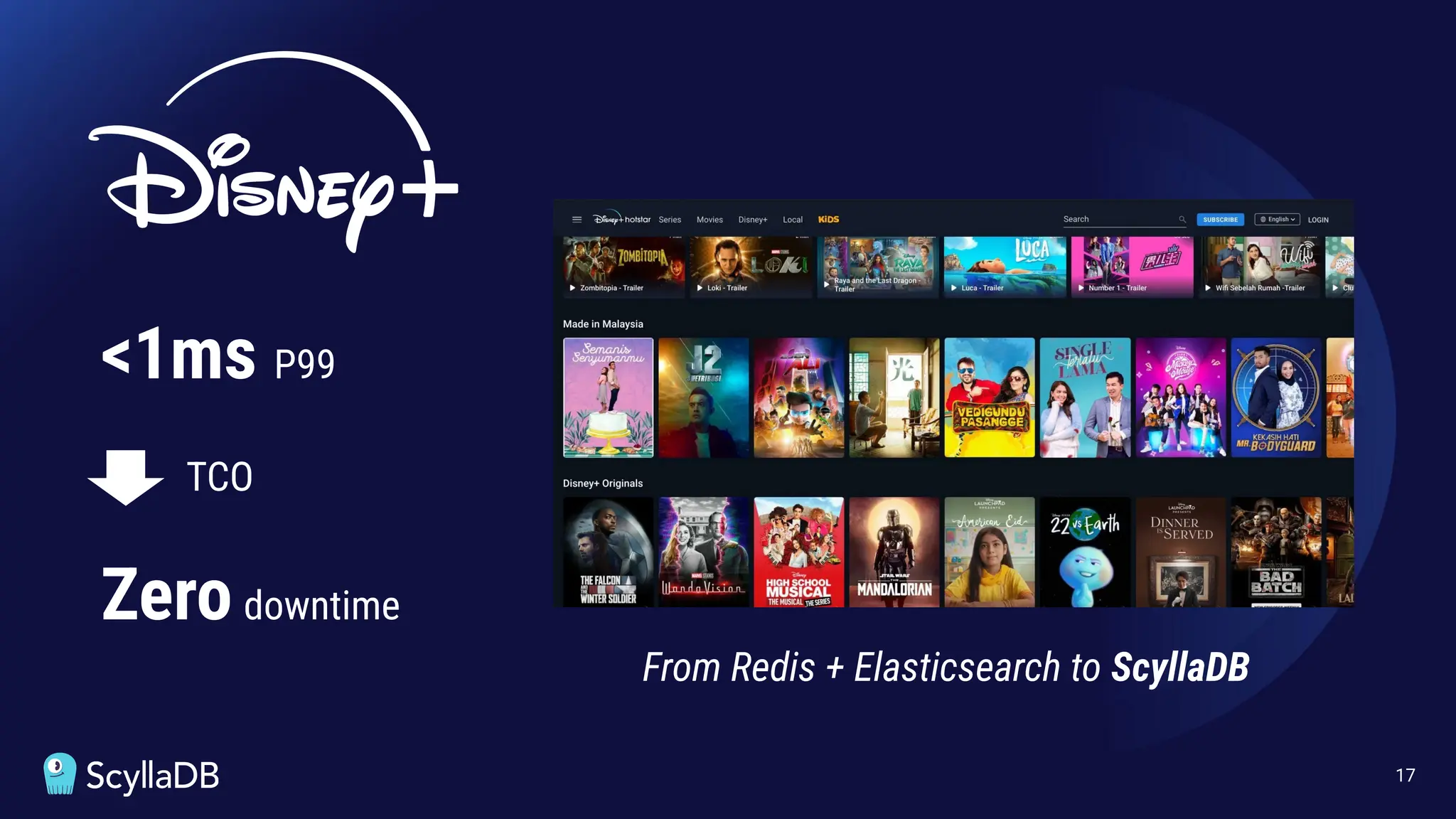

- 17. From Redis +Elasticsearch to ScyllaDB 17 <1ms P99 Zero downtime TCO
- 18. 18 “ScyllaDB provides abaseline that simplifies the whole <config> process and reduces risk and anxiety. Once in production, rather than rely on constant human intervention, ScyllaDB becomes self-tuning, dynamically adapting to real-world workloads..” - Mark Smith, Discord size, fewer nodes 8x throughput, ms P99 operational complexity
- 19. 19 “This not onlyreduced TCO, but also reduced the pain that the database engineering team was taking to actually maintain the cluster in a healthy state.” – Niraj Kothari, Dir. Platforms Engineering 55 C* nodes to 6! 80% EC2 costs 5xgrowth in clusters
- 20. TCO Speed of Redis FromRedis to ScyllaDB for Data Stores, Fraud Detection, Ad Targeting Scalability
- 21. 962 C* nodesto 78 60% TCO 95% latency “By moving to ScyllaDB Enterprise software running on AWS EC2 infrastructure and on-premises, Comcast improved P99 latency by more than 95% and were able to rip out a UI cache layer”
- 22. 22 <1ms avg Latency FromRedis to Cassandra to ScyllaDB Cloud 4-8msP99 Fault Tolerance
- 23. 23 Real-time workloads on 3AWS nodes Out-of-order solved Process all Zillow data in <1 day with no performance hit to real-time “No one even realizes we are processing the entirety of Zillow’s property and listings data.” – Dan Podhola, Principle Engineer
- 24. 24 “It was comparableto the solution with Kafka, and we didn’t have to add, manage, and maintain another data product in our ecosystem.” – Daniel Belenky, Palo Alto Networks operational complexity operational costs (for 1,000+ dbs!) app throughput
- 25.

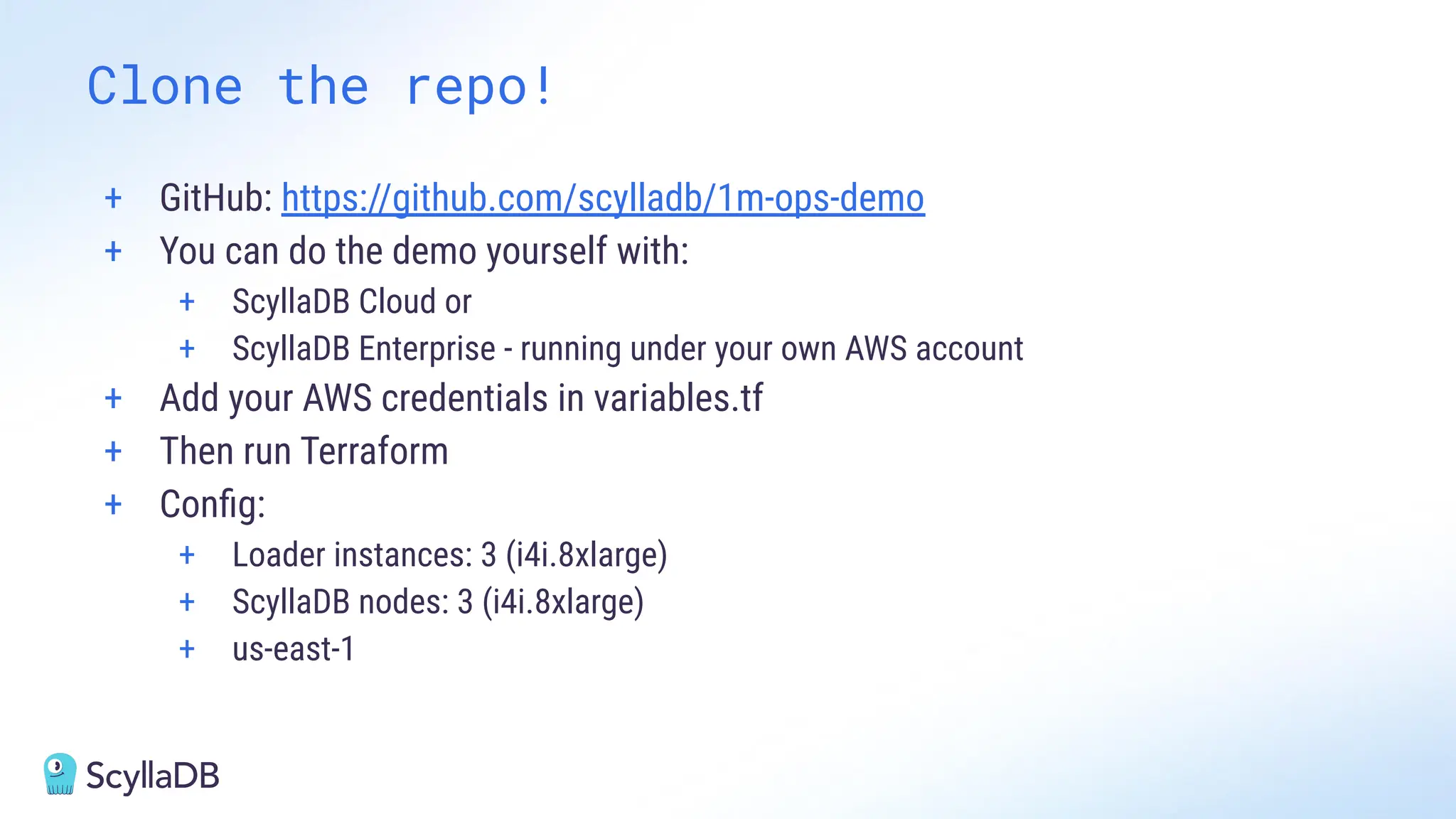

- 26. + GitHub: https://github.com/scylladb/1m-ops-demo +You can do the demo yourself with: + ScyllaDB Cloud or + ScyllaDB Enterprise - running under your own AWS account + Add your AWS credentials in variables.tf + Then run Terraform + Config: + Loader instances: 3 (i4i.8xlarge) + ScyllaDB nodes: 3 (i4i.8xlarge) + us-east-1 Clone the repo!
- 27.

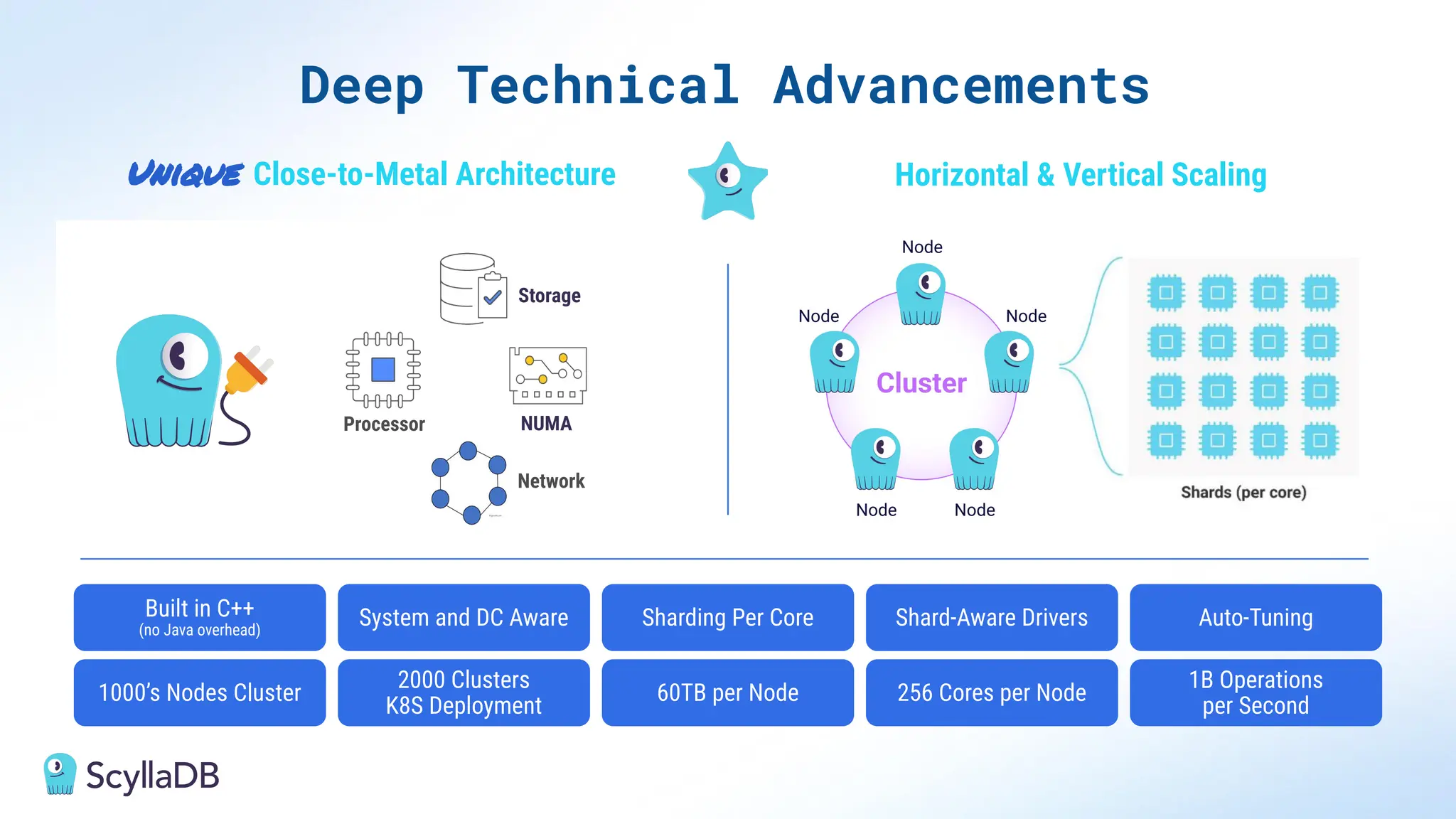

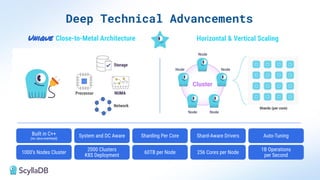

- 28. Horizontal & VerticalScaling Deep Technical Advancements Built in C++ (no Java overhead) System and DC Aware Sharding Per Core Shard-Aware Drivers Auto-Tuning Network Processor NUMA Storage Unique Close-to-Metal Architecture 1000’s Nodes Cluster 2000 Clusters K8S Deployment 60TB per Node 256 Cores per Node 1B Operations per Second
- 29. ScyllaDB Design Decisions 1 2All Things Async 3 Shard per Core 4 Unified Cache 5 I/O Scheduler 6 Autonomous C++ instead of Java
- 30. ScyllaDB Design Decisions 1 2All Things Async 3 Shard per Core 4 Unified Cache 5 I/O Scheduler 6 Autonomous C++ instead of Java

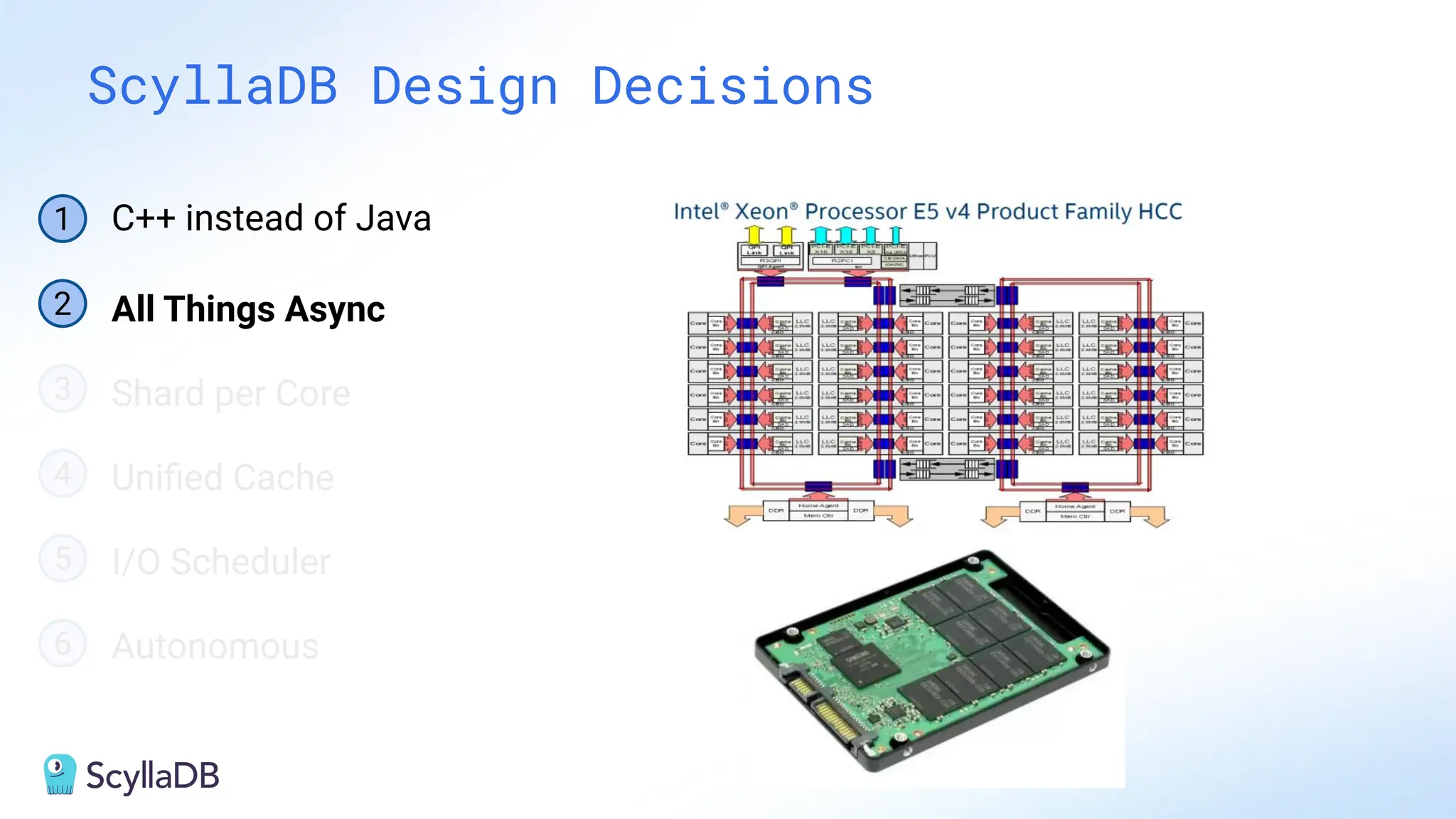

- 31. ScyllaDB Design Decisions ThreadsShards 1 C++ instead of Java 2 All Things Async 3 Shard per Core 4 Unified Cache 5 I/O Scheduler 6 Autonomous

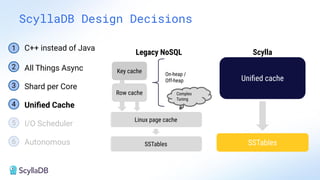

- 32. ScyllaDB Design Decisions LegacyNoSQL Scylla Key cache Row cache On-heap / Off-heap Linux page cache SSTables Unified cache SSTables Complex Tuning 1 2 All Things Async 3 Shard per Core 4 Unified Cache 5 I/O Scheduler 6 Autonomous C++ instead of Java

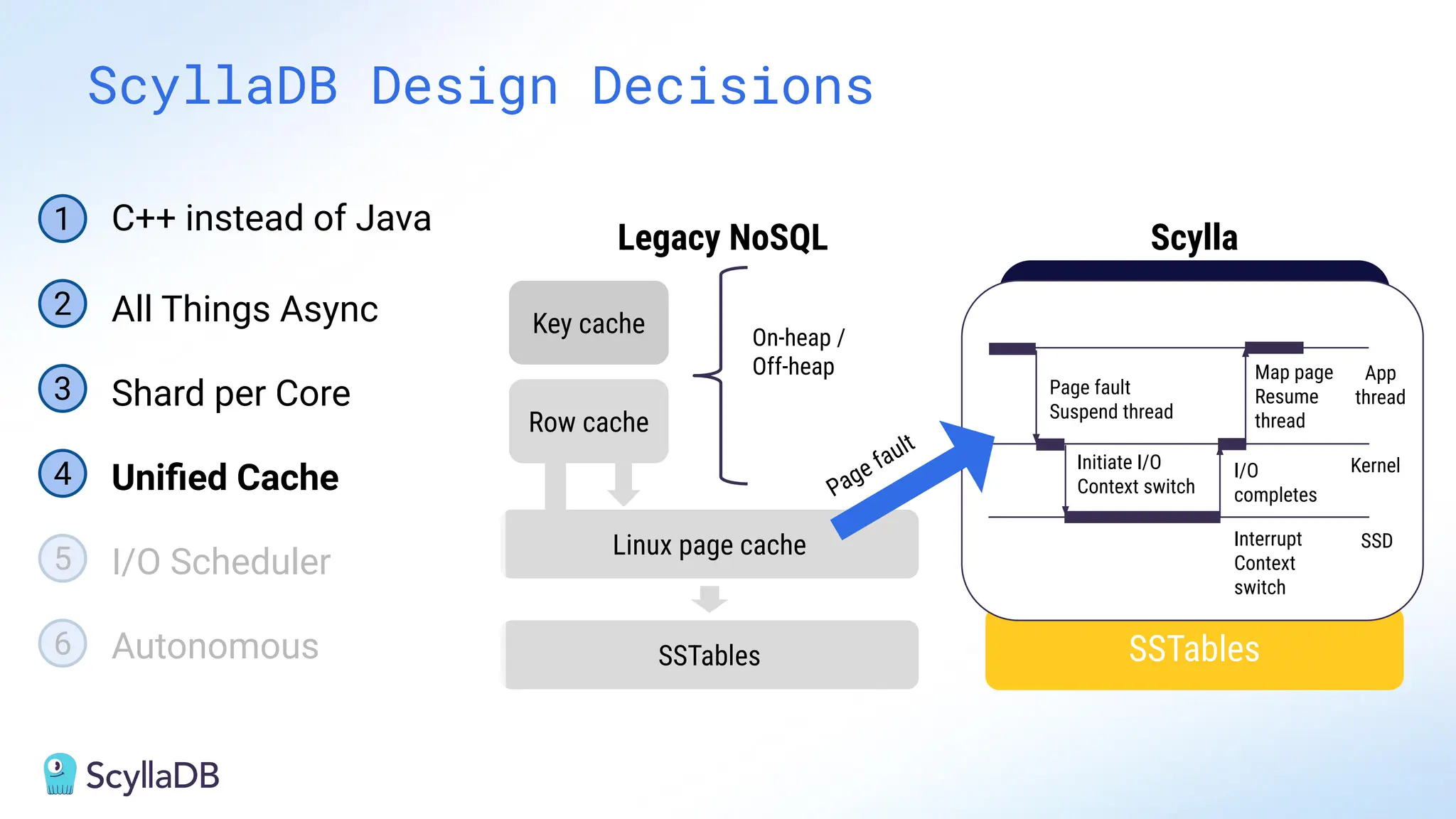

- 33. ScyllaDB Design Decisions LegacyNoSQL Scylla Key cache Row cache On-heap / Off-heap Linux page cache SSTables Unified cache SSTables App thread Kernel SSD Page fault Suspend thread Initiate I/O Context switch I/O completes Interrupt Context switch Map page Resume thread Page fault 1 2 All Things Async 3 Shard per Core 4 Unified Cache 5 I/O Scheduler 6 Autonomous C++ instead of Java

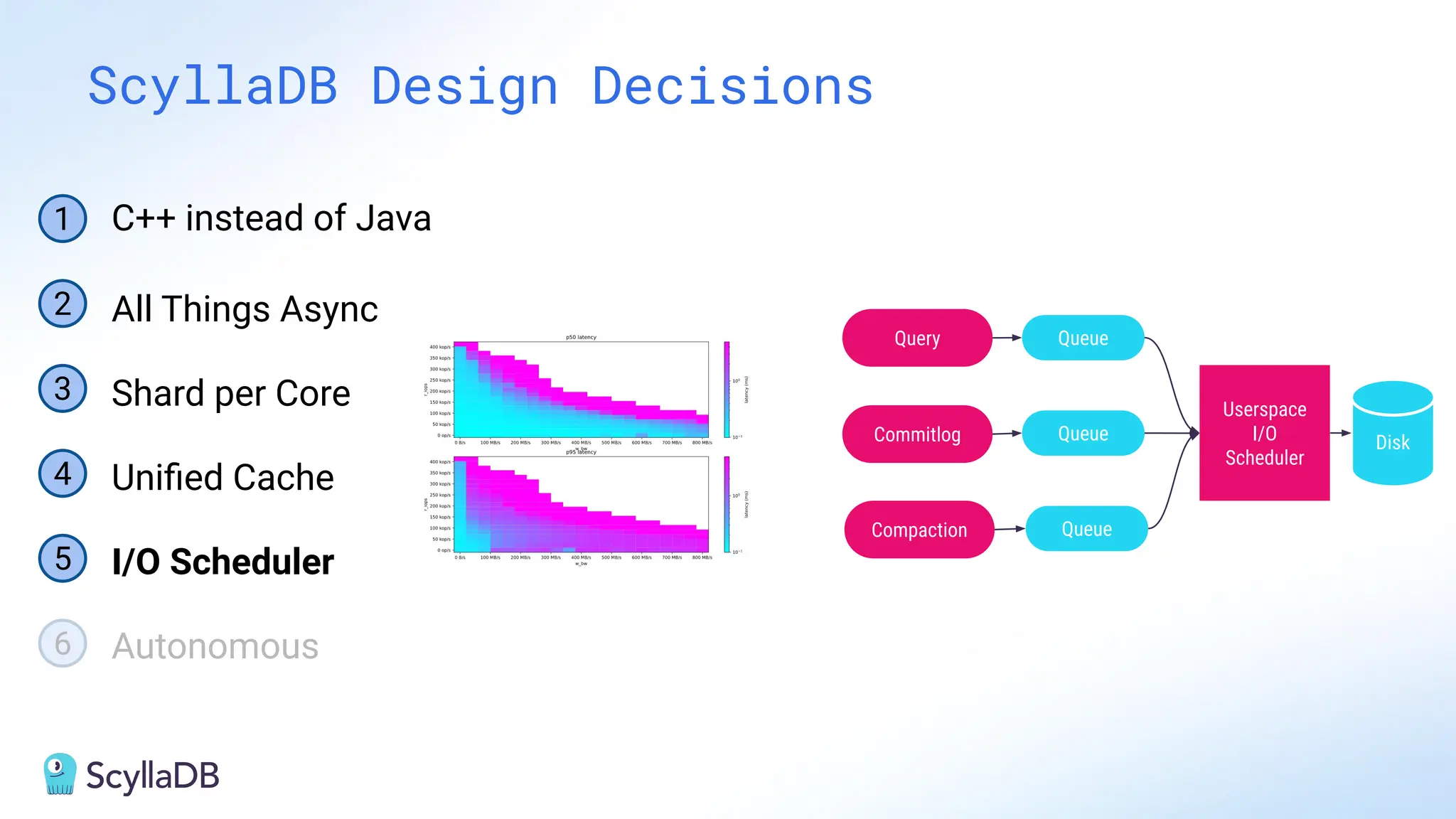

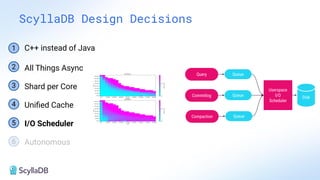

- 34. ScyllaDB Design Decisions Query Commitlog Compaction Userspace I/O Scheduler Disk Queue Queue Queue 1 2All Things Async 3 Shard per Core 4 Unified Cache 5 I/O Scheduler 6 Autonomous C++ instead of Java

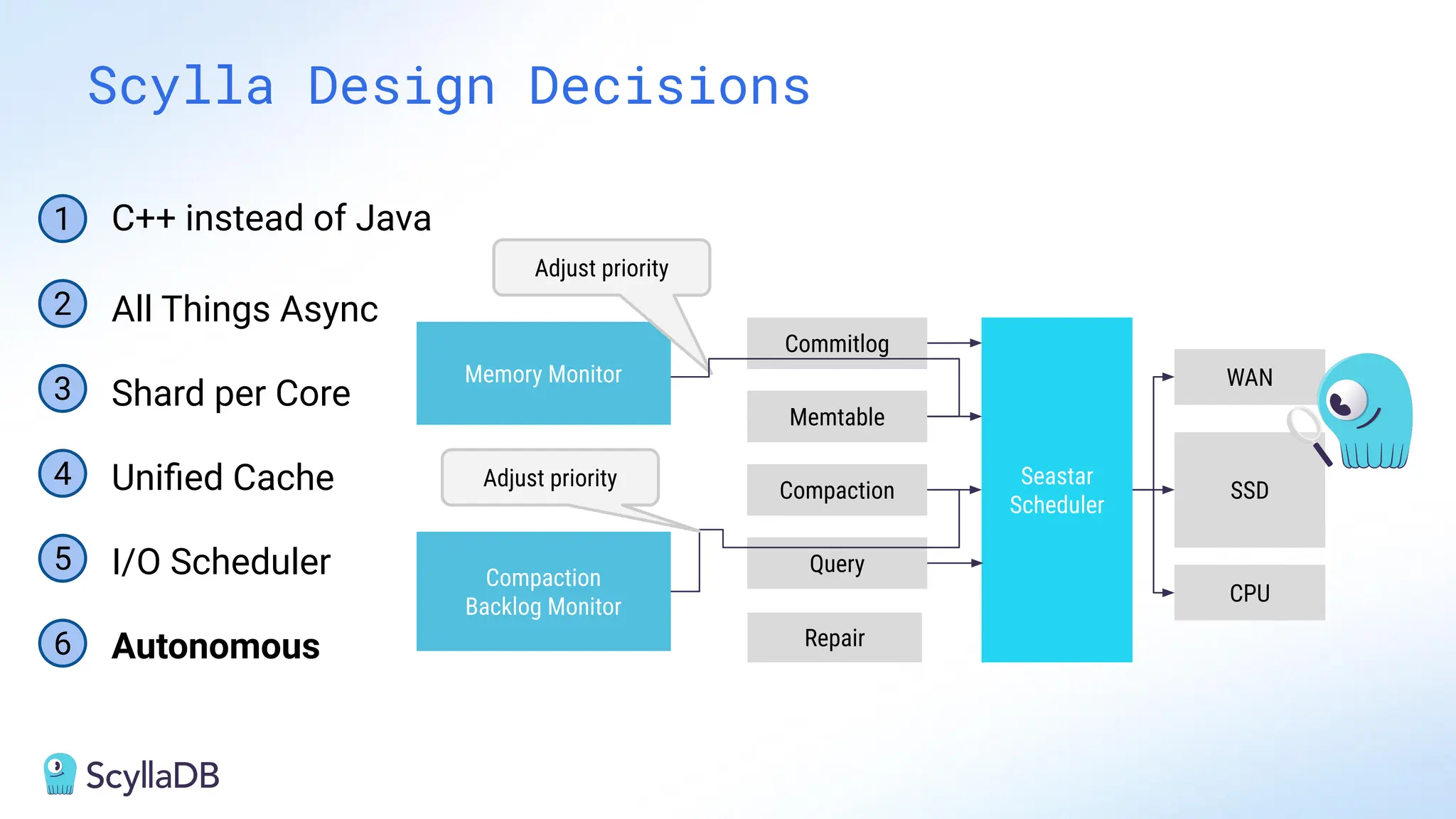

- 35. Scylla Design Decisions Memtable Seastar Scheduler Compaction Query Repair Commitlog SSD Compaction BacklogMonitor Memory Monitor Adjust priority Adjust priority WAN CPU 1 2 All Things Async 3 Shard per Core 4 Unified Cache 5 I/O Scheduler 6 Autonomous C++ instead of Java
- 36.

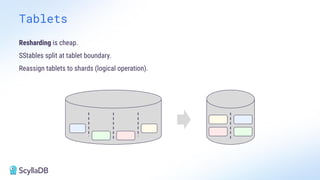

- 37. Tablets Resharding is cheap. SStablessplit at tablet boundary. Reassign tablets to shards (logical operation).

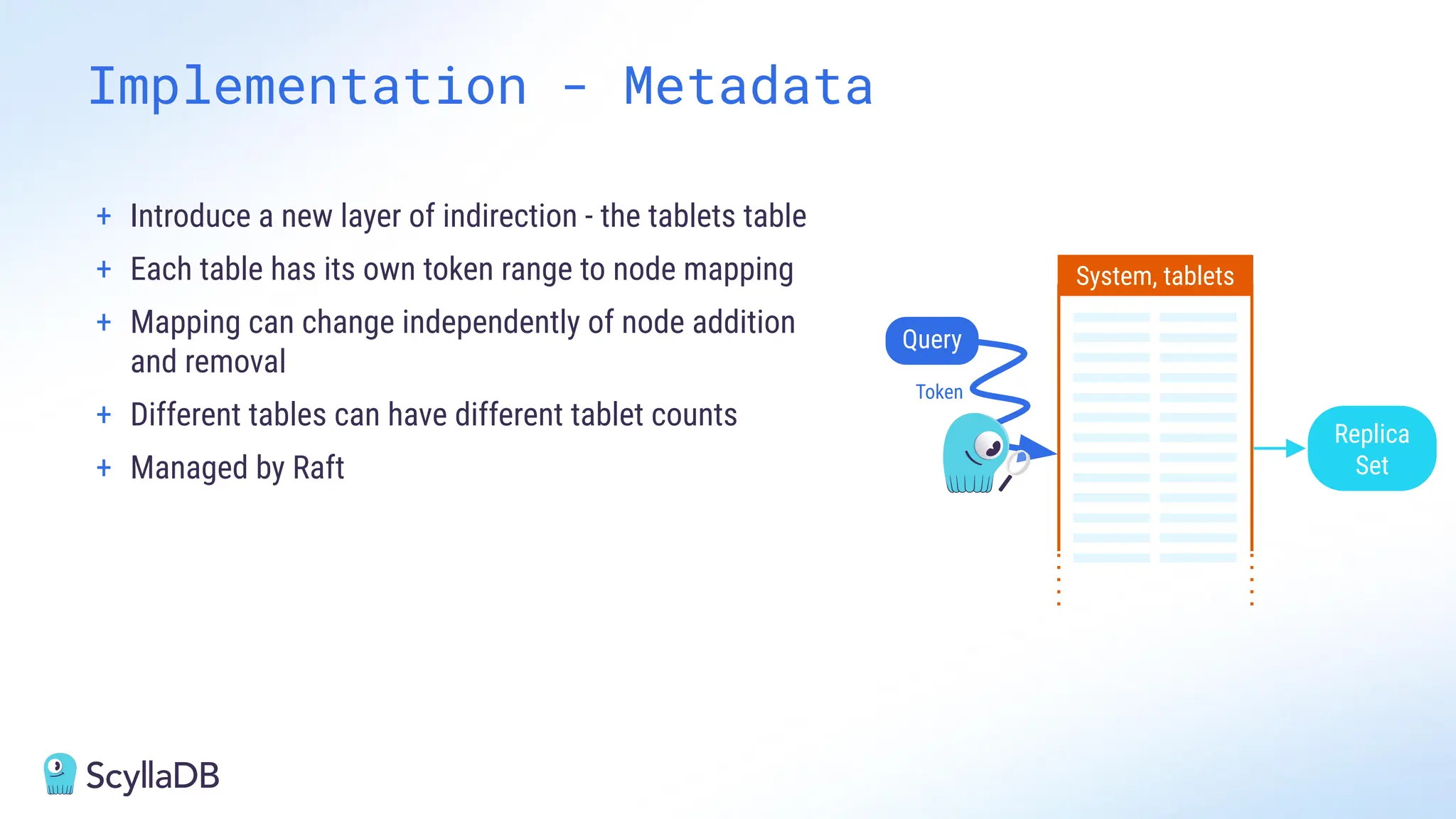

- 38. + Introduce anew layer of indirection - the tablets table + Each table has its own token range to node mapping + Mapping can change independently of node addition and removal + Different tables can have different tablet counts + Managed by Raft Implementation - Metadata System, tablets Query Replica Set Token

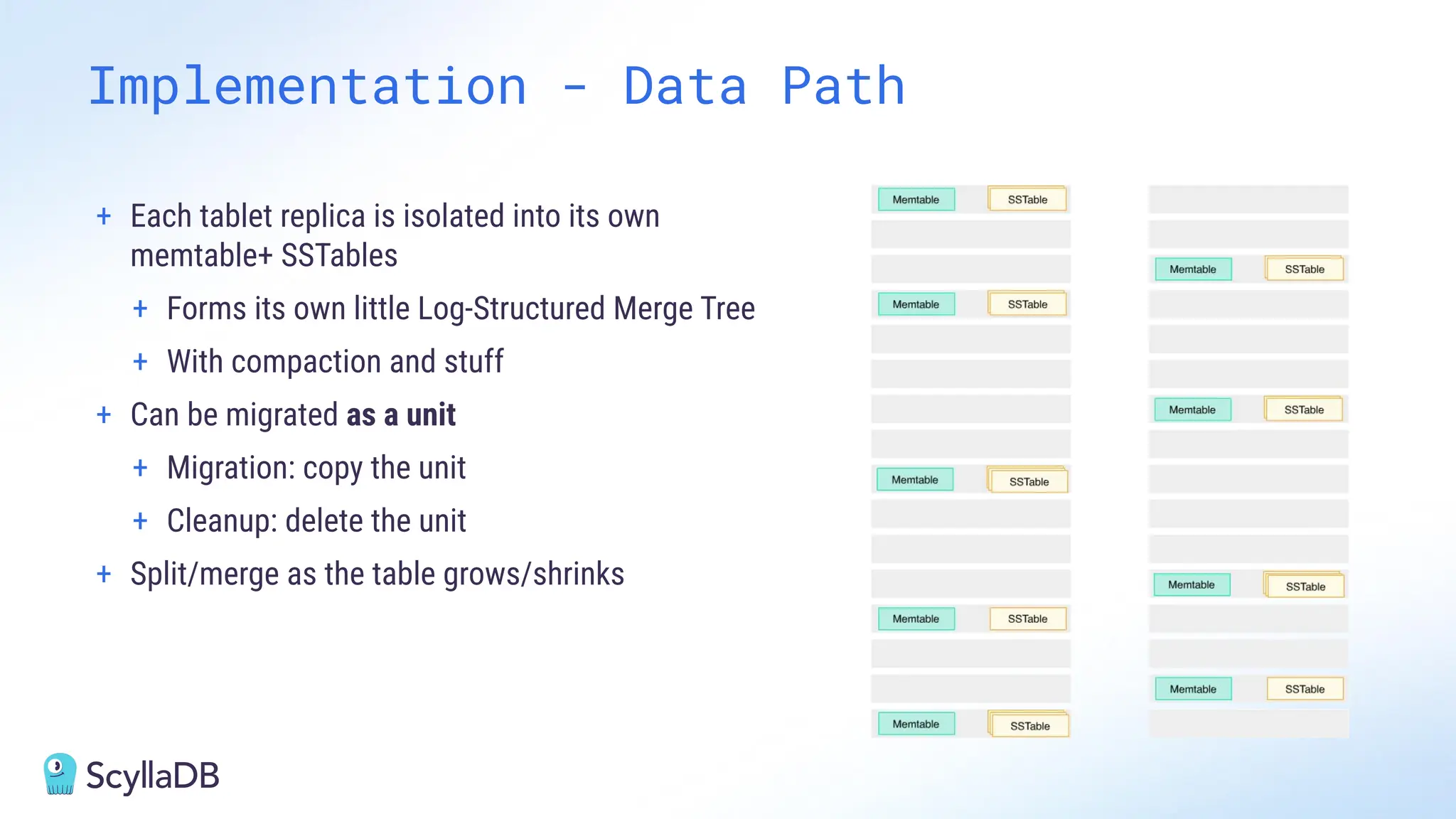

- 39. + Each tabletreplica is isolated into its own memtable+ SSTables + Forms its own little Log-Structured Merge Tree + With compaction and stuff + Can be migrated as a unit + Migration: copy the unit + Cleanup: delete the unit + Split/merge as the table grows/shrinks Implementation - Data Path

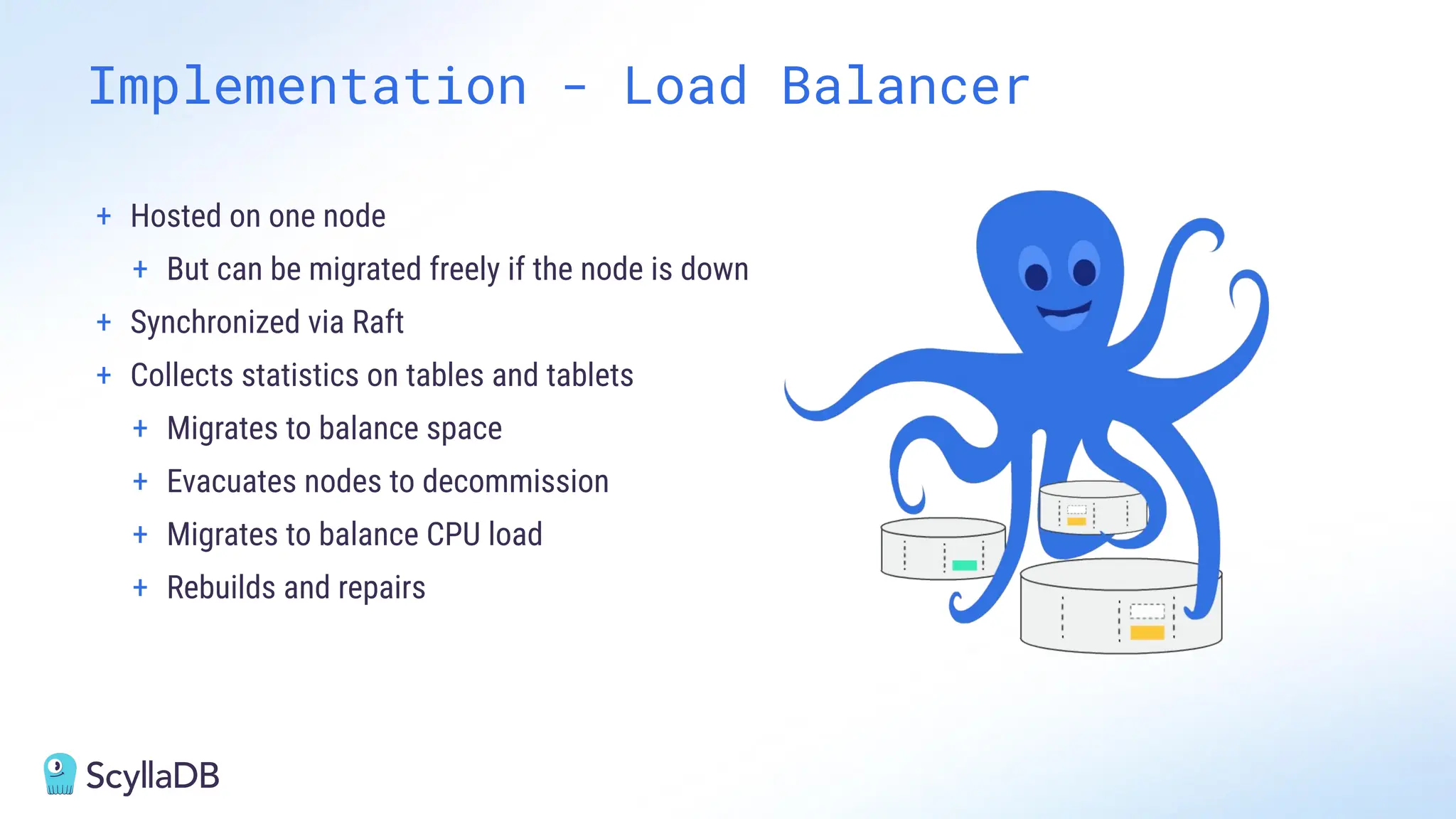

- 40. + Hosted onone node + But can be migrated freely if the node is down + Synchronized via Raft + Collects statistics on tables and tablets + Migrates to balance space + Evacuates nodes to decommission + Migrates to balance CPU load + Rebuilds and repairs Implementation - Load Balancer

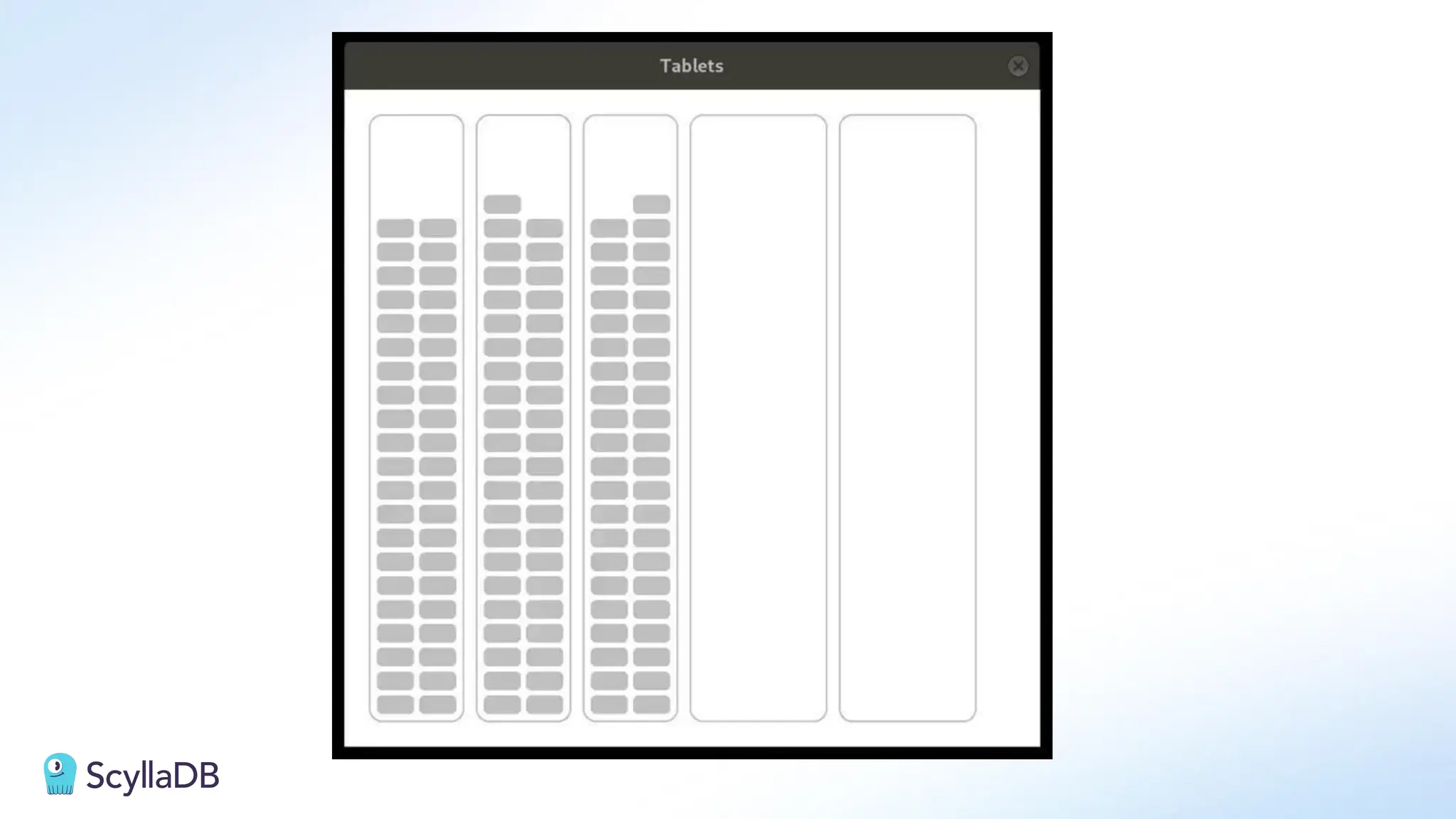

- 42.

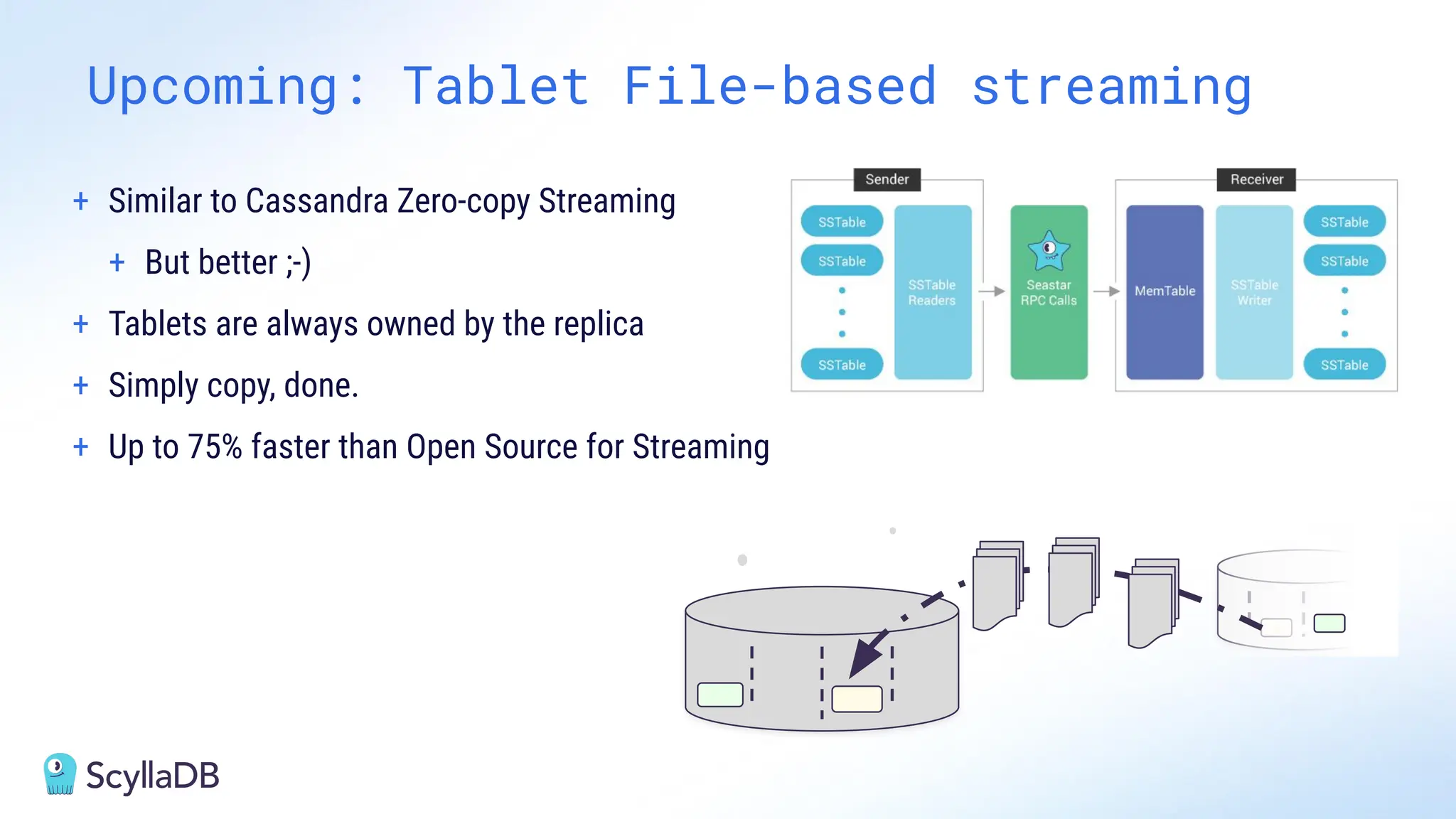

- 43. Upcoming: Tablet File-basedstreaming + Similar to Cassandra Zero-copy Streaming + But better ;-) + Tablets are always owned by the replica + Simply copy, done. + Up to 75% faster than Open Source for Streaming

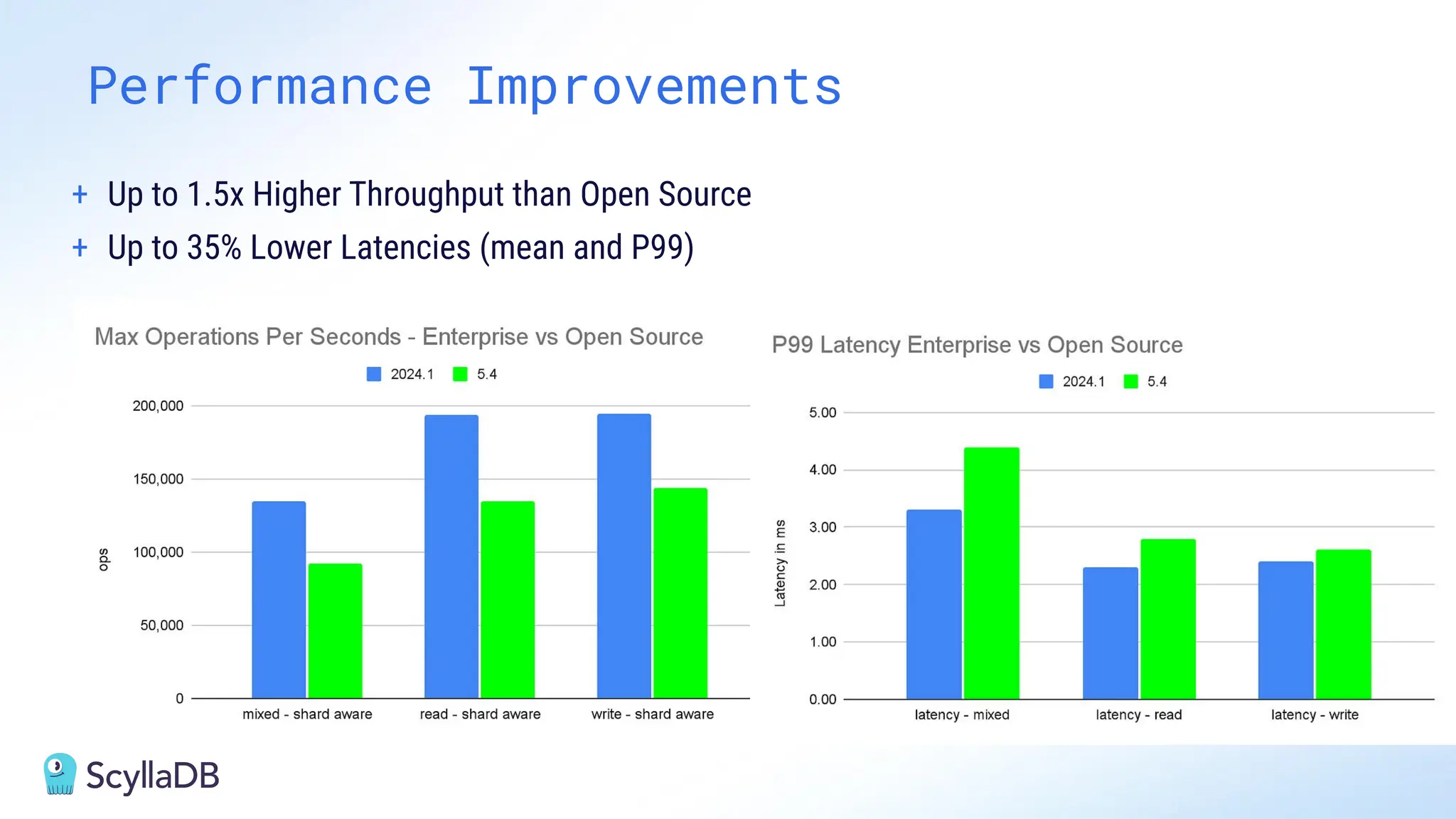

- 44. Performance Improvements + Upto 1.5x Higher Throughput than Open Source + Up to 35% Lower Latencies (mean and P99)

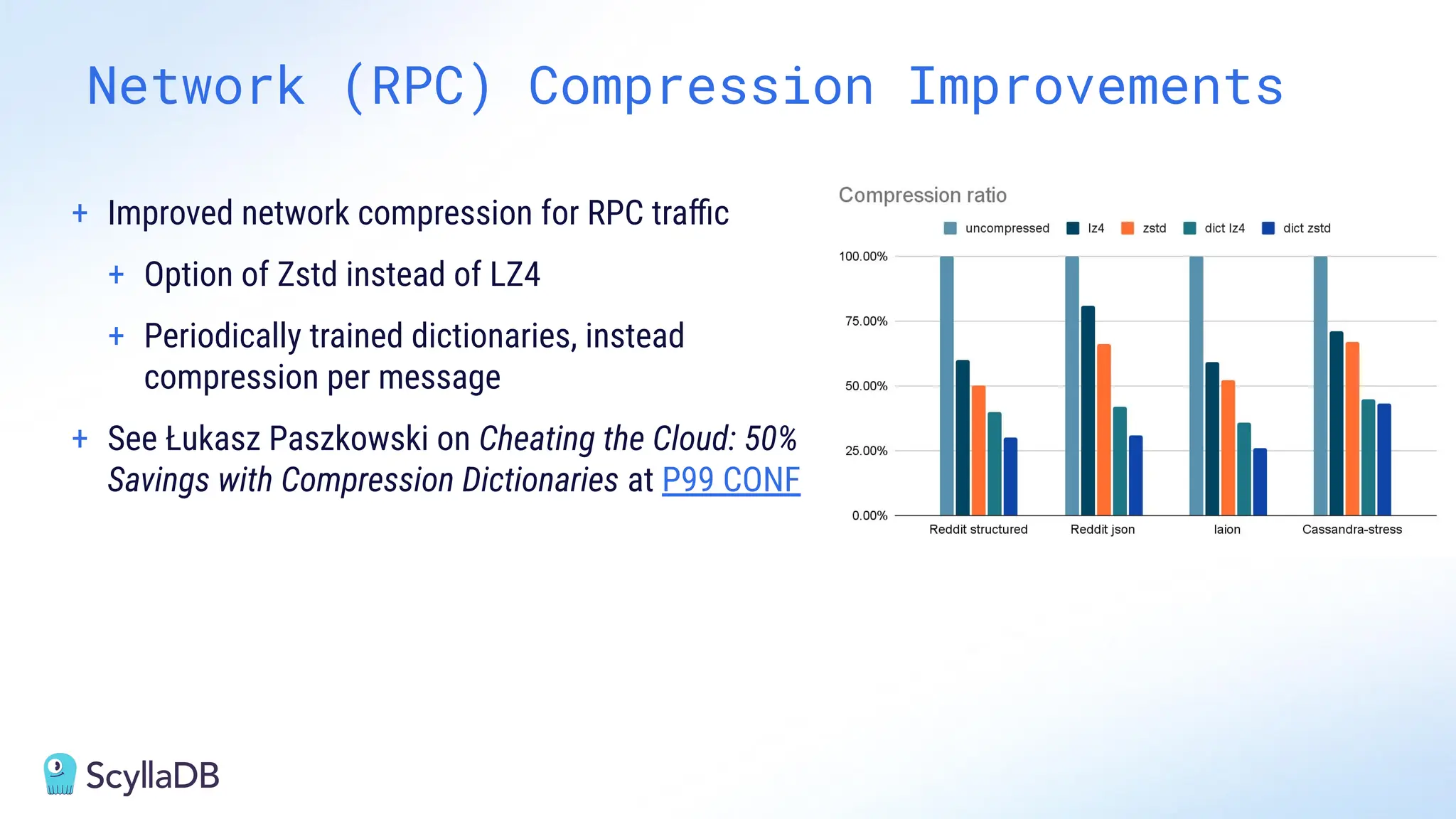

- 45. Network (RPC) CompressionImprovements + Improved network compression for RPC traffic + Option of Zstd instead of LZ4 + Periodically trained dictionaries, instead compression per message + See Łukasz Paszkowski on Cheating the Cloud: 50% Savings with Compression Dictionaries at P99 CONF

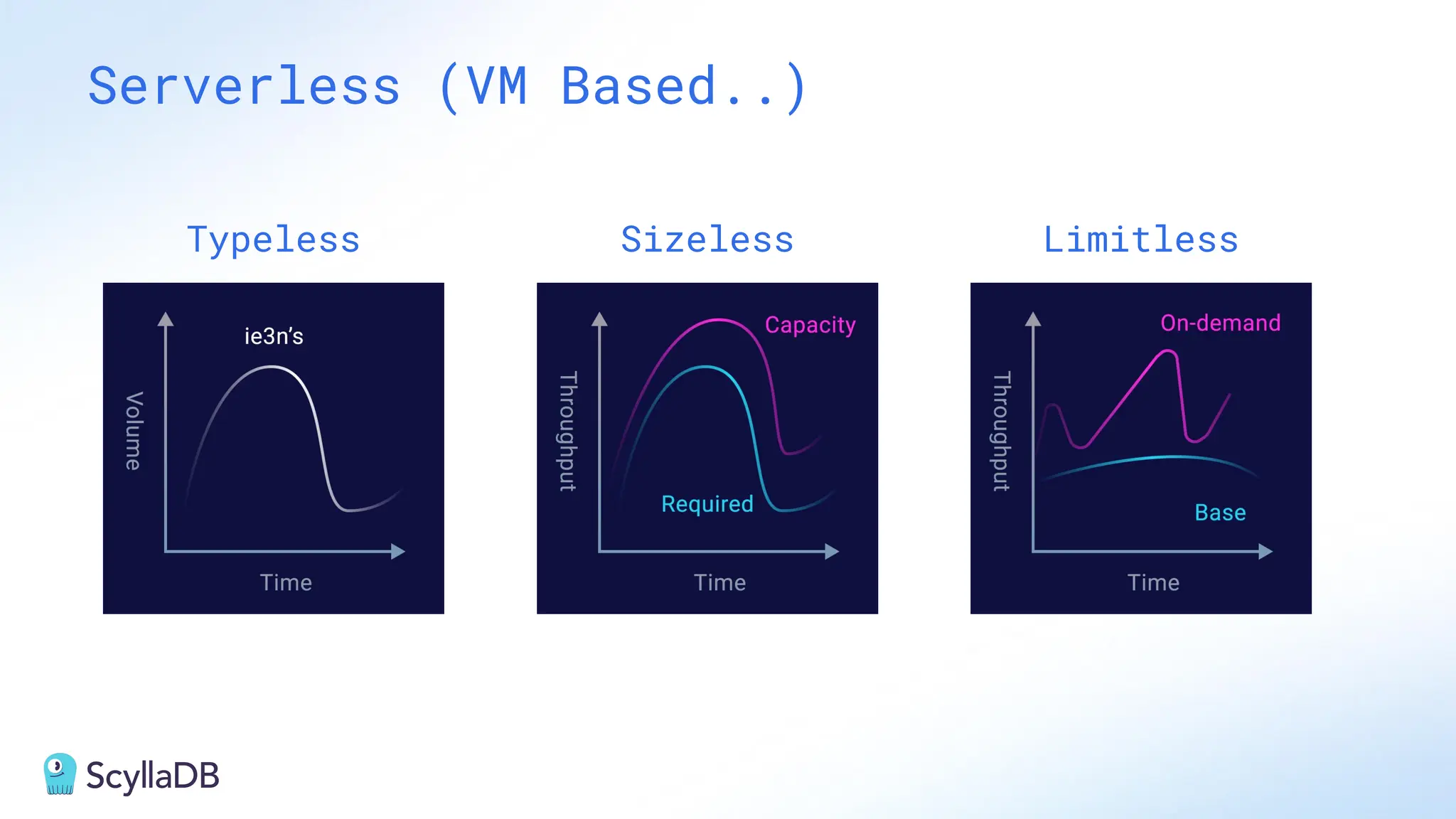

- 46. Serverless (VM Based..) TypelessSizeless Limitless
- 47.
- 48. Poll How long doesit take for you to scale your existing database?
- 49. Keep Learning scylladb.com/category/engineering Visit our blogfor more on ScyllaDB engineering ONLINE | MARCH 11 + 12, 2025 CALL FOR SPEAKERS
- 50. Thank you for joiningus today. @scylladb scylladb/ slack.scylladb.com @scylladb company/scylladb/ scylladb/
