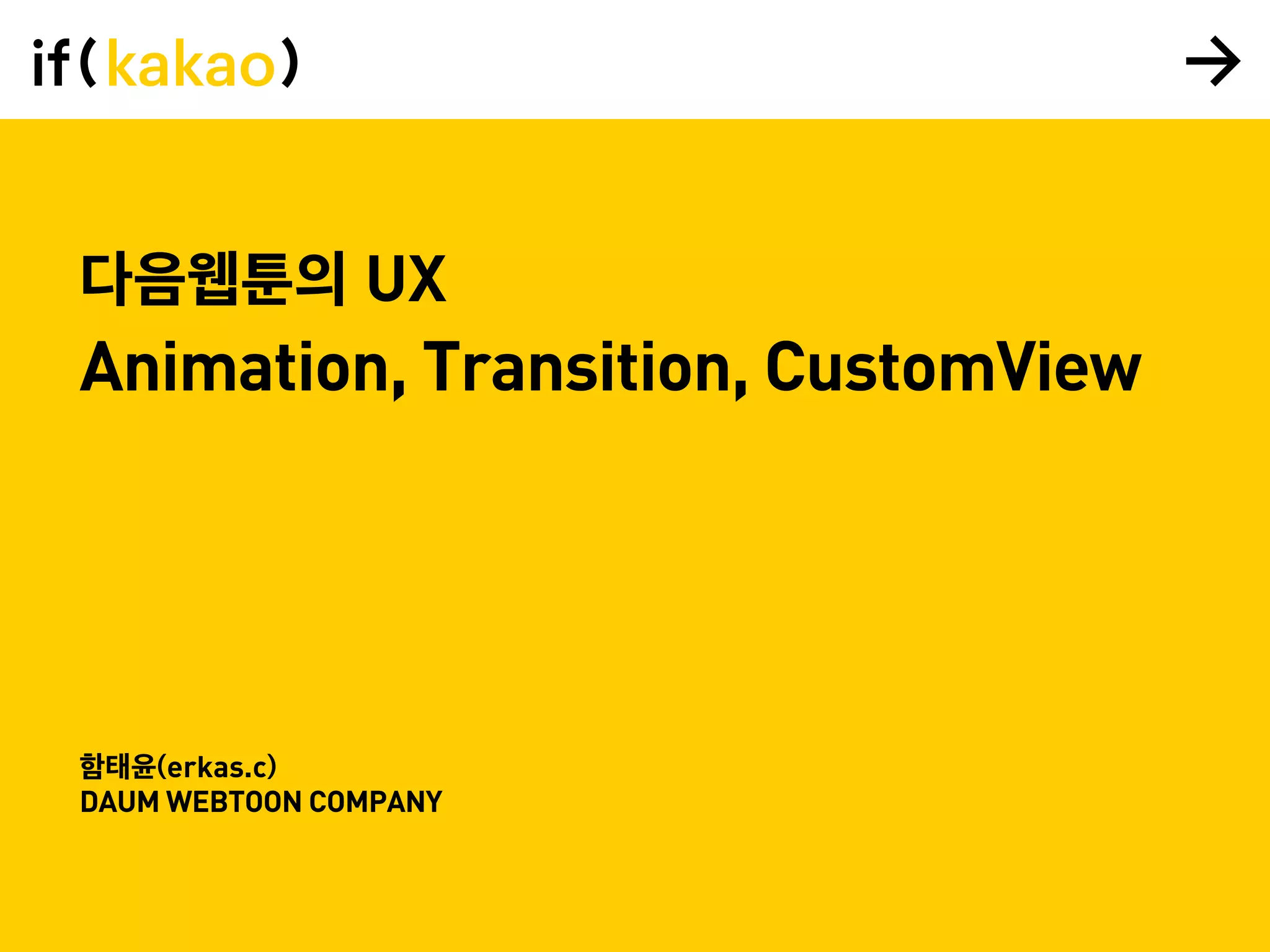

- 1. 다음웹툰의 UX 함태윤(erkas.c) DAUM WEBTOONCOMPANY Animation, Transition, CustomView
- 2.

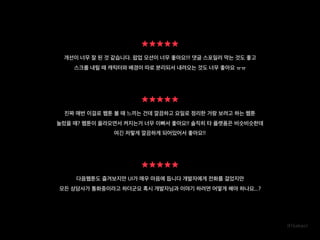

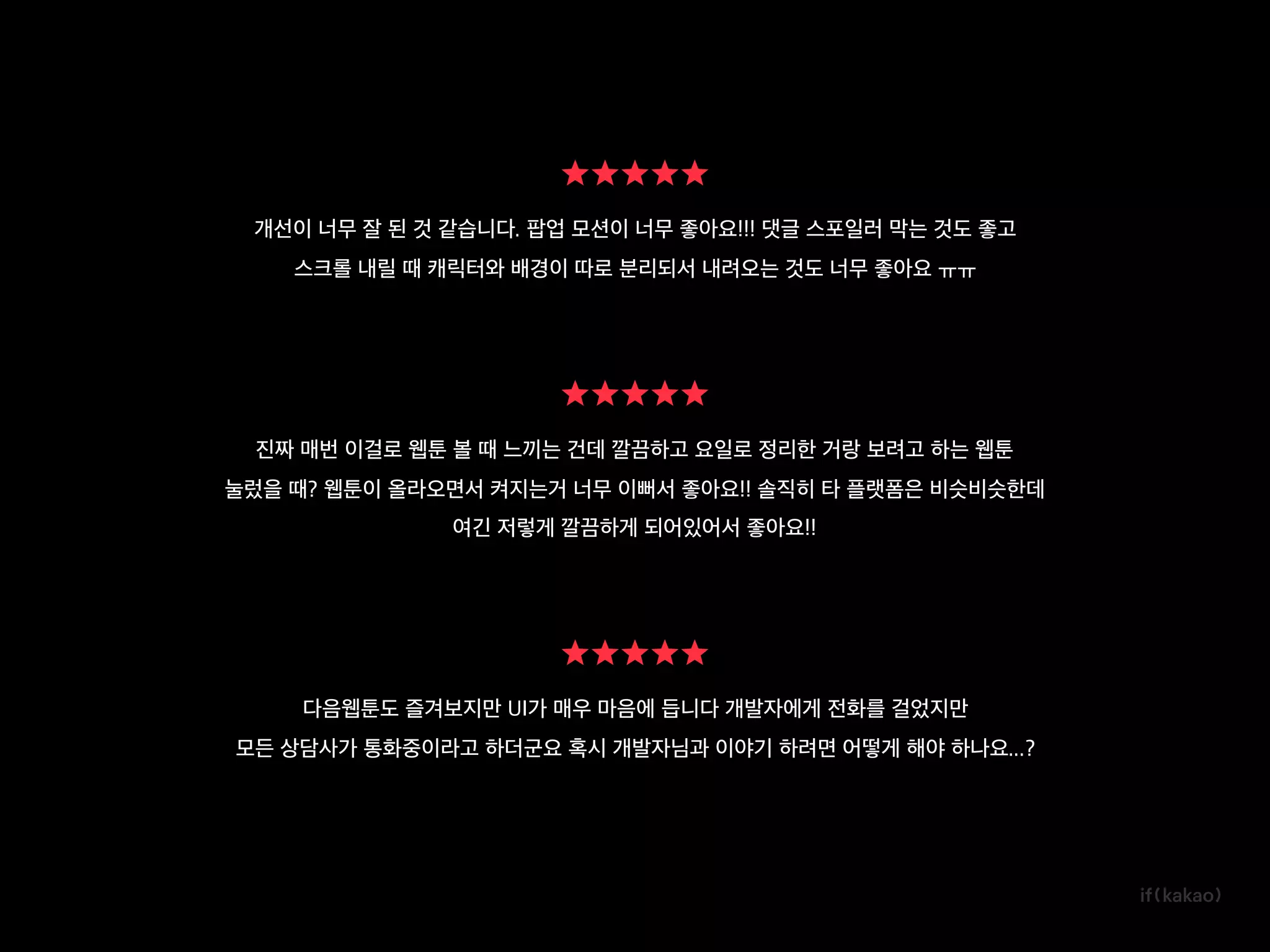

- 3. 개선이 너무 잘된 것 같습니다. 팝업 모션이 너무 좋아요!!! 댓글 스포일러 막는 것도 좋고 스크롤 내릴 때 캐릭터와 배경이 따로 분리되서 내려오는 것도 너무 좋아요 ㅠㅠ 진짜 매번 이걸로 웹툰 볼 때 느끼는 건데 깔끔하고 요일로 정리한 거랑 보려고 하는 웹툰 눌렀을 때? 웹툰이 올라오면서 켜지는거 너무 이뻐서 좋아요!! 솔직히 타 플랫폼은 비슷비슷한데 여긴 저렇게 깔끔하게 되어있어서 좋아요!! 다음웹툰도 즐겨보지만 UI가 매우 마음에 듭니다 개발자에게 전화를 걸었지만 모든 상담사가 통화중이라고 하더군요 혹시 개발자님과 이야기 하려면 어떻게 해야 하나요...?

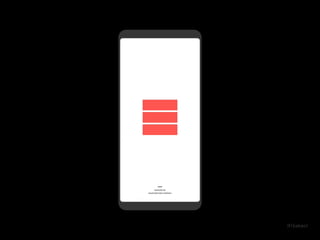

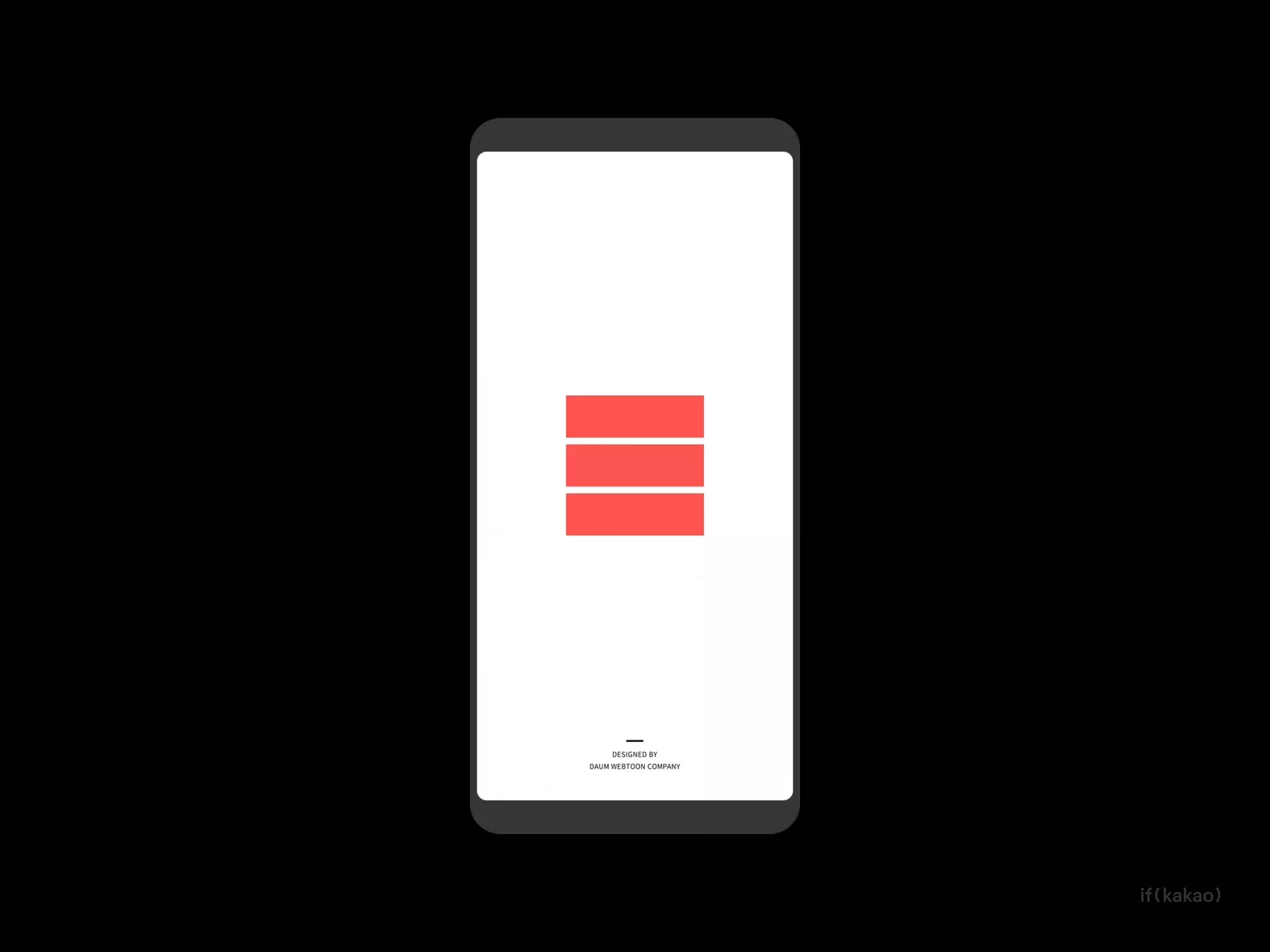

- 5.
- 6.
- 7.

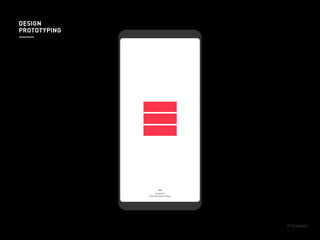

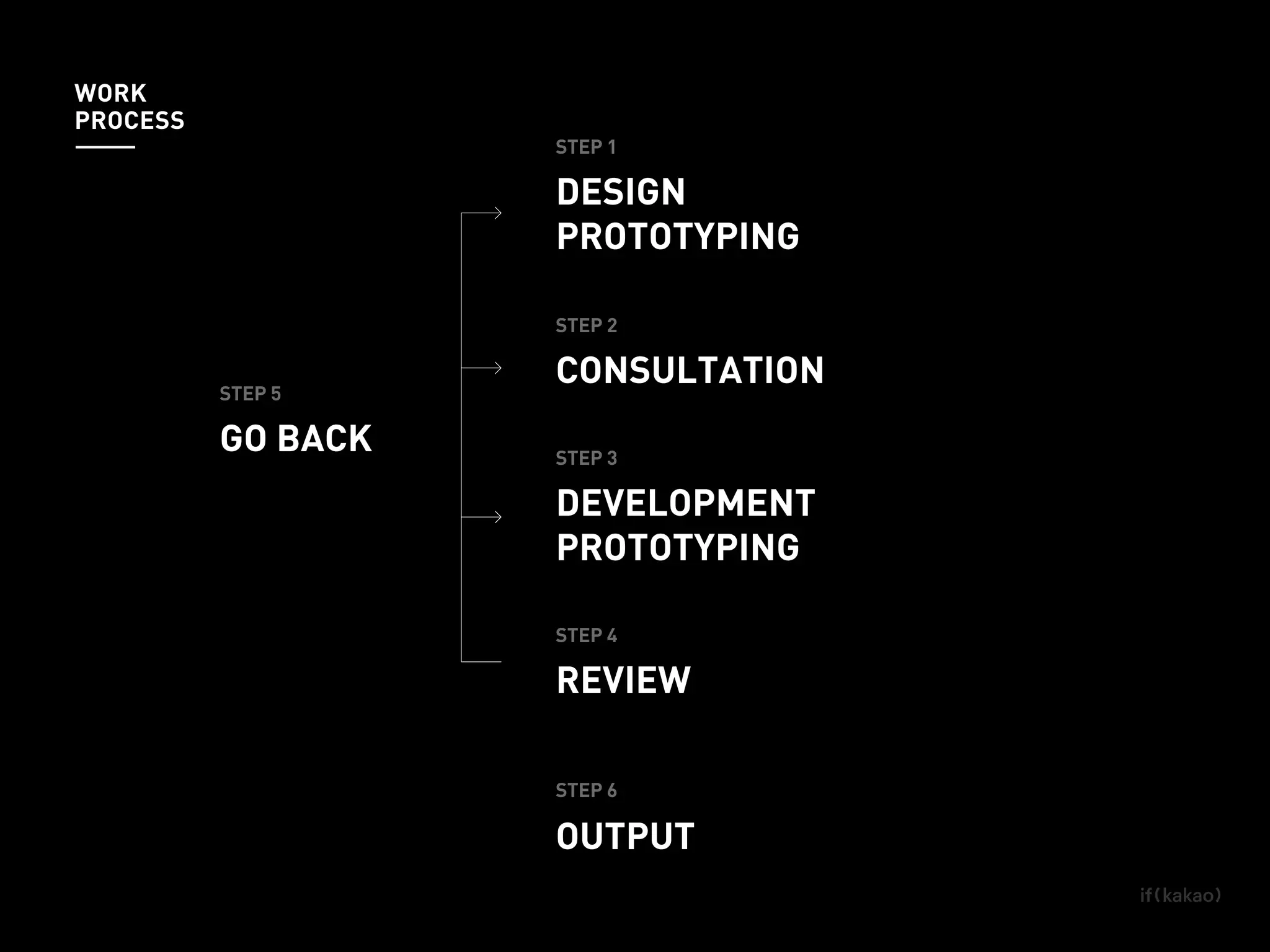

- 8. DESIGN PROTOTYPING STEP 1 CONSULTATION STEP 2 DEVELOPMENT PROTOTYPING STEP3 REVIEW STEP 4 OUTPUT STEP 6 GO BACK STEP 5 WORK PROCESS

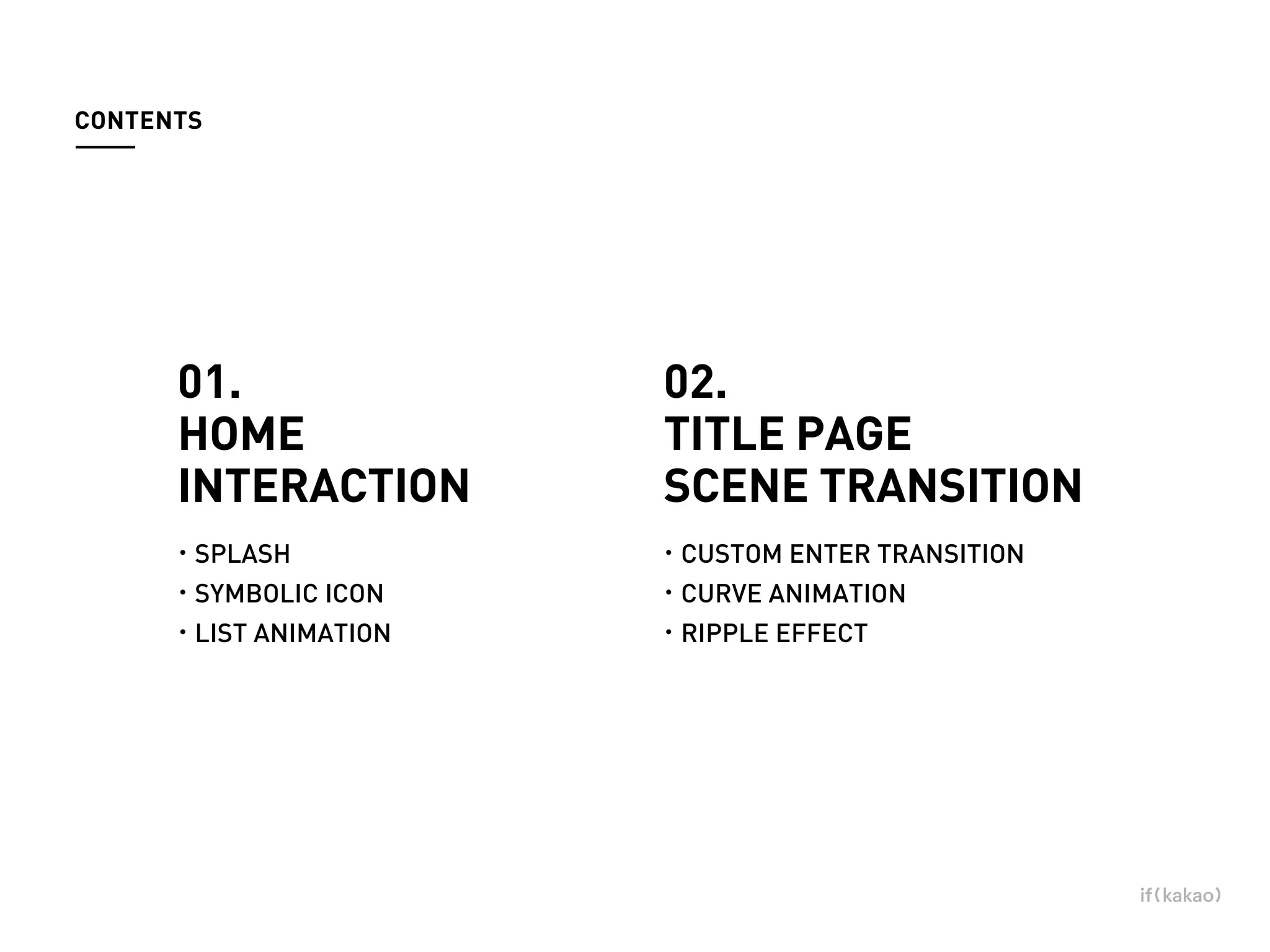

- 9. 01. HOME INTERACTION SPLASH SYMBOLIC ICON LIST ANIMATION 02. TITLEPAGE SCENE TRANSITION CUSTOM ENTER TRANSITION CURVE ANIMATION RIPPLE EFFECT CONTENTS
- 10.
- 11.

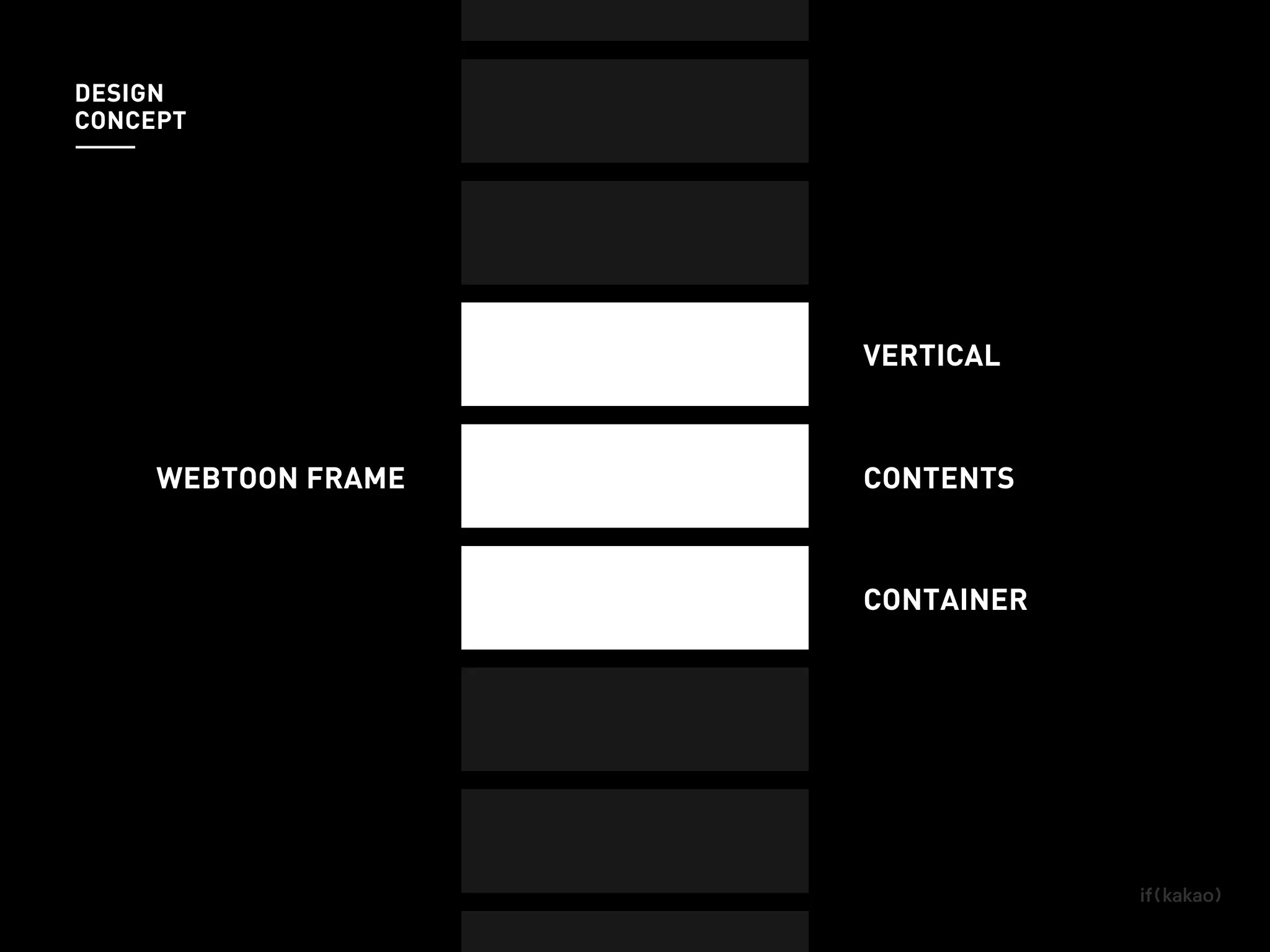

- 12.

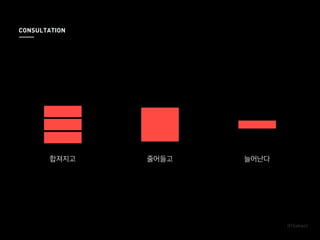

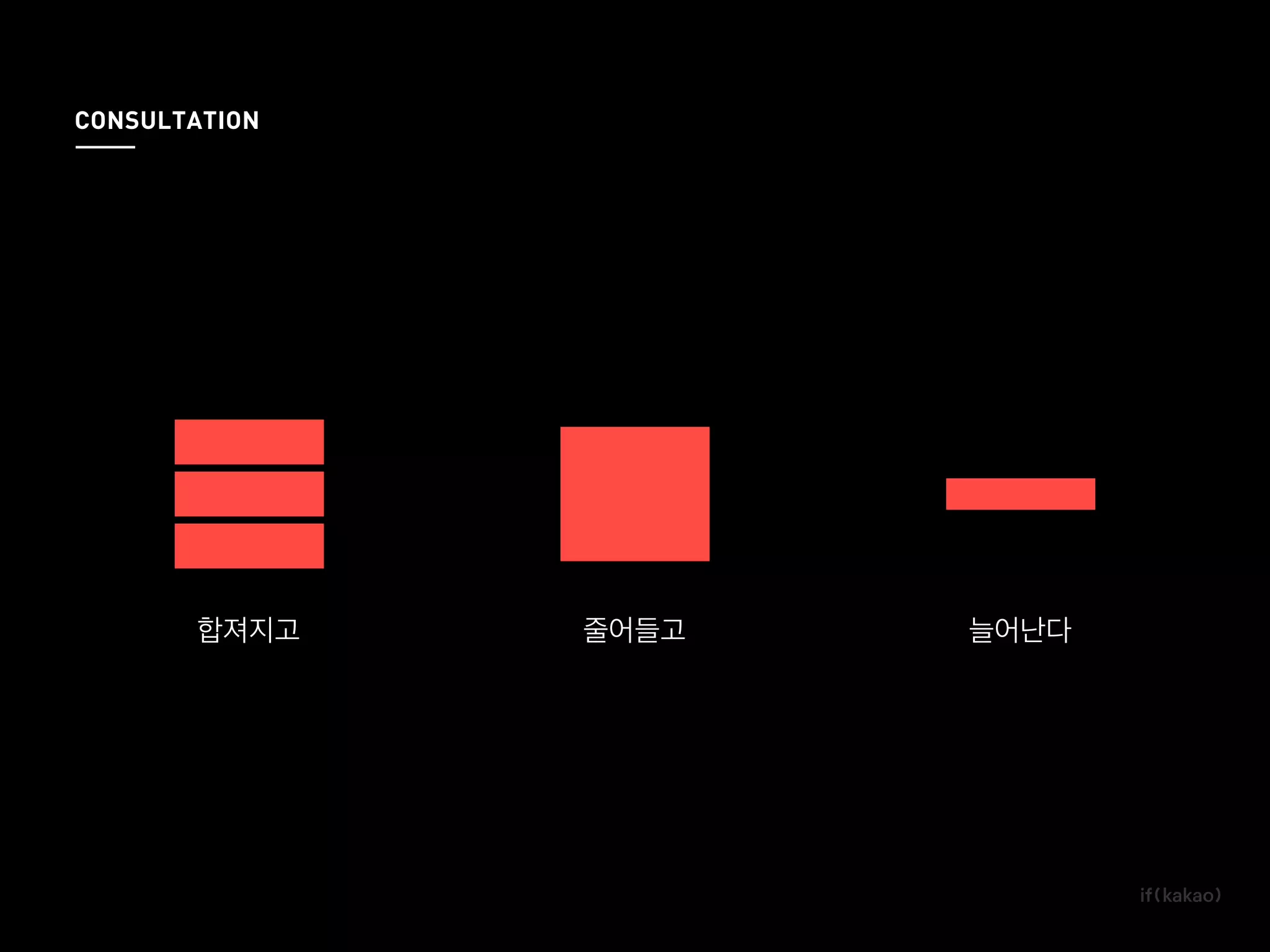

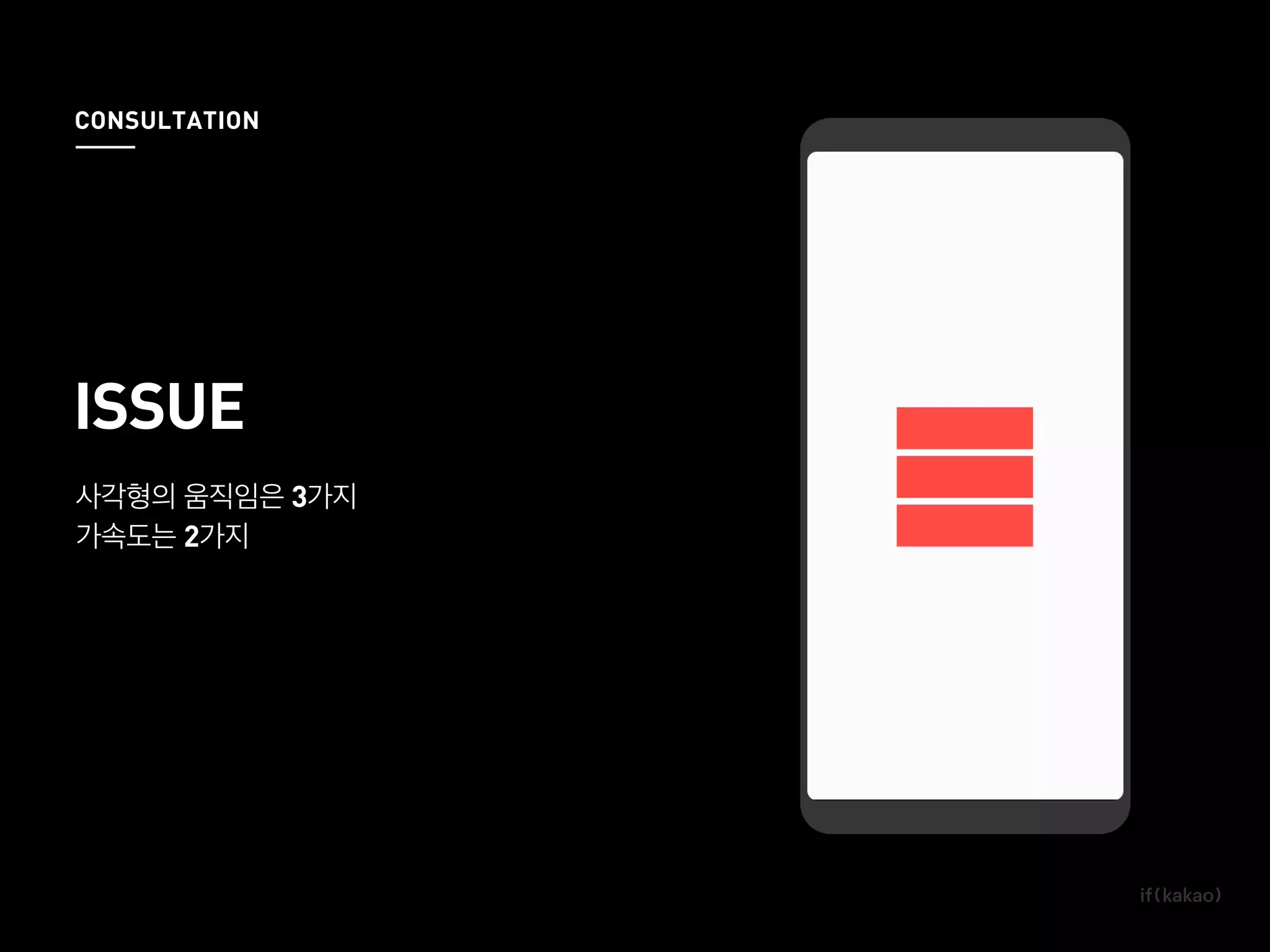

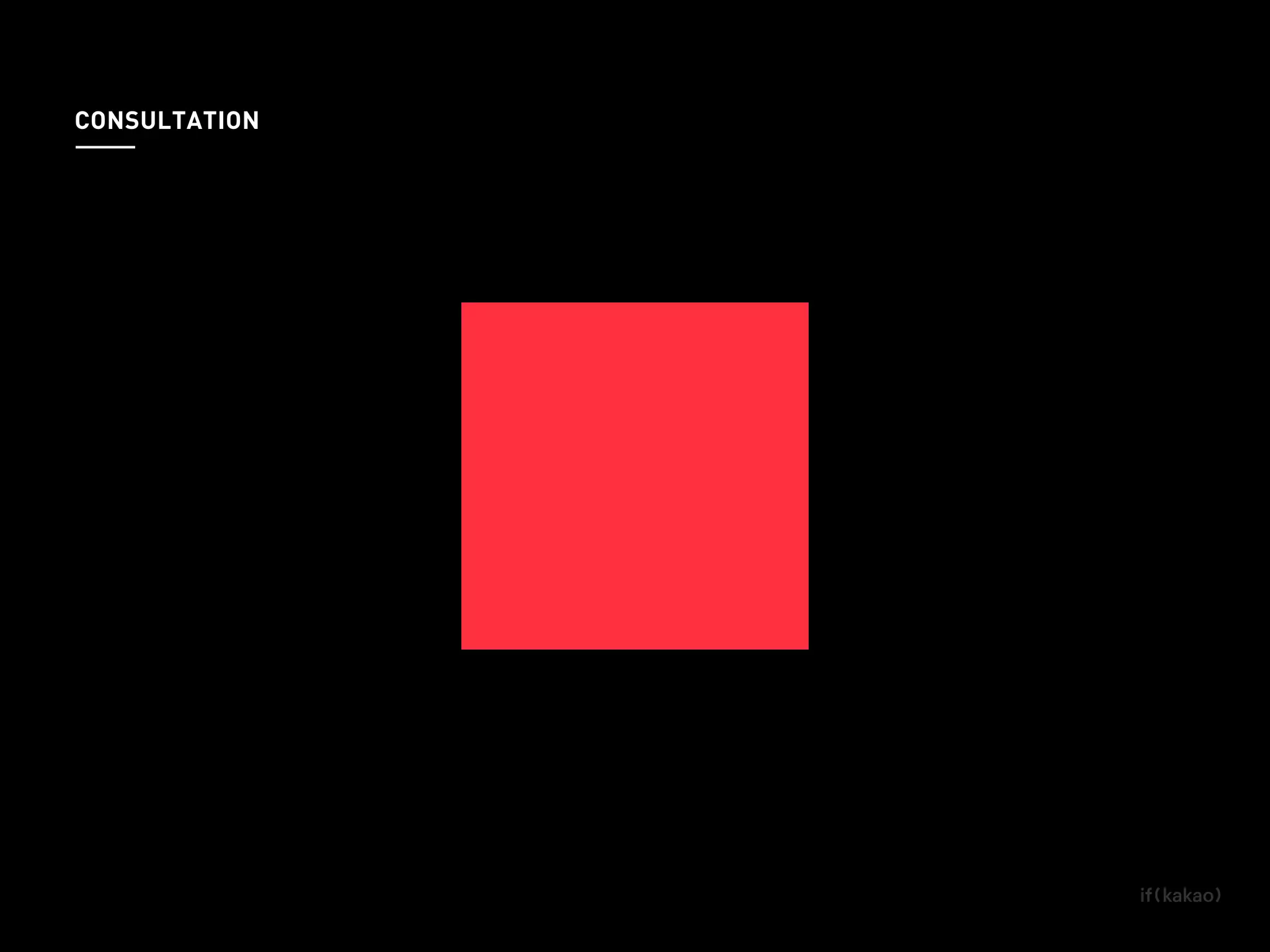

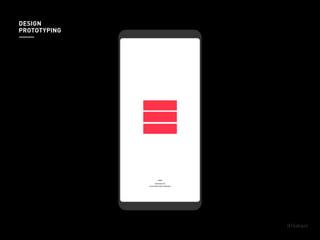

- 13. 사각형의 움직임은 3가지 가속도는2가지 ISSUE CONSULTATION
- 14.
- 15.
- 16.

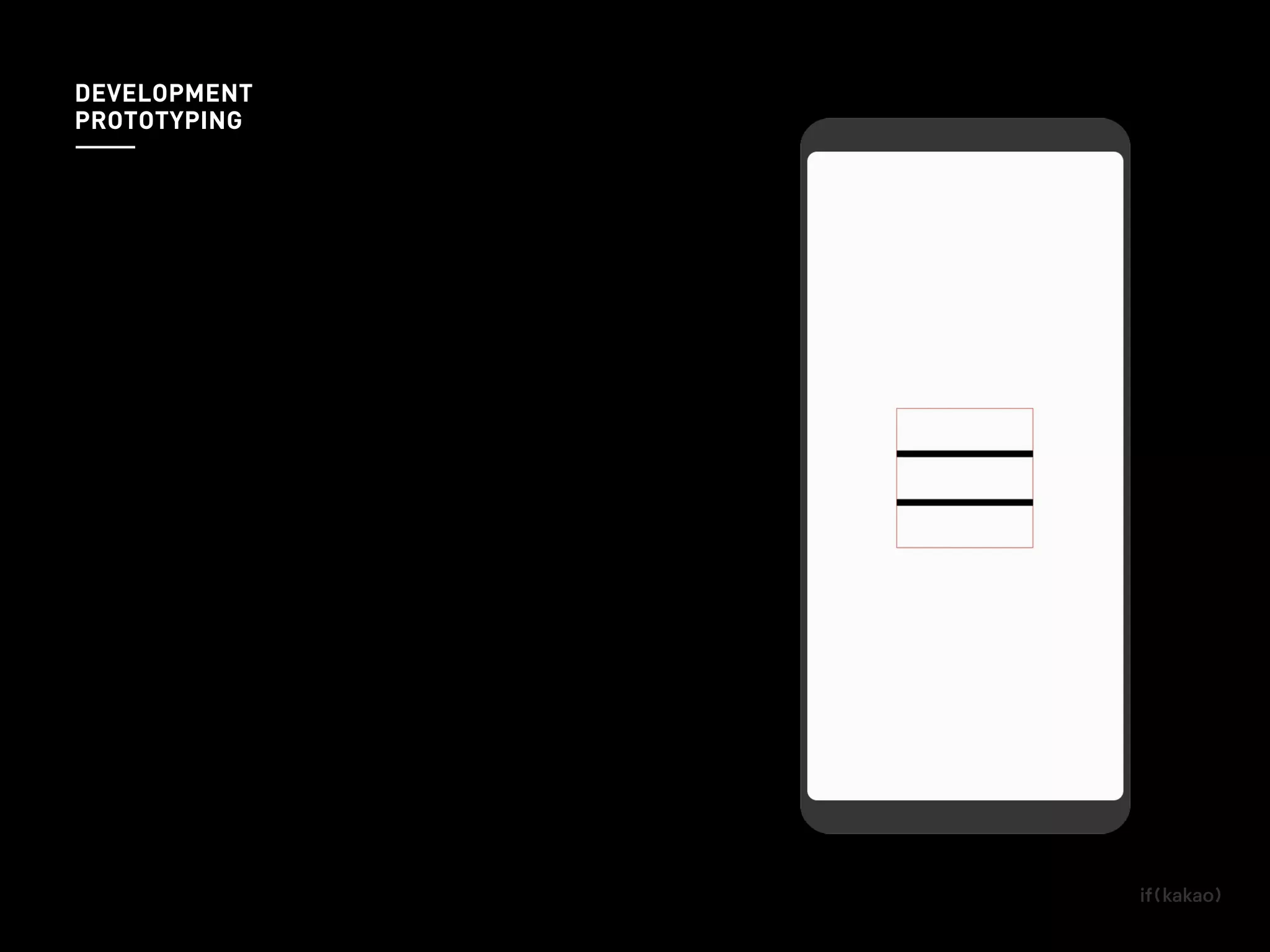

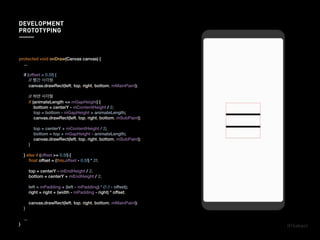

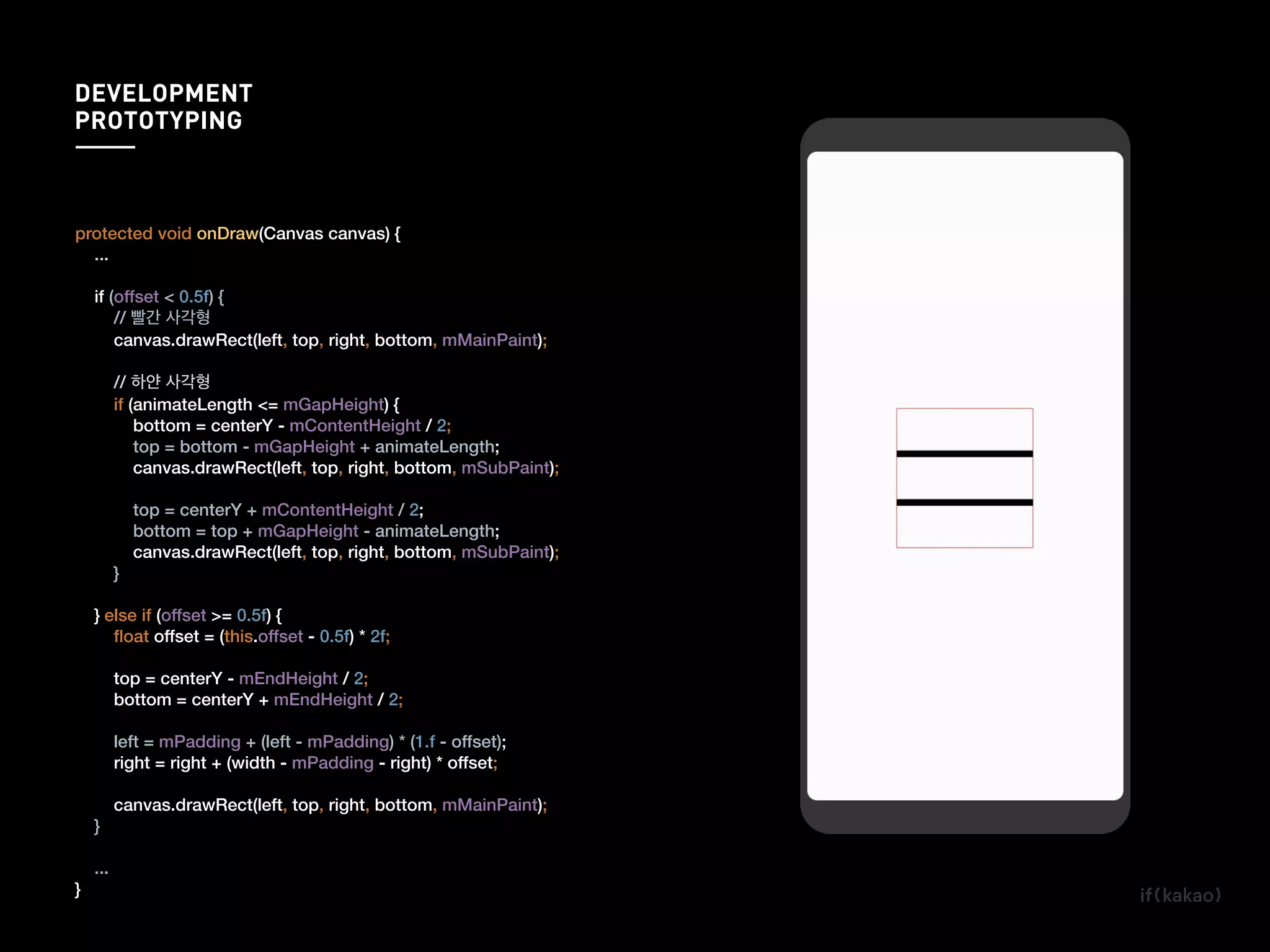

- 17. protected void onDraw(Canvascanvas) { ... if (offset < 0.5f) { // 빨간 사각형 canvas.drawRect(left, top, right, bottom, mMainPaint); // 하얀 사각형 if (animateLength <= mGapHeight) { bottom = centerY - mContentHeight / 2; top = bottom - mGapHeight + animateLength; canvas.drawRect(left, top, right, bottom, mSubPaint); top = centerY + mContentHeight / 2; bottom = top + mGapHeight - animateLength; canvas.drawRect(left, top, right, bottom, mSubPaint); } } else if (offset >= 0.5f) { float offset = (this.offset - 0.5f) * 2f; top = centerY - mEndHeight / 2; bottom = centerY + mEndHeight / 2; left = mPadding + (left - mPadding) * (1.f - offset); right = right + (width - mPadding - right) * offset; canvas.drawRect(left, top, right, bottom, mMainPaint); } ... } DEVELOPMENT PROTOTYPING
- 18.
- 19.

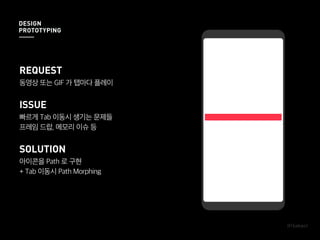

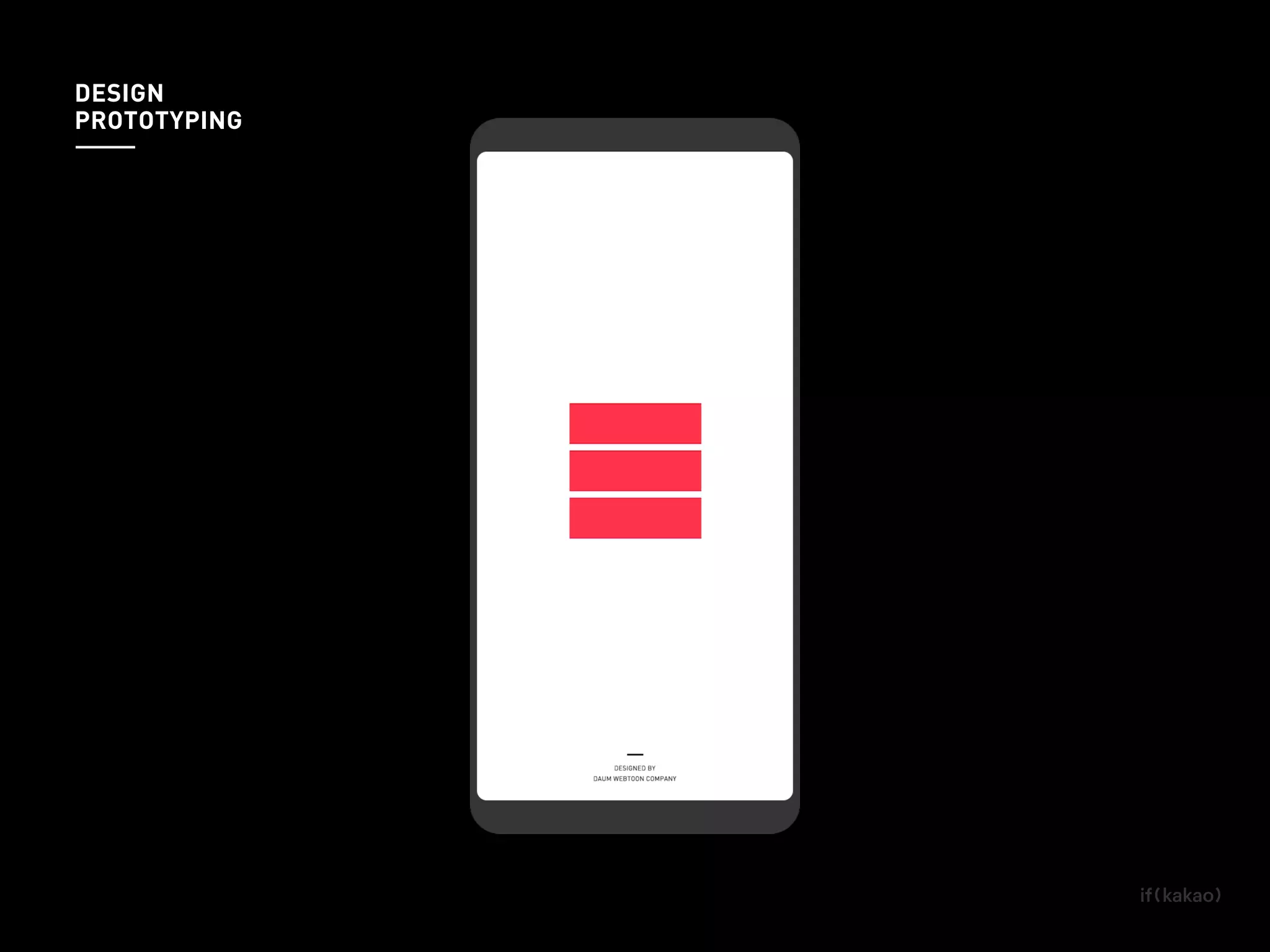

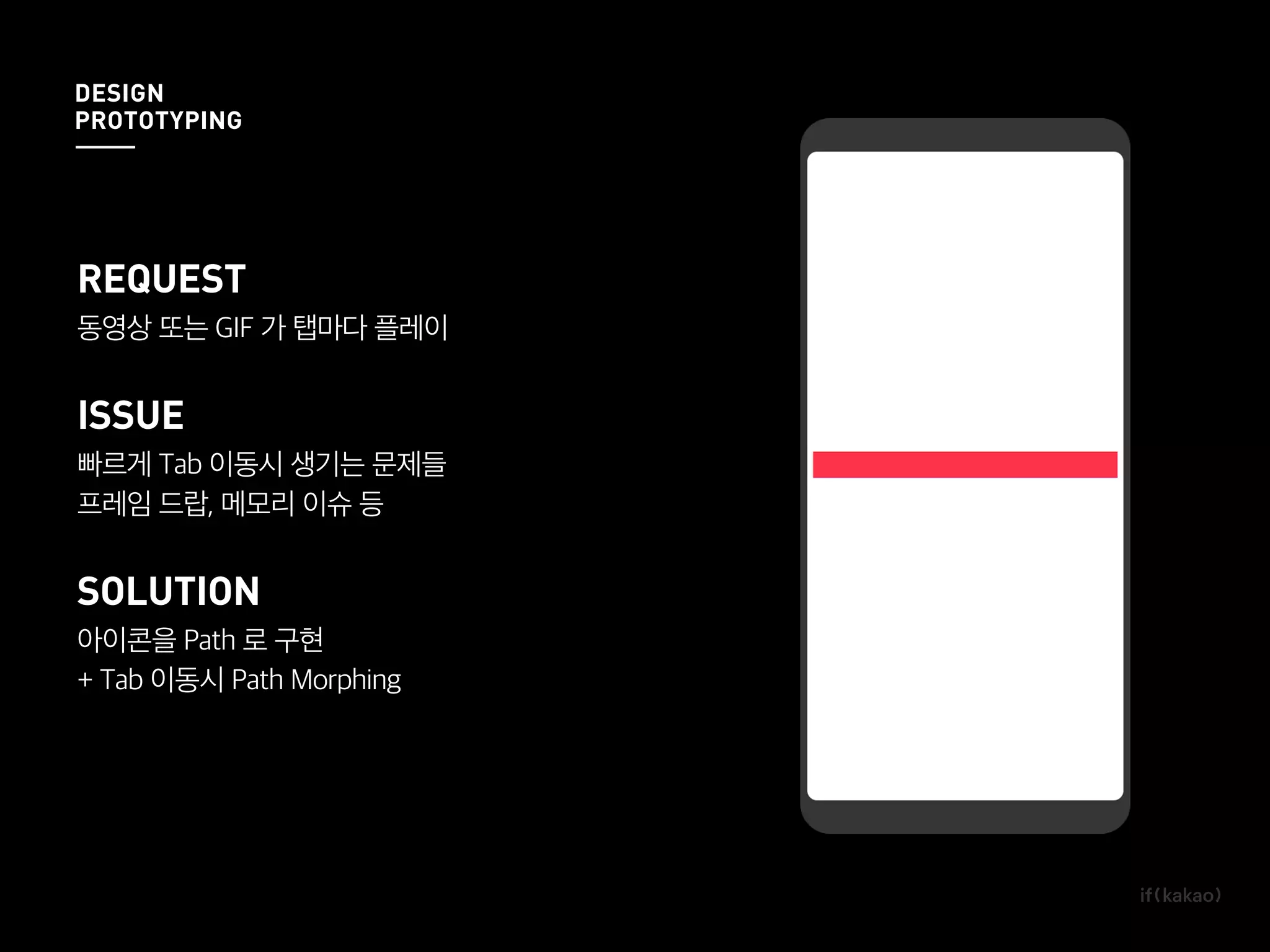

- 20. REQUEST 동영상 또는 GIF가 탭마다 플레이 ISSUE 빠르게 Tab 이동시 생기는 문제들 프레임 드랍, 메모리 이슈 등 SOLUTION 아이콘을 Path 로 구현 + Tab 이동시 Path Morphing DESIGN PROTOTYPING

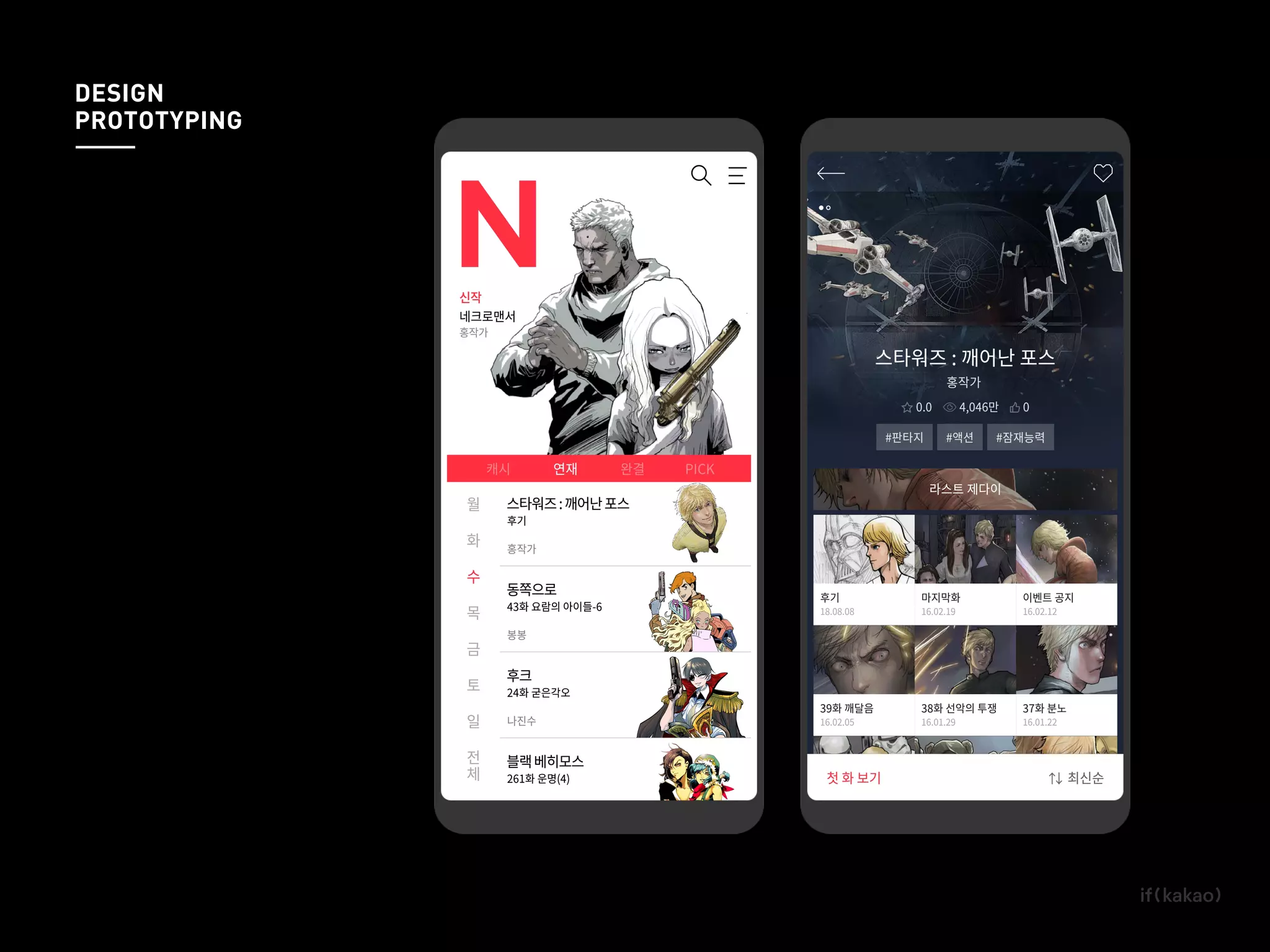

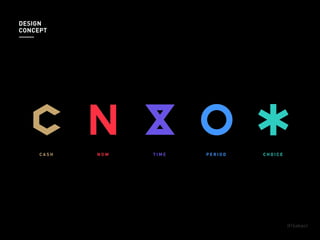

- 21. C A SH N O W T I M E P E R I O D C H O I C E DESIGN CONCEPT

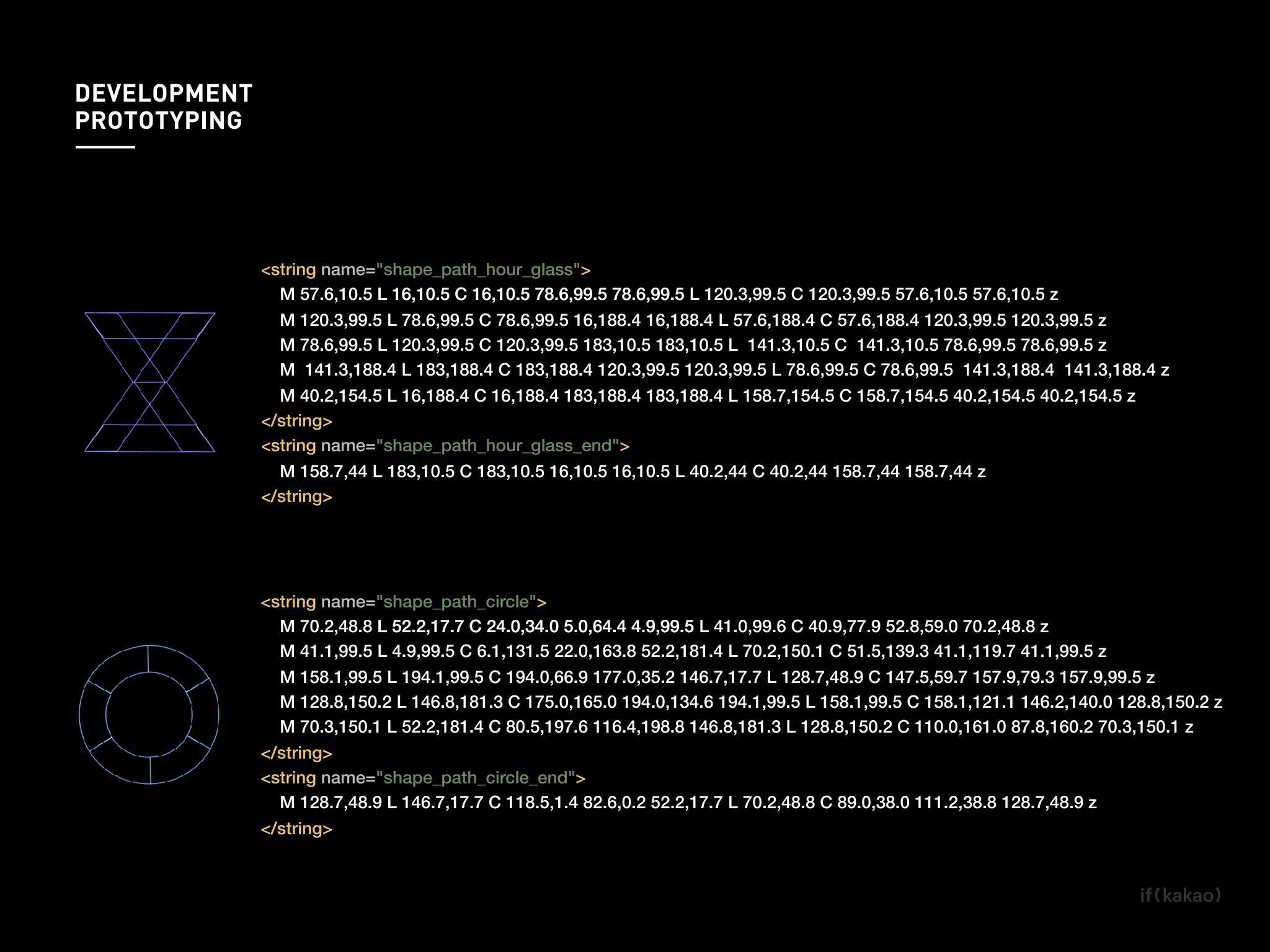

- 22. <string name="shape_path_hour_glass"> M 57.6,10.5L 16,10.5 C 16,10.5 78.6,99.5 78.6,99.5 L 120.3,99.5 C 120.3,99.5 57.6,10.5 57.6,10.5 z M 120.3,99.5 L 78.6,99.5 C 78.6,99.5 16,188.4 16,188.4 L 57.6,188.4 C 57.6,188.4 120.3,99.5 120.3,99.5 z M 78.6,99.5 L 120.3,99.5 C 120.3,99.5 183,10.5 183,10.5 L 141.3,10.5 C 141.3,10.5 78.6,99.5 78.6,99.5 z M 141.3,188.4 L 183,188.4 C 183,188.4 120.3,99.5 120.3,99.5 L 78.6,99.5 C 78.6,99.5 141.3,188.4 141.3,188.4 z M 40.2,154.5 L 16,188.4 C 16,188.4 183,188.4 183,188.4 L 158.7,154.5 C 158.7,154.5 40.2,154.5 40.2,154.5 z </string> <string name="shape_path_hour_glass_end"> M 158.7,44 L 183,10.5 C 183,10.5 16,10.5 16,10.5 L 40.2,44 C 40.2,44 158.7,44 158.7,44 z </string> <string name="shape_path_circle"> M 70.2,48.8 L 52.2,17.7 C 24.0,34.0 5.0,64.4 4.9,99.5 L 41.0,99.6 C 40.9,77.9 52.8,59.0 70.2,48.8 z M 41.1,99.5 L 4.9,99.5 C 6.1,131.5 22.0,163.8 52.2,181.4 L 70.2,150.1 C 51.5,139.3 41.1,119.7 41.1,99.5 z M 158.1,99.5 L 194.1,99.5 C 194.0,66.9 177.0,35.2 146.7,17.7 L 128.7,48.9 C 147.5,59.7 157.9,79.3 157.9,99.5 z M 128.8,150.2 L 146.8,181.3 C 175.0,165.0 194.0,134.6 194.1,99.5 L 158.1,99.5 C 158.1,121.1 146.2,140.0 128.8,150.2 z M 70.3,150.1 L 52.2,181.4 C 80.5,197.6 116.4,198.8 146.8,181.3 L 128.8,150.2 C 110.0,161.0 87.8,160.2 70.3,150.1 z </string> <string name="shape_path_circle_end"> M 128.7,48.9 L 146.7,17.7 C 118.5,1.4 82.6,0.2 52.2,17.7 L 70.2,48.8 C 89.0,38.0 111.2,38.8 128.7,48.9 z </string> L 52.2,17.7 C 24.0,34.0 5.0,64.4 4.9,99.5 L 16,10.5 C 16,10.5 78.6,99.5 78.6,99.5 DEVELOPMENT PROTOTYPING

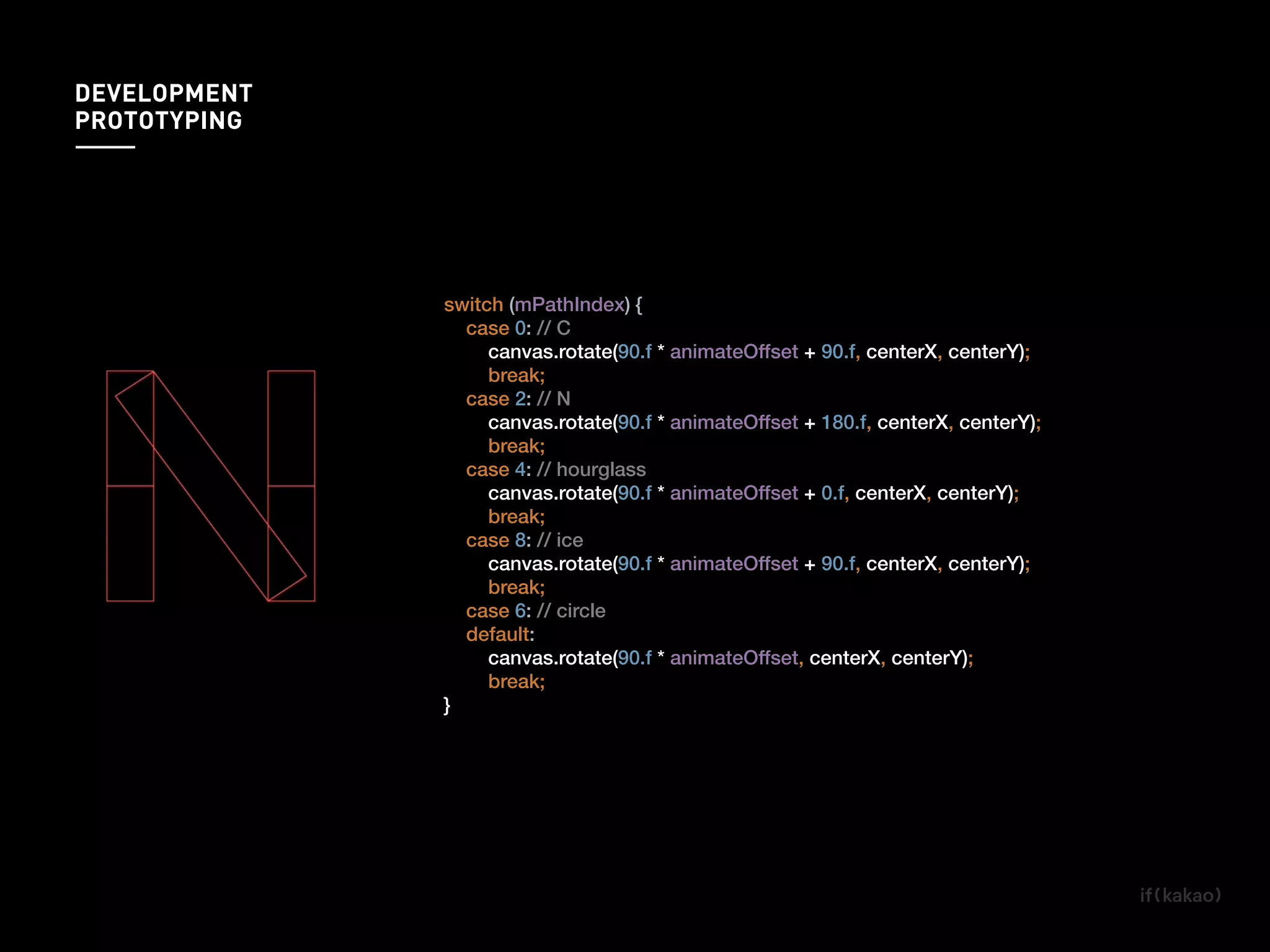

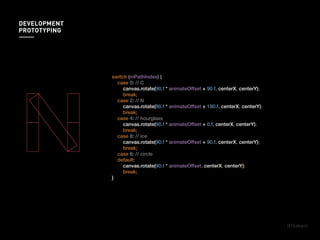

- 23. switch (mPathIndex) { case0: // C canvas.rotate(90.f * animateOffset + 90.f, centerX, centerY); break; case 2: // N canvas.rotate(90.f * animateOffset + 180.f, centerX, centerY); break; case 4: // hourglass canvas.rotate(90.f * animateOffset + 0.f, centerX, centerY); break; case 8: // ice canvas.rotate(90.f * animateOffset + 90.f, centerX, centerY); break; case 6: // circle default: canvas.rotate(90.f * animateOffset, centerX, centerY); break; } DEVELOPMENT PROTOTYPING

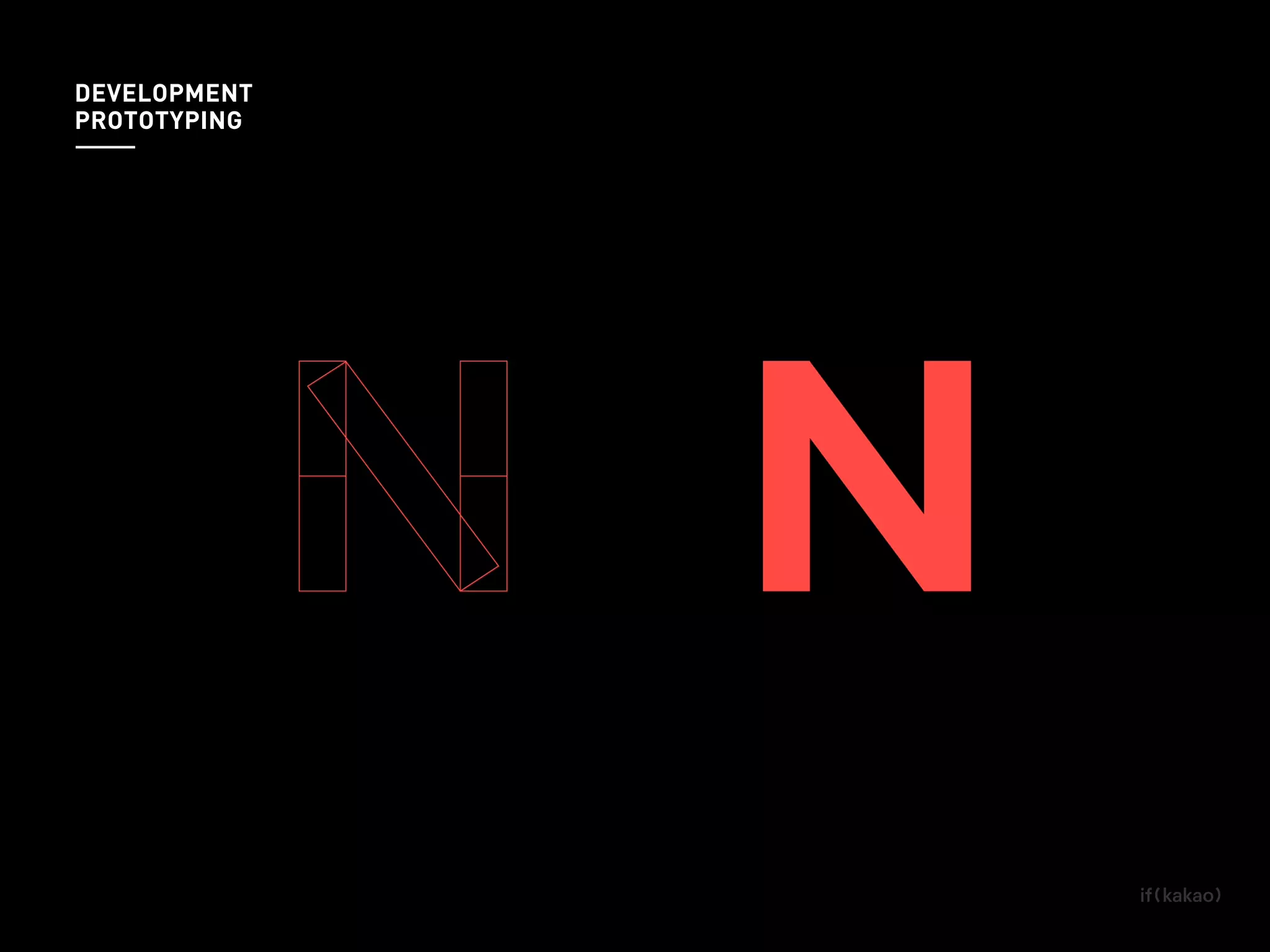

- 24.

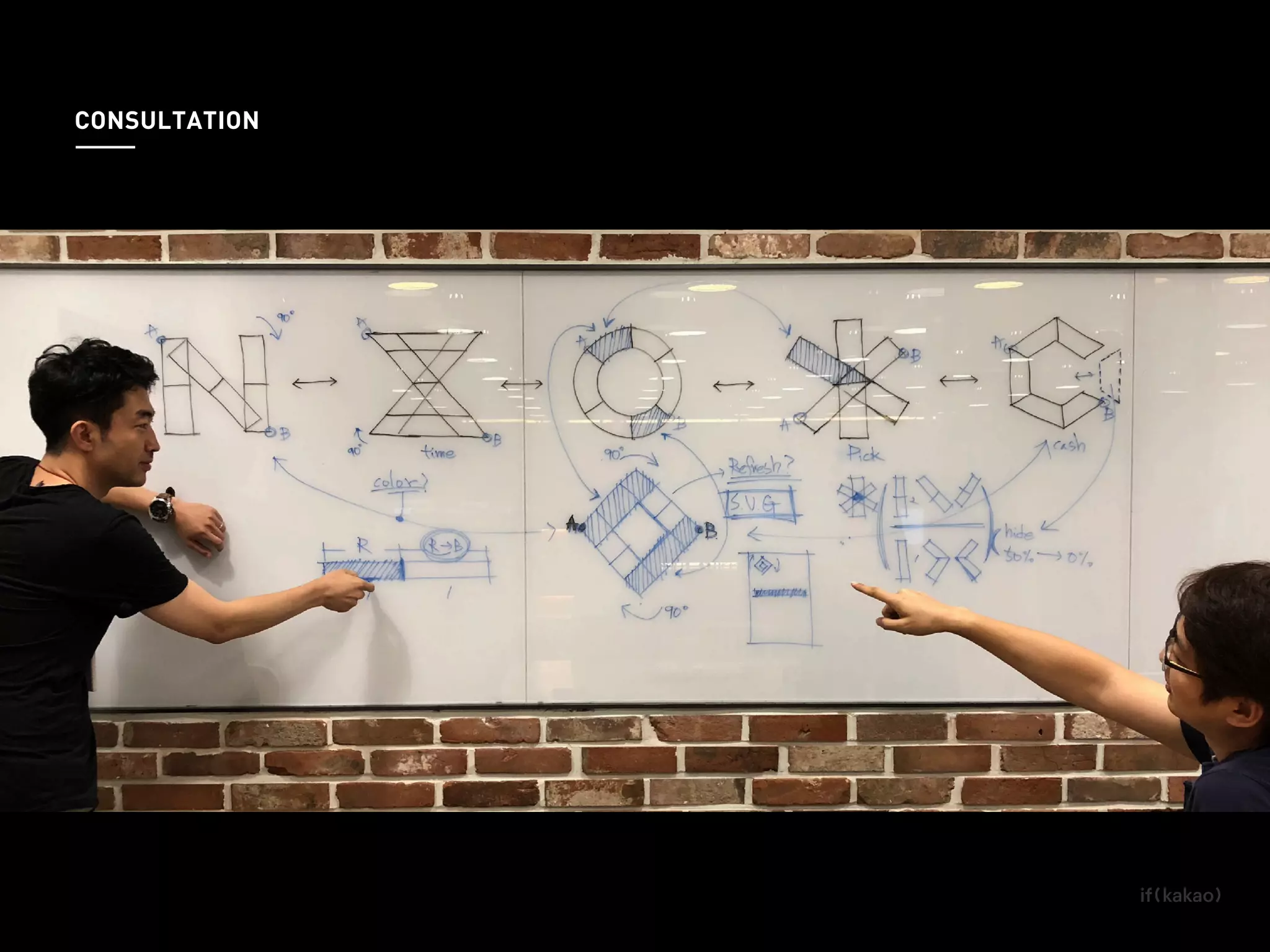

- 25.

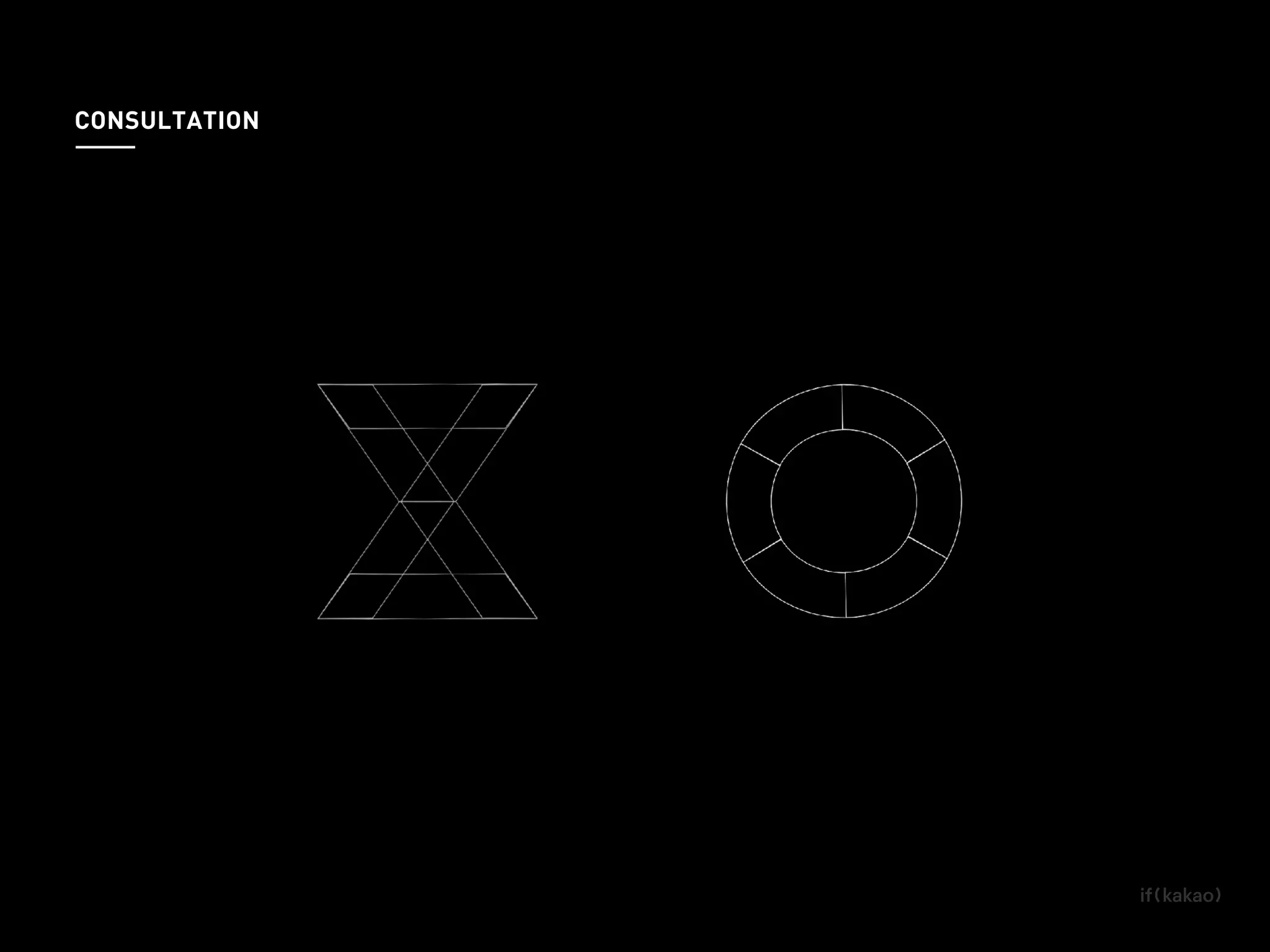

- 26.
- 27.
- 28.
- 29.

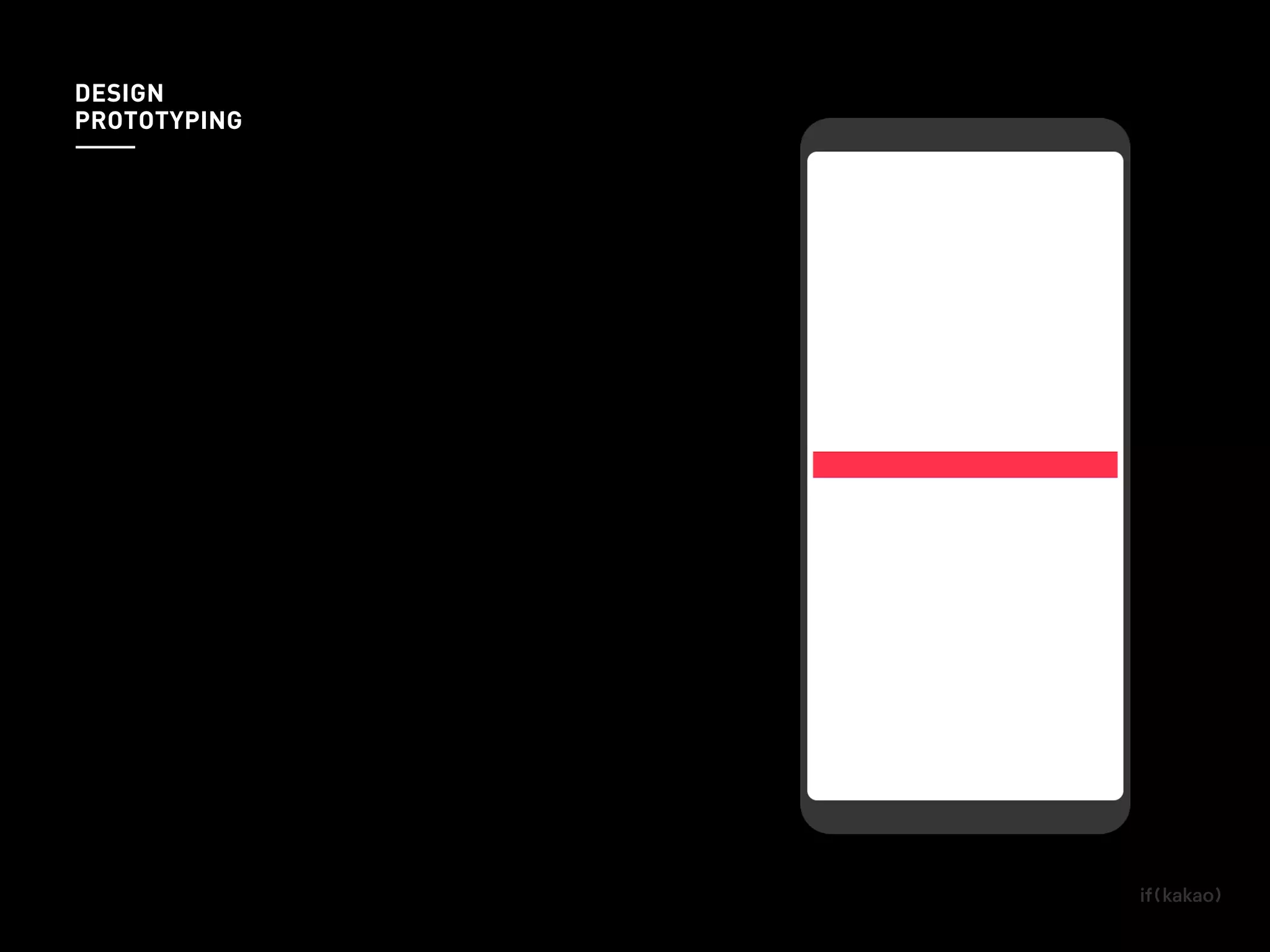

- 30.
- 31.

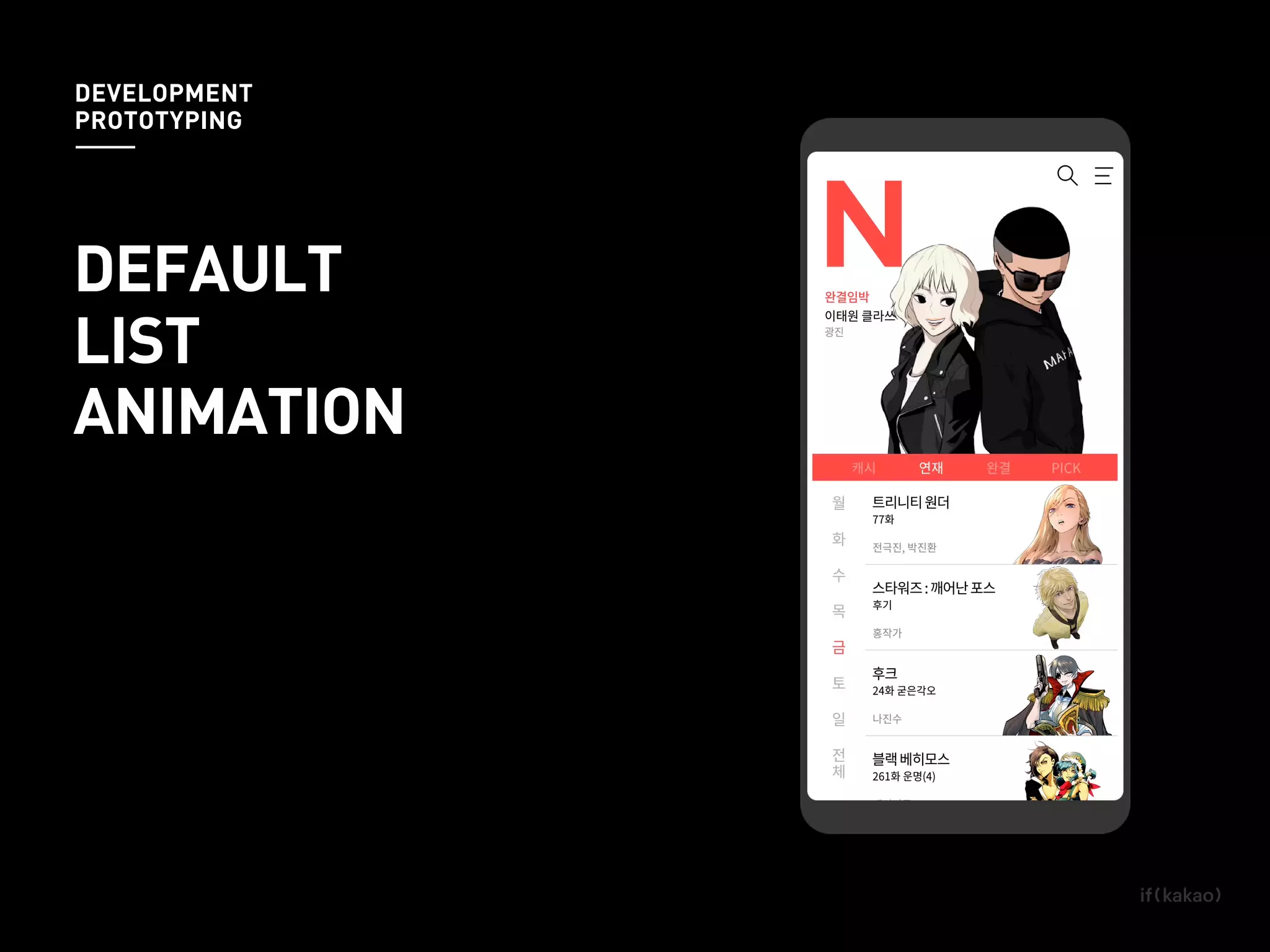

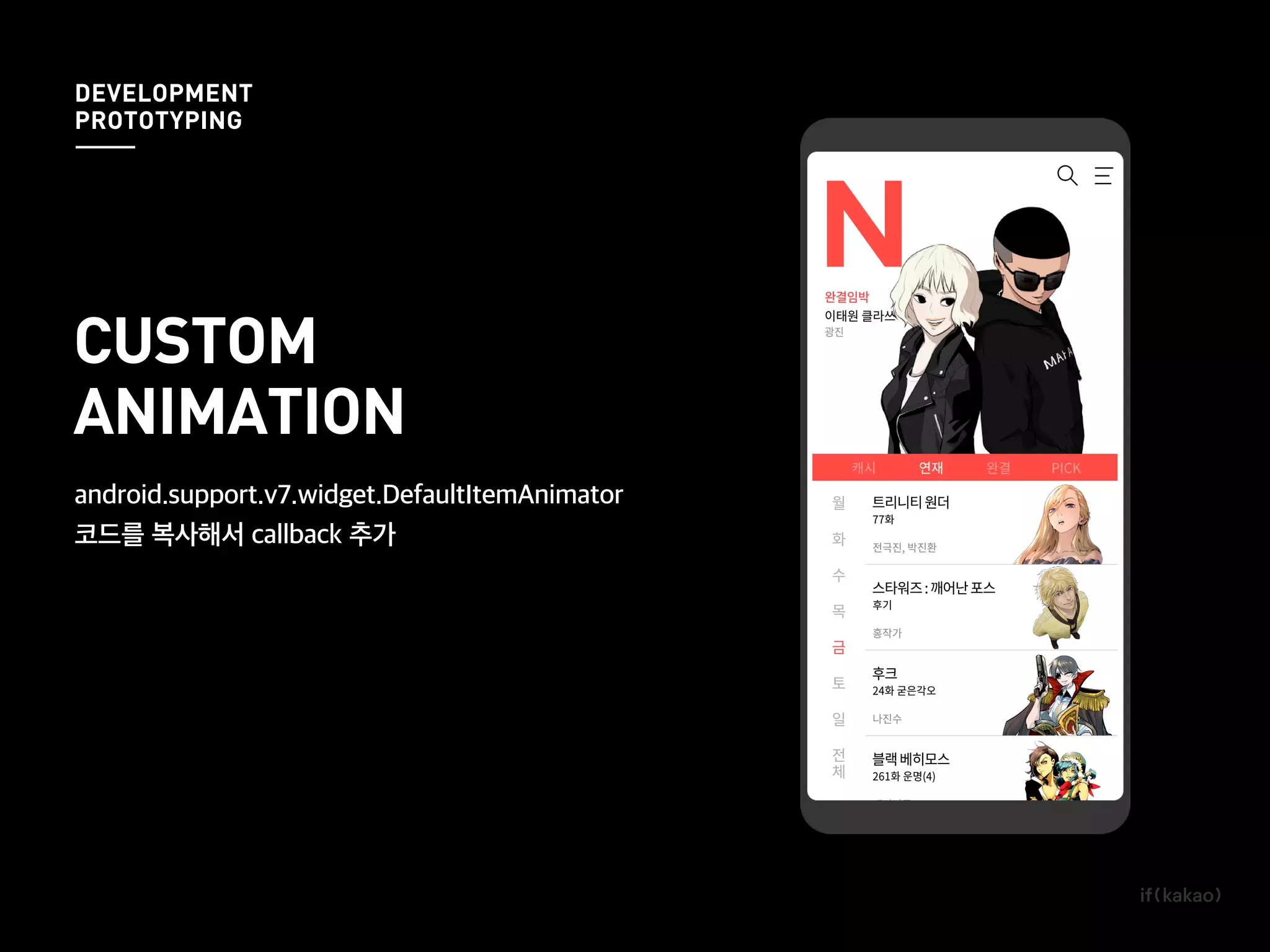

- 32. android.support.v7.widget.DefaultItemAnimator 코드를 복사해서 callback추가 DEVELOPMENT PROTOTYPING CUSTOM ANIMATION

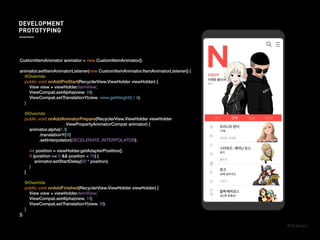

- 33. CustomItemAnimator animator =new CustomItemAnimator(); animator.setItemAnimatorListener(new CustomItemAnimator.ItemAnimatorListener() { @Override public void onAddPreStart(RecyclerView.ViewHolder viewHolder) { View view = viewHolder.itemView; ViewCompat.setAlpha(view, 0f); ViewCompat.setTranslationY(view, view.getHeight() / 4); } @Override public void onAddAnimatorPrepare(RecyclerView.ViewHolder viewHolder , ViewPropertyAnimatorCompat animator) { animator.alpha(1.f) .translationY(0f) .setInterpolator(DECELERATE_INTERPOLATOR); int position = viewHolder.getAdapterPosition(); if (position >= 0 && position < 10) { animator.setStartDelay(50 * position); } } @Override public void onAddFinished(RecyclerView.ViewHolder viewHolder) { View view = viewHolder.itemView; ViewCompat.setAlpha(view, 1f); ViewCompat.setTranslationY(view, 0f); } }); DEVELOPMENT PROTOTYPING

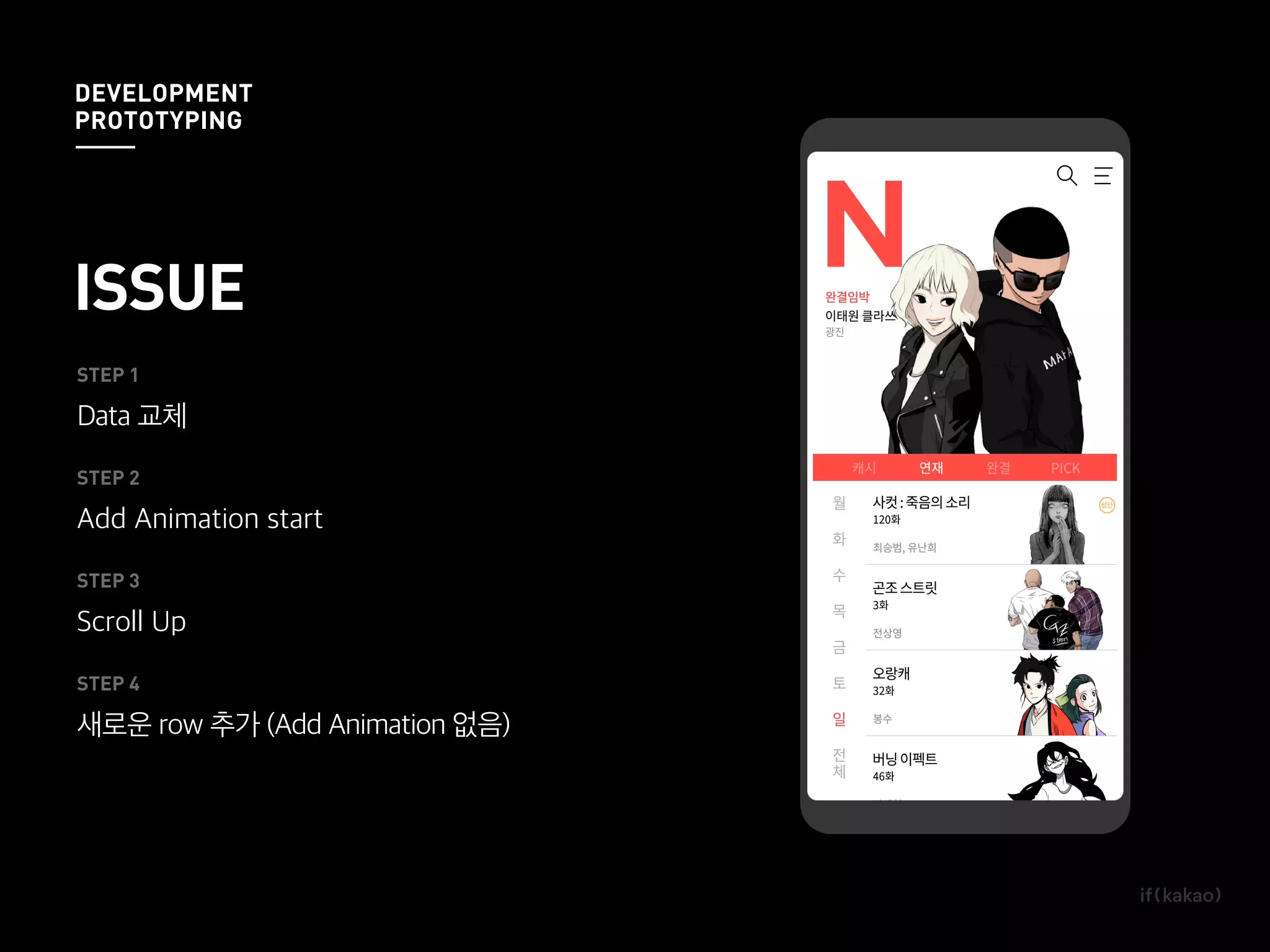

- 34. STEP 1 Data 교체 STEP2 Add Animation start STEP 3 Scroll Up STEP 4 새로운 row 추가 (Add Animation 없음) ISSUE DEVELOPMENT PROTOTYPING

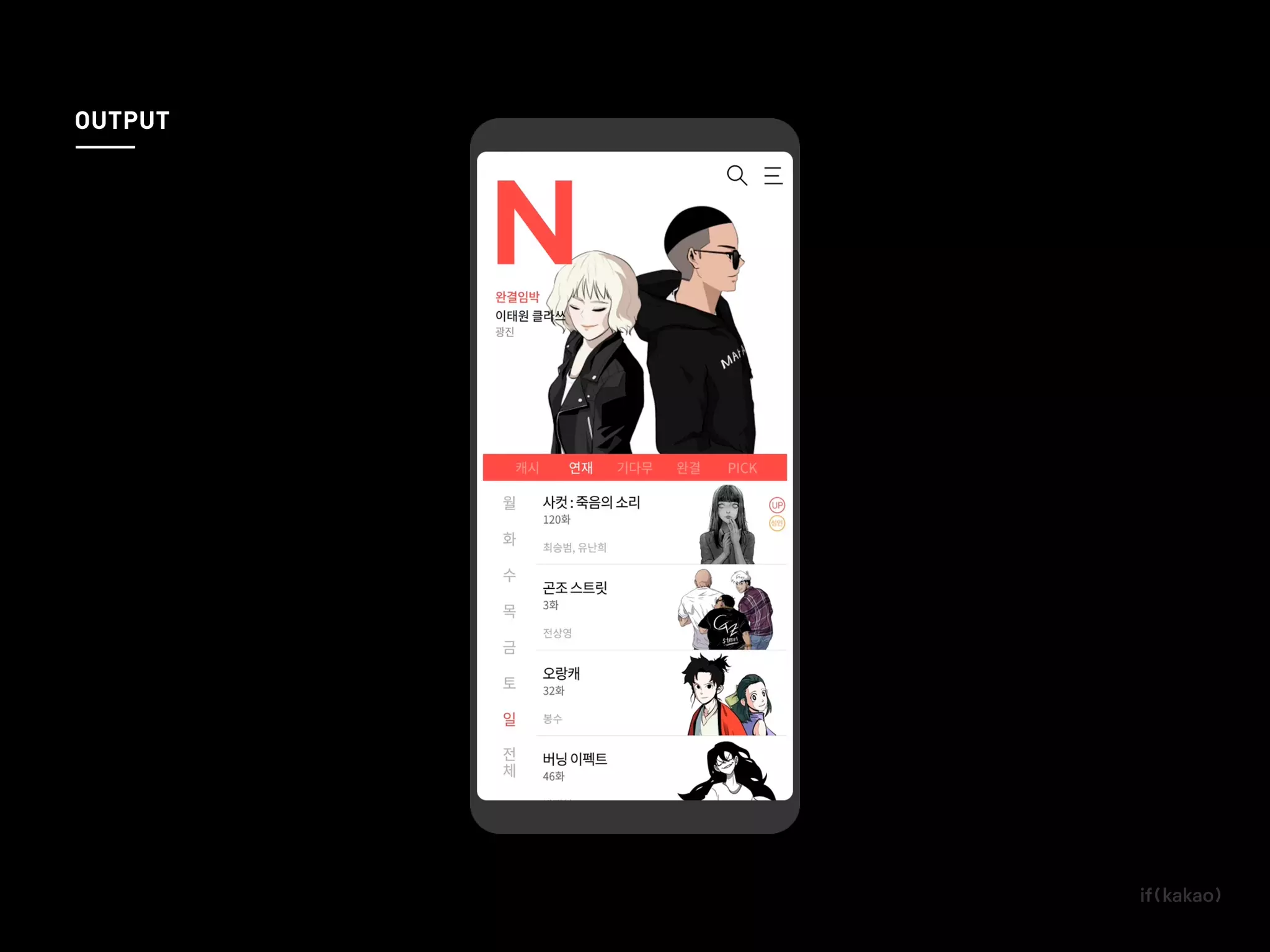

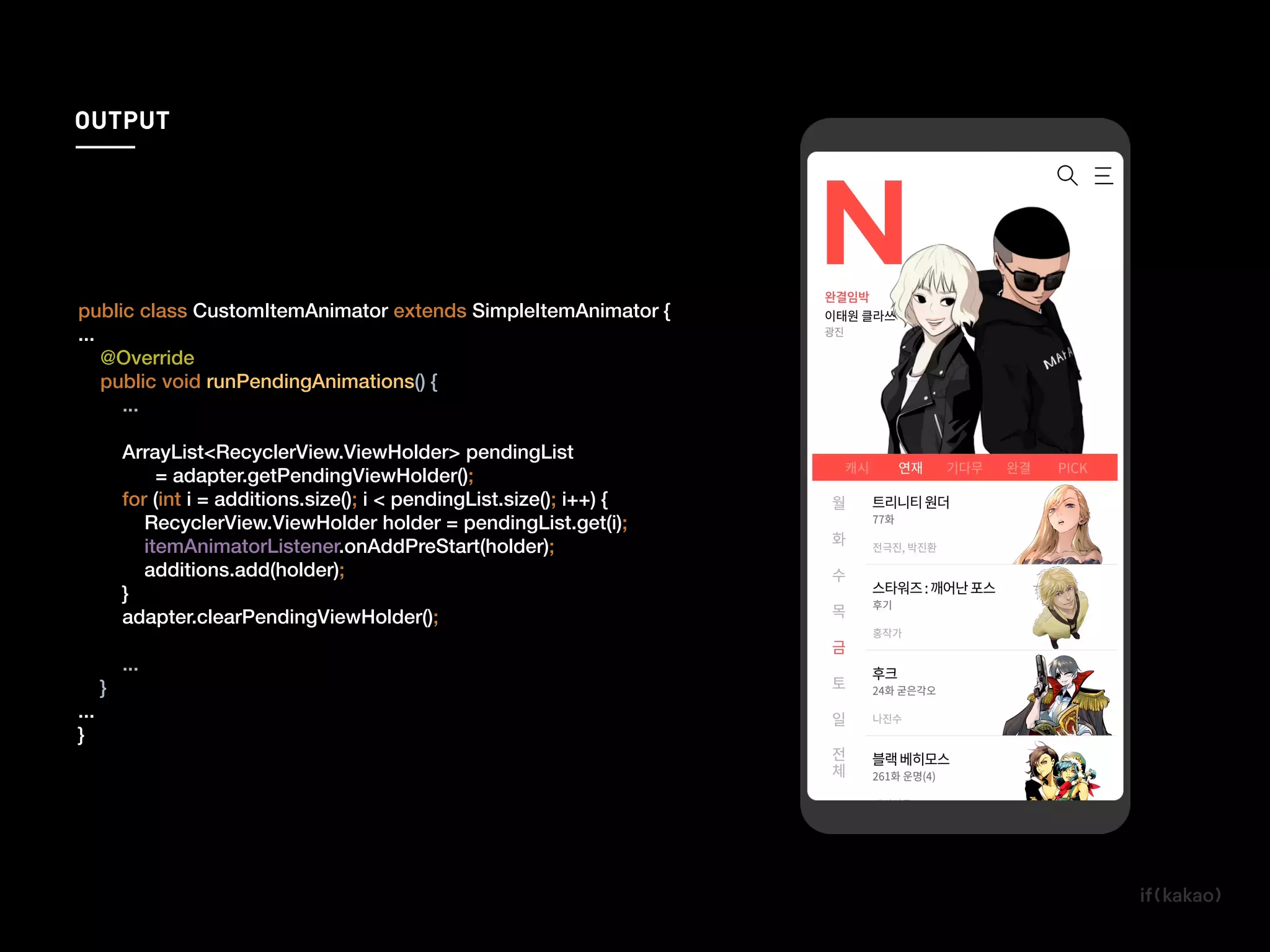

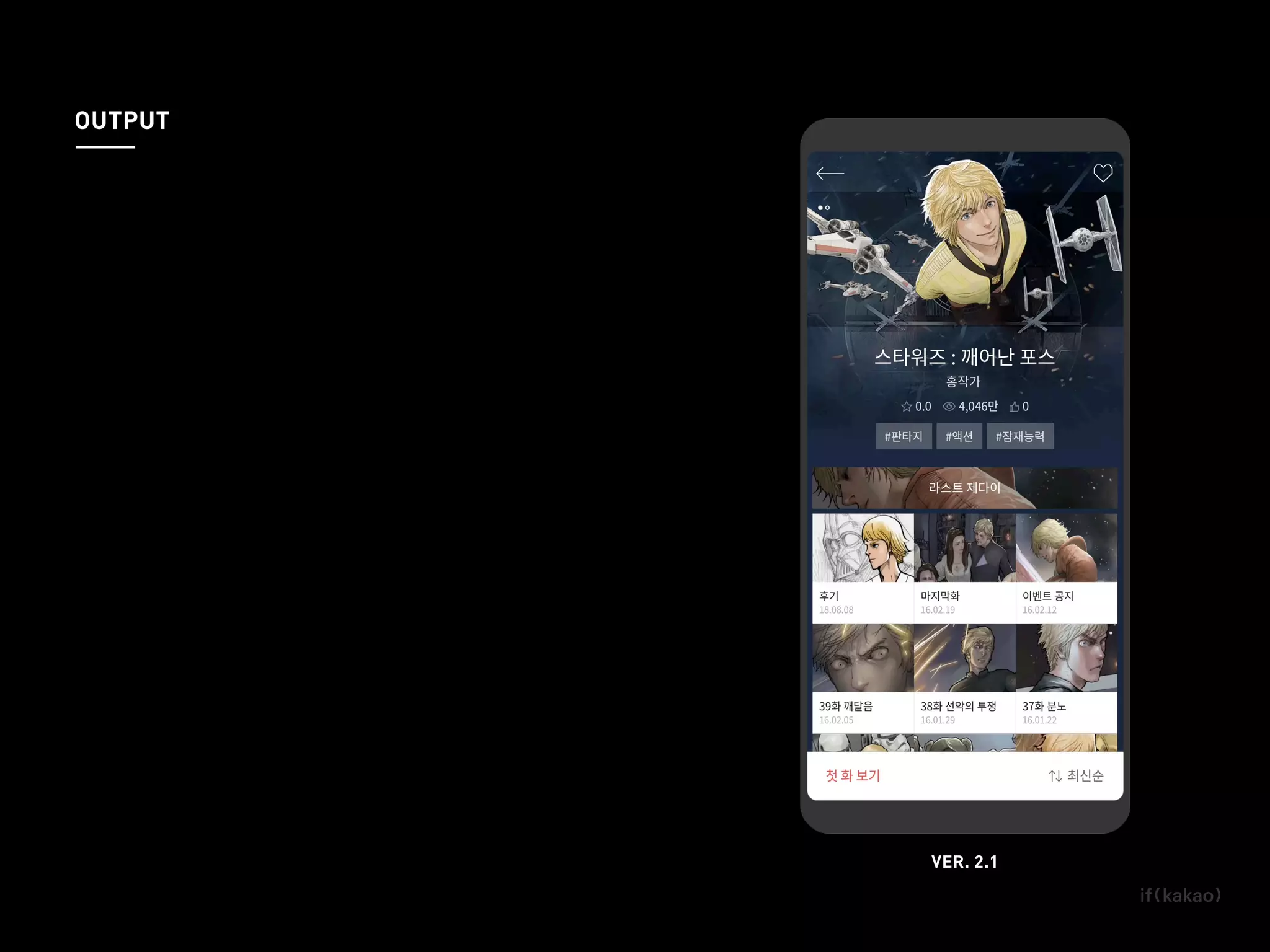

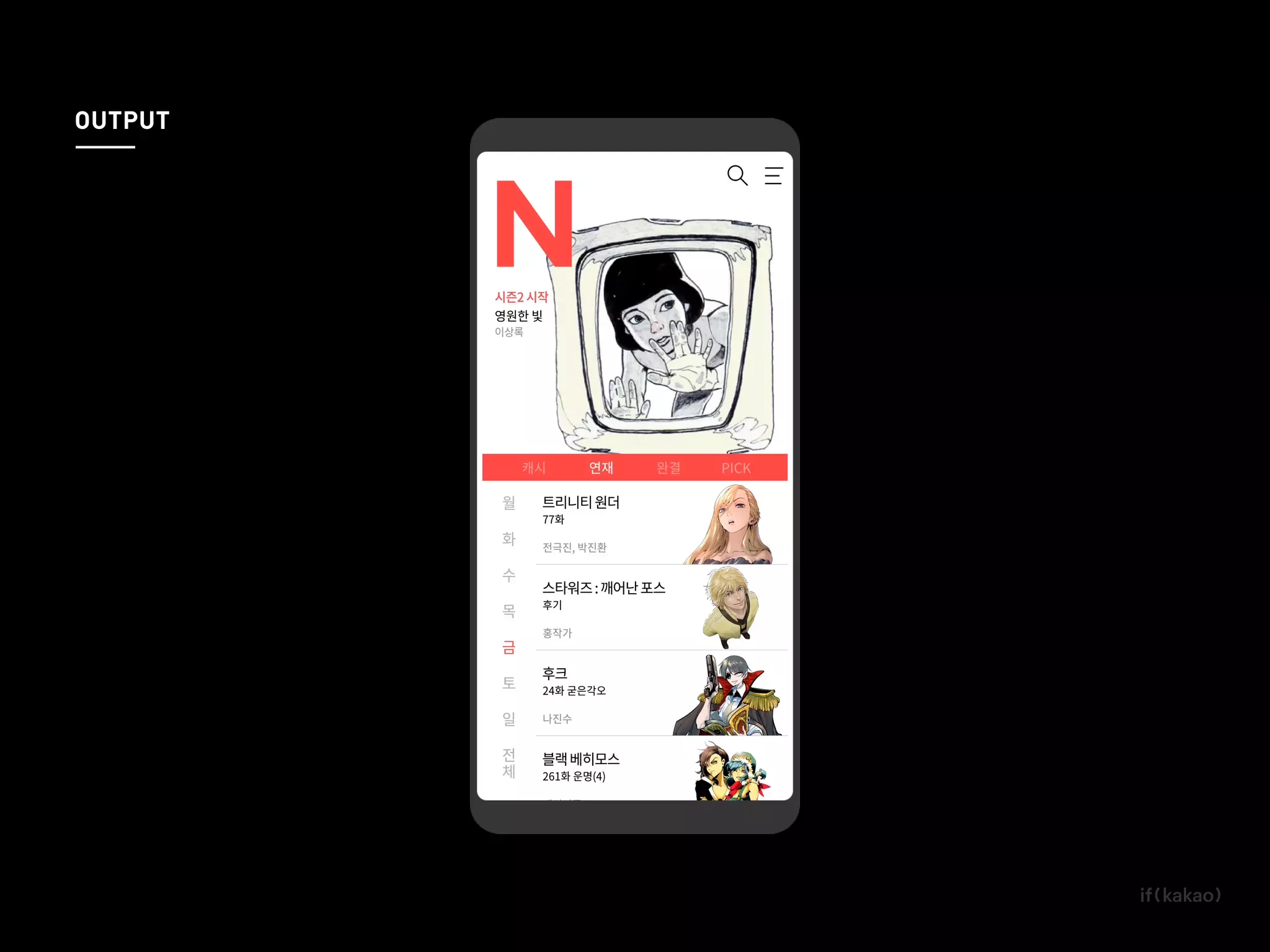

- 35. public class CustomItemAnimatorextends SimpleItemAnimator { ... @Override public void runPendingAnimations() { ... ArrayList<RecyclerView.ViewHolder> pendingList = adapter.getPendingViewHolder(); for (int i = additions.size(); i < pendingList.size(); i++) { RecyclerView.ViewHolder holder = pendingList.get(i); itemAnimatorListener.onAddPreStart(holder); additions.add(holder); } adapter.clearPendingViewHolder(); ... } ... } additions.add(holder); OUTPUT
- 36.
- 37.
- 38.

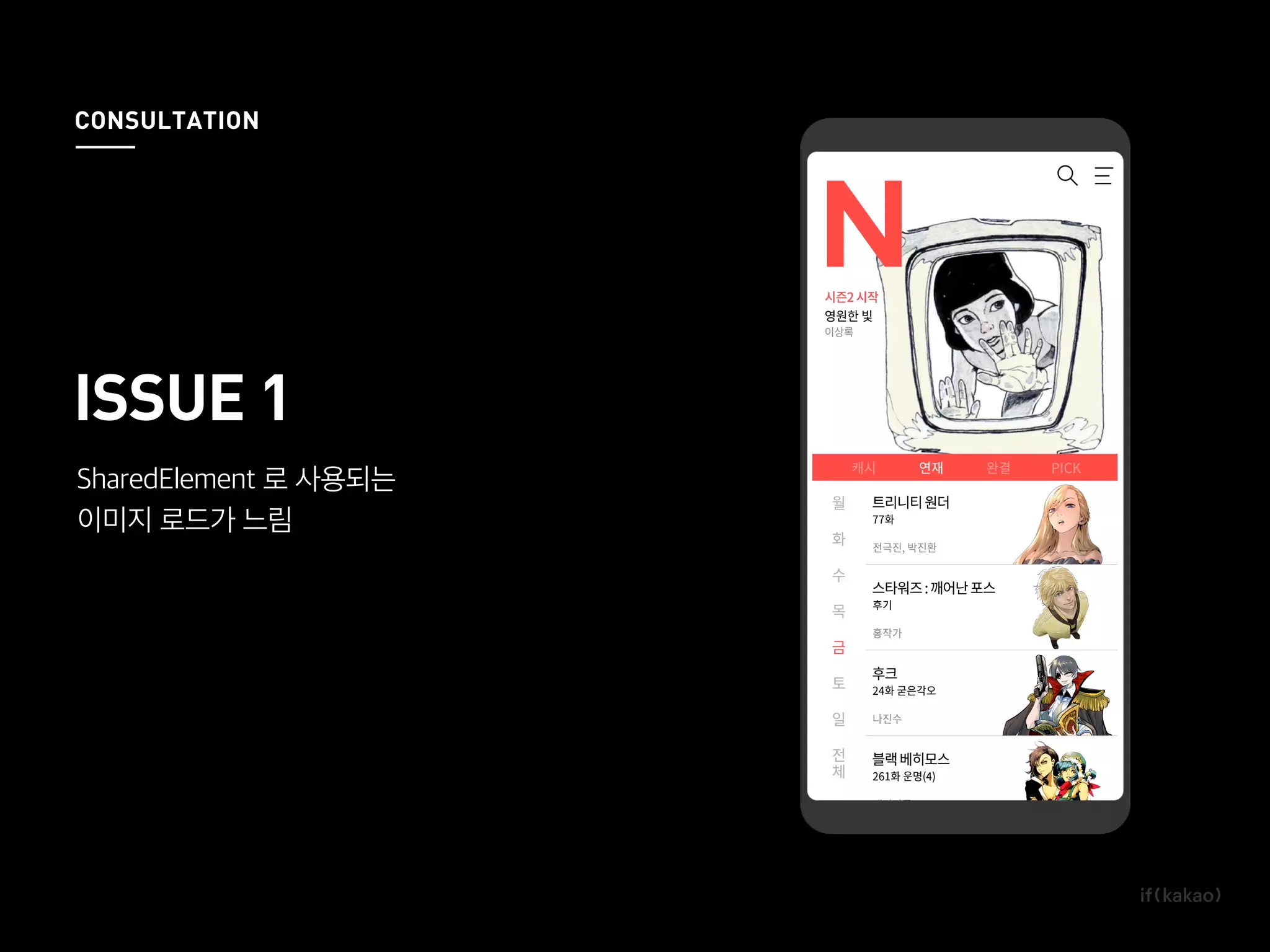

- 39. SharedElement 로 사용되는 이미지로드가 느림 ISSUE 1 CONSULTATION
- 40. getLocationInWindow() 값이 StatusBar Height만큼 어긋남 ISSUE 2 CONSULTATION
- 41. ChangeBounds 가 오동작하여 이미지Scale 이 어긋남 ISSUE 3 CONSULTATION

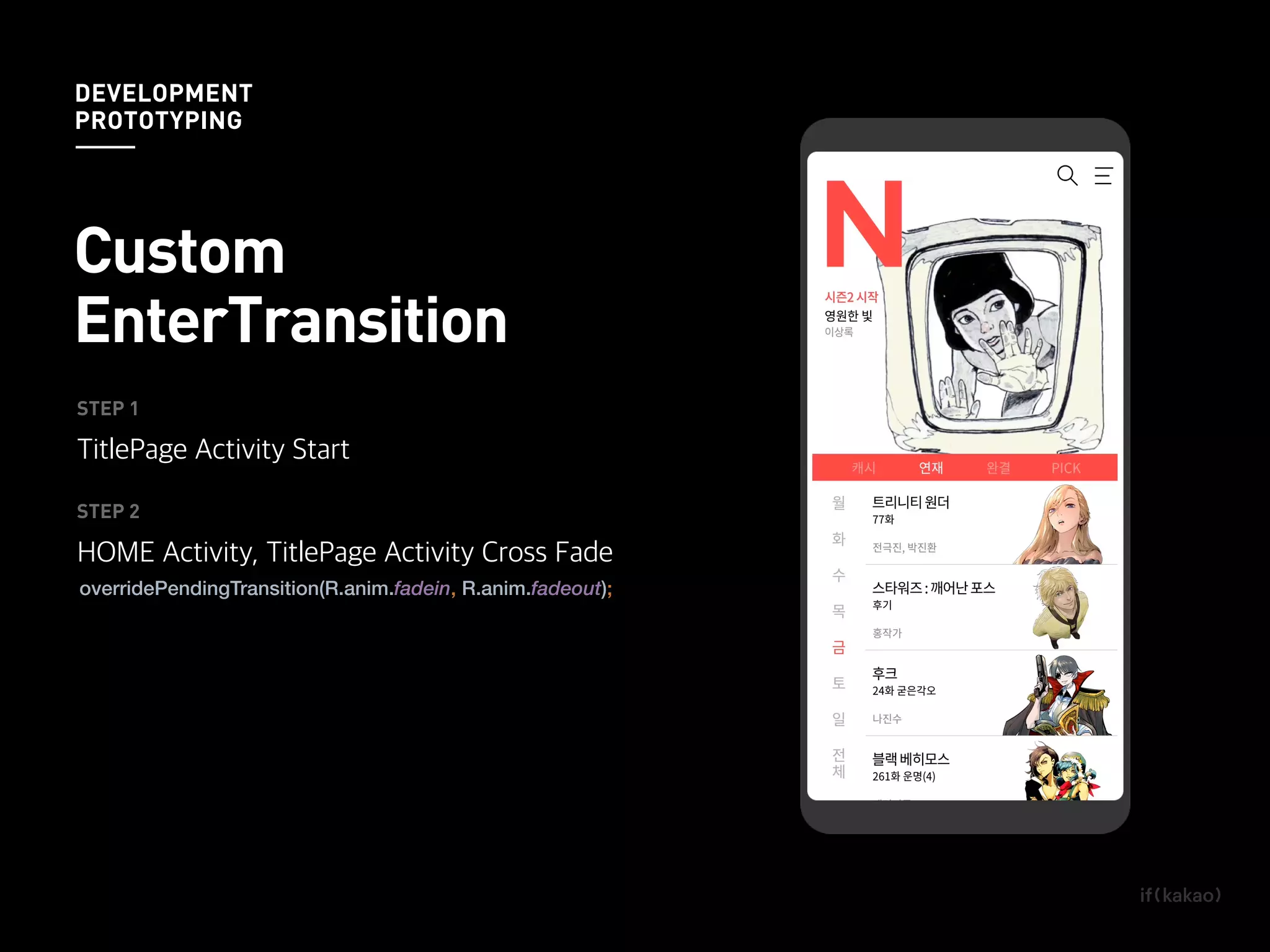

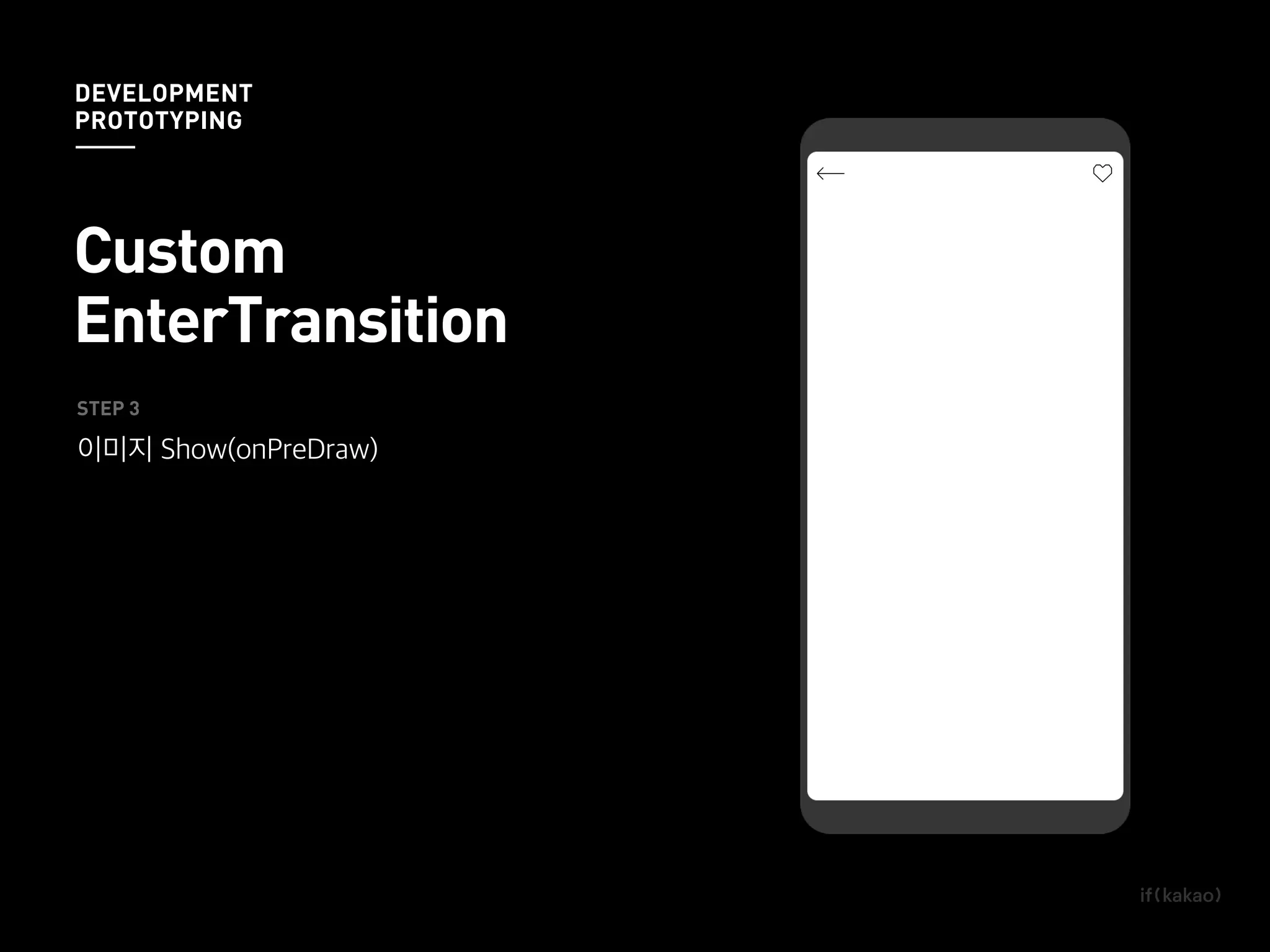

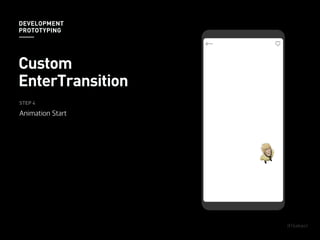

- 42. overridePendingTransition(R.anim.fadein, R.anim.fadeout); STEP 1 TitlePageActivity Start STEP 2 HOME Activity, TitlePage Activity Cross Fade Custom EnterTransition DEVELOPMENT PROTOTYPING
- 43.
- 44.

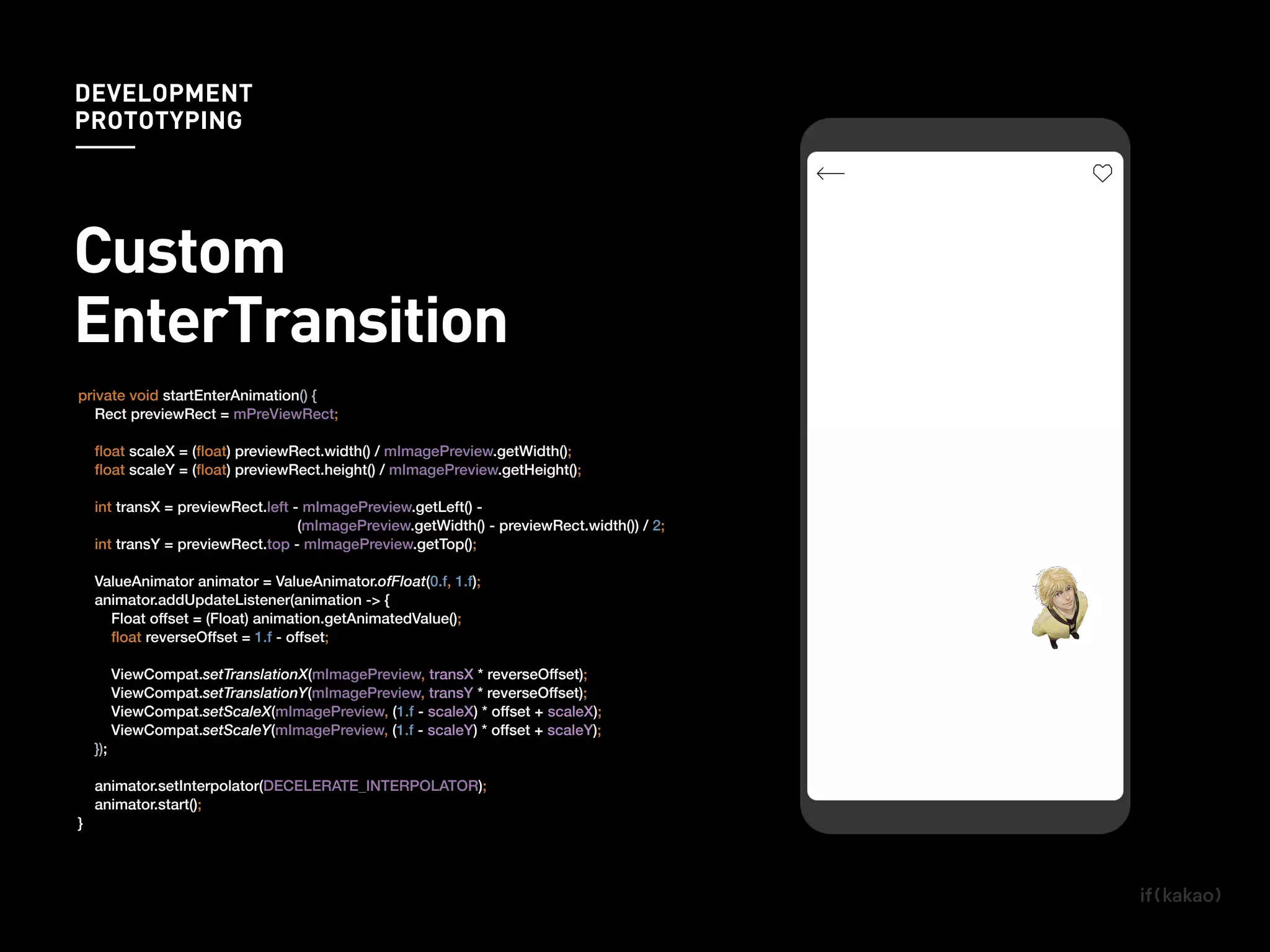

- 45. private void startEnterAnimation(){ Rect previewRect = mPreViewRect; float scaleX = (float) previewRect.width() / mImagePreview.getWidth(); float scaleY = (float) previewRect.height() / mImagePreview.getHeight(); int transX = previewRect.left - mImagePreview.getLeft() - (mImagePreview.getWidth() - previewRect.width()) / 2; int transY = previewRect.top - mImagePreview.getTop(); ValueAnimator animator = ValueAnimator.ofFloat(0.f, 1.f); animator.addUpdateListener(animation -> { Float offset = (Float) animation.getAnimatedValue(); float reverseOffset = 1.f - offset; ViewCompat.setTranslationX(mImagePreview, transX * reverseOffset); ViewCompat.setTranslationY(mImagePreview, transY * reverseOffset); ViewCompat.setScaleX(mImagePreview, (1.f - scaleX) * offset + scaleX); ViewCompat.setScaleY(mImagePreview, (1.f - scaleY) * offset + scaleY); }); animator.setInterpolator(DECELERATE_INTERPOLATOR); animator.start(); } DEVELOPMENT PROTOTYPING Custom EnterTransition
- 46.

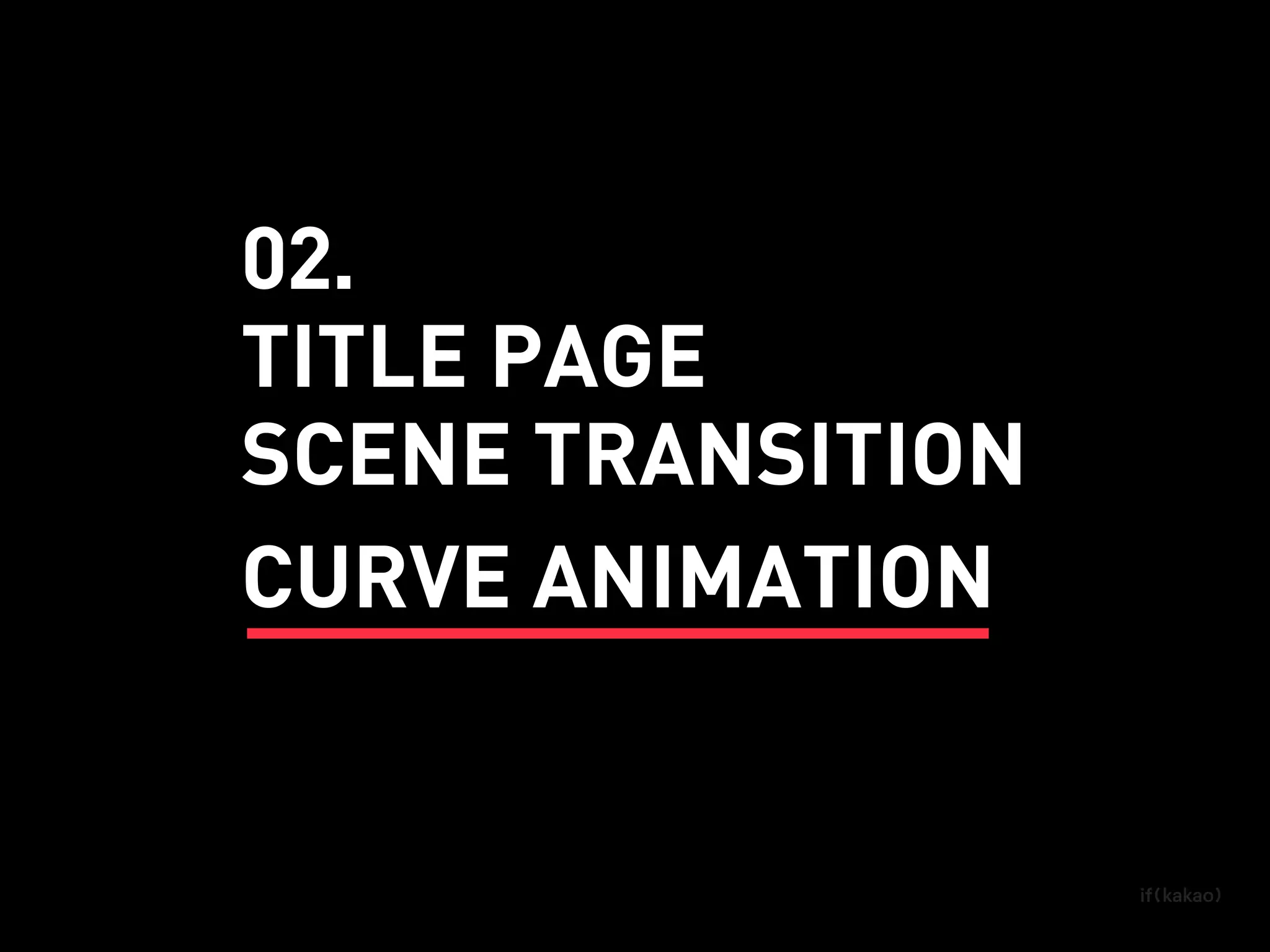

- 47. SCENE TRANSITION TITLE PAGE CURVEANIMATION 02.

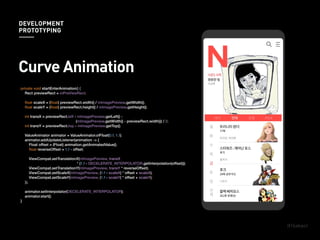

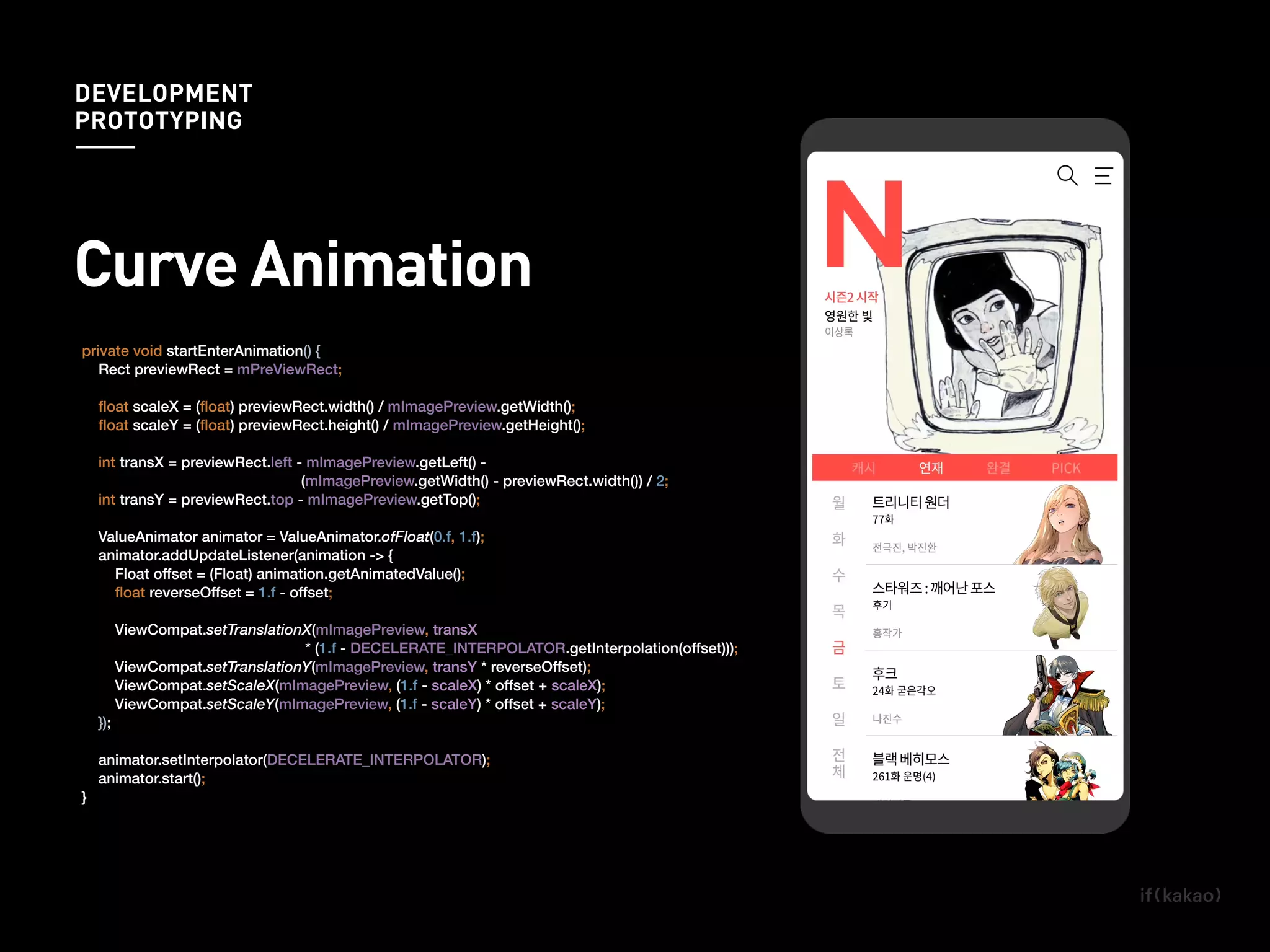

- 48. private void startEnterAnimation(){ Rect previewRect = mPreViewRect; float scaleX = (float) previewRect.width() / mImagePreview.getWidth(); float scaleY = (float) previewRect.height() / mImagePreview.getHeight(); int transX = previewRect.left - mImagePreview.getLeft() - (mImagePreview.getWidth() - previewRect.width()) / 2; int transY = previewRect.top - mImagePreview.getTop(); ValueAnimator animator = ValueAnimator.ofFloat(0.f, 1.f); animator.addUpdateListener(animation -> { Float offset = (Float) animation.getAnimatedValue(); float reverseOffset = 1.f - offset; ViewCompat.setTranslationX(mImagePreview, transX * (1.f - DECELERATE_INTERPOLATOR.getInterpolation(offset))); ViewCompat.setTranslationY(mImagePreview, transY * reverseOffset); ViewCompat.setScaleX(mImagePreview, (1.f - scaleX) * offset + scaleX); ViewCompat.setScaleY(mImagePreview, (1.f - scaleY) * offset + scaleY); }); animator.setInterpolator(DECELERATE_INTERPOLATOR); animator.start(); } ViewCompat.setTranslationX(mImagePreview, transX * (1.f - DECELERATE_INTERPOLATOR.getInterpolation(offset))); Curve Animation DEVELOPMENT PROTOTYPING
- 49. SCENE TRANSITION TITLE PAGE RIPPLEEFFECT 02.
- 50.

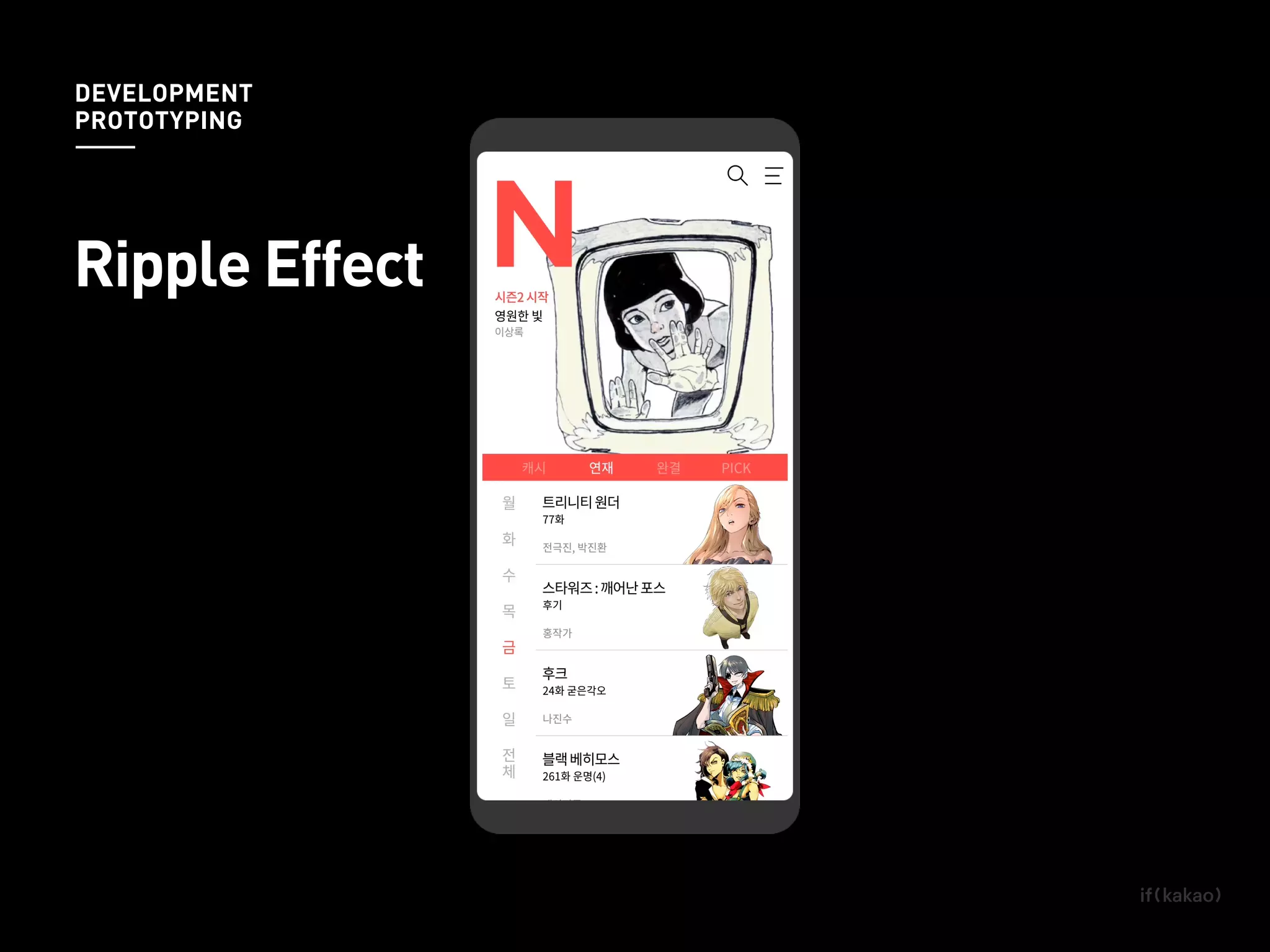

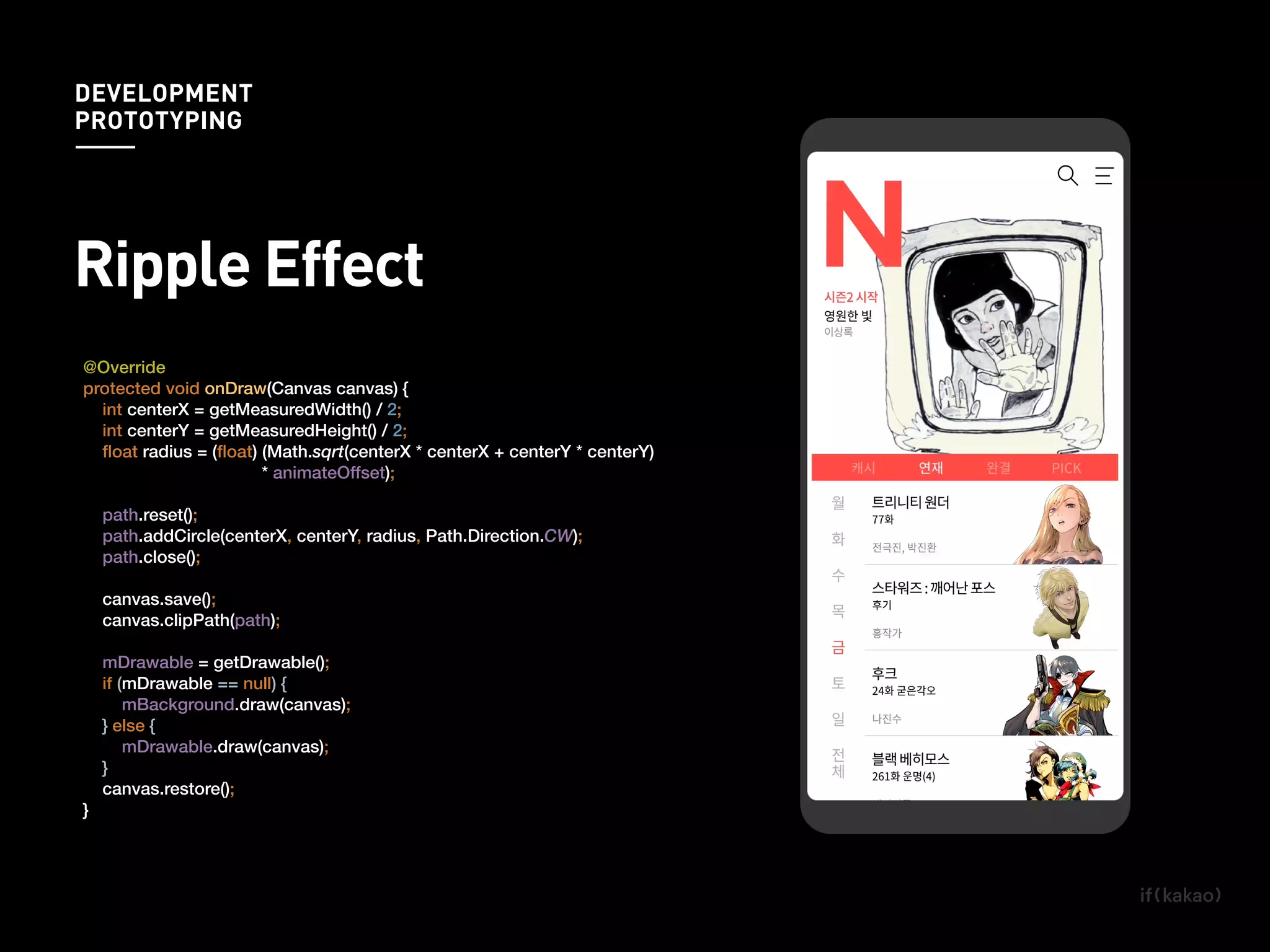

- 51. @Override protected void onDraw(Canvascanvas) { int centerX = getMeasuredWidth() / 2; int centerY = getMeasuredHeight() / 2; float radius = (float) (Math.sqrt(centerX * centerX + centerY * centerY) * animateOffset); path.reset(); path.addCircle(centerX, centerY, radius, Path.Direction.CW); path.close(); canvas.save(); canvas.clipPath(path); mDrawable = getDrawable(); if (mDrawable == null) { mBackground.draw(canvas); } else { mDrawable.draw(canvas); } canvas.restore(); } canvas.clipPath(path); Ripple Effect DEVELOPMENT PROTOTYPING

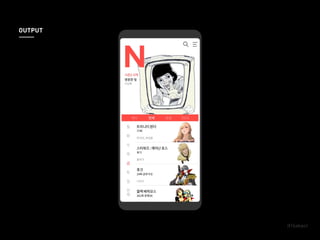

- 52.

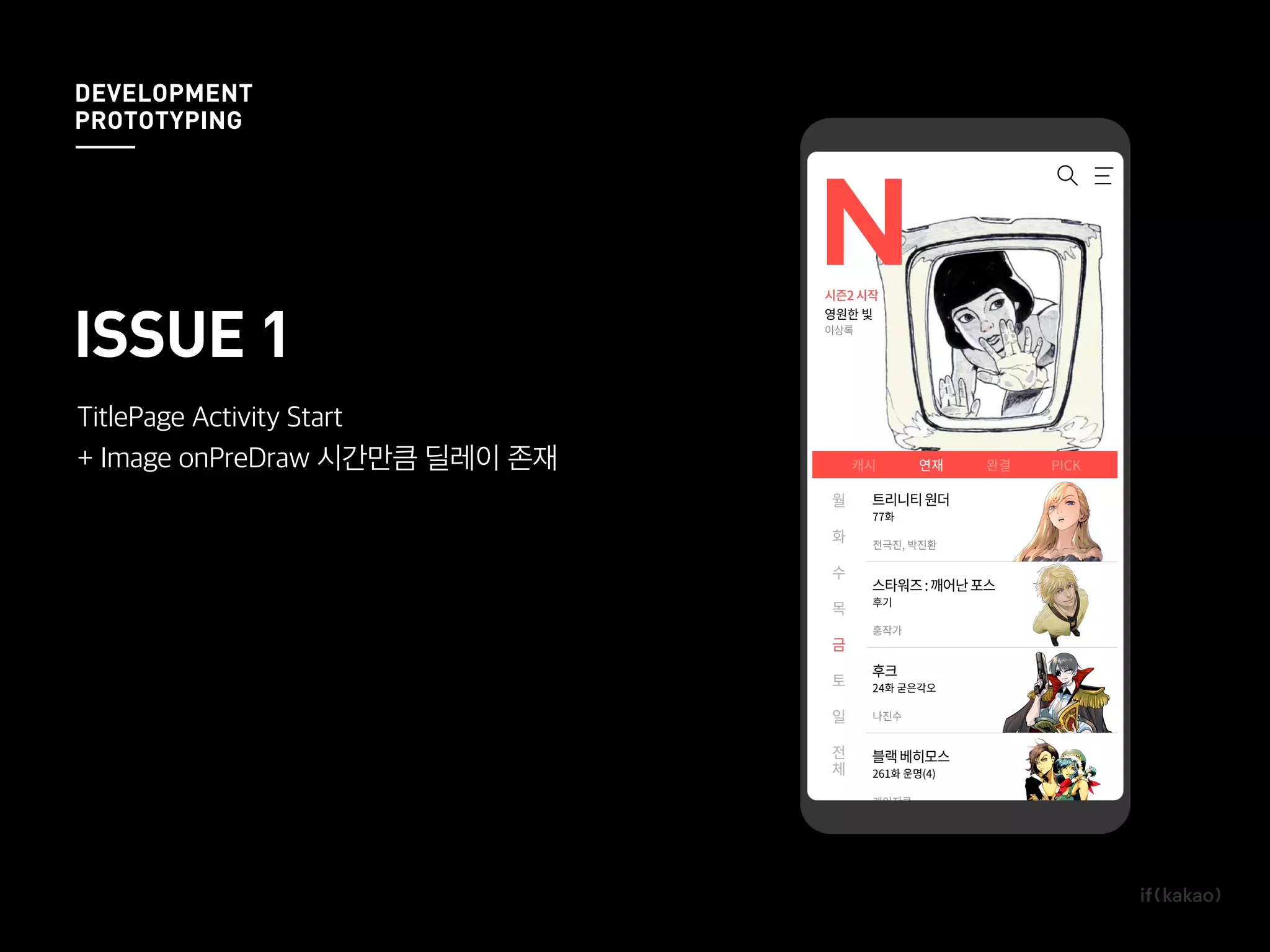

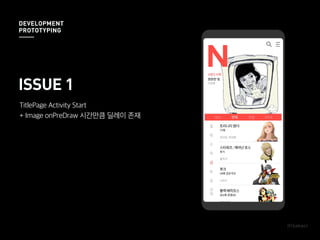

- 53. ISSUE 1 TitlePage ActivityStart + Image onPreDraw 시간만큼 딜레이 존재 DEVELOPMENT PROTOTYPING
- 54. EnterTransition 을 Main에서 처리 (lifecycle 활용) SOLUTION 1 DEVELOPMENT PROTOTYPING

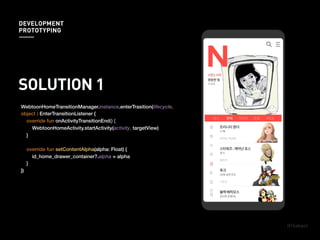

- 55. SOLUTION 1 WebtoonHomeTransitionManager.instance.enterTrasition(lifecycle, object :EnterTransitionListener { override fun onActivityTransitionEnd() { WebtoonHomeActivity.startActivity(activity, targetView) } override fun setContentAlpha(alpha: Float) { id_home_drawer_container?.alpha = alpha } }) DEVELOPMENT PROTOTYPING

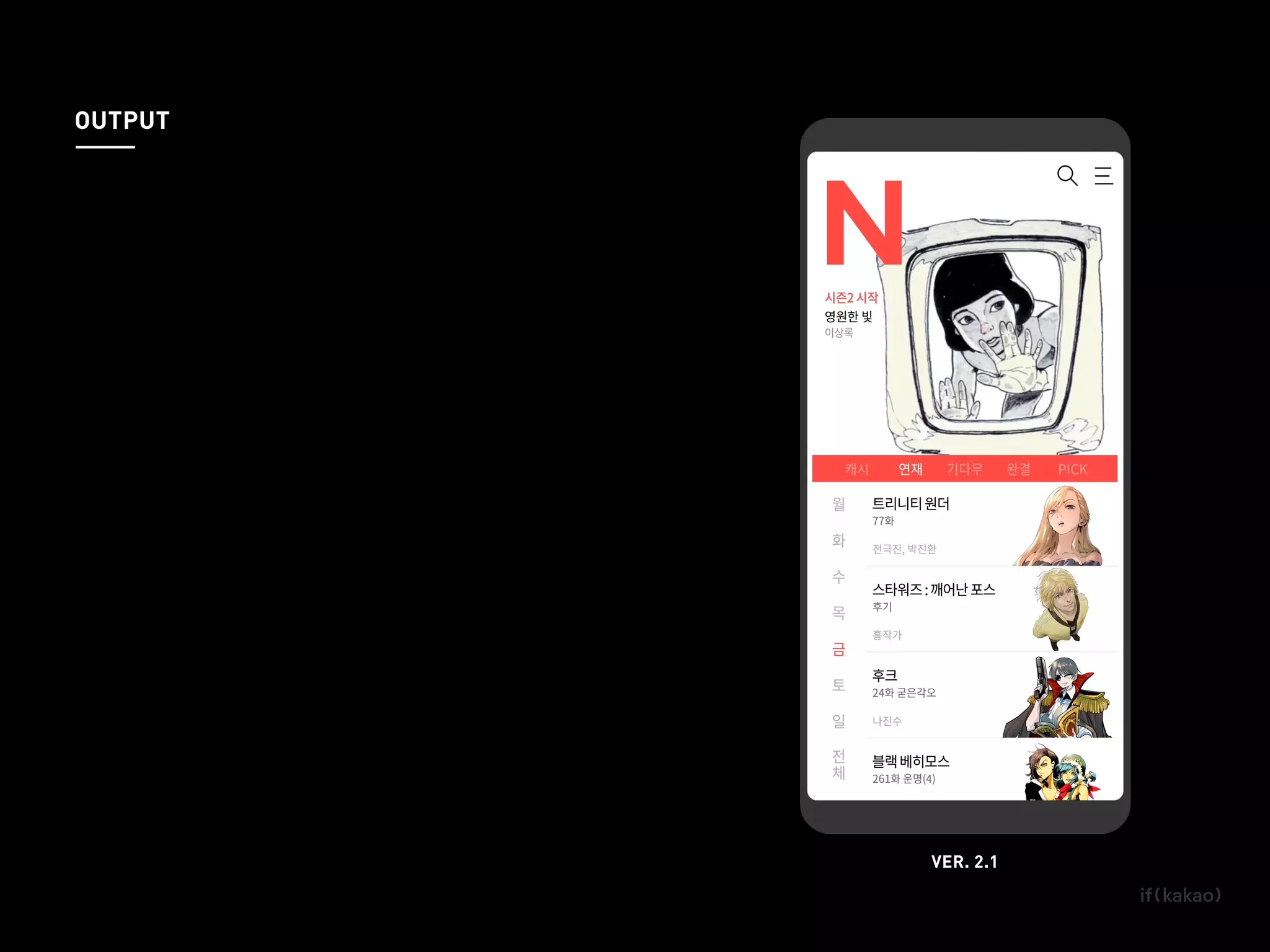

- 56.

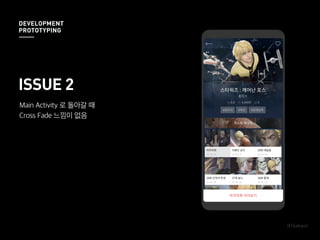

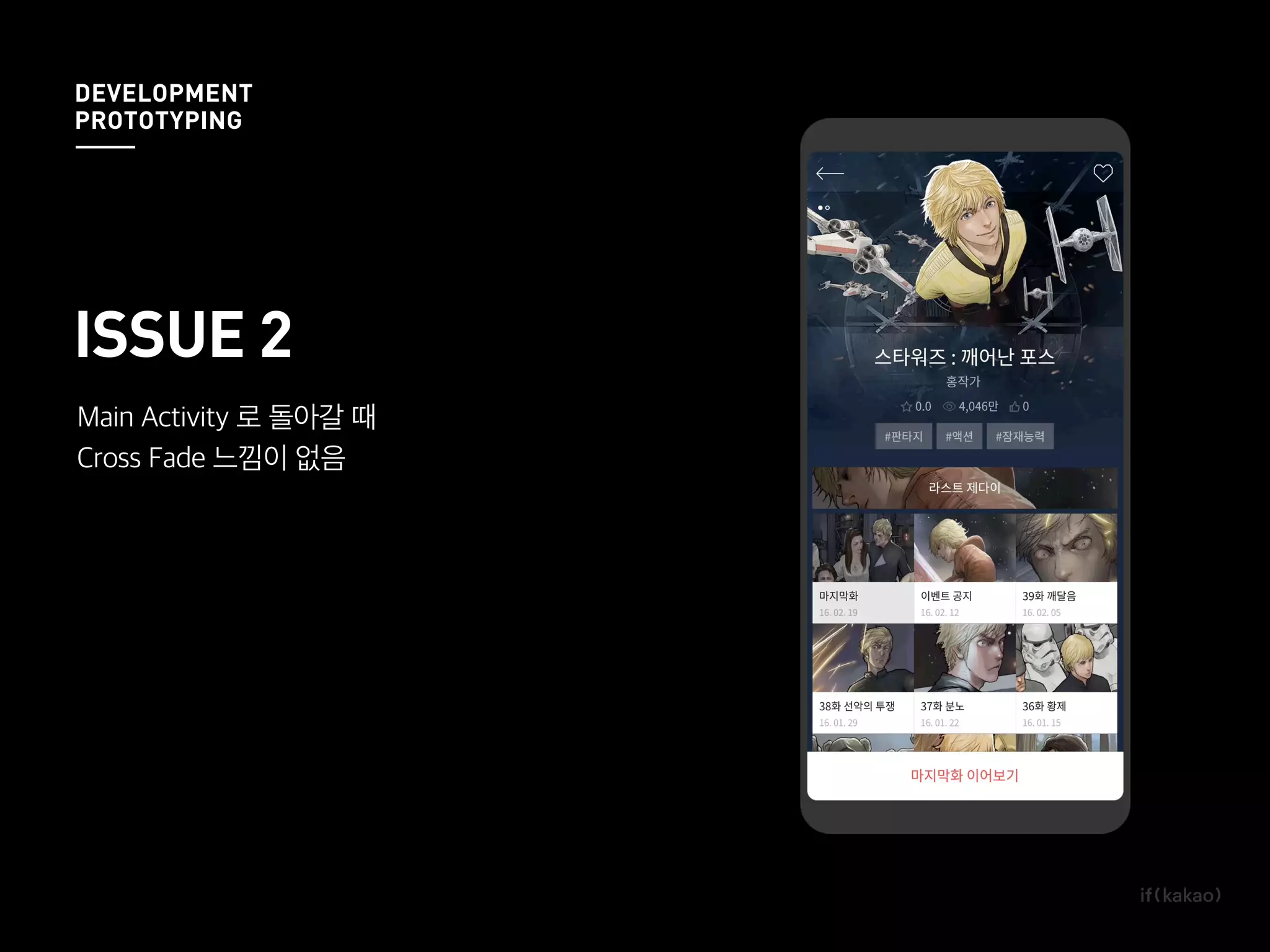

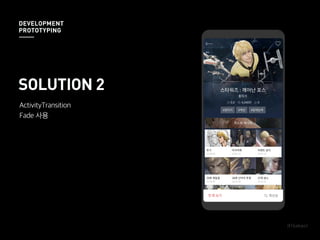

- 57. Main Activity 로돌아갈 때 Cross Fade 느낌이 없음 ISSUE 2 DEVELOPMENT PROTOTYPING
