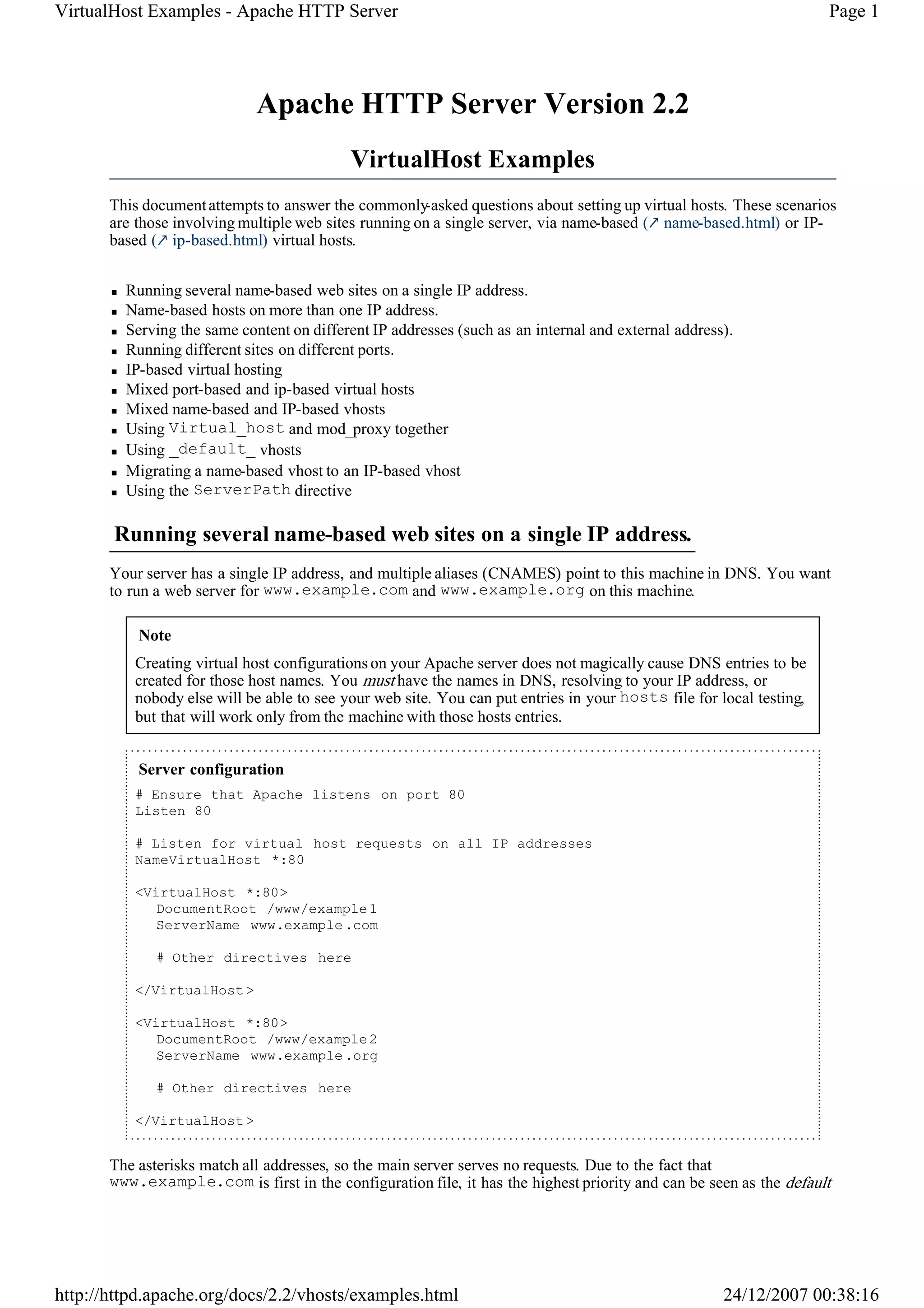

  VirtualHost Examples -Apache HTTP Server Page 1 Apache HTTP Server Version 2.2 VirtualHost Examples This document attempts to answer the commonly -asked questions about setting up virtual hosts. These scenarios are those involving multiple web sites running on a single server, via name-based ( name-based.html) or IP- based ( ip-based.html) virtual hosts. Running several name-based web sites on a single IP address. Name-based hosts on more than one IP address. Serving the same content on different IP addresses (such as an internal and external address). Running different sites on different ports. IP-based virtual hosting Mixed port-based and ip-based virtual hosts Mixed name-based and IP-based vhosts Using Virtual_host and mod_proxy together Using _default_ vhosts Migrating a name-based vhost to an IP-based vhost Using the ServerPath directive Running several name-based web sites on a single IP address. Your server has a single IP address, and multiple aliases (CNAMES) point to this machine in DNS. You want to run a web server for www.example.com and www.example.org on this machine. Note Creating virtual host configurations on your Apache server does not magically cause DNS entries to be created for those host names. You must have the names in DNS, resolving to your IP address, or nobody else will be able to see your web site. You can put entries in your hosts file for local testing, but that will work only from the machine with those hosts entries. Server configuration # Ensure that Apache listens on port 80 Listen 80 # Listen for virtual host requests on all IP addresses NameVirtualHost *:80 <VirtualHost *:80> DocumentRoot /www/example 1 ServerName www.example .com # Other directives here </VirtualHost > <VirtualHost *:80> DocumentRoot /www/example 2 ServerName www.example .org # Other directives here </VirtualHost > The asterisks match all addresses, so the main server serves no requests. Due to the fact that www.example.com is first in the configuration file, it has the highest priority and can be seen as the default http://httpd.apache.org/docs/2.2/vhosts/examples.html 24/12/2007 00:38:16
• 2.

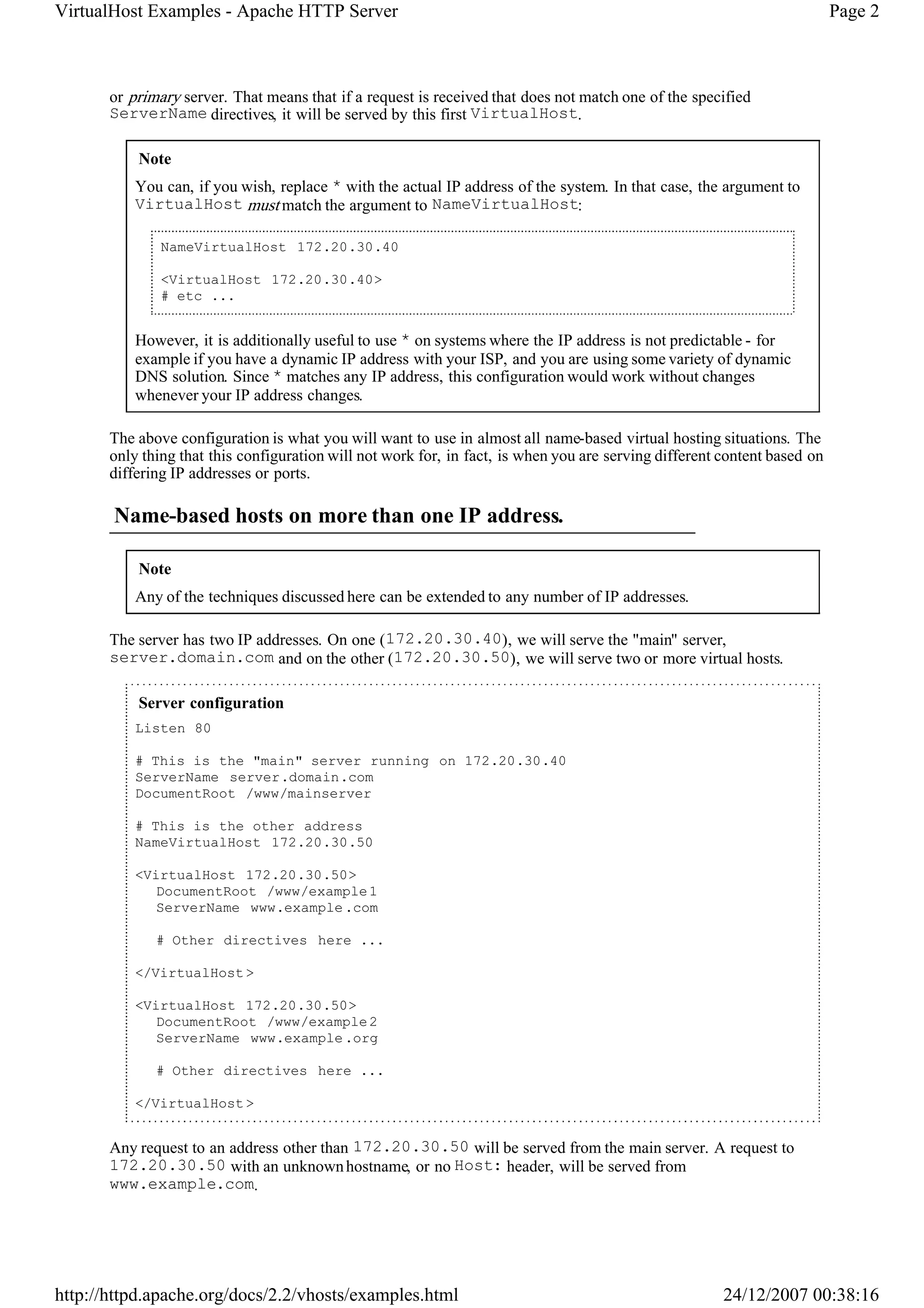

  VirtualHost Examples -Apache HTTP Server Page 2 or primary server. That means that if a request is received that does not match one of the specified ServerName directives, it will be served by this first VirtualHost. Note You can, if you wish, replace * with the actual IP address of the system. In that case, the argument to VirtualHost must match the argument to NameVirtualHost: NameVirtualHost 172.20.30.40 <VirtualHost 172.20.30.40> # etc ... However, it is additionally useful to use * on systems where the IP address is not predictable - for example if you have a dynamic IP address with your ISP, and you are using some variety of dynamic DNS solution. Since * matches any IP address, this configuration would work without changes whenever your IP address changes. The above configuration is what you will want to use in almost all name-based virtual hosting situations. The only thing that this configuration will not work for, in fact, is when you are serving different content based on differing IP addresses or ports. Name-based hosts on more than one IP address. Note Any of the techniques discussed here can be extended to any number of IP addresses. The server has two IP addresses. On one (172.20.30.40), we will serve the "main" server, server.domain.com and on the other (172.20.30.50), we will serve two or more virtual hosts. Server configuration Listen 80 # This is the "main" server running on 172.20.30.40 ServerName server.domain.com DocumentRoot /www/mainserver # This is the other address NameVirtualHost 172.20.30.50 <VirtualHost 172.20.30.50> DocumentRoot /www/example 1 ServerName www.example .com # Other directives here ... </VirtualHost > <VirtualHost 172.20.30.50> DocumentRoot /www/example 2 ServerName www.example .org # Other directives here ... </VirtualHost > Any request to an address other than 172.20.30.50 will be served from the main server. A request to 172.20.30.50 with an unknown hostname, or no Host: header, will be served from www.example.com. http://httpd.apache.org/docs/2.2/vhosts/examples.html 24/12/2007 00:38:16
• 3.

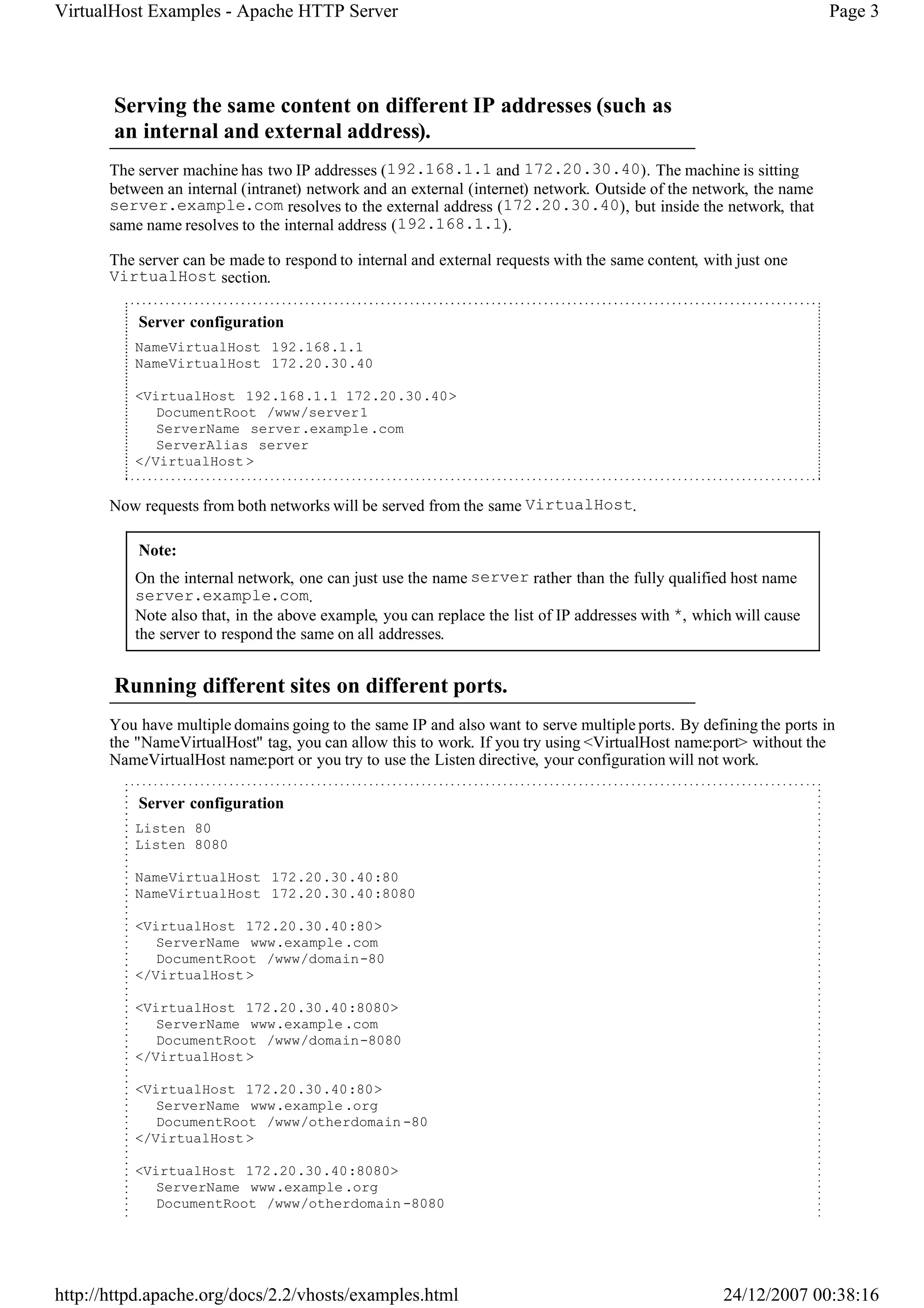

  VirtualHost Examples -Apache HTTP Server Page 3 Serving the same content on different IP addresses (such as an internal and external address). The server machine has two IP addresses (192.168.1.1 and 172.20.30.40). The machine is sitting between an internal (intranet) network and an external (internet) network. Outside of the network, the name server.example.com resolves to the external address (172.20.30.40), but inside the network, that same name resolves to the internal address (192.168.1.1). The server can be made to respond to internal and external requests with the same content, with just one VirtualHost section. Server configuration NameVirtualHost 192.168.1.1 NameVirtualHost 172.20.30.40 <VirtualHost 192.168.1.1 172.20.30.40> DocumentRoot /www/server1 ServerName server.example .com ServerAlias server </VirtualHost > Now requests from both networks will be served from the same VirtualHost. Note: On the internal network, one can just use the name server rather than the fully qualified host name server.example.com. Note also that, in the above example, you can replace the list of IP addresses with *, which will cause the server to respond the same on all addresses. Running different sites on different ports. You have multiple domains going to the same IP and also want to serve multiple ports. By defining the ports in the "NameVirtualHost" tag, you can allow this to work. If you try using <VirtualHost name:port> without the NameVirtualHost name:port or you try to use the Listen directive, your configuration will not work. Server configuration Listen 80 Listen 8080 NameVirtualHost 172.20.30.40:80 NameVirtualHost 172.20.30.40:8080 <VirtualHost 172.20.30.40:80> ServerName www.example .com DocumentRoot /www/domain-80 </VirtualHost > <VirtualHost 172.20.30.40:8080> ServerName www.example .com DocumentRoot /www/domain-8080 </VirtualHost > <VirtualHost 172.20.30.40:80> ServerName www.example .org DocumentRoot /www/otherdomain -80 </VirtualHost > <VirtualHost 172.20.30.40:8080> ServerName www.example .org DocumentRoot /www/otherdomain -8080 http://httpd.apache.org/docs/2.2/vhosts/examples.html 24/12/2007 00:38:16
• 4.

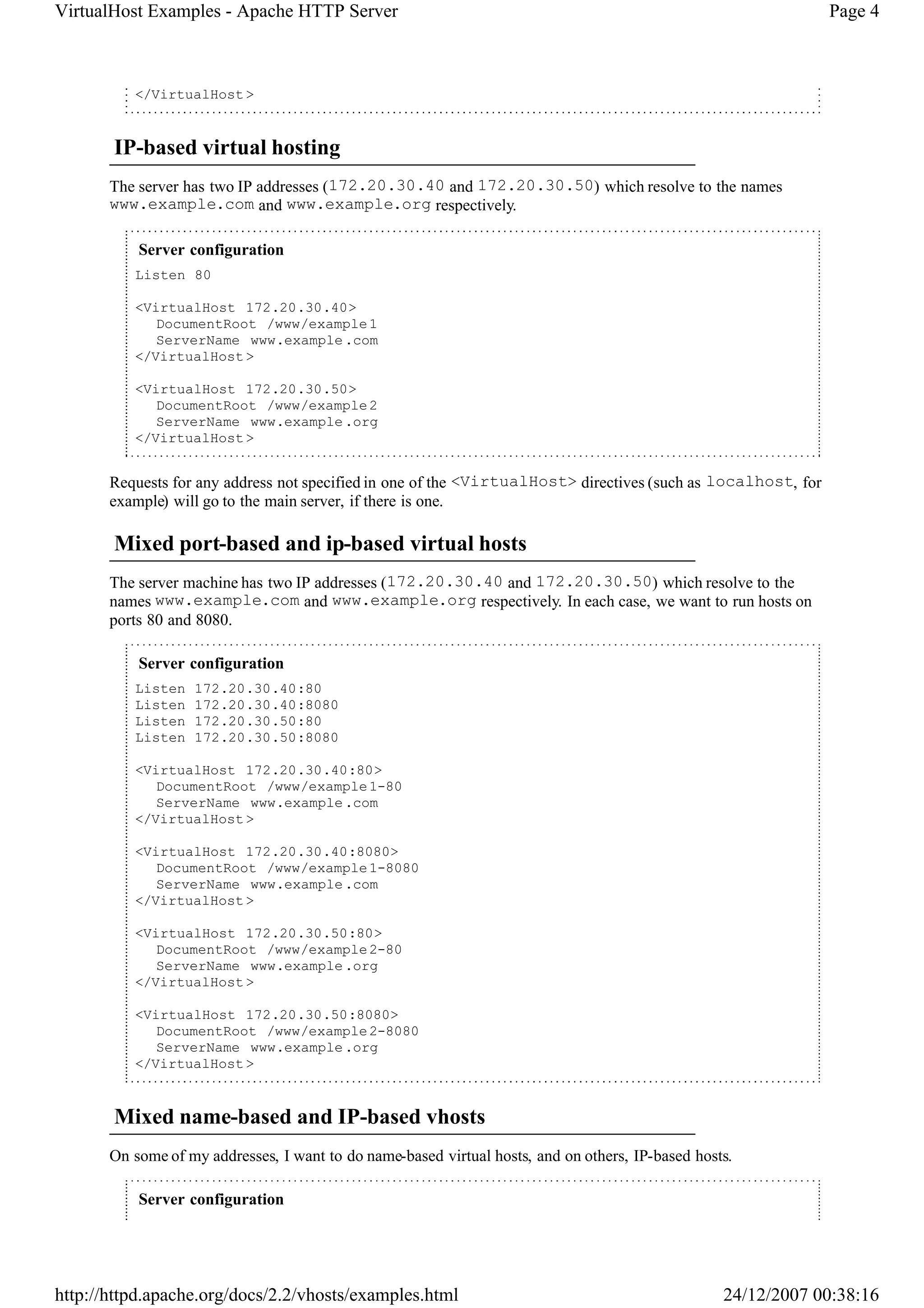

  VirtualHost Examples -Apache HTTP Server Page 4 </VirtualHost > IP-based virtual hosting The server has two IP addresses (172.20.30.40 and 172.20.30.50) which resolve to the names www.example.com and www.example.org respectively. Server configuration Listen 80 <VirtualHost 172.20.30.40> DocumentRoot /www/example 1 ServerName www.example .com </VirtualHost > <VirtualHost 172.20.30.50> DocumentRoot /www/example 2 ServerName www.example .org </VirtualHost > Requests for any address not specified in one of the <VirtualHost> directives (such as localhost, for example) will go to the main server, if there is one. Mixed port-based and ip-based virtual hosts The server machine has two IP addresses (172.20.30.40 and 172.20.30.50) which resolve to the names www.example.com and www.example.org respectively. In each case, we want to run hosts on ports 80 and 8080. Server configuration Listen 172.20.30.40:80 Listen 172.20.30.40:8080 Listen 172.20.30.50:80 Listen 172.20.30.50:8080 <VirtualHost 172.20.30.40:80> DocumentRoot /www/example 1-80 ServerName www.example .com </VirtualHost > <VirtualHost 172.20.30.40:8080> DocumentRoot /www/example 1-8080 ServerName www.example .com </VirtualHost > <VirtualHost 172.20.30.50:80> DocumentRoot /www/example 2-80 ServerName www.example .org </VirtualHost > <VirtualHost 172.20.30.50:8080> DocumentRoot /www/example 2-8080 ServerName www.example .org </VirtualHost > Mixed name-based and IP-based vhosts On some of my addresses, I want to do name-based virtual hosts, and on others, IP-based hosts. Server configuration http://httpd.apache.org/docs/2.2/vhosts/examples.html 24/12/2007 00:38:16
• 5.

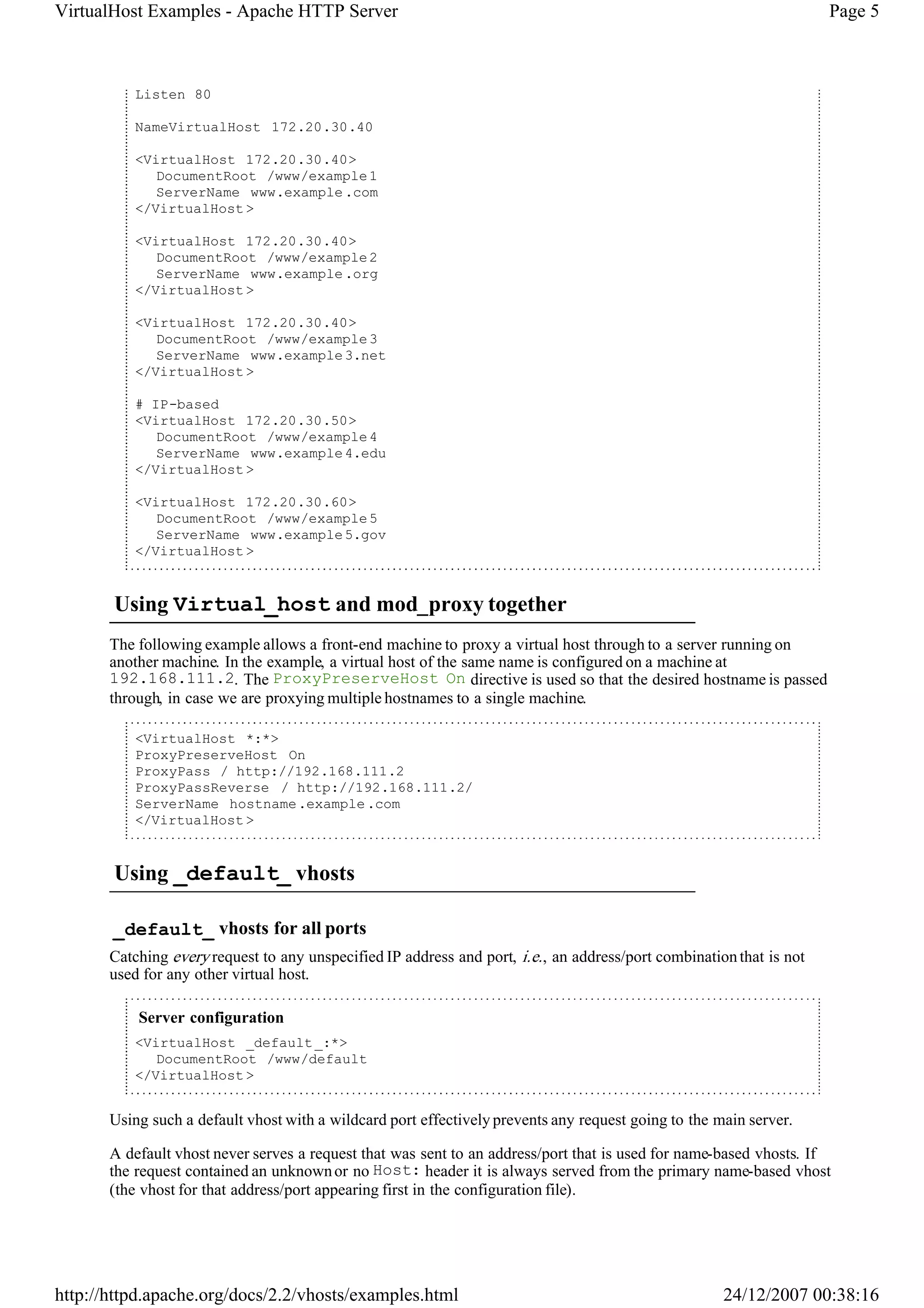

  VirtualHost Examples -Apache HTTP Server Page 5 Listen 80 NameVirtualHost 172.20.30.40 <VirtualHost 172.20.30.40> DocumentRoot /www/example 1 ServerName www.example .com </VirtualHost > <VirtualHost 172.20.30.40> DocumentRoot /www/example 2 ServerName www.example .org </VirtualHost > <VirtualHost 172.20.30.40> DocumentRoot /www/example 3 ServerName www.example 3.net </VirtualHost > # IP-based <VirtualHost 172.20.30.50> DocumentRoot /www/example 4 ServerName www.example 4.edu </VirtualHost > <VirtualHost 172.20.30.60> DocumentRoot /www/example 5 ServerName www.example 5.gov </VirtualHost > Using Virtual_host and mod_proxy together The following example allows a front-end machine to proxy a virtual host through to a server running on another machine. In the example, a virtual host of the same name is configured on a machine at 192.168.111.2. The ProxyPreserveHost On directive is used so that the desired hostname is passed through, in case we are proxying multiple hostnames to a single machine. <VirtualHost *:*> ProxyPreserveHost On ProxyPass / http://192.168.111.2 ProxyPassReverse / http://192.168.111.2/ ServerName hostname .example .com </VirtualHost > Using _default_ vhosts _default_ vhosts for all ports Catching every request to any unspecified IP address and port, i.e. , an address/port combination that is not used for any other virtual host. Server configuration <VirtualHost _default _:*> DocumentRoot /www/default </VirtualHost > Using such a default vhost with a wildcard port effectively prevents any request going to the main server. A default vhost never serves a request that was sent to an address/port that is used for name-based vhosts. If the request contained an unknown or no Host: header it is always served from the primary name-based vhost (the vhost for that address/port appearing first in the configuration file). http://httpd.apache.org/docs/2.2/vhosts/examples.html 24/12/2007 00:38:16
• 6.
  VirtualHost Examples -Apache HTTP Server Page 6 You can use AliasMatch or RewriteRule to rewrite any request to a single information page (or script). _default_ vhosts for different ports Same as setup 1, but the server listens on several ports and we want to use a second _default_ vhost for port 80. Server configuration <VirtualHost _default _:80> DocumentRoot /www/default 80 # ... </VirtualHost > <VirtualHost _default _:*> DocumentRoot /www/default # ... </VirtualHost > The default vhost for port 80 (which must appear before any default vhost with a wildcard port) catches all requests that were sent to an unspecified IP address. The main server is never used to serve a request. _default_ vhosts for one port We want to have a default vhost for port 80, but no other default vhosts. Server configuration <VirtualHost _default _:80> DocumentRoot /www/default ... </VirtualHost > A request to an unspecified address on port 80 is served from the default vhost. Any other request to an unspecified address and port is served from the main server. Migrating a name-based vhost to an IP-based vhost The name-based vhost with the hostname www.example.org (from our name-based ( #name) example, setup 2) should get its own IP address. To avoid problems with name servers or proxies who cached the old IP address for the name-based vhost we want to provide both variants during a migration phase. The solution is easy, because we can simply add the new IP address (172.20.30.50) to the VirtualHost directive. Server configuration Listen 80 ServerName www.example .com DocumentRoot /www/example 1 NameVirtualHost 172.20.30.40 <VirtualHost 172.20.30.40 172.20.30.50> DocumentRoot /www/example 2 ServerName www.example .org # ... </VirtualHost > <VirtualHost 172.20.30.40> DocumentRoot /www/example 3 ServerName www.example .net ServerAlias *.example .net # ... http://httpd.apache.org/docs/2.2/vhosts/examples.html 24/12/2007 00:38:16
• 7.

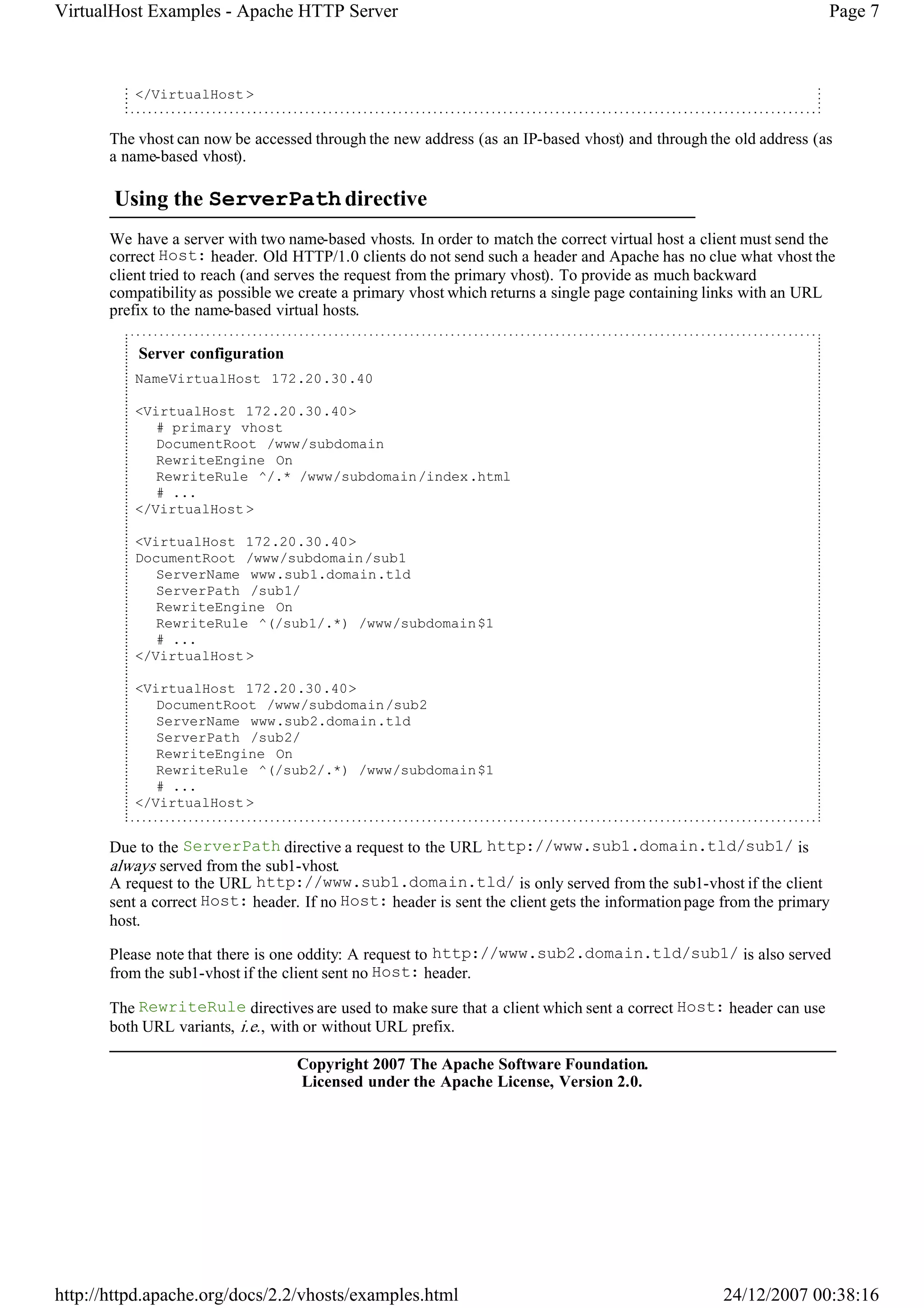

  VirtualHost Examples -Apache HTTP Server Page 7 </VirtualHost > The vhost can now be accessed through the new address (as an IP-based vhost) and through the old address (as a name-based vhost). Using the ServerPath directive We have a server with two name-based vhosts. In order to match the correct virtual host a client must send the correct Host: header. Old HTTP/1.0 clients do not send such a header and Apache has no clue what vhost the client tried to reach (and serves the request from the primary vhost). To provide as much backward compatibility as possible we create a primary vhost which returns a single page containing links with an URL prefix to the name-based virtual hosts. Server configuration NameVirtualHost 172.20.30.40 <VirtualHost 172.20.30.40> # primary vhost DocumentRoot /www/subdomain RewriteEngine On RewriteRule ^/.* /www/subdomain/index.html # ... </VirtualHost > <VirtualHost 172.20.30.40> DocumentRoot /www/subdomain/sub1 ServerName www.sub1.domain.tld ServerPath /sub1/ RewriteEngine On RewriteRule ^(/sub1/.*) /www/subdomain$1 # ... </VirtualHost > <VirtualHost 172.20.30.40> DocumentRoot /www/subdomain/sub2 ServerName www.sub2.domain.tld ServerPath /sub2/ RewriteEngine On RewriteRule ^(/sub2/.*) /www/subdomain$1 # ... </VirtualHost > Due to the ServerPath directive a request to the URL http://www.sub1.domain.tld/sub1/ is always served from the sub1-vhost. A request to the URL http://www.sub1.domain.tld/ is only served from the sub1-vhost if the client sent a correct Host: header. If no Host: header is sent the client gets the information page from the primary host. Please note that there is one oddity: A request to http://www.sub2.domain.tld/sub1/ is also served from the sub1-vhost if the client sent no Host: header. The RewriteRule directives are used to make sure that a client which sent a correct Host: header can use both URL variants, i.e. , with or without URL prefix. Copyright 2007 The Apache Software Foundation. Licensed under the Apache License, Version 2.0. http://httpd.apache.org/docs/2.2/vhosts/examples.html 24/12/2007 00:38:16
