![Virtual Instruction Set
for ( i=0; i<N; ++i)
sum(&A[i], &P);
loop:
%i.1 = phi int [ 0, %bb0 ], [ %i.2, %loop ]
%AiAddr = getelementptr float* %A, int %i.1
call void %sum(float %AiAddr, %pair* %P)
%i.2 = add int %i.1, 1
%tmp.4 = setlt int %i.1, %N
br bool %tmp.4, label %loop, label %outloop
http://llvm.org/docs/LangRef.html](https://image.slidesharecdn.com/jco2014llvm-140223230715-phpapp02/85/VM-LLVM-19-320.jpg)
![LLVM Demo
#include <stdio.h>
#include <stdlib.h>
!
int factorial(int X) {
if (X == 0) return 1;
return X*factorial(X-1);
}
!
int main(int argc, char **argv) {
printf("%dn", factorial(atoi(argv[1])));
}
http://llvm.org/demo](https://image.slidesharecdn.com/jco2014llvm-140223230715-phpapp02/85/VM-LLVM-20-320.jpg)

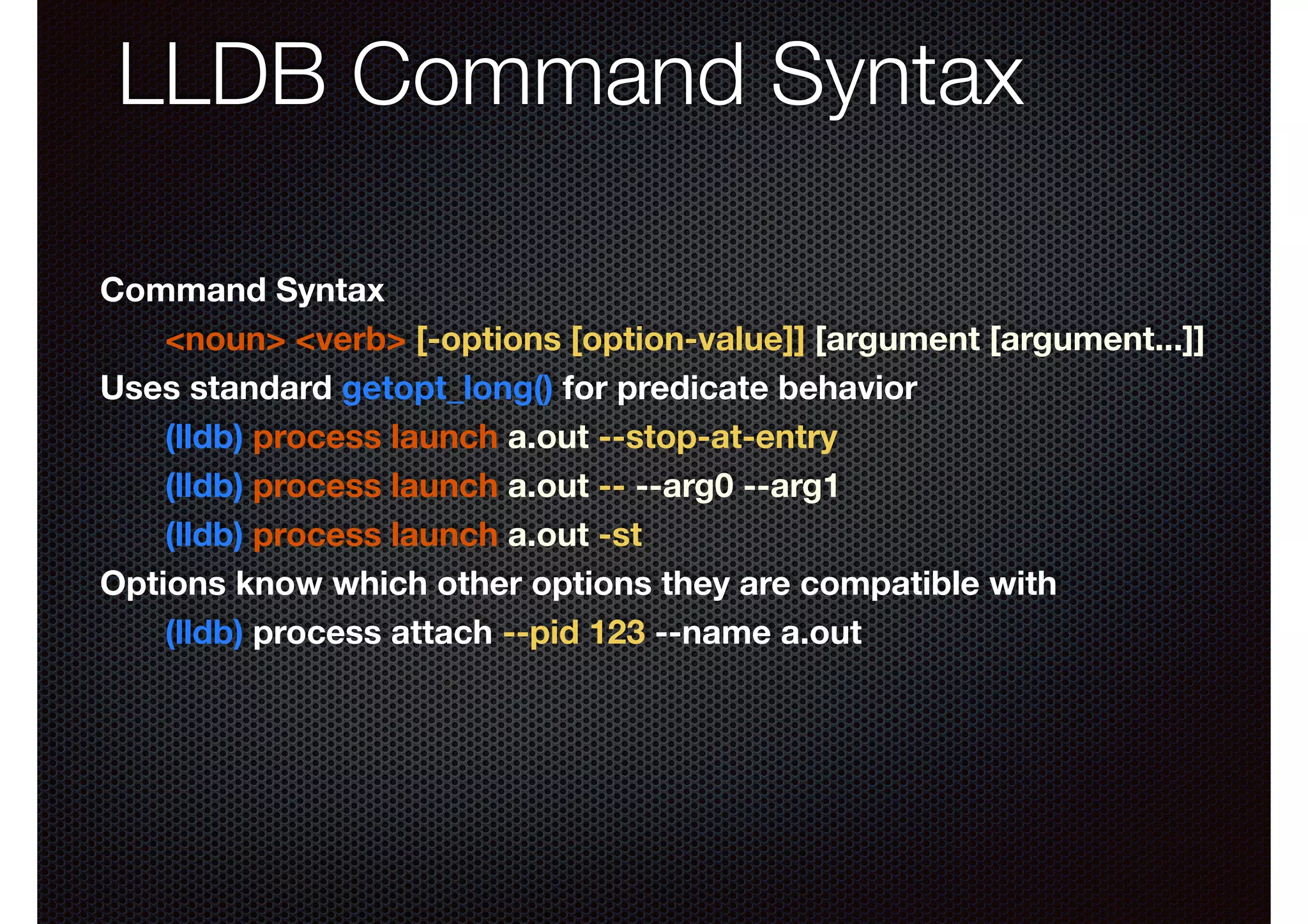

![LLDB Command Syntax
Command Syntax
<noun> <verb> [-options [option-value]] [argument [argument...]]
Uses standard getopt_long() for predicate behavior
(lldb) process launch a.out --stop-at-entry
(lldb) process launch a.out -- --arg0 --arg1
(lldb) process launch a.out -st
Options know which other options they are compatible with
(lldb) process attach --pid 123 --name a.out](https://image.slidesharecdn.com/jco2014llvm-140223230715-phpapp02/85/VM-LLVM-42-320.jpg)

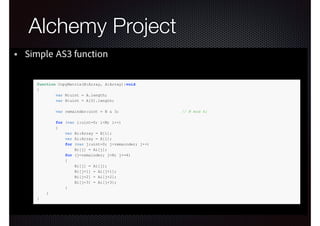

![ActionScript3 + LLVM?

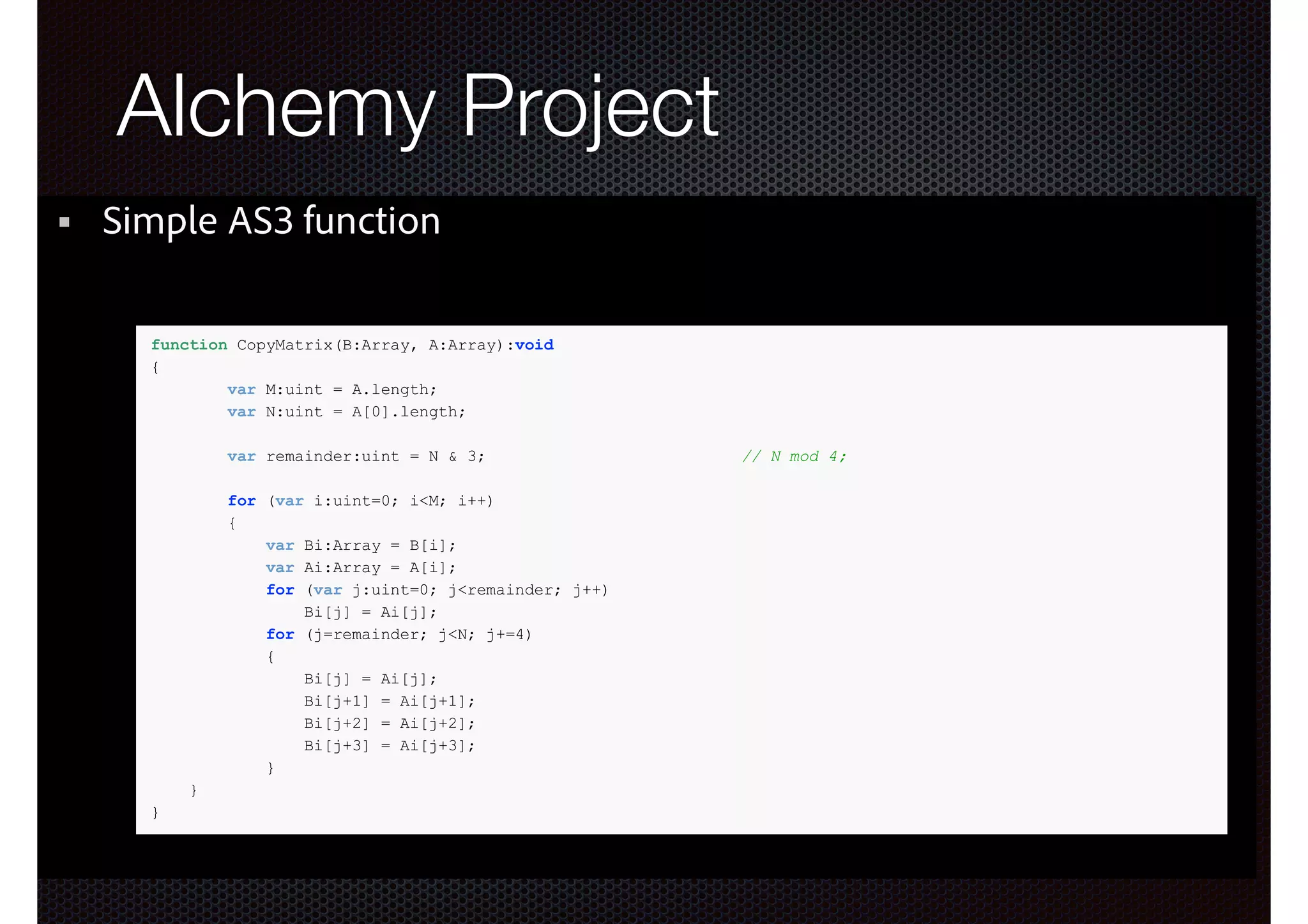

Alchemy Project
Simple AS3 function
function CopyMatrix(B:Array, A:Array):void
{
var M:uint = A.length;
var N:uint = A[0].length;
var remainder:uint = N & 3;
for (var i:uint=0; i<M; i++)
{
var Bi:Array = B[i];
var Ai:Array = A[i];
for (var j:uint=0; j<remainder; j++)
Bi[j] = Ai[j];
for (j=remainder; j<N; j+=4)
{
Bi[j] = Ai[j];
Bi[j+1] = Ai[j+1];
Bi[j+2] = Ai[j+2];
Bi[j+3] = Ai[j+3];
}
}
}
// N mod 4;](https://image.slidesharecdn.com/jco2014llvm-140223230715-phpapp02/85/VM-LLVM-59-320.jpg)

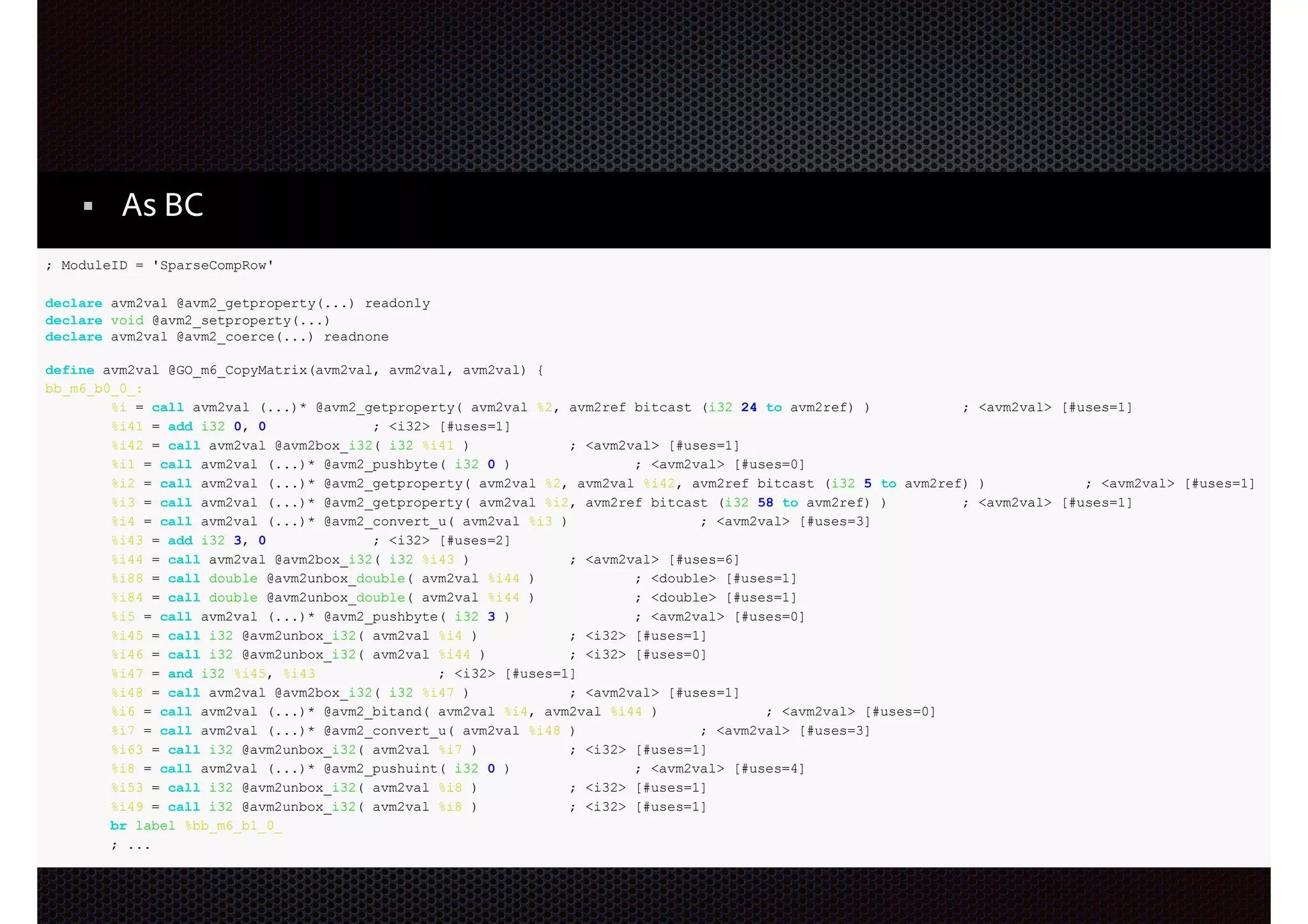

![ActionScript3 + LLVM?

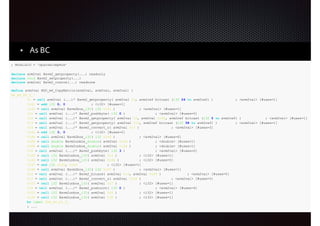

As BC
; ModuleID = 'SparseCompRow'
declare avm2val @avm2_getproperty(...) readonly
declare void @avm2_setproperty(...)
declare avm2val @avm2_coerce(...) readnone
define avm2val @GO_m6_CopyMatrix(avm2val, avm2val, avm2val) {
bb_m6_b0_0_:
%i = call avm2val (...)* @avm2_getproperty( avm2val %2, avm2ref bitcast (i32 24 to avm2ref) )
; <avm2val> [#uses=1]
%i41 = add i32 0, 0
; <i32> [#uses=1]
%i42 = call avm2val @avm2box_i32( i32 %i41 )
; <avm2val> [#uses=1]
%i1 = call avm2val (...)* @avm2_pushbyte( i32 0 )
; <avm2val> [#uses=0]
%i2 = call avm2val (...)* @avm2_getproperty( avm2val %2, avm2val %i42, avm2ref bitcast (i32 5 to avm2ref) )
; <avm2val> [#uses=1]
%i3 = call avm2val (...)* @avm2_getproperty( avm2val %i2, avm2ref bitcast (i32 58 to avm2ref) )
; <avm2val> [#uses=1]
%i4 = call avm2val (...)* @avm2_convert_u( avm2val %i3 )
; <avm2val> [#uses=3]
%i43 = add i32 3, 0
; <i32> [#uses=2]
%i44 = call avm2val @avm2box_i32( i32 %i43 )
; <avm2val> [#uses=6]
%i88 = call double @avm2unbox_double( avm2val %i44 )
; <double> [#uses=1]
%i84 = call double @avm2unbox_double( avm2val %i44 )
; <double> [#uses=1]
%i5 = call avm2val (...)* @avm2_pushbyte( i32 3 )
; <avm2val> [#uses=0]
%i45 = call i32 @avm2unbox_i32( avm2val %i4 )
; <i32> [#uses=1]
%i46 = call i32 @avm2unbox_i32( avm2val %i44 )
; <i32> [#uses=0]
%i47 = and i32 %i45, %i43
; <i32> [#uses=1]
%i48 = call avm2val @avm2box_i32( i32 %i47 )
; <avm2val> [#uses=1]
%i6 = call avm2val (...)* @avm2_bitand( avm2val %i4, avm2val %i44 )
; <avm2val> [#uses=0]
%i7 = call avm2val (...)* @avm2_convert_u( avm2val %i48 )
; <avm2val> [#uses=3]
%i63 = call i32 @avm2unbox_i32( avm2val %i7 )
; <i32> [#uses=1]
%i8 = call avm2val (...)* @avm2_pushuint( i32 0 )
; <avm2val> [#uses=4]
%i53 = call i32 @avm2unbox_i32( avm2val %i8 )
; <i32> [#uses=1]
%i49 = call i32 @avm2unbox_i32( avm2val %i8 )
; <i32> [#uses=1]
br label %bb_m6_b1_0_
; ...
®](https://image.slidesharecdn.com/jco2014llvm-140223230715-phpapp02/85/VM-LLVM-61-320.jpg)
![Virtual Instruction Set
for ( i=0; i<N; ++i)
sum(&A[i], &P);
loop:
%i.1 = phi int [ 0, %bb0 ], [ %i.2, %loop ]
%AiAddr = getelementptr float* %A, int %i.1
call void %sum(float %AiAddr, %pair* %P)
%i.2 = add int %i.1, 1
%tmp.4 = setlt int %i.1, %N
br bool %tmp.4, label %loop, label %outloop
http://llvm.org/docs/LangRef.html](https://image.slidesharecdn.com/jco2014llvm-140223230715-phpapp02/75/VM-LLVM-19-2048.jpg)
![LLVM Demo
#include <stdio.h>
#include <stdlib.h>
!
int factorial(int X) {
if (X == 0) return 1;
return X*factorial(X-1);
}
!
int main(int argc, char **argv) {
printf("%dn", factorial(atoi(argv[1])));
}

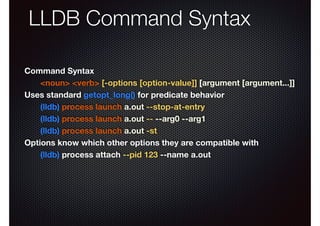

http://llvm.org/demo](https://image.slidesharecdn.com/jco2014llvm-140223230715-phpapp02/75/VM-LLVM-20-2048.jpg)
![LLDB Command Syntax
Command Syntax
<noun> <verb> [-options [option-value]] [argument [argument...]]
Uses standard getopt_long() for predicate behavior
(lldb) process launch a.out --stop-at-entry
(lldb) process launch a.out -- --arg0 --arg1
(lldb) process launch a.out -st
Options know which other options they are compatible with
(lldb) process attach --pid 123 --name a.out](https://image.slidesharecdn.com/jco2014llvm-140223230715-phpapp02/75/VM-LLVM-42-2048.jpg)
![ActionScript3 + LLVM?
Alchemy Project
Simple AS3 function
function CopyMatrix(B:Array, A:Array):void
{
var M:uint = A.length;
var N:uint = A[0].length;
var remainder:uint = N & 3;
for (var i:uint=0; i<M; i++)
{
var Bi:Array = B[i];
var Ai:Array = A[i];
for (var j:uint=0; j<remainder; j++)
Bi[j] = Ai[j];
for (j=remainder; j<N; j+=4)
{
Bi[j] = Ai[j];
Bi[j+1] = Ai[j+1];
Bi[j+2] = Ai[j+2];
Bi[j+3] = Ai[j+3];
}
}
}
// N mod 4;](https://image.slidesharecdn.com/jco2014llvm-140223230715-phpapp02/75/VM-LLVM-59-2048.jpg)
![ActionScript3 + LLVM?
As BC
; ModuleID = 'SparseCompRow'
declare avm2val @avm2_getproperty(...) readonly
declare void @avm2_setproperty(...)
declare avm2val @avm2_coerce(...) readnone
define avm2val @GO_m6_CopyMatrix(avm2val, avm2val, avm2val) {
bb_m6_b0_0_:
%i = call avm2val (...)* @avm2_getproperty( avm2val %2, avm2ref bitcast (i32 24 to avm2ref) )
; <avm2val> [#uses=1]
%i41 = add i32 0, 0
; <i32> [#uses=1]
%i42 = call avm2val @avm2box_i32( i32 %i41 )
; <avm2val> [#uses=1]
%i1 = call avm2val (...)* @avm2_pushbyte( i32 0 )
; <avm2val> [#uses=0]
%i2 = call avm2val (...)* @avm2_getproperty( avm2val %2, avm2val %i42, avm2ref bitcast (i32 5 to avm2ref) )
; <avm2val> [#uses=1]
%i3 = call avm2val (...)* @avm2_getproperty( avm2val %i2, avm2ref bitcast (i32 58 to avm2ref) )
; <avm2val> [#uses=1]
%i4 = call avm2val (...)* @avm2_convert_u( avm2val %i3 )
; <avm2val> [#uses=3]
%i43 = add i32 3, 0
; <i32> [#uses=2]
%i44 = call avm2val @avm2box_i32( i32 %i43 )
; <avm2val> [#uses=6]
%i88 = call double @avm2unbox_double( avm2val %i44 )
; <double> [#uses=1]
%i84 = call double @avm2unbox_double( avm2val %i44 )
; <double> [#uses=1]
%i5 = call avm2val (...)* @avm2_pushbyte( i32 3 )
; <avm2val> [#uses=0]
%i45 = call i32 @avm2unbox_i32( avm2val %i4 )
; <i32> [#uses=1]
%i46 = call i32 @avm2unbox_i32( avm2val %i44 )
; <i32> [#uses=0]
%i47 = and i32 %i45, %i43
; <i32> [#uses=1]
%i48 = call avm2val @avm2box_i32( i32 %i47 )
; <avm2val> [#uses=1]
%i6 = call avm2val (...)* @avm2_bitand( avm2val %i4, avm2val %i44 )
; <avm2val> [#uses=0]
%i7 = call avm2val (...)* @avm2_convert_u( avm2val %i48 )
; <avm2val> [#uses=3]
%i63 = call i32 @avm2unbox_i32( avm2val %i7 )
; <i32> [#uses=1]
%i8 = call avm2val (...)* @avm2_pushuint( i32 0 )
; <avm2val> [#uses=4]
%i53 = call i32 @avm2unbox_i32( avm2val %i8 )
; <i32> [#uses=1]
%i49 = call i32 @avm2unbox_i32( avm2val %i8 )
; <i32> [#uses=1]
br label %bb_m6_b1_0_
; ...
®](https://image.slidesharecdn.com/jco2014llvm-140223230715-phpapp02/75/VM-LLVM-61-2048.jpg)
Uploaded byJung Kim
차세대컴파일러, VM의미래: 애플 오픈소스 LLVM
The document discusses LLVM, a low-level virtual machine designed for efficient multi-stage optimization in compiler infrastructure, aimed at improving compiler construction speed and performance. It emphasizes modular components, cross-platform capabilities, and notable contributions from developers like Chris Lattner and Vikram Adve. The text also highlights various projects utilizing LLVM, including Clang, LLDB, and numerous optimization techniques and sub-projects for modern programming languages and systems.
More Related Content
Similar to 차세대컴파일러, VM의미래: 애플 오픈소스 LLVM
![[COSCUP 2021] LLVM Project: The Good, The Bad, and The Ugly](https://cdn.slidesharecdn.com/ss_thumbnails/coscup2021-llvm-210731054723-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
차세대컴파일러, VM의미래: 애플 오픈소스 LLVM
- 1. 차세대 컴파일러 VM의 미래 애플오픈소스 프로젝트 LLVM twitter.com/@godrm facebook.com/godrm
- 2.

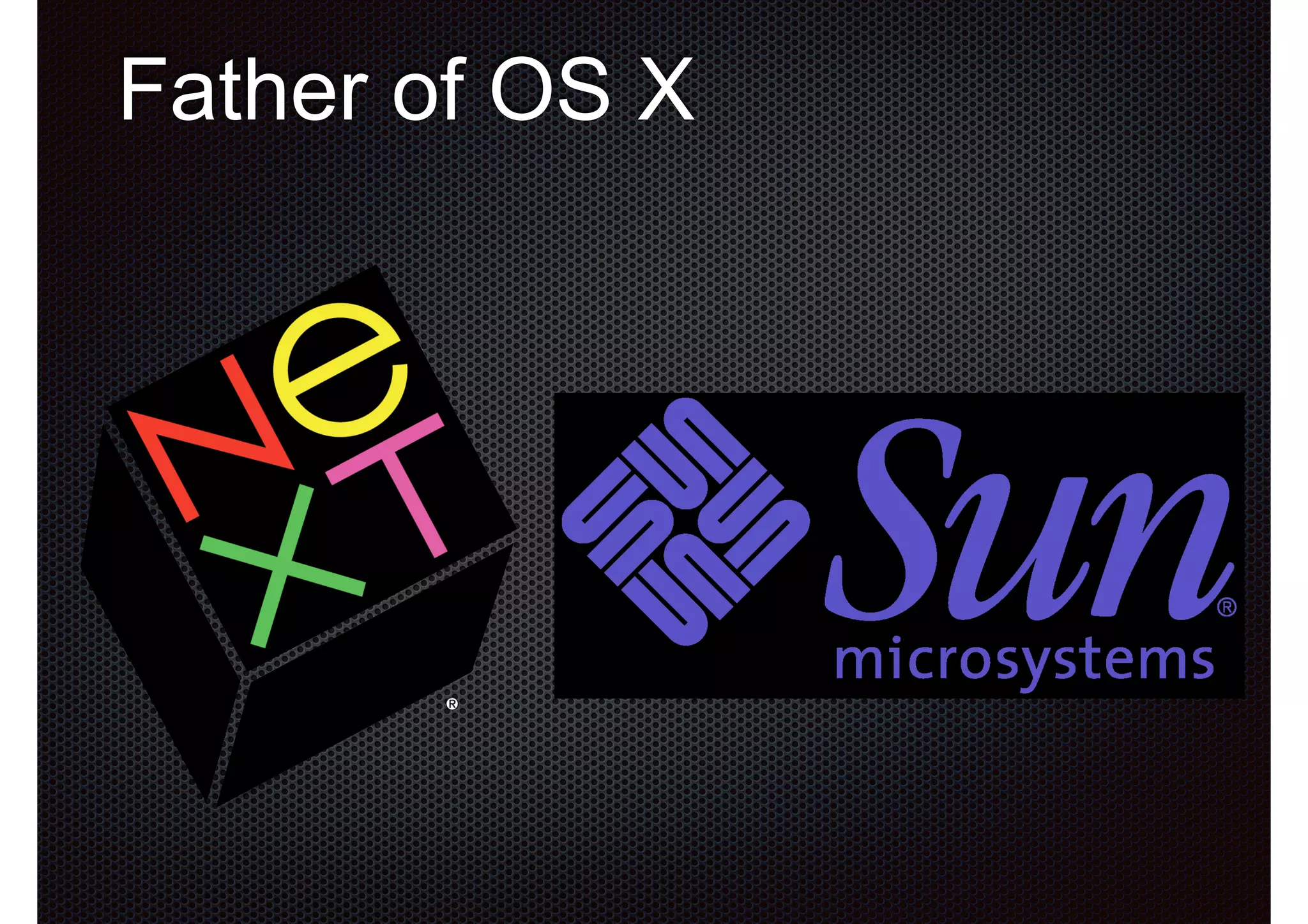

- 3. Mac OS X MacOSX iOS의 아버지
- 4.

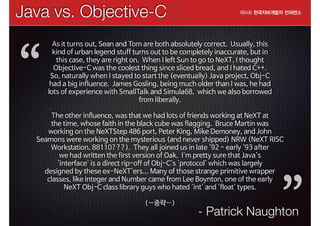

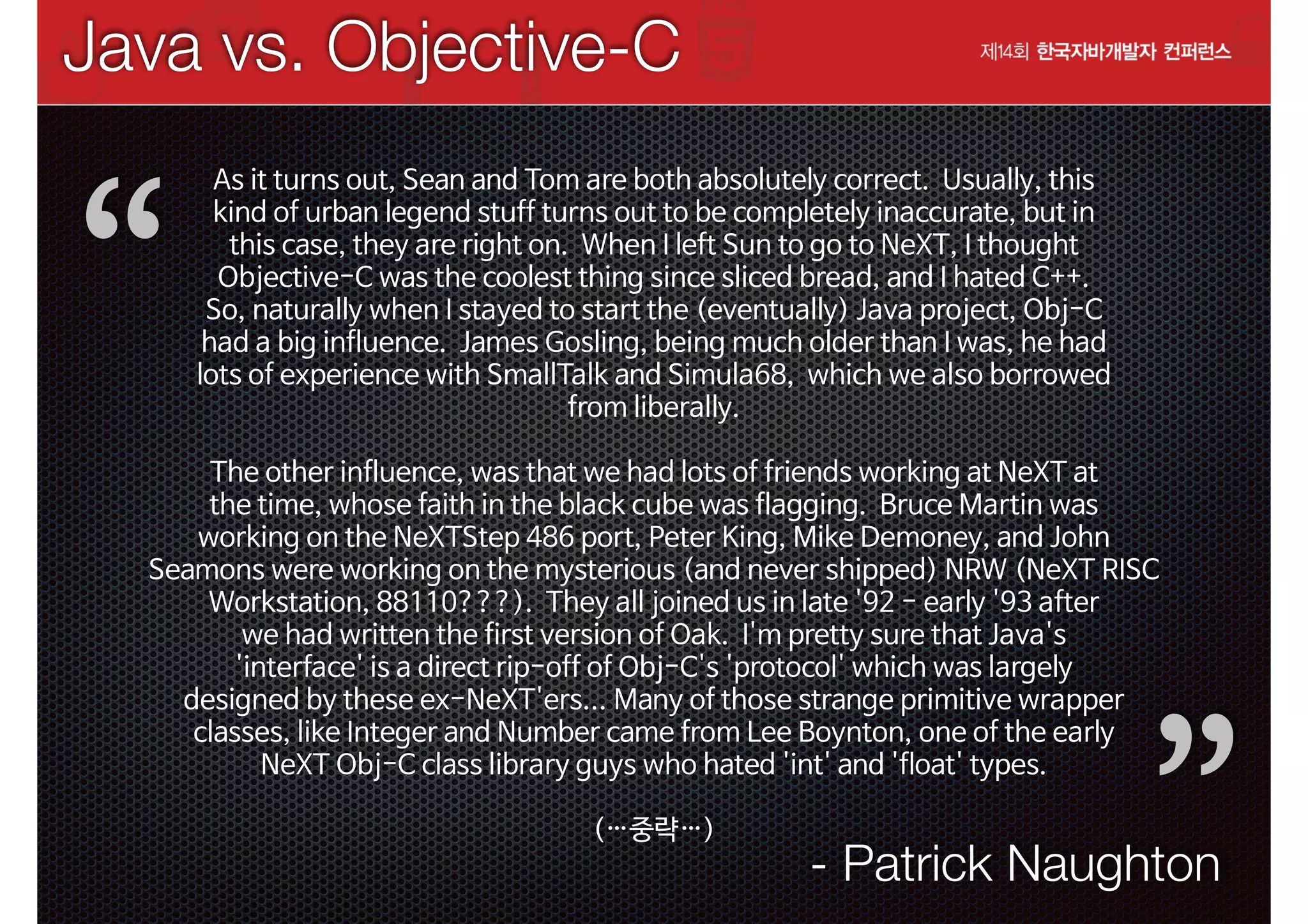

- 5. Java vs. Objective-C “ ! ! ” -Patrick Naughton

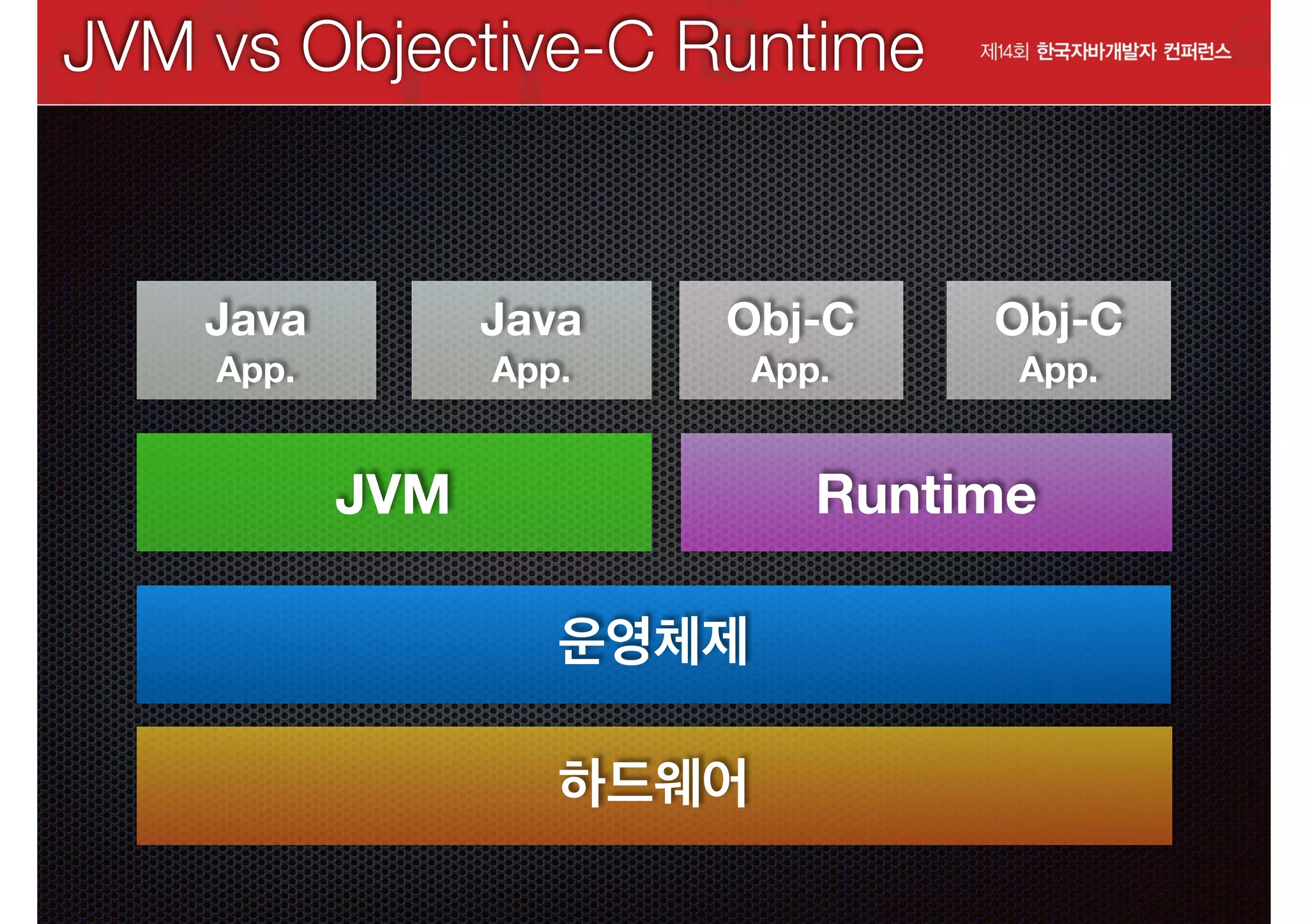

- 6. JVM vs Objective-CRuntime Java Java Obj-C Obj-C App. App. App. App. Runtime JVM 운영체제 하드웨어
- 8.
- 9.

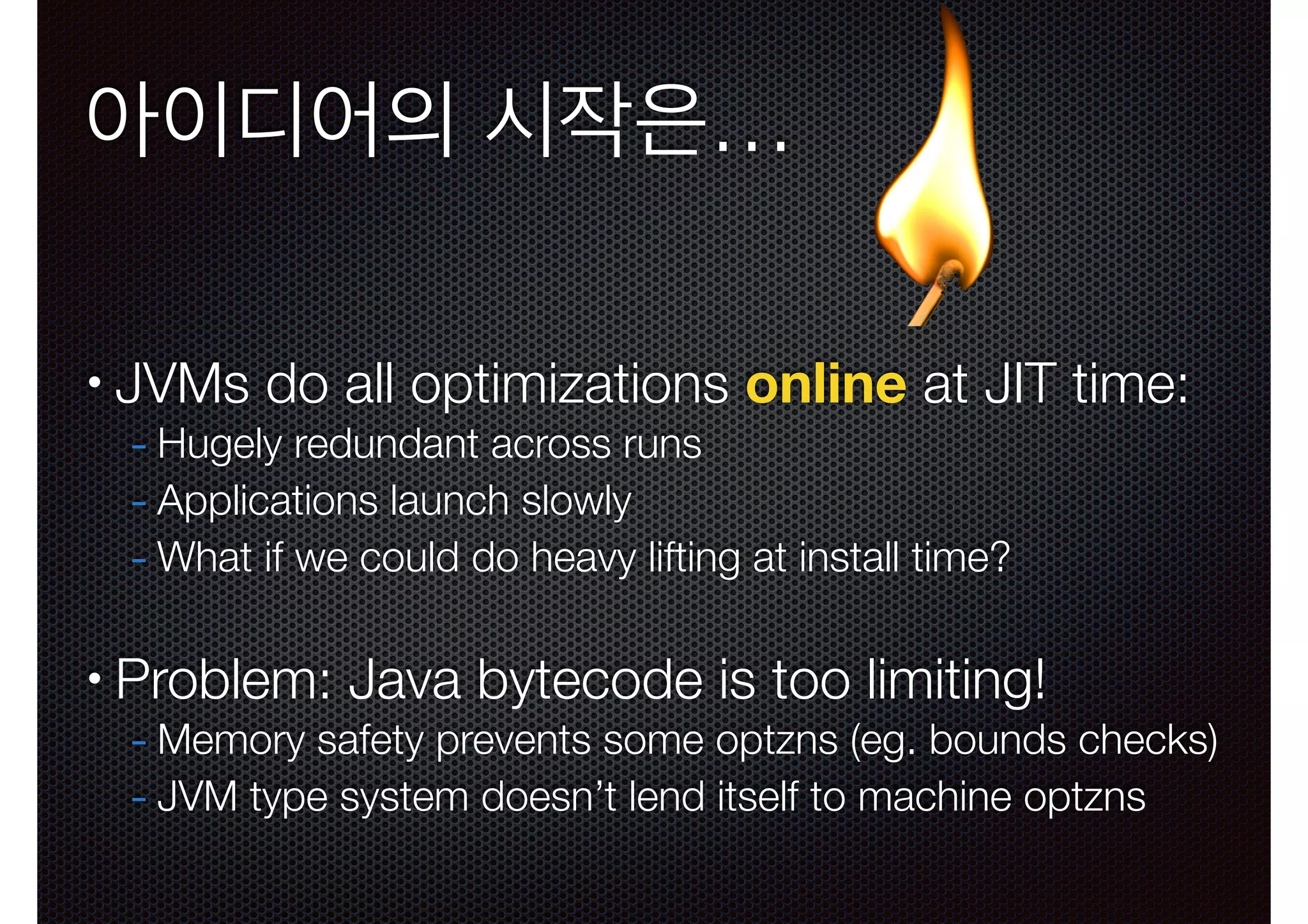

- 10. 아이디어의 시작은… • JVMs doall optimizations online at JIT time: - Hugely redundant across runs - Applications launch slowly - What if we could do heavy lifting at install time? ! • Problem: Java bytecode is too limiting! - Memory safety prevents some optzns (eg. bounds checks) - JVM type system doesn’t lend itself to machine optzns

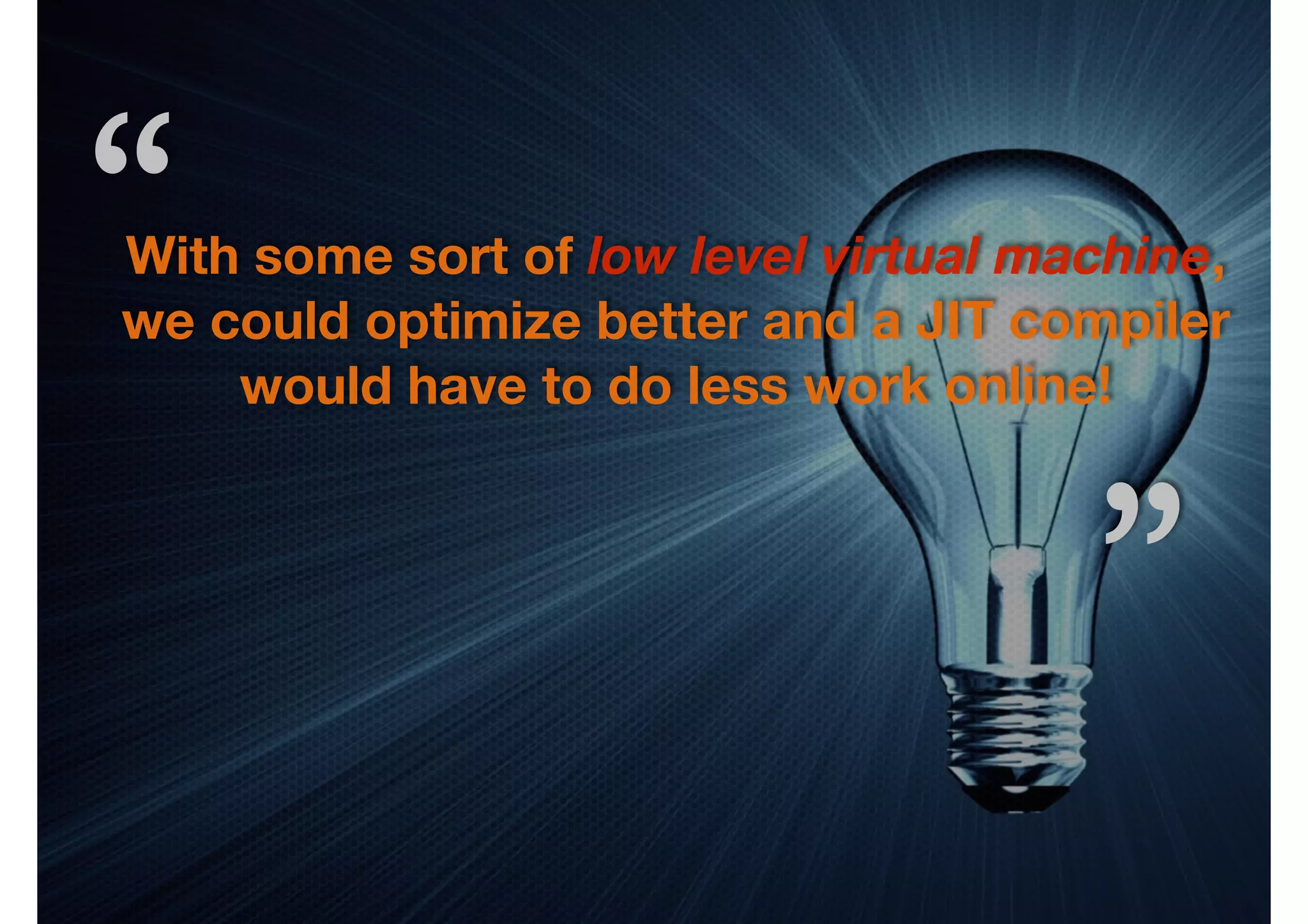

- 11. “ With some sortof low level virtual machine, we could optimize better and a JIT compiler would have to do less work online! ”

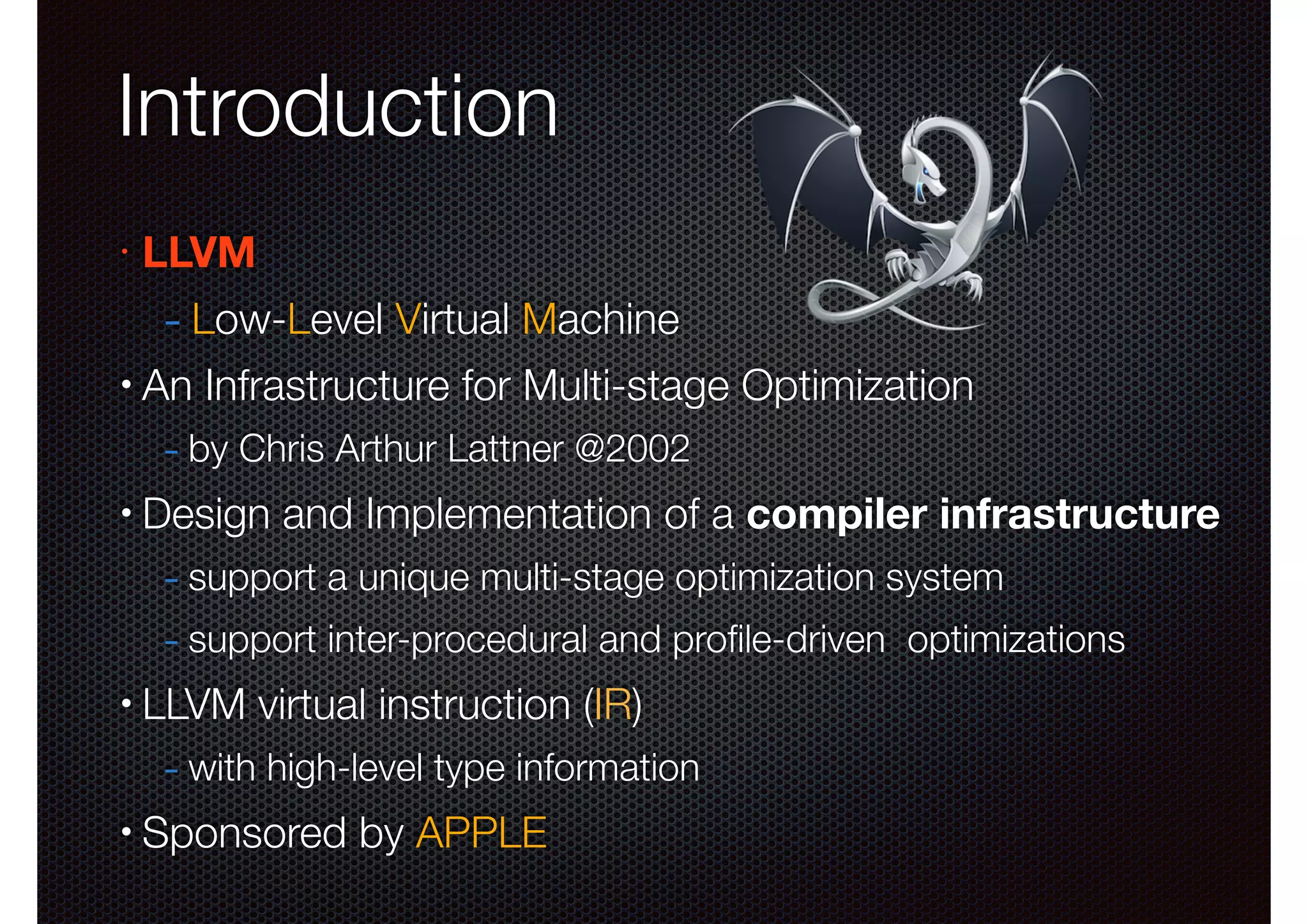

- 12. Introduction • LLVM - Low-Level VirtualMachine • An Infrastructure for Multi-stage Optimization - by Chris Arthur Lattner @2002 • Design and Implementation of a compiler infrastructure - support a unique multi-stage optimization system - support inter-procedural and profile-driven optimizations • LLVM virtual instruction (IR) - with high-level type information • Sponsored by APPLE

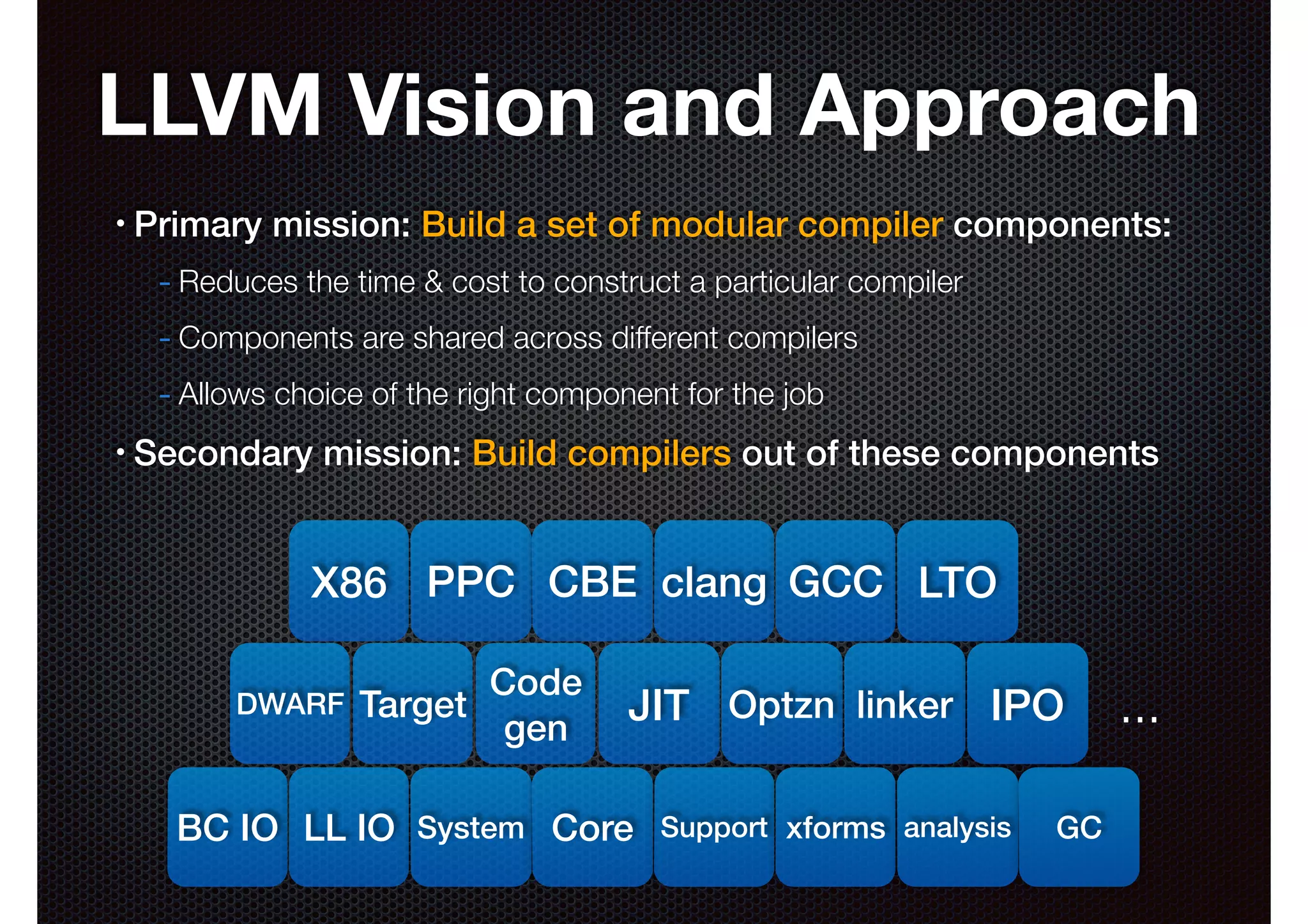

- 13. LLVM Vision andApproach • Primary mission: Build a set of modular compiler components: - Reduces the time & cost to construct a particular compiler - Components are shared across different compilers - Allows choice of the right component for the job • Secondary mission: Build compilers out of these components X86 PPC CBE clang GCC LTO DWARF Code Target gen JIT Optzn linker IPO BC IO LL IO System Core Support xforms analysis GC ...

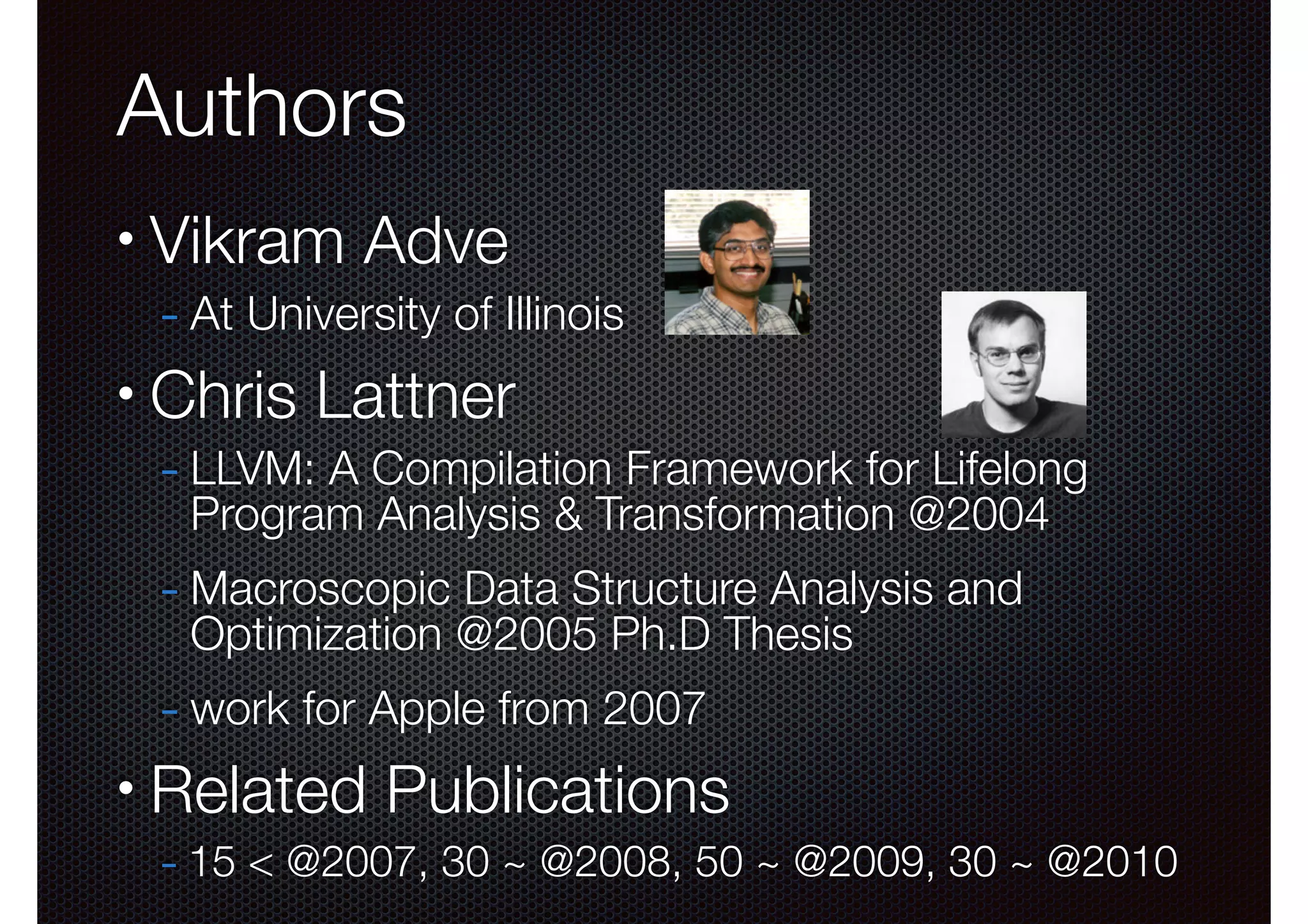

- 14. Authors • Vikram Adve - AtUniversity of Illinois • Chris Lattner - LLVM: A Compilation Framework for Lifelong Program Analysis & Transformation @2004 - Macroscopic Data Structure Analysis and Optimization @2005 Ph.D Thesis - work for Apple from 2007 • Related Publications - 15 < @2007, 30 ~ @2008, 50 ~ @2009, 30 ~ @2010

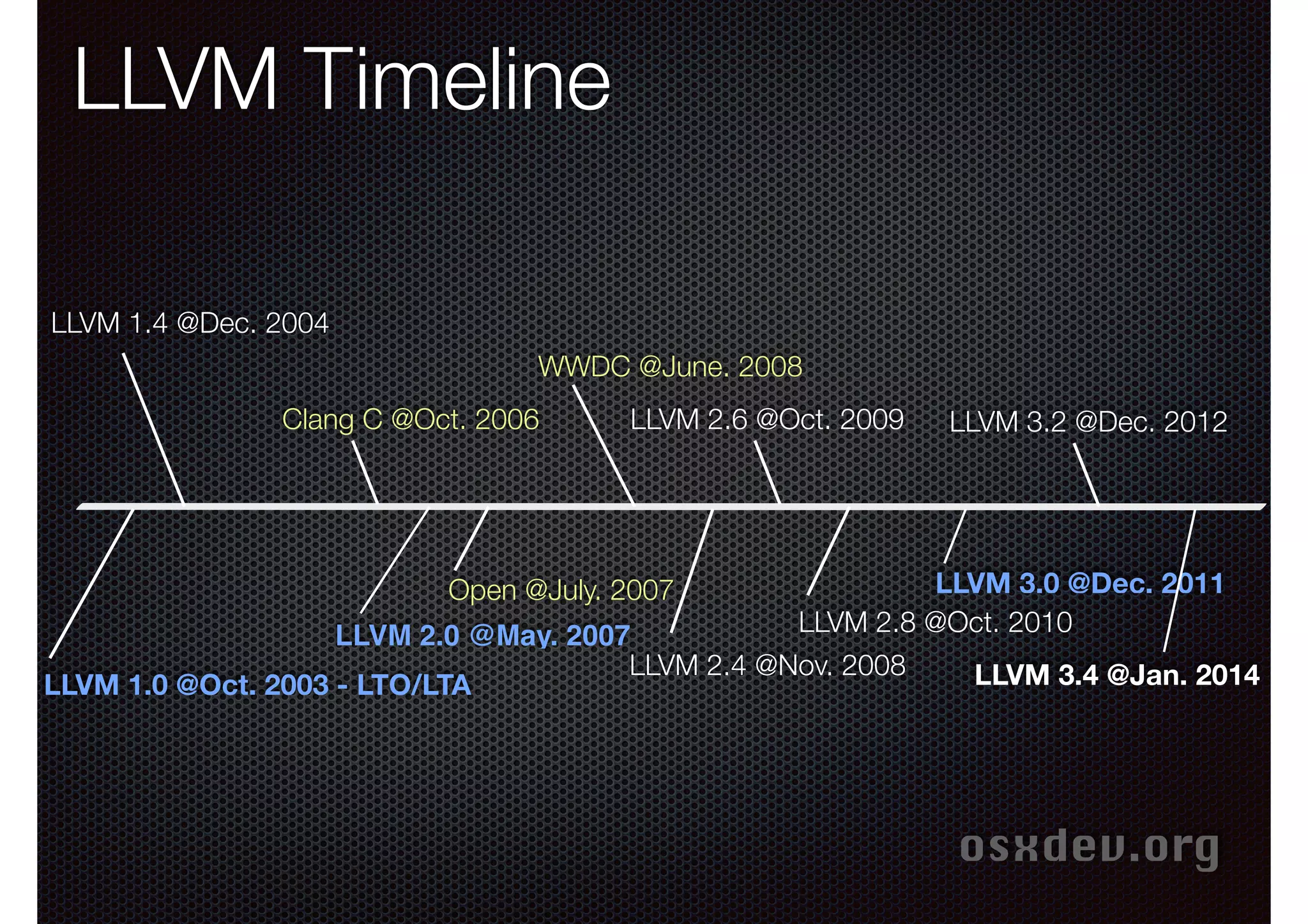

- 15. LLVM Timeline LLVM 1.4@Dec. 2004 WWDC @June. 2008 Clang C @Oct. 2006 LLVM 2.6 @Oct. 2009 LLVM 3.2 @Dec. 2012 LLVM 3.0 @Dec. 2011 LLVM 2.8 @Oct. 2010 LLVM 2.0 @May. 2007 LLVM 2.4 @Nov. 2008 LLVM 3.4 @Jan. 2014 LLVM 1.0 @Oct. 2003 - LTO/LTA Open @July. 2007 osxdev.org

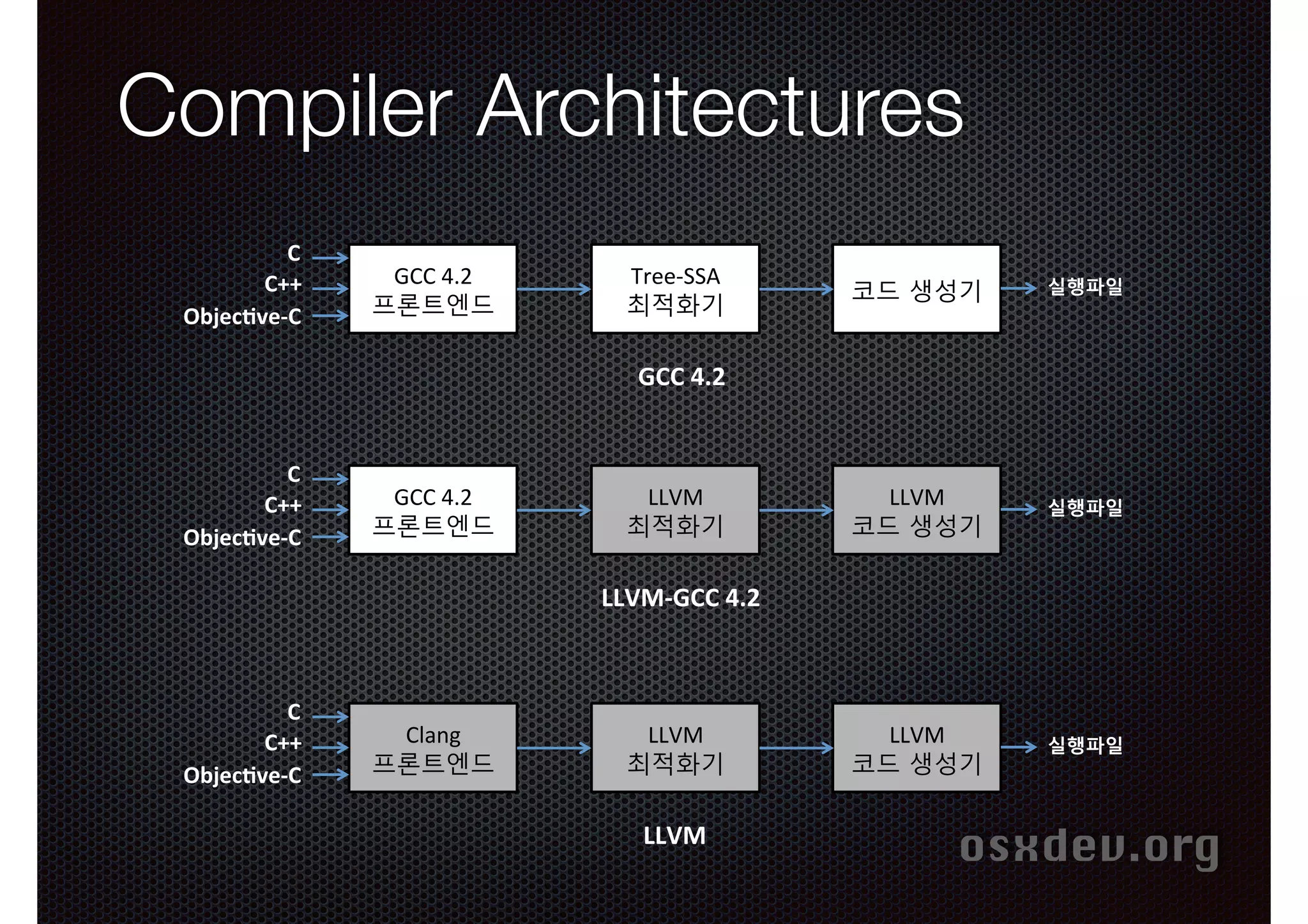

- 16. Compiler Architectures C" C++" Objec)ve+C" GCC#4.2# 프론트엔드# Tree*SSA# 최적화기# 코드 생성기# 실행파일" LLVM# 코드생성기# 실행파일" LLVM# 코드 생성기# 실행파일" GCC"4.2" C" C++" Objec)ve+C" GCC#4.2# 프론트엔드# LLVM# 최적화기# LLVM+GCC"4.2" C" C++" Objec)ve+C" Clang# 프론트엔드# LLVM# 최적화기# LLVM" osxdev.org

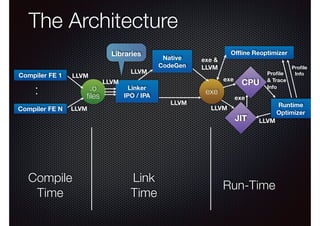

- 17. The Architecture Libraries Compiler FE1 . . Compiler FE N LLVM .o files LLVM LLVM Native CodeGen Offline Reoptimizer exe & LLVM exe Linker IPO / IPA LLVM exe LLVM CPU exe Link Time Runtime Optimizer LLVM JIT Compile Time Profile & Trace Info Profile Info LLVM Run-Time

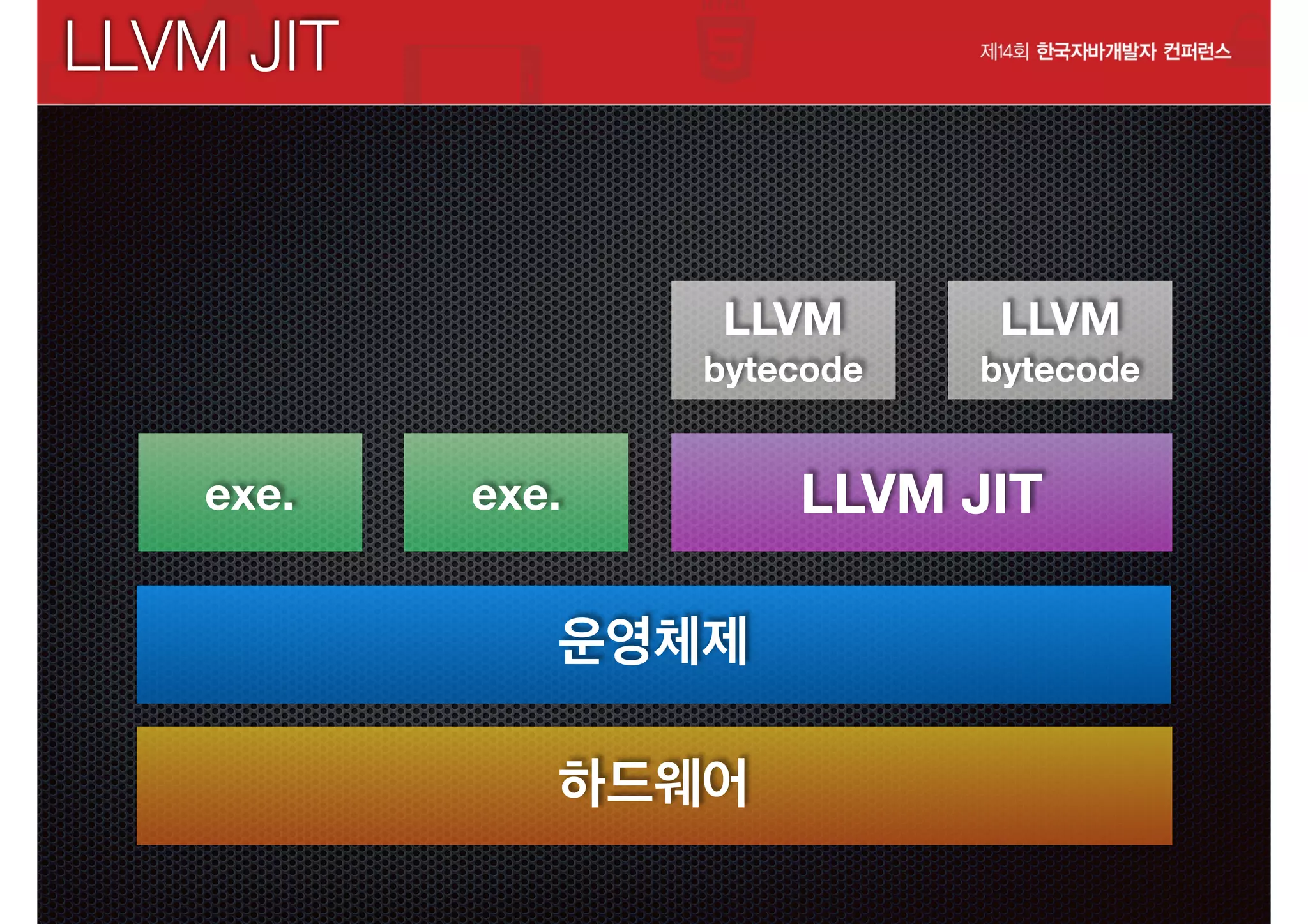

- 18.

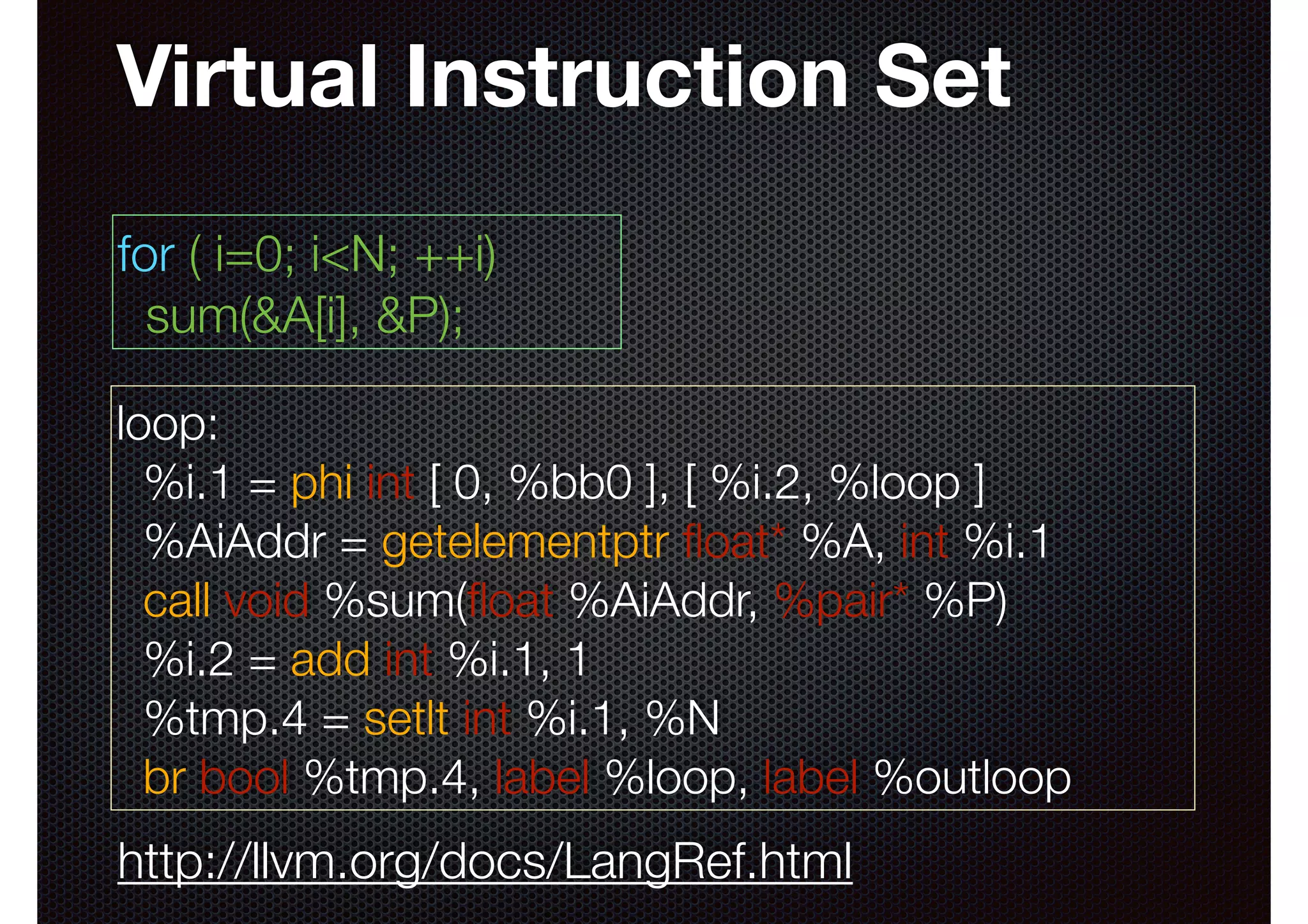

- 19. Virtual Instruction Set for( i=0; i<N; ++i) sum(&A[i], &P); loop: %i.1 = phi int [ 0, %bb0 ], [ %i.2, %loop ] %AiAddr = getelementptr float* %A, int %i.1 call void %sum(float %AiAddr, %pair* %P) %i.2 = add int %i.1, 1 %tmp.4 = setlt int %i.1, %N br bool %tmp.4, label %loop, label %outloop http://llvm.org/docs/LangRef.html

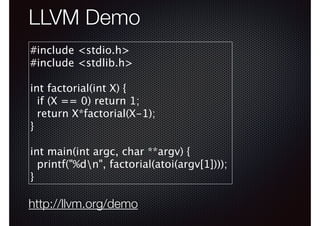

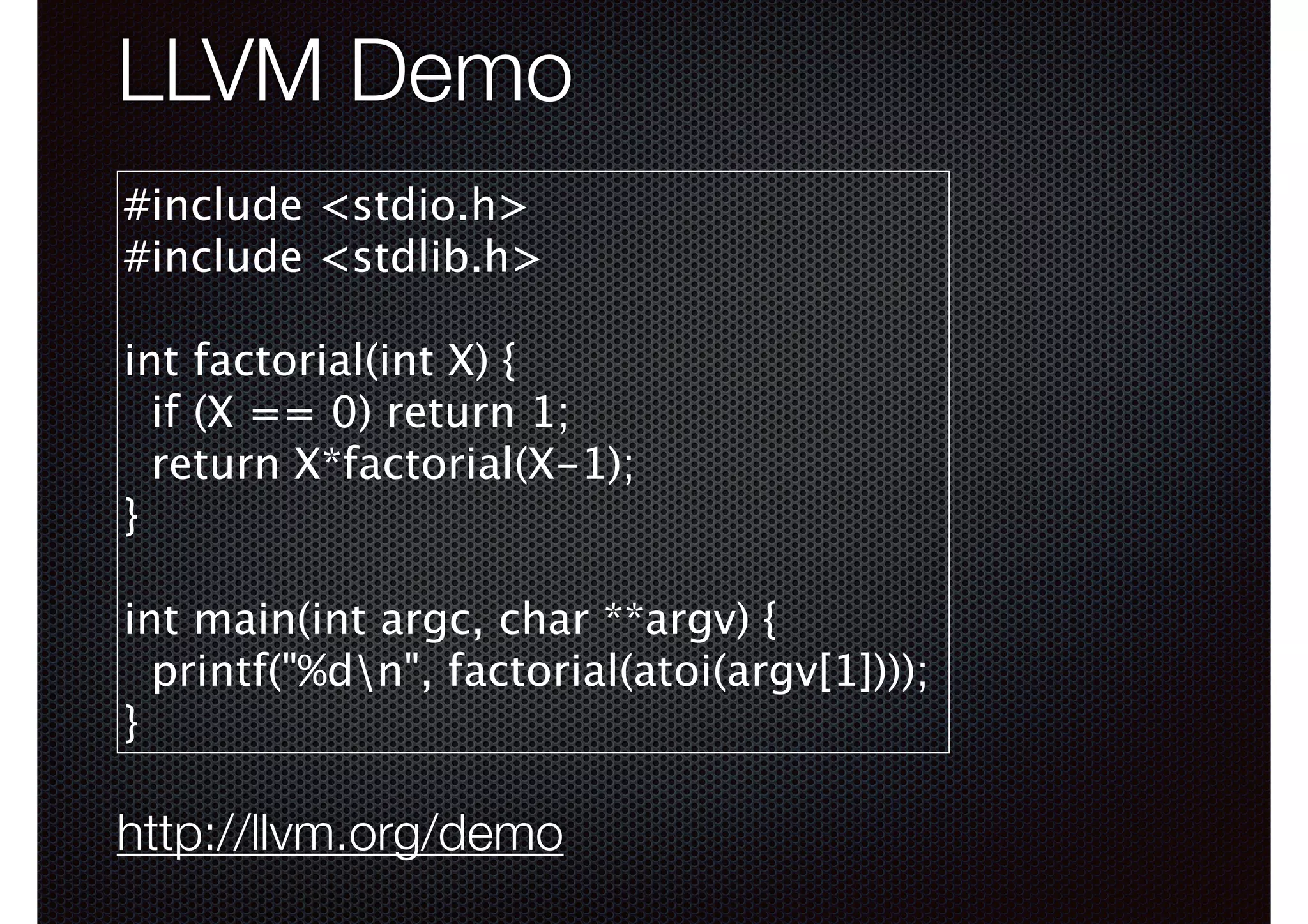

- 20. LLVM Demo #include <stdio.h> #include<stdlib.h> ! int factorial(int X) { if (X == 0) return 1; return X*factorial(X-1); } ! int main(int argc, char **argv) { printf("%dn", factorial(atoi(argv[1]))); } http://llvm.org/demo

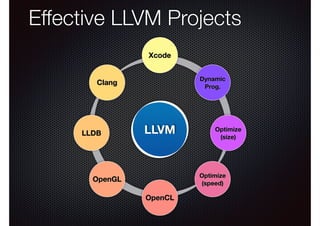

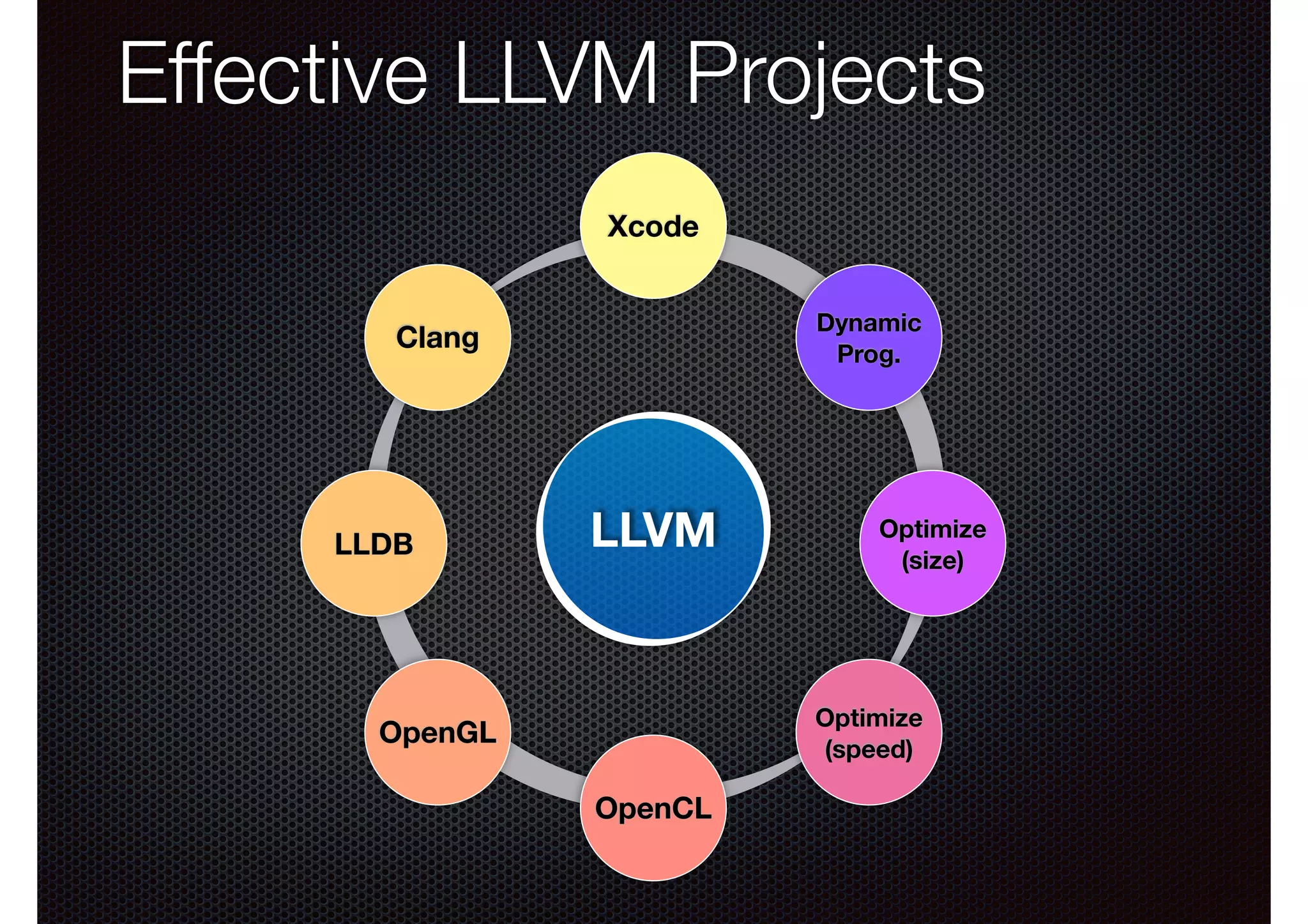

- 21.

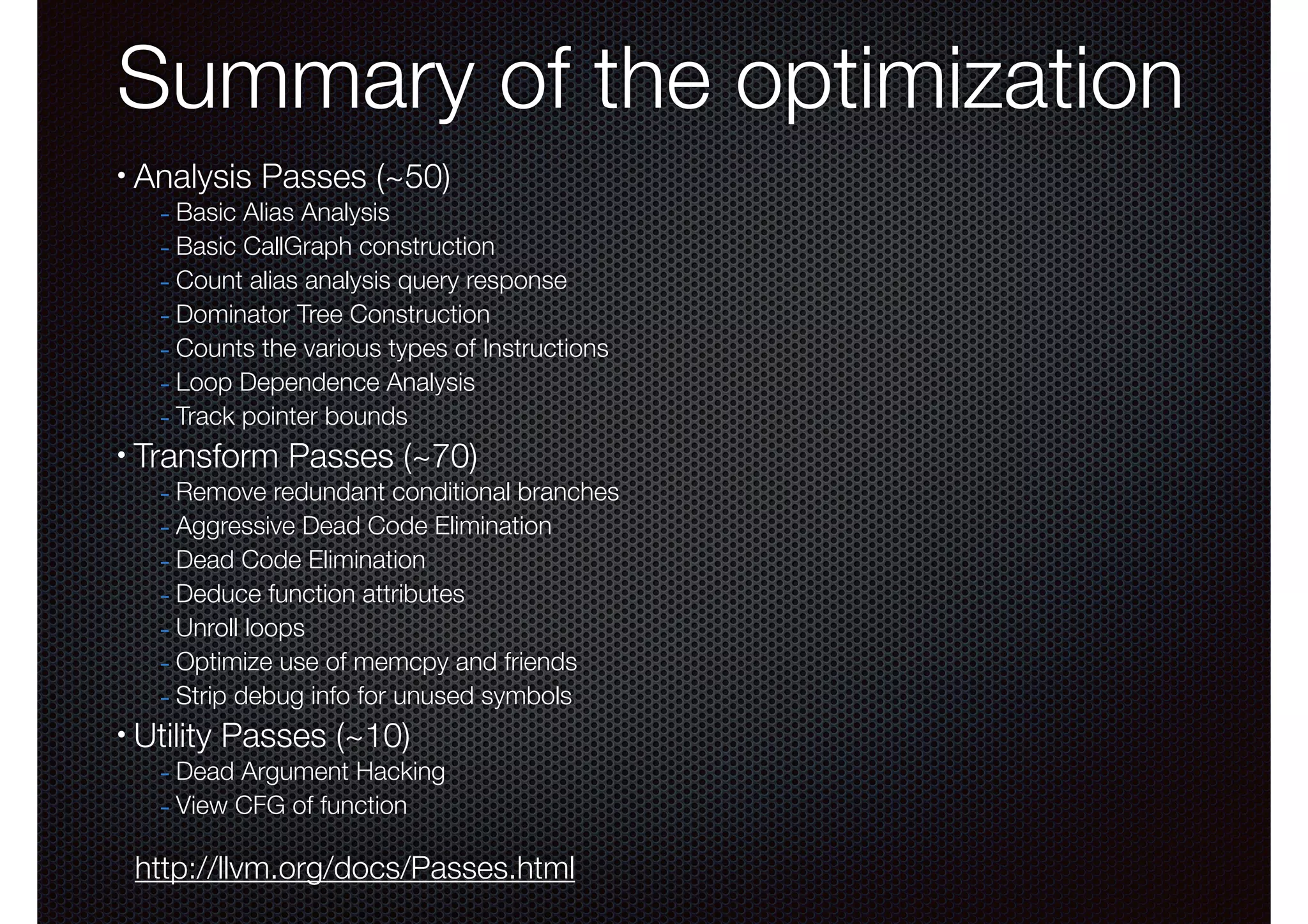

- 22. Summary of theoptimization • Analysis Passes (~50) - Basic Alias Analysis - Basic CallGraph construction - Count alias analysis query response - Dominator Tree Construction - Counts the various types of Instructions - Loop Dependence Analysis - Track pointer bounds • Transform Passes (~70) - Remove redundant conditional branches - Aggressive Dead Code Elimination - Dead Code Elimination - Deduce function attributes - Unroll loops - Optimize use of memcpy and friends - Strip debug info for unused symbols • Utility Passes (~10) - Dead Argument Hacking - View CFG of function http://llvm.org/docs/Passes.html

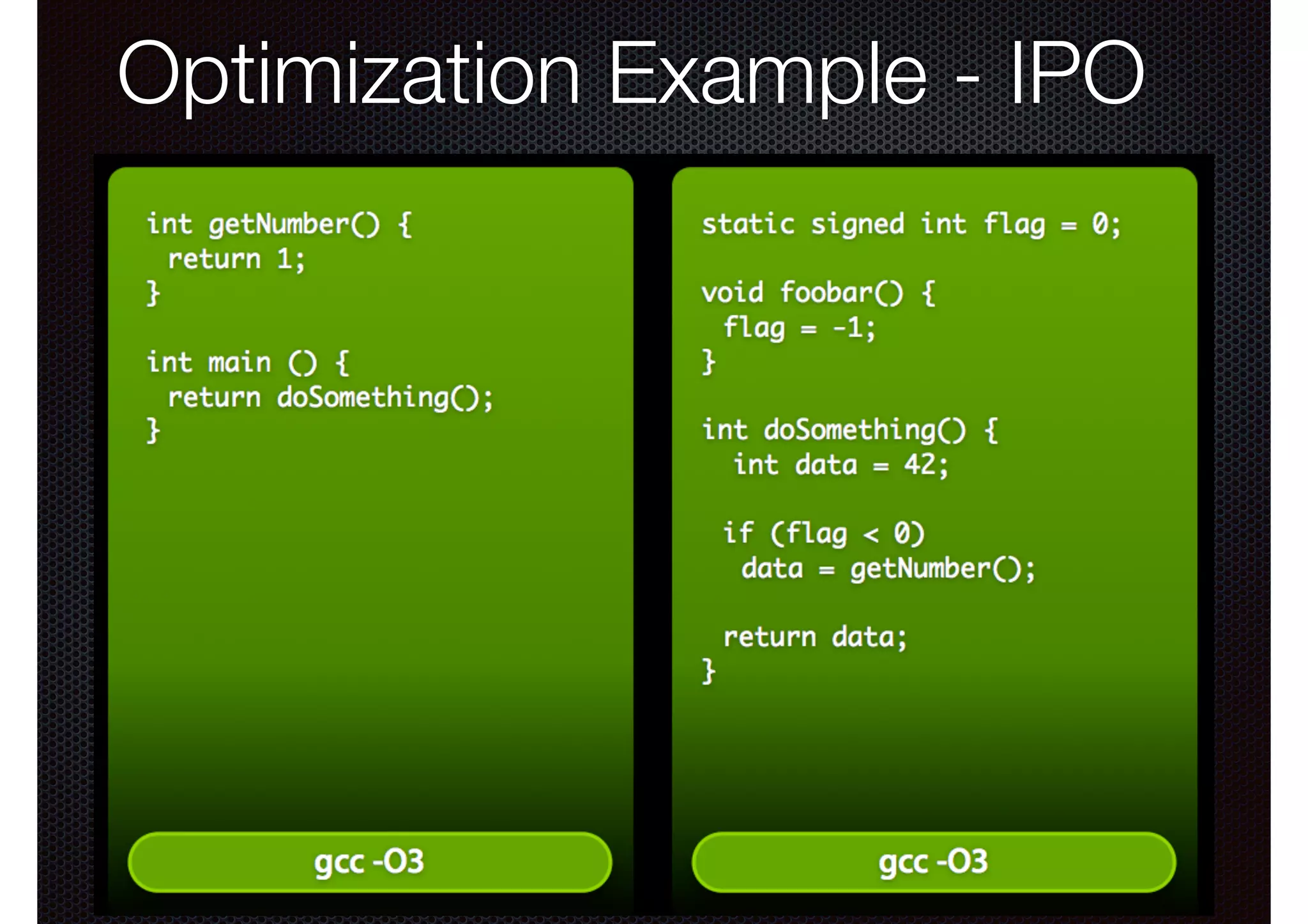

- 23.

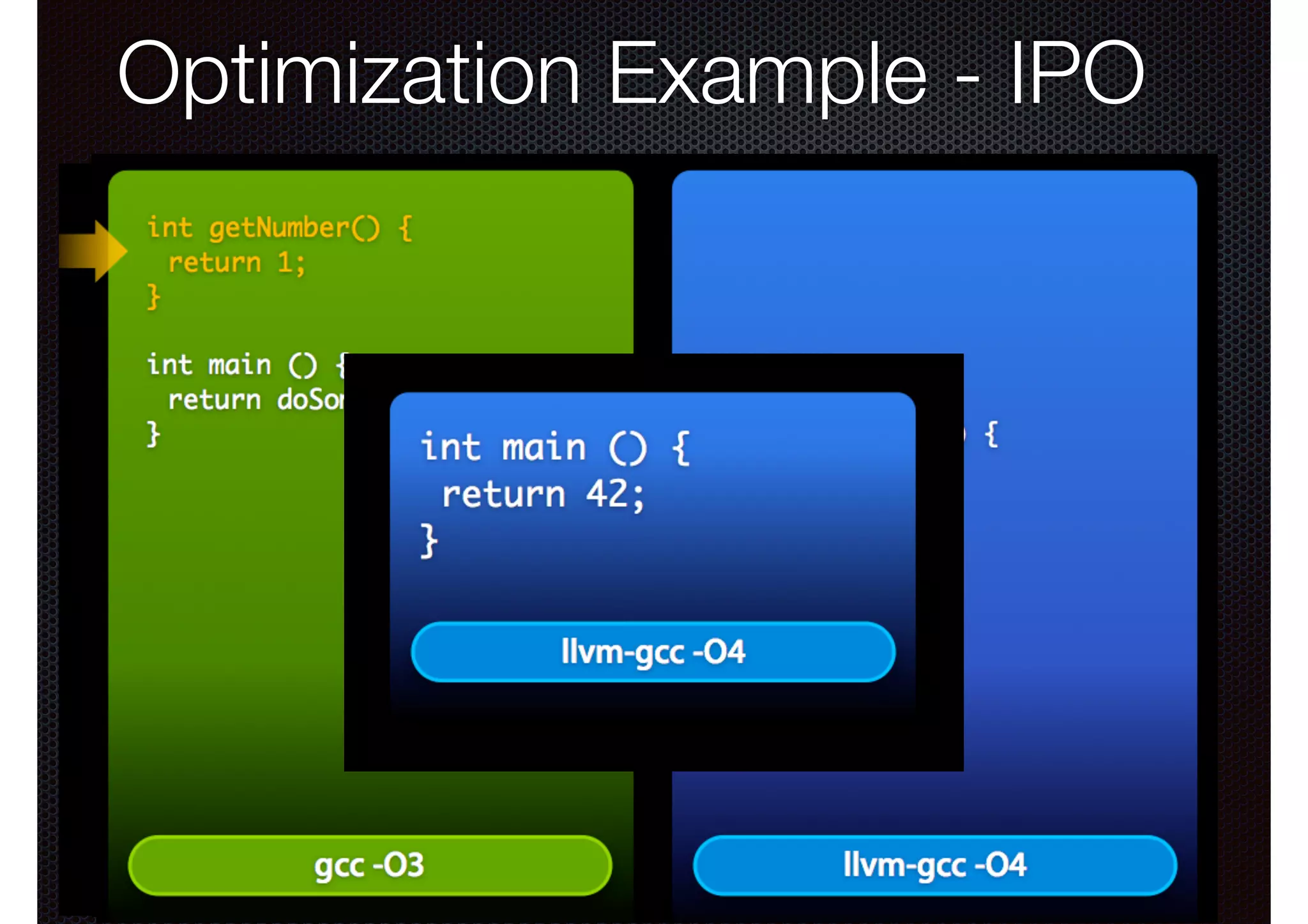

- 24.

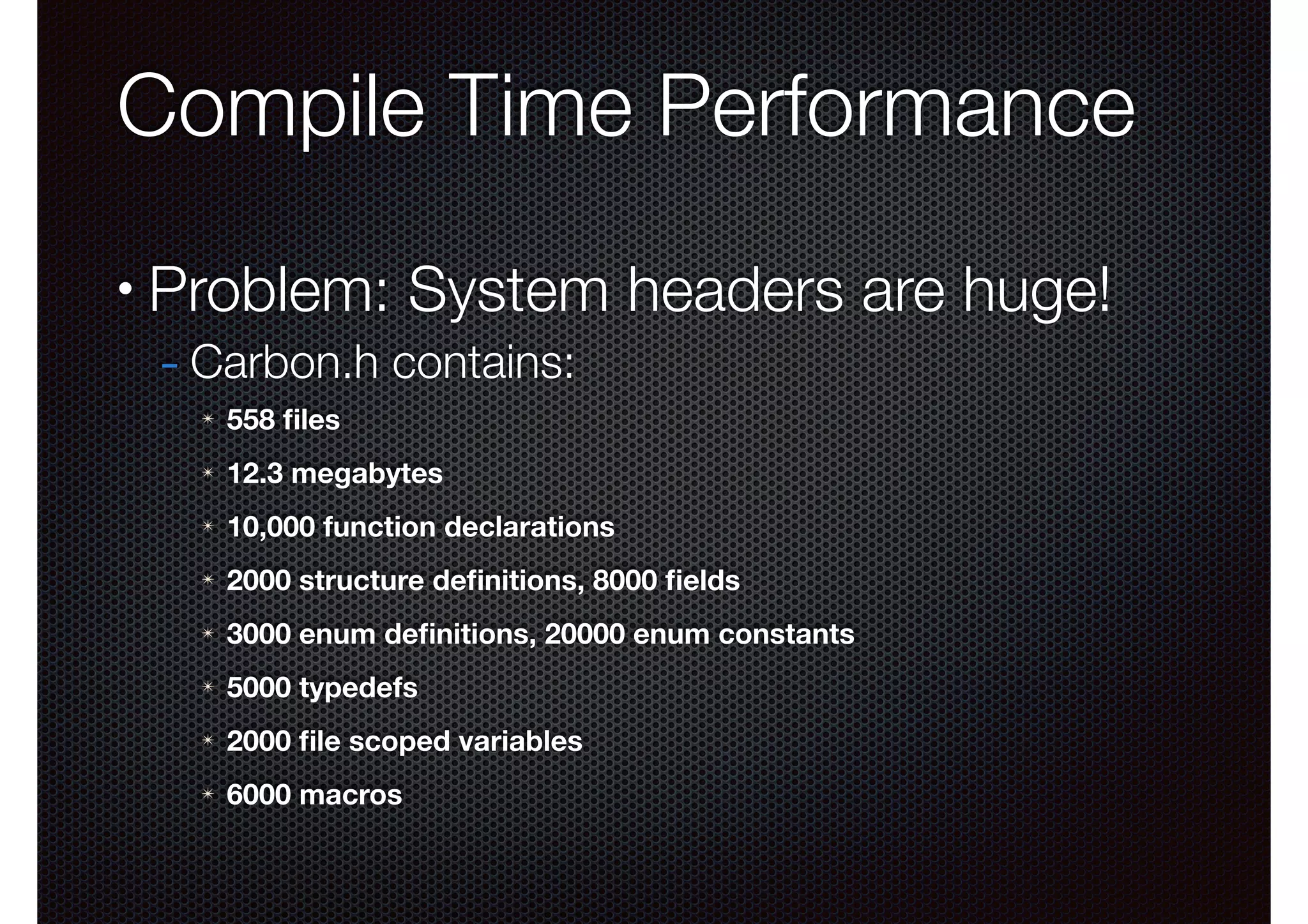

- 25. Compile Time Performance • Problem:System headers are huge! - Carbon.h contains: ✴ 558 files ✴ 12.3 megabytes ✴ 10,000 function declarations ✴ 2000 structure definitions, 8000 fields ✴ 3000 enum definitions, 20000 enum constants ✴ 5000 typedefs ✴ 2000 file scoped variables ✴ 6000 macros

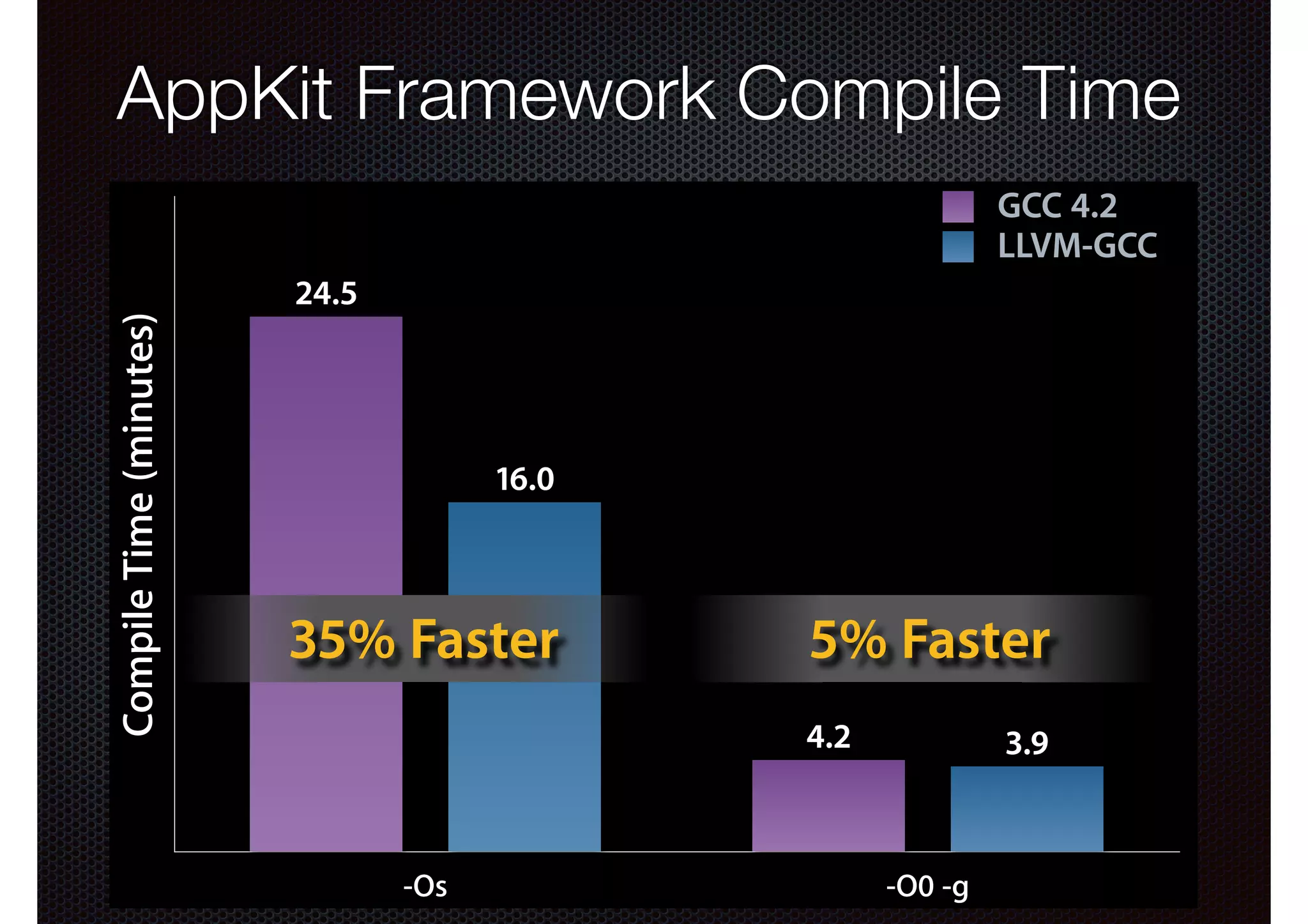

- 26. AppKit Framework Compile AppKitFramework Compile Times Time Compile Time (minutes) GCC 4.2 LLVM-GCC 24.5 16.0 35% Faster 5% Faster 4.2 -Os 3.9 -O0 -g

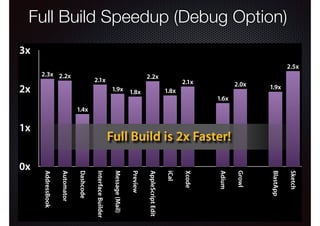

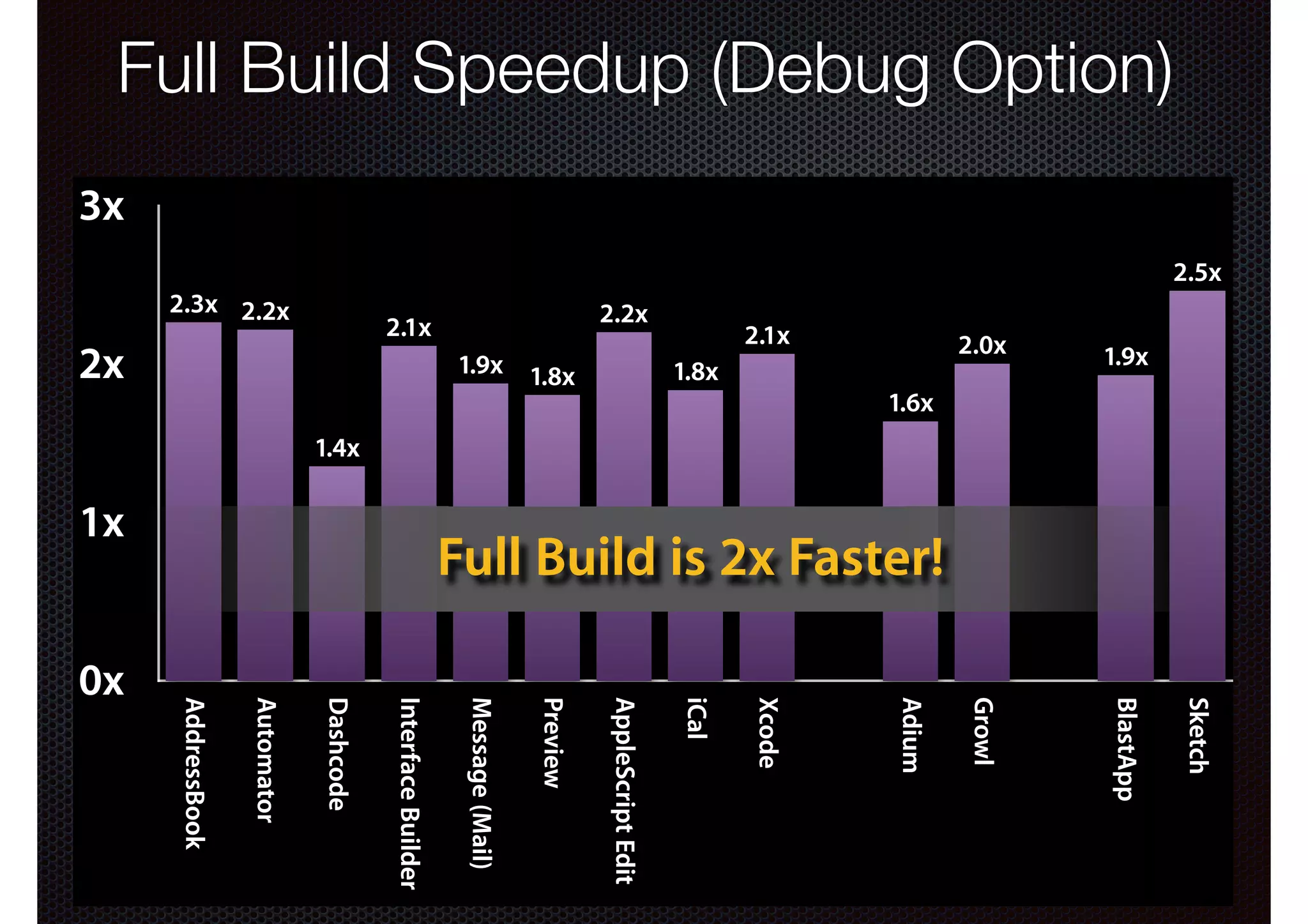

- 27. Full Build Speedup(Debug Option) Full Build Speedup (Debug Config) 3x 2.5x 2.3x 2.2x 2.2x 1.9x 1.8x 2.0x 1.8x 1.9x BlastApp 2x 2.1x Growl 2.1x 1.6x 1.4x 1x Sketch Adium Xcode iCal AppleScript Edit Preview Message (Mail) Interface Builder Dashcode Automator AddressBook 0x Full Build is 2x Faster!

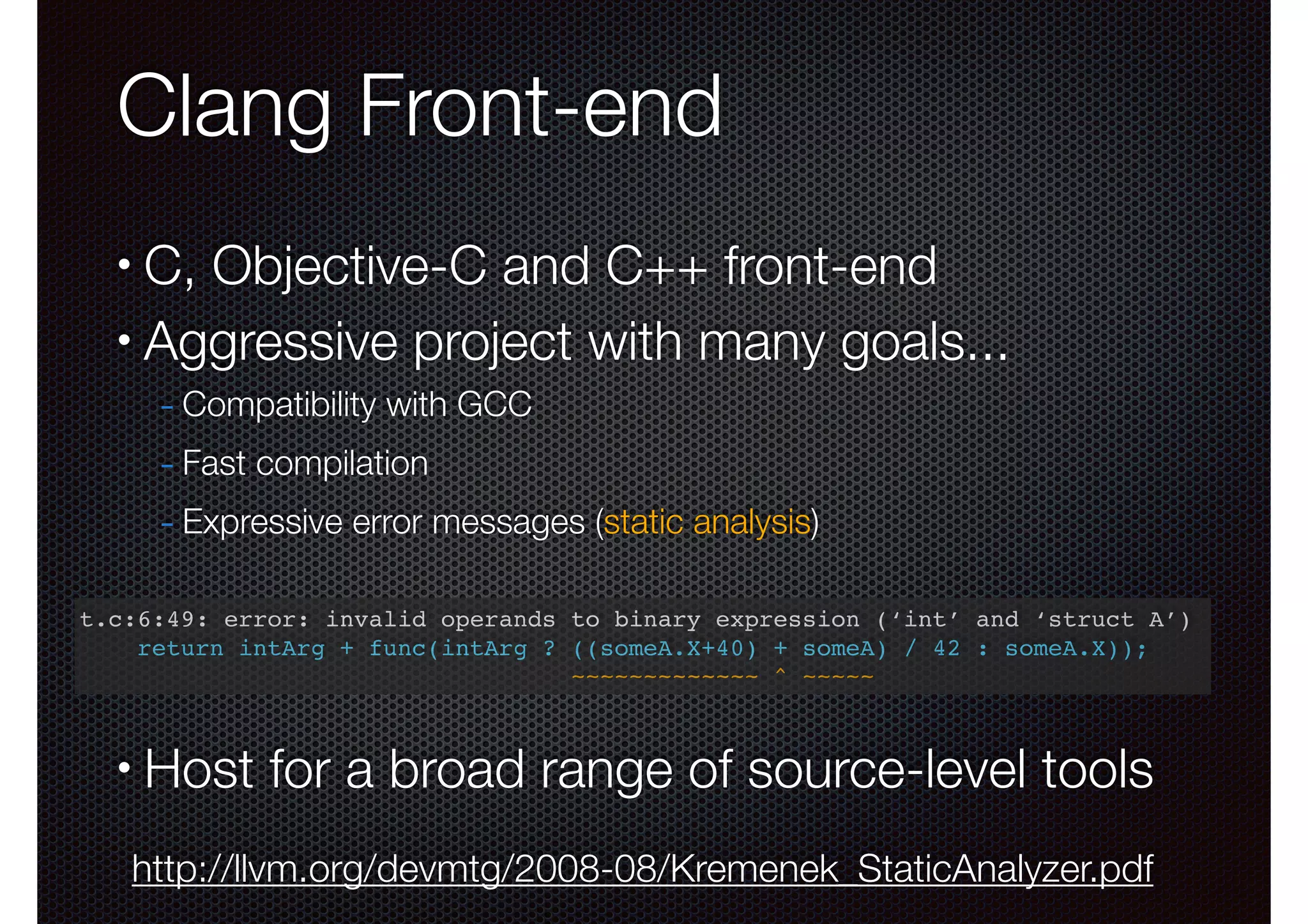

- 28. Clang Front-end C, Objective-Cand C++ front-end • Aggressive project with many goals... • - Compatibility with GCC - Fast compilation - Expressive error messages (static analysis) ! t.c:6:49: error: invalid operands to binary expression (‘int’ and ‘struct A’)! ! return intArg + func(intArg ? ((someA.X+40) + someA) / 42 : someA.X));! ~~~~~~~~~~~~~ ^ ~~~~~ ! • Host for a broad range of source-level tools http://llvm.org/devmtg/2008-08/Kremenek_StaticAnalyzer.pdf

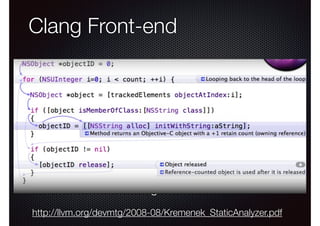

- 29. Clang Front-end Analyzer XcodeIntegration C, Objective-C and C++ front-end • Aggressive project with many goals... • - Compatibility with GCC - Fast compilation - Expressive error messages (static analysis) ! t.c:6:49: error: invalid operands to binary expression (‘int’ and ‘struct A’)! ! return intArg + func(intArg ? ((someA.X+40) + someA) / 42 : someA.X));! ~~~~~~~~~~~~~ ^ ~~~~~ ! • Host for a broad range of source-level tools Improving Your Application with the Xcode Static Analyzer North Beach Tuesday 5:00PM http://llvm.org/devmtg/2008-08/Kremenek_StaticAnalyzer.pdf

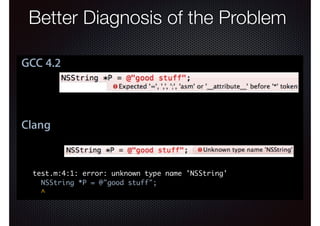

- 30. Better Diagnosis ofthe Problem Better Diagnosis of the Problem GCC 4.2 Clang test.m:4:1: error: unknown type name 'NSString' NSString *P = @"good stuff"; ^

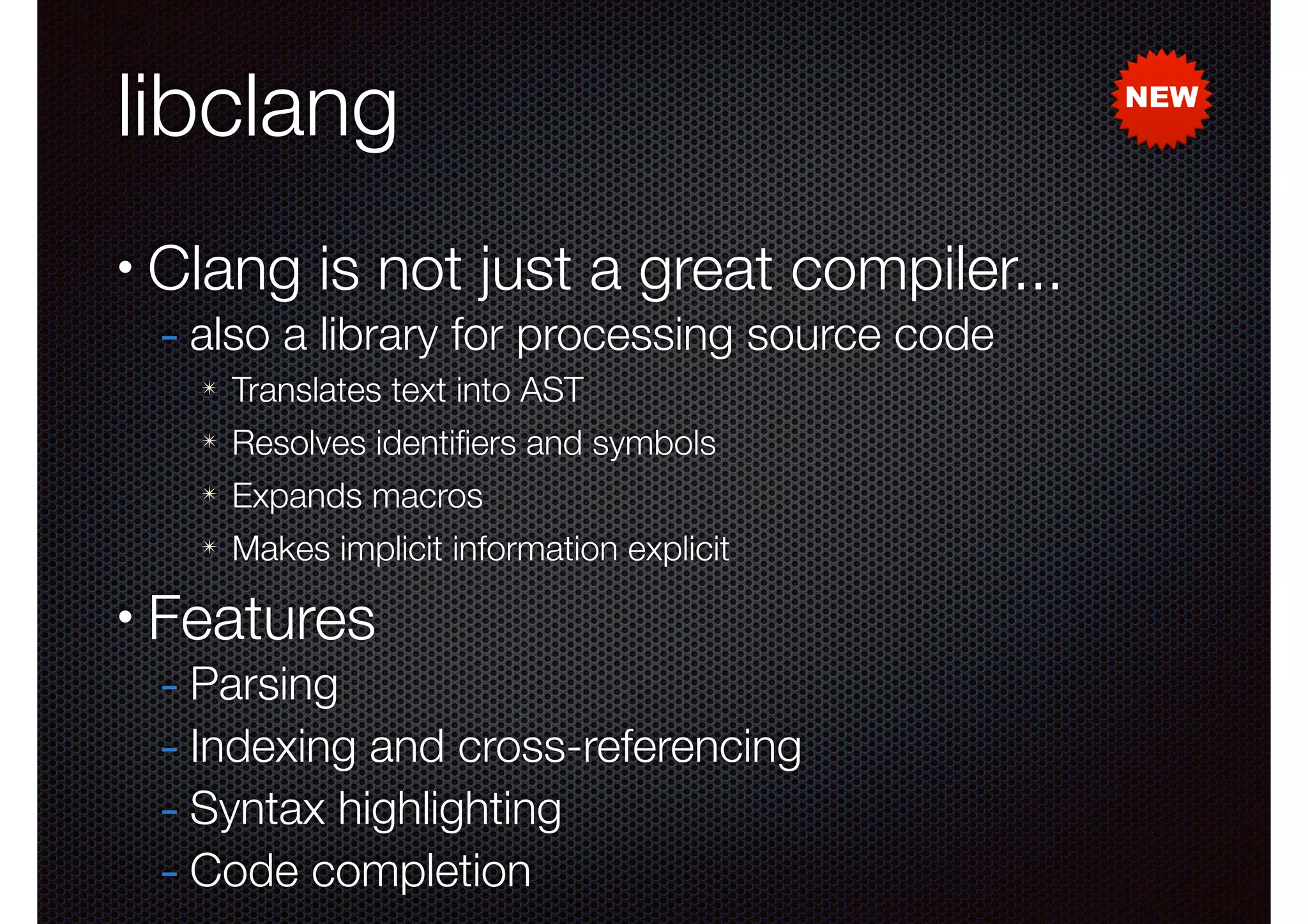

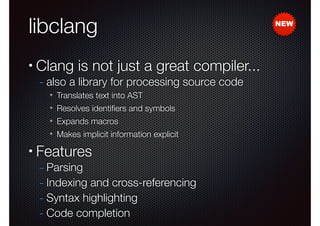

- 31. libclang • Clang is notjust a great compiler... - also a library for processing source code ✴ ✴ Resolves identifiers and symbols ✴ Expands macros ✴ • Translates text into AST Makes implicit information explicit Features - Parsing - Indexing and cross-referencing - Syntax highlighting - Code completion NEW

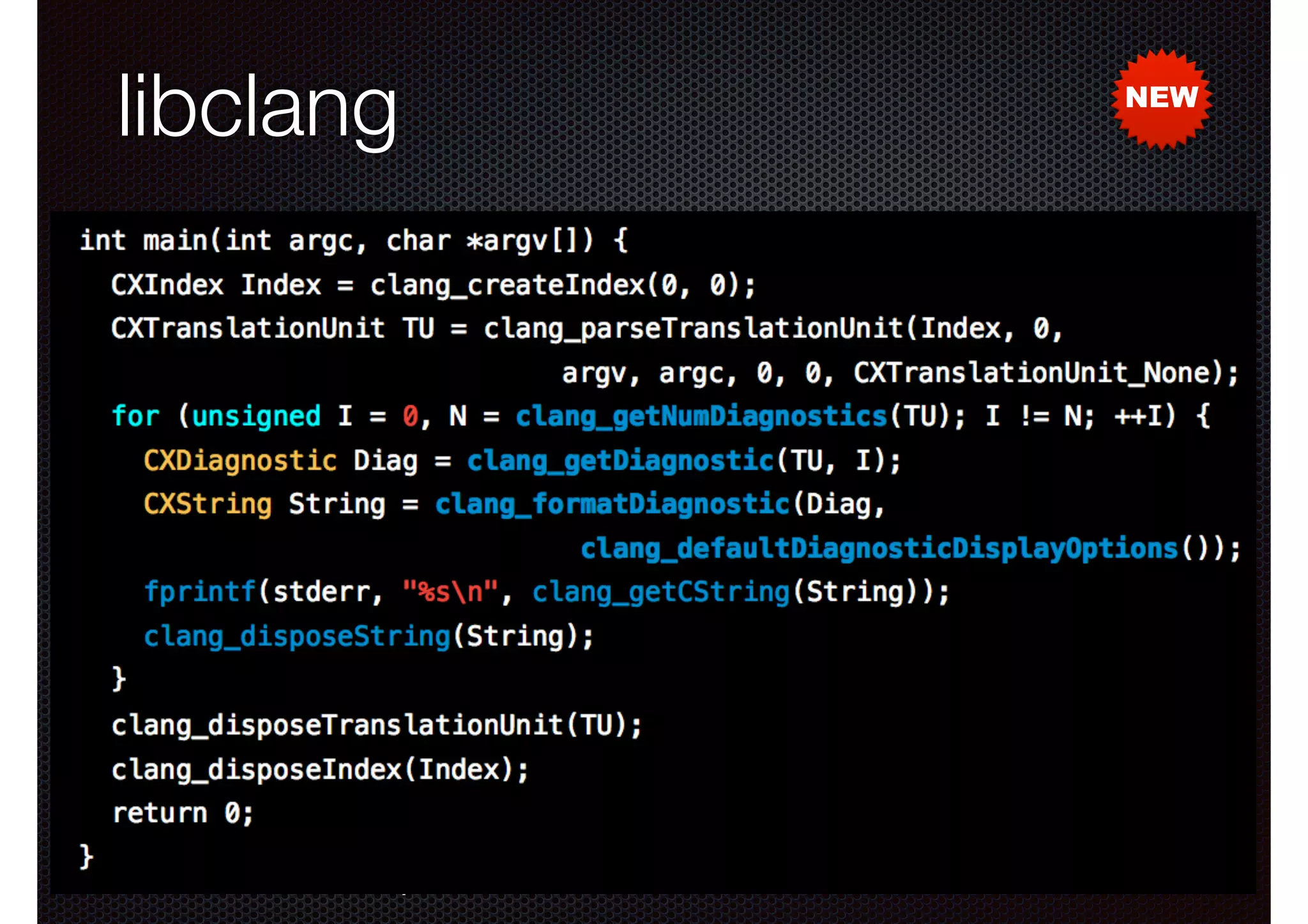

- 32. libclang • Clang is notjust a great compiler... - also a library for processing source code ✴ ✴ Resolves identifiers and symbols ✴ Expands macros ✴ • Translates text into AST Makes implicit information explicit Features - Parsing - Indexing and cross-referencing - Syntax highlighting - Code completion NEW

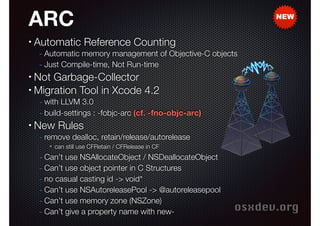

- 33. ARC • NEW Automatic Reference Coun AutomaticReference Counting - Automatic memory management of Objective-C objects - Just Compile-time, Not Run-time Not Garbage-Collector • Migration Tool in Xcode 4.2 • - with LLVM 3.0 - build-settings : -fobjc-arc (cf. -fno-objc-arc) • New Rules - remove dealloc, retain/release/autorelease ✴ can still use CFRetain / CFRelease in CF - Can’t use NSAllocateObject / NSDeallocateObject - Can’t use object pointer in C Structures - no casual casting id -> void* - Can’t use NSAutoreleasePool -> @autoreleasepool - Can’t use memory zone (NSZone) - Can’t give a property name with new- osxdev.org

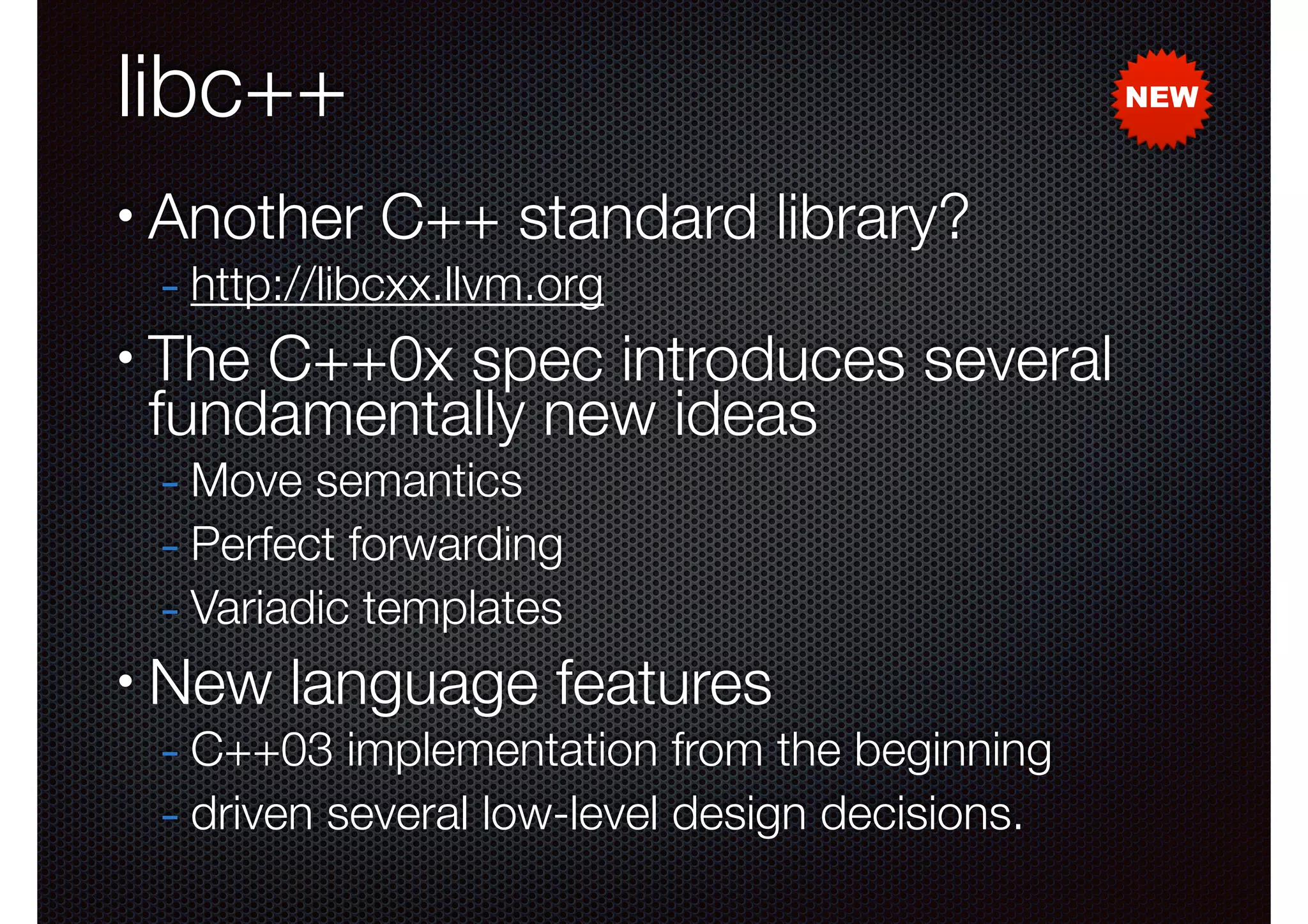

- 34. libc++ • Another C++ standardlibrary? - http://libcxx.llvm.org • The C++0x spec introduces several fundamentally new ideas - Move semantics - Perfect forwarding - Variadic templates • New language features - C++03 implementation from the beginning - driven several low-level design decisions. NEW

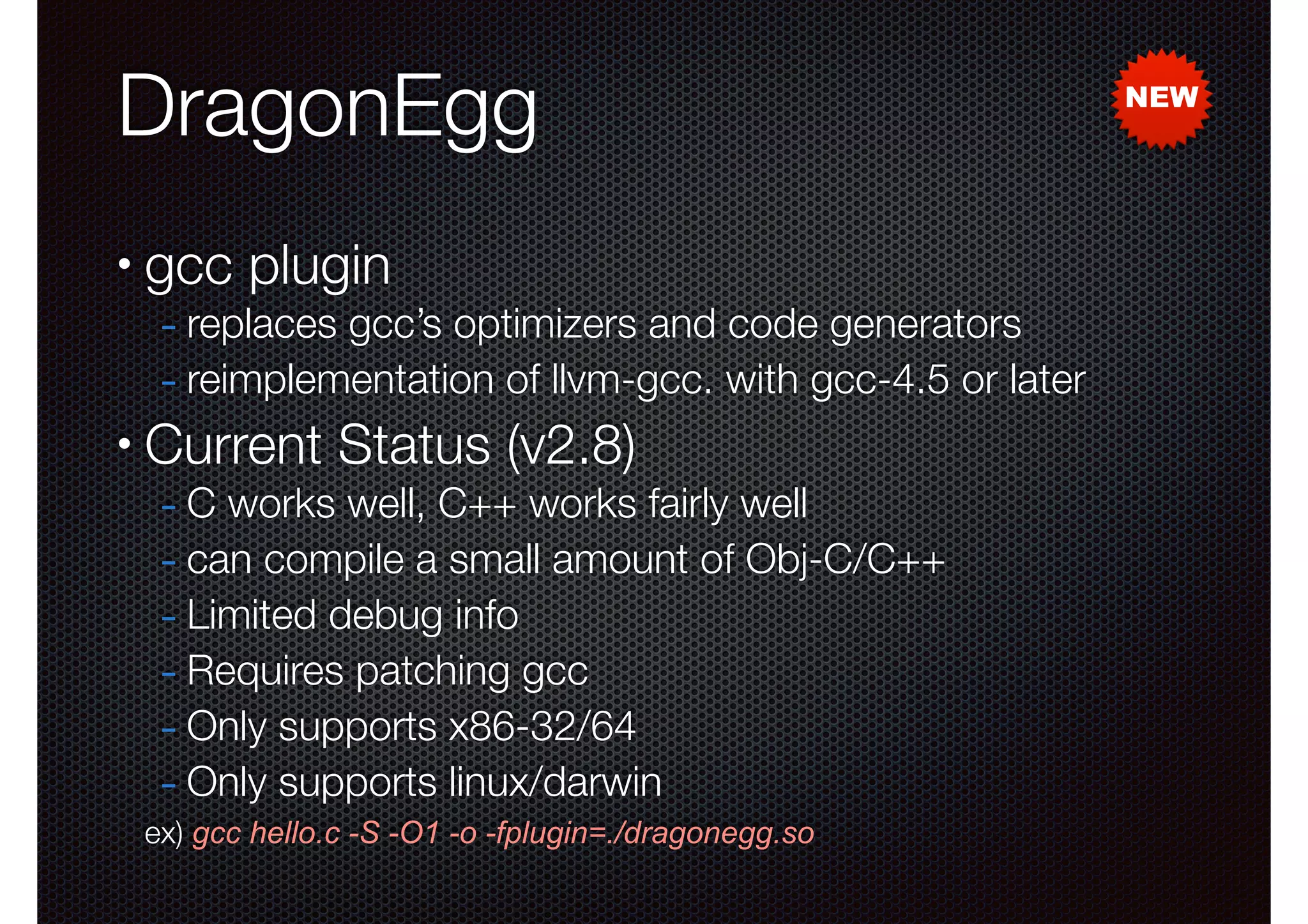

- 35. DragonEgg • gcc plugin - replacesgcc’s optimizers and code generators - reimplementation of llvm-gcc. with gcc-4.5 or later • Current Status (v2.8) - C works well, C++ works fairly well - can compile a small amount of Obj-C/C++ - Limited debug info - Requires patching gcc - Only supports x86-32/64 - Only supports linux/darwin ex) gcc hello.c -S -O1 -o -fplugin=./dragonegg.so NEW

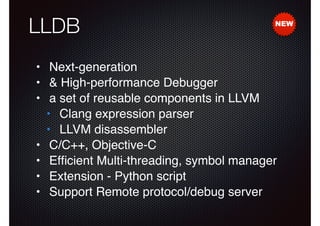

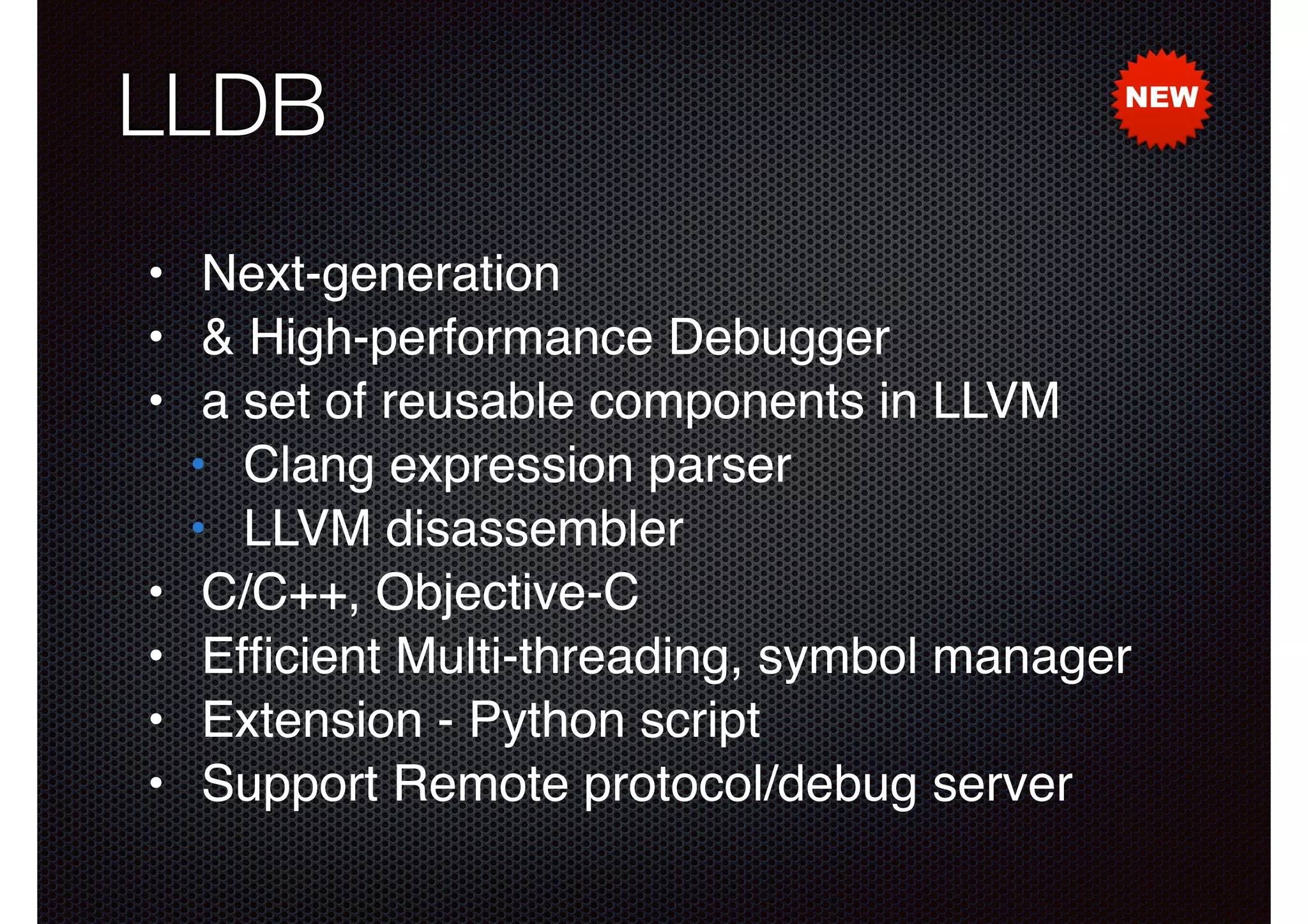

- 37. LLDB NEW • Next-generation! • &High-performance Debugger! • a set of reusable components in LLVM! • Clang expression parser! • LLVM disassembler! • C/C++, Objective-C! • Efficient Multi-threading, symbol manager! • Extension - Python script! • Support Remote protocol/debug server

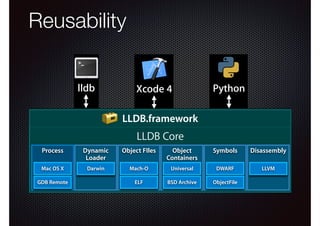

- 38. Reusability Reusability Extensibility Reusability Extensibility Reusability Extensibility Reusability Extensibility lldb lldblldb lldb Xcode Xcode 44 44 Xcode Xcode Python Python Python Python LLDB.framework LLDB.framework LLDB.framework LLDB.framework LLDB Core LLDB Core LLDB Core LLDB Core Process Dynamic Dynamic Object FIles Object Symbols Disassembly Process Process Dynamic Object FIles Object Symbols Disassembly Process Dynamic Object FIles FIlesObject Dynamic Object FIles Object Object Symbols Symbols Disassembly Disassembly Process Object Symbols Disassembly Loader Containers Loader Loader Containers Containers Loader Containers Loader Containers Mac OS X GDB Remote Darwin Mach-O Universal DWARF ELF BSD Archive ObjectFile LLVM

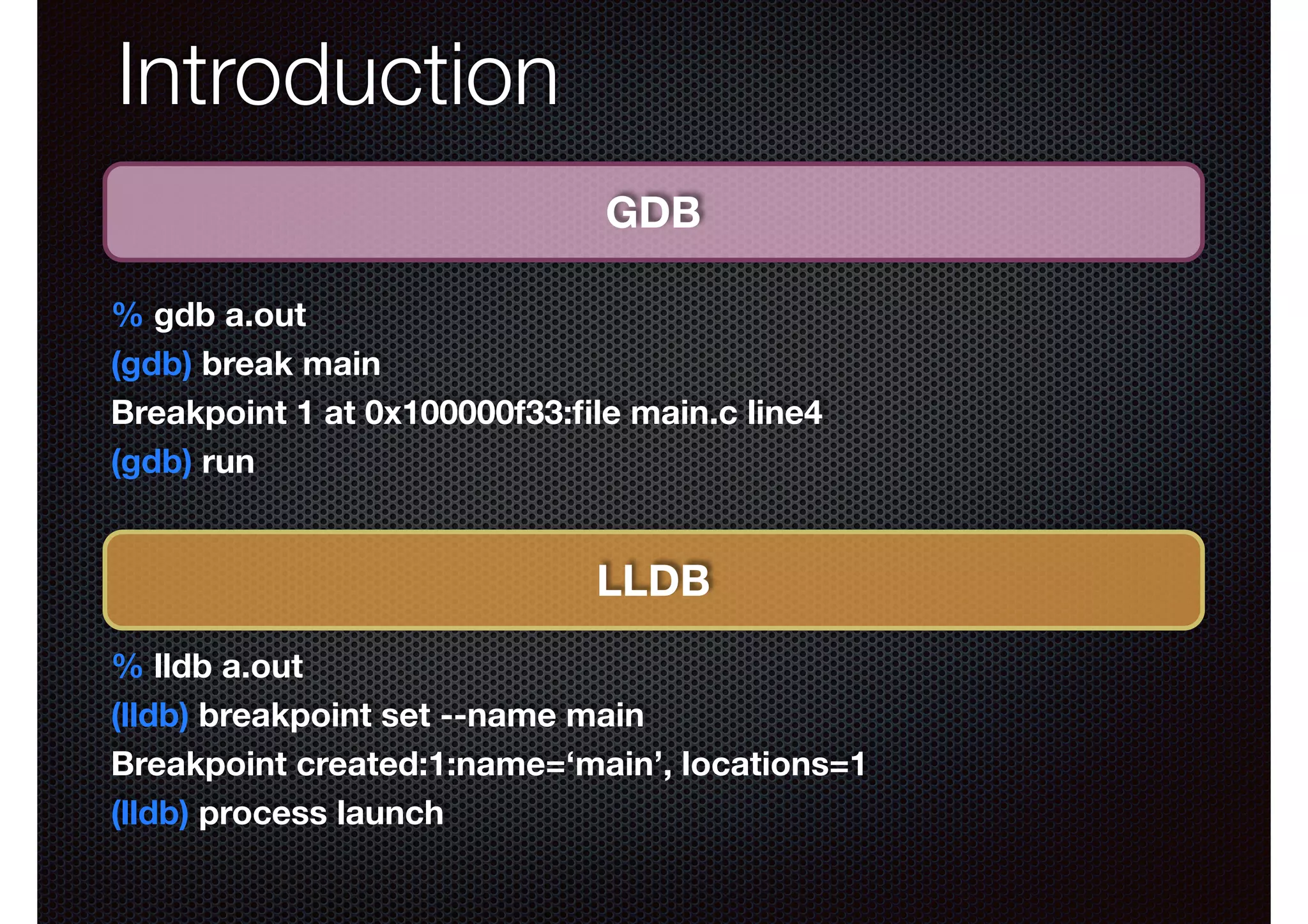

- 39. Introduction GDB % gdb a.out (gdb)break main Breakpoint 1 at 0x100000f33:file main.c line4 (gdb) run LLDB % lldb a.out (lldb) breakpoint set --name main Breakpoint created:1:name=‘main’, locations=1 (lldb) process launch

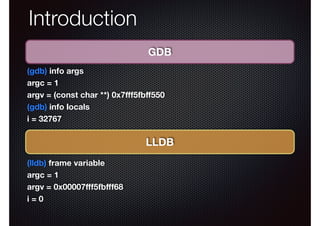

- 40. Introduction GDB (gdb) info args argc= 1 argv = (const char **) 0x7fff5fbff550 (gdb) info locals i = 32767 LLDB (lldb) frame variable argc = 1 argv = 0x00007fff5fbfff68 i=0

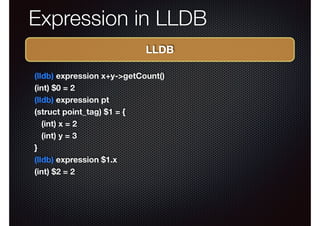

- 41. Expression in LLDB LLDB (lldb)expression x+y->getCount() (int) $0 = 2 (lldb) expression pt (struct point_tag) $1 = { (int) x = 2 (int) y = 3 } (lldb) expression $1.x (int) $2 = 2
- 42. LLDB Command Syntax CommandSyntax <noun> <verb> [-options [option-value]] [argument [argument...]] Uses standard getopt_long() for predicate behavior (lldb) process launch a.out --stop-at-entry (lldb) process launch a.out -- --arg0 --arg1 (lldb) process launch a.out -st Options know which other options they are compatible with (lldb) process attach --pid 123 --name a.out

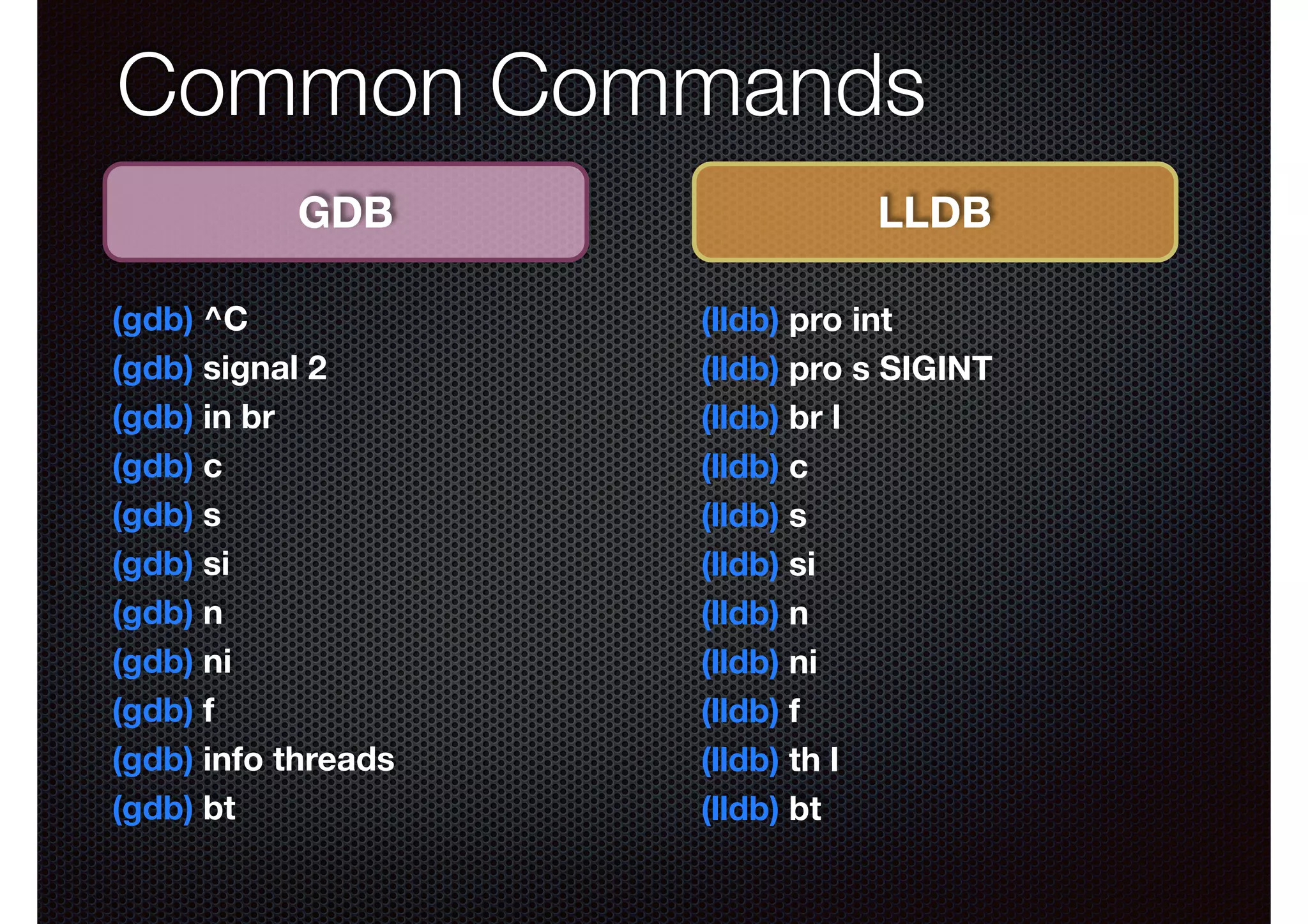

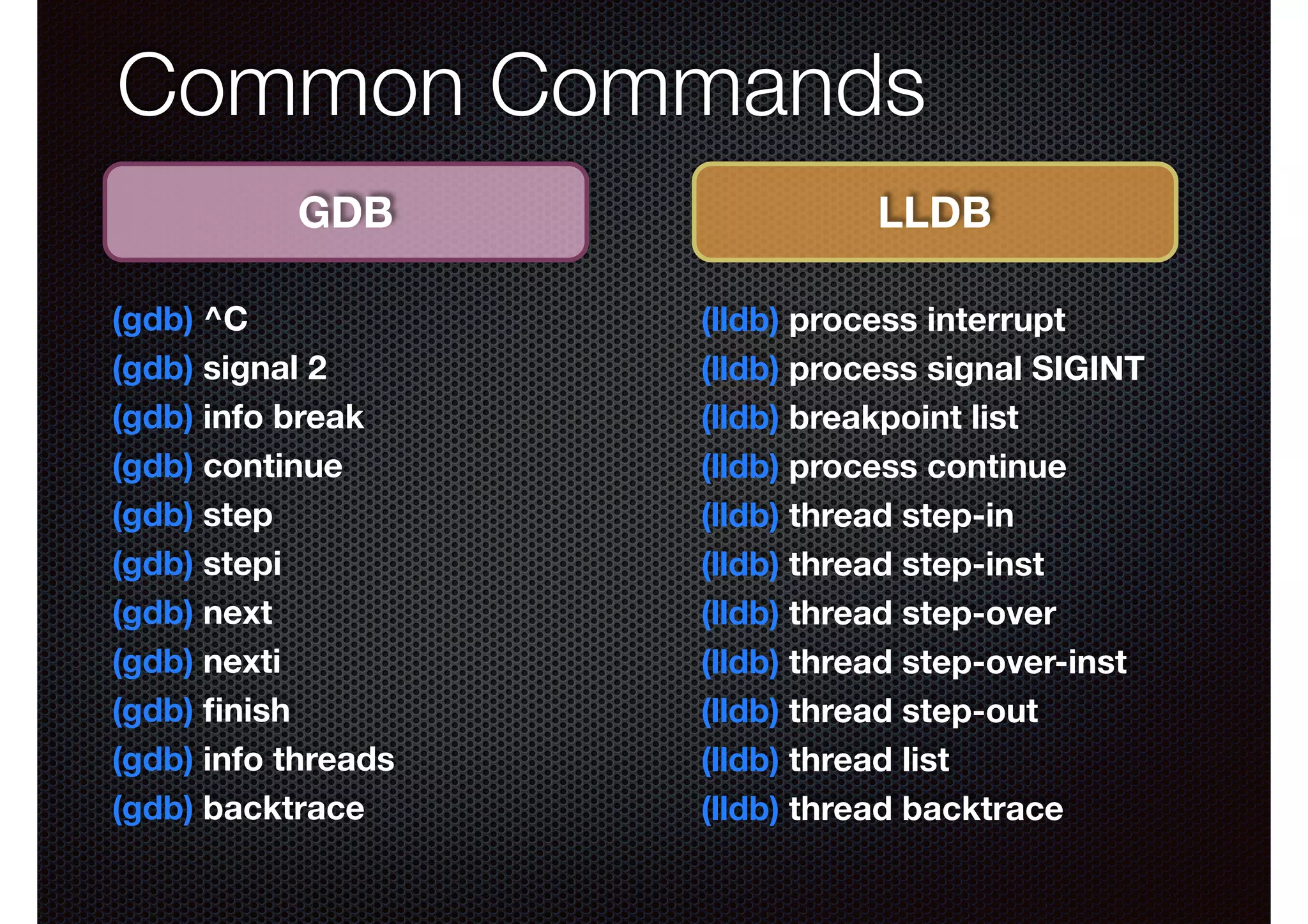

- 43. Common Commands GDB (gdb) ^C (gdb)signal 2 (gdb) info break (gdb) continue (gdb) step (gdb) stepi (gdb) next (gdb) nexti (gdb) finish (gdb) info threads (gdb) backtrace LLDB (lldb) process interrupt (lldb) process signal SIGINT (lldb) breakpoint list (lldb) process continue (lldb) thread step-in (lldb) thread step-inst (lldb) thread step-over (lldb) thread step-over-inst (lldb) thread step-out (lldb) thread list (lldb) thread backtrace

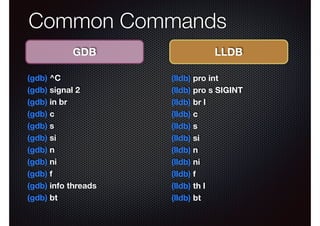

- 44. Common Commands GDB LLDB (gdb) ^C (gdb)signal 2 (gdb) in br (gdb) c (gdb) s (gdb) si (gdb) n (gdb) ni (gdb) f (gdb) info threads (gdb) bt (lldb) pro int (lldb) pro s SIGINT (lldb) br l (lldb) c (lldb) s (lldb) si (lldb) n (lldb) ni (lldb) f (lldb) th l (lldb) bt
- 45.

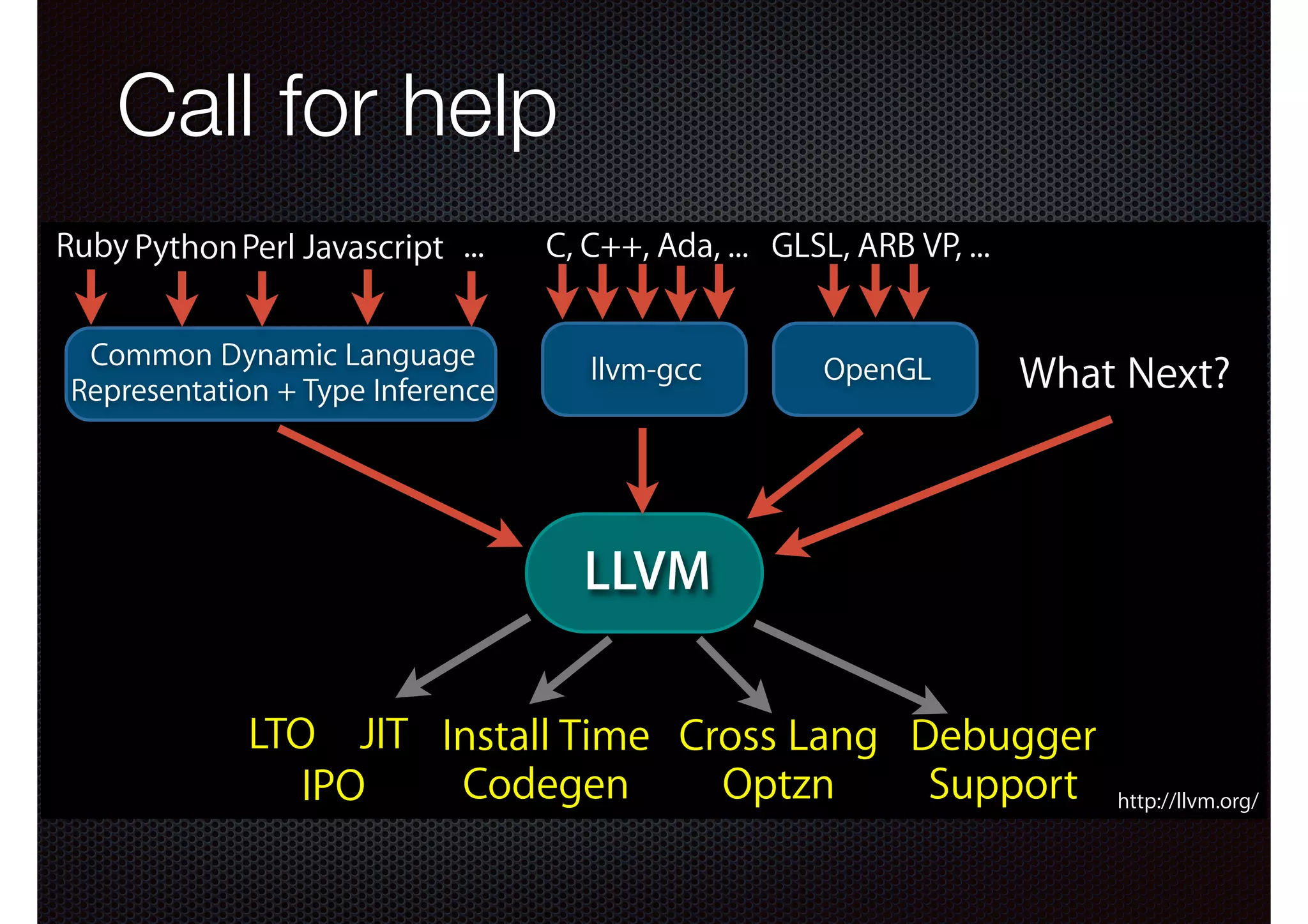

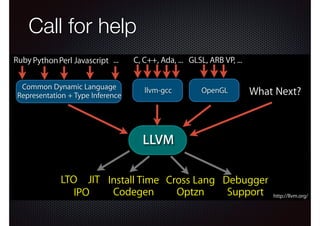

- 46. Call for help! Callfor help OSS community needs to unite work on various scripting languages – Common module to represent/type infer an arbitrary dynamic language – Who will provide this? pypy? parrot? llvm itself someday (“hlvm”)? – Ruby Python Perl Javascript ... Common Dynamic Language Representation + Type Inference C, C++, Ada, ... GLSL, ARB VP, ... llvm-gcc OpenGL What Next? LLVM LTO JIT Install Time Cross Lang Debugger Codegen Optzn Support IPO http://llvm.org/

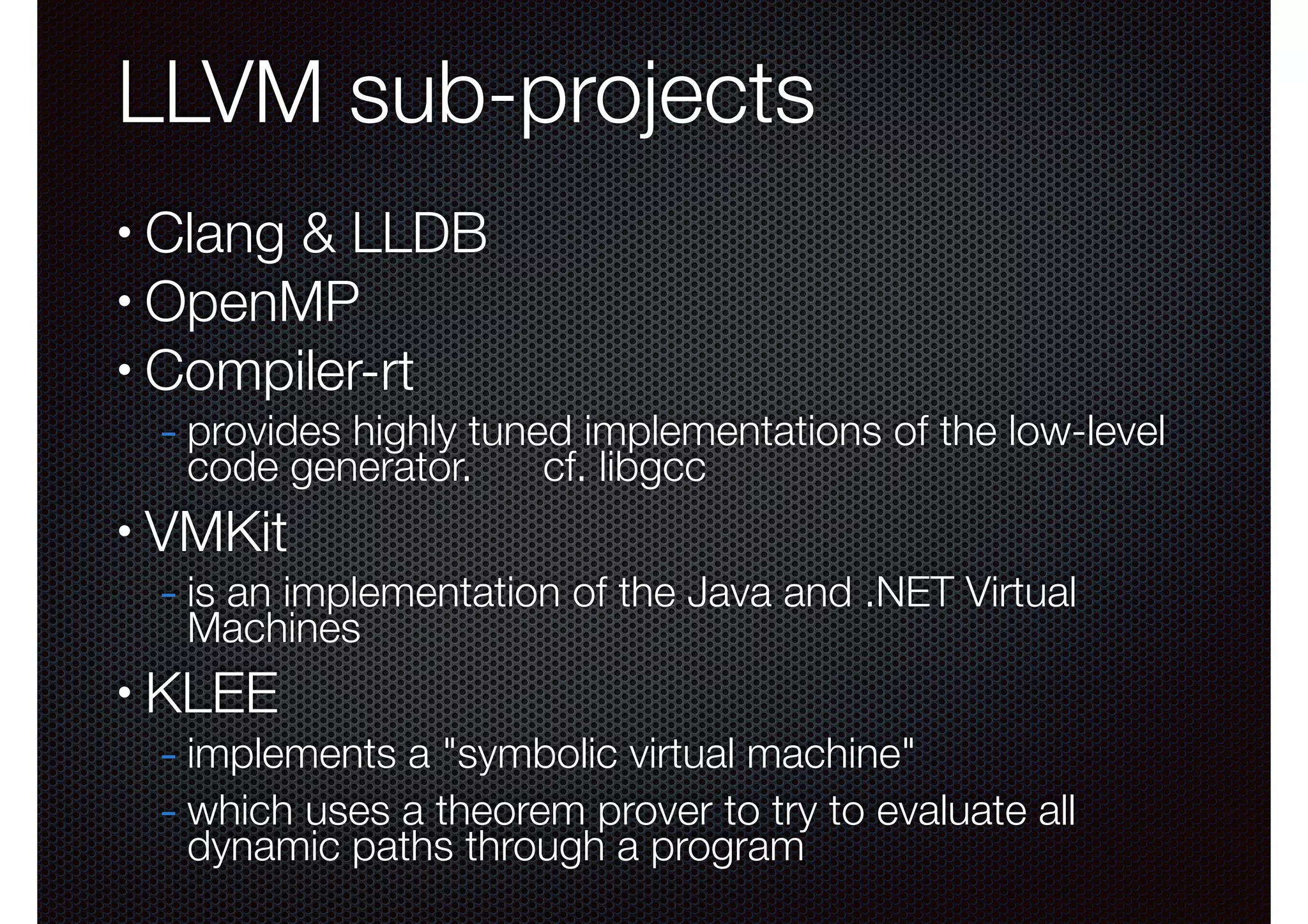

- 47. LLVM sub-projects Clang &LLDB • OpenMP • Compiler-rt • - provides highly tuned implementations of the low-level code generator. • cf. libgcc VMKit - is an implementation of the Java and .NET Virtual Machines • KLEE - implements a "symbolic virtual machine" - which uses a theorem prover to try to evaluate all dynamic paths through a program

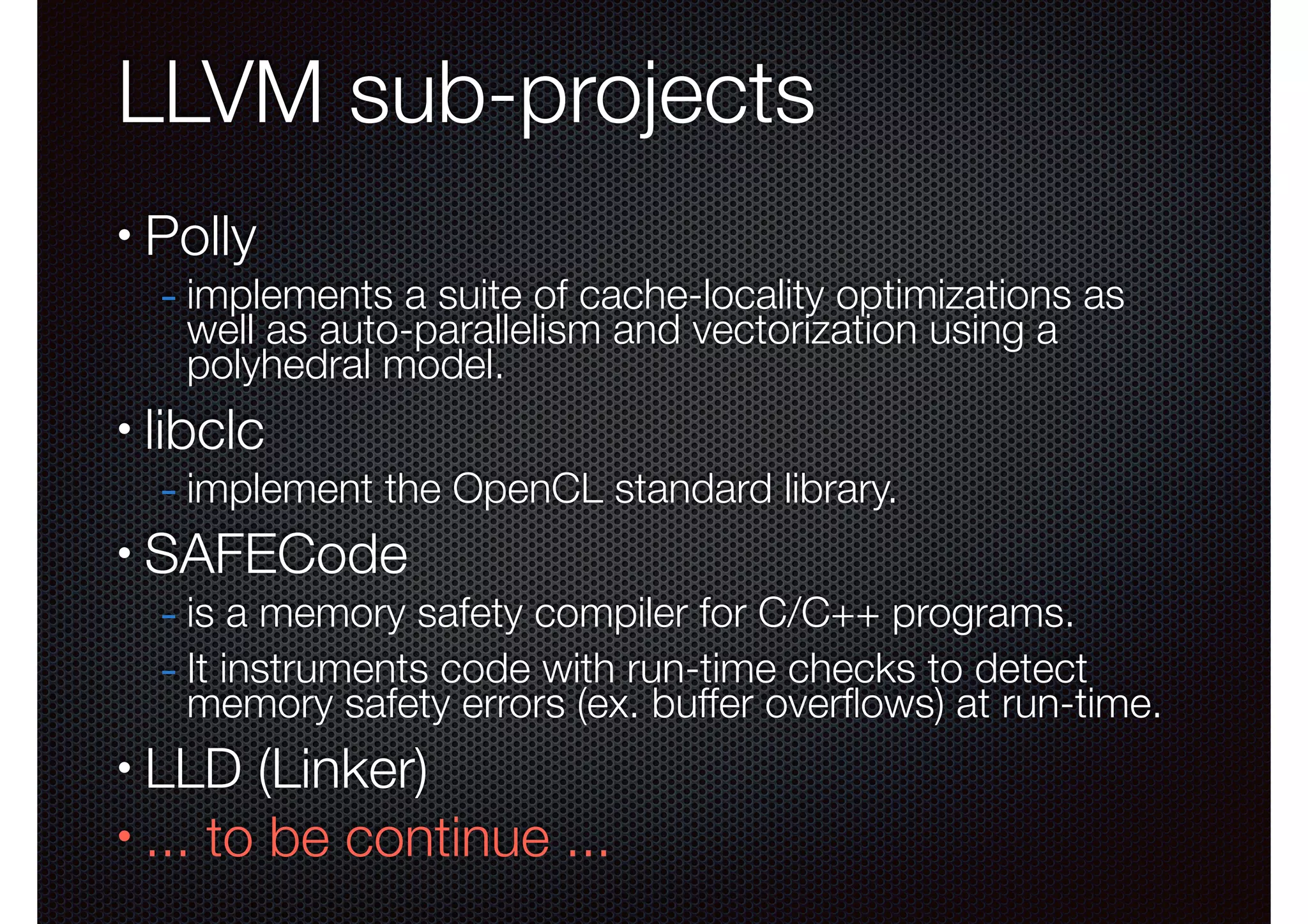

- 48. LLVM sub-projects • Polly - implementsa suite of cache-locality optimizations as well as auto-parallelism and vectorization using a polyhedral model. • libclc - implement the OpenCL standard library. • SAFECode - is a memory safety compiler for C/C++ programs. - It instruments code with run-time checks to detect memory safety errors (ex. buffer overflows) at run-time. LLD (Linker) • ... to be continue ... •
- 49. VMKit: a substratefor virtual machines MMTk Classpath Mono Pnetlib LLVM JIT POSIX 운영체제 하드웨어 http://vmkit.llvm.org/tuto/VMKit_pres_eng.pdf

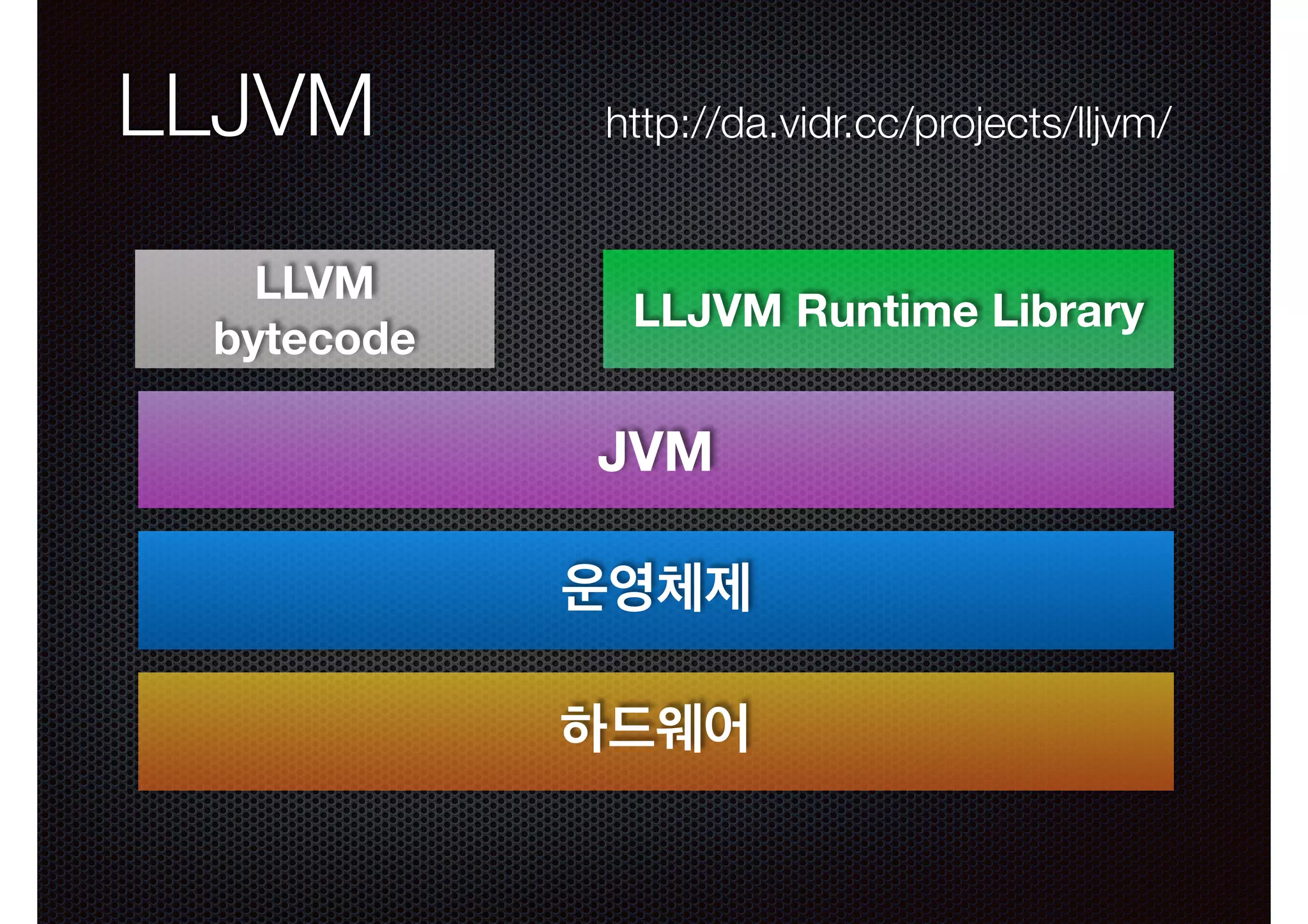

- 50.
- 51.

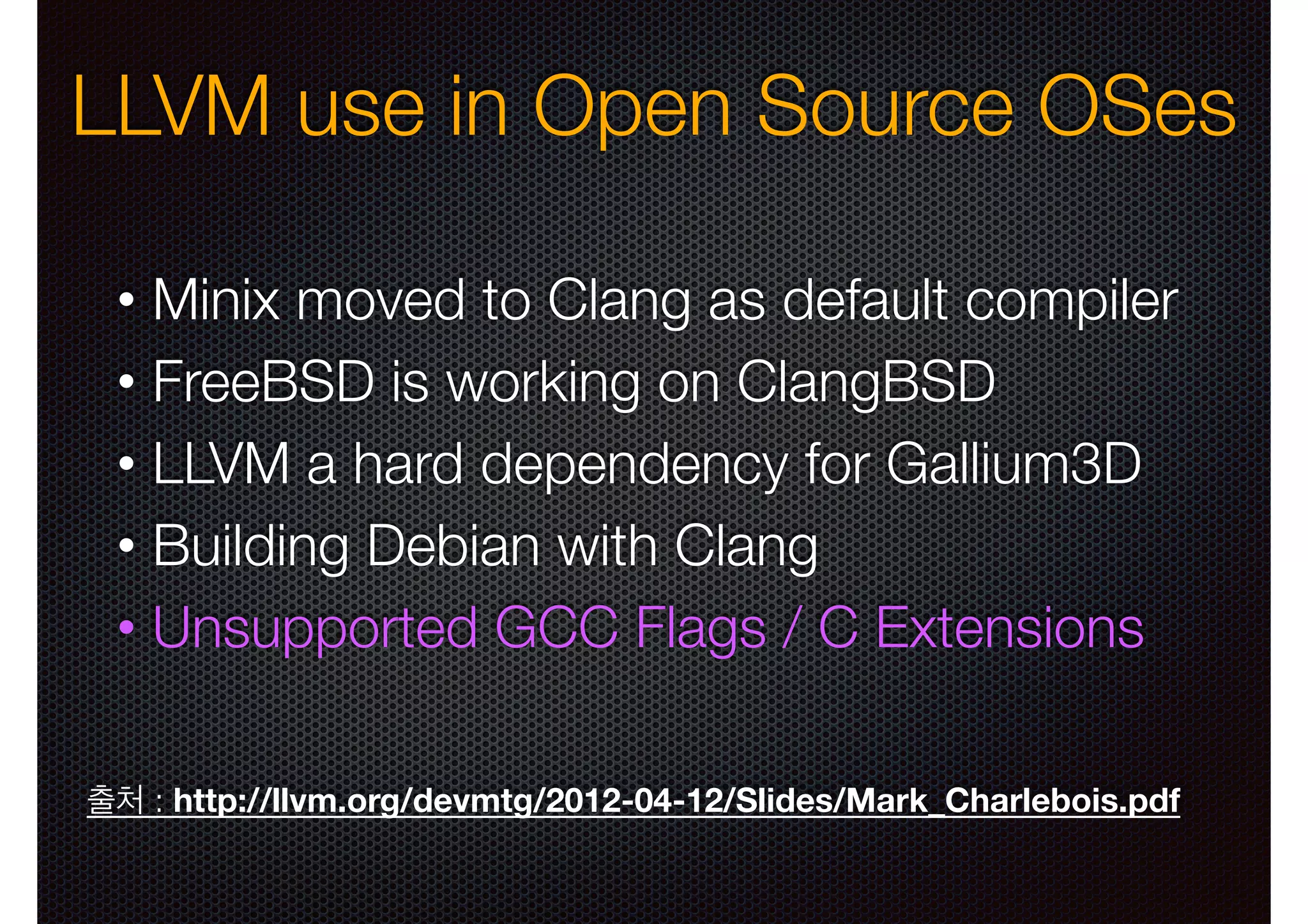

- 52. LLVM use inOpen Source OSes Minix moved to Clang as default compiler • FreeBSD is working on ClangBSD • LLVM a hard dependency for Gallium3D • Building Debian with Clang • Unsupported GCC Flags / C Extensions • 출처 : http://llvm.org/devmtg/2012-04-12/Slides/Mark_Charlebois.pdf

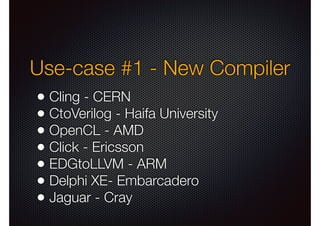

- 53. Use-case #1 -New Compiler • Cling - CERN • CtoVerilog - Haifa University • OpenCL - AMD • Click - Ericsson • EDGtoLLVM - ARM • Delphi XE- Embarcadero • Jaguar - Cray

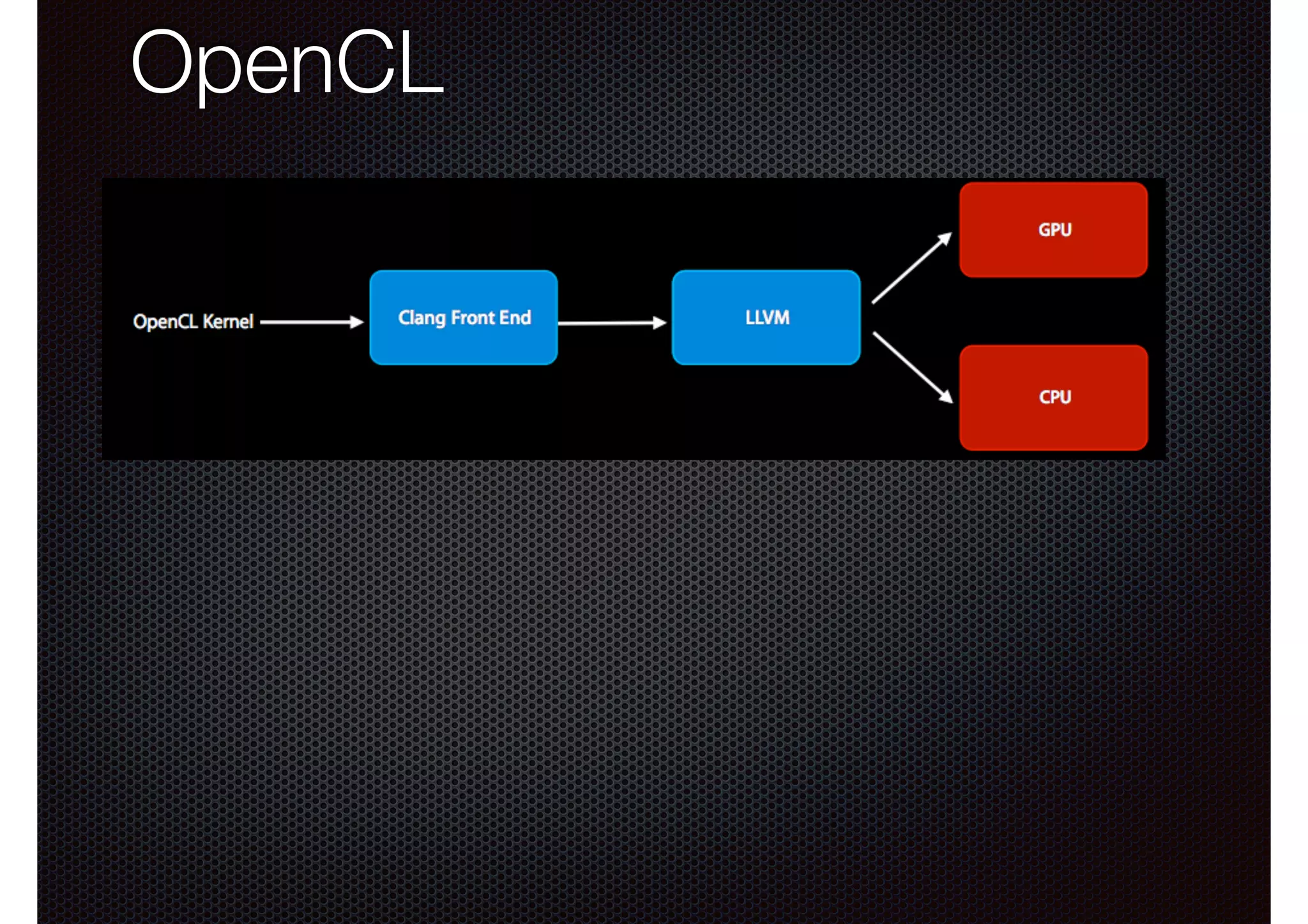

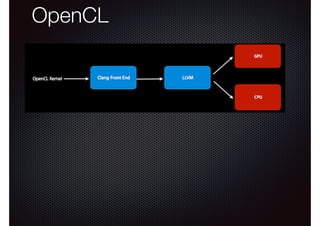

- 54.

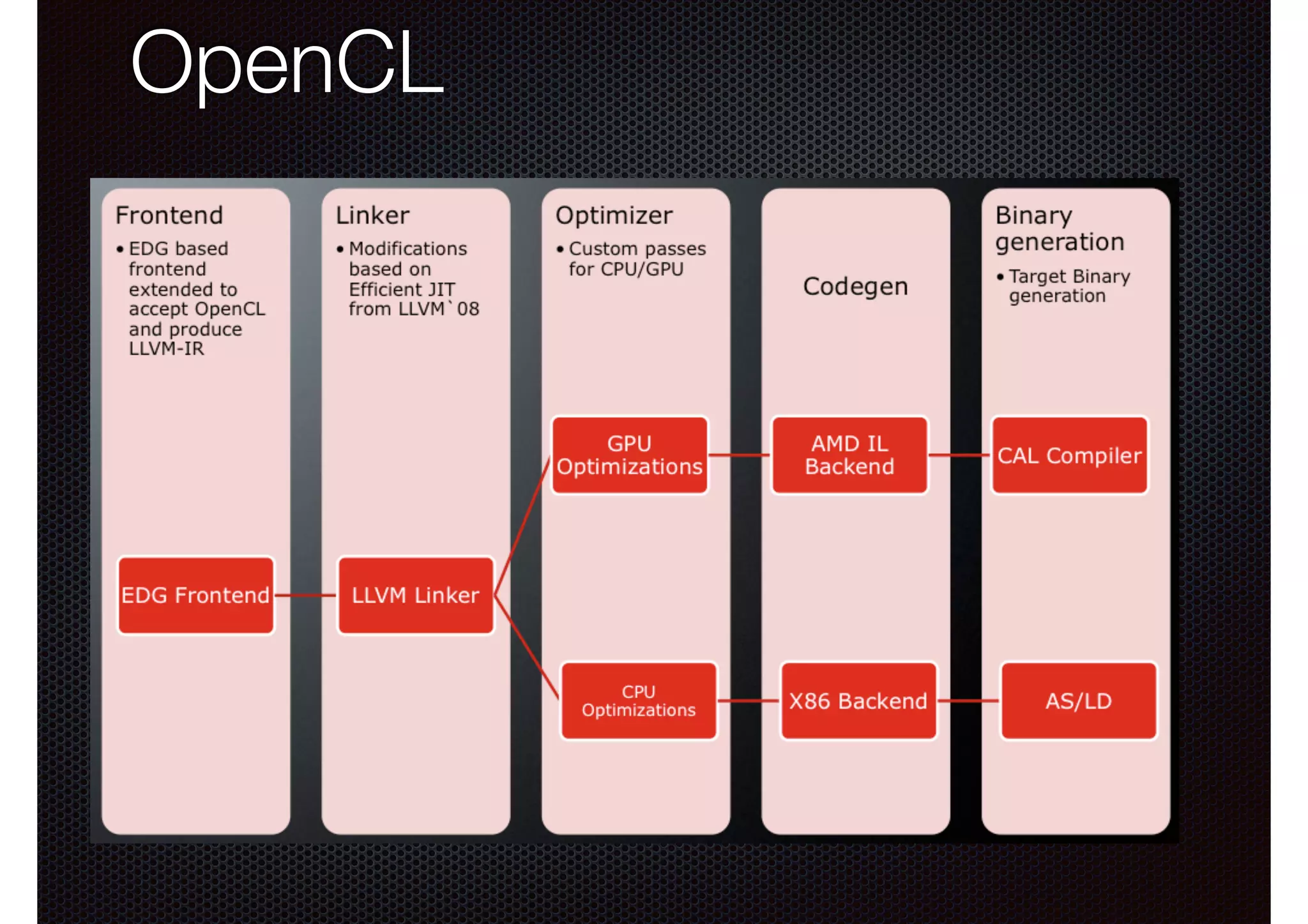

- 55.

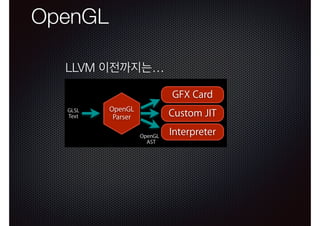

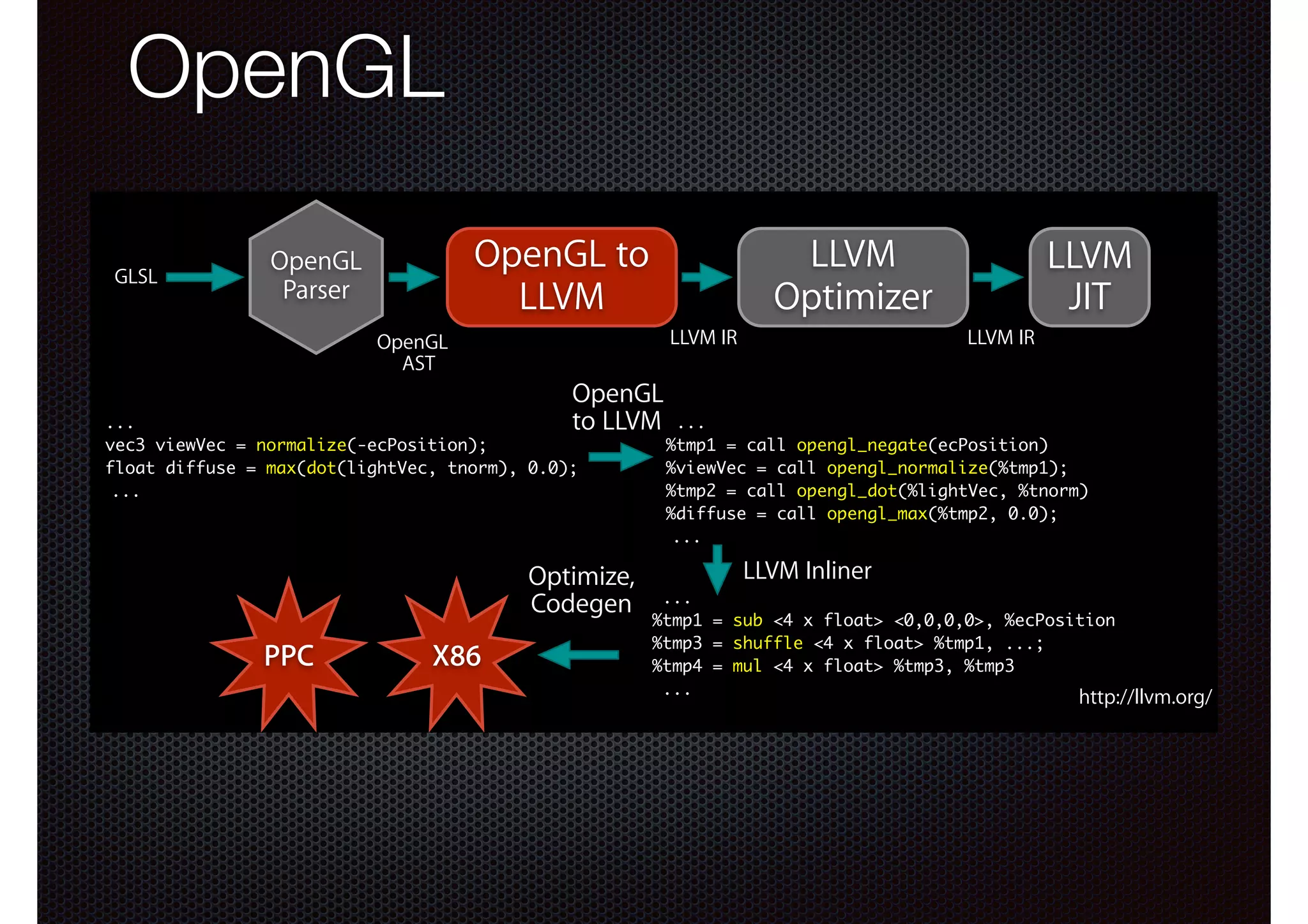

- 56. OpenGL – • Very fragile, hardto understand and change (hex opcodes) OpenGL Interpreter: – JIT didn’t support all OpenGL features: fallback to interpreter – Interpreter was very slow, 100x or worse than JIT LLVM 이전까지는… GFX Card GLSL Text OpenGL Parser Custom JIT OpenGL AST Interpreter htt
- 57. 1.Translate OpenGL ASTinto LLVM call instructions: one per operation – Very fragile, hard to understand and change (hex 2.Use the LLVM inliner to inline opcodes from precompiled bytecode opcodes) 3.Optimize/codegen as before OpenGL • GLSL OpenGL Interpreter: – JIT didn’t support all OpenGL features: fallback to interpreter – Interpreter was very slow, 100xLLVM OpenGL to or worse thanLLVM JIT OpenGL LLVM 이전까지는… Parser LLVM Optimizer JIT LLVM IR OpenGL AST OpenGL to LLVM ... vec3 viewVec = normalize(-ecPosition); GLSL float diffuse = max(dot(lightVec, tnorm), 0.0); Text ... OpenGL Parser OpenGL Optimize, AST Codegen PPC X86 LLVM IR GFX Card ... %tmp1 = call opengl_negate(ecPosition) %viewVec = call opengl_normalize(%tmp1); %tmp2 = call opengl_dot(%lightVec, %tnorm) %diffuse = call opengl_max(%tmp2, 0.0); ... Custom JIT Interpreter LLVM Inliner ... %tmp1 = sub <4 x float> <0,0,0,0>, %ecPosition %tmp3 = shuffle <4 x float> %tmp1, ...; %tmp4 = mul <4 x float> %tmp3, %tmp3 ... http://llvm.org/ htt

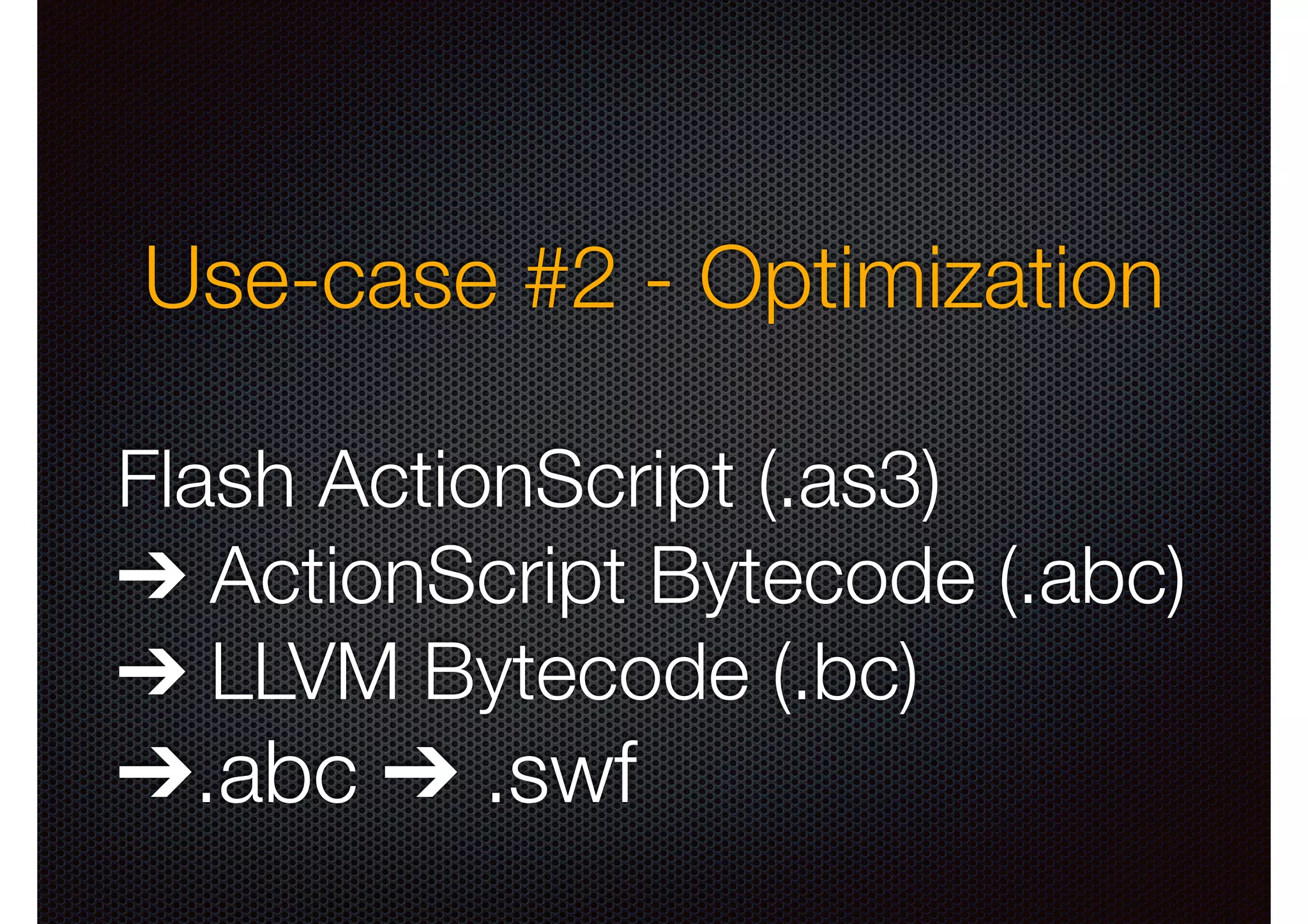

- 58. Use-case #2 -Optimization Flash ActionScript (.as3) ➔ ActionScript Bytecode (.abc) ➔ LLVM Bytecode (.bc) ➔.abc ➔ .swf
- 59. ActionScript3 + LLVM? AlchemyProject Simple AS3 function function CopyMatrix(B:Array, A:Array):void { var M:uint = A.length; var N:uint = A[0].length; var remainder:uint = N & 3; for (var i:uint=0; i<M; i++) { var Bi:Array = B[i]; var Ai:Array = A[i]; for (var j:uint=0; j<remainder; j++) Bi[j] = Ai[j]; for (j=remainder; j<N; j+=4) { Bi[j] = Ai[j]; Bi[j+1] = Ai[j+1]; Bi[j+2] = Ai[j+2]; Bi[j+3] = Ai[j+3]; } } } // N mod 4;

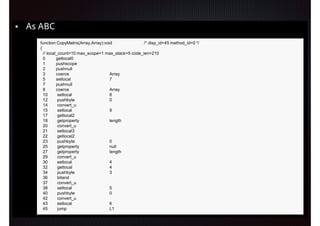

- 60. As ABC function CopyMatrix(Array,Array):void /*disp_id=45 method_id=0 */ { // local_count=10 max_scope=1 max_stack=5 code_len=210 0 getlocal0 1 pushscope 2 pushnull 3 coerce Array 5 setlocal 7 7 pushnull 8 coerce Array 10 setlocal 8 12 pushbyte 0 14 convert_u 15 setlocal 9 17 getlocal2 18 getproperty length 20 convert_u 21 setlocal3 22 getlocal2 23 pushbyte 0 25 getproperty null 27 getproperty length 29 convert_u 30 setlocal 4 32 getlocal 4 34 pushbyte 3 36 bitand 37 convert_u 38 setlocal 5 40 pushbyte 0 42 convert_u 43 setlocal 6 45 jump L1
- 61. ActionScript3 + LLVM? AsBC ; ModuleID = 'SparseCompRow' declare avm2val @avm2_getproperty(...) readonly declare void @avm2_setproperty(...) declare avm2val @avm2_coerce(...) readnone define avm2val @GO_m6_CopyMatrix(avm2val, avm2val, avm2val) { bb_m6_b0_0_: %i = call avm2val (...)* @avm2_getproperty( avm2val %2, avm2ref bitcast (i32 24 to avm2ref) ) ; <avm2val> [#uses=1] %i41 = add i32 0, 0 ; <i32> [#uses=1] %i42 = call avm2val @avm2box_i32( i32 %i41 ) ; <avm2val> [#uses=1] %i1 = call avm2val (...)* @avm2_pushbyte( i32 0 ) ; <avm2val> [#uses=0] %i2 = call avm2val (...)* @avm2_getproperty( avm2val %2, avm2val %i42, avm2ref bitcast (i32 5 to avm2ref) ) ; <avm2val> [#uses=1] %i3 = call avm2val (...)* @avm2_getproperty( avm2val %i2, avm2ref bitcast (i32 58 to avm2ref) ) ; <avm2val> [#uses=1] %i4 = call avm2val (...)* @avm2_convert_u( avm2val %i3 ) ; <avm2val> [#uses=3] %i43 = add i32 3, 0 ; <i32> [#uses=2] %i44 = call avm2val @avm2box_i32( i32 %i43 ) ; <avm2val> [#uses=6] %i88 = call double @avm2unbox_double( avm2val %i44 ) ; <double> [#uses=1] %i84 = call double @avm2unbox_double( avm2val %i44 ) ; <double> [#uses=1] %i5 = call avm2val (...)* @avm2_pushbyte( i32 3 ) ; <avm2val> [#uses=0] %i45 = call i32 @avm2unbox_i32( avm2val %i4 ) ; <i32> [#uses=1] %i46 = call i32 @avm2unbox_i32( avm2val %i44 ) ; <i32> [#uses=0] %i47 = and i32 %i45, %i43 ; <i32> [#uses=1] %i48 = call avm2val @avm2box_i32( i32 %i47 ) ; <avm2val> [#uses=1] %i6 = call avm2val (...)* @avm2_bitand( avm2val %i4, avm2val %i44 ) ; <avm2val> [#uses=0] %i7 = call avm2val (...)* @avm2_convert_u( avm2val %i48 ) ; <avm2val> [#uses=3] %i63 = call i32 @avm2unbox_i32( avm2val %i7 ) ; <i32> [#uses=1] %i8 = call avm2val (...)* @avm2_pushuint( i32 0 ) ; <avm2val> [#uses=4] %i53 = call i32 @avm2unbox_i32( avm2val %i8 ) ; <i32> [#uses=1] %i49 = call i32 @avm2unbox_i32( avm2val %i8 ) ; <i32> [#uses=1] br label %bb_m6_b1_0_ ; ... ®

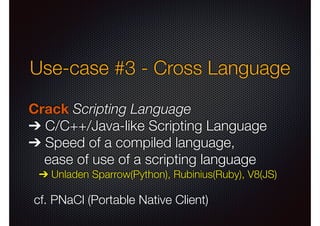

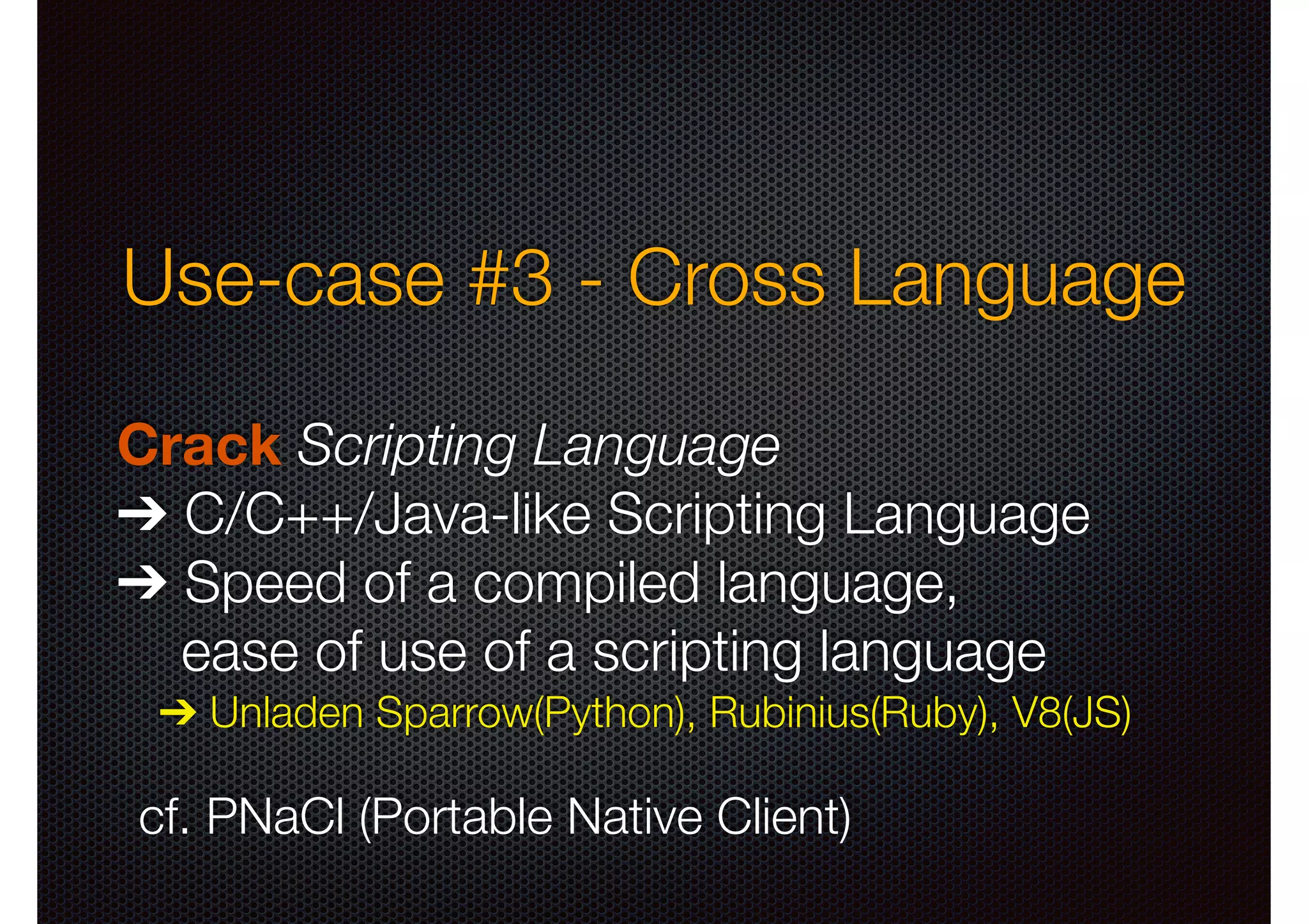

- 62. Use-case #3 -Cross Language Crack Scripting Language ➔ C/C++/Java-like Scripting Language ➔ Speed of a compiled language, ease of use of a scripting language ➔ Unladen Sparrow(Python), Rubinius(Ruby), V8(JS) cf. PNaCl (Portable Native Client)

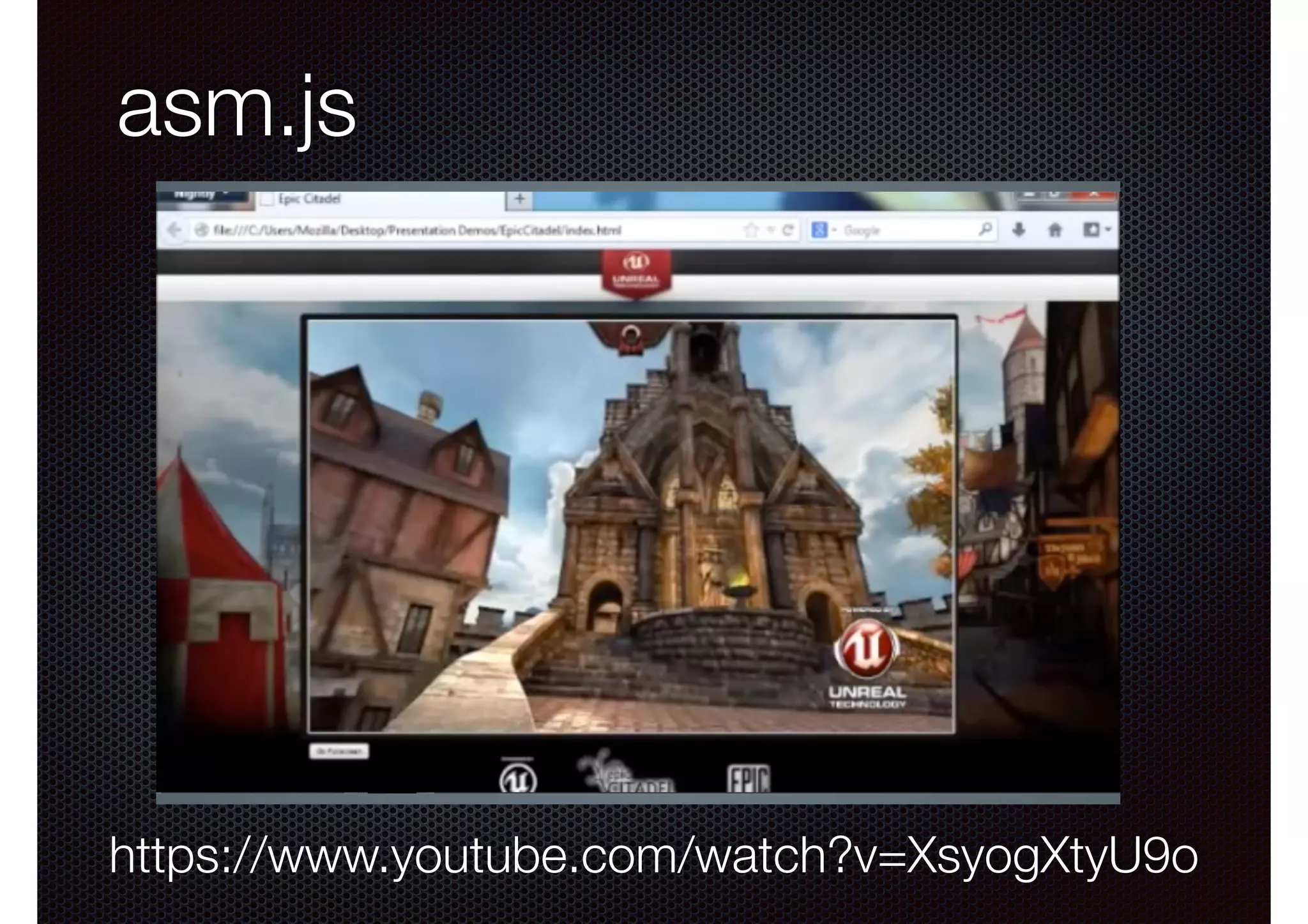

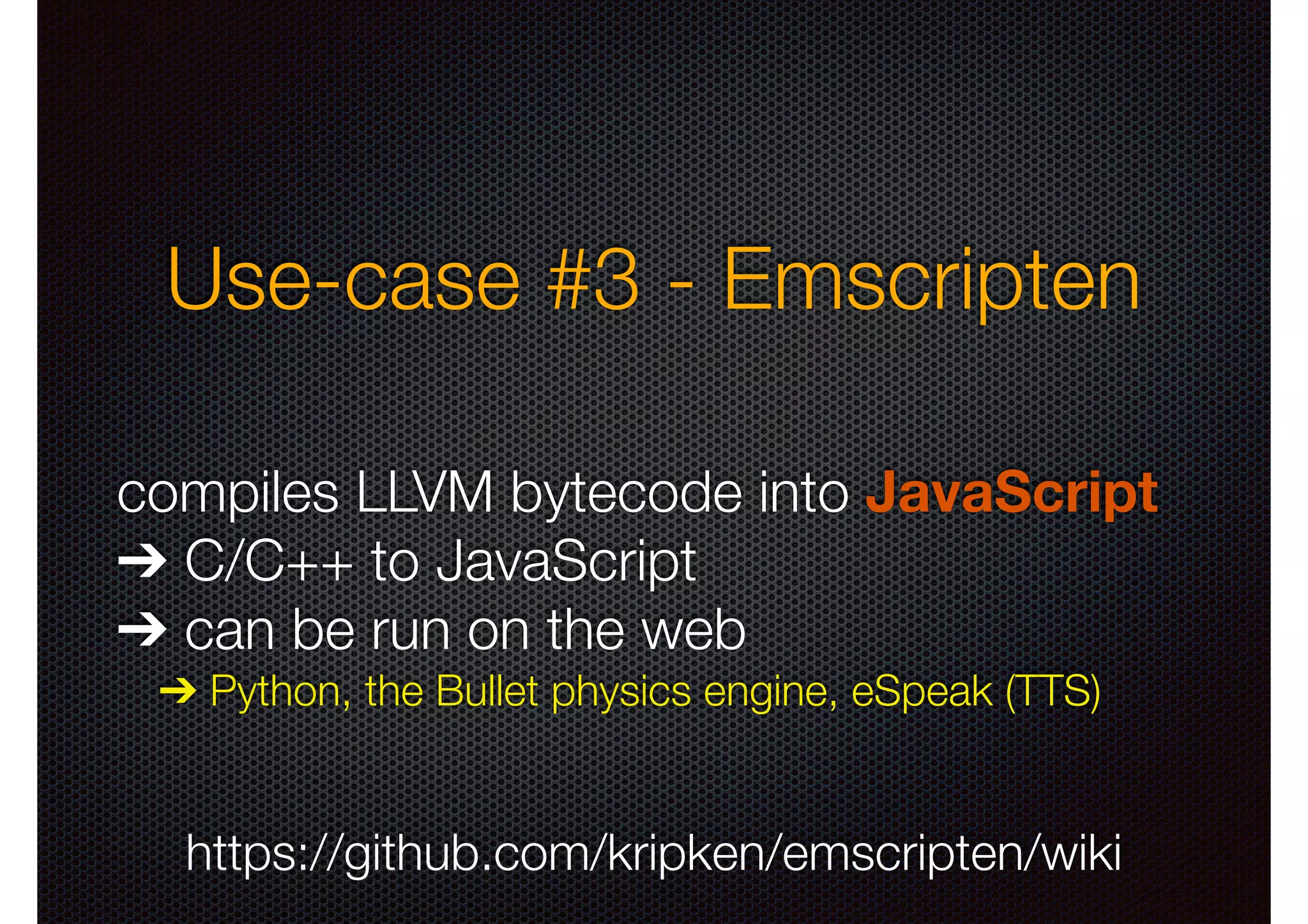

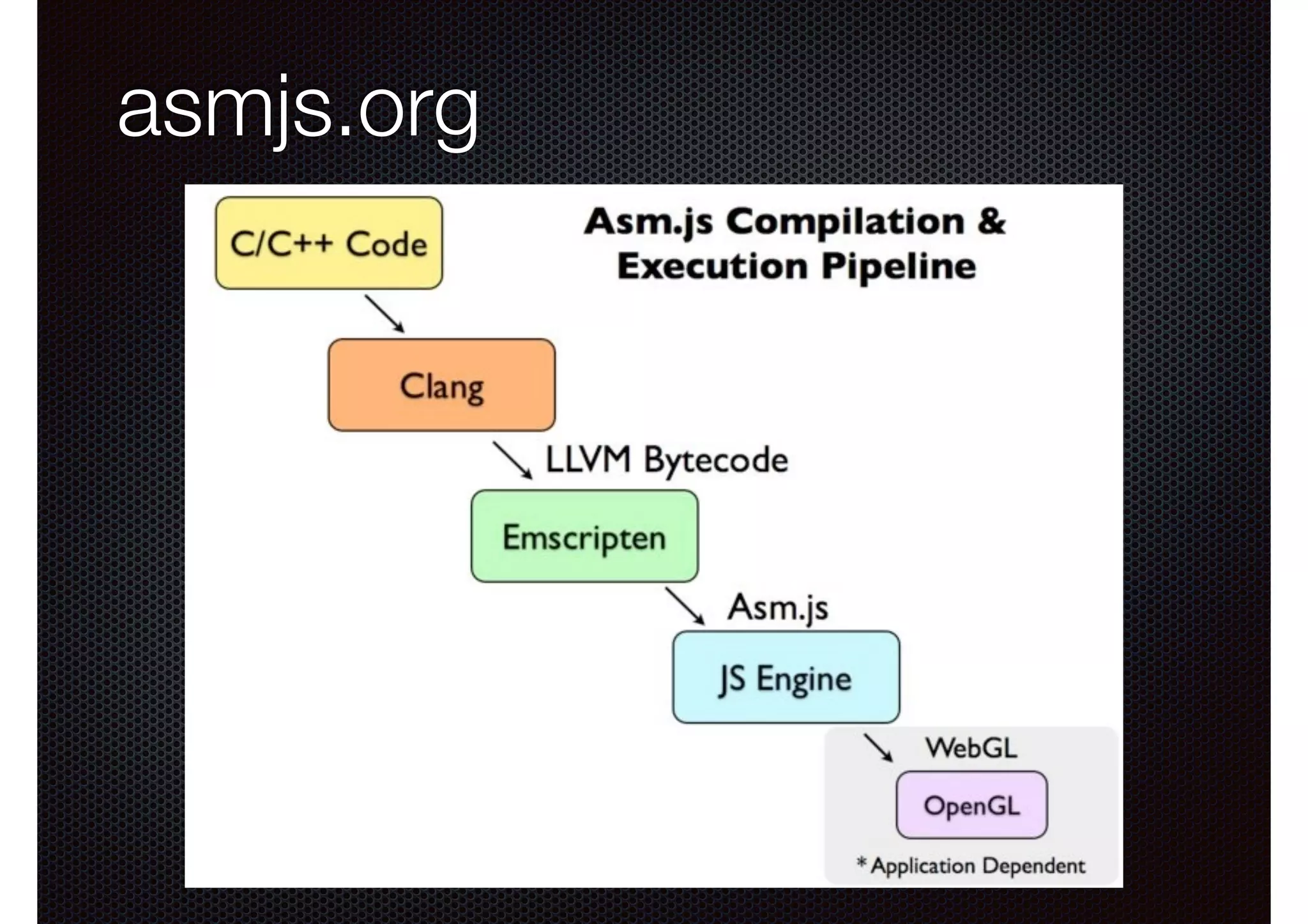

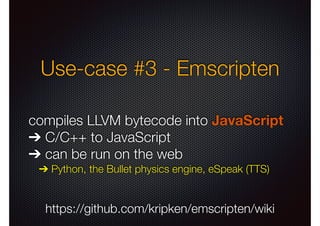

- 63. Use-case #3 -Emscripten compiles LLVM bytecode into JavaScript ➔ C/C++ to JavaScript ➔ can be run on the web ➔ Python, the Bullet physics engine, eSpeak (TTS) https://github.com/kripken/emscripten/wiki

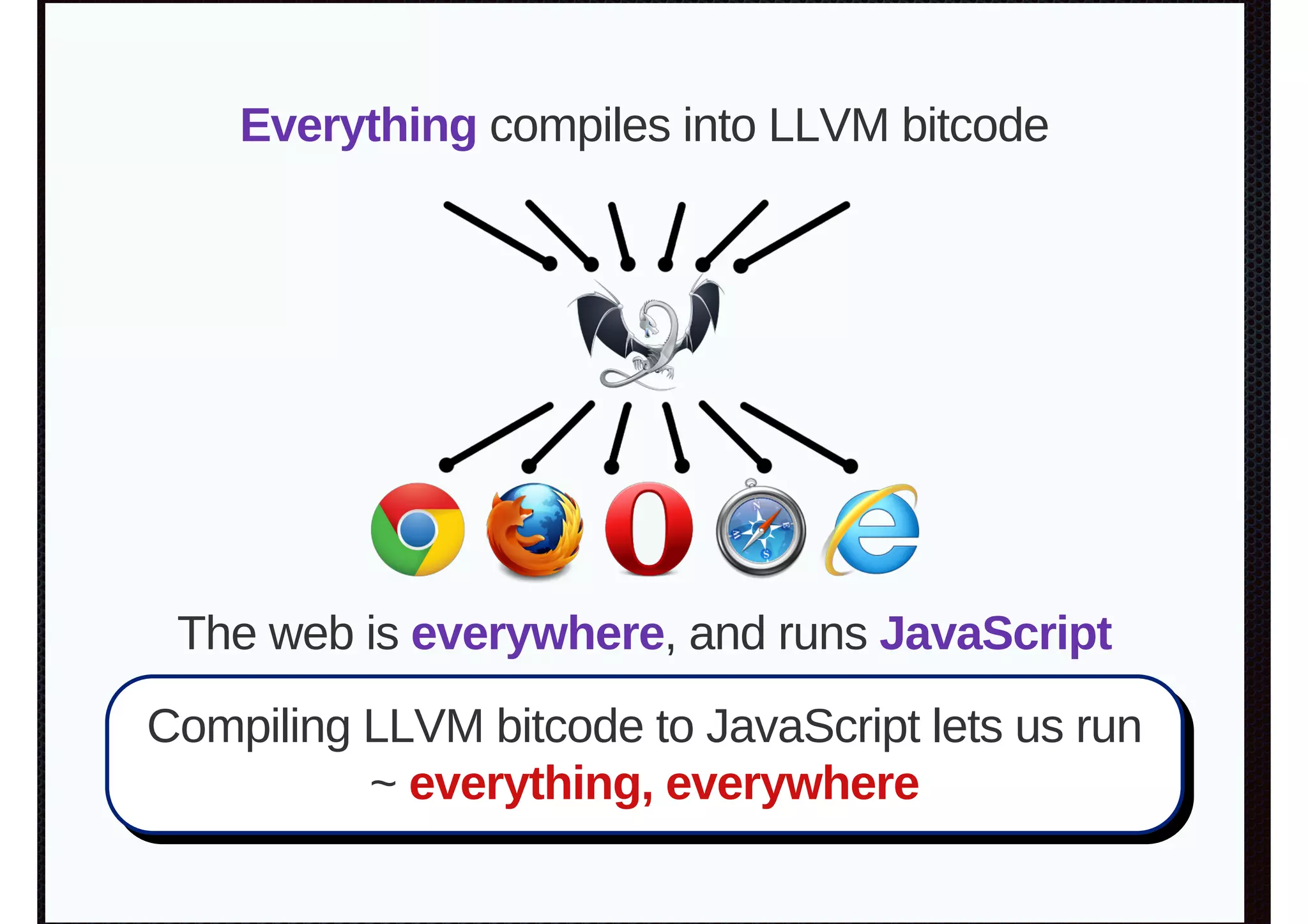

- 64. Everything compiles into LLVM bitcode Use-case #3 - Emscripten compiles LLVM bytecode into JavaScript ➔ C/C++ to JavaScript ➔ The web is everywhere, and runs JavaScript can be run on the web ➔ Python, the Bullet physics engine, eSpeak (TTS) Compiling LLVM bitcode to JavaScript lets us run ~ everything, everywhere https://github.com/kripken/emscripten/wiki
- 65.
- 66.
- 67.

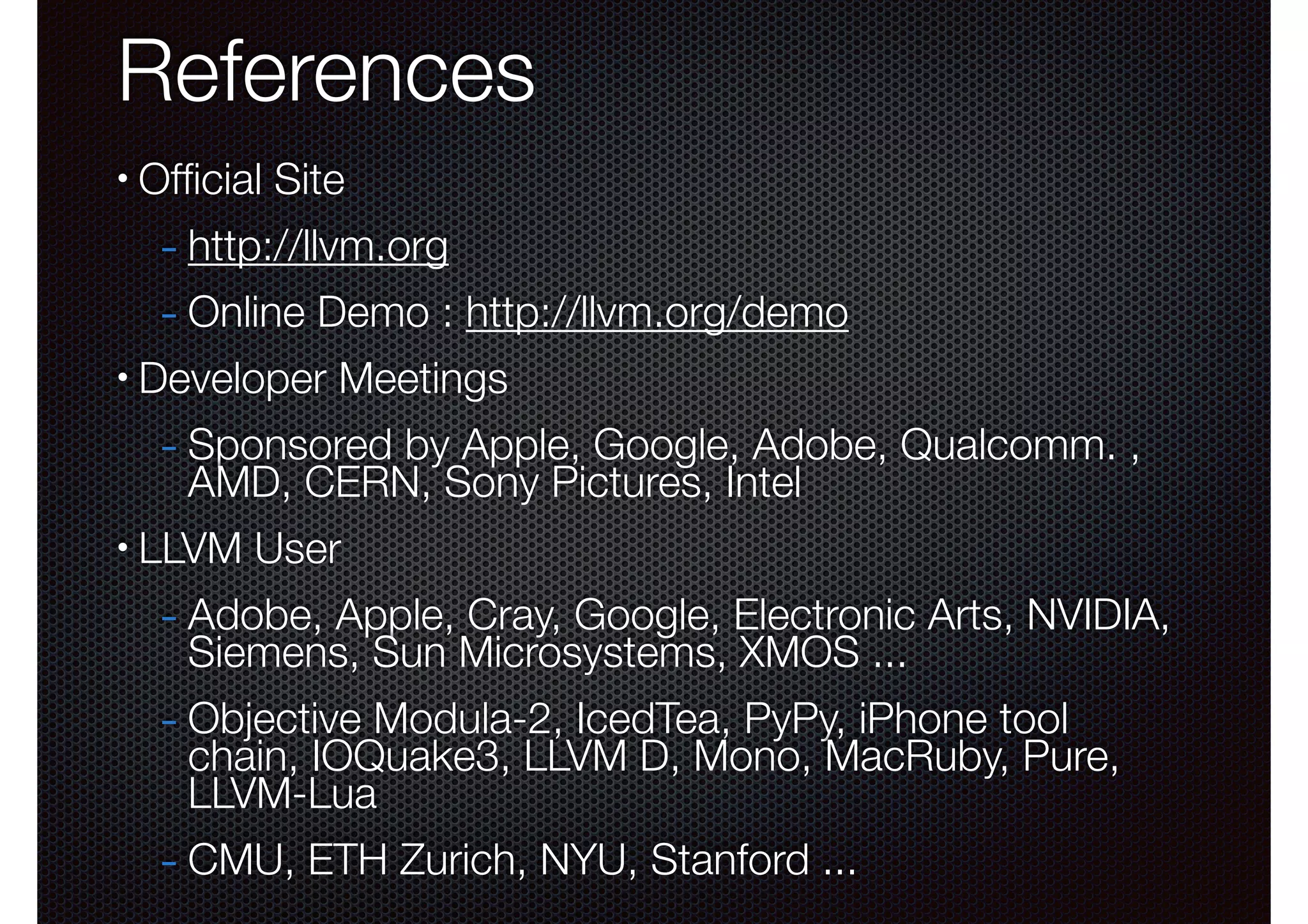

- 69. References • Official Site - http://llvm.org -Online Demo : http://llvm.org/demo • Developer Meetings - Sponsored by Apple, Google, Adobe, Qualcomm. , AMD, CERN, Sony Pictures, Intel • LLVM User - Adobe, Apple, Cray, Google, Electronic Arts, NVIDIA, Siemens, Sun Microsystems, XMOS ... - Objective Modula-2, IcedTea, PyPy, iPhone tool chain, IOQuake3, LLVM D, Mono, MacRuby, Pure, LLVM-Lua - CMU, ETH Zurich, NYU, Stanford ...

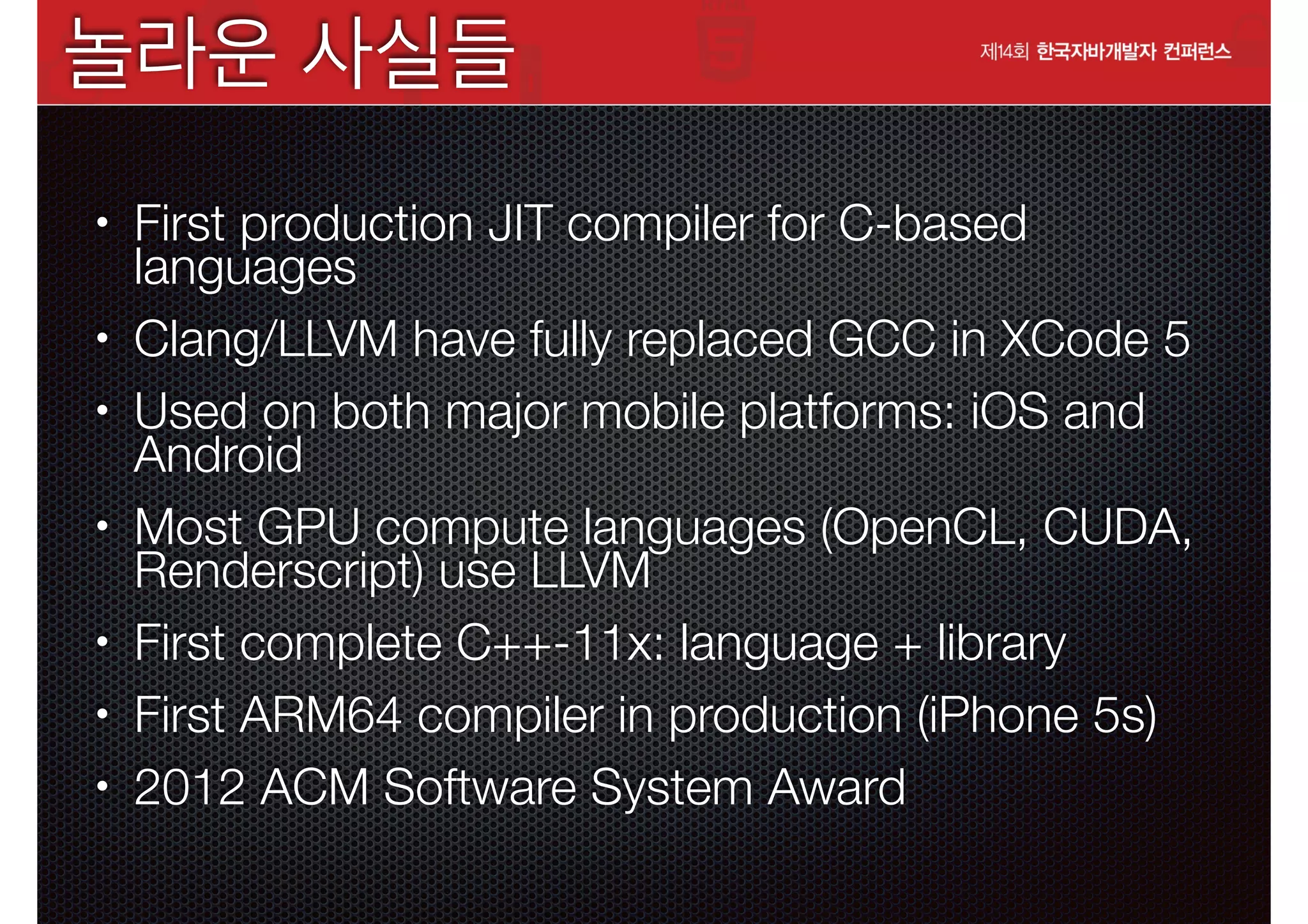

- 70. 놀라운 사실들 • • • • • • • First productionJIT compiler for C-based languages Clang/LLVM have fully replaced GCC in XCode 5 Used on both major mobile platforms: iOS and Android Most GPU compute languages (OpenCL, CUDA, Renderscript) use LLVM First complete C++-11x: language + library First ARM64 compiler in production (iPhone 5s) 2012 ACM Software System Award

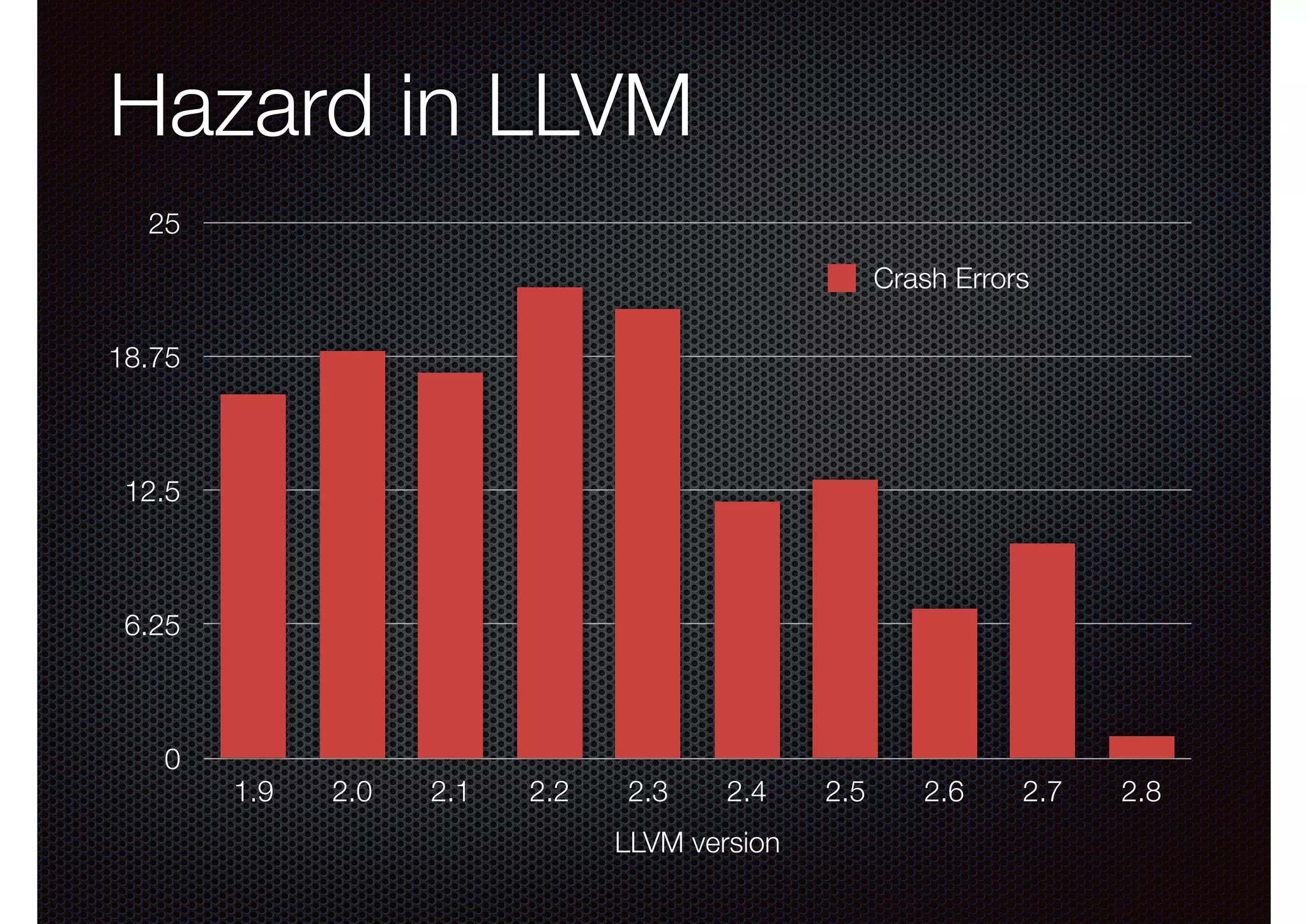

- 71. Hazard in LLVM 25 CrashErrors 18.75 12.5 6.25 0 1.9 2.0 2.1 2.2 2.3 2.4 LLVM version 2.5 2.6 2.7 2.8

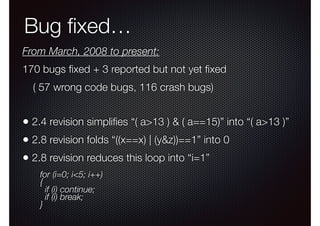

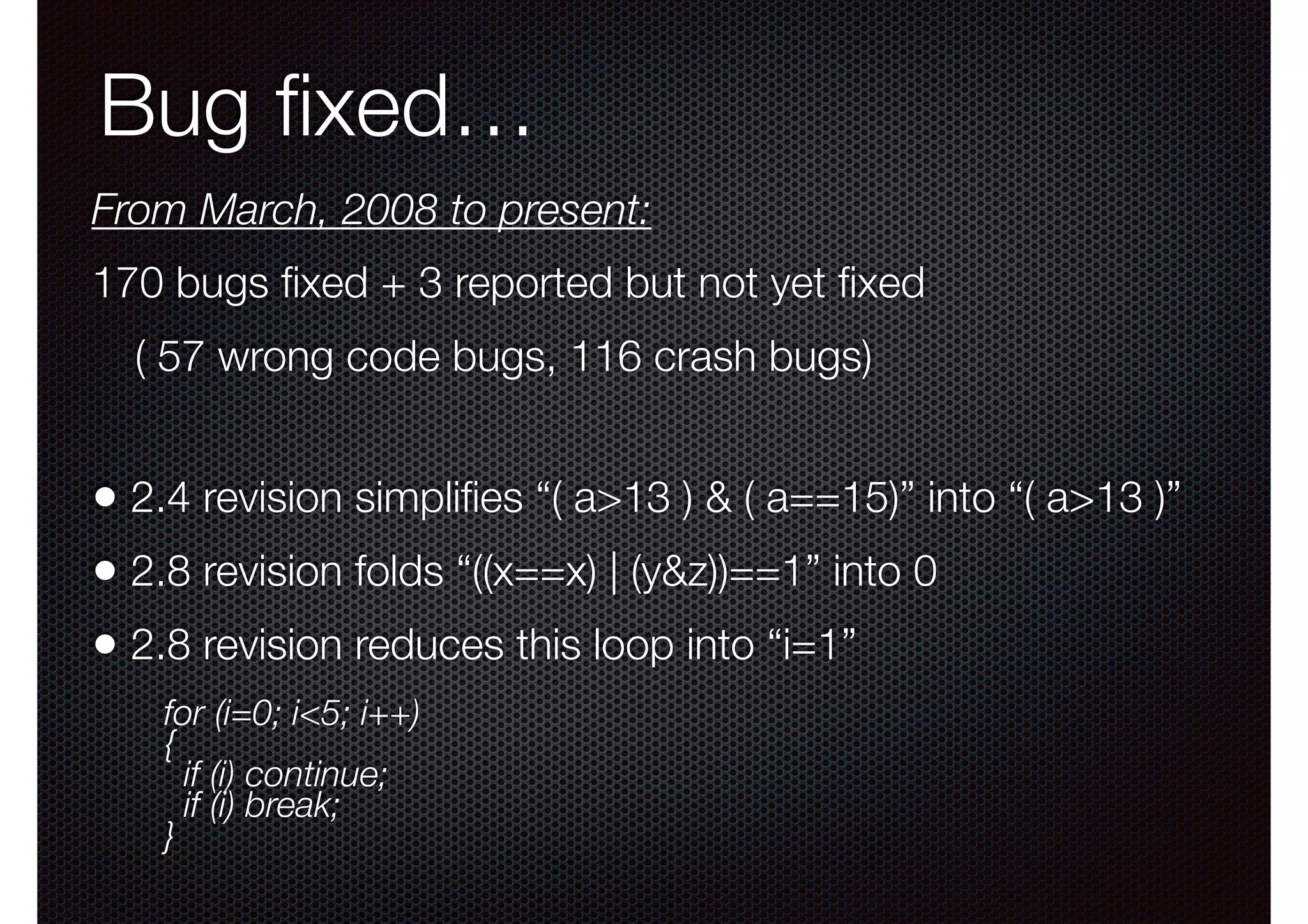

- 72. Bug fixed… From March,2008 to present: 170 bugs fixed + 3 reported but not yet fixed ( 57 wrong code bugs, 116 crash bugs) • 2.4 revision simplifies “( a>13 ) & ( a==15)” into “( a>13 )” • 2.8 revision folds “((x==x) | (y&z))==1” into 0 • 2.8 revision reduces this loop into “i=1” for (i=0; i<5; i++) { if (i) continue; if (i) break; }

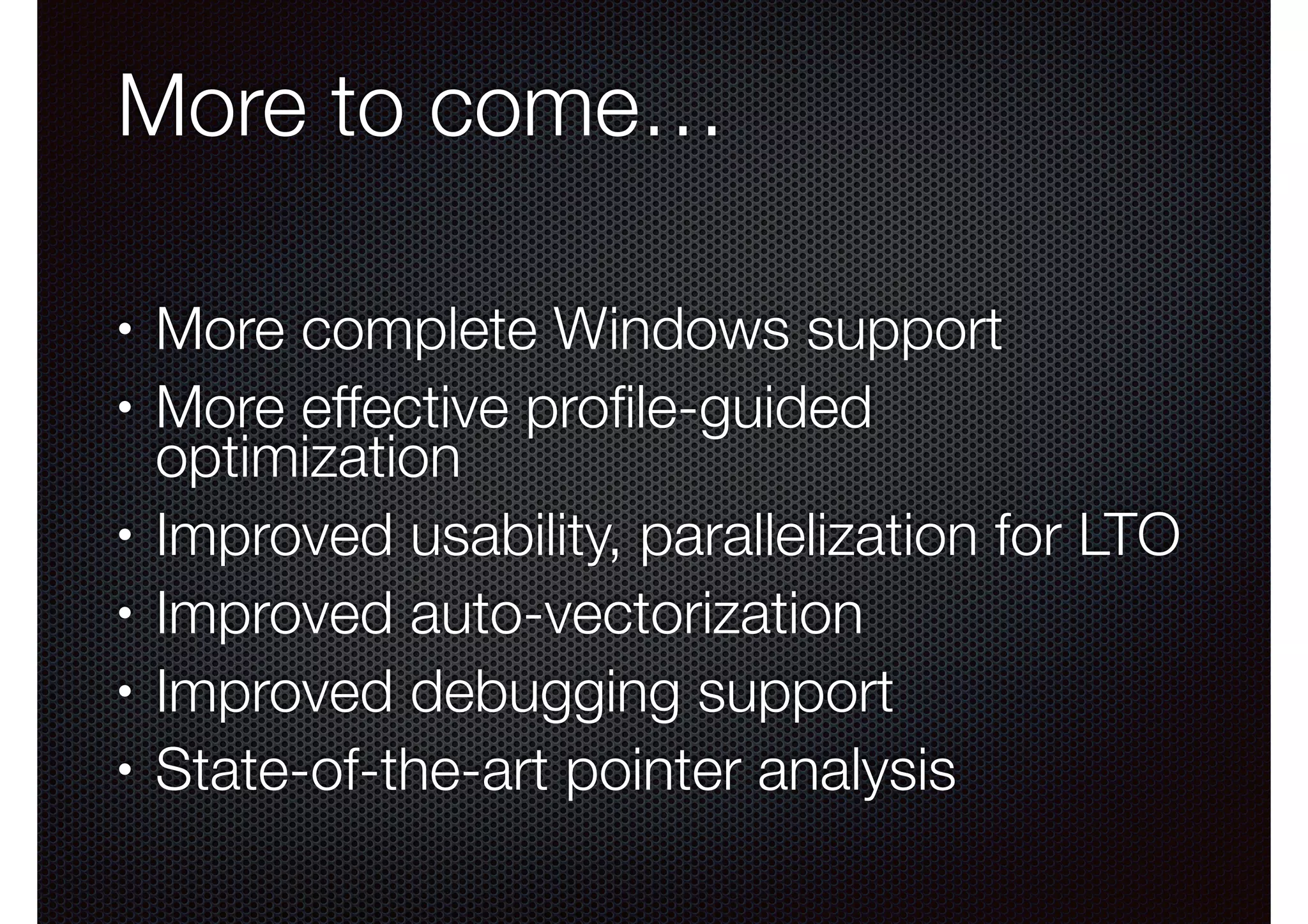

- 73. More to come… • • • • • • Morecomplete Windows support More effective profile-guided optimization Improved usability, parallelization for LTO Improved auto-vectorization Improved debugging support State-of-the-art pointer analysis

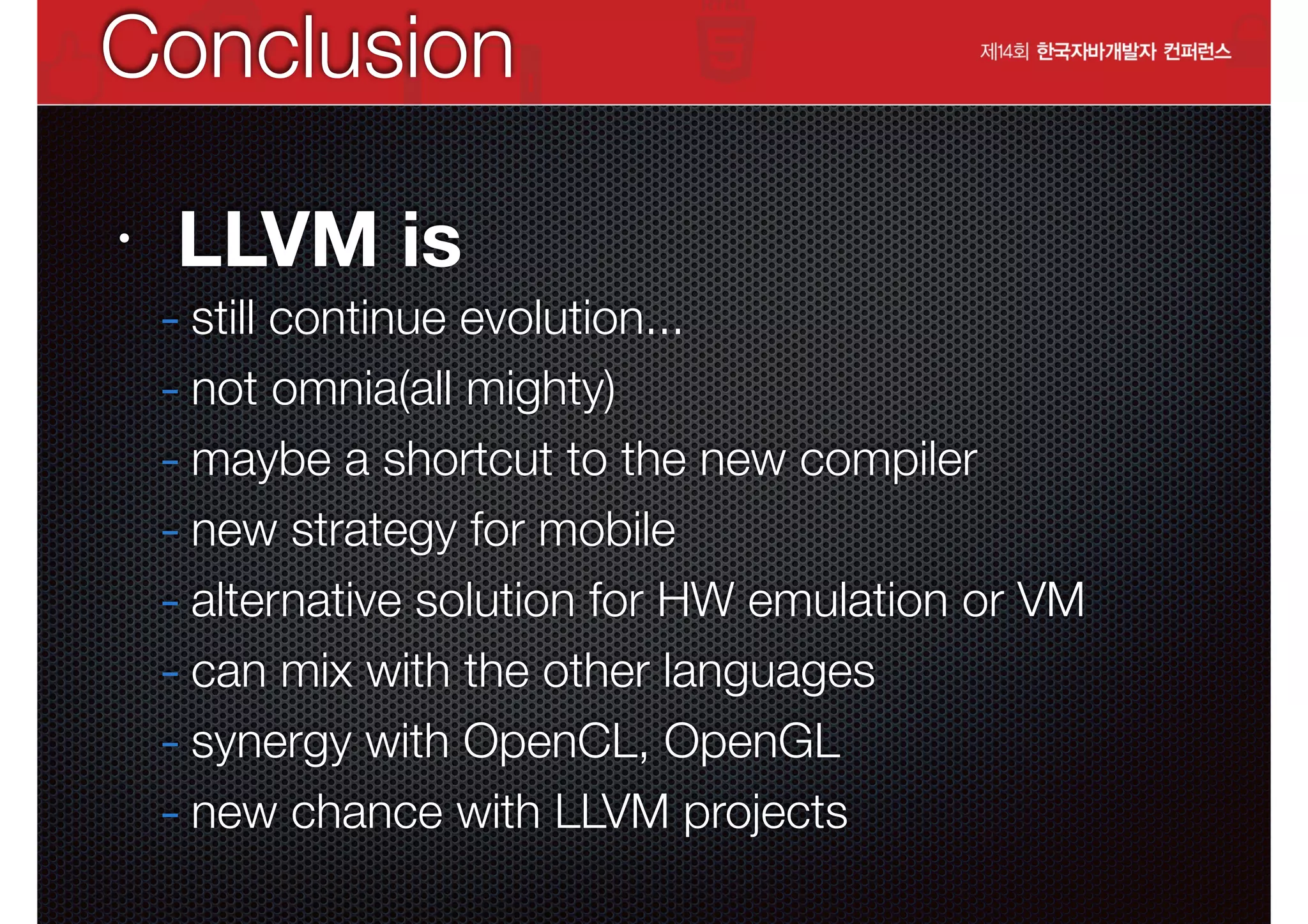

- 74. Conclusion • LLVM is - stillcontinue evolution... - not omnia(all mighty) - maybe a shortcut to the new compiler - new strategy for mobile - alternative solution for HW emulation or VM - can mix with the other languages - synergy with OpenCL, OpenGL - new chance with LLVM projects
- 75.
