Windows 8 App Developer Day
This document discusses Windows Store apps and how they can be developed to take advantage of live tiles, notifications, and other Windows features. It covers the Windows app architecture and tools for app development. Key points include how live tiles can be configured to update periodically from a service URL or with push notifications to remain dynamic even when the app is not running. Templates define the format of tile, badge, and toast updates to provide a consistent user experience.
More Related Content
Similar to Windows 8 App Developer Day
Windows 8 App Developer Day

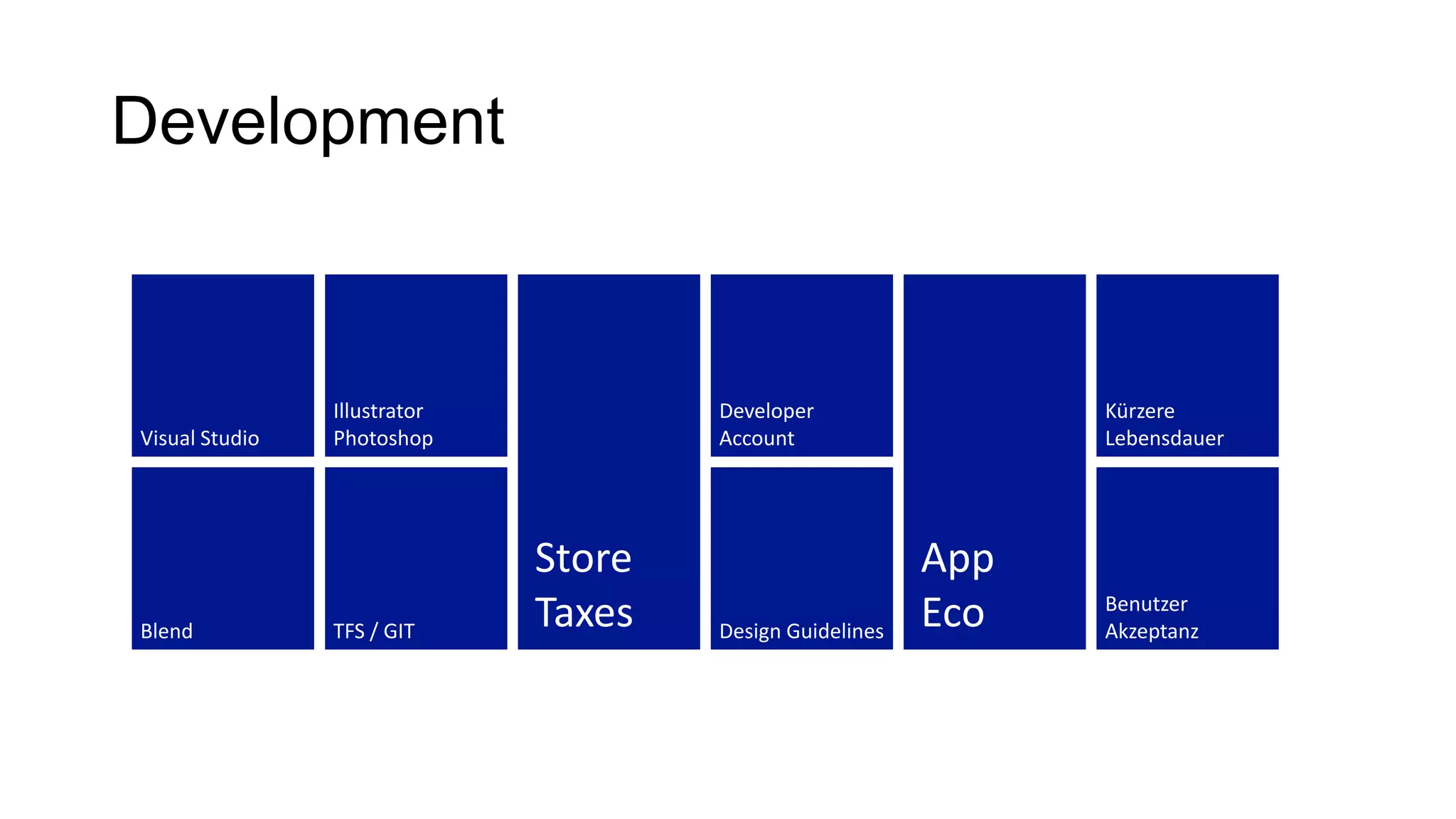

- 1. Development Illustrator Developer Kürzere Visual Studio Photoshop Account Lebensdauer Store App Blend TFS / GIT Taxes Design Guidelines Eco Benutzer Akzeptanz

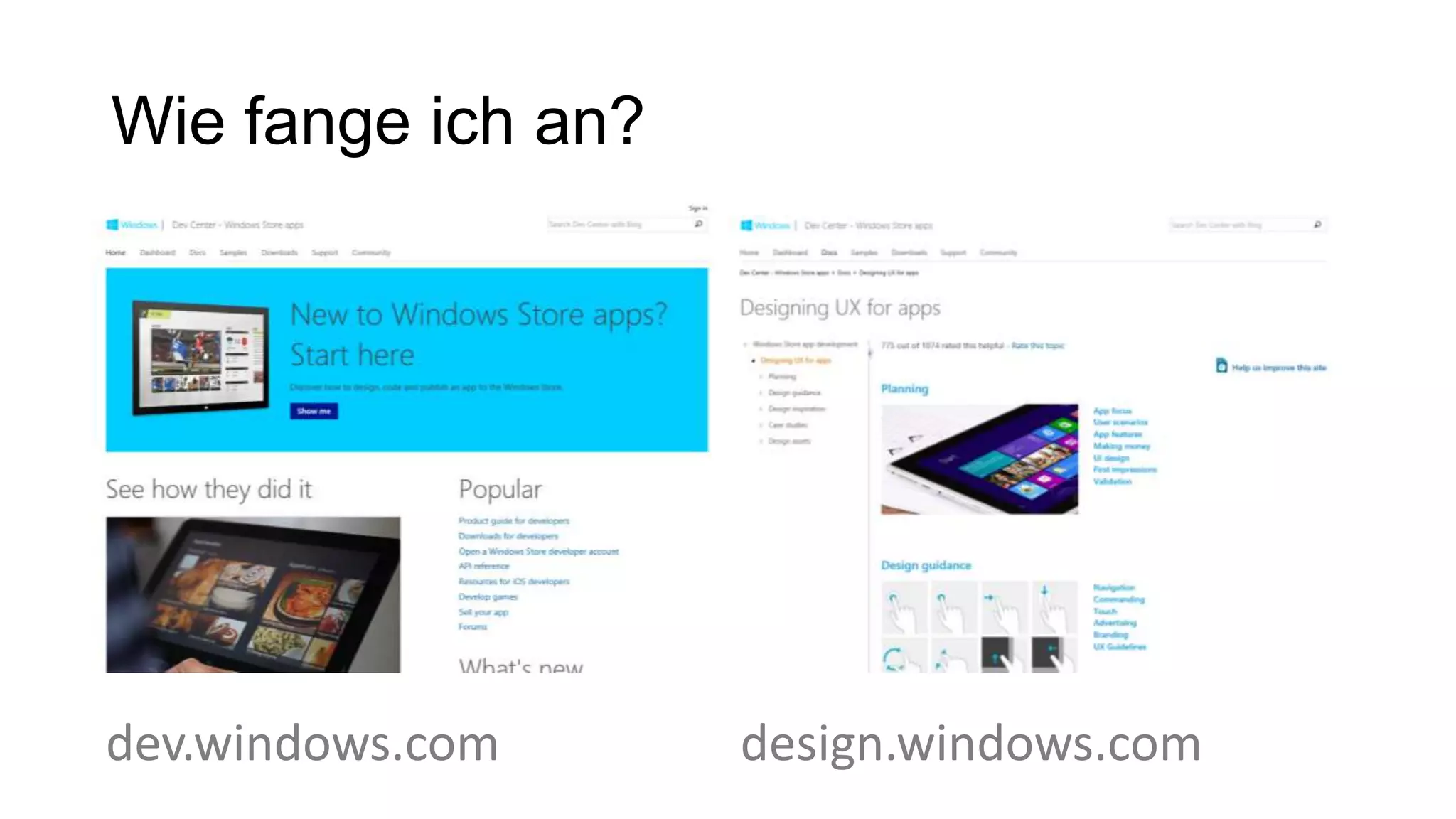

- 2. Wie fange ichan? dev.windows.com design.windows.com

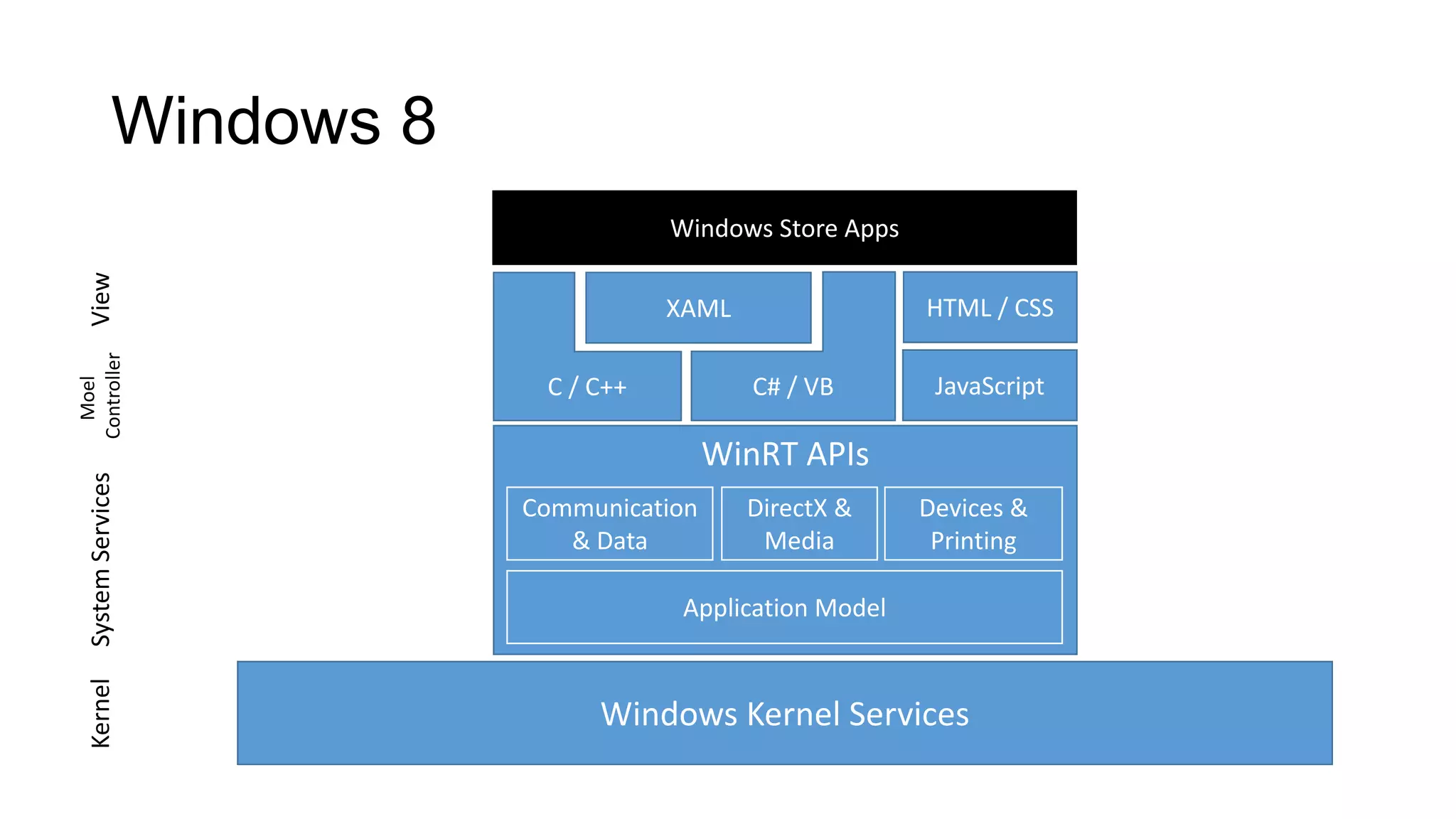

- 3. Windows 8 Windows Store Apps View XAML HTML / CSS Controller C / C++ C# / VB JavaScript Moel WinRT APIs System Services Communication DirectX & Devices & & Data Media Printing Application Model Kernel Windows Kernel Services

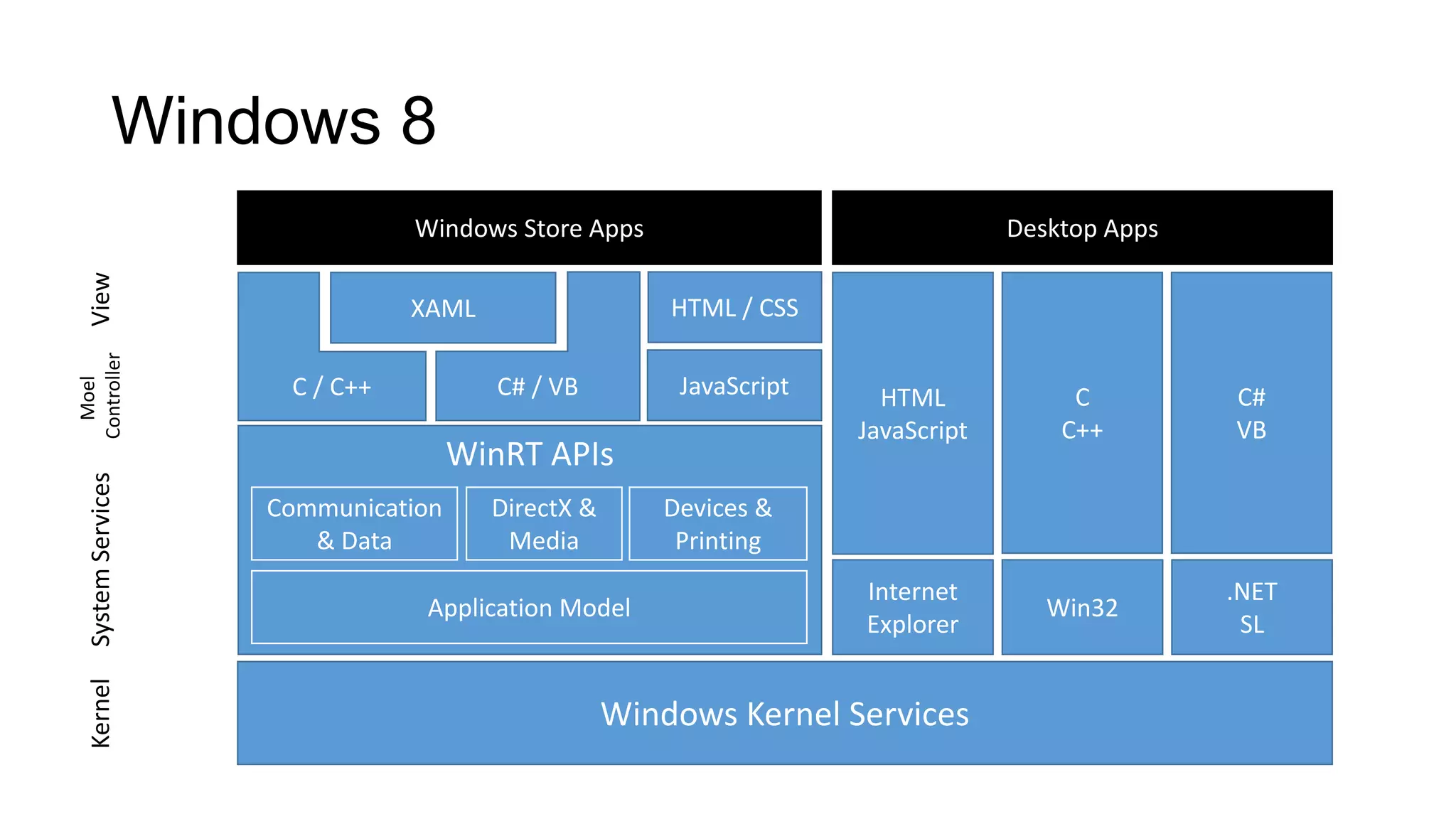

- 4. Windows 8 Windows Store Apps Desktop Apps View XAML HTML / CSS Controller C / C++ C# / VB JavaScript Moel HTML C C# JavaScript C++ VB WinRT APIs System Services Communication DirectX & Devices & & Data Media Printing Internet .NET Application Model Win32 Explorer SL Kernel Windows Kernel Services

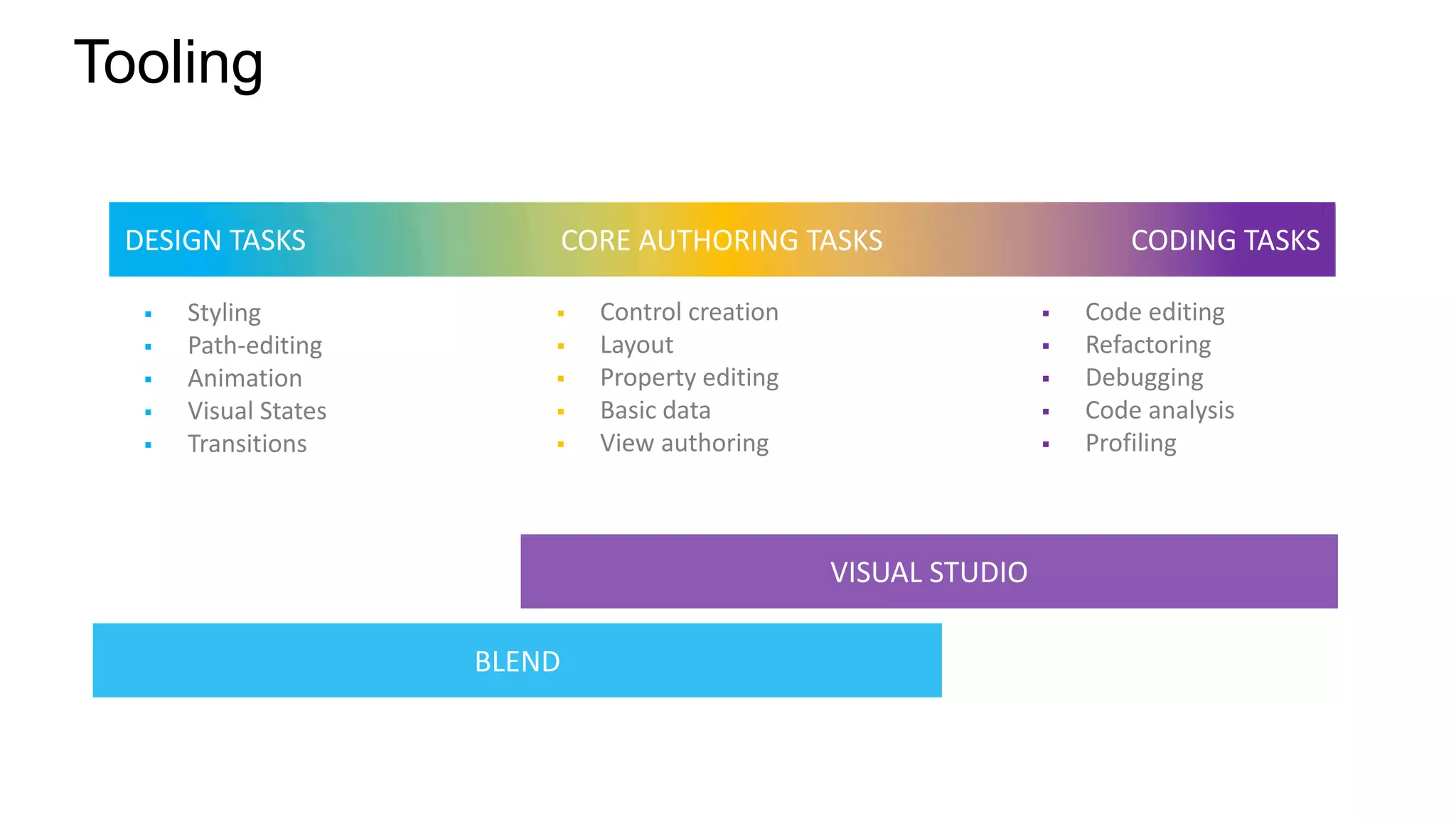

- 5. Tooling DESIGN TASKS CORE AUTHORING TASKS CODING TASKS Styling Control creation Code editing Path-editing Layout Refactoring Animation Property editing Debugging Visual States Basic data Code analysis Transitions View authoring Profiling VISUAL STUDIO BLEND
- 6. Demo Visual Studio Expression Blend ExpressionDesign Emulator

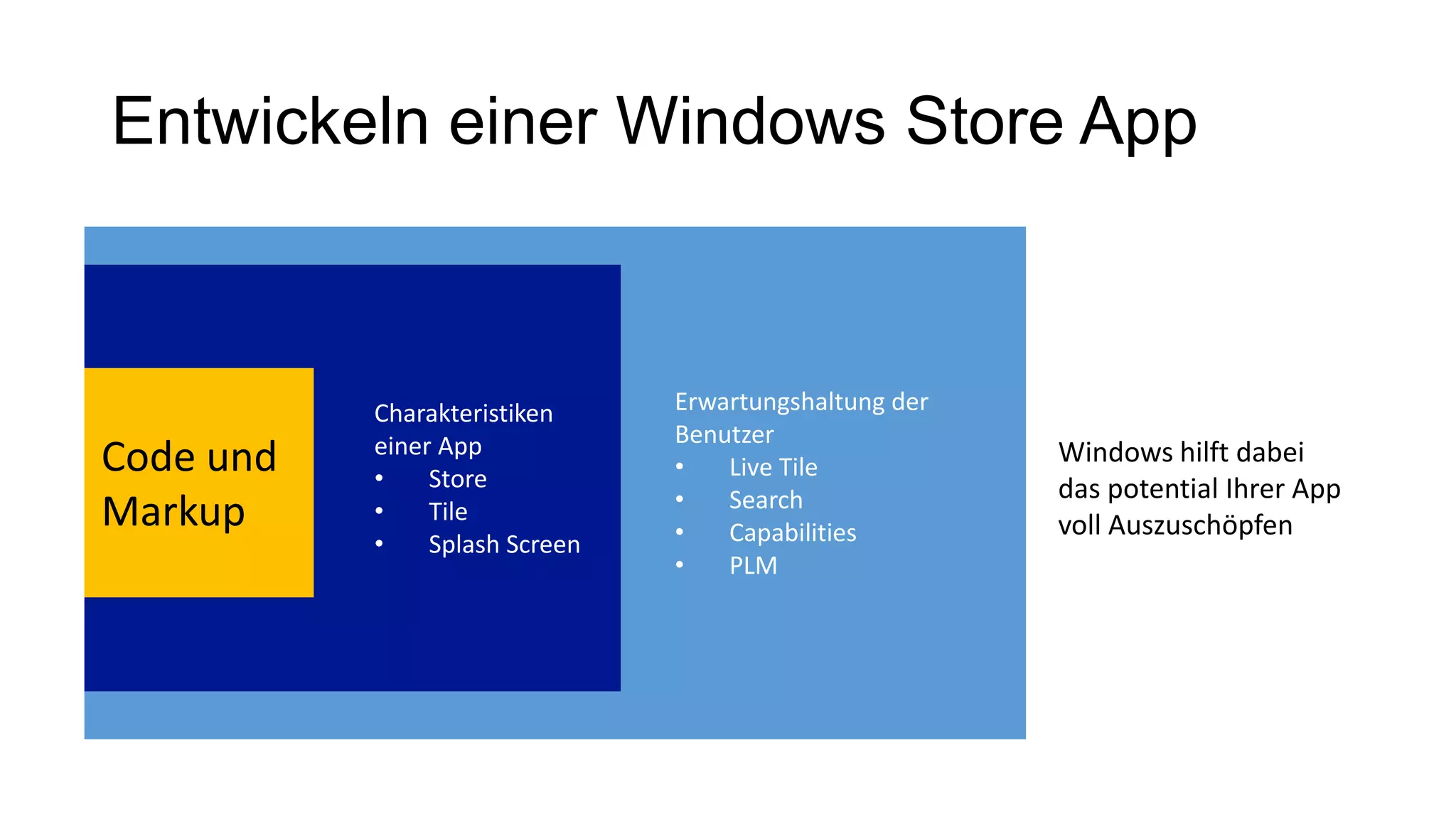

- 7. Entwickeln einer WindowsStore App Charakteristiken Erwartungshaltung der einer App Benutzer Code und • Store • Live Tile Windows hilft dabei • Search das potential Ihrer App Markup • Tile • Capabilities voll Auszuschöpfen • Splash Screen • PLM
- 8.

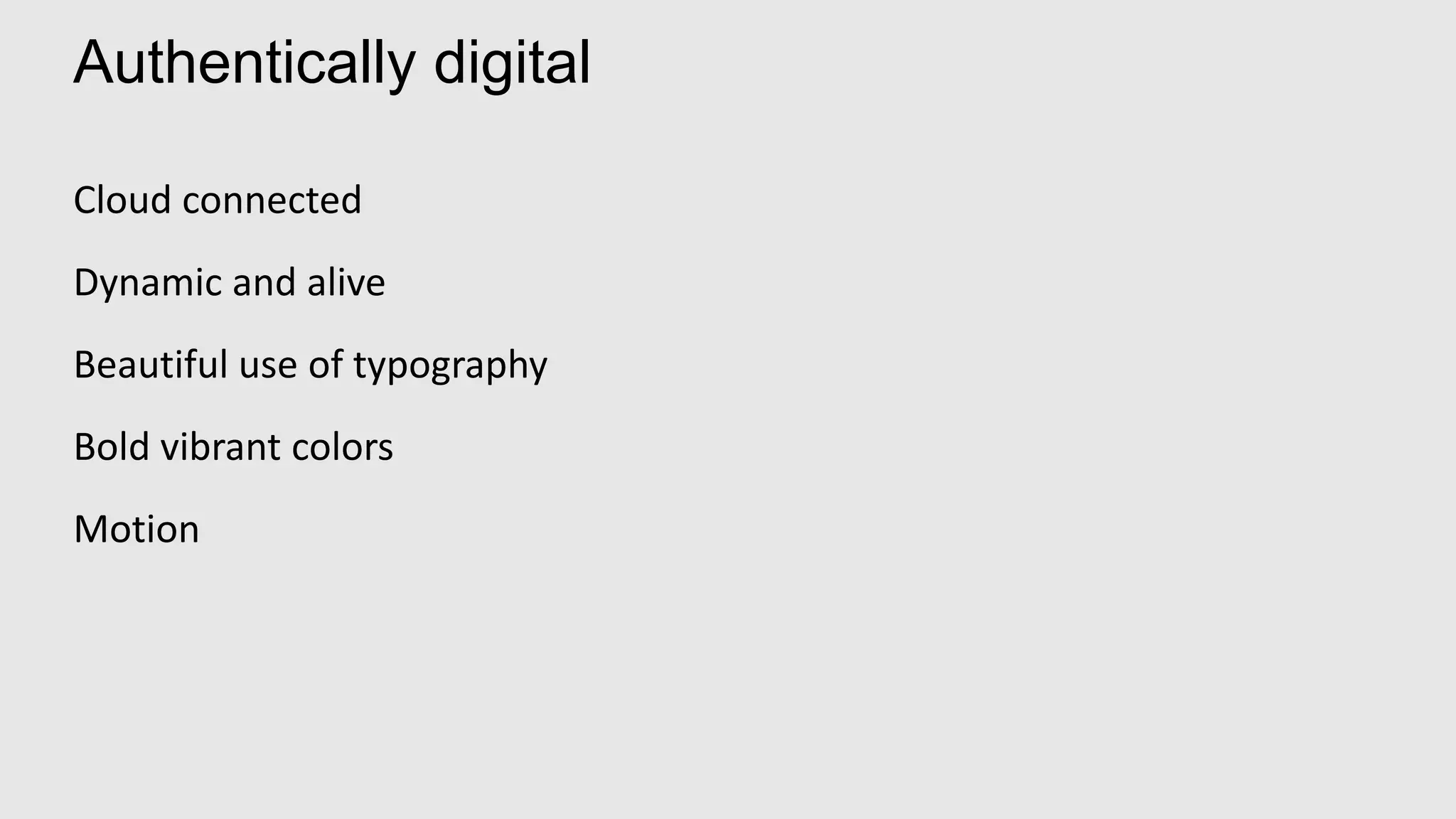

- 22. Authentically digital Cloud connected Dynamicand alive Beautiful use of typography Bold vibrant colors Motion
- 25.

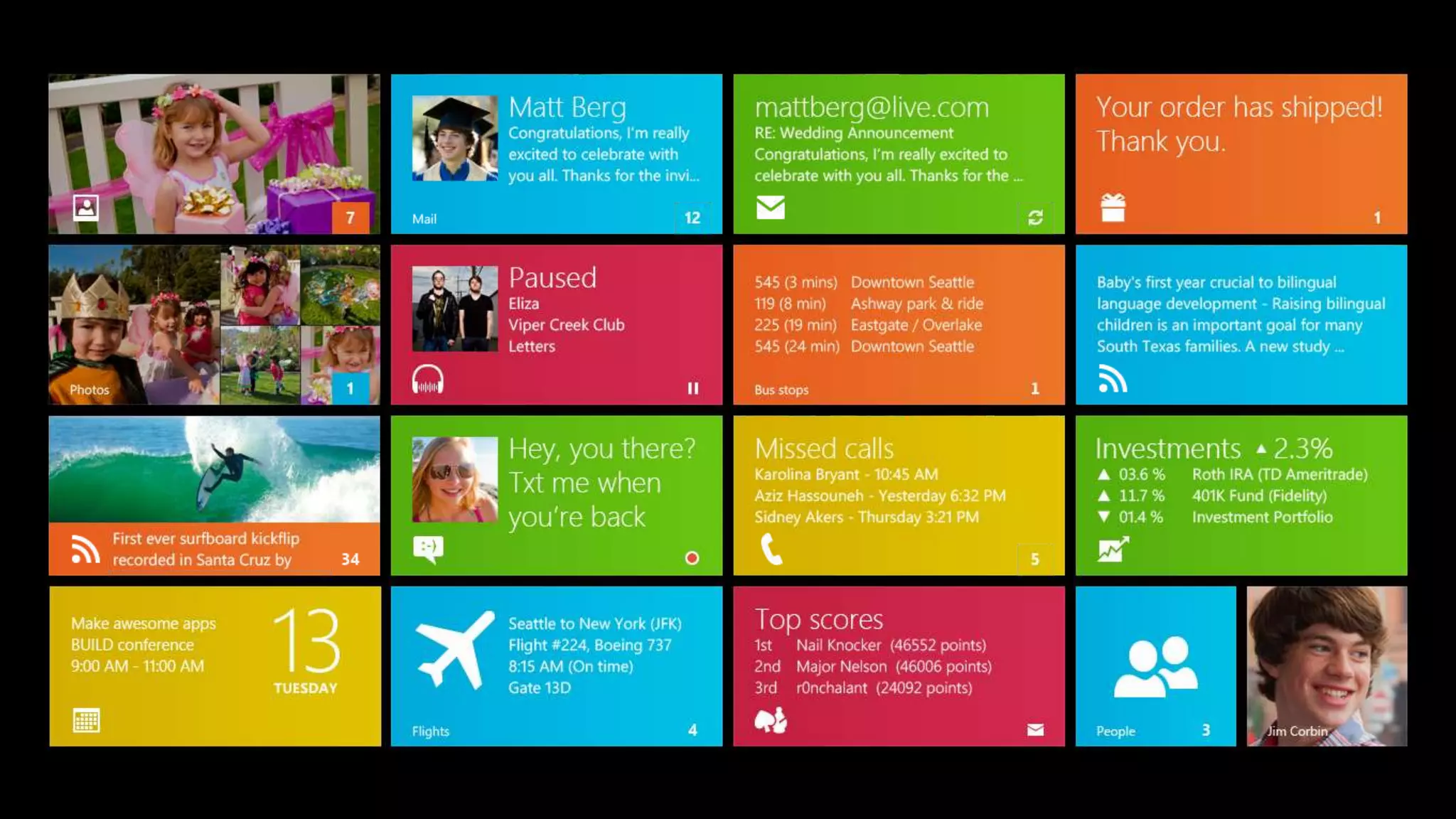

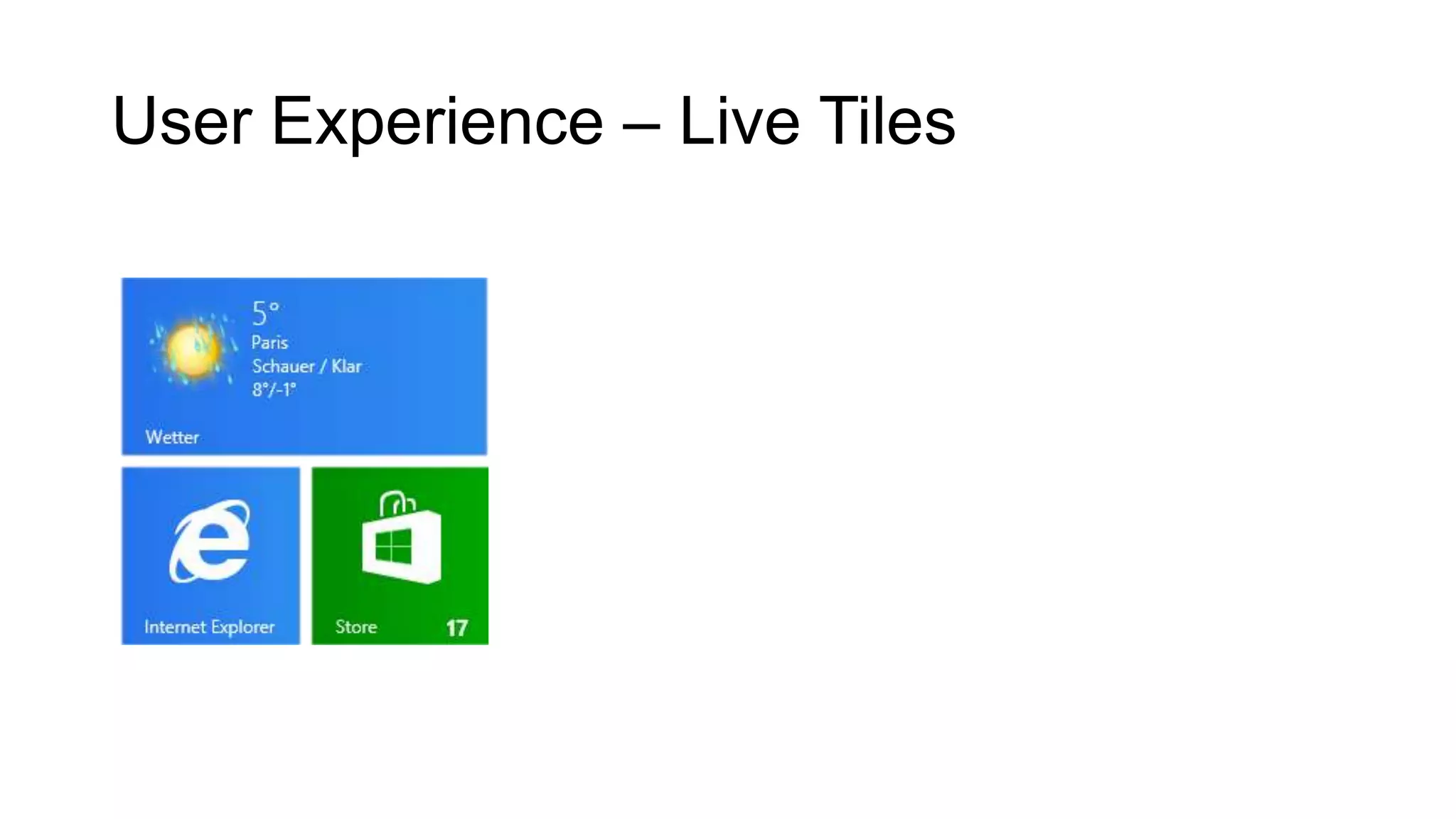

- 26. User Experience –Live Tiles

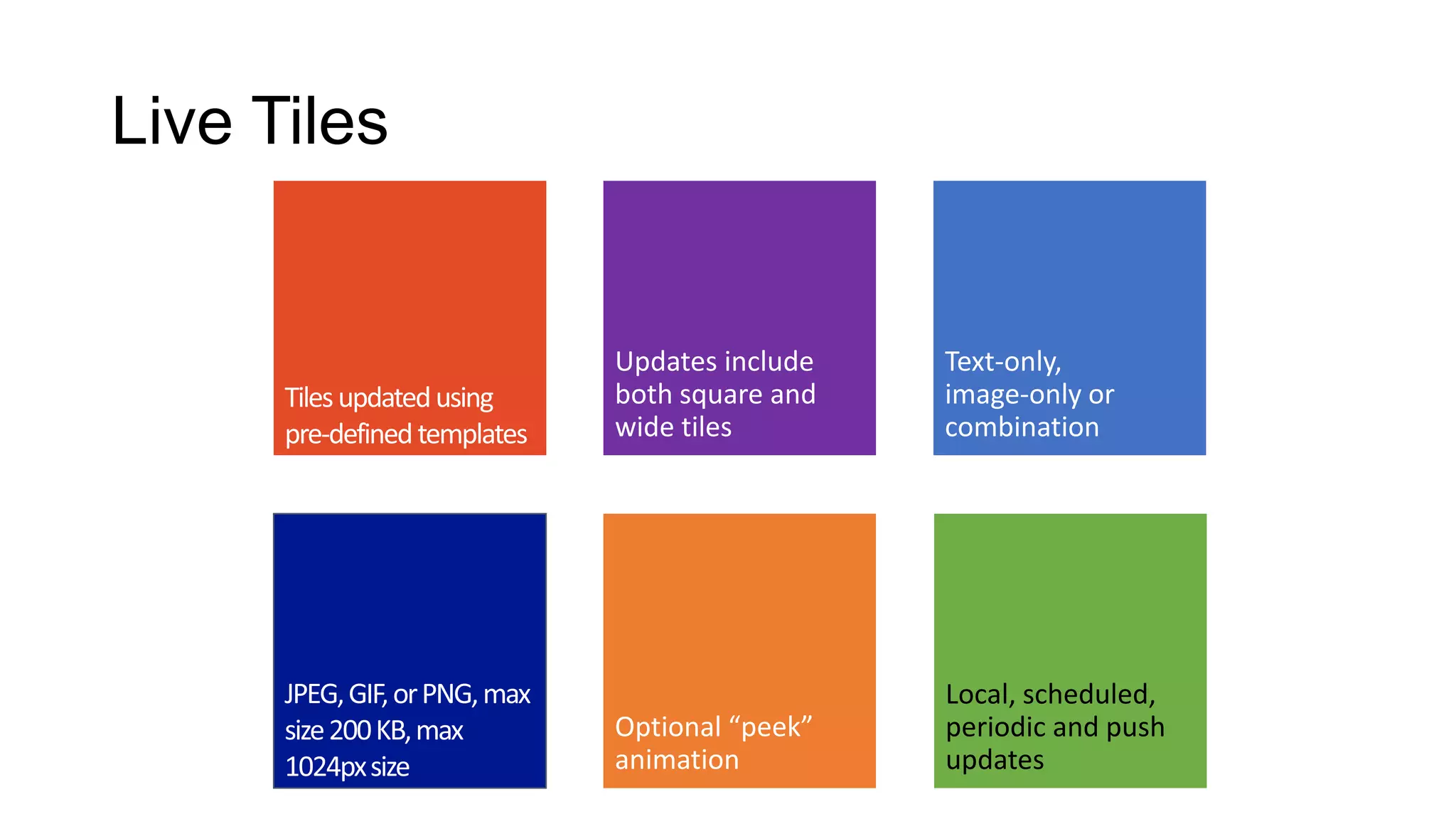

- 28. Live Tiles Local, scheduled, periodic and push updates

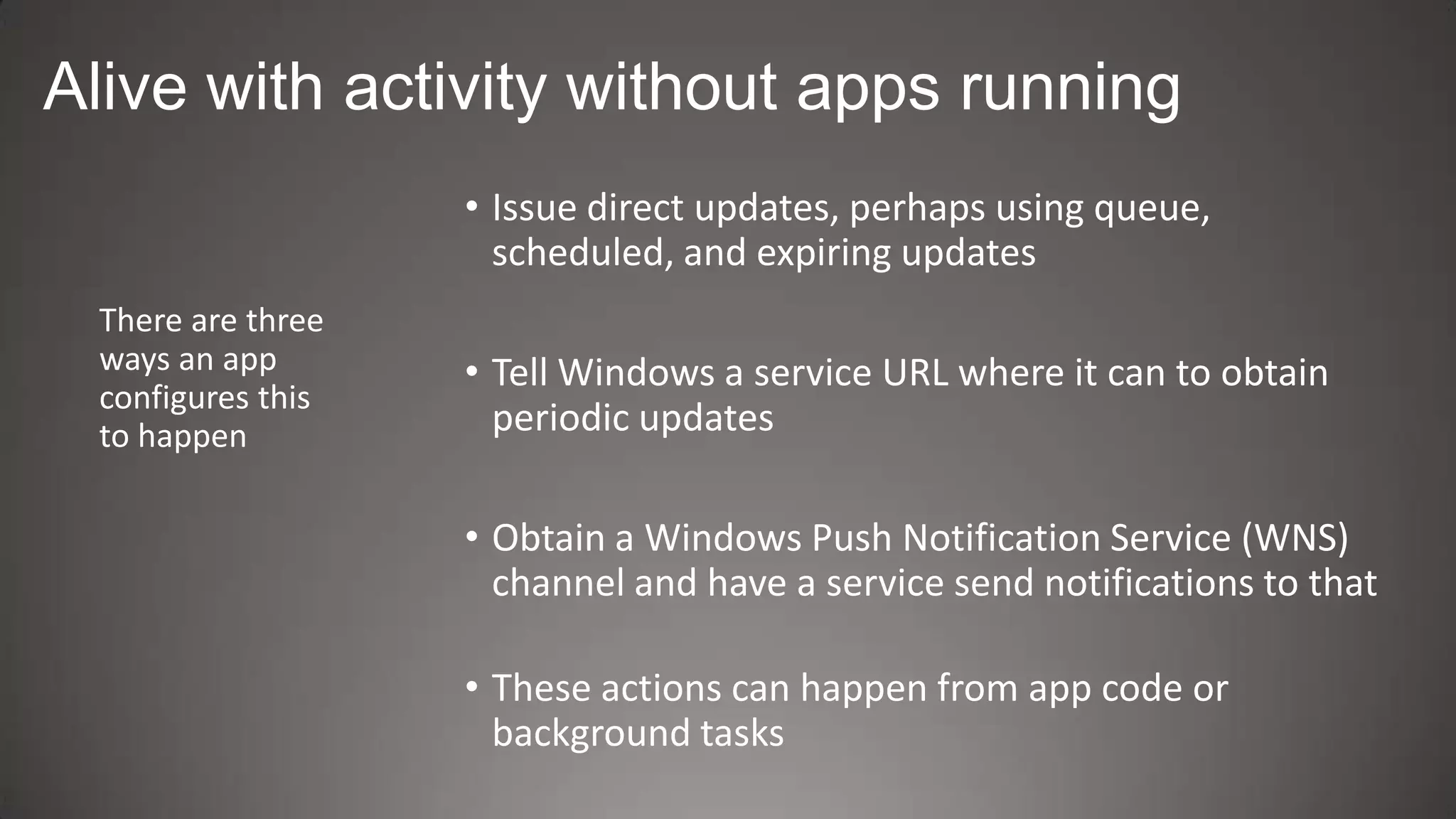

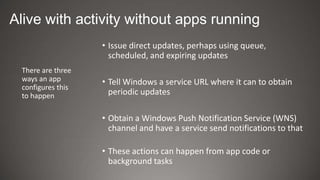

- 29. Alive with activitywithout apps running • Issue direct updates, perhaps using queue, scheduled, and expiring updates There are three ways an app • Tell Windows a service URL where it can to obtain configures this to happen periodic updates • Obtain a Windows Push Notification Service (WNS) channel and have a service send notifications to that • These actions can happen from app code or background tasks

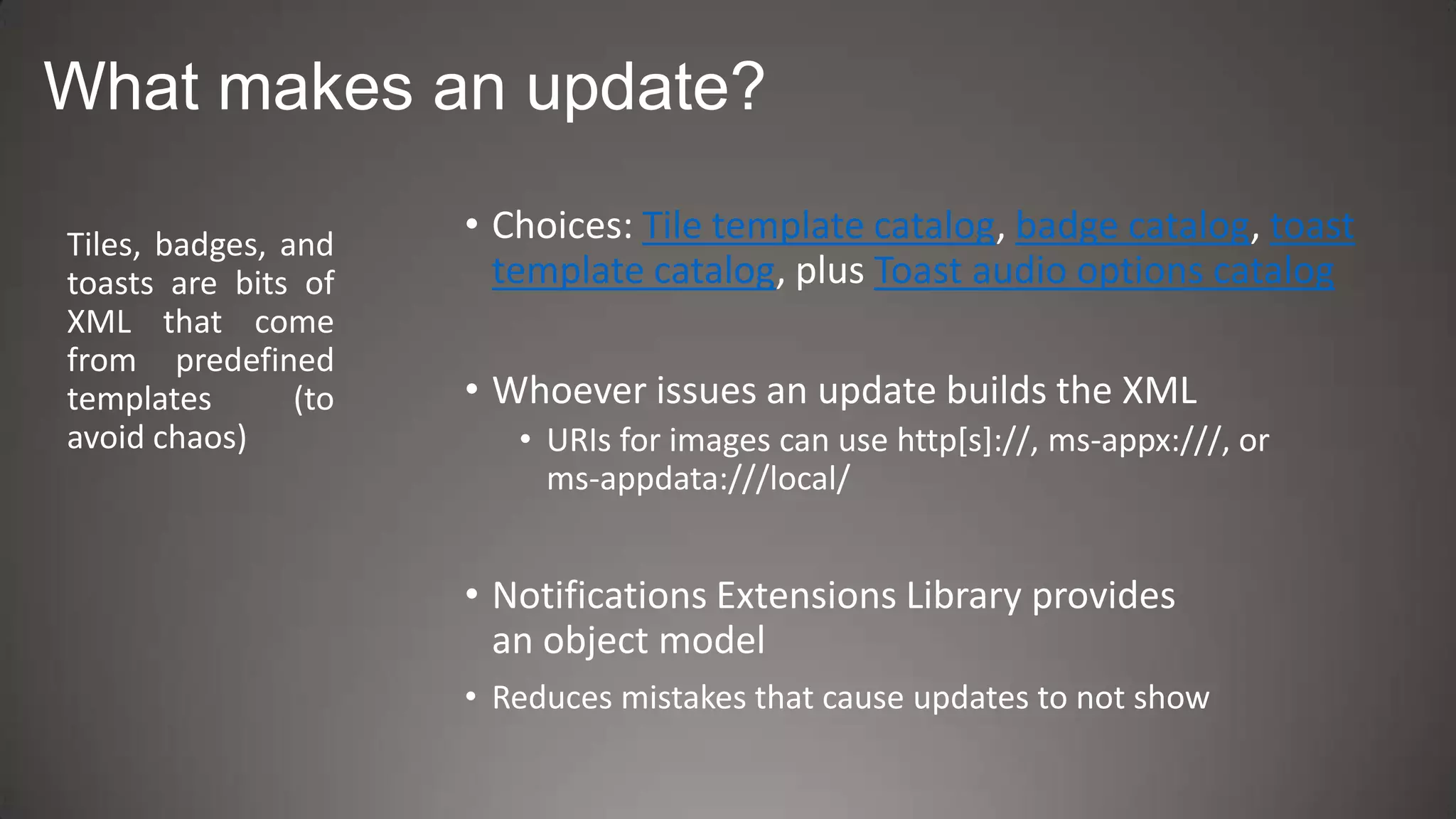

- 30. What makes anupdate? Tiles, badges, and • Choices: Tile template catalog, badge catalog, toast toasts are bits of template catalog, plus Toast audio options catalog XML that come from predefined templates (to • Whoever issues an update builds the XML avoid chaos) • URIs for images can use http[s]://, ms-appx:///, or ms-appdata:///local/ • Notifications Extensions Library provides an object model • Reduces mistakes that cause updates to not show

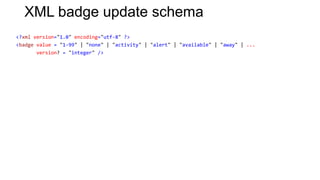

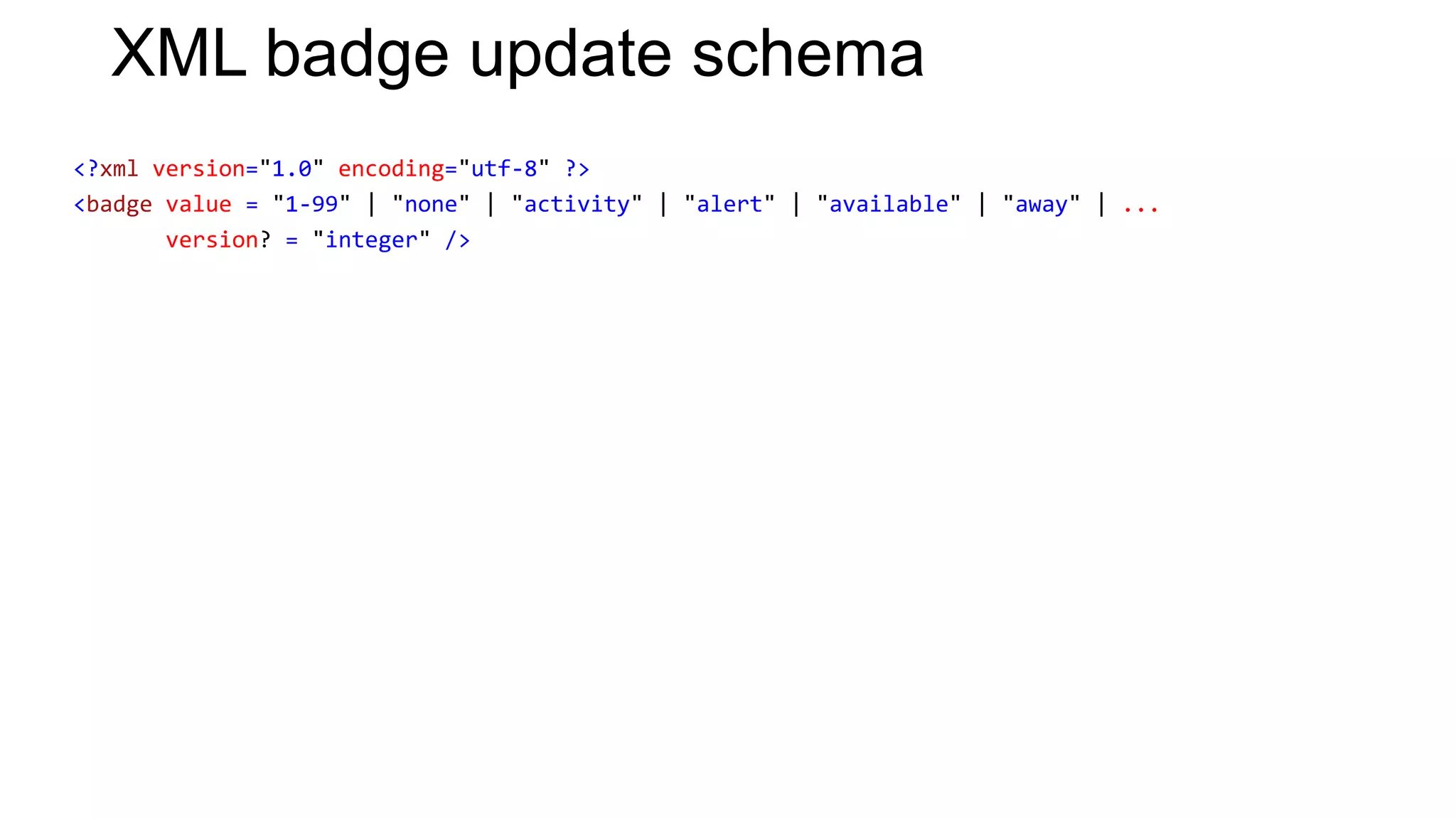

- 31. XML badge updateschema <?xml version="1.0" encoding="utf-8" ?> <badge value = "1-99" | "none" | "activity" | "alert" | "available" | "away" | ... version? = "integer" />

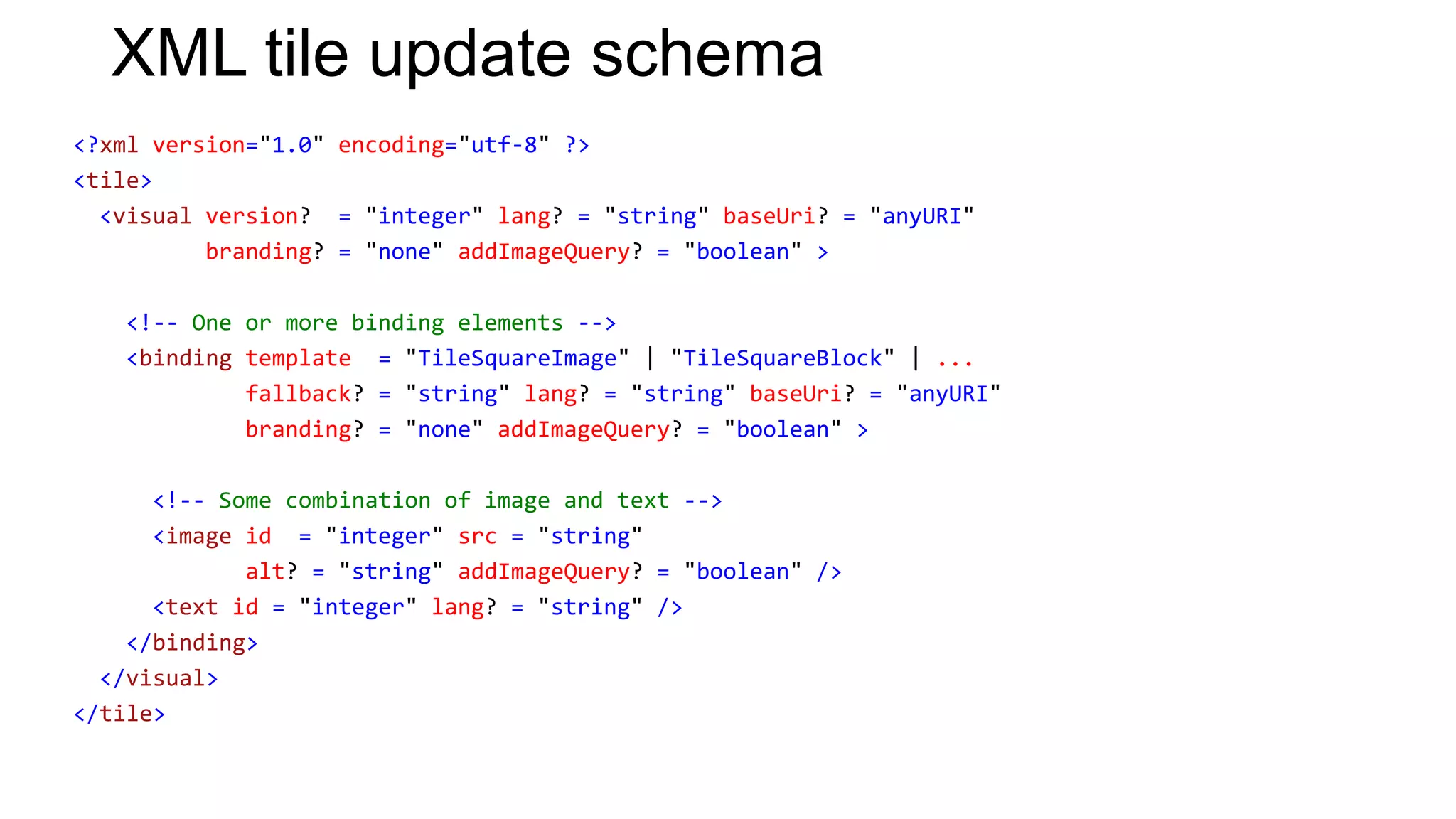

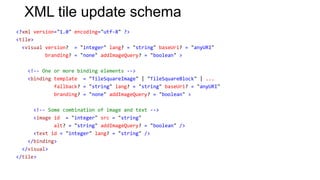

- 32. XML tile updateschema <?xml version="1.0" encoding="utf-8" ?> <tile> <visual version? = "integer" lang? = "string" baseUri? = "anyURI" branding? = "none" addImageQuery? = "boolean" > <!-- One or more binding elements --> <binding template = "TileSquareImage" | "TileSquareBlock" | ... fallback? = "string" lang? = "string" baseUri? = "anyURI" branding? = "none" addImageQuery? = "boolean" > <!-- Some combination of image and text --> <image id = "integer" src = "string" alt? = "string" addImageQuery? = "boolean" /> <text id = "integer" lang? = "string" /> </binding> </visual> </tile>

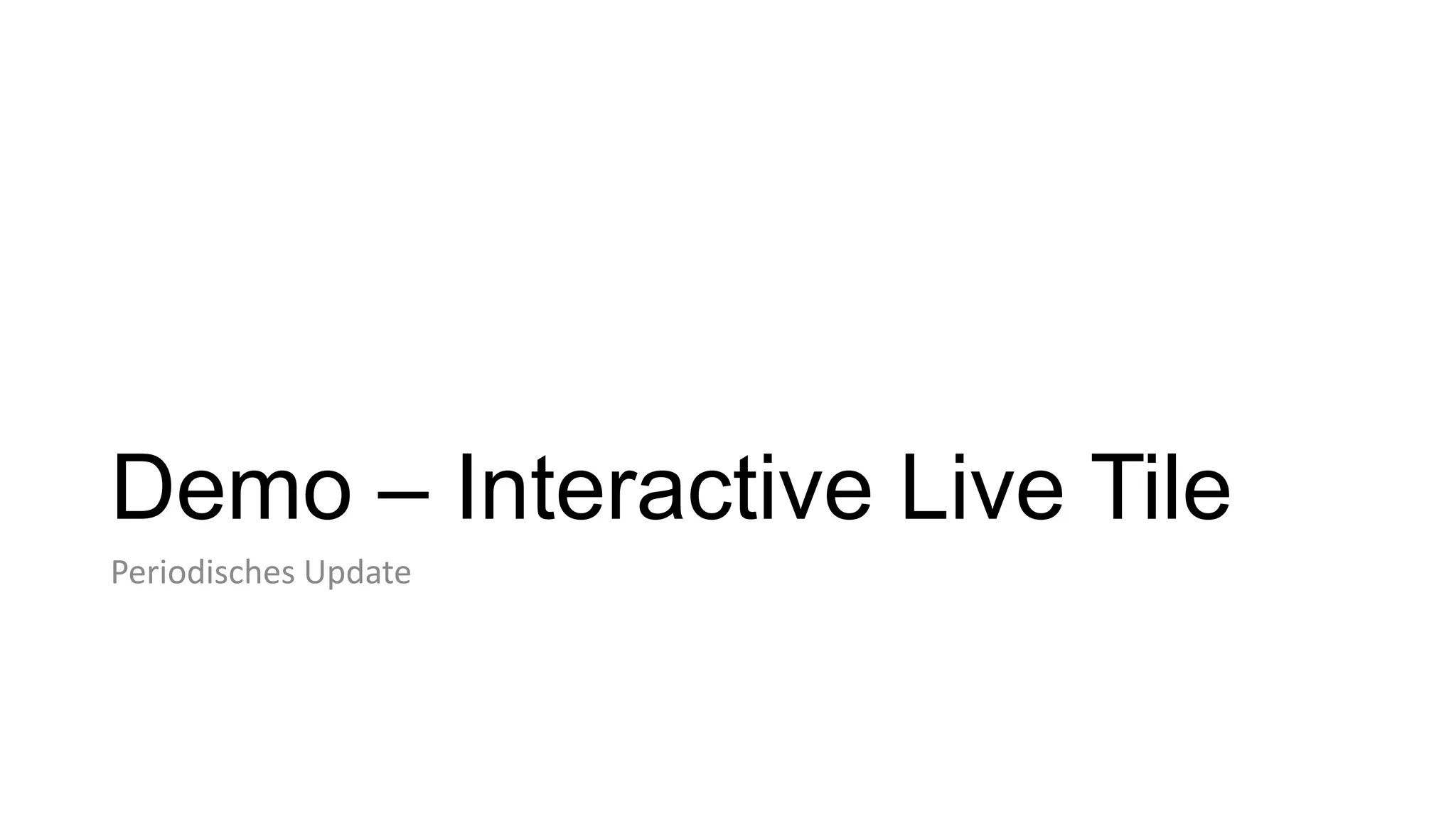

- 33. Demo – InteractiveLive Tile Periodisches Update
