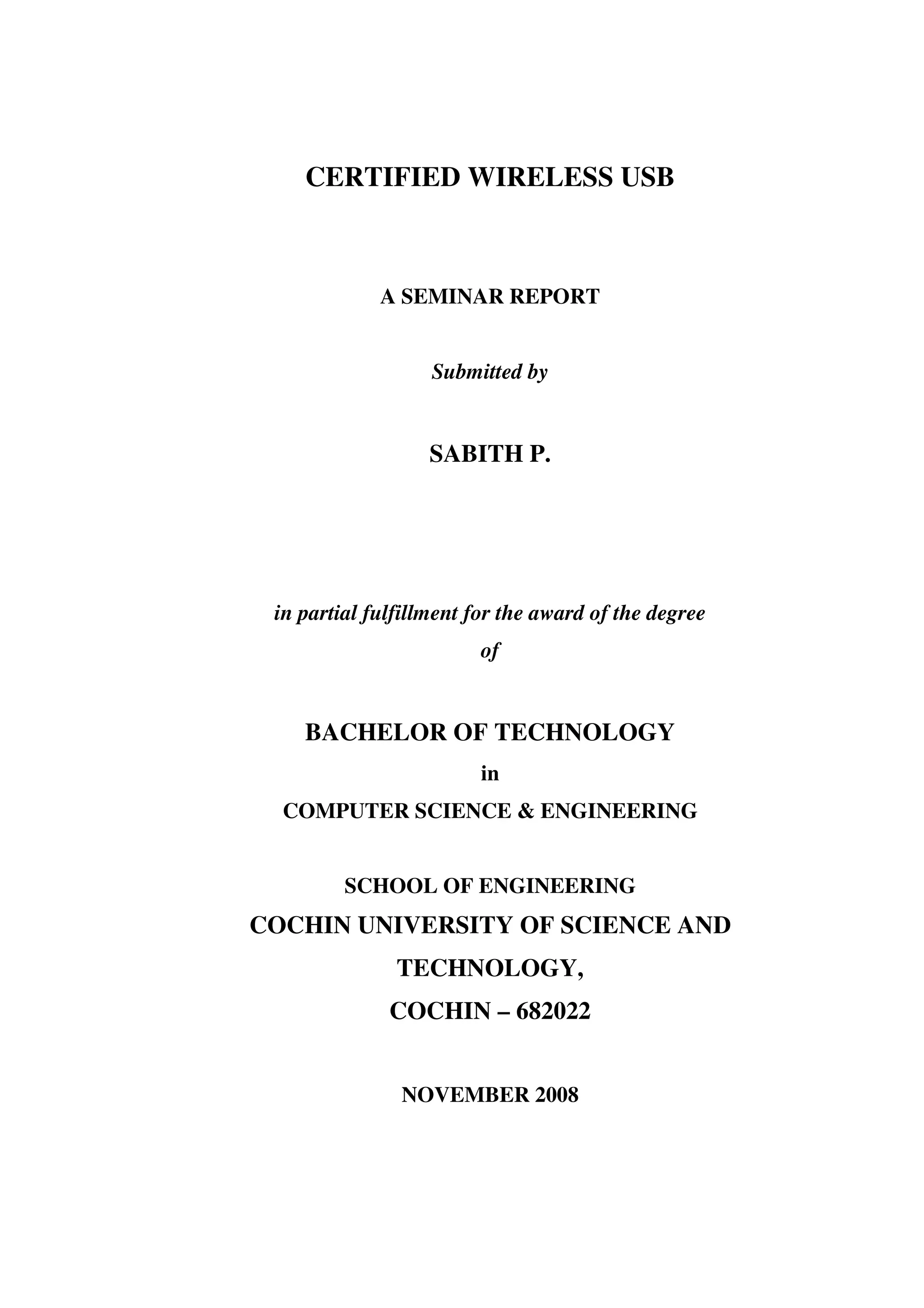

Wireless Usb

CERTIFIED WIRELESS USB

A SEMINAR REPORT

Submitted by

SABITH P.

in partial fulfillment for the award of the degree
of

BACHELOR OF TECHNOLOGY
in
COMPUTER SCIENCE & ENGINEERING

SCHOOL OF ENGINEERING
COCHIN UNIVERSITY OF SCIENCE AND
TECHNOLOGY,
COCHIN – 682022

NOVEMBER 2008

DIVISION OF COMPUTER ENGINEERING
SCHOOL OF ENGINEERING

COCHIN UNIVERSITY OF SCIENCE AND
TECHNOLOGY, COCHIN – 682022

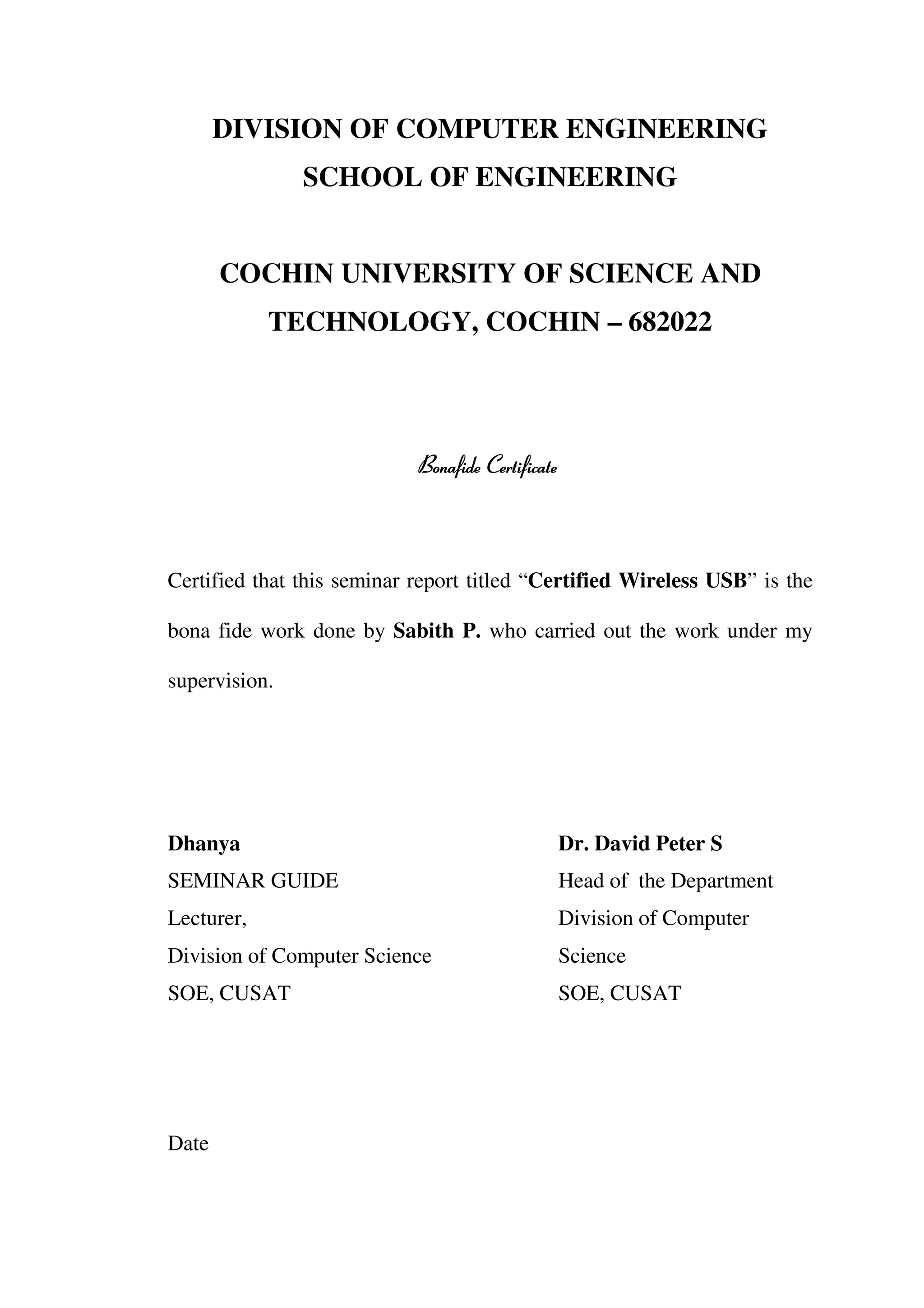

Bonafide Certificate

Certified that this seminar report titled “Certified Wireless USB” is the

bona fide work done by Sabith P. who carried out the work under my

supervision.

Dhanya Dr. David Peter S
SEMINAR GUIDE Head of the Department
Lecturer, Division of Computer
Division of Computer Science Science
SOE, CUSAT SOE, CUSAT

Date

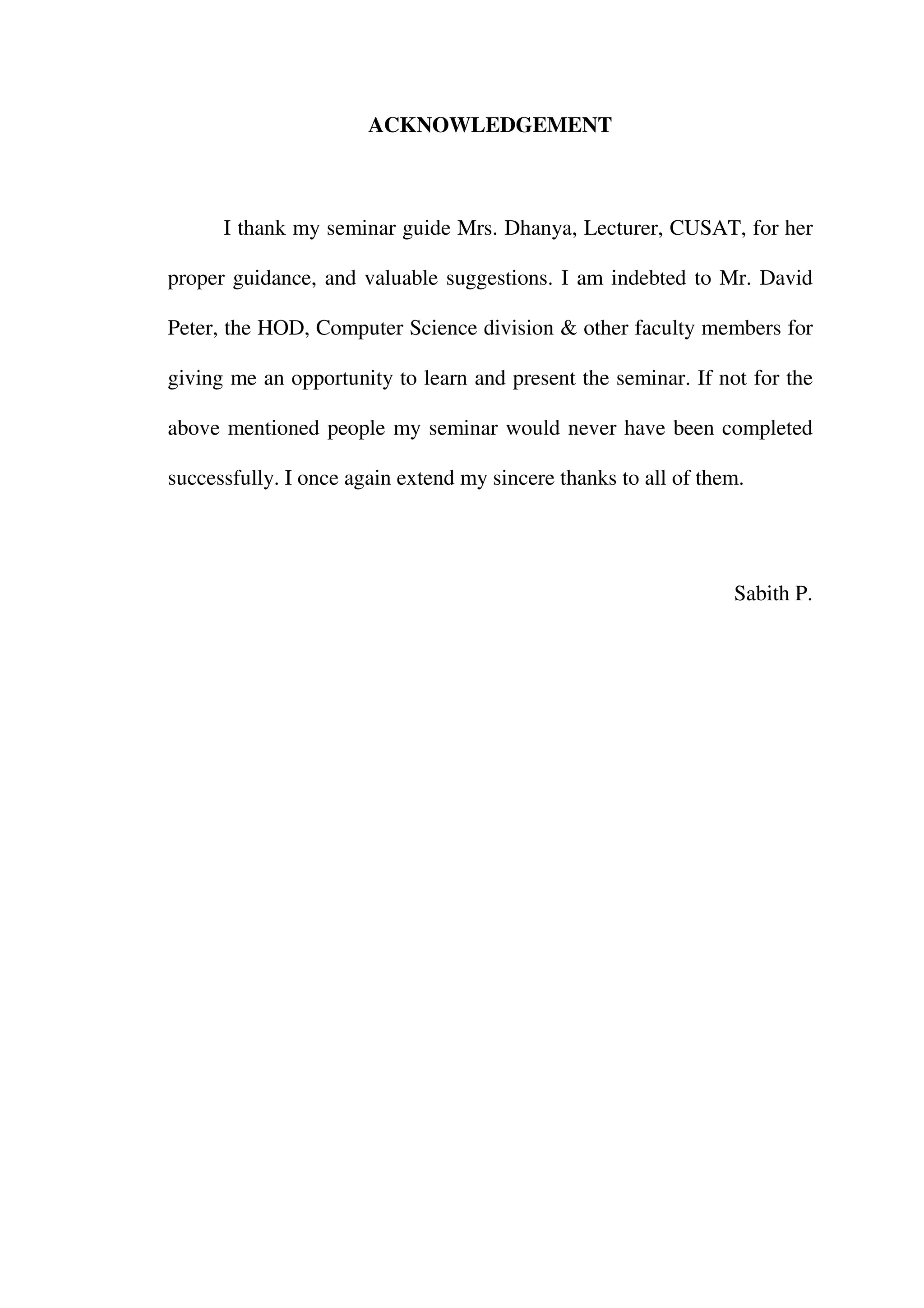

ACKNOWLEDGEMENT

I thank my seminar guide Mrs. Dhanya, Lecturer, CUSAT, for her

proper guidance, and valuable suggestions. I am indebted to Mr. David

Peter, the HOD, Computer Science division & other faculty members for

giving me an opportunity to learn and present the seminar. If not for the

above mentioned people my seminar would never have been completed

successfully. I once again extend my sincere thanks to all of them.

Sabith P.

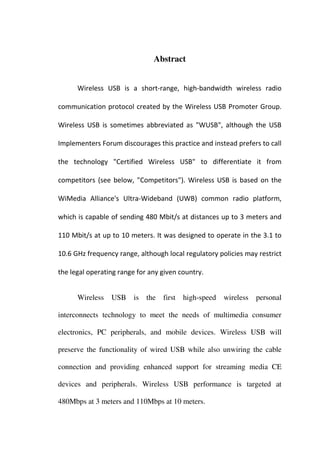

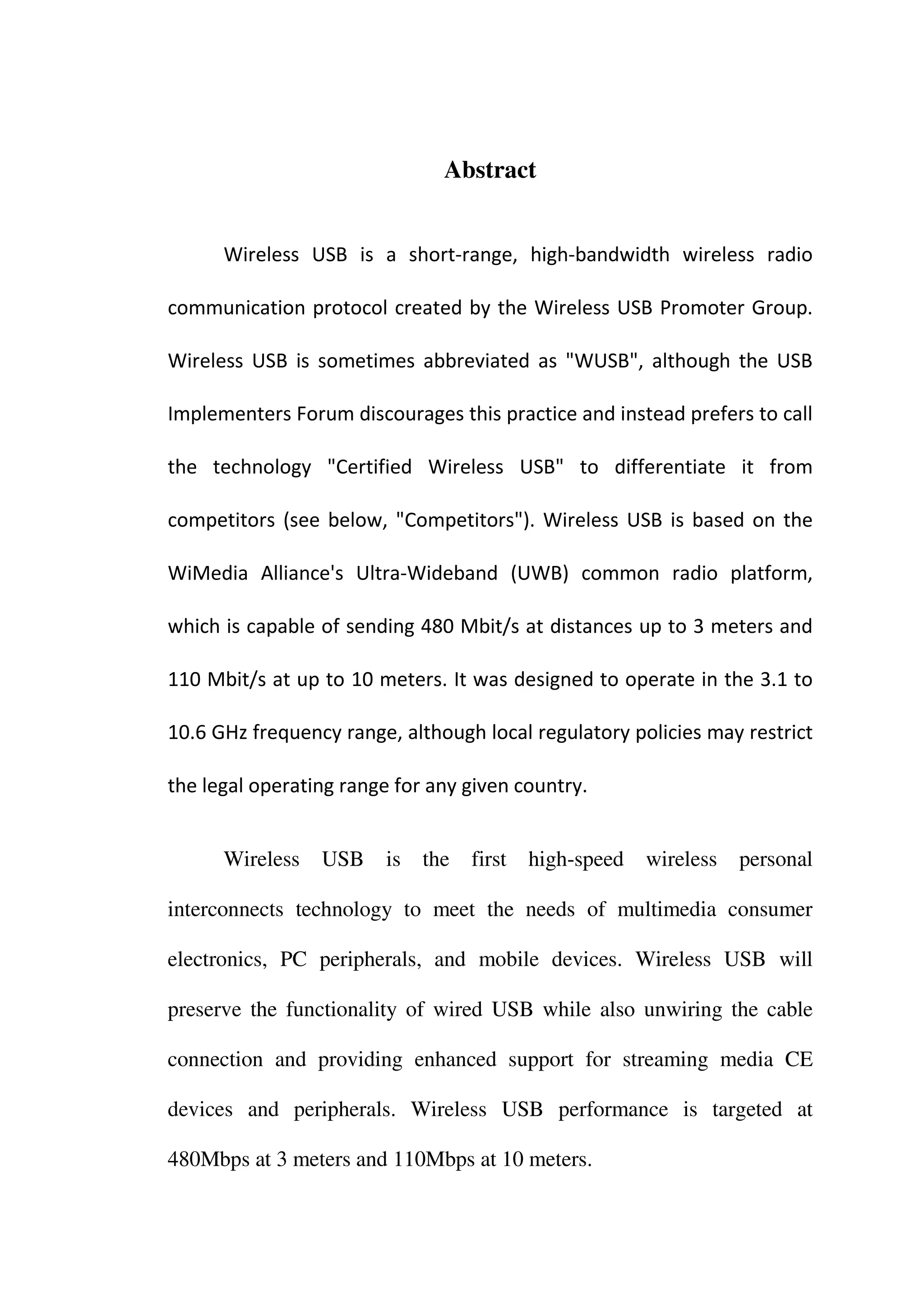

Abstract

Wireless USB is a short-range, high-bandwidth wireless radio

communication protocol created by the Wireless USB Promoter Group.

Wireless USB is sometimes abbreviated as "WUSB", although the USB

Implementers Forum discourages this practice and instead prefers to call

the technology "Certified Wireless USB" to differentiate it from

competitors (see below, "Competitors"). Wireless USB is based on the

WiMedia Alliance's Ultra-Wideband (UWB) common radio platform,

which is capable of sending 480 Mbit/s at distances up to 3 meters and

110 Mbit/s at up to 10 meters. It was designed to operate in the 3.1 to

10.6 GHz frequency range, although local regulatory policies may restrict

the legal operating range for any given country.

Wireless USB is the first high-speed wireless personal

interconnects technology to meet the needs of multimedia consumer

electronics, PC peripherals, and mobile devices. Wireless USB will

preserve the functionality of wired USB while also unwiring the cable

connection and providing enhanced support for streaming media CE

devices and peripherals. Wireless USB performance is targeted at

480Mbps at 3 meters and 110Mbps at 10 meters.

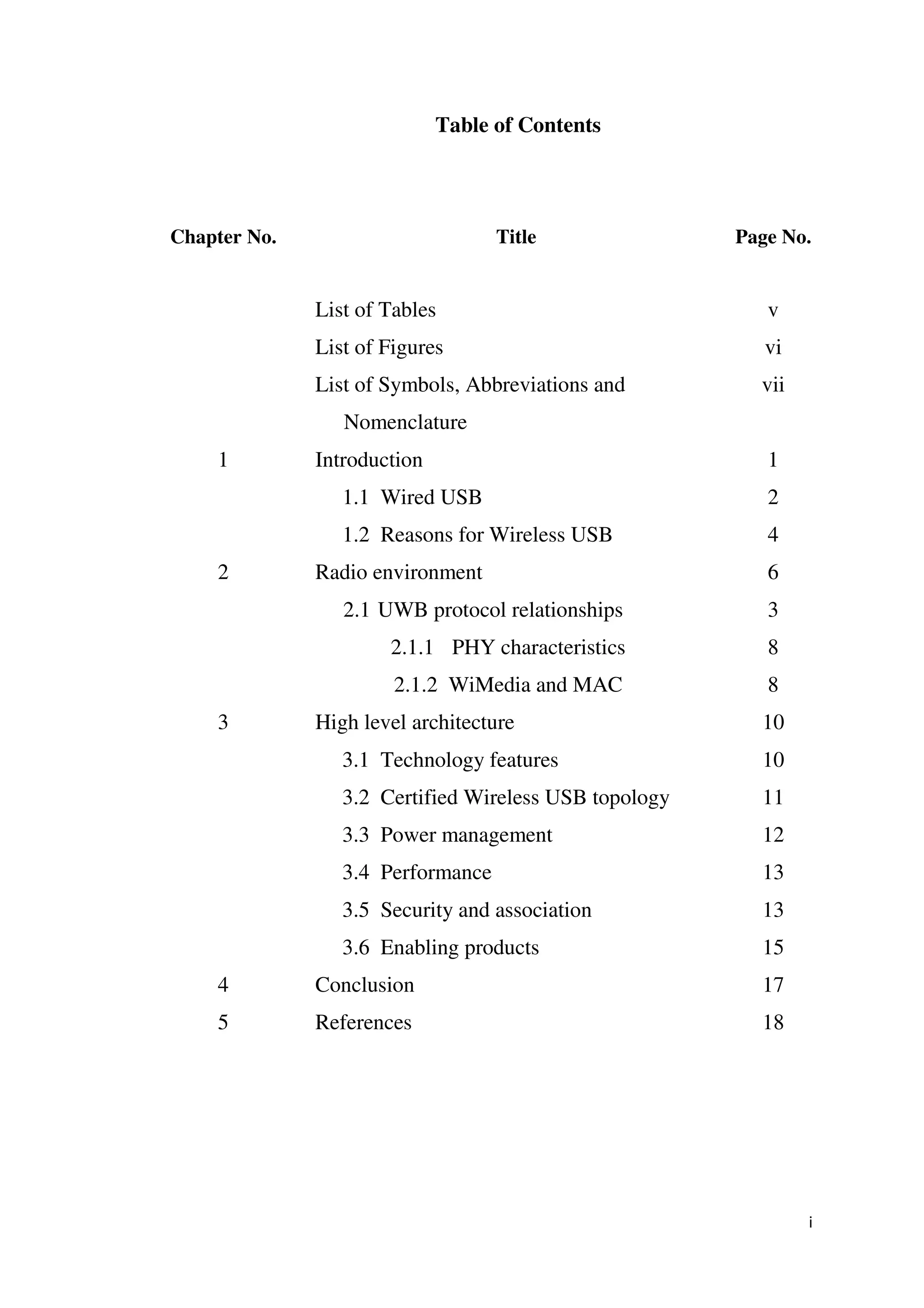

Table of Contents

Chapter No. Title Page No.

List of Tables v
List of Figures vi
List of Symbols, Abbreviations and vii
Nomenclature
1 Introduction 1
1.1 Wired USB 2
1.2 Reasons for Wireless USB 4
2 Radio environment 6
2.1 UWB protocol relationships 3
2.1.1 PHY characteristics 8
2.1.2 WiMedia and MAC 8
3 High level architecture 10
3.1 Technology features 10

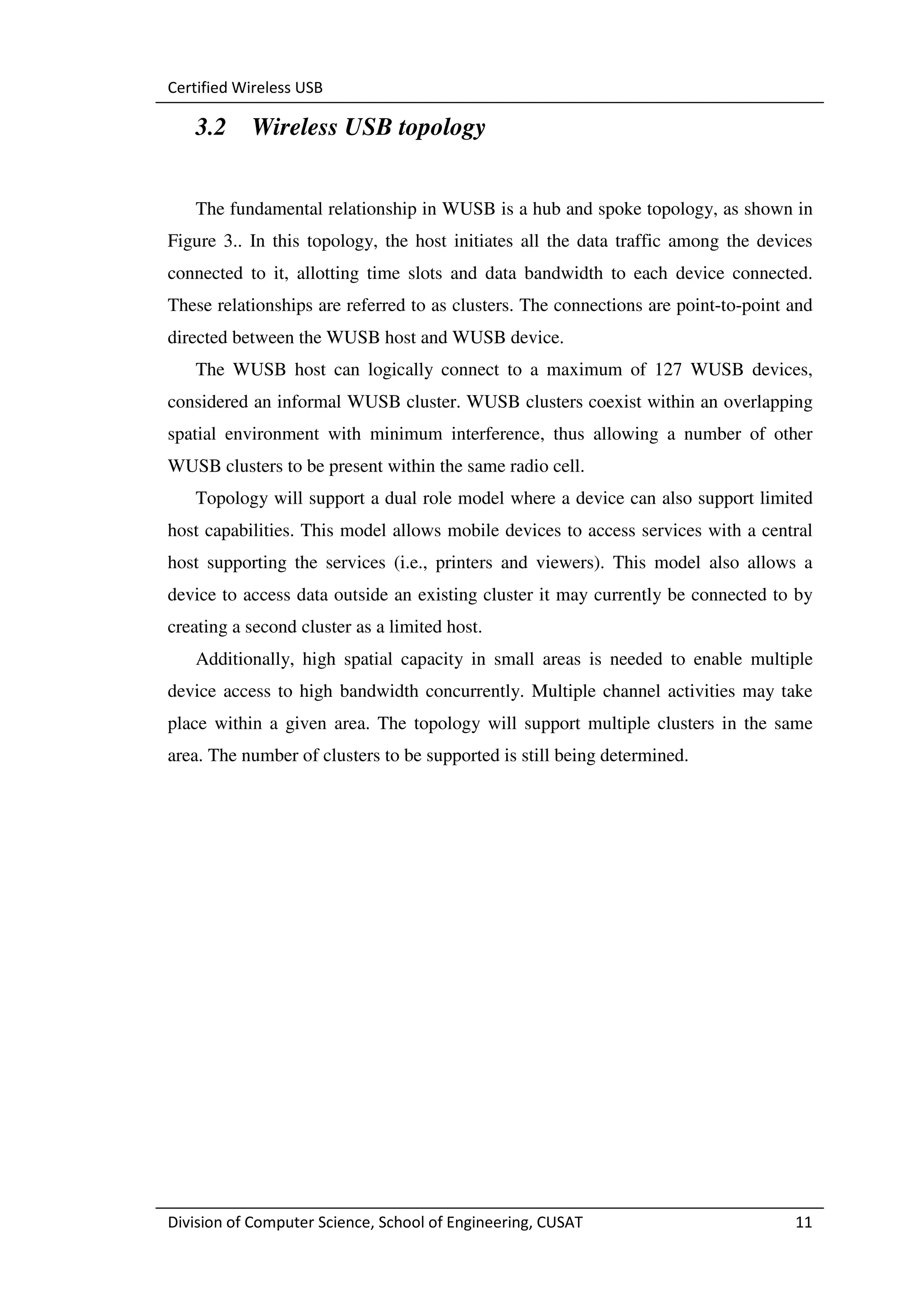

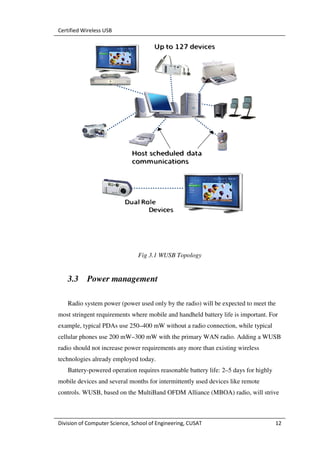

3.2 Certified Wireless USB topology 11
3.3 Power management 12
3.4 Performance 13
3.5 Security and association 13
3.6 Enabling products 15

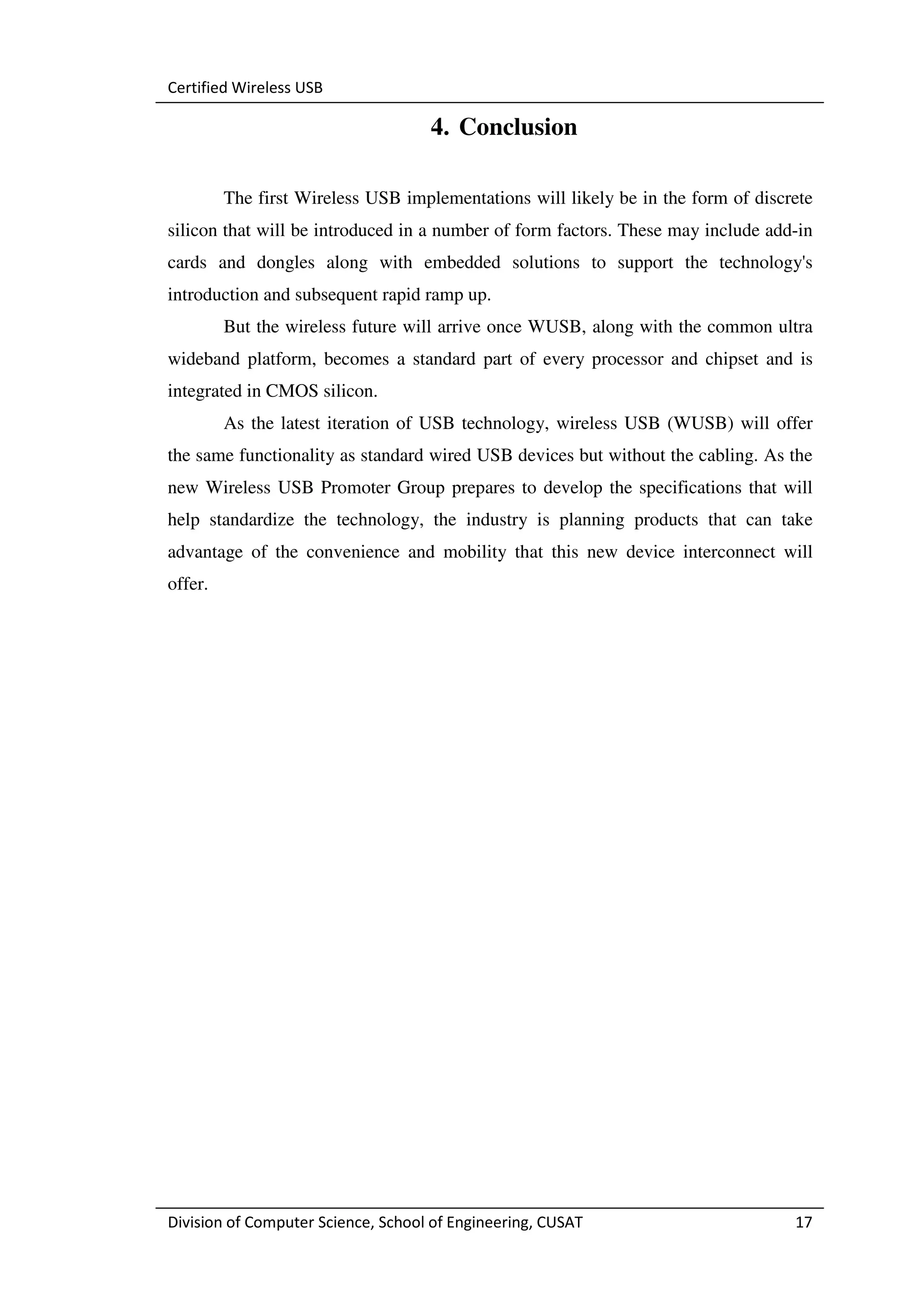

4 Conclusion 17

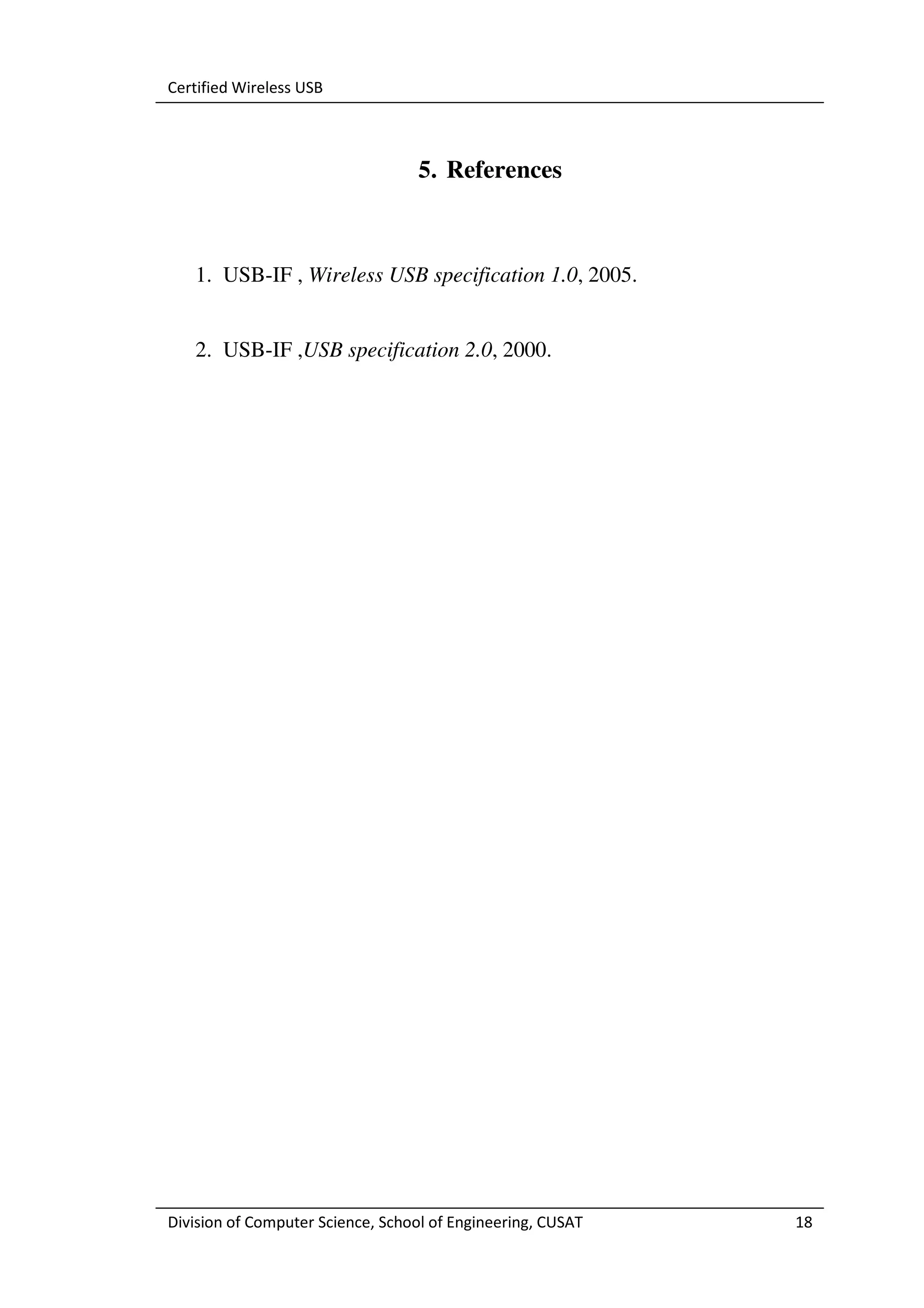

5 References 18

i

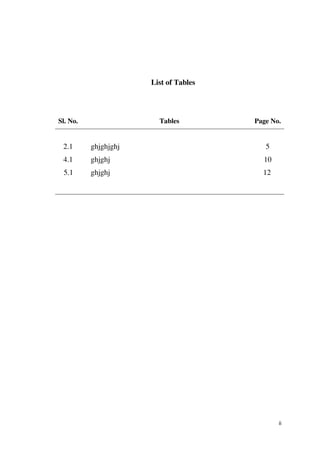

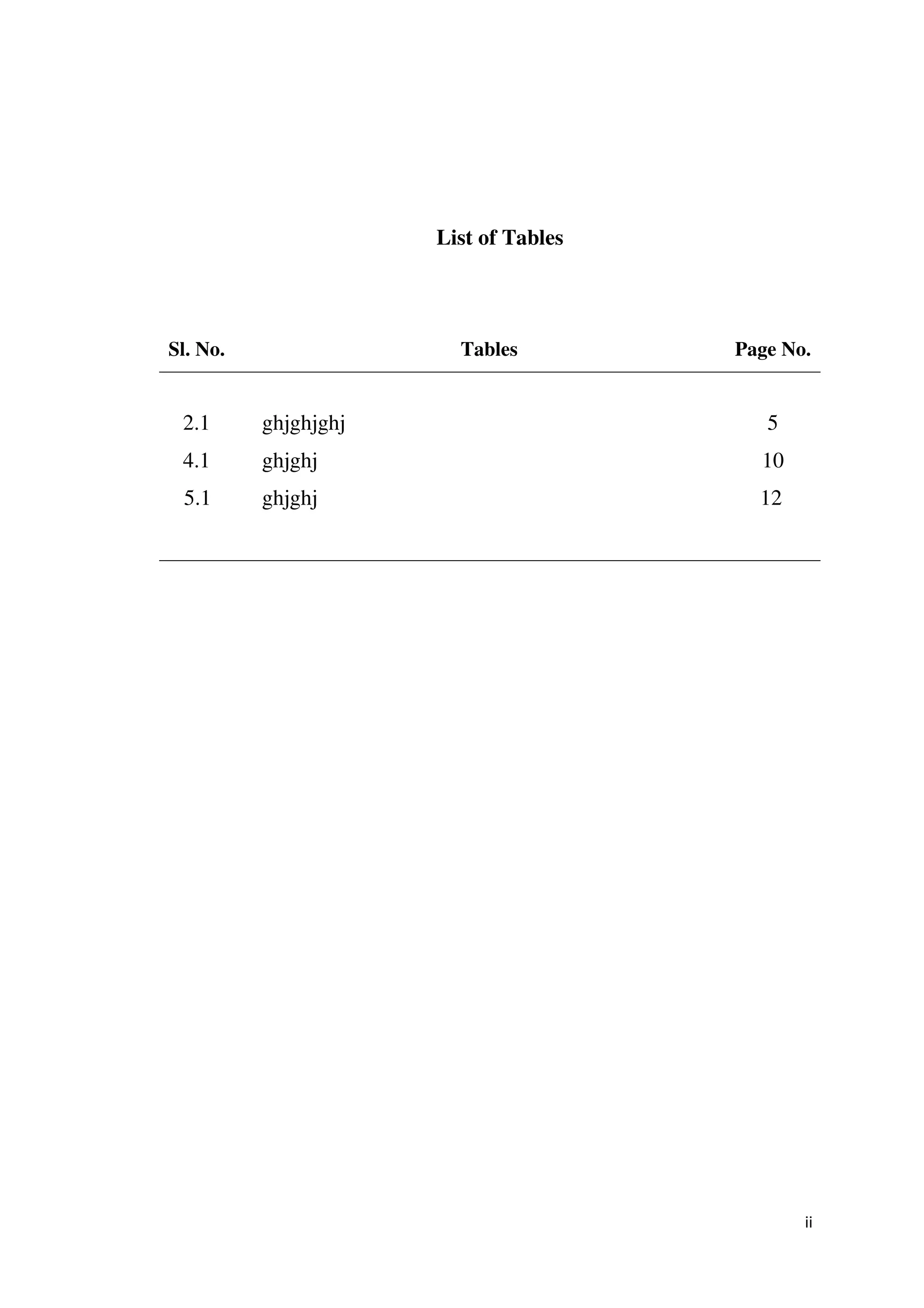

List of Tables

Sl. No. Tables Page No.

2.1 ghjghjghj 5
4.1 ghjghj 10
5.1 ghjghj 12

ii

List of figures

Sl. No. Images Page No.

2.1 Structure of DNA 4
2.2 Travelling Salesman Problem - Graph 11
5.2 TSP – City Encoding 13
5.3 TSP – Route Encoding 13
5.4 Gel Electrophoresis 15
5.5 Affinity Purification 16

iii

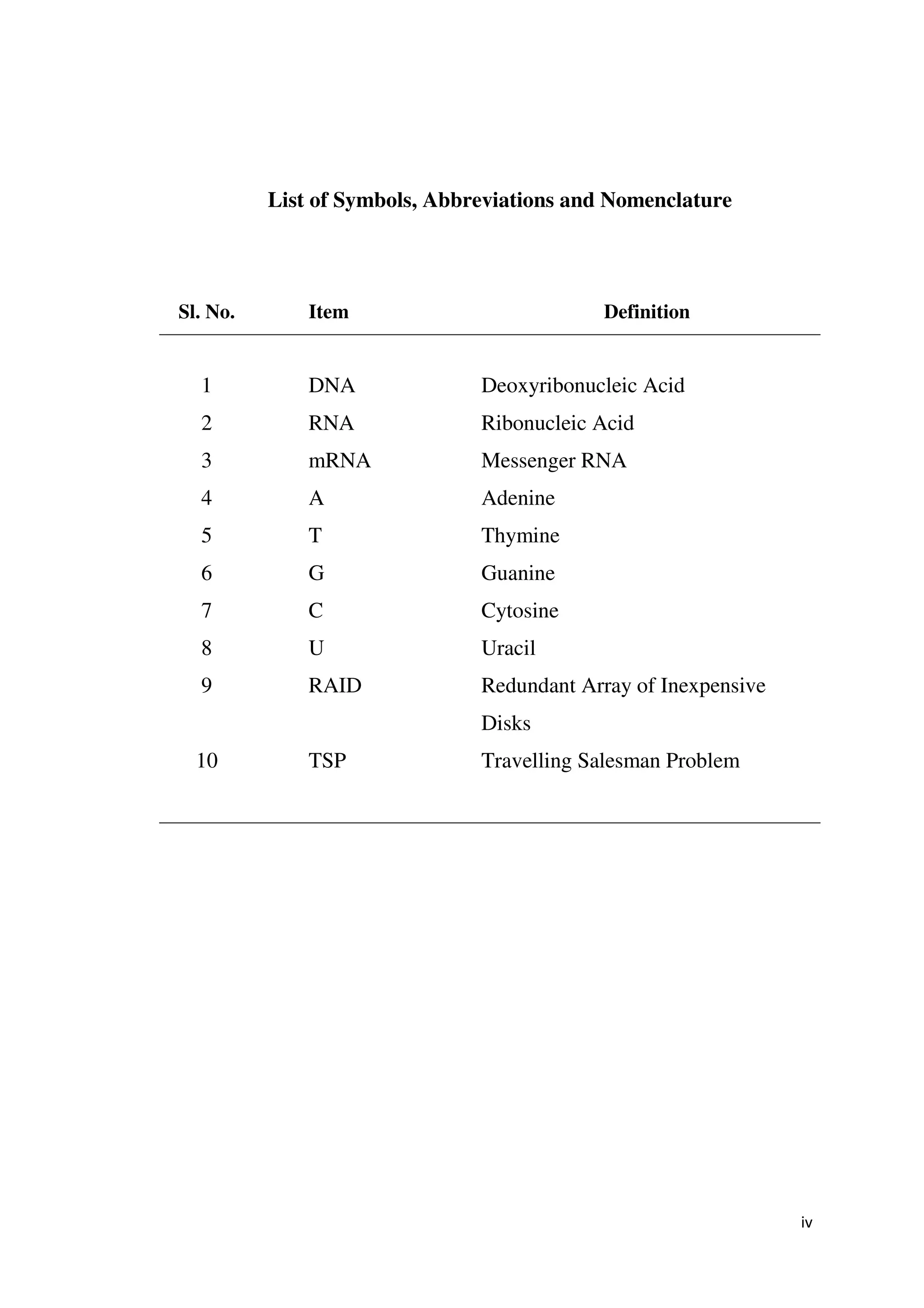

List of Symbols, Abbreviations and Nomenclature

Sl. No. Item Definition

1 DNA Deoxyribonucleic Acid
2 RNA Ribonucleic Acid
3 mRNA Messenger RNA
4 A Adenine
5 T Thymine
6 G Guanine
7 C Cytosine
8 U Uracil
9 RAID Redundant Array of Inexpensive
Disks
10 TSP Travelling Salesman Problem

iv

Certified Wireless USB

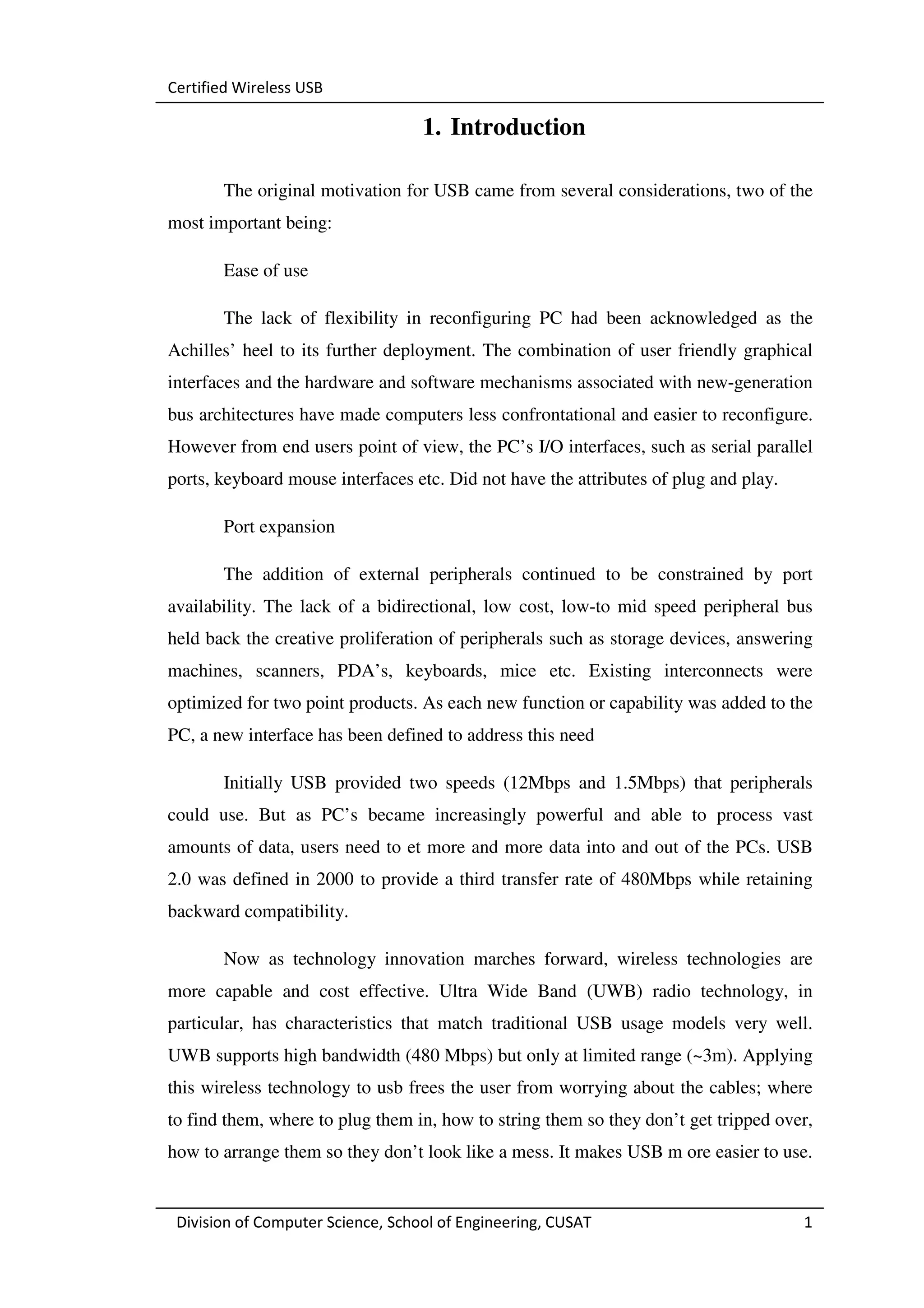

1. Introduction

The original motivation for USB came from several considerations, two of the
most important being:

Ease of use

The lack of flexibility in reconfiguring PC had been acknowledged as the
Achilles’ heel to its further deployment. The combination of user friendly graphical
interfaces and the hardware and software mechanisms associated with new-generation
bus architectures have made computers less confrontational and easier to reconfigure.
However from end users point of view, the PC’s I/O interfaces, such as serial parallel
ports, keyboard mouse interfaces etc. Did not have the attributes of plug and play.

Port expansion

The addition of external peripherals continued to be constrained by port
availability. The lack of a bidirectional, low cost, low-to mid speed peripheral bus
held back the creative proliferation of peripherals such as storage devices, answering
machines, scanners, PDA’s, keyboards, mice etc. Existing interconnects were
optimized for two point products. As each new function or capability was added to the
PC, a new interface has been defined to address this need

Initially USB provided two speeds (12Mbps and 1.5Mbps) that peripherals
could use. But as PC’s became increasingly powerful and able to process vast
amounts of data, users need to et more and more data into and out of the PCs. USB
2.0 was defined in 2000 to provide a third transfer rate of 480Mbps while retaining
backward compatibility.

Now as technology innovation marches forward, wireless technologies are
more capable and cost effective. Ultra Wide Band (UWB) radio technology, in
particular, has characteristics that match traditional USB usage models very well.
UWB supports high bandwidth (480 Mbps) but only at limited range (~3m). Applying
this wireless technology to usb frees the user from worrying about the cables; where
to find them, where to plug them in, how to string them so they don’t get tripped over,
how to arrange them so they don’t look like a mess. It makes USB m ore easier to use.

Division of Computer Science, School of Engineering, CUSAT 1

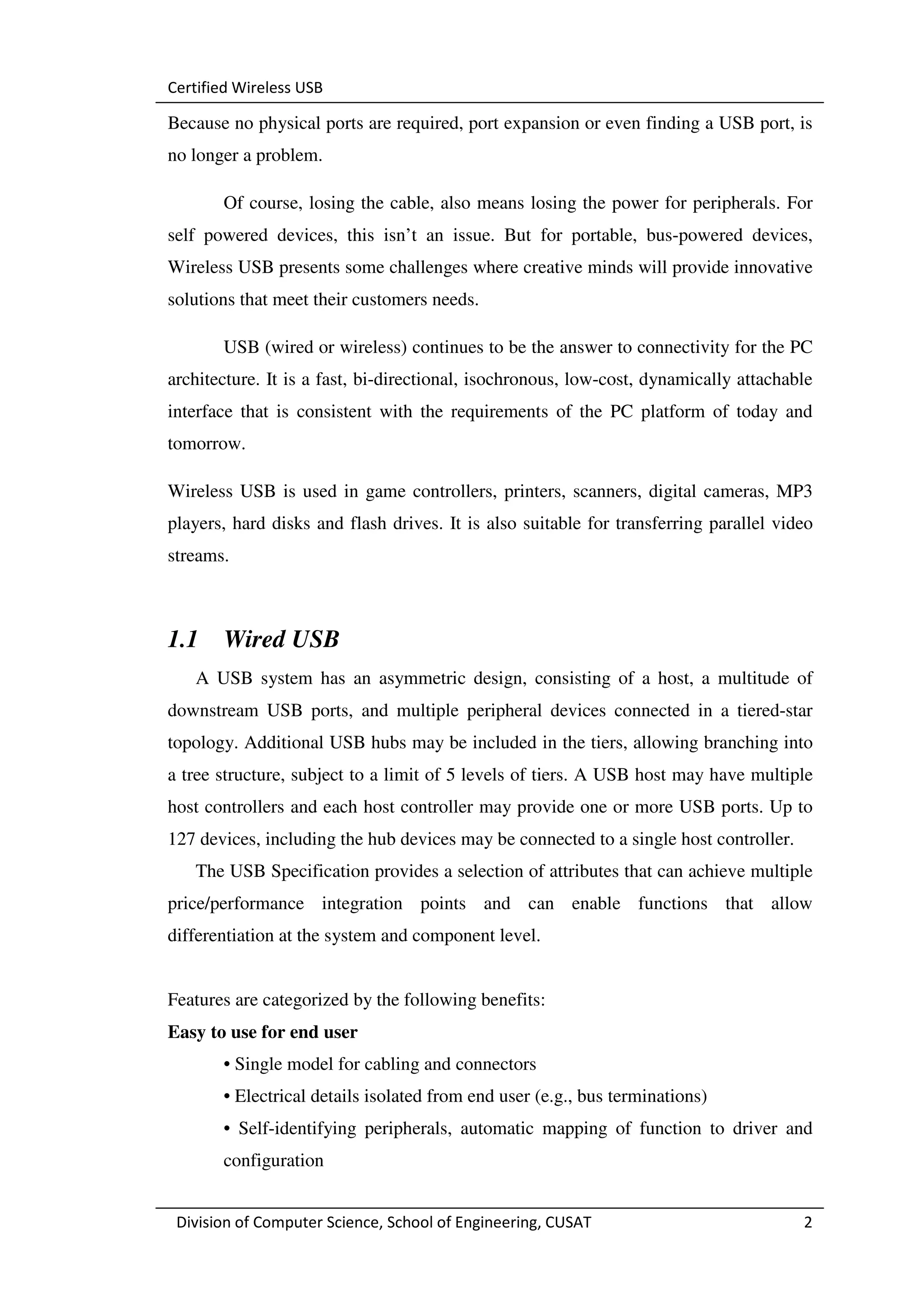

Because no physical ports are required, port expansion or even finding a USB port, is
no longer a problem.

Of course, losing the cable, also means losing the power for peripherals. For
self powered devices, this isn’t an issue. But for portable, bus-powered devices,
Wireless USB presents some challenges where creative minds will provide innovative
solutions that meet their customers needs.

USB (wired or wireless) continues to be the answer to connectivity for the PC
architecture. It is a fast, bi-directional, isochronous, low-cost, dynamically attachable
interface that is consistent with the requirements of the PC platform of today and
tomorrow.

Wireless USB is used in game controllers, printers, scanners, digital cameras, MP3
players, hard disks and flash drives. It is also suitable for transferring parallel video
streams.

1.1 Wired USB
A USB system has an asymmetric design, consisting of a host, a multitude of
downstream USB ports, and multiple peripheral devices connected in a tiered-star
topology. Additional USB hubs may be included in the tiers, allowing branching into
a tree structure, subject to a limit of 5 levels of tiers. A USB host may have multiple
host controllers and each host controller may provide one or more USB ports. Up to
127 devices, including the hub devices may be connected to a single host controller.
The USB Specification provides a selection of attributes that can achieve multiple
price/performance integration points and can enable functions that allow
differentiation at the system and component level.

Features are categorized by the following benefits:
Easy to use for end user
• Single model for cabling and connectors
• Electrical details isolated from end user (e.g., bus terminations)
• Self-identifying peripherals, automatic mapping of function to driver and
configuration



• Dynamically attachable and reconfigurable peripherals

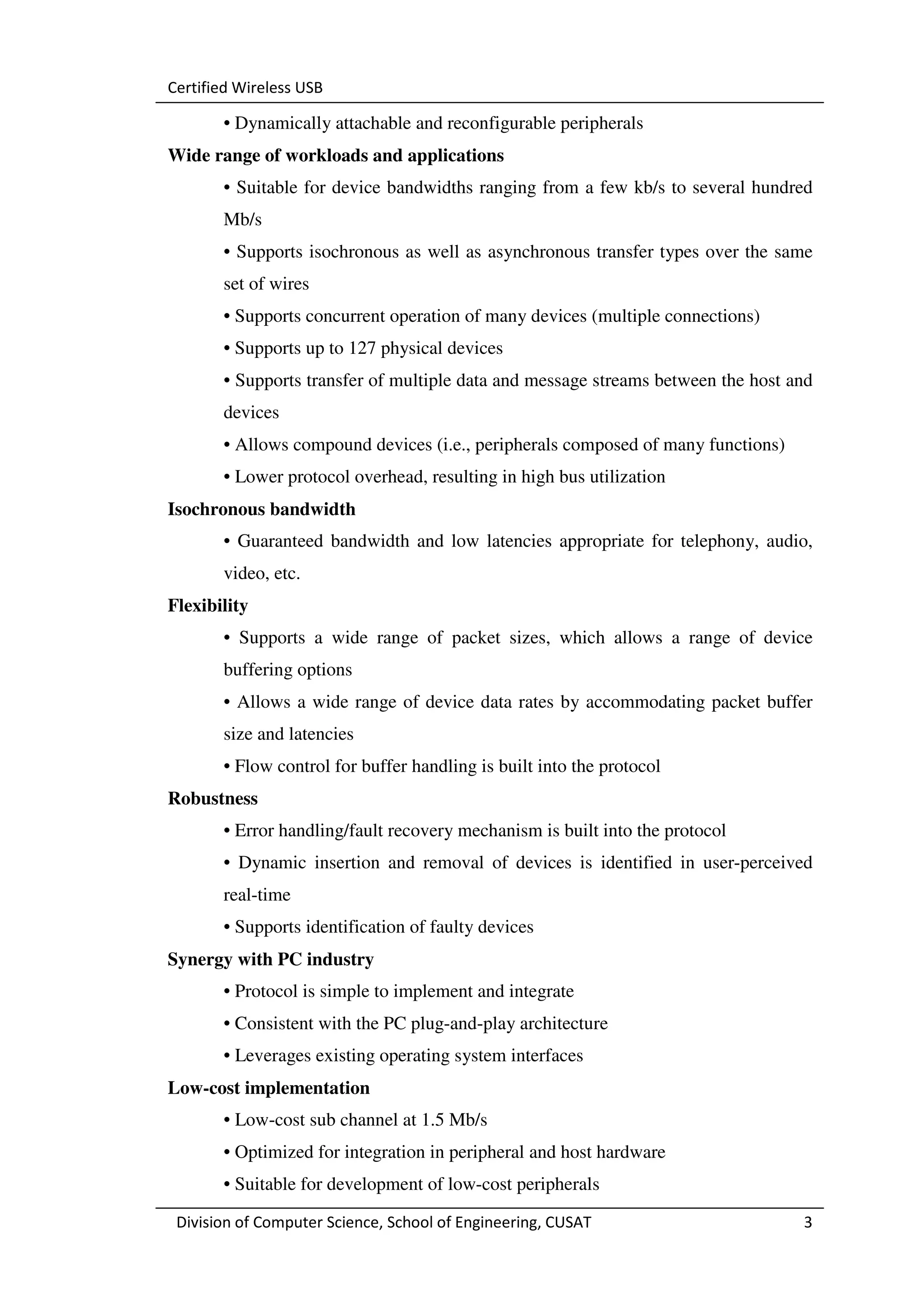

Wide range of workloads and applications
• Suitable for device bandwidths ranging from a few kb/s to several hundred
Mb/s
• Supports isochronous as well as asynchronous transfer types over the same
set of wires
• Supports concurrent operation of many devices (multiple connections)
• Supports up to 127 physical devices
• Supports transfer of multiple data and message streams between the host and
devices
• Allows compound devices (i.e., peripherals composed of many functions)
• Lower protocol overhead, resulting in high bus utilization
Isochronous bandwidth
• Guaranteed bandwidth and low latencies appropriate for telephony, audio,
video, etc.
Flexibility
• Supports a wide range of packet sizes, which allows a range of device
buffering options
• Allows a wide range of device data rates by accommodating packet buffer
size and latencies
• Flow control for buffer handling is built into the protocol
Robustness
• Error handling/fault recovery mechanism is built into the protocol
• Dynamic insertion and removal of devices is identified in user-perceived
real-time
• Supports identification of faulty devices
Synergy with PC industry
• Protocol is simple to implement and integrate
• Consistent with the PC plug-and-play architecture
• Leverages existing operating system interfaces
Low-cost implementation
• Low-cost sub channel at 1.5 Mb/s
• Optimized for integration in peripheral and host hardware
• Suitable for development of low-cost peripherals



• Low-cost cables and connectors
• Uses commodity technologies
Upgrade path
• Architecture upgradeable to support multiple USB Host Controllers in a
system

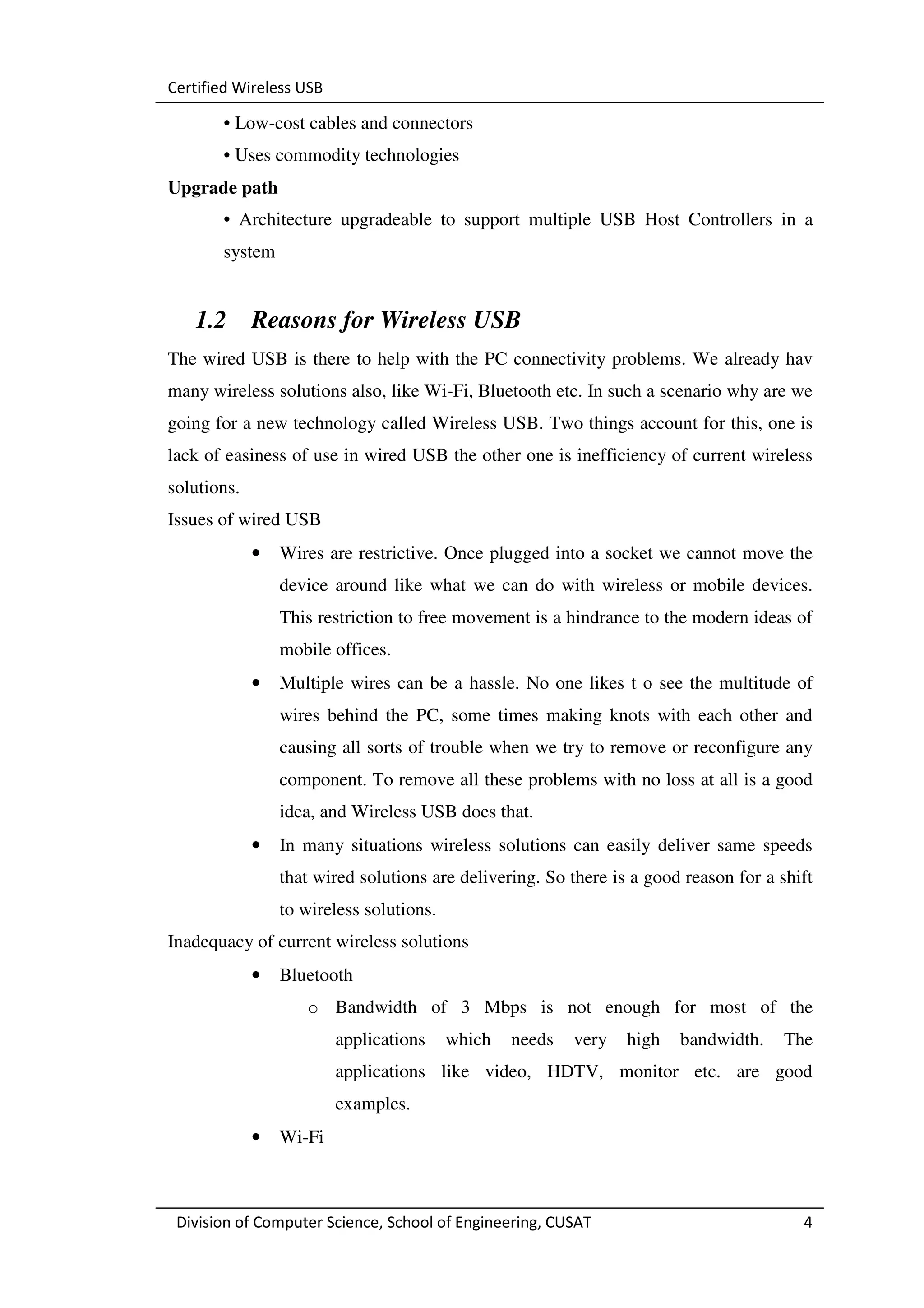

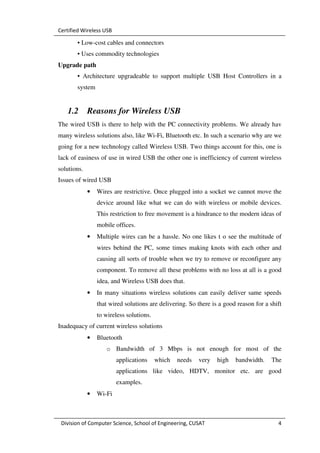

1.2 Reasons for Wireless USB
The wired USB is there to help with the PC connectivity problems. We already hav
many wireless solutions also, like Wi-Fi, Bluetooth etc. In such a scenario why are we
going for a new technology called Wireless USB. Two things account for this, one is
lack of easiness of use in wired USB the other one is inefficiency of current wireless
solutions.
Issues of wired USB
• Wires are restrictive. Once plugged into a socket we cannot move the
device around like what we can do with wireless or mobile devices.
This restriction to free movement is a hindrance to the modern ideas of
mobile offices.
• Multiple wires can be a hassle. No one likes t o see the multitude of
wires behind the PC, some times making knots with each other and
causing all sorts of trouble when we try to remove or reconfigure any
component. To remove all these problems with no loss at all is a good
idea, and Wireless USB does that.
• In many situations wireless solutions can easily deliver same speeds
that wired solutions are delivering. So there is a good reason for a shift
to wireless solutions.
Inadequacy of current wireless solutions
• Bluetooth
o Bandwidth of 3 Mbps is not enough for most of the
applications which needs very high bandwidth. The
applications like video, HDTV, monitor etc. are good
examples.

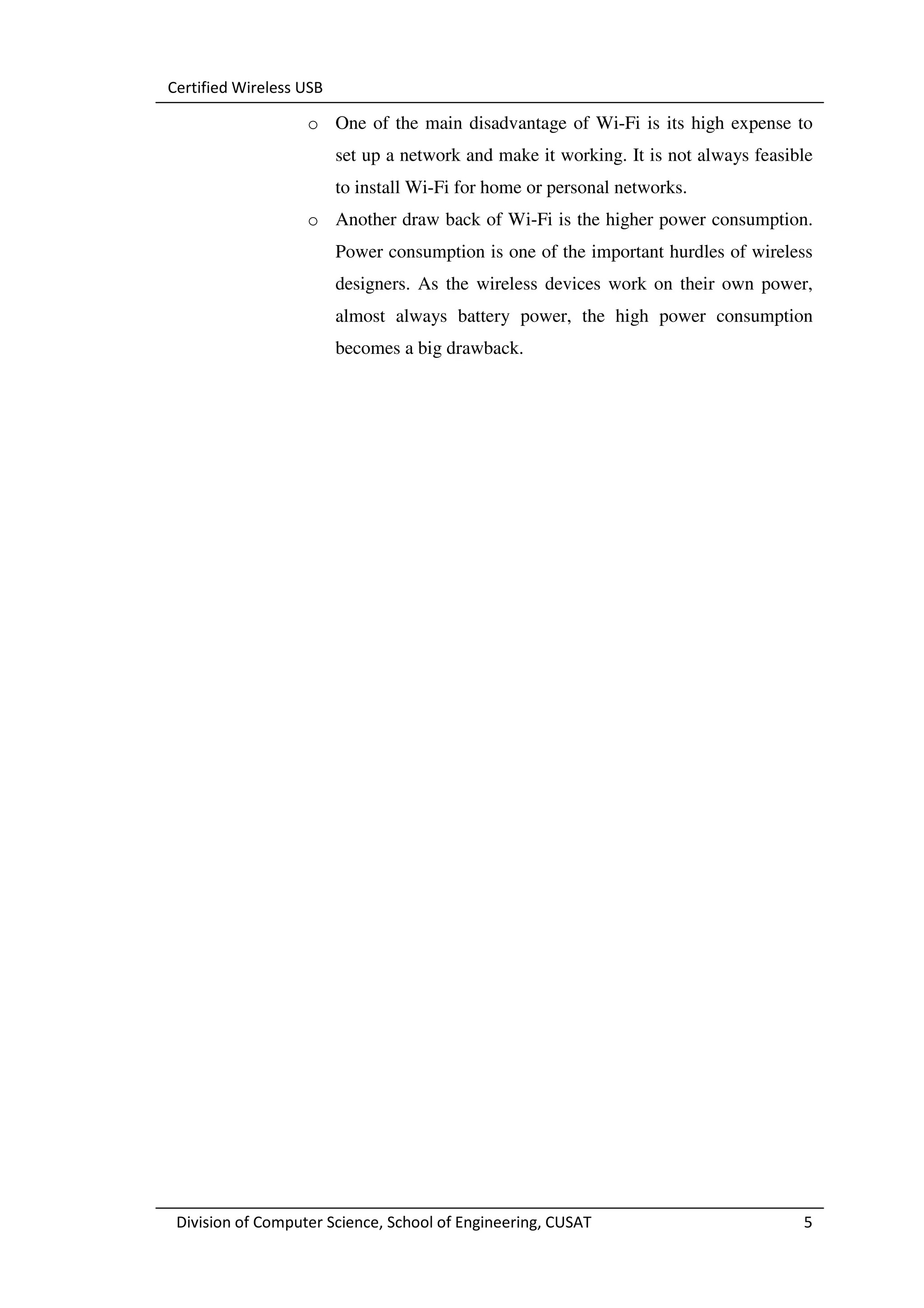

• Wi-Fi



o One of the main disadvantage of Wi-Fi is its high expense to
set up a network and make it working. It is not always feasible
to install Wi-Fi for home or personal networks.
o Another draw back of Wi-Fi is the higher power consumption.
Power consumption is one of the important hurdles of wireless
designers. As the wireless devices work on their own power,
almost always battery power, the high power consumption
becomes a big drawback.

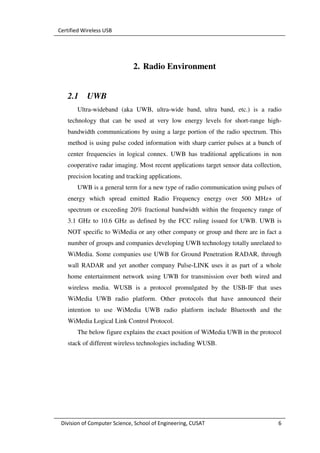

2. Radio Environment

2.1 UWB
Ultra-wideband (aka UWB, ultra-wide band, ultra band, etc.) is a radio
technology that can be used at very low energy levels for short-range high-
bandwidth communications by using a large portion of the radio spectrum. This
method is using pulse coded information with sharp carrier pulses at a bunch of
center frequencies in logical connex. UWB has traditional applications in non
cooperative radar imaging. Most recent applications target sensor data collection,
precision locating and tracking applications.

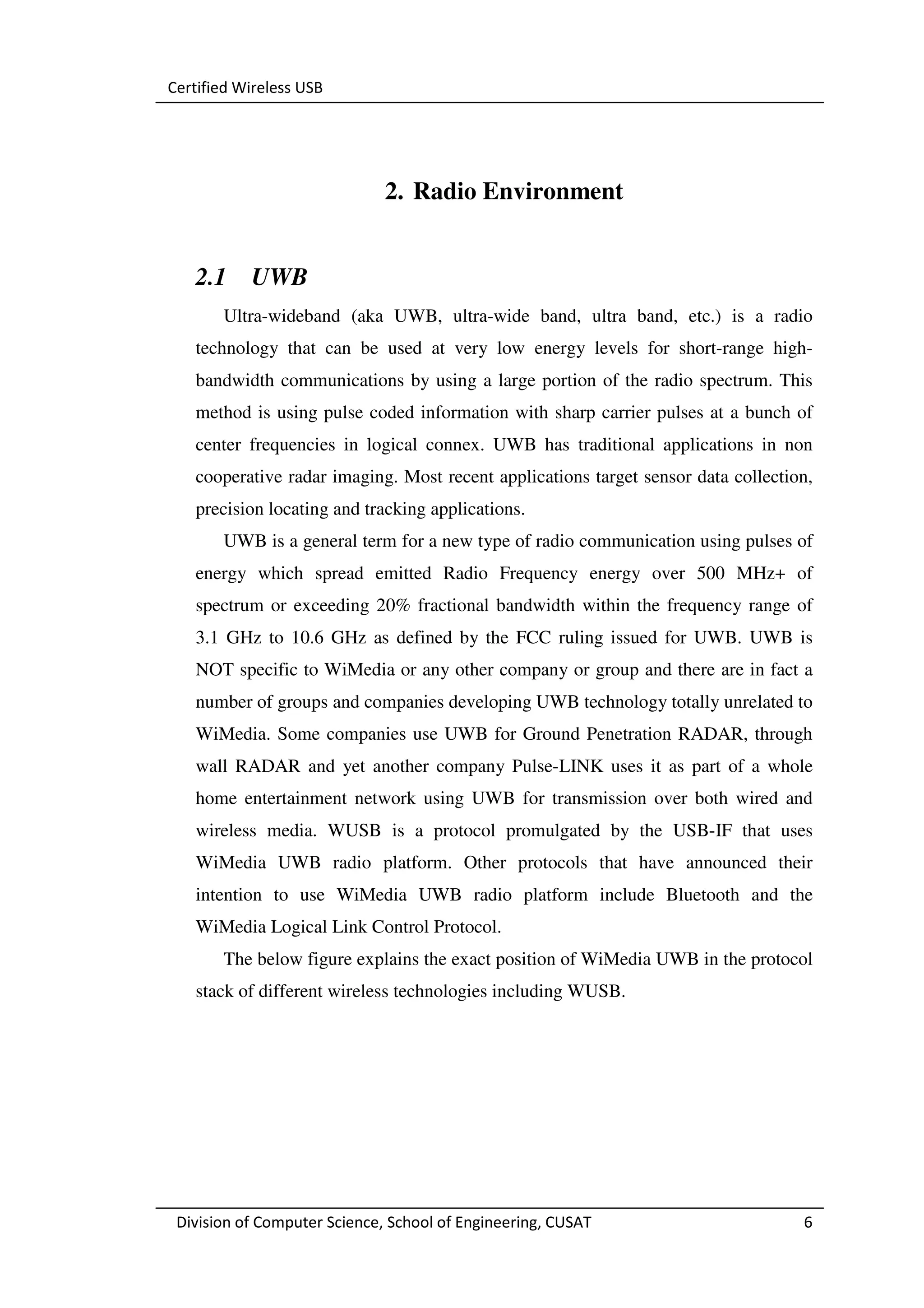

UWB is a general term for a new type of radio communication using pulses of
energy which spread emitted Radio Frequency energy over 500 MHz+ of
spectrum or exceeding 20% fractional bandwidth within the frequency range of
3.1 GHz to 10.6 GHz as defined by the FCC ruling issued for UWB. UWB is
NOT specific to WiMedia or any other company or group and there are in fact a
number of groups and companies developing UWB technology totally unrelated to
WiMedia. Some companies use UWB for Ground Penetration RADAR, through
wall RADAR and yet another company Pulse-LINK uses it as part of a whole
home entertainment network using UWB for transmission over both wired and
wireless media. WUSB is a protocol promulgated by the USB-IF that uses
WiMedia UWB radio platform. Other protocols that have announced their
intention to use WiMedia UWB radio platform include Bluetooth and the
WiMedia Logical Link Control Protocol.
The below figure explains the exact position of WiMedia UWB in the protocol
stack of different wireless technologies including WUSB.



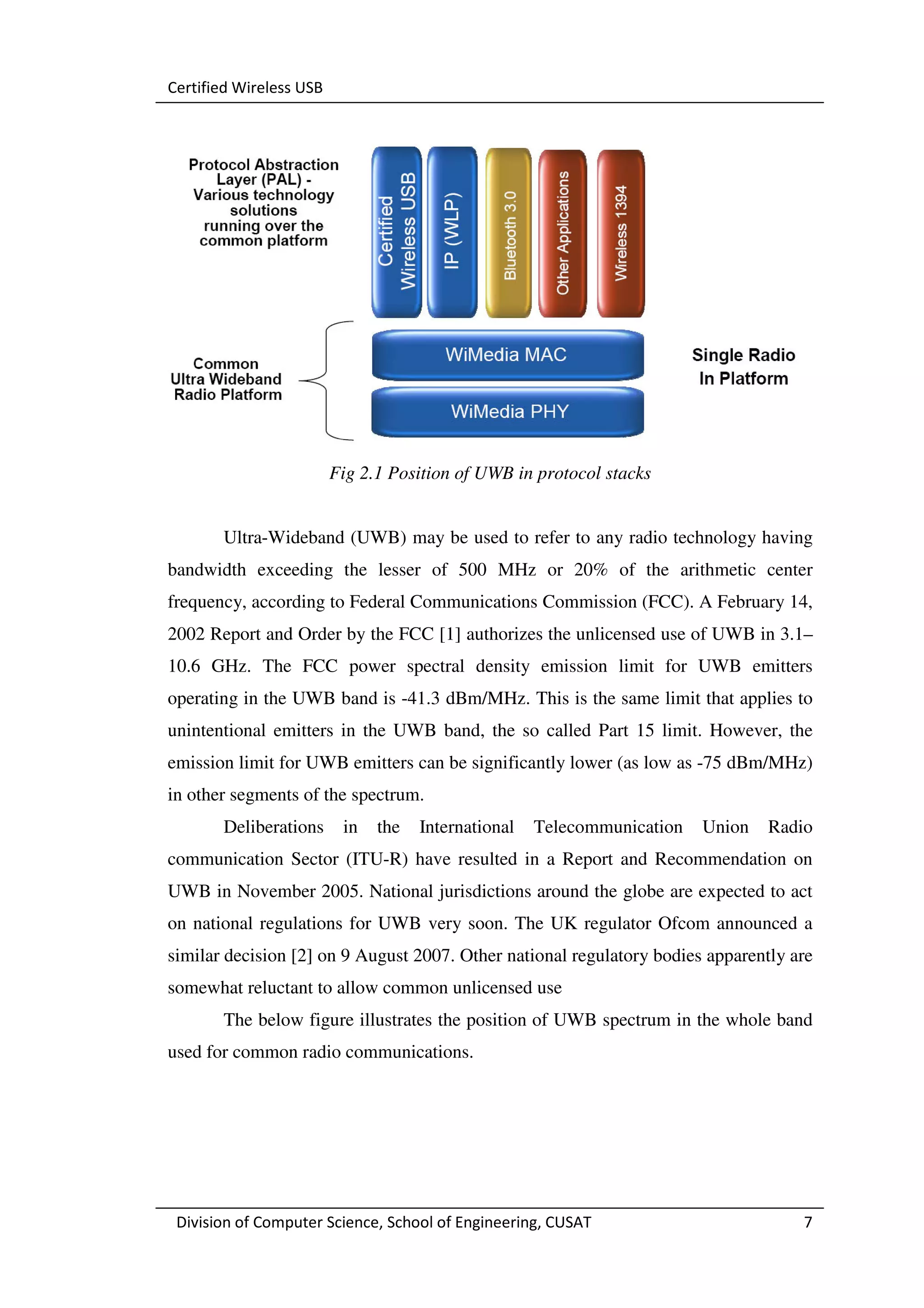

Fig 2.1 Position of UWB in protocol stacks

Ultra-Wideband (UWB) may be used to refer to any radio technology having
bandwidth exceeding the lesser of 500 MHz or 20% of the arithmetic center
frequency, according to Federal Communications Commission (FCC). A February 14,
2002 Report and Order by the FCC [1] authorizes the unlicensed use of UWB in 3.1–
10.6 GHz. The FCC power spectral density emission limit for UWB emitters
operating in the UWB band is -41.3 dBm/MHz. This is the same limit that applies to
unintentional emitters in the UWB band, the so called Part 15 limit. However, the
emission limit for UWB emitters can be significantly lower (as low as -75 dBm/MHz)
in other segments of the spectrum.
Deliberations in the International Telecommunication Union Radio
communication Sector (ITU-R) have resulted in a Report and Recommendation on
UWB in November 2005. National jurisdictions around the globe are expected to act
on national regulations for UWB very soon. The UK regulator Ofcom announced a
similar decision [2] on 9 August 2007. Other national regulatory bodies apparently are
somewhat reluctant to allow common unlicensed use
The below figure illustrates the position of UWB spectrum in the whole band
used for common radio communications.



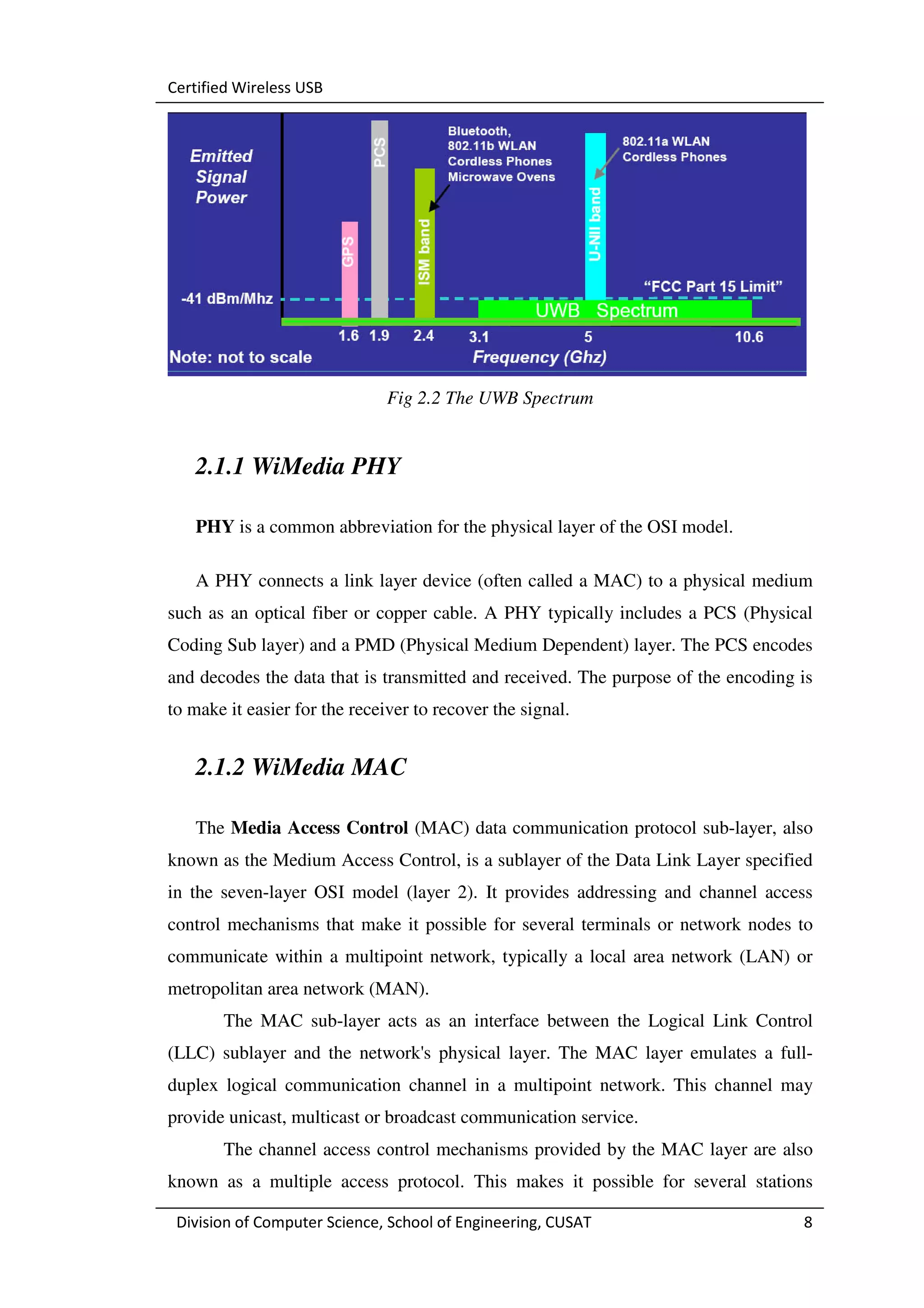

Fig 2.2 The UWB Spectrum

2.1.1 WiMedia PHY

PHY is a common abbreviation for the physical layer of the OSI model.

A PHY connects a link layer device (often called a MAC) to a physical medium
such as an optical fiber or copper cable. A PHY typically includes a PCS (Physical
Coding Sub layer) and a PMD (Physical Medium Dependent) layer. The PCS encodes
and decodes the data that is transmitted and received. The purpose of the encoding is
to make it easier for the receiver to recover the signal.

2.1.2 WiMedia MAC

The Media Access Control (MAC) data communication protocol sub-layer, also
known as the Medium Access Control, is a sublayer of the Data Link Layer specified
in the seven-layer OSI model (layer 2). It provides addressing and channel access
control mechanisms that make it possible for several terminals or network nodes to
communicate within a multipoint network, typically a local area network (LAN) or
metropolitan area network (MAN).
The MAC sub-layer acts as an interface between the Logical Link Control
(LLC) sublayer and the network's physical layer. The MAC layer emulates a full-
duplex logical communication channel in a multipoint network. This channel may
provide unicast, multicast or broadcast communication service.

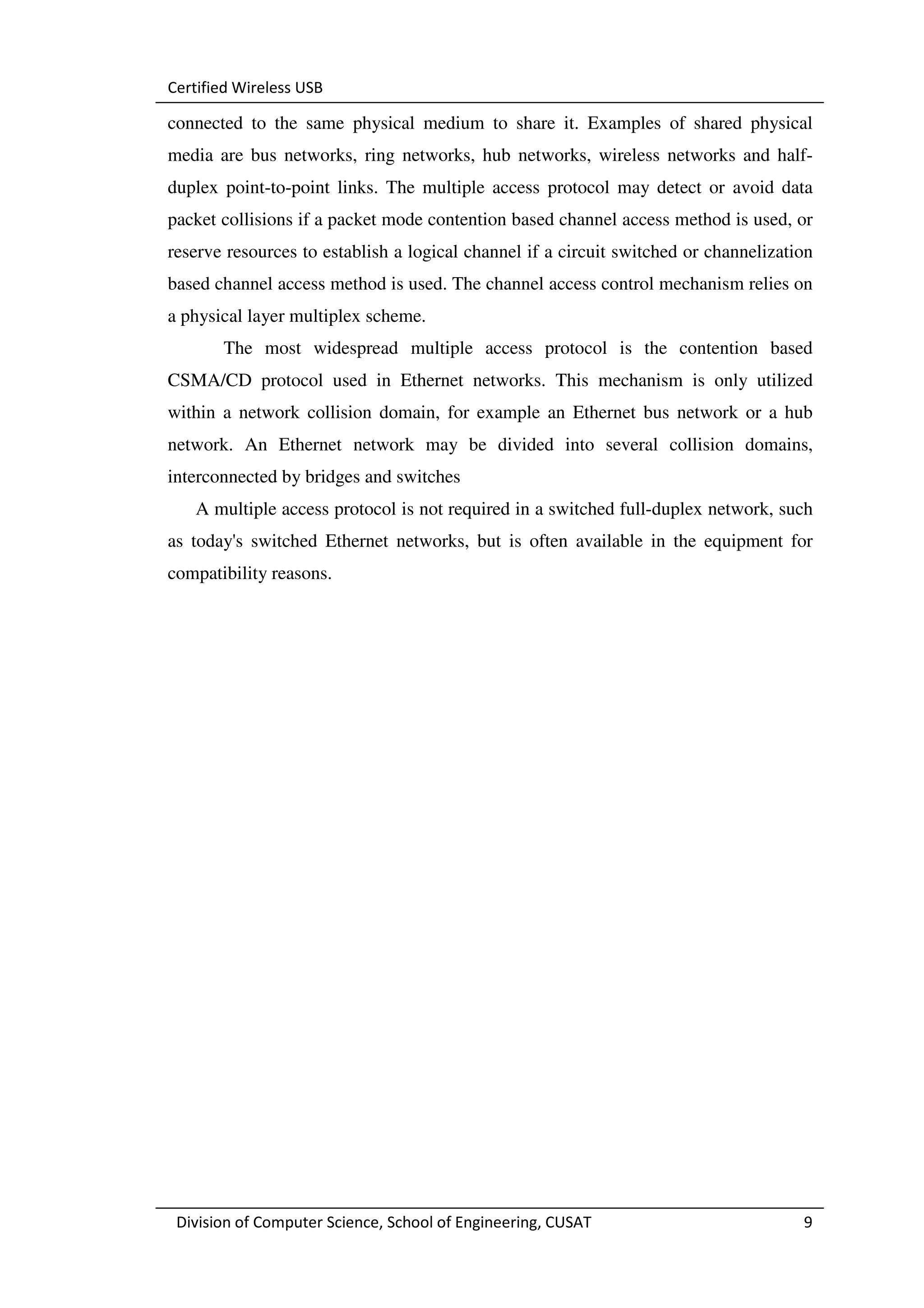

The channel access control mechanisms provided by the MAC layer are also
known as a multiple access protocol. This makes it possible for several stations



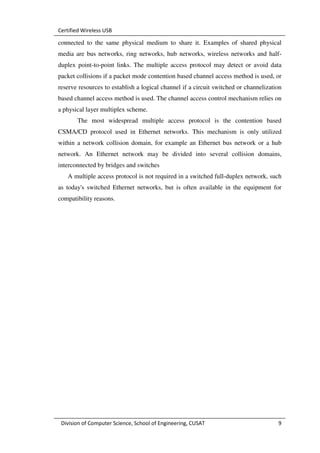

connected to the same physical medium to share it. Examples of shared physical
media are bus networks, ring networks, hub networks, wireless networks and half-
duplex point-to-point links. The multiple access protocol may detect or avoid data
packet collisions if a packet mode contention based channel access method is used, or
reserve resources to establish a logical channel if a circuit switched or channelization
based channel access method is used. The channel access control mechanism relies on
a physical layer multiplex scheme.
The most widespread multiple access protocol is the contention based
CSMA/CD protocol used in Ethernet networks. This mechanism is only utilized
within a network collision domain, for example an Ethernet bus network or a hub
network. An Ethernet network may be divided into several collision domains,
interconnected by bridges and switches
A multiple access protocol is not required in a switched full-duplex network, such
as today's switched Ethernet networks, but is often available in the equipment for
compatibility reasons.

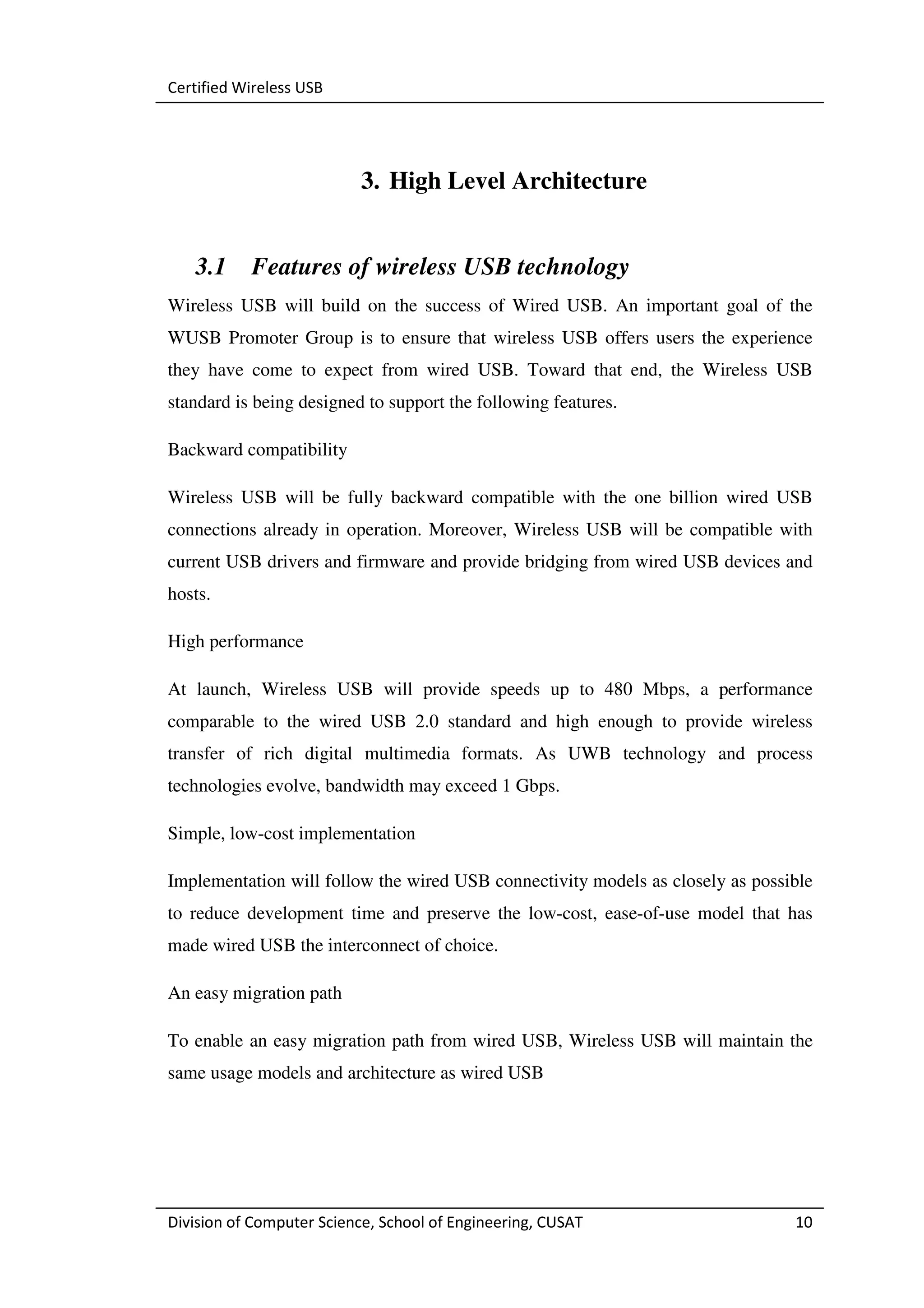

3. High Level Architecture

3.1 Features of wireless USB technology
Wireless USB will build on the success of Wired USB. An important goal of the
WUSB Promoter Group is to ensure that wireless USB offers users the experience
they have come to expect from wired USB. Toward that end, the Wireless USB
standard is being designed to support the following features.

Backward compatibility

Wireless USB will be fully backward compatible with the one billion wired USB
connections already in operation. Moreover, Wireless USB will be compatible with
current USB drivers and firmware and provide bridging from wired USB devices and
hosts.

High performance

At launch, Wireless USB will provide speeds up to 480 Mbps, a performance
comparable to the wired USB 2.0 standard and high enough to provide wireless
transfer of rich digital multimedia formats. As UWB technology and process
technologies evolve, bandwidth may exceed 1 Gbps.

Simple, low-cost implementation

Implementation will follow the wired USB connectivity models as closely as possible
to reduce development time and preserve the low-cost, ease-of-use model that has
made wired USB the interconnect of choice.

An easy migration path

To enable an easy migration path from wired USB, Wireless USB will maintain the
same usage models and architecture as wired USB



3.2 Wireless USB topology

The fundamental relationship in WUSB is a hub and spoke topology, as shown in
Figure 3.. In this topology, the host initiates all the data traffic among the devices
connected to it, allotting time slots and data bandwidth to each device connected.
These relationships are referred to as clusters. The connections are point-to-point and
directed between the WUSB host and WUSB device.
The WUSB host can logically connect to a maximum of 127 WUSB devices,
considered an informal WUSB cluster. WUSB clusters coexist within an overlapping
spatial environment with minimum interference, thus allowing a number of other
WUSB clusters to be present within the same radio cell.
Topology will support a dual role model where a device can also support limited
host capabilities. This model allows mobile devices to access services with a central
host supporting the services (i.e., printers and viewers). This model also allows a
device to access data outside an existing cluster it may currently be connected to by
creating a second cluster as a limited host.
Additionally, high spatial capacity in small areas is needed to enable multiple
device access to high bandwidth concurrently. Multiple channel activities may take
place within a given area. The topology will support multiple clusters in the same
area. The number of clusters to be supported is still being determined.

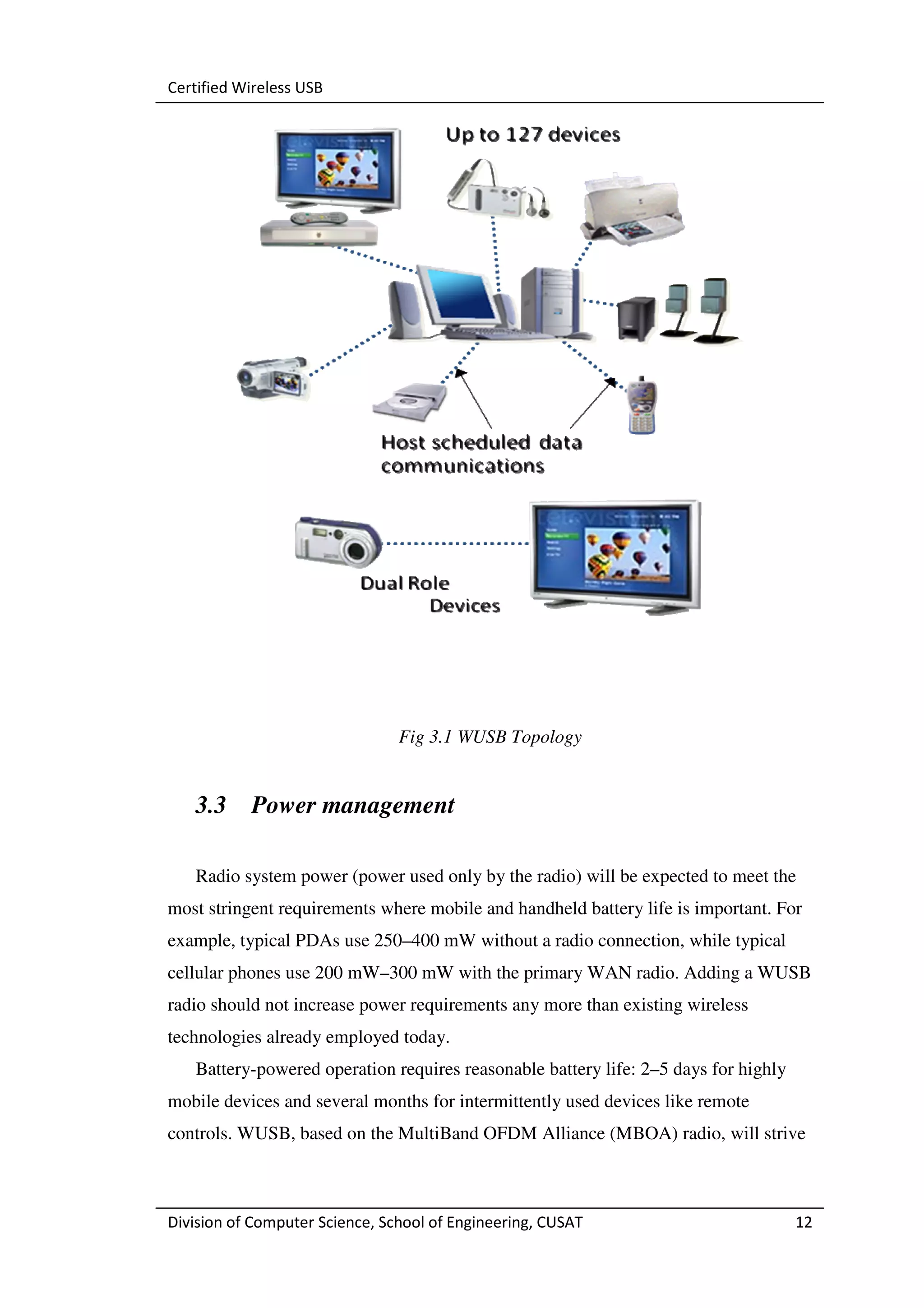

Fig 3.1 WUSB Topology

3.3 Power management

Radio system power (power used only by the radio) will be expected to meet the
most stringent requirements where mobile and handheld battery life is important. For
example, typical PDAs use 250–400 mW without a radio connection, while typical
cellular phones use 200 mW–300 mW with the primary WAN radio. Adding a WUSB
radio should not increase power requirements any more than existing wireless
technologies already employed today.
Battery-powered operation requires reasonable battery life: 2–5 days for highly
mobile devices and several months for intermittently used devices like remote
controls. WUSB, based on the MultiBand OFDM Alliance (MBOA) radio, will strive



to meet these standards. The power target for WUSB radio will be introduced at less
than 300 mW and drive to a target of 100 mW over time.

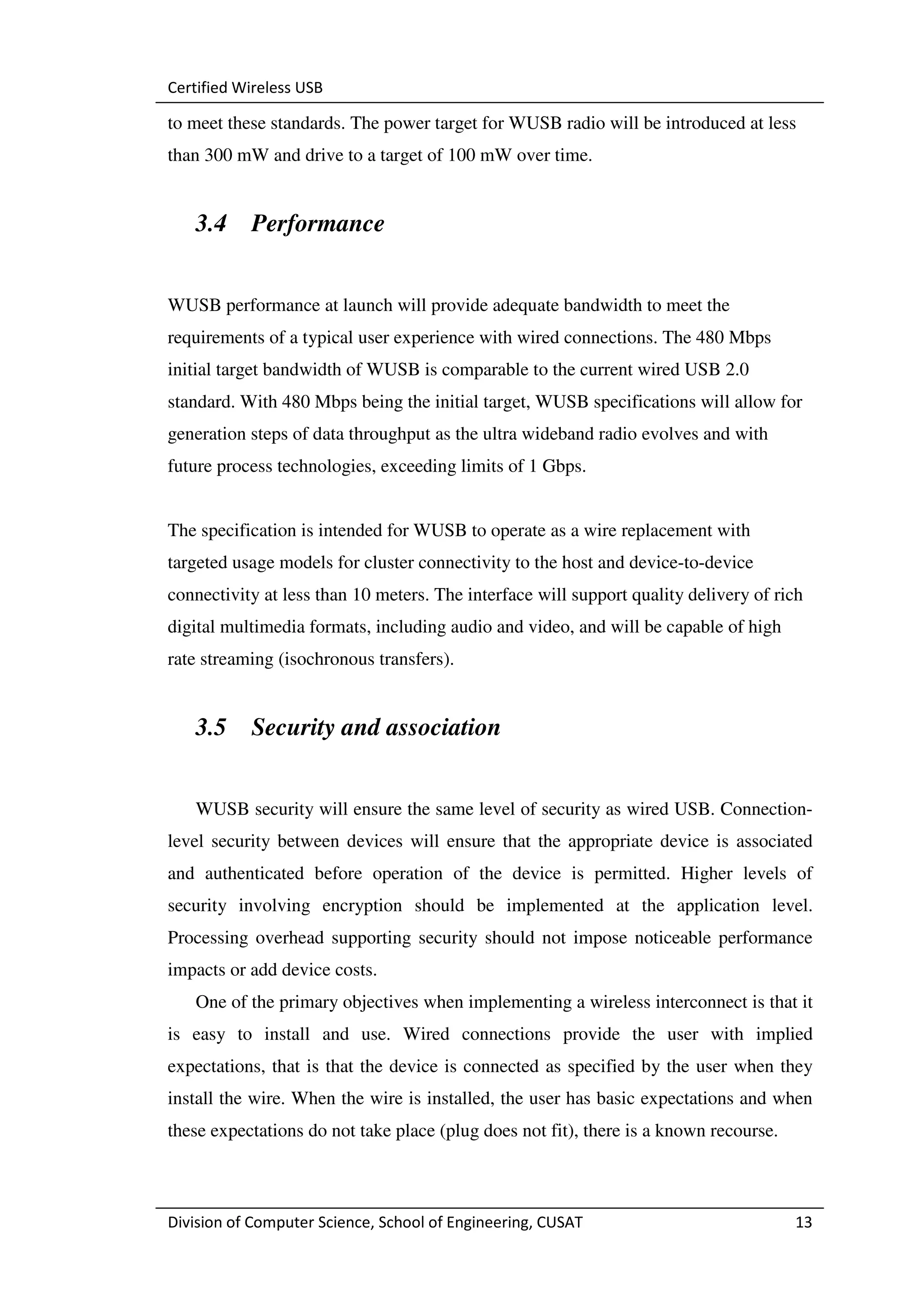

3.4 Performance

WUSB performance at launch will provide adequate bandwidth to meet the
requirements of a typical user experience with wired connections. The 480 Mbps
initial target bandwidth of WUSB is comparable to the current wired USB 2.0
standard. With 480 Mbps being the initial target, WUSB specifications will allow for
generation steps of data throughput as the ultra wideband radio evolves and with
future process technologies, exceeding limits of 1 Gbps.

The specification is intended for WUSB to operate as a wire replacement with
targeted usage models for cluster connectivity to the host and device-to-device
connectivity at less than 10 meters. The interface will support quality delivery of rich
digital multimedia formats, including audio and video, and will be capable of high
rate streaming (isochronous transfers).

3.5 Security and association

WUSB security will ensure the same level of security as wired USB. Connection-
level security between devices will ensure that the appropriate device is associated
and authenticated before operation of the device is permitted. Higher levels of
security involving encryption should be implemented at the application level.
Processing overhead supporting security should not impose noticeable performance
impacts or add device costs.
One of the primary objectives when implementing a wireless interconnect is that it
is easy to install and use. Wired connections provide the user with implied
expectations, that is that the device is connected as specified by the user when they
install the wire. When the wire is installed, the user has basic expectations and when
these expectations do not take place (plug does not fit), there is a known recourse.



Wireless connections, on the other hand, due to environmental characteristics,
may establish connection paths that are not obvious. In fact, it may not be obvious
when a device is connected.
So WUSB devices installed for the first time should automatically install drivers,
security features, and so on and associate with systems that they can interact with. The
concepts of 'turn on and use it' with an easy setup procedure will be employed.

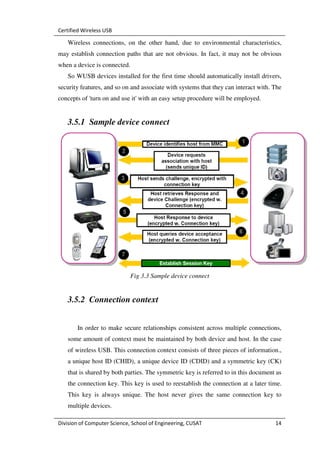

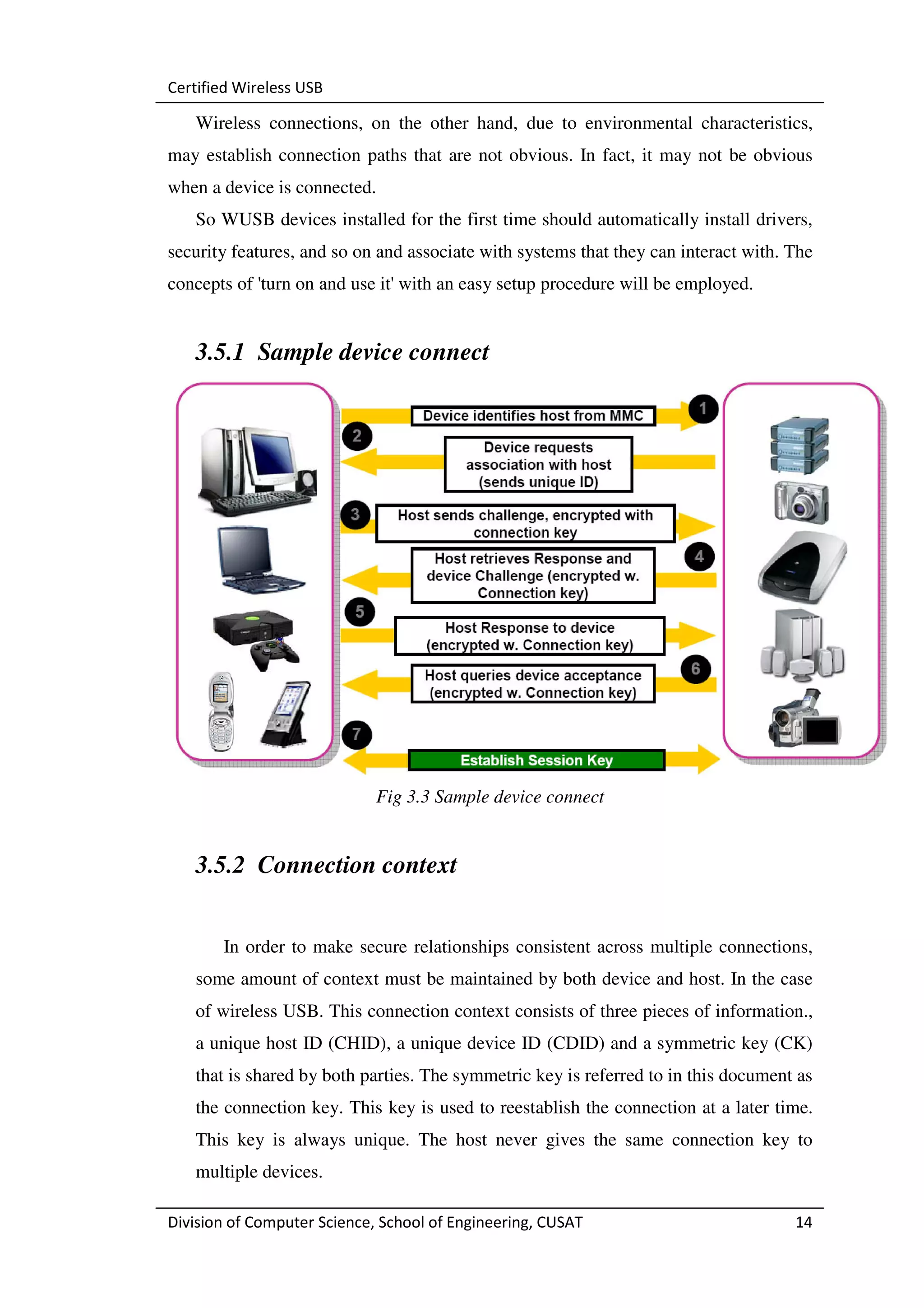

3.5.1 Sample device connect

Fig 3.3 Sample device connect

3.5.2 Connection context

In order to make secure relationships consistent across multiple connections,
some amount of context must be maintained by both device and host. In the case
of wireless USB. This connection context consists of three pieces of information.,
a unique host ID (CHID), a unique device ID (CDID) and a symmetric key (CK)
that is shared by both parties. The symmetric key is referred to in this document as
the connection key. This key is used to reestablish the connection at a later time.
This key is always unique. The host never gives the same connection key to
multiple devices.

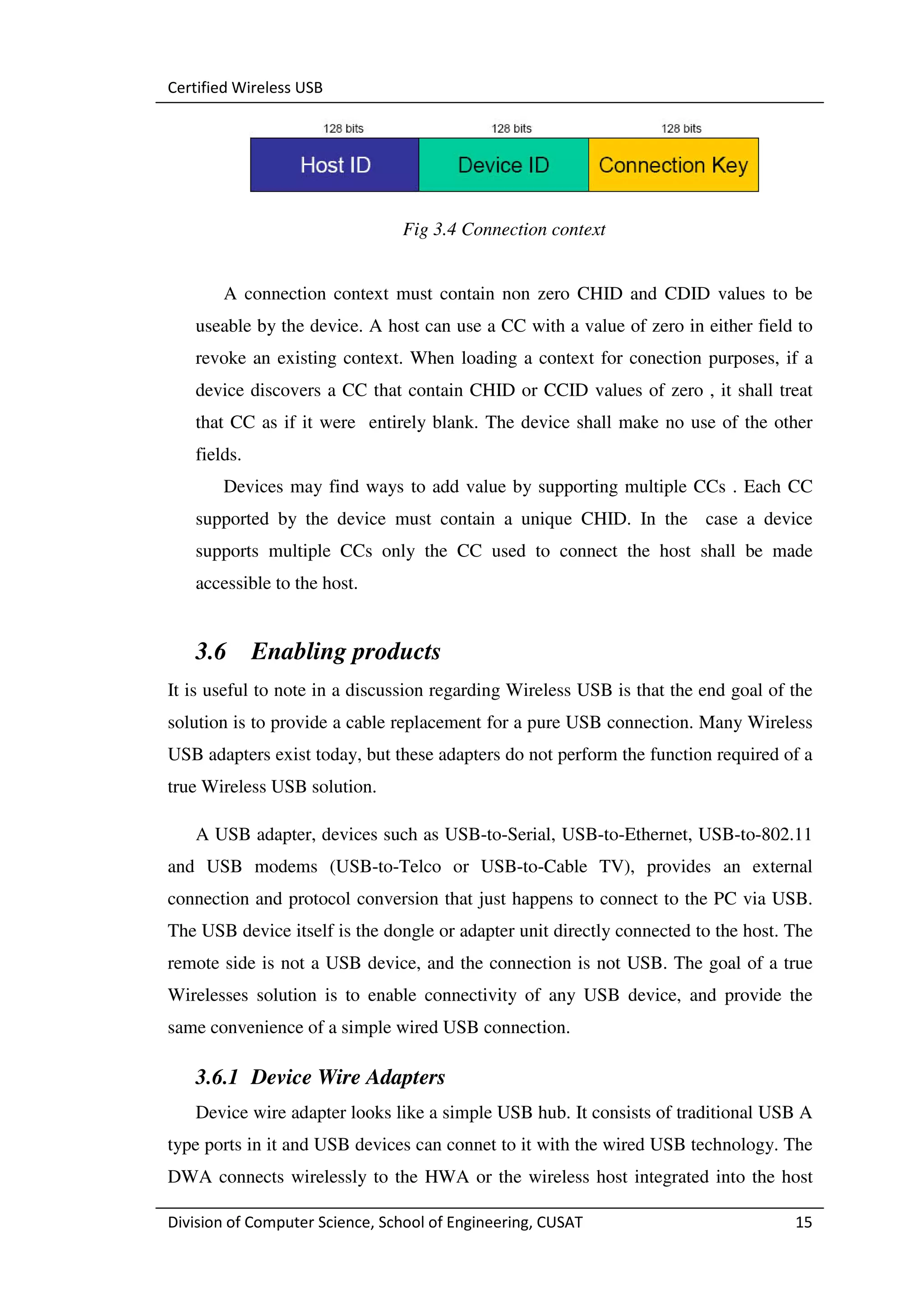

Fig 3.4 Connection context

A connection context must contain non zero CHID and CDID values to be
useable by the device. A host can use a CC with a value of zero in either field to
revoke an existing context. When loading a context for conection purposes, if a
device discovers a CC that contain CHID or CCID values of zero , it shall treat
that CC as if it were entirely blank. The device shall make no use of the other
fields.
Devices may find ways to add value by supporting multiple CCs . Each CC
supported by the device must contain a unique CHID. In the case a device
supports multiple CCs only the CC used to connect the host shall be made
accessible to the host.

3.6 Enabling products
It is useful to note in a discussion regarding Wireless USB is that the end goal of the
solution is to provide a cable replacement for a pure USB connection. Many Wireless
USB adapters exist today, but these adapters do not perform the function required of a
true Wireless USB solution.

A USB adapter, devices such as USB-to-Serial, USB-to-Ethernet, USB-to-802.11
and USB modems (USB-to-Telco or USB-to-Cable TV), provides an external
connection and protocol conversion that just happens to connect to the PC via USB.
The USB device itself is the dongle or adapter unit directly connected to the host. The
remote side is not a USB device, and the connection is not USB. The goal of a true
Wirelesses solution is to enable connectivity of any USB device, and provide the
same convenience of a simple wired USB connection.

3.6.1 Device Wire Adapters
Device wire adapter looks like a simple USB hub. It consists of traditional USB A
type ports in it and USB devices can connet to it with the wired USB technology. The

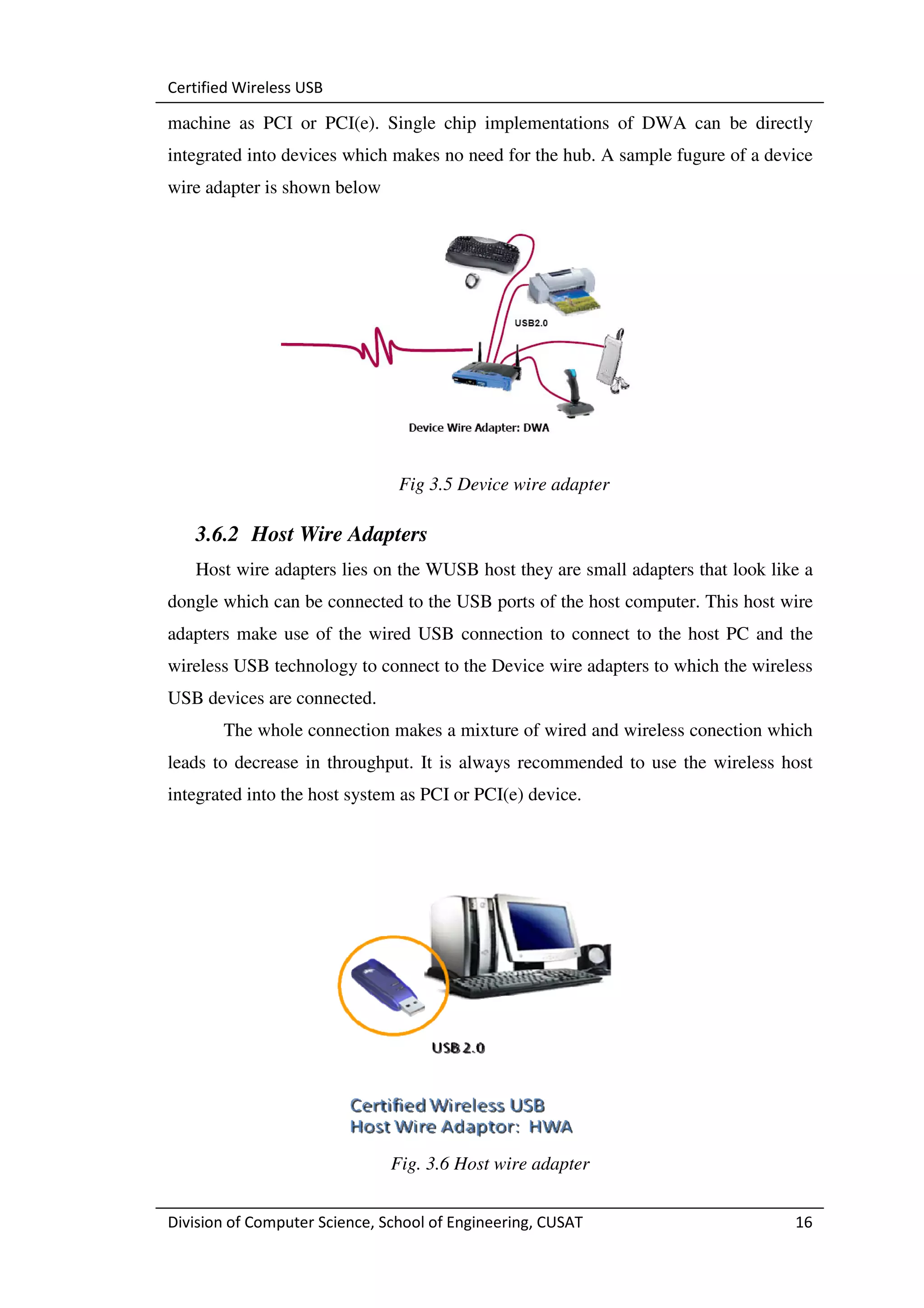

DWA connects wirelessly to the HWA or the wireless host integrated into the host



machine as PCI or PCI(e). Single chip implementations of DWA can be directly
integrated into devices which makes no need for the hub. A sample fugure of a device
wire adapter is shown below

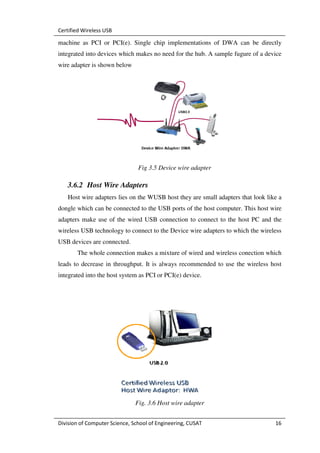

Fig 3.5 Device wire adapter

3.6.2 Host Wire Adapters
Host wire adapters lies on the WUSB host they are small adapters that look like a
dongle which can be connected to the USB ports of the host computer. This host wire
adapters make use of the wired USB connection to connect to the host PC and the
wireless USB technology to connect to the Device wire adapters to which the wireless
USB devices are connected.
The whole connection makes a mixture of wired and wireless conection which
leads to decrease in throughput. It is always recommended to use the wireless host
integrated into the host system as PCI or PCI(e) device.

Fig. 3.6 Host wire adapter

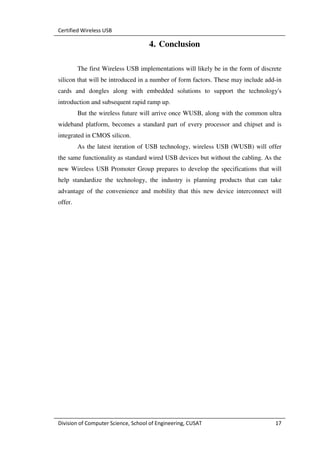

4. Conclusion

The first Wireless USB implementations will likely be in the form of discrete
silicon that will be introduced in a number of form factors. These may include add-in
cards and dongles along with embedded solutions to support the technology's
introduction and subsequent rapid ramp up.
But the wireless future will arrive once WUSB, along with the common ultra
wideband platform, becomes a standard part of every processor and chipset and is
integrated in CMOS silicon.
As the latest iteration of USB technology, wireless USB (WUSB) will offer
the same functionality as standard wired USB devices but without the cabling. As the
new Wireless USB Promoter Group prepares to develop the specifications that will
help standardize the technology, the industry is planning products that can take
advantage of the convenience and mobility that this new device interconnect will
offer.

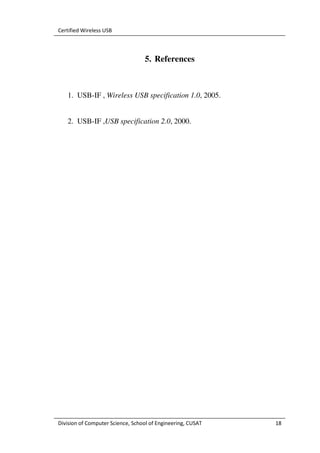

5. References

1. USB-IF , Wireless USB specification 1.0, 2005.

2. USB-IF ,USB specification 2.0, 2000.


Wireless Usb

More Related Content

What's hot

Viewers also liked

Similar to Wireless Usb

Recently uploaded

Wireless Usb
