XML and Web Services with Groovy

XML and Web
Services with Groovy
Dr Paul King, ASERT: @paulk_asert, paulk@asert.com.au
SpringOne2GX - 1

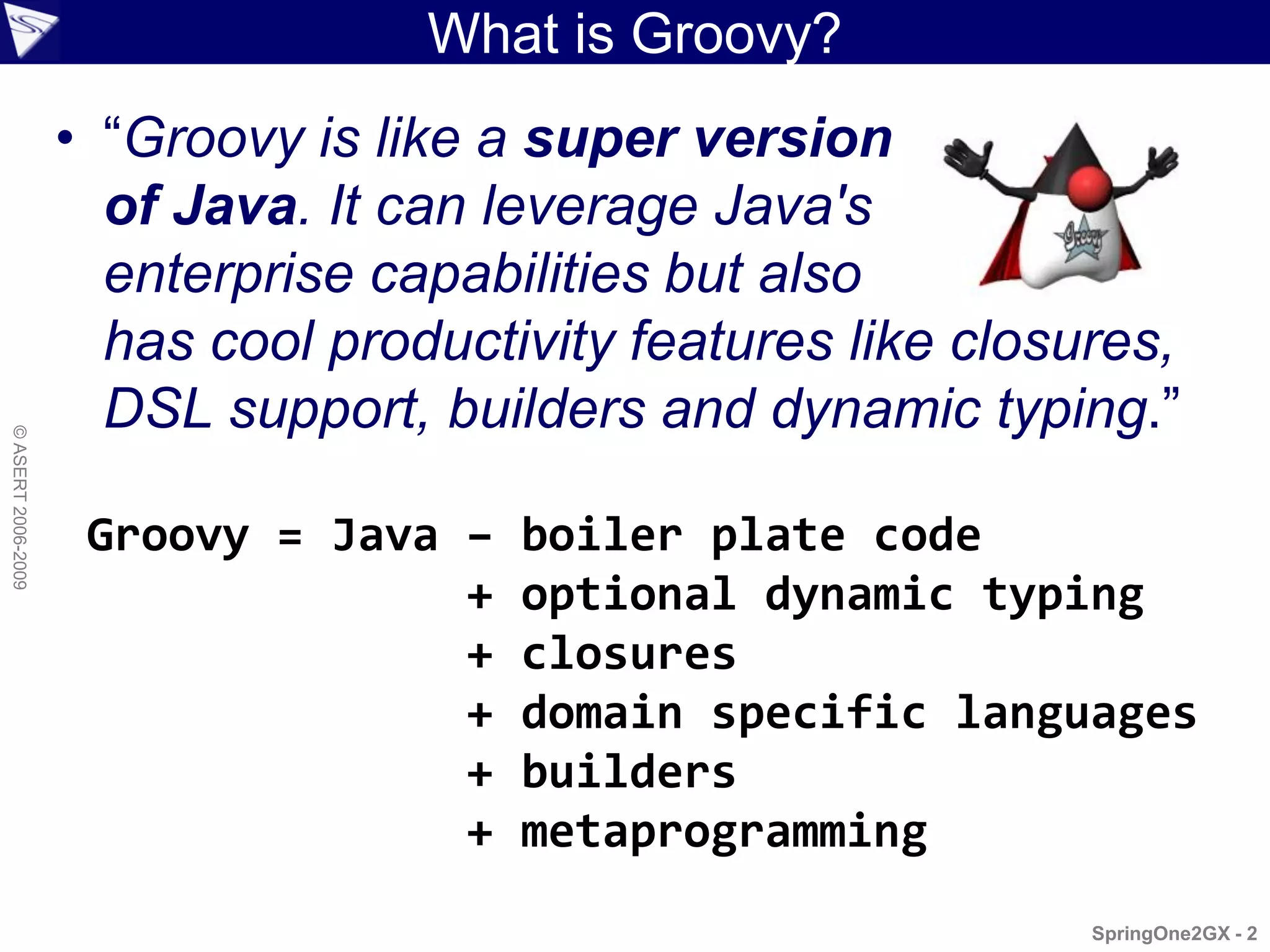

What is Groovy?
• “Groovy is like a super version
of Java. It can leverage Java's
enterprise capabilities but also
has cool productivity features like closures,
DSL support, builders and dynamic typing.”
© ASERT 2006-2009

Groovy = Java – boiler plate code
+ optional dynamic typing
+ closures
+ domain specific languages
+ builders
+ metaprogramming
SpringOne2GX - 2

Growing Acceptance …
A slow and steady start but now gaining in
momentum, maturity and mindshare

Now free

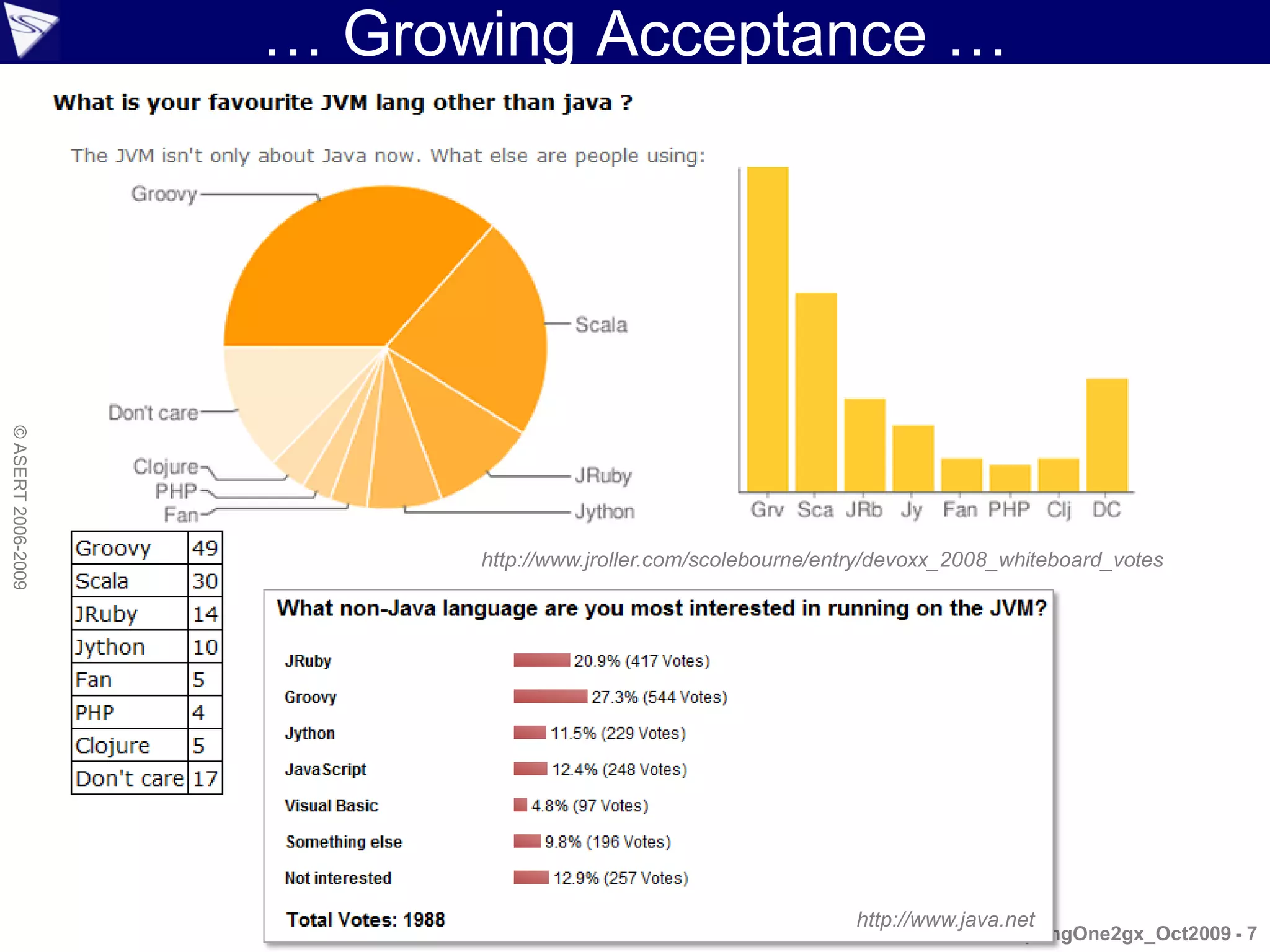

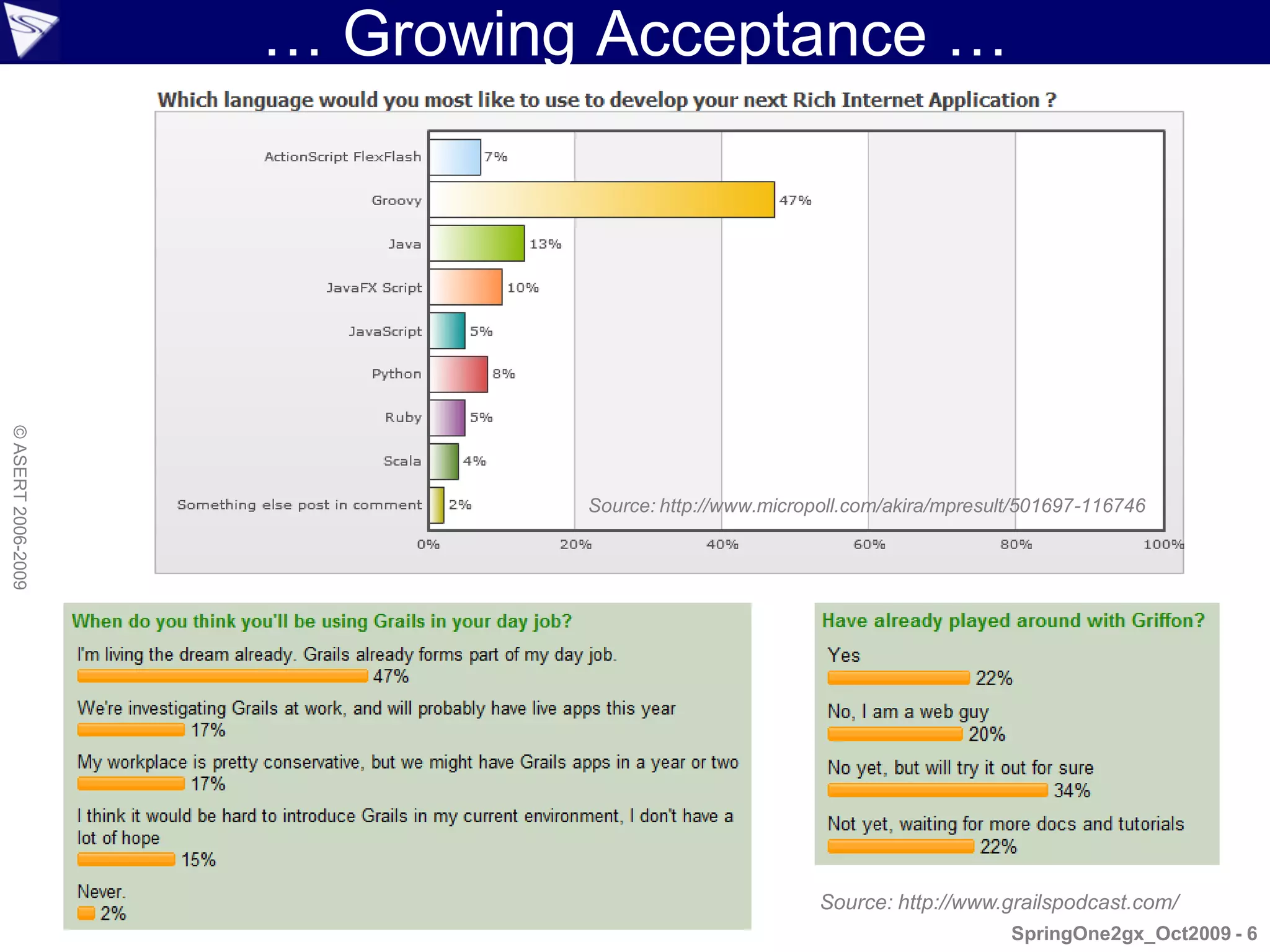

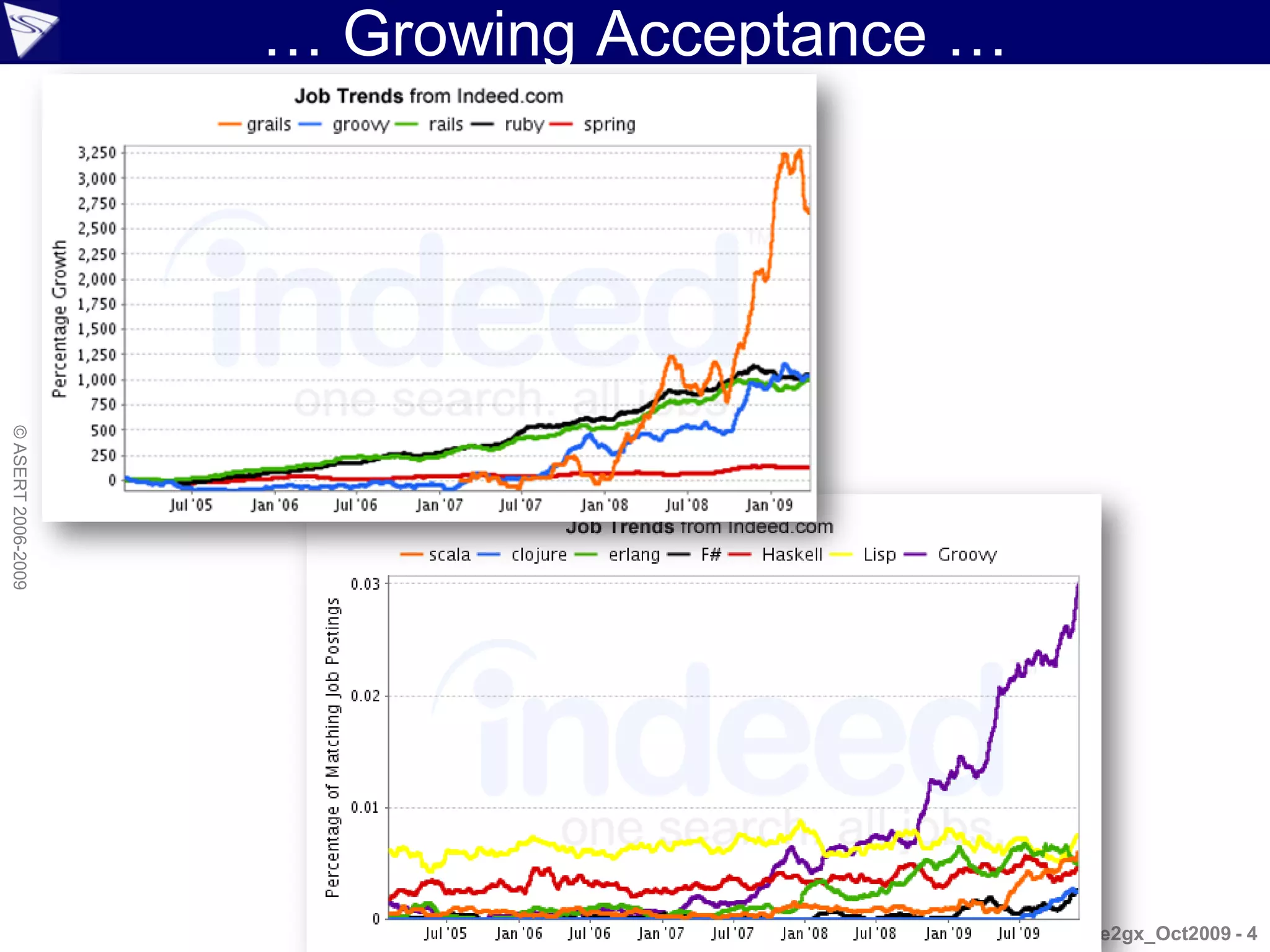

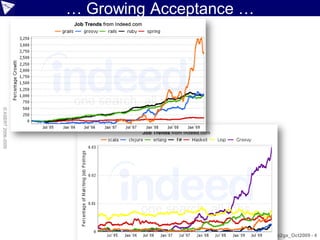

… Growing Acceptance …
© ASERT 2006-2009

SpringOne2gx_Oct2009 - 4

© ASERT 2006-2009

Groovy and Grails downloads:
70-90K per month and growing SpringOne2gx_Oct2009 - 5

© ASERT 2006-2009

Source: http://www.micropoll.com/akira/mpresult/501697-116746

Source: http://www.grailspodcast.com/

© ASERT 2006-2009

http://www.jroller.com/scolebourne/entry/devoxx_2008_whiteboard_votes

http://www.java.net

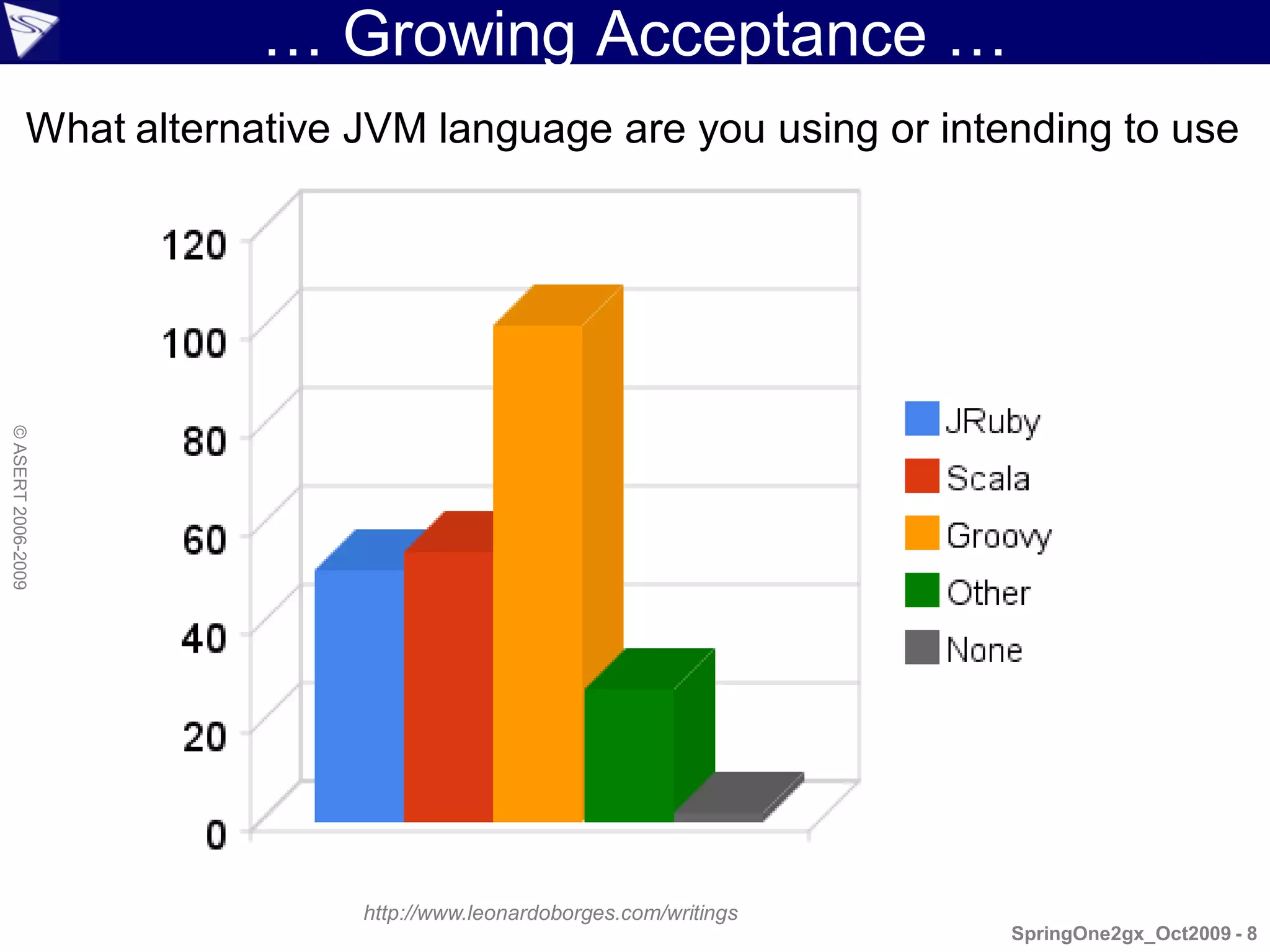

What alternative JVM language are you using or intending to use
© ASERT 2006-2009

http://www.leonardoborges.com/writings

© ASERT 2006-2009

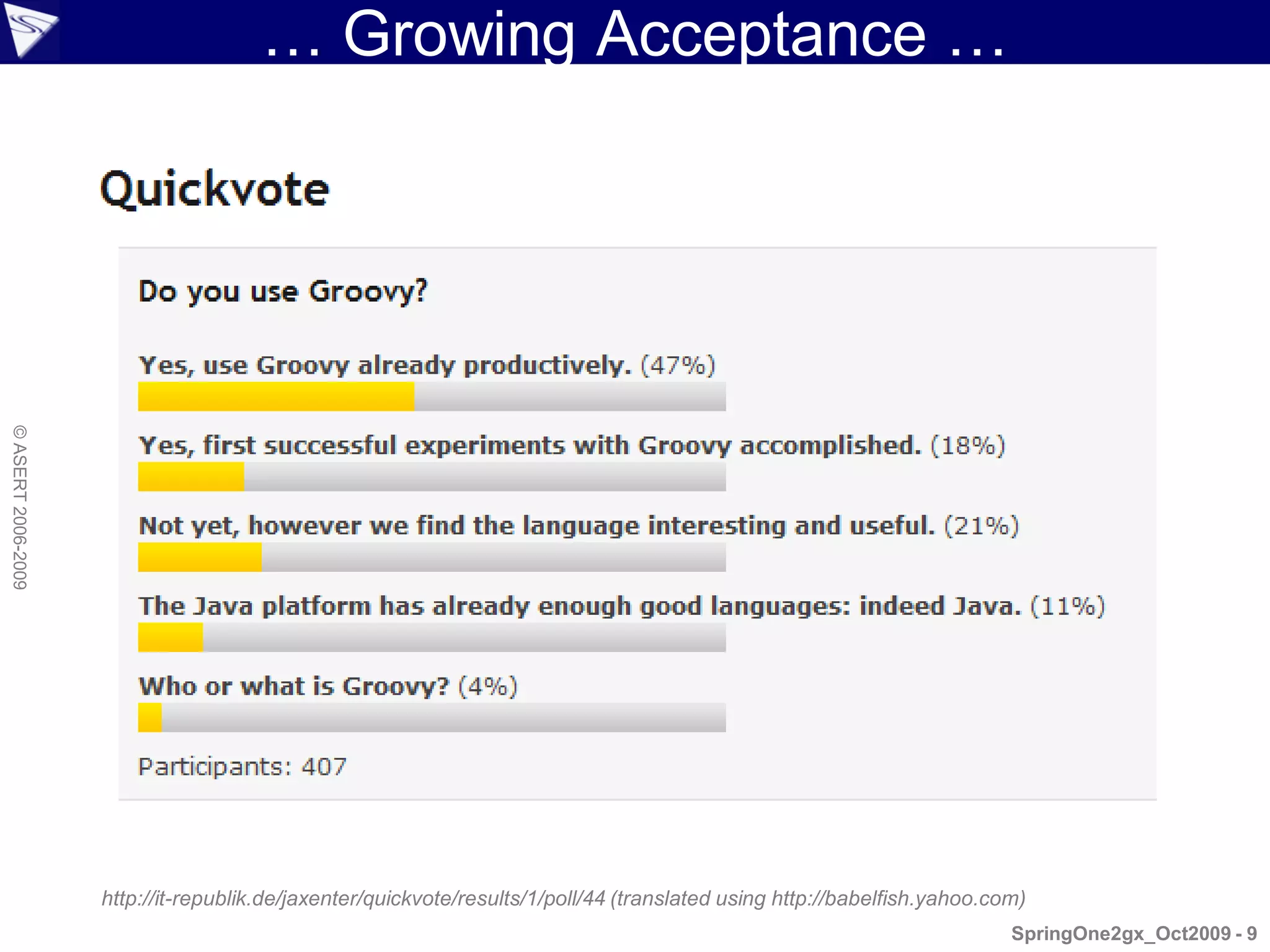

http://it-republik.de/jaxenter/quickvote/results/1/poll/44 (translated using http://babelfish.yahoo.com)

… Growing Acceptance
© ASERT 2006-2009

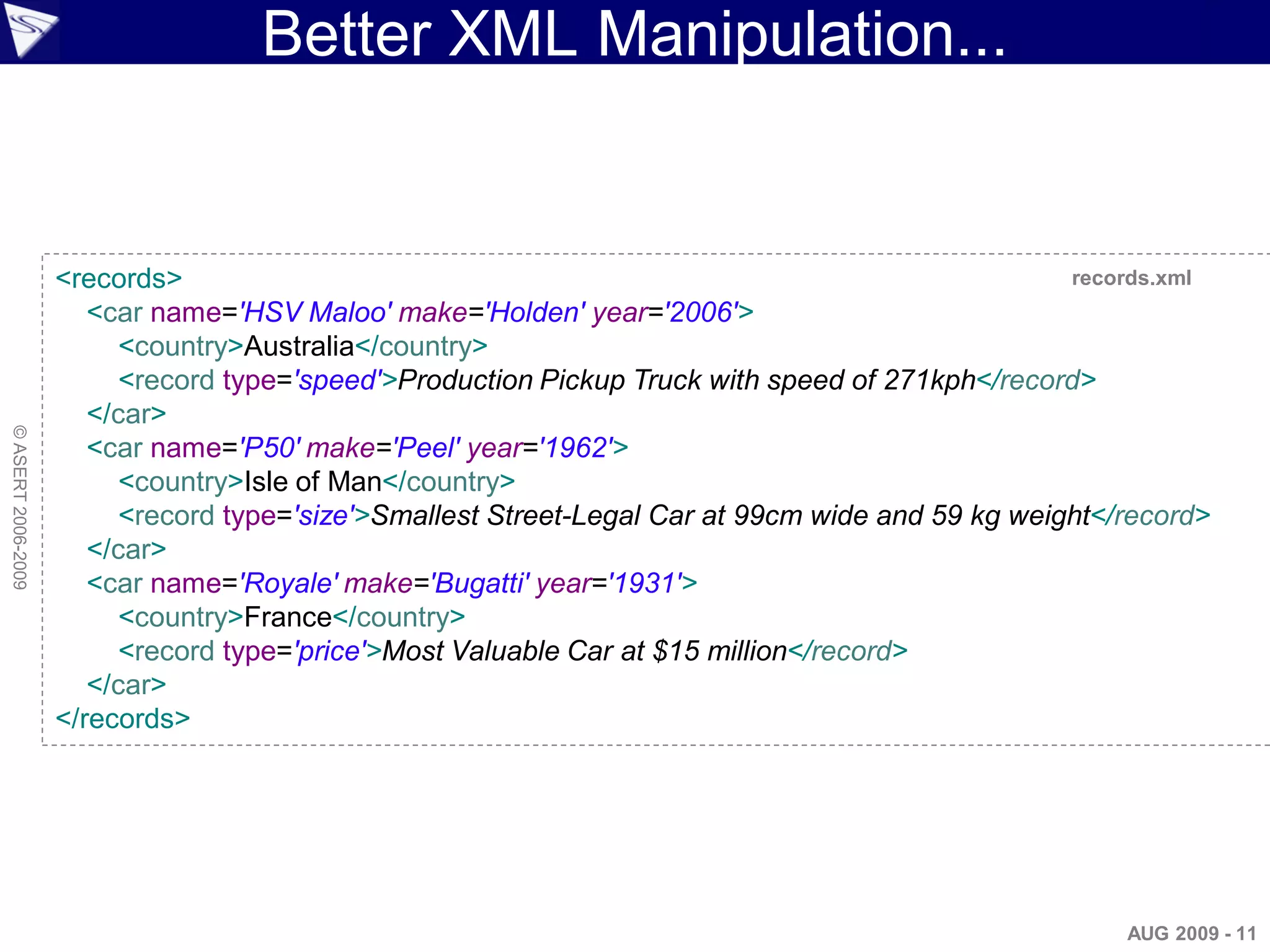

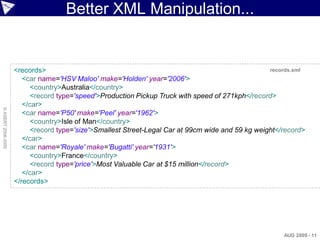

Better XML Manipulation...

<records> records.xml
<car name='HSV Maloo' make='Holden' year='2006'>
<country>Australia</country>
<record type='speed'>Production Pickup Truck with speed of 271kph</record>
</car>
© ASERT 2006-2009

<car name='P50' make='Peel' year='1962'>
<country>Isle of Man</country>
<record type='size'>Smallest Street-Legal Car at 99cm wide and 59 kg weight</record>
</car>
<car name='Royale' make='Bugatti' year='1931'>
<country>France</country>
<record type='price'>Most Valuable Car at $15 million</record>
</car>
</records>

AUG 2009 - 11

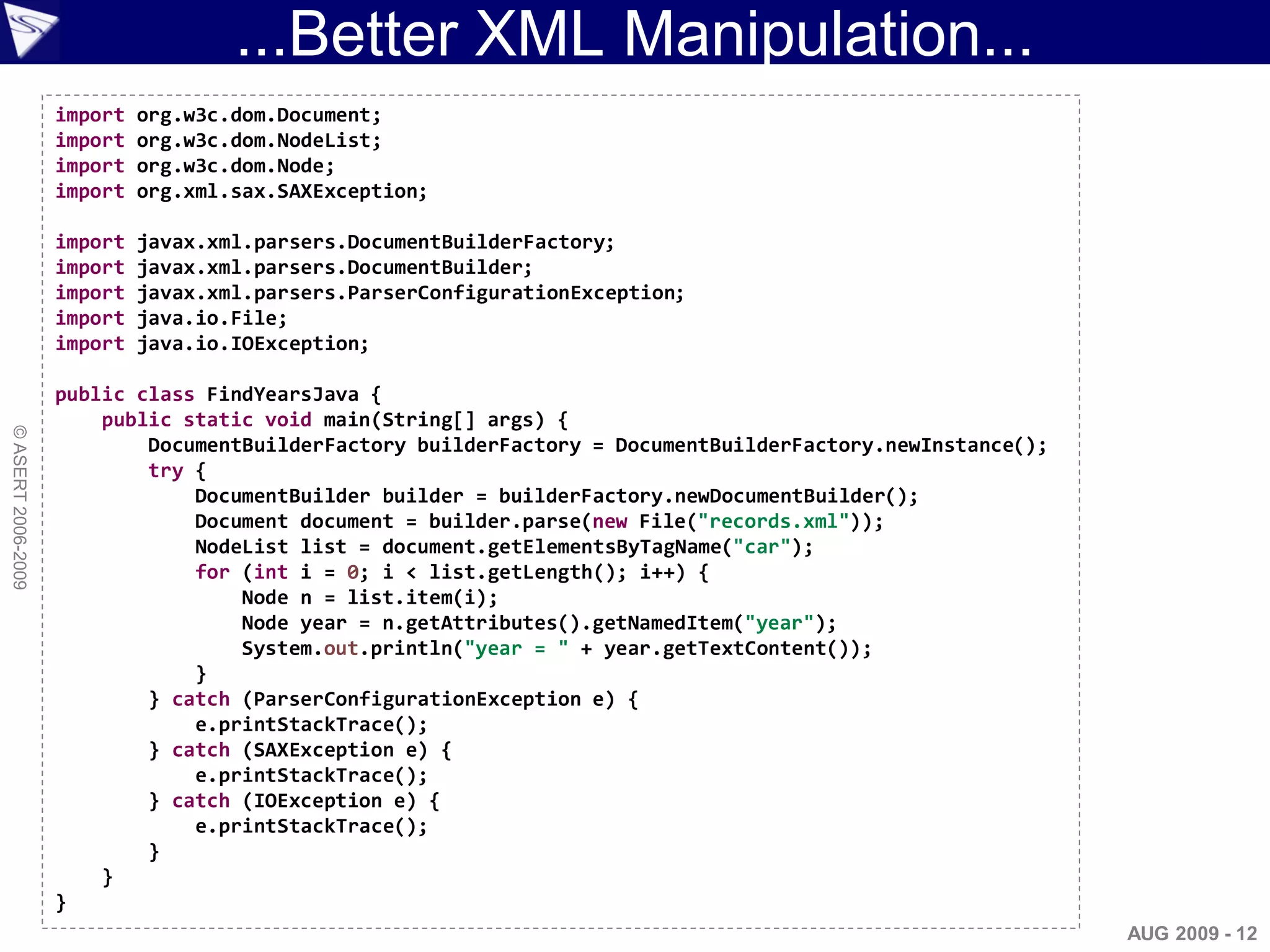

...Better XML Manipulation...
import org.w3c.dom.Document;
import org.w3c.dom.NodeList;
import org.w3c.dom.Node;
import org.xml.sax.SAXException;

import javax.xml.parsers.DocumentBuilderFactory;
import javax.xml.parsers.DocumentBuilder;
import javax.xml.parsers.ParserConfigurationException;
import java.io.File;
import java.io.IOException;

public class FindYearsJava {
public static void main(String[] args) {
© ASERT 2006-2009

DocumentBuilderFactory builderFactory = DocumentBuilderFactory.newInstance();
try {
DocumentBuilder builder = builderFactory.newDocumentBuilder();
Document document = builder.parse(new File("records.xml"));
NodeList list = document.getElementsByTagName("car");
for (int i = 0; i < list.getLength(); i++) {
Node n = list.item(i);
Node year = n.getAttributes().getNamedItem("year");
System.out.println("year = " + year.getTextContent());
}
} catch (ParserConfigurationException e) {
e.printStackTrace();
} catch (SAXException e) {
} catch (IOException e) {
}
}
}
AUG 2009 - 12

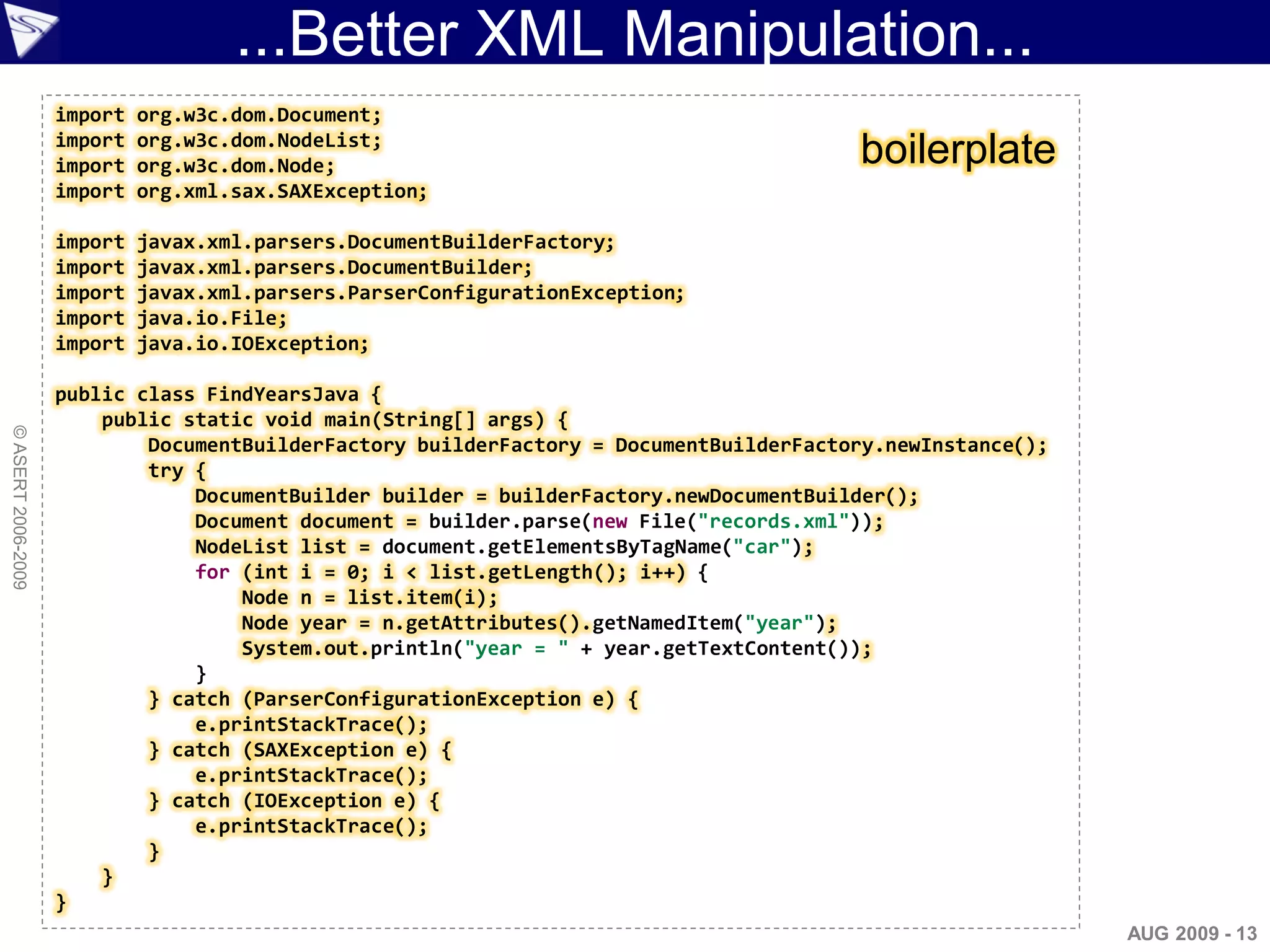

...Better XML Manipulation...
import org.w3c.dom.Document;
import org.w3c.dom.NodeList;
import org.w3c.dom.Node; boilerplate
import org.xml.sax.SAXException;

import javax.xml.parsers.DocumentBuilderFactory;
import javax.xml.parsers.DocumentBuilder;
import javax.xml.parsers.ParserConfigurationException;
import java.io.File;
import java.io.IOException;

public class FindYearsJava {
public static void main(String[] args) {
© ASERT 2006-2009

DocumentBuilderFactory builderFactory = DocumentBuilderFactory.newInstance();
try {
DocumentBuilder builder = builderFactory.newDocumentBuilder();
Document document = builder.parse(new File("records.xml"));
NodeList list = document.getElementsByTagName("car");
for (int i = 0; i < list.getLength(); i++) {
Node n = list.item(i);
Node year = n.getAttributes().getNamedItem("year");
System.out.println("year = " + year.getTextContent());
}
} catch (ParserConfigurationException e) {
} catch (SAXException e) {
} catch (IOException e) {
}
}
}
AUG 2009 - 13

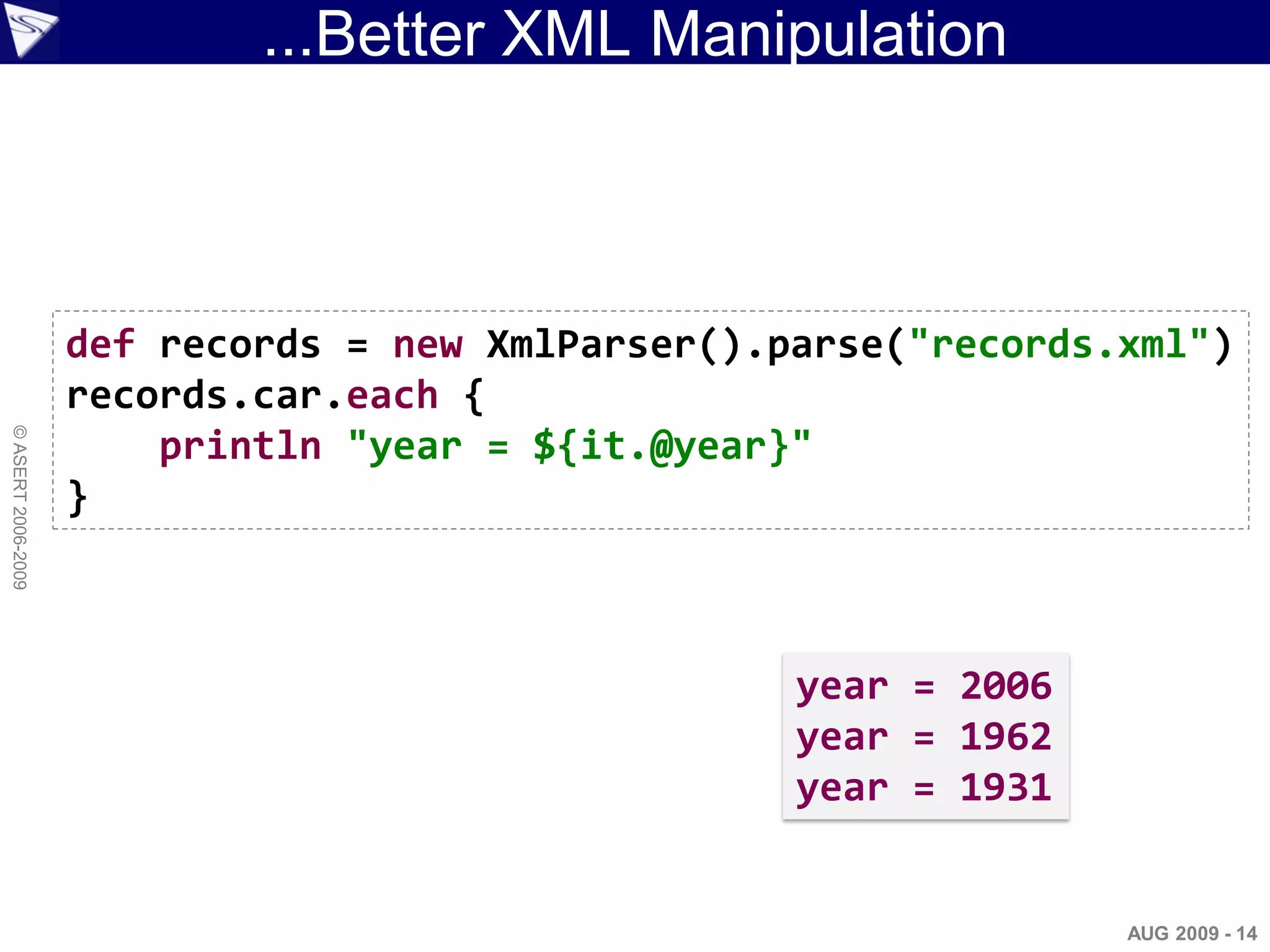

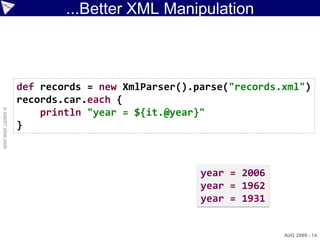

...Better XML Manipulation

def records = new XmlParser().parse("records.xml")
records.car.each {
© ASERT 2006-2009

println "year = ${it.@year}"
}

year = 2006
year = 1962
year = 1931

AUG 2009 - 14

XML

SpringOne 2GX 2009. All rights reserved. Do not distribute without permission.

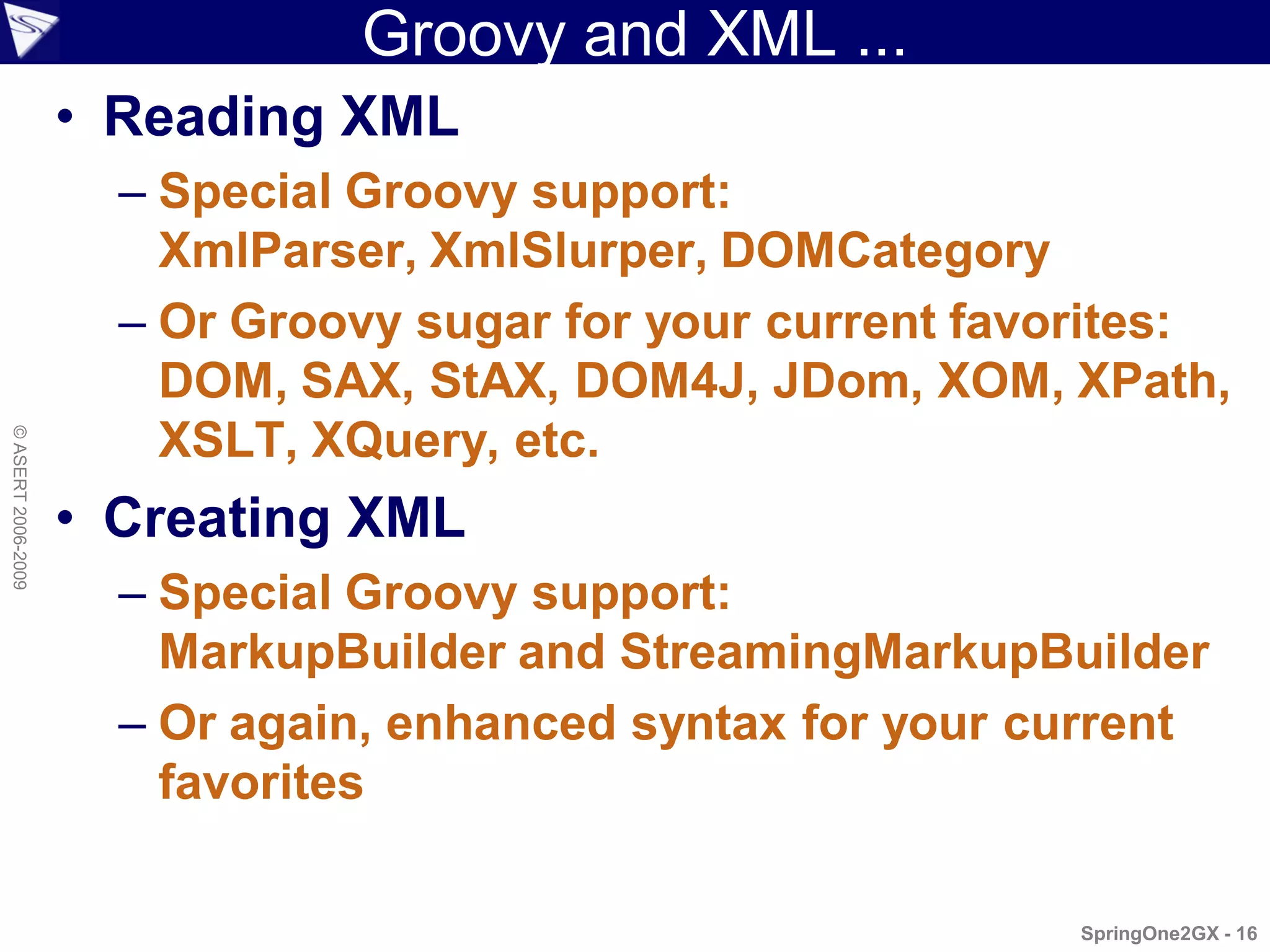

Groovy and XML ...
• Reading XML
– Special Groovy support:
XmlParser, XmlSlurper, DOMCategory
– Or Groovy sugar for your current favorites:

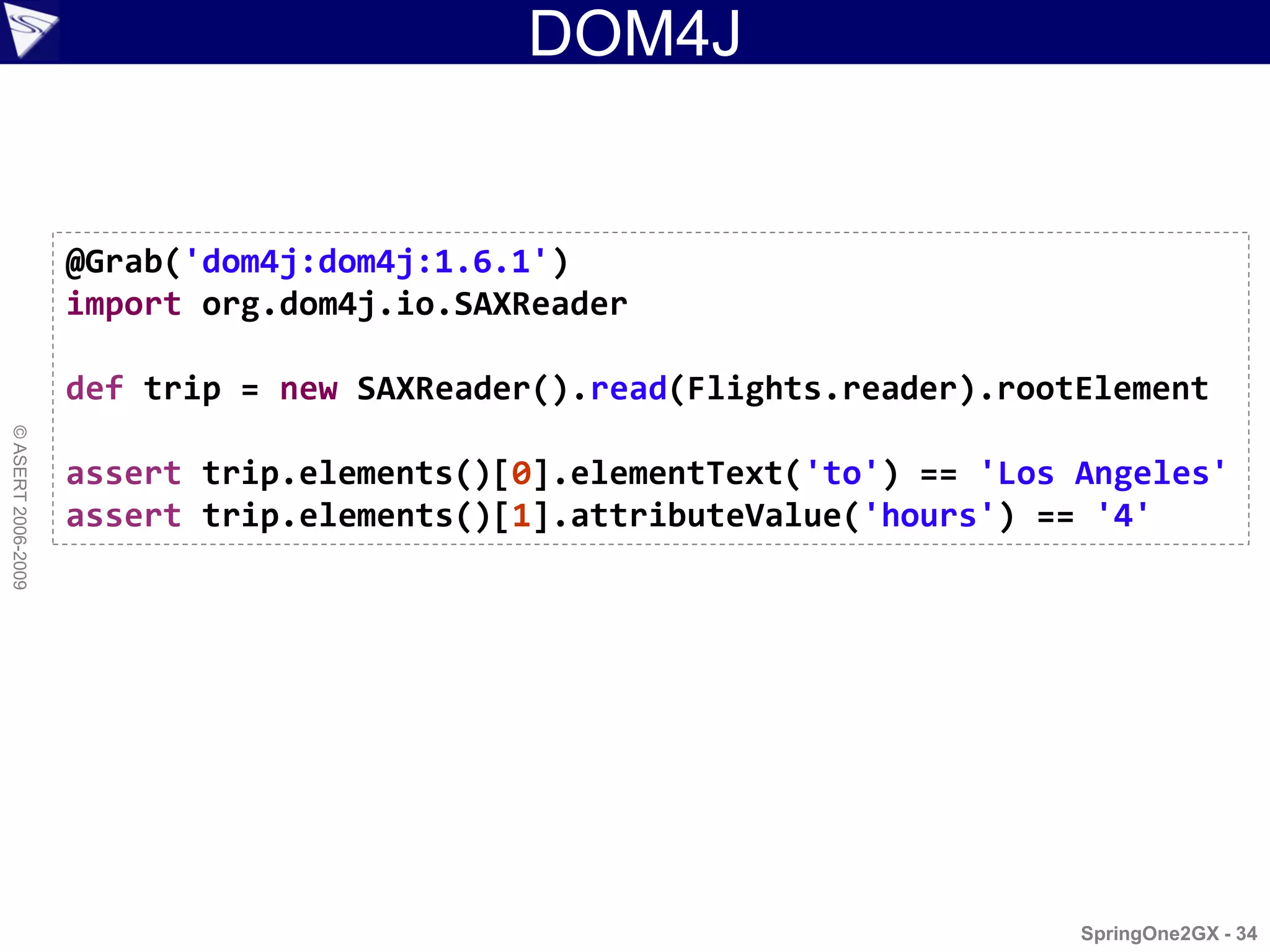

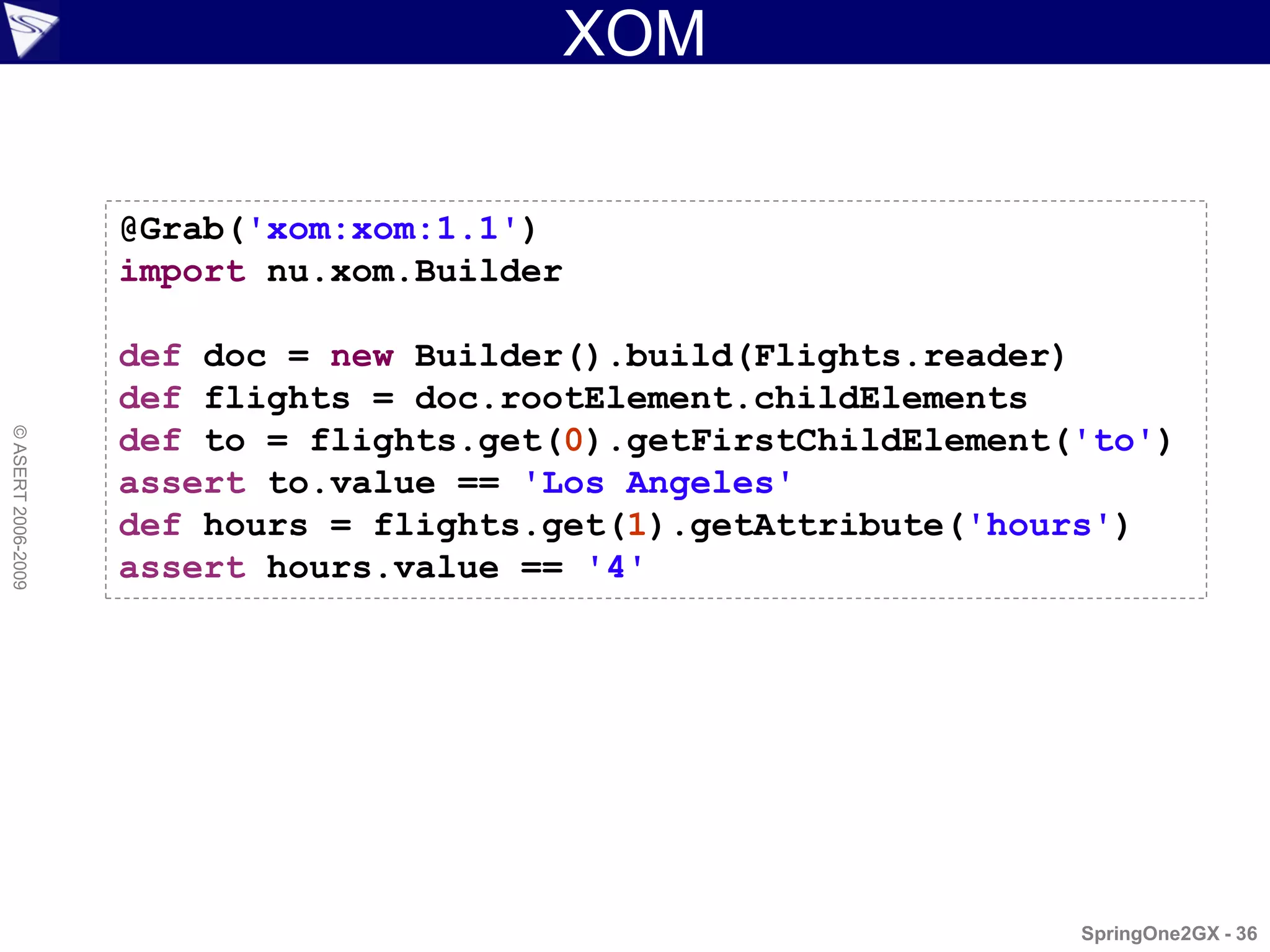

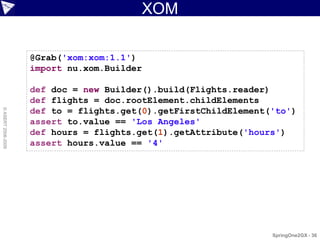

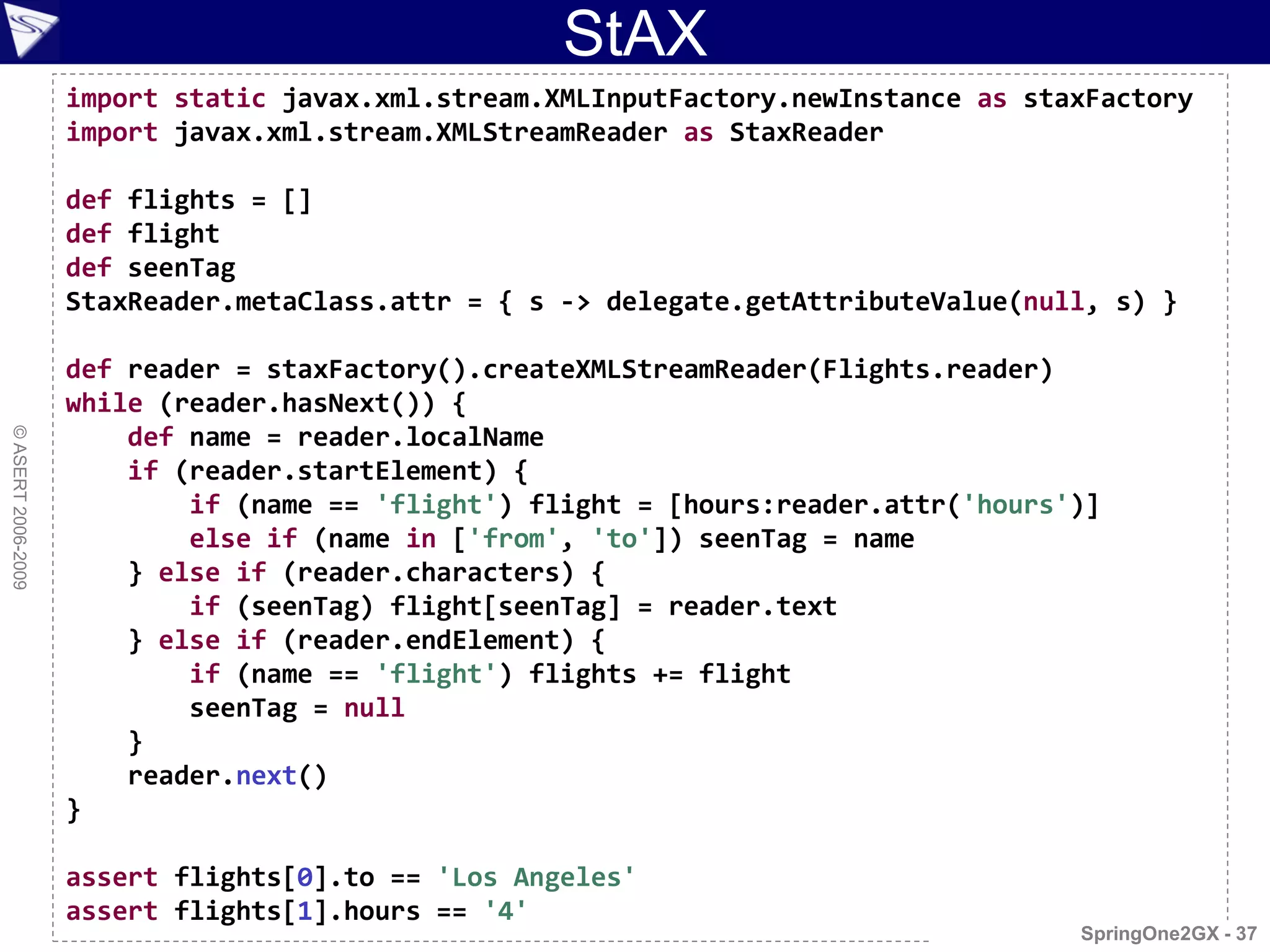

DOM, SAX, StAX, DOM4J, JDom, XOM, XPath,
XSLT, XQuery, etc.
© ASERT 2006-2009

• Creating XML
– Special Groovy support:

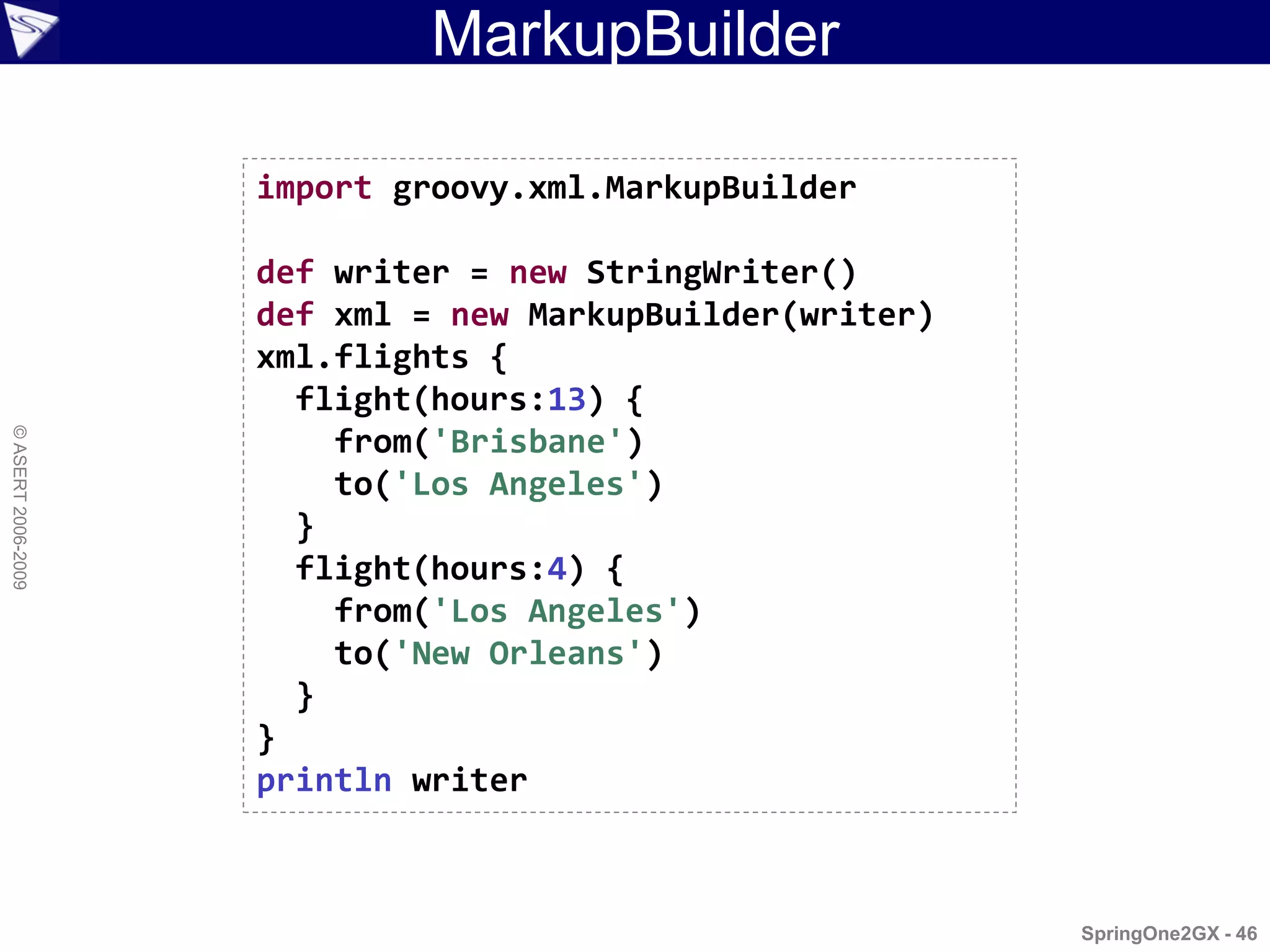

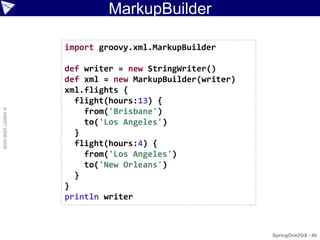

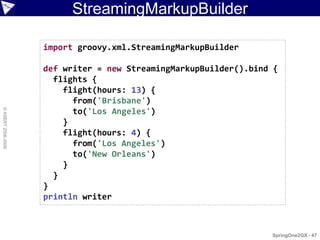

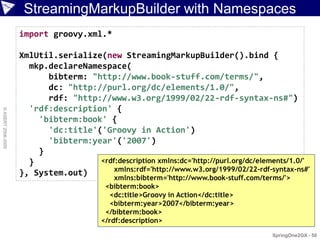

MarkupBuilder and StreamingMarkupBuilder
– Or again, enhanced syntax for your current
favorites

SpringOne2GX - 16

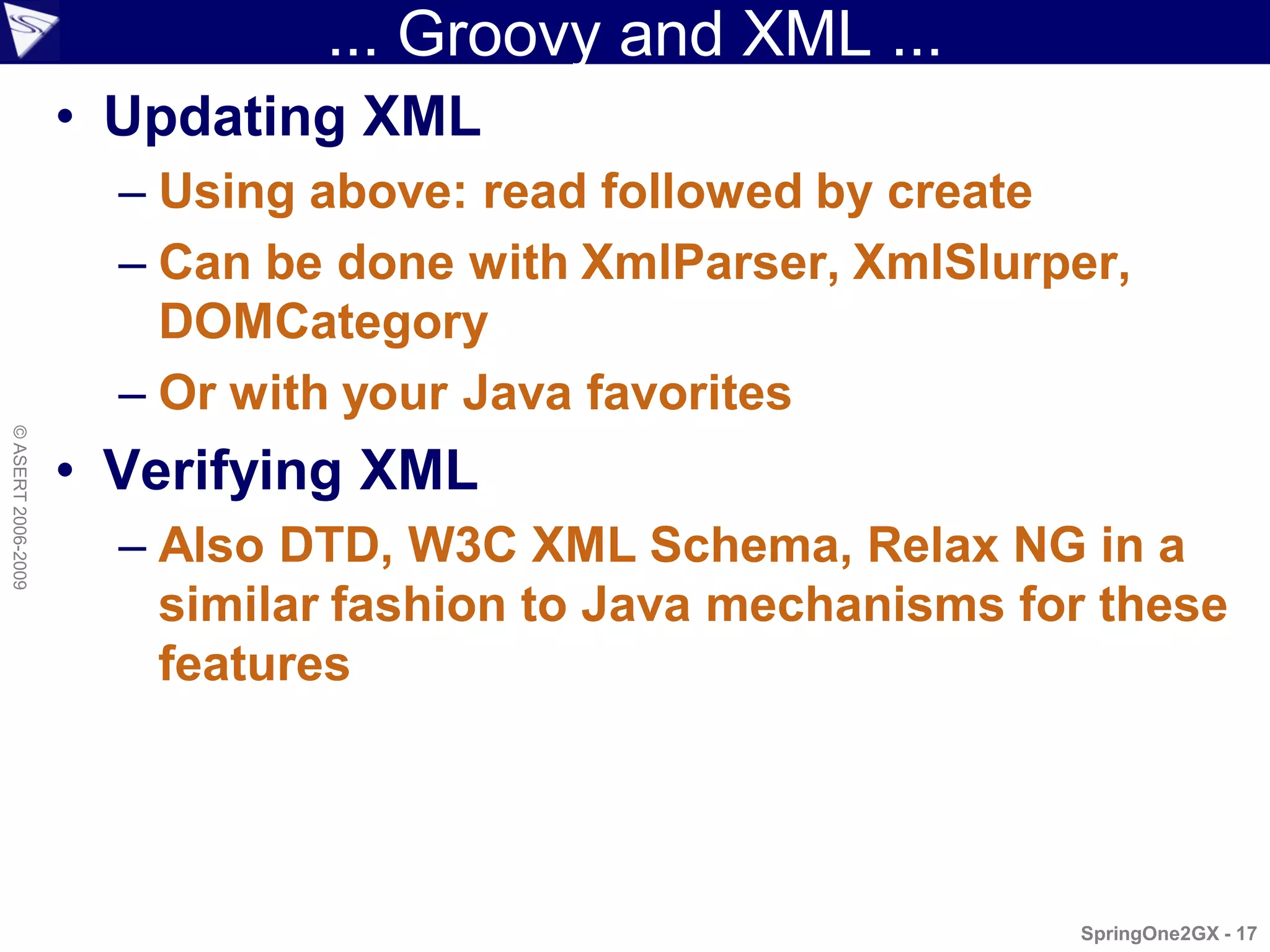

... Groovy and XML ...

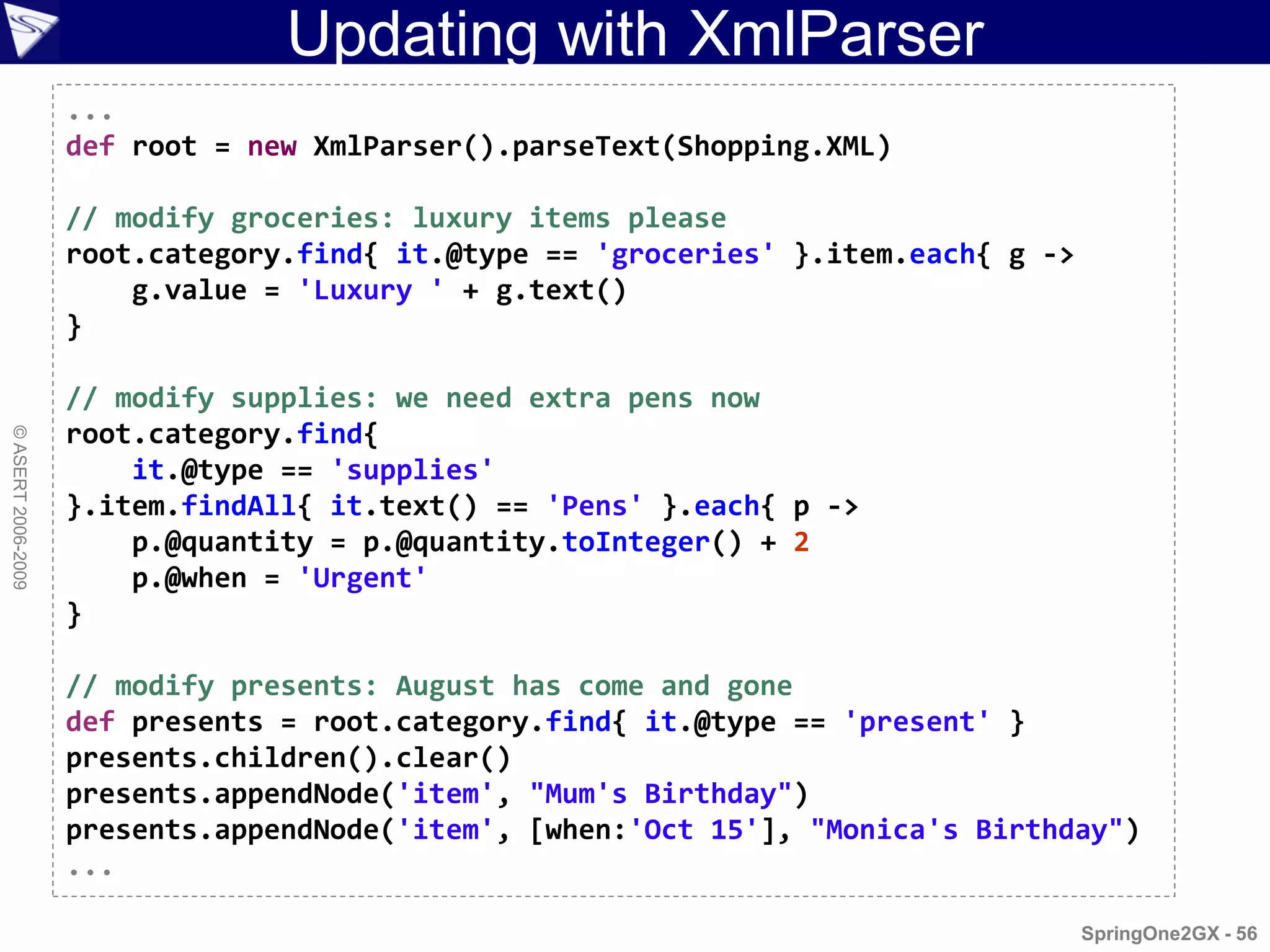

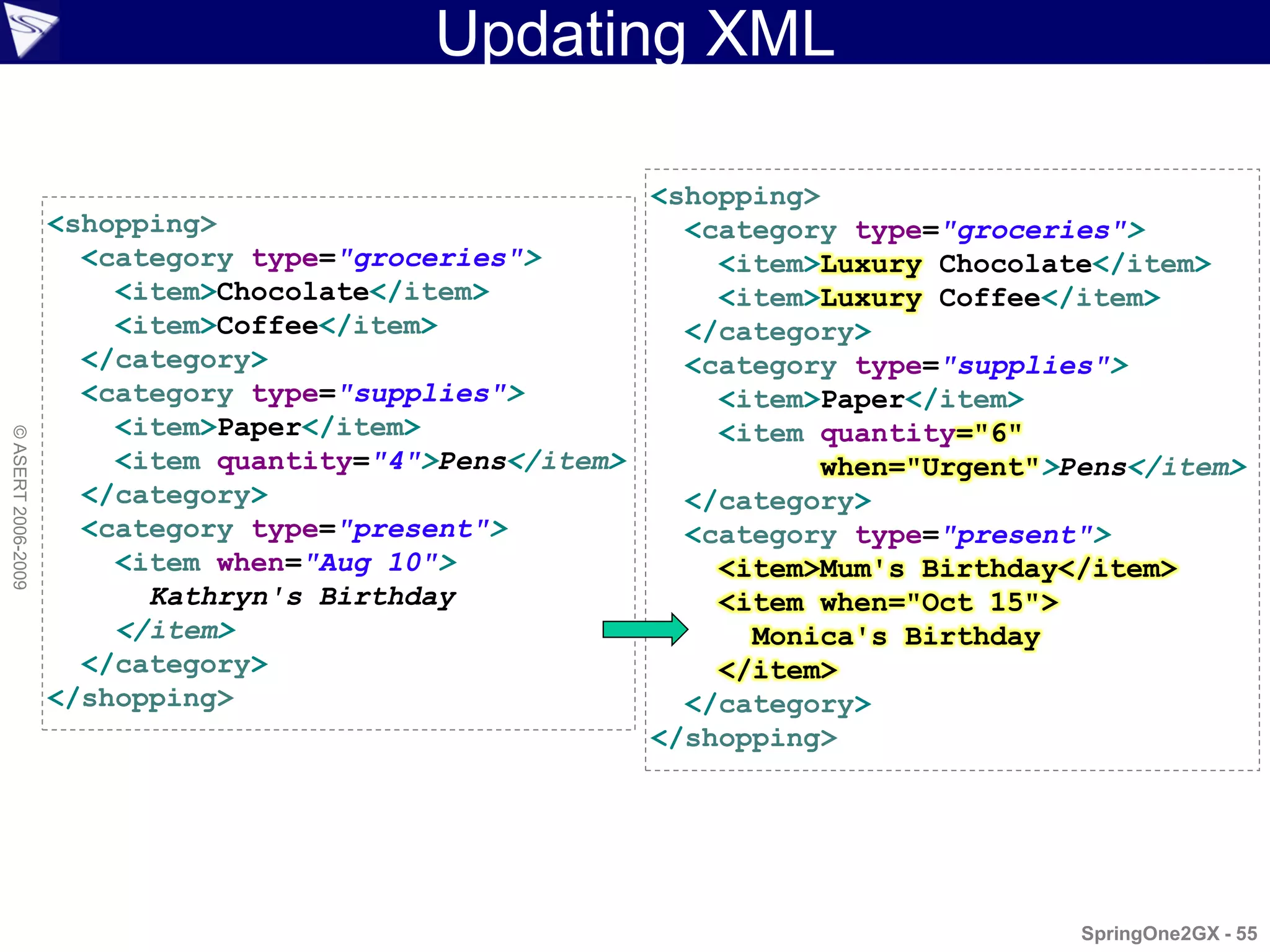

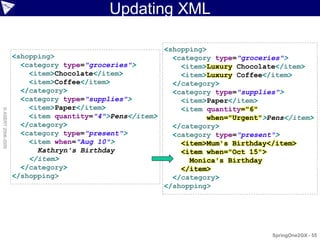

• Updating XML
– Using above: read followed by create
– Can be done with XmlParser, XmlSlurper,
DOMCategory
– Or with your Java favorites
© ASERT 2006-2009

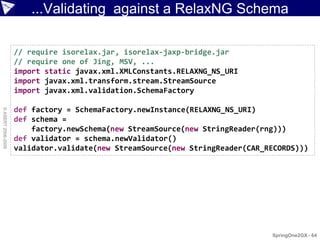

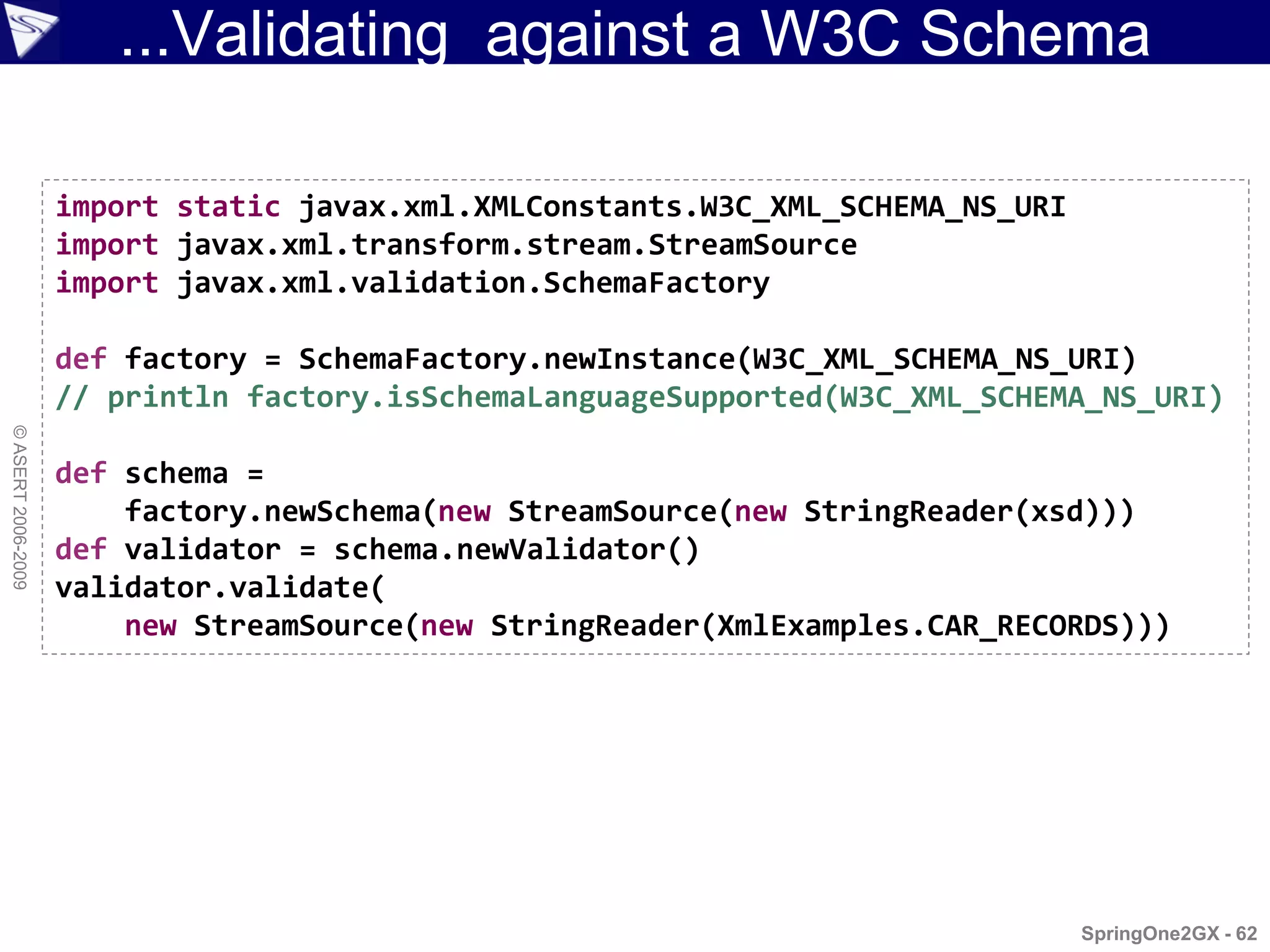

• Verifying XML
– Also DTD, W3C XML Schema, Relax NG in a
similar fashion to Java mechanisms for these
features

SpringOne2GX - 17

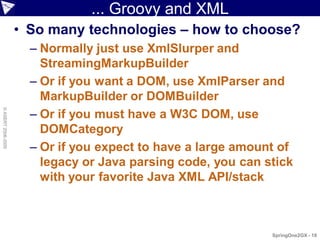

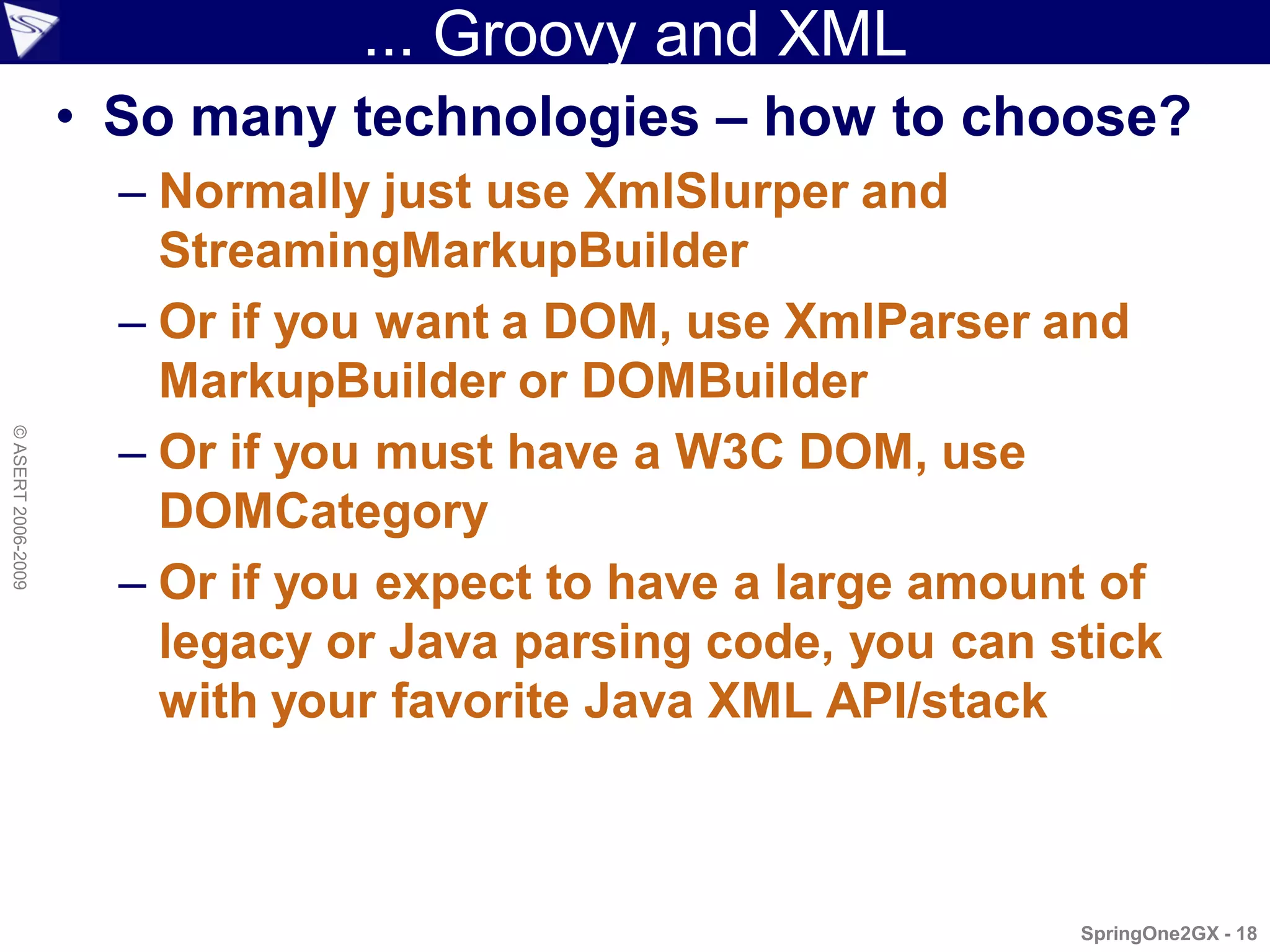

... Groovy and XML
• So many technologies – how to choose?
– Normally just use XmlSlurper and
StreamingMarkupBuilder
– Or if you want a DOM, use XmlParser and
MarkupBuilder or DOMBuilder
– Or if you must have a W3C DOM, use
© ASERT 2006-2009

DOMCategory
– Or if you expect to have a large amount of
legacy or Java parsing code, you can stick
with your favorite Java XML API/stack

SpringOne2GX - 18

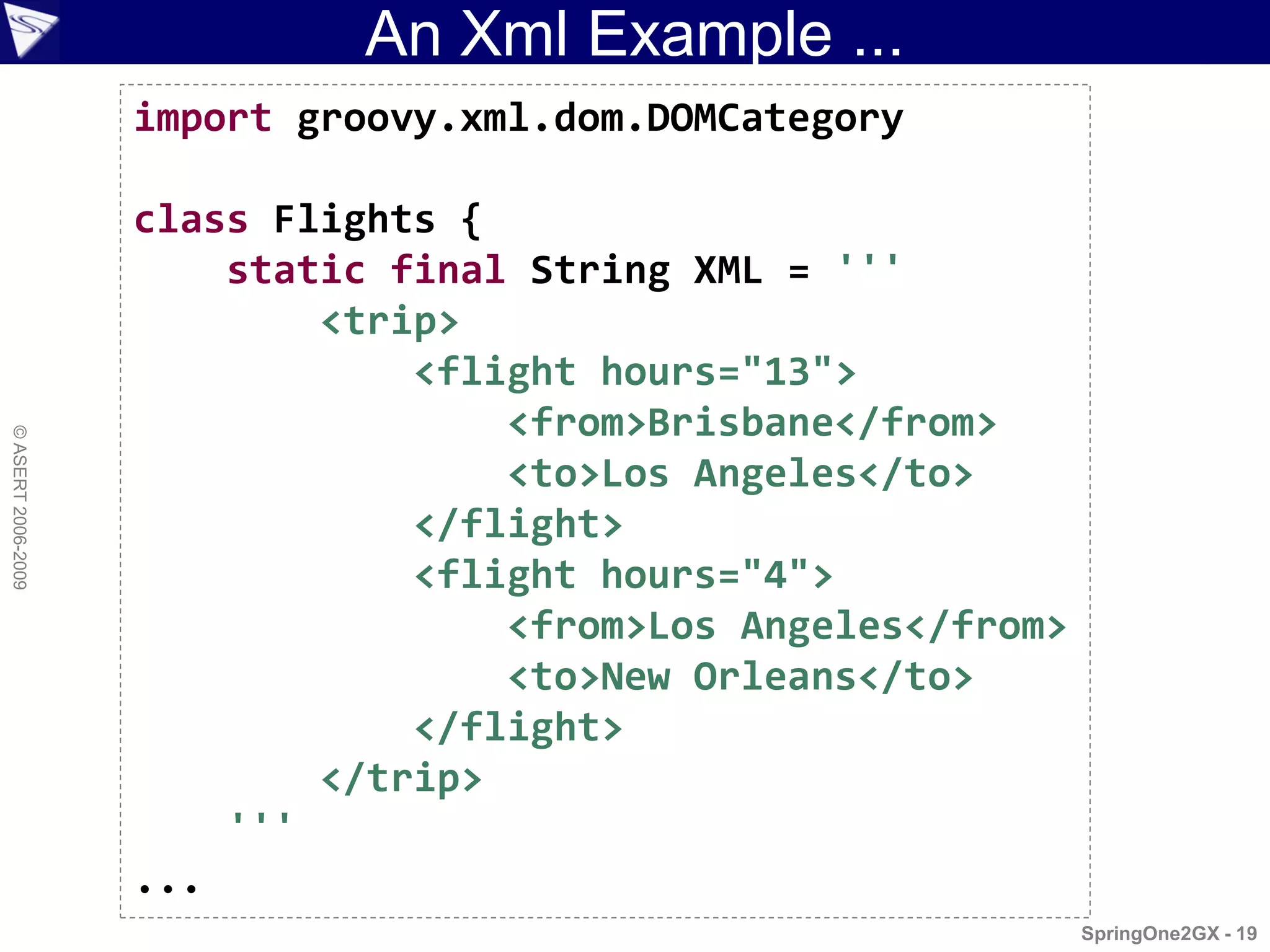

An Xml Example ...
import groovy.xml.dom.DOMCategory

class Flights {
static final String XML = '''
<trip>
<flight hours="13">
<from>Brisbane</from>
© ASERT 2006-2009

<to>Los Angeles</to>
</flight>
<flight hours="4">
<from>Los Angeles</from>
<to>New Orleans</to>
</flight>
</trip>
'''
...
SpringOne2GX - 19

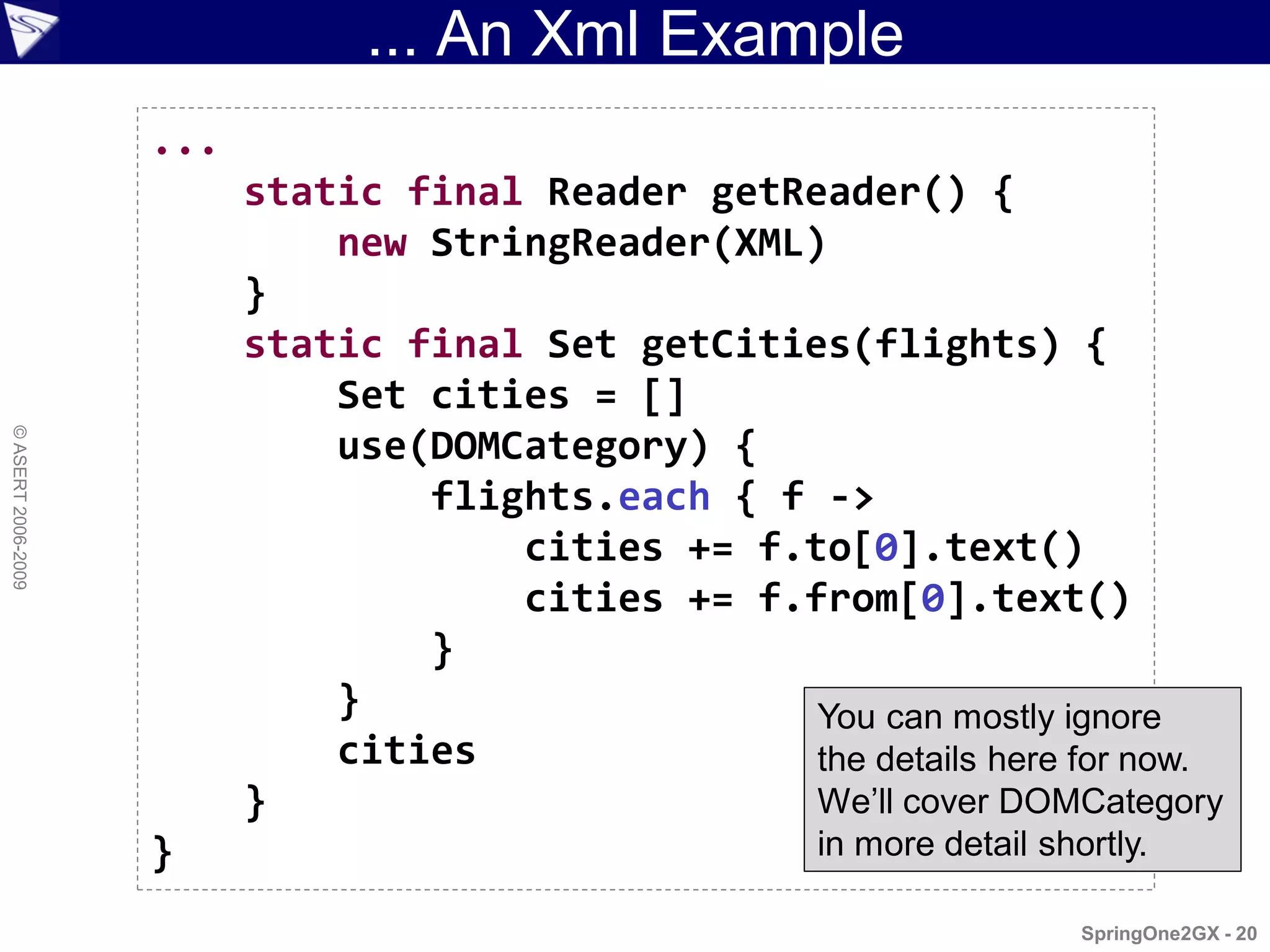

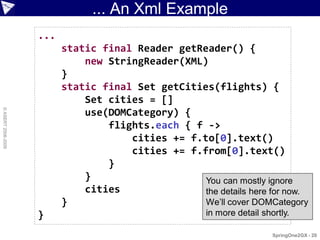

... An Xml Example
...
static final Reader getReader() {
new StringReader(XML)
}
static final Set getCities(flights) {
Set cities = []
© ASERT 2006-2009

use(DOMCategory) {
flights.each { f ->
cities += f.to[0].text()
cities += f.from[0].text()
}
} You can mostly ignore
cities the details here for now.
} We’ll cover DOMCategory
} in more detail shortly.

SpringOne2GX - 20

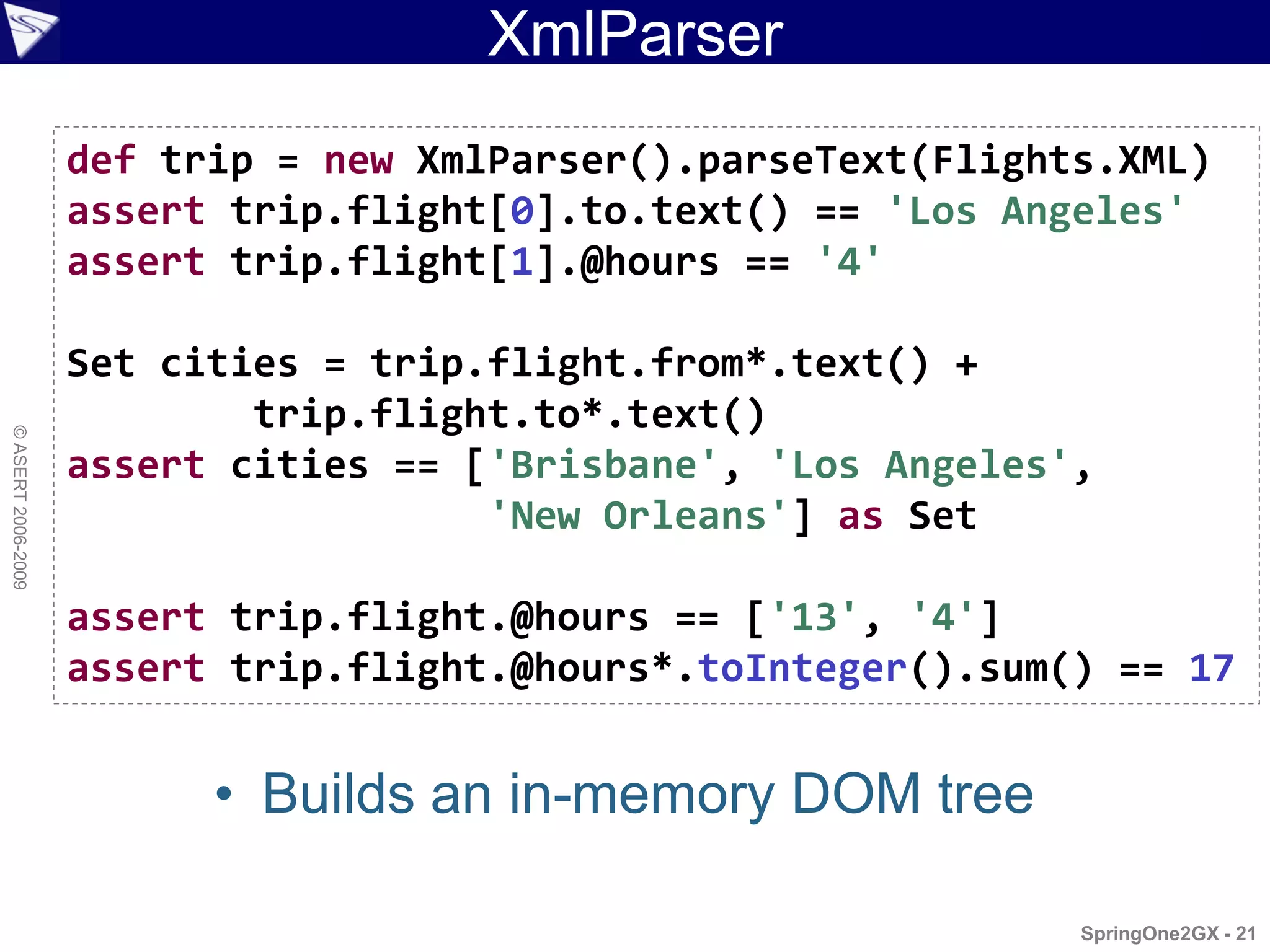

XmlParser
def trip = new XmlParser().parseText(Flights.XML)
assert trip.flight[0].to.text() == 'Los Angeles'
assert trip.flight[1].@hours == '4'

Set cities = trip.flight.from*.text() +
trip.flight.to*.text()
© ASERT 2006-2009

assert cities == ['Brisbane', 'Los Angeles',
'New Orleans'] as Set

assert trip.flight.@hours == ['13', '4']
assert trip.flight.@hours*.toInteger().sum() == 17

• Builds an in-memory DOM tree

SpringOne2GX - 21

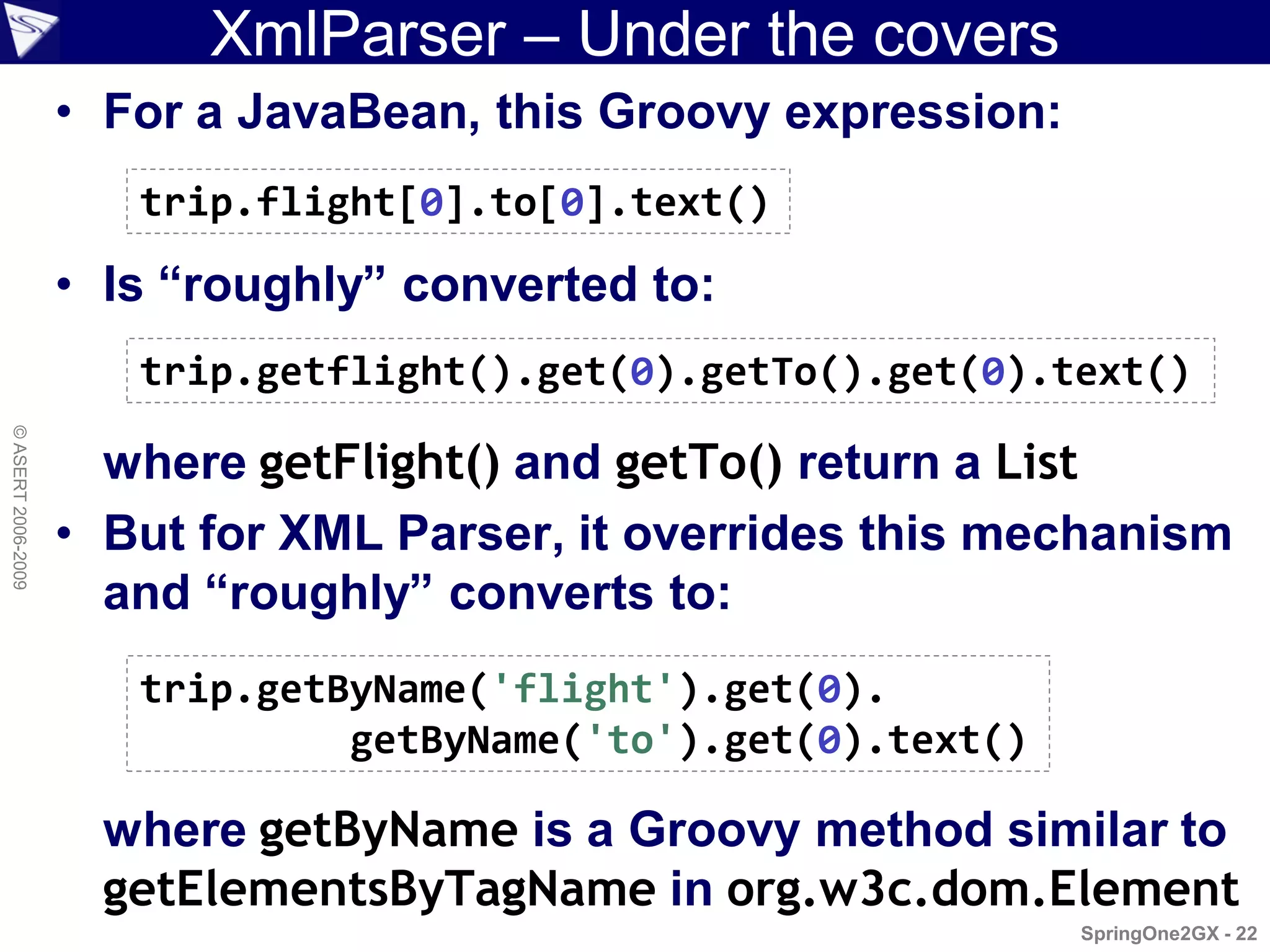

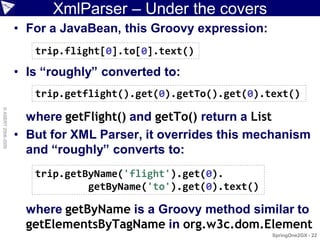

XmlParser – Under the covers
• For a JavaBean, this Groovy expression:
trip.flight[0].to[0].text()

• Is “roughly” converted to:
trip.getflight().get(0).getTo().get(0).text()
© ASERT 2006-2009

where getFlight() and getTo() return a List
• But for XML Parser, it overrides this mechanism
and “roughly” converts to:
trip.getByName('flight').get(0).
getByName('to').get(0).text()

where getByName is a Groovy method similar to
getElementsByTagName in org.w3c.dom.Element
SpringOne2GX - 22

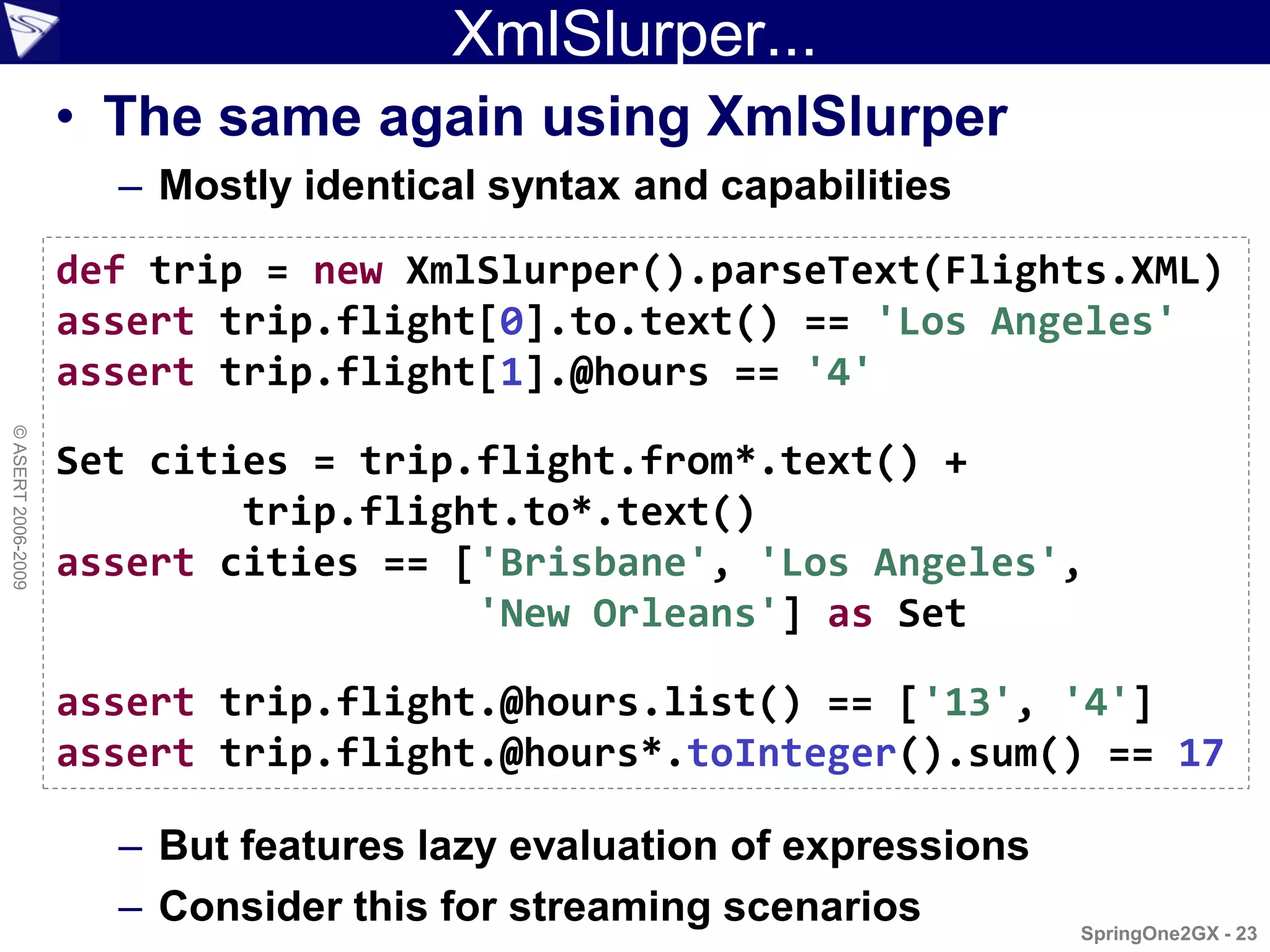

XmlSlurper...
• The same again using XmlSlurper
– Mostly identical syntax and capabilities
def trip = new XmlSlurper().parseText(Flights.XML)
assert trip.flight[0].to.text() == 'Los Angeles'
assert trip.flight[1].@hours == '4'
© ASERT 2006-2009

Set cities = trip.flight.from*.text() +
trip.flight.to*.text()
assert cities == ['Brisbane', 'Los Angeles',

assert trip.flight.@hours.list() == ['13', '4']
assert trip.flight.@hours*.toInteger().sum() == 17

– But features lazy evaluation of expressions
– Consider this for streaming scenarios SpringOne2GX - 23

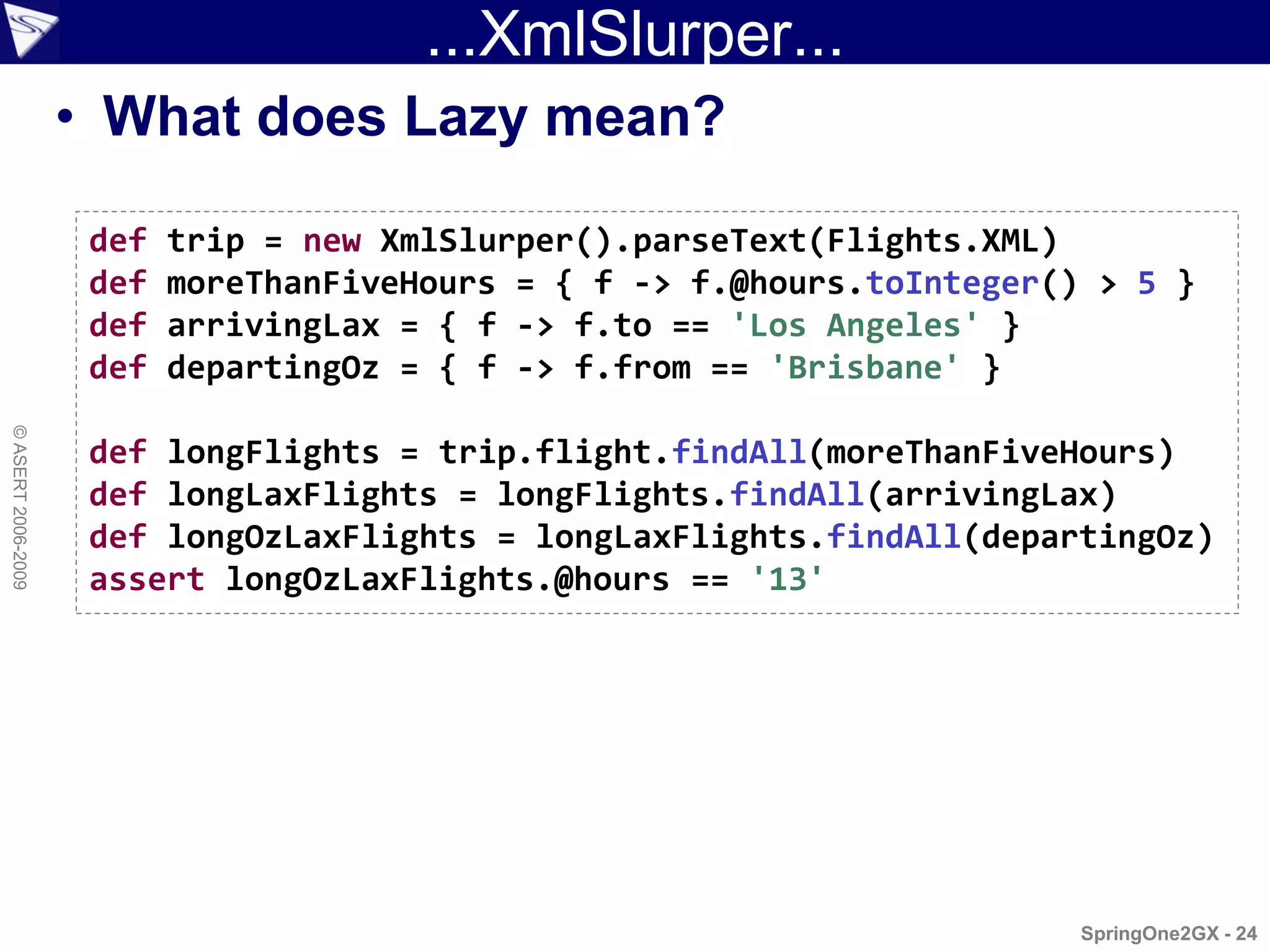

...XmlSlurper...
• What does Lazy mean?

def moreThanFiveHours = { f -> f.@hours.toInteger() > 5 }
def arrivingLax = { f -> f.to == 'Los Angeles' }
def departingOz = { f -> f.from == 'Brisbane' }
© ASERT 2006-2009

def longFlights = trip.flight.findAll(moreThanFiveHours)
def longLaxFlights = longFlights.findAll(arrivingLax)
def longOzLaxFlights = longLaxFlights.findAll(departingOz)
assert longOzLaxFlights.@hours == '13'

SpringOne2GX - 24

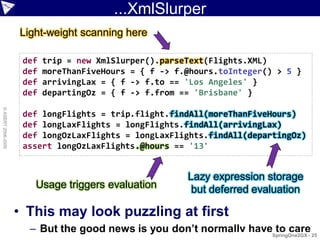

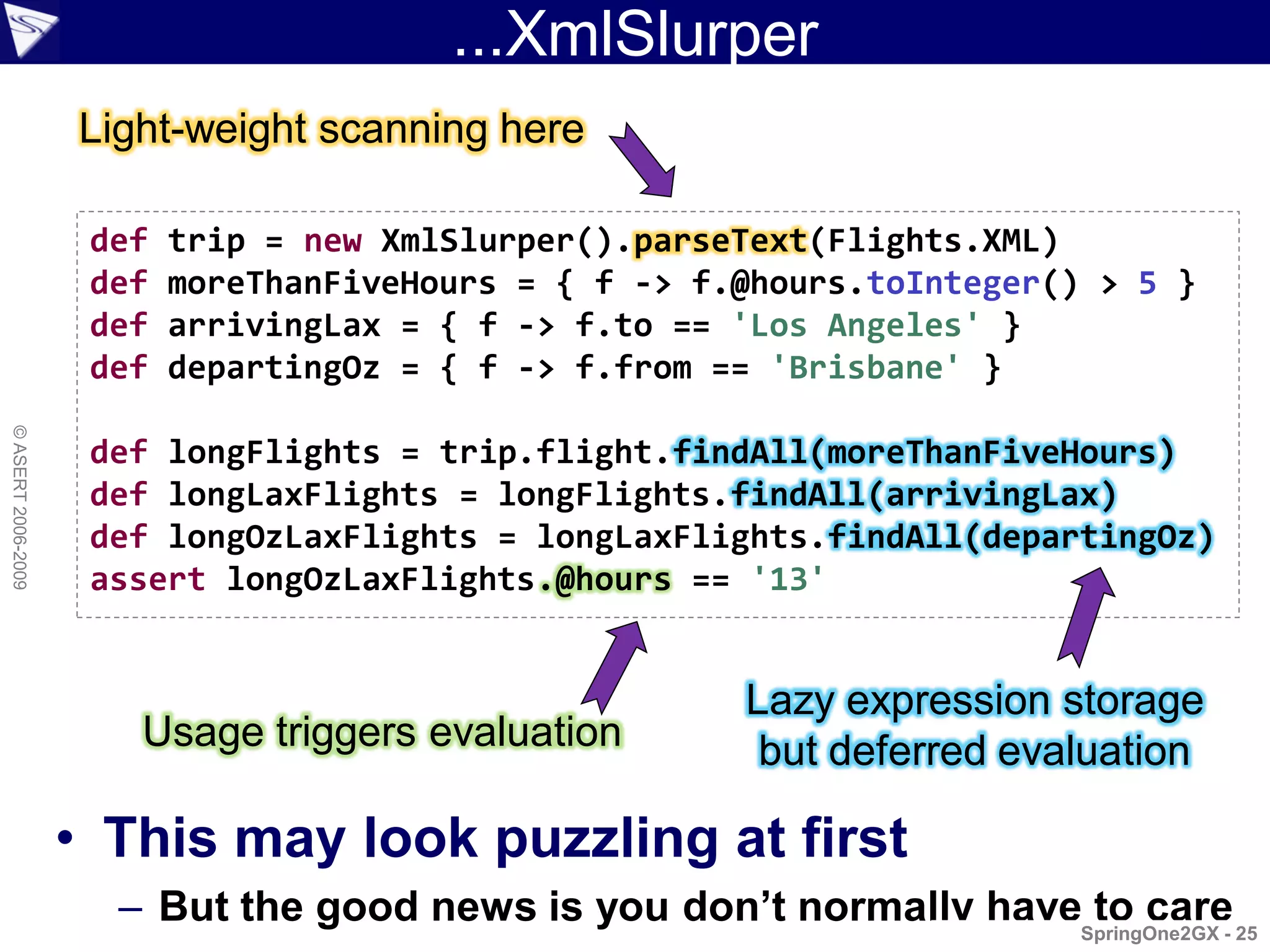

...XmlSlurper
Light-weight scanning here

def moreThanFiveHours = { f -> f.@hours.toInteger() > 5 }
def arrivingLax = { f -> f.to == 'Los Angeles' }
def departingOz = { f -> f.from == 'Brisbane' }
© ASERT 2006-2009

def longFlights = trip.flight.findAll(moreThanFiveHours)
def longLaxFlights = longFlights.findAll(arrivingLax)
def longOzLaxFlights = longLaxFlights.findAll(departingOz)
assert longOzLaxFlights.@hours == '13'

Lazy expression storage
Usage triggers evaluation but deferred evaluation

• This may look puzzling at first
– But the good news is you don’t normally haveSpringOne2GX - 25
to care

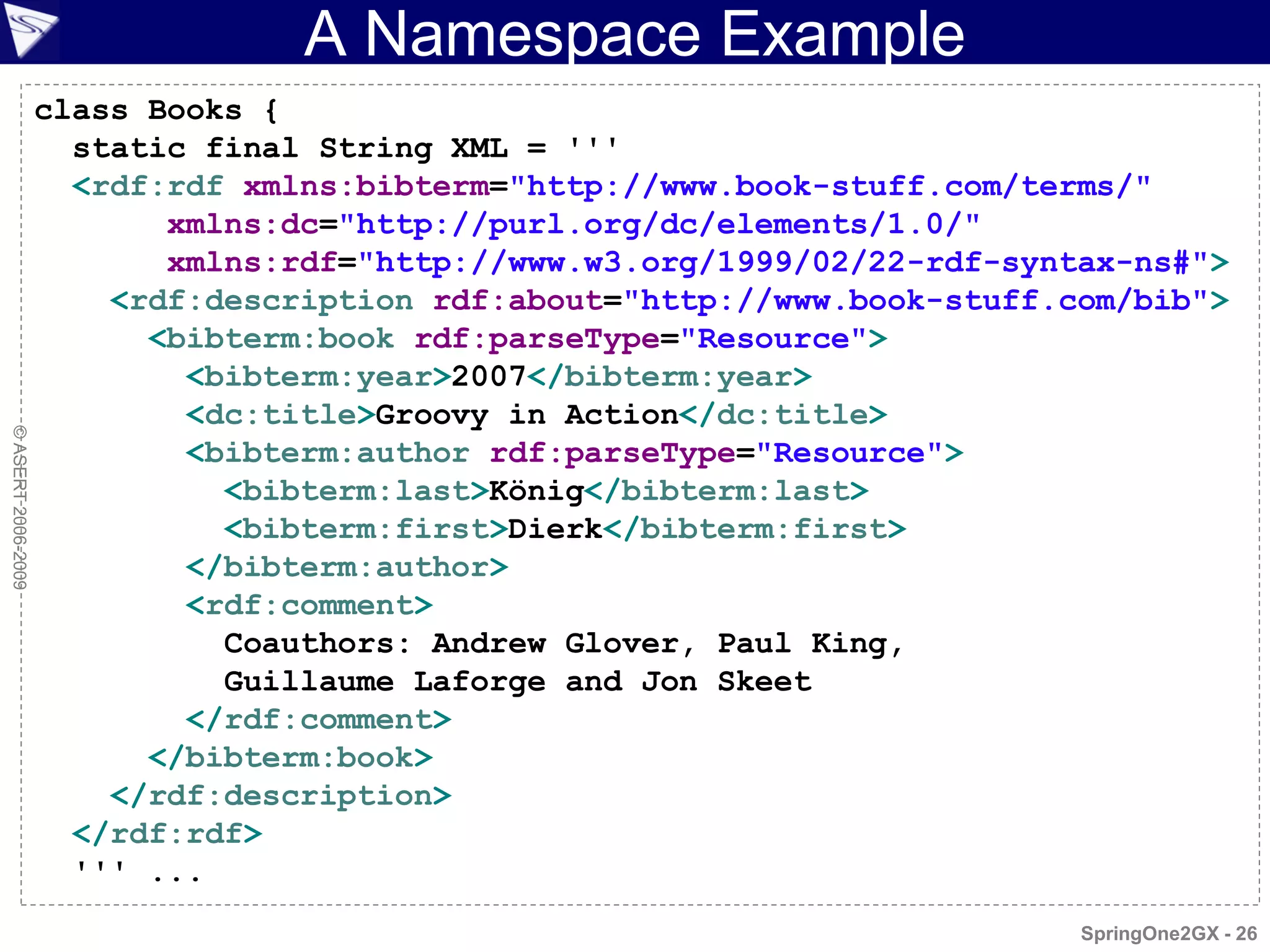

A Namespace Example
class Books {
static final String XML = '''
<rdf:rdf xmlns:bibterm="http://www.book-stuff.com/terms/"
xmlns:dc="http://purl.org/dc/elements/1.0/"
xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#">
<rdf:description rdf:about="http://www.book-stuff.com/bib">
<bibterm:book rdf:parseType="Resource">
<bibterm:year>2007</bibterm:year>
<dc:title>Groovy in Action</dc:title>
© ASERT 2006-2009

<bibterm:author rdf:parseType="Resource">
<bibterm:last>König</bibterm:last>
<bibterm:first>Dierk</bibterm:first>
</bibterm:author>
<rdf:comment>
Coauthors: Andrew Glover, Paul King,
Guillaume Laforge and Jon Skeet
</rdf:comment>
</bibterm:book>
</rdf:description>
</rdf:rdf>
''' ...
SpringOne2GX - 26

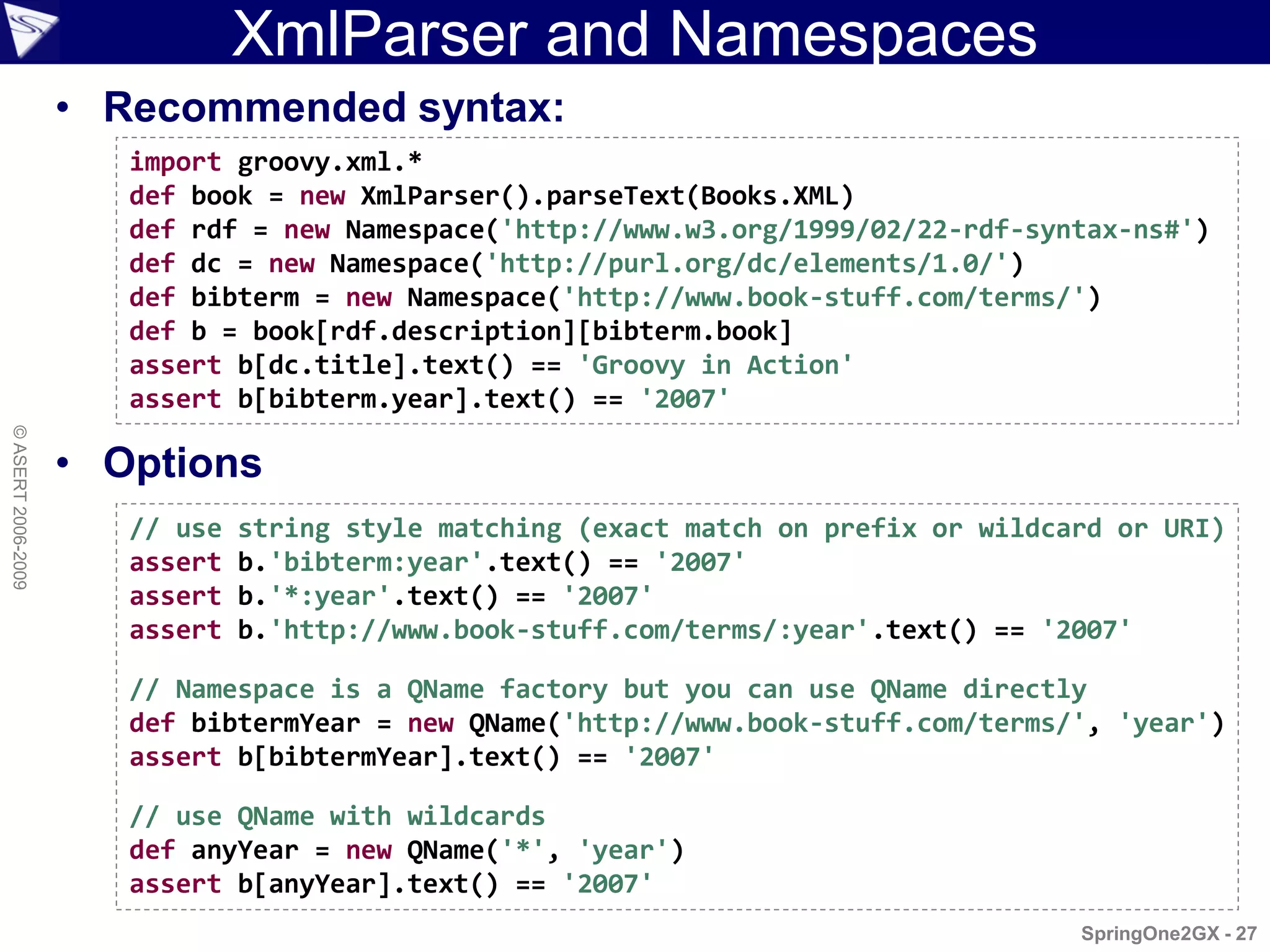

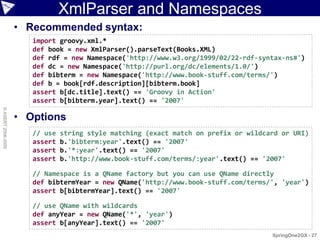

XmlParser and Namespaces
• Recommended syntax:
import groovy.xml.*
def book = new XmlParser().parseText(Books.XML)
def rdf = new Namespace('http://www.w3.org/1999/02/22-rdf-syntax-ns#')
def dc = new Namespace('http://purl.org/dc/elements/1.0/')
def bibterm = new Namespace('http://www.book-stuff.com/terms/')
def b = book[rdf.description][bibterm.book]
assert b[dc.title].text() == 'Groovy in Action'
assert b[bibterm.year].text() == '2007'
© ASERT 2006-2009

• Options
// use string style matching (exact match on prefix or wildcard or URI)
assert b.'bibterm:year'.text() == '2007'
assert b.'*:year'.text() == '2007'
assert b.'http://www.book-stuff.com/terms/:year'.text() == '2007'

// Namespace is a QName factory but you can use QName directly
def bibtermYear = new QName('http://www.book-stuff.com/terms/', 'year')
assert b[bibtermYear].text() == '2007'

// use QName with wildcards
def anyYear = new QName('*', 'year')
assert b[anyYear].text() == '2007'
SpringOne2GX - 27

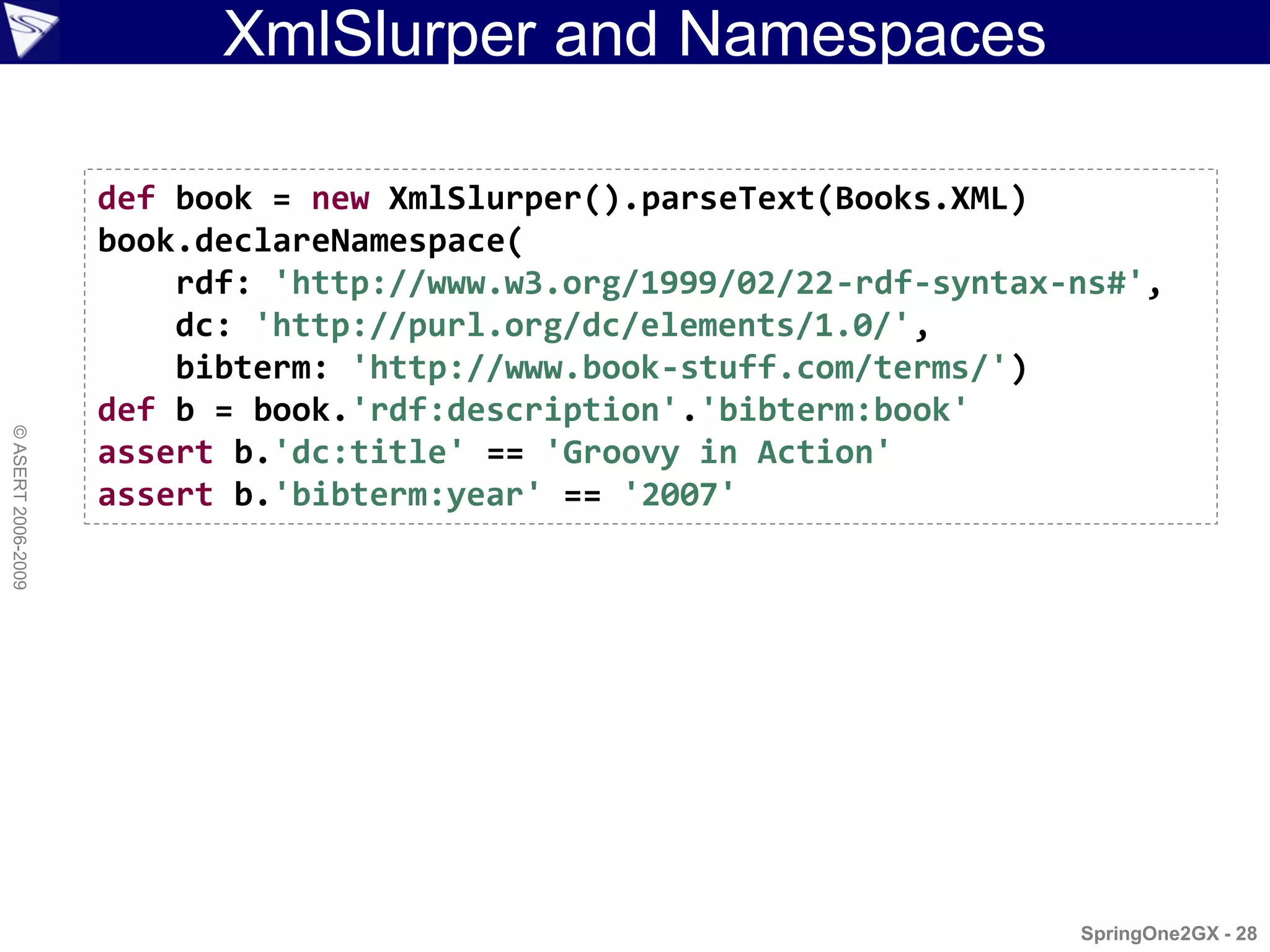

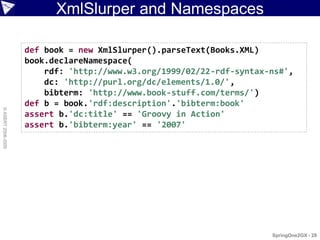

XmlSlurper and Namespaces

def book = new XmlSlurper().parseText(Books.XML)
book.declareNamespace(
rdf: 'http://www.w3.org/1999/02/22-rdf-syntax-ns#',
dc: 'http://purl.org/dc/elements/1.0/',
bibterm: 'http://www.book-stuff.com/terms/')
def b = book.'rdf:description'.'bibterm:book'
© ASERT 2006-2009

assert b.'dc:title' == 'Groovy in Action'
assert b.'bibterm:year' == '2007'

SpringOne2GX - 28

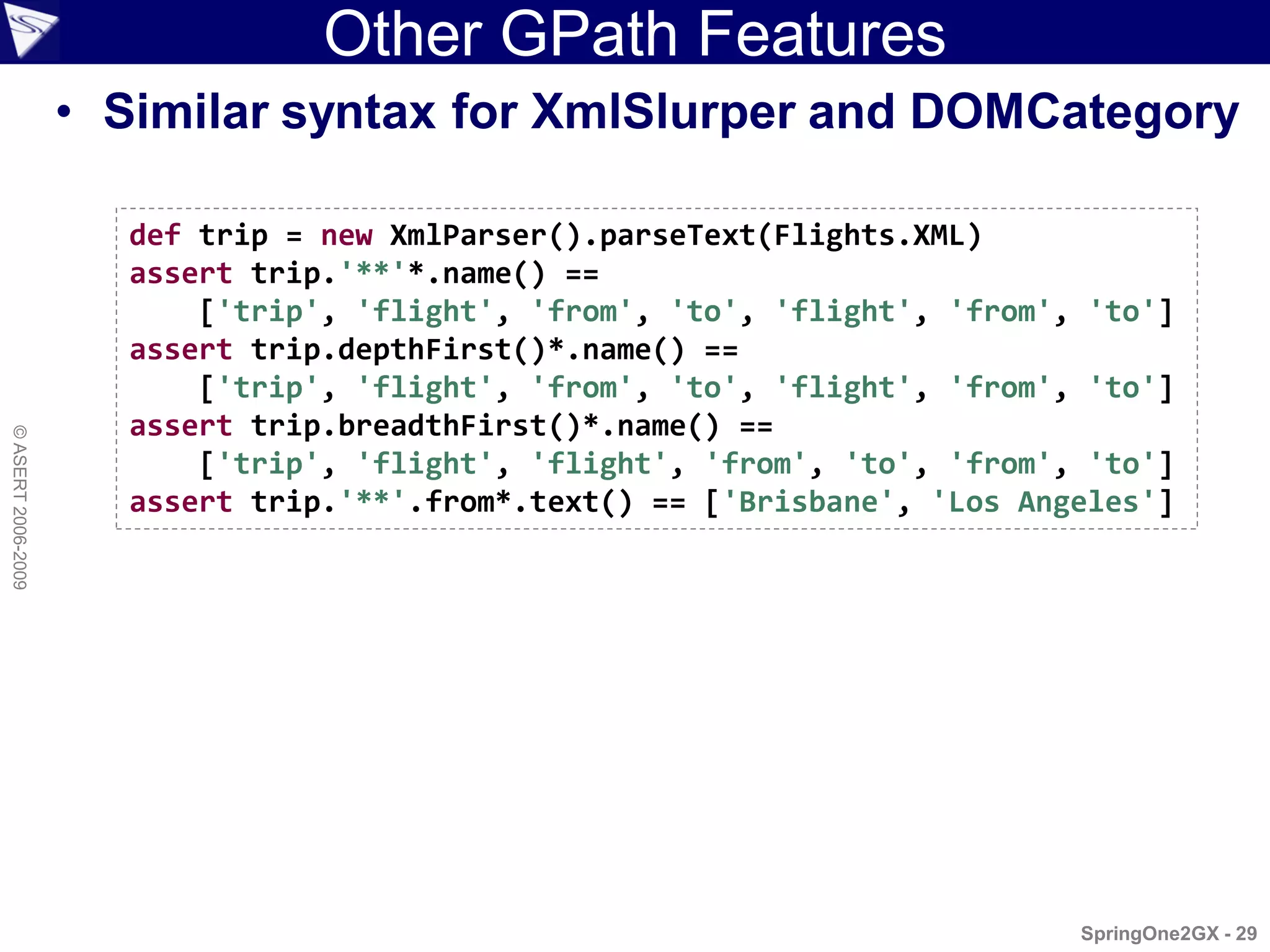

Other GPath Features
• Similar syntax for XmlSlurper and DOMCategory

def trip = new XmlParser().parseText(Flights.XML)
assert trip.'**'*.name() ==
['trip', 'flight', 'from', 'to', 'flight', 'from', 'to']
assert trip.depthFirst()*.name() ==
['trip', 'flight', 'from', 'to', 'flight', 'from', 'to']
assert trip.breadthFirst()*.name() ==
© ASERT 2006-2009

['trip', 'flight', 'flight', 'from', 'to', 'from', 'to']
assert trip.'**'.from*.text() == ['Brisbane', 'Los Angeles']

SpringOne2GX - 29

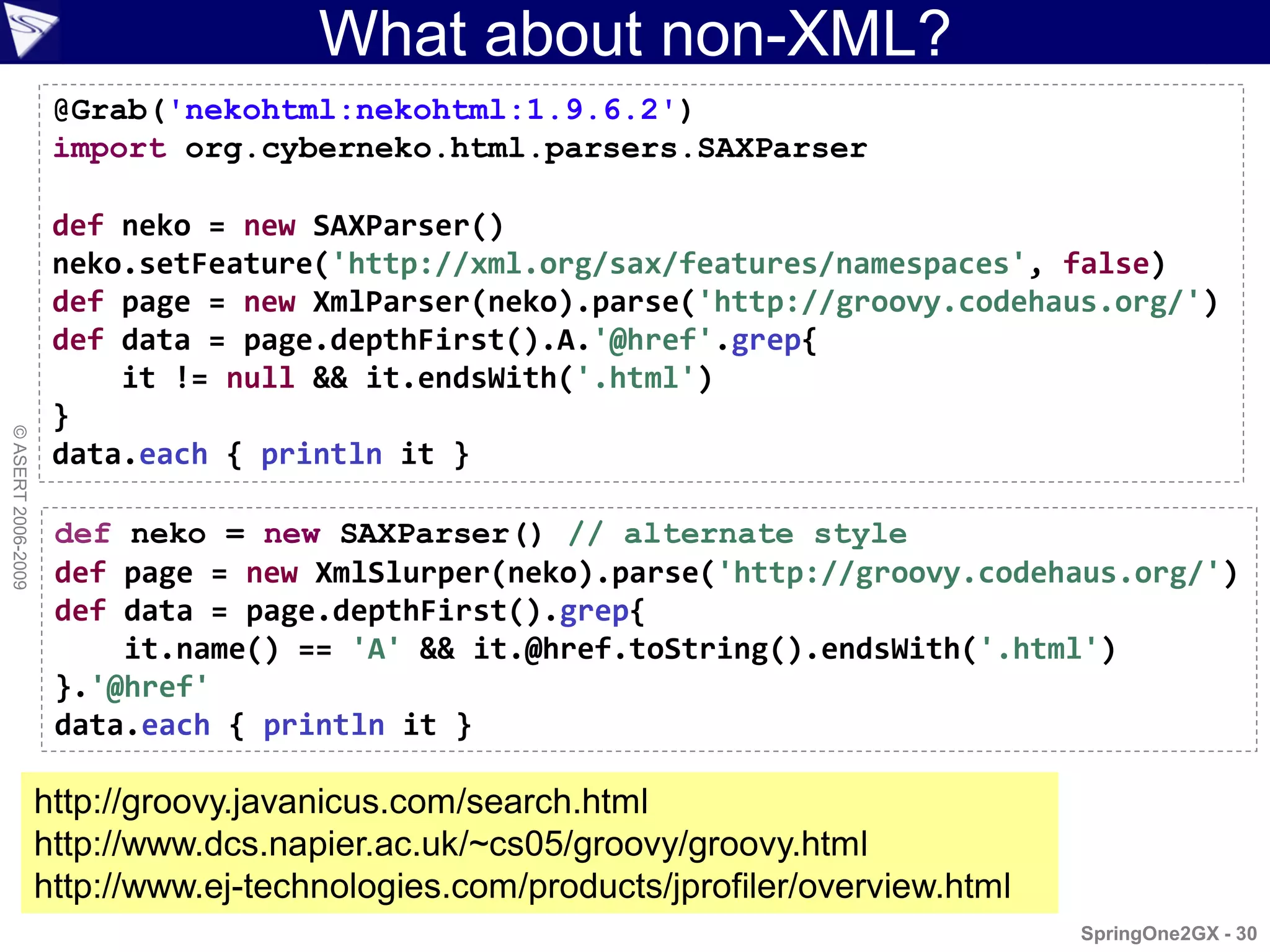

What about non-XML?
@Grab('nekohtml:nekohtml:1.9.6.2')
import org.cyberneko.html.parsers.SAXParser

def neko = new SAXParser()
neko.setFeature('http://xml.org/sax/features/namespaces', false)
def page = new XmlParser(neko).parse('http://groovy.codehaus.org/')
def data = page.depthFirst().A.'@href'.grep{
it != null && it.endsWith('.html')
}
© ASERT 2006-2009

data.each { println it }

def neko = new SAXParser() // alternate style
def page = new XmlSlurper(neko).parse('http://groovy.codehaus.org/')
def data = page.depthFirst().grep{
it.name() == 'A' && it.@href.toString().endsWith('.html')
}.'@href'
data.each { println it }

http://groovy.javanicus.com/search.html
http://www.dcs.napier.ac.uk/~cs05/groovy/groovy.html
http://www.ej-technologies.com/products/jprofiler/overview.html
SpringOne2GX - 30

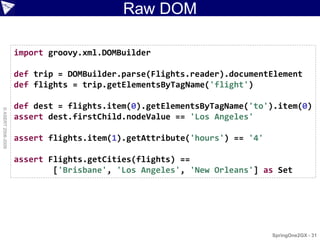

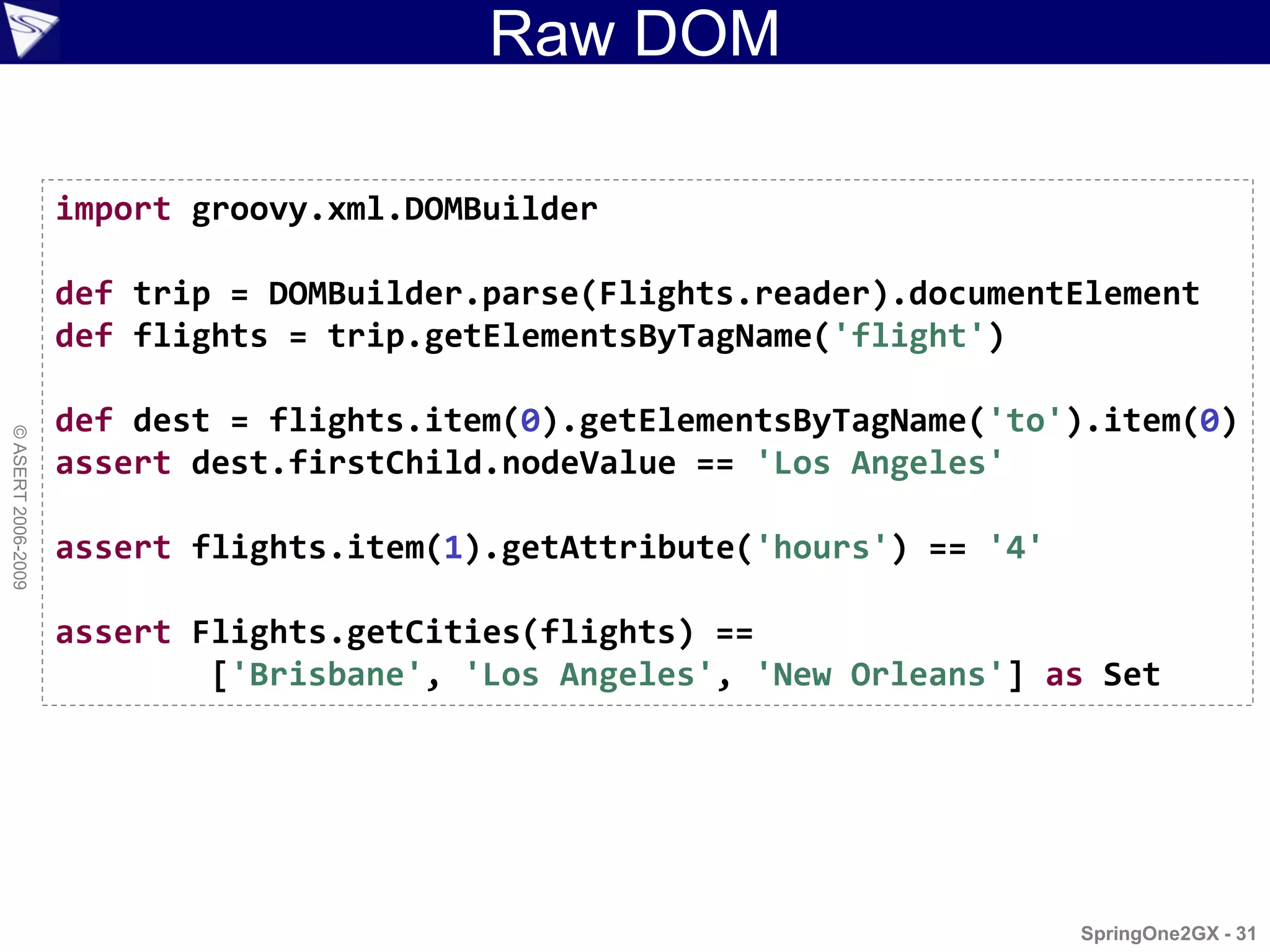

Raw DOM

import groovy.xml.DOMBuilder

def trip = DOMBuilder.parse(Flights.reader).documentElement
def flights = trip.getElementsByTagName('flight')

def dest = flights.item(0).getElementsByTagName('to').item(0)
© ASERT 2006-2009

assert dest.firstChild.nodeValue == 'Los Angeles'

assert flights.item(1).getAttribute('hours') == '4'

assert Flights.getCities(flights) ==
['Brisbane', 'Los Angeles', 'New Orleans'] as Set

SpringOne2GX - 31

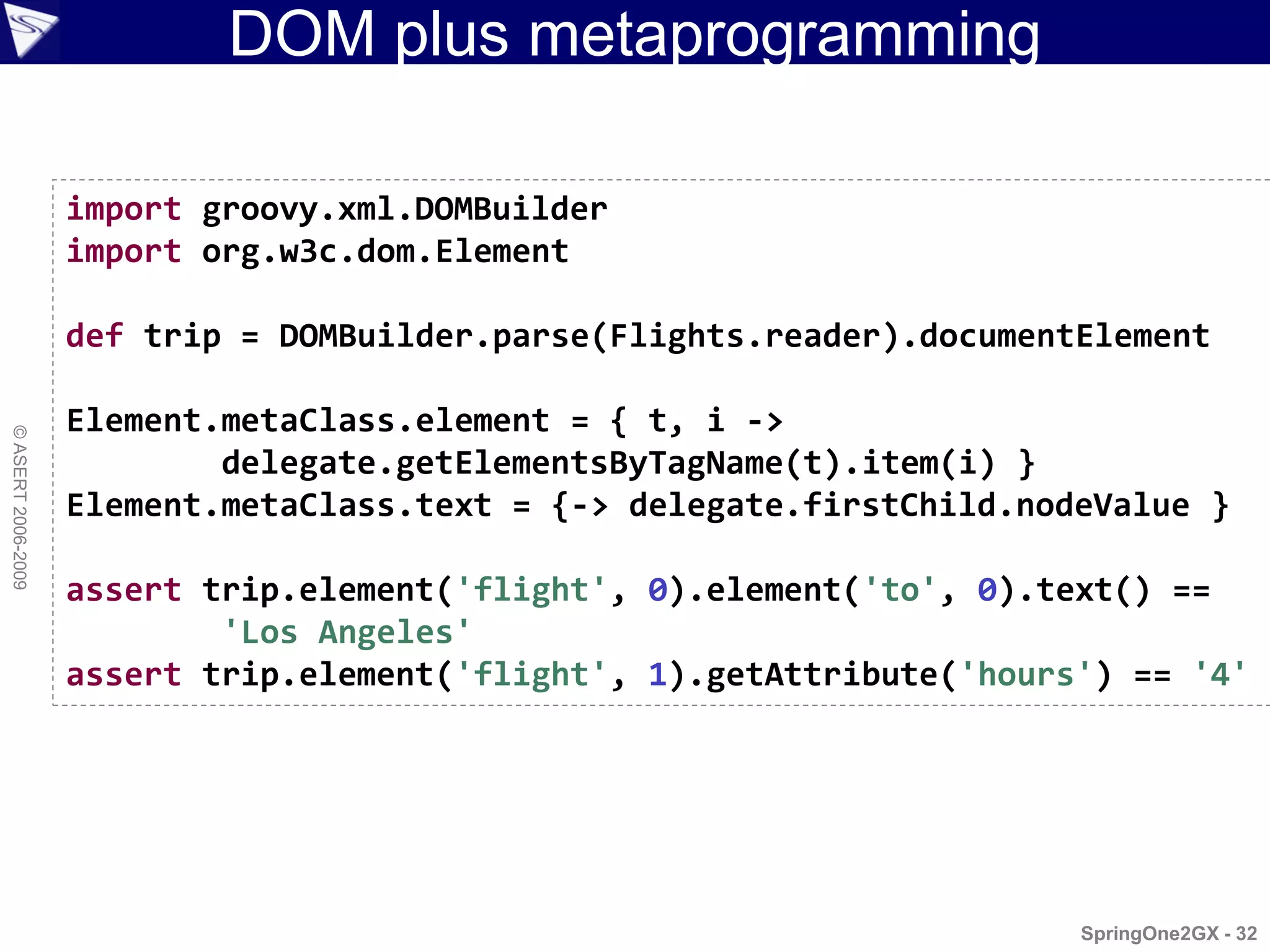

DOM plus metaprogramming

import org.w3c.dom.Element


Element.metaClass.element = { t, i ->
© ASERT 2006-2009

delegate.getElementsByTagName(t).item(i) }
Element.metaClass.text = {-> delegate.firstChild.nodeValue }

assert trip.element('flight', 0).element('to', 0).text() ==
'Los Angeles'
assert trip.element('flight', 1).getAttribute('hours') == '4'

SpringOne2GX - 32

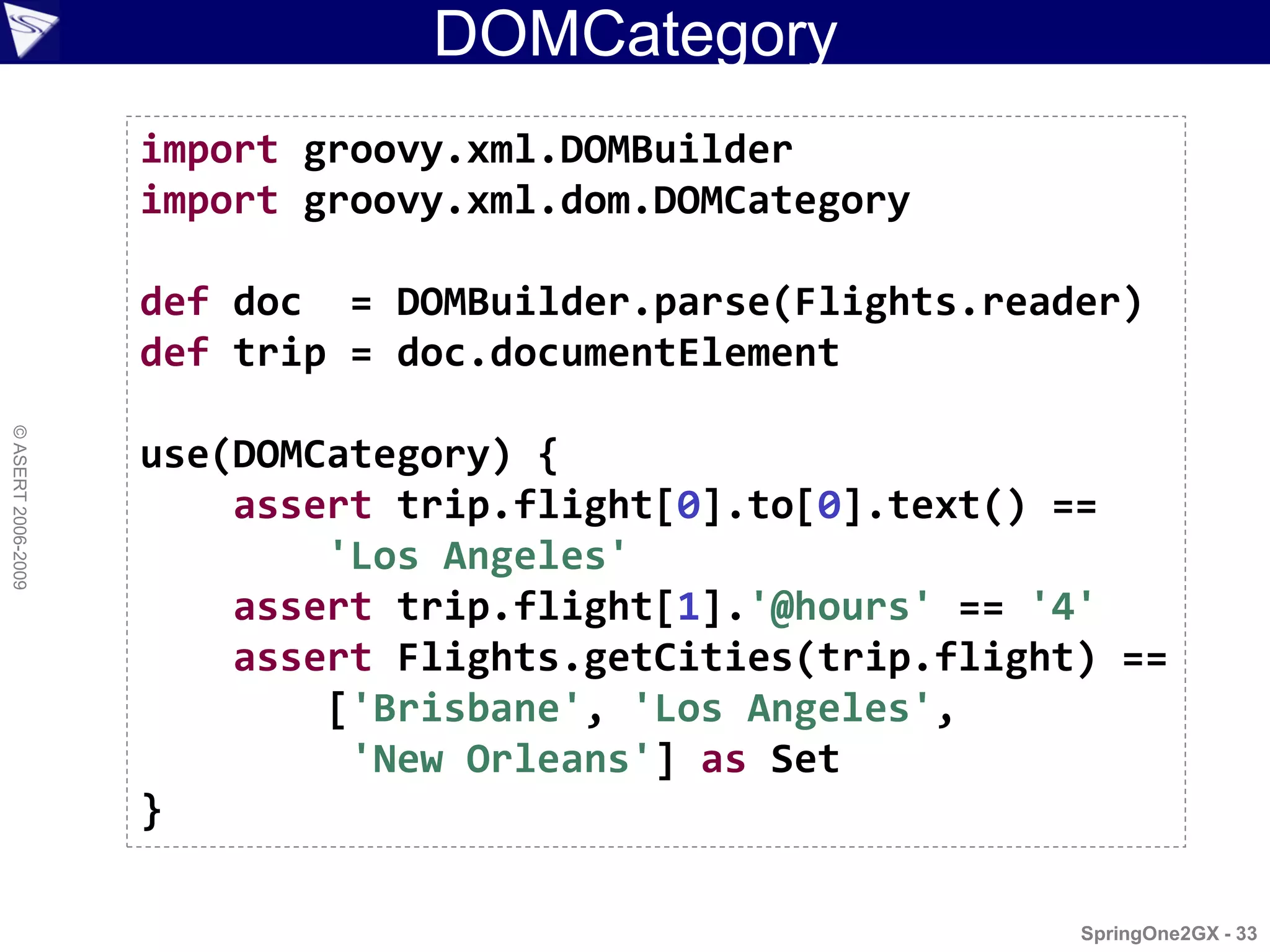

DOMCategory

def doc = DOMBuilder.parse(Flights.reader)
def trip = doc.documentElement
© ASERT 2006-2009

use(DOMCategory) {
assert trip.flight[0].to[0].text() ==
'Los Angeles'
assert trip.flight[1].'@hours' == '4'
assert Flights.getCities(trip.flight) ==
['Brisbane', 'Los Angeles',
}

SpringOne2GX - 33

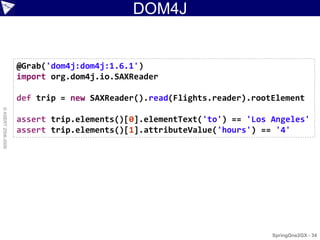

DOM4J

@Grab('dom4j:dom4j:1.6.1')
import org.dom4j.io.SAXReader

def trip = new SAXReader().read(Flights.reader).rootElement
© ASERT 2006-2009

assert trip.elements()[0].elementText('to') == 'Los Angeles'
assert trip.elements()[1].attributeValue('hours') == '4'

SpringOne2GX - 34

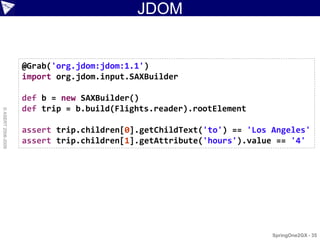

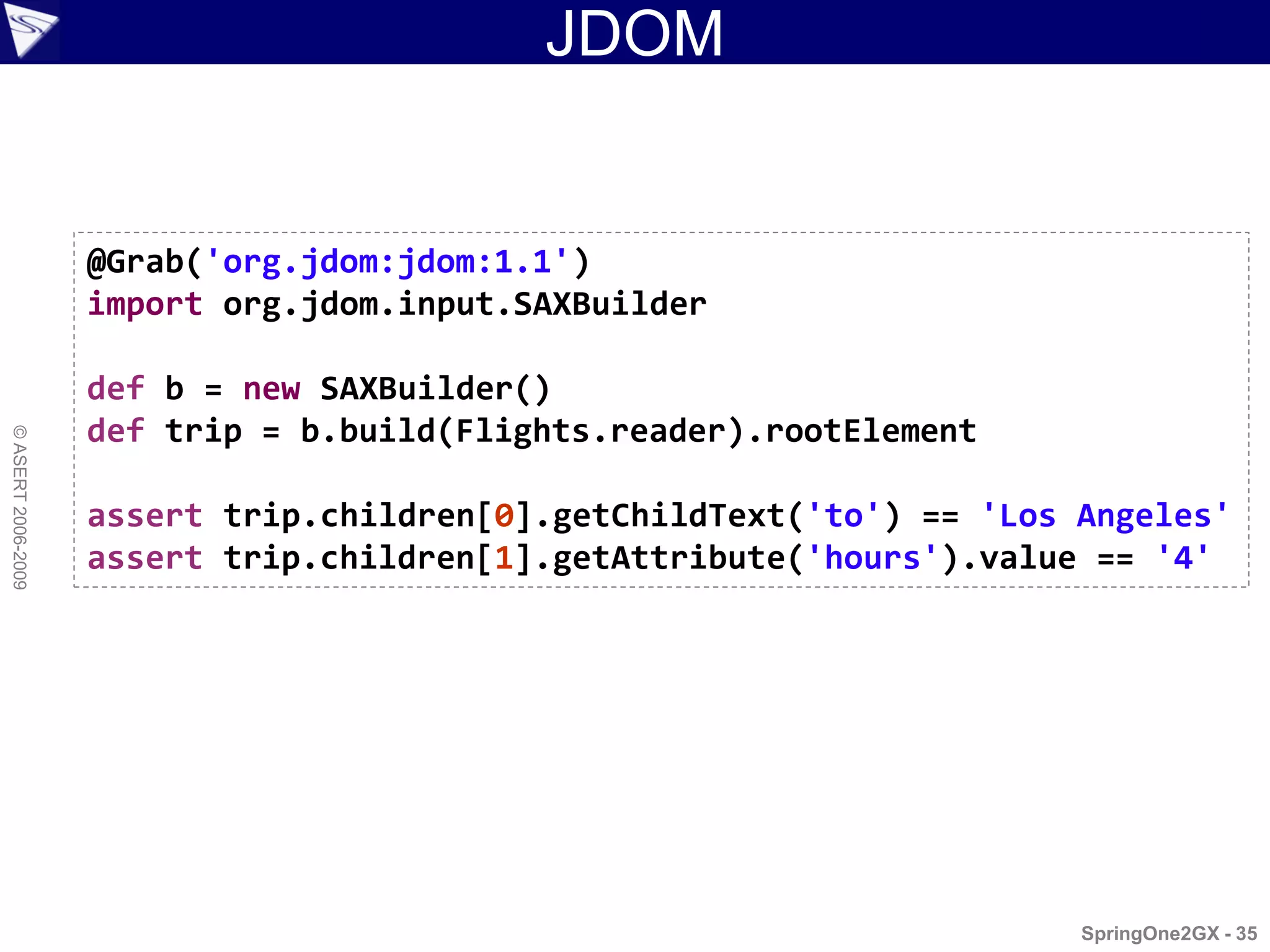

JDOM

@Grab('org.jdom:jdom:1.1')
import org.jdom.input.SAXBuilder

def b = new SAXBuilder()
def trip = b.build(Flights.reader).rootElement
© ASERT 2006-2009

assert trip.children[0].getChildText('to') == 'Los Angeles'
assert trip.children[1].getAttribute('hours').value == '4'

SpringOne2GX - 35

XOM

@Grab('xom:xom:1.1')
import nu.xom.Builder

def doc = new Builder().build(Flights.reader)
def flights = doc.rootElement.childElements
def to = flights.get(0).getFirstChildElement('to')
© ASERT 2006-2009

assert to.value == 'Los Angeles'
def hours = flights.get(1).getAttribute('hours')
assert hours.value == '4'

SpringOne2GX - 36

StAX
import static javax.xml.stream.XMLInputFactory.newInstance as staxFactory
import javax.xml.stream.XMLStreamReader as StaxReader

def flights = []
def flight
def seenTag
StaxReader.metaClass.attr = { s -> delegate.getAttributeValue(null, s) }

def reader = staxFactory().createXMLStreamReader(Flights.reader)
while (reader.hasNext()) {
def name = reader.localName
© ASERT 2006-2009

if (reader.startElement) {
if (name == 'flight') flight = [hours:reader.attr('hours')]
else if (name in ['from', 'to']) seenTag = name
} else if (reader.characters) {
if (seenTag) flight[seenTag] = reader.text
} else if (reader.endElement) {
if (name == 'flight') flights += flight
seenTag = null
}
reader.next()
}

assert flights[0].to == 'Los Angeles'
assert flights[1].hours == '4'
SpringOne2GX - 37

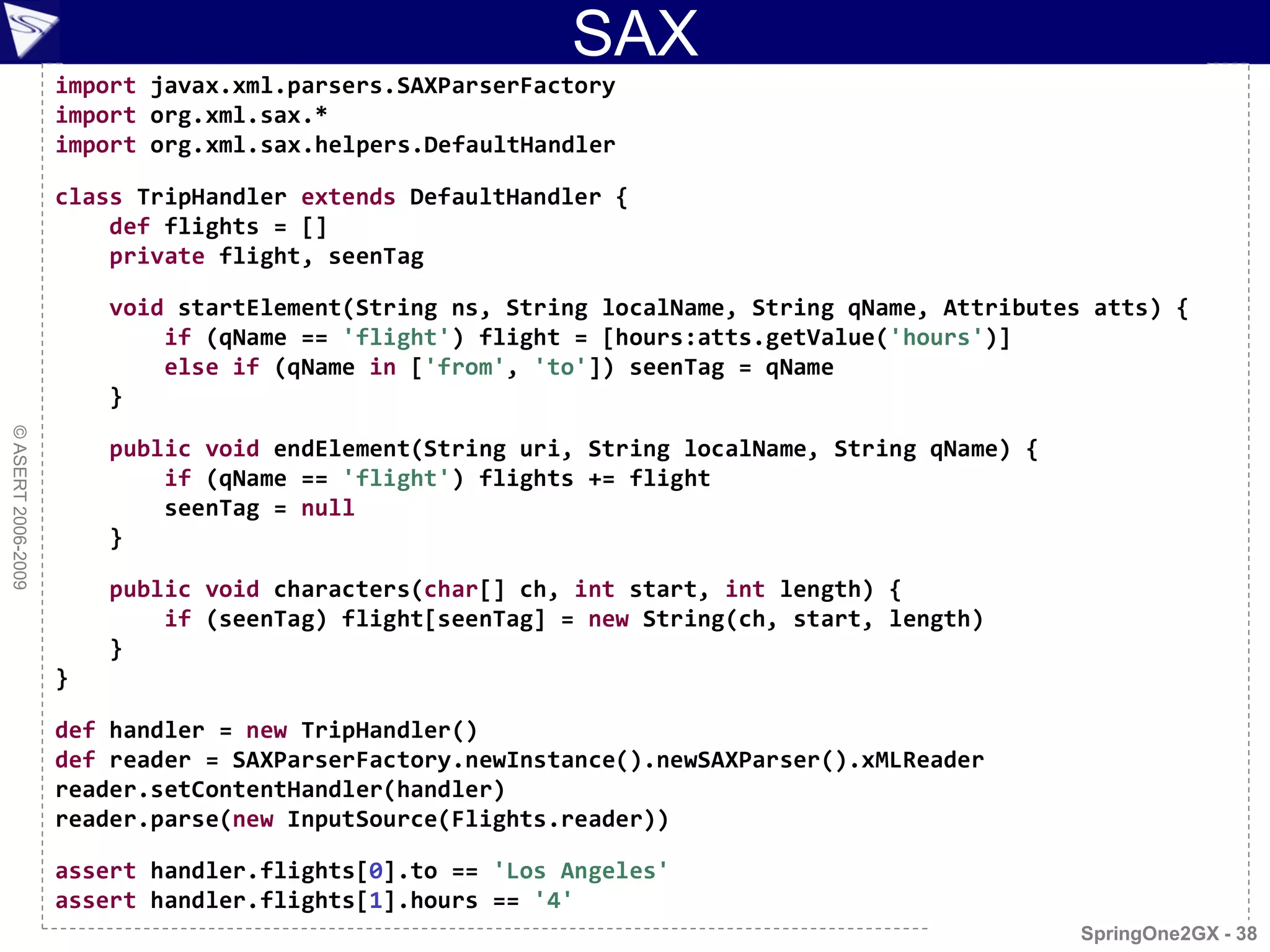

SAX
import javax.xml.parsers.SAXParserFactory
import org.xml.sax.*
import org.xml.sax.helpers.DefaultHandler

class TripHandler extends DefaultHandler {
def flights = []
private flight, seenTag

void startElement(String ns, String localName, String qName, Attributes atts) {
if (qName == 'flight') flight = [hours:atts.getValue('hours')]
else if (qName in ['from', 'to']) seenTag = qName
}
© ASERT 2006-2009

public void endElement(String uri, String localName, String qName) {
if (qName == 'flight') flights += flight
seenTag = null
}

public void characters(char[] ch, int start, int length) {
if (seenTag) flight[seenTag] = new String(ch, start, length)
}
}

def handler = new TripHandler()
def reader = SAXParserFactory.newInstance().newSAXParser().xMLReader
reader.setContentHandler(handler)
reader.parse(new InputSource(Flights.reader))

assert handler.flights[0].to == 'Los Angeles'
assert handler.flights[1].hours == '4'
SpringOne2GX - 38

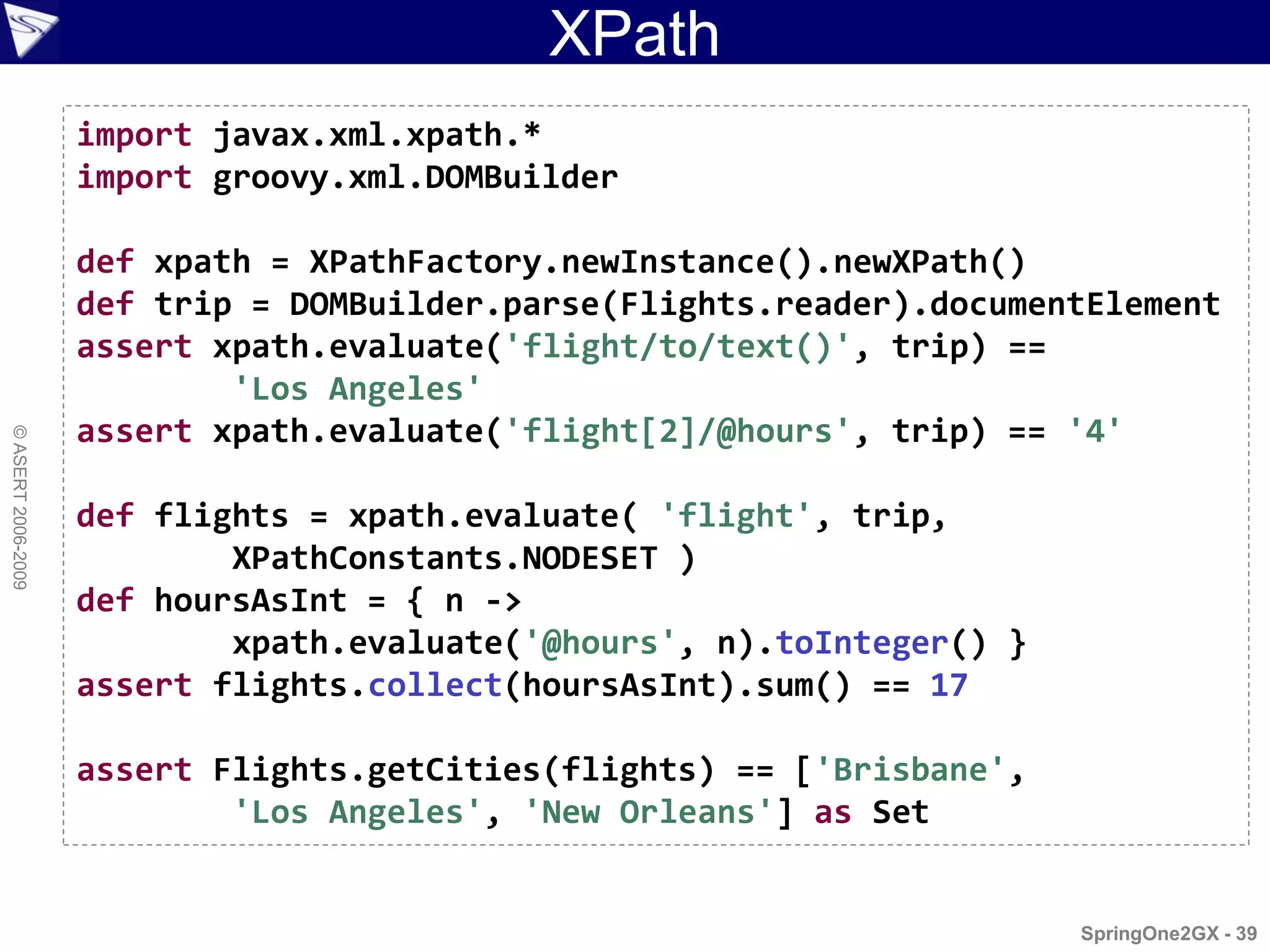

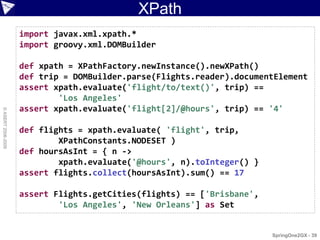

XPath
import javax.xml.xpath.*

def xpath = XPathFactory.newInstance().newXPath()
assert xpath.evaluate('flight/to/text()', trip) ==
'Los Angeles'
assert xpath.evaluate('flight[2]/@hours', trip) == '4'
© ASERT 2006-2009

def flights = xpath.evaluate( 'flight', trip,
XPathConstants.NODESET )
def hoursAsInt = { n ->
xpath.evaluate('@hours', n).toInteger() }
assert flights.collect(hoursAsInt).sum() == 17

assert Flights.getCities(flights) == ['Brisbane',
'Los Angeles', 'New Orleans'] as Set

SpringOne2GX - 39

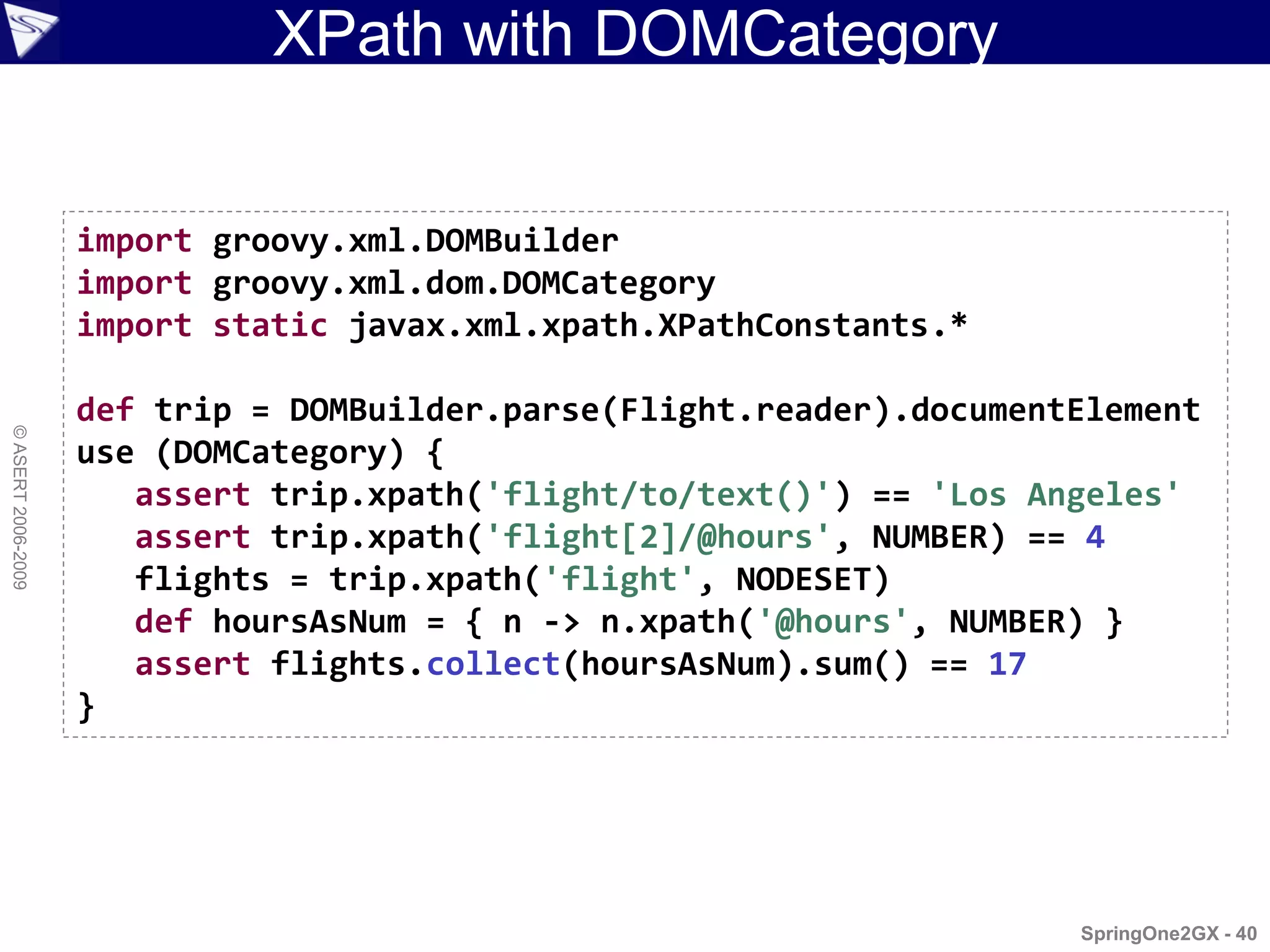

XPath with DOMCategory

import static javax.xml.xpath.XPathConstants.*

def trip = DOMBuilder.parse(Flight.reader).documentElement
© ASERT 2006-2009

use (DOMCategory) {
assert trip.xpath('flight/to/text()') == 'Los Angeles'
assert trip.xpath('flight[2]/@hours', NUMBER) == 4
flights = trip.xpath('flight', NODESET)
def hoursAsNum = { n -> n.xpath('@hours', NUMBER) }
assert flights.collect(hoursAsNum).sum() == 17
}

SpringOne2GX - 40

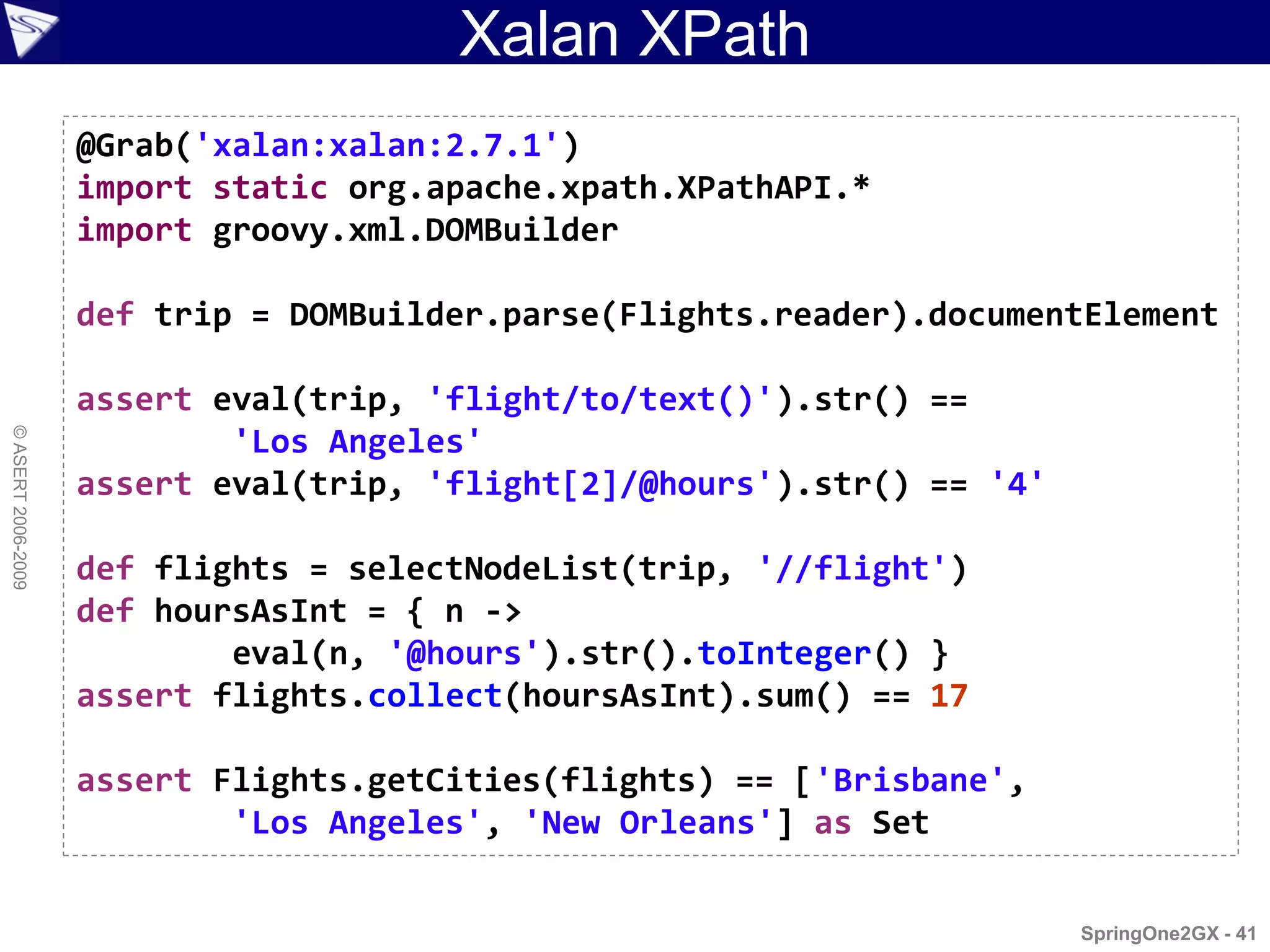

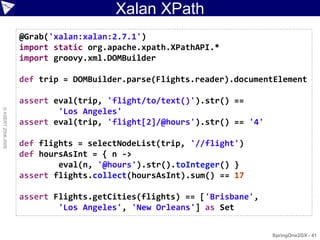

Xalan XPath
@Grab('xalan:xalan:2.7.1')
import static org.apache.xpath.XPathAPI.*


assert eval(trip, 'flight/to/text()').str() ==
© ASERT 2006-2009

'Los Angeles'
assert eval(trip, 'flight[2]/@hours').str() == '4'

def flights = selectNodeList(trip, '//flight')
eval(n, '@hours').str().toInteger() }


SpringOne2GX - 41

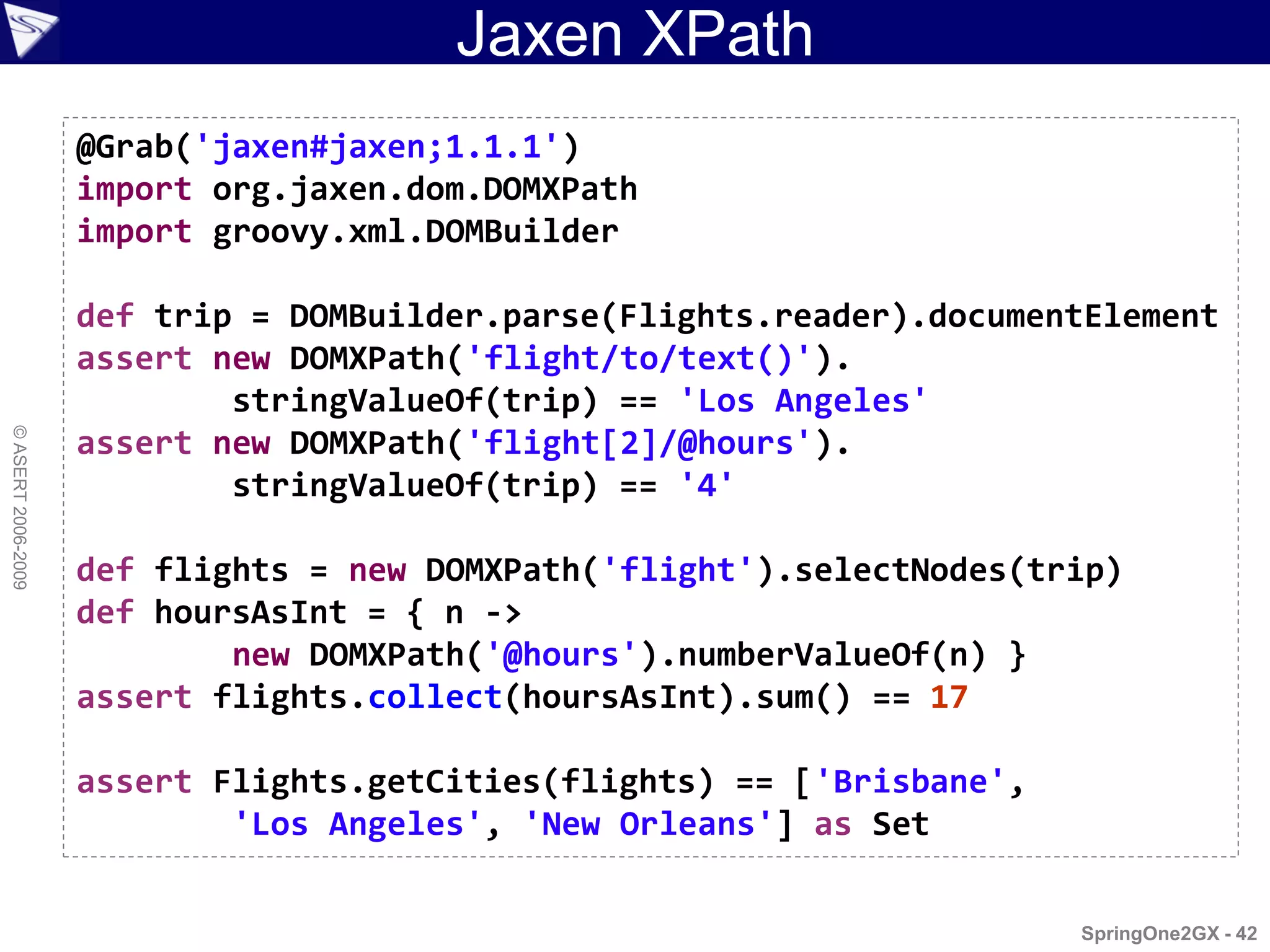

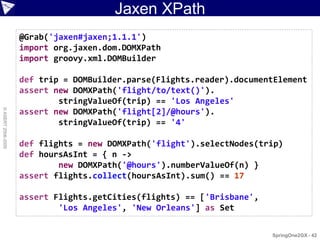

Jaxen XPath
@Grab('jaxen#jaxen;1.1.1')
import org.jaxen.dom.DOMXPath

assert new DOMXPath('flight/to/text()').
stringValueOf(trip) == 'Los Angeles'
© ASERT 2006-2009

assert new DOMXPath('flight[2]/@hours').
stringValueOf(trip) == '4'

def flights = new DOMXPath('flight').selectNodes(trip)
new DOMXPath('@hours').numberValueOf(n) }


SpringOne2GX - 42

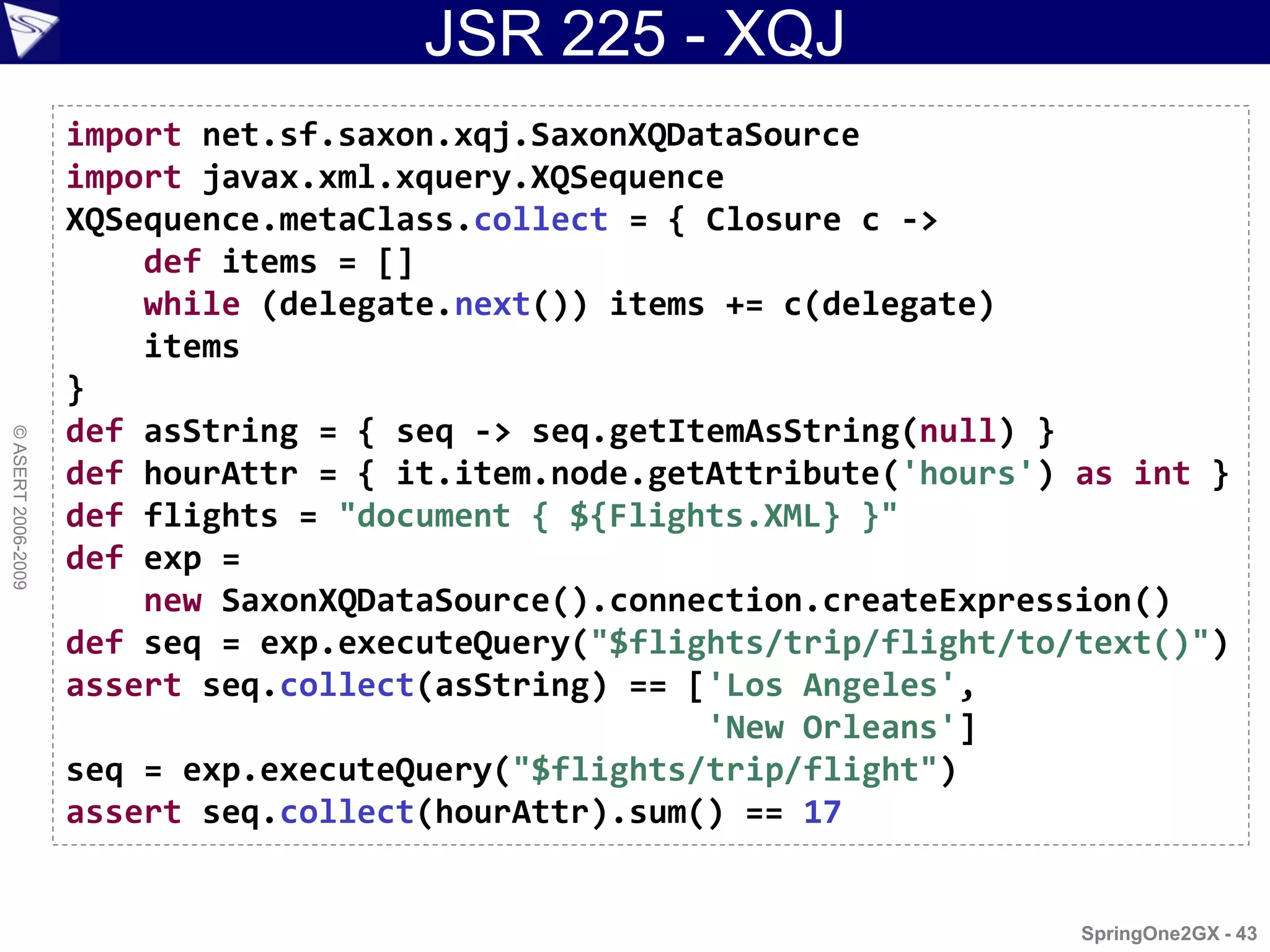

JSR 225 - XQJ
import net.sf.saxon.xqj.SaxonXQDataSource
import javax.xml.xquery.XQSequence
XQSequence.metaClass.collect = { Closure c ->
def items = []
while (delegate.next()) items += c(delegate)
items
}
def asString = { seq -> seq.getItemAsString(null) }
© ASERT 2006-2009

def hourAttr = { it.item.node.getAttribute('hours') as int }
def flights = "document { ${Flights.XML} }"
def exp =
new SaxonXQDataSource().connection.createExpression()
def seq = exp.executeQuery("$flights/trip/flight/to/text()")
assert seq.collect(asString) == ['Los Angeles',
'New Orleans']
seq = exp.executeQuery("$flights/trip/flight")
assert seq.collect(hourAttr).sum() == 17

SpringOne2GX - 43

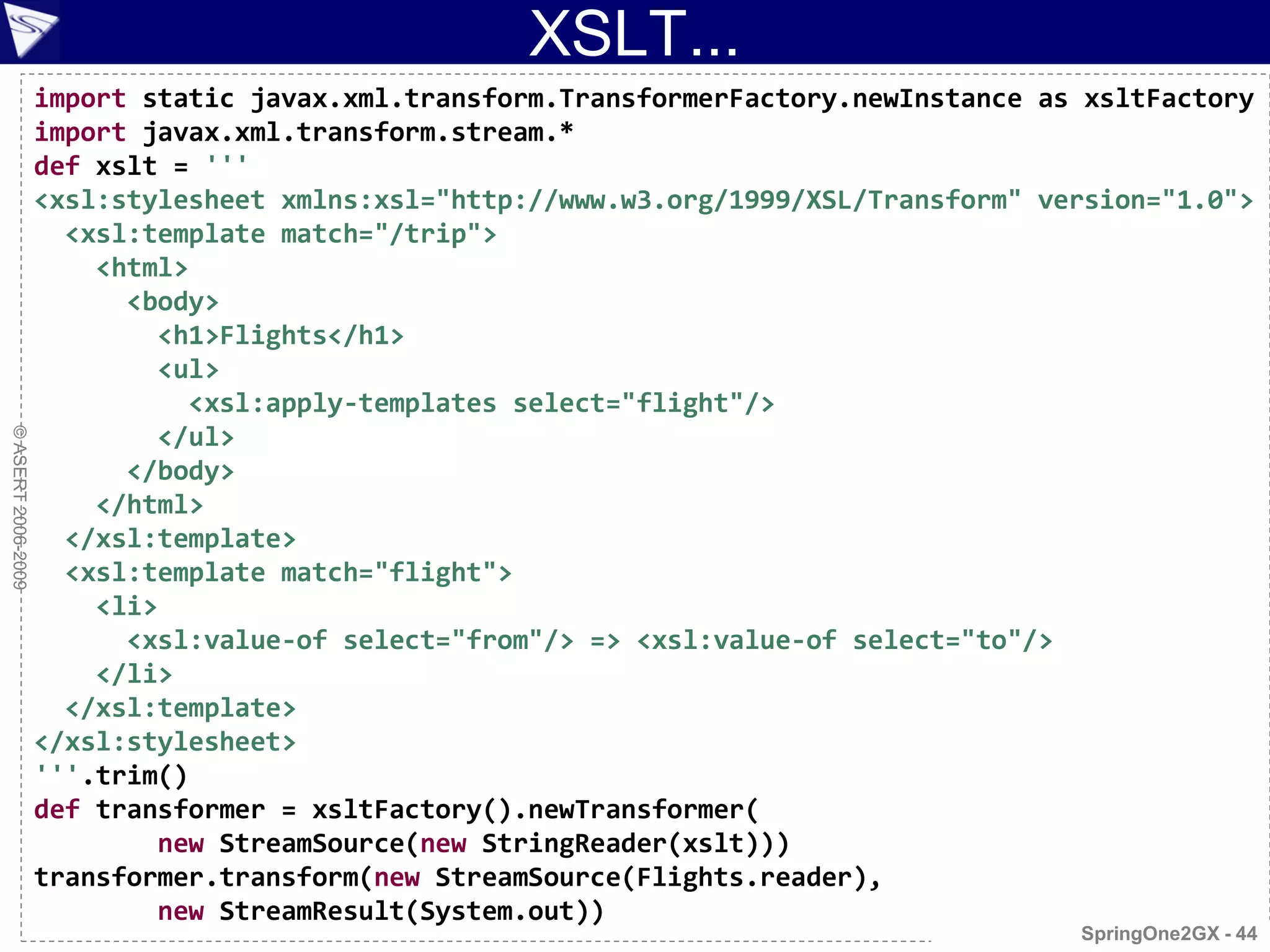

XSLT...
import static javax.xml.transform.TransformerFactory.newInstance as xsltFactory
import javax.xml.transform.stream.*
def xslt = '''
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0">
<xsl:template match="/trip">
<html>
<body>
<h1>Flights</h1>
<ul>
<xsl:apply-templates select="flight"/>
</ul>
© ASERT 2006-2009

</body>
</html>
</xsl:template>
<xsl:template match="flight">
<li>
<xsl:value-of select="from"/> => <xsl:value-of select="to"/>
</li>
</xsl:template>
</xsl:stylesheet>
'''.trim()
def transformer = xsltFactory().newTransformer(
new StreamSource(new StringReader(xslt)))
transformer.transform(new StreamSource(Flights.reader),
new StreamResult(System.out))
SpringOne2GX - 44

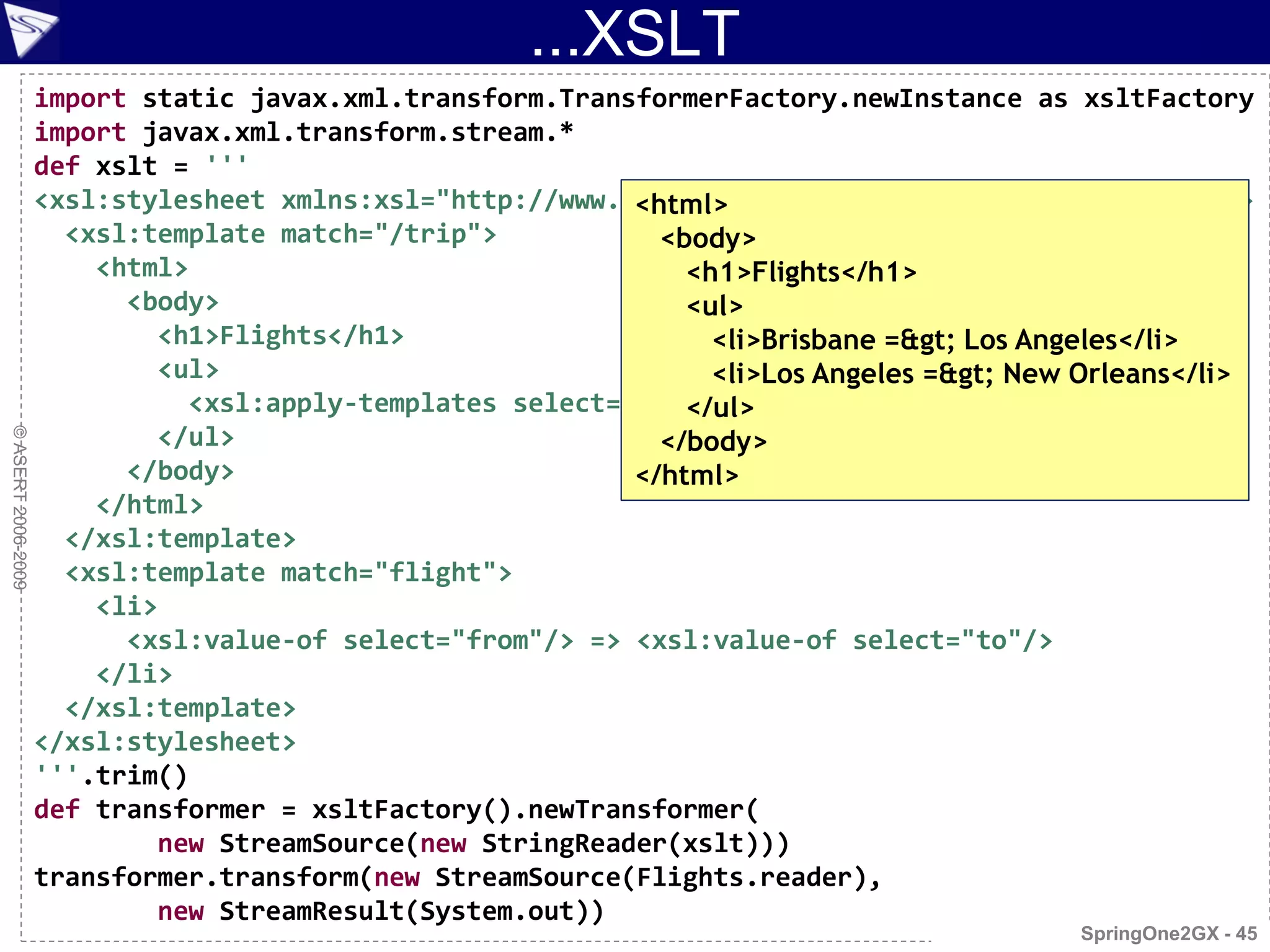

...XSLT
import static javax.xml.transform.TransformerFactory.newInstance as xsltFactory
import javax.xml.transform.stream.*
def xslt = '''
<html>
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" version="1.0">
<xsl:template match="/trip"> <body>
<html> <h1>Flights</h1>
<body> <ul>
<h1>Flights</h1> <li>Brisbane => Los Angeles</li>
<ul> <li>Los Angeles => New Orleans</li>
</ul>
<xsl:apply-templates select="flight"/>
</ul> </body>
© ASERT 2006-2009

</body> </html>
</html>
</xsl:template>
<xsl:template match="flight">
<li>
<xsl:value-of select="from"/> => <xsl:value-of select="to"/>
</li>
</xsl:template>
</xsl:stylesheet>
'''.trim()
def transformer = xsltFactory().newTransformer(
new StreamSource(new StringReader(xslt)))
transformer.transform(new StreamSource(Flights.reader),
new StreamResult(System.out))
SpringOne2GX - 45

MarkupBuilder

import groovy.xml.MarkupBuilder

def writer = new StringWriter()
def xml = new MarkupBuilder(writer)
xml.flights {
flight(hours:13) {
© ASERT 2006-2009

from('Brisbane')
to('Los Angeles')
}
flight(hours:4) {
from('Los Angeles')
to('New Orleans')
}
}
println writer

SpringOne2GX - 46

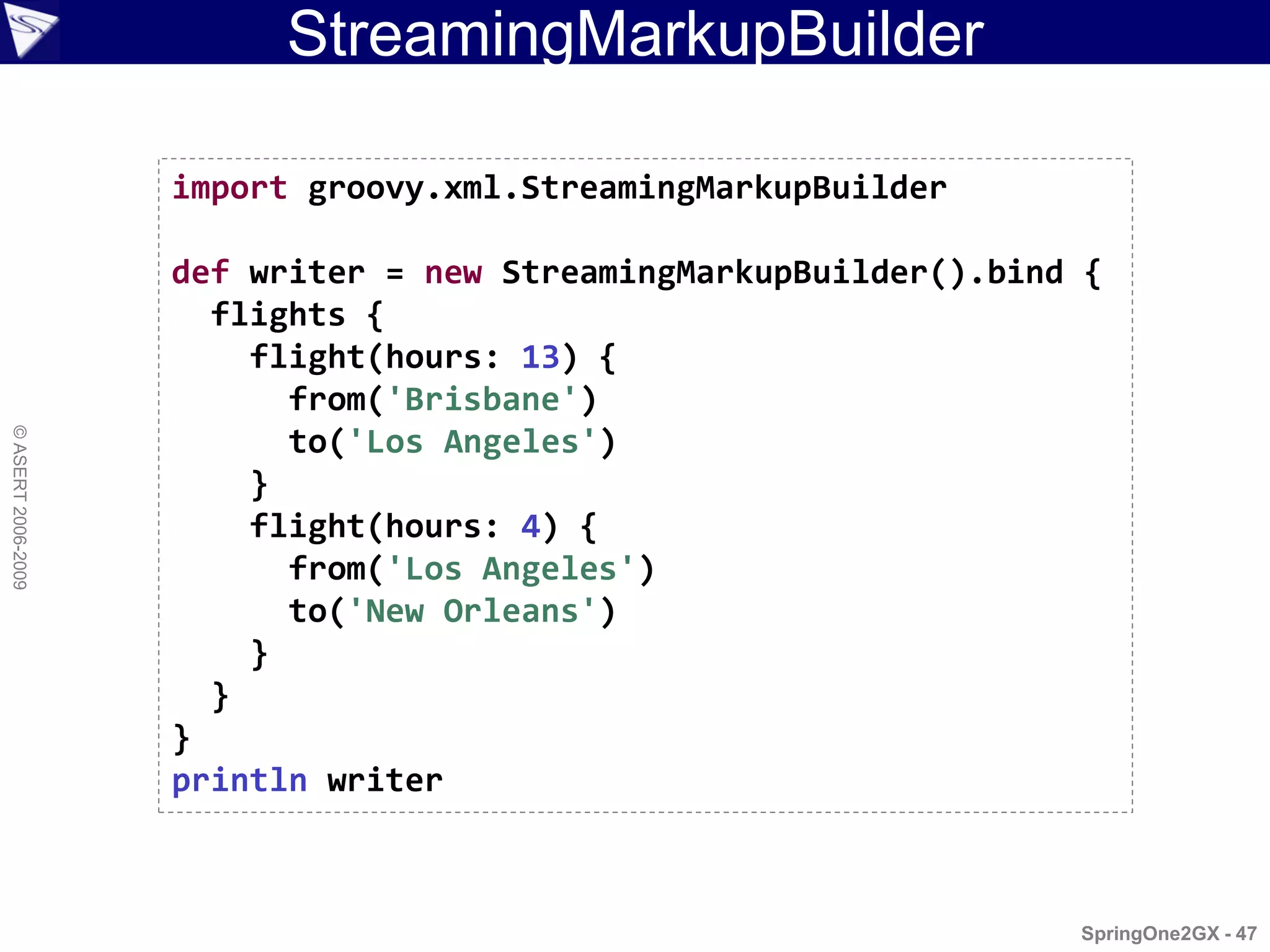

StreamingMarkupBuilder

import groovy.xml.StreamingMarkupBuilder

def writer = new StreamingMarkupBuilder().bind {
flights {
flight(hours: 13) {
from('Brisbane')
© ASERT 2006-2009

to('Los Angeles')
}
flight(hours: 4) {
from('Los Angeles')
to('New Orleans')
}
}
}
println writer

SpringOne2GX - 47

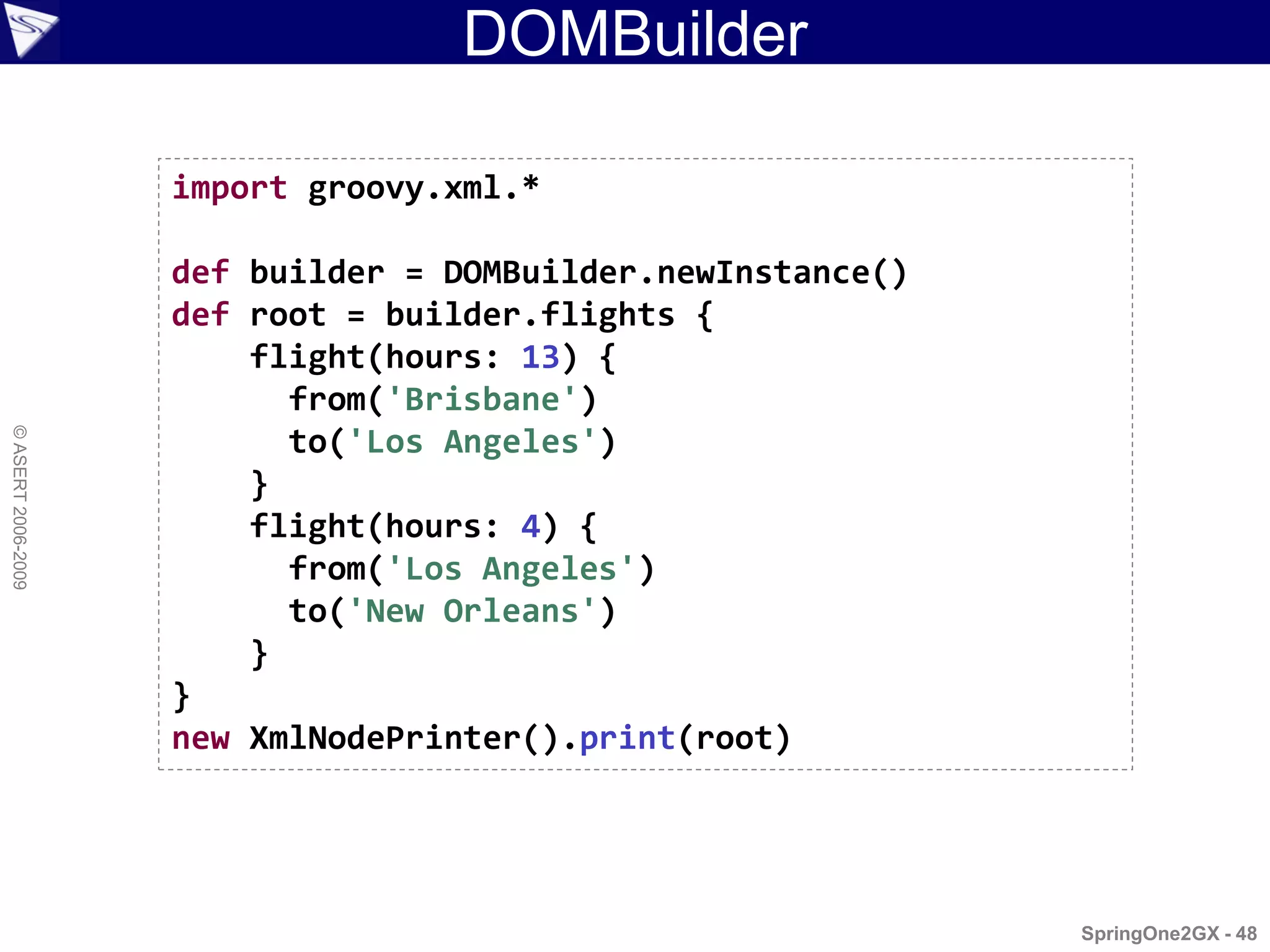

DOMBuilder

import groovy.xml.*

def builder = DOMBuilder.newInstance()
def root = builder.flights {
flight(hours: 13) {
from('Brisbane')
© ASERT 2006-2009

to('Los Angeles')
}
flight(hours: 4) {
from('Los Angeles')
to('New Orleans')
}
}
new XmlNodePrinter().print(root)

SpringOne2GX - 48

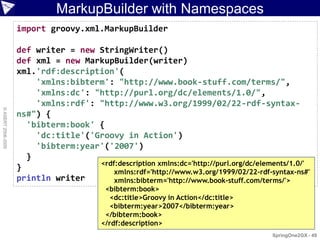

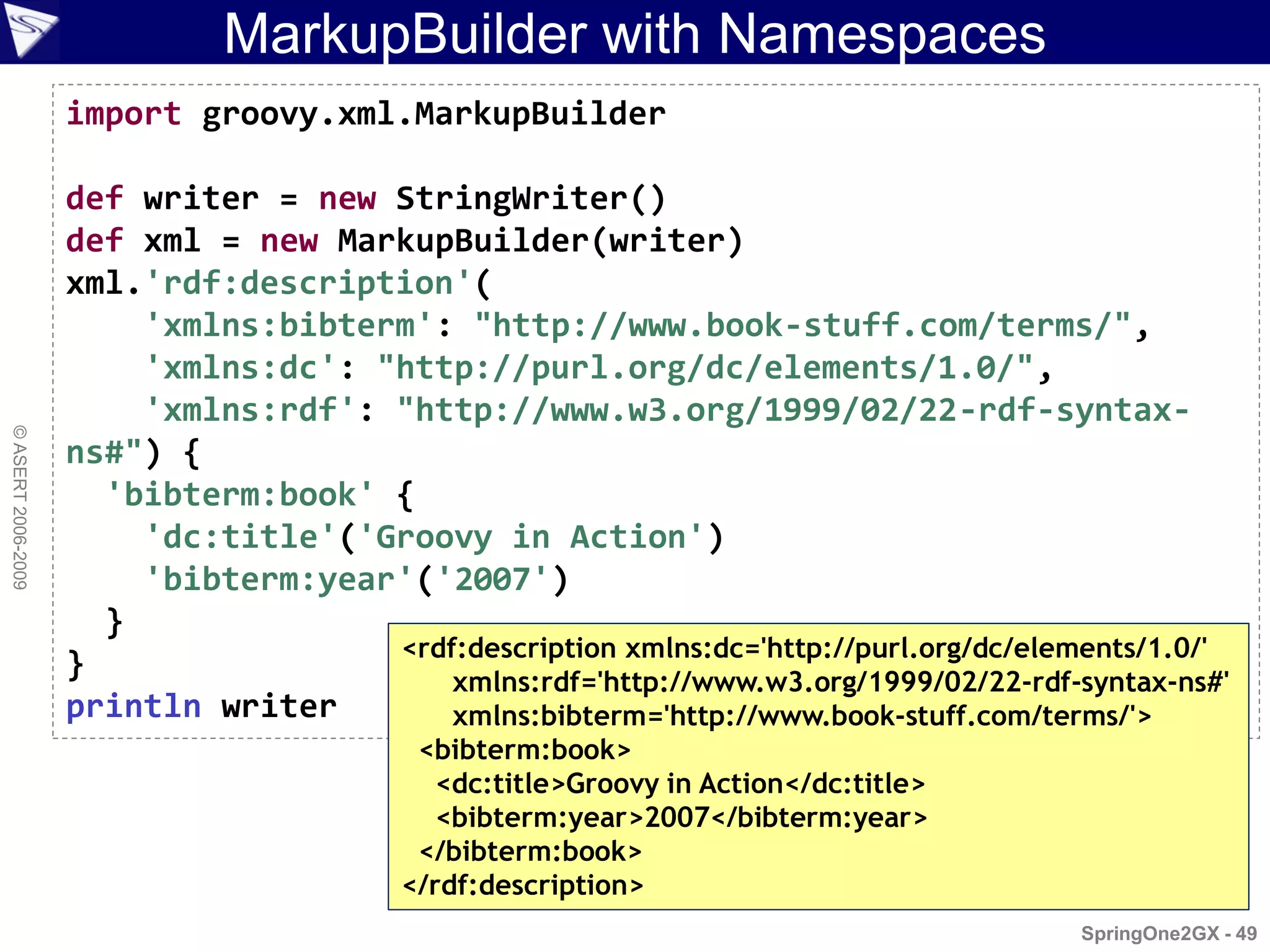

MarkupBuilder with Namespaces
import groovy.xml.MarkupBuilder

def xml = new MarkupBuilder(writer)
xml.'rdf:description'(
'xmlns:bibterm': "http://www.book-stuff.com/terms/",
'xmlns:dc': "http://purl.org/dc/elements/1.0/",
'xmlns:rdf': "http://www.w3.org/1999/02/22-rdf-syntax-
© ASERT 2006-2009

ns#") {
'bibterm:book' {
'dc:title'('Groovy in Action')
'bibterm:year'('2007')
}
<rdf:description xmlns:dc='http://purl.org/dc/elements/1.0/'
} xmlns:rdf='http://www.w3.org/1999/02/22-rdf-syntax-ns#'
println writer xmlns:bibterm='http://www.book-stuff.com/terms/'>
<bibterm:book>
</bibterm:book>
</rdf:description>
SpringOne2GX - 49

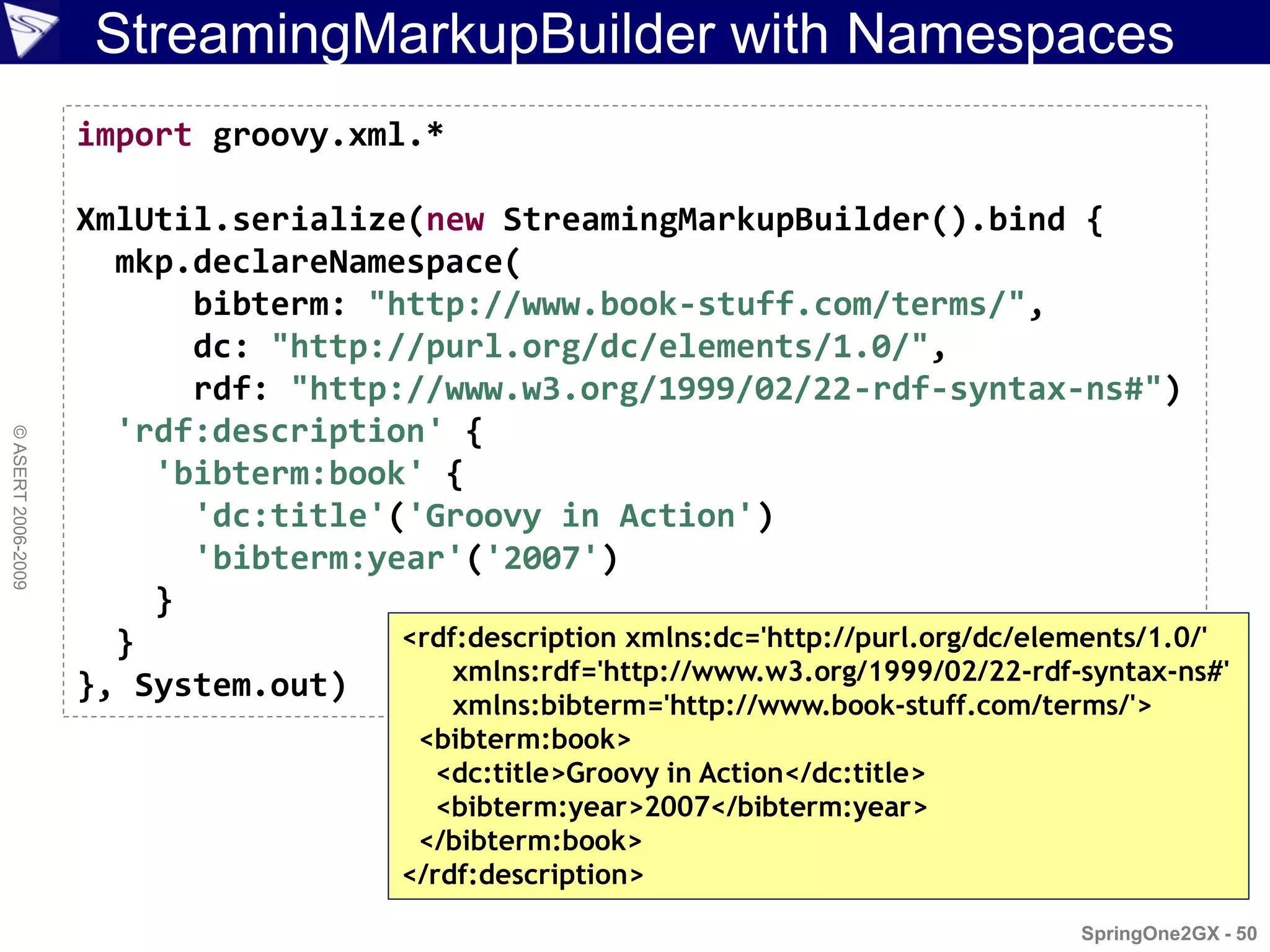

StreamingMarkupBuilder with Namespaces
import groovy.xml.*

XmlUtil.serialize(new StreamingMarkupBuilder().bind {
mkp.declareNamespace(
bibterm: "http://www.book-stuff.com/terms/",
dc: "http://purl.org/dc/elements/1.0/",
rdf: "http://www.w3.org/1999/02/22-rdf-syntax-ns#")
'rdf:description' {
© ASERT 2006-2009

'bibterm:book' {
}
} <rdf:description xmlns:dc='http://purl.org/dc/elements/1.0/'
xmlns:rdf='http://www.w3.org/1999/02/22-rdf-syntax-ns#'
}, System.out)
xmlns:bibterm='http://www.book-stuff.com/terms/'>
<bibterm:book>
</bibterm:book>
</rdf:description>
SpringOne2GX - 50

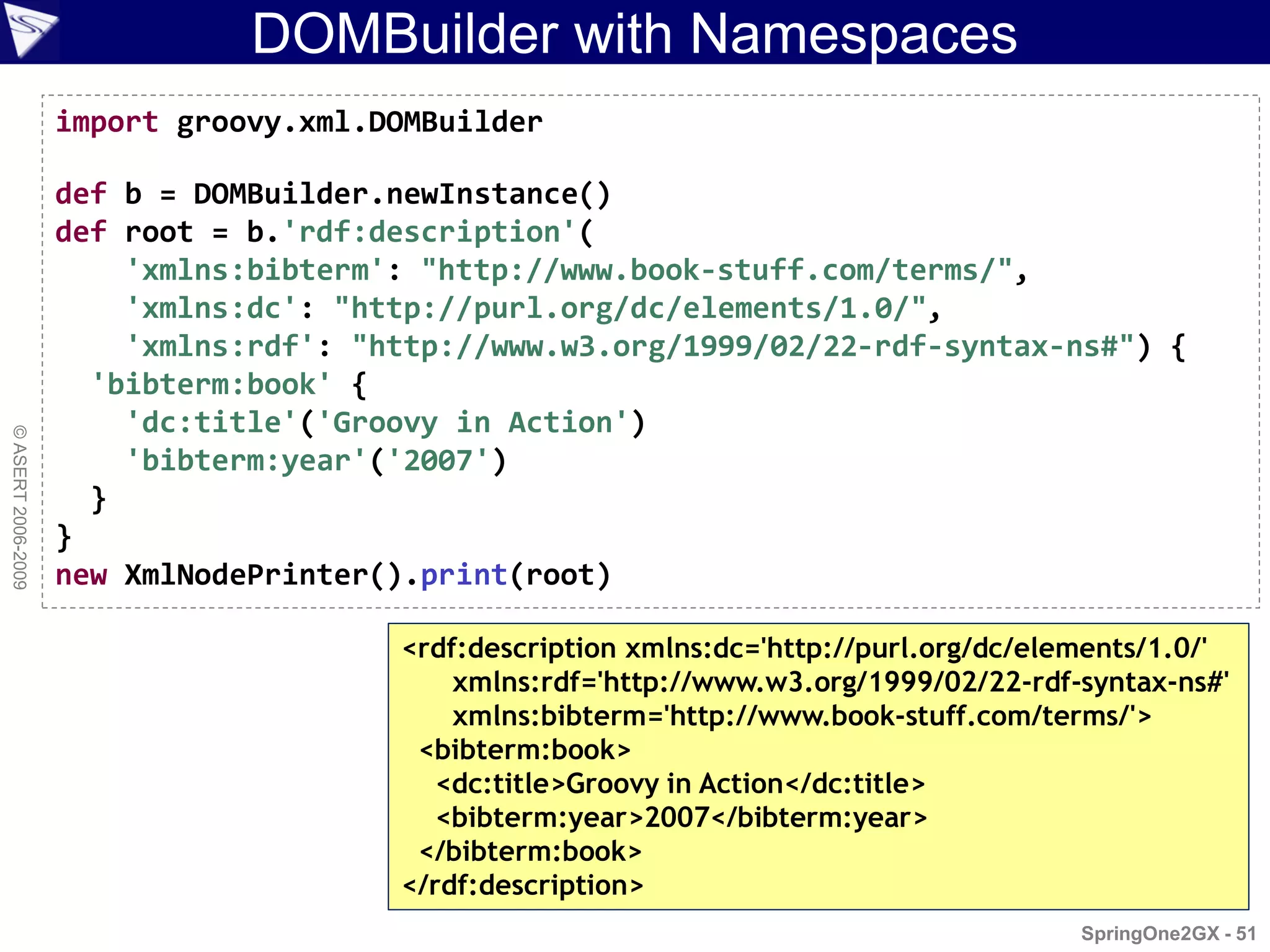

DOMBuilder with Namespaces

def b = DOMBuilder.newInstance()
def root = b.'rdf:description'(
'xmlns:bibterm': "http://www.book-stuff.com/terms/",
'xmlns:dc': "http://purl.org/dc/elements/1.0/",
'xmlns:rdf': "http://www.w3.org/1999/02/22-rdf-syntax-ns#") {
'bibterm:book' {
© ASERT 2006-2009

}
}

<rdf:description xmlns:dc='http://purl.org/dc/elements/1.0/'
xmlns:rdf='http://www.w3.org/1999/02/22-rdf-syntax-ns#'
xmlns:bibterm='http://www.book-stuff.com/terms/'>
<bibterm:book>
</bibterm:book>
</rdf:description>
SpringOne2GX - 51

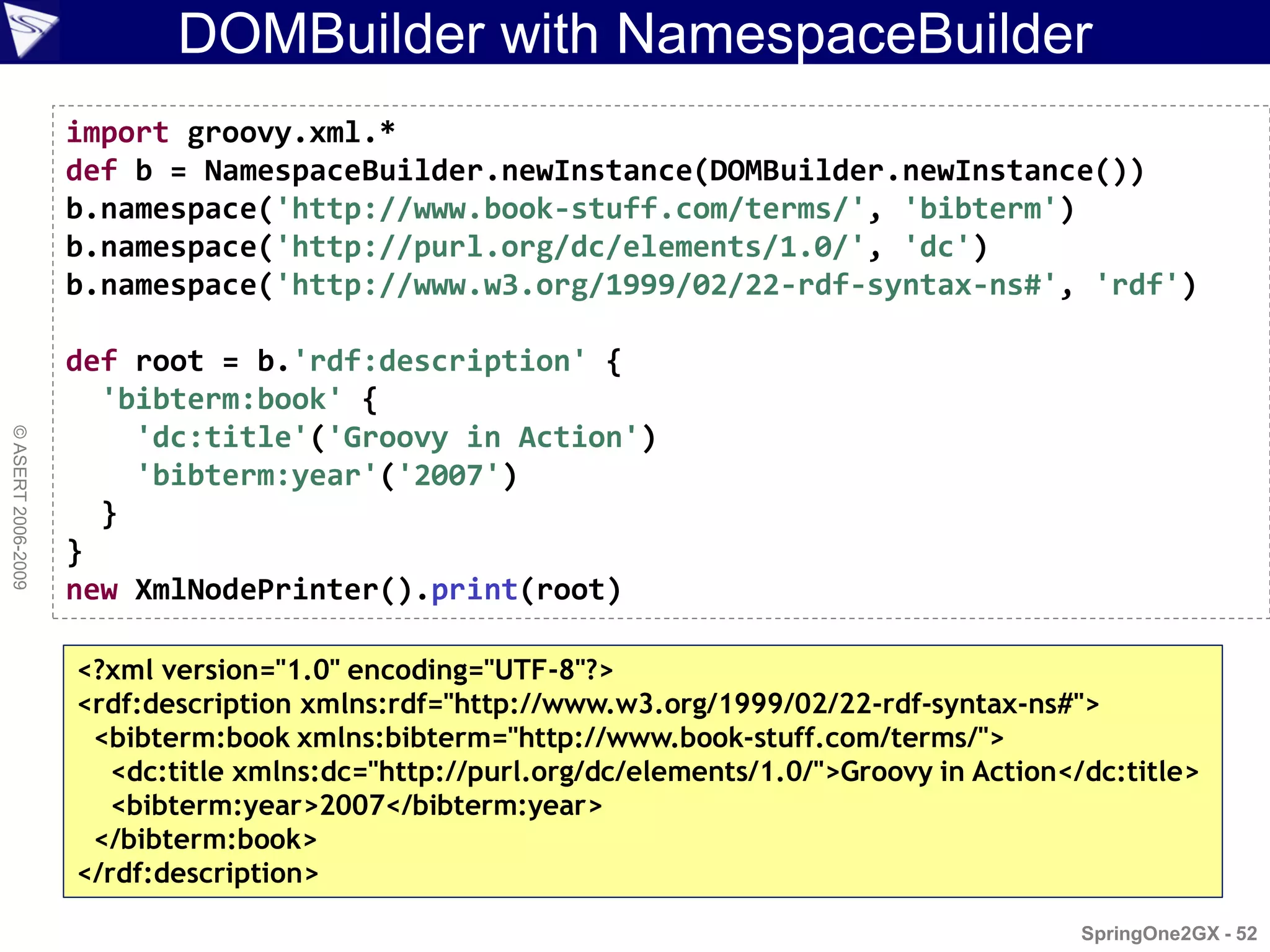

DOMBuilder with NamespaceBuilder
import groovy.xml.*
def b = NamespaceBuilder.newInstance(DOMBuilder.newInstance())
b.namespace('http://www.book-stuff.com/terms/', 'bibterm')
b.namespace('http://purl.org/dc/elements/1.0/', 'dc')
b.namespace('http://www.w3.org/1999/02/22-rdf-syntax-ns#', 'rdf')

def root = b.'rdf:description' {
'bibterm:book' {
© ASERT 2006-2009

}
}

<?xml version="1.0" encoding="UTF-8"?>
<rdf:description xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#">
<bibterm:book xmlns:bibterm="http://www.book-stuff.com/terms/">
<dc:title xmlns:dc="http://purl.org/dc/elements/1.0/">Groovy in Action</dc:title>
</bibterm:book>
</rdf:description>

SpringOne2GX - 52

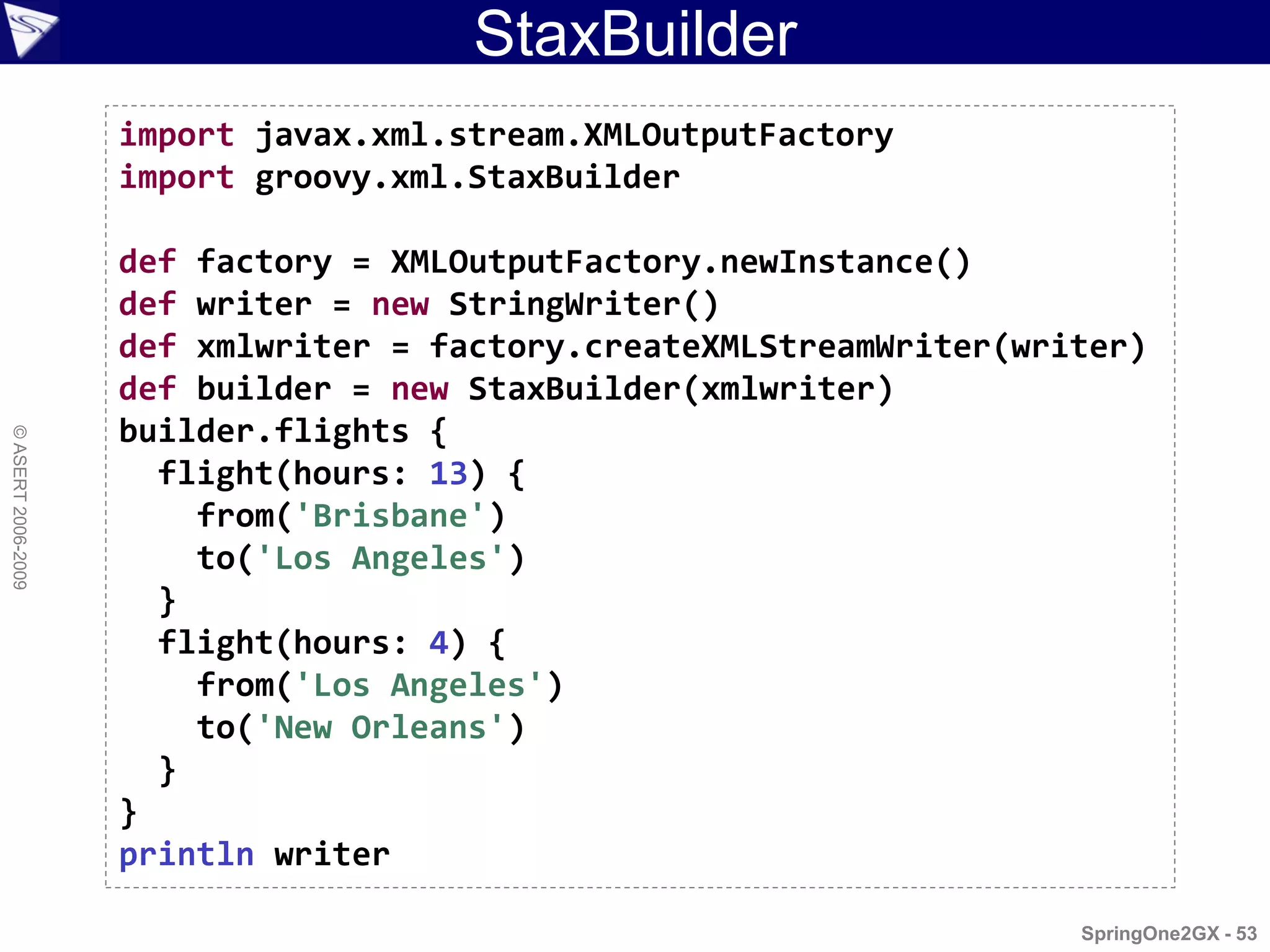

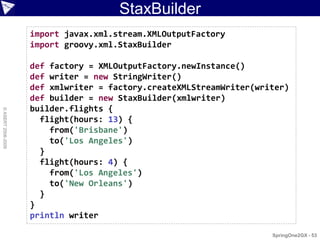

StaxBuilder
import javax.xml.stream.XMLOutputFactory
import groovy.xml.StaxBuilder

def factory = XMLOutputFactory.newInstance()
def xmlwriter = factory.createXMLStreamWriter(writer)
def builder = new StaxBuilder(xmlwriter)
builder.flights {
© ASERT 2006-2009

flight(hours: 13) {
from('Brisbane')
to('Los Angeles')
}
flight(hours: 4) {
from('Los Angeles')
to('New Orleans')
}
}
println writer

SpringOne2GX - 53

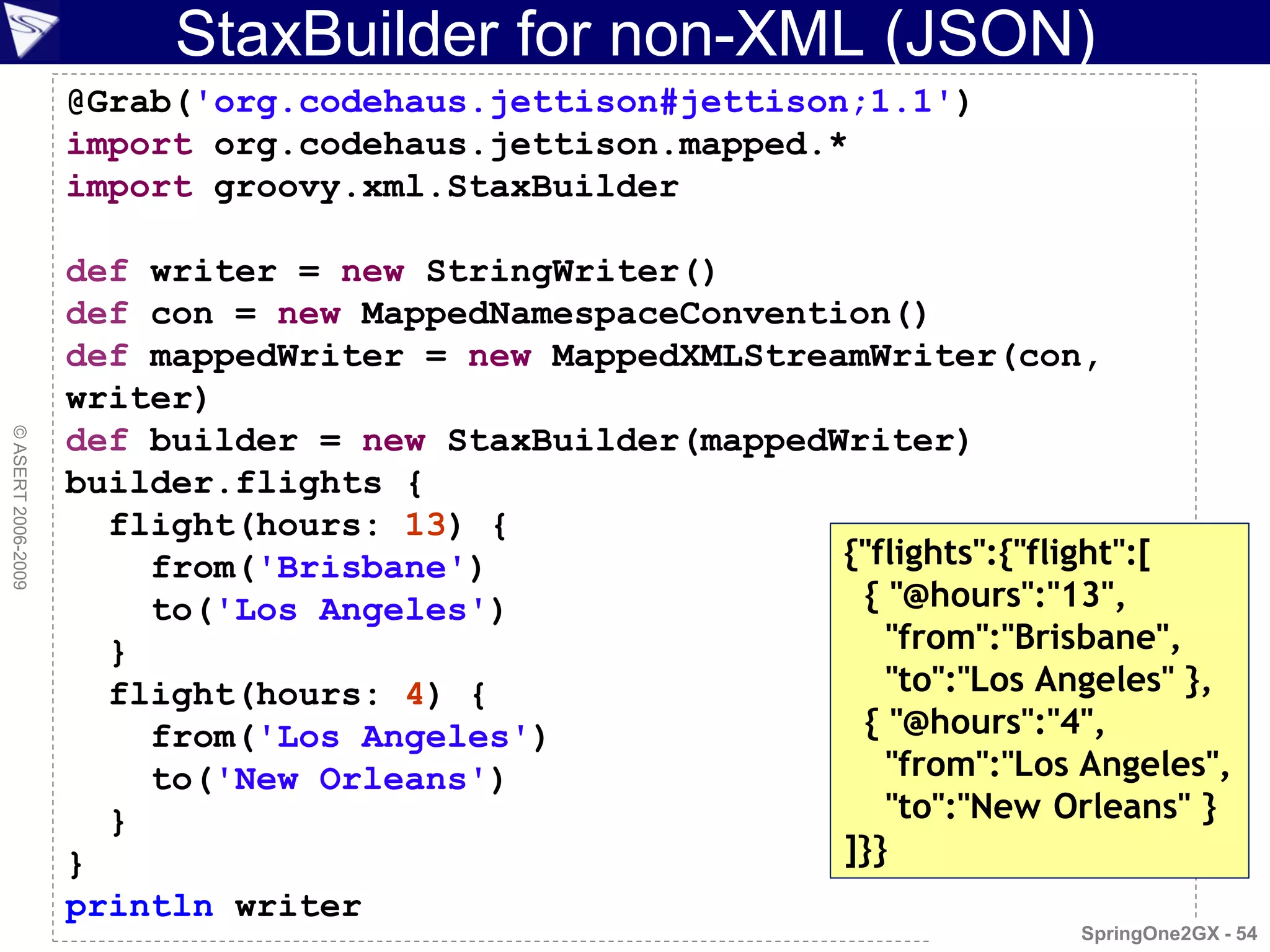

StaxBuilder for non-XML (JSON)
@Grab('org.codehaus.jettison#jettison;1.1')
import org.codehaus.jettison.mapped.*
import groovy.xml.StaxBuilder

def con = new MappedNamespaceConvention()
def mappedWriter = new MappedXMLStreamWriter(con,
writer)
def builder = new StaxBuilder(mappedWriter)
© ASERT 2006-2009

builder.flights {
flight(hours: 13) {
from('Brisbane') {"flights":{"flight":[
to('Los Angeles') { "@hours":"13",
} "from":"Brisbane",
flight(hours: 4) { "to":"Los Angeles" },
from('Los Angeles') { "@hours":"4",
to('New Orleans') "from":"Los Angeles",
} "to":"New Orleans" }
} ]}}
println writer
SpringOne2GX - 54

Updating XML

<shopping>
<shopping> <category type="groceries">
<category type="groceries"> <item>Luxury Chocolate</item>
<item>Chocolate</item> <item>Luxury Coffee</item>
<item>Coffee</item> </category>
</category> <category type="supplies">
<category type="supplies"> <item>Paper</item>
<item>Paper</item> <item quantity="6"
© ASERT 2006-2009

<item quantity="4">Pens</item> when="Urgent">Pens</item>
</category> </category>
<category type="present"> <category type="present">
<item when="Aug 10"> <item>Mum's Birthday</item>
Kathryn's Birthday <item when="Oct 15">
</item> Monica's Birthday
</category> </item>
</shopping> </category>
</shopping>

SpringOne2GX - 55

Updating with XmlParser
...
def root = new XmlParser().parseText(Shopping.XML)

// modify groceries: luxury items please
root.category.find{ it.@type == 'groceries' }.item.each{ g ->
g.value = 'Luxury ' + g.text()
}

// modify supplies: we need extra pens now
root.category.find{
© ASERT 2006-2009

it.@type == 'supplies'
}.item.findAll{ it.text() == 'Pens' }.each{ p ->
p.@quantity = p.@quantity.toInteger() + 2
p.@when = 'Urgent'
}

// modify presents: August has come and gone
def presents = root.category.find{ it.@type == 'present' }
presents.children().clear()
presents.appendNode('item', "Mum's Birthday")
presents.appendNode('item', [when:'Oct 15'], "Monica's Birthday")
...

SpringOne2GX - 56

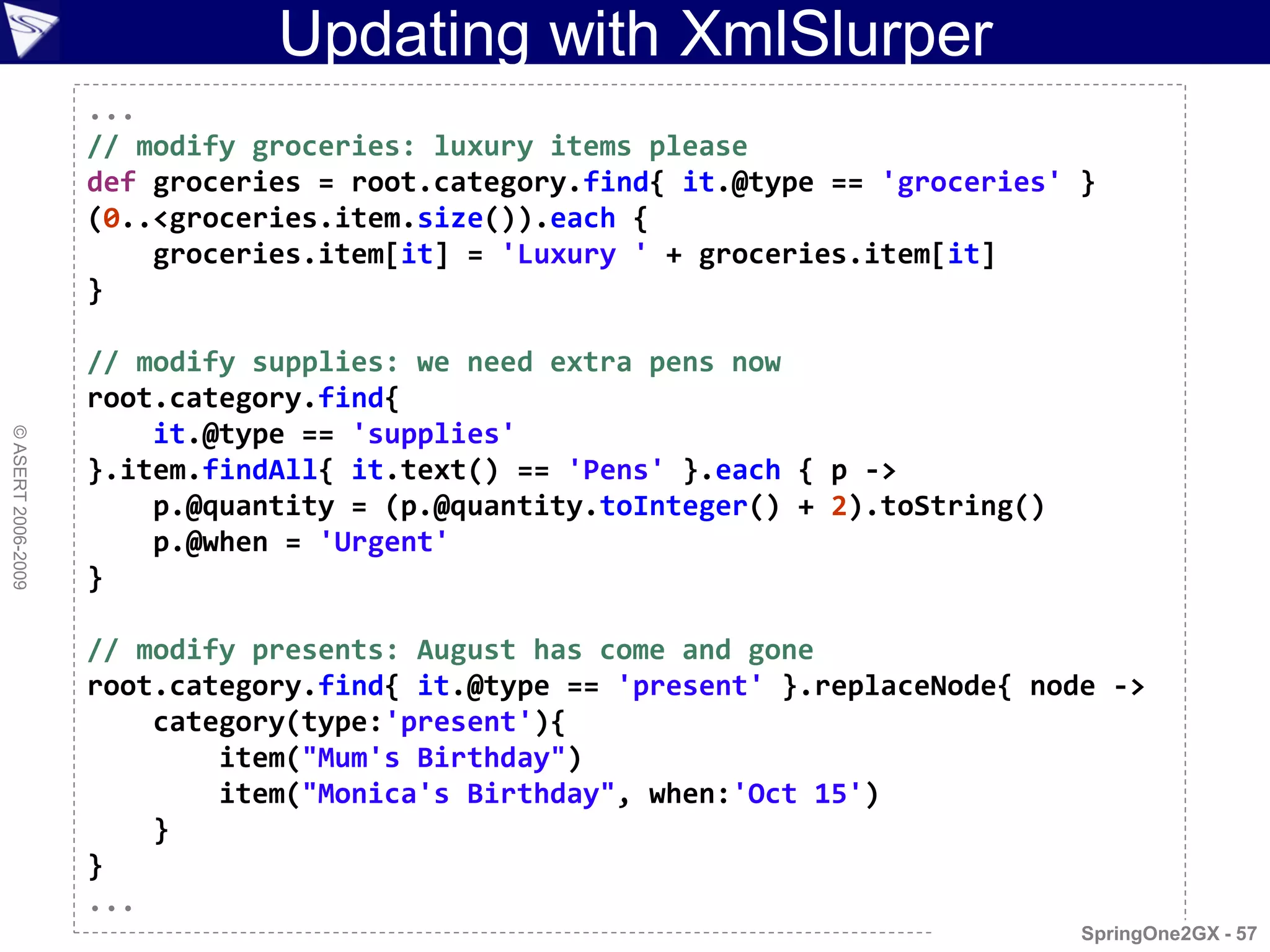

Updating with XmlSlurper
...
def groceries = root.category.find{ it.@type == 'groceries' }
(0..<groceries.item.size()).each {
groceries.item[it] = 'Luxury ' + groceries.item[it]
}

root.category.find{
it.@type == 'supplies'
© ASERT 2006-2009

}.item.findAll{ it.text() == 'Pens' }.each { p ->
p.@quantity = (p.@quantity.toInteger() + 2).toString()
p.@when = 'Urgent'
}

root.category.find{ it.@type == 'present' }.replaceNode{ node ->
category(type:'present'){
item("Mum's Birthday")
item("Monica's Birthday", when:'Oct 15')
}
}
...
SpringOne2GX - 57

Updating with DOMCategory
use(DOMCategory) {
def groceries = root.category.find{ it.'@type' == 'groceries' }.item
groceries.each { g ->
g.value = 'Luxury ' + g.text()
}

def supplies = root.category.find{ it.'@type' == 'supplies' }.item
supplies.findAll{ it.text() == 'Pens' }.each { p ->
© ASERT 2006-2009

p['@quantity'] = p.'@quantity'.toInteger() + 2
p['@when'] = 'Urgent'
}

def presents = root.category.find{ it.'@type' == 'present' }
presents.item.each { presents.removeChild(it) }
presents.appendNode('item', "Mum's Birthday")
presents.appendNode('item', [when:'Oct 15'], "Monica's Birthday")
...
}

SpringOne2GX - 58

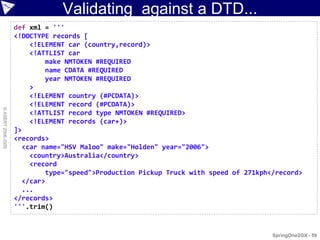

Validating against a DTD...
def xml = '''
<!DOCTYPE records [
<!ELEMENT car (country,record)>
<!ATTLIST car
make NMTOKEN #REQUIRED
name CDATA #REQUIRED
year NMTOKEN #REQUIRED
>
<!ELEMENT country (#PCDATA)>
<!ELEMENT record (#PCDATA)>
© ASERT 2006-2009

<!ATTLIST record type NMTOKEN #REQUIRED>
<!ELEMENT records (car+)>
]>
<records>
<car name="HSV Maloo" make="Holden" year="2006">
<country>Australia</country>
<record
type="speed">Production Pickup Truck with speed of 271kph</record>
</car>
...
</records>
'''.trim()

SpringOne2GX - 59

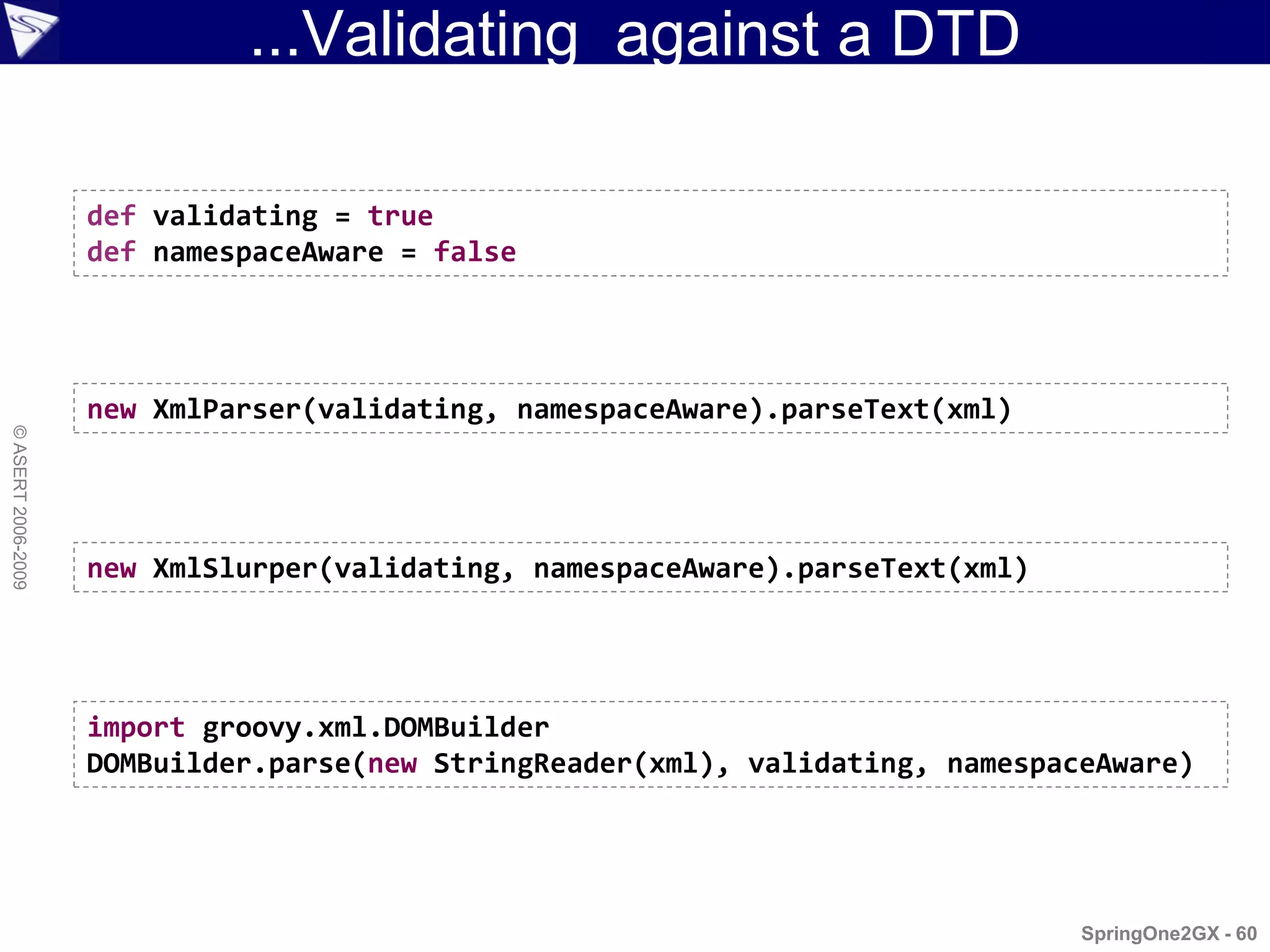

...Validating against a DTD

def validating = true
def namespaceAware = false

new XmlParser(validating, namespaceAware).parseText(xml)
© ASERT 2006-2009

new XmlSlurper(validating, namespaceAware).parseText(xml)

DOMBuilder.parse(new StringReader(xml), validating, namespaceAware)

SpringOne2GX - 60

Validating against a W3C Schema...
def xsd = '''
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" elementFormDefault="qualified">
<xs:element name="records">
<xs:complexType>
<xs:sequence>
<xs:element maxOccurs="unbounded" ref="car"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="car">
<xs:complexType>
<xs:sequence>
© ASERT 2006-2009

<xs:element ref="country"/>
<xs:element ref="record"/>
</xs:sequence>
<xs:attribute name="make" use="required" type="xs:NCName"/>
<xs:attribute name="name" use="required"/>
<xs:attribute name="year" use="required" type="xs:integer"/>
</xs:complexType>
</xs:element>
<xs:element name="country" type="xs:string"/>
<xs:element name="record">
<xs:complexType mixed="true">
<xs:attribute name="type" use="required" type="xs:NCName"/>
</xs:complexType>
</xs:element>
</xs:schema>
'''.trim()
SpringOne2GX - 61

...Validating against a W3C Schema

import static javax.xml.XMLConstants.W3C_XML_SCHEMA_NS_URI
import javax.xml.transform.stream.StreamSource
import javax.xml.validation.SchemaFactory

def factory = SchemaFactory.newInstance(W3C_XML_SCHEMA_NS_URI)
// println factory.isSchemaLanguageSupported(W3C_XML_SCHEMA_NS_URI)
© ASERT 2006-2009

def schema =
factory.newSchema(new StreamSource(new StringReader(xsd)))
def validator = schema.newValidator()
validator.validate(
new StreamSource(new StringReader(XmlExamples.CAR_RECORDS)))

SpringOne2GX - 62

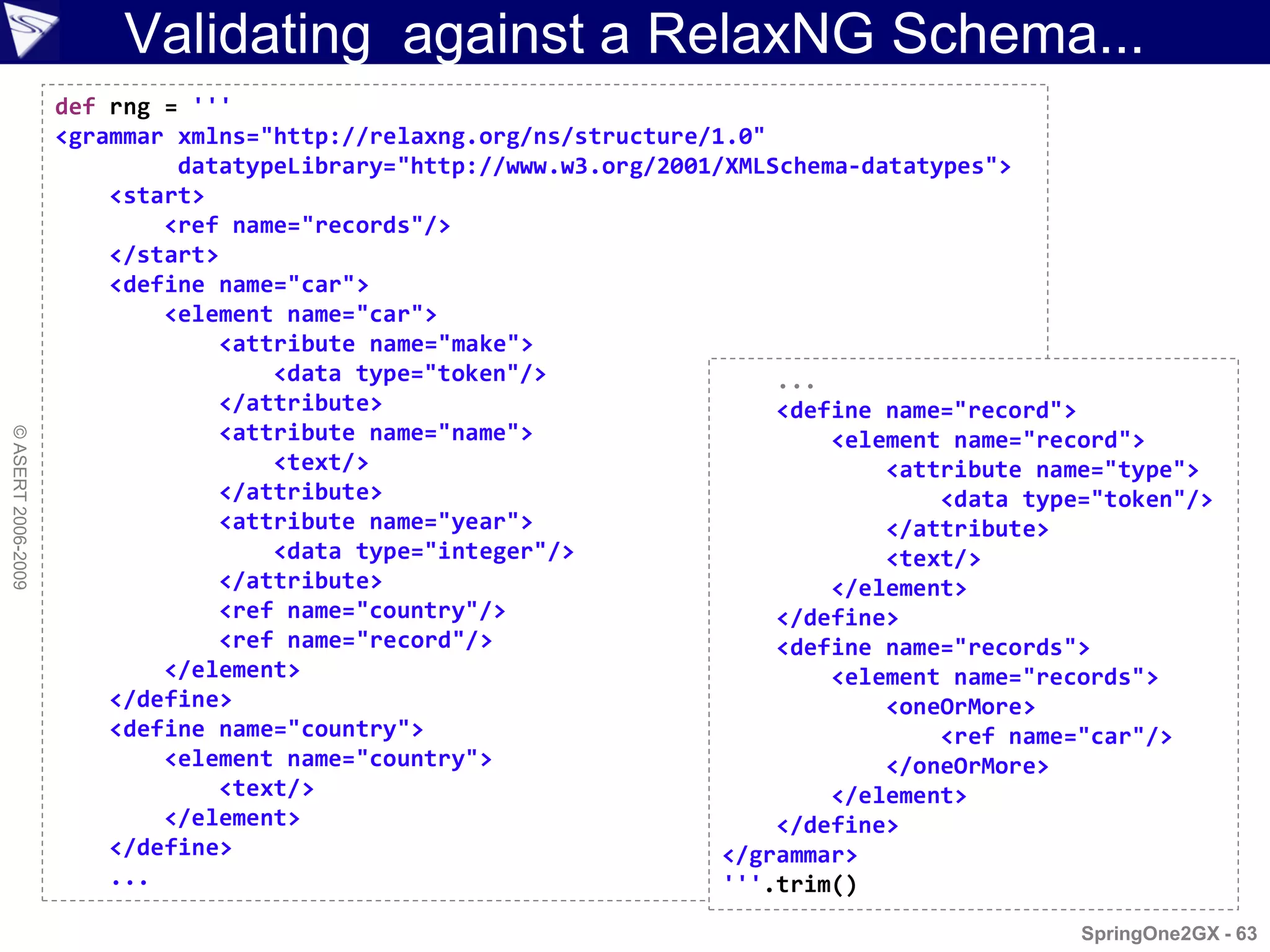

Validating against a RelaxNG Schema...
def rng = '''
<grammar xmlns="http://relaxng.org/ns/structure/1.0"
datatypeLibrary="http://www.w3.org/2001/XMLSchema-datatypes">
<start>
<ref name="records"/>
</start>
<define name="car">
<element name="car">
<attribute name="make">
<data type="token"/> ...
</attribute> <define name="record">
<attribute name="name">
© ASERT 2006-2009

<element name="record">
<text/> <attribute name="type">
</attribute> <data type="token"/>
<attribute name="year"> </attribute>
<data type="integer"/> <text/>
</attribute> </element>
<ref name="country"/> </define>
<ref name="record"/> <define name="records">
</element> <element name="records">
</define> <oneOrMore>
<define name="country"> <ref name="car"/>
<element name="country"> </oneOrMore>
<text/> </element>
</element> </define>
</define> </grammar>
... '''.trim()
SpringOne2GX - 63

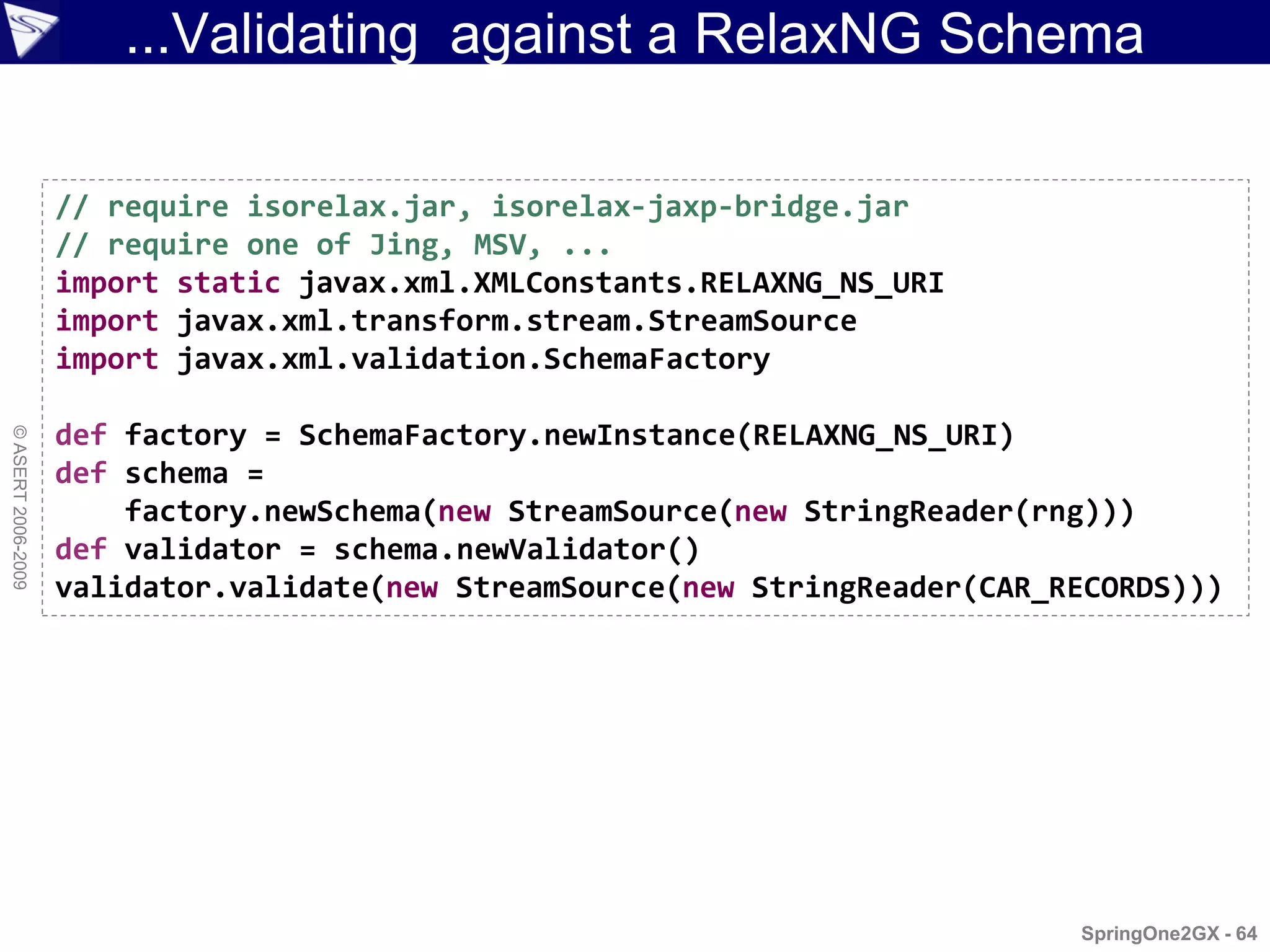

...Validating against a RelaxNG Schema

// require isorelax.jar, isorelax-jaxp-bridge.jar
// require one of Jing, MSV, ...
import static javax.xml.XMLConstants.RELAXNG_NS_URI
import javax.xml.transform.stream.StreamSource
import javax.xml.validation.SchemaFactory

def factory = SchemaFactory.newInstance(RELAXNG_NS_URI)
© ASERT 2006-2009

def schema =
factory.newSchema(new StreamSource(new StringReader(rng)))
def validator = schema.newValidator()
validator.validate(new StreamSource(new StringReader(CAR_RECORDS)))

SpringOne2GX - 64

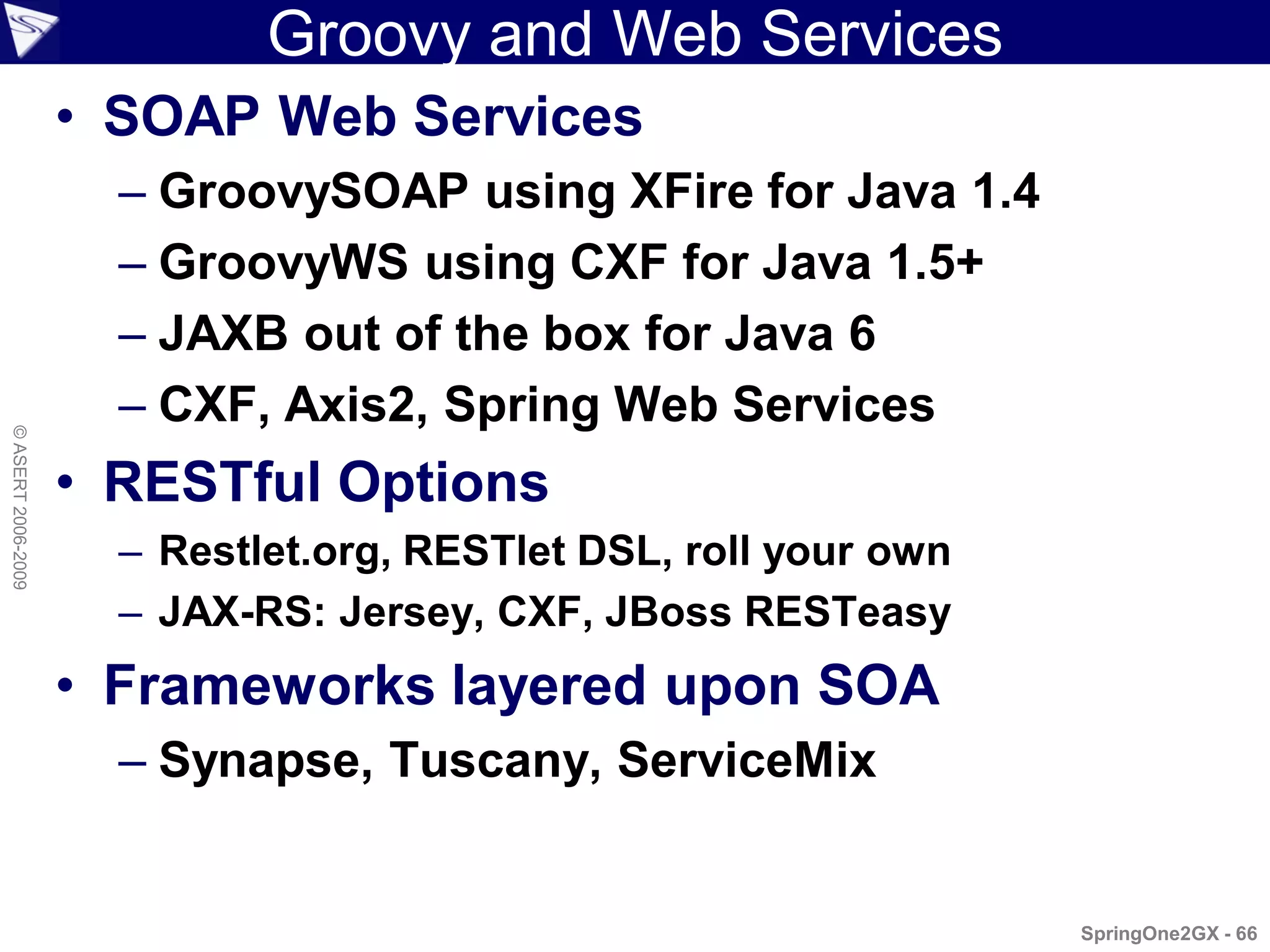

Groovy and Web Services
• SOAP Web Services
– GroovySOAP using XFire for Java 1.4
– GroovyWS using CXF for Java 1.5+
– JAXB out of the box for Java 6
– CXF, Axis2, Spring Web Services
© ASERT 2006-2009

• RESTful Options
– Restlet.org, RESTlet DSL, roll your own

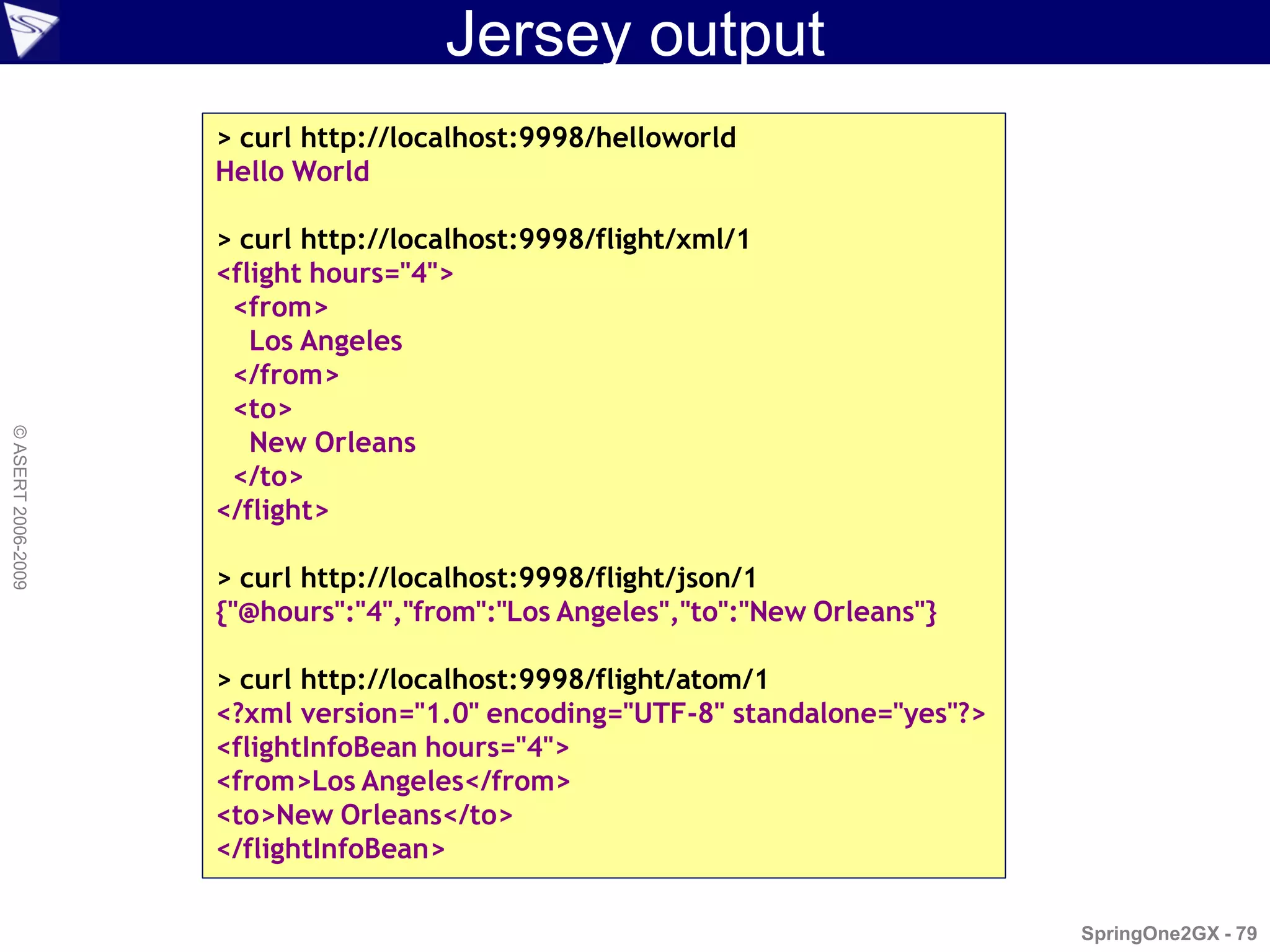

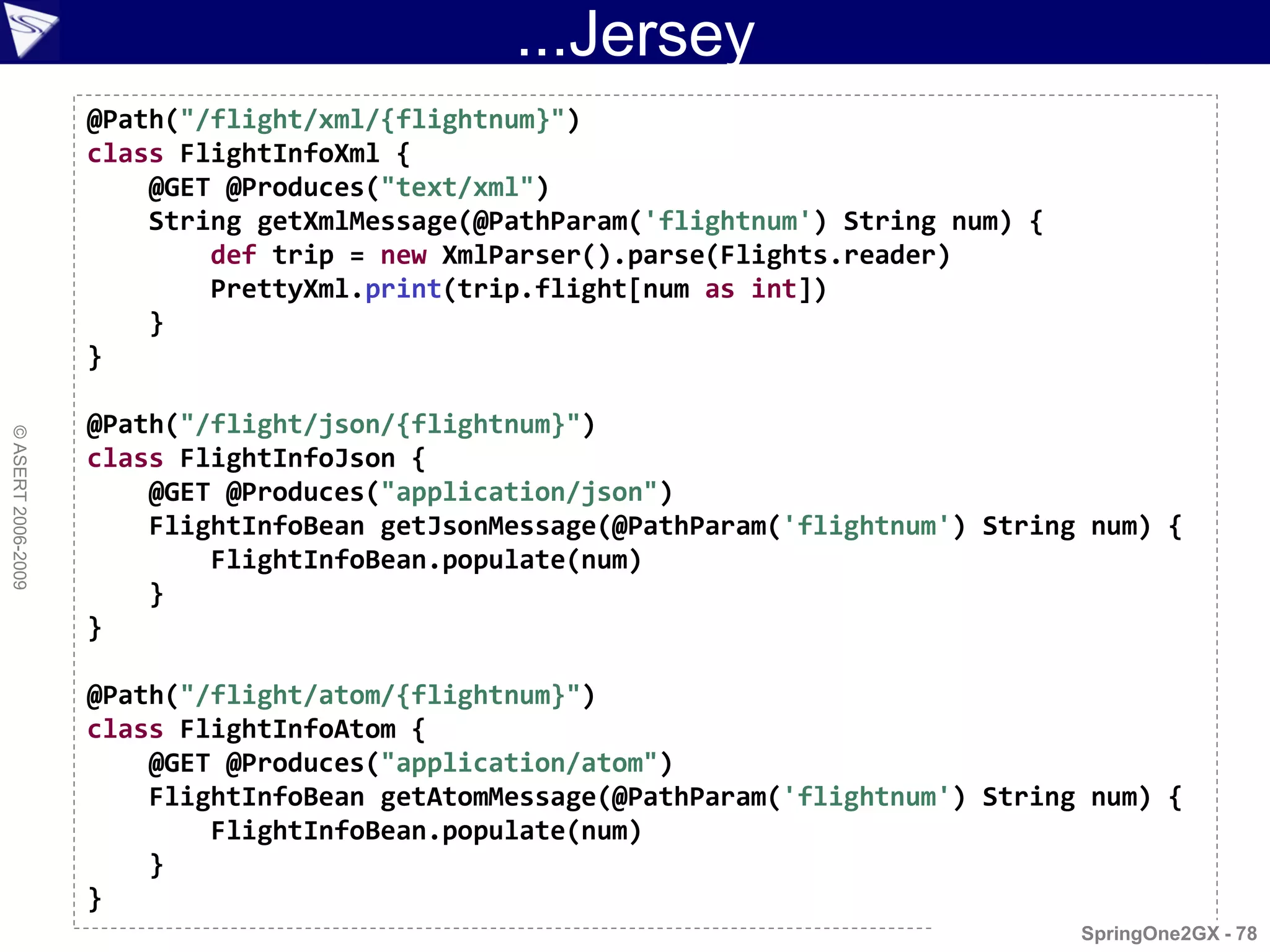

– JAX-RS: Jersey, CXF, JBoss RESTeasy

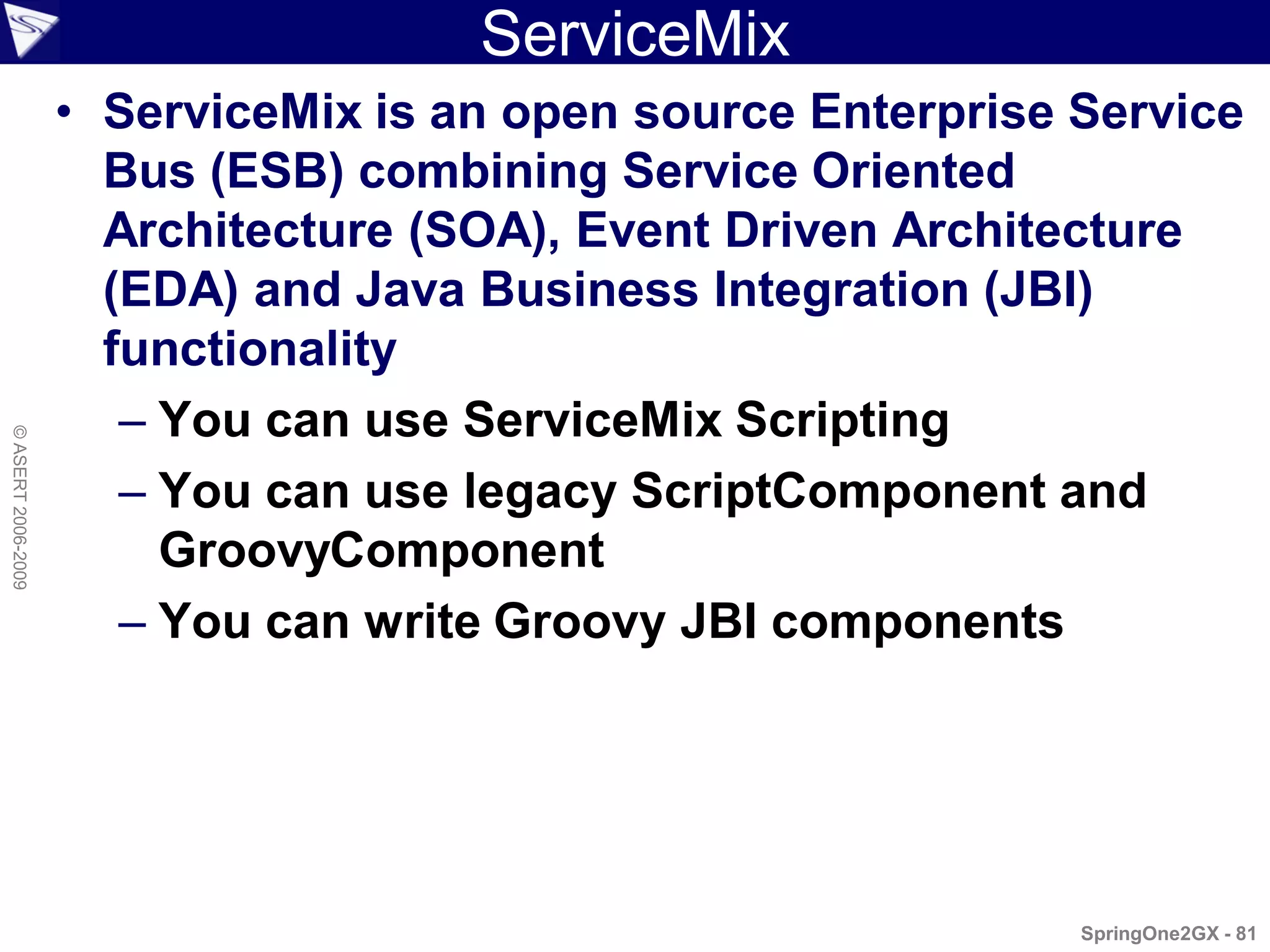

• Frameworks layered upon SOA

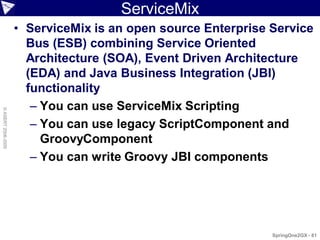

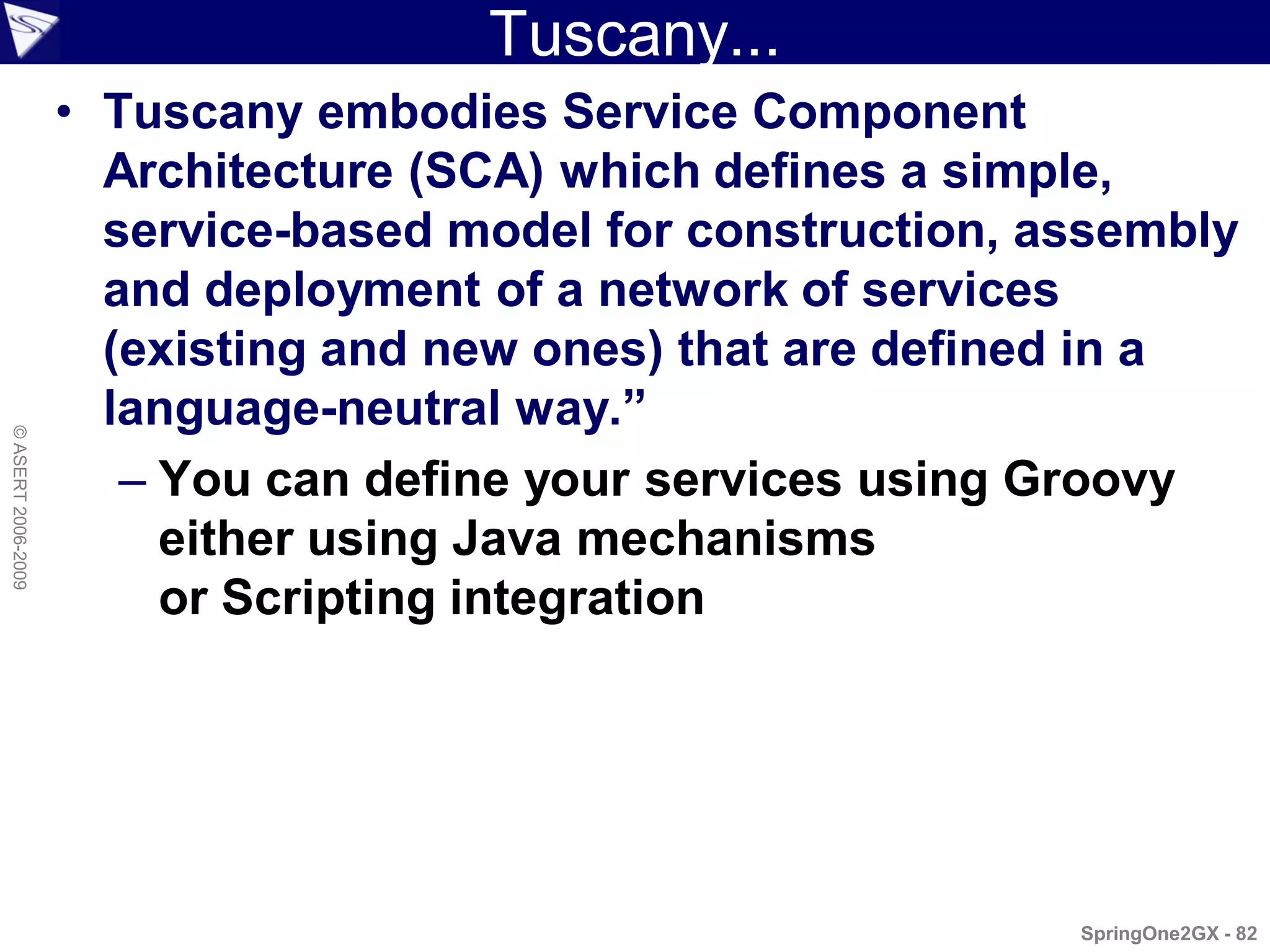

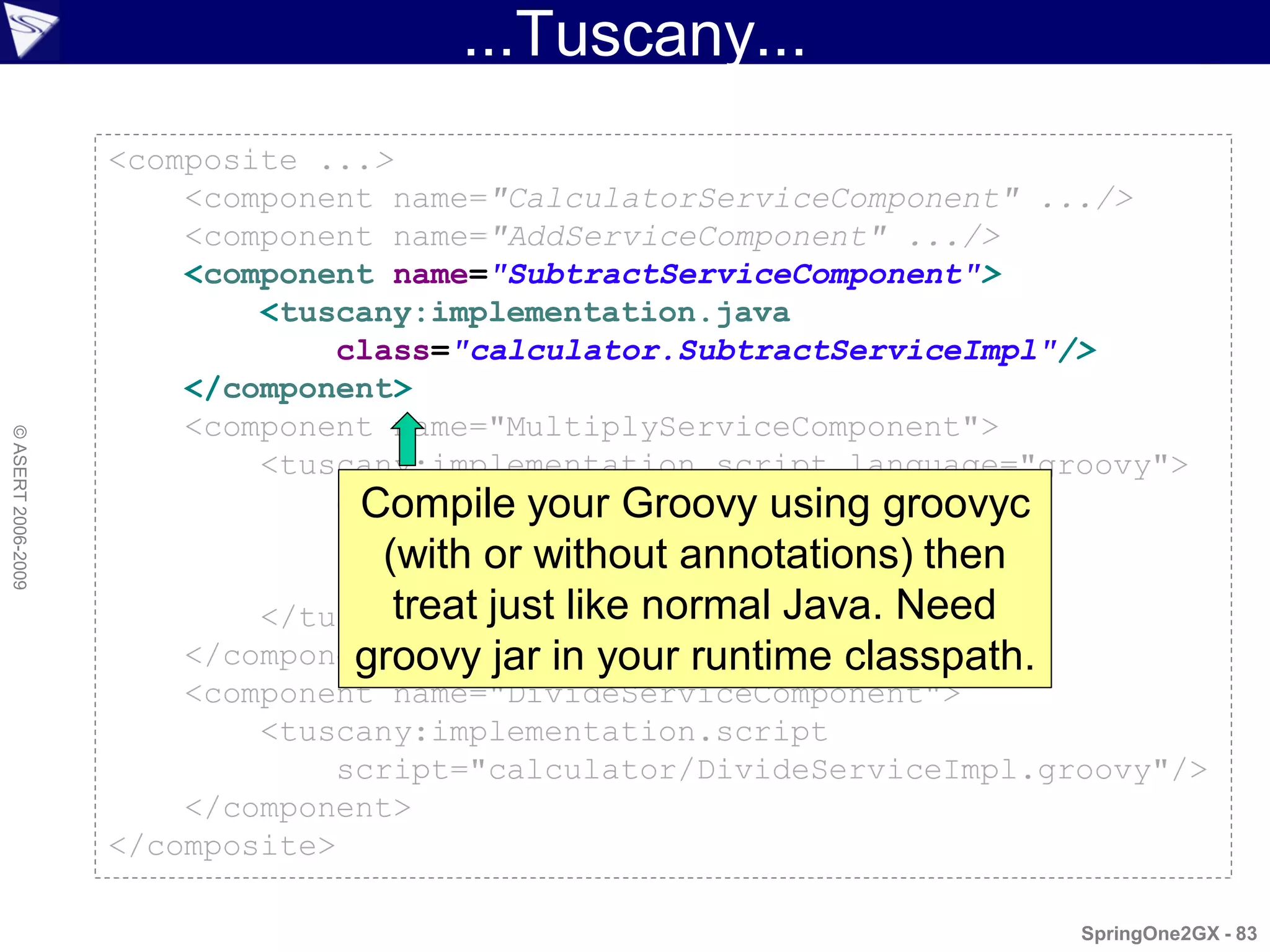

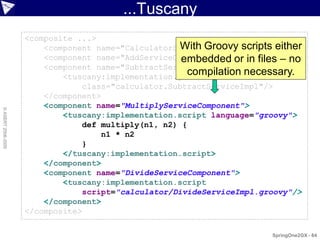

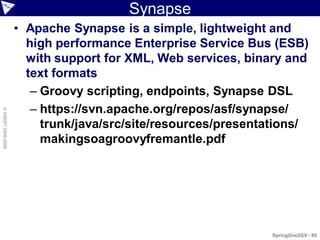

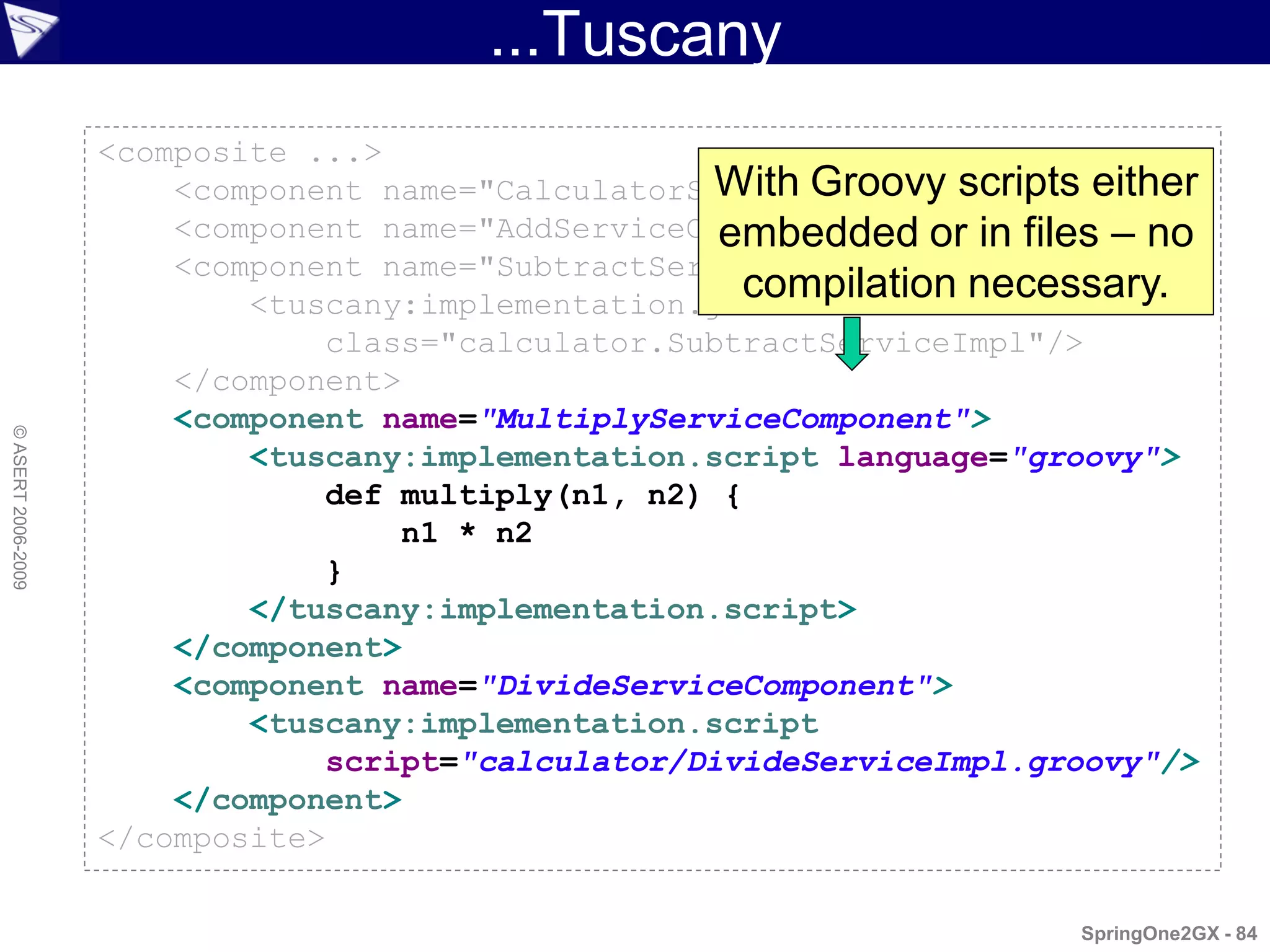

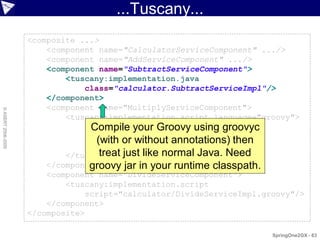

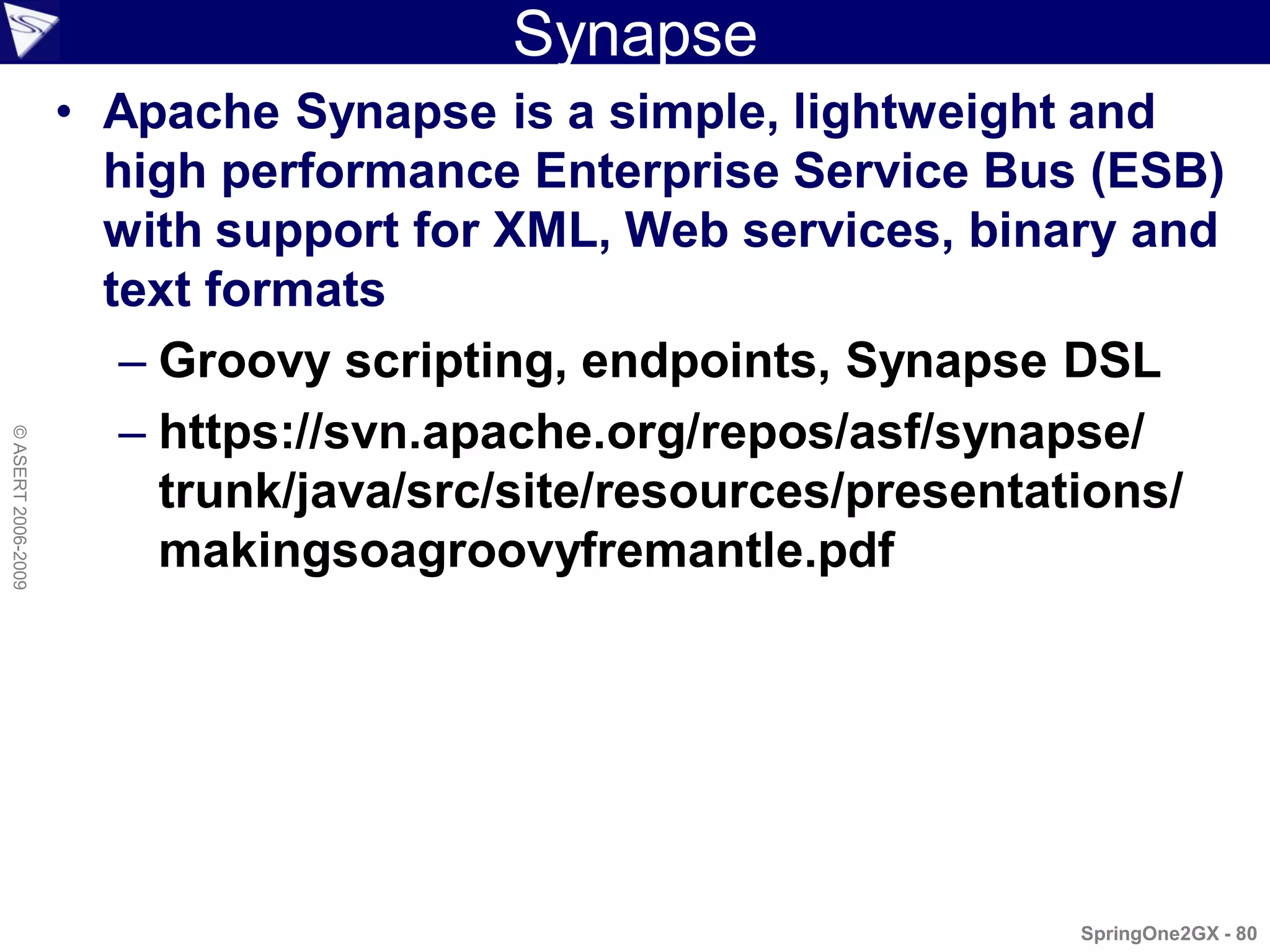

– Synapse, Tuscany, ServiceMix

SpringOne2GX - 66

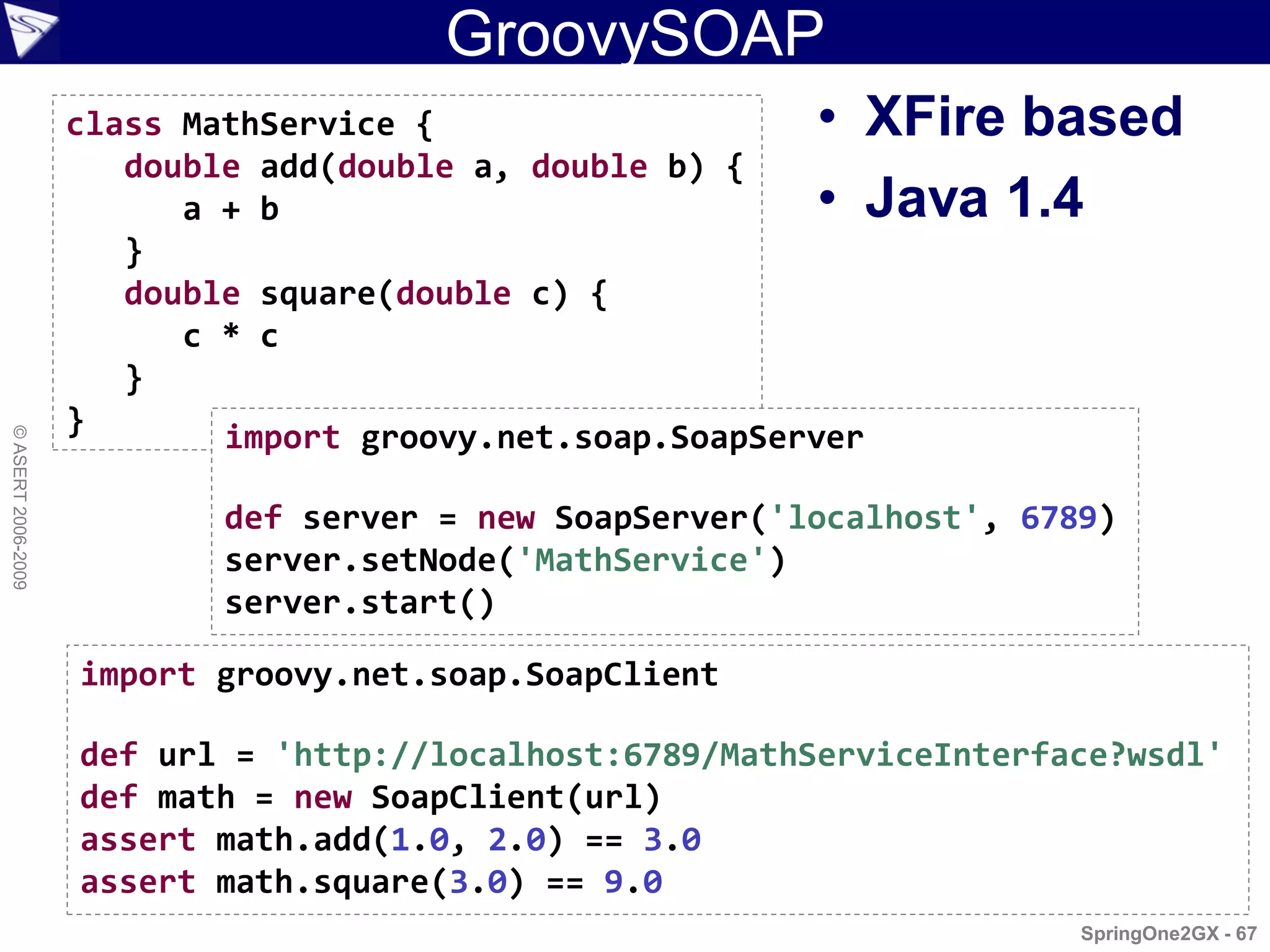

GroovySOAP
class MathService { • XFire based
double add(double a, double b) {
a + b • Java 1.4
}
double square(double c) {
c * c
}
} import groovy.net.soap.SoapServer
© ASERT 2006-2009

def server = new SoapServer('localhost', 6789)
server.setNode('MathService')
server.start()

import groovy.net.soap.SoapClient

def url = 'http://localhost:6789/MathServiceInterface?wsdl'
def math = new SoapClient(url)
assert math.add(1.0, 2.0) == 3.0
assert math.square(3.0) == 9.0
SpringOne2GX - 67

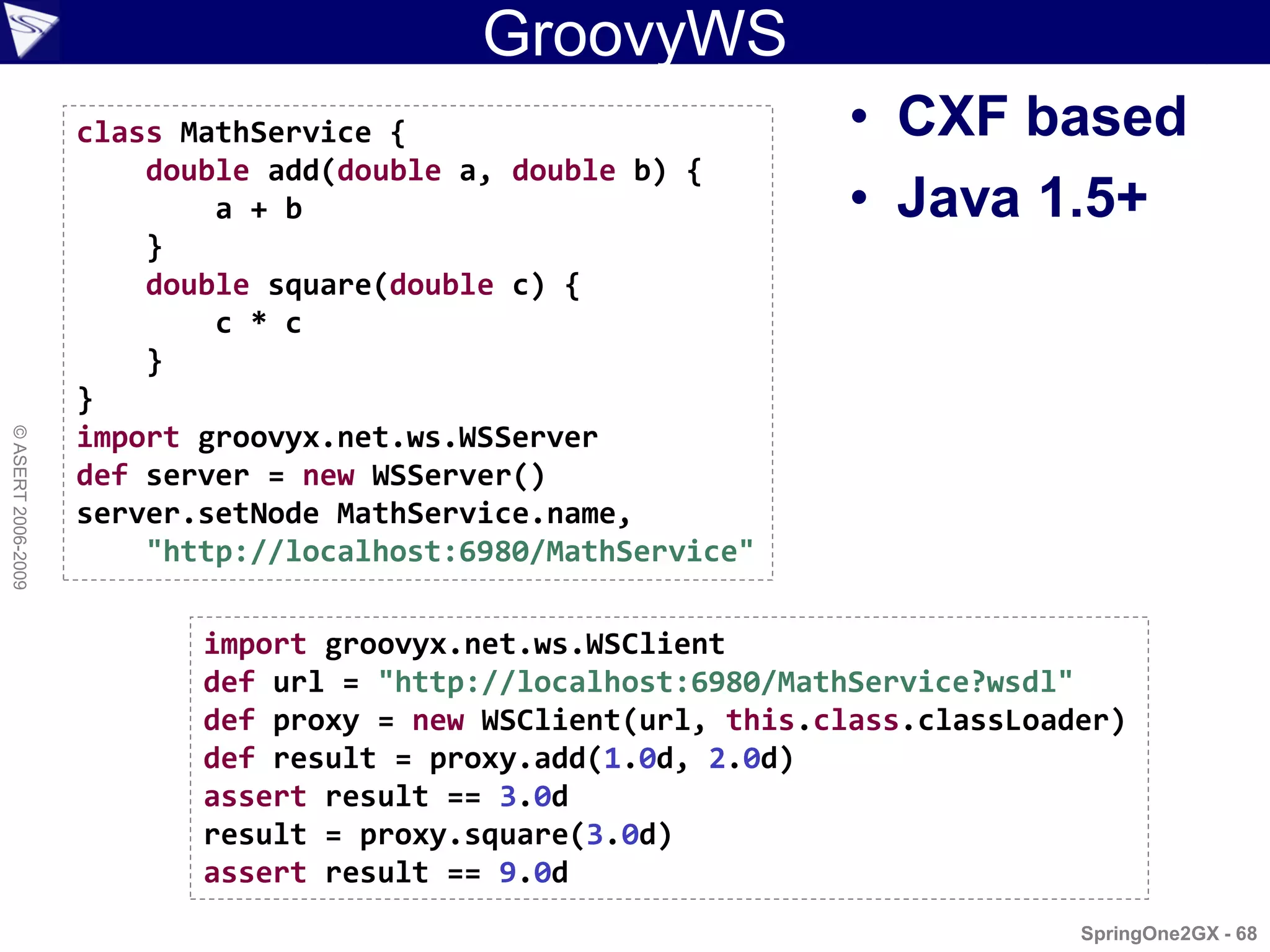

GroovyWS
class MathService { • CXF based
double add(double a, double b) {
a + b • Java 1.5+
}
double square(double c) {
c * c
}
}
import groovyx.net.ws.WSServer
© ASERT 2006-2009

def server = new WSServer()
server.setNode MathService.name,
"http://localhost:6980/MathService"

import groovyx.net.ws.WSClient
def url = "http://localhost:6980/MathService?wsdl"
def proxy = new WSClient(url, this.class.classLoader)
def result = proxy.add(1.0d, 2.0d)
assert result == 3.0d
result = proxy.square(3.0d)
assert result == 9.0d
SpringOne2GX - 68

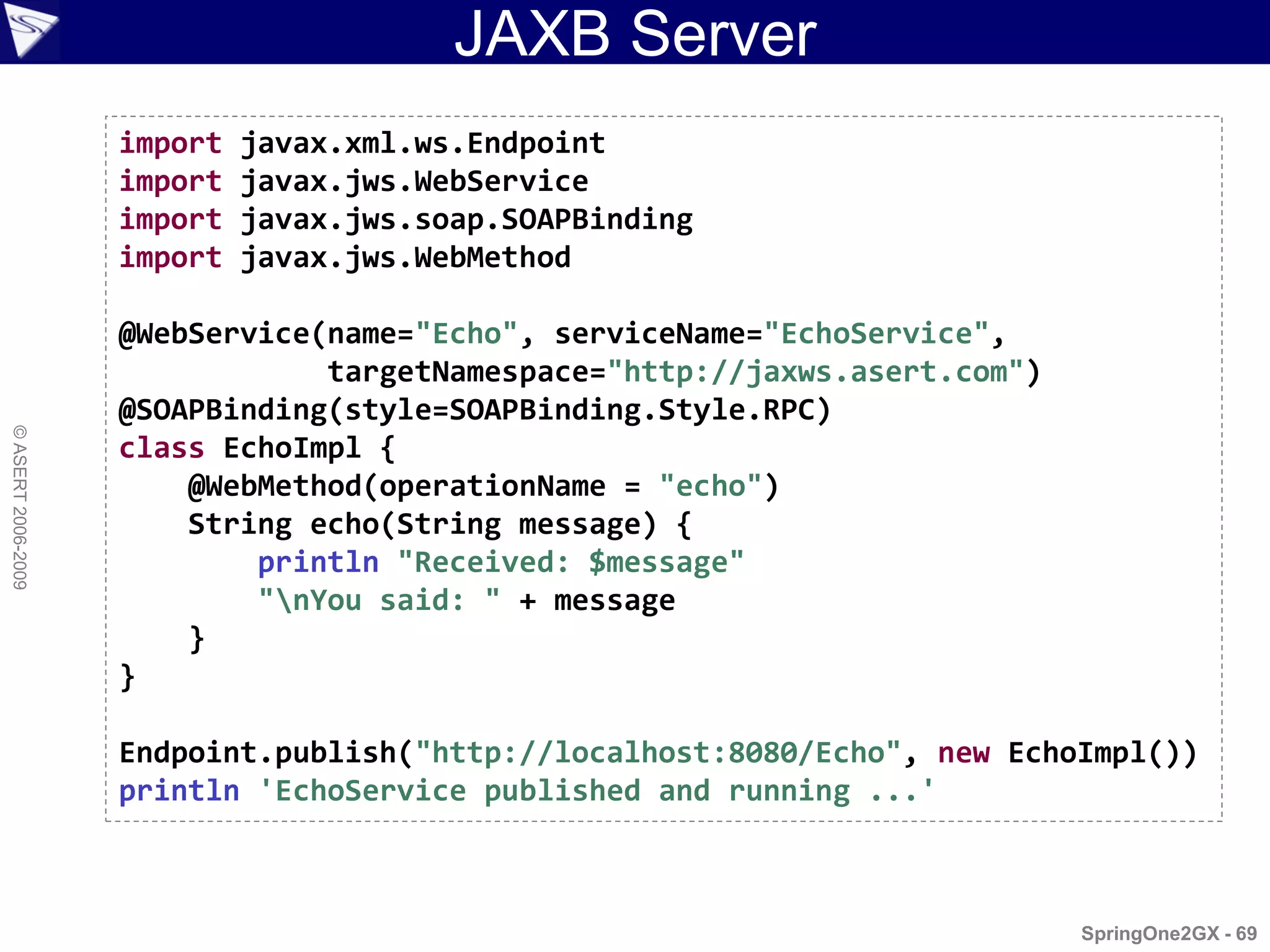

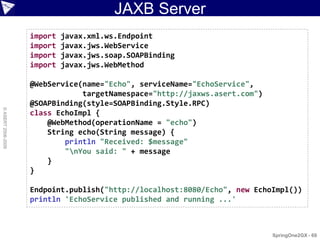

JAXB Server
import javax.xml.ws.Endpoint
import javax.jws.WebService
import javax.jws.soap.SOAPBinding
import javax.jws.WebMethod

@WebService(name="Echo", serviceName="EchoService",
targetNamespace="http://jaxws.asert.com")
@SOAPBinding(style=SOAPBinding.Style.RPC)
© ASERT 2006-2009

class EchoImpl {
@WebMethod(operationName = "echo")
String echo(String message) {
println "Received: $message"
"nYou said: " + message
}
}

Endpoint.publish("http://localhost:8080/Echo", new EchoImpl())
println 'EchoService published and running ...'

SpringOne2GX - 69

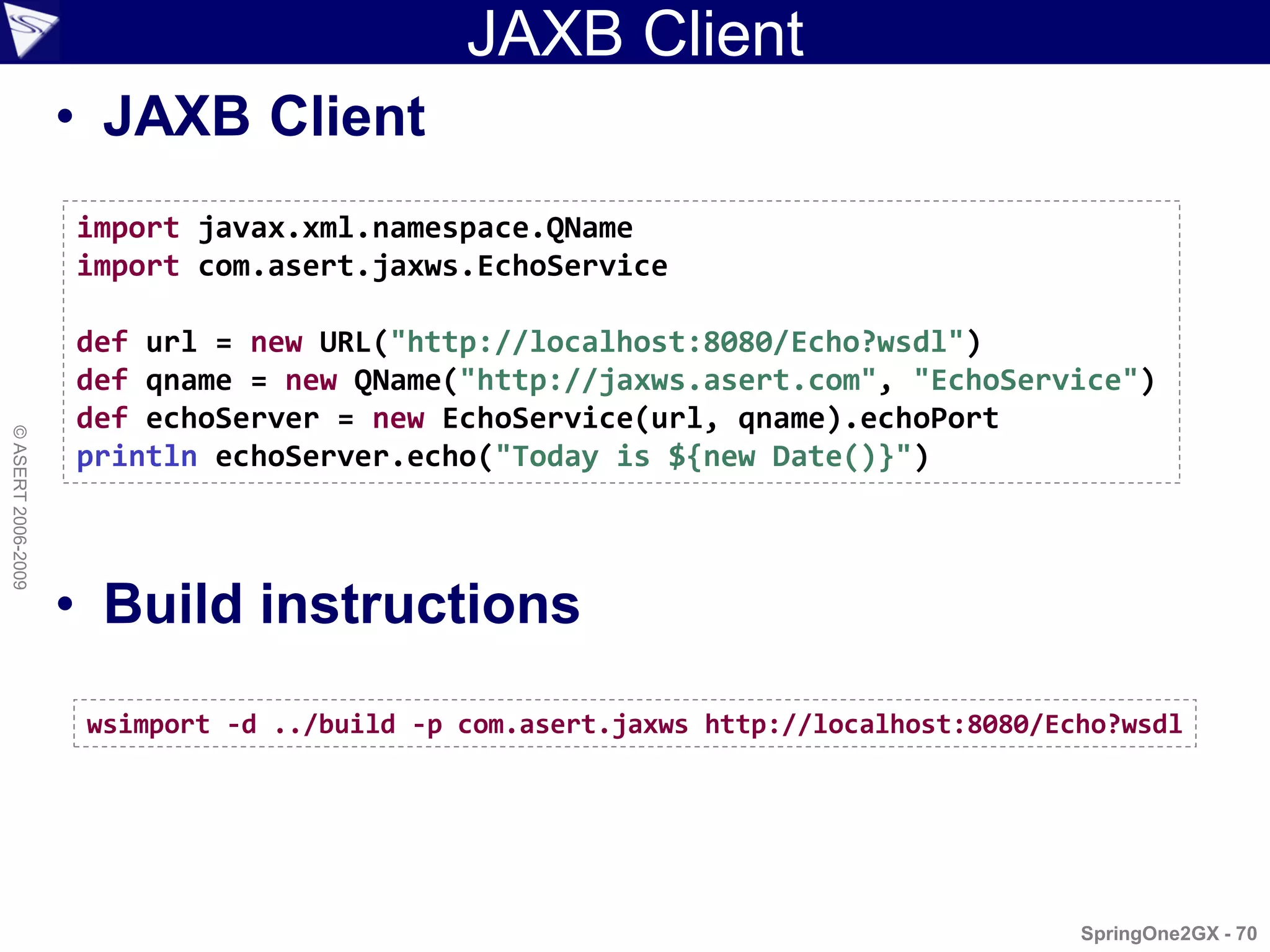

JAXB Client
• JAXB Client
import javax.xml.namespace.QName
import com.asert.jaxws.EchoService

def url = new URL("http://localhost:8080/Echo?wsdl")
def qname = new QName("http://jaxws.asert.com", "EchoService")
def echoServer = new EchoService(url, qname).echoPort
© ASERT 2006-2009

println echoServer.echo("Today is ${new Date()}")

• Build instructions
wsimport -d ../build -p com.asert.jaxws http://localhost:8080/Echo?wsdl

SpringOne2GX - 70

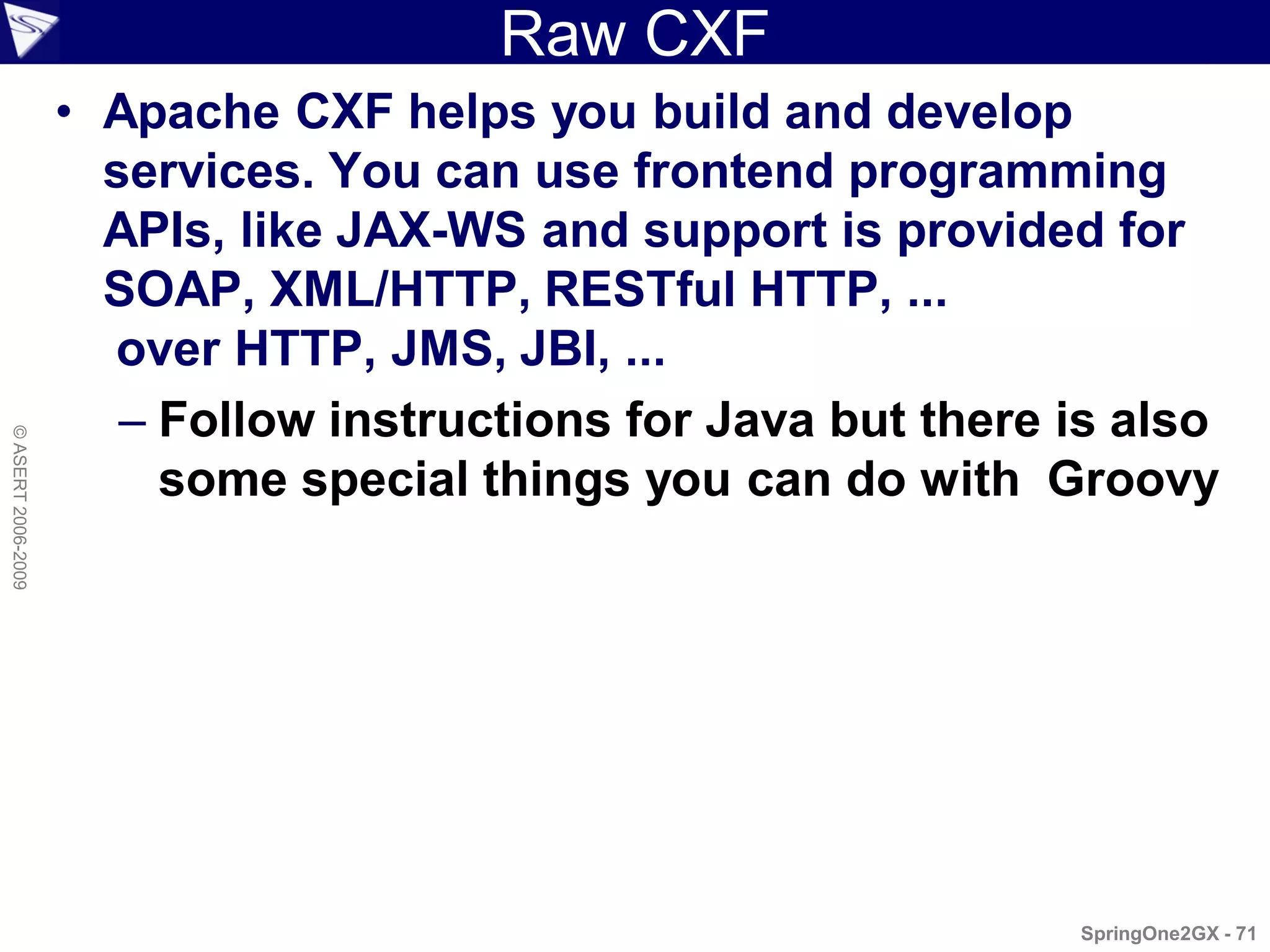

Raw CXF
• Apache CXF helps you build and develop
services. You can use frontend programming
APIs, like JAX-WS and support is provided for
SOAP, XML/HTTP, RESTful HTTP, ...
over HTTP, JMS, JBI, ...
– Follow instructions for Java but there is also
© ASERT 2006-2009

some special things you can do with Groovy

SpringOne2GX - 71

Axis2
• Apache Axis is a comprehensive
implementation of SOAP
– Follow the instructions for Java but use
Groovy instead and precompile
– Use GroovyShell to call script at runtime
• Another article:
© ASERT 2006-2009

– http://www.developer.com/services/article.ph
p/10928_3570031_2

SpringOne2GX - 72

RESTful options
• Several Options
– Already supported in discussed
frameworks, e.g. CXF
– Groovy Restlet DSL
http://docs.codehaus.org/display/GROOVY/GroovyRestlet
– Jersey
© ASERT 2006-2009

http://wikis.sun.com/display/Jersey/Main
– restlet.org
http://www.restlet.org

SpringOne2GX - 73

restlet.org
import org.restlet.*
import org.restlet.data.*
class MailboxResource extends Restlet {
void handle(Request request, Response response) {
switch (request.method) {
case Method.GET:
handleGet(request, response)
break

case Method.PUT:
handlePut(request, response)
© ASERT 2006-2009

break

case Method.POST:
handlePost(request, response)
break

default:
// The request method is not allowed; set an error status
response.setStatus(Status.CLIENT_ERROR_METHOD_NOT_ALLOWED)
response.setAllowedMethods([Method.GET, Method.PUT, Method.POST] as Set)
}
}
void handleGet(request, response) {
response.setEntity("Hello, world!", MediaType.TEXT_PLAIN)
}
// ...
SpringOne2GX - 74

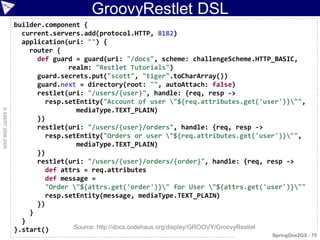

GroovyRestlet DSL
builder.component {
current.servers.add(protocol.HTTP, 8182)
application(uri: "") {
router {
def guard = guard(uri: "/docs", scheme: challengeScheme.HTTP_BASIC,
realm: "Restlet Tutorials")
guard.secrets.put("scott", "tiger".toCharArray())
guard.next = directory(root: "", autoAttach: false)
restlet(uri: "/users/{user}", handle: {req, resp ->
resp.setEntity("Account of user "${req.attributes.get('user')}"",
mediaType.TEXT_PLAIN)
© ASERT 2006-2009

})
restlet(uri: "/users/{user}/orders", handle: {req, resp ->
resp.setEntity("Orders or user "${req.attributes.get('user')}"",
mediaType.TEXT_PLAIN)
})
restlet(uri: "/users/{user}/orders/{order}", handle: {req, resp ->
def attrs = req.attributes
def message =
"Order "${attrs.get('order')}" for User "${attrs.get('user')}""
resp.setEntity(message, mediaType.TEXT_PLAIN)
})
}
}
}.start() Source: http://docs.codehaus.org/display/GROOVY/GroovyRestlet
SpringOne2GX - 75

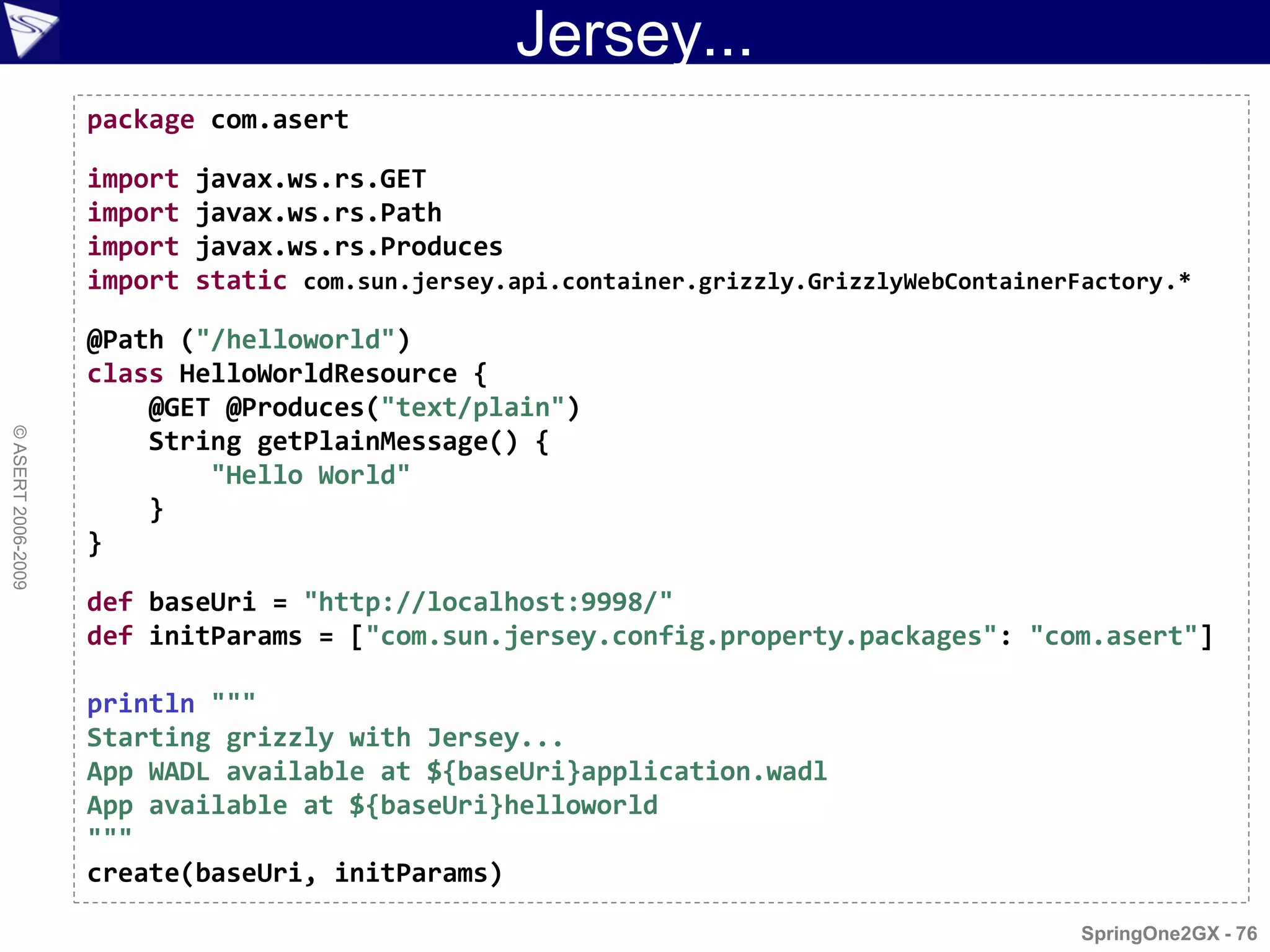

Jersey...
package com.asert

import javax.ws.rs.GET
import javax.ws.rs.Path
import javax.ws.rs.Produces
import static com.sun.jersey.api.container.grizzly.GrizzlyWebContainerFactory.*

@Path ("/helloworld")
class HelloWorldResource {
@GET @Produces("text/plain")
© ASERT 2006-2009

String getPlainMessage() {
"Hello World"
}
}

def baseUri = "http://localhost:9998/"
def initParams = ["com.sun.jersey.config.property.packages": "com.asert"]

println """
Starting grizzly with Jersey...
App WADL available at ${baseUri}application.wadl
App available at ${baseUri}helloworld
"""
create(baseUri, initParams)

SpringOne2GX - 76

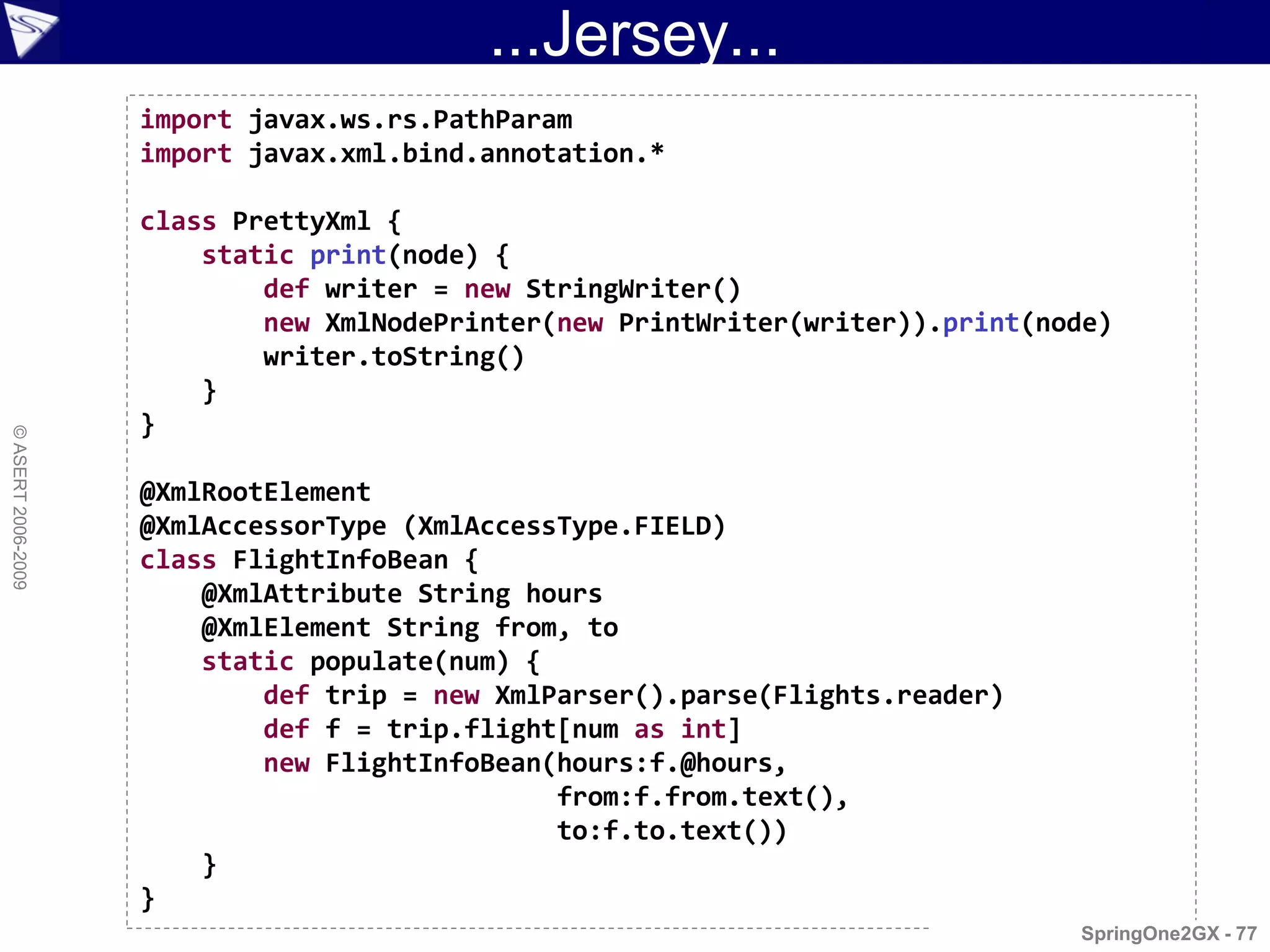

...Jersey...
import javax.ws.rs.PathParam
import javax.xml.bind.annotation.*

class PrettyXml {
static print(node) {
new XmlNodePrinter(new PrintWriter(writer)).print(node)
writer.toString()
}
}
© ASERT 2006-2009

@XmlRootElement
@XmlAccessorType (XmlAccessType.FIELD)
class FlightInfoBean {
@XmlAttribute String hours
@XmlElement String from, to
static populate(num) {
def trip = new XmlParser().parse(Flights.reader)
def f = trip.flight[num as int]
new FlightInfoBean(hours:f.@hours,
from:f.from.text(),
to:f.to.text())
}
}
SpringOne2GX - 77

...Jersey
@Path("/flight/xml/{flightnum}")
class FlightInfoXml {
@GET @Produces("text/xml")
String getXmlMessage(@PathParam('flightnum') String num) {
def trip = new XmlParser().parse(Flights.reader)
PrettyXml.print(trip.flight[num as int])
}
}

@Path("/flight/json/{flightnum}")
© ASERT 2006-2009

class FlightInfoJson {
@GET @Produces("application/json")
FlightInfoBean getJsonMessage(@PathParam('flightnum') String num) {
FlightInfoBean.populate(num)
}
}

@Path("/flight/atom/{flightnum}")
class FlightInfoAtom {
@GET @Produces("application/atom")
FlightInfoBean getAtomMessage(@PathParam('flightnum') String num) {
FlightInfoBean.populate(num)
}
}
SpringOne2GX - 78

Jersey output
> curl http://localhost:9998/helloworld
Hello World

> curl http://localhost:9998/flight/xml/1
<flight hours="4">
<from>
Los Angeles
</from>
<to>
New Orleans
© ASERT 2006-2009

</to>
</flight>

> curl http://localhost:9998/flight/json/1
{"@hours":"4","from":"Los Angeles","to":"New Orleans"}

> curl http://localhost:9998/flight/atom/1
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<flightInfoBean hours="4">
<from>Los Angeles</from>
<to>New Orleans</to>
</flightInfoBean>

SpringOne2GX - 79

Synapse
• Apache Synapse is a simple, lightweight and
high performance Enterprise Service Bus (ESB)
with support for XML, Web services, binary and
text formats
– Groovy scripting, endpoints, Synapse DSL
– https://svn.apache.org/repos/asf/synapse/
© ASERT 2006-2009

trunk/java/src/site/resources/presentations/
makingsoagroovyfremantle.pdf

SpringOne2GX - 80

ServiceMix
• ServiceMix is an open source Enterprise Service
Bus (ESB) combining Service Oriented
Architecture (SOA), Event Driven Architecture
(EDA) and Java Business Integration (JBI)
functionality
– You can use ServiceMix Scripting
© ASERT 2006-2009

– You can use legacy ScriptComponent and
GroovyComponent
– You can write Groovy JBI components

SpringOne2GX - 81

Tuscany...
• Tuscany embodies Service Component
Architecture (SCA) which defines a simple,
service-based model for construction, assembly
and deployment of a network of services
(existing and new ones) that are defined in a
language-neutral way.”
© ASERT 2006-2009

– You can define your services using Groovy
either using Java mechanisms
or Scripting integration

SpringOne2GX - 82

...Tuscany...
<composite ...>
<component name="CalculatorServiceComponent" .../>
<component name="AddServiceComponent" .../>
<component name="SubtractServiceComponent">
<tuscany:implementation.java
class="calculator.SubtractServiceImpl"/>
</component>
<component name="MultiplyServiceComponent">
© ASERT 2006-2009

<tuscany:implementation.script language="groovy">
def multiply(n1, n2) { using groovyc
Compile your Groovy
}
(with*or without annotations) then
n1 n2

</tuscany:implementation.script> Need
treat just like normal Java.
</component>
groovy jar in your runtime classpath.
<component name="DivideServiceComponent">
<tuscany:implementation.script
script="calculator/DivideServiceImpl.groovy"/>
</component>
</composite>

SpringOne2GX - 83

...Tuscany
<composite ...>
With Groovy scripts either
<component name="CalculatorServiceComponent" .../>
<component name="AddServiceComponent" .../> files – no
embedded or in
<component name="SubtractServiceComponent">
compilation necessary.
<tuscany:implementation.java
class="calculator.SubtractServiceImpl"/>
</component>
<component name="MultiplyServiceComponent">
© ASERT 2006-2009

<tuscany:implementation.script language="groovy">
def multiply(n1, n2) {
n1 * n2
}
</tuscany:implementation.script>
</component>
<component name="DivideServiceComponent">
<tuscany:implementation.script
script="calculator/DivideServiceImpl.groovy"/>
</component>
</composite>

SpringOne2GX - 84

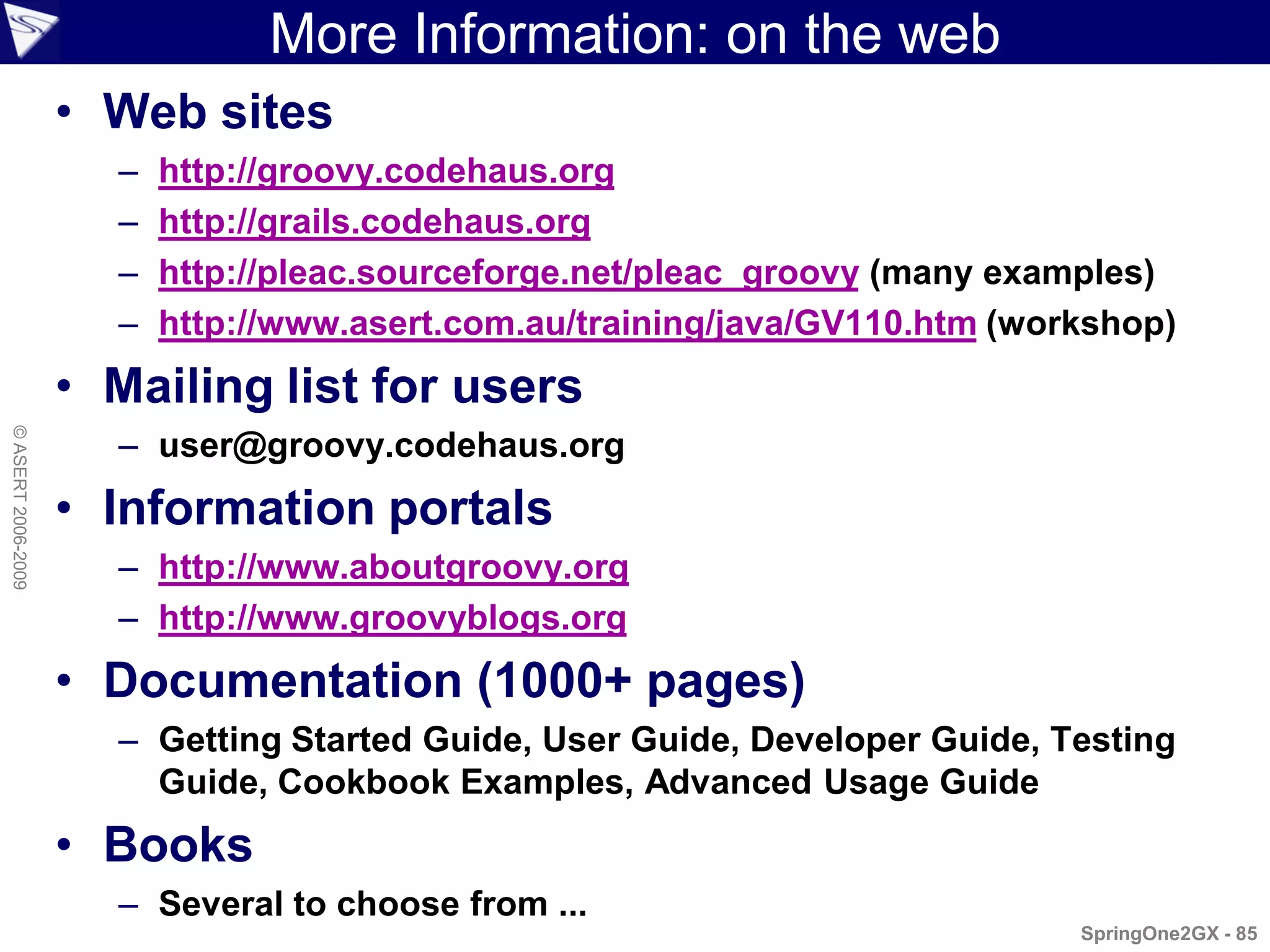

More Information: on the web
• Web sites
– http://groovy.codehaus.org
– http://grails.codehaus.org
– http://pleac.sourceforge.net/pleac_groovy (many examples)
– http://www.asert.com.au/training/java/GV110.htm (workshop)
• Mailing list for users
– user@groovy.codehaus.org
© ASERT 2006-2009

• Information portals
– http://www.aboutgroovy.org
– http://www.groovyblogs.org
• Documentation (1000+ pages)
– Getting Started Guide, User Guide, Developer Guide, Testing
Guide, Cookbook Examples, Advanced Usage Guide
• Books
– Several to choose from ...
SpringOne2GX - 85

XML and Web Services with Groovy

More Related Content

What's hot

Viewers also liked

Similar to XML and Web Services with Groovy

More from Paul King

Recently uploaded

XML and Web Services with Groovy
