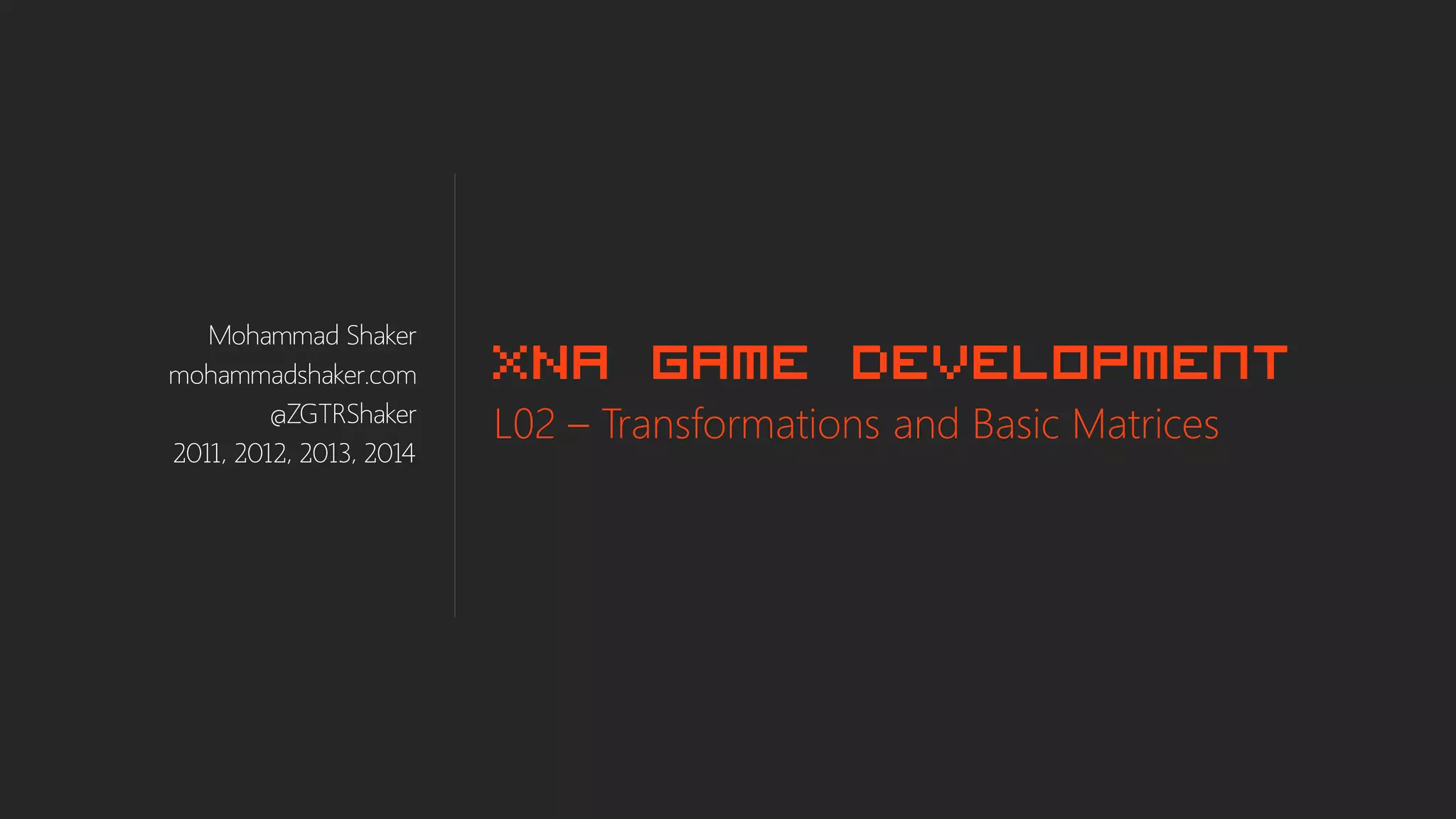

- 1. Mohammad Shaker mohammadshaker.com @ZGTRShaker 2011, 2012, 2013, 2014 XNA Game Development L02 –Transformations and Basic Matrices

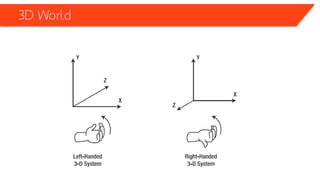

- 2.

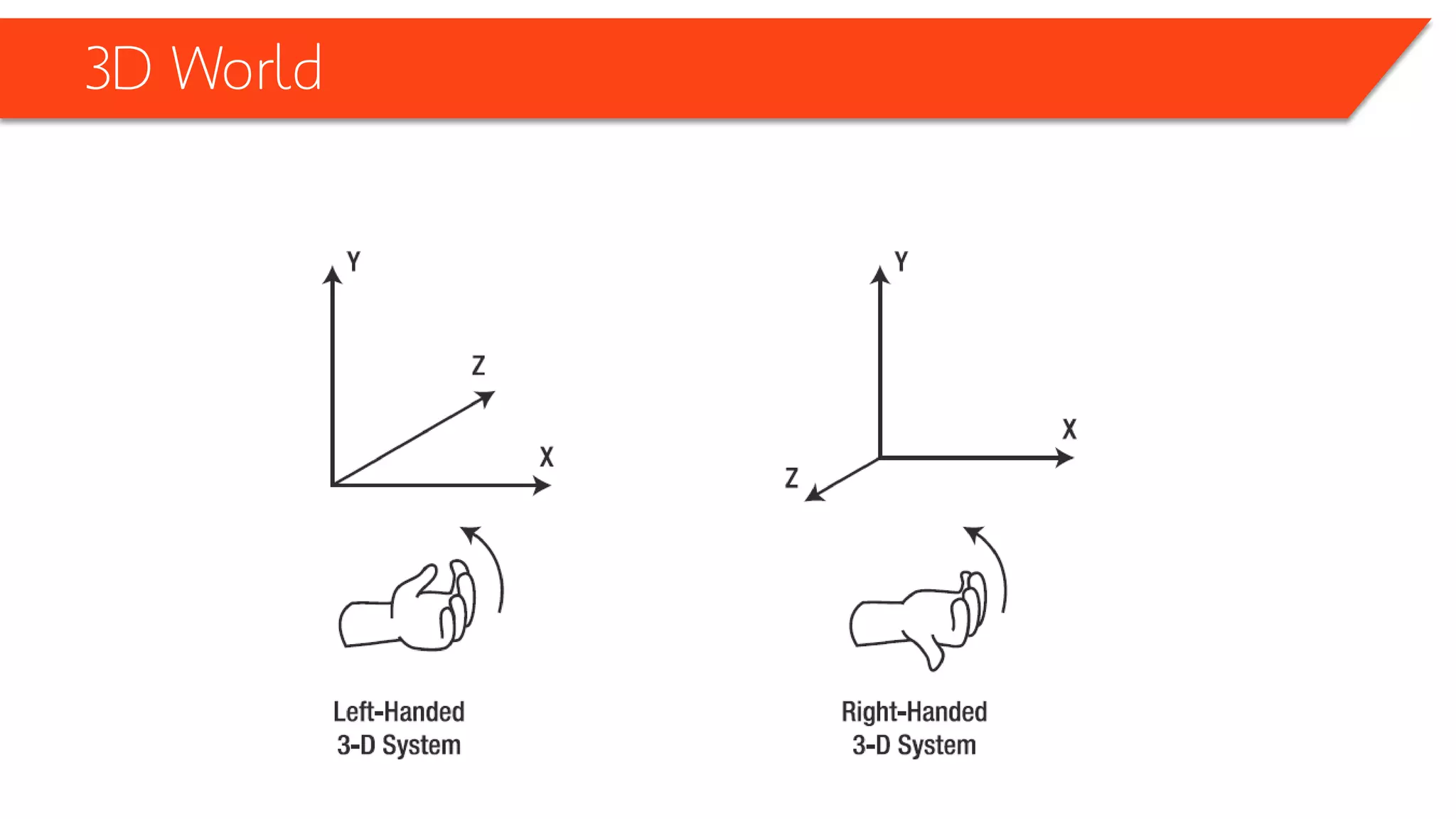

- 3.

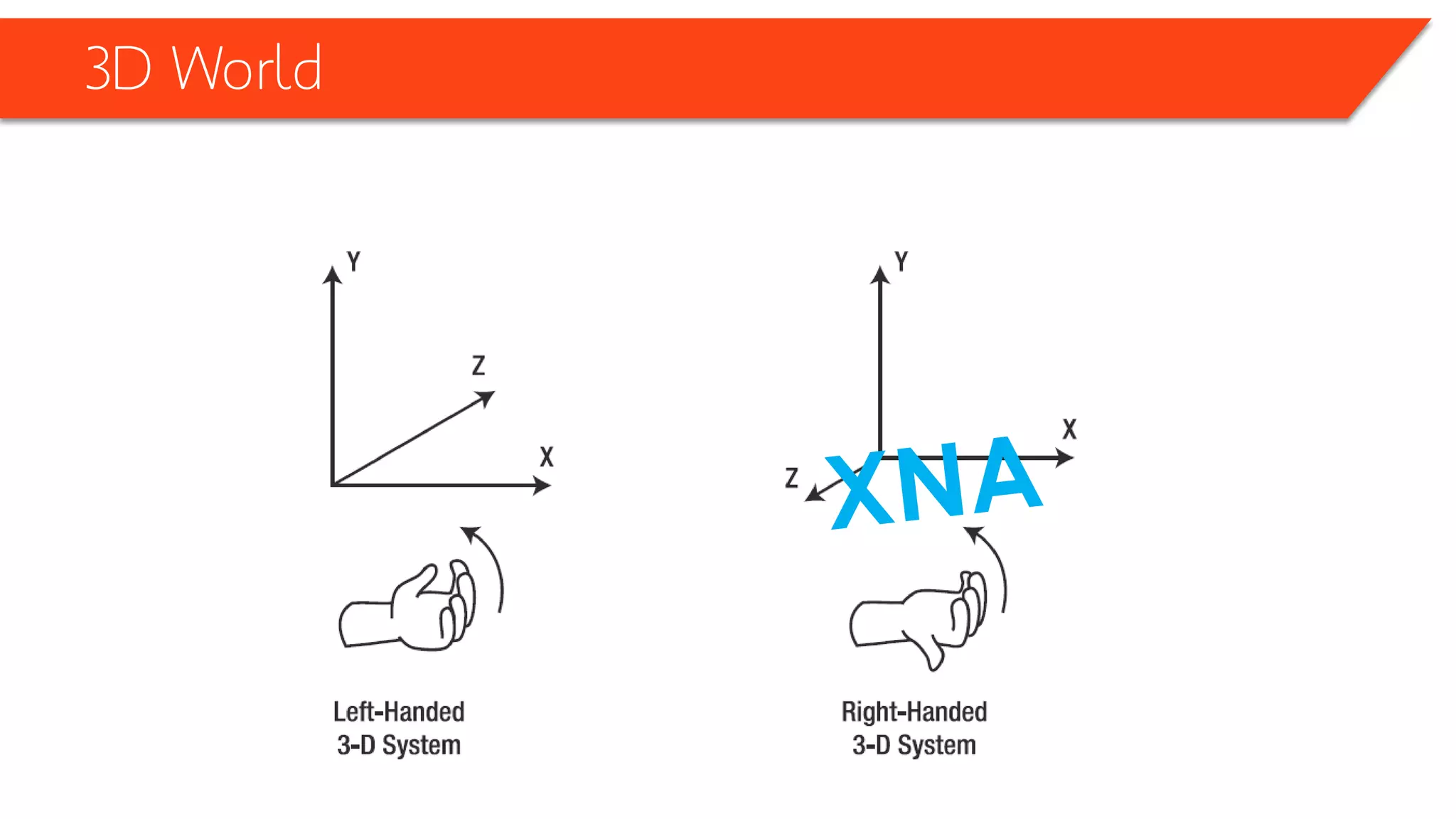

- 4.
- 5.

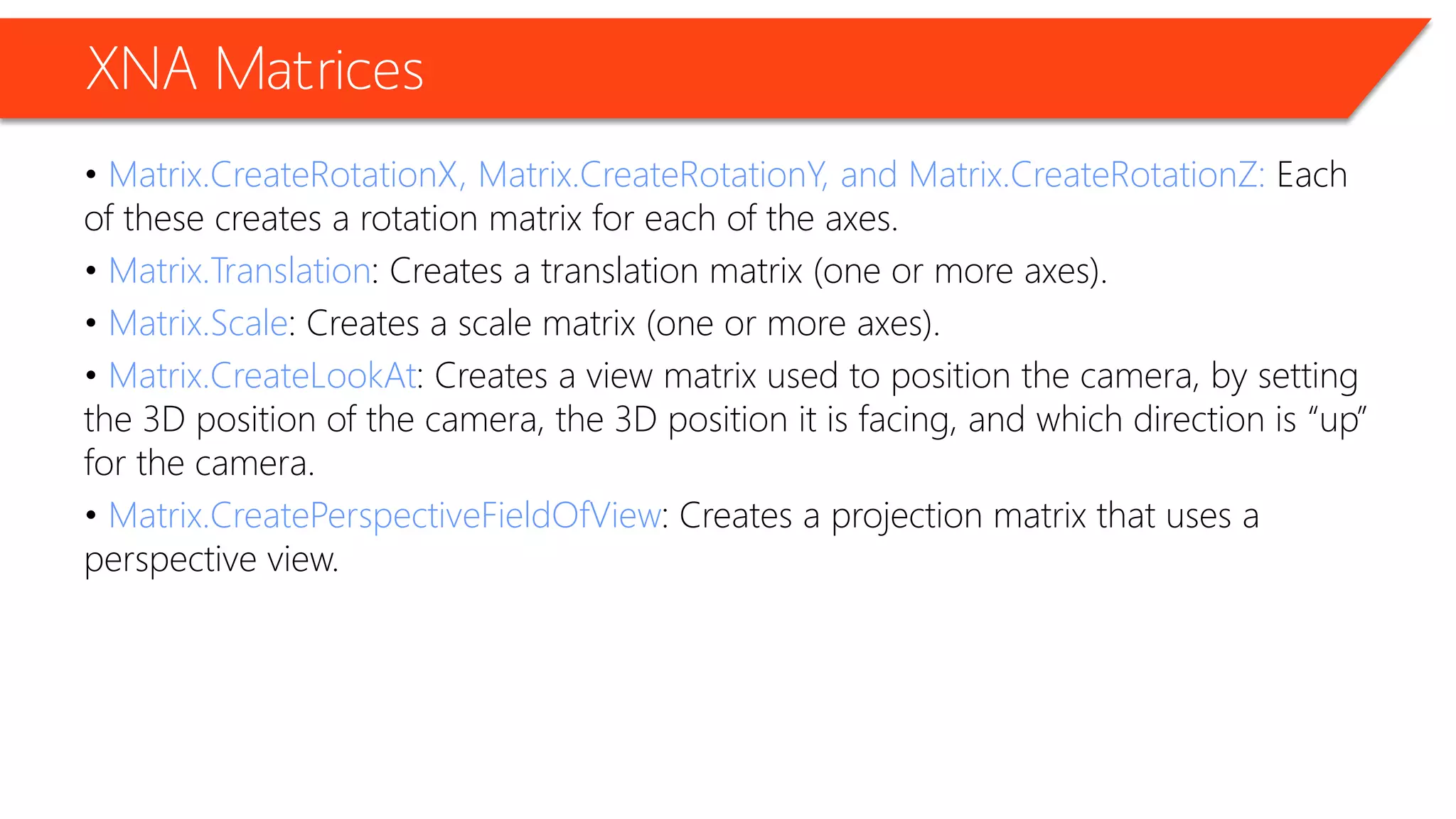

- 6. XNA Matrices •Matrix.CreateRotationX, Matrix.CreateRotationY, and Matrix.CreateRotationZ: Each of these creates a rotation matrix for each of the axes. • Matrix.Translation: Creates a translation matrix (one or more axes). • Matrix.Scale: Creates a scale matrix (one or more axes). • Matrix.CreateLookAt: Creates a view matrix used to position the camera, by setting the 3D position of the camera, the 3D position it is facing, and which direction is “up” for the camera. • Matrix.CreatePerspectiveFieldOfView: Creates a projection matrix that uses a perspective view.

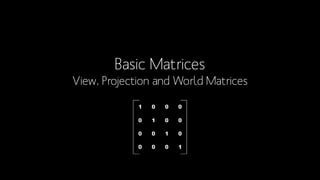

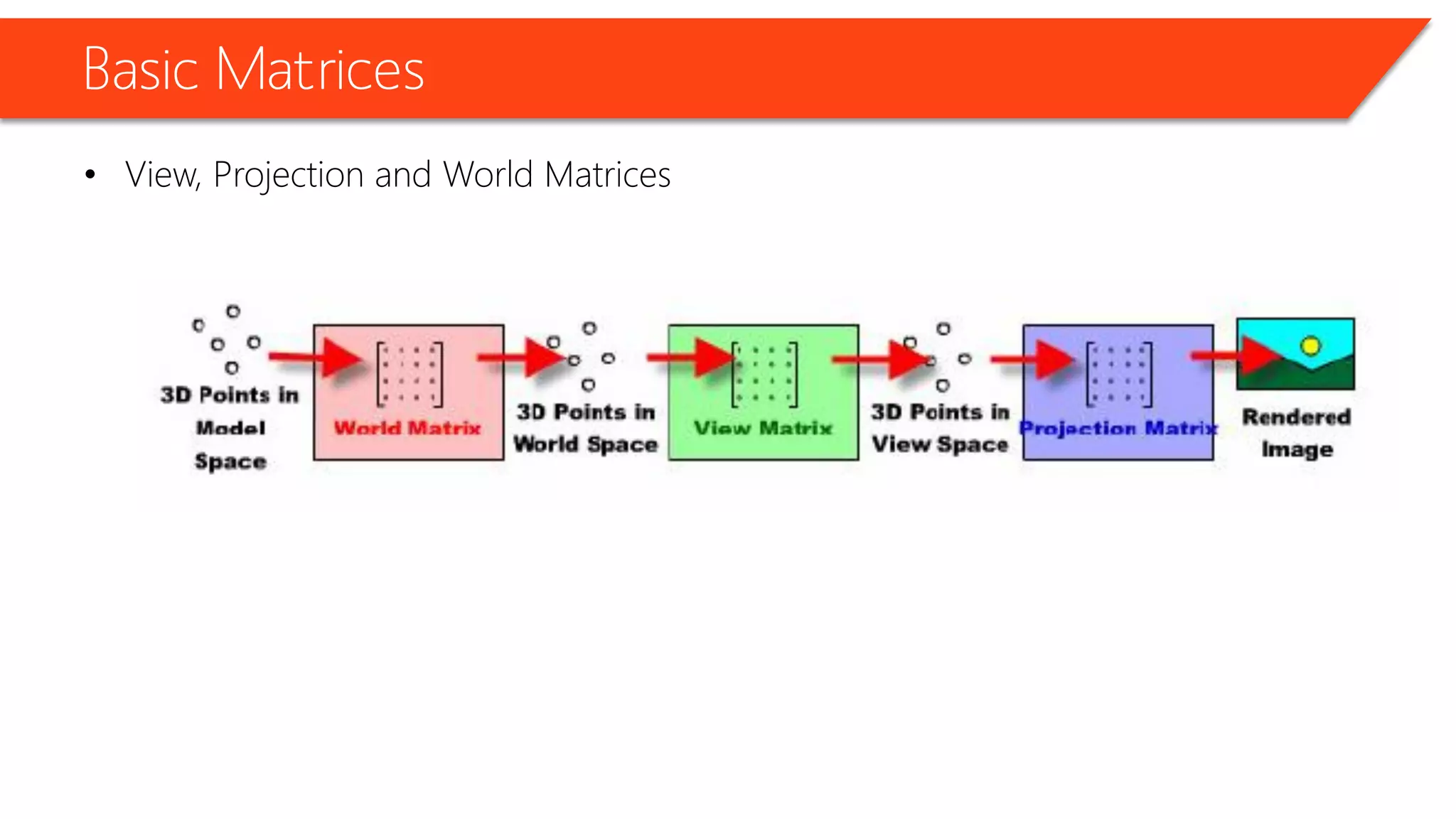

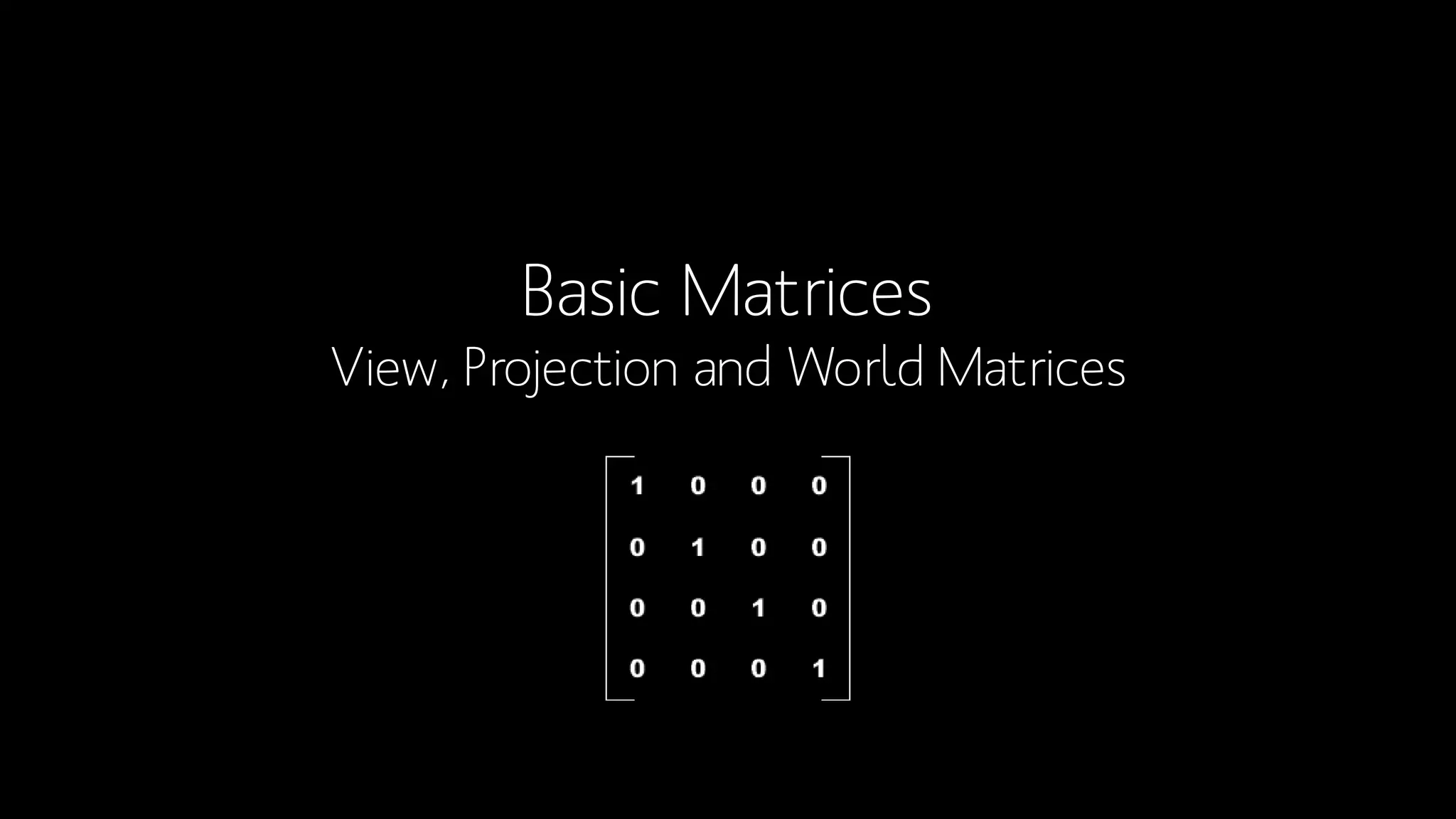

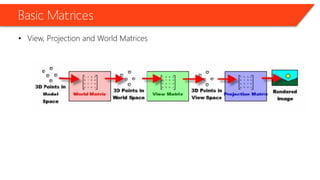

- 7. Basic Matrices View,Projection and World Matrices
- 8. Basic Matrices •View,Projection and World Matrices
- 9.

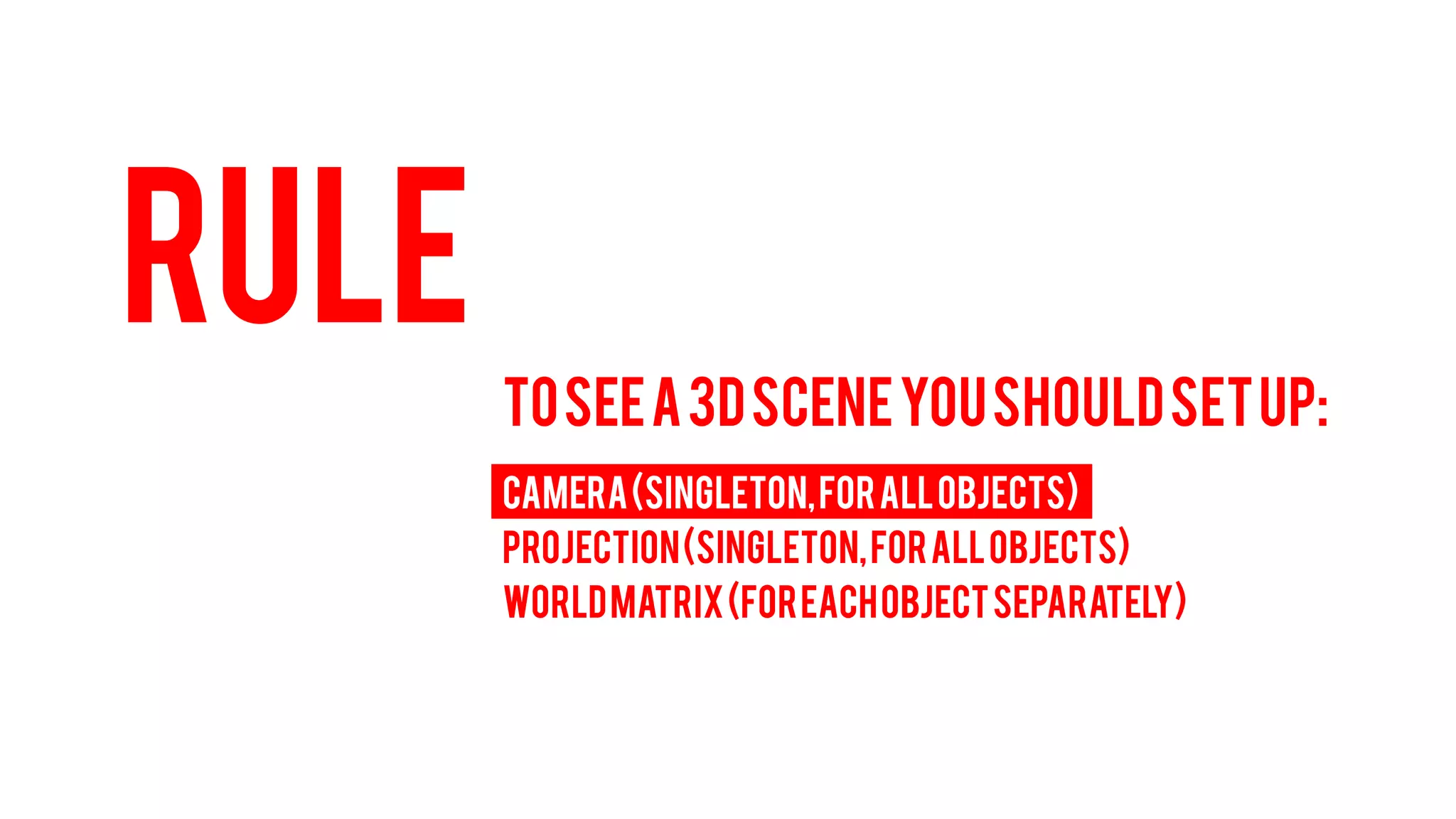

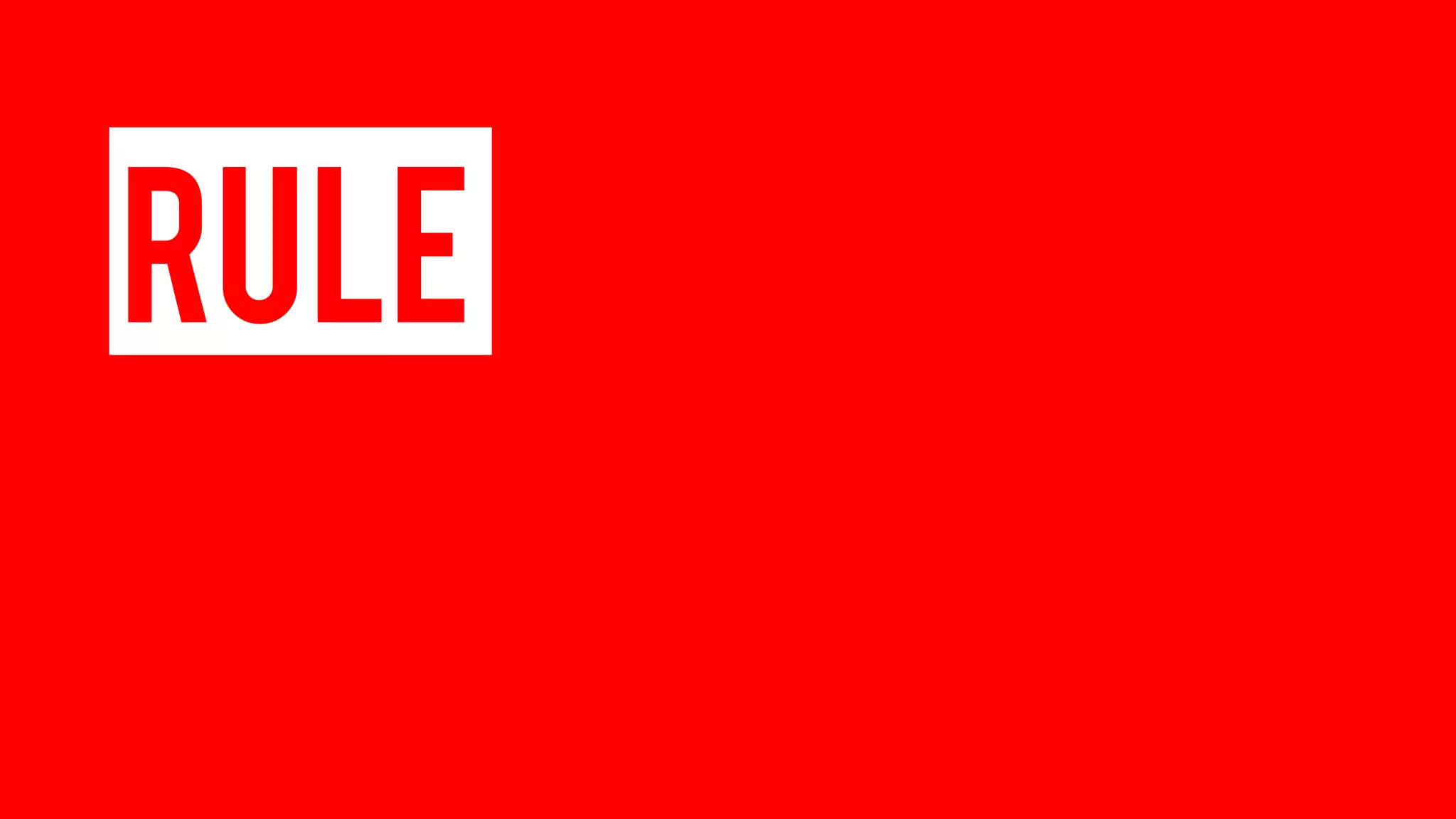

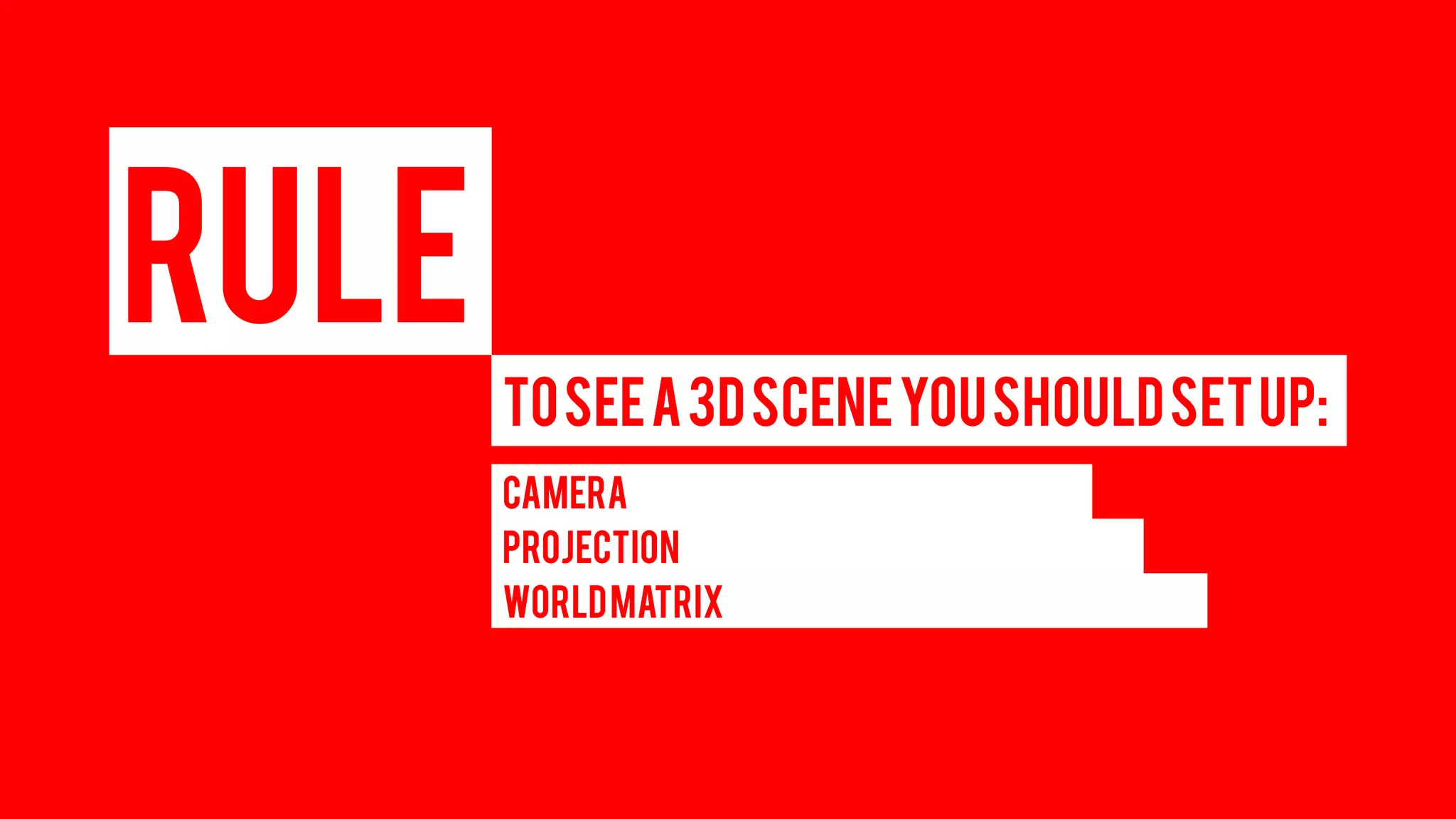

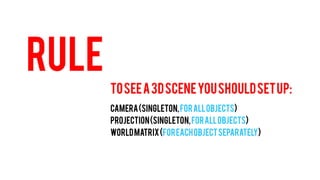

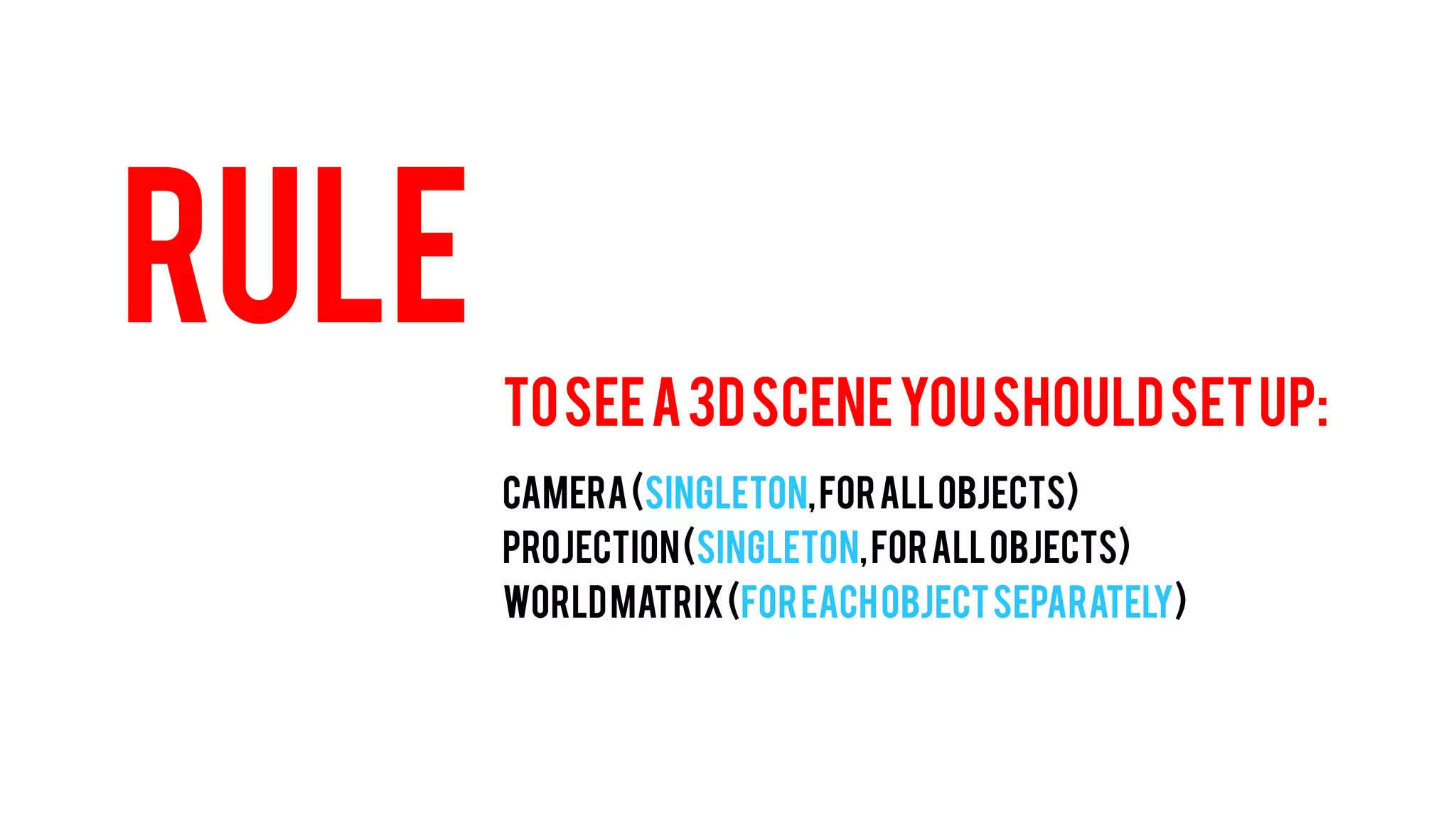

- 10. RULE TO SEEA 3D SCENE YOU SHOULD SET UP:

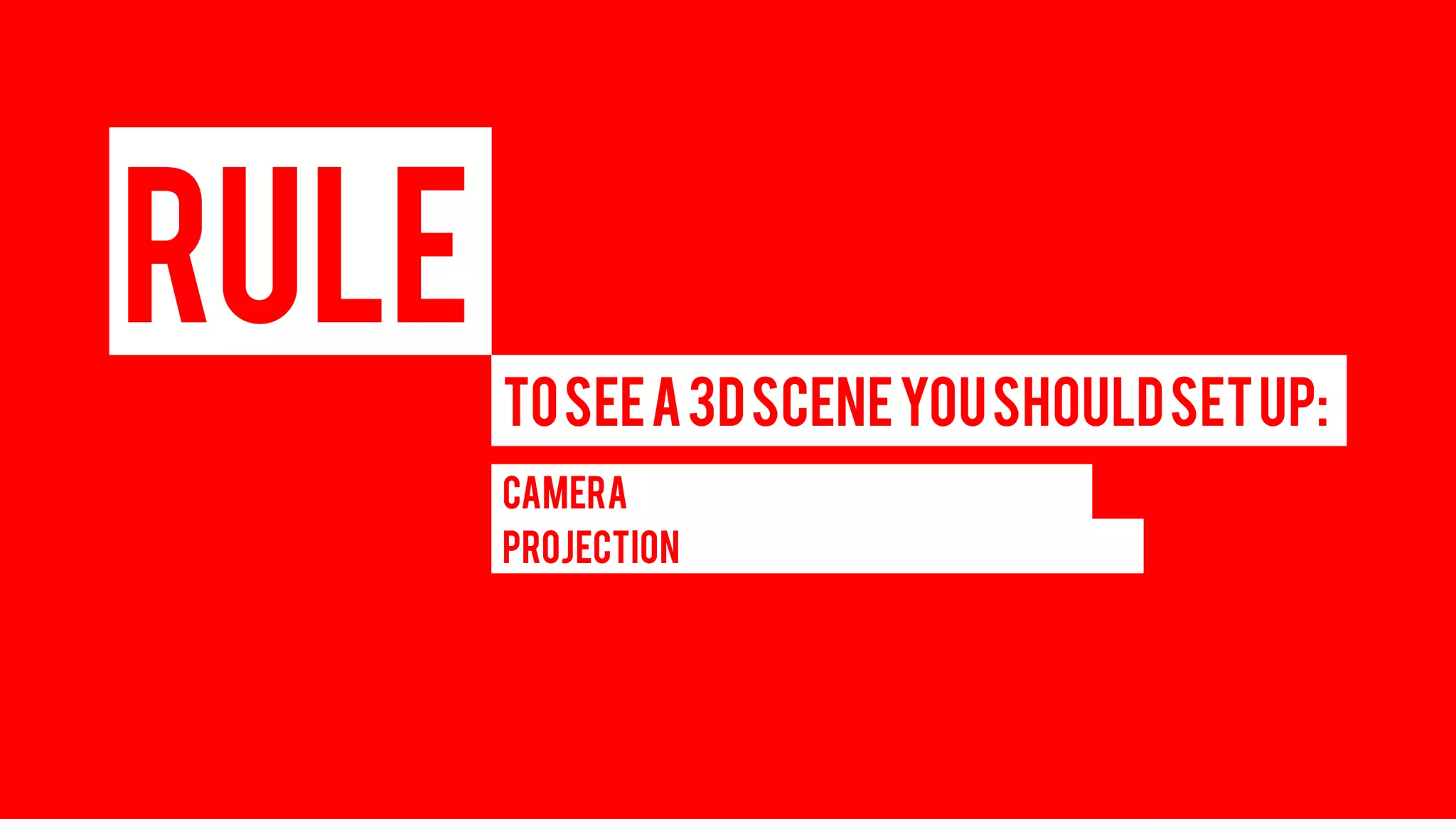

- 11. RULE TO SEEA 3D SCENE YOU SHOULD SET UP: CAMERA
- 12. RULE TO SEEA 3D SCENE YOU SHOULD SET UP: CAMERA PROJECTION
- 13. RULE TO SEEA 3D SCENE YOU SHOULD SET UP: CAMERA PROJECTION WORLD MATRIX

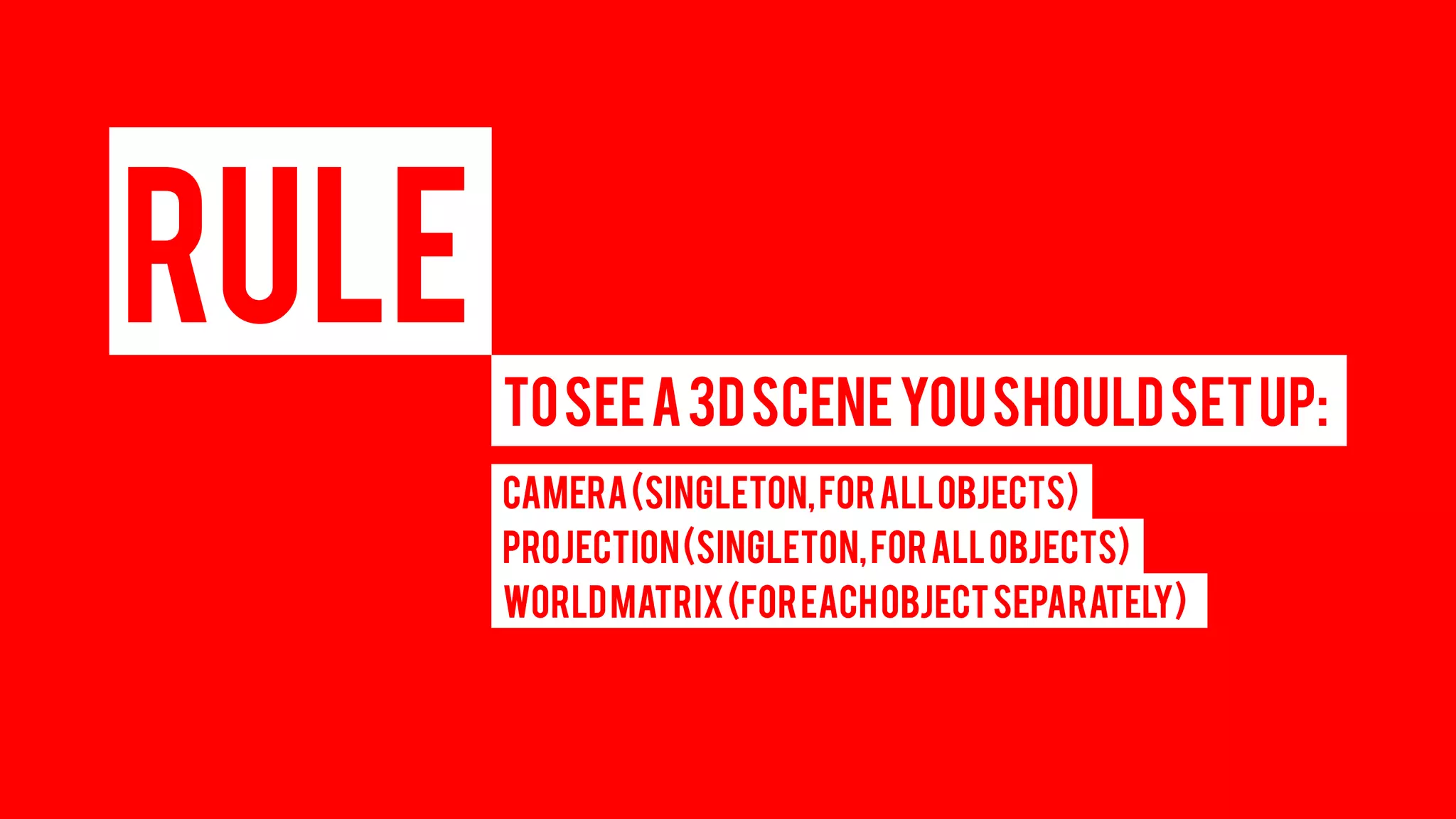

- 14. RULE TO SEEA 3D SCENE YOU SHOULD SET UP: CAMERA (Singleton, for all objects) PROJECTION (Singleton, for all objects) WORLD MATRIX (For each object separately)

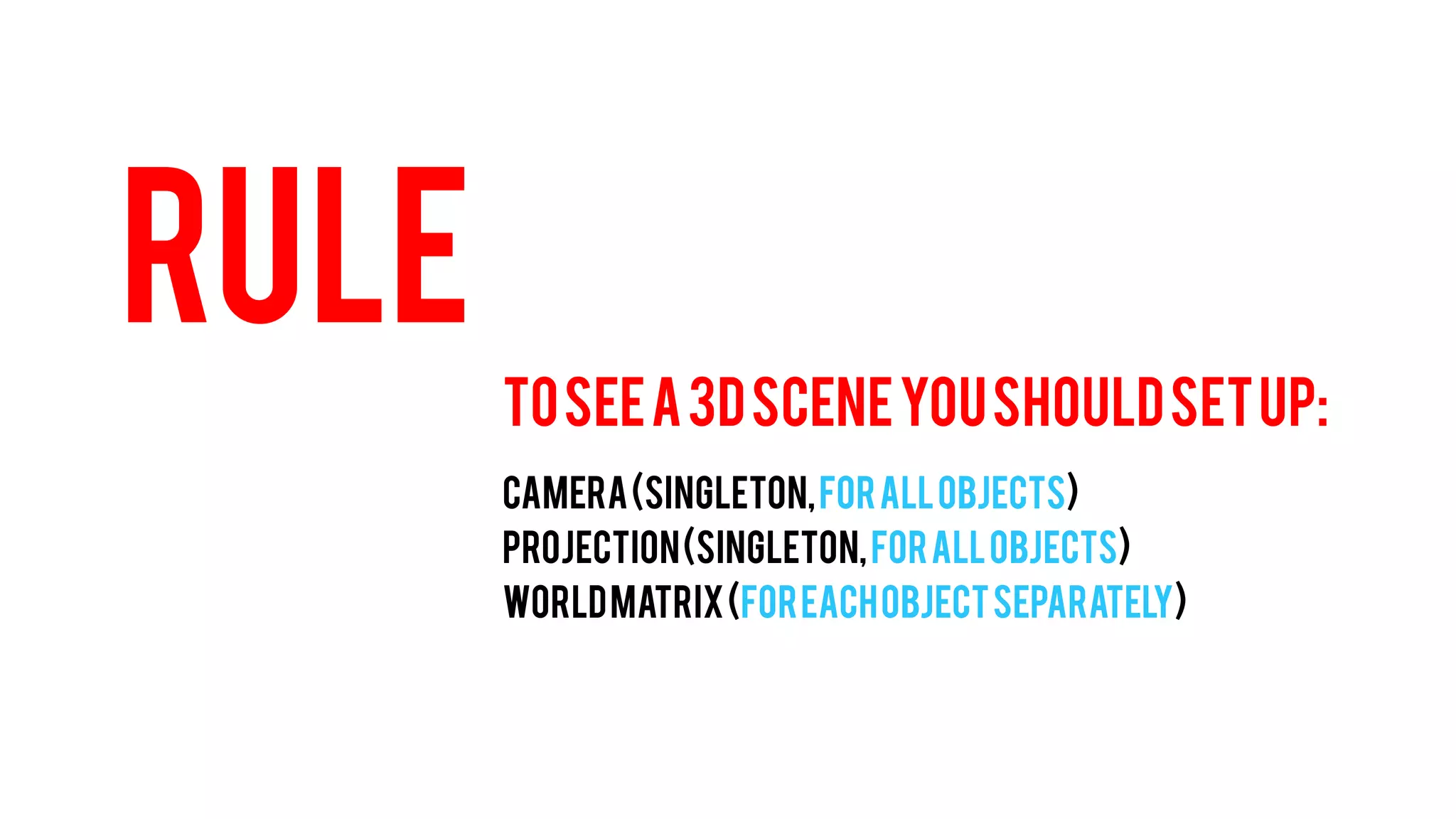

- 15. RULE TO SEEA 3D SCENE YOU SHOULD SET UP: CAMERA (Singleton, for all objects) PROJECTION (Singleton, for all objects) WORLD MATRIX (For each object separately)
- 16. RULE TO SEEA 3D SCENE YOU SHOULD SET UP: CAMERA (Singleton, for all objects) PROJECTION (Singleton, for all objects) WORLD MATRIX (For each object separately)
- 17. RULE TO SEEA 3D SCENE YOU SHOULD SET UP: CAMERA (Singleton, for all objects) PROJECTION (Singleton, for all objects) WORLD MATRIX (For each object separately)

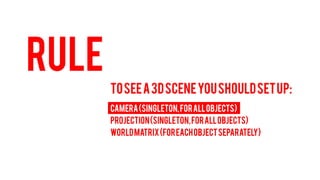

- 18. RULE TO SEEA 3D SCENE YOU SHOULD SET UP: CAMERA (Singleton, for all objects) PROJECTION (Singleton, for all objects) WORLD MATRIX (For each object separately)
- 19.
- 20. XNA Matrices •Matrix.CreateRotationX, Matrix.CreateRotationY, and Matrix.CreateRotationZ: Each of these creates a rotation matrix for each of the axes. • Matrix.Translation: Creates a translation matrix (one or more axes). • Matrix.Scale: Creates a scale matrix (one or more axes). • Matrix.CreateLookAt: Creates a view matrix used to position the camera, by setting the 3D position of the camera, the 3D position it is facing, and which direction is “up” for the camera. • Matrix.CreatePerspectiveFieldOfView: Creates a projection matrix that uses a perspective view.

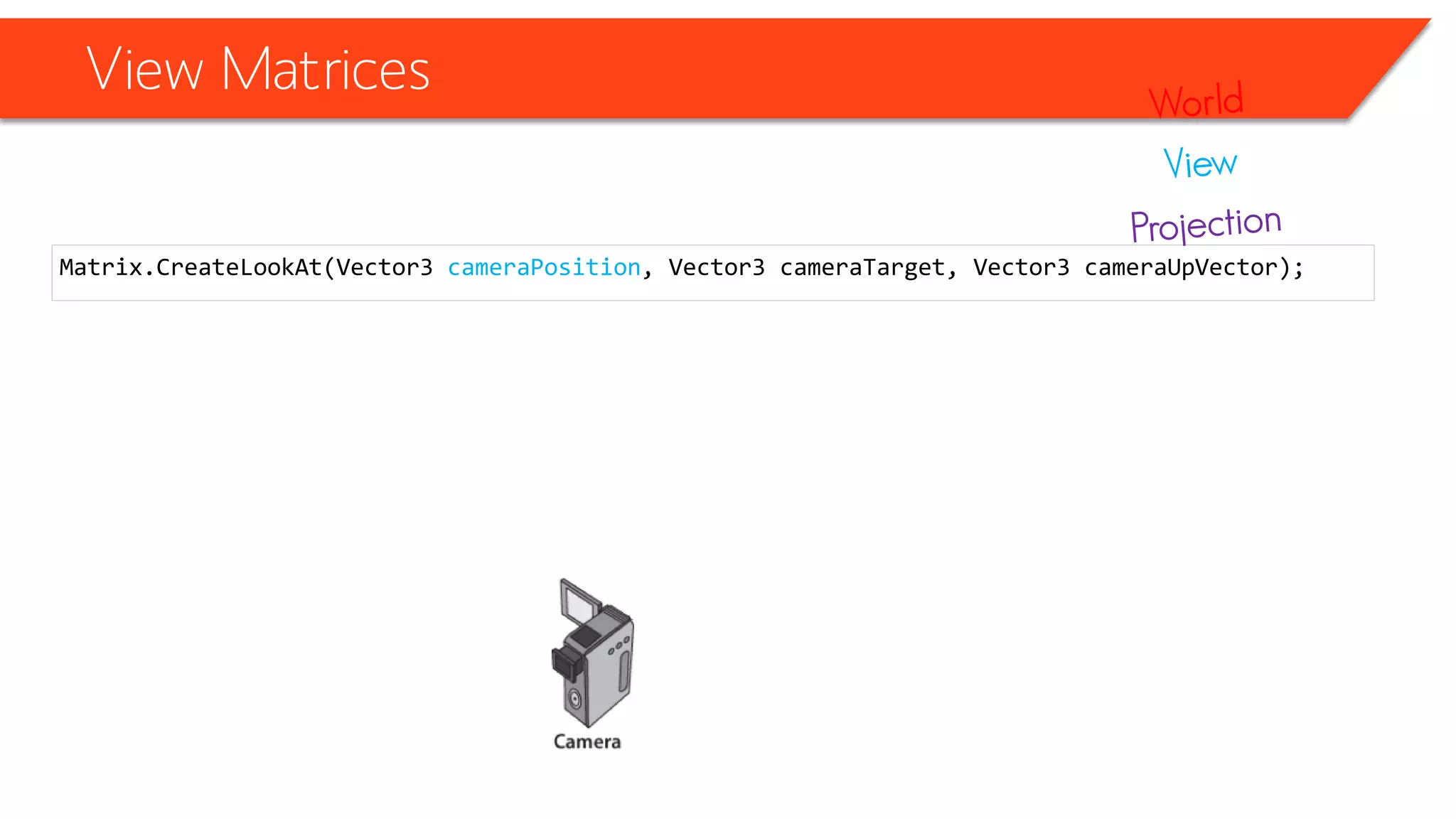

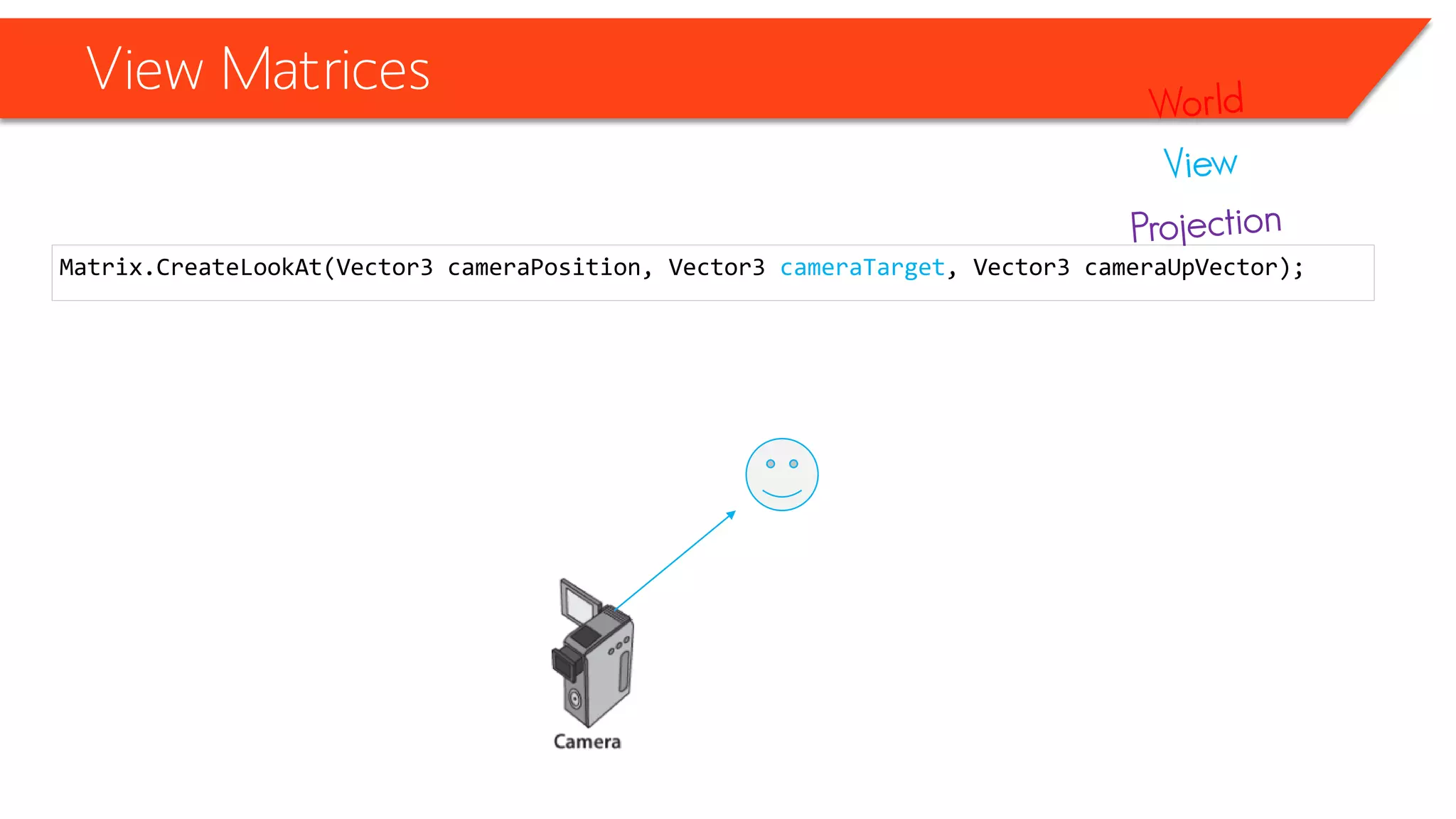

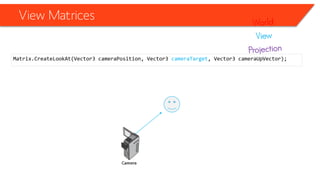

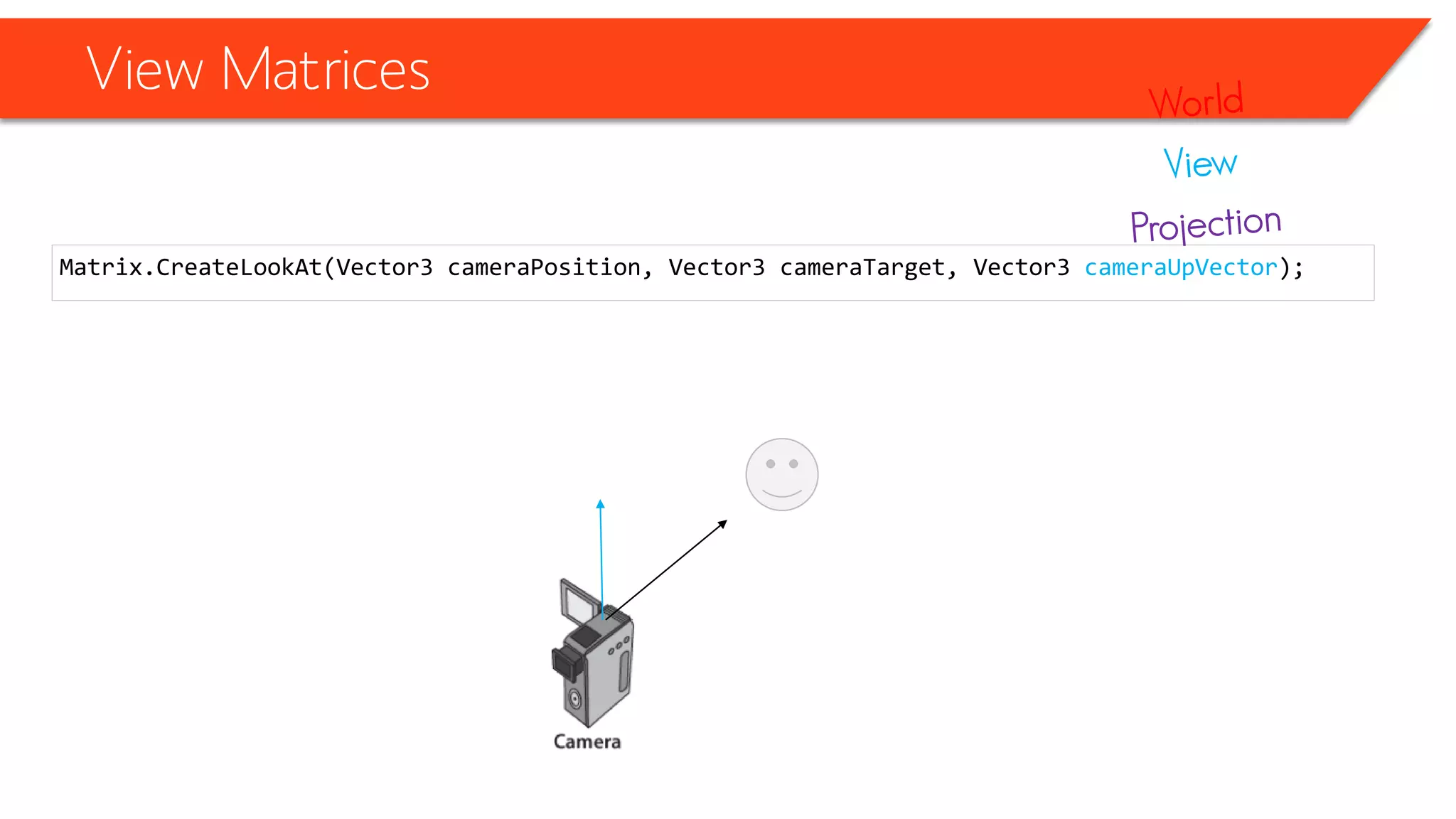

- 21. View Matrices Matrix.CreateLookAt(Vector3cameraPosition, Vector3 cameraTarget, Vector3 cameraUpVector);
- 22. View Matrices Matrix.CreateLookAt(Vector3cameraPosition, Vector3 cameraTarget, Vector3 cameraUpVector);
- 23. View Matrices Matrix.CreateLookAt(Vector3cameraPosition, Vector3 cameraTarget, Vector3 cameraUpVector);

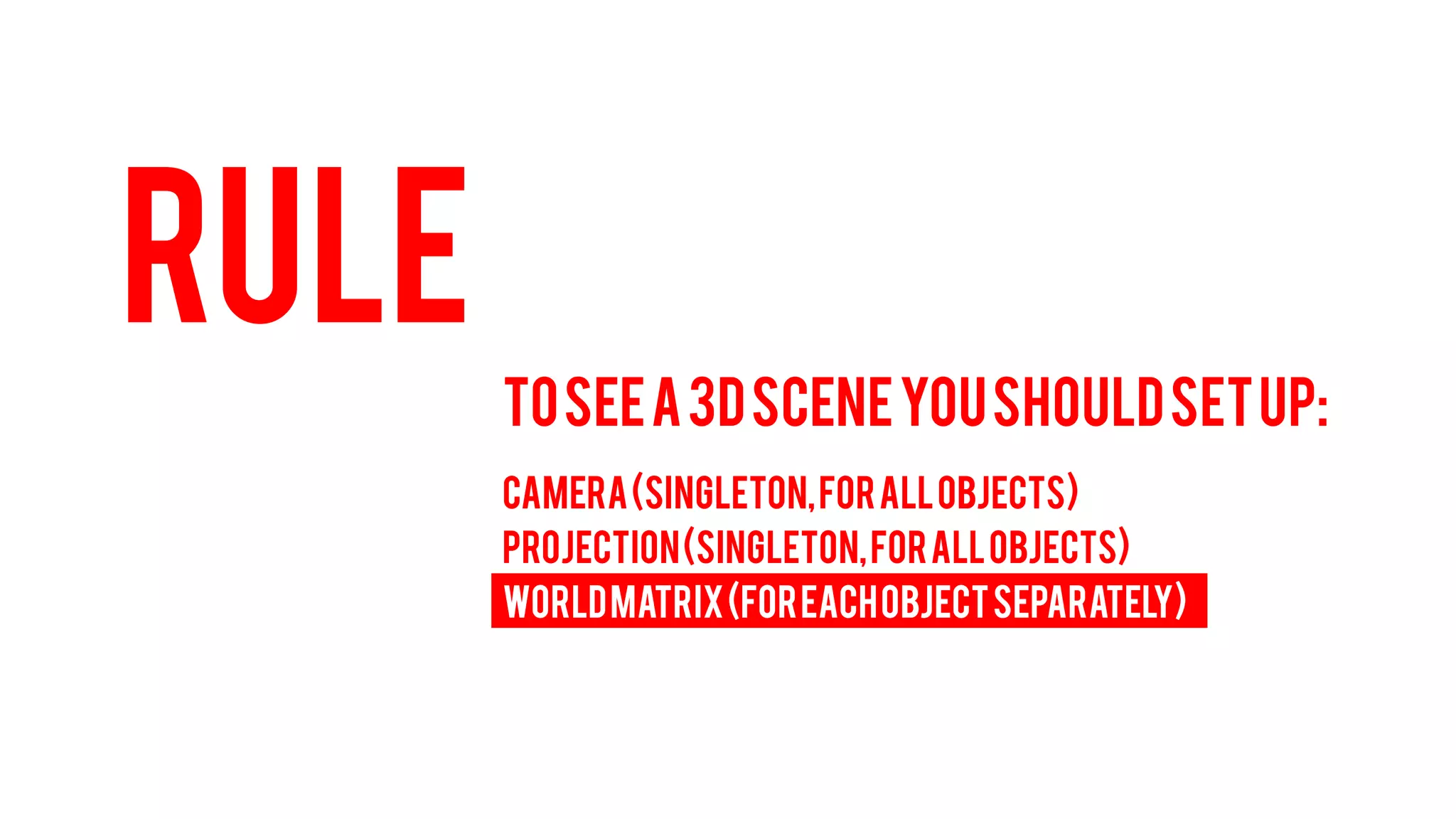

- 24. RULE TO SEEA 3D SCENE YOU SHOULD SET UP: CAMERA (Singleton, for all objects) PROJECTION (Singleton, for all objects) WORLD MATRIX (For each object separately)

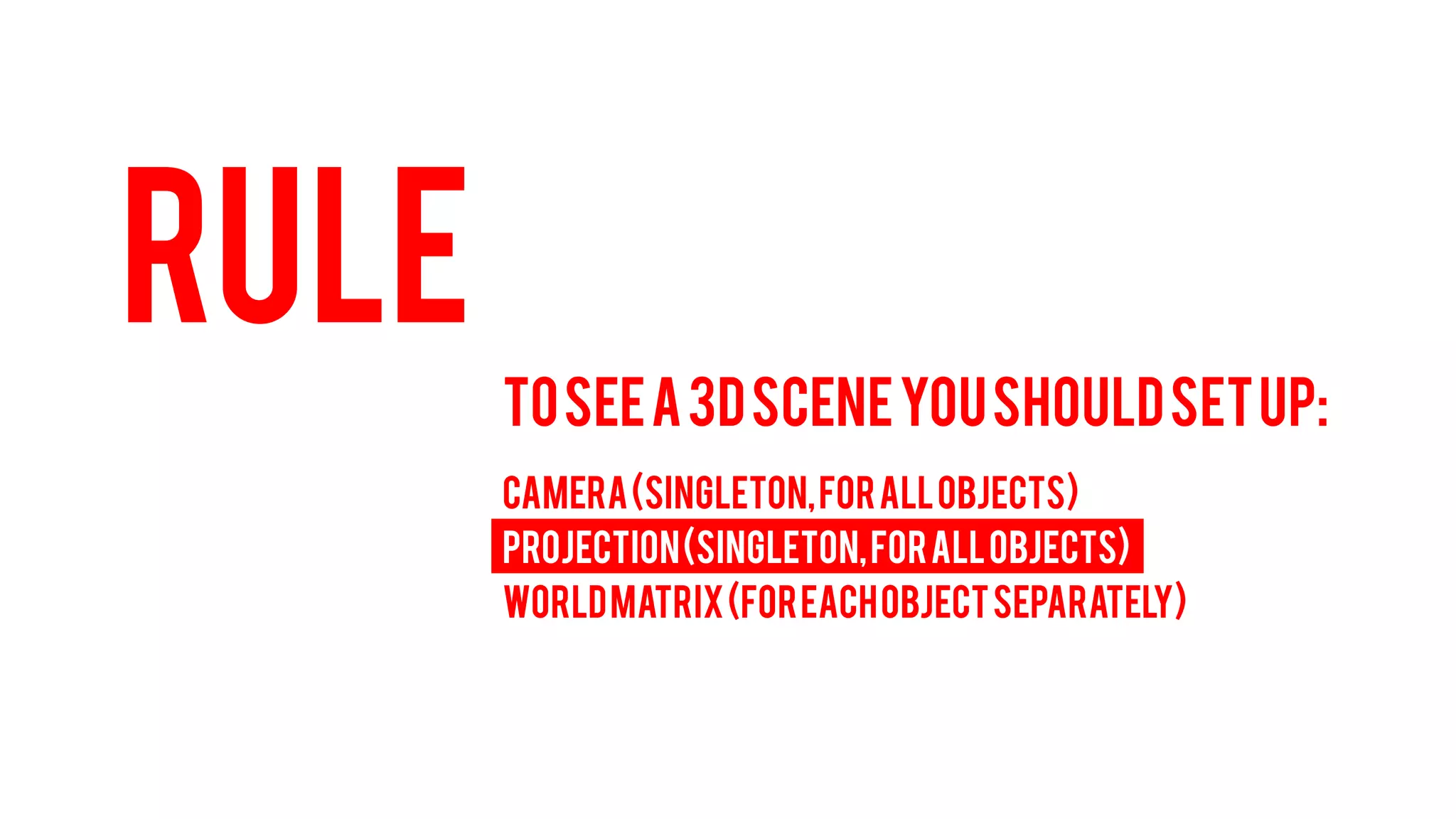

- 25. RULE TO SEEA 3D SCENE YOU SHOULD SET UP: CAMERA (Singleton, for all objects) PROJECTION (Singleton, for all objects) WORLD MATRIX (For each object separately)

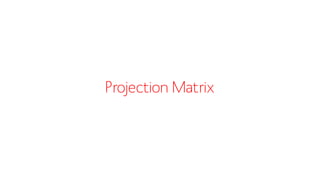

- 26.
- 27. XNA Matrices •Matrix.CreateRotationX, Matrix.CreateRotationY, and Matrix.CreateRotationZ: Each of these creates a rotation matrix for each of the axes. • Matrix.Translation: Creates a translation matrix (one or more axes). • Matrix.Scale: Creates a scale matrix (one or more axes). • Matrix.CreateLookAt: Creates a view matrix used to position the camera, by setting the 3D position of the camera, the 3D position it is facing, and which direction is “up” for the camera. • Matrix.CreatePerspectiveFieldOfView: Creates a projection matrix that uses a perspective view.
- 28.

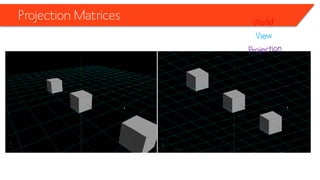

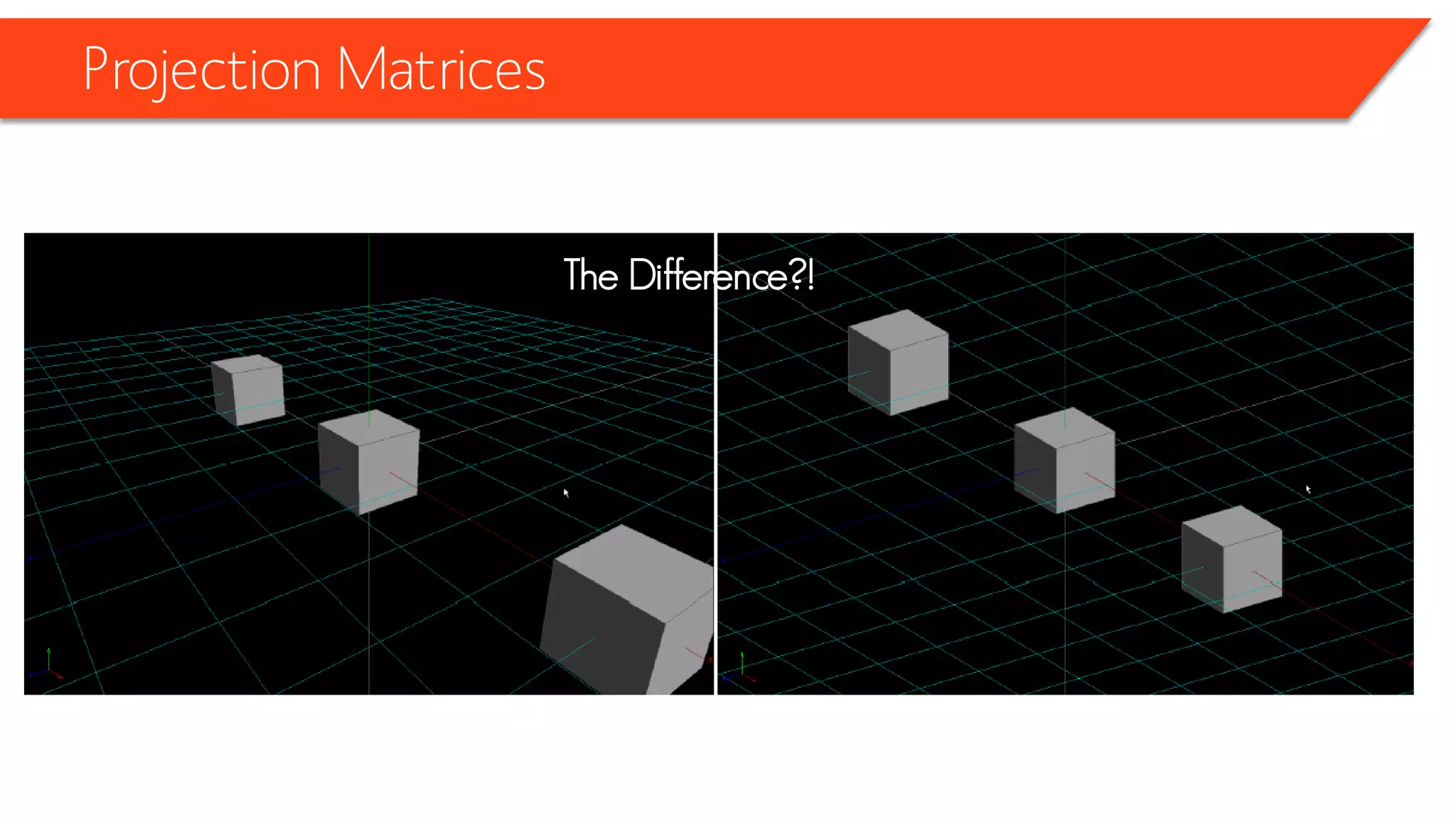

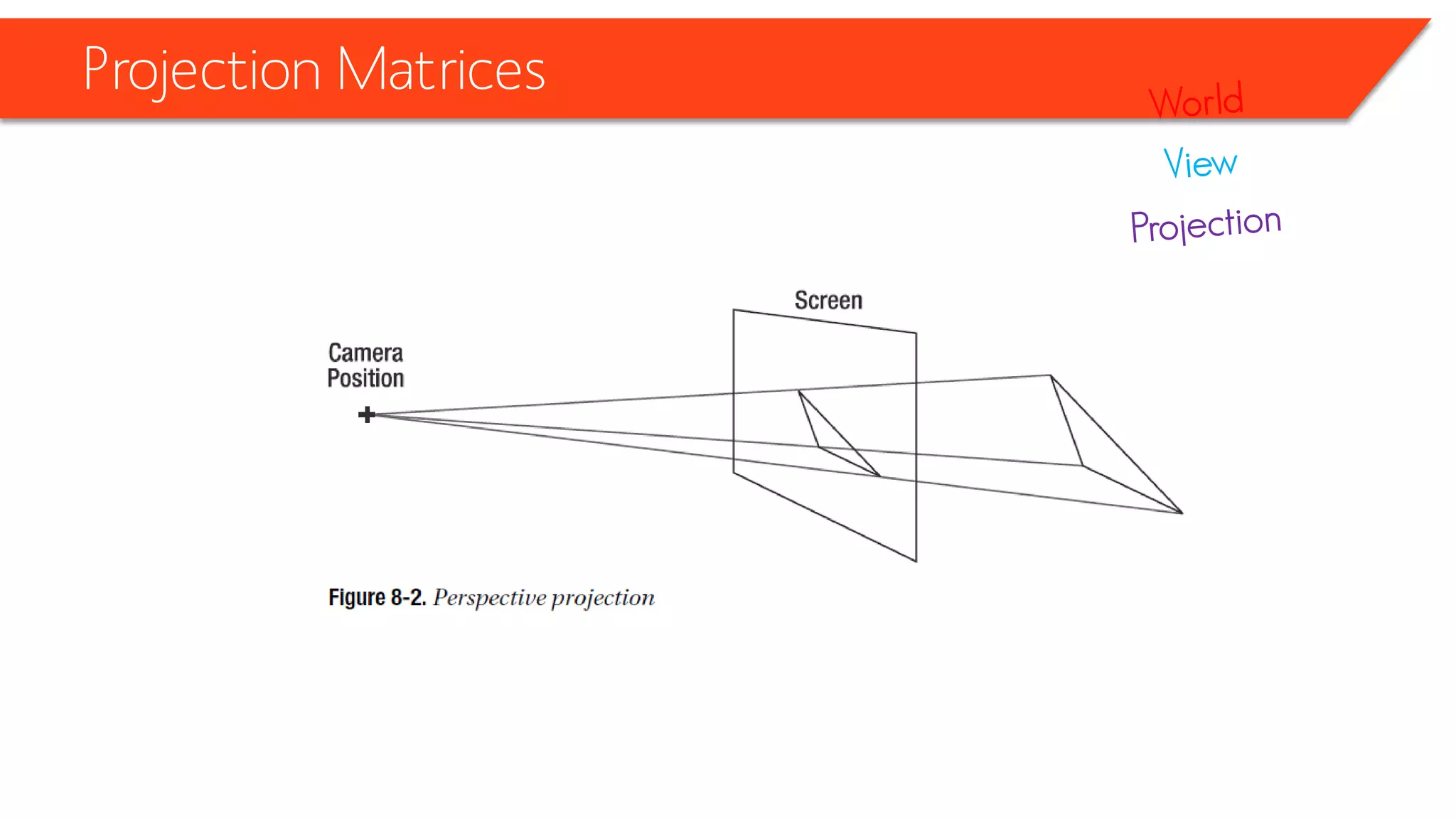

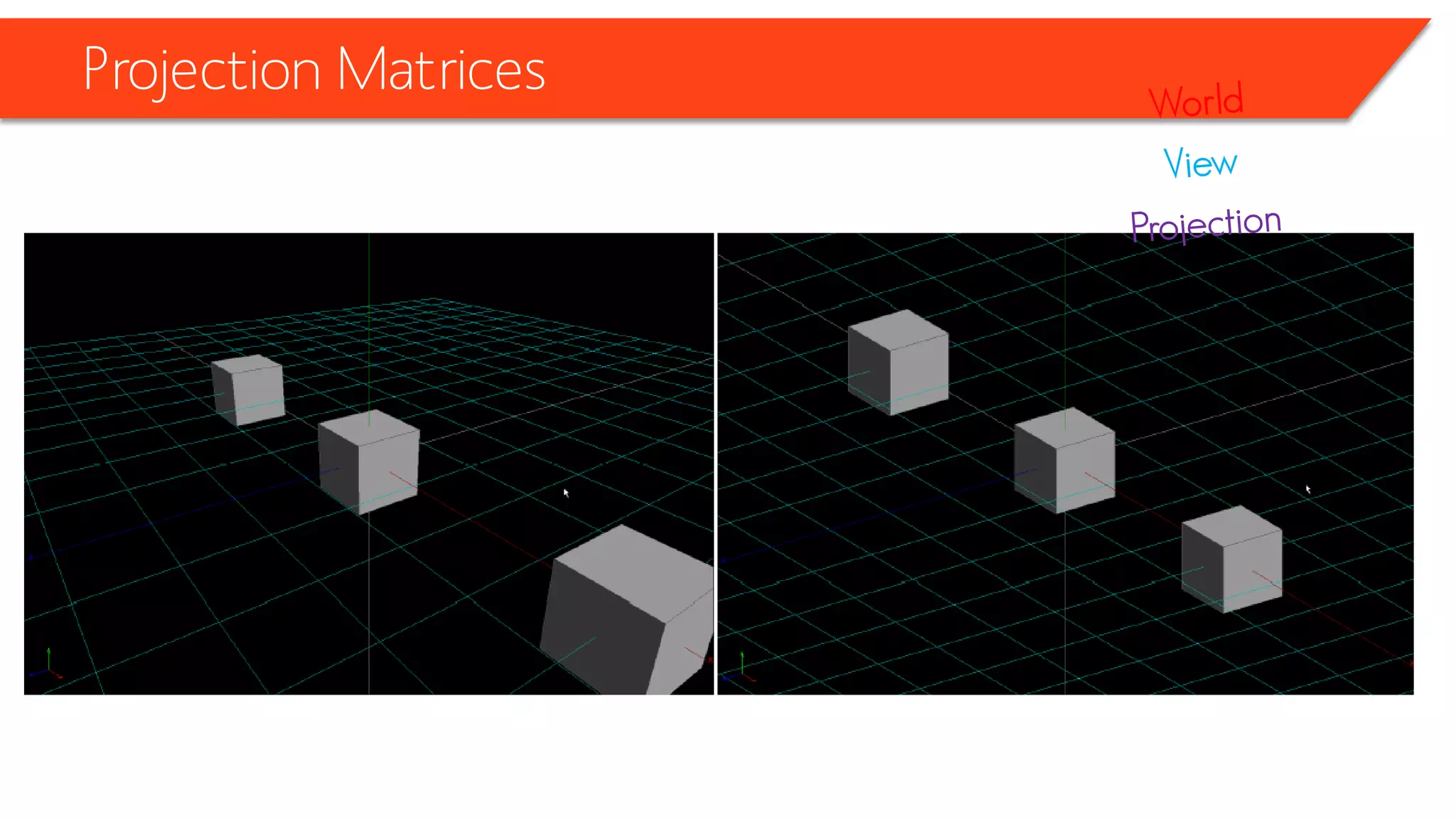

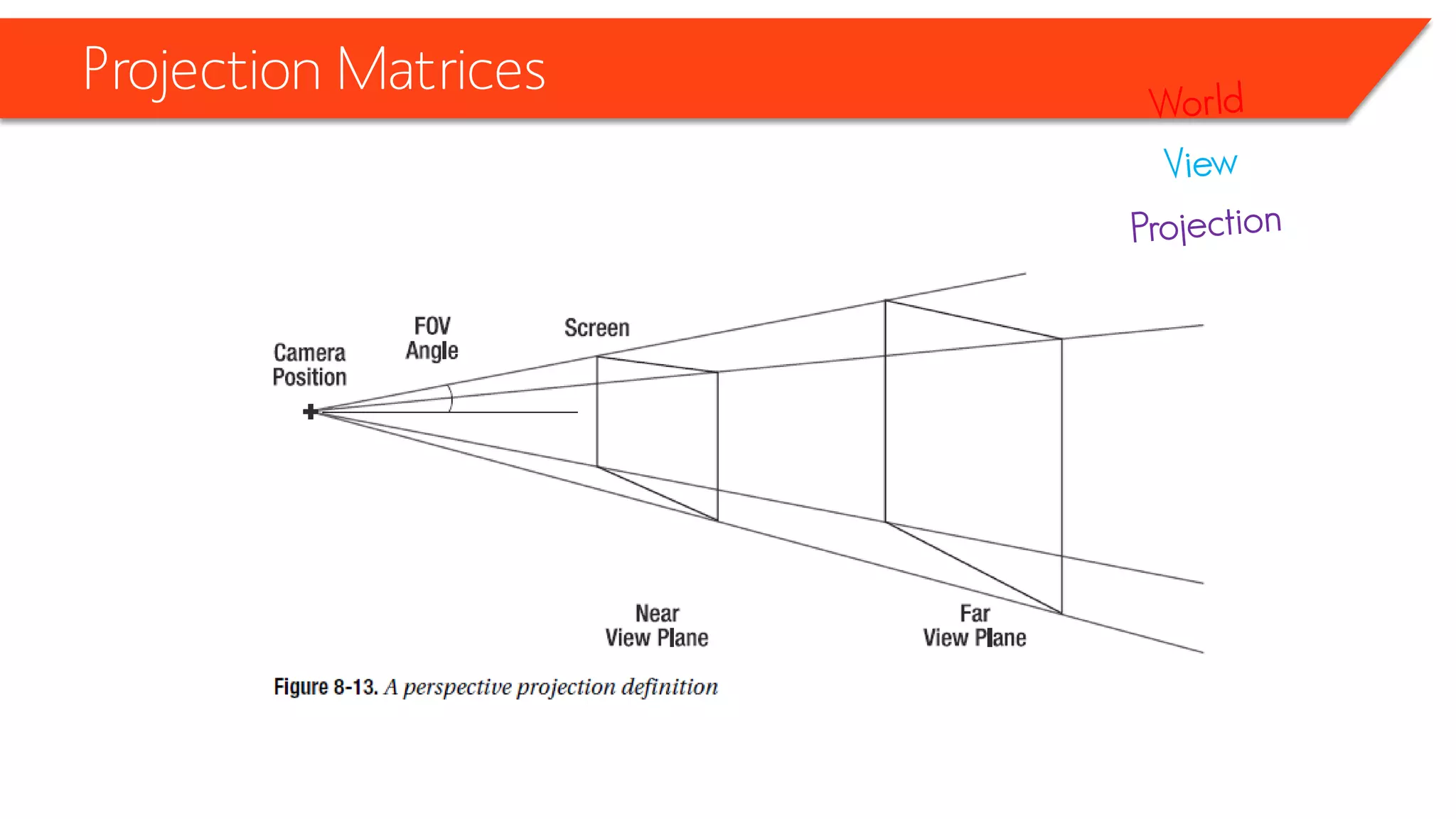

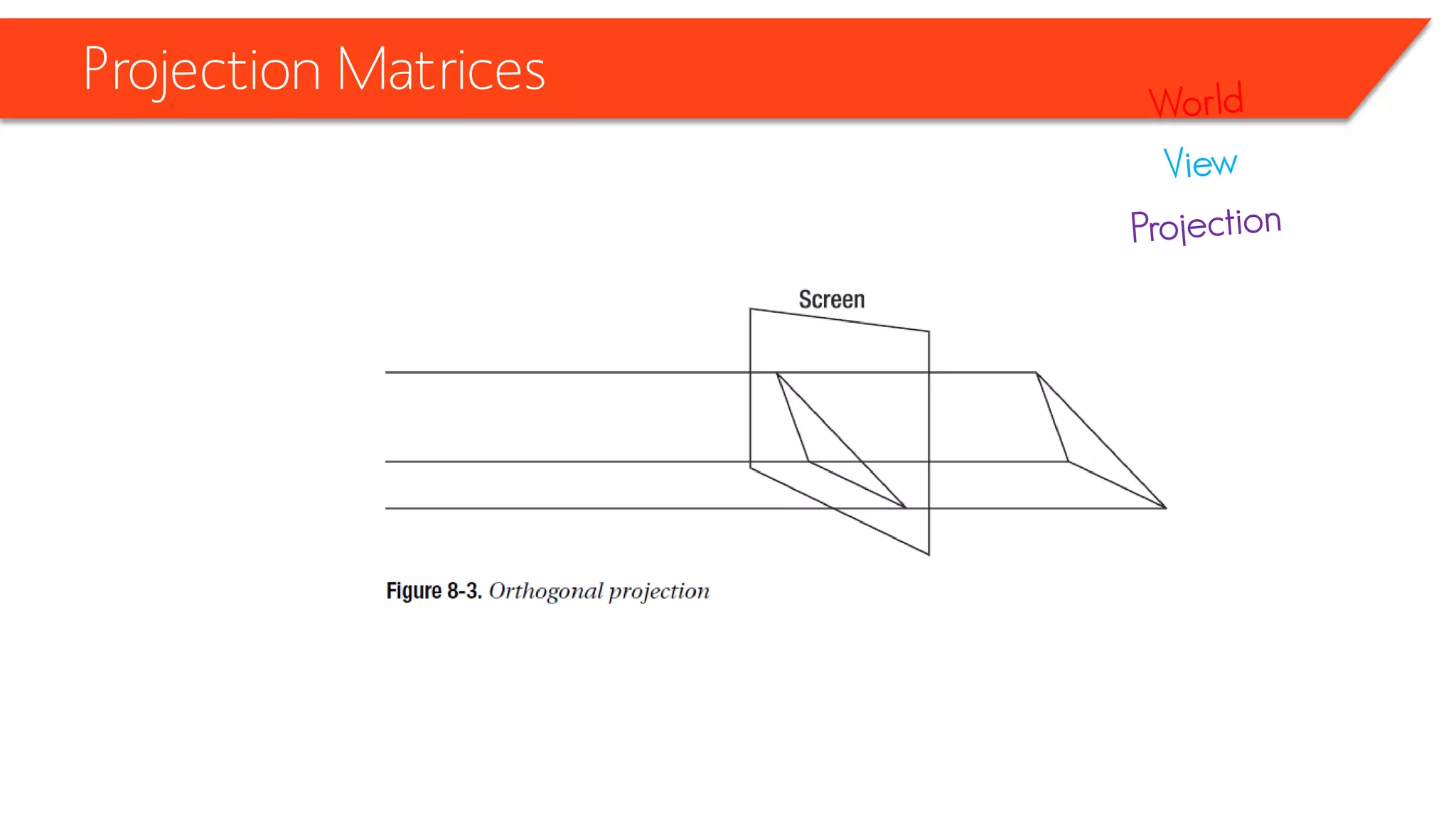

- 29. Projection Matrices TheDifference?!
- 30. Projection Matrices TheDifference?! perspective
- 31. Projection Matrices TheDifference?! perspective orthographic
- 32.
- 33.

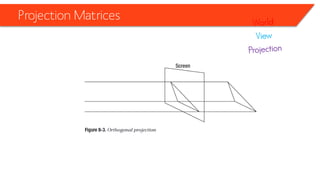

- 34.
- 35. Projection Matrices Realistic? perspective orthographic

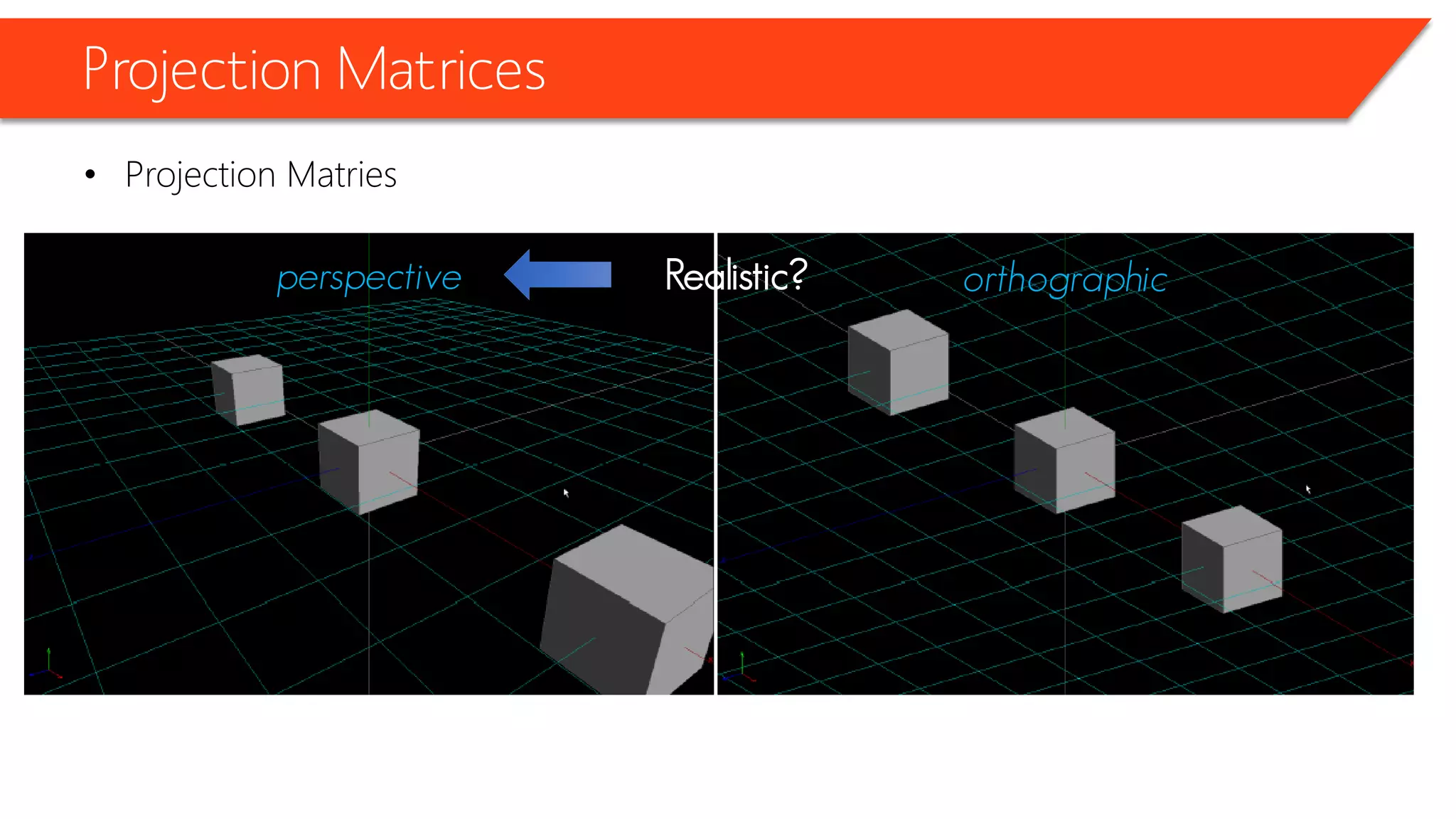

- 36. Projection Matrices •ProjectionMatries Realistic? perspective orthographic
- 37. Projection Matrices Architecture? perspective orthographic
- 38. Projection Matrices Architecture? perspective orthographic
- 39. Projection Matrices Usability? perspective orthographic
- 40. Projection Matrices Usability? perspective orthographic
- 41. XNA Matrices •Matrix.CreateRotationX, Matrix.CreateRotationY, and Matrix.CreateRotationZ: Each of these creates a rotation matrix for each of the axes. • Matrix.Translation: Creates a translation matrix (one or more axes). • Matrix.Scale: Creates a scale matrix (one or more axes). • Matrix.CreateLookAt: Creates a view matrix used to position the camera, by setting the 3D position of the camera, the 3D position it is facing, and which direction is “up” for the camera. • Matrix.CreatePerspectiveFieldOfView: Creates a projection matrix that uses a perspective view.

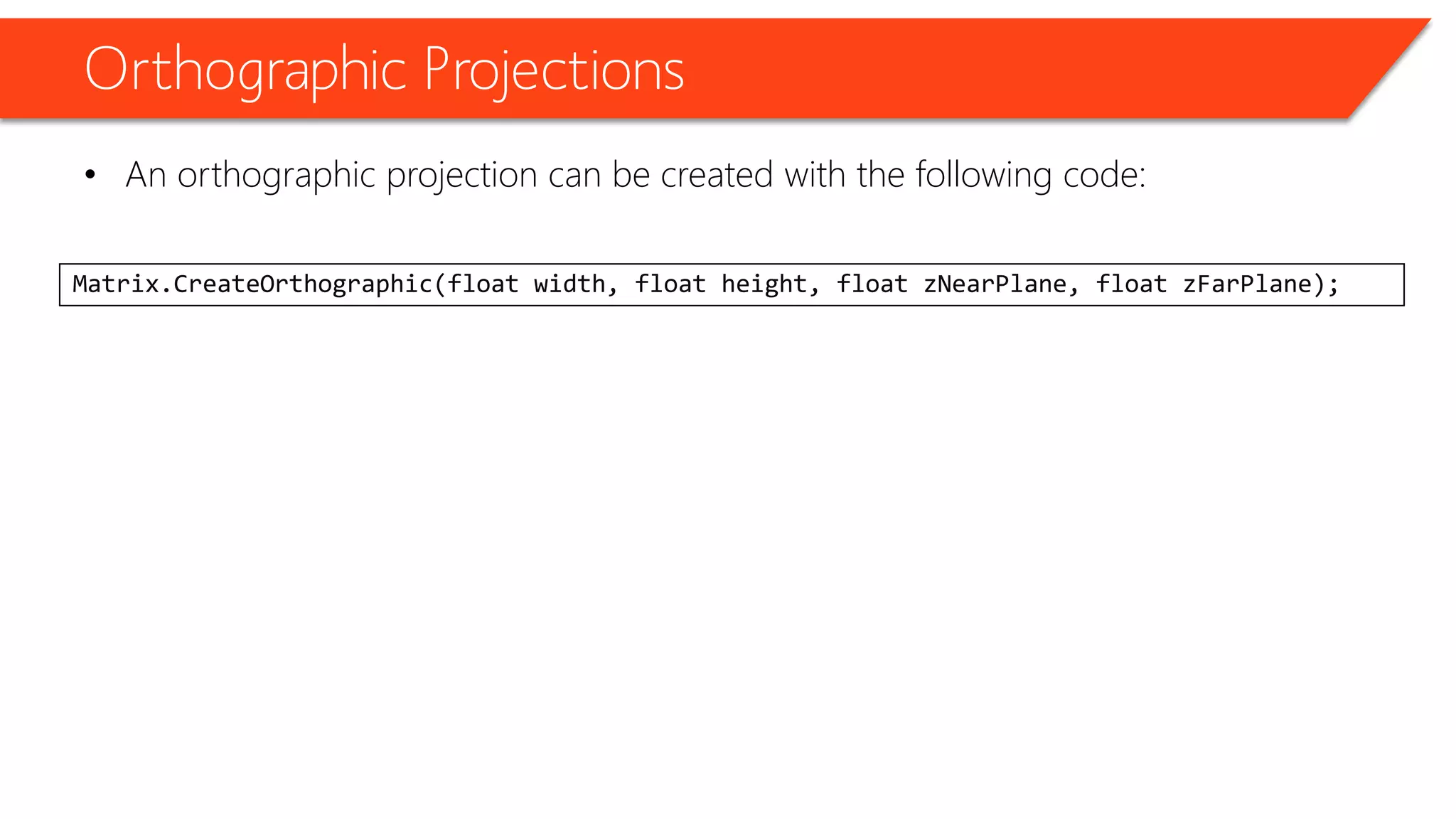

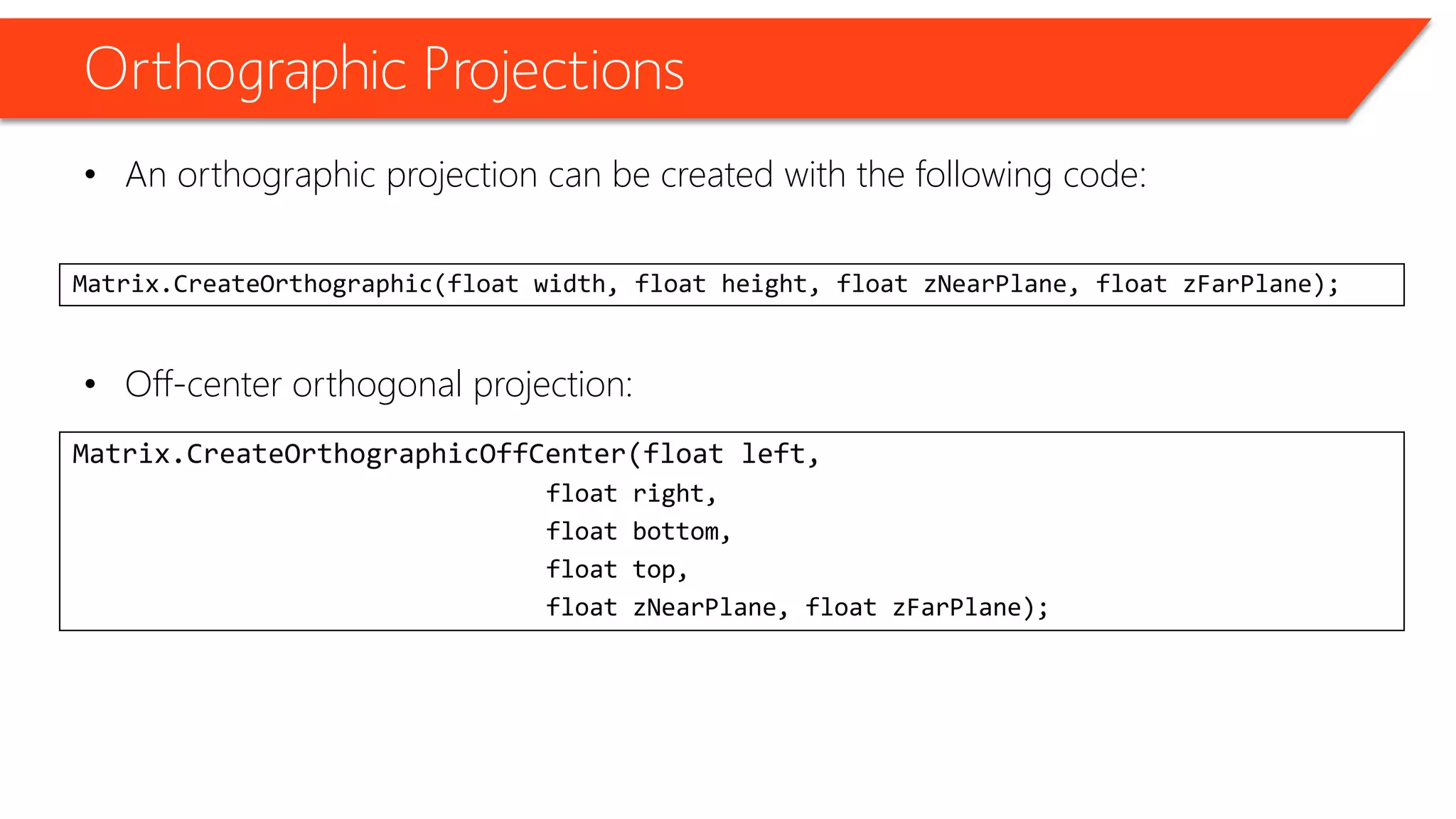

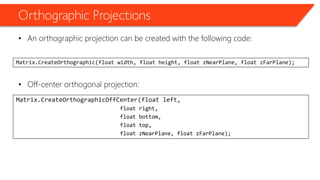

- 42. Orthographic Projections •Anorthographic projection can be created with the following code: Matrix.CreateOrthographic(float width, float height, float zNearPlane, float zFarPlane);
- 43. Orthographic Projections •Anorthographic projection can be created with the following code: •Off-center orthogonal projection: Matrix.CreateOrthographic(float width, float height, float zNearPlane, float zFarPlane); Matrix.CreateOrthographicOffCenter(float left, float right, float bottom, float top, float zNearPlane, float zFarPlane);

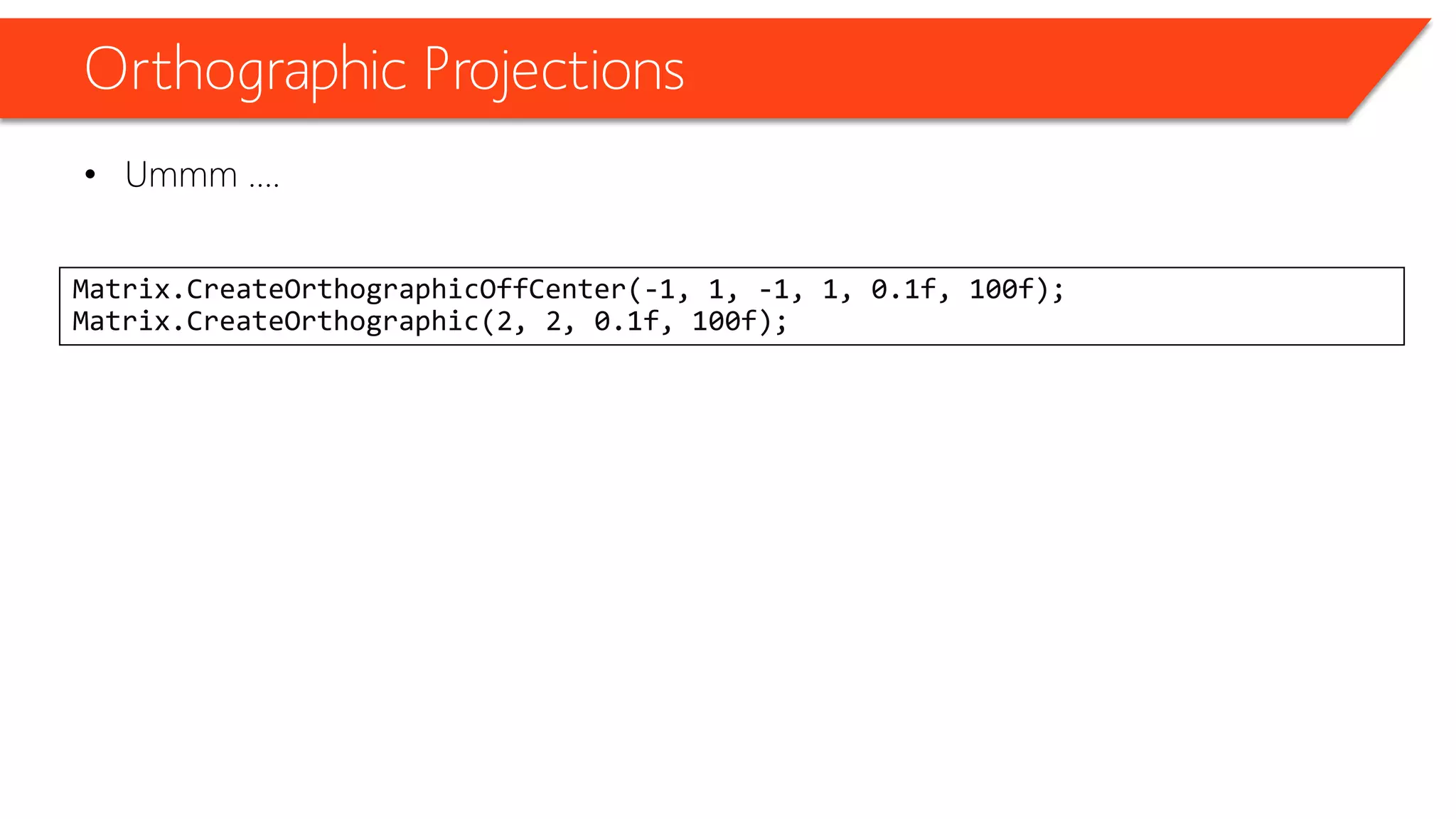

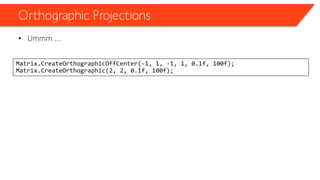

- 44. Orthographic Projections •Ummm…. Matrix.CreateOrthographicOffCenter(-1, 1, -1, 1, 0.1f, 100f); Matrix.CreateOrthographic(2, 2, 0.1f, 100f);

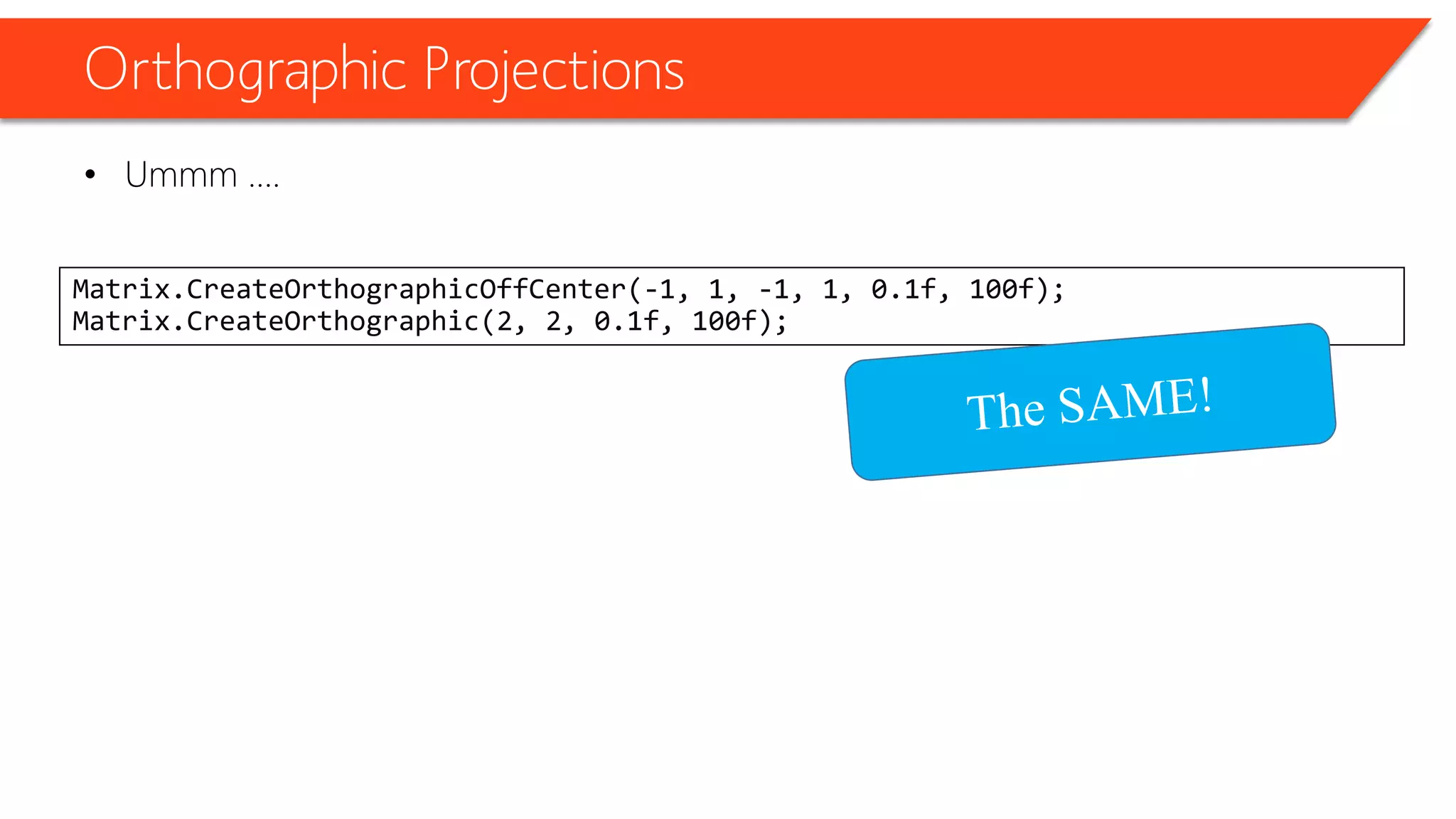

- 45. Orthographic Projections •Ummm…. Matrix.CreateOrthographicOffCenter(-1, 1, -1, 1, 0.1f, 100f); Matrix.CreateOrthographic(2, 2, 0.1f, 100f);

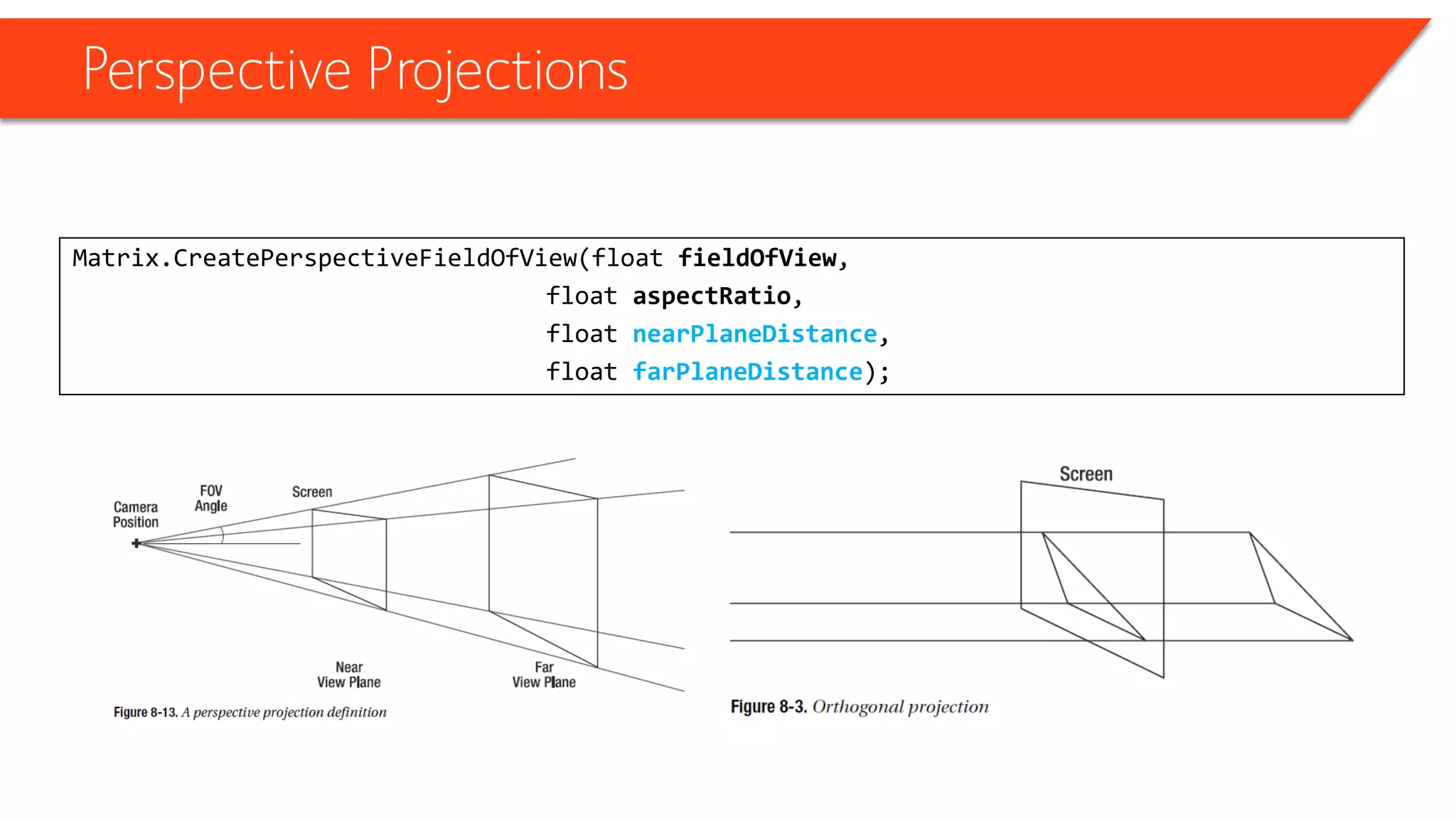

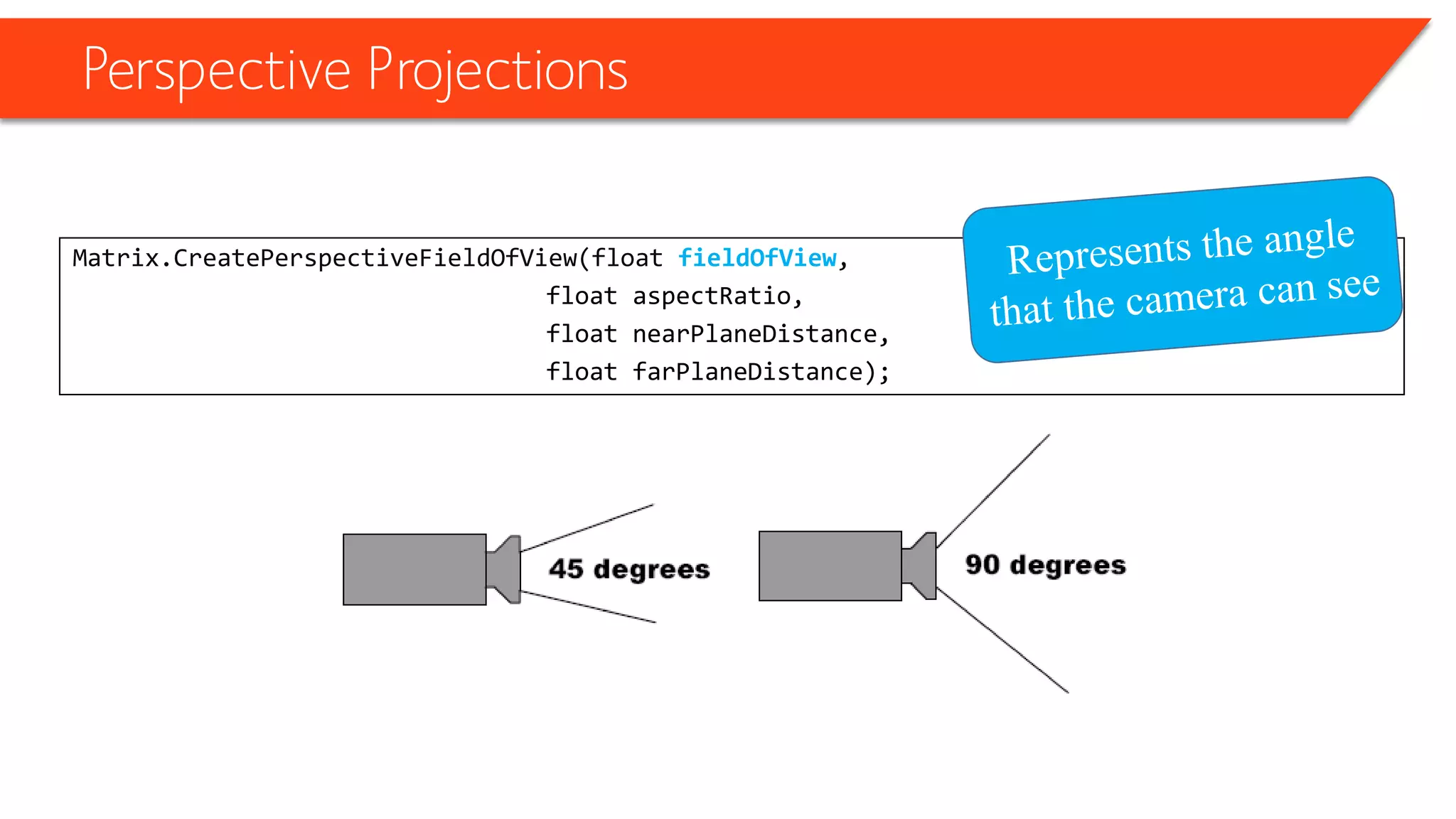

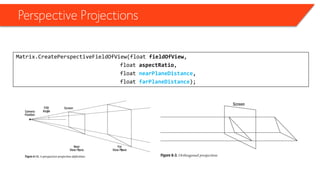

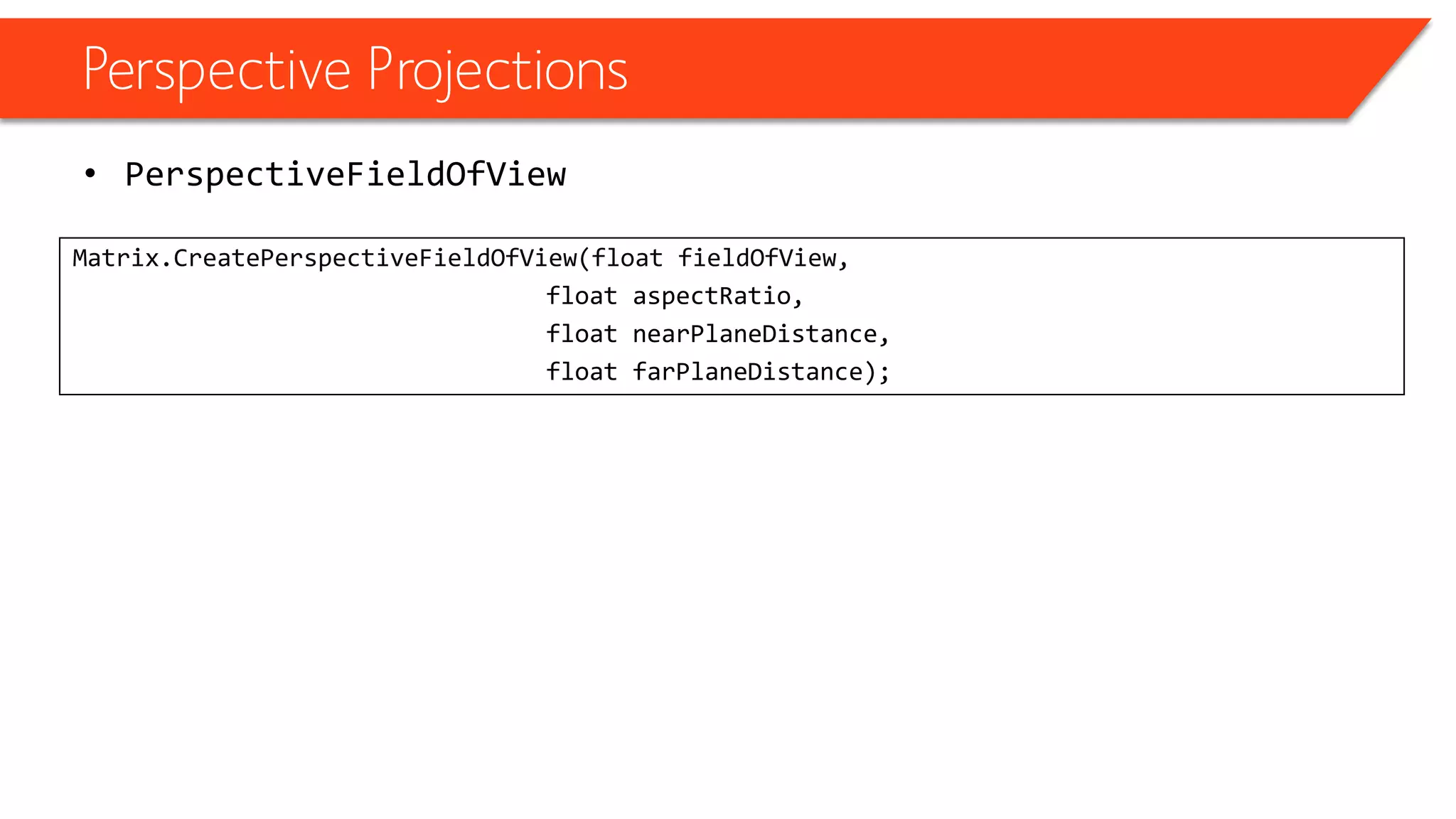

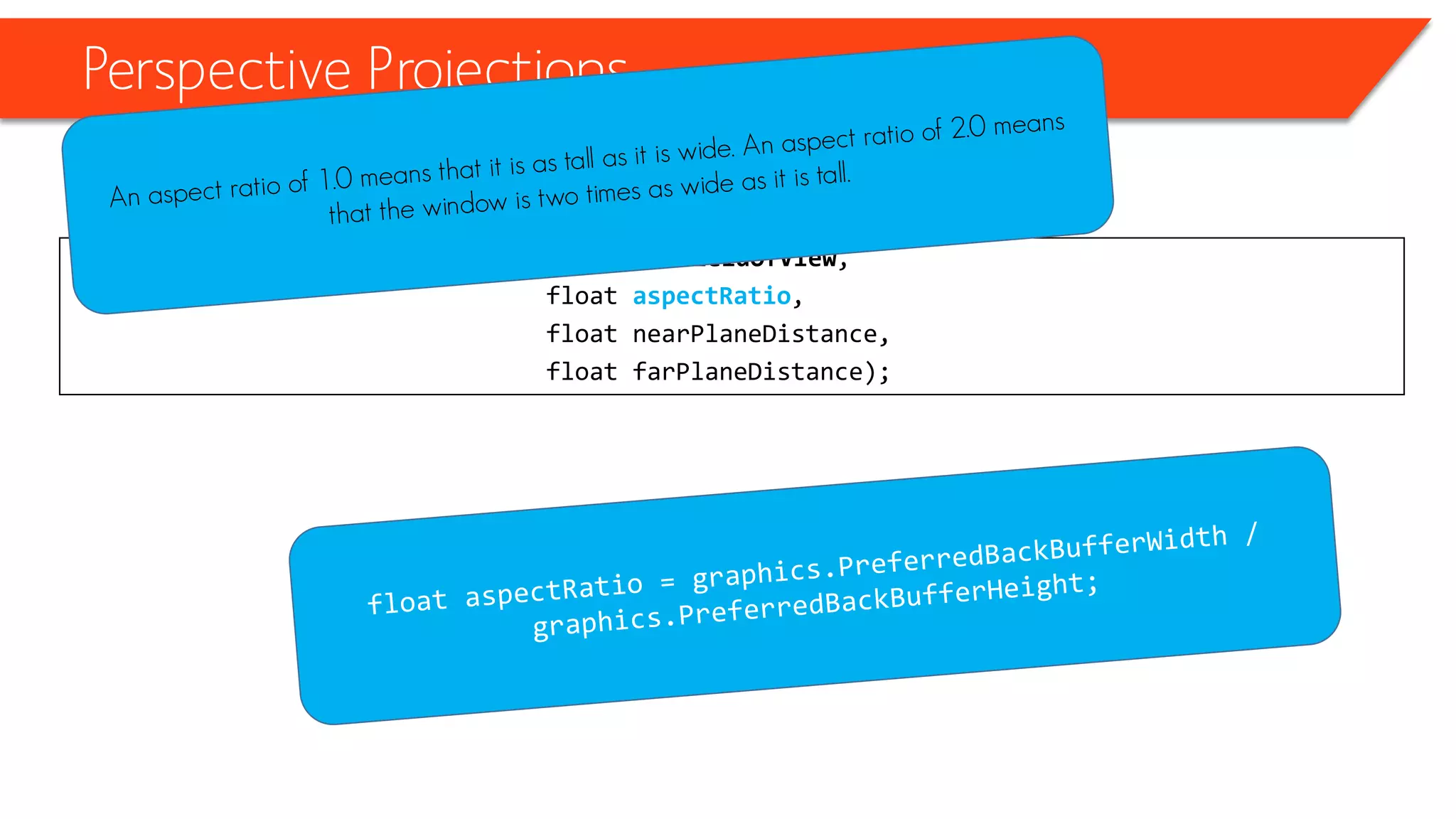

- 46. Perspective Projections •PerspectiveFieldOfView Matrix.CreatePerspectiveFieldOfView(float fieldOfView, float aspectRatio, float nearPlaneDistance, float farPlaneDistance);

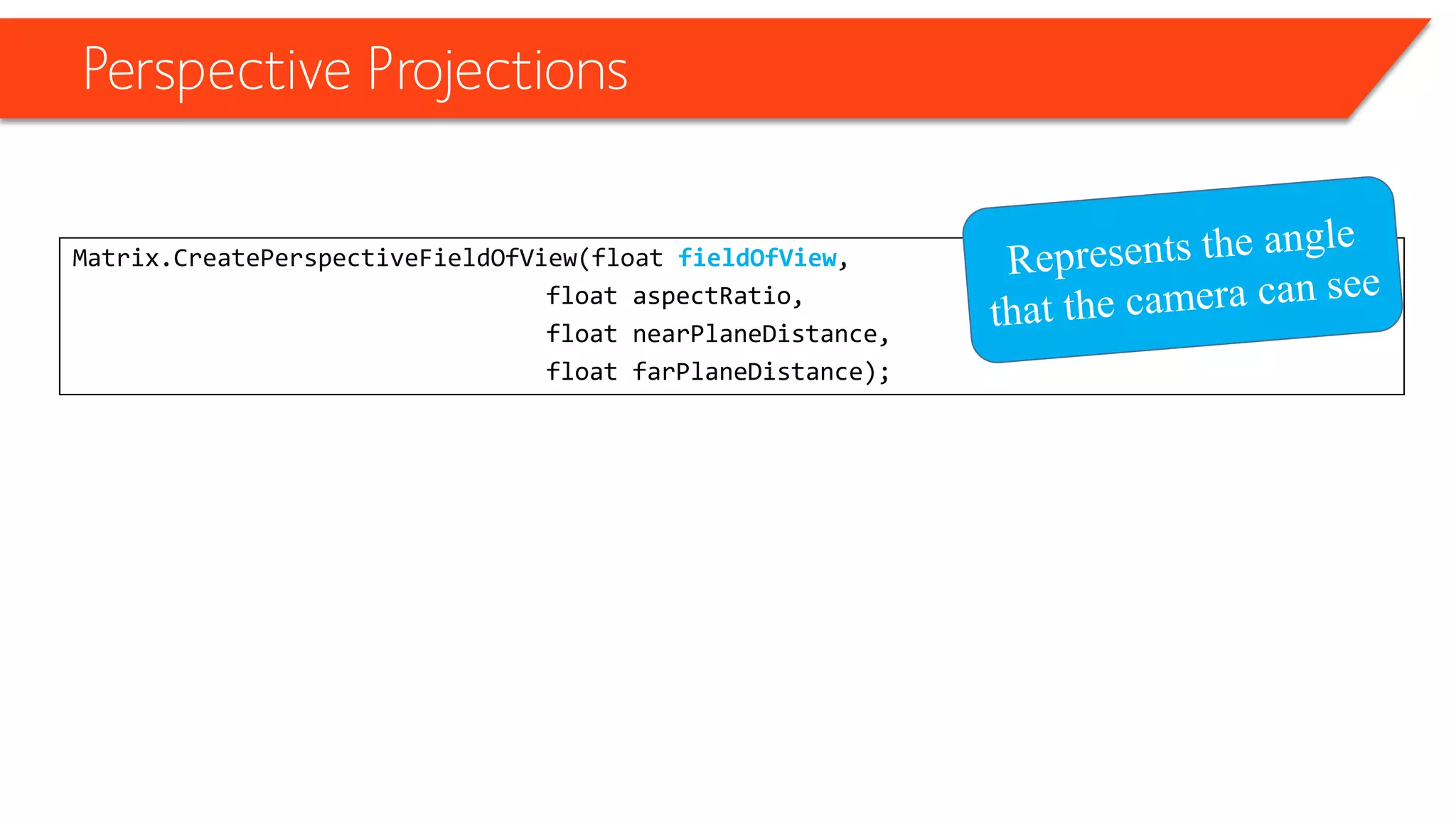

- 47. Perspective Projections Matrix.CreatePerspectiveFieldOfView(floatfieldOfView, float aspectRatio, float nearPlaneDistance, float farPlaneDistance);
- 48. Perspective Projections Matrix.CreatePerspectiveFieldOfView(floatfieldOfView, float aspectRatio, float nearPlaneDistance, float farPlaneDistance);

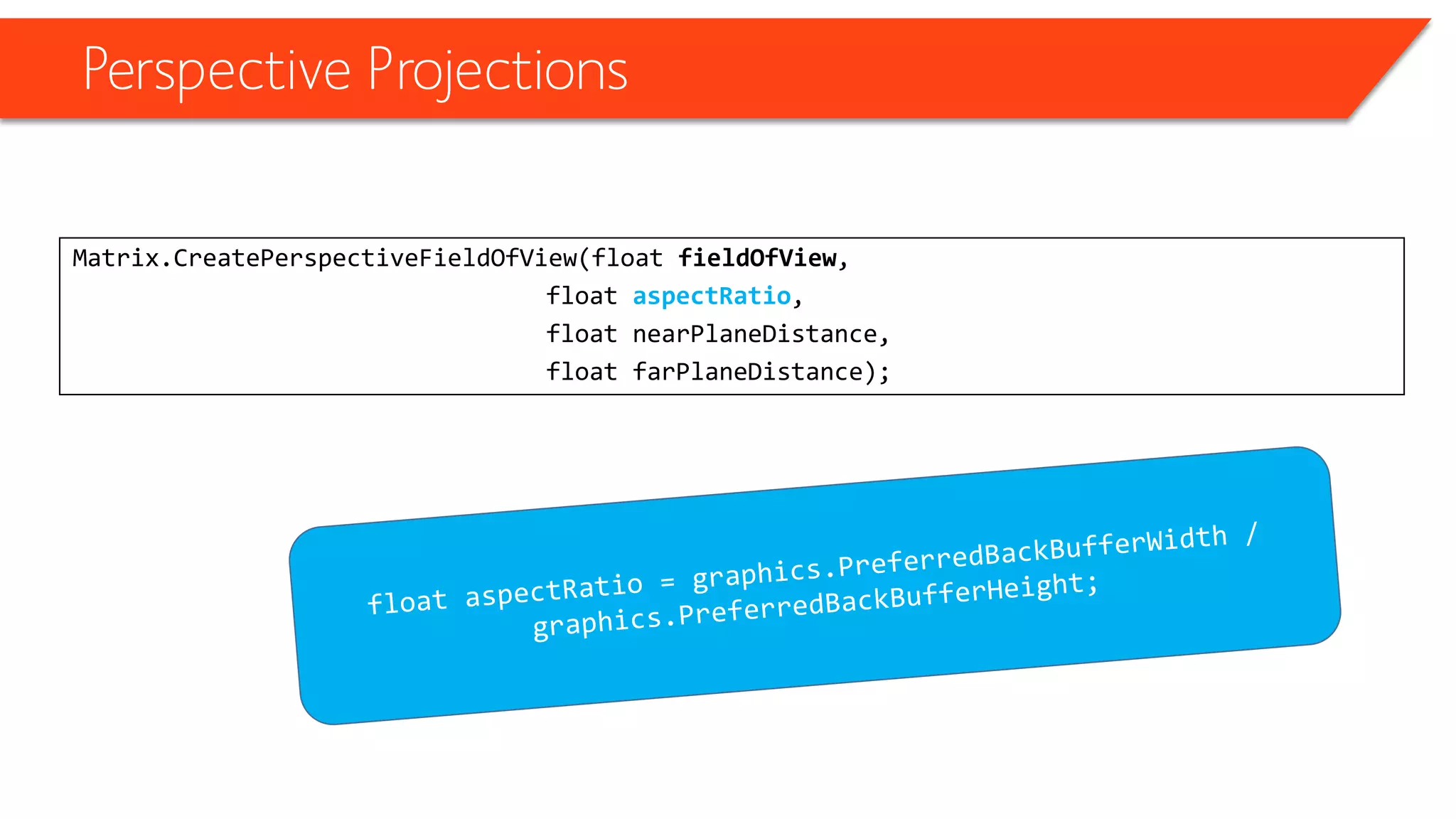

- 49. Perspective Projections Matrix.CreatePerspectiveFieldOfView(floatfieldOfView, float aspectRatio, float nearPlaneDistance, float farPlaneDistance);

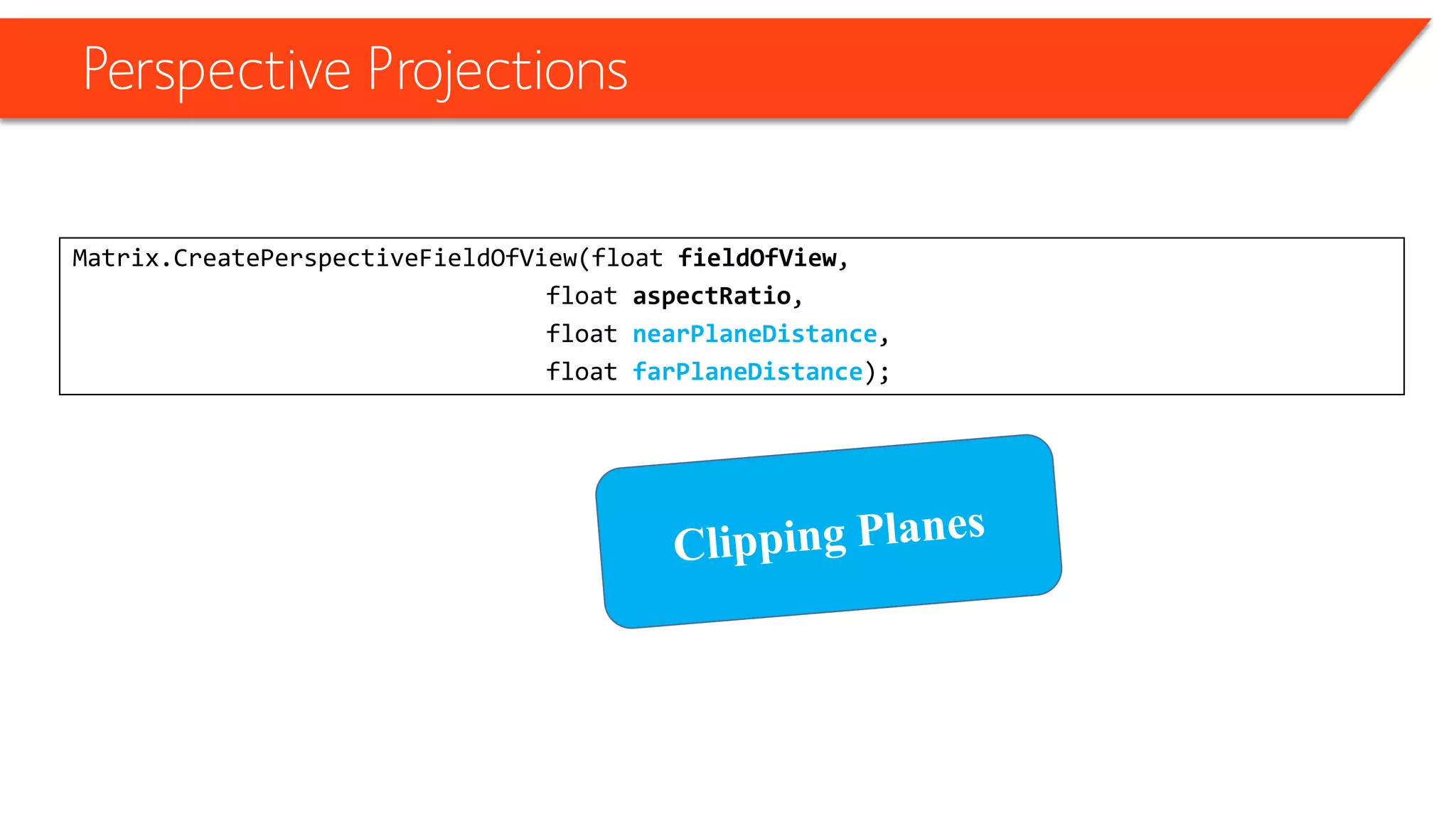

- 50. Perspective Projections •Perspectiveprojections Matrix.CreatePerspectiveFieldOfView(float fieldOfView, float aspectRatio, float nearPlaneDistance, float farPlaneDistance);
- 51. Perspective Projections Matrix.CreatePerspectiveFieldOfView(floatfieldOfView, float aspectRatio, float nearPlaneDistance, float farPlaneDistance);
- 52. Perspective Projections Matrix.CreatePerspectiveFieldOfView(floatfieldOfView, float aspectRatio, float nearPlaneDistance, float farPlaneDistance);

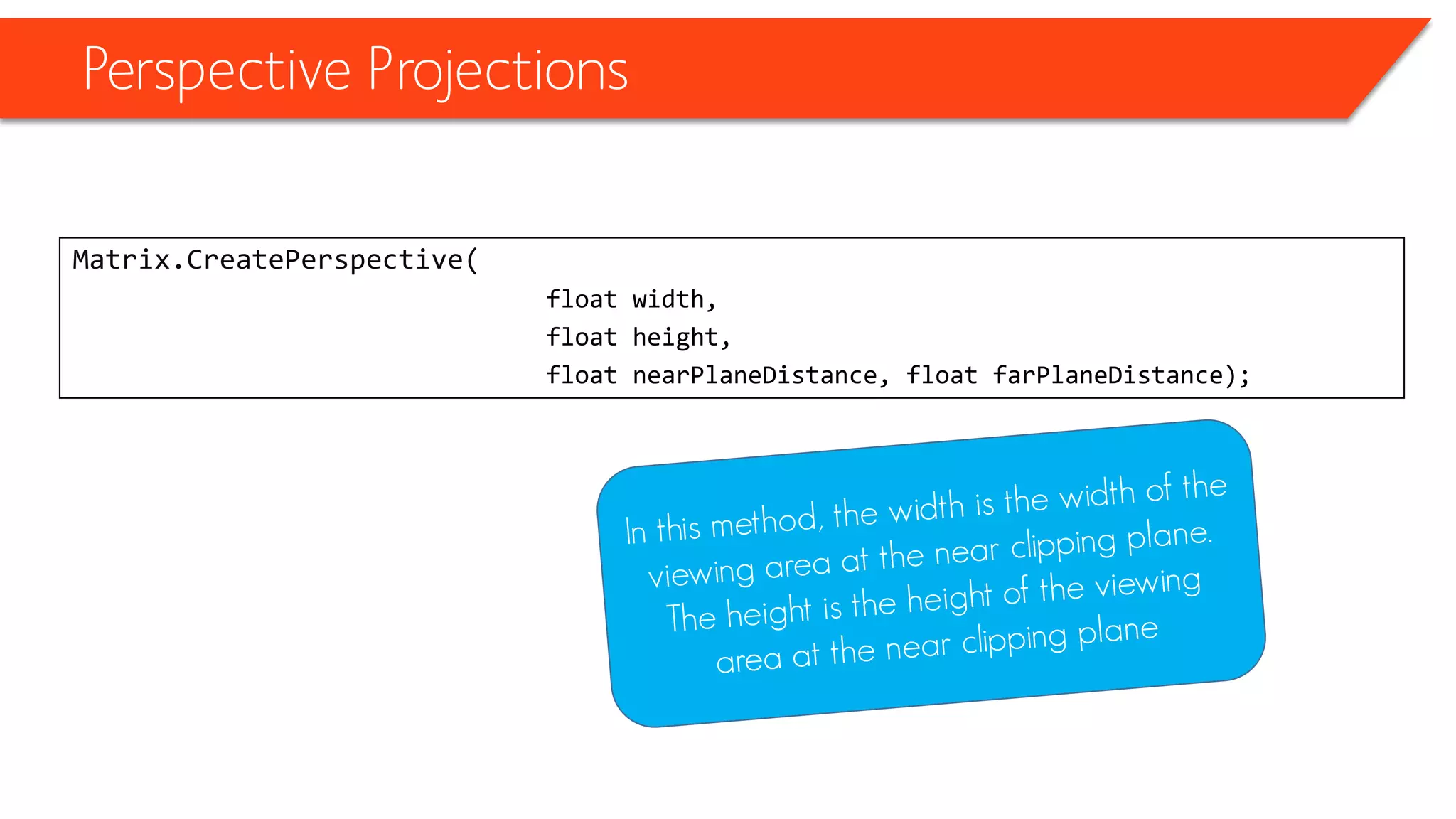

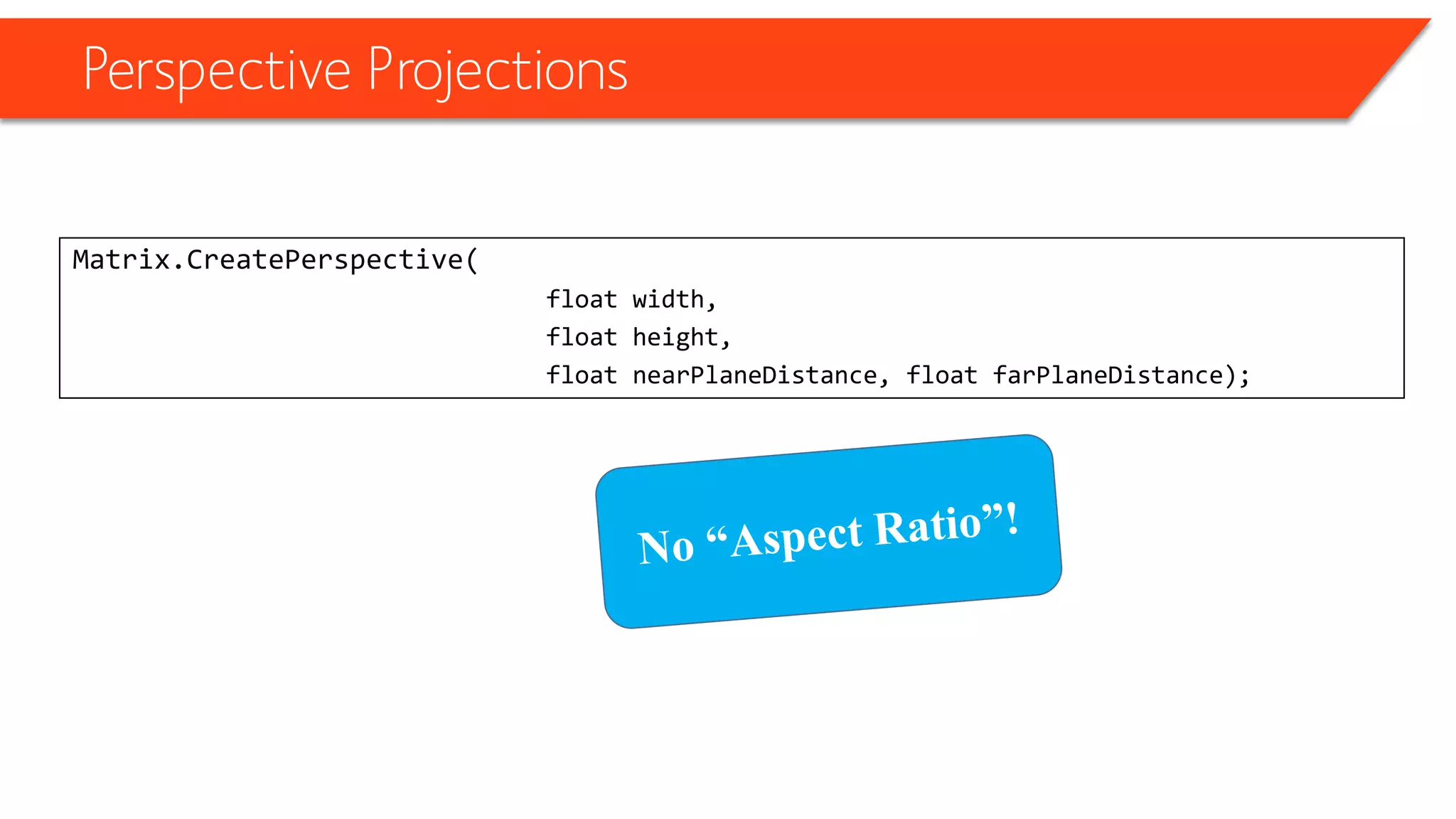

- 53. Perspective Projections Matrix.CreatePerspective( float width, float height, float nearPlaneDistance, float farPlaneDistance);
- 54. Perspective Projections Matrix.CreatePerspective( float width, float height, float nearPlaneDistance, float farPlaneDistance);
- 55. Perspective Projections Matrix.CreatePerspective( float width, float height, float nearPlaneDistance, float farPlaneDistance);

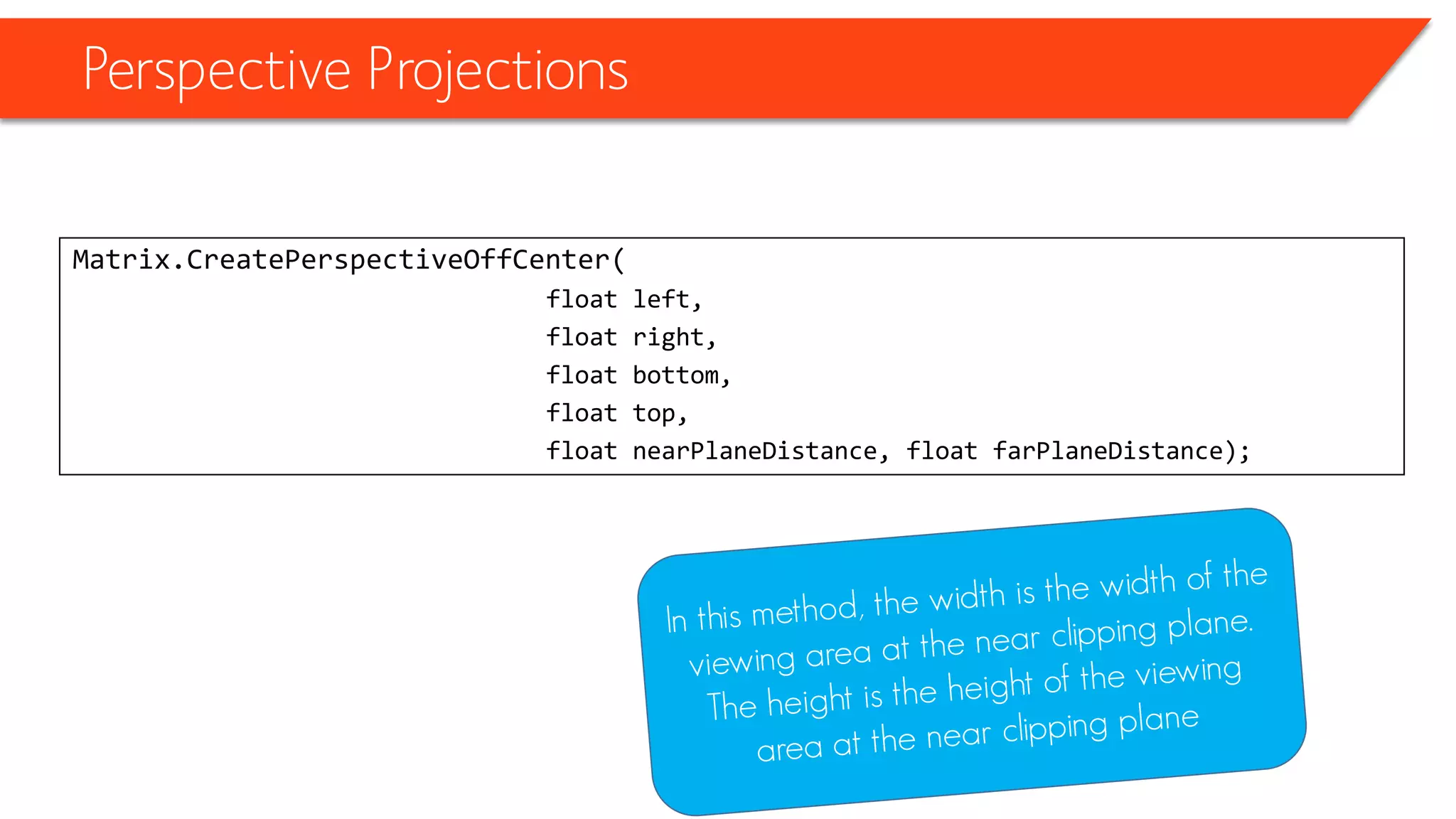

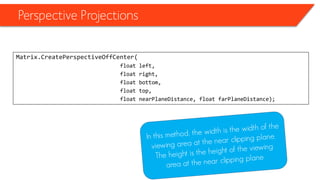

- 56. Perspective Projections Matrix.CreatePerspectiveOffCenter( float left, float right, float bottom, float top, float nearPlaneDistance, float farPlaneDistance);

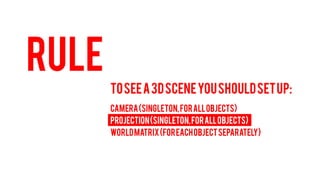

- 57. RULE TO SEEA 3D SCENE YOU SHOULD SET UP: CAMERA (Singleton, for all objects) PROJECTION (Singleton, for all objects) WORLD MATRIX (For each object separately)
- 58. RULE TO SEEA 3D SCENE YOU SHOULD SET UP: CAMERA (Singleton, for all objects) PROJECTION (Singleton, for all objects) WORLD MATRIX (For each object separately)

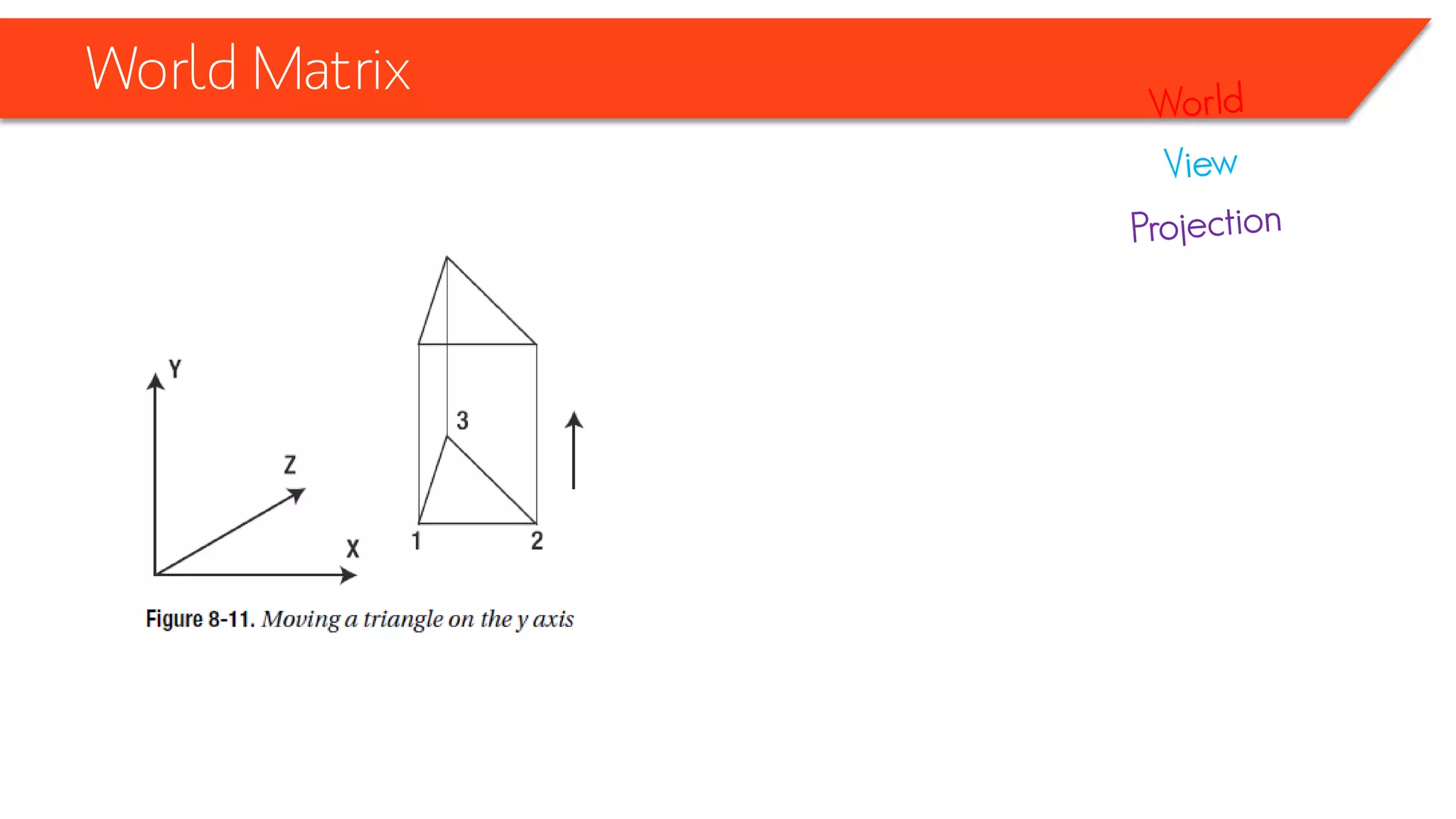

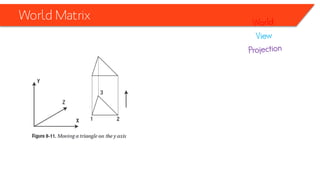

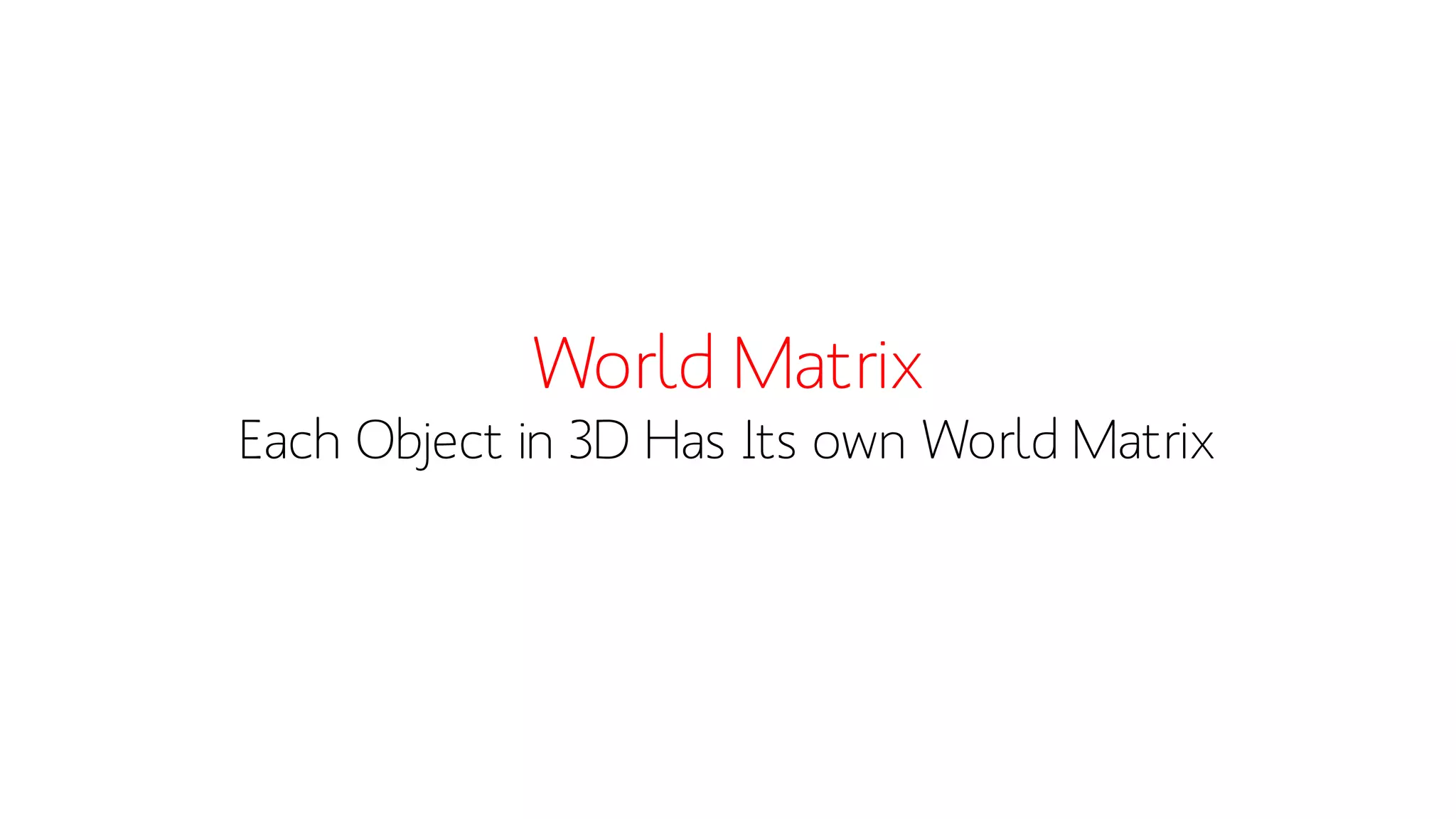

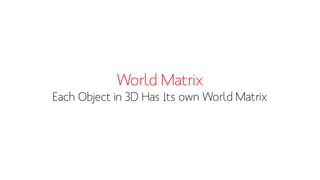

- 59. World MatrixEach Objectin 3D Has Its own World Matrix
- 60.

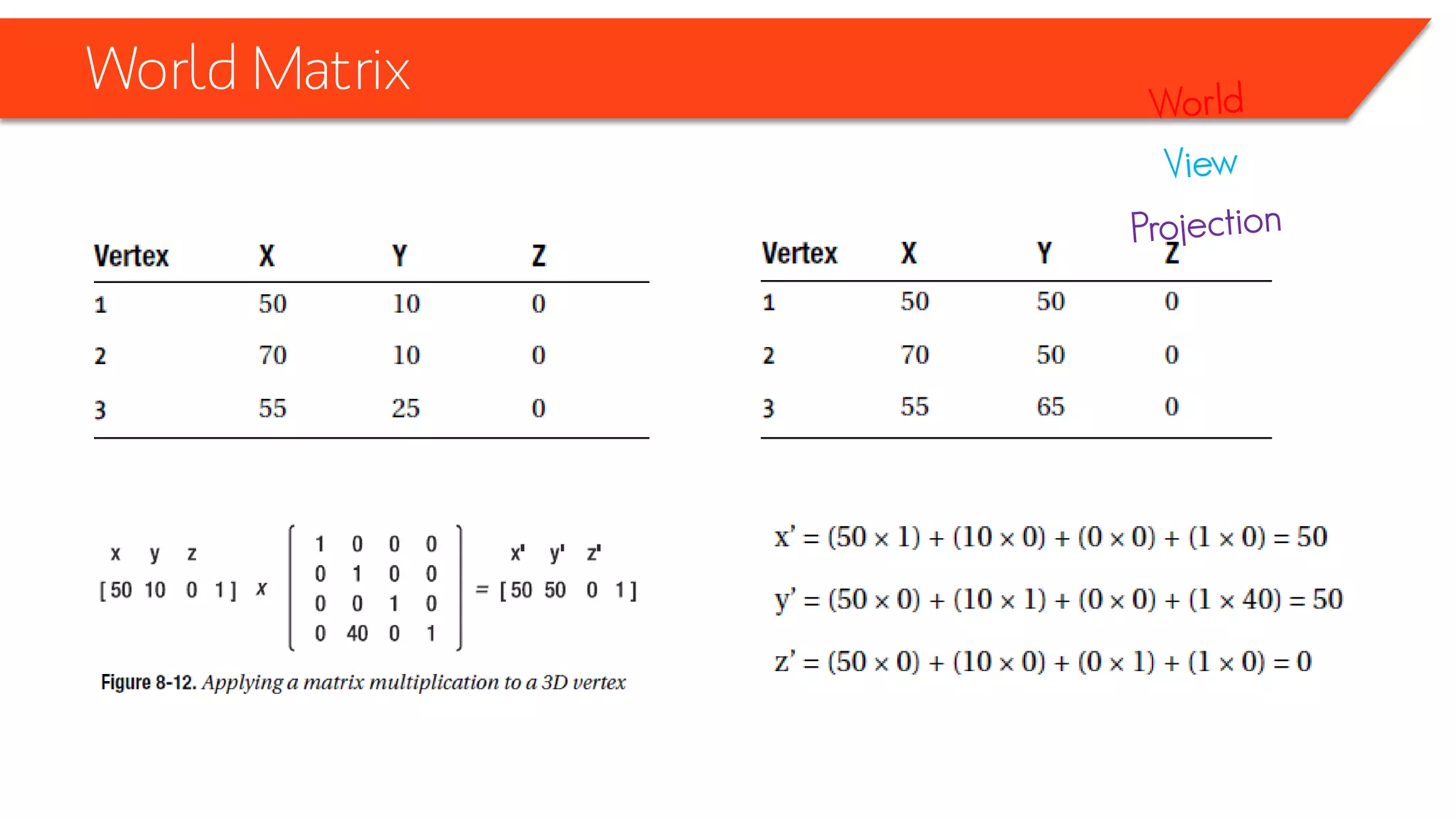

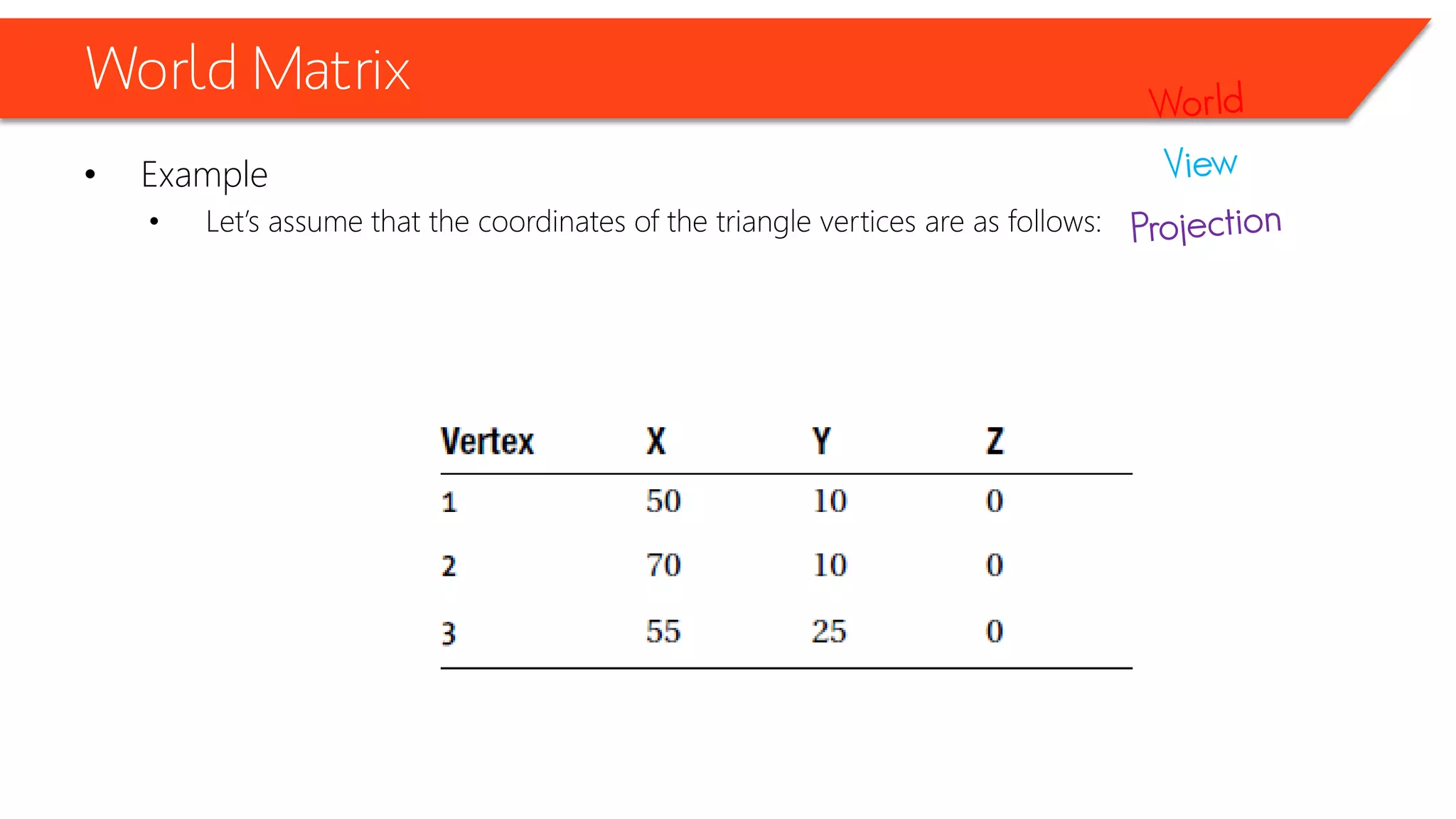

- 61. World Matrix •Example •Let’s assume that the coordinates of the triangle vertices are as follows:

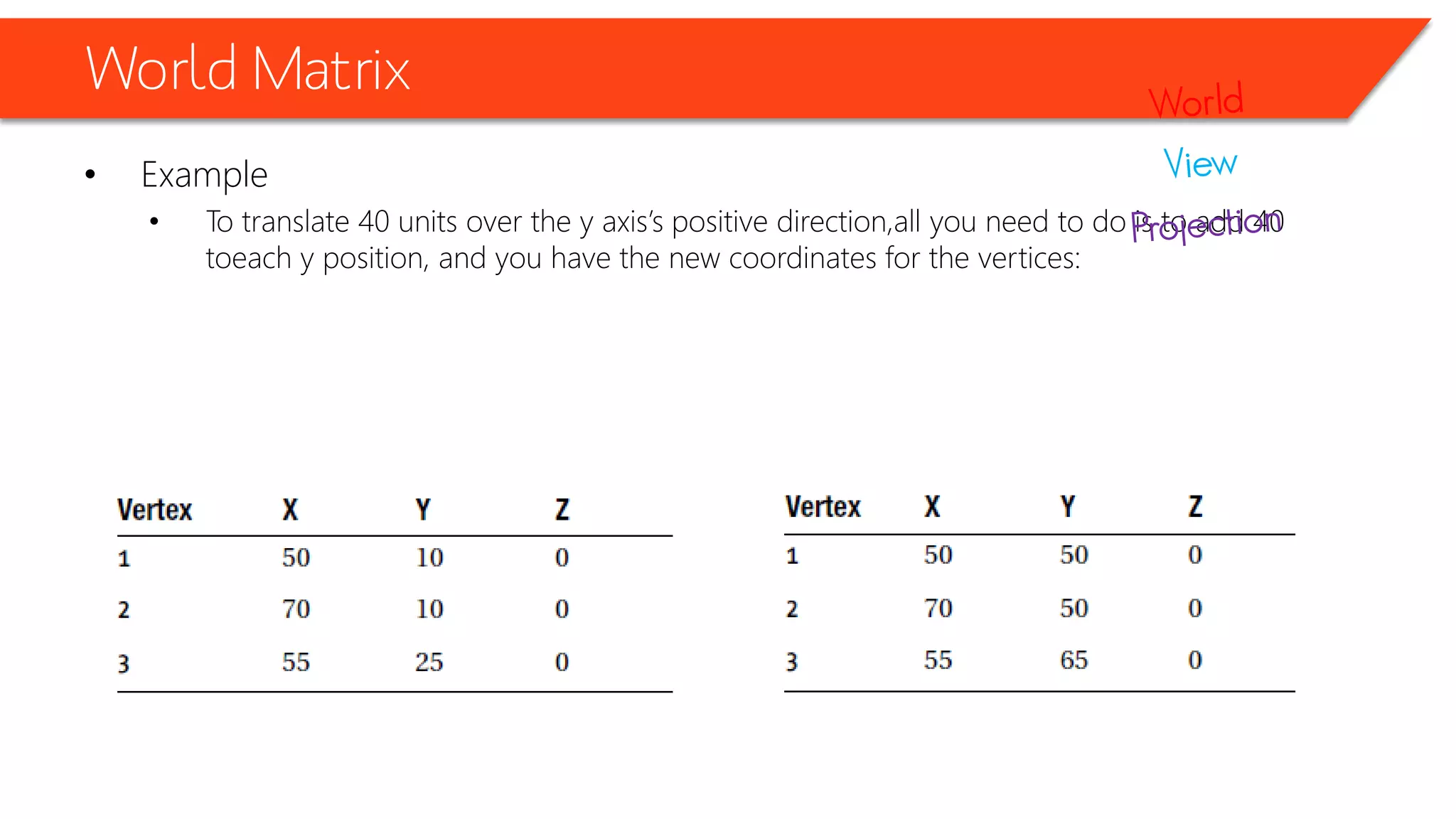

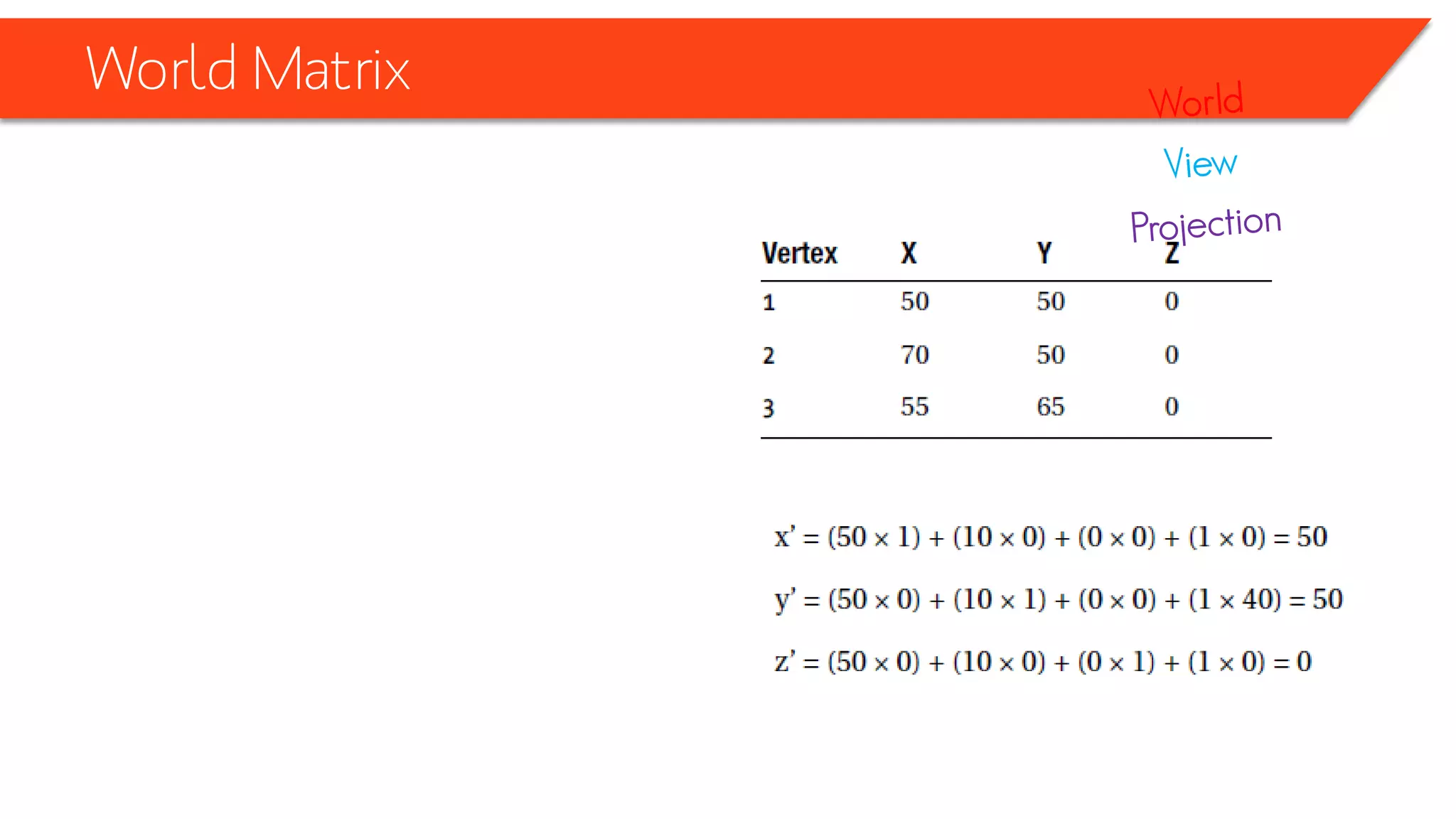

- 62. World Matrix •Example •To translate 40 units over the y axis’s positive direction,allyou need to do is to add 40 toeachy position, and you have the new coordinates for the vertices:

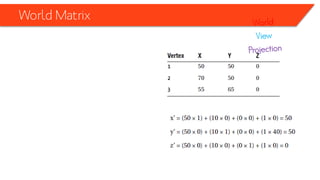

- 63.
- 64.

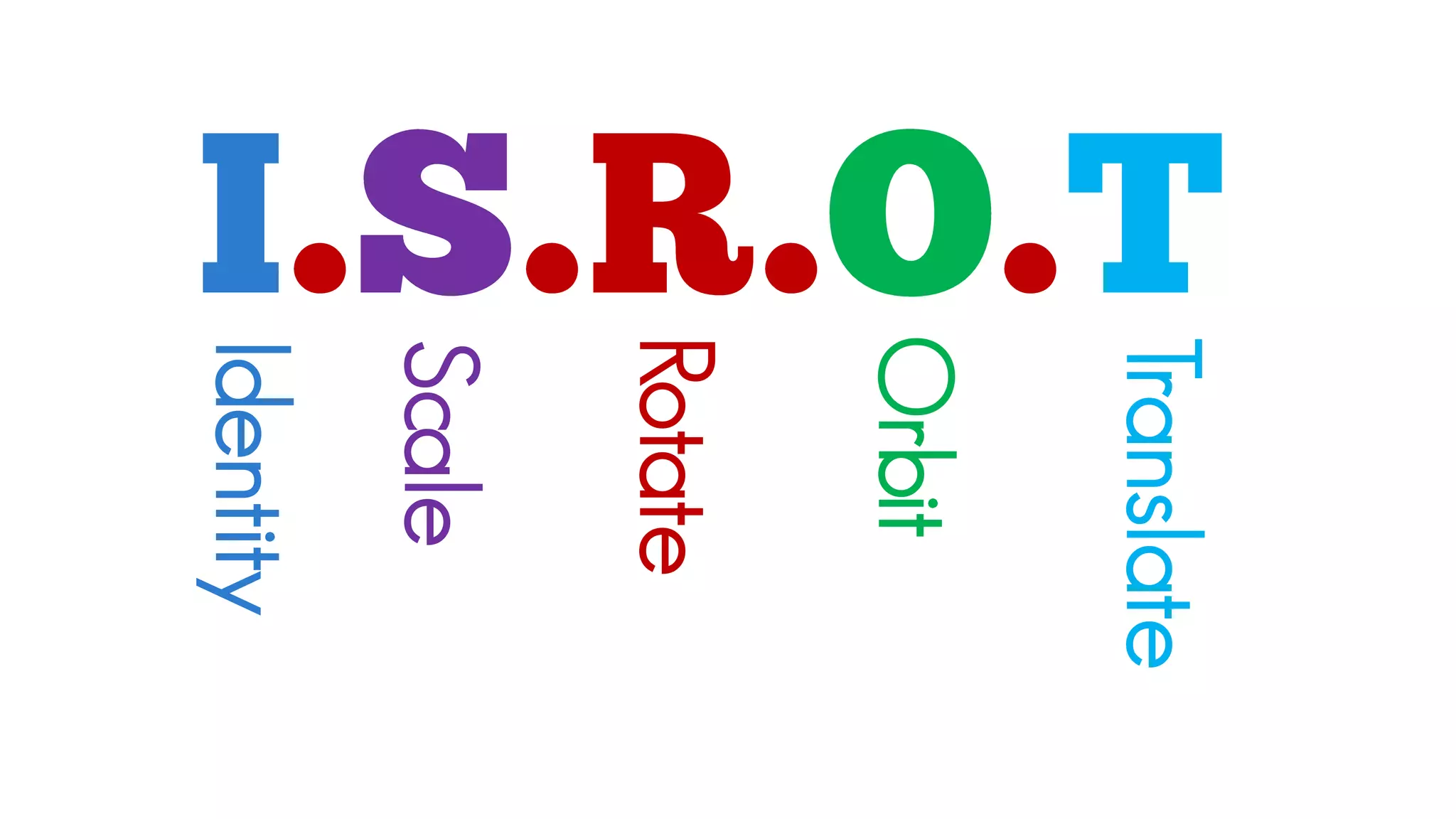

- 65. Identity Scale Rotate Orbit Translate

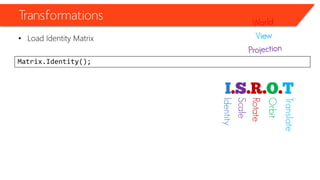

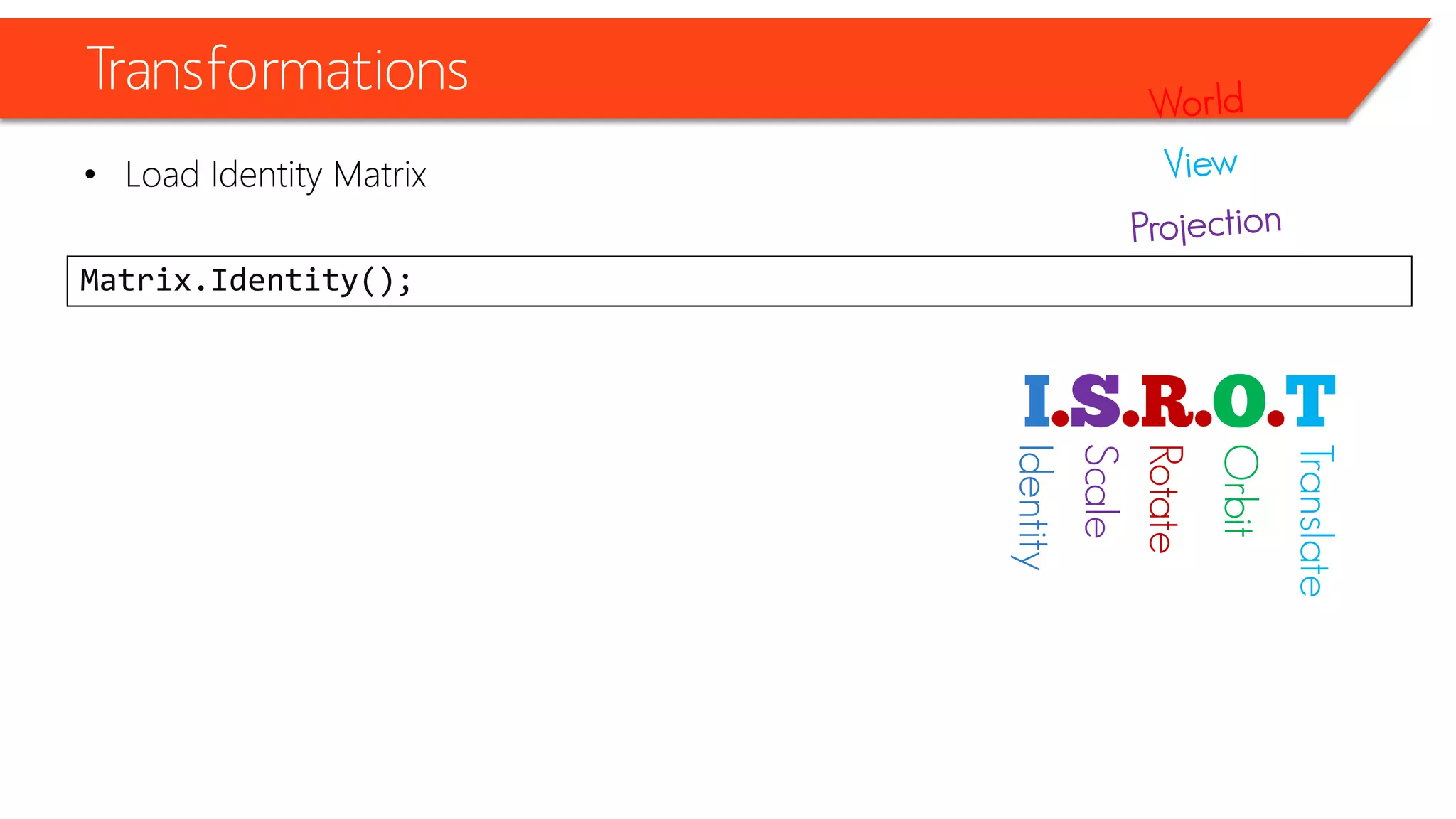

- 66. Transformations •Load IdentityMatrix Matrix.Identity(); Identity Scale Rotate Orbit Translate

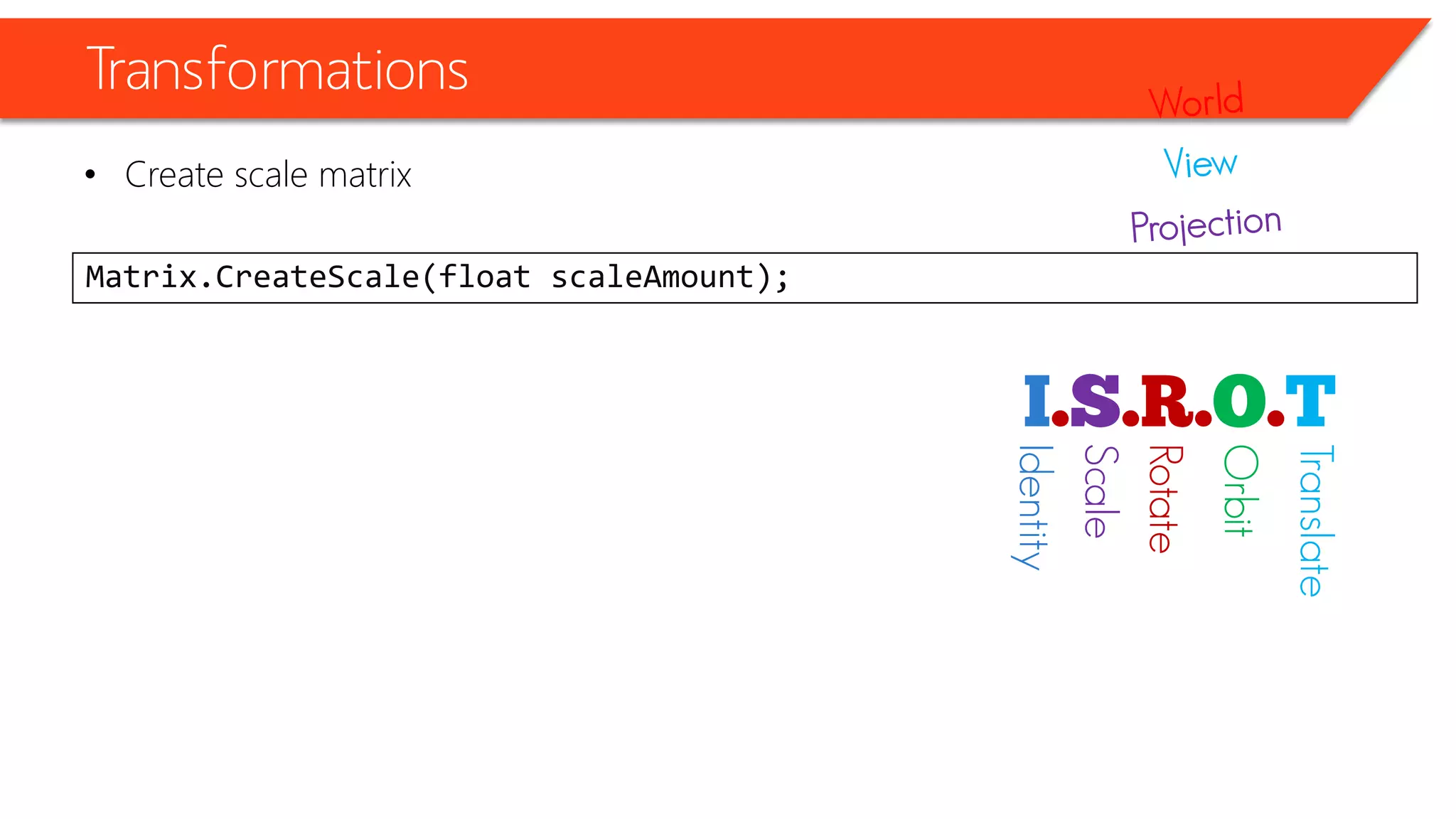

- 67. Transformations •Create scalematrix Matrix.CreateScale(float scaleAmount); Identity Scale Rotate Orbit Translate

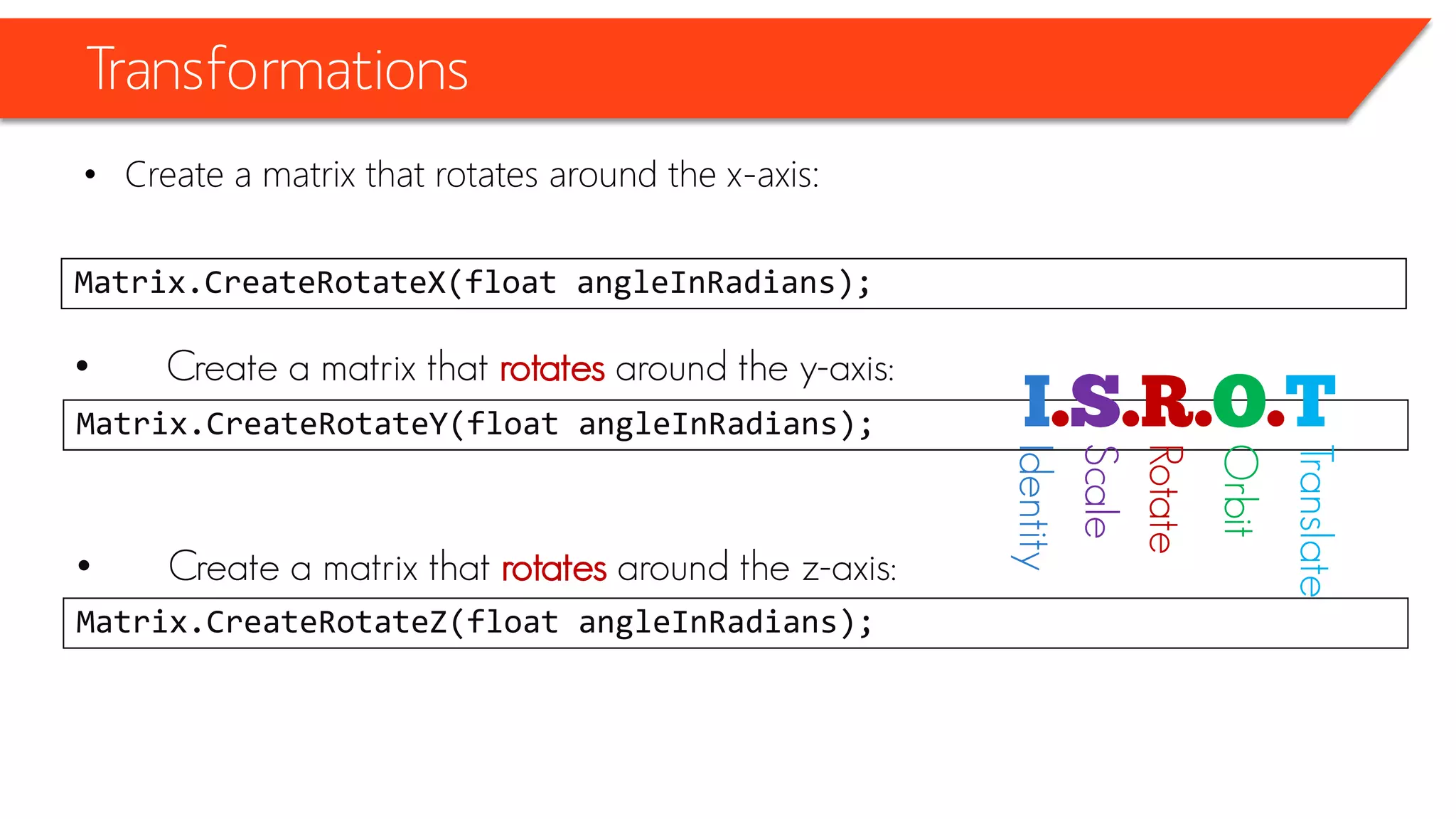

- 68. Transformations •Create amatrix that rotates around the x-axis: Matrix.CreateRotateX(float angleInRadians); •Create a matrix that rotatesaround the y-axis: Matrix.CreateRotateY(float angleInRadians); •Create a matrix that rotatesaround the z-axis: Matrix.CreateRotateZ(float angleInRadians); Identity Scale Rotate Orbit Translate

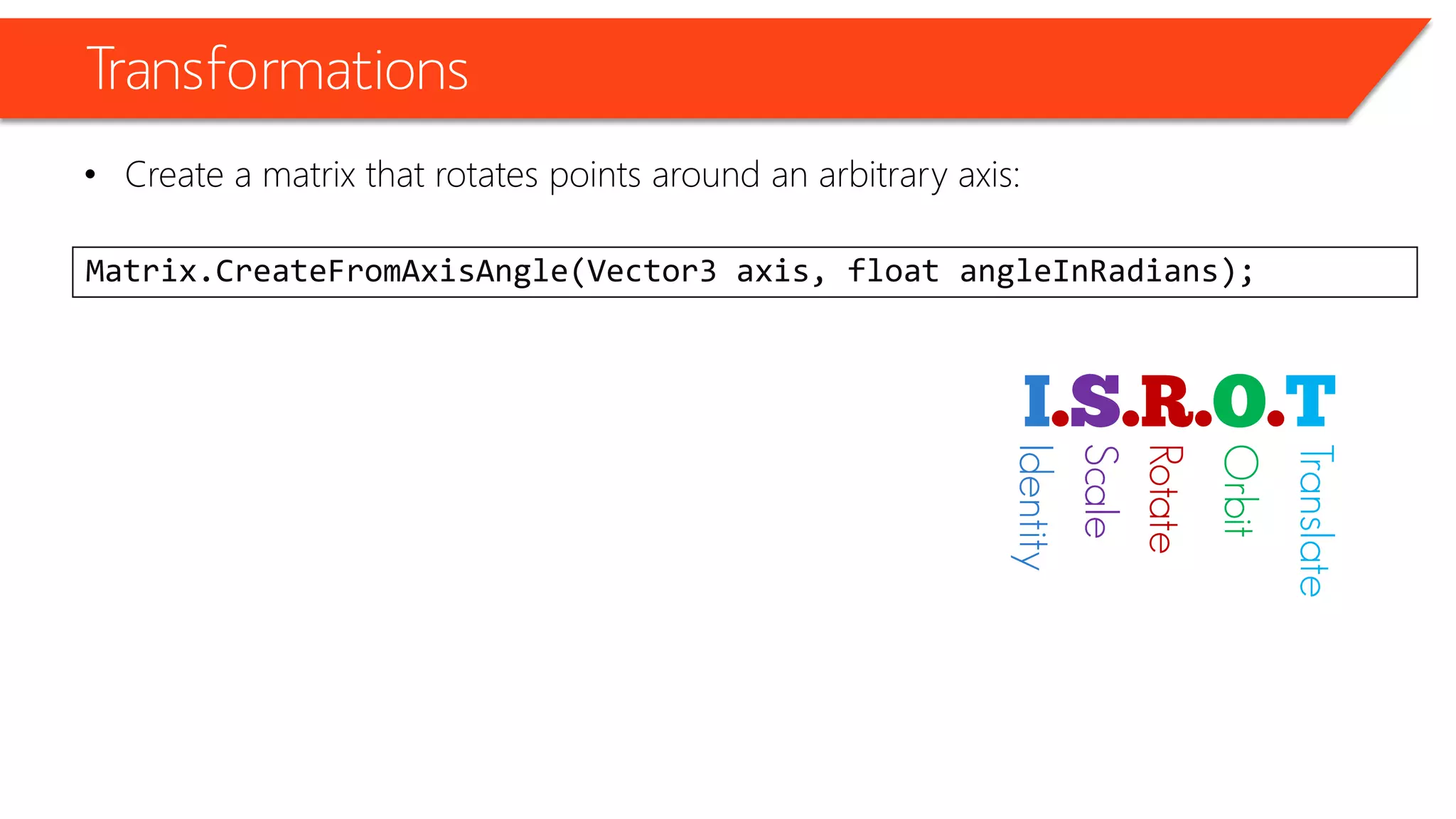

- 69. Transformations •Create amatrix that rotates points around an arbitrary axis: Matrix.CreateFromAxisAngle(Vector3 axis, float angleInRadians); Identity Scale Rotate Orbit Translate
- 70. Transformations •Create anOrbit matrix?! Identity Scale Rotate Orbit Translate

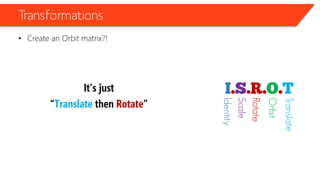

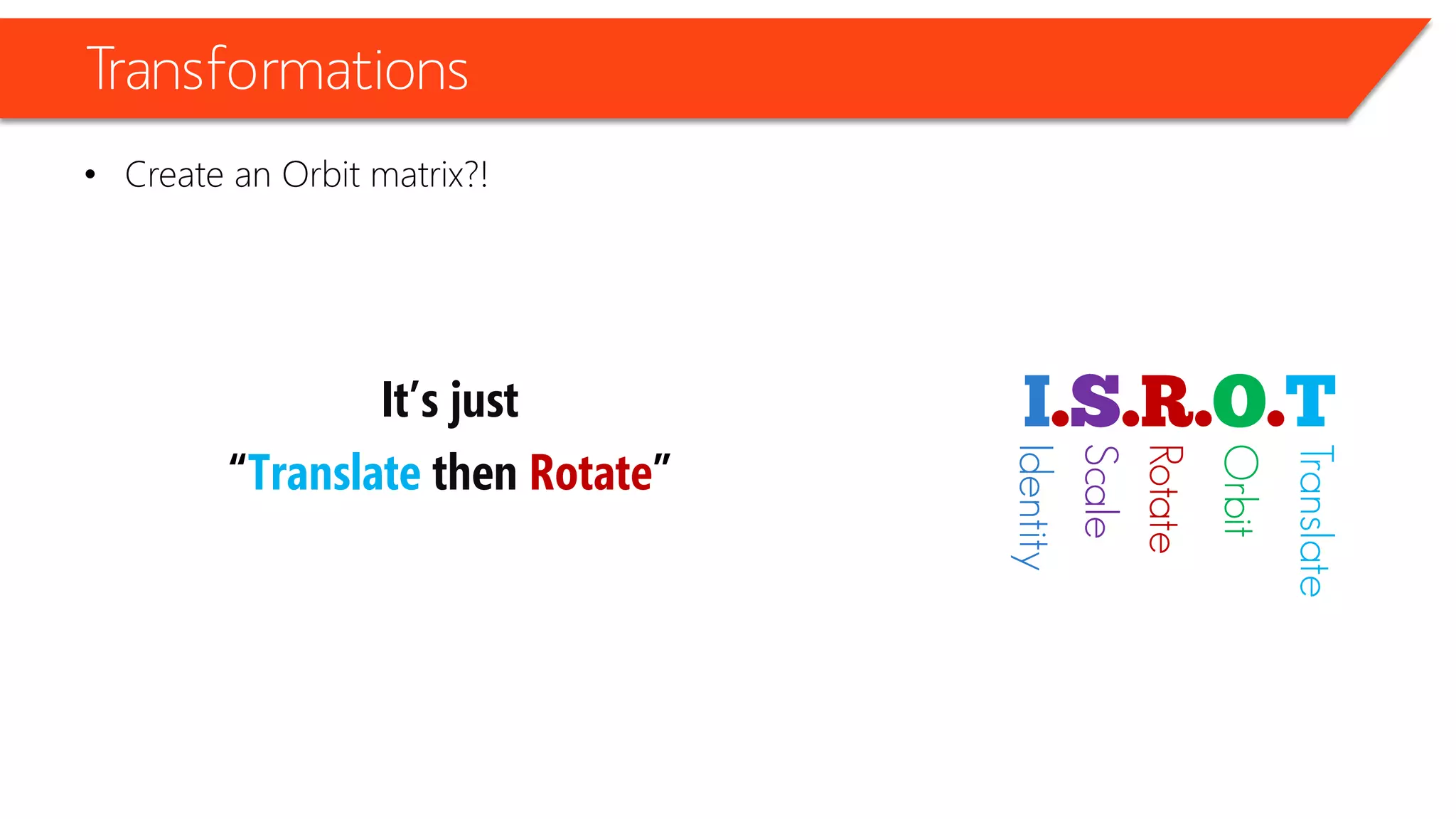

- 71. Transformations •Create anOrbit matrix?! It’s just “Translate then Rotate” Identity Scale Rotate Orbit Translate

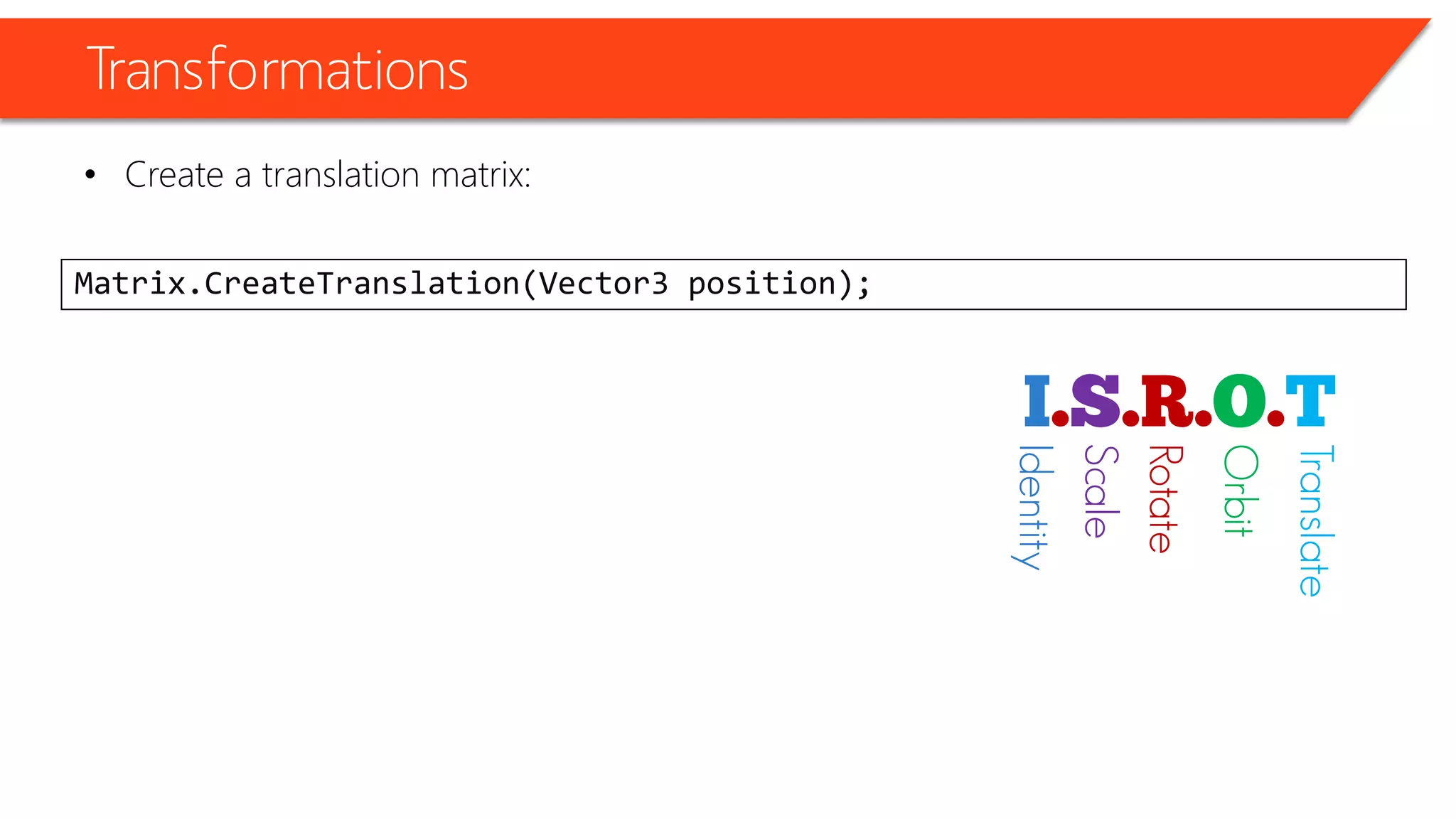

- 72. Transformations •Create atranslation matrix: Matrix.CreateTranslation(Vector3 position); Identity Scale Rotate Orbit Translate
- 73. Transformations •Multiple WorldTransformations

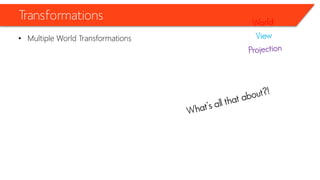

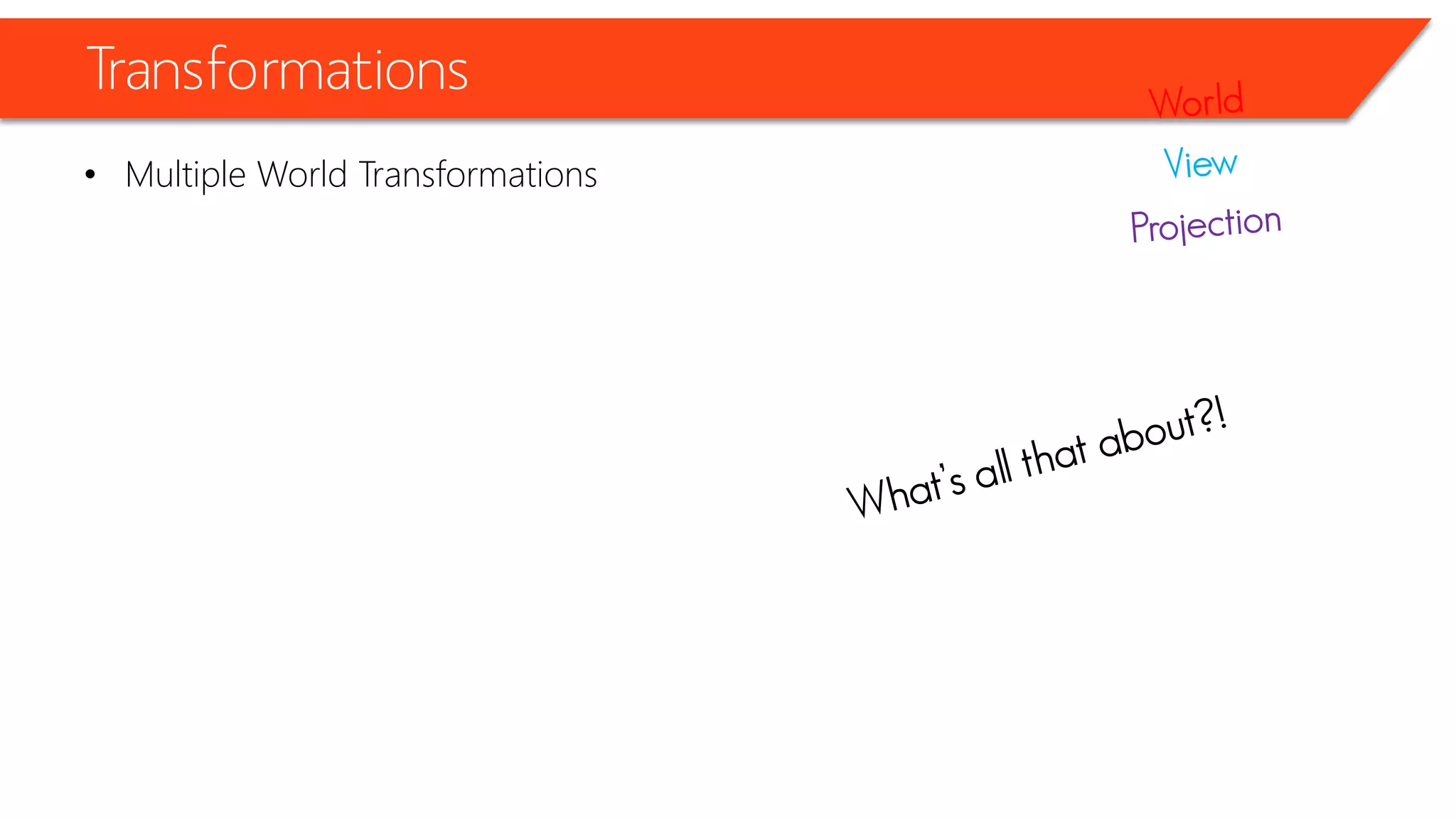

- 74. Transformations •Multiple WorldTransformations

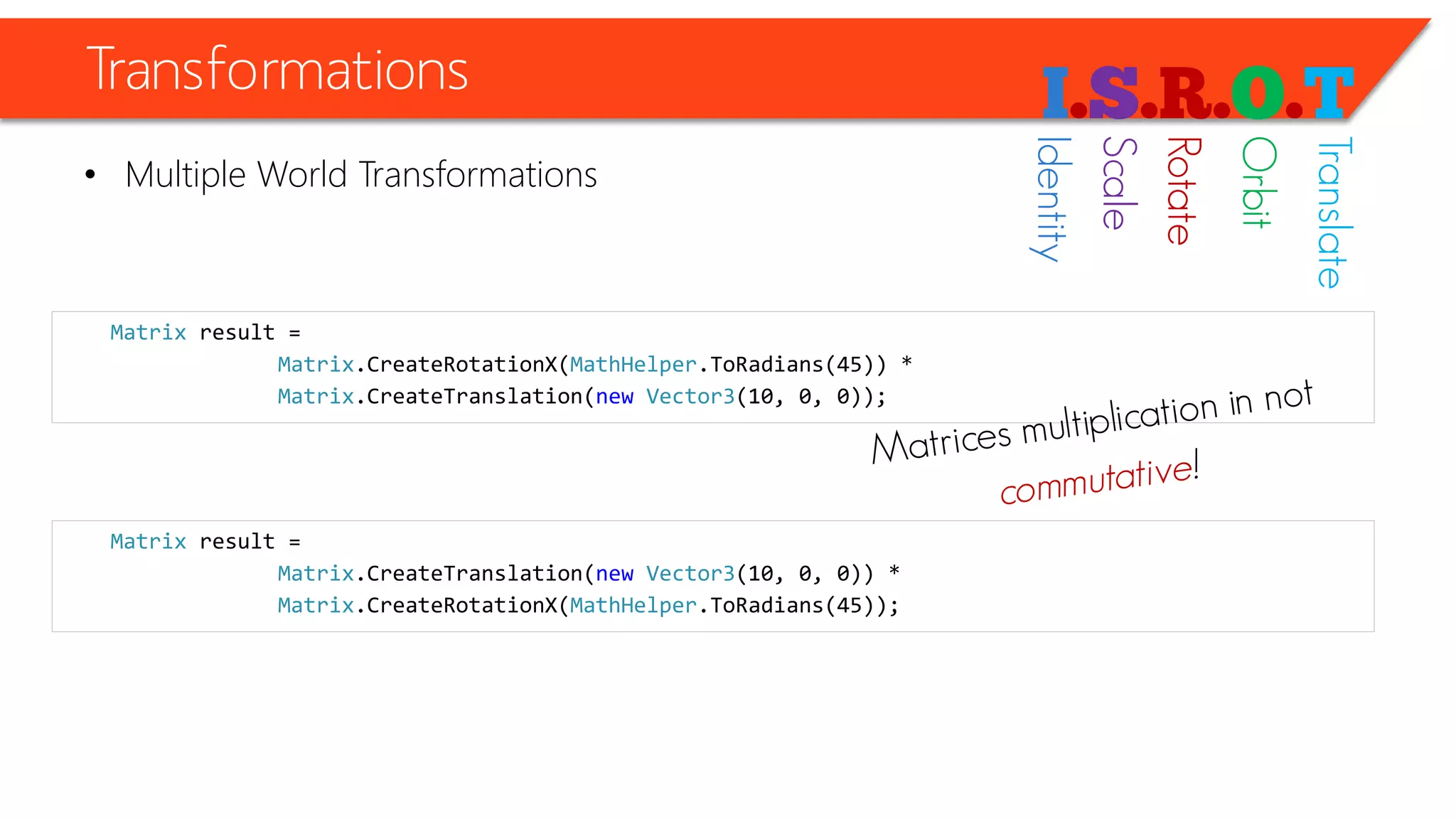

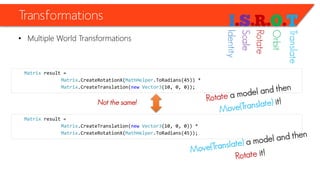

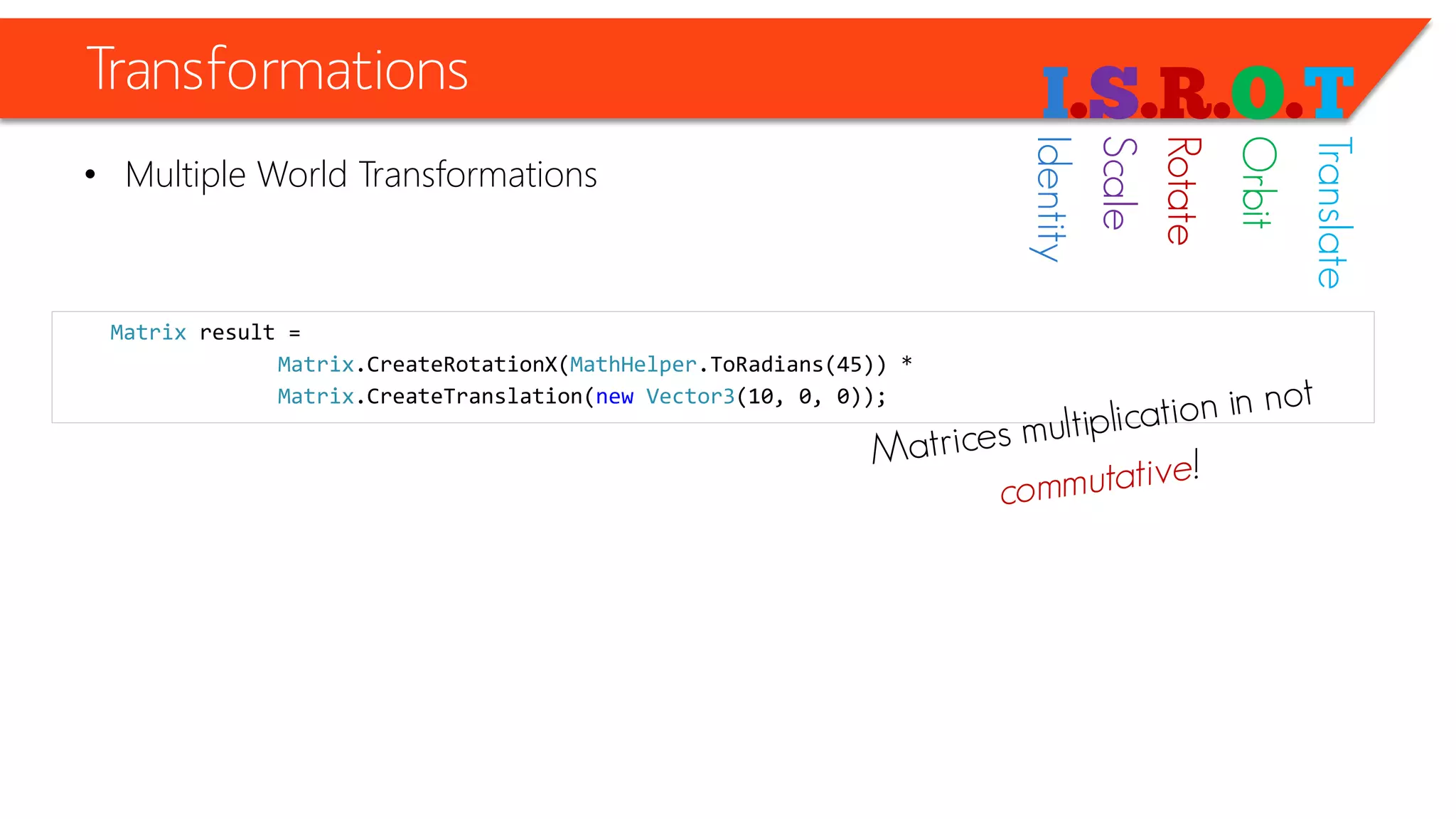

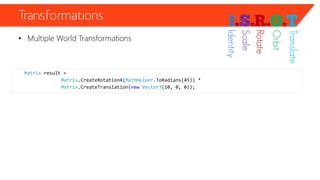

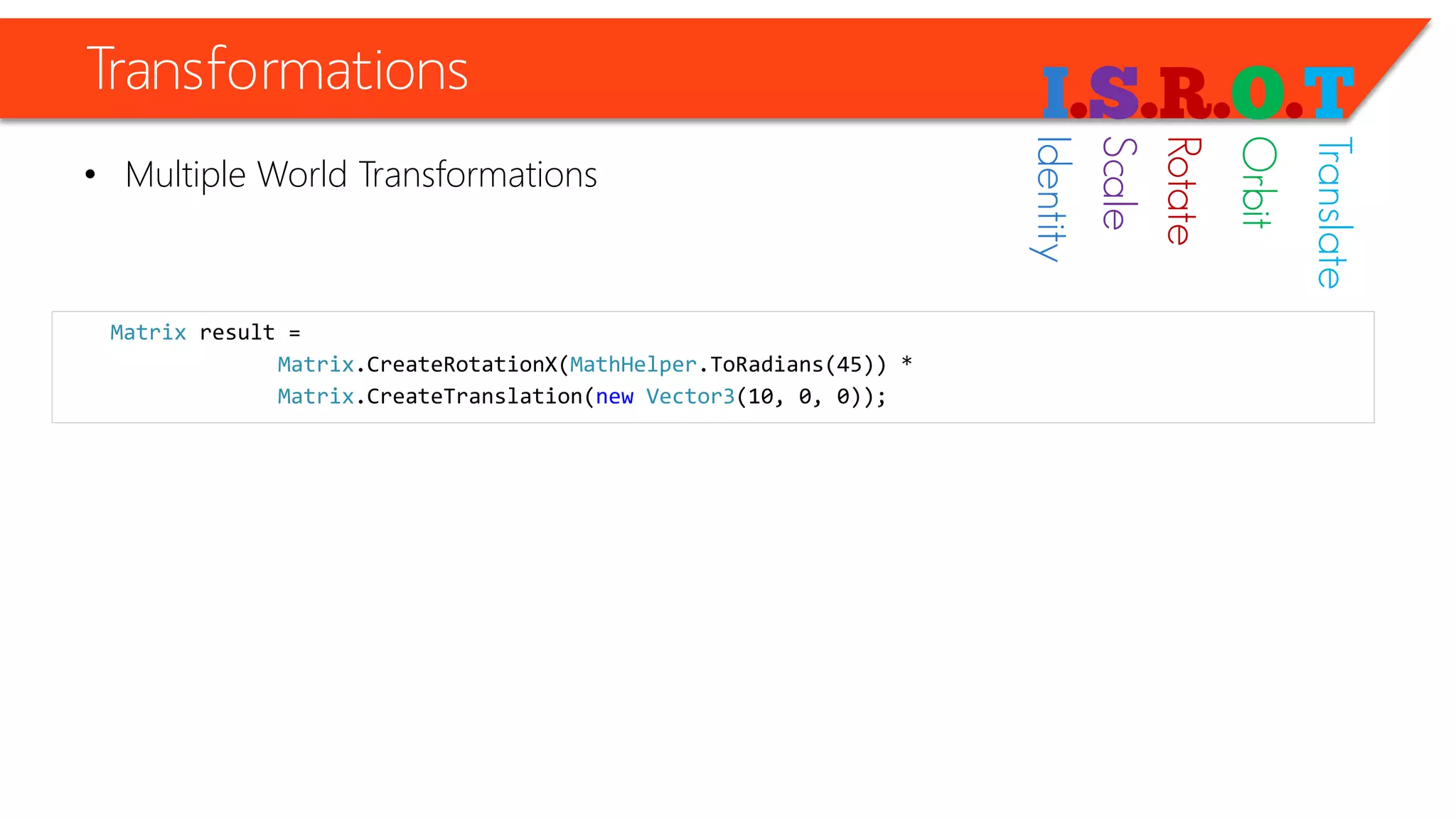

- 75. Transformations •Multiple WorldTransformations Matrixresult = Matrix.CreateRotationX(MathHelper.ToRadians(45)) * Matrix.CreateTranslation(newVector3(10, 0, 0)); Identity Scale Rotate Orbit Translate

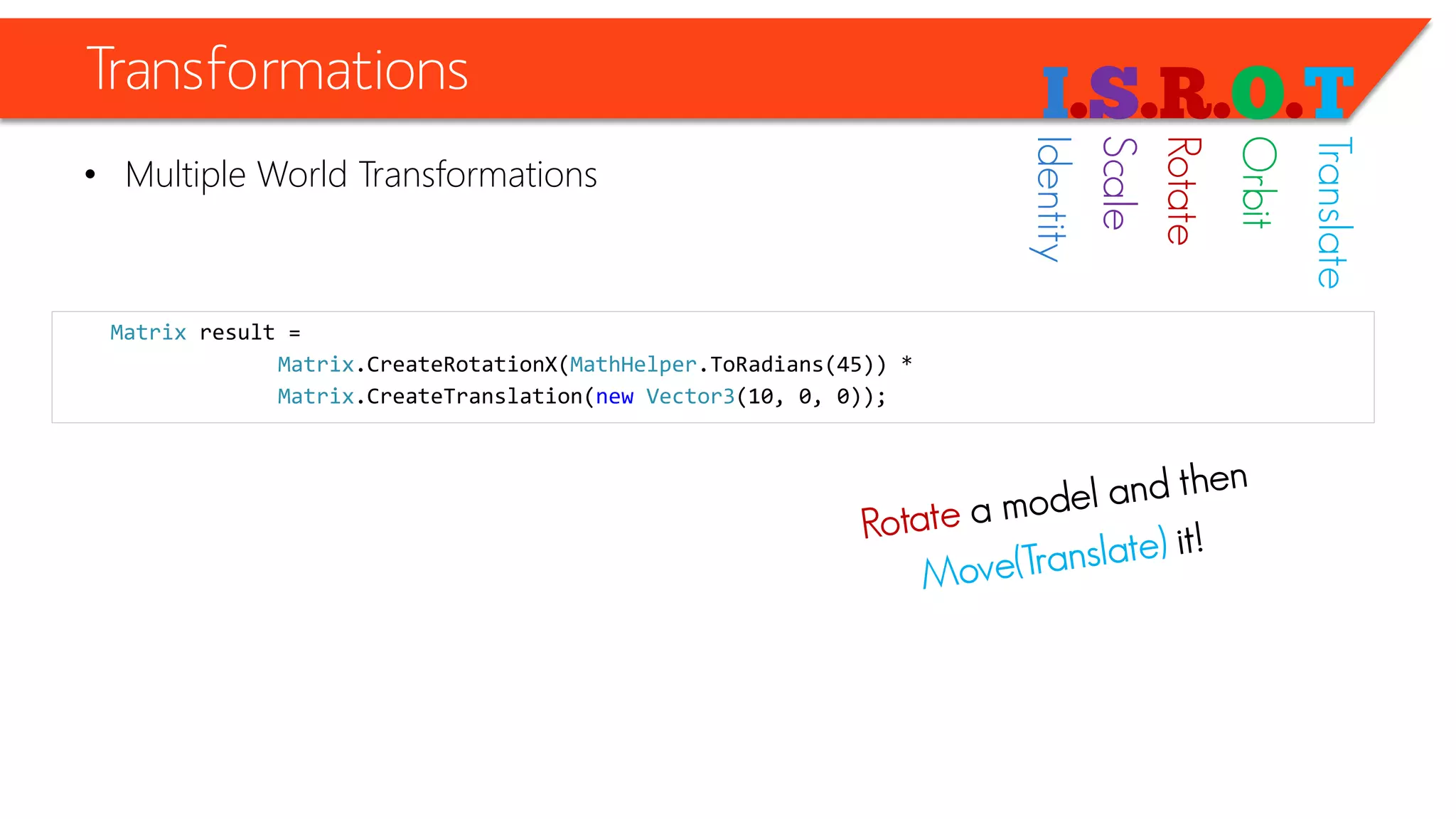

- 76. Transformations •Multiple WorldTransformations Matrixresult = Matrix.CreateRotationX(MathHelper.ToRadians(45)) * Matrix.CreateTranslation(newVector3(10, 0, 0)); Identity Scale Rotate Orbit Translate
- 77. Transformations •Multiple WorldTransformations Matrixresult = Matrix.CreateRotationX(MathHelper.ToRadians(45)) * Matrix.CreateTranslation(newVector3(10, 0, 0)); Identity Scale Rotate Orbit Translate
- 78. Transformations •Multiple WorldTransformations Matrixresult = Matrix.CreateRotationX(MathHelper.ToRadians(45)) * Matrix.CreateTranslation(newVector3(10, 0, 0)); Identity Scale Rotate Orbit Translate
- 79. Transformations •Multiple WorldTransformations Matrixresult = Matrix.CreateRotationX(MathHelper.ToRadians(45)) * Matrix.CreateTranslation(newVector3(10, 0, 0)); Matrixresult = Matrix.CreateTranslation(newVector3(10, 0, 0)) * Matrix.CreateRotationX(MathHelper.ToRadians(45)); Identity Scale Rotate Orbit Translate
- 80. Transformations •Multiple WorldTransformations Matrixresult = Matrix.CreateRotationX(MathHelper.ToRadians(45)) * Matrix.CreateTranslation(newVector3(10, 0, 0)); Matrixresult = Matrix.CreateTranslation(newVector3(10, 0, 0)) * Matrix.CreateRotationX(MathHelper.ToRadians(45)); Identity Scale Rotate Orbit Translate
- 81. Transformations •Multiple WorldTransformations Matrixresult = Matrix.CreateRotationX(MathHelper.ToRadians(45)) * Matrix.CreateTranslation(newVector3(10, 0, 0)); Matrixresult = Matrix.CreateTranslation(newVector3(10, 0, 0)) * Matrix.CreateRotationX(MathHelper.ToRadians(45)); Not the same! Identity Scale Rotate Orbit Translate
- 82. Transformations •Multiple WorldTransformations Matrixresult = Matrix.CreateRotationX(MathHelper.ToRadians(45)) * Matrix.CreateTranslation(newVector3(10, 0, 0)); Matrixresult = Matrix.CreateTranslation(newVector3(10, 0, 0)) * Matrix.CreateRotationX(MathHelper.ToRadians(45)); Not the same! Identity Scale Rotate Orbit Translate

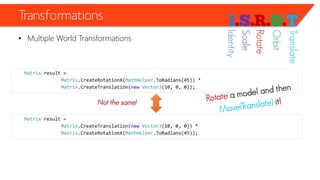

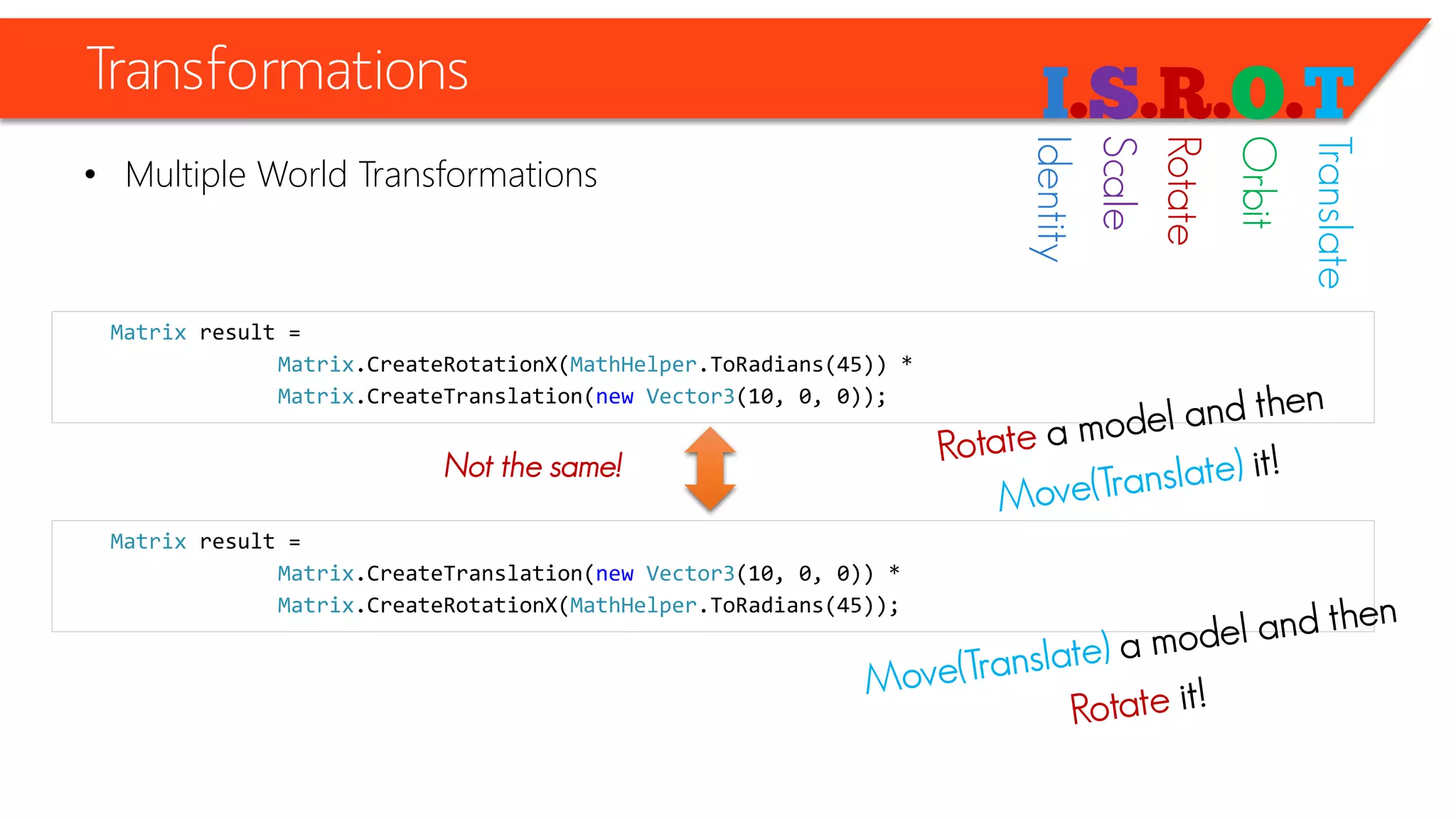

- 83. Transformations •Multiple WorldTransformations Matrixresult = Matrix.CreateRotationX(MathHelper.ToRadians(45)) * Matrix.CreateTranslation(newVector3(10, 0, 0)); Matrixresult = Matrix.CreateTranslation(newVector3(10, 0, 0)) * Matrix.CreateRotationX(MathHelper.ToRadians(45)); Not the same! Identity Scale Rotate Orbit Translate

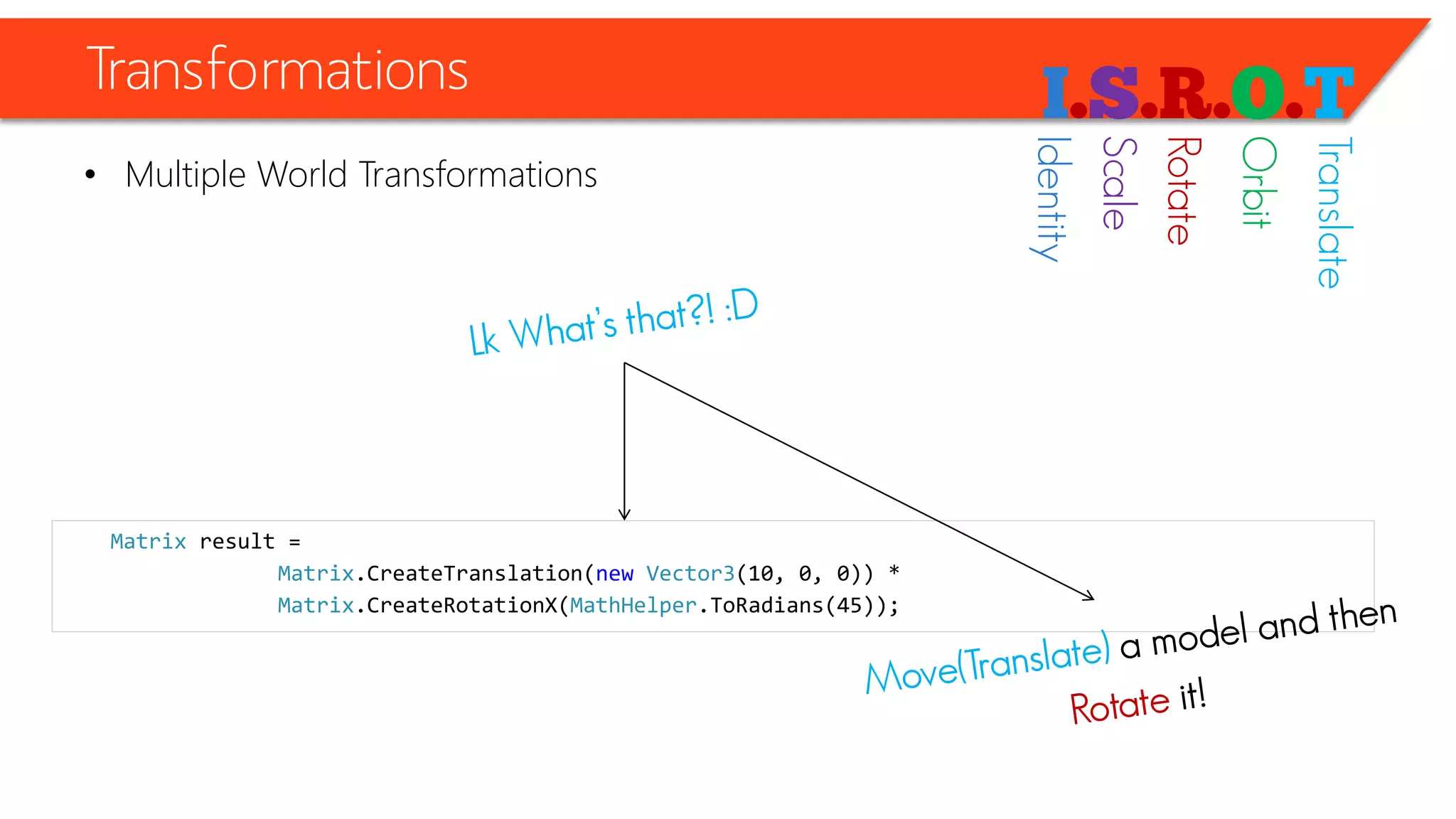

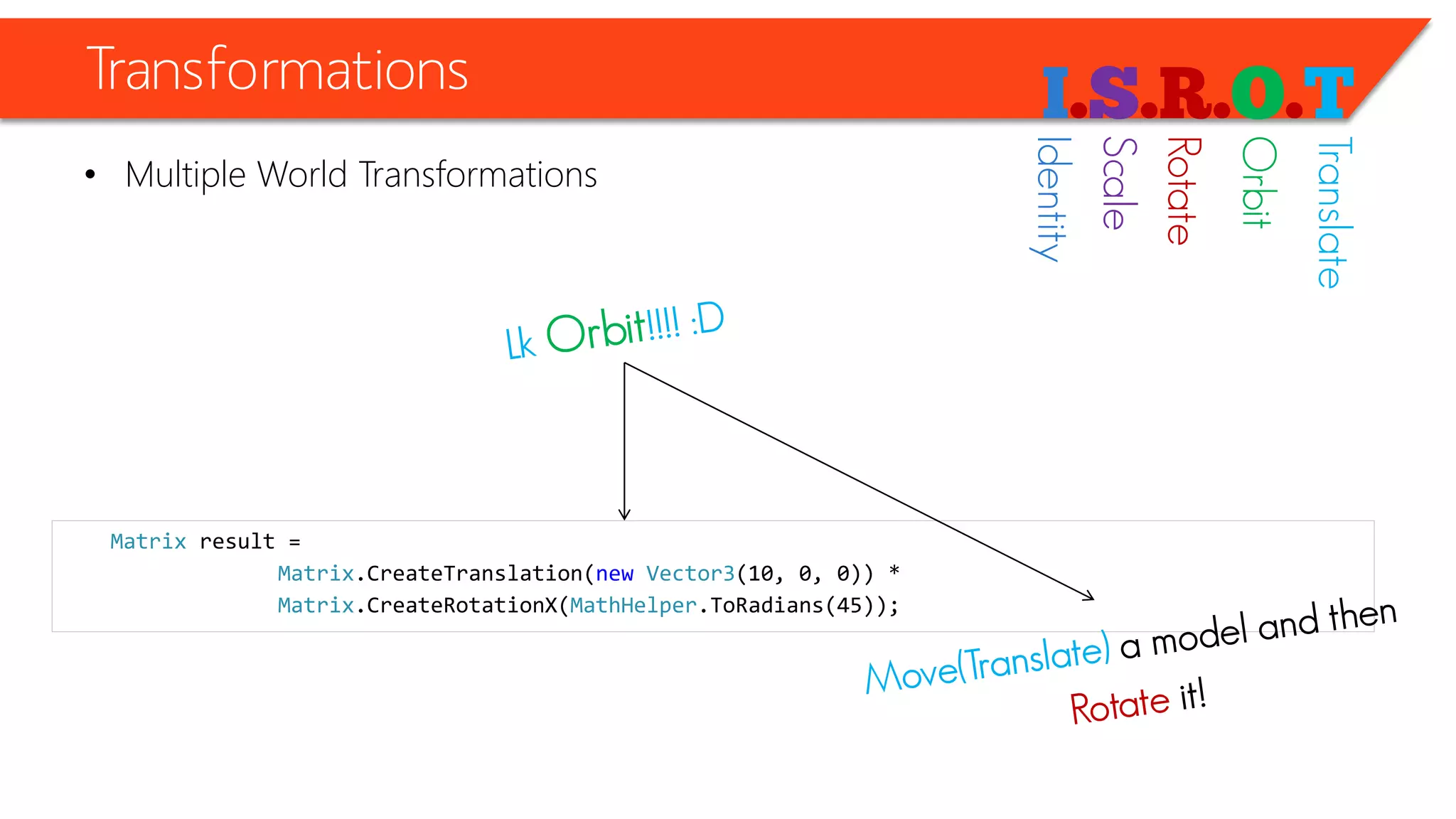

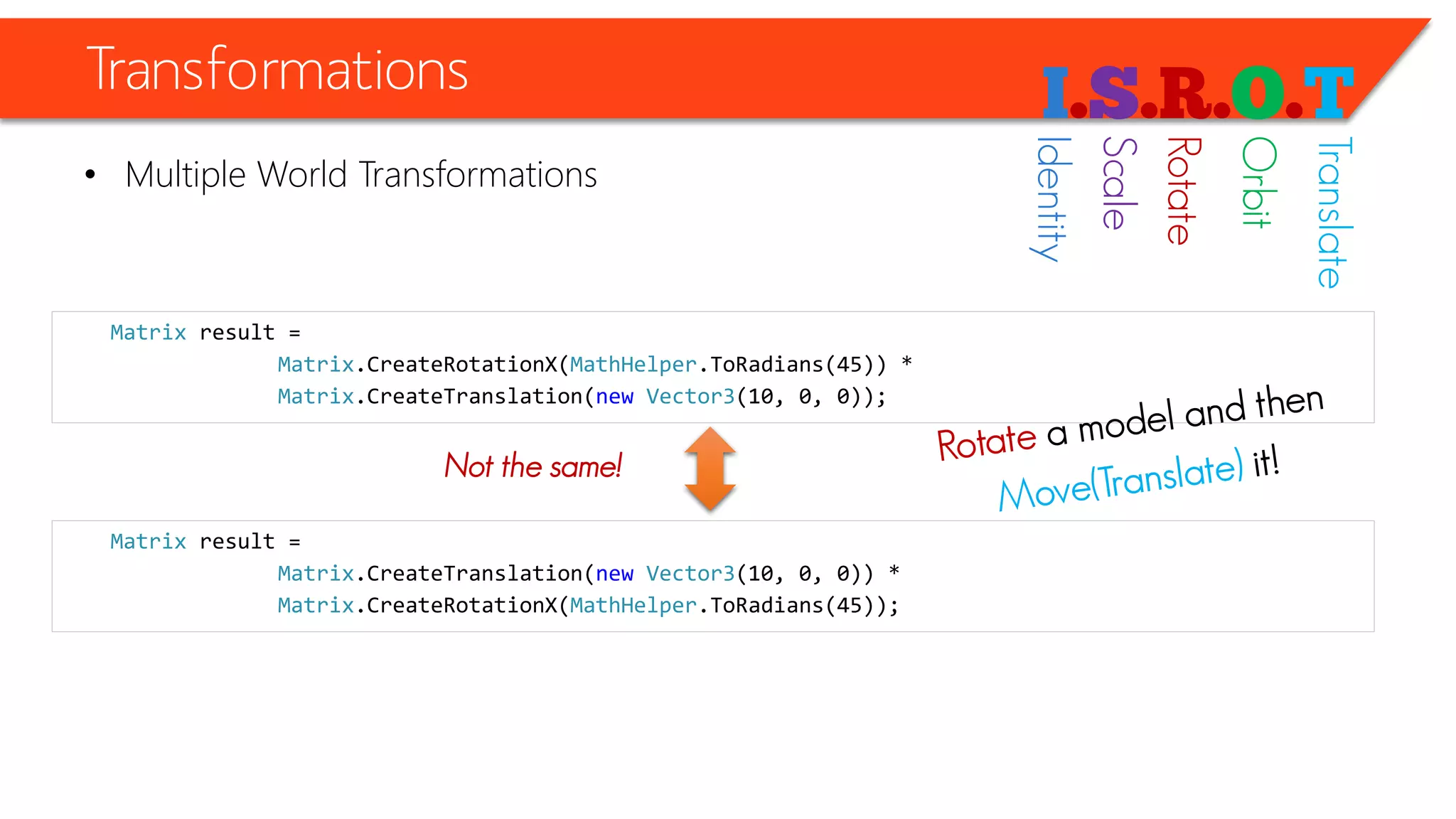

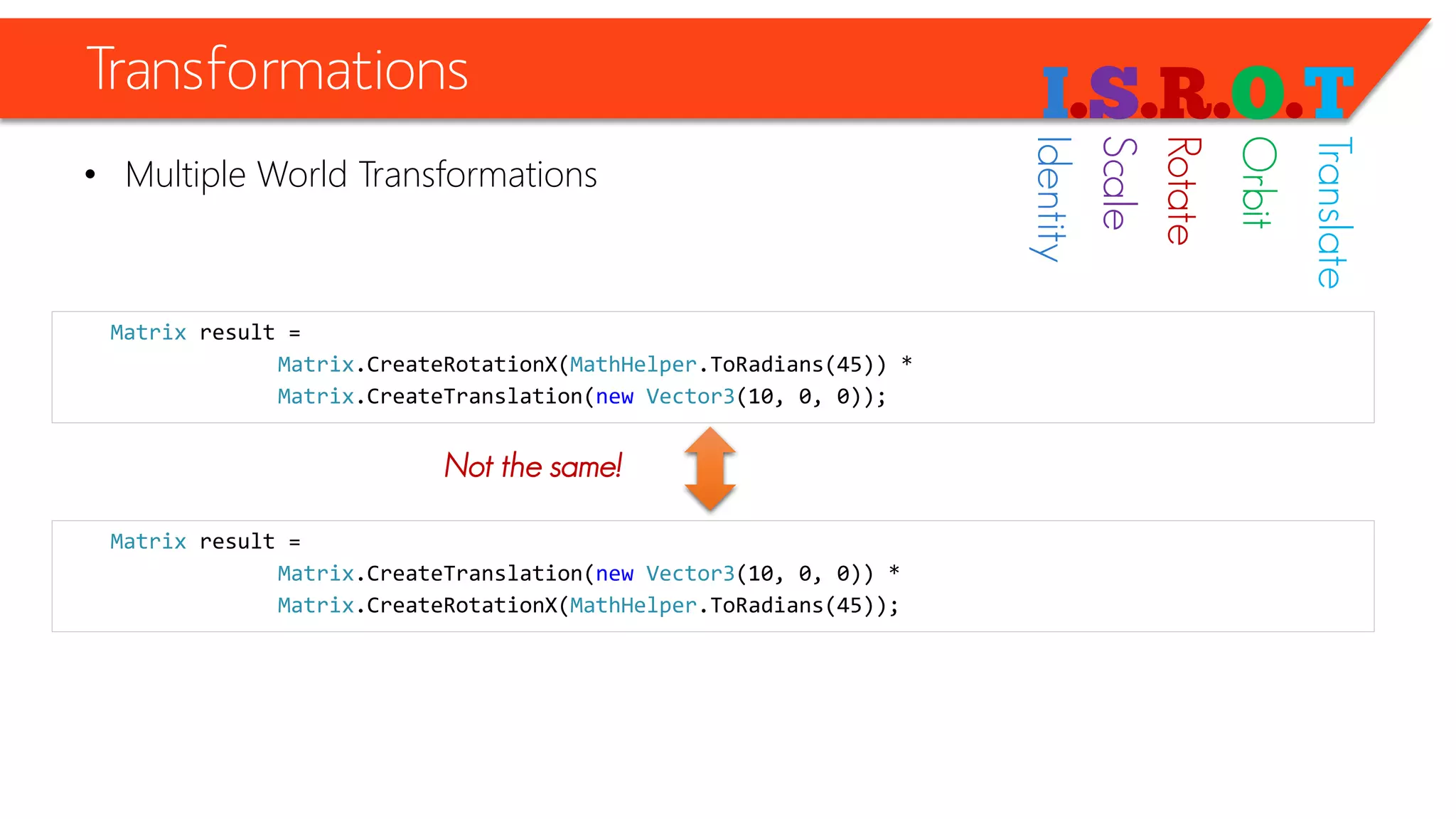

- 84. Transformations •Multiple WorldTransformations Matrixresult = Matrix.CreateTranslation(newVector3(10, 0, 0)) * Matrix.CreateRotationX(MathHelper.ToRadians(45)); Identity Scale Rotate Orbit Translate
- 85. Transformations •Multiple WorldTransformations Matrixresult = Matrix.CreateTranslation(newVector3(10, 0, 0)) * Matrix.CreateRotationX(MathHelper.ToRadians(45)); Identity Scale Rotate Orbit Translate

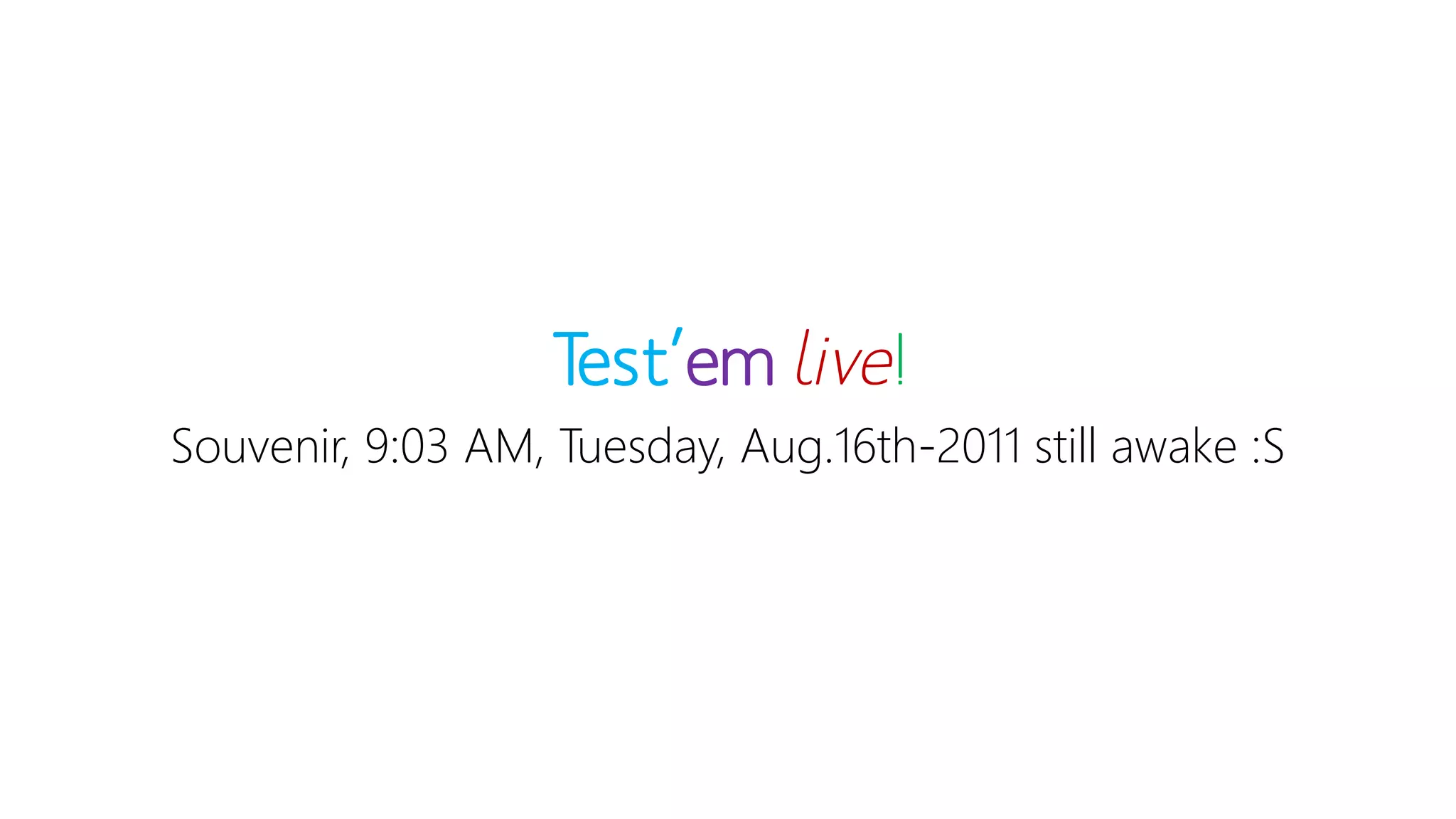

- 86. Test’emlive! Souvenir, 9:03AM, Tuesday, Aug.16th-2011 still awake :S
- 87.

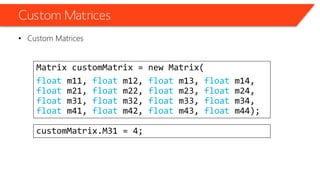

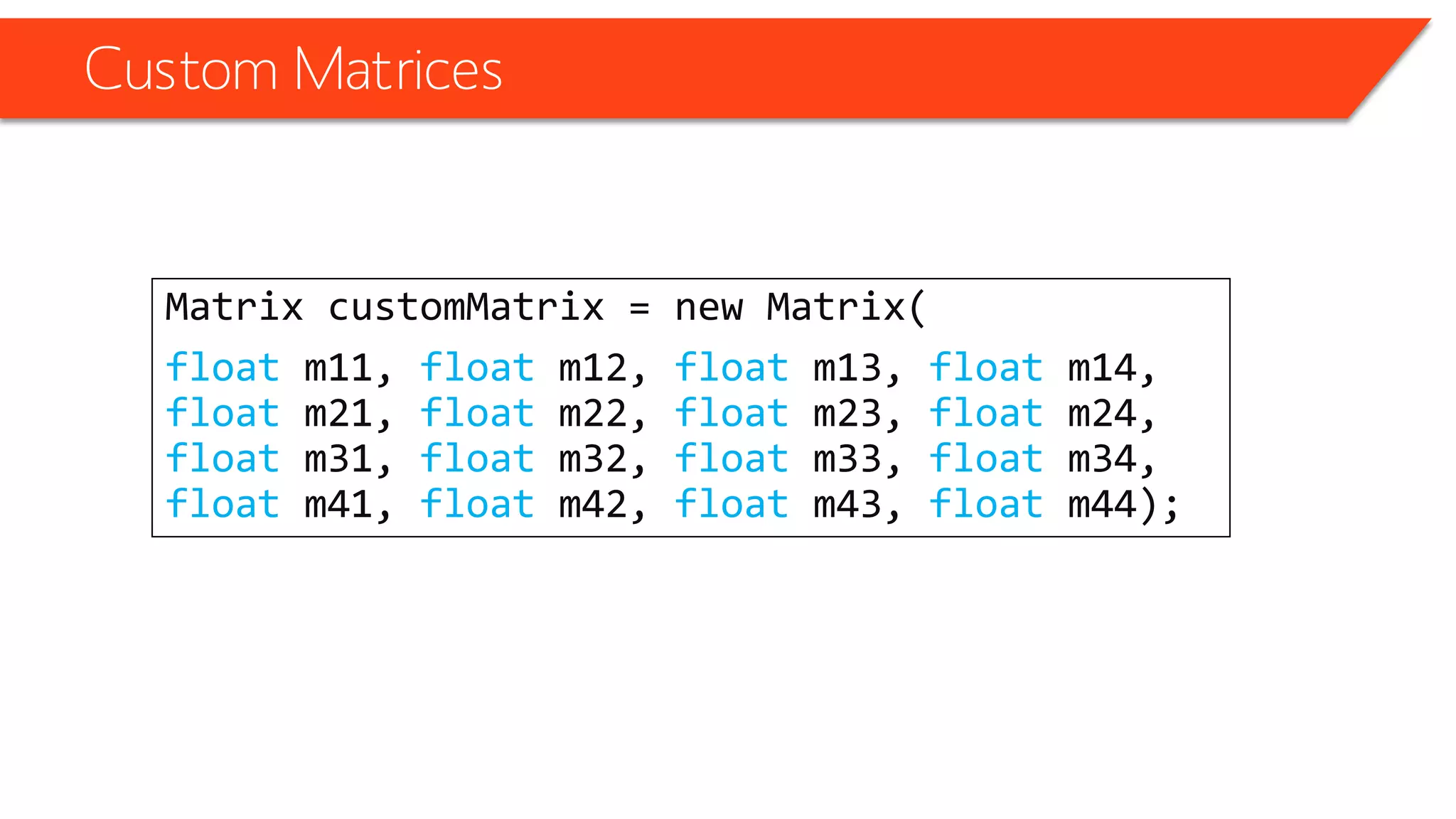

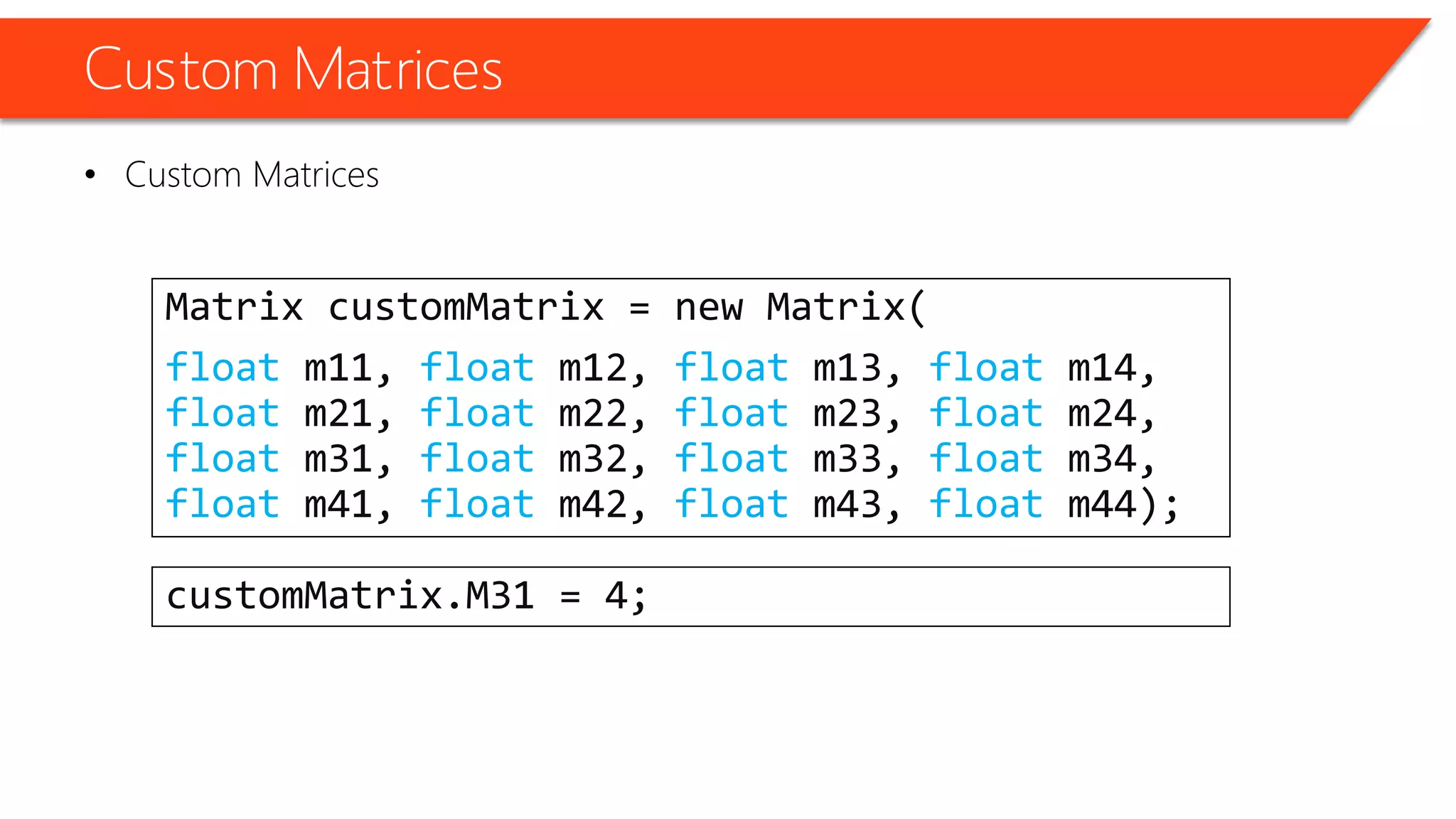

- 88. Custom Matrices MatrixcustomMatrix= new Matrix( floatm11, floatm12, floatm13, floatm14, floatm21, floatm22, floatm23, floatm24, floatm31, floatm32, floatm33, floatm34, floatm41, floatm42, floatm43, floatm44);
- 89. Custom Matrices •CustomMatrices Matrix customMatrix= new Matrix( floatm11, floatm12, floatm13, floatm14, floatm21, floatm22, floatm23, floatm24, floatm31, floatm32, floatm33, floatm34, floatm41, floatm42, floatm43, floatm44); customMatrix.M31 = 4;

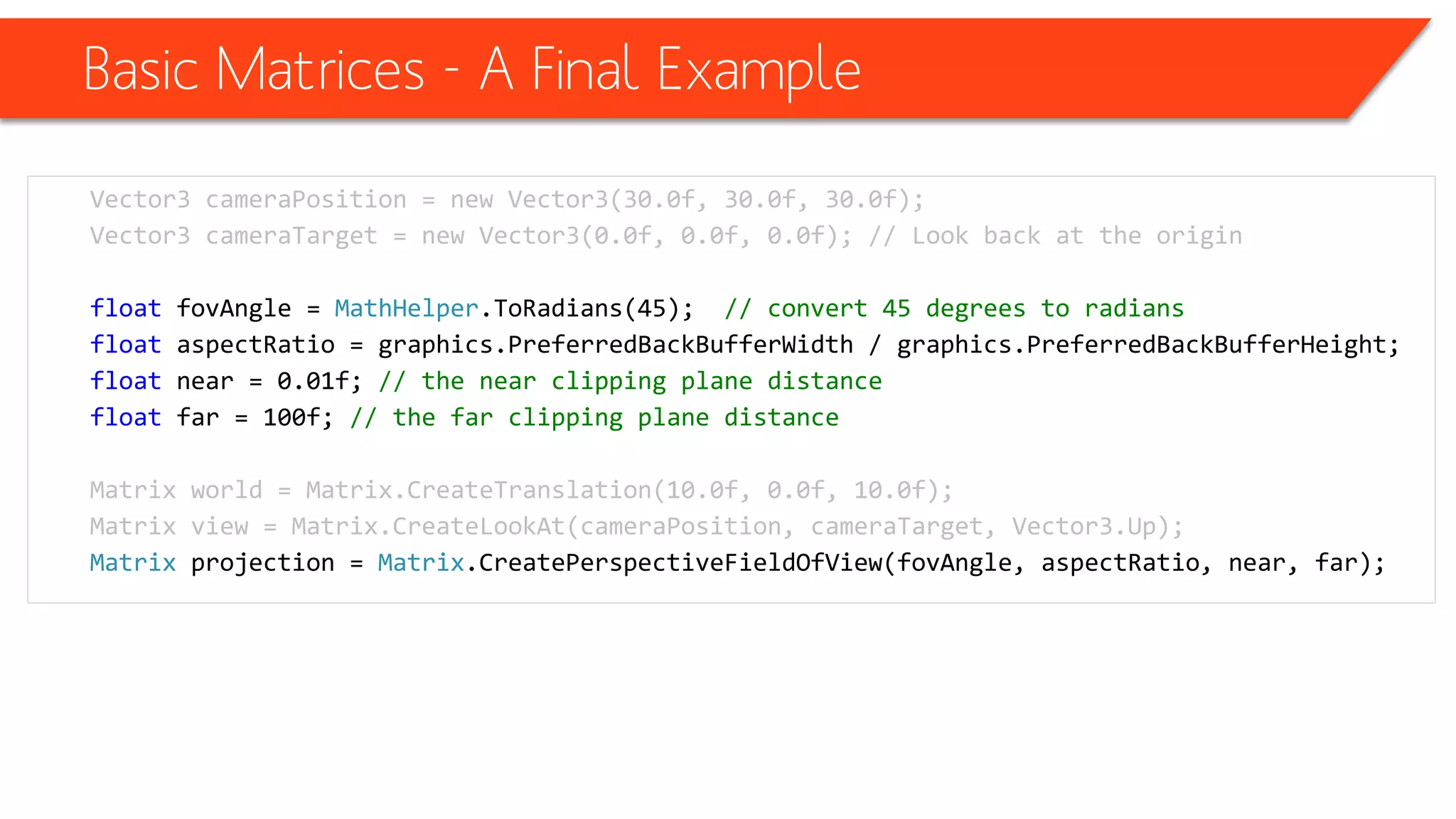

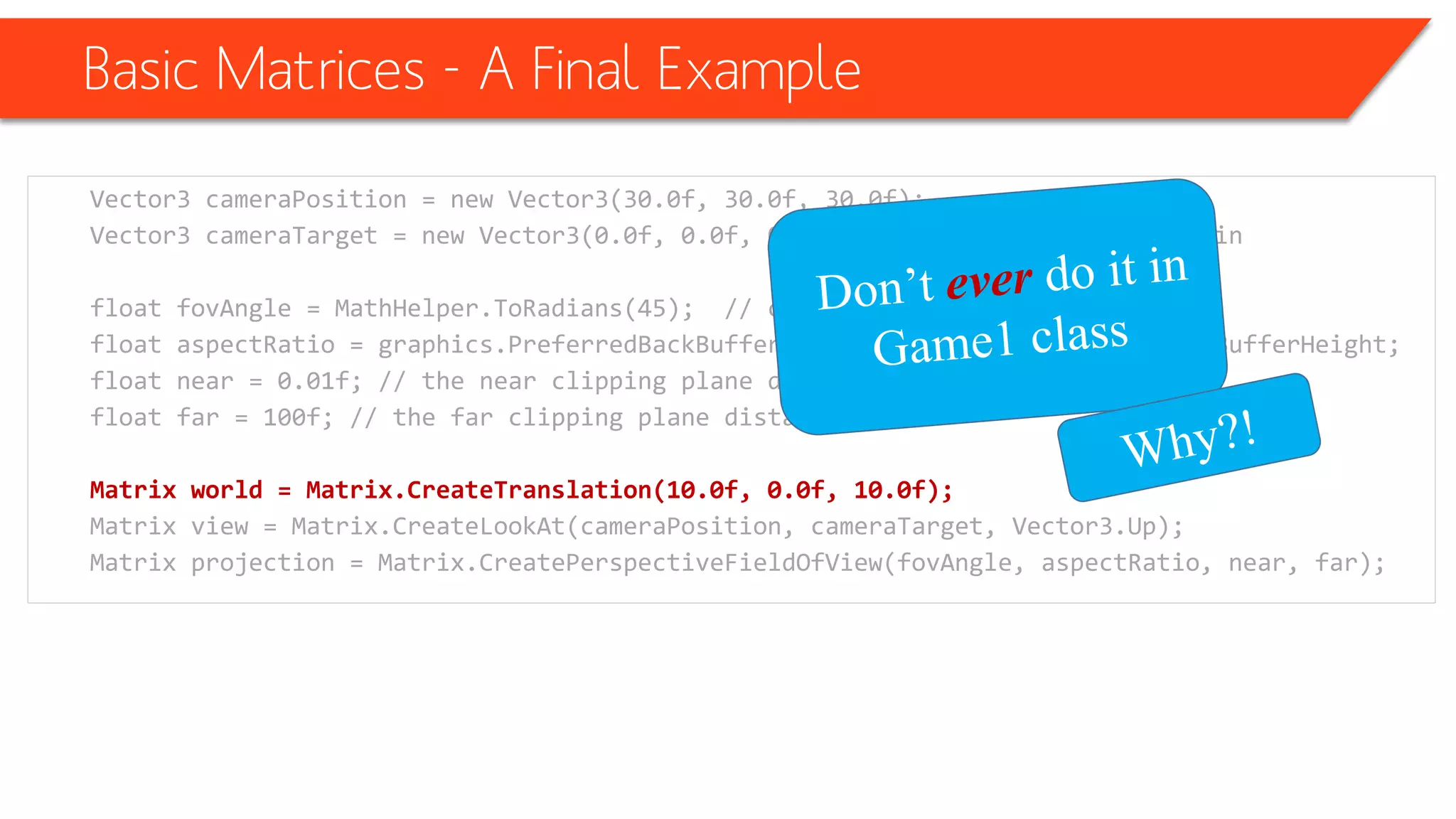

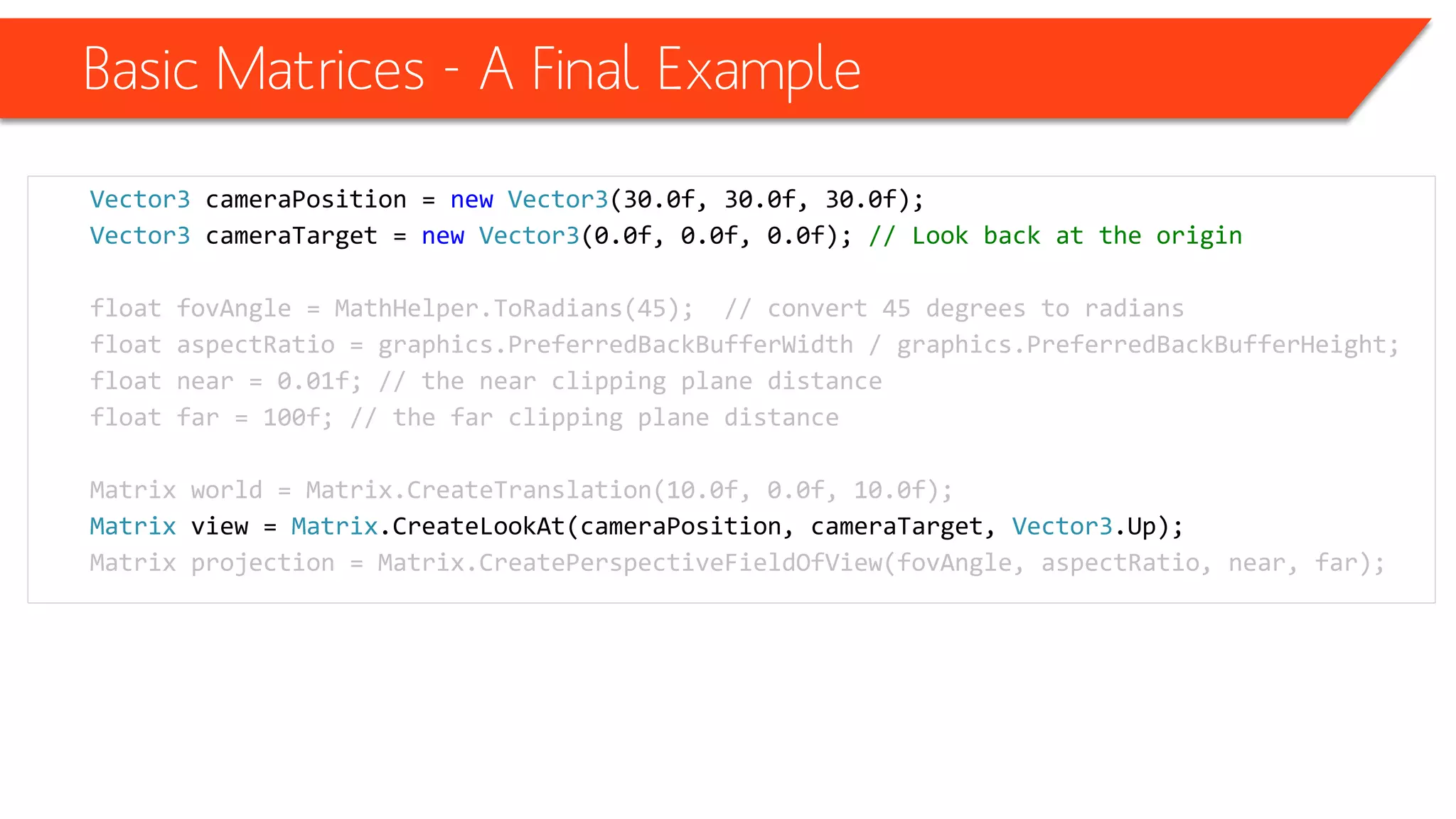

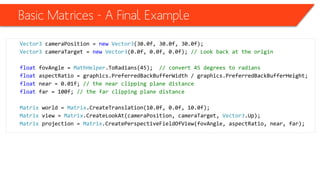

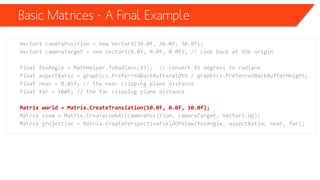

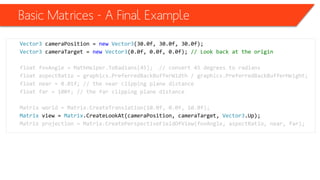

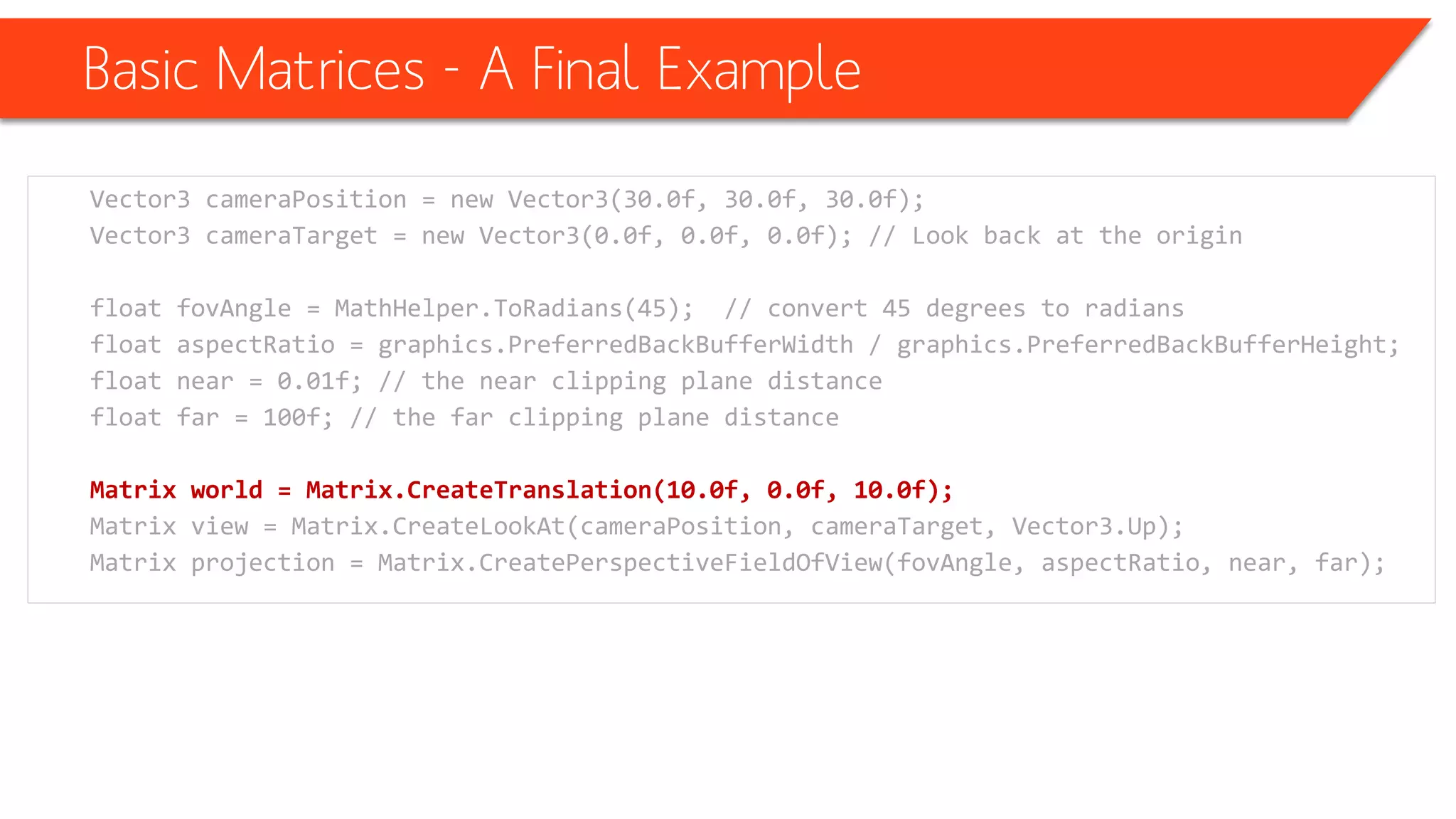

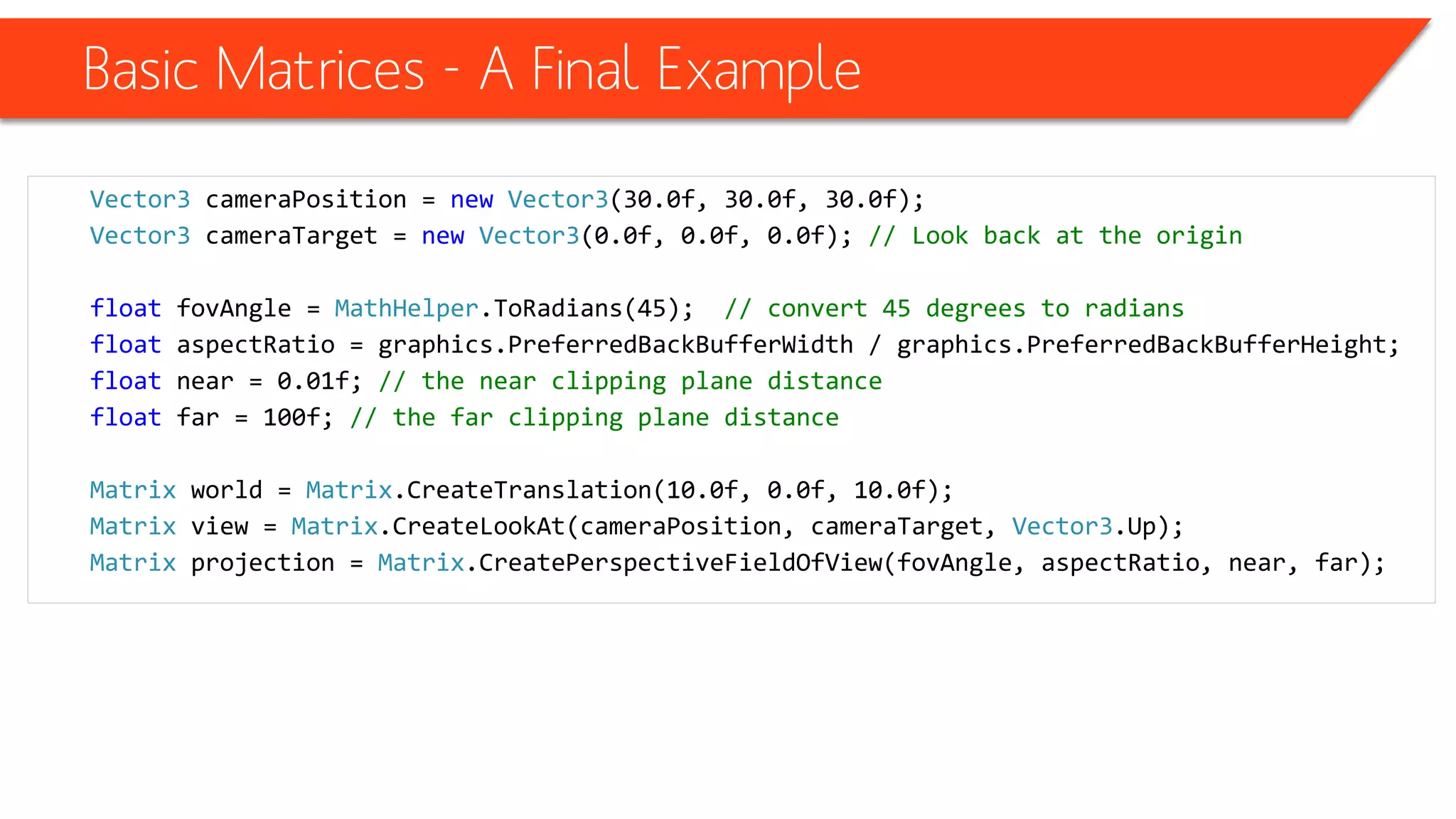

- 90. Basic Matrices -AFinal Example Vector3cameraPosition= newVector3(30.0f, 30.0f, 30.0f); Vector3cameraTarget= newVector3(0.0f, 0.0f, 0.0f); // Look back at the origin floatfovAngle= MathHelper.ToRadians(45); // convert 45 degrees to radians floataspectRatio= graphics.PreferredBackBufferWidth/ graphics.PreferredBackBufferHeight; floatnear = 0.01f; // the near clipping plane distance floatfar = 100f; // the far clipping plane distance Matrixworld = Matrix.CreateTranslation(10.0f, 0.0f, 10.0f); Matrixview = Matrix.CreateLookAt(cameraPosition, cameraTarget, Vector3.Up); Matrixprojection = Matrix.CreatePerspectiveFieldOfView(fovAngle, aspectRatio, near, far);
- 91. Basic Matrices -AFinal Example Vector3cameraPosition= newVector3(30.0f, 30.0f, 30.0f); Vector3cameraTarget= newVector3(0.0f, 0.0f, 0.0f); // Look back at the origin float fovAngle= MathHelper.ToRadians(45); // convert 45 degrees to radians float aspectRatio= graphics.PreferredBackBufferWidth/ graphics.PreferredBackBufferHeight; float near = 0.01f; // the near clipping plane distance float far = 100f; // the far clipping plane distance Matrix world = Matrix.CreateTranslation(10.0f, 0.0f, 10.0f); Matrixview = Matrix.CreateLookAt(cameraPosition, cameraTarget, Vector3.Up); Matrix projection = Matrix.CreatePerspectiveFieldOfView(fovAngle, aspectRatio, near, far);

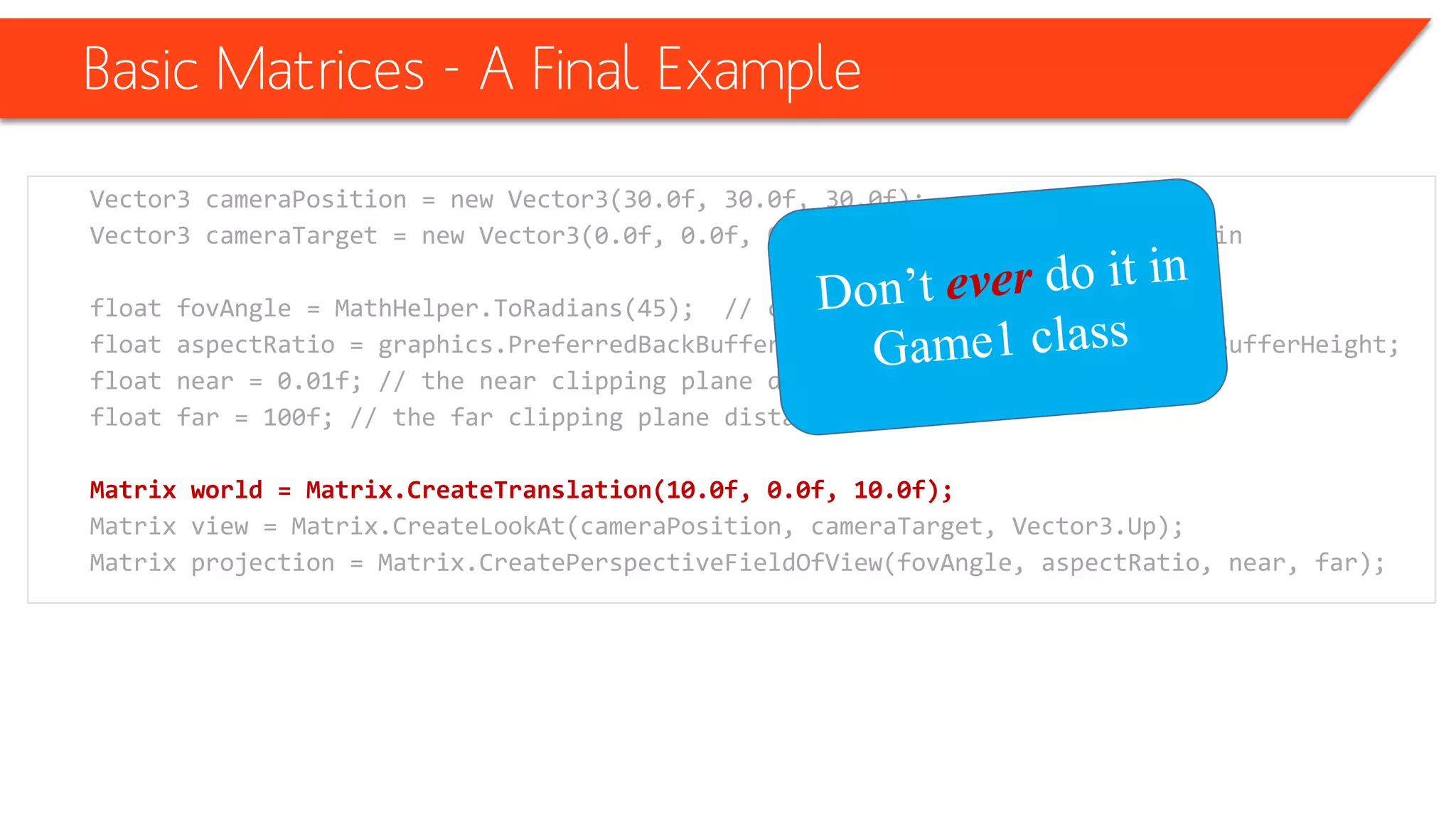

- 92. Basic Matrices -AFinal Example Vector3 cameraPosition= new Vector3(30.0f, 30.0f, 30.0f); Vector3 cameraTarget= new Vector3(0.0f, 0.0f, 0.0f); // Look back at the origin floatfovAngle= MathHelper.ToRadians(45); // convert 45 degrees to radians floataspectRatio= graphics.PreferredBackBufferWidth/ graphics.PreferredBackBufferHeight; floatnear = 0.01f; // the near clipping plane distance floatfar = 100f; // the far clipping plane distance Matrix world = Matrix.CreateTranslation(10.0f, 0.0f, 10.0f); Matrix view = Matrix.CreateLookAt(cameraPosition, cameraTarget, Vector3.Up); Matrixprojection = Matrix.CreatePerspectiveFieldOfView(fovAngle, aspectRatio, near, far);
- 93. Basic Matrices -AFinal Example Vector3 cameraPosition= new Vector3(30.0f, 30.0f, 30.0f); Vector3 cameraTarget= new Vector3(0.0f, 0.0f, 0.0f); // Look back at the origin float fovAngle= MathHelper.ToRadians(45); // convert 45 degrees to radians float aspectRatio= graphics.PreferredBackBufferWidth/ graphics.PreferredBackBufferHeight; float near = 0.01f; // the near clipping plane distance float far = 100f; // the far clipping plane distance Matrix world = Matrix.CreateTranslation(10.0f, 0.0f, 10.0f); Matrix view = Matrix.CreateLookAt(cameraPosition, cameraTarget, Vector3.Up); Matrix projection = Matrix.CreatePerspectiveFieldOfView(fovAngle, aspectRatio, near, far);
- 94. Basic Matrices -AFinal Example Vector3 cameraPosition= new Vector3(30.0f, 30.0f, 30.0f); Vector3 cameraTarget= new Vector3(0.0f, 0.0f, 0.0f); // Look back at the origin float fovAngle= MathHelper.ToRadians(45); // convert 45 degrees to radians float aspectRatio= graphics.PreferredBackBufferWidth/ graphics.PreferredBackBufferHeight; float near = 0.01f; // the near clipping plane distance float far = 100f; // the far clipping plane distance Matrix world = Matrix.CreateTranslation(10.0f, 0.0f, 10.0f); Matrix view = Matrix.CreateLookAt(cameraPosition, cameraTarget, Vector3.Up); Matrix projection = Matrix.CreatePerspectiveFieldOfView(fovAngle, aspectRatio, near, far);
- 95. Basic Matrices -AFinal Example Vector3 cameraPosition= new Vector3(30.0f, 30.0f, 30.0f); Vector3 cameraTarget= new Vector3(0.0f, 0.0f, 0.0f); // Look back at the origin float fovAngle= MathHelper.ToRadians(45); // convert 45 degrees to radians float aspectRatio= graphics.PreferredBackBufferWidth/ graphics.PreferredBackBufferHeight; float near = 0.01f; // the near clipping plane distance float far = 100f; // the far clipping plane distance Matrix world = Matrix.CreateTranslation(10.0f, 0.0f, 10.0f); Matrix view = Matrix.CreateLookAt(cameraPosition, cameraTarget, Vector3.Up); Matrix projection = Matrix.CreatePerspectiveFieldOfView(fovAngle, aspectRatio, near, far);
