Basic RISC-V support #644

shipilev · 2022-09-02T11:27:22Z

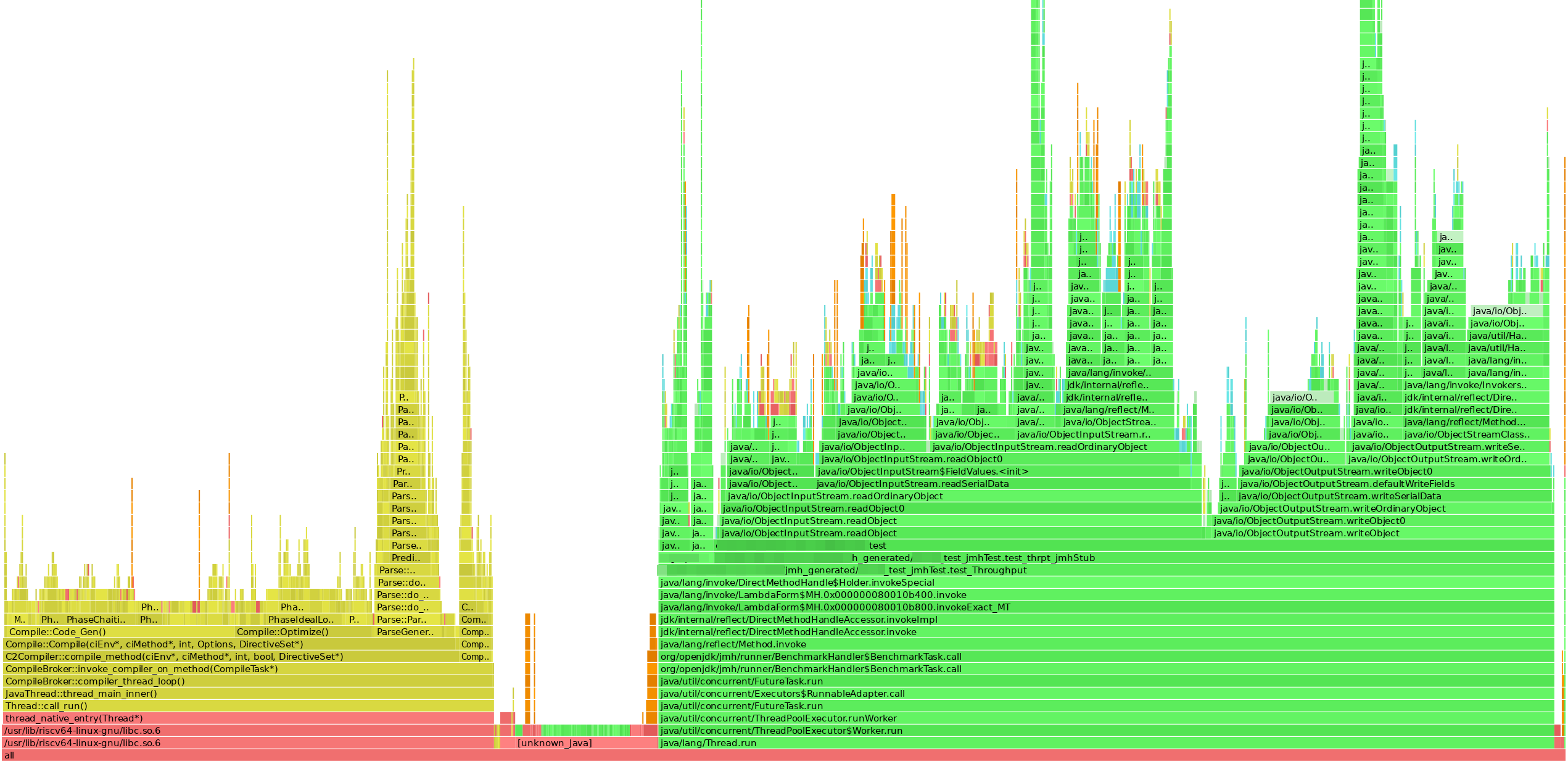

This PR adds the support for building and running on riscv64 platforms. I have built and tested it on HiFive Unmatched board running Ubuntu 22.04, and ran async-profiler with JMH -prof async and bleeding edge mainline JDK 20 build. The flamegraphs seem to make sense: it resolves C2 native code well, resolves compiled code well, etc.

I tested with -Xint, -XX:TieredStopAtLevel=1 (C1), default (C2).

I still call this support "basic", because it is not tested beyound toy examples, and some features (like stub pops) are stubbed out.

apangin · 2022-09-05T09:45:06Z

Thanks, that sounds interesting. I'll take a look.

How do you see the future maintenance of RISC-V port? Currently, I can't guarantee that ongoing development will keep the port functioning or even buildable.

shipilev · 2022-09-05T10:41:09Z

How do you see the future maintenance of RISC-V port? Currently, I can't guarantee that ongoing development will keep the port functioning or even buildable.

I can take a look at it every once in a while, or maybe someone from RISC-V community takes on that role too. I wonder if there is a way to integrate the support for these arches under heavy "It would probably build, it would probably work, but it is not tested well" caveat warnings.

luhenry · 2022-09-05T15:47:49Z

We could have a minimum of cross-compilation even if we don't run any tests. I'm happy to take a look at it in the future (working on Java on RISC-V now).

RealFYang · 2022-11-28T02:44:02Z

Hi,

Let me revive this please.

Turns out that @zifeihan from my team has real-world working experience with the async-profiler tool.
He is currently working on investigating and enabling open-source Java performance tools on linux-riscv platform.
I think async-profiler riscv port will be a good start point. He will be responsible for future ongoing development of the
riscv port and will keep the port functioning.

@zifeihan: Could you please post your extra changes needed for the latest codebase and the test results?
@apangin : Could we have a reivew for this please? Thanks.

zifeihan · 2022-11-28T03:09:44Z

@shipilev Hello aleksey, Following extra change is needed to make this buildable with latest async-profiler code:

diff --git a/src/arch.h b/src/arch.h
index 46842fd..5f1c6df 100644
--- a/src/arch.h
+++ b/src/arch.h
@@ -128,6 +128,7 @@ const int BREAKPOINT_OFFSET = 0;
 const int SYSCALL_SIZE = sizeof(instruction_t);
 const int FRAME_PC_SLOT = 1;    // return address is at -1 from FP
 const int ADJUST_RET = 0;       // No need for adjustments
+const int PROBE_SP_LIMIT = 0;
 const int PLT_HEADER_SIZE = 24; // Best guess from examining readelf
 const int PLT_ENTRY_SIZE = 24;  // ...same...
 const int PERF_REG_PC = 0;      // PERF_REG_RISCV_PC

Could you please add this into this PR? Thanks. And this is the detailed test output using latest async-profiler codebase on Linux-riscv64 platform:

zifeihan@ubuntu:~/async-profiler$ uname -a
Linux ubuntu 5.11.0-1028-generic #31-Ubuntu SMP Wed Jan 12 18:50:58 UTC 2022 riscv64 riscv64 riscv64 GNU/Linux
zifeihan@ubuntu:~/async-profiler$ make test
test/smoke-test.sh
+ '[' -z /home/zifeihan/jdk-bin/jdk ']'
++ dirname test/smoke-test.sh
+ cd test
+ '[' Target.class -ot Target.java ']'
+ FILENAME=/tmp/java.trace
+ /home/zifeihan/jdk-bin/jdk/bin/java Target
+ JAVAPID=1057017
+ sleep 1
Starting...
+ ../profiler.sh -f /tmp/java.trace -o collapsed -d 5 1057017
Profiling started
Profiling for 5 seconds
Done
+ kill 1057017
+ assert_string 'Target.main;Target.method1 '
+ grep -q 'Target.main;Target.method1 ' /tmp/java.trace
+ assert_string 'Target.main;Target.method2 '
+ grep -q 'Target.main;Target.method2 ' /tmp/java.trace
+ assert_string 'Target.main;Target.method3;java/io/File'
+ grep -q 'Target.main;Target.method3;java/io/File' /tmp/java.trace
test/thread-smoke-test.sh
+ '[' -z /home/zifeihan/jdk-bin/jdk ']'
++ dirname test/thread-smoke-test.sh
+ cd test
+ '[' ThreadsTarget.class -ot ThreadsTarget.java ']'
+ FILENAME=/tmp/java.trace
+ /home/zifeihan/jdk-bin/jdk/bin/java -agentpath:../build/libasyncProfiler.so=start,event=cpu,collapsed,threads,file=/tmp/java.trace ThreadsTarget
Profiling started
+ assert_string '\[ThreadEarlyEnd tid=[0-9]\+\];.*ThreadsTarget.methodForThreadEarlyEnd;.*'
+ grep -q '\[ThreadEarlyEnd tid=[0-9]\+\];.*ThreadsTarget.methodForThreadEarlyEnd;.*' /tmp/java.trace
+ assert_string '\[RenamedThread tid=[0-9]\+\];.*ThreadsTarget.methodForRenamedThread;.*'
+ grep -q '\[RenamedThread tid=[0-9]\+\];.*ThreadsTarget.methodForRenamedThread;.*' /tmp/java.trace
test/alloc-smoke-test.sh
+ '[' -z /home/zifeihan/jdk-bin/jdk ']'
++ dirname test/alloc-smoke-test.sh
+ cd test
+ '[' AllocatingTarget.class -ot AllocatingTarget.java ']'
+ FILENAME=/tmp/java.trace
+ /home/zifeihan/jdk-bin/jdk/bin/java AllocatingTarget
+ JAVAPID=1057094
+ sleep 1
+ ../profiler.sh -f /tmp/java.trace -o collapsed -d 5 -e alloc -t 1057094
Profiling started
Profiling for 5 seconds
Done
+ kill 1057094
+ assert_string '\[AllocThread-1 tid=[0-9]\+\];.*AllocatingTarget.allocate;.*java.lang.Integer\[\]'
+ grep -q '\[AllocThread-1 tid=[0-9]\+\];.*AllocatingTarget.allocate;.*java.lang.Integer\[\]' /tmp/java.trace
+ assert_string '\[AllocThread-2 tid=[0-9]\+\];.*AllocatingTarget.allocate;.*int\[\]'
+ grep -q '\[AllocThread-2 tid=[0-9]\+\];.*AllocatingTarget.allocate;.*int\[\]' /tmp/java.trace
test/load-library-test.sh
+ '[' -z /home/zifeihan/jdk-bin/jdk ']'
++ dirname test/load-library-test.sh
+ cd test
+ '[' LoadLibraryTest.class -ot LoadLibraryTest.java ']'
+ FILENAME=/tmp/java.trace
+ JAVAPID=1057141
+ sleep 1
+ /home/zifeihan/jdk-bin/jdk/bin/java -agentpath:../build/libasyncProfiler.so LoadLibraryTest
+ ../profiler.sh -f /tmp/java.trace -o collapsed -d 5 -i 1ms 1057141
Profiling started
Profiling for 5 seconds
Done
+ kill 1057141
+ assert_string Java_sun_management
+ grep -q Java_sun_management /tmp/java.trace
test/fdtransfer-smoke-test.sh
++ uname -s
+ UNAME_S=Linux
+ '[' Linux '!=' Linux ']'
+ '[' -z /home/zifeihan/jdk-bin/jdk ']'
++ dirname test/fdtransfer-smoke-test.sh
+ cd test
+ '[' Target.class -ot Target.java ']'
+ FILENAME=/tmp/java.trace
+ /home/zifeihan/jdk-bin/jdk/bin/java Target
+ JAVAPID=1057183
+ sleep 1
Starting...
+ sudo ../profiler.sh -f /tmp/java.trace -o collapsed -e cpu -i 1ms --fdtransfer -d 5 1057183
Profiling started
Profiling for 5 seconds
^@Done
+ kill 1057183
+ assert_string 'Target.main;Target.method1 '
+ grep -q 'Target.main;Target.method1 ' /tmp/java.trace
+ assert_string 'Target.main;Target.method2 '
+ grep -q 'Target.main;Target.method2 ' /tmp/java.trace
+ assert_string 'Target.main;Target.method3;java/io/File'
+ grep -q 'Target.main;Target.method3;java/io/File' /tmp/java.trace
+ assert_string sys_getdents
+ grep -q sys_getdents /tmp/java.trace
echo "All tests passed"
All tests passed

And I have also collected the sampling results for several test items from specjvm2008 and compared with results on linux-aarch64 platform. Sampling results look good. @apangin : Could you please take a look at these changes? Thanks

shipilev · 2022-11-28T12:29:54Z

@shipilev Hello aleksey, Following extra change is needed to make this buildable with latest async-profiler code:

Added!

apangin · 2022-11-29T01:31:36Z

Hi and thank you for working on this.

I have nothing against the content, however, the project does not accept external code contributions at this moment. This is temporary. I'll get back to you as soon as I resolve the blockers. I appreciate your patience.

apangin · 2023-11-26T03:28:00Z

Thank you for the contribution. I merged the PR with the minor follow-up fixes.
Verified in QEMU that make test passes.

zifeihan · 2023-11-27T02:39:54Z

Hi, it's great to see this merged. I also performed make test on LicheePI-4A board. Result looks good. I'll keep an eye on the async-profiler upstream code update, and try to keep the riscv part up to date.

Basic riscv64 support

1fc609c

shipilev force-pushed the basic-riscv64-support branch from 6a0e2ee to 1fc609c Compare November 25, 2023 08:09

apangin merged commit 752b79e into async-profiler:master Nov 26, 2023

apangin added a commit that referenced this pull request Nov 26, 2023

#644: Fixed RISC-V build and tests

0d0f0f0
