Programming For Problem Solving
Lecture Number :- 1
“Introduction toC”
1

2

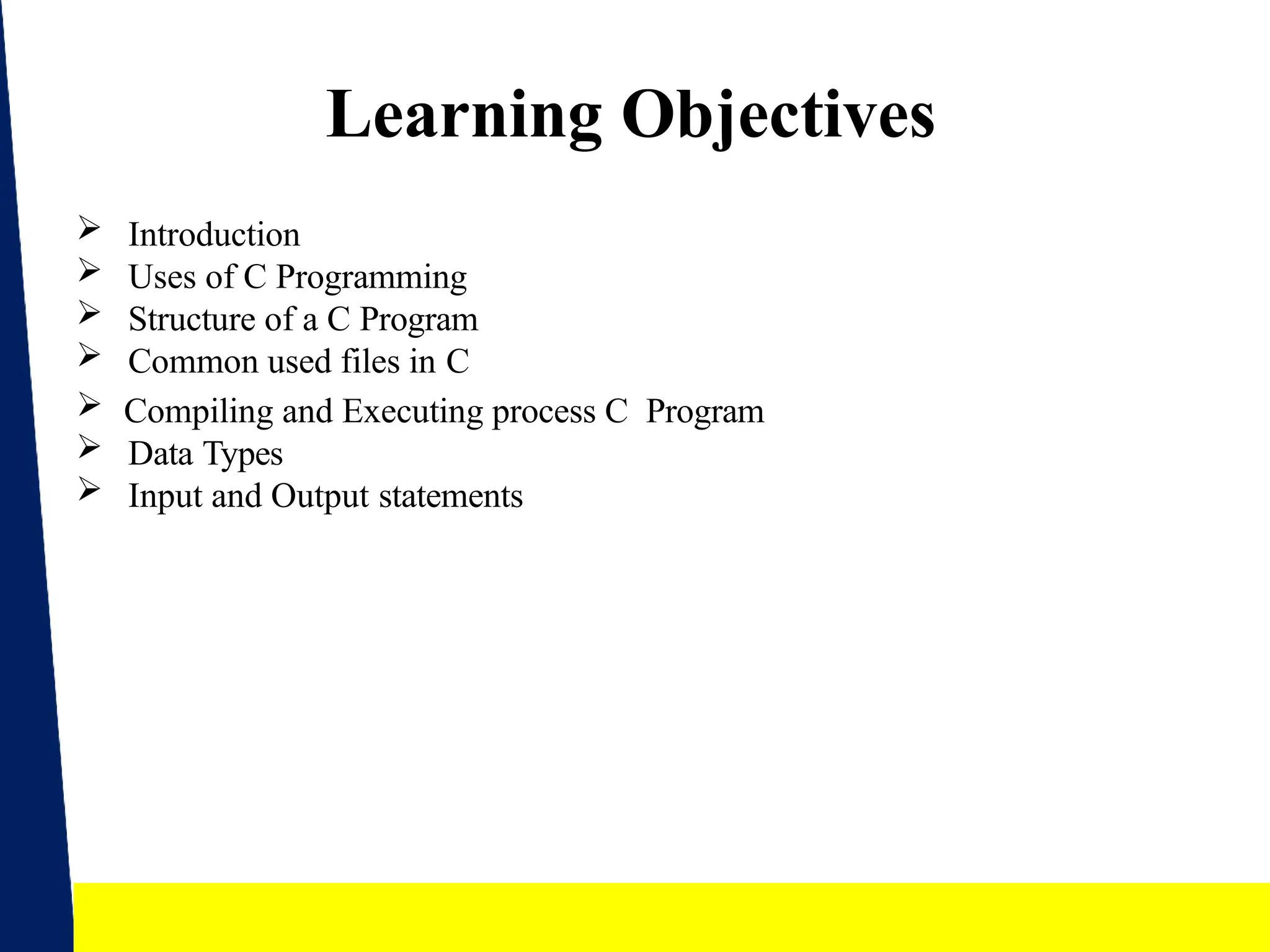

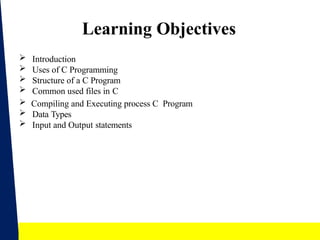

Learning Objectives
 Introduction
 Uses of C Programming
 Structure of a C Program
 Common used files in C
 Compiling and Executing process C Program
 Data Types
 Input and Output statements

3

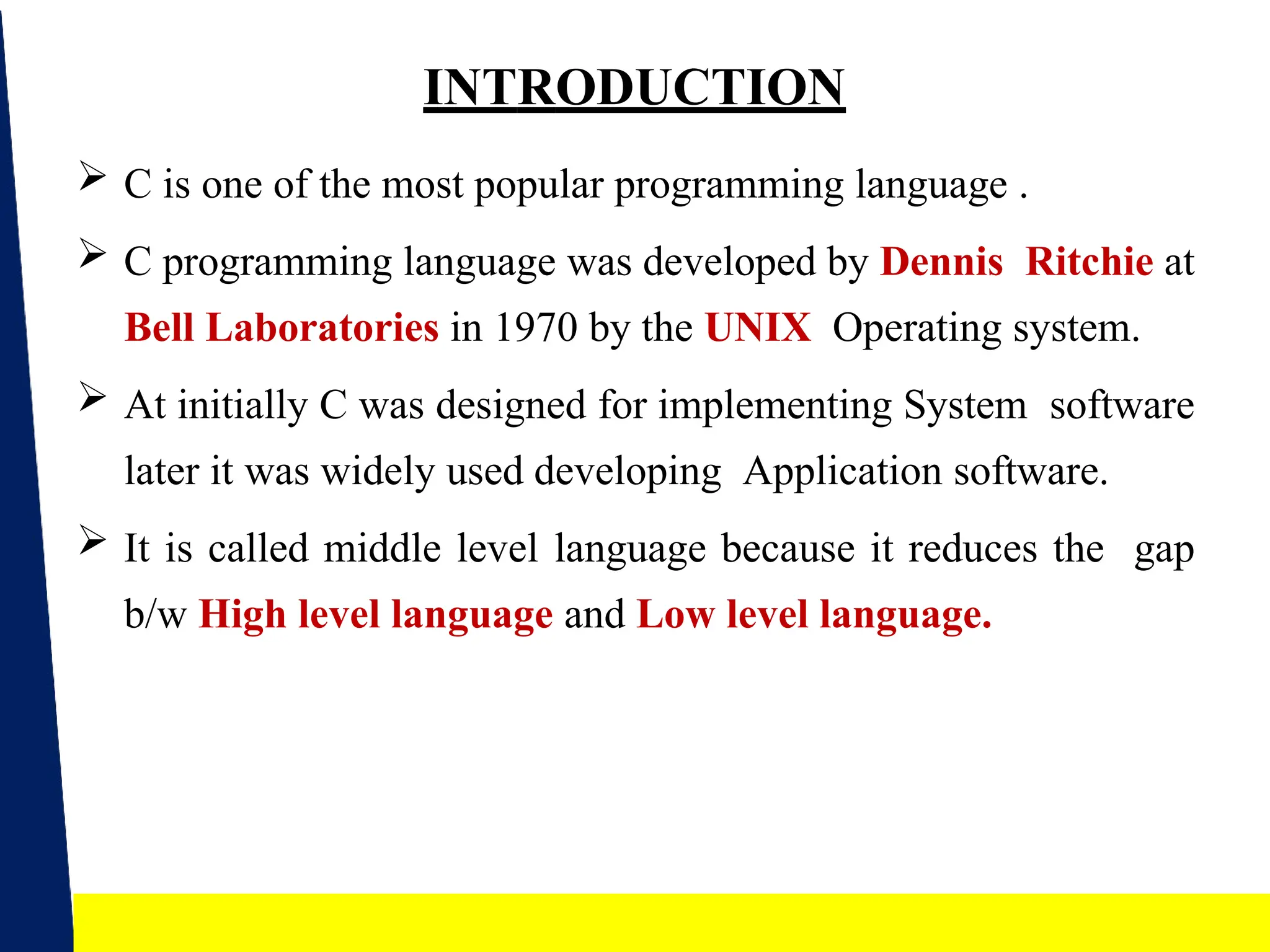

INTRODUCTION
 C is one of the most popular programming language .
 C programming language was developed by Dennis Ritchie at
Bell Laboratories in 1970 by the UNIX Operating system.
 At initially C was designed for implementing System software
later it was widely used developing Application software.
 It is called middle level language because it reduces the gap
b/w High level language and Low level language.

4

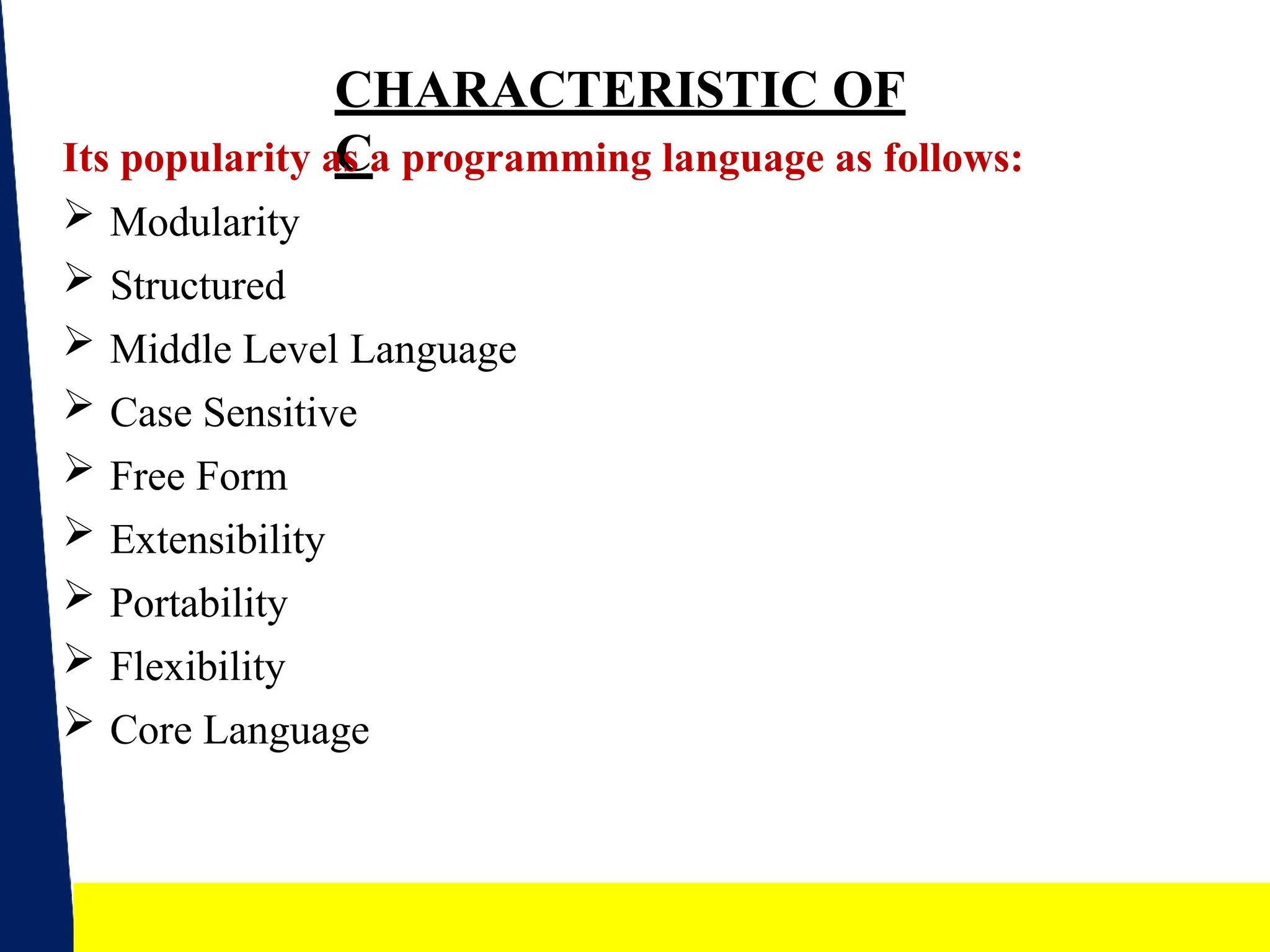

CHARACTERISTIC OF
C
Its popularity as a programming language as follows:
 Modularity
 Structured
 Middle Level Language
 Case Sensitive
 Free Form
 Extensibility
 Portability
 Flexibility
 Core Language

5

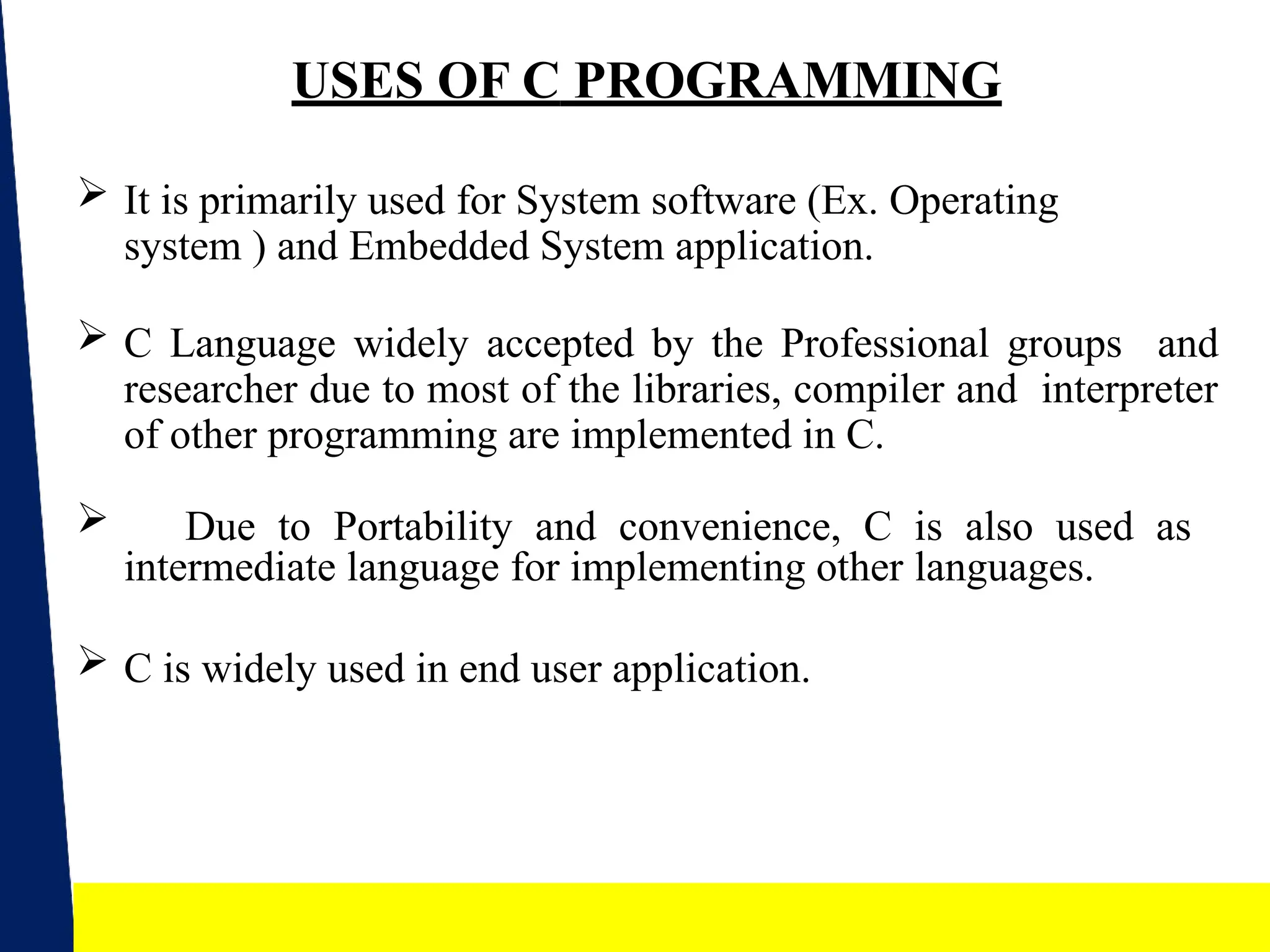

USES OF C PROGRAMMING
 It is primarily used for System software (Ex. Operating
system ) and Embedded System application.
 C Language widely accepted by the Professional groups and
researcher due to most of the libraries, compiler and interpreter
of other programming are implemented in C.
 Due to Portability and convenience, C is also used as
intermediate language for implementing other languages.
 C is widely used in end user application.

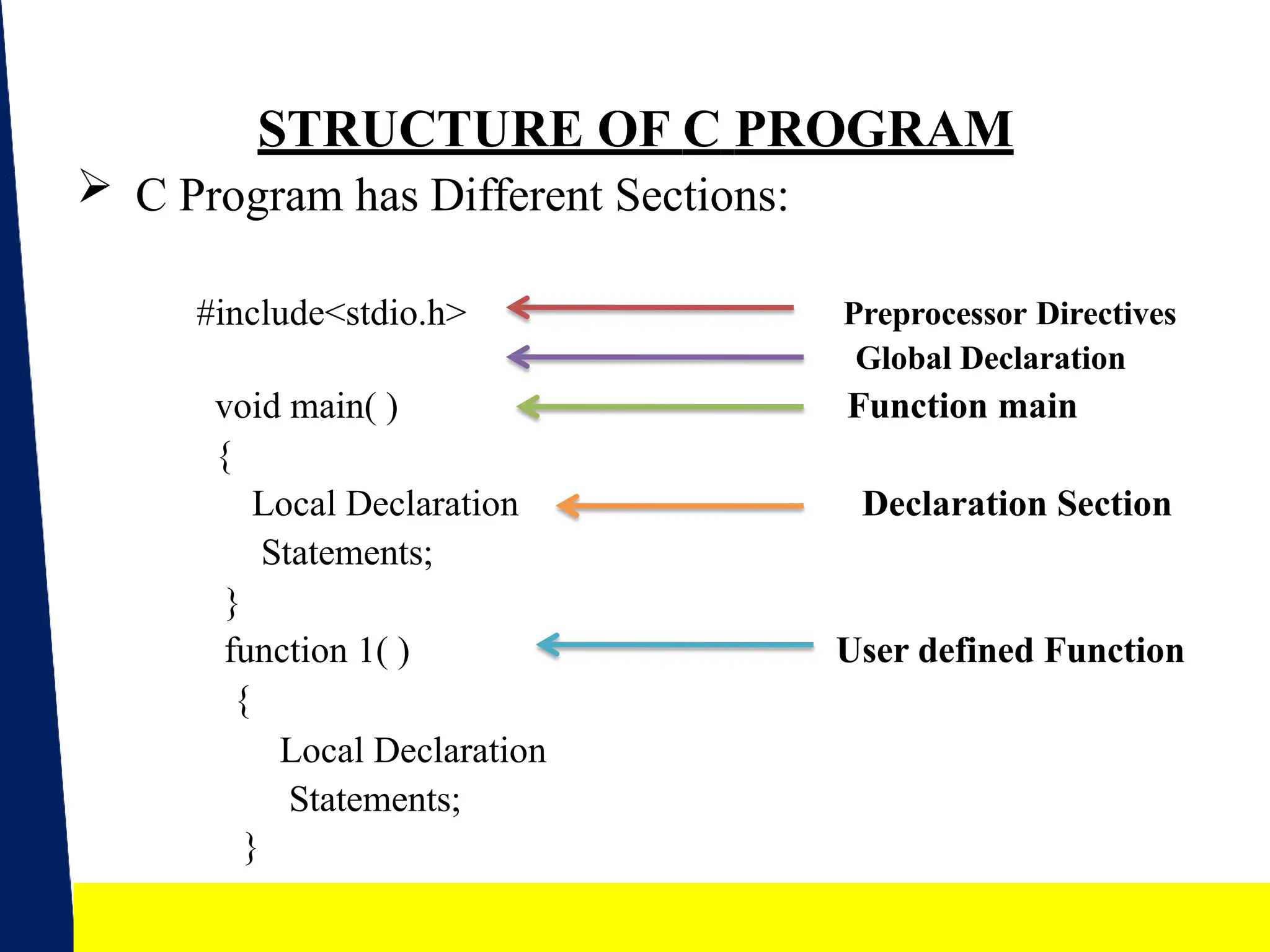

STRUCTURE OF C PROGRAM
 C Program has Different Sections:
#include<stdio.h> Preprocessor Directives
Global Declaration
Function main
void main( )
{
Local Declaration
Statements;
}
function 1( )
{
Local Declaration
Statements;
}
Declaration Section
User defined Function
6

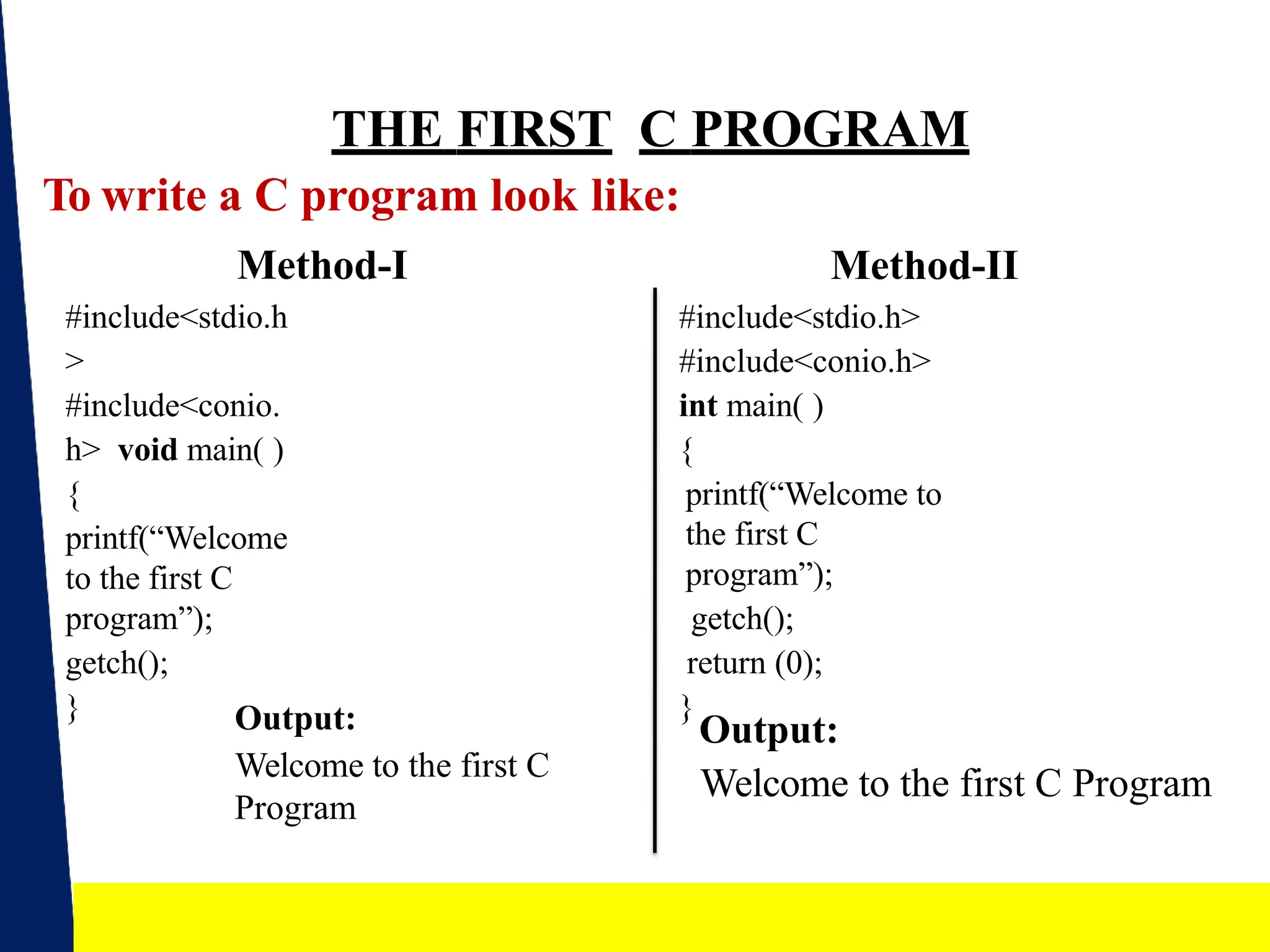

THE FIRST C PROGRAM
To write a C program look like:
Method-I
#include<stdio.h
>
#include<conio.
h> void main( )
{
printf(“Welcome
to the first C
program”);
getch();
}
Method-II
#include<stdio.h>
#include<conio.h>
int main( )
{
printf(“Welcome to
the first C
program”);
getch();
return (0);
}
Output:
Welcome to the first C
Program
Output:
Welcome to the first C Program
7

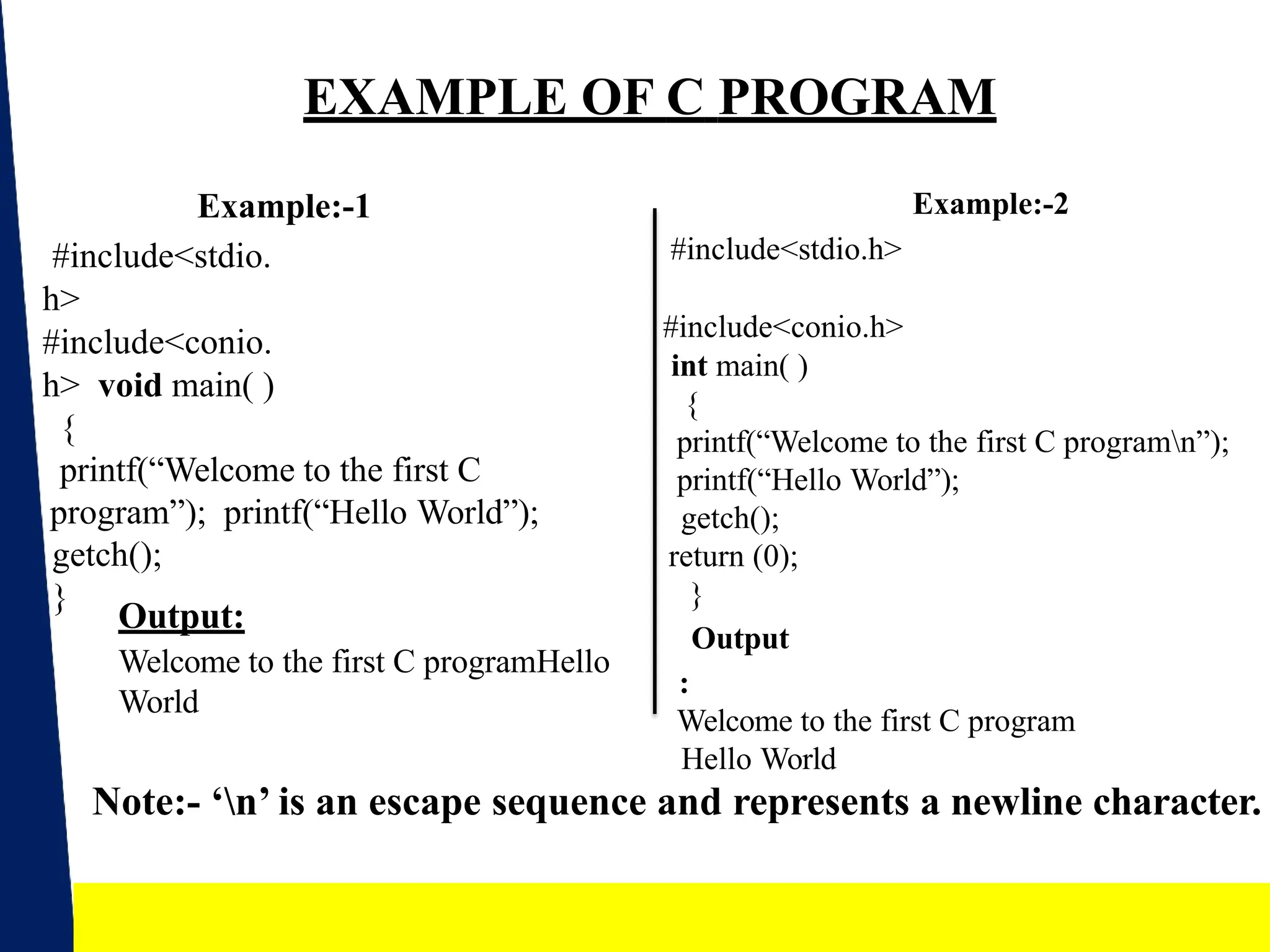

EXAMPLE OF C PROGRAM
Example:-1
#include<stdio.
h>
#include<conio.
h> void main( )
{
printf(“Welcome to the first C
program”); printf(“Hello World”);
getch();
}
Example:-2
#include<stdio.h>
#include<conio.h>
int main( )
{
printf(“Welcome to the first C programn”);
printf(“Hello World”);
getch();
return (0);
}
Output
:
Welcome to the first C program
Hello World
Output:
Welcome to the first C programHello
World
Note:- ‘n’ is an escape sequence and represents a newline character.
8

9

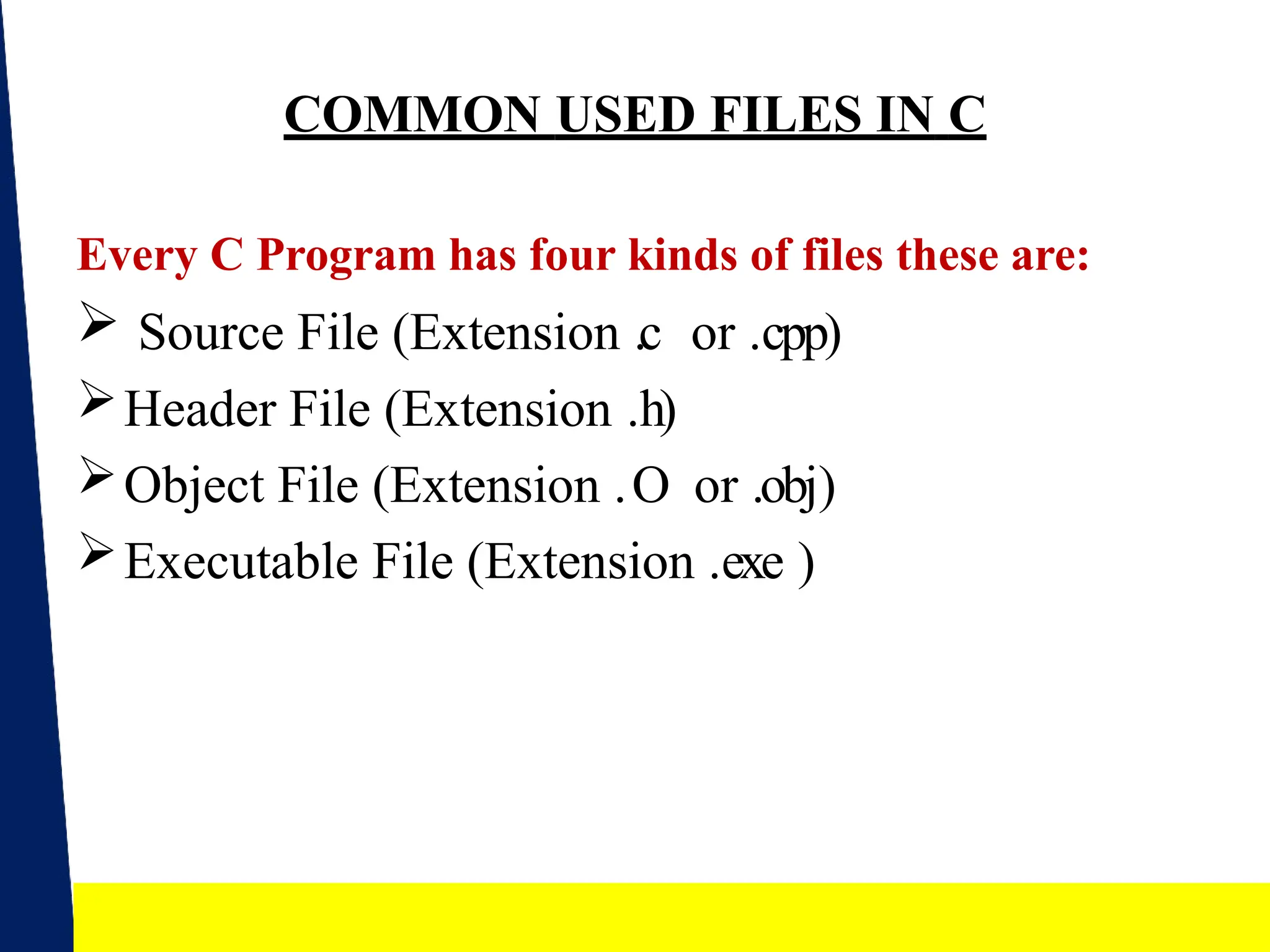

COMMON USED FILES IN C
Every C Program has four kinds of files these are:
 Source File (Extension .c or .cpp)
Header File (Extension .h)
Object File (Extension .O or .obj)
Executable File (Extension .exe )

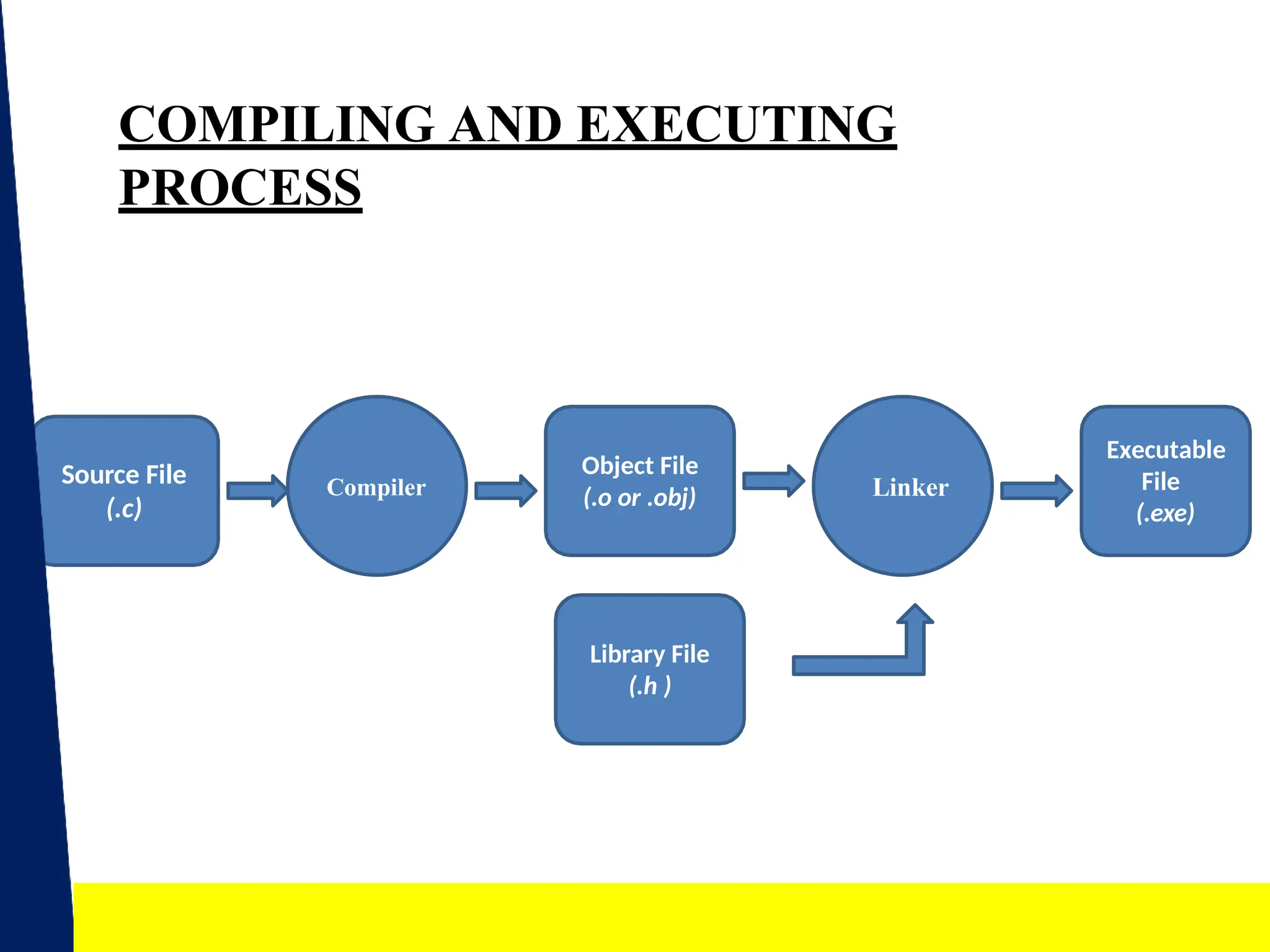

COMPILING AND EXECUTING
PROCESS
Source File
(.c)
Compiler Linker
Object File
(.o or .obj)
Library File
(.h )
Executable
File
(.exe)
10

11

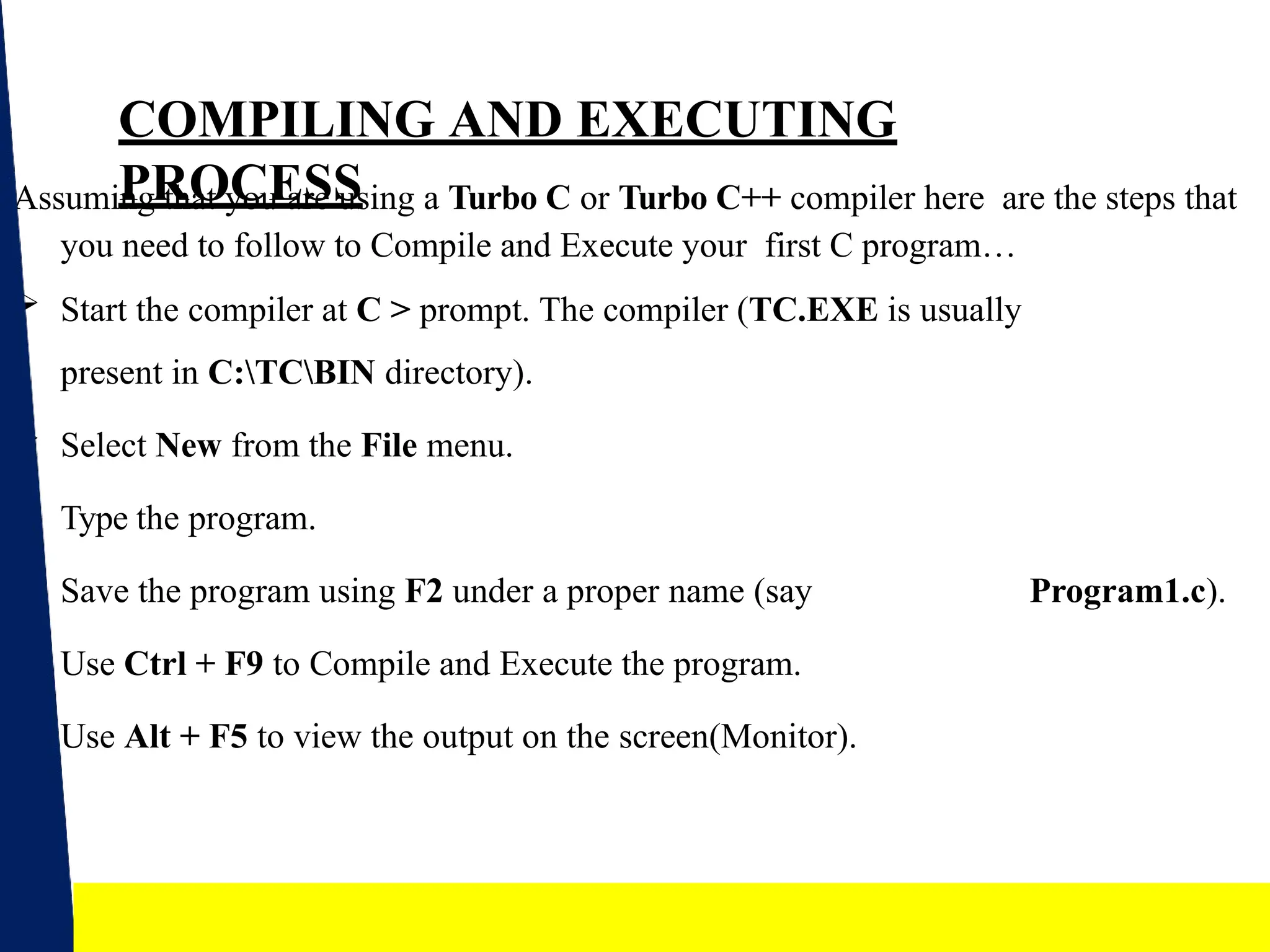

COMPILING AND EXECUTING
PROCESS
Assuming that you are using a Turbo C or Turbo C++ compiler here are the steps that
you need to follow to Compile and Execute your first C program…
 Start the compiler at C > prompt. The compiler (TC.EXE is usually
present in C:TCBIN directory).
 Select New from the File menu.
 Type the program.
 Save the program using F2 under a proper name (say Program1.c).
 Use Ctrl + F9 to Compile and Execute the program.
 Use Alt + F5 to view the output on the screen(Monitor).

12

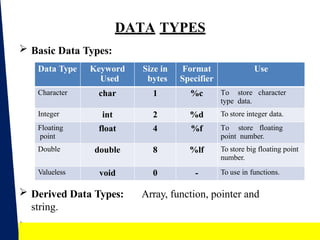

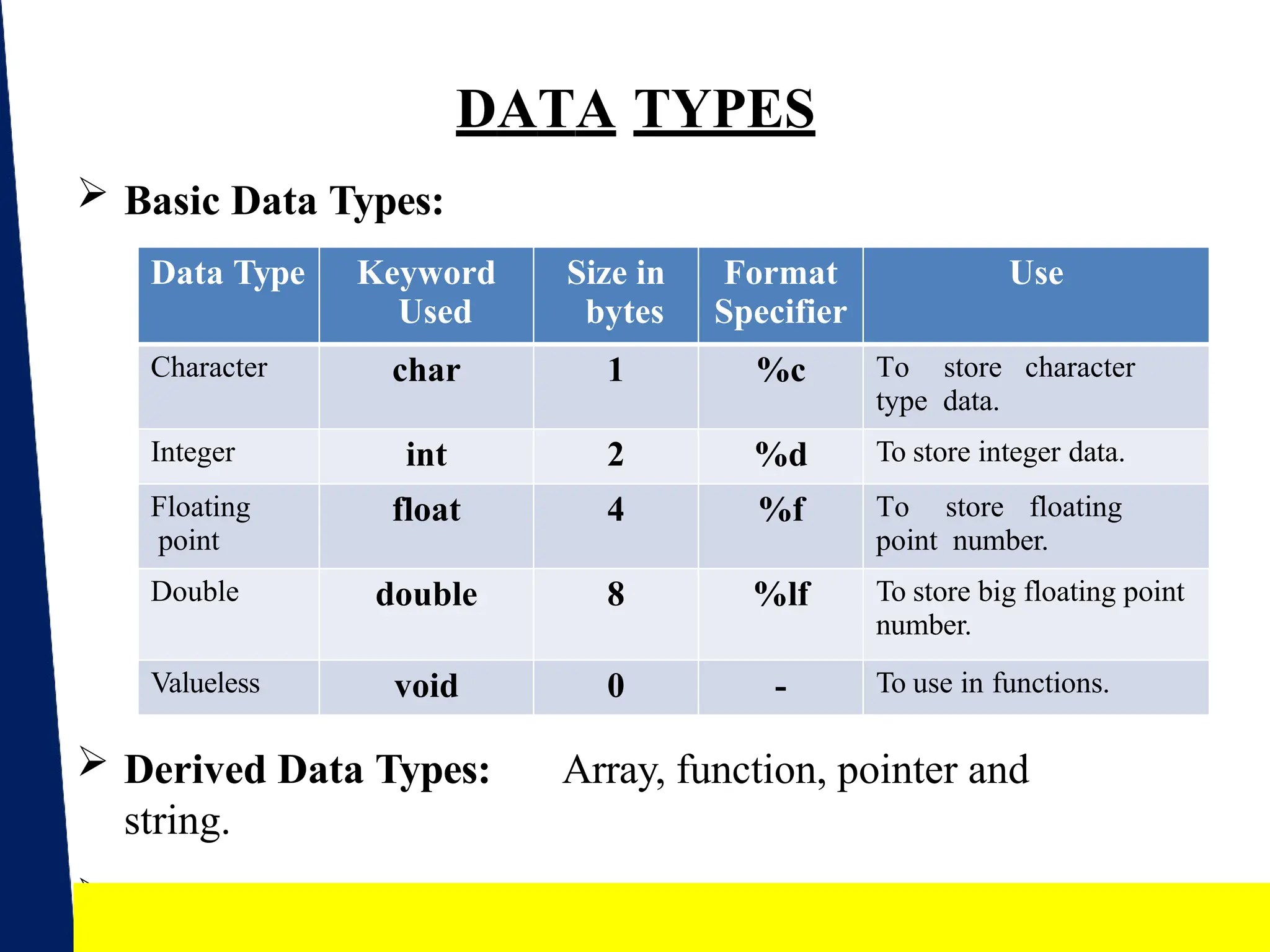

DATA TYPES
 Basic Data Types:
 Derived Data Types: Array, function, pointer and
string.
 User Defined Data Types: Structure, union and enum.
Data Type Keyword
Used
Size in
bytes
Format
Specifier
Use
Character char 1 %c To store character
type data.
Integer int 2 %d To store integer data.
Floating
point
float 4 %f To store floating
point number.
Double double 8 %lf To store big floating point
number.
Valueless void 0 - To use in functions.

13

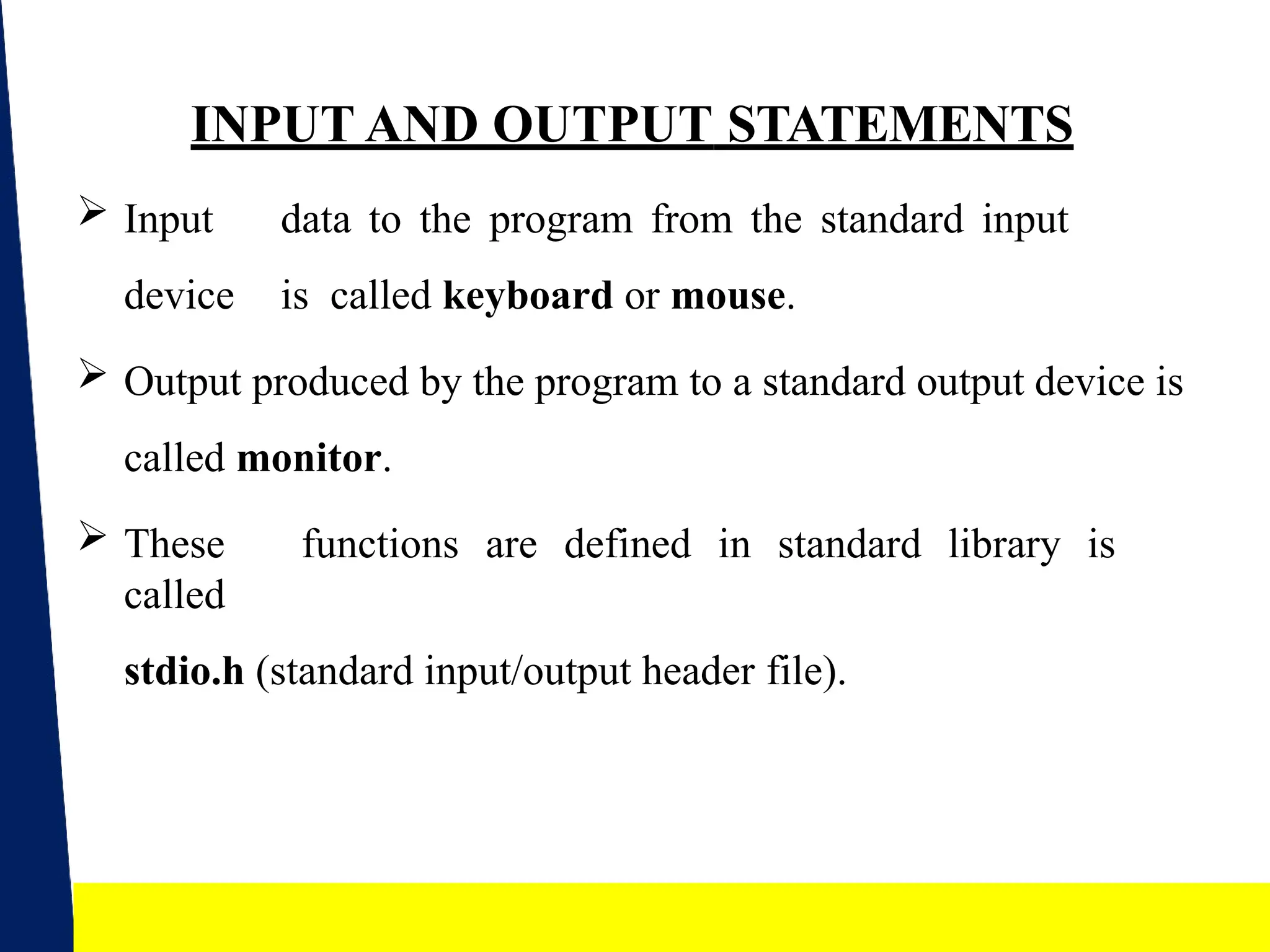

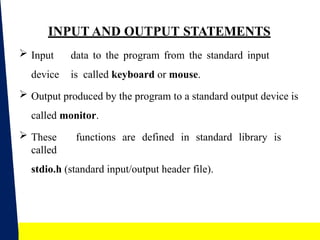

INPUT AND OUTPUT STATEMENTS
 Input data to the program from the standard input
device is called keyboard or mouse.
 Output produced by the program to a standard output device is
called monitor.
 These functions are defined in standard library is
called
stdio.h (standard input/output header file).

14

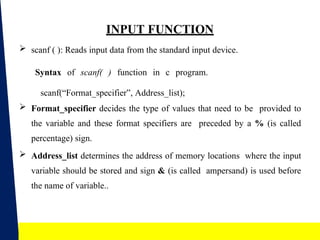

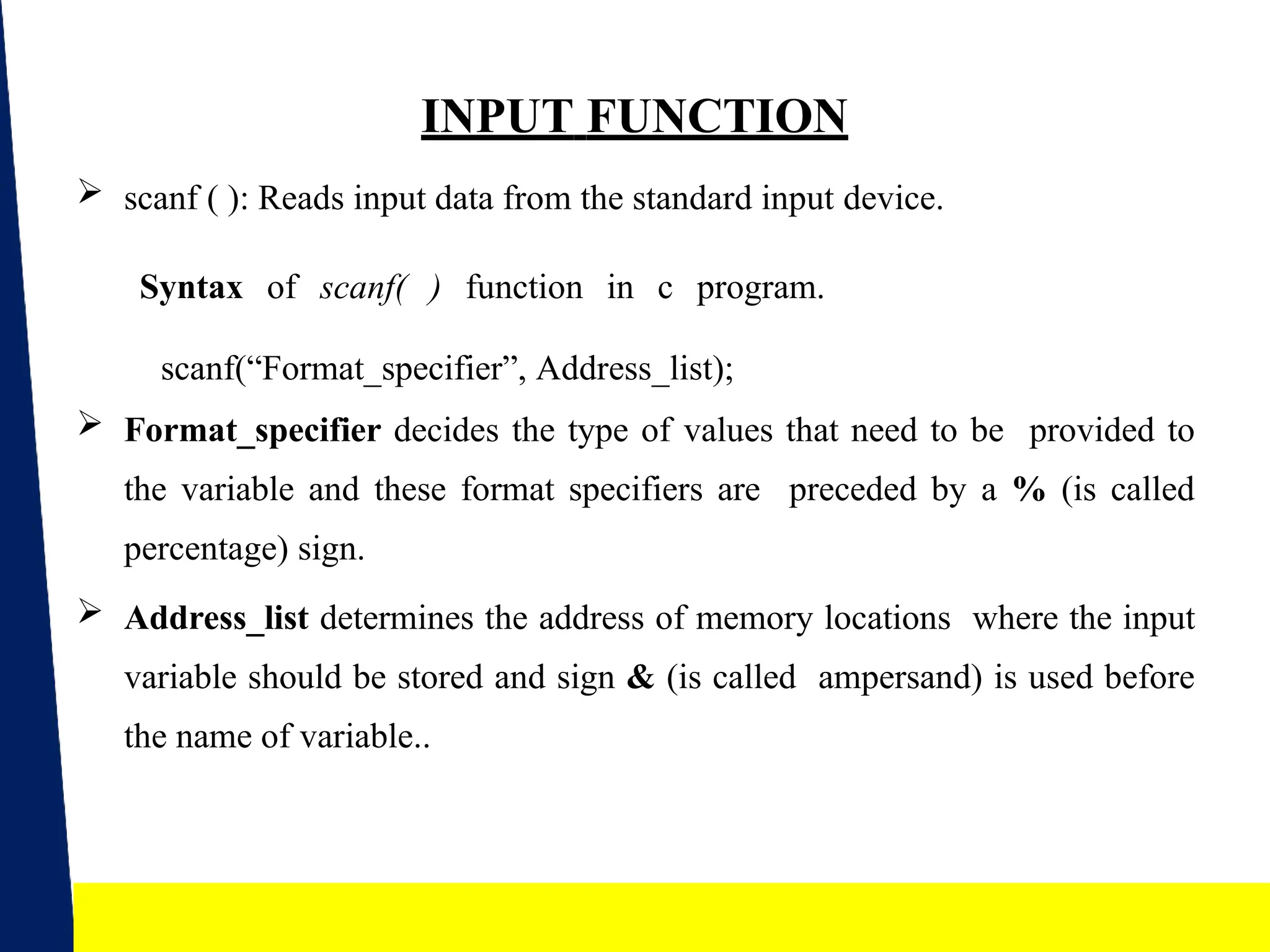

INPUT FUNCTION
 scanf ( ): Reads input data from the standard input device.
Syntax of scanf( ) function in c program.
scanf(“Format_specifier”, Address_list);
 Format_specifier decides the type of values that need to be provided to
the variable and these format specifiers are preceded by a % (is called
percentage) sign.
 Address_list determines the address of memory locations where the input
variable should be stored and sign & (is called ampersand) is used before
the name of variable..

15

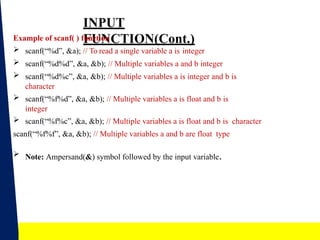

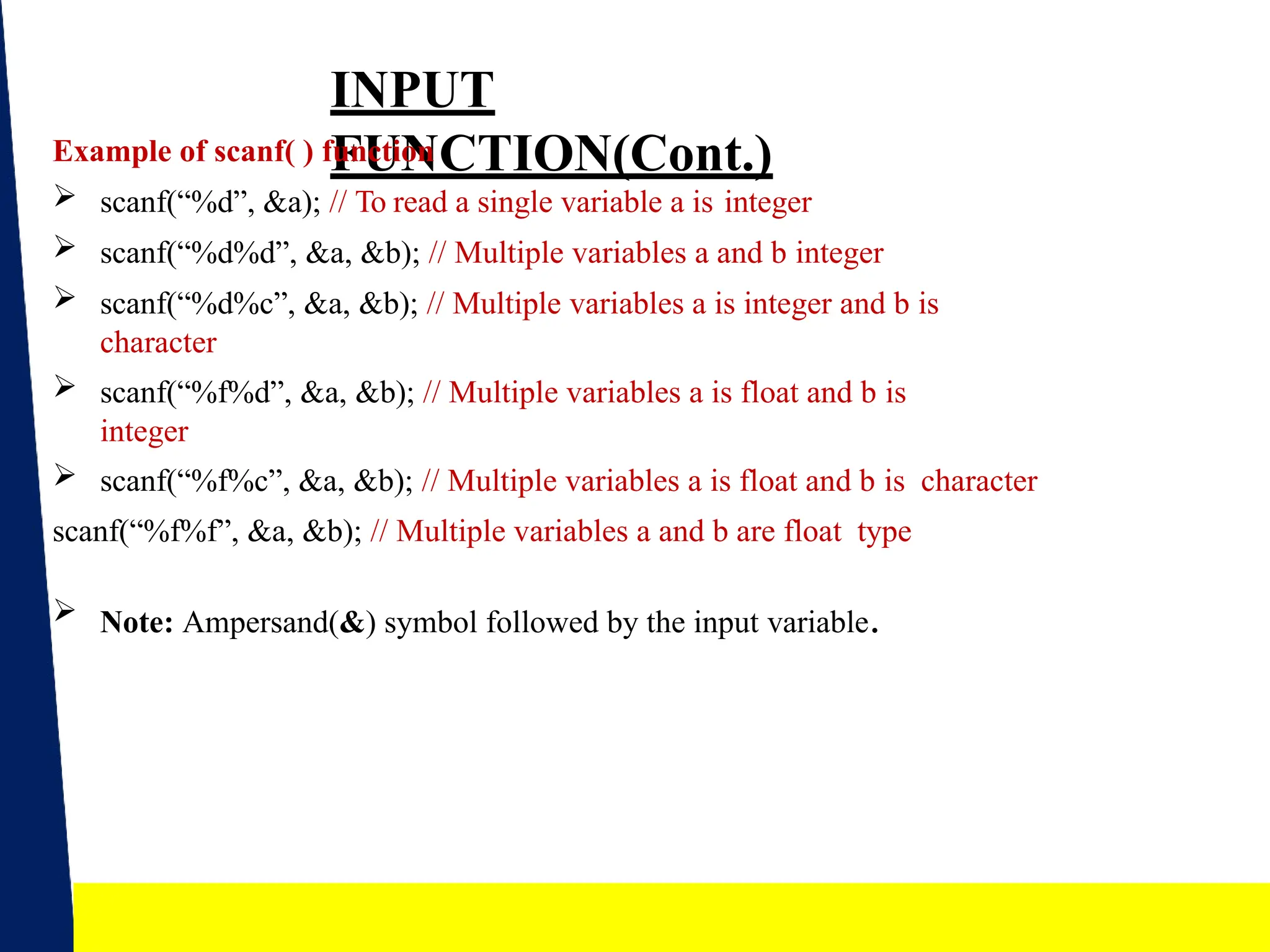

INPUT
FUNCTION(Cont.)
Example of scanf( ) function
 scanf(“%d”, &a); // To read a single variable a is integer
 scanf(“%d%d”, &a, &b); // Multiple variables a and b integer
 scanf(“%d%c”, &a, &b); // Multiple variables a is integer and b is
character
 scanf(“%f%d”, &a, &b); // Multiple variables a is float and b is
integer
 scanf(“%f%c”, &a, &b); // Multiple variables a is float and b is character
scanf(“%f%f”, &a, &b); // Multiple variables a and b are float type
 Note: Ampersand(&) symbol followed by the input variable.

16

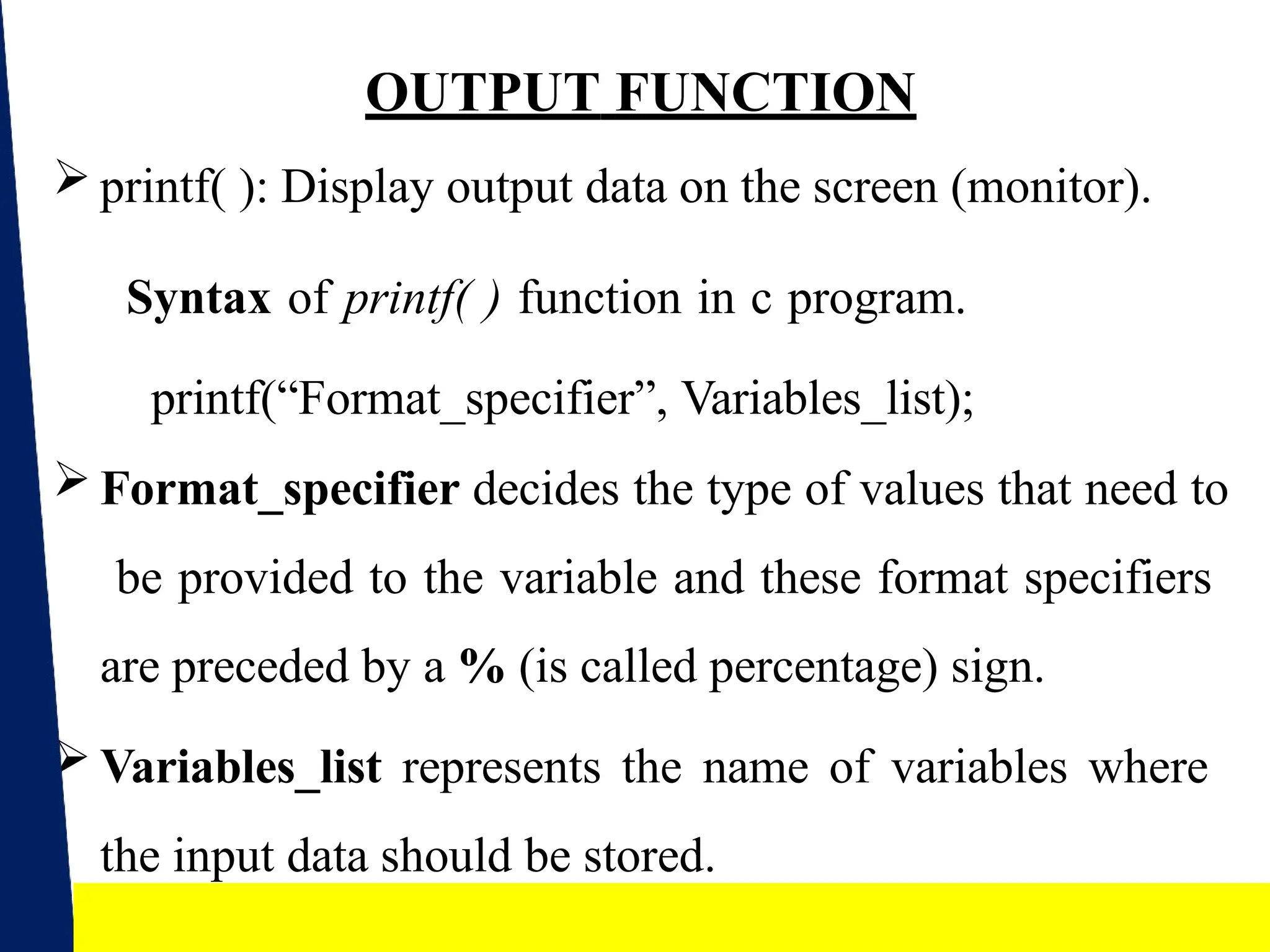

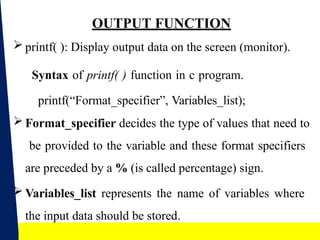

OUTPUT FUNCTION
 printf( ): Display output data on the screen (monitor).
Syntax of printf( ) function in c program.
printf(“Format_specifier”, Variables_list);
 Format_specifier decides the type of values that need to
be provided to the variable and these format specifiers
are preceded by a % (is called percentage) sign.
 Variables_list represents the name of variables where
the input data should be stored.

17

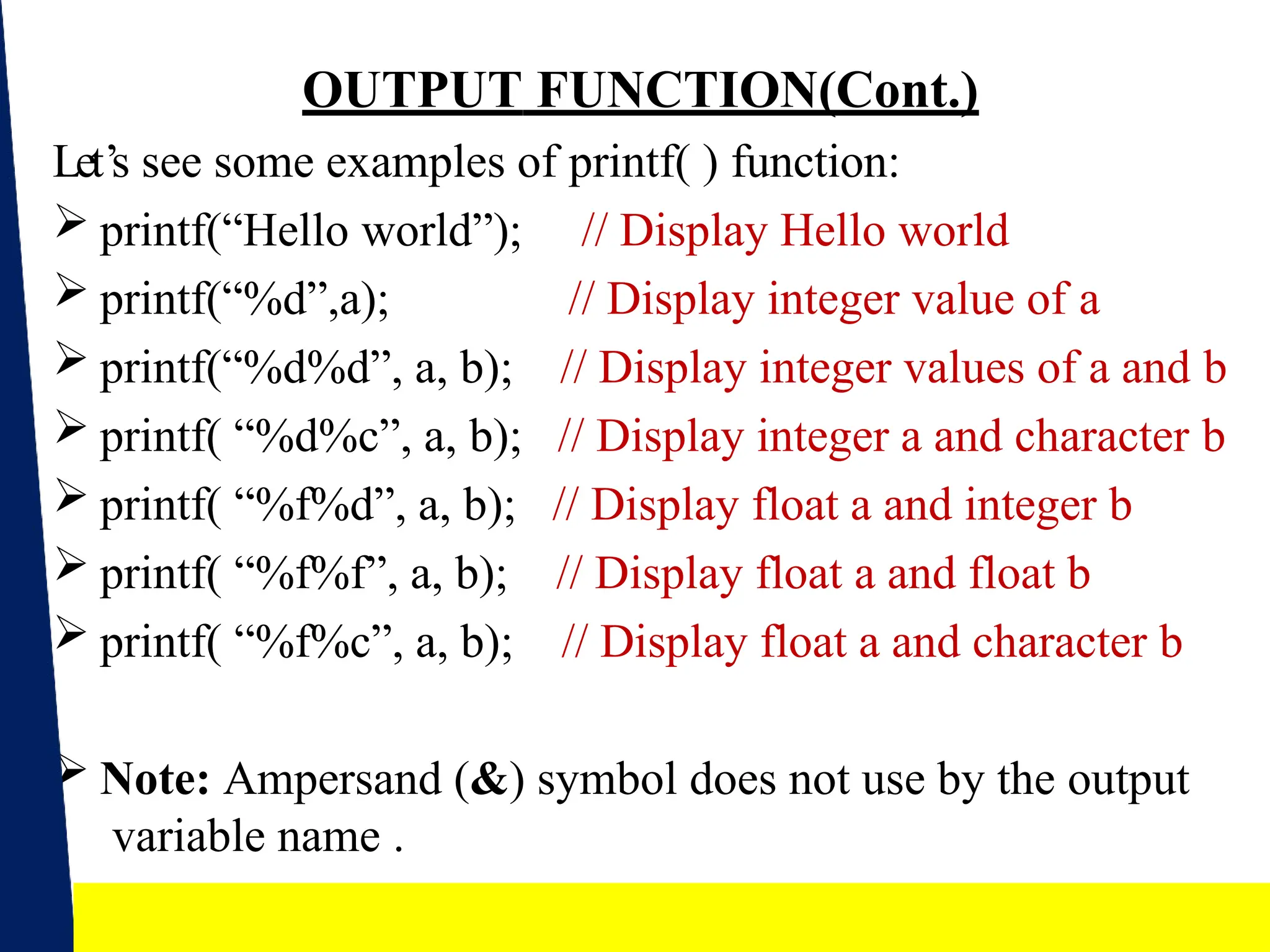

OUTPUT FUNCTION(Cont.)
Let’s see some examples of printf( ) function:
 printf(“Hello world”);
 printf(“%d”,a);
 printf(“%d%d”, a, b);
 printf( “%d%c”, a, b);
 printf( “%f%d”, a, b);
 printf( “%f%f”, a, b);
 printf( “%f%c”, a, b);
// Display Hello world
// Display integer value of a
// Display integer values of a and b
// Display integer a and character b
// Display float a and integer b
// Display float a and float b
// Display float a and character b
 Note: Ampersand (&) symbol does not use by the output
variable name .

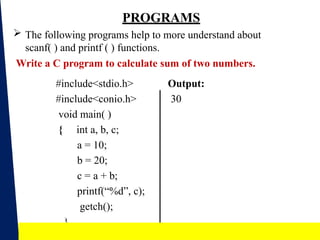

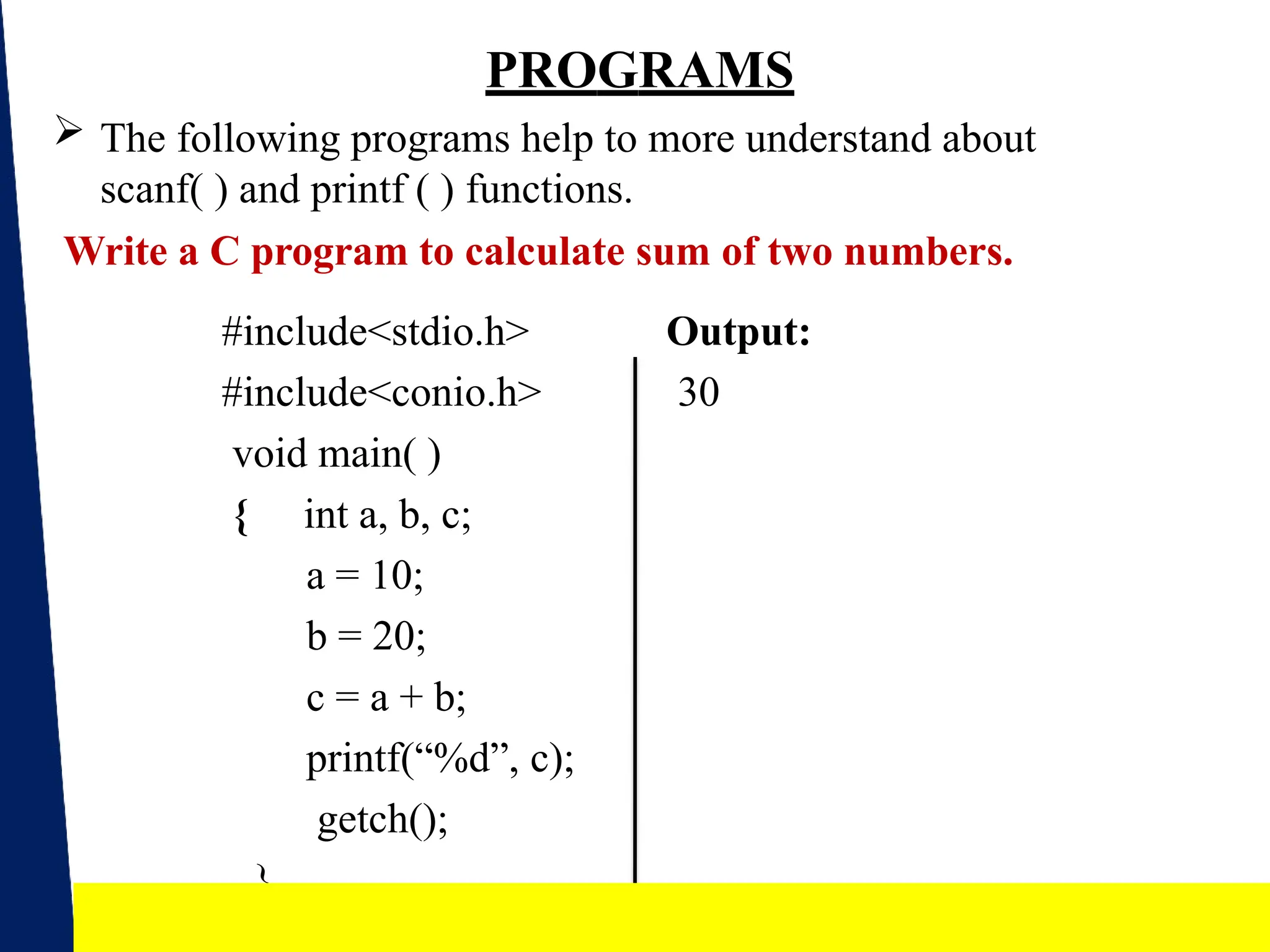

PROGRAMS
 The following programs help to more understand about
scanf( ) and printf ( ) functions.
Write a C program to calculate sum of two numbers.
Output:
30
#include<stdio.h>
#include<conio.h>
void main( )
{ int a, b, c;
a = 10;
b = 20;
c = a + b;
printf(“%d”, c);
getch();
}
18

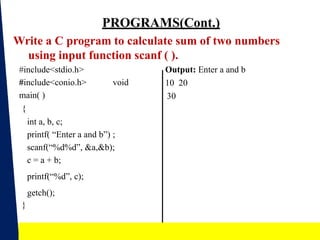

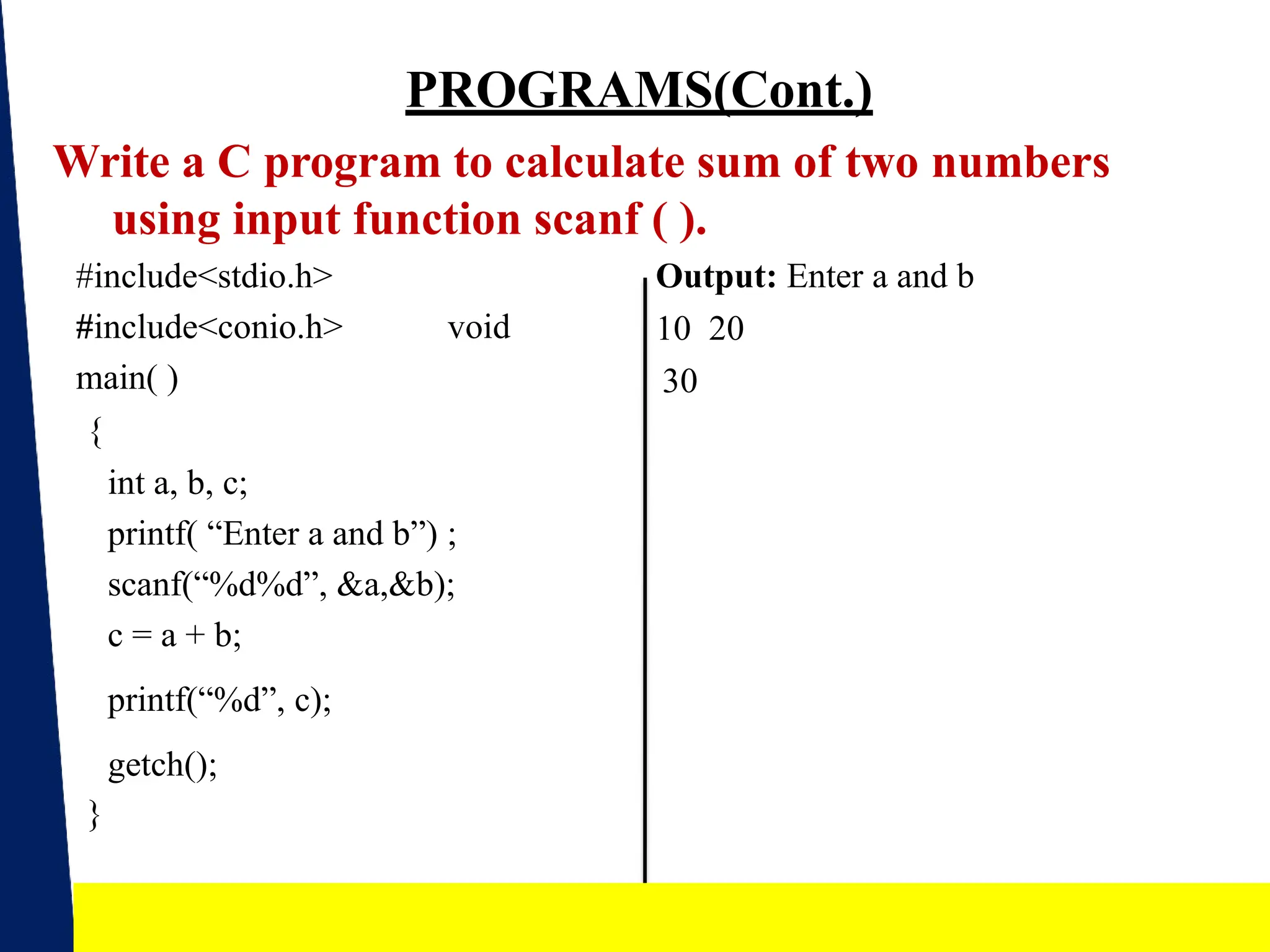

PROGRAMS(Cont.)
Write a C program to calculate sum of two numbers
using input function scanf ( ).
Output: Enter a and b
10 20
30
#include<stdio.h>
#include<conio.h> void
main( )
{
int a, b, c;
printf( “Enter a and b”) ;
scanf(“%d%d”, &a,&b);
c = a + b;
printf(“%d”, c);
getch();
}
19

20

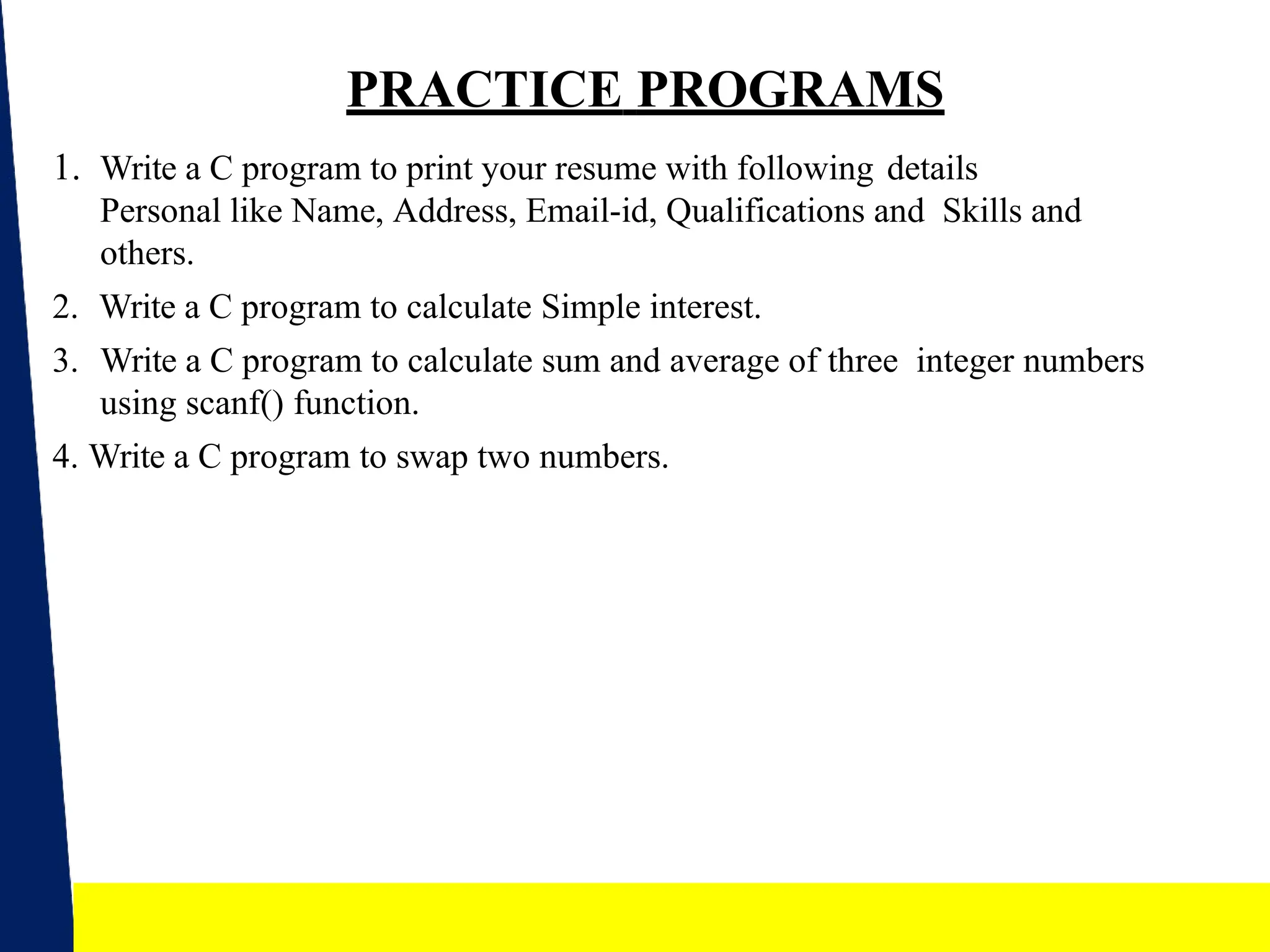

PRACTICE PROGRAMS
1. Write a C program to print your resume with following details
Personal like Name, Address, Email-id, Qualifications and Skills and
others.
2. Write a C program to calculate Simple interest.
3. Write a C program to calculate sum and average of three integer numbers
using scanf() function.
4. Write a C program to swap two numbers.
