Download as PDF, PPTX

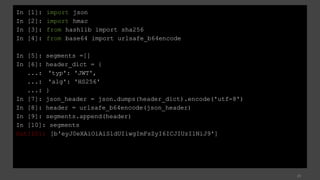

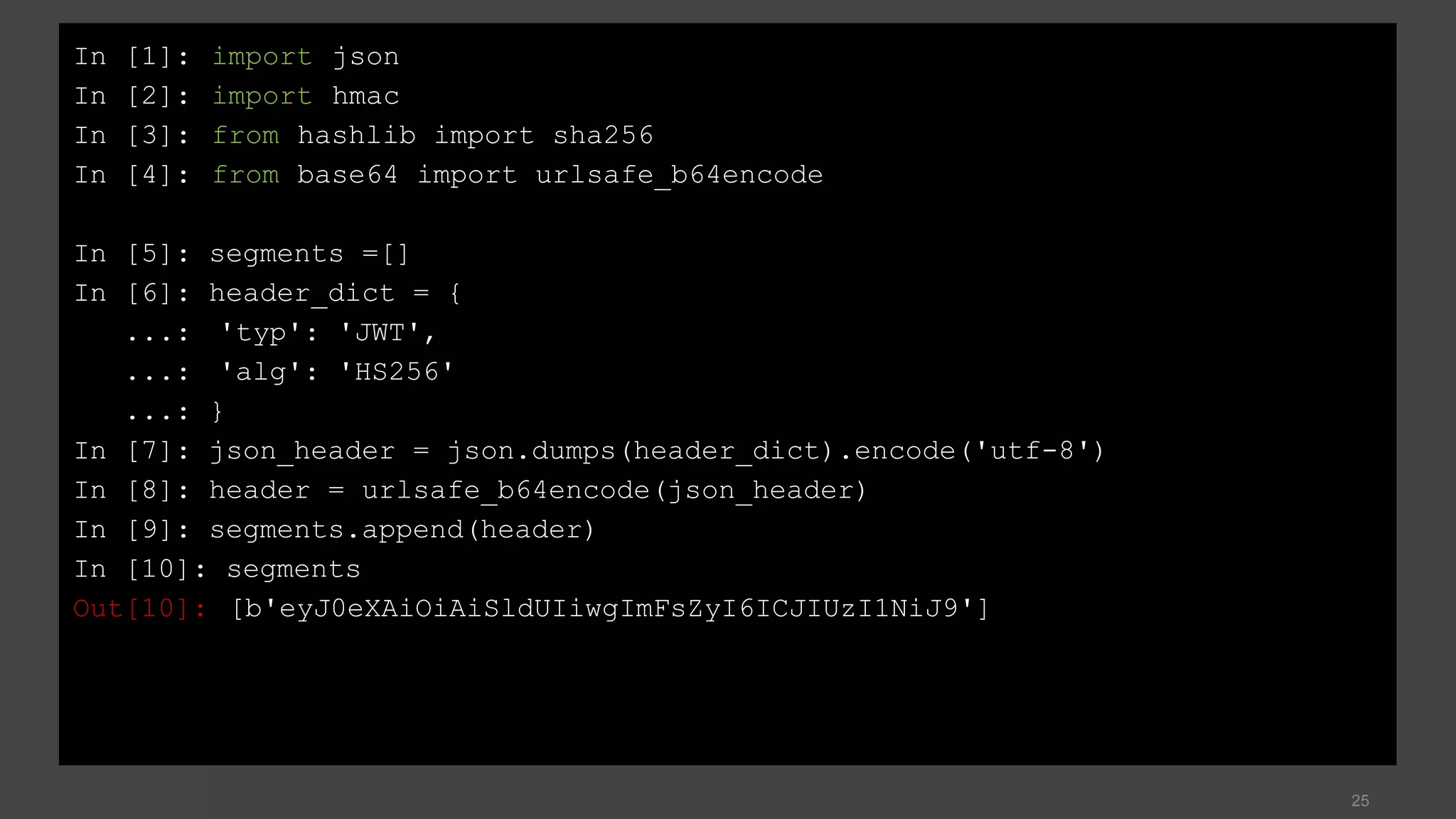

![25
In [1]: import json
In [2]: import hmac
In [3]: from hashlib import sha256
In [4]: from base64 import urlsafe_b64encode
In [5]: segments =[]
In [6]: header_dict = {
...: 'typ': 'JWT',
...: 'alg': 'HS256'
...: }
In [7]: json_header = json.dumps(header_dict).encode('utf-8')
In [8]: header = urlsafe_b64encode(json_header)
In [9]: segments.append(header)
In [10]: segments
Out[10]: [b'eyJ0eXAiOiAiSldUIiwgImFsZyI6ICJIUzI1NiJ9']](https://image.slidesharecdn.com/2016pycontwwebapiauthentication-160604081733/85/2016-pycontw-web-api-authentication-25-320.jpg)

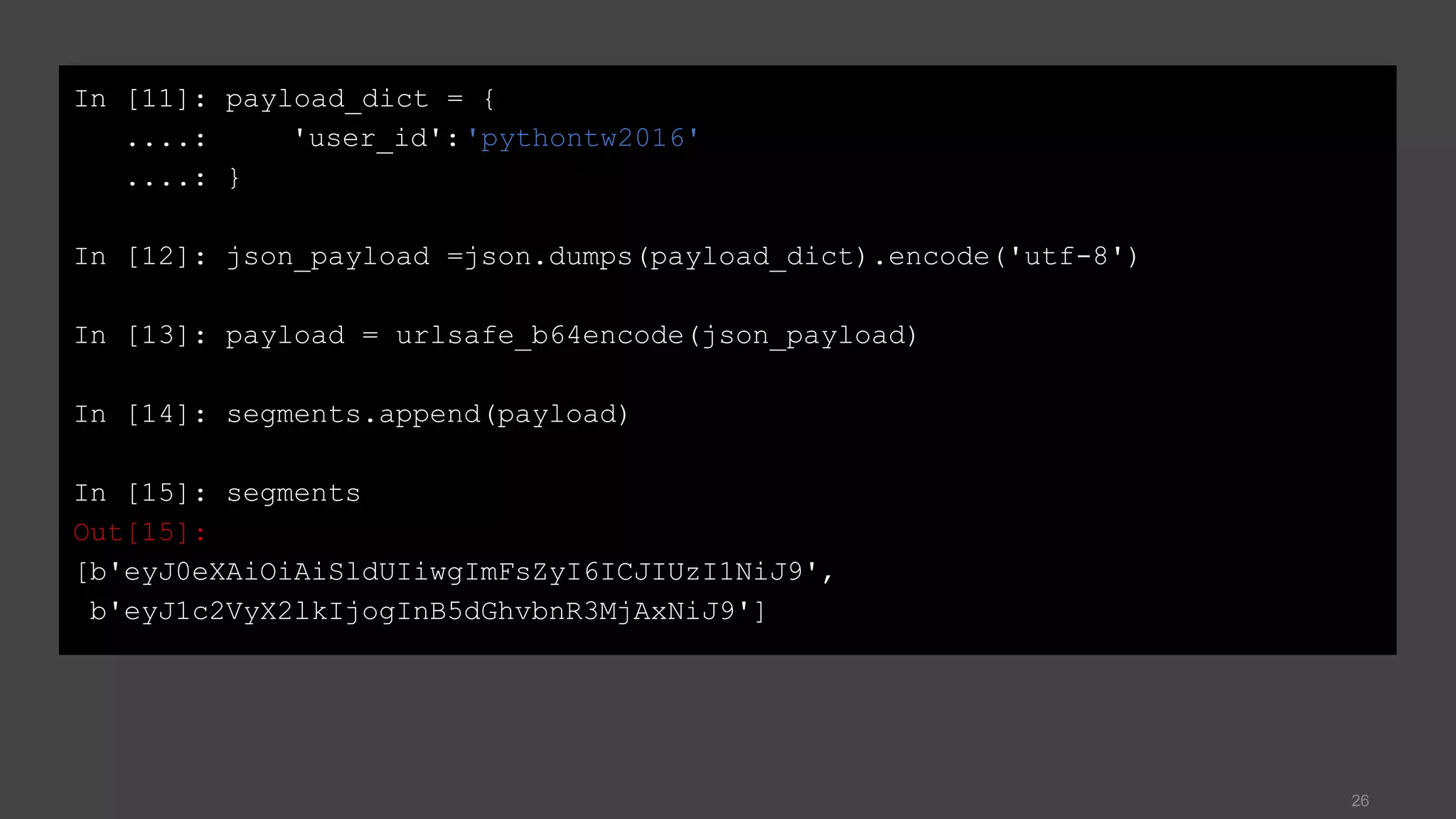

![26
In [11]: payload_dict = {
....: 'user_id':'pythontw2016'
....: }
In [12]: json_payload =json.dumps(payload_dict).encode('utf-8')
In [13]: payload = urlsafe_b64encode(json_payload)
In [14]: segments.append(payload)
In [15]: segments
Out[15]:
[b'eyJ0eXAiOiAiSldUIiwgImFsZyI6ICJIUzI1NiJ9',
b'eyJ1c2VyX2lkIjogInB5dGhvbnR3MjAxNiJ9']](https://image.slidesharecdn.com/2016pycontwwebapiauthentication-160604081733/85/2016-pycontw-web-api-authentication-26-320.jpg)

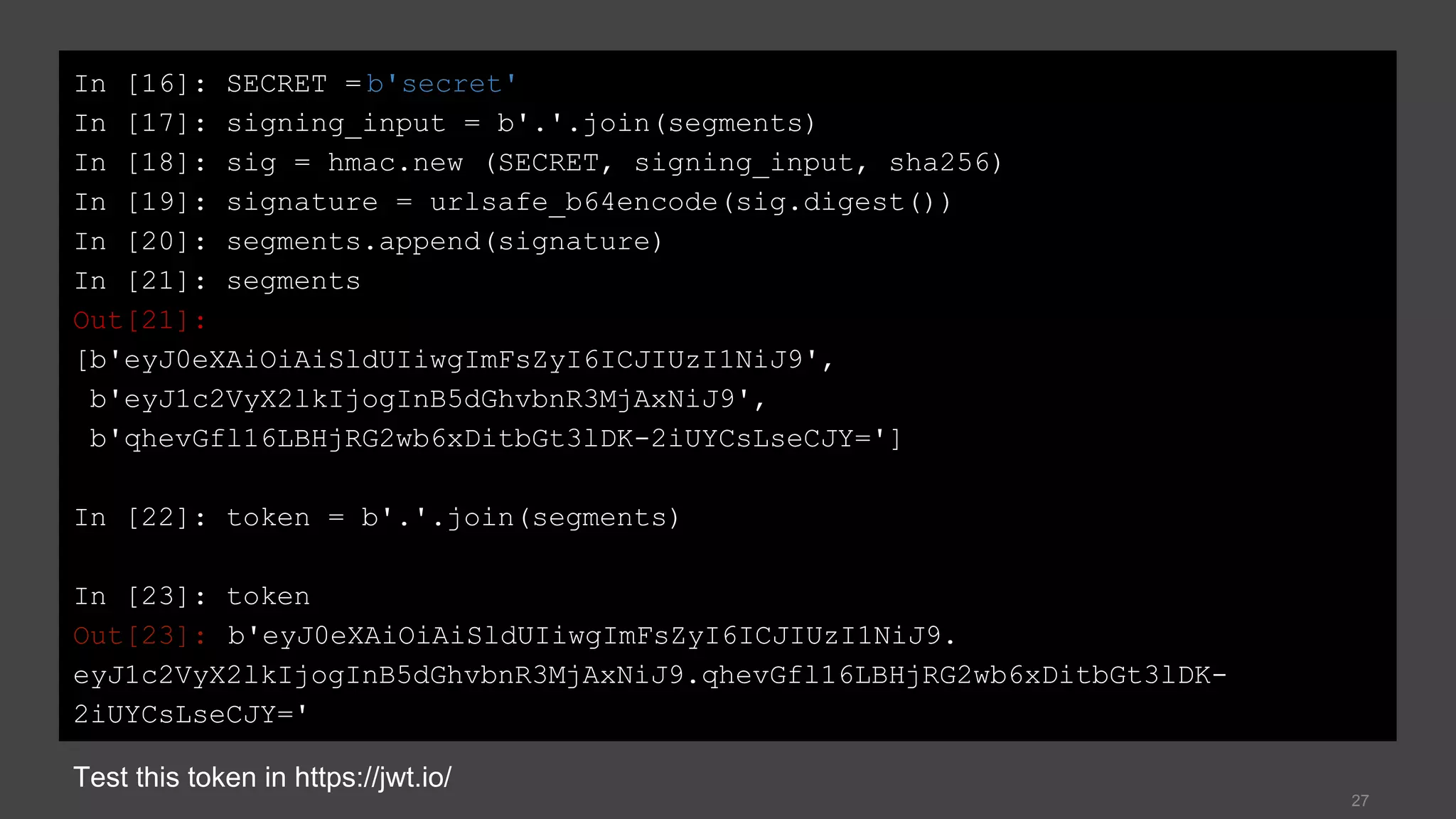

![27

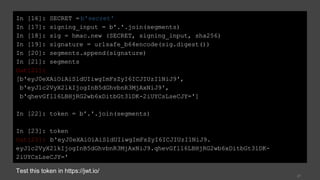

In [16]: SECRET = b'secret'
In [17]: signing_input = b'.'.join(segments)
In [18]: sig = hmac.new (SECRET, signing_input, sha256)
In [19]: signature = urlsafe_b64encode(sig.digest())
In [20]: segments.append(signature)
In [21]: segments
Out[21]:
[b'eyJ0eXAiOiAiSldUIiwgImFsZyI6ICJIUzI1NiJ9',
b'eyJ1c2VyX2lkIjogInB5dGhvbnR3MjAxNiJ9',
b'qhevGfl16LBHjRG2wb6xDitbGt3lDK-2iUYCsLseCJY=']
In [22]: token = b'.'.join(segments)
In [23]: token
Out[23]: b'eyJ0eXAiOiAiSldUIiwgImFsZyI6ICJIUzI1NiJ9.
eyJ1c2VyX2lkIjogInB5dGhvbnR3MjAxNiJ9.qhevGfl16LBHjRG2wb6xDitbGt3lDK-
2iUYCsLseCJY='
Test this token in https://jwt.io/](https://image.slidesharecdn.com/2016pycontwwebapiauthentication-160604081733/85/2016-pycontw-web-api-authentication-27-320.jpg)

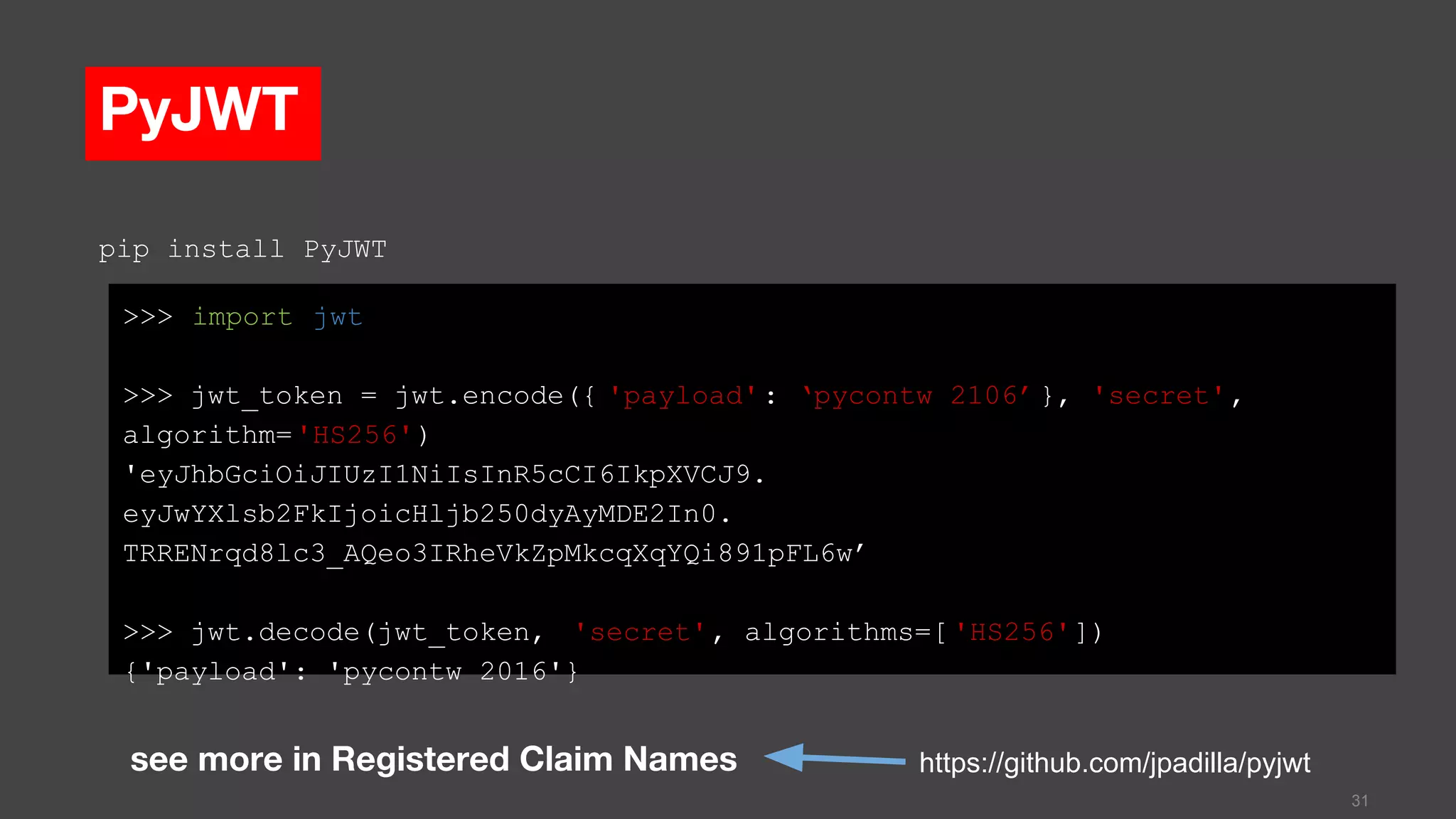

![PyJWT
>>> import jwt
>>> jwt_token = jwt.encode({ 'payload': ‘pycontw 2106’ }, 'secret',
algorithm='HS256')
'eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.
eyJwYXlsb2FkIjoicHljb250dyAyMDE2In0.
TRRENrqd8lc3_AQeo3IRheVkZpMkcqXqYQi891pFL6w’
>>> jwt.decode(jwt_token, 'secret', algorithms=[ 'HS256'])
{'payload': 'pycontw 2016'}
31
https://github.com/jpadilla/pyjwt
pip install PyJWT
see more in Registered Claim Names](https://image.slidesharecdn.com/2016pycontwwebapiauthentication-160604081733/85/2016-pycontw-web-api-authentication-31-320.jpg)

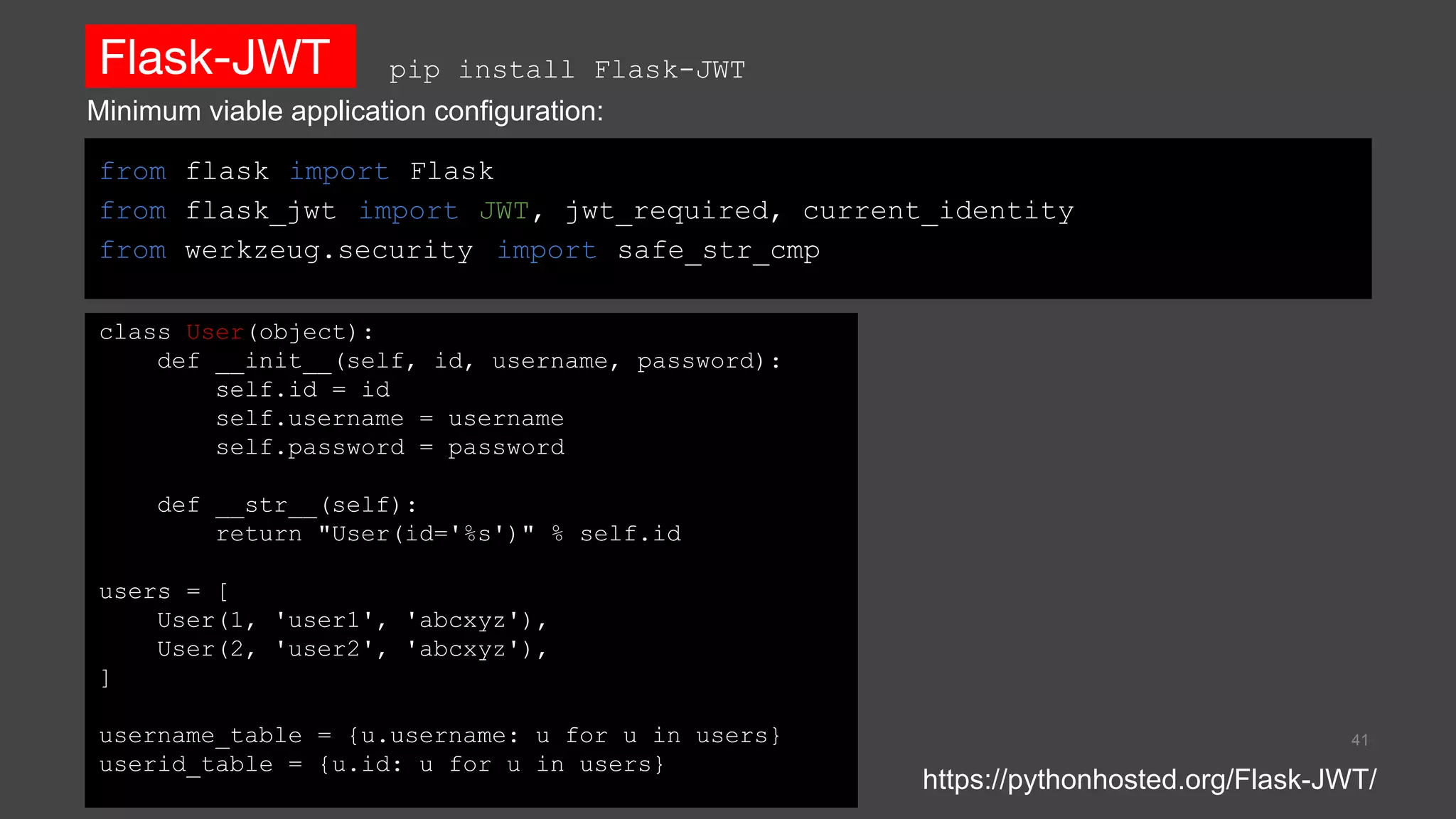

![Flask-JWT
from flask import Flask
from flask_jwt import JWT, jwt_required, current_identity
from werkzeug.security import safe_str_cmp
41
https://pythonhosted.org/Flask-JWT/
pip install Flask-JWT
class User(object):
def __init__(self, id, username, password):
self.id = id
self.username = username
self.password = password
def __str__(self):
return "User(id='%s')" % self.id
users = [
User(1, 'user1', 'abcxyz'),
User(2, 'user2', 'abcxyz'),
]
username_table = {u.username: u for u in users}
userid_table = {u.id: u for u in users}
Minimum viable application configuration:](https://image.slidesharecdn.com/2016pycontwwebapiauthentication-160604081733/85/2016-pycontw-web-api-authentication-41-320.jpg)

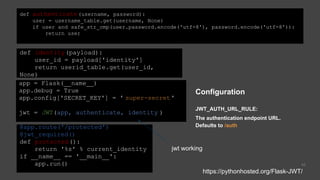

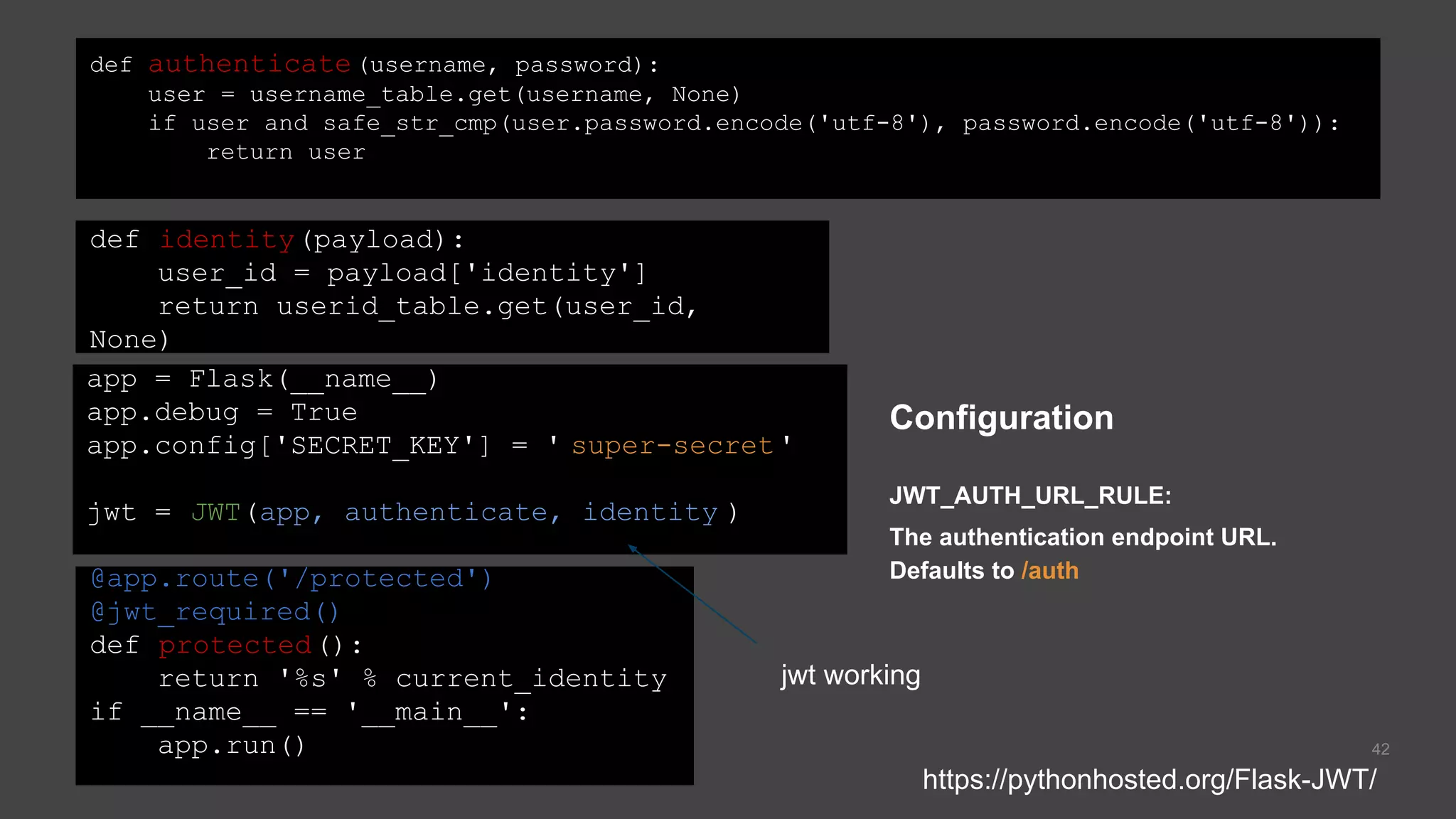

![42
app = Flask(__name__)
app.debug = True
app.config['SECRET_KEY'] = ' super-secret'
jwt = JWT(app, authenticate, identity )
def identity(payload):
user_id = payload['identity']
return userid_table.get(user_id,
None)
def authenticate(username, password):
user = username_table.get(username, None)
if user and safe_str_cmp(user.password.encode('utf-8'), password.encode('utf-8')):
return user
@app.route('/protected')
@jwt_required()
def protected():
return '%s' % current_identity
if __name__ == '__main__':
app.run()
Configuration
JWT_AUTH_URL_RULE:
The authentication endpoint URL.
Defaults to /auth
https://pythonhosted.org/Flask-JWT/
jwt working](https://image.slidesharecdn.com/2016pycontwwebapiauthentication-160604081733/85/2016-pycontw-web-api-authentication-42-320.jpg)
![25
In [1]: import json
In [2]: import hmac
In [3]: from hashlib import sha256
In [4]: from base64 import urlsafe_b64encode
In [5]: segments =[]
In [6]: header_dict = {
...: 'typ': 'JWT',
...: 'alg': 'HS256'
...: }
In [7]: json_header = json.dumps(header_dict).encode('utf-8')
In [8]: header = urlsafe_b64encode(json_header)
In [9]: segments.append(header)
In [10]: segments
Out[10]: [b'eyJ0eXAiOiAiSldUIiwgImFsZyI6ICJIUzI1NiJ9']](https://image.slidesharecdn.com/2016pycontwwebapiauthentication-160604081733/75/2016-pycontw-web-api-authentication-25-2048.jpg)
![26
In [11]: payload_dict = {
....: 'user_id':'pythontw2016'
....: }
In [12]: json_payload =json.dumps(payload_dict).encode('utf-8')
In [13]: payload = urlsafe_b64encode(json_payload)
In [14]: segments.append(payload)
In [15]: segments
Out[15]:
[b'eyJ0eXAiOiAiSldUIiwgImFsZyI6ICJIUzI1NiJ9',
b'eyJ1c2VyX2lkIjogInB5dGhvbnR3MjAxNiJ9']](https://image.slidesharecdn.com/2016pycontwwebapiauthentication-160604081733/75/2016-pycontw-web-api-authentication-26-2048.jpg)
![27
In [16]: SECRET = b'secret'
In [17]: signing_input = b'.'.join(segments)
In [18]: sig = hmac.new (SECRET, signing_input, sha256)
In [19]: signature = urlsafe_b64encode(sig.digest())
In [20]: segments.append(signature)
In [21]: segments
Out[21]:
[b'eyJ0eXAiOiAiSldUIiwgImFsZyI6ICJIUzI1NiJ9',
b'eyJ1c2VyX2lkIjogInB5dGhvbnR3MjAxNiJ9',
b'qhevGfl16LBHjRG2wb6xDitbGt3lDK-2iUYCsLseCJY=']
In [22]: token = b'.'.join(segments)
In [23]: token
Out[23]: b'eyJ0eXAiOiAiSldUIiwgImFsZyI6ICJIUzI1NiJ9.
eyJ1c2VyX2lkIjogInB5dGhvbnR3MjAxNiJ9.qhevGfl16LBHjRG2wb6xDitbGt3lDK-
2iUYCsLseCJY='
Test this token in https://jwt.io/](https://image.slidesharecdn.com/2016pycontwwebapiauthentication-160604081733/75/2016-pycontw-web-api-authentication-27-2048.jpg)
![PyJWT
>>> import jwt
>>> jwt_token = jwt.encode({ 'payload': ‘pycontw 2106’ }, 'secret',
algorithm='HS256')
'eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.
eyJwYXlsb2FkIjoicHljb250dyAyMDE2In0.
TRRENrqd8lc3_AQeo3IRheVkZpMkcqXqYQi891pFL6w’
>>> jwt.decode(jwt_token, 'secret', algorithms=[ 'HS256'])
{'payload': 'pycontw 2016'}
31
https://github.com/jpadilla/pyjwt
pip install PyJWT
see more in Registered Claim Names](https://image.slidesharecdn.com/2016pycontwwebapiauthentication-160604081733/75/2016-pycontw-web-api-authentication-31-2048.jpg)
![Flask-JWT
from flask import Flask
from flask_jwt import JWT, jwt_required, current_identity
from werkzeug.security import safe_str_cmp
41
https://pythonhosted.org/Flask-JWT/
pip install Flask-JWT
class User(object):
def __init__(self, id, username, password):
self.id = id
self.username = username
self.password = password
def __str__(self):
return "User(id='%s')" % self.id
users = [
User(1, 'user1', 'abcxyz'),
User(2, 'user2', 'abcxyz'),
]
username_table = {u.username: u for u in users}
userid_table = {u.id: u for u in users}
Minimum viable application configuration:](https://image.slidesharecdn.com/2016pycontwwebapiauthentication-160604081733/75/2016-pycontw-web-api-authentication-41-2048.jpg)
![42
app = Flask(__name__)
app.debug = True
app.config['SECRET_KEY'] = ' super-secret'
jwt = JWT(app, authenticate, identity )
def identity(payload):
user_id = payload['identity']
return userid_table.get(user_id,
None)
def authenticate(username, password):
user = username_table.get(username, None)
if user and safe_str_cmp(user.password.encode('utf-8'), password.encode('utf-8')):
return user
@app.route('/protected')
@jwt_required()
def protected():
return '%s' % current_identity
if __name__ == '__main__':
app.run()
Configuration
JWT_AUTH_URL_RULE:
The authentication endpoint URL.
Defaults to /auth
https://pythonhosted.org/Flask-JWT/
jwt working](https://image.slidesharecdn.com/2016pycontwwebapiauthentication-160604081733/75/2016-pycontw-web-api-authentication-42-2048.jpg)
Uploaded byMicron Technology
2016 pycontw web api authentication
This document discusses JSON Web Tokens (JWT) for authentication. It begins by explaining the need for authorization in web applications and how token-based authentication addresses issues with server-based authentication. The structure of a JWT is described as a JSON object with a header, payload, and signature. Python libraries for working with JWT like PyJWT, Django REST Framework JWT, and Flask-JWT are presented. The document demonstrates generating and verifying JWT in Python code. Examples of using JWT for authentication in the Kalay IoT platform and Diuit messaging API are provided.
More Related Content
Similar to 2016 pycontw web api authentication
![PHP Experience 2016 - [Palestra] Json Web Token (JWT)](https://cdn.slidesharecdn.com/ss_thumbnails/17h00ivanrosolen-160331183444-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
2016 pycontw web api authentication
- 1. Authentication with JSON WebTokens 2016. 06. 04 pyconTW Shuhsi Lin Data Engineer of Throughtek
- 2.
- 3.

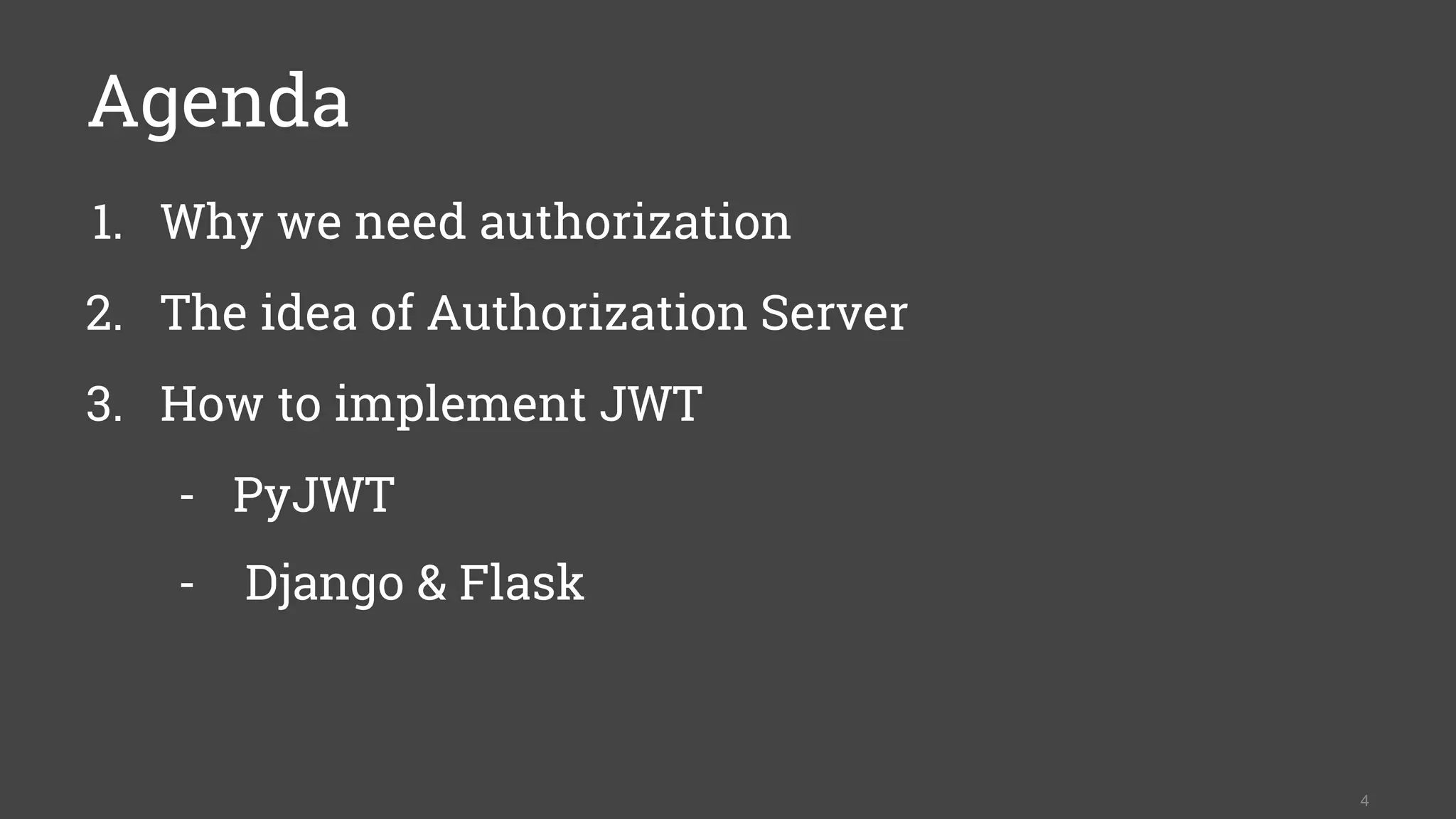

- 4. 1. Why weneed authorization 2. The idea of Authorization Server 3. How to implement JWT - PyJWT - Django & Flask 4 Agenda
- 5. About Me Data Engineerof Throughtek Currently working with - IoT -PaaS - Streaming processing framework - WebAPI - Lurking in PyHug, Taipei.py and various Meetups 5 Shuhsi Lin sucitw@gmail.com shuhsi_lin@tutk.com

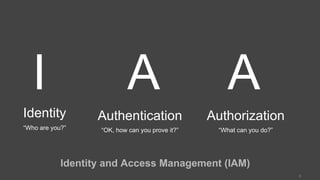

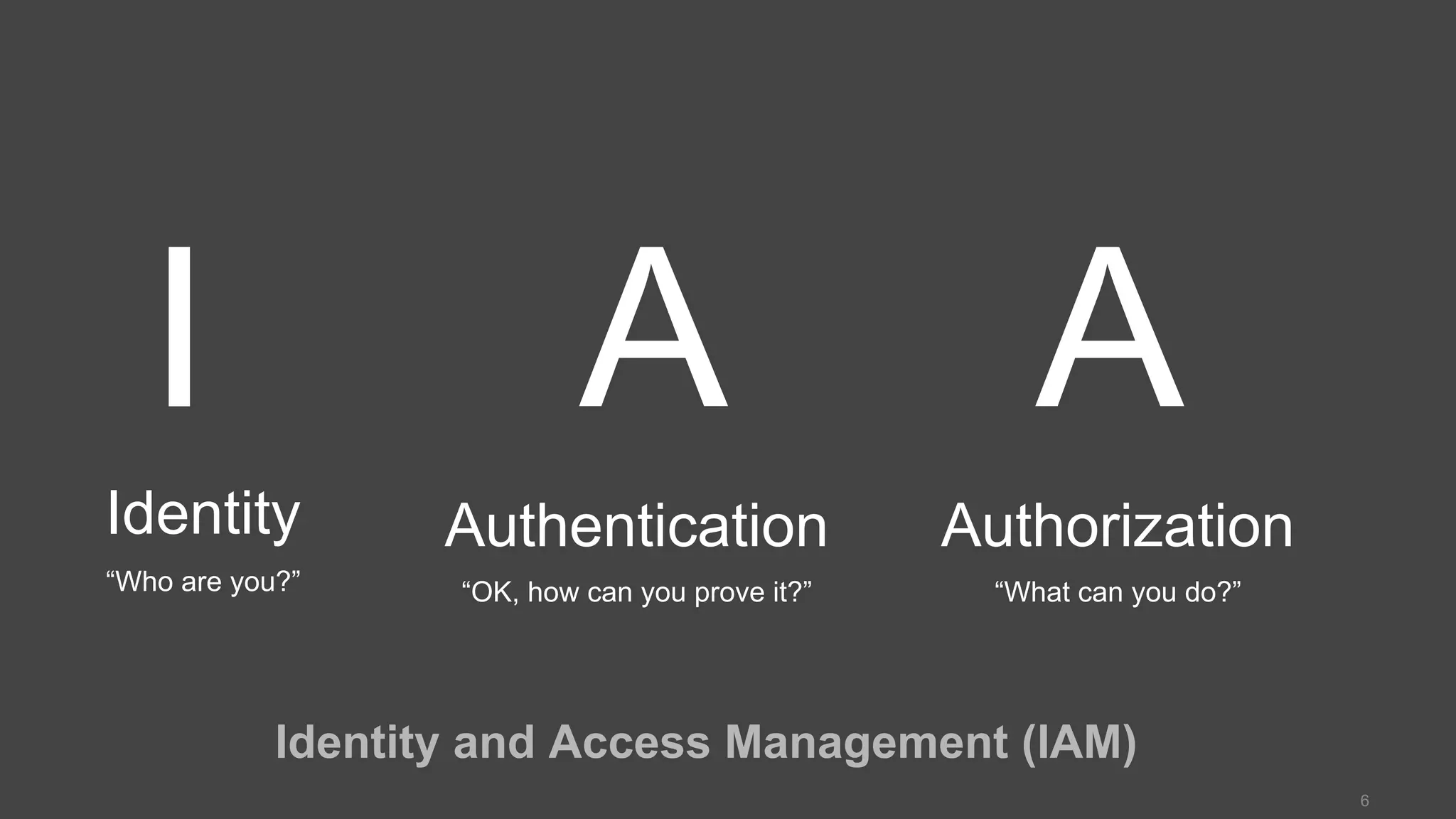

- 6. I A A Identity “Whoare you?” 6 Authentication “OK, how can you prove it?” Authorization “What can you do?” Identity and Access Management (IAM)
- 7. Copyright © 2016ThroughTek Co., Ltd. All rights reserved. Confidential. Do not distribute. 7 • Generic applications • Customization service • Kalay Kit • FW integration micro-service system
- 8. Turnkey Solution forRapid IoT Deployment Kalay Platform
- 9.
- 10. Copyright © 2016ThroughTek Co., Ltd. All rights reserved. Confidential. Do not distribute. 10 10 “Handshake” in the language of the aboriginal Tao people of Taiwan Connecting All Devices

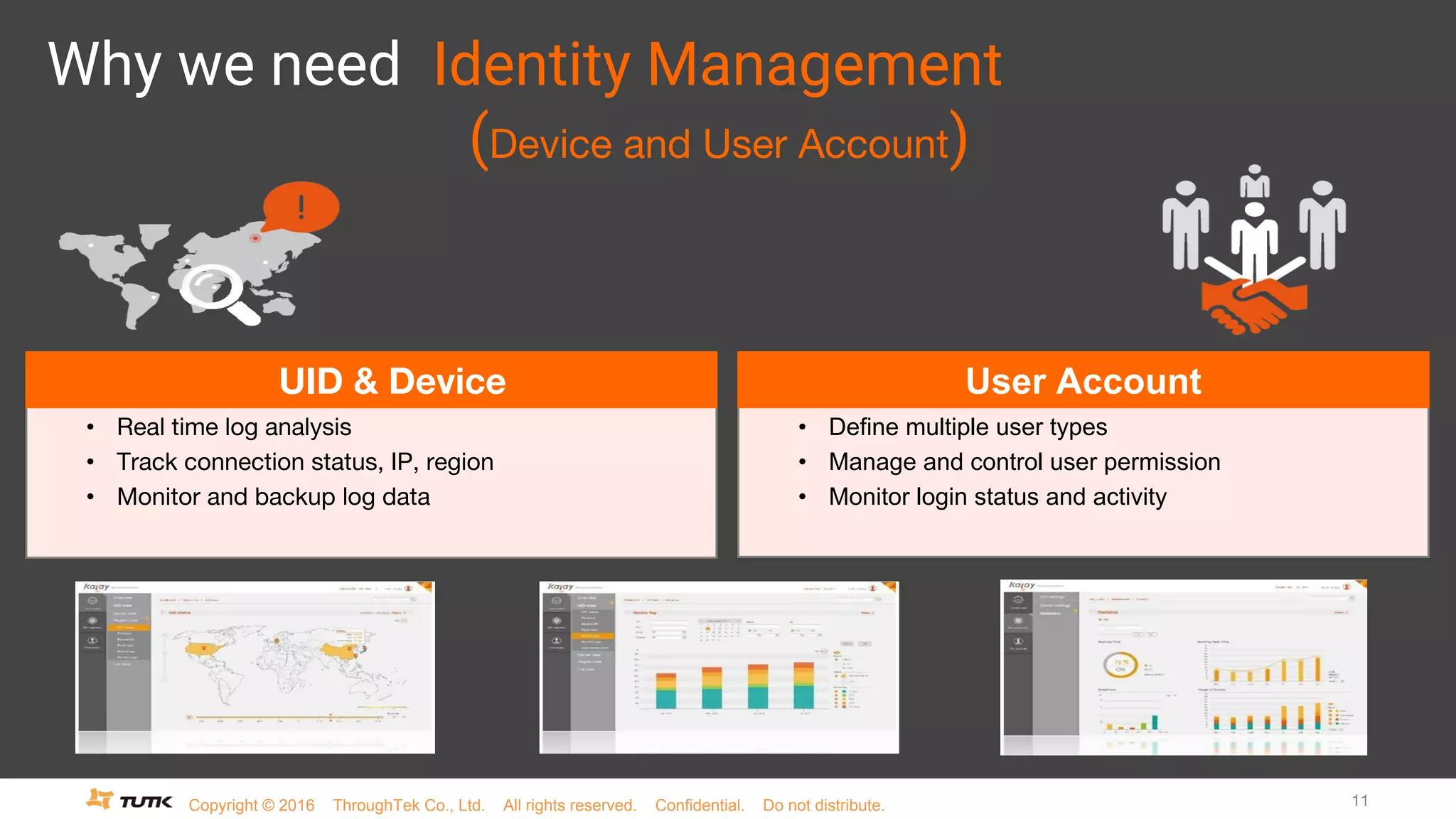

- 11. Copyright © 2016ThroughTek Co., Ltd. All rights reserved. Confidential. Do not distribute. 11 User Account • Define multiple user types • Manage and control user permission • Monitor login status and activity UID & Device • Real time log analysis • Track connection status, IP, region • Monitor and backup log data Why we need Identity Management (Device and User Account)
- 12. A server hasto know who is requesting the resource 12

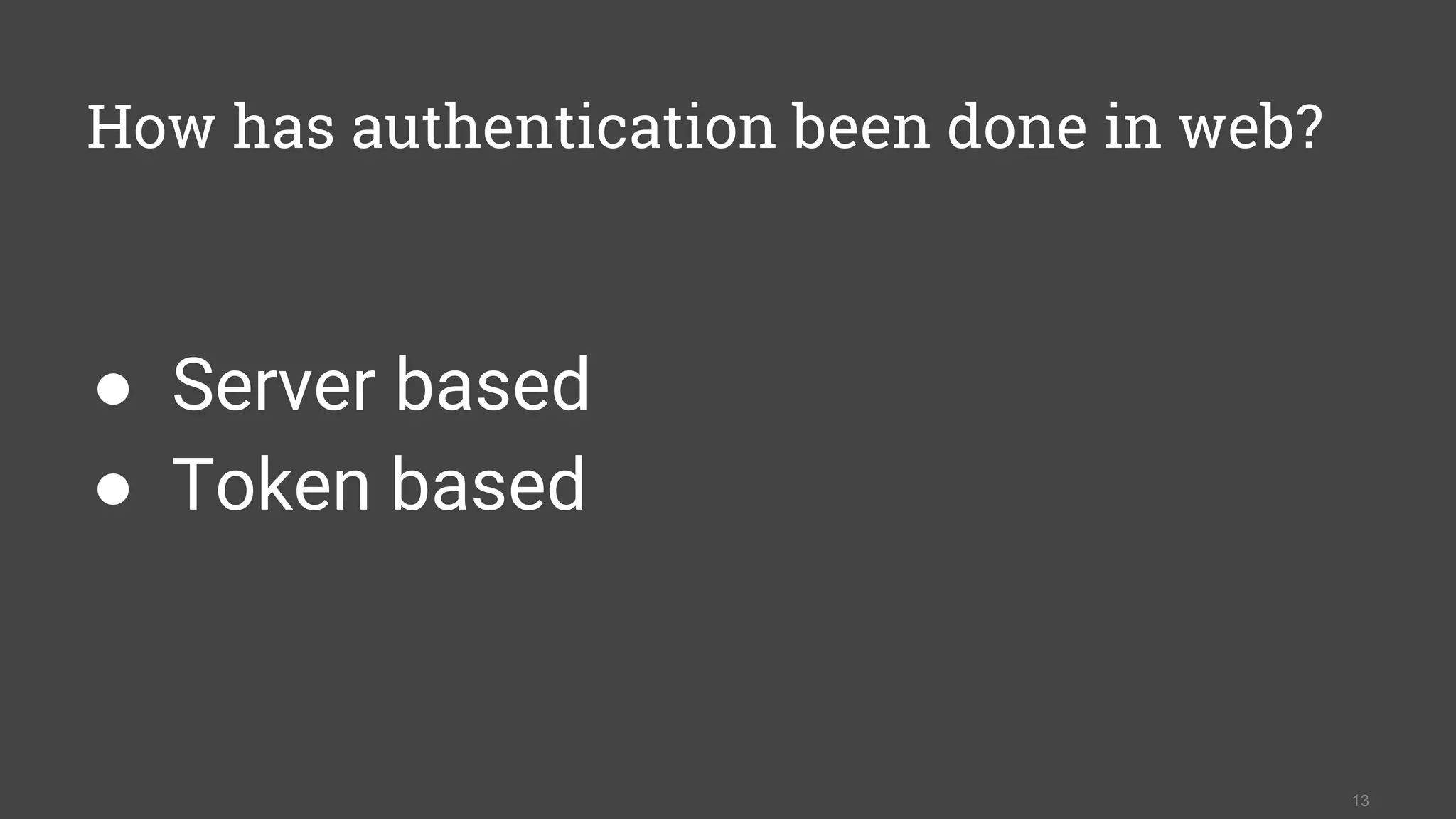

- 13. How has authenticationbeen done in web? 13 ● Server based ● Token based

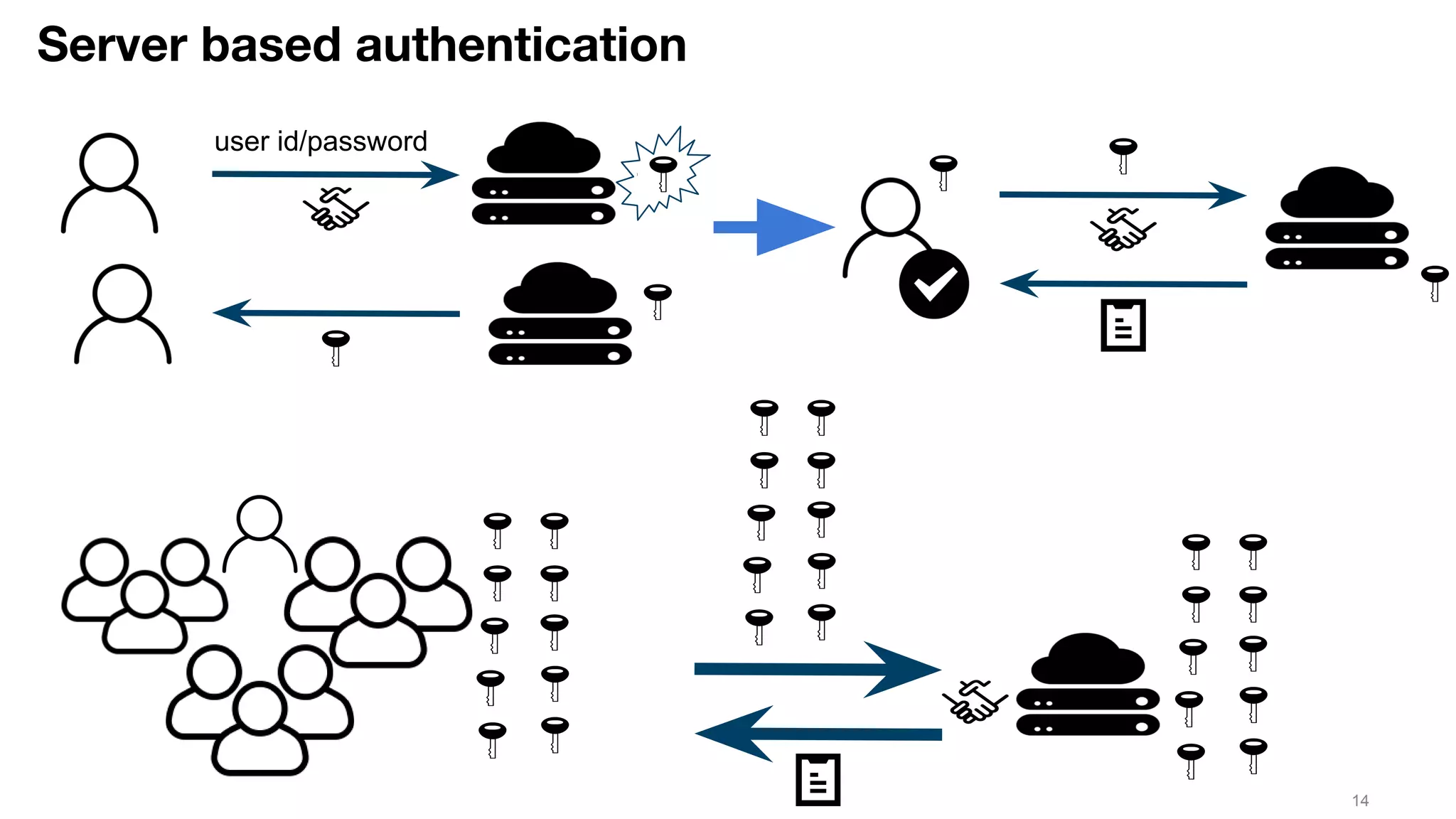

- 14. Server based authentication 14 userid/password

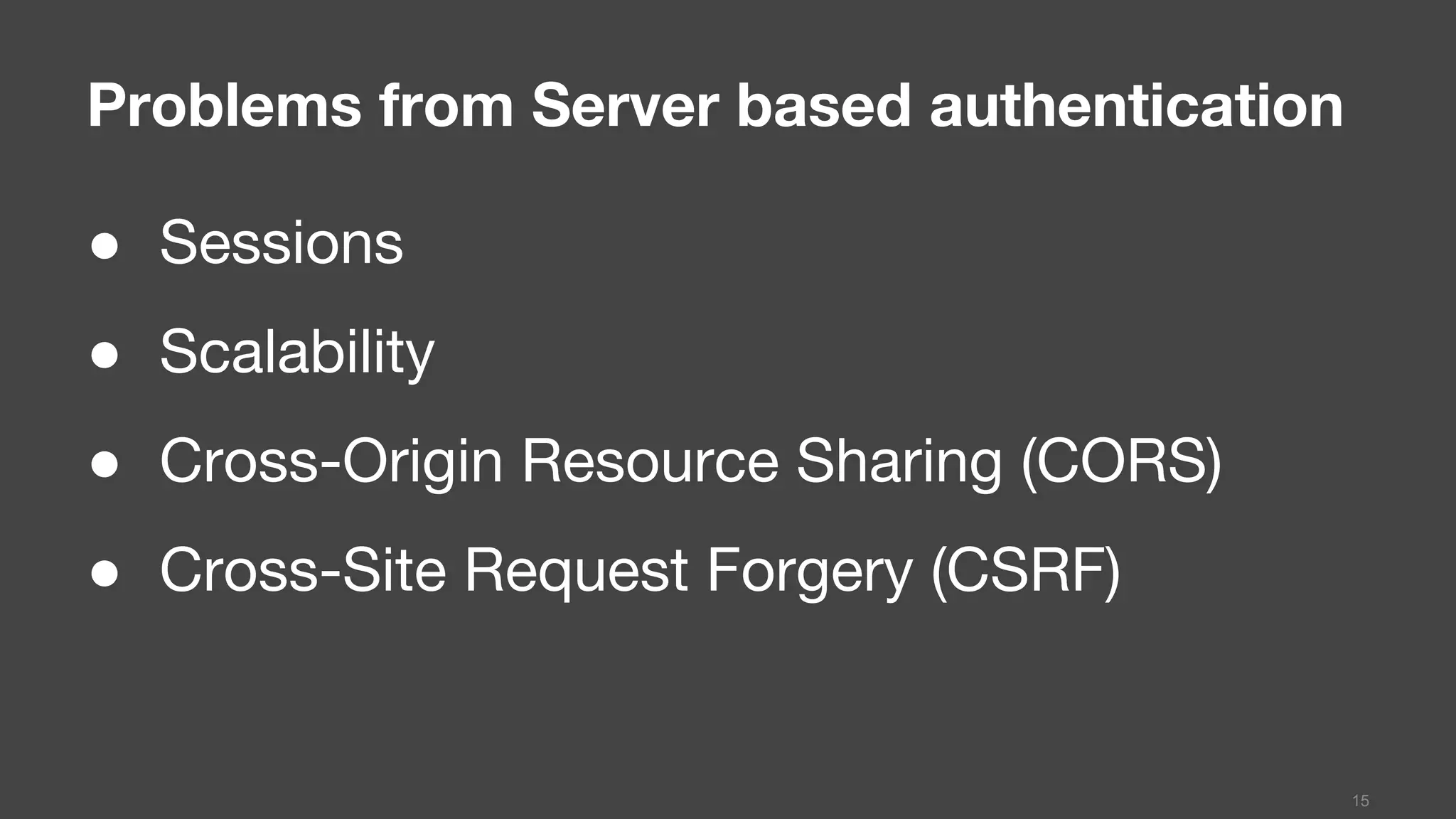

- 15. Problems from Serverbased authentication ● Sessions ● Scalability ● Cross-Origin Resource Sharing (CORS) ● Cross-Site Request Forgery (CSRF) 15

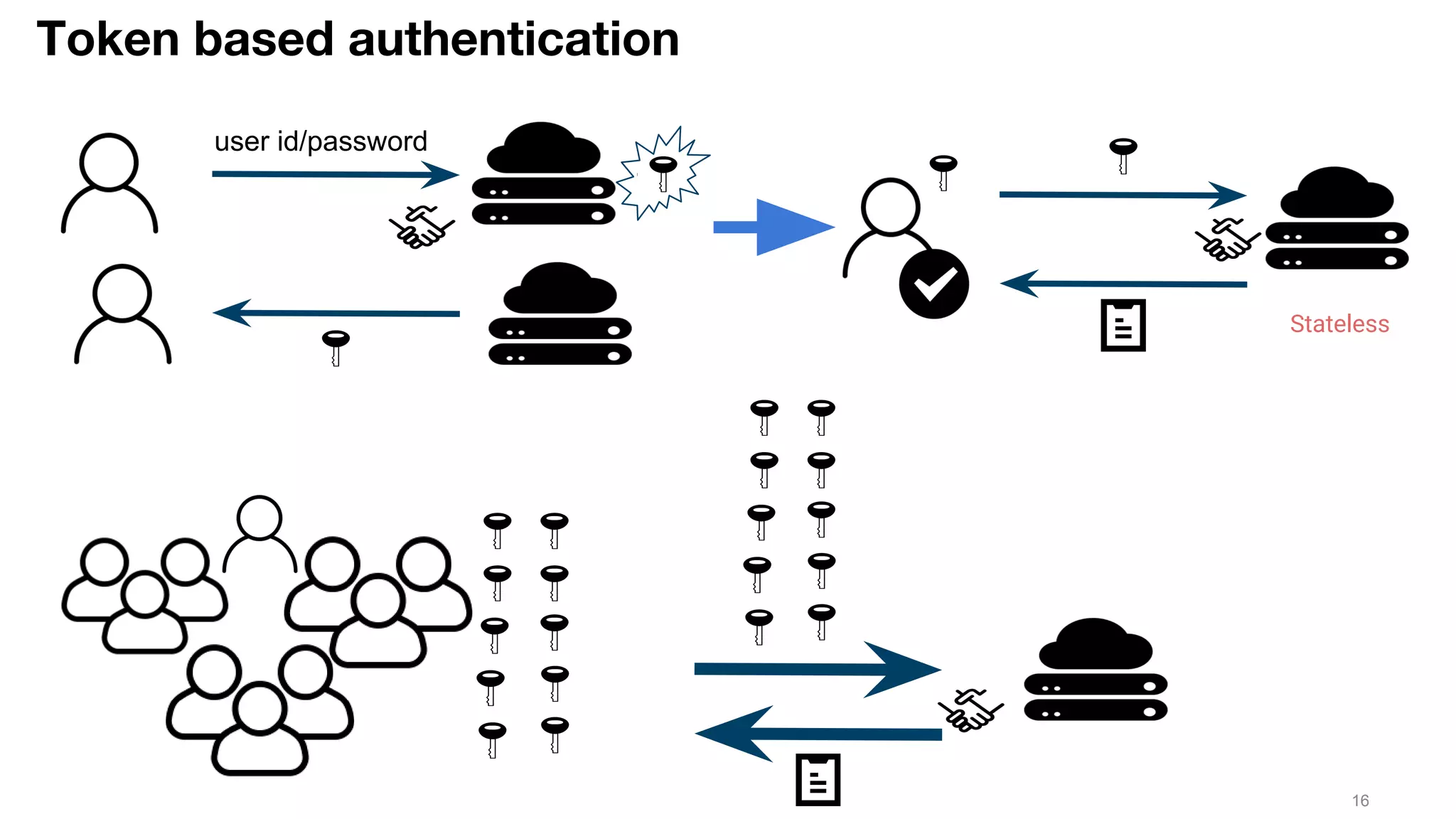

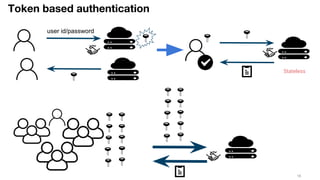

- 16. Token based authentication 16 userid/password Stateless

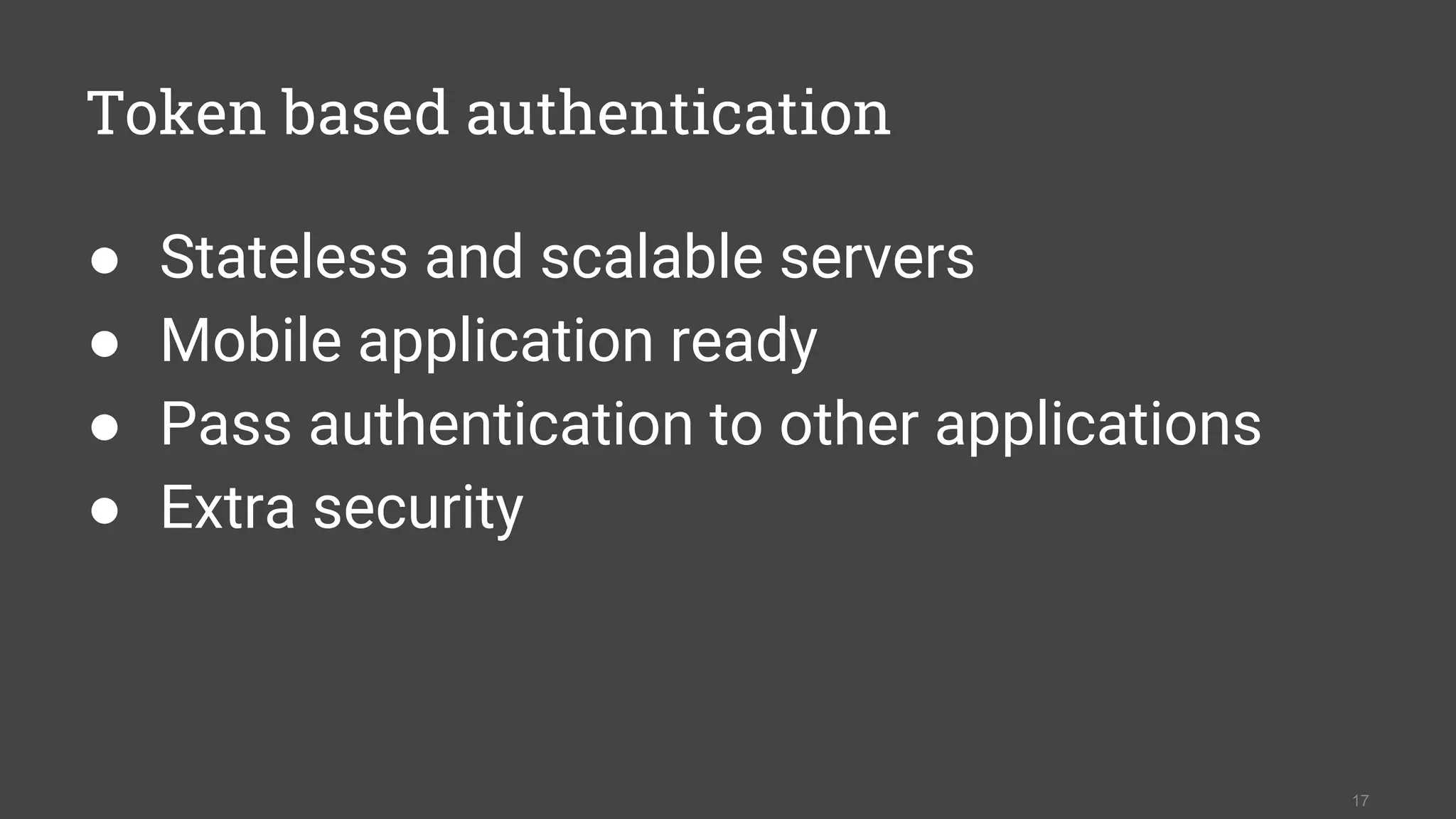

- 17. Token based authentication ●Stateless and scalable servers ● Mobile application ready ● Pass authentication to other applications ● Extra security 17

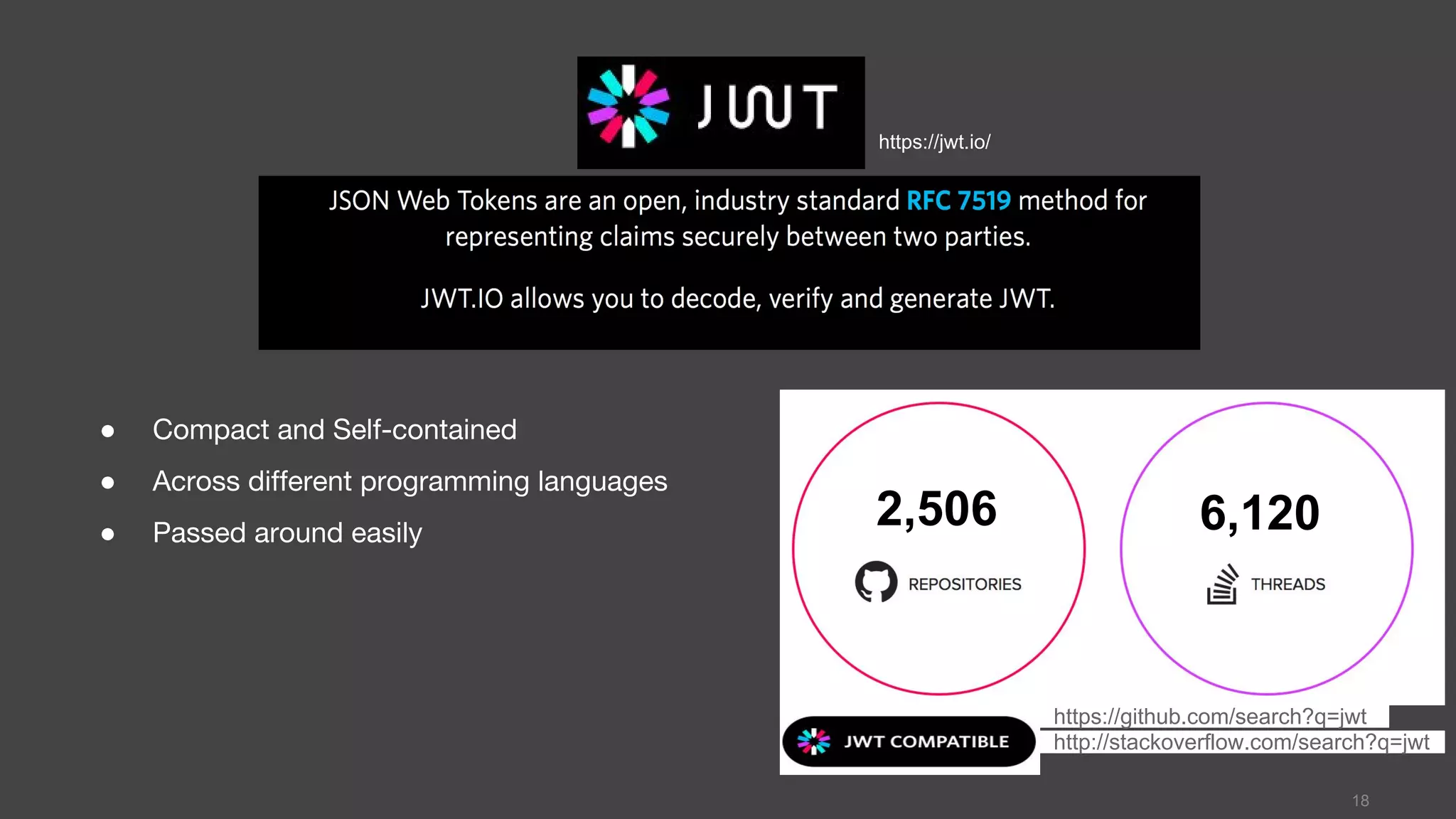

- 18. 18 https://jwt.io/ 2,506 6,120 https://github.com/search?q=jwt http://stackoverflow.com/search?q=jwt ● Compactand Self-contained ● Across different programming languages ● Passed around easily

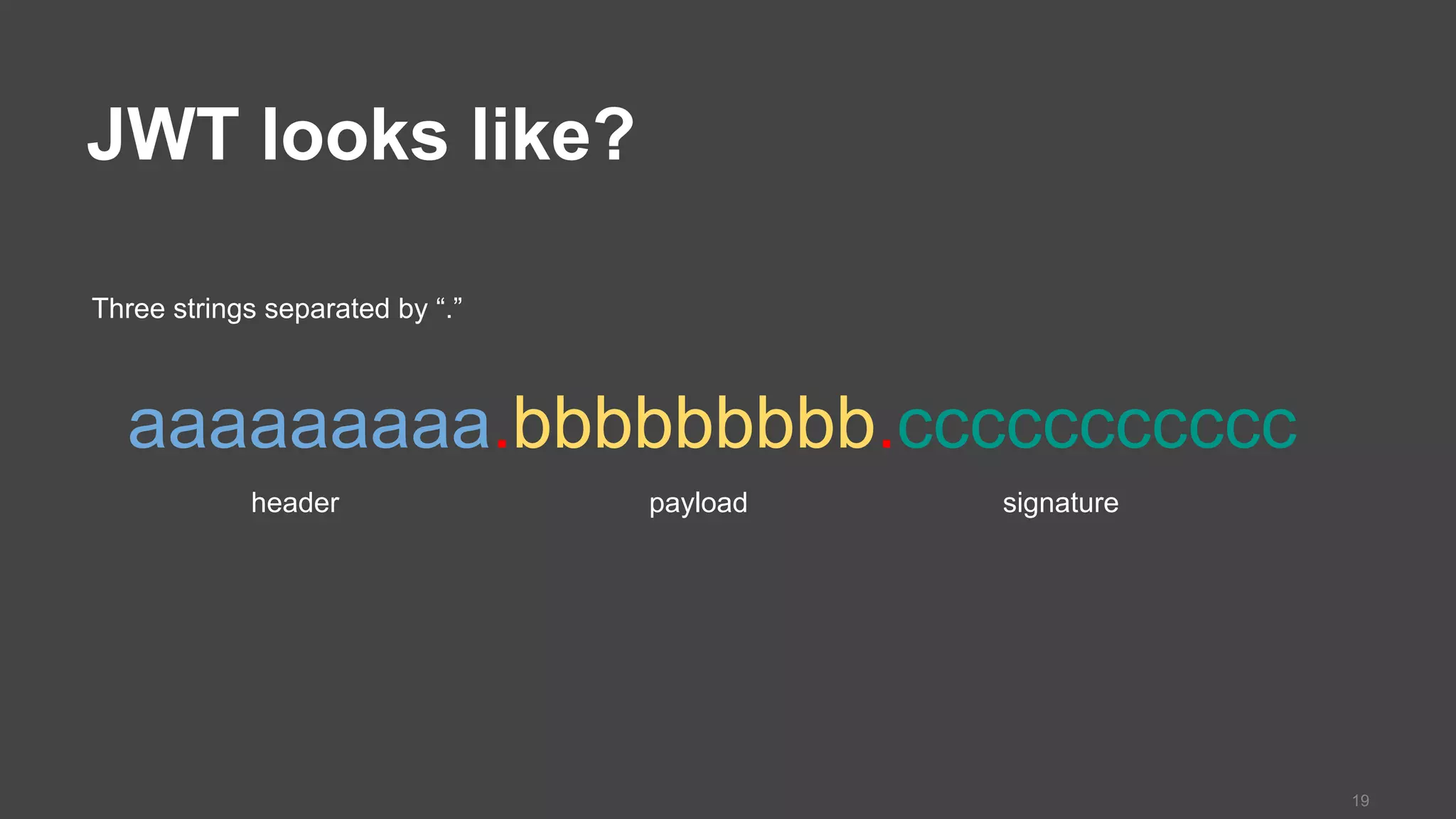

- 19. JWT looks like? 19 Threestrings separated by “.” aaaaaaaaa.bbbbbbbbb.ccccccccccc header payload signature
- 20.
- 21. How usually JSONWeb Tokens work ? 21

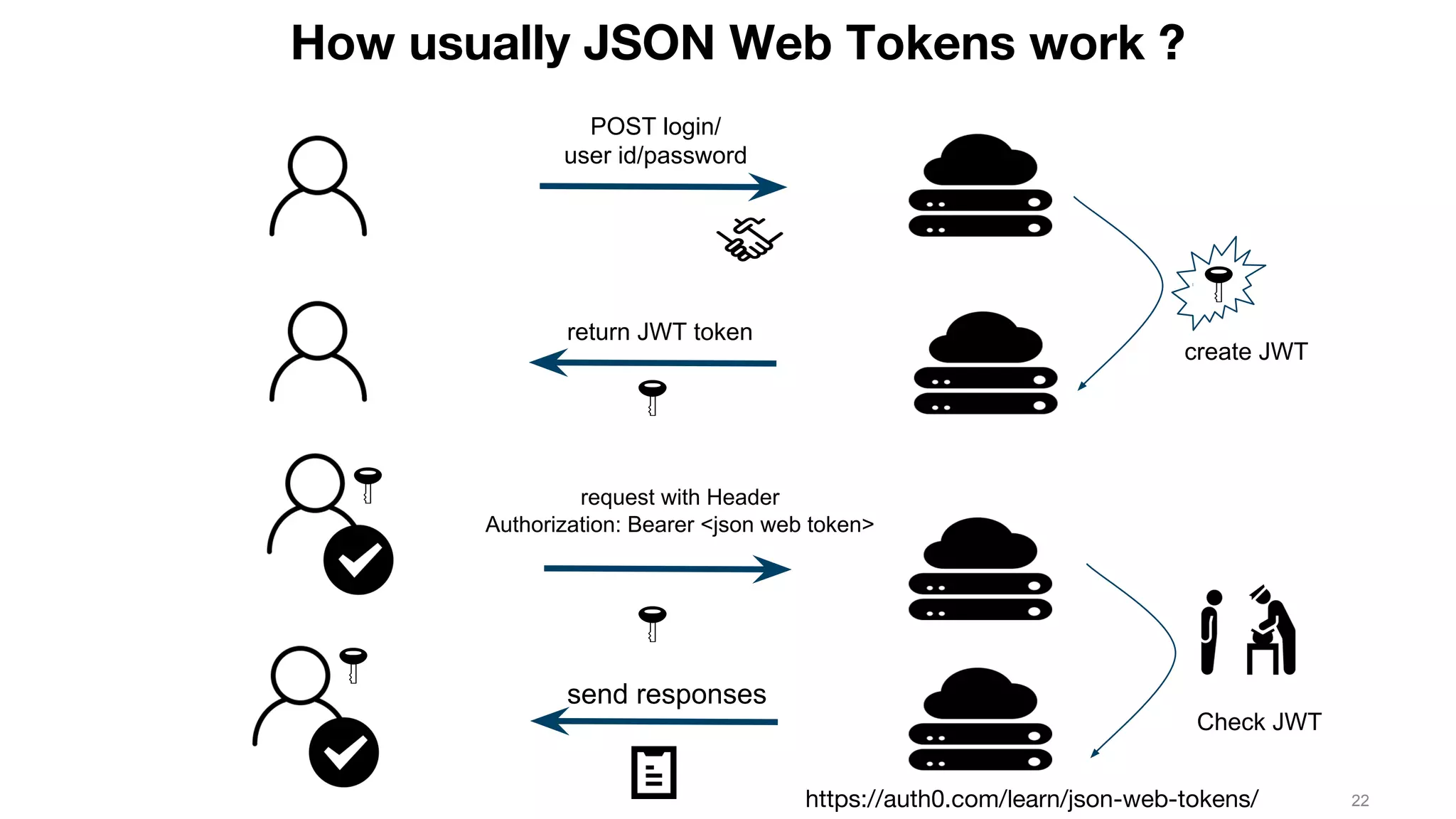

- 22. How usually JSONWeb Tokens work ? 22 POST login/ user id/password https://auth0.com/learn/json-web-tokens/ return JWT token request with Header Authorization: Bearer <json web token> create JWT Check JWT send responses

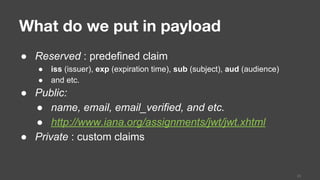

- 23. What do weput in payload ● Reserved : predefined claim ● iss (issuer), exp (expiration time), sub (subject), aud (audience) ● and etc. ● Public: ● name, email, email_verified, and etc. ● http://www.iana.org/assignments/jwt/jwt.xhtml ● Private : custom claims 23
- 24. How to implementit in python ? 24
- 25. 25 In [1]: importjson In [2]: import hmac In [3]: from hashlib import sha256 In [4]: from base64 import urlsafe_b64encode In [5]: segments =[] In [6]: header_dict = { ...: 'typ': 'JWT', ...: 'alg': 'HS256' ...: } In [7]: json_header = json.dumps(header_dict).encode('utf-8') In [8]: header = urlsafe_b64encode(json_header) In [9]: segments.append(header) In [10]: segments Out[10]: [b'eyJ0eXAiOiAiSldUIiwgImFsZyI6ICJIUzI1NiJ9']
- 26. 26 In [11]: payload_dict= { ....: 'user_id':'pythontw2016' ....: } In [12]: json_payload =json.dumps(payload_dict).encode('utf-8') In [13]: payload = urlsafe_b64encode(json_payload) In [14]: segments.append(payload) In [15]: segments Out[15]: [b'eyJ0eXAiOiAiSldUIiwgImFsZyI6ICJIUzI1NiJ9', b'eyJ1c2VyX2lkIjogInB5dGhvbnR3MjAxNiJ9']
- 27. 27 In [16]: SECRET= b'secret' In [17]: signing_input = b'.'.join(segments) In [18]: sig = hmac.new (SECRET, signing_input, sha256) In [19]: signature = urlsafe_b64encode(sig.digest()) In [20]: segments.append(signature) In [21]: segments Out[21]: [b'eyJ0eXAiOiAiSldUIiwgImFsZyI6ICJIUzI1NiJ9', b'eyJ1c2VyX2lkIjogInB5dGhvbnR3MjAxNiJ9', b'qhevGfl16LBHjRG2wb6xDitbGt3lDK-2iUYCsLseCJY='] In [22]: token = b'.'.join(segments) In [23]: token Out[23]: b'eyJ0eXAiOiAiSldUIiwgImFsZyI6ICJIUzI1NiJ9. eyJ1c2VyX2lkIjogInB5dGhvbnR3MjAxNiJ9.qhevGfl16LBHjRG2wb6xDitbGt3lDK- 2iUYCsLseCJY=' Test this token in https://jwt.io/
- 28. We don’t needto reinvent the wheel 28
- 29.

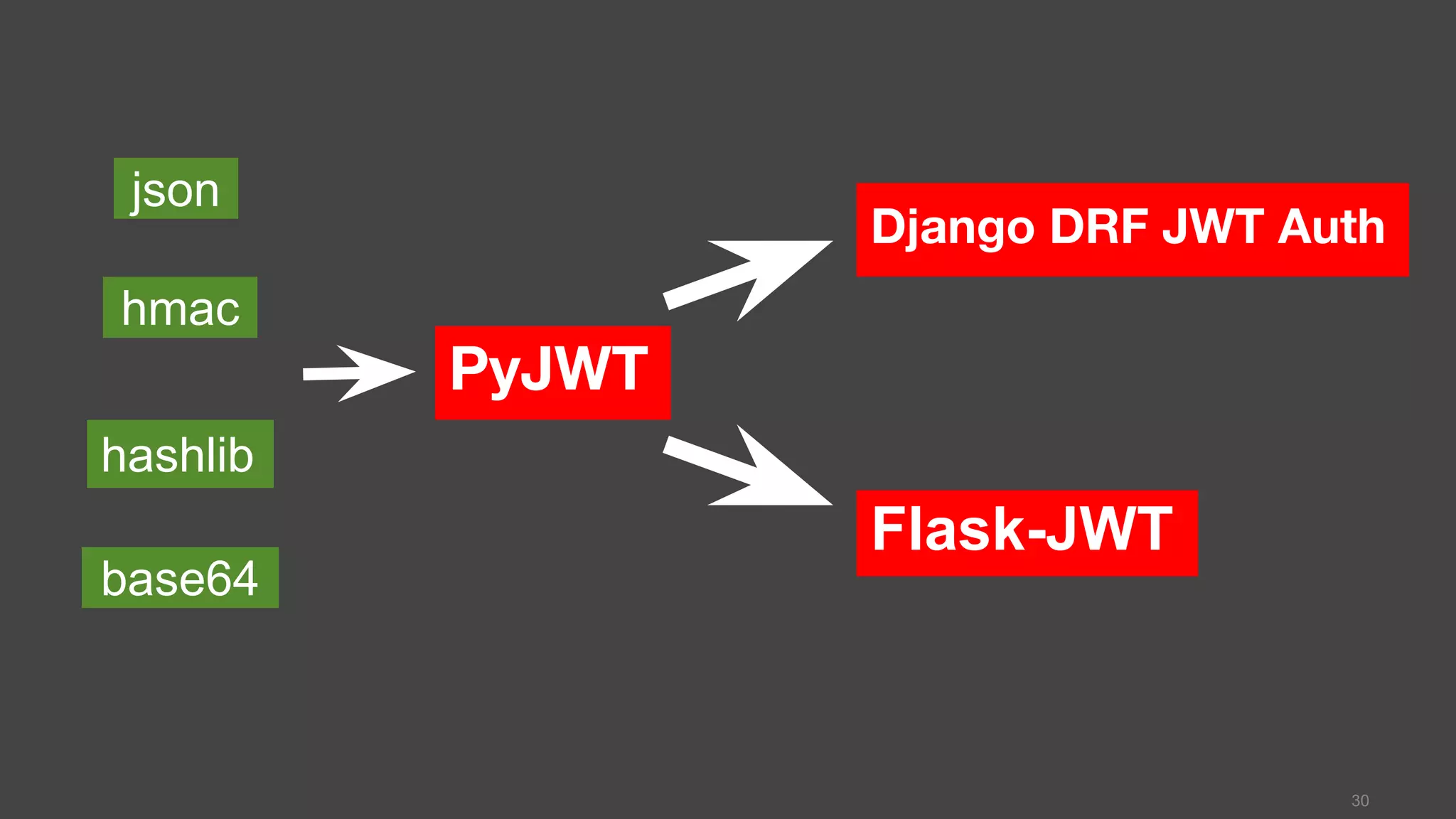

- 30. 30 PyJWT Django DRF JWTAuth json hmac base64 hashlib Flask-JWT

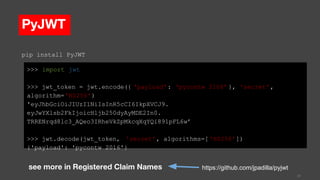

- 31. PyJWT >>> import jwt >>>jwt_token = jwt.encode({ 'payload': ‘pycontw 2106’ }, 'secret', algorithm='HS256') 'eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9. eyJwYXlsb2FkIjoicHljb250dyAyMDE2In0. TRRENrqd8lc3_AQeo3IRheVkZpMkcqXqYQi891pFL6w’ >>> jwt.decode(jwt_token, 'secret', algorithms=[ 'HS256']) {'payload': 'pycontw 2016'} 31 https://github.com/jpadilla/pyjwt pip install PyJWT see more in Registered Claim Names
- 32.

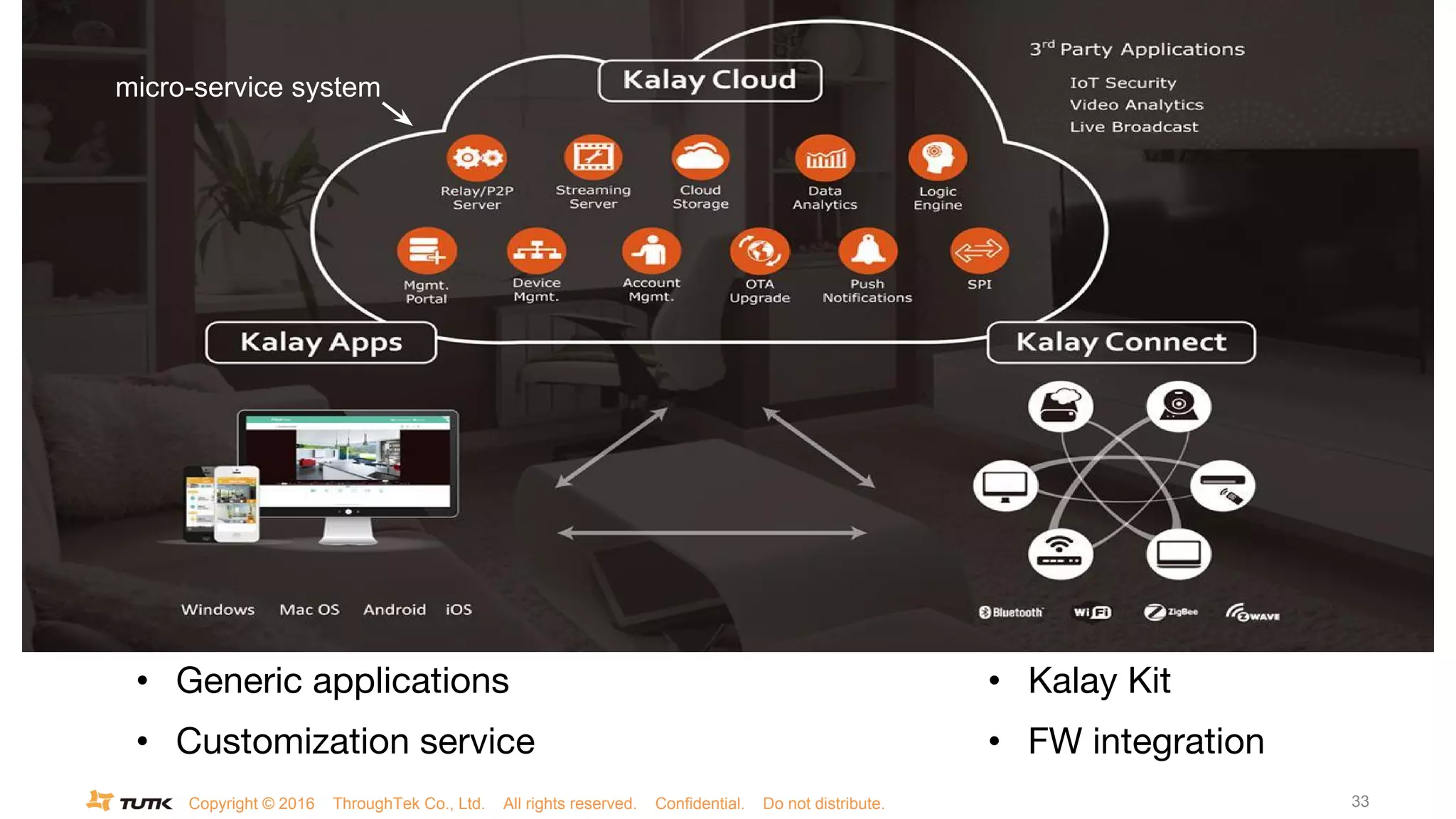

- 33. Copyright © 2016ThroughTek Co., Ltd. All rights reserved. Confidential. Do not distribute. 33 • Generic applications • Customization service • Kalay Kit • FW integration micro-service system

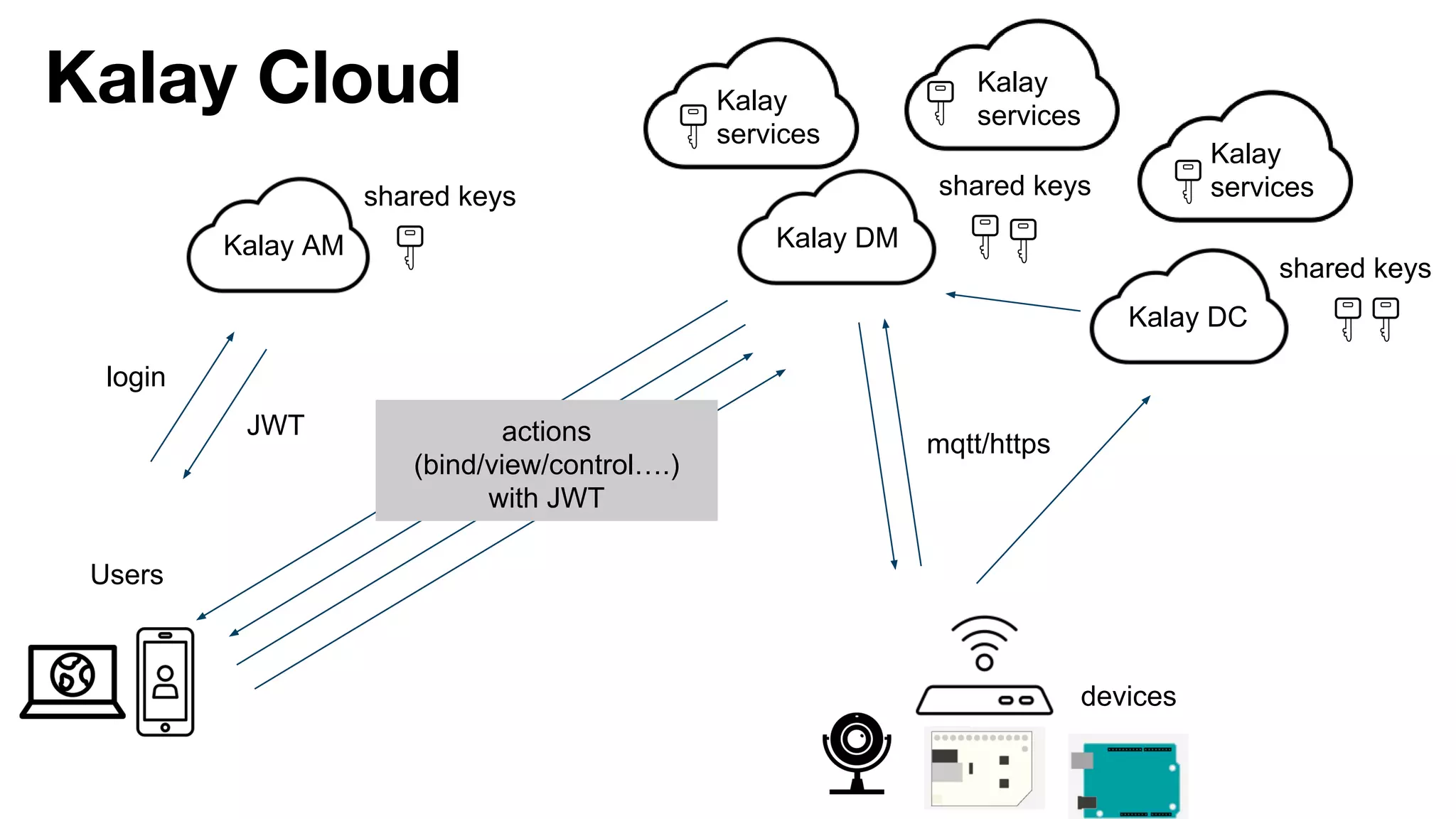

- 34. Kalay services Users Kalay AM KalayDM JWT login Kalay DC mqtt/https shared keys shared keys shared keys Kalay Cloud Kalay services Kalay services devices actions (bind/view/control….) with JWT

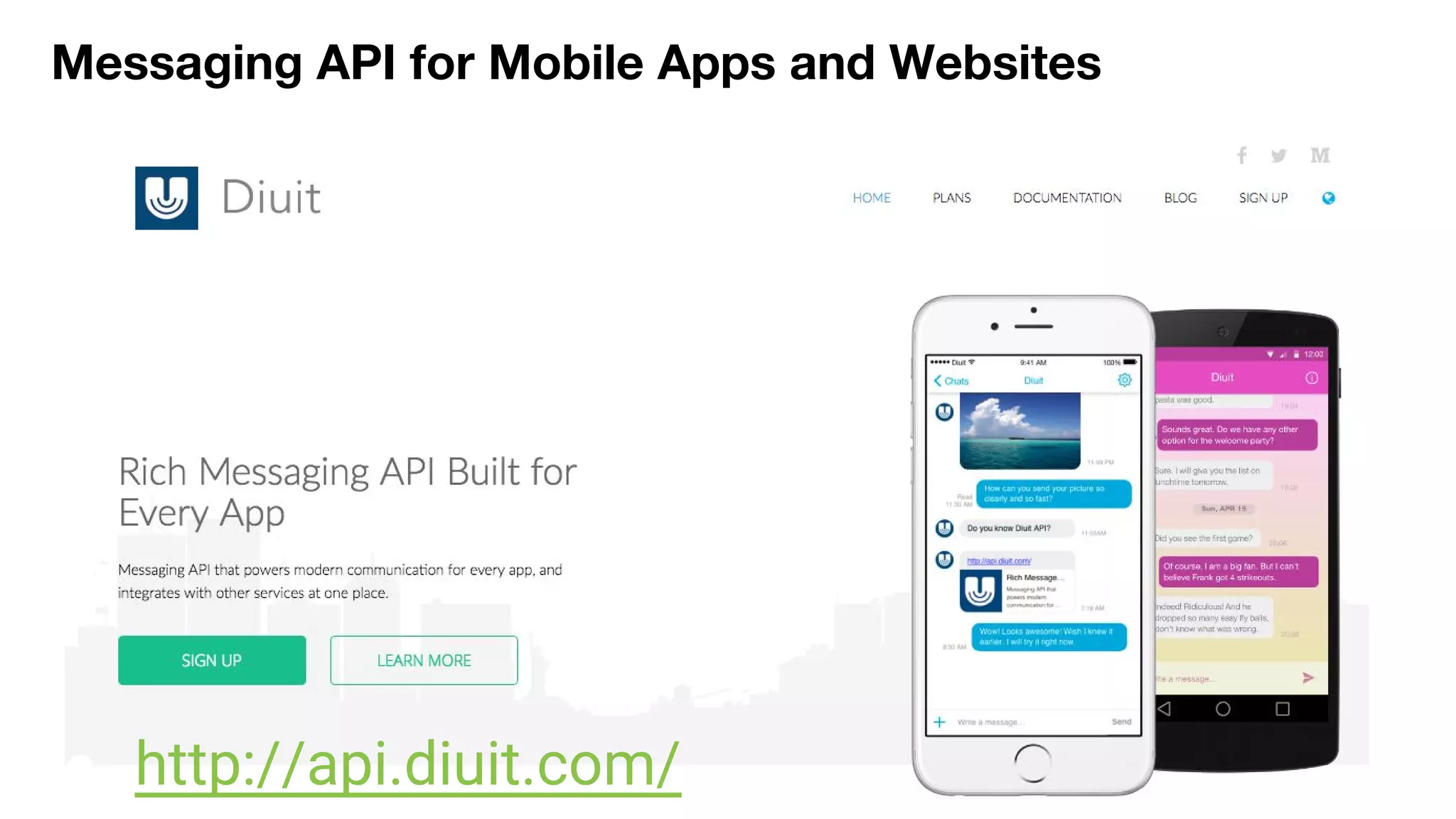

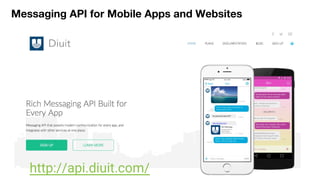

- 35. Messaging API forMobile Apps and Websites ● http://api.diuit.com/

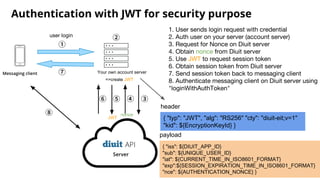

- 36. Authentication with JWTfor security purpose 1. User sends login request with credential 2. Auth user on your server (account server) 3. Request for Nonce on Diuit server 4. Obtain nonce from Diuit server 5. Use JWT to request session token 6. Obtain session token from Diuit server 7. Send session token back to messaging client 8. Authenticate messaging client on Diuit server using "loginWithAuthToken" JWT Your own account server user login nonce =>create JWT { "typ": "JWT", "alg": "RS256" "cty": "diuit-eit;v=1" "kid": ${EncryptionKeyId} } header { "iss": ${DIUIT_APP_ID} "sub": ${UNIQUE_USER_ID} "iat": ${CURRENT_TIME_IN_ISO8601_FORMAT} "exp":${SESSION_EXPIRATION_TIME_IN_ISO8601_FORMAT} "nce": ${AUTHENTICATION_NONCE} } payload

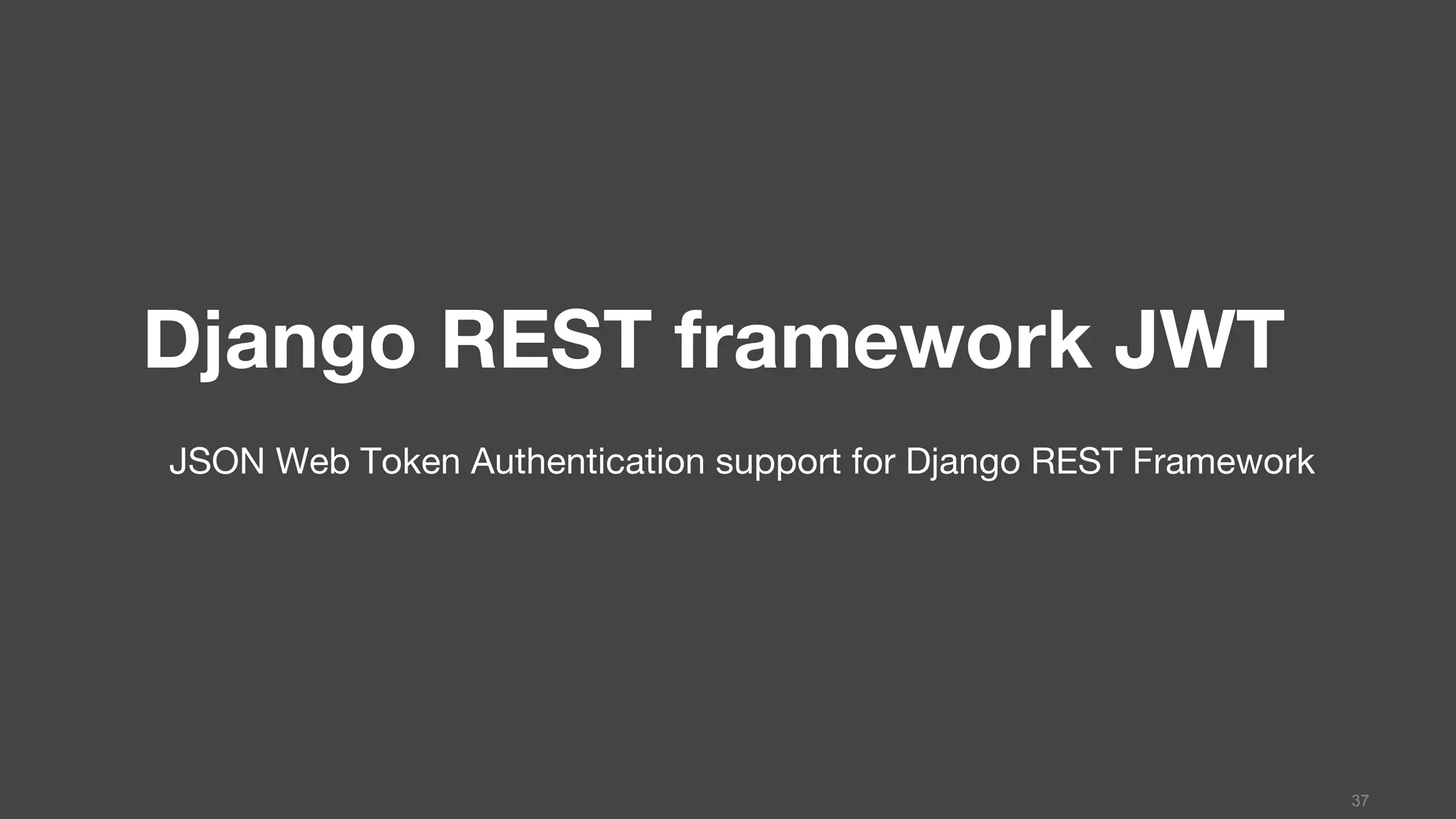

- 37. Django REST frameworkJWT JSON Web Token Authentication support for Django REST Framework 37

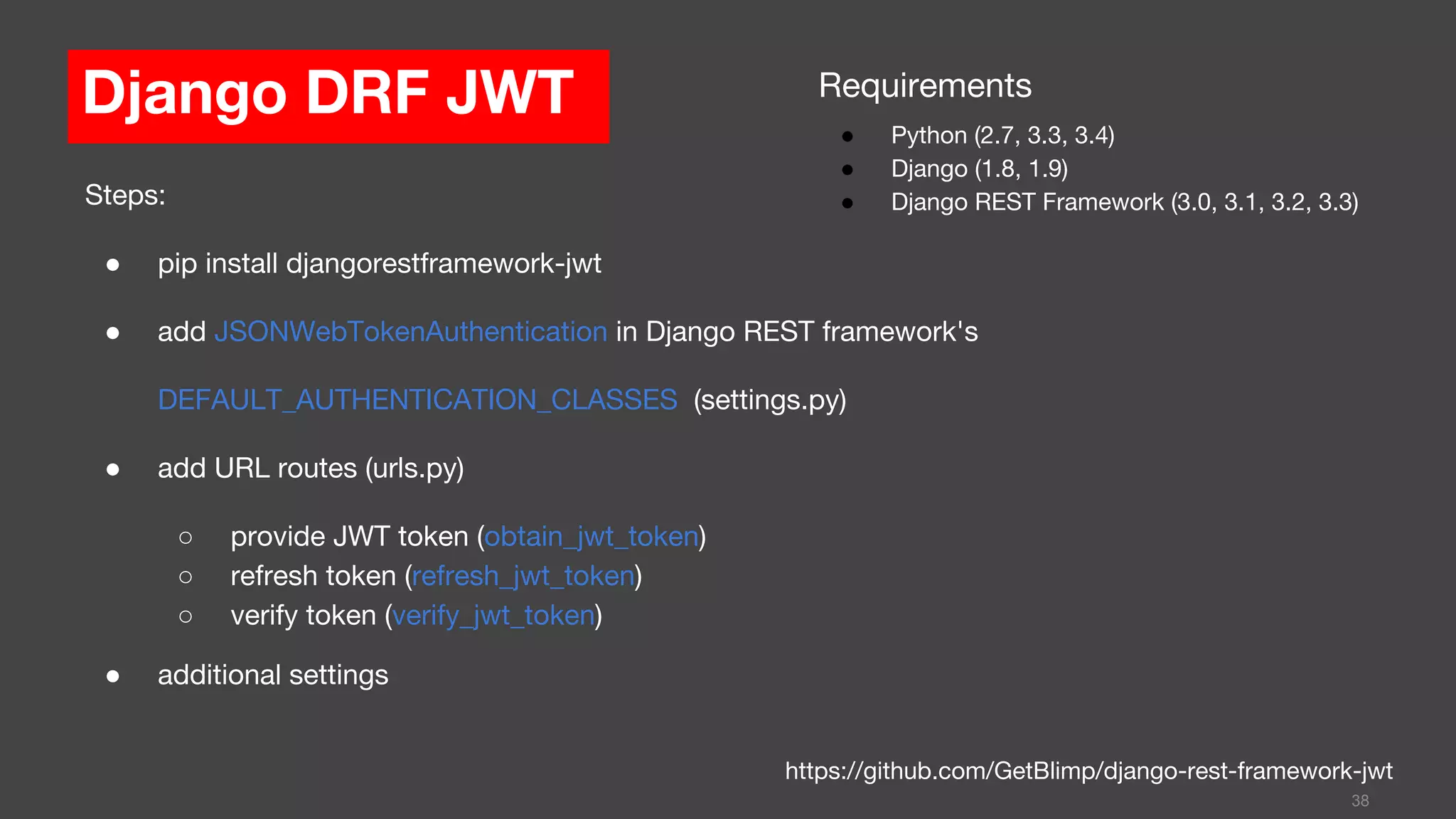

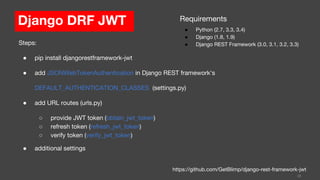

- 38. Django DRF JWT 38 https://github.com/GetBlimp/django-rest-framework-jwt Steps: ●pip install djangorestframework-jwt ● add JSONWebTokenAuthentication in Django REST framework's DEFAULT_AUTHENTICATION_CLASSES (settings.py) ● add URL routes (urls.py) ○ provide JWT token (obtain_jwt_token) ○ refresh token (refresh_jwt_token) ○ verify token (verify_jwt_token) ● additional settings Requirements ● Python (2.7, 3.3, 3.4) ● Django (1.8, 1.9) ● Django REST Framework (3.0, 3.1, 3.2, 3.3)

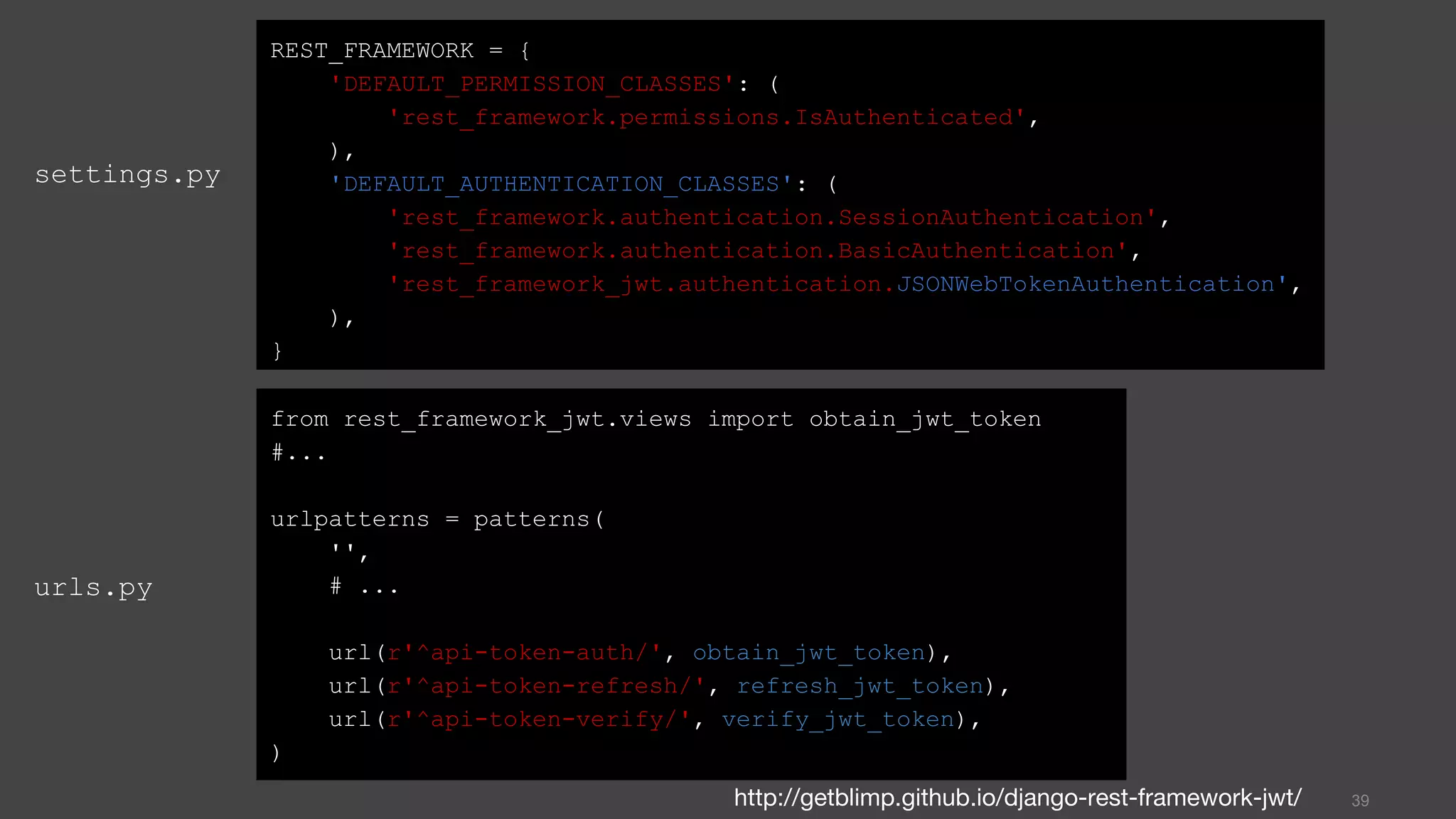

- 39. settings.py 39 REST_FRAMEWORK = { 'DEFAULT_PERMISSION_CLASSES':( 'rest_framework.permissions.IsAuthenticated', ), 'DEFAULT_AUTHENTICATION_CLASSES': ( 'rest_framework.authentication.SessionAuthentication', 'rest_framework.authentication.BasicAuthentication', 'rest_framework_jwt.authentication.JSONWebTokenAuthentication', ), } from rest_framework_jwt.views import obtain_jwt_token #... urlpatterns = patterns( '', # ... url(r'^api-token-auth/', obtain_jwt_token), url(r'^api-token-refresh/', refresh_jwt_token), url(r'^api-token-verify/', verify_jwt_token), ) urls.py http://getblimp.github.io/django-rest-framework-jwt/
- 40. Flask-JWT Add basic JWTfeatures to your Flask application 40 https://pythonhosted.org/Flask-JWT/
- 41. Flask-JWT from flask importFlask from flask_jwt import JWT, jwt_required, current_identity from werkzeug.security import safe_str_cmp 41 https://pythonhosted.org/Flask-JWT/ pip install Flask-JWT class User(object): def __init__(self, id, username, password): self.id = id self.username = username self.password = password def __str__(self): return "User(id='%s')" % self.id users = [ User(1, 'user1', 'abcxyz'), User(2, 'user2', 'abcxyz'), ] username_table = {u.username: u for u in users} userid_table = {u.id: u for u in users} Minimum viable application configuration:
- 42. 42 app = Flask(__name__) app.debug= True app.config['SECRET_KEY'] = ' super-secret' jwt = JWT(app, authenticate, identity ) def identity(payload): user_id = payload['identity'] return userid_table.get(user_id, None) def authenticate(username, password): user = username_table.get(username, None) if user and safe_str_cmp(user.password.encode('utf-8'), password.encode('utf-8')): return user @app.route('/protected') @jwt_required() def protected(): return '%s' % current_identity if __name__ == '__main__': app.run() Configuration JWT_AUTH_URL_RULE: The authentication endpoint URL. Defaults to /auth https://pythonhosted.org/Flask-JWT/ jwt working

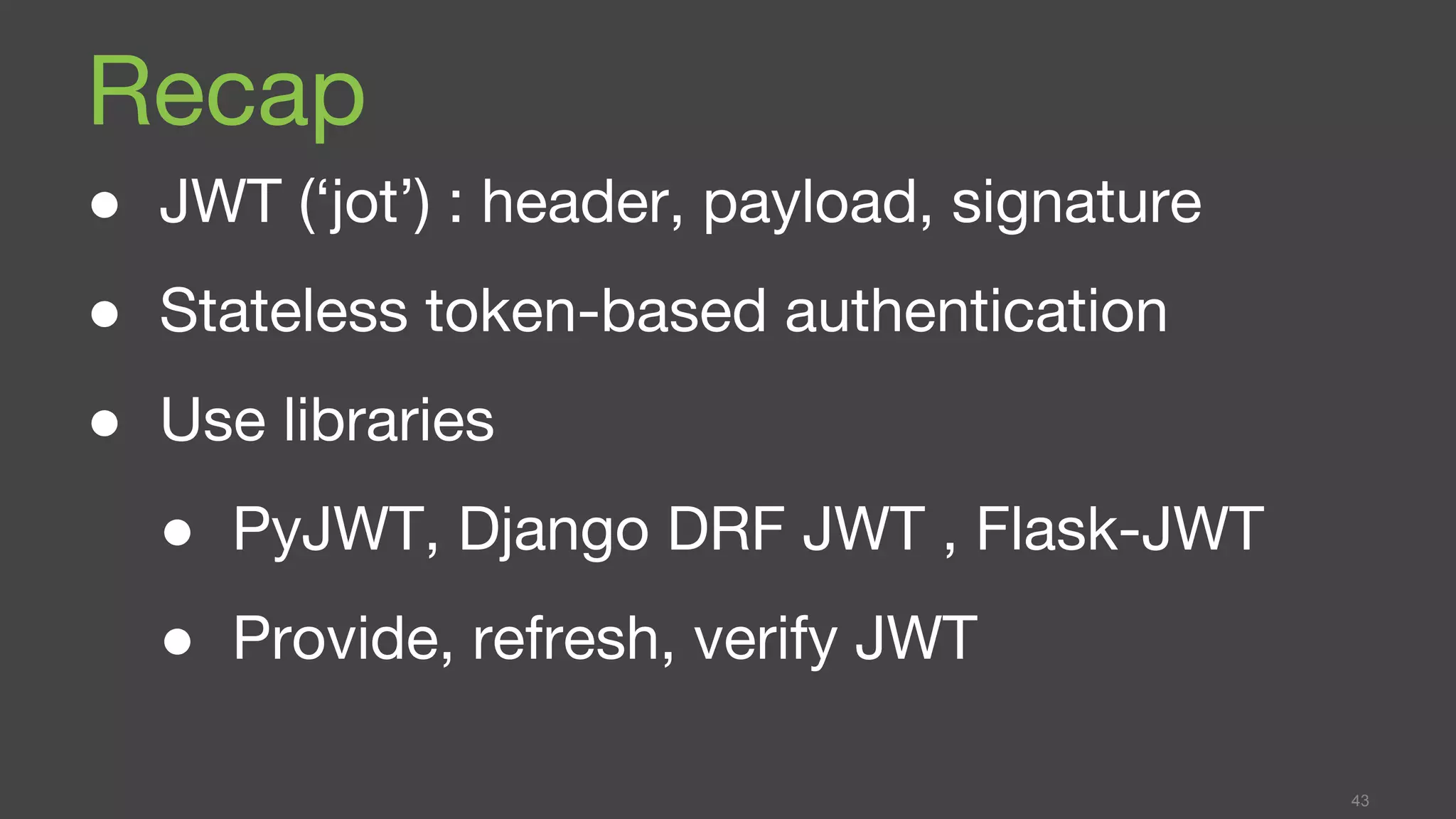

- 43. Recap ● JWT (‘jot’): header, payload, signature ● Stateless token-based authentication ● Use libraries ● PyJWT, Django DRF JWT , Flask-JWT ● Provide, refresh, verify JWT 43

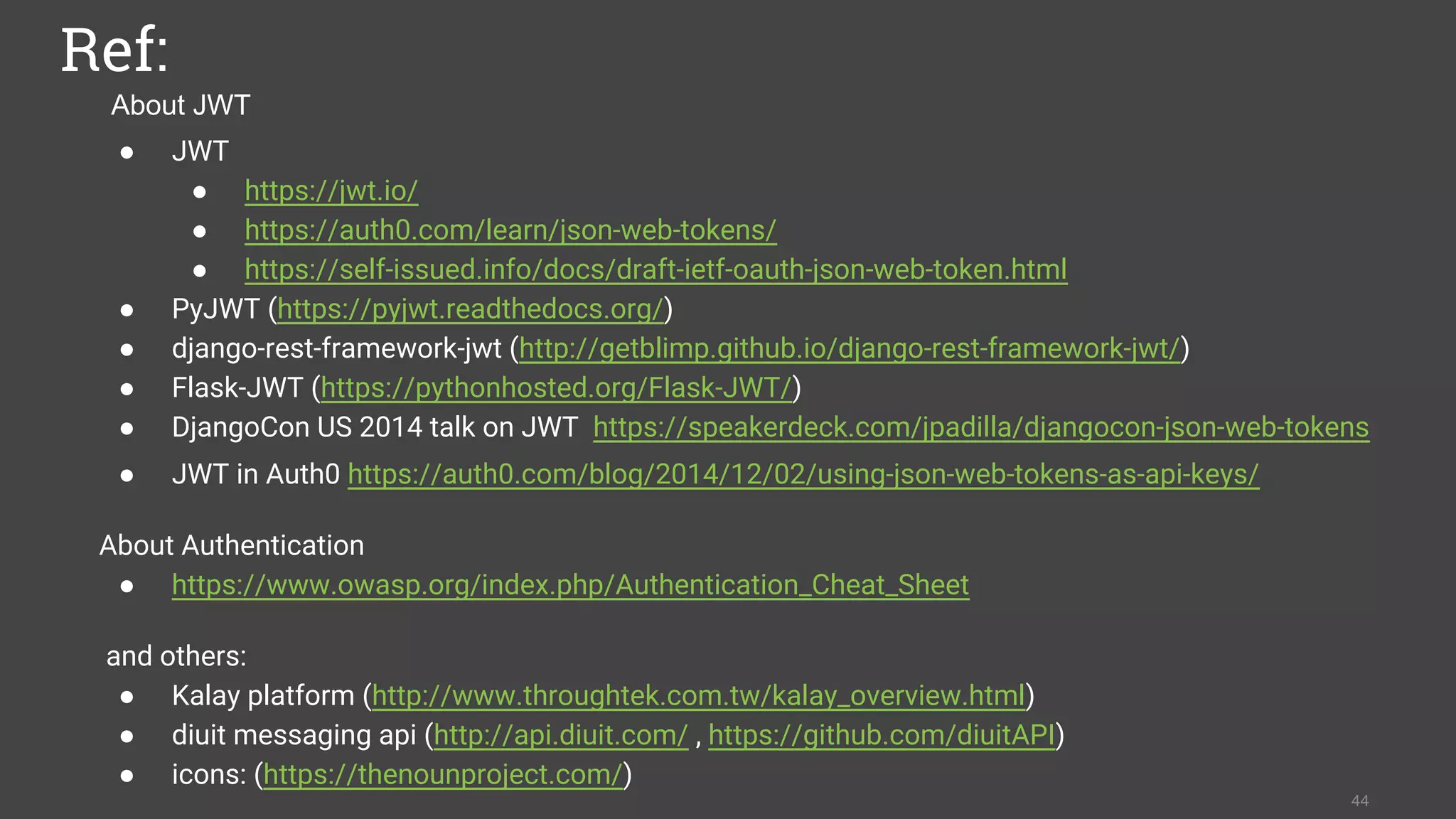

- 44. About JWT Ref: ● JWT ●https://jwt.io/ ● https://auth0.com/learn/json-web-tokens/ ● https://self-issued.info/docs/draft-ietf-oauth-json-web-token.html ● PyJWT (https://pyjwt.readthedocs.org/) ● django-rest-framework-jwt (http://getblimp.github.io/django-rest-framework-jwt/) ● Flask-JWT (https://pythonhosted.org/Flask-JWT/) ● DjangoCon US 2014 talk on JWT https://speakerdeck.com/jpadilla/djangocon-json-web-tokens ● JWT in Auth0 https://auth0.com/blog/2014/12/02/using-json-web-tokens-as-api-keys/ About Authentication ● https://www.owasp.org/index.php/Authentication_Cheat_Sheet and others: ● Kalay platform (http://www.throughtek.com.tw/kalay_overview.html) ● diuit messaging api (http://api.diuit.com/ , https://github.com/diuitAPI) ● icons: (https://thenounproject.com/) 44
- 45.
