Advanced Hibernate Notes

Advanced Hibernate Notes

• 1.

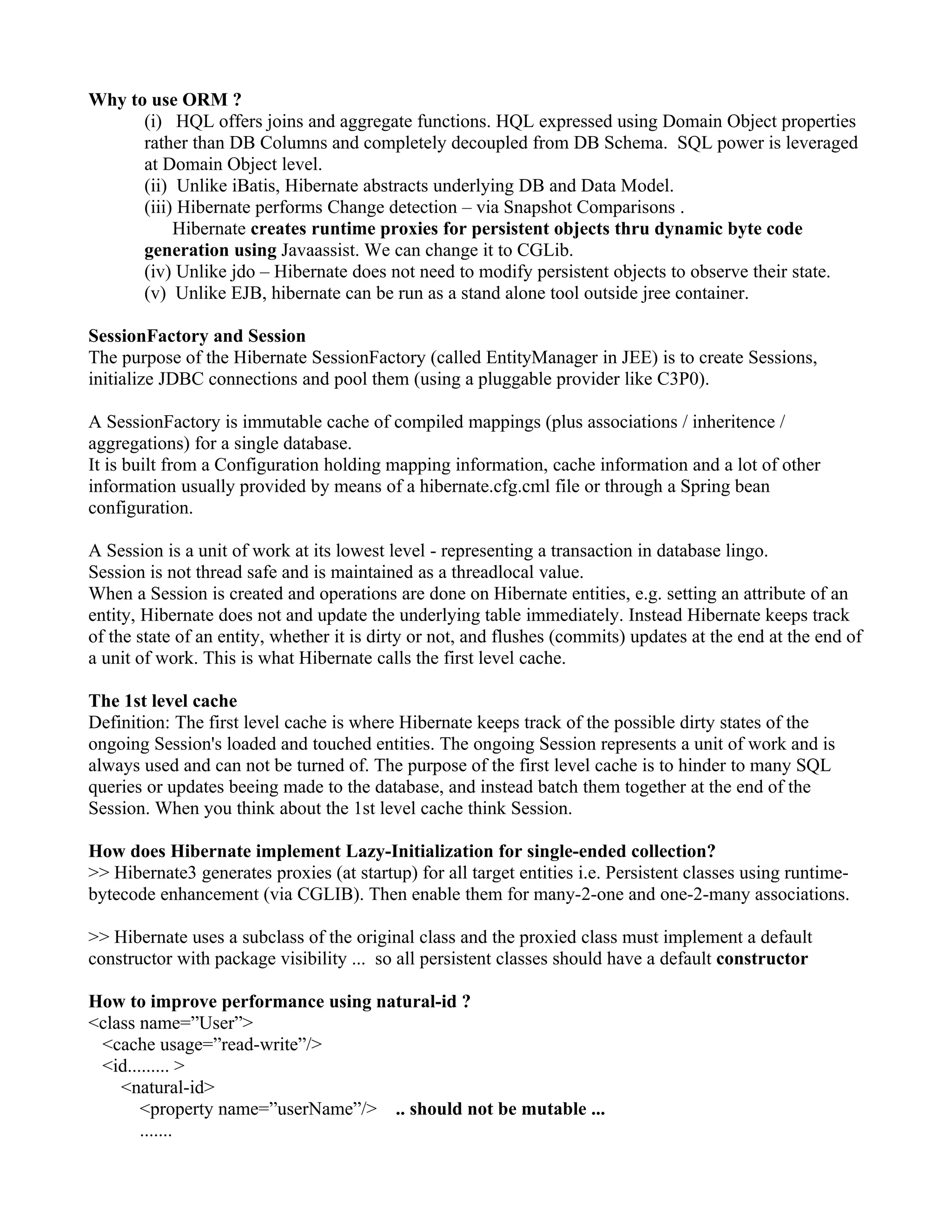

  Why to useORM ? (i) HQL offers joins and aggregate functions. HQL expressed using Domain Object properties rather than DB Columns and completely decoupled from DB Schema. SQL power is leveraged at Domain Object level. (ii) Unlike iBatis, Hibernate abstracts underlying DB and Data Model. (iii) Hibernate performs Change detection – via Snapshot Comparisons . Hibernate creates runtime proxies for persistent objects thru dynamic byte code generation using Javaassist. We can change it to CGLib. (iv) Unlike jdo – Hibernate does not need to modify persistent objects to observe their state. (v) Unlike EJB, hibernate can be run as a stand alone tool outside jree container. SessionFactory and Session The purpose of the Hibernate SessionFactory (called EntityManager in JEE) is to create Sessions, initialize JDBC connections and pool them (using a pluggable provider like C3P0). A SessionFactory is immutable cache of compiled mappings (plus associations / inheritence / aggregations) for a single database. It is built from a Configuration holding mapping information, cache information and a lot of other information usually provided by means of a hibernate.cfg.cml file or through a Spring bean configuration. A Session is a unit of work at its lowest level - representing a transaction in database lingo. Session is not thread safe and is maintained as a threadlocal value. When a Session is created and operations are done on Hibernate entities, e.g. setting an attribute of an entity, Hibernate does not and update the underlying table immediately. Instead Hibernate keeps track of the state of an entity, whether it is dirty or not, and flushes (commits) updates at the end at the end of a unit of work. This is what Hibernate calls the first level cache. The 1st level cache Definition: The first level cache is where Hibernate keeps track of the possible dirty states of the ongoing Session's loaded and touched entities. The ongoing Session represents a unit of work and is always used and can not be turned of. The purpose of the first level cache is to hinder to many SQL queries or updates beeing made to the database, and instead batch them together at the end of the Session. When you think about the 1st level cache think Session. How does Hibernate implement Lazy-Initialization for single-ended collection? >> Hibernate3 generates proxies (at startup) for all target entities i.e. Persistent classes using runtime- bytecode enhancement (via CGLIB). Then enable them for many-2-one and one-2-many associations. >> Hibernate uses a subclass of the original class and the proxied class must implement a default constructor with package visibility ... so all persistent classes should have a default constructor How to improve performance using natural-id ? <class name=”User”> <cache usage=”read-write”/> <id......... > <natural-id> <property name=”userName”/> .. should not be mutable ... .......
• 2.

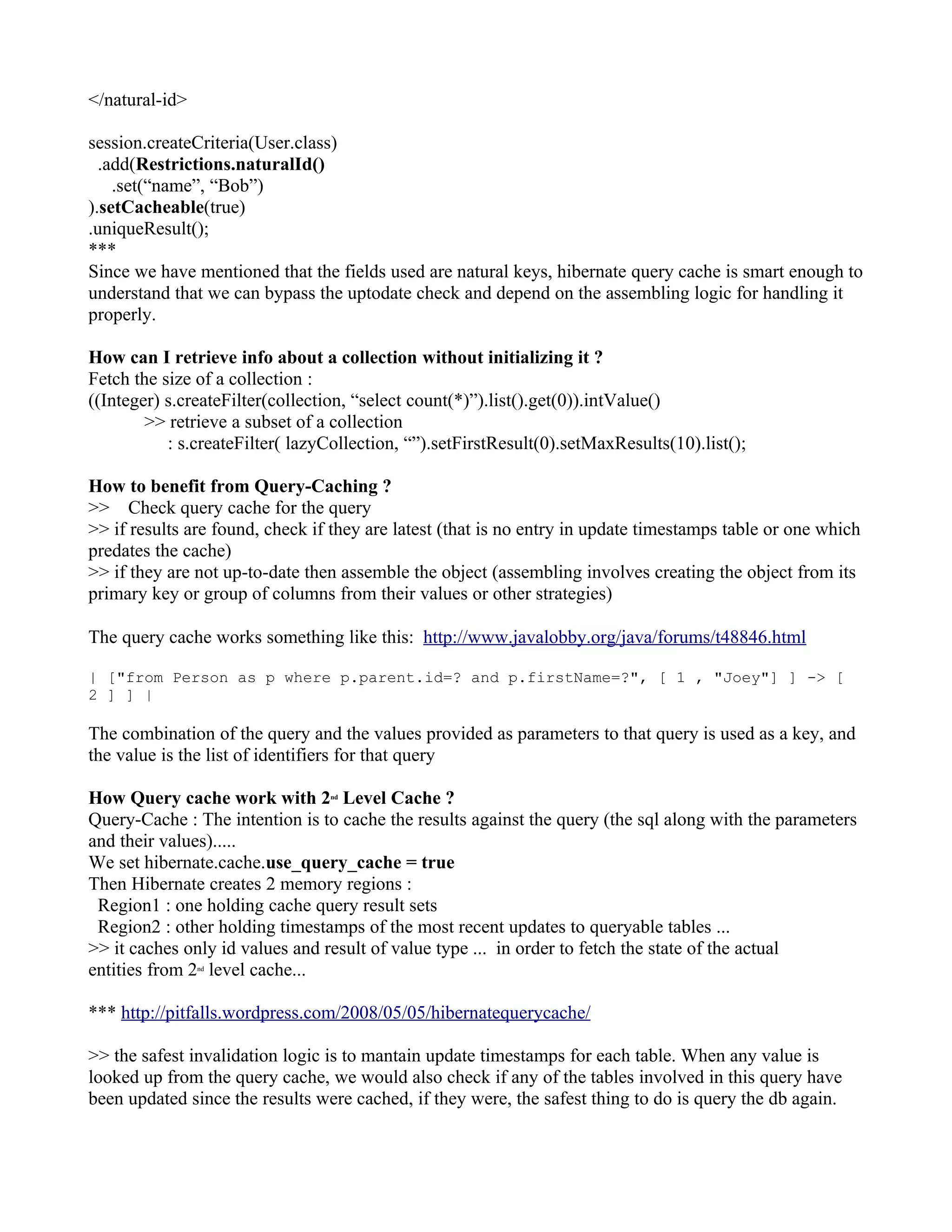

  </natural-id> session.createCriteria(User.class) .add(Restrictions.naturalId() .set(“name”, “Bob”) ).setCacheable(true) .uniqueResult(); *** Since we have mentioned that the fields used are natural keys, hibernate query cache is smart enough to understand that we can bypass the uptodate check and depend on the assembling logic for handling it properly. How can I retrieve info about a collection without initializing it ? Fetch the size of a collection : ((Integer) s.createFilter(collection, “select count(*)”).list().get(0)).intValue() >> retrieve a subset of a collection : s.createFilter( lazyCollection, “”).setFirstResult(0).setMaxResults(10).list(); How to benefit from Query-Caching ? >> Check query cache for the query >> if results are found, check if they are latest (that is no entry in update timestamps table or one which predates the cache) >> if they are not up-to-date then assemble the object (assembling involves creating the object from its primary key or group of columns from their values or other strategies) The query cache works something like this: http://www.javalobby.org/java/forums/t48846.html | ["from Person as p where p.parent.id=? and p.firstName=?", [ 1 , "Joey"] ] -> [ 2 ] ] | The combination of the query and the values provided as parameters to that query is used as a key, and the value is the list of identifiers for that query How Query cache work with 2 Level Cache ? nd Query-Cache : The intention is to cache the results against the query (the sql along with the parameters and their values)..... We set hibernate.cache.use_query_cache = true Then Hibernate creates 2 memory regions : Region1 : one holding cache query result sets Region2 : other holding timestamps of the most recent updates to queryable tables ... >> it caches only id values and result of value type ... in order to fetch the state of the actual entities from 2 level cache... nd *** http://pitfalls.wordpress.com/2008/05/05/hibernatequerycache/ >> the safest invalidation logic is to mantain update timestamps for each table. When any value is looked up from the query cache, we would also check if any of the tables involved in this query have been updated since the results were cached, if they were, the safest thing to do is query the db again.
• 3.

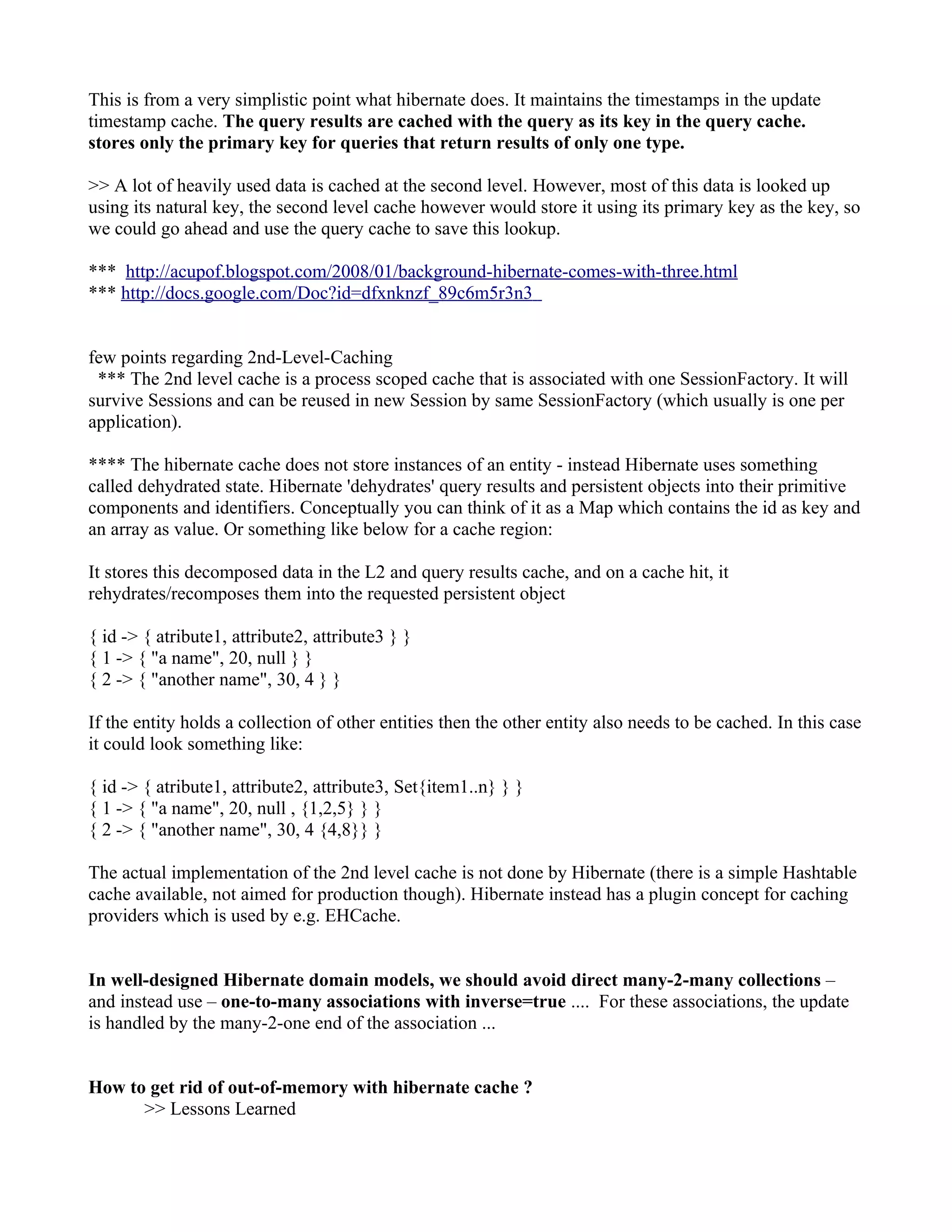

  This is froma very simplistic point what hibernate does. It maintains the timestamps in the update timestamp cache. The query results are cached with the query as its key in the query cache. stores only the primary key for queries that return results of only one type. >> A lot of heavily used data is cached at the second level. However, most of this data is looked up using its natural key, the second level cache however would store it using its primary key as the key, so we could go ahead and use the query cache to save this lookup. *** http://acupof.blogspot.com/2008/01/background-hibernate-comes-with-three.html *** http://docs.google.com/Doc?id=dfxnknzf_89c6m5r3n3 few points regarding 2nd-Level-Caching *** The 2nd level cache is a process scoped cache that is associated with one SessionFactory. It will survive Sessions and can be reused in new Session by same SessionFactory (which usually is one per application). **** The hibernate cache does not store instances of an entity - instead Hibernate uses something called dehydrated state. Hibernate 'dehydrates' query results and persistent objects into their primitive components and identifiers. Conceptually you can think of it as a Map which contains the id as key and an array as value. Or something like below for a cache region: It stores this decomposed data in the L2 and query results cache, and on a cache hit, it rehydrates/recomposes them into the requested persistent object { id -> { atribute1, attribute2, attribute3 } } { 1 -> { "a name", 20, null } } { 2 -> { "another name", 30, 4 } } If the entity holds a collection of other entities then the other entity also needs to be cached. In this case it could look something like: { id -> { atribute1, attribute2, attribute3, Set{item1..n} } } { 1 -> { "a name", 20, null , {1,2,5} } } { 2 -> { "another name", 30, 4 {4,8}} } The actual implementation of the 2nd level cache is not done by Hibernate (there is a simple Hashtable cache available, not aimed for production though). Hibernate instead has a plugin concept for caching providers which is used by e.g. EHCache. In well-designed Hibernate domain models, we should avoid direct many-2-many collections – and instead use – one-to-many associations with inverse=true .... For these associations, the update is handled by the many-2-one end of the association ... How to get rid of out-of-memory with hibernate cache ? >> Lessons Learned
• 4.

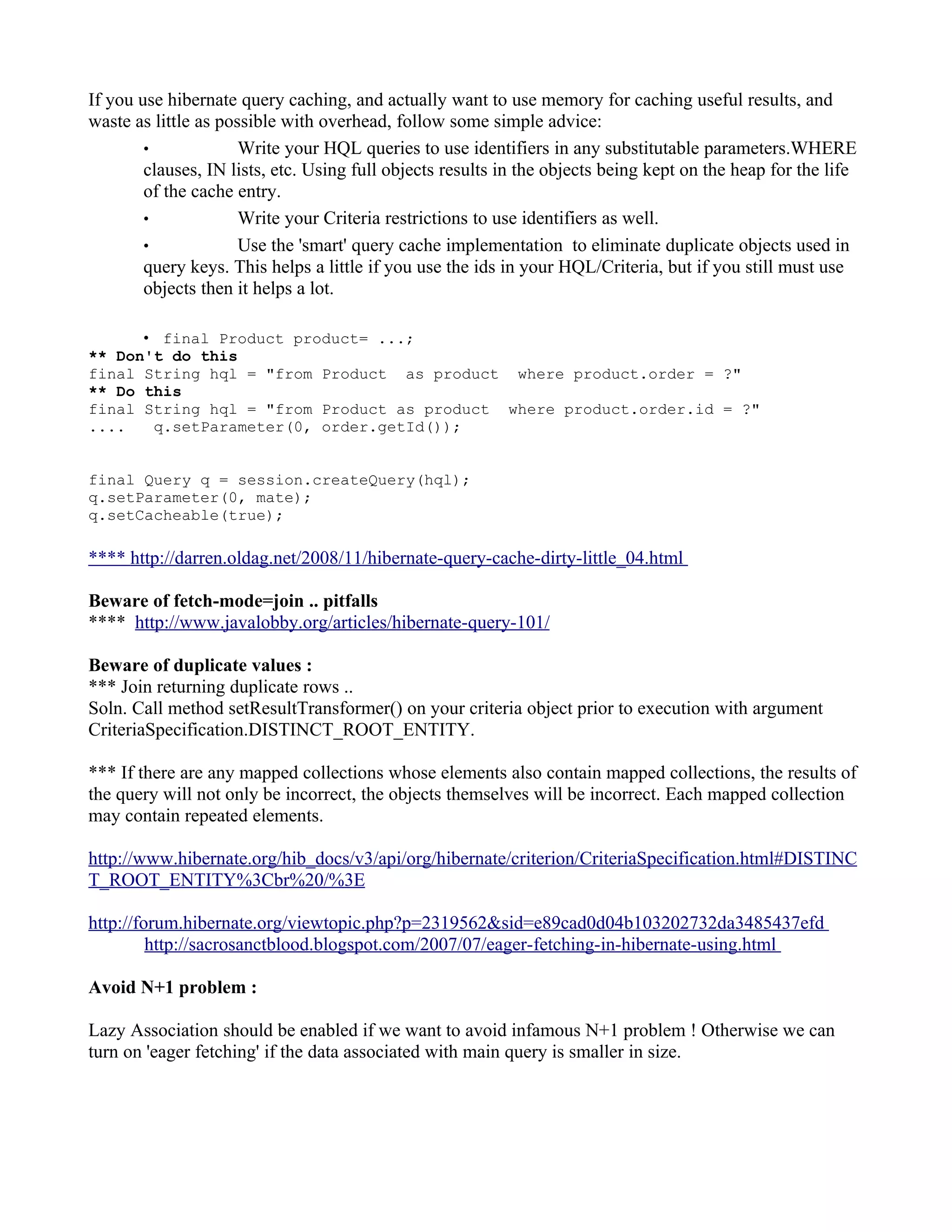

  If you usehibernate query caching, and actually want to use memory for caching useful results, and waste as little as possible with overhead, follow some simple advice: • Write your HQL queries to use identifiers in any substitutable parameters.WHERE clauses, IN lists, etc. Using full objects results in the objects being kept on the heap for the life of the cache entry. • Write your Criteria restrictions to use identifiers as well. • Use the 'smart' query cache implementation to eliminate duplicate objects used in query keys. This helps a little if you use the ids in your HQL/Criteria, but if you still must use objects then it helps a lot. • final Product product= ...; ** Don't do this final String hql = "from Product as product where product.order = ?" ** Do this final String hql = "from Product as product where product.order.id = ?" .... q.setParameter(0, order.getId()); final Query q = session.createQuery(hql); q.setParameter(0, mate); q.setCacheable(true); **** http://darren.oldag.net/2008/11/hibernate-query-cache-dirty-little_04.html Beware of fetch-mode=join .. pitfalls **** http://www.javalobby.org/articles/hibernate-query-101/ Beware of duplicate values : *** Join returning duplicate rows .. Soln. Call method setResultTransformer() on your criteria object prior to execution with argument CriteriaSpecification.DISTINCT_ROOT_ENTITY. *** If there are any mapped collections whose elements also contain mapped collections, the results of the query will not only be incorrect, the objects themselves will be incorrect. Each mapped collection may contain repeated elements. http://www.hibernate.org/hib_docs/v3/api/org/hibernate/criterion/CriteriaSpecification.html#DISTINC T_ROOT_ENTITY%3Cbr%20/%3E http://forum.hibernate.org/viewtopic.php?p=2319562&sid=e89cad0d04b103202732da3485437efd http://sacrosanctblood.blogspot.com/2007/07/eager-fetching-in-hibernate-using.html Avoid N+1 problem : Lazy Association should be enabled if we want to avoid infamous N+1 problem ! Otherwise we can turn on 'eager fetching' if the data associated with main query is smaller in size.
• 5.

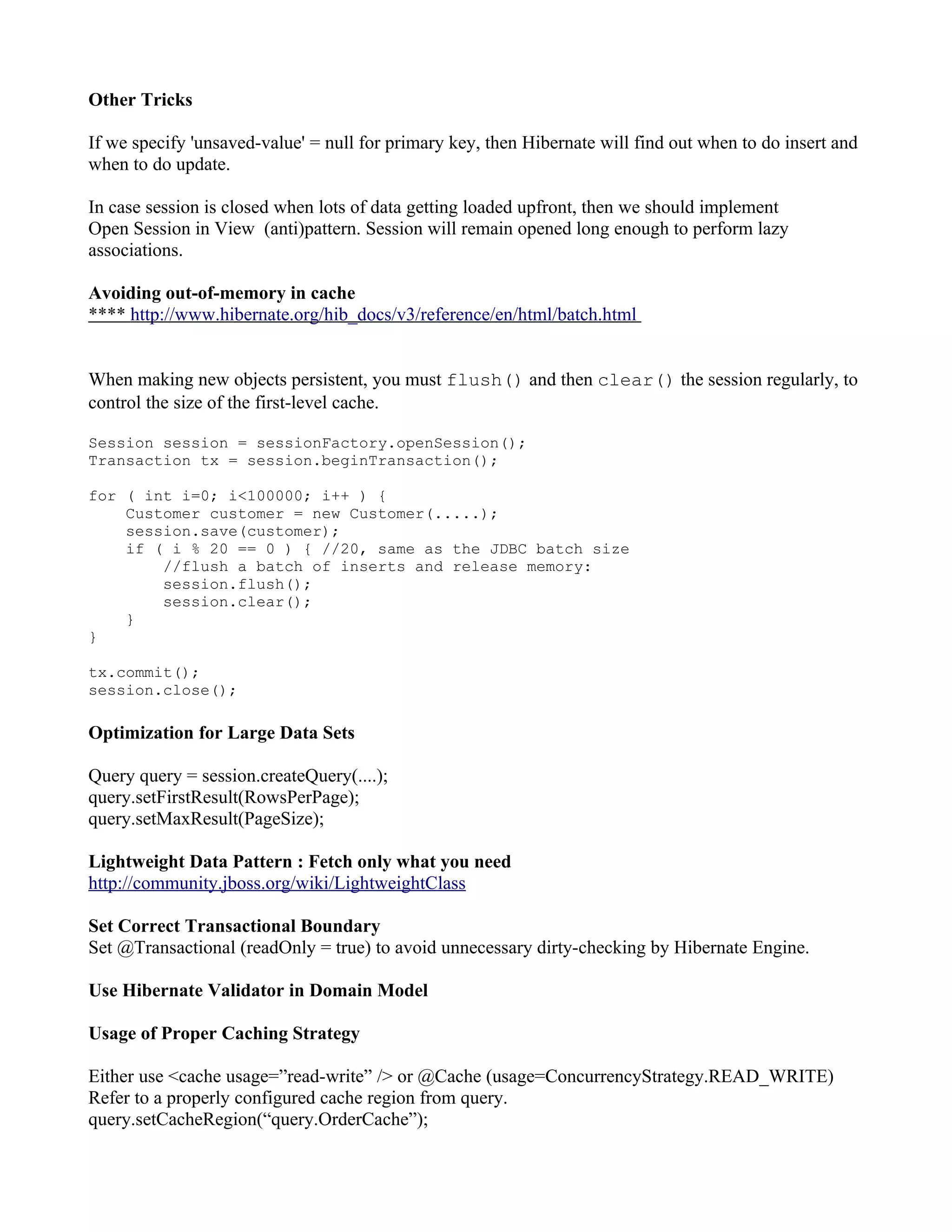

  Other Tricks If wespecify 'unsaved-value' = null for primary key, then Hibernate will find out when to do insert and when to do update. In case session is closed when lots of data getting loaded upfront, then we should implement Open Session in View (anti)pattern. Session will remain opened long enough to perform lazy associations. Avoiding out-of-memory in cache **** http://www.hibernate.org/hib_docs/v3/reference/en/html/batch.html When making new objects persistent, you must flush() and then clear() the session regularly, to control the size of the first-level cache. Session session = sessionFactory.openSession(); Transaction tx = session.beginTransaction(); for ( int i=0; i<100000; i++ ) { Customer customer = new Customer(.....); session.save(customer); if ( i % 20 == 0 ) { //20, same as the JDBC batch size //flush a batch of inserts and release memory: session.flush(); session.clear(); } } tx.commit(); session.close(); Optimization for Large Data Sets Query query = session.createQuery(....); query.setFirstResult(RowsPerPage); query.setMaxResult(PageSize); Lightweight Data Pattern : Fetch only what you need http://community.jboss.org/wiki/LightweightClass Set Correct Transactional Boundary Set @Transactional (readOnly = true) to avoid unnecessary dirty-checking by Hibernate Engine. Use Hibernate Validator in Domain Model Usage of Proper Caching Strategy Either use <cache usage=”read-write” /> or @Cache (usage=ConcurrencyStrategy.READ_WRITE) Refer to a properly configured cache region from query. query.setCacheRegion(“query.OrderCache”);
