Analyzing the Performance of Mobile Web
This document discusses techniques for analyzing the performance of mobile web applications. It covers challenges like network variability, different device hardware, and continuous integration. Approaches mentioned include benchmarking, injecting instrumentation, emulation, and remote inspection. Strategies suggested are reducing complexity, replicating analysis on desktop, and tweaking at the system level. Tools mentioned include the Nexus One, Gingerbread, PhantomJS, and headless WebKit. The document provides examples and caveats for analyzing areas like network traffic, graphics commands, garbage collection, and JavaScript parsing.
More Related Content
![[1C5]Lessons from developing a web browser for raspberry pi](https://cdn.slidesharecdn.com/ss_thumbnails/1c5lessonsfromdevelopingawebbrowserforraspberrypi-140927232725-phpapp01-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
Similar to Analyzing the Performance of Mobile Web
Analyzing the Performance of Mobile Web
- 1. Analyzing the Performanceof Mobile Web: Challenges and Techniques ARIYA HIDAYAT ENGINEERING DIRECTOR
- 2.
- 3. Going Under theHood
- 4.
- 5.

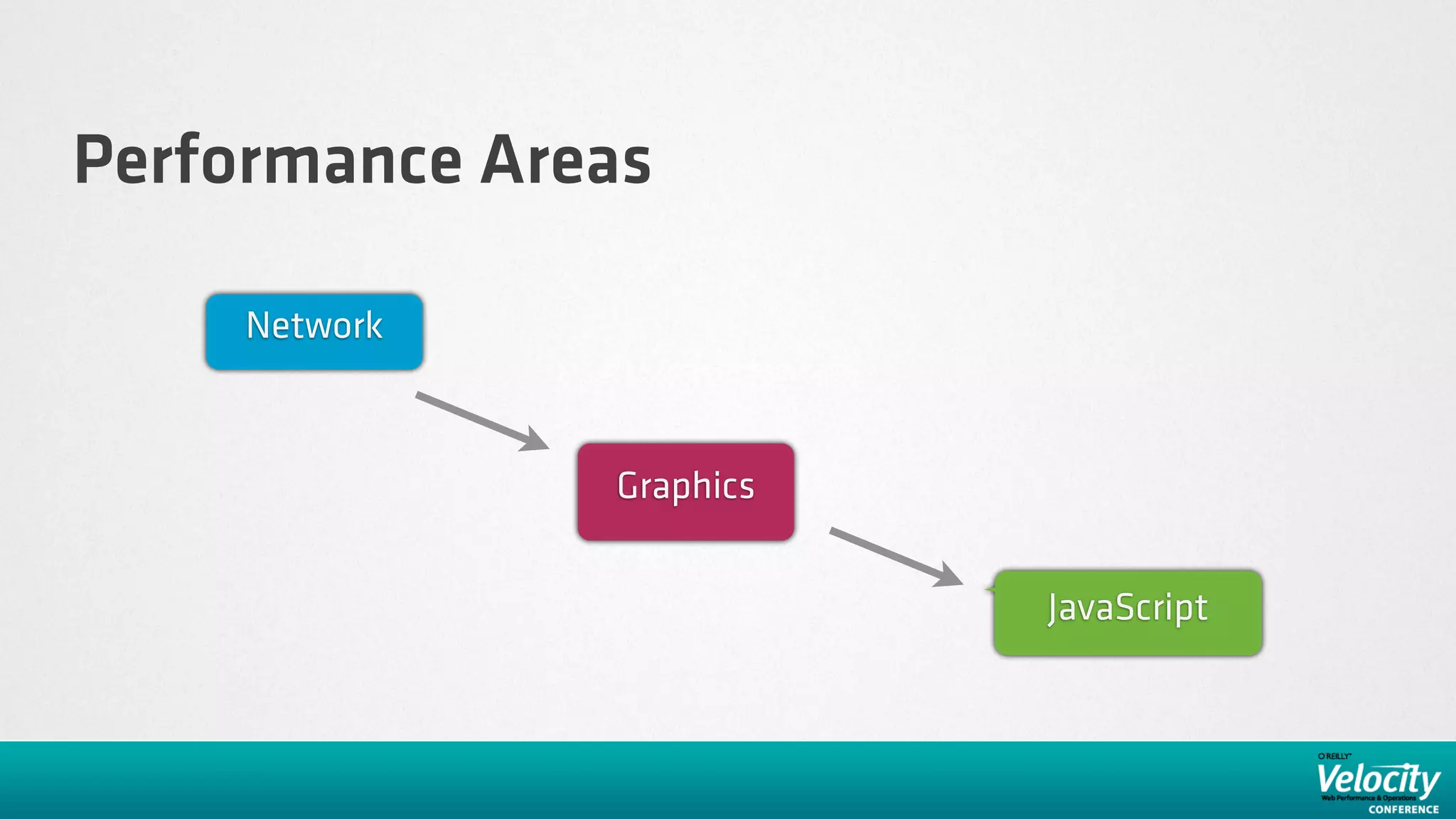

- 6. Performance Areas Network Graphics JavaScript

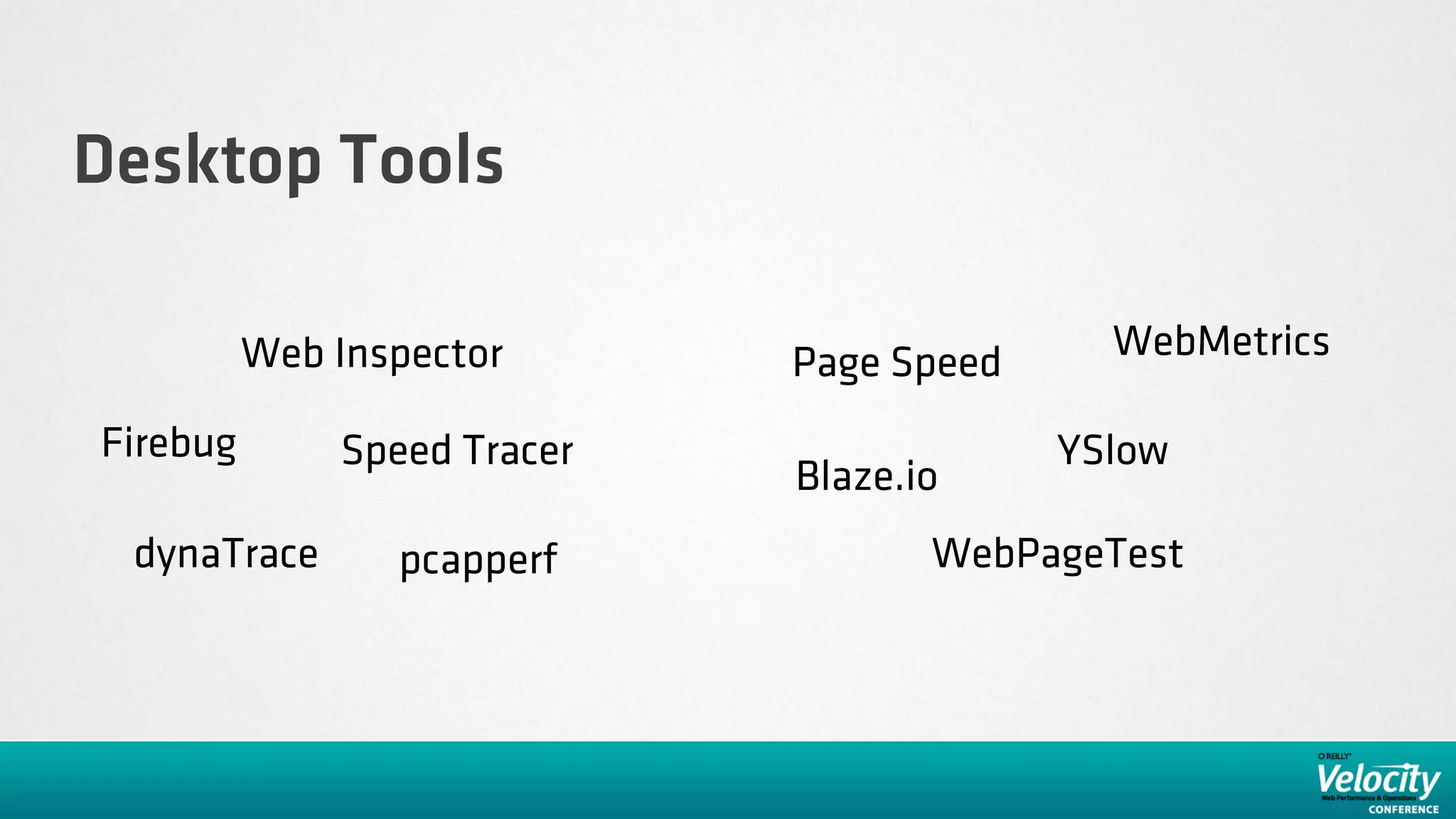

- 7. Desktop Tools Web Inspector Page Speed WebMetrics Firebug Speed Tracer YSlow Blaze.io dynaTrace pcapperf WebPageTest

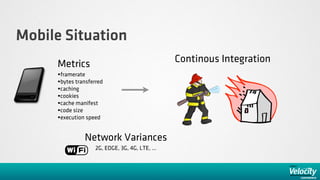

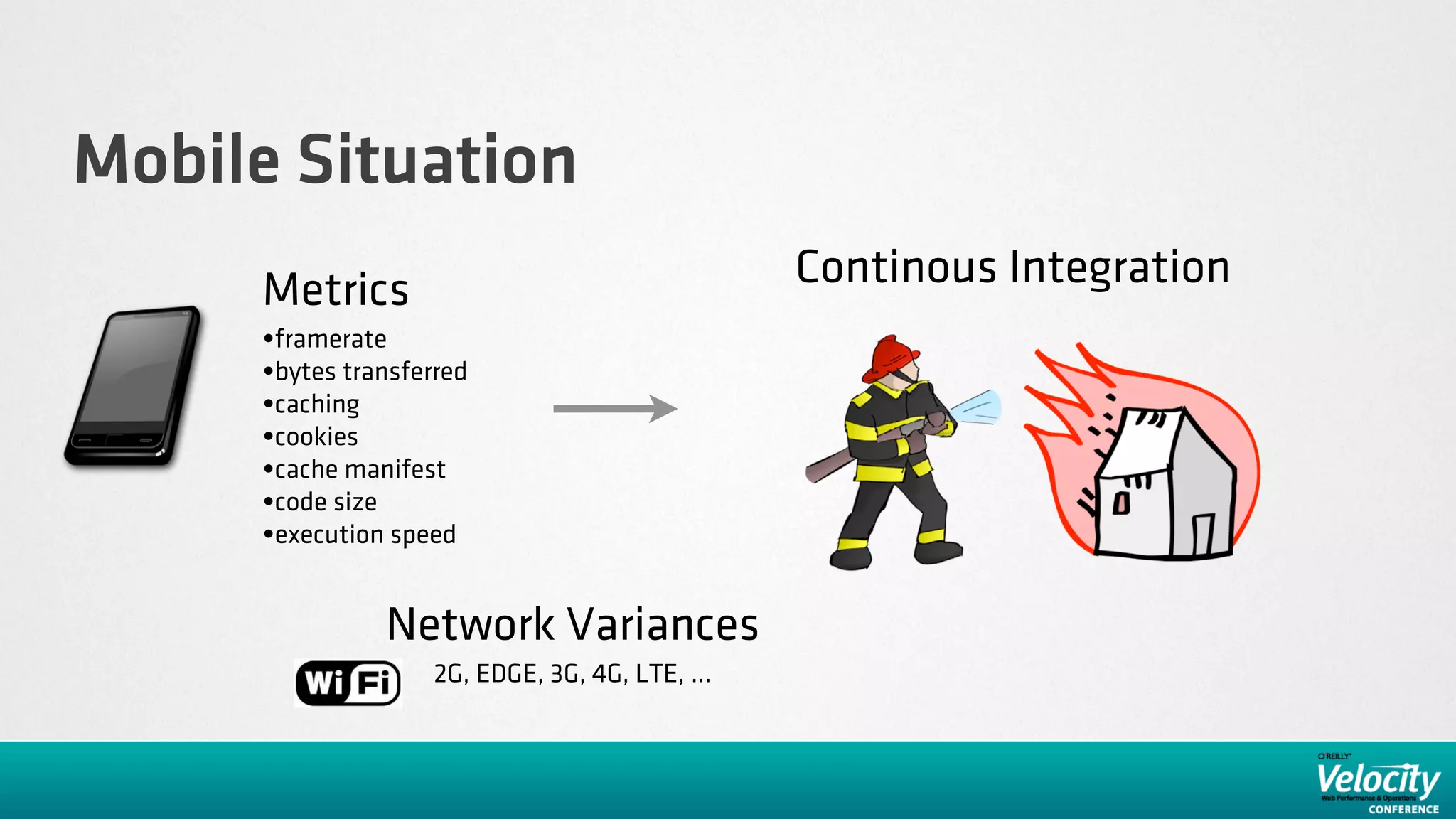

- 8. Mobile Situation Metrics Continous Integration •framerate •bytes transferred •caching •cookies •cache manifest •code size •execution speed Network Variances 2G, EDGE, 3G, 4G, LTE, ...

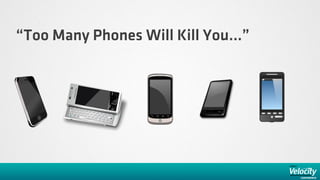

- 9. “Too Many PhonesWill Kill You...”

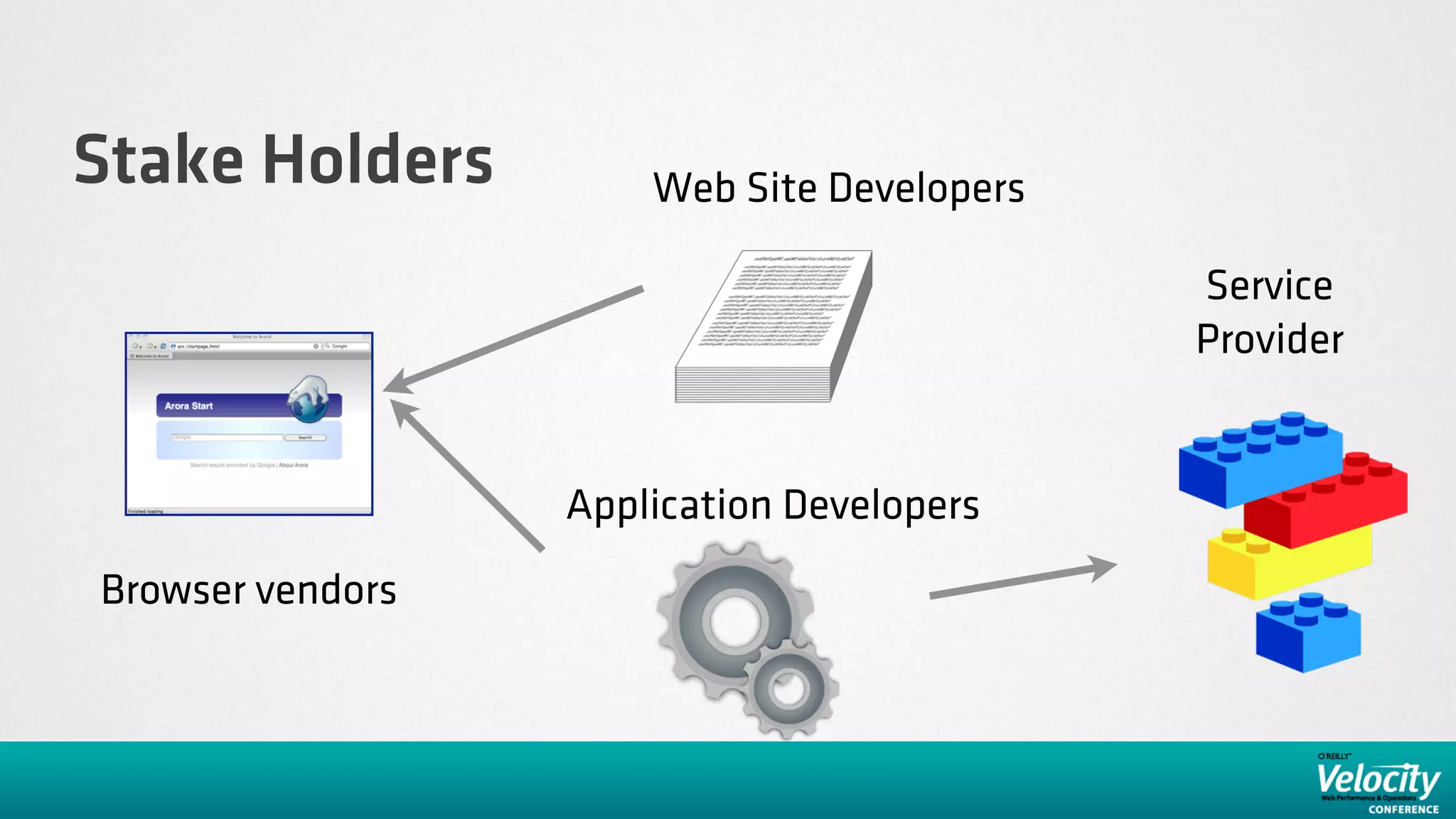

- 10. Stake Holders Web Site Developers Service Provider Application Developers Browser vendors

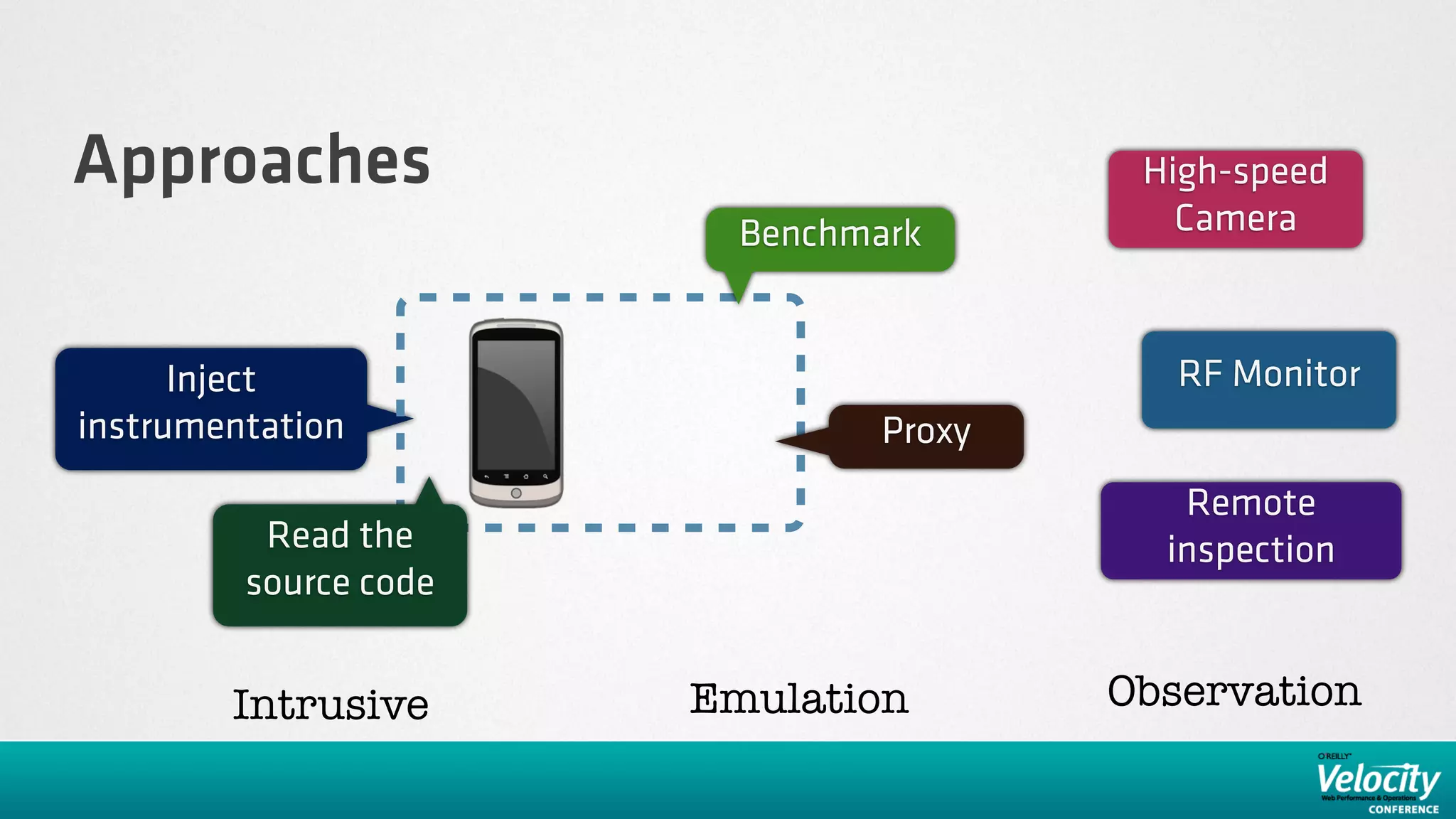

- 11. Approaches High-speed Benchmark Camera Inject RF Monitor instrumentation Proxy Remote Read the inspection source code Intrusive Emulation Observation

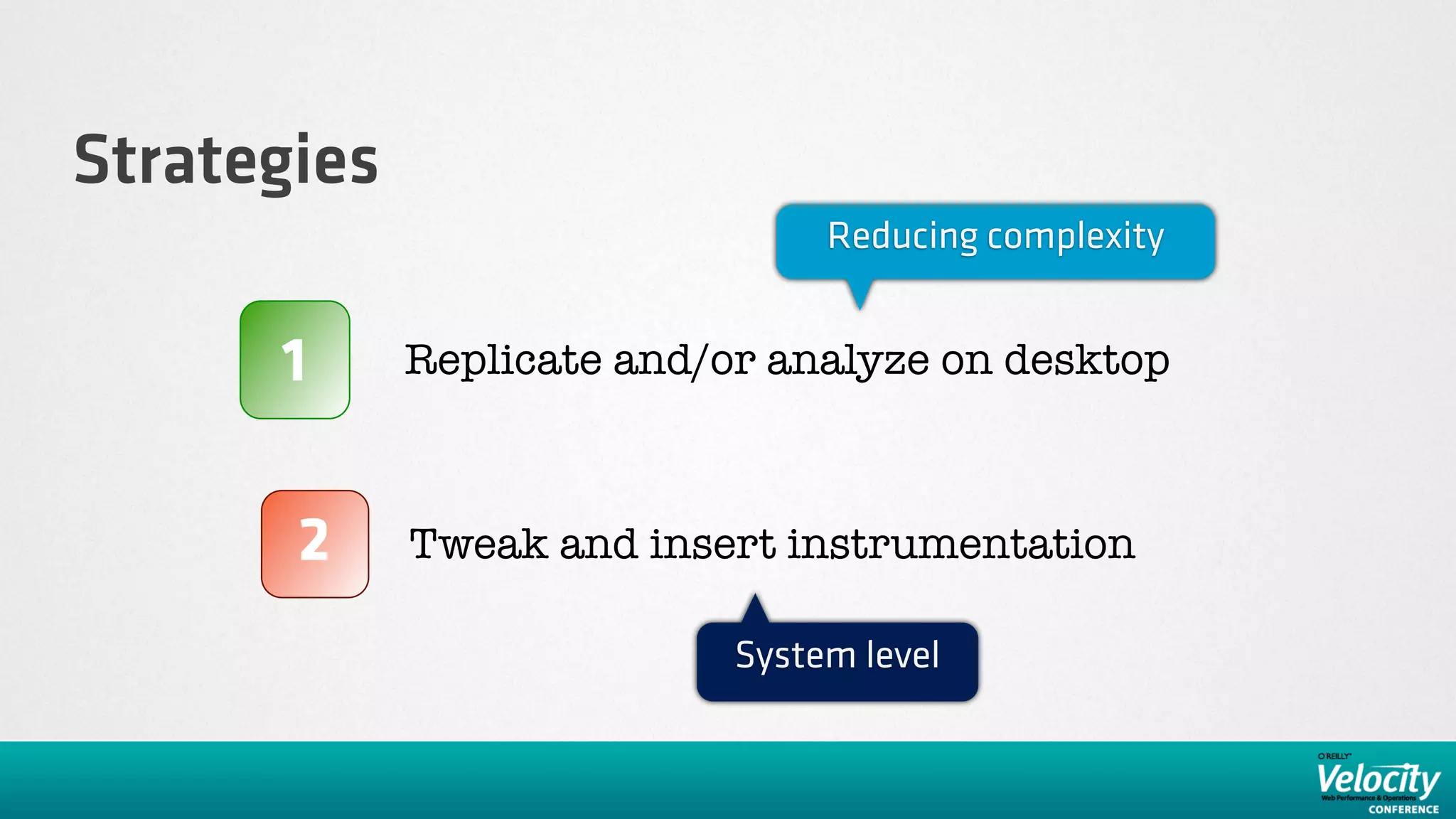

- 12. Strategies Reducing complexity 1 Replicate and/or analyze on desktop 2 Tweak and insert instrumentation System level

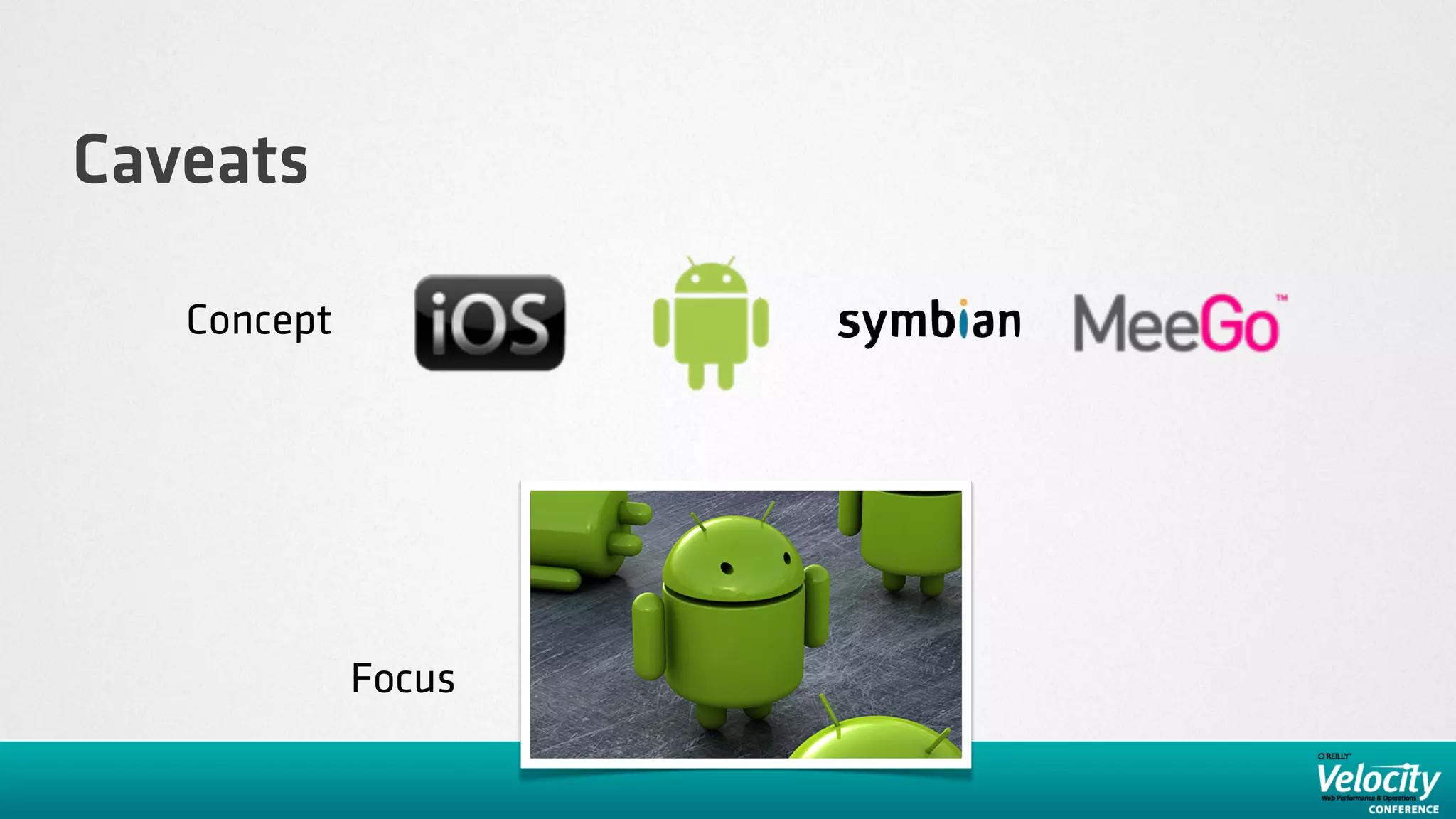

- 13. Caveats Concept Focus

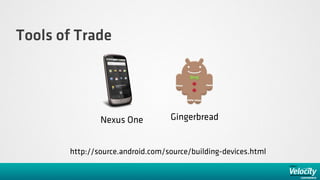

- 14. Tools of Trade Nexus One Gingerbread http://source.android.com/source/building-devices.html
- 15. Headless WebKit “Full web stack. No browser required” http://www.phantomjs.org https://github.com/ariya/phantomjs

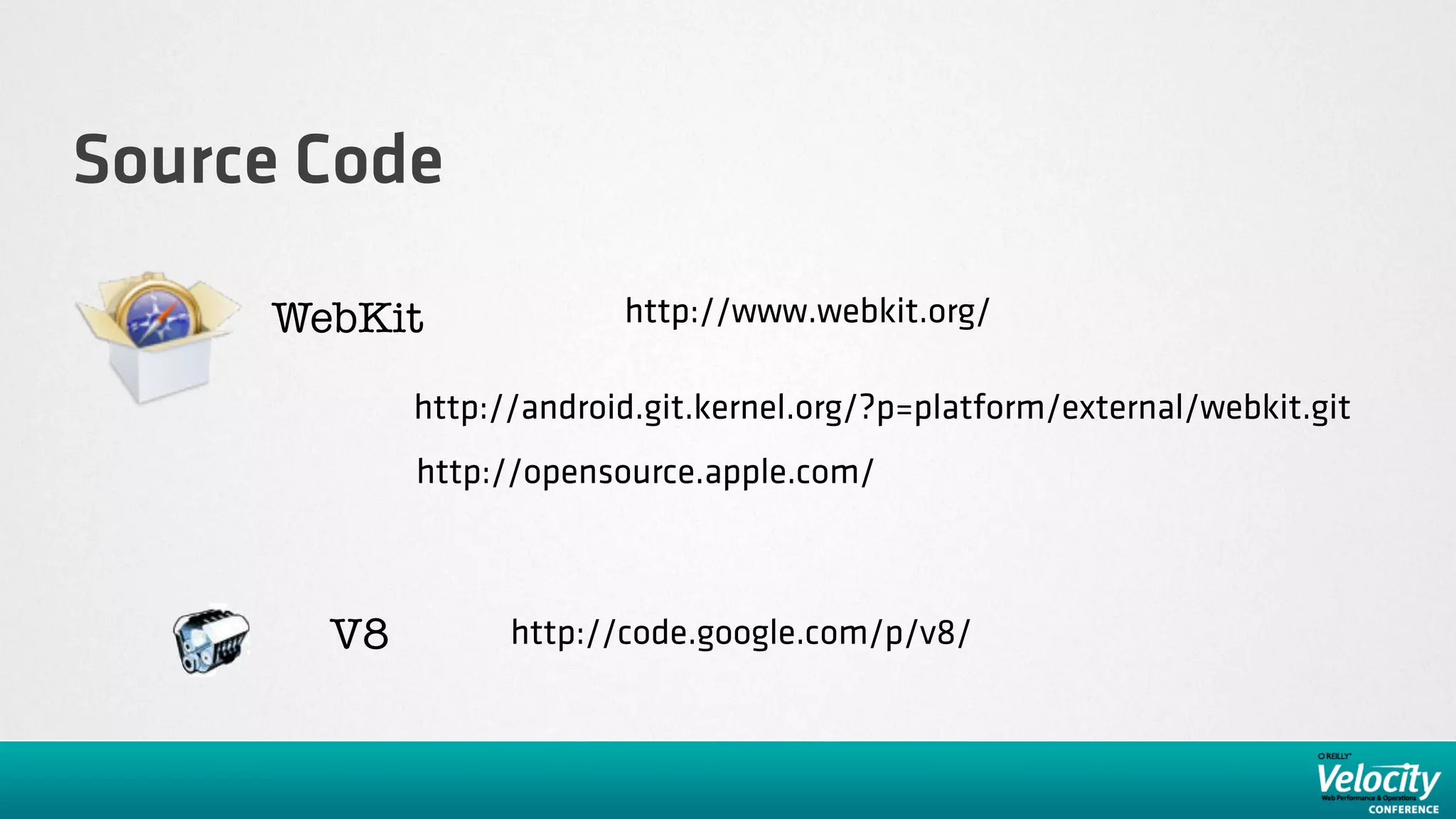

- 16. Source Code WebKit http://www.webkit.org/ http://android.git.kernel.org/?p=platform/external/webkit.git http://opensource.apple.com/ V8 http://code.google.com/p/v8/

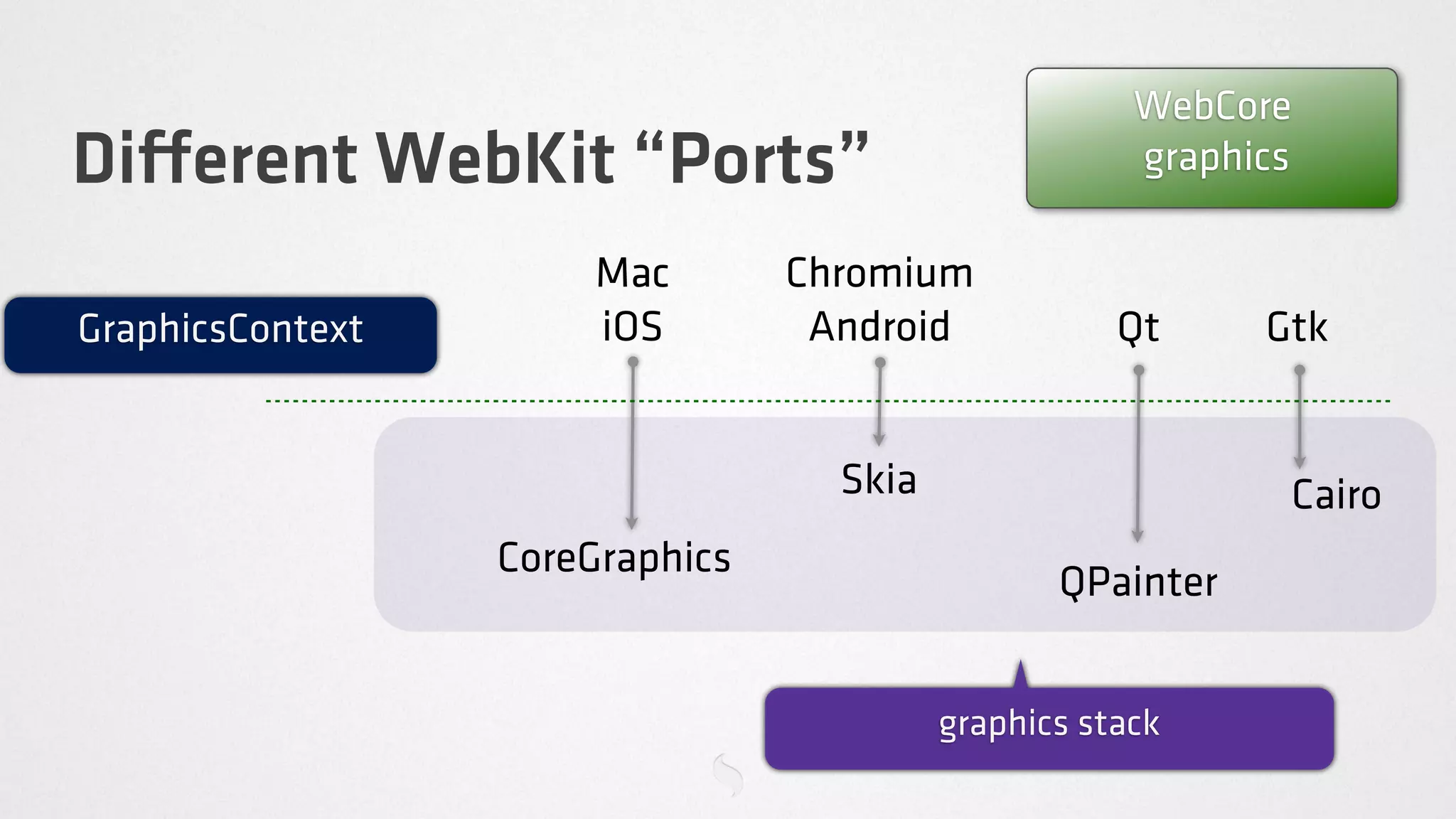

- 17. WebCore Di erent WebKit“Ports” graphics Mac Chromium GraphicsContext iOS Android Qt Gtk Skia Cairo CoreGraphics QPainter graphics stack
- 18.

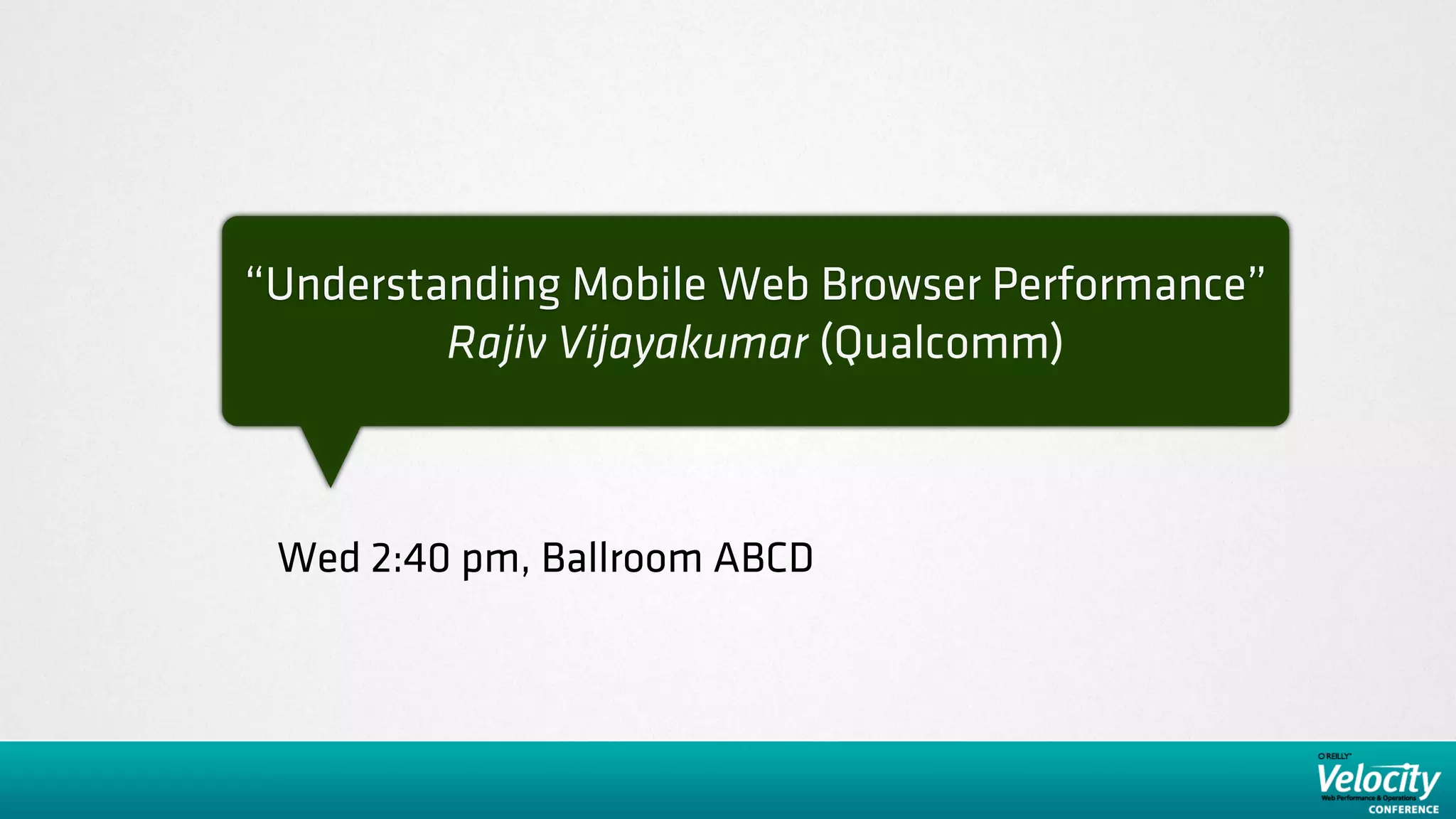

- 19. “Understanding Mobile WebBrowser Performance” Rajiv Vijayakumar (Qualcomm) Wed 2:40 pm, Ballroom ABCD
- 20.
- 21.

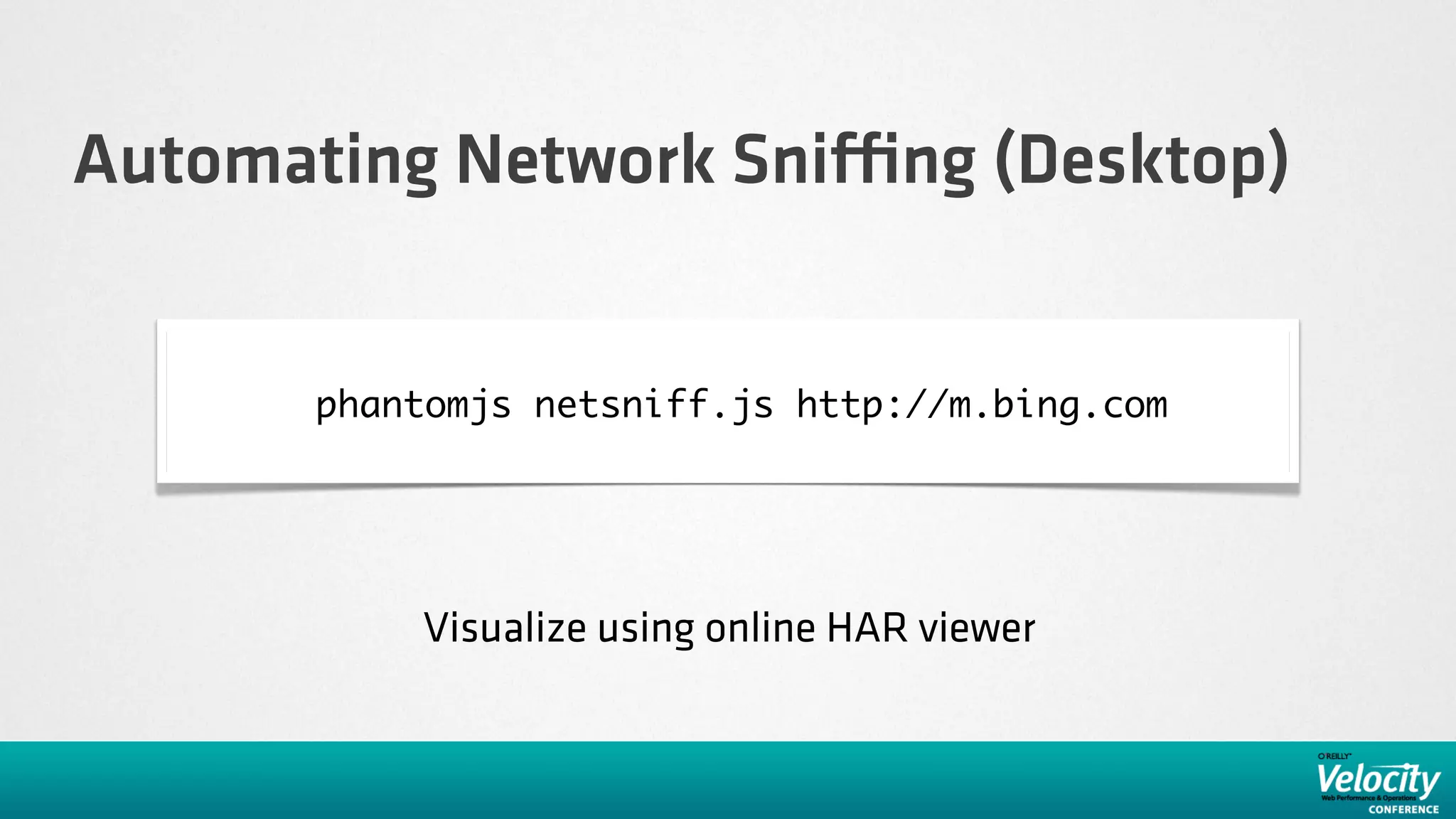

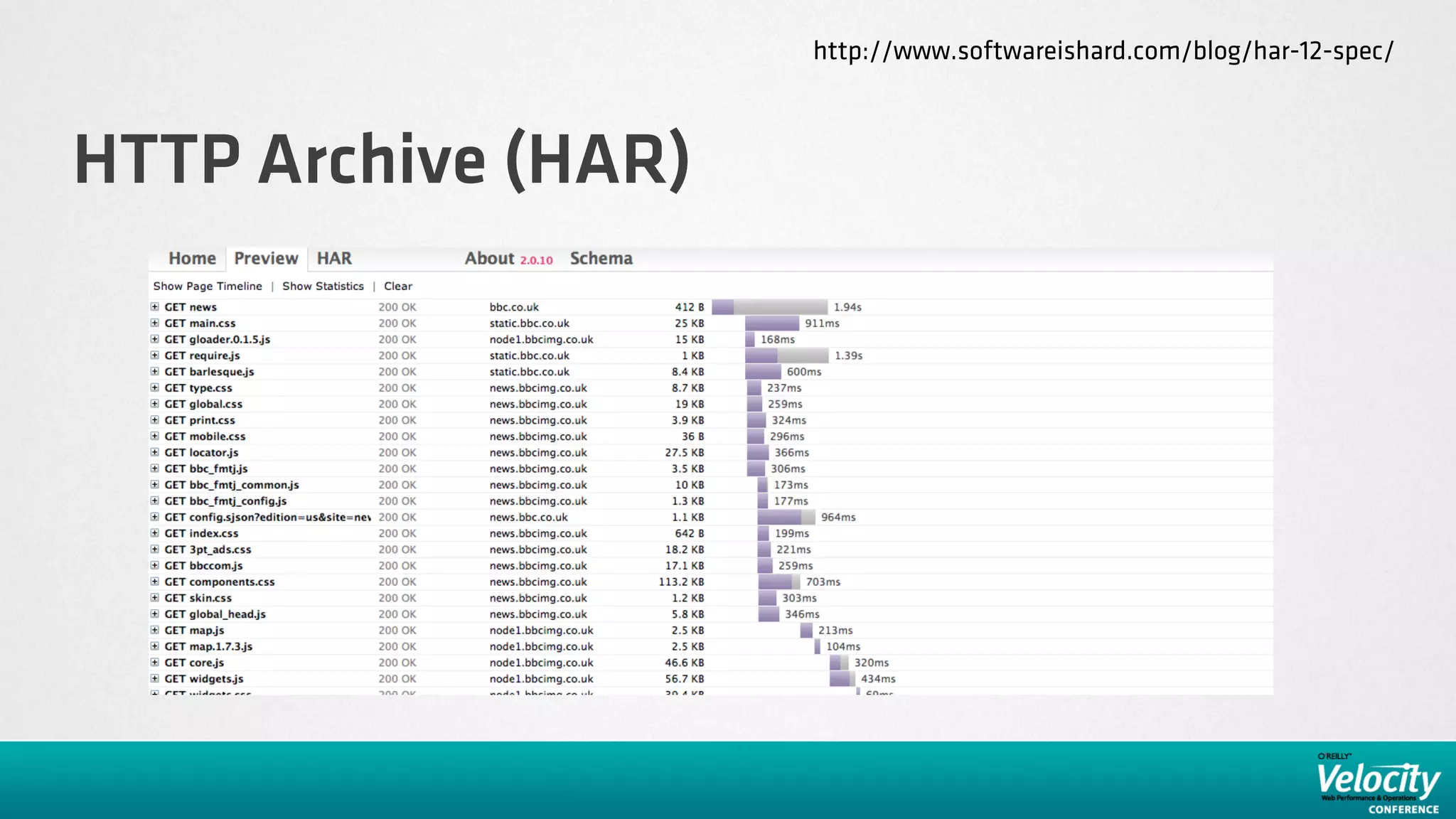

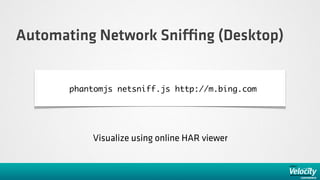

- 22. Automating Network Sning (Desktop) phantomjs netsniff.js http://m.bing.com Visualize using online HAR viewer

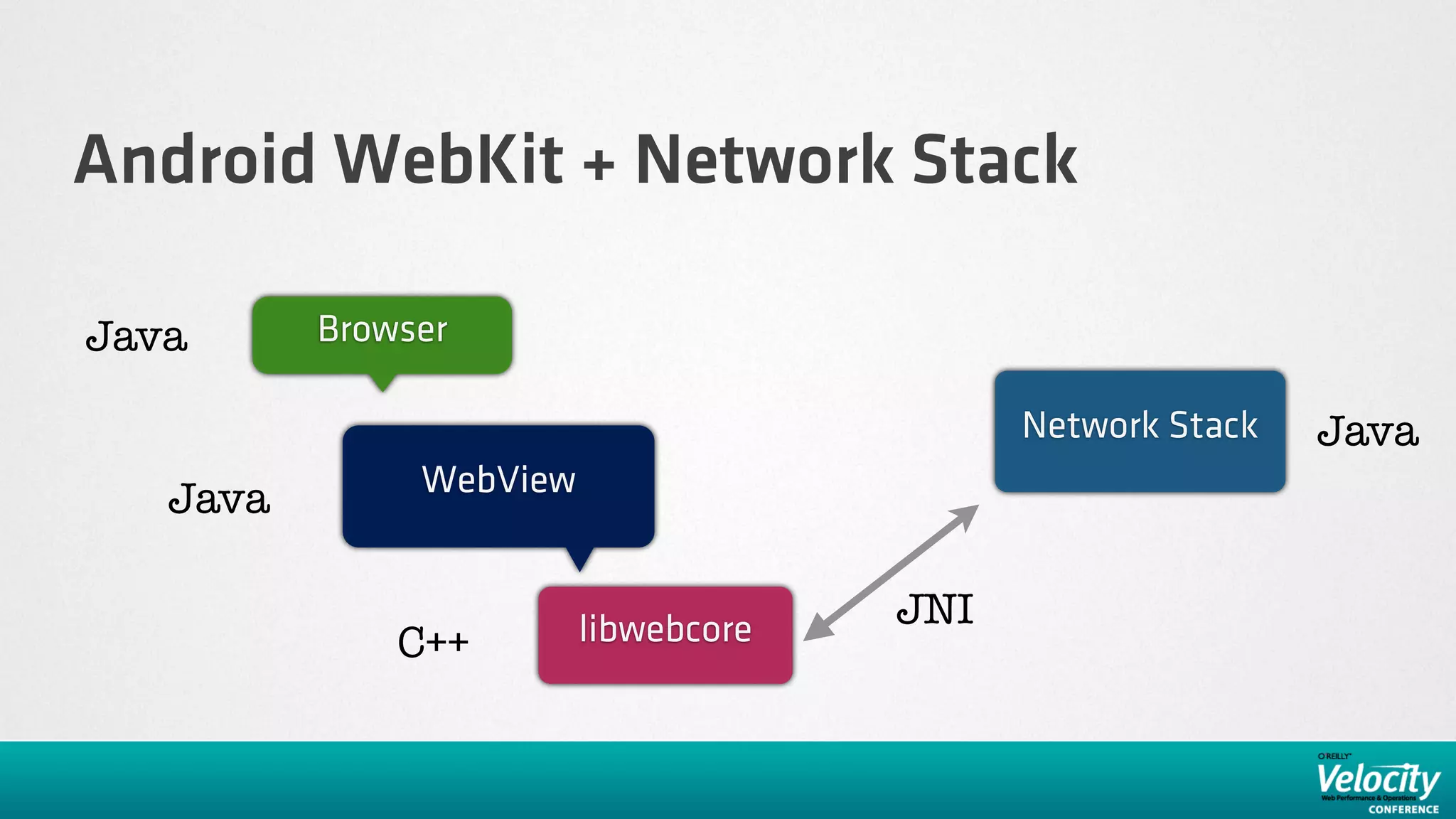

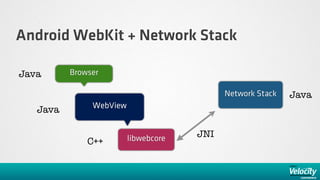

- 23. Android WebKit +Network Stack Java Browser Network Stack Java WebView Java libwebcore JNI C++

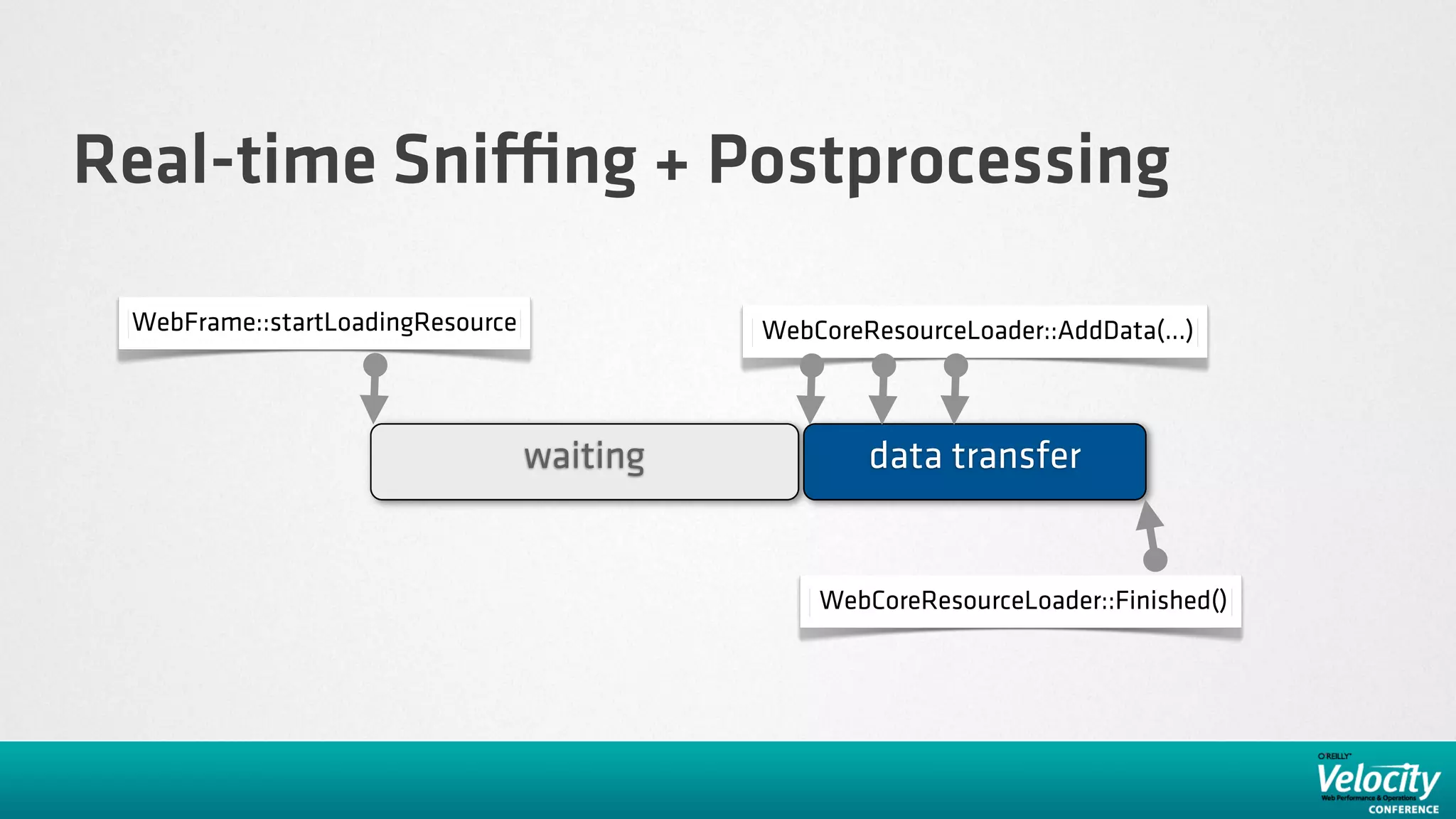

- 24. Real-time Sni ng+ Postprocessing WebFrame::startLoadingResource WebCoreResourceLoader::AddData(...) waiting data transfer WebCoreResourceLoader::Finished()

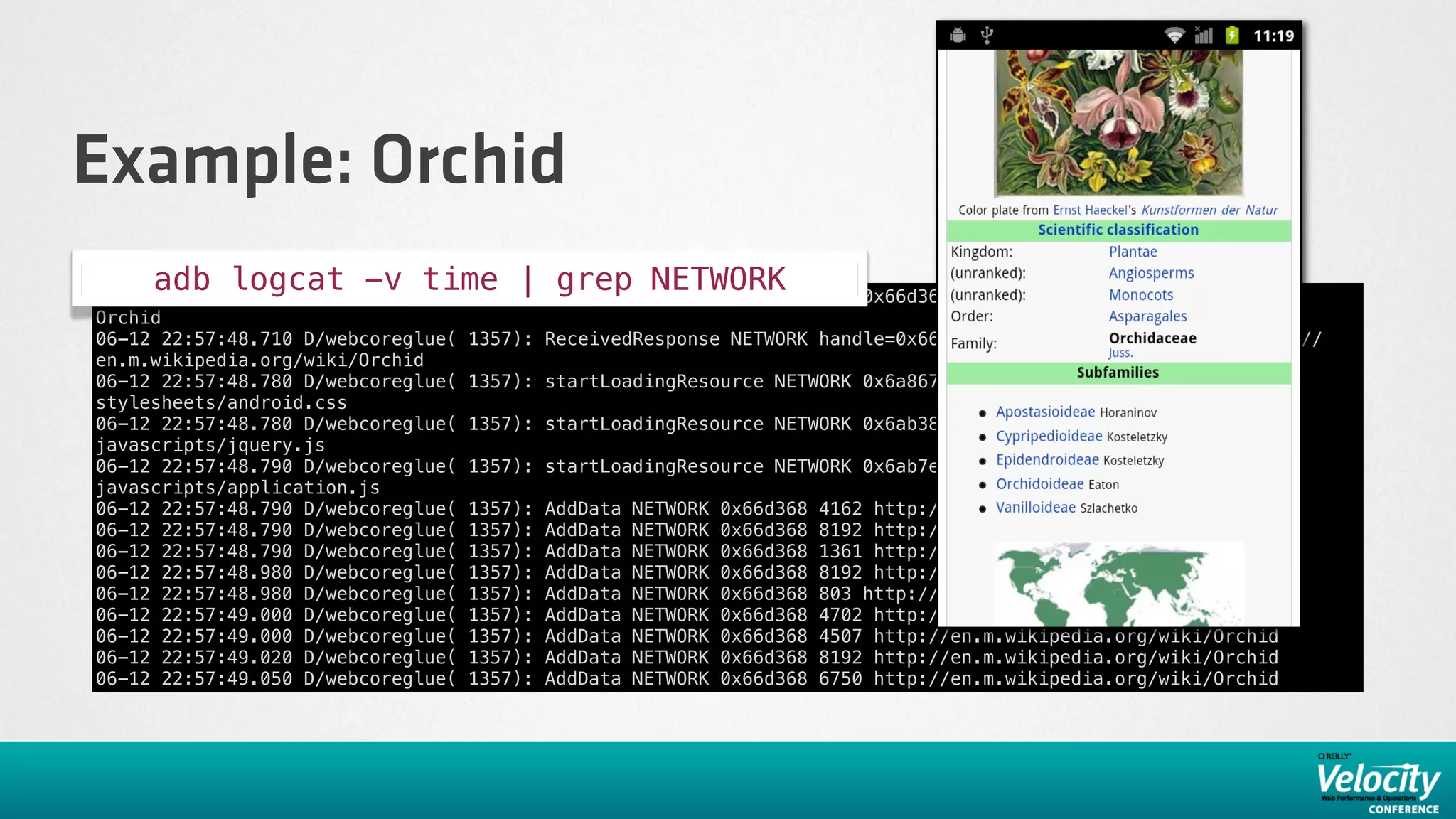

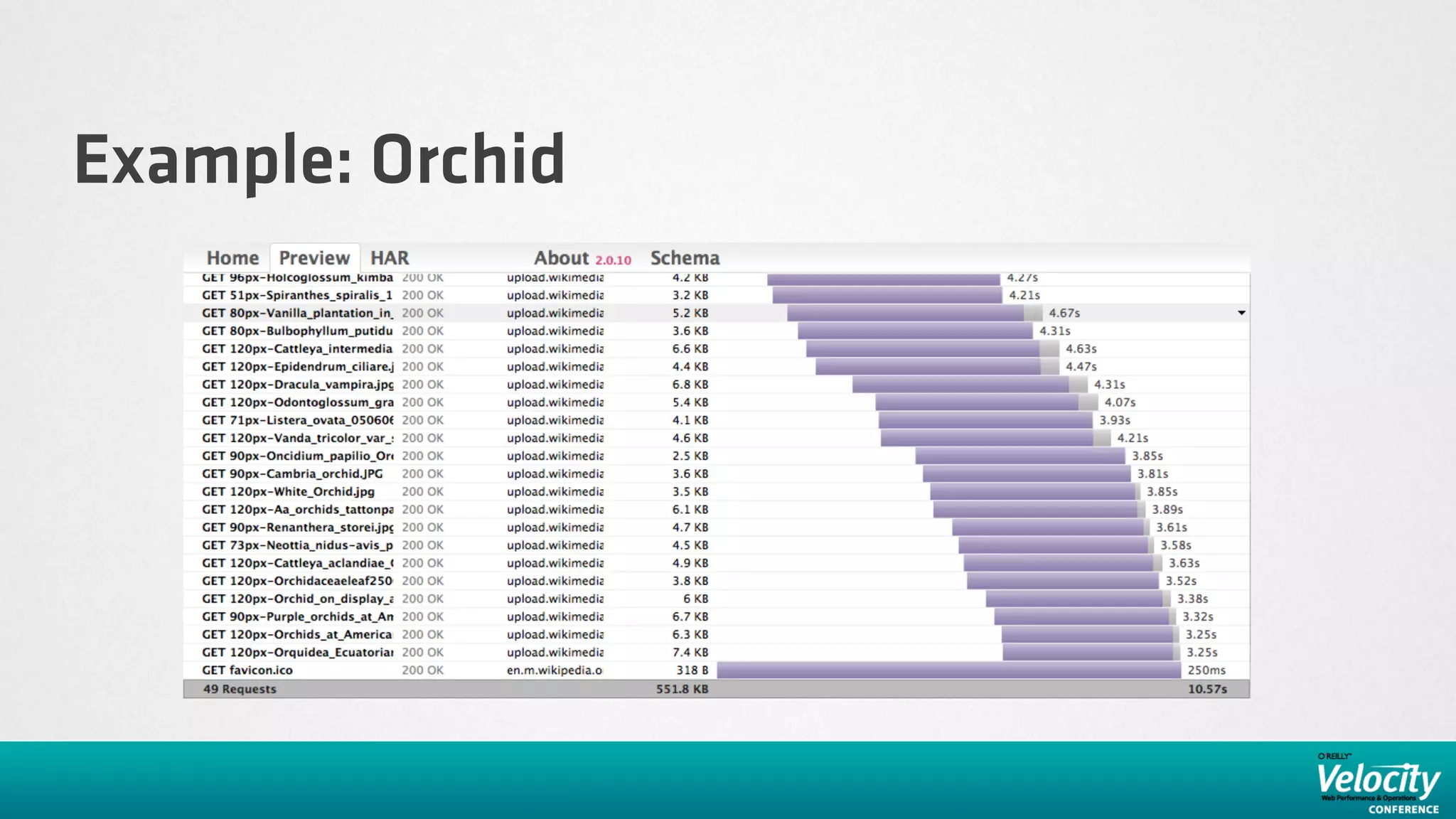

- 25. Example: Orchid adb logcat -v time | startLoadingResource NETWORK 06-12 22:57:48.430 D/webcoreglue( 1357): grep NETWORK 0x66d368 http://en.m.wikipedia.org/wiki/ Orchid 06-12 22:57:48.710 D/webcoreglue( 1357): ReceivedResponse NETWORK handle=0x66d368 mimeType=text/html url=http:// en.m.wikipedia.org/wiki/Orchid 06-12 22:57:48.780 D/webcoreglue( 1357): startLoadingResource NETWORK 0x6a8678 http://en.m.wikipedia.org/ stylesheets/android.css 06-12 22:57:48.780 D/webcoreglue( 1357): startLoadingResource NETWORK 0x6ab388 http://en.m.wikipedia.org/ javascripts/jquery.js 06-12 22:57:48.790 D/webcoreglue( 1357): startLoadingResource NETWORK 0x6ab7e8 http://en.m.wikipedia.org/ javascripts/application.js 06-12 22:57:48.790 D/webcoreglue( 1357): AddData NETWORK 0x66d368 4162 http://en.m.wikipedia.org/wiki/Orchid 06-12 22:57:48.790 D/webcoreglue( 1357): AddData NETWORK 0x66d368 8192 http://en.m.wikipedia.org/wiki/Orchid 06-12 22:57:48.790 D/webcoreglue( 1357): AddData NETWORK 0x66d368 1361 http://en.m.wikipedia.org/wiki/Orchid 06-12 22:57:48.980 D/webcoreglue( 1357): AddData NETWORK 0x66d368 8192 http://en.m.wikipedia.org/wiki/Orchid 06-12 22:57:48.980 D/webcoreglue( 1357): AddData NETWORK 0x66d368 803 http://en.m.wikipedia.org/wiki/Orchid 06-12 22:57:49.000 D/webcoreglue( 1357): AddData NETWORK 0x66d368 4702 http://en.m.wikipedia.org/wiki/Orchid 06-12 22:57:49.000 D/webcoreglue( 1357): AddData NETWORK 0x66d368 4507 http://en.m.wikipedia.org/wiki/Orchid 06-12 22:57:49.020 D/webcoreglue( 1357): AddData NETWORK 0x66d368 8192 http://en.m.wikipedia.org/wiki/Orchid 06-12 22:57:49.050 D/webcoreglue( 1357): AddData NETWORK 0x66d368 6750 http://en.m.wikipedia.org/wiki/Orchid
- 26.

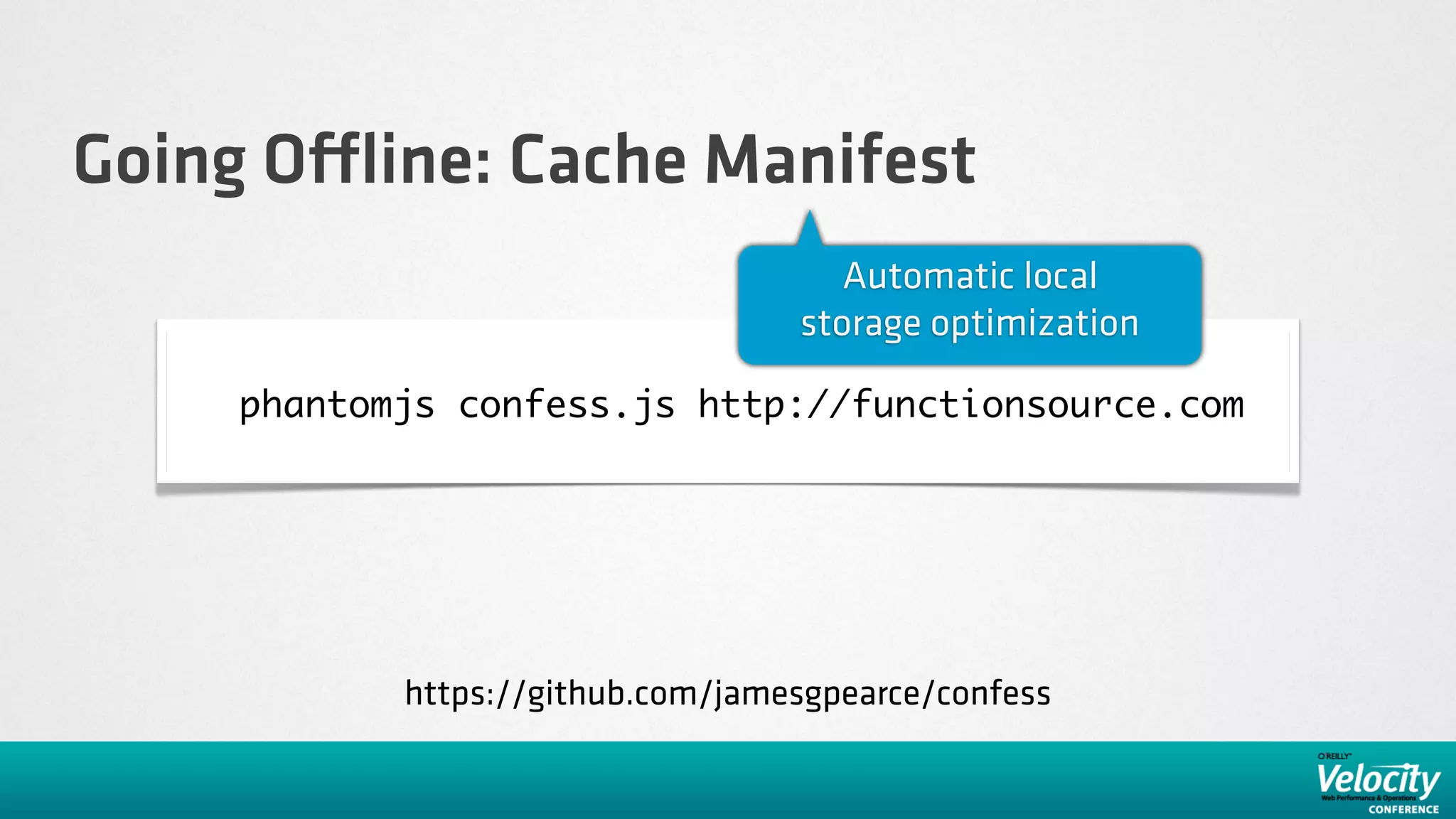

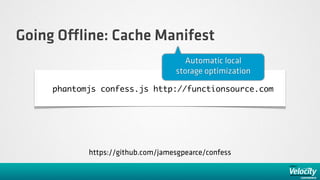

- 27. Going O ine:Cache Manifest Automatic local storage optimization phantomjs confess.js http://functionsource.com https://github.com/jamesgpearce/confess
- 28.

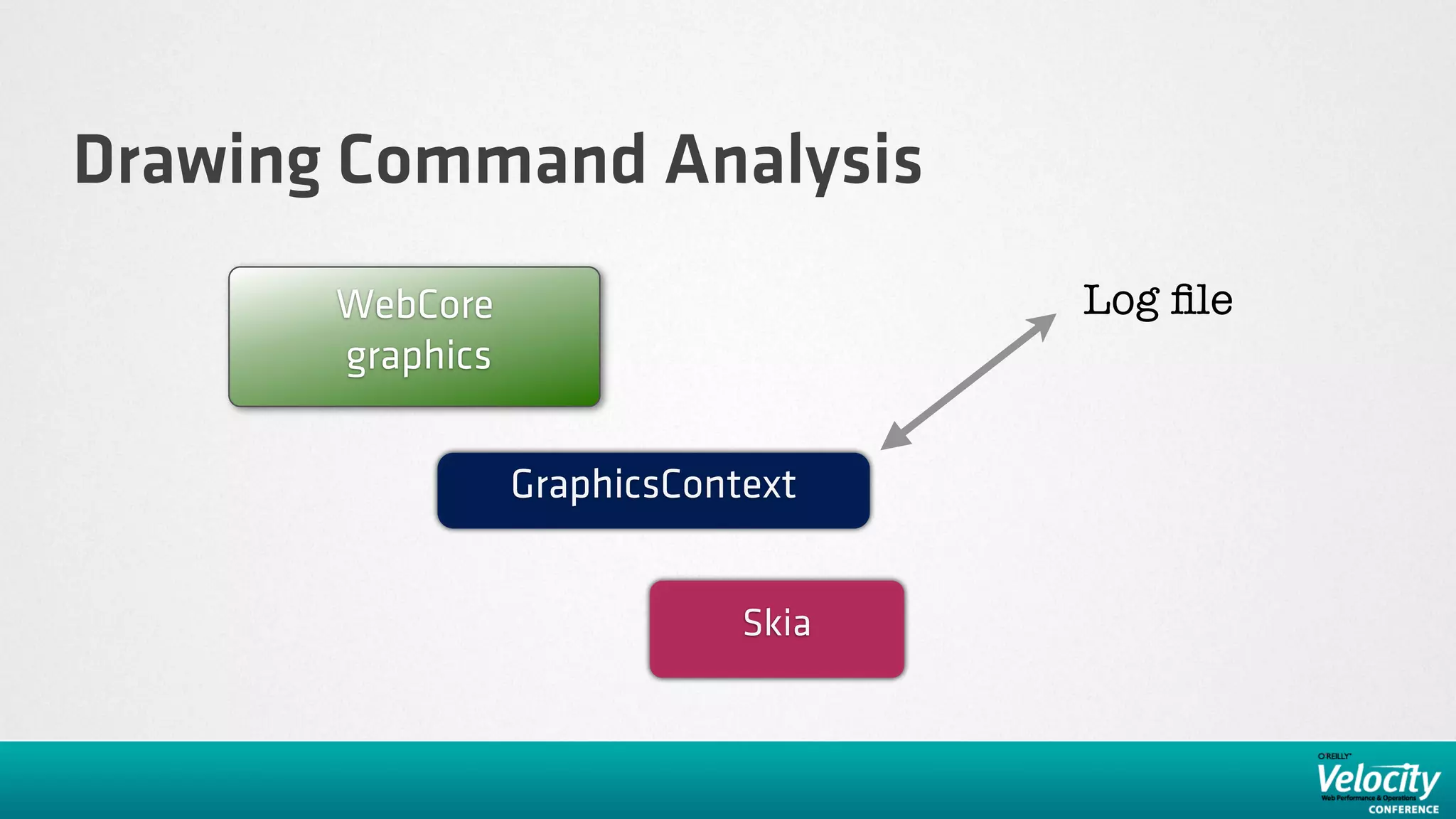

- 29. Drawing Command Analysis WebCore Log file graphics GraphicsContext Skia

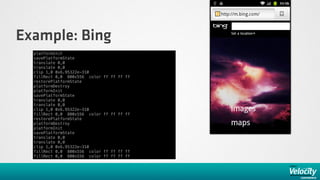

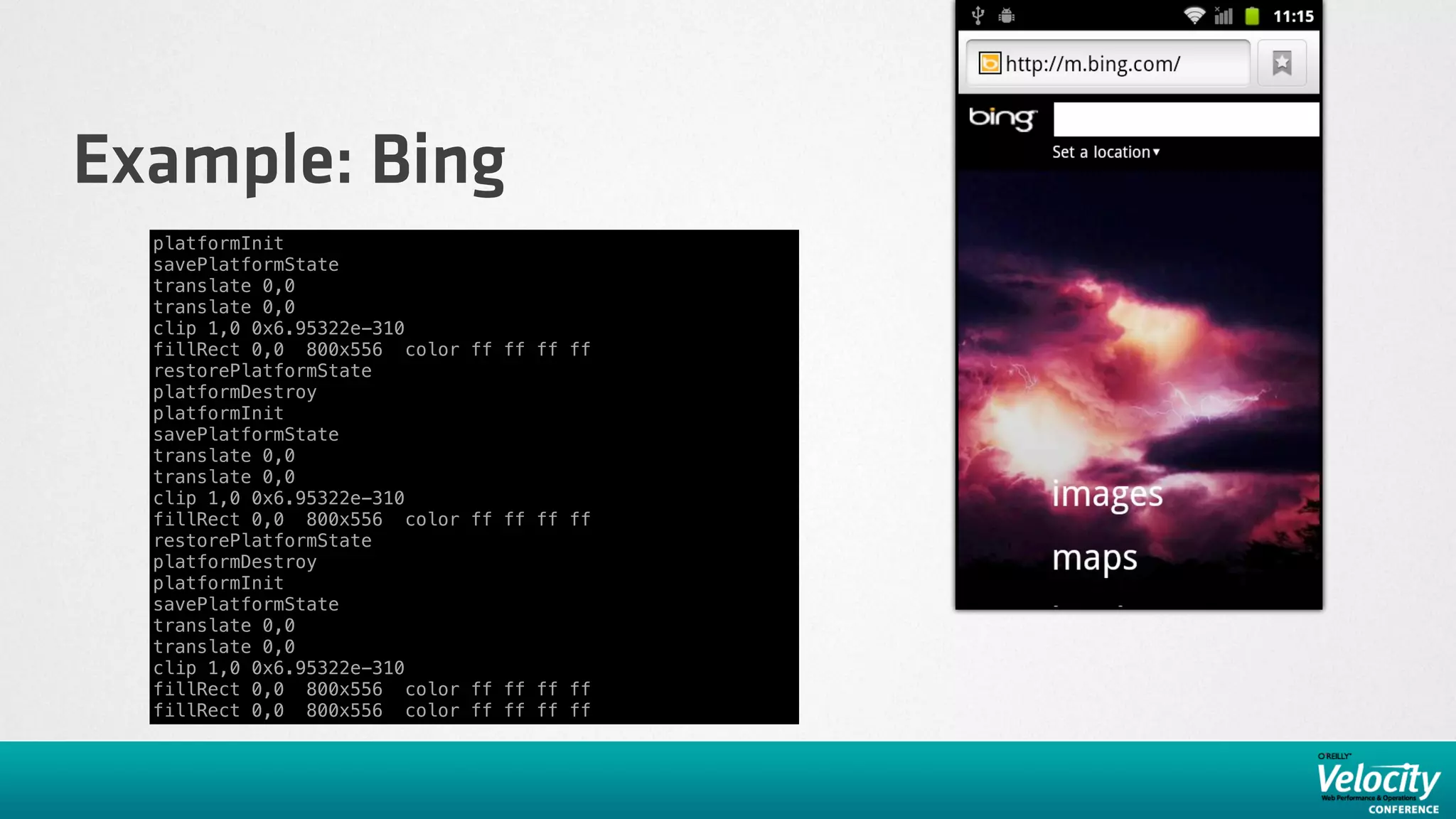

- 30. Example: Bing platformInit savePlatformState translate 0,0 translate 0,0 clip 1,0 0x6.95322e-310 fillRect 0,0 800x556 color ff ff ff ff restorePlatformState platformDestroy platformInit savePlatformState translate 0,0 translate 0,0 clip 1,0 0x6.95322e-310 fillRect 0,0 800x556 color ff ff ff ff restorePlatformState platformDestroy platformInit savePlatformState translate 0,0 translate 0,0 clip 1,0 0x6.95322e-310 fillRect 0,0 800x556 color ff ff ff ff fillRect 0,0 800x556 color ff ff ff ff
- 31.

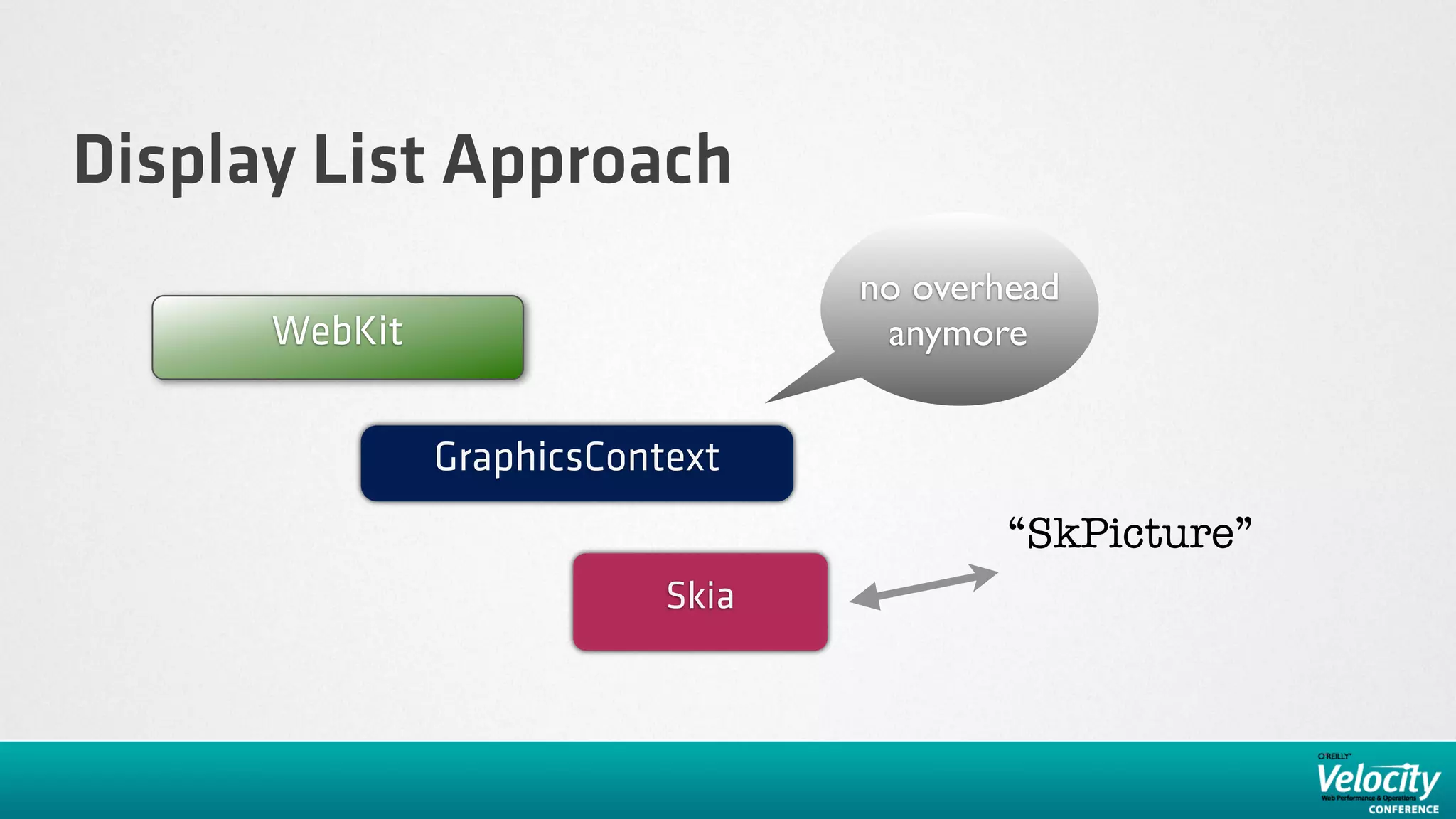

- 32. Display List Approach no overhead WebKit anymore GraphicsContext “SkPicture” Skia

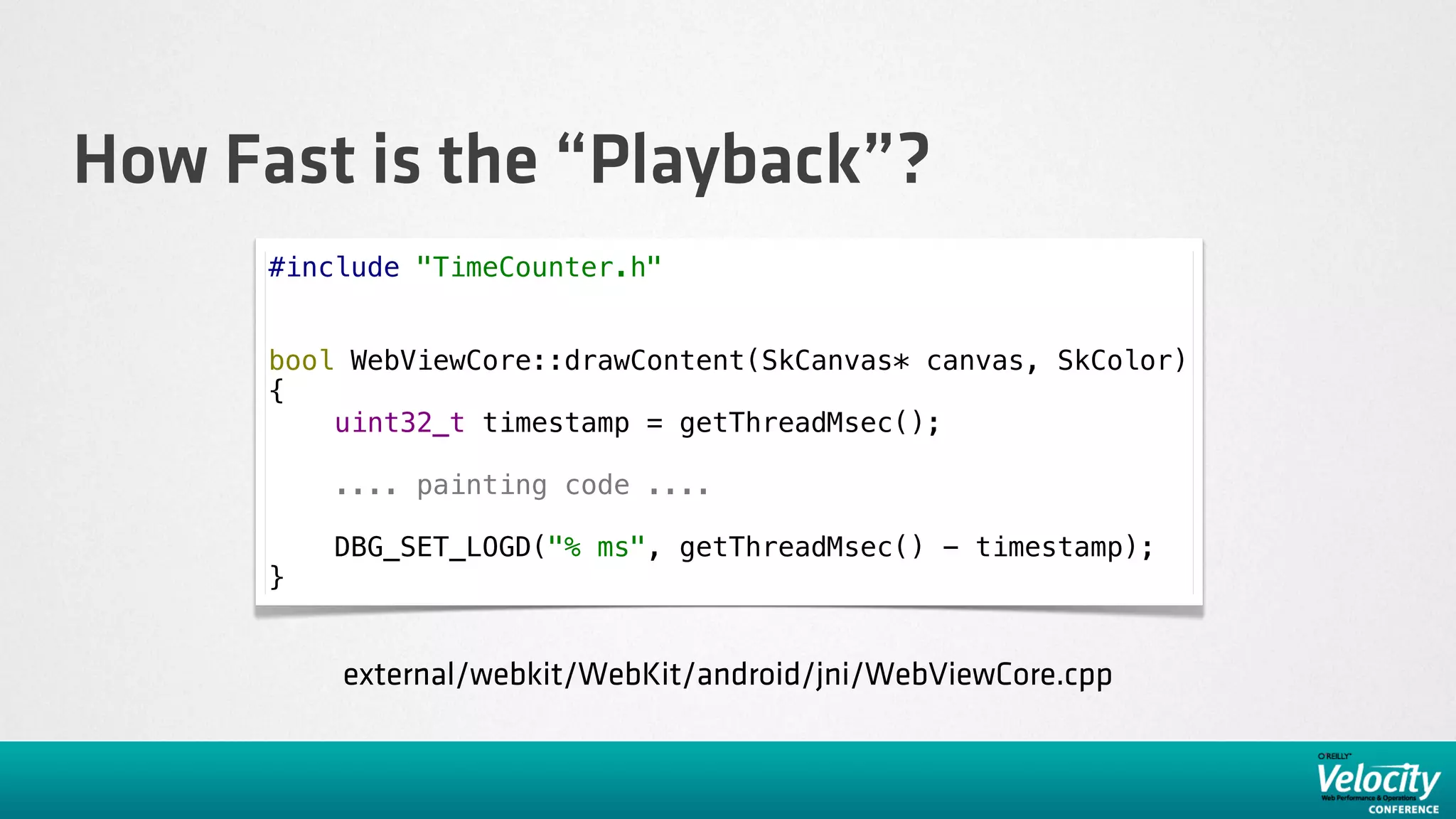

- 33. How Fast isthe “Playback”? #include "TimeCounter.h" bool WebViewCore::drawContent(SkCanvas* canvas, SkColor) { uint32_t timestamp = getThreadMsec(); .... painting code .... DBG_SET_LOGD("% ms", getThreadMsec() - timestamp); } external/webkit/WebKit/android/jni/WebViewCore.cpp

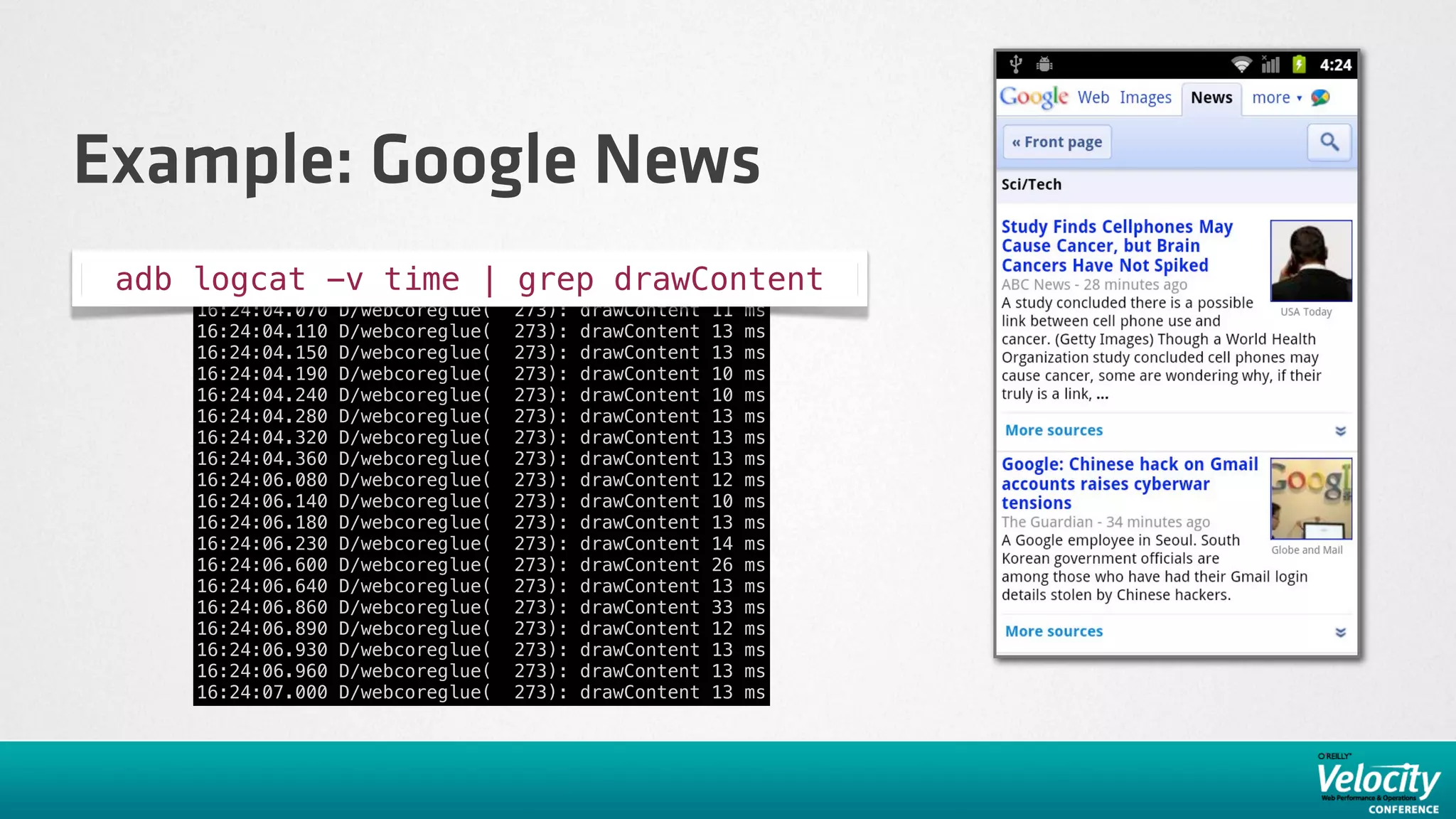

- 34. Example: Google News adb logcat -v time | grep drawContent 16:24:04.070 D/webcoreglue( 273): drawContent 11 ms 16:24:04.110 D/webcoreglue( 273): drawContent 13 ms 16:24:04.150 D/webcoreglue( 273): drawContent 13 ms 16:24:04.190 D/webcoreglue( 273): drawContent 10 ms 16:24:04.240 D/webcoreglue( 273): drawContent 10 ms 16:24:04.280 D/webcoreglue( 273): drawContent 13 ms 16:24:04.320 D/webcoreglue( 273): drawContent 13 ms 16:24:04.360 D/webcoreglue( 273): drawContent 13 ms 16:24:06.080 D/webcoreglue( 273): drawContent 12 ms 16:24:06.140 D/webcoreglue( 273): drawContent 10 ms 16:24:06.180 D/webcoreglue( 273): drawContent 13 ms 16:24:06.230 D/webcoreglue( 273): drawContent 14 ms 16:24:06.600 D/webcoreglue( 273): drawContent 26 ms 16:24:06.640 D/webcoreglue( 273): drawContent 13 ms 16:24:06.860 D/webcoreglue( 273): drawContent 33 ms 16:24:06.890 D/webcoreglue( 273): drawContent 12 ms 16:24:06.930 D/webcoreglue( 273): drawContent 13 ms 16:24:06.960 D/webcoreglue( 273): drawContent 13 ms 16:24:07.000 D/webcoreglue( 273): drawContent 13 ms

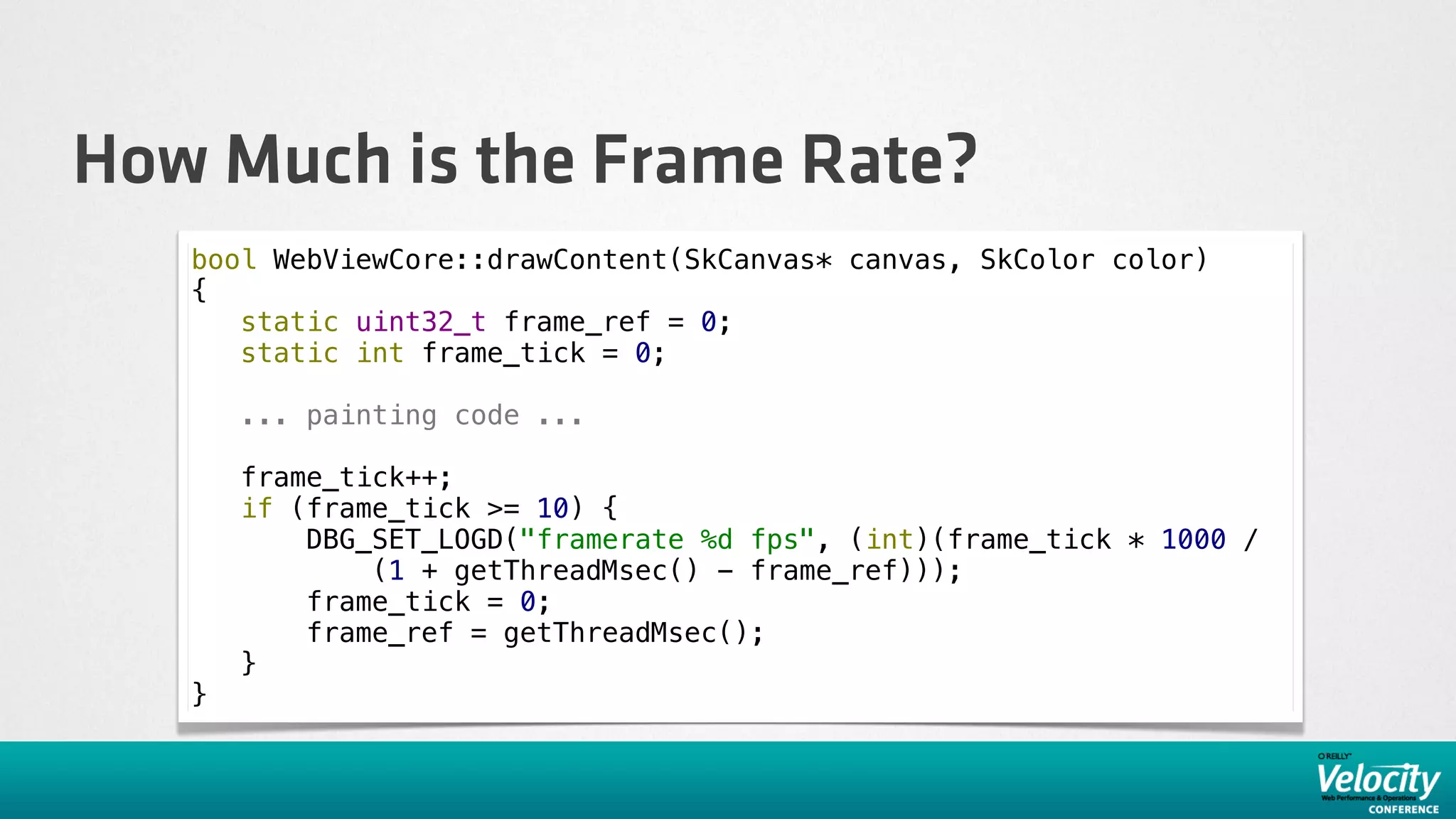

- 35. How Much isthe Frame Rate? bool WebViewCore::drawContent(SkCanvas* canvas, SkColor color) { static uint32_t frame_ref = 0; static int frame_tick = 0; ... painting code ... frame_tick++; if (frame_tick >= 10) { DBG_SET_LOGD("framerate %d fps", (int)(frame_tick * 1000 / (1 + getThreadMsec() - frame_ref))); frame_tick = 0; frame_ref = getThreadMsec(); } }

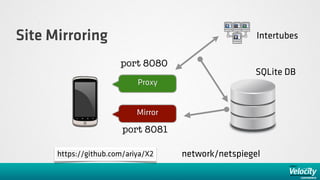

- 36. Site Mirroring Intertubes port 8080 SQLite DB Proxy Mirror port 8081 https://github.com/ariya/X2 network/netspiegel
- 37.

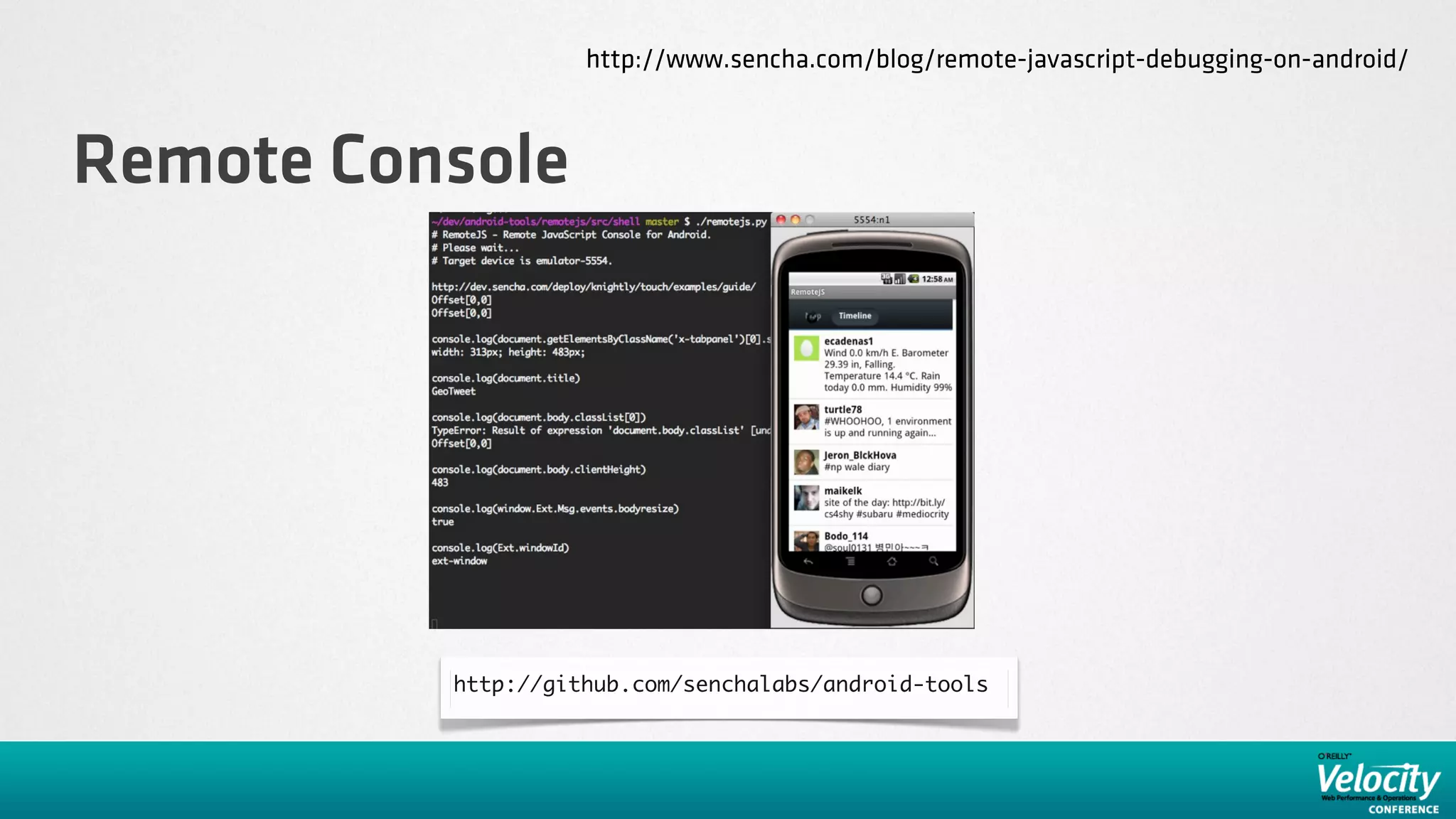

- 38. http://www.sencha.com/blog/remote-javascript-debugging-on-android/ Remote Console http://github.com/senchalabs/android-tools

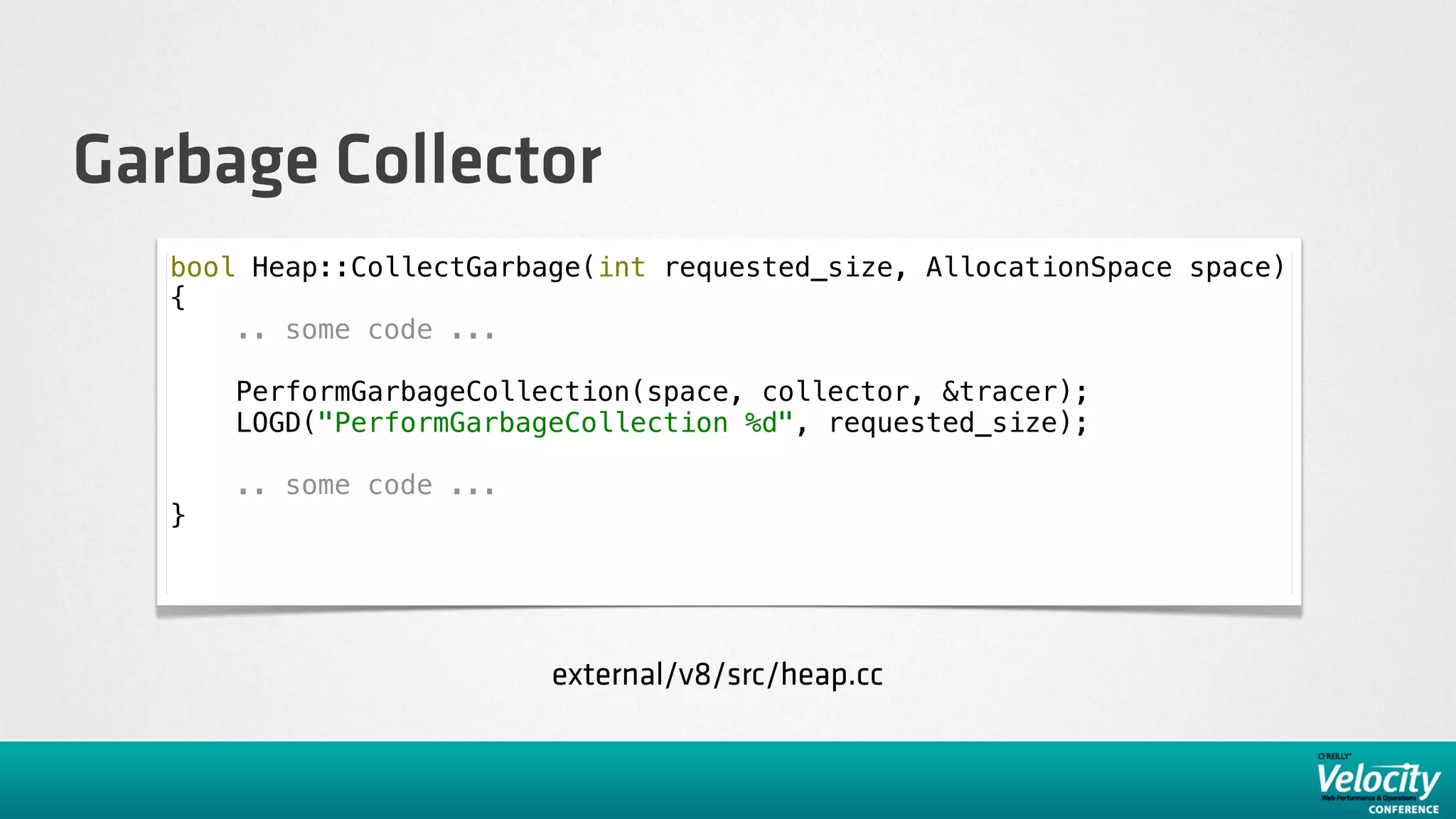

- 40. Garbage Collector bool Heap::CollectGarbage(int requested_size, AllocationSpace space) { .. some code ... PerformGarbageCollection(space, collector, &tracer); LOGD("PerformGarbageCollection %d", requested_size); .. some code ... } external/v8/src/heap.cc

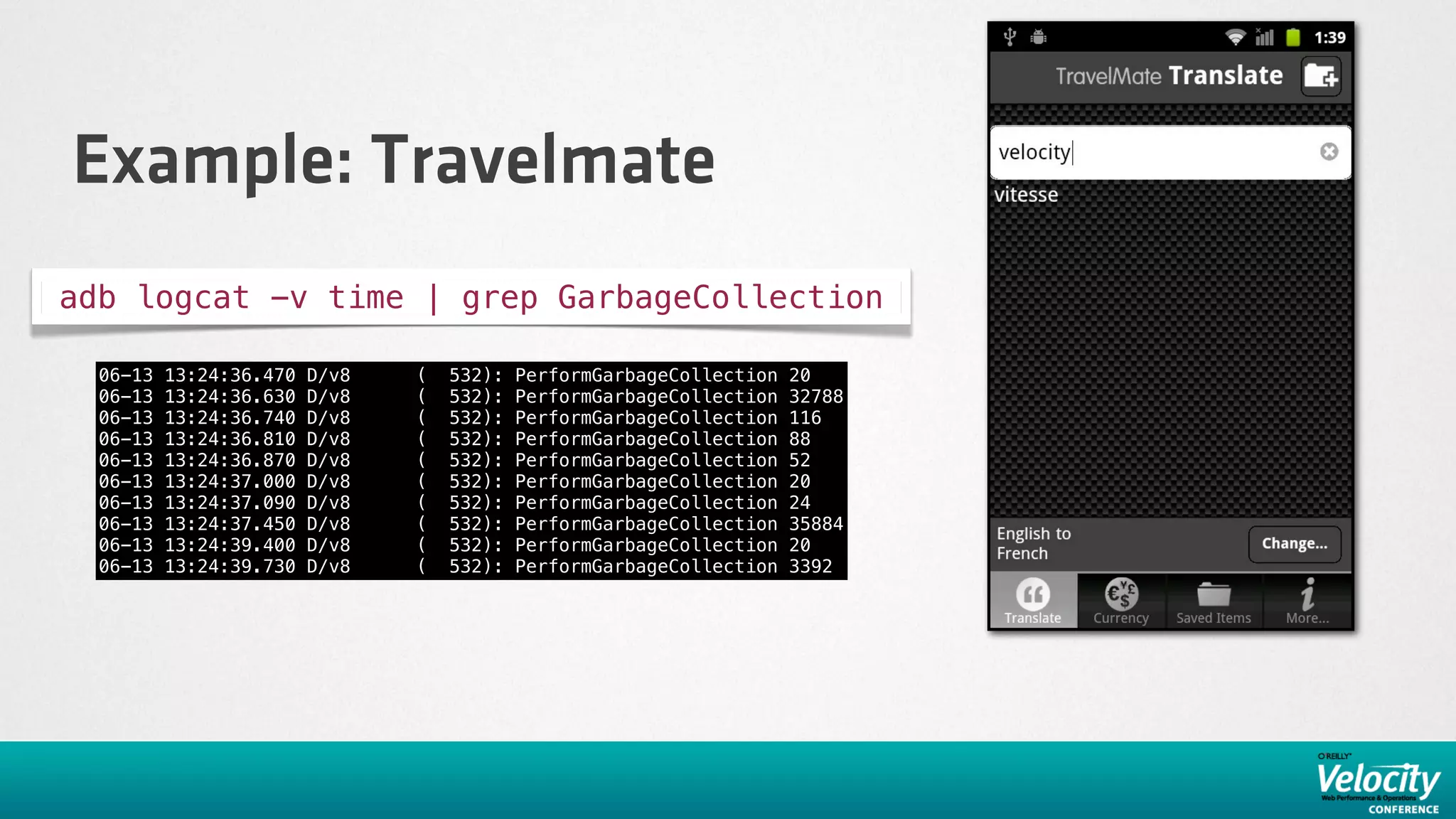

- 41. Example: Travelmate adb logcat-v time | grep GarbageCollection 06-13 13:24:36.470 D/v8 ( 532): PerformGarbageCollection 20 06-13 13:24:36.630 D/v8 ( 532): PerformGarbageCollection 32788 06-13 13:24:36.740 D/v8 ( 532): PerformGarbageCollection 116 06-13 13:24:36.810 D/v8 ( 532): PerformGarbageCollection 88 06-13 13:24:36.870 D/v8 ( 532): PerformGarbageCollection 52 06-13 13:24:37.000 D/v8 ( 532): PerformGarbageCollection 20 06-13 13:24:37.090 D/v8 ( 532): PerformGarbageCollection 24 06-13 13:24:37.450 D/v8 ( 532): PerformGarbageCollection 35884 06-13 13:24:39.400 D/v8 ( 532): PerformGarbageCollection 20 06-13 13:24:39.730 D/v8 ( 532): PerformGarbageCollection 3392

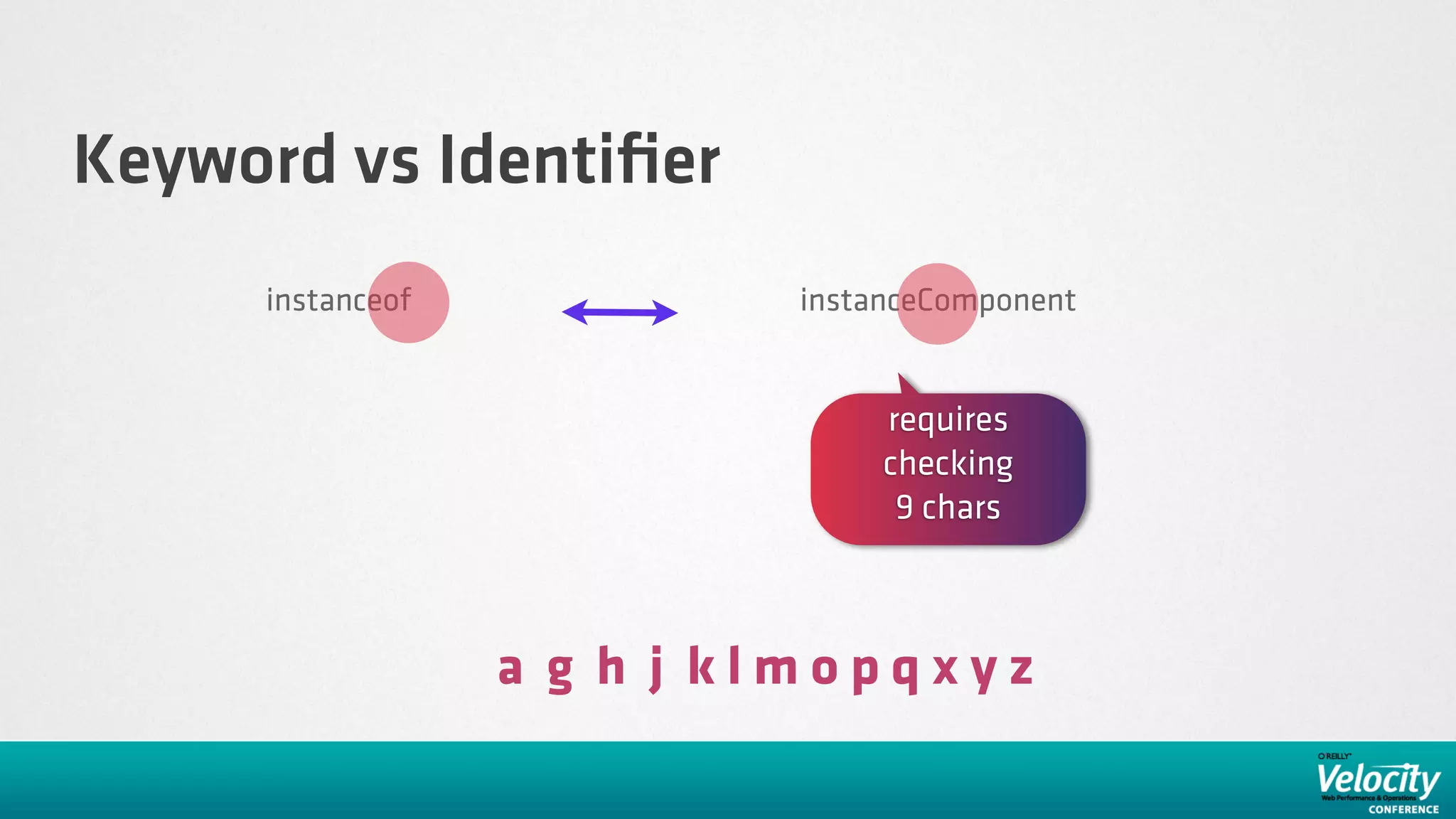

- 42. Keyword vs Identifier instanceof instanceComponent requires checking 9 chars a g h j klmopqxyz

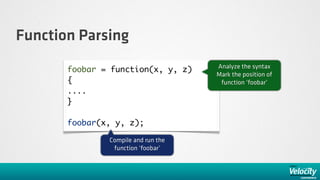

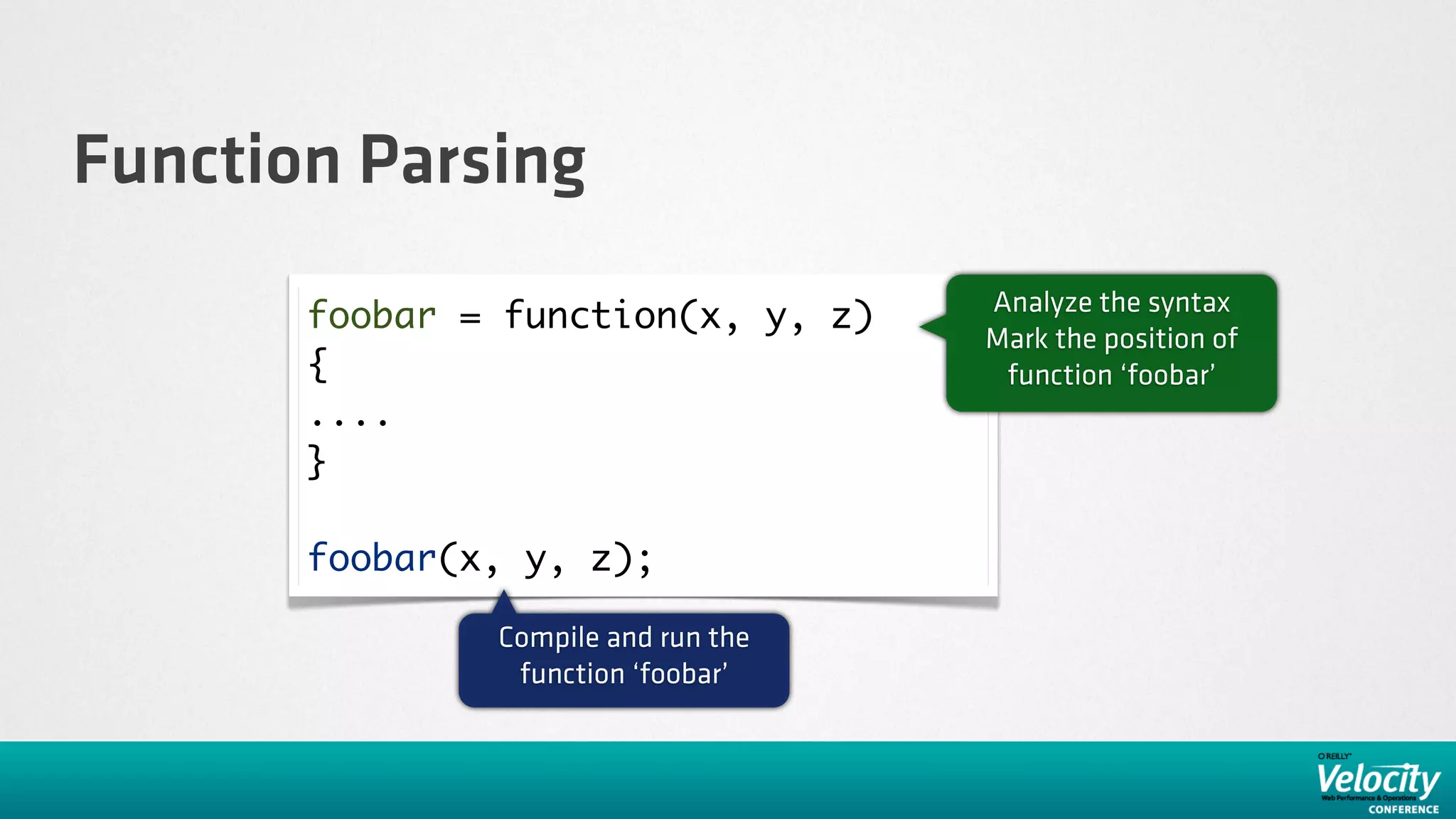

- 43. Function Parsing Analyze the syntax foobar = function(x, y, z) Mark the position of { function ‘foobar’ .... } foobar(x, y, z); Compile and run the function ‘foobar’

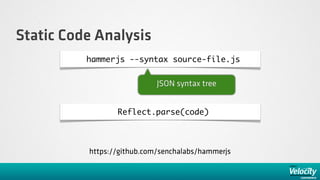

- 44. Static Code Analysis hammerjs --syntax source-file.js JSON syntax tree Reflect.parse(code) https://github.com/senchalabs/hammerjs

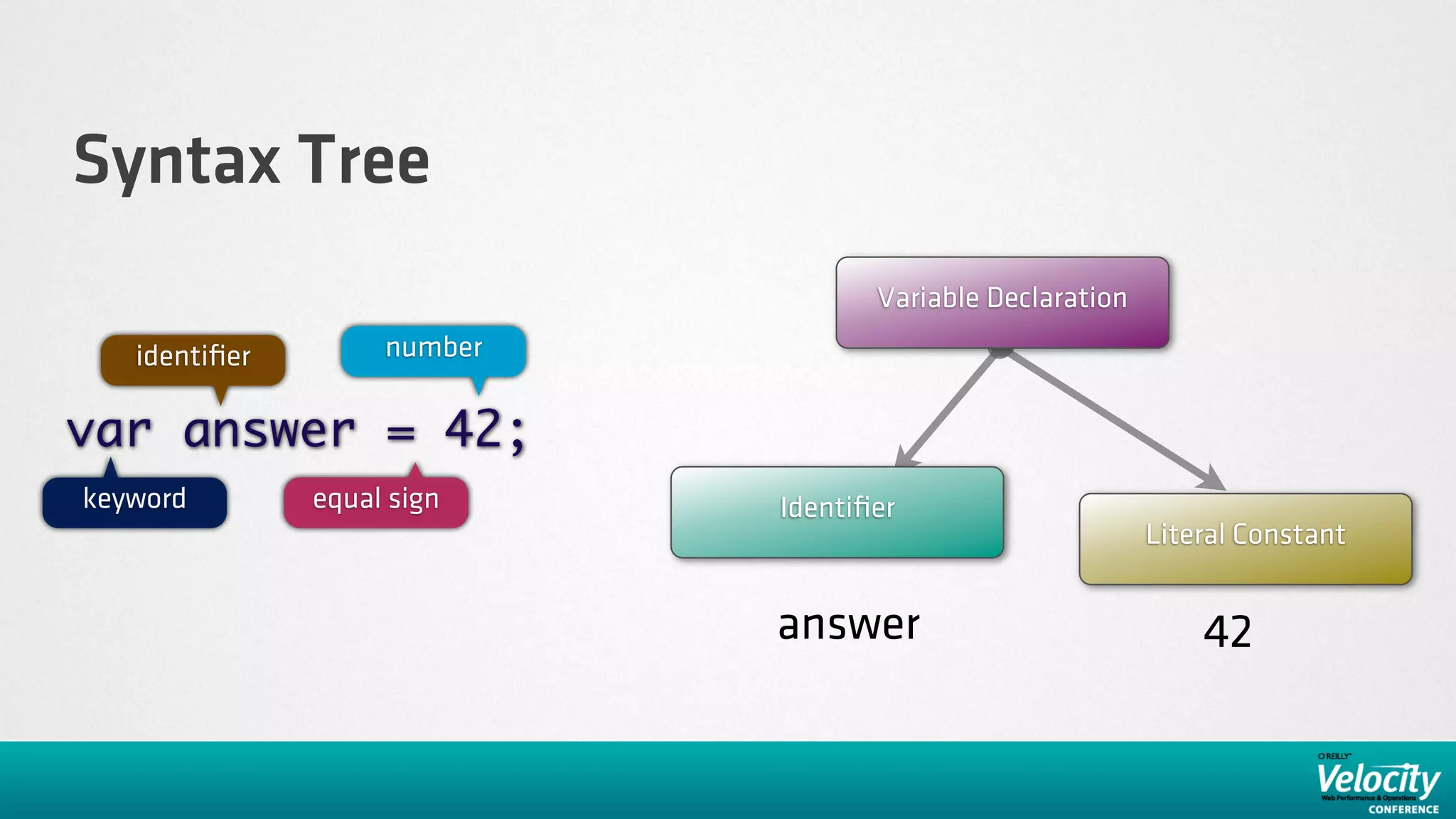

- 45. Syntax Tree Variable Declaration identifier number var answer = 42; keyword equal sign Identifier Literal Constant answer 42

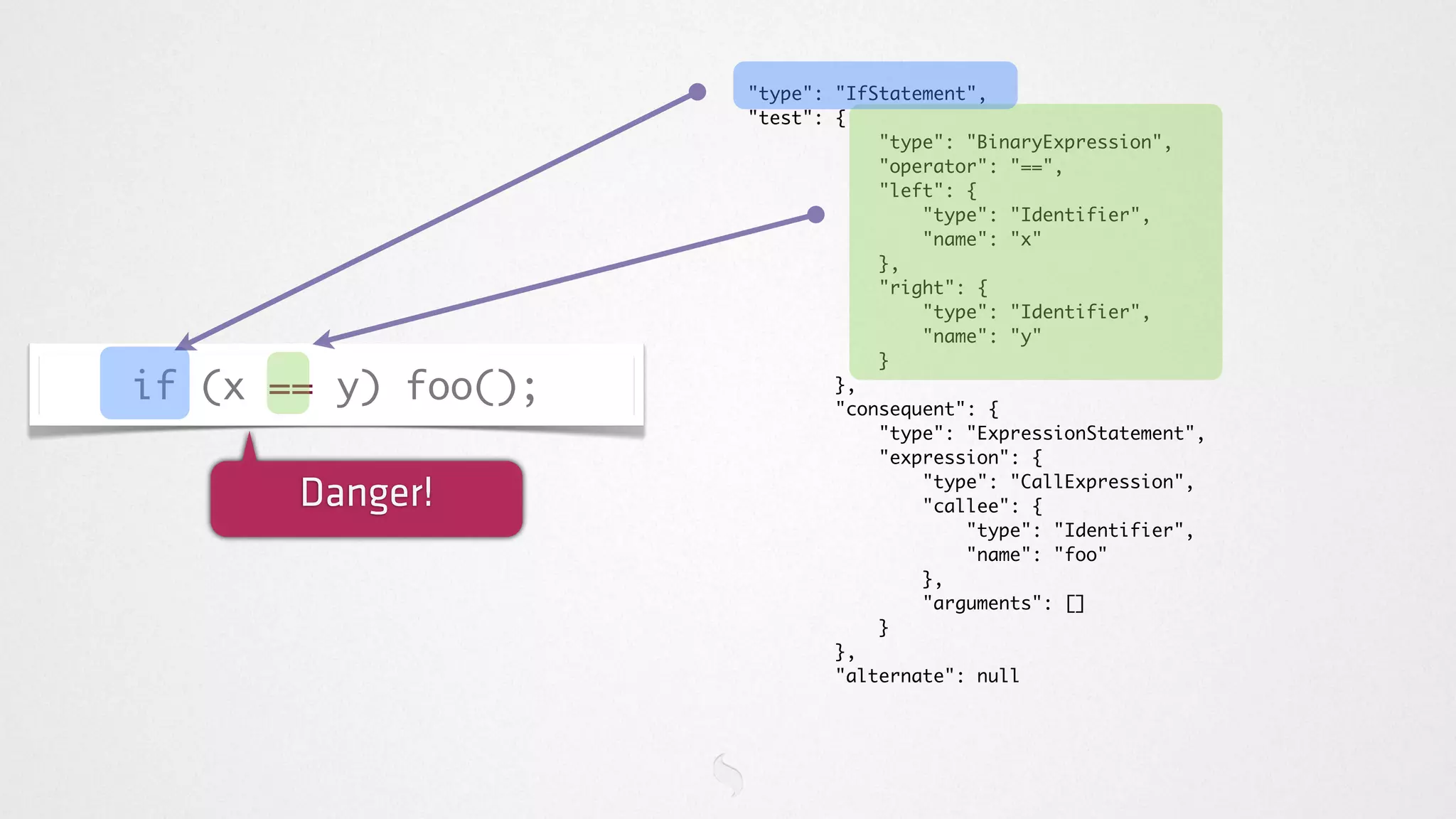

- 46. "type": "IfStatement", "test": { "type": "BinaryExpression", "operator": "==", "left": { "type": "Identifier", "name": "x" }, "right": { "type": "Identifier", "name": "y" } if (x == y) foo(); }, "consequent": { "type": "ExpressionStatement", "expression": { "type": "CallExpression", Danger! "callee": { "type": "Identifier", "name": "foo" }, "arguments": [] } }, "alternate": null

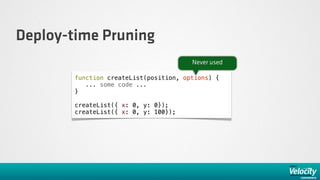

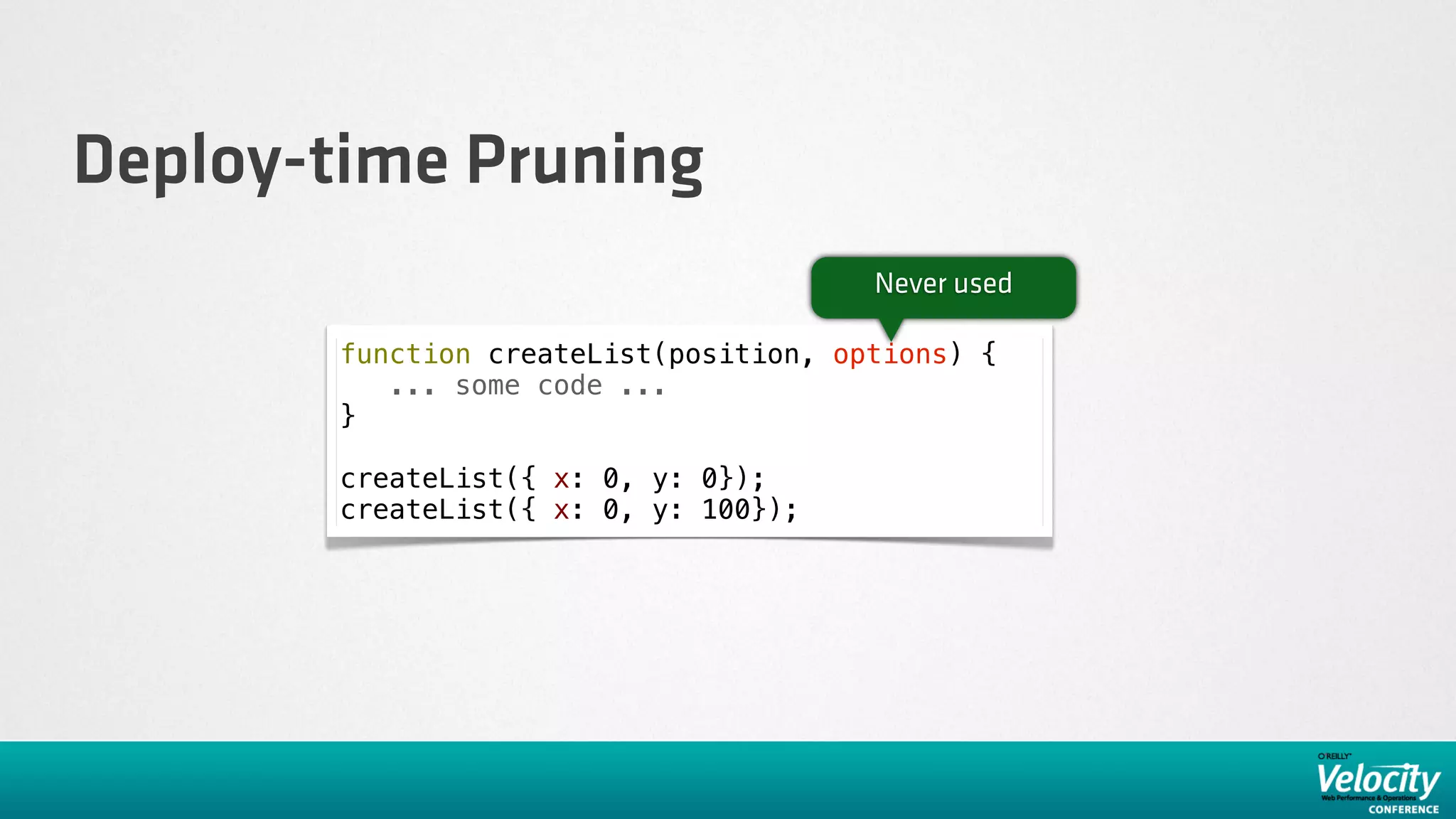

- 47. Deploy-time Pruning Never used function createList(position, options) { ... some code ... } createList({ x: 0, y: 0}); createList({ x: 0, y: 100});

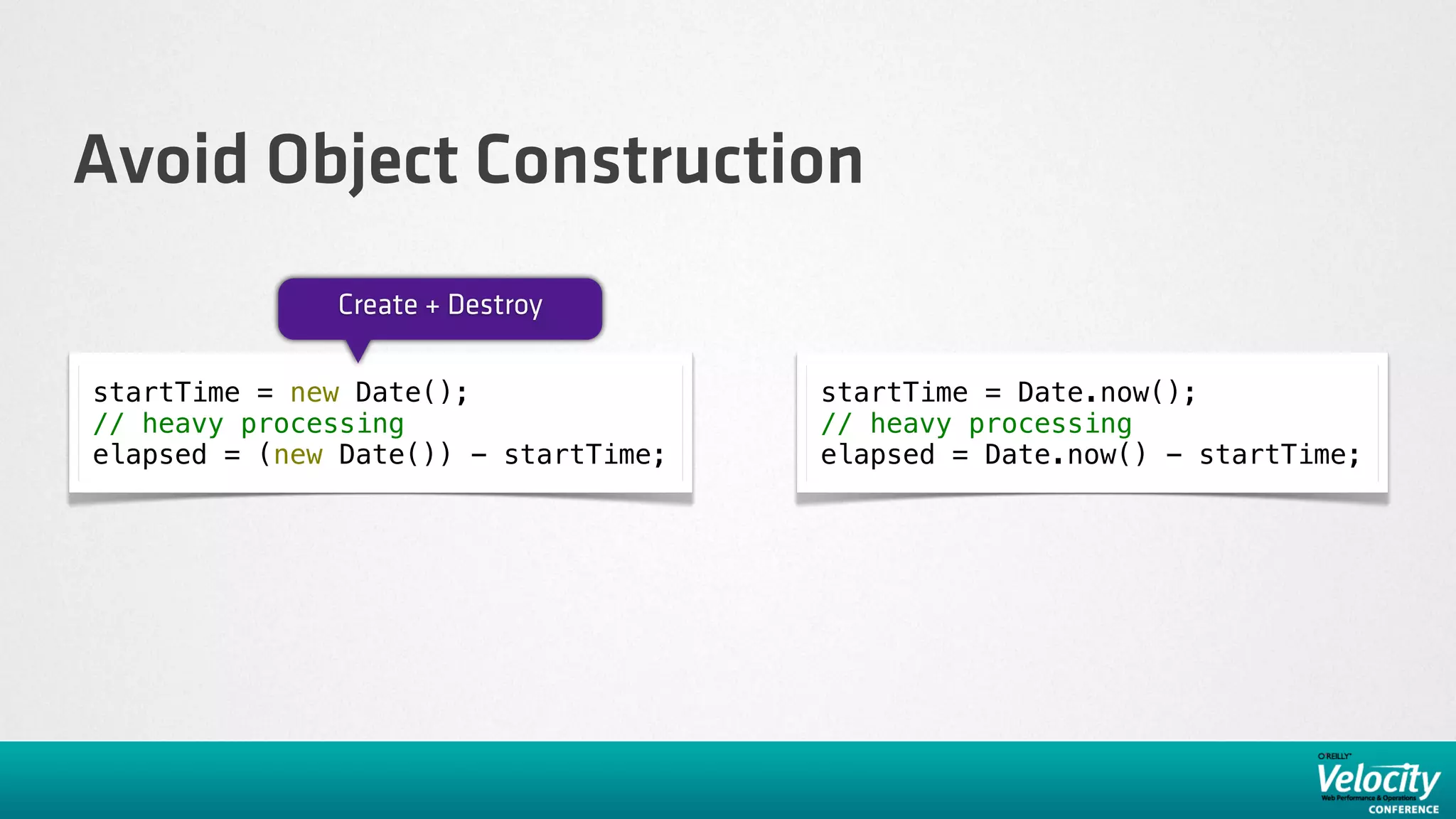

- 48. Avoid Object Construction Create + Destroy startTime = new Date(); startTime = Date.now(); // heavy processing // heavy processing elapsed = (new Date()) - startTime; elapsed = Date.now() - startTime;

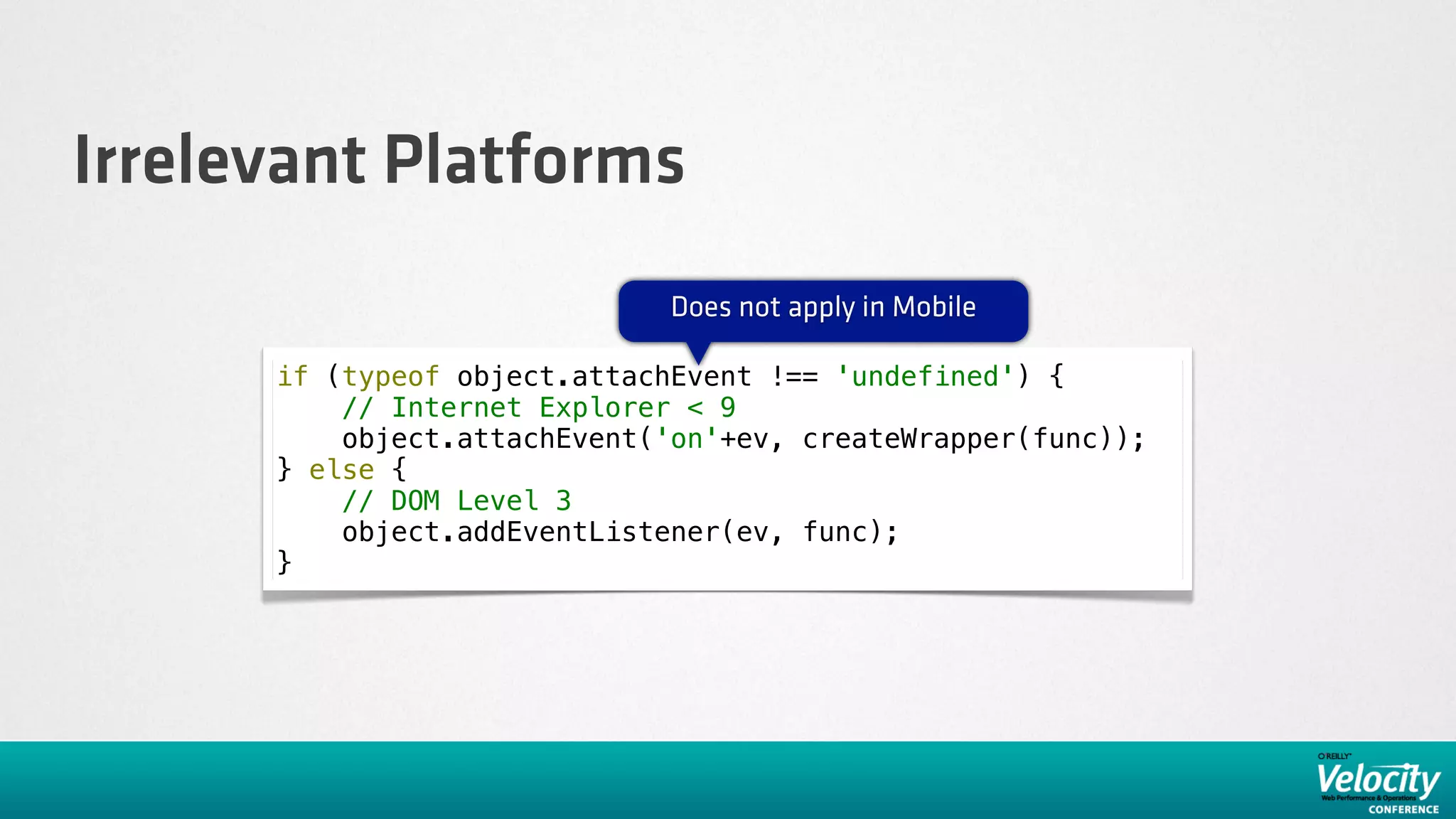

- 49. Irrelevant Platforms Does not apply in Mobile if (typeof object.attachEvent !== 'undefined') { // Internet Explorer < 9 object.attachEvent('on'+ev, createWrapper(func)); } else { // DOM Level 3 object.addEventListener(ev, func); }
- 50.
- 51.
- 52.

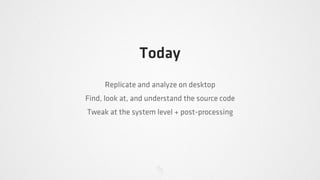

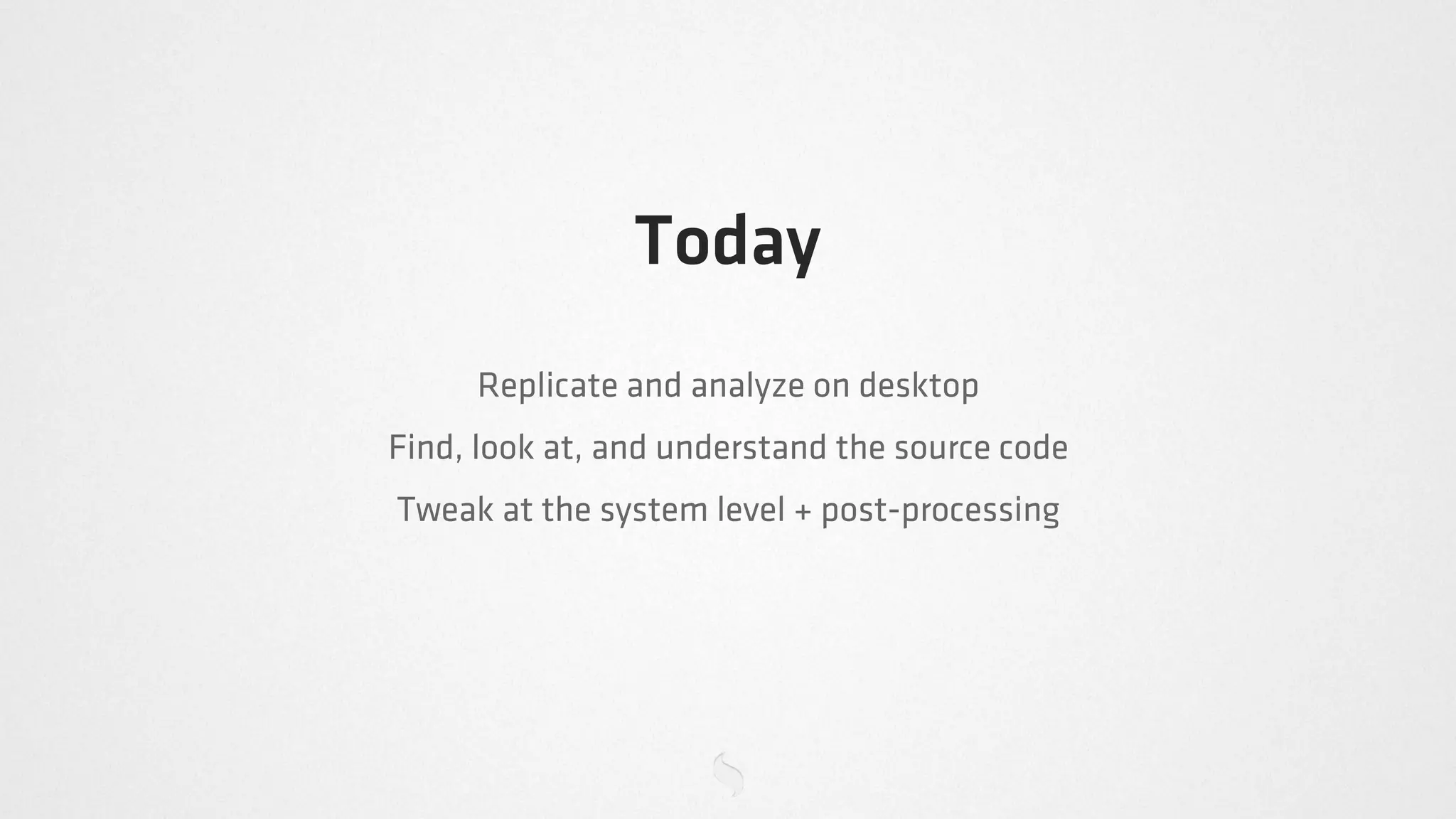

- 53. Today Replicate and analyze on desktop Find, look at, and understand the source code Tweak at the system level + post-processing

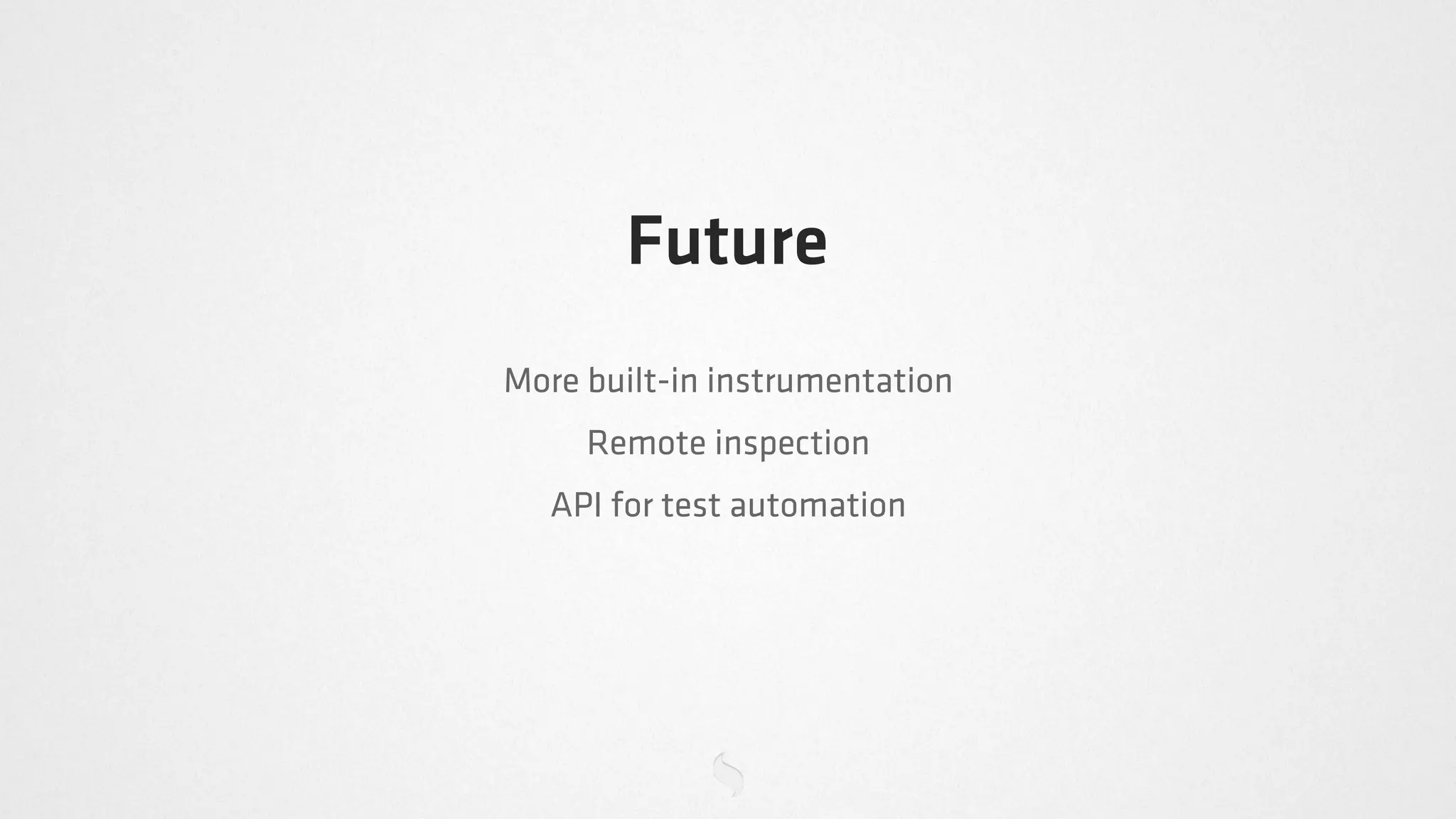

- 54. Future More built-in instrumentation Remote inspection API for test automation
- 55. THANK YOU! ariya.hidayat@gmail.com ariya.blogspot.com @ariyahidayat
