Angular Unit Testing from the Trenches

1.
http://digitaldrummerj.me Justin James Web Developer ProfessionalSpeaker digitaldrummerj.me @digitaldrummerj

2.

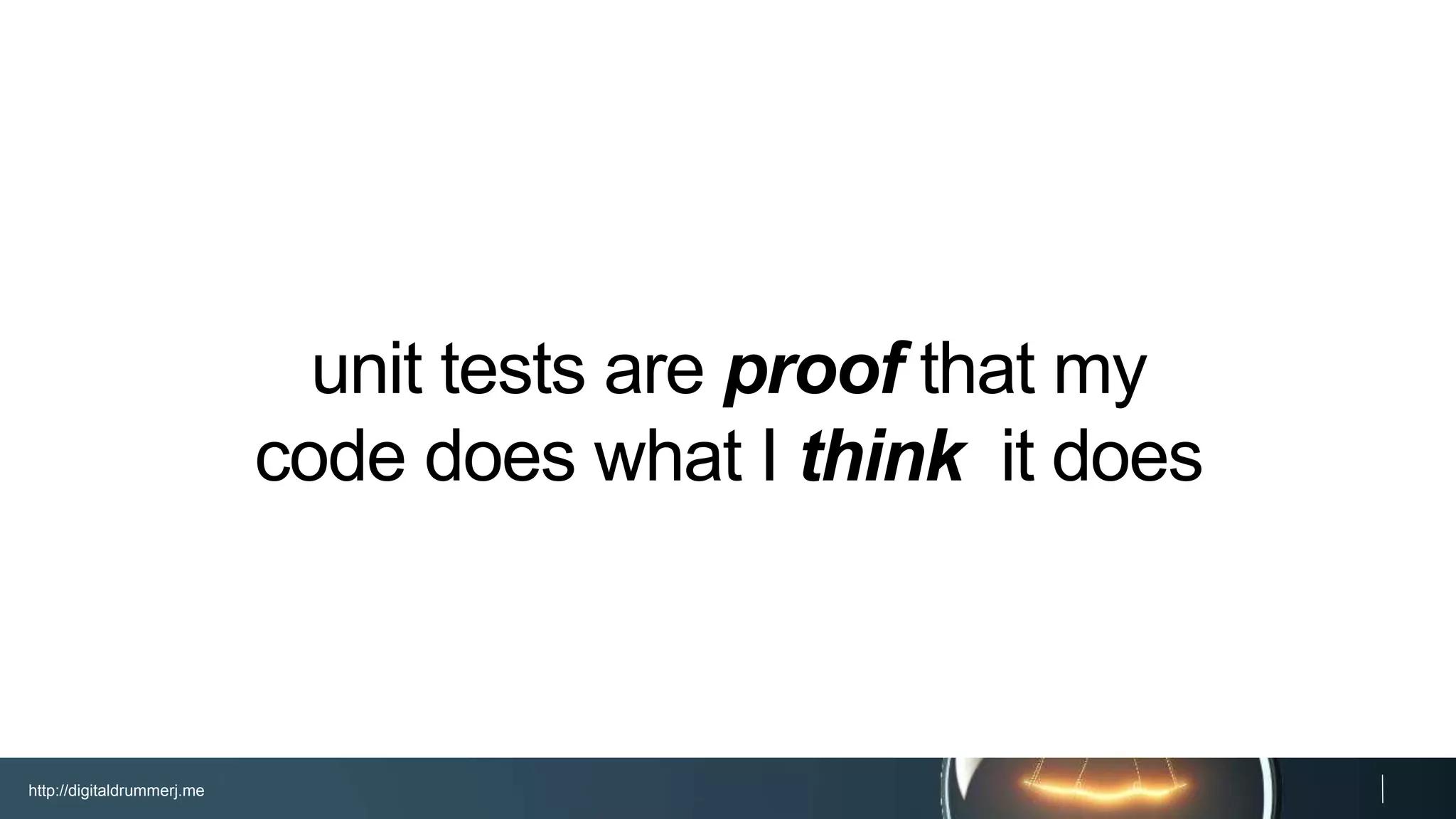

http://digitaldrummerj.me unit tests areproof that my code does what I think it does

3.

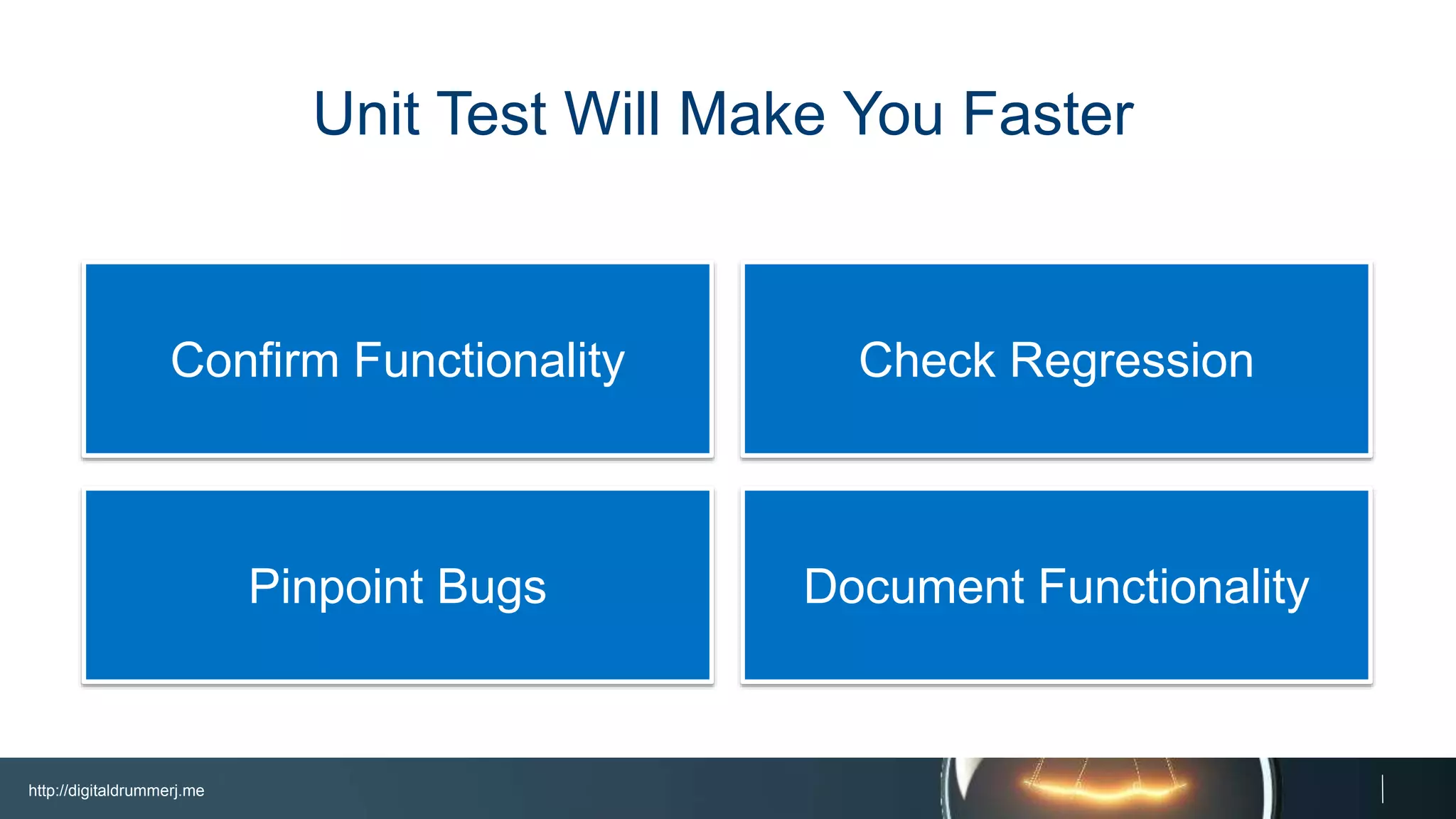

http://digitaldrummerj.me Document FunctionalityPinpoint Bugs CheckRegressionConfirm Functionality Unit Test Will Make You Faster

4.

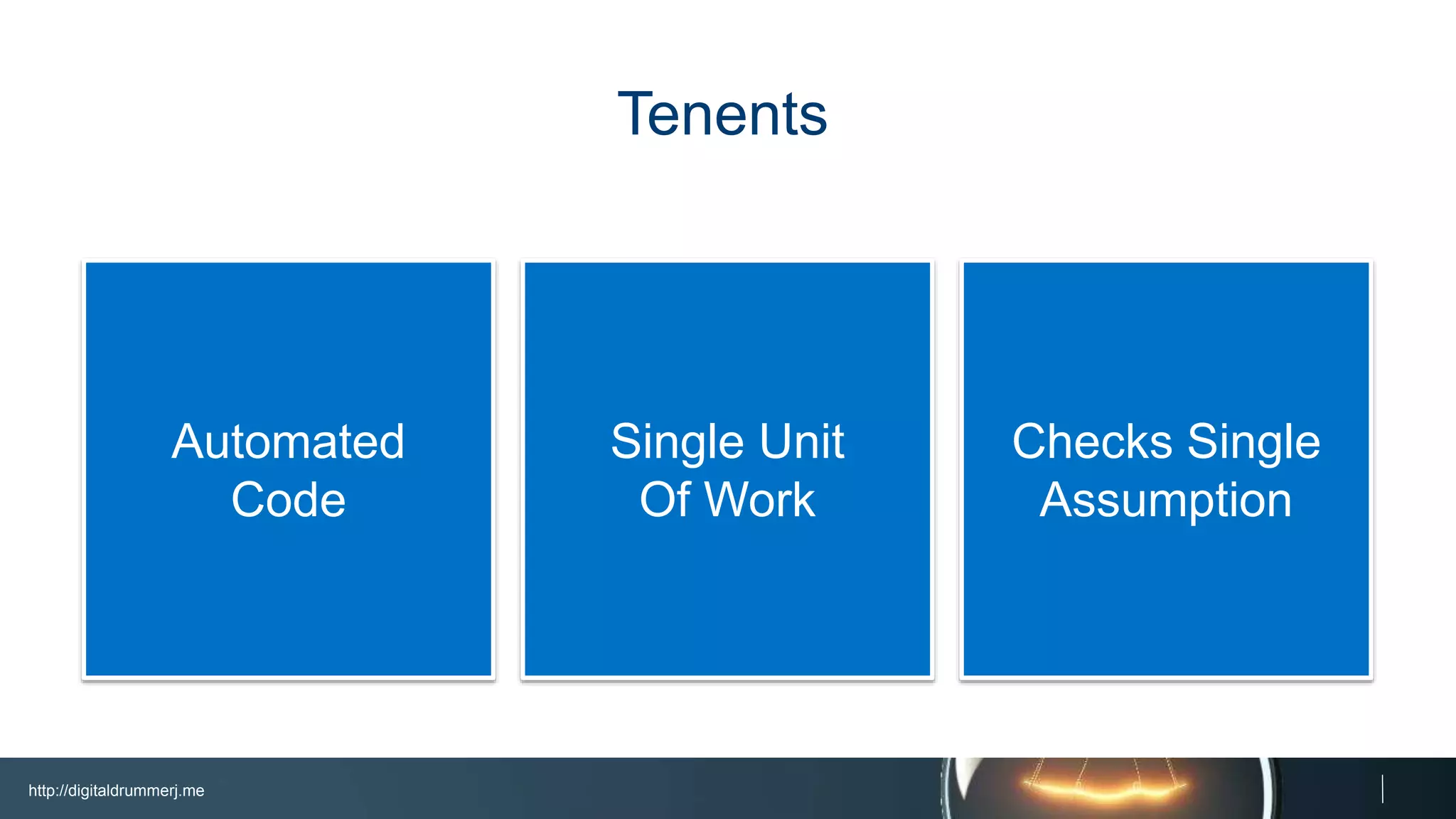

http://digitaldrummerj.me Checks Single Assumption Single Unit OfWork Automated Code Tenents

5.
http://digitaldrummerj.me We only getthese advantages when we are comfortable writing good tests Disclaimer

6.
http://digitaldrummerj.me RunnableDependableMaintainable Good Unit Tests

7.

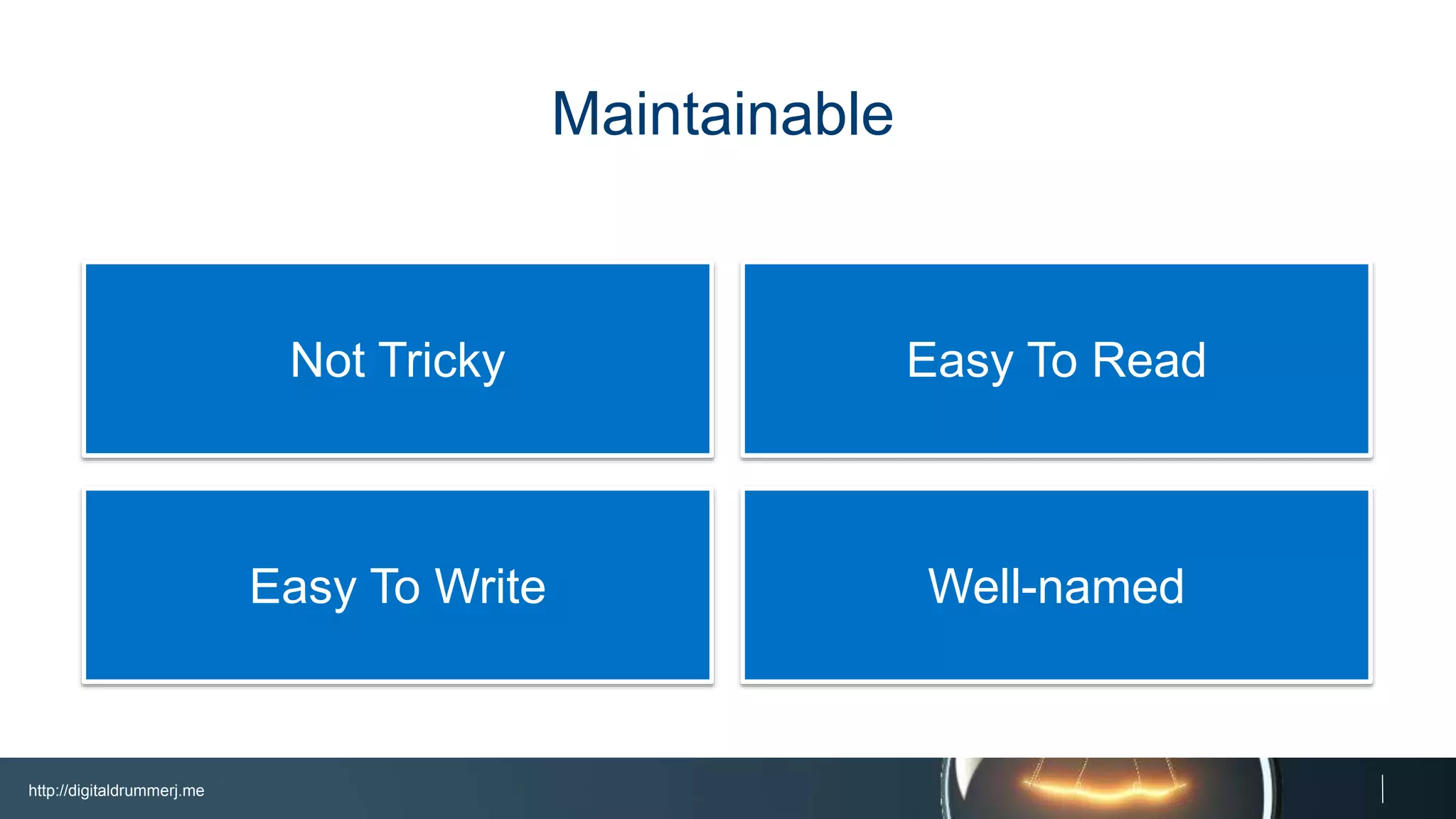

http://digitaldrummerj.me Well-namedEasy To Write EasyTo ReadNot Tricky Maintainable

8.
http://digitaldrummerj.me Tests Right ThingsContinuedRelevance IsolatedConsistent Results Dependable

9.
http://digitaldrummerj.me Failures Point To TheProblem Repeatable Fast Runnable Single Click

10.

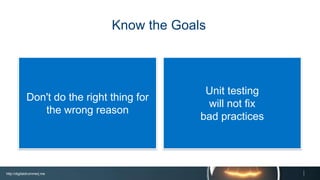

http://digitaldrummerj.me Unit testing will notfix bad practices Don't do the right thing for the wrong reason Know the Goals

11.
http://digitaldrummerj.me "Don't let thefear that testing can't catch all bugs stop you from writing the tests that will catch most bugs" Martin Fowler Refactoring

12.

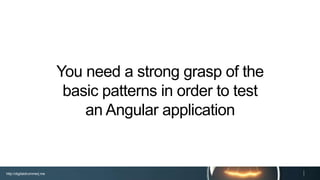

http://digitaldrummerj.me You need astrong grasp of the basic patterns in order to test an Angular application

13.

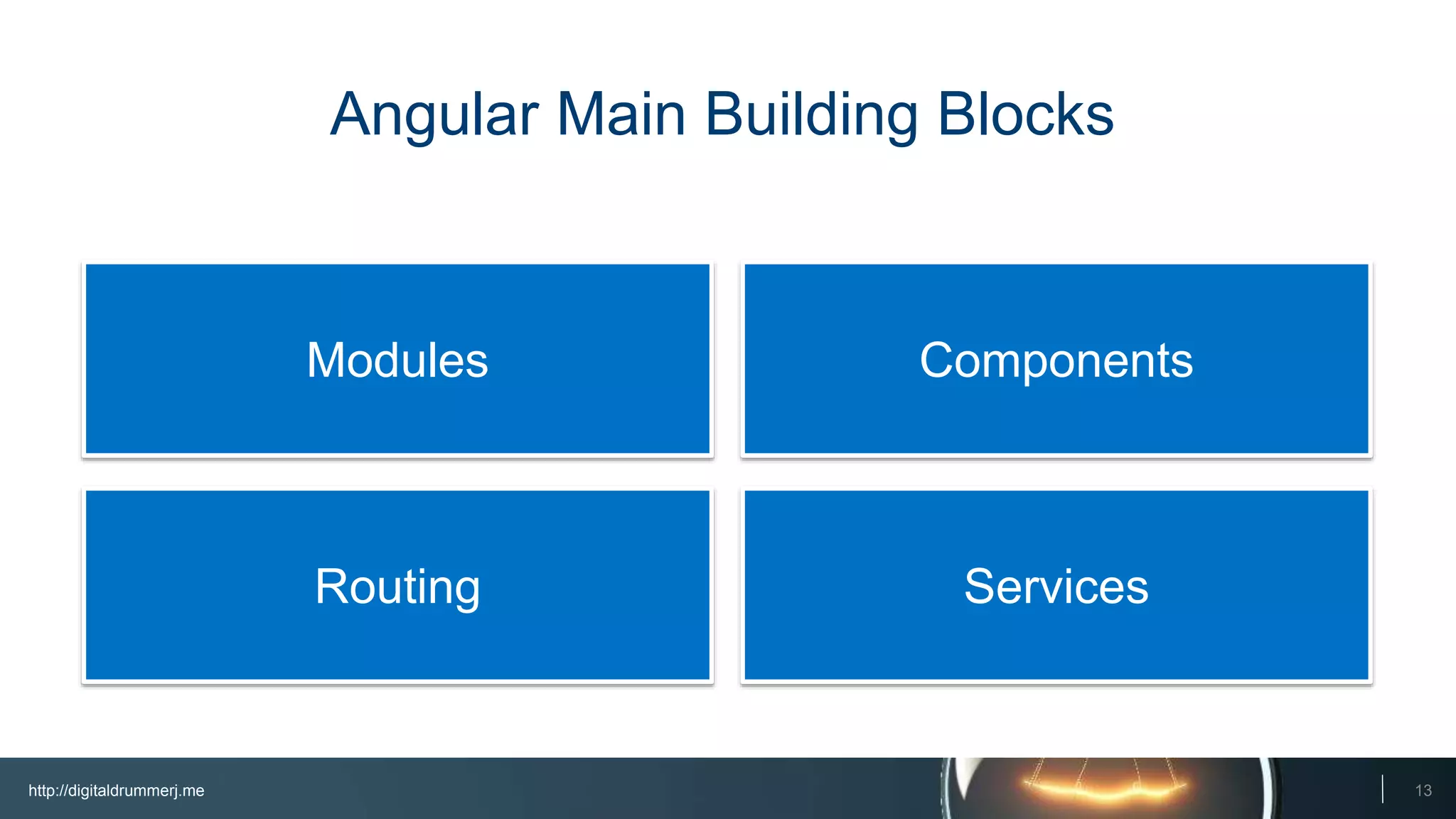

http://digitaldrummerj.me ServicesRouting ComponentsModules Angular Main BuildingBlocks 13

14.

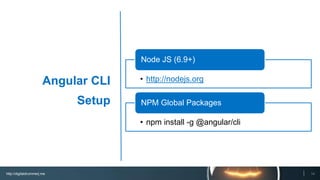

http://digitaldrummerj.me http://nodejs.org Node JS (6.9+) npminstall -g @angular/cli NPM Global Packages Angular CLI Setup 14

15.

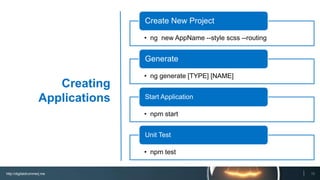

http://digitaldrummerj.me ng new AppName--style scss --routing Create New Project ng generate [TYPE] [NAME] Generate npm start Start Application npm test Unit Test Creating Applications 15

16.
http://digitaldrummerj.me Test Runner TestFramework Testing Utilities Karma Tools and Technology Jasmine Angular

17.
http://digitaldrummerj.me

18.

19.

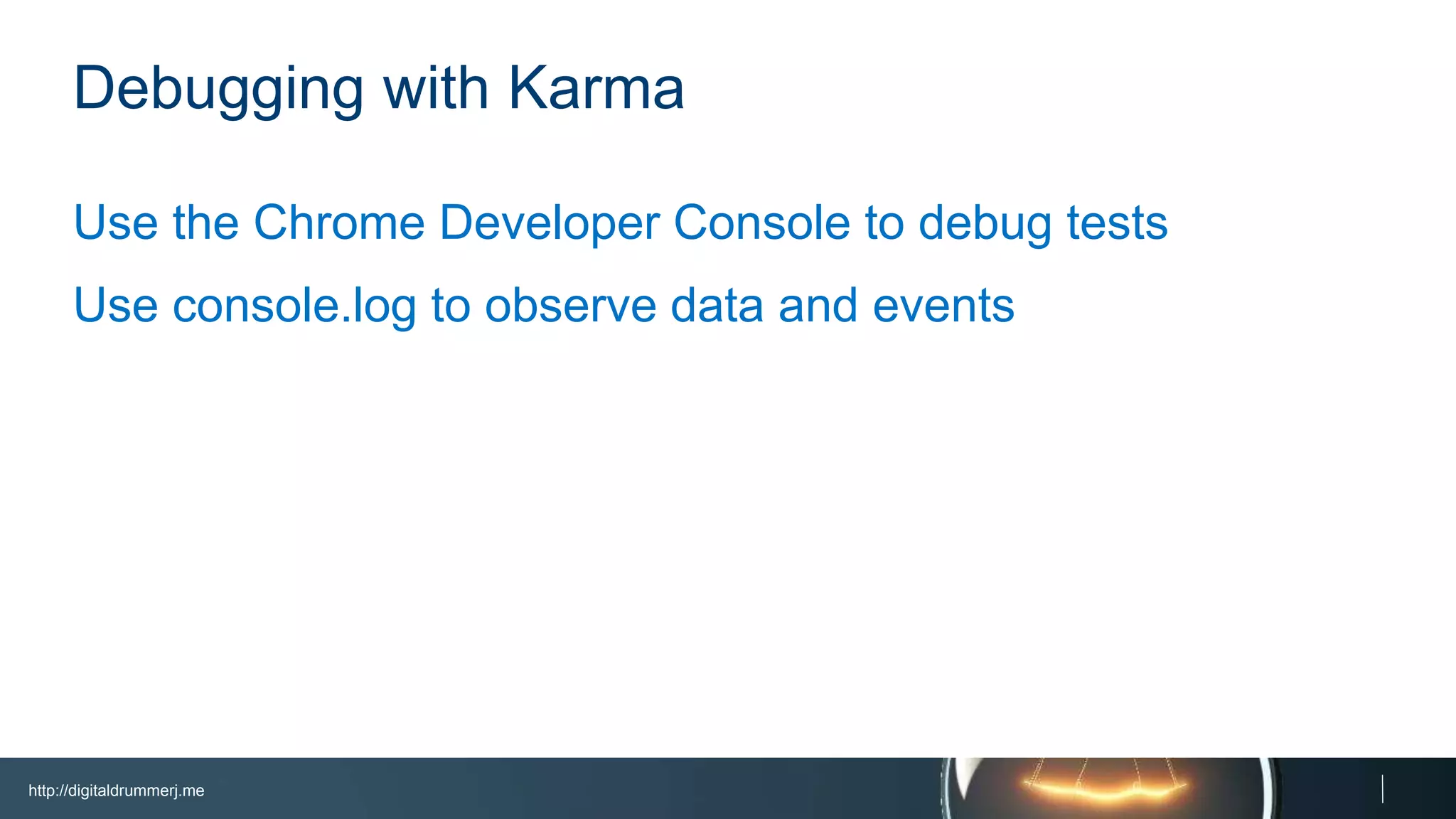

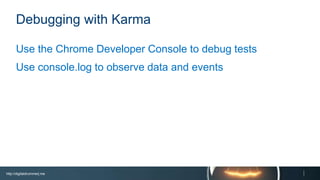

http://digitaldrummerj.me Debugging with Karma Usethe Chrome Developer Console to debug tests Use console.log to observe data and events

20.

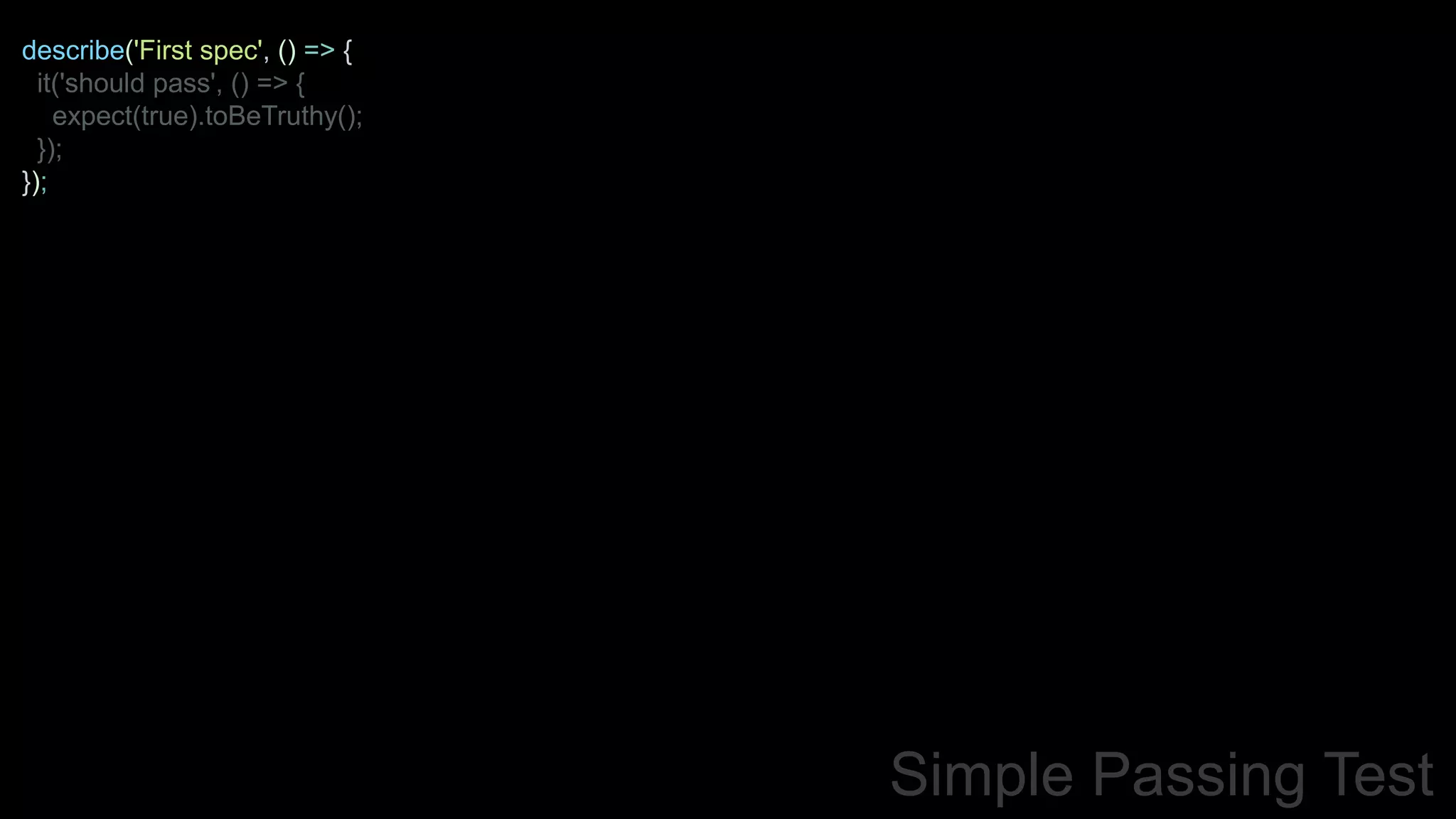

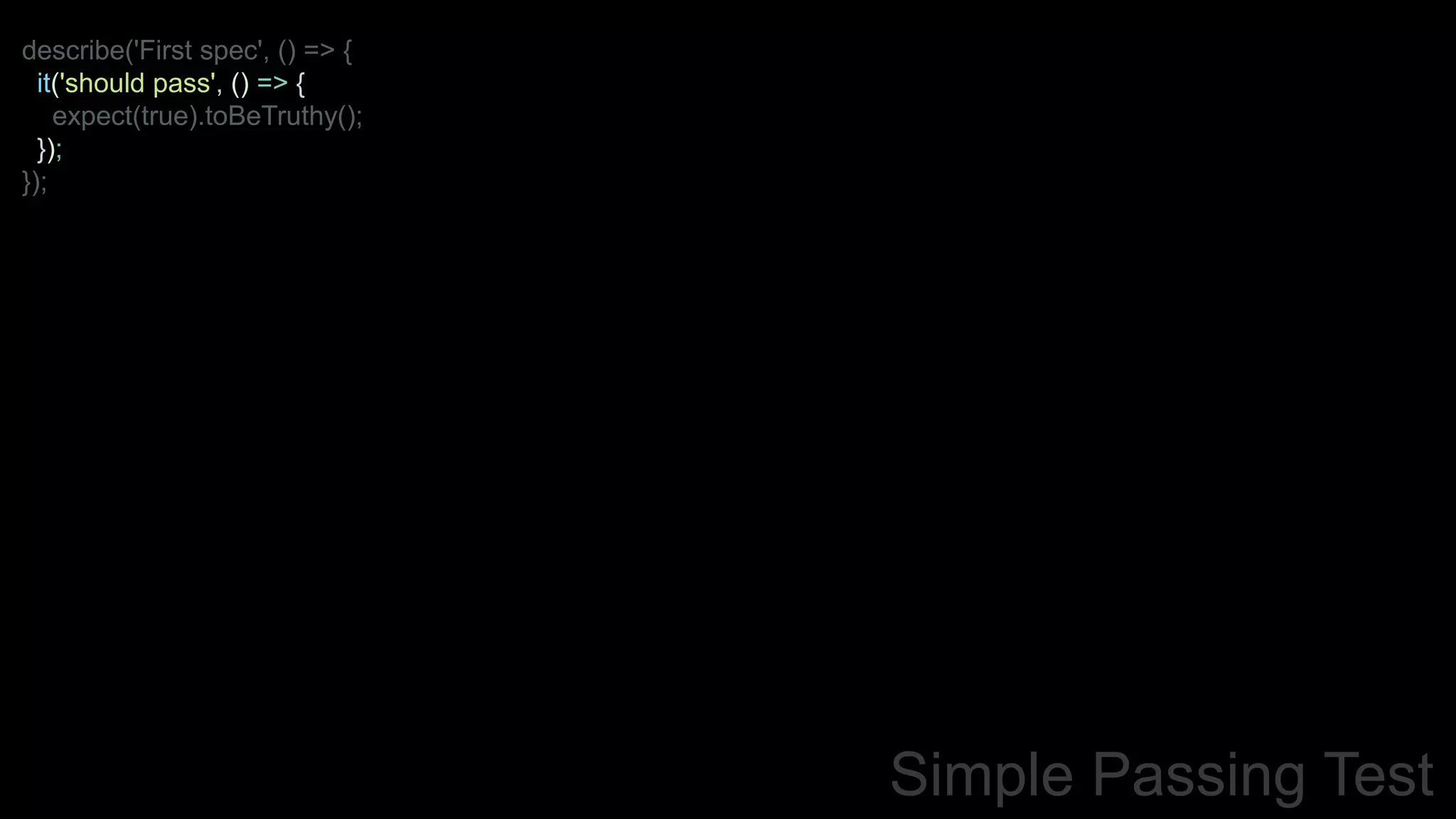

describe('First spec', ()=> { it('should pass', () => { expect(true).toBeTruthy(); }); }); Simple Passing Test

21.

22.

23.

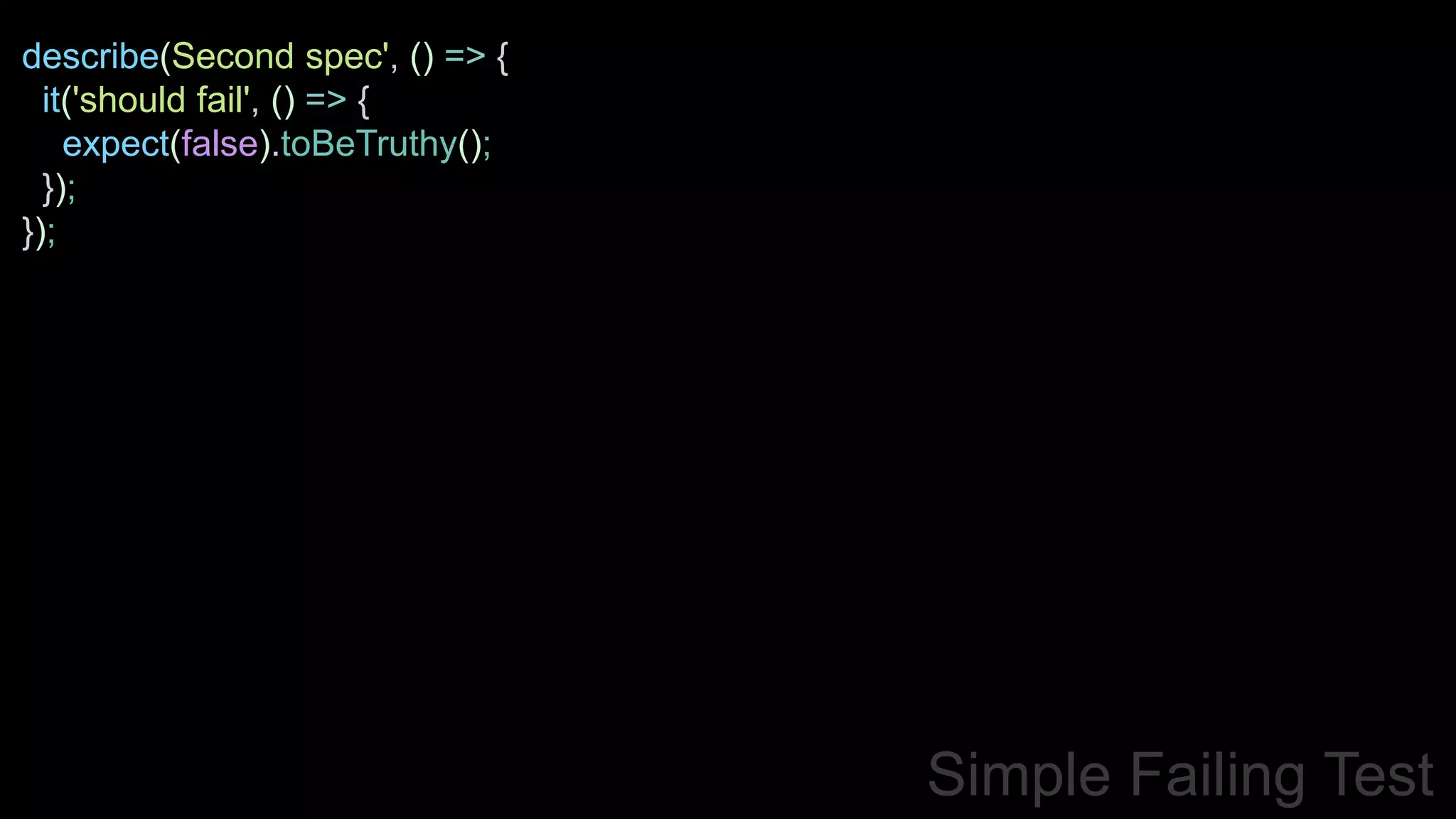

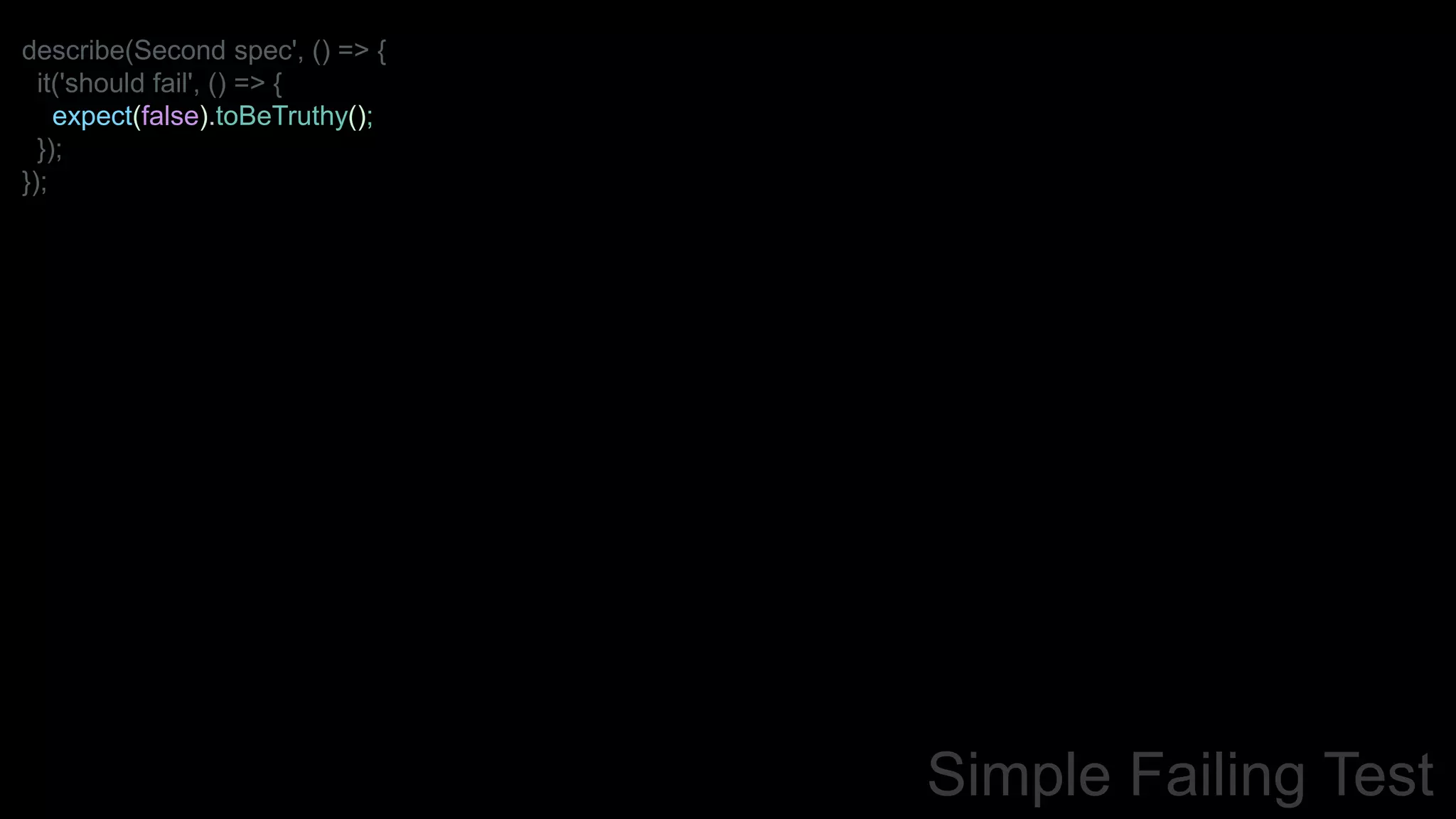

describe(Second spec', ()=> { it('should fail', () => { expect(false).toBeTruthy(); }); }); Simple Failing Test

24.

25.

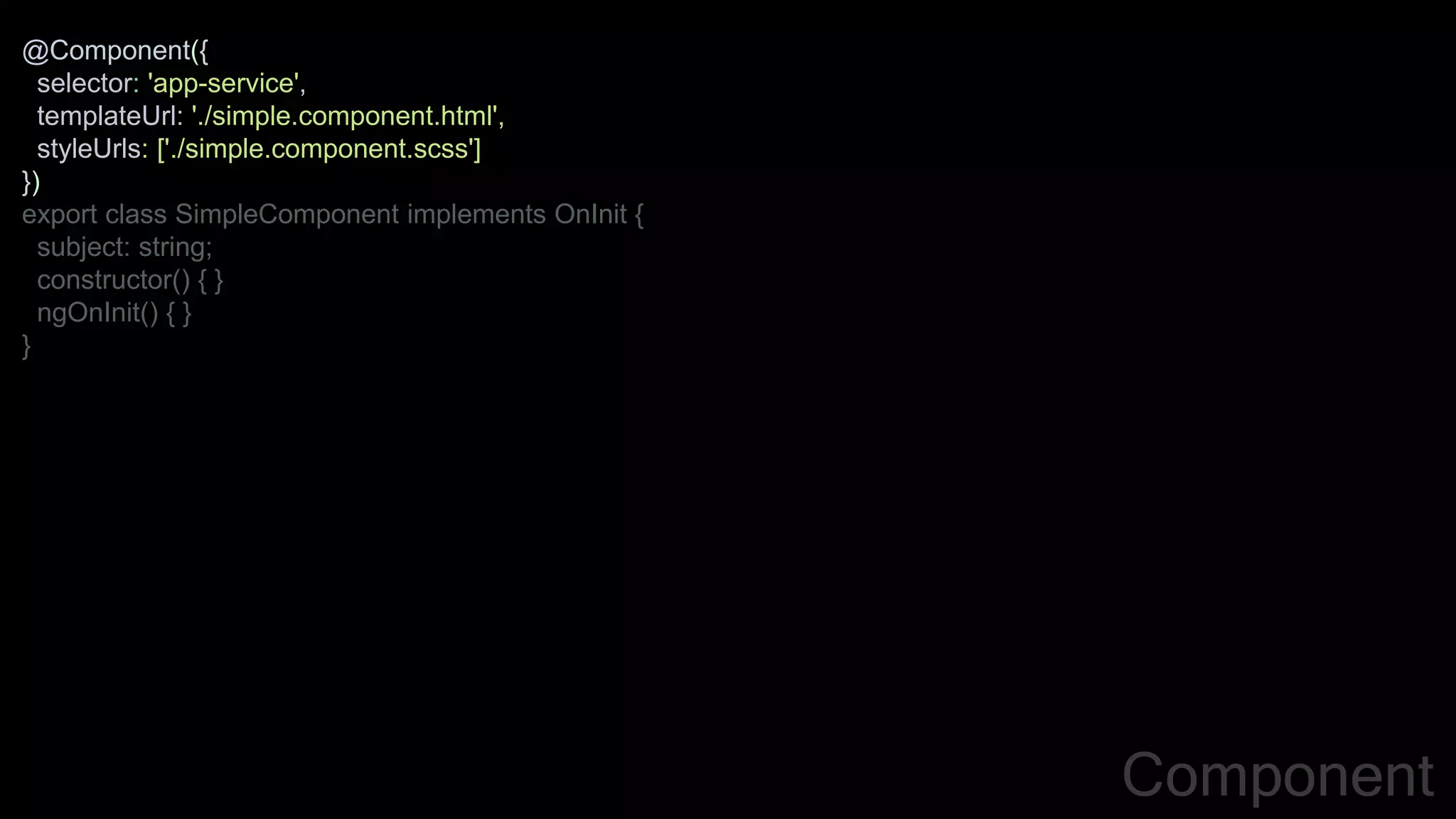

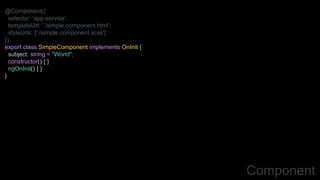

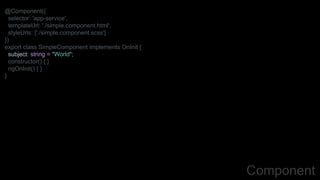

@Component({ selector: 'app-service', templateUrl: './simple.component.html', styleUrls:['./simple.component.scss'] }) export class SimpleComponent implements OnInit { subject: string; constructor() { } ngOnInit() { } } Component

26.
@Component({ selector: 'app-service', templateUrl: './simple.component.html', styleUrls:['./simple.component.scss'] }) export class SimpleComponent implements OnInit { subject: string = "World"; constructor() { } ngOnInit() { } } Component

27.

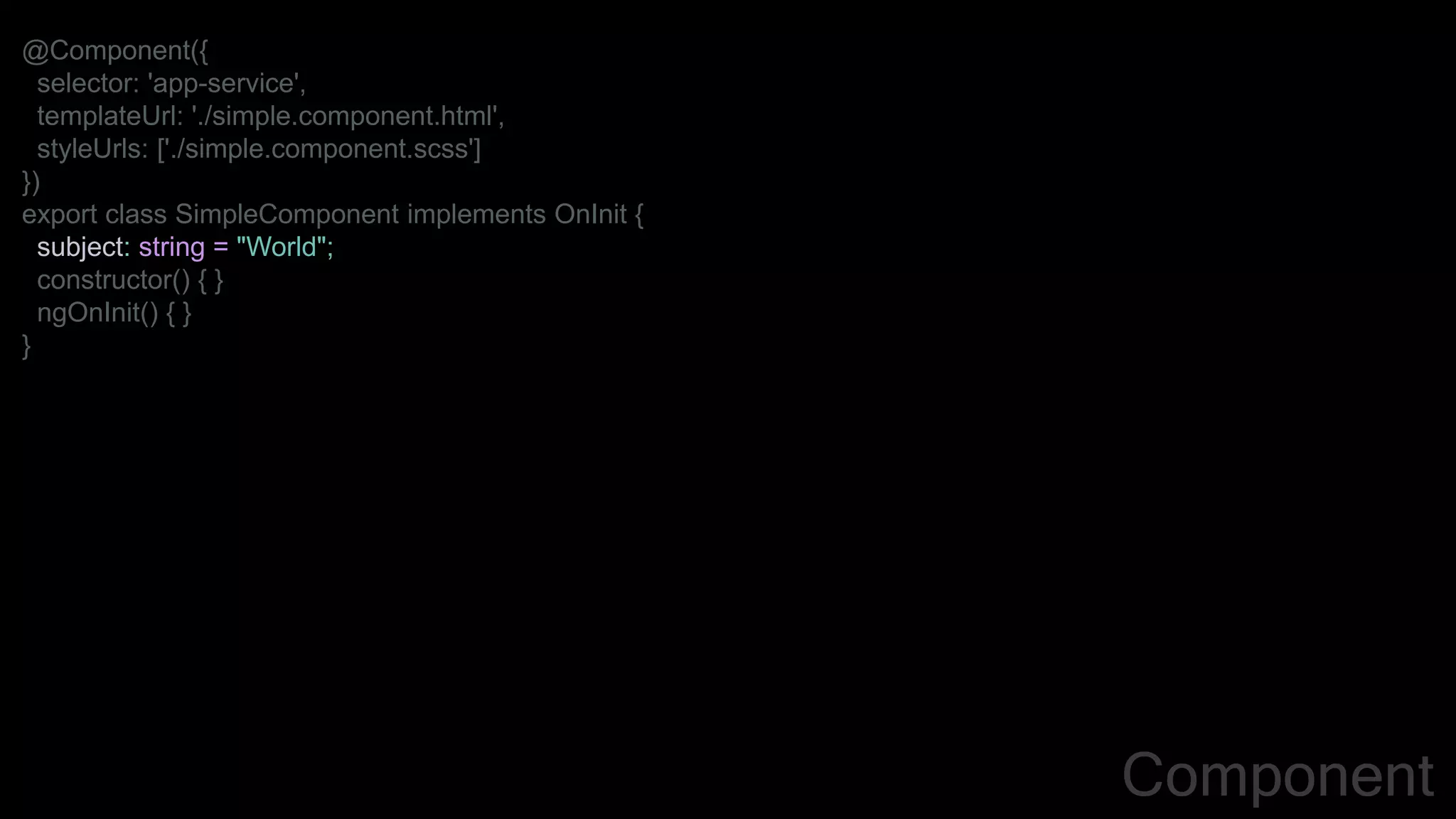

@Component({ selector: 'app-service', templateUrl: './simple.component.html', styleUrls:['./simple.component.scss'] }) export class SimpleComponent implements OnInit { subject: string = "World"; constructor() { } ngOnInit() { } } Component

28.
http://digitaldrummerj.me 1. Configure Module

29.

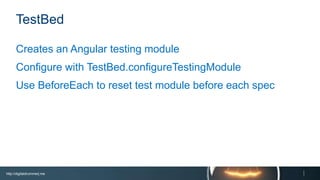

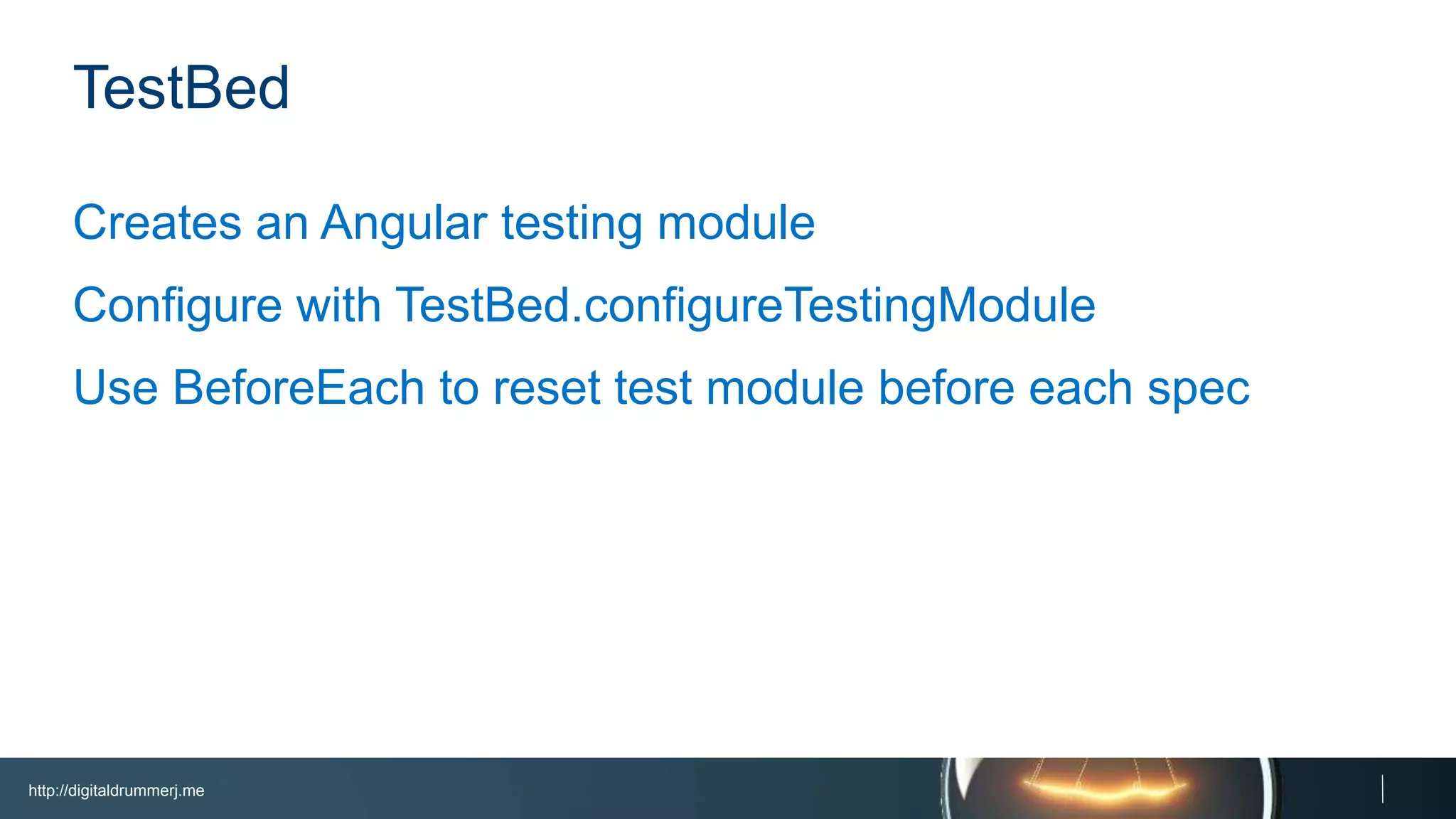

http://digitaldrummerj.me TestBed Creates an Angulartesting module Configure with TestBed.configureTestingModule Use BeforeEach to reset test module before each spec

30.

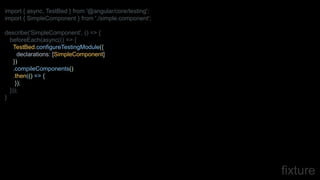

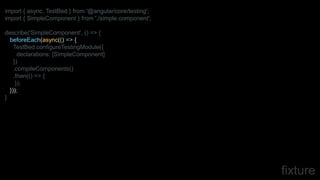

fixture import { async,TestBed } from '@angular/core/testing'; import { SimpleComponent } from './simple.component'; describe('SimpleComponent', () => { beforeEach(async(() => { TestBed.configureTestingModule({ declarations: [SimpleComponent] }) .compileComponents() .then(() => { }); })); }

31.

32.

33.

34.

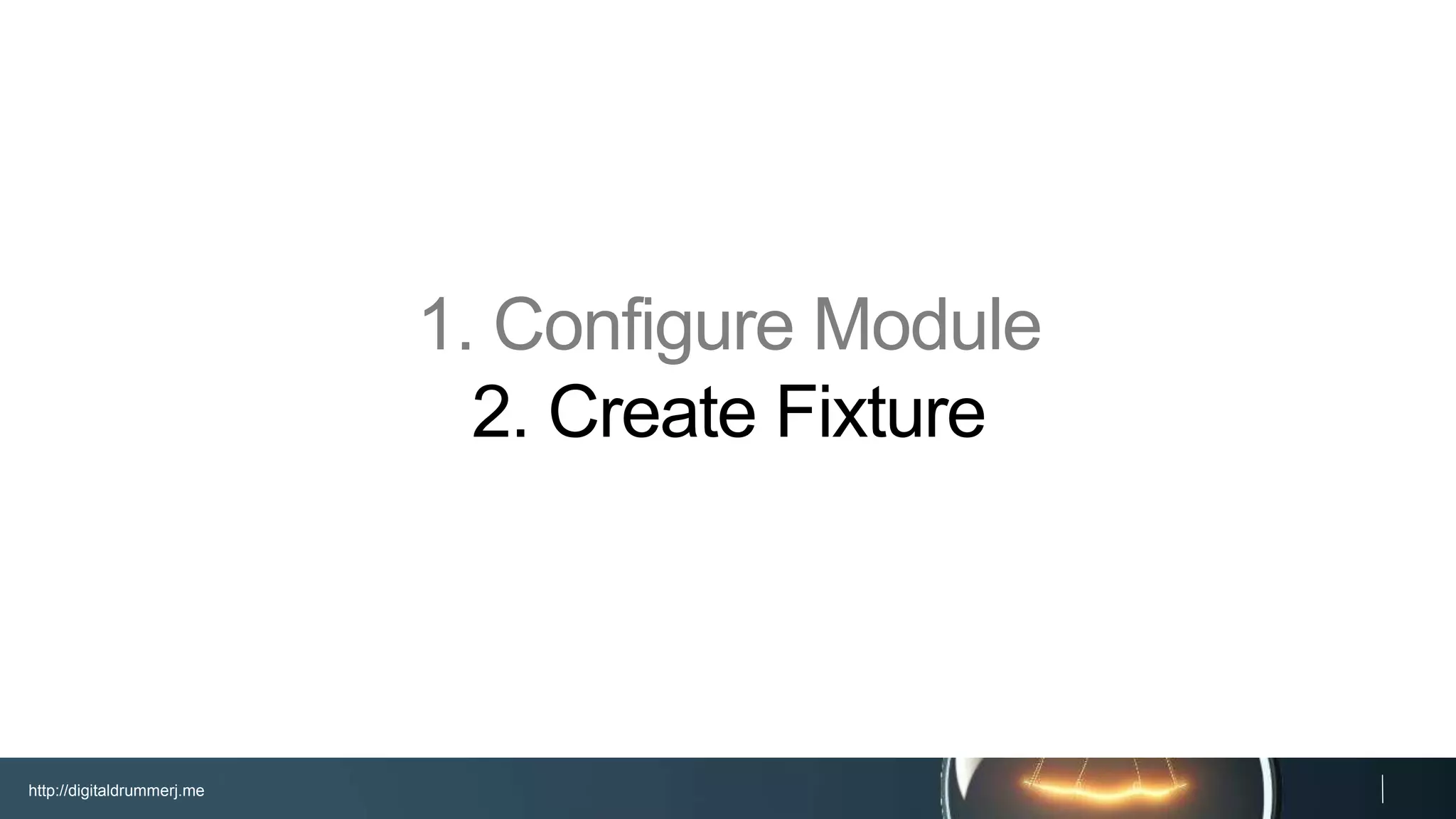

http://digitaldrummerj.me 1. Configure Module 2.Create Fixture

35.

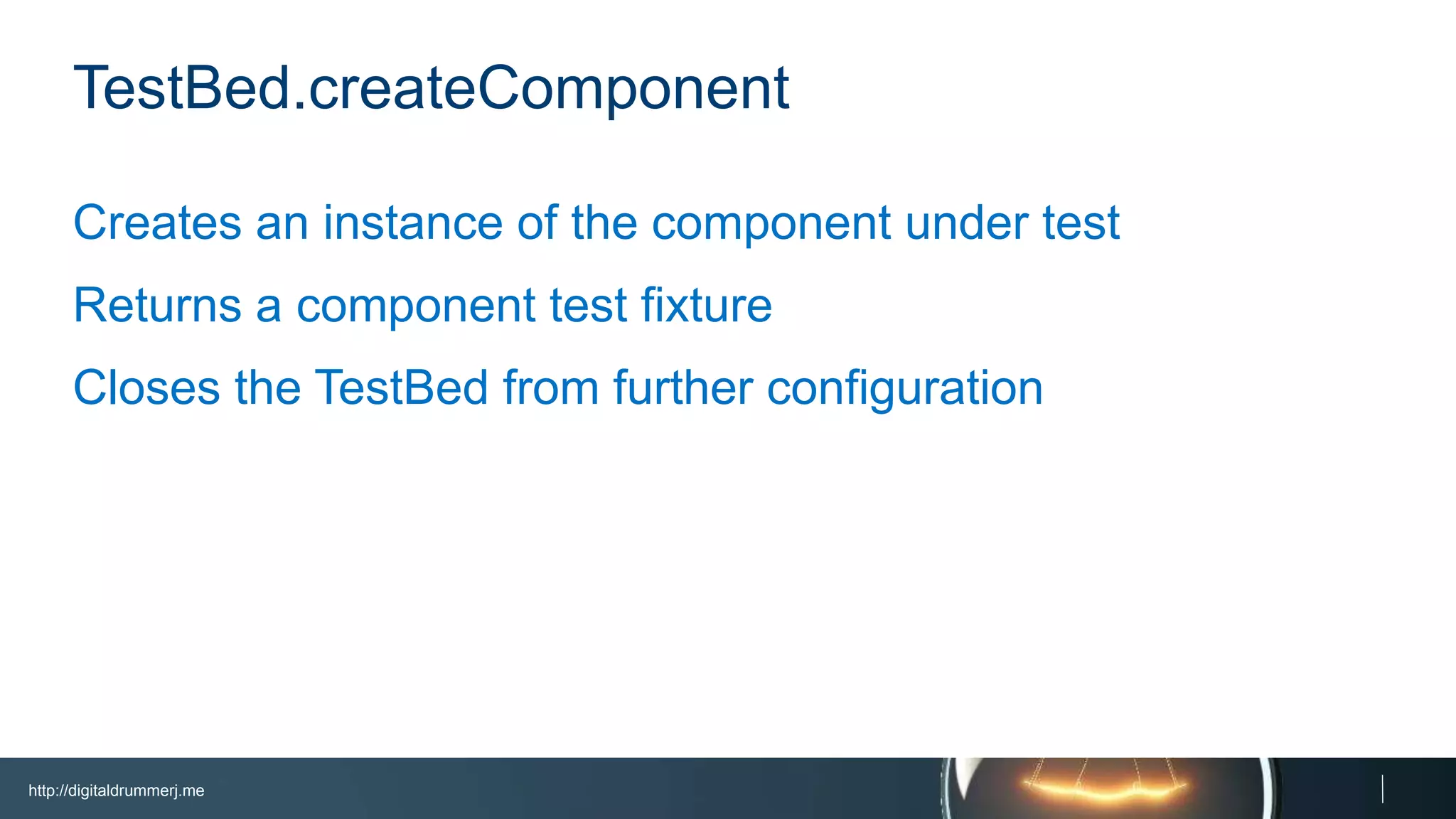

http://digitaldrummerj.me TestBed.createComponent Creates an instanceof the component under test Returns a component test fixture Closes the TestBed from further configuration

36.
import { async,ComponentFixture, TestBed } from '@angular/core/testing'; import { SimpleComponent } from './simple.component'; describe('SimpleComponent', () => { let fixture: ComponentFixture<SimpleComponent>; beforeEach(async(() => { TestBed.configureTestingModule({ declarations: [SimpleComponent ] }) .compileComponents() .then(() => { fixture = TestBed.createComponent(SimpleComponent); }); })); } The Fixture

37.
http://digitaldrummerj.me 1. Configure Module 2.Create Fixture 3. Get Component Instance

38.

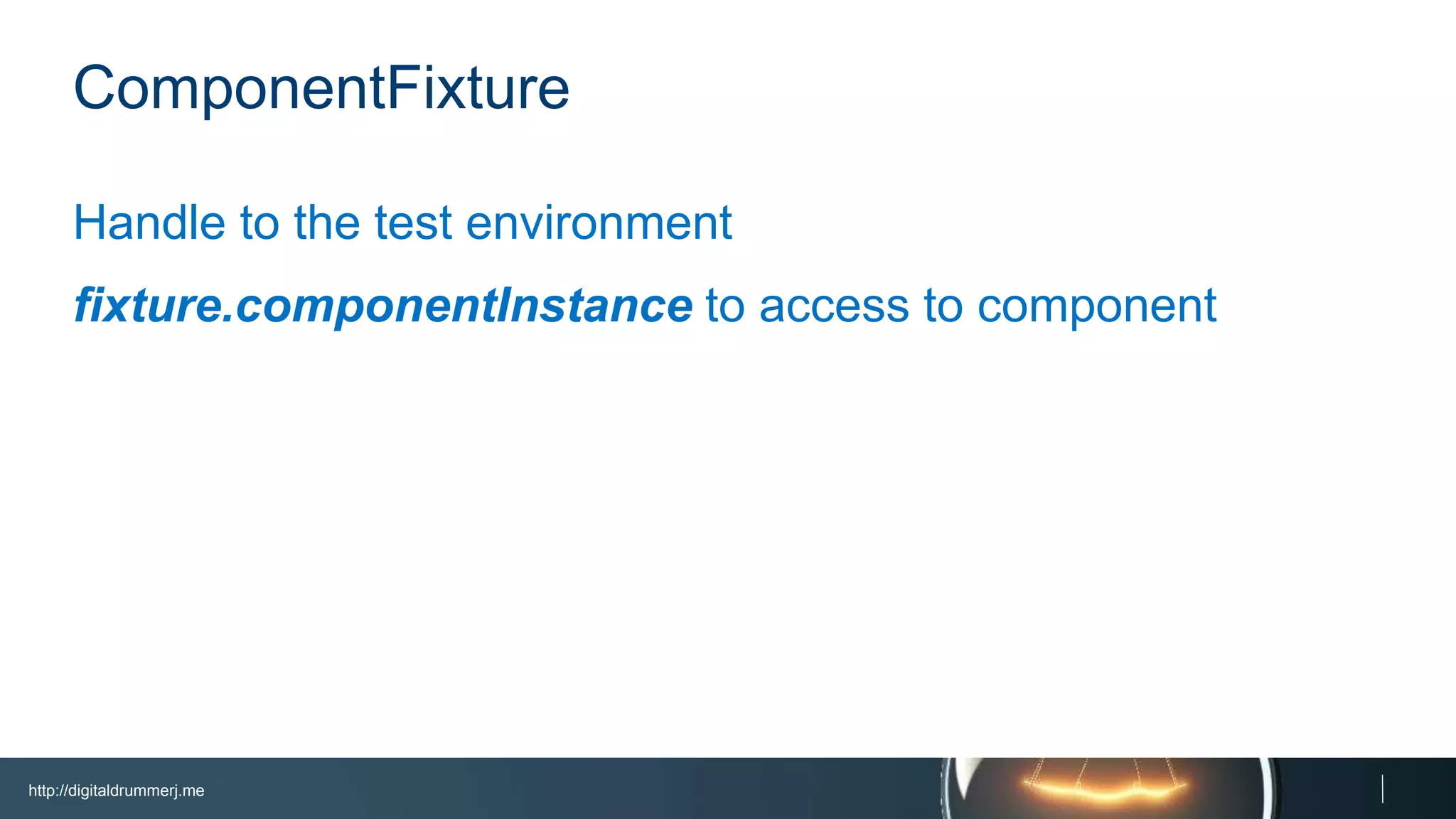

http://digitaldrummerj.me ComponentFixture Handle to thetest environment fixture.componentInstance to access to component

39.

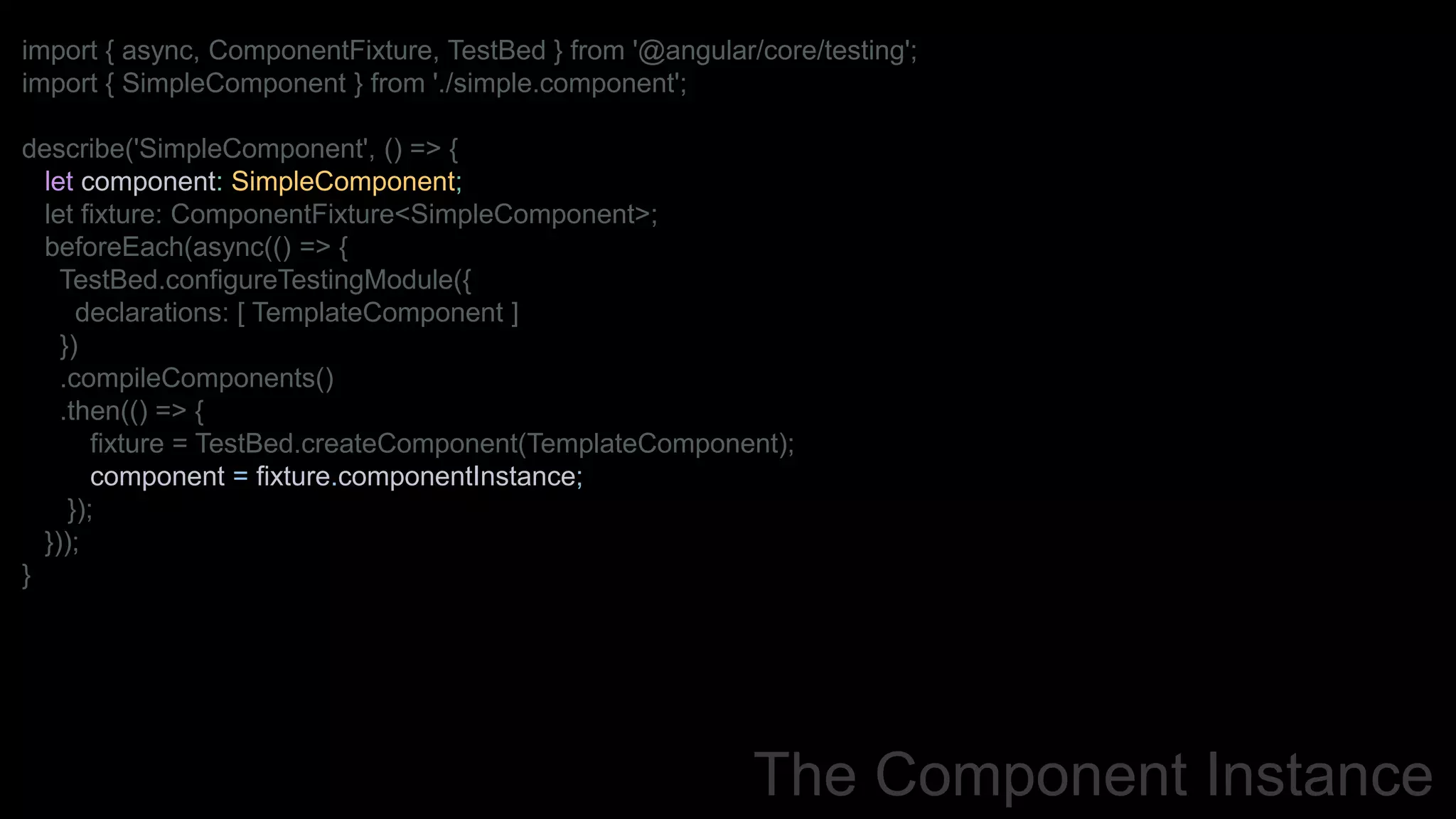

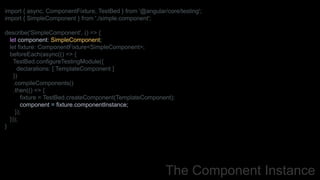

The Component Instance import{ async, ComponentFixture, TestBed } from '@angular/core/testing'; import { SimpleComponent } from './simple.component'; describe('SimpleComponent', () => { let component: SimpleComponent; let fixture: ComponentFixture<SimpleComponent>; beforeEach(async(() => { TestBed.configureTestingModule({ declarations: [ TemplateComponent ] }) .compileComponents() .then(() => { fixture = TestBed.createComponent(TemplateComponent); component = fixture.componentInstance; }); })); }

40.

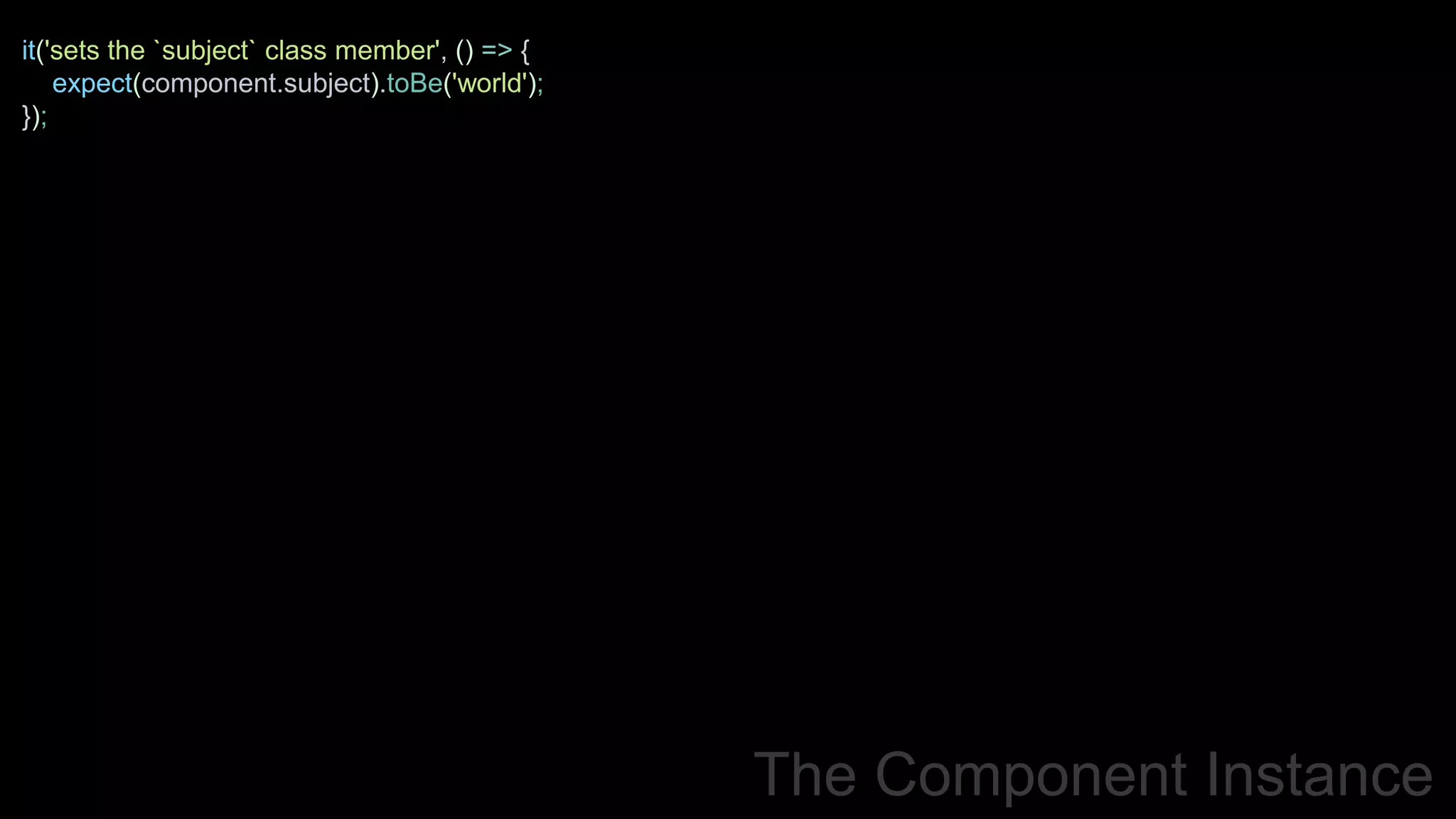

The Component Instance it('setsthe `subject` class member', () => { expect(component.subject).toBe('world'); });

41.
http://digitaldrummerj.me ComponentFixture.detectChanges Triggers change detection Nottriggered by TestBed.createComponent

42.
import { async,ComponentFixture, TestBed } from '@angular/core/testing'; import { SimpleComponent } from './simple.component'; describe('SimpleComponent', () => { let component: SimpleComponent; let fixture: ComponentFixture<SimpleComponent>; beforeEach(() => { fixture = TestBed.configureTestingModule({ declarations: [ SimpleComponent ] }) .createComponent(SimpleComponent) .then(() => { component = fixture.componentInstance; return fixture.whenStable().then(() => { fixture.detectChanges(); }); }); })); } The Debug Element

43.

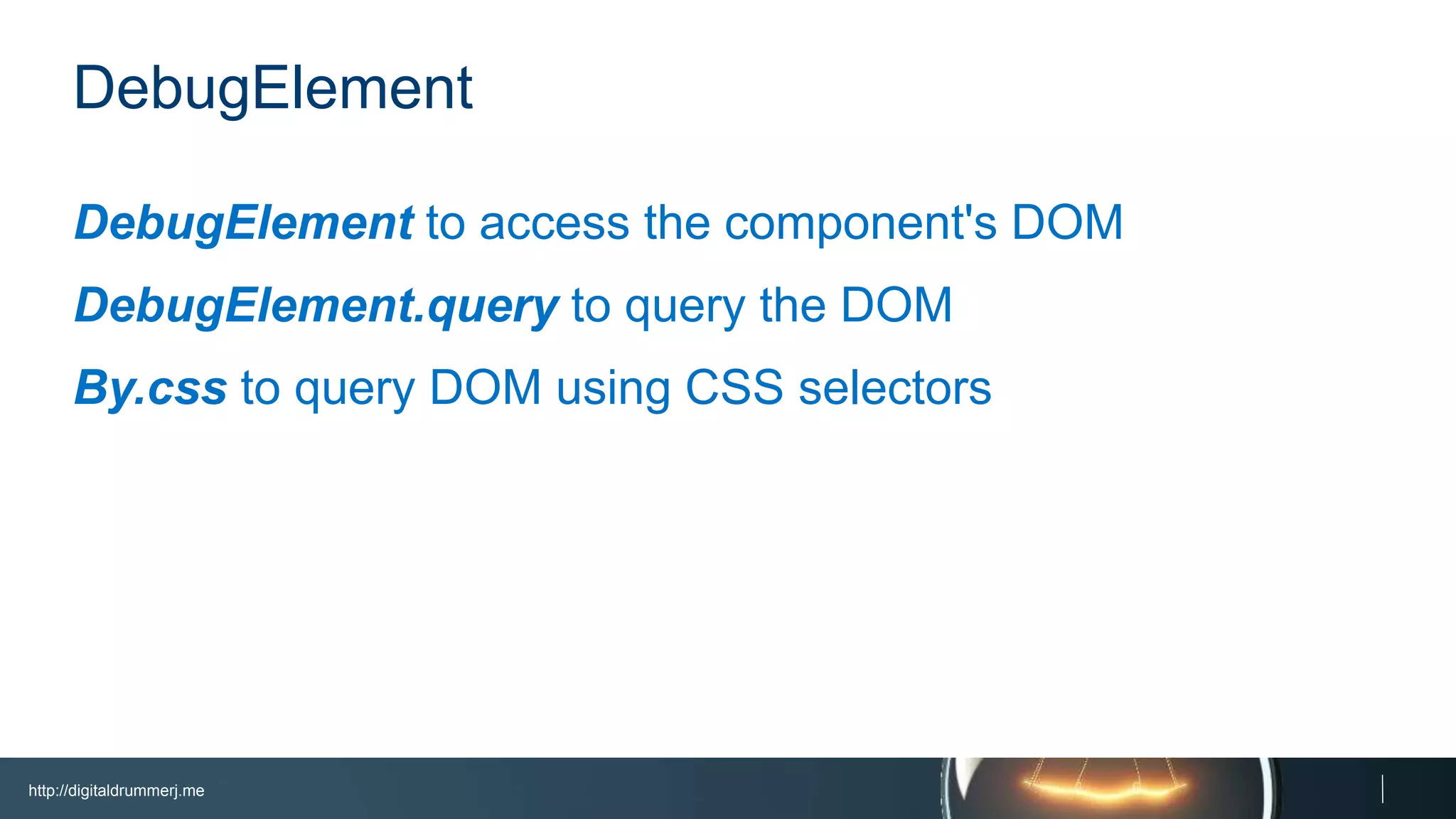

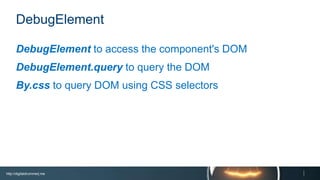

http://digitaldrummerj.me DebugElement DebugElement to accessthe component's DOM DebugElement.query to query the DOM By.css to query DOM using CSS selectors

44.

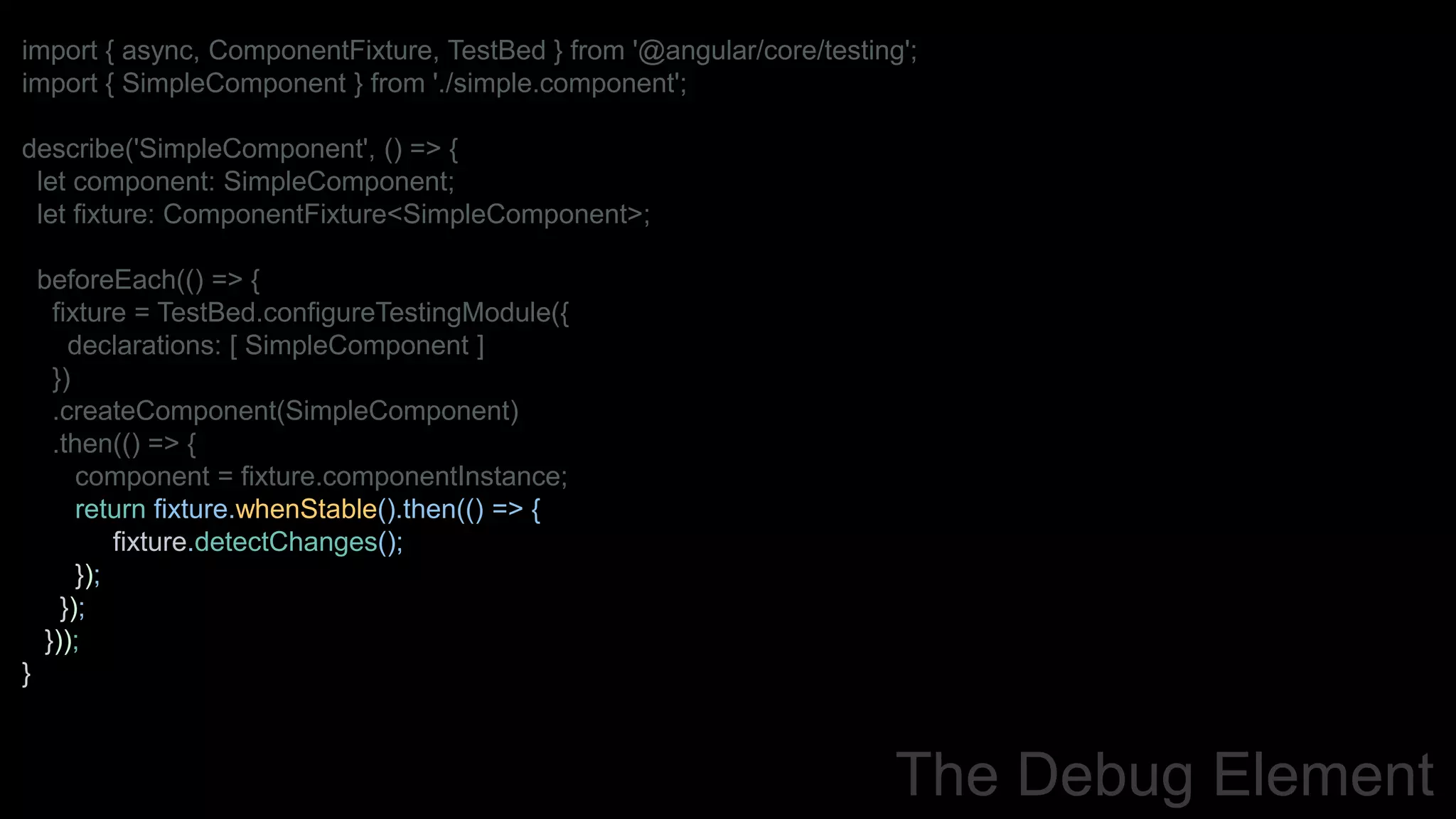

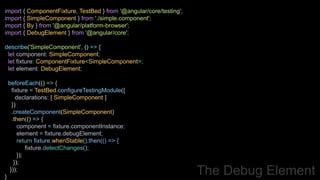

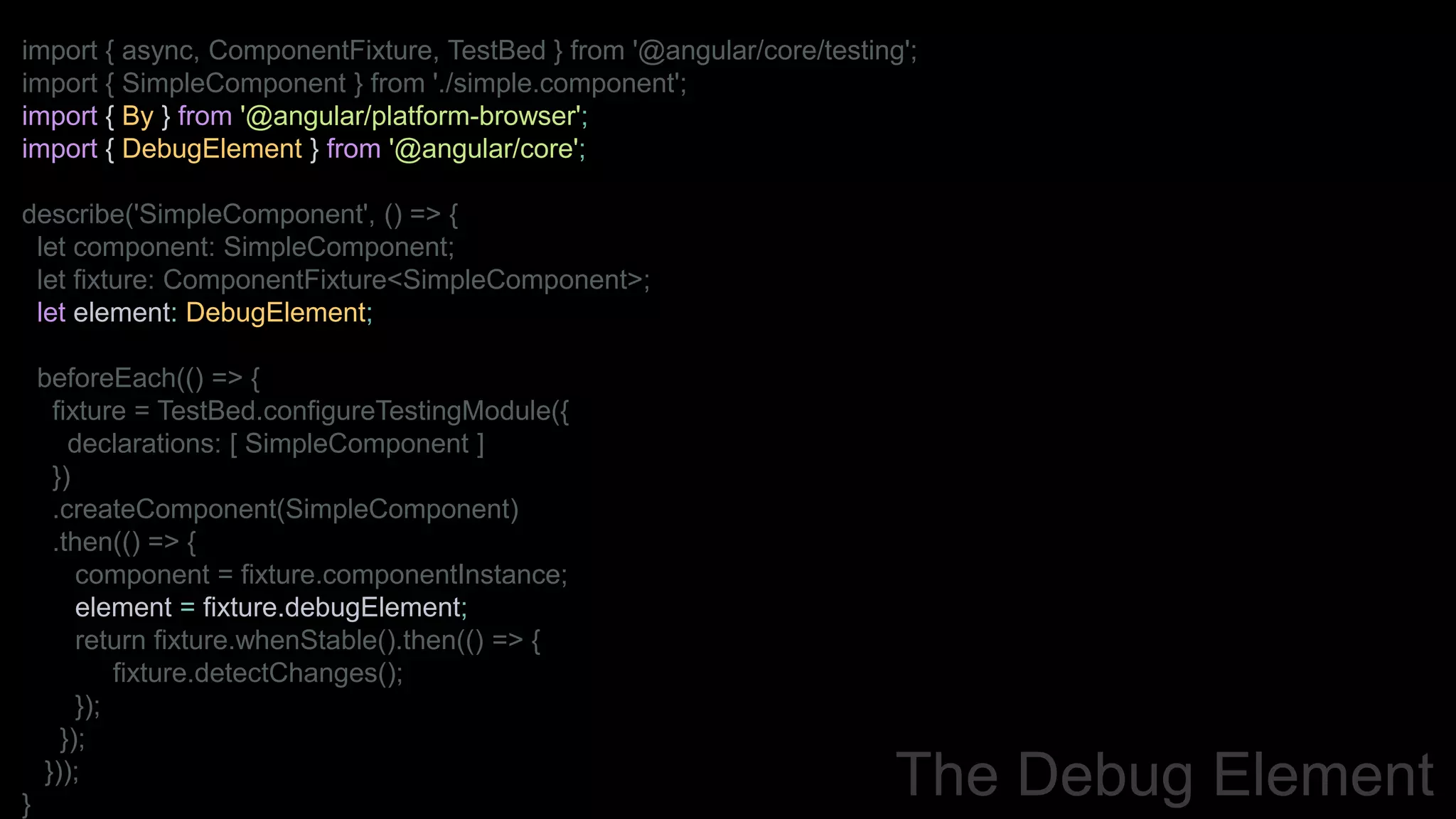

import { async,ComponentFixture, TestBed } from '@angular/core/testing'; import { SimpleComponent } from './simple.component'; import { By } from '@angular/platform-browser'; import { DebugElement } from '@angular/core'; describe('SimpleComponent', () => { let component: SimpleComponent; let fixture: ComponentFixture<SimpleComponent>; let element: DebugElement; beforeEach(() => { fixture = TestBed.configureTestingModule({ declarations: [ SimpleComponent ] }) .createComponent(SimpleComponent) .then(() => { component = fixture.componentInstance; element = fixture.debugElement; return fixture.whenStable().then(() => { fixture.detectChanges(); }); }); })); } The Debug Element

45.

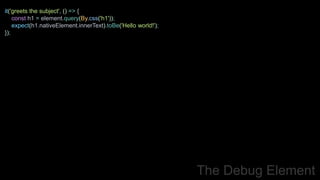

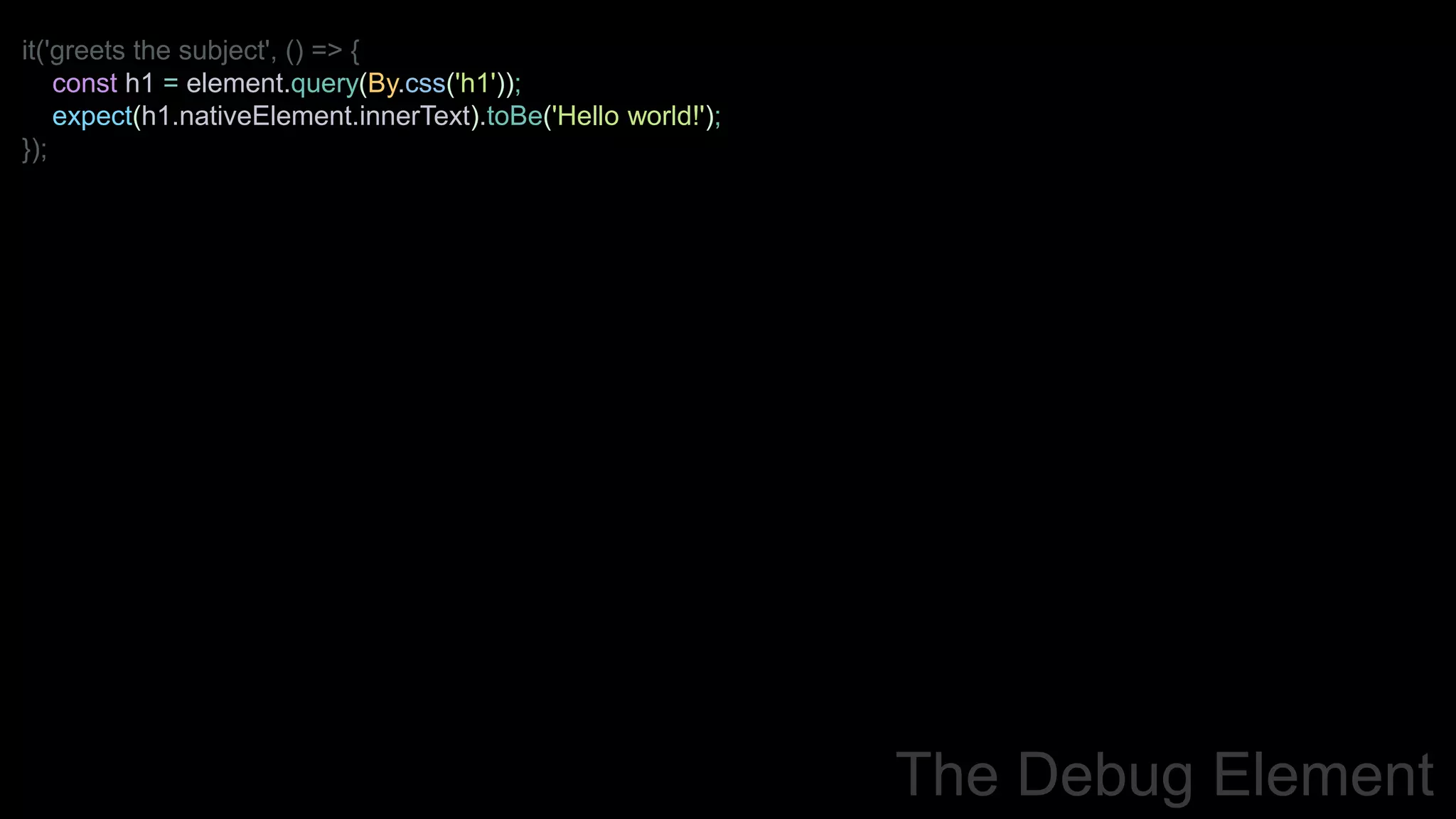

it('greets the subject',() => { const h1 = element.query(By.css('h1')); expect(h1.nativeElement.innerText).toBe('Hello world!'); }); The Debug Element

46.

47.

48.

49.

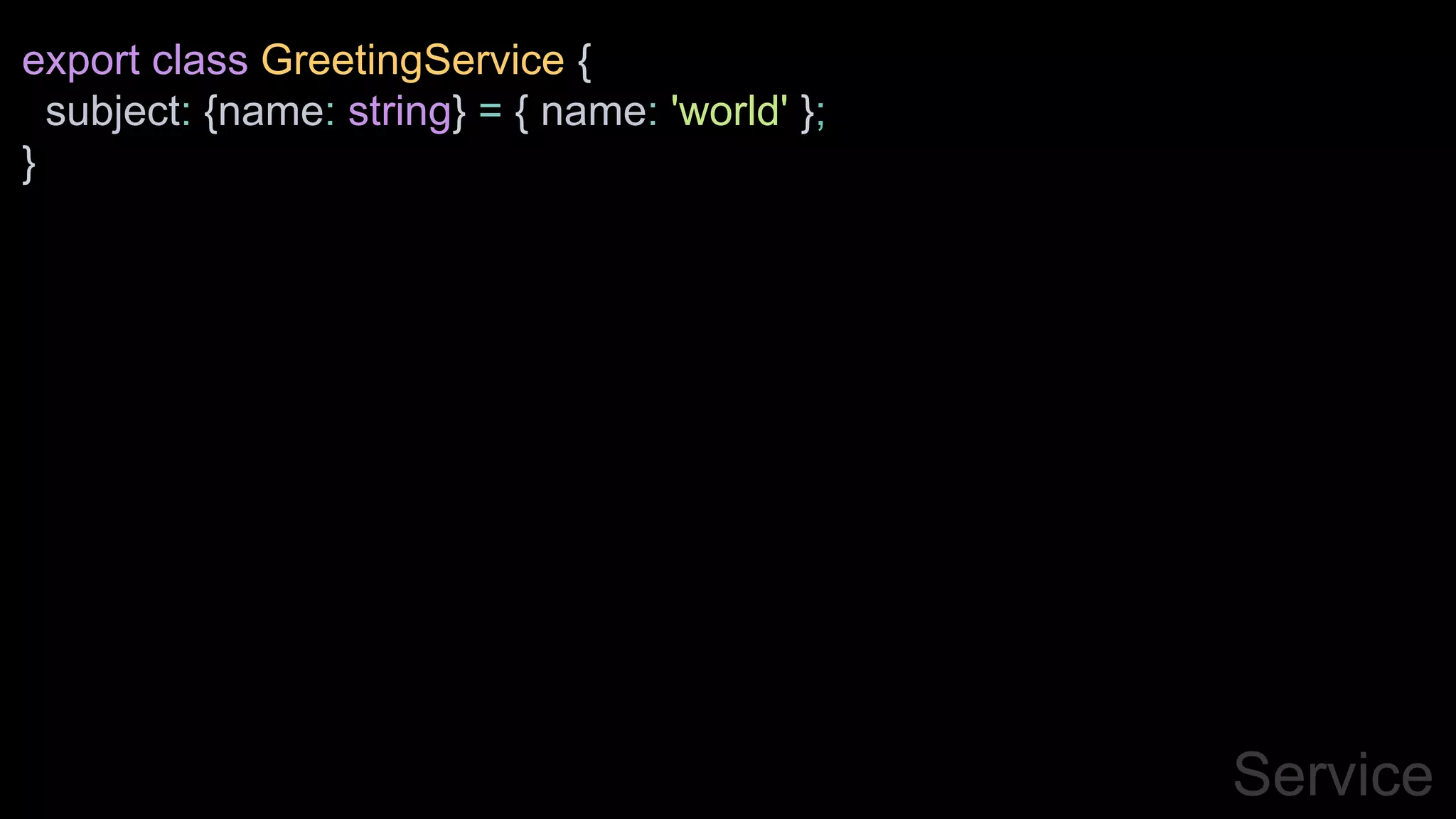

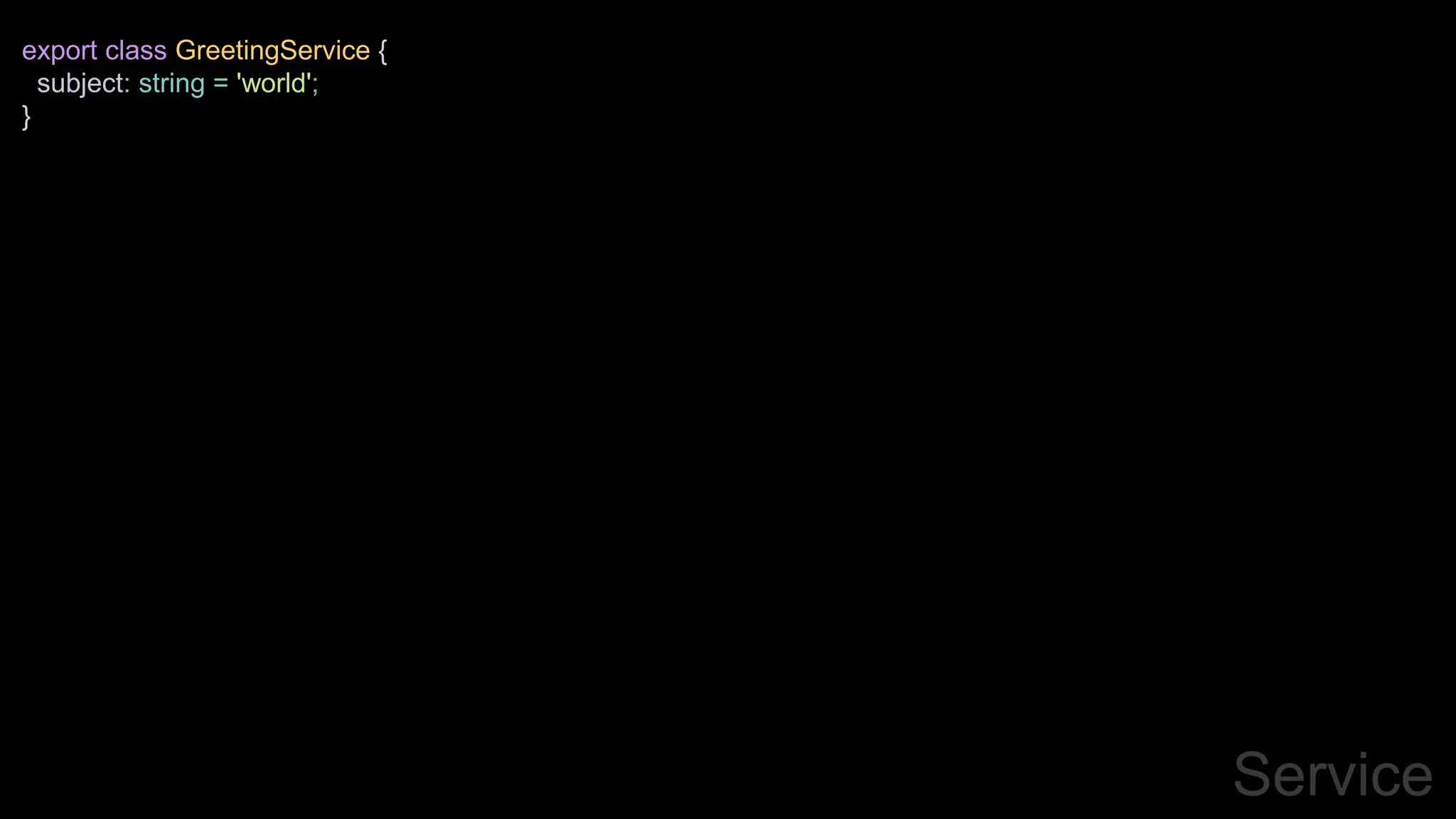

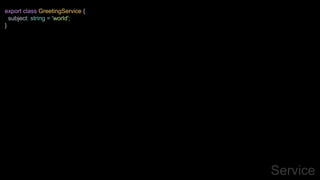

Service export class GreetingService{ subject: string = 'world'; }

50.

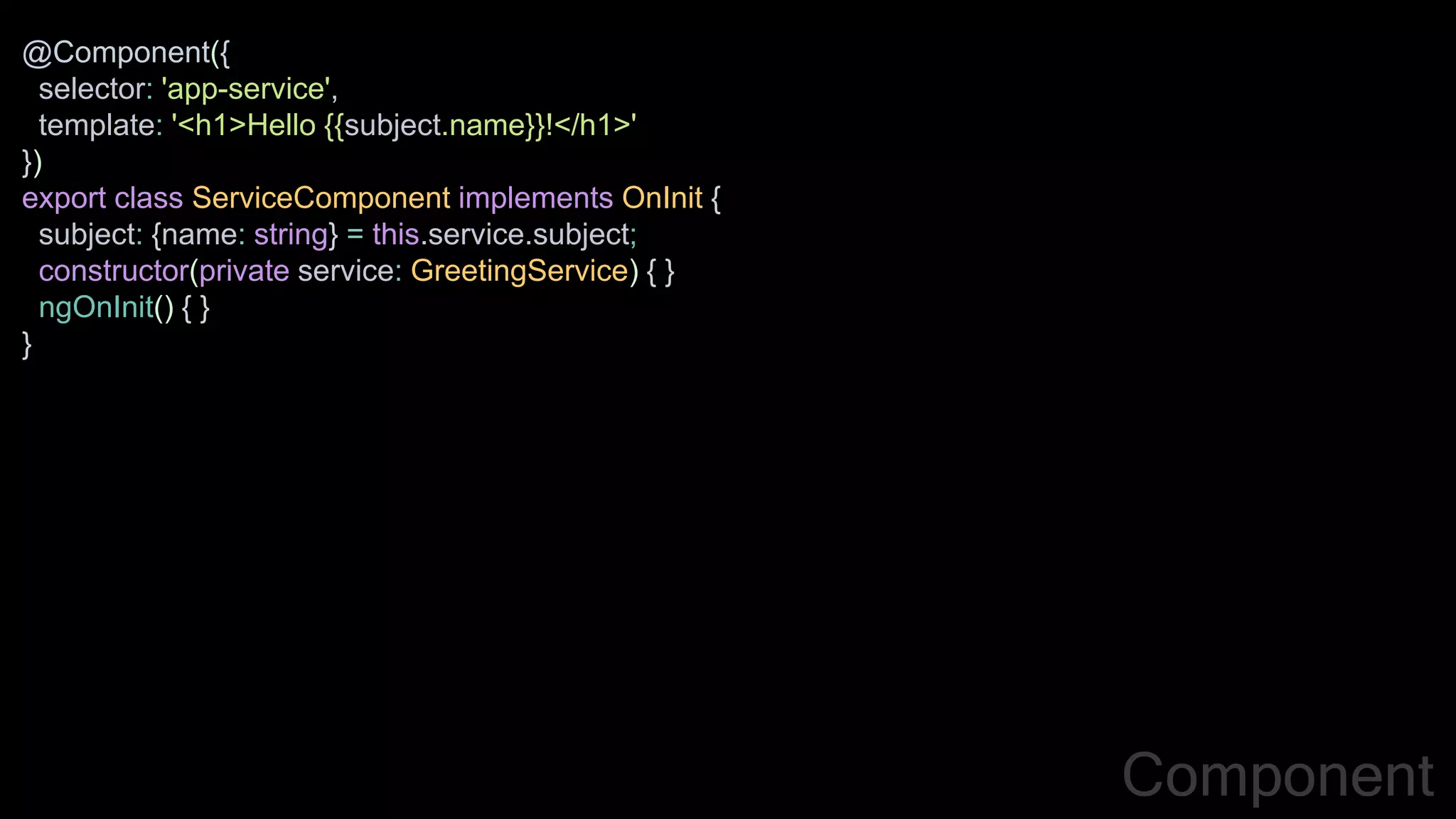

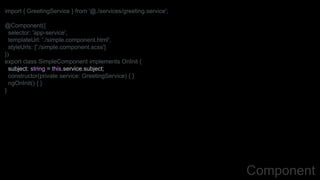

import { GreetingService} from '@./services/greeting.service'; @Component({ selector: 'app-service', templateUrl: './simple.component.html', styleUrls: ['./simple.component.scss'] }) export class SimpleComponent implements OnInit { subject: string = this.service.subject; constructor(private service: GreetingService) { } ngOnInit() { } } Component

51.

52.

53.
http://digitaldrummerj.me Don't Use RealServices

54.

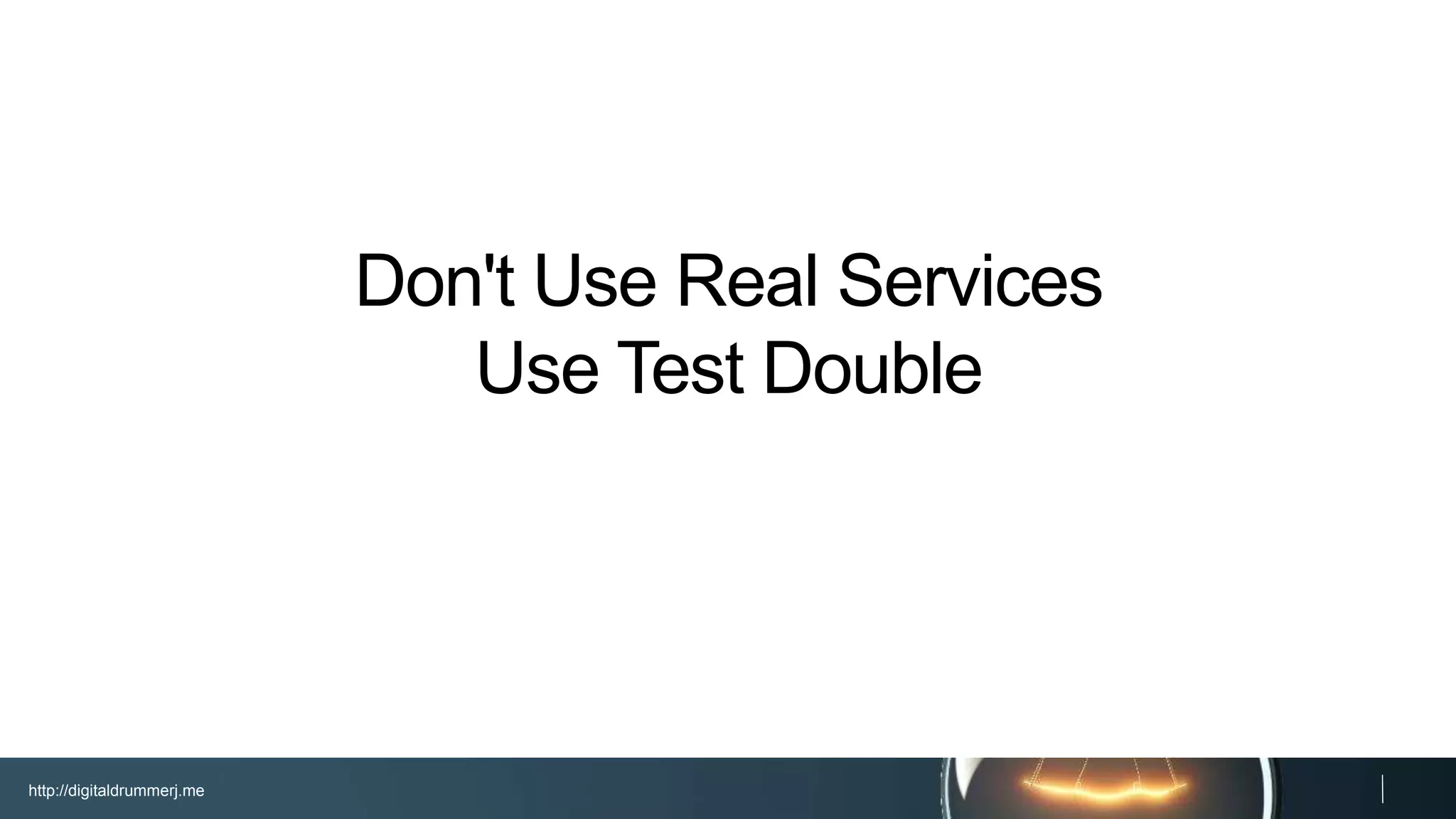

http://digitaldrummerj.me Don't Use RealServices Use Test Double

55.
http://digitaldrummerj.me Don't Use RealServices Use Test Double Use A Stub

56.

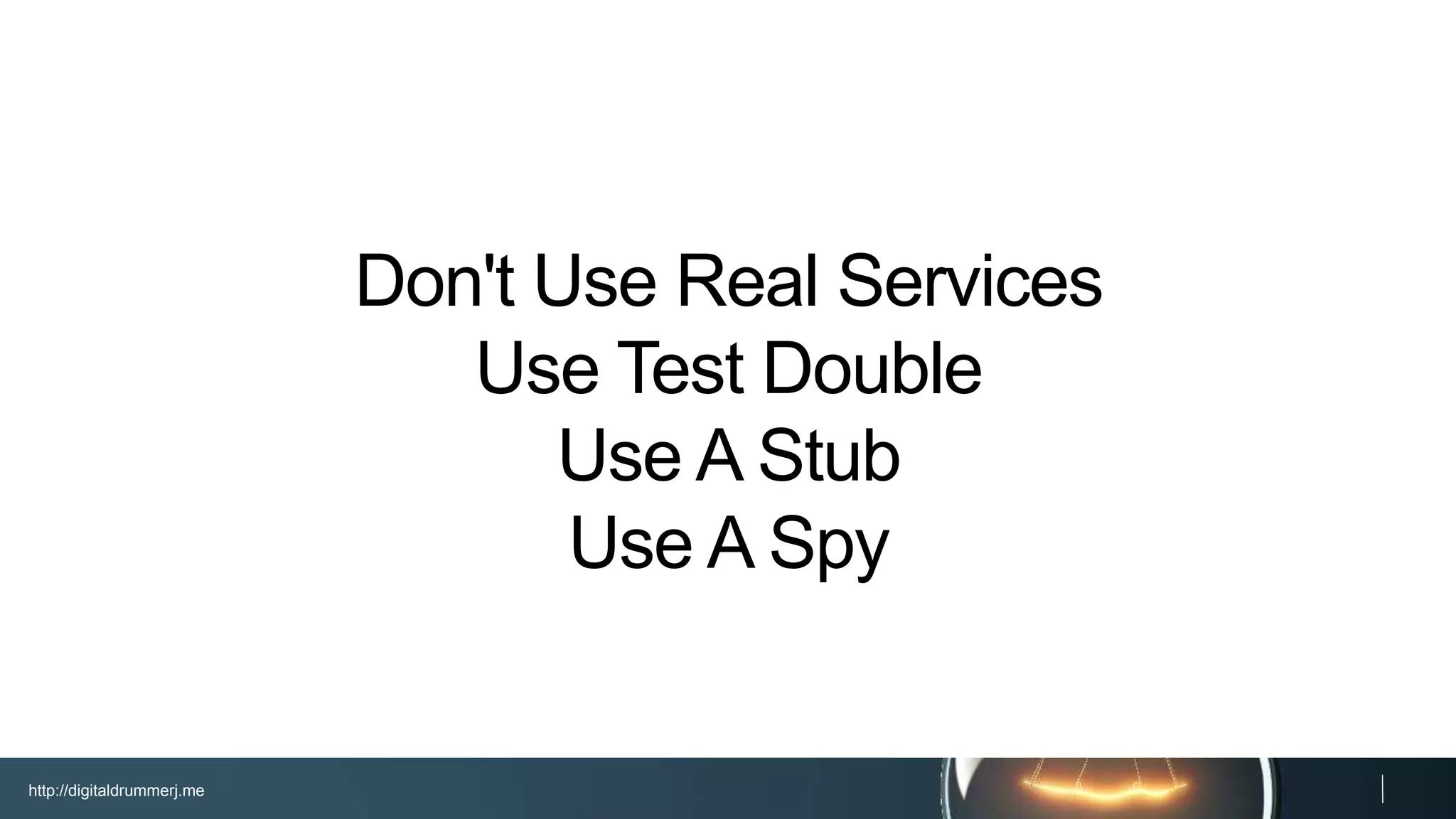

http://digitaldrummerj.me Don't Use RealServices Use Test Double Use A Stub Use A Spy

57.

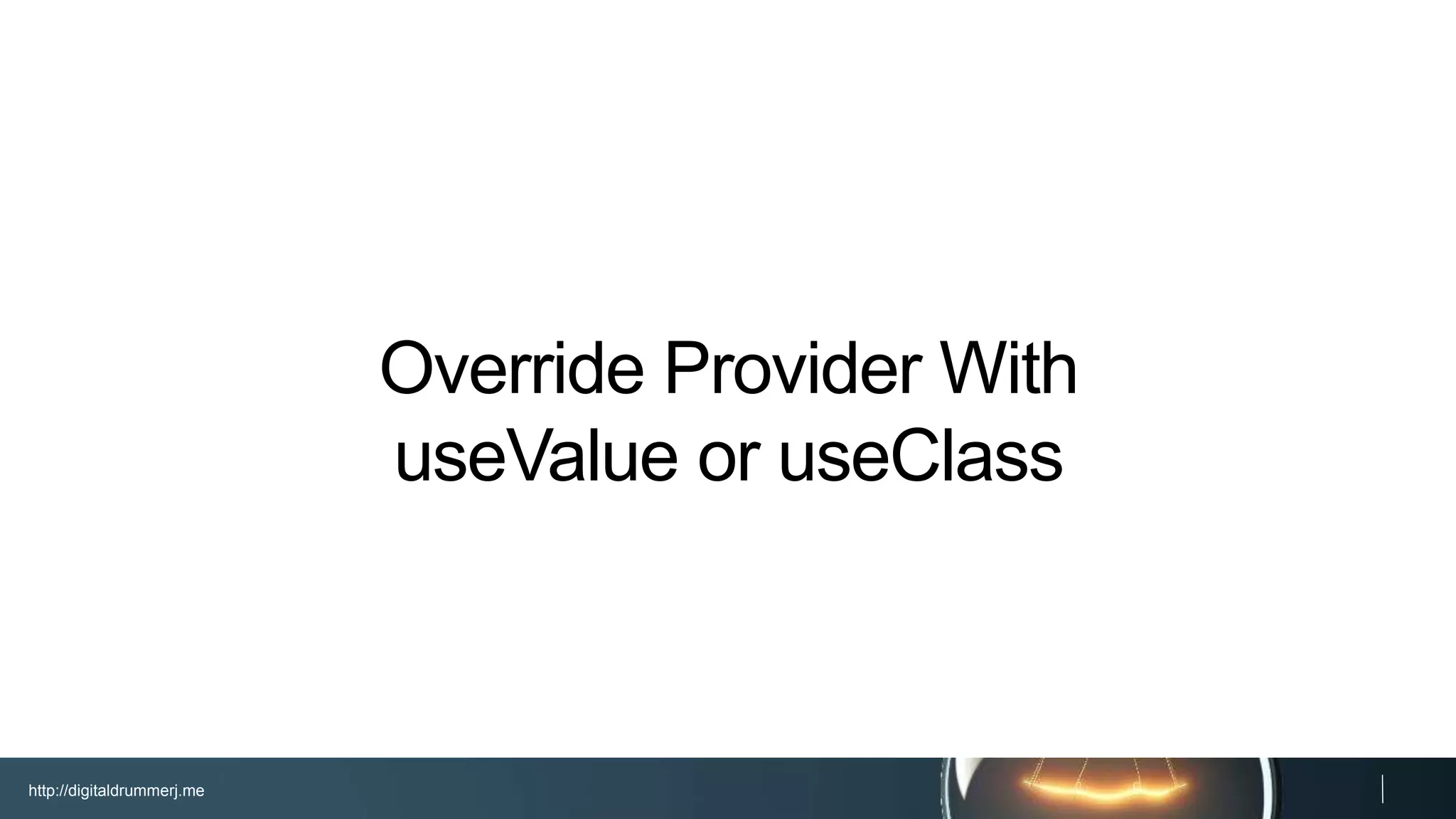

http://digitaldrummerj.me Override Provider With useValueor useClass

58.

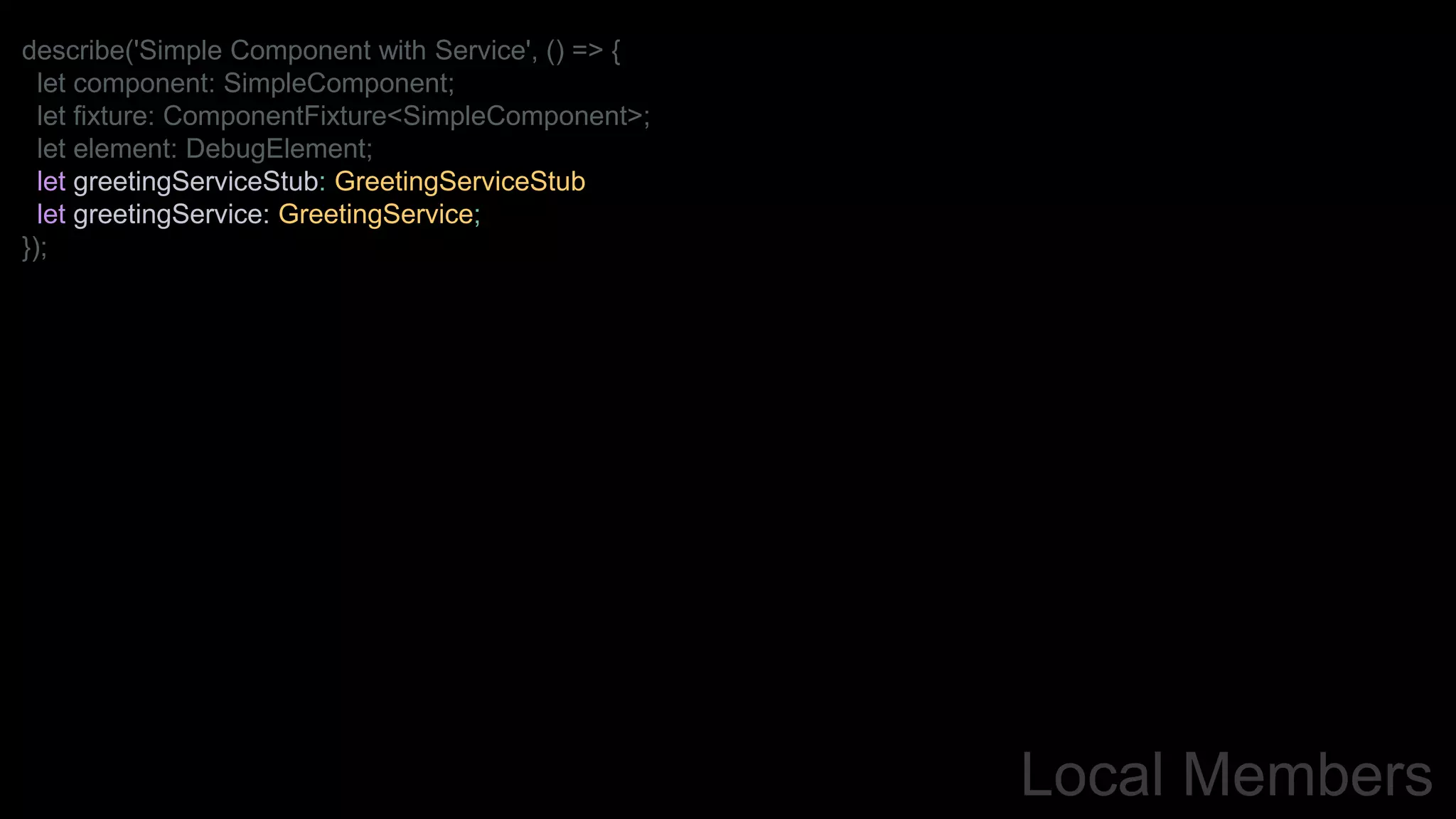

Local Members describe('Simple Componentwith Service', () => { let component: SimpleComponent; let fixture: ComponentFixture<SimpleComponent>; let element: DebugElement; let greetingServiceStub: GreetingServiceStub let greetingService: GreetingService; });

59.
Local Members describe('Simple Componentwith Service', () => { let component: SimpleComponent; let fixture: ComponentFixture<SimpleComponent>; let element: DebugElement; let greetingServiceStub: GreetingServiceStub let greetingService: GreetingService; });

60.

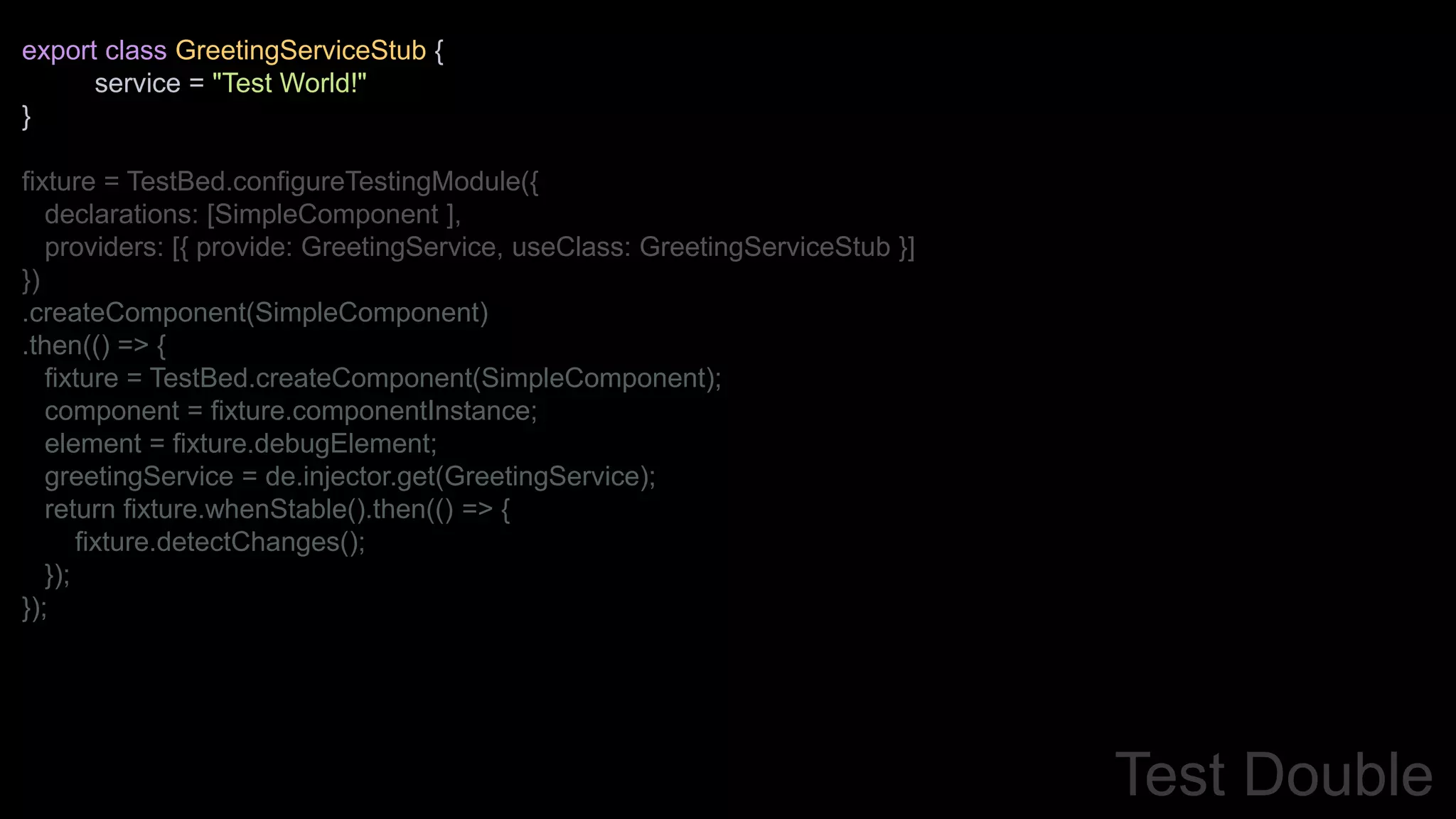

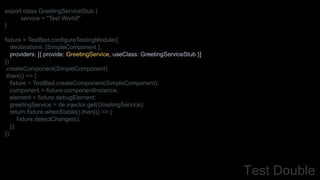

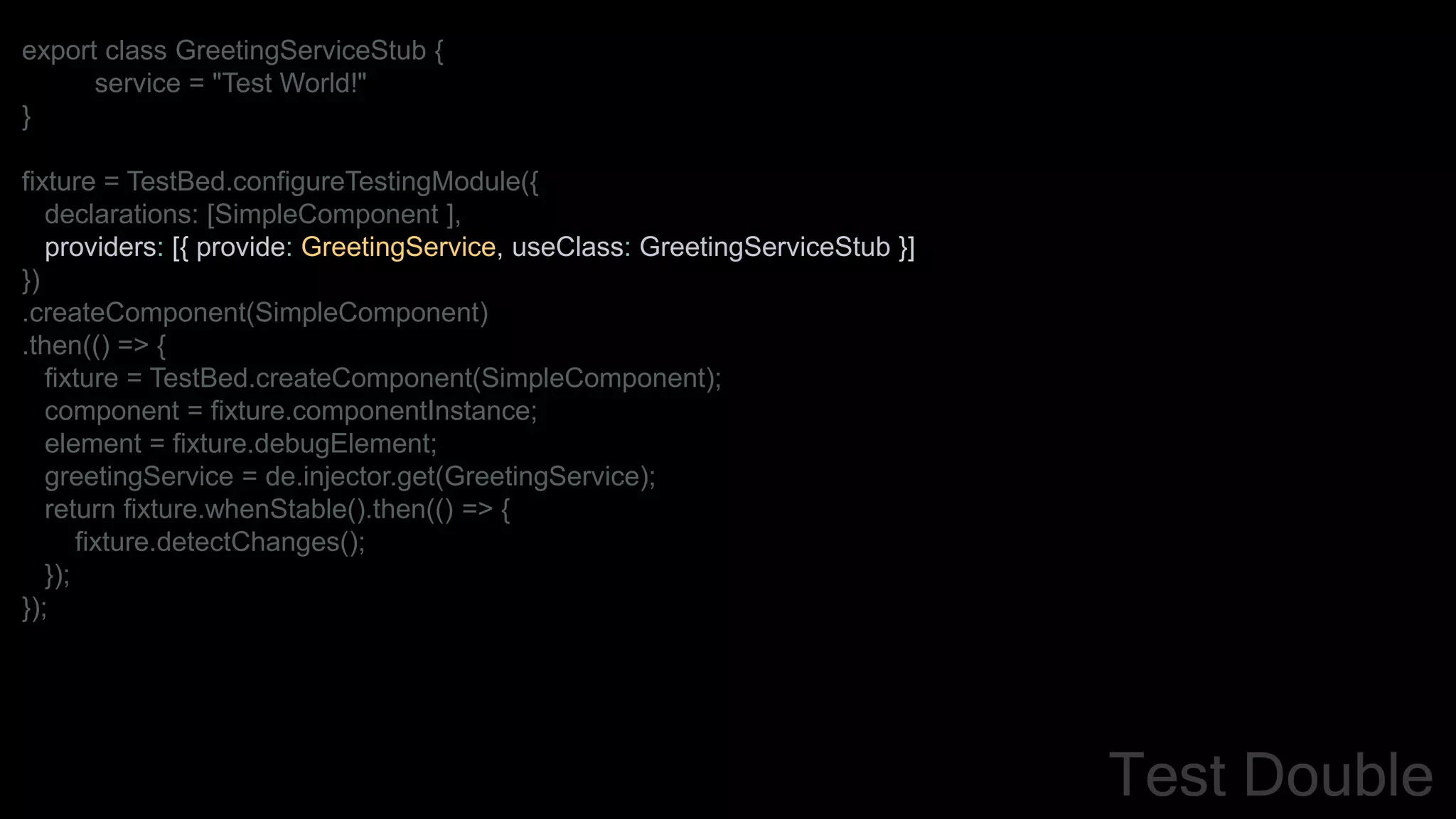

export class GreetingServiceStub{ service = "Test World!" } fixture = TestBed.configureTestingModule({ declarations: [SimpleComponent ], providers: [{ provide: GreetingService, useClass: GreetingServiceStub }] }) .createComponent(SimpleComponent) .then(() => { fixture = TestBed.createComponent(SimpleComponent); component = fixture.componentInstance; element = fixture.debugElement; greetingService = de.injector.get(GreetingService); return fixture.whenStable().then(() => { fixture.detectChanges(); }); }); Test Double

61.
export class GreetingServiceStub{ service = "Test World!" } fixture = TestBed.configureTestingModule({ declarations: [SimpleComponent ], providers: [{ provide: GreetingService, useClass: GreetingServiceStub }] }) .createComponent(SimpleComponent) .then(() => { fixture = TestBed.createComponent(SimpleComponent); component = fixture.componentInstance; element = fixture.debugElement; greetingService = de.injector.get(GreetingService); return fixture.whenStable().then(() => { fixture.detectChanges(); }); }); Test Double

62.
http://digitaldrummerj.me Get Service ReferenceWith debugElement.injector

63.

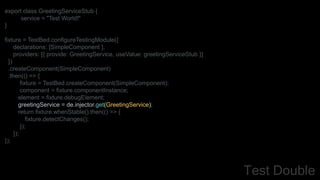

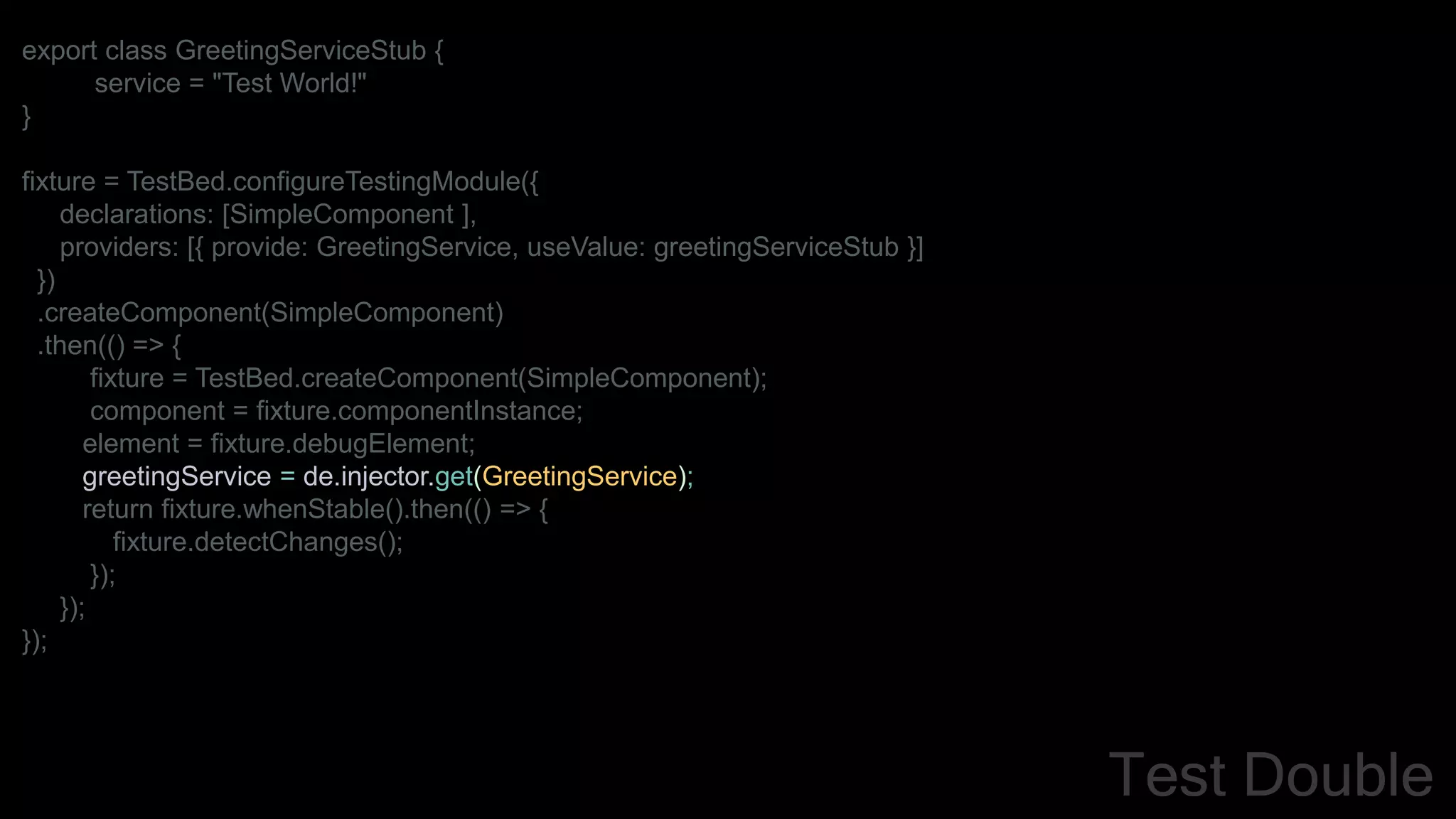

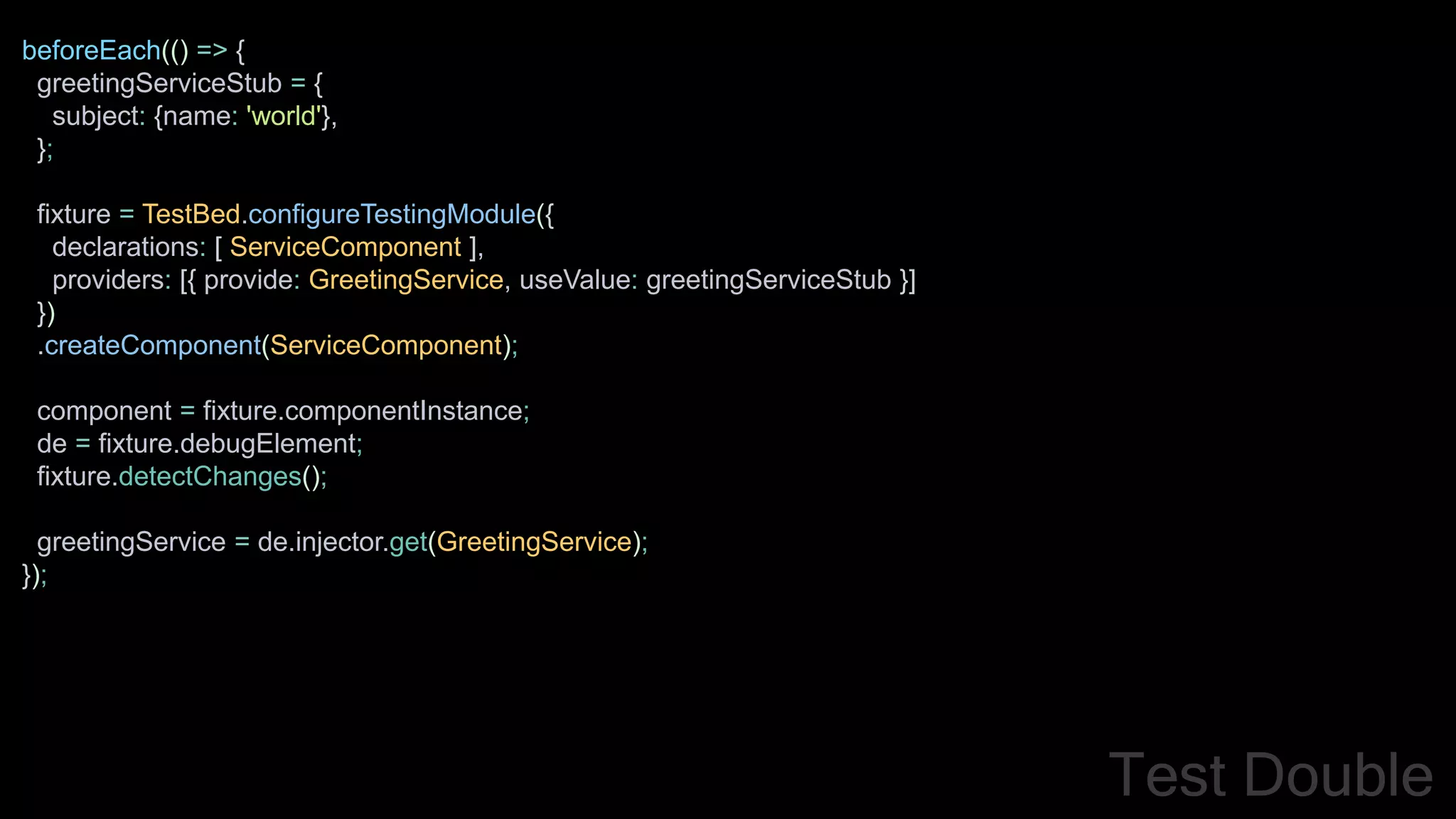

export class GreetingServiceStub{ service = "Test World!" } fixture = TestBed.configureTestingModule({ declarations: [SimpleComponent ], providers: [{ provide: GreetingService, useValue: greetingServiceStub }] }) .createComponent(SimpleComponent) .then(() => { fixture = TestBed.createComponent(SimpleComponent); component = fixture.componentInstance; element = fixture.debugElement; greetingService = de.injector.get(GreetingService); return fixture.whenStable().then(() => { fixture.detectChanges(); }); }); }); Test Double

64.

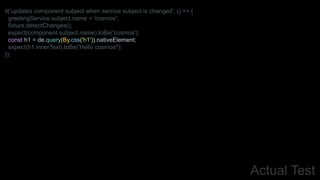

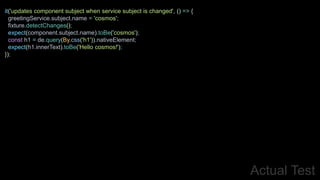

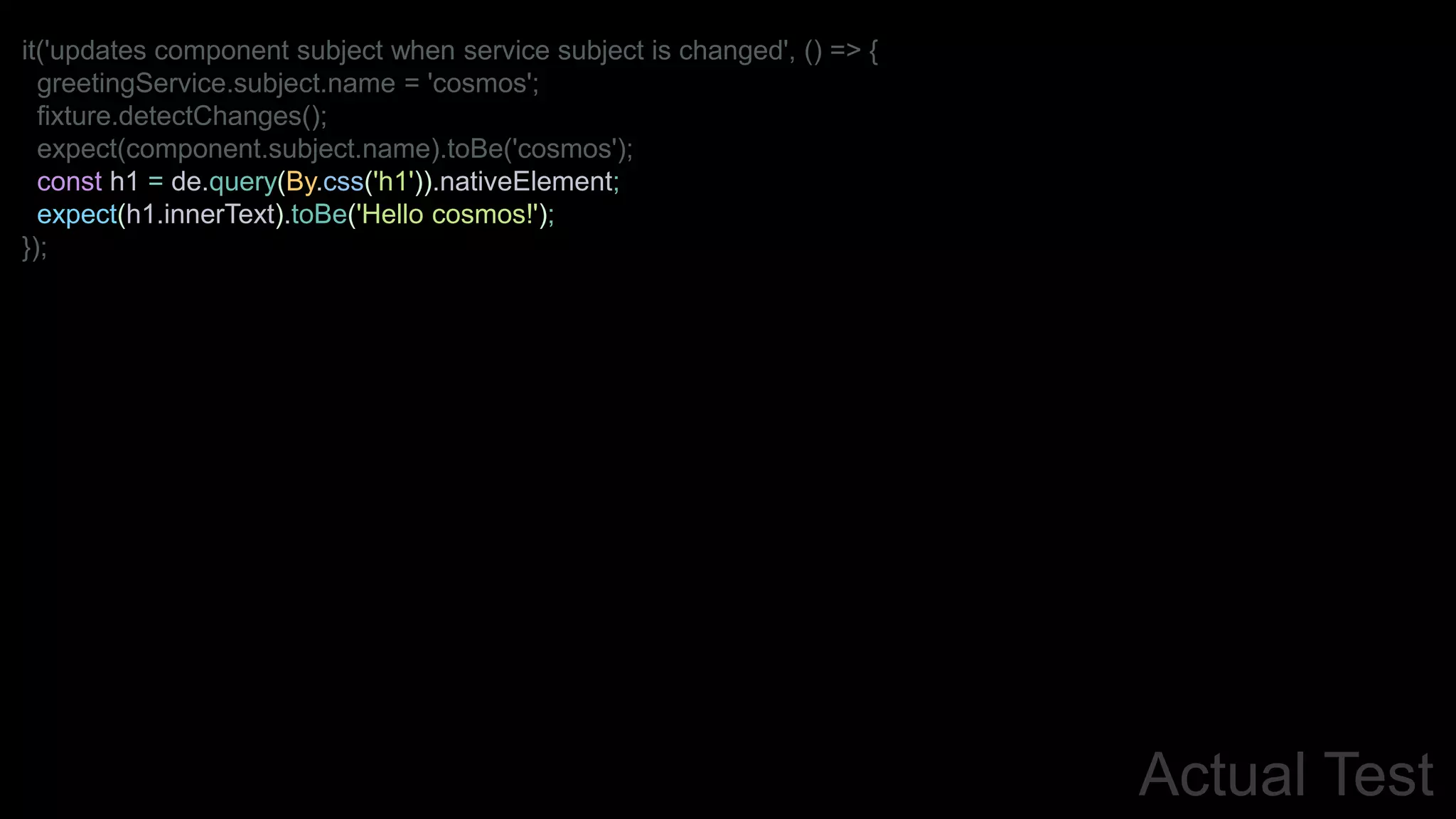

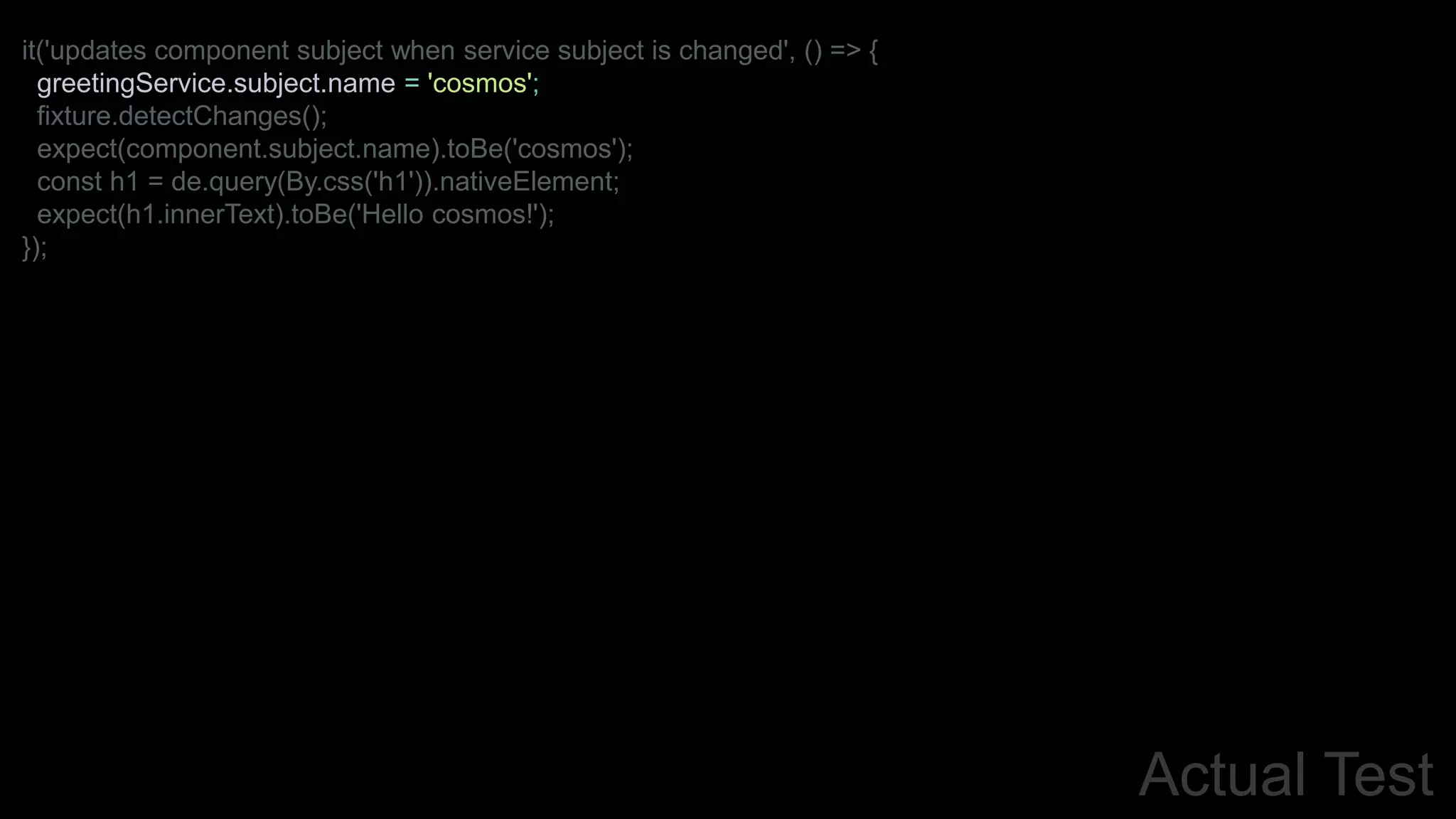

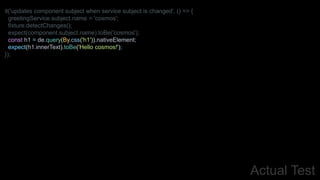

Actual Test it('updates componentsubject when service subject is changed', () => { greetingService.subject.name = 'cosmos'; fixture.detectChanges(); expect(component.subject.name).toBe('cosmos'); const h1 = de.query(By.css('h1')).nativeElement; expect(h1.innerText).toBe('Hello cosmos!'); });

65.

66.

67.

68.

69.

70.

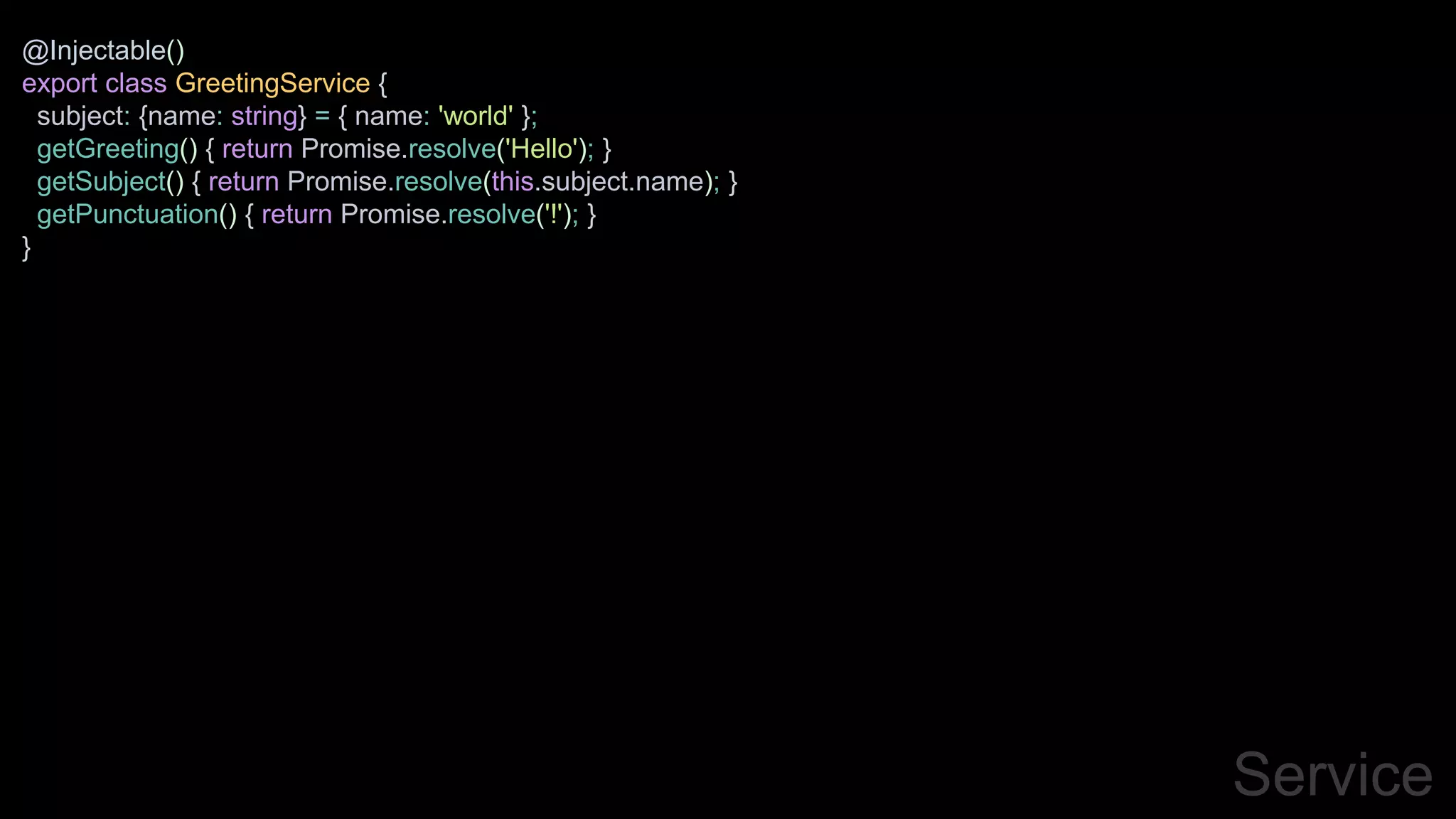

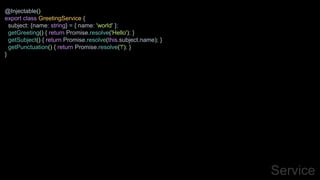

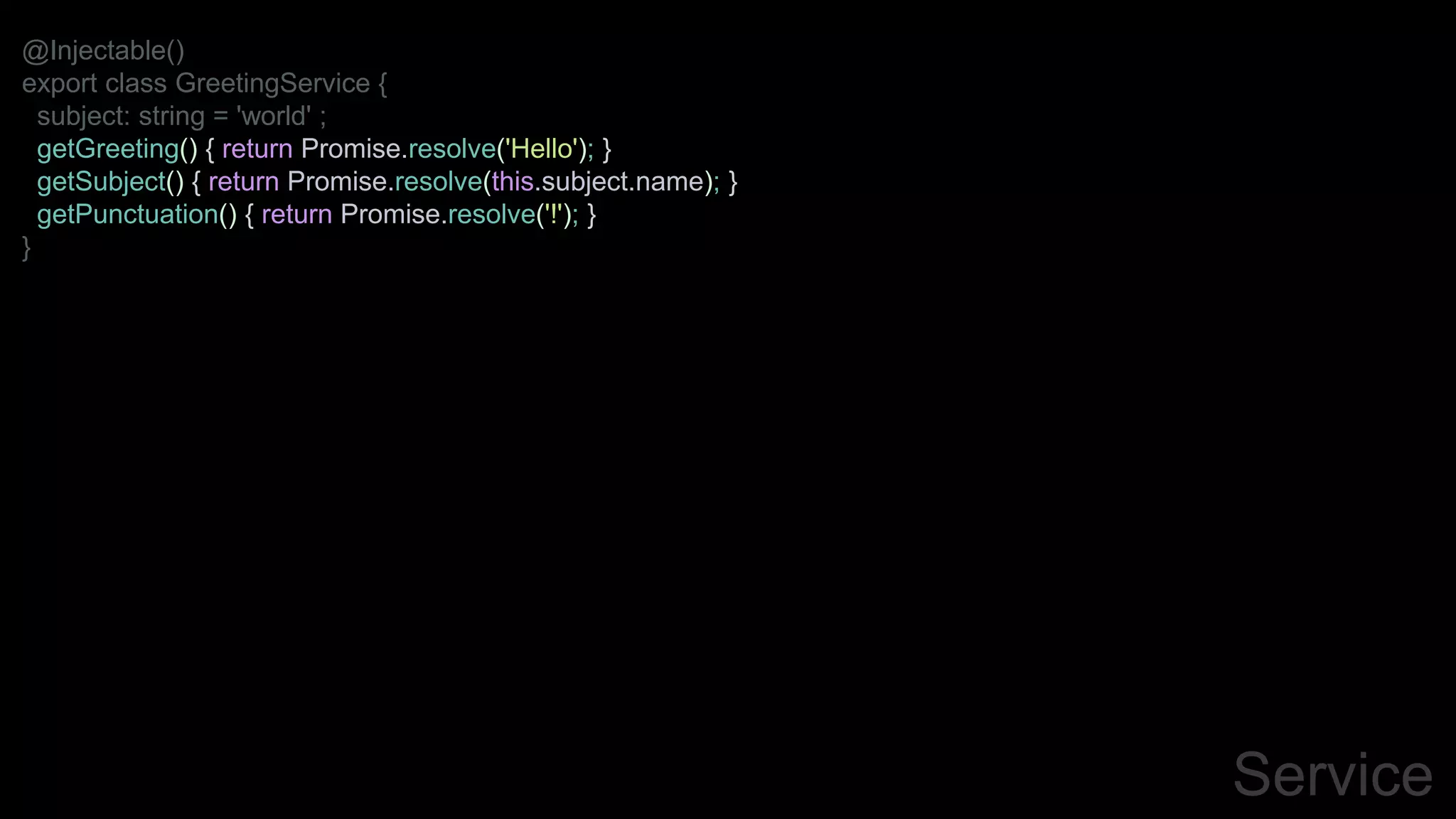

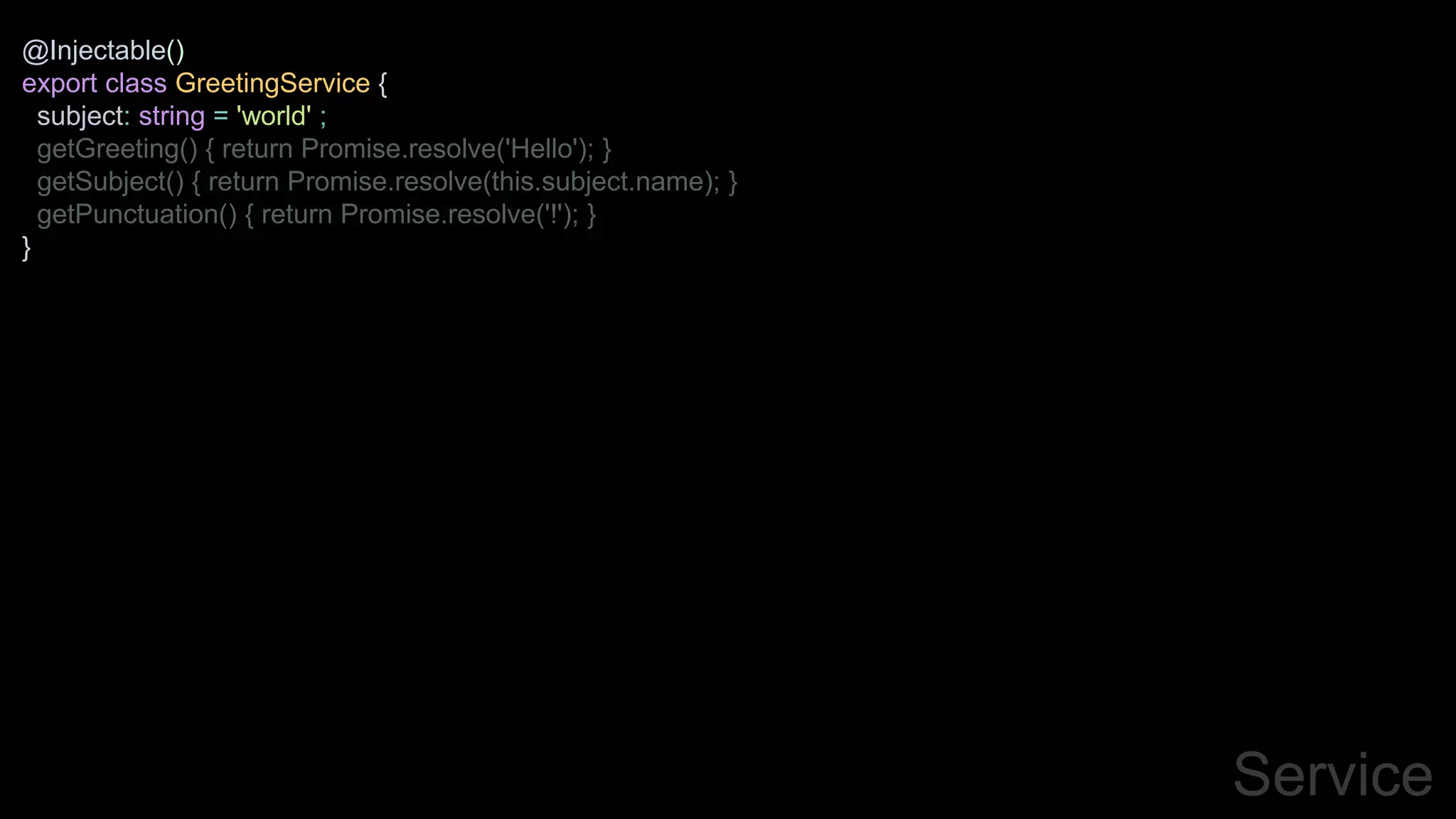

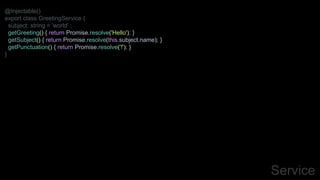

Service @Injectable() export class GreetingService{ subject: string = 'world' ; getGreeting() { return Promise.resolve('Hello'); } getSubject() { return Promise.resolve(this.subject.name); } getPunctuation() { return Promise.resolve('!'); } }

71.
Service @Injectable() export class GreetingService{ subject: string = 'world' ; getGreeting() { return Promise.resolve('Hello'); } getSubject() { return Promise.resolve(this.subject.name); } getPunctuation() { return Promise.resolve('!'); } }

72.

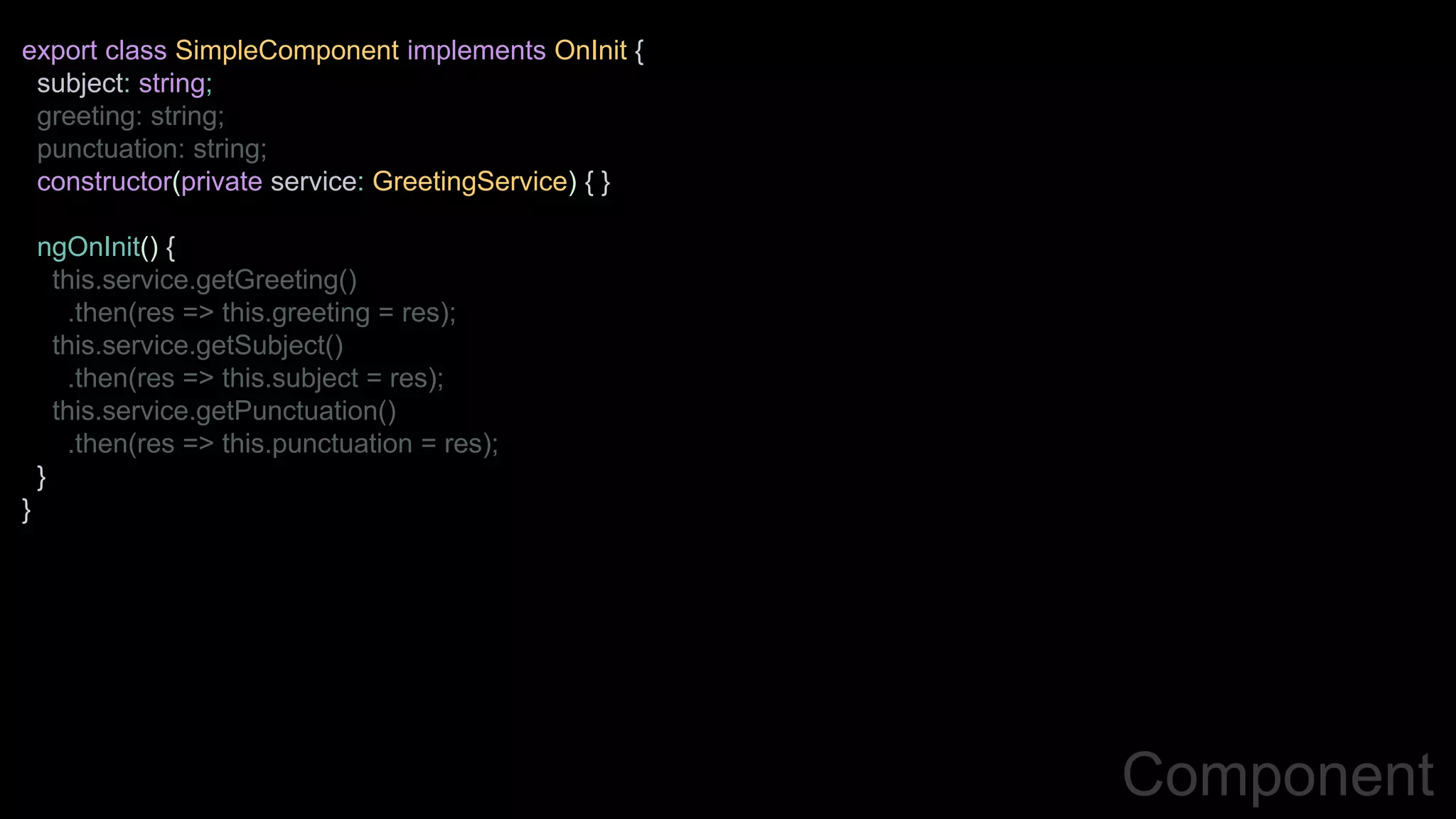

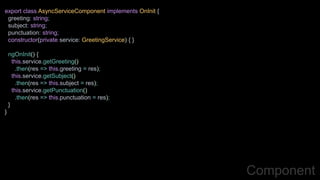

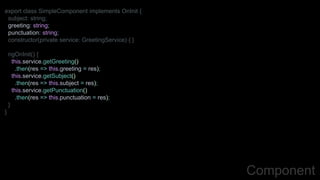

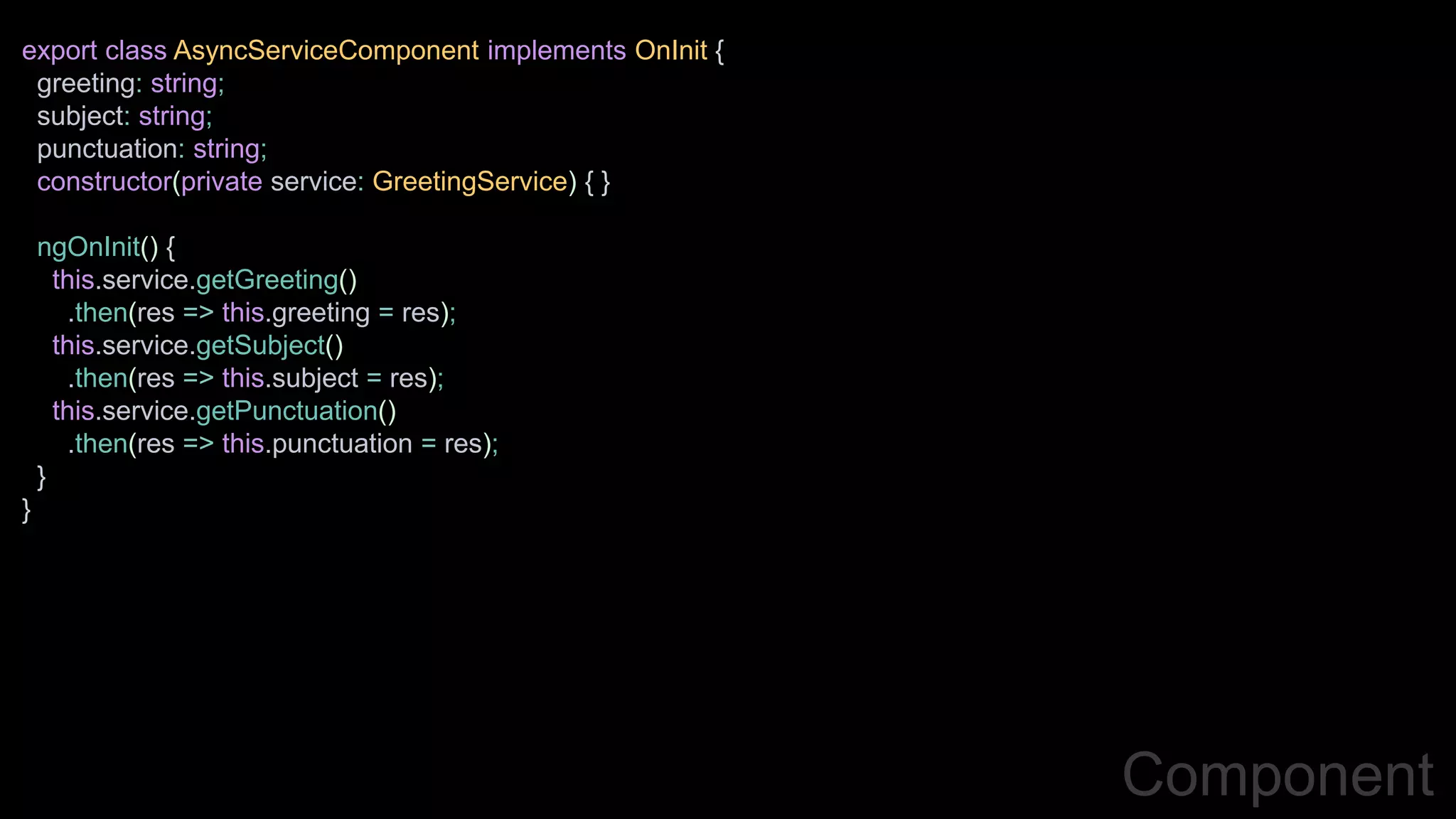

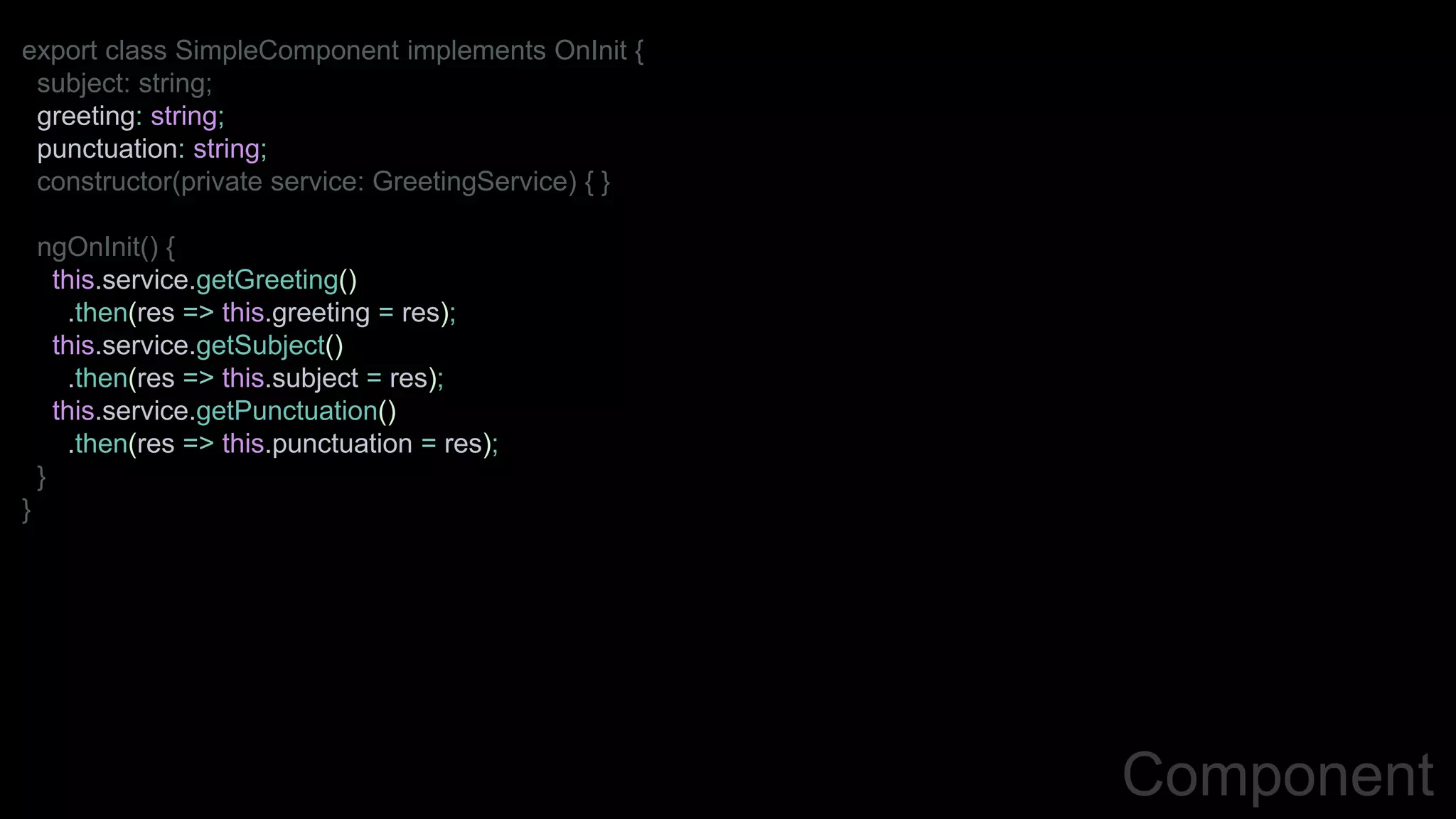

Component export class SimpleComponentimplements OnInit { subject: string; greeting: string; punctuation: string; constructor(private service: GreetingService) { } ngOnInit() { this.service.getGreeting() .then(res => this.greeting = res); this.service.getSubject() .then(res => this.subject = res); this.service.getPunctuation() .then(res => this.punctuation = res); } }

73.
Component export class SimpleComponentimplements OnInit { subject: string; greeting: string; punctuation: string; constructor(private service: GreetingService) { } ngOnInit() { this.service.getGreeting() .then(res => this.greeting = res); this.service.getSubject() .then(res => this.subject = res); this.service.getPunctuation() .then(res => this.punctuation = res); } }

74.

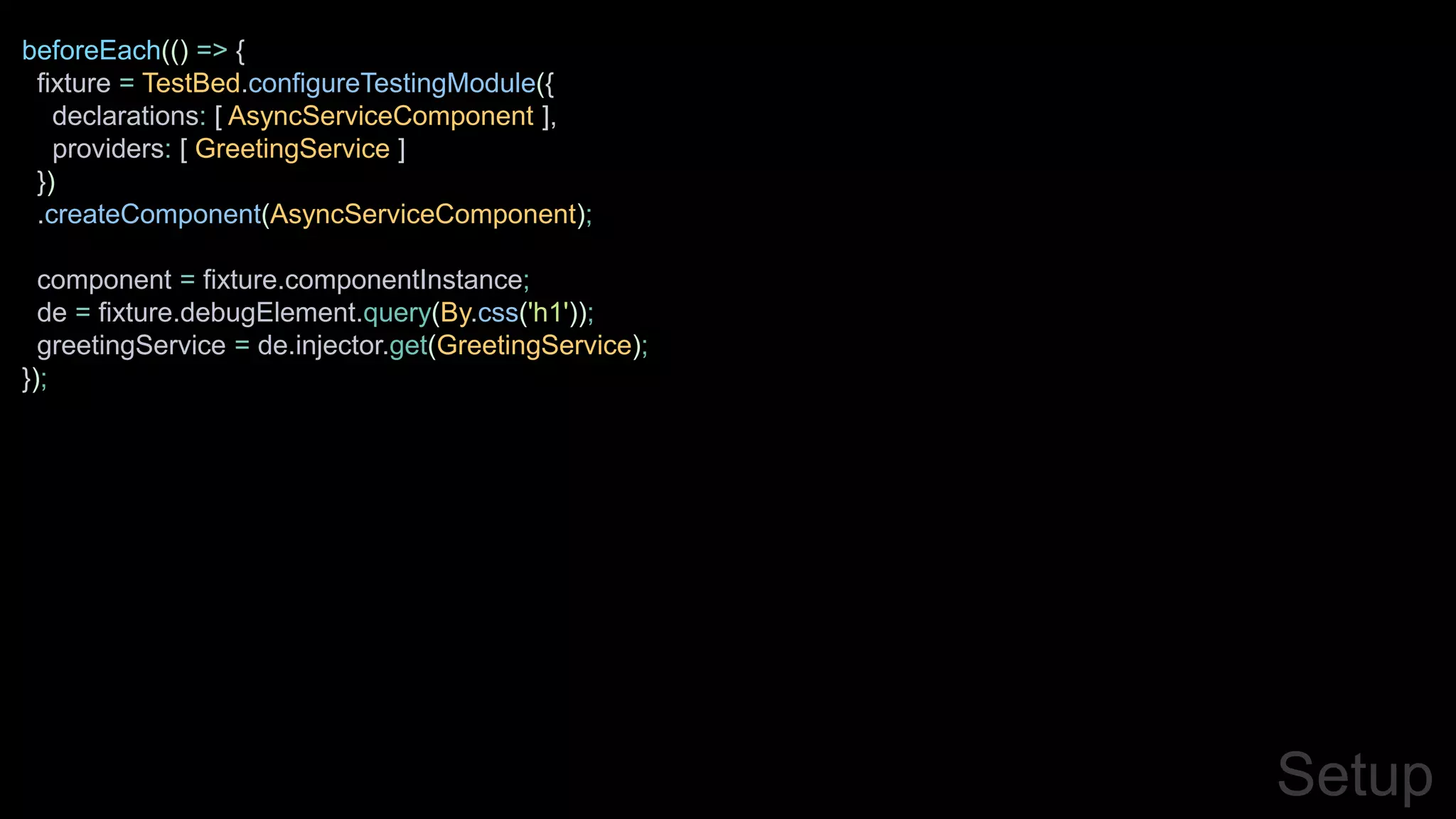

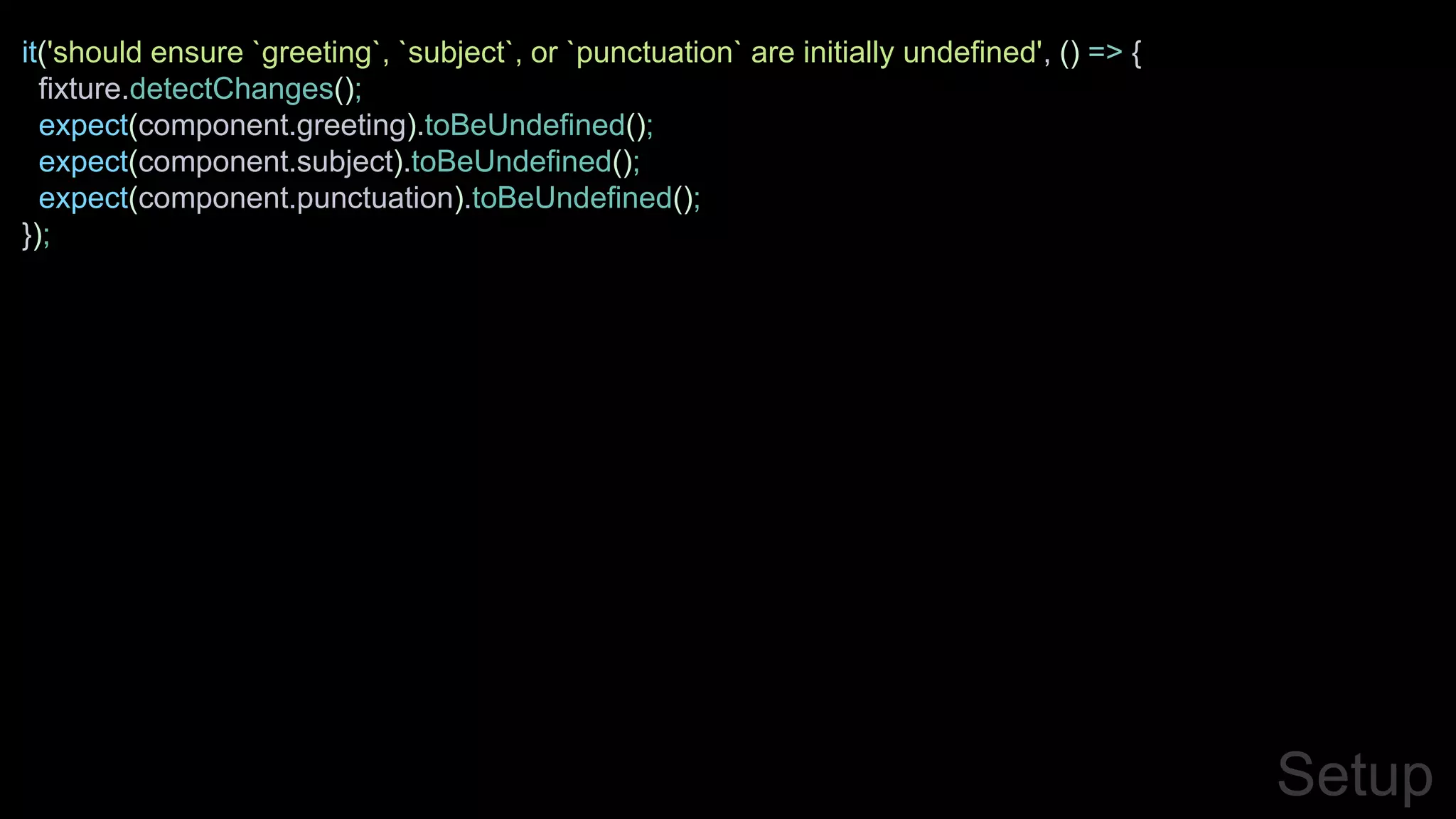

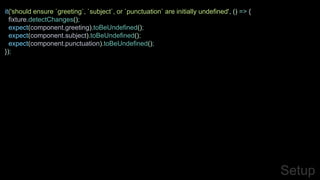

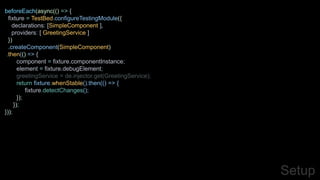

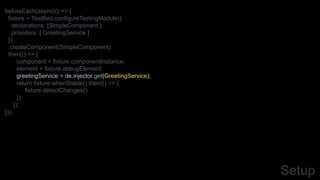

Setup beforeEach(async(() => { fixture= TestBed.configureTestingModule({ declarations: [SimpleComponent ], providers: [ GreetingService ] }) .createComponent(SimpleComponent) .then(() => { component = fixture.componentInstance; element = fixture.debugElement; greetingService = de.injector.get(GreetingService); return fixture.whenStable().then(() => { fixture.detectChanges(); }); }); }));

75.
Setup beforeEach(async(() => { fixture= TestBed.configureTestingModule({ declarations: [SimpleComponent ], providers: [ GreetingService ] }) .createComponent(SimpleComponent) .then(() => { component = fixture.componentInstance; element = fixture.debugElement; greetingService = de.injector.get(GreetingService); return fixture.whenStable().then(() => { fixture.detectChanges(); }); }); }));

76.

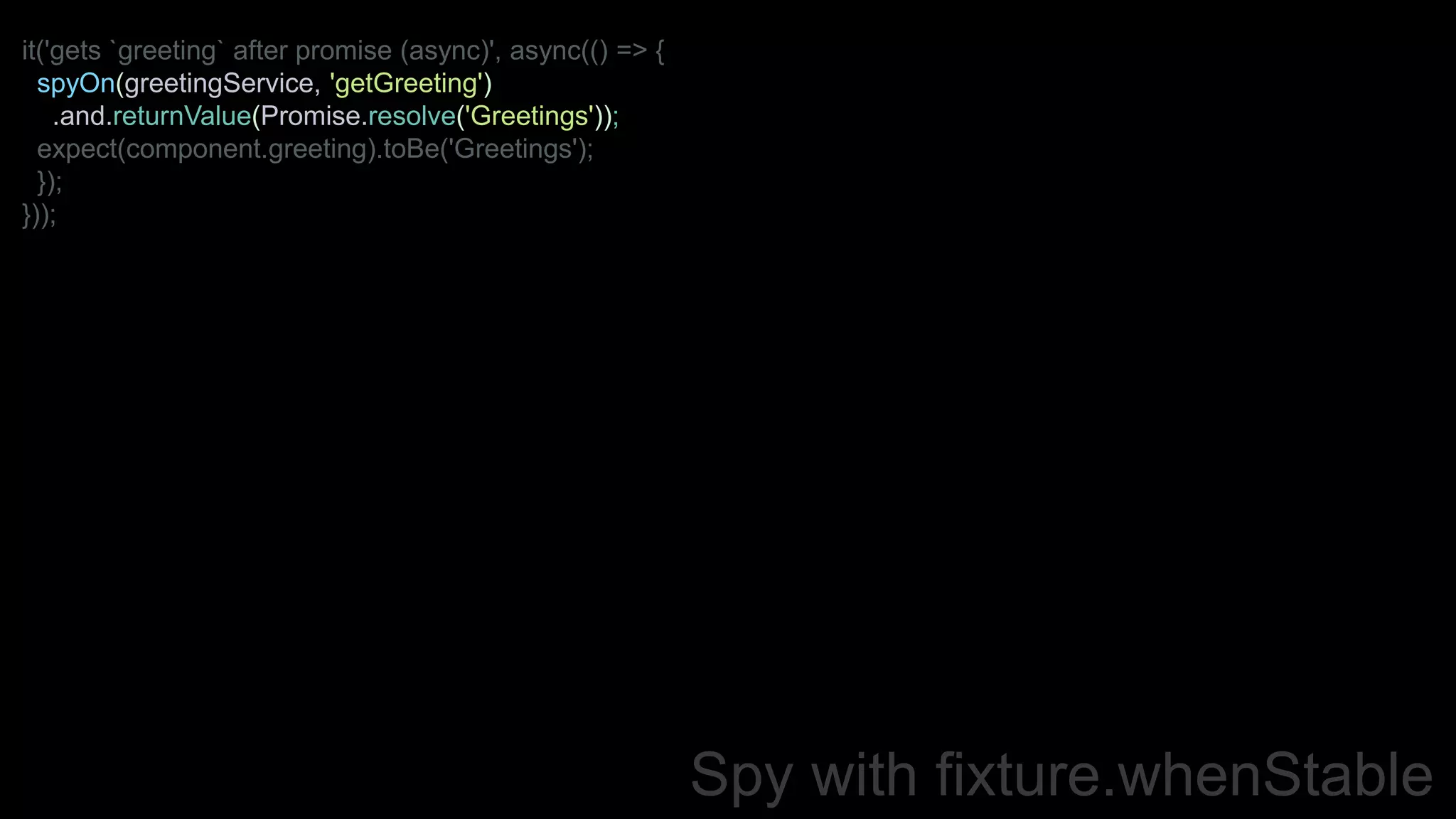

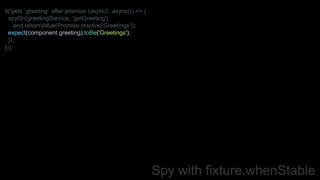

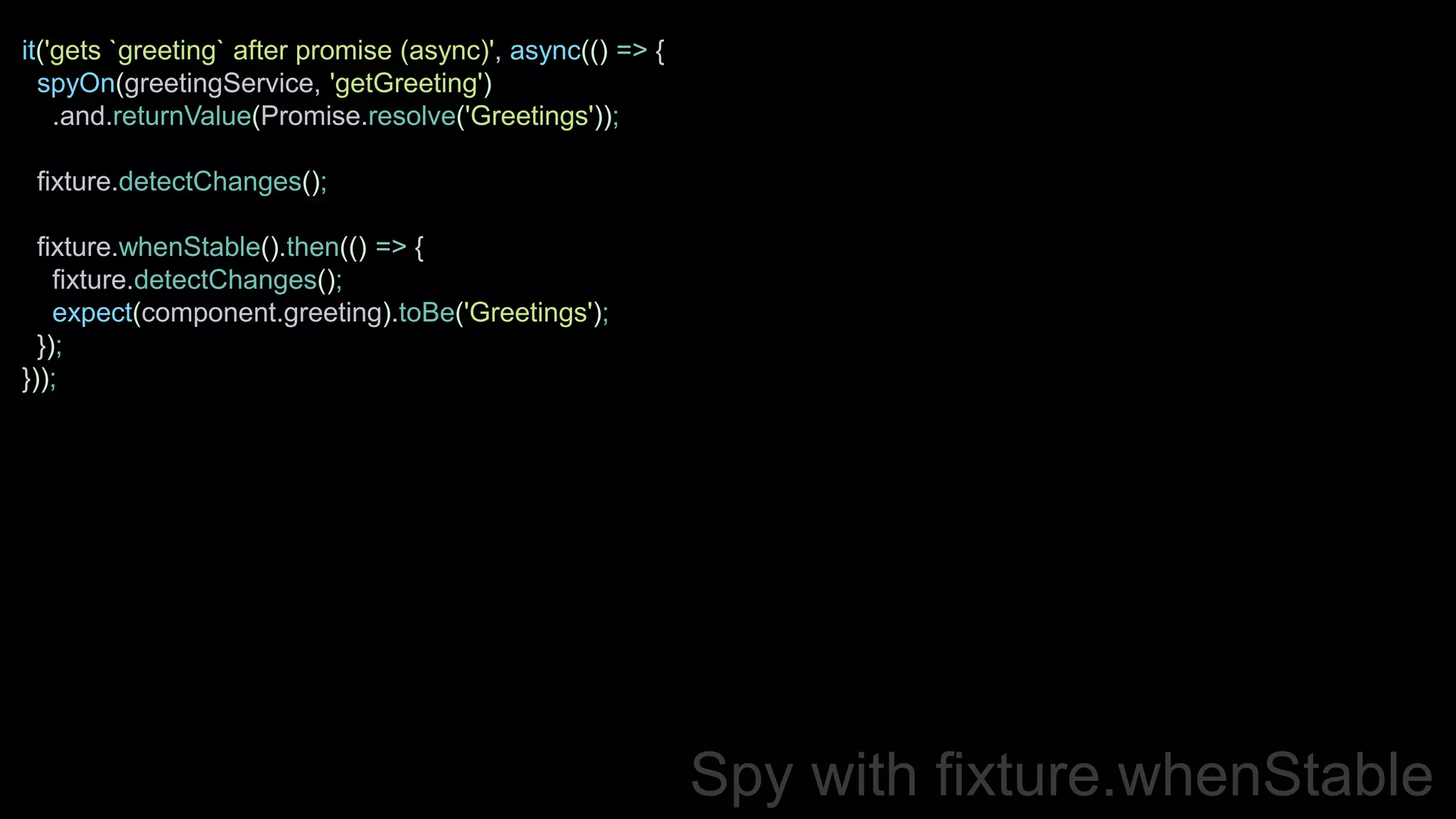

Spy with fixture.whenStable it('gets`greeting` after promise (async)', async(() => { spyOn(greetingService, 'getGreeting') .and.returnValue(Promise.resolve('Greetings')); expect(component.greeting).toBe('Greetings'); }); }));

77.

78.

79.

80.

81.

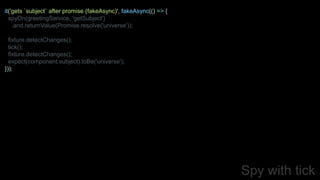

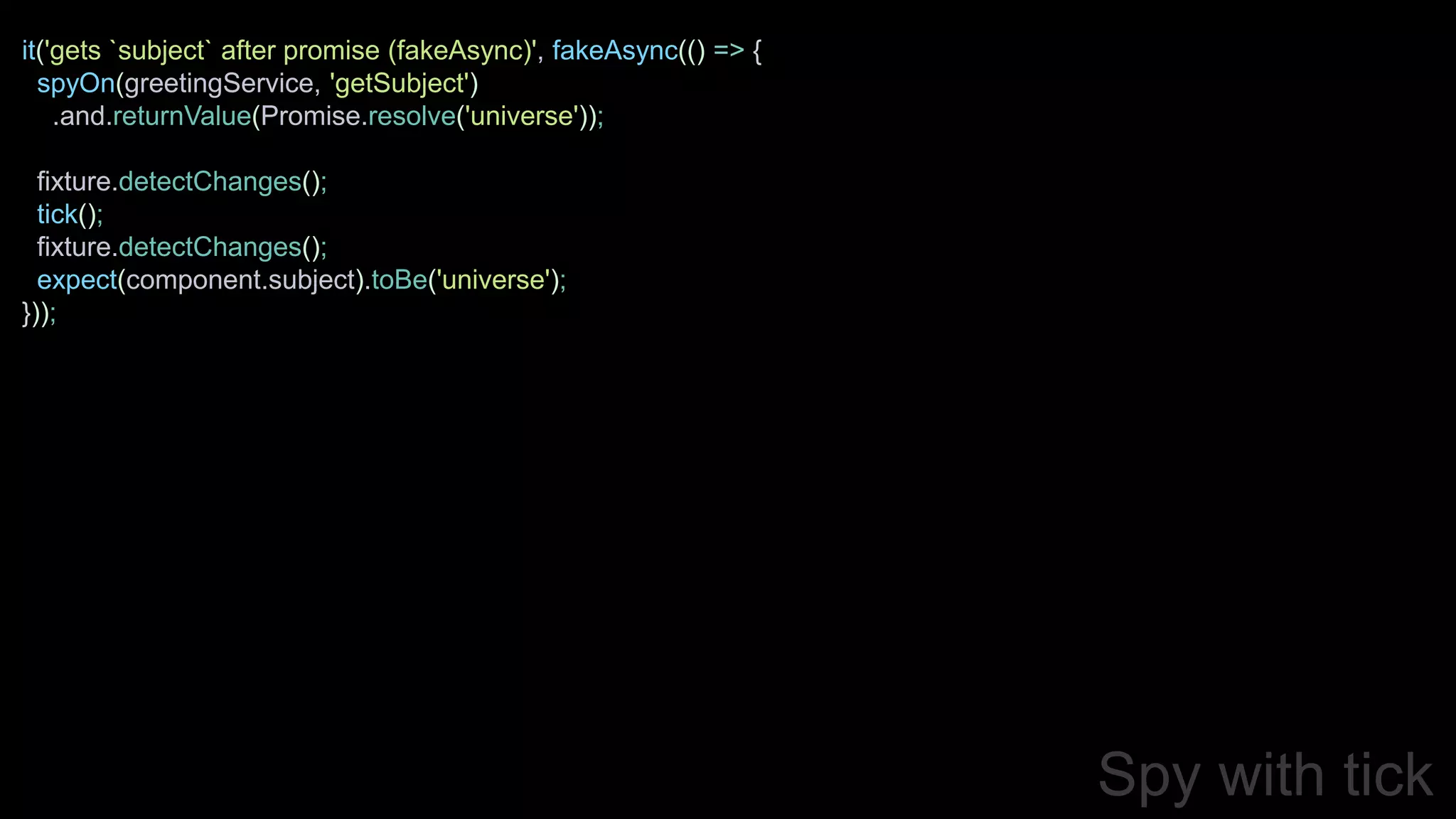

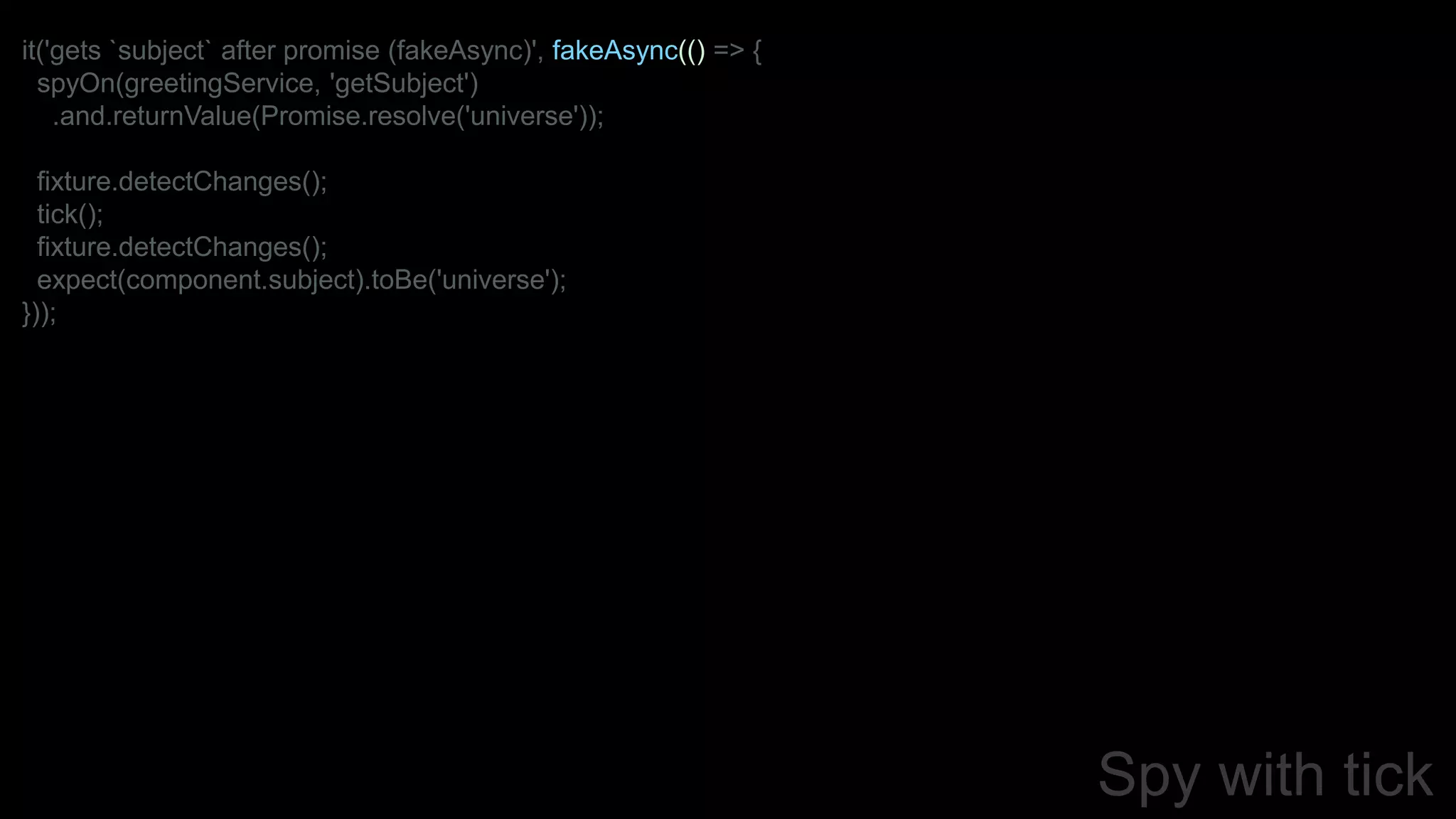

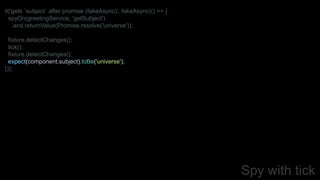

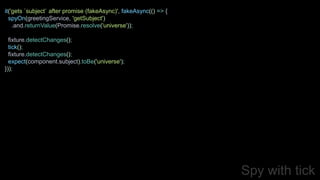

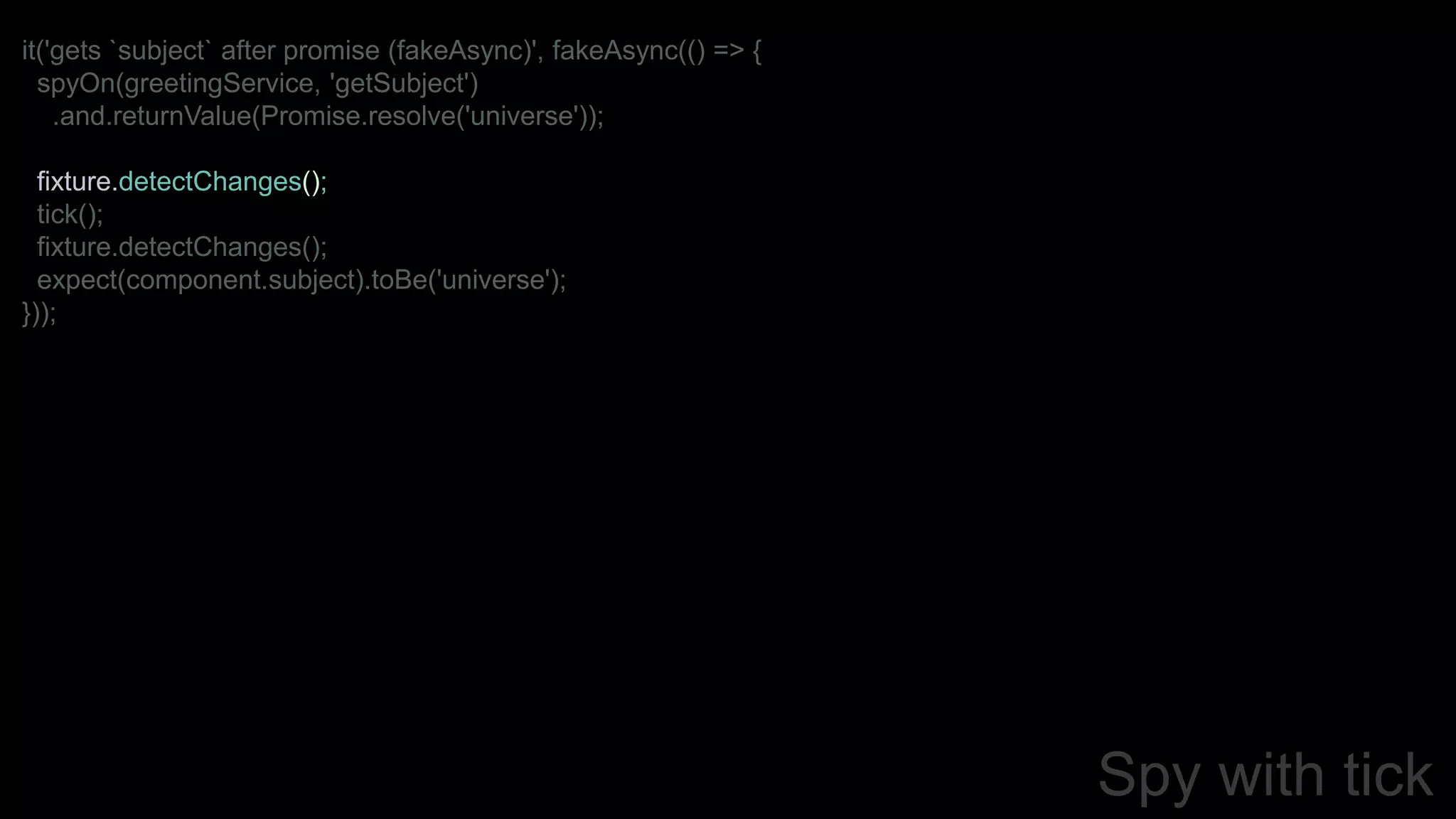

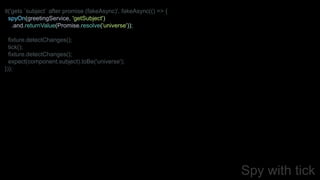

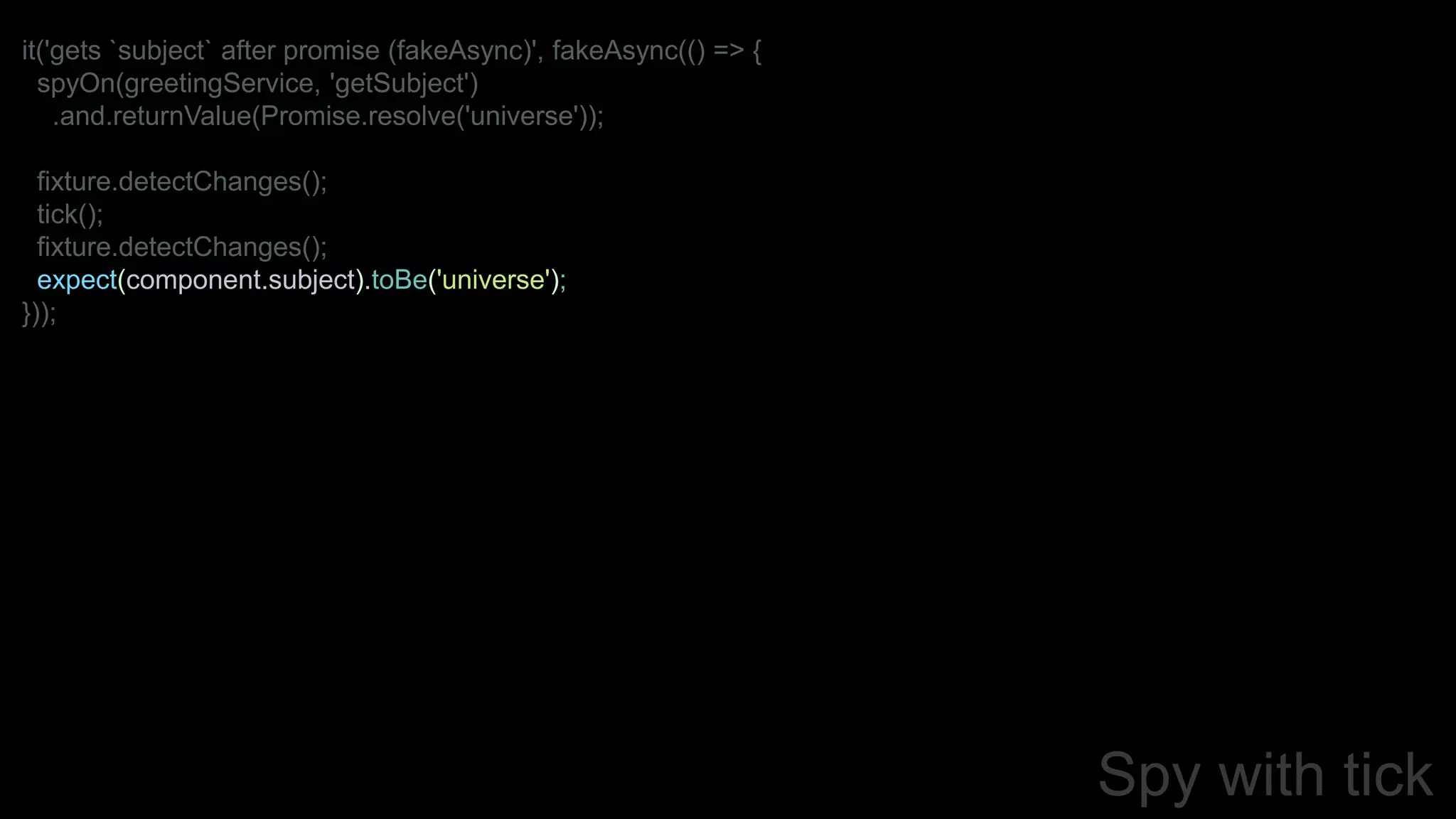

Spy with tick it('gets`subject` after promise (fakeAsync)', fakeAsync(() => { spyOn(greetingService, 'getSubject') .and.returnValue(Promise.resolve('universe')); fixture.detectChanges(); tick(); fixture.detectChanges(); expect(component.subject).toBe('universe'); }));

82.

83.

84.

85.

86.

87.

88.

89.
http://digitaldrummerj.me Component with Inputsand Outputs The goal is to ensure that binding works as expected Test input: simply update value and ensure it renders Test output: trigger triggerEventHandler and subscribe to the EventEmitter

90.

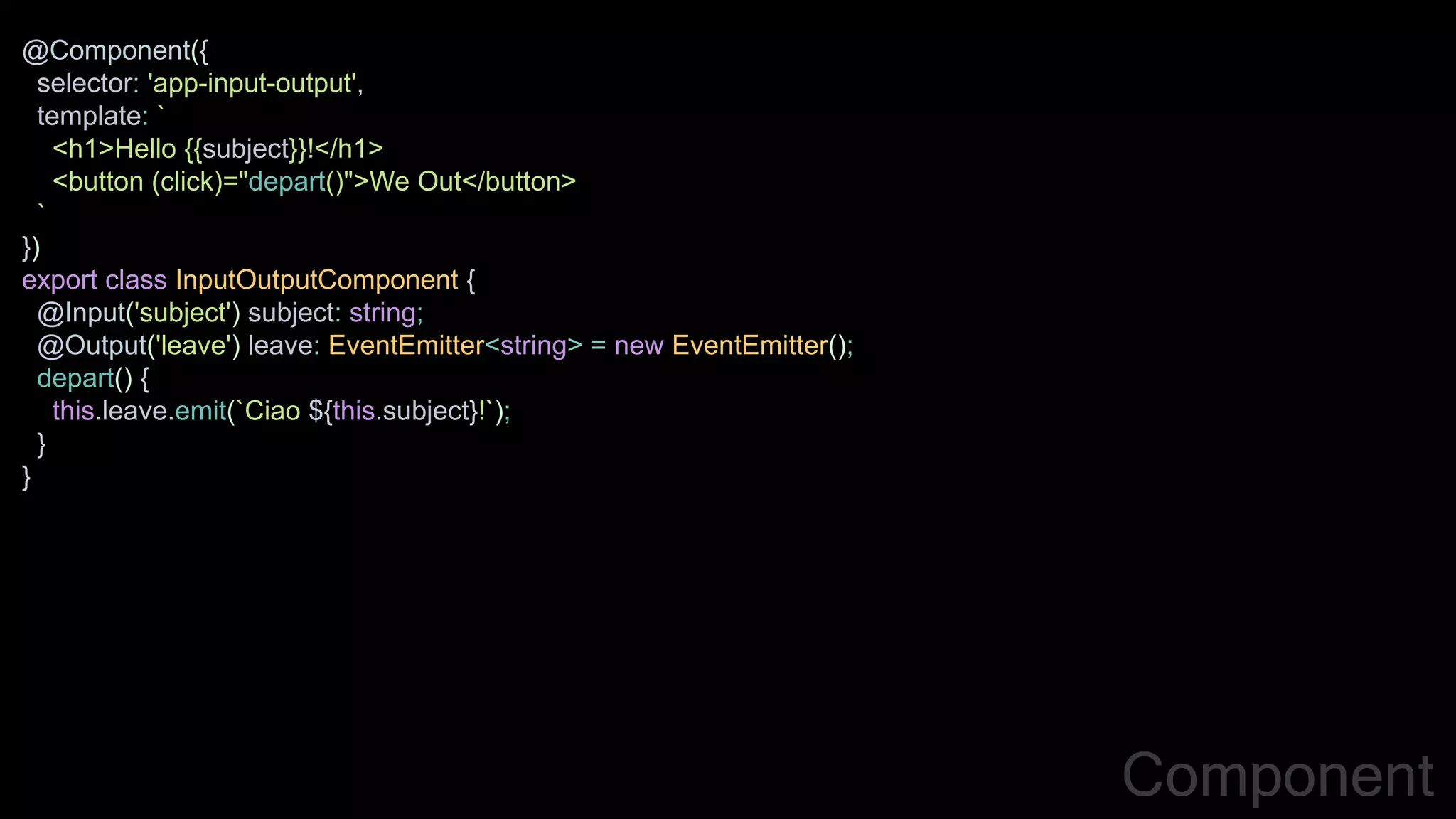

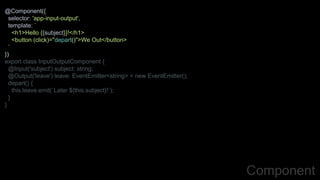

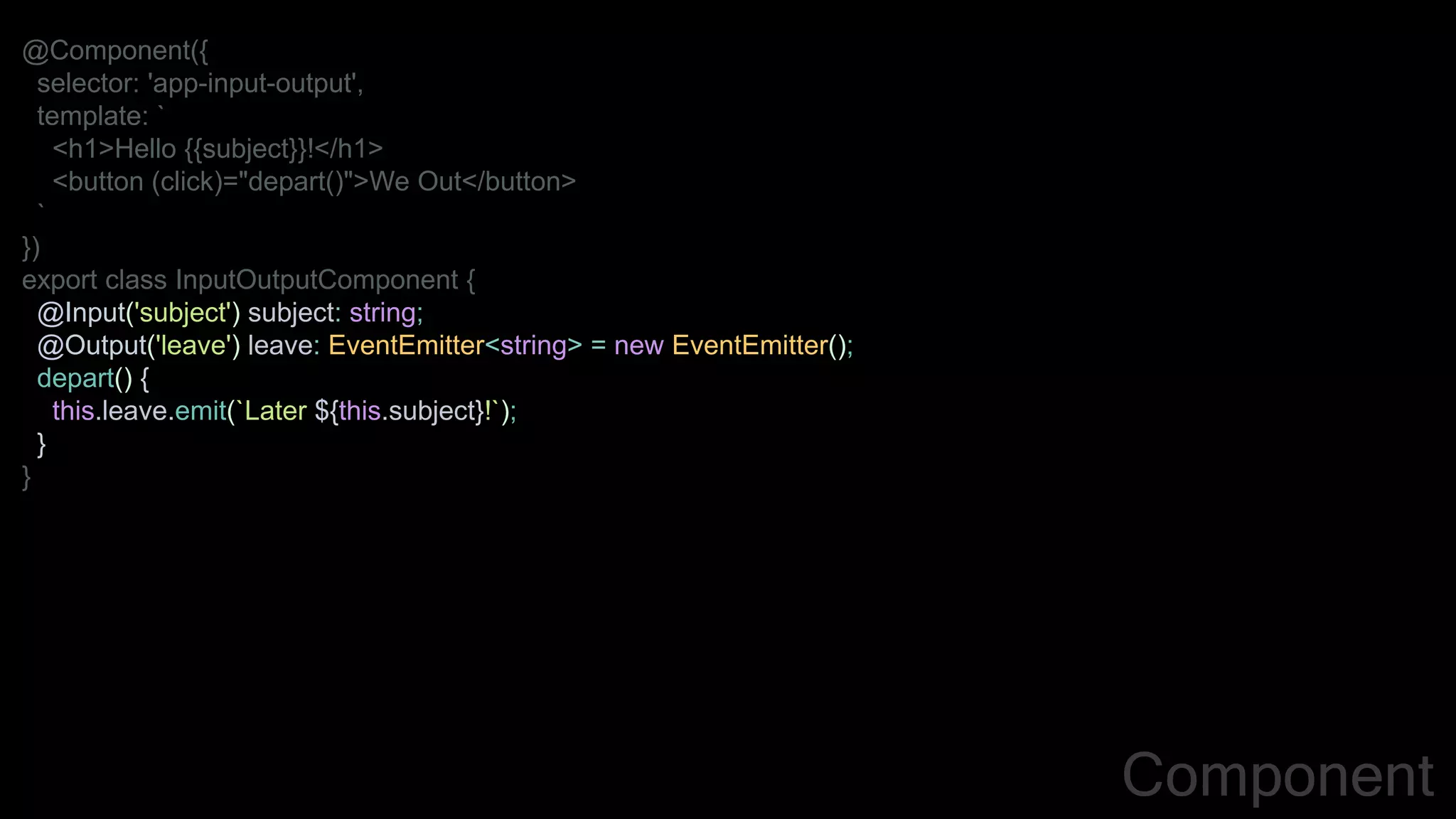

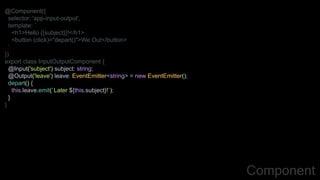

@Component({ selector: 'app-input-output', template: ` <h1>Hello{{subject}}!</h1> <button (click)="depart()">We Out</button> ` }) export class InputOutputComponent { @Input('subject') subject: string; @Output('leave') leave: EventEmitter<string> = new EventEmitter(); depart() { this.leave.emit(`Later ${this.subject}!`); } } Component

91.
@Component({ selector: 'app-input-output', template: ` <h1>Hello{{subject}}!</h1> <button (click)="depart()">We Out</button> ` }) export class InputOutputComponent { @Input('subject') subject: string; @Output('leave') leave: EventEmitter<string> = new EventEmitter(); depart() { this.leave.emit(`Later ${this.subject}!`); } } Component

92.

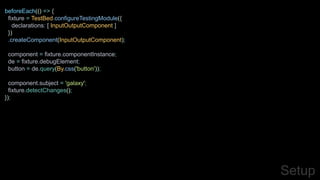

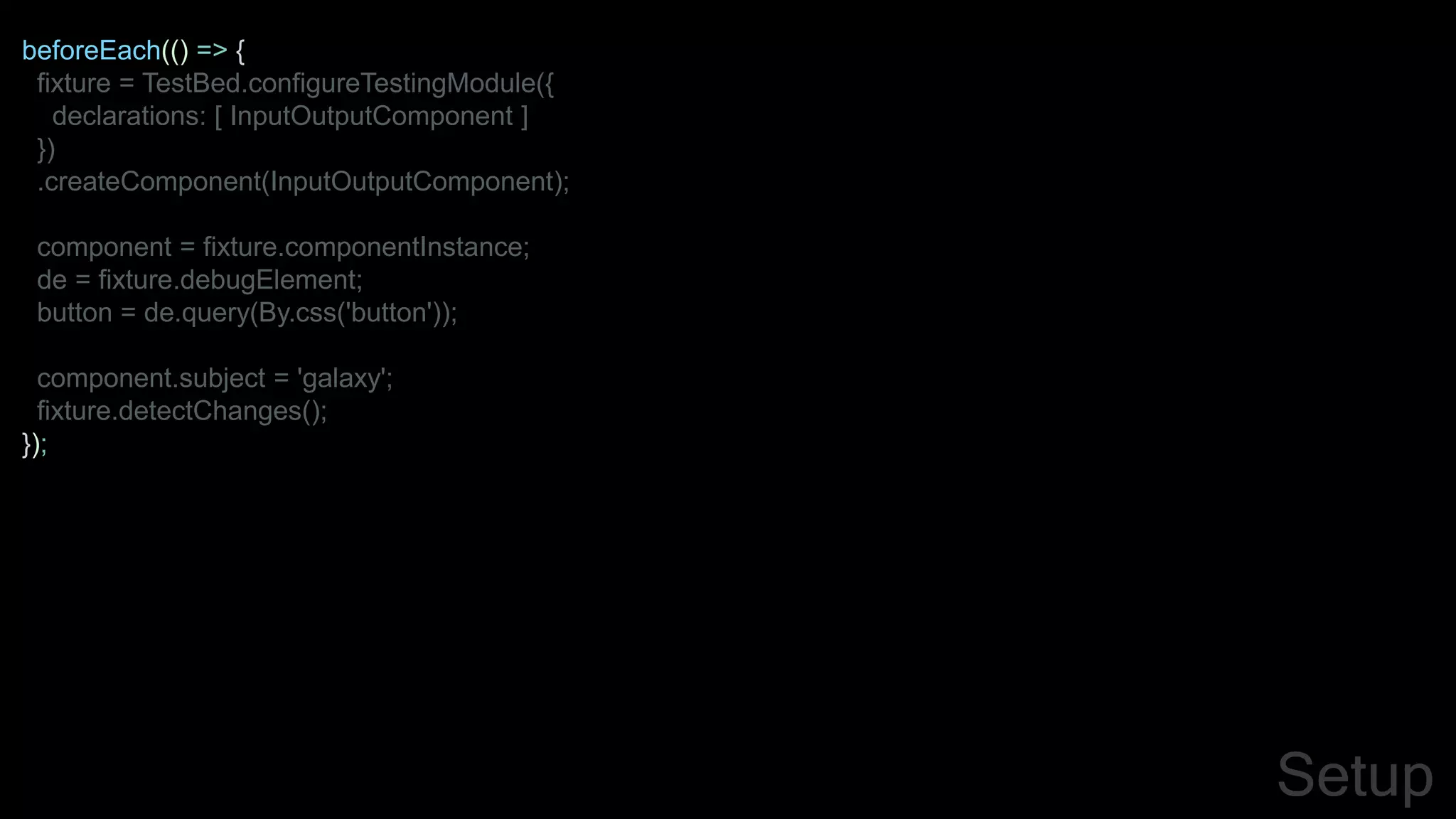

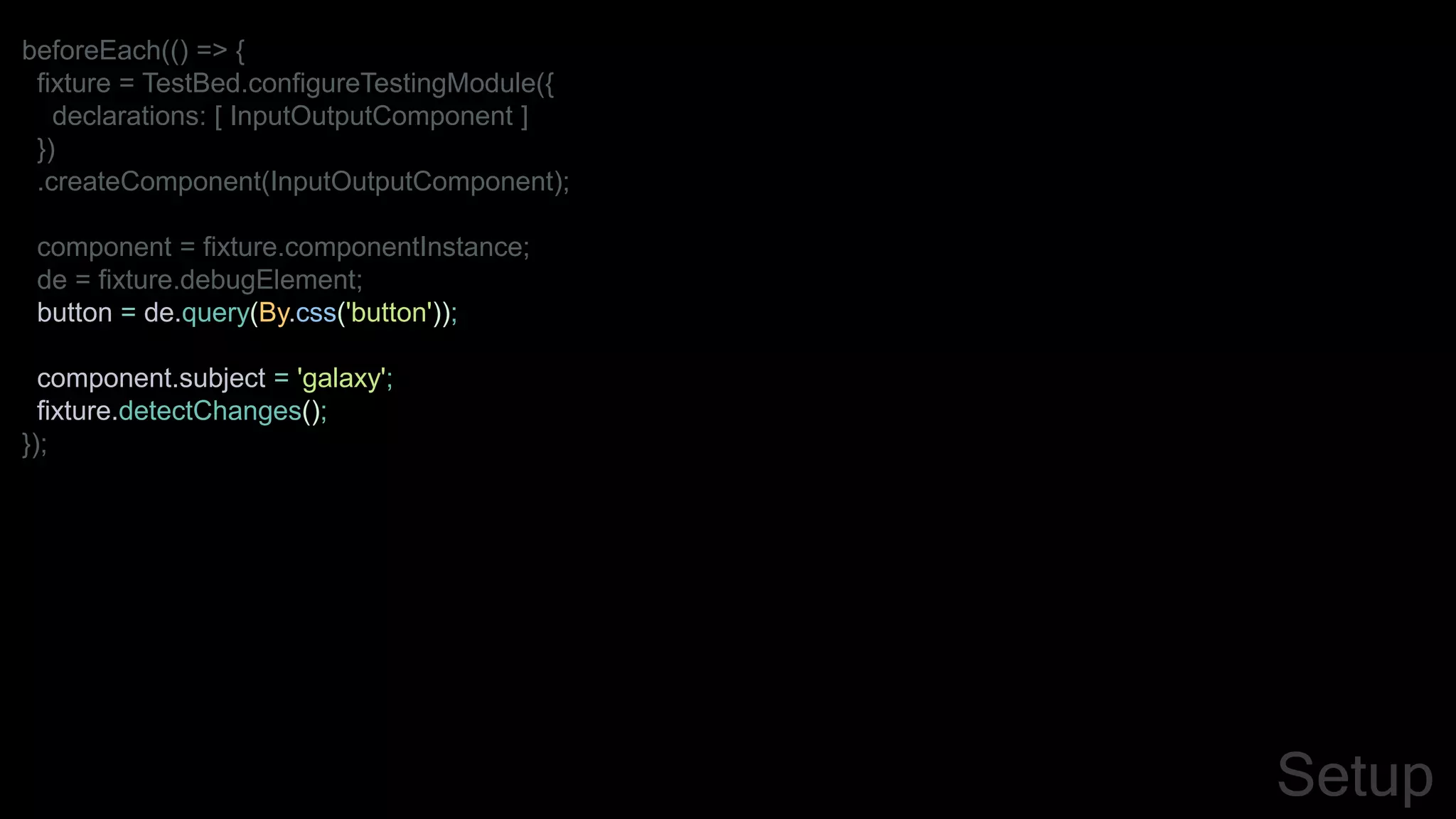

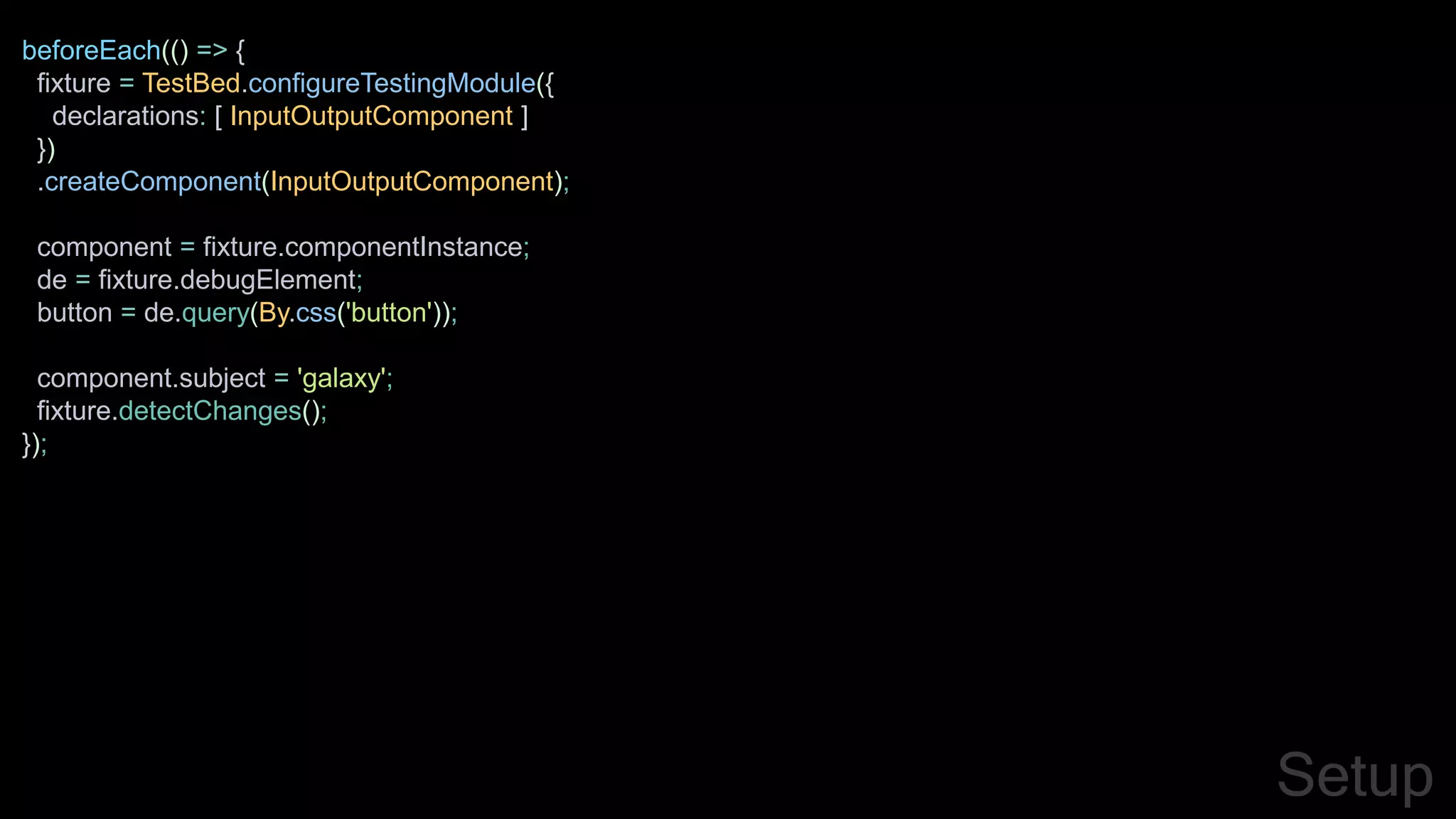

beforeEach(() => { fixture= TestBed.configureTestingModule({ declarations: [ InputOutputComponent ] }) .createComponent(InputOutputComponent); component = fixture.componentInstance; de = fixture.debugElement; button = de.query(By.css('button')); component.subject = 'galaxy'; fixture.detectChanges(); }); Setup

93.

94.

95.

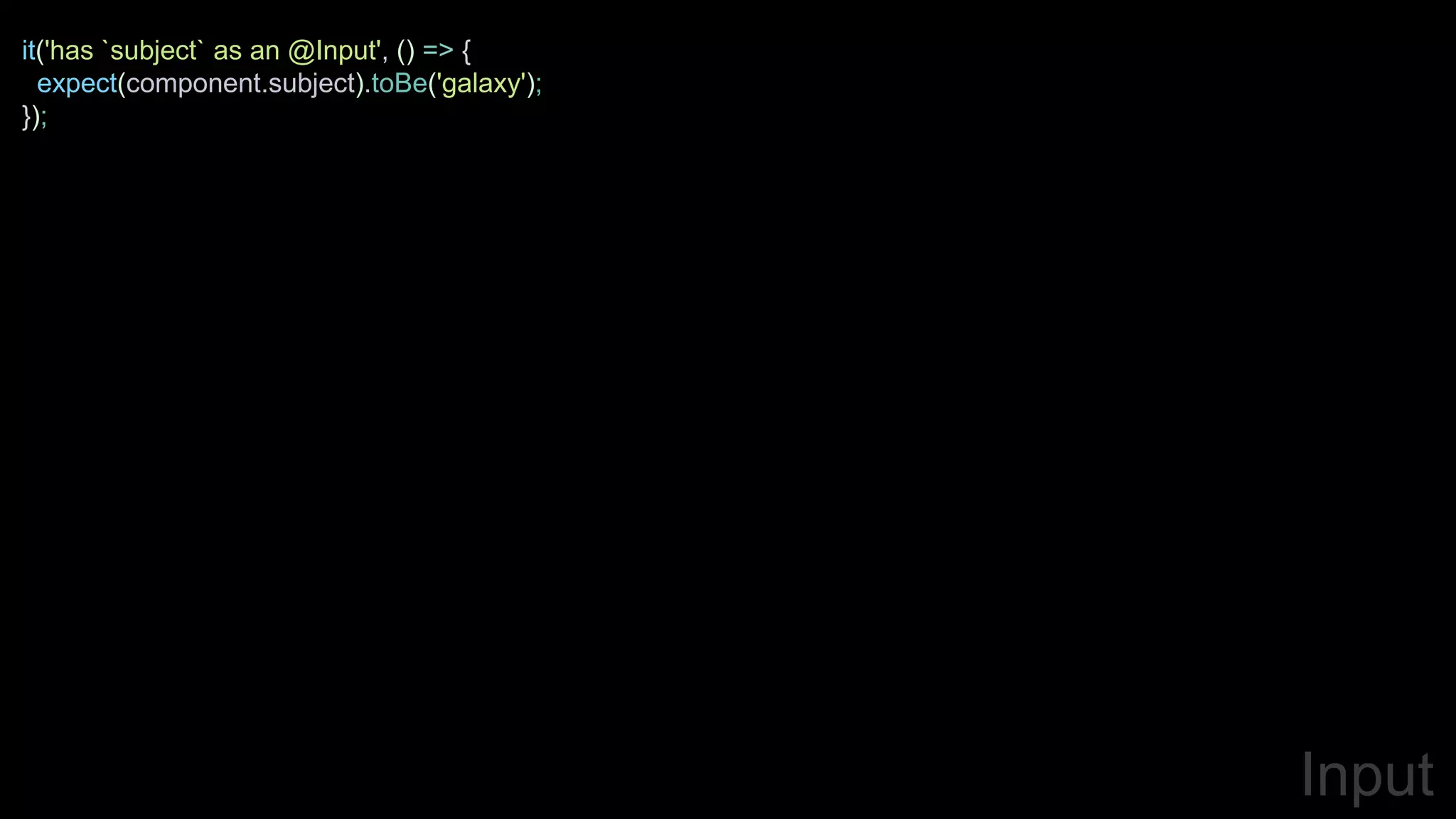

it('has `subject` asan @Input', () => { expect(component.subject).toBe('galaxy'); }); Input

96.

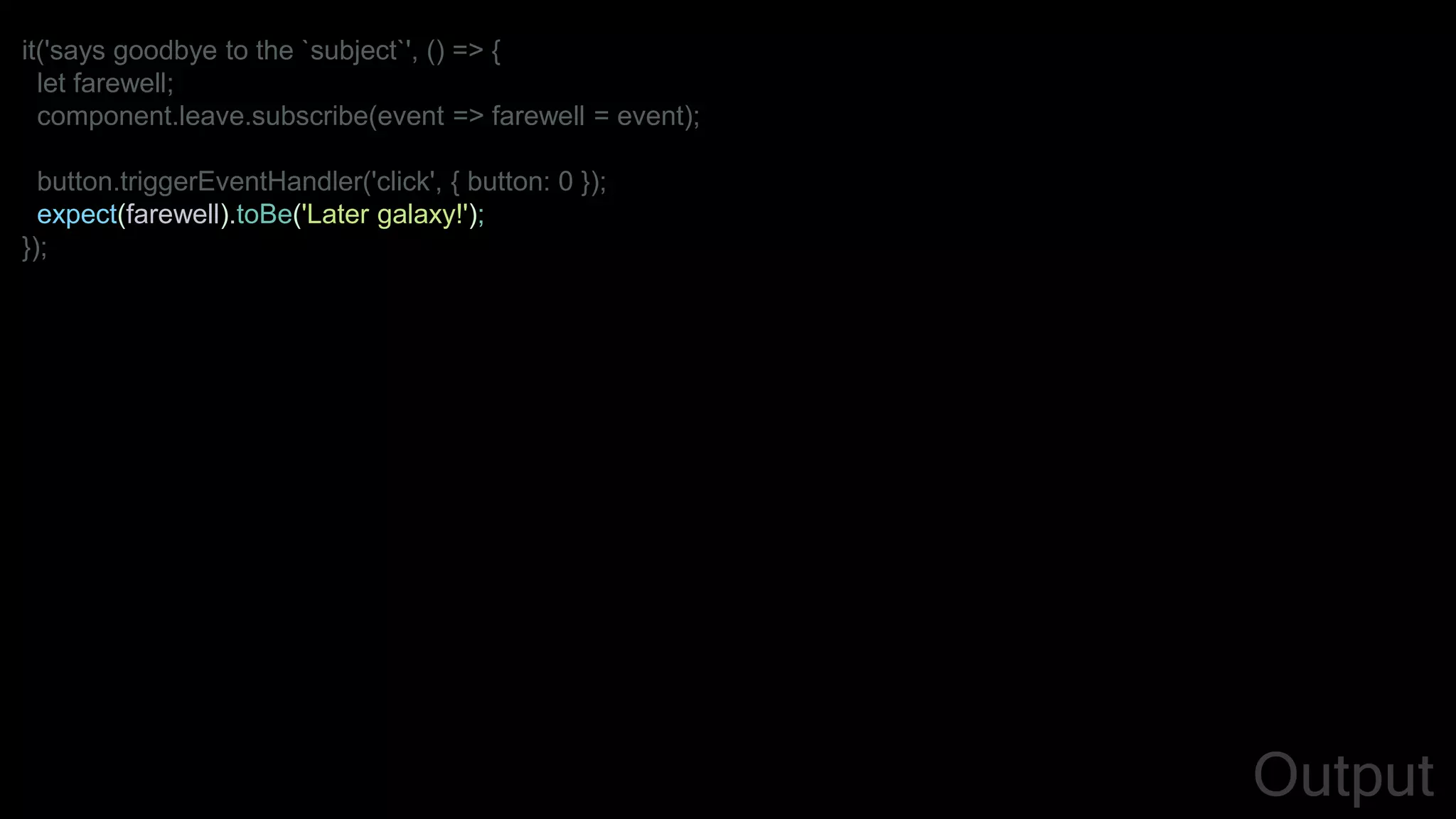

it('says goodbye tothe `subject`', () => { let farewell; component.leave.subscribe(event => farewell = event); button.triggerEventHandler('click', { button: 0 }); expect(farewell).toBe('Later galaxy!'); }); Output

97.

98.

99.

100.

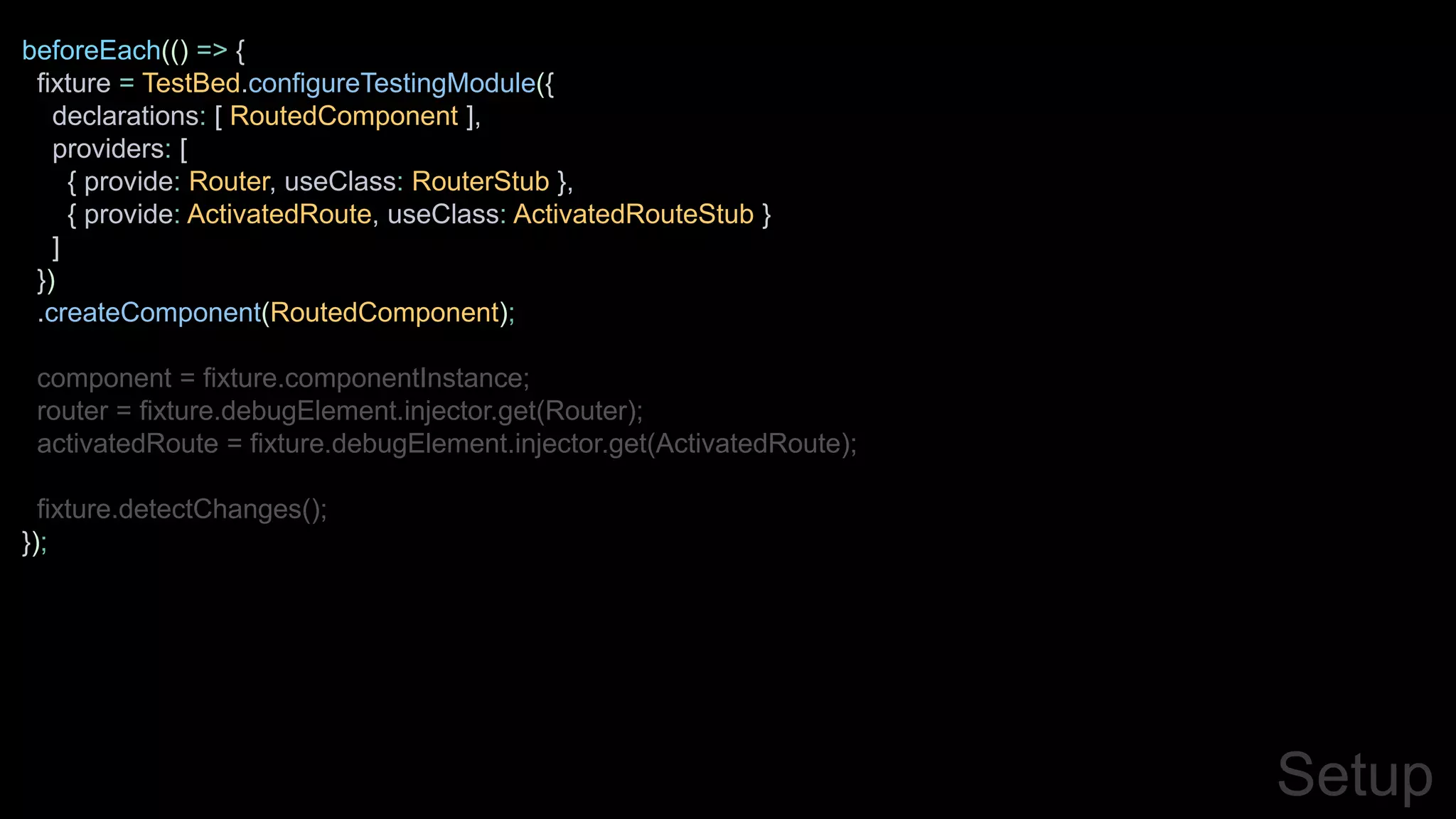

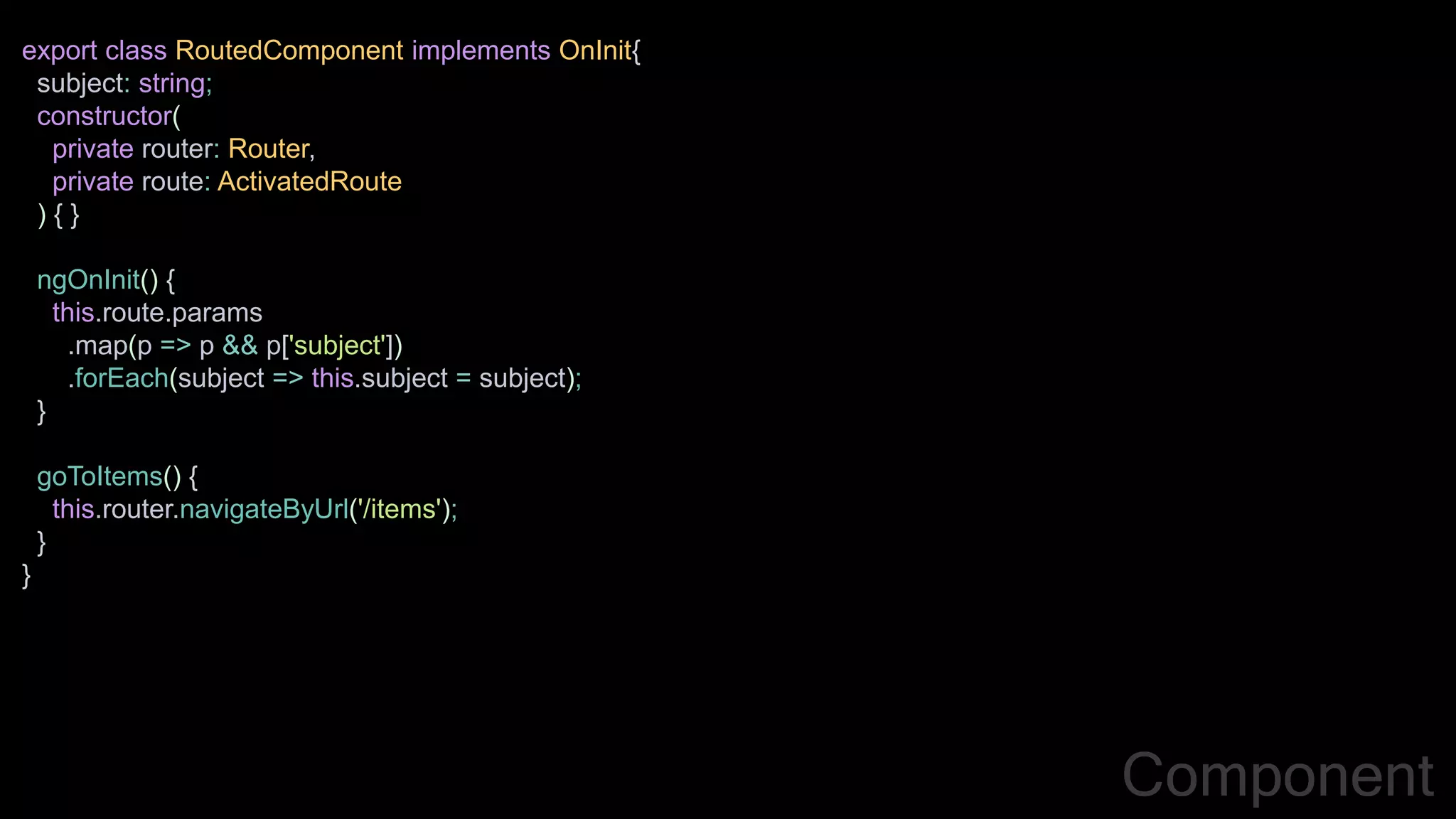

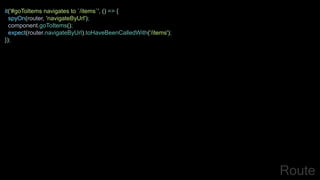

http://digitaldrummerj.me Routed Component Avoid routercomplexity. Use RouterTestingModule Test that component navigates to proper route

101.
beforeEach(() => { fixture= TestBed.configureTestingModule({ imports: [ RouterTestingModule.withRoutes([ {path: '', redirectTo: '/items', pathMatch: 'full' }, {path: 'items', component: ItemsComponent}, {path: 'routed/:subject', component: RoutedComponent}, {path: 'widgets', component: WidgetsComponent}, {path: '**', redirectTo: '/items', pathMatch: 'full'} ]); ], declarations: [ RoutedComponent ] }) .createComponent(RoutedComponent); component = fixture.componentInstance; de = fixture.debugElement; fixture.detectChanges(); }); Routes

102.

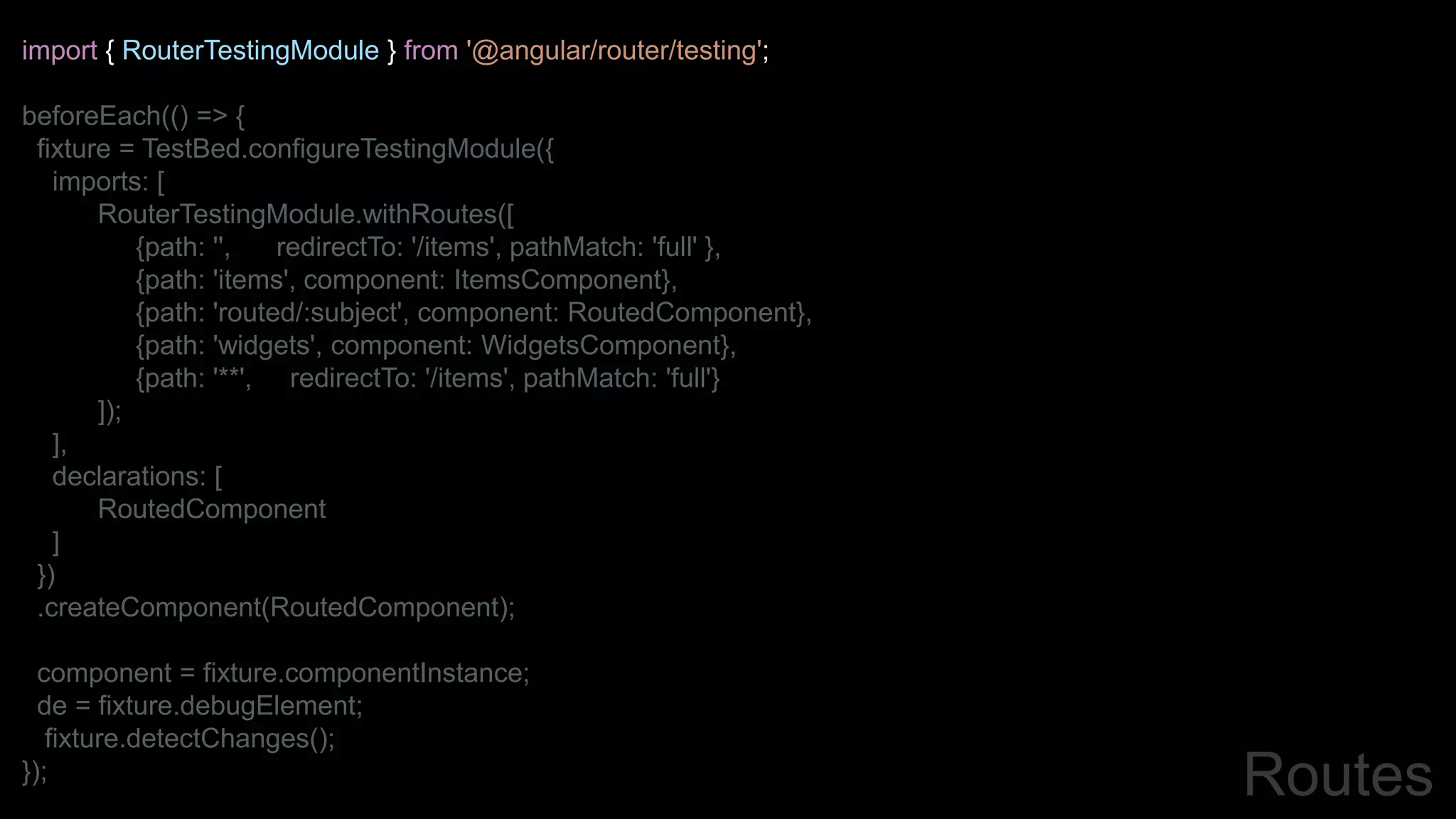

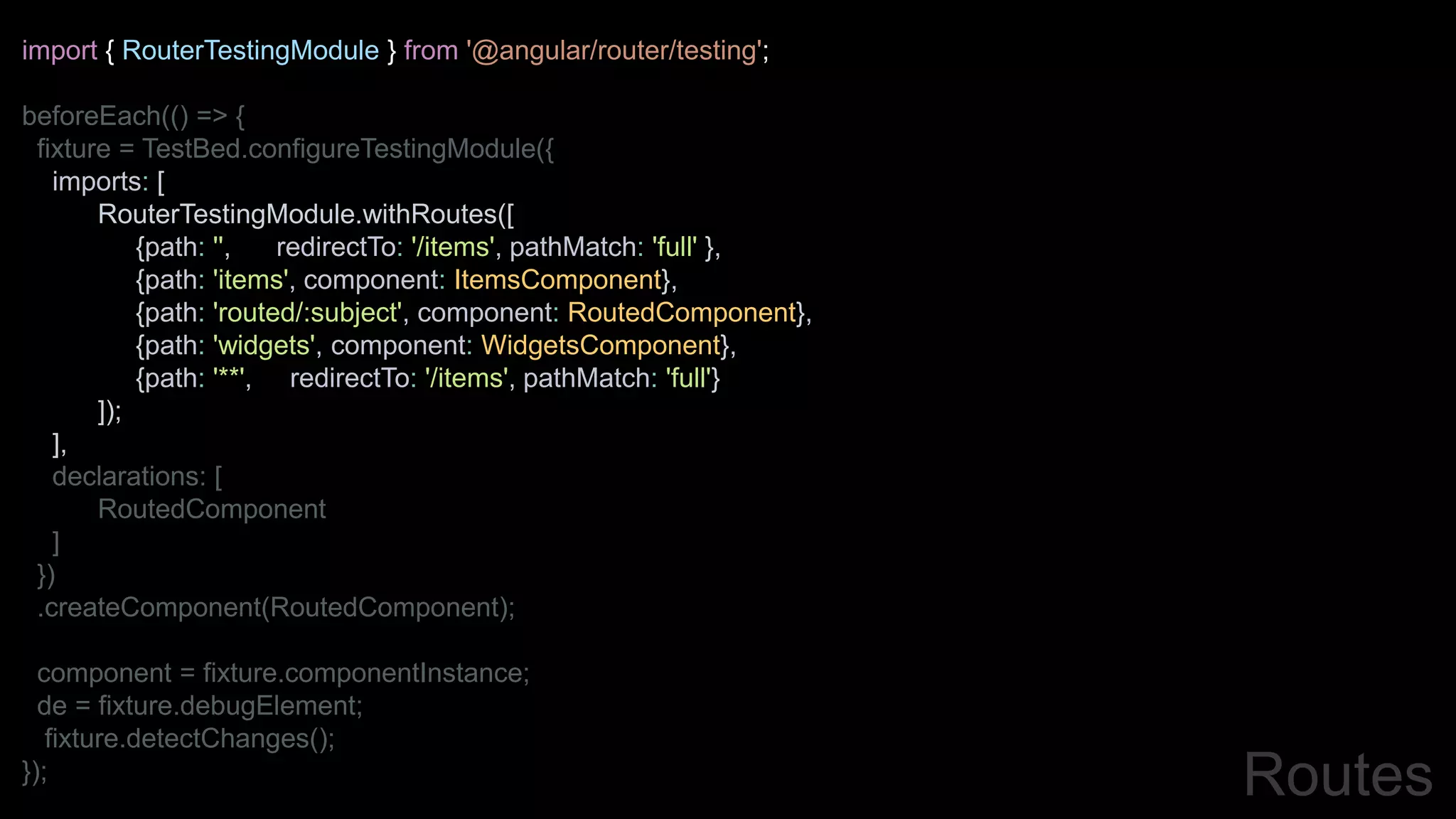

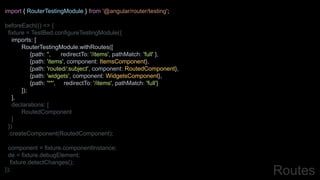

import { RouterTestingModule} from '@angular/router/testing'; beforeEach(() => { fixture = TestBed.configureTestingModule({ imports: [ RouterTestingModule.withRoutes([ {path: '', redirectTo: '/items', pathMatch: 'full' }, {path: 'items', component: ItemsComponent}, {path: 'routed/:subject', component: RoutedComponent}, {path: 'widgets', component: WidgetsComponent}, {path: '**', redirectTo: '/items', pathMatch: 'full'} ]); ], declarations: [ RoutedComponent ] }) .createComponent(RoutedComponent); component = fixture.componentInstance; de = fixture.debugElement; fixture.detectChanges(); }); Routes

103.
import { RouterTestingModule} from '@angular/router/testing'; beforeEach(() => { fixture = TestBed.configureTestingModule({ imports: [ RouterTestingModule.withRoutes([ {path: '', redirectTo: '/items', pathMatch: 'full' }, {path: 'items', component: ItemsComponent}, {path: 'routed/:subject', component: RoutedComponent}, {path: 'widgets', component: WidgetsComponent}, {path: '**', redirectTo: '/items', pathMatch: 'full'} ]); ], declarations: [ RoutedComponent ] }) .createComponent(RoutedComponent); component = fixture.componentInstance; de = fixture.debugElement; fixture.detectChanges(); }); Routes

104.

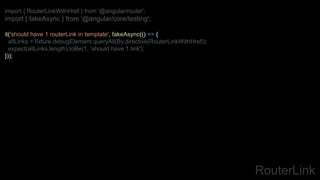

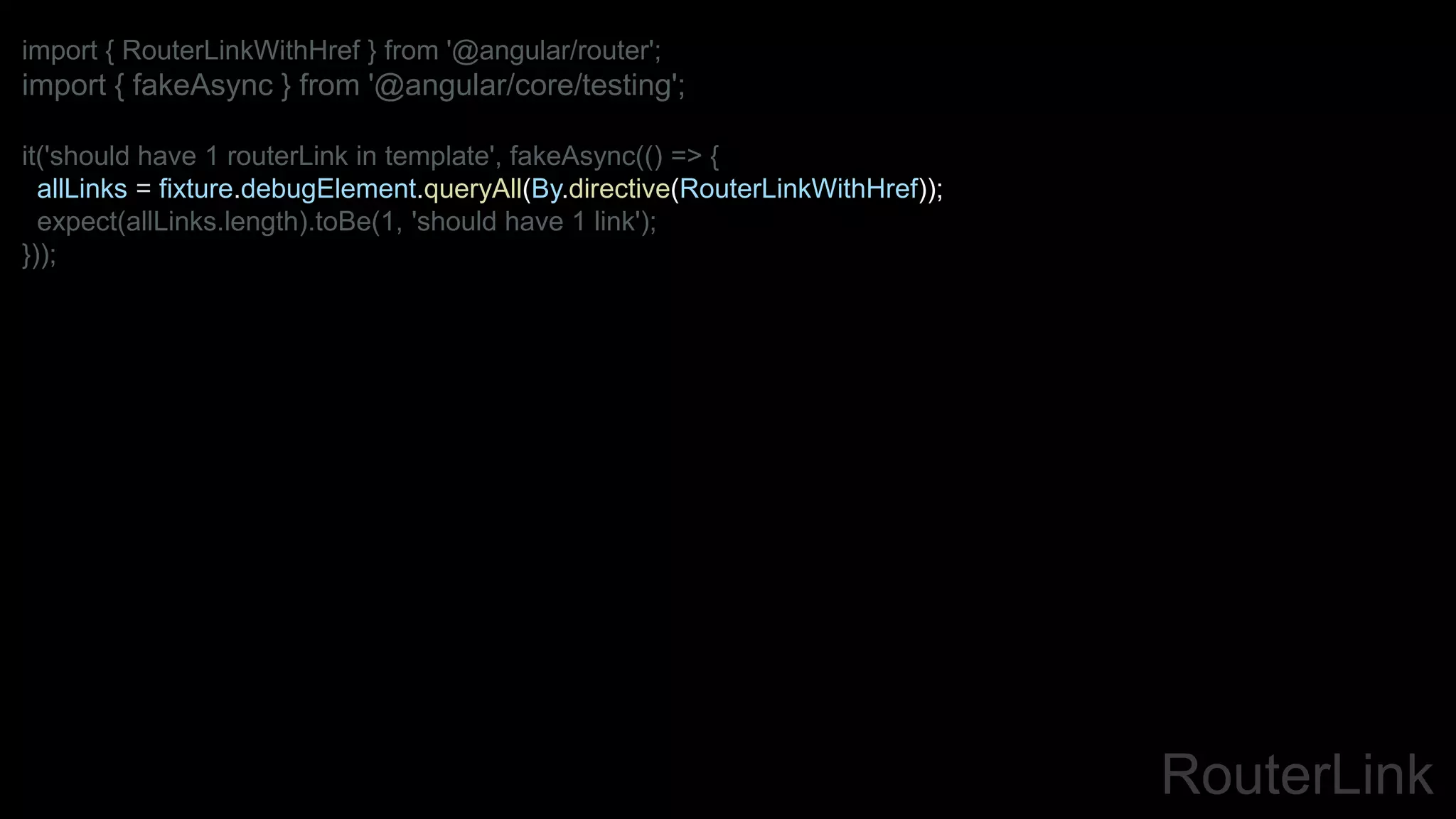

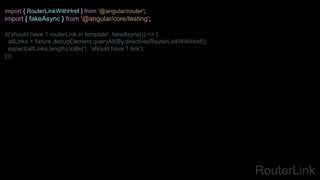

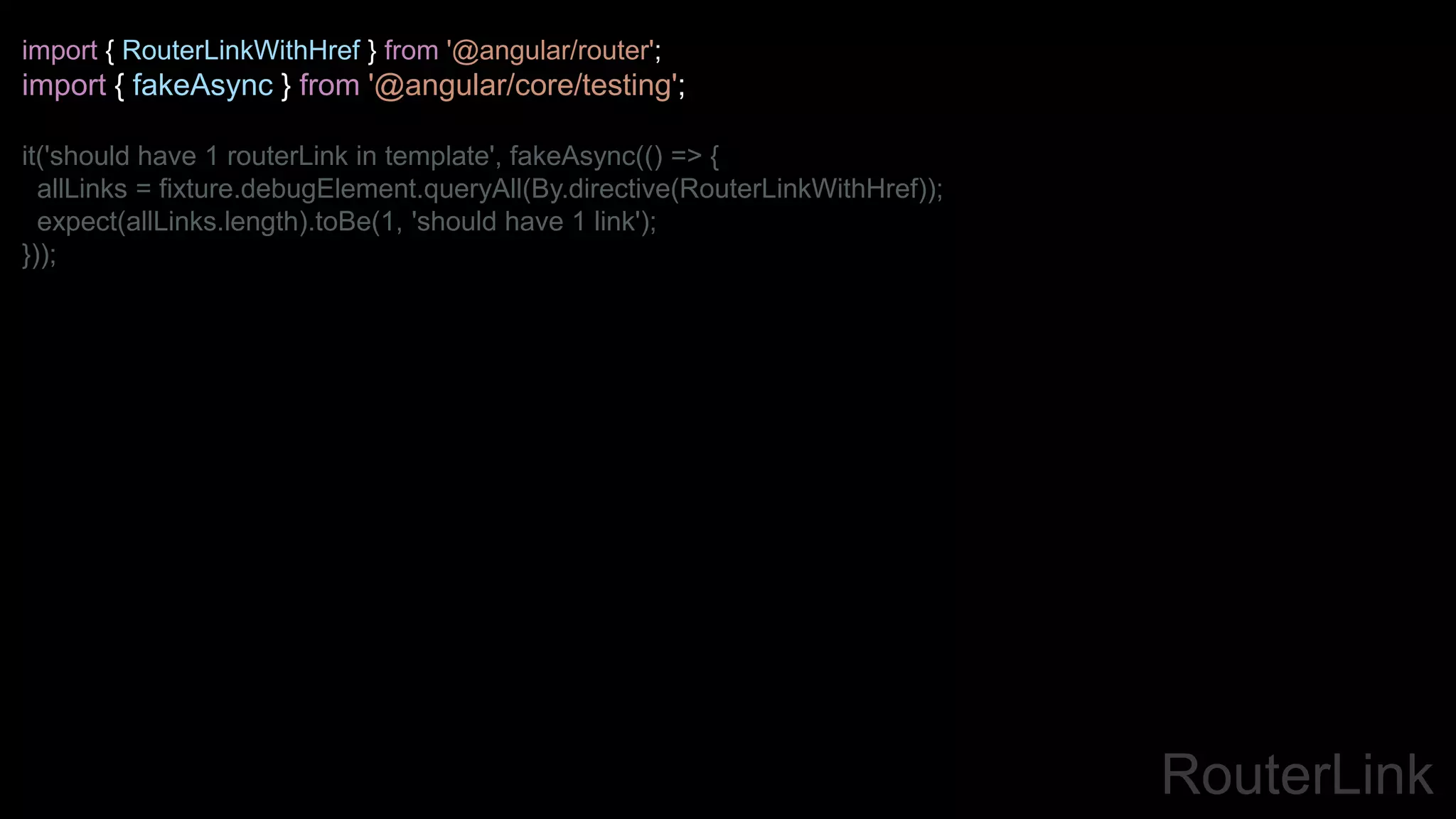

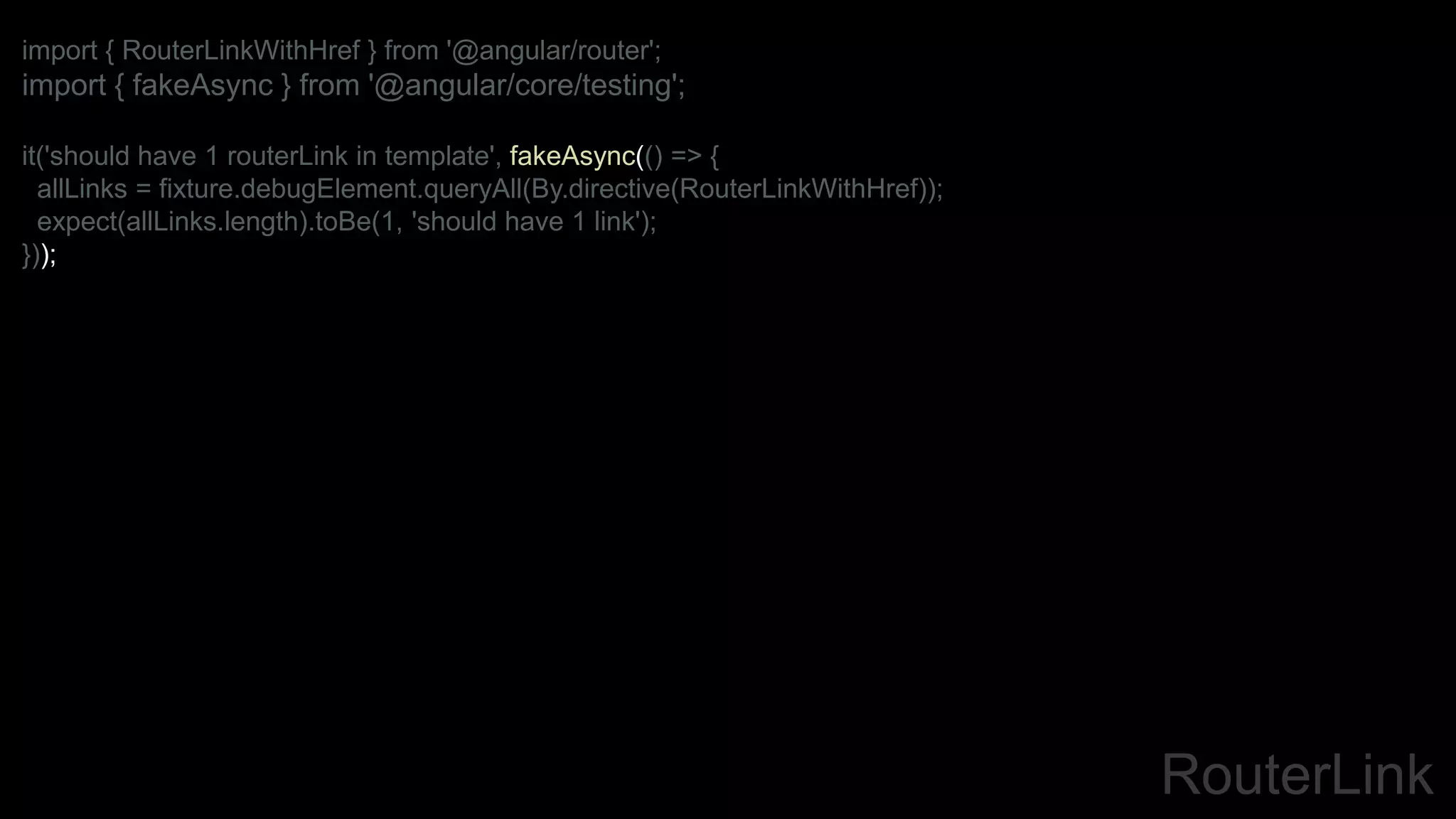

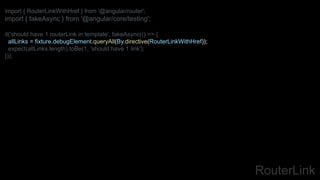

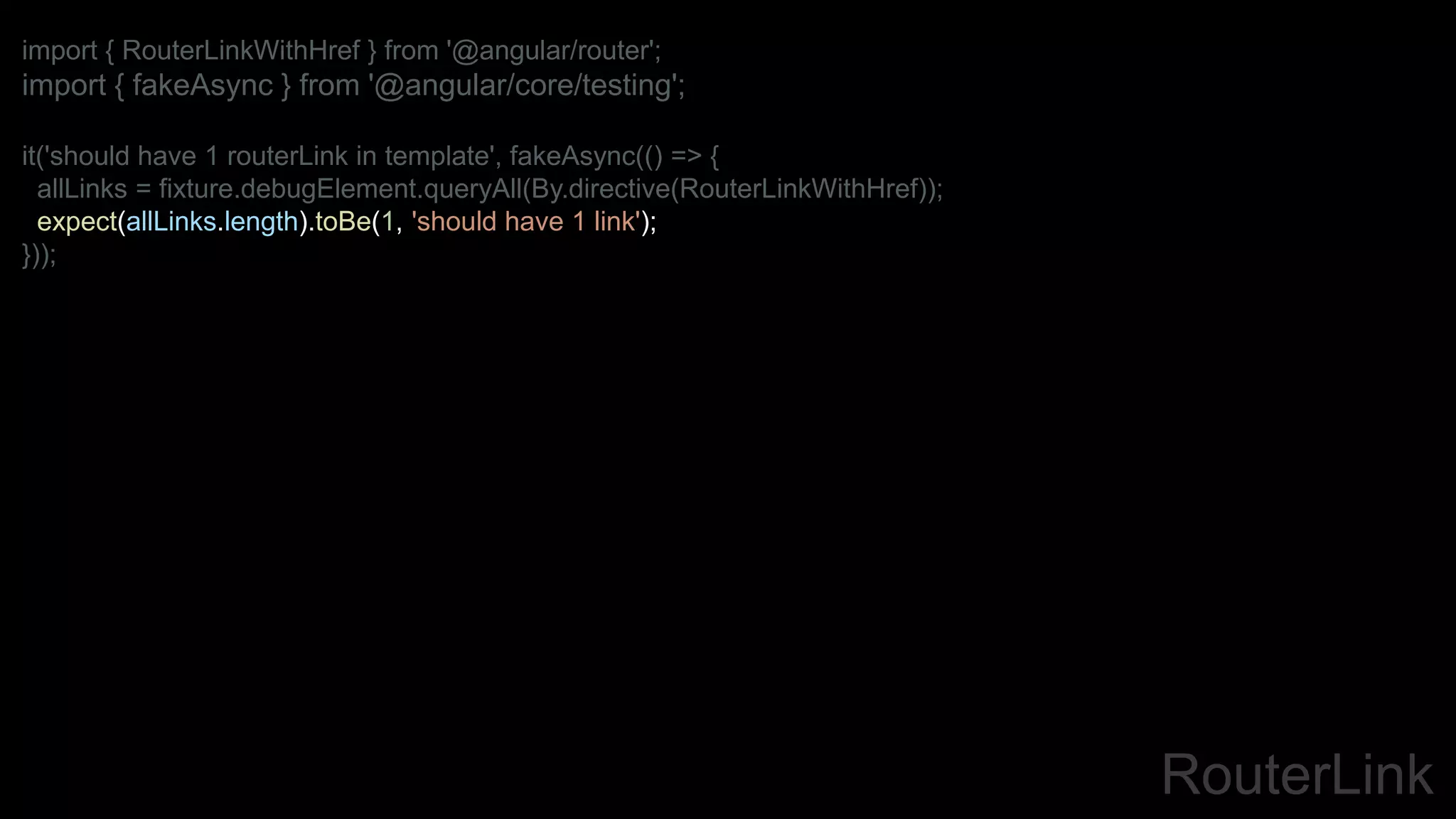

RouterLink import { RouterLinkWithHref} from '@angular/router'; import { fakeAsync } from '@angular/core/testing'; it('should have 1 routerLink in template', fakeAsync(() => { allLinks = fixture.debugElement.queryAll(By.directive(RouterLinkWithHref)); expect(allLinks.length).toBe(1, 'should have 1 link'); }));

105.

106.

107.

108.

109.

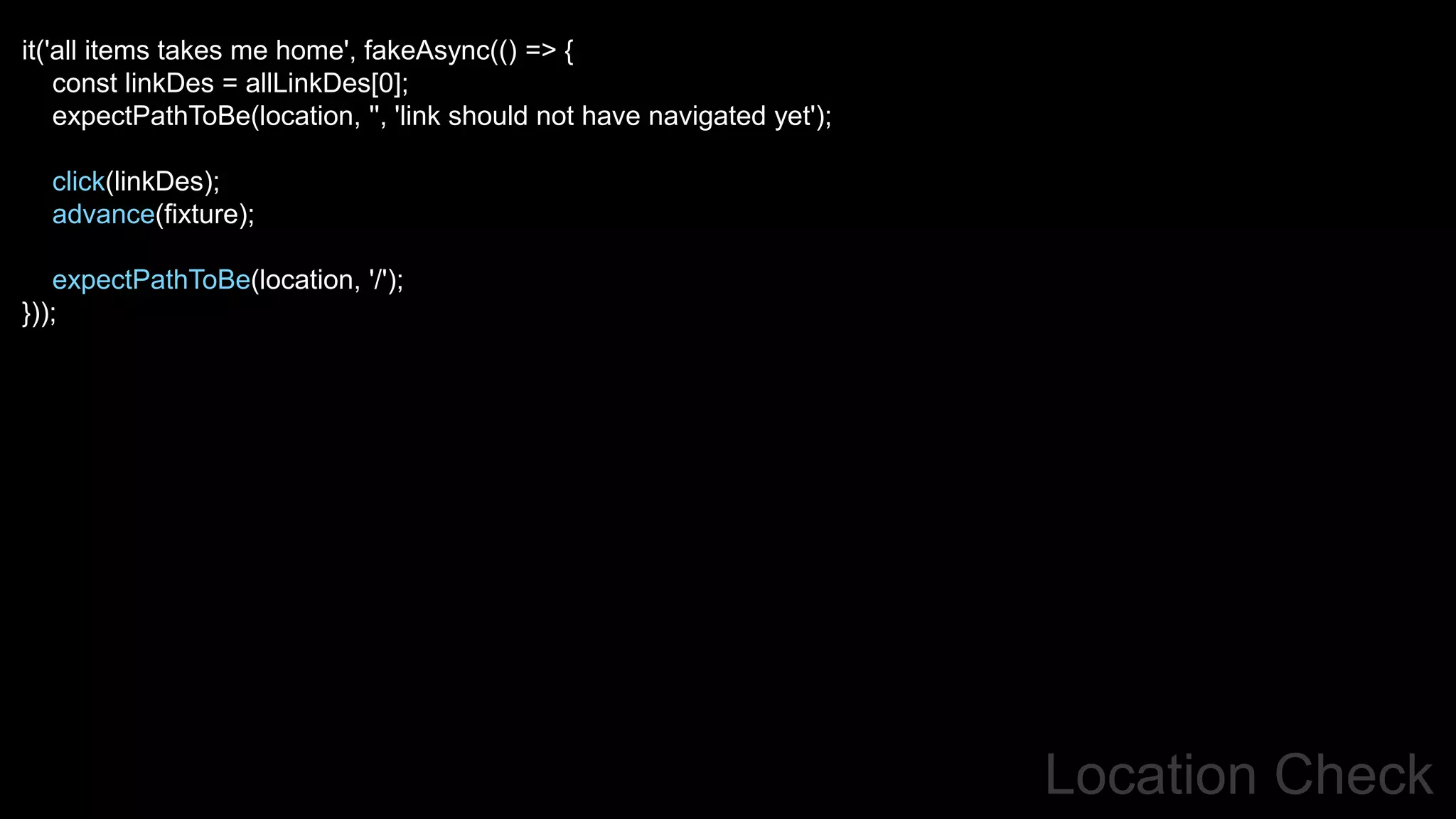

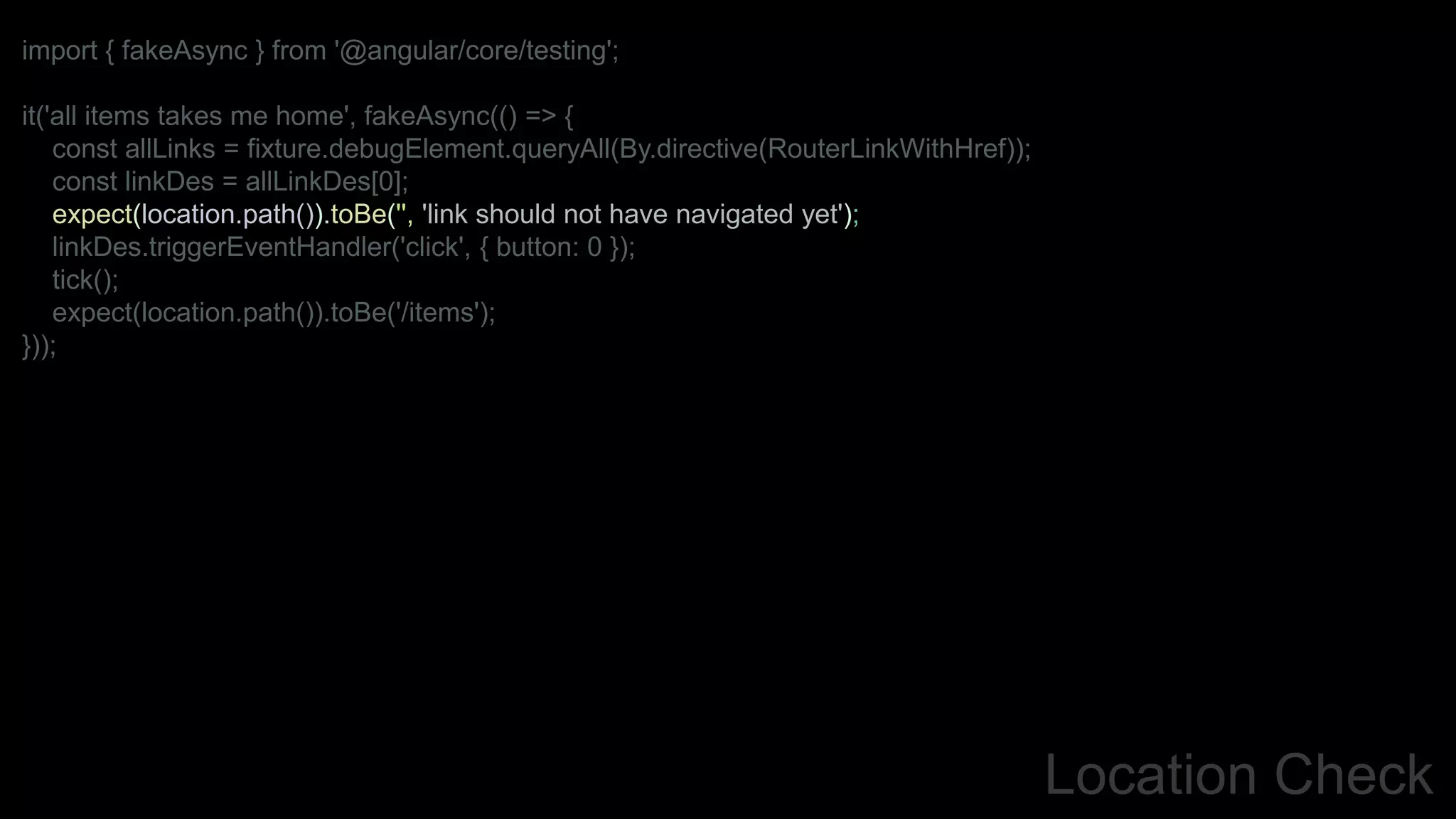

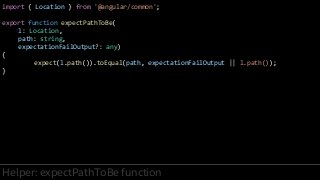

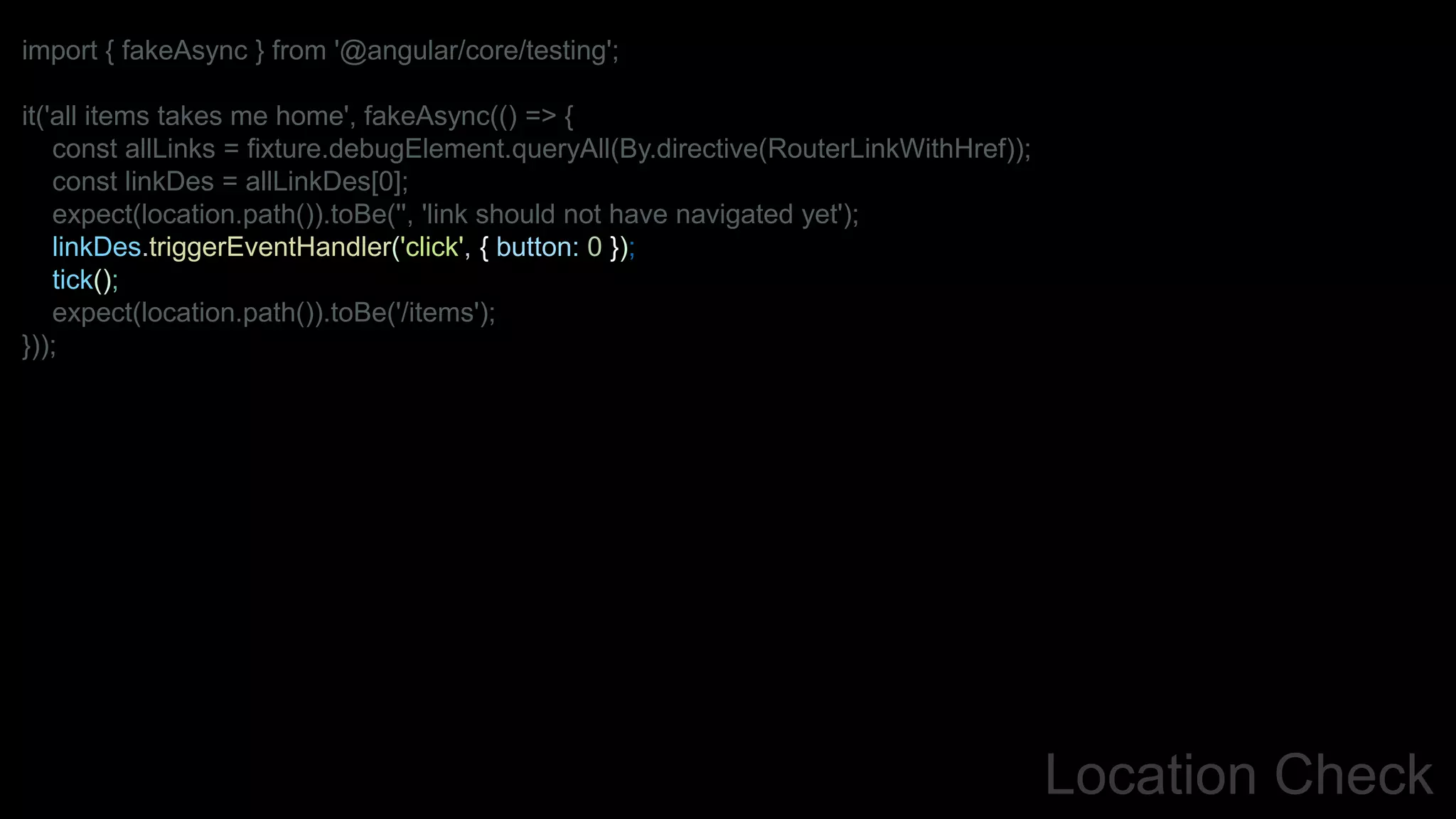

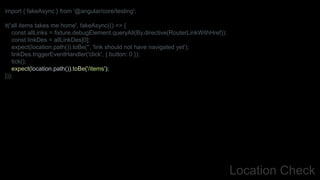

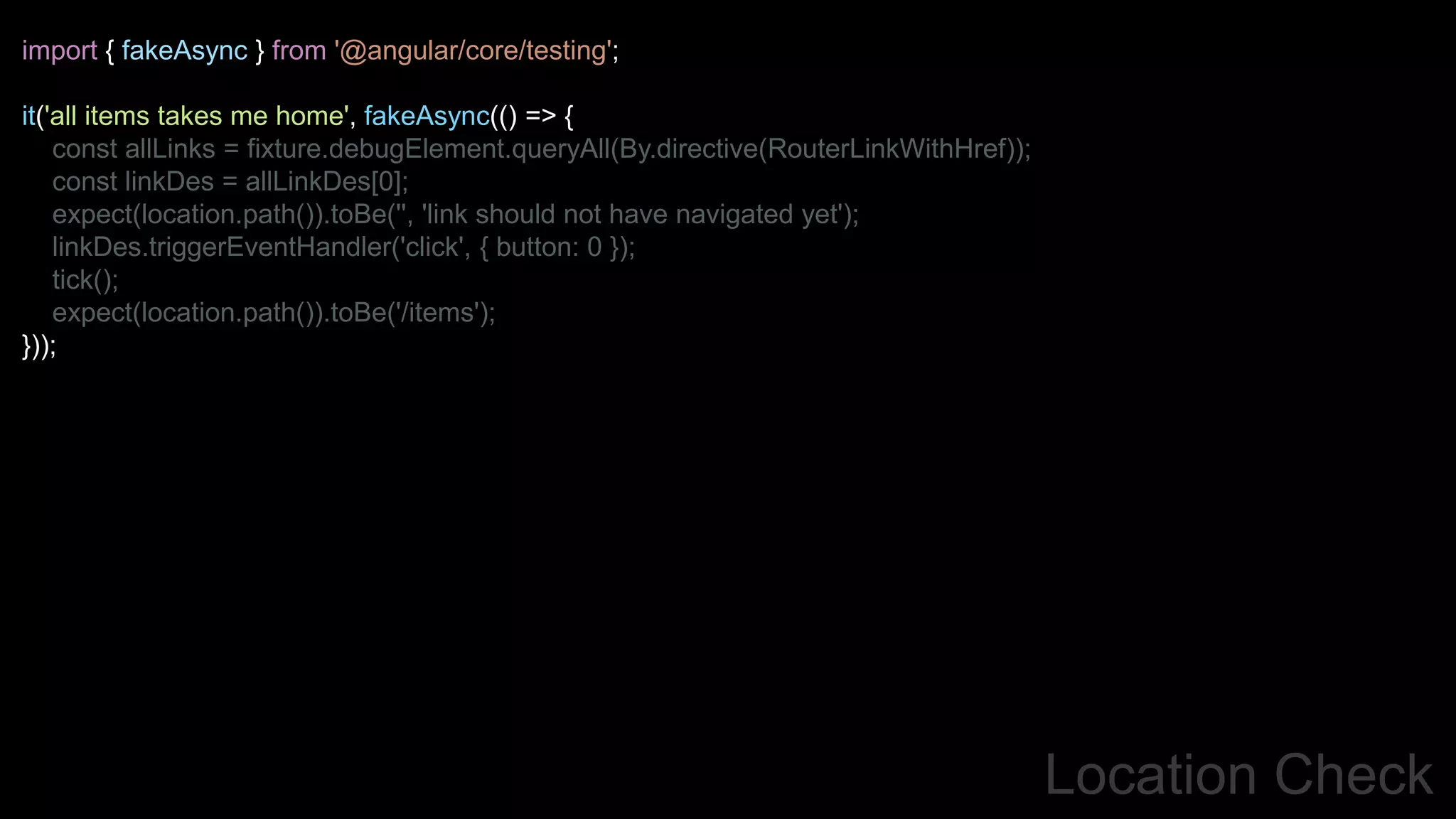

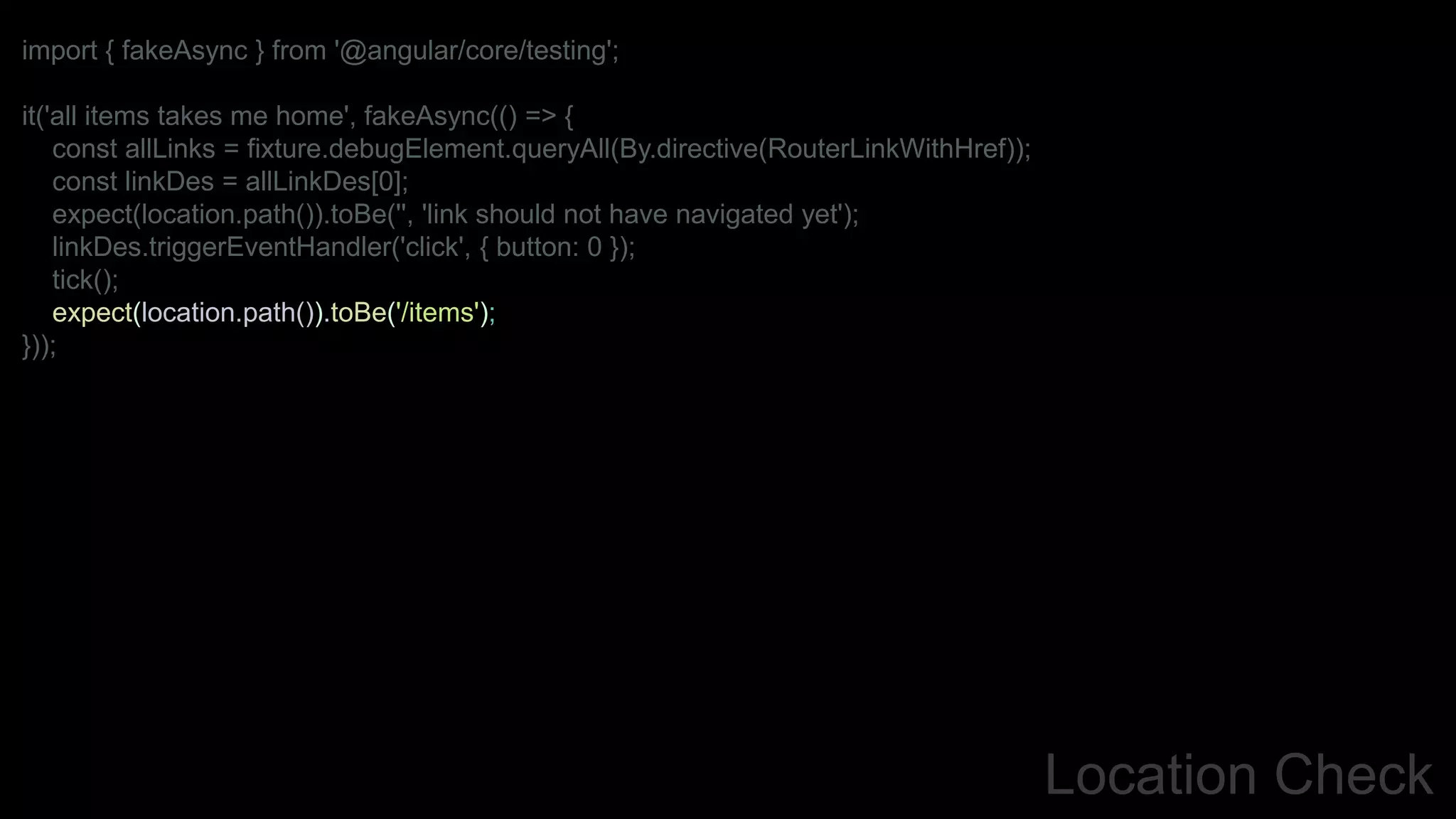

Location Check import {fakeAsync } from '@angular/core/testing'; it('all items takes me home', fakeAsync(() => { const allLinks = fixture.debugElement.queryAll(By.directive(RouterLinkWithHref)); const linkDes = allLinkDes[0]; expect(location.path()).toBe('', 'link should not have navigated yet'); linkDes.triggerEventHandler('click', { button: 0 }); tick(); expect(location.path()).toBe('/items'); }));

110.

111.

112.

113.

114.
http://digitaldrummerj.me Document FunctionalityPinpoint Bugs CheckRegressionConfirm Functionality Unit Test Will Make You Faster

115.
http://digitaldrummerj.me Checks Single Assumption Single Unit OfWork Automated Code Tenents

116.
http://digitaldrummerj.me RunnableDependableMaintainable Good Unit Tests

117.

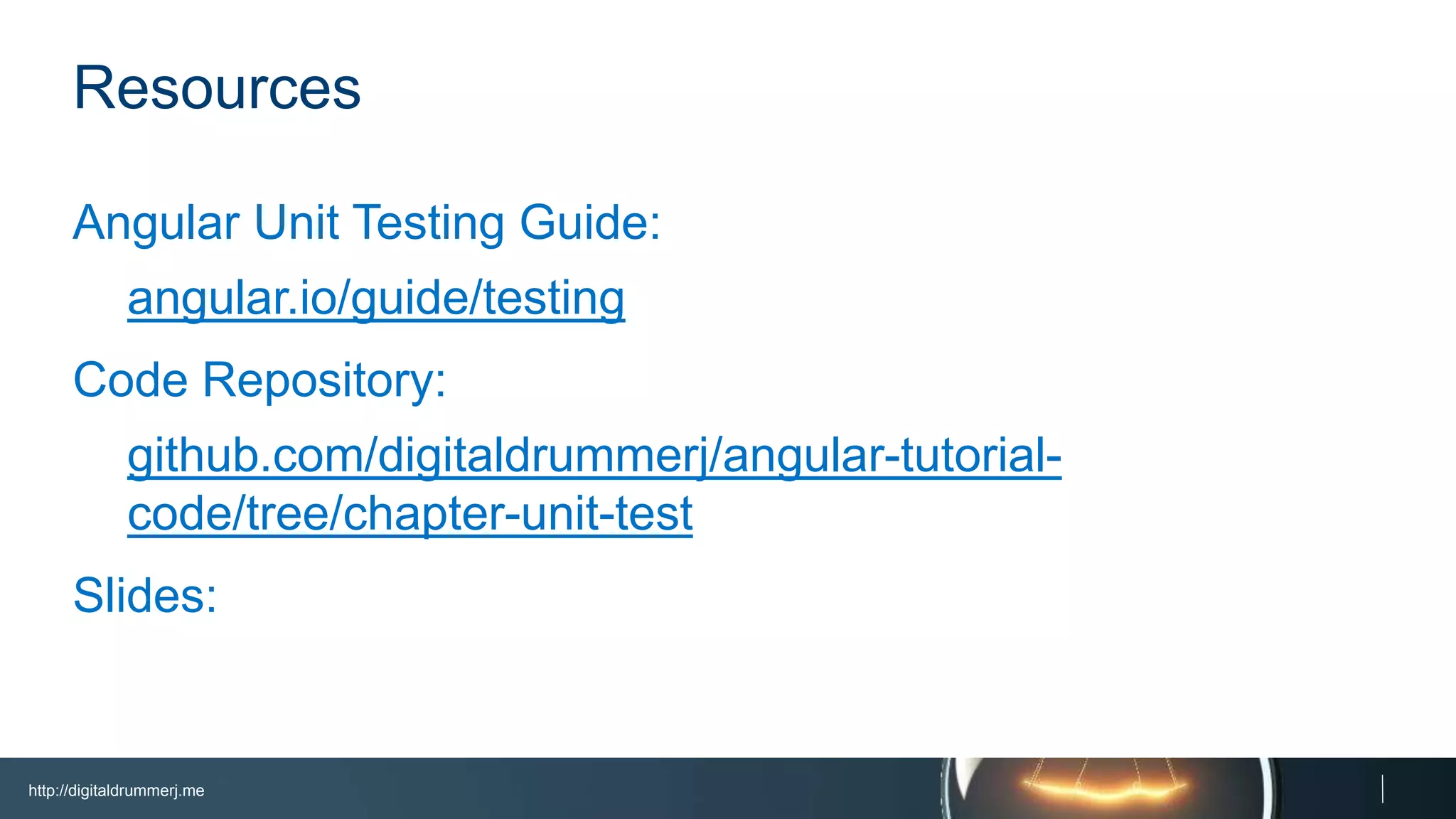

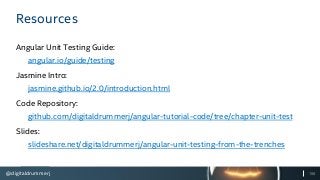

http://digitaldrummerj.me Resources Angular Unit TestingGuide: angular.io/guide/testing Code Repository: github.com/digitaldrummerj/angular-tutorial-code/tree/chapter- unit-test Slides: slideshare.net/digitaldrummerj/angular-unit-testing-from-the- trenches

118.
http://digitaldrummerj.me digitaldrummerj.me @digitaldrummerj
