• 1.
  AngularJS & RESTWeb Services #OMRS15 Darius Jazayeri darius@openmrs.org djazayeri@thoughtworks.com
• 2.

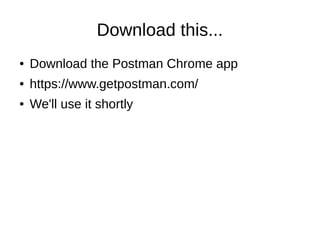

  Download this... ● Downloadthe Postman Chrome app ● https://www.getpostman.com/ ● We'll use it shortly
• 3.

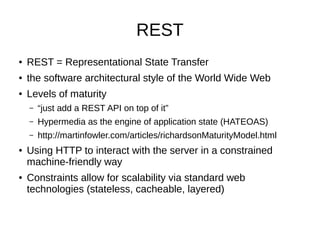

  REST ● REST =Representational State Transfer ● the software architectural style of the World Wide Web ● Levels of maturity – “just add a REST API on top of it” – Hypermedia as the engine of application state (HATEOAS) – http://martinfowler.com/articles/richardsonMaturityModel.html ● Using HTTP to interact with the server in a constrained machine-friendly way ● Constraints allow for scalability via standard web technologies (stateless, cacheable, layered)
• 4.

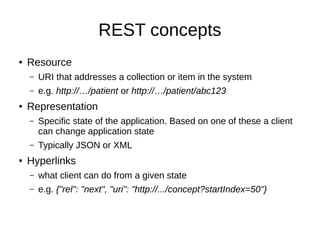

  REST concepts ● Resource –URI that addresses a collection or item in the system – e.g. http://…/patient or http://…/patient/abc123 ● Representation – Specific state of the application. Based on one of these a client can change application state – Typically JSON or XML ● Hyperlinks – what client can do from a given state – e.g. {"rel": "next", "uri": "http://.../concept?startIndex=50"}
• 5.

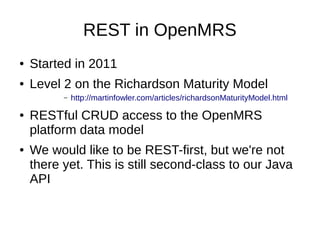

  REST in OpenMRS ●Started in 2011 ● Level 2 on the Richardson Maturity Model – http://martinfowler.com/articles/richardsonMaturityModel.html ● RESTful CRUD access to the OpenMRS platform data model ● We would like to be REST-first, but we're not there yet. This is still second-class to our Java API
• 6.

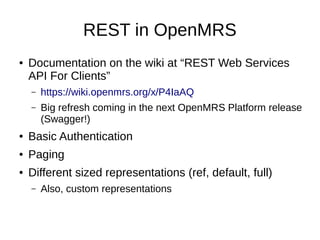

  REST in OpenMRS ●Documentation on the wiki at “REST Web Services API For Clients” – https://wiki.openmrs.org/x/P4IaAQ – Big refresh coming in the next OpenMRS Platform release (Swagger!) ● Basic Authentication ● Paging ● Different sized representations (ref, default, full) – Also, custom representations
• 7.

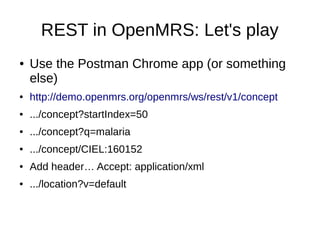

  REST in OpenMRS:Let's play ● Use the Postman Chrome app (or something else) ● http://demo.openmrs.org/openmrs/ws/rest/v1/concept ● .../concept?startIndex=50 ● .../concept?q=malaria ● .../concept/CIEL:160152 ● Add header… Accept: application/xml ● .../location?v=default
• 8.

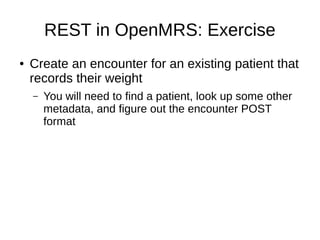

  REST in OpenMRS:Exercise ● Create an encounter for an existing patient that records their weight – You will need to find a patient, look up some other metadata, and figure out the encounter POST format
• 9.

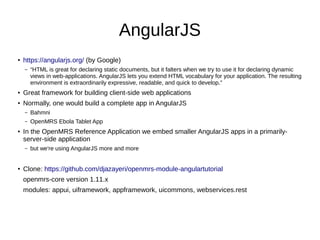

  AngularJS ● https://angularjs.org/ (by Google) –“HTML is great for declaring static documents, but it falters when we try to use it for declaring dynamic views in web-applications. AngularJS lets you extend HTML vocabulary for your application. The resulting environment is extraordinarily expressive, readable, and quick to develop.” ● Great framework for building client-side web applications ● Normally, one would build a complete app in AngularJS – Bahmni – OpenMRS Ebola Tablet App ● In the OpenMRS Reference Application we embed smaller AngularJS apps in a primarily- server-side application – but we're using AngularJS more and more ● Clone: https://github.com/djazayeri/openmrs-module-angulartutorial openmrs-core version 1.11.x modules: appui, uiframework, appframework, uicommons, webservices.rest
• 10.

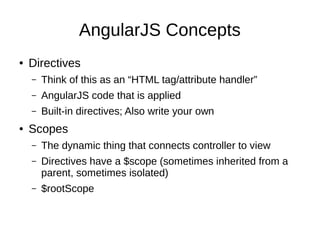

  AngularJS Concepts ● Directives –Think of this as an “HTML tag/attribute handler” – AngularJS code that is applied – Built-in directives; Also write your own ● Scopes – The dynamic thing that connects controller to view – Directives have a $scope (sometimes inherited from a parent, sometimes isolated) – $rootScope
• 11.

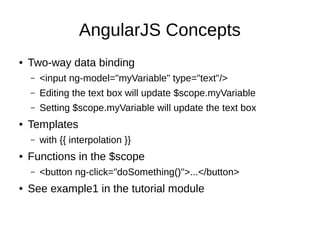

  AngularJS Concepts ● Two-waydata binding – <input ng-model="myVariable" type="text"/> – Editing the text box will update $scope.myVariable – Setting $scope.myVariable will update the text box ● Templates – with {{ interpolation }} ● Functions in the $scope – <button ng-click="doSomething()">...</button> ● See example1 in the tutorial module
• 12.

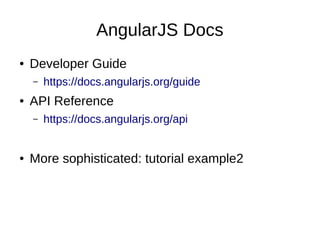

  AngularJS Docs ● DeveloperGuide – https://docs.angularjs.org/guide ● API Reference – https://docs.angularjs.org/api ● More sophisticated: tutorial example2
• 13.

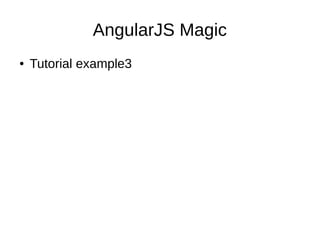

  AngularJS Magic ● Tutorialexample3
• 14.

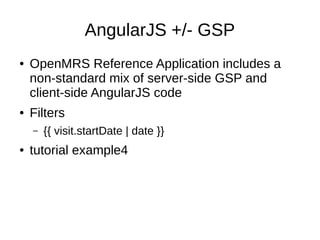

  AngularJS +/- GSP ●OpenMRS Reference Application includes a non-standard mix of server-side GSP and client-side AngularJS code ● Filters – {{ visit.startDate | date }} ● tutorial example4
• 15.

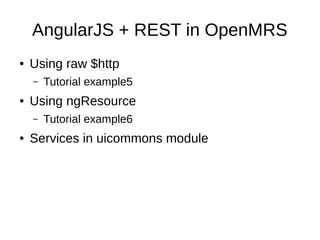

  AngularJS + RESTin OpenMRS ● Using raw $http – Tutorial example5 ● Using ngResource – Tutorial example6 ● Services in uicommons module
