Apache Kylin’s Performance Boost from Apache HBase

Apache Kylin’s Performance Boost from Apache HBase

• 1.
  Hongbin Ma, LukeHan Kyligence Inc. Apache Kylin’s Performance Boost from Apache HBase

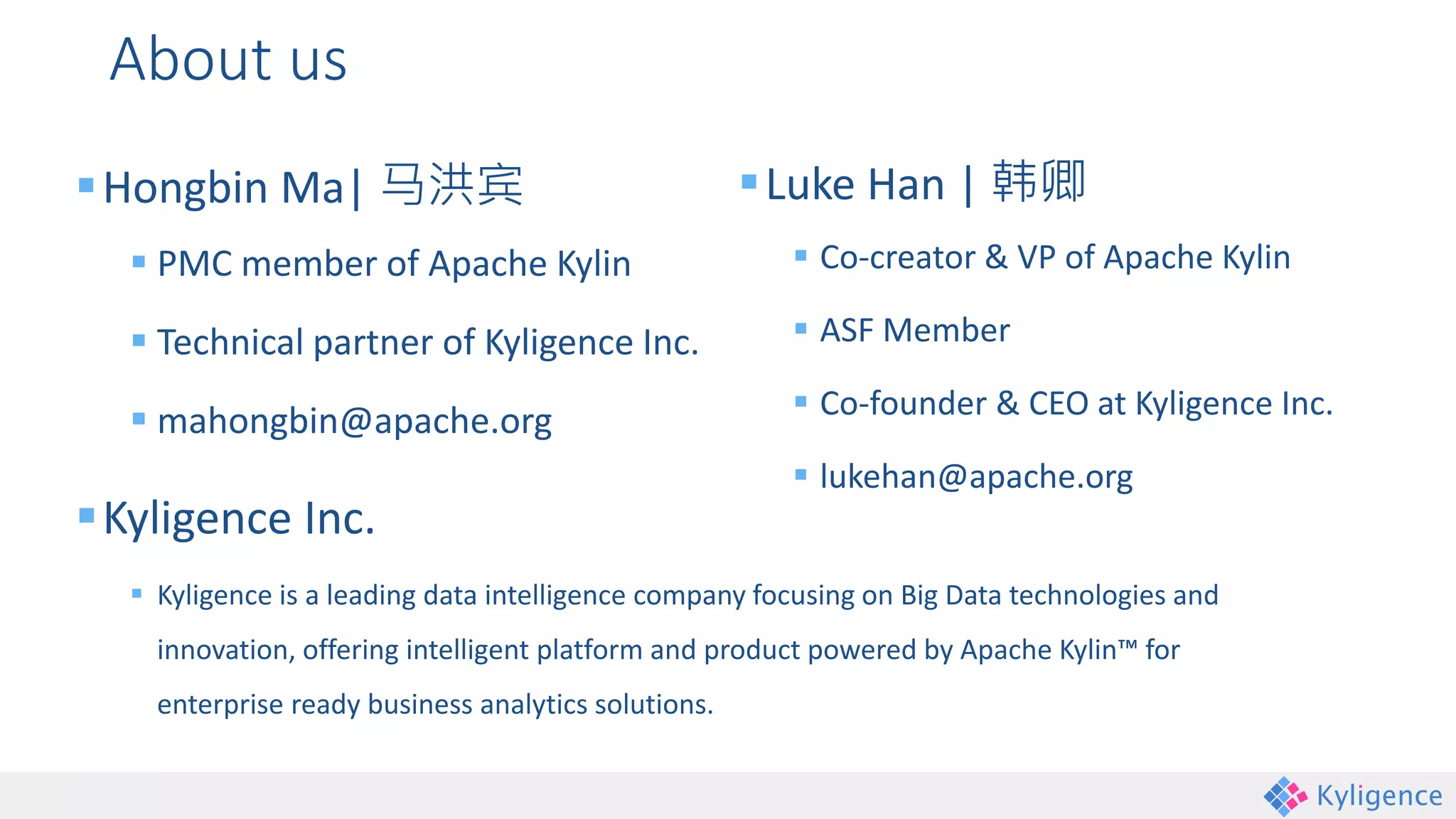

• 2.
  About us Hongbin Ma|马洪宾  PMC member of Apache Kylin  Technical partner of Kyligence Inc.  mahongbin@apache.org Kyligence Inc.  Kyligence is a leading data intelligence company focusing on Big Data technologies and innovation, offering intelligent platform and product powered by Apache Kylin™ for enterprise ready business analytics solutions. Luke Han | 韩卿  Co-creator & VP of Apache Kylin  ASF Member  Co-founder & CEO at Kyligence Inc.  lukehan@apache.org
• 3.

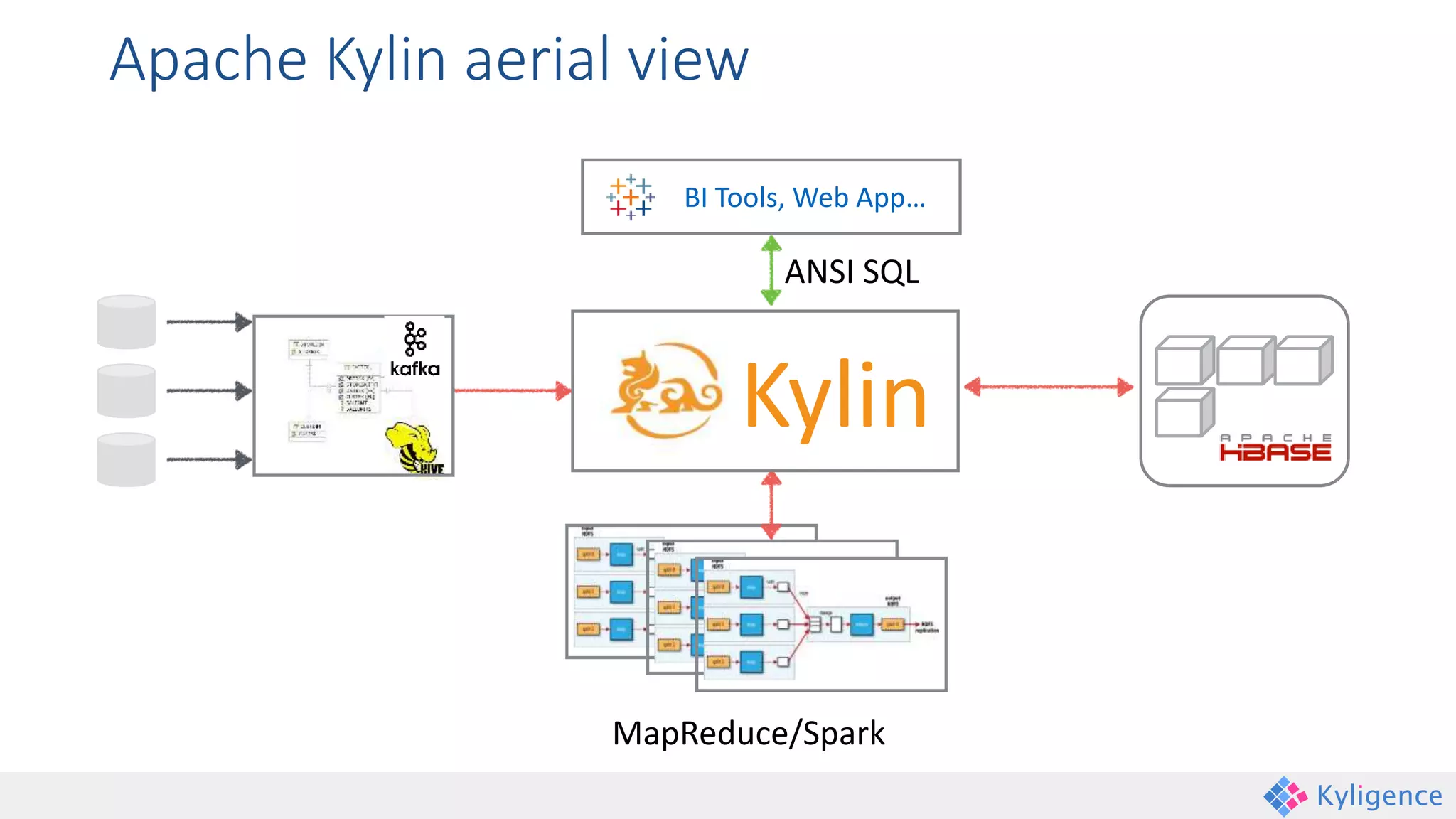

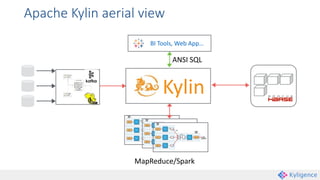

  Apache Kylin aerialview MapReduce/Spark Kylin BI Tools, Web App… ANSI SQL
• 4.
  What is ApacheKylin  Apache Kylin is an open source distributed analytics engine that provides a SQL interface for multi-dimensional analysis on Hadoop  Works well with extremely large datasets  Provides REST API, ODBC and JDBC as user interface  Widely adopted by many companies like eBay, JD, Baidu, NetEase, VIP.com, etc.
• 5.
  Apache Kylin GlobalAdoptions

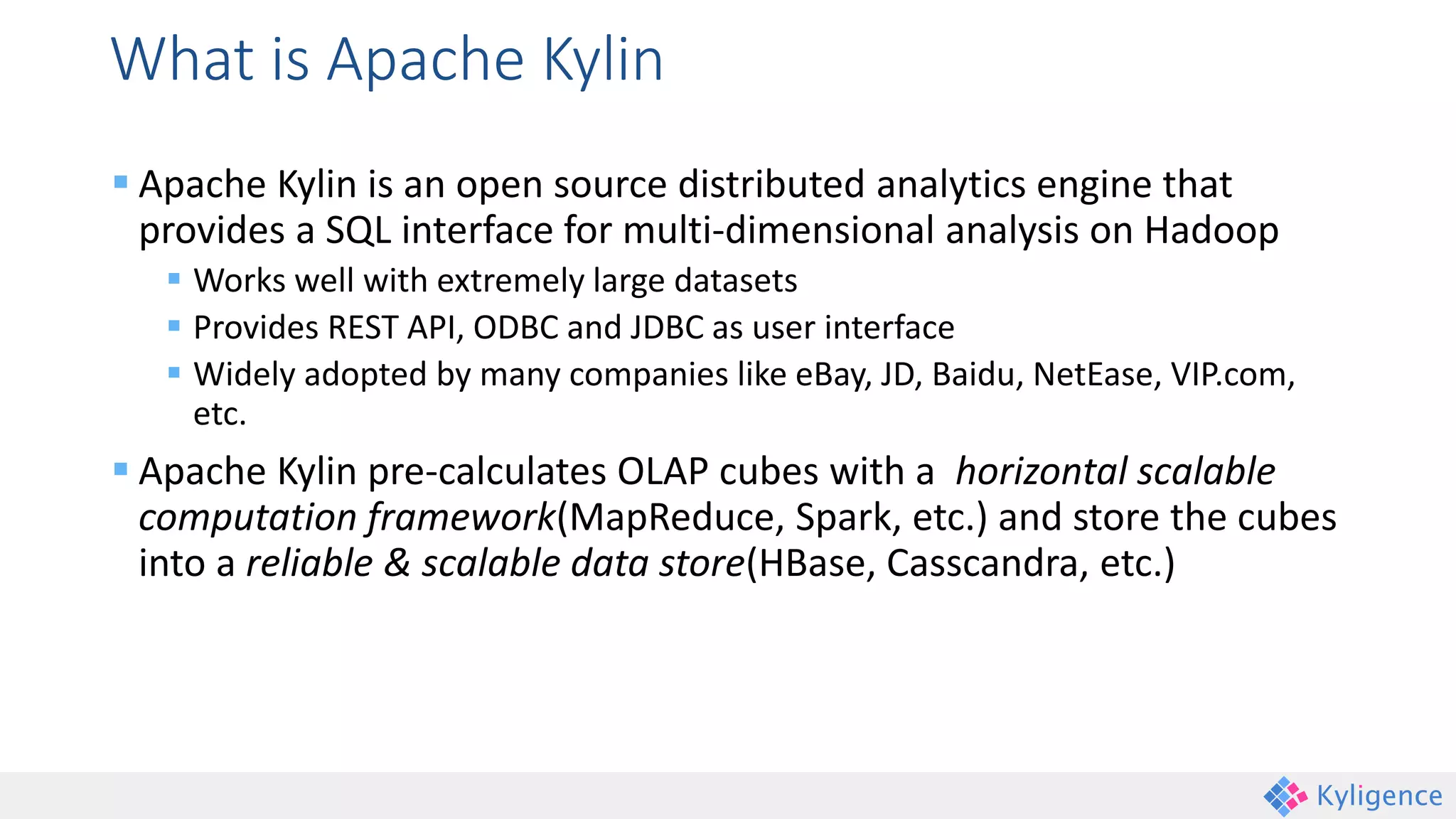

• 6.
  What is ApacheKylin  Apache Kylin is an open source distributed analytics engine that provides a SQL interface for multi-dimensional analysis on Hadoop  Works well with extremely large datasets  Provides REST API, ODBC and JDBC as user interface  Widely adopted by many companies like eBay, JD, Baidu, NetEase, VIP.com, etc.  Apache Kylin pre-calculates OLAP cubes with a horizontal scalable computation framework(MapReduce, Spark, etc.) and store the cubes into a reliable & scalable data store(HBase, Casscandra, etc.)
• 7.

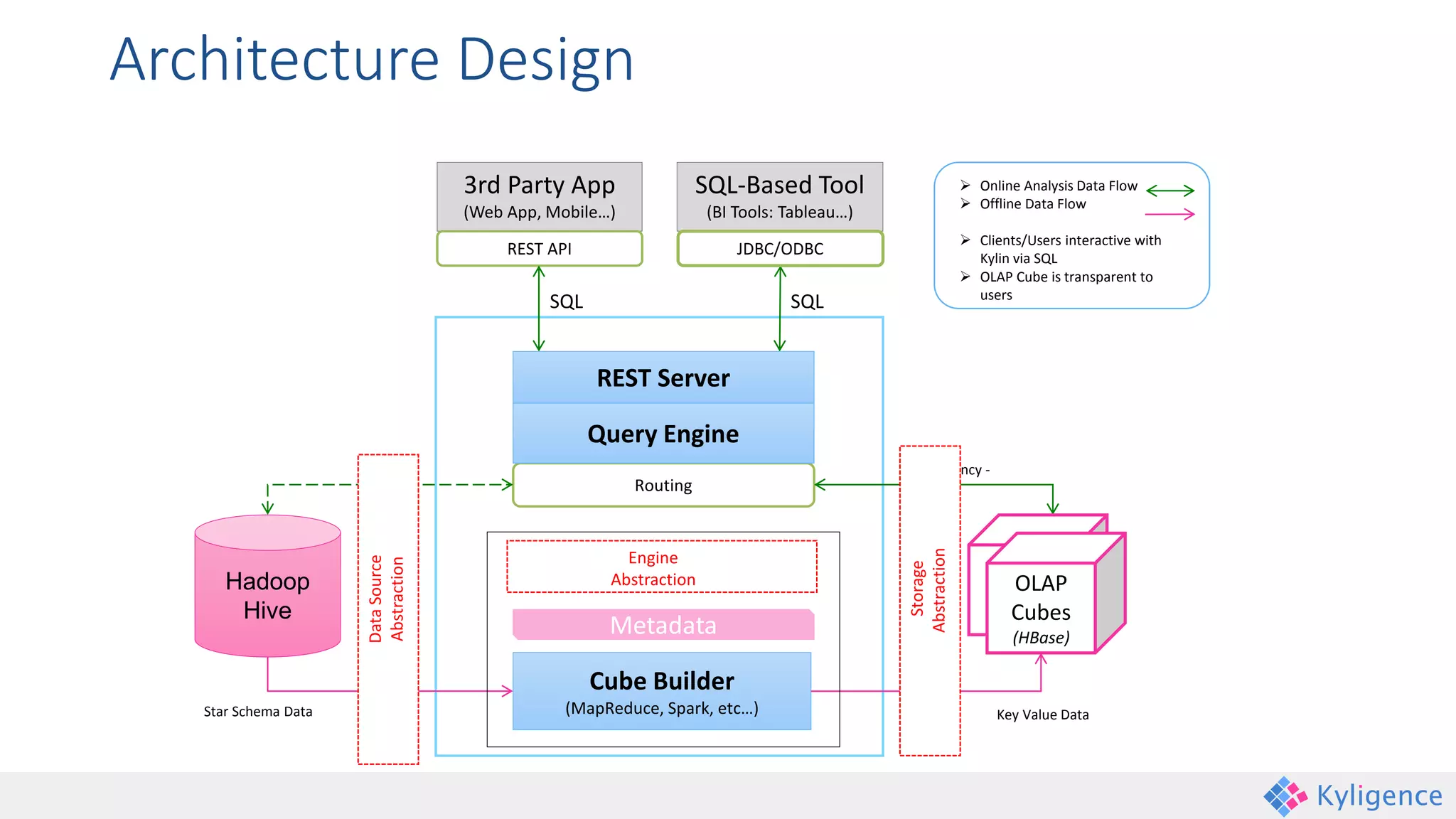

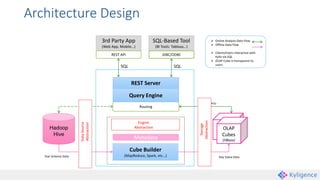

  Architecture Design Cube Builder (MapReduce,Spark, etc…) SQL Low Latency - SecondsRouting 3rd Party App (Web App, Mobile…) Metadata SQL-Based Tool (BI Tools: Tableau…) Query Engine Hadoop Hive REST API JDBC/ODBC  Online Analysis Data Flow  Offline Data Flow  Clients/Users interactive with Kylin via SQL  OLAP Cube is transparent to users Star Schema Data Key Value Data Data Cube OLAP Cubes (HBase) SQL REST ServerDataSource Abstraction Engine Abstraction Storage Abstraction
• 8.

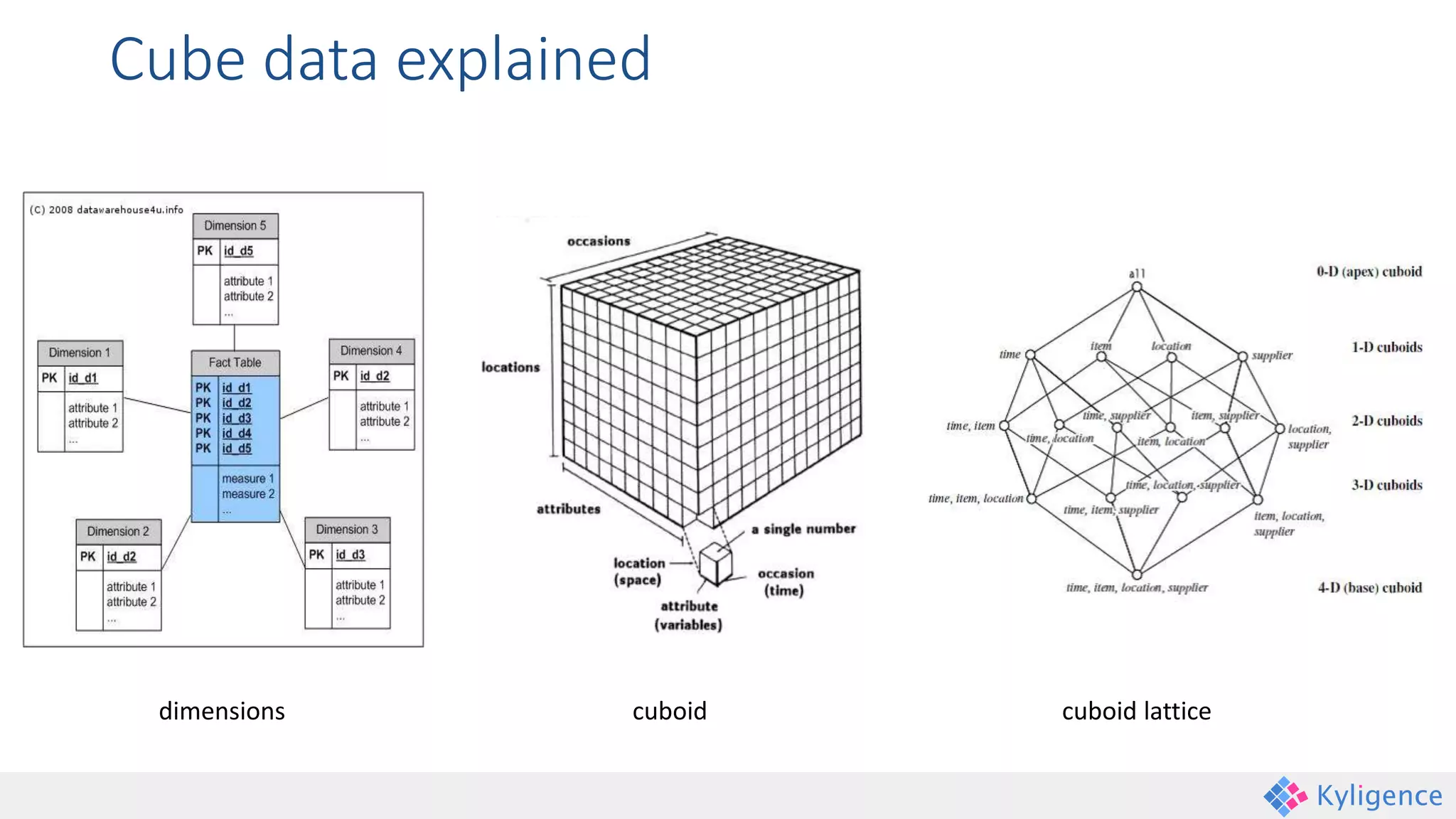

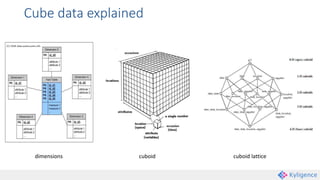

  Cube data explained dimensionscuboid cuboid lattice

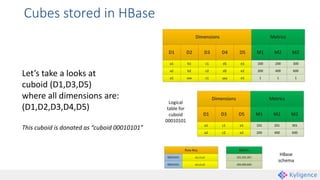

• 9.
  Cubes stored inHBase Let’s take a looks at cuboid (D1,D3,D5) where all dimensions are: (D1,D2,D3,D4,D5) This cuboid is donated as “cuboid 00010101”
• 10.

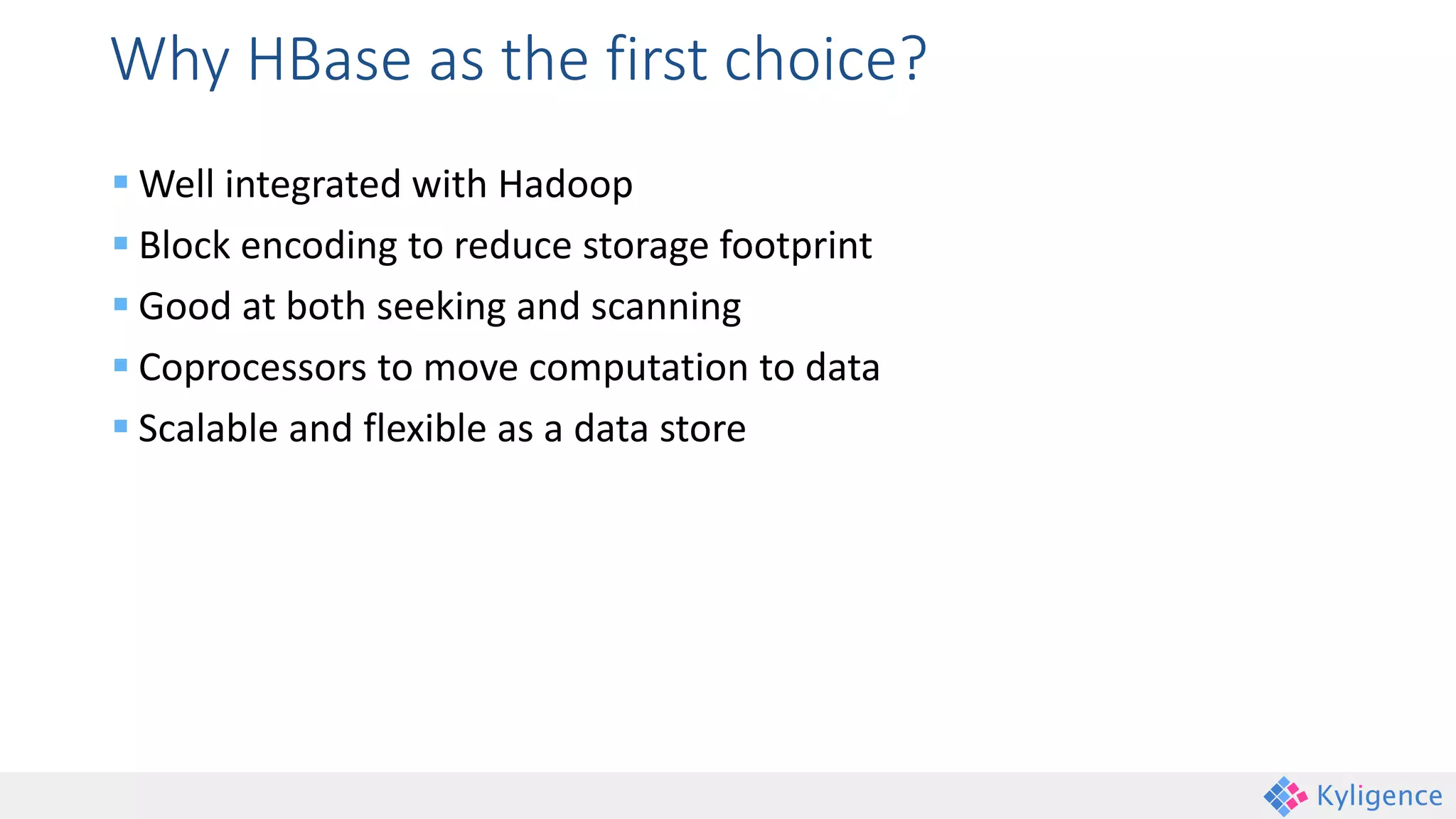

  Why HBase asthe first choice?  Well integrated with Hadoop  Block encoding to reduce storage footprint  Good at both seeking and scanning  Coprocessors to move computation to data  Scalable and flexible as a data store
• 11.

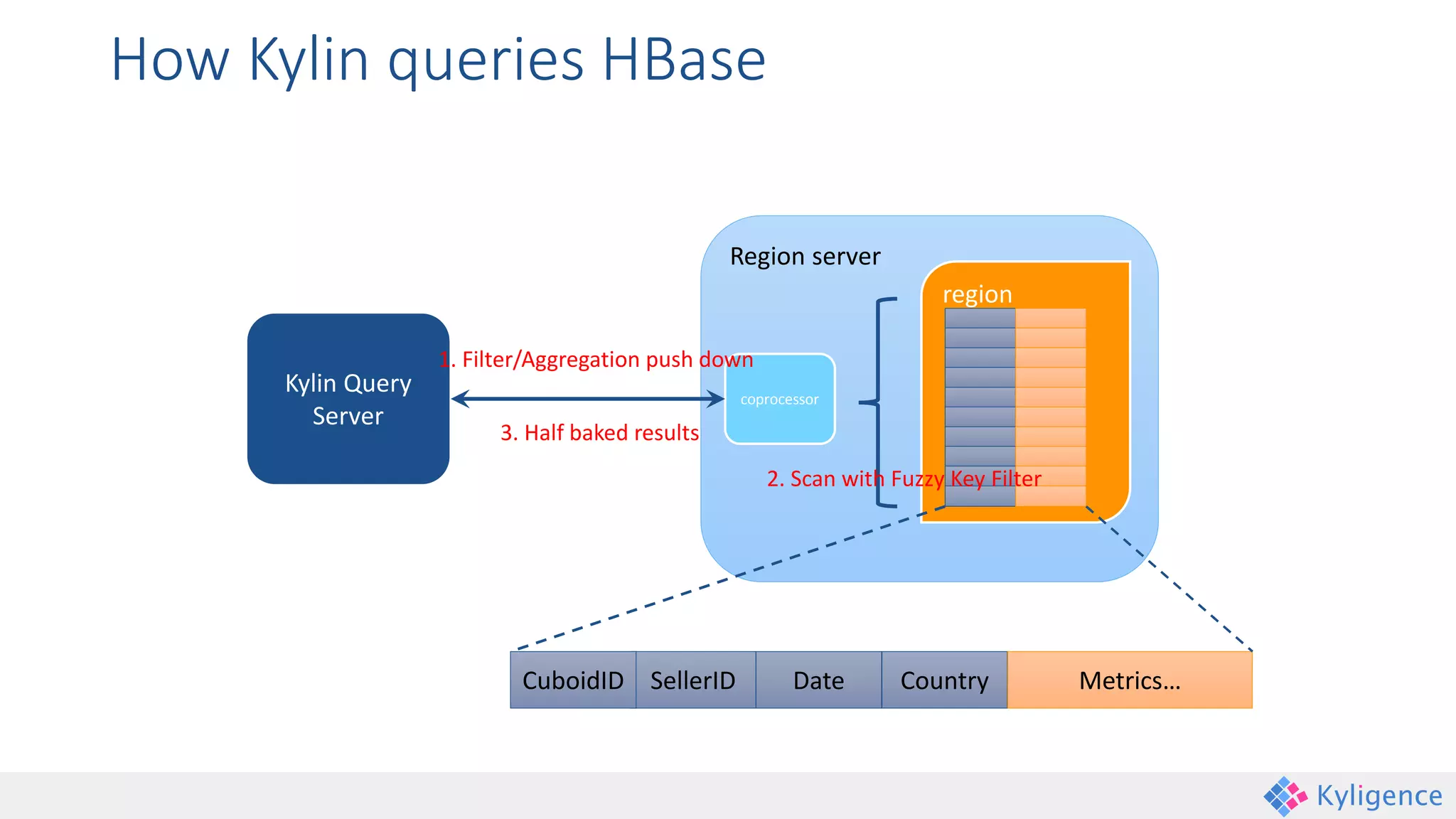

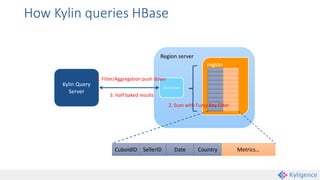

  Region server How Kylinqueries HBase Kylin Query Server region coprocessor Country Metrics…DateSellerIDCuboidID 2. Scan with Fuzzy Key Filter 1. Filter/Aggregation push down 3. Half baked results

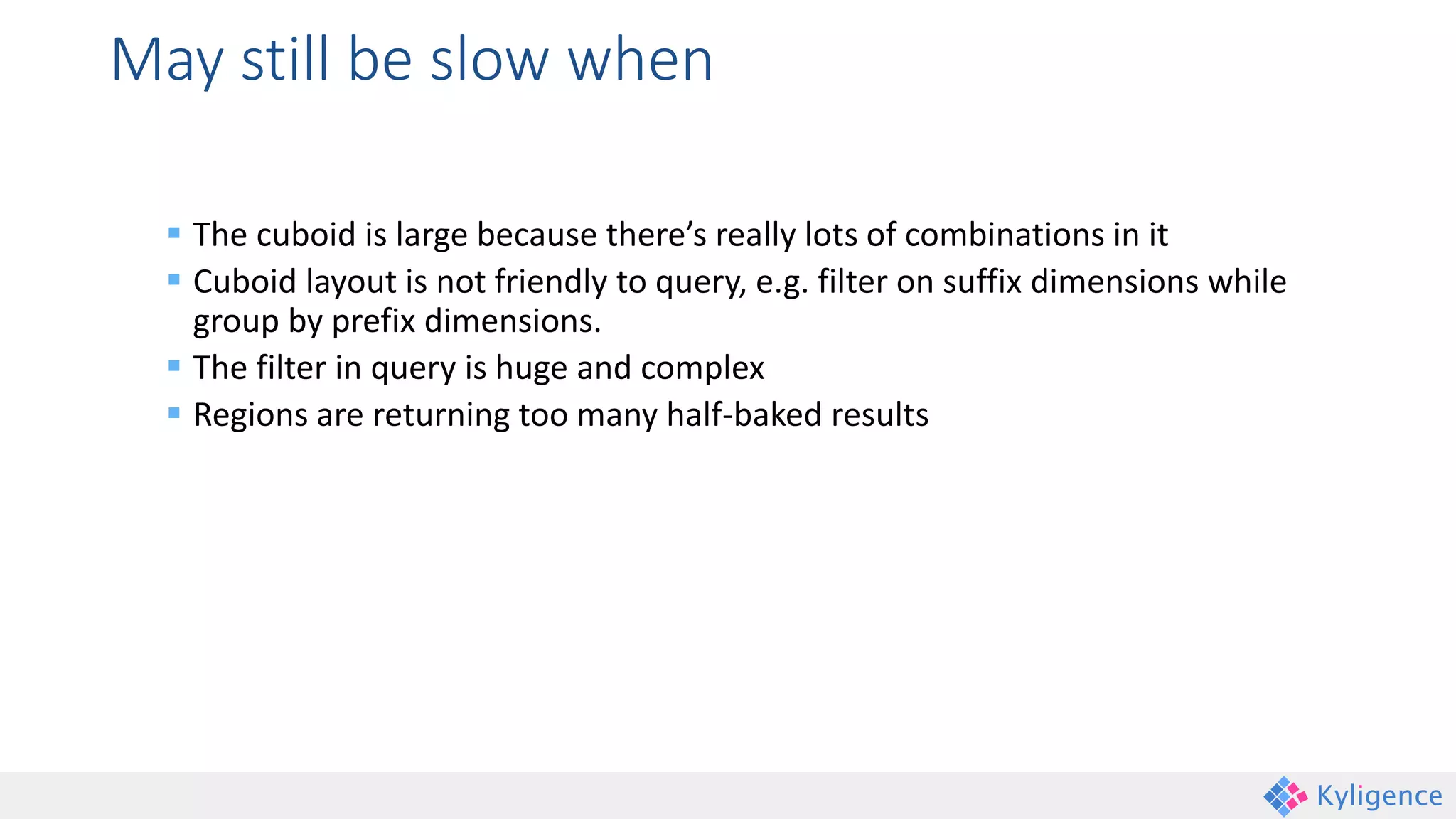

• 12.

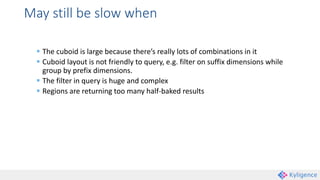

  May still beslow when  The cuboid is large because there’s really lots of combinations in it  Cuboid layout is not friendly to query, e.g. filter on suffix dimensions while group by prefix dimensions.  The filter in query is huge and complex  Regions are returning too many half-baked results

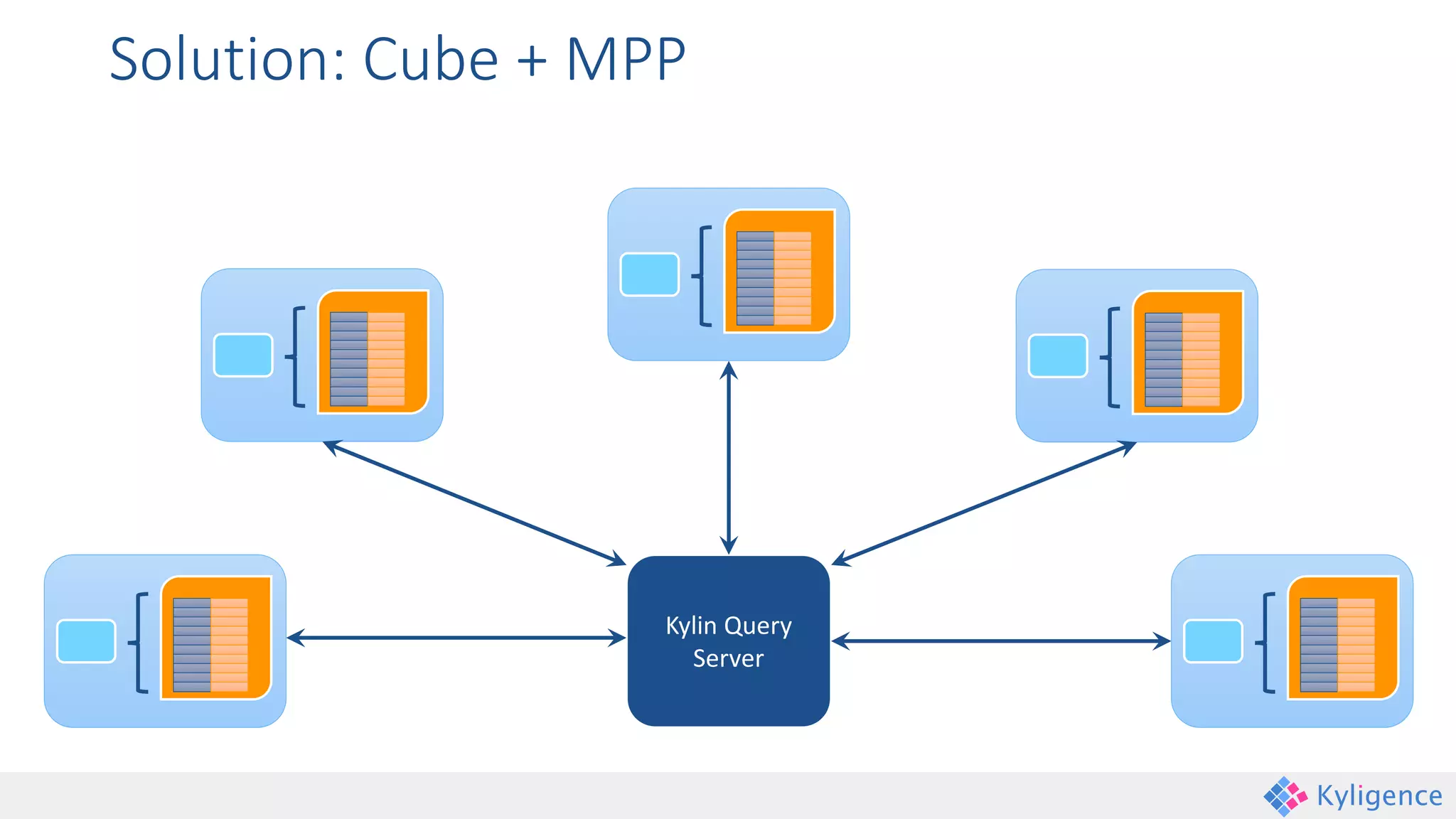

• 13.

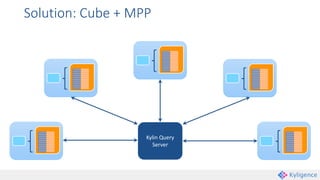

  Solution: Cube +MPP Kylin Query Server

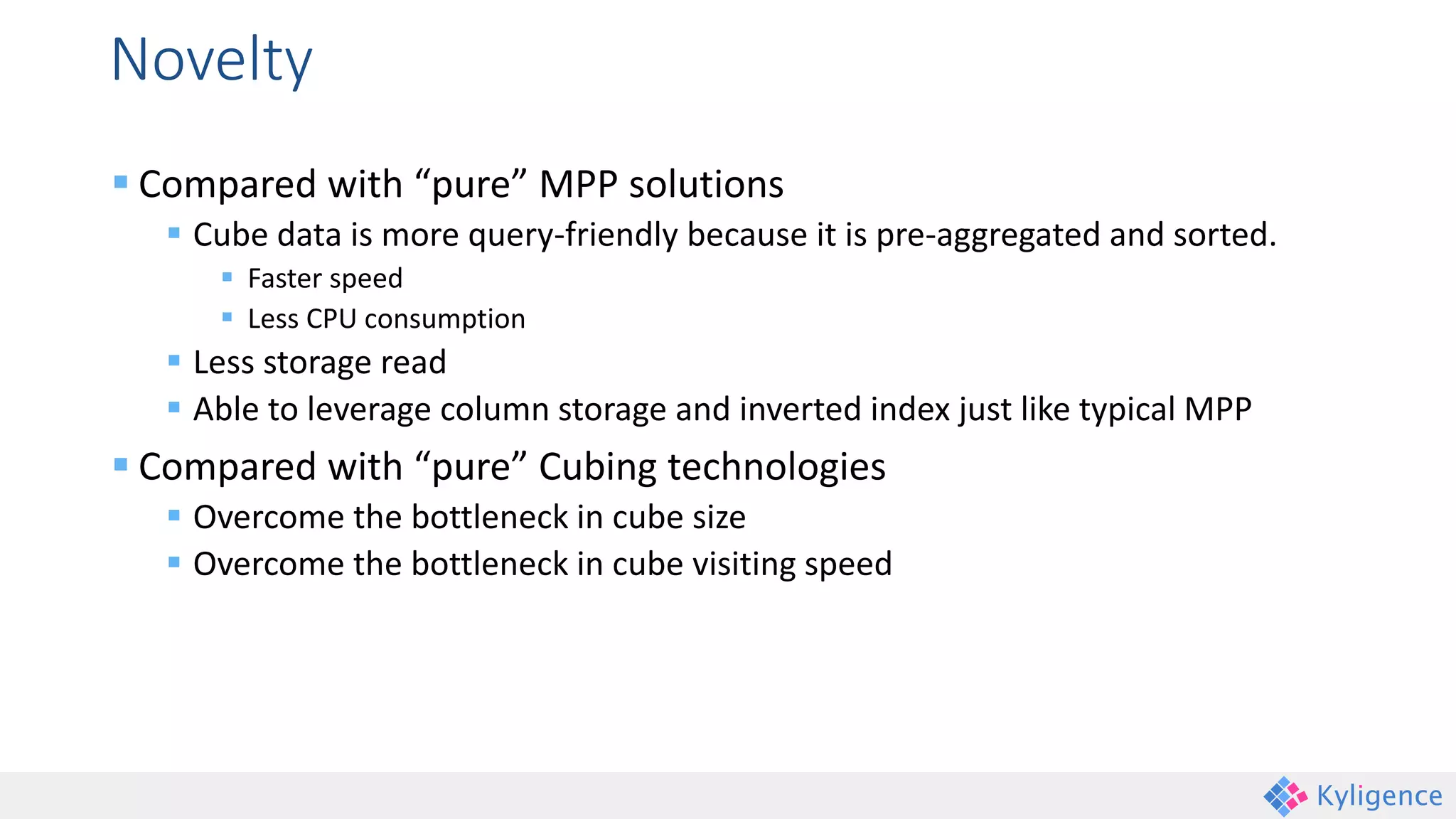

• 14.
  Novelty  Compared with“pure” MPP solutions  Cube data is more query-friendly because it is pre-aggregated and sorted.  Faster speed  Less CPU consumption  Less storage read  Able to leverage column storage and inverted index just like typical MPP  Compared with “pure” Cubing technologies  Overcome the bottleneck in cube size  Overcome the bottleneck in cube visiting speed
• 15.

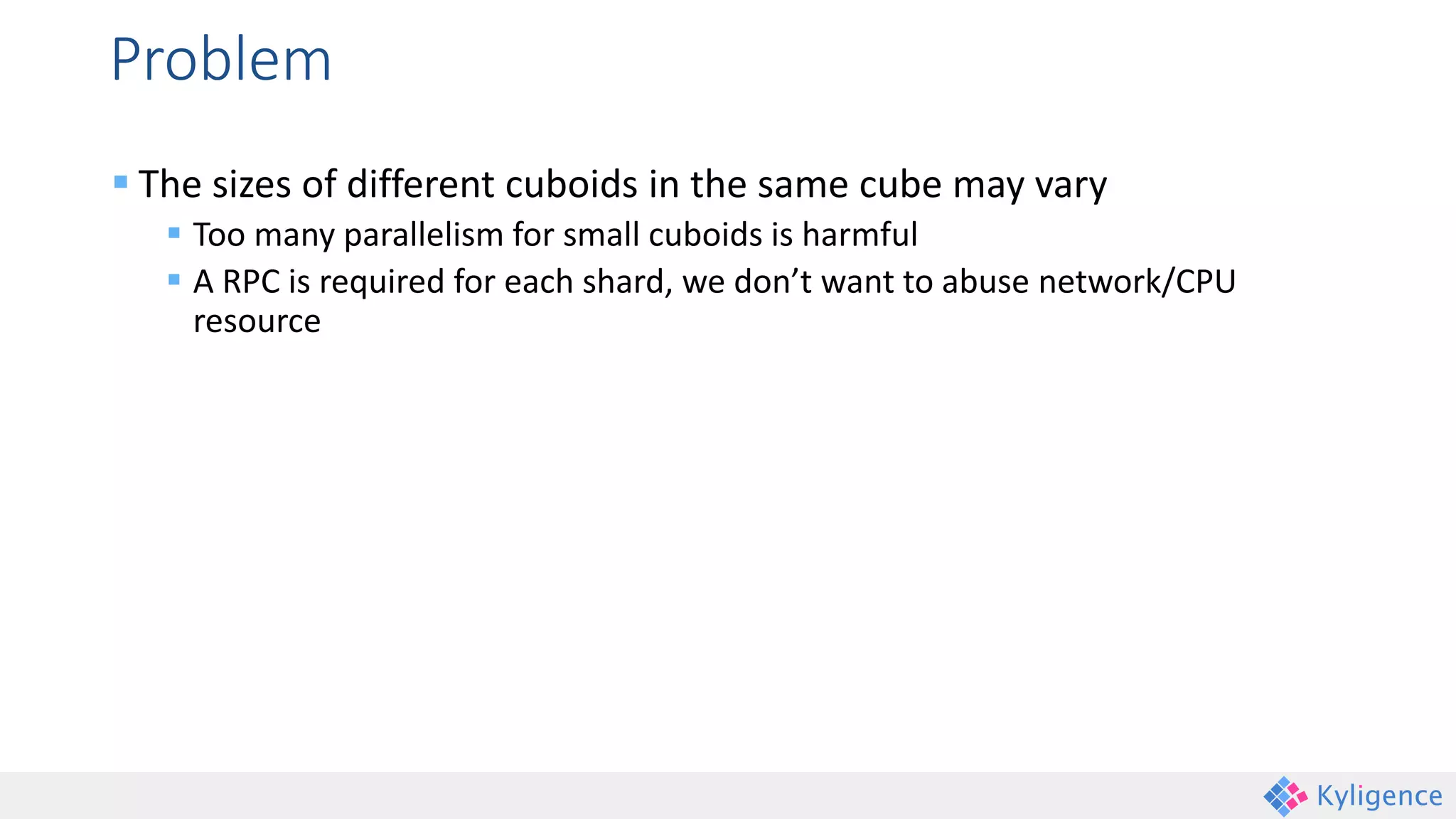

  Problem  The sizesof different cuboids in the same cube may vary  Too many parallelism for small cuboids is harmful  A RPC is required for each shard, we don’t want to abuse network/CPU resource

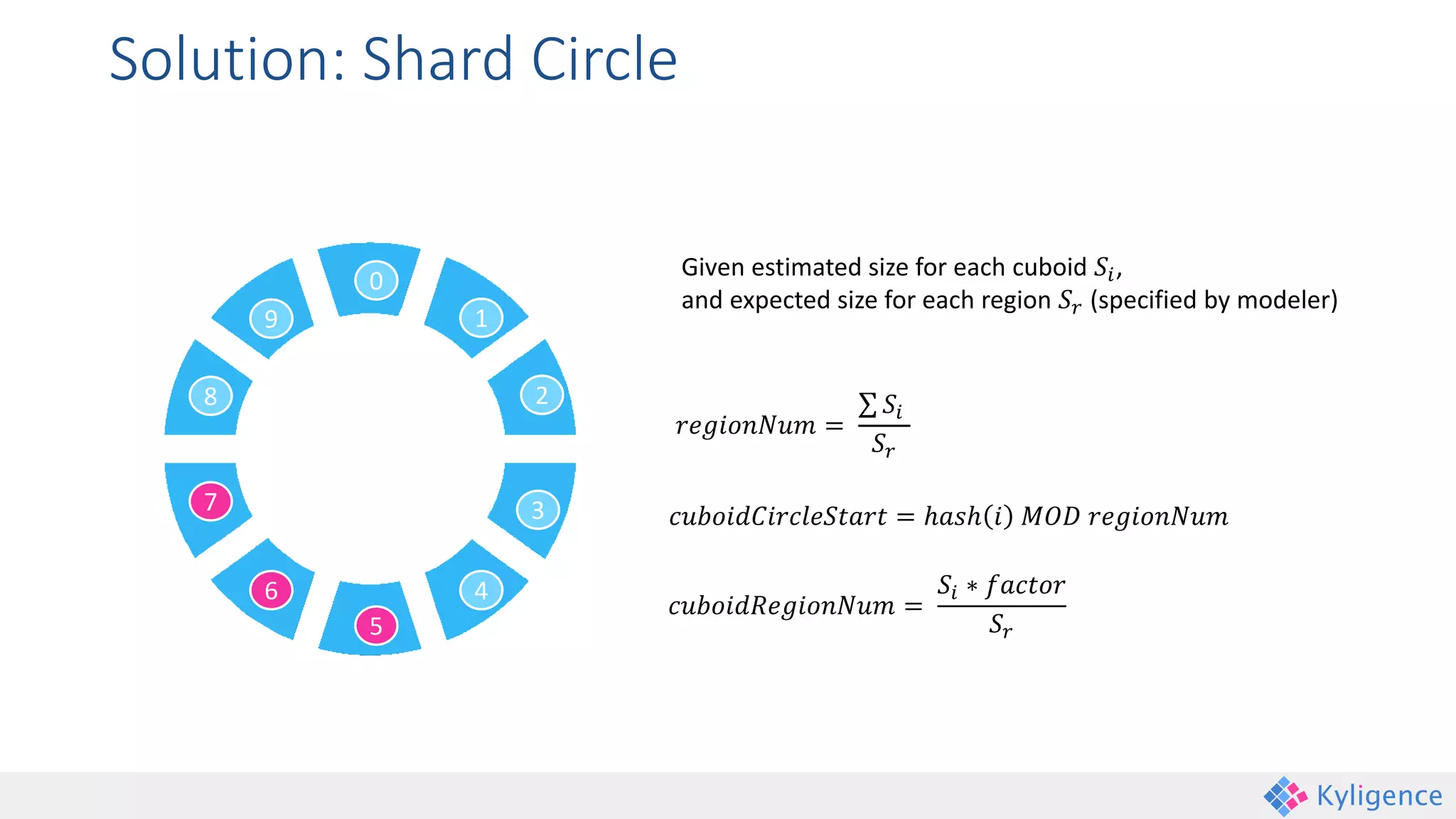

• 16.
  Solution: Shard Circle 0 1 2 3 4 5 6 7 8 9 Givenestimated size for each cuboid 𝑆𝑖, and expected size for each region 𝑆𝑟 (specified by modeler) 𝑟𝑒𝑔𝑖𝑜𝑛𝑁𝑢𝑚 = 𝑆𝑖 𝑆𝑟 𝑐𝑢𝑏𝑜𝑖𝑑𝑅𝑒𝑔𝑖𝑜𝑛𝑁𝑢𝑚 = 𝑆𝑖 ∗ 𝑓𝑎𝑐𝑡𝑜𝑟 𝑆𝑟 𝑐𝑢𝑏𝑜𝑖𝑑𝐶𝑖𝑟𝑐𝑙𝑒𝑆𝑡𝑎𝑟𝑡 = ℎ𝑎𝑠ℎ 𝑖 𝑀𝑂𝐷 𝑟𝑒𝑔𝑖𝑜𝑛𝑁𝑢𝑚
• 17.

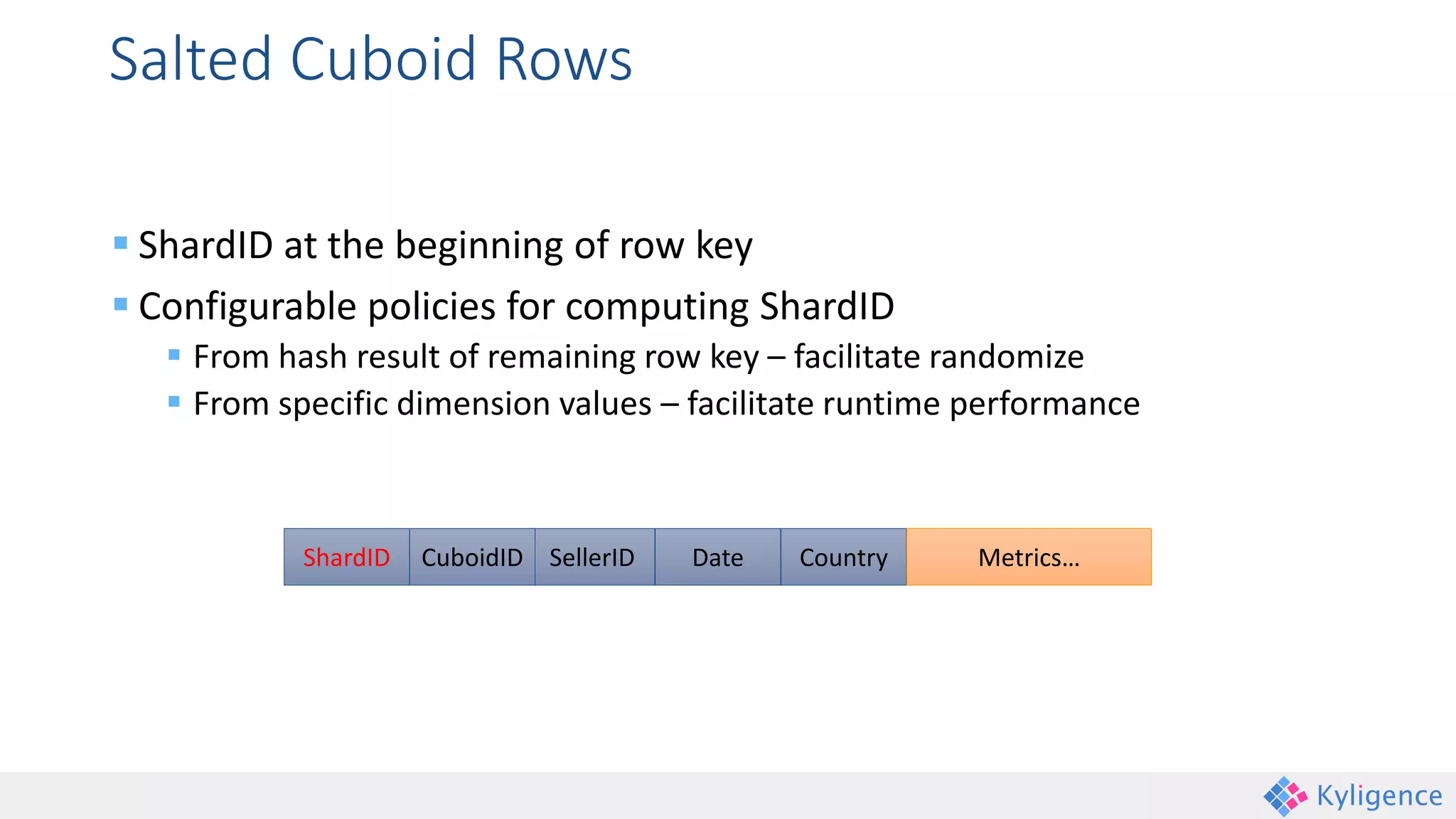

  Salted Cuboid Rows ShardID at the beginning of row key  Configurable policies for computing ShardID  From hash result of remaining row key – facilitate randomize  From specific dimension values – facilitate runtime performance Country Metrics…DateSellerIDCuboidIDShardID
• 18.

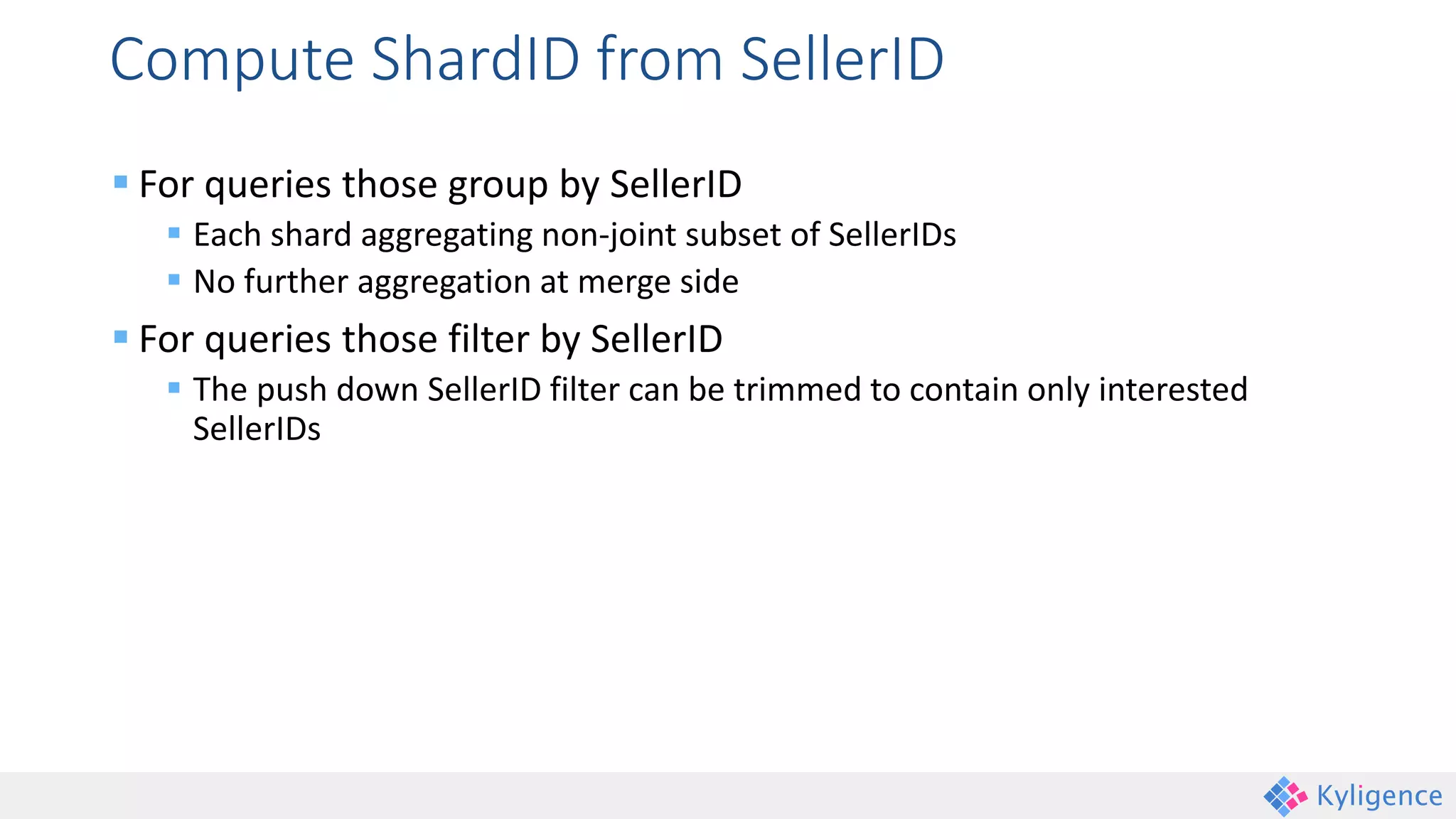

  Compute ShardID fromSellerID  For queries those group by SellerID  Each shard aggregating non-joint subset of SellerIDs  No further aggregation at merge side  For queries those filter by SellerID  The push down SellerID filter can be trimmed to contain only interested SellerIDs
• 19.

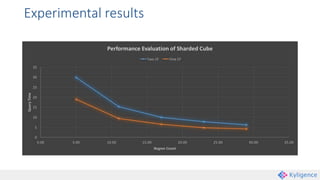

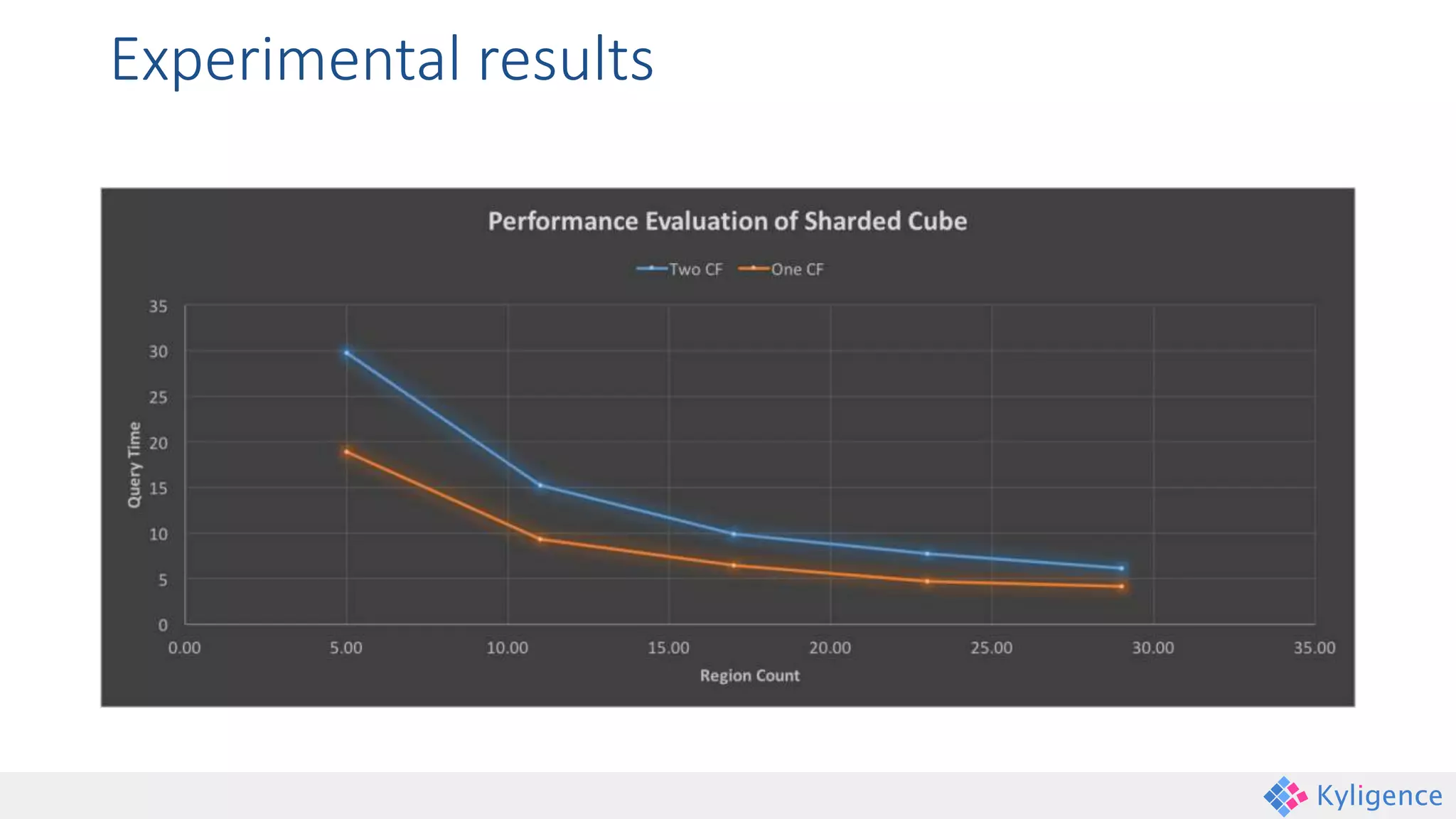

  Experimental results
• 20.

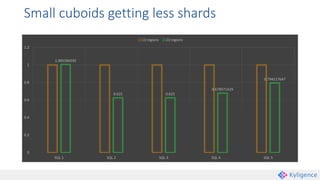

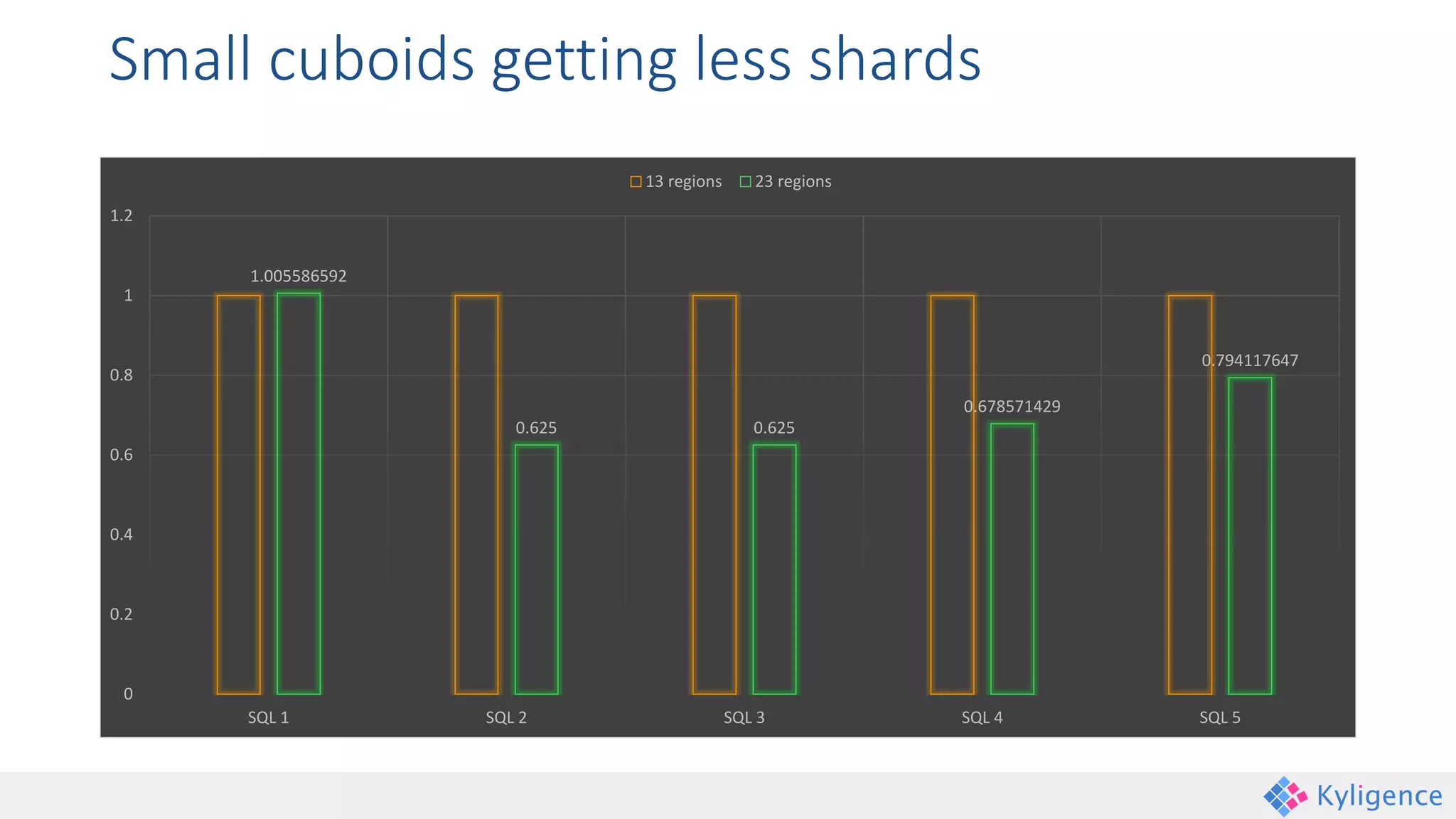

  Small cuboids gettingless shards 1.005586592 0.625 0.625 0.678571429 0.794117647 0 0.2 0.4 0.6 0.8 1 1.2 SQL 1 SQL 2 SQL 3 SQL 4 SQL 5 13 regions 23 regions
• 21.

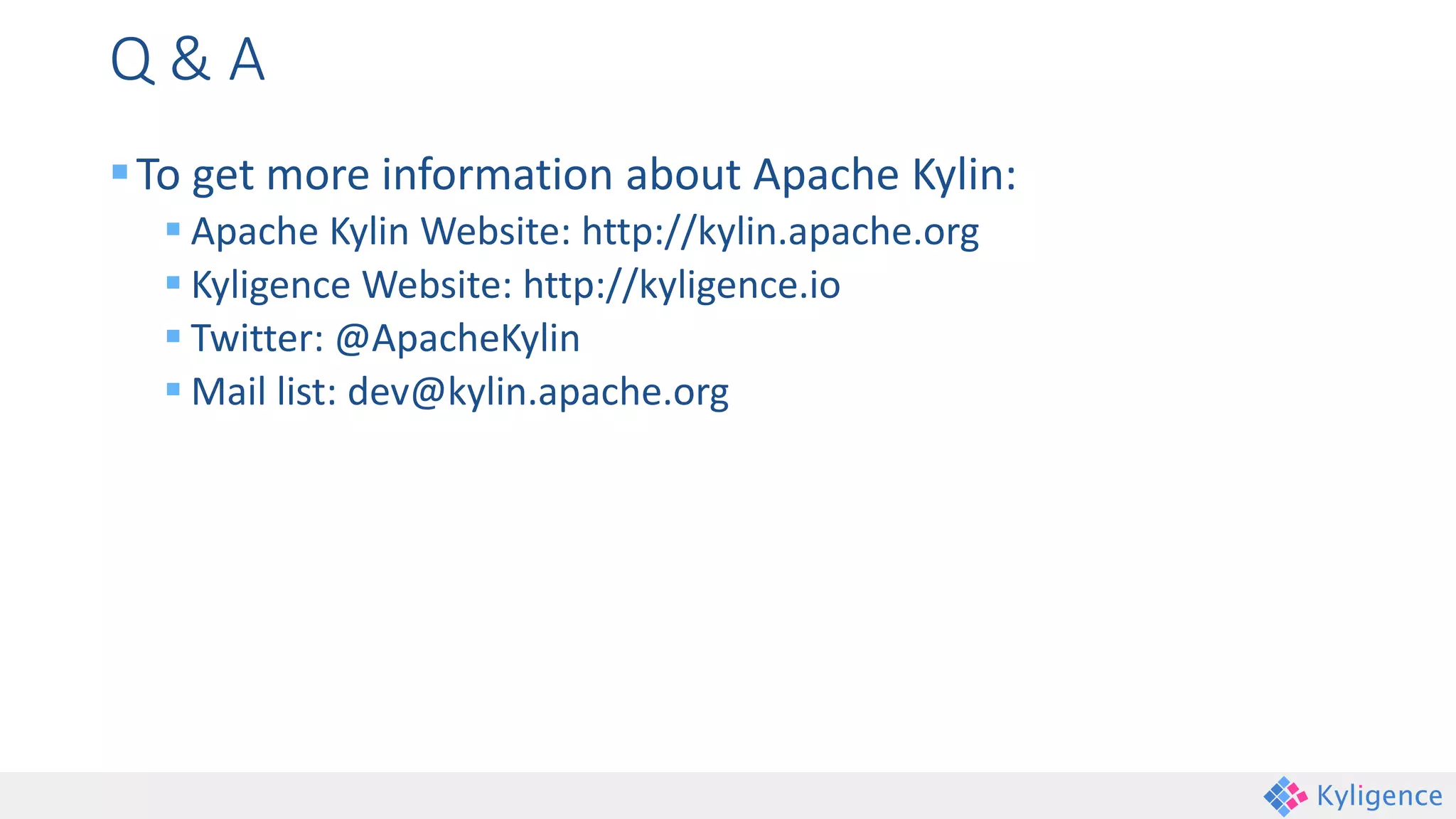

  Q & A Toget more information about Apache Kylin:  Apache Kylin Website: http://kylin.apache.org  Kyligence Website: http://kyligence.io  Twitter: @ApacheKylin  Mail list: dev@kylin.apache.org
