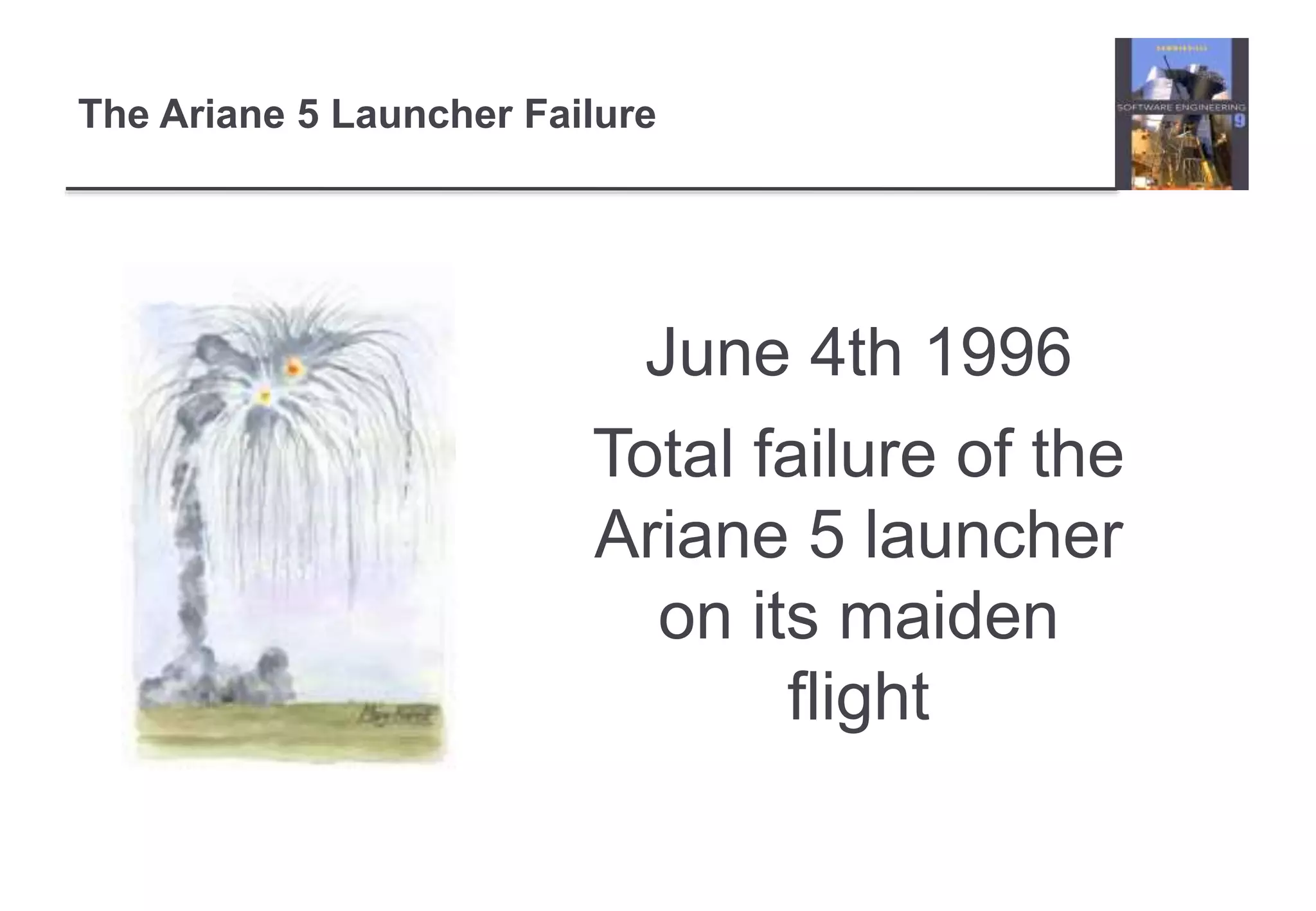

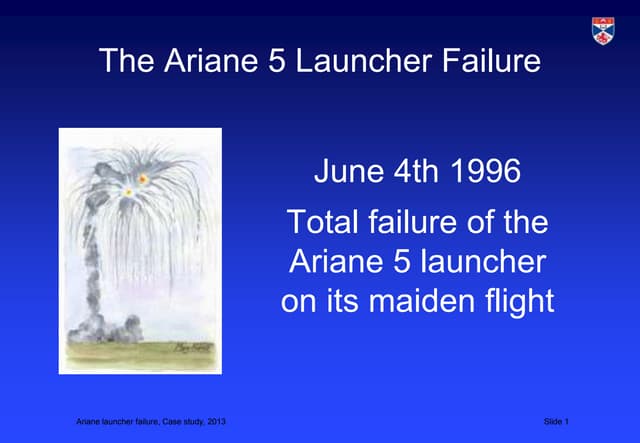

  The Ariane 5Launcher Failure June 4th 1996 Total failure of the Ariane 5 launcher on its maiden flight
• 2.

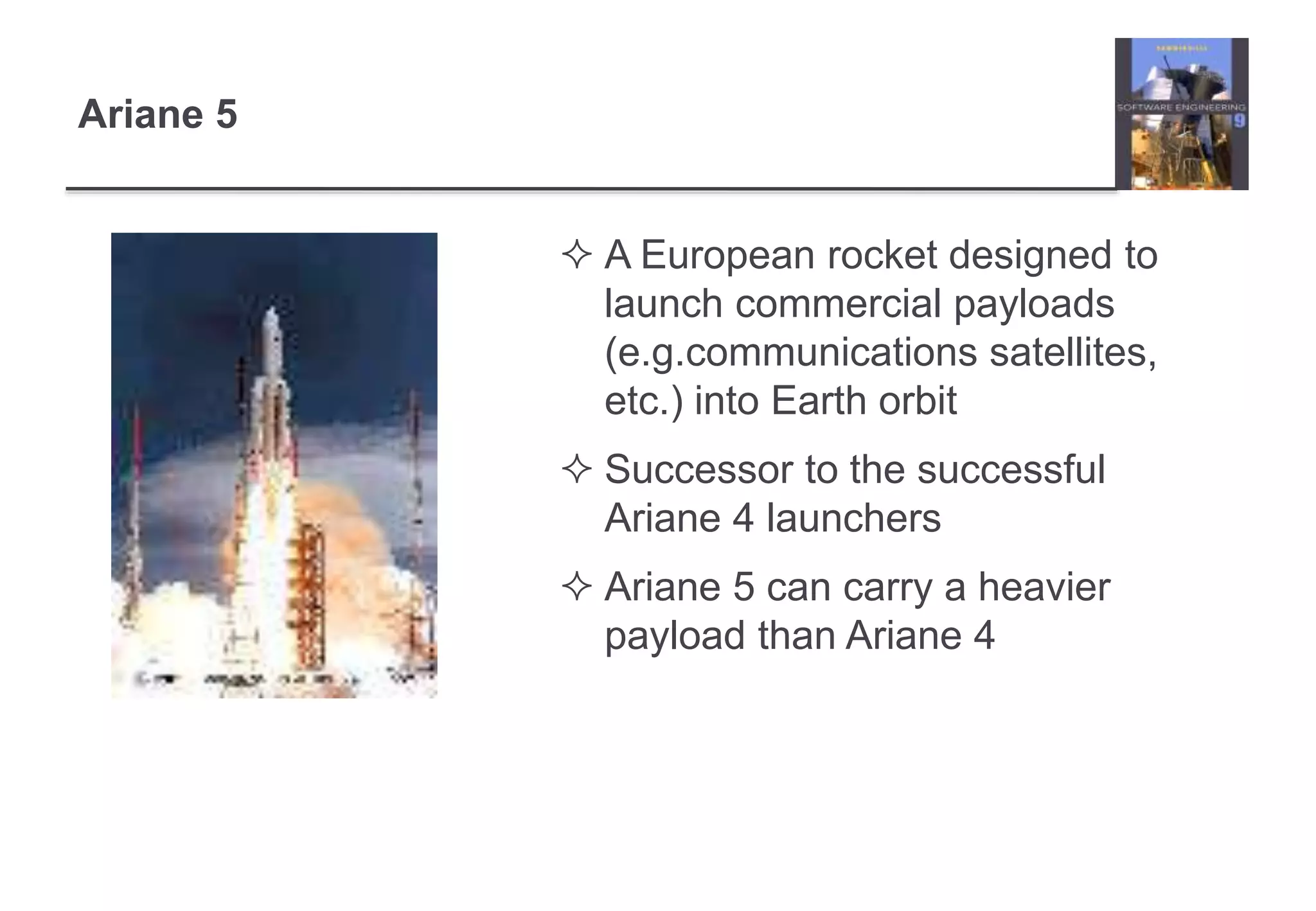

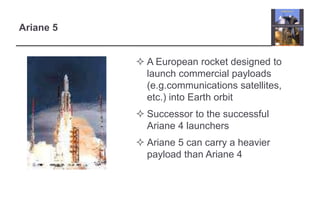

  Ariane 5 A European rocket designed to launch commercial payloads (e.g.communications satellites, etc.) into Earth orbit  Successor to the successful Ariane 4 launchers  Ariane 5 can carry a heavier payload than Ariane 4
• 3.

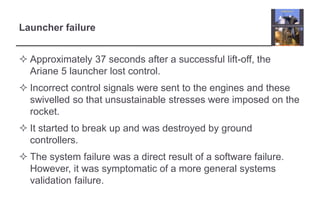

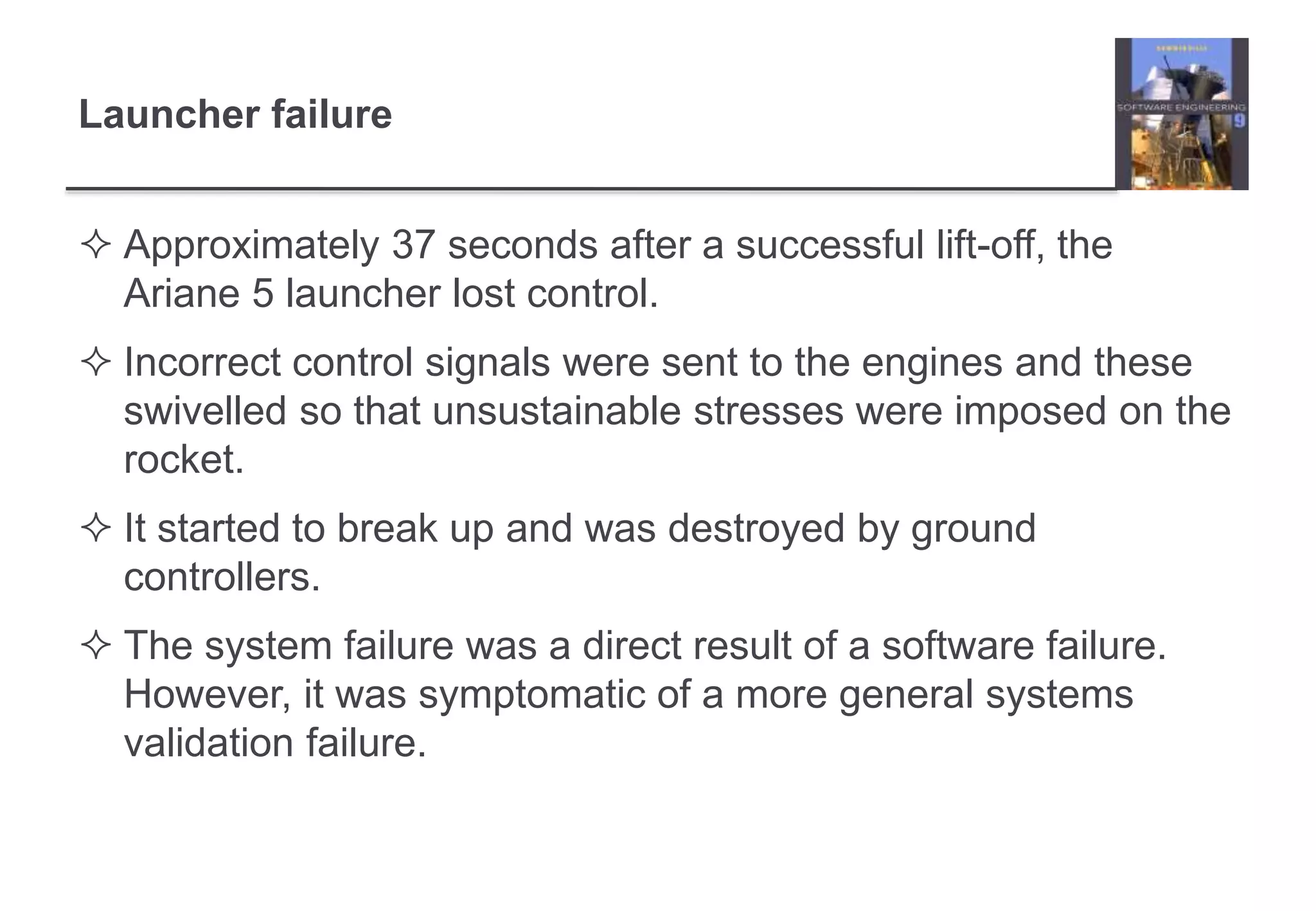

  Launcher failure Approximately 37 seconds after a successful lift-off, the Ariane 5 launcher lost control.  Incorrect control signals were sent to the engines and these swivelled so that unsustainable stresses were imposed on the rocket.  It started to break up and was destroyed by ground controllers.  The system failure was a direct result of a software failure. However, it was symptomatic of a more general systems validation failure.
• 4.

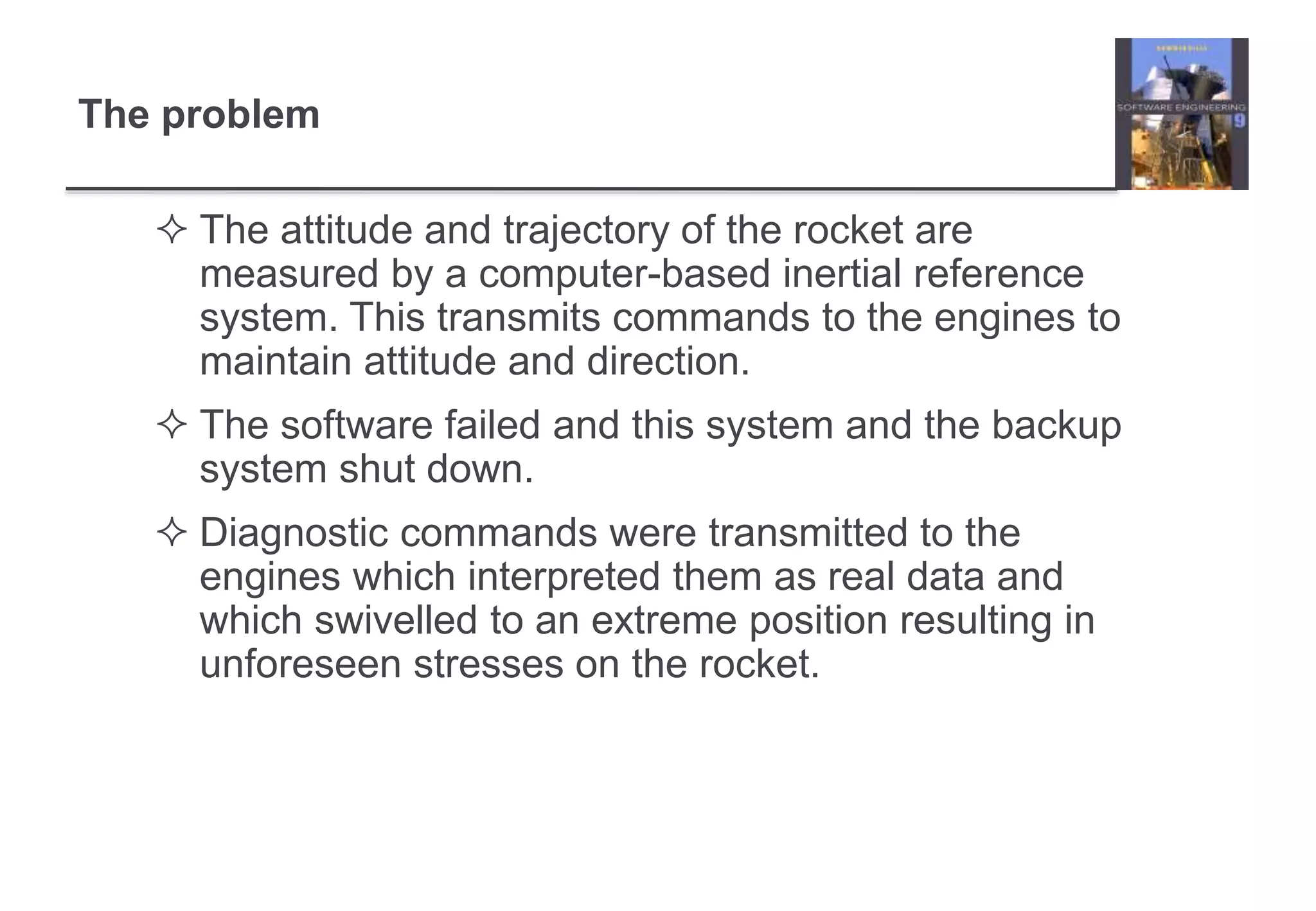

  The problem The attitude and trajectory of the rocket are measured by a computer-based inertial reference system. This transmits commands to the engines to maintain attitude and direction.  The software failed and this system and the backup system shut down.  Diagnostic commands were transmitted to the engines which interpreted them as real data and which swivelled to an extreme position resulting in unforeseen stresses on the rocket.
• 5.

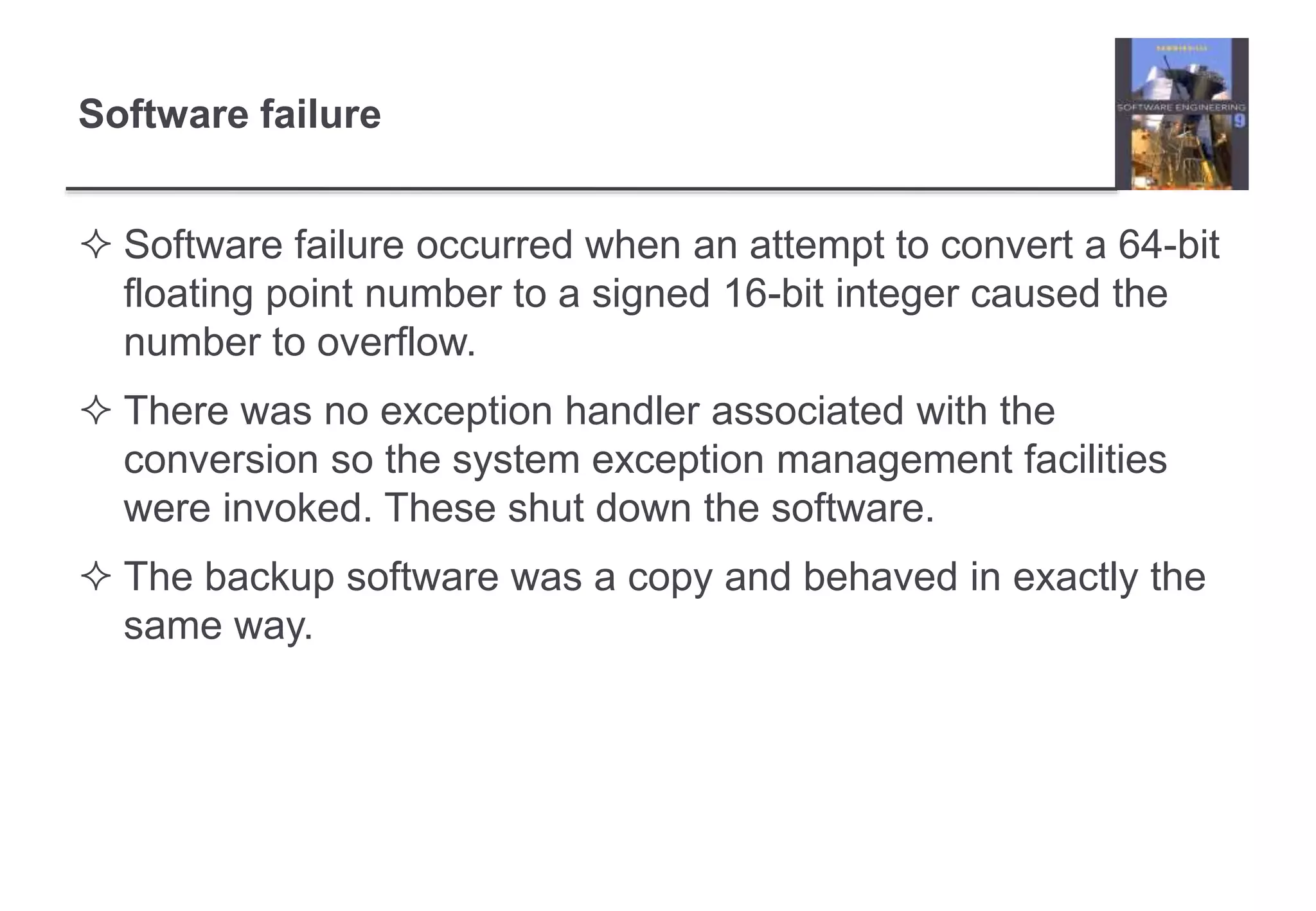

  Software failure Software failure occurred when an attempt to convert a 64-bit floating point number to a signed 16-bit integer caused the number to overflow.  There was no exception handler associated with the conversion so the system exception management facilities were invoked. These shut down the software.  The backup software was a copy and behaved in exactly the same way.
• 6.

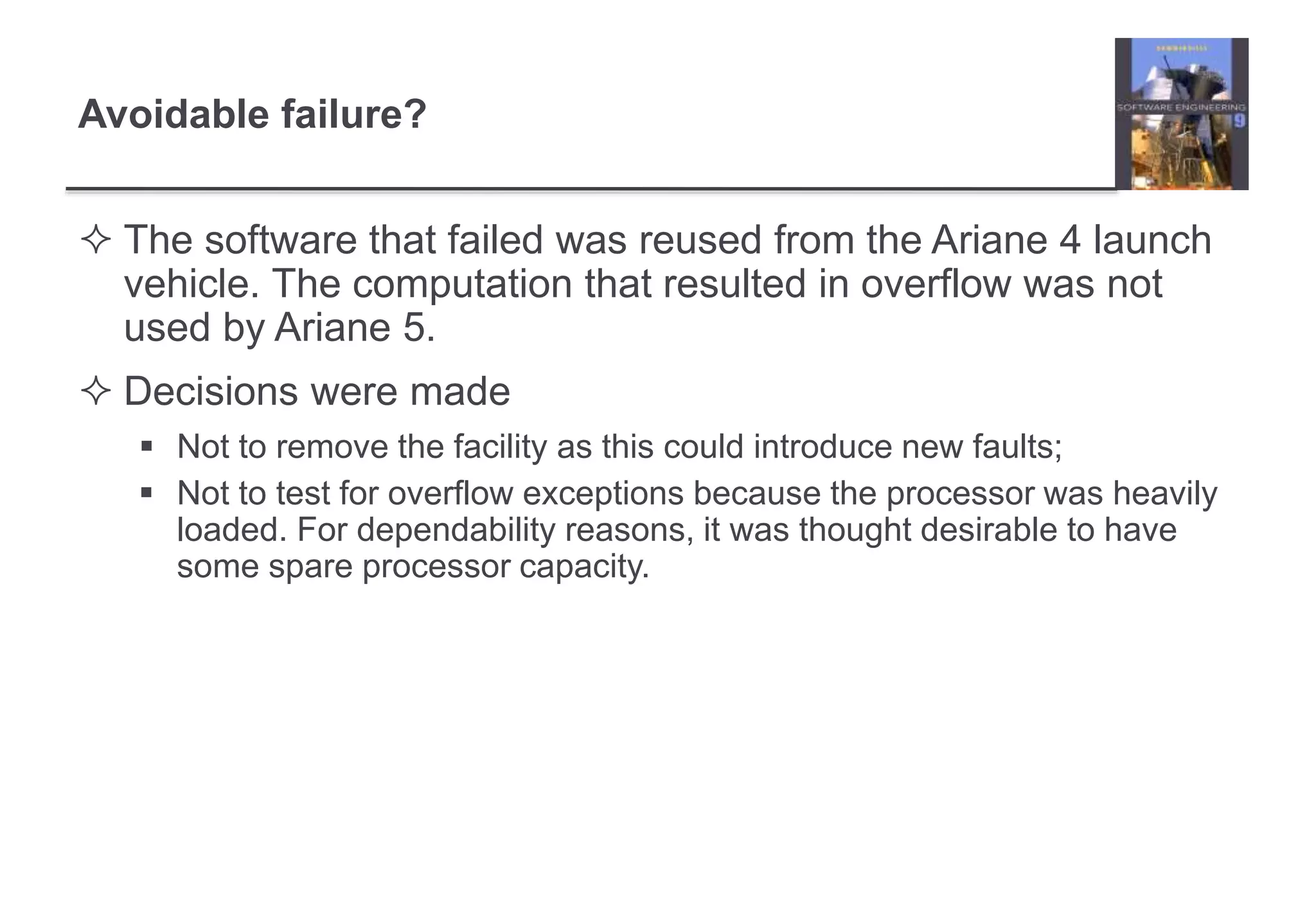

  Avoidable failure? The software that failed was reused from the Ariane 4 launch vehicle. The computation that resulted in overflow was not used by Ariane 5.  Decisions were made  Not to remove the facility as this could introduce new faults;  Not to test for overflow exceptions because the processor was heavily loaded. For dependability reasons, it was thought desirable to have some spare processor capacity.
• 7.
  Why not Ariane4?  The physical characteristics of Ariane 4 (A smaller vehicle) are such that it has a lower initial acceleration and build up of horizontal velocity than Ariane 5.  The value of the variable on Ariane 4 could never reach a level that caused overflow during the launch period.
• 8.

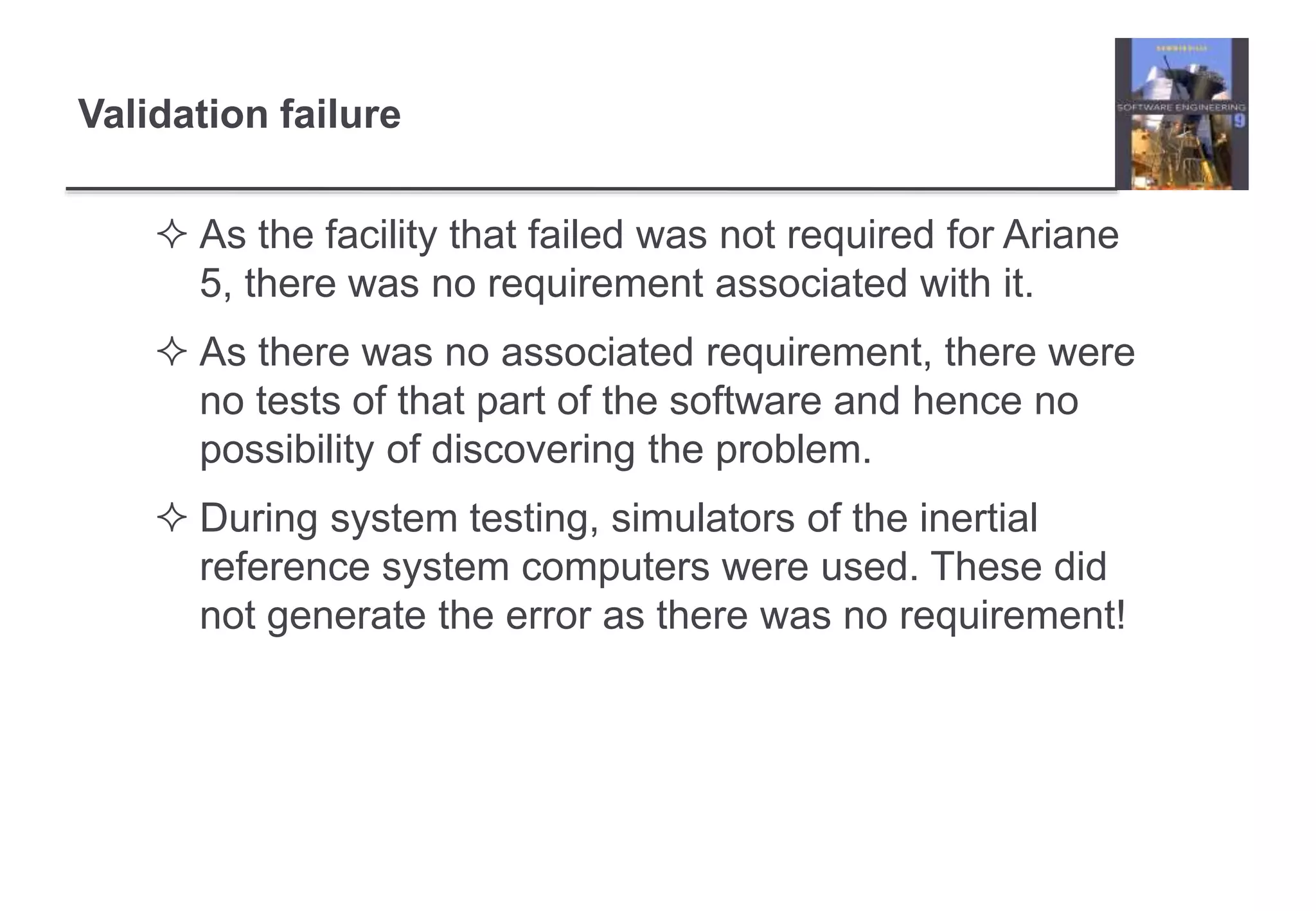

  Validation failure As the facility that failed was not required for Ariane 5, there was no requirement associated with it.  As there was no associated requirement, there were no tests of that part of the software and hence no possibility of discovering the problem.  During system testing, simulators of the inertial reference system computers were used. These did not generate the error as there was no requirement!
• 9.

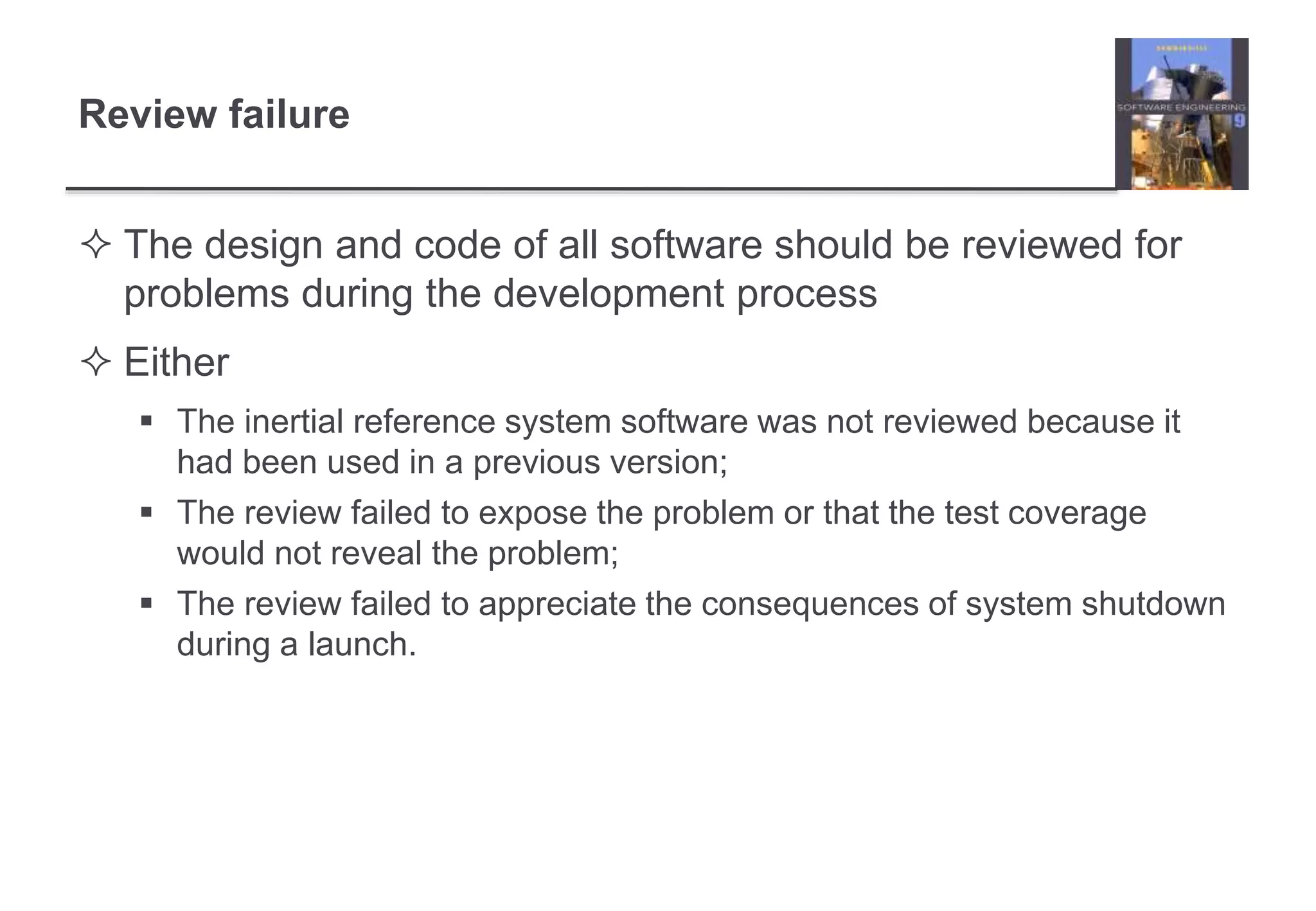

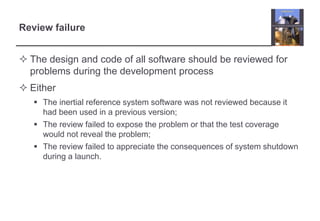

  Review failure The design and code of all software should be reviewed for problems during the development process  Either  The inertial reference system software was not reviewed because it had been used in a previous version;  The review failed to expose the problem or that the test coverage would not reveal the problem;  The review failed to appreciate the consequences of system shutdown during a launch.
• 10.

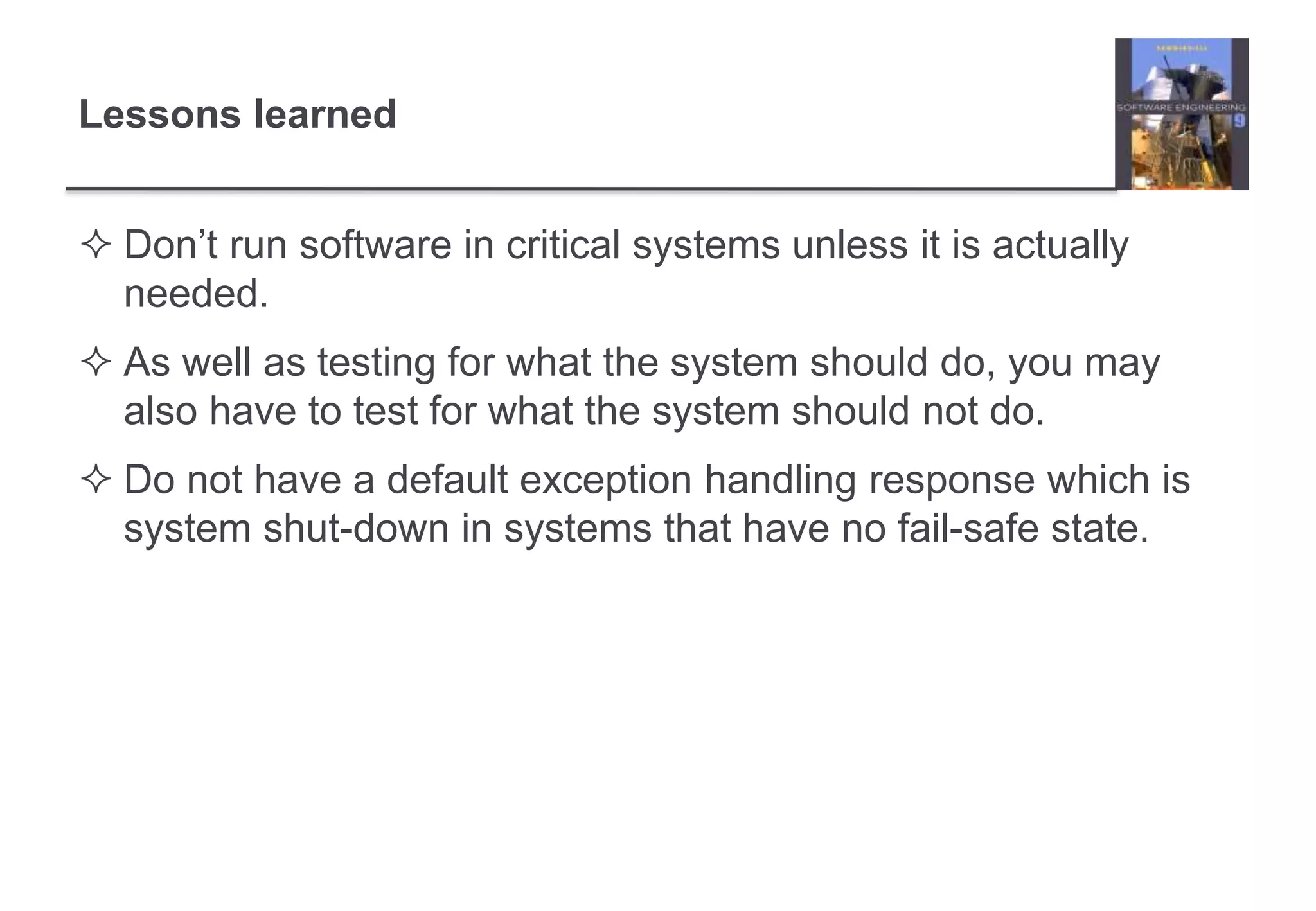

  Lessons learned Don’t run software in critical systems unless it is actually needed.  As well as testing for what the system should do, you may also have to test for what the system should not do.  Do not have a default exception handling response which is system shut-down in systems that have no fail-safe state.
• 11.

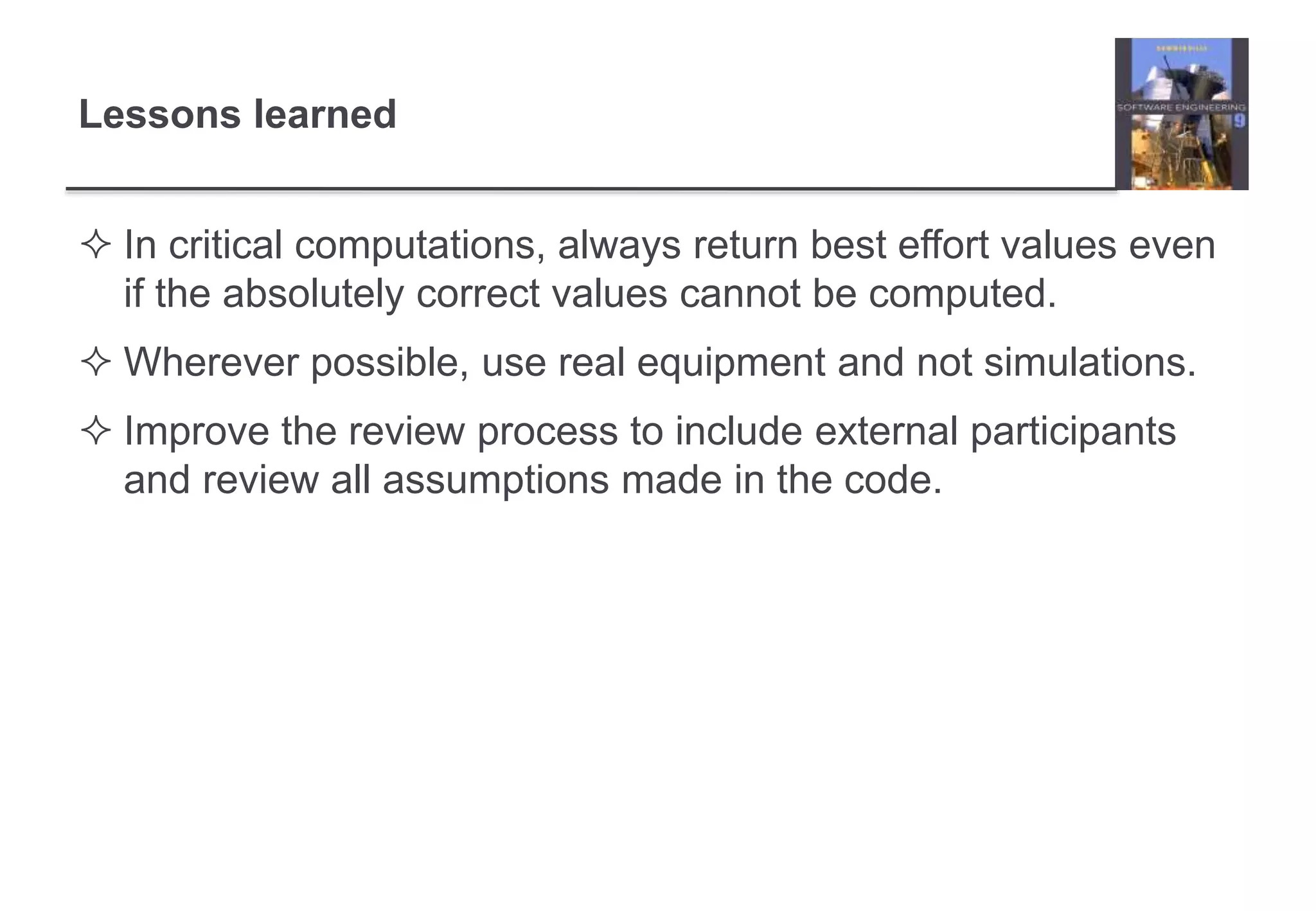

  Lessons learned In critical computations, always return best effort values even if the absolutely correct values cannot be computed.  Wherever possible, use real equipment and not simulations.  Improve the review process to include external participants and review all assumptions made in the code.
• 12.

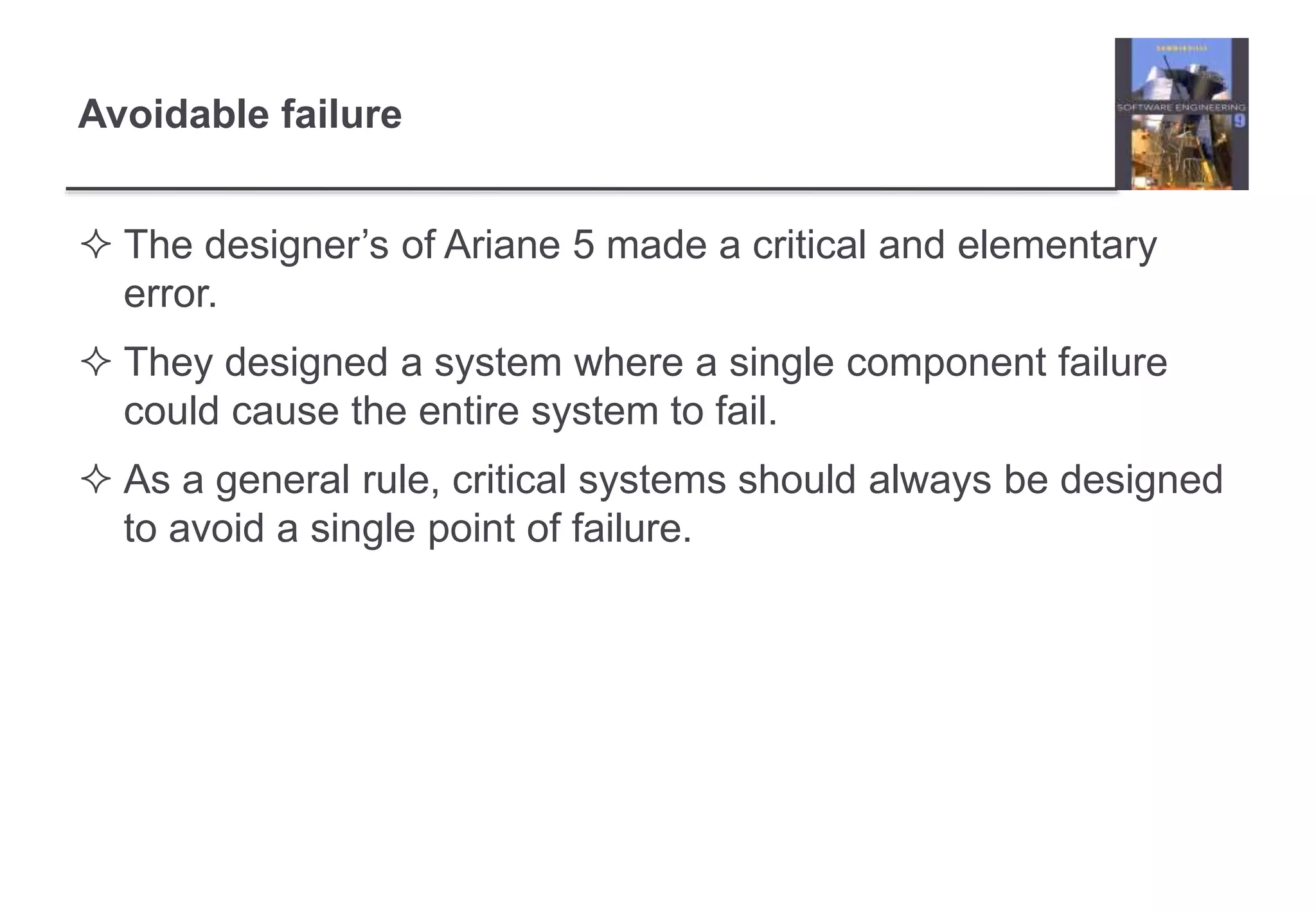

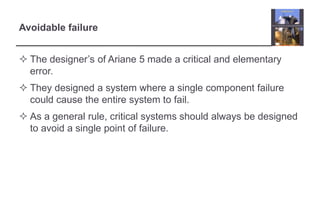

  Avoidable failure The designer’s of Ariane 5 made a critical and elementary error.  They designed a system where a single component failure could cause the entire system to fail.  As a general rule, critical systems should always be designed to avoid a single point of failure.
