Unified process Model
The Unified Process (UP) is a software development process that provides guidance on team activities and work integration. It originated from issues with traditional processes being too diverse and outdated. Key aspects of UP include being use-case driven, architecture-centric, and iterative/incremental. UP follows a lifecycle of inception, elaboration, construction, and transition phases within iterative development cycles. While UP addressed issues with prior methods, its weaknesses include not covering the full software process and tools-focus not suiting complex systems.
More Related Content
Similar to Unified process Model
Unified process Model
- 1.

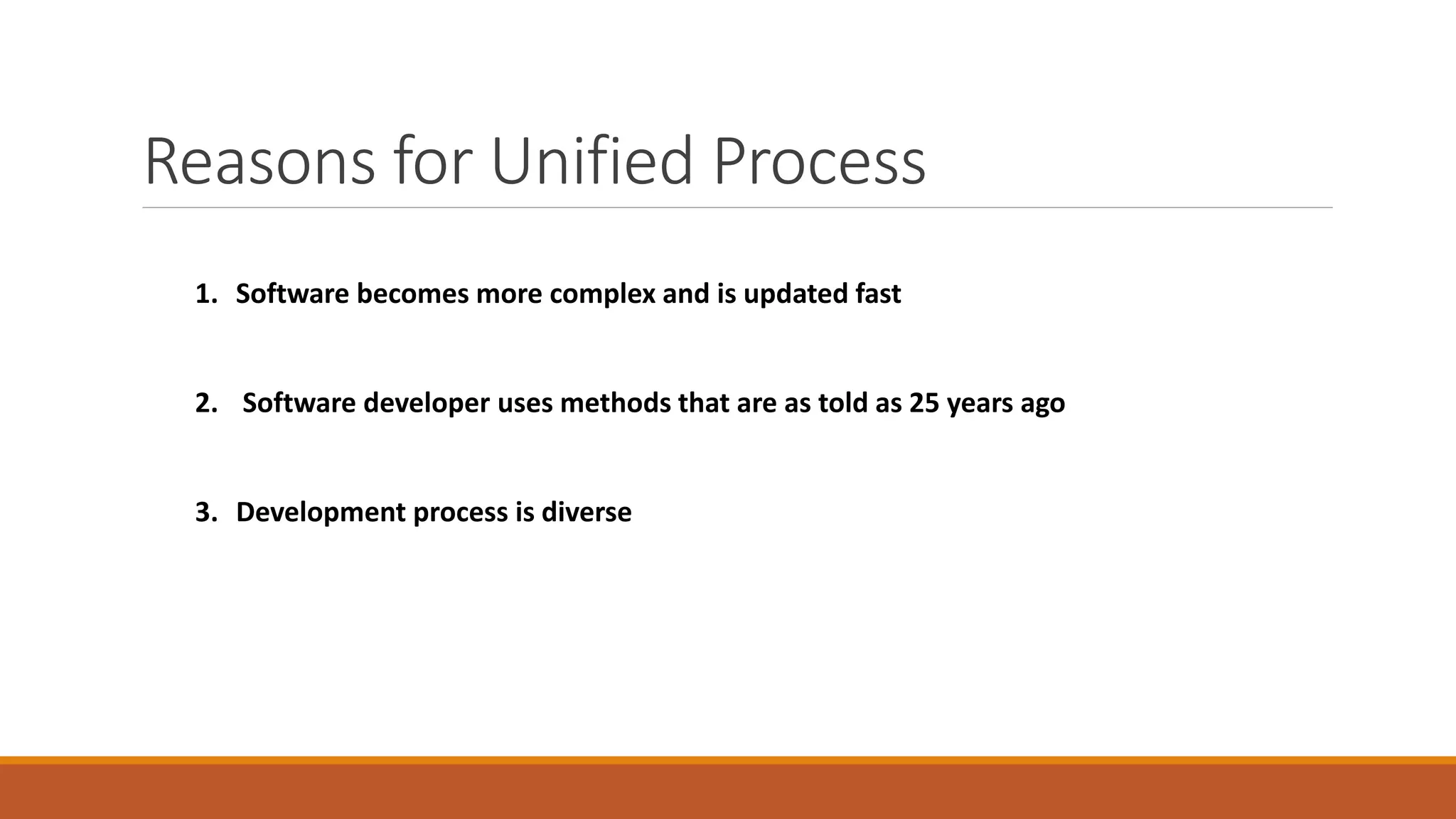

- 2. Reasons for UnifiedProcess 1. Software becomes more complex and is updated fast 2. Software developer uses methods that are as told as 25 years ago 3. Development process is diverse

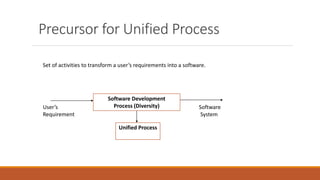

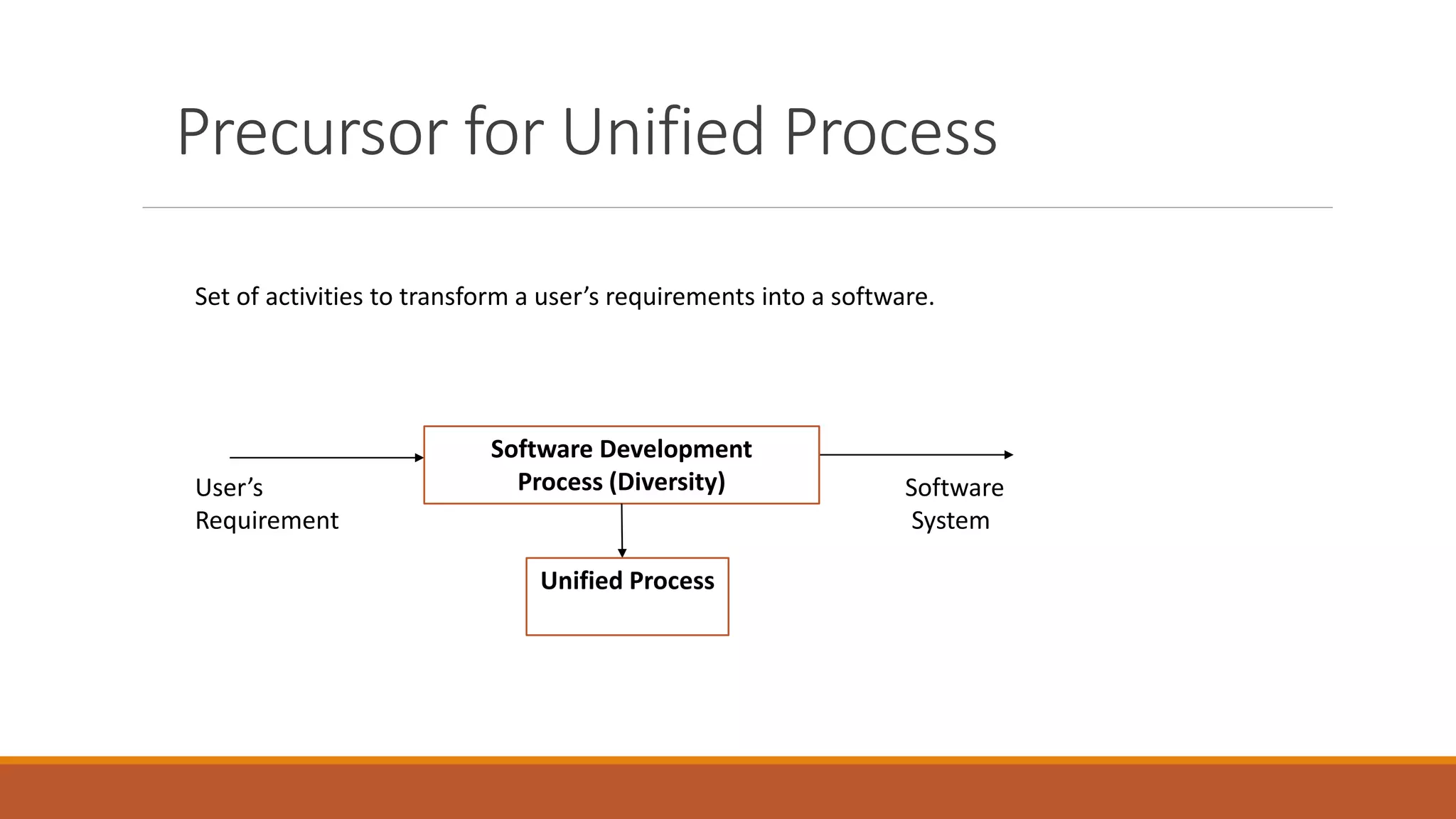

- 3. Precursor for UnifiedProcess Set of activities to transform a user’s requirements into a software. Software Development Process (Diversity) Unified Process User’s Requirement Software System

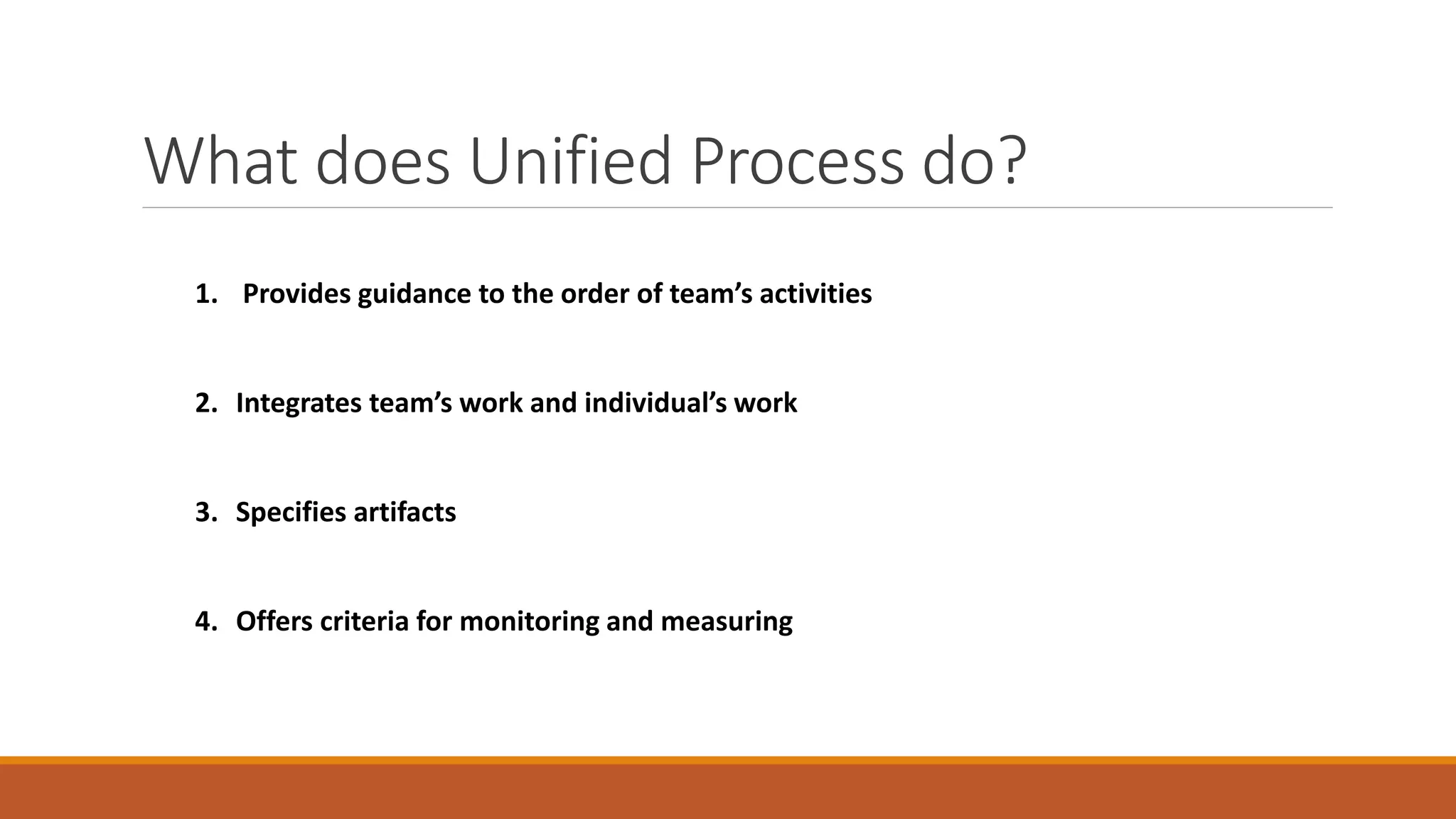

- 4. What does UnifiedProcess do? 1. Provides guidance to the order of team’s activities 2. Integrates team’s work and individual’s work 3. Specifies artifacts 4. Offers criteria for monitoring and measuring

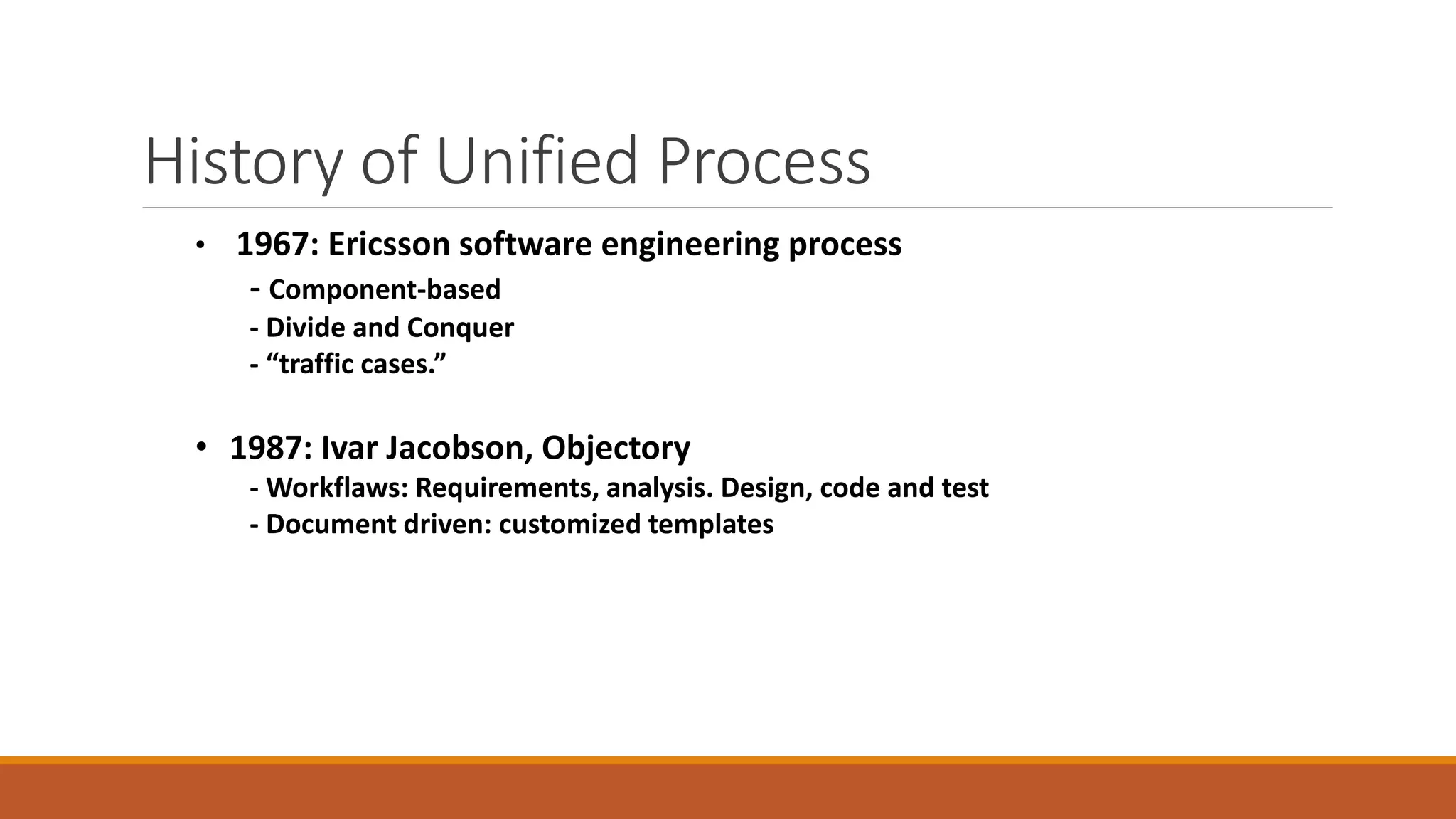

- 5. History of UnifiedProcess • 1967: Ericsson software engineering process - Component-based - Divide and Conquer - “traffic cases.” • 1987: Ivar Jacobson, Objectory - Workflaws: Requirements, analysis. Design, code and test - Document driven: customized templates

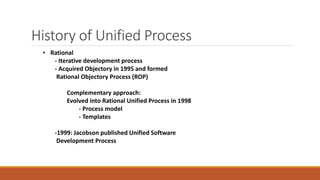

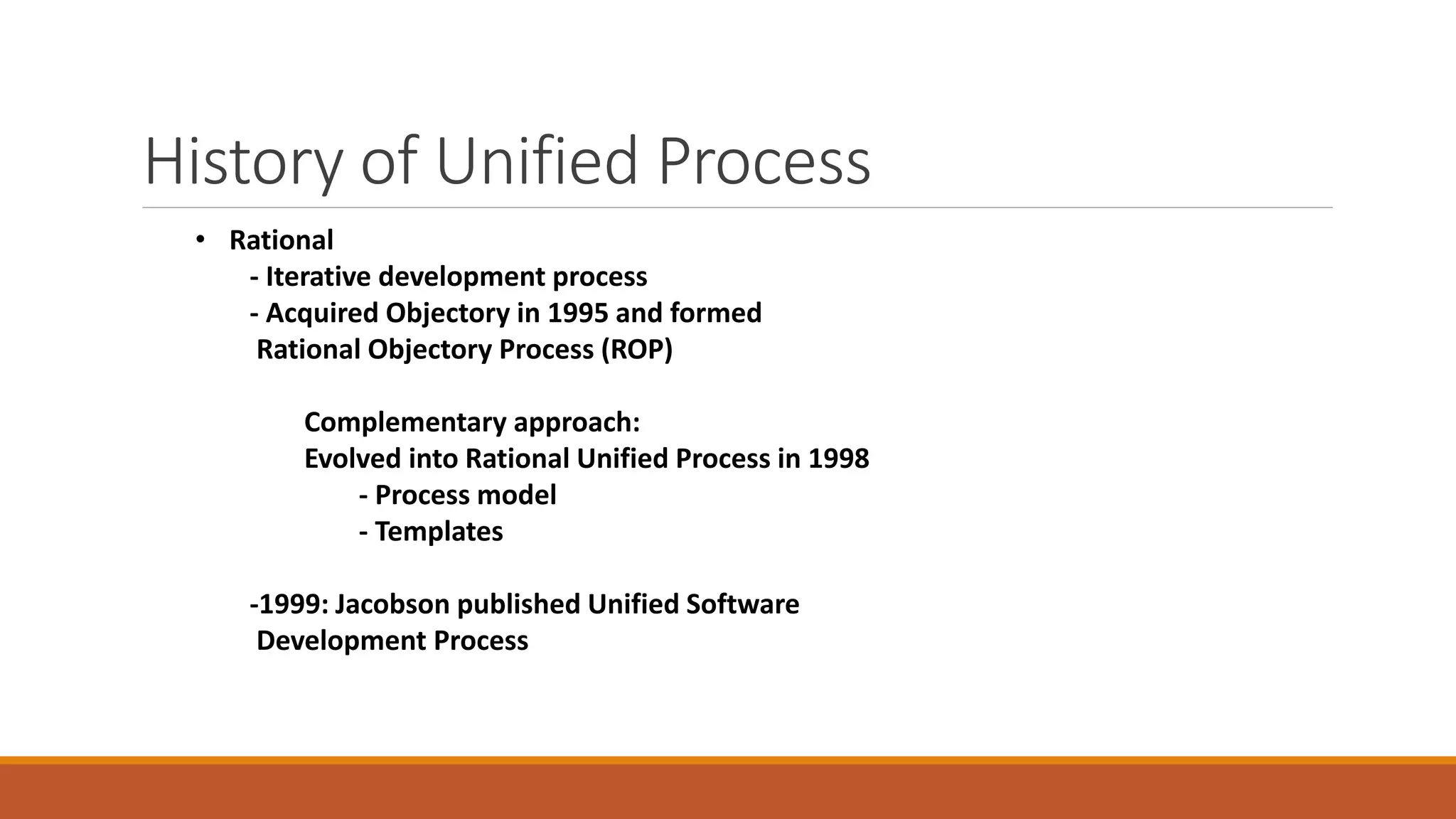

- 6. History of UnifiedProcess • Rational - Iterative development process - Acquired Objectory in 1995 and formed Rational Objectory Process (ROP) Complementary approach: Evolved into Rational Unified Process in 1998 - Process model - Templates -1999: Jacobson published Unified Software Development Process

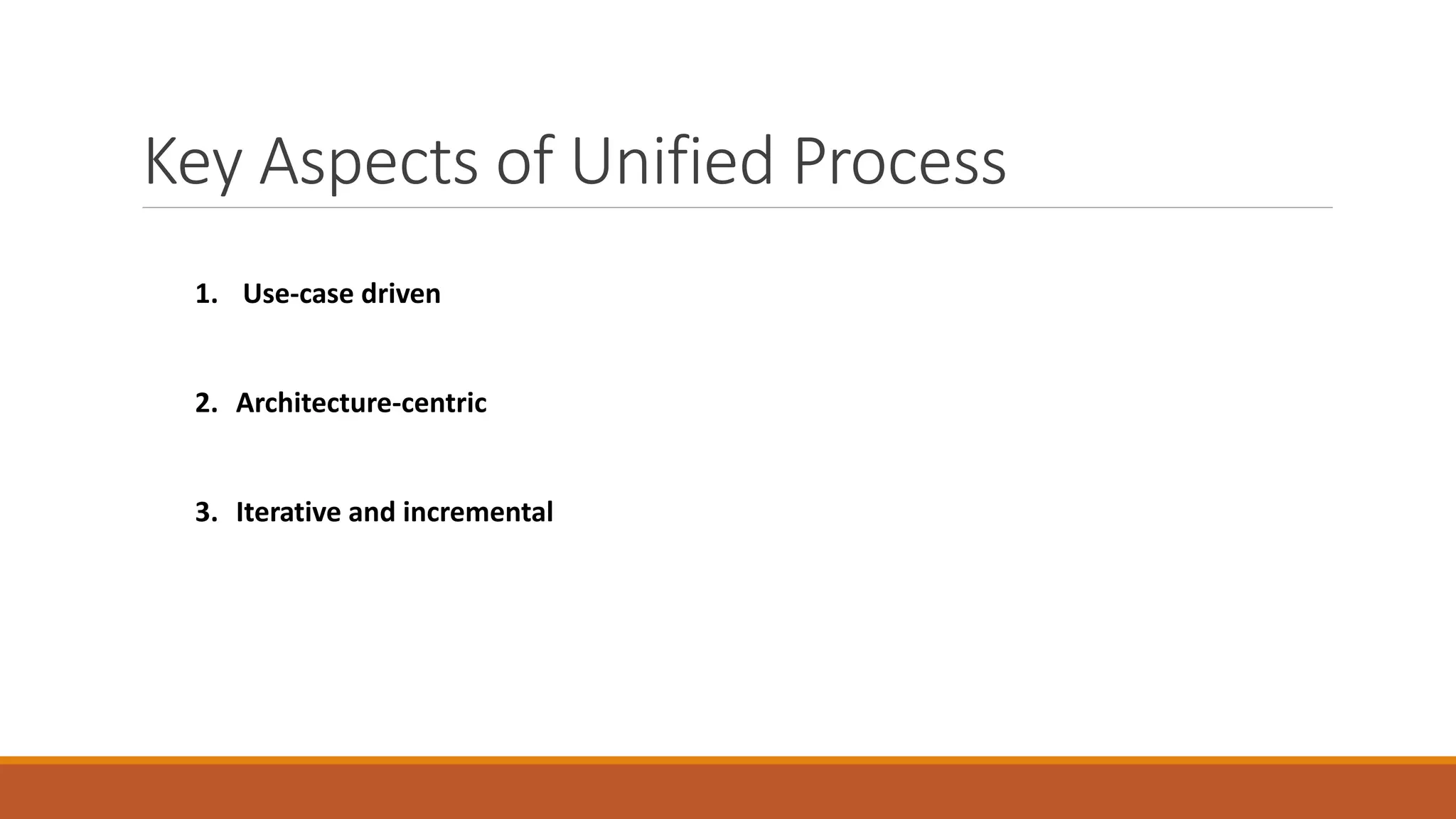

- 7. Key Aspects ofUnified Process 1. Use-case driven 2. Architecture-centric 3. Iterative and incremental

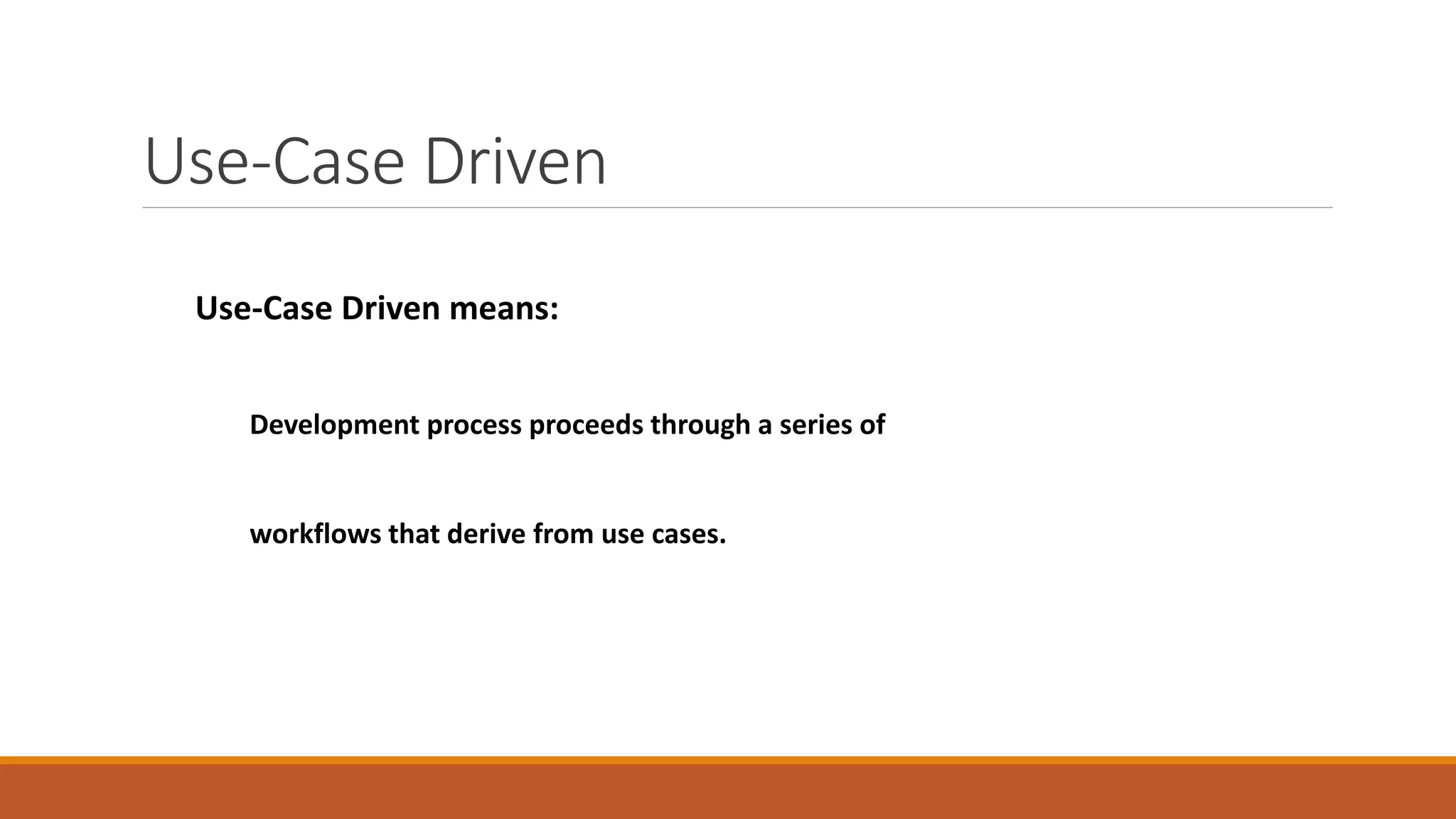

- 8. Use-Case Driven Use-Case Drivenmeans: Development process proceeds through a series of workflows that derive from use cases.

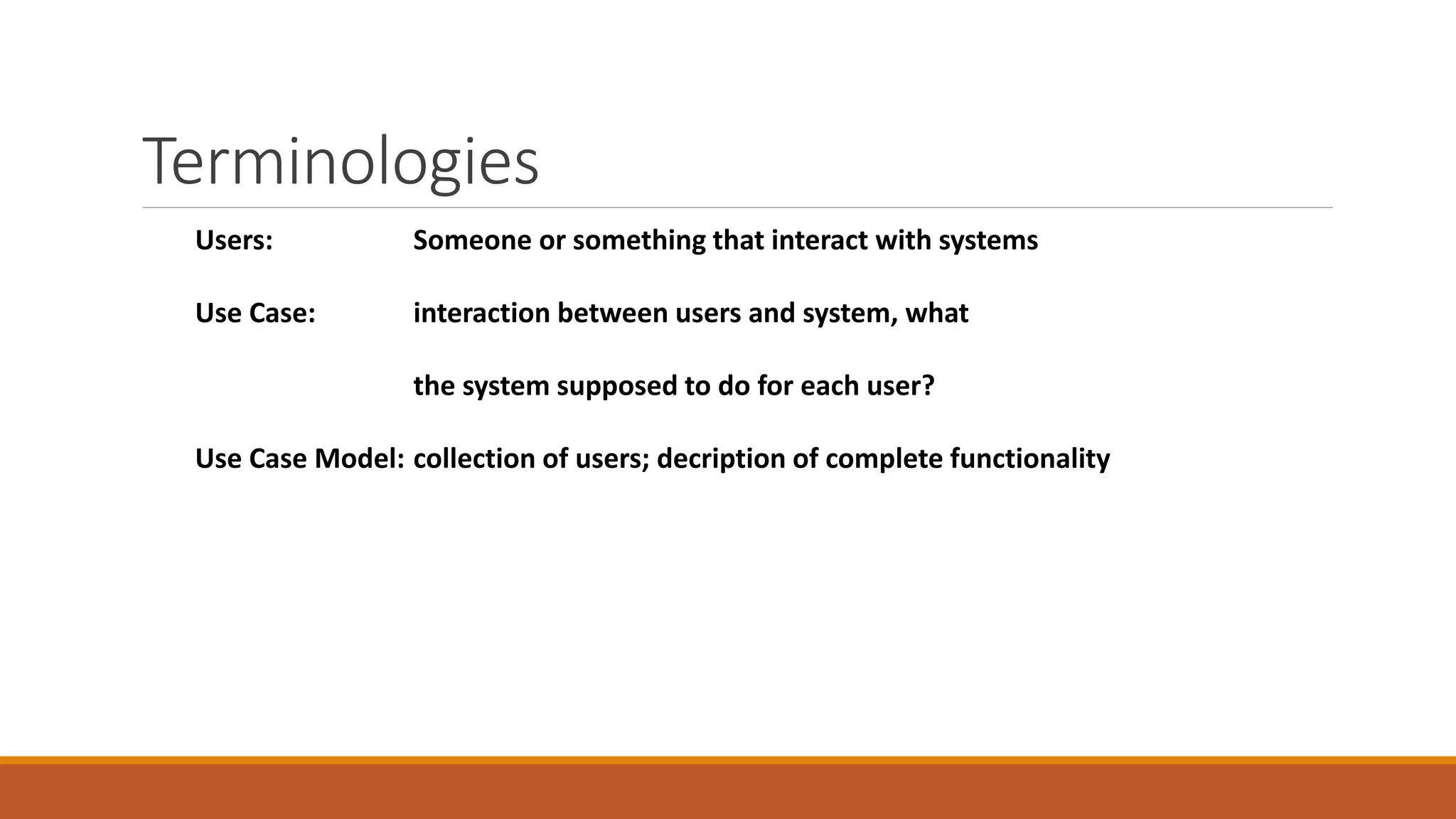

- 9. Terminologies Users: Someone orsomething that interact with systems Use Case: interaction between users and system, what the system supposed to do for each user? Use Case Model: collection of users; decription of complete functionality

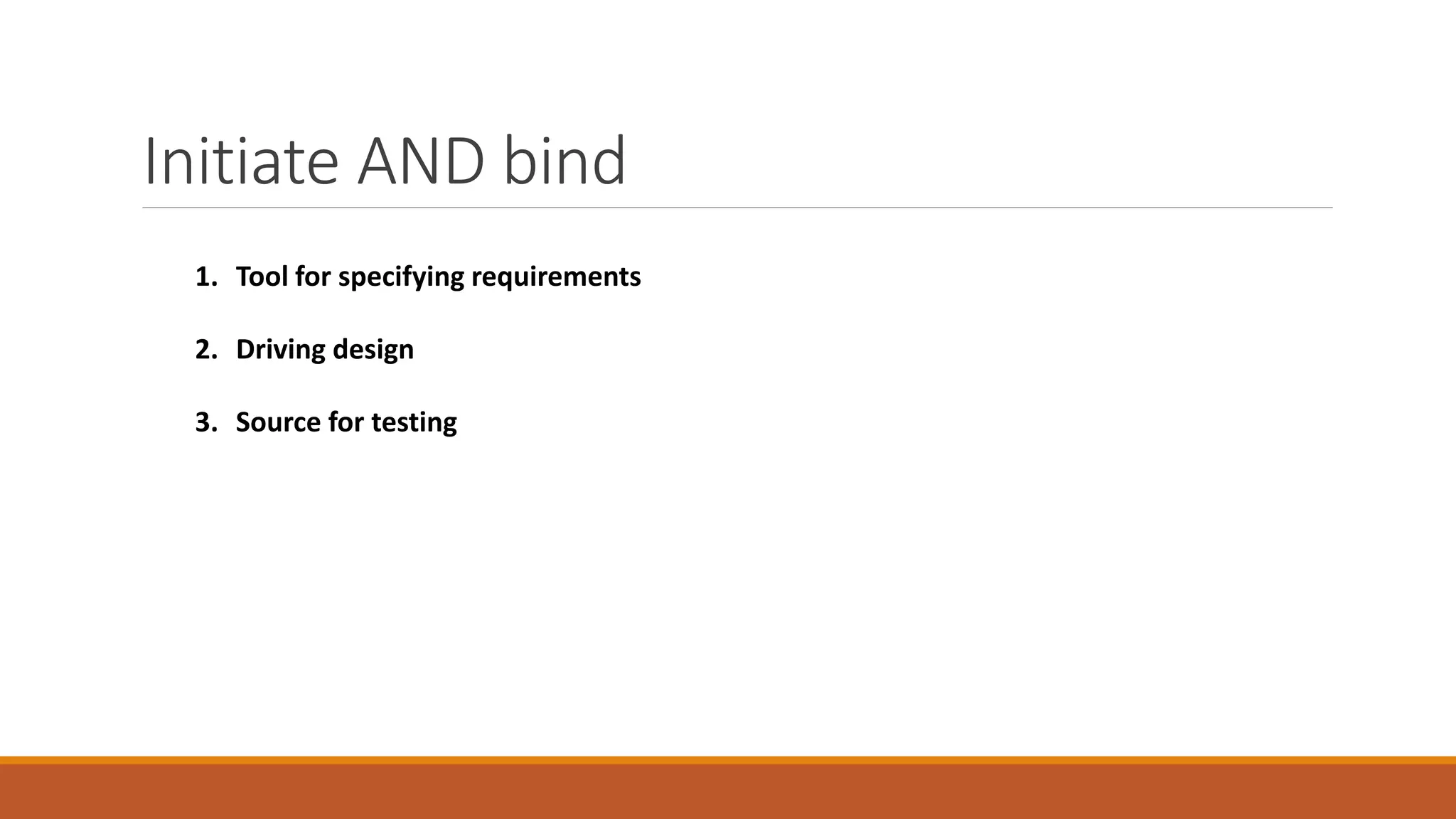

- 10. Initiate AND bind 1.Tool for specifying requirements 2. Driving design 3. Source for testing

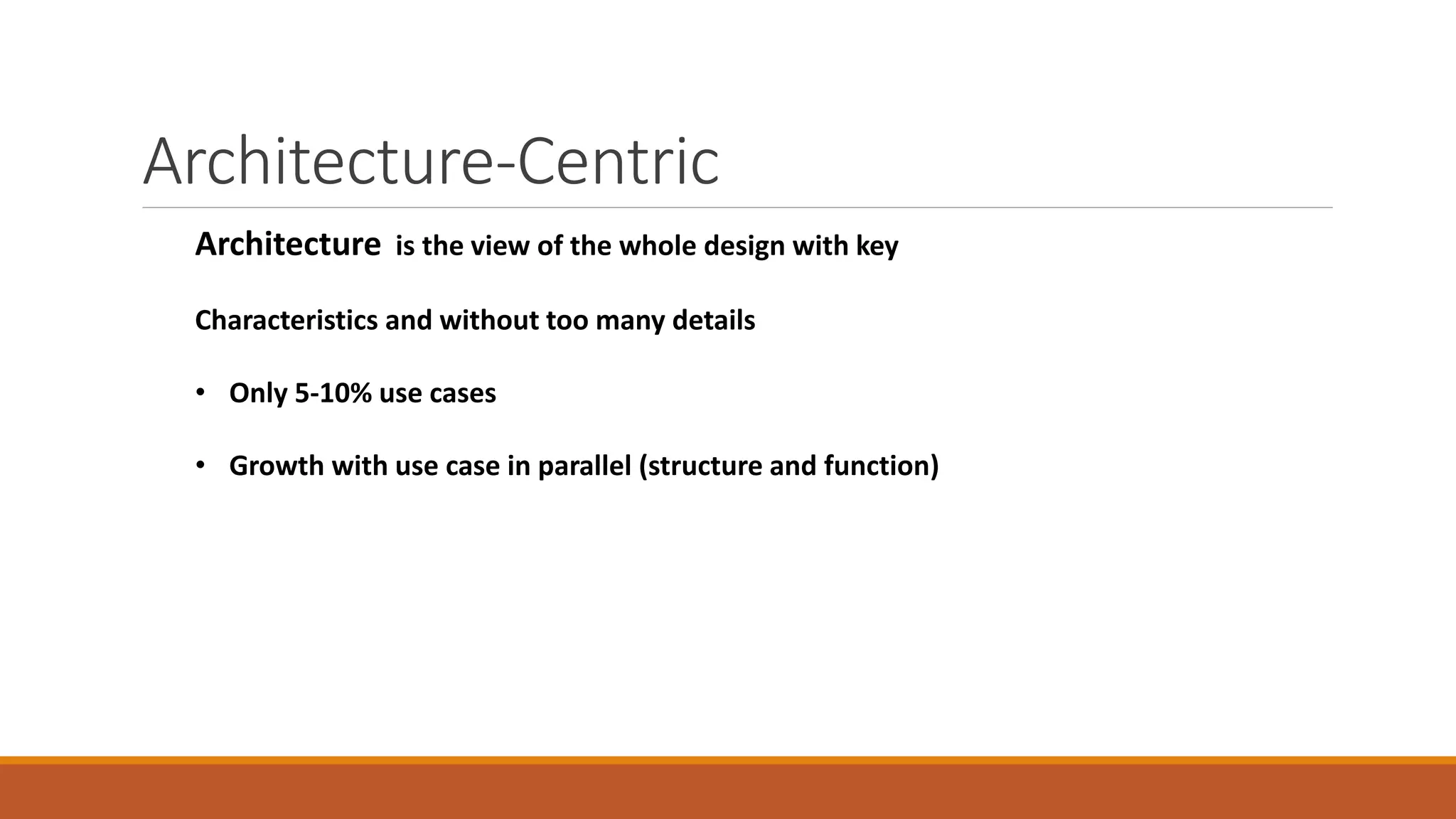

- 11. Architecture-Centric Architecture is theview of the whole design with key Characteristics and without too many details • Only 5-10% use cases • Growth with use case in parallel (structure and function)

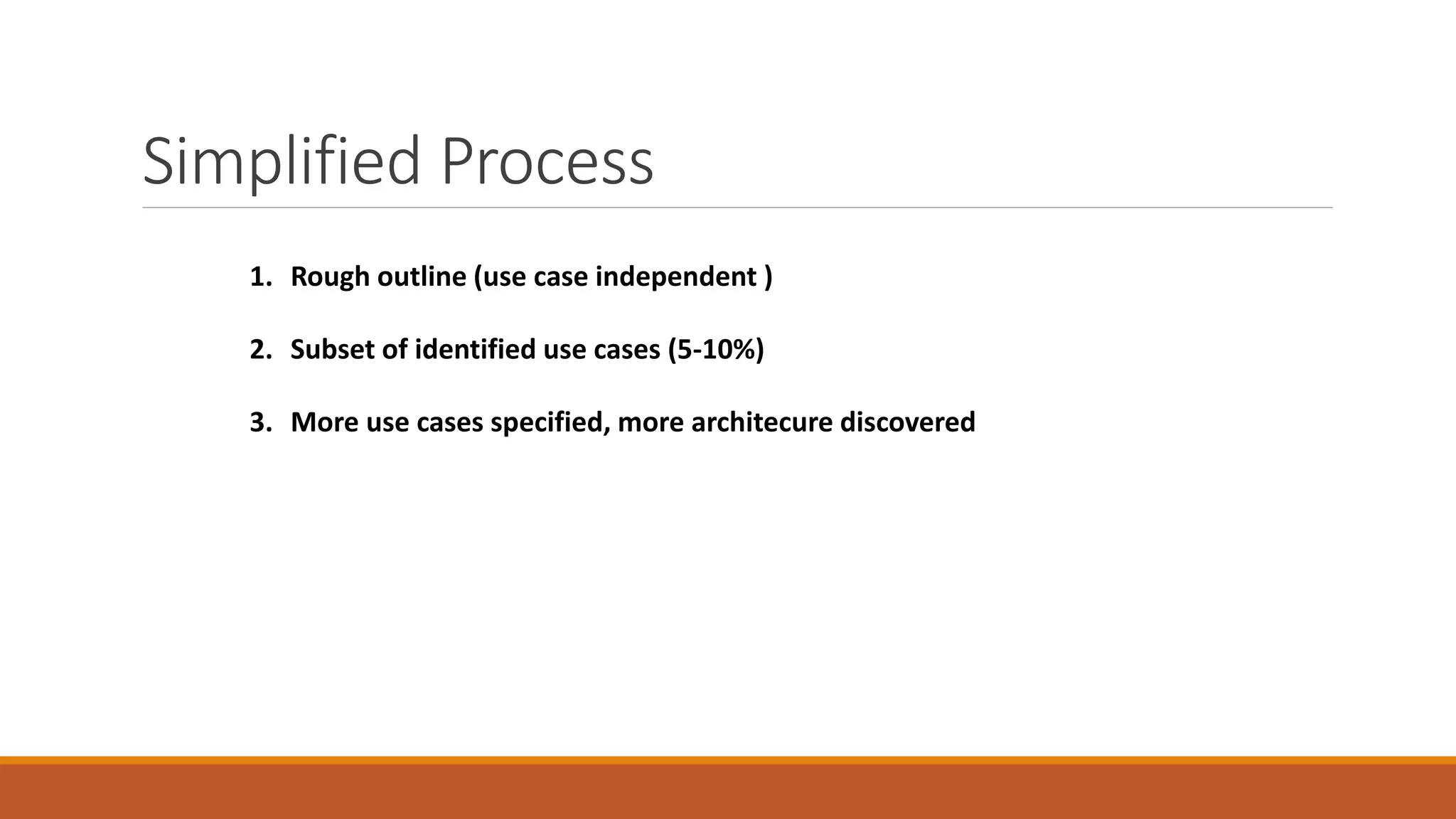

- 12. Simplified Process 1. Roughoutline (use case independent ) 2. Subset of identified use cases (5-10%) 3. More use cases specified, more architecure discovered

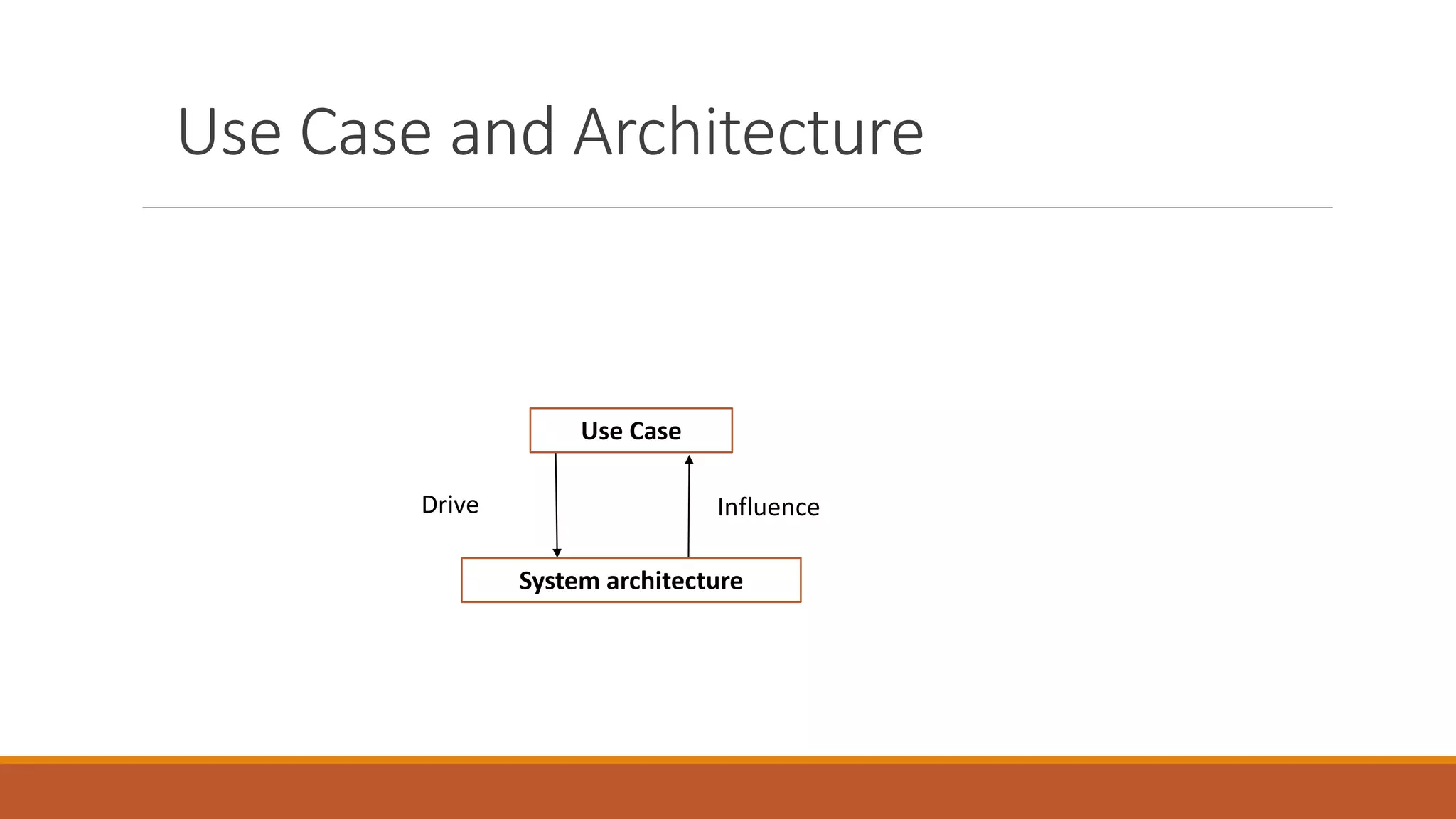

- 13. Use Case andArchitecture System architecture Drive Influence Use Case

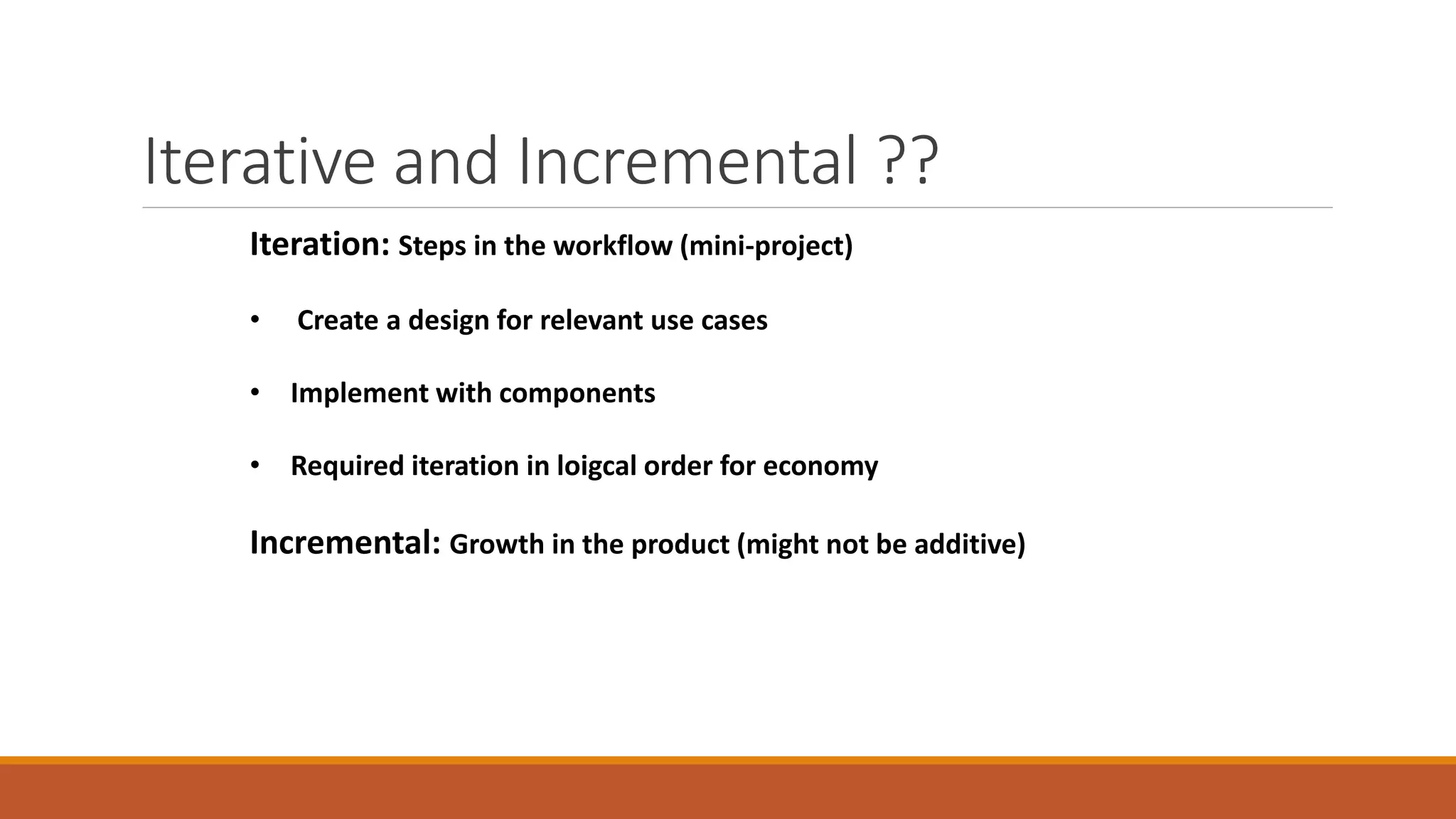

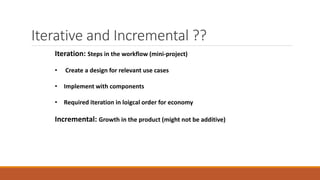

- 14. Iterative and Incremental?? Iteration: Steps in the workflow (mini-project) • Create a design for relevant use cases • Implement with components • Required iteration in loigcal order for economy Incremental: Growth in the product (might not be additive)

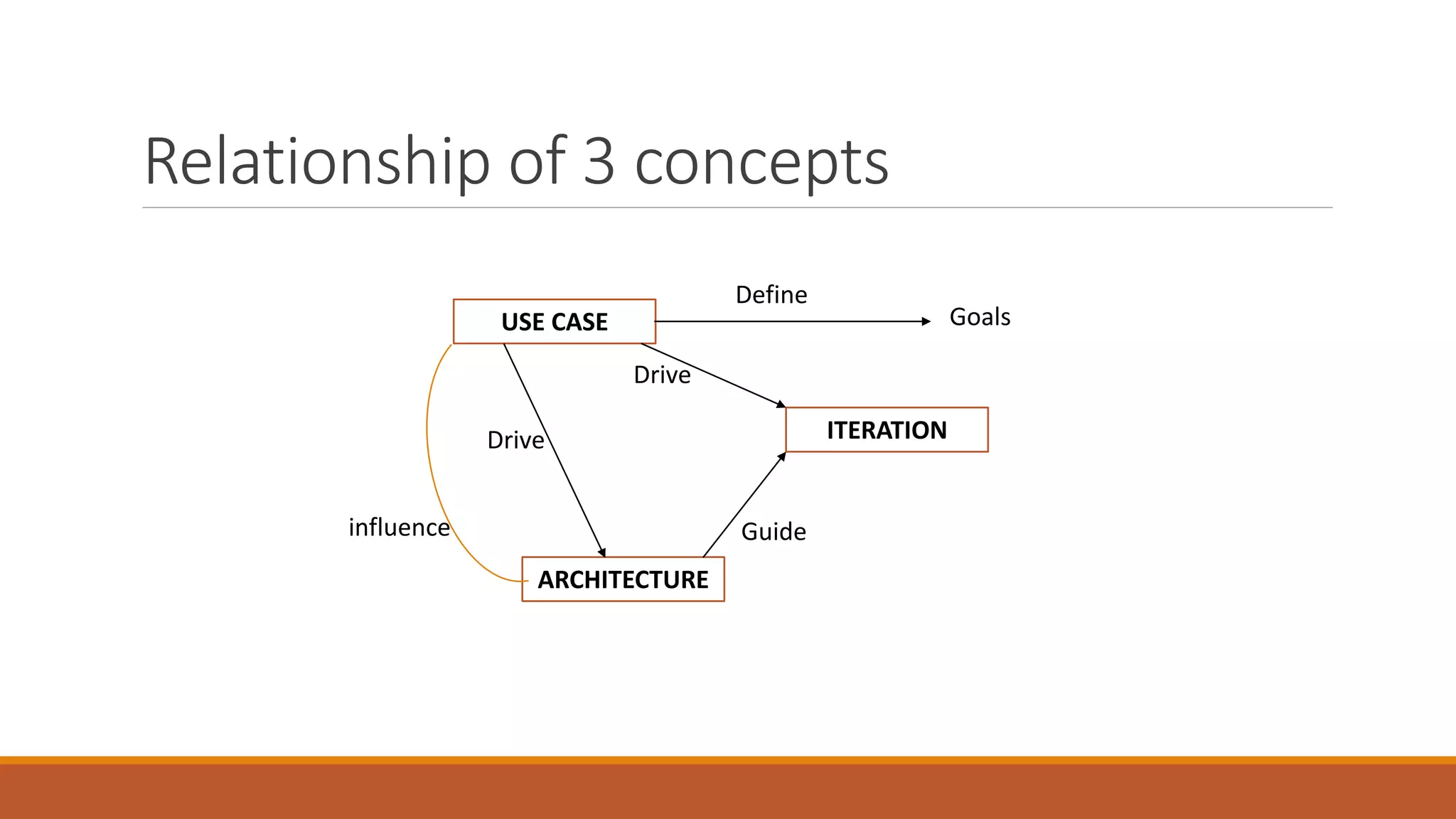

- 15. Relationship of 3concepts USE CASE ARCHITECTURE ITERATION Define Goals Guide Drive Drive influence

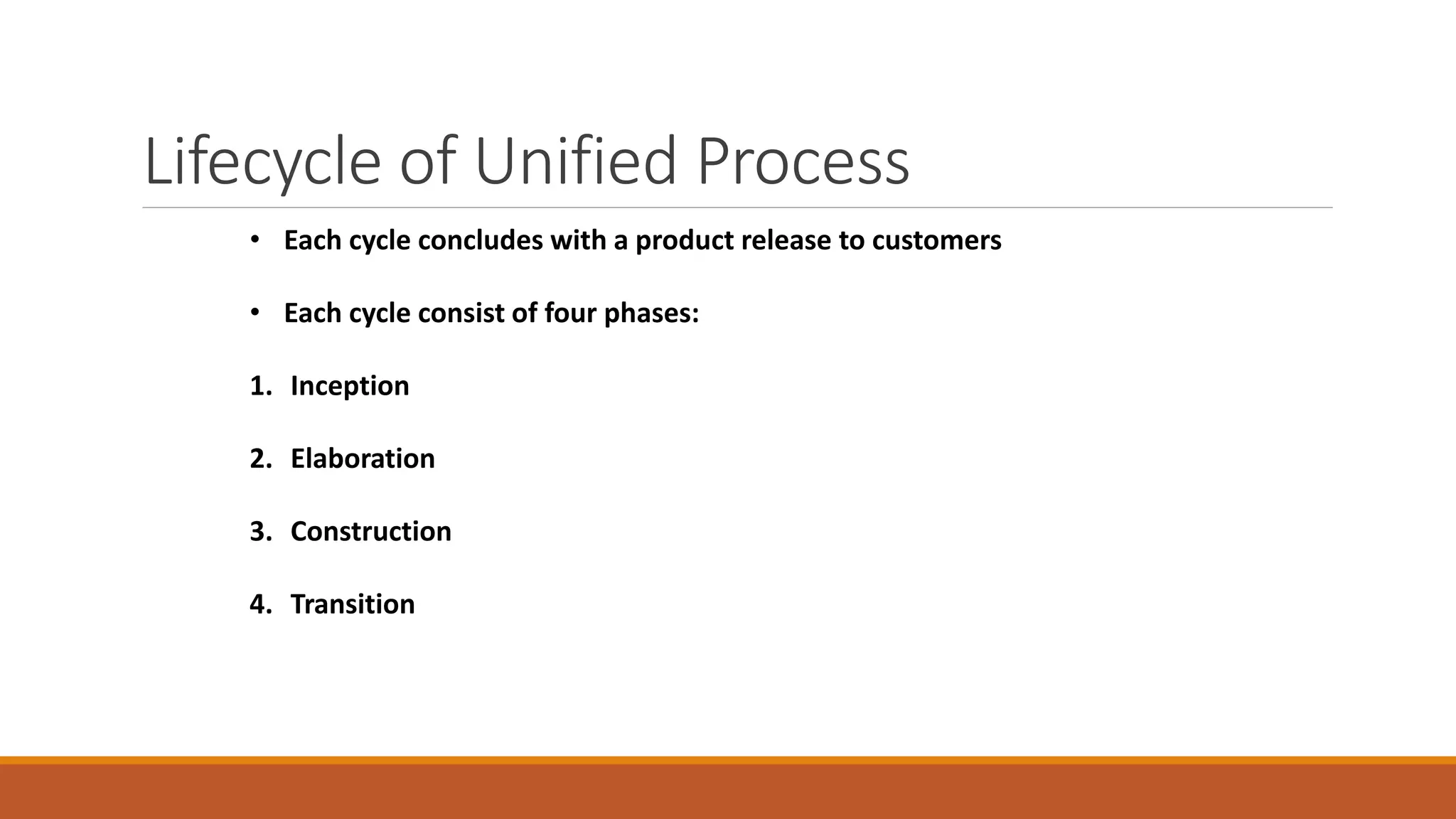

- 16. Lifecycle of UnifiedProcess • Each cycle concludes with a product release to customers • Each cycle consist of four phases: 1. Inception 2. Elaboration 3. Construction 4. Transition

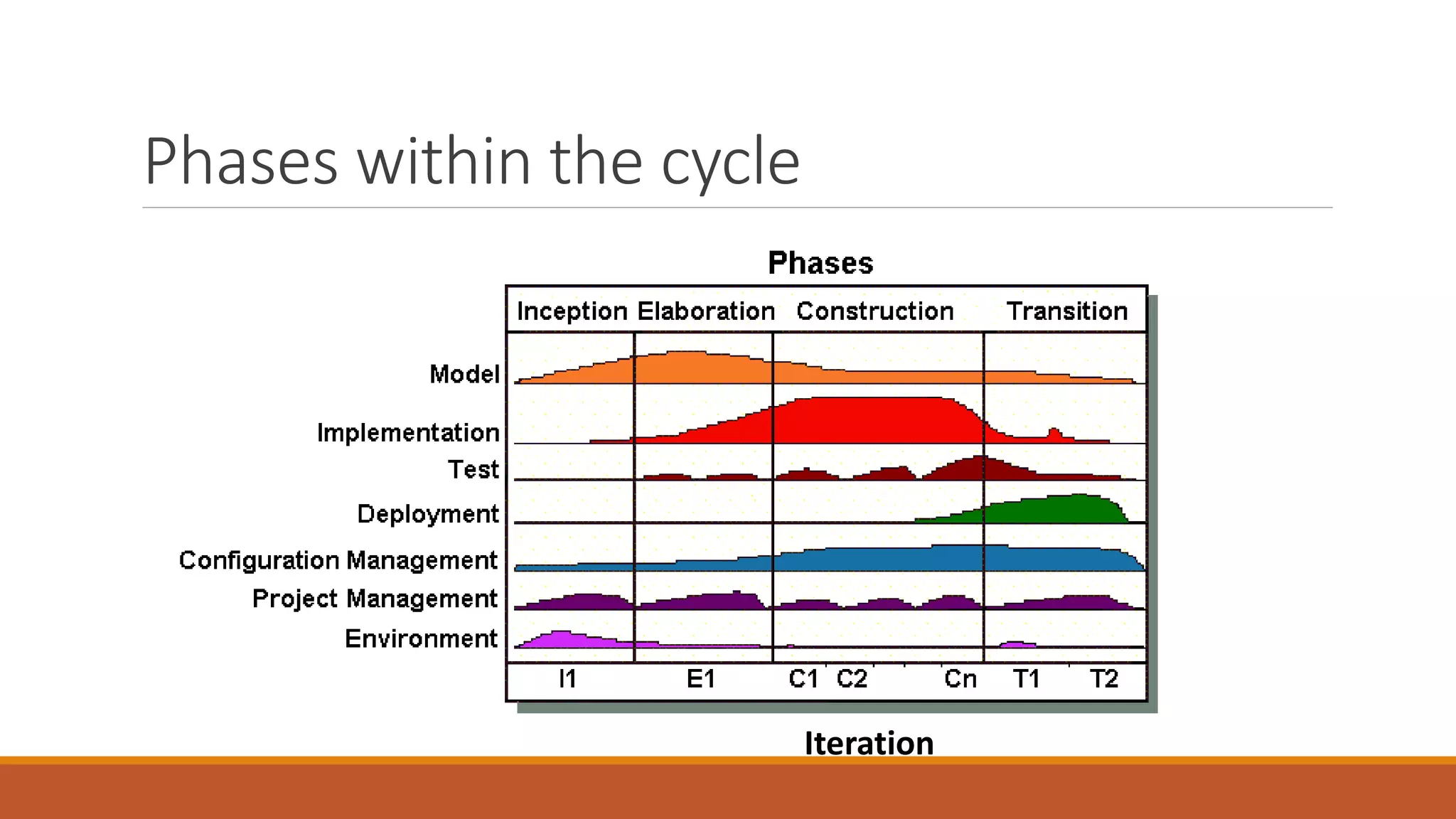

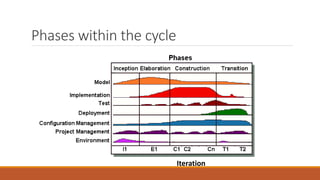

- 17. Phases within thecycle Iteration

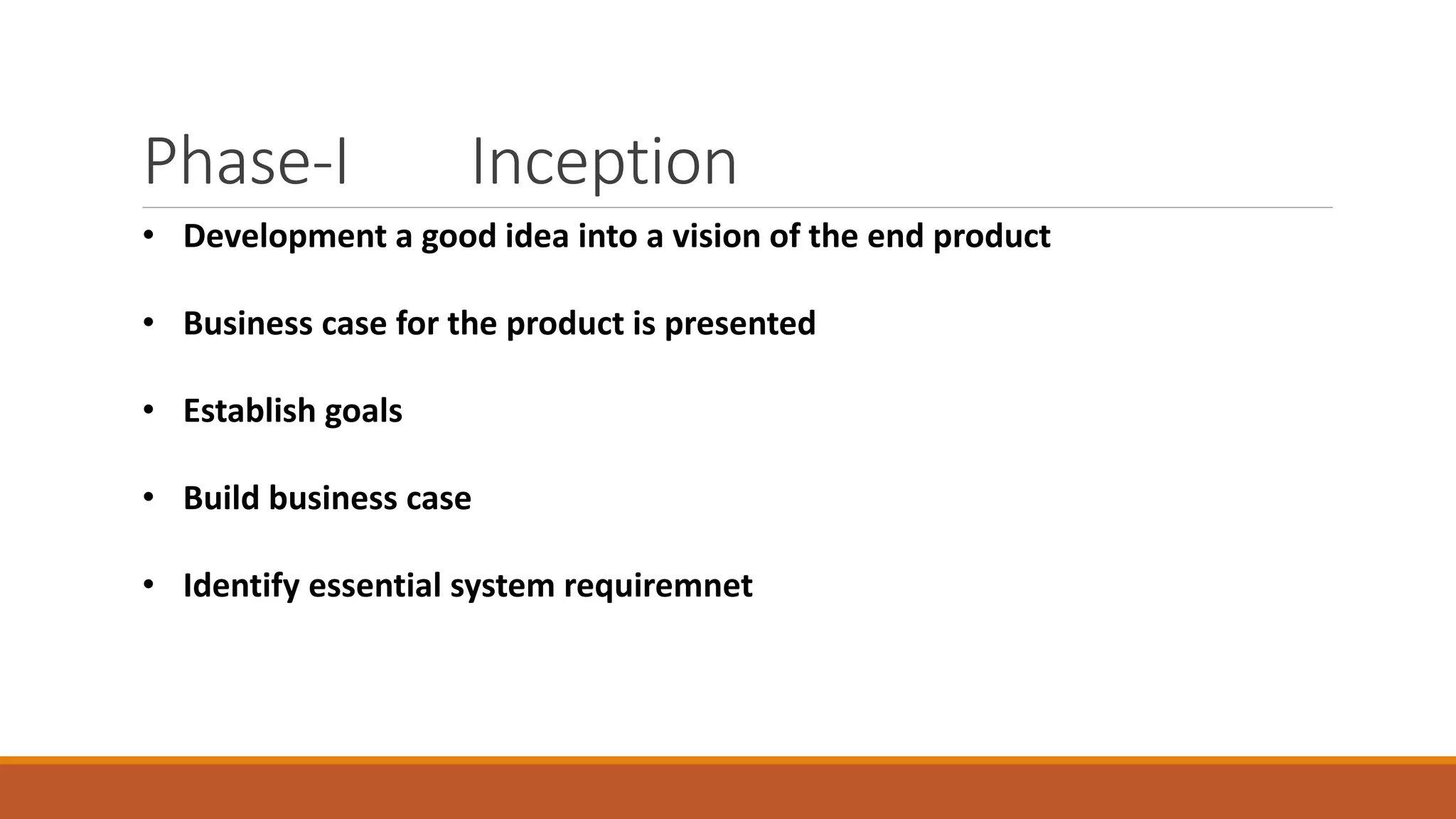

- 18. Phase-I Inception • Developmenta good idea into a vision of the end product • Business case for the product is presented • Establish goals • Build business case • Identify essential system requiremnet

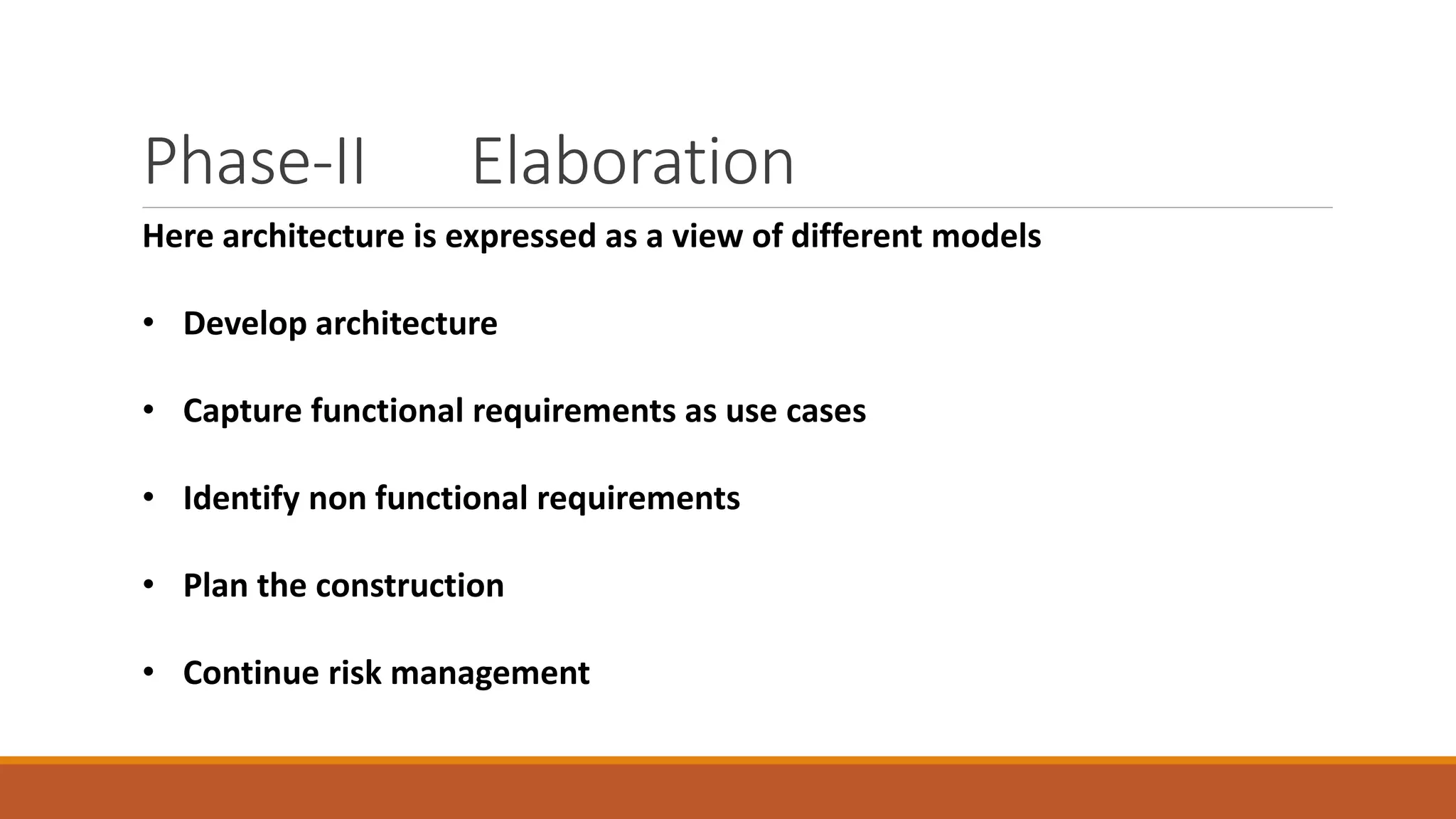

- 19. Phase-II Elaboration Here architectureis expressed as a view of different models • Develop architecture • Capture functional requirements as use cases • Identify non functional requirements • Plan the construction • Continue risk management

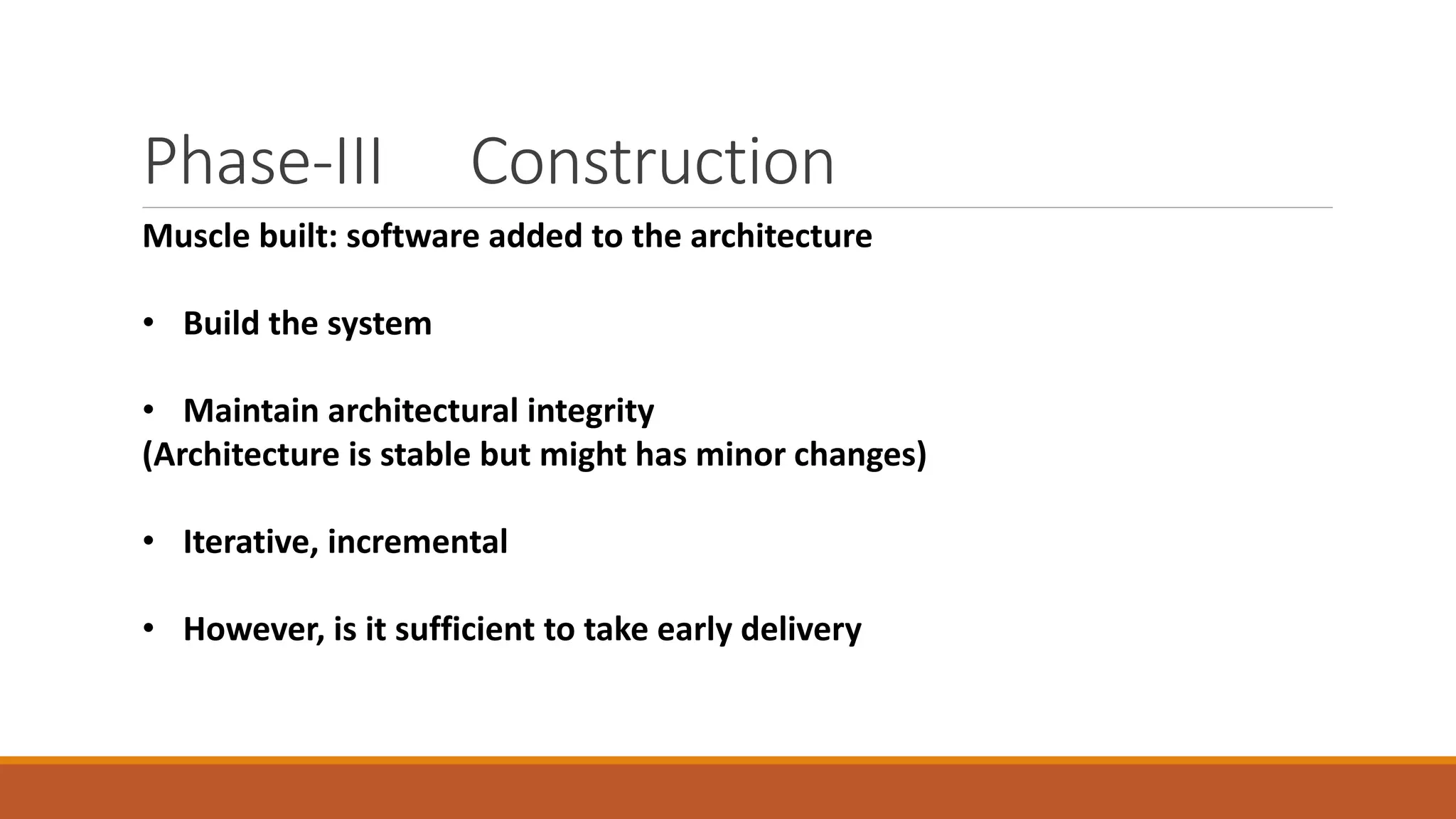

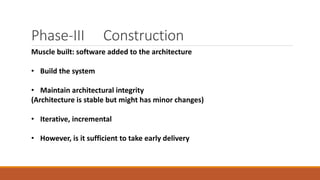

- 20. Phase-III Construction Muscle built:software added to the architecture • Build the system • Maintain architectural integrity (Architecture is stable but might has minor changes) • Iterative, incremental • However, is it sufficient to take early delivery

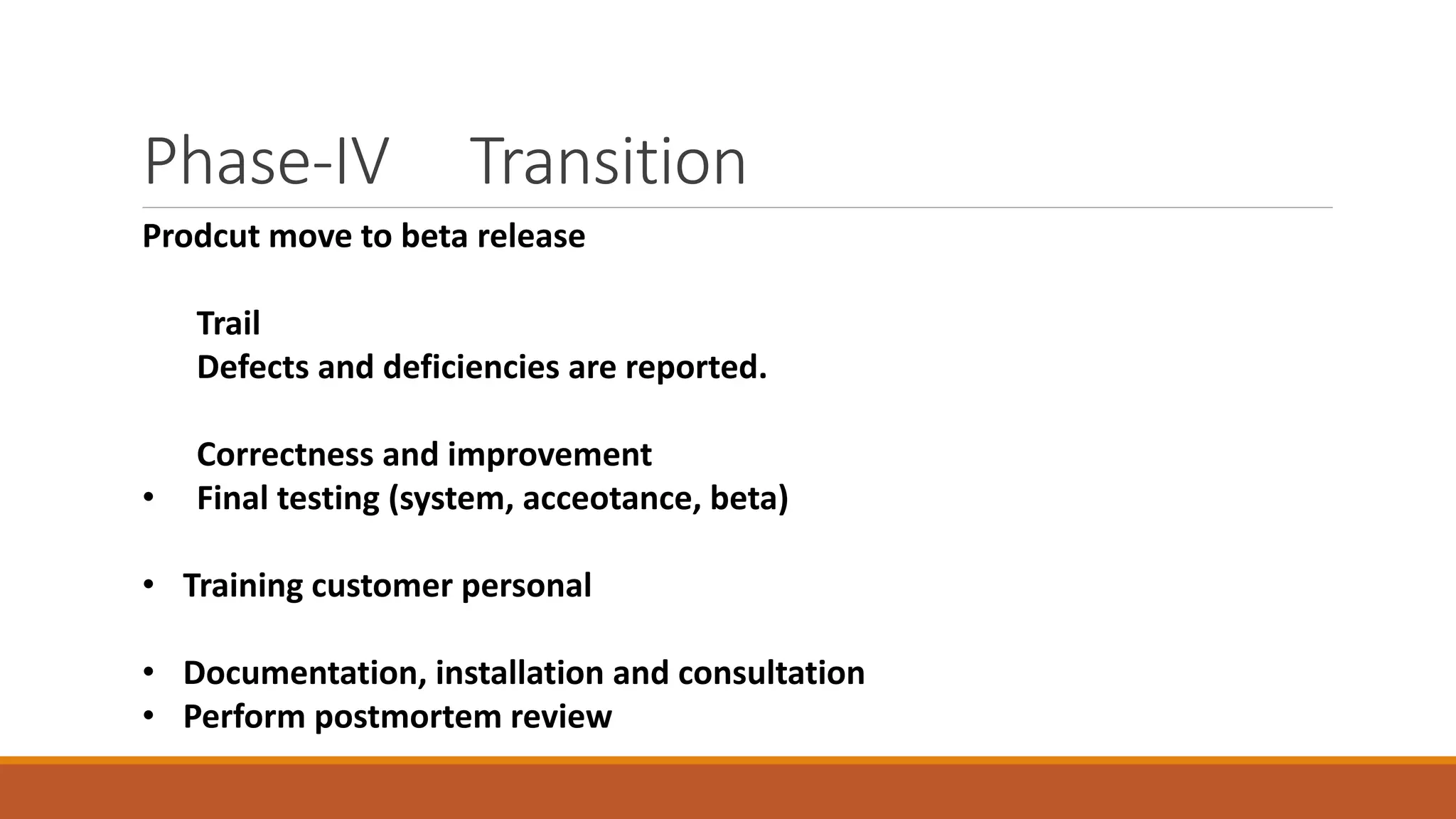

- 21. Phase-IV Transition Prodcut moveto beta release Trail Defects and deficiencies are reported. Correctness and improvement • Final testing (system, acceotance, beta) • Training customer personal • Documentation, installation and consultation • Perform postmortem review

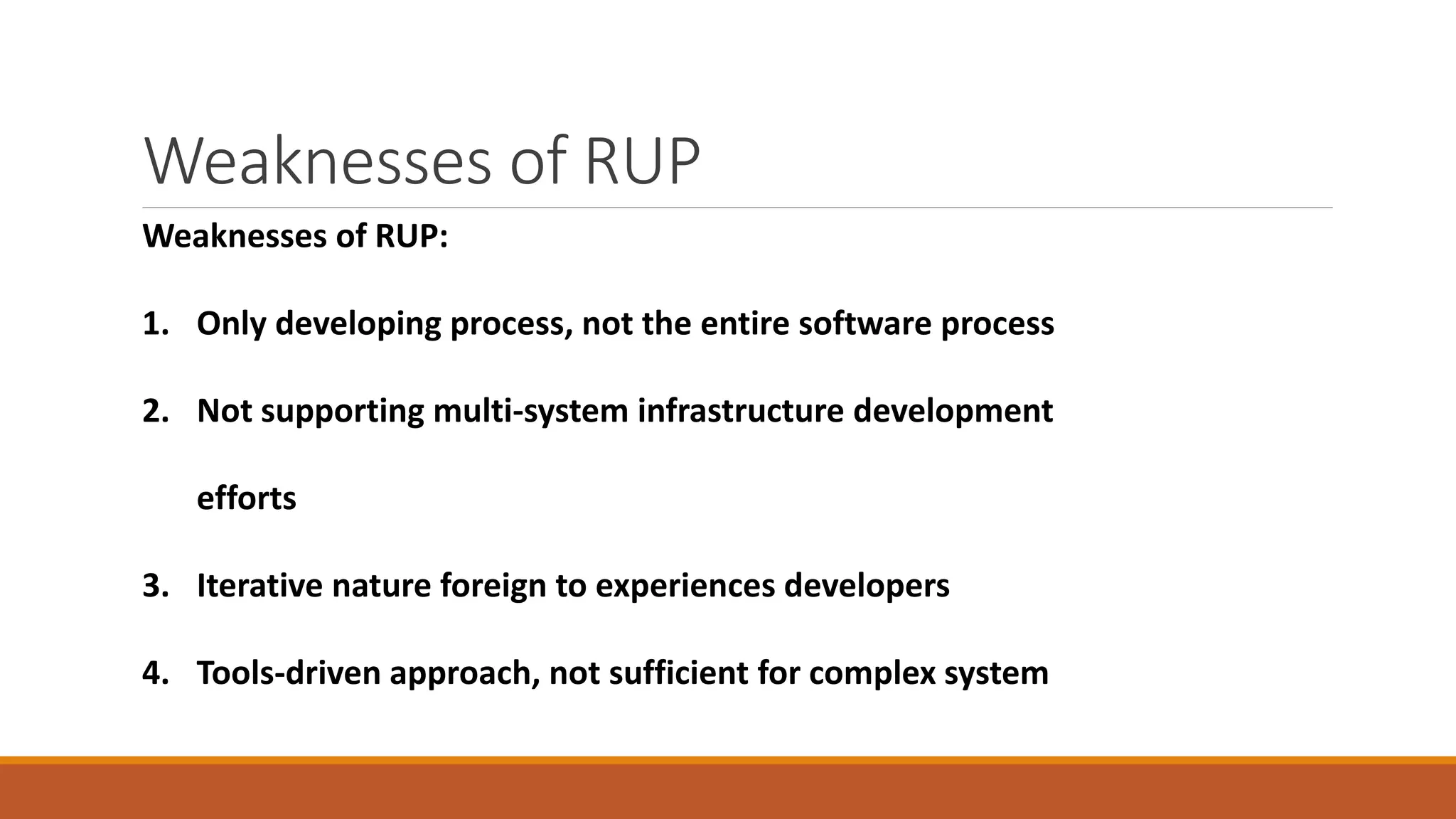

- 22. Weaknesses of RUP Weaknessesof RUP: 1. Only developing process, not the entire software process 2. Not supporting multi-system infrastructure development efforts 3. Iterative nature foreign to experiences developers 4. Tools-driven approach, not sufficient for complex system

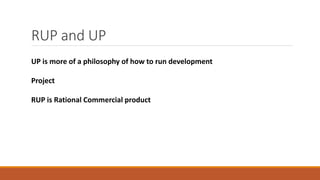

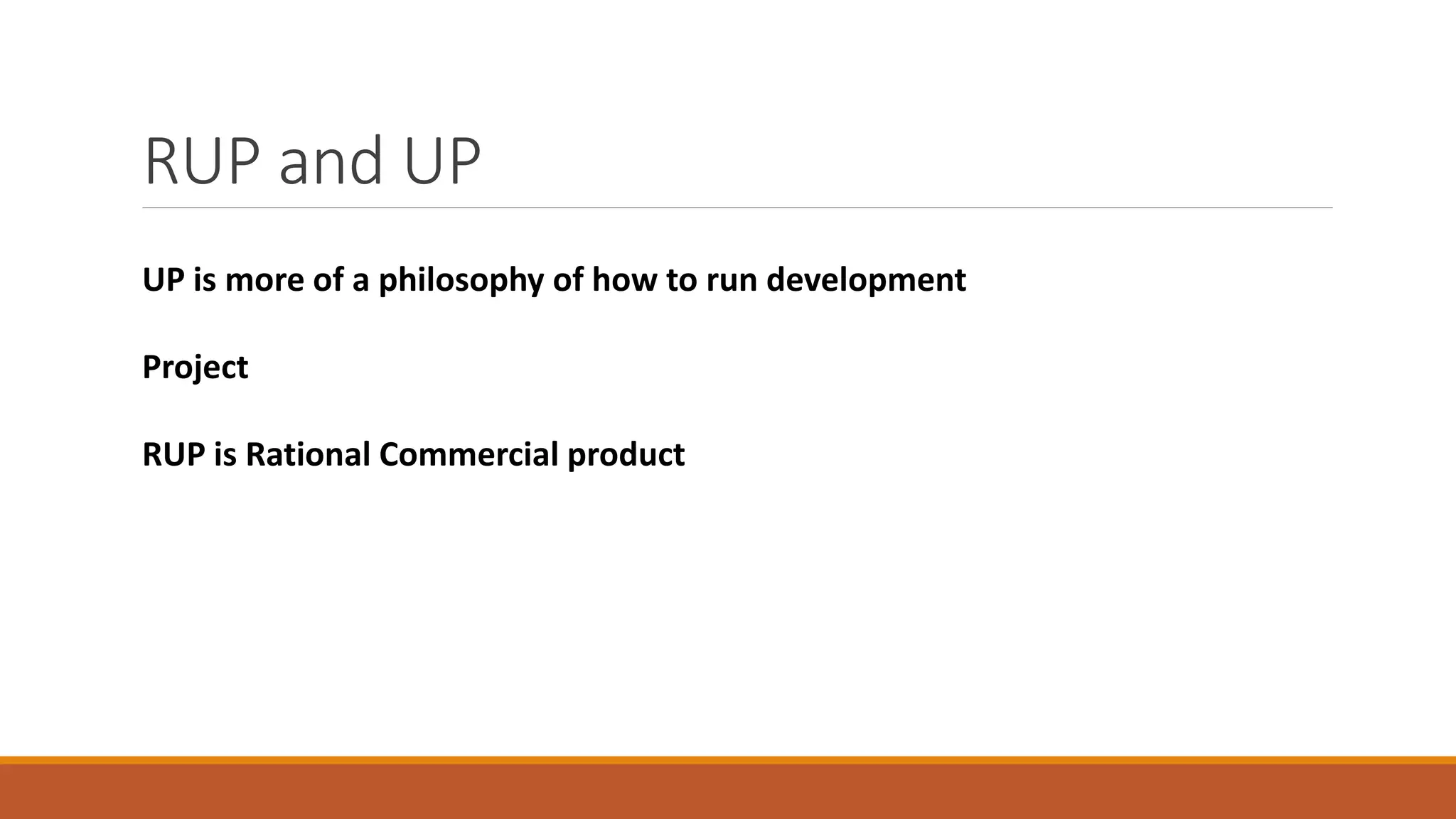

- 23. RUP and UP UPis more of a philosophy of how to run development Project RUP is Rational Commercial product

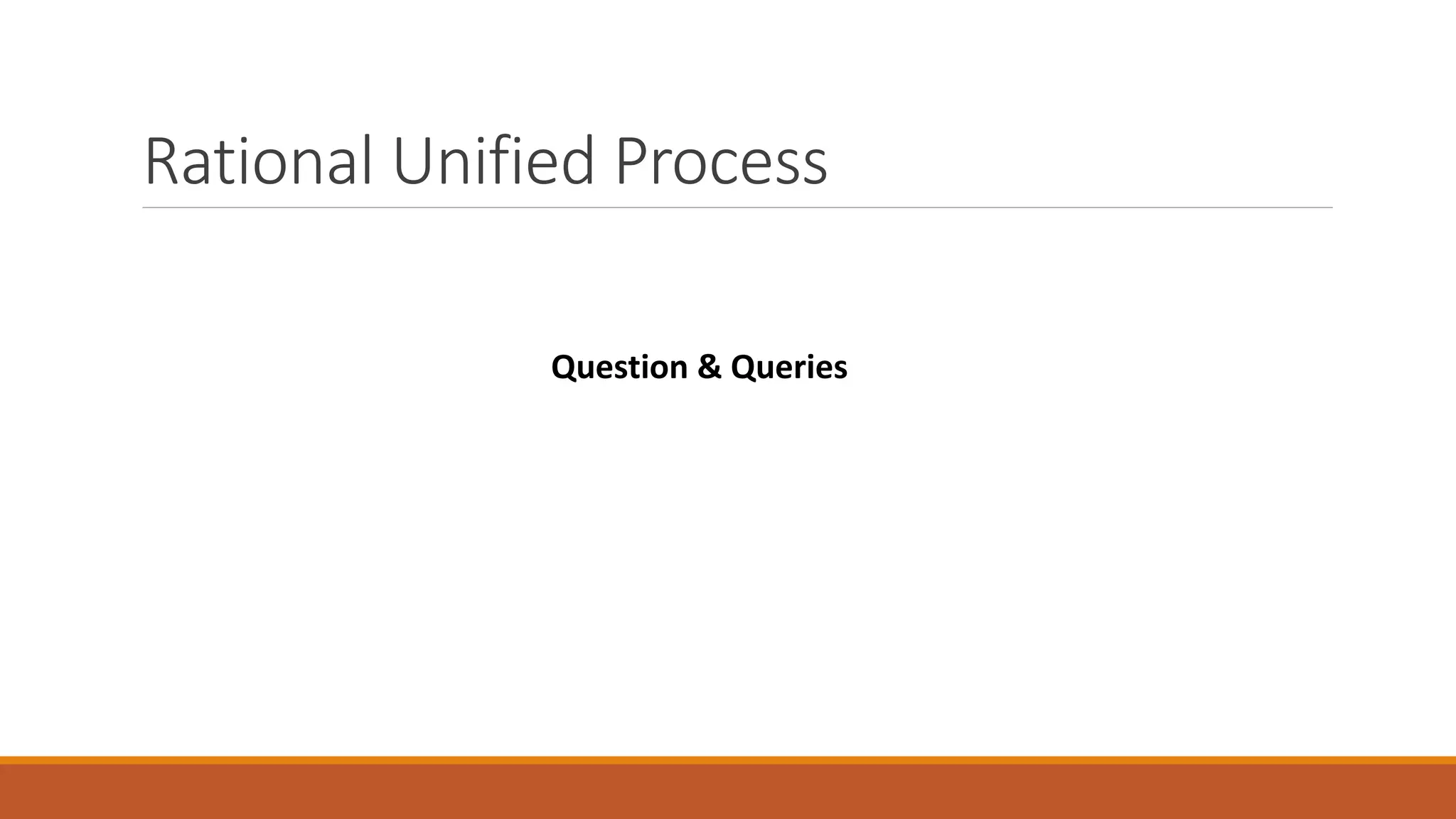

- 24. Rational Unified Process Question& Queries
