Automate Application Container
Delivery with CI/CD and DevOps

How do you to build and Deploy
your App Containers?

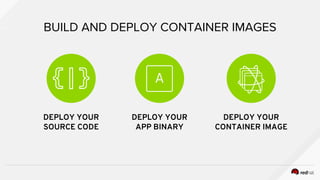

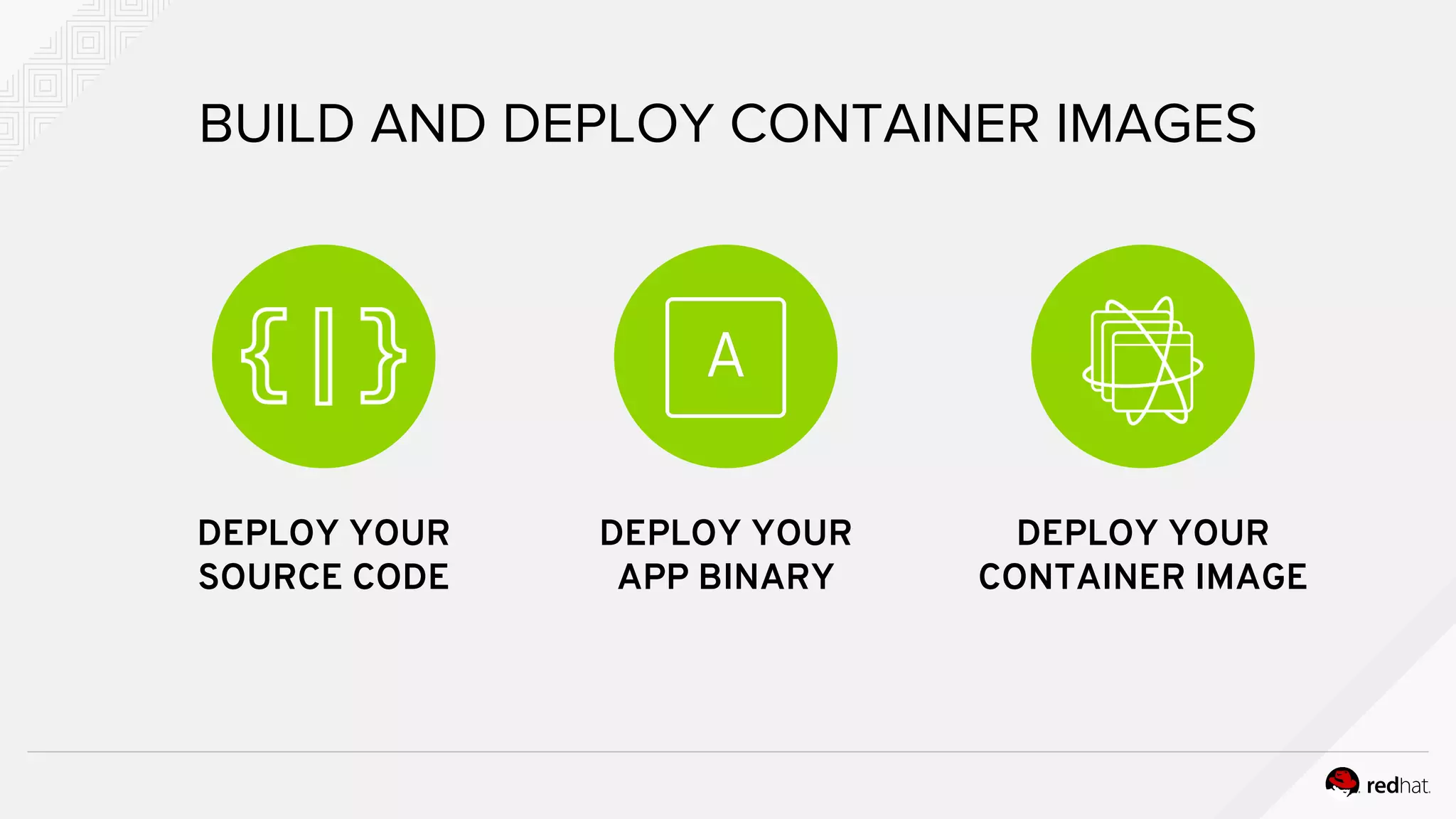

BUILD AND DEPLOY CONTAINER IMAGES

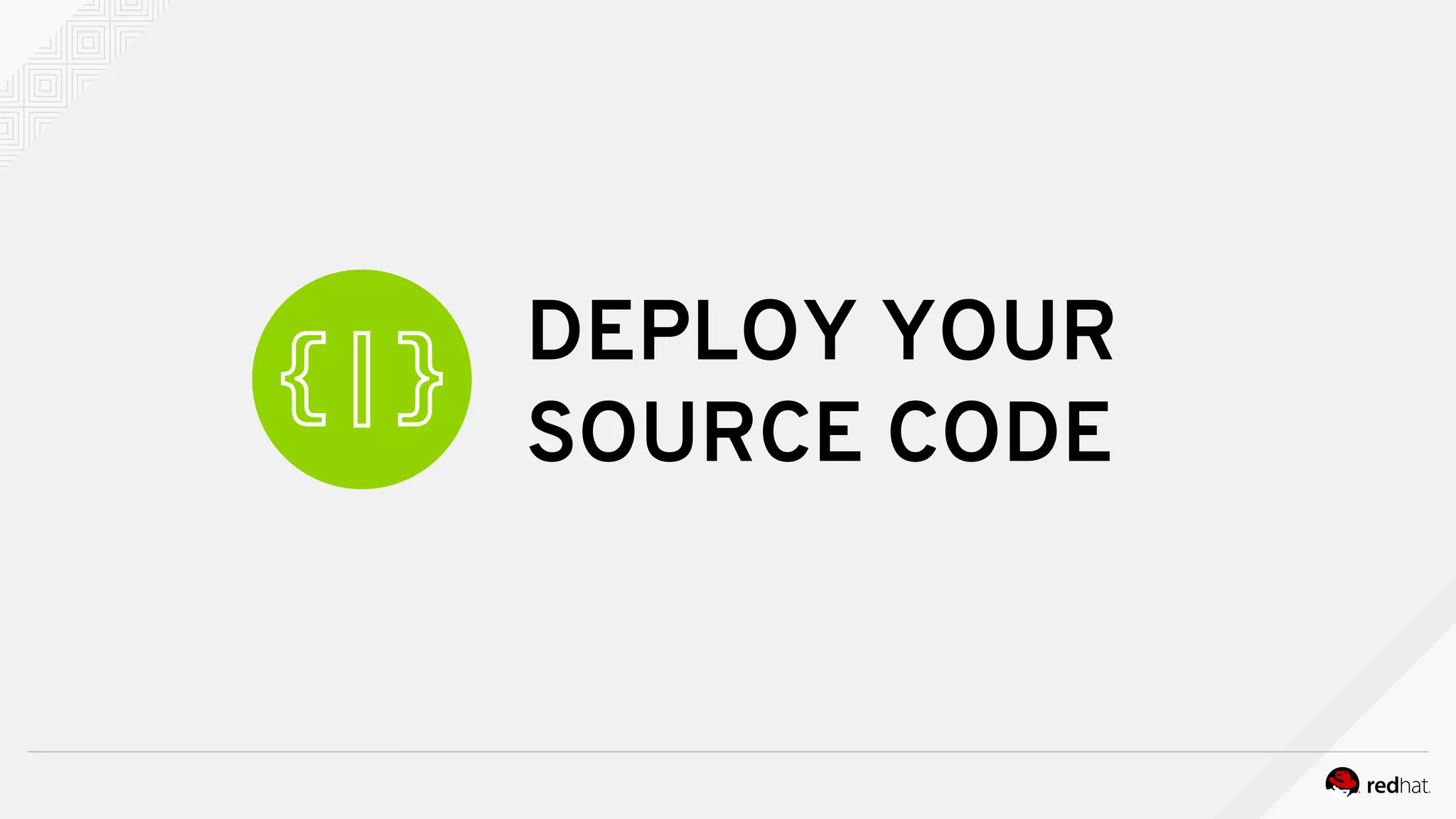

DEPLOY YOUR
SOURCE CODE
DEPLOY YOUR
APP BINARY
DEPLOY YOUR
CONTAINER IMAGE

Developers write code using
existing development tools
such as Maven, NPM, Bower,
PIP, Dockerfile and Git and
then access the OpenShift
Web, CLI or IDE to create an
app from the code

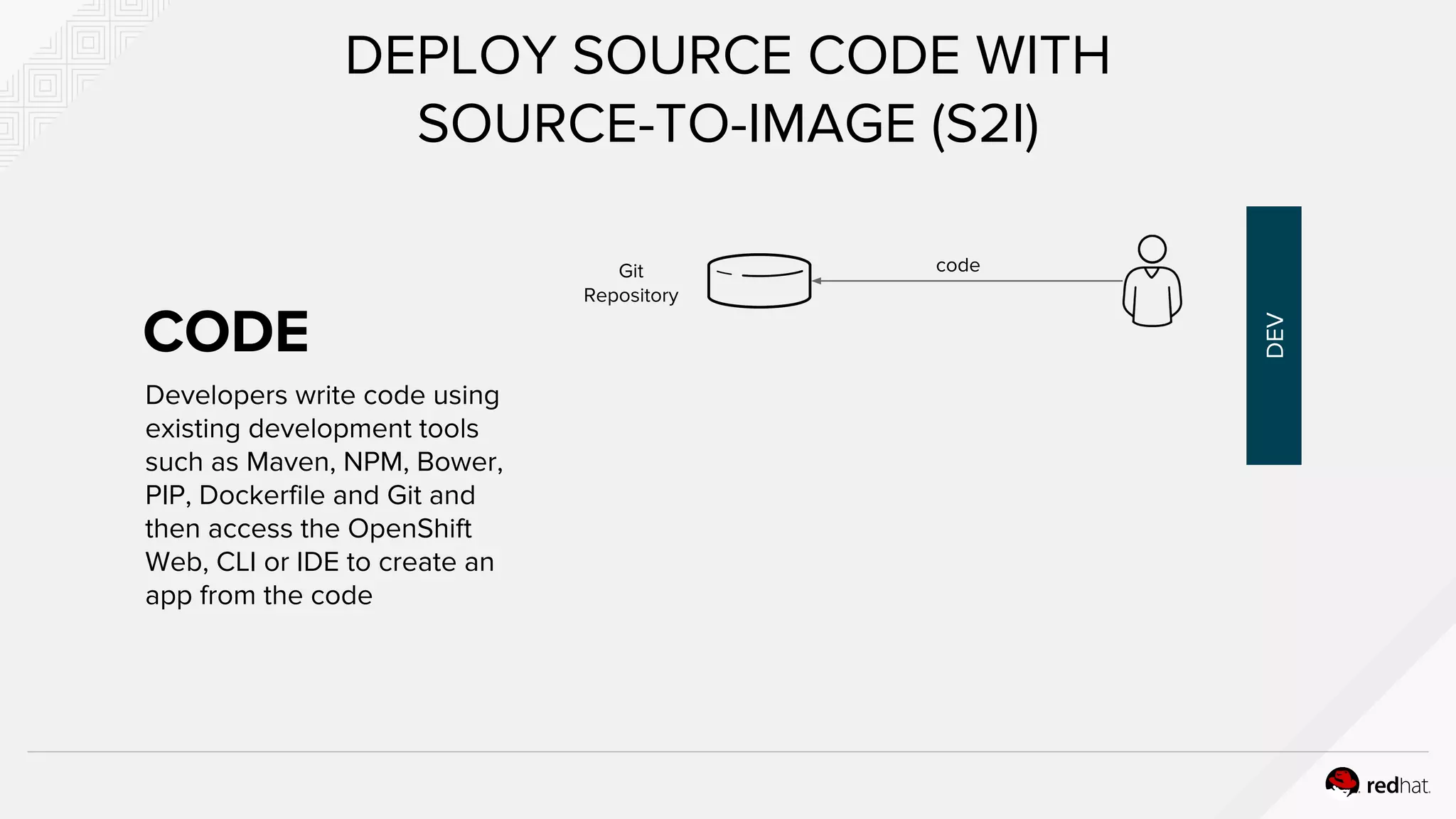

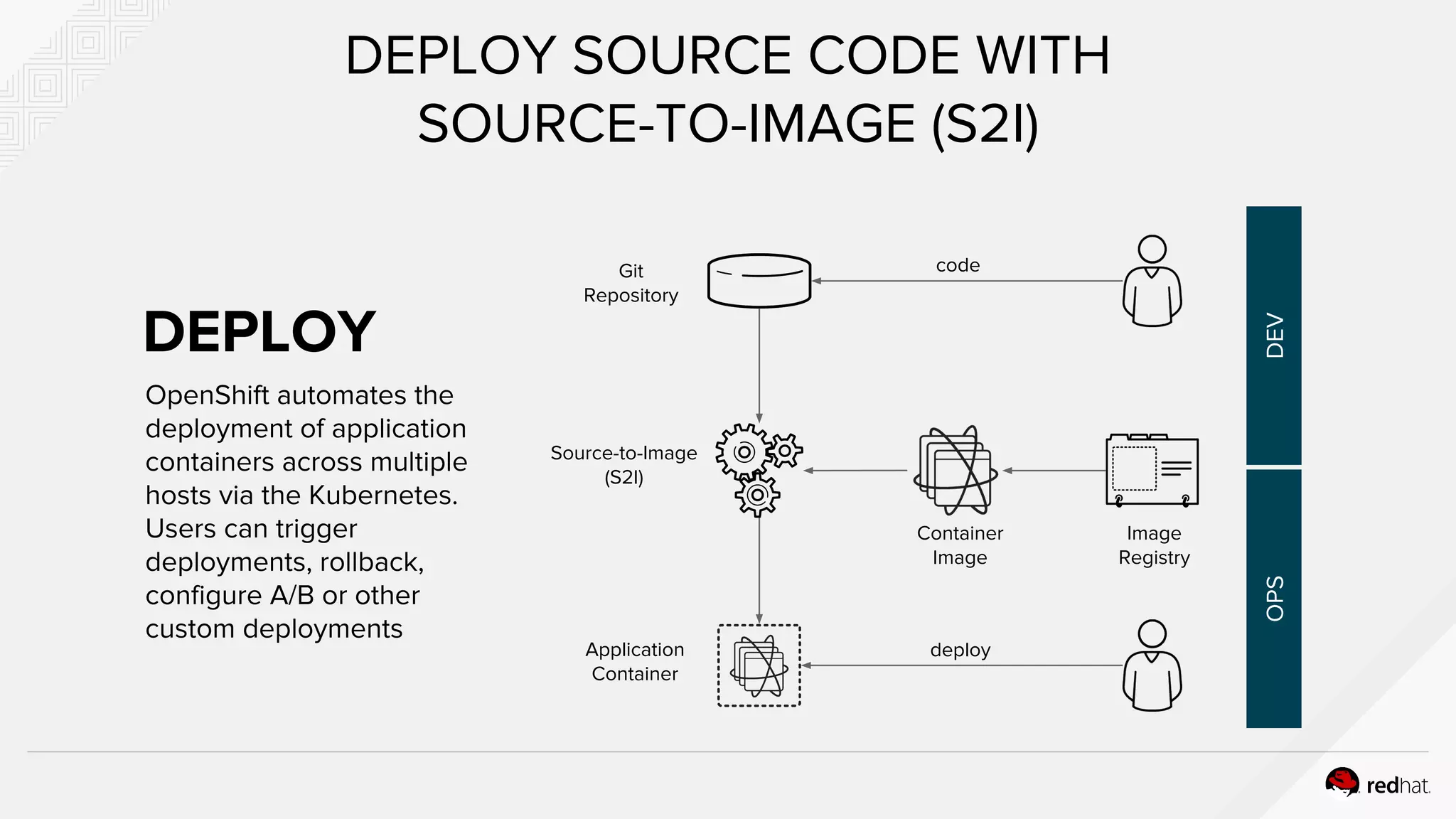

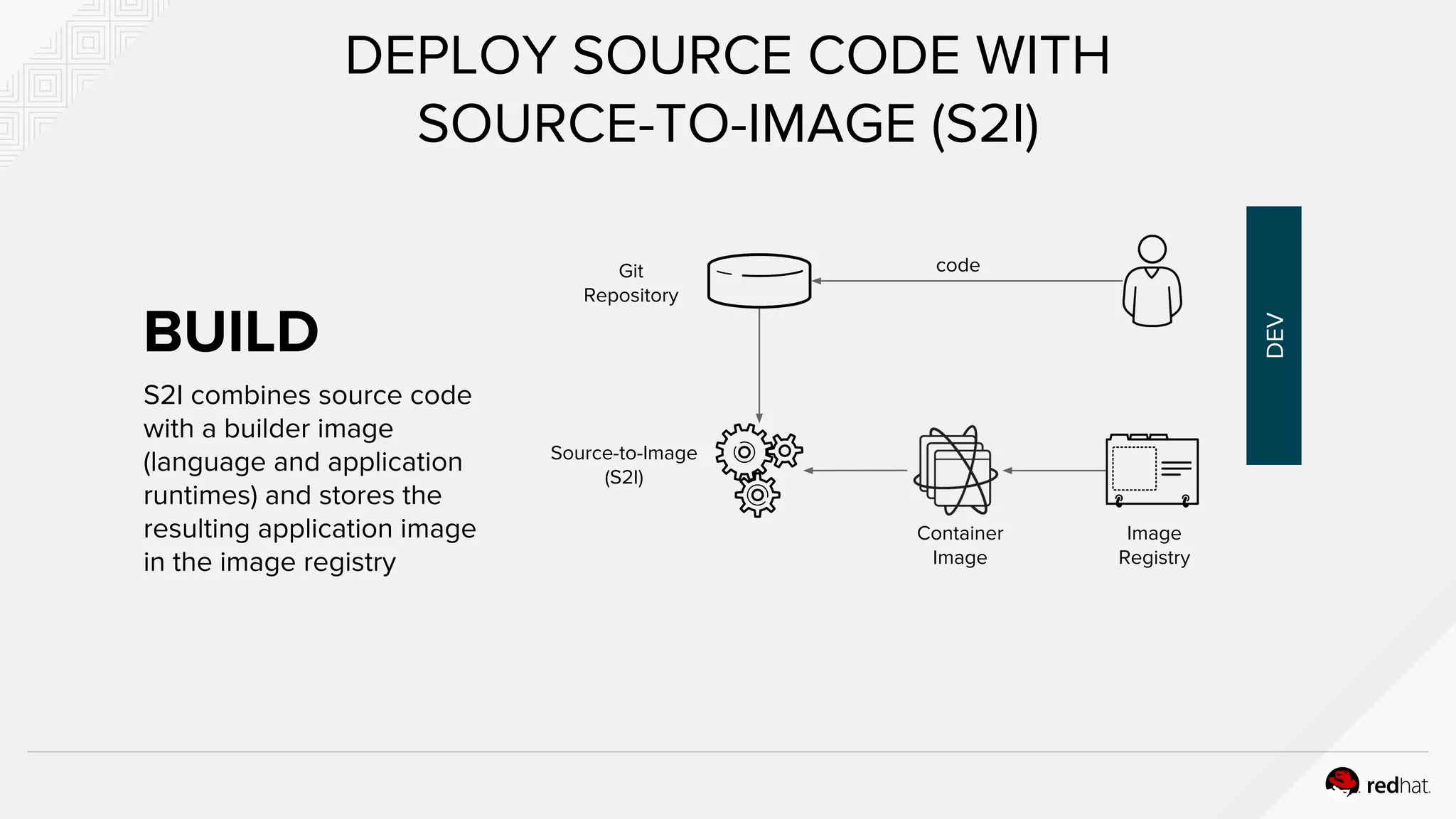

DEPLOY SOURCE CODE WITH
SOURCE-TO-IMAGE (S2I)
codeGit
Repository
CODE
DEV

S2I combines source code
with a builder image
(language and application
runtimes) and stores the
resulting application image
in the image registry
codeGit
Repository
Source-to-Image
(S2I)
Container
Registry
BUILD
DEV

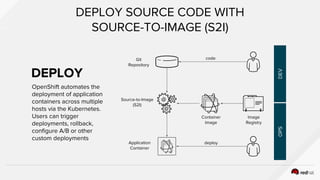

OpenShift automates the
deployment of application
containers across multiple
hosts via the Kubernetes.
Users can trigger
deployments, rollback,
configure A/B or other
custom deployments
codeGit
Repository
Source-to-Image
(S2I)
deploy
Container
Registry
OPSDEV
DEPLOY
Application
Container

Developers use the existing
build process and tools (e.g.
Maven, Gradle, Jenkins, Nexus)
to build the app binaries (e.g.
JAR, WAR, EAR) and use
OpenShift CLI to create an app
from the app binaries

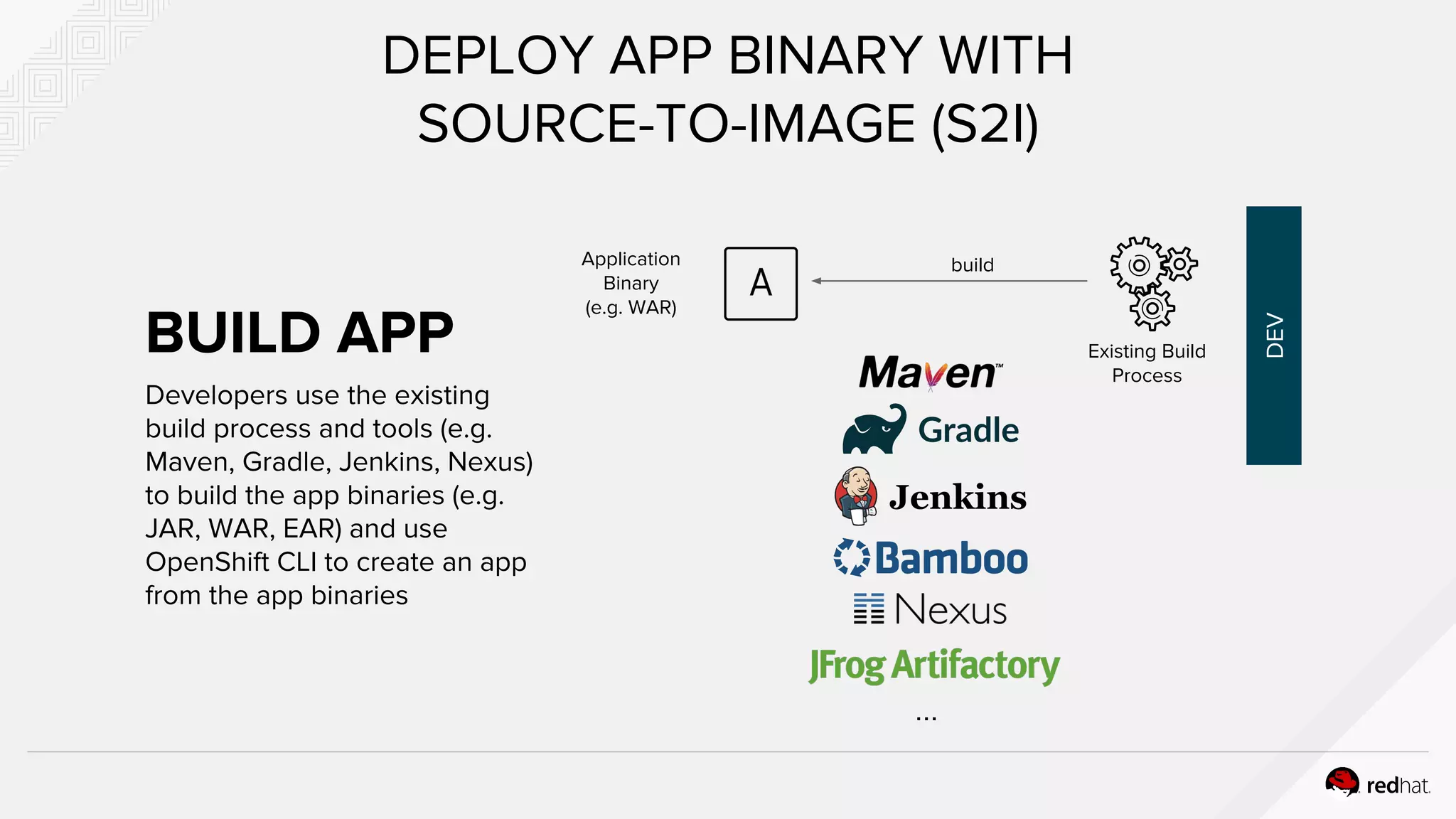

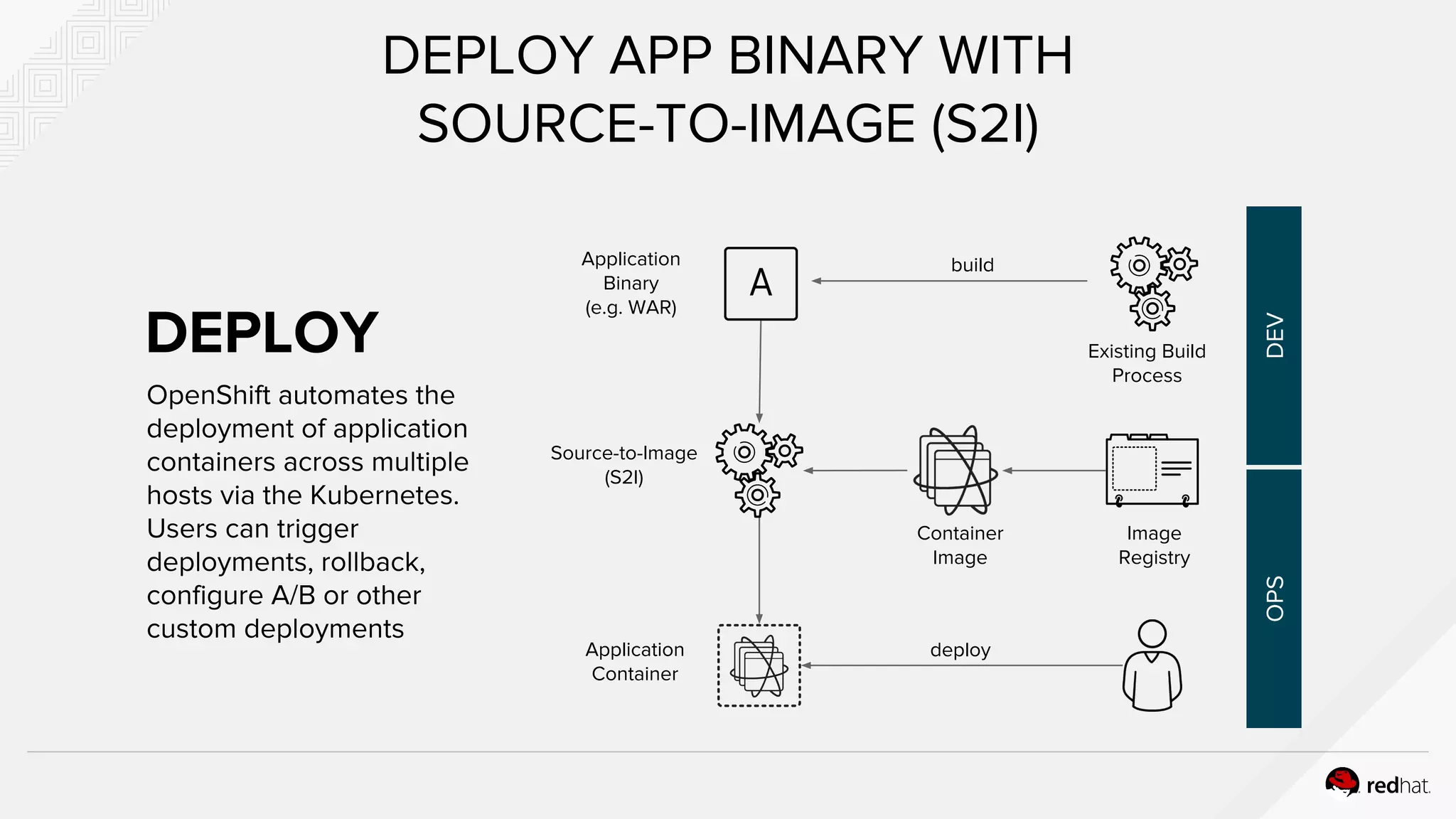

DEPLOY APP BINARY WITH
Application
Binary
(e.g. WAR)
DEV
BUILD APP
build
Existing Build
Process
...

Application
Binary
(e.g. WAR)
Source-to-Image
(S2I)
Container
Registry
DEV
build
Existing Build
Process

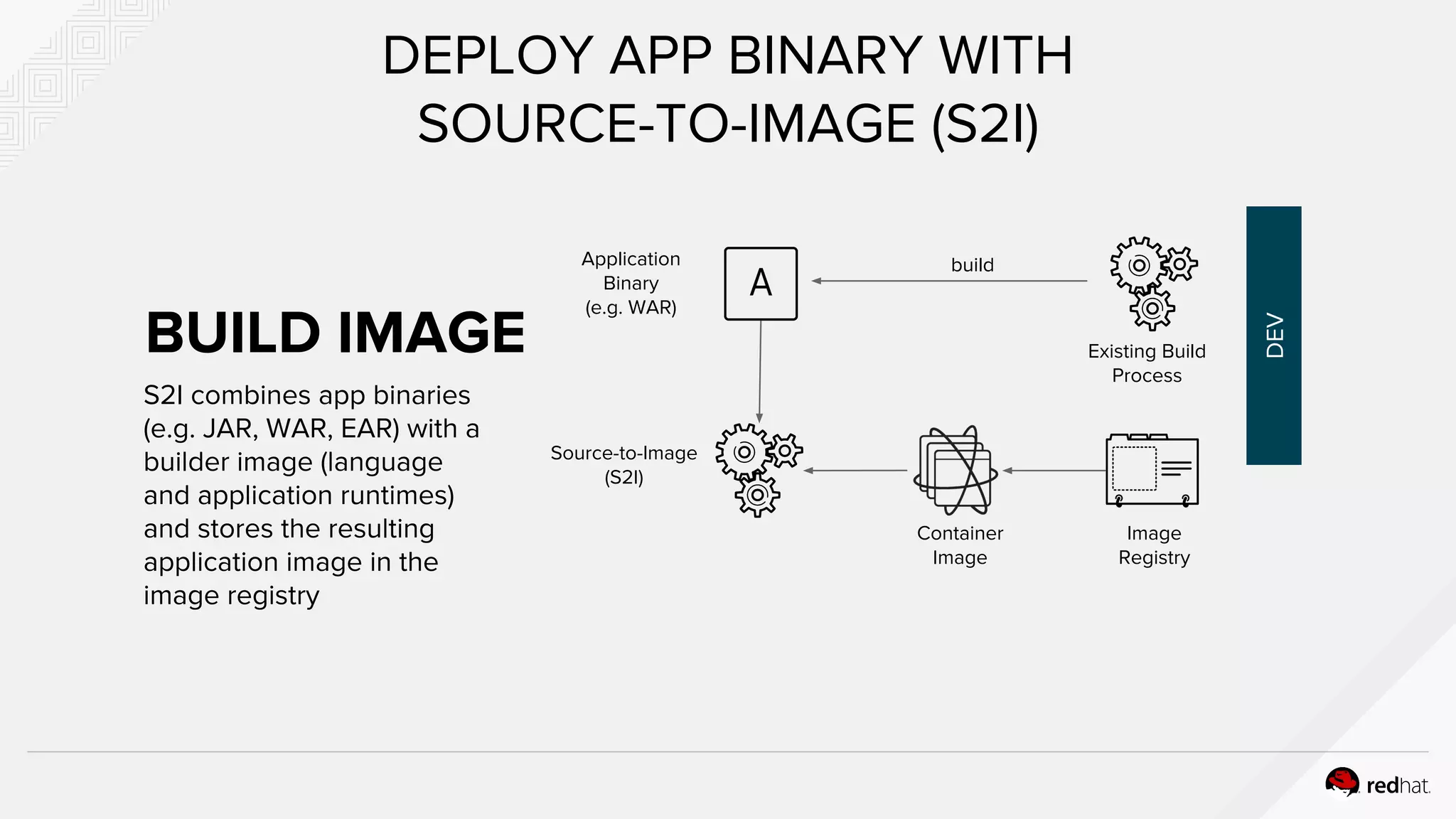

BUILD IMAGE
S2I combines app binaries
(e.g. JAR, WAR, EAR) with a
builder image (language
and application runtimes)
and stores the resulting
application image in the
image registry

Application
Binary
(e.g. WAR)
Source-to-Image
(S2I)
deploy
Container
Registry
OPSDEV
build
Existing Build
Process
DEPLOY
Application
Container
OpenShift automates the
deployment of application
containers across multiple
hosts via the Kubernetes.
Users can trigger
deployments, rollback,
configure A/B or other
custom deployments

App images are built using the
existing docker image build
process. OpenShift automates
the deployment of app
containers across multiple hosts
via the Kubernetes. Users can
trigger deployments, rollback,
configure A/B, etc
DEPLOY

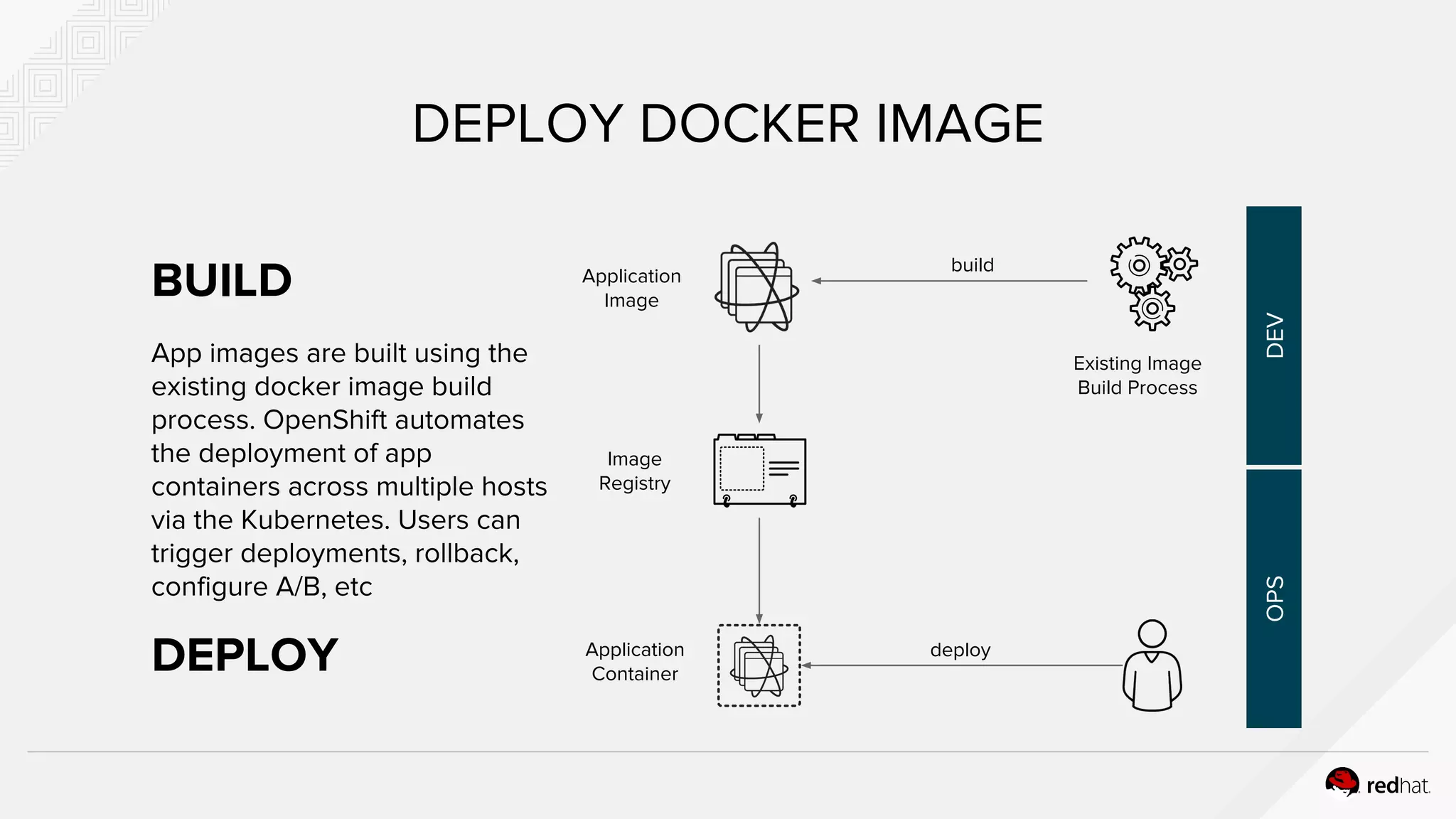

DEPLOY DOCKER IMAGE
build
Application
Container
deploy
Application
Registry
OPSDEV
BUILD
Existing Image
Build Process

CONTINUOUS INTEGRATION (CI)
CONTINUOUS DELIVERY (CD)

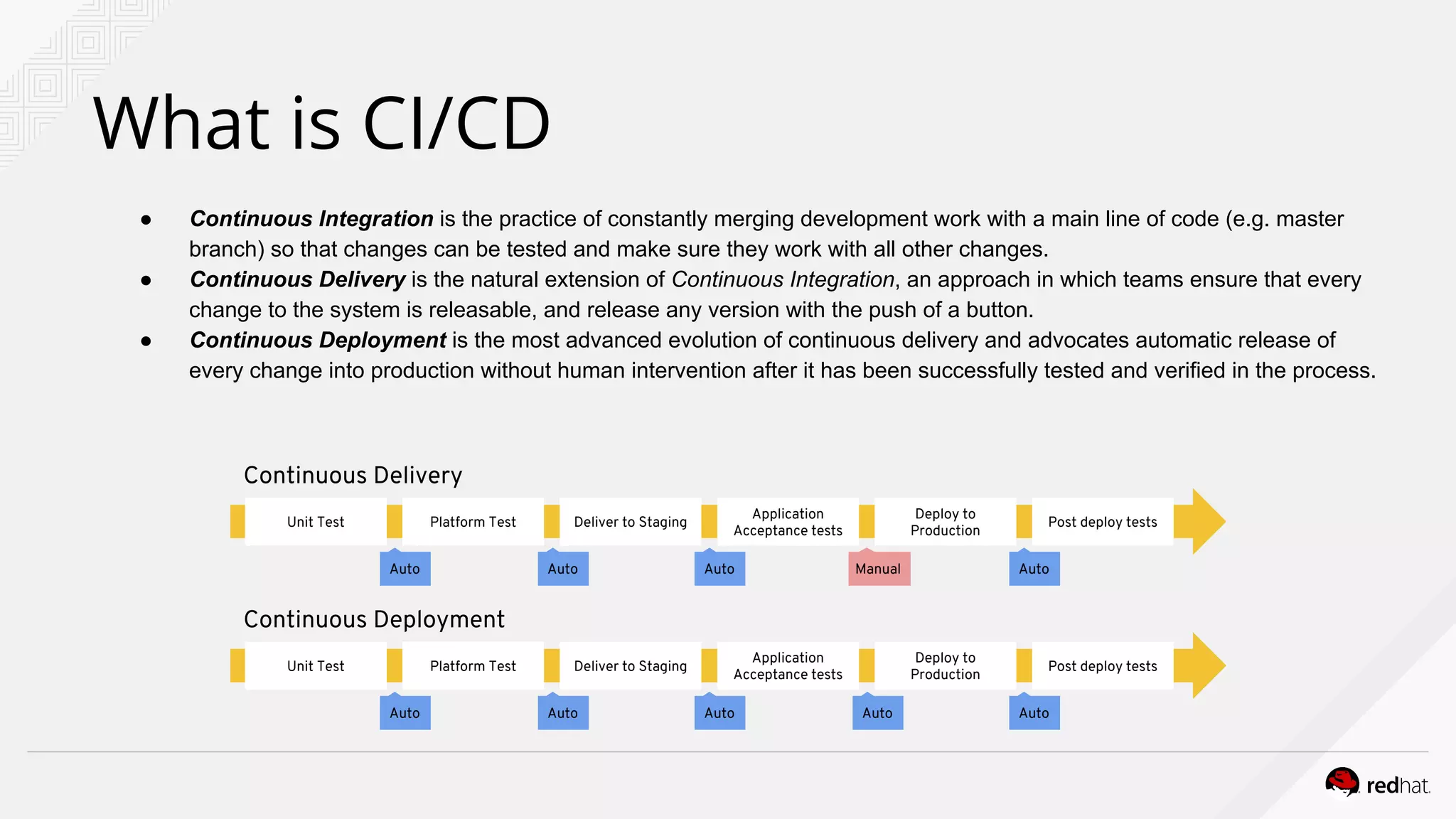

What is CI/CD
● Continuous Integration is the practice of constantly merging development work with a main line of code (e.g. master
branch) so that changes can be tested and make sure they work with all other changes.
● Continuous Delivery is the natural extension of Continuous Integration, an approach in which teams ensure that every
change to the system is releasable, and release any version with the push of a button.
● Continuous Deployment is the most advanced evolution of continuous delivery and advocates automatic release of
every change into production without human intervention after it has been successfully tested and verified in the process.
Unit Test Platform Test Deliver to Staging
Application
Acceptance tests
Deploy to
Production
Post deploy tests
Auto Auto Auto AutoManual
Unit Test Platform Test Deliver to Staging
Application
Acceptance tests
Deploy to
Production
Post deploy tests
Auto Auto Auto AutoAuto
Continuous Delivery
Continuous Deployment

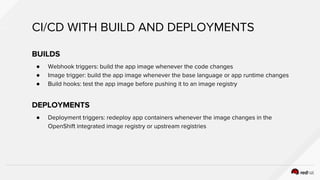

CI/CD WITH BUILD AND DEPLOYMENTS
BUILDS
● Webhook triggers: build the app image whenever the code changes
● Image trigger: build the app image whenever the base language or app runtime changes
● Build hooks: test the app image before pushing it to an image registry
DEPLOYMENTS
● Deployment triggers: redeploy app containers whenever the image changes in the
OpenShift integrated image registry or upstream registries

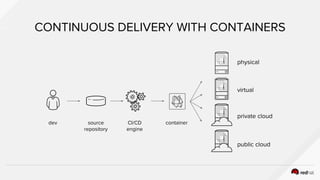

CONTINUOUS DELIVERY WITH CONTAINERS
source
repository
CI/CD
engine
dev container
physical
virtual
private cloud
public cloud

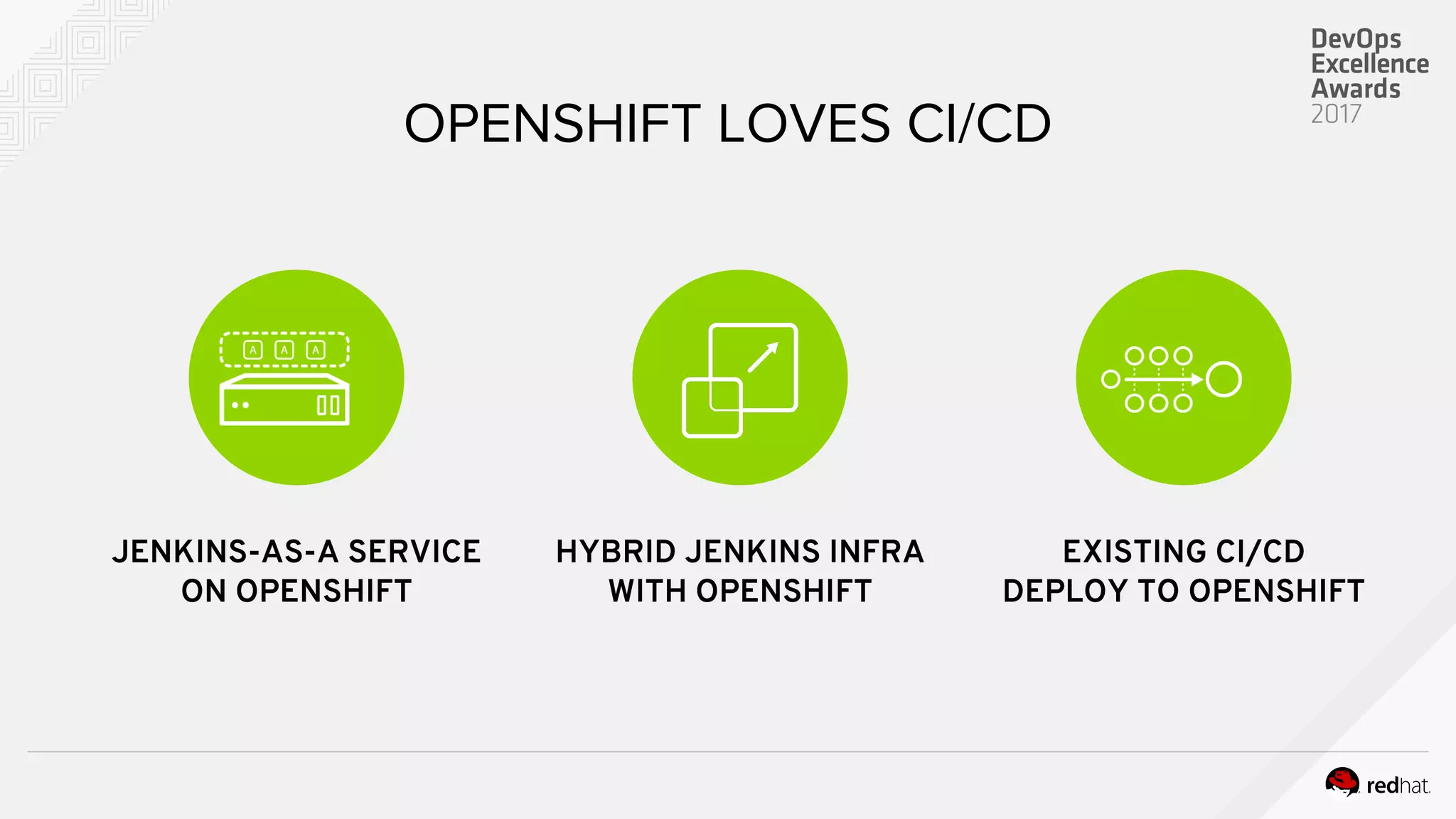

OPENSHIFT LOVES CI/CD
JENKINS-AS-A SERVICE
ON OPENSHIFT
HYBRID JENKINS INFRA
WITH OPENSHIFT
EXISTING CI/CD
DEPLOY TO OPENSHIFT

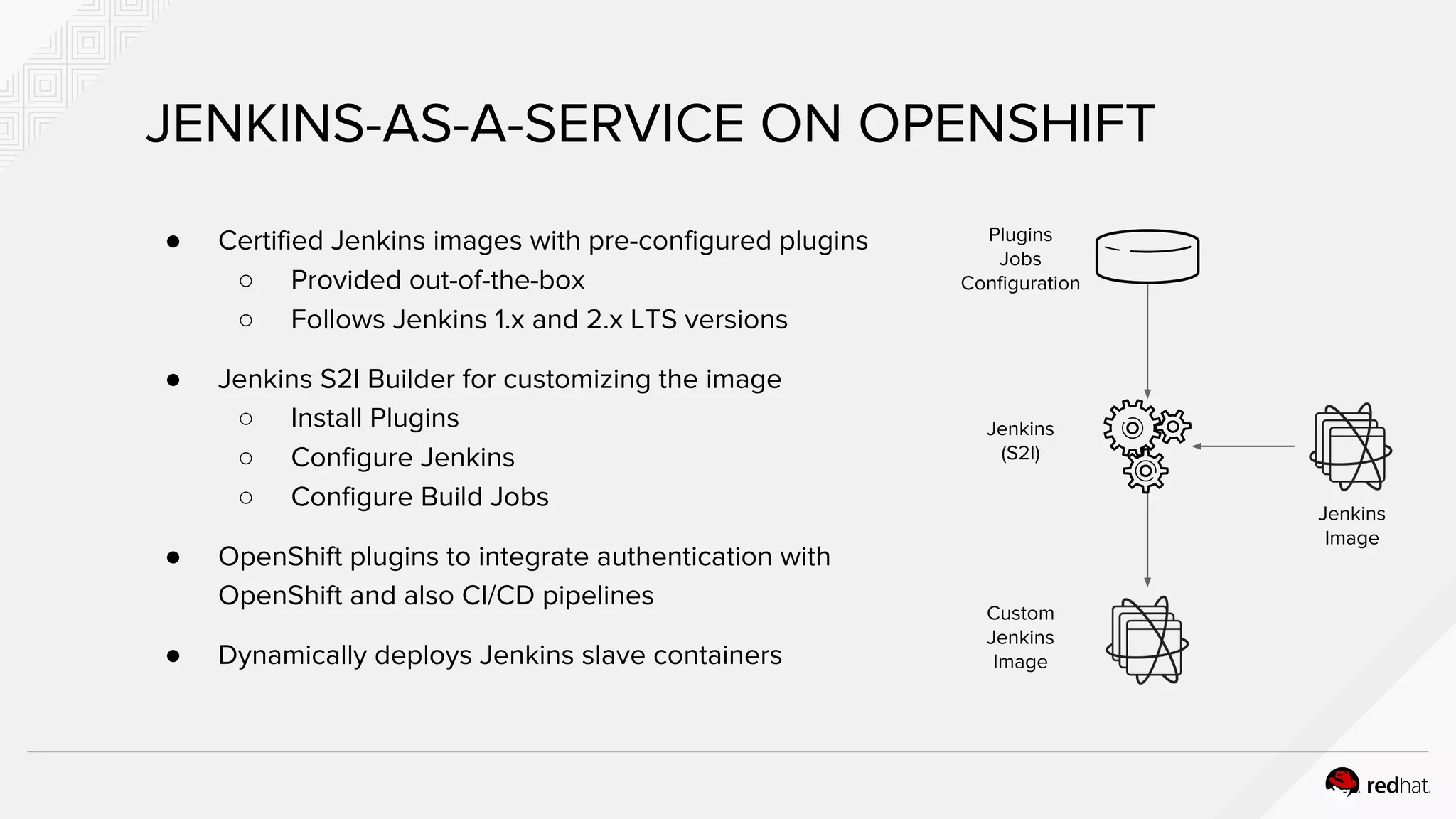

JENKINS-AS-A-SERVICE ON OPENSHIFT
● Certified Jenkins images with pre-configured plugins
○ Provided out-of-the-box
○ Follows Jenkins 1.x and 2.x LTS versions
● Jenkins S2I Builder for customizing the image
○ Install Plugins
○ Configure Jenkins
○ Configure Build Jobs
● OpenShift plugins to integrate authentication with
OpenShift and also CI/CD pipelines
● Dynamically deploys Jenkins slave containers
Plugins
Jobs
Configuration
Jenkins
(S2I)
Custom
Jenkins
Jenkins

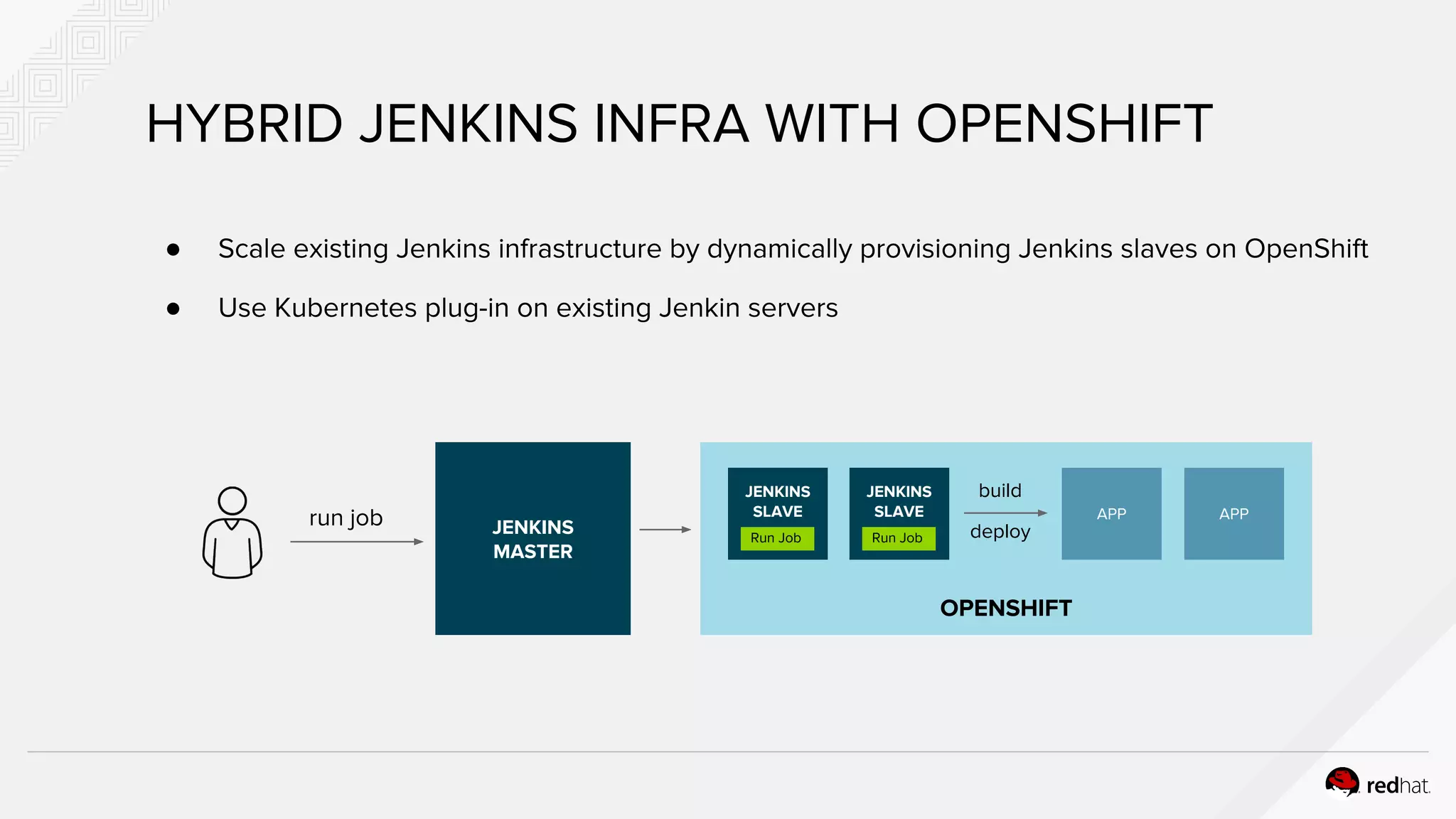

● Scale existing Jenkins infrastructure by dynamically provisioning Jenkins slaves on OpenShift
● Use Kubernetes plug-in on existing Jenkin servers
HYBRID JENKINS INFRA WITH OPENSHIFT
OPENSHIFT
APP APPrun job
JENKINS
SLAVE
Run Job
JENKINS
SLAVE
Run Job
build
JENKINS
MASTER
deploy

● Existing CI/CD infrastructure outside OpenShift performs operations against OpenShift
○ OpenShift Pipeline Jenkins Plugin for Jenkins
○ OpenShift CLI for integrating other CI Engines with OpenShift
● Without disrupting existing processes, can be combined with previous alternative

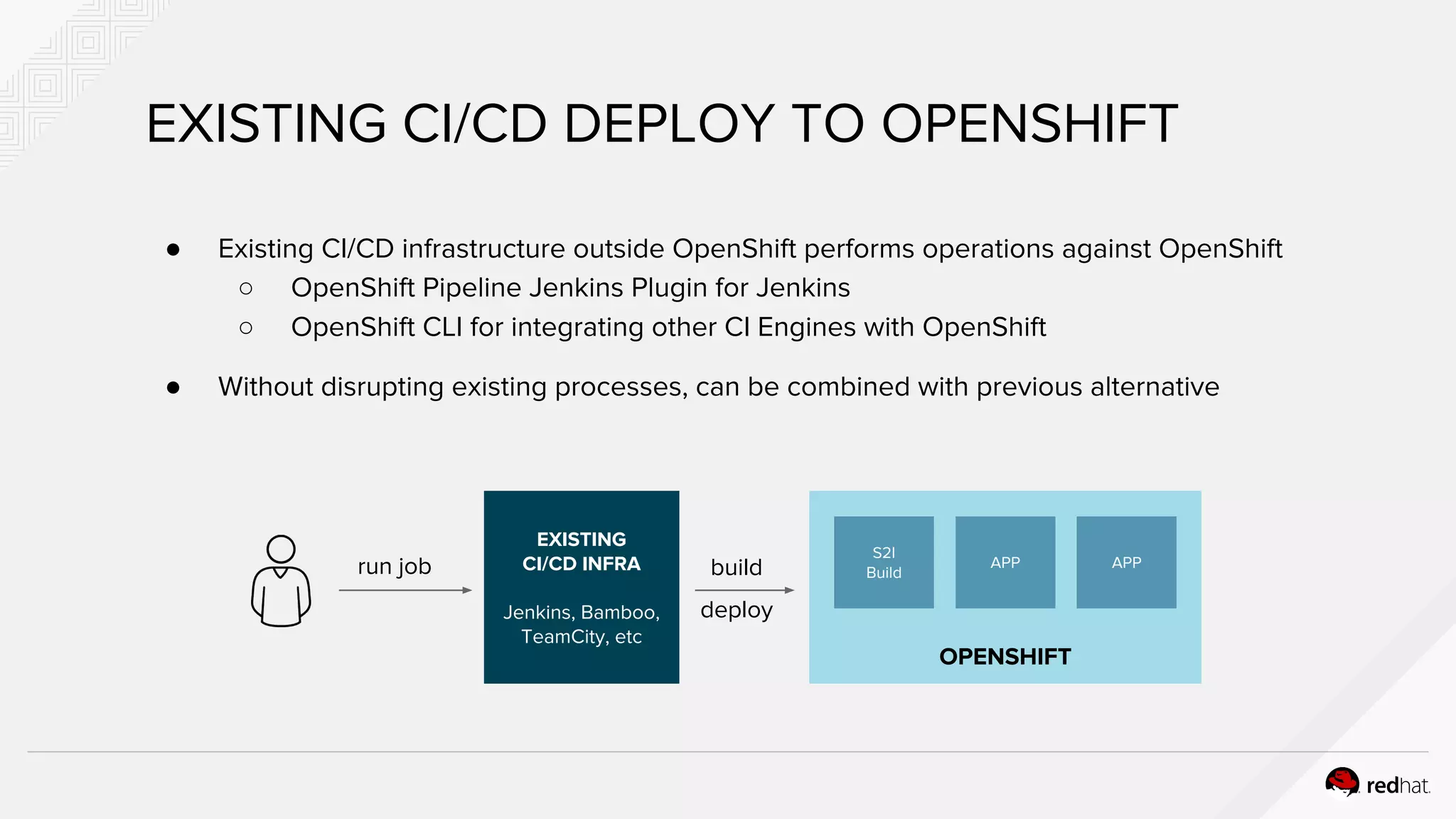

EXISTING CI/CD DEPLOY TO OPENSHIFT
OPENSHIFT
APP
EXISTING
CI/CD INFRA
Jenkins, Bamboo,
TeamCity, etc
APPbuild
deploy
S2I
Buildrun job

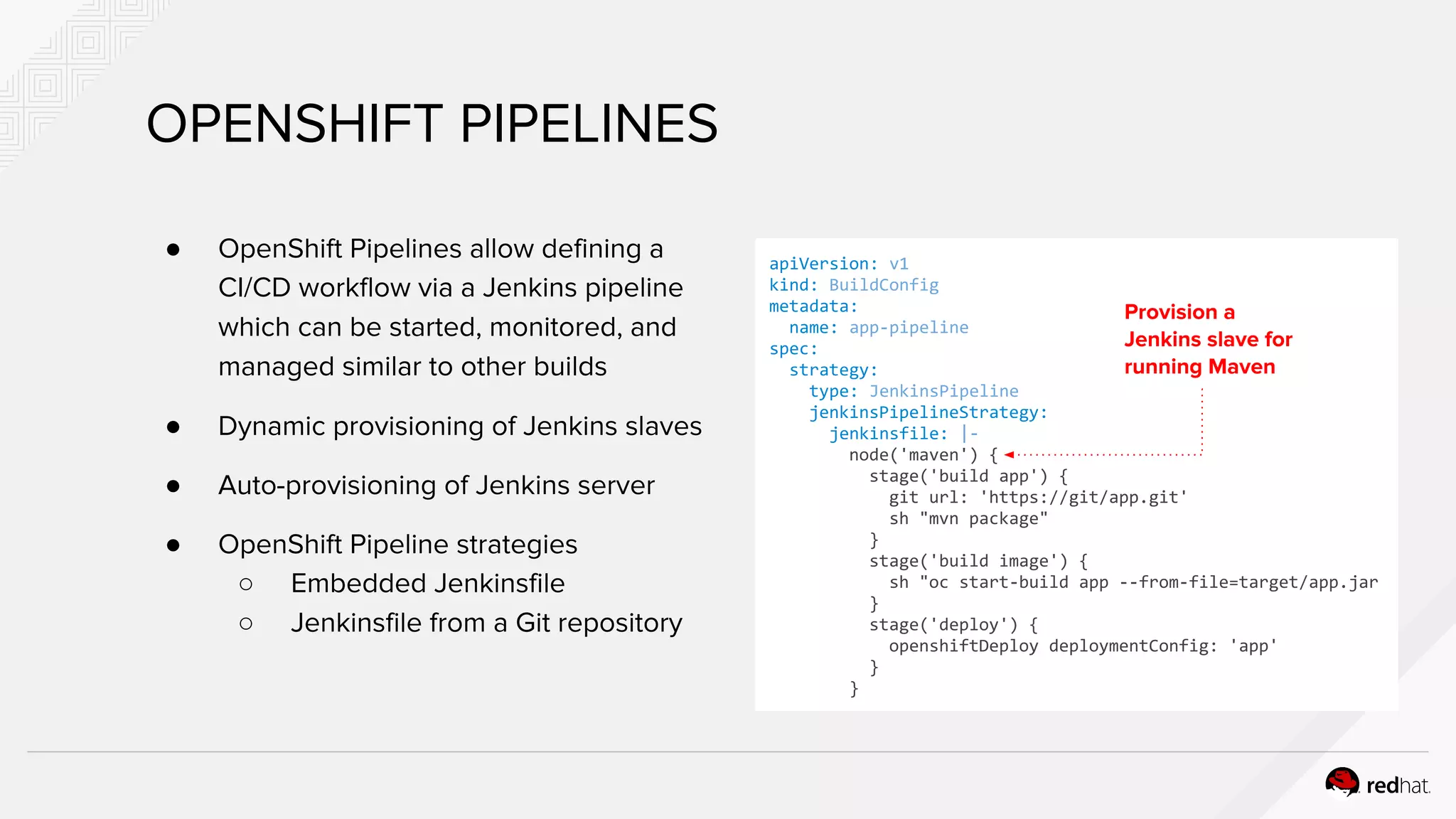

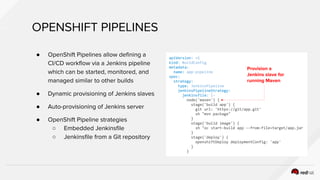

OPENSHIFT PIPELINES
● OpenShift Pipelines allow defining a
CI/CD workflow via a Jenkins pipeline
which can be started, monitored, and
managed similar to other builds
● Dynamic provisioning of Jenkins slaves
● Auto-provisioning of Jenkins server
● OpenShift Pipeline strategies
○ Embedded Jenkinsfile
○ Jenkinsfile from a Git repository
apiVersion: v1
kind: BuildConfig
metadata:
name: app-pipeline
spec:
strategy:
type: JenkinsPipeline
jenkinsPipelineStrategy:
jenkinsfile: |-
node('maven') {
stage('build app') {
git url: 'https://git/app.git'
sh "mvn package"
}
stage('build image') {
sh "oc start-build app --from-file=target/app.jar
}
stage('deploy') {
openshiftDeploy deploymentConfig: 'app'
}
}
Provision a
Jenkins slave for
running Maven

OpenShift
Pipelines in

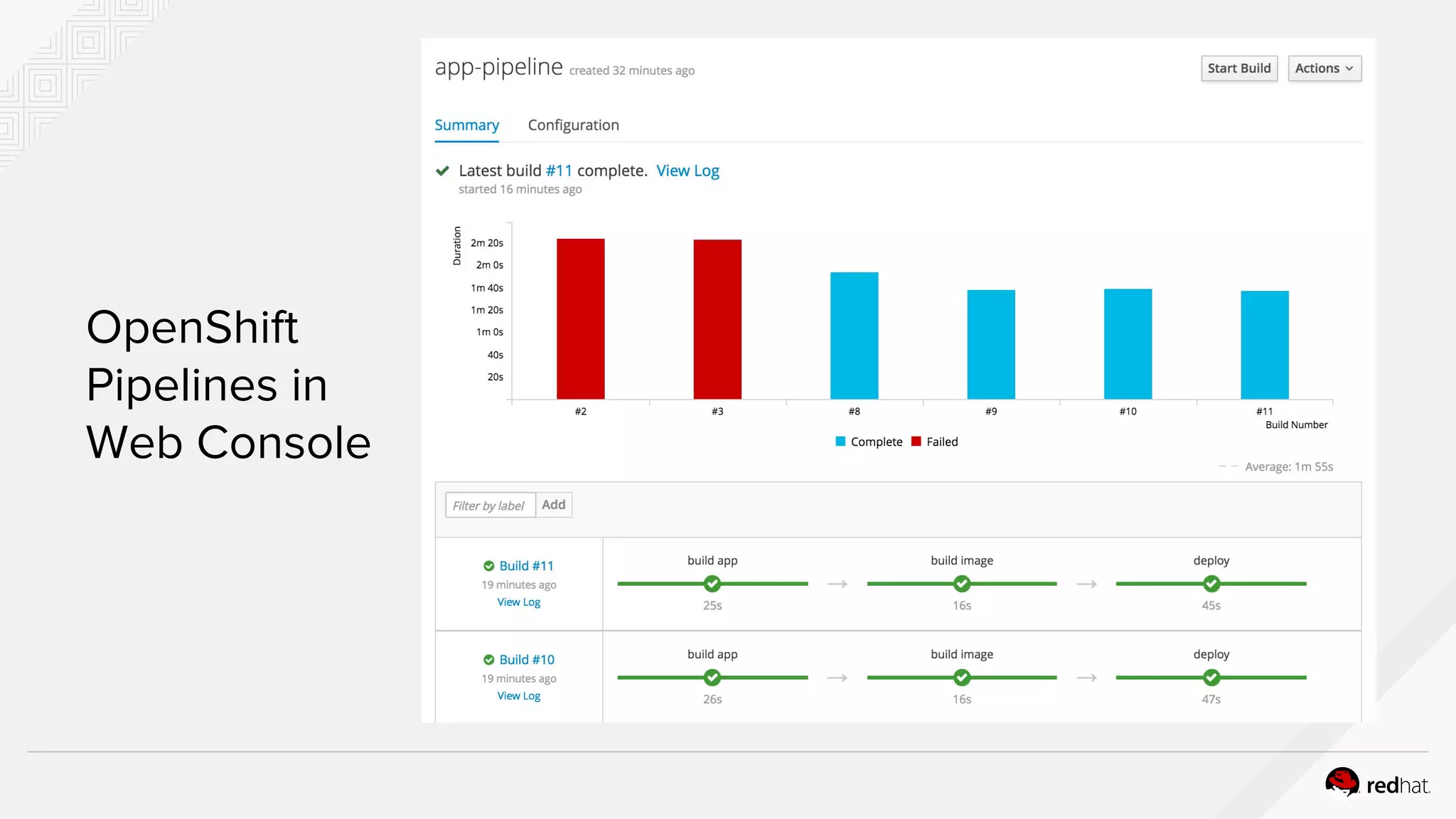

Web Console

APPLICATION

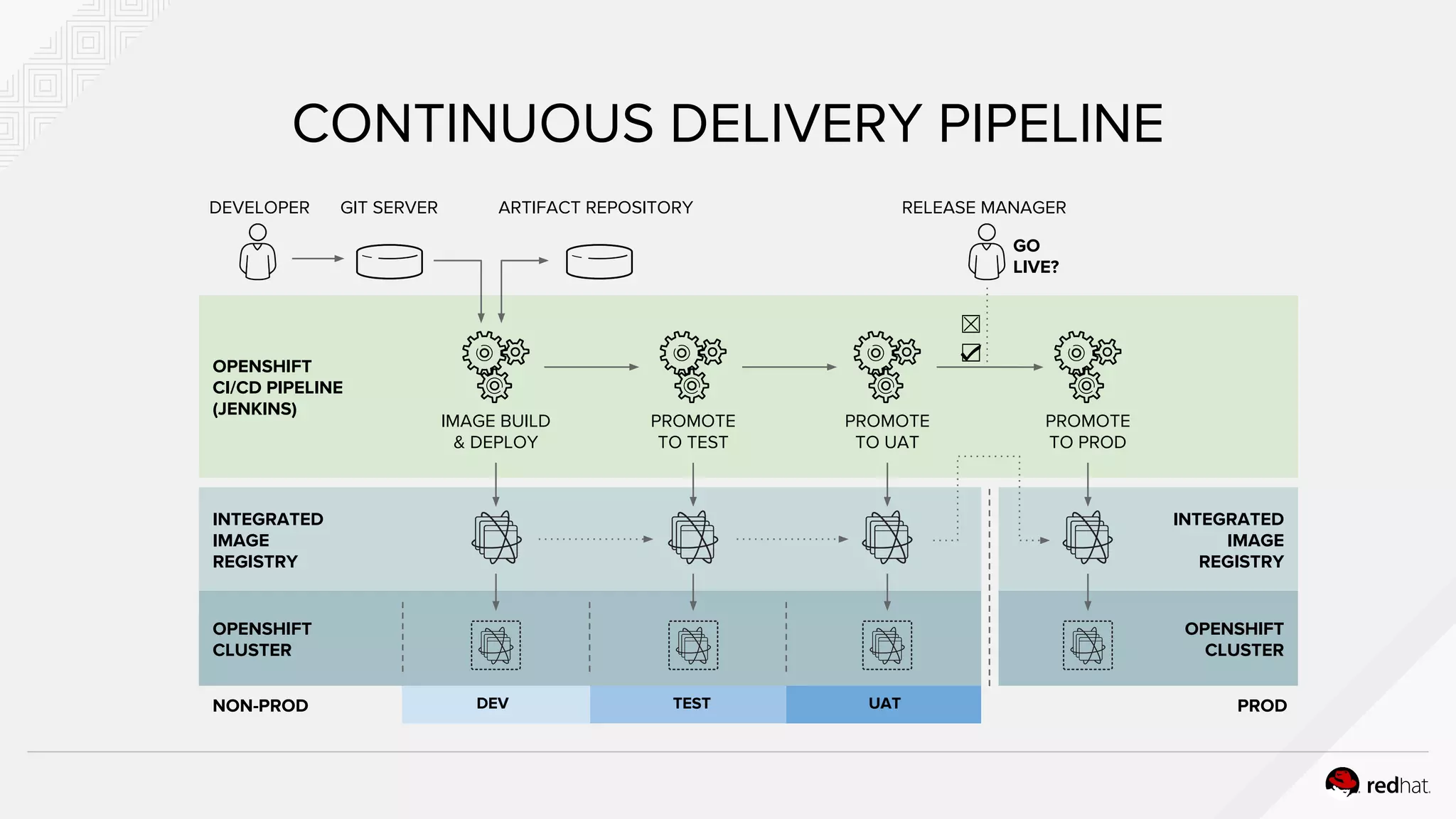

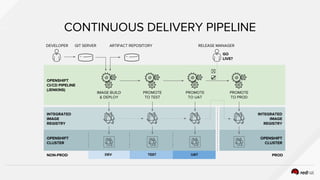

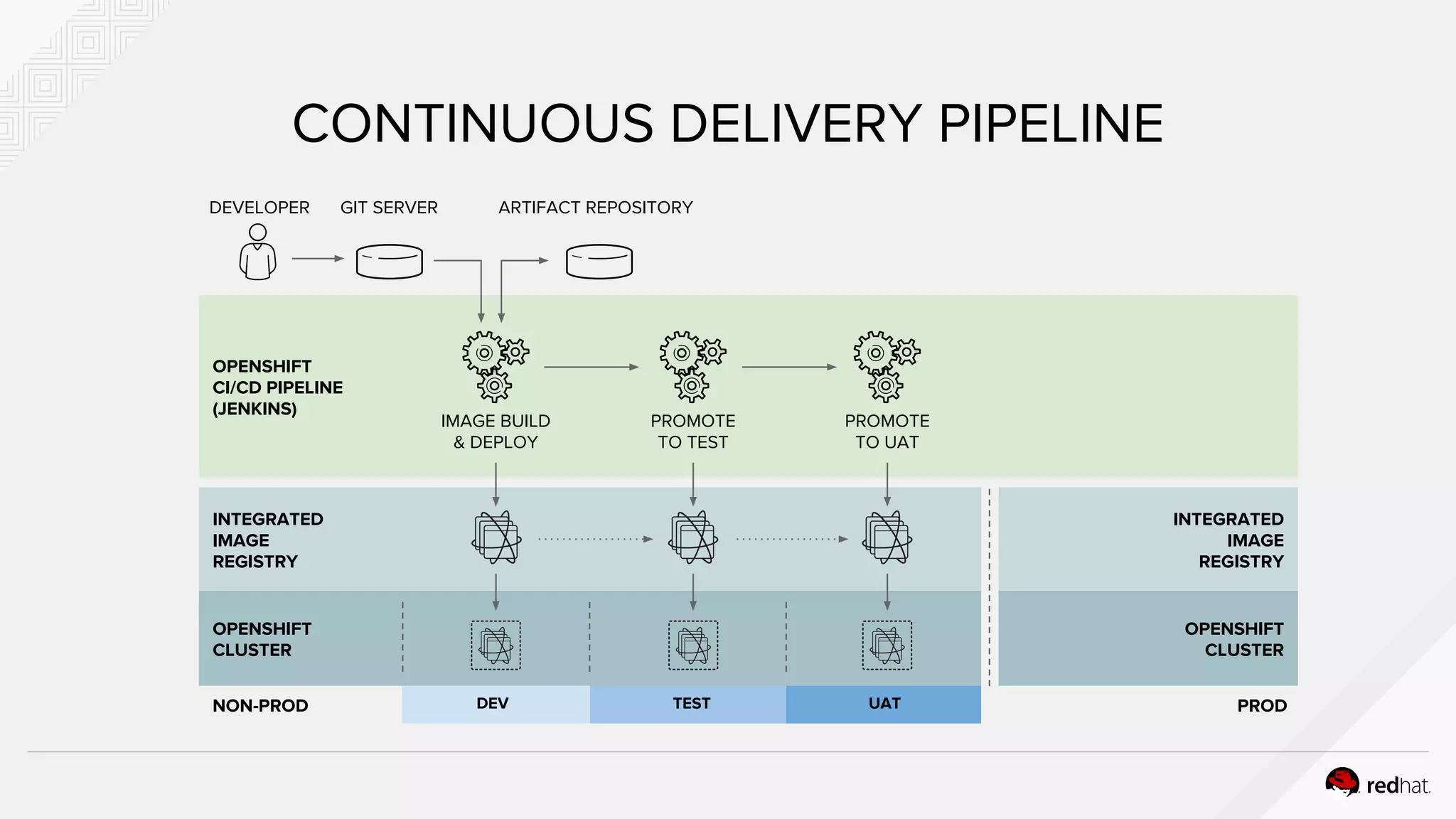

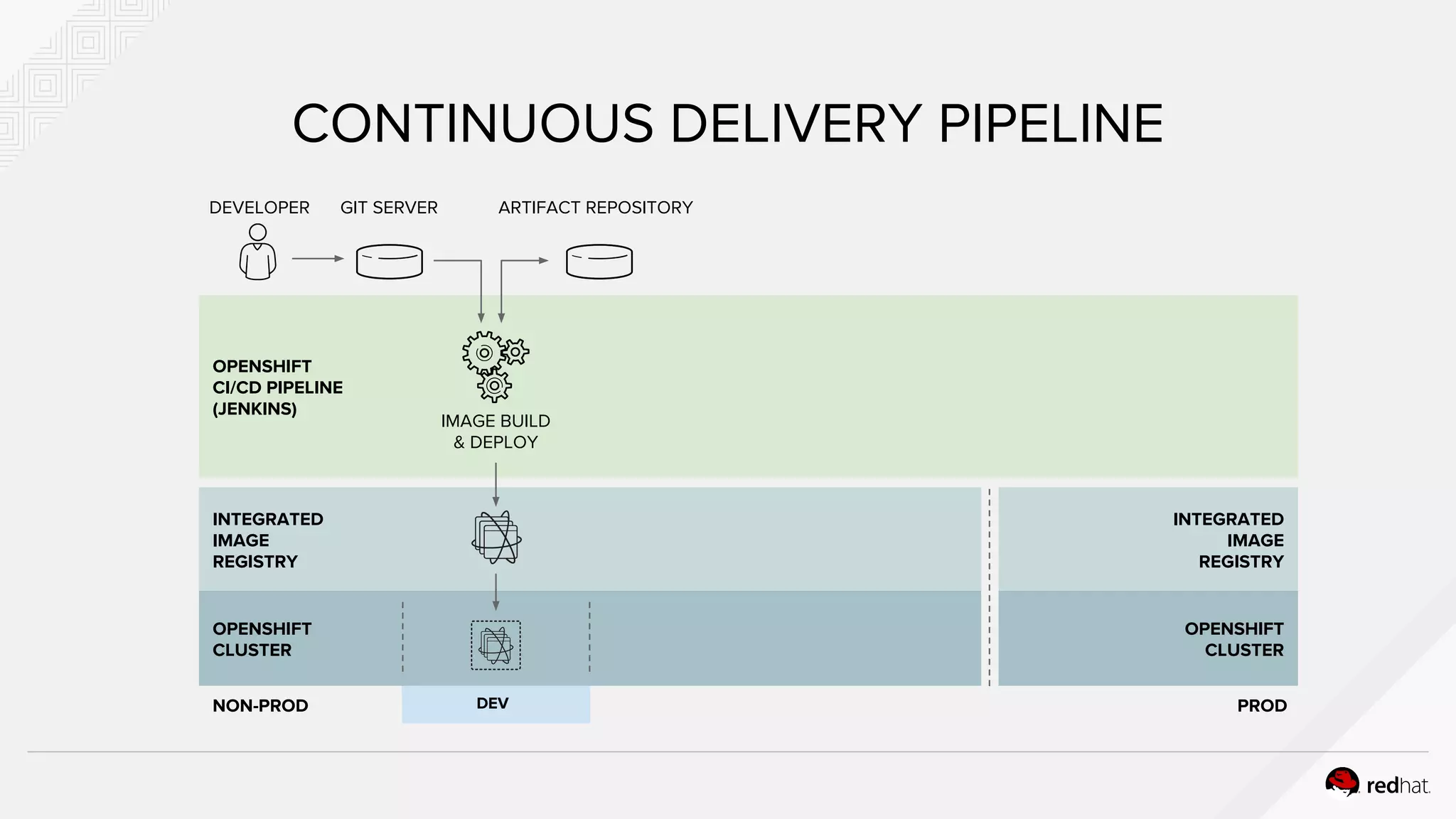

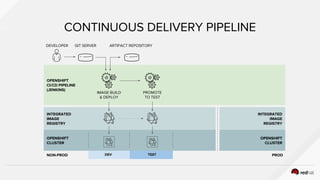

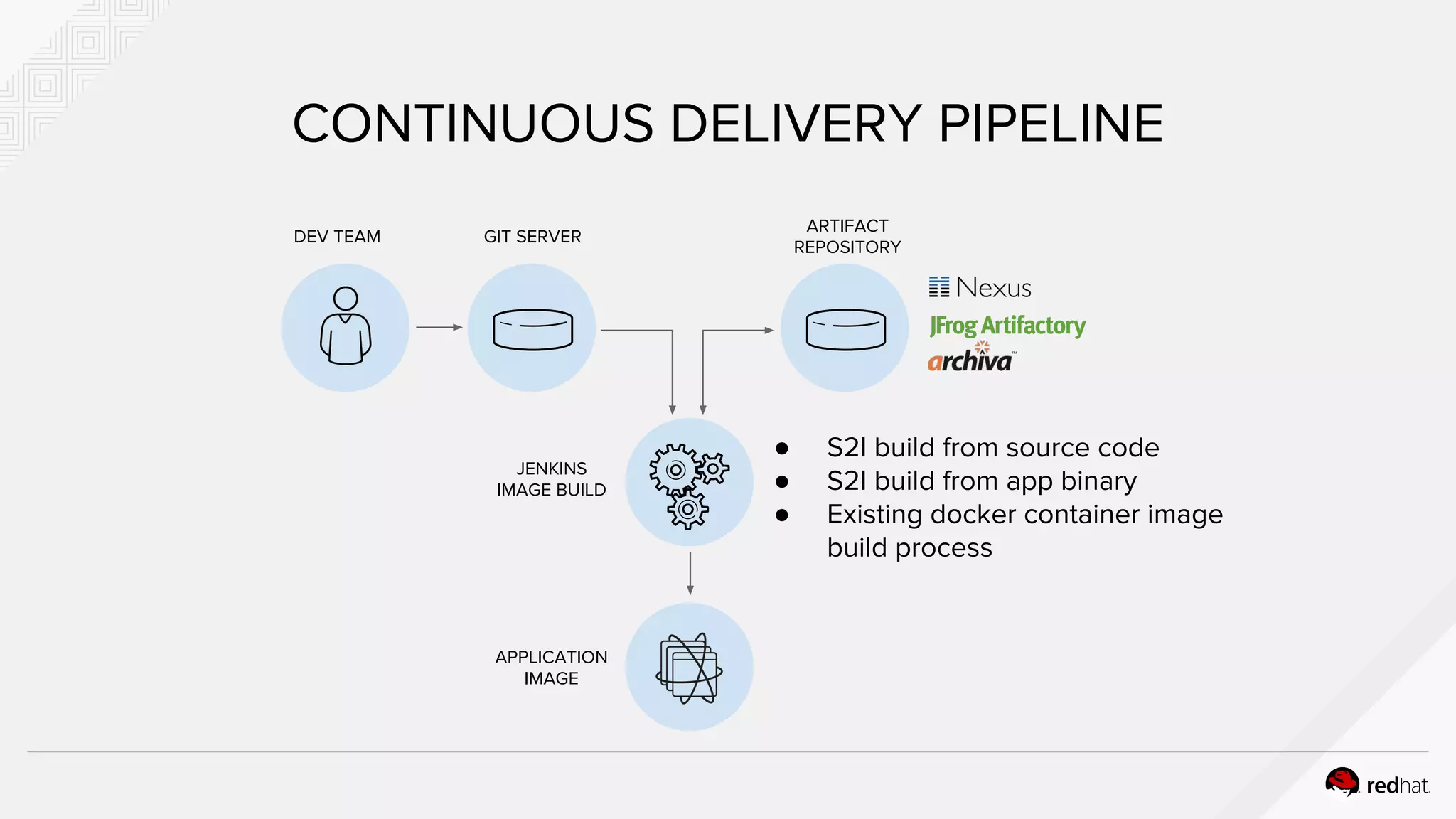

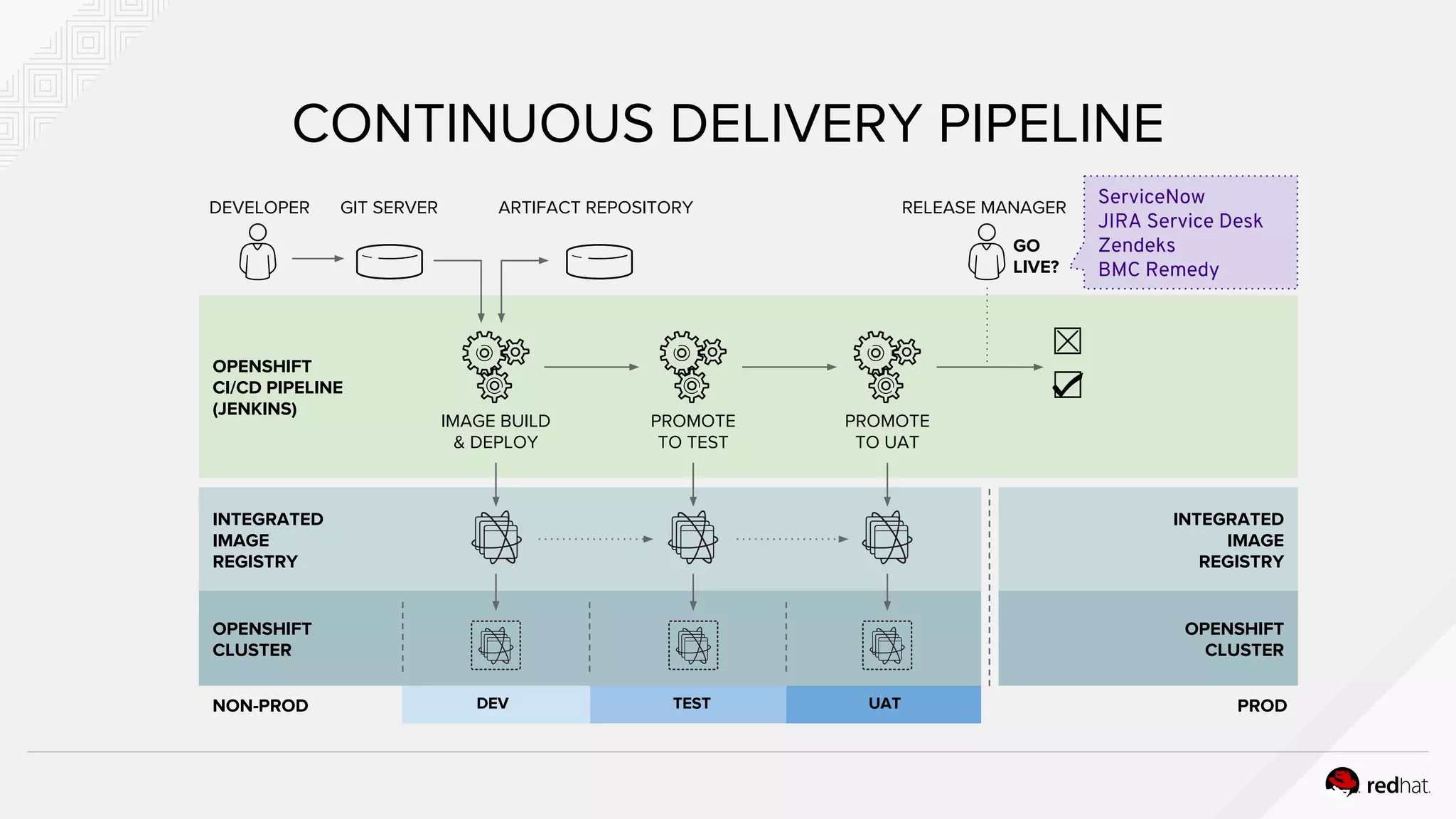

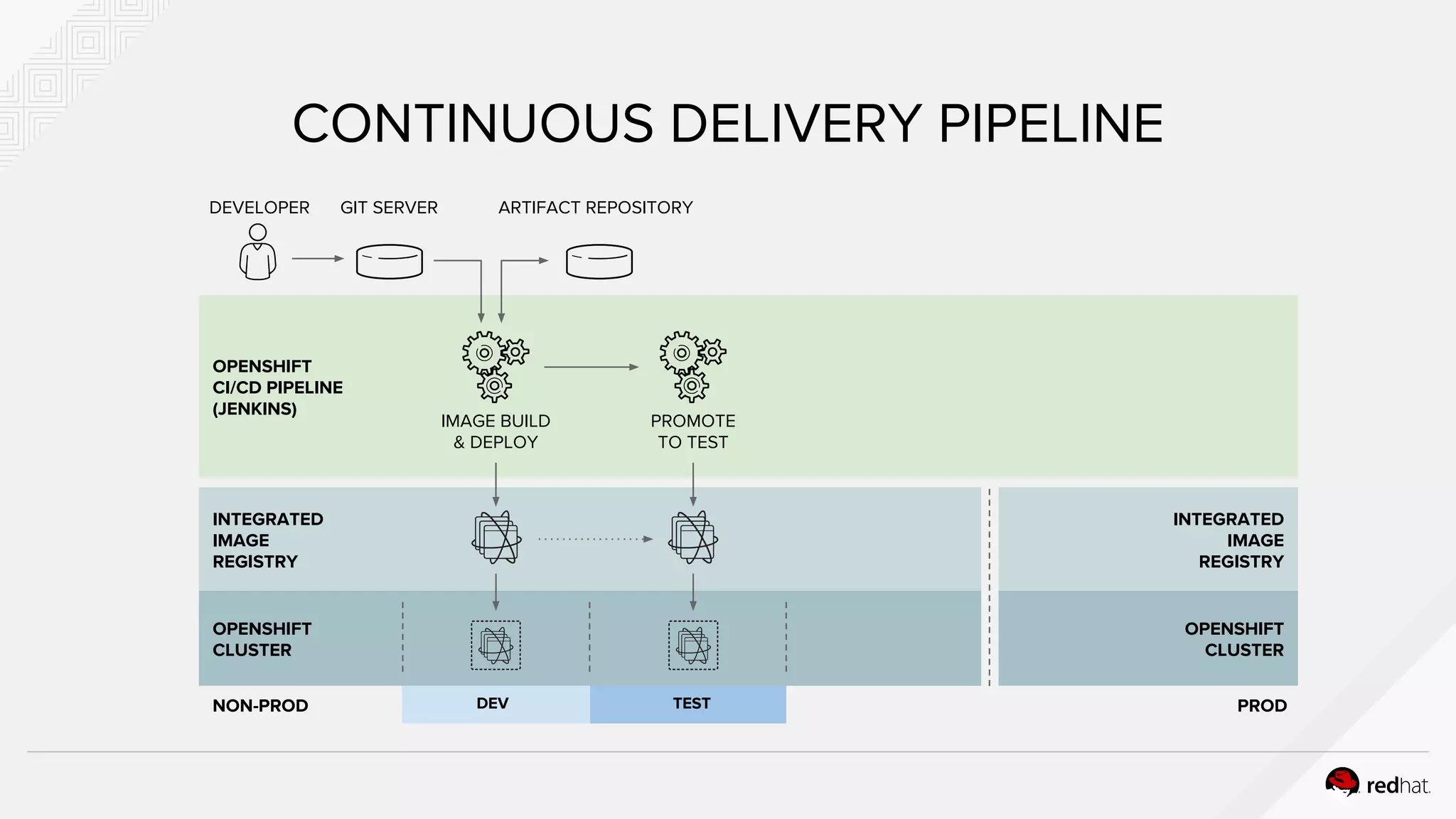

CONTINUOUS DELIVERY PIPELINE
DEV TEAM GIT SERVER
ARTIFACT
REPOSITORY
JENKINS
IMAGE BUILD
● S2I build from source code
● S2I build from app binary
● Existing docker container image
build process

INTEGRATED
REGISTRY
OPENSHIFT
CLUSTER
DEVELOPER GIT SERVER ARTIFACT REPOSITORY
OPENSHIFT
CI/CD PIPELINE
(JENKINS)
IMAGE BUILD
& DEPLOY
INTEGRATED
REGISTRY
OPENSHIFT
CLUSTER
NON-PROD PRODDEV

INTEGRATED
REGISTRY
OPENSHIFT
CLUSTER
OPENSHIFT
CI/CD PIPELINE
(JENKINS)
IMAGE BUILD
& DEPLOY
INTEGRATED
REGISTRY
OPENSHIFT
CLUSTER
PROMOTE
TO TEST
NON-PROD PRODDEV TEST

INTEGRATED
REGISTRY
OPENSHIFT
CLUSTER
OPENSHIFT
CI/CD PIPELINE
(JENKINS)
IMAGE BUILD
& DEPLOY
INTEGRATED
REGISTRY
OPENSHIFT
CLUSTER
PROMOTE
TO TEST
PROMOTE
TO UAT
NON-PROD PRODDEV TEST UAT

ServiceNow
JIRA Service Desk
Zendeks
BMC Remedy
INTEGRATED
REGISTRY
OPENSHIFT
CLUSTER
OPENSHIFT
CI/CD PIPELINE
(JENKINS)
IMAGE BUILD
& DEPLOY
INTEGRATED
REGISTRY
OPENSHIFT
CLUSTER
GO
LIVE?
PROMOTE
TO TEST
PROMOTE
TO UAT
RELEASE MANAGER
NON-PROD PROD
☒
☑
DEV TEST UAT

INTEGRATED
REGISTRY
OPENSHIFT
CLUSTER
OPENSHIFT
CI/CD PIPELINE
(JENKINS)
IMAGE BUILD
& DEPLOY
INTEGRATED
REGISTRY
OPENSHIFT
CLUSTER
GO
LIVE?
PROMOTE
TO TEST
PROMOTE
TO UAT
PROMOTE
TO PROD
RELEASE MANAGER
NON-PROD PRODDEV TEST UAT
☒
☑
