Big-O notations, Algorithm and complexity analaysis

Mathematical Foundation
Mathematical Foundation
Chapter 4

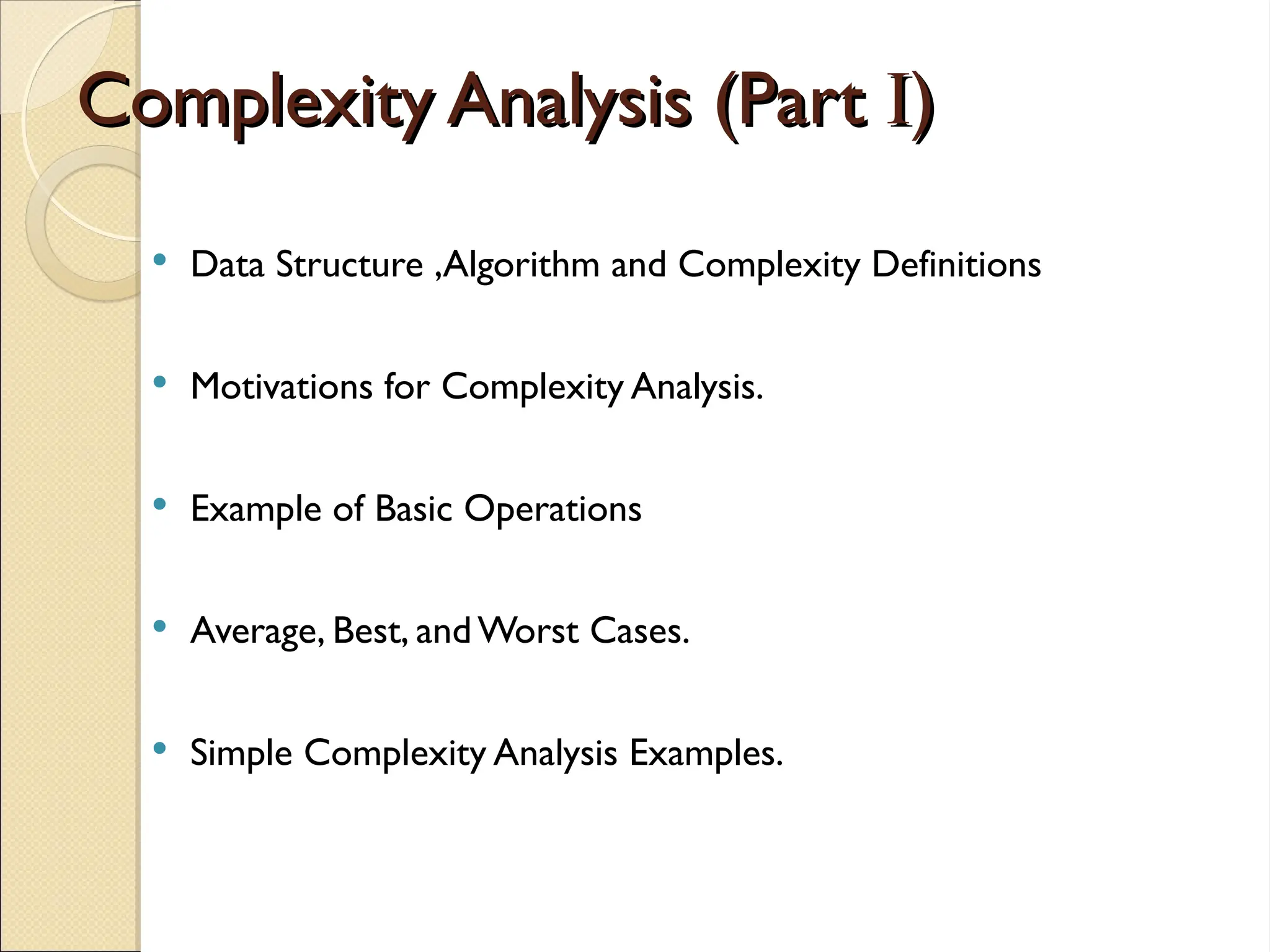

Complexity Analysis (Part
Complexity Analysis (Part I
I)
)
 Data Structure ,Algorithm and Complexity Definitions
 Motivations for Complexity Analysis.
 Example of Basic Operations
 Average, Best, andWorst Cases.
 Simple Complexity Analysis Examples.

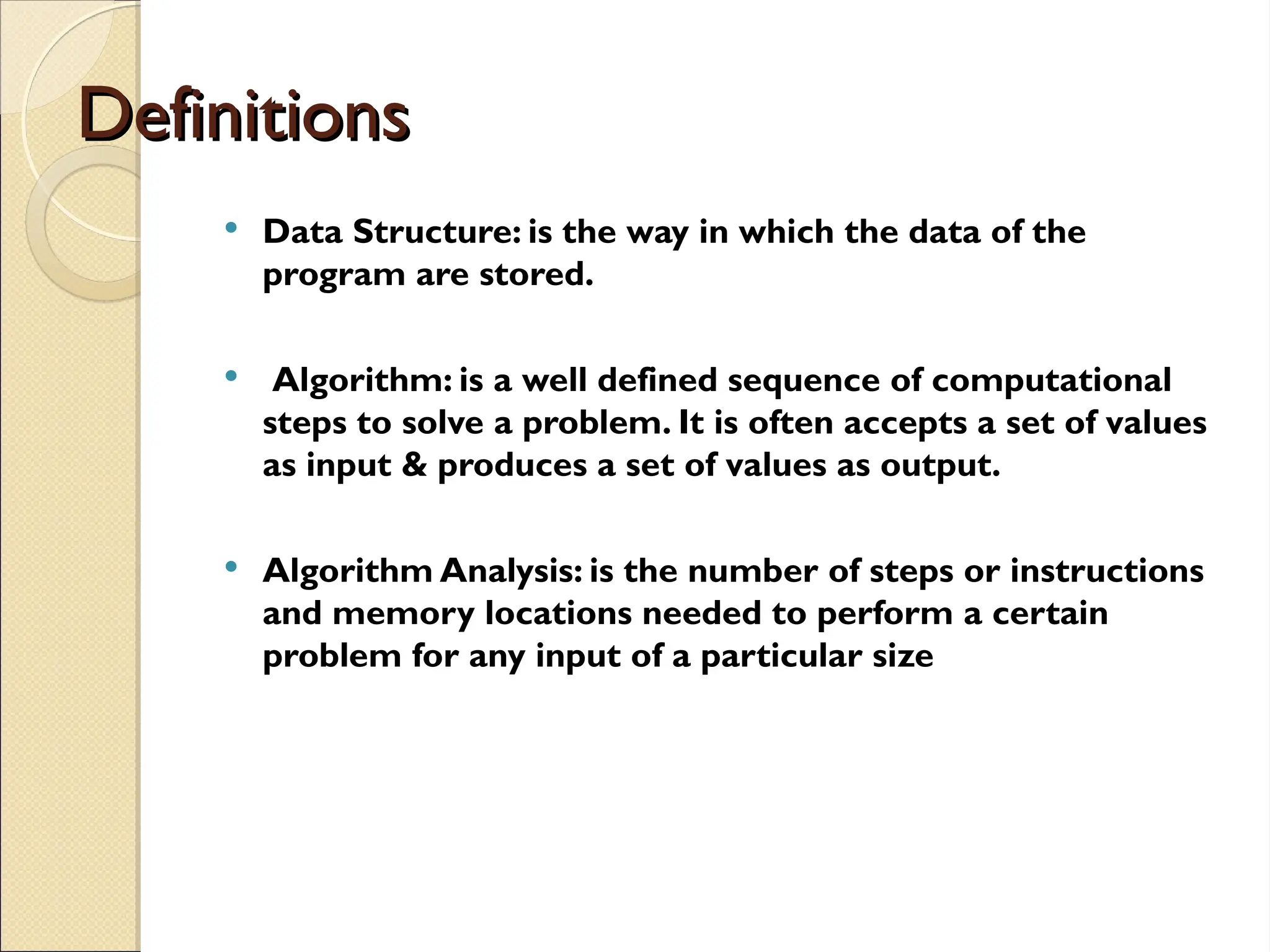

Definitions
Definitions
 Data Structure: is the way in which the data of the
program are stored.
 Algorithm: is a well defined sequence of computational
steps to solve a problem. It is often accepts a set of values
as input & produces a set of values as output.
 Algorithm Analysis: is the number of steps or instructions
and memory locations needed to perform a certain
problem for any input of a particular size

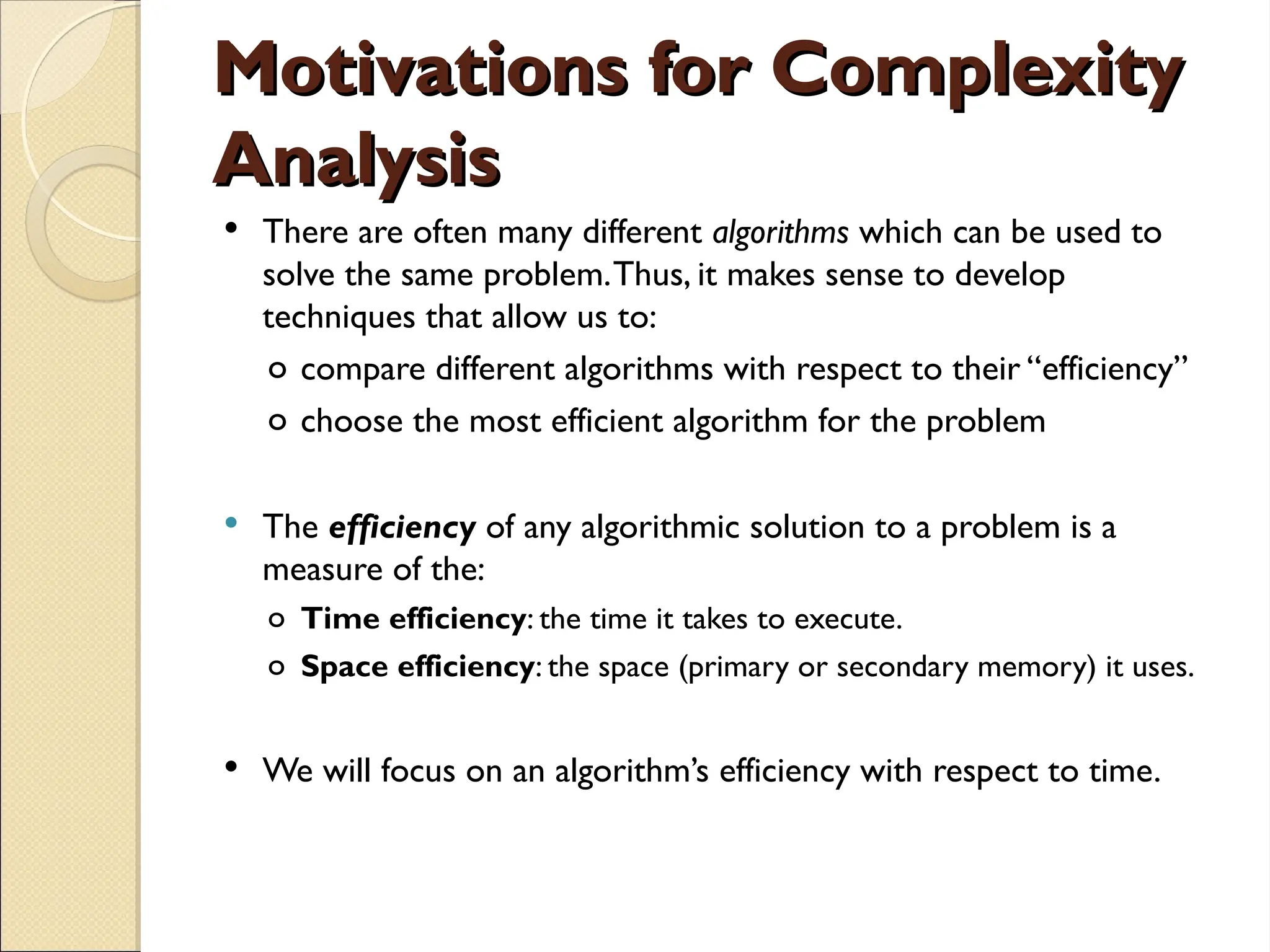

Motivations for Complexity
Motivations for Complexity
Analysis
Analysis
 There are often many different algorithms which can be used to
solve the same problem.Thus, it makes sense to develop
techniques that allow us to:
o compare different algorithms with respect to their “efficiency”
o choose the most efficient algorithm for the problem
 The efficiency of any algorithmic solution to a problem is a
measure of the:
o Time efficiency: the time it takes to execute.
o Space efficiency: the space (primary or secondary memory) it uses.
 We will focus on an algorithm’s efficiency with respect to time.

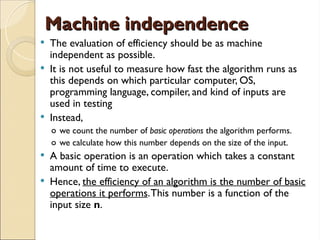

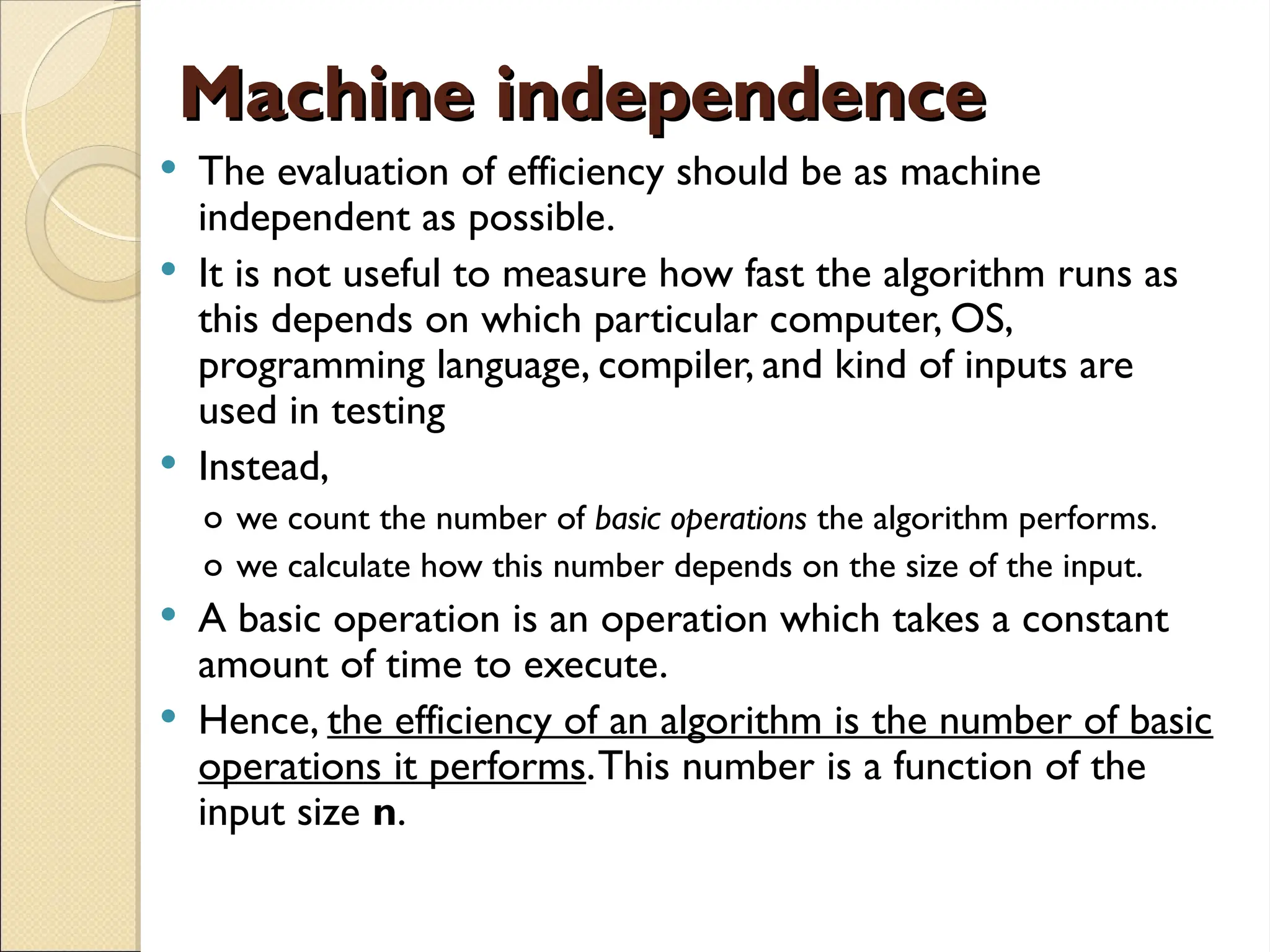

Machine independence
Machine independence
 The evaluation of efficiency should be as machine
independent as possible.
 It is not useful to measure how fast the algorithm runs as
this depends on which particular computer, OS,
programming language, compiler, and kind of inputs are
used in testing
 Instead,
o we count the number of basic operations the algorithm performs.
o we calculate how this number depends on the size of the input.
 A basic operation is an operation which takes a constant
amount of time to execute.
 Hence, the efficiency of an algorithm is the number of basic
operations it performs.This number is a function of the
input size n.

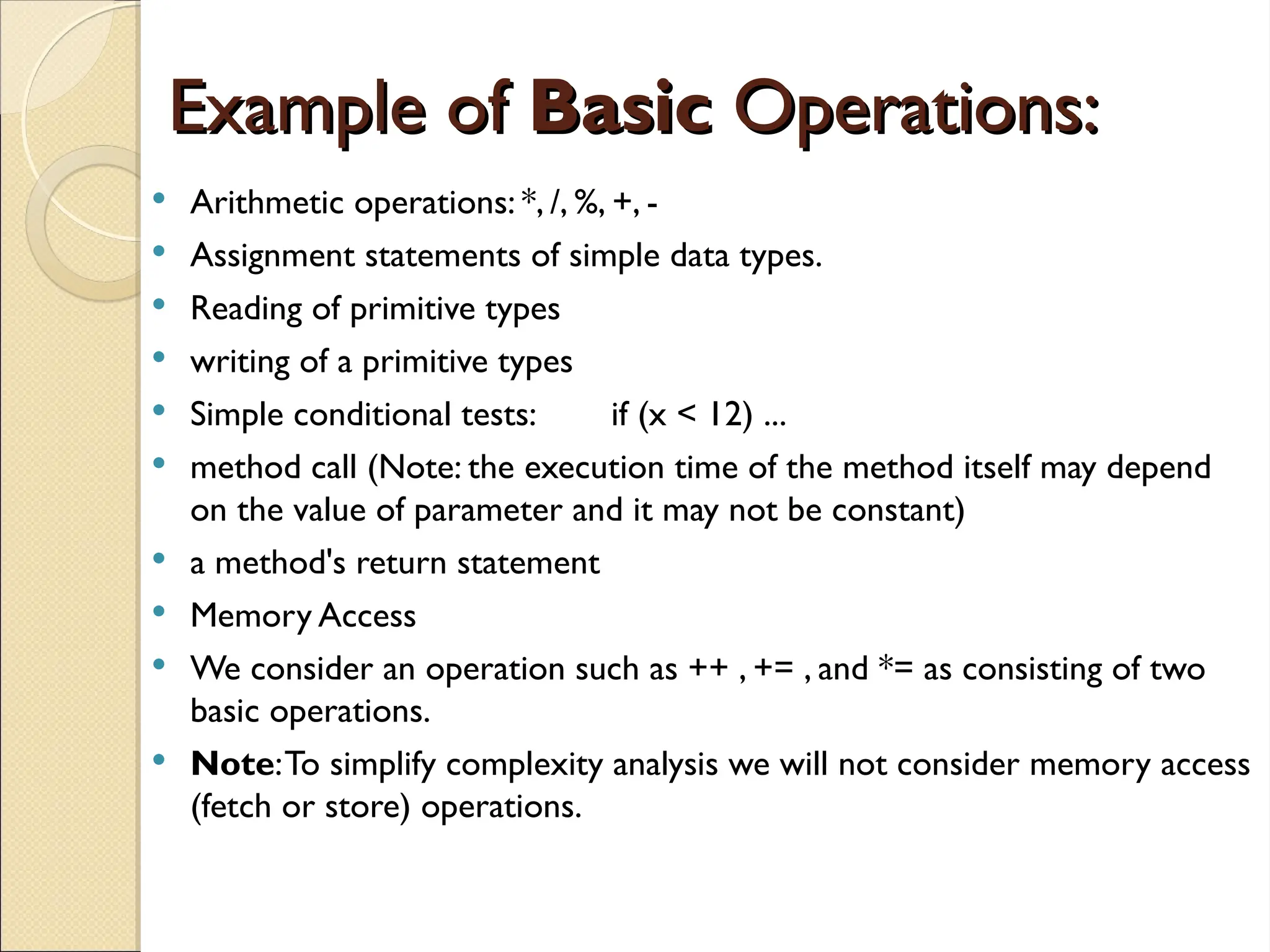

Example of
Example of Basic
Basic Operations:
Operations:
 Arithmetic operations: *, /, %, +, -
 Assignment statements of simple data types.
 Reading of primitive types
 writing of a primitive types
 Simple conditional tests: if (x < 12) ...
 method call (Note: the execution time of the method itself may depend
on the value of parameter and it may not be constant)
 a method's return statement
 Memory Access
 We consider an operation such as ++ , += , and *= as consisting of two
basic operations.
 Note:To simplify complexity analysis we will not consider memory access
(fetch or store) operations.

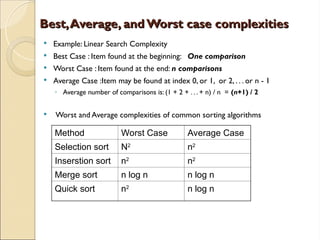

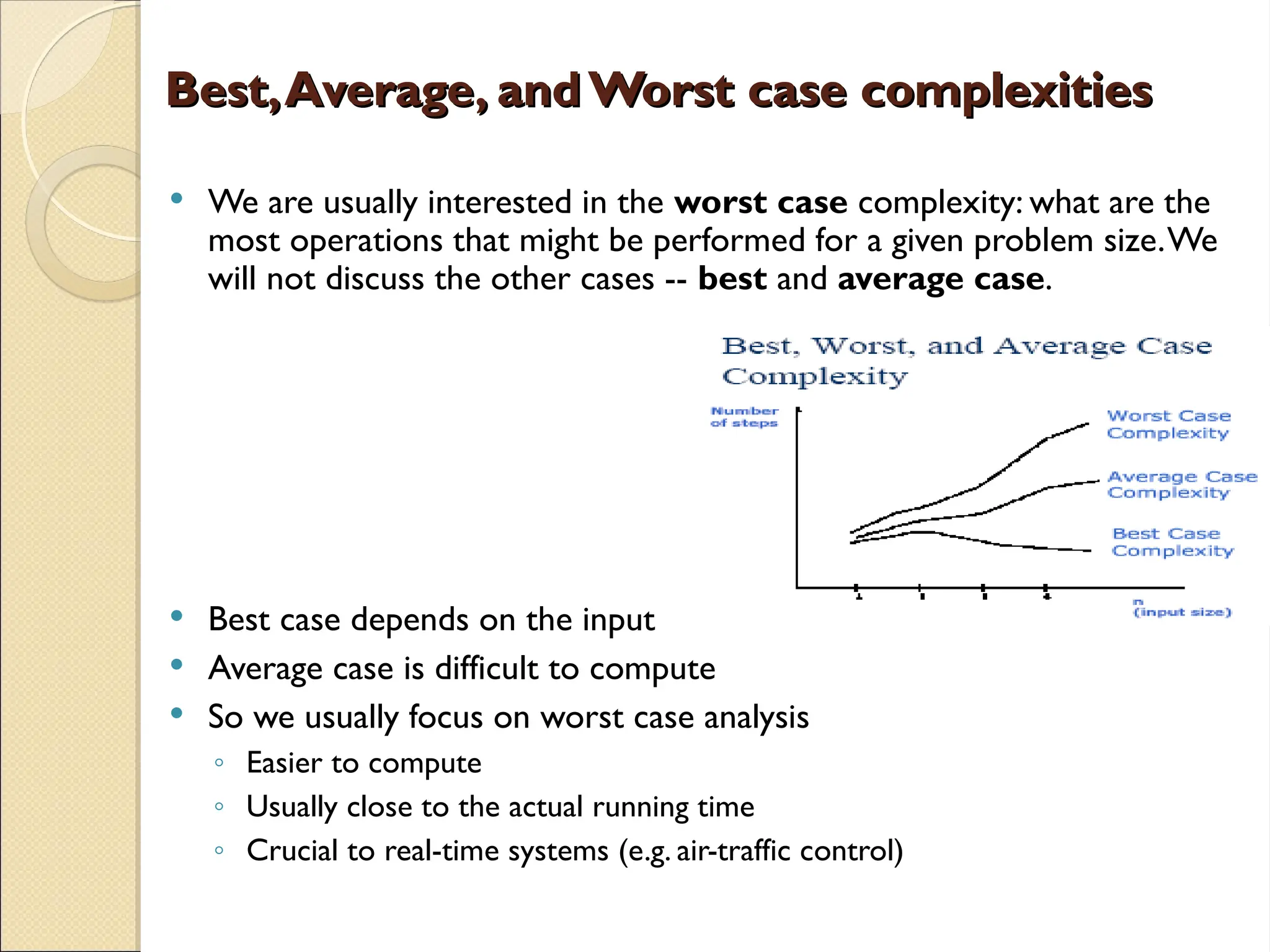

Best,Average, andWorst case complexities
 We are usually interested in the worst case complexity: what are the
most operations that might be performed for a given problem size.We
will not discuss the other cases -- best and average case.
 Best case depends on the input
 Average case is difficult to compute
 So we usually focus on worst case analysis
◦ Easier to compute
◦ Usually close to the actual running time
◦ Crucial to real-time systems (e.g. air-traffic control)

 Example: Linear Search Complexity
 Best Case : Item found at the beginning: One comparison
 Worst Case : Item found at the end: n comparisons
 Average Case :Item may be found at index 0, or 1, or 2, . . . or n - 1
◦ Average number of comparisons is: (1 + 2 + . . . + n) / n = (n+1) / 2
 Worst and Average complexities of common sorting algorithms
Method Worst Case Average Case
Selection sort N2
n2
Inserstion sort n2
n2
Merge sort n log n n log n
Quick sort n2
n log n

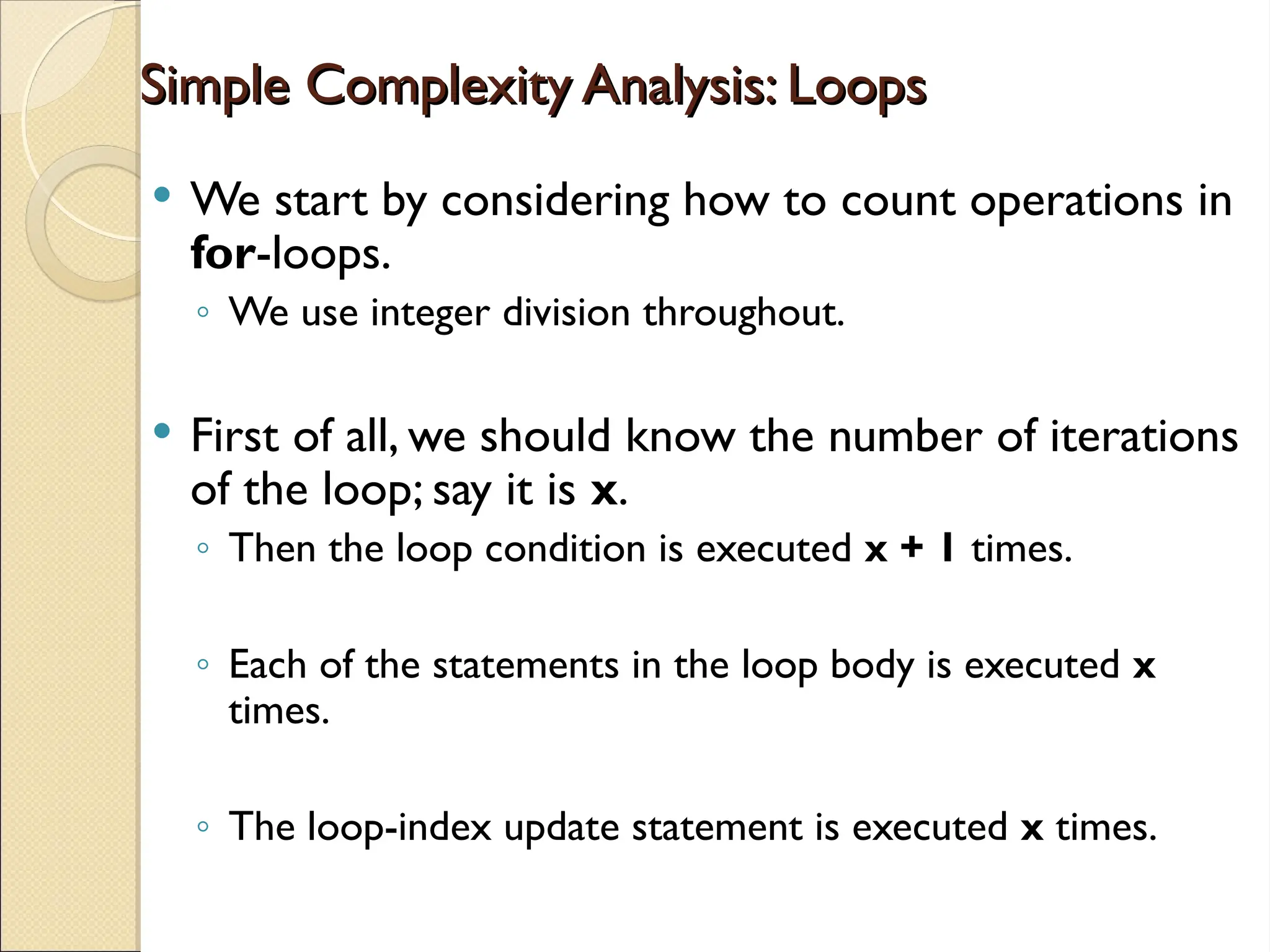

Simple Complexity Analysis: Loops
Simple Complexity Analysis: Loops
 We start by considering how to count operations in
for-loops.
◦ We use integer division throughout.
 First of all, we should know the number of iterations
of the loop; say it is x.
◦ Then the loop condition is executed x + 1 times.
◦ Each of the statements in the loop body is executed x
times.
◦ The loop-index update statement is executed x times.

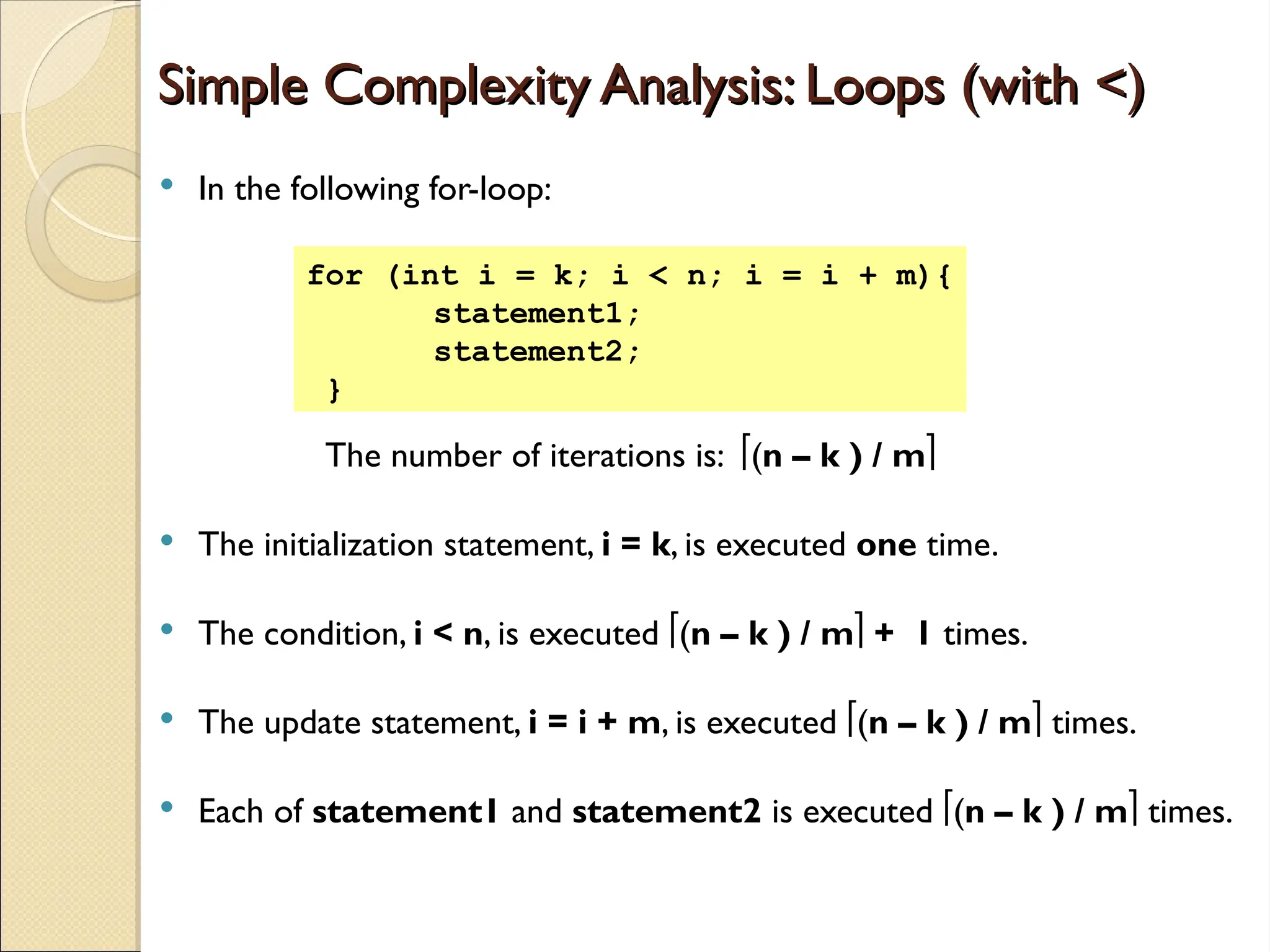

Simple Complexity Analysis: Loops (with <)
Simple Complexity Analysis: Loops (with <)
 In the following for-loop:
The number of iterations is: (n – k ) / m
 The initialization statement, i = k, is executed one time.
 The condition, i < n, is executed (n – k ) / m + 1 times.
 The update statement, i = i + m, is executed (n – k ) / m times.
 Each of statement1 and statement2 is executed (n – k ) / m times.
for (int i = k; i < n; i = i + m){
statement1;
statement2;
}

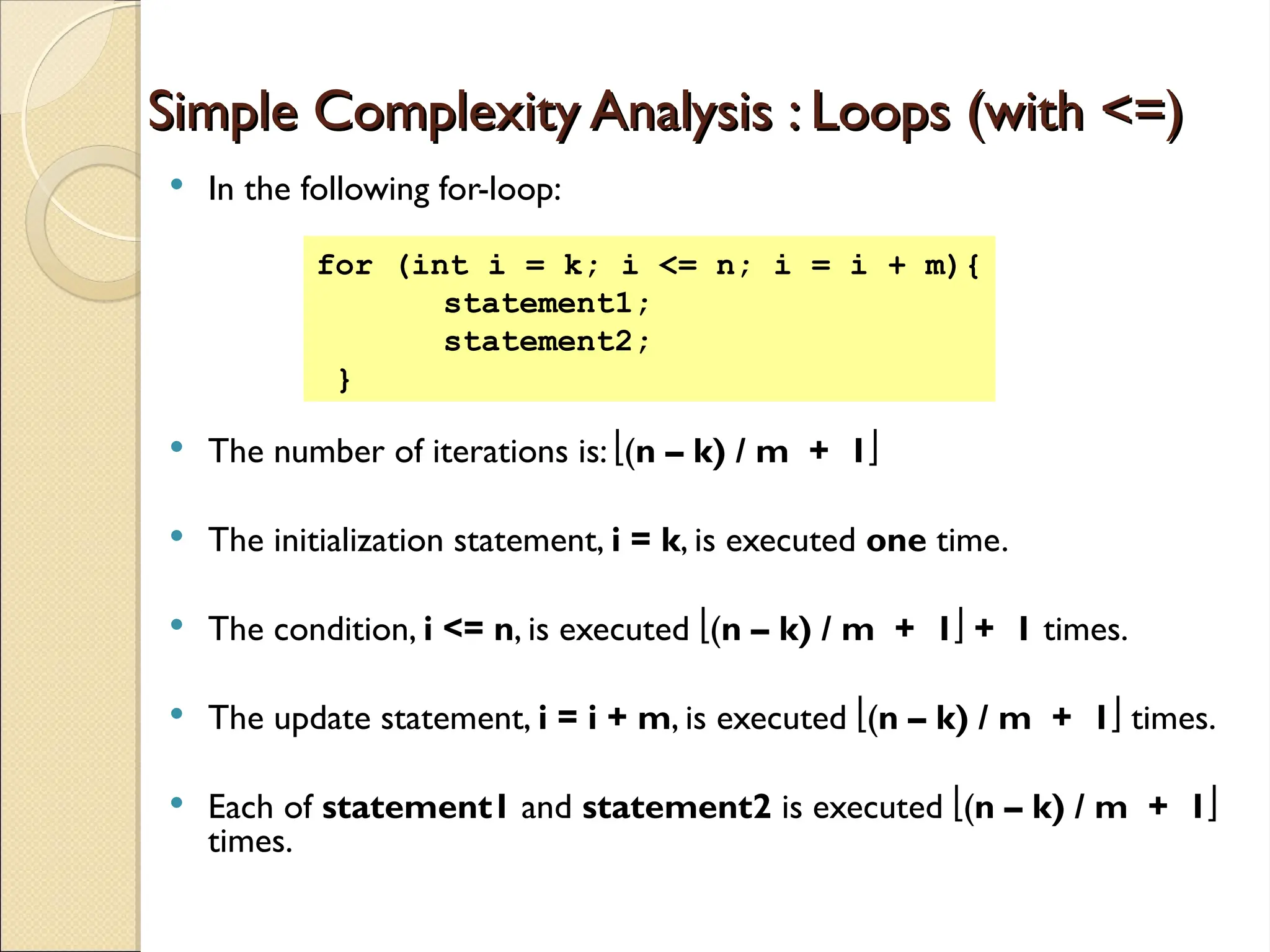

Simple Complexity Analysis : Loops (with <=)
Simple Complexity Analysis : Loops (with <=)
 In the following for-loop:
 The number of iterations is: (n – k) / m + 1
 The initialization statement, i = k, is executed one time.
 The condition, i <= n, is executed (n – k) / m + 1 + 1 times.
 The update statement, i = i + m, is executed (n – k) / m + 1 times.
 Each of statement1 and statement2 is executed (n – k) / m + 1
times.
for (int i = k; i <= n; i = i + m){
statement1;
statement2;
}

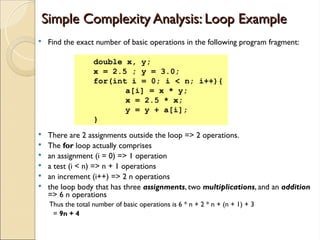

Simple Complexity Analysis: Loop Example
Simple Complexity Analysis: Loop Example
 Find the exact number of basic operations in the following program fragment:
 There are 2 assignments outside the loop => 2 operations.
 The for loop actually comprises
 an assignment (i = 0) => 1 operation
 a test (i < n) => n + 1 operations
 an increment (i++) => 2 n operations
 the loop body that has three assignments, two multiplications, and an addition
=> 6 n operations
Thus the total number of basic operations is 6 * n + 2 * n + (n + 1) + 3
= 9n + 4
double x, y;
x = 2.5 ; y = 3.0;
for(int i = 0; i < n; i++){
a[i] = x * y;
x = 2.5 * x;
y = y + a[i];
}

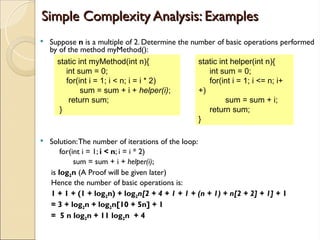

Simple Complexity Analysis: Examples
Simple Complexity Analysis: Examples
 Suppose n is a multiple of 2. Determine the number of basic operations performed
by of the method myMethod():
 Solution:The number of iterations of the loop:
for(int i = 1; i < n; i = i * 2)
sum = sum + i + helper(i);
is log2n (A Proof will be given later)
Hence the number of basic operations is:
1 + 1 + (1 + log2n) + log2n[2 + 4 + 1 + 1 + (n + 1) + n[2 + 2] + 1] + 1
= 3 + log2n + log2n[10 + 5n] + 1
= 5 n log2n + 11 log2n + 4
static int myMethod(int n){
int sum = 0;
for(int i = 1; i < n; i = i * 2)
sum = sum + i + helper(i);
return sum;
}
static int helper(int n){
int sum = 0;
for(int i = 1; i <= n; i+
+)
sum = sum + i;
return sum;
}

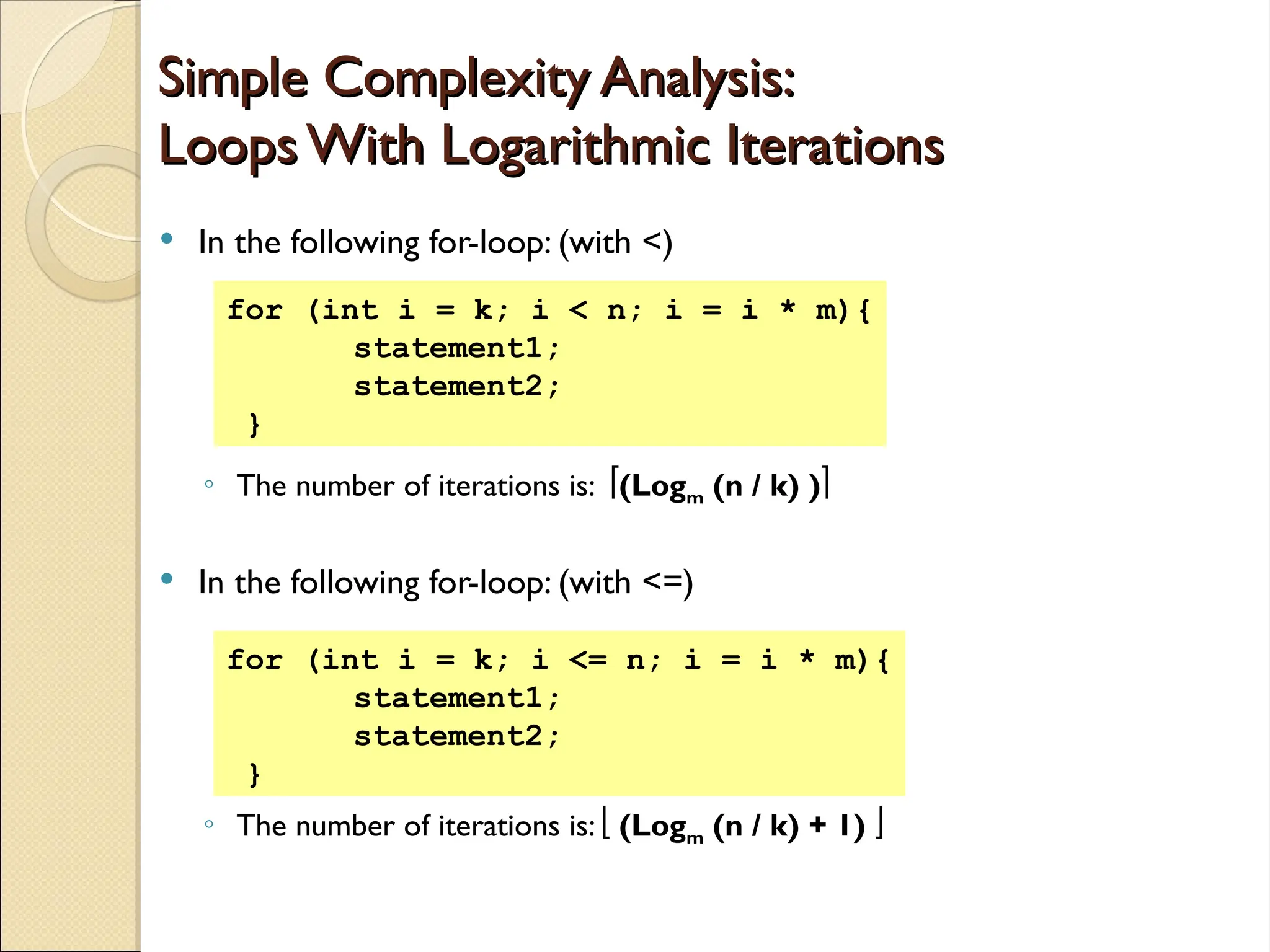

Simple Complexity Analysis:
Simple Complexity Analysis:
Loops With Logarithmic Iterations
Loops With Logarithmic Iterations
 In the following for-loop: (with <)
◦ The number of iterations is: (Logm (n / k) )
 In the following for-loop: (with <=)
◦ The number of iterations is:  (Logm (n / k) + 1) 
for (int i = k; i < n; i = i * m){
statement1;
statement2;
}
for (int i = k; i <= n; i = i * m){
statement1;
statement2;
}

15
4.

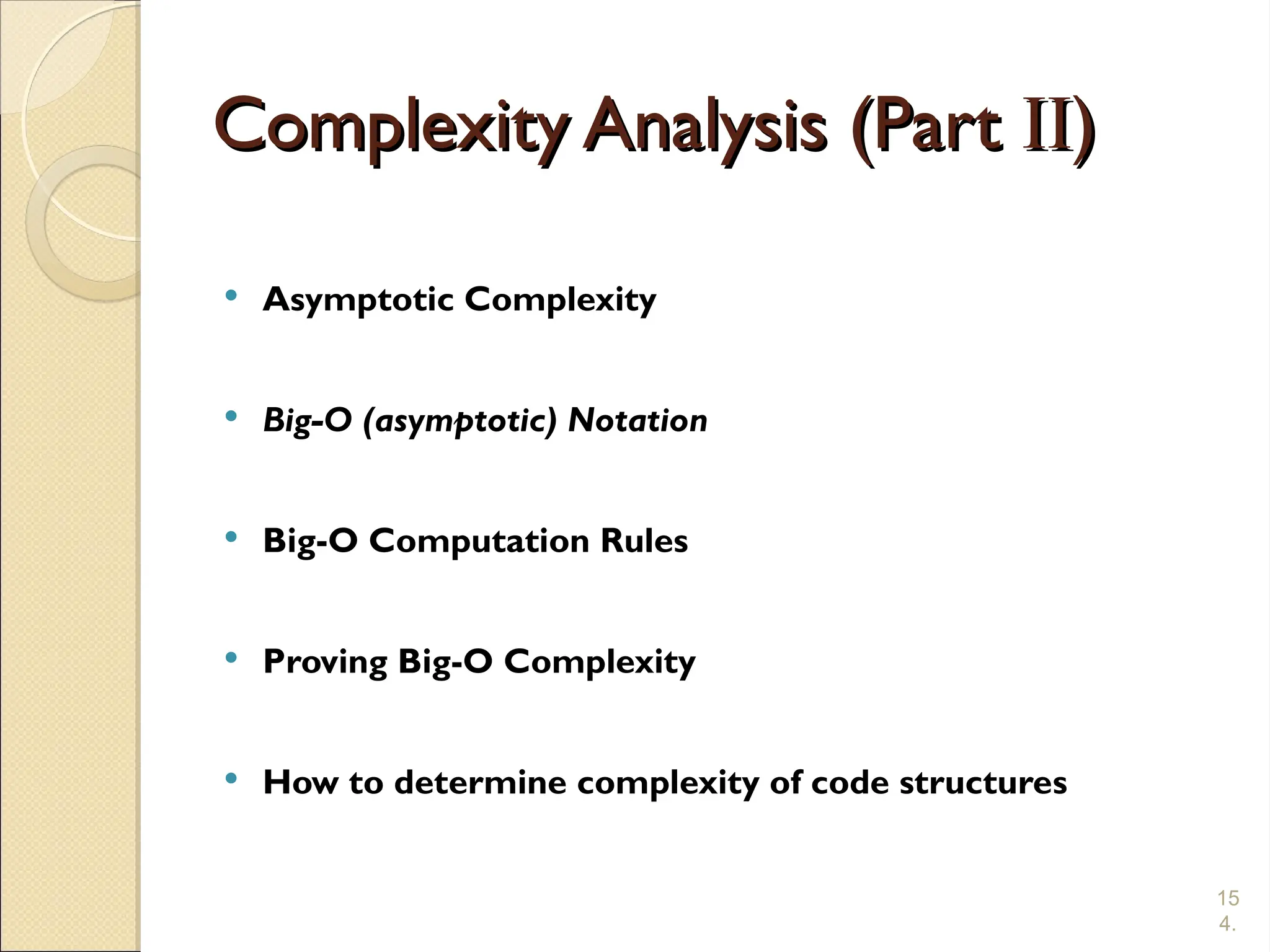

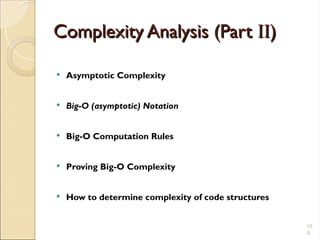

Complexity Analysis (Part
Complexity Analysis (Part II
II)
)
 Asymptotic Complexity
 Big-O (asymptotic) Notation
 Big-O Computation Rules
 Proving Big-O Complexity
 How to determine complexity of code structures

16
4.

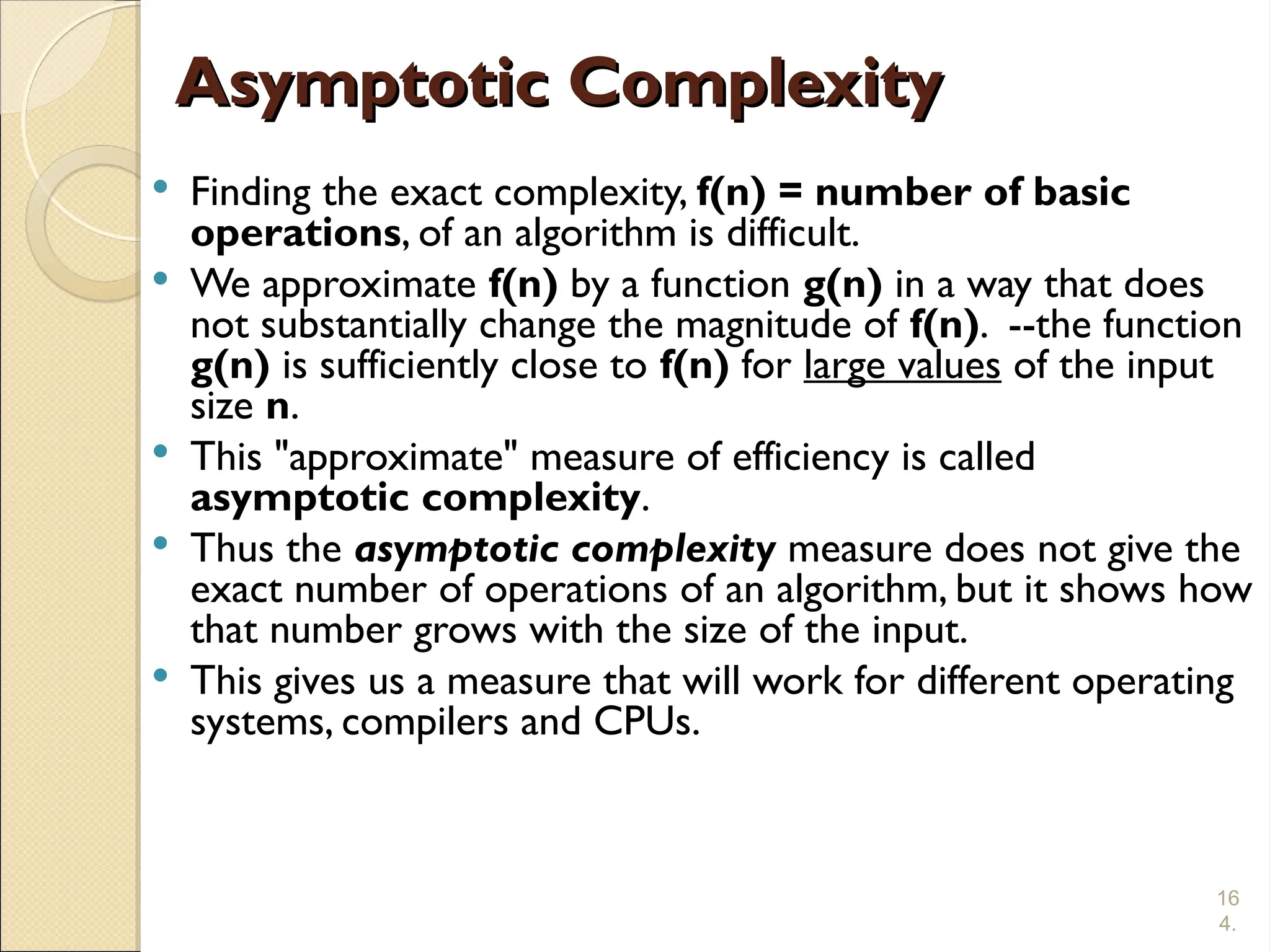

Asymptotic Complexity
Asymptotic Complexity
 Finding the exact complexity, f(n) = number of basic
operations, of an algorithm is difficult.
 We approximate f(n) by a function g(n) in a way that does
not substantially change the magnitude of f(n). --the function
g(n) is sufficiently close to f(n) for large values of the input
size n.
 This "approximate" measure of efficiency is called
asymptotic complexity.
 Thus the asymptotic complexity measure does not give the
exact number of operations of an algorithm, but it shows how
that number grows with the size of the input.
 This gives us a measure that will work for different operating
systems, compilers and CPUs.

17
4.

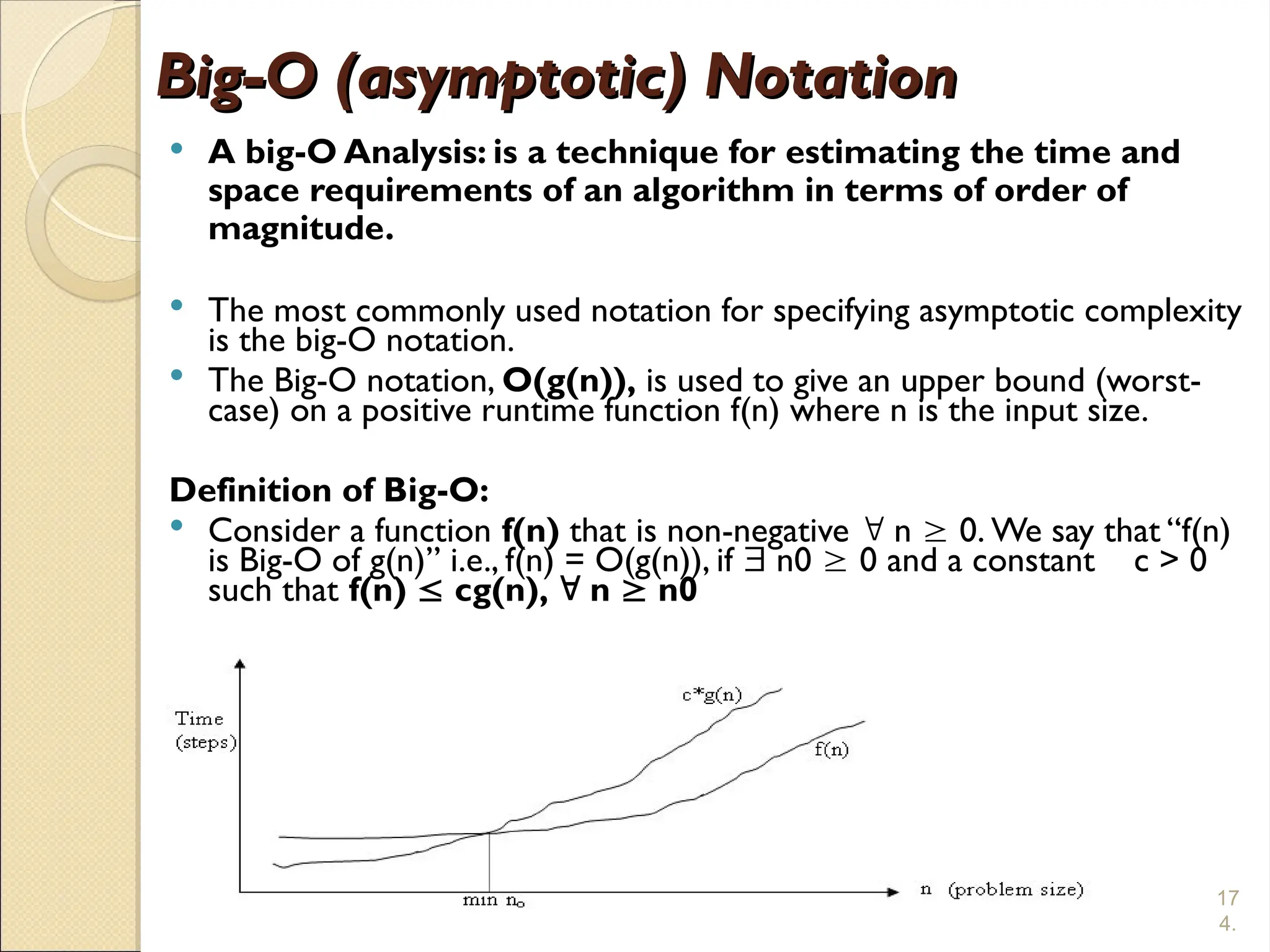

Big-O (asymptotic) Notation
 A big-O Analysis: is a technique for estimating the time and
space requirements of an algorithm in terms of order of
magnitude.
 The most commonly used notation for specifying asymptotic complexity
is the big-O notation.
 The Big-O notation, O(g(n)), is used to give an upper bound (worst-
case) on a positive runtime function f(n) where n is the input size.
Definition of Big-O:
 Consider a function f(n) that is non-negative  n  0. We say that “f(n)
is Big-O of g(n)” i.e., f(n) = O(g(n)), if  n0  0 and a constant c > 0
such that f(n)  cg(n),  n  n0

18
4.

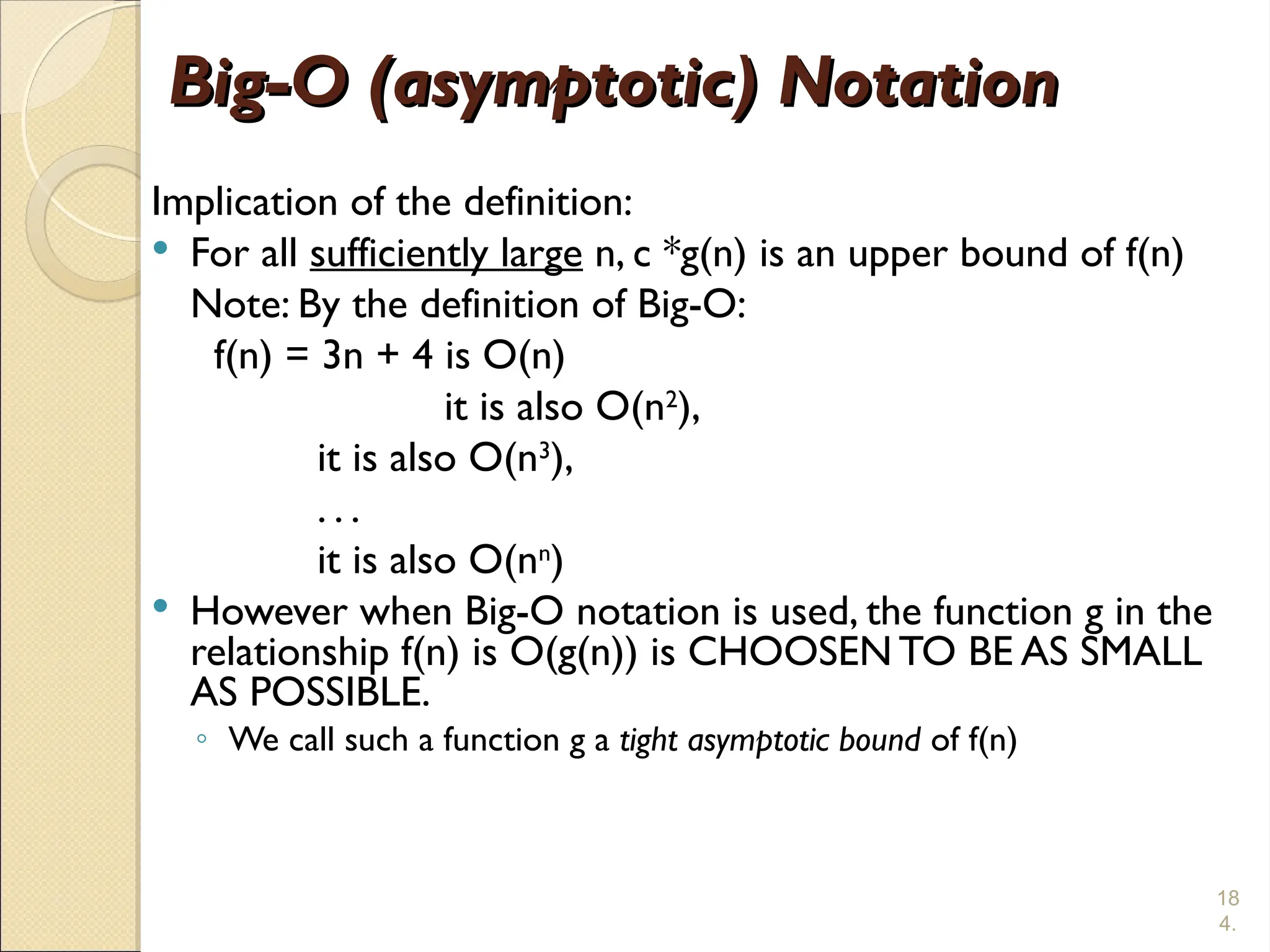

Implication of the definition:
 For all sufficiently large n, c *g(n) is an upper bound of f(n)
Note: By the definition of Big-O:
f(n) = 3n + 4 is O(n)
it is also O(n2
),
it is also O(n3
),
. . .
it is also O(nn
)
 However when Big-O notation is used, the function g in the
relationship f(n) is O(g(n)) is CHOOSEN TO BE AS SMALL
AS POSSIBLE.
◦ We call such a function g a tight asymptotic bound of f(n)

194.

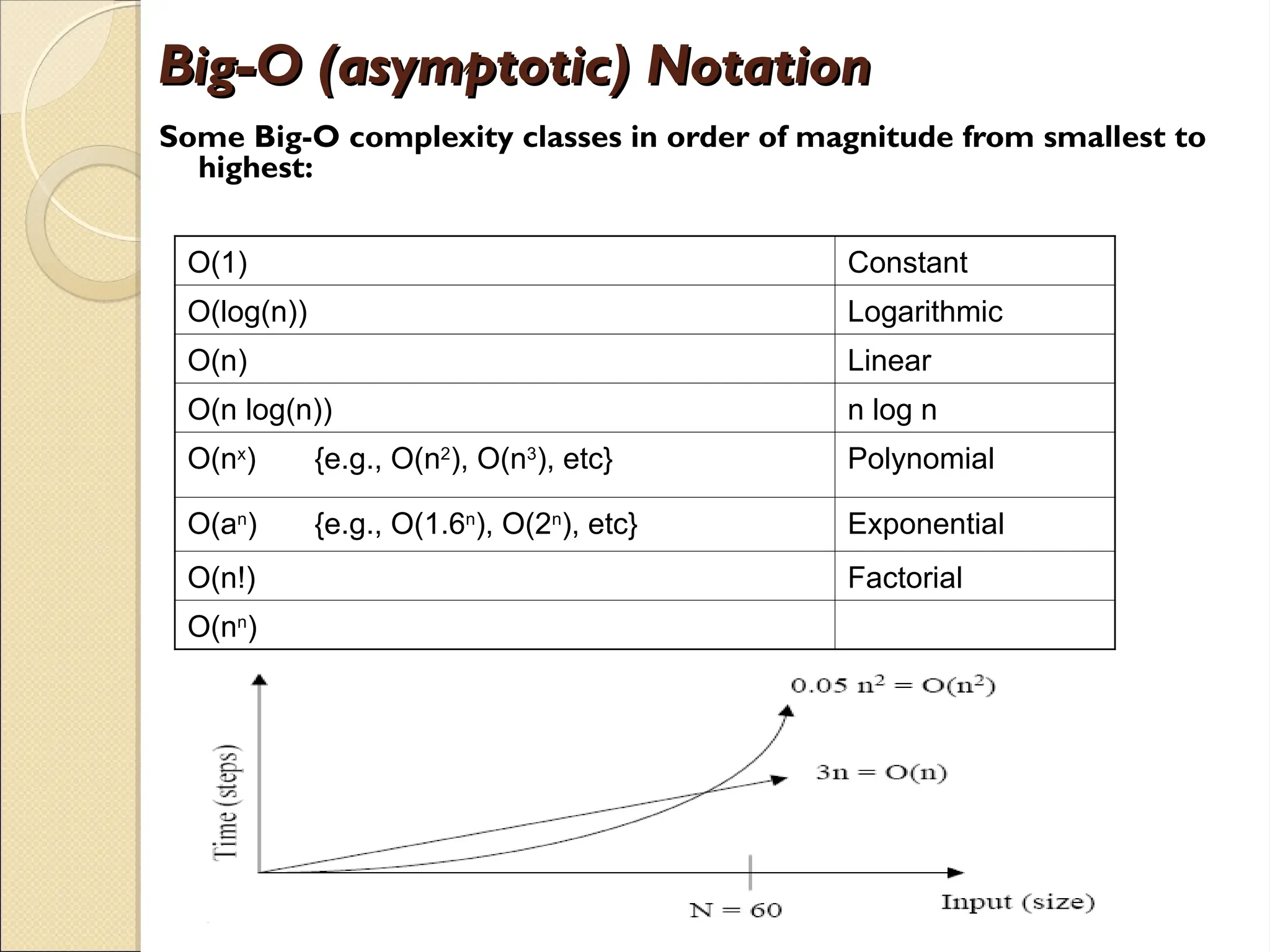

Some Big-O complexity classes in order of magnitude from smallest to
highest:
O(1) Constant
O(log(n)) Logarithmic
O(n) Linear
O(n log(n)) n log n
O(nx
) {e.g., O(n2
), O(n3
), etc} Polynomial
O(an
) {e.g., O(1.6n
), O(2n
), etc} Exponential
O(n!) Factorial
O(nn
)

204.

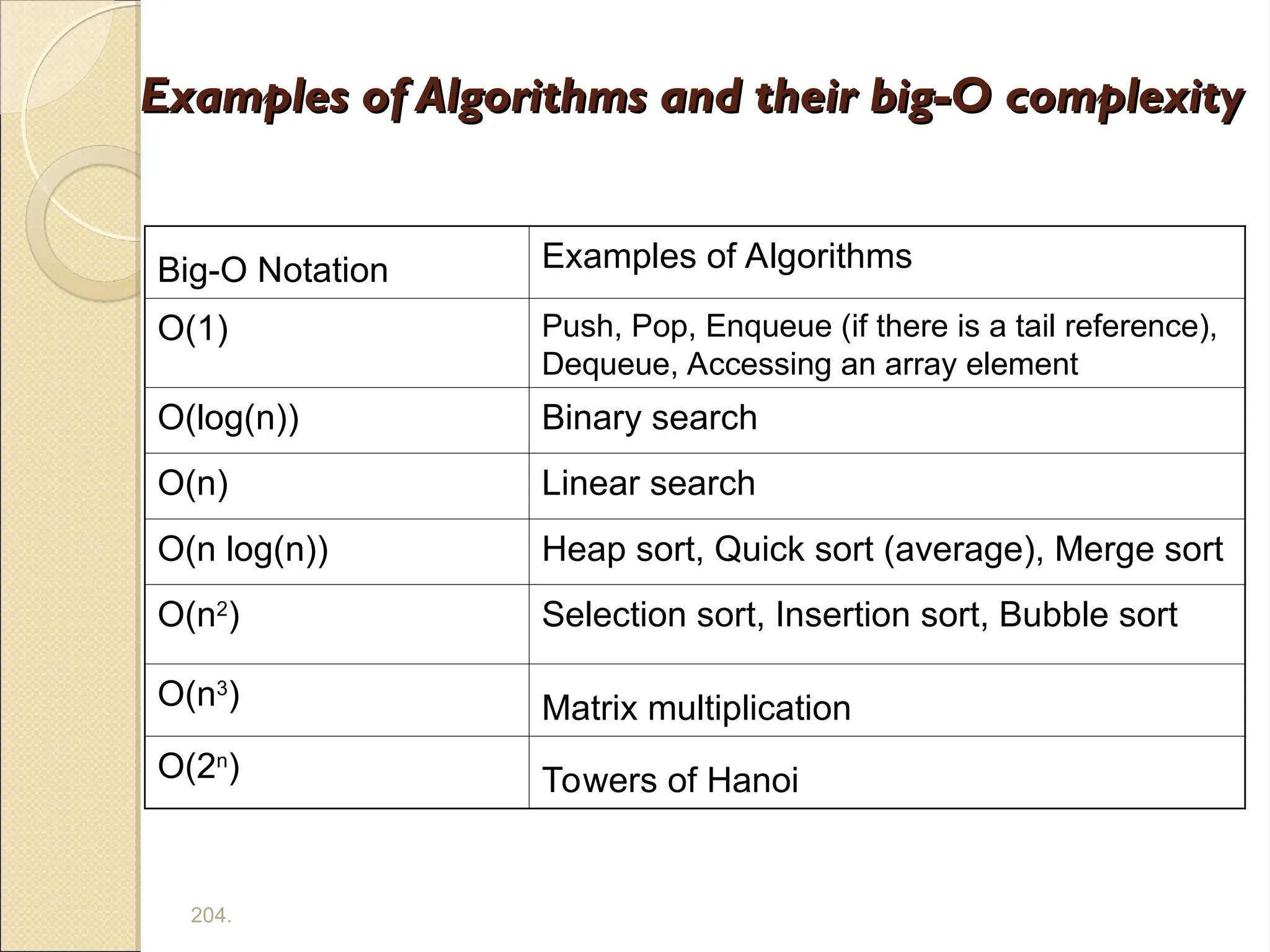

Examples of Algorithms and their big-O complexity
Examples of Algorithms and their big-O complexity
Big-O Notation Examples of Algorithms
O(1) Push, Pop, Enqueue (if there is a tail reference),
Dequeue, Accessing an array element
O(log(n)) Binary search
O(n) Linear search
O(n log(n)) Heap sort, Quick sort (average), Merge sort
O(n2
) Selection sort, Insertion sort, Bubble sort
O(n3
) Matrix multiplication
O(2n
) Towers of Hanoi

21
4.

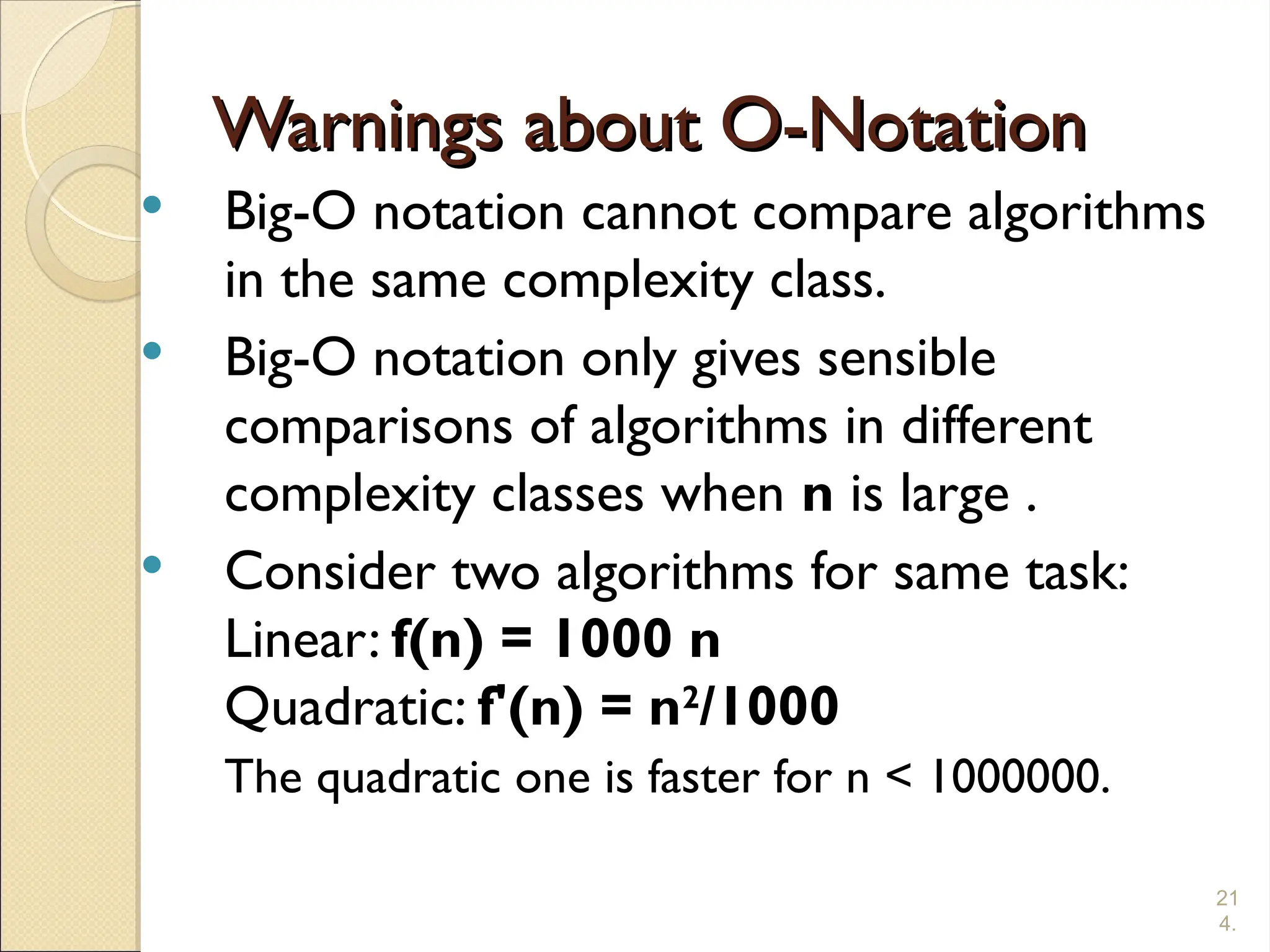

Warnings about O-Notation
Warnings about O-Notation
 Big-O notation cannot compare algorithms
in the same complexity class.
 Big-O notation only gives sensible
comparisons of algorithms in different
complexity classes when n is large .
 Consider two algorithms for same task:
Linear: f(n) = 1000 n
Quadratic: f'(n) = n2
/1000
The quadratic one is faster for n < 1000000.

22
4.

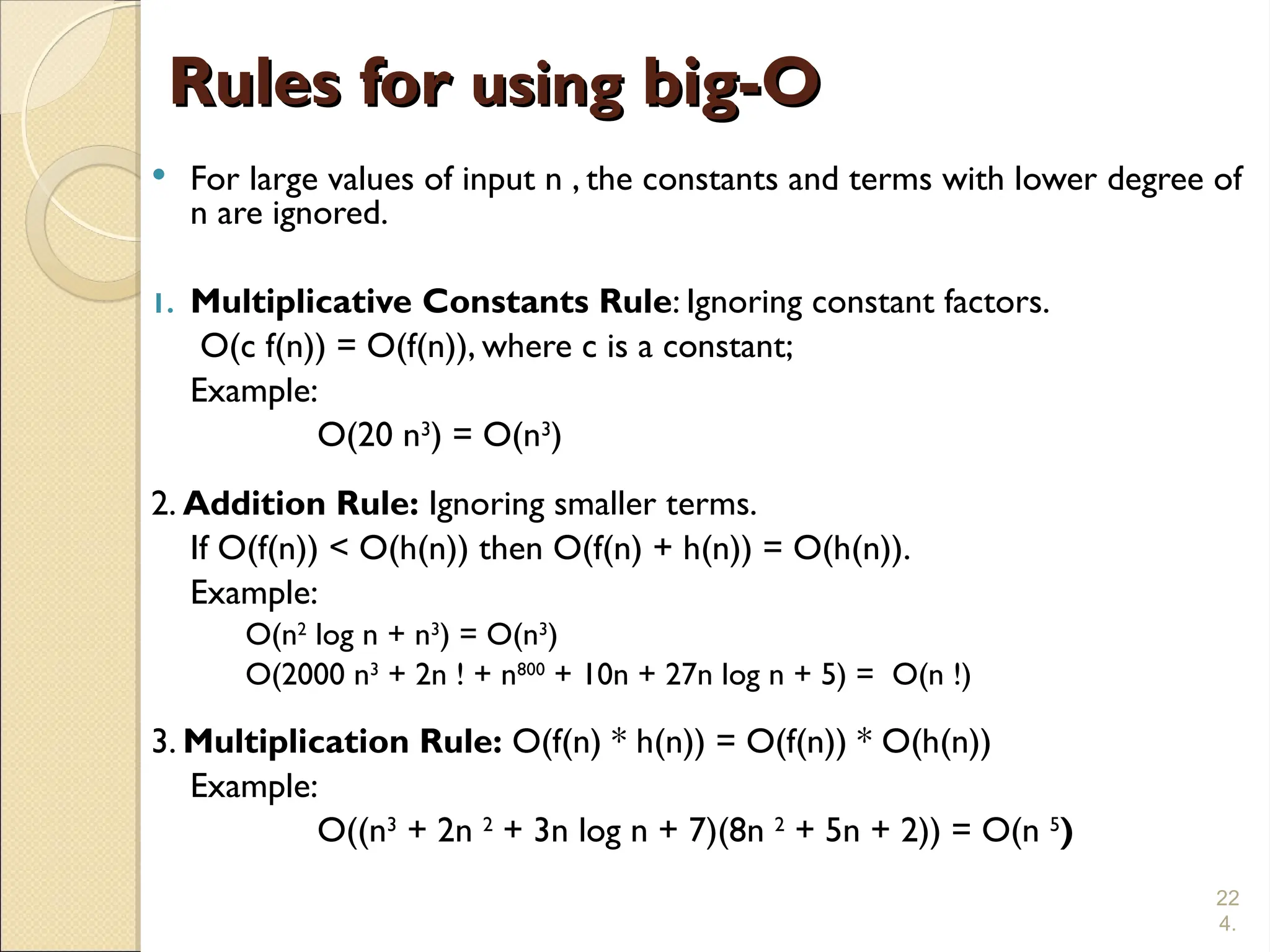

Rules for
Rules for using
using big-O
big-O
 For large values of input n , the constants and terms with lower degree of
n are ignored.
1. Multiplicative Constants Rule: Ignoring constant factors.
O(c f(n)) = O(f(n)), where c is a constant;
Example:
O(20 n3
) = O(n3
)
2. Addition Rule: Ignoring smaller terms.
If O(f(n)) < O(h(n)) then O(f(n) + h(n)) = O(h(n)).
Example:
O(n2
log n + n3
) = O(n3
)
O(2000 n3
+ 2n ! + n800
+ 10n + 27n log n + 5) = O(n !)
3. Multiplication Rule: O(f(n) * h(n)) = O(f(n)) * O(h(n))
Example:
O((n3
+ 2n 2
+ 3n log n + 7)(8n 2
+ 5n + 2)) = O(n 5
)

234.

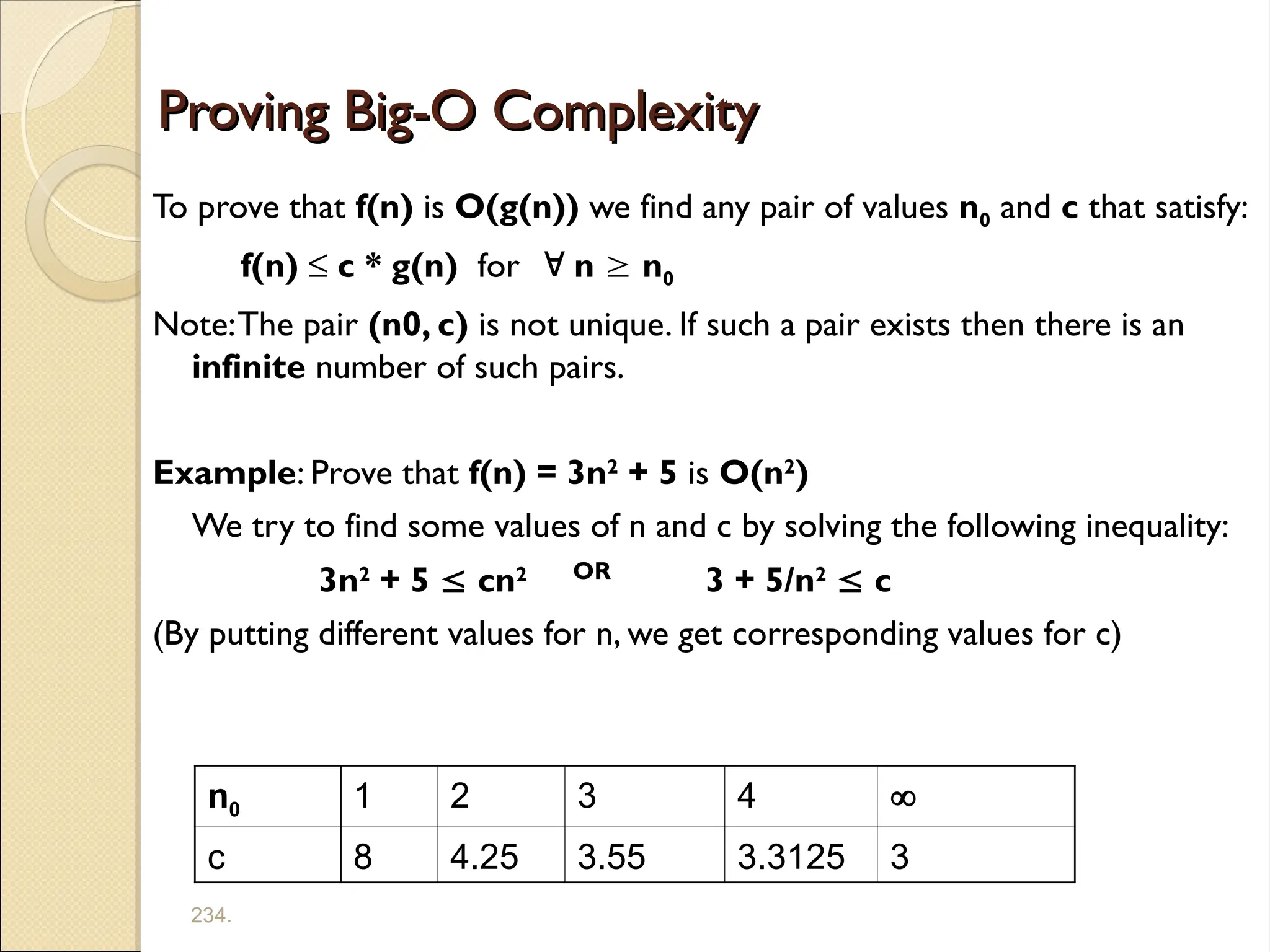

Proving Big-O Complexity
To prove that f(n) is O(g(n)) we find any pair of values n0 and c that satisfy:
f(n) ≤ c * g(n) for  n  n0
Note:The pair (n0, c) is not unique. If such a pair exists then there is an
infinite number of such pairs.
Example: Prove that f(n) = 3n2
+ 5 is O(n2
)
We try to find some values of n and c by solving the following inequality:
3n2
+ 5  cn2 OR
3 + 5/n2
 c
(By putting different values for n, we get corresponding values for c)
n0 1 2 3 4 
c 8 4.25 3.55 3.3125 3

244.

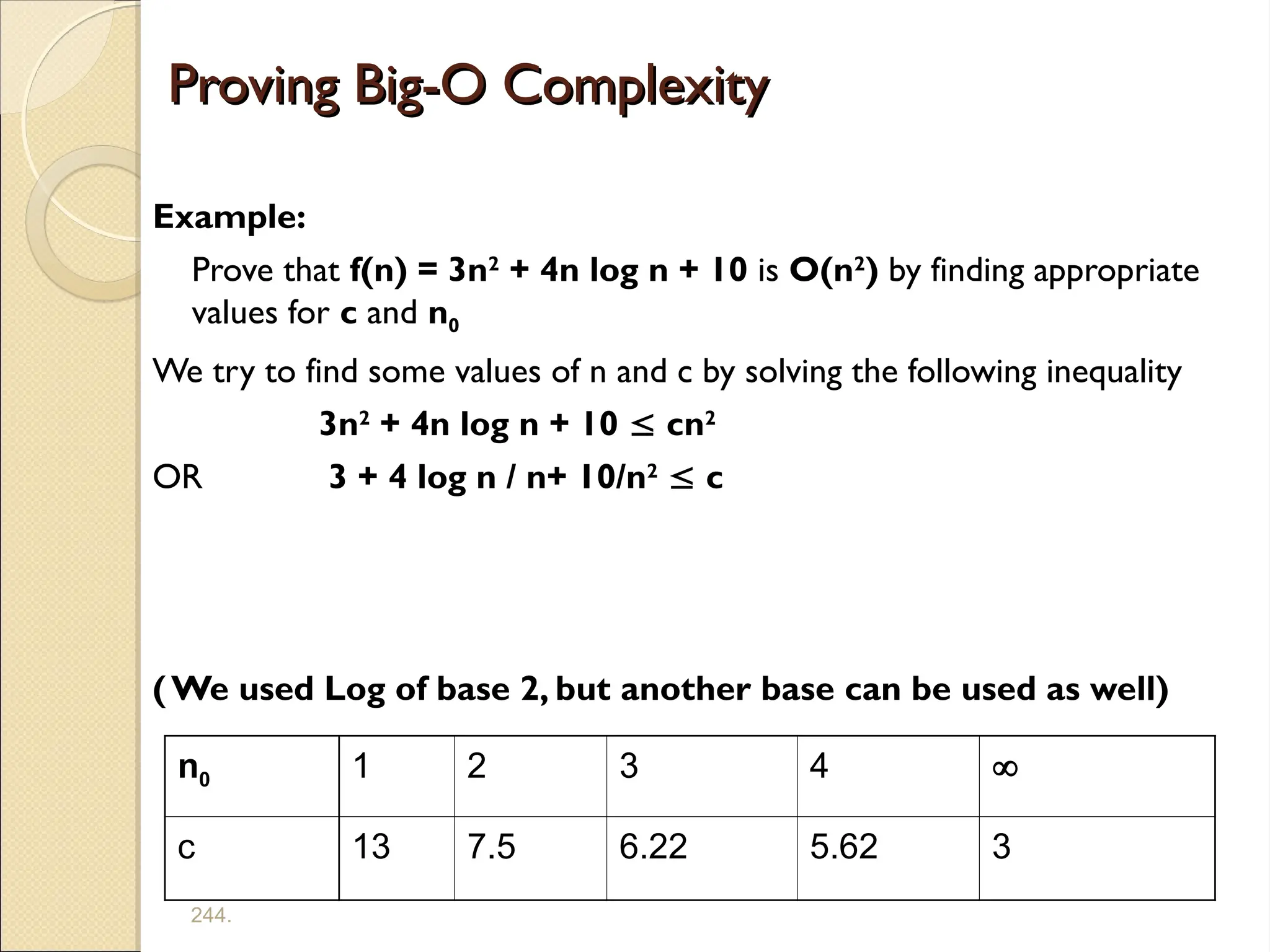

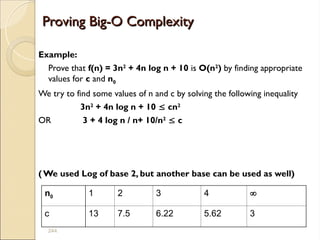

Example:
Prove that f(n) = 3n2
+ 4n log n + 10 is O(n2
) by finding appropriate
values for c and n0
We try to find some values of n and c by solving the following inequality
3n2
+ 4n log n + 10  cn2
OR 3 + 4 log n / n+ 10/n2
 c
(We used Log of base 2, but another base can be used as well)
n0 1 2 3 4 
c 13 7.5 6.22 5.62 3

25
4.
How to determine complexity of code structures
Loops: for, while, and do-while:
Complexity is determined by the number of iterations in the
loop times the complexity of the body of the loop.
Examples:
for (int i = 0; i < n; i++)
sum = sum - i;
for (int i = 0; i < n * n; i++)
sum = sum + i;
i=1;
while (i < n) {
sum = sum + i;
i = i*2
}
O(n)
O(n2
)
O(log n)

26

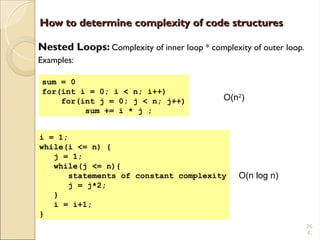

4.
Nested Loops: Complexity of inner loop * complexity of outer loop.
Examples:
sum = 0
for(int i = 0; i < n; i++)
for(int j = 0; j < n; j++)
sum += i * j ;
i = 1;
while(i <= n) {
j = 1;
while(j <= n){
statements of constant complexity
j = j*2;
}
i = i+1;
}
O(n2
)
O(n log n)

27

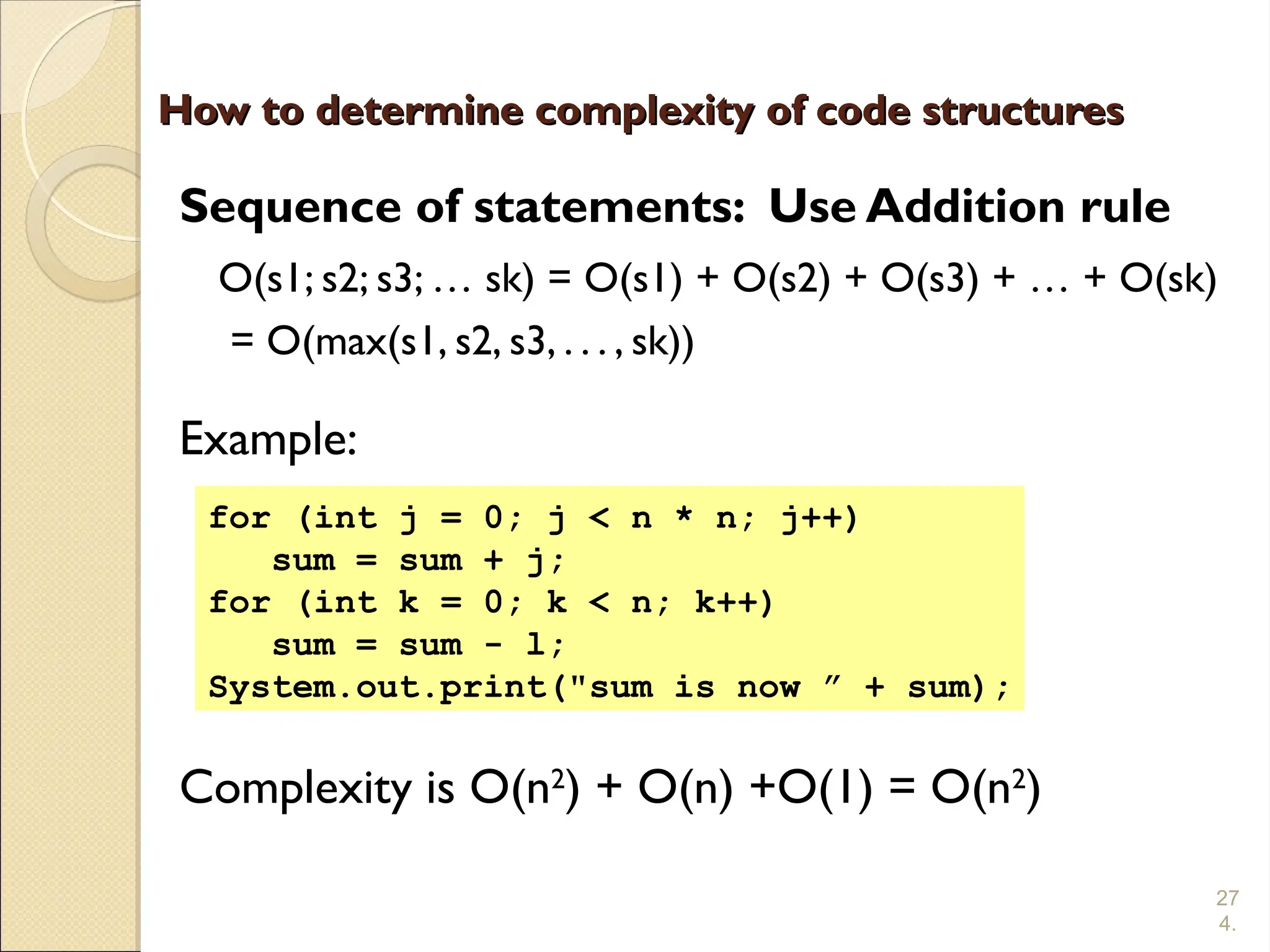

4.
Sequence of statements: Use Addition rule
O(s1; s2; s3; … sk) = O(s1) + O(s2) + O(s3) + … + O(sk)
= O(max(s1, s2, s3, . . . , sk))
Example:
Complexity is O(n2
) + O(n) +O(1) = O(n2
)
for (int j = 0; j < n * n; j++)
sum = sum + j;
for (int k = 0; k < n; k++)
sum = sum - l;
System.out.print("sum is now ” + sum);

28

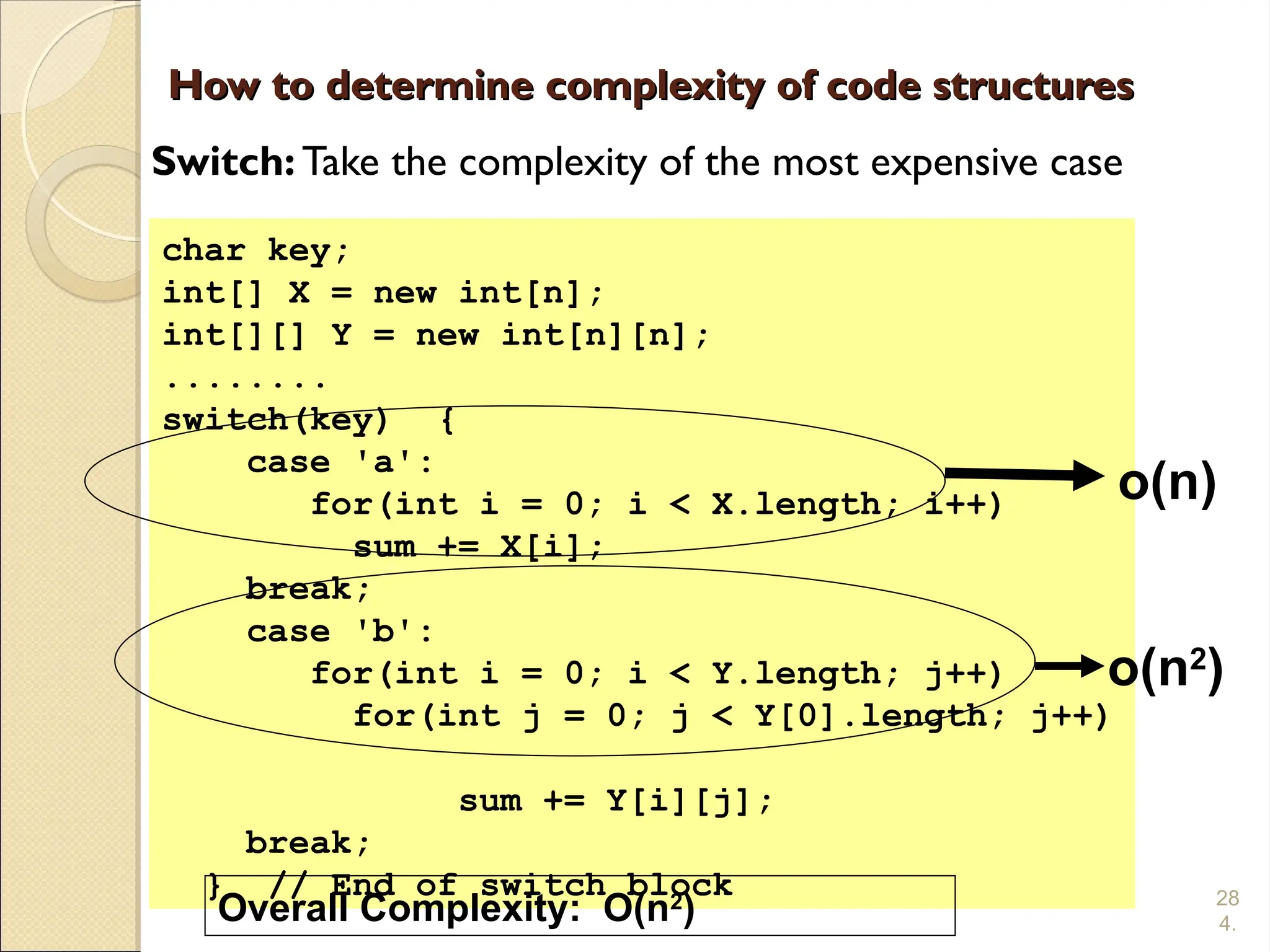

4.
char key;
int[] X = new int[n];
int[][] Y = new int[n][n];
........
switch(key) {
case 'a':
for(int i = 0; i < X.length; i++)
sum += X[i];
break;
case 'b':
for(int i = 0; i < Y.length; j++)
for(int j = 0; j < Y[0].length; j++)
sum += Y[i][j];
break;
} // End of switch block
Switch: Take the complexity of the most expensive case
o(n)
o(n2
)
Overall Complexity: O(n2
)

29

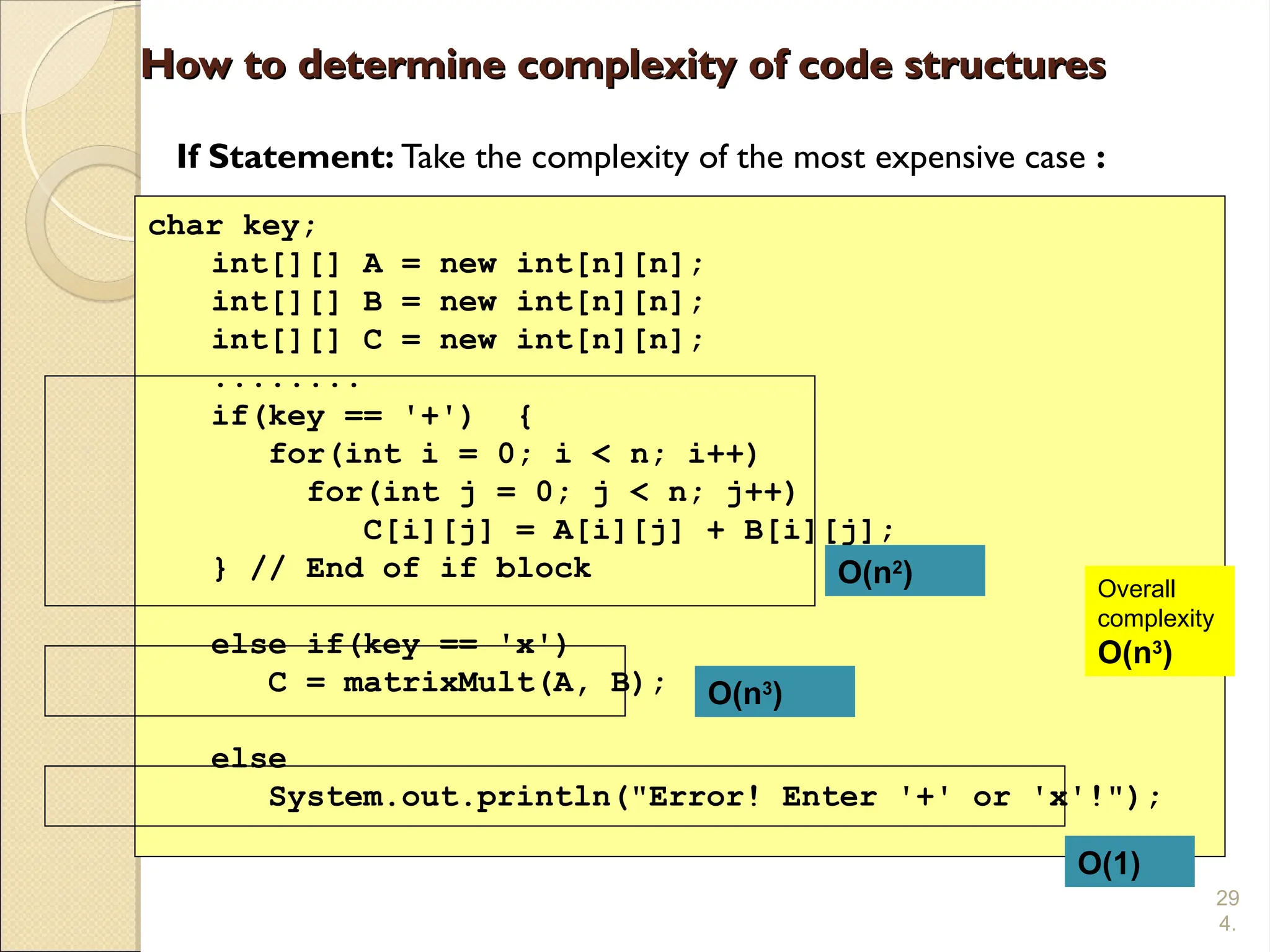

4.
char key;
int[][] A = new int[n][n];
int[][] B = new int[n][n];
int[][] C = new int[n][n];
........
if(key == '+') {
for(int i = 0; i < n; i++)
for(int j = 0; j < n; j++)
C[i][j] = A[i][j] + B[i][j];
} // End of if block
else if(key == 'x')
C = matrixMult(A, B);
else
System.out.println("Error! Enter '+' or 'x'!");
If Statement: Take the complexity of the most expensive case :
O(n2
)
O(n3
)
O(1)
Overall
complexity
O(n3
)

30

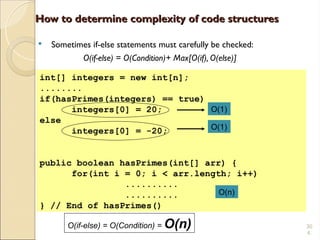

4.
int[] integers = new int[n];
........
if(hasPrimes(integers) == true)
integers[0] = 20;
else
integers[0] = -20;
public boolean hasPrimes(int[] arr) {
for(int i = 0; i < arr.length; i++)
..........
..........
} // End of hasPrimes()
 Sometimes if-else statements must carefully be checked:
O(if-else) = O(Condition)+ Max[O(if), O(else)]
O(1)
O(1)
O(if-else) = O(Condition) = O(n)
O(n)

31

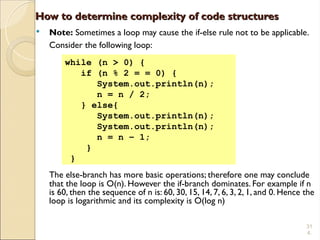

4.
 Note: Sometimes a loop may cause the if-else rule not to be applicable.
Consider the following loop:
The else-branch has more basic operations; therefore one may conclude
that the loop is O(n). However the if-branch dominates. For example if n
is 60, then the sequence of n is: 60, 30, 15, 14, 7, 6, 3, 2, 1, and 0. Hence the
loop is logarithmic and its complexity is O(log n)
while (n > 0) {
if (n % 2 = = 0) {
System.out.println(n);
n = n / 2;
} else{
n = n – 1;
}
}

Big-O notations, Algorithm and complexity analaysis

More Related Content

Similar to Big-O notations, Algorithm and complexity analaysis

Recently uploaded

Big-O notations, Algorithm and complexity analaysis
