PROGRAM EFFICIENCY &
COMPLEXITY ANALYSIS
Lecture 03-04
By: Dr. Zahoor Jan
1

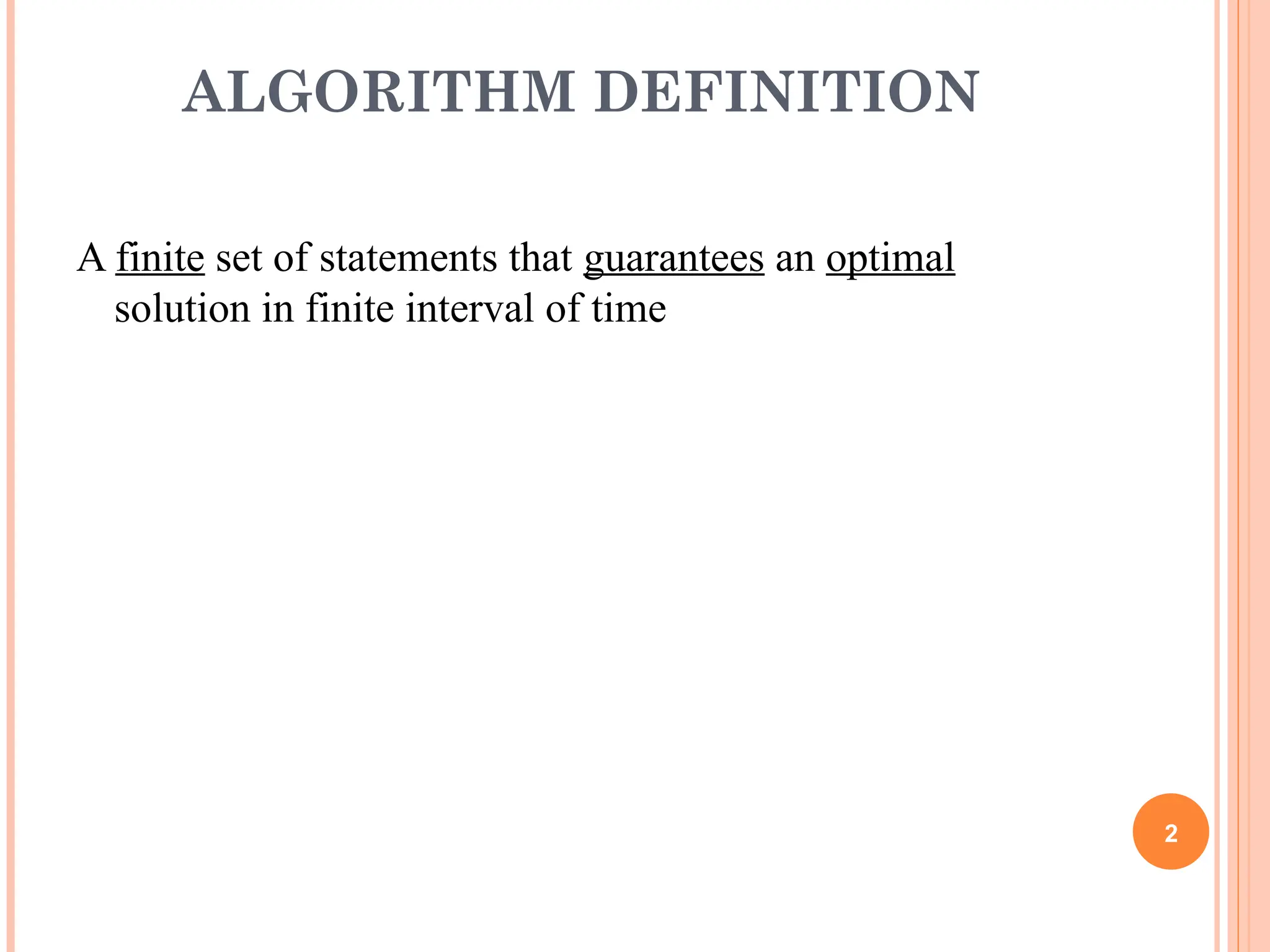

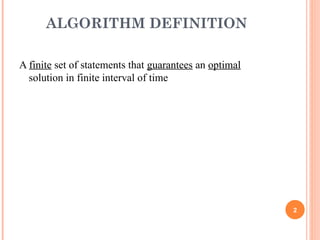

ALGORITHM DEFINITION
A finite set of statements that guarantees an optimal
solution in finite interval of time
2

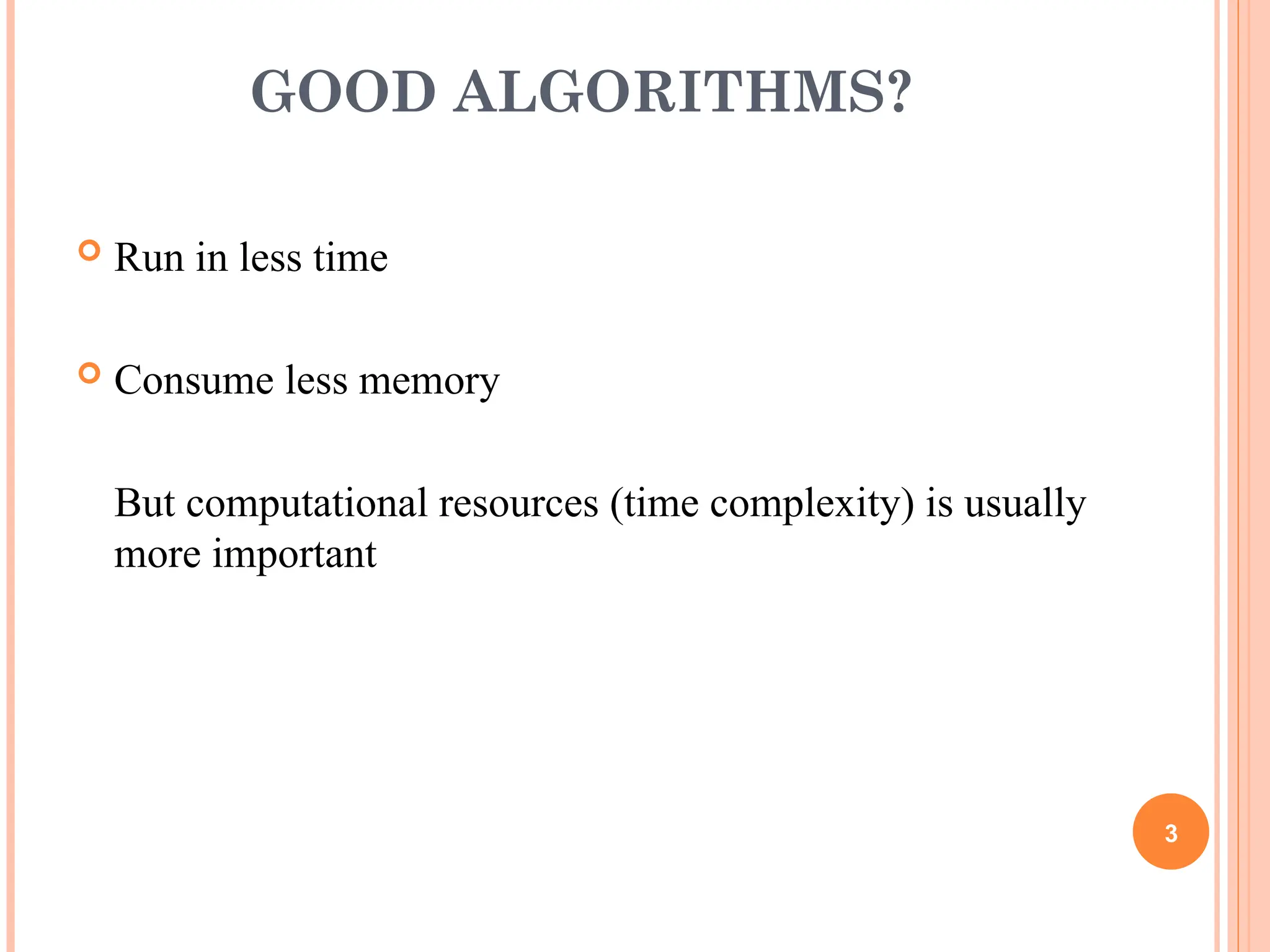

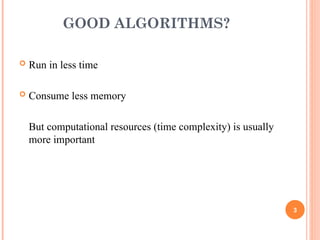

GOOD ALGORITHMS?
 Run in less time
 Consume less memory
But computational resources (time complexity) is usually
more important
3

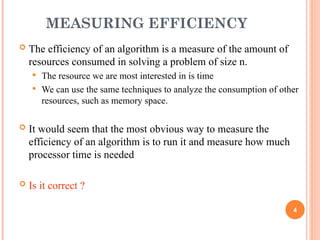

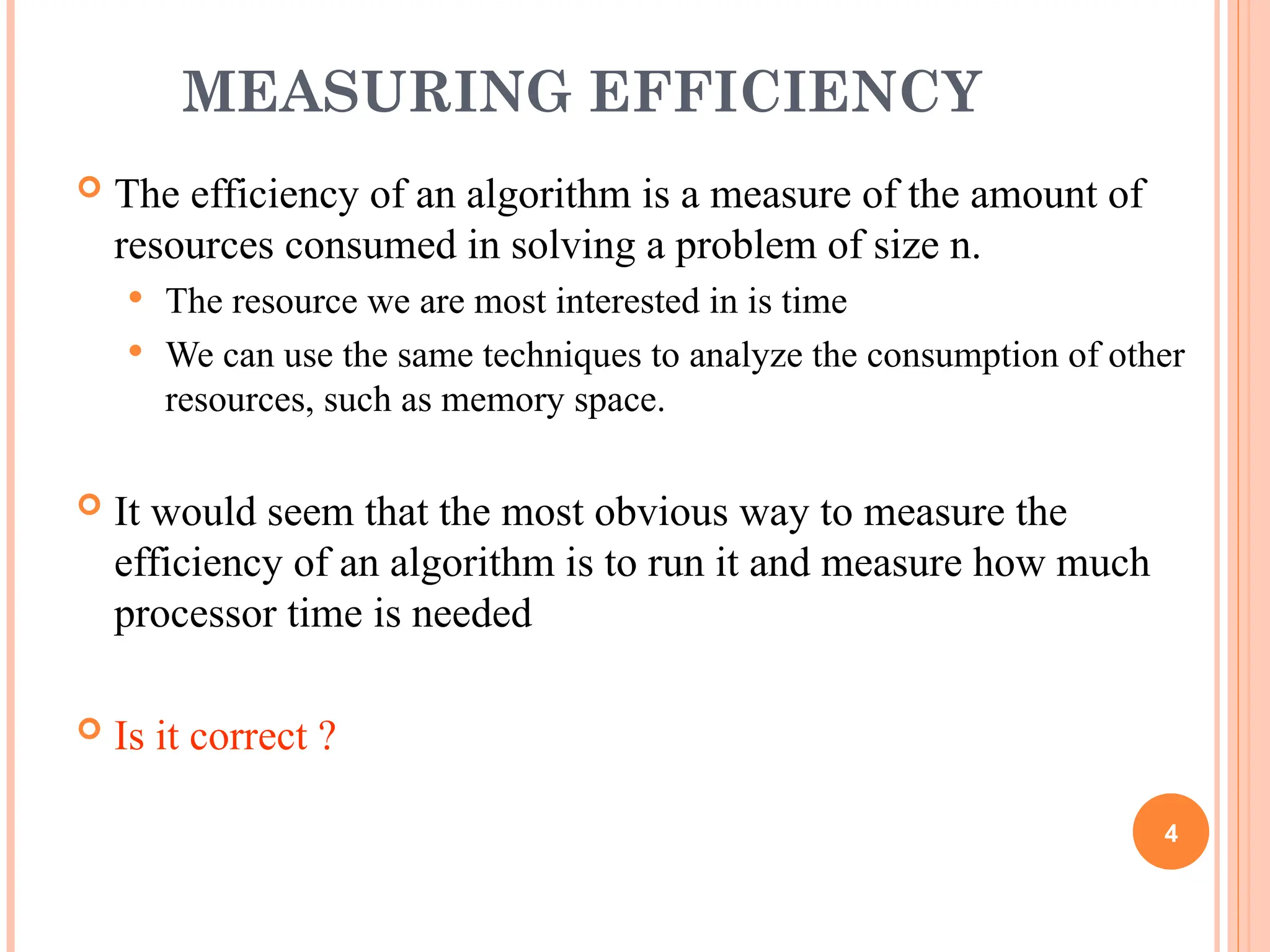

MEASURING EFFICIENCY
 The efficiency of an algorithm is a measure of the amount of
resources consumed in solving a problem of size n.
 The resource we are most interested in is time
 We can use the same techniques to analyze the consumption of other
resources, such as memory space.
 It would seem that the most obvious way to measure the
efficiency of an algorithm is to run it and measure how much
processor time is needed
 Is it correct ?
4

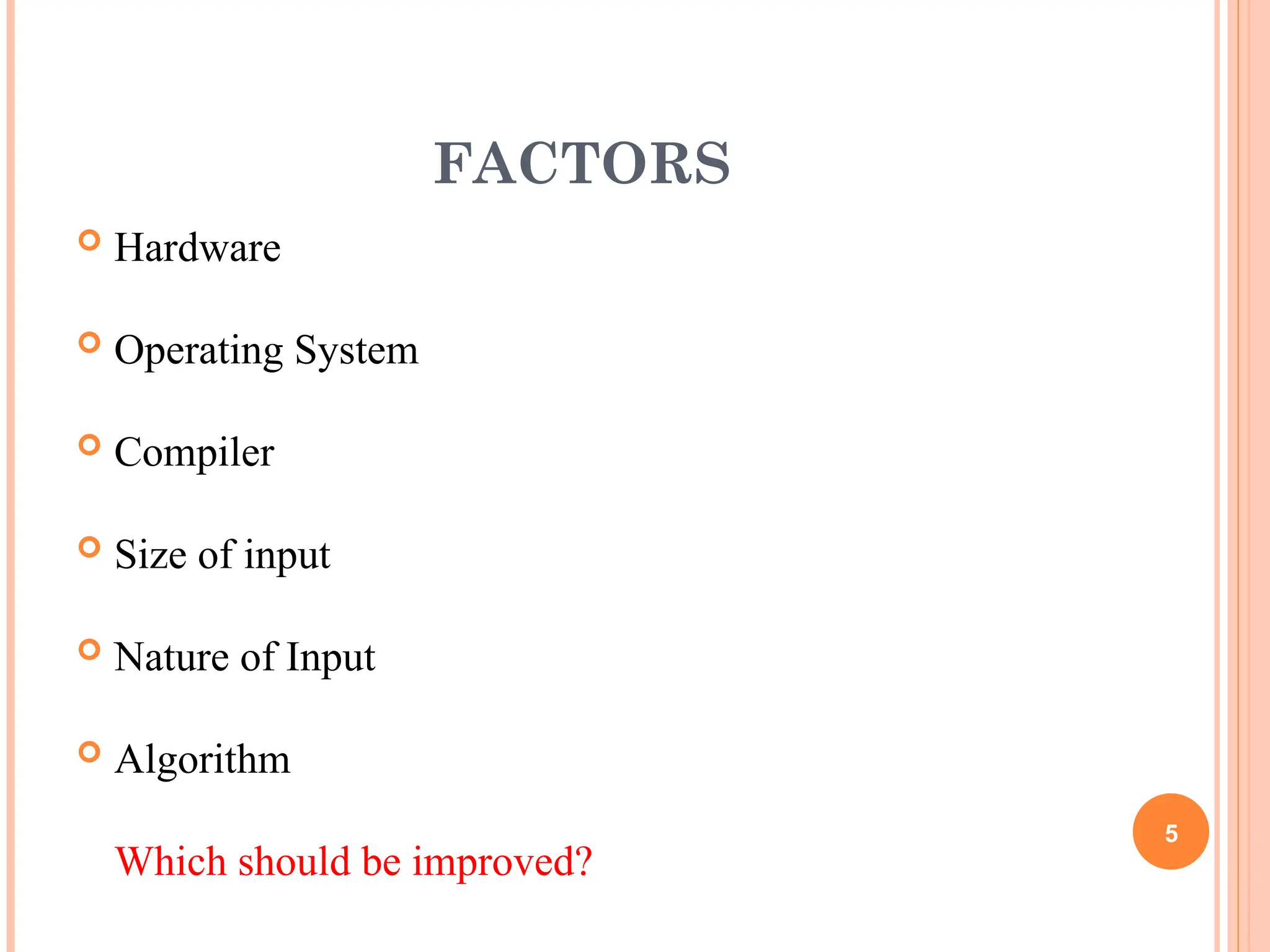

FACTORS
 Hardware
 Operating System
 Compiler
 Size of input
 Nature of Input
 Algorithm
Which should be improved?
5

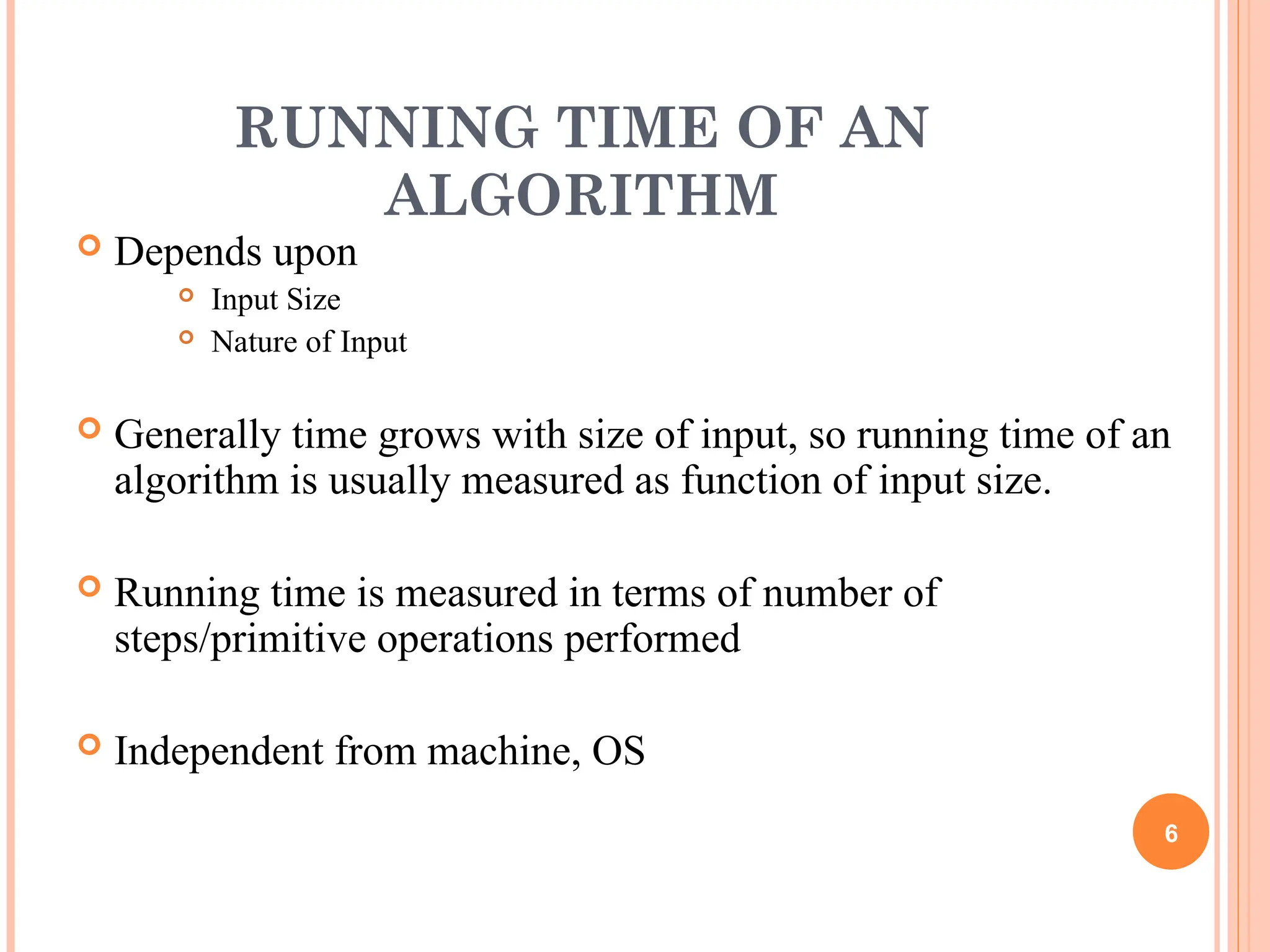

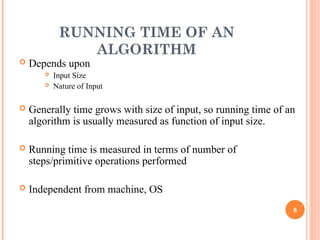

RUNNING TIME OF AN
ALGORITHM
 Depends upon
 Input Size
 Nature of Input
 Generally time grows with size of input, so running time of an
algorithm is usually measured as function of input size.
 Running time is measured in terms of number of
steps/primitive operations performed
 Independent from machine, OS
6

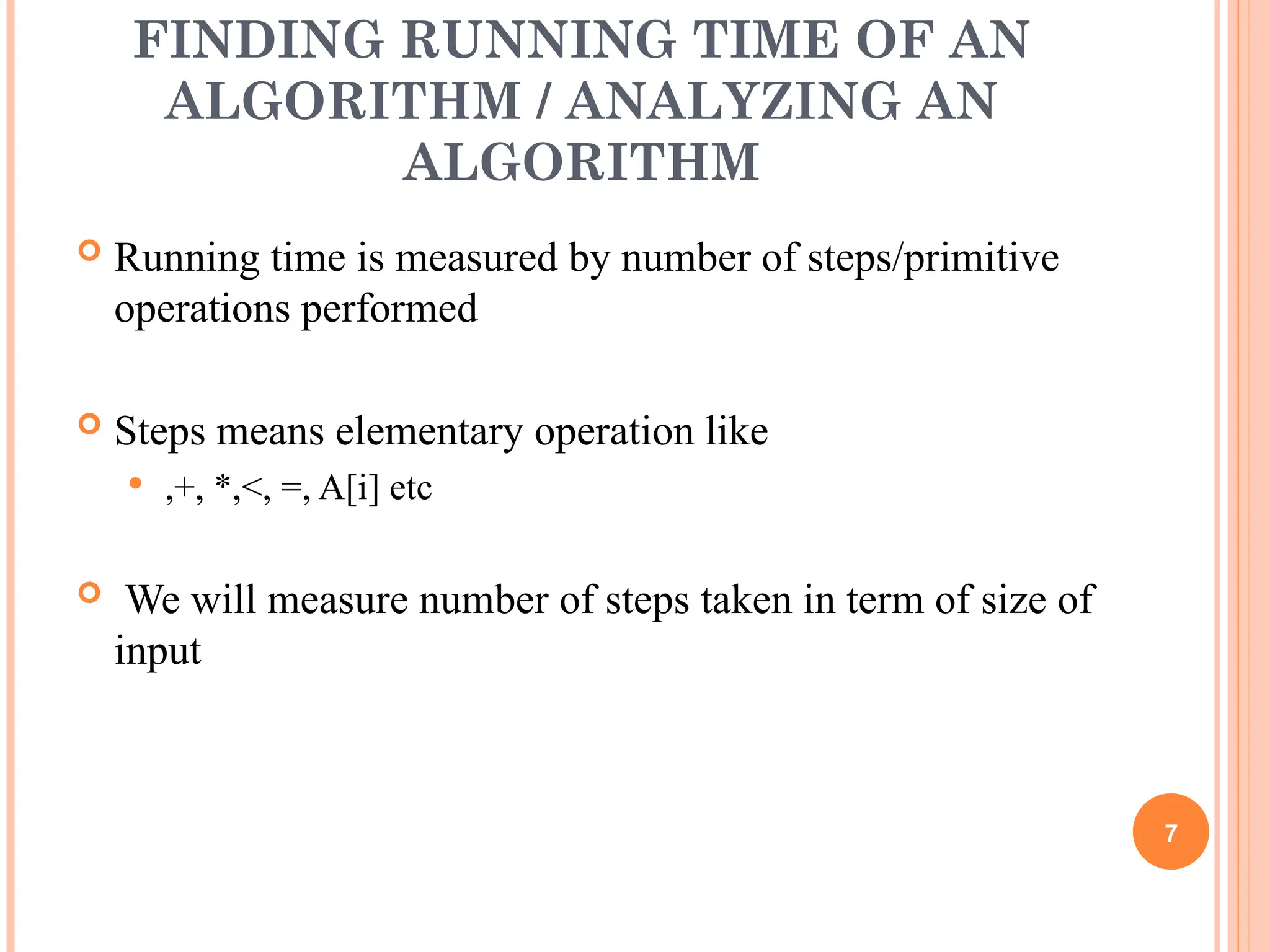

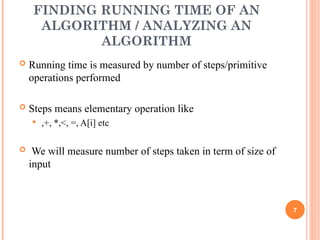

FINDING RUNNING TIME OF AN
ALGORITHM / ANALYZING AN
ALGORITHM
 Running time is measured by number of steps/primitive
operations performed
 Steps means elementary operation like
 ,+, *,<, =, A[i] etc
 We will measure number of steps taken in term of size of
input
7

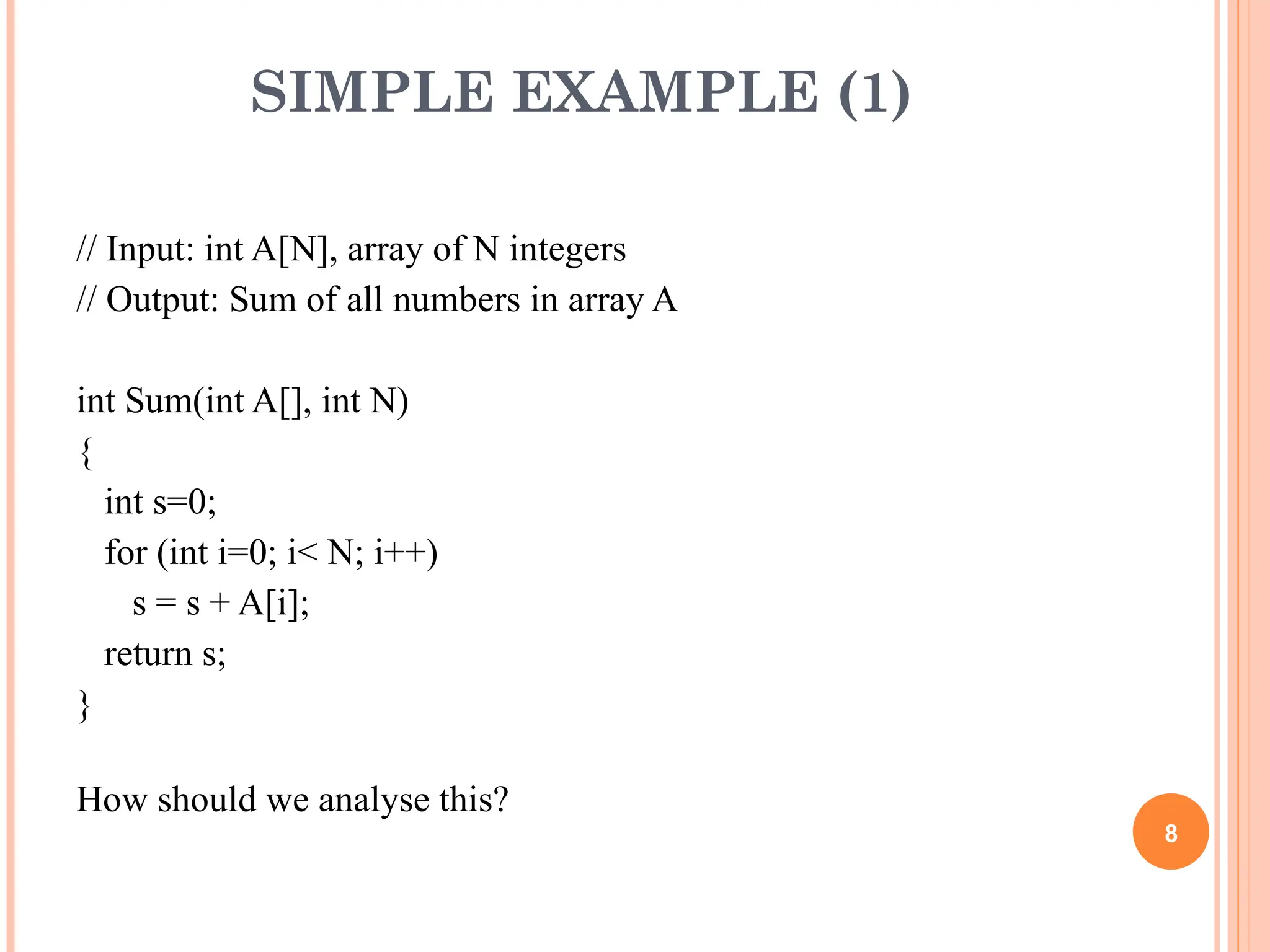

SIMPLE EXAMPLE (1)
// Input: int A[N], array of N integers
// Output: Sum of all numbers in array A
int Sum(int A[], int N)
{
int s=0;
for (int i=0; i< N; i++)
s = s + A[i];
return s;
}
How should we analyse this?
8

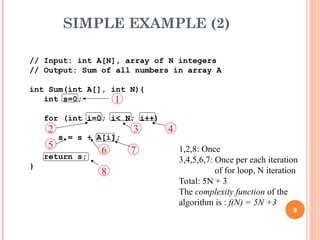

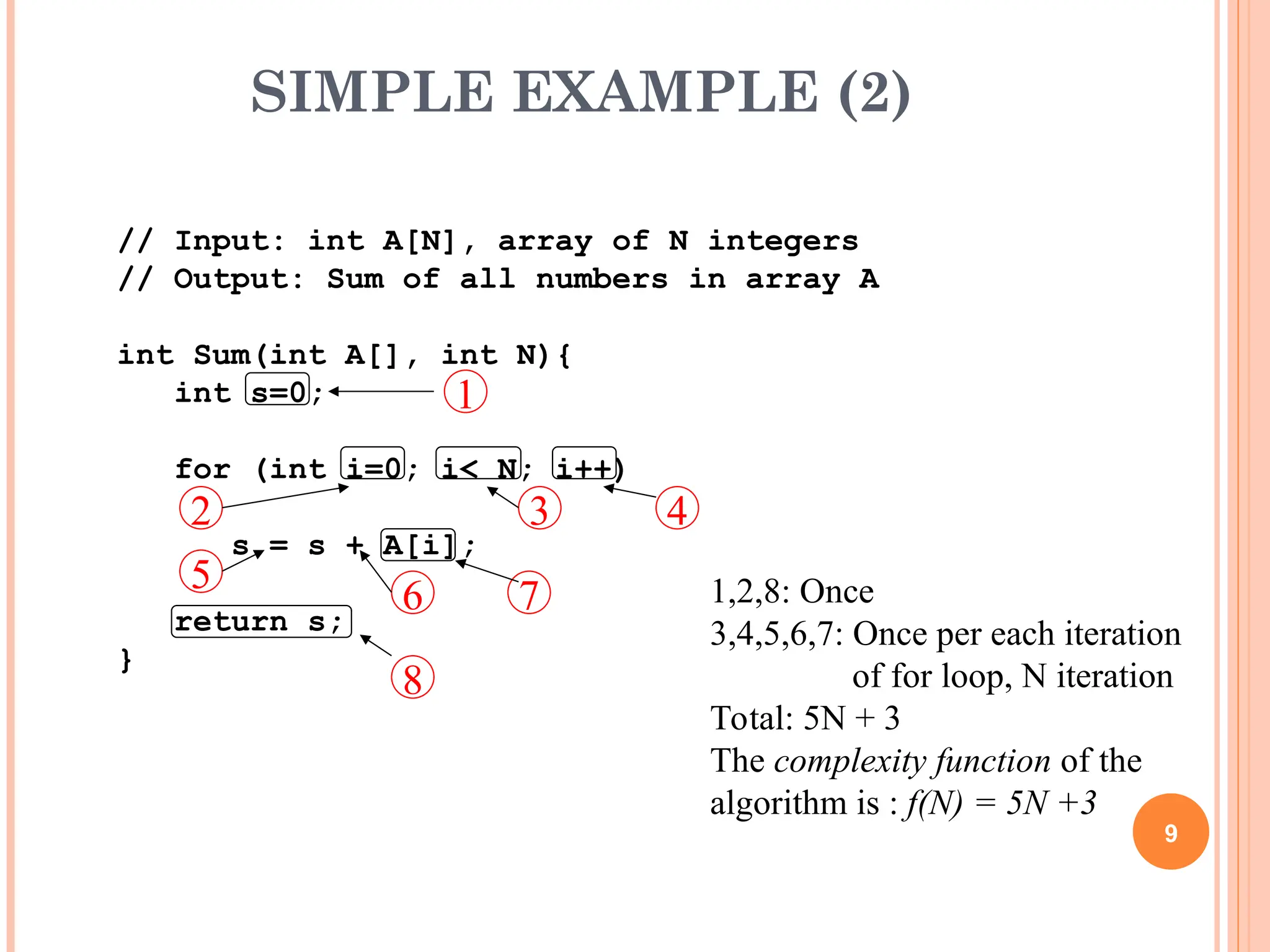

SIMPLE EXAMPLE (2)
9
// Input: int A[N], array of N integers
// Output: Sum of all numbers in array A
int Sum(int A[], int N){
int s=0;
for (int i=0; i< N; i++)
s = s + A[i];
return s;
}
1
2 3 4
5 6 7
8
1,2,8: Once
3,4,5,6,7: Once per each iteration
of for loop, N iteration
Total: 5N + 3
The complexity function of the
algorithm is : f(N) = 5N +3

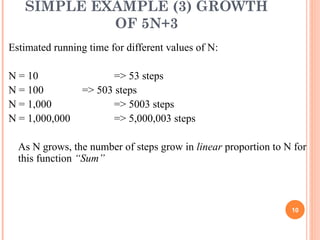

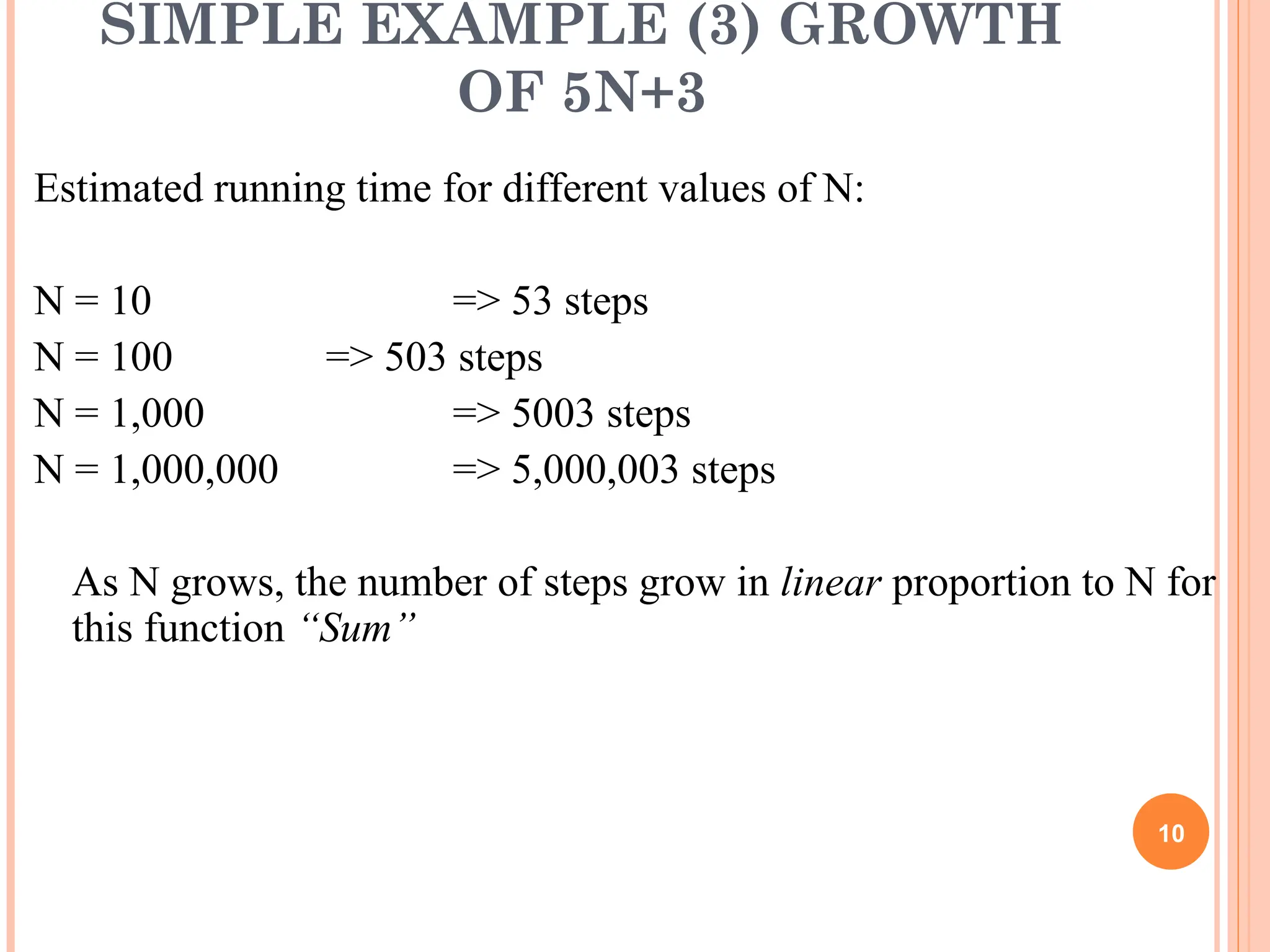

SIMPLE EXAMPLE (3) GROWTH
OF 5N+3
Estimated running time for different values of N:
N = 10 => 53 steps
N = 100 => 503 steps
N = 1,000 => 5003 steps
N = 1,000,000 => 5,000,003 steps
As N grows, the number of steps grow in linear proportion to N for
this function “Sum”
10

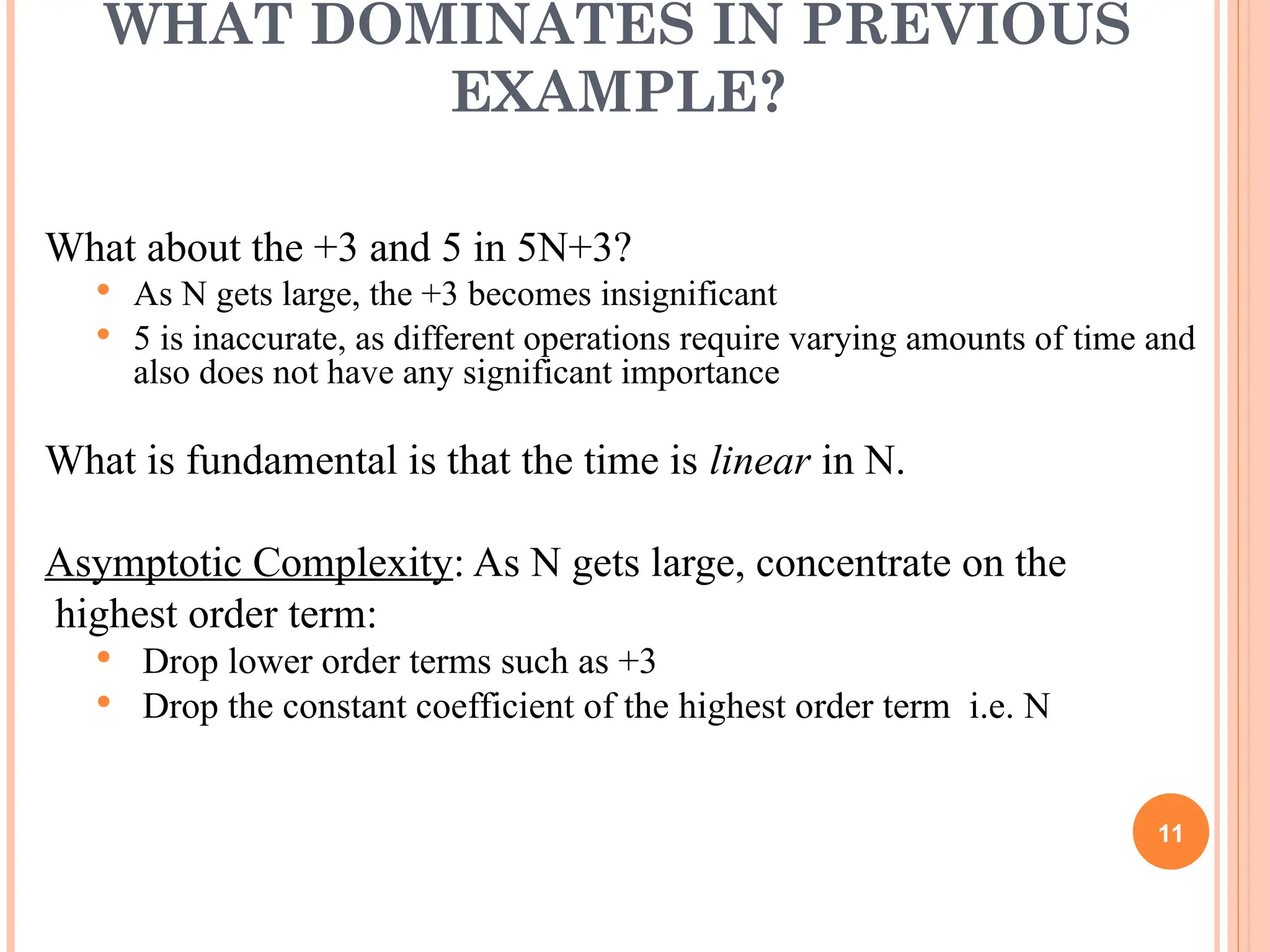

WHAT DOMINATES IN PREVIOUS
EXAMPLE?
What about the +3 and 5 in 5N+3?
 As N gets large, the +3 becomes insignificant
 5 is inaccurate, as different operations require varying amounts of time and
also does not have any significant importance
What is fundamental is that the time is linear in N.
Asymptotic Complexity: As N gets large, concentrate on the
highest order term:
 Drop lower order terms such as +3
 Drop the constant coefficient of the highest order term i.e. N
11

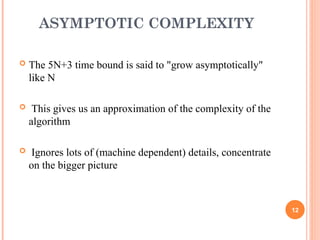

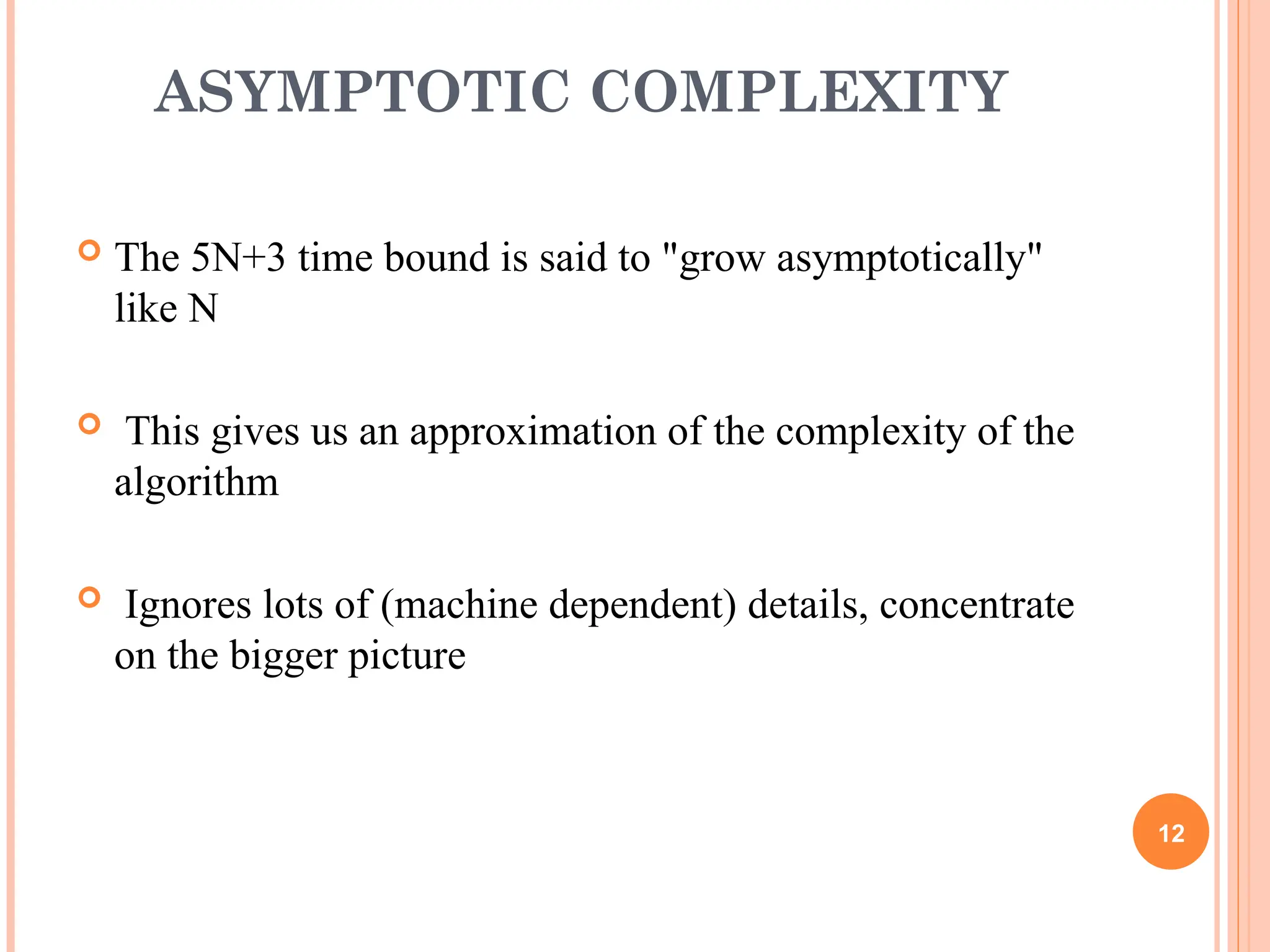

ASYMPTOTIC COMPLEXITY
 The 5N+3 time bound is said to "grow asymptotically"
like N
 This gives us an approximation of the complexity of the
algorithm
 Ignores lots of (machine dependent) details, concentrate
on the bigger picture
12

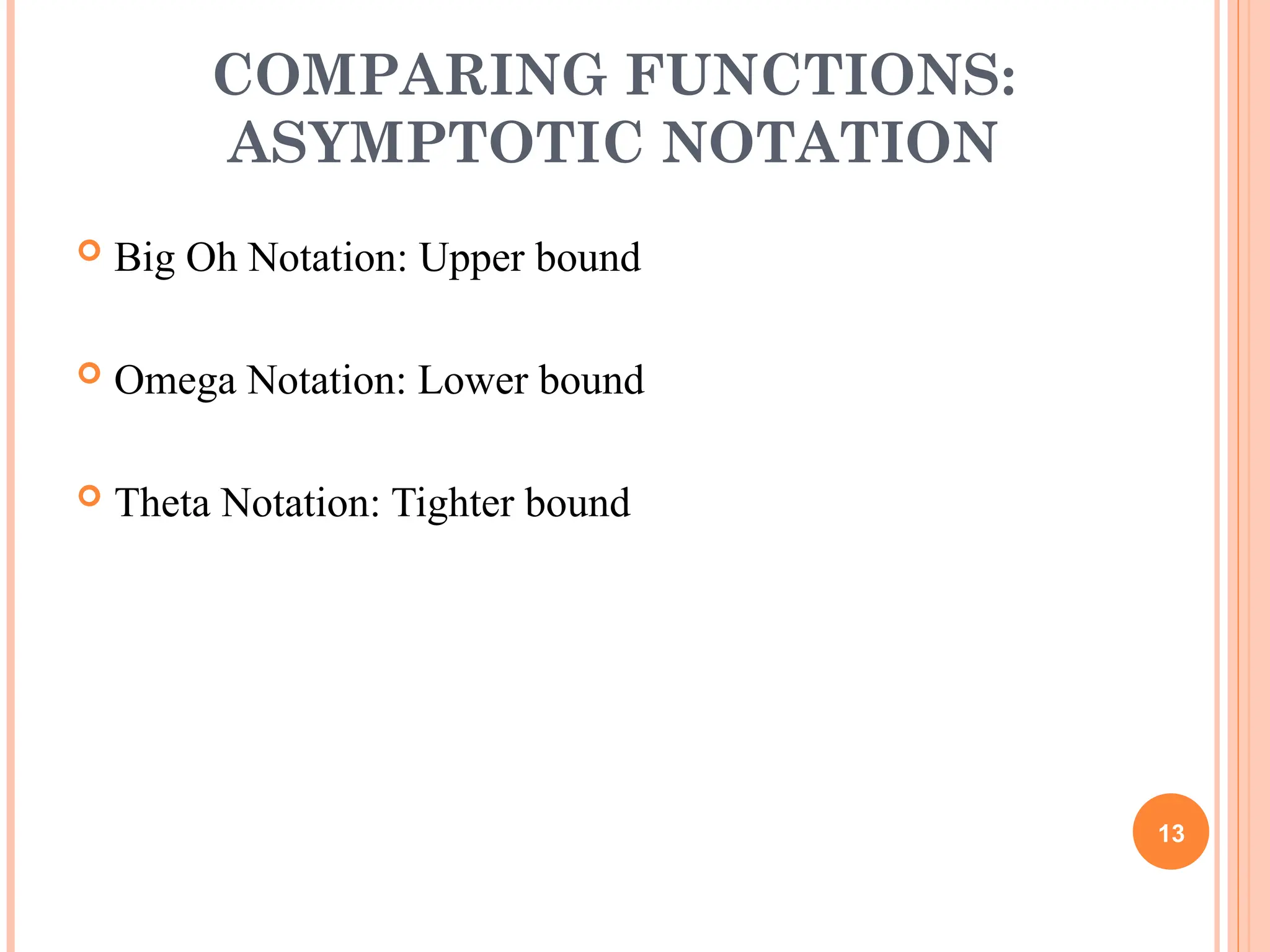

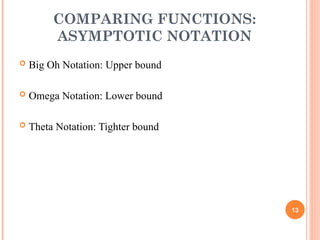

COMPARING FUNCTIONS:
ASYMPTOTIC NOTATION
 Big Oh Notation: Upper bound
 Omega Notation: Lower bound
 Theta Notation: Tighter bound
13

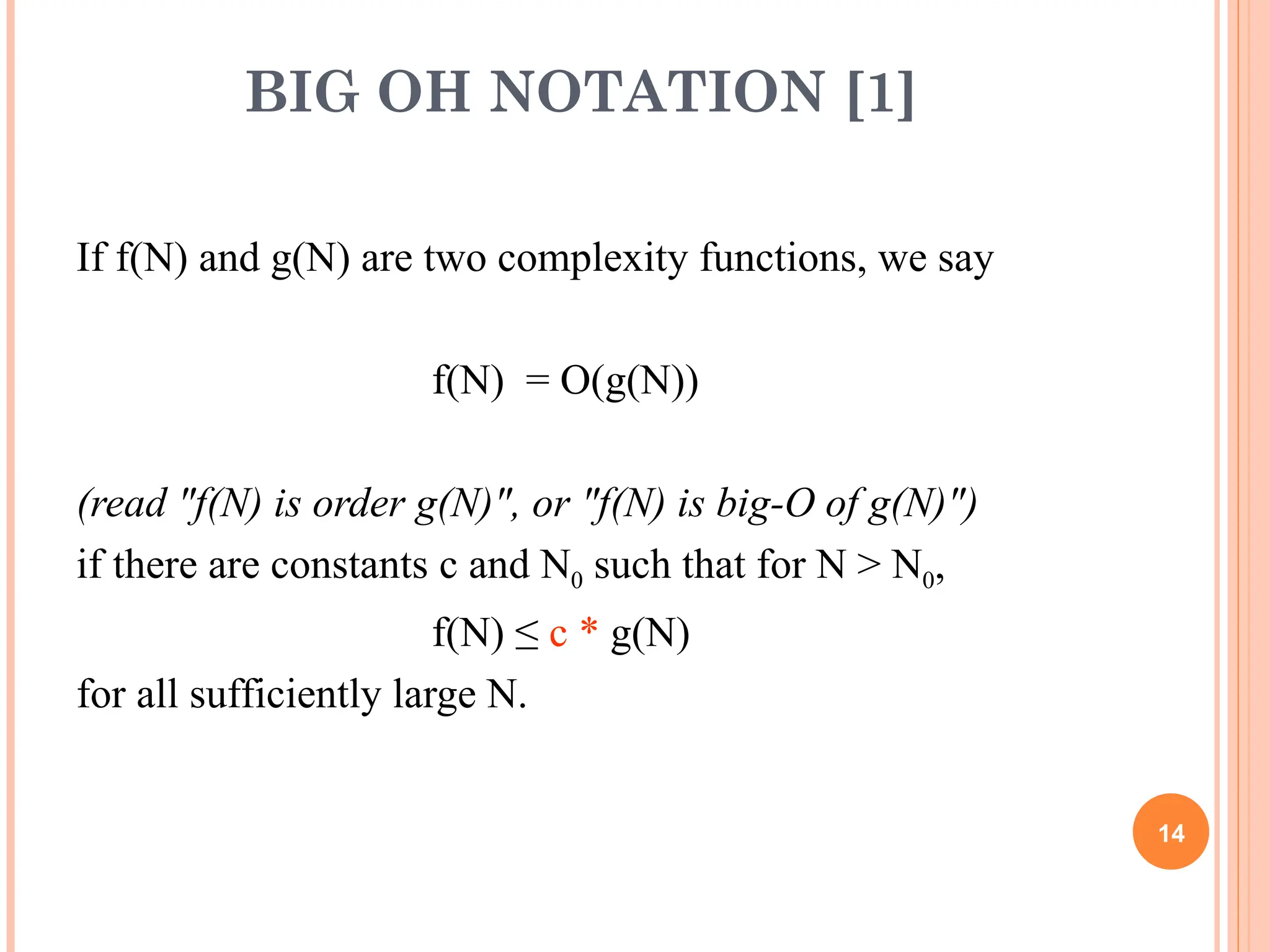

BIG OH NOTATION [1]
If f(N) and g(N) are two complexity functions, we say
f(N) = O(g(N))
(read "f(N) is order g(N)", or "f(N) is big-O of g(N)")
if there are constants c and N0 such that for N > N0,
f(N) ≤ c * g(N)
for all sufficiently large N.
14

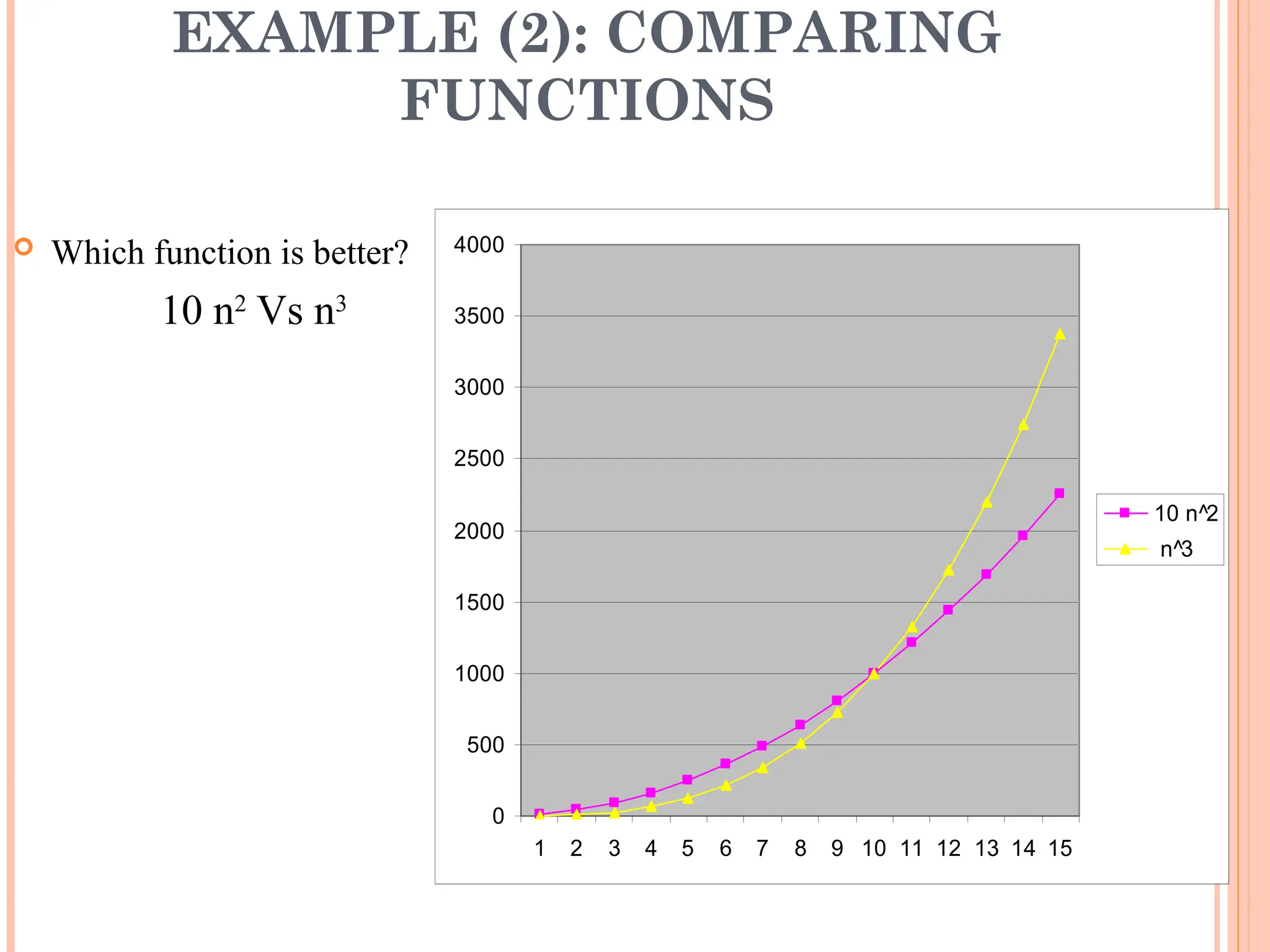

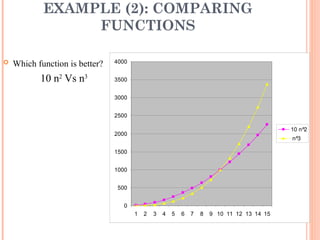

EXAMPLE (2): COMPARING
FUNCTIONS
 Which function is better?
10 n2
Vs n3
0
500
1000
1500
2000
2500
3000
3500
4000
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
10 n^2
n^3
17

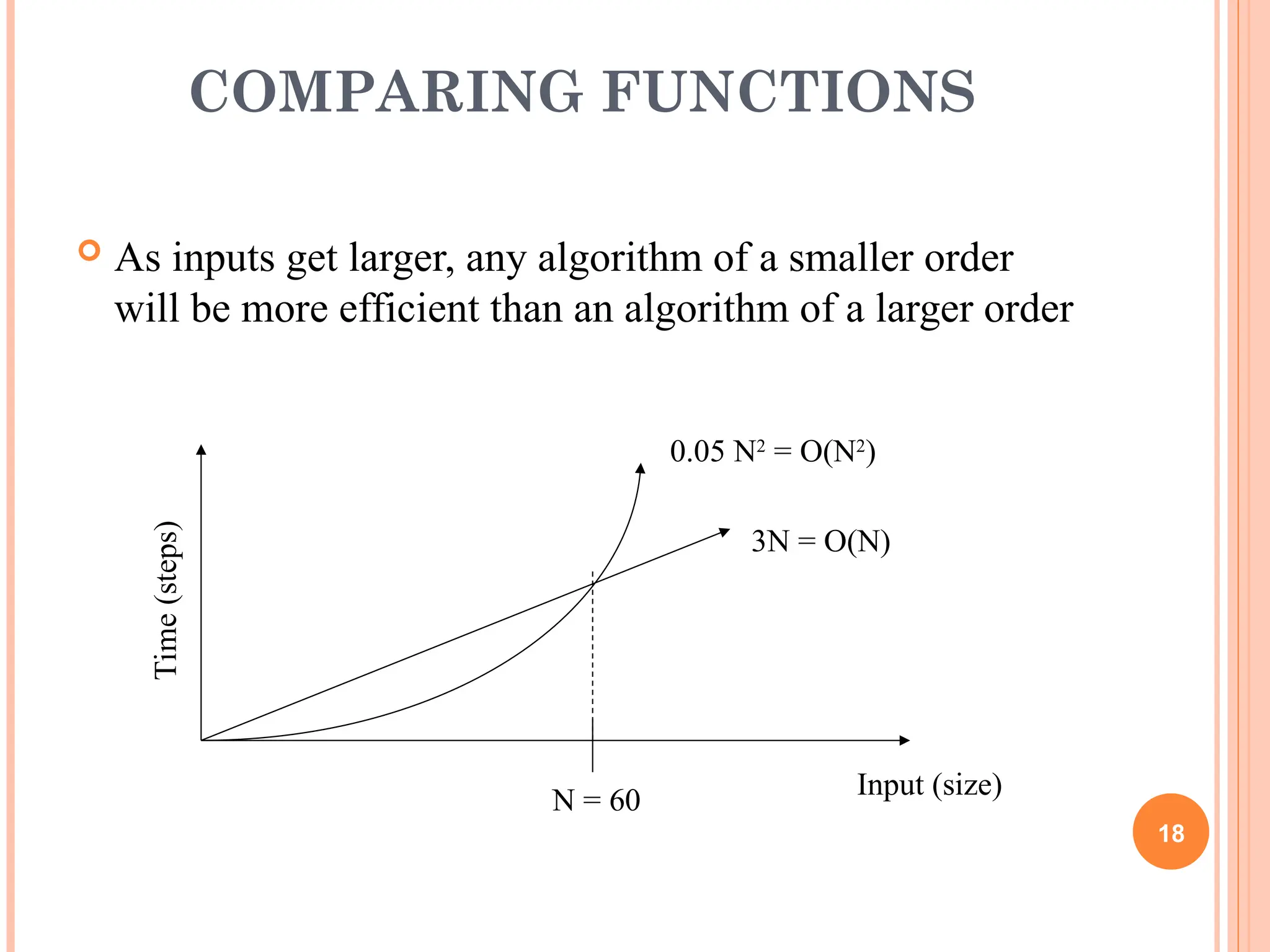

COMPARING FUNCTIONS
 As inputs get larger, any algorithm of a smaller order
will be more efficient than an algorithm of a larger order
18
Time
(steps)
Input (size)
3N = O(N)
0.05 N2
= O(N2
)
N = 60

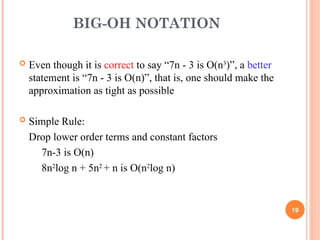

BIG-OH NOTATION
 Even though it is correct to say “7n - 3 is O(n3
)”, a better
statement is “7n - 3 is O(n)”, that is, one should make the
approximation as tight as possible
 Simple Rule:
Drop lower order terms and constant factors
7n-3 is O(n)
8n2
log n + 5n2
+ n is O(n2
log n)
19

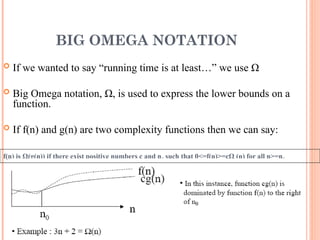

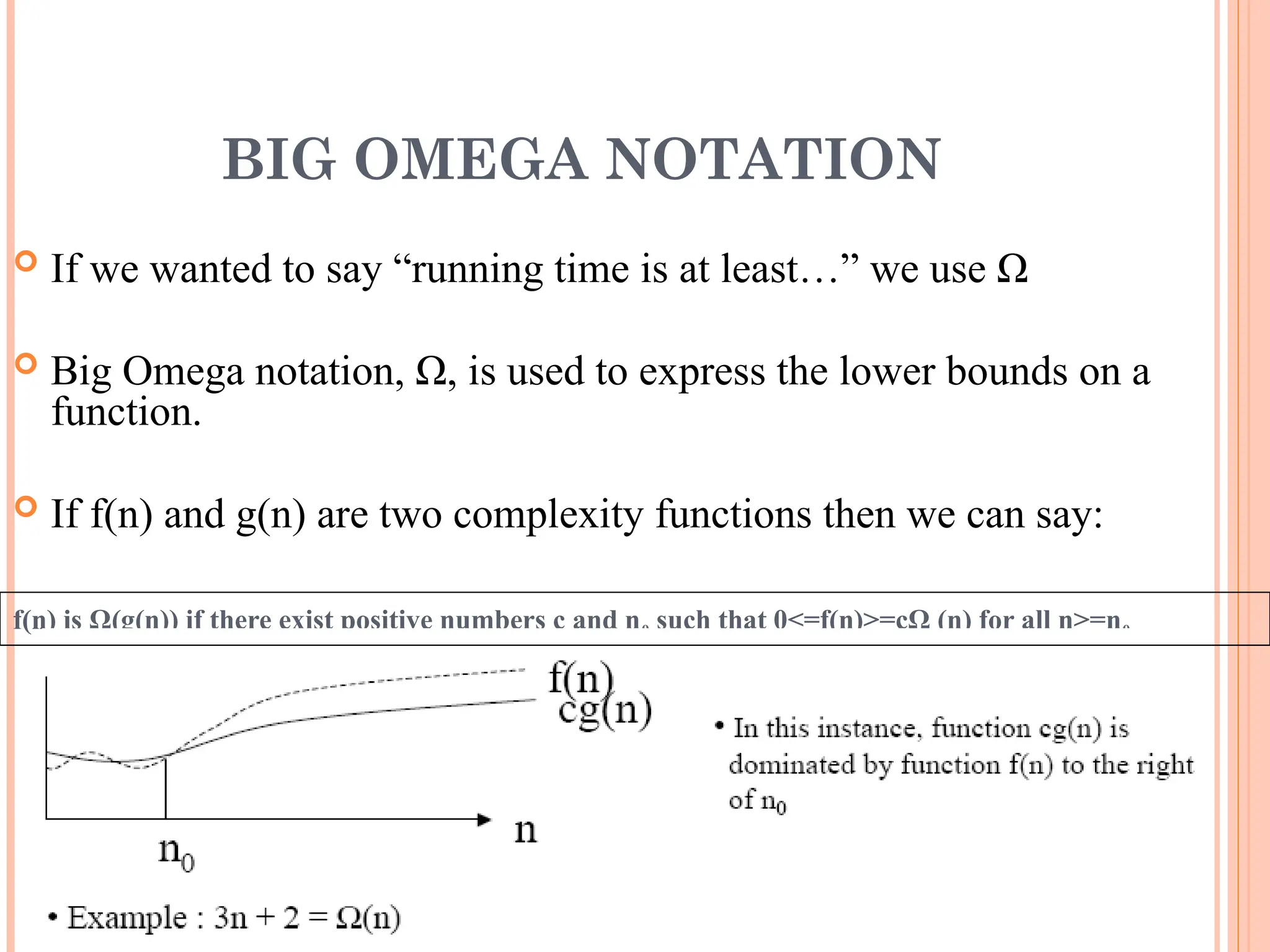

BIG OMEGA NOTATION
 If we wanted to say “running time is at least…” we use Ω
 Big Omega notation, Ω, is used to express the lower bounds on a
function.
 If f(n) and g(n) are two complexity functions then we can say:
f(n) is Ω(g(n)) if there exist positive numbers c and n0 such that 0<=f(n)>=cΩ (n) for all n>=n0
20

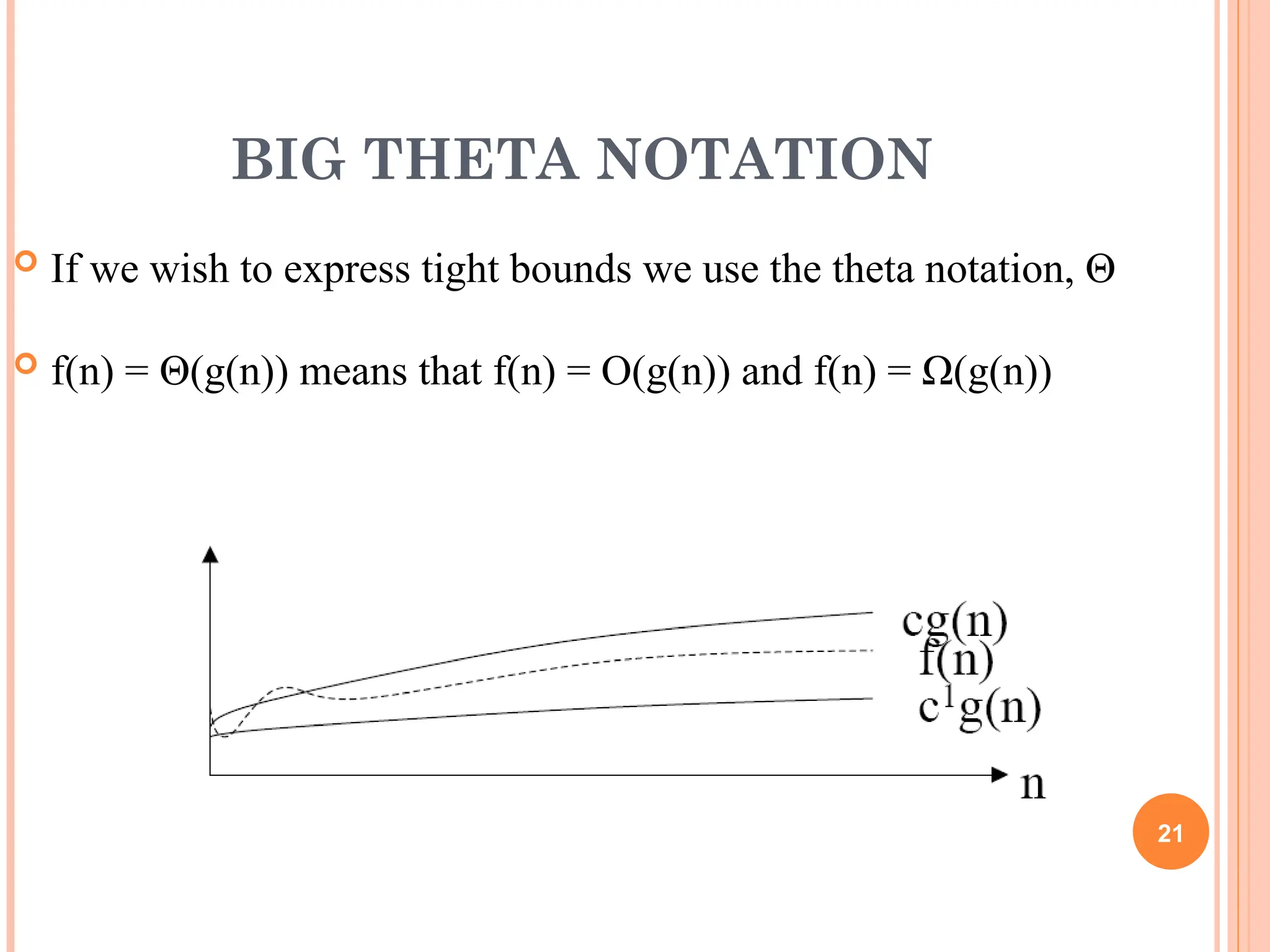

BIG THETA NOTATION
 If we wish to express tight bounds we use the theta notation, Θ
 f(n) = Θ(g(n)) means that f(n) = O(g(n)) and f(n) = Ω(g(n))
21

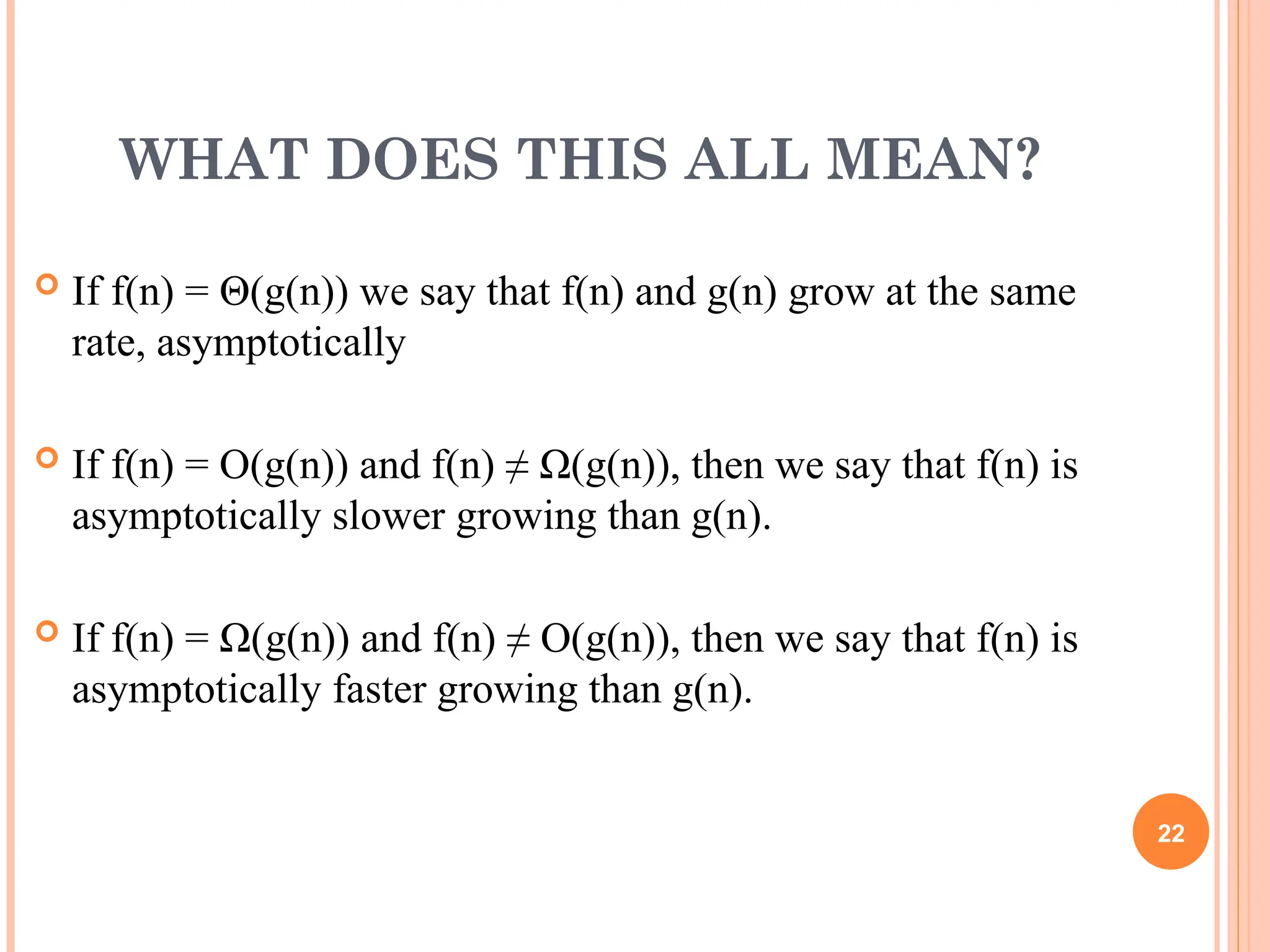

WHAT DOES THIS ALL MEAN?
 If f(n) = Θ(g(n)) we say that f(n) and g(n) grow at the same
rate, asymptotically
 If f(n) = O(g(n)) and f(n) ≠ Ω(g(n)), then we say that f(n) is
asymptotically slower growing than g(n).
 If f(n) = Ω(g(n)) and f(n) ≠ O(g(n)), then we say that f(n) is
asymptotically faster growing than g(n).
22

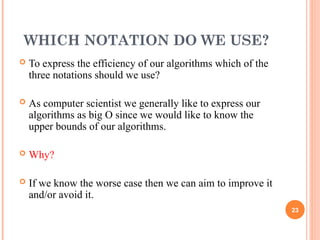

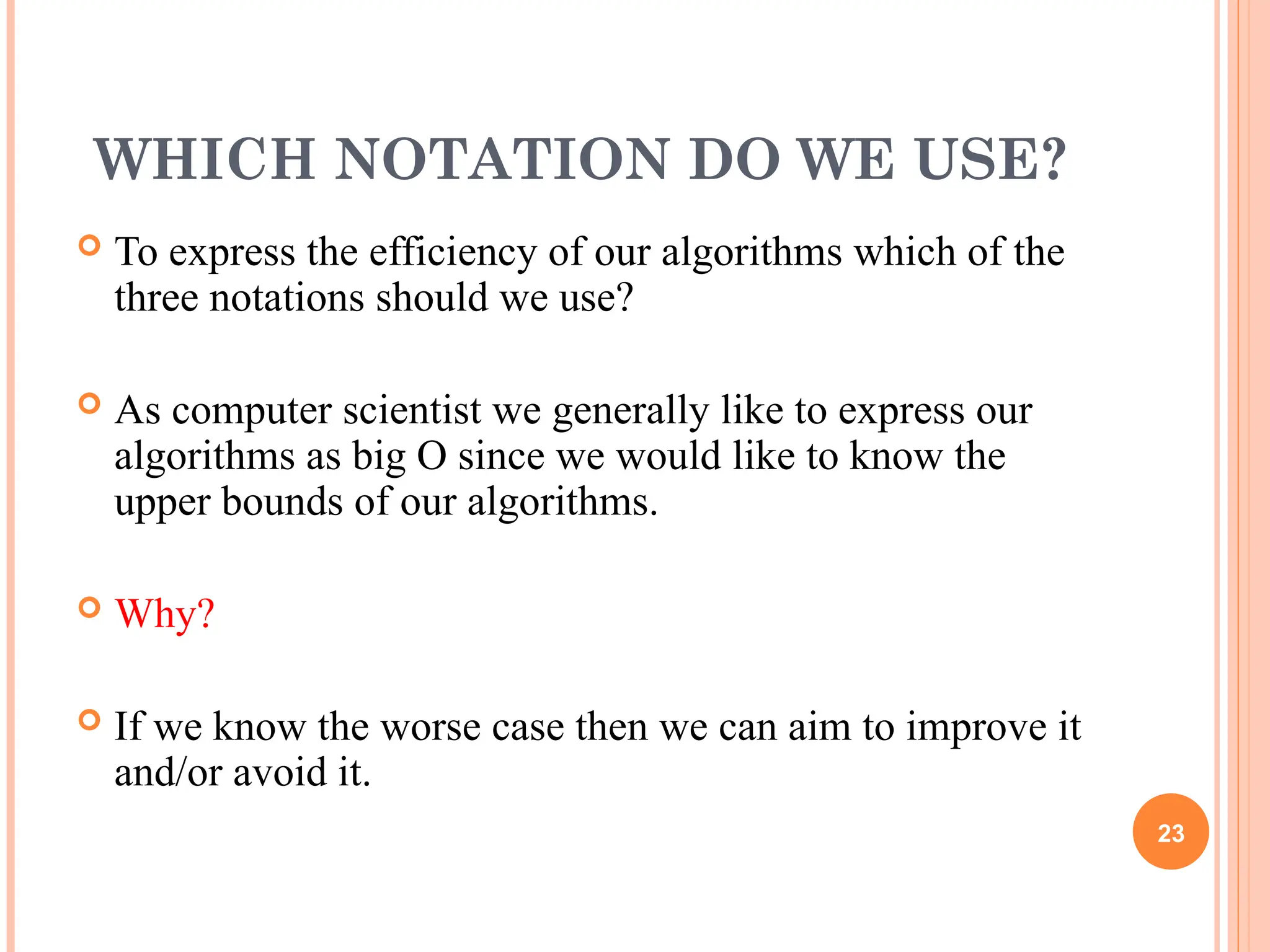

WHICH NOTATION DO WE USE?
 To express the efficiency of our algorithms which of the
three notations should we use?
 As computer scientist we generally like to express our
algorithms as big O since we would like to know the
upper bounds of our algorithms.
 Why?
 If we know the worse case then we can aim to improve it
and/or avoid it.
23

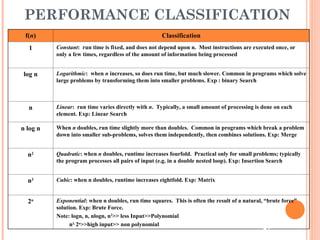

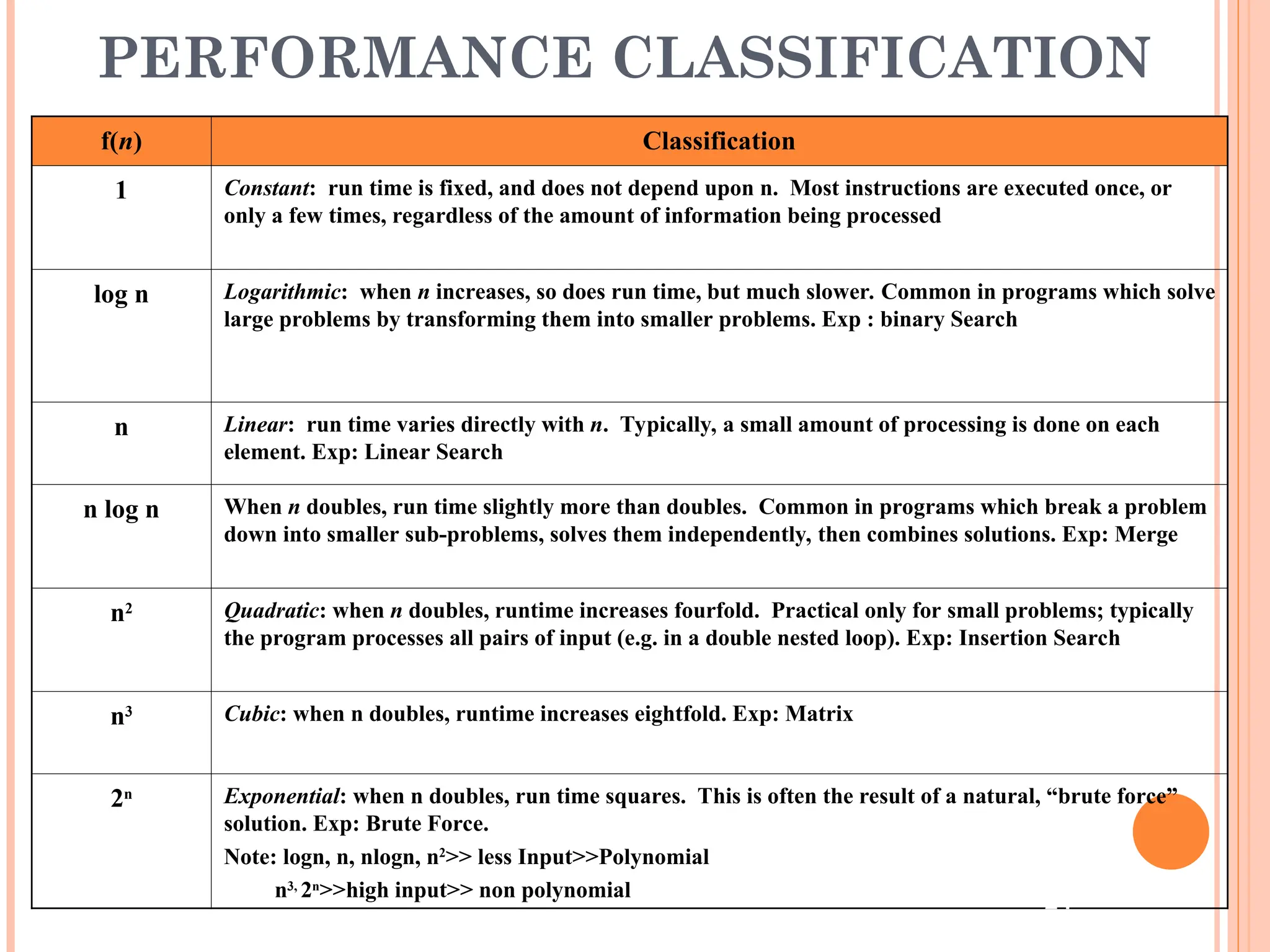

PERFORMANCE CLASSIFICATION
f(n) Classification
1 Constant: run time is fixed, and does not depend upon n. Most instructions are executed once, or
only a few times, regardless of the amount of information being processed
log n Logarithmic: when n increases, so does run time, but much slower. Common in programs which solve
large problems by transforming them into smaller problems. Exp : binary Search
n Linear: run time varies directly with n. Typically, a small amount of processing is done on each
element. Exp: Linear Search
n log n When n doubles, run time slightly more than doubles. Common in programs which break a problem
down into smaller sub-problems, solves them independently, then combines solutions. Exp: Merge
n2 Quadratic: when n doubles, runtime increases fourfold. Practical only for small problems; typically
the program processes all pairs of input (e.g. in a double nested loop). Exp: Insertion Search
n3 Cubic: when n doubles, runtime increases eightfold. Exp: Matrix
2n Exponential: when n doubles, run time squares. This is often the result of a natural, “brute force”
solution. Exp: Brute Force.
Note: logn, n, nlogn, n2
>> less Input>>Polynomial
n3,
2n
>>high input>> non polynomial
24

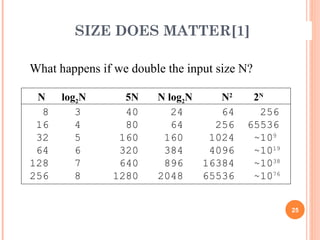

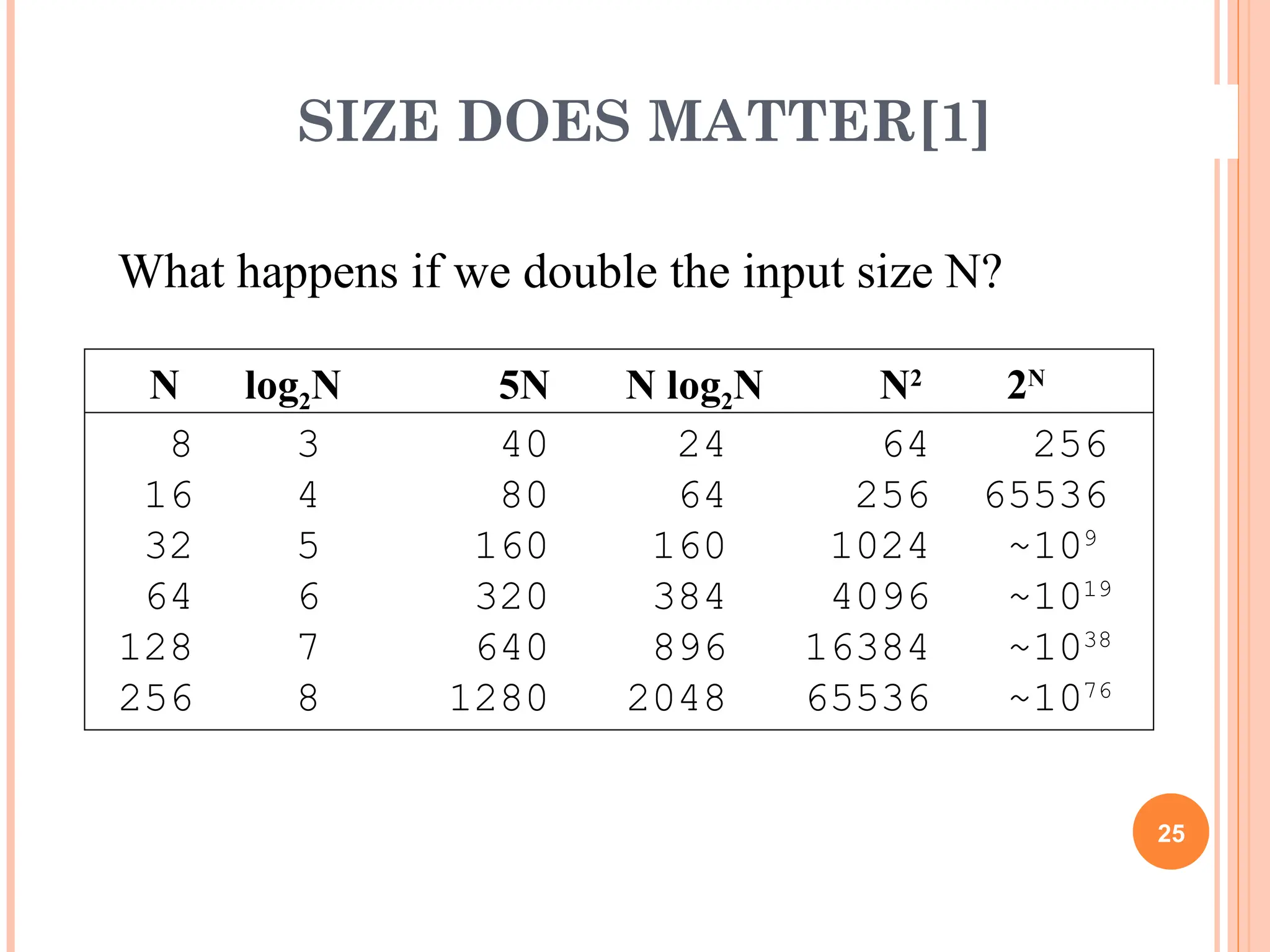

SIZE DOES MATTER[1]
25
What happens if we double the input size N?
N log2N 5N N log2N N2
2N
8 3 40 24 64 256
16 4 80 64 256 65536
32 5 160 160 1024 ~109
64 6 320 384 4096 ~1019
128 7 640 896 16384 ~1038
256 8 1280 2048 65536 ~1076

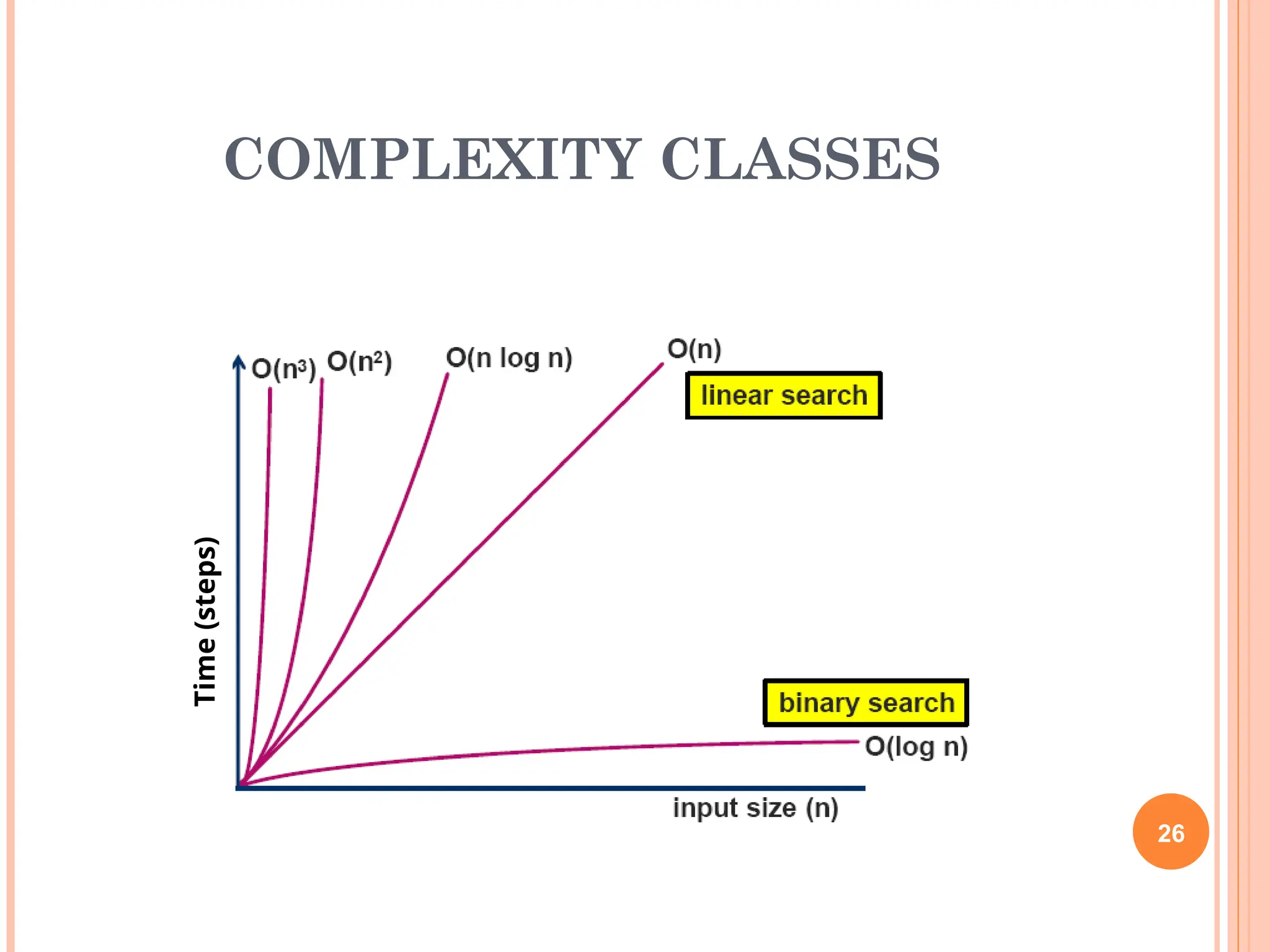

COMPLEXITY CLASSES
Time
(steps)
26

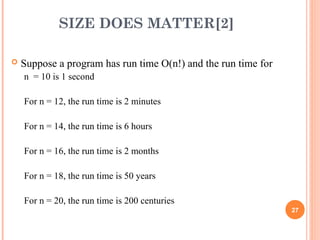

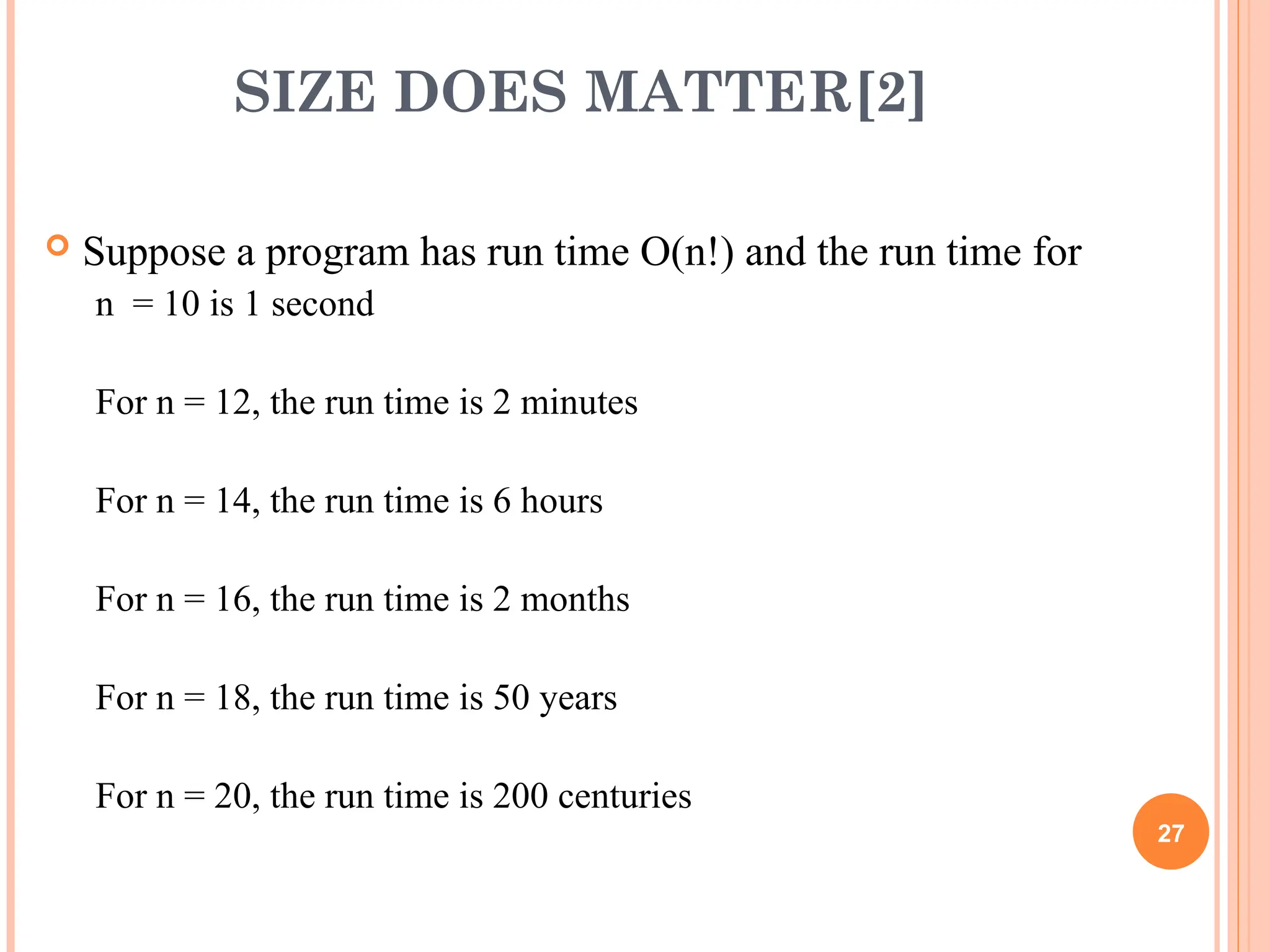

SIZE DOES MATTER[2]
 Suppose a program has run time O(n!) and the run time for
n = 10 is 1 second
For n = 12, the run time is 2 minutes
For n = 14, the run time is 6 hours
For n = 16, the run time is 2 months
For n = 18, the run time is 50 years
For n = 20, the run time is 200 centuries
27

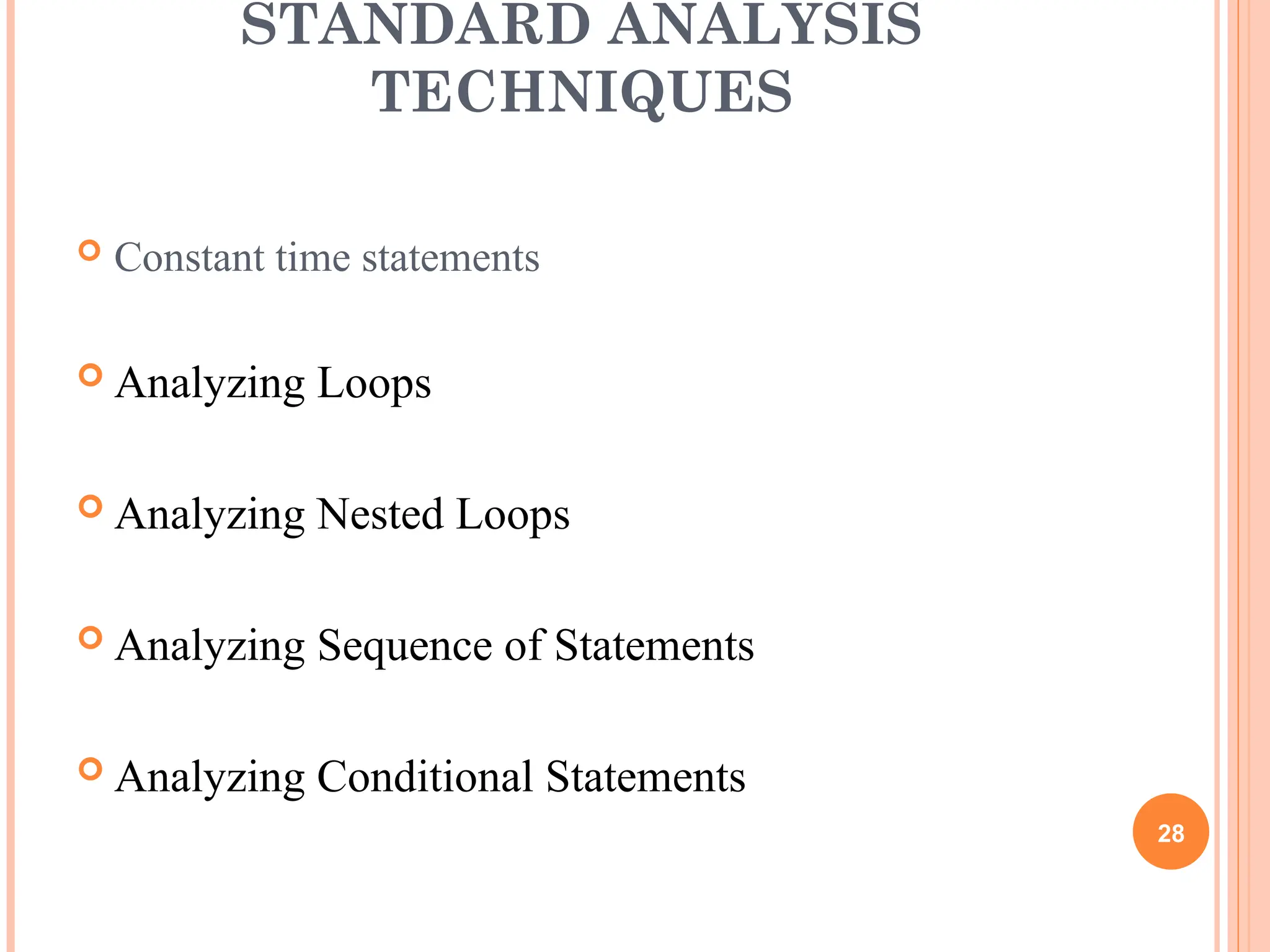

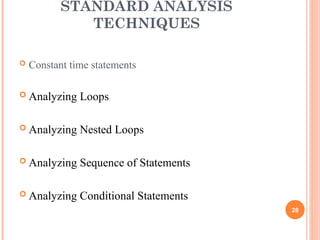

STANDARD ANALYSIS
TECHNIQUES
 Constant time statements
 Analyzing Loops
 Analyzing Nested Loops
 Analyzing Sequence of Statements
 Analyzing Conditional Statements
28

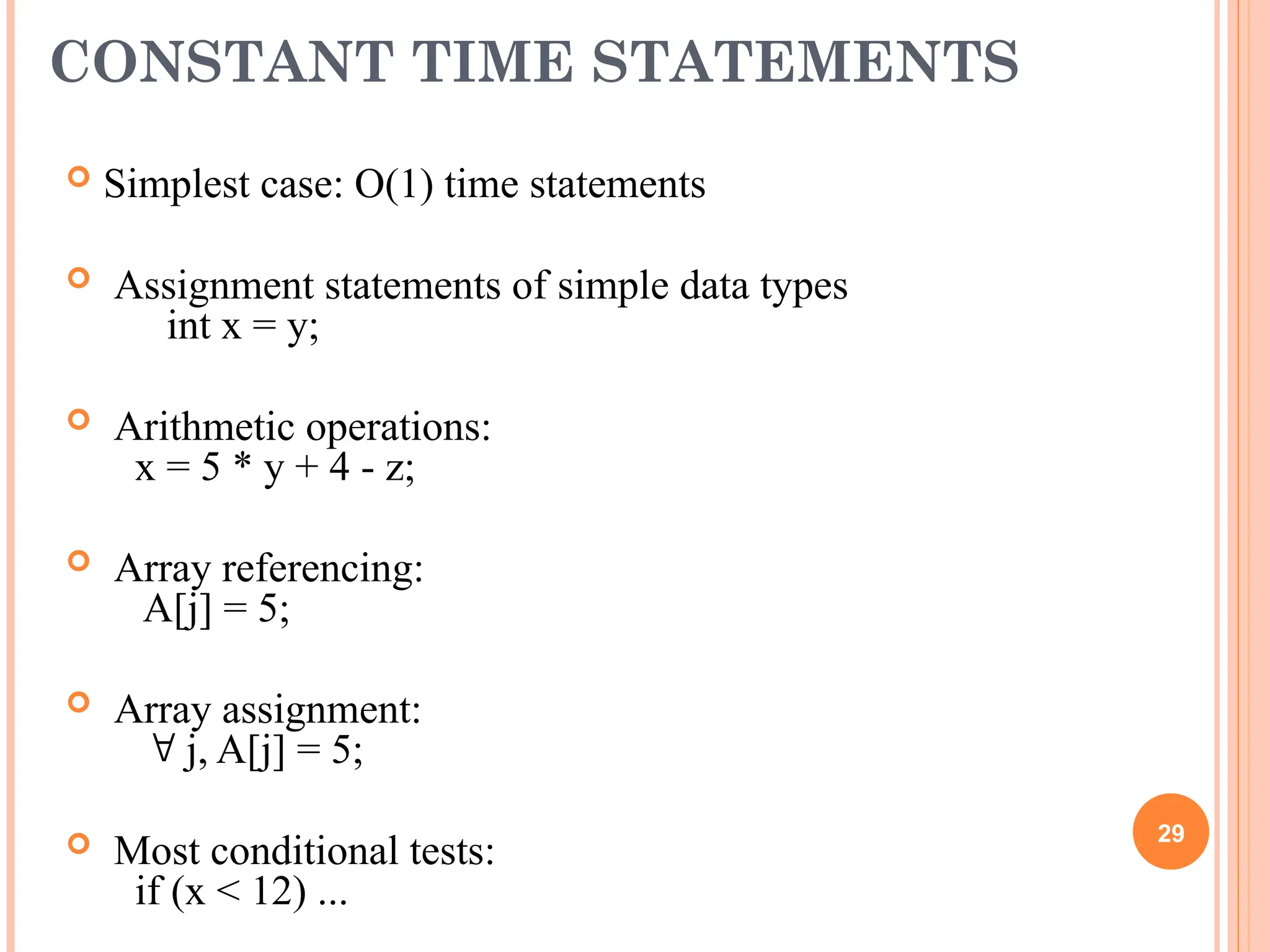

CONSTANT TIME STATEMENTS
 Simplest case: O(1) time statements
 Assignment statements of simple data types
int x = y;
 Arithmetic operations:
x = 5 * y + 4 - z;
 Array referencing:
A[j] = 5;
 Array assignment:
 j, A[j] = 5;
 Most conditional tests:
if (x < 12) ...
29

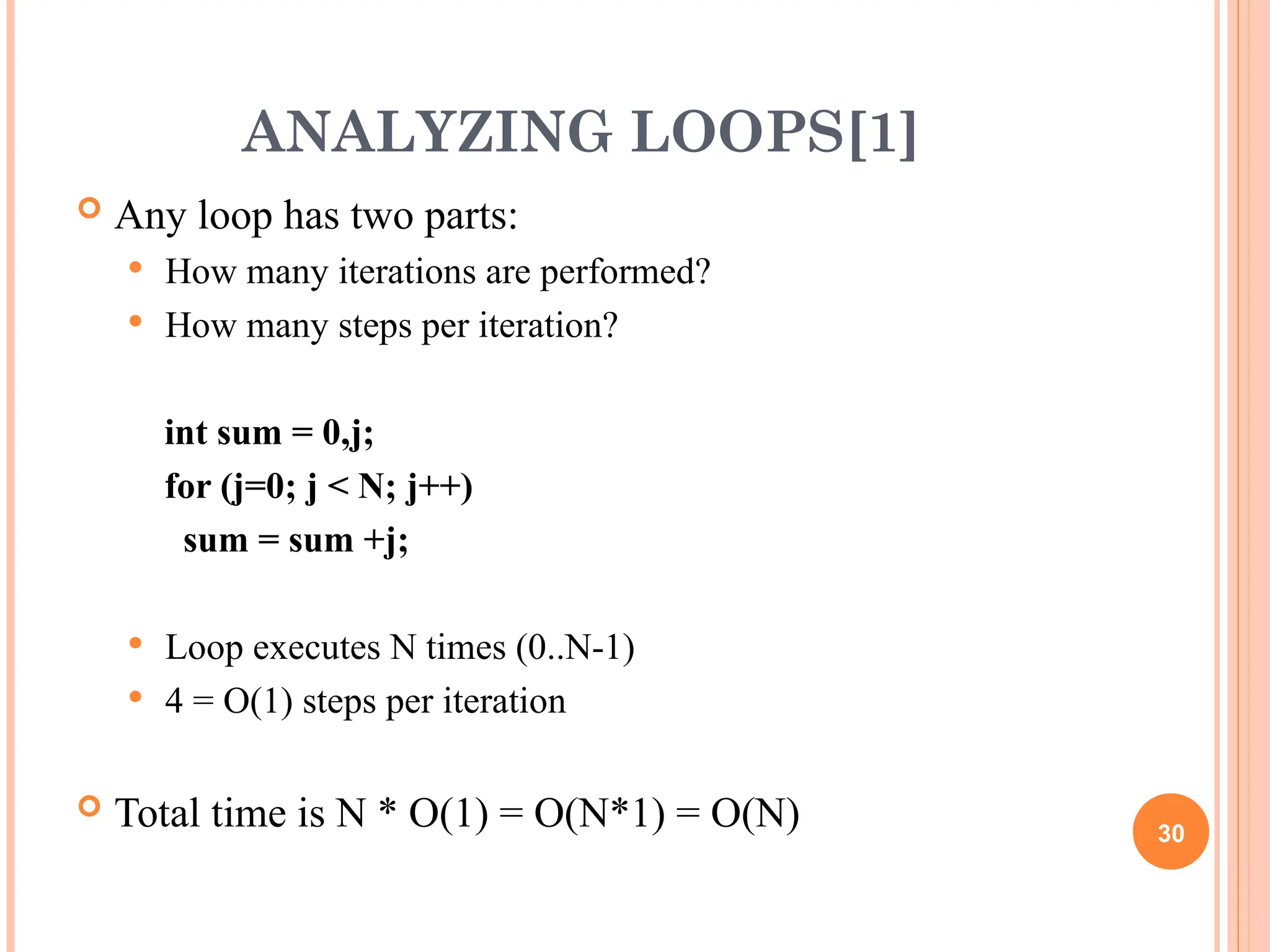

ANALYZING LOOPS[1]
 Any loop has two parts:
 How many iterations are performed?
 How many steps per iteration?
int sum = 0,j;
for (j=0; j < N; j++)
sum = sum +j;
 Loop executes N times (0..N-1)
 4 = O(1) steps per iteration
 Total time is N * O(1) = O(N*1) = O(N) 30

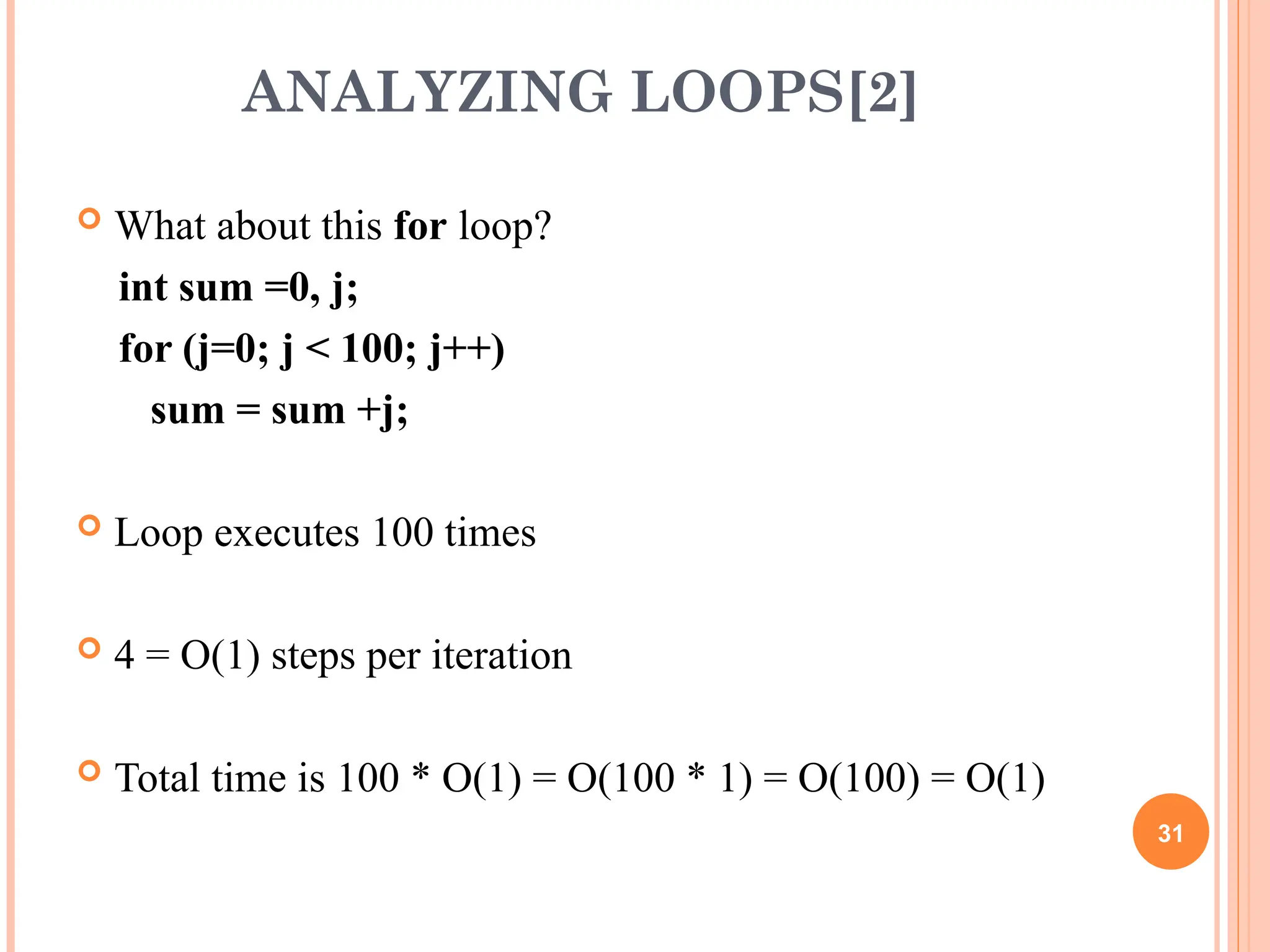

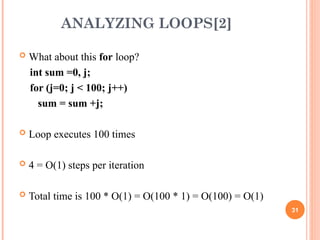

ANALYZING LOOPS[2]
 What about this for loop?
int sum =0, j;
for (j=0; j < 100; j++)
sum = sum +j;
 Loop executes 100 times
 4 = O(1) steps per iteration
 Total time is 100 * O(1) = O(100 * 1) = O(100) = O(1)
31

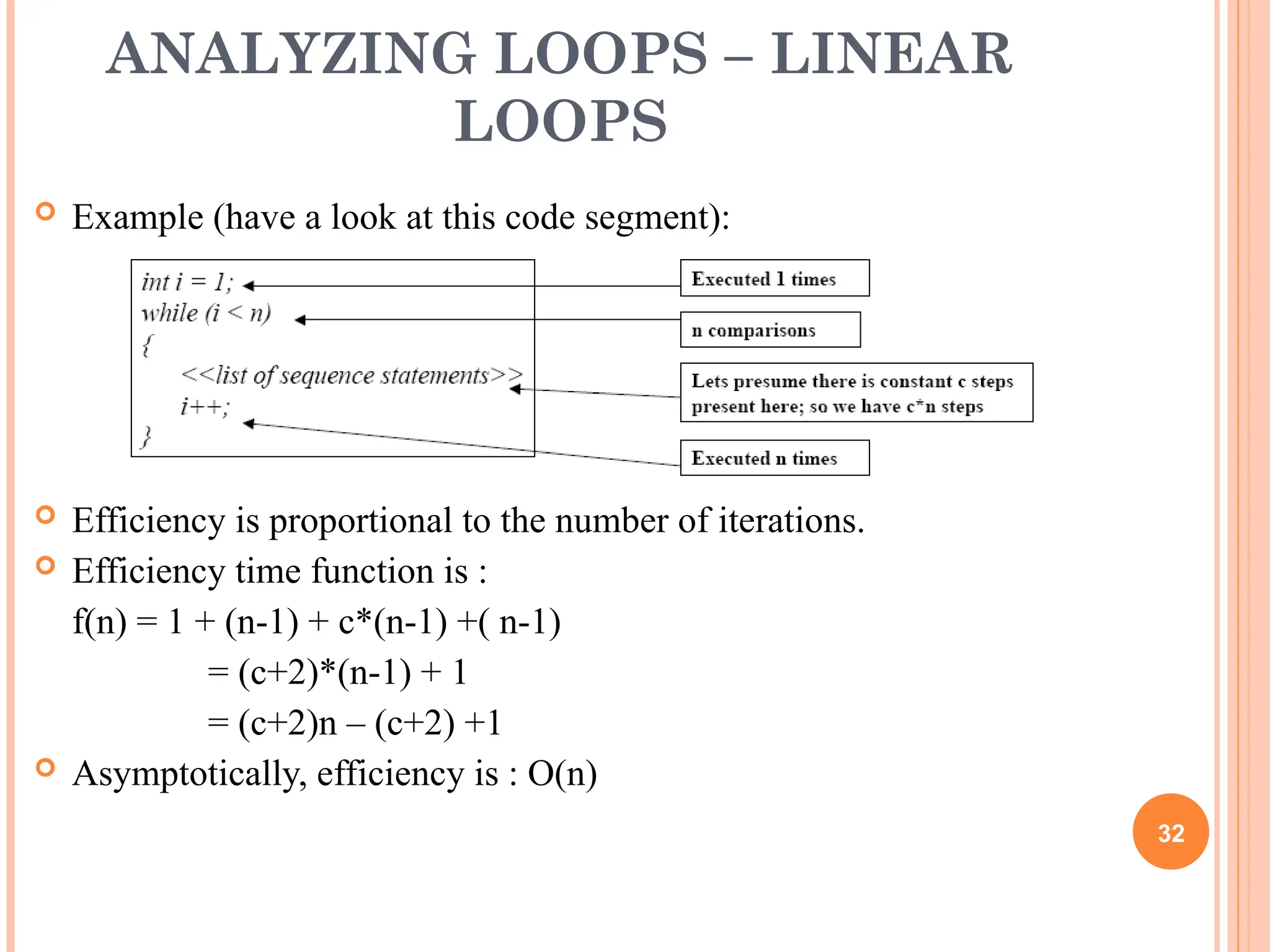

ANALYZING LOOPS – LINEAR
LOOPS
 Example (have a look at this code segment):
 Efficiency is proportional to the number of iterations.
 Efficiency time function is :
f(n) = 1 + (n-1) + c*(n-1) +( n-1)
= (c+2)*(n-1) + 1
= (c+2)n – (c+2) +1
 Asymptotically, efficiency is : O(n)
32

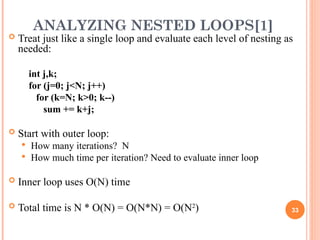

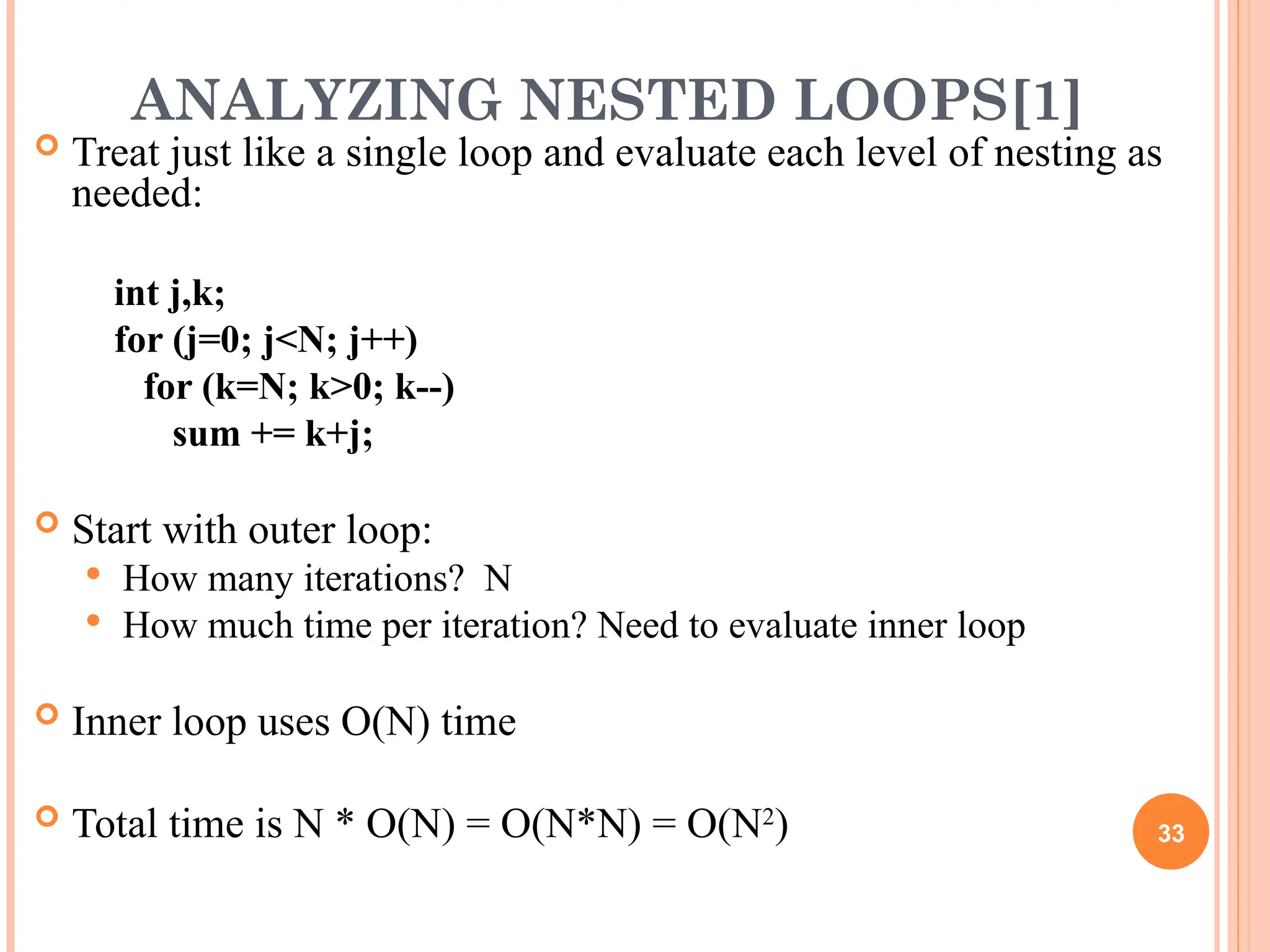

ANALYZING NESTED LOOPS[1]
 Treat just like a single loop and evaluate each level of nesting as
needed:
int j,k;
for (j=0; j<N; j++)
for (k=N; k>0; k--)
sum += k+j;
 Start with outer loop:
 How many iterations? N
 How much time per iteration? Need to evaluate inner loop
 Inner loop uses O(N) time
 Total time is N * O(N) = O(N*N) = O(N2
) 33

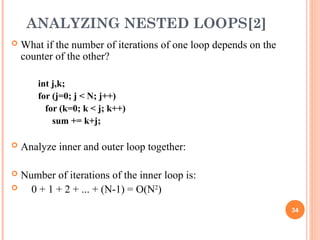

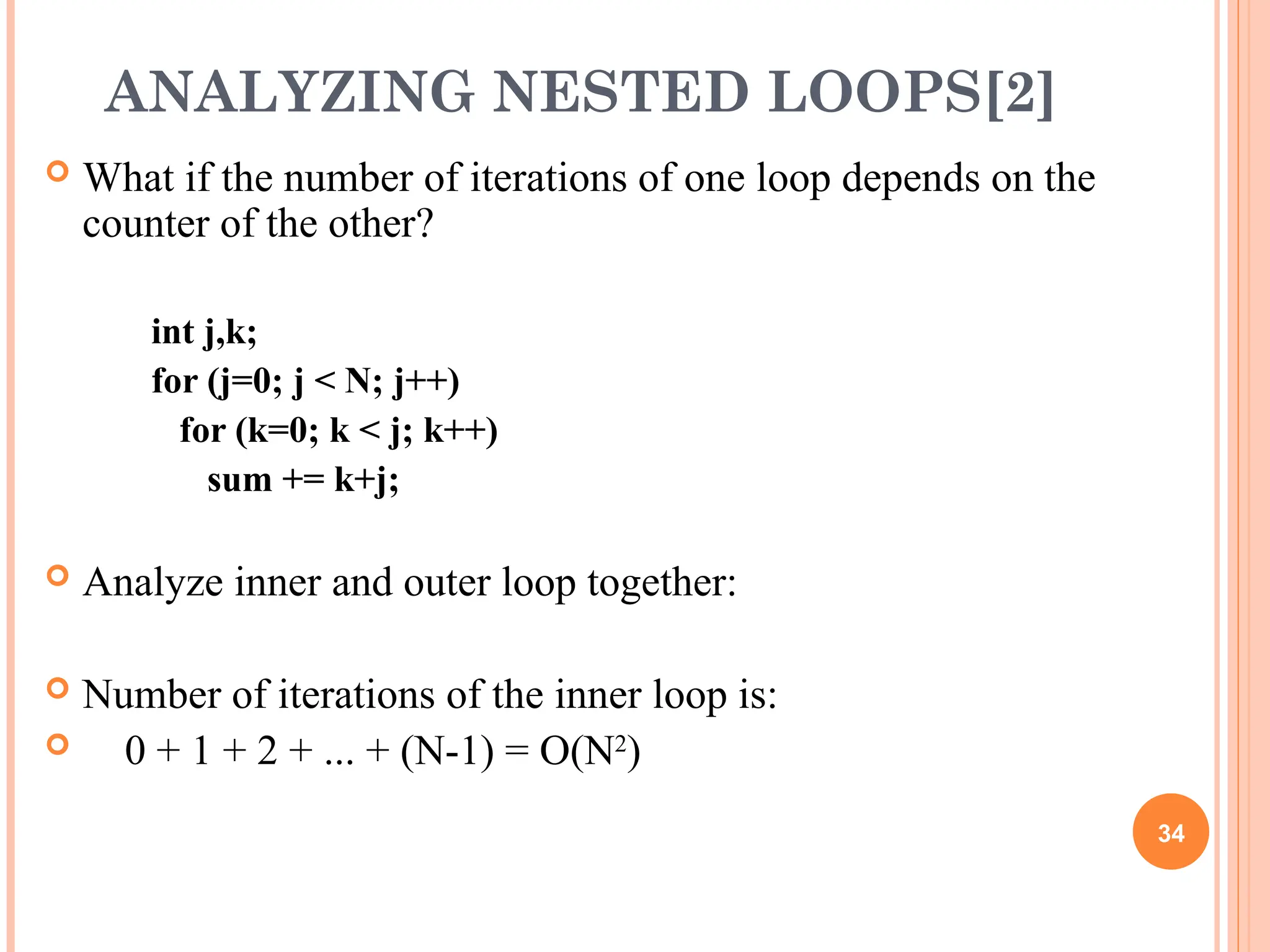

ANALYZING NESTED LOOPS[2]
 What if the number of iterations of one loop depends on the
counter of the other?
int j,k;
for (j=0; j < N; j++)
for (k=0; k < j; k++)
sum += k+j;
 Analyze inner and outer loop together:
 Number of iterations of the inner loop is:
 0 + 1 + 2 + ... + (N-1) = O(N2
)
34

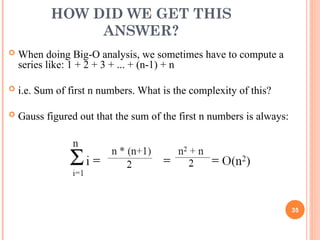

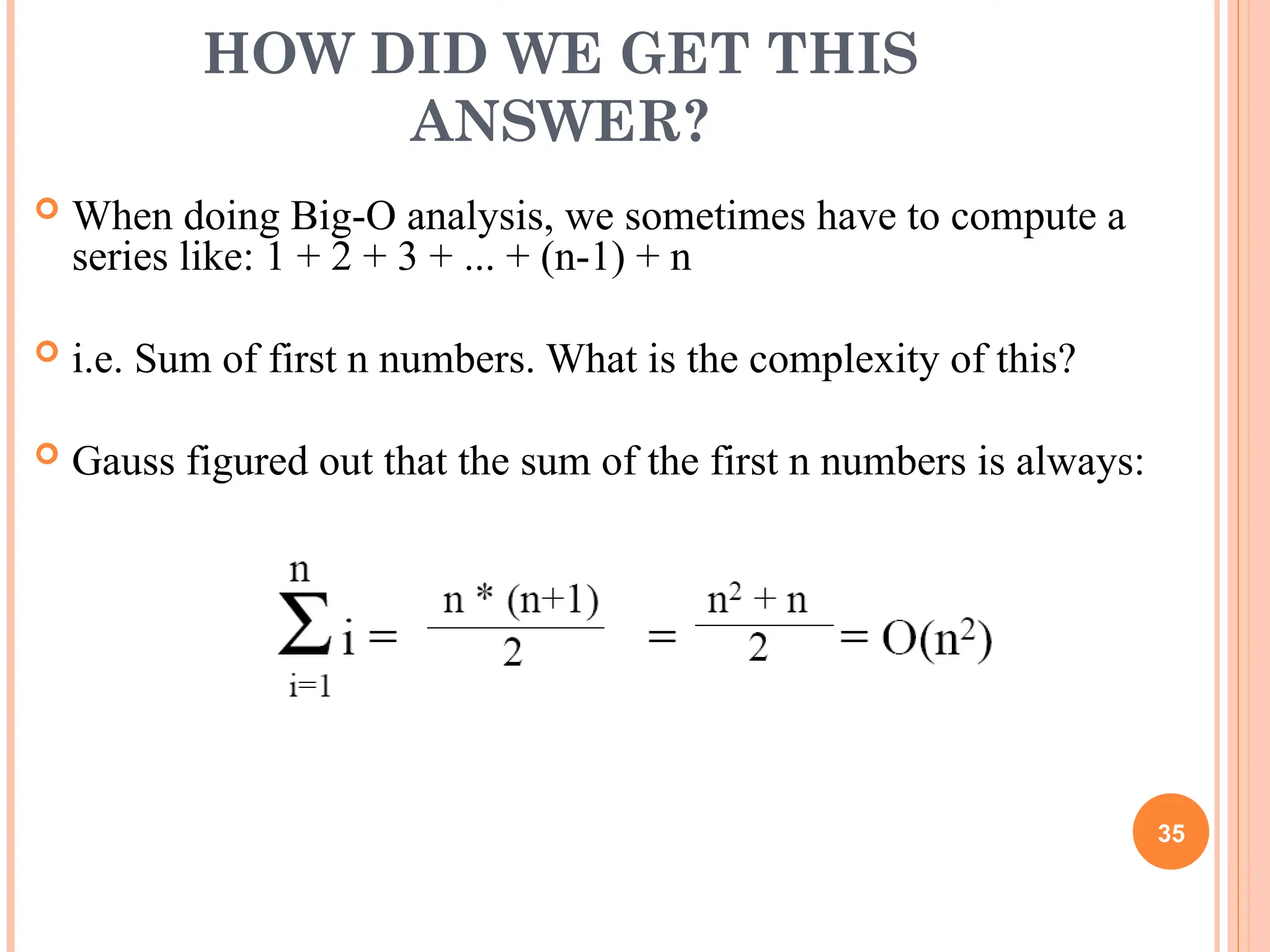

HOW DID WE GET THIS
ANSWER?
 When doing Big-O analysis, we sometimes have to compute a
series like: 1 + 2 + 3 + ... + (n-1) + n
 i.e. Sum of first n numbers. What is the complexity of this?
 Gauss figured out that the sum of the first n numbers is always:
35

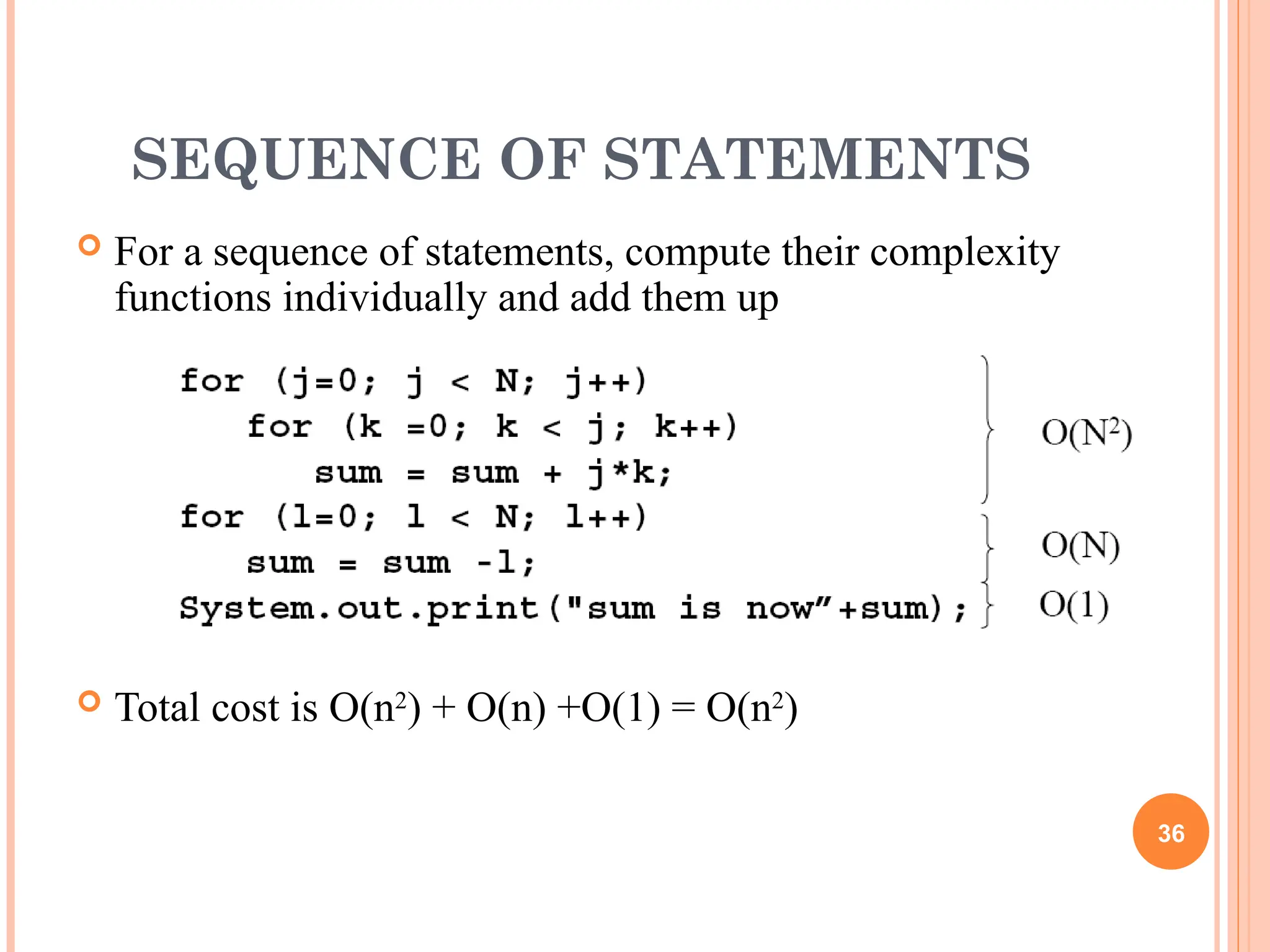

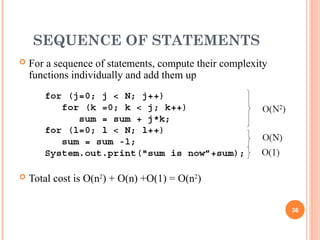

SEQUENCE OF STATEMENTS
 For a sequence of statements, compute their complexity
functions individually and add them up
 Total cost is O(n2
) + O(n) +O(1) = O(n2
)
36

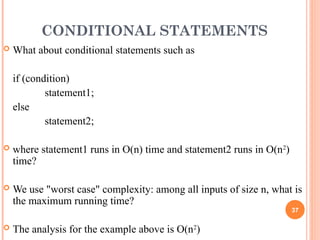

CONDITIONAL STATEMENTS
 What about conditional statements such as
if (condition)
statement1;
else
statement2;
 where statement1 runs in O(n) time and statement2 runs in O(n2
)
time?
 We use "worst case" complexity: among all inputs of size n, what is
the maximum running time?
 The analysis for the example above is O(n2
)
37

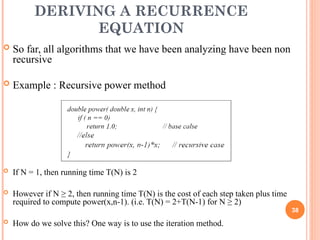

DERIVING A RECURRENCE
EQUATION
 So far, all algorithms that we have been analyzing have been non
recursive
 Example : Recursive power method
 If N = 1, then running time T(N) is 2
 However if N ≥ 2, then running time T(N) is the cost of each step taken plus time
required to compute power(x,n-1). (i.e. T(N) = 2+T(N-1) for N ≥ 2)
 How do we solve this? One way is to use the iteration method.
38

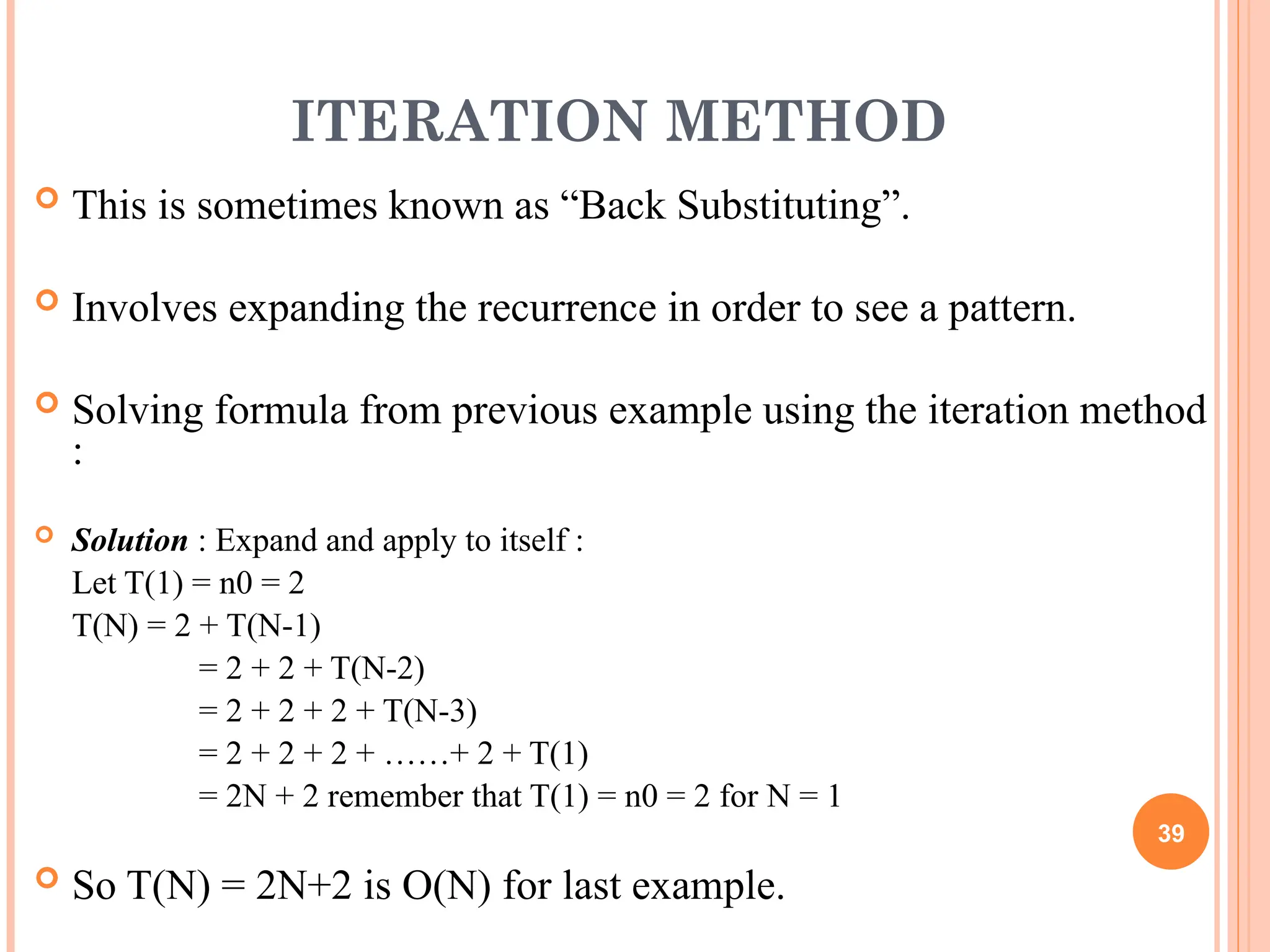

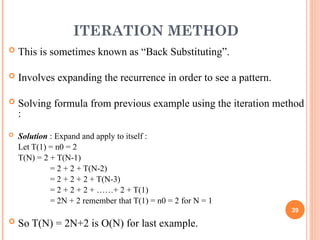

ITERATION METHOD
 This is sometimes known as “Back Substituting”.
 Involves expanding the recurrence in order to see a pattern.
 Solving formula from previous example using the iteration method
:
 Solution : Expand and apply to itself :
Let T(1) = n0 = 2
T(N) = 2 + T(N-1)
= 2 + 2 + T(N-2)
= 2 + 2 + 2 + T(N-3)
= 2 + 2 + 2 + ……+ 2 + T(1)
= 2N + 2 remember that T(1) = n0 = 2 for N = 1
 So T(N) = 2N+2 is O(N) for last example.
39

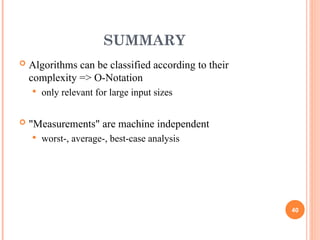

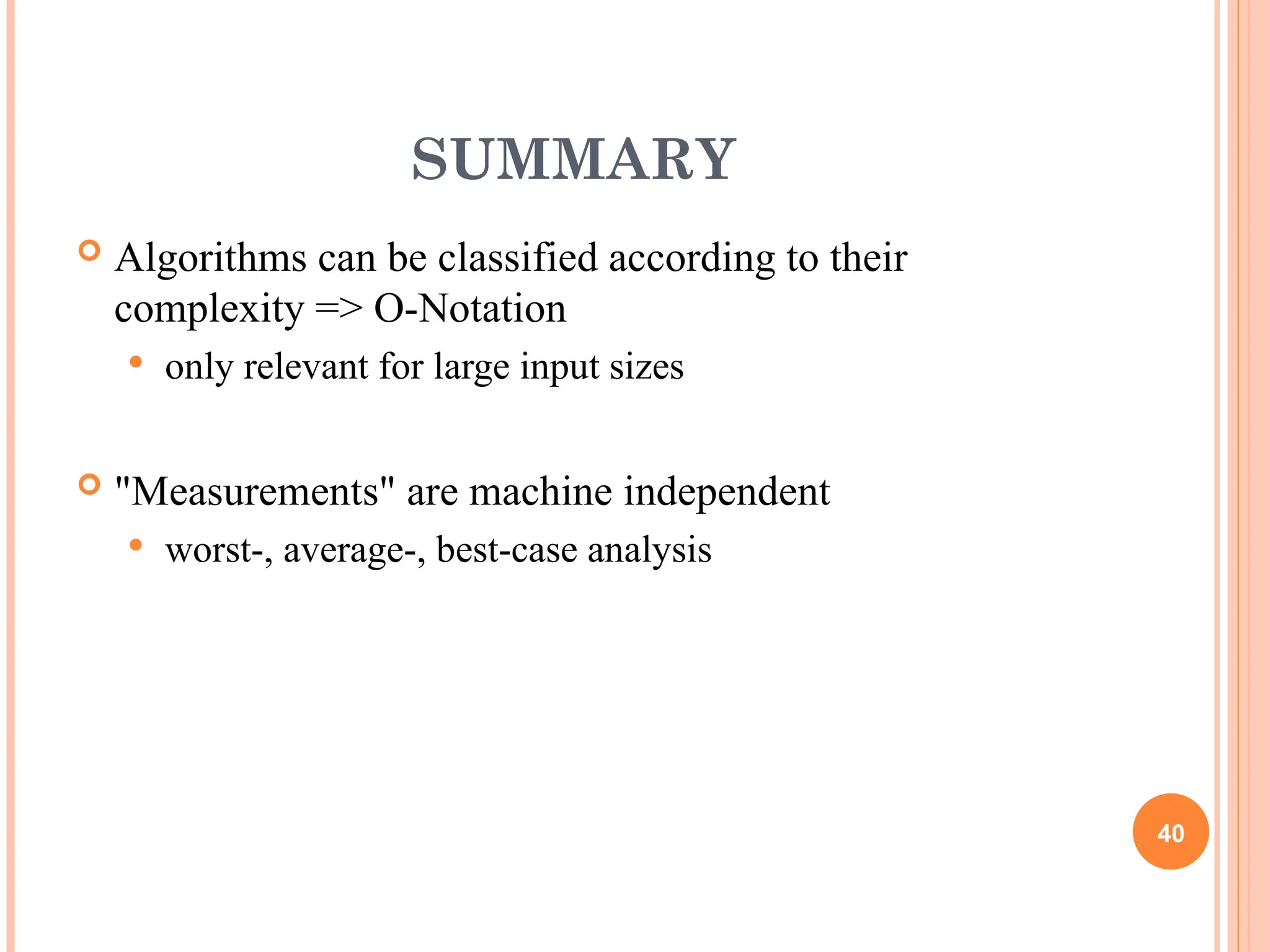

SUMMARY
 Algorithms can be classified according to their
complexity => O-Notation
 only relevant for large input sizes
 "Measurements" are machine independent
 worst-, average-, best-case analysis
40

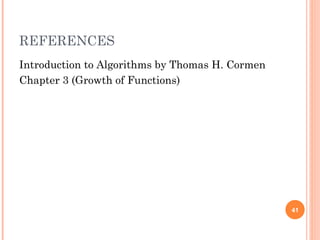

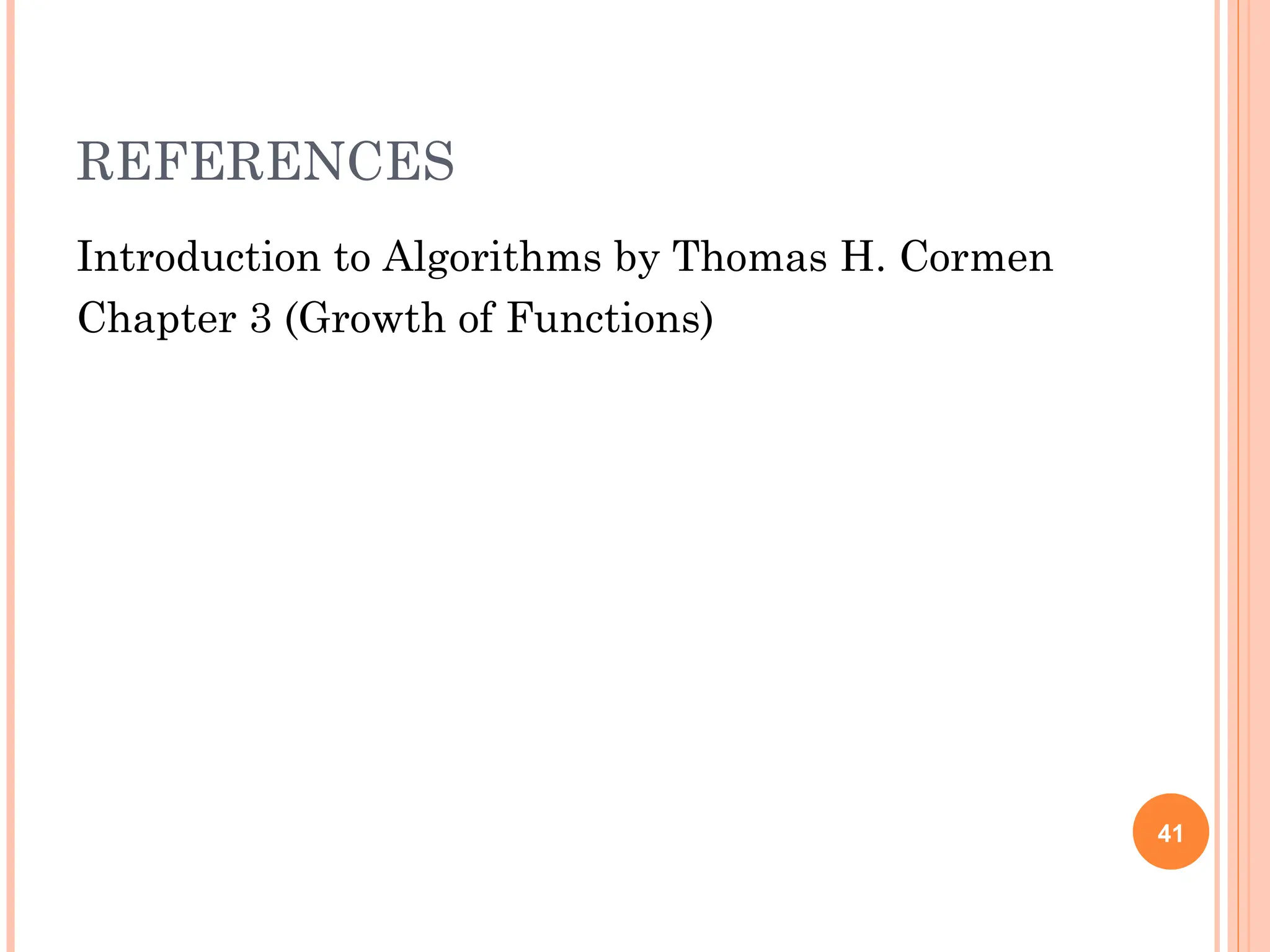

REFERENCES
Introduction to Algorithms by Thomas H. Cormen
Chapter 3 (Growth of Functions)
41

How to calculate complexity in Data Structure

More Related Content

Similar to How to calculate complexity in Data Structure

More from debasisdas225831

Recently uploaded

How to calculate complexity in Data Structure
