Bigdata processing with Spark - part II

SIKS Big Data Course
Part Two
Prof.dr.ir. Arjen P. de Vries
arjen@acm.org
Enschede, December 7, 2016

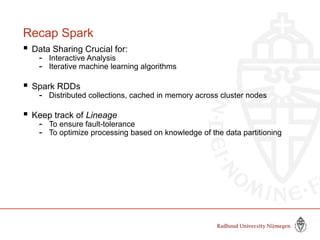

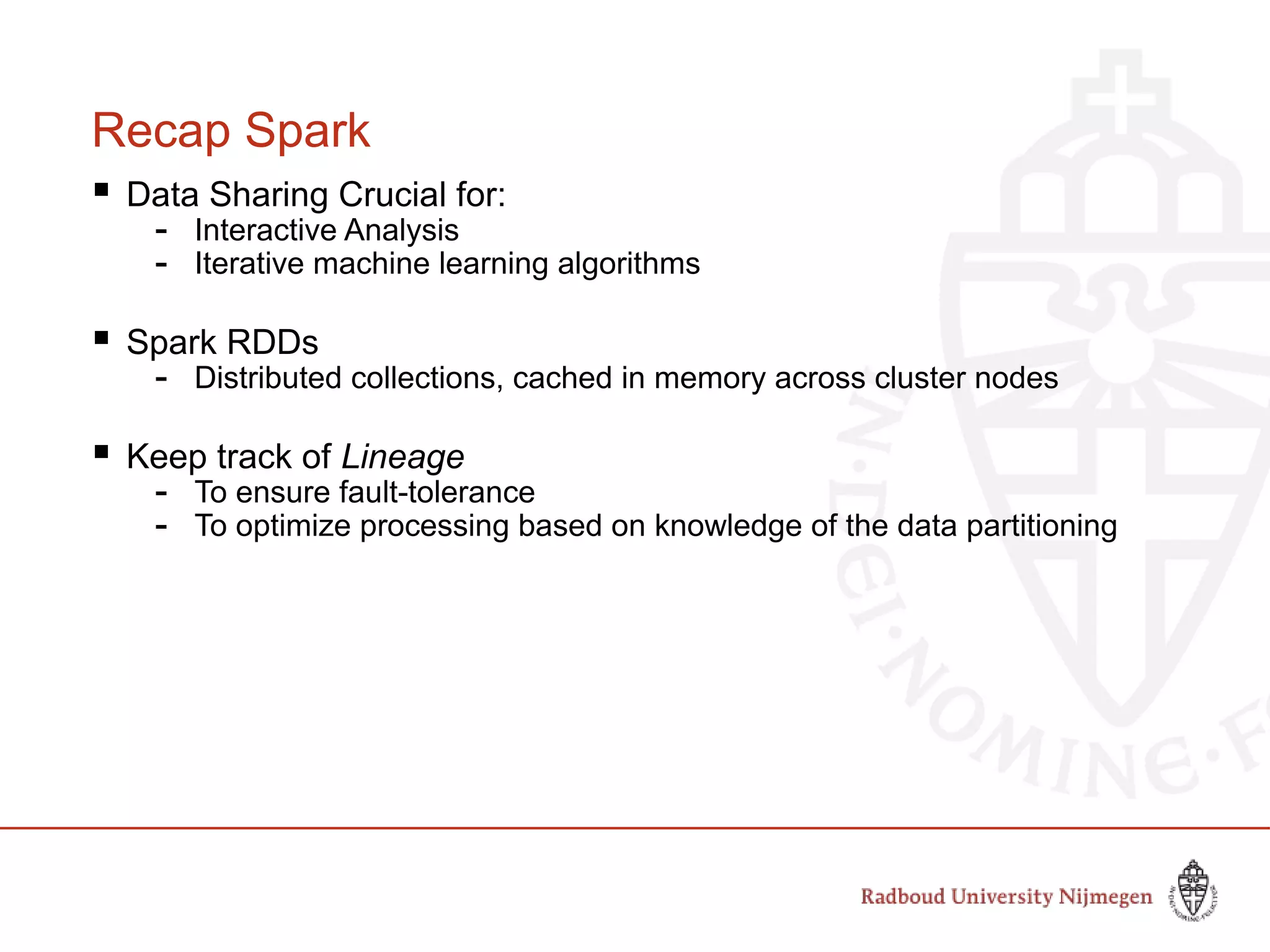

Recap Spark
 Data Sharing Crucial for:
- Interactive Analysis
- Iterative machine learning algorithms
 Spark RDDs
- Distributed collections, cached in memory across cluster nodes
 Keep track of Lineage
- To ensure fault-tolerance
- To optimize processing based on knowledge of the data partitioning

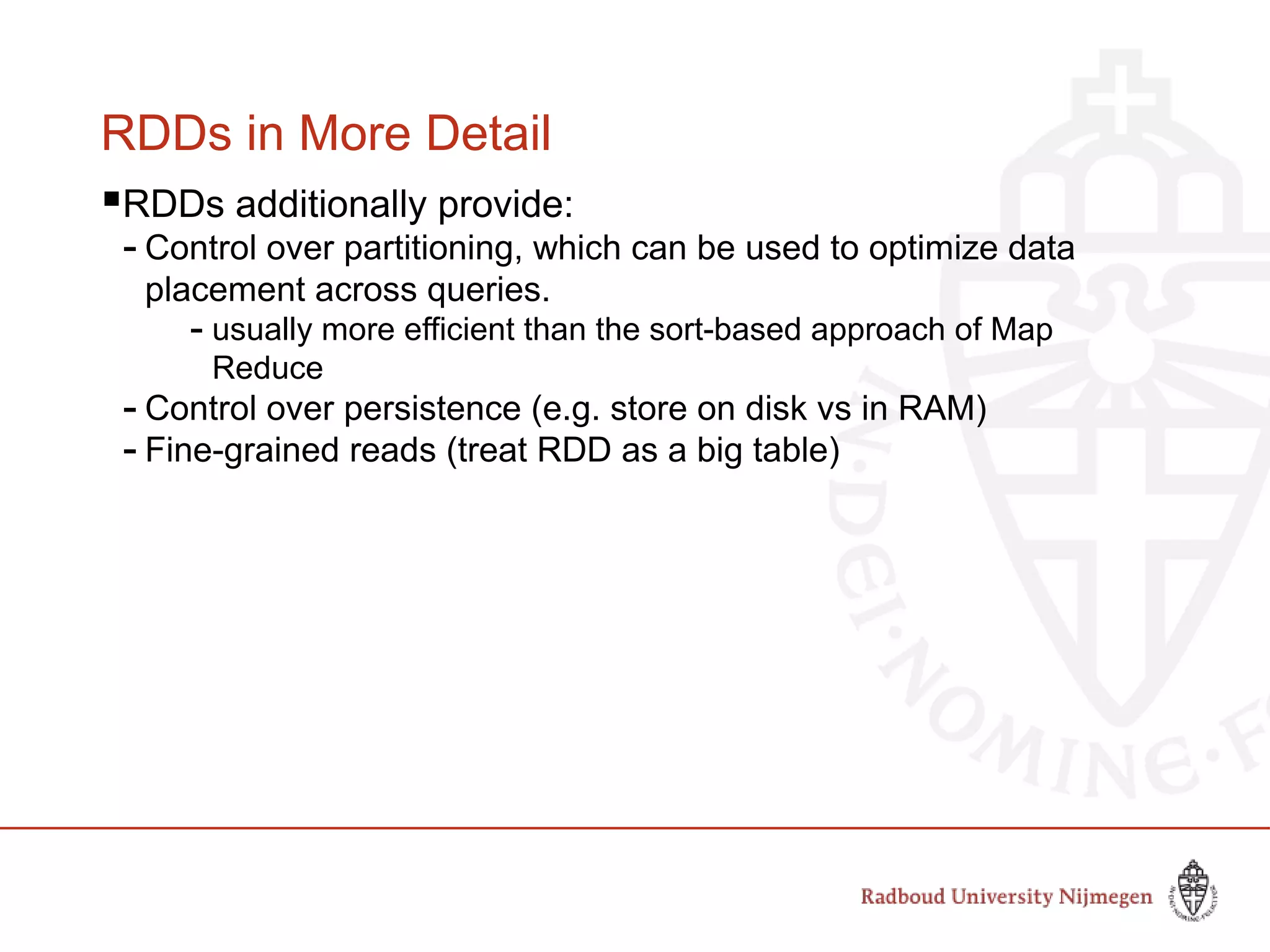

RDDs in More Detail
RDDs additionally provide:
- Control over partitioning, which can be used to optimize data
placement across queries.
- usually more efficient than the sort-based approach of Map
Reduce
- Control over persistence (e.g. store on disk vs in RAM)
- Fine-grained reads (treat RDD as a big table)
Slide by Matei Zaharia, creator Spark, http://spark-project.org

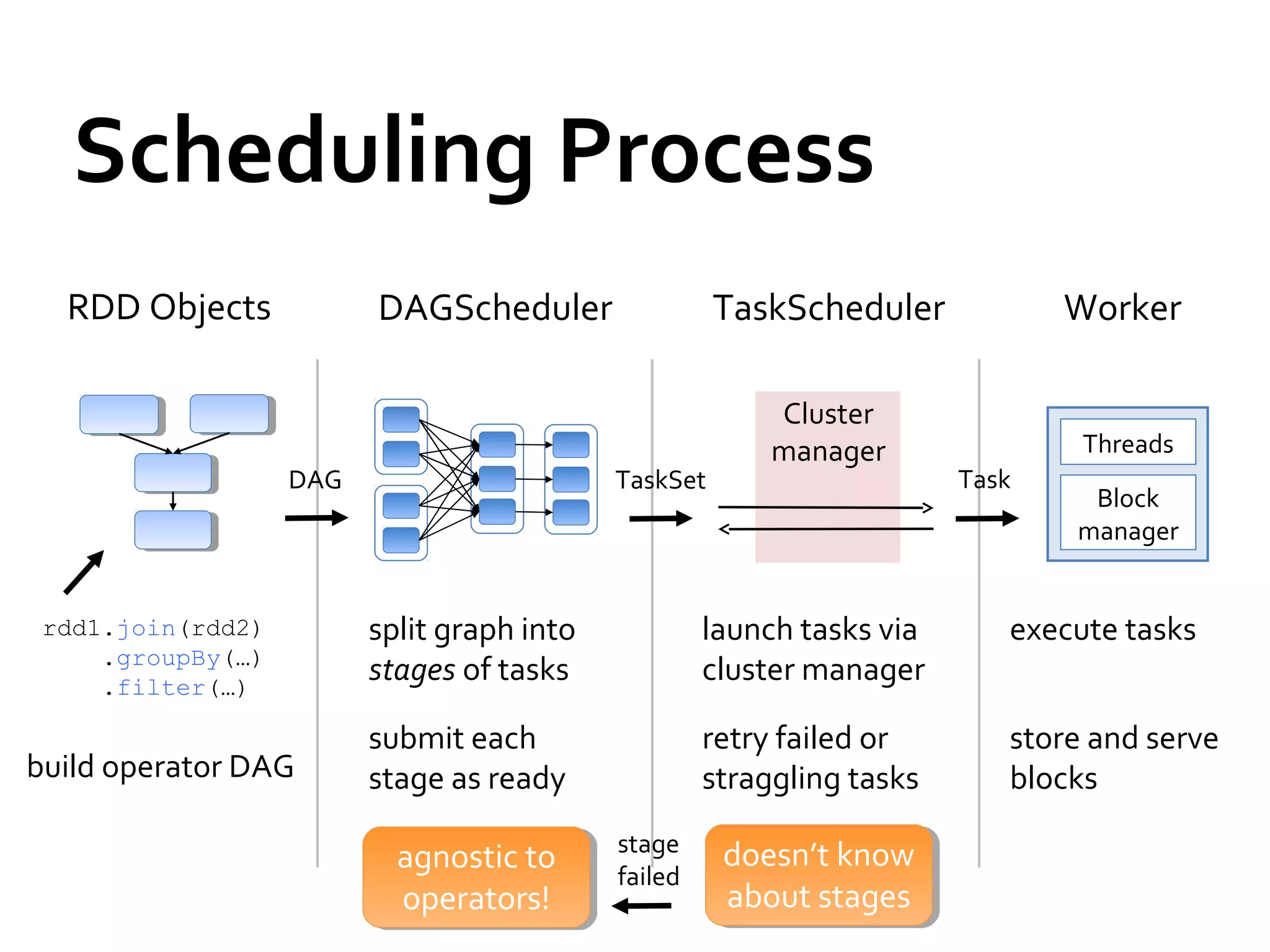

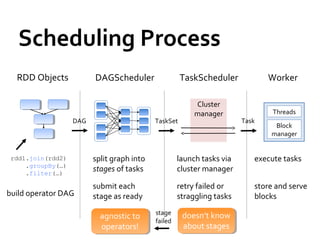

Scheduling Process
rdd1.join(rdd2)
.groupBy(…)
.filter(…)
RDD Objects
build operator DAG
agnostic to
operators!
agnostic to
operators!
doesn’t know
about stages
doesn’t know
about stages
DAGScheduler
split graph into
stages of tasks
submit each
stage as ready
DAG
TaskScheduler
TaskSet
launch tasks via
cluster manager
retry failed or
straggling tasks
Cluster
manager
Worker
execute tasks
store and serve
blocks
Block
manager
Threads
Task
stage
failed

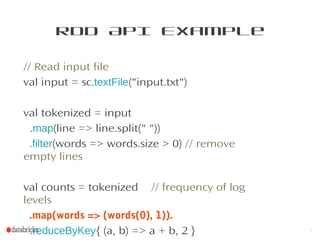

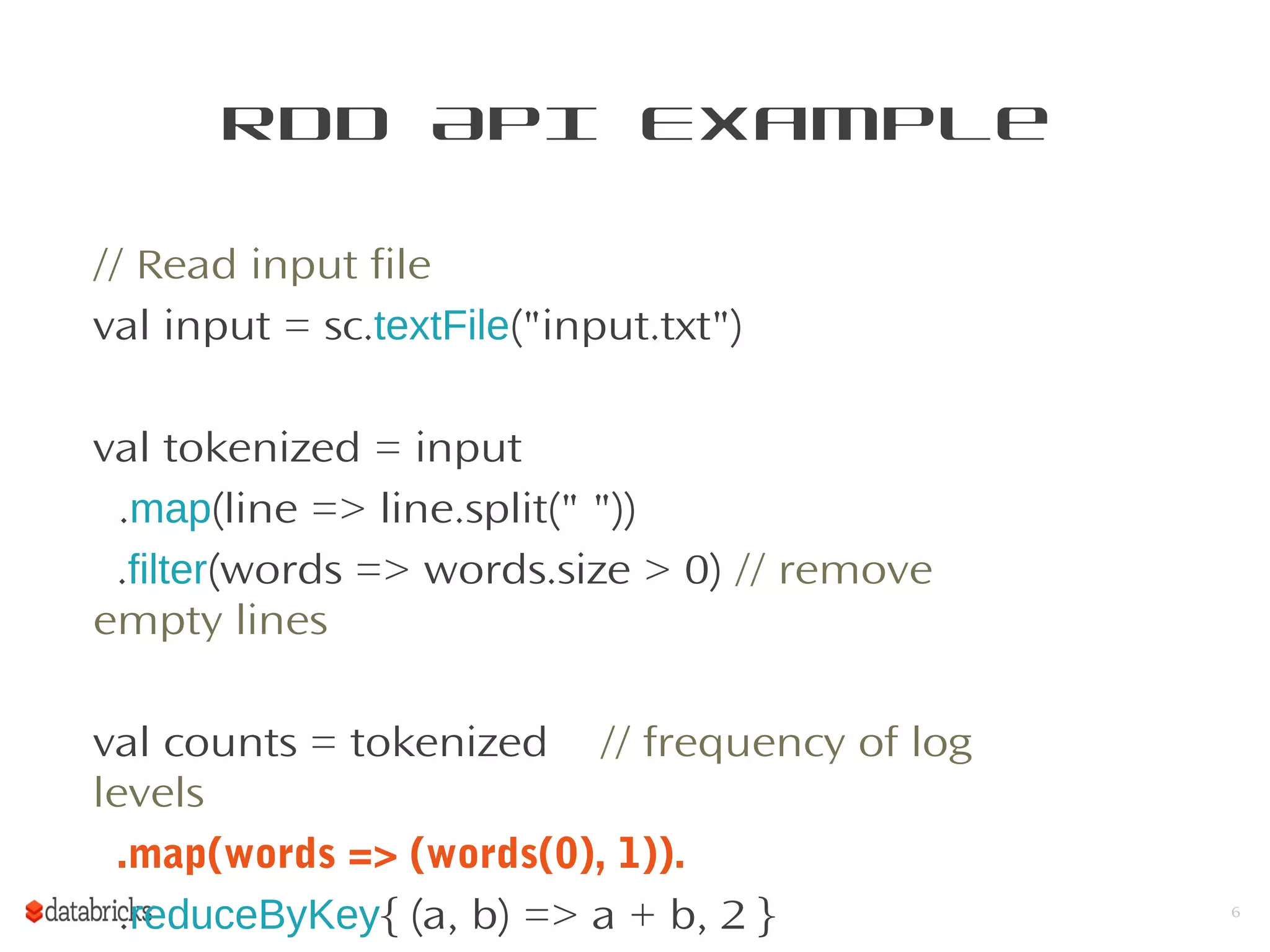

RDD API Example
// Read input file
val input = sc.textFile("input.txt")
val tokenized = input
.map(line => line.split(" "))
.filter(words => words.size > 0) // remove
empty lines
val counts = tokenized // frequency of log
levels
.map(words => (words(0), 1)).
.reduceByKey{ (a, b) => a + b, 2 } 6

RDD API Example
// Read input file
val input = sc.textFile( )
val tokenized = input
.map(line => line.split(" "))
.filter(words => words.size > 0) // remove
empty lines
val counts = tokenized // frequency of log
levels
.map(words => (words(0), 1)).
.reduceByKey{ (a, b) => a + b } 7

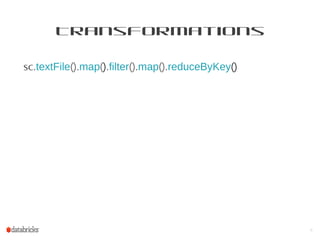

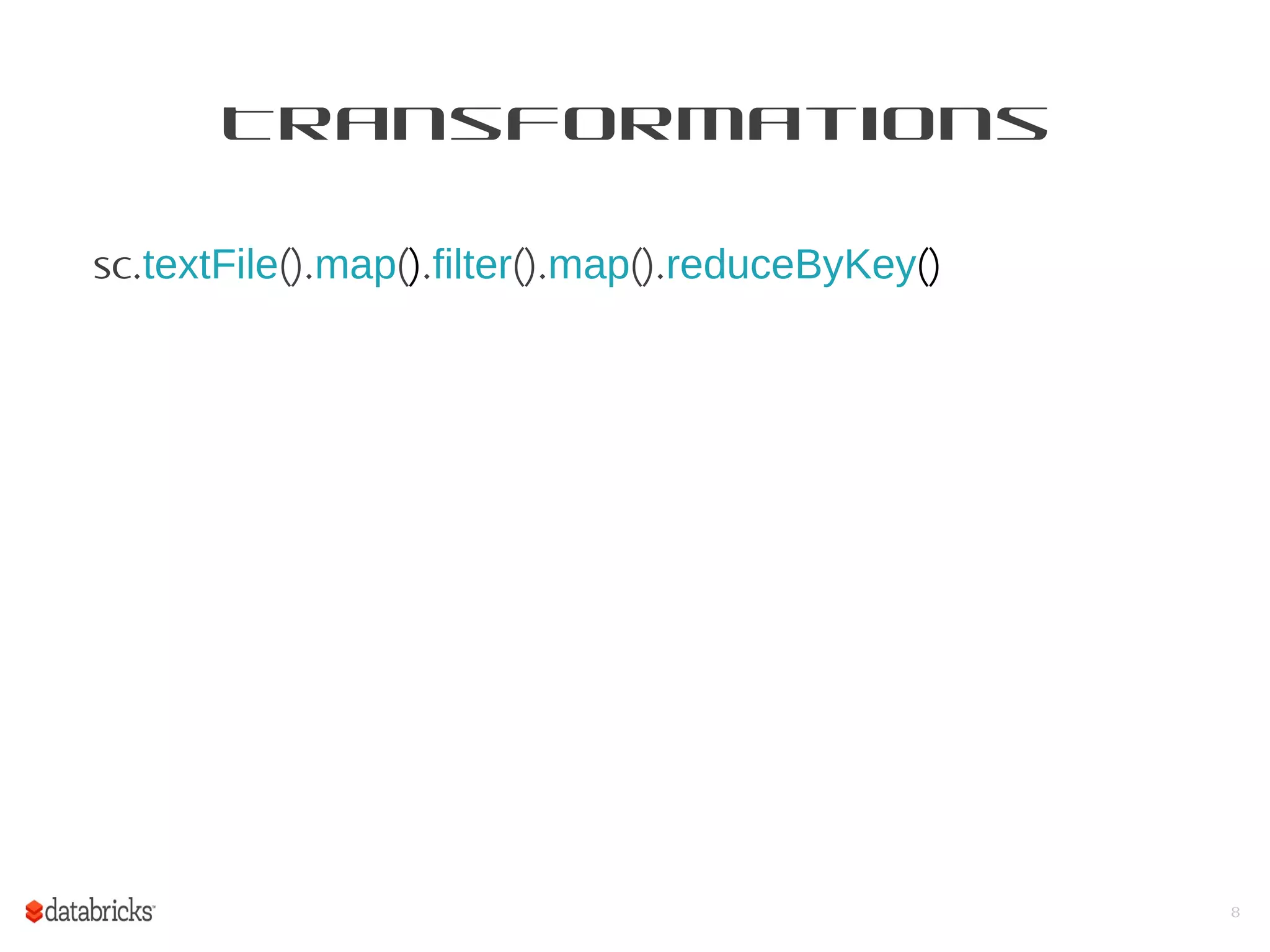

Transformations
sc.textFile().map().filter().map().reduceByKey()
8

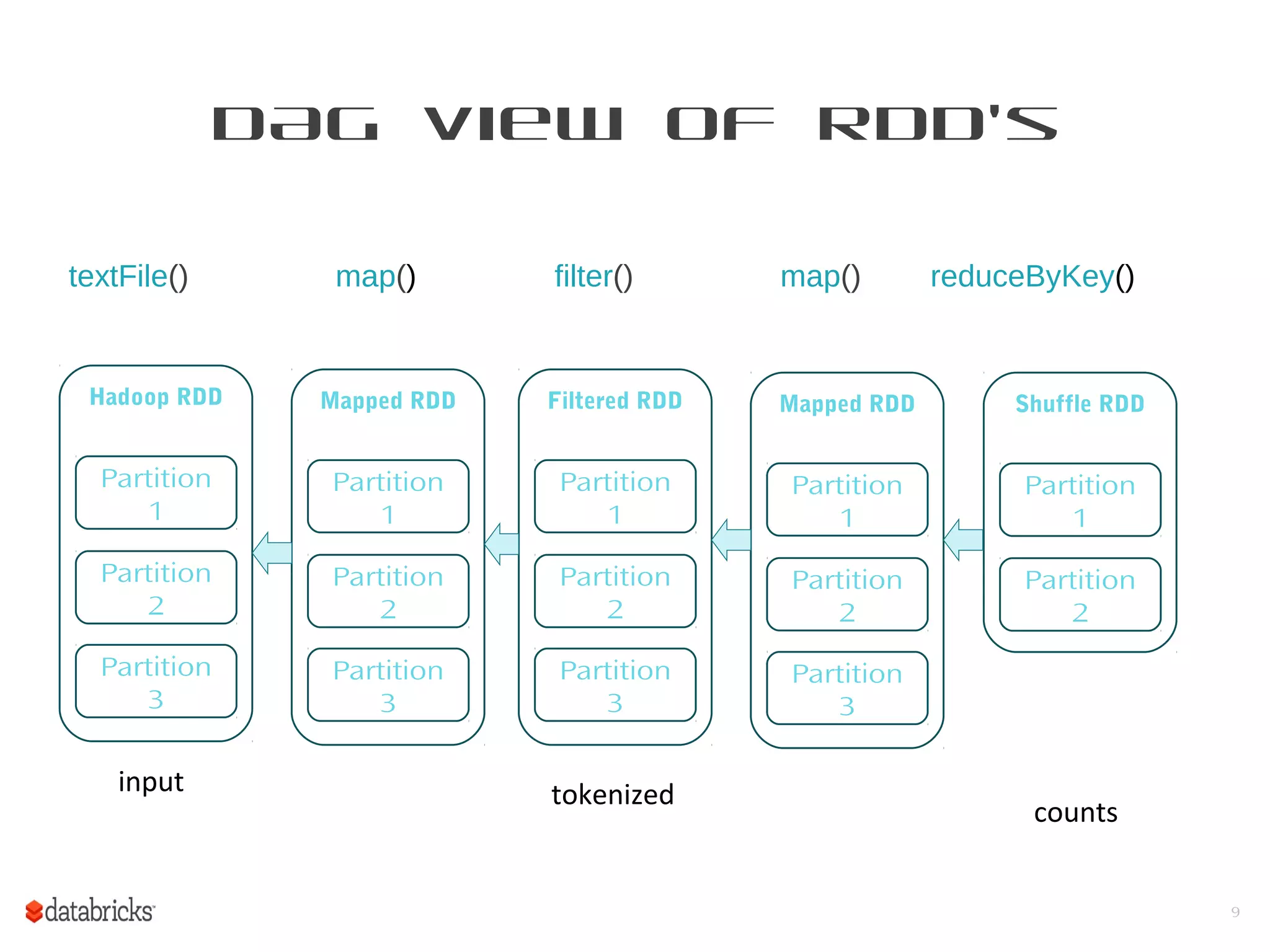

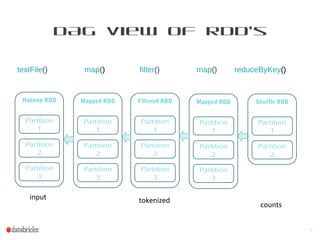

DAG View of RDD’s
textFile() map() filter() map() reduceByKey()
9
Mapped RDD
Partition
1
Partition
2
Partition
3
Filtered RDD
Partition
1
Partition
2
Partition
3
Mapped RDD
Partition
1
Partition
2
Partition
3
Shuffle RDD
Partition
1
Partition
2
Hadoop RDD
Partition
1
Partition
2
Partition
3
input tokenized
counts

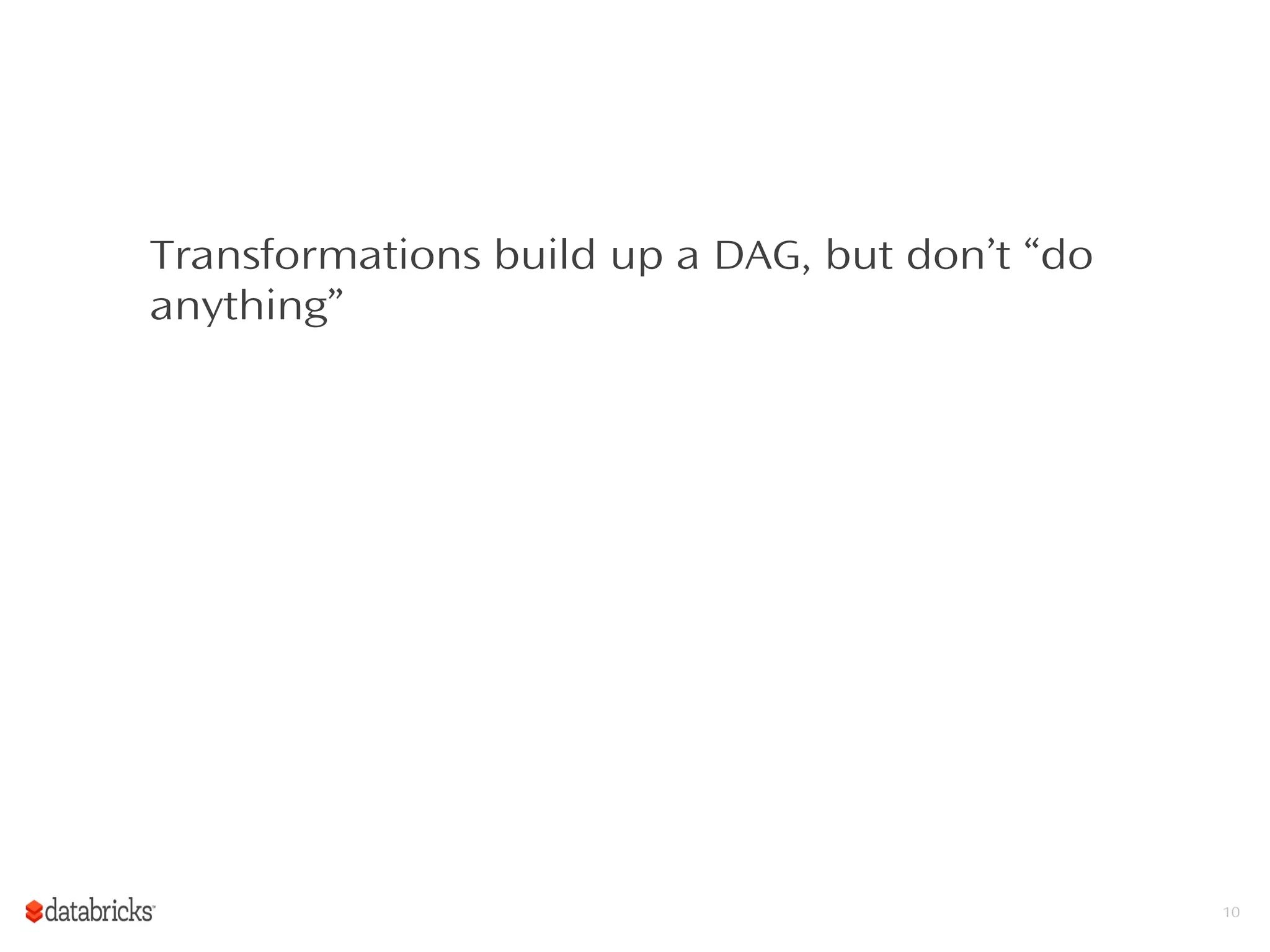

Transformations build up a DAG, but don’t “do
anything”
10

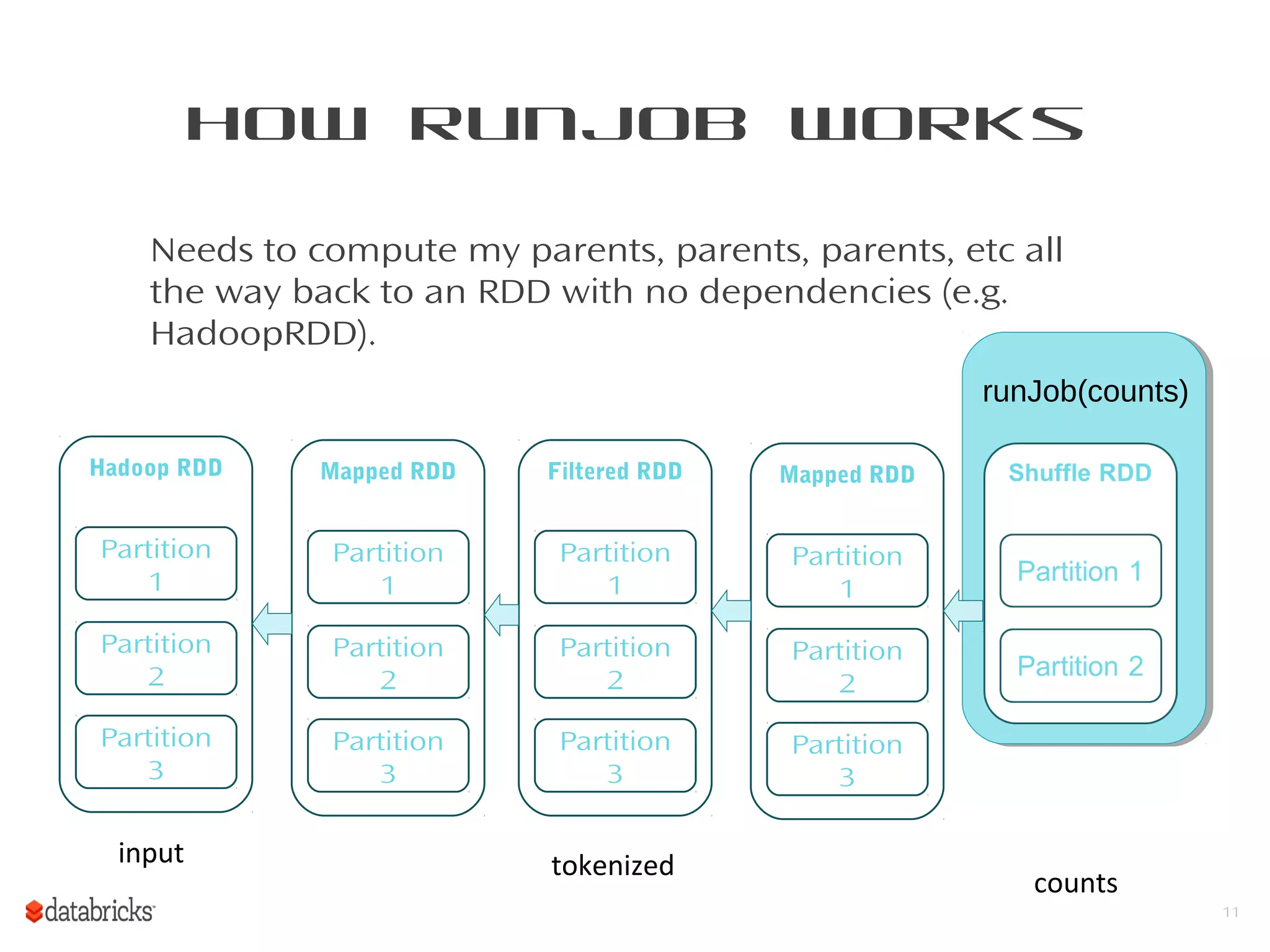

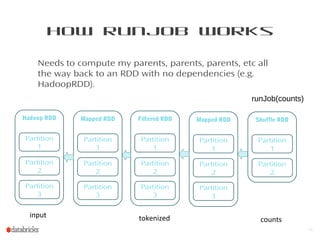

How runJob Works
Needs to compute my parents, parents, parents, etc all
the way back to an RDD with no dependencies (e.g.
HadoopRDD).
11
Mapped RDD
Partition
1
Partition
2
Partition
3
Filtered RDD
Partition
1
Partition
2
Partition
3
Mapped RDD
Partition
1
Partition
2
Partition
3
Hadoop RDD
Partition
1
Partition
2
Partition
3
input tokenized
counts
runJob(counts)

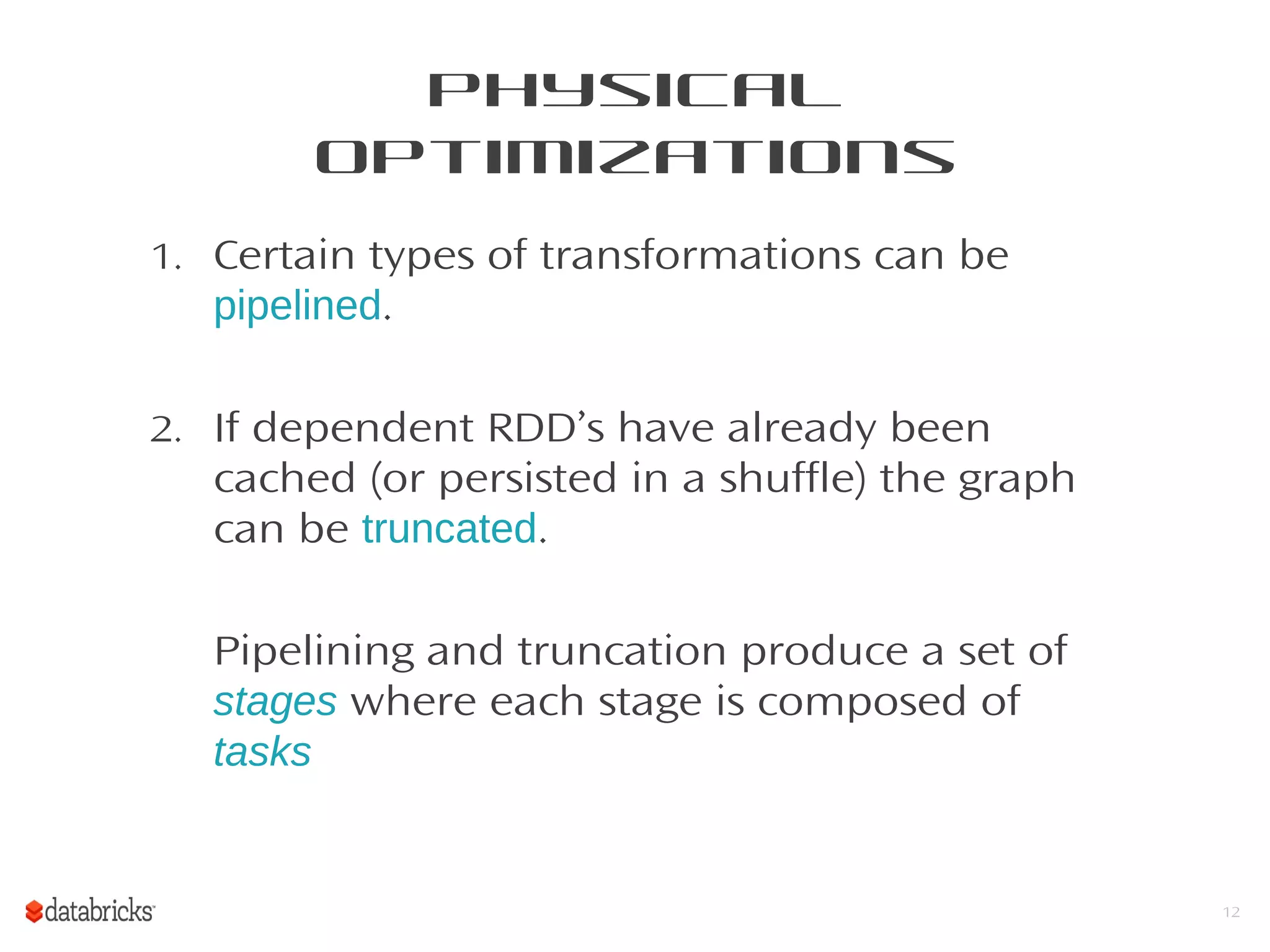

Physical
Optimizations
1. Certain types of transformations can be
pipelined.
2. If dependent RDD’s have already been
cached (or persisted in a shuffle) the graph
can be truncated.
Pipelining and truncation produce a set of
stages where each stage is composed of
tasks
12

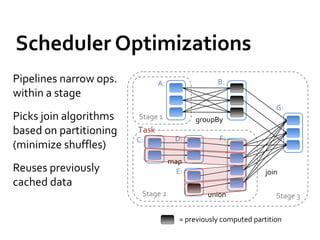

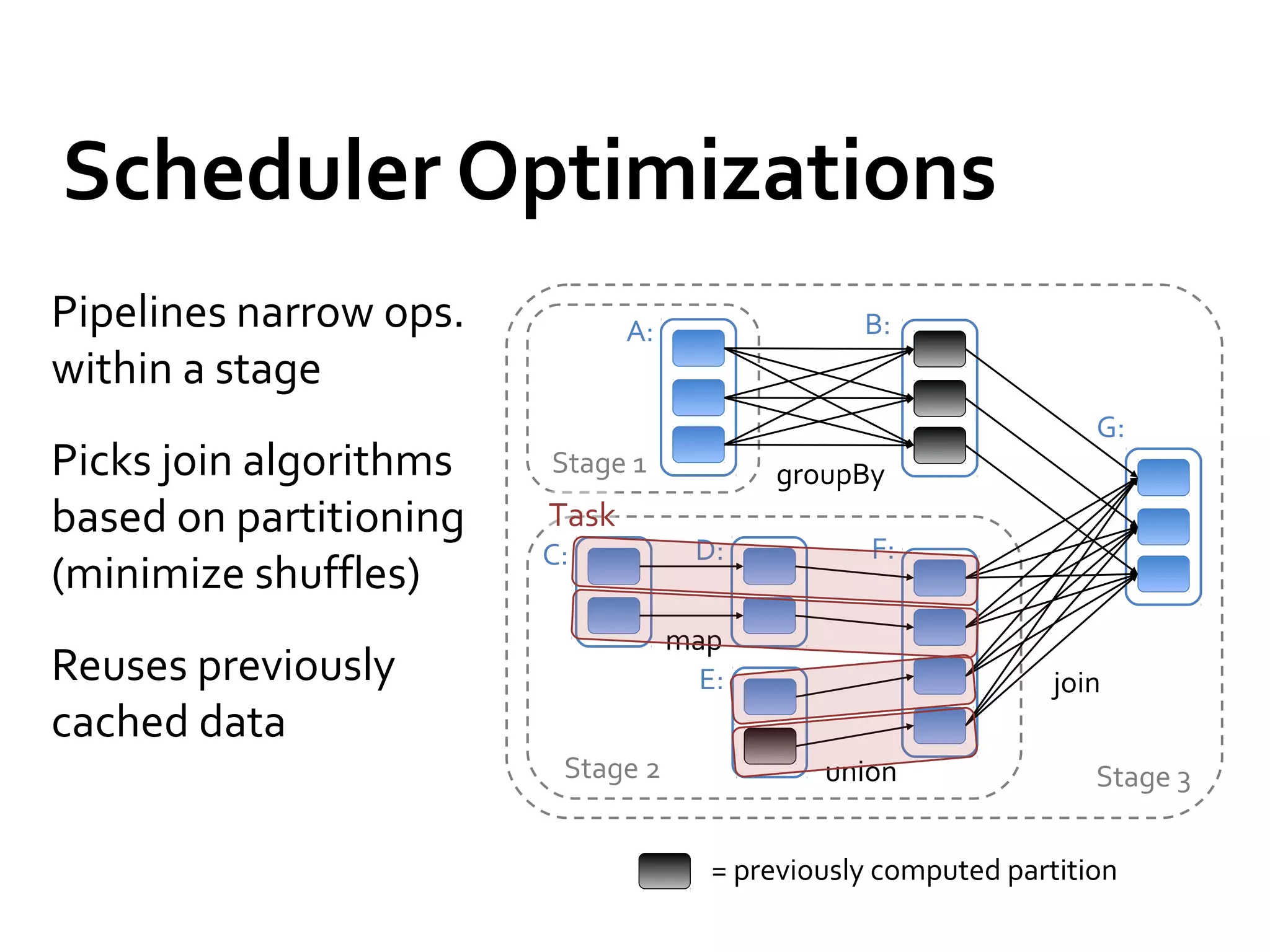

Scheduler Optimizations
Pipelines narrow ops.
within a stage
Picks join algorithms
based on partitioning
(minimize shuffles)
Reuses previously
cached data
join
union
groupBy
map
Stage 3
Stage 1
Stage 2
A: B:
C: D:
E:
F:
G:
= previously computed partition
Task

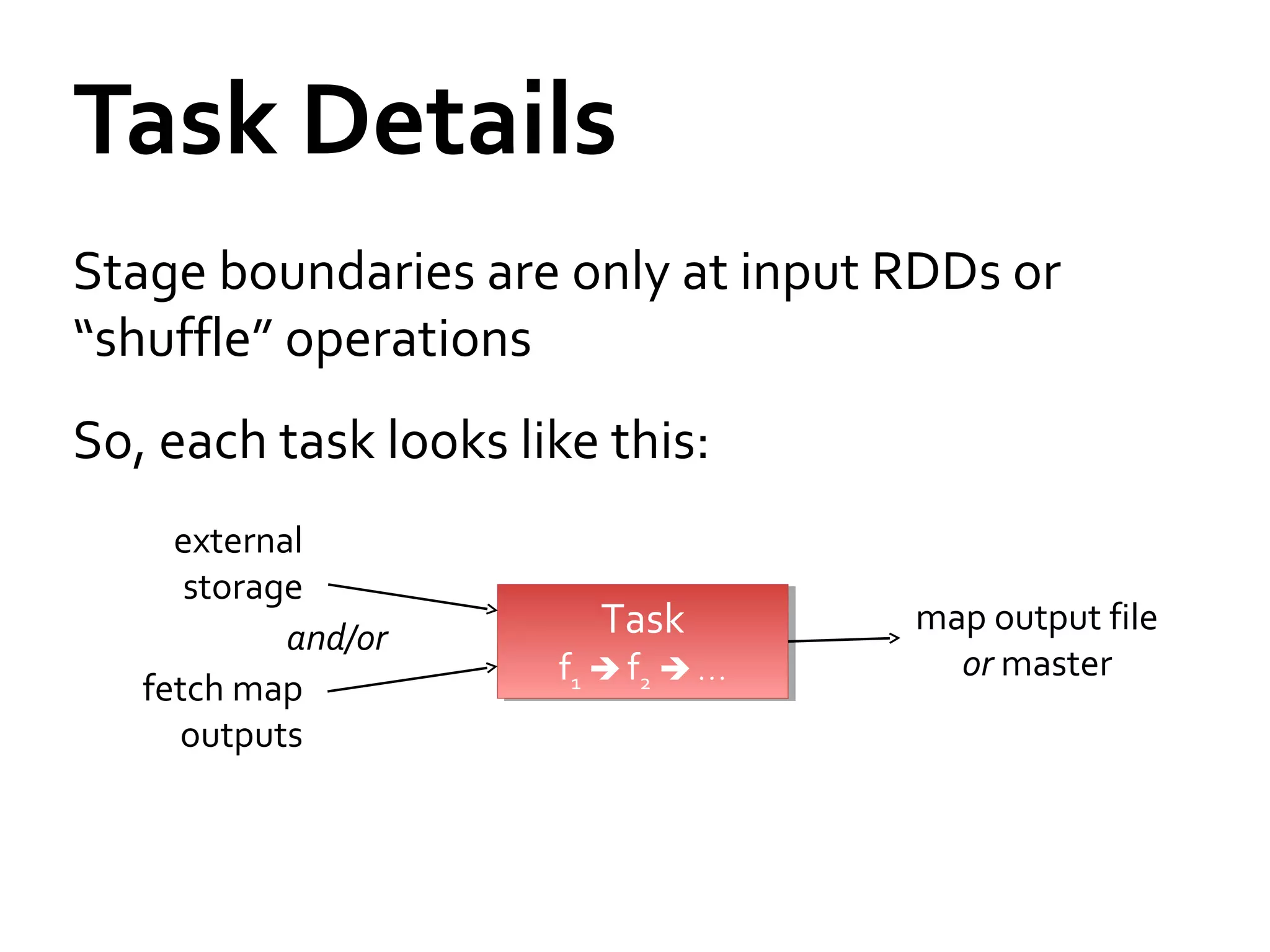

Task Details
Stage boundaries are only at input RDDs or
“shuffle” operations
So, each task looks like this:
Task
f1  f2  …
Task
f1  f2  …
map output file
or master
external
storage
fetch map
outputs
and/or

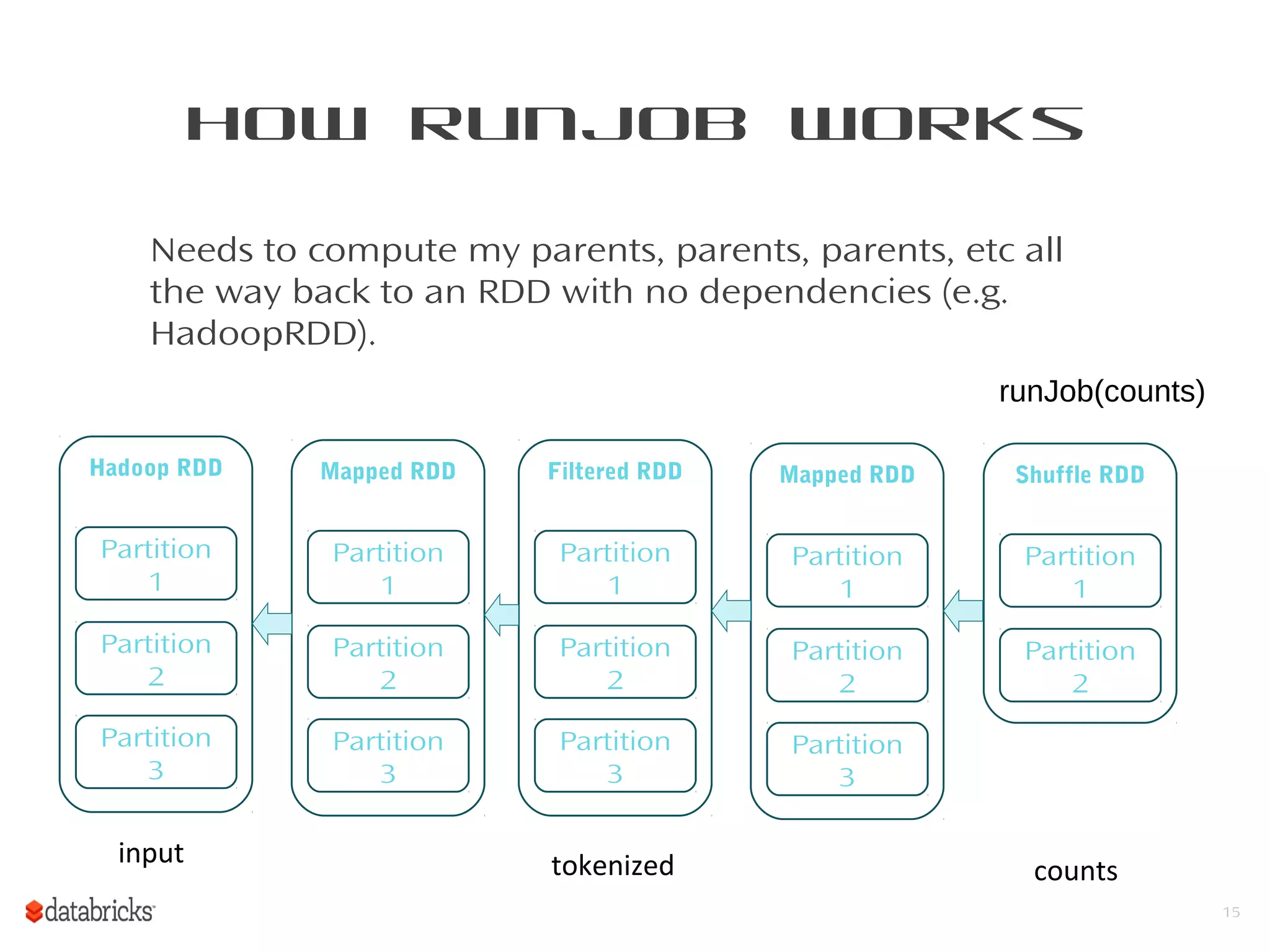

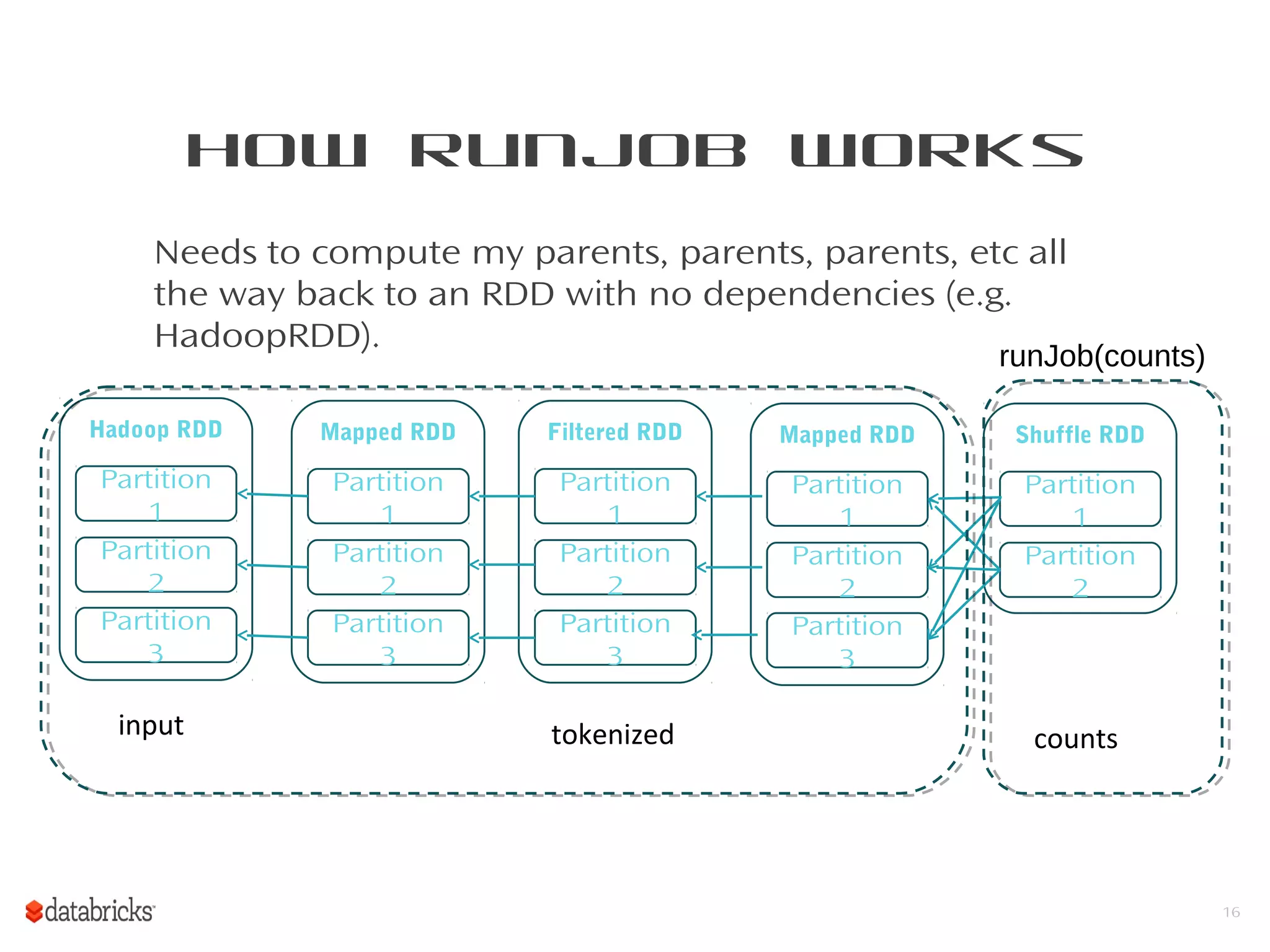

How runJob Works
HadoopRDD).
15
Mapped RDD
Partition
1
Partition
2
Partition
3
Filtered RDD
Partition
1
Partition
2
Partition
3
Mapped RDD
Partition
1
Partition
2
Partition
3
Shuffle RDD
Partition
1
Partition
2
Hadoop RDD
Partition
1
Partition
2
Partition
3
input tokenized counts
runJob(counts)

16
How runJob Works
HadoopRDD).
input tokenized counts
Mapped RDD
Partition
1
Partition
2
Partition
3
Filtered RDD
Partition
1
Partition
2
Partition
3
Mapped RDD
Partition
1
Partition
2
Partition
3
Shuffle RDD
Partition
1
Partition
2
Hadoop RDD
Partition
1
Partition
2
Partition
3
runJob(counts)

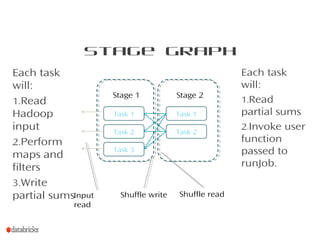

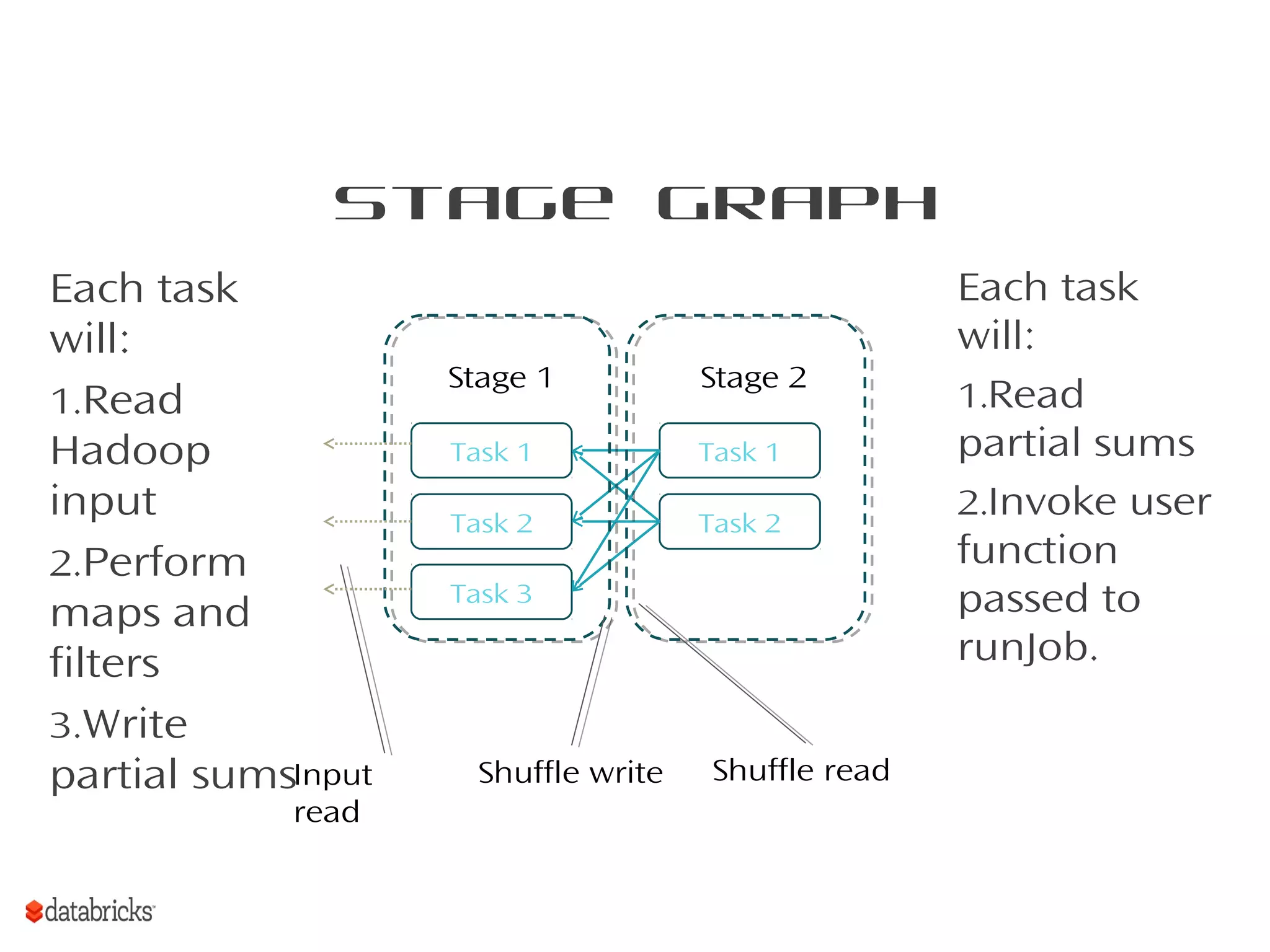

Stage Graph
Task 1
Task 2
Task 3
Task 1
Task 2
Stage 1 Stage 2
Each task
will:
1.Read
Hadoop
input
2.Perform
maps and
filters
3.Write
partial sums
Each task
will:
1.Read
partial sums
2.Invoke user
function
passed to
runJob.
Shuffle write Shuffle readInput
read

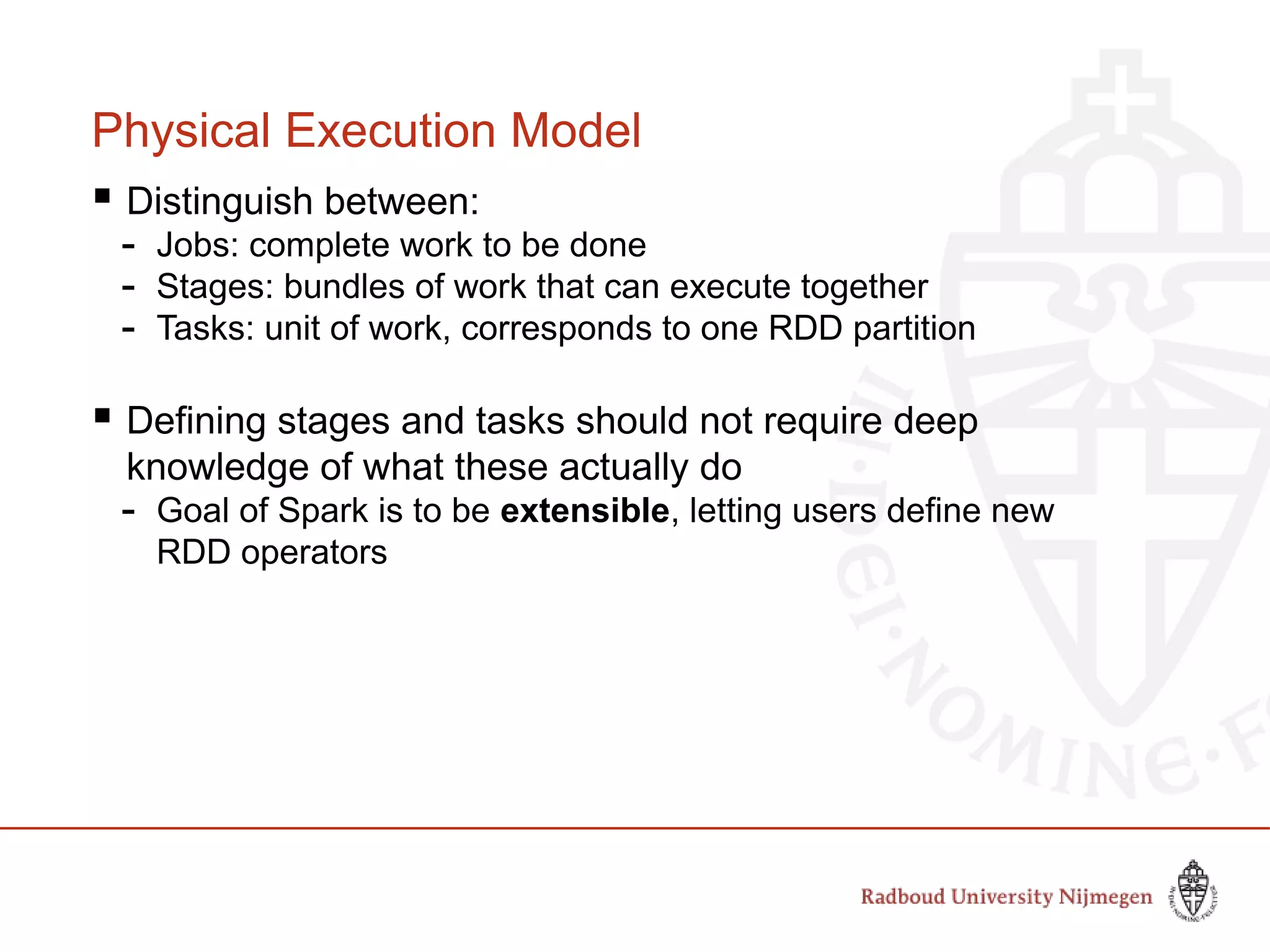

Physical Execution Model
 Distinguish between:
- Jobs: complete work to be done
- Stages: bundles of work that can execute together
- Tasks: unit of work, corresponds to one RDD partition
 Defining stages and tasks should not require deep
knowledge of what these actually do
- Goal of Spark is to be extensible, letting users define new
RDD operators

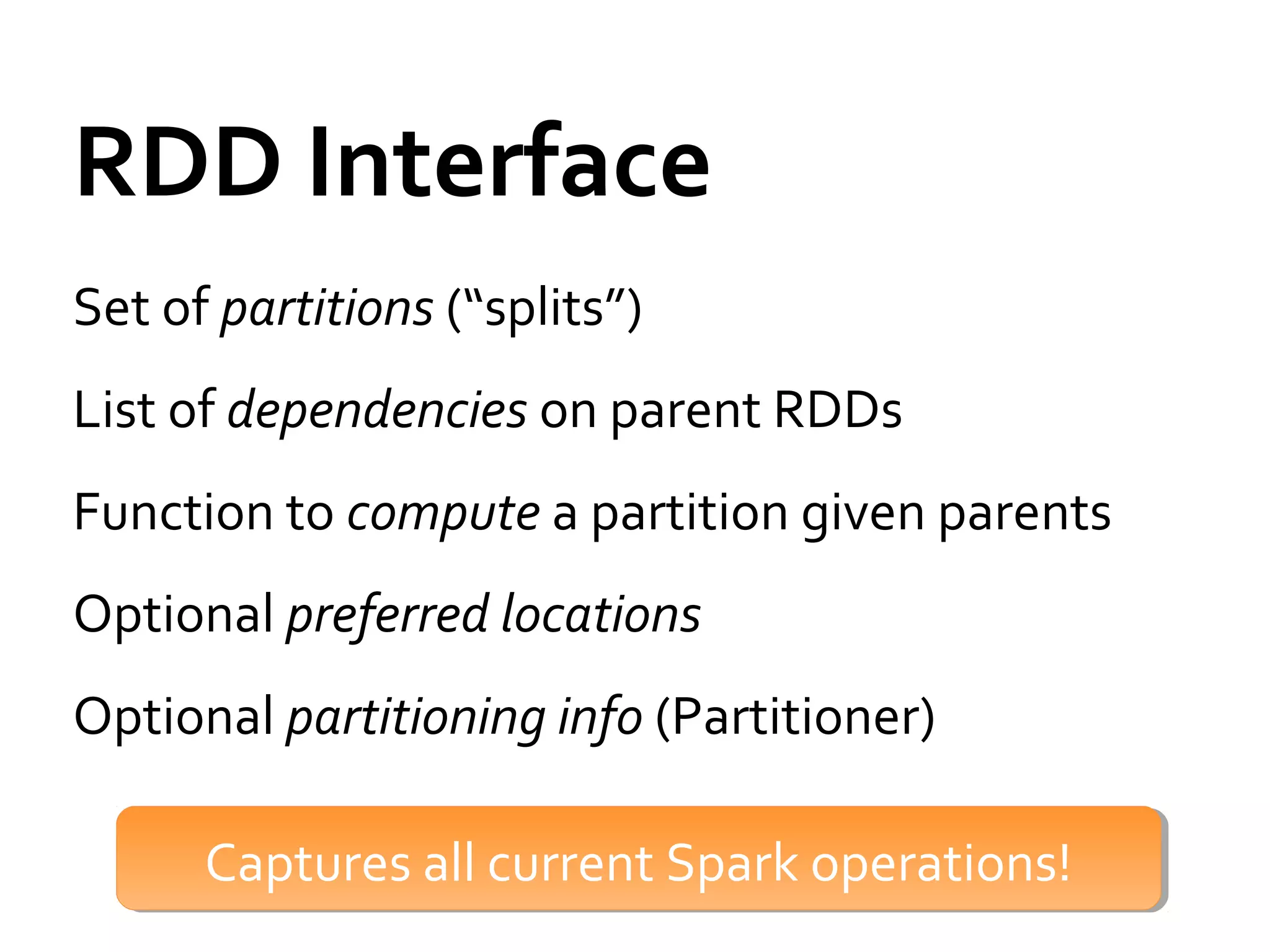

RDD Interface
Set of partitions (“splits”)
List of dependencies on parent RDDs
Function to compute a partition given parents
Optional preferred locations
Optional partitioning info (Partitioner)
Captures all current Spark operations!Captures all current Spark operations!

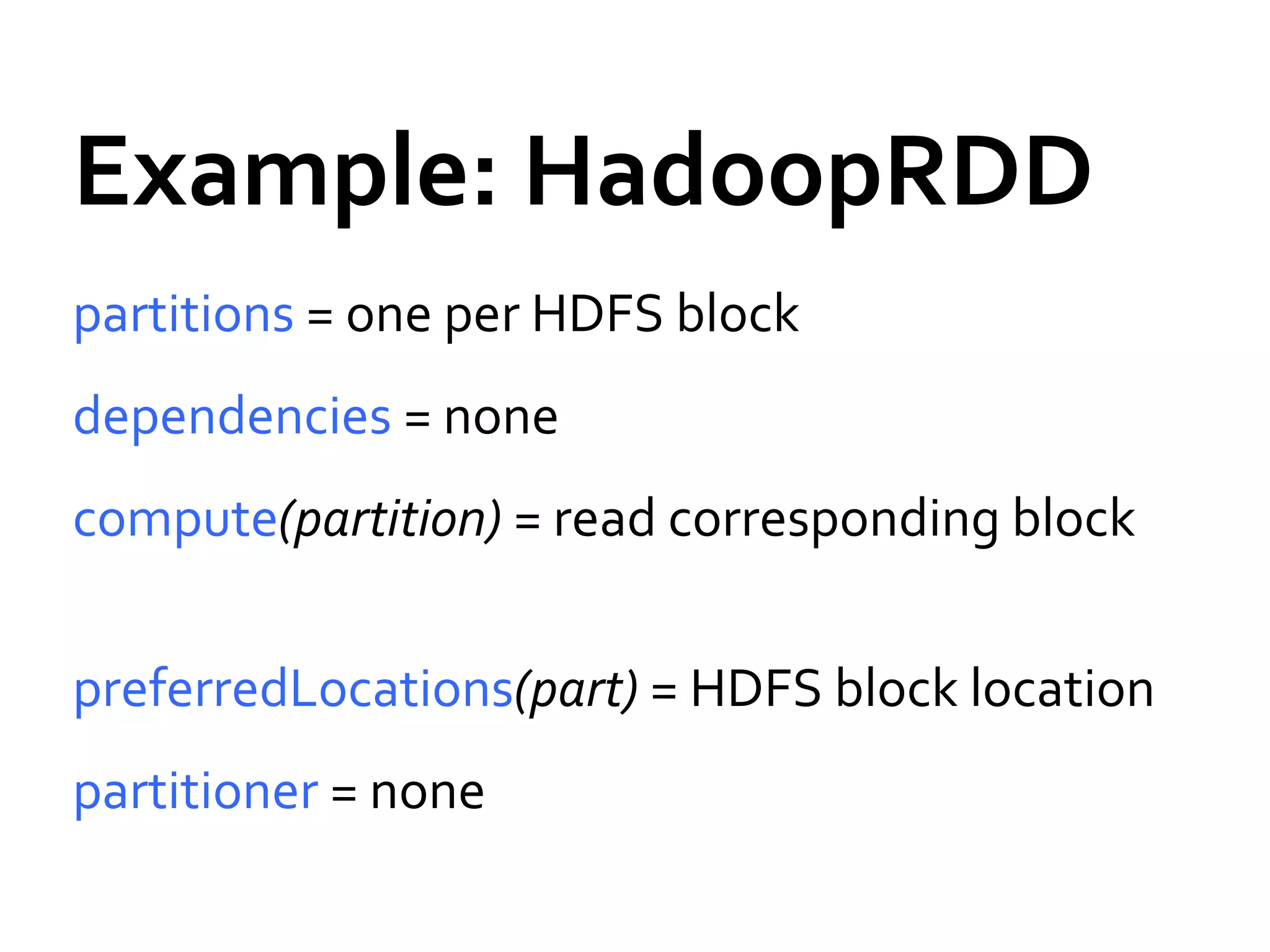

Example: HadoopRDD
partitions = one per HDFS block
dependencies = none
compute(partition) = read corresponding block
preferredLocations(part) = HDFS block location
partitioner = none

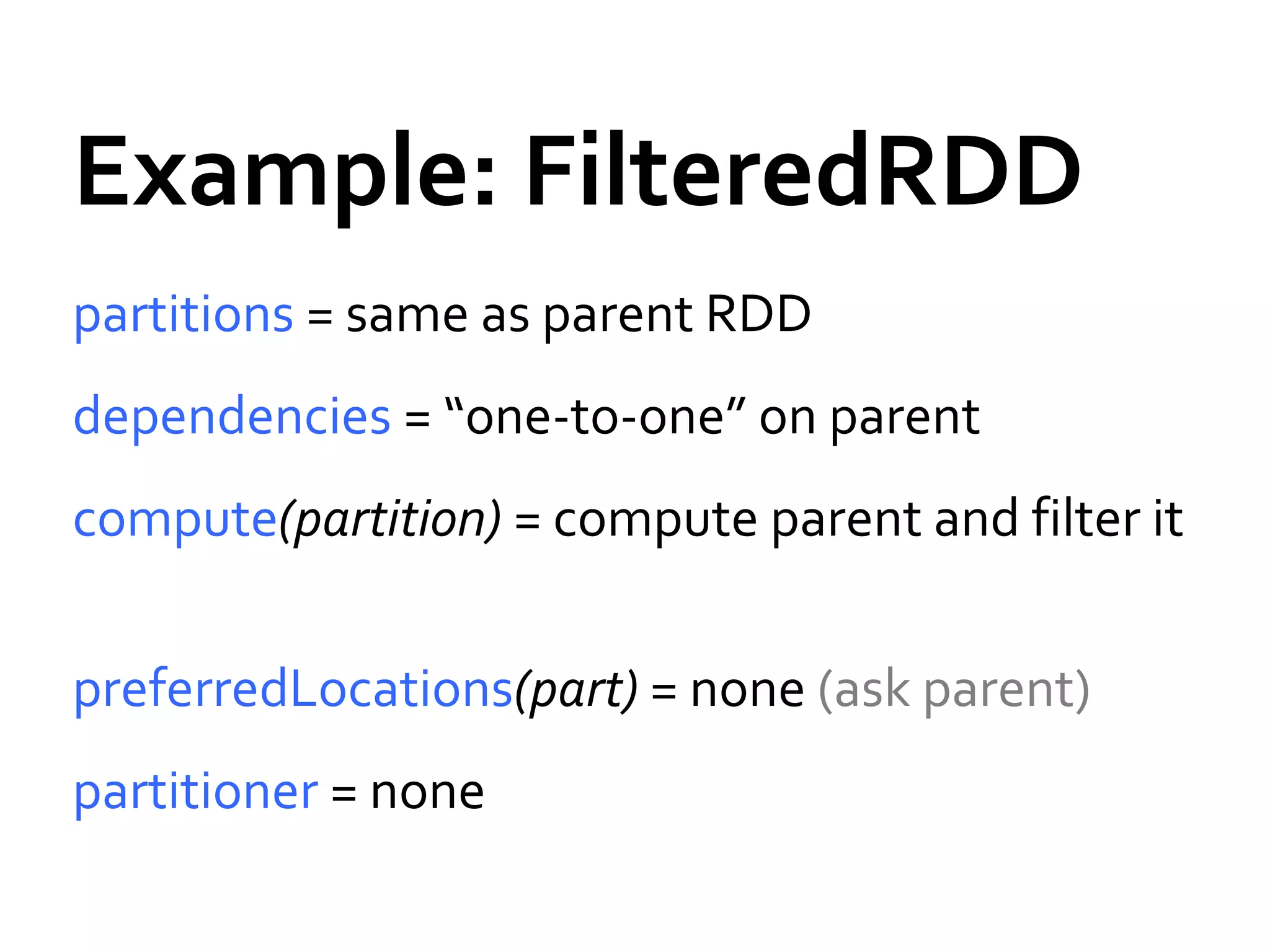

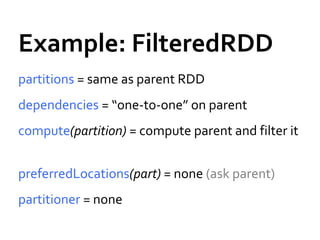

Example: FilteredRDD
partitions = same as parent RDD
dependencies = “one-to-one” on parent
compute(partition) = compute parent and filter it
preferredLocations(part) = none (ask parent)
partitioner = none

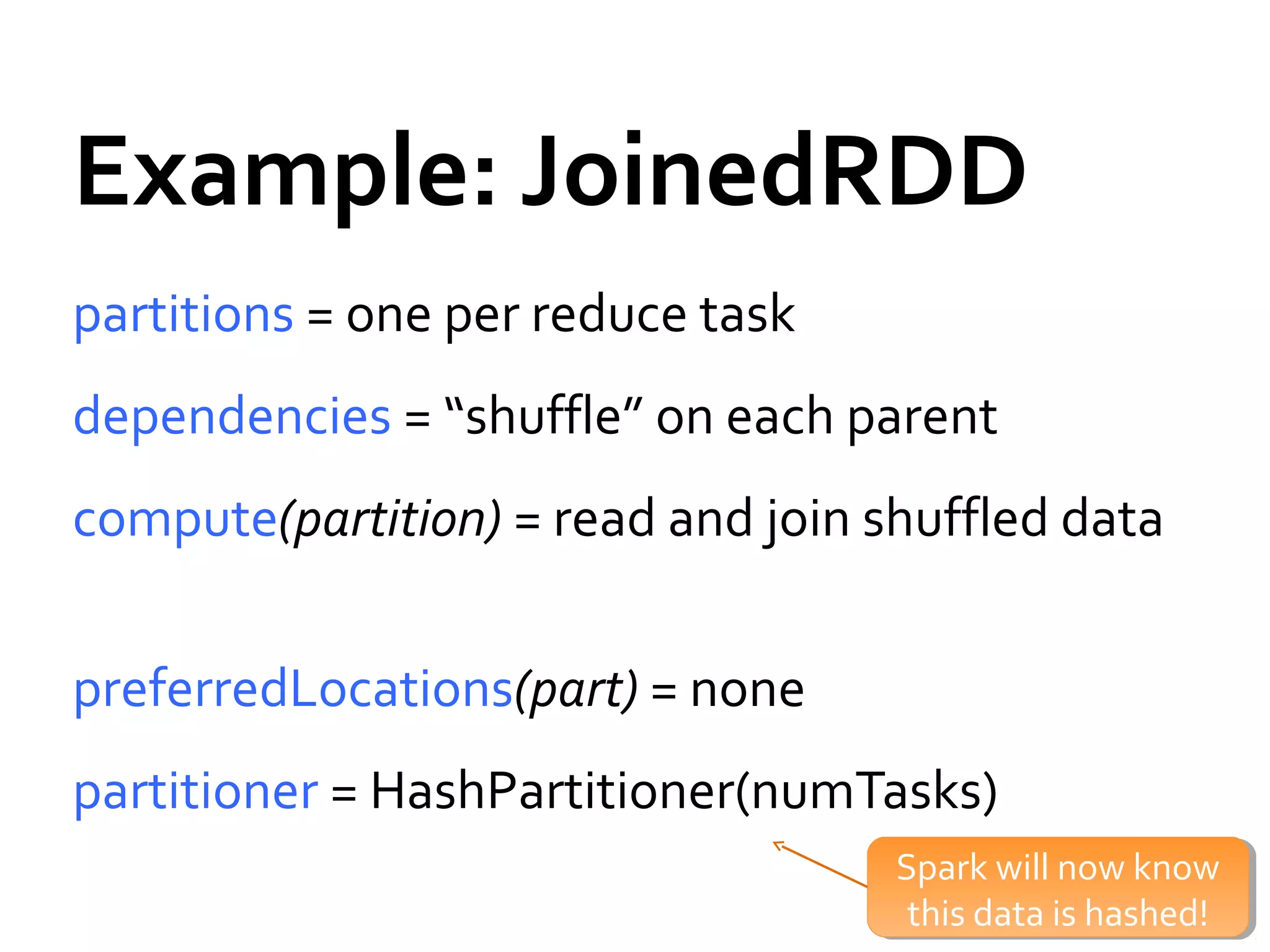

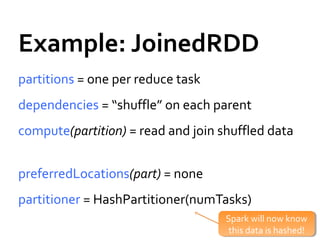

Example: JoinedRDD
partitions = one per reduce task
dependencies = “shuffle” on each parent
compute(partition) = read and join shuffled data
preferredLocations(part) = none
partitioner = HashPartitioner(numTasks)
Spark will now know
this data is hashed!
Spark will now know
this data is hashed!

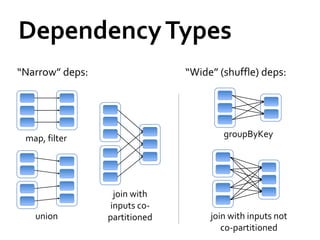

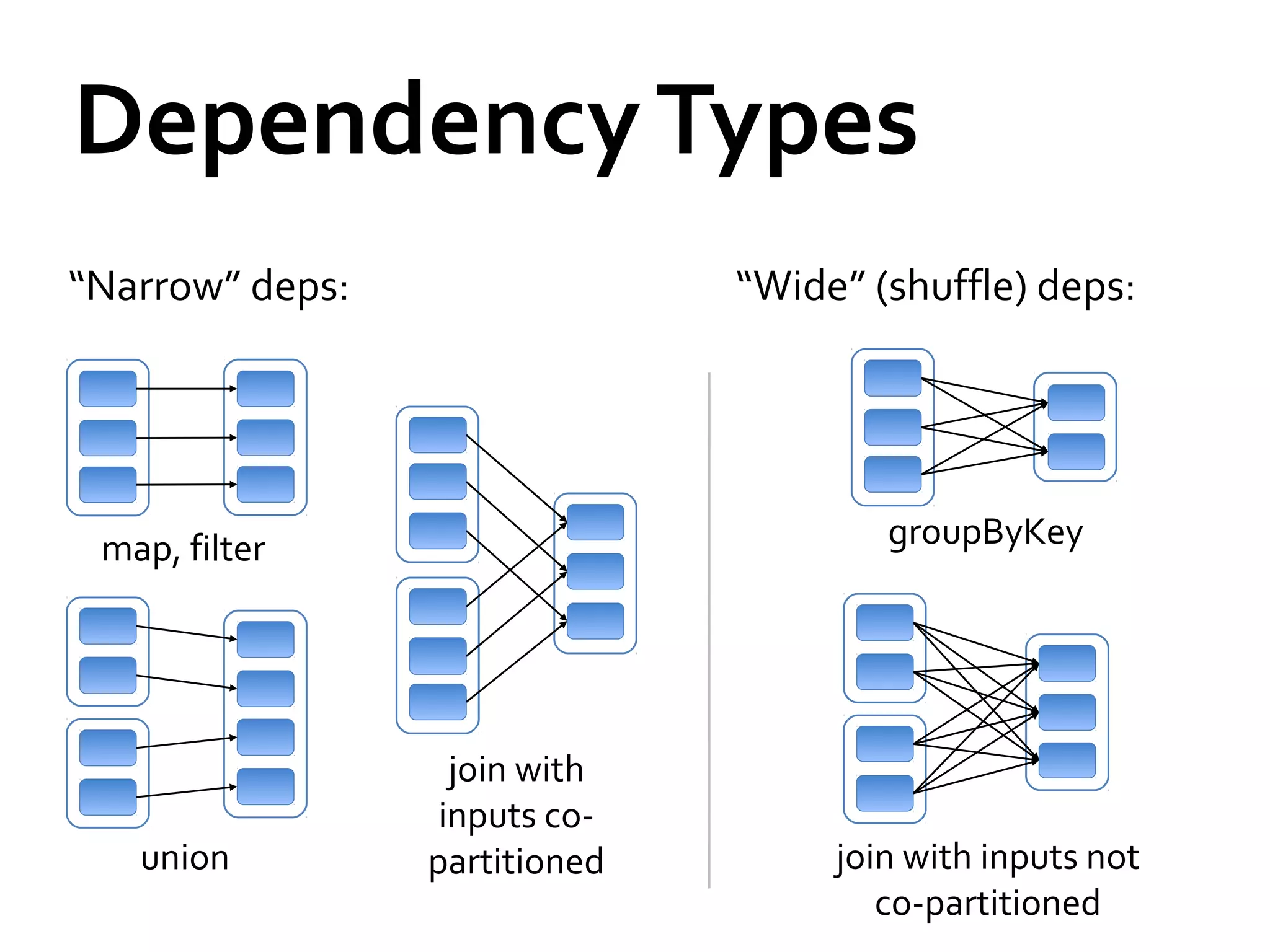

DependencyTypes
union join with inputs not
co-partitioned
map, filter
join with
inputs co-
partitioned
“Narrow” deps:
groupByKey
“Wide” (shuffle) deps:

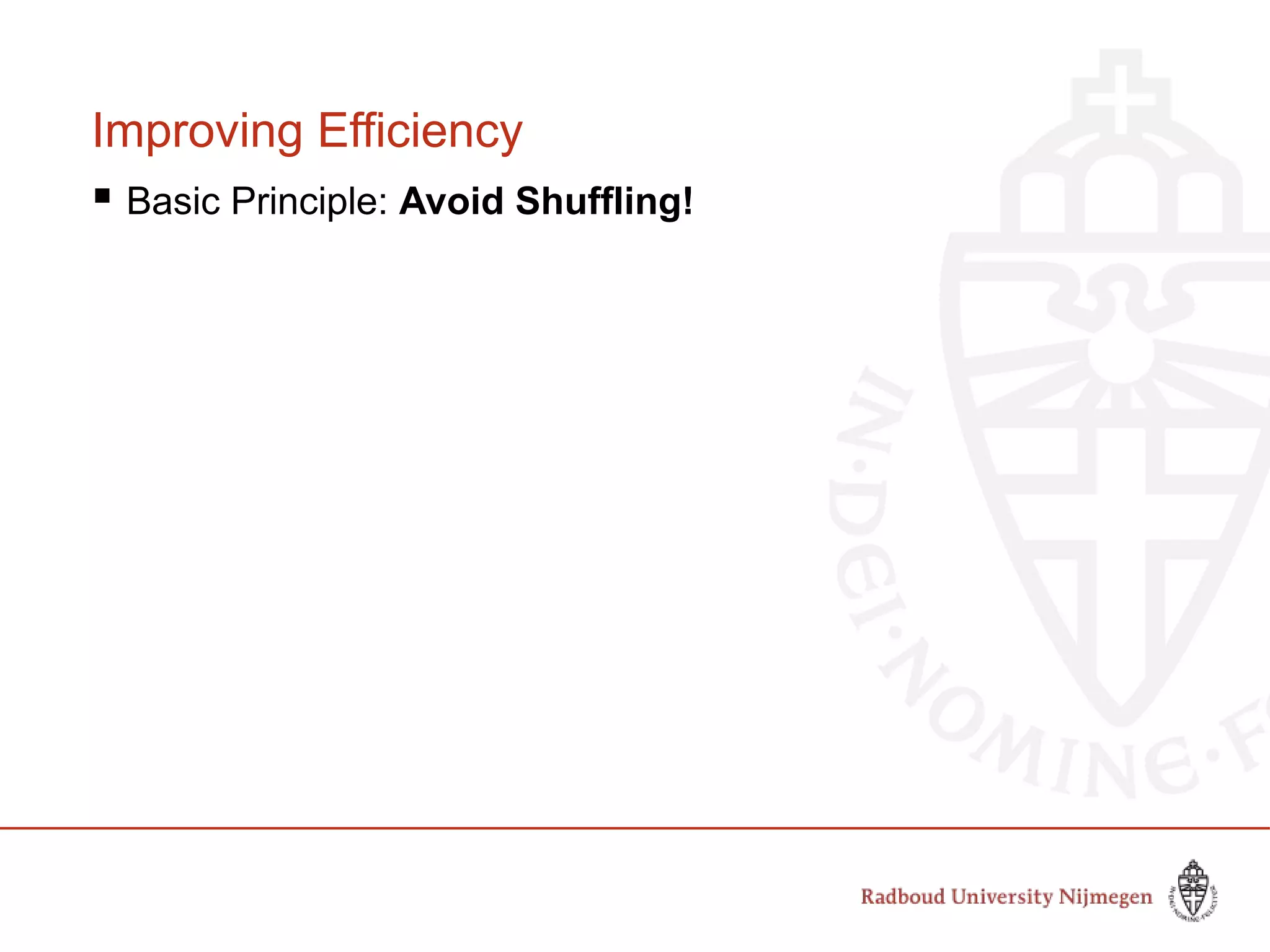

Improving Efficiency
 Basic Principle: Avoid Shuffling!

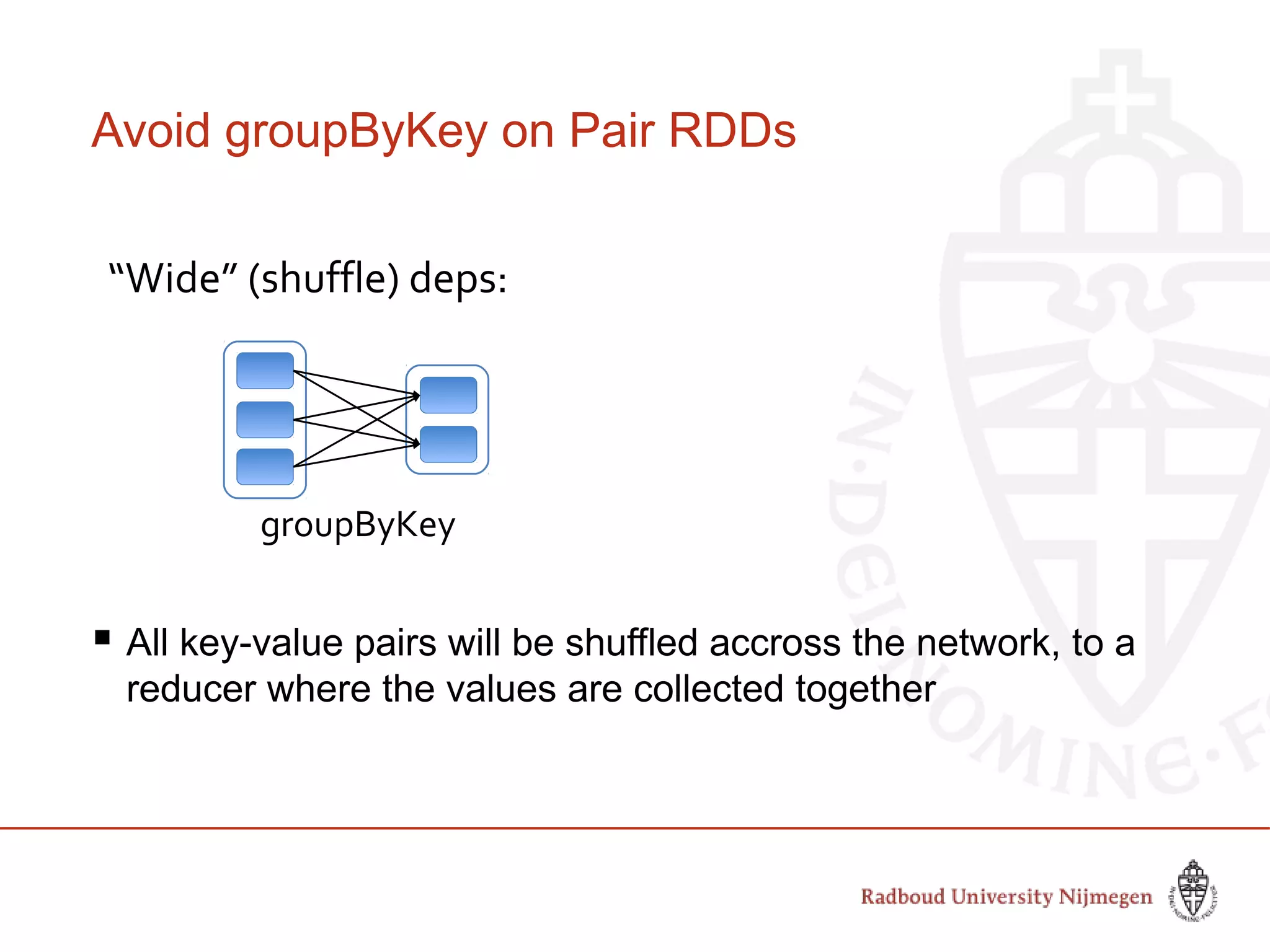

Avoid groupByKey on Pair RDDs
 All key-value pairs will be shuffled accross the network, to a
reducer where the values are collected together
groupByKey
“Wide” (shuffle) deps:

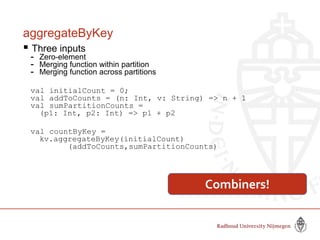

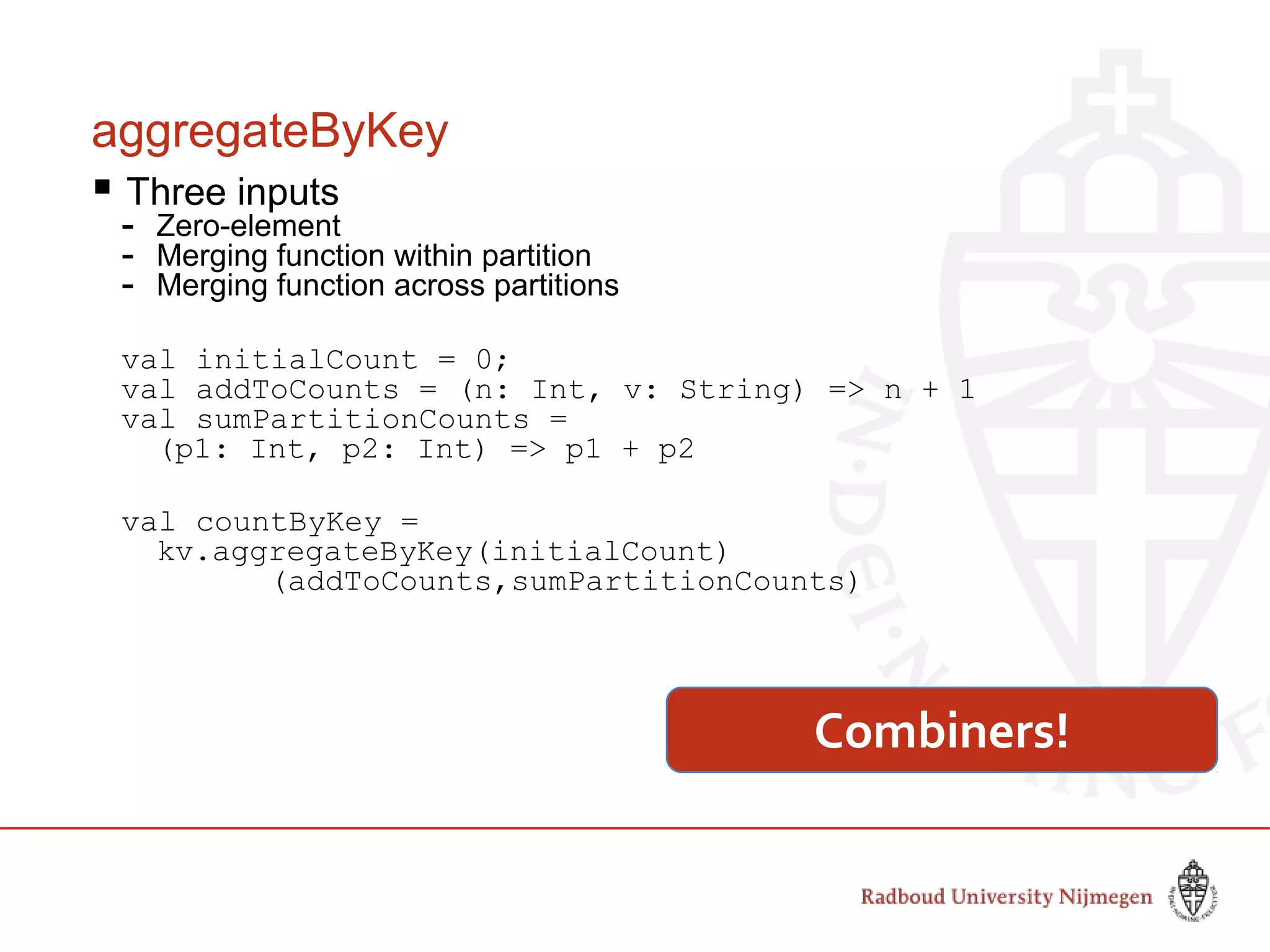

aggregateByKey
 Three inputs
- Zero-element
- Merging function within partition
- Merging function across partitions
val initialCount = 0;
val addToCounts = (n: Int, v: String) => n + 1
val sumPartitionCounts =
(p1: Int, p2: Int) => p1 + p2
val countByKey =
kv.aggregateByKey(initialCount)
(addToCounts,sumPartitionCounts)
Combiners!

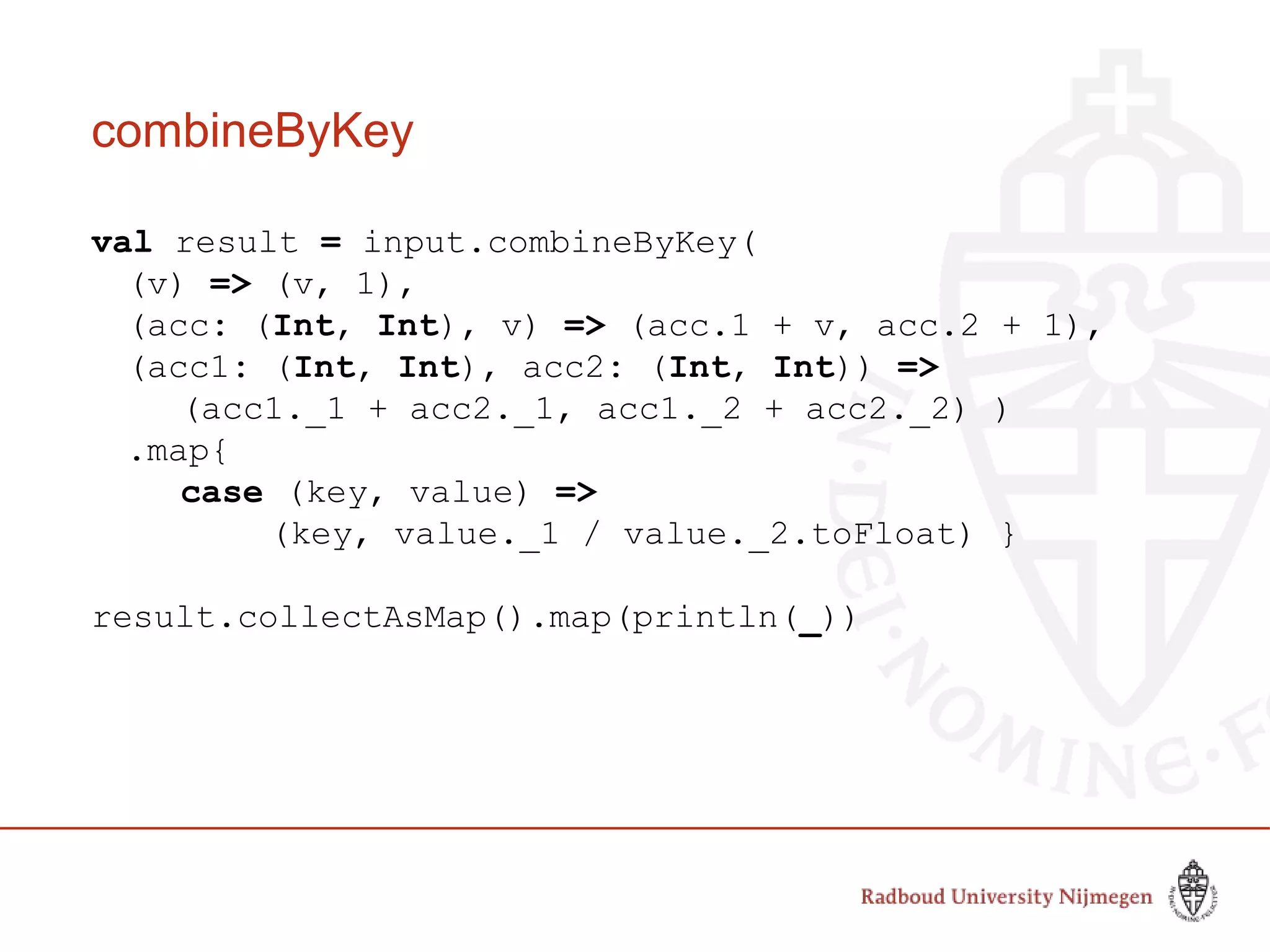

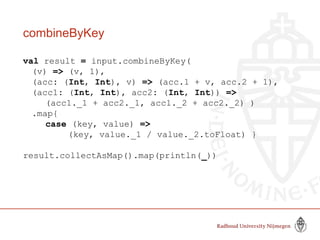

combineByKey
val result = input.combineByKey(
(v) => (v, 1),
(acc: (Int, Int), v) => (acc.1 + v, acc.2 + 1),
(acc1: (Int, Int), acc2: (Int, Int)) =>
(acc1._1 + acc2._1, acc1._2 + acc2._2) )
.map{
case (key, value) =>
(key, value._1 / value._2.toFloat) }
result.collectAsMap().map(println(_))

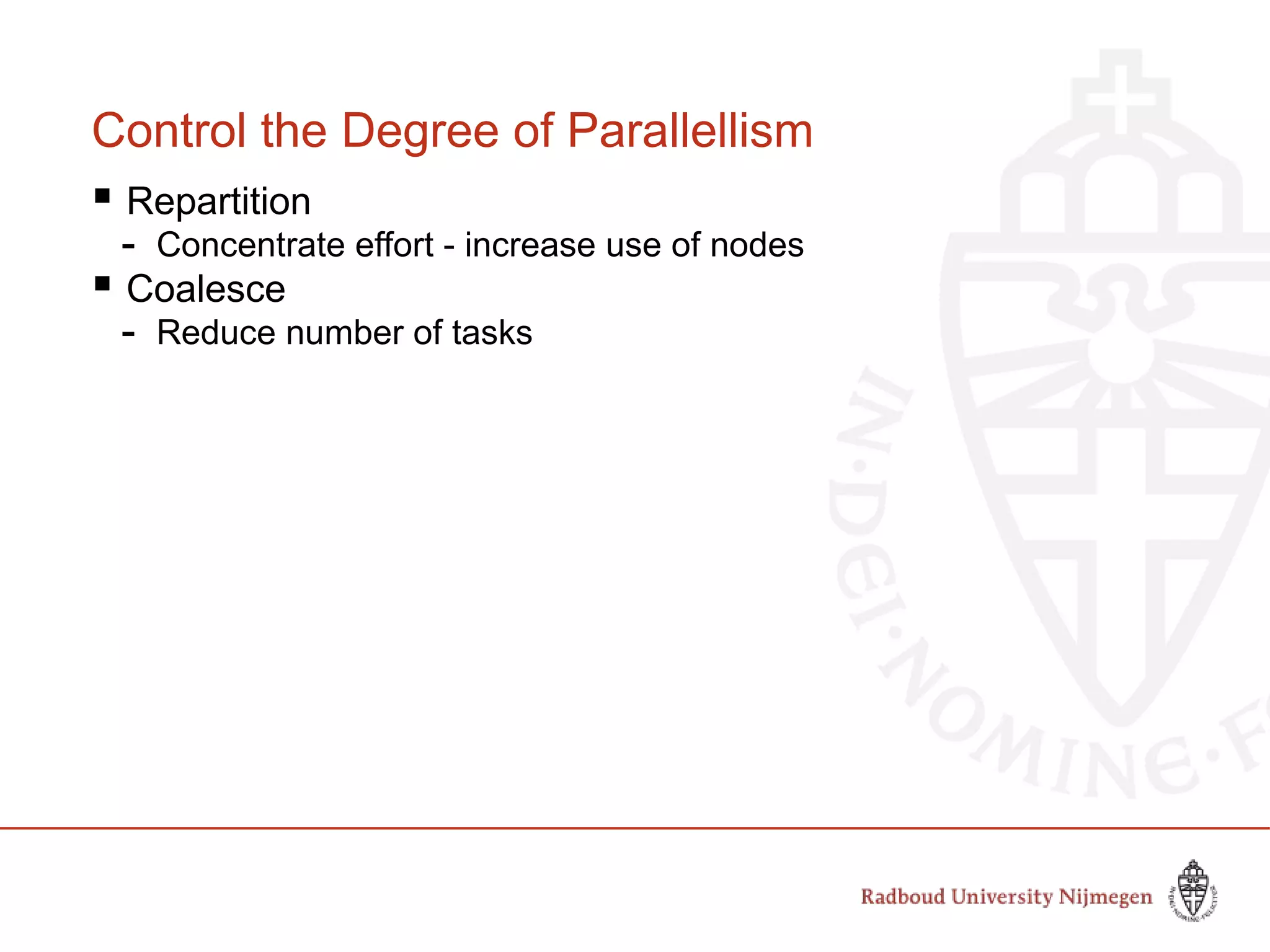

Control the Degree of Parallellism
 Repartition
- Concentrate effort - increase use of nodes
 Coalesce
- Reduce number of tasks

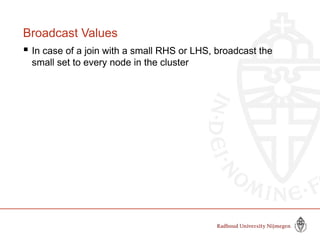

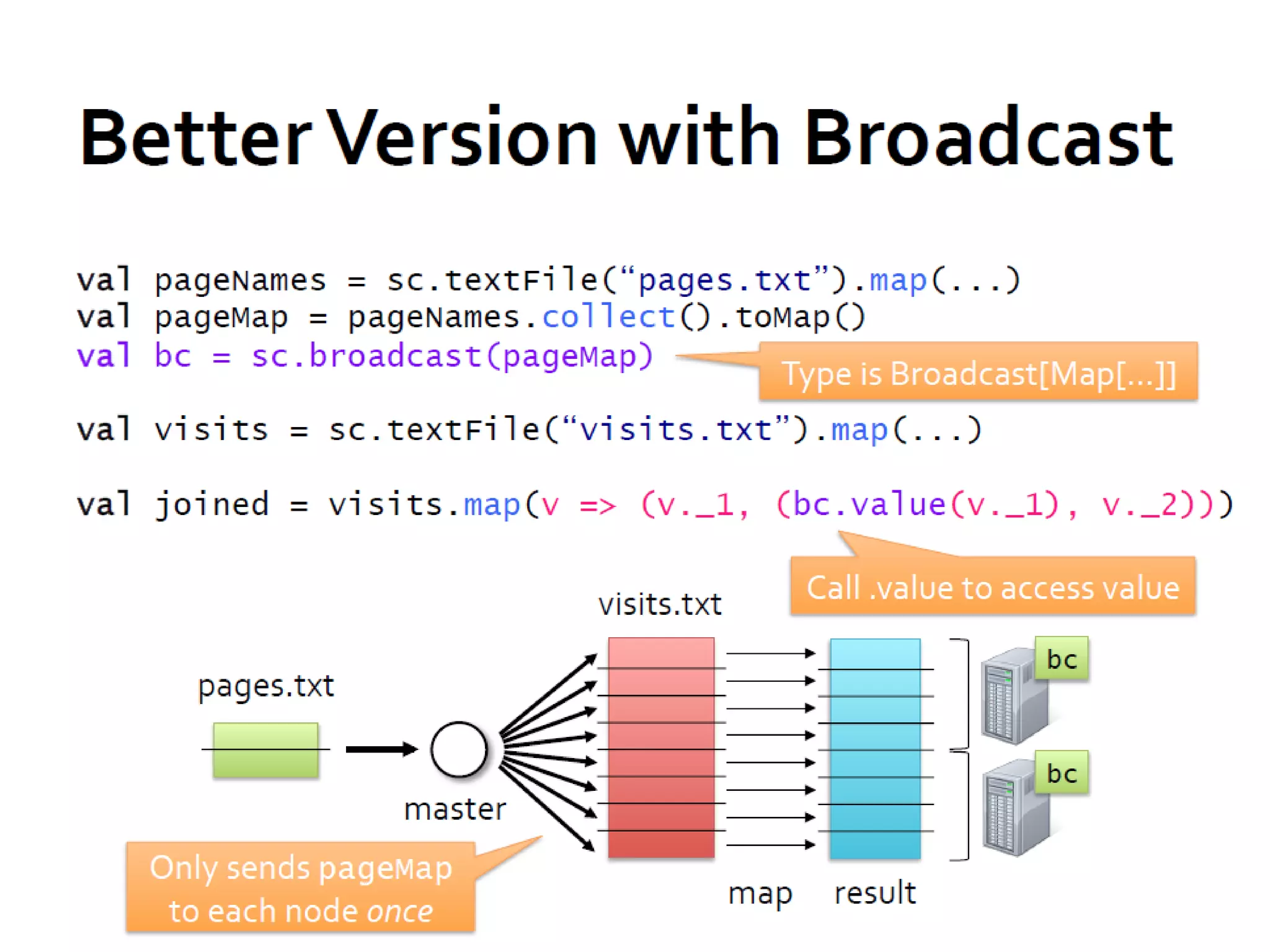

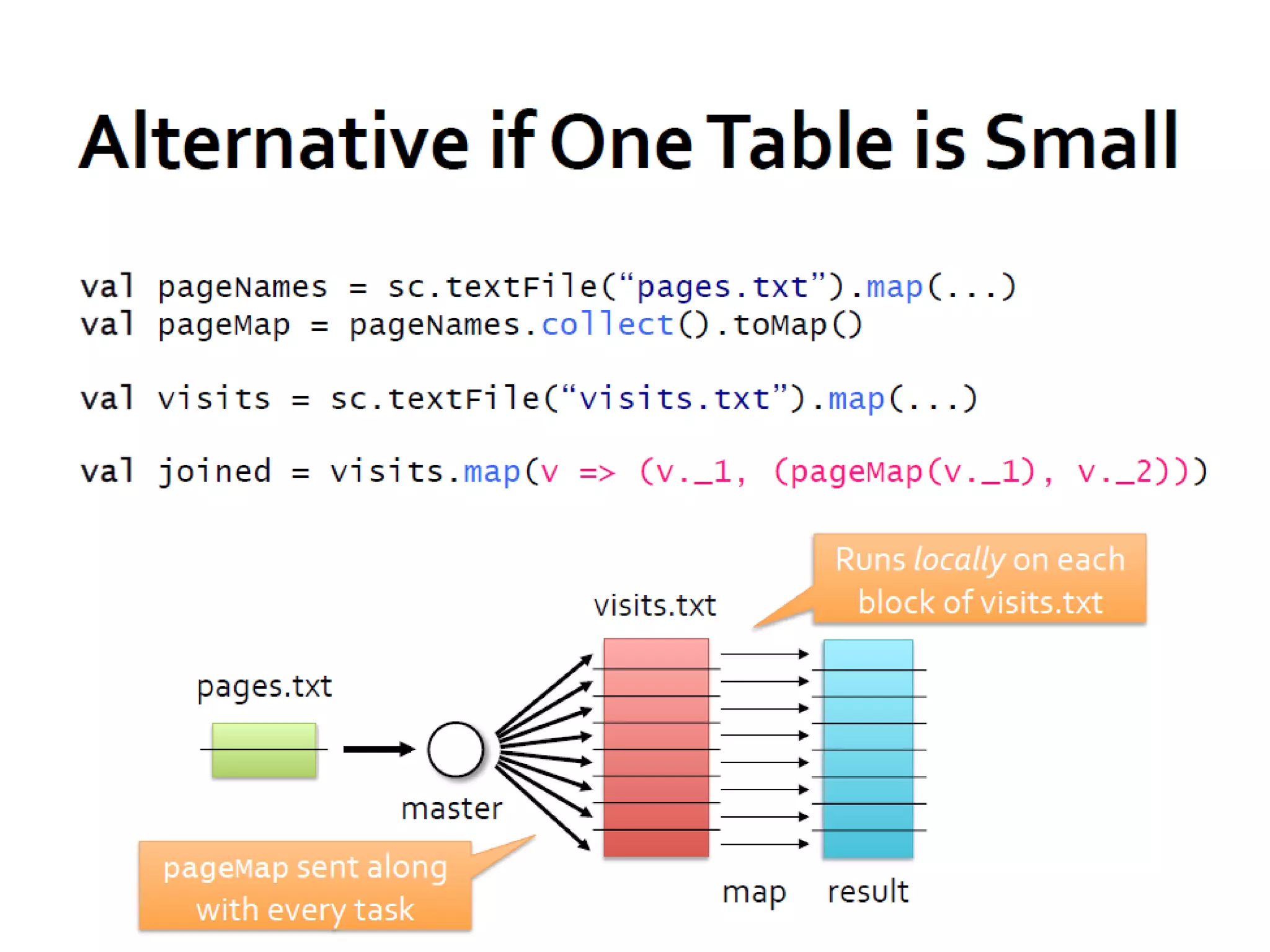

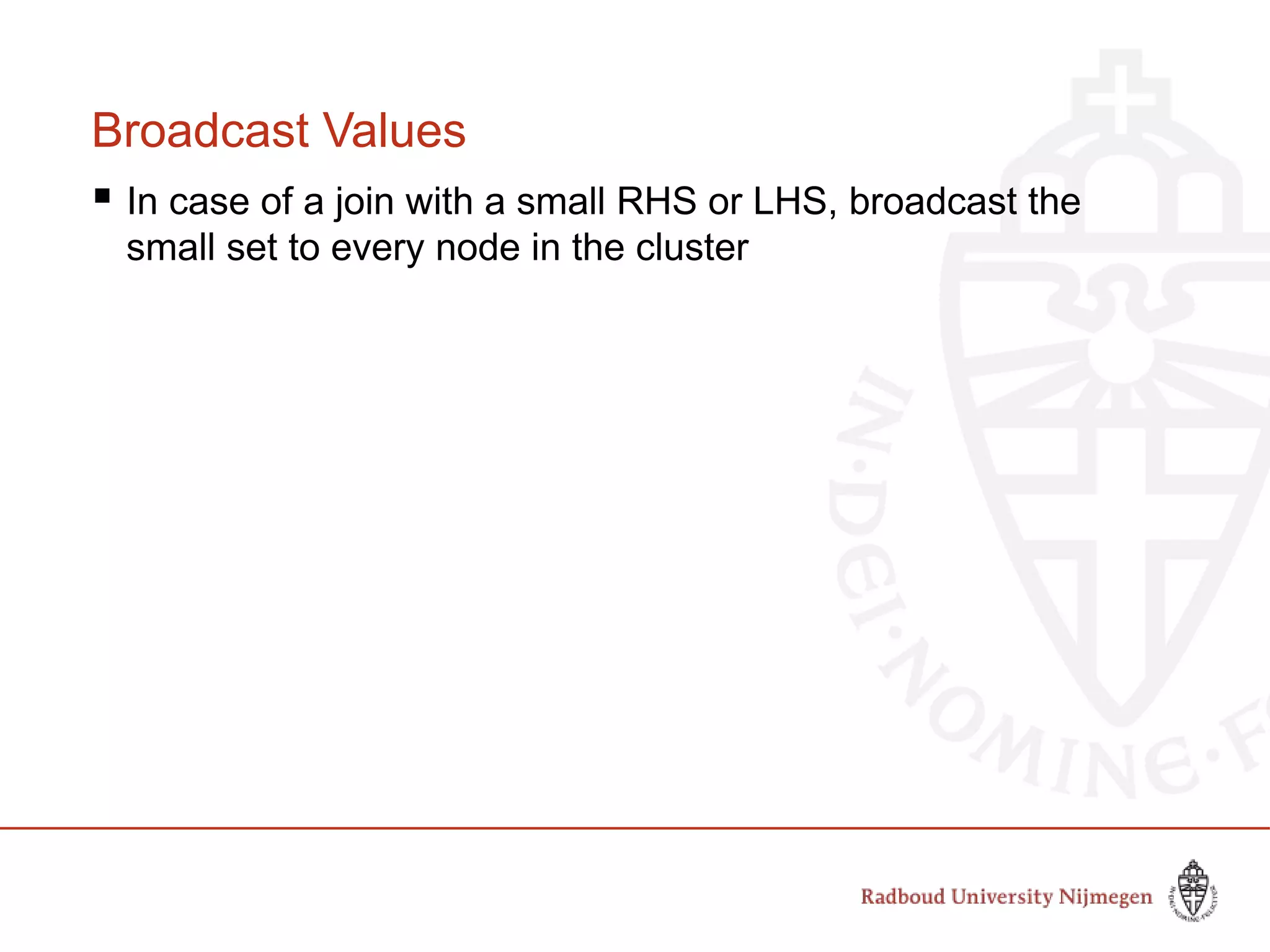

Broadcast Values
 In case of a join with a small RHS or LHS, broadcast the
small set to every node in the cluster

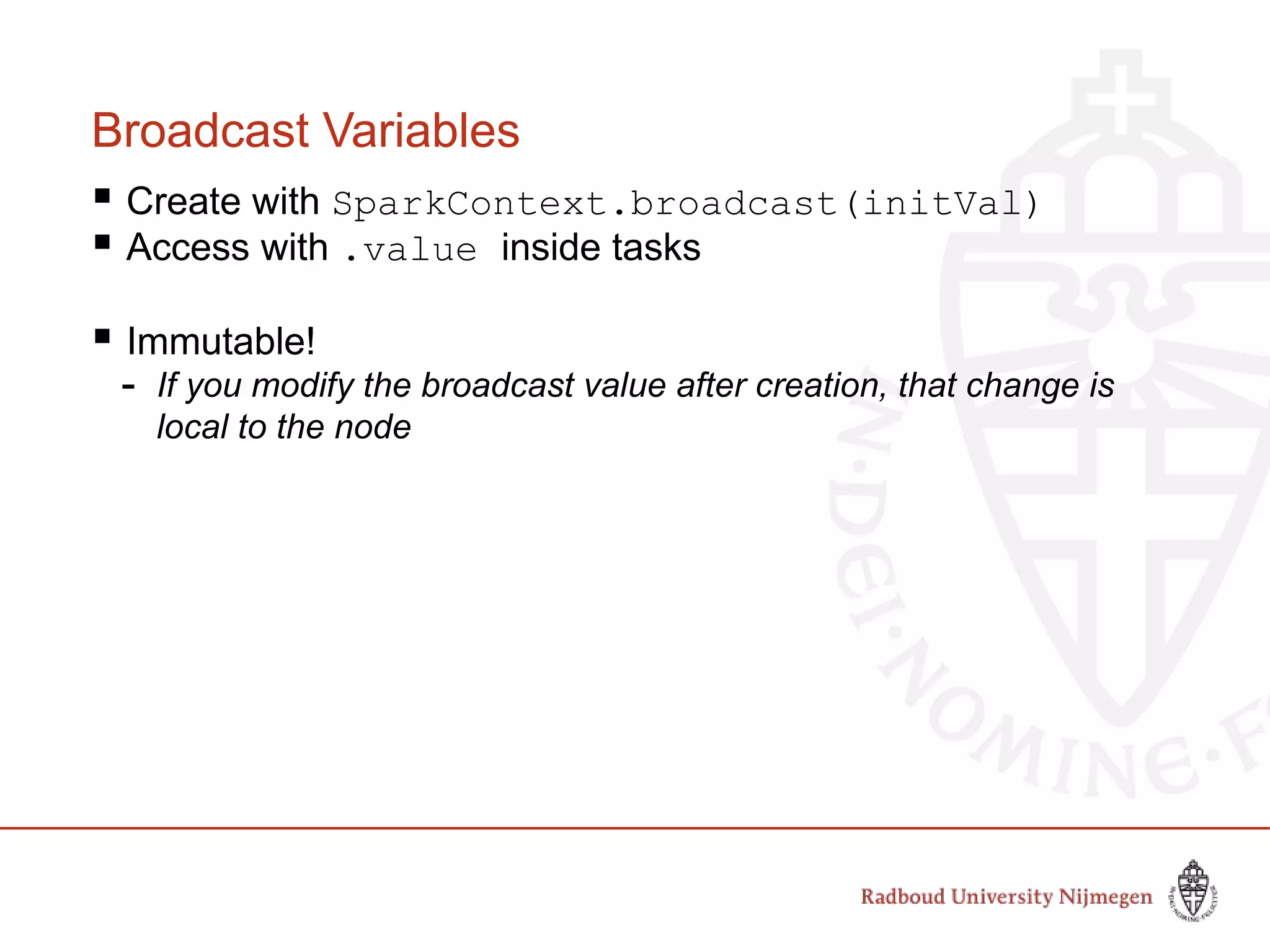

Broadcast Variables
 Create with SparkContext.broadcast(initVal)
 Access with .value inside tasks
 Immutable!
- If you modify the broadcast value after creation, that change is
local to the node

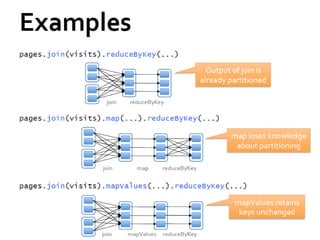

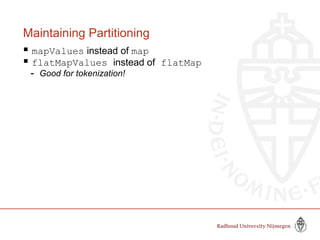

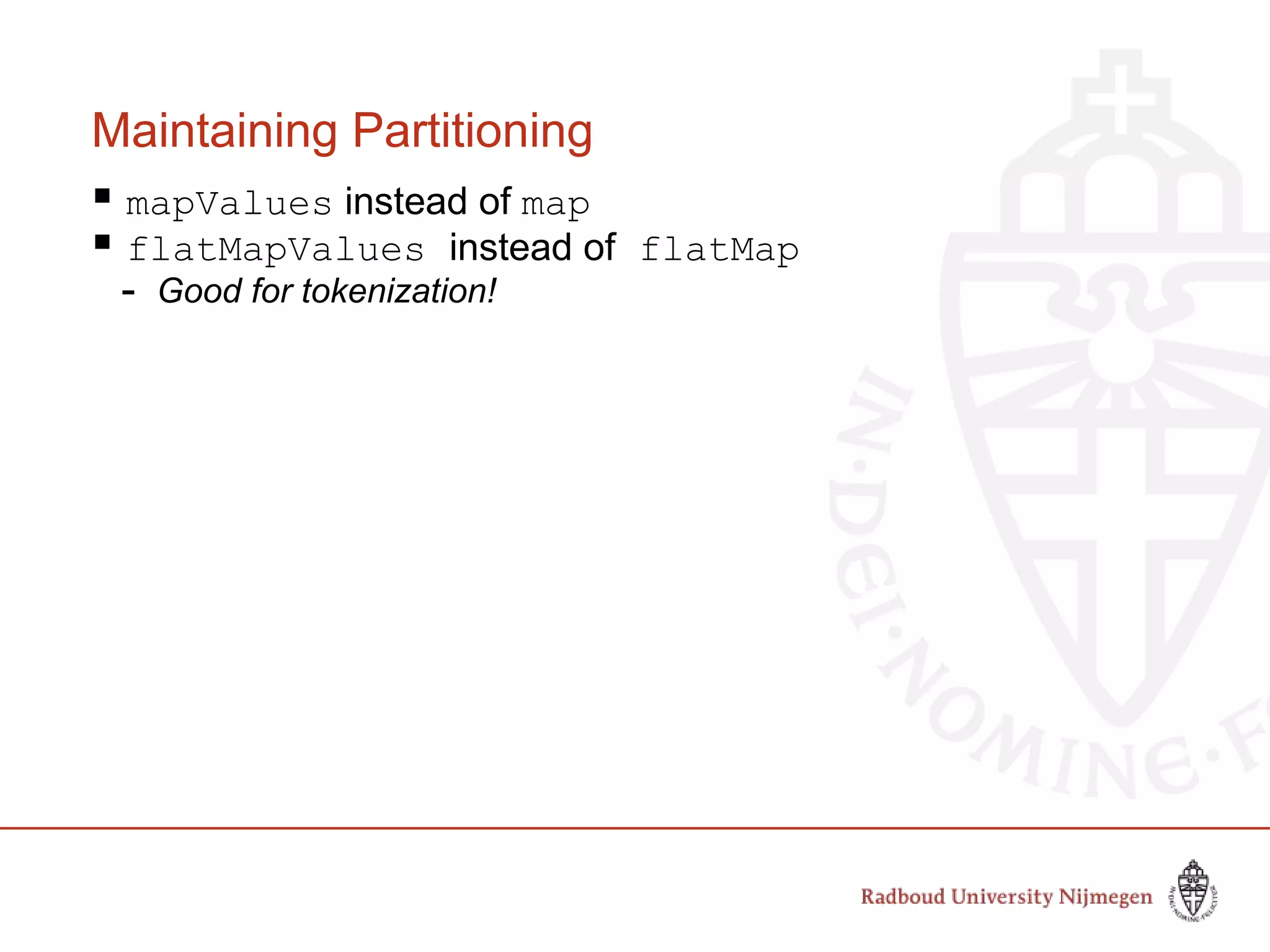

Maintaining Partitioning
 mapValues instead of map
 flatMapValues instead of flatMap
- Good for tokenization!

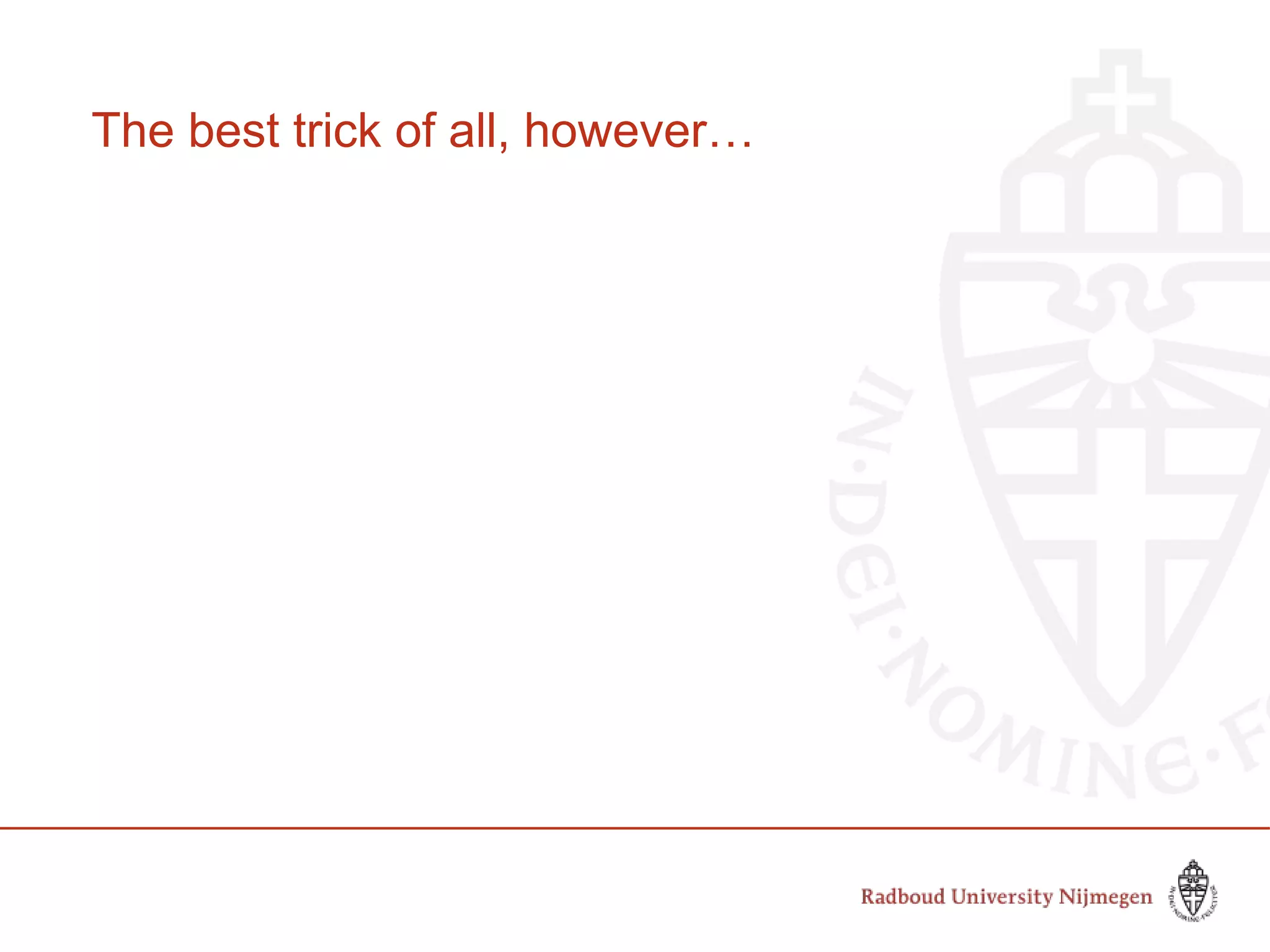

The best trick of all, however…

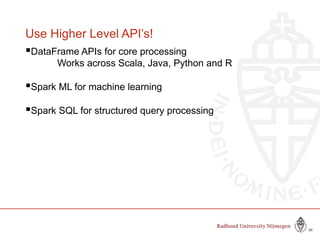

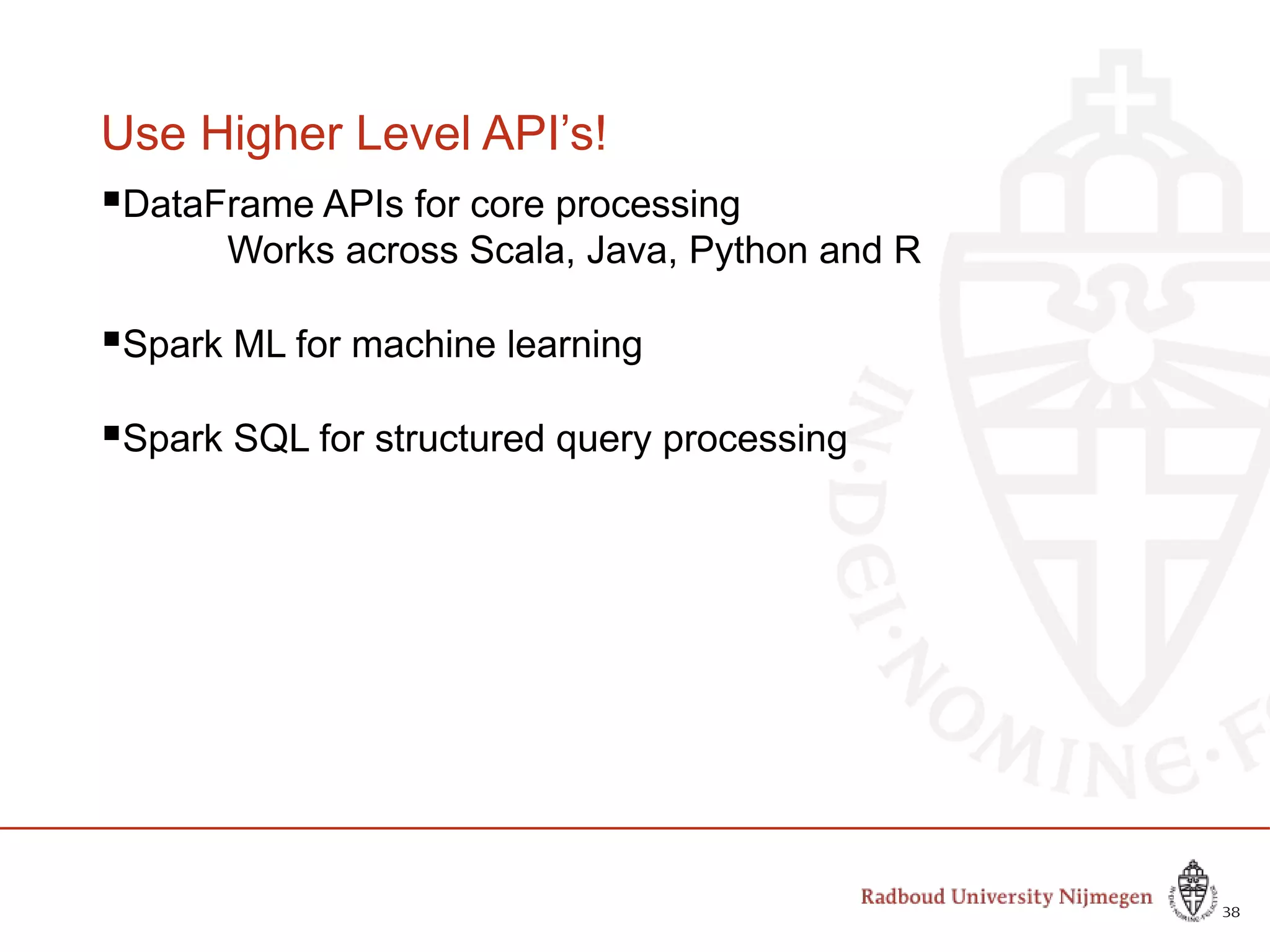

Use Higher Level API’s!
DataFrame APIs for core processing
Works across Scala, Java, Python and R
Spark ML for machine learning
Spark SQL for structured query processing
38

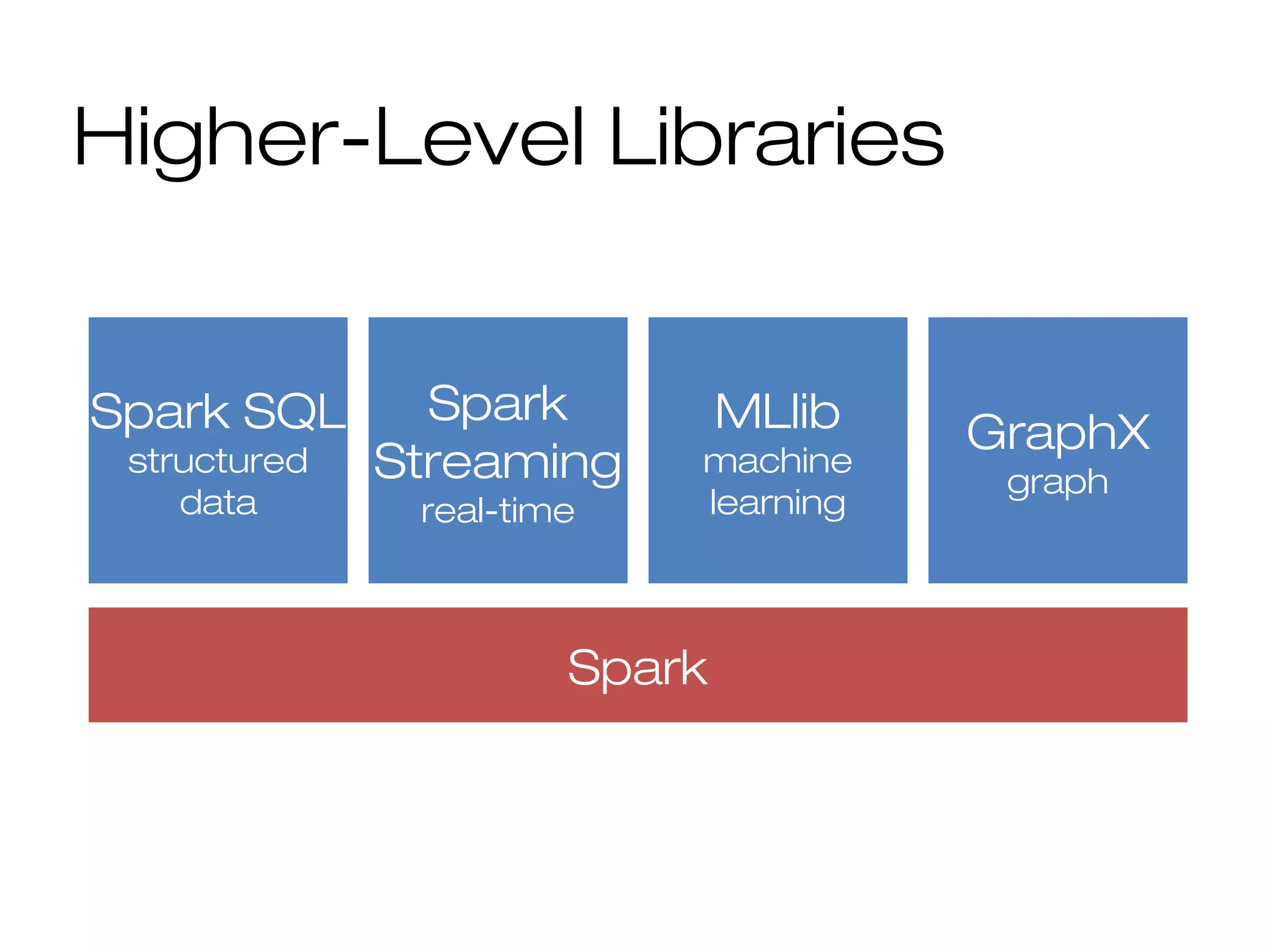

Higher-Level Libraries
Spark
Spark
Streaming
real-time
Spark SQL
structured
data
MLlib
machine
learning
GraphX
graph

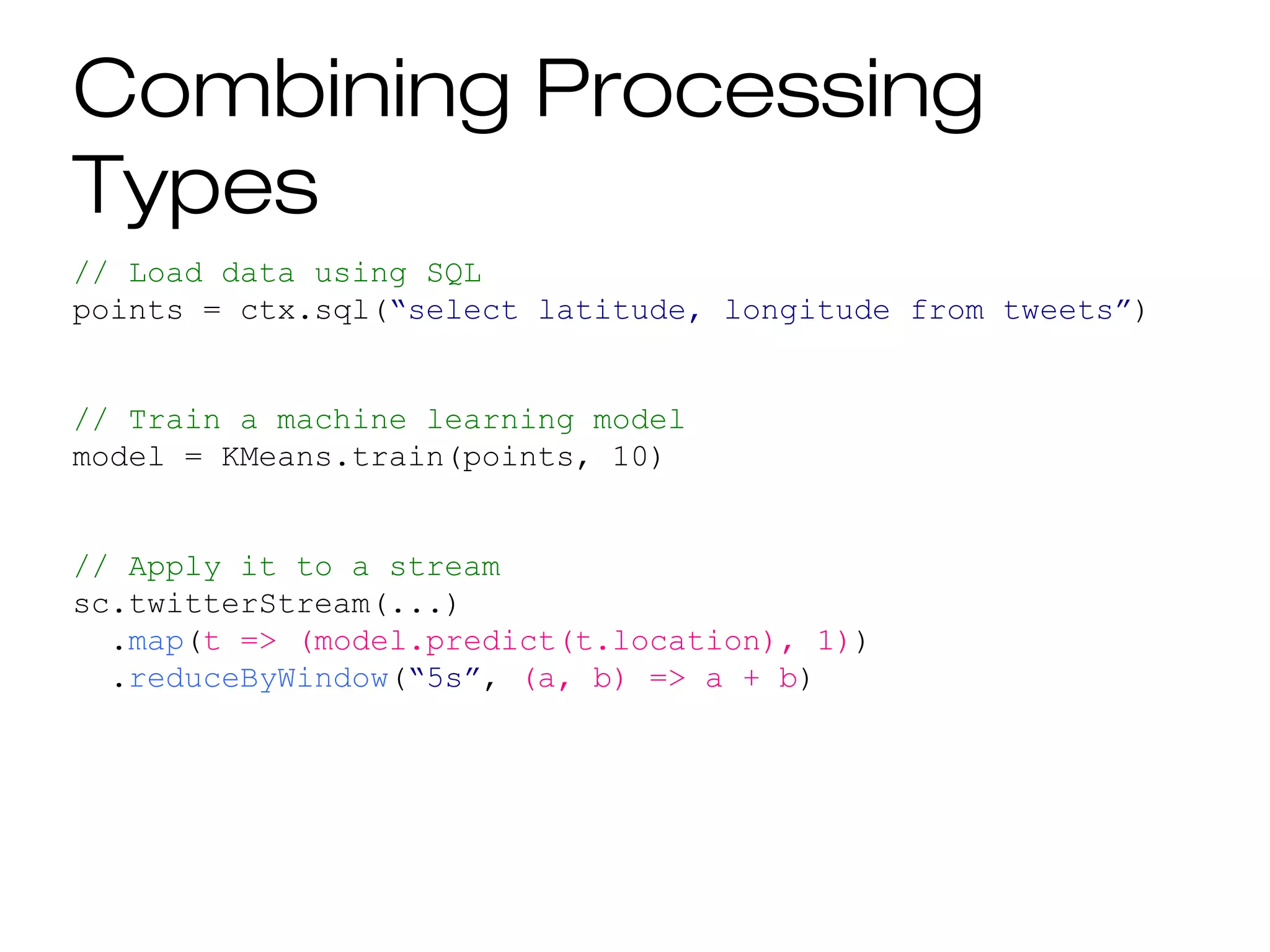

Combining Processing
Types
// Load data using SQL
points = ctx.sql(“select latitude, longitude from tweets”)
// Train a machine learning model
model = KMeans.train(points, 10)
// Apply it to a stream
sc.twitterStream(...)
.map(t => (model.predict(t.location), 1))
.reduceByWindow(“5s”, (a, b) => a + b)

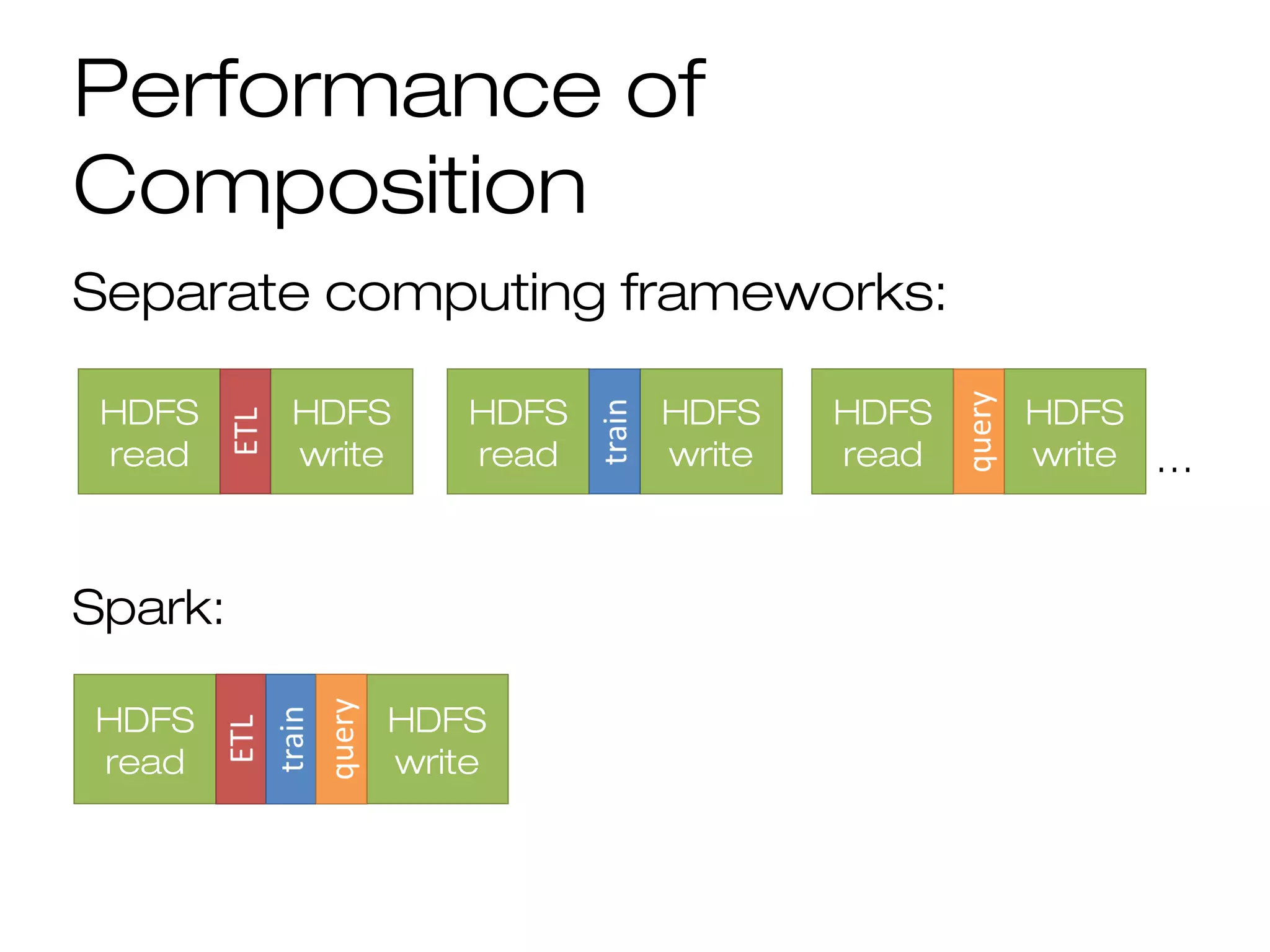

Performance of
Composition
Separate computing frameworks:
…
HDFS
read
HDFS
write
HDFS
read
HDFS
write
HDFS
read
HDFS
write
HDFS
write
HDFS
read
Spark:

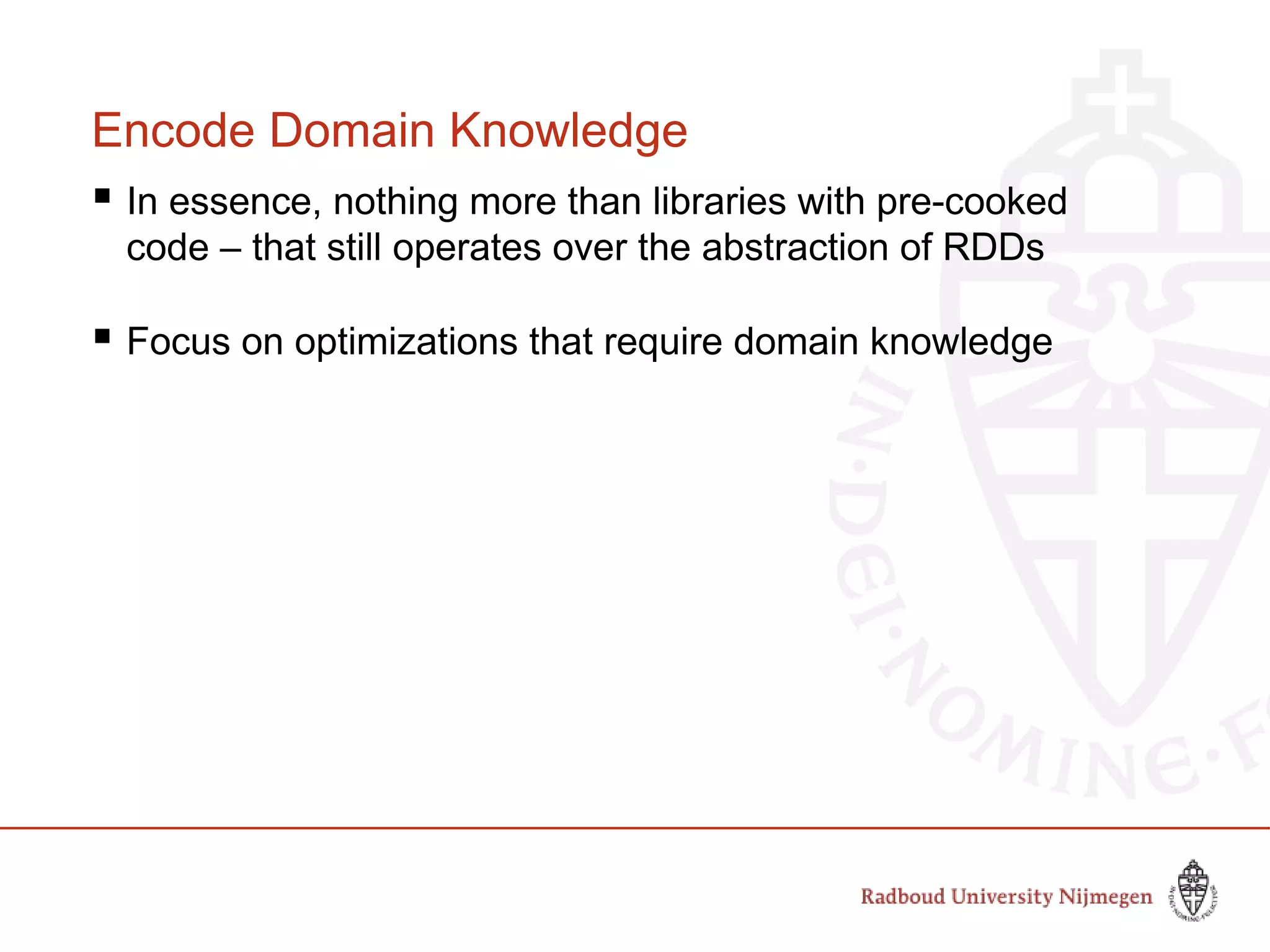

Encode Domain Knowledge
 In essence, nothing more than libraries with pre-cooked
code – that still operates over the abstraction of RDDs
 Focus on optimizations that require domain knowledge

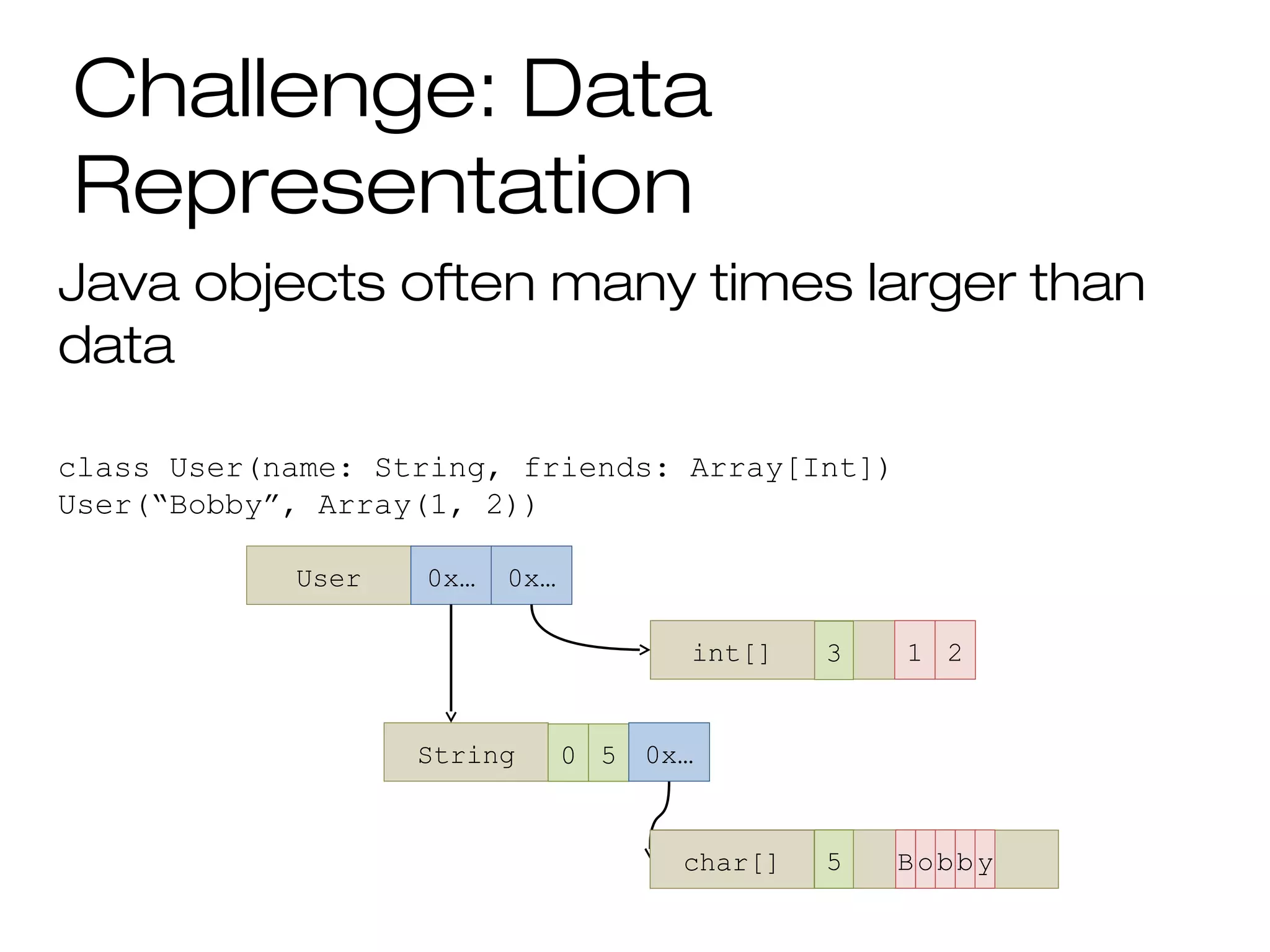

Challenge: Data
Representation
Java objects often many times larger than
data
class User(name: String, friends: Array[Int])
User(“Bobby”, Array(1, 2))
User 0x… 0x…
String
3
0
1 2
Bobby
5 0x…
int[]
char[] 5

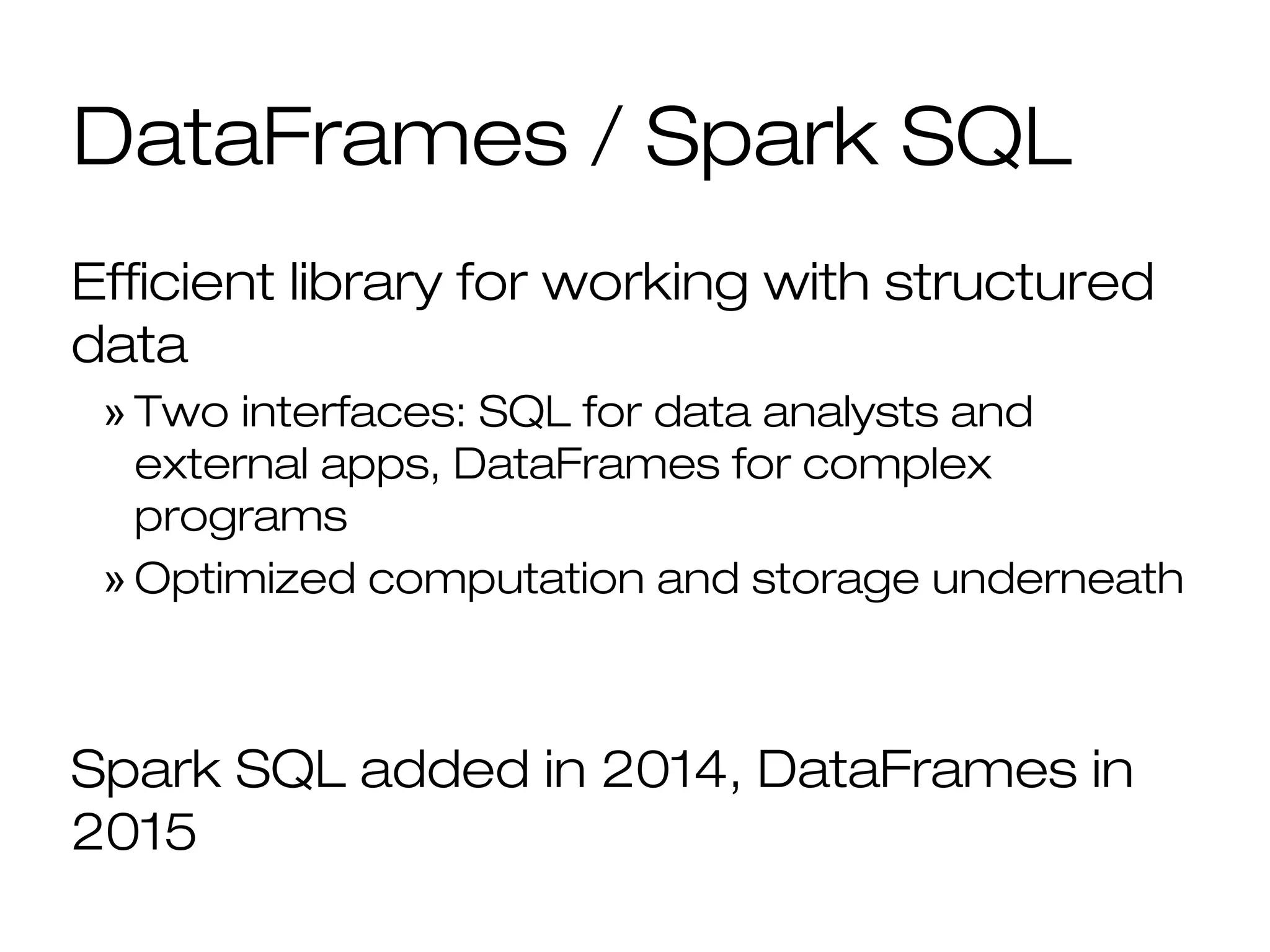

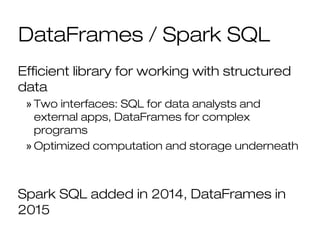

DataFrames / Spark SQL
Efficient library for working with structured
data
» Two interfaces: SQL for data analysts and
external apps, DataFrames for complex
programs
» Optimized computation and storage underneath
Spark SQL added in 2014, DataFrames in
2015

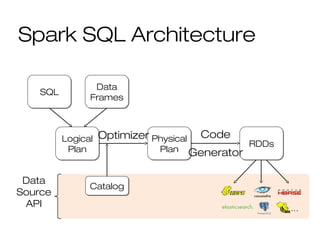

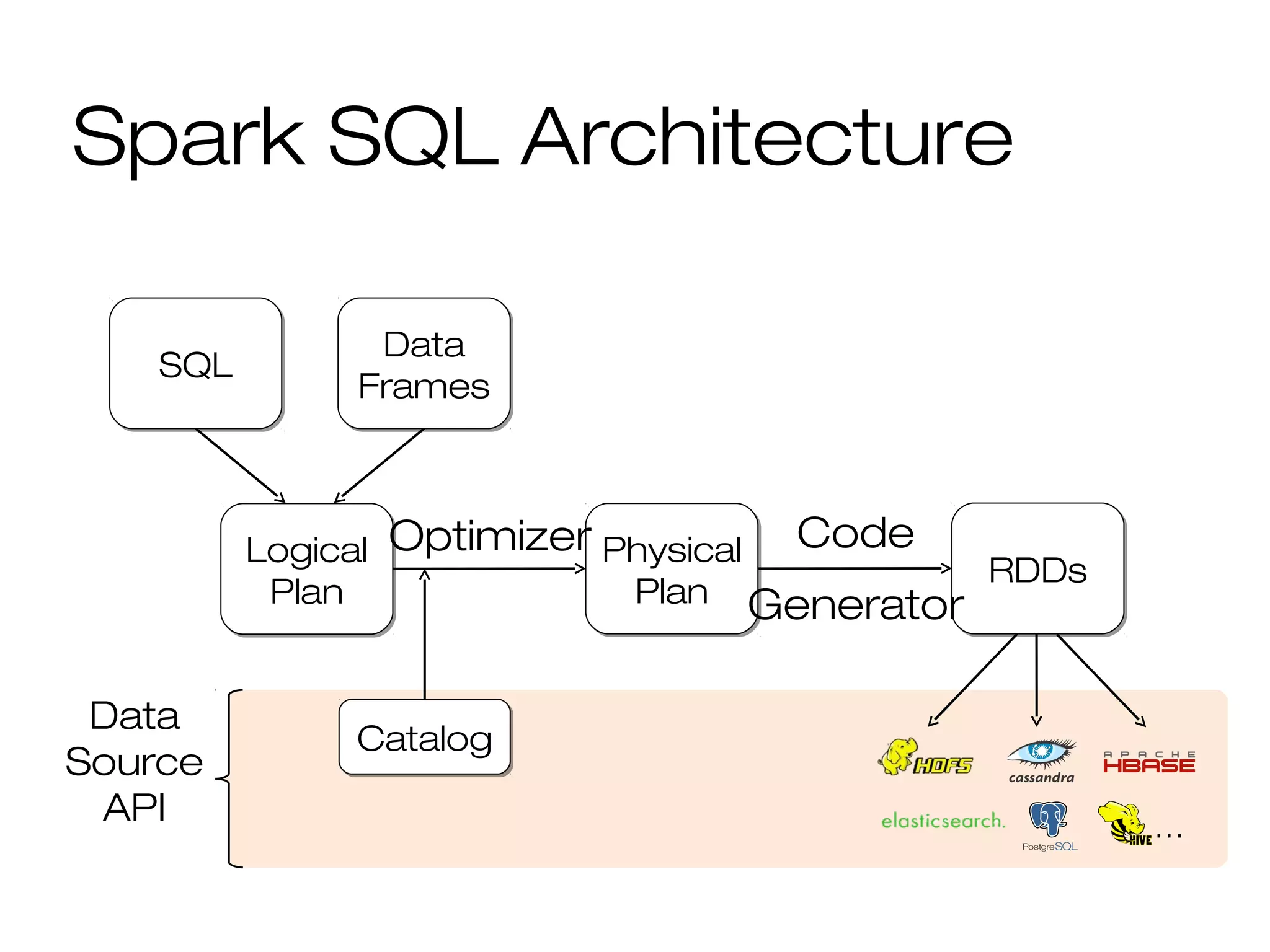

Spark SQL Architecture
Logical
Plan
Logical
Plan
Physical
Plan
Physical
Plan
CatalogCatalog
Optimizer
RDDsRDDs
…
Data
Source
API
SQLSQL
Data
Frames
Data
Frames
Code
Generator

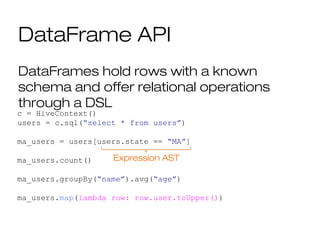

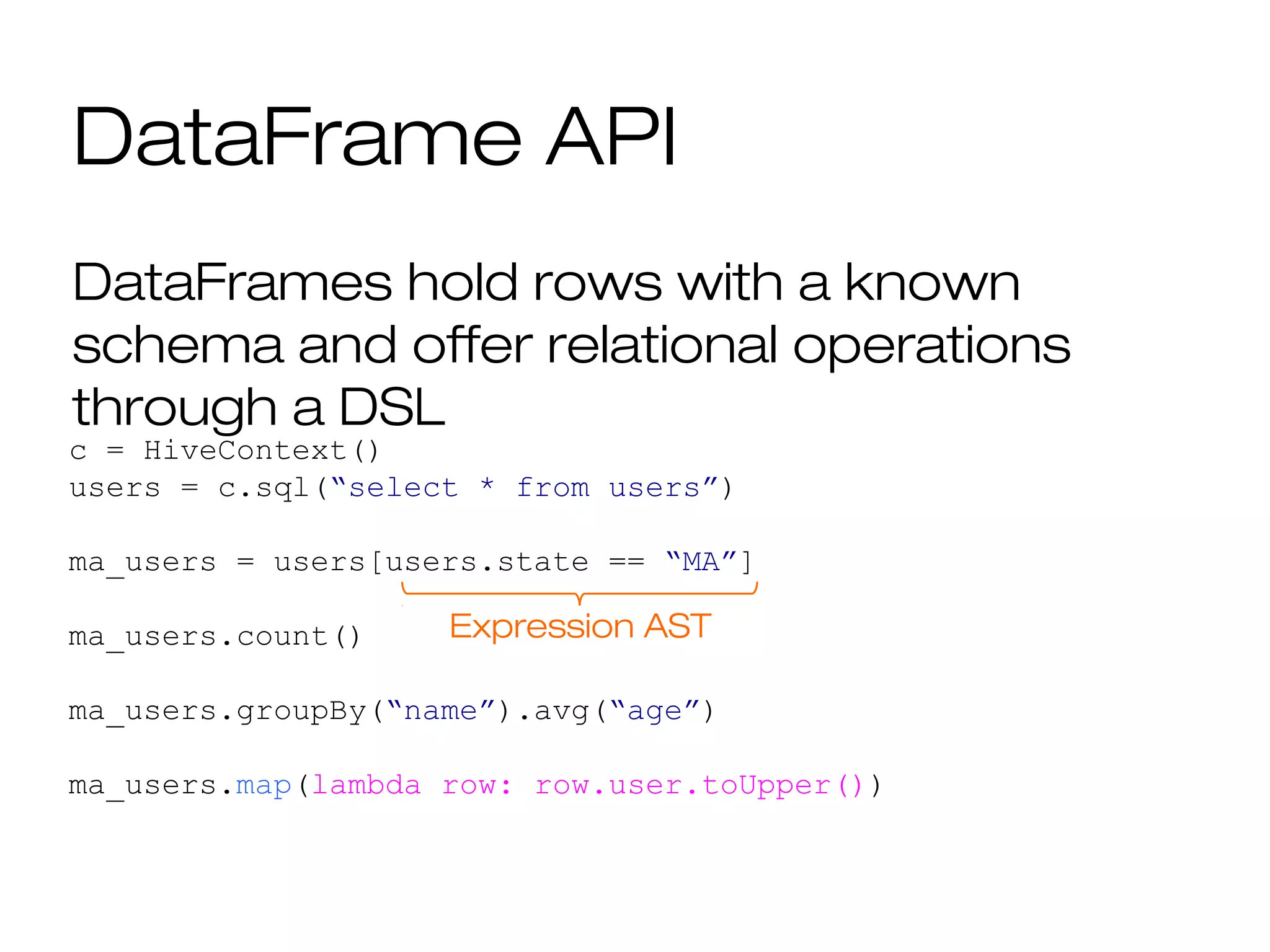

DataFrame API
DataFrames hold rows with a known
schema and offer relational operations
through a DSL
c = HiveContext()
users = c.sql(“select * from users”)
ma_users = users[users.state == “MA”]
ma_users.count()
ma_users.groupBy(“name”).avg(“age”)
ma_users.map(lambda row: row.user.toUpper())
Expression AST

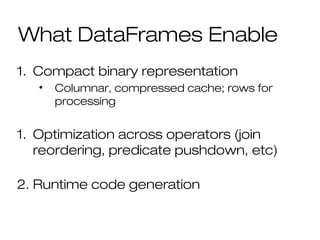

What DataFrames Enable
1. Compact binary representation
• Columnar, compressed cache; rows for
processing
1. Optimization across operators (join
reordering, predicate pushdown, etc)
2. Runtime code generation

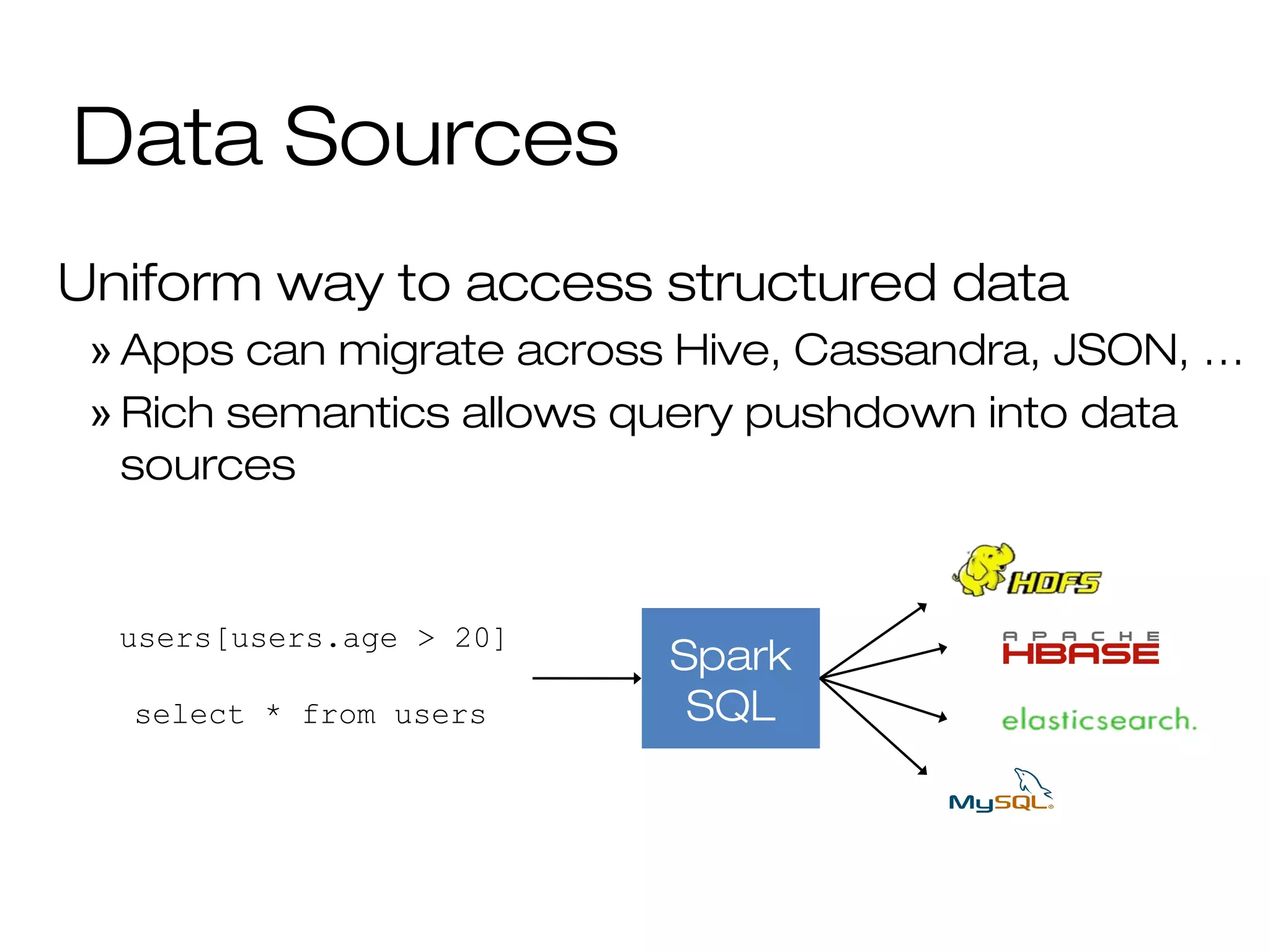

Data Sources
Uniform way to access structured data
» Apps can migrate across Hive, Cassandra, JSON, …
» Rich semantics allows query pushdown into data
sources
Spark
SQL
users[users.age > 20]
select * from users

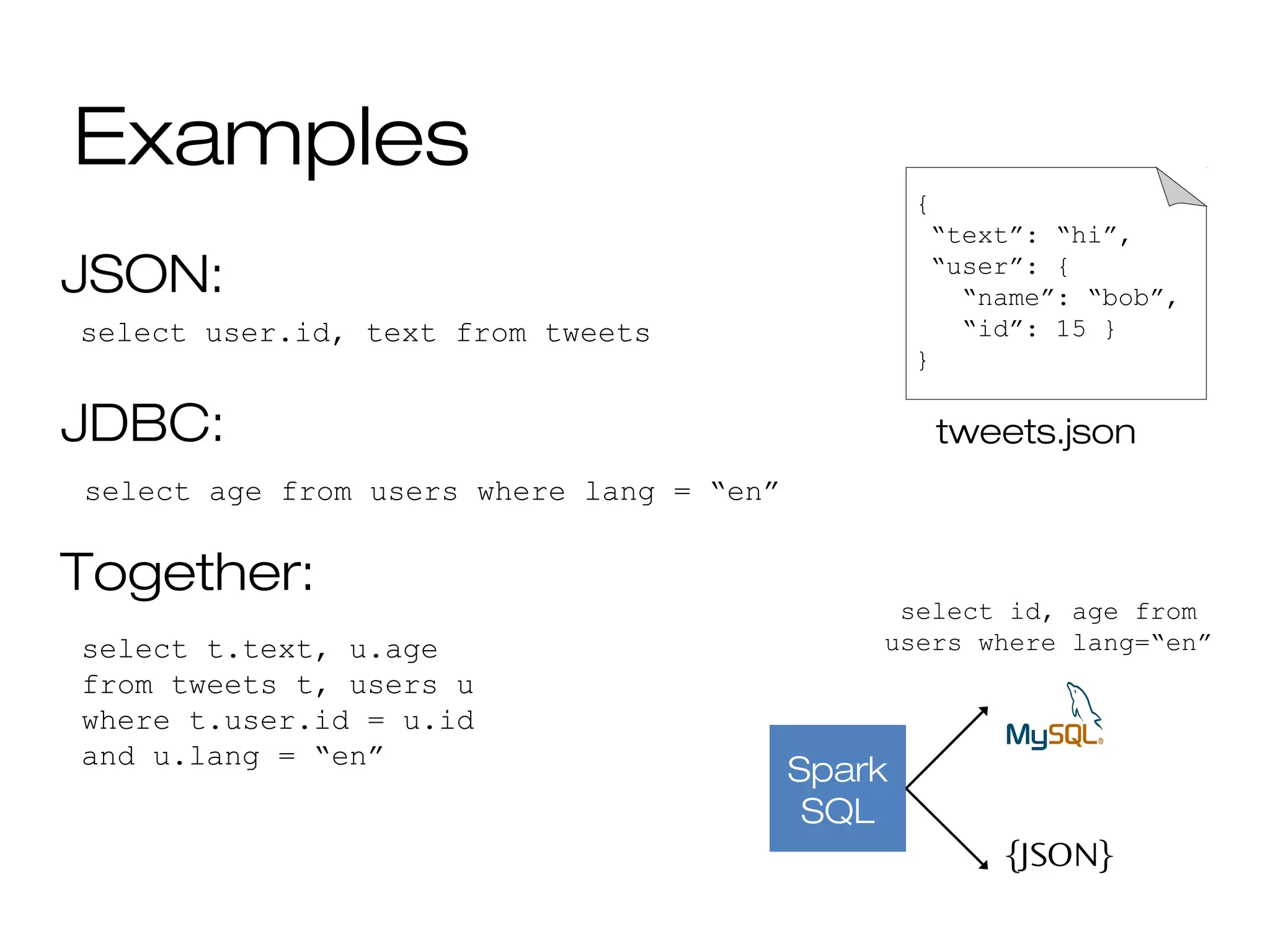

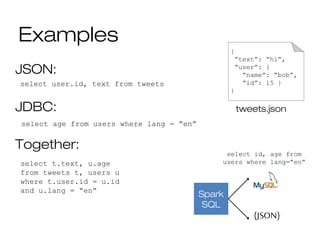

Examples
JSON:
JDBC:
Together:
select user.id, text from tweets
{
“text”: “hi”,
“user”: {
“name”: “bob”,
“id”: 15 }
}
tweets.json
select age from users where lang = “en”
select t.text, u.age
from tweets t, users u
where t.user.id = u.id
and u.lang = “en”
Spark
SQL
{JSON}
select id, age from
users where lang=“en”

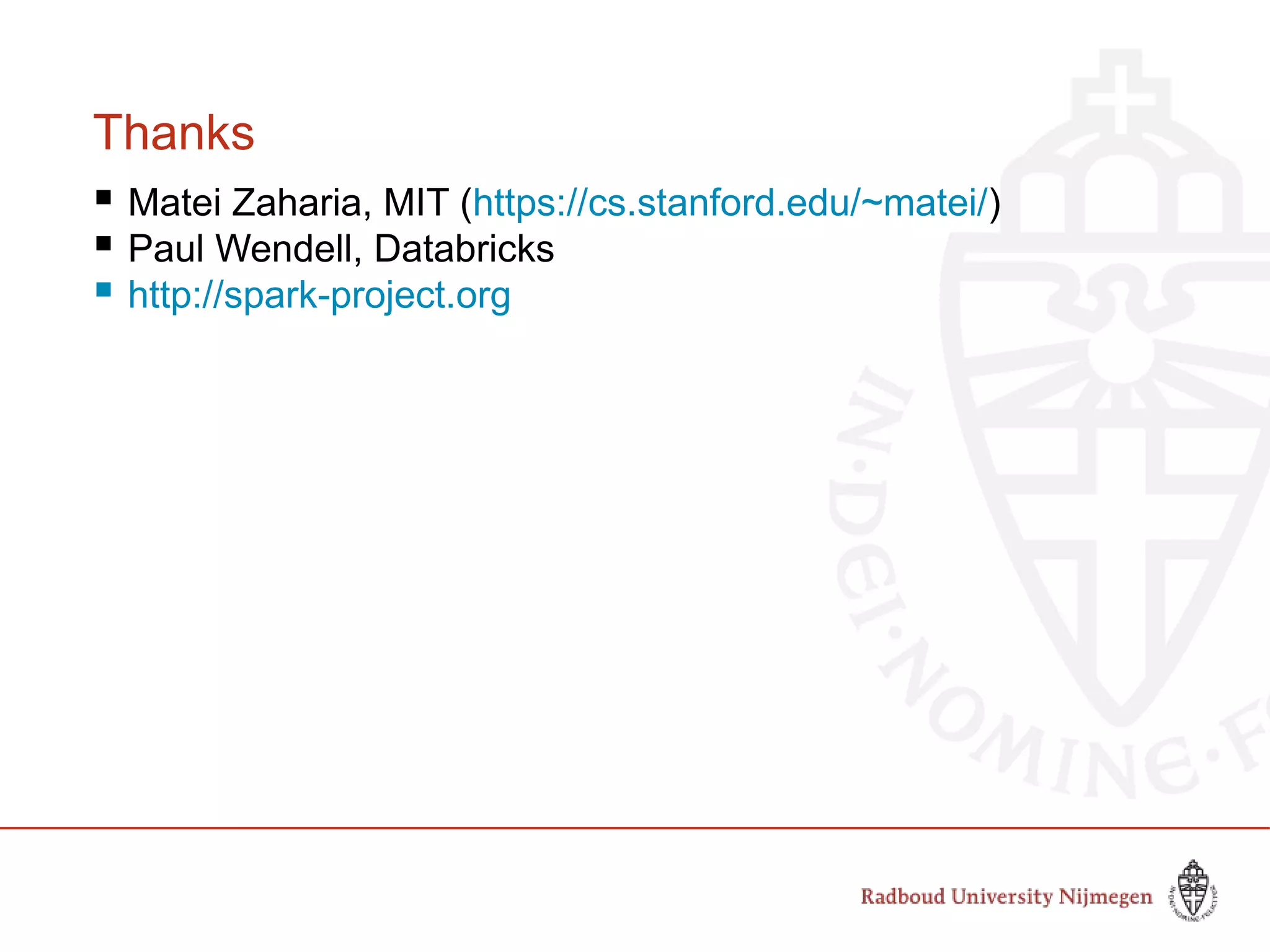

Thanks
 Matei Zaharia, MIT (https://cs.stanford.edu/~matei/)
 Paul Wendell, Databricks
 http://spark-project.org

Bigdata processing with Spark - part II

More Related Content

What's hot

Similar to Bigdata processing with Spark - part II

More from Arjen de Vries

Recently uploaded

Bigdata processing with Spark - part II

Editor's Notes
