Bit plane coding

Bit plane coding

• 2.
   Bit-plane coding Bit-plane decomposition  Constant area coding  One-dimensional run-length coding
• 3.

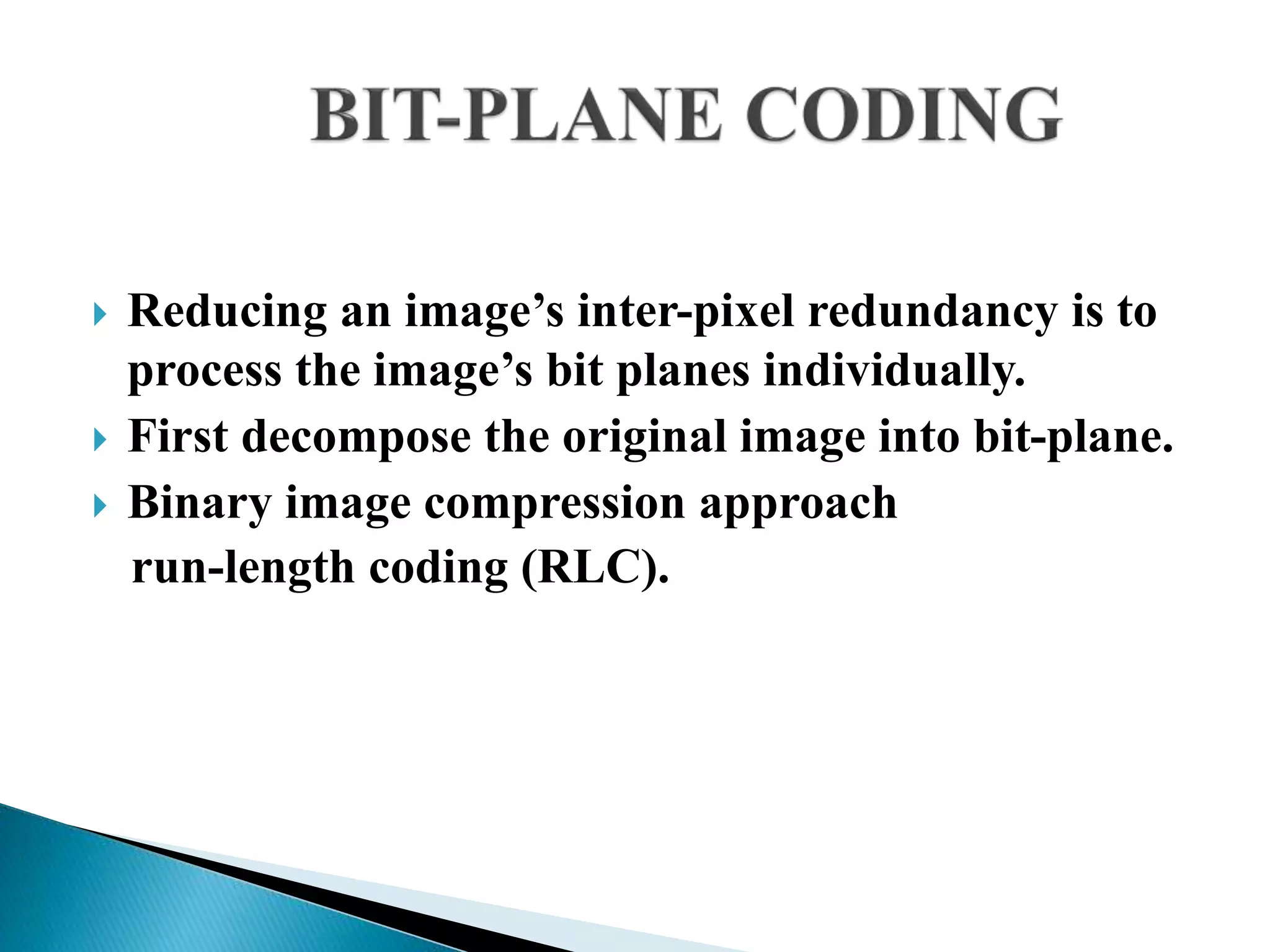

   Reducing animage’s inter-pixel redundancy is to process the image’s bit planes individually.  First decompose the original image into bit-plane.  Binary image compression approach run-length coding (RLC).
• 4.
  Binarycompressor Bitplaneseparation
• 6.

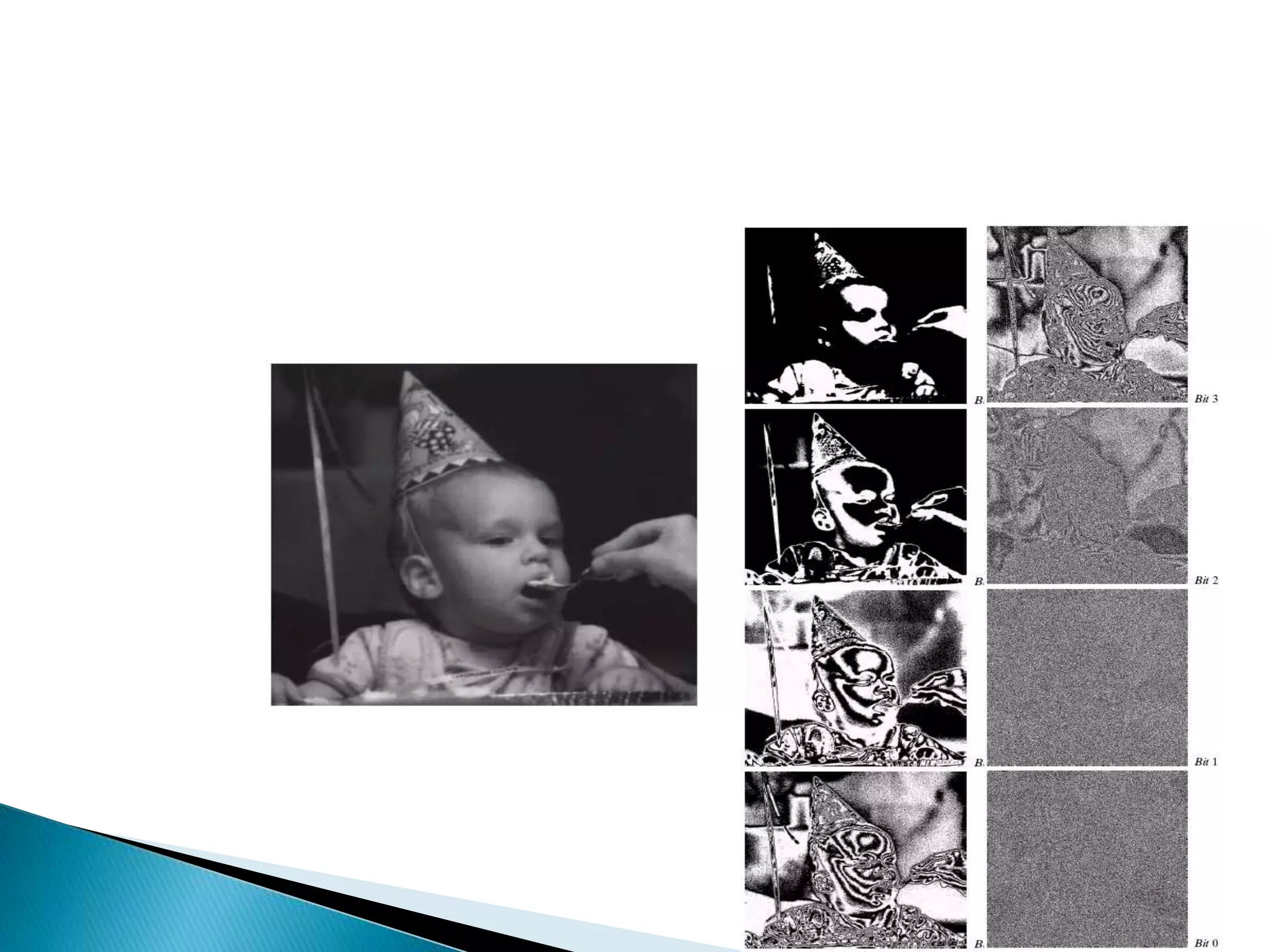

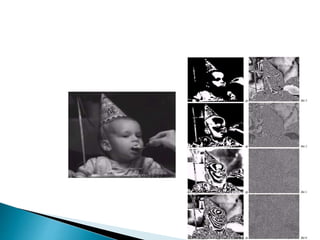

   The graylevels of an m-bit gray-scale image can be represented in the form of the base 2 polynomial. am-12m-1 + am-22m-2 + ……a121 + a020  Based on this property, a simple method of decomposing the image into a collection of the binary images.  The disadvantage of this approach is that small change in the gray level can have the significant impact of the complexity of the bit plane
• 7.
   A simplemethod to compressing a binary image or bit plane is to use special code words to identify large area of contiguous 1’s or 0’s.  A images is divided into block of size p*q pixels,which are classified as all white,all black,or mixed intensity.  for2D blocks a solid white images is coded as 0 and all other images are coded as 1.
• 8.

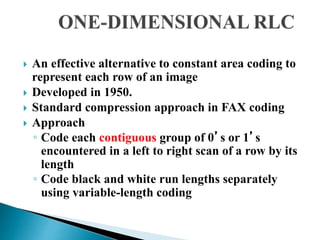

   An effectivealternative to constant area coding to represent each row of an image  Developed in 1950.  Standard compression approach in FAX coding  Approach ◦ Code each contiguous group of 0’s or 1’s encountered in a left to right scan of a row by its length ◦ Code black and white run lengths separately using variable-length coding
