Broad Data Jim Hendler Tetherless World Constellation Tetherless World Professor of Computer and Cognitive Science Director, Information Technology and Web Science Program Rensselaer Polytechnic Institute http://www.cs.rpi.edu/~hendler @jahendler (twitter)

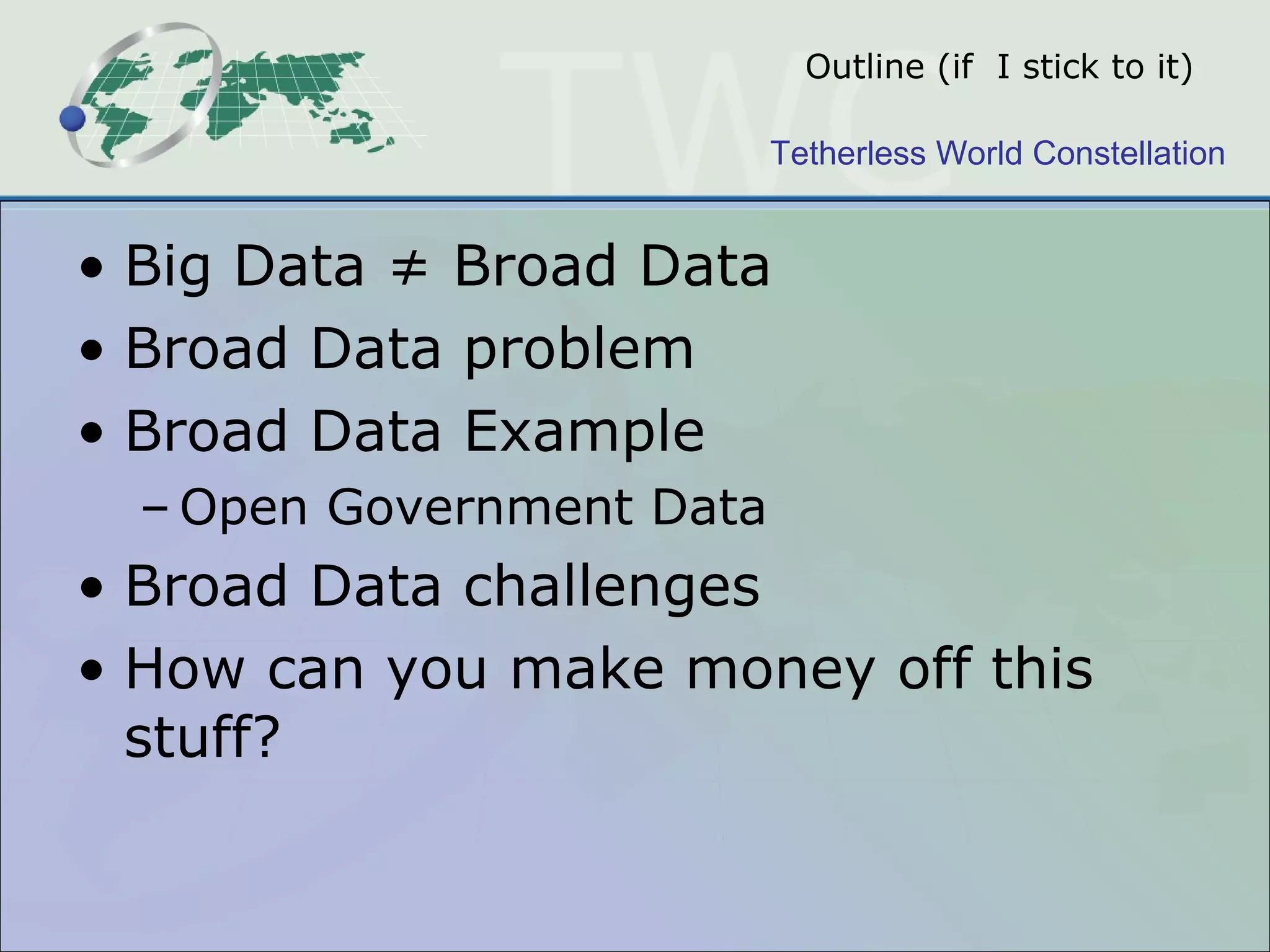

Outline (if I stick to it) Big Data ≠ Broad Data Broad Data problem Broad Data Example Open Government Data Broad Data challenges How can you make money off this stuff?

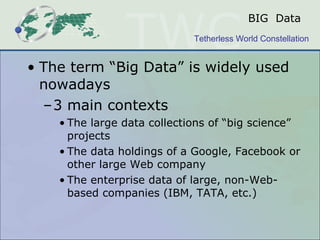

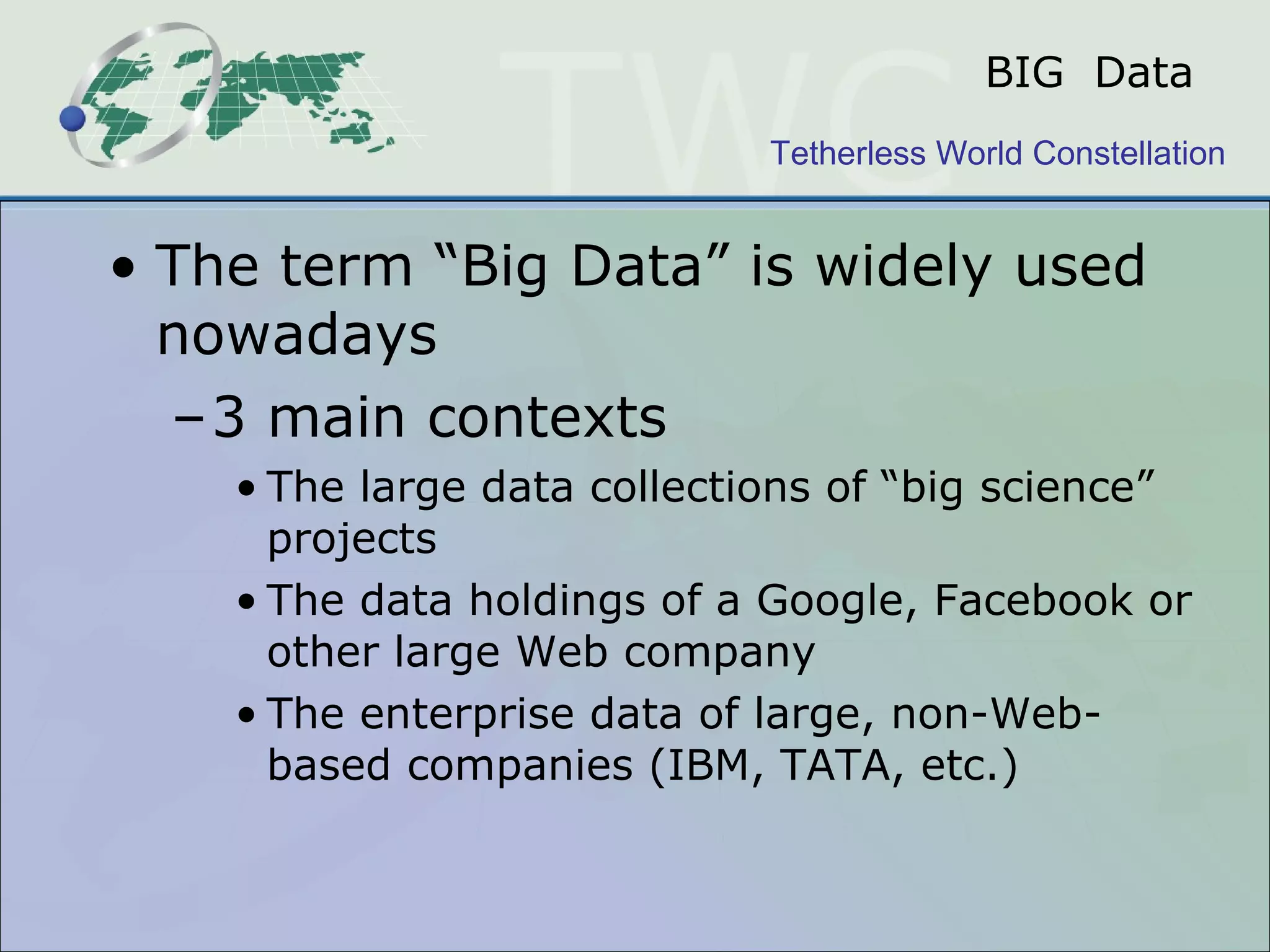

BIG Data The term “Big Data” is widely used nowadays 3 main contexts The large data collections of “big science” projects The data holdings of a Google, Facebook or other large Web company The enterprise data of large, non-Web-based companies (IBM, TATA, etc.)

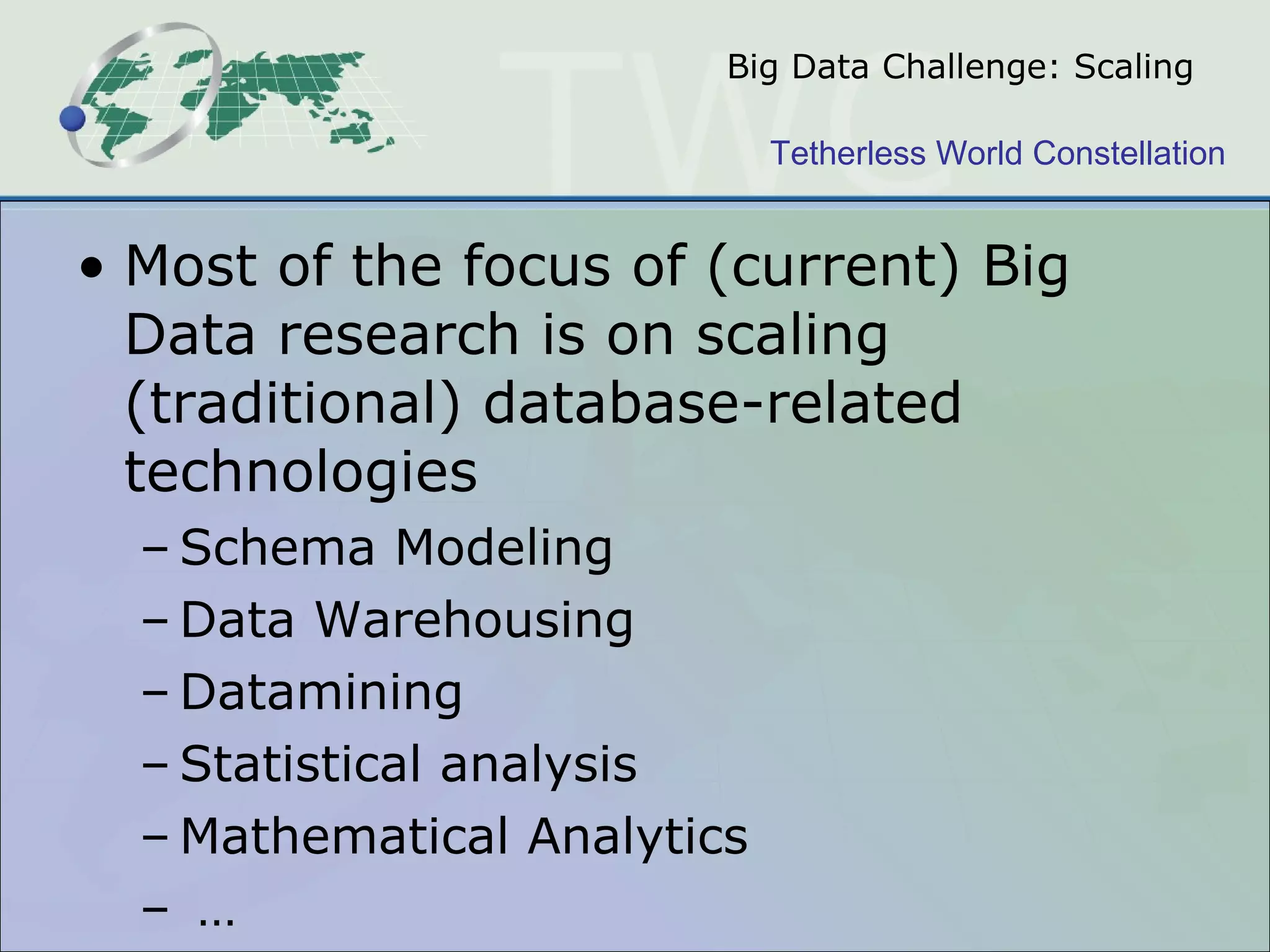

Big Data Challenge: Scaling Most of the focus of (current) Big Data research is on scaling (traditional) database-related technologies Schema Modeling Data Warehousing Datamining Statistical analysis Mathematical Analytics …

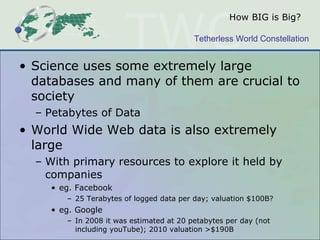

How BIG is Big? Science uses some extremely large databases and many of them are crucial to society Petabytes of Data World Wide Web data is also extremely large With primary resources to explore it held by companies eg. Facebook 25 Terabytes of logged data per day; valuation $100B? eg. Google In 2008 it was estimated at 20 petabytes per day (not including youTube); 2010 valuation >$190B

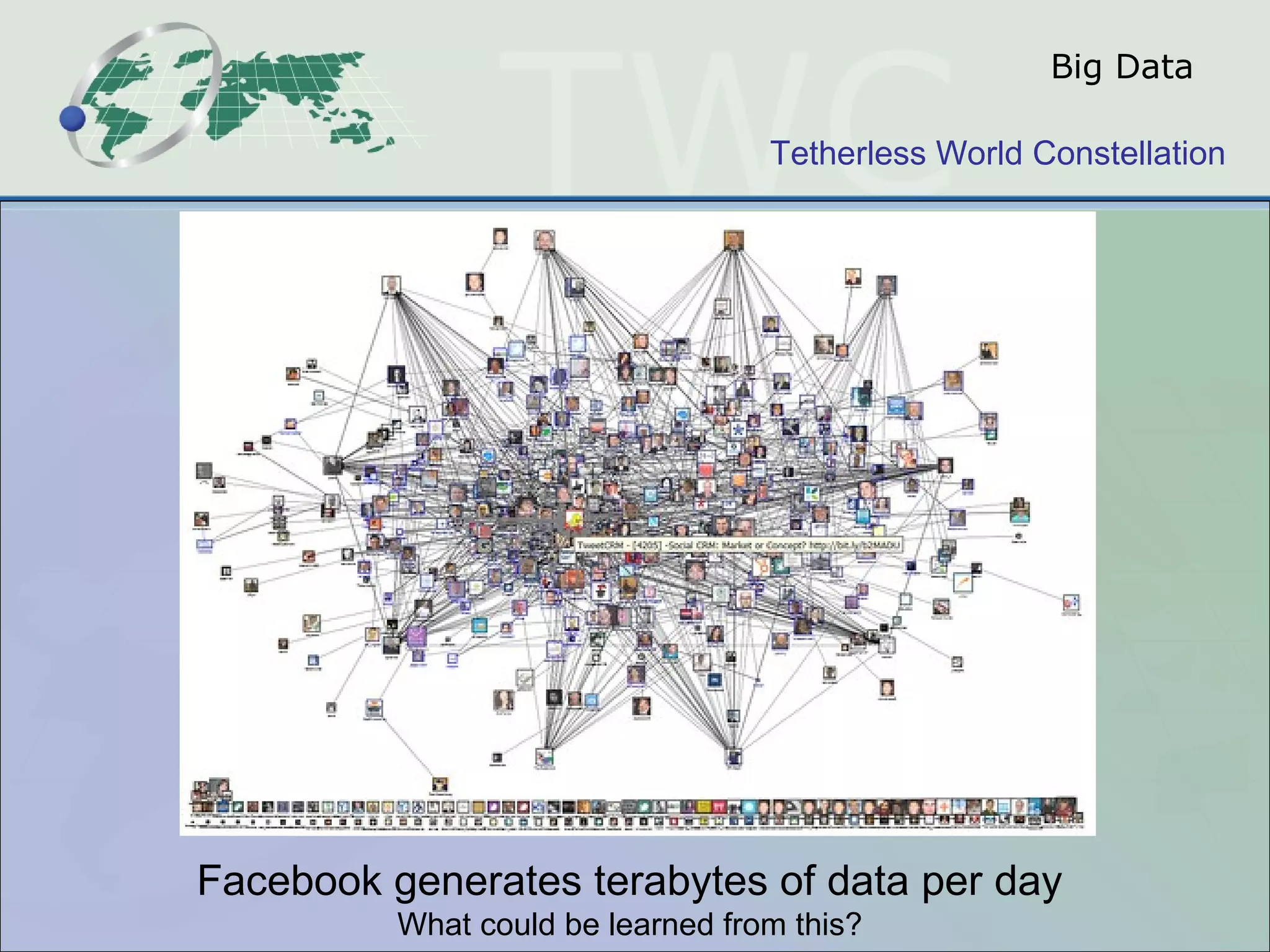

Big Data Facebook generates terabytes of data per day What could be learned from this?

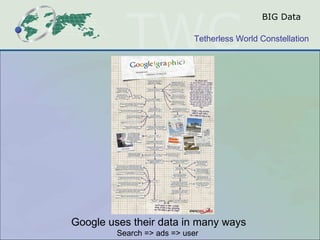

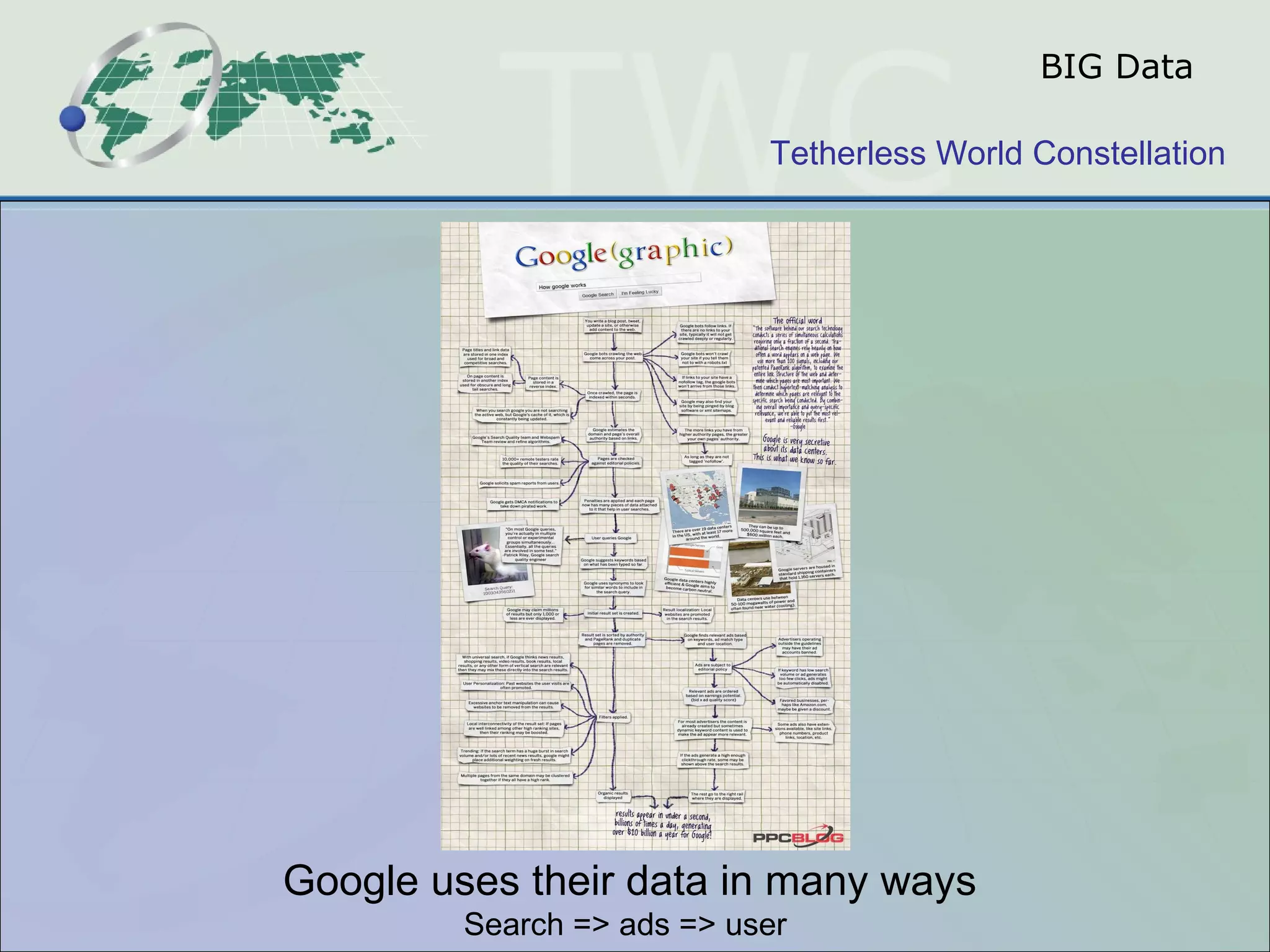

BIG Data Google uses their data in many ways Search => ads => user

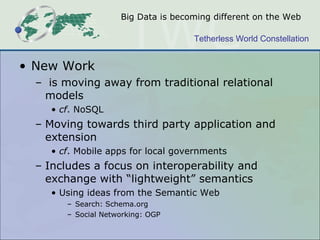

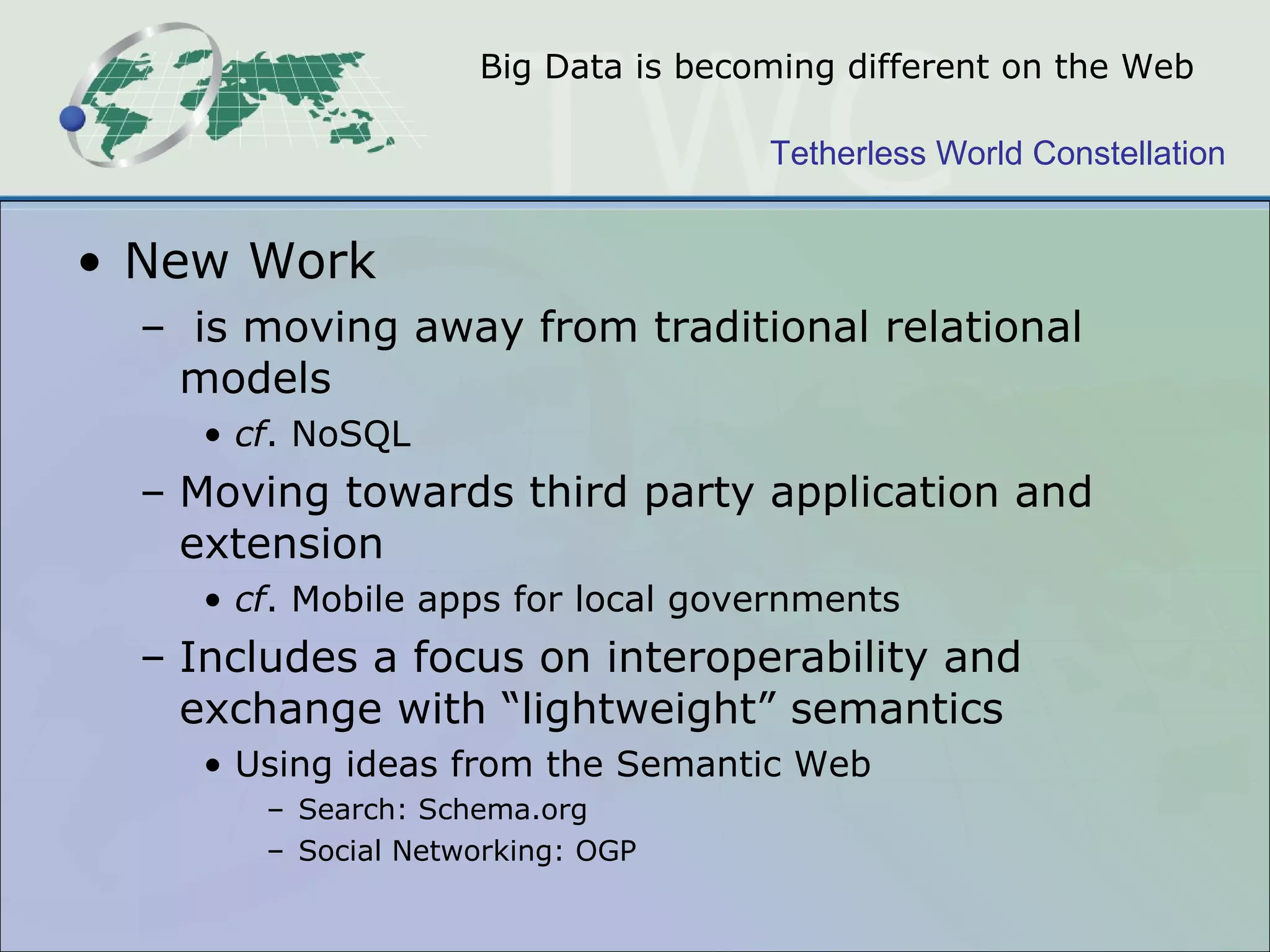

Big Data is becoming different on the Web New Work is moving away from traditional relational models cf . NoSQL Moving towards third party application and extension cf . Mobile apps for local governments Includes a focus on interoperability and exchange with “lightweight” semantics Using ideas from the Semantic Web Search: Schema.org Social Networking: OGP

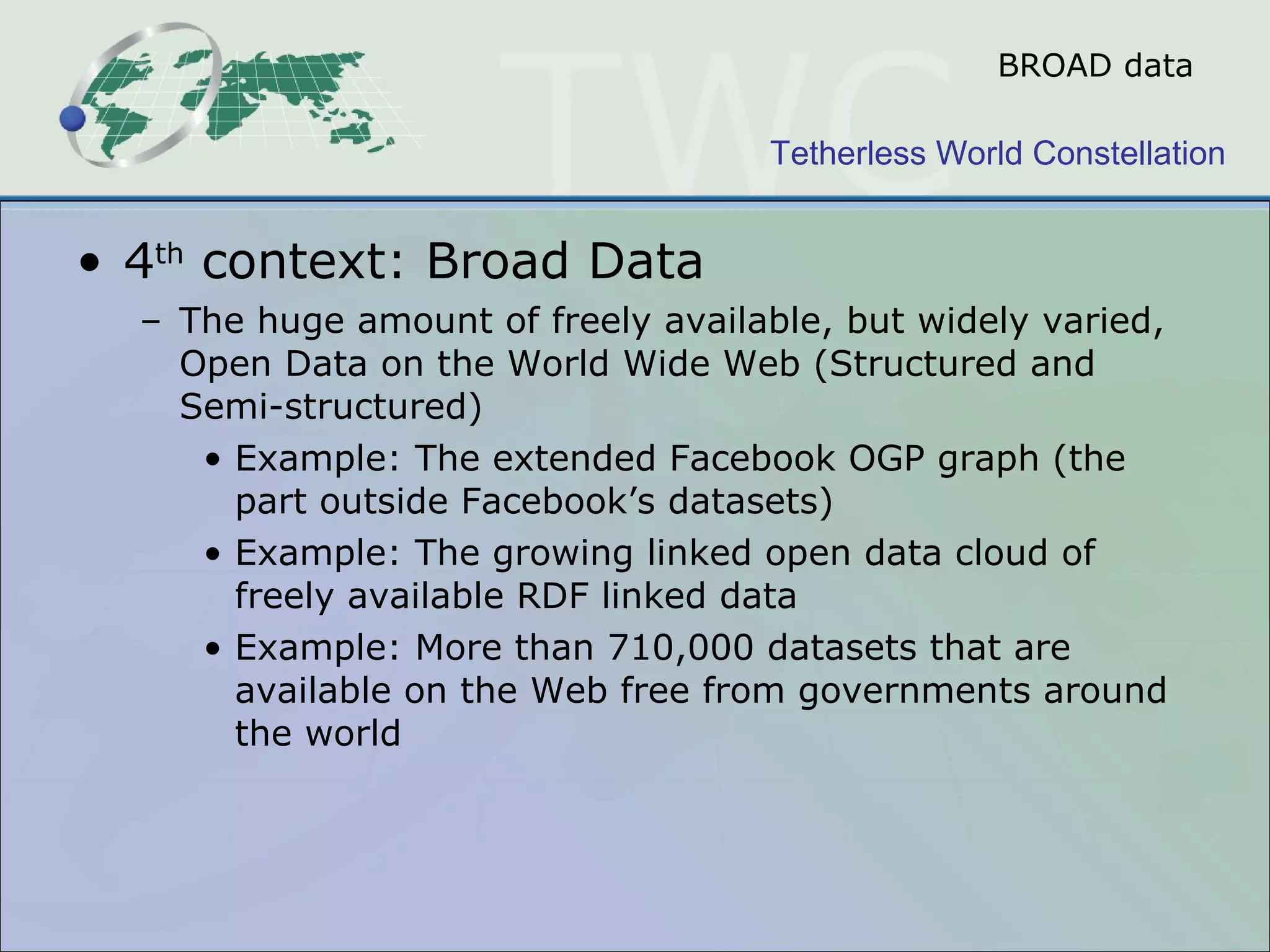

BROAD data 4 th context: Broad Data The huge amount of freely available, but widely varied, Open Data on the World Wide Web (Structured and Semi-structured) Example: The extended Facebook OGP graph (the part outside Facebook’s datasets) Example: The growing linked open data cloud of freely available RDF linked data Example: More than 710,000 datasets that are available on the Web free from governments around the world

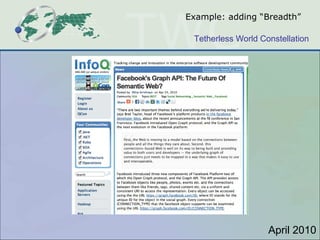

Example: adding “Breadth” April 2010

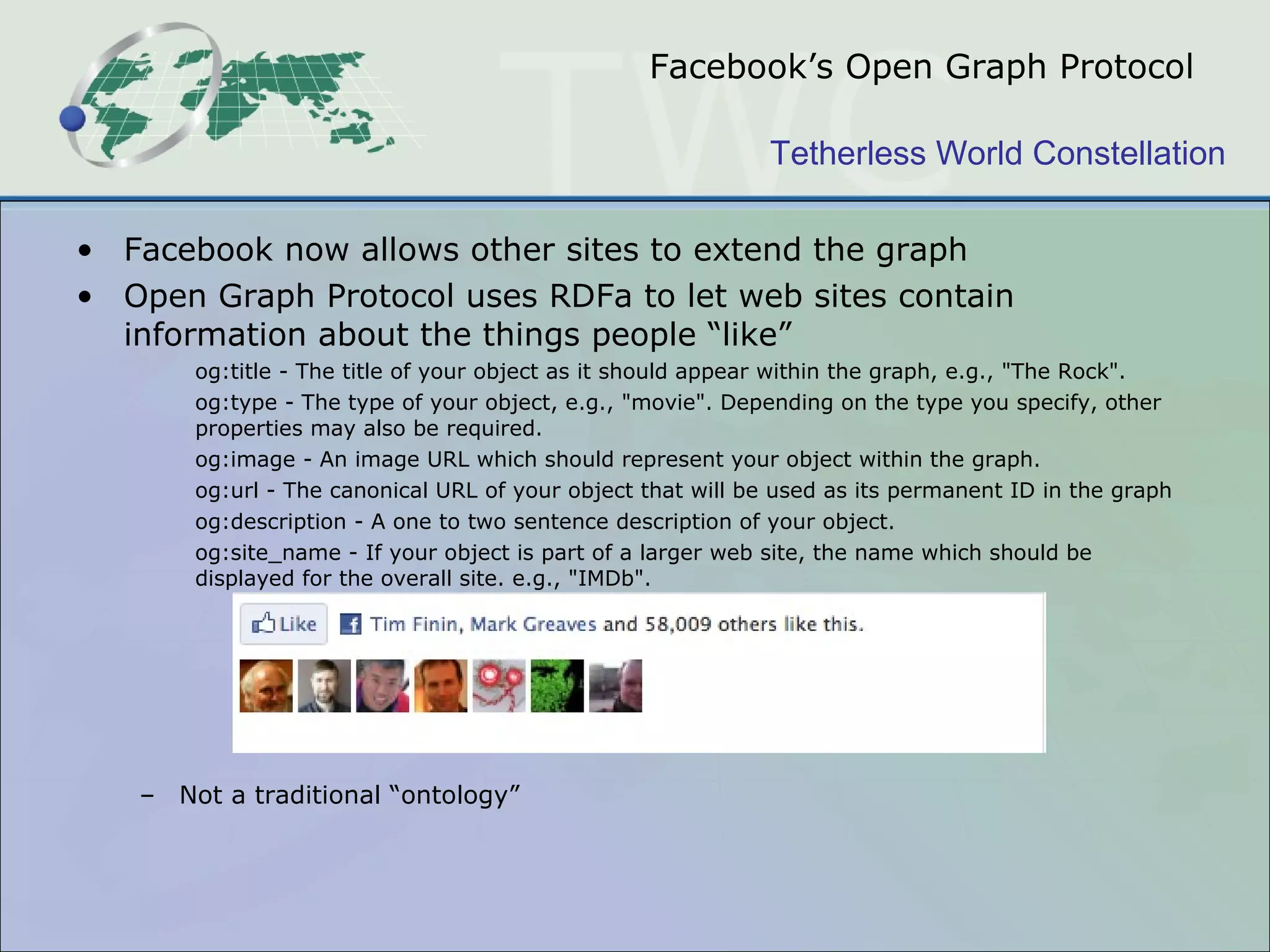

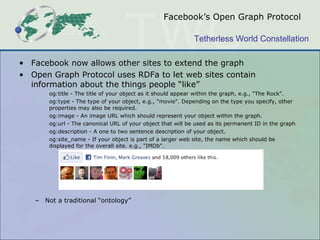

Facebook ’s Open Graph Protocol Facebook now allows other sites to extend the graph Open Graph Protocol uses RDFa to let web sites contain information about the things people “like” og:title - The title of your object as it should appear within the graph, e.g., "The Rock". og:type - The type of your object, e.g., "movie". Depending on the type you specify, other properties may also be required. og:image - An image URL which should represent your object within the graph. og:url - The canonical URL of your object that will be used as its permanent ID in the graph og:description - A one to two sentence description of your object. og:site_name - If your object is part of a larger web site, the name which should be displayed for the overall site. e.g., "IMDb". Not a traditional “ontology”

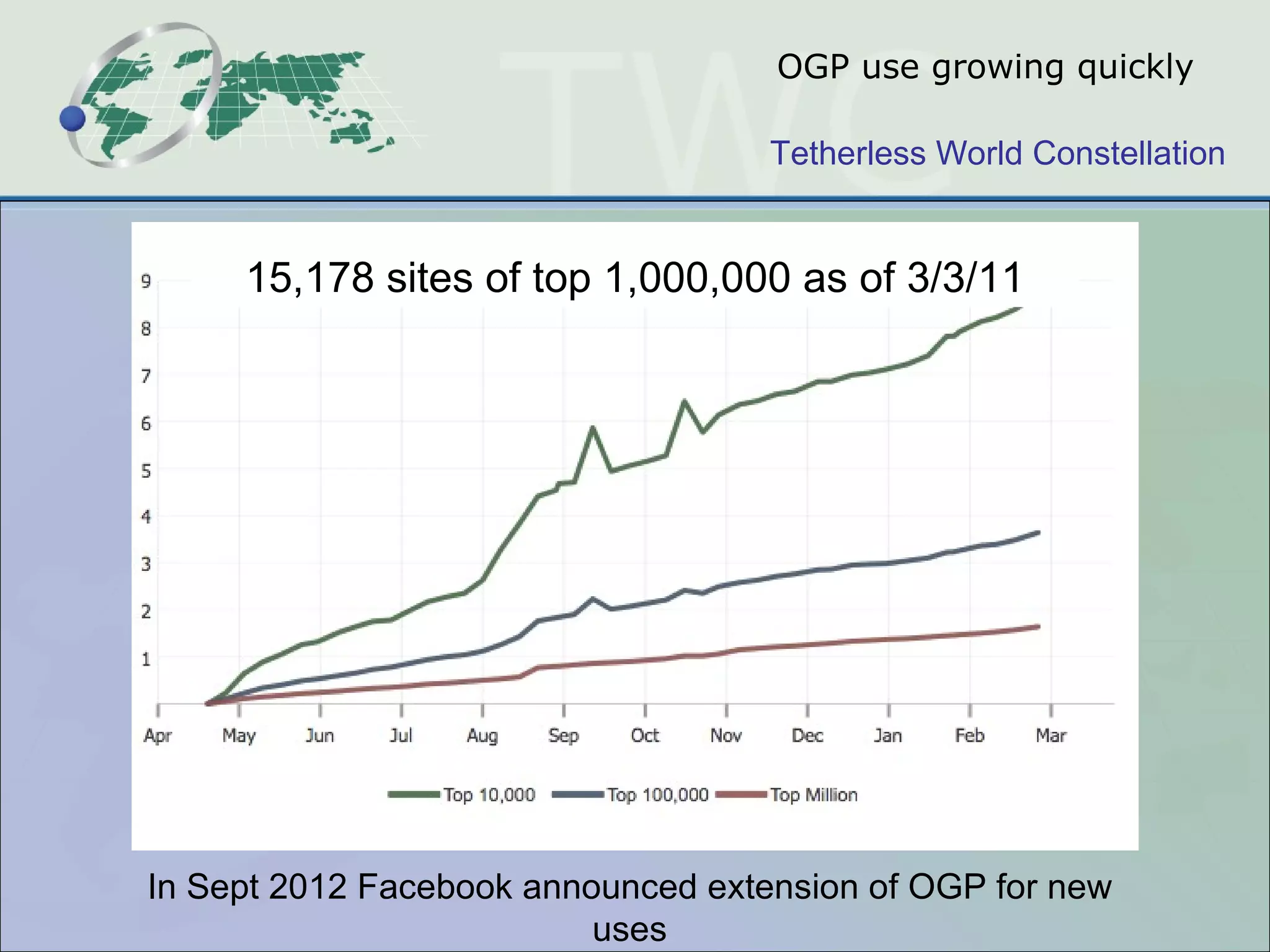

OGP use growing quickly 15,178 sites of top 1,000,000 as of 3/3/11 In Sept 2012 Facebook announced extension of OGP for new uses

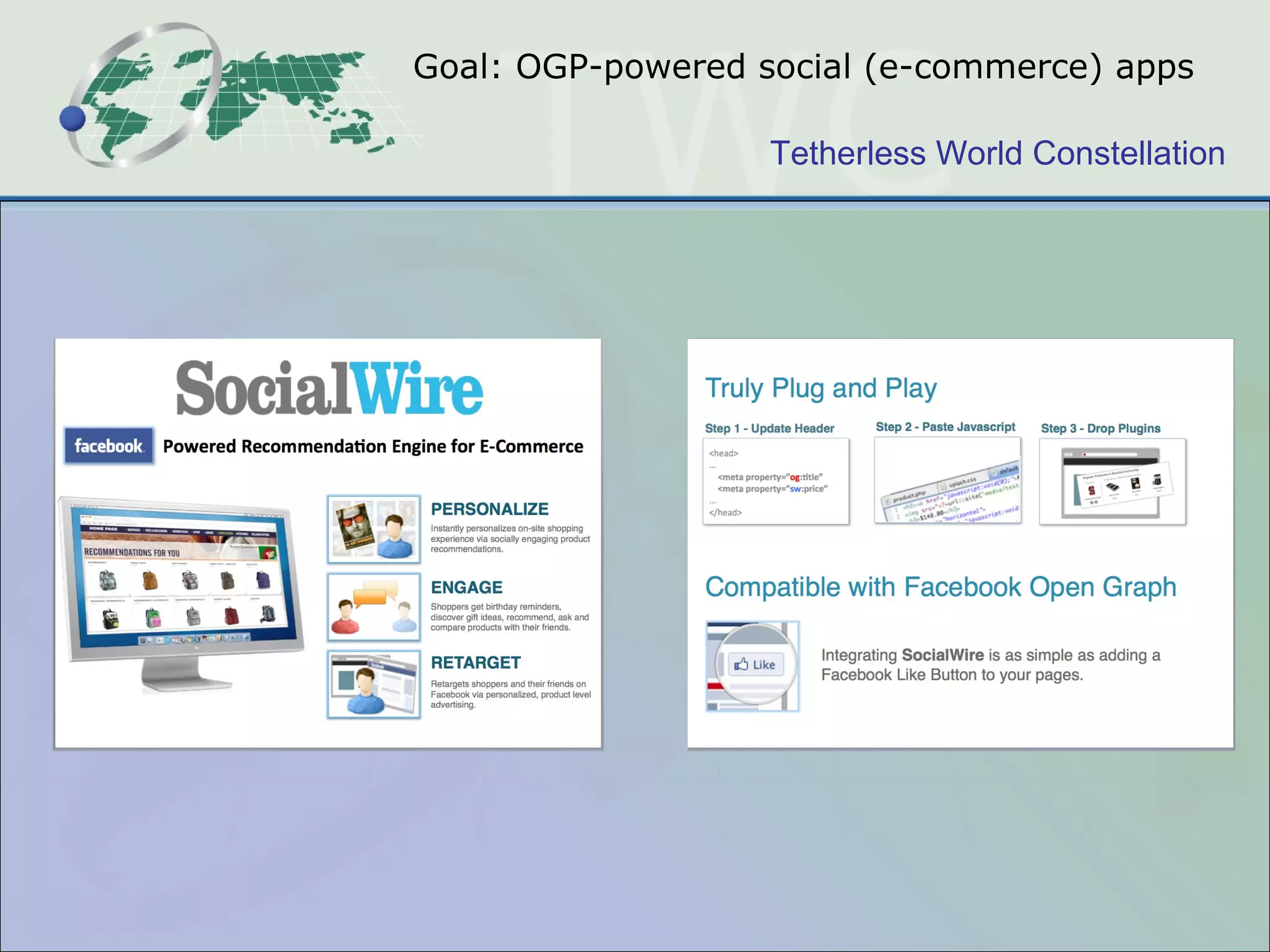

Goal: OGP-powered social (e-commerce) apps

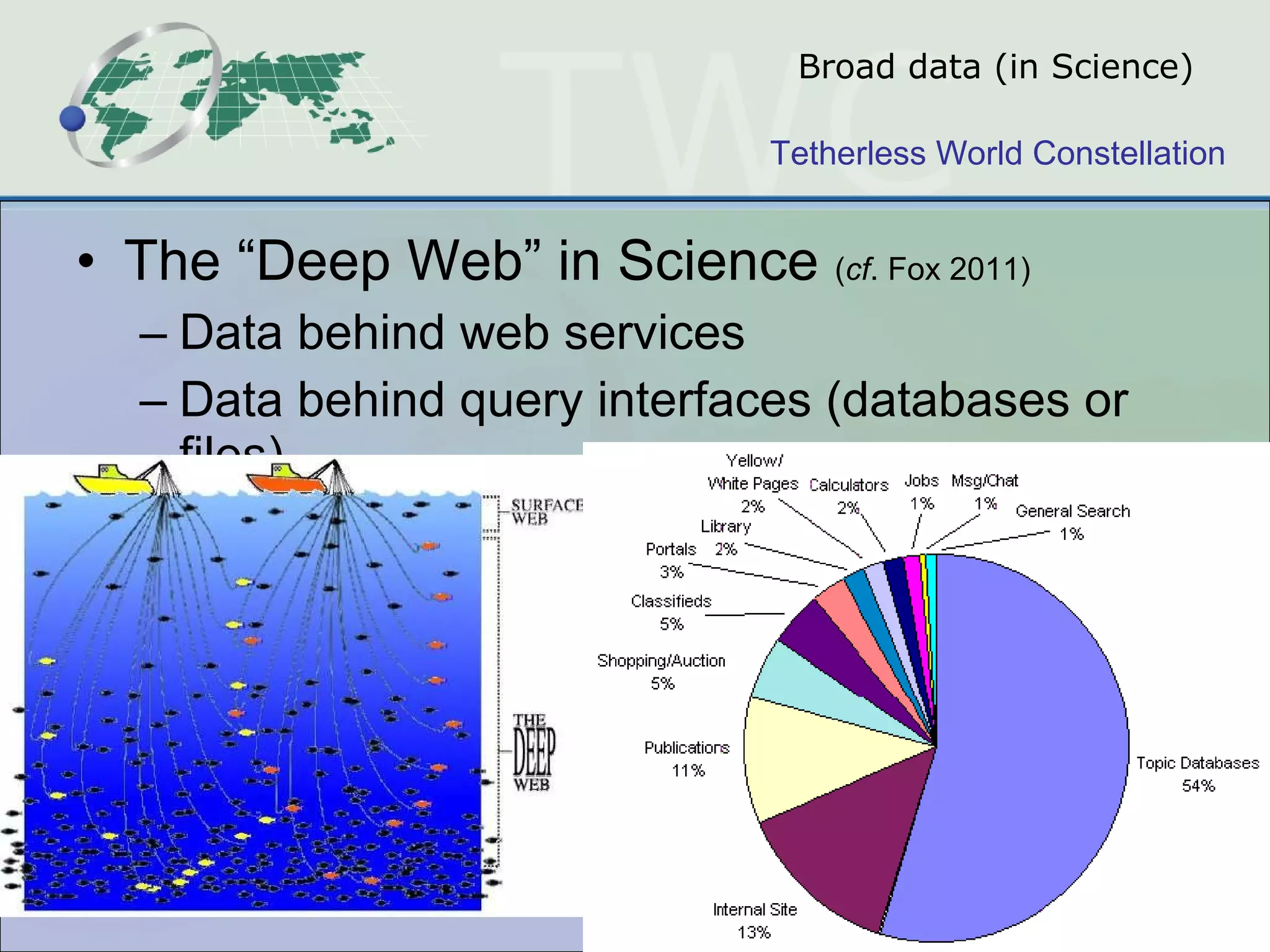

Broad data (in Science) The “ Deep Web ” in Science ( cf . Fox 2011) Data behind web services Data behind query interfaces (databases or files) Introduces a different curation problem

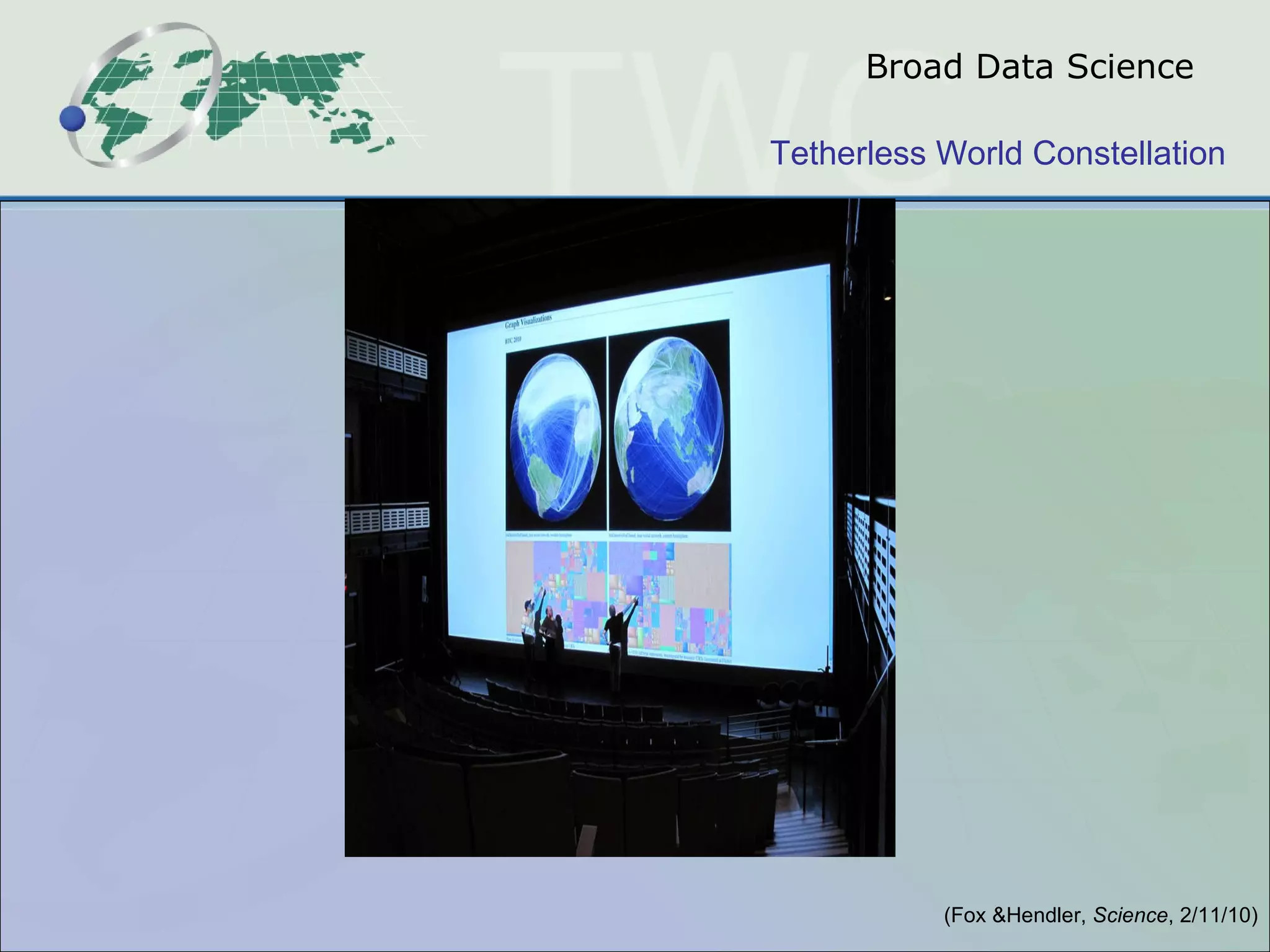

Broad Data Science (Fox &Hendler, Science , 2/11/10)

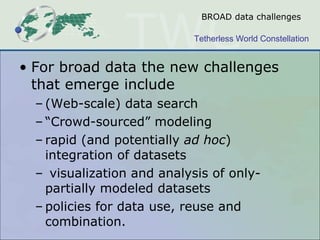

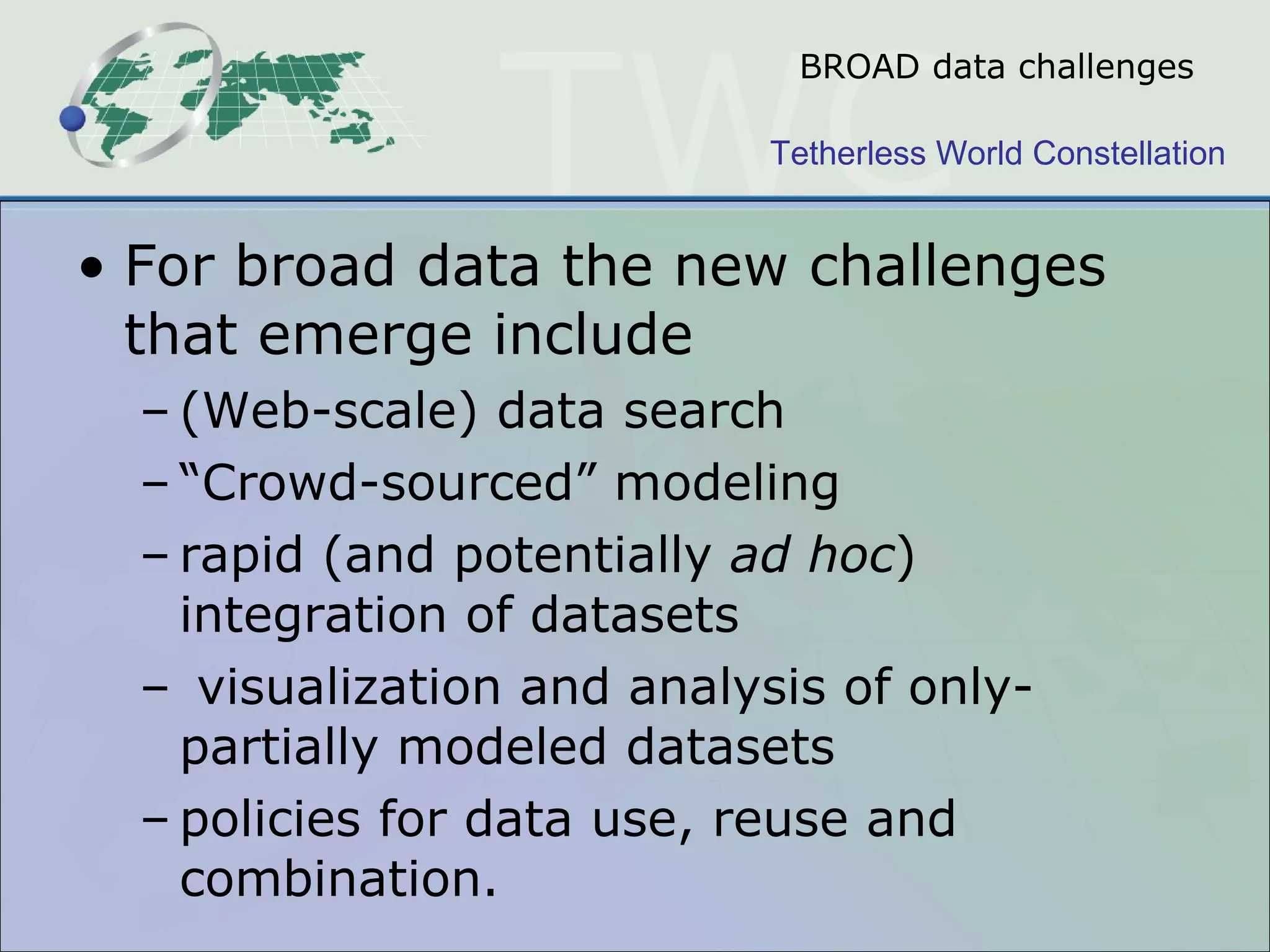

BROAD data challenges For broad data the new challenges that emerge include (Web-scale) data search “ Crowd-sourced” modeling rapid (and potentially ad hoc ) integration of datasets visualization and analysis of only-partially modeled datasets policies for data use, reuse and combination.

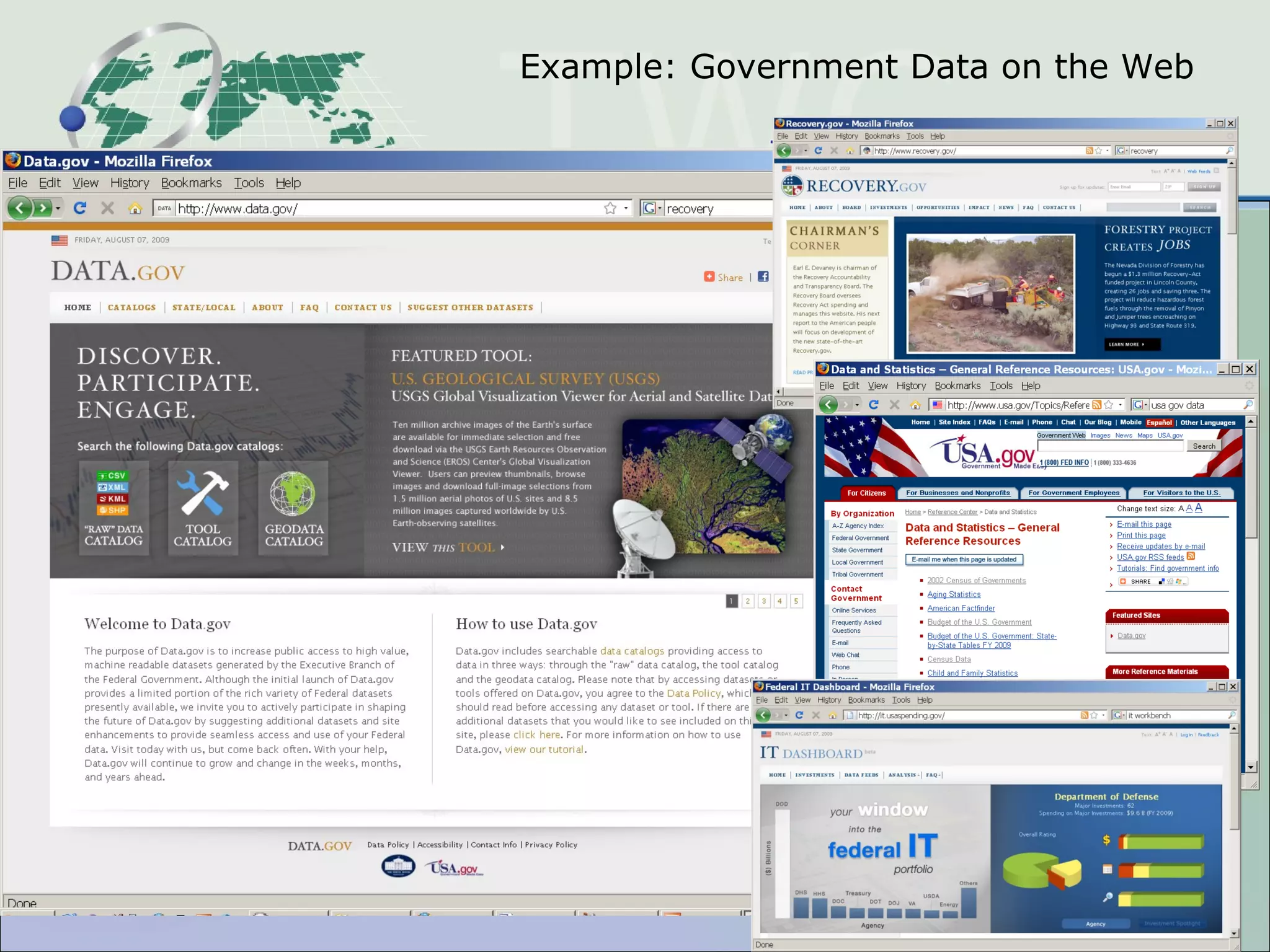

Example: Government Data on the Web

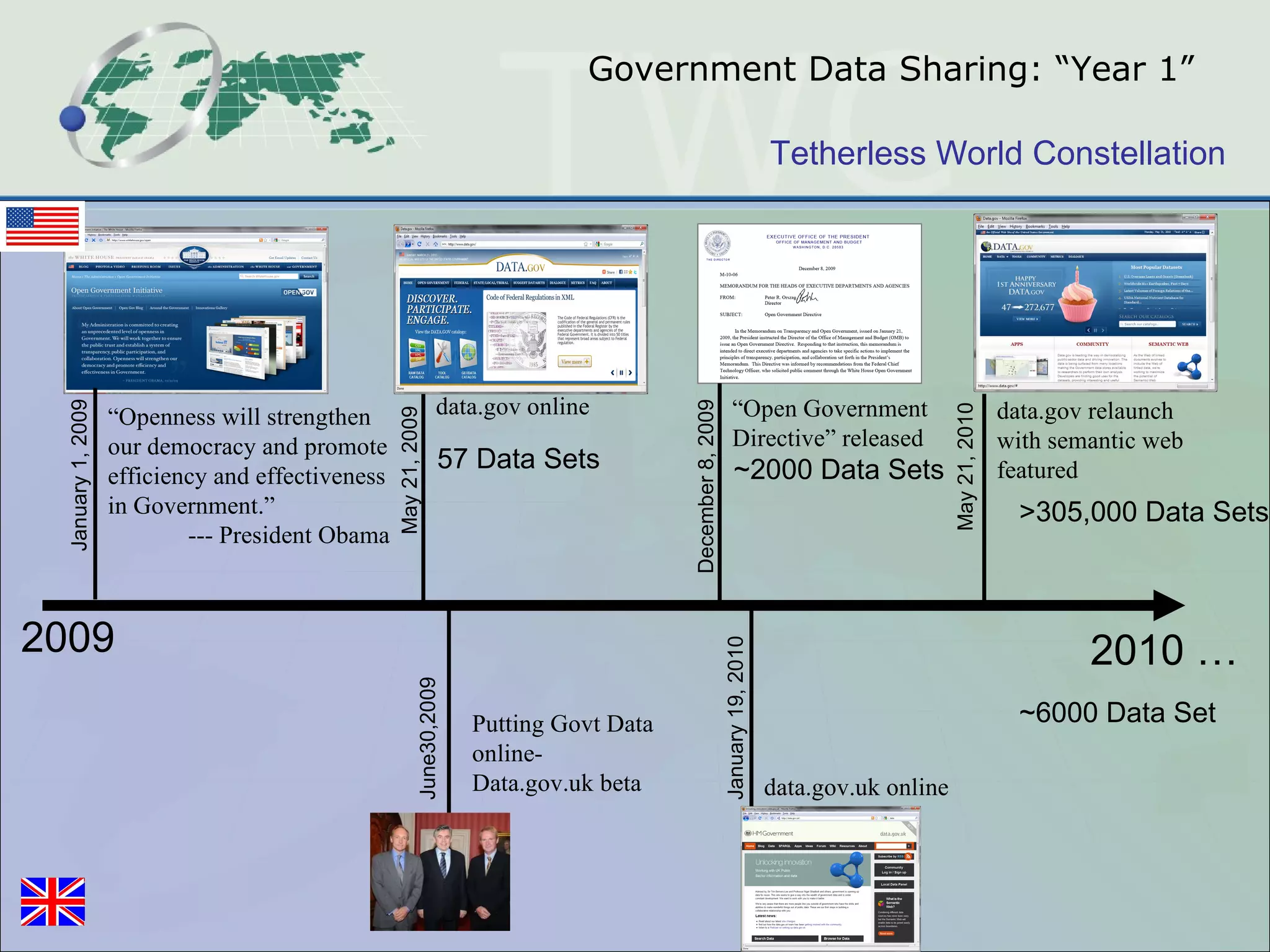

Government Data Sharing: “Year 1” January 1, 2009 “ Openness will strengthen our democracy and promote efficiency and effectiveness in Government.” --- President Obama Putting Govt Data online- Data.gov.uk beta May 21, 2009 January 19, 2010 data.gov.uk online May 21, 2010 data.gov online data.gov relaunch with semantic web featured June30,2009 December 8, 2009 “ Open Government Directive ” released 2009 2010 … 57 Data Sets ~6000 Data Set ~2000 Data Sets >305,000 Data Sets

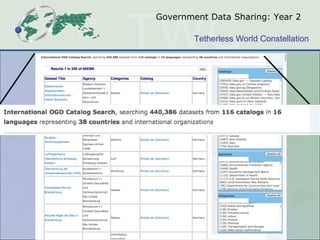

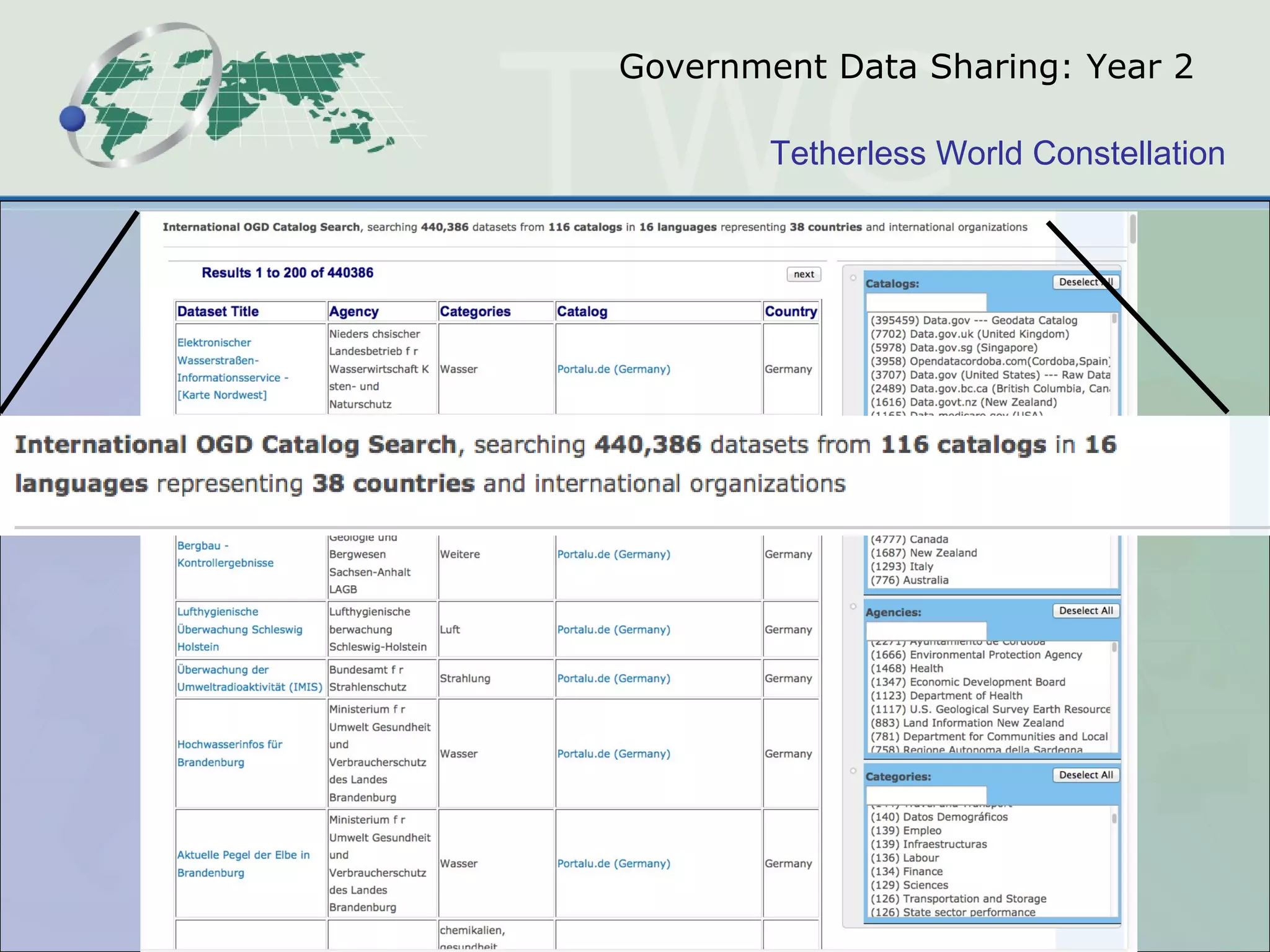

Government Data Sharing: Year 2

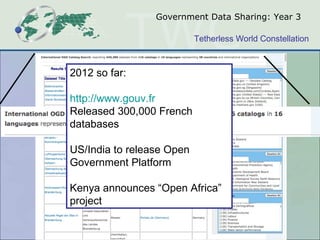

Government Data Sharing: Year 3 2012 so far: http://www.gouv.fr Released 300,000 French databases US/India to release Open Government Platform Kenya announces “Open Africa” project

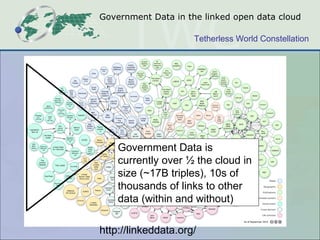

Government Data in the linked open data cloud http://linkeddata.org/ Government Data is currently over ½ the cloud in size (~17B triples), 10s of thousands of links to other data (within and without)

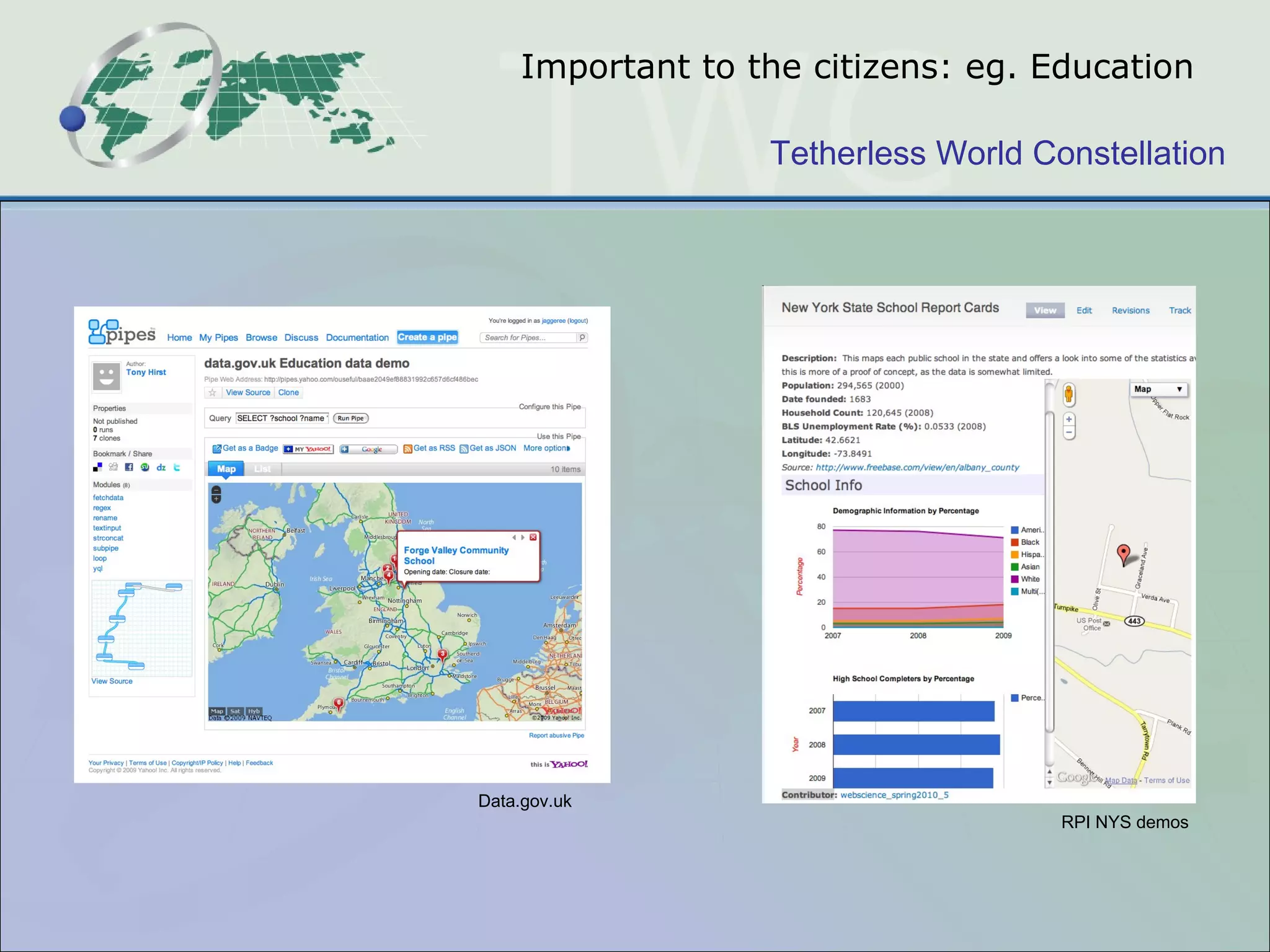

Important to the citizens: eg. Education Data.gov.uk RPI NYS demos

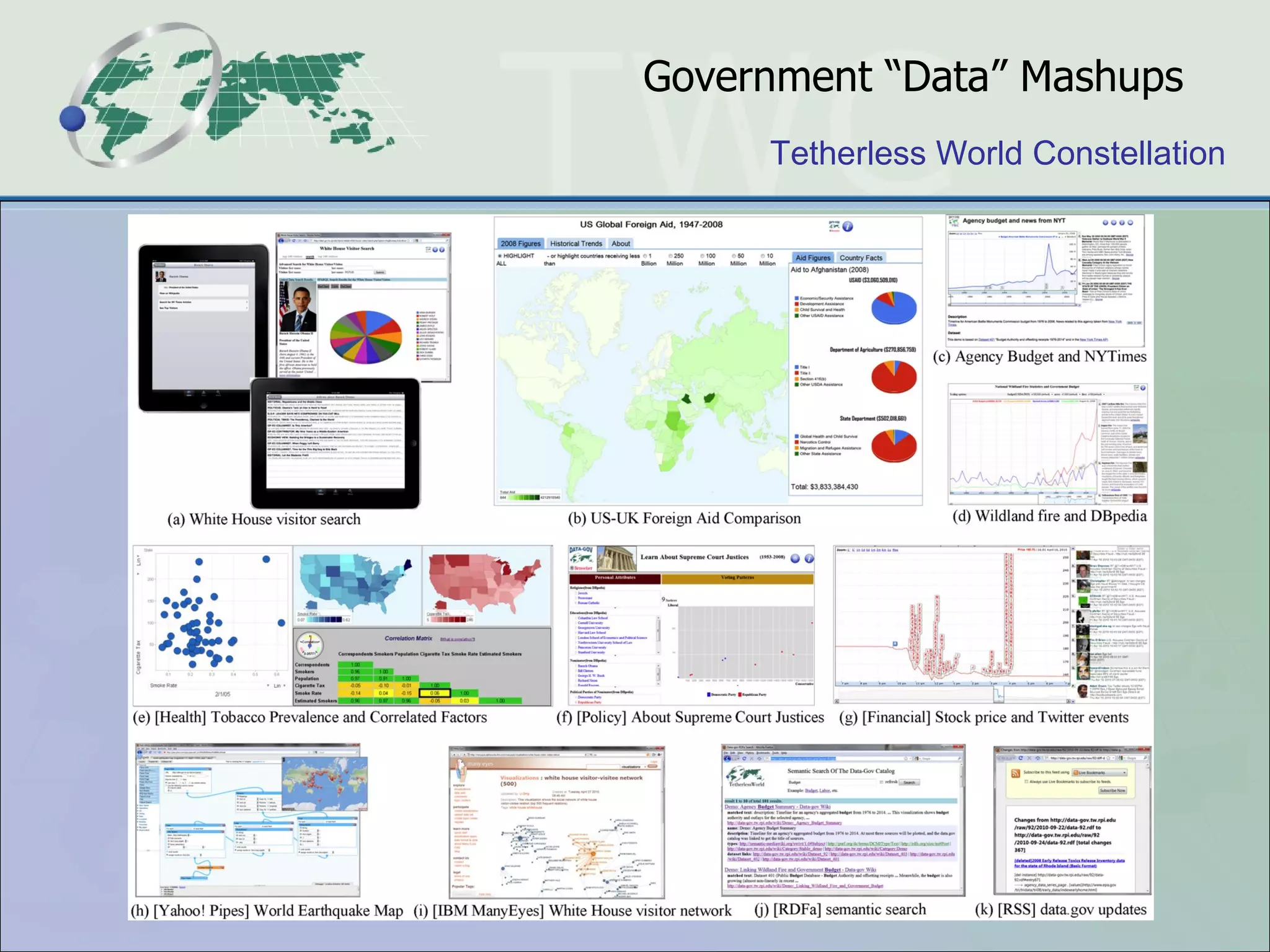

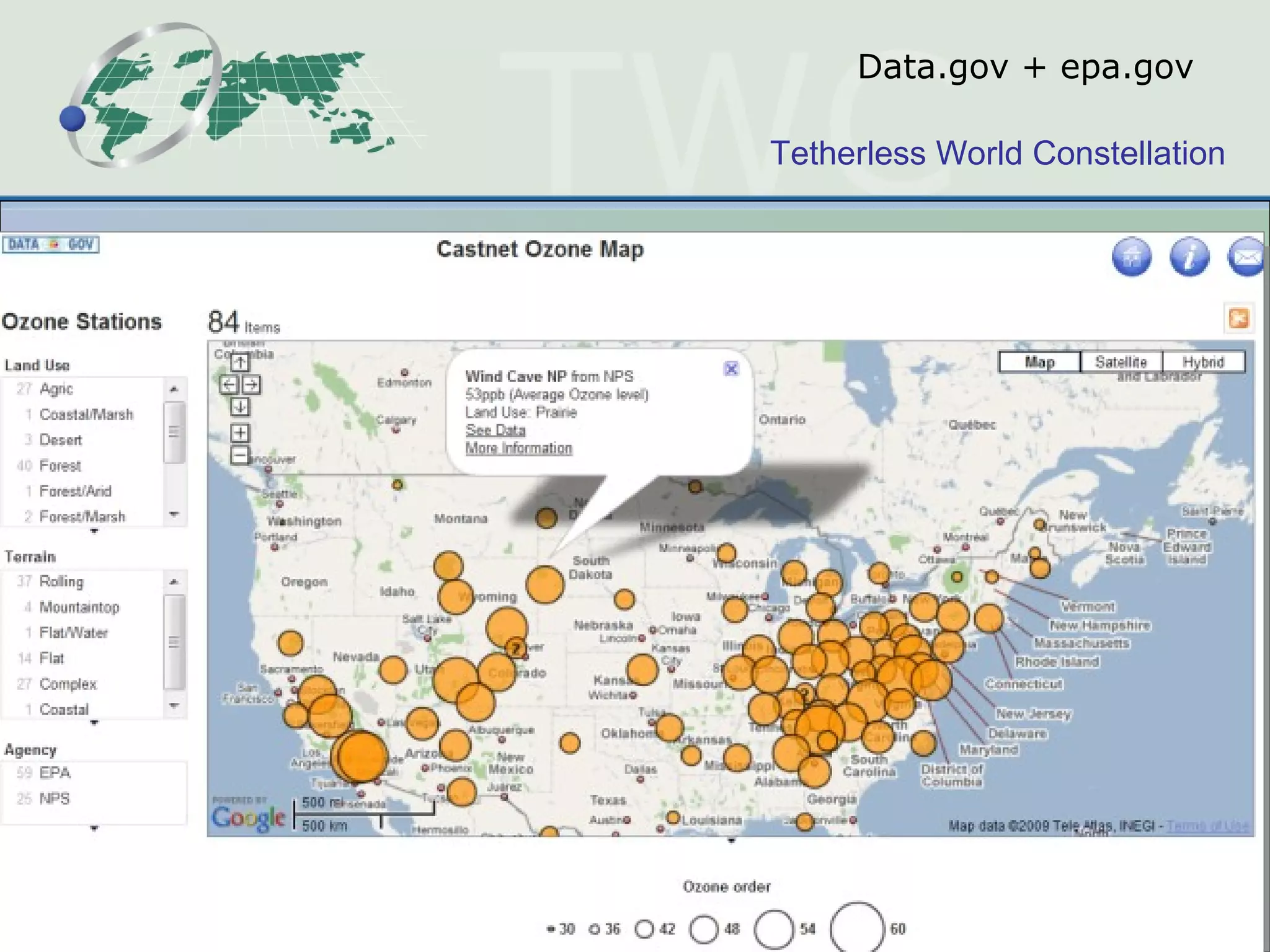

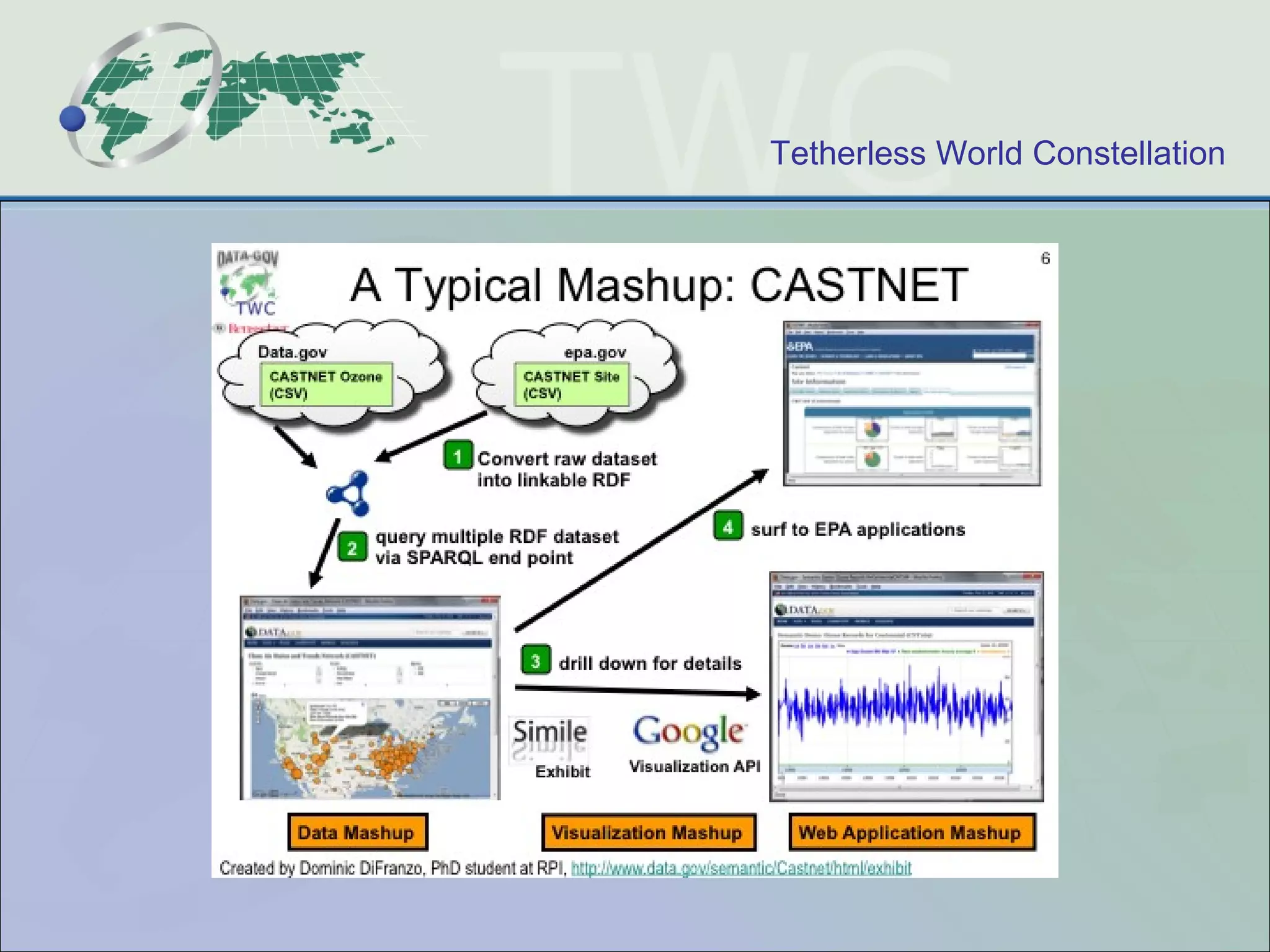

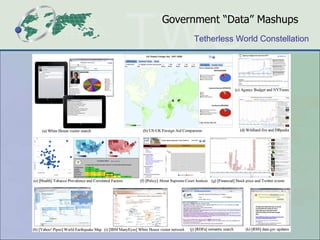

Government “ Data ” Mashups

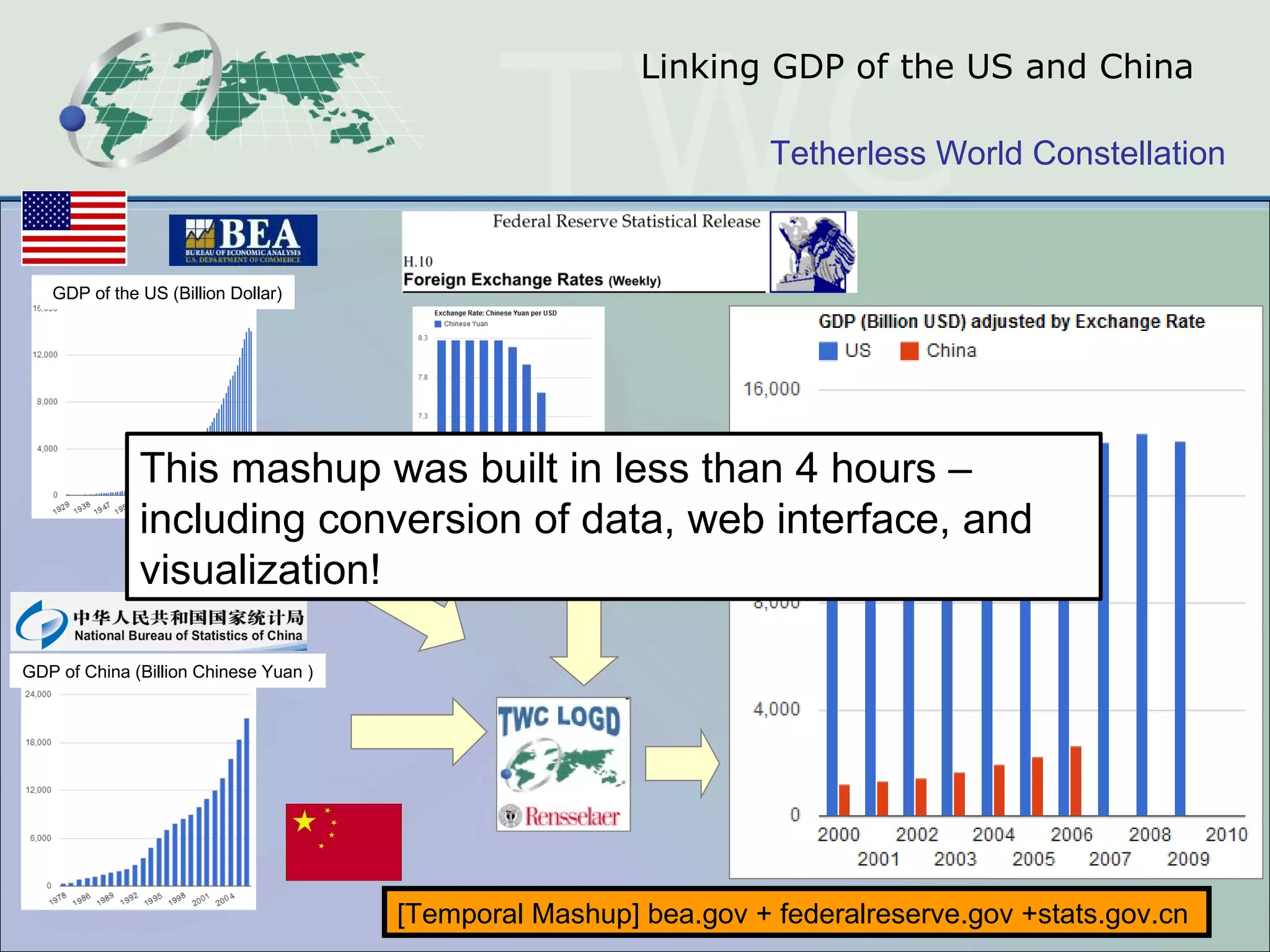

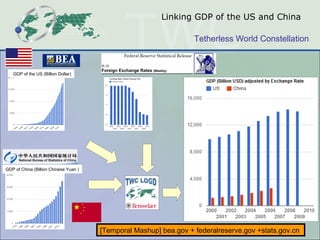

Linking GDP of the US and China GDP of China (Billion Chinese Yuan ) GDP of the US (Billion Dollar) [Temporal Mashup] bea.gov + federalreserve.gov +stats.gov.cn

Linking GDP of the US and China GDP of China (Billion Chinese Yuan ) GDP of the US (Billion Dollar) [Temporal Mashup] bea.gov + federalreserve.gov +stats.gov.cn This mashup was built in less than 4 hours – including conversion of data, web interface, and visualization!

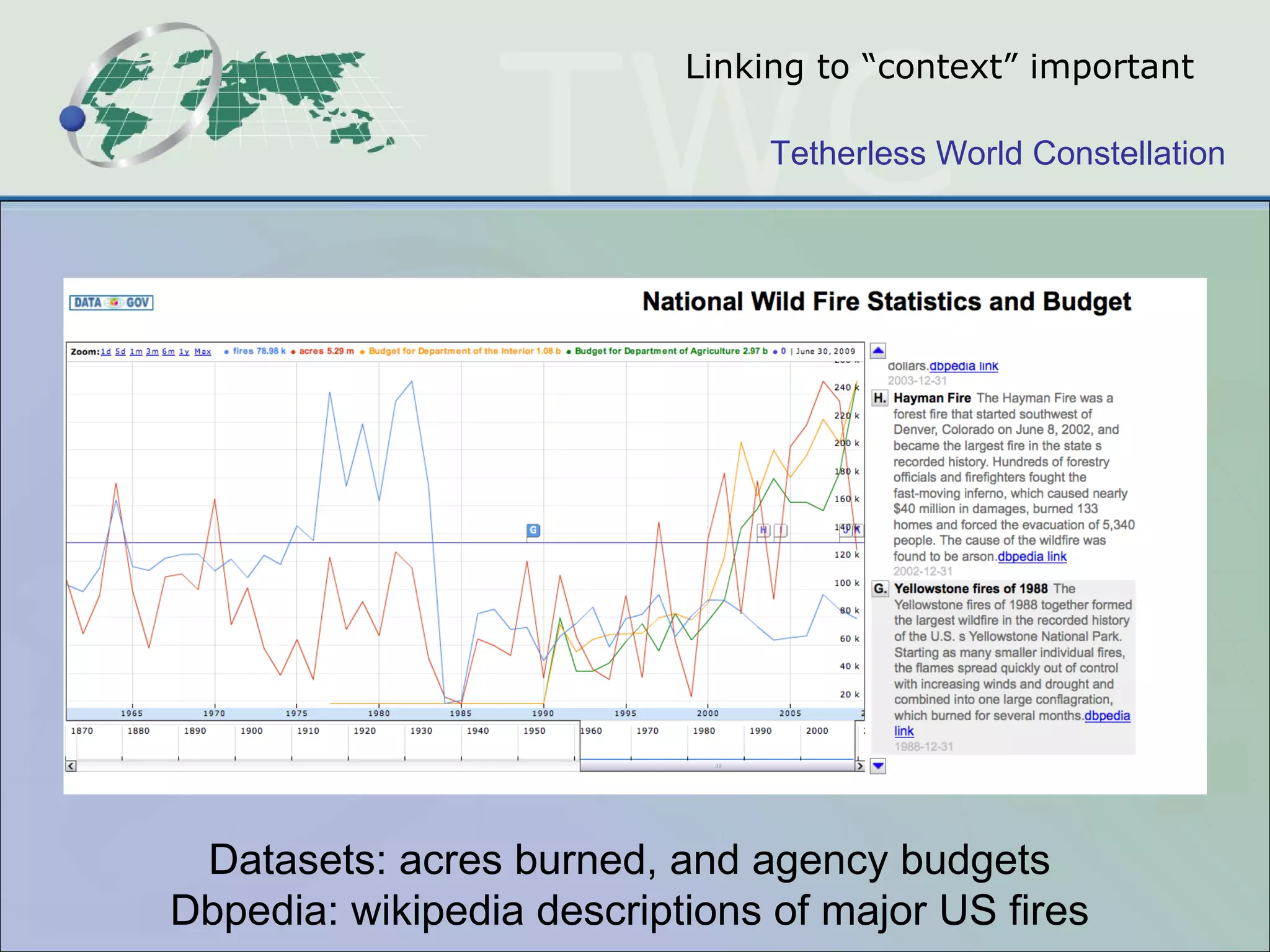

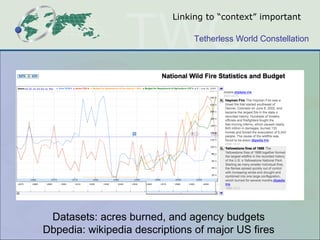

Linking to “context” important Datasets: acres burned, and agency budgets Dbpedia: wikipedia descriptions of major US fires

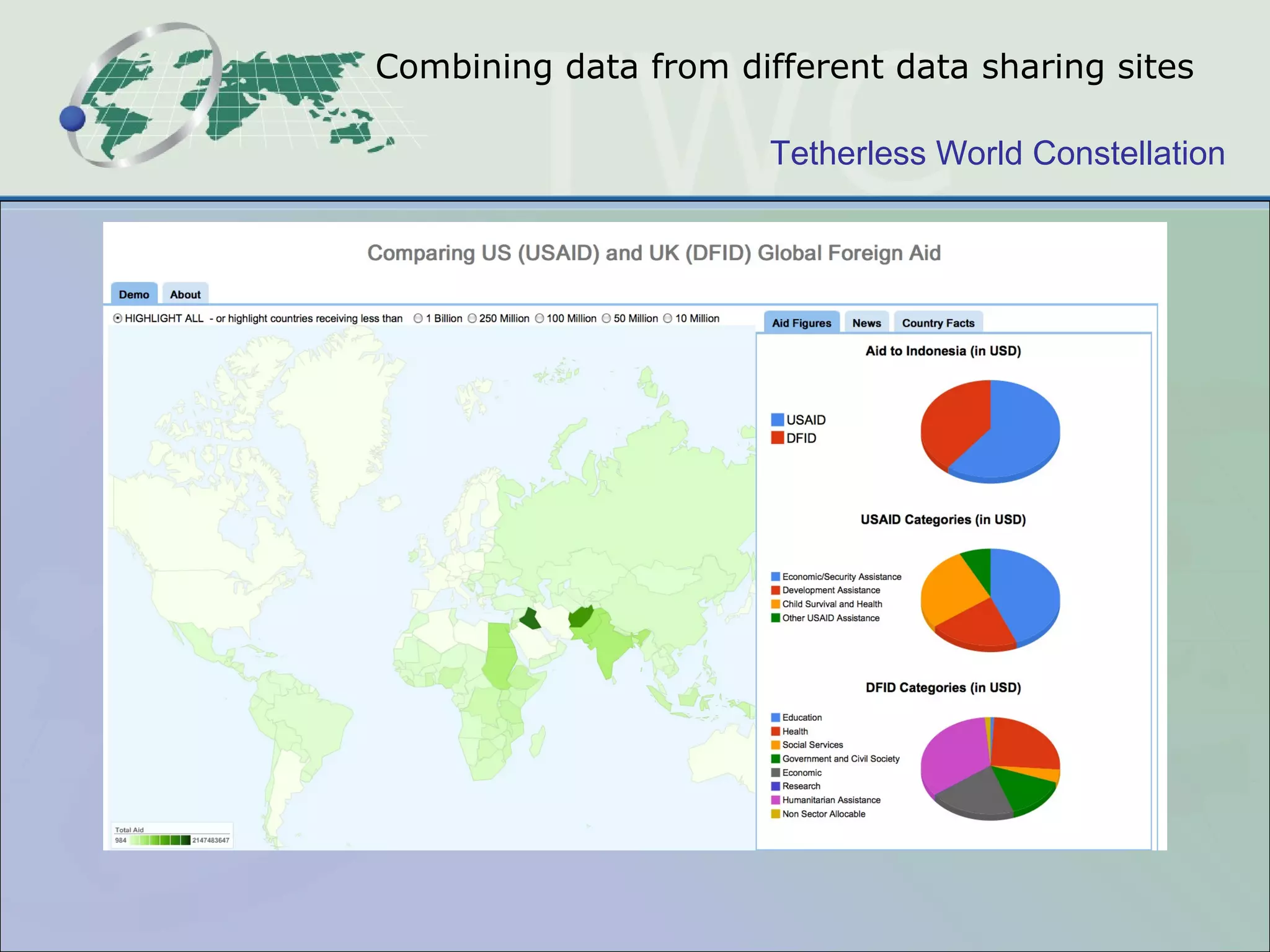

Combining data from different data sharing sites

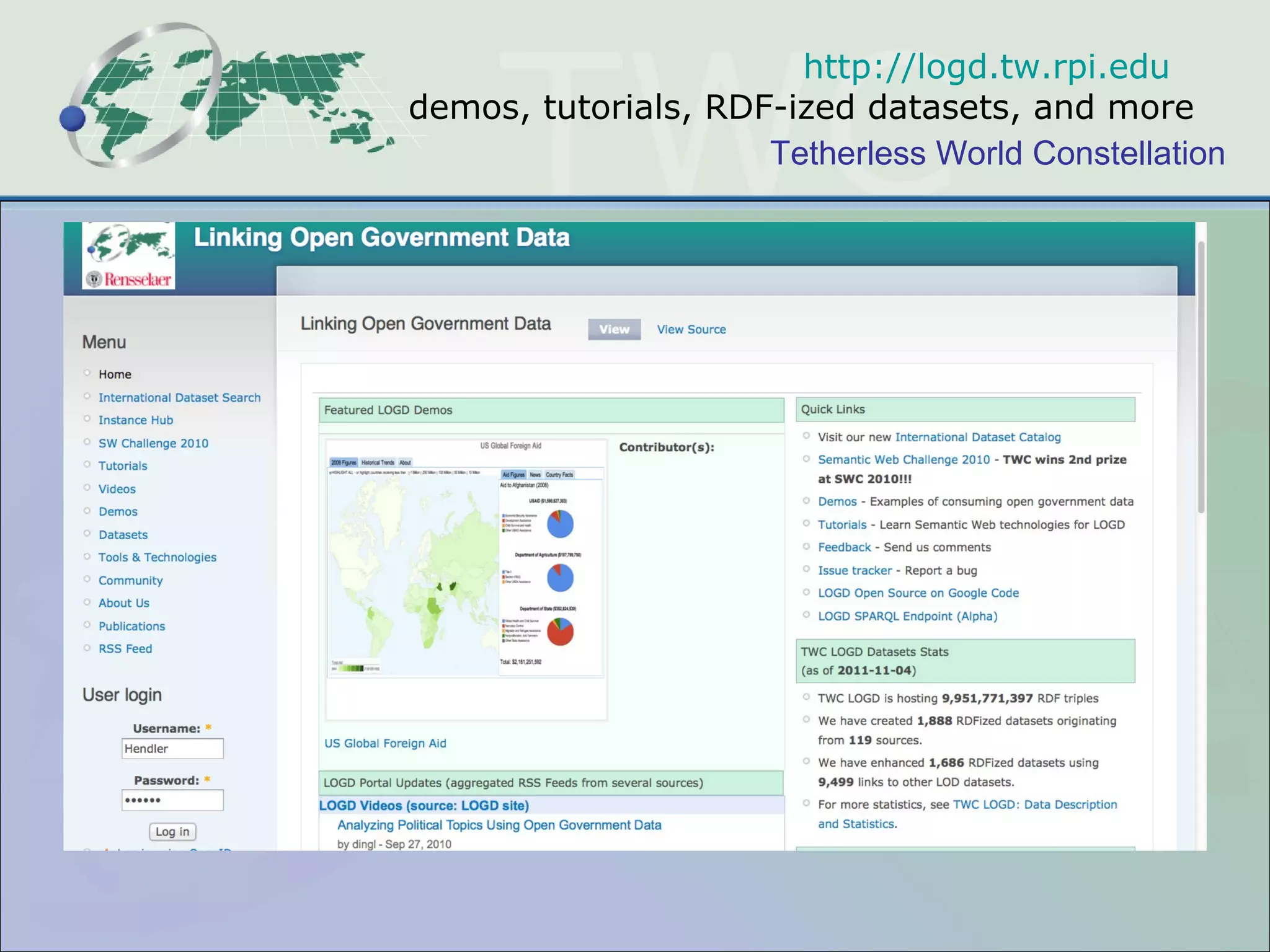

http://logd.tw.rpi.edu demos, tutorials, RDF-ized datasets, and more

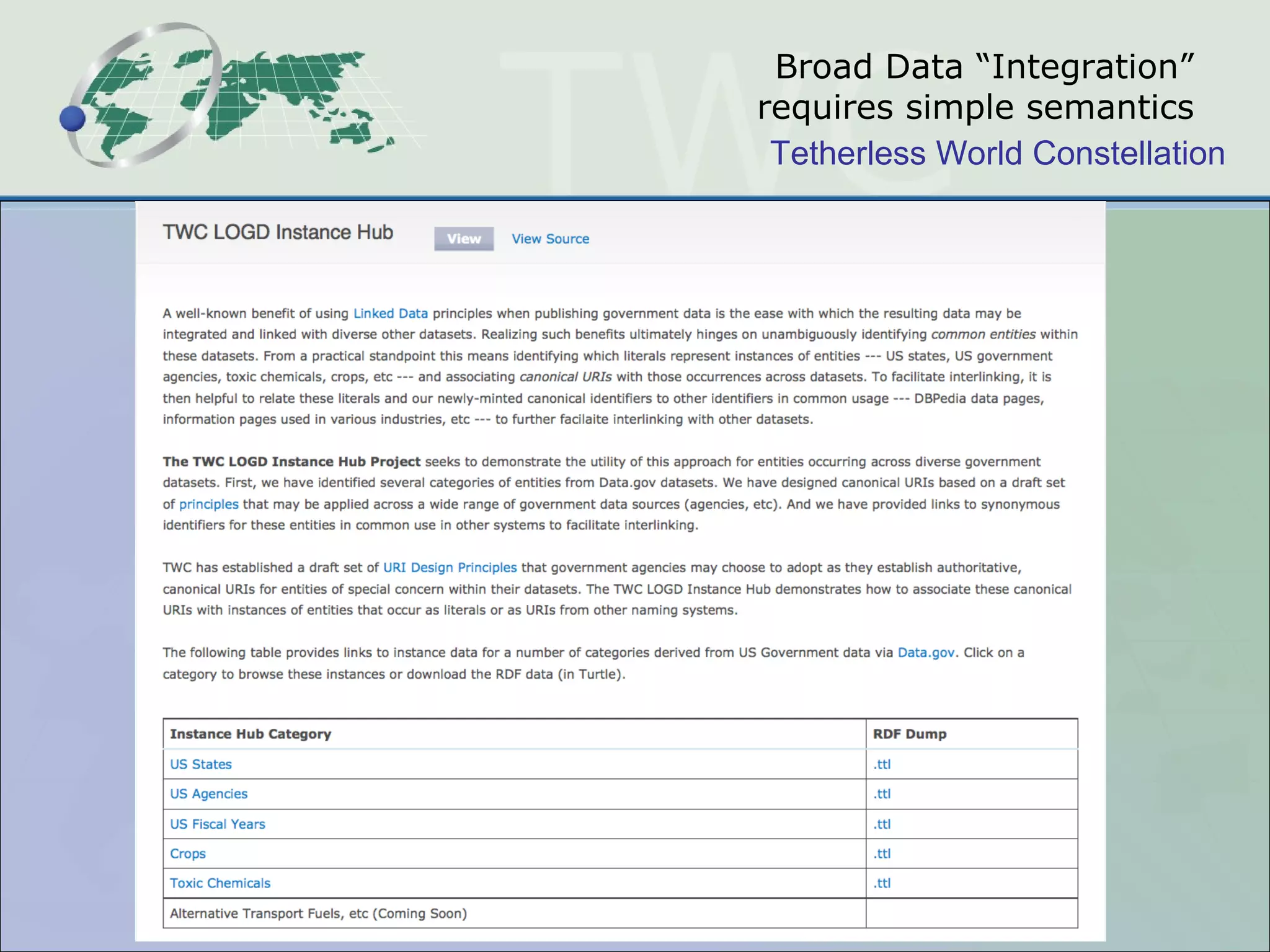

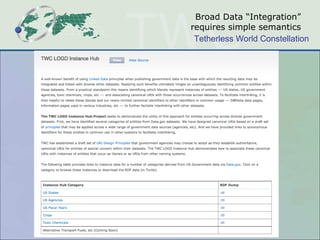

Broad Data “Integration” requires simple semantics

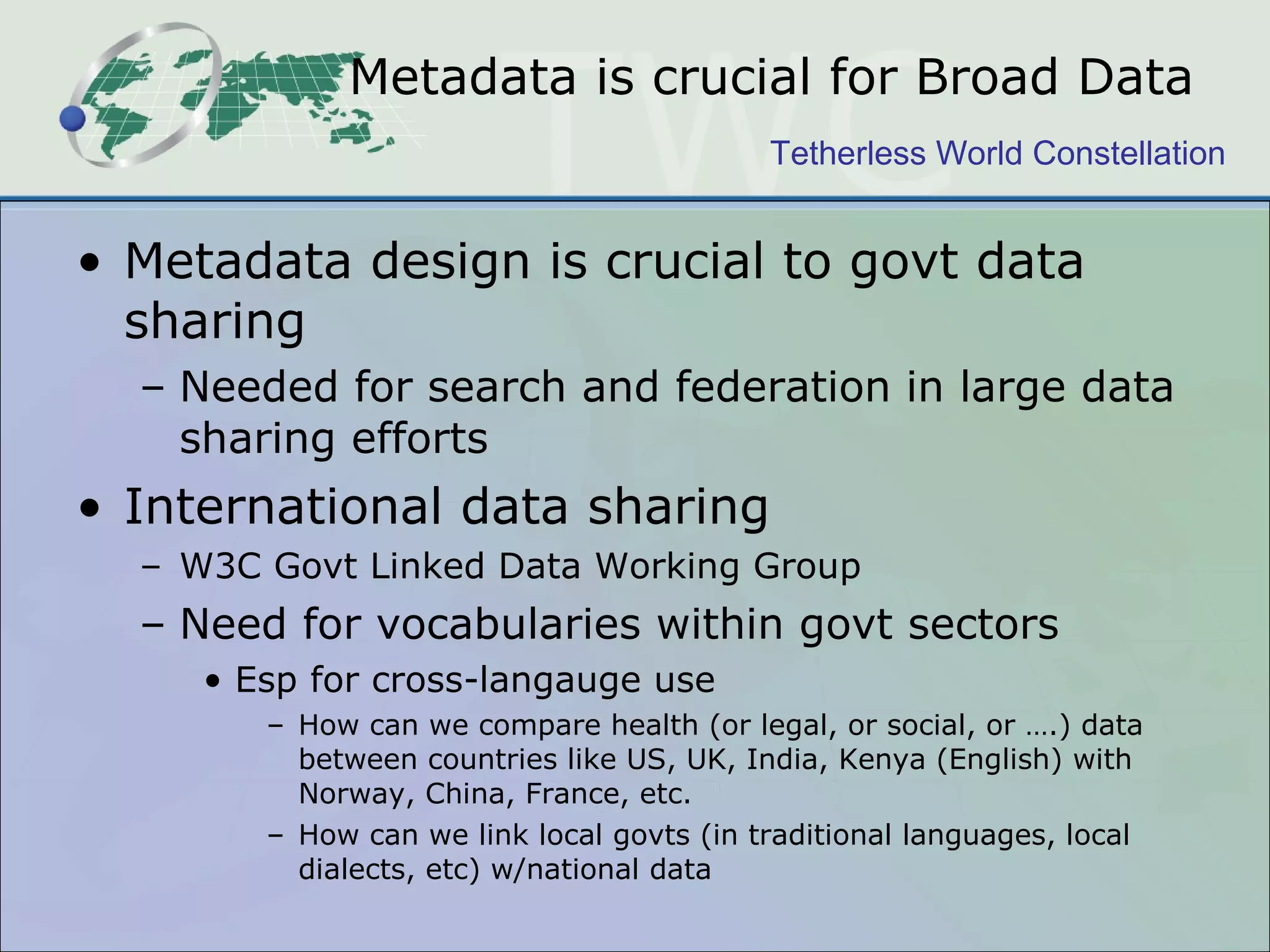

Metadata is crucial for Broad Data Metadata design is crucial to govt data sharing Needed for search and federation in large data sharing efforts International data sharing W3C Govt Linked Data Working Group Need for vocabularies within govt sectors Esp for cross-langauge use How can we compare health (or legal, or social, or ….) data between countries like US, UK, India, Kenya (English) with Norway, China, France, etc. How can we link local govts (in traditional languages, local dialects, etc) w/national data

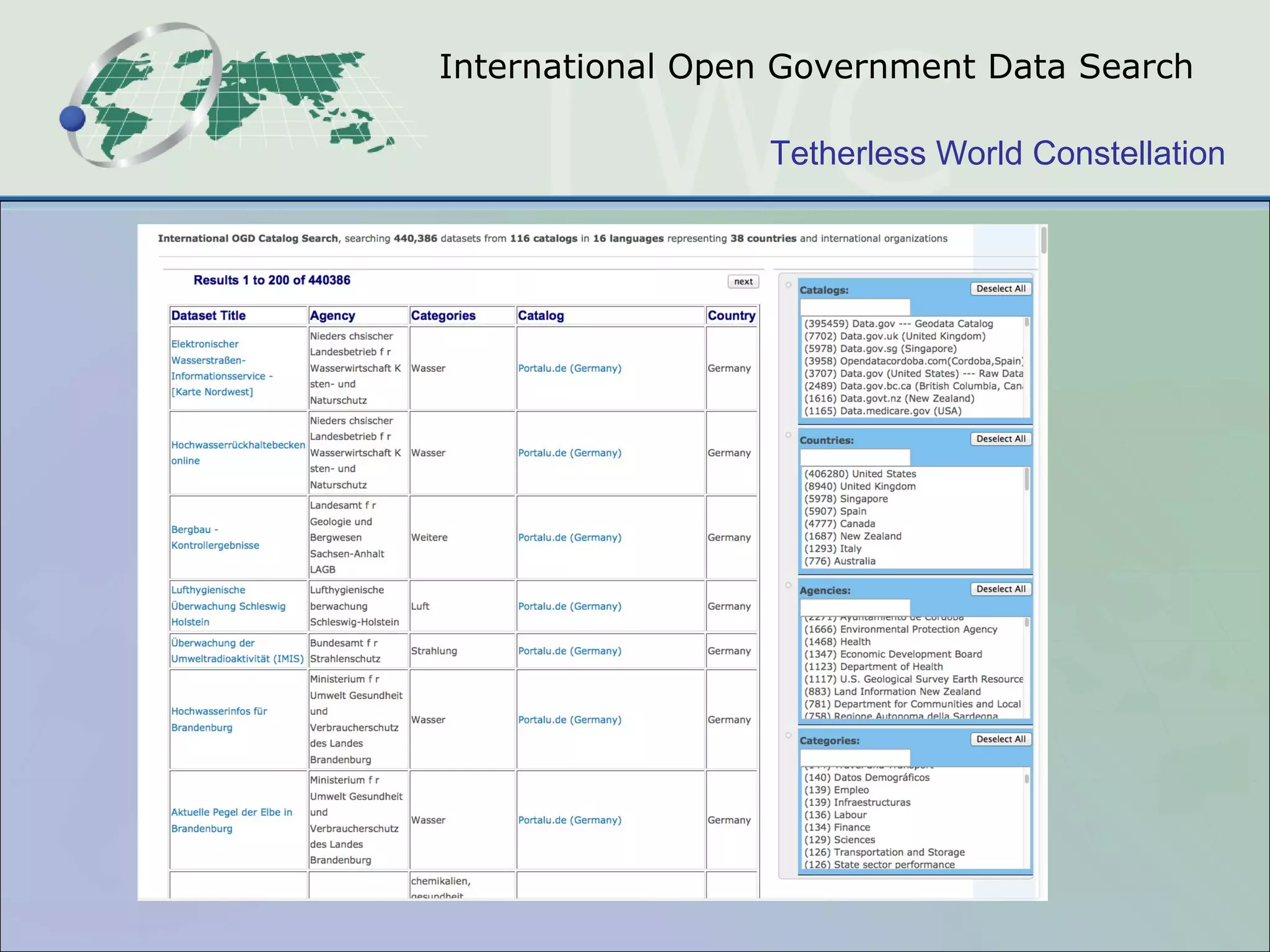

International Open Government Data Search

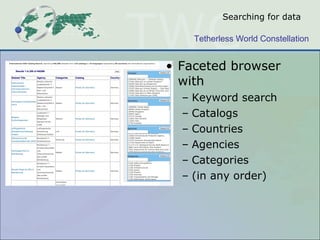

Searching for data Faceted browser with Keyword search Catalogs Countries Agencies Categories (in any order)

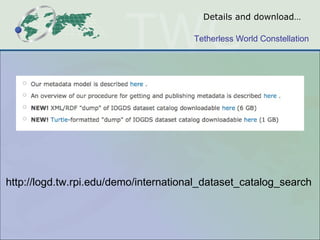

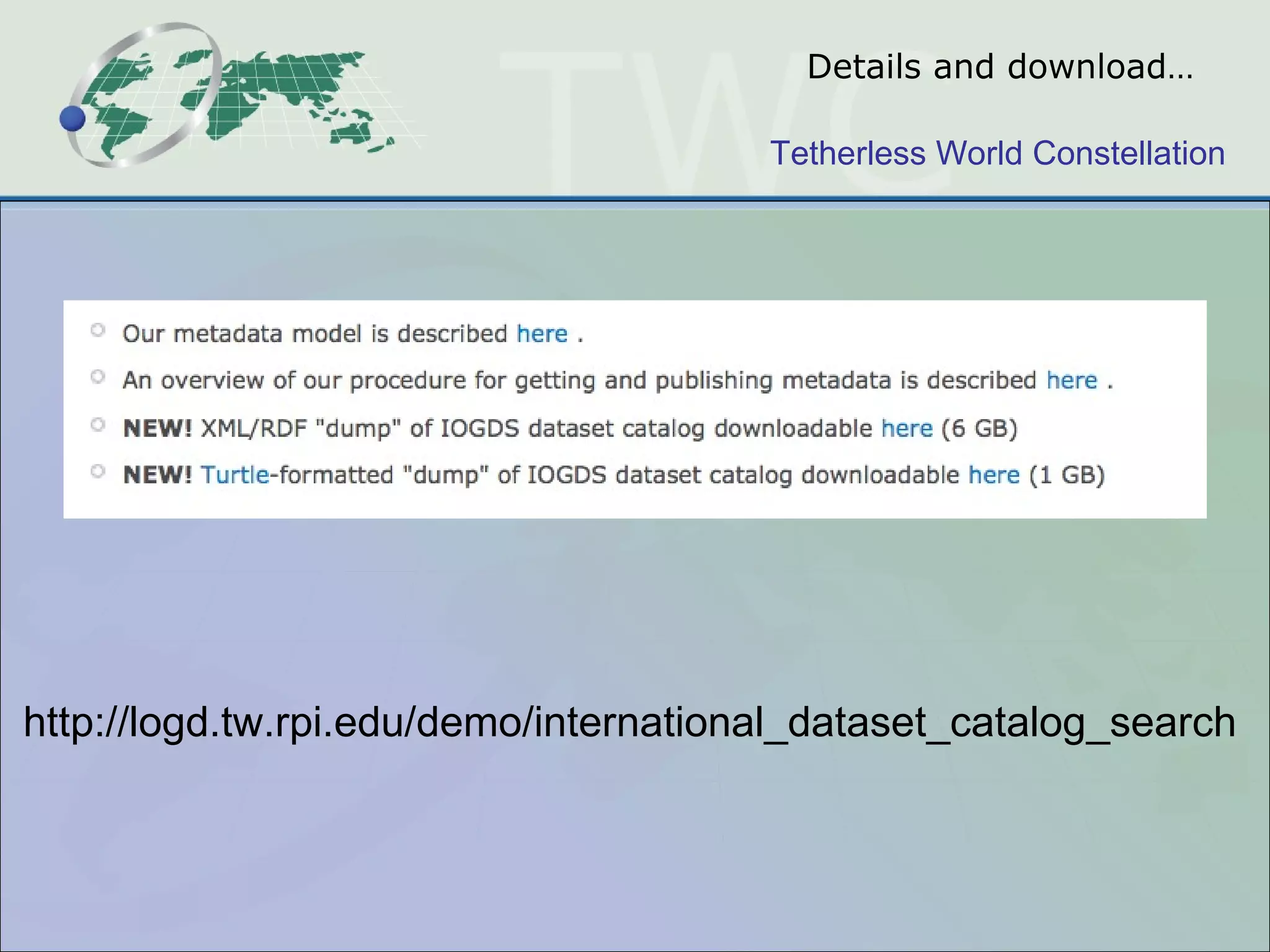

Details and download… http://logd.tw.rpi.edu/demo/international_dataset_catalog_search

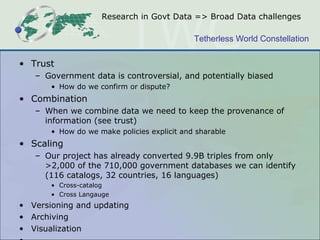

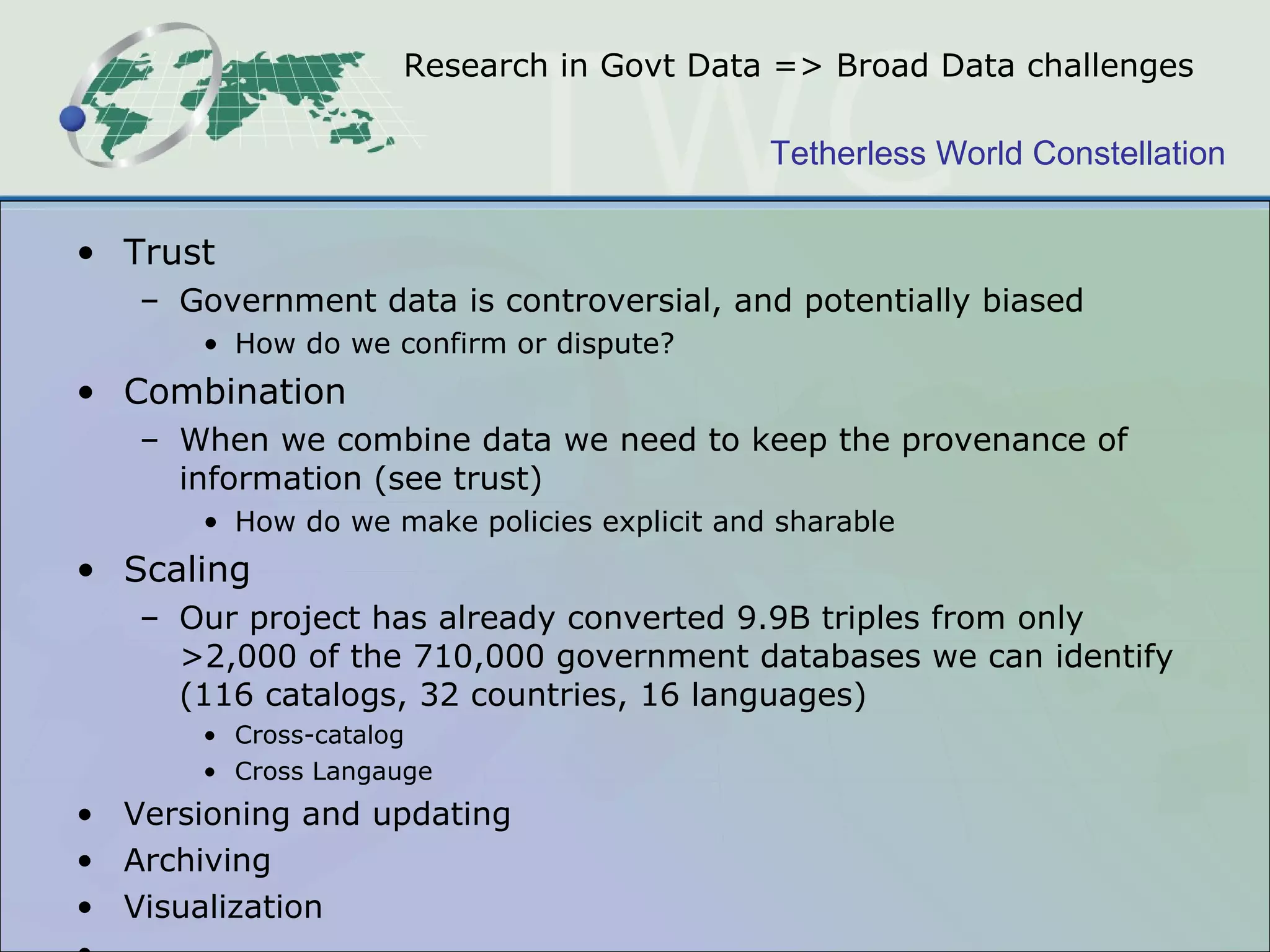

Research in Govt Data => Broad Data challenges Trust Government data is controversial, and potentially biased How do we confirm or dispute? Combination When we combine data we need to keep the provenance of information (see trust) How do we make policies explicit and sharable Scaling Our project has already converted 9.9B triples from only >2,000 of the 710,000 government databases we can identify (116 catalogs, 32 countries, 16 languages) Cross-catalog Cross Langauge Versioning and updating Archiving Visualization …

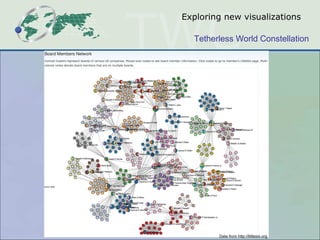

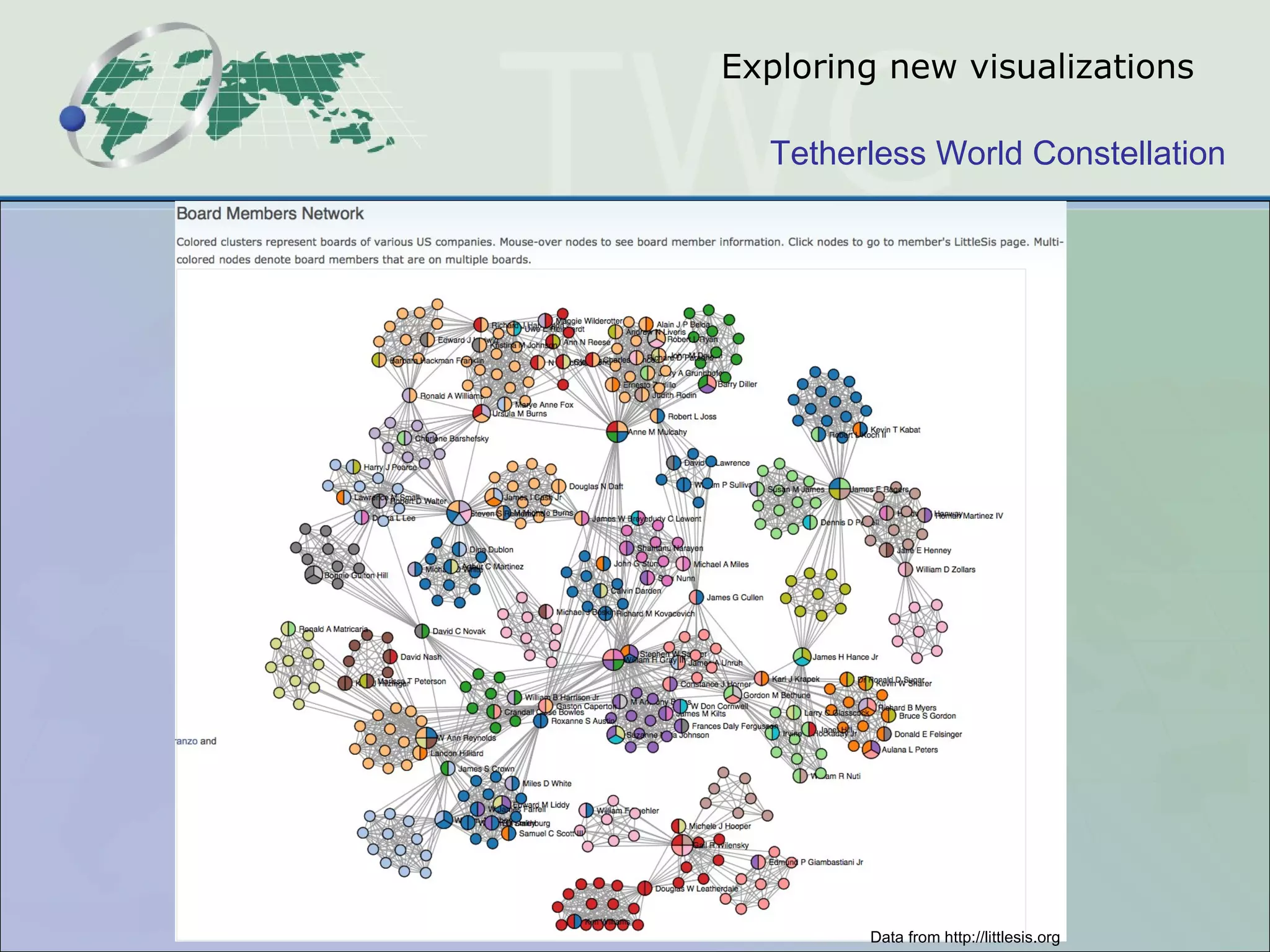

Exploring new visualizations Data from http://littlesis.org

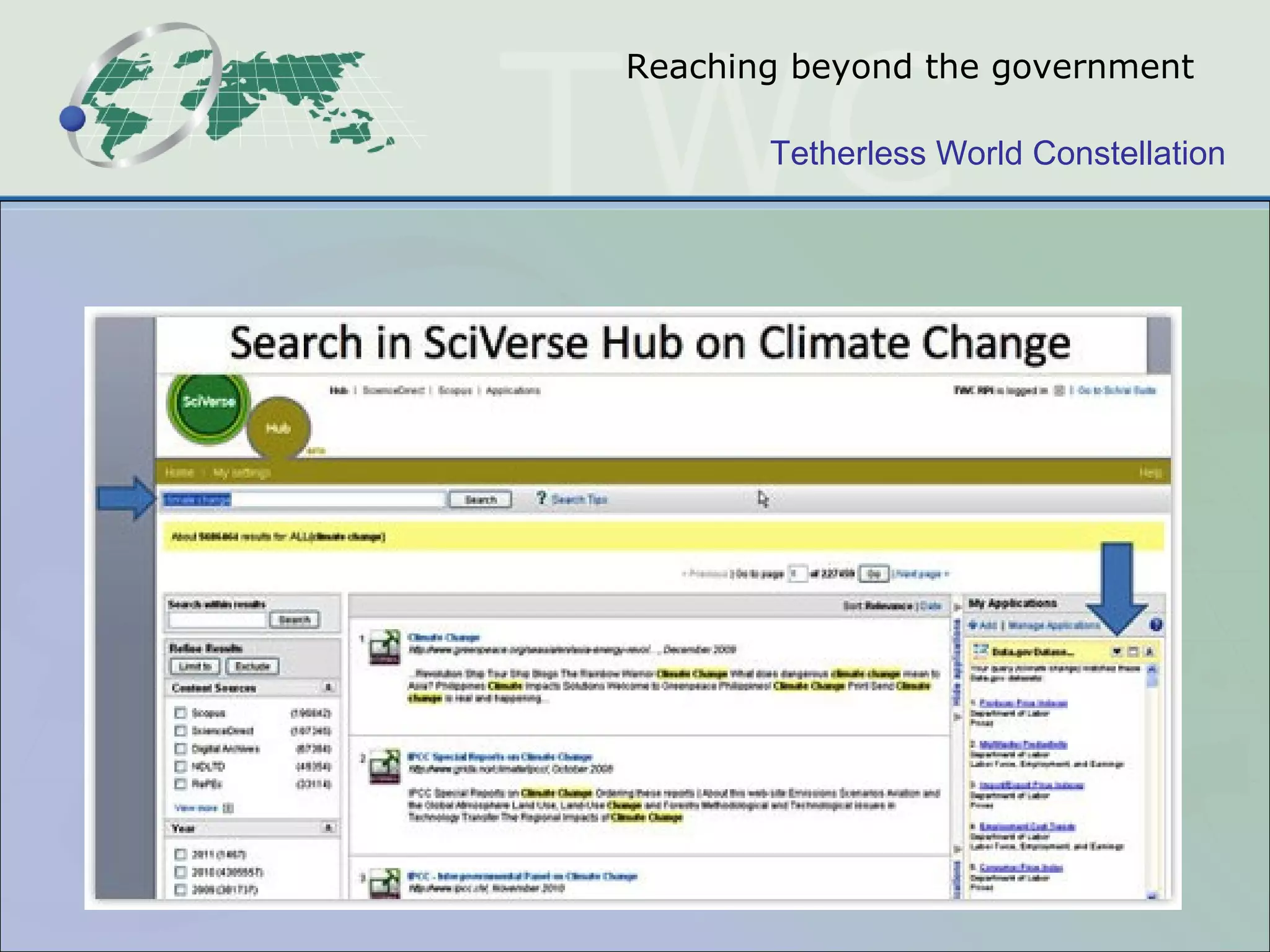

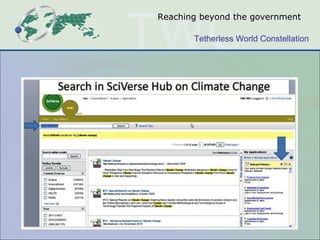

Reaching beyond the government

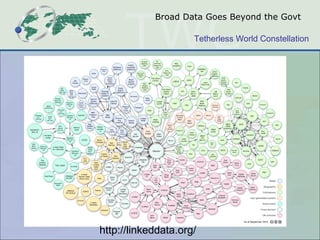

Broad Data Goes Beyond the Govt http://linkeddata.org/

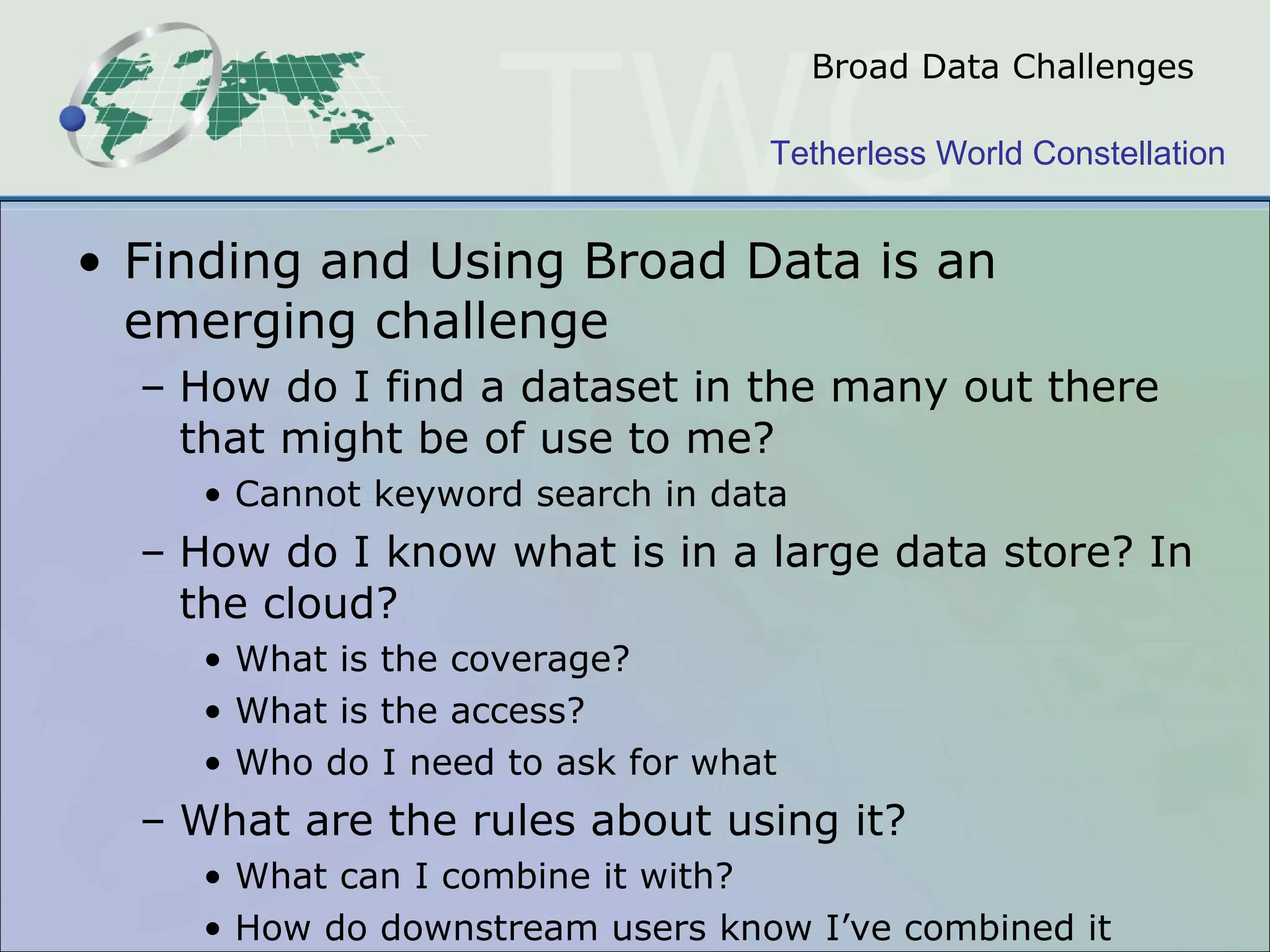

Broad Data Challenges Finding and Using Broad Data is an emerging challenge How do I find a dataset in the many out there that might be of use to me? Cannot keyword search in data How do I know what is in a large data store? In the cloud? What is the coverage? What is the access? Who do I need to ask for what What are the rules about using it? What can I combine it with? How do downstream users know I ’ ve combined it

Broad Data Market? Significant and growing commercial interest… Web: Google, Amazon, Travelocity… Web 2.0: Facebook, Wikipedia, YouTube, Twitter… Web 3.0: ??

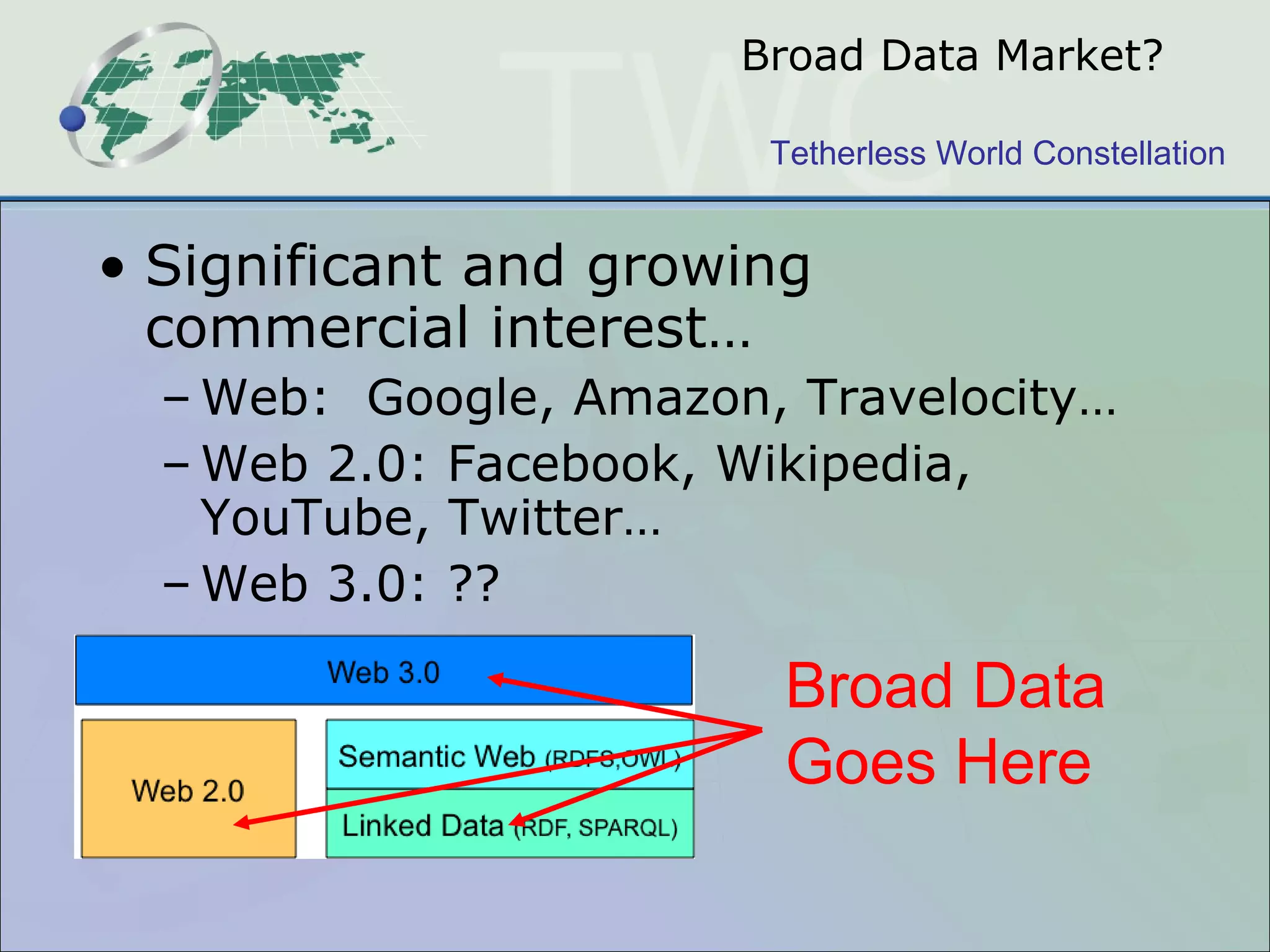

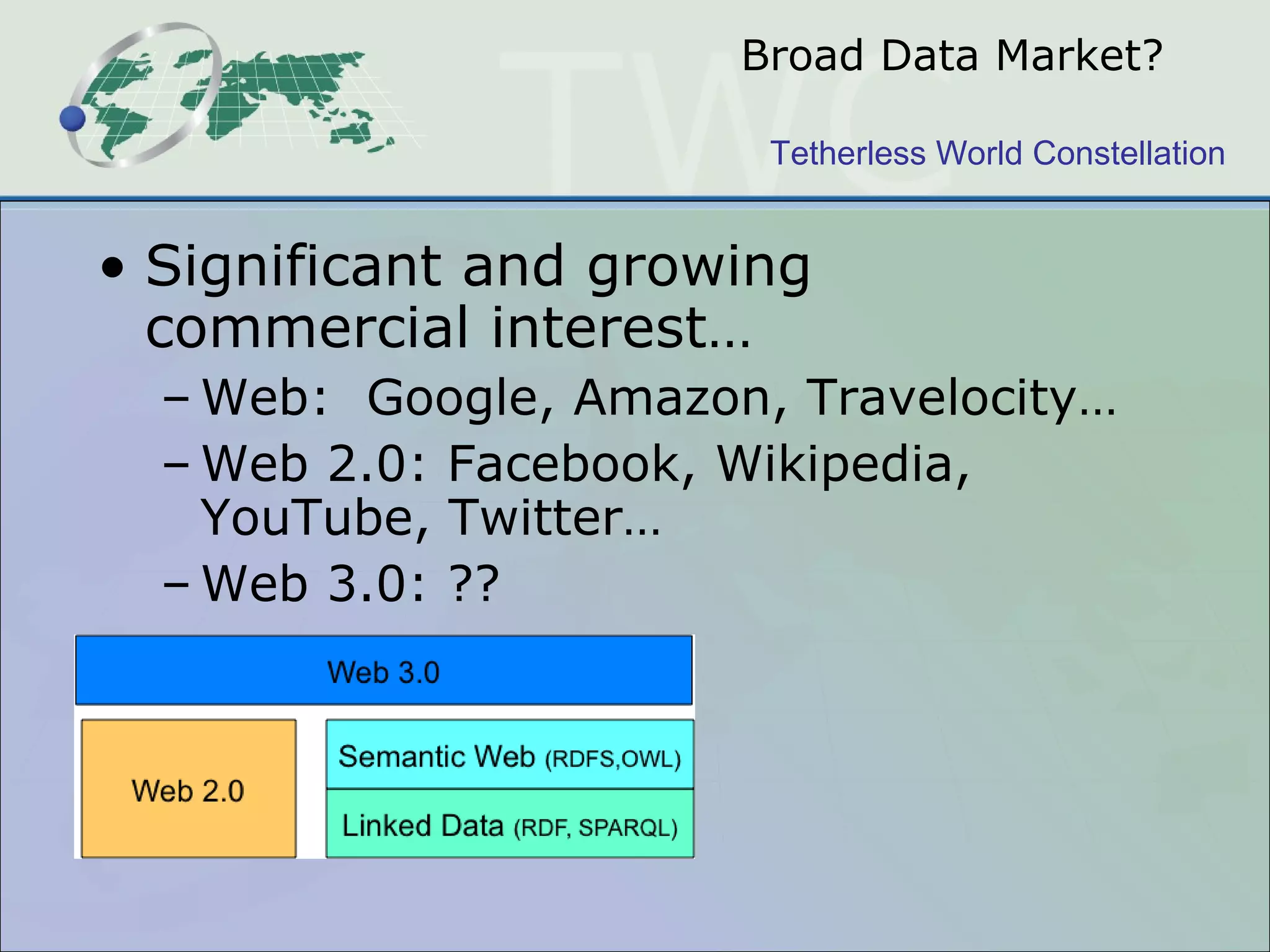

Broad Data Market? Significant and growing commercial interest… Web: Google, Amazon, Travelocity… Web 2.0: Facebook, Wikipedia, YouTube, Twitter… Web 3.0: ?? Broad Data Goes Here

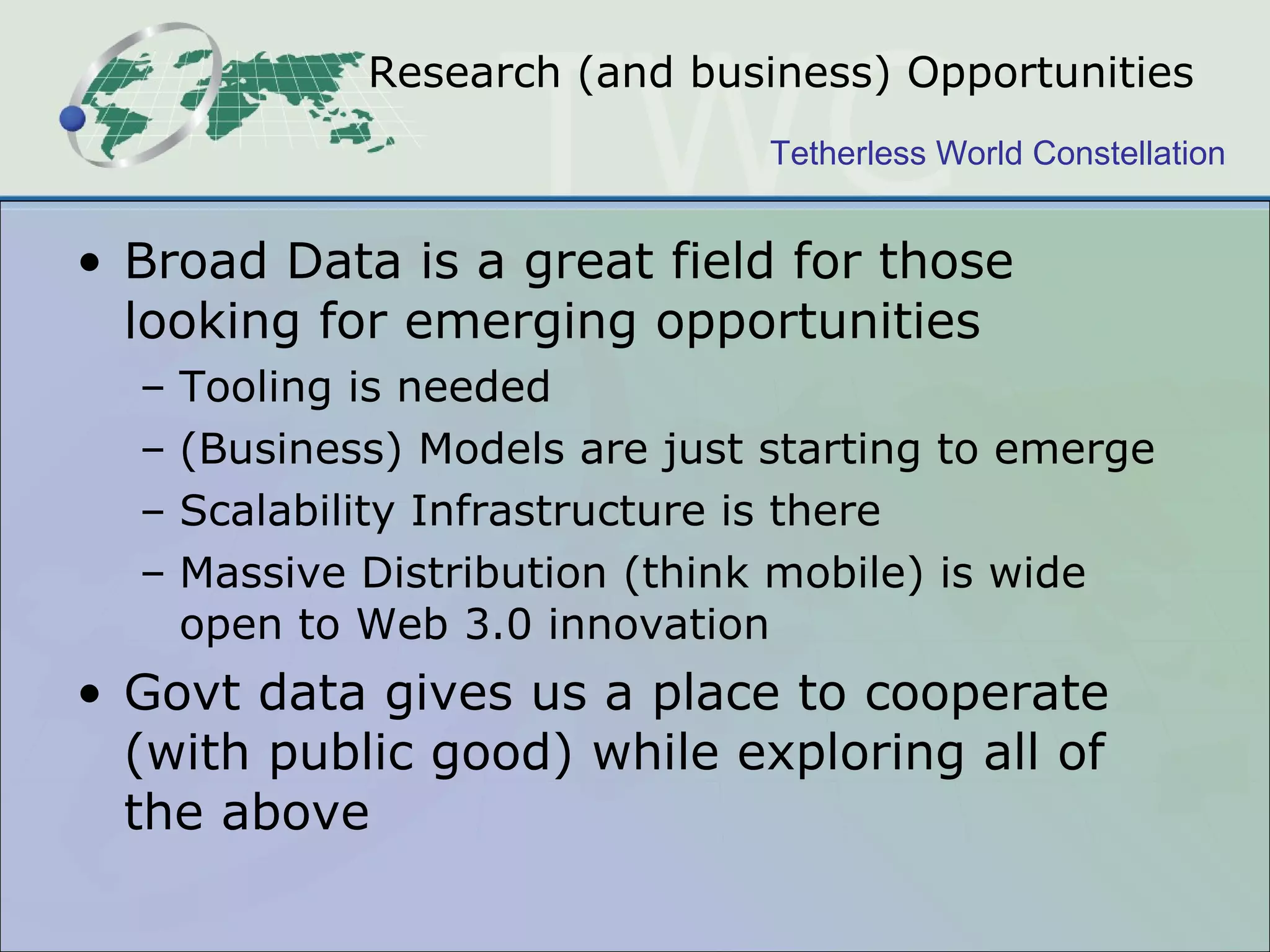

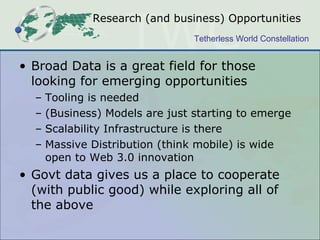

Research (and business) Opportunities Broad Data is a great field for those looking for emerging opportunities Tooling is needed (Business) Models are just starting to emerge Scalability Infrastructure is there Massive Distribution (think mobile) is wide open to Web 3.0 innovation Govt data gives us a place to cooperate (with public good) while exploring all of the above

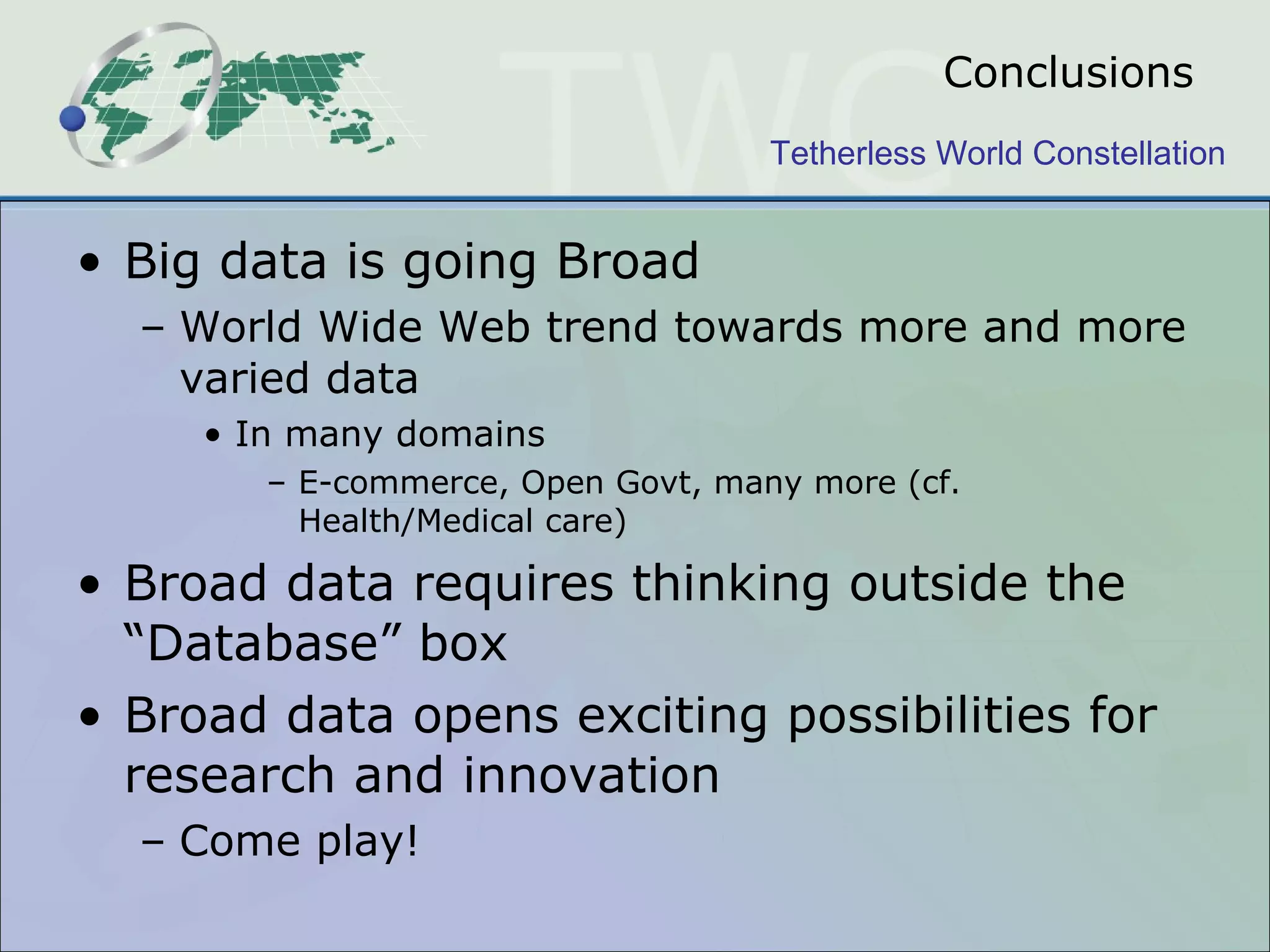

Conclusions Big data is going Broad World Wide Web trend towards more and more varied data In many domains E-commerce, Open Govt, many more (cf. Health/Medical care) Broad data requires thinking outside the “Database” box Broad data opens exciting possibilities for research and innovation Come play!
