Building Distributed Systems in Scala

Building Distributed Systems in Scala
A presentation to Emerging Technologies for the Enterprise
April 8, 2010 – Philadelphia, PA

TM

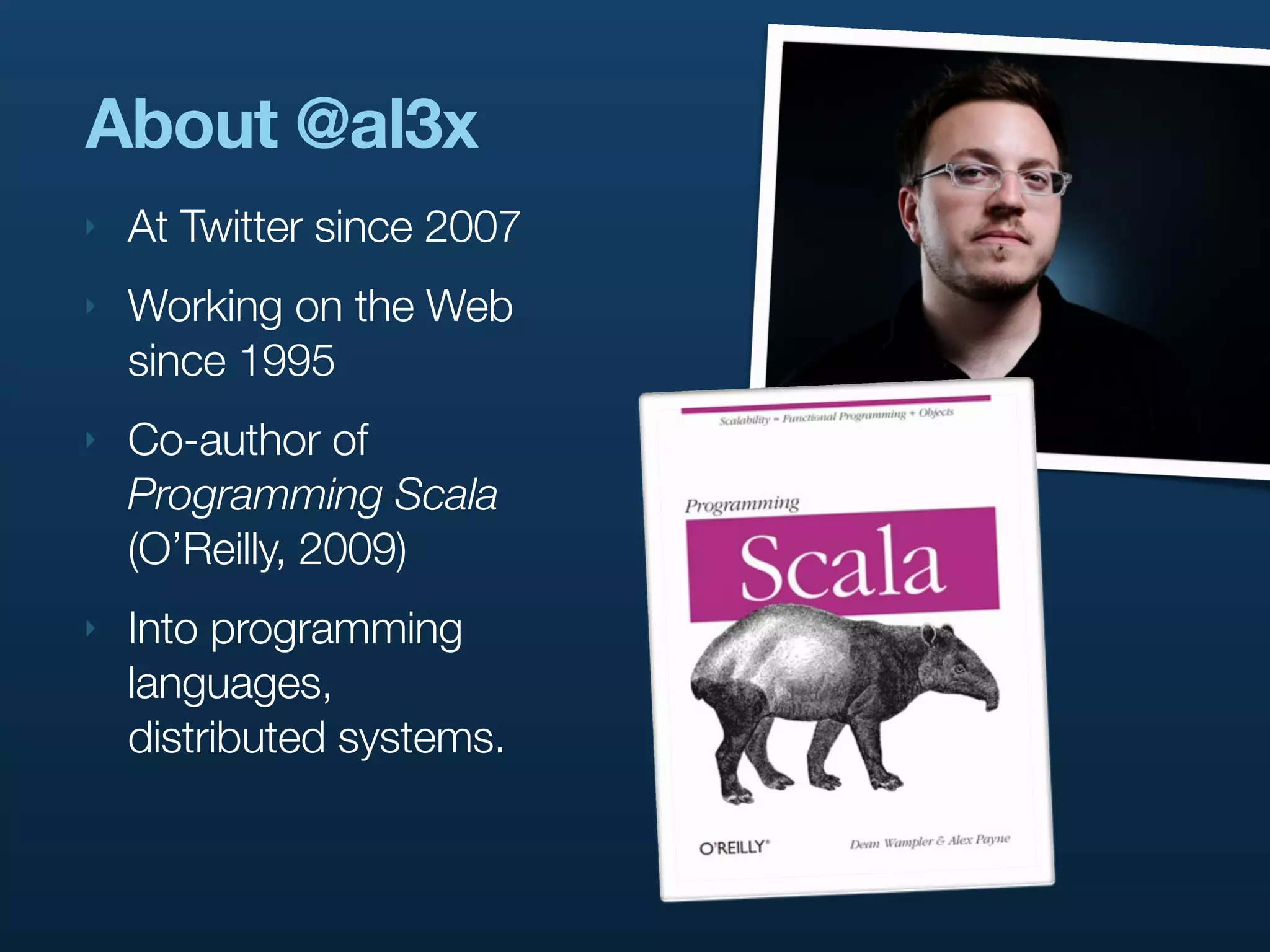

About @al3x
‣ At Twitter since 2007
‣ Working on the Web
since 1995
‣ Co-author of
Programming Scala
(O’Reilly, 2009)
‣ Into programming
languages,
distributed systems.

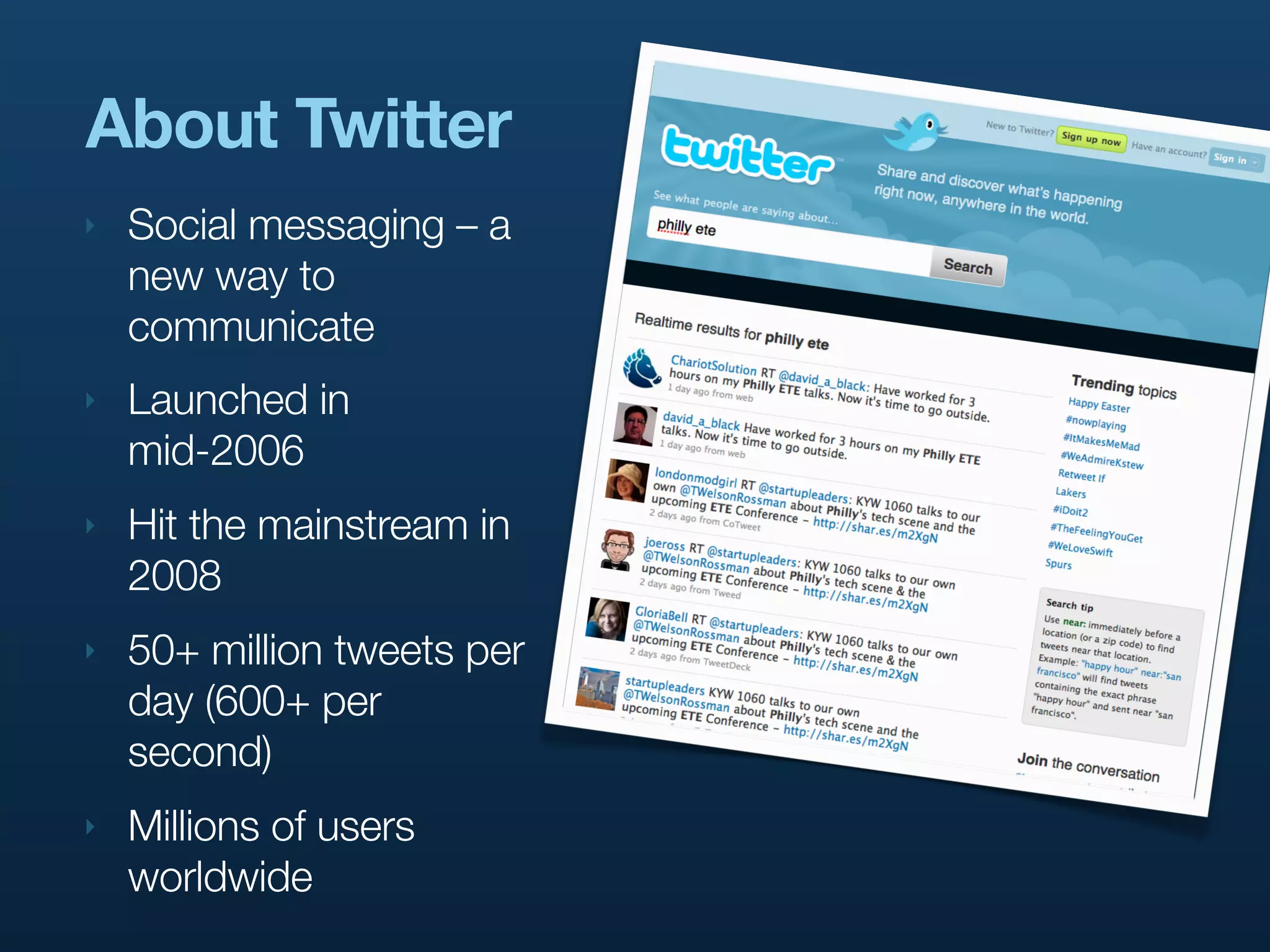

About Twitter
‣ Social messaging – a
new way to
communicate
‣ Launched in
mid-2006
‣ Hit the mainstream in
2008
‣ 50+ million tweets per
day (600+ per
second)
‣ Millions of users
worldwide

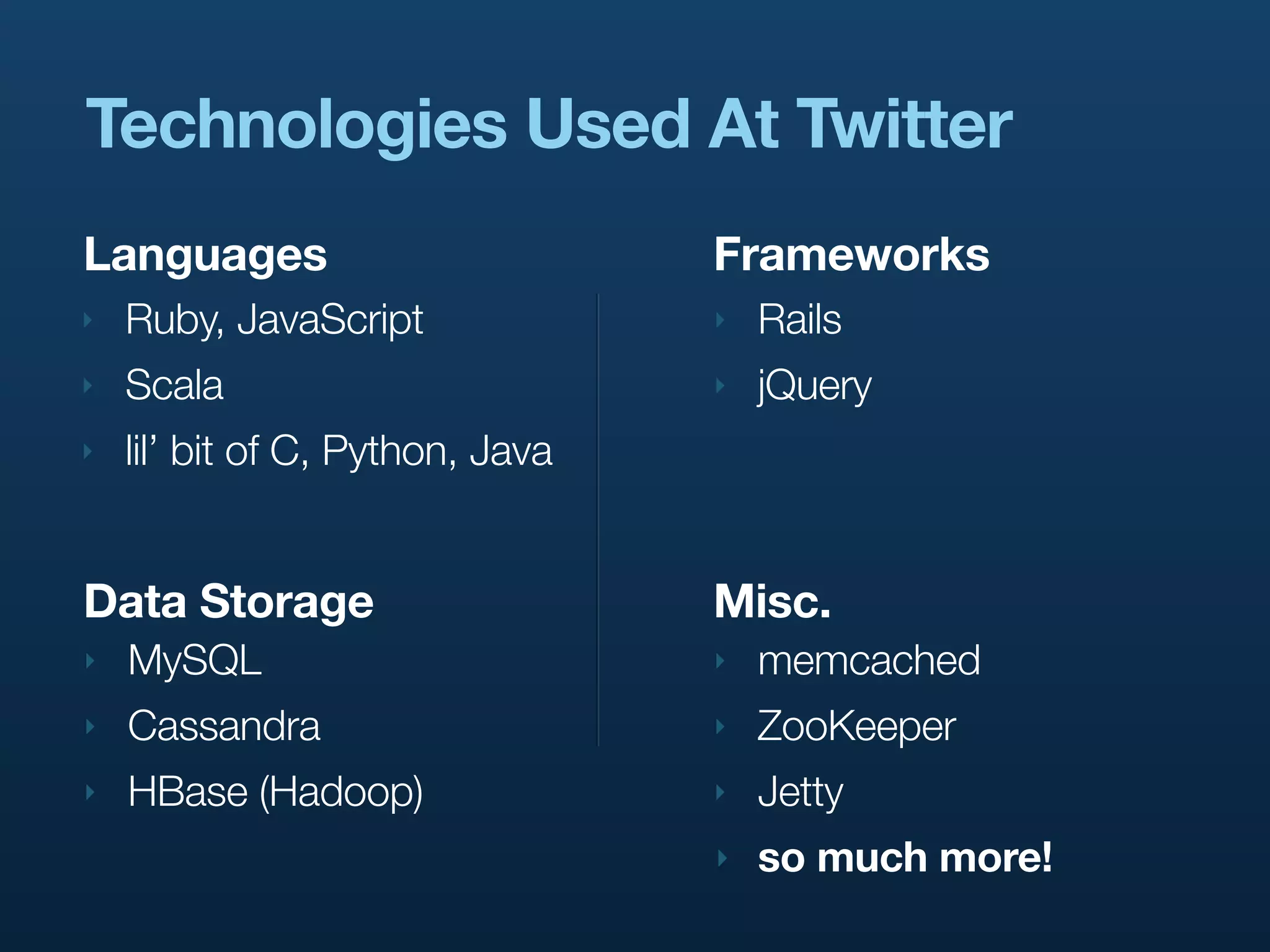

Technologies Used At Twitter
Languages Frameworks
‣ Ruby, JavaScript ‣ Rails
‣ Scala ‣ jQuery
‣ lil’ bit of C, Python, Java

Data Storage Misc.
‣ MySQL ‣ memcached
‣ Cassandra ‣ ZooKeeper
‣ HBase (Hadoop) ‣ Jetty
‣ so much more!

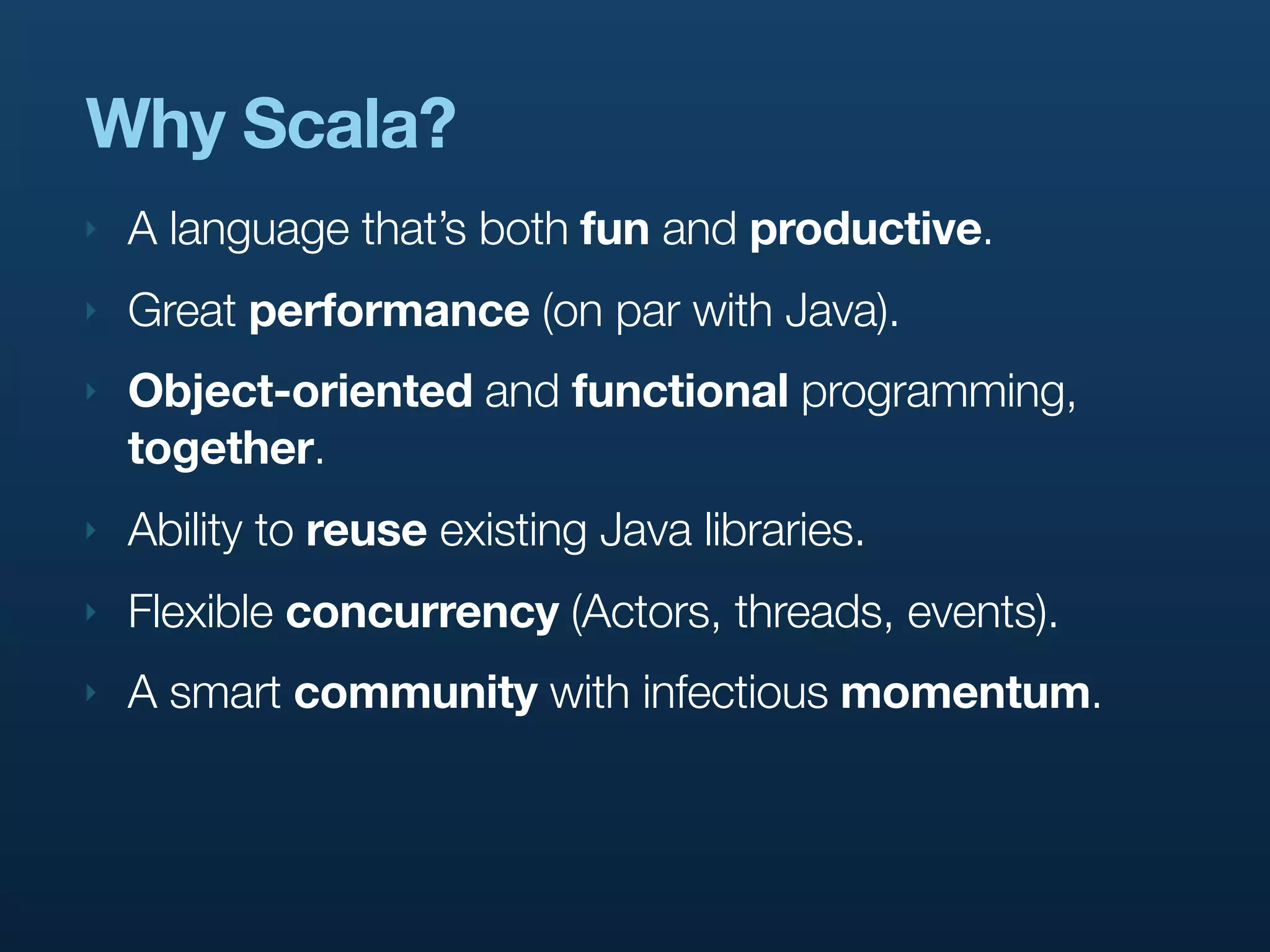

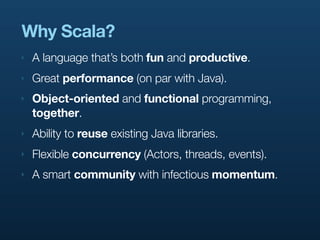

Why Scala?
‣ A language that’s both fun and productive.
‣ Great performance (on par with Java).
‣ Object-oriented and functional programming,
together.
‣ Ability to reuse existing Java libraries.
‣ Flexible concurrency (Actors, threads, events).
‣ A smart community with infectious momentum.

Hawkwind
A case study in (re)building
a distributed system in Scala.

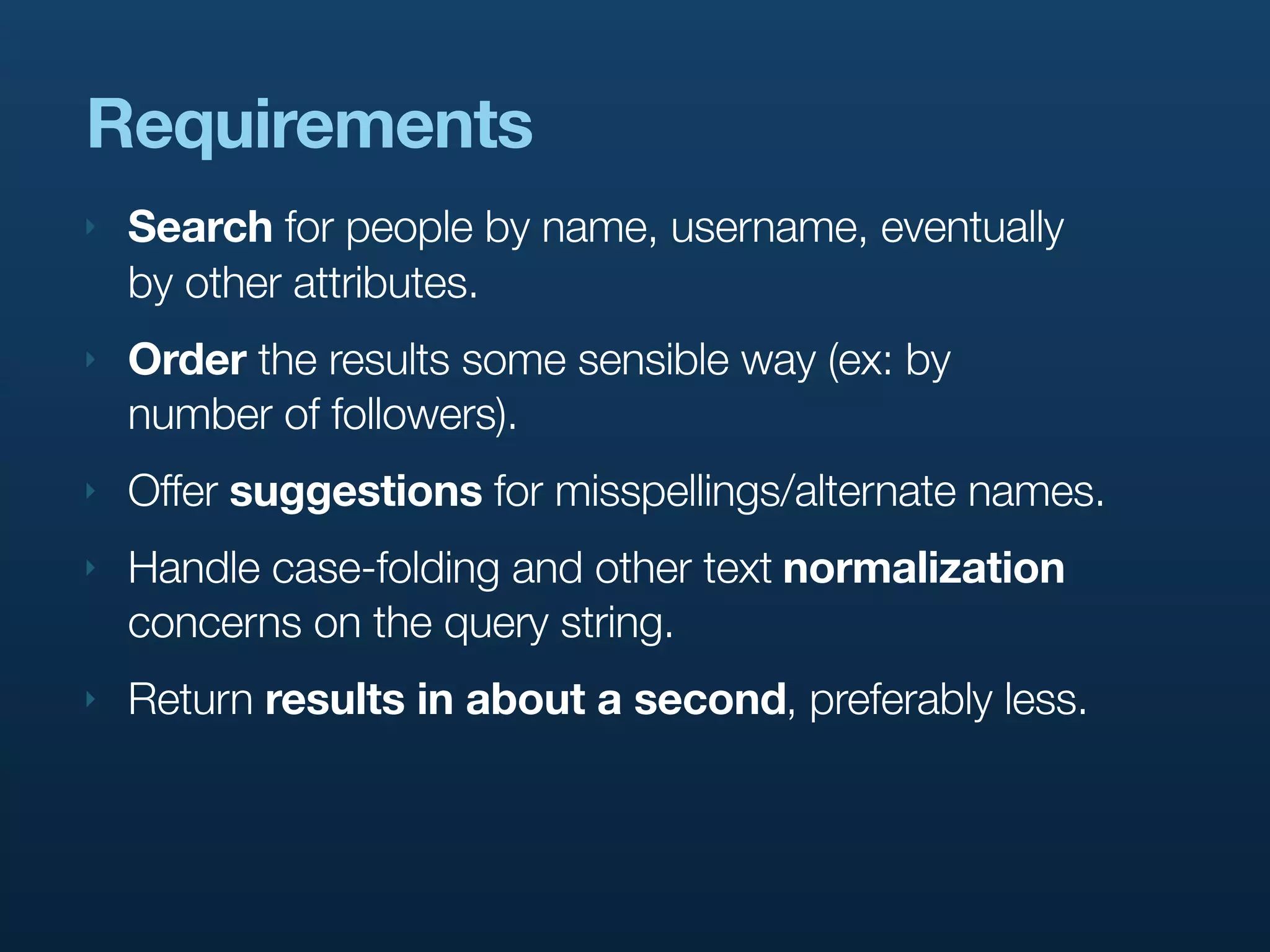

Requirements
‣ Search for people by name, username, eventually
by other attributes.
‣ Order the results some sensible way (ex: by
number of followers).
‣ Offer suggestions for misspellings/alternate names.
‣ Handle case-folding and other text normalization
concerns on the query string.
‣ Return results in about a second, preferably less.

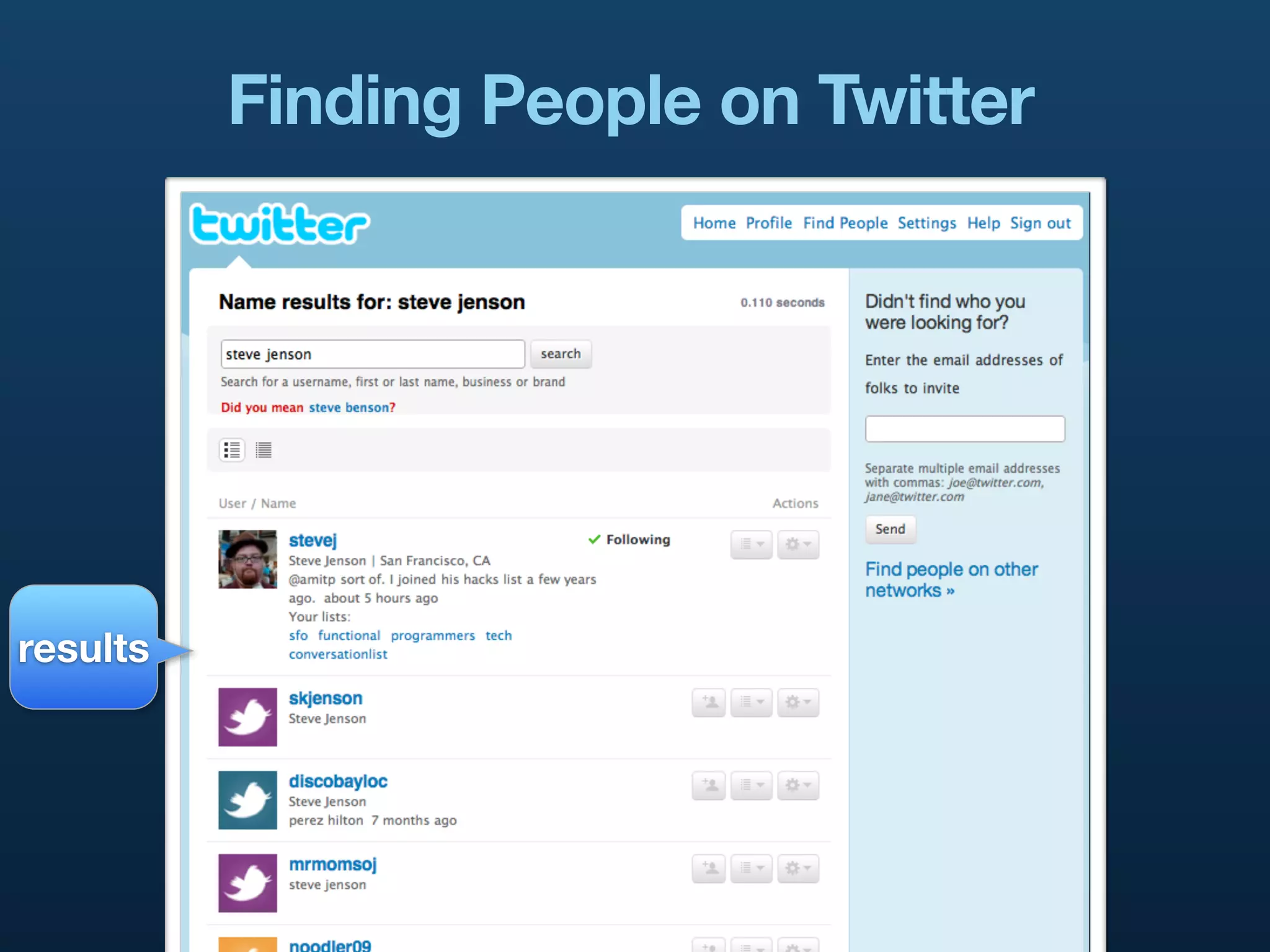

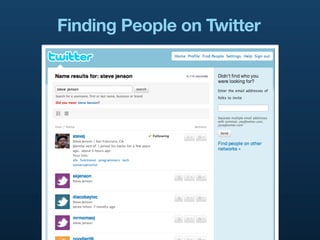

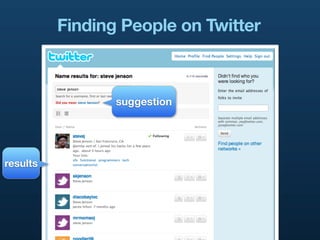

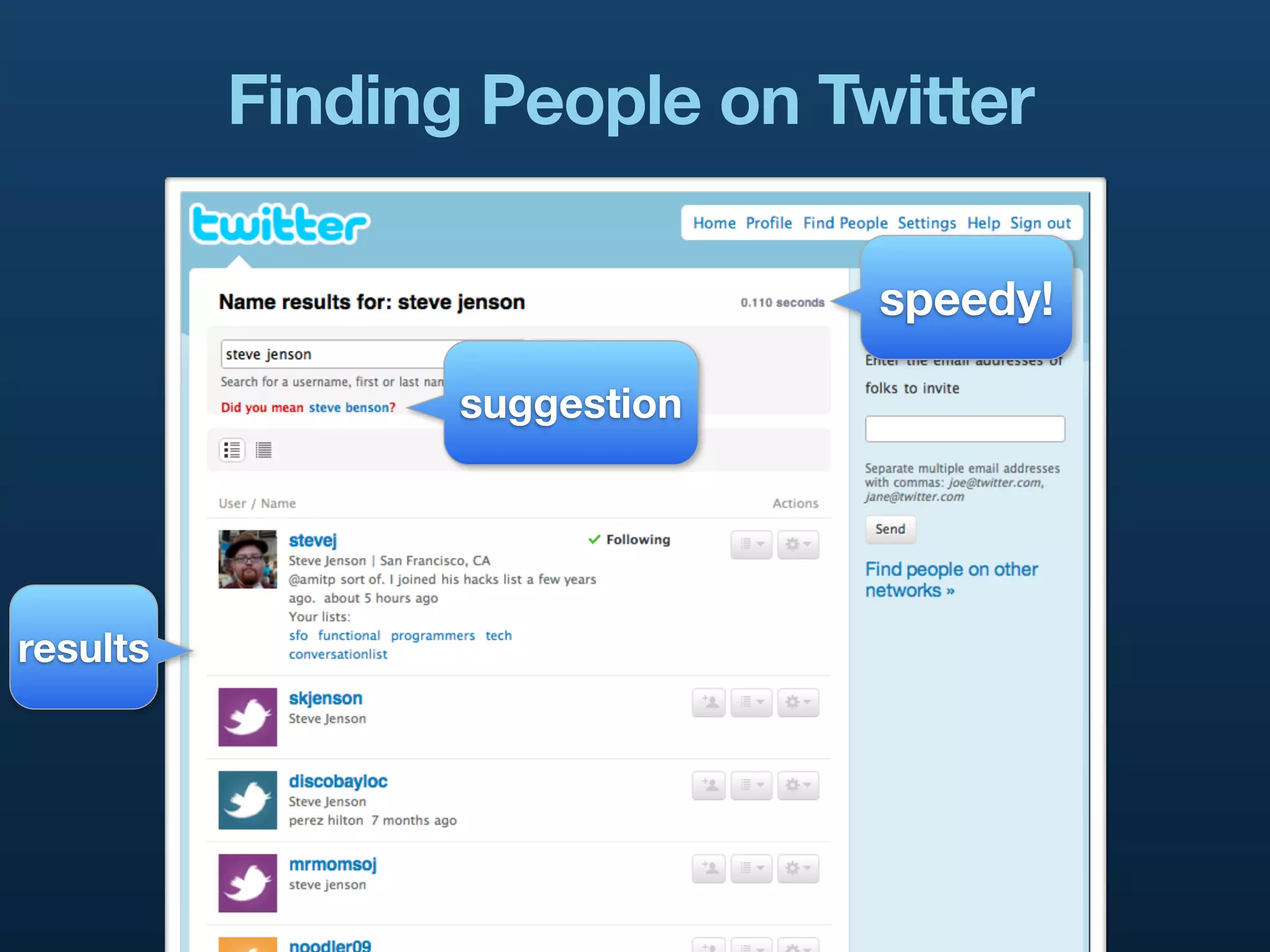

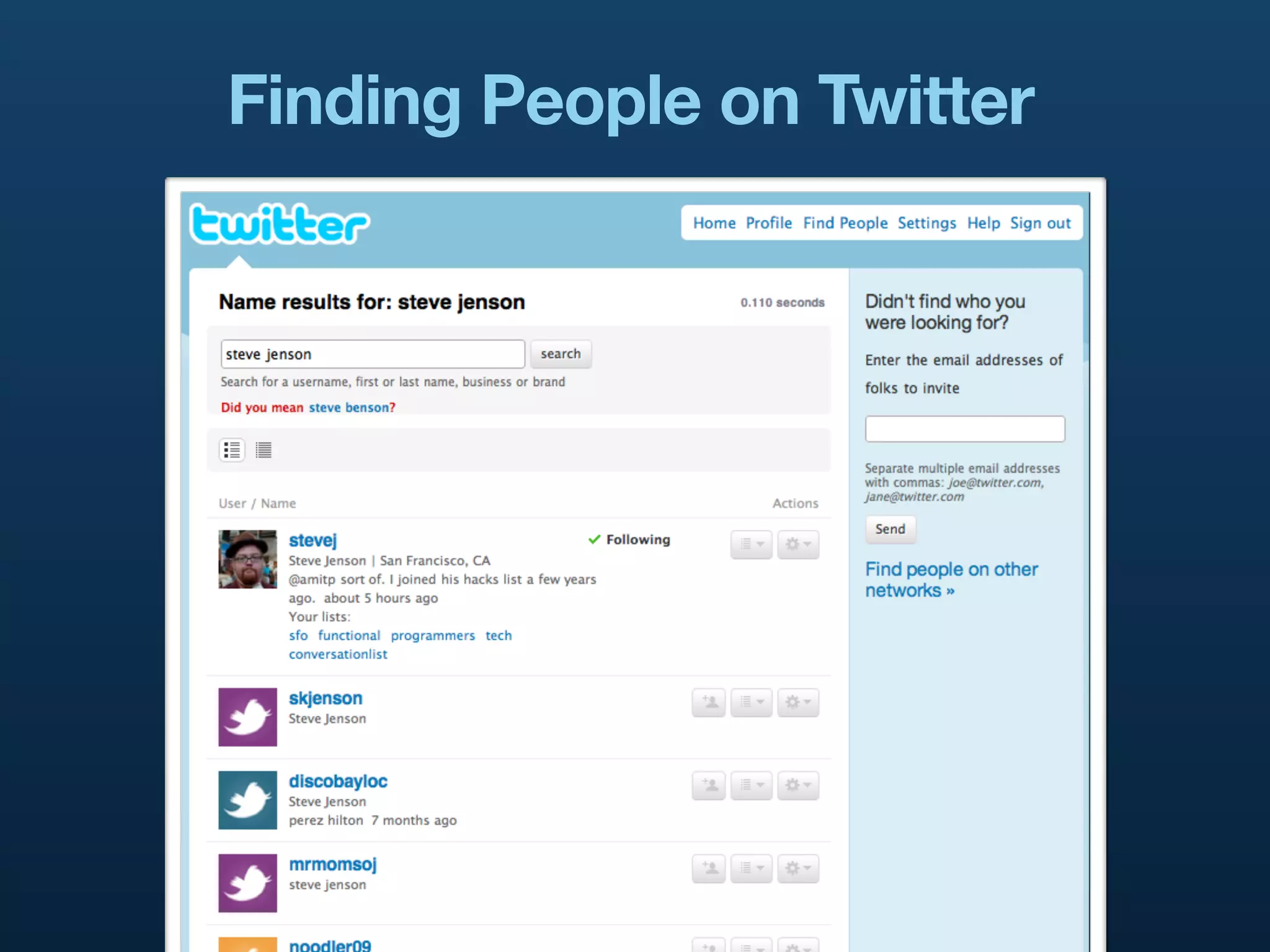

Finding People on Twitter

results


suggestion

results


speedy!

suggestion

results

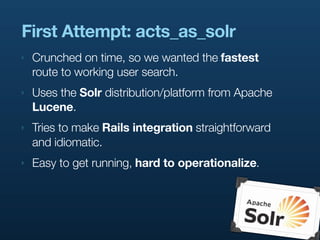

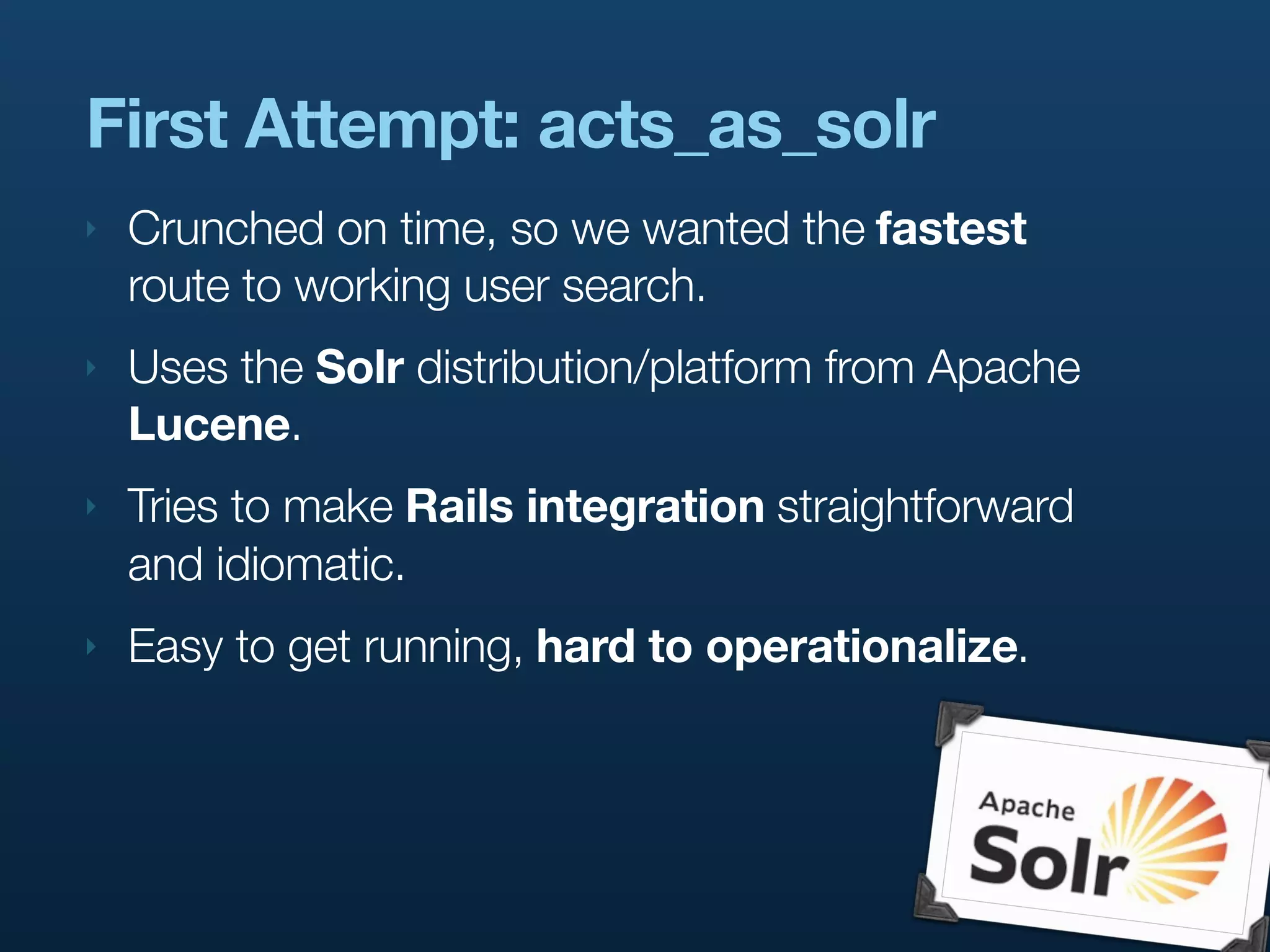

First Attempt: acts_as_solr
‣ Crunched on time, so we wanted the fastest
route to working user search.
‣ Uses the Solr distribution/platform from Apache
Lucene.
‣ Tries to make Rails integration straightforward
and idiomatic.
‣ Easy to get running, hard to operationalize.

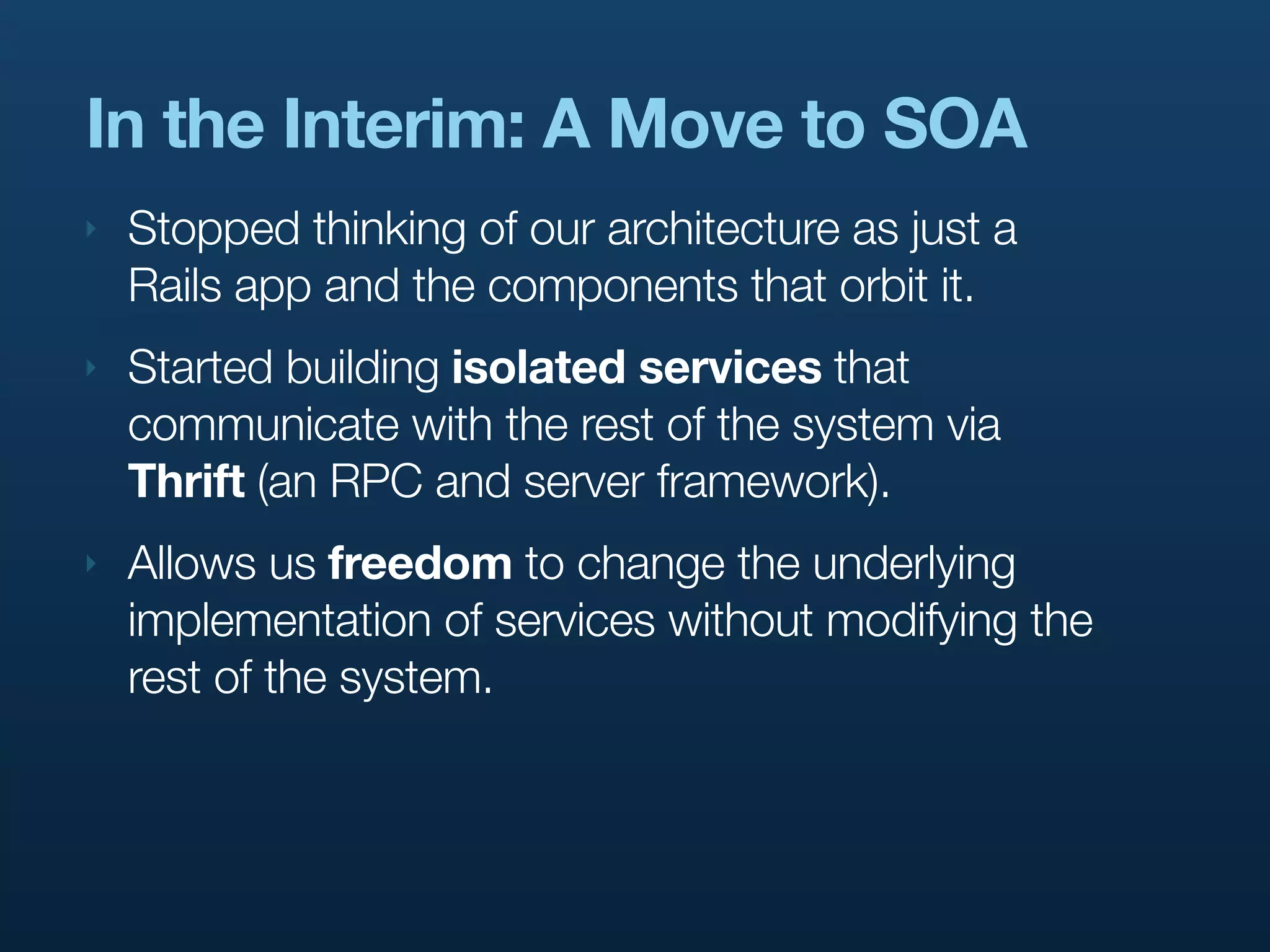

In the Interim: A Move to SOA
‣ Stopped thinking of our architecture as just a
Rails app and the components that orbit it.
‣ Started building isolated services that
communicate with the rest of the system via
Thrift (an RPC and server framework).
‣ Allows us freedom to change the underlying
implementation of services without modifying the
rest of the system.

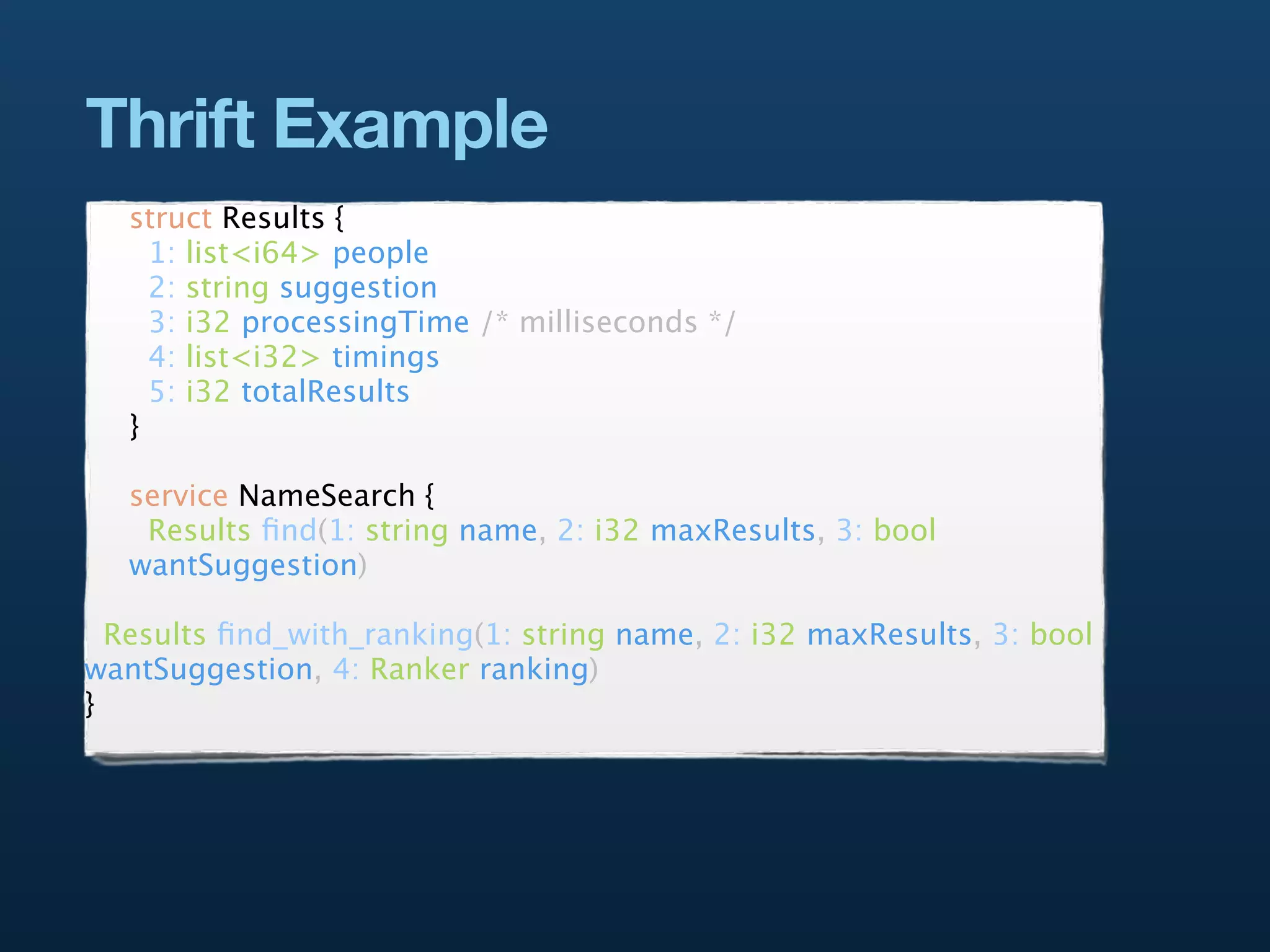

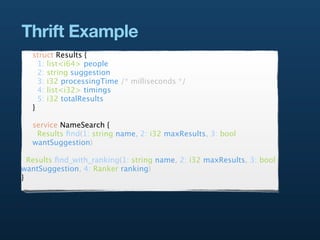

Thrift Example
struct Results {
1: list<i64> people
2: string suggestion
3: i32 processingTime /* milliseconds */
4: list<i32> timings
5: i32 totalResults
}

service NameSearch {
Results ﬁnd(1: string name, 2: i32 maxResults, 3: bool
wantSuggestion)

Results ﬁnd_with_ranking(1: string name, 2: i32 maxResults, 3: bool
wantSuggestion, 4: Ranker ranking)
}

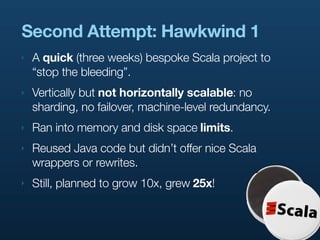

Second Attempt: Hawkwind 1
‣ A quick (three weeks) bespoke Scala project to
“stop the bleeding”.
‣ Vertically but not horizontally scalable: no
sharding, no failover, machine-level redundancy.
‣ Ran into memory and disk space limits.
‣ Reused Java code but didn’t offer nice Scala
wrappers or rewrites.
‣ Still, planned to grow 10x, grew 25x!

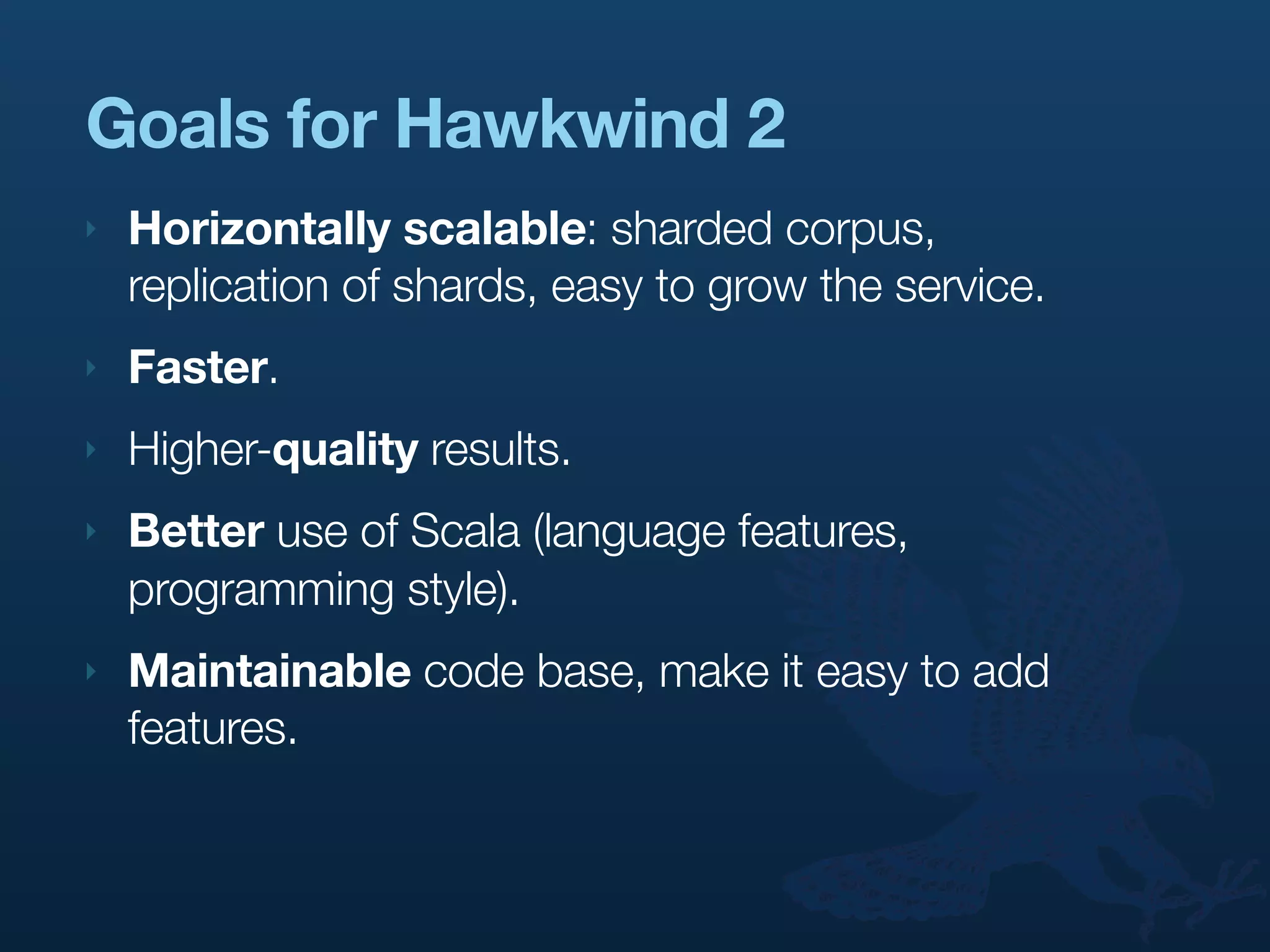

Goals for Hawkwind 2
‣ Horizontally scalable: sharded corpus,
replication of shards, easy to grow the service.
‣ Faster.
‣ Higher-quality results.
‣ Better use of Scala (language features,
programming style).
‣ Maintainable code base, make it easy to add
features.

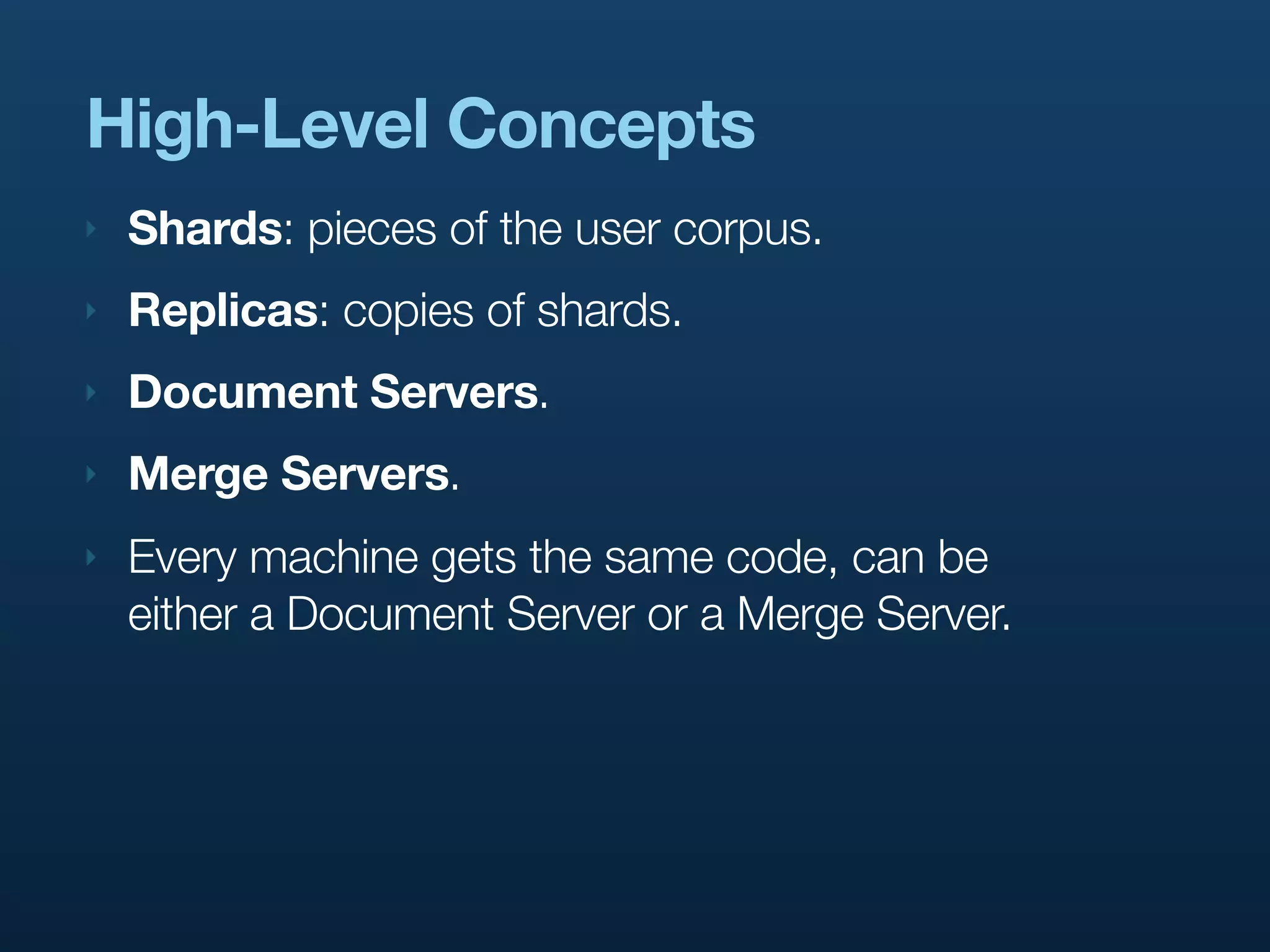

High-Level Concepts
‣ Shards: pieces of the user corpus.
‣ Replicas: copies of shards.
‣ Document Servers.
‣ Merge Servers.
‣ Every machine gets the same code, can be
either a Document Server or a Merge Server.

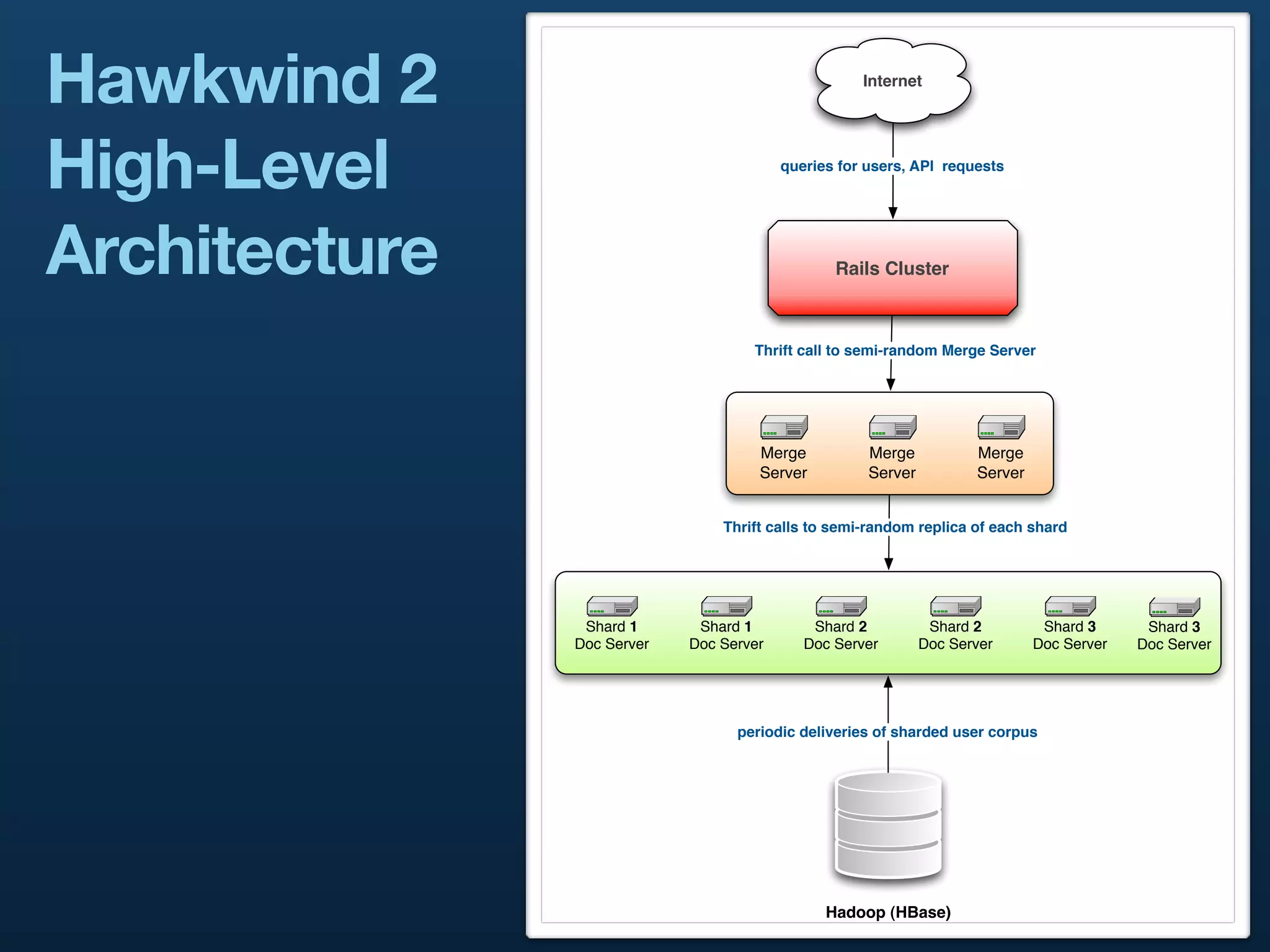

Hawkwind 2 Internet

High-Level queries for users, API requests

Architecture Rails Cluster

Thrift call to semi-random Merge Server

Merge Merge Merge
Server Server Server

Thrift calls to semi-random replica of each shard

Shard 1 Shard 1 Shard 2 Shard 2 Shard 3 Shard 3
Doc Server Doc Server Doc Server Doc Server Doc Server Doc Server

periodic deliveries of sharded user corpus

Hadoop (HBase)

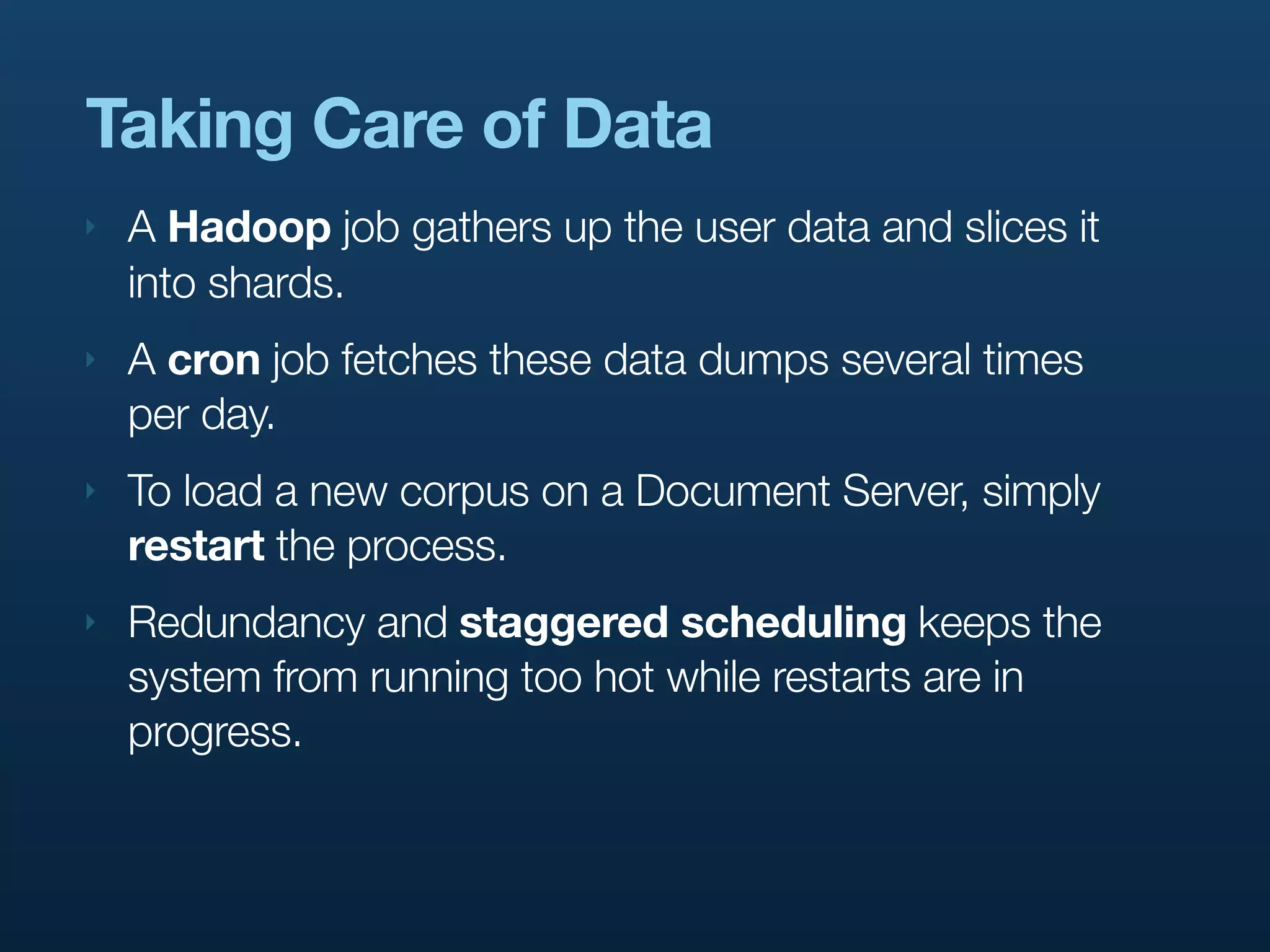

Taking Care of Data
‣ A Hadoop job gathers up the user data and slices it
into shards.
‣ A cron job fetches these data dumps several times
per day.
‣ To load a new corpus on a Document Server, simply
restart the process.
‣ Redundancy and staggered scheduling keeps the
system from running too hot while restarts are in
progress.

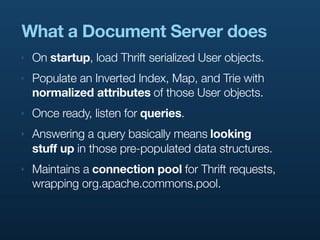

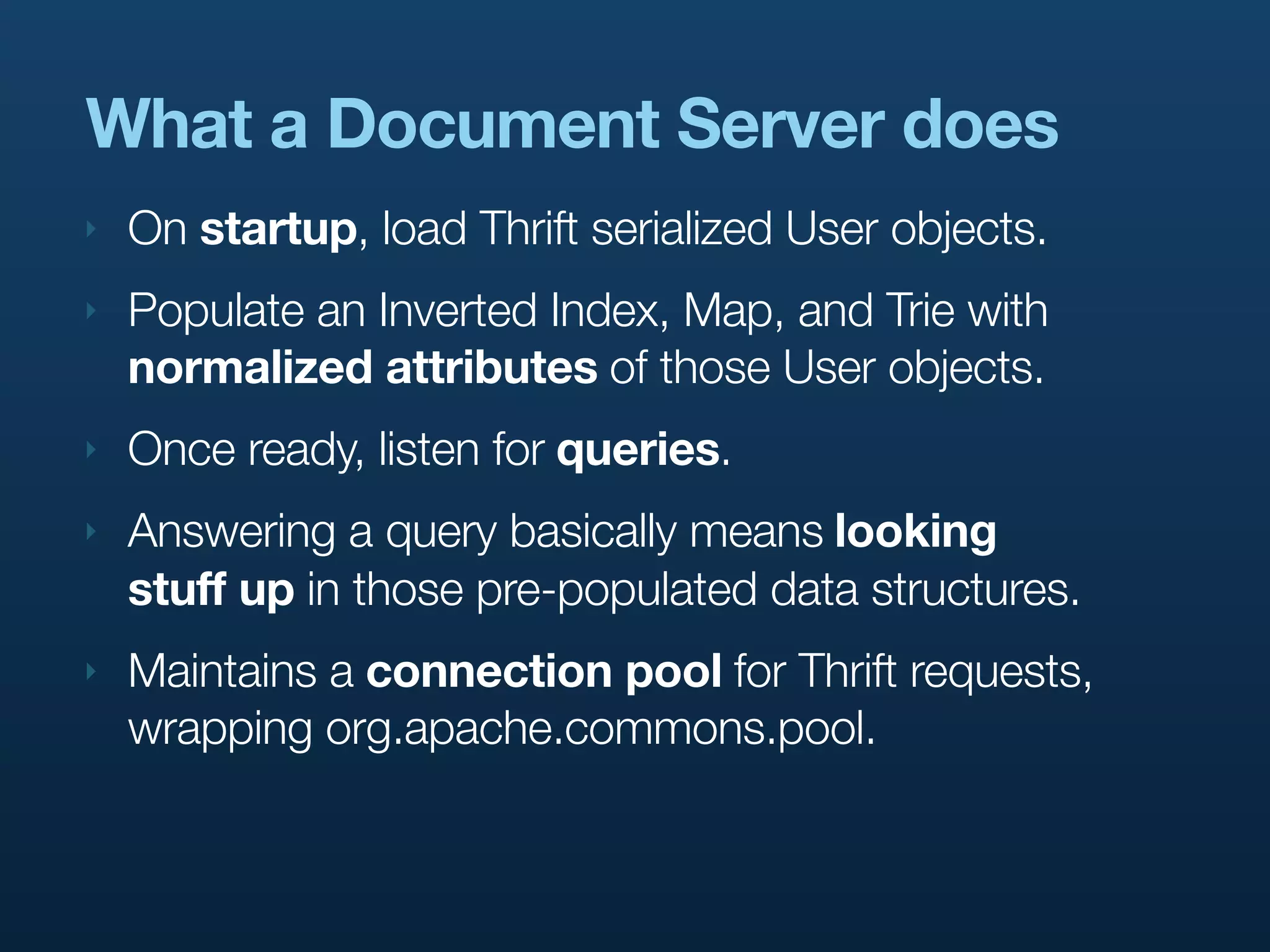

What a Document Server does
‣ On startup, load Thrift serialized User objects.
‣ Populate an Inverted Index, Map, and Trie with
normalized attributes of those User objects.
‣ Once ready, listen for queries.
‣ Answering a query basically means looking
stuff up in those pre-populated data structures.
‣ Maintains a connection pool for Thrift requests,
wrapping org.apache.commons.pool.

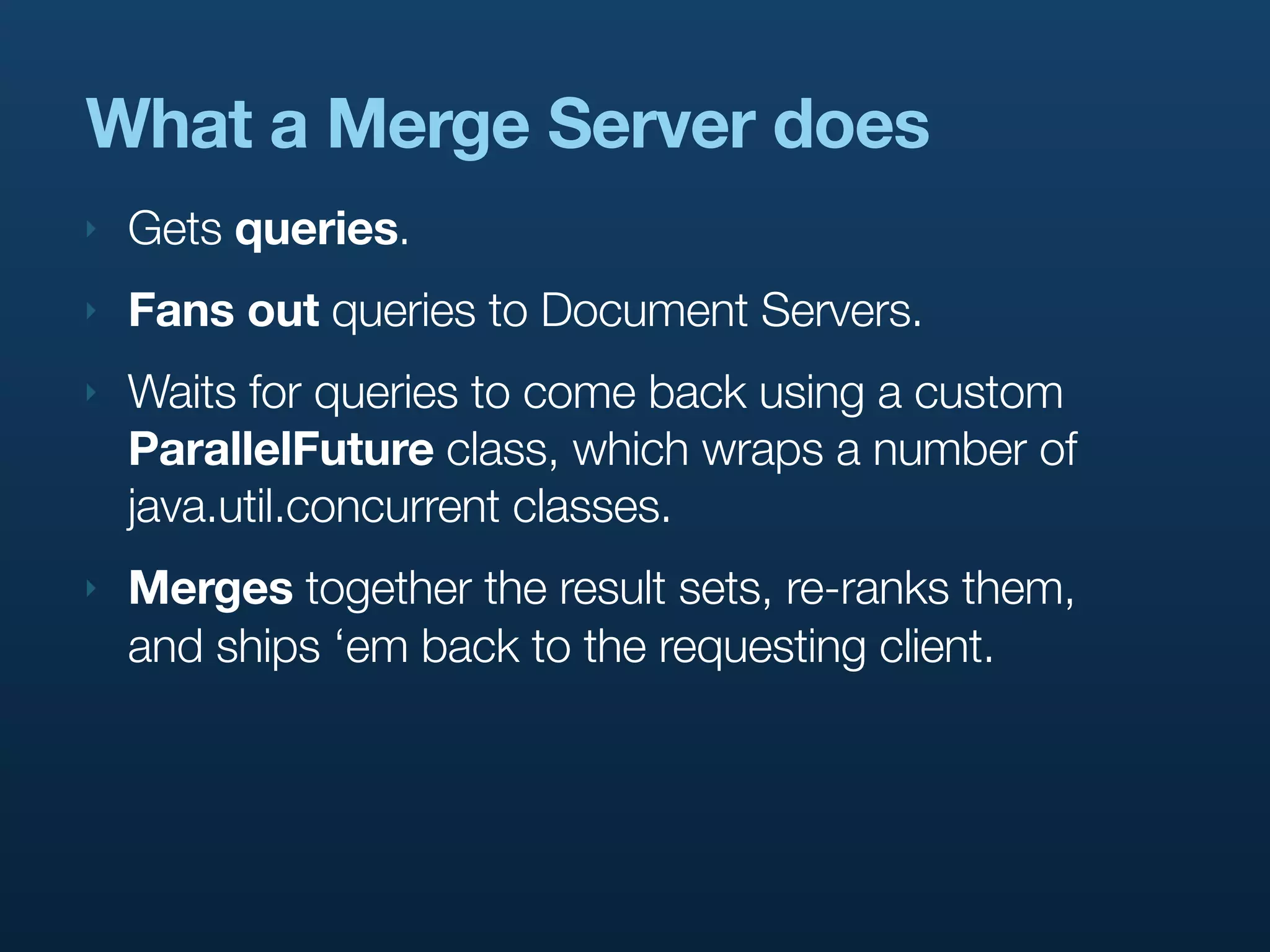

What a Merge Server does
‣ Gets queries.
‣ Fans out queries to Document Servers.
‣ Waits for queries to come back using a custom
ParallelFuture class, which wraps a number of
java.util.concurrent classes.
‣ Merges together the result sets, re-ranks them,
and ships ‘em back to the requesting client.

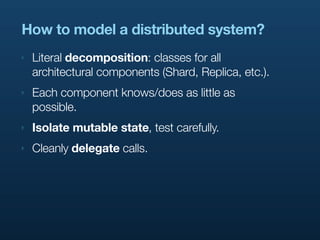

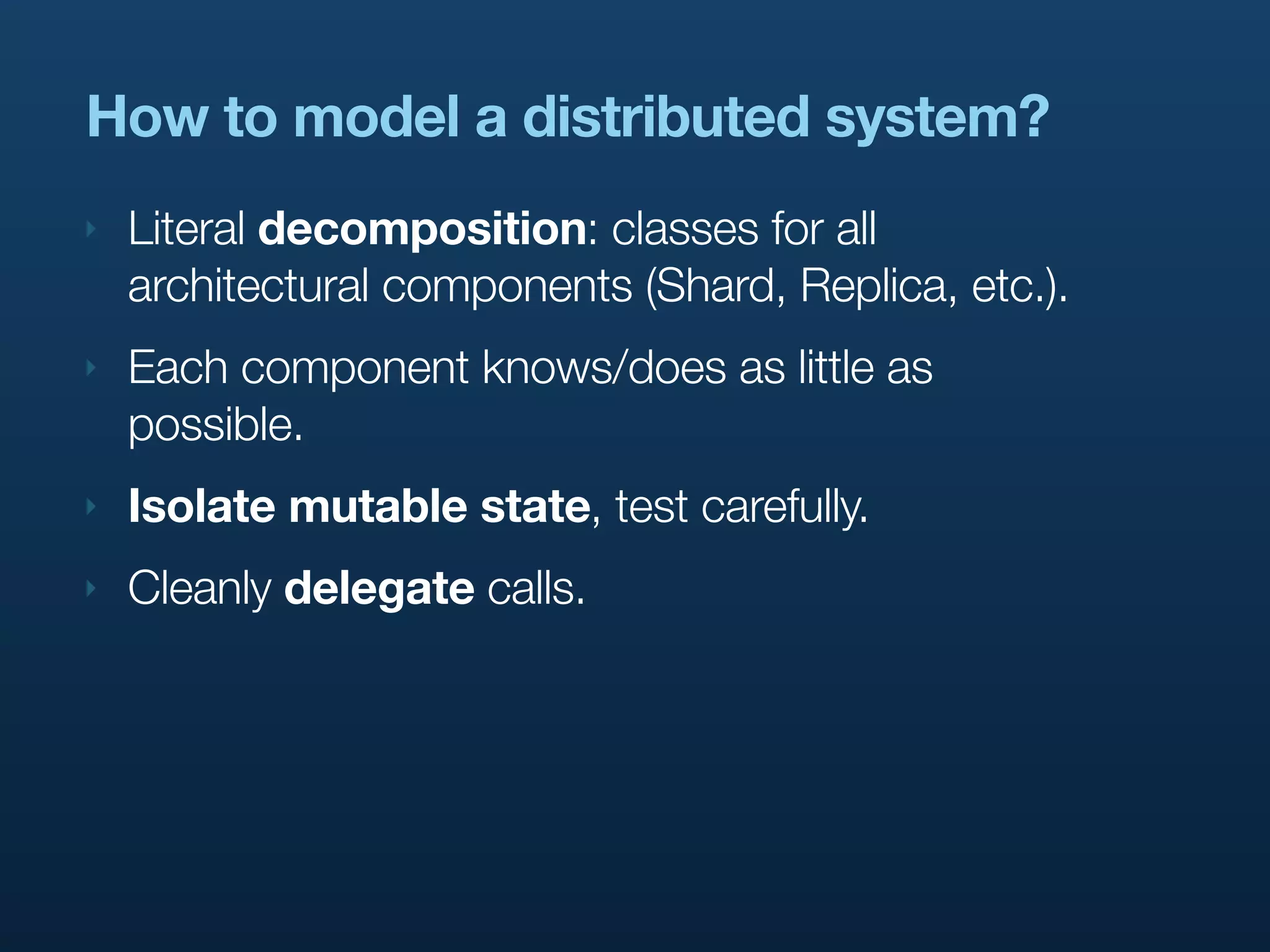

How to model a distributed system?
‣ Literal decomposition: classes for all
architectural components (Shard, Replica, etc.).
‣ Each component knows/does as little as
possible.
‣ Isolate mutable state, test carefully.
‣ Cleanly delegate calls.

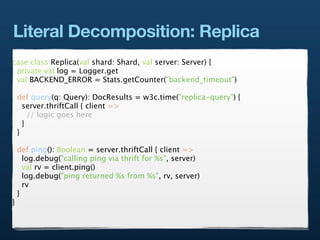

Literal Decomposition: Replica
case class Replica(val shard: Shard, val server: Server) {
private val log = Logger.get
val BACKEND_ERROR = Stats.getCounter("backend_timeout")

def query(q: Query): DocResults = w3c.time("replica-query") {
server.thriftCall { client =>
// logic goes here
}
}

def ping(): Boolean = server.thriftCall { client =>
log.debug("calling ping via thrift for %s", server)
val rv = client.ping()
log.debug("ping returned %s from %s", rv, server)
rv
}
}

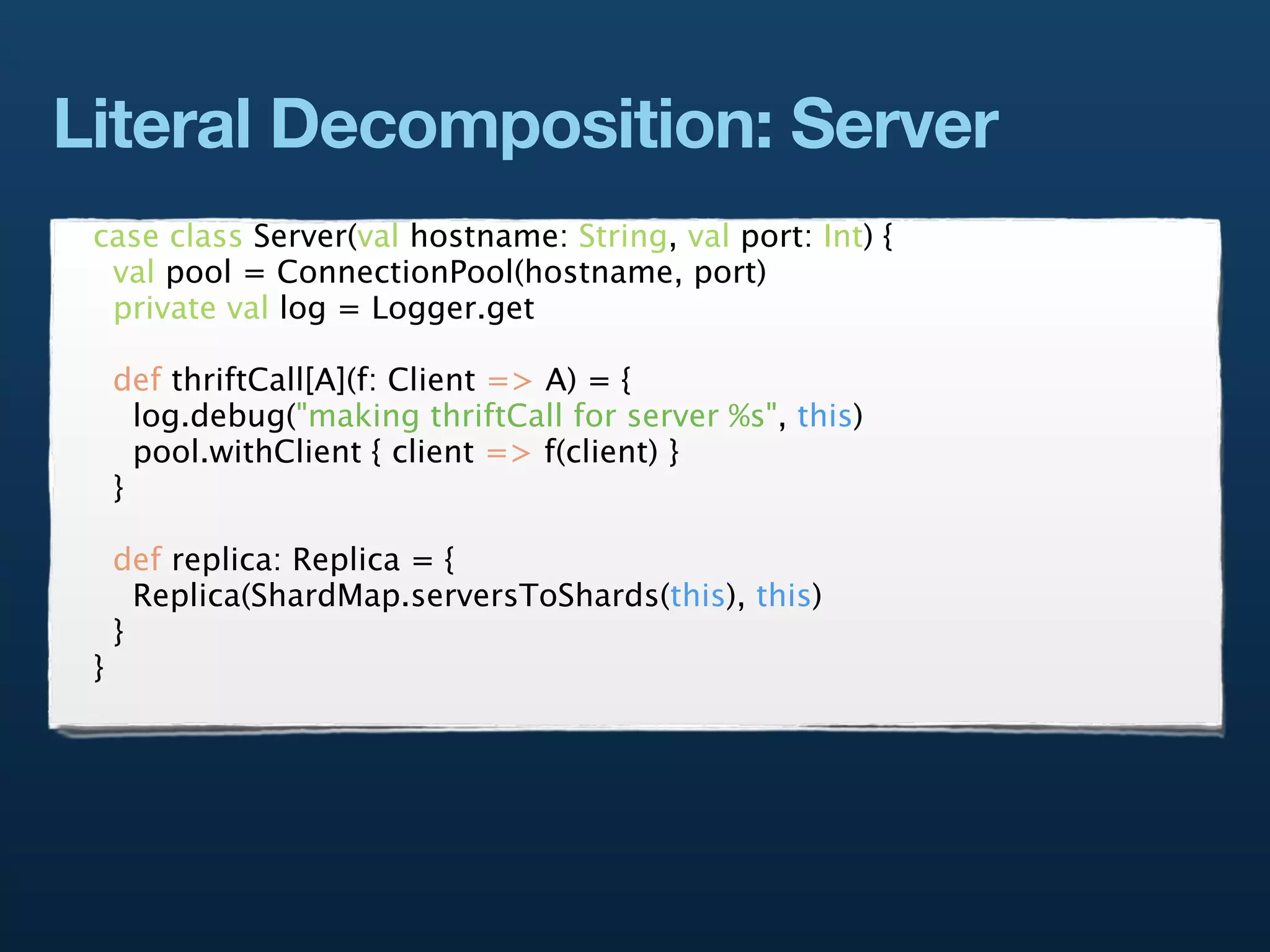

Literal Decomposition: Server
case class Server(val hostname: String, val port: Int) {
val pool = ConnectionPool(hostname, port)
private val log = Logger.get

def thriftCall[A](f: Client => A) = {
log.debug("making thriftCall for server %s", this)
pool.withClient { client => f(client) }
}

def replica: Replica = {
Replica(ShardMap.serversToShards(this), this)
}
}

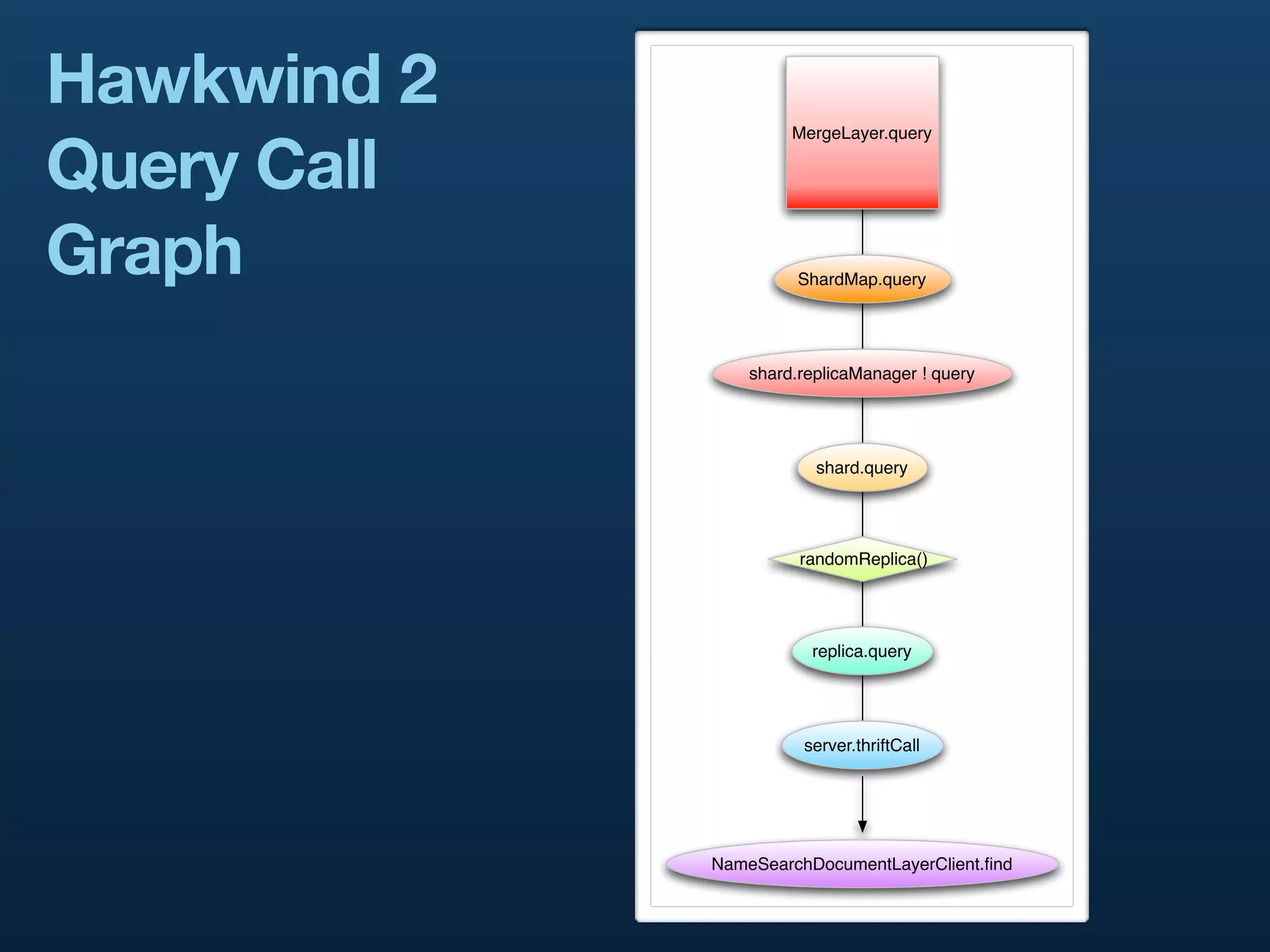

Hawkwind 2
Query Call
MergeLayer.query

Graph ShardMap.query

shard.replicaManager ! query

shard.query

randomReplica()

replica.query

server.thriftCall

NameSearchDocumentLayerClient.ﬁnd

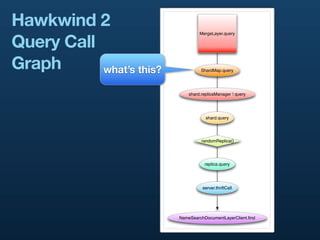

Hawkwind 2
Query Call
MergeLayer.query

Graph what’s this? ShardMap.query

shard.replicaManager ! query

shard.query

randomReplica()

replica.query

server.thriftCall

NameSearchDocumentLayerClient.ﬁnd

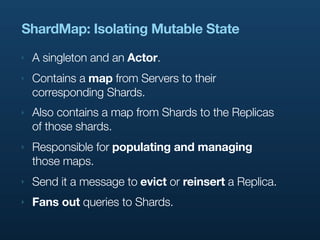

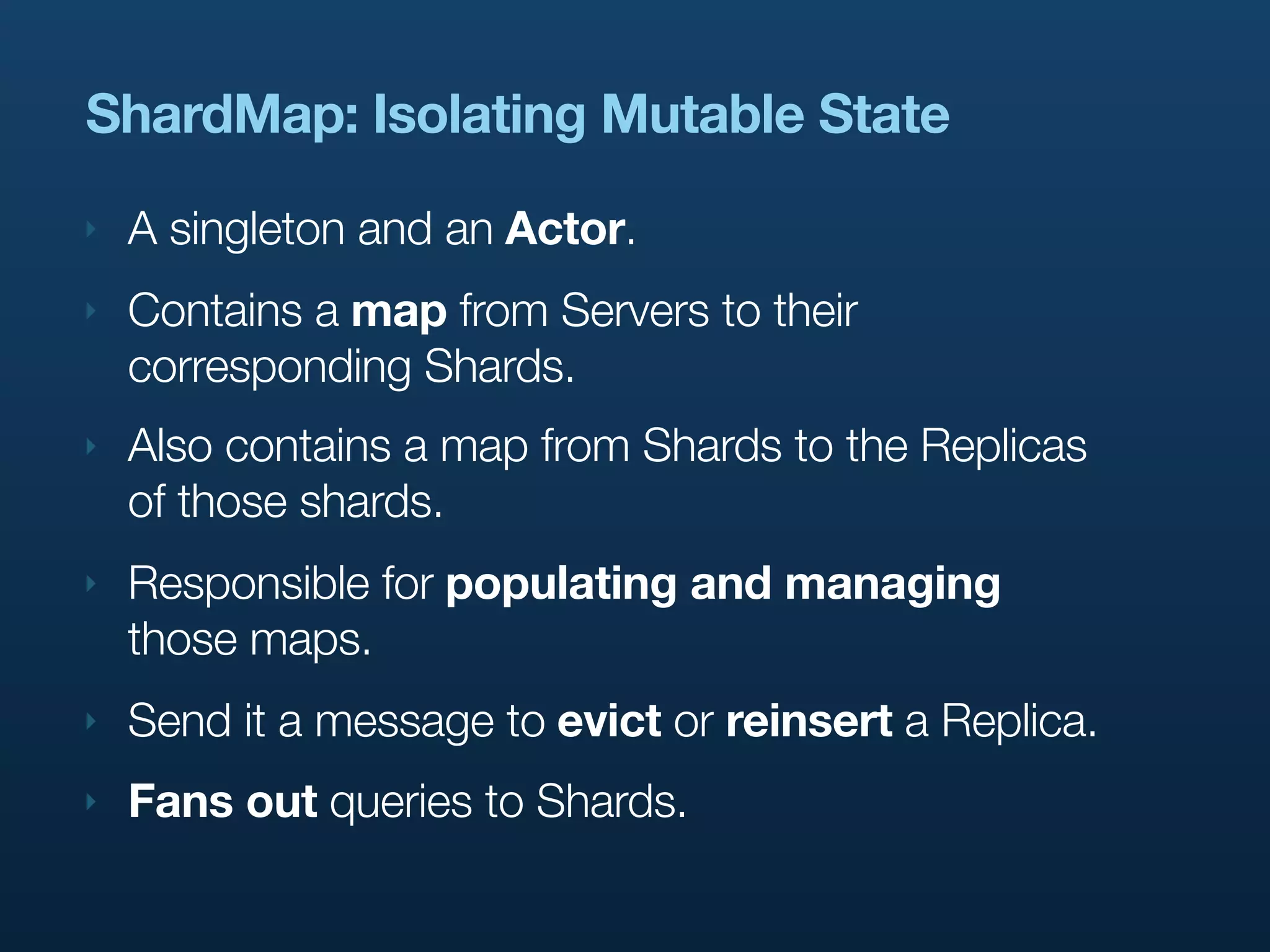

ShardMap: Isolating Mutable State
‣ A singleton and an Actor.
‣ Contains a map from Servers to their
corresponding Shards.
‣ Also contains a map from Shards to the Replicas
of those shards.
‣ Responsible for populating and managing
those maps.
‣ Send it a message to evict or reinsert a Replica.
‣ Fans out queries to Shards.

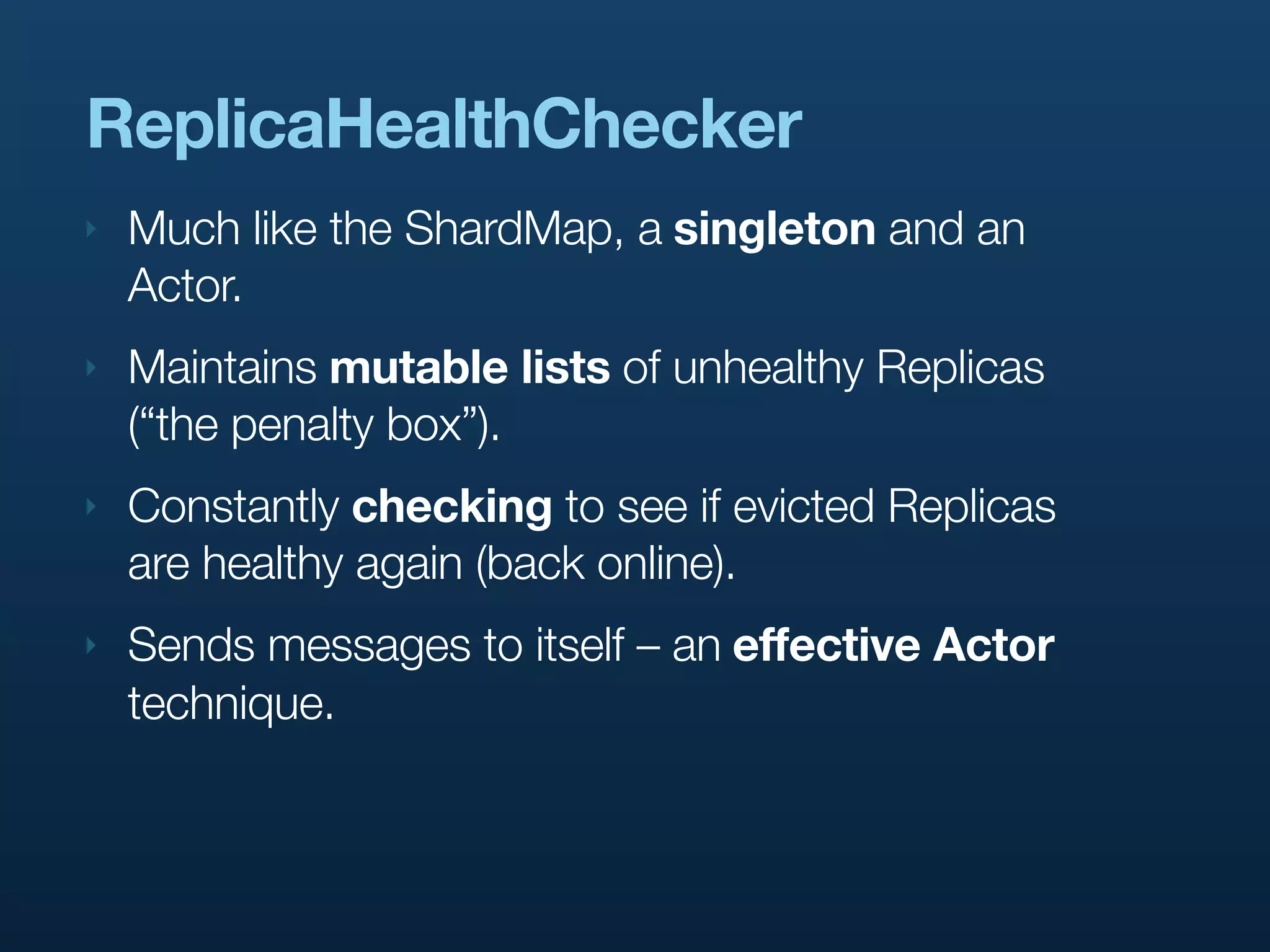

ReplicaHealthChecker
‣ Much like the ShardMap, a singleton and an
Actor.
‣ Maintains mutable lists of unhealthy Replicas
(“the penalty box”).
‣ Constantly checking to see if evicted Replicas
are healthy again (back online).
‣ Sends messages to itself – an effective Actor
technique.

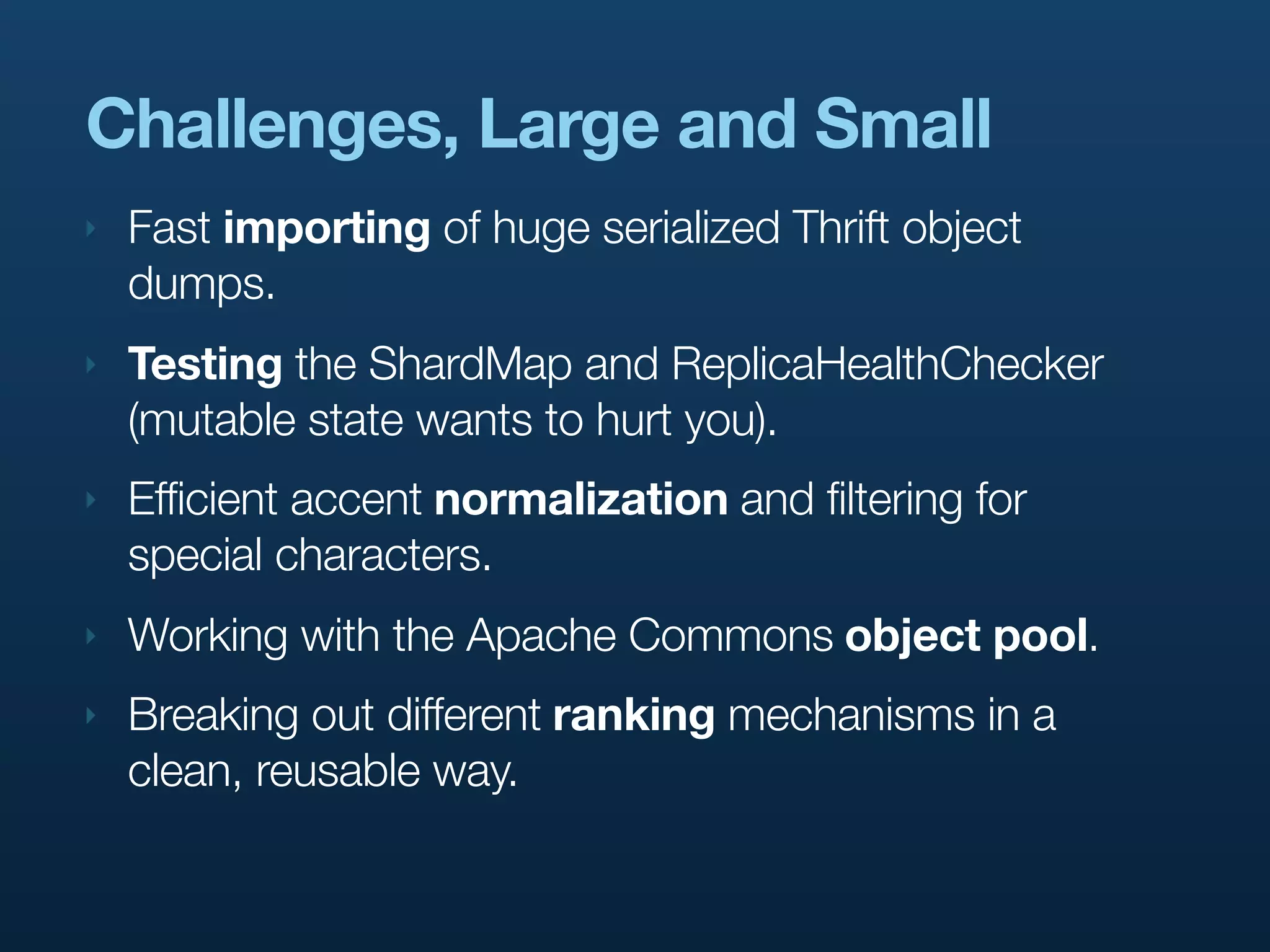

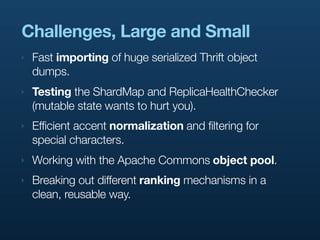

Challenges, Large and Small
‣ Fast importing of huge serialized Thrift object
dumps.
‣ Testing the ShardMap and ReplicaHealthChecker
(mutable state wants to hurt you).
‣ Efficient accent normalization and filtering for
special characters.
‣ Working with the Apache Commons object pool.
‣ Breaking out different ranking mechanisms in a
clean, reusable way.

Libraries & Tools
Things that make working in Scala
way more productive.

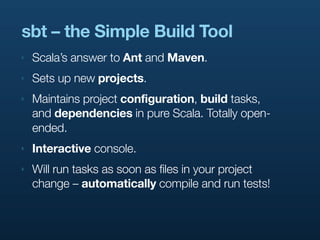

sbt – the Simple Build Tool
‣ Scala’s answer to Ant and Maven.
‣ Sets up new projects.
‣ Maintains project configuration, build tasks,
and dependencies in pure Scala. Totally open-
ended.
‣ Interactive console.
‣ Will run tasks as soon as files in your project
change – automatically compile and run tests!

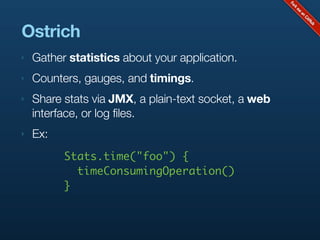

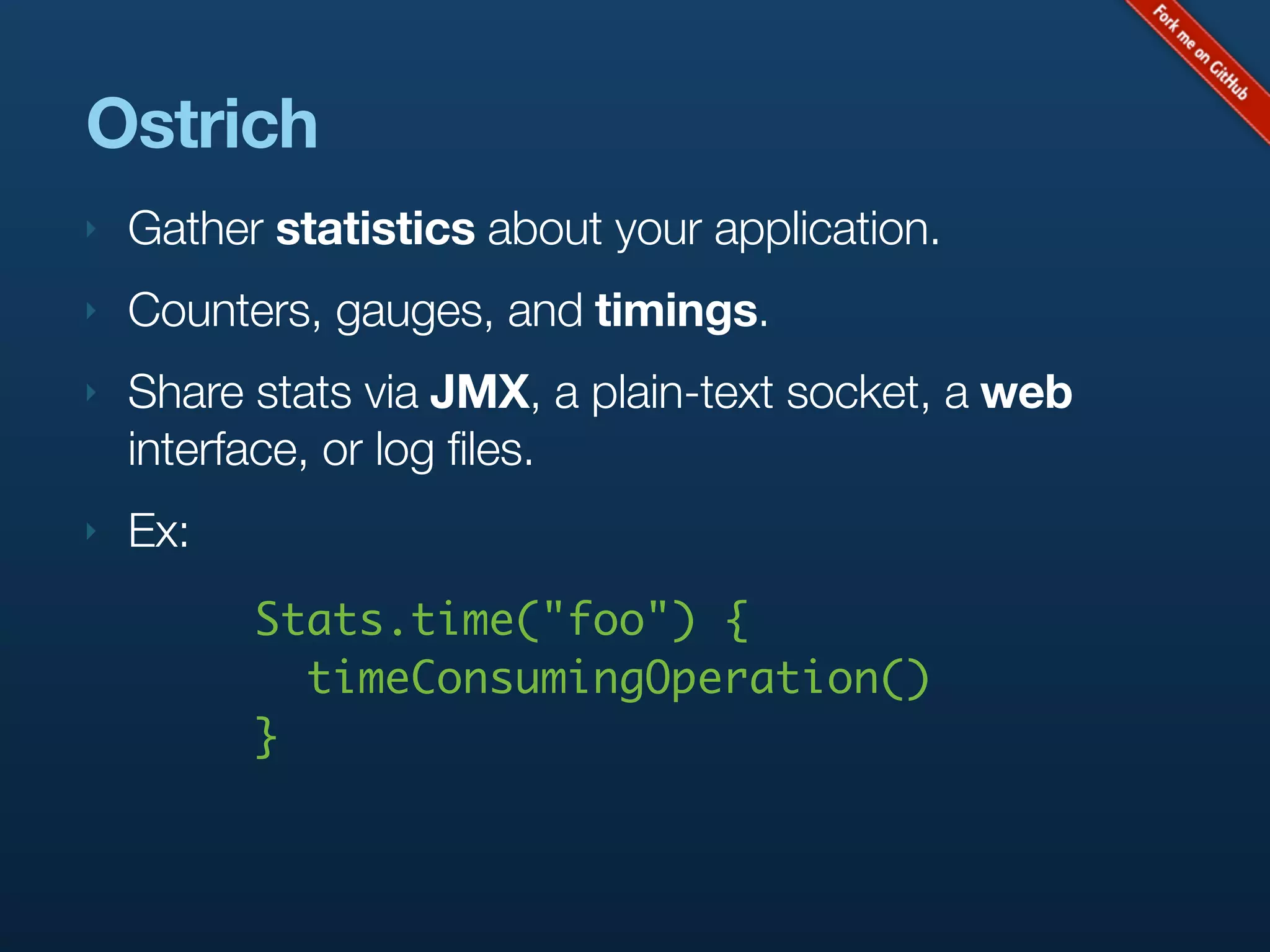

Ostrich
‣ Gather statistics about your application.
‣ Counters, gauges, and timings.
‣ Share stats via JMX, a plain-text socket, a web
interface, or log files.
‣ Ex:
Stats.time("foo") {
timeConsumingOperation()
}

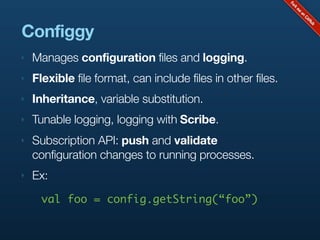

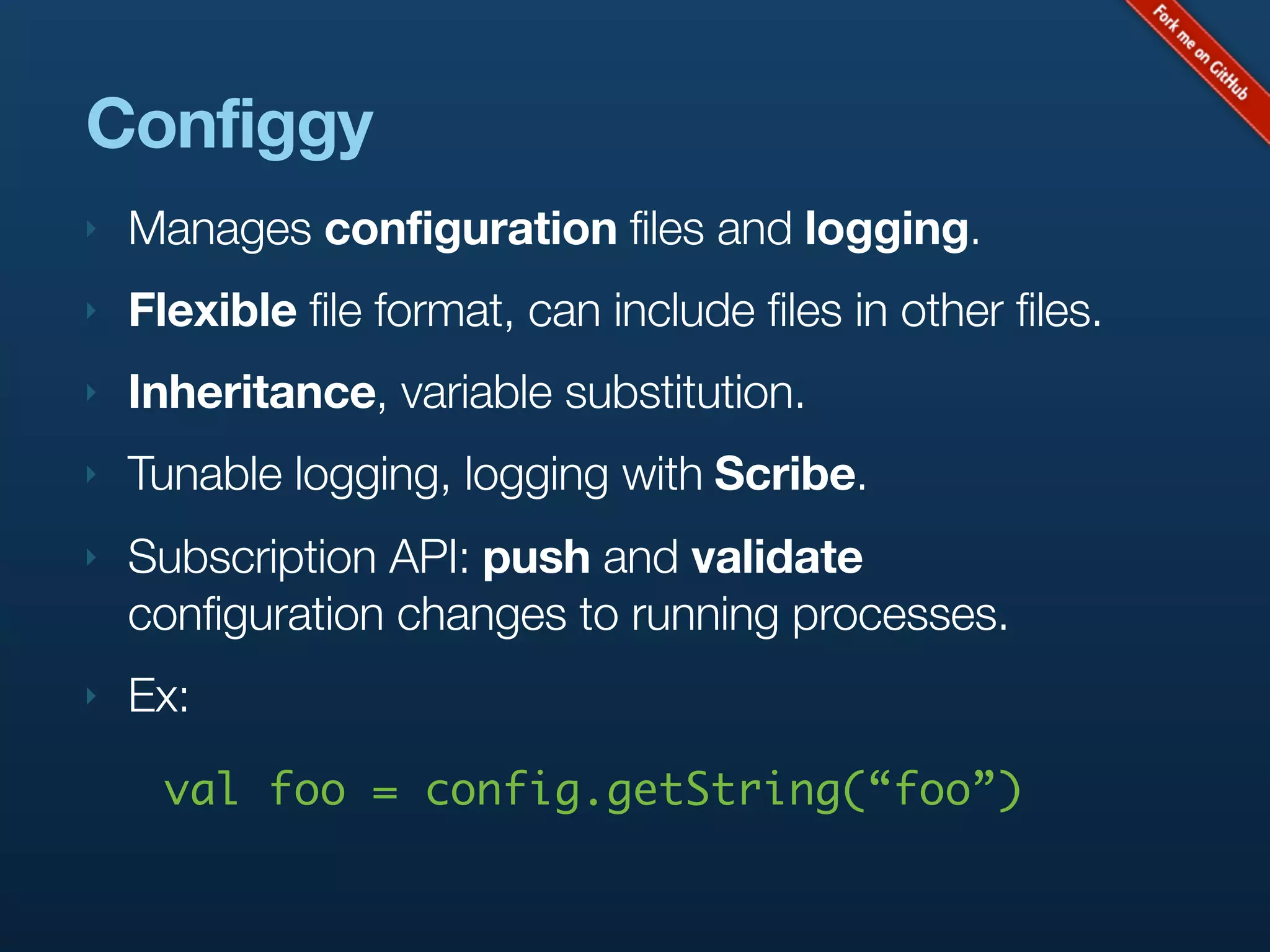

Configgy
‣ Manages configuration files and logging.
‣ Flexible file format, can include files in other files.
‣ Inheritance, variable substitution.
‣ Tunable logging, logging with Scribe.
‣ Subscription API: push and validate
configuration changes to running processes.
‣ Ex:
val foo = config.getString(“foo”)

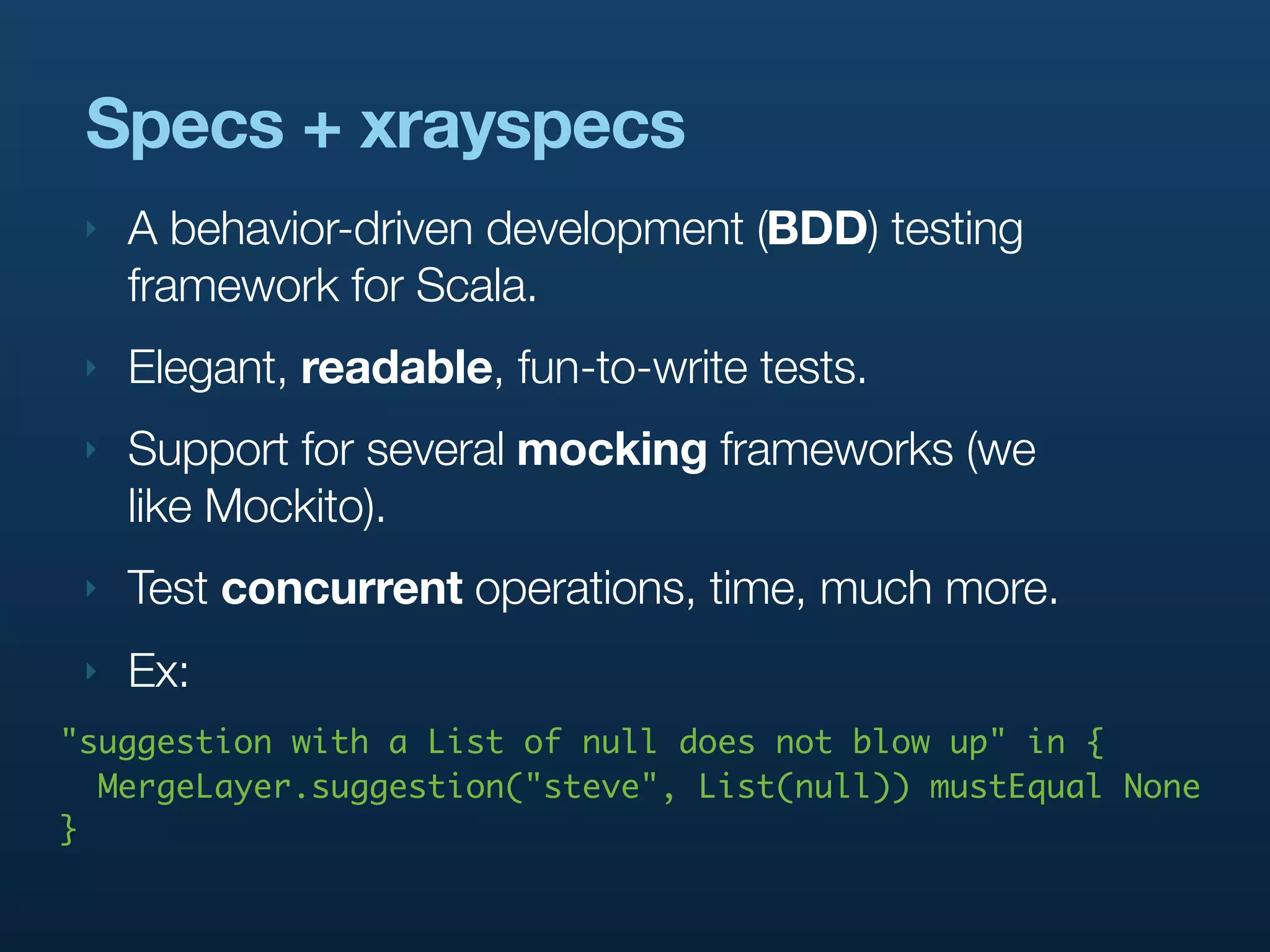

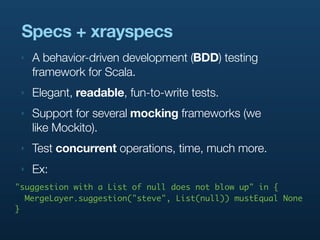

Specs + xrayspecs
‣ A behavior-driven development (BDD) testing
framework for Scala.
‣ Elegant, readable, fun-to-write tests.
‣ Support for several mocking frameworks (we
like Mockito).
‣ Test concurrent operations, time, much more.
‣ Ex:
"suggestion with a List of null does not blow up" in {
MergeLayer.suggestion("steve", List(null)) mustEqual None
}

Questions? Follow me at
twitter.com/al3x

Learn with us at engineering.twitter.com
Work with us at jobs.twitter.com
