Building web framework with Rack

Building web framework
with Rack
Marcin Kulik

EuRuKo, 2010/05/30

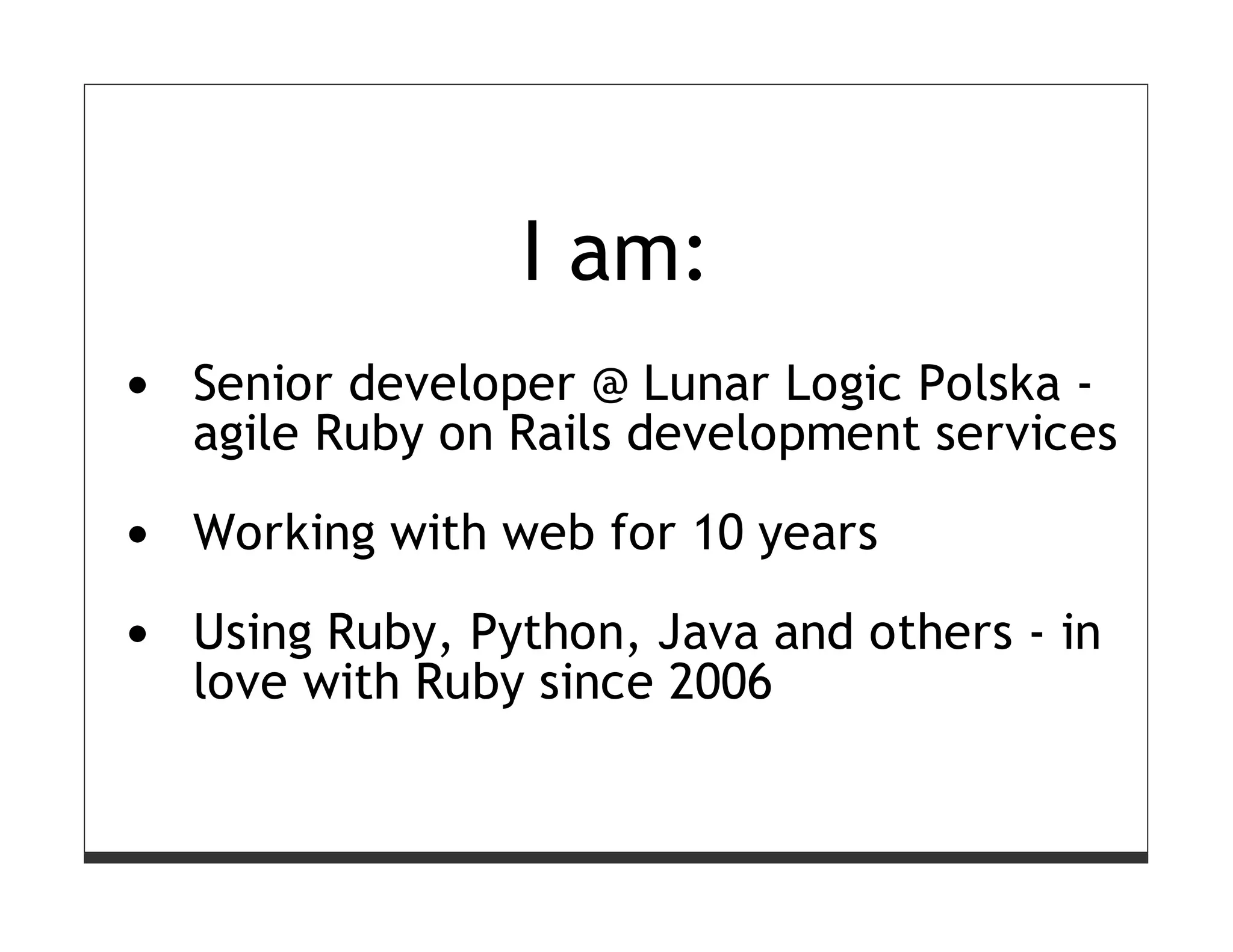

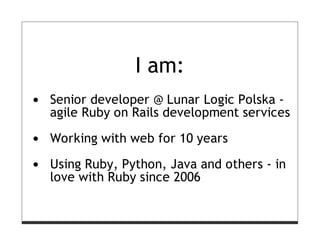

I am:
Senior developer @ Lunar Logic Polska -
agile Ruby on Rails development services

Working with web for 10 years

Using Ruby, Python, Java and others - in
love with Ruby since 2006

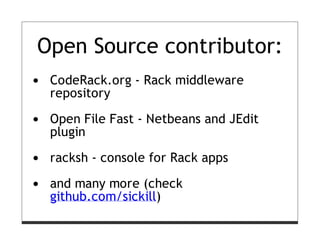

Open Source contributor:
CodeRack.org - Rack middleware
repository

Open File Fast - Netbeans and JEdit
plugin

racksh - console for Rack apps

and many more (check
github.com/sickill)

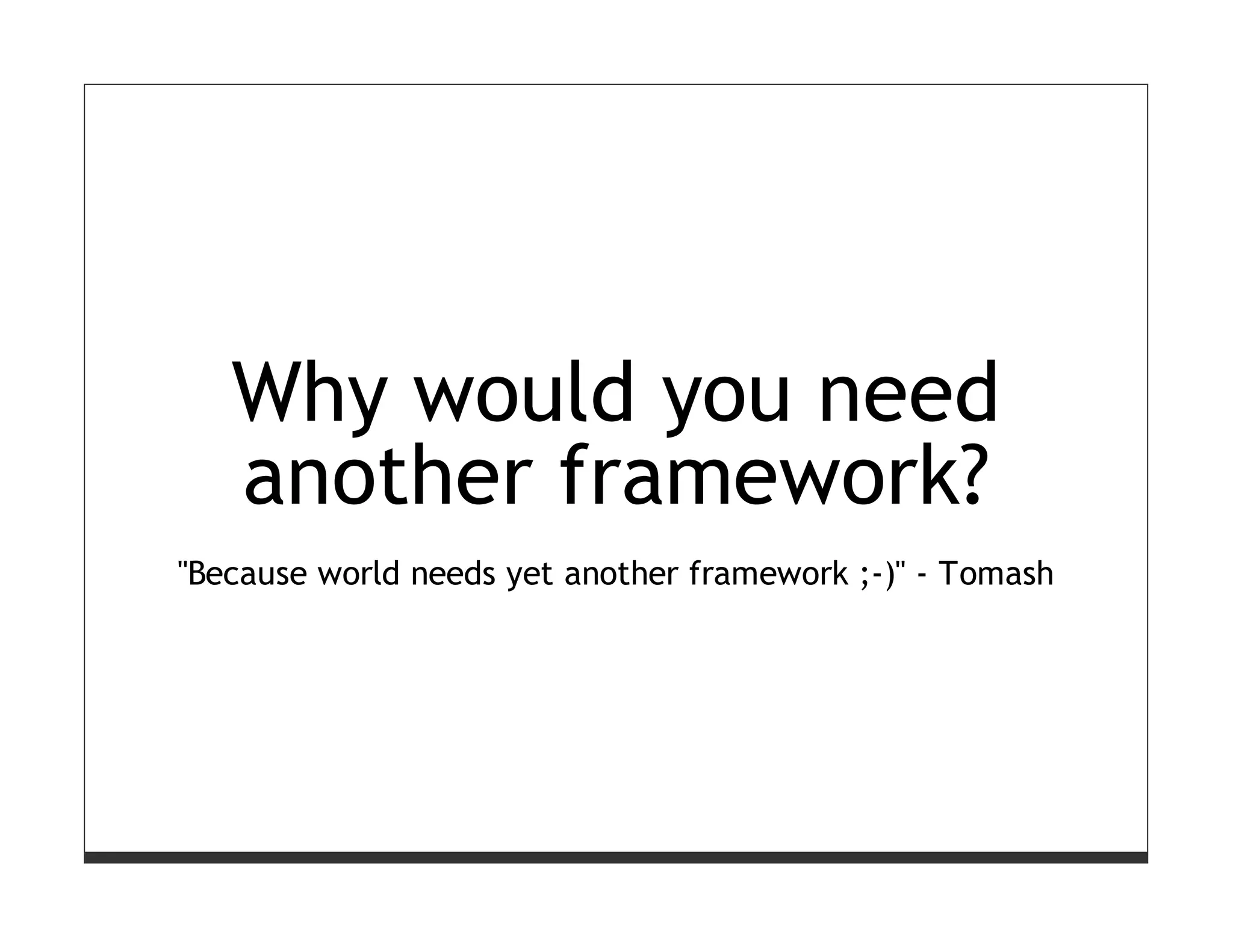

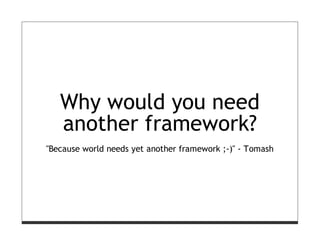

Why would you need
another framework?
"Because world needs yet another framework ;-)" - Tomash

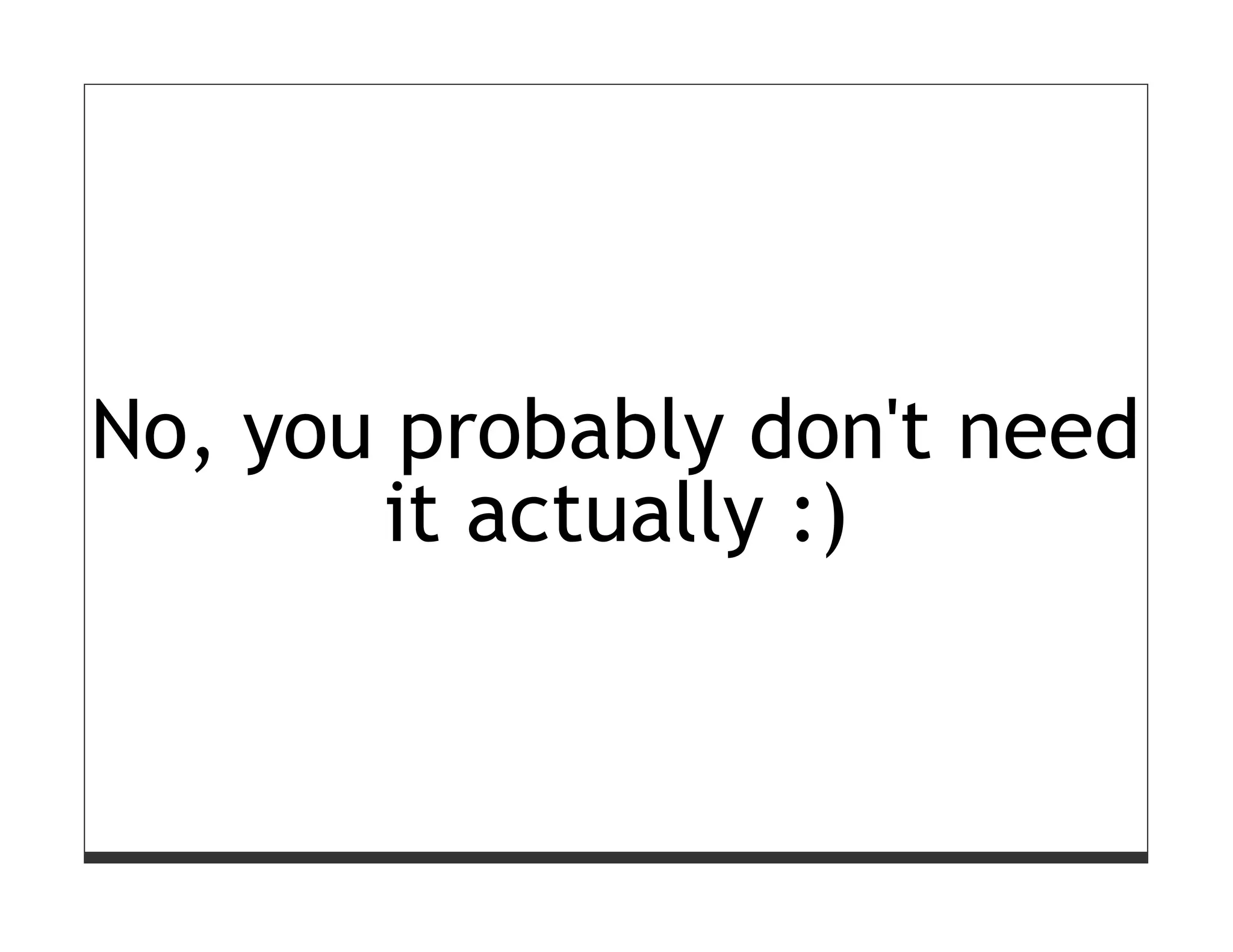

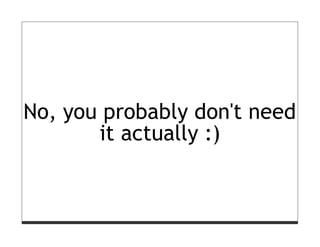

No, you probably don't need
it actually :)

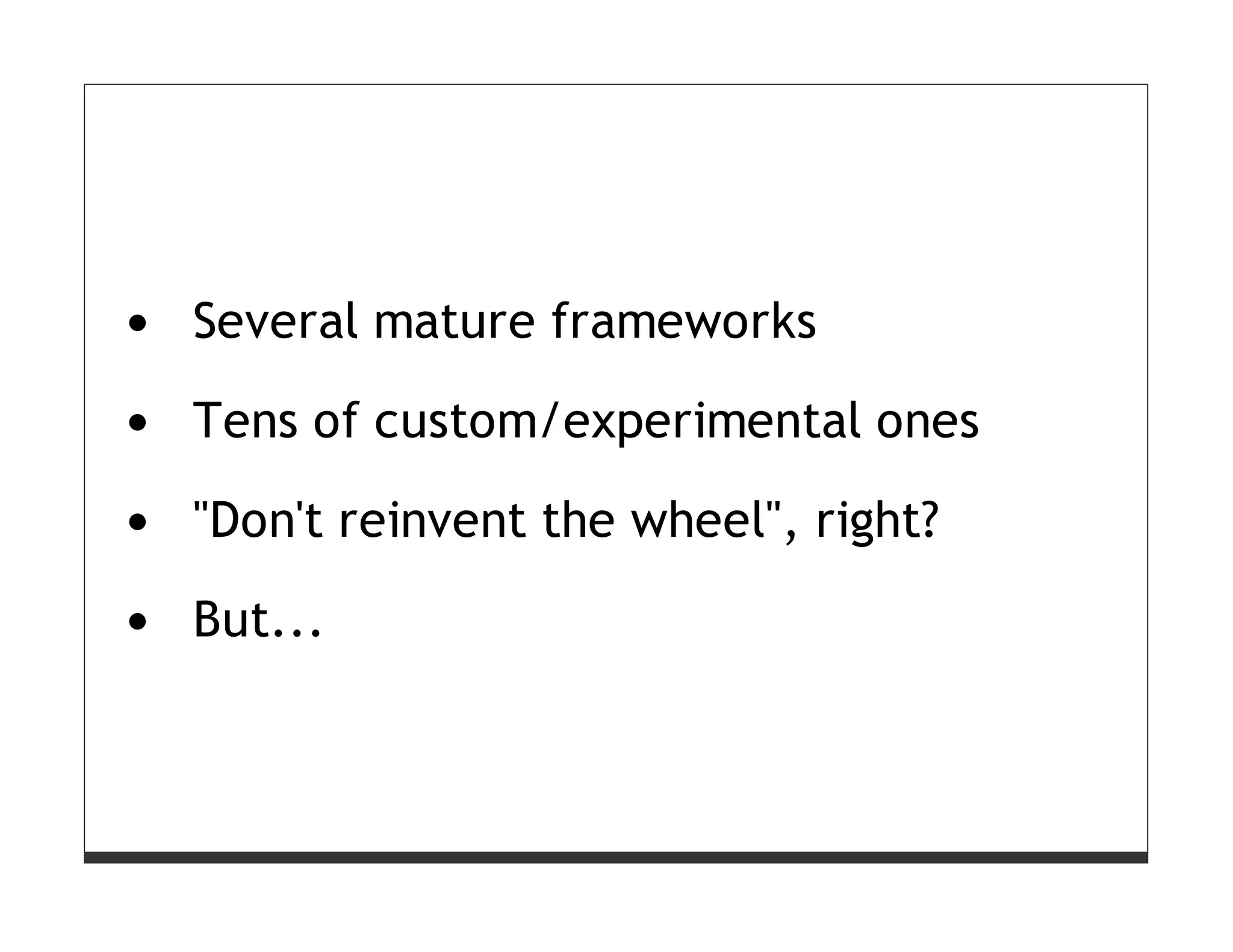

Several mature frameworks

Tens of custom/experimental ones

"Don't reinvent the wheel", right?

But...

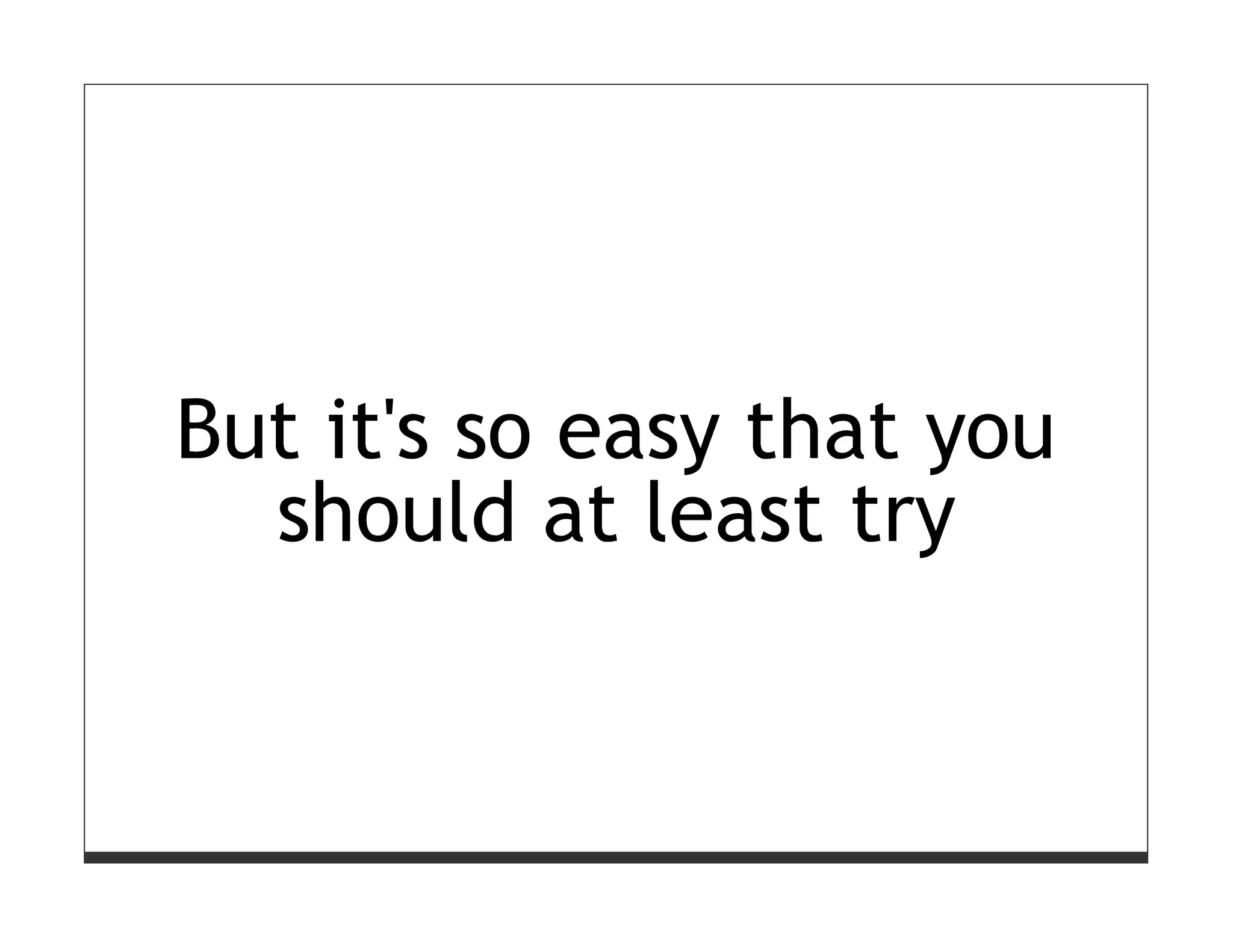

But it's so easy that you
should at least try

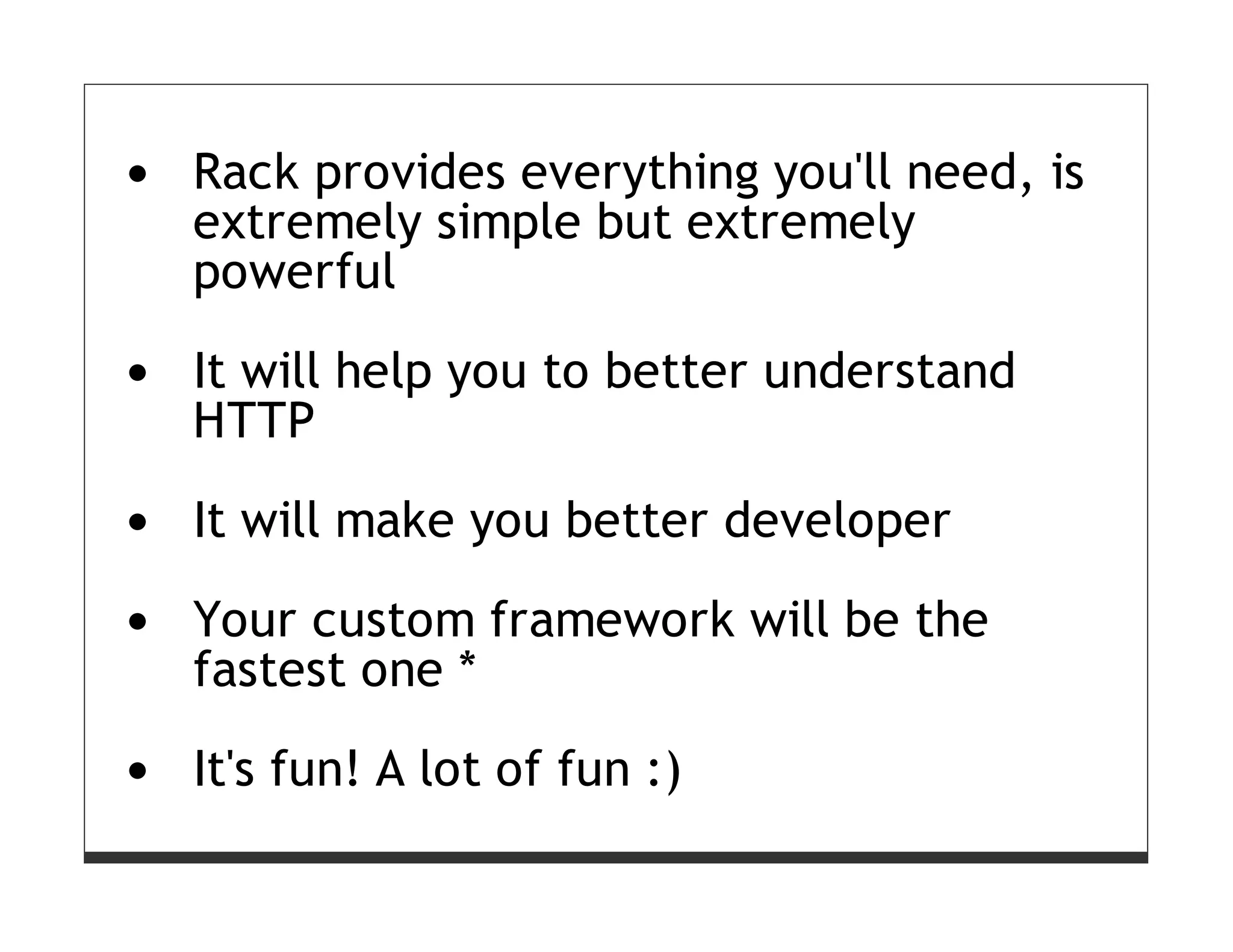

Rack provides everything you'll need, is
extremely simple but extremely
powerful

It will help you to better understand
HTTP

It will make you better developer

Your custom framework will be the
fastest one *

It's fun! A lot of fun :)

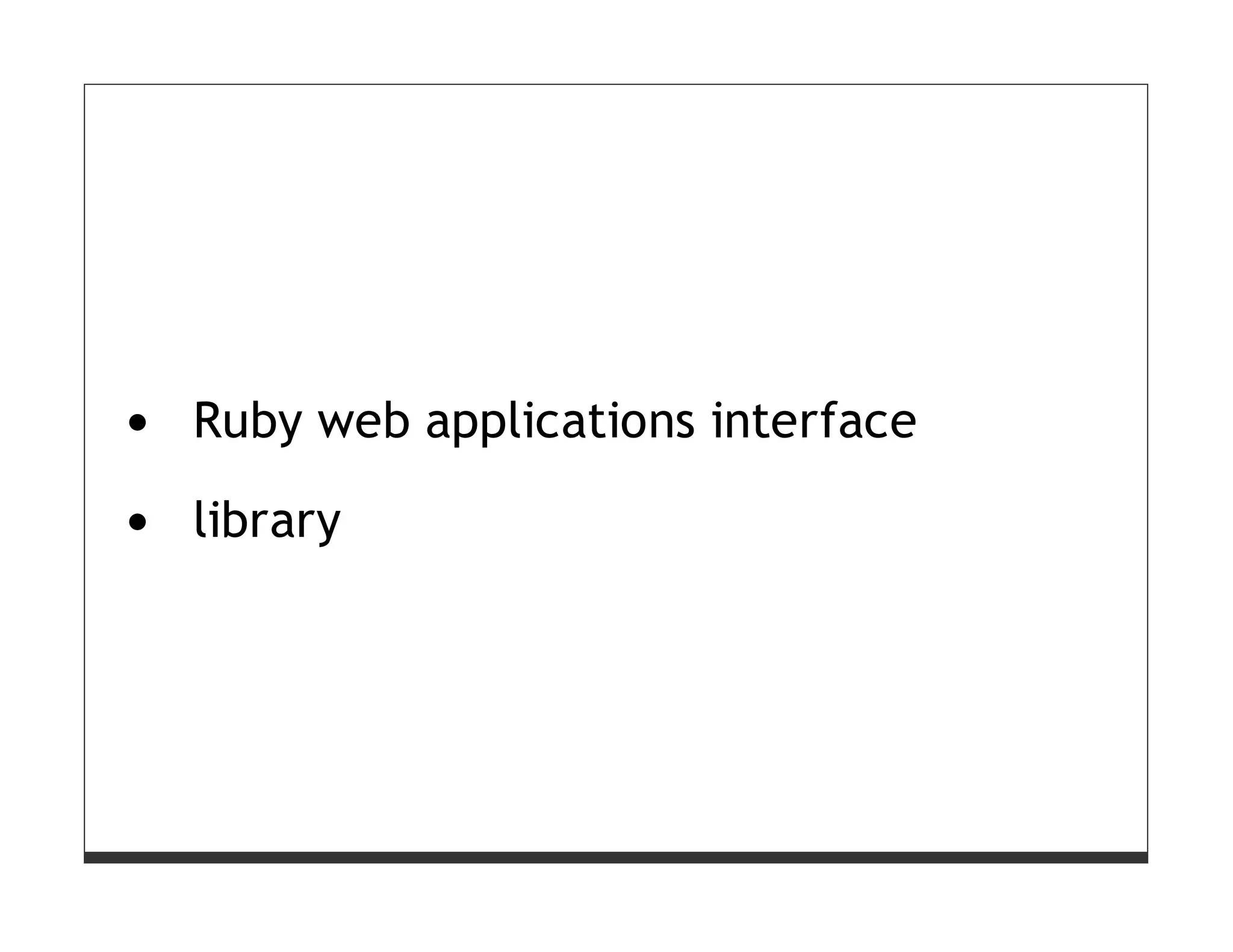

Ruby web applications interface

library

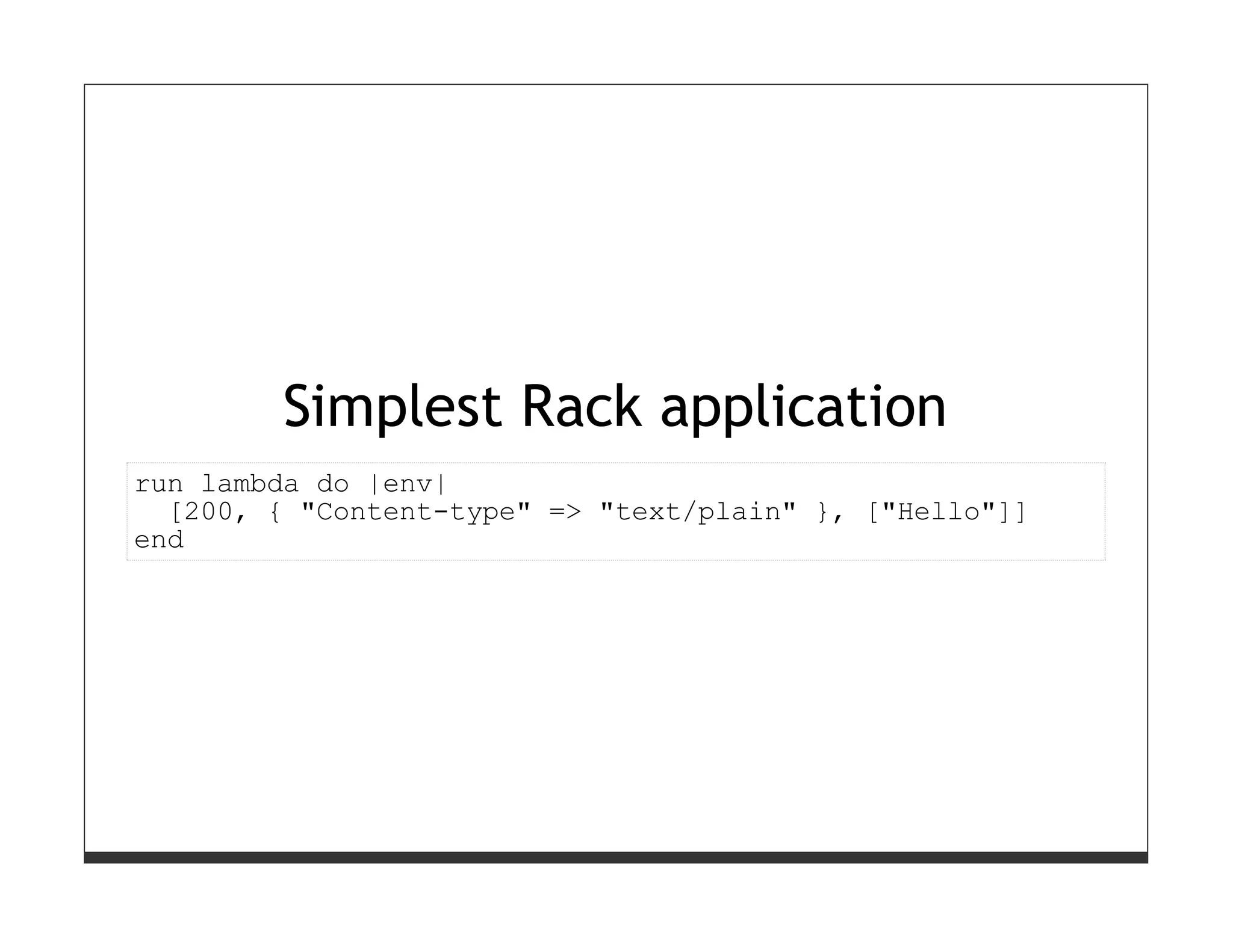

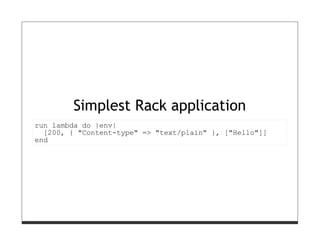

Simplest Rack application
run lambda do |env|
[200, { "Content-type" => "text/plain" }, ["Hello"]]
end

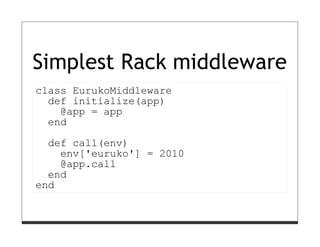

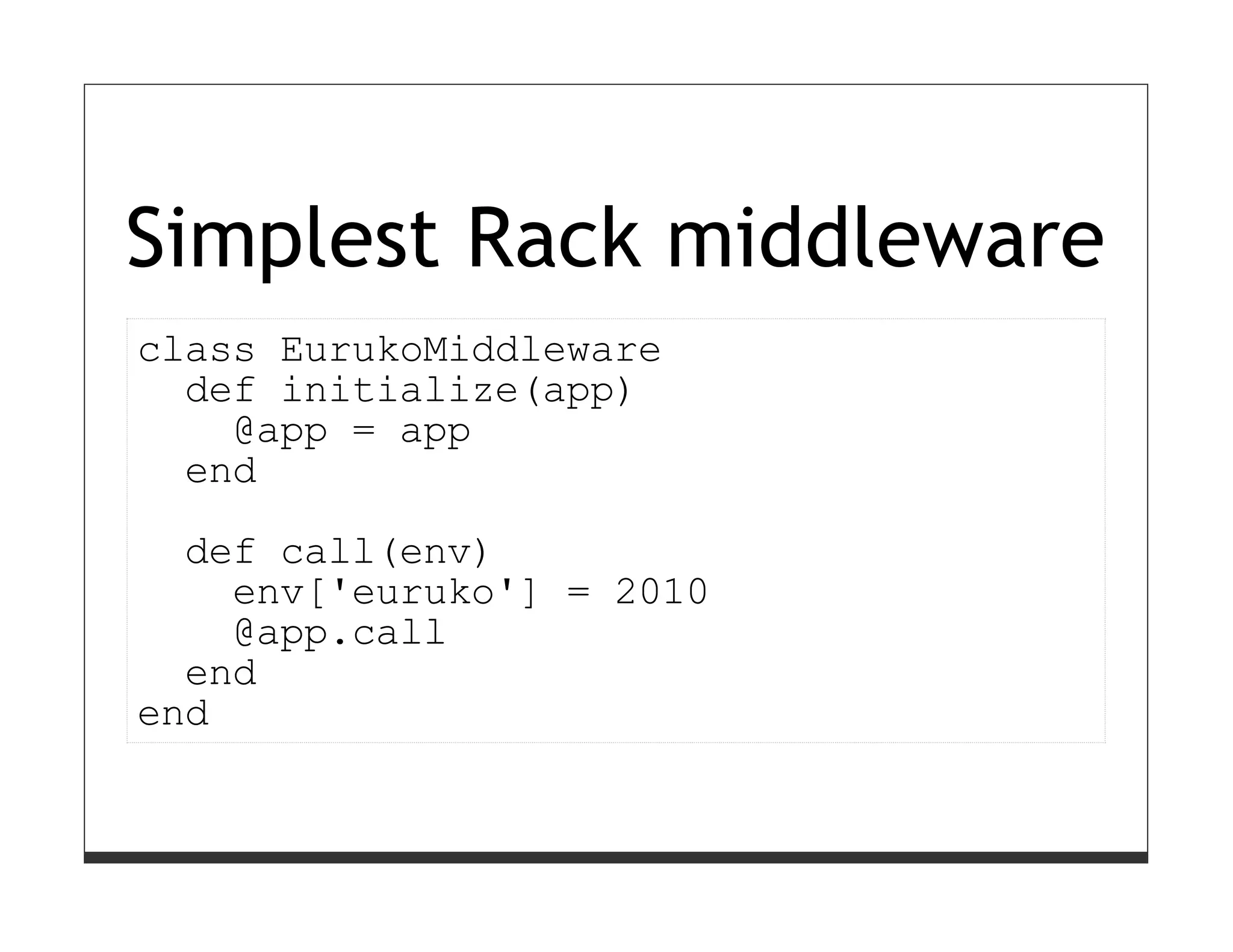

Simplest Rack middleware
class EurukoMiddleware
def initialize(app)
@app = app
end
def call(env)
env['euruko'] = 2010
@app.call
end
end

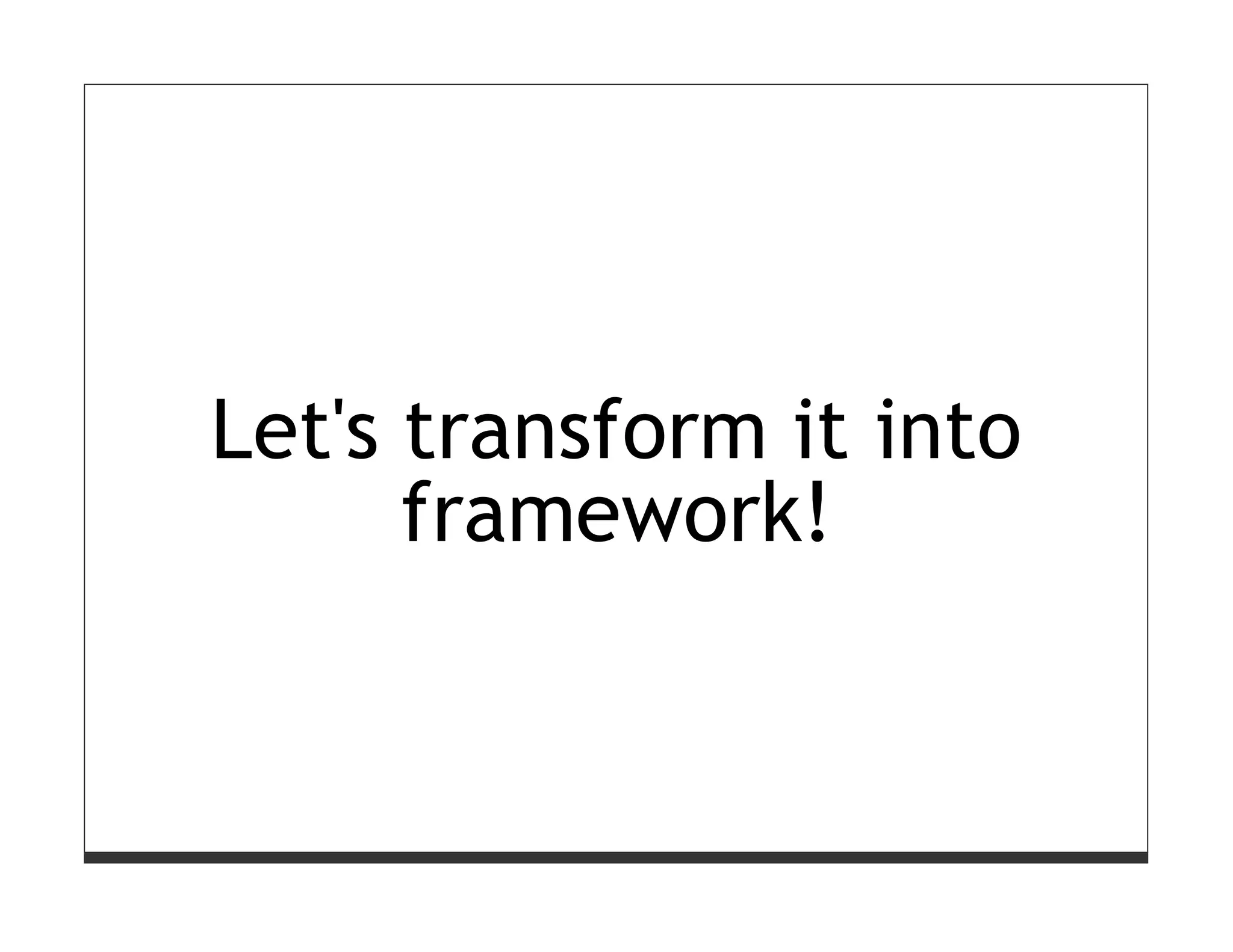

Let's transform it into
framework!

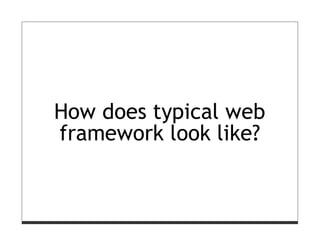

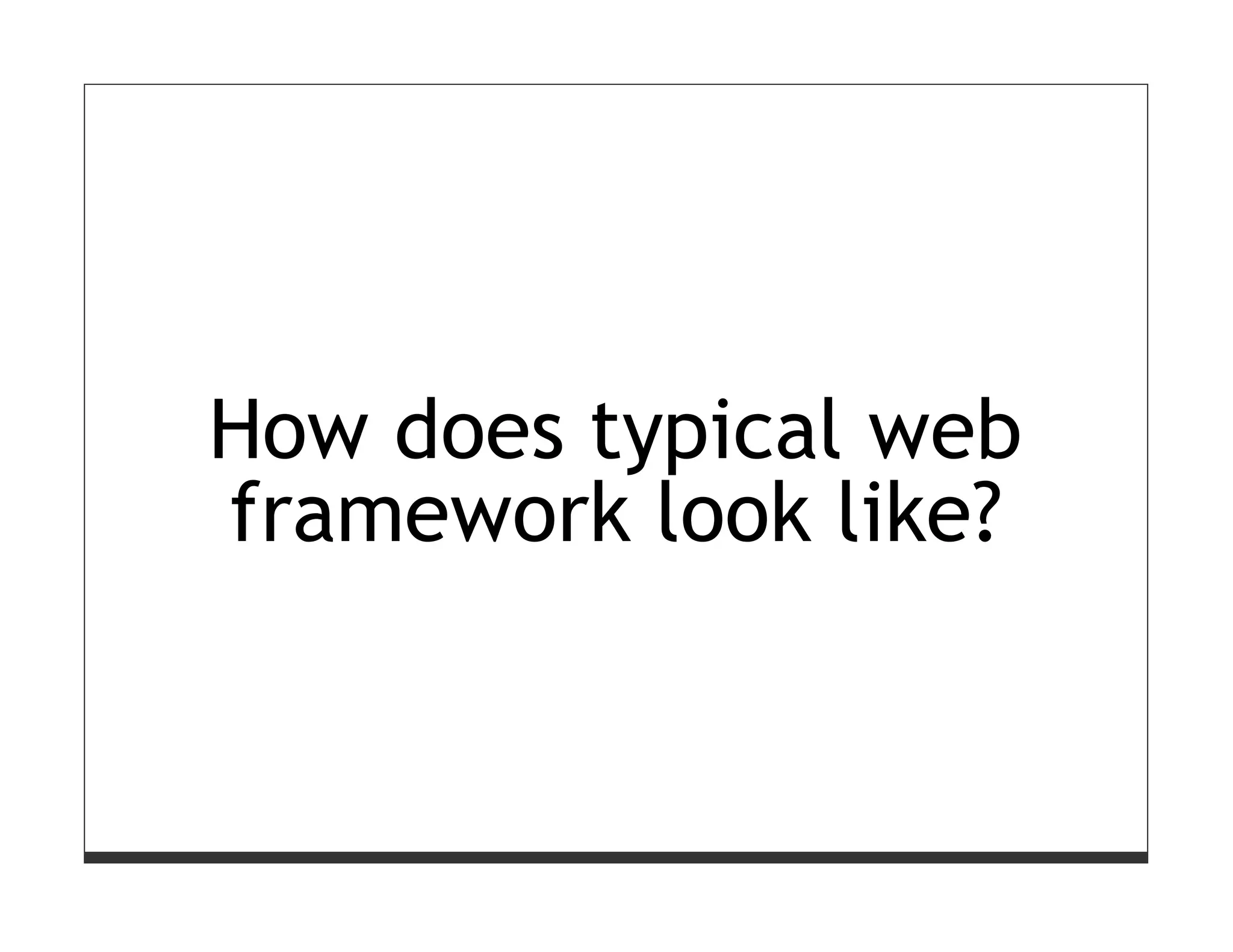

How does typical web
framework look like?

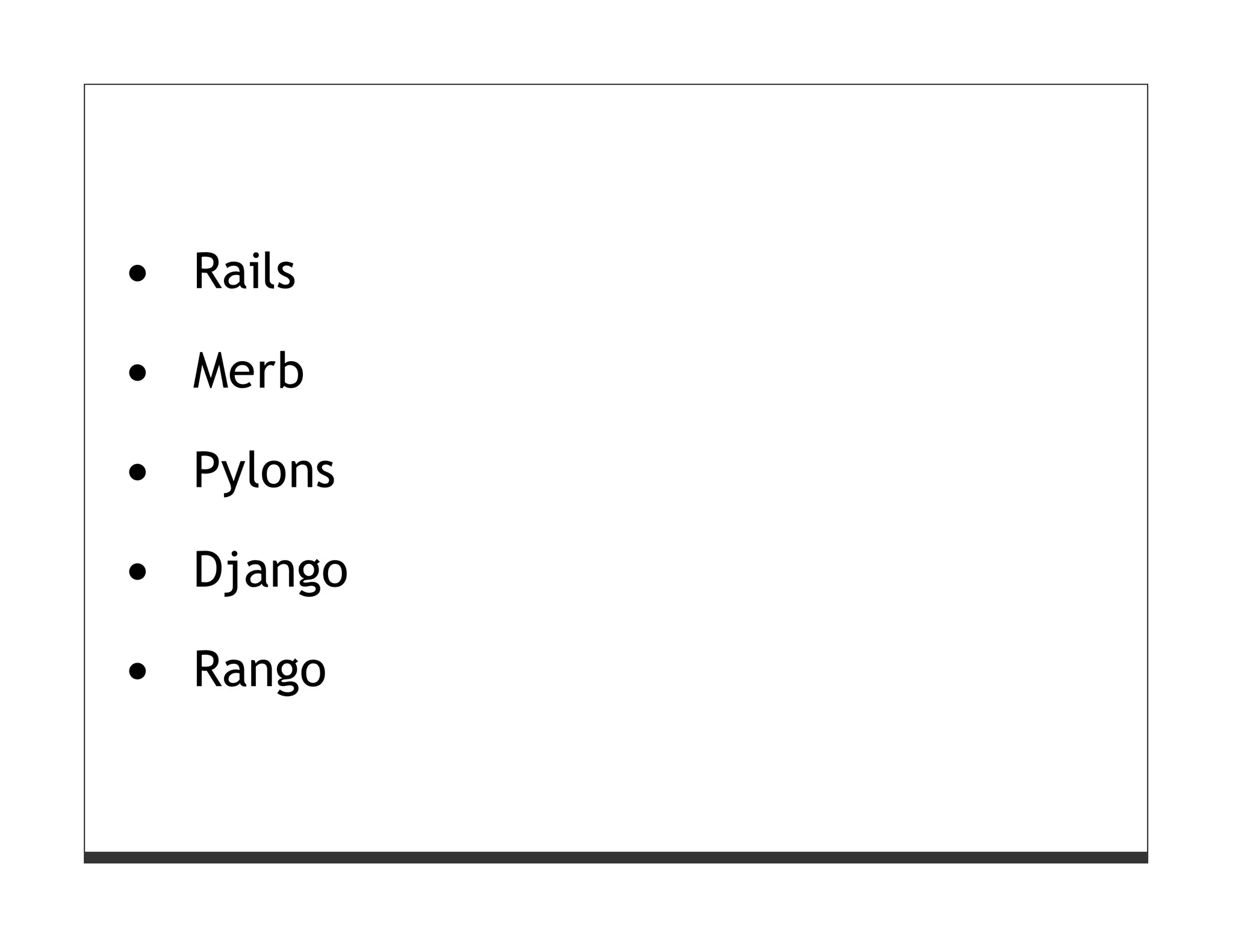

Rails

Merb

Pylons

Django

Rango

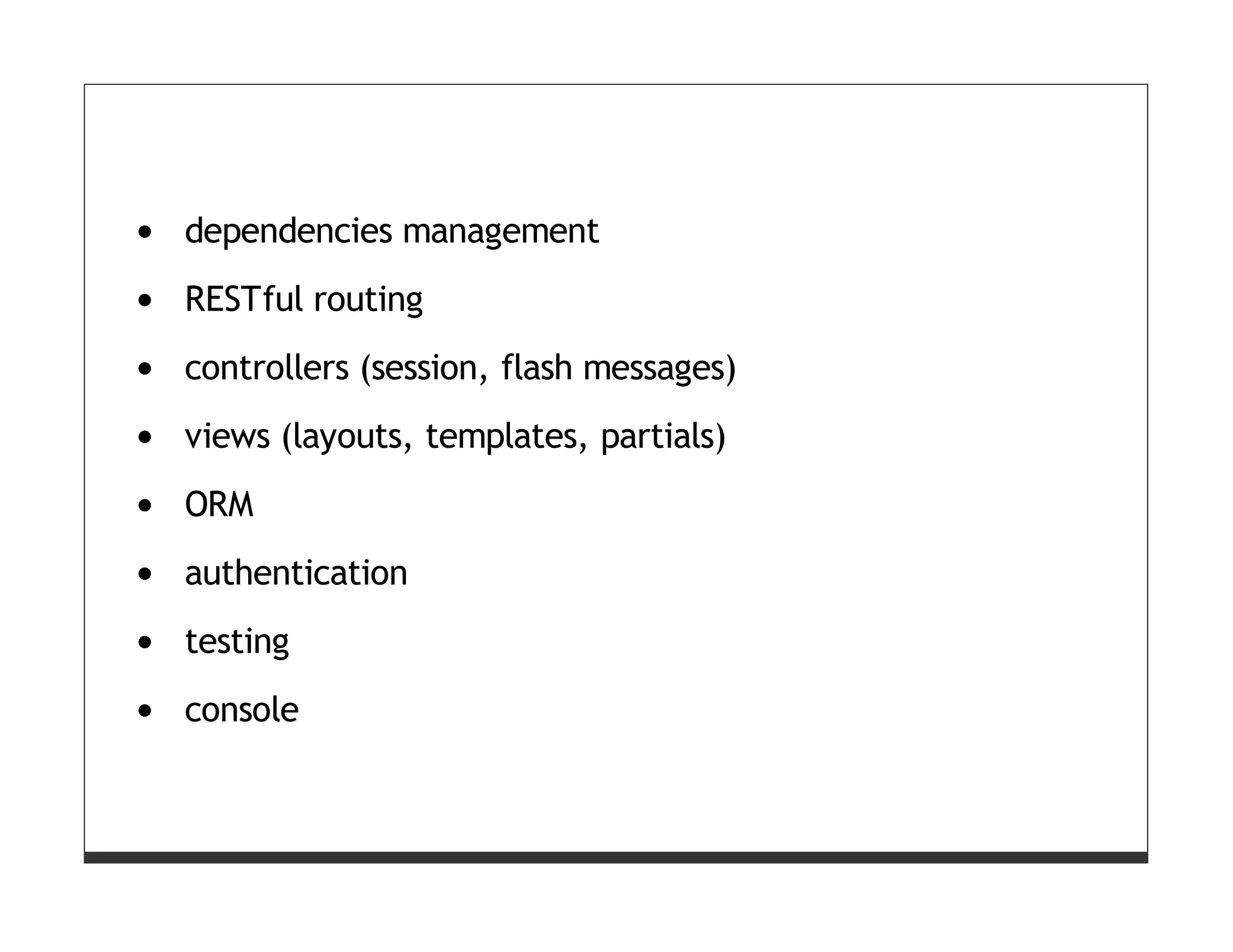

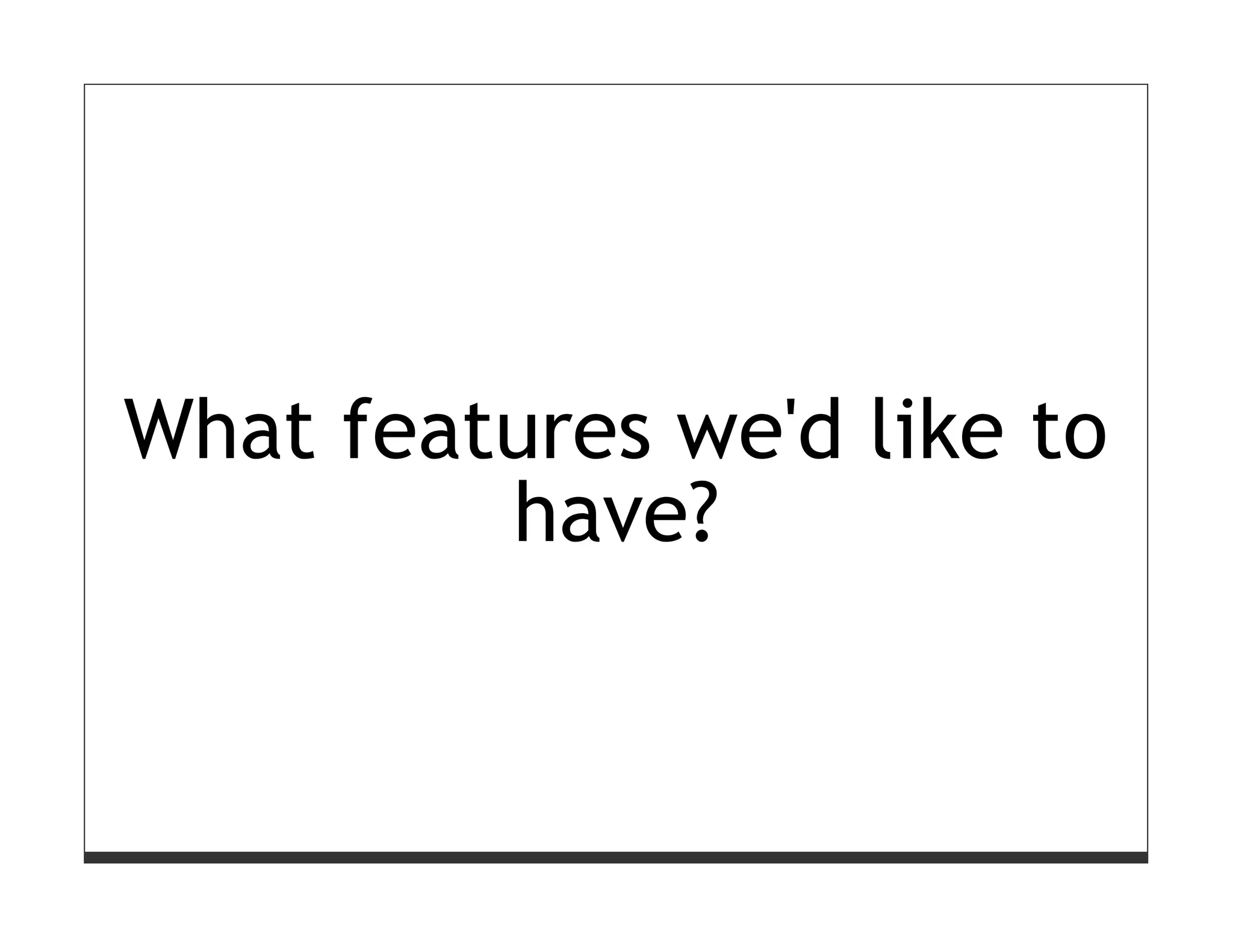

What features we'd like to
have?

dependencies management
RESTful routing
controllers (session, flash messages)
views (layouts, templates, partials)
ORM
authentication
testing
console

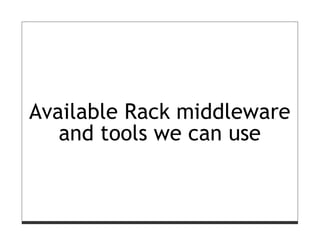

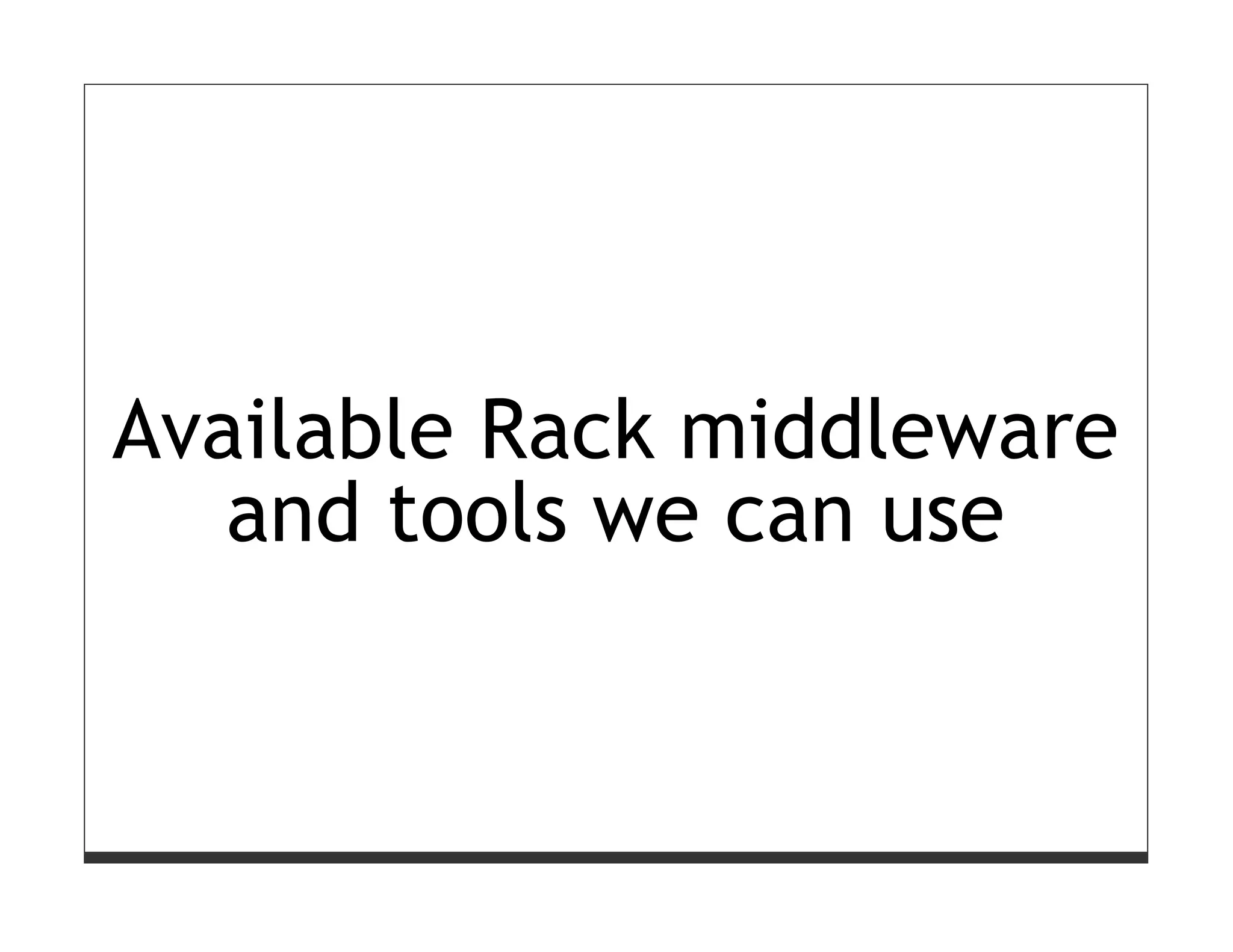

Available Rack middleware
and tools we can use

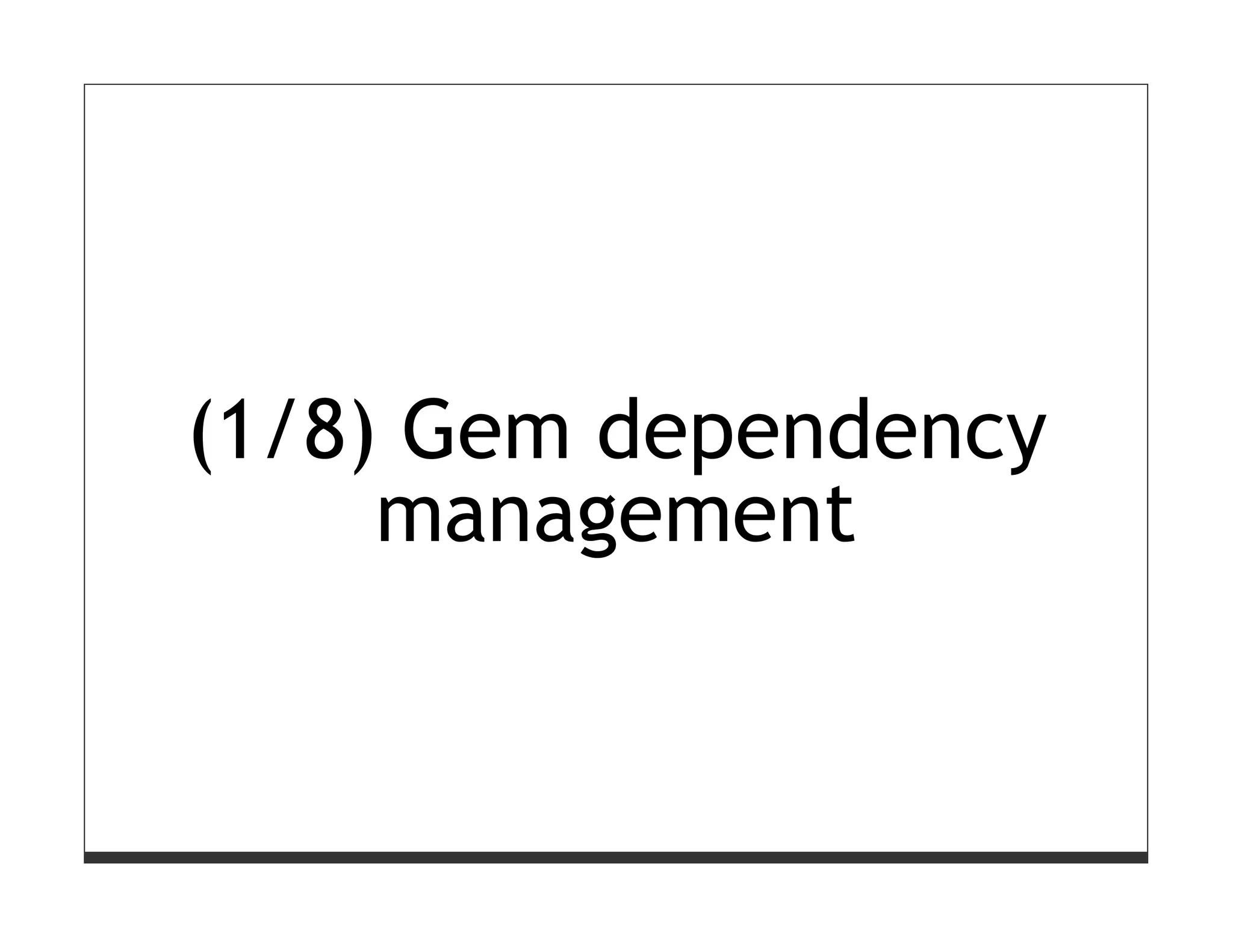

(1/8) Gem dependency
management

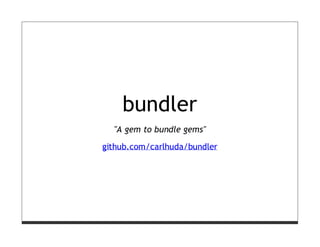

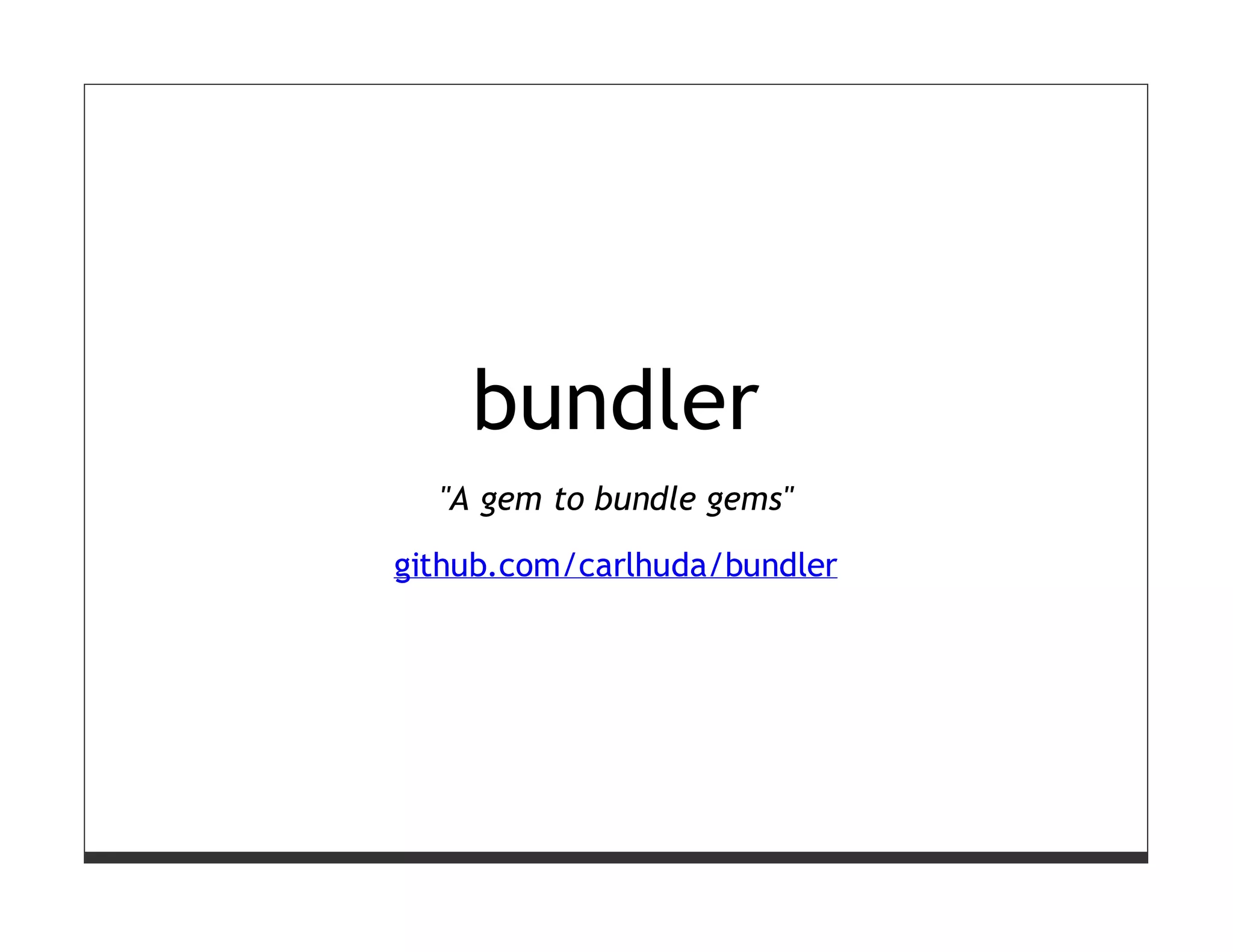

bundler
"A gem to bundle gems"

github.com/carlhuda/bundler

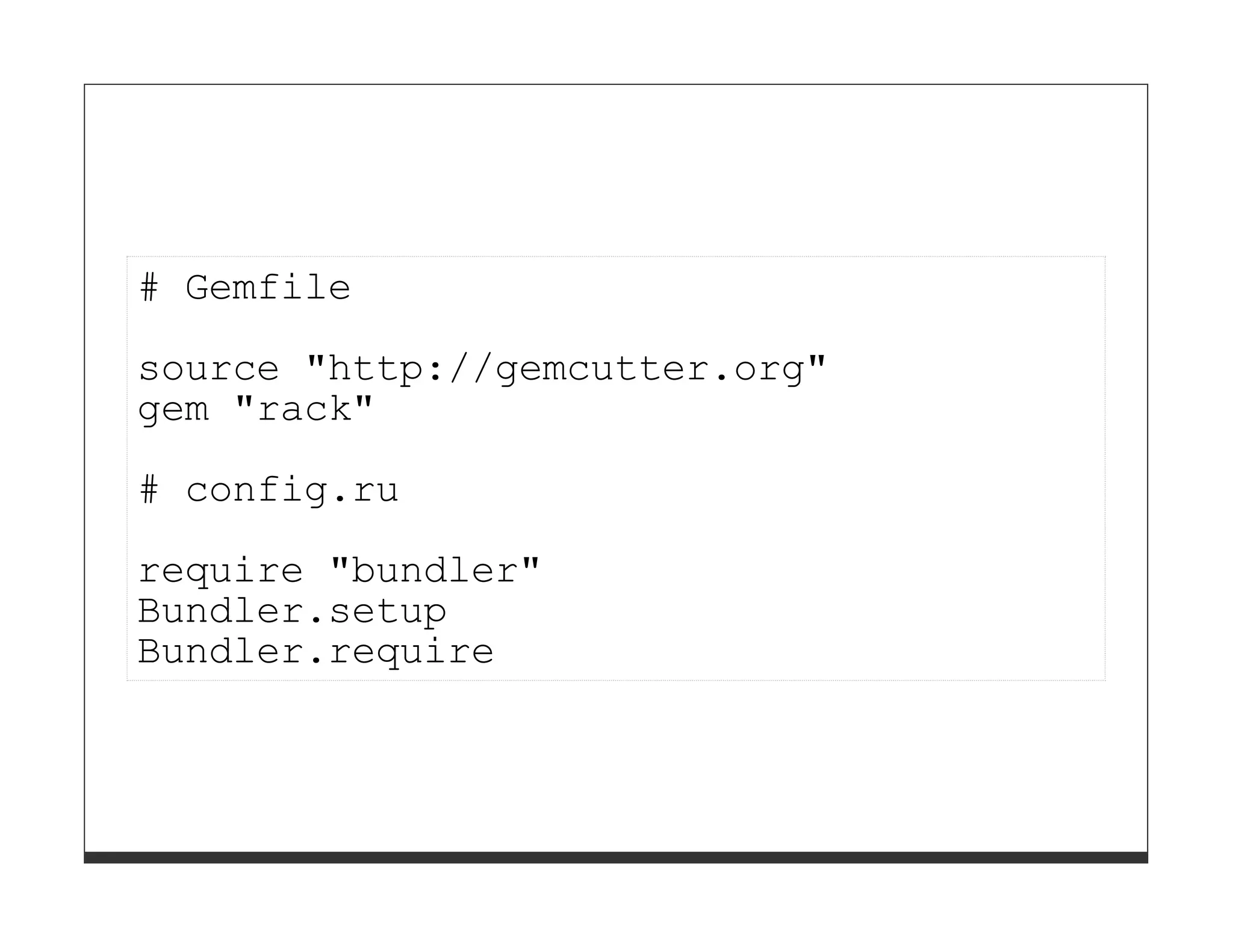

# Gemfile
source "http://gemcutter.org"
gem "rack"
# config.ru

require "bundler"
Bundler.setup
Bundler.require

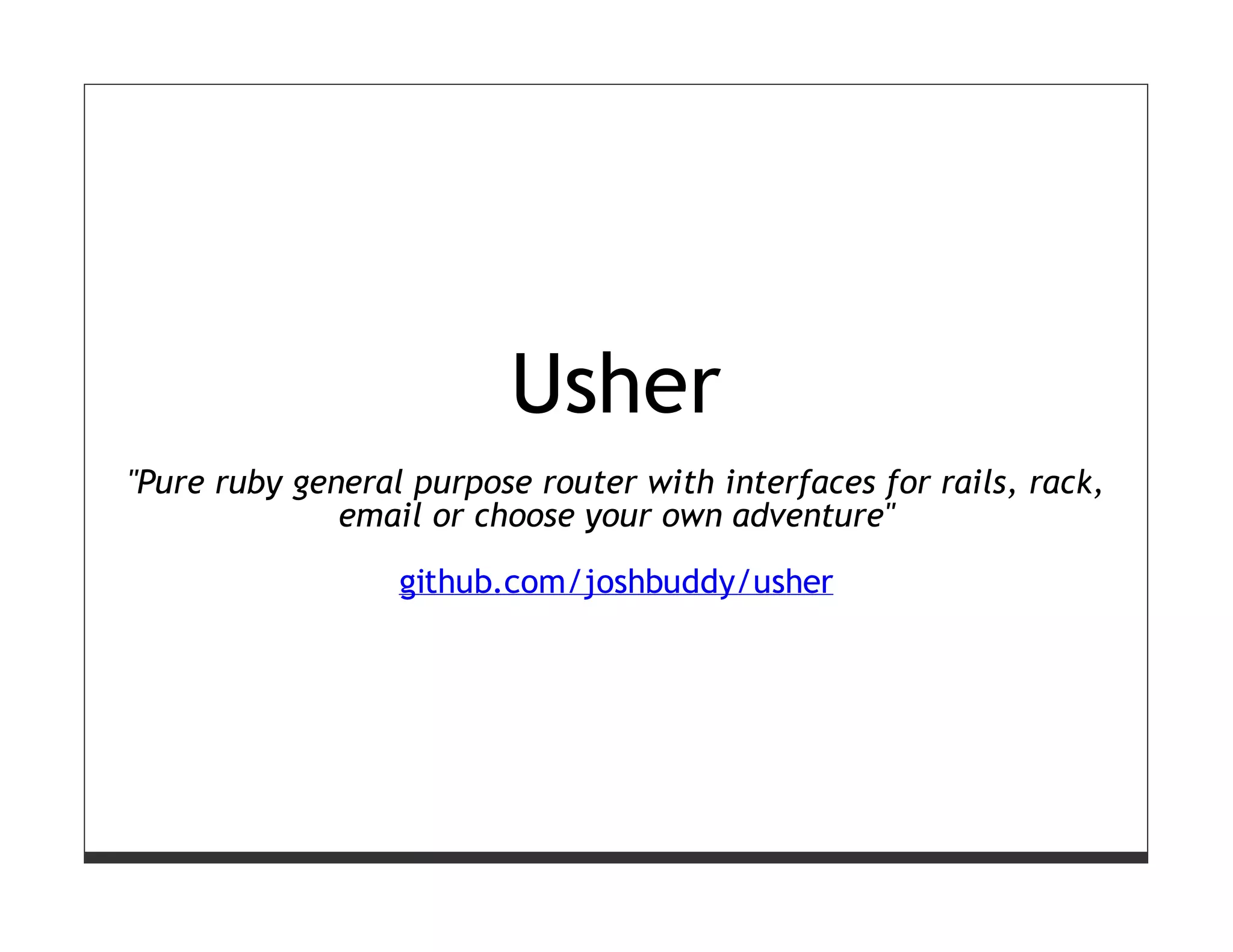

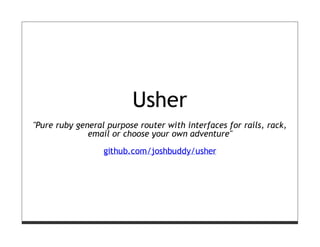

Usher
"Pure ruby general purpose router with interfaces for rails, rack,
email or choose your own adventure"

github.com/joshbuddy/usher

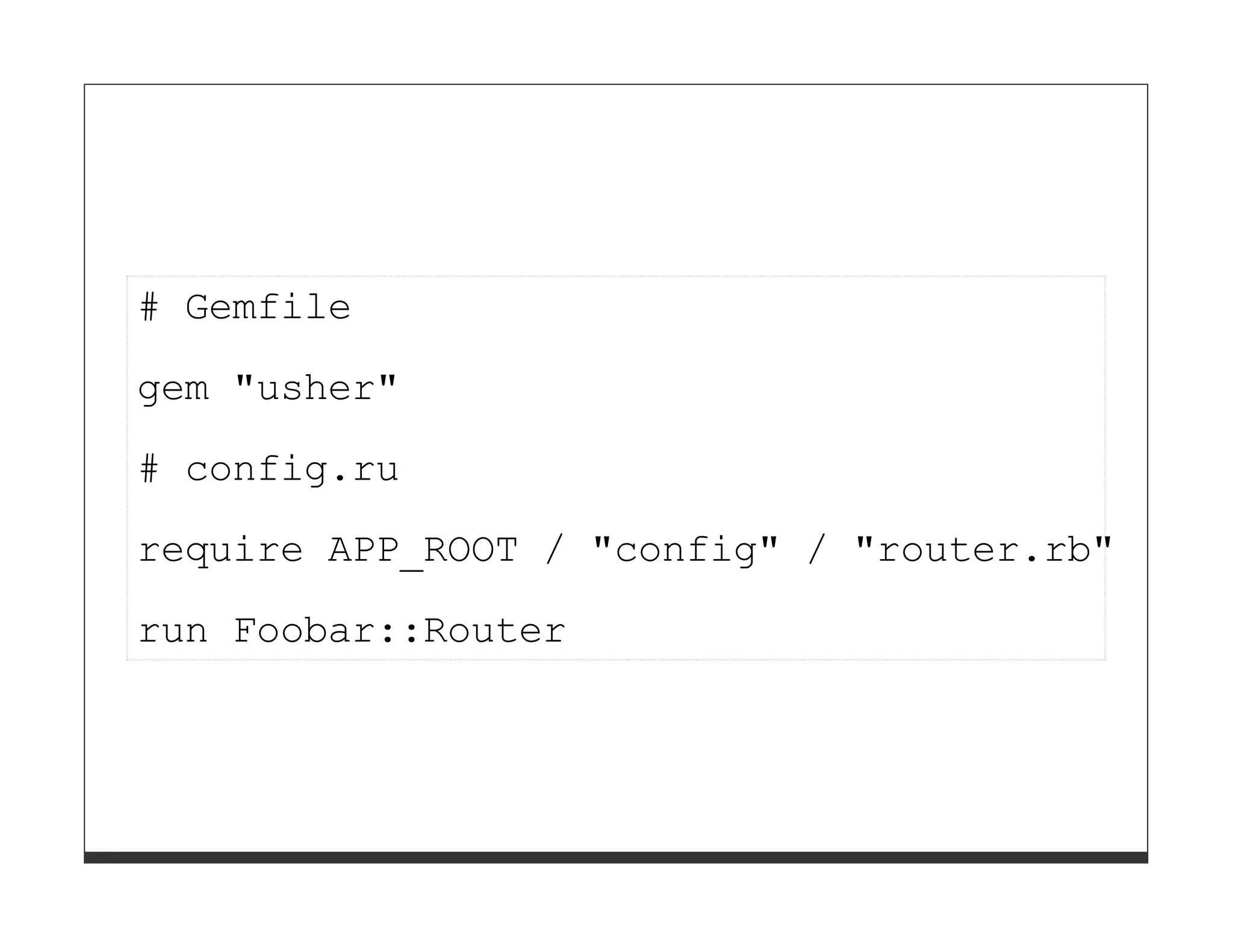

# Gemfile

gem "usher"
# config.ru
require APP_ROOT / "config" / "router.rb"

run Foobar::Router

# config/router.rb
module Foobar
Router = Usher::Interface.for(:rack) do
get('/').to(HomeController.action(:welcome)).name(:root) # root
add('/login').to(SessionController.action(:login)).name(:login)
get('/logout').to(SessionController.action(:logout)).name(:logo
...
default ExceptionsController.action(:not_found) # 404
end
end

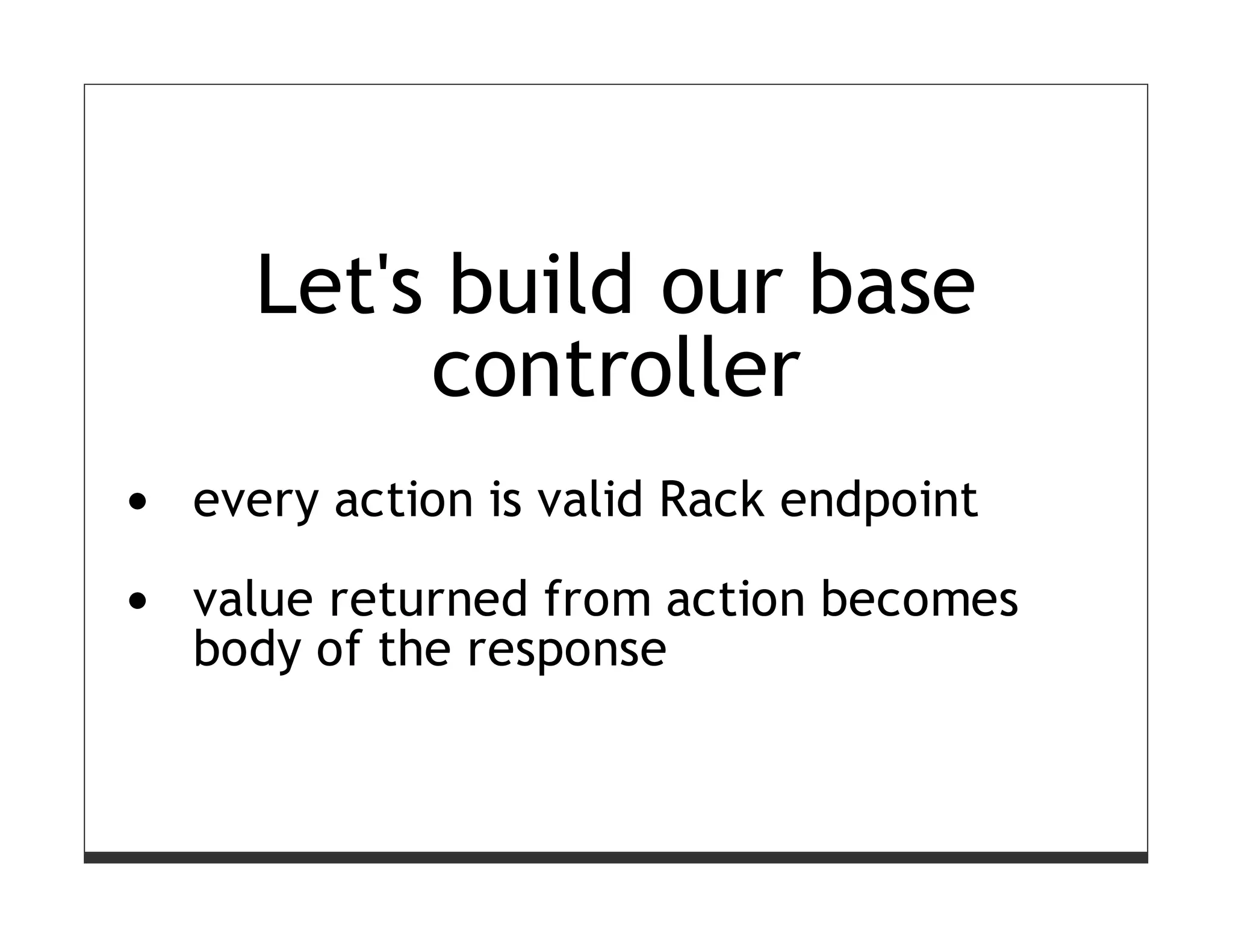

Let's build our base
controller
every action is valid Rack endpoint

value returned from action becomes
body of the response

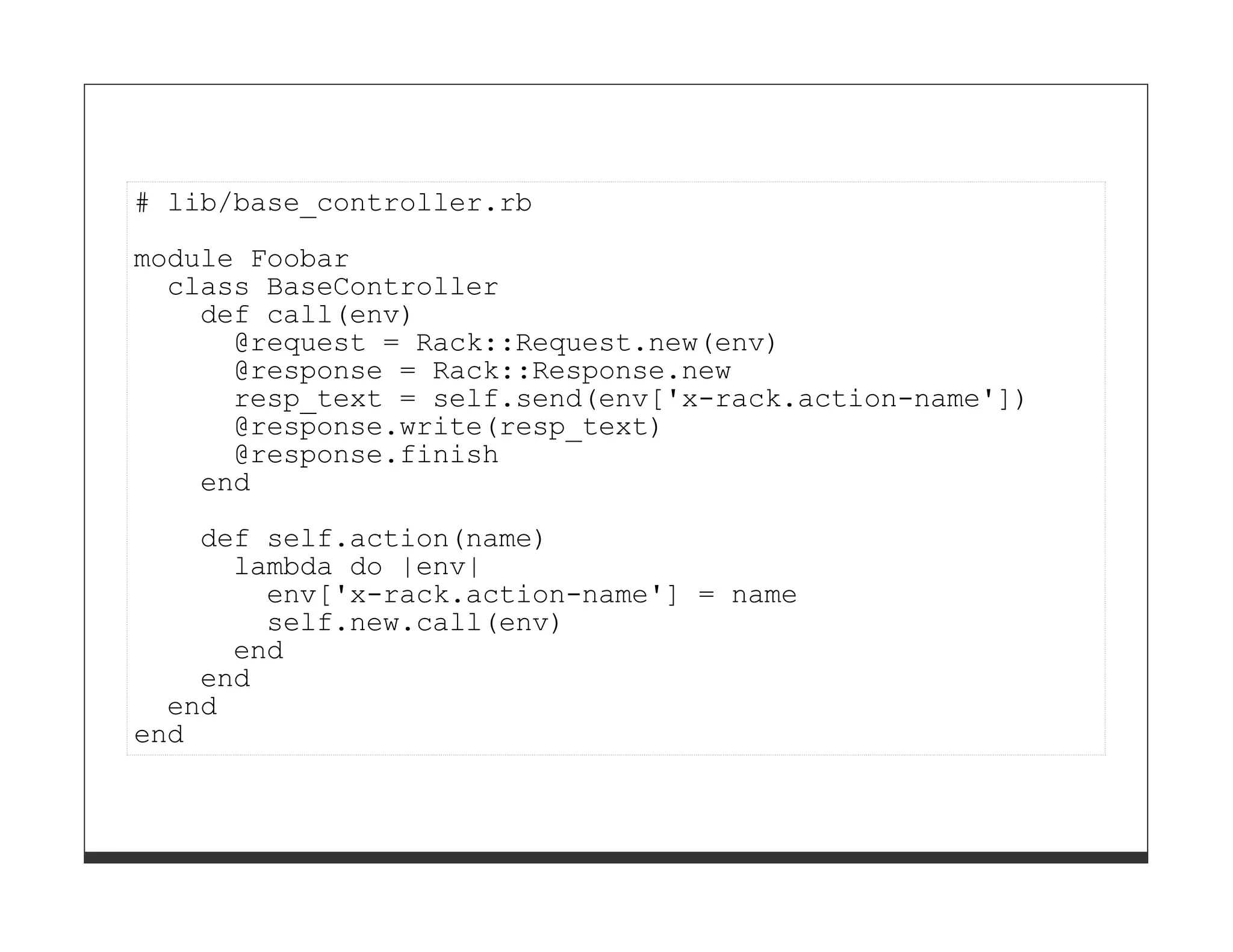

# lib/base_controller.rb

module Foobar
class BaseController
def call(env)
@request = Rack::Request.new(env)
@response = Rack::Response.new
resp_text = self.send(env['x-rack.action-name'])
@response.write(resp_text)
@response.finish
end
def self.action(name)
lambda do |env|
env['x-rack.action-name'] = name
self.new.call(env)
end
end
end
end

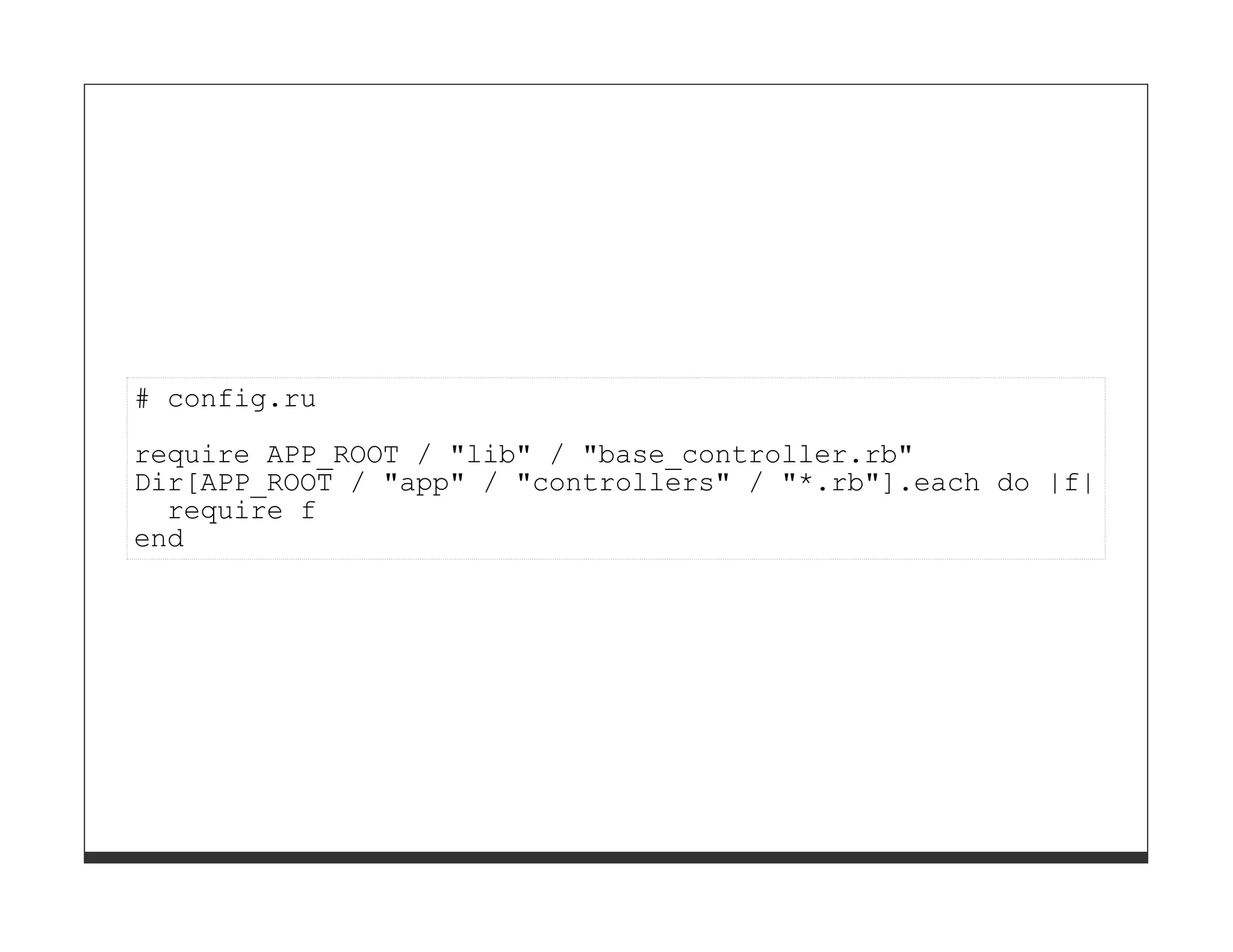

# config.ru
require APP_ROOT / "lib" / "base_controller.rb"
Dir[APP_ROOT / "app" / "controllers" / "*.rb"].each do |f|
require f
end

Now we can create
UsersController

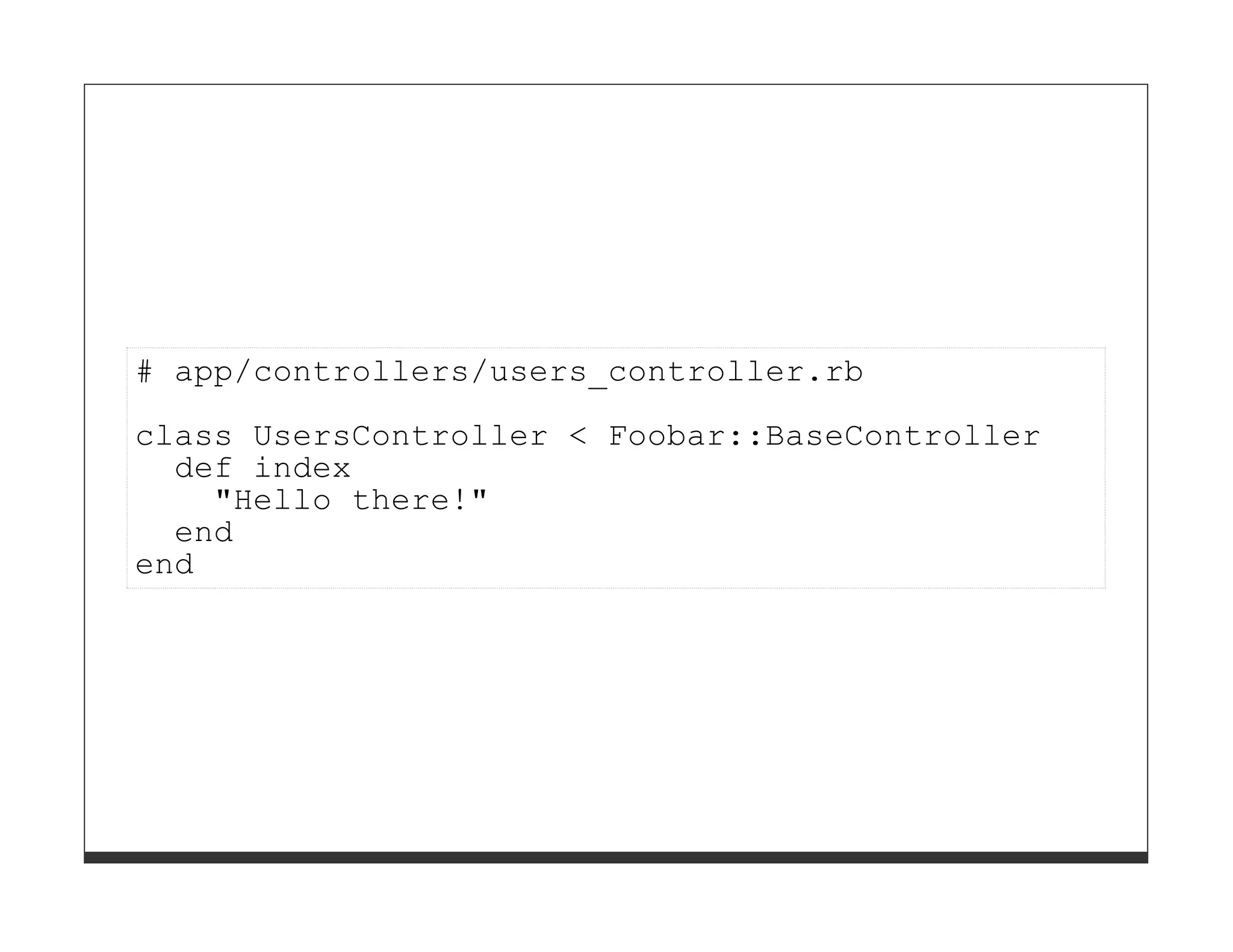

# app/controllers/users_controller.rb
class UsersController < Foobar::BaseController
def index
"Hello there!"
end
end

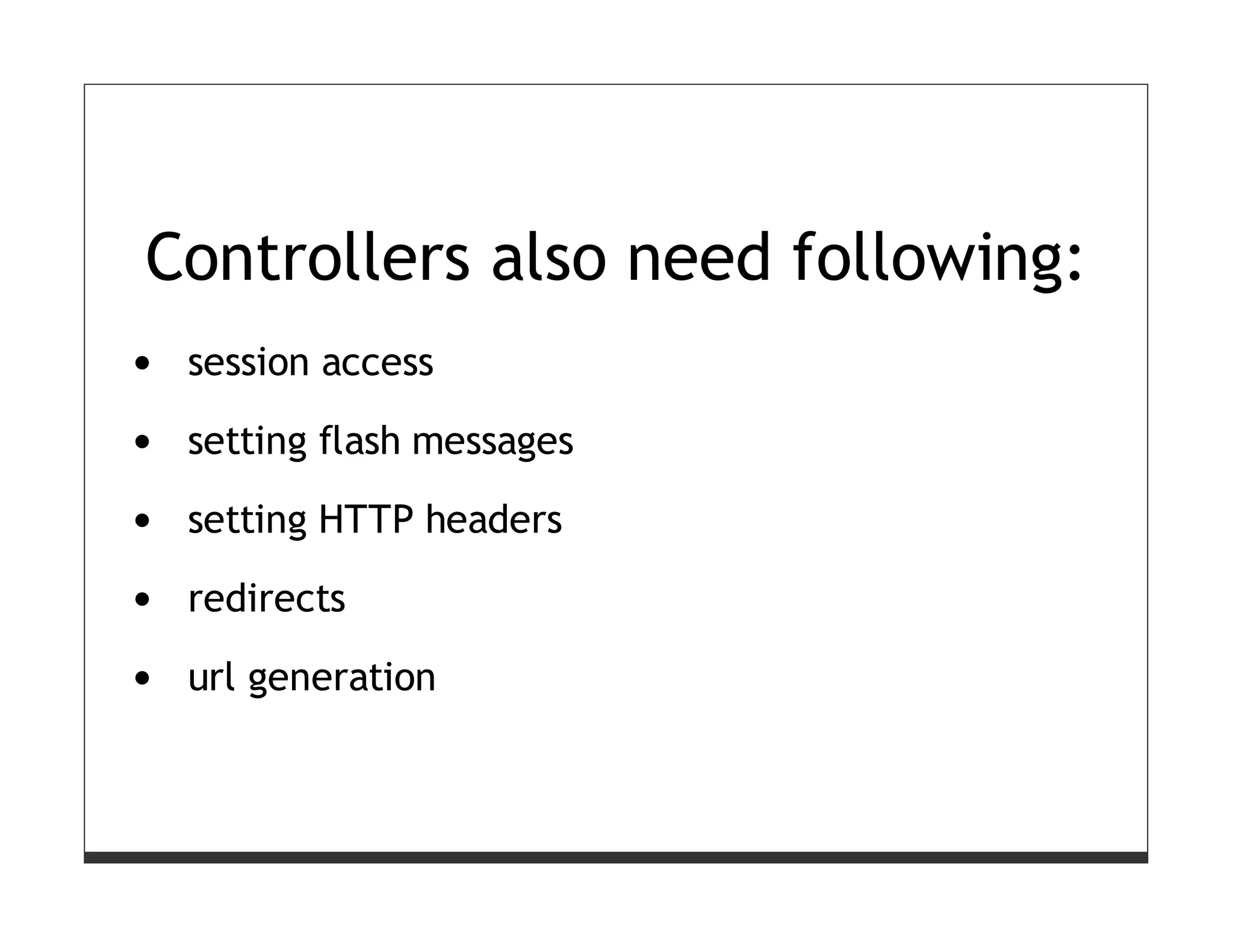

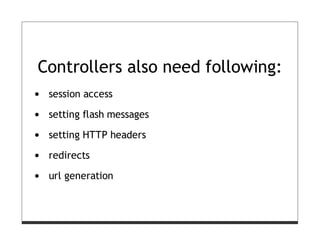

Controllers also need following:
session access

setting flash messages

setting HTTP headers
redirects

url generation

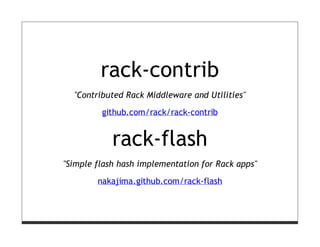

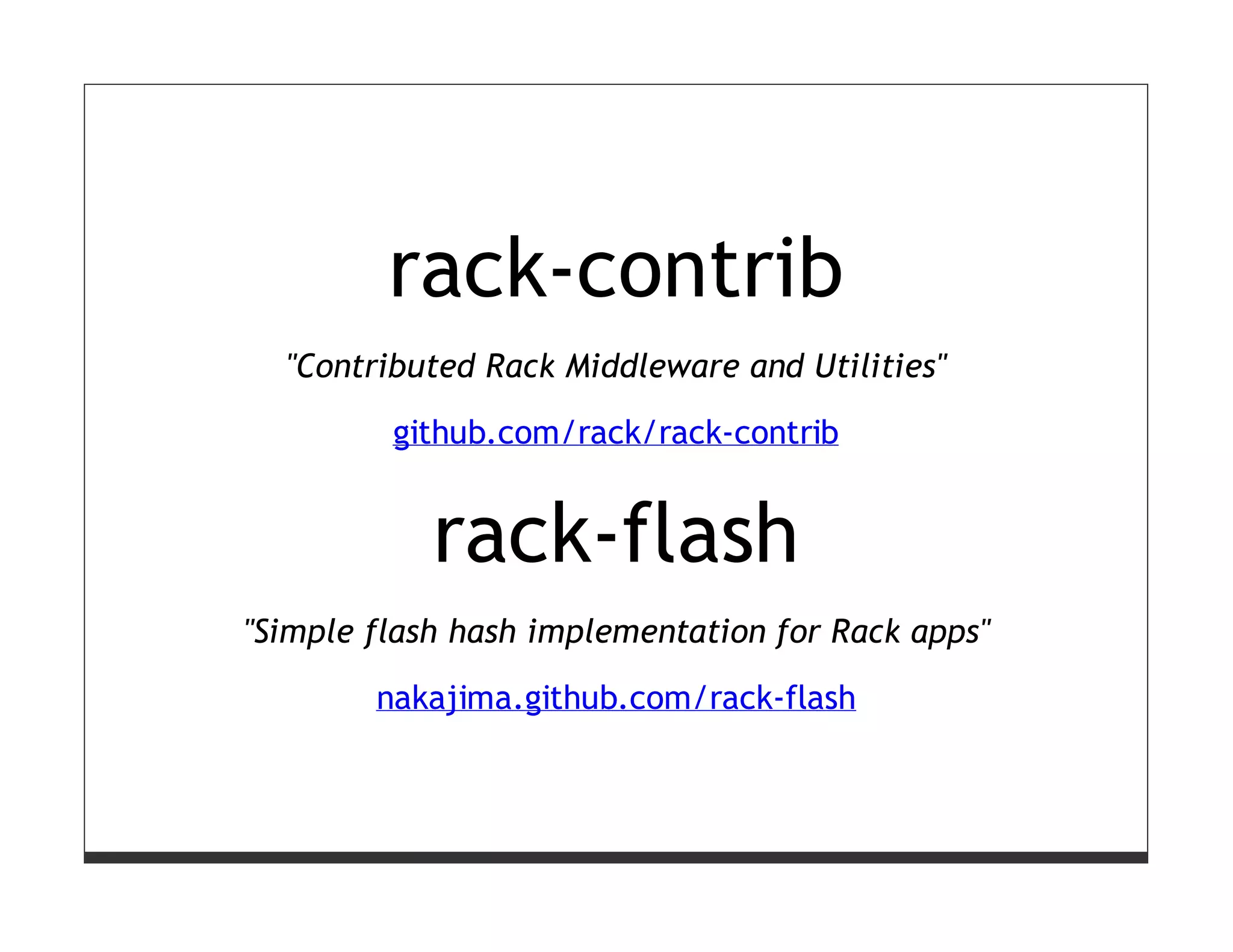

rack-contrib
"Contributed Rack Middleware and Utilities"
github.com/rack/rack-contrib

rack-flash
"Simple flash hash implementation for Rack apps"

nakajima.github.com/rack-flash

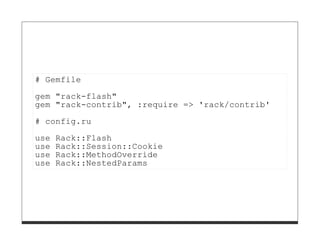

# Gemfile
gem "rack-flash"
gem "rack-contrib", :require => 'rack/contrib'
# config.ru

use Rack::Flash
use Rack::Session::Cookie
use Rack::MethodOverride
use Rack::NestedParams

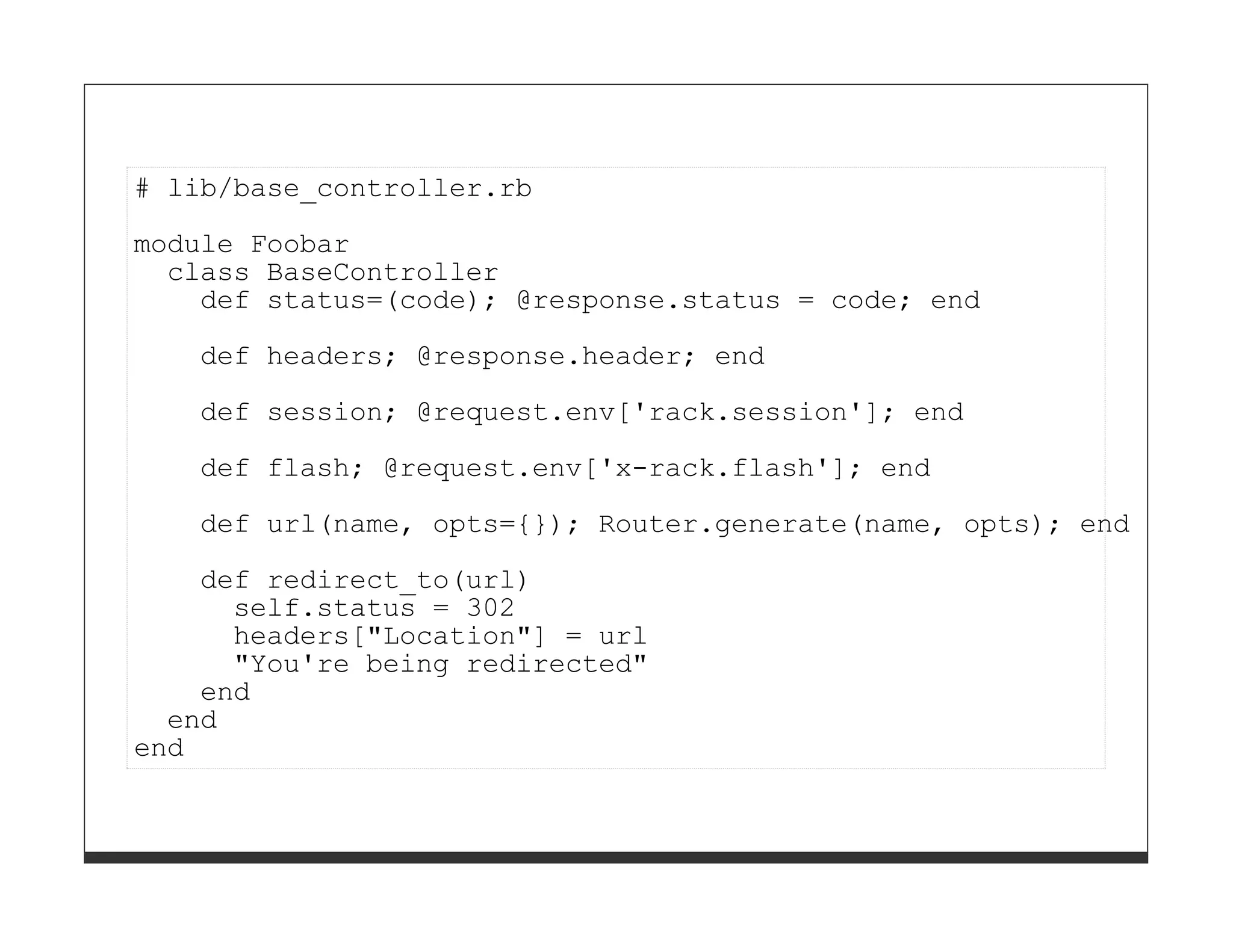

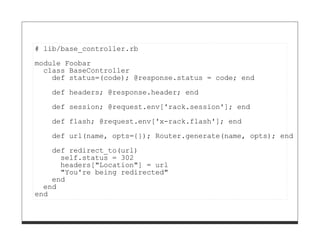

module Foobar
def status=(code); @response.status = code; end
def headers; @response.header; end
def session; @request.env['rack.session']; end

def flash; @request.env['x-rack.flash']; end
def url(name, opts={}); Router.generate(name, opts); end
def redirect_to(url)
self.status = 302
headers["Location"] = url
"You're being redirected"
end
end
end

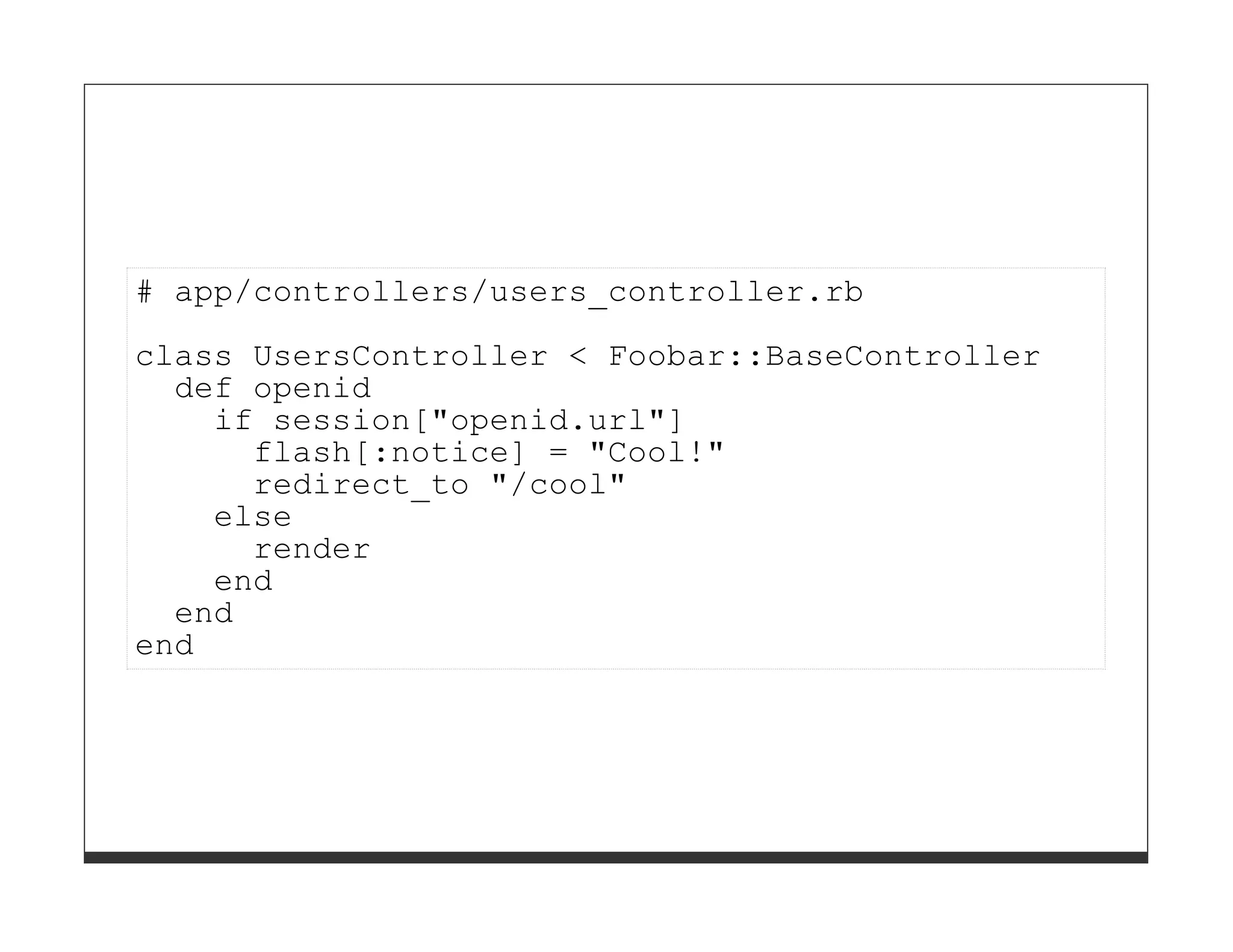

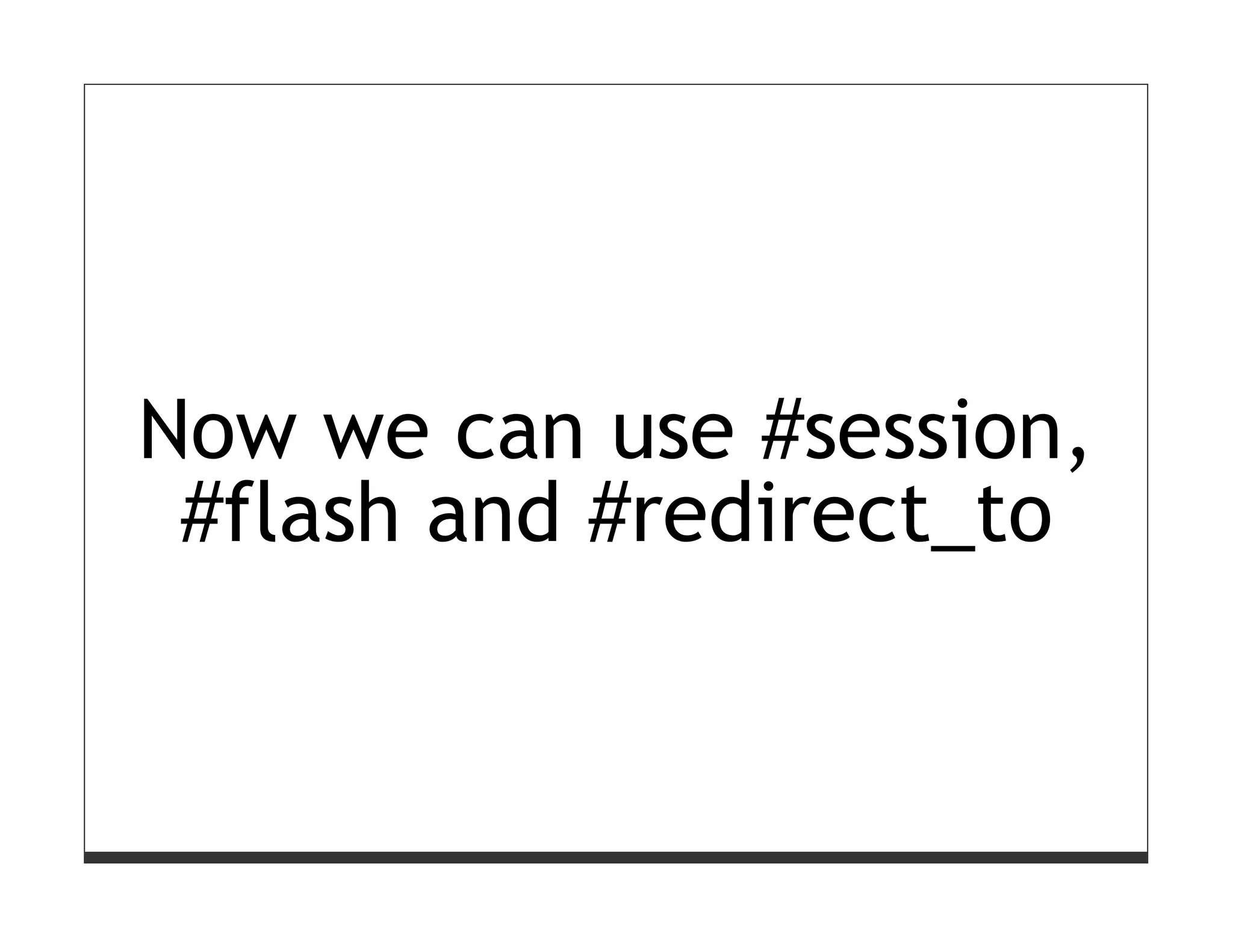

Now we can use #session,
#flash and #redirect_to


def openid
if session["openid.url"]
flash[:notice] = "Cool!"
redirect_to "/cool"
else
render
end
end
end

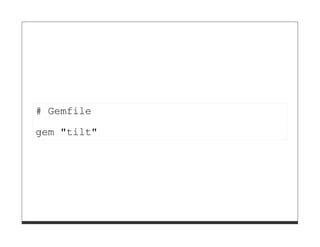

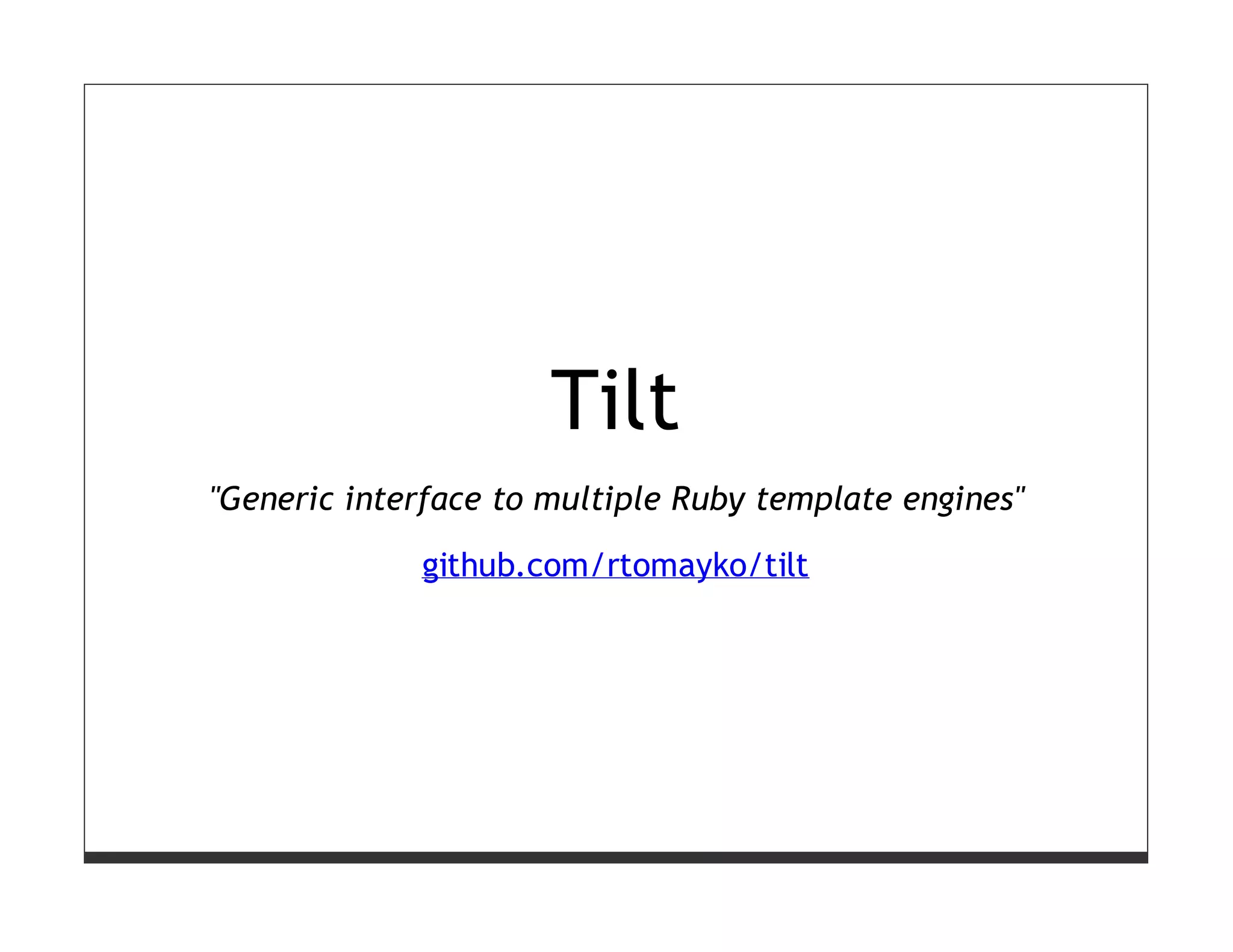

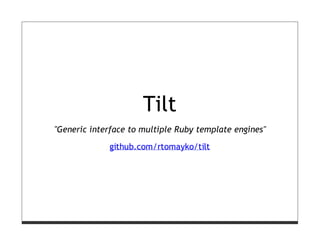

Tilt
"Generic interface to multiple Ruby template engines"

github.com/rtomayko/tilt

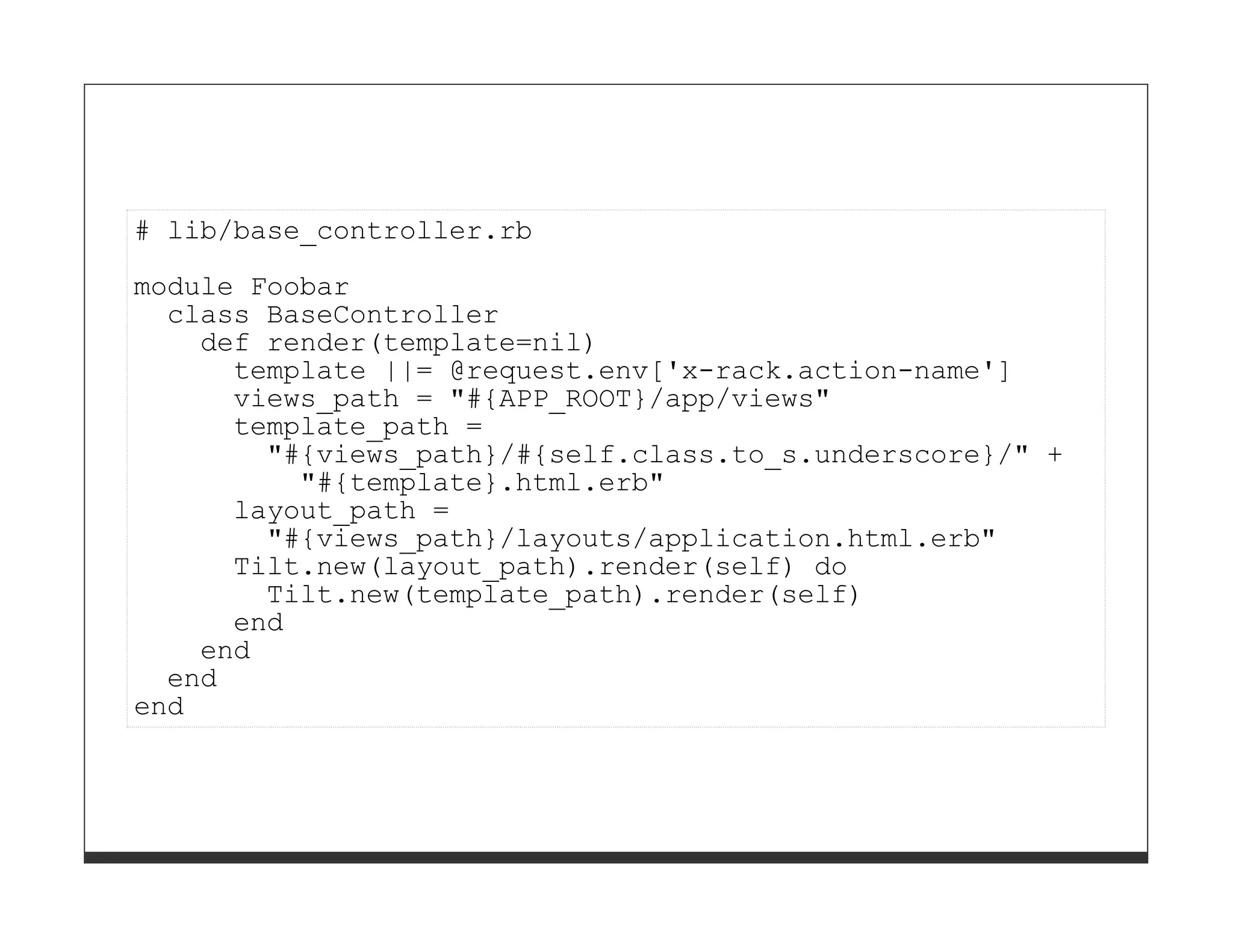

module Foobar
def render(template=nil)
template ||= @request.env['x-rack.action-name']
views_path = "#{APP_ROOT}/app/views"
template_path =
"#{views_path}/#{self.class.to_s.underscore}/" +
"#{template}.html.erb"
layout_path =
"#{views_path}/layouts/application.html.erb"
Tilt.new(layout_path).render(self) do
Tilt.new(template_path).render(self)
end
end
end
end

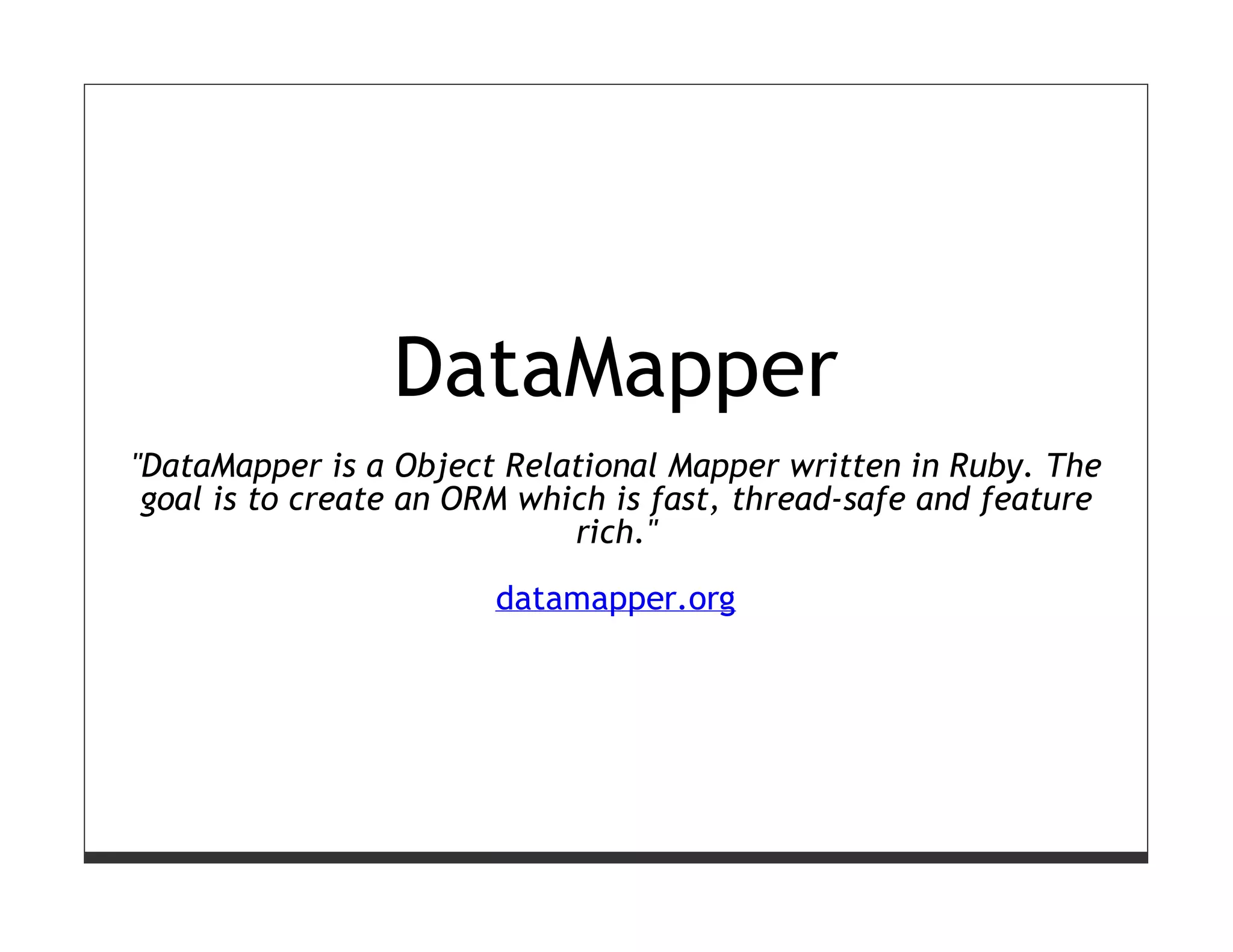

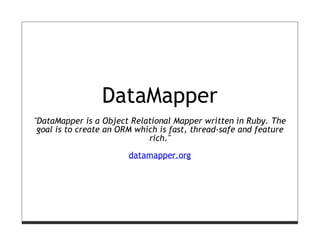

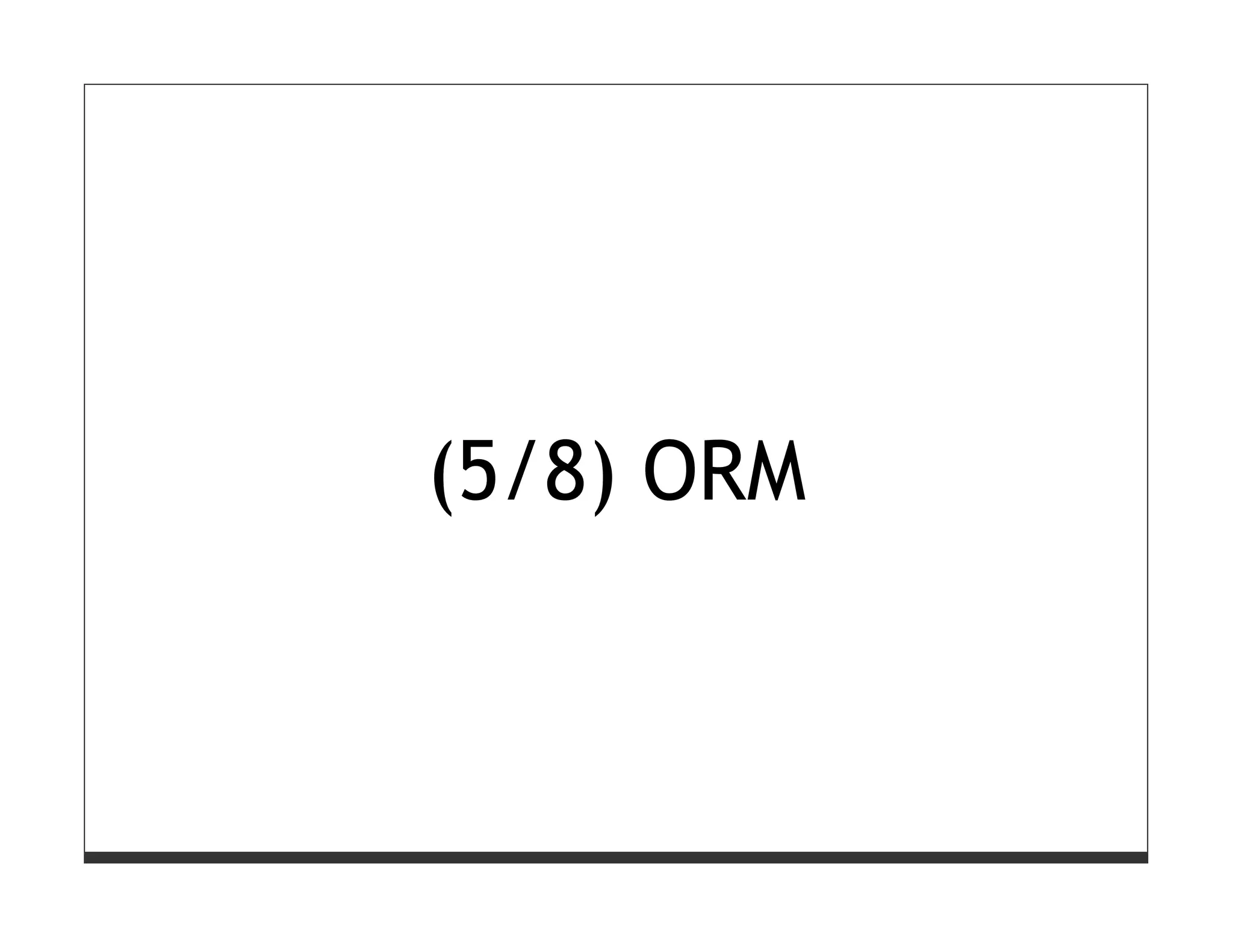

DataMapper
"DataMapper is a Object Relational Mapper written in Ruby. The
goal is to create an ORM which is fast, thread-safe and feature
rich."

datamapper.org

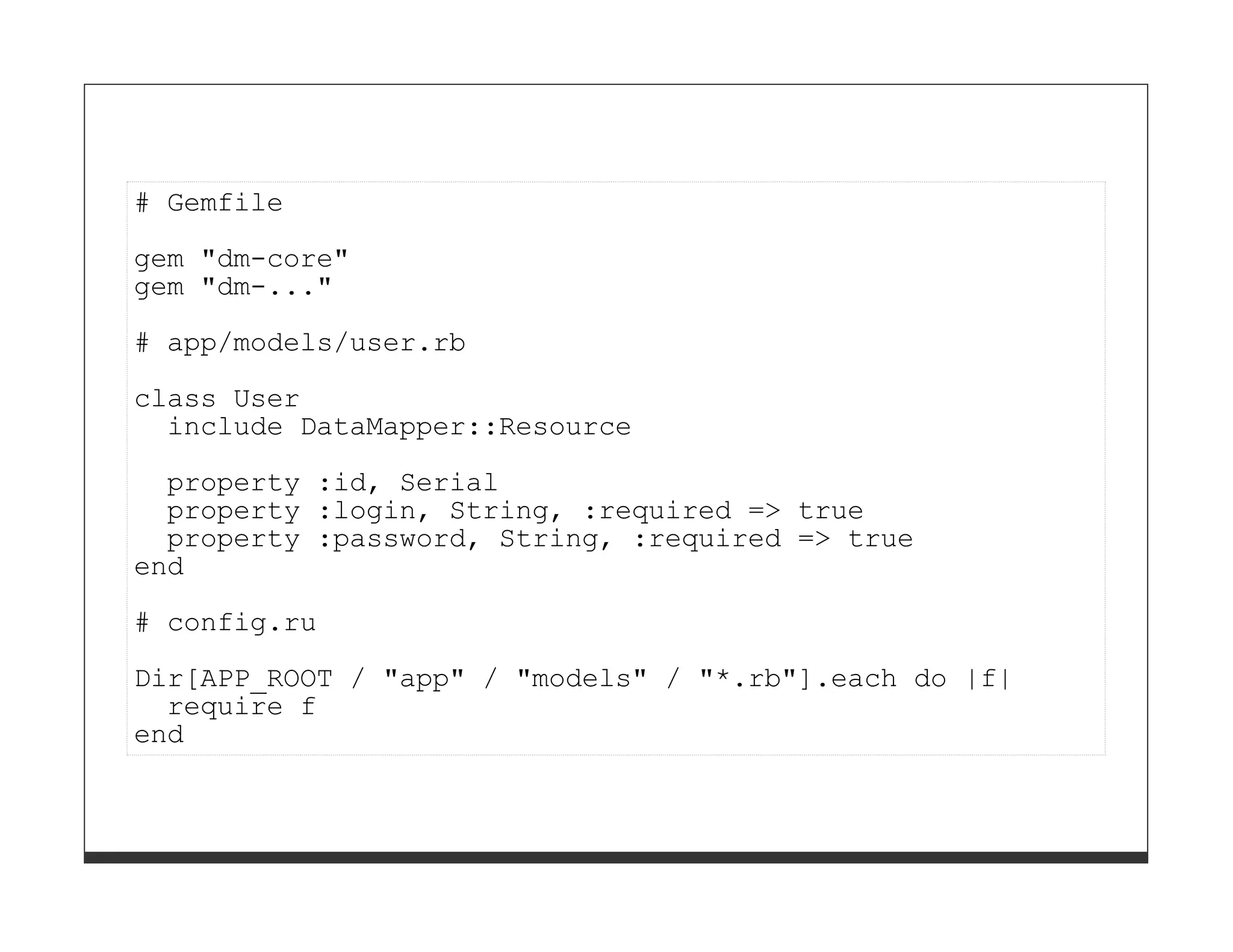

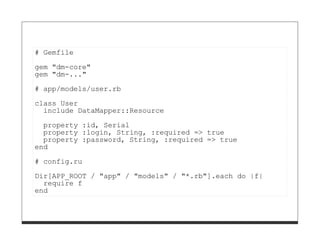

# Gemfile

gem "dm-core"
gem "dm-..."
# app/models/user.rb

class User
include DataMapper::Resource

property :id, Serial
property :login, String, :required => true
property :password, String, :required => true
end
# config.ru
Dir[APP_ROOT / "app" / "models" / "*.rb"].each do |f|
require f
end

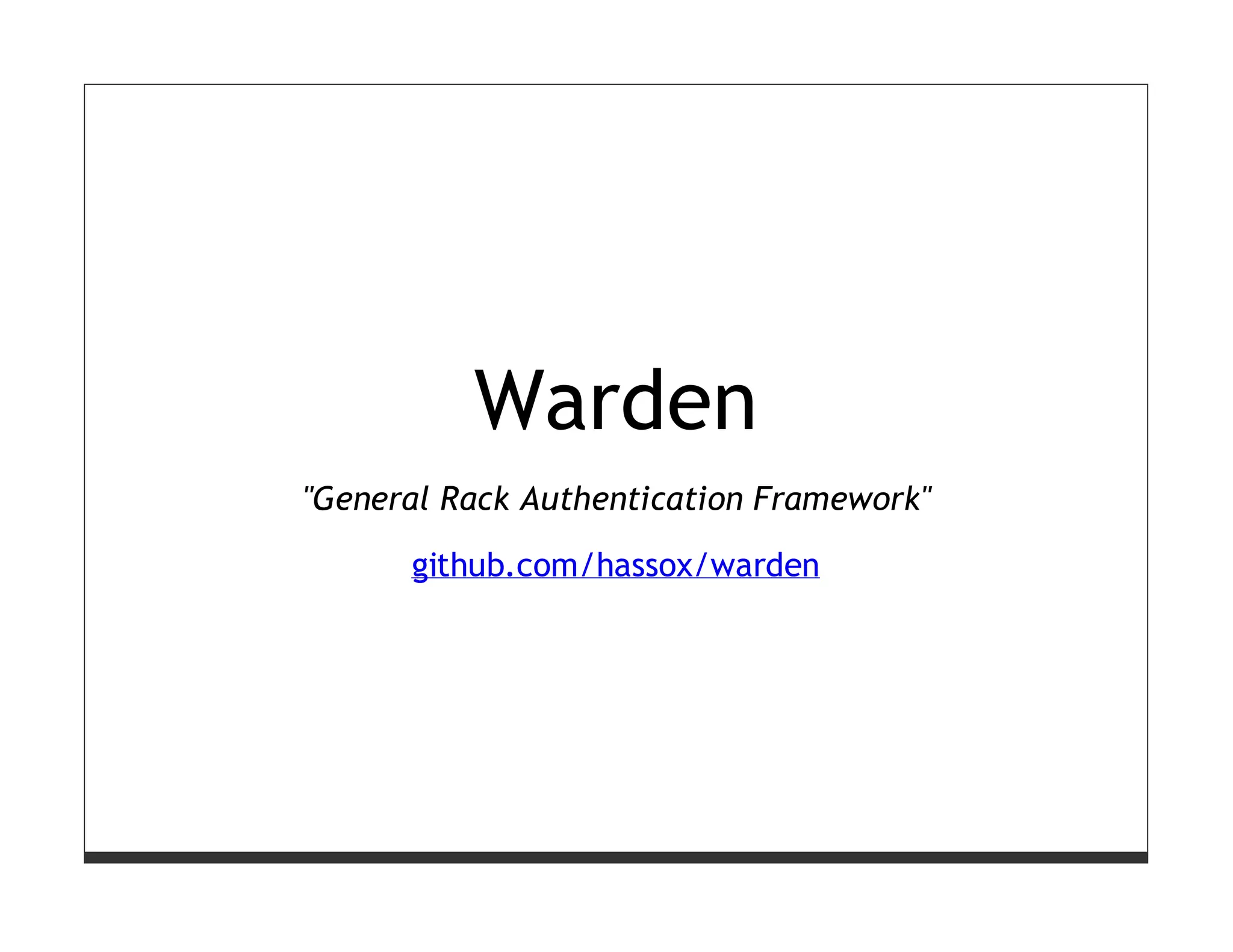

Warden
"General Rack Authentication Framework"

github.com/hassox/warden

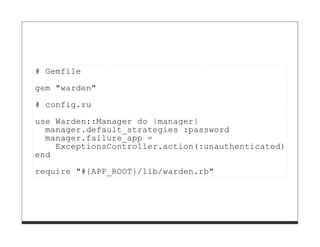

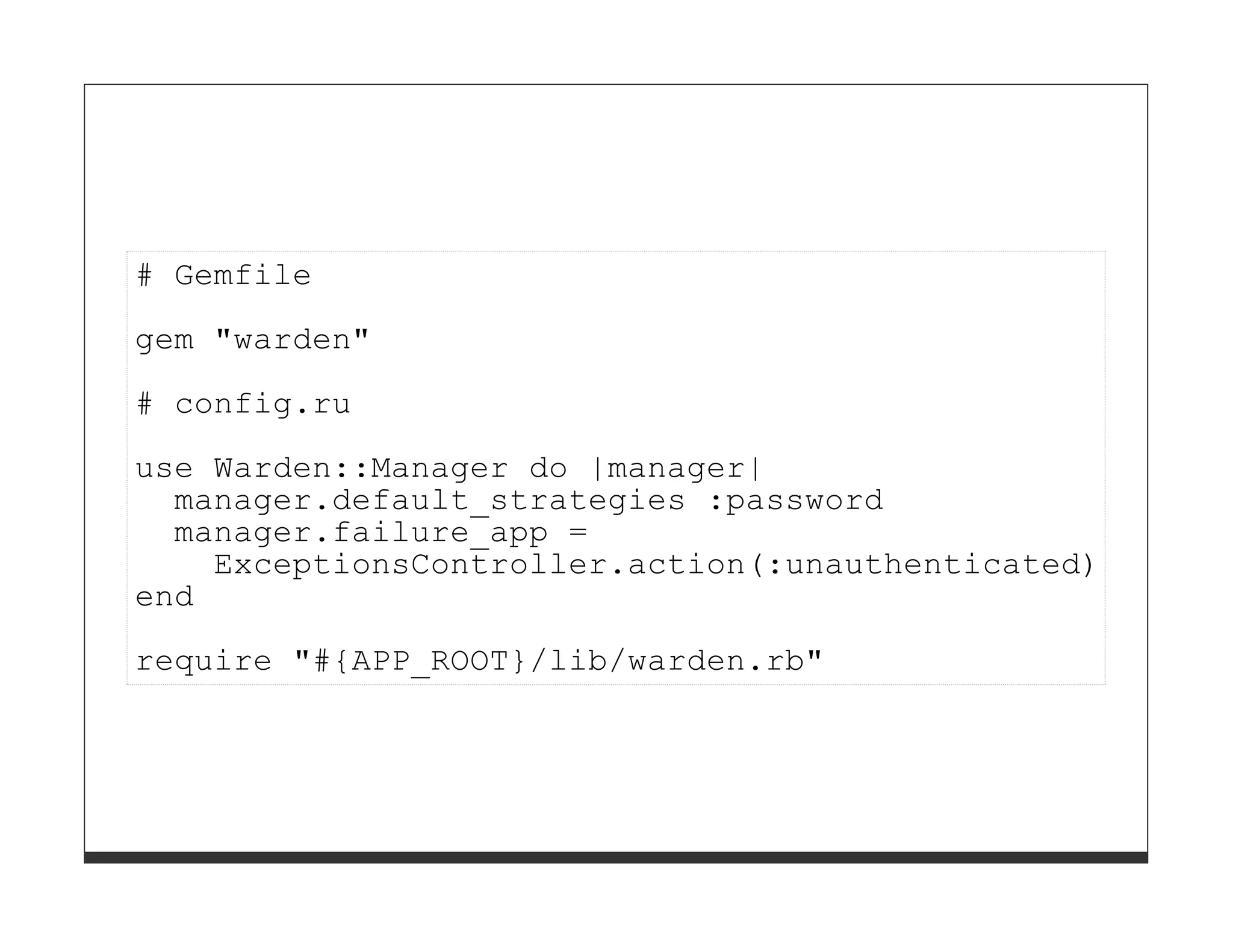

# Gemfile

gem "warden"
# config.ru
use Warden::Manager do |manager|
manager.default_strategies :password
manager.failure_app =
ExceptionsController.action(:unauthenticated)
end
require "#{APP_ROOT}/lib/warden.rb"

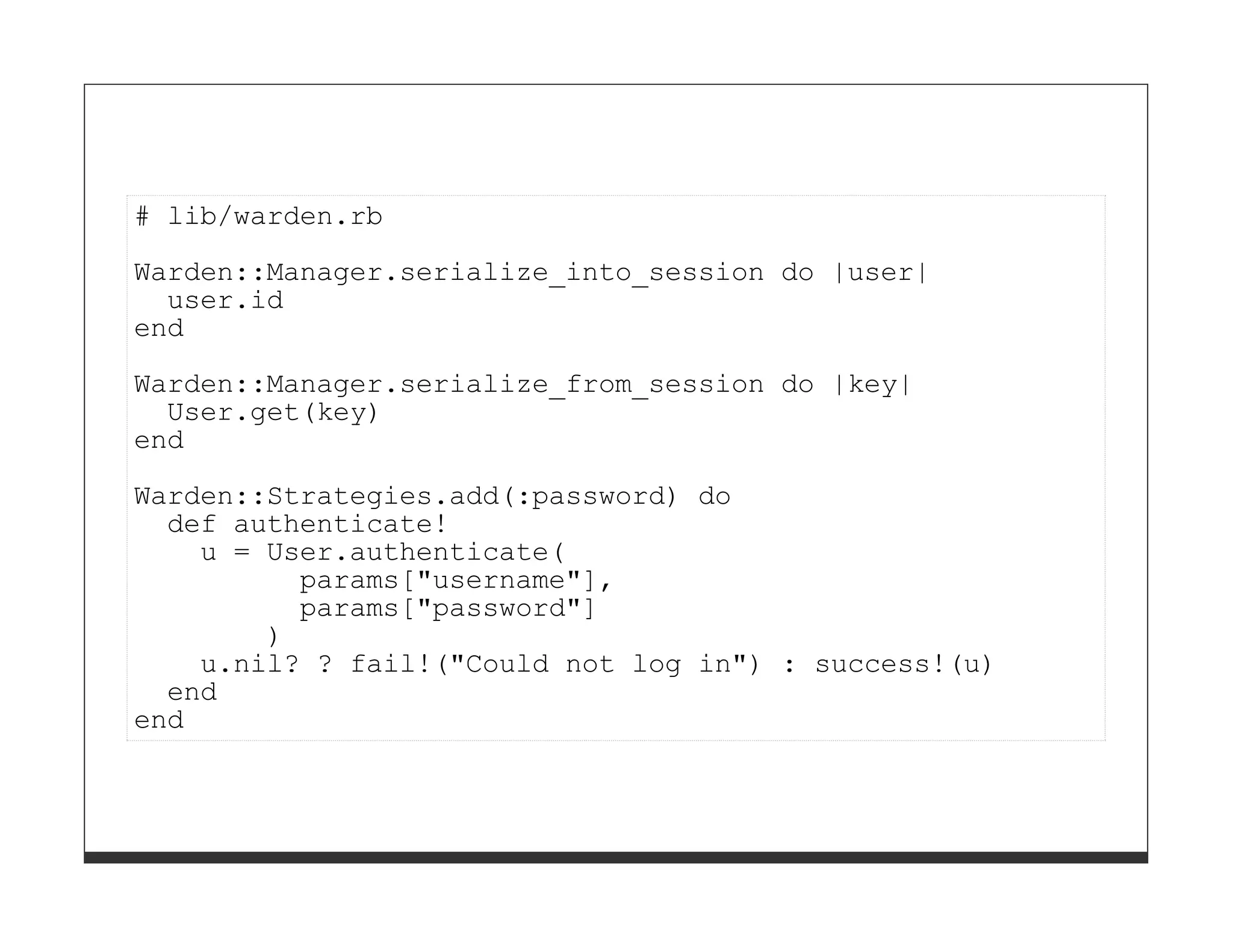

# lib/warden.rb
Warden::Manager.serialize_into_session do |user|
user.id
end
Warden::Manager.serialize_from_session do |key|
User.get(key)
end
Warden::Strategies.add(:password) do
def authenticate!
u = User.authenticate(
params["username"],
params["password"]
)
u.nil? ? fail!("Could not log in") : success!(u)
end
end

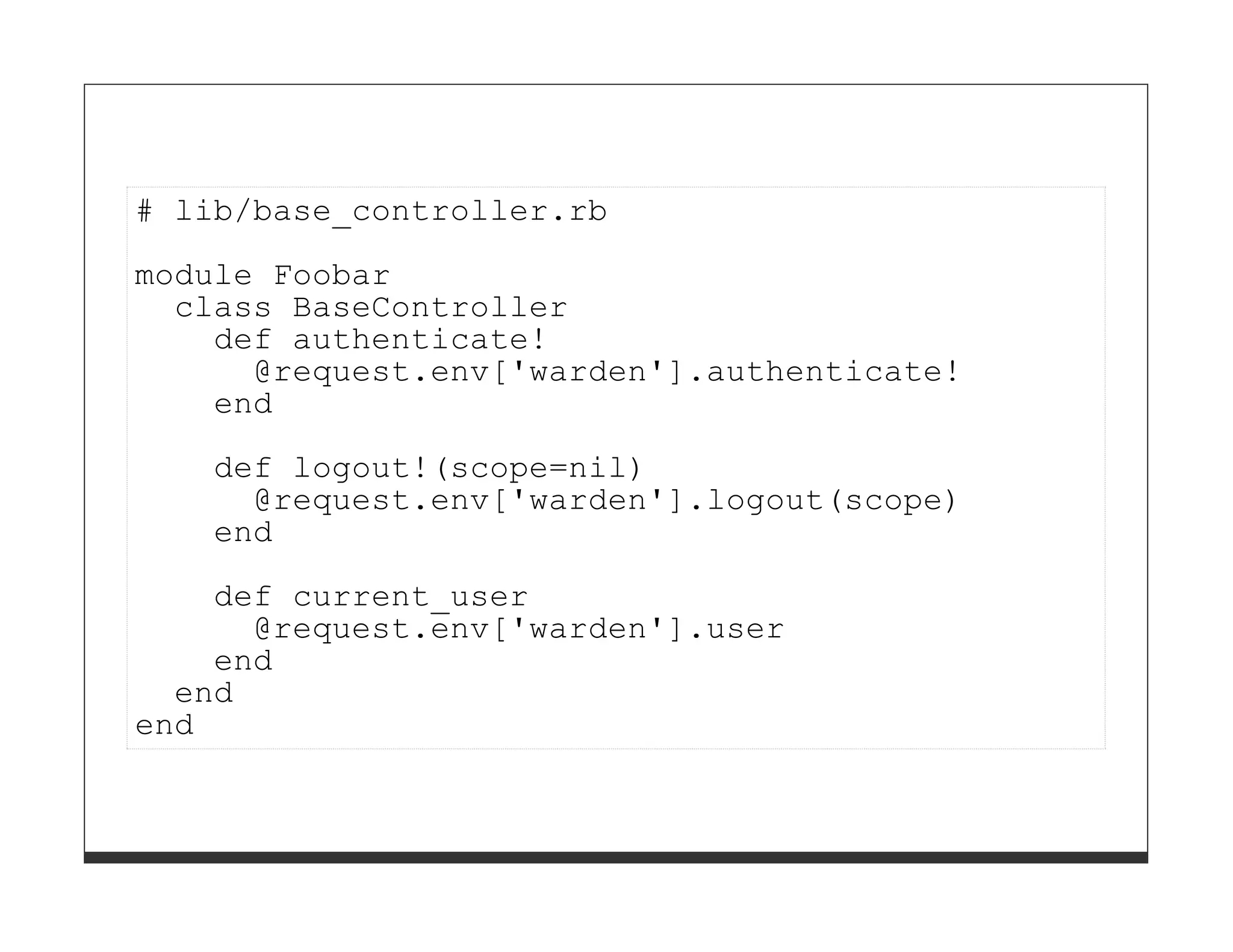

module Foobar
def authenticate!
@request.env['warden'].authenticate!
end
def logout!(scope=nil)
@request.env['warden'].logout(scope)
end
def current_user
@request.env['warden'].user
end
end
end

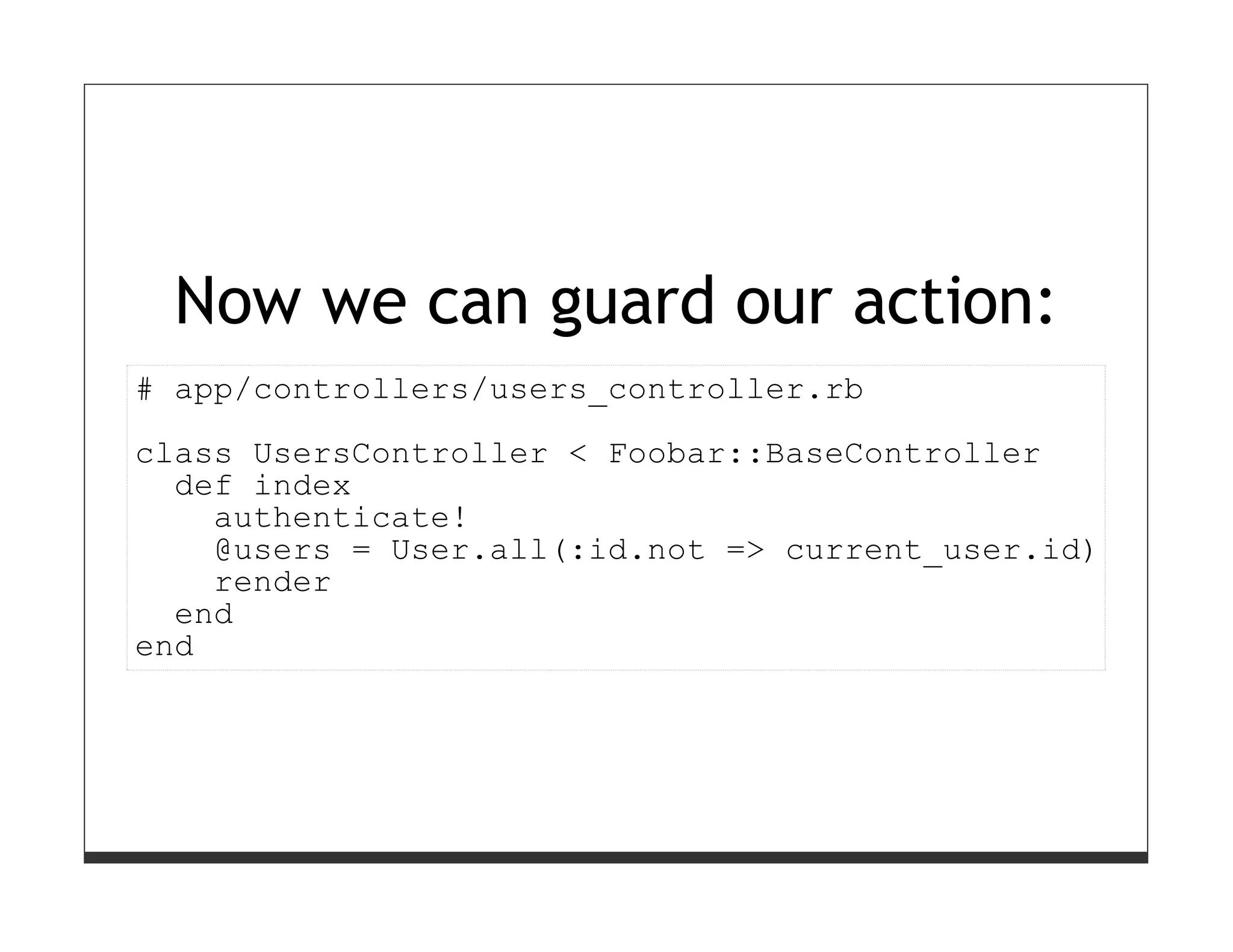

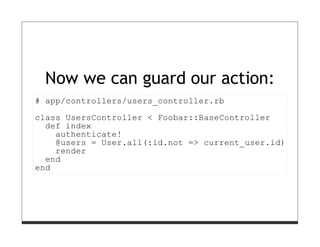

Now we can guard our action:
def index
authenticate!
@users = User.all(:id.not => current_user.id)
render
end
end

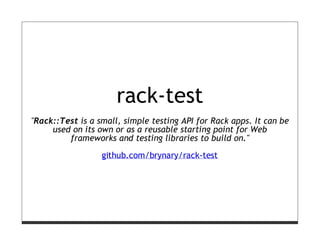

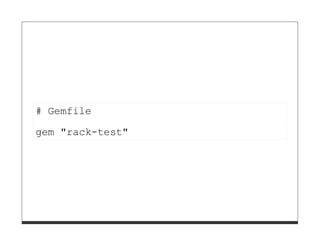

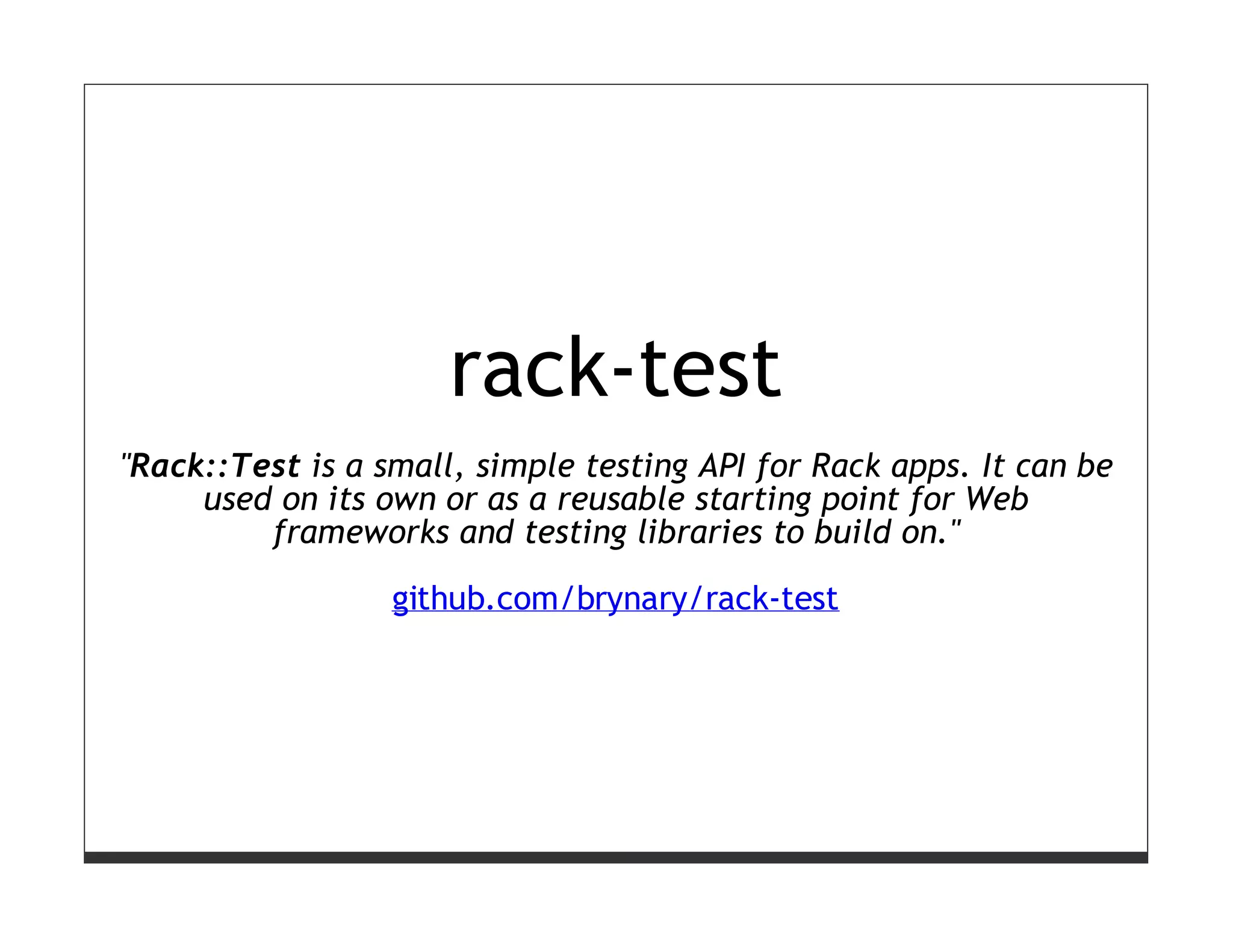

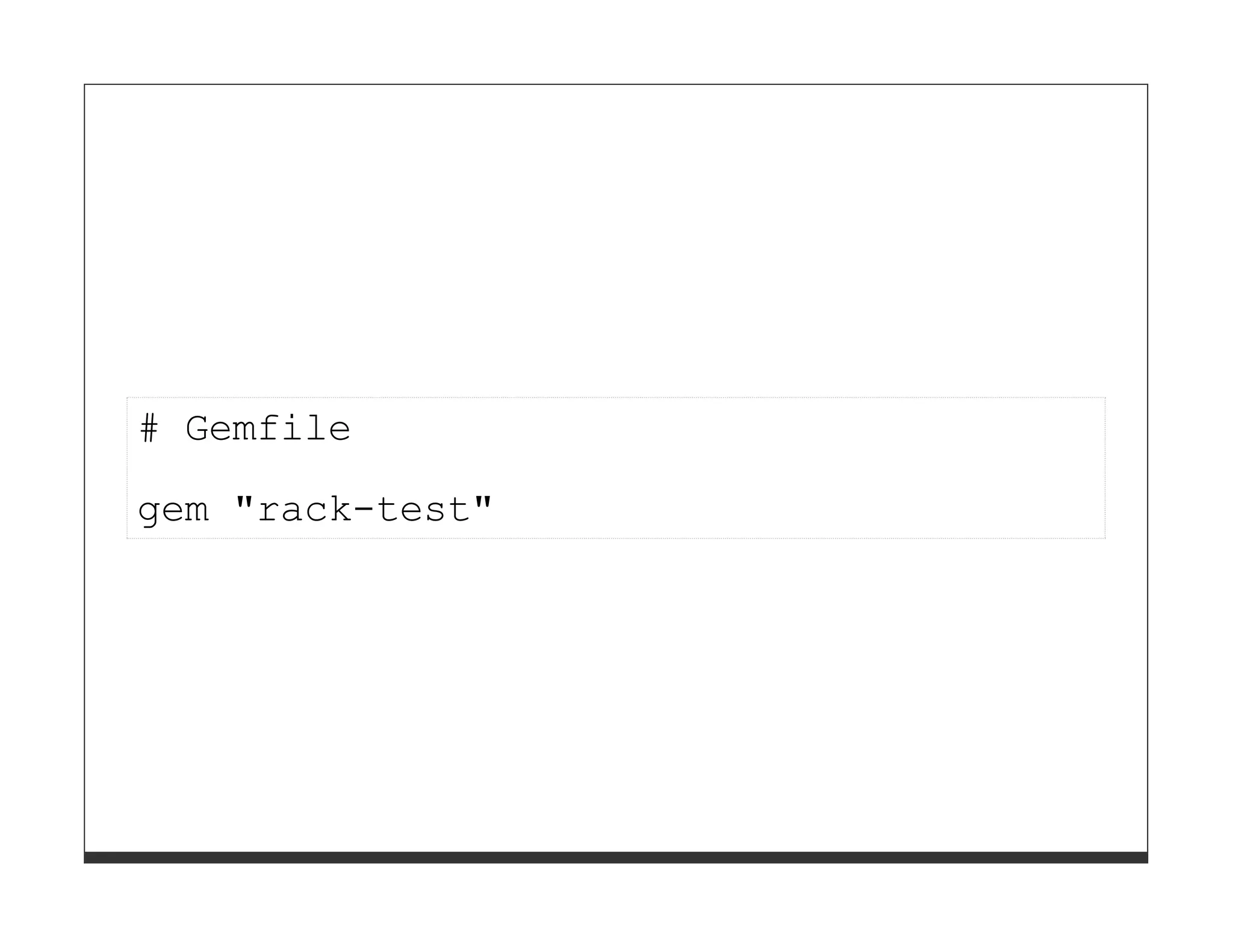

rack-test
"Rack::Test is a small, simple testing API for Rack apps. It can be
used on its own or as a reusable starting point for Web
frameworks and testing libraries to build on."

github.com/brynary/rack-test

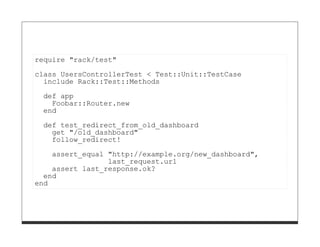

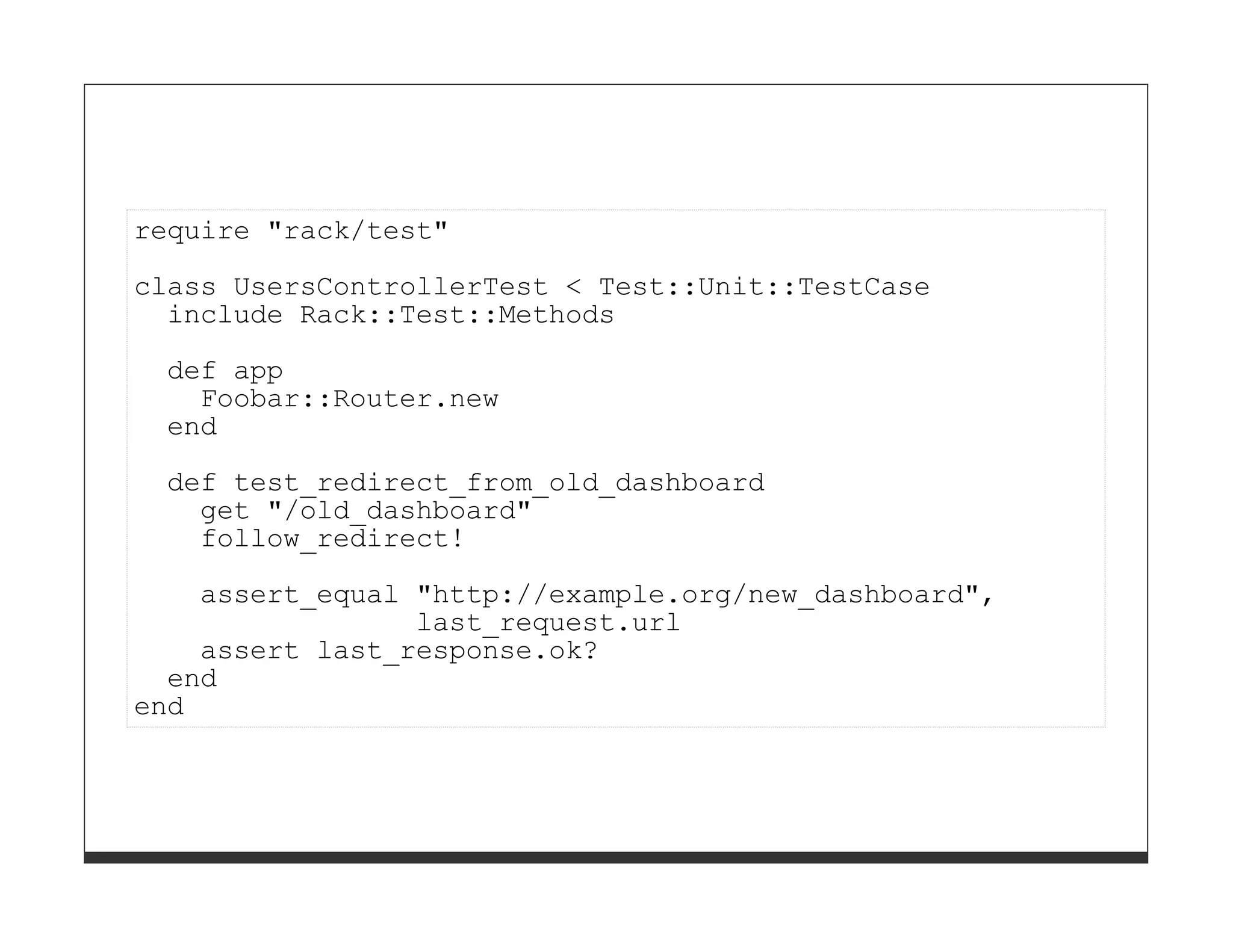

require "rack/test"

class UsersControllerTest < Test::Unit::TestCase
include Rack::Test::Methods
def app
Foobar::Router.new
end

def test_redirect_from_old_dashboard
get "/old_dashboard"
follow_redirect!
assert_equal "http://example.org/new_dashboard",
last_request.url
assert last_response.ok?
end
end

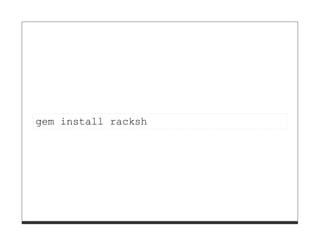

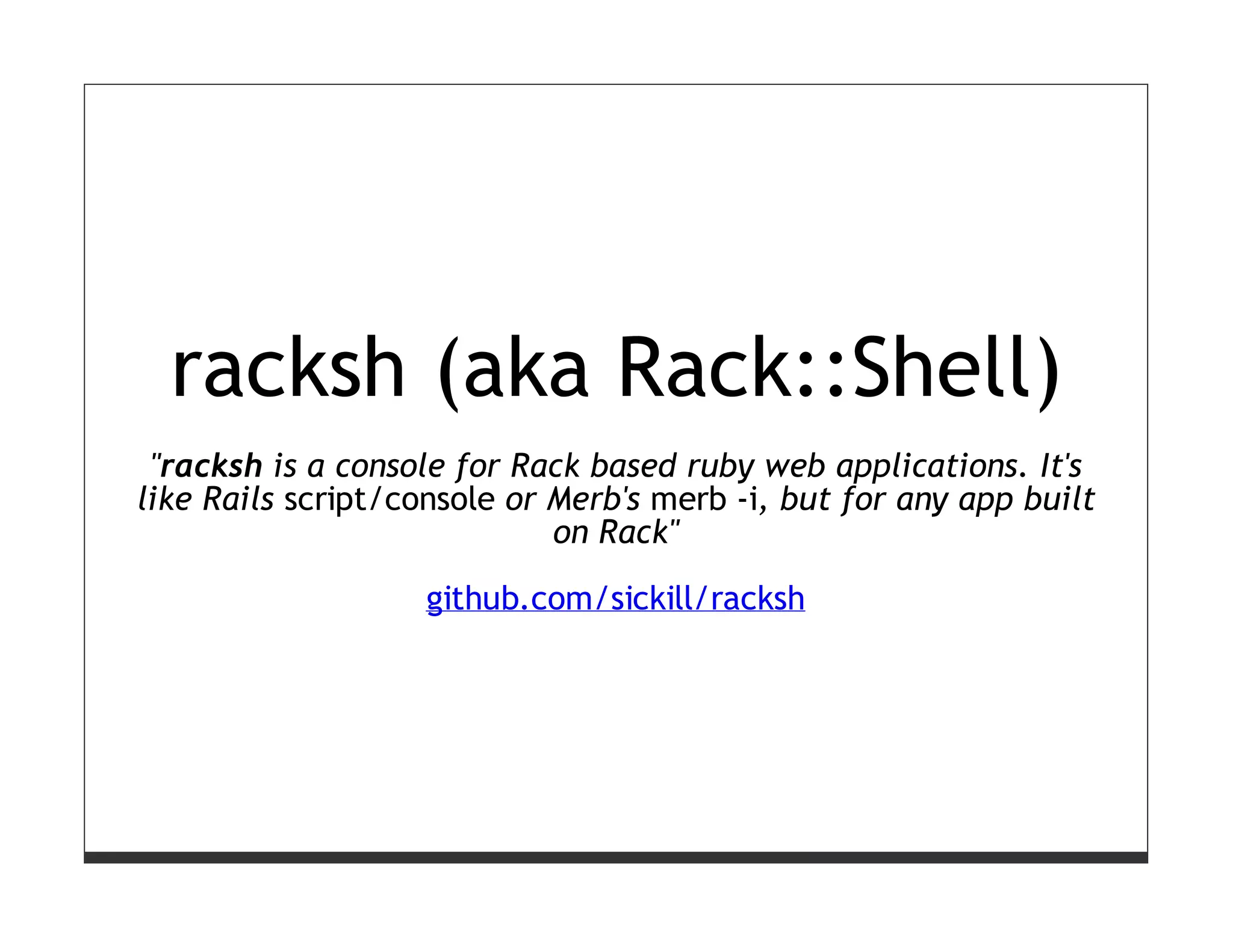

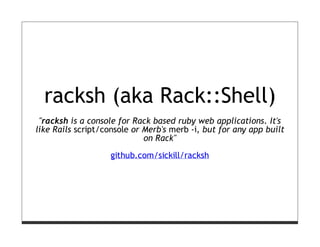

racksh (aka Rack::Shell)
"racksh is a console for Rack based ruby web applications. It's
like Rails script/console or Merb's merb -i, but for any app built
on Rack"

github.com/sickill/racksh

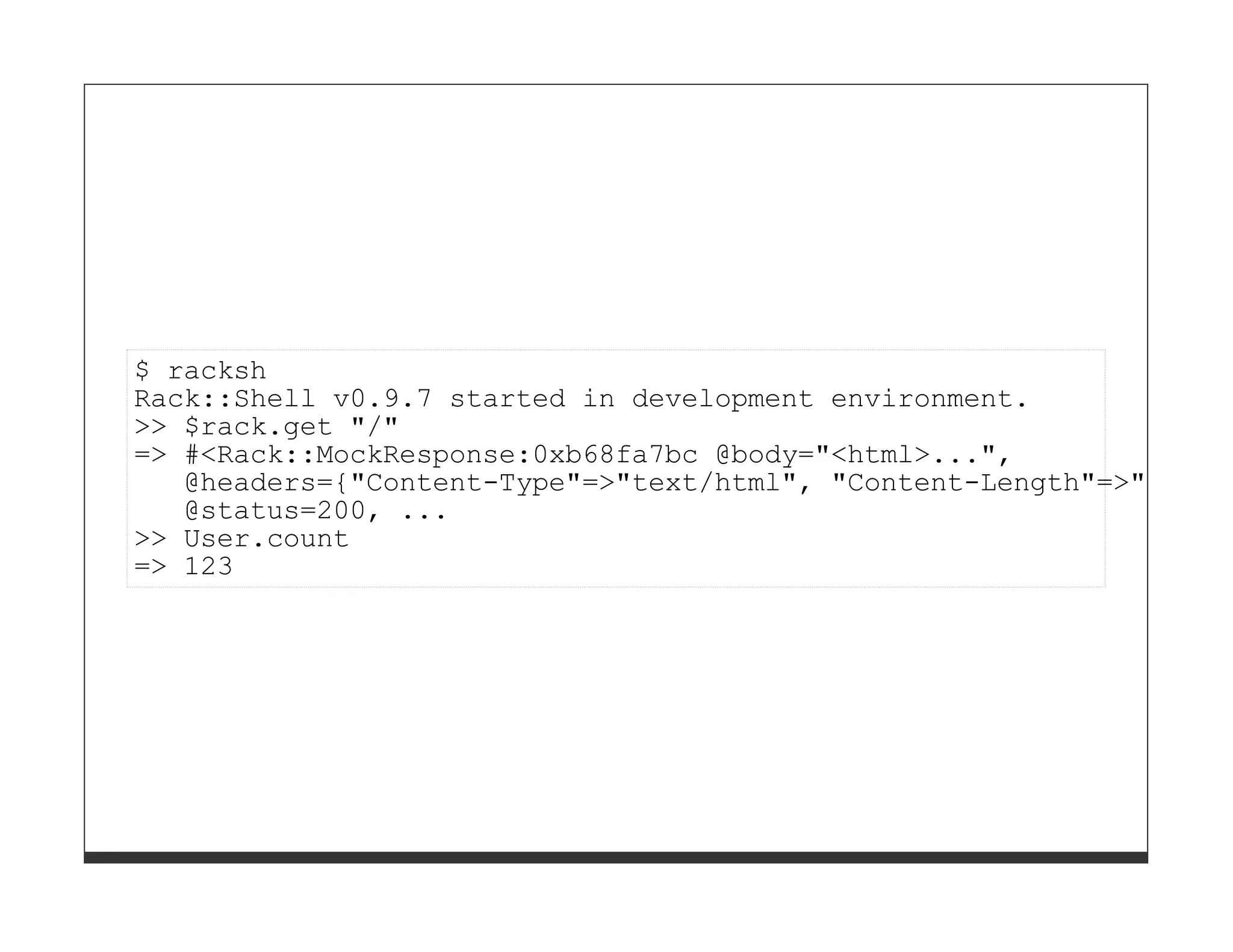

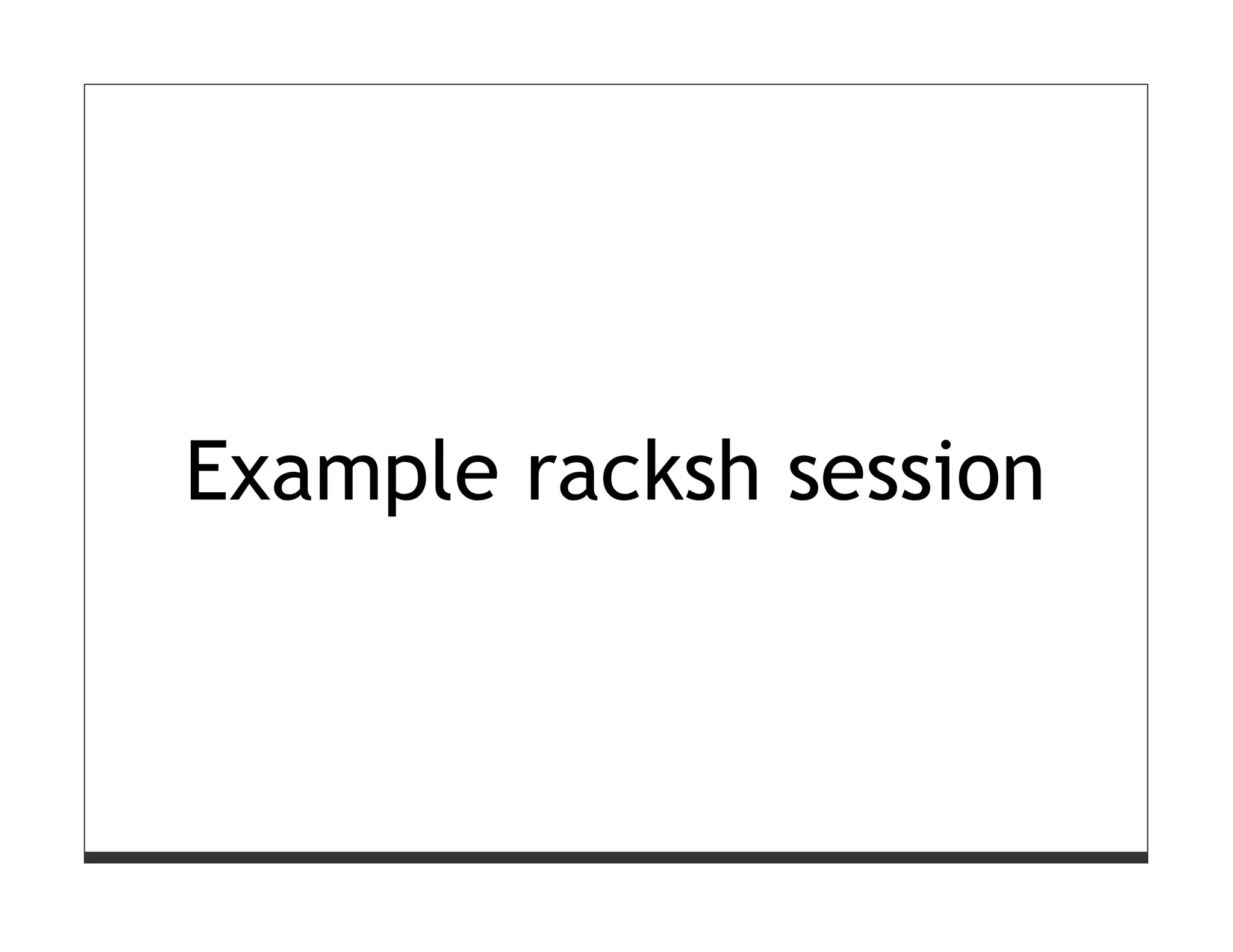

$ racksh
Rack::Shell v0.9.7 started in development environment.
>> $rack.get "/"
=> #<Rack::MockResponse:0xb68fa7bc @body="<html>...",
@headers={"Content-Type"=>"text/html", "Content-Length"=>"1812"}
@status=200, ...
>> User.count
=> 123

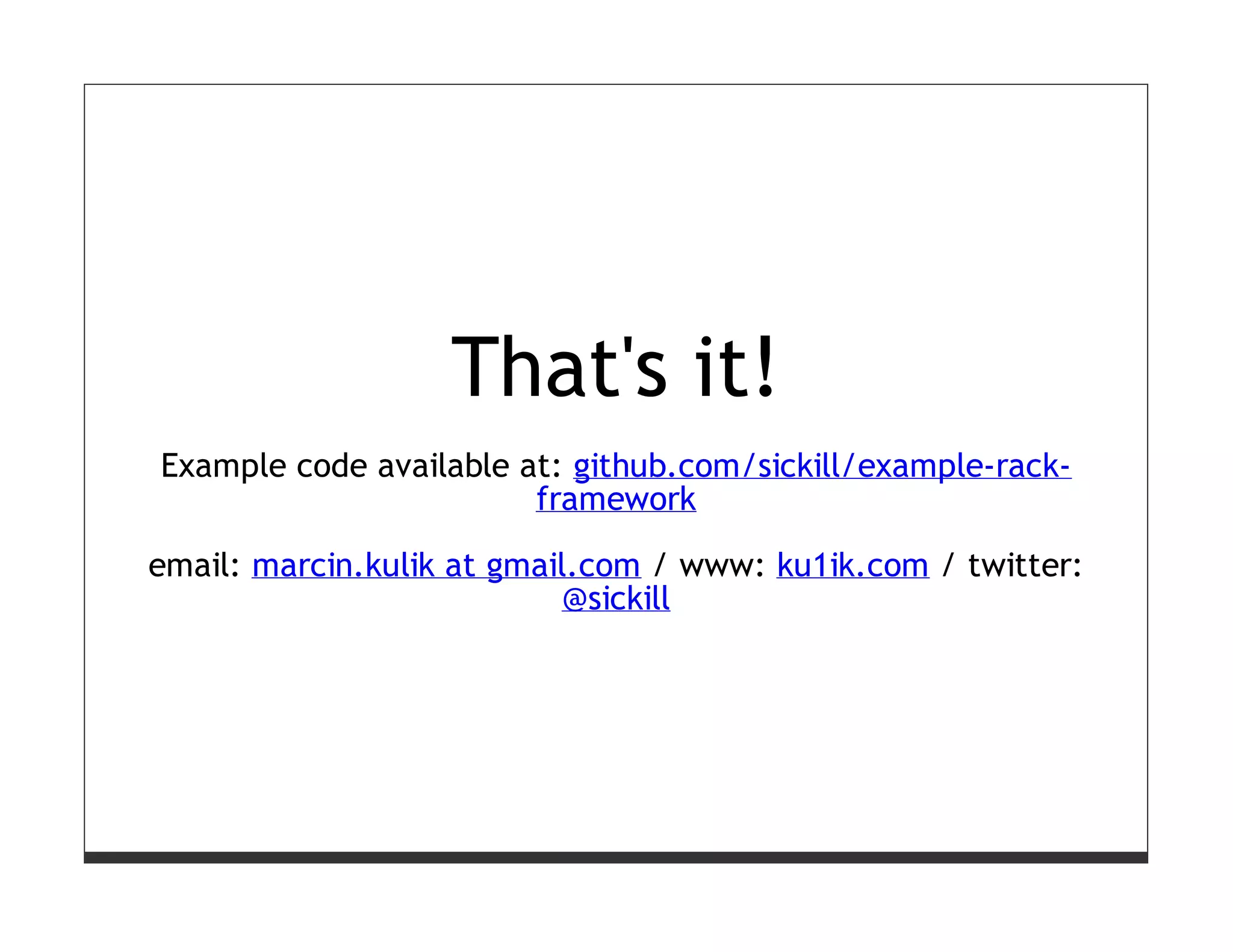

That's it!
Example code available at: github.com/sickill/example-rack-
framework

email: marcin.kulik at gmail.com / www: ku1ik.com / twitter:
@sickill
